Structural basis for the disaggregase activity and regulation of Hsp104

  1. Alexander Heuck
  2. Sonja Schitter-Sollner
  3. Marcin Józef Suskiewicz
  4. Robert Kurzbauer
  5. Juliane Kley
  6. Alexander Schleiffer
  7. Pascaline Rombaut
  8. Franz Herzog
  9. Tim Clausen  Is a corresponding author
  1. Research Institute of Molecular Pathology, Vienna Biocenter, Austria
  2. Ludwig-Maximilians University, Germany
Research Article
  • Cited 30
  • Views 2,365
  • Annotations
Cite this article as: eLife 2016;5:e21516 doi: 10.7554/eLife.21516

Abstract

The Hsp104 disaggregase is a two-ring ATPase machine that rescues various forms of non-native proteins including the highly resistant amyloid fibers. The structural-mechanistic underpinnings of how the recovery of toxic protein aggregates is promoted and how this potent unfolding activity is prevented from doing collateral damage to cellular proteins are not well understood. Here, we present structural and biochemical data revealing the organization of Hsp104 from Chaetomium thermophilum at 3.7 Å resolution. We show that the coiled-coil domains encircling the disaggregase constitute a ‘restraint mask’ that sterically controls the mobility and thus the unfolding activity of the ATPase modules. In addition, we identify a mechanical linkage that coordinates the activity of the two ATPase rings and accounts for the high unfolding potential of Hsp104. Based on these findings, we propose a general model for how Hsp104 and related chaperones operate and are kept under control until recruited to appropriate substrates.

https://doi.org/10.7554/eLife.21516.001

Introduction

Proteins, the most intricate of biological macromolecules, are inherently prone to misfolding and aggregation. These processes, aggravated by mutations, translation errors, aging, and physico-chemical stresses (Tyedmers et al., 2010), can be toxic and are linked to severe human diseases (Horwich, 2002). As part of the protective response, cells of all organisms produce chaperones of the AAA (ATPases Associated with a variety of cellular Activities) family that utilize the energy from ATP hydrolysis to remodel non-native proteins. The AAA chaperone machines can associate with cage-forming proteases, such as the 20S proteasome, yielding bipartite proteolytic complexes, or, alternatively, team up with partner chaperones to solubilize aggregated proteins and promote their refolding (Sauer et al., 2004).

HSP100 unfoldases, a subclass of the AAA chaperones found in yeast and bacteria as well as in the mitochondria and chloroplasts of higher eukaryotes, employ a powerful mechanism to recover functional proteins from aggregates. Upon forming a hexameric ring, they unravel polypeptides by threading them through a narrow central pore (Weber-Ban et al., 1999; Weibezahn et al., 2004; Hinnerwisch et al., 2005). Substrate stretching and unfolding is mediated by ATP-driven power strokes (Maillard et al., 2011), which result from the movement of rigid ATPase bodies composed of the large (L) subdomain of one protomer and the small (S) subdomain of the next (Glynn et al., 2009; Wang et al., 2001). Coordination of adjacent L/S* modules (the asterisk denotes the neighboring subunit) relies on a special active site organization, as each nucleotide binding site is formed by residues of the L-, S*- and L*-subdomains at the subunit interface. In terms of substrates, the particularly powerful HSP100 unfoldases have the remarkable ability to disentangle protein aggregates (Parsell et al., 1994), which, owing to their inert, scrambled, and water-insoluble character, represent the most challenging target for the protein quality control system. Although HSP100 chaperones play a crucial function in removing these potentially dangerous aggregates, the molecular details of their robust cleaning activity have remained unclear. It has been postulated that the disaggregation activity of HSP100 machines relies on the presence of two AAA rings, most likely to provide a strong, 2-handed grip for remodeling protein substrates (Doyle et al., 2007a; Olivares et al., 2014; Hinnerwisch et al., 2005). However, the structural basis underlying the functional coupling of the two ATPase rings has not been determined. To address this mechanism, we performed a structure-function analysis of the fungal Hsp104, a disaggregase that was originally identified as a critical factor for survival under extreme stress conditions (Sanchez and Lindquist, 1990; Sanchez et al., 1992) and, later, for prion propagation (Chernoff et al., 1995). Indeed, Hsp104 can team up with Hsp70 to establish one of the most potent disaggregase machineries in nature, being able to unravel even the particularly resistant amyloid fibers (Shorter and Lindquist, 2004; Inoue et al., 2004; Krzewska and Melki, 2006). To avoid damage to native proteins, the high unfolding potential of Hsp104 and related disaggregases needs to be carefully regulated. This control is mediated by an inserted coiled-coil domain (M-domain, MD), which assembles a molecular belt encircling the hexameric particle and keeping the enzyme in its latent state (Carroni et al., 2014). Binding of the Hsp70 chaperone to the MD activates Hsp104 and targets it towards protein aggregates (Lee et al., 2013; Seyffer et al., 2012; Rosenzweig et al., 2013; Oguchi et al., 2012; Haslberger et al., 2007; Miot et al., 2011; Sielaff and Tsai, 2010). Again, despite the wealth of genetic and biochemical data and the availability of structural information (Carroni et al., 2014; Lee et al., 2007, 2003, 2010; Yokom et al., 2016), the molecular mechanism of how the MD regulates the disaggregase machinery could not be resolved so far.

Here, we present the crystal structure of Hsp104 from Chaetomium thermophilum that – although forming a helical filament – reveals important mechanistic features. First, we identify the long-sought mechanical link coupling the two AAA rings of HSP100 chaperones and, second, we delineate structural details underlying the regulatory role of the MD. Jointly, these two elements make Hsp104 a very potent yet highly tunable protein disaggregase. As will be discussed, the uncovered mechanistic features represent novel concepts that might be generally applicable to AAA mechanoenzymes implicated in protein quality control and beyond.

Results

Crystal structure of the Hsp104 subunit

To study the molecular details of the HSP100 machinery, we performed a biochemical and structural analysis of the Hsp104 disaggregase from Chaetomium thermophilum (CtHsp104), which exhibits similar ATPase and protein remodeling activities to those of the well-characterized Saccharomyces cerevisiae ortholog (ScHsp104) (Figure 1A). The crystal structure of the double Walker-B mutant in complex with ADP was determined at 3.7 Å resolution (Table 1). Despite medium resolution, the final electron density map was of excellent quality revealing the overall side-chain conformation of most functionally important residues (Figure 1—figure supplement 1).

Figure 1 with 2 supplements see all

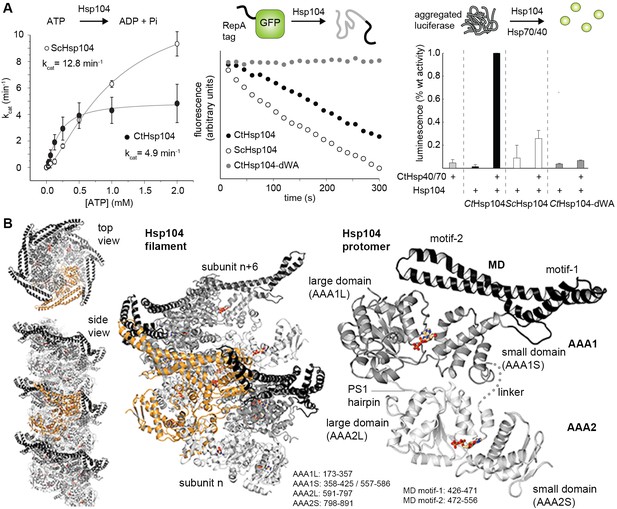

Crystal structure of Hsp104.

(A) Overview of ATPase, GFP unfolding, and luciferase disaggregation assays used to test the functionality of the Hsp104 protein from C. thermophilum (CtHsp104) and its homologue from yeast (ScHsp104). The catalytic inactive double Walker A (WA; K229A/K640A) mutant was used as negative control. For the unfolding and disaggregase assay, the relative activities to the CtHsp104 wild-type protein are shown, with error bars representing standard deviations of 3 independent experiments. Unfoldase activity was measured using a non-physiological ATP/ATPgS mixture required by the assay setup. (B) Ribbon presentation of the crystallized Hsp104 filament (color coded according to domains, with one whole subunit depicted in orange) and of the constituting protomer. ADP molecules are shown in stick representation. See also Figure 1—figure supplements 1 and 2.

https://doi.org/10.7554/eLife.21516.002
Table 1

Data collection and refinement statistics.

https://doi.org/10.7554/eLife.21516.005

5d4w

Data collection

Space group

P21

Cell dimensions

a, b, c (Å)

144.9, 93.2, 144.4

α, β, γ (°)

90, 119.7, 90

Resolution (Å)

47.2–3.7 (3.8–3.7)1

Rmerge

0.192 (1.624)

Rpim

0.130 (1.121)

II

5.3 (0.8)

Completeness (%)

98.3 (97.9)

Redundancy

3.1 (2.9)

Refinement2

Resolution (Å)

47.6–3.7

No. reflections

35560

Rwork/Rfree

0.237/0.277

No. atoms (all)

16272

Protein

16110

ADP

162

B-factors (all)

210.7

Protein

210.9

ADP

188.6

R.m.s deviations

Bond lengths (Å)

0.006

Bond angles (°)

1.082

  1. 1Highest resolution shell is shown in parenthesis.

  2. 2One crystal was used for measurement and the stereochemistry of the model was validated with Molprobity (Chen et al., 2010).

The Hsp104 disaggregase is composed of tandemly linked structural modules that build up the N-terminal domain (NTD), the two ATPase engines (AAA1, AAA2), and the regulatory MD extension (Figure 1B). Although the obtained crystals are formed by the full-length protein (data not shown), the NTD was not defined by electron density, likely due to high flexibility. Such en-bloc mobility was also reported in previous EM studies of related HSP100 enzymes (Ishikawa et al., 2004; Effantin et al., 2010; Carroni et al., 2014; Lee et al., 2003, 2007) and seems to be an inherent property of the domain, which is connected to the rest of the molecule by a long linker. The AAA1 and AAA2 domains consist of a large (L) RecA-like α/β and a small (S) α-helical ATPase subdomain. Like in the crystal structure of the closely related ClpB disaggregase (Lee et al., 2003) that operates by the same basic mechanism as Hsp104 (Kummer et al., 2016), the large subdomains AAA1L and AAA2L are organized around a five-stranded parallel β-sheet that is flanked by three to four helices on either side. The small C-terminal subdomains AAA1S and AAA2S have a four-helix bundle at their core, with one helix replaced by a three-stranded β-sheet in AAA2S. The active sites, located at the AAA subdomain interface, are defined by co-crystallized ADP molecules, which were clearly visible in the electron density map (Figure 1—figure supplement 2). In AAA1, ADP is accommodated in a pocket formed by the general Walker A (Lys229, Thr230) and Walker B (Asp295, Glu296) motifs as well as by AAA-specific (sensor-1: Thr330, sensor-2: Arg402) functional groups (Hanson and Whiteheart, 2005; Mogk et al., 2003; Hattendorf and Lindquist, 2002b). In addition, the neighboring subunit contributes one α-helix, the so-called Second Region of Homology (SRH) motif, to the nucleotide-binding pocket. From here, Arg349* protrudes into the active site and interacts with the Pα and Pβ of the bound ADP (Figure 1—figure supplement 2). Consistent with its position close to the nucleotide phosphates, Arg349* has been previously described as the arginine finger critical for ATP binding and hydrolysis, and inter-subunit communication (Mogk et al., 2003). In AAA2, the active site is formed by the corresponding motifs (Walker A: Lys640, Thr641; Walker B: Asp706, Glu707; sensor-1: Asn748; sensor-2: Arg849 and SRH*: Arg788 (Biter et al., 2012b; Mogk et al., 2003; Hattendorf and Lindquist, 2002b, 2002a)), though participating side-chains are less defined by electron density than in AAA1. In addition to exhibiting a lower overall flexibility, AAA1 is distinguished from AAA2 by a prominent additional structure, the MD, which is an extension of AAA1S. The MD motif comprises an elongated helix that pairs with its flanking helices via Leu-zipper interactions. The C-terminal blade (motif-2) of the resultant propeller-like structure binds to the AAA1 body via numerous polar contacts, while the N-terminal blade (motif-1) protrudes away from the subunit to interact with a neighboring Hsp104 protomer.

ATPase rigid bodies are maintained in the crystallized Hsp104 filament

In the crystal, CtHsp104 subunits are arranged in a helical 61 filament (Figure 1B) rather than forming a defined hexameric particle as observed in the recent cryo-electron microscopy structure of ScHsp104 (Yokom et al., 2016) or the crystal structure of a related HSP100 unfoldase, ClpC (Wang et al., 2011). It is interesting to note that while the ClpC hexamer is planar, the ScHsp104 hexamer shows a helical, staircase-like arrangement (Figure 2—figure supplement 1) with a smaller pitch but the same handedness as our crystallized filament. This suggests that CtHsp104 crystallization might have built upon an intrinsic tendency of Hsp104, and perhaps all HSP100 proteins, to switch between planar and helical conformations. The uncanonical AAA1-AAA2 interface between the first and the sixth protomer that closes the ring in the case of ScHsp104 is absent in our CtHsp104 crystal, allowing an infinite spiral to form. Importantly, however, the crystallized filament seems to reflect mechanistic properties of the HSP100 hexamer, as the architecture of the basic building blocks of AAA unfoldases, the so-called rigid bodies, is comparable to that in both ClpC and ScHsp104 hexameric structures. As seen in previous crystal structures of hexameric unfoldases, the AAA rigid body comprises a mixed L/S* module formed between adjacent subunits (Glynn et al., 2009; Wang et al., 2001). In fact, structural comparison shows that the AAA1L/AAA1S* and AAA2L/AAA2S* rigid bodies of the Hsp104 filament are very similar to those of the hexameric ScHsp104 and ClpC (Figure 2 and Figure 2—figure supplement 2). A central component tethering the L and S* subdomains is the sensor-2* helix, the helix following the sensor-2 residue (Hanson and Whiteheart, 2005), that accounts for about 75% of the inter-subunit interface (750 Å2 in total). Oriented by specific polar contacts, the sensor-2* helix protrudes towards the active site, with its N-terminal end located in a close distance from the arginine fingers that protrude from the SRH helix (Figure 2B and Figure 1—figure supplement 2). In concert, the properly arranged sensor-2* and SRH residues can perform their nucleotide-sensing task and coordinate the interplay of ATPase rigid bodies (Glynn et al., 2009; Wang et al., 2001). It is important to note that, in contrast to the L/S* organization of Hsp104, helical crystal structures of the bacterial homologue ClpB (Carroni et al., 2014; Lee et al., 2003) do not reveal the functional L/S* rigid bodies (Figure 2 and Figure 2—figure supplement 2). Here, the sensor-2 helix does not pair with the neighboring subunit and, consequently, the composite sensor-2*/SRH motif is disrupted. Moreover, the two subdomains are connected by a markedly reduced interface of 100–400 Å2, which is too small to support en-bloc movement of L and S*. In conclusion, the structural alignments suggest that the L/S* rigid bodies of the Hsp104 filament are similarly organized to those of the native hexameric enzyme. This notion is further corroborated by the observation that residues mediating the Hsp104 L/S* contacts are highly conserved (Figure 2—figure supplement 3) and match the hydrogen-exchange data of the related ClpB disaggregase (Oguchi et al., 2012). Together, these points suggest that the Hsp104 structure provides a molecular model of unprecedented resolution to study mechanistic aspects of HSP100 function. In fact, structure-guided experiments allowed us to biochemically determine the regulatory role of the MD and to discover a mechanical link establishing the potent two-engine disaggregase motor of Hsp104.

Figure 2 with 3 supplements see all

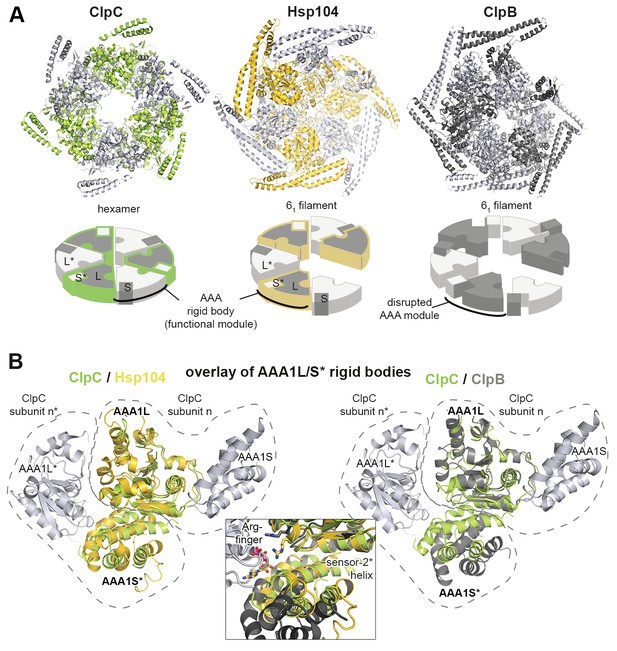

Functional ATPase modules are retained in the Hsp104 filament.

(A) Ribbon presentation of ClpC (PDB 3pxg), Hsp104, and ClpB (PDB 4ciu) oligomers highlighting the L/S* rigid bodies (colored). While ClpC was crystallized as a hexamer, Hsp104 and ClpB were crystallized in a helical filament with a six-fold screw axis. The cartoons below depict six L/S* modules (framed) that are formed between adjacent subunits (distinct grey tones). (B) Ribbon presentation of adjacent AAA1 domains of the hexameric ClpC that jointly compose one L/S* rigid body (green). Superimposed are the L/S* modules of the Hsp104 (yellow, left panel) and ClpB (dark grey, right panel) filament. The zoomed-in window emphasizes the distinct orientation of the sensor-2 helix, the central element in linking L and S* sub-domains. ADP and the SRH* arginine finger are shown in stick representation to mark the position of the active site. See also Figure 2—figure supplements 1,2 and 3.

https://doi.org/10.7554/eLife.21516.006

The Hsp104 structure reveals the regulatory contacts of the MD

Recent studies highlight the central role of the MD in regulating HSP100 disaggregases, as the domain is critical for AAA1-AAA2 communication, Hsp70 binding, and keeping the enzyme inactive in the absence of cognate substrates (Cashikar et al., 2002; Lee et al., 2013; Oguchi et al., 2012; Seyffer et al., 2012; Haslberger et al., 2007; Sielaff and Tsai, 2010; Miot et al., 2011). As described, the MD assembles a coiled-coil propeller that consists of motif-1 (residues 426–471) and motif-2 (residues 472–556). The adjacent propellers can interact in a head-to-tail fashion, whereby the tip of motif-1 contacts that of motif-2*, yielding a ring-like scaffold encircling the six AAA1 domains (Carroni et al., 2014). Binding of Hsp70 to the tip of motif-2 turns Hsp104 activity on, presumably by abrogating the MD-MD* interaction. Of note, site-specific mutations influencing the MD contacts have a similar regulatory effect (Supplementary file 1). They can either disrupt the coiled-coil contacts, yielding a toxic, hyperactive Hsp104 variant that is constitutively ‘on’ (Lee et al., 2005; Lipińska et al., 2013; Schirmer et al., 2004; Oguchi et al., 2012) or stabilize the MD-MD* interaction, yielding a repressed form that is strongly inhibited (Carroni et al., 2014). Although previous studies revealed an influence of the MD on the overall AAA1 domain conformation (Oguchi et al., 2012; Lee et al., 2007), an effect relying on a number of polar interactions between the two domains (Lipińska et al., 2013), the precise molecular mechanism of regulating HSP100 disaggregases has not been determined.

The present crystal structure provides a detailed picture of the resting state of Hsp104, shedding light on the regulatory role of the MD. In particular, intramolecular contacts between the MD and the ATPase core are for the first time delineated with high precision. Accordingly, three main interfaces can be distinguished (Figure 3A). First, an extensive network of polar interactions connects the central portion of the MD propeller to the AAA1 small subdomain of one ATPase module. In parallel, the MD binds to the neighboring ATPase module by docking the tip of motif-2, particularly Arg509, into a two-helix cleft on the edge of the AAA1 large subdomain. The two elements engaged by the MD, AAA1S and AAA1L, belong to the same subunit but to different ATPase modules. This tethering of adjacent ATPase modules is of utmost importance for the regulation of Hsp104 (see below). Finally, several van-der-Waals contacts and hydrogen bonds connect the tips of motif-1 and motif-2* of two adjacent coiled-coils, yielding a continuous MD ring that wraps around the AAA1 core. The functional relevance of this interaction network is underscored by the fact that every residue in the list of hyperactive mutations overlaps with one of the specific MD-AAA1 or MD-MD* contacts observed in the crystal structure (Figure 3A and Supplementary file 1). To further test the validity of the described network, we mutated two additional residues at the MD interfaces (D247A and A446V) and assessed their enzymatic activity (Figure 3B). As in previous analyses (Biter et al., 2012b; Jackrel et al., 2014), the stimulatory effect on the unfolding and disaggregase activities varied to some extent, possibly because these functions depend on the interaction with substrates and co-chaperones that may be affected by mutations in the MD. Most importantly, however, the predicted hyperactive mutants displayed an elevated basal ATPase activity, confirming that the contacts seen in the crystal structure are critical to regulate Hsp104.

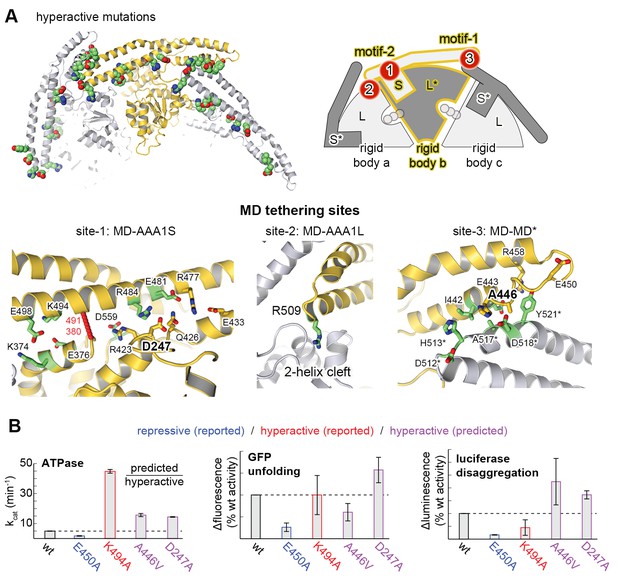

Structural organization of the MD-AAA1 interface.

(A) Ribbon presentation of Hsp104 showing the clustering of hyperactive mutations (green, see Supplementary file 1) along the MD-AAA1 and MD-MD* interfaces. The cartoon illustrates the localization of the three major MD tethering sites, which are also shown in structural detail. The 380–491 pair used in cross-linking studies connects motif-2 of the MD with AAA1 (red line). (B) Comparison of mutants predicted to be hyperactive (A446V and D247A should destabilize the MD-AAA1-MD* interface) with reported hyperactive (red, K494A) and repressed (blue, E450A) mutants. Error bars indicate standard deviations.

https://doi.org/10.7554/eLife.21516.010

The MD belt controls the mobility and thus activity of AAA1 modules

Having revealed the precise architecture of the inter-domain interface, we next studied how the intricate interaction network linking the MD and AAA1 domains could repress Hsp104 activity. In this regard, it should be noted that for AAA unfoldases to work, the ATPase modules need to move against each other in order to mechanically unfold client proteins (Olivares et al., 2016). As seen in the proteasome, the ATP-driven conformational changes comprise pronounced en-bloc movements of the L/S* modules of about 15 Å (Śledź et al., 2013), which would be hindered by an enclosing structural scaffold. To estimate the corresponding ATPase rearrangements in Hsp104, we generated a model of the disaggregase hexamer using the ClpC hexamer (Wang et al., 2011) as a template (Figure 4A). Superposition of the proteasomal ATPase core subunits Rpt1-6 on the modeled Hsp104 hexamer suggests that the MD scaffold may sterically impede conformational rearrangements of the ATPase rigid bodies (Figure 4B). Accordingly, the MD has a potential to establish a topological belt, a ‘restraint mask’, limiting movement and activity of the entrapped AAA1 domains.

Figure 4 with 2 supplements see all

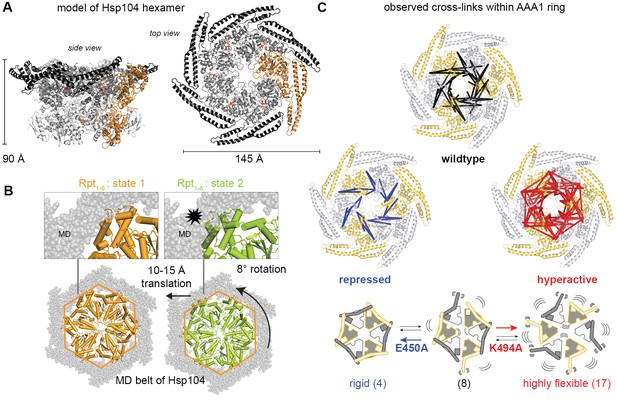

Inhibitory function of the MD.

(A) Ribbon presentation of a modeled Hsp104 hexamer that was constructed from the L/S* rigid body of the crystallized filament. The dimensions of the Hsp104 hexamer are indicated and subunits are colored as in Figure 1B). (B) Ribbon representation of the proteasomal Rpt1-6 present in two alternative conformations (state-1, PDB 4cr2, orange, and state-2, PDB 4cr4, green (Unverdorben et al., 2014)). The two AAA rings are shown together with the MD belt (grey surface) of the superimposed Hsp104 hexamer. Conformational differences between the Rpt1-6 ATPase modules are indicated. The asterisk highlights a hypothetical clash with the MD belt. (C) Ribbon presentation of the modeled Hsp104 hexamer highlighting the L/S* rigid bodies (colored differently). The different numbers of identified Lys-Lys cross-links are represented by intermolecular connections, linking neighboring rigid bodies (wt in black, E450A in blue, K494A in red). The proposed effects of activating and repressing mutations on the dynamics of the Hsp104 hexamer are schematically indicated. See also Figure 4—figure supplements 1 and 2.

https://doi.org/10.7554/eLife.21516.011

To directly monitor the mobility of the engaged ATPase modules upon opening and closing of the MD ring, we performed a cross-linking coupled mass spectrometry (XL-MS) experiment. As reported recently, the number of distinct Lys-Lys cross-links determined in a comparative XL-MS analysis is useful to estimate protein dynamics in a semi-quantitative manner (Scorsato et al., 2016; Walzthoeni et al., 2015). Accordingly, we reasoned that a structurally flexible Hsp104 particle that comprises a mixture of different conformations should yield a more complex cross-linking pattern than an Hsp104 variant that is closely embraced by a MD ring. For the cross-linking reaction, we used bis-sulfosuccinimidyl suberate (BS3), which connects lysine side chains located at a distance of 10–30 Å. To account for the distinct cross-linking efficiencies, we individually adjusted the amounts of BS3 for each of the analyzed Hsp104 species (Figure 4—figure supplement 1). According to the restraint-mask model, the mobility of ATPase units should be increased in the hyperactive (K494A) mutant, resulting in a greater number of distinct cross-linked Lys-pairs. In contrast, the repressive (E450A) mutant is expected to be less dynamic, allowing only few distinct Lys-pairs to become cross-linked. Consistent with this prediction, the recorded MS data show clear differences in the number of observed Lys-pairs (Figure 4—source data 1 and Figure 4—figure supplement 2). The most drastic variation was seen within the AAA1 ring, for which we identified four distinct cross-linked Lys-pairs in the repressive, eight in the wild-type, and 17 in the hyperactive Hsp104. Compared to AAA1, differences in the cross-linking pattern within the MD and AAA2 were less pronounced. Mapping the XL-MS data onto the structure of the AAA1 domains immediately illustrates the increased dynamicity of the released ATPase modules in the hyperactive mutant, whereas the repressive mutation seems to freeze the Hsp104 enzyme (Figure 4C). In conclusion, the comparative XL-MS analysis supports the restraint-mask model, which predicts that a closed MD belt immobilizes the entrapped AAA1 ATPase modules, thereby keeping the Hsp104 disaggregase in its resting state. Once the MD contacts are broken, the ATPase modules are free to move against each other, as seen for the hyperactive mutant, to remodel engaged client proteins.

Motif-2 of the MD can tether adjacent AAA1 modules to immobilize them

To further validate the relevance of the MD in sterically controlling Hsp104, we developed a specific cysteine cross-linking approach. From several Cys-Cys pairs inserted in a Cys-free mutant of Hsp104, only a single Cys-Cys couple could efficiently cross-link AAA1 and MD without undergoing side reactions (Figure 5—figure supplement 1). Using this G380C-Q491C mutant, it was possible to covalently link motif-2 of the MD to the AAA1S subdomain thereby tethering neighboring ATPase bodies. To estimate the effects of ‘tight’ and ‘loose’ MD belts, we carried out Cys-Cys and Cys-bismaleimidoethane-Cys (BMOE) cross-linking, respectively, and compared the activities to those under no-cross-linking conditions. GFP unfolding and luciferase disaggregation assays revealed that the S-S bond formation upon Cys-Cys cross-linking yielded a fastened MD belt that almost completely abolished activity. In strong contrast, introducing the 8-Å-long BMOE cross-linker at the same position restores flexibility of the MD and supports high unfolding and disaggregation capability (Figure 5A). Of note, the introduced cysteine residues at position 380 and 491 influenced by themselves the activity of Hsp104, as predicted by the crystal structure. Whereas, under reducing conditions, the adjacent Cys residues can form a hydrogen bond that further stabilizes the repressed low-activity state, insertion of the bulky BMOE cross-linker (or its functional head, maleimide) seems to physically separate the two Cys residues thereby activating Hsp104 (Figure 5A). More importantly, the two cross-linked particles Hsp104(Cys-Cys) and Hsp104(Cys-BMOE-Cys) exhibit distinct activities. While both cross-linkers covalently link and thus physically restrain adjacent ATPase units, only the BMOE compound provides the conformational freedom required for Hsp104 function. In conclusion, the cross-linking data support the restrain-mask model showing that AAA1 domains engaged by a covalently-linked but loosened MD belt can still reorient and cooperate with each other.

Figure 5 with 1 supplement see all

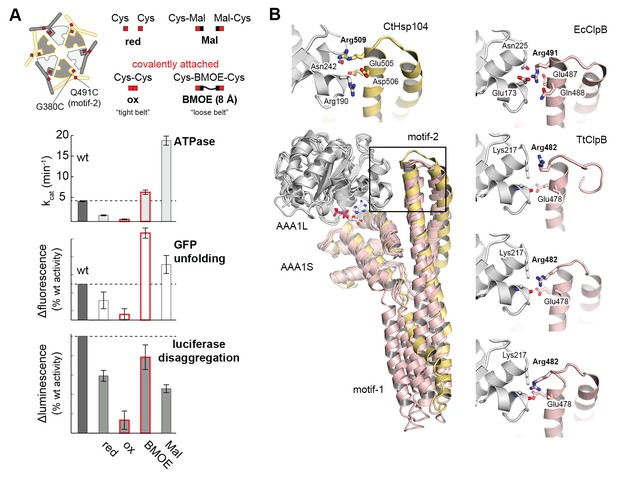

Regulatory role of motif-2.

(A) As schematically shown, the G380C/Q491C mutant allows to covalently connect MD and AAA1 by a ‘tight’ (Cys-Cys linkage) or a ‘loose’ belt (Cys-BMOE-Cys). ATPase, unfolding and disaggregase activity of the G380C/Q491C mutant under reducing (red) and oxidizing conditions (ox) and upon reaction with the chemical cross-linker (BMOE) or free maleimide (Mal) are shown in comparison to the wild-type enzyme. Error bars represent standard deviations. See also Figure 5—figure supplement 1. (B) Interaction between MD and AAA1 domain, observed in Hsp104 and ClpB crystal structures (EcClpB PDB 4ciu, TtClpB PDB 1qvr). As shown in the superposition (Hsp104 MD in yellow; ClpB MD conformations in red) and the zoomed-in windows, motif-2 binds via a conserved arginine to the same two-helix cleft in AAA1L. Adjacent polar contacts should stabilize this interaction.

https://doi.org/10.7554/eLife.21516.015

The inactivating effect of the Cys380-Cys491 cross-link also highlights the importance of motif-2 as the main inhibitory element that immobilizes two adjacent AAA1 ATPase modules. Structural comparison with ClpB further emphasizes the inhibitory role of motif-2. Superposition of different ClpB structures on Hsp104 points to a pronounced flexibility of motif-1, whereas motif-2 is always similarly oriented (Figure 5B). In all structures, the tip of motif-2 is bound to a neighboring AAA1 module, mainly by placing a conserved arginine residue in the described two-helix cleft formed at the AAA1-MD interface (Figure 3A). Notably, the respective arginine residue (Arg509) has been identified in Hsp104 as an important functional group giving rise to hyperactive mutations (Biter et al., 2012a; Wendler et al., 2007).

Taken together, the Cys-Cys cross-linking experiments demonstrate that the MD establishes a topological belt that sterically controls the activity of the Hsp104 disaggregase. The cross-linking data also delineate the key feature of the MD safety belt: By simultaneously binding to two AAA1 rigid bodies, motif-2 is capable of reducing the mobility and thus the activity of engaged ATPase modules. Given the structural conservation of these contacts, we presume that the proposed restrain-mask model is generally relevant for HSP100 disaggregases.

The PS1-hairpin of AAA2 synchronizes the two AAA rings of Hsp104

The AAA2 domain contains a characteristic β-hairpin that precedes strand β4 and is referred to as the pre-sensor-1 (PS1) motif (Erzberger and Berger, 2006). Strikingly, in the crystal structure of Hsp104, the PS1-hairpin protrudes from the AAA2 into the AAA1* ring, where it is accommodated in a deep pocket close to the ATP binding site of a neighboring subunit (Figure 6A). To test whether the PS1 motif could adopt a similar conformation in the hexameric particle, we aligned the functional L/S* unit (AAA1L/S*-AAA2L/S*) of the CtHsp104 filament onto the ClpC and ScHsp104 hexamers. Except a few steric clashes with the flexible MD (clashes that could be avoided by a minor reorientation of the coiled-coil domain), the superposed rigid bodies of the ScHsp104 filament, including the PS1 motif, fit remarkably well to the rigid bodies of the planar and helical hexamers (Figure 6—figure supplement 1). These structural alignments suggest that the PS1 motif is well positioned to functionally link the AAA1 and AAA2 rings in the various HSP100 oligomers. According to these data, we hypothesize that the Hsp104 disaggregase can switch between planar and helical conformations while maintaining the integrity of the L/S* rigid bodies to ensure intra- and inter-ring cooperativity during the ATPase-driven power strokes.

Figure 6 with 4 supplements see all

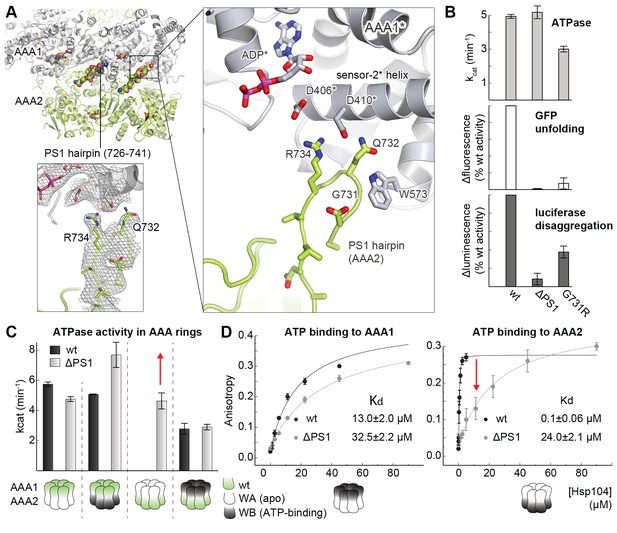

Functional coupling of the two AAA rings of Hsp104.

(A) The PS1-hairpin of AAA2, which was well-defined by electron density (inset: omit density map contoured at 1.0 σ), forms specific contacts within the AAA1* active site. Bound ADP and interacting residues are shown in stick mode. (B) Characterization of the PS1 deletion (∆PS1) and the G731R mutant showing that the PS1-hairpin is essential for unfoldase and disaggregase activity, but not for ATPase activity. (C and D) ATPase and mant-ATP binding assays reveal the role of the PS1-hairpin in adjusting the activities and nucleotide binding affinities of AAA1 and AAA2 to each other. Strongest effects of the ∆PS1 mutation are highlighted (red arrow). The used AAA variants (WA/WB combined with wildtype) are indicated. Error bars represent standard deviations.

https://doi.org/10.7554/eLife.21516.017

At the tip of the PS1-haripin, the side chains of Gln732 and Arg734 form specific interactions with Asp406* and Asp410* located on the sensor-2 helix. These contacts, which physically link the PS1-motif of AAA2 to the AAA1S* sub-domain, are in perfect agreement with surprising results of subunit mixing experiments, in which AAA1 exerted an allosteric effect on AAA2 in trans (Franzmann et al., 2011). Given its AAA2-AAA1* bridging position and the high conservation of interface residues (Supplementary file 2), we explored whether the PS1-hairpin could be the long-sought mechanical link of the two AAA rings in HSP100 chaperones. Upon deleting the PS1-hairpin, we could measure only a minor effect on the overall ATPase activity. Despite leaving the ATPase engines largely untouched, the PS1 deletion, however, fully blocked the unfoldase and disaggregase activities (Figure 6B). This remarkable decoupling effect, which has not been reported before for any other HSP100 unfoldase, highlights the importance of the PS1-hairpin for linking the two ATPase engines, a linkage that is essential to achieve full unfolding and disaggregation activity. Notably, deleting the PS1 hairpin in the yeast Hsp104 had a similar effect, suggesting that the uncovered coupling is generally relevant for HSP100 disaggregases (Figure 6—figure supplement 2). To show that the observed effects are not due to putative gross structural changes caused by the PS1 deletion, we analyzed a site-specific mutation at the tip of the PS1 hairpin that was predicted to sterically expel the PS1 motif from the active site of AAA1. For this purpose, we replaced Gly731, which is in close contact to Trp573, by arginine. When tested in our activity assays, the G731R mutant had a slightly decreased ATPase activity, but it was even more impaired in its unfoldase and disaggregase activity, thus mimicking the PS1 deletion phenotype (Figure 6B). The in vivo relevance of the described PS1 interactions is also emphasized by a reported mutation in the arginine residue at the tip of the PS1-hairpin in ClpB from Arabidopsis thaliana that, despite its conservative character (R705K), led to a loss-of-function phenotype (Lee et al., 2005).

To explore how the PS1-hairpin influences the communication between the two AAA rings, we analyzed the ATPase activities of the AAA1 and AAA2 engines separately. For this purpose, we combined Walker A (WA) or Walker B (WB) mutations (Figure 6—figure supplement 3) – which mimic the apo and ATP-bound states, respectively – in one AAA domain with a wild-type active site in the partner AAA domain. Using this approach, we observed a strong coupling between the AAA domains, especially the dependence of AAA2 activity on the nucleotide state of AAA1. Under the conditions where ATP is stably bound to AAA1 (WB mutation), the AAA2 ring remains fully active. In contrast, preventing ATP binding to the AAA1 ring (WA mutation) turns AAA2 activity off. Strikingly, deleting the PS1-hairpin abolishes this correlation and renders the AAA2 ring active independent of the nucleotide-binding state of AAA1. Of note, the same effect was observed in the presence of substrate proteins, emphasizing the role of the PS1 hairpin in coupling the two AAA engines during substrate translocation (Figure 6C and Figure 6—figure supplement 4). Moreover, the PS1-hairpin is critical for adjusting the nucleotide-binding properties of AAA1 and AAA2, which is particularly evident from the analysis of ATP binding to AAA2 (Figure 6D). Using the AAA1 WA mutant, the observed affinity of AAA2 for ATP was very high (Kd≈0.1 μM), most likely due to an allosteric effect of an empty AAA1 on AAA2, as previously proposed (Franzmann et al., 2011). Removal of the PS1-hairpin decreases the affinity under these conditions by more than two orders of magnitude, suggesting that the allosteric control of AAA2 by AAA1 has now been compromised. Taken together, our structural and biochemical data demonstrate that the PS1 motif is the structural element coordinating the two ATPase engines of Hsp104.

Signaling path between AAA1 and AAA2

Notably, the PS1-hairpin and the AAA2 nucleotide binding site are located on opposite sides of the central β-sheet. We therefore analyzed how the signal could be passed across the β-sheet. Two features evident in the Hsp104 crystal structure seem to be important for this signaling. First, the PS1-hairpin is directly connected via strand β4 with the sensor-1 motif of AAA2 (Asn748) that is critical for ATP hydrolysis (Hattendorf and Lindquist, 2002b). Secondly, the central β-sheet of AAA2 appears to be slightly distorted in the Hsp104 filament. Structural comparison with the isolated AAA2 domain from ClpB (Zeymer et al., 2014) suggests that in the Hsp104 oligomer, contacts to the AAA1 domain, as well as to neighboring AAA2 subunits, induce a distortion of the central β-sheet, in particular of the two capping strands (Figure 7A and Figure 7—figure supplement 1). Notably, parallel β-sheets are presumed to be less stable than the anti-parallel counterparts (Richardson, 1977) and may thus be amenable to such deformation. Furthermore, the entrance point of the PS1-hairpin into the β-sheet of AAA2 is lined on one side by the strictly conserved Pro627, which does not form hydrogen bonds with the backbone of strand β4. We hypothesize that, owing to the observed imperfect secondary structure, the middle strand β4 may undergo small rearrangements within the frame of the central β-sheet. Such mobility would allow the repositioning of the sensor-1 residue Asn748 (AAA2) via β4/PS1 in response to subunit reorientation in the AAA1 ring (Figure 7B). To ensure efficient coupling, the β4/PS1 mechanical link should have a defined conformation. To test this prediction, we inserted a single Gly residue between residues Asn740 and Cys741 that directly precede strand β4. In addition to this PS1+ decoupling mutant, we shortened the PS1-hairpin by two residues (Δ737-738, PS1- mutant) or modified the central β-sheet of AAA2 by mutating the Pro-Pro-Ser motif of strand β1 by a less distorting sequence (P627T-P628G-S629N, PP mutant). Similar to the ΔPS1 deletion, these mutations led to a severe reduction in the unfolding and disaggregation activities, while the ATPase activity of AAA1 and AAA2 became partially uncoupled (Figure 7B and Figure 7—figure supplement 2). These data underscore the tight spatial constraints underlying the PS1-mediated coupling of the two ATPase rings. To test constraints imposed at the opposite side of the signaling path, i.e. at the sensor-1 residue of AAA2 located at the distal end of β4, we mutated Asn748 to either a shorter (Ser) or a longer (Gln) amino acid with similar hydrogen bonding properties. Although mutating the sensor-1 residue of AAA2 had only a minor influence on the overall ATPase activity (Figure 7C), the two mutations clearly affected the nucleotide binding in the remote AAA1 ring. When AAA2 was present in the apo state (WA), both sensor-1 mutations markedly increased the binding affinity of ATP to AAA1 (Figure 7C). This experiment demonstrates that changes in the sensor-1 residue can be communicated to AAA1 and support our hypothesis that the sensor-1 residue of AAA2 is part of the PS1 signaling device synchronizing the activities of the two AAA rings. It should be also noted that the N748S and N748Q mutations had opposite effects on the overall unfoldase activity of Hsp104 (Figure 7—figure supplement 3). This puzzling result cannot be explained by an altered communication between AAA1 and AAA2, as both mutants caused similar enzymatic effects in AAA1 and AAA2, respectively (Figure 7—figure supplement 3). Owing to the close distance between the PS1 hairpin and the AAA2 pore-loop (Biter et al., 2012b), we presume that the opposite effects of the sensor-1 mutations on unfolding activity may reflect different substrate translocation properties of the Hsp104 particles; however, the molecular mechanism of this intriguing function remains to be elucidated.

Figure 7 with 3 supplements see all

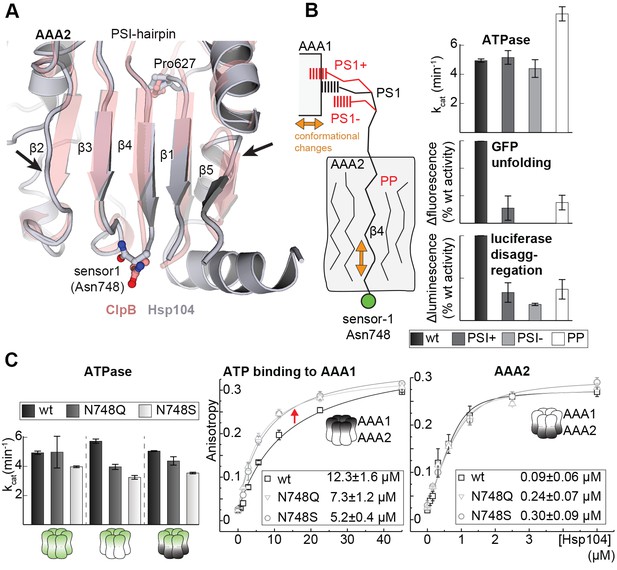

Signal path between AAA1 and AAA2.

(A) Superposition of the AAA2 domain of the Hsp104 filament (grey) with the AAA2 domain of ClpB that was crystallized as isolated domain (salmon; PDB 4lj5). The ribbon model illustrates the distortion of strands β2 and β5 (arrows) and the shorter strands β1, β3, and β4 observed in the Hsp104 structure. See also Figure 7—figure supplement 1. (B) Model of how conformational changes of an AAA1 ATPase module or reorientations of strand β4 and the sensor-1 residue are communicated by the PSI-hairpin. Mutants predicted to decouple signaling (PS1+, PS1- and PP) were analyzed for their ATPase, unfolding, and disaggregation activities. See also Figure 7—figure supplements 2 and 3. (C) ATPase activity assay and mant-ATP binding data of sensor-1 mutants (N748S and N748Q). Strongest effects compared to the respective wildtype control are highlighted (red arrow). The used AAA variants (WA/WB combined with wildtype) are indicated. Error bars represent standard deviations.

https://doi.org/10.7554/eLife.21516.022

Discussion

AAA molecular machines are only functional as oligomers and require coordination between the individual building blocks for efficient activity. While the homotypic interactions between the six ATPase subunits within a single AAA hexamer are increasingly well understood, the mechanistic importance of heterotypic communication is less clear and its molecular underpinnings were not resolved in the recent cryoEM analysis (Yokom et al., 2016). Heterotypic contacts include, for example, interactions with the ATPase subunits of a second AAA ring, with additional regulatory domains or proteins, and with cognate substrate molecules. The present study reveals two novel mechanisms how such trans-regulation is mediated in the AAA disaggregase Hsp104, mechanisms that may be generally applicable to AAA proteins of various functions and also, to some extent, to other multiprotein machineries.

Steric control of complex AAA machines

Hsp104 and its orthologs are under control of their MD extension that can form a continuous ring around the hexamer. Binding of Hsp70 to the MD opens this ring and stimulates disaggregase activity by an unknown mechanism. Our data demonstrate that the MDs compose a topological belt tightly embracing the AAA1 ring (Figure 8A). Each MD glues two ATPase L/S* modules together, thus restricting their relative movement and keeping the AAA machine in a latent state. In this self-entrapment process, motif-2 serves as a molecular tether that physically links neighboring ATPase units via two well-defined binding sites. The flexible motif-1 associates with the solvent-directed face of motif-2 thereby closing the MD belt and stabilizing the MD/AAA1 interactions. As shown previously, the Hsp70 chaperone, functioning as a substrate-recruiting adaptor, competes with motif-1 for binding to motif-2. According to the modeled Hsp70/Hsp104 complex (Rosenzweig et al., 2013), Hsp70 binding would lead to a rearrangement of motif-2 disrupting its contacts with AAA1. The now released ATPase modules are free to fulfill their dynamic task in the protein unfolding and disaggregation reaction. As it is assumed that chaperones, unfoldases, and proteases acting on damaged proteins must be highly flexible to be active (Saibil, 2013), it will be interesting to see whether other quality control factors are regulated by similar restraint mechanisms or factors. To our knowledge, the motor protein dynein is the only other AAA enzyme employing a comparable steric brake. Dynein, which is composed of six fused ATPase domains, is regulated by a "doorstop" mechanism, whereby the regulatory protein Lis1 binds to the AAA ring and sterically hinders progression through the AAA mechano-chemical cycle (Toropova et al., 2014). Notably, restricting the conformational freedom of individual subunits seems to be an emerging theme in regulating large macromolecular machineries, seen for example also in the ribosome. Here, a chaperone complex implicated in co-translational folding of nascent polypeptides, RAC, physically links adjacent ribosomal subunits thus controlling the inter-subunit rotation required for peptide elongation (Zhang et al., 2014).

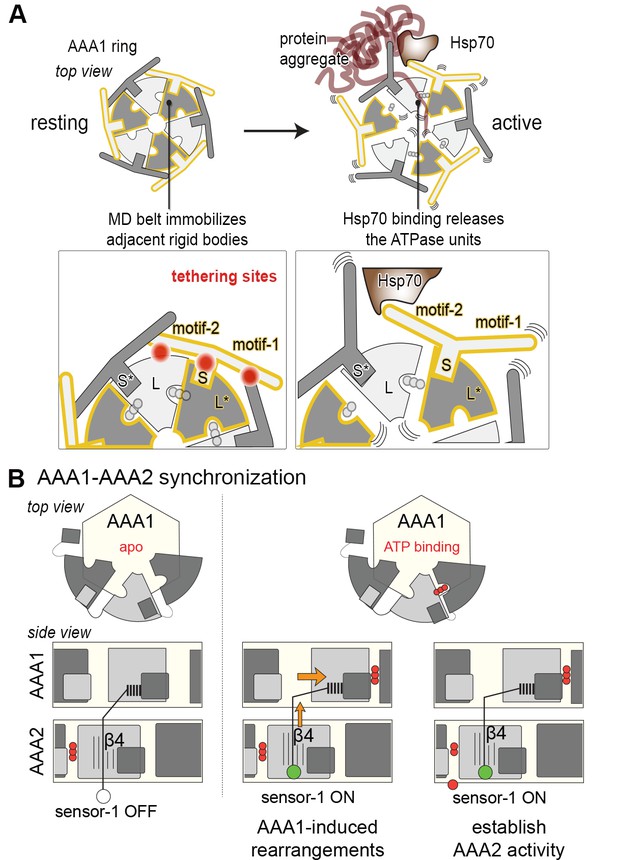

Novel mechanistic features of the Hsp104 disaggregase.

(A) A restraint mask composed of the MD keeps the disaggregase inactive by immobilizing ATPase modules of the AAA1 ring. Binding of Hsp70 to the MD opens the safety belt and activates Hsp104 to act on the presented protein aggregate. The zoomed-in windows illustrate the multiple contact sites established by the MD that result in a physical tethering of adjacent rigid bodies (neighboring subunits are colored in different grey tones and rigid bodies are framed). (B) Allosteric coupling of the two AAA rings by the PS1 motif of AAA2. Nucleotide-dependent movements of an AAA1 module are transduced via the PS1-hairpin over a large distance leading to the repositioning of the catalytic sensor-1 residue of AAA2. As indicated, the functional switch relies on the reorientation of strand β4 in the AAA2 domain.

https://doi.org/10.7554/eLife.21516.026

Synchronizing ATPase engines in complex molecular machines

The Hsp104 crystal structure identifies the structural motif that mechanically links the two ATPase engines of a HSP100 chaperone machine. We suggest that the PS1-hairpin and the associated strand β4 couple conformational changes in AAA1 with the repositioning of the catalytic sensor-1 residue of AAA2 (Figure 8B). The signaling mechanism relies on the rearrangement of individual β-strands within the AAA2 β-sheet, which presumably requires a distortion of secondary structure as observed in the present Hsp104 crystal structure. We hypothesize that the relatively short parallel β-sheet found in the AAA fold is well suited for such a distortion. This may be one of the factors underpinning the dynamic and highly allosteric nature of AAA proteins. Aside from the inter-ring communication, the PS1 loop has been implicated in intra-ring signaling, due to its location near the pore-loop of AAA2 (Biter et al., 2012b). Accordingly, the PS1 motif might coordinate inter-ring structural changes with the movements of the AAA1 and AAA2 pore-loops.

Identification of the inter-ring coupling device also provides insight into the conservation of HSP100 remodeling proteins. A detailed sequence analysis showed that the PS1-hairpin, the acceptor site at AAA1, and elements destabilizing the AAA2 β-sheet are among the most conserved sequence stretches in the HSP100 unfoldase/disaggregase family comprising for example ClpA, ClpB, ClpC, ClpE, and Hsp104 (Supplementary file 2). In contrast, Cdc48 and related enzymes, which are also composed of stacked AAA1 and AAA2 hexamers, lack these motifs, pointing to distinct inter-ring signaling mechanisms and functions. Finally, it should be noted that the PS1-hairpin is the defining feature of a major AAA superclade comprising also single-ring ATPase machines of various remodeling functions (Erzberger and Berger, 2006). Among these, a signaling link between PS1 and sensor-1 has been proposed to occur in DNA-remodeling proteins (Schumacher et al., 2007). We thus suggest that the PS1-hairpin, the associated β4-strand, and sensor-1 residue constitute a common signaling device to couple ATPase activity with external stimuli such as substrate, co-factor, or ligand binding. It is this multi-purpose structural device sensing heterotypic contacts that provides the long-sought link between the two ATPase engines in the powerful protein unfolding machine Hsp104.

Materials and methods

Cloning, expression and purification

Request a detailed protocol

The Saccharomyces cerevisiae Hsp104 and Escherichia coli GroEL genes were cloned from yeast and bacterial genomic DNA, respectively. The genes of full-length Hsp104, Hsp70, and Hsp40 from Chaetomium thermophilum, as well as for the RepA-GFP fusion protein (70 initial amino acids of RepA followed by full-length GFP), were synthesized chemically. All constructs were cloned into the pET21a vector and expressed in E. coli yielding recombinant proteins with a C-terminal His6-tag. To generate Cys-Cys mutants for cross-linking experiments, we used a Cys-free, but fully functional Hsp104 variant, in which all Cys residues were replaced by Ser. All mutations were introduced by site-directed mutagenesis using specific DNA primers.

Except Hsp40, which was purified using a Zn-Sepharose column, all proteins were affinity-purified by NiNTA chromatography applying a step-wise imidazole gradient. In the second chromatography step, the samples were loaded onto a Resource Q anion exchange column and separated by a linear NaCl gradient. To transfer the purified proteins into buffer-A (20 mM HEPES, pH 8.1, 100 mM NaCl) supplemented with 1 mM TCEP, we used pre-equilibrated buffer-exchange and gel-filtration columns (Superdex-200 for Hsp104, GroEL, and Hsp70; Superdex-75 for Hsp40 and RepA-GFP). After concentrating proteins to about 0.1 mM, the samples were flash-frozen in liquid nitrogen and stored at −80°C until use.

Crystallization and structure determination

Request a detailed protocol

Prior to crystallization trials, the full-length Hsp104 protein of C. thermophilum was incubated with an equimolar mixture of ADP and AlF3 (3 mM each). Crystals were grown at room temperature by the sitting-drop vapor-diffusion method. Upon mixing 200 nL of Hsp104 (7.5 mg/mL) with 100 nL of a reservoir solution containing 8.3% penta-erythritol propoxylate and 0.1 M MES-NaOH pH 5.8, hexagonal crystals appeared after three days. The crystals belonged to the monoclinic space group P21 and contained three Hsp104 subunits per asymmetric unit. For cryo-protection, crystals were transferred to a solution containing 28% pentaerythritol propoxylate and 0.1 M MES-NaOH, pH 5.8, and subsequently flash-frozen in liquid nitrogen. Diffraction data were collected at beamline P14 at DESY (Deutsches Elektronen-Synchrotron, Hamburg, Germany). Data were processed with XDS (Kabsch, 2010) and scaled with SCALA (Winn et al., 2011). The structure was solved by molecular replacement using the program Phaser (Mccoy et al., 2007). As search models we used the AAA1 (PDB 4hse [Zeymer et al., 2013]) and AAA2 (PDB 1qvr [Lee et al., 2003]) domains of ClpB that were adapted to the Hsp104 sequence by MODELER (Eswar et al., 2006) and CHAINSAW (Schwarzenbacher et al., 2004). Model building and refinement proceeded in repeated cycles using the programs O (Jones et al., 1991), CNS (Brünger et al., 1998), and PHENIX (Adams et al., 2010). The final structure was refined at 3.7 Å resolution to an R-factor of 23.7% (Rfree value of 27.7%) with Ramachandran statistics having 86.8% of the residues in the favored region and 0.2% in the disallowed region. Data collection, phasing, and refinement statistics are summarized in Table 1.

Sequence alignments

Request a detailed protocol

Sequence alignments of Hsp100 disaggregases were performed with the program MAFFT (version 6, L-INS-I method) (Katoh and Toh, 2008) and visualized using the ESPript 3.0 server(Robert and Gouet, 2014). Sequences are derived from the NCBI protein database: Hsp104_Ct: Chaetomium thermophilum (gi|340959261|); HS104_YEAST: Saccharomyces cerevisiae (gi|6323002|ref|NP_013074.1|); Hsp104_Um: Ustilago maydis (gi|71024695|); CLPB_ECOLI: Escherichia coli (gi|15832709|); CLPB_THET8: Thermus thermophilus (gi|55981456|); HSP78_YEAST: Saccharomyces cerevisiae (gi|398366295|); CLPC_BACSU: Bacillus subtilis (gi|16077154|), CLPE_BACSU: Bacillus subtilis (gi|16078434|ref|NP_389253.1|); CLPA_ECO57: Escherichia coli (gi|15830222|). For coloring the structure according to conservation scores, Hsp104 sequence orthologs were first retrieved from the NCBI non-redundant protein database using NCBI-BLAST (version 2.2.26, E-values < 1e-180) (Altschul et al., 1997) and then 20 fungal sequences representing a wide taxonomic range were selected. Sequence conservation values were calculated with the program al2co, using no weighting scheme for amino acid frequency estimation, the sum-of-pairs measure conservation calculation method, and the BLOSUM62 scoring matrix (Pei and Grishin, 2001).

Modeling of the Hsp104 hexamer

Request a detailed protocol

To model the planar Hsp104 hexamer we used a single L/S* building block composed of the AAA1L/AAA1S* and AAA2L/AAA2S* domains of two adjacent protomers of the crystallized filament. The hexameric Hsp104 was generated by overlying the AAA1 part of the L/S* module onto the six AAA1 modules of the hexameric ClpC structure (PDB 3pxi (Wang et al., 2011)). Structural alignments were done with O (Jones et al., 1991) and the model was energy-minimized by CNS (Brünger et al., 1998). To generate the overlay with the ScHsp104 EM structure (Yokom et al., 2016) the same strategy was applied and the AAA1L/AAA1S* rigid bodies were aligned using the program Pymol (Delano, 2002).

Cross-linking coupled mass spectrometry (XL-MS)

Request a detailed protocol

Cross-linking was performed by mixing 0.7 mg/mL Hsp104 with various amounts of an equimolar mixture of isotopically light (d0) and heavy (d12) labeled BS3. The reaction mixture was incubated for one hour at room temperature and subsequently quenched by the addition of 100 mM ammonium bicarbonate. The appropriate BS3 concentration (repressed variant and wild-type 0.3 mM, hyper-active variant 0.6 mM, respectively) was determined based on SDS-PAGE (Figure 4—figure supplement 1) and the chemical cross-links on Hsp104 were identified by mass-spectrometry as previously described (Herzog et al., 2012). Briefly, proteins were denatured by the addition of two sample volumes of 8 M urea and reduced with 5 mM TCEP for 20 min at 35°C. Subsequently, proteins were alkylated with 10 mM iodoacetamide and incubated for 40 min at room temperature in the dark. Digestion of the cross-linked proteins was performed with lysyl endopeptidase at an enzyme ratio of 1 to 50 (w/w) at 37°C for 2 hr. A second digestion with trypsin (also at 1:50 ration w/w) was completed at 37°C overnight. Cross-linked peptides were enriched by size exclusion chromatography on a Superdex Peptide PC 3.2/30 column (300×3.2 mm). The cross-link fractions were analyzed by liquid chromatography coupled to tandem mass-spectrometry using a LTQ Orbitrap Elite instrument. Cross-linked peptides were identified using the xQuest (Walzthoeni et al., 2012) software and cross-links were visualized by the xVis server (Grimm et al., 2015). False discovery rates (FDRs) were estimated by the program, xProphet (Walzthoeni et al., 2012) and results were filtered according to the following parameters: FDR = 0.05, min delta score = 0.90, MS1 tolerance window of −4 to 4 ppm, ld-score > 22.

Cys-Cys cross-linking

Request a detailed protocol

To ensure efficient Cys-Cys cross-linking, proteins were oxidized by the addition of 25 µM dichloro (1, 10-phenanthroline) copper. After 15 min, the reactions were stopped by transferring the reaction mixture to fresh buffer-A. To insert the maleimide or the bismaleimidoethane (BMOE) cross-linker, the Cys-Cys variants of Hsp104 were first treated with 10 mM DTT to reduce potential disulfides. After 5 min, proteins were transferred into buffer-B (20 mM HEPES, pH 7.5, 100 mM NaCl, 5 mM EDTA) using a PD10 desalting column. Reactions were started by adding a two-fold molar excess of BMOE (or maleimide) and stopped after 15 min by the addition of 10 mM DTT. Upon a buffer exchange to buffer-A containing 1 mM TCEP, the cross-linking efficiencies were characterized by non-reducing SDS-PAGE analysis.

ATPase assay

Request a detailed protocol

ATPase activity was determined by a coupled enzymatic reaction (Nørby, 1988). 1.5 µM Hsp104 were incubated with 37.5 U/mL pyruvate kinase, 42.9 U/mL lactacte dehydrogenase, 0.25 mM NADH, 15 mM phosphoenolpyruvate, 5 mM MgCl2 and varying ATP concentrations. A340 was recorded for 10 min using a Synergy H1 Multi-Mode Reader. Experiments were repeated three times using protein from independent purifications. The molar ATPase activity (kcat) was calculated by the following equation:

kcat=ΔA340path length×6220 M1×cm1×[Hsp104]

Resulting activities were plotted against the ATP concentration and kinetic parameters were fitted using the Hill equation in the program ORIGIN (Seifert, 2014).

RepA-GFP unfolding assay

Request a detailed protocol

The unfolding activity of Hsp104 was assayed by monitoring the decrease in fluorescence of the model substrate RepA-GFP (Doyle et al., 2007b). To this end, 10 µM Hsp104 were pre-incubated with 2.1 µM GroEL-trap (GroEL D87K), 300 nM RepA-GFP, the ATP regeneration system (15 U/mL pyruvate kinase, 6.25 mM phosphoenolpyruvate), and 0.1 mg/mL BSA in buffer-A supplemented with 1 mM TCEP, 0.1 mM EDTA, 10% (v/v) glycerol, and 10 mM MgCl2. The reaction was started by adding an equimolar mixture of ATP and ATPγS (5 mM each). The change in fluorescence was monitored at λex = 395 nm and λem = 509 nm, at room temperature. Unfolding activities were derived from the decrease of the fluorescence signal within the initial 2–10 min time window. All experiments were performed as triplicates using protein from independent purifications. Although experiments performed in the presence of ATP/ATPγS reflect the unfolding mechanism mediated by Hsp104 only partially (Kummer et al., 2016), they do represent a valuable tool to compare the activity of various Hsp104 mutants independent of their ability to cooperate with Hsp70.

Luciferase disaggregation assay

Request a detailed protocol

As a model substrate to measure protein disaggregation, we used firefly luciferase. To generate the aggregated substrate, luciferase (0.5 µM) was dissolved in buffer-C (25 mM HEPES pH 7.5, 150 mM KCl, 15 mM MgCl2) and heat-denatured at 45°C. For the disaggregation reaction, 1.5 µM Hsp104 was mixed with 1.5 µM Hsp70, 1.5 µM Hsp40, 0.05 µM aggregated luciferase, 5 mM ATP, the ATP regeneration system (15 U/mL pyruvate kinase, 6.25 mM phosphoenolpyruvate), and 0.1 mg/mL BSA in buffer-C. After 90 min of incubation at 30°C, luciferin was added to the final concentration of 15 µM and luminescence was recorded with a PHERAStar plate reader. Reactions lacking Hsp104 were used as a negative control. The average refolding efficiency for wt CtHsp104 was between 5% and 15%. All experiments were performed three times using protein from independent purifications.

Fluorescence anisotropy measurements

Request a detailed protocol

Experiments were performed in triplicate using inactive protein (WA and WB mutants) from independent purifications. For all titrations, mantATP was kept constant at 1 μM. Fluorescence anisotropy measurements were carried out at room temperature using λex = 355 nm and λem = 448 nm. Observed anisotropy values (A) were plotted as a function of Hsp104 concentration and fitted to the following equation with ORIGIN:

A=A0+(A1A0)× (([mantATP]+Kd+[Hsp104])([mantATP]Kd[Hsp104])24×[mantATP]×[Hsp104]2[mantATP])

A0: anisotropy observed with free mantATP; A1: anisotropy of protein bound mantATP

Kd: equilibrium dissociation constant

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    The PyMOL Molecular Graphics System
    1. WL Delano
    (2002)
    DeLano Scientific, San Carlos.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Comparative protein structure modeling using Modeller
    1. N Eswar
    2. B Webb
    3. MA Marti-Renom
    4. MS Madhusudhan
    5. D Eramian
    6. MY Shen
    7. U Pieper
    8. A Sali
    (2006)
    Current Protocols in Bioinformatics, Chapter 5, 10.1002/0471250953.bi0506s15, 18428767.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    XDS
    1. W Kabsch
    (2010)
    Acta Crystallographica. Section D, Biological Crystallography 66:125–132.
    https://doi.org/10.1107/S0907444909047337
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    Hsp104 is required for tolerance to many forms of stress
    1. Y Sanchez
    2. J Taulien
    3. KA Borkovich
    4. S Lindquist
    (1992)
    The EMBO Journal 11:2357–2364.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
    Spiral architecture of the Hsp104 disaggregase reveals the basis for polypeptide translocation
    1. AL Yokom
    2. SN Gates
    3. ME Jackrel
    4. KL Mack
    5. Su M
    6. J Shorter
    7. DR Southworth
    (2016)
    Nature Structural & Molecular Biology, 23, 10.1038/nsmb.3277, 27478928.
  78. 78
  79. 79
  80. 80

Decision letter

  1. Manajit Hayer-Hartl
    Reviewing Editor; Max Planck Institute of Biochemistry, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Structural basis for the disaggregase activity and regulation of Hsp104" for consideration by eLife. Your article has been evaluated by Michael Marletta (Senior Editor) and four reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your present submission will not be considered for publication in eLife. However, you will see that the reviewers, although raising substantial technical concerns, found your work interesting and important for the field. We therefore encourage you to consider resubmission once you have been able to address the referees' comments.

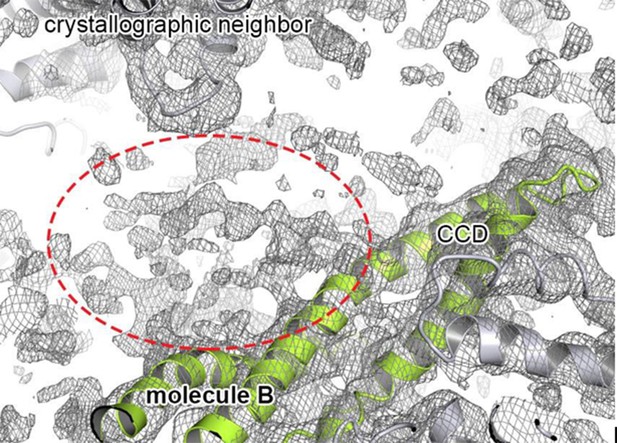

The referees expressed concern regarding the quality of the structural model (reviewer #1), interpretation of the crosslink data (reviewers #2 & #4), controls for various biochemical experiments (reviewer #3) and the correct citation of the literature (reviewer #2).

Reviewer #1:

Hsp104 is the fungal homolog of the bacterial ClpB and ClpC proteins. These hexameric molecular machines consist of two AAA (AAA1 and AAA2) rings. A characteristic feature is a coiled-coil insertion (CCD) in the AAA1 ring. The α-helical propeller-like structure of the CCD is important for functional cooperation with Hsp70 in protein disaggregation. In fungi, Hsp104 is a crucial component of the response to proteotoxic heat stress. Extensive structural and mechanistic studies of this class of molecular chaperones have previously been published. Crystal and cryo-EM structures exist for ClpB/ClpC and Hsp104, respectively. Numerous mutants, especially relating to the function of the CCD, have been characterized. However, questions about the regulation and the mechanism remained unanswered.

The present manuscript reports the first crystal structure of the eukaryotic disaggregase protein Hsp104. The crystal lattice does not contain the functionally active hexamer, but rather a helical filament of subunits. However, the structural building block, a complex between large and small AAA subdomains, resembles closely the respective units in the hexamer structure of ClpC. I am surprised about the poor stereochemical quality of the model, with 82.6, 13.3 and 4.1% of the peptide bonds in favored, allowed and disallowed regions of the Ramachandran plots, respectively. For an excellent-quality model >98, <2 and <0.05% are expected. This suggests serious over-fitting of the data, thereby distorting the stereochemistry, and thus casts doubt on the atomic presentation/discussion of the biochemically important contacts. Restraining the stereochemistry more tightly and accepting slightly worse R-factors should yield a more plausible model. I also wonder whether the nominal resolution was properly chosen. The authors should consider using available automated tools like Rosetta_refine to improve the refinement of their model.

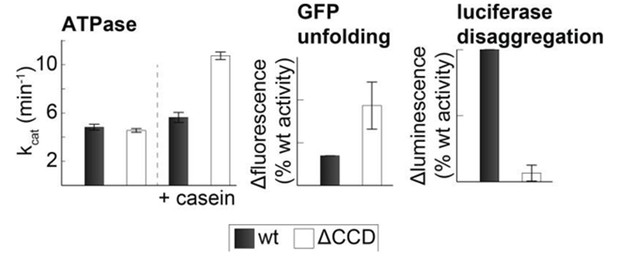

The biochemical evidence presented for a CCD belt being a "straitjacket" for the AAA1 domain mobility appears solid. However, it is strange that the reduced Cys-Cys mutant of Hsp104 (Figure 5) should yield much lower activity than wildtype and the BMOE-linked variant. The proposed model appears to be in line with previously published biochemical data.

In the Hsp104 crystal structure, the PS1-hairpins of the AAA2 ring reach out to nucleotide binding pockets in the AAA1 ring. This led the authors to suggest that the PS1-hairpins in the AAA2 domain regulate the allosteric communication between the AAA rings. Deletion of the PS1-hairpin or modification of the length between PS1 tip and sensor-1 motif of AAA2 seem to decouple ATPase from remodeling activity. These findings strongly support their hypothesis. Overall the manuscript is well-written and defines interesting mechanistic aspects of the Hsp104 machinery.

Reviewer #2:

Hsp104 is an AAA+ ATPase, which together with Hsp70/40 chaperones recovers functional protein from aggregates (Glover and Lindquist, 1998). Hsp104 orthologs are found in bacteria (e.g. TtHsp104 and EcHsp104), yeast (ScHsp104), and plants (e.g. AtHsp104), which are essential to the respective heat-shock responses, and share the ability to disaggregate amorphous protein aggregates. In addition to its role in the heat-shock response, ScHsp104 is also required for the propagation and maintenance of all amyloid-forming prions in S. cerevisiae (Chernoff et al., 1995), an activity that was presumed to be unique to ScHsp104 (Shorter and Lindquist, 2004). Hence, it was proposed that yeast and bacterial Hsp104 are different proteins and consequently must differ in their three-dimensional structure. This resulted in the infamous model by Wendler et al., who proposed that ScHsp104 is an atypical AAA ATPase, which differs in structure from bacterial Hsp104 and other AAA+ ATPases (Wendler et al., 2007; Wendler et al., 2009). It is now firmly established, but not uniformly accepted, that yeast and bacterial Hsp104 are conserved in both structure (Carroni et al., 2014; Lee et al., 2010; Sweeny et al., 2015) and function (Reidy et al., 2012; Yuan et al., 2014). It is worth noting that the highly speculative and incorrect Wendler structure is now refuted by the same groups (Carroni et al., 2014; Sweeny et al., 2015; Wendler et al., 2012), but continues to be cited in the current literature causing major damage to the field.

Heuck et al. reports the first crystal structure of a fungal Hsp104. The work is a welcome addition to the debate, and reconfirms that fungal Hsp104 (CtHsp104) is structurally conserved with bacterial Hsp104 (Carroni et al., 2014; Lee et al., 2003). Like the previously reported crystals structures of bacterial Hsp104, CtHsp104 crystallized as a helical filament, but is believed to form a hexameric ring-assembly similar to other single- and double-ring Hsp100 ATPases (Glynn et al., 2009; Sousa et al., 2000; Wang et al., 2011; Wang et al., 2001a; Wang et al., 2001b). Heuck et al. confirmed this using cross-linking coupled mass spectrometry and site-specific disulfide crosslinking. Finally, the authors proposed an elegant mechanism how the ATP signal is transduced between the AAA-1 and AAA-2 ring, involving a PS1 hairpin that may function as a signal transducer.

On balance, the data support the conclusion drawn. Although the work is a welcome addition and may be suitable for publication, is requires major revisions. Especially care should be taken when revising the manuscript because some of the references are incorrect or misleading, while others are missing. A re-review of the revised manuscript is advisable due to the collection of minor issues that distract from the main thrust of the current paper.

1) It is unfortunate that the crystal structure of CtHsp104 and not of ScHsp104 was determined, which does not directly address the controversy that has been damaging the field. For instance, the biochemical activities of CtHsp104, while similar to ScHsp104, are not identical, and could fuel the argument that CtHsp104 is different from ScHsp104. Is CtHsp104 essential for fungal prion propagation?

2) A major limitation of the present work is that the X-ray structure of the ring assembly was not determined. Moreover, neither the N-domain nor C-terminal extension were resolved in the present structure, perhaps as a result of finding a structure solution by molecular replacement, arguing for independent phase information.

3) The authors do not make it clear how many of the cross-linked Lys, if any, disagree with their proposed model of active and inactive states. It would seem that interpretation of the cross-linking pattern is complicated since the structure of the active state was not determined. If the CCD represents a "restraint mask" or negative regulator of Hsp104, elimination of the CCD should activate the protein disaggregase. Yet, Hsp104 variants that lack the CCD are inactive in protein disaggregation. How can this be reconciled?

4) Care needs to be taken when reporting WA and/or WB Hsp104 mutants. It is known that WA mutants cause deoligomerization, while WB mutants can bind ADP or contain no nucleotide. At a minimum, the authors need to show that the mutants form hexamers.

5) The novelty of the PS1-hairpin of AAA-2 is somewhat overstated since it is identical to the previously reported β-hairpin that is part of the intersubunit signaling motif (Biter et al., 2012).

Additional comments:

1. It is now generally accepted that the Wendler model (Wendler et al., 2007) is wrong, falling short of a retraction. It is therefore confusing what the authors consider "consistent" with the Wendler model (e.g. subsection “Crystal structure of the Hsp104 subunit”, last paragraph). Moreover, it is doubtful that the Wendler structure has the necessary resolution to assign side-chain conformations correctly. Great care needs to be taken when using the terms "flexible", "motions", "structural rearrangements, which are loosely defined and refer to very different things in high-resolution X-ray structures and in structural work based lower resolution cryoEM, SAXS, etc.

2) Introduction: "Mixed L/S* modules…represent the functional units of AAA chaperones[…]". The large and small subdomains are both required for nucleotide binding. Neighboring subdomains may exert regulatory function but are dispensable for nucleotide binding in cis. This statement is misleading and needs to be revised.

3) Abstract: What is exactly meant by "near-atomic"? Does it refer to resolution (i.e. 3.7A) or coordinates (i.e. atoms can be seen)? Near-atomic is not appropriate to describe either (c.f. Results, first paragraph).

4) Introduction, first paragraph: It is true that AAA ATPases are found in cells of all organisms, but Hsp104 disaggregases are not present in animal cells, despite functional conservation of a protein disaggregating activity in higher Eukarya. This needs to be clearly distinguished.

5) Introduction, second paragraph: The present work is concerned with the structure-function analysis of C. thermophilum Hsp104. CtHsp104 and ScHsp104 are similar but non-identical (e.g. Figure 1A). Also, in Figure 1A (right panel), it is unclear whether the luminescence measurements represent absolute or relative activities. What is the activity of the cognate ScHsp104:Hsp70/40 system? What is the SEM?

6) Introduction, second paragraph: The ability of Hsp104 to unravel prions on its own has been questioned (Inoue et al., 2004; Krzewska and Melki, 2006; Reidy et al., 2012; Yuan et al., 2014). It is now widely accepted that the ability to dissolute prions is dependent on the Hsp104-Hsp70 bi-chaperone system, and is the same for the dissolution of for amorphous aggregates.

7) Introduction, second paragraph: Rosenzweig et al. did not demonstrate that Hsp70 binding to the M-domain activates the Hsp100 motor (Rosenzweig et al., 2013). They showed that DnaK binds to the M-domain of Hsp100 confirming earlier work by Haslberger et al. (Haslberger et al., 2007).

8) Introduction, end of second paragraph: It is now widely accepted that the Wendler structure (Wendler et al., 2007) is incorrect and contrasts the more recent work by the same authors (Carroni et al., 2014). This statement needs to be revised. In this context, recent work by the Bukau, Wickner and other labs how the CCD regulates the Hsp100 motor should be discussed.

9) Subsection “Crystal structure of the Hsp104 subunit”, last paragraph: How was the identity of sensor-2 defined? There should only be one, not three.

10) Subsection “Crystal structure of the Hsp104 subunit”, last paragraph: "[…]Arg349 has been previously described as the Arg finger[…]? What is the reference for this?

11) Subsection “ATPase rigid bodies are maintained in the crystallized Hsp104 filament”, last paragraph: Glynn et al. (Glynn et al., 2009) reported the hexameric crystal structure of ClpX, a single-ring Hsp100 member. This statement needs to be rephrased. Also, what about ring-forming structures determined by cryoEM?

12) Supplementary file 2: The sequence numbering does not match with the sequence numbering of the atomic coordinates.

Reviewer #3:

AAA proteins are mechanochemical ATPases that perform conformational work fueled by ATP hydrolysis to remodel substrates. The yeast AAA protein Hsp104 functions as a disaggregase by reactivating aggregated proteins in cooperation with Hsp70. Hsp104 consists of two AAA domains (AAA-1, AAA-2) and a regulatory coiled-coil domain (CCD, also termed M-domain). How ATPase activity is regulated and how the two ATPase modules communicate is of central importance for understanding disaggregase mechanism. Here the authors determined the crystal structure of Chaetomium thermophilum Hsp104 providing them a structural map to dissect the regulation of ATPase and disaggregation activity.

The determined crystal structure is similar to the ones of bacterial ClpB homologs. However, it includes additional novel and valuable information as crucial contacts between neighboring AAA domains are maintained in contrast to former structures. The novel Hsp104 structure confirms the previously established position and regulatory function of the CCD yet the interaction details are of higher resolution. The authors show that the CCD is restricting AAA-1 mobility, providing a rationale for down regulation of ATPase and disaggregase activity by the CCD. This part of the study is well performed and includes novel information, yet it also represents an evolution of an already established and accepted mode of Hsp104 activity control. In the second part, the authors identify a conserved structural element, the PS1 hairpin, which is suggested to act as sensor mediating interdomain communication between AAA-1 and AAA-2. A role of the hairpin in controlling ATPase and disaggregase activity is supported by biochemical analysis, though some assays and results need further clarification (see below). How exactly PS1 synchronizes the AAA modules remains vague and therefore some of the conclusions should be softened.

Overall the presented work is of high quality, contributes to an improved understanding of disaggregase mechanism and includes the identification of a novel regulatory element. The following points should be addressed in a revised manuscript:

1) The RepA-GFP unfolding assay requires the presence of non-physiological ATP/ATPγS mixtures. The relevance of such conditions for disaggregase function (disaggregation activity in presence of these nucleotide mixtures is low or not existing) and ATPase communication is unclear and results based on the assay are at least in parts questionable.

2) ATPase activities were always determined in the absence of substrate. Casein and specific peptides stimulate ATPase hydrolysis by Hsp104. It is recommended to include those in ATPase measurements as it might allow to more precisely defining the role of PS1 in signal transduction.

3) To exclude that deletion of the PS1 hairpin causes structural defects it is recommended to analyze the effect of e.g. Q732/R734 mutation, which should abolish interaction with the sensor 2 helix.

4) Figure 7C: The two analyzed variants of N748 (sensor1) have opposing effects on GFP unfolding (Figure 4D), a conflict overlooked and not discussed so far.

5) While the data demonstrate that PS1 plays a role in ATPase communication, the precise mechanism remains unclear. In their model (Figure 8B) the authors suggest a defined order of signaling events between the ATPase domains, which is not really supported by the presented findings. It is therefore suggested to soften respective conclusions and modify the model accordingly.

6) The authors need to report on the refolding efficiency of aggregated Luciferase. So far only absolute activities (Luminescence a.u. Figure 1A) are provided. Similarly, when comparing GFP unfolding or luciferase disaggregation activities of Hsp104 wild type and mutants, the scale of the y-axis is not well defined (Figure 3B, Figure 5A/6B/7B). It is recommended to set the activity of Hsp104 wild type at 100% and calculate the relative activity of variants.

Reviewer #4:

In their manuscript, Heuk et al. provide the structure of the Hsp104 disaggregase from Chaetomium thermophilum (a thermophilic fungus) at 3.7 A resolution. Subsequently, they carry out very detailed and careful biochemical analyses to highlight the mechanism by which the coiled-coil domain in Hsp104 regulates the activity of the chaperone. They also carry out mutational analyses to demonstrate how the coupling between the AAA1 and AAA2 ATPase domains is achieved in this protein.

As a general comment, the data presented in this manuscript about Hsp104 structure and mechanism of function are already established for Hsp104 and ClpB from other organisms. The only new information is probably the potential coupling of the activity of AAA1 and AAA2 through the pre-sensor 1 hairpin (PS1-hairpin). Furthermore, the interpretation of the data in several instances seems to be over simplified.

1) The authors need to explain Figure 1A and not just refer to it in the text.

2) The XL-MS data of Figure 4C might be misleading. The data is simply interpreted by the authors as: if there are more crosslinks, then the protein is more dynamic, which is not necessarily true. Furthermore, in Figure 4—figure supplement 2, the authors state that they needed to use larger amounts of BS3 to crosslink the hyperactive mutant compared to WT. This makes interpreting the crosslinking data problematic.

Also, what about crosslinks to the N-domain? These were not discussed. What happens if the crosslinking was done in the presence of ATP/ADP/etc.?

3) Figure 5A – It is not clear why Hsp104 with BMOE crosslink would be more active than WT?

4) To further detail the coupling between AAA1 and AAA2, the authors make several mutants including PS1+ and PS1- (making the PS1 hairpin longer or shorter). However, since such mutations can lead to many other structural re-arrangements, I think the authors have to be more qualitative in interpreting their data. The best case scenario would have been if the authors obtained the X-ray structures of these mutants, which I acknowledge might or might not be trivial.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Structural basis for the disaggregase activity and regulation of Hsp104" for further consideration at eLife. Your revised article has been favorably evaluated by Michael Marletta (Senior Editor), a Reviewing Editor, and three reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

One outstanding question that should be discussed before final acceptance is whether a helical assembly as described in a recent paper by Yokom et al., 2016 can be physiological. Is the mechanical link coupling the two AAA rings and the role of the middle domain compatible with a helical assembly as the functional disaggregase? A short critical comparison of the mechanistic features as revealed by the ADP-bound crystal structure (helical filament) of the Hsp104 from Chaetomium thermophilum with that of the recently published ATP-bound cryo-EM spiral structure of Hsp104 from yeast (Yokom et al., 2016), would be important for understanding how some AAA enzymes function.

Note that the mutational analysis requested by reviewer #1 are not absolutely required for final acceptance. However, the term CCD should be changed to M-domain throughout the manuscript and figures. Reviewer #2 is correct that the term M-domain is the standard used in the literature and it is not necessary to reinvent new terms.

Reviewer #1:

The authors addressed many of the comments made by mainly counter arguing but they also did carry out a few additional experiments. Given the recent publication of the cryo-EM structure of Saccharomyces cerevisiae Hsp104 in the ATP state by Yokom et al. [Nat Struct Mol Biol 23(9), 830-837], I think the publication of the current manuscript would be very timely.

Reviewer #2 (General assessment and major comments (Required)):

In their revised version the authors have successfully addressed most of my previous concerns. They added new data, which provide further support for the suggested role of the PS1 hairpin in signal transduction between the two ATPase domains and at the same time soften the model as formerly requested.

Reviewer #3:

The manuscript by Heuck et al. describes the 3.7A resolution crystal structure of a fungal Hsp104 together with biochemical and cross-linking/mass spectrometry (XL-MS) data. The manuscript is well written and experimental results are convincing. Perhaps one of the most interesting finding is that the CCD via motif-2 contacts the AAA1 large subunit of the neighboring protomer providing the structural basis for a functional role of the CCD in nucleotide signaling between neighboring ATPase modules. The latter has largely been inferred but never been demonstrated for an Hsp100 chaperone. The role of the PS1 motif in coordinating the two ATPase rings is novel and supported by biochemical experiments. The hypothesis that the CCD belt immobilizes the entrapped AAA1 ATPase modules is novel and substantiated in part by the XL-MS analysis using BS3 crosslinker. The only concern with this approach is that, because of the homo-oligomeric structures, intra- vs. inter-domain crosslinks would be difficult to differentiate.

1) It is not entirely clear why heterotypic contacts cannot be resolved by the recent cryoEM analysis of a proposed helical Hsp104 assembly (Yokom et al., 2016). Although it remains uncertain whether a helical assembly is physiological, is the proposed role of the PS1 motif compatible with a helical assembly?

https://doi.org/10.7554/eLife.21516.033

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

The referees expressed concern regarding the quality of the structural model (reviewer #1), interpretation of the crosslink data (reviewers #2 & #4), controls for various biochemical experiments (reviewer #3) and the correct citation of the literature (reviewer #2).

We hope you will find the referee comments useful in preparing the manuscript for resubmission to eLife or another journal.

Reviewer #1:

Hsp104 is the fungal homolog of the bacterial ClpB and ClpC proteins. These hexameric molecular machines consist of two AAA (AAA1 and AAA2) rings. A characteristic feature is a coiled-coil insertion (CCD) in the AAA1 ring. The α-helical propeller-like structure of the CCD is important for functional cooperation with Hsp70 in protein disaggregation. In fungi, Hsp104 is a crucial component of the response to proteotoxic heat stress. Extensive structural and mechanistic studies of this class of molecular chaperones have previously been published. Crystal and cryo-EM structures exist for ClpB/ClpC and Hsp104, respectively. Numerous mutants, especially relating to the function of the CCD, have been characterized. However, questions about the regulation and the mechanism remained unanswered.

The present manuscript reports the first crystal structure of the eukaryotic disaggregase protein Hsp104. The crystal lattice does not contain the functionally active hexamer, but rather a helical filament of subunits. However, the structural building block, a complex between large and small AAA subdomains, resembles closely the respective units in the hexamer structure of ClpC.

I am surprised about the poor stereochemical quality of the model, with 82.6, 13.3 and 4.1% of the peptide bonds in favored, allowed and disallowed regions of the Ramachandran plots, respectively. For an excellent-quality model >98, <2 and <0.05% are expected. This suggests serious over-fitting of the data, thereby distorting the stereochemistry, and thus casts doubt on the atomic presentation/discussion of the biochemically important contacts. Restraining the stereochemistry more tightly and accepting slightly worse R-factors should yield a more plausible model. I also wonder whether the nominal resolution was properly chosen. The authors should consider using available automated tools like Rosetta_refine to improve the refinement of their model.

In judging the quality of the current structure, one has to keep in mind the medium resolution of about 3.7 Å. At this resolution, the relatively "spacious" electron density does not define the precise geometry of the amino acid building blocks. To overcome this limitation, the information from high-resolution, homologous structures should be included in the refinement process. Unfortunately, however, for Hsp104, there are no suitable reference structures available that could be used as templates for the AAA1 or AAA2 domain. The only unfoldase present in a functional oligomeric state is ClpC, but the disaggregase is too distantly related to Hsp104 and was also determined at medium resolution (3.65 Å). Similarly, the published structures of ClpB, in which the AAA domains were captured either in isolation or as distorted ATPase rigid bodies, did not serve as suitable reference models. When used in DEN or Phenix refinements, the ClpC- and ClpB-derived models improved the stereochemical properties of Hsp104, but pulled the structure out of the density, as reflected also by increasing R-free values. With regards to Rosetta, it should be noted that the suggested Rosetta_refine tool does not properly work for large proteins, such as Hsp104, having ≥ 1000 residues. Even more importantly, it is not possible so far to impose NCS restraints in Rosetta_Refine. However, applying NCS restraints was absolutely required in the present case to ensure the continuous and parallel decrease of R and R-free. Moreover, we had to activate the "Ramachandran" option in Phenix_Refine (Headd et al., 2012) to enhance the stereochemical properties during refinement. To further improve the overall quality of the reported model, as recommended by this reviewer, we manually corrected the Hsp104 structure in iterative rebuilding and refinement cycles. The final Ramachandran statistics (favored: 86.8%, allowed: 12.9% , outlier: 0.2%, in comparison to 82.6% , 13.3% and 4.1% of the original model) and stereochemical parameters (RMSD's for bonds: 0.006 and angles: 1.08) nicely compare to other crystal structures determined at similar resolution and lacking a homology model. The improvement of the model is manifested in the drop of the R-free value from 0.294 to 0.277, as shown in the new crystallographic Table (Figure 1—figure supplement 1). Together, the crystallographic parameters reflect a well-refined crystal structure at 3.7 Å resolution and exclude an over-fitting of the diffraction data. The updated coordinates are now submitted to the Protein Data Bank replacing the previous entry (PDB 5d4w).

The biochemical evidence presented for a CCD belt being a "straitjacket" for the AAA1 domain mobility appears solid. However, it is strange that the reduced Cys-Cys mutant of Hsp104 (Figure 5) should yield much lower activity than wildtype and the BMOE-linked variant. The proposed model appears to be in line with previously published biochemical data.

The introduced Cys residues Q491C/G380C, located at the CCD-AAA1 interface, are in close vicinity to each other such that they can form a disulfide bridge under oxidizing conditions. Owing to this close proximity, we presume that under reducing conditions the two cysteines form a short-distanced hydrogen bond that stabilizes Hsp104 in its repressed state (of note, the original Gly-Gln pair does not interact with each other). In contrast, insertion of the bulky BMOE crosslinker should physically separate the two cysteine residues, yielding an activated state. To explore the influence of the two cysteines on Hsp104 activity, we modified Cys380 and Cys491 with maleimide, the functional group of the BMOE cross- linker. According to the Hsp104 crystal structure, maleimide attachment should also disrupt the Cys-Cys interaction and activate Hsp104. Consistently we observed that maleimide treatment elevated Hsp104 activity to a similar extent as the BMOE cross-linker. In conclusion, the new data explain the different activities of the Q491C/G380C variants (red, ox, BMOE, Mal). Most importantly, the two cross-linked particles, Cys‒Cys and Cys‒BMOE‒Cys, exhibit distinct activities. While both cross-linkers tether and thus physically restrain adjacent ATPase units, only the BMOE compound provides the conformational freedom to let the engaged ATPase units move against each other and remodel client proteins. The new data are included in the following paragraph (Figure 5):

“To estimate the effects of “tight” and “loose” CCD belts, we carried out Cys-Cys and Cys- bismaleimidoethane-Cys (BMOE) cross-linking, respectively, and compared the activities to those under no-cross-linking conditions. […] In conclusion, the cross-linking data support the restrain-mask model showing that AAA1 domains engaged by a covalently-linked but loosened CCD belt can still reorient and cooperate with each other.”

Reviewer #2: […]

On balance, the data support the conclusion drawn. Although the work is a welcome addition and may be suitable for publication, is requires major revisions. Especially care should be taken when revising the manuscript because some of the references are incorrect or misleading, while others are missing. A re-review of the revised manuscript is advisable due to the collection of minor issues that distract from the main thrust of the current paper.

1) It is unfortunate that the crystal structure of CtHsp104 and not of ScHsp104 was determined, which does not directly address the controversy that has been damaging the field. For instance, the biochemical activities of CtHsp104, while similar to ScHsp104, are not identical, and could fuel the argument that CtHsp104 is different from ScHsp104. Is CtHsp104 essential for fungal prion propagation?

The activities of the two Hsp104s differ to some extent in the applied disaggregation assay. Of note, the activity measured in this assay also depends on the cognate Hsp70 that varies between Ct and Sc, a fact that also prevents testing the role of CtHsp104 for prion propagation in yeast. Most importantly, however, the molecular mechanisms behind rescuing protein aggregates should be conserved between CtHsp104 and ScHsp104. To show this biochemically, we included a ScHsp104 variant lacking the PS1 hairpin in our analysis (Figure 6—figure supplement 1). ATPase and GFP unfoldase data suggest that the yeast enzyme utilizes the same AAA1-AAA2 coupling mechanism as CtHsp104, to remodel damaged proteins. We thus presume that findings for the CtHsp104 system can be straightforwardly extrapolated to related HSP100 disaggregases. These data are referred in the revised text:

“Notably, deleting the PS1 hairpin in the yeast Hsp104 had a similar effect, suggesting that the uncovered coupling is generally relevant for HSP100 disaggregases (Figure 6—figure supplement 1).”

2) A major limitation of the present work is that the X-ray structure of the ring assembly was not determined. Moreover, neither the N-domain nor C-terminal extension were resolved in the present structure, perhaps as a result of finding a structure solution by molecular replacement, arguing for independent phase information.

Not having captured the hexamer is clearly not our favorite scenario. However, we would like to emphasize again that the basic building blocks of the hexamer are maintained in the observed filament. Thus, we could deduce important mechanistic features from the structural data, which we later confirmed by a detailed biochemical analysis.

With regards to model building, the reviewer is right – the protein was crystallized as SeMet protein thus offering independent SAD phase information. Although this phase information was very helpful at the initial stages to interpret the AAA1, CCD and AAA2 folds, the NTD and the C-terminal extension did not show up in the experimental density maps. However, this is not surprising. While the C-terminal extension is predicted to be disordered, the NTD could not (or only weakly) be seen in the non-averaged electron density maps of recent cryoEM analyses (Lee et al., 2007). Thus, the NTD appears to exhibit inherent en- bloc mobility hindering its localization in a functional disaggregase and determining its precise role. In the present crystal structure, we observed extra, unconnected density in the vicinity of the CCD. However, the quality of this density was not good enough to include a model there. Author response image 1 depicts part of the 2Fo-Fc electron density map next to molecule B, which showed the largest amount of extra electron density compared to the other protomers in the asymmetric unit:

Author response image 1
Extra density that may account for the N-terminal domain.

Cartoon representation showing the CCD of molecule B colored in green, together with the 2FoFc electron density contoured at 0.8 σ. The observed extra density for molecule B that could not be used for model building is highlighted. The neighboring subunits (molecule C and crystallographic neighbors) are colored in grey.

https://doi.org/10.7554/eLife.21516.029

3) The authors do not make it clear how many of the cross-linked Lys, if any, disagree with their proposed model of active and inactive states. It would seem that interpretation of the cross-linking pattern is complicated since the structure of the active state was not determined. If the CCD represents a "restraint mask" or negative regulator of Hsp104, elimination of the CCD should activate the protein disaggregase. Yet, Hsp104 variants that lack the CCD are inactive in protein disaggregation. How can this be reconciled?

Active and inactive states are characterized by distinct motilities of the same rigid bodies, formed between adjacent subunit. In other words, we expected to find all cross-links formed in the repressed state also in the wild-type and the active state. This was indeed the case, with wild-type and activated Hsp104 having increasing numbers of additionally connected Lys-Lys pairs, respectively. In total, 65% of the contacts that we observe for the repressed state are formed between lysine residues that are located at a distance of 10-30 Å. Thus, the observed MS pattern is consistent with and further corroborates our structural data. As noted by reviewer 4, several XL-MS contacts, however, do not fit to the modeled hexamer. For example, the flexible half of the CCD (motif-1) undergoes long-distance contacts with surface residues on the AAA2 domain. Such contacts, most of which were observed in the hyperactive Hsp104 variant, could result from the induced flexibility of motif-1 upon opening the CCD ring. Consistent with this interpretation, motif-2 of the CCD was also too flexible to be properly built into EM density maps of the hyperactive ClpB variant (Carroni et al., 2014). Please see also our comments to reviewer 4, major comment 2.

As suggested by the reviewer, we tested the activity of the CCD deletion mutant (CtHsp104ΔP427-G553). In our hands, the ΔCCD mutant showed elevated ATPase activity in the presence of substrate and an elevated GFP unfolding activity. However, consistent with the results from previous studies (Sielaff and Tsai, 2010), we observe a strongly reduced disaggregation activity (see Author response image 2). Because the disaggregation activity depends on the binding of Hsp70 to the CCD, such reduced activity is not surprising and does not argue against the presented model. Moreover, it is not unlikely that the deletion of the entire CCD domain (residues 427 to 553) leads to further structural changes in the two-ring disaggregase. Therefore, point mutations that specifically disrupt CCD-AAA1 or CCD-CCD* contacts are better suited to address the regulatory function of the HSP100 coiled-coil domain.

Author response image 2
Activity of the CCD deletion mutant.

Substrate-induced ATPase activity of CtHsp104ΔP427-G553 (ΔCCD) is higher than for wild-type Hsp104. Moreover, the ΔCCD mutant showed an increased GFP-unfolding activity while the luciferase disaggregation activity of the corresponding Hsp104/Hsp70 system was reduced.

https://doi.org/10.7554/eLife.21516.030

4) Care needs to be taken when reporting WA and/or WB Hsp104 mutants. It is known that WA mutants cause deoligomerization, while WB mutants can bind ADP or contain no nucleotide. At a minimum, the authors need to show that the mutants form hexamers.

We now included the respective SEC profiles of CtHsp104 WA and WB mutants showing their structural integrity (Figure 6—figure supplement 2). Regarding the possible binding of ADP to the WB mutant, it is important to note that our biochemical assays contained relatively high ATP concentrations (5 mM) that exceed the observed dissociation constants of 12 μM for AAA1 and 0.1 μM for AAA2, respectively. Moreover, all assays were performed in the presence of an ATP regenerating system to shift the equilibrium to the ATP bound state. We thus believe that under the experimental conditions used, the WB mutants should represent the ATP-bound state.

5) The novelty of the PS1-hairpin of AAA-2 is somewhat overstated since it is identical to the previously reported β-hairpin that is part of the intersubunit signaling motif (Biter et al., 2012).

The mentioned study describes a structural characterization of the isolated AAA2 domain from thermophilus ClpB. In this structure, the authors observe a direct contact between the PS1 hairpin residue H693 (Q732 in CtHsp104) and the AAA2 pore loop. Based on this observation, the authors suggest an intra-ring signaling mechanism that involves the residues D685 (D724 in CtHsp104) and R747 (Arg-Finger, R788 in CtHsp104). Although H693 is not conserved within the class of HSP100 proteins (Supplementary file 2) and contacts between the PS1 hairpin and the pore loop are not visible in our CtHsp104 crystal structure, the observed contact may reflect an alternative conformation and function of the PS1 hairpin. Indeed, the connection of PS1 and the pore-loop of AAA2 is interesting, as it may point to a way of coupling inter-ring structural changes with the rearrangement of the pore-loops in AAA2. We have to apologize for not having included the indicated mechanistic study in our Discussion. At the same time, however, we do not feel that the novelty of the PS1 hairpin is overstated, as our study elucidates the long-sought structural motif coupling the activities of the two AAA rings in HSP100 disaggregase machines. To properly account for the work of Biter et al., we have added the following statement to our manuscript:

"Aside from the inter-ring communication, the PS1 loop has been implicated in intra-ring signaling, l to its location near the pore-loop of AAA2 (Biter et al., 2012b).”

Additional comments:

1. It is now generally accepted that the Wendler model (Wendler et al., 2007) is wrong, falling short of a retraction. It is therefore confusing what the authors consider "consistent" with the Wendler model (e.g. subsection “Crystal structure of the Hsp104 subunit”, last paragraph). Moreover, it is doubtful that the Wendler structure has the necessary resolution to assign side-chain conformations correctly. Great care needs to be taken when using the terms "flexible", "motions", "structural rearrangements, which are loosely defined and refer to very different things in high-resolution X-ray structures and in structural work based lower resolution cryoEM, SAXS, etc.

We have revised our manuscript to avoid non-proper use of the indicated terms. We also removed the (Wendler et al., 2007) citation from the indicated statement. However, one mechanistically relevant arginine located on the CCD has been identified in this study (Arg509), although for an entirely different (as it looks now, wrong) reason. Arg509 was implicated in nucleotide binding, whereas the present structure demonstrates that mutating this arginine should detach the CCD from the AAA core, thus unrestraining and activating the ATPase machinery (Figure 3A).

2) Introduction: "Mixed L/S* modules…represent the functional units of AAA chaperones[…]". The large and small subdomains are both required for nucleotide binding. Neighboring subdomains may exert regulatory function but are dispensable for nucleotide binding in cis. This statement is misleading and needs to be revised.

We agree. The revised statement reads now as follows:

"Substrate stretching and unfolding is mediated by ATP-driven power strokes (Maillard et al., 2011), which result from the movement of rigid ATPase bodies composed of the large (L) subdomain of one protomer and the small (S) subdomain of the next (Glynn et al., 2009, Wang et al., 2001). Coordination of adjacent L/S* modules (the asterisk denotes the neighboring subunit) relies on a special active site organization, as each nucleotide binding site is formed by residues of the L-, S*- and L*-subdomains at the subunit interface."

3) Abstract: What is exactly meant by "near-atomic"? Does it refer to resolution (i.e. 3.7A) or coordinates (i.e. atoms can be seen)? Near-atomic is not appropriate to describe either (c.f. Results, first paragraph).

We have replaced near-atomic by the nominal resolution of the determined crystal structure:

“we present structural and biochemical data revealing the organization of the Hsp104 disaggregase machinery at 3.7 Å resolution”.

4) Introduction, first paragraph: It is true that AAA ATPases are found in cells of all organisms, but Hsp104 disaggregases are not present in animal cells, despite functional conservation of a protein disaggregating activity in higher Eukarya. This needs to be clearly distinguished.

We have changed the above statement to:

"HSP100 unfoldases, a subclass of the AAA chaperones found in yeast and bacteria as well as in the mitochondria and chloroplasts of higher eukaryotes, employ a powerful mechanism to reactivate damaged proteins."

5) Introduction, second paragraph: The present work is concerned with the structure-function analysis of C. thermophilum Hsp104. CtHsp104 and ScHsp104 are similar but non-identical (e.g. Figure 1A). Also, in Figure 1A (right panel), it is unclear whether the luminescence measurements represent absolute or relative activities. What is the activity of the cognate ScHsp104:Hsp70/40 system? What is the SEM?

In the original Figure 1A, absolute numbers of luciferase activity were presented. However, to highlight differences between independent experiments we now present activities normalized to wild type CtHsp104 ( ± standard deviation). As indicated before, the Hsp104/Hsp70/Hsp40 systems from Sc and Ct exhibit distinct activities in rescuing heat-denatured luciferase. However, most importantly, the applied mechanism for remodeling aberrant proteins should be conserved, as suggested by the analysis of the ∆PS1 mutant of ScHsp104 (please see also major-point 1).

6) Introduction, second paragraph: The ability of Hsp104 to unravel prions on its own has been questioned (Inoue et al., 2004; Krzewska and Melki, 2006; Reidy et al., 2012; Yuan et al., 2014). It is now widely accepted that the ability to dissolute prions is dependent on the Hsp104-Hsp70 bi-chaperone system, and is the same for the dissolution of for amorphous aggregates.

We agree and have changed the text accordingly.

"Indeed, Hsp104 can team up with Hsp70 to establish one of the most potent disaggregase machineries in nature, being able to unravel even the particularly resistant amyloid fibers (Shorter and Lindquist, 2004, Inoue et al., 2004, Krzewska and Melki, 2006)."

7) Introduction, second paragraph: Rosenzweig et al. did not demonstrate that Hsp70 binding to the M-domain activates the Hsp100 motor (Rosenzweig et al., 2013). They showed that DnaK binds to the M-domain of Hsp100 confirming earlier work by Haslberger et al. (Haslberger et al., 2007).

The indicated sentence “Binding of the Hsp70 chaperone to the CCD activates Hsp104 and targets it towards protein aggregates (Lee et al., 2013, Seyffer et al., 2012, Rosenzweig et al., 2013, Oguchi et al., 2012, Haslberger et al., 2007, Miot et al., 2011, Sielaff and Tsai, 2010).” refers to the interaction site of Hsp70 and the activation of Hsp104 upon Hsp70 binding. As Rosenzweig et al., 2013 visualized the DnaK binding to this domain, we feel that this citation is relevant at this point. However, we agree that the study by Haslberger et al., 2007, Miot et al., 2011 should be cited here as well.

8) Introduction, end of second paragraph: It is now widely accepted that the Wendler structure (Wendler et al., 2007) is incorrect and contrasts the more recent work by the same authors (Carroni et al., 2014). This statement needs to be revised. In this context, recent work by the Bukau, Wickner and other labs how the CCD regulates the Hsp100 motor should be discussed.

We have adapted the text accordingly. Regarding the latter point, a detailed introduction describing the regulatory function of the CCD is already provided and should give the broader audience the required background on the HSP100 coiled-coil insertion:

“Recent studies highlight the central role of the CCD in regulating HSP100 disaggregases, as the domain is critical for AAA1-AAA2 communication, Hsp70 binding, and keeping the enzyme inactive in the absence of cognate substrates (Cashikar et al., 2002, Lee et al., 2013, Oguchi et al., 2012, Seyffer et al., 2012, Haslberger et al., 2007, Sielaff and Tsai, 2010, Miot et al., 2011).”

9) Subsection “Crystal structure of the Hsp104 subunit”, last paragraph: How was the identity of sensor-2 defined? There should only be one, not three.

According to the definition of (Hanson and Whiteheart, 2005),Arg402 and Arg849 are the sensor-2 residues of AAA1 and AAA2, respectively, located at the beginning of the conserved AAA helix-α7. This helix protrudes towards the bound nucleotide and carries a number of highly conserved active site residues. Owing to the crucial regulatory role of these residues, helix-α7 is often referred to as sensor-2 helix. We would thus prefer to keep the used nomenclature, which, also, was not criticized by the other reviewers. To avoid any misunderstanding, we added the indicated reference:

"In AAA1, ADP is accommodated in a pocket formed by the general Walker A (Lys229, Thr230) and Walker B (Asp295, Glu296) motifs as well as by AAA-specific (sensor-1: Thr330, sensor-2: Arg402) functional groups (Hanson and Whiteheart, 2005, Mogk et al., 2003, Hattendorf and Lindquist, 2002b)."

10) Subsection “Crystal structure of the Hsp104 subunit”, last paragraph: "[…]Arg349 has been previously described as the Arg finger[…]? What is the reference for this?

The reference is (Mogk et al., 2003) and we included the citation in the manuscript (subsection “Crystal structure of the Hsp104 subunit”, second paragraph).

11) Subsection “ATPase rigid bodies are maintained in the crystallized Hsp104 filament”, last paragraph: Glynn et al. (Glynn et al., 2009) reported the hexameric crystal structure of ClpX, a single-ring Hsp100 member. This statement needs to be rephrased. Also, what about ring-forming structures determined by cryoEM?

We have rephrased the sentence accordingly, referring in particular to HSP100 enzymes containing two AAA rings. Due to the lower resolution of the available cryo-EM structures, respective models were not considered for comparison with the Hsp104 crystal structure:

“Strikingly, structural comparison with the related AAA protein ClpC (Wang et al., 2011) – the only double-ring HSP100 unfoldase crystallized in a hexameric form so far – shows that the AAA1L/AAA1S* and AAA2L/AAA2S* rigid bodies of the Hsp104 filament are very similar to those of the hexameric unfoldase (Figure 2).”

12) Supplementary file 2: The sequence numbering does not match with the sequence numbering of the atomic coordinates.

We have checked the numbering again, and, in our opinion, the sequence numbering is matching the atomic coordinates.

Reviewer #3:

AAA proteins are mechanochemical ATPases that perform conformational work fueled by ATP hydrolysis to remodel substrates. The yeast AAA protein Hsp104 functions as a disaggregase by reactivating aggregated proteins in cooperation with Hsp70. Hsp104 consists of two AAA domains (AAA-1, AAA-2) and a regulatory coiled-coil domain (CCD, also termed M-domain). How ATPase activity is regulated and how the two ATPase modules communicate is of central importance for understanding disaggregase mechanism. Here the authors determined the crystal structure of Chaetomium thermophilum Hsp104 providing them a structural map to dissect the regulation of ATPase and disaggregation activity.

The determined crystal structure is similar to the ones of bacterial ClpB homologs. However, it includes additional novel and valuable information as crucial contacts between neighboring AAA domains are maintained in contrast to former structures. The novel Hsp104 structure confirms the previously established position and regulatory function of the CCD yet the interaction details are of higher resolution. The authors show that the CCD is restricting AAA-1 mobility, providing a rationale for down regulation of ATPase and disaggregase activity by the CCD. This part of the study is well performed and includes novel information, yet it also represents an evolution of an already established and accepted mode of Hsp104 activity control. In the second part, the authors identify a conserved structural element, the PS1 hairpin, which is suggested to act as sensor mediating interdomain communication between AAA-1 and AAA-2. A role of the hairpin in controlling ATPase and disaggregase activity is supported by biochemical analysis, though some assays and results need further clarification (see below). How exactly PS1 synchronizes the AAA modules remains vague and therefore some of the conclusions should be softened.

Overall the presented work is of high quality, contributes to an improved understanding of disaggregase mechanism and includes the identification of a novel regulatory element. The following points should be addressed in a revised manuscript:

1) The RepA-GFP unfolding assay requires the presence of non-physiological ATP/ATPγS mixtures. The relevance of such conditions for disaggregase function (disaggregation activity in presence of these nucleotide mixtures is low or not existing) and ATPase communication is unclear and results based on the assay are at least in parts questionable.

We agree that the ATP/ATPγS mixture in the RepA-GFP unfolding assay is not optimal. However, the assay is well-established in the field. The nucleotide mixture was introduced, because ATP is required for binding substrates, whereas ATP hydrolysis is critical for the remodeling of the captured substrates. For protein disaggregation, the situation is different as substrate binding is mediated by the Hsp70 partner chaperone. Therefore, the disaggregation assays can be carried out under more physiological conditions lacking ATPγS. Accordingly, the two assays, when applied in combination, should represent a proper way to characterize HSP100 variants and determine the kinetic parameters of the unfolding as well as the disaggregation reaction. Consistent with this, most mutant proteins that were predicted to affect the communication between AAA1 and AAA2 ATPase rings were similarly affected in their unfoldase and disaggregase activity. To further validate the proposed mechanism, we have now also performed ATPase measurements characterizing the communication of AAA1 and AAA2 in the presence of substrate (see next point). Together, the unfoldase, disaggregase and ATPase data provide strong evidence for the role of the PS1 hairpin in coupling AAA1 and AAA2 ATPase activity.

2) ATPase activities were always determined in the absence of substrate. Casein and specific peptides stimulate ATPase hydrolysis by Hsp104. It is recommended to include those in ATPase measurements as it might allow to more precisely defining the role of PS1 in signal transduction.

As suggested, we carried out ATPase assays (i.e. for the mixed walkerA/B mutants) in the presence of casein, our model substrate (Figure 6—figure supplement 3). Consistent with the numbers observed in the absence of substrate, the derived kinetic parameters nicely confirm the coupling of the two AAA engines, as is now described:

"Of note, the same effect was observed in the presence of substrate proteins, emphasizing the role of the PS1 hairpin in coupling the two AAA engines during substrate translocation (Figure 6C and Figure 6—figure supplement 3).”

3) To exclude that deletion of the PS1 hairpin causes structural defects it is recommended to analyze the effect of e.g. Q732/R734 mutation, which should abolish interaction with the sensor 2 helix.

We followed the advice of this referee to introduce an additional point mutation into the PS1 hairpin. As both residues Q732 and R734 form various hydrogen-bonds at the AAA1 active site and because the QR/AA double mutant could not be produced as stable protein, we decided to mutate another residue at the tip of the PS1 hairpin. By replacing Gly731 we aimed to abrogate the close contact with Trp573 (Figure 6B) and sterically disrupt the binding of PS1 to AAA1. The corresponding G731R mutant had an overall reduced ATPase activity, however its unfolding and disaggregase activities were even more impaired, thus supporting the results of deleting the PS1-hairpin. To this end, we would like to note that the WA/WB mutants lacking the PS1 hairpin exhibited robust, substrate-inducible ATPase activity in both AAA rings (Figure 6B and Figure 6—figure supplement 3). These data indicate that the intra-ring communication is still active, excluding gross structural defects by the PS1 deletion. Moreover, we characterized further site-specific mutants in the PS1 motif (PS1+, PS1- (Figure 7B and Figure 7—figure supplement 2) that exhibit a similar phenotype as the ∆PS1 mutant. Together, the biochemical characterization of the PS1 variants supports the proposed role of PS1 in mechanically coupling AAA1 and AAA2:

"To show that the observed effects are not due to putative gross structural changes caused by the PS1 deletion, we analyzed a site-specific mutation at the tip of the PS1 hairpin that was predicted to sterically expel the PS1 motif from the active site of AAA1. For this purpose, we replaced Gly731, which is in close contact to Trp573, by arginine. When tested in our activity assays, the G731R mutant had a slightly decreased ATPase activity, but it was even more impaired in its unfoldase and disaggregase activity, thus mimicking the PS1 deletion phenotype (Figure 6B).”

4) Figure 7C: The two analyzed variants of N748 (sensor1) have opposing effects on GFP unfolding (Figure 4D), a conflict overlooked and not discussed so far.

Indeed, the N748S and N748Q mutations have opposite effects on the unfolding potential of Hsp104. Since both mutations completely suppress AAA2 activity, we cannot distinguish whether the catalytic activities observed for them stem from a local function of sensor-1 in the nucleotide binding pocket of AAA2 or rather point to a role in the allosteric communicating between different parts of AAA2 or between the two AAA rings. At the current stage, we find the results of the unfolding and disaggregase assays difficult to explain in definite terms. For that reason, we decided to omit these data from Figure 7, but still share them with the community in the supplementary part of the manuscript (updated Figure 7—figure supplement 3).

Instead, we focused on the ATP binding assays, which are easier to interpret. Both mutations of the sensor-1 residue in AAA2 markedly increase the binding affinity of AAA1 for ATP (Figure 7C) demonstrating that slight changes in sensor-1 of AAA2 are communicated to the remote AAA1 ring. These results, together with the new observed data for the PP mutant (Figure 7B) support our hypothesis that the sensor-1 residue and the central β-strand (β4) are part of the PS1 signaling device synchronizing the activities of the two AAA rings.

The opposite effects mediated by the sensor-1 mutations are now described in the manuscript: “Although mutating the sensor-1 residue of AAA2 had only a minor influence on the overall ATPase activity (Figure 7C), the two mutations clearly affected the nucleotide binding in the remote AAA1 ring. […] Owing to the close distance of the PS1 hairpin and the AAA2 pore-loop (Biter et al., 2012b), we presume that the opposite activities of the sensor-1 mutants may reflect different substrate translocation properties of the Hsp104 particles; however, the molecular mechanism of this intriguing function remains to be elucidated.”

5) While the data demonstrate that PS1 plays a role in ATPase communication, the precise mechanism remains unclear. In their model (Figure 8B) the authors suggest a defined order of signaling events between the ATPase domains, which is not really supported by the presented findings. It is therefore suggested to soften respective conclusions and modify the model accordingly.

We agree and adapted the Discussion and Figure 8B accordingly. Moreover, we characterized a further mutant supporting the proposed signaling mechanism. An important feature of the HSP100 machinery is the distorted β-sheet in AAA2 allowing for rearrangements of individual β-strands in response to external stimuli. As indicated by the crystal structure, strand β4, the direct extension of the PS1-hairpin, is only loosely connected to its neighboring β-strands. The distortion in secondary structure is mainly due to a highly conserved Pro-Pro motif in the adjacent β1 strand. To more strongly fasten together strands β1 and β4, we replaced the Pro627/Pro628/Ser629 by the Thr627/Gly628/Asn629 motif, a sequence found in Hsp104 homologues from diatoms, such as Coscinodiscophyceae or Bacillariophyceae. Consistent with our model, this mutant exhibited an increased ATPase activity; however, it was largely inactive in GFP- unfolding and luciferase disaggregation assays (Figure 7B). Moreover, the AAA2 ATPase activity of this mutant was uncoupled from the nucleotide binding state of AAA1 (Figure 7—figure supplement 2). Accordingly, the P627T-P628G-S629N mutant exhibits a similar mechanistic phenotype as the PS1 deletion mutant.

Taken together, we present a detailed characterization of 5 mutants (PS1+, PS1-, PP, G731R and ∆PS1) that abrogate the AAA1-AAA2 communication at distinct strategic points. Importantly, all these mutants show a similar enzymatic profile in retaining ATPase activity, but being incapable of remodeling aberrant proteins. Together, these data confirm the proposed role of the PS1 motif in coupling AAA1 and AAA2 activities, as is now described:

"We suggest that the PS1-hairpin and the associated strand β4 couple conformational changes in AAA1 with the repositioning of the catalytic sensor-1 residue of AAA2 (Figure 8B). […] This may be one of the factors underpinning the dynamic and highly allosteric nature of AAA proteins."

6) The authors need to report on the refolding efficiency of aggregated Luciferase. So far only absolute activities (Luminescence a.u. Figure 1A) are provided. Similarly, when comparing GFP unfolding or luciferase disaggregation activities of Hsp104 wild type and mutants, the scale of the y-axis is not well defined (Figure 3B, Figure 5A/6B/7B). It is recommended to set the activity of Hsp104 wild type at 100% and calculate the relative activity of variants.

As suggested, we indicate the luciferase refolding efficiency (which was between 5 and 15% , as mentioned in the Materials and methods section, subsection “Luciferase disaggregation assay”). With respect to the axis label, all unfolding and disaggregation activities are shown relative to the respective wild type level (wt set to 100% ). We improved our figure presentations by changing the axis label to: “% wt activity”.

Reviewer #4:

In their manuscript, Heuk et al. provide the structure of the Hsp104 disaggregase from Chaetomium thermophilum (a thermophilic fungus) at 3.7 A resolution. Subsequently, they carry out very detailed and careful biochemical analyses to highlight the mechanism by which the coiled-coil domain in Hsp104 regulates the activity of the chaperone. They also carry out mutational analyses to demonstrate how the coupling between the AAA1 and AAA2 ATPase domains is achieved in this protein.

As a general comment, the data presented in this manuscript about Hsp104 structure and mechanism of function are already established for Hsp104 and ClpB from other organisms. The only new information is probably the potential coupling of the activity of AAA1 and AAA2 through the pre-sensor 1 hairpin (PS1-hairpin). Furthermore, the interpretation of the data in several instances seems to be over simplified.

1) The authors need to explain Figure 1A and not just refer to it in the text.

Figure 1A is now introduced in the main text:

“we performed a biochemical and structural analysis of the Hsp104 disaggregase from Chaetomium thermophilum, which exhibits similar ATPase and protein remodeling activities to those of the well- characterized yeast ortholog (Figure 1A).”

2) The XL-MS data of Figure 4C might be misleading. The data is simply interpreted by the authors as: if there are more crosslinks, then the protein is more dynamic, which is not necessarily true. Furthermore, in Figure 4—figure supplement 2, the authors state that they needed to use larger amounts of BS3 to crosslink the hyperactive mutant compared to WT. This makes interpreting the crosslinking data problematic.

Also, what about crosslinks to the N-domain? These were not discussed. What happens if the crosslinking was done in the presence of ATP/ADP/etc.?

We agree that the presentation of the XL-MS experiment may be misleading; however, our interpretation of these data is consistent with other studies in the field. As reported for example by (Walzthoeni et al., 2015, Scorsato et al., 2016), chemical crosslinking can be used in combination with quantitative mass spectrometry to visualize the dynamics of high-molecular weight complexes. The main difference to the indicated study is that we did not carry out a quantitative MS analysis of the cross-linked peptides (as this is highly complex requiring specialized software programs), but rather performed a semi-quantitative analysis comparing the number of cross-linked peptides. Such an analysis, i.e. correlating number of cross-links with dynamicity, has been also reported by others, as for example (Sriswasdi et al., 2014). In the case of Hsp104, we reasoned that in a rigid protein ensemble (e.g. the repressed state), the inter- residue distances are well-defined allowing efficient cross-linking of certain lysine residues, whereas in a dynamic protein complex (i.e. the hyperactive mutant) subunits move against each other yielding an ensemble of intermediate states. As the reaction with BS3 is irreversible, it is possible to capture the short- lived states thus obtaining a larger number of cross-links in a dynamic than in a rigid protein complex. Correlating the number of cross-links with the dynamics of the Hsp104 structure is also supported by the domain-specific effects induced by the hyperactive and repressive mutation. Whereas the number of cross- links varies within the AAA1 domain by a factor of 4, the differences in the AAA2 domain are markedly smaller (Figure 4—figure supplement 1). Accordingly, the dynamics of the AAA1 ring seems to be most affected by the CCD mutation, as predicted by the restraint-mask model.

Regarding the BS3 cross-linker, we indeed used different concentrations for the MS experiment. The reason for this is that we wanted to compare wild-type, repressed and hyperactive Hsp104 having a similar total number of cross-links. To identify respective conditions, we performed an SDS-PAGE analysis to characterize inter-subunit Hsp104 crosslinks in dependence of the BS3 concentration (Figure 4—figure supplement 1). From these experiments, we concluded that we should apply the concentration of 0.3 mM BS3 to cross link wild-type and repressed CtHsp104 and 0.6 mM BS3 for the hyperactive variant. In other words, the cross linking conditions for the wild type and the repressed Hsp104 variants were identical. To clarify the outline of the cross-linking experiment, we have modified the chapter in the Materials and methods section accordingly:

"The appropriate BS3 concentration (repressed variant and wild-type 0.3 mM, hyper-active variant 0.6 mM, respectively) was determined based on SDS-PAGE (Figure 4—figure supplement 1)."

Cross-links to the NTD are not discussed, as the location of the NTD is still unclear (the NTD is a highly mobile domain that could not be conclusively resolved in recent EM analyses). Likewise, we haven't analyzed the crosslinking pattern of different nucleotide-bounds states, as this would represent an analysis on its own going beyond the scope of this study.

For a better presentation of the cross linking data we updated Figure 4 and modified XL-MS paragraph in the Results section:

"To directly monitor the mobility of the engaged ATPase modules upon opening and closing of the CCD ring, we performed a cross-linking coupled mass spectrometry (XL-MS) experiment. […] Once the CCD contacts are broken, the ATPase modules are free to move against each other, as seen for the hyperactive mutant, to remodel engaged client proteins."

3) Figure 5A – It is not clear why Hsp104 with BMOE crosslink would be more active than WT?

To address this point, we treated Hsp104 with maleimide, the functional group of the BMOE crosslinker. Similar to the results observed upon BMOE crosslinking, also maleimide treatment stimulated Hsp104 activity above the wild type level, suggesting that the chemical modification of Cys380 and Cys491 increases Hsp104 activity, most likely by disrupting this 380-491 contact. More importantly, it should be noted that BMOE covalently cross-links two adjacent ATPase modules. It is thus remarkable that such physically restrained Hsp104 machine is still capable to be enzymatically active. Please refer also to our response to reviewer 1, major comment 2for further details. The additional experiments are now described in the following paragraph and Figure 5:

“To estimate the effects of “tight” and “loose” CCD belts, we carried out Cys-Cys and Cys- bismaleimidoethane-Cys (BMOE) cross-linking, respectively, and compared the activities to those under no-cross-linking conditions. […] In conclusion, the cross-linking data support the restrain-mask model showing that AAA1 domains engaged by a covalently-linked but loosened CCD belt can still reorient and cooperate with each other.”

4) To further detail the coupling between AAA1 and AAA2, the authors make several mutants including PS1+ and PS1- (making the PS1 hairpin longer or shorter). However, since such mutations can lead to many other structural re-arrangements, I think the authors have to be more qualitative in interpreting their data. The best case scenario would have been if the authors obtained the X-ray structures of these mutants, which I acknowledge might or might not be trivial.

We are aware that the insertion or deletion of individual PS1 residues may cause structural re-arrangements in the target protein. However, when analyzing these mutants, we observed a wild type-like ATPase activity in the two AAA rings. These data show the conservation of intra-ring signaling thus highlighting the overall structural integrity of the PS1 mutants (Figure 7B and Figure 7—figure supplement 2). In addition, we provide biochemical data of two additional mutants (G713R, Figure 6B; P627T-P628G-S629N, Figure 7B) that show comparable activity to the PS1+ and PS1- mutants while maintaining the length of the PS1 hairpin. As discussed previously (reviewer 3, major comment 5), the mutational analysis carried out during revision provides strong evidence for the proposed signaling mechanism, which is now presented in a more qualitative way. Certainly, structural data of the PS1 mutants is highly desirable, but unfortunately out of reach (finding well-diffracting crystals among the many weakly-diffracting crystals took about 3 years).

[Editors' note: the author responses to the re-review follow.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

One outstanding question that should be discussed before final acceptance is whether a helical assembly as described in a recent paper by Yokom et al., 2016 can be physiological. Is the mechanical link coupling the two AAA rings and the role of the middle domain compatible with a helical assembly as the functional disaggregase? A short critical comparison of the mechanistic features as revealed by the ADP-bound crystal structure (helical filament) of the Hsp104 from Chaetomium thermophilum with that of the recently published ATP-bound cryo-EM spiral structure of Hsp104 from yeast (Yokom et al., 2016), would be important for understanding how some AAA enzymes function.

Note that the mutational analysis requested by reviewer #1 are not absolutely required for final acceptance. However, the term CCD should be changed to M-domain throughout the manuscript and figures. Reviewer #2 is correct that the term M-domain is the standard used in the literature and it is not necessary to reinvent new terms.

To properly account for the recently published cryoEM structure of the Hsp104 from Saccharomyces cerevisiae (ScHsp104), we now compare the organization of the CtHsp104 filament with the two distinct hexameric states of HSP100 enzymes, which are represented by the helical ScHsp104 (Yokom et al., 2016) and the planar ClpC hexamer (Wang et al., 2011). We focused in particular on the question, whether the proposed function of the PS1-hairpin in mediating communication between the AAA1 and AAA2 rings is compatible with the distinct quaternary organizations. To this end, we aligned the L/S* rigid bodies observed in the CtHsp104 crystal structure en bloc onto corresponding building blocks of the ScHsp104 and ClpC hexamer. The resultant alignment clearly show that the PS1 motif is well positioned to functionally link the AAA1 and AAA2 rings in the both planar and helical arrangement of the hexamer. To include this comparison into the manuscript, we added the following paragraphs:

“In the crystal, CtHsp104 subunits are arranged in a helical 61 filament (Figure 1B) rather than forming a defined hexameric particle as observed in the recent cry-electron microscopy structure of ScHsp104 (Yokom et al., 2016) or the crystal structure of a related HSP100 unfoldase, ClpC (Wang et al., 2011). […] In fact, structural comparison shows that the AAA1L/AAA1S* and AAA2L/AAA2S* rigid bodies of the Hsp104 filament are very similar to those of the hexameric Hsp104 and ClpC (Figure 2 and Figure 2—figure supplement 2).”

“To test whether the PS1 motif could adopt a similar conformation in the hexameric particle, we aligned the functional L/S* unit (AAA1L/S*-AAA2L/S*) of the CtHsp104 filament onto the ClpC and ScHsp104 hexamers. […] According to these data, we hypothesize that the Hsp104 disaggregase can switch between planar and helical conformations while maintaining the integrity of the L/S* rigid bodies to ensure intra- and inter-ring cooperativity during the ATPase-driven power strokes.”

To account for the inserted Figures (Figure 2—figure supplement 1, Figure 6—figure supplement 1), we had to revise the order of our supplement figures in the following way:

Figure 2—figure supplement 1: Comparison between planar and helical Hsp100 conformations (New)

Figure 2—figure supplement 2: Functional ATPase modules are retained in the Hsp104 filament (former Figure 2—figure supplement 1). The figure was extended and includes now the superimposed L/S* modules from hexameric ScHsp104 on the AAA1 and AAA2 L/S* modules of the CtHsp104 filament.

Figure 2—figure supplement 3: Sequence conservation of HSP100 disaggregases (former Figure 2—figure supplement 2)

Figure 6—figure supplement 1: Position of the PS1-hairpin in hexameric Hsp104 (New)

Figure 6—figure supplement 2: Effect of PS1-hairpin deletion on ScHsp104 activity (former Figure 6—figure supplement 1)

Figure 6—figure supplement 3: SEC profiles of CtHsp104 dWA and dWB mutants (former Figure 6—figure supplement 2)

Figure 6—figure supplement 4: Effect of casein on ATPase activity (former Figure 6—figure supplement 3)

Reviewer #3:

The manuscript by Heuck et al. describes the 3.7A resolution crystal structure of a fungal Hsp104 together with biochemical and cross-linking/mass spectrometry (XL-MS) data. The manuscript is well written and experimental results are convincing. Perhaps one of the most interesting finding is that the CCD via motif-2 contacts the AAA1 large subunit of the neighboring protomer providing the structural basis for a functional role of the CCD in nucleotide signaling between neighboring ATPase modules. The latter has largely been inferred but never been demonstrated for an Hsp100 chaperone. The role of the PS1 motif in coordinating the two ATPase rings is novel and supported by biochemical experiments. The hypothesis that the CCD belt immobilizes the entrapped AAA1 ATPase modules is novel and substantiated in part by the XL-MS analysis using BS3 crosslinker. The only concern with this approach is that, because of the homo-oligomeric structures, intra- vs. inter-domain crosslinks would be difficult to differentiate.

1) It is not entirely clear why heterotypic contacts cannot be resolved by the recent cryoEM analysis of a proposed helical Hsp104 assembly (Yokom et al., 2016). Although it remains uncertain whether a helical assembly is physiological, is the proposed role of the PS1 motif compatible with a helical assembly?

Our original statement pointed mainly to the limited resolution of the cryoEM study (6.5A resolution of the unmasked map). However, we agree that the heterotypic contact of the CtHsp104 could, in principle, be also observed at that resolution. A further difference is that Yokom et al. used AMPPNP in their structural study, whereas the CtHsp104 crystal structure reflects the ADP bound state. It is thus unclear, whether technical or functional reasons account for the absence of the PS1 loop in the AAA1 active site of the ScHsp104 cryoEM structure. We thus followed the advice of the referee and adapted the indicated statement. Most importantly, the coupling function of the PS1 motif should be also possible within the helical hexamer, as discussed in our response to the Editorial Comments.

“[…]the mechanistic importance of heterotypic communication is less clear and its molecular underpinnings were not resolved in the recent cryoEM analysis (Yokom et al., 2016).”

https://doi.org/10.7554/eLife.21516.034

Article and author information

Author details

  1. Alexander Heuck

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    AH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Sonja Schitter-Sollner and Marcin Józef Suskiewicz
    Competing interests
    The authors declare that no competing interests exist.
  2. Sonja Schitter-Sollner

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    SS-S, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Alexander Heuck and Marcin Józef Suskiewicz
    Competing interests
    The authors declare that no competing interests exist.
  3. Marcin Józef Suskiewicz

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    MJS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Alexander Heuck and Sonja Schitter-Sollner
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3279-6571
  4. Robert Kurzbauer

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    RK, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Juliane Kley

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    JK, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Alexander Schleiffer

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    AS, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Pascaline Rombaut

    Gene Center and Department of Biochemistry, Ludwig-Maximilians University, Munich, Germany
    Contribution
    PR, Conception and design, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Franz Herzog

    Gene Center and Department of Biochemistry, Ludwig-Maximilians University, Munich, Germany
    Contribution
    FH, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  9. Tim Clausen

    Research Institute of Molecular Pathology, Vienna Biocenter, Vienna, Austria
    Contribution
    TC, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    clausen@imp.univie.ac.at
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1582-6924

Funding

Boehringer Ingelheim (IMP is funded by Boehringer Ingelheim)

  • Alexander Heuck
  • Sonja Schitter-Sollner
  • Marcin Józef Suskiewicz
  • Robert Kurzbauer
  • Juliane Kley
  • Alexander Schleiffer
  • Tim Clausen

European Molecular Biology Organization (Long-Term Fellowship ALTF 1078-2010)

  • Alexander Heuck

Austrian Science Fund (Hertha-Firnberg fellowship T557-B11)

  • Sonja Schitter-Sollner

European Research Council (StG no. 638218)

  • Franz Herzog

Österreichische Forschungsförderungsgesellschaft (No 852936)

  • Tim Clausen

European Research Council (AdG no. 694978)

  • Tim Clausen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Janine Kirstein for advice in assay design and Gleb Bourenkov and Thomas Schneider at DESY for assistance during data collection. This work was supported by the Austrian Research Promotion Agency (FFG). The IMP is funded by Boehringer Ingelheim.

Reviewing Editor

  1. Manajit Hayer-Hartl, Max Planck Institute of Biochemistry, Germany

Publication history

  1. Received: September 14, 2016
  2. Accepted: November 22, 2016
  3. Version of Record published: November 30, 2016 (version 1)

Copyright

© 2016, Heuck et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,365
    Page views
  • 438
    Downloads
  • 30
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Slavica Pavlovic Djuranovic et al.
    Research Article
    1. Biochemistry and Chemical Biology
    Santosh Kumar Kuncha et al.
    Research Article
