Seed dormancy is a complex life history trait that determines the timing of germination and is crucial for local adaptation. Genetic studies of dormancy are challenging, because the trait is highly plastic and strongly influenced by the maternal environment. Using a combination of statistical and experimental approaches, we show that multiple alleles at the previously identified dormancy locus DELAY OF GERMINATION1 jointly explain as much as 57% of the variation observed in Swedish Arabidopsis thaliana, but give rise to spurious associations that seriously mislead genome-wide association studies unless modeled correctly. Field experiments confirm that the major alleles affect germination as well as survival under natural conditions, and demonstrate that locally adaptive traits can sometimes be dissected genetically.https://doi.org/10.7554/eLife.22502.001
The genetic basis of complex trait variation is a major challenge for modern biology. There are long-standing debates over whether alleles are common or rare, loci few or many, effects small or large, interactions additive or epistatic, and so on—questions of practical importance for agriculture and human health, and of fundamental importance for evolutionary biology. Lately, the discourse has been heavily influenced by the mass of human genome-wide association studies (GWAS), which have generally revealed a highly polygenic basis for complex traits, with numerous causative polymorphisms of small effect distributed across the genome (Visscher et al., 2012). However, the relevance of these studies for understanding adaptive variation is not clear, as they have almost exclusively involved traits likely to have been under stabilizing or purifying selection. Indeed, among the few GWAS of adaptive variation that have been carried out, some have identified common alleles of major effect (including for human traits such as pigmentation) (Atwell et al., 2010; Beleza et al., 2013).
Here we consider seed dormancy, a complex life history trait that plays a major role in local adaptation for many plant species (Finch-Savage and Leubner-Metzger, 2006). For a weedy annual like Arabidopsis thaliana, the subject of our study, germinating at the right time is crucial for early survival, and also influences other life history traits, such as flowering (Postma and Ågren, 2016; Huang et al., 2010a; Chiang et al., 2013; Donohue et al., 2010; Springthorpe and Penfield, 2015). Seed dormancy varies geographically, with high dormancy being associated with long, dry summers, and low dormancy being more prevalent where summers are short and wet (Chiang et al., 2011; Debieu et al., 2013; Kronholm et al., 2012). Analysis of a diallel cross between a highly dormant line from the Cape Verde Islands and a non-dormant line from Poland revealed several quantitative trait loci (QTL), one of which, DELAY OF GERMINATION1 (DOG1), has been cloned and molecularly characterized (Alonso-Blanco et al., 2003; Bentsink et al., 2006), although its function is poorly understood. It appears to be tightly regulated by a complex array of mechanisms that include alternative splicing, alternative polyadenylation, and a cis-acting antisense non-coding transcript (asDOG1) (Bentsink et al., 2006; Nakabayashi et al., 2015; Cyrek et al., 2016; Fedak et al., 2016), but, although DOG1 mRNA and protein abundance generally correlate with seed dormancy, this relationship is not observed in all accessions (Bentsink et al., 2006; Chiang et al., 2011; Nakabayashi et al., 2012; Fedak et al., 2016). In these cases, epistatic interactions with the genetic background, or other mechanisms, such as the critical self-dimerization of the DOG1 protein, might come into play (Nakabayashi et al., 2015). The DOG1 locus harbors a series of functionally distinct alleles segregating in wild populations, and exhibits a pattern of genetic differentiation suggestive of local adaptation (Kronholm et al., 2012). Moreover, field experiments using a diallel cross between accessions from Sweden and Italy identified a major QTL associated with total fitness that spanned the DOG1 region, and also demonstrated that genetic differences in seedling establishment—and most particularly in seed dormancy—are one of the main components of local adaptation (Postma and Ågren, 2016; Postma et al., 2016; Huang et al., 2010a). Finally, extensive natural variation for seed dormancy is not unique to the DOG1 locus and many other QTLs have been mapped in various populations (Alonso-Blanco et al., 2003; Bentsink et al., 2006, 2010; Amiguet-Vercher et al., 2015; Xiang et al., 2016). The recent cloning of the DELAY OF GERMINATION18 (DOG18)/IBO QTLs in two independent diallel crosses revealed the existence of numerous loss-of-function alleles—mainly caused by nonsense mutations and structural variants—at the REDUCED DORMANCY5 (RDO5) locus in wild A. thaliana populations (Xiang et al., 2016; Amiguet-Vercher et al., 2015; Xiang et al., 2014).
To investigate the genetic basis for seed dormancy variation in a natural population, we carried out a GWAS using 161 lines from Sweden (Figure 1—source data 1), where seeds are normally set in early summer and seedling establishment mostly occurs in fall. We focused on the germination rate of seeds after-ripened for 21 days (GR21), which showed dramatic variation with 46% of lines being dormant (GR21 < 20%) and 35% being effectively non-dormant (GR21 > 80%) (Figure 1A). We observed a strong correlation between GR21 and latitude (Pearson’s r = 0.62) (Figure 1B), largely due to the fact that northern Swedish lines were mostly non-dormant whereas the majority of southern Swedish lines was dormant (Figure 1C and online: https://goo.gl/3HeqX5). GR21 was also strongly correlated with both temperature and length of growing season, consistent with genetic variation for seed dormancy being adaptive (Supplementary file 1).

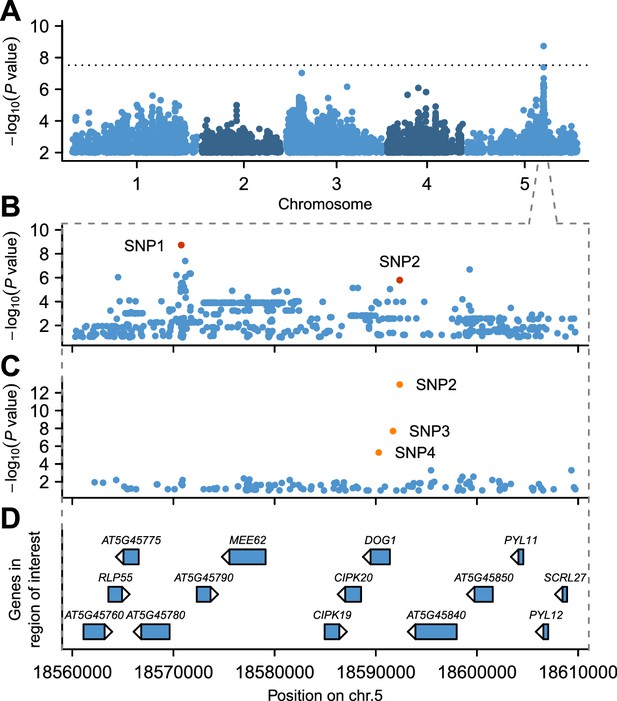

GWAS for GR21 identified a single highly significant peak spanning almost 50 kb at about 18.6 Mb on chromosome 5 (Figure 2A and online: https://goo.gl/30EPt3). The region includes DOG1, but the significantly associated SNPs were located 21 kb away from this obvious candidate, and several other genes in the region could possibly be involved in dormancy (Figure 2B and D, Figure 2—figure supplement 1 and Materials and methods). Analysis of tDNA insertion lines (in the Col-0 background) for three of these genes revealed that CIPK20—the first gene downstream of DOG1—could potentially affect dormancy as well (although it could also be the case that the cipk20 tDNA insertion directly affects regulation of DOG1; see Figure 2—figure supplement 1). Thus, although DOG1 seemed an excellent candidate for explaining dormancy variation (Alonso-Blanco et al., 2003; Bentsink et al., 2006, 2010; Kronholm et al., 2012), we could not exclude that neighbouring genes also contribute.
However, a simpler reason for the distant association is that allelic heterogeneity at the DOG1 locus (previously described by Kronholm et al., 2012) gives rise to ‘synthetic’, or ‘ghost’ associations in the region. This phenomenon, which is well-documented in both A. thaliana (Atwell et al., 2010) and rice (Huang et al., 2010b), is a simple statistical artifact that arises from fitting a single-locus, two-allele model when the true cause of phenotypic variation is multiple correlated factors (Atwell et al., 2010; Dickson et al., 2010; Platt et al., 2010).
To look for evidence of allelic heterogeneity and synthetic associations, we examined linkage disequilibrium (LD) between the most strongly associated SNP (SNP1, −log10p = 8.73) and the other markers in the region. As is typical in A. thaliana (Kim et al., 2007; Long et al., 2013), LD decayed within 10 kb of SNP1, however, we identified one marker, SNP2, in moderate LD (r2 = 0.61) with SNP1 despite a separation of almost 21 kb (Figure 2—figure supplement 2). SNP2 was strongly, albeit non-significantly, associated with GR21 (−log10p = 5.80) and is located in the promoter region of DOG1. As DOG1 expression is often correlated with seed dormancy (Bentsink et al., 2006; Chiang et al., 2011; Nakabayashi et al., 2012; Fedak et al., 2016), we hypothesized that SNP2 could contribute to GR21 variation, and used it as starting point for a multi-locus GWAS based on stepwise inclusion of markers (Segura et al., 2012). The optimal model resulting from starting with SNP2 explained 57% of the variation and consisted of two markers in addition to SNP2: SNP3, also in the DOG1 promoter; and SNP4, a rare allele [minor allele frequency (MAF) = 0.018] in the first exon of DOG1 (Figure 2C–D and Figure 2—figure supplement 3B and E). In contrast, the optimal model resulting from starting with SNP1 explained only 46% of the variation, and identified only one additional marker: SNP4 (Figure 2—figure supplement 3A and D). Starting from SNP3, on the other hand, yielded the same model as starting from SNP2, and it is clear that the combined effect of SNP2 and SNP3 effectively eliminates the signal at SNP1 (Figure 2—figure supplement 3B–C and E–F), suggesting that it (and the small peak around it) is a synthetic association that serves as a proxy for SNP2 and SNP3 (or closely linked variants: SNP3 is in perfect LD with two other nearby SNPs that can explain the variation just as well; see Materials and methods). The rare SNP4, on the other hand, appears to be independent of the other SNPs. In line with these stepwise results, we found that SNP2 and SNP3 were the best pairwise predictors of the dormancy variation (see Materials and methods and Supplementary file 2). Taken together, these GWAS results strongly suggest that variants in the DOG1 promoter region underlie dormancy variation in the Swedish population (but say nothing about the molecular mechanism, a fact to which we will return below).
To confirm the hypotheses generated by GWAS, we turned to transgenics and experimental crosses. Linkage analysis in six different F2 populations confirmed the importance of the DOG1 region (Figure 3A and Figure 3—source data 1). Two of the crosses (TFÄ 07 x Stenk-3 and Eden-2 x ÖMö1-7) demonstrated that the dormant SNP2 allele does not require SNP1, as expected if the association observed at the latter is synthetic. However, due to the strong linkage disequilibrium between SNP3 and SNP1, no cross let us similarly demonstrate that the dormant SNP3 has an effect independently of SNP1. To overcome these limitations, we complemented the non-dormant dog1-2 mutant with genomic fragments—promoter and gene—corresponding to different DOG1 alleles. Lines transformed with predicted dormant alleles carrying either SNP2 or SNP3 (but not SNP1, which is not part of the transformed fragment) were significantly more dormant than those transformed with a predicted non-dormant allele (Figure 3B and Figure 3—source data 2). It is thus clear that DOG1 alleles tagged by SNP2 and SNP3 are capable of producing a dormant phenotype independently of SNP1 (and other closely linked genes, like CIPK20). Finally, two additional F2 populations (TEDEN 03 x TÅL 07 and TAA 14 x TEDEN 03) supported the association between dormancy and SNP4, thus bringing the number of distinct dormant DOG1 alleles to three (Figure 3A).

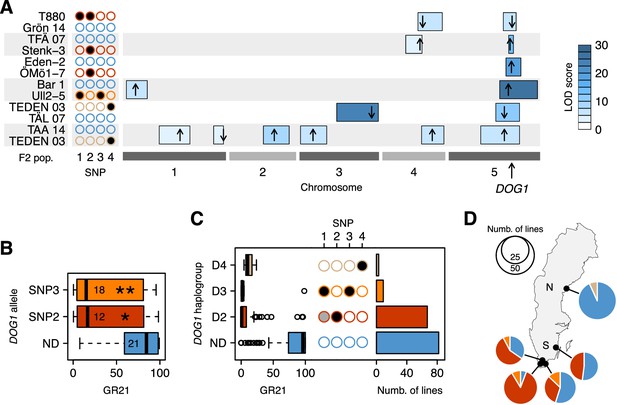

In summary, GWAS identified four DOG1 haplotypes, three associated with dormancy (D2-D4, tagged by the late alleles of SNP2-SNP4, respectively), and one associated with non-dormancy (ND, tagged by early alleles at all three SNP loci) (Figure 3C). These SNPs may be causative, but we emphasize that SNP3 is in perfect LD with two other SNPs a few bp away that can explain the variation just as well (see Materials and methods and Supplementary file 2), and that there may also be structural variants not present in the data we used to carry out GWAS (Long et al., 2013). Furthermore, it is difficult to completely rule out that these SNPs are themselves tagging rare alleles, just like SNP1 is tagging them (Figure 3C). Fully establishing causality would require extensive experiments using lines engineered to test all polymorphisms independently of each other, and would be almost impossible without techniques for in situ gene replacement given the variation in gene expression that results from transgene insertion (Figure 3B). It is also crucial to distinguish between causality in the genetic sense (the focus of this paper) and molecular mechanism: we emphasize that we do not know whether these SNPs affect dormancy by regulating DOG1, asDOG1 or even CIPK20. Given the apparent complexity of DOG1 regulation, elucidating the causative mechanism will be a non-trivial task. It should also be noted that further alleles that we do not have the power to detect, either because they are rare or have small effect, may exist. However, while it is impossible to exclude the possibility that there are alleles we did not detect, a variance-components analysis (Sasaki et al., 2015) estimated that 51% of the dormancy variation is due to genetic variation in the 4.8 kb surrounding DOG1, which suggests that most of the variation at DOG1 has been accounted for by the identified haplotypes (see Materials and methods). The variation in dormancy between lines carrying the same DOG1 haplotype (Figure 3C) is probably due to variation at other loci (the existence of which is evident from GWAS and the F2 crosses, see Figure 2A, Figure 3A and online: https://goo.gl/30EPt3). DOG18/RDO5/IBO, because of its recently characterized multiple natural alleles, was a good candidate to explain part of the remaining dormancy variation. However, no association was observed at this gene, presumably because the four distinct loss-of-function alleles (carried by Vår2-6, Löv-1, ÖMö2-1 and Hov3-2) segregating in our population appear to be singletons and thus cannot be detected using GWAS (and they do not segregate in our six F2 populations).
The geographic distribution of the four DOG1 haplotypes mirrors the GR21 distribution strikingly well (Figures 1C and 3D and online: https://goo.gl/3HeqX5). The majority of northern lines carry the non-dormant haplotype ND, with a small number carrying D4. Southern lines are much more diverse, with about half carrying ND, and the rest carrying either D2 or (much more rarely) D3.
To confirm that this striking variation is not an artifact of laboratory conditions, we performed field experiments in southern Sweden, utilizing two of our previous mapping populations: T880 (D2) x Grön 14 (ND) and Bar 1 (ND) x Ull2-5 (D3) (Figure 3A). Our goal was to track changes in DOG1 haplotype frequency across time, from seed release to the end of the germination window. Because timing of germination partly depends on the interaction between genes and seed maturation environment (Postma and Ågren, 2015; Chiang et al., 2011; Donohue et al., 2005), we first grew a set of F2 individuals for each population in a common garden experiment, from germination to ripening. The progeny of these plants (F3 seeds) was then mixed and dispersed in experimental plots in early summer, using a two-block design for replication. We sampled all visible seedlings (destructive sampling) in September and November and also sampled soil shortly before winter in order to gain access to the live seeds present in newly-formed seed bank (see Materials and methods and Supplementary file 3A).
The results were consistent across replicates, and demonstrated that the DOG1 haplotypes can have a major effect on survival. For both populations, the frequency of the dormant haplotype increased over time (as expected given delayed germination), but the details varied greatly (Figure 4, Supplementary file 3B–C, Figure 4—figure supplement 1 and Figure 4—source data 1). In the D2 x ND population, the frequency of D2 increased moderately between seed dispersal and September, and appeared to continue increasing throughout fall (it was slightly lower in the seed bank) (Figure 4A). This is consistent with D2 delaying germination, and delayed germination increasing seedling survival. In contrast, the frequency of D3 in the ND x D3 population decreased dramatically between seed dispersal and September, but recovered rapidly by November, indicating a dramatic delay in germination (Figure 4B). Furthermore, the D3 frequency in the seed bank was very high, demonstrating that this haplotype not only caused a delay in seed germination but also prevented seeds from germinating at all (Figure 4B).
With all live individuals at the end of the experiment counted (i.e., with the seed banks included), the proportion of dormant alleles increased massively in both populations, presumably because non-dormant seeds germinated under unfavorable conditions, and died before they could be sampled (Figure 4C–D). The implied selection strengths are enormous: the viability of homozygous non-dormant DOG1 genotypes relative to homozygous dormant ones until winter was 50–60% depending on population (Supplementary file 3D). Of course there will be further mortality in the seed bank and not all established seedlings will survive and reproduce, but the results serve to illustrate that selection on DOG1 could be very strong indeed, and lend credence to the notion that the observed distribution of dormancy and DOG1 alleles (Figures 1C and 3D) reflects local adaptation. Although our experiments have limitations and do not allow us to decompose total fitness, our results agree with those from previous studies, and it becomes very clear that germination timing is one of the main (if not the main) fitness components (Postma and Ågren, 2016; Huang et al., 2010a). To fully understand how selection acts will require multi-generational field experiments as selection pressures are likely to vary from year to year (and are unlikely to be at equilibrium, because of large-scale climate variations). Under the conditions of our experiment, D2 (the most common dormant haplotype) appears to have had a clear advantage over ND, whereas D3 may have been too dormant (Figure 4).
Furthermore, strong selection could also lead to adaptation on a very local scale. Generally speaking, deep dormancy may allow plants from the south to avoid periodic drought and high temperatures in summer, whereas northern populations may benefit from a shallower dormancy to cope with a short vegetative growth window. However, the fact that southern Sweden harbors large numbers of both dormant and non-dormant DOG1 haplotypes demonstrates that variation for seed dormancy can be found at a very local scale, presumably due to microenvironmental variation, and the distribution of SNP4, which segregates in northern Sweden only, suggests that moderate levels of dormancy could also be beneficial at this latitude.
Finally, our results provide a dramatic illustration that the ‘holy grail’ of molecular ecology — finding ‘the genes that matter’—may sometimes actually be obtainable (Mitchell-Olds, 2001; Rockman, 2012). That a single locus should explain most of the variation for a major life history trait is certainly surprising and arguably unprecedented. Of course we do not know how much of dormancy variation DOG1 would explain under field conditions (and we certainly do not know how much of the variation for total fitness it would explain), but our data suggest that it is a major contributor. Although other loci also appeared to be under selection in our field experiments—as expected given that the F2 results show that other loci also contribute strongly to variation for dormancy—allele frequency changes at DOG1 were among the strongest in both populations (Figure 3A and Figure 4—figure supplement 1). Interestingly, GWAS in a global population also identifies DOG1 as strongly associated with flowering time variation (Atwell et al., 2010; 1001 Genomes Consortium 2016), although it is not yet clear whether this association is real or spurious. If the latter, a likely explanation is that correlated selection pressures on two related life history traits—germination and flowering—has generated cross-trait genotype-phenotype correlations. If the former, DOG1 emerges as an evolutionary ‘master switch’ for life history variation, perhaps similar in importance to the central flowering regulator FLC (Li et al., 2014). Indeed a recent study has demonstrated that DOG1 may affect both dormancy and flowering (Huo et al., 2016), and it is interesting to note that both genes appear to be regulated through similar mechanisms, with chromatin remodelling and antisense transcripts switching off sense transcription (Swiezewski et al., 2009; Footitt et al., 2015; Fedak et al., 2016). Perhaps such genes play general role in regulating and modulating environmentally dependent life history transitions?
In conclusion, the study of adaptive traits variation in A. thaliana is starting to reveal a similar picture: multiple, often complex, alleles at a relatively small number of loci account for much of the variation (Li et al., 2014; Sasaki et al., 2015; Chao et al., 2012; Poormohammad Kiani et al., 2012; Forsberg et al., 2015). The phenomenon is certainly not limited to A. thaliana—pigmentation often appears to behave similarly, for example, in humans (Beleza et al., 2013) as well as Drosophila (Rebeiz et al., 2009)—nor is it universal in this species (Atwell et al., 2010). While it is straightforward to show that local adaptation may lead to such an architecture (Yeaman and Whitlock, 2011), much more data—from a variety of organisms and phenotypes—are needed before we can draw general conclusions about when and why this happens.
All the inbred lines used in this study were collected from natural populations in Sweden. Climatic and environmental conditions show extensive variation across Sweden and these populations are likely to be locally adapted. Northern Sweden is characterized by long, cold winters, mild summers and rapidly declining temperatures and day length in fall. In the south, natural populations experience a wider range of conditions than in the north, but, in general, summer is longer, warmer and dryer, while winter is shorter. The micro-environment is also very diverse is Sweden. For example, populations from the north are mainly located on eroded, south-facing rocky slopes, while the ones from the south occur in various types of habitats, such as meadows, agricultural fields, beaches and urban areas. Because of this environmental variation, the seasonal timing of key life history traits can differ between populations, although Swedish A. thaliana generally exhibit a winter annual life cycle. Flowering usually occurs one month later in the north (June) than in the south (May) whereas seedlings can usually be seen earlier in the north (August) than in the south (September–November) (personal observations).
All these features made the Swedish population highly suitable for studying the genetic basis of seed dormancy. The 161 lines that we used to carry out GWAS were recently sequenced and more than 4.5 millions SNPs were generated, allowing for high-resolution mapping (Long et al., 2013). These accessions are listed in Figure 1—source data 1. One line not in this set—Bar 1 (Figure 3—source data 3)—was used in an F2 cross and its DOG1 genotype obtained by Sanger sequencing.
As measuring dormancy requires fresh seeds, three biological replicates of each line were grown under long-day conditions (16 hr light, 8 hr dark) for 8 weeks at 4°C to ensure proper vernalization. Temperature was then raised to 21°C (day) and 16°C (night) until seed harvest. Watering was individually monitored and stopped when about half of the siliques of a given plant had ripened. Seeds were harvested 10 days later. After-ripening was performed in the dark at 16°C with 30% relative humidity for 21 days. Seeds from the three biological replicates were pooled together to compensate for growth chamber heterogeneity. About 100 seeds per genotype were spread on wet filter paper in Petri dishes subsequently placed in moisture chambers (Alonso-Blanco et al., 2003) that were located in a culture room set at 25°C with a long-day light regime. Germination rate (GR21) was determined after 7 days of incubation by scoring radicle emergence. GR21 values are available in Figure 1—source data 1.

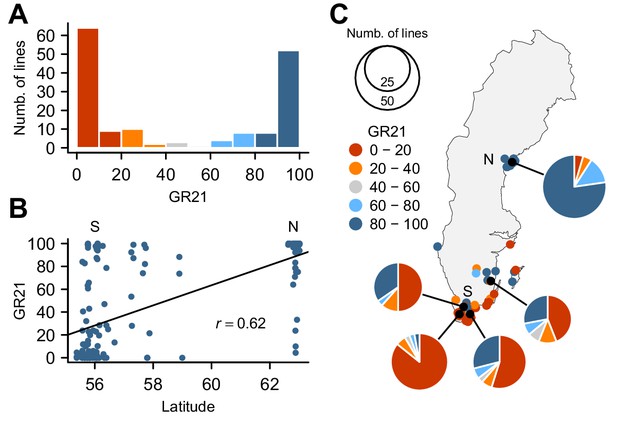

We observed a strong positive correlation between GR21 and latitude in Sweden (Pearson’s r = 0.62). Because climate varies with latitude, we assessed correlations between dormancy and various climate variables to identify those that might shape natural variation for this trait. We used climate data generated by the WorldClim project (Hijmans et al., 2005) as well as data gathered by Hancock et al. (2011). We focused on a set of 20 variables that seemed ecologically relevant to seed dormancy (Supplementary file 1). We tried to minimize collinearity and redundancy when selecting variables. It should be noted that the resolution of these climatic data is really too low to characterize accurately a small geographic area such as Sweden. Similarly to Hancock et al. (2011) we used a partial Mantel test (Mantel, 1967; Smouse et al., 1986) to assess the significance of the correlation between GR21 and the selected climate variables. The dependent variable was a pairwise distance matrix of the GR21 phenotype and the predictor variable was a pairwise distance matrix of the climate variables. To account for demographic history we used as covariate a pairwise kinship matrix based on the SNPs from the RegMap panel (Horton et al., 2012). We estimated the Mantel Spearman’s coefficient using the ecodist package (Goslee and Urban, 2007) in the R environment (R Core Team, 2014). Results are presented in Supplementary file 1.
To identify the genetic basis of the GR21 variation we carried out a GWAS using a mixed-model accounting for population structure (Kang et al., 2010; Zhang et al., 2010) using the SNPs generated by Long et al. (2013). We identified a broad peak on chromosome five that spanned almost 50 kb and encompassed around 1800 SNPs (Figure 2A–B). Other peaks were found on other chromosomes but as none of them reached genome-wide significance (Bonferroni threshold, used to correct for multiple testing) they were not considered in this manuscript. The GWAS results can be viewed interactively online (https://goo.gl/30EPt3).
Among all the genes present in the 50 kb associated region, DOG1 was the most obvious candidate because of its major contribution to seed dormancy variation (Alonso-Blanco et al., 2003; Bentsink et al., 2006, 2010; Kronholm et al., 2012). However, we also considered the possibility that genes other than DOG1 have an effect on dormancy. We selected three candidates, based on their position (located between the significantly associated SNPs and DOG1) and function. One of them, MEE62 (At5g45800), encodes a leucine-rich repeat protein kinase contributing to embryo development (Pagnussat et al., 2005). The two other genes, CIPK19 (At5g45810) and CIPK20 (At5g45820) are part of the SnRK protein family, whose members encode serine-threonine protein kinases involved in responses to salt stress and sugar and ABA signalling (Hrabak et al. 2003).

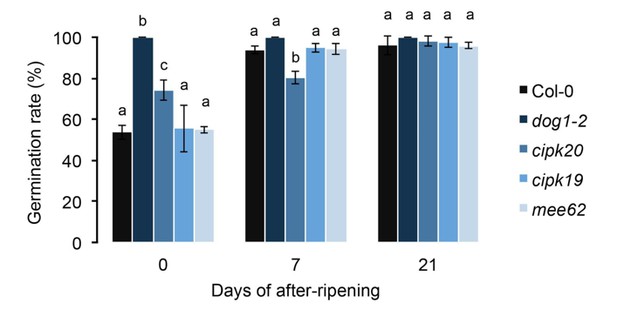

We measured GR21 on insertion mutants that were obtained from the ABRC stock center (SALK_133510 - MEE62, SALK_044735 - CIPK19 and GABI_533 G02 - CIPK20, all in Col-0 background). We used as controls the accession Col-0 (WT) and the dog1-2 mutant—also in Col-0 background—that contains a premature stop codon in the first exon of the gene resulting in completely non-dormant seeds (van Zanten et al., 2011). This line was kindly provided by Wim Soppe (Max Planck Institute for Plant Breeding Research, Cologne, Germany). Germination rate after 0, 7 and 21 days of after-ripening was estimated as previously described, using three biological replicates per genotype (See Materials and methods, GR21 estimation in Swedish accessions). However, it should be noted that the vernalization treatment was not applied because all the tested genotypes are in the Col-0 background, which does not require low temperature to flower. Differences between genotypes were evaluated with a one-way ANOVA followed by a Tukey’s HSD test (p<0.05, n = 3).
To dissect further the main GWAS peak, we examined the linkage disequilibrium (LD) pattern in the associated region. Using custom-made R scripts (available for download at GitHub: https://goo.gl/1QdEdY) we calculated LD (r2) between SNP1 and the neighboring SNPs that were spanned by the peak. As expected, we found that LD decayed within 10 kb starting from SNP1 (Kim et al., 2007; Long et al., 2013). However, a marker that we named SNP2 (c5p18592365) was still in moderate LD (r2 = 0.61) with SNP1 despite a physical separation of almost 21 kb, as shown in Figure 2—figure supplement 2.
To look for evidence of allelic heterogeneity and identify the variants potentially causing synthetic associations, we used a multi-locus mixed-model (MLMM) (Segura et al., 2012), which follows a stepwise approach to incorporate SNPs as covariates in the GWA model. At each step, the MLMM algorithm adds the most significant SNP to the model, before re-estimating genetic and error variances. We used the extended Bayesian information criteria (extBIC) calculated by the program to avoid model overfitting and to select the optimal number of steps—and therefore the number of cofactors added to the model. All analysis were performed using the R version of MLMM, which was modified to be able to specify the SNP that should be used as starting point—i.e. included at the first step. By default, the program picks the most significant marker, which, in our case, would always be SNP1.
SNP3 (c5p18591702), which was identified by the MLMM program, is in complete LD (r2 = 1) with two other markers. The first one, c5p18591361, was located in DOG1 first exon and the second one, c5p18591703, in DOG1 promoter. Any of these three markers gave similar results when included in the MLMM. In this manuscript, we are arbitrarily discussing only one of them, SNP3.
A complementary way to look for evidence of allelic heterogeneity was to test the association between GR21 and pairs of markers, instead of assessing the effect of one marker at a time—as we did in the marginal GWAS. Our goal was to identify SNPs that, when combined, explained a substantial proportion of the GR21 variation. Because the GR21 phenotype has a bimodal distribution (Figure 1A), we assumed that variants potentially causing synthetic associations were mutually exclusive and would not cosegregate among the Swedish lines. From the SNP matrix used for GWAS (Long et al., 2013), we extracted 1805 SNPs that were located within the 50 kb associated region encompassing DOG1. To minimize the number of pairs to test, SNPs with a minor allele frequency lower than 5% were discarded. The remaining 1145 SNPs were paired (0 or 0 = 0, 1 or 0 = 1, 0 or 1 = 1, 1 or 1 = 1) to create pseudo SNPs (pSNPs) and the association between all 654,940 possible pSNPs and GR21 was tested with the GWA model used for the marginal analysis. We found that pSNP285192 (SNP1 + SNP2) and pSNP580642 (SNP2 + SNP3) shared the lowest p-value (−log10p = 11.88) (Supplementary file 2). As previously mentioned, SNP3 is in strong linkage disequilibrium with two other markers (r2 = 1): c5p18591361 and c5p18591703. For this reason, pSNP579096 (c5p18591361 + SNP2) and pSNP581026 (c5p18591703 + SNP2) are also among the top combinations (Supplementary file 2).
The variance-component analysis was carried out using a Python-based mixed model package ‘Mixmogam’ (https://github.com/bvilhjal/mixmogam, ‘local_vs_global_mm’ function). Phenotypic variation was decomposed into genetic variation explained by local and global genomic regions and was modelled using the following equation
where is a vector of the GR21 phenotype, and are random effects corresponding to local (DOG1 cloned region, chr5, 18,588,990 to 18,593,792) and global relatedness (the rest of the genome) matrices, respectively, and is noise. IBD relatedness matrices were computed using local and global SNPs generated by Long et al. (2013).
We used two complementary approaches—QTL mapping in F2 populations and transgenic complementation—to validate the DOG1 alleles identified in our GWAS. We generated six different F2 mapping populations in which various DOG1 allele segregate. T880 x Grön 14, TFÄ 07 x Stenk-3 and Eden-2 x ÖMö1-7 were designed to show that the allele tagged by SNP2 was functional (all three populations) and could produce a dormant phenotype without requiring SNP1 (last two populations). Bar 1 x Ull2-5 was created to validate the allele tagged by SNP3. Finally, the two remaining populations, TAA 14 x TEDEN 03 and TEDEN 03 x TÄL 07, were used to assess the effect of SNP4. SNP and haplotype information regarding these accessions can be found in Figure 3A and Figure 3—source data 3 and 4. For each population, we grew 90 F2 individuals and estimated GR21 on their offspring (F3 seeds). F2s were grown under similar conditions as the Swedish accessions and we also followed the same protocol for seed harvest and GR21 estimation.
DNA was isolated from F2 flower buds from branches that would not produce siliques. We followed the standard protocol of the Macherey Nagel NucleoMag 96 Plant kit. Three F2 populations (Bar 1 x Ull2-5, TAA 14 x TEDEN 03 and TEDEN 03 x TÄL 07) were genotyped using a 384-SNP Illumina GoldenGate genotyping assay. Illumina’s Genome Studio software and custom-made R scripts (available for download at GitHub: https://goo.gl/1QdEdY) were used for SNP calling. The three remaining populations (T880 x Grön 14, TFÄ 07 x Stenk-3 and Eden-2 x ÖMö1-7) were genotyped by sequencing. Genomic DNA libraries were prepared using Illumina’s Nextera 96 kit and sequenced on an Illumina HiSeq 2500. We aligned the resulting 125 bp paired-end reads to the A. thaliana TAIR 10 reference genome with the BWA-MEM algorithm (Li, 2013). We then followed the Genome Analysis Toolkit (GATK) recommendations for variant calling (McKenna et al., 2010; DePristo et al., 2011; Van der Auwera et al., 2013). Finally, custom-made R scripts (available for download at GitHub: https://goo.gl/1QdEdY) were used for SNP filtering and polarization and determine the genotype of each F2 individual in 200 kb windows, which were used as markers in downstream analyses. Raw sequencing reads were uploaded to NCBI SRA (BioProjects and BioSamples accession numbers are available in Figure 3—source data 5).
QTL mapping for GR21 was carried out using the ‘MQM’ strategy (‘mqmscan()’ function) implemented in the R/qtl package (Arends et al., 2010; Broman et al., 2003). The 95% LOD significance threshold was determined by running 1000 permutations per F2 population (Figure 3—source data 1). Genetic maps and GR21 phenotypes of the six F2 populations are available in Figure 3—source data 5.
For the transgenic complementation experiment, a 4.8 kb genomic fragment encompassing DOG1 and its promoter—2.4 kb upstream start codon and 0.6 kb downstream stop codon—was amplified from DNA isolated from three different accessions carrying various DOG1 alleles. Ale-Stenar-64–24 and Ale-Stenar-44–4 respectively carry the non-reference (dormant) allele at SNP2 and SNP3 while Eden-2 carries the reference (non-dormant) alleles at both SNPs (Figure 3—source data 4). Products of a Phusion-based PCR using allele-specific oligonucleotides (Figure 3—source data 6)—because of polymorphism at the 3’ end of the gene—were cloned with the In-fusion Advantage PCR Cloning Kit (Clontech) into the EcoRI digested expression vector pGreenII 0029, which was kindly provided by Santosh Satbhai (Gregor Mendel Institute, Vienna, Austria). Constructs were transferred into dog1–2 plants using A. tumefaciens. GR21 was estimated on T4 seeds descending from homozygous T3 plants grown under long-day conditions (16 hr light, 8 hr dark) at 21°C (day) and 16°C (night). Three biological replicates were grown per T3 line and their mean GR21 value was used for statistical analyses. We phenotyped a total of 12, 18 and 21 independent T3 lines for Ale-Stenar-64–24, Ale-Stenar-44–4 and Eden-2 alleles, respectively (Figure 3—source data 2).
The two-year field experiments took place in Skåne, southern Sweden, between September 2013 and November 2014. The first year was dedicated to the production of the seeds that were used the following year, which consisted in a selection experiment designed to assess the adaptive relevance of seed dormancy and DOG1 genetic variation. We focused on two different mapping populations that were previously analysed under controlled conditions (Figure 3A). We chose parents with contrasted origins, dormancy phenotypes and DOG1 haplotypes. The first population (D2 x ND) was derived from the cross between T880 (southern Sweden, GR21 = 0%, haplotype D2, dormant allele at SNP2) and Grön 14 (northern Sweden, GR21 = 100%, haplotype ND, non-dormant allele at SNP2). The parents of the second population (ND x D3) were Bar 1 (northern Sweden, GR21 = 100%, haplotype ND, non-dormant allele at SNP3) and Ull2-5 (southern Sweden, GR21 = 0%, haplotype D3, dormant allele at SNP3).
Seed dormancy is heavily influenced by environmental conditions during seed maturation (Chiang et al., 2011; Postma and Ågren, 2015; Donohue et al., 2005). Therefore, it was necessary to use seeds produced in the field. For each population, we grew 248 F2 individuals in a common garden experiment at Ullstorp (56.066721, 13.944655), southern Sweden. Stratified seeds were sown on 6 × 11 planting trays filled with potting soil (‘Lantliv Plantjord’, www.rolunda.se) on 26th September 2013. Trays were watered and placed next to the planting site under a small greenhouse to maximise seed germination. Three weeks later, we transferred them into soil and extra seedlings were thinned out. Finally, trays were watered one last time to ensure a smooth transition between the greenhouse and the field. These plants grew under natural conditions during most of their life cycle and their progeny was therefore highly suitable to study seed dormancy. F3 seeds were harvested on 30th May 2014, which coincided with ripening in surrounding A. thaliana wild populations. Because some F2 individuals did not survive, we harvested seeds for 185 and 214 F3 families for D2 x ND and ND x D3 populations, respectively. After seed cleaning, we created pools of seeds by mixing together 5 (D2 x ND) and 4 (ND x D3) seeds from each F3 family. We prepared a total of eight pools per population, each of them consisting of 925 and 856 F3 seeds for D2 x ND and ND x D3, respectively.
The selection experiment was conducted at Rathckegården (55.905647, 14.260095), southern Sweden, about 30 km flying distance from the seed production site. This location had previously been used to perform common garden experiments involving several A. thaliana lines. Consequently, the already existing seed bank prevented us from dispersing seeds directly on natural soil. To circumvent this issue, we used a mixture of potting soil (‘Lantliv Plantjord’, www.rolunda.se) and fine sand (‘Sandlådsand’, www.weibulls.com) to disperse the seeds on (ratio was 1 L of sand/10 L of soil). Two rectangular holes (220 × 100 × 5–10 cm) corresponding to both experimental blocks were dug next to each other. To avoid competition and contamination caused by other weeds growing in the vicinity of the experiment, we added a layer of landscape fabric at the bottom and on the sides of each block. This way, only gas and humidity exchanges were permitted between the ground and the artificial soil layer, excluding undesirable plant material from the experiment. Holes were then filled up with the soil mixture. Each experimental block was designed to accommodate eight 20 × 30 cm frames (four frames per population) Pools of seeds were dispersed homogeneously in their respective frames on 13th June 2014, less than 15 days after seed harvest.
Germination usually occurs in a time window ranging from the beginning of September to mid November in A. thaliana populations from southern Sweden. Therefore, we harvested seedlings on 26th September 2014 (sampling point 1) and 25th November 2014 (sampling point 2) to cover the whole germination window. Because the number of seedlings was extremely low at both time points we decided to sample all visible seedlings (that were big enough to be seen, destructive sampling) instead of randomly harvesting a predefined number of plants. As a consequence, all seedlings collected in November had germinated later than those sampled in September. Additionally, a few seedlings found outside the frames—because of seed transportation—were also collected to partially compensate for the overall low number of samples.
We performed soil sampling on 26th November 2014 (sampling point 3). With the help of a little plastic scoop, we took 18 soil samples per frame, each sample covering approximately 1 of the frame surface. Therefore we covered 18 cm2, which was about 3% of the total surface of a frame (600 cm2). Soil samples were kept in paper envelopes placed in sealed freezing bags to make sure that soil did not dry during the transfer to Vienna. On 28th November 2014, soil samples were spread as a fine layer onto small plastic trays filled with potting soil and placed in a greenhouse under long-day conditions. The 16 trays (one for each experimental frame) were watered on regular basis and seedlings were harvested until no germinants were observed. At this point, watering was stopped and we let the trays dry out for about four weeks. After re-watering the trays, we noticed a new flush of germination that lasted for a few days. We then repeated the drought treatment two more times, until no more germination was observed. This treatment has presumably promoted the germination of most of the live seeds present in the soil samples. However, it is impossible to rule out the possibility that some live seeds did not germinate because of a too deep dormancy.
Overall, the number of samples collected at points 1, 2 and 3 was lower than expected (based on previous unpublished data). Therefore, instead of looking at allele frequency changes at the frame level—as originally planned—we decided to look at changes at the block level in subsequent analysis. Supplementary file 3A recapitulates the number of samples collected per block and population at the different time points.
We isolated DNA for all field experiments samples with the NucleoMag 96 Plant kit (Macherey Nagel) following the standard protocol. All samples were genotyped by sequencing, as previously described (See Materials and methods, Functional validation of DOG1 alleles). Raw sequencing reads were uploaded to NCBI SRA (BioProjects and BioSamples accession numbers are available in Figure 4—source data 1). To bin SNPs, we again used a window size of 200 kb, which was sufficient to estimate the genome-wide allele frequency changes (Figure 4—figure supplement 1 and Figure 4—source data 1). However, we used a smaller window centered on DOG1 (22 kb, DOG1 ORF ±10 kb) to estimate changes at the DOG1 locus more accurately (Figure 4, Supplementary file 3B–C).

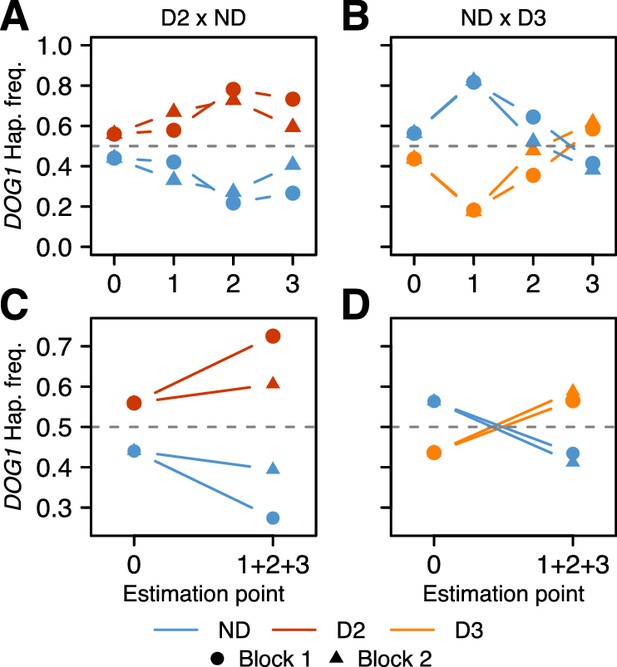

Starting genotype and allele frequencies depend on the viability and the genotype of the dispersed F3 seeds. The proportion of viable seeds was determined for each F3 family by measuring the germination rate of 50–100 stratified seeds (five days, 4°C, dark, 99% humidity) as described previously (See Materials and methods, GR21 estimation in Swedish accessions). Petri dishes used to determine viabilities were kept and seven-day-old seedlings as well as imbibed ungerminated seeds were pooled together to isolate DNA. These pools were genotyped by sequencing as described previously (See Materials and methods, Functional validation of DOG1 alleles). This allowed us to reconstruct the genotype of the parental F2s and to determine the genome-wide genotype frequencies for both populations. We were then able to estimate the genotype and allele frequencies in the pools of dispersed F3 seeds, taking into account seed viability and assuming Mendelian inheritance between generations. These frequencies were used as a proxy for starting allele frequencies at dispersal (sampling point 0).
Intermediate genotype and allele frequencies were calculated using the genotype counts observed at each sampling point (1, 2, and 3). Ending frequencies were estimated by considering all the collected samples together (sampling points 1 + 2 + 3), as a pool, regardless of their original sampling point. It should be noted that we covered only 3% of the frames surface when soil sampling. Also, we noticed that some seeds had been transported outside the frames during the course of the experiment. Therefore, the contribution of soil samples to the ending frequencies had to be adjusted accordingly (Supplementary file 3A). We first estimated genotype counts () for september (), november () and soil () sampling points. We calculated ending genotype counts () for each population and block using the following equation
where was used to compensate for the low area covered during soil sampling —It was equal to 100/3—and was the proportion of seeds that had moved outside the frames during the course of the experiment. It was calculated by dividing the number of seedlings found outside the frames at sampling points 1 and 2 by the total number of seedlings collected at both sampling points. was equal to 0.053, 0.027, 0.044 and 0.009 for D2 x ND block 1, D2 x ND block 2, ND x D3 block 1 and ND x D3 block 2, respectively. Ending genotype and allele frequencies were then derived from CEGC. Allele and genotype frequencies (starting, intermediate and ending) estimated for the DOG1 locus are listed in Supplementary file 3B–C, respectively.
The main focus of our field experiments was to assess differences in germination timing, and their design was not optimal for quantifying total fitness. As a consequence, we could only estimate survival between dispersal in June and the onset of winter in November. Postma et al. (2016) have shown that survival during this phase is critical to plant performance. Thus, we believe that our estimations of ‘fitness’ are realistic. The fitness contribution of the DOG1 genotypes was quantified using starting and ending genotype frequencies at the DOG1 locus (Supplementary file 3C) as well as the mean fitnesses of the tested populations (proportion of live individuals at the end of the experiment) (Supplementary file 3A). The marginal fitnesses , and of all three genotypes were modeled as follows for each block and population
where , and are the starting genotype frequencies, , and the ending genotype frequencies and the mean fitness. Relative fitnesses were calculated by dividing the marginal fitnesses by the marginal fitness of the fittest genotype (Supplementary file 3D).
Germination, postgermination adaptation, and species ecological rangesAnnual Review of Ecology, Evolution, and Systematics 41:293–319.https://doi.org/10.1146/annurev-ecolsys-102209-144715
The ecodist package for Dissimilarity-based analysis of ecological dataJournal of Statistical Software 22:1–19.https://doi.org/10.18637/jss.v022.i07
Very high resolution interpolated climate surfaces for global land areasInternational Journal of Climatology 25:1965–1978.https://doi.org/10.1002/joc.1276
The Arabidopsis CDPK-SnRK superfamily of protein kinasesPlant Physiology 132:666–680.https://doi.org/10.1104/pp.102.011999
Genome-wide association studies of 14 agronomic traits in rice landracesNature Genetics 42:961–967.https://doi.org/10.1038/ng.695
Recombination and linkage disequilibrium in Arabidopsis thalianaNature Genetics 39:1151–1155.https://doi.org/10.1038/ng2115
Arabidopsis thaliana and its wild relatives: a model system for ecology and evolutionTrends in Ecology & Evolution 16:693–700.https://doi.org/10.1016/S0169-5347(01)02291-1
R: A Language and Environment for Statistical ComputingVienna, Austria: R Foundation for Statistical Computing.
From FastQ data to high confidence variant calls: the genome analysis toolkit best practices pipelineCurrent Protocols in Bioinformatics 43:1–33.https://doi.org/10.1002/0471250953.bi1110s43
REDUCED DORMANCY5 encodes a protein phosphatase 2c that is required for seed dormancy in ArabidopsisThe Plant Cell Online 26:4362–4375.https://doi.org/10.1105/tpc.114.132811
Mixed linear model approach adapted for genome-wide association studiesNature Genetics 42:355–360.https://doi.org/10.1038/ng.546
Christian S HardtkeReviewing Editor; University of Lausanne, Switzerland
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "Multiple alleles at a single locus control seed dormancy in Swedish Arabidopsis" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Christian Hardtke as the Senior Editor and Reviewing Editor.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
Overall, the reviewers appreciate your effort to verify the importance of a locus pinpointed through GWAS in the field. There are however a number of shortcomings in the paper that have to be addressed before it can be considered for publication. Please address the reviewers' concerns as outlined below, but pay particular attention to the following points:
1) Please embed your work in the wider context and acknowledge the prior work of others in the field more comprehensively. With regard to seed dormancy in local adaptation, it appears pertinent that the work of Postma et al. (also 2016, Ann. Bot.) and Kronholm et al. 2012 is discussed in more detail. Further, please expand your Introduction and Discussion of natural seed dormancy loci, notably with regard to DOG18/RDO5/IBO, for which extensive natural variation and QTL have been reported (Amiguet-Vercher et al., 2015, New Phyt; Xiang et al. 2016, Plant Phys).
2) With regard to the latter, please determine whether variation in DOG18/RDO5/IBO exists in your populations and if so, whether it could explain some of the variation.
3) One key issue: the dormancy assays that are presented for candidate genes in the mapping interval are somewhat obsolete, because the T-DNA lines that were tested are in the rather low dormant Col-0 background. Please provide a time course of germination with shorter after-ripening intervals to exclude that none of the other loci is responsible for the phenotype.
4) Another key issue: please demonstrate that there is indeed a correlation between dormancy and DOG1 expression levels (or possibly with the expression level of particular alternative transcripts), and that the allelic DOG1 variants you discovered influence these expression levels. You should also take into account the very recent work by Fedak et al., 2016, PNAS, with regard to DOG1 antisense transcripts.
The case presented by Kerdaffrec et al. is very similar to that of Bentsink et al. 2006 reporting the cloning of the DOG1 QTL. Both groups face the difficulty of identifying a gene (or several genes?) responsible to confer high dormancy in a genomic interval. It is worth therefore quickly reviewing the case of DOG1. Bentsink used the NILDOG17-1 line, which contains a Cvi introgression in Ler conferring a strong dormancy QTL. This Cvi introgression encompasses the same genomic interval identified by Kerdaffrec et al. Bentsink et al. mutagenized the NILDOG17-1 line with EMS to find mutants that are no longer dormant. The intrinsic assumption is that the NILDOG17-1 introgression confers high dormancy by virtue of the higher activity of a gene product. This is by no means guaranteed. It could be that one or several genes products in the NILDOG17-1 introgression have lower activity and this in turn is responsible for the higher NILDOG17-1 line dormancy. How will the EMS approach identify such gene(s)?
Instead, it seems more plausible that the EMS approach may generate mutations that lower NILDOG17-1 dormancy by disrupting the function of other dormancy genes unrelated to those truly responsible for the high dormancy conferred by NILDOG17-1. This point is illustrated by the fact that in their EMS screen Bentsink et al. reported mutations in ABA biosynthetic genes. These genes were discarded because the ABA biosynthetic genes were not in the NILDOG17-1 interval. Suppose anyway that these genes were located in the NILDOG17-1 interval. Would it necessarily mean that they are responsible for the higher dormancy conferred by the NILDOG17-1 introgression? Not necessarily.
It is therefore possible that, like ABA biosynthetic genes, DOG1 is a gene regulating dormancy that happens to be in the NILDOG17-1 interval. Its disruption after the EMS mutagenesis would lower the dormancy of the NILDOG17-1 line without actually being the cause of the higher dormancy conferred by the non-mutagenized NILDOG17-1 line.
Besides this point I take the opportunity of this review to comment about what I perceive as peripheral problems concerning DOG1, which I think could also be relevant for this review. In Bentsink et al. the mutated NILDOG17-1 line was not complemented with the pBIB-DOG1-Cvi construct (Figure 4 of Bentsink et al. 2006). Instead Bentsink et al. transformed Ler with pBIB-DOG1-Cvi. The resulting transgenic plants were more dormant but strictly speaking this experiment does not qualify as a complementation analysis. Furthermore, to my best knowledge mutations in DOG1 were only reported in NILDOG17-1 (the original dog1 mutation) and the Col ecotype. The Col ecotype is notoriously non-dormant so evaluating the function of a dormancy gene in a non-dormant ecotype is not ideal.
So far all the evidence supporting DOG1 is regulating dormancy is rather circumstantial, mostly coming from transgenic plants expressing DOG1, which leads to higher dormancy. Whether this dormancy truly illustrates DOG1's function in planta or whether it is a gain-of-function, neomorphic effect of DOG1 expression remains to be determined. It would be highly informative to know for example whether mutating DOG1 in a pure Cvi background (e.g. by CRISPR/CAS) does significantly lower dormancy. But even if this were the case it would still not show, as discussed above, that DOG1 is the causative agent of the higher dormancy observed in NILDOG17-1.
With these preliminary comments, here is my review of the work by Kerdaffrec et al.
Kerdaffrec et al. perform a GWAS using 161 Arabidopsis inbred lines from Sweden. Authors focus on the trait of dormancy by measuring the germination percentage of seed populations after-ripened for 21 days (GR21).
GWAS for GR21 identified a single highly significant peak covering a 50kb interval in chromosome 5 containing DOG1, a known dormancy gene. None of the significantly associated SNPs were located within the coding sequence of DOG1. Authors could not exclude that genes in the interval other than DOG1 are involved in dormancy. Thus, GR21 values of T-DNA insertion mutants for genes present in the 50kb associated region identified by GWAS were measured (MEE62, CIPK19, CIPK20). No dormancy phenotype was found.
As discussed above, the interval might contain genes whose product activity is negatively or positively regulating dormancy. In the former case, the lower the activity conferred by the SNPs the higher the dormancy whereas in the latter case the higher the activity conferred by the SNPs the higher the dormancy. A T-DNA mutant in a negative and positive regulator of dormancy will increase and decrease dormancy, respectively. Therefore, a T-DNA mutant analysis must ensure that both cases can be found. Under the conditions used, Col-0 control seeds are no longer dormant after 21 days of after-ripening. This is illustrated by the fact that no difference in dormancy can be detected between dog1-2 and Col.
With long after-ripening times only high dormancy phenotypes in the insertion lines can be potentially detected. Furthermore, there is even the risk of missing mild higher dormancy phenotypes.
Authors should shorten their after-ripening time in order to detect dormancy in the Col-0 control in order to see whether they can detect low or high dormancy in their insertion lines. Also, many other T-DNA insertions in other genes present in the interval should be tested.
Given the presence of DOG1 in the interval authors propose that allelic heterogeneity at DOG1 gives rise to synthetic or "ghost" associations. Authors note the presence of SNP2 in the promoter region of DOG1. Furthermore, authors reason that since DOG1 expression strongly correlates with seed dormancy (Chiang et al. 2011; Nakabayashi et al. 2012), SNP2 could contribute to GR21 variation.
One should exert caution about the claim that DOG1 expression is strongly correlating with seed dormancy. Available literature shows that this correlation is sometimes observed (as in the case of Ler and Cvi, which was discussed in the original paper identifying DOG1 (Bentsink et al. 2006) but also sometimes not observed. For example, in Figure 6 of Bentsink et al. one can see that DOG1 expression in Col-0 (a notoriously non-dormant ecotype) is much higher than Ler and, critically, higher than that in Cvi (a notoriously dormant ecotype). Furthermore, the DOG1 expression in Col-0 is comparable to that of NILDOG17-1 (the introgression line used in the paper to map DOG1). If I remember well, Bentsink et al. do not comment about this nor do they discuss whether the dormancy levels of the other ecotypes studied in Figure 6 correlate with DOG1 expression levels.
Concerning the reference Chiang et al. 2011, authors establish a correlation in the expression of DOG1 among in Arabidopsis lines whose geographical distances and latitudes are much larger (southern Europe vs. northern Europe) than in this study. Unlike the present study, the Chiang et al. study also examines the particular case of the response of DOG1 expression to changes in environmental factors, such as temperature, during seed development, which affect final seed dormancy levels.
The Chiang et al. study uses three Swedish lines, Lov-5 (Lv), Bil-7 (Bi) and Ull2-3 (Ul). Lv and Bi live in similar latitudes, which appear to be equivalent to those of the northern Swedish lines used by Kerdaffrec et al. The Ul line lives in a latitude equivalent to that of the southern Swedish lines used by Kerdaffrec et al. Nevertheless, these three lines belong to the northern group in Chiang et al. and they do not appear to report marked differences regarding DOG1 expression between these three accessions.
The Nakabayashi et al. study is mainly concerned with the Ler and Cvi ecotypes where a correlation between DOG1 expression and dormancy levels takes place. However, in a more recent study Nakabayashi et al. take notice of the absence of correlation between DOG1 expression and dormancy levels in Col-0 ("Surprisingly, a comparison of DOG1 transcript and dormancy levels in the low dormant accessions Ler and Col, and the dormant line NIL DOG1 (which contains the Cvi allele of DOG1) showed that this correlation was absent in Col, which has relatively high DOG1 transcript levels (Figure 5A and 5B)"). Furthermore, in that study DOG1 protein levels in Col, Ler and Cvi also correlate with DOG1 mRNA levels. This clearly poses a challenge to the notion that DOG1 expression and dormancy levels are correlated. This led Nakabayashi et al. to study DOG1 protein self-binding ability, which could be associated with a change in its activity. Self-binding ability would vary according to the different DOG1 isoforms produced by splicing variants of the DOG1 gene (Nakabayashi et al. 2015). Finally, Nakabayashi et al. propose that DOG1 self-binding ability can contribute to natural variation (Nakabayashi et al. 2015).
Because of the significant uncertainties regarding the link between DOG1 expression and dormancy levels, authors must show that there is indeed a correlation between the GR21 values and the DOG1 expression in the dormancy of the Swedish lines particularly those carrying SNP2 and SNP3.
After using different SNPs as starting points for a multi-locus GWAS, authors found that the optimal model with SNPS located in the promoter region of DOG1 (SNP2 and SNP3) explains 57% of the variations in dormancy among the Swedish Arabidopsis inbred lines.
This reviewer wonders about the contribution of the remaining SNPs. There are some SNPs in chromosomes 3 but also chromosome 4 nearly reaching the threshold of significance. Could they represent potential loci regulating dormancy?
Next authors use a transgenic approach to evaluate the contribution of the dormant alleles (SNP2 or SNP3) using the dog1-2 mutant background. Transgenes containing SNP2 and SNP3 confer higher dormancy than controls (Figure 3B).
In absence of quantification of DOG1 mRNA levels, this approach is not really testing the hypothesis that SNP2 and SNP3 contribute to dormancy by virtue of their effect of DOG1 gene expression.
As above, authors must show a correlation between DOG1 mRNA levels and dormancy in the three transgenic lines of Figure 3B.
In this manuscript the authors use genome-wide association (GWA) mapping in a set of 161 accessions from Sweden to identify the genetic architecture underlying variation in seed dormancy in Arabidopsis thaliana. The reported GWA mapping results identify DOG1 as a strong candidate locus accounting for 57% of the variation. This confirms the previous results that identify DOG1 as the causal gene underlying a seed dormancy QTL in a diallelic synthetic population, correctly cited in this manuscript. Using 8 different diallelic synthetic F2 populations, and transgenic complementation, the authors go on to identify 4 DOG1 haplotypes in this Swedish population (3 dormancy and 1 non-dormancy alleles). Interestingly, the distribution of these alleles on the landscape matches the distribution of the dormancy phenotype. The non-dormancy allele is mainly found in the northern plants where non-dormancy is prevalent. The 2 most prevalent dormancy alleles being found in the southern plants where dormancy is more common. This suggests that variation at DOG1 is adaptive, and this supported previously published work, correctly cited in this manuscript. To obtain evidence that these various DOG1 alleles are adaptive the authors performed a 1-year, single site common garden experiment in the field in Southern Sweden. At this site the authors evaluate the allele frequency of the non-dormant allele and the 2 most common dormancy alleles that are segregating in 2 diallelic synthetic F2 populations. By assessing the allele frequency at sowing in early spring and again in September, November and in the seed bank the authors reveal that the frequency of both DOG1 dormancy alleles increases from sowing to seed back and that the frequency of the non-dormancy DOG1 allele decreases. The authors conclude that this evidence 'lends credence to the notion that the observed distribution of dormancy and DOG1 alleles reflects local adaptation'. I think this is a very reasonable statement. It is of cause a shame that the authors did not repeat this experiment over multiple years and also included a northern site where they could have tested the adaptive potential of the non-dormancy allele (early germination to avoid early killing frosts in the fall perhaps).
In conclusion, the authors make the statement 'the study of flowering and dormancy variation in A. thaliana are starting to reveal a similar picture: multiple, often complex, alleles at a relatively small number of loci account for much of the variation (Sasaki et al. 2015; Li et al. 2014)'. The authors could have also made a similar statement about variation in mineral uptake by plants (Chao et al., 2012; Forsberg et al., 2015).
Overall this is a nice GWAS which gets to the underlying alleles through a combination of association genetics, linkage genetics in F2 mapping populations and transgenic complementation. This in itself is not novel in the GWAS field. However, what makes this manuscript stand out for me is the field work component that starts to test in the field if the different alleles of DOG1 are adaptive. These field experiments have limitations (only performed in 1 year and at one site) but I think these experiments still differentiate this work from the growing body of published GWAS, and as such raise the potential impact of this work.
The manuscript provides interesting results on the genetic basis and fitness consequences of dormancy variation in A. thaliana. A significant finding is that in Swedish material, one locus, DOG1, is highly important in governing variation in dormancy. Earlier authors have also shown that DOG1 is likely important for local adaptation, but with different sampling and methods. Further, the authors have conducted field experiments to evaluate the fitness consequences of the variation, a valuable contribution. However, this part of the manuscript would benefit from clarification.
The genetics part provides interesting results. The complexities of mapping are nicely illustrated and resolved in this case study. Combining QTL mapping, association mapping, and transformations seems useful to characterize the effects of different haplotypes.
The data on correlations with climate variables do not seem so informative. With sampling heavily in the south and then in the north, with little in between, most variables are highly correlated with latitude. In fact, a more interesting question would be whether any climate variables can account for the considerable variation in GR21 in southern Sweden. For this reason, it would also be interesting to see on the map where the field experiment was located.
As mentioned, the field experiment is potentially very interesting. In the main text, the experiment is not sufficiently described. While the details should of course be in Materials and methods, it would be nice to have enough in the results to be able to follow the reasoning. For instance, the final sample sizes should be listed, and the origin of the materials, and the place of the field site should be on the map.
Also, it was not really clear what populations the allele frequencies that are shown were calculated for. Seeds were sown, they germinated, and were sampled in September and November and later. Reading details in Materials and methods shows that the allele frequencies are of seedlings available at the sampling date, and if I assume correctly, the seedlings were discarded after sampling. In this case, the allele frequencies are not for population data, but for germinating seeds. Any differences e.g. in post-germination survival are not included? So seeds that inherited for parents a late germinating haplotype also germinate later in the wild, and other fitness components were not studied. Now the non-dormant populations are all from the north – the poor success of the non-dormant seeds/seedlings could presumably be related to other linked loci in the F2 progenies. The delay of germination of the D2 and D3 haplotypes seemed pretty similar earlier (in the transformants). At least in some parts of southern Sweden nearly a third of the plants seem to be very early germinating, and the frequencies non-dormant haplotypes are very high. So, one could assume that in southern Sweden there are other important fitness components. If there is something I misunderstood, the writing could be clearer, if not, then it would be good to point out that only a part of the life cycle was studied and that there may be other fitness effects later. This part of the work could be much clarified. (Further, to demonstrate local adaptation, it would of course have been good to have another experiment in the north.)
Kronholm et al. (2012) did a thorough study on DOG1 effects, in wider geographical area. It would seem that the present work could be more compared to those results. The key finding of multiple haplotypes was already presented. They also had extensive analysis of the phenotypic variation. Now the paper is just referenced a couple of times.https://doi.org/10.7554/eLife.22502.028
- Magnus Nordborg
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
This work was supported by European Research Council grant 268962 (MAXMAP) to MN. We thank members of the Nordborg lab for illuminating discussions, Caroline Broyart, Malte Jönsson, Nils Jönsson, Svante Holm, Torbjörn Säll and Ann Espelund for help with the field experiments, Wim Soppe and Santosh Satbhai for providing us with biological material, Bjarni J Vilhjálmsson for making the ‘mixmogam’ package available, the VBCF NGS Unit (www.vbcf.ac.at) for performing Illumina sequencing, Harald Scheuch for running the 384-SNP Illumina GoldenGate genotyping assays, and Joy Bergelson and Caroline Dean for comments on the manuscript.
