Complementary codes for odor identity and intensity in olfactory cortex

  1. Kevin A Bolding
  2. Kevin M Franks Is a corresponding author
  1. Duke University Medical School, United States
Research Article
Cited
4
Views
1,853
Comments
0
Cite as: eLife 2017;6:e22630 doi: 10.7554/eLife.22630

Abstract

The ability to represent both stimulus identity and intensity is fundamental for perception. Using large-scale population recordings in awake mice, we find distinct coding strategies facilitate non-interfering representations of odor identity and intensity in piriform cortex. Simply knowing which neurons were activated is sufficient to accurately represent odor identity, with no additional information about identity provided by spike time or spike count. Decoding analyses indicate that cortical odor representations are not sparse. Odorant concentration had no systematic effect on spike counts, indicating that rate cannot encode intensity. Instead, odor intensity can be encoded by temporal features of the population response. We found a subpopulation of rapid, largely concentration-invariant responses was followed by another population of responses whose latencies systematically decreased at higher concentrations. Cortical inhibition transforms olfactory bulb output to sharpen these dynamics. Our data therefore reveal complementary coding strategies that can selectively represent distinct features of a stimulus.

https://doi.org/10.7554/eLife.22630.001

Introduction

Olfaction plays a central role in finding food, avoiding predators and selecting a mate, and is thus crucial for survival. These behaviors require that an animal can extract and represent different features of the odor stimulus. For example, an animal following a scent trail must be able to reliably recognize the target odor over a large range of concentrations. However, the animal must also be able to discriminate small changes in odorant concentration if it is to track the scent to its source. This presents a challenge for the olfactory system because it must form a representation of odor identity that is robust to changes in concentration while simultaneously retaining the ability to represent odor intensity.

Odors are detected by an array of odorant receptors on olfactory sensory neurons in the nasal epithelium. Each olfactory sensory neuron expresses just one type of odorant receptor, and all sensory neurons expressing a given receptor project to a unique pair of glomeruli in the olfactory bulb, so that odors are first represented by combinations of active glomeruli that each represent elemental molecular features of the odorant (Wilson and Mainen, 2006). This information is then projected by olfactory bulb mitral/tufted cells to piriform cortex, where it is integrated and synthesized, and thought to give rise to the perception of ‘odor objects’ that should represent different features of the odor, including its identity and intensity (Gottfried, 2010; Wilson and Sullivan, 2011).

Odors activate distributed and overlapping ensembles of piriform neurons, with a small fraction of cells responding strongly to any given stimulus (Illig and Haberly, 2003; Rennaker et al., 2007; Poo and Isaacson, 2009; Stettler and Axel, 2009). Studies in awake, behaving rodents have shown that different odorants can be accurately decoded from populations of piriform neurons using spike counts across the population (i.e. a rate code), with little additional information provided by spike time (Miura et al., 2012). These decoding analyses only examined piriform responses to different odorants at a single concentration. However, odor identity, as one feature of the odor stimulus, should be largely independent of odorant concentration. Thus, it is unclear which features of the cortical response represent odor identity per se.

While input to olfactory bulb glomeruli is strongly concentration-dependent (Rubin and Katz, 1999; Spors and Grinvald, 2002), olfactory bulb output may be normalized over a large range of concentrations (Banerjee et al., 2015; Sirotin et al., 2015; Economo et al., 2016; Roland et al., 2016). Therefore, it is unclear how, or even if, odor concentration is represented in piriform cortex (Sugai et al., 2005; Stettler and Axel, 2009; Xia et al., 2015). Odors typically retain their perceptual identities across a range of concentrations (Krone et al., 2001; Laing et al., 2003; Homma et al., 2009). It may be the case that piriform odor representations are largely concentration-invariant. Alternatively, identity and intensity could be represented by different and independent features of the neural response. No previous studies have attempted to decode odor concentration from neural activity in piriform cortex. Therefore, three fundamental questions remain unanswered: how is odor identity represented in piriform cortex, how is odor intensity represented in piriform cortex, if at all, and how do piriform representations of odor identity depend on odorant concentration?

A dissociation of temporal and rate codes in piriform cortex could give rise to non-interfering representations of identity and intensity (Hopfield, 1995; Schaefer and Margrie, 2007). Odors activate different olfactory bulb glomeruli and mitral/tufted cells at specific phases of the respiration cycle (Spors et al., 2006; Bathellier et al., 2008; Cury and Uchida, 2010; Shusterman et al., 2011). Increasing odorant concentration typically does not increase spiking systematically in responsive mitral/tufted cells, but rather decreases their onset latencies (Chalansonnet and Chaput, 1998; Cang and Isaacson, 2003; Margrie and Schaefer, 2003; Fukunaga et al., 2012; Sirotin et al., 2015). Therefore, the same subset of mitral/tufted cells may be activated by a given odorant at different concentrations, but with shorter latencies at higher concentrations. Thus, if different features of the piriform response are sensitive to the spatial and the temporal (Haddad et al., 2013) patterns of its input from olfactory bulb, then these features could independently represent odor identity and odor intensity.

To test these predictions we recorded odor-evoked spiking activity in populations of piriform cortex neurons in awake, head-fixed mice. We found that different odorants activated distinct ensembles of piriform neurons but neither ensemble size nor spike counts in responsive neurons were systematically concentration-dependent, indicating that a rate code cannot be used to represent odor intensity. Instead, we find that responses occur in two phases that become more synchronous at higher concentrations. These concentration-dependent dynamics are not simply inherited from olfactory bulb; intracortical inhibition is sharpened at higher concentrations, suggesting its role in actively transforming input from bulb. Using a linear decoder to classify single-trial responses, we show that odor identity is accurately encoded by the ensemble of activated neurons. By contrast, intensity is represented by the latency of neurons that respond more slowly. We therefore propose that odor identity and odor intensity are represented using distinct and non-interfering coding strategies in piriform cortex.

Results

We recorded extracellular spiking activity in large populations of anterior piriform cortex neurons in awake, head-fixed mice (Figure 1A). Probes were positioned to span layer II of anterior piriform cortex, with the most ventral electrodes in layer I and the most dorsal electrodes in layer III (Figure 1B). Our dataset contains 459 layer II neurons from nine separate recordings in five mice (Figure 1C; 33–73 well-isolated units per recording, see Methods and Figure 1—figure supplement 1A–E). In a subset of these experiments (6/9) we obtained simultaneous recordings from olfactory bulb cells (126 neurons from ventrolateral mitral cell layer, see Materials and methods). Piriform cortex cells typically had low spontaneous firing rates with a log-normal distribution (mean: 3.09 Hz; median: 1.68 Hz; st. dev: 3.93 Hz; range: 0.0028–40.8 Hz; Figure 1—figure supplement 1F). Individual cells exhibited weak phase preferences that were uniformly distributed across the sniff so that, unlike in anesthetized conditions (Rennaker et al., 2007; Poo and Isaacson, 2009), population spiking was decoupled from respiration (Figure 1—figure supplement 1G). We estimate that ~93% of these units were principal neurons (see Figure 9), which is consistent with histological measures (Suzuki and Bekkers, 2010). These results indicate that our recordings sampled large and relatively unbiased populations of neurons. We first recorded cortical responses evoked by different monomolecular odorants at a nominal concentration (0.3% v./v.) and examined spiking activity across the population for the first sniff after odor onset (Figure 1D). While animals typically sniffed actively after odor offset (Figure 1D), respiration barely changed during the odor presentation (see Figure 2—figure supplement 1C), indicating that odor-evoked changes we observed in neural activity were not complicated by changes in sniffing. We aligned trials to the onset of inhalation. Some cells had very selective, reliable and precise responses (Figure 1E, cell 1) while others were somewhat less selective or precise (Figure 1E, cell 2), and many cells were suppressed by odor (Figure 1E, cell 3). To examine population activity, we constructed response vectors by counting the number of spikes each cell fired in a single sniff. Averaged responses to different odorants for one simultaneously recorded population of neurons are shown as firing rates (Figure 1F) and using a response index that quantifies discriminability of odor responses versus blank (Figure 1G). A response (i.e. a cell-odor pair response) was defined as ‘activated’ or ‘suppressed’ if spiking was statistically significantly higher or lower over the first full respiration cycle compared to a mineral oil ‘blank’ (p<0.05, rank-sum test). Using this strict criterion, 23% of cells (105/459 cells) were activated by at least one of the six odors, while 33% of cells (150/459 cells) were suppressed, and on average, each odor activated and suppressed 6.7% and 13.3% of cells, respectively (Figure 1—figure supplement 2). (These data are largely consistent with previous studies (Rennaker et al., 2007; Poo and Isaacson, 2009; Stettler and Axel, 2009; Zhan and Luo, 2010; Miura et al., 2012).

Figure 1 with 3 supplements see all

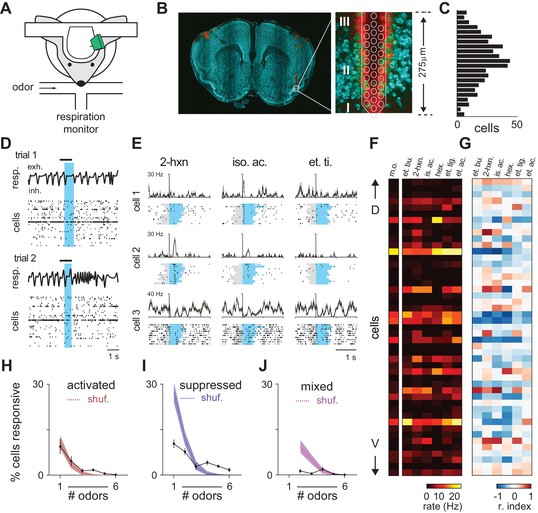

Odor responses in piriform cortex.

(A) Schematic of experimental setup. (B) Left, Coronal brain section showing region of anterior piriform cortex where recordings were obtained. Multielectrode probes were painted with DiI to mark recording locations (red, DiI; green, NeuroTrace). DiI in the left hemisphere is from a separate recording. Right, higher magnification image of boxed area on left, superimposed with a schematic at scale of a 32-channel probe. Numerals indicate piriform layers. Note the electrode tip spans layer II. (C) Dorso-ventral (DV) distribution of 459 isolated cells (n = 9 experiments) determined by measuring the center of mass of each unit’s waveform amplitudes recorded on different channels across the probe. (D) Population activity and timing of odor delivery. One-second odor pulses (black bar, isoamyl acetate) were triggered on exhalation. Blue shaded region indicates first full respiration cycle after odor onset. Population raster plots below display spiking activity of 33 simultaneously recorded cells sorted by estimated DV position within layer II. (E) Inhalation-aligned raster plots showing responses of three simultaneously recorded cells to three different odor stimuli (0.3% v./v.). Gray shading indicates odor delivery. Blue shading indicates respiration cycle. Cells displayed varying degrees of odor specificity, activation or suppression, and temporal precision. (F–G) Population responses in a representative experiment with 48 simultaneously recorded neurons sorted by relative DV location responding to six different monomolecular odorants (0.3%). (F). Firing rates during the first respiration cycle after odor onset. A mineral oil control is shown on left. (G). Same data expressed using a response index where cells with response index values of −1 (blue) and 1 (red) are unambiguously suppressed or activated, respectively. Odors: et. bu., ethyl butyrate; 2-hxn., 2-hexanone; is. ac., isoamyl acetate; hex., hexanal; et. ti., ethyl tiglate; et. ac., ethyl acetate. (H–J) Percent cells responding to different numbers of odorants with significantly increased spiking (H), decreased spiking (I), or mixed polarity responses (J). Filled circles are mean ± s.e.m. (n = 9). The dashed line denotes the expected distribution when cell identities are shuffled; shaded area, 5th–95th percentiles.

https://doi.org/10.7554/eLife.22630.002

Functionally distinct subpopulations of piriform neurons

However, we observed considerable trial-to-trial variability across the population following repeated presentations of the same odorant. The ability to resolve some cells with exquisitely reliable and precise responses (e.g. cell 1 in Figure 1) indicates that this variability cannot be explained by poor stimulus control or misaligned responses, but rather is a true reflection of the population response which could impact odor recognition and discrimination. To quantify that we computed correlations between single-trial response vectors for repeated presentations of the same odorant (0.48 ± 0.12; n = 6 odors, 9 recordings). We then compared these to responses to different odors. Inter-odorant responses were significantly lower, but nevertheless much higher than expected by chance (0.38 ± 0.09, p<0.001, paired t-test).

Olfactory bulb projections to piriform cortex show no discernible topography. If each piriform cell was driven by solely by inputs from a random subset of glomeruli, their responses to different odors would be independent. In this case, we would expect zero correlations between responses to different odors. Why then are responses to different odors so highly correlated? If ensembles were independent we would expect many cells to be activated by some odors and suppressed by others. Instead, we found overrepresented populations of cells that were either broadly activated or broadly suppressed. (Figure 1H,I, Figure 1—figure supplement 3A). Moreover, only 4% of cells (18/459 cells) showed mixed responses, whereas the distribution of mixed responses predicted from independent ensembles would be 14% (66/459; Figure 1J, Figure 1—figure supplement 3B). Our data therefore suggest that there are functionally distinct subclasses of piriform neurons that encode odor stimuli exclusively through either activation or suppression, consistent with a recent imaging study (Otazu et al., 2015). We looked for other properties that could distinguish activated and suppressed cells but found no differences in their waveforms or sublaminar positions (Figure 1—figure supplement 3C–E). Future experiments will therefore be required to distinguish and further characterize these two cell types.

Decorrelation and normalization across concentration in bulb and cortex

Odors could retain their perceptual identities over a range of concentrations, if cortical odor responses were concentration-invariant. In fact, it remains unclear whether or how output from olfactory bulb depends on concentration. To address this question we compared responses across odorants or across concentrations of a given odorant (0.03–1%, Figure 2—figure supplement 1) in simultaneously recorded populations of olfactory bulb mitral cells and piriform cortex neurons (Figure 2A). Trial-to-trial correlations within and across stimuli were lower in piriform cortex than in olfactory bulb (Figure 2B). Notably, correlations in both olfactory bulb and piriform cortex decreased systematically with differences in concentration, becoming as dissimilar over a 30-fold concentration range as responses to two different odorants. This analysis reveals that odor representations in both olfactory bulb and piriform cortex, defined by spike counts, are not concentration invariant.

Figure 2 with 1 supplement see all
Concentration-dependent suppression in piriform cortex.

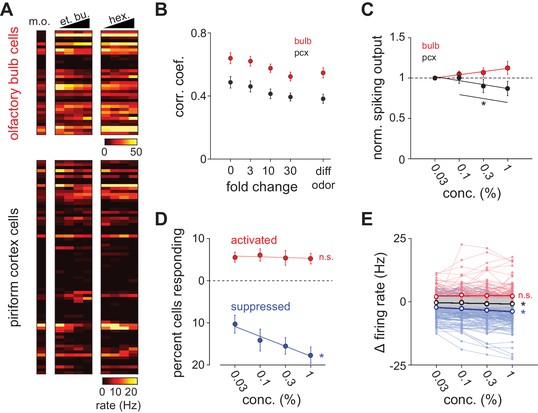

(A) Simultaneous population recordings were obtained from olfactory bulb and ipsilateral piriform cortex in 6/9 experiments. Responses are represented as average firing rates over the first respiration cycle after odor delivery for one example experiment. (B) Average trial-by-trial correlation coefficients of population firing rate vectors in olfactory bulb (red circles; n = 6) and piriform cortex (black circles; n = 9), as a function of fold change in concentration for the identical odorant (0–30) or with a distinct odorant at any concentration (diff odor). (C) Total spiking output as a function of concentration in bulb (red circles; repeated measures ANOVA for concentrations 0.1–1%, F(2, 22)=1.66, p=0.21) and piriform cortex (black circles; n = 12, repeated measures ANOVA for concentrations 0.1–1%, F(2, 22)=11.08, p<0.001). Lines are fit to means as a function of concentration. Normalized spiking output did not differ significantly from 1 for any concentration in either region (one sample t-test, p>0.05). (D) Percent piriform cortex neurons significantly responding with increases in firing rate (red circles) or decreases in firing rate (blue circles; p<0.05, Wilcoxon rank-sum test vs. blank stimulus, n = 9). Lines are fit to means as a function of concentration. The percent of suppressed cells increased with concentration but the percent of activated cells did not change (repeated measures ANOVA, activated: F(3, 24)=0.25, p=0.86; suppressed: F(3, 24)=10.83, p<0.001). (E) Average piriform firing rates are not systematically concentration-dependent. Change in firing rate compared to blank responses for all cells for both concentration series (n = 918). Black unfilled circles are mean firing rate changes as a function of concentration for all recorded cells (s.e.m. smaller than marker size). Thin red and blue lines indicate concentration curves for cells that were significantly activated or suppressed for at least one concentration. Unfilled red and blue circles are mean changes in firing rate for these activated and suppressed cells, respectively. Thin gray lines are concentration curves for cells that were unresponsive at any concentration. Average firing rates changed for all responses and for suppressed responses as a function of concentration, but not for activated responses (repeated measures ANOVA, all: F(3, 2751)=23.00, p<0.001; activated: F(3, 354)=1.24, p=0.30; suppressed: F(3, 705)=40.08, p<0.001).

https://doi.org/10.7554/eLife.22630.006

We next asked how odor intensity is encoded in piriform cortex. Intensity may be encoded by a simple, systematic concentration-dependent increase in spiking. This type of cortical rate code would predict that spiking output from olfactory bulb also increased. However total bulb spiking remained unchanged across concentrations (Figure 2C), indicating that substantial normalization occurs in olfactory bulb, consistent with recent imaging (Banerjee et al., 2015; Economo et al., 2016; Roland et al., 2016) and electrophysiology (Sirotin et al., 2015) studies. Interestingly, total spiking in piriform cortex decreased slightly at higher concentrations (Figure 2C). Nevertheless, a rate code could still be used to represent odor intensity if increased spiking in some cells was balanced by stronger suppression in others. Our data argue against this. First, the number of activated neurons did not change with concentration, although more cells were suppressed at higher concentrations (Figure 2D). Second, spiking in individual activated cells showed no systematic relationship to odorant concentration, although, again, suppression was weakly concentration-dependent (Figure 2E). Given the low firing-rate of piriform neurons, it seems unlikely that intensity could be encoded by weak suppression. Therefore, a simple rate code cannot be used to represent odor intensity in piriform cortex.

Cortical synchrony increases with odor concentration

We therefore next asked if odor concentration might instead be encoded using temporal features of the population response. To reveal concentration-dependent changes in response dynamics we generated peri-stimulus time histograms (PSTHs, 10 ms kernel) for populations of simultaneously recorded piriform neurons. Population spiking from an example experiment is shown in Figure 3A. We observed a rapid increase in population spiking, peaking within 50–100 ms after inhalation. This was followed by a second phase of population spiking: at low concentrations the second phase was large and distinct from the first, however, as concentrations increased its latency decreased systematically so that the two phases of the response became more synchronous. Averaging across all experiments (Figure 3B), we again found a rapid increase in spiking that occurred within 50–100 ms after inhalation. This peak increased slightly at higher concentrations (0.03% mean ± st. dev.: 4.39 Hz ±1.33 Hz; 1%: 5.14 Hz ±2.16 Hz; repeated measures ANOVA, F(3, 51)=3.78, p=0.0159, n = 18). This small increase in peak spiking, together with the small decrease in total spiking, indicates that there is a systematic, concentration-dependent redistribution of spike times (Figure 3C).

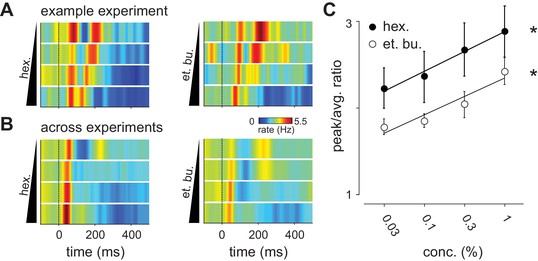

Distribution of spike times changes with concentration.

(A) Population PSTHs averaged across, and normalized by, all 48 cells in an example experiment are shown as a function of concentration of ethyl butyrate (left) or hexanal (right). Dashed line indicates inhalation onset. (B) As above but with PSTHs averaged across all 459 recorded cells as a function of concentration. (C) The peak/average ratio, which indicates synchrony, increases significantly with concentration for both odors (repeated measures ANOVA, et. bu.: F(3, 24)=7.44, p<0.01, n = 9; hex.: F(3, 24)=6.29, p<0.01, n = 9).

https://doi.org/10.7554/eLife.22630.008

We observed sustained concentration-dependent suppression following the first peak. When averaging across cells in a population, suppression of some cells masks the activation of others. Therefore, rather than examining total population spike rate, we examined the timing of single cell responses. We selected cells with a detectable peak in the PSTH (i.e. cells that spiked at least once on any trial) in response to all four concentrations of either odorant (412/918 cell-odor pairs). Response times in some cells were similar across concentrations (Figure 4A, cells 1 and 2) while response latencies in other cells decreased systematically at higher concentrations (Figure 4A, cells 3 and 4). Note that although response latencies decreased, response amplitudes often remained constant or even decreased with concentration. Because most cells have low spontaneous firing rates (Figure 1—figure supplement 1) and brief response durations (Figure 1—figure supplement 2), we could define each cell’s response by its latency to peak. Across the population, we found a systematic concentration-dependent decrease in response latency (Figure 4B).

Figure 4 with 1 supplement see all
Odor concentration alters response timing.

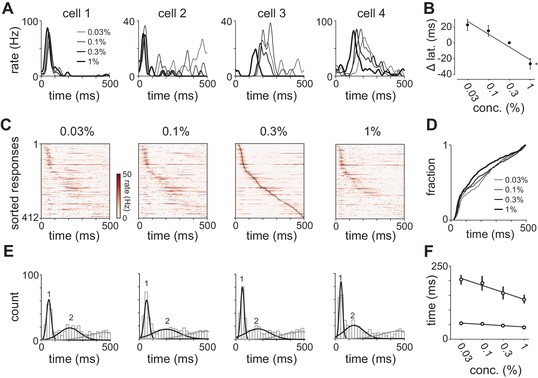

(A) Odor-evoked changes in firing rate for four cells in response to different odorant concentrations. Response latencies systematically decreased at higher concentrations in some activated cells but not in others. (B) Response latencies averaged across all piriform cortex cells decreased with concentration (repeated measures ANOVA for relative latencies at 0.03%, 0.1%, and 1%, F(2, 1834)=25.85, p<0.001; n = 918). Relative latencies at each concentration were significantly different from 0 (one sample t-test for 0.03%, 0.1%, and 1%, p<0.05, n = 918). Line is fit to relative latency means as a function of concentration. (C) PSTHs for responses in which a peak could be identified within the 500 ms response window. Cells are sorted by their latencies to peak at 0.3% v./v. with the same sorting order maintained for responses at different concentrations. Black dots indicate times of peak response. (D) Cumulative distributions of latencies to response peak at different concentrations. (E) Histograms of latency to peak distribution overlaid with fits for a mixture of three Gaussians. Note that while peak latencies decreased systematically at higher concentrations the timing of the earliest responses was largely concentration-invariant. (F) Timing of the first and second peaks of Gaussian fits (see Figure 4—figure supplement 1) for the distribution of latencies to peak activation (black circles, error bars are 2.5–97.5th percentile of bootstrap model fits).

https://doi.org/10.7554/eLife.22630.009

To then determine how response times in individual cells change with concentration we sorted cells by their latencies to peak at a given concentration (0.3%, Figure 4C). This analysis revealed a systematic decrease in response latencies at higher concentrations (Figure 4D). However, the earliest responses were largely concentration-invariant, and concentration-dependent effects were greatest for cells that responded >100 ms later, suggesting again that there are functionally distinct classes of responses. In fact, the distributions of response latencies at all four concentrations were well fit by a mixture of Gaussian functions (Figure 4E, Figure 4—figure supplement 1). Time to peak of the first Gaussian barely changed across concentrations while the peak of the second Gaussian shifted systematically from 206 ms at 0.03% to 136 ms at 1% (Figure 4F). A third Gaussian was used to fit later components of the response, and parameters for this distribution were held constant while fitting the other two (Figure 4—figure supplement 1). Thus, the cortical odor response is composed of two phases that become more synchronous at higher concentrations.

Different strategies for encoding odor identity and odor intensity

We next used a decoding analysis to reveal features of the cortical response that represent distinct features of the odor. To do this, we trained and tested a linear classifier on single-trial responses using three different types of response vectors that contained various amounts of information about the piriform response (Figure 5A). Binary response vectors simply indicate whether or not a cell responded (i.e. spike counts greater than one st. dev. above baseline) on each trial. By discarding all information about both the strength and timing of the response, as well as any information that may be conveyed by suppression, this approach determines how well a simple ensemble membership code can represent the odor. Spike count vectors contain information about the strength of each cell’s response but no information about spike timing. Finally, spike count vectors subdivided into 30 ms bins to provide information about spike times.

Figure 5 with 5 supplements see all
Coding strategies for representations of odor identity and intensity.

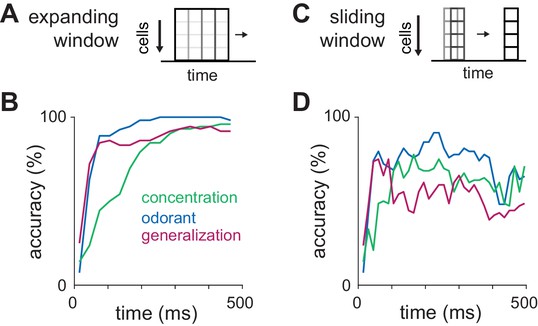

(A) Feature vectors for classifier analysis were constructed as either spike counts summed over a 480 ms response window (middle), as binary activation vectors (top), or as spike counts for 16 concatenated 30 ms bins over the same time period (bottom). Binary activation vectors were constructed according to a 1 st. dev. threshold above mean spike counts on blank trials. (B) (Left) Classification accuracy for identifying one of six different odorants as a function of number of cells using binarized spike counts (magenta), summed spike counts (green) or binned spike counts (black). Data are mean accuracy for 200 permutations of pseudopopulation construction. Differences in classification accuracy using different coding schemes failed to reach statistical significance (p>0.05, see Figure 5—figure supplement 2). Classifier performance using shuffled trial label-spike counts (grey) was at chance levels (dashed line). (Right) Points illustrate accuracy for individual pseudopopulations at low sample sizes using binned spike count representations. Distribution of accuracies using different 25-cell populations is shown at the right for each coding scheme. (C) Same as B for classification for one of four concentrations of the same odorant. Spike time information markedly enhances intensity decoding accuracy. Accuracy for each permutation was the average of accuracy for the two different concentration series. Shading indicates points at which decoding accuracy was significantly different (p<0.05) for different coding schemes. (D–E) Odor identity classification accuracy for a classifier trained with all stimuli except for one concentration of the target odorant (n = 11 different stimuli) and then tested using the withheld responses. Accuracy was assessed for correctly identifying the odorant regardless of concentration. Differences in classification accuracy using different coding schemes failed to reach statistical significance (p>0.05).

https://doi.org/10.7554/eLife.22630.011

We first asked the decoder to classify responses to six different odorants at a single concentration (0.3%). We varied the number of cells in different sized pseudopopulations, testing coding accuracy using 200 different, randomly selected subsets of cells per population size. Odorant classification accuracy, averaged across pseudopopulations, quickly rose using all three types of response vectors (mean number of cells to reach 90% accuracy: membership, 145 cells; summed, 115 cells; binned, 75 cells; Figure 5B). However, because individual cells convey different amounts of information about the stimulus, classifier outcomes varied across permutations. However, differences in classifier performance with the same sets of cells using any of the three different coding schemes did not reach statistical significance over any tested population sizes (Figure 5—figure supplement 2). Odorant classification did not depend on stimulus concentration (Figure 5—figure supplement 3). Also, classifier performance using real populations of simultaneously recorded cells and pseudopopulations of cells sampled across experiments was equivalent (Figure 5—figure supplement 4).

We next asked the decoder to classify responses evoked by a given odorant at one of four different concentrations. In general, concentration classification was less accurate than classification of different odorants. Classifier performance using binary response vectors as inputs was relatively poor and did not reach the 90% accuracy criterion. However, classification was still much better than chance (Figure 5C), indicating that an odor at different concentrations activates highly overlapping but nevertheless distinct ensembles of piriform neurons. Classification accuracy only improved marginally when using spike count vectors (90% accuracy with 425 cells; Figure 5—figure supplement 2B). This result indicates that the strength of each cell’s response provides little information about odor concentration and is consistent with data presented in Figure 2. However, if spike time information is used to represent odor intensity then using binned response vectors should improve classification. Indeed, classification accuracy and efficiency increased significantly using binned response vectors (90% accuracy with 210 cells; Figure 5—figure supplement 2E). Thus, we conclude that spike time information provides more information about odor concentration than spike count. Classifier performance did not qualitatively depend on bin size or type of classifier (Figure 5—figure supplement 5).

These analyses examine decoding of responses to different odorants or to different concentrations of a given odorant but they do not actually examine how odor identity per se is encoded. To do this, we derived a generalization task (Figure 5D). We used responses from our full odor stimulus panel in which some of the odorants were presented at multiple concentrations. We removed responses to an odorant at one concentration and trained the classifier on the remaining set of responses. We then asked the classifier to identify the odorant of the eliminated set of responses; that is, we asked the classifier to identify a familiar odor at a novel concentration. Classification accuracy was not statistically different using the three types of input vectors (Figure 5E) with, if anything, a trend towards slightly better performance using summed versus binned spike counts, and better performance still with a binary membership code (90% accuracy: binary, 310 cells; summed, 370 cells; binned, 425 cells; Figure 5—figure supplement 2C,F,I). In summary, we find that odor identity can be represented by the specific subsets of activated neurons, with no additional information provided by knowing when or how strongly each cell responded. Different concentrations of a given odor activate overlapping but nevertheless distinct cortical ensembles, and knowing when these ensembles respond provides substantially more information about odor concentration than knowing how strongly they respond.

Are odor representations in piriform cortex sparse?

Odor representations are said to be sparse in piriform cortex (Poo and Isaacson, 2009; Stettler and Axel, 2009; Miura et al., 2012; Otazu et al., 2015) and analogous structures in invertebrates (Perez-Orive et al., 2002; Honegger et al., 2011; Caron et al., 2013). However, our measures of both lifetime sparseness (0.34 ± 0.21; n = 459 cells); Figure 1—figure supplement 2) and population sparseness (0.68 ± 0.10, n = 54 population-odors) in awake, head-fixed mice are considerably lower than in urethane-anesthetized rats (Poo and Isaacson, 2009) and slightly lower than in trained rats performing an odor-discrimination task (Miura et al., 2012). This led us to revisit the question of sparseness. The distribution of classifier performances with random subsets of cells provides an alternate way to determine if cortical odor representations are sparse. Mouse piriform cortex contains ~106 neurons (Srinivasan and Stevens, 2017). If odor representations are sparse then randomly selecting small subsets of cells should produce a large and highly skewed distribution of classifier performances; in the vast majority of cases decoding accuracy will be poor as none of the selected cells will respond to the presented odors, but in a few cases decoding accuracy will be excellent if just the right combination of cells are selected. By contrast, if odor representations are dense then many cells will provide some information about most of the odors. In this case, accurate classification accuracy would be achieved using only a few cells, with a relatively small and normal distribution of classifier performances. Our data clearly support this second model. First, the range of performances is small. Randomly selected subpopulations of only 10 neurons had an average accuracy of >50%. Importantly, accuracy was above chance 98% of the time for this population size (Figure 5B). Second, we examined classifier performances when using subpopulations of 25 cells, when accuracy distributions are wide and should be highly skewed if odor representations are sparse. Instead, we found the distribution of performances were normally distributed when classifying different odorants (Figure 5B), concentrations (Figure 5C), or generalizing for odor identity (Figure 5E), using any of the decoding strategies. We therefore conclude that cortical odor representations are not especially sparse.

Dissociating representations of identity and intensity

Our data suggest two different ways in which spike time information could be used to accurately represent odor intensity. First, we find a systematic concentration-dependent increase in the initial peak of the population PSTH (Figure 3B). Second, we find a small but systematic decrease in latencies of later-responding cells (Figure 4D,F). Either of these can explain why decoding concentration is better using binned versus summed response vectors. To compare the relative contributions of the early and late phases we asked when information becomes available for accurate classification of both odor identity and concentration. Using an expanding window as input (Figure 6A), we could accurately classify the odorant and generalize for odor identity within ~100 ms after inhalation (Figure 6B). However, intensity decoding accuracy remained poor during the initial ~100 ms and then increased steadily over the next ~100 ms. This result supports a model in which the earliest inputs generate a concentration-invariant representation of odor identity and odor intensity is encoded by the relative timing of later responses. The ability to generalize for identity should therefore deteriorate as responses become more concentration-dependent. To test this prediction we trained and tested the classifier using responses in a sliding 30 ms window as input (Figure 6C), which indicates what features are represented at different phases of the sniff. Odorant classification was accurate throughout the sniff, indicating that responses to the different odorants were always distinct. As predicted, identity generalization also increased rapidly while concentration decoding accuracy remained poor for the first ~100 ms. However, as concentration decoding improved, the ability to generalize across concentrations decreased (Figure 6D), consistent with a trade-off between a concentration-invariant representation of odor identity and a representation of odor intensity. Interestingly, trained mice take longer to discriminate differences in odor concentrations than they require to discriminate distinct odors (Abraham et al., 2004). The differences we find in the amount of time required to represent identity vs. intensity could underlie, at least in part, this difference in reaction times. We note, however, that strategies that our classifier was not designed to decode, in piriform or elsewhere, could support rapid decoding of odor concentration (Resulaj and Rinberg, 2015).

Dissociating identity and intensity coding.

(A–B) Classification accuracy for odorant, intensity, or identity generalization as a function of integration time using an ‘expanding window’ consisting of feature vectors with increasing numbers of 30 ms bins for up to 480 ms. Pseudopopulations were constructed from all recorded cells (n = 459). The accuracy of intensity classification lags behind that for identity classification by ~100 ms and plateaus at a lower value. (C–D) Classification accuracy for odorant, intensity, or identity generalization as a function of time after inhalation using spike counts in a sliding 30 ms window as feature vectors. Note that while odorant classification accuracy remains elevated through the end of the sniff, generalization accuracy falls as concentration accuracy improves.

https://doi.org/10.7554/eLife.22630.017

Piriform cortex actively transforms olfactory bulb input

We next sought to examine the neural circuit mechanisms that underlie the concentration-dependence of cortical odor responses. If cortical responses simply reflect input from bulb then the two structures should have similar dynamics. However, only a few studies have examined how odor-response properties in populations of olfactory bulb mitral/tufted cells in awake rodents depend on odorant concentration (Fukunaga et al., 2012; Otazu et al., 2015; Sirotin et al., 2015). We therefore also examined odor responses recorded in olfactory bulb. As discussed above, total spike count did not change with concentration (Figure 2). As in piriform, the distribution of bulb response latencies was well fit with a mixture of Gaussians (Figure 7 and Figure 7—figure supplement 1). Latencies of the first responses were rapid and barely changed with concentration. These fast bulb responses overlapped with the first phase of piriform responses (Figure 7D), consistent with the earliest activated cells in bulb driving the fast responses in piriform. Again like piriform, latencies of the second peak in olfactory bulb responses decreased with concentration (Figure 7—figure supplement 1D). At low concentrations (0.03%) this peak appeared to occur earlier in bulb (192 ms) than piriform cortex (206 ms). However, interestingly, the second phase appeared to peak earlier in piriform (136 ms) than bulb (151 ms) at high concentrations (1%), although bootstrapped confidence intervals for the timing of these peaks overlapped.

Figure 7 with 1 supplement see all
Response latencies for olfactory bulb cells change with concentration.

(A) PSTHs for olfactory bulb responses sorted by their latencies to peak at 0.3% v./v. with the same sorting order maintained for responses at different concentrations. Black dots indicate time of peak responses. (B) Cumulative distributions of latencies to response peak at different concentrations. (C) Histograms of latencies to peak activation for olfactory bulb responses overlaid with fits for a mixture of three Gaussians. Olfactory bulb responses can clearly be divided into two phases but with different dynamics to those in piriform cortex. (D) Timing of the first and second peaks of Gaussian fits for the distribution of latencies to peak activation (red circles, error bars are 2.5–97.5th percentile of bootstrap model fits). Replotted results from Figure 4F show timing of peaks in piriform cortex (black circles).

https://doi.org/10.7554/eLife.22630.018

This analysis suggests two ways in which odor information from olfactory bulb is actively transformed within piriform cortex. First, the second phase of the response appears more pronounced in bulb than cortex. To compare these directly, we overlaid the distribution of response latencies in bulb and cortex. At all concentrations, the early peak in the bulb response aligned with the early peak in the piriform response (Figure 8A). However, the second phase of the response was much more pronounced in bulb than piriform, indicating that later bulb input is actively suppressed within piriform cortex. This result suggests that although individual mitral/tufted cells may fire at different phases throughout the sniff cycle (Bathellier et al., 2008; Cury and Uchida, 2010; Shusterman et al., 2011) piriform cortex is preferentially responsive to the earliest-active bulb inputs.

Olfactory bulb input is actively transformed in piriform cortex.

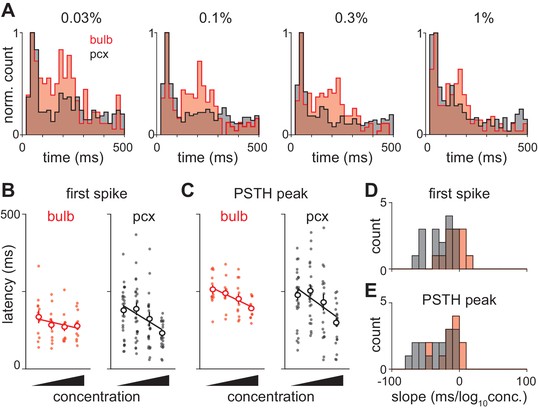

(A) Response peak latency histograms normalized to peak value and overlaid for bulb and piriform. The second phase of responses is more prominent in bulb than in piriform cortex at all but the highest concentration (KS test: 0.03%, 0.0263; 0.1%, 0.0160; 0.3%, 0.0145; 1%, 0.1603). (B–C) Example experiment showing changes in ethyl butyrate response latencies in simultaneously recorded populations of bulb and piriform cells. Response latency for each cell was taken as either the average time to first spike (B) or the average time to PSTH peak (C). Points are average response latencies for each cell at different concentrations. Lines are fit to the average of these points. (D–E) Distribution of fitted slopes for bulb (n = 12, 6 experiments * 2 odors, red) and piriform (n = 16, 8 experiments * 2 odors, red). Fitted slopes were reliably steeper as a function of concentration for piriform populations (unpaired t-test: first-spike, p=0.004; PSTH peak, p=0.016).

https://doi.org/10.7554/eLife.22630.020

Second, the shift in response latencies appears more pronounced in cortex than bulb. Variability from experiment-to-experiment may obscure some concentration-dependent changes in response dynamics. (For example, note the slightly longer latencies in the experiment shown in Figure 3A versus the average across experiments shown in Figure 3B). We therefore took advantage of our ability to record from large populations of neurons in bulb and piriform cortex to estimate concentration-dependent changes for each recording. We measured latency to first spike (Figure 8B) and latency to peak (Figure 8C) for each cell, and then fit a regression line through the population average to determine how the response changes with concentration. While latencies decreased systematically with concentration in both structures, both latency to first spike and latency to peak were more steeply concentration-dependent in piriform cortex (Figure 8D,E). Together, these data indicate an active transformation of bulb input within piriform cortex in which later inputs from bulb are suppressed and the population response is temporally sharpened with concentration.

Intracortical inhibition is sharpened at higher odor concentrations

To probe the circuit mechanisms that mediate this transformation we obtained a separate set of recordings in mice that express channelrhodopsin-2 (ChR2+) in inhibitory interneurons (VGAT-hChR2-YFP; Zhao et al., 2011; Hu et al., 2016; Large et al., 2016) using an optic-fiber-coupled recording probe (Figure 9A,B). As before, probes were positioned to span layer II. We identified ChR2+ cells with a series of light pulses (1s) before and after presentation of the odor panel. While light pulses suppressed spontaneous spiking in most neurons, ~7% of cells (35/512, n = 9 recordings) exhibited robust and sustained light-evoked spiking (Figure 9C). We concluded that these cells were ChR2+ and defined them as inhibitory interneurons. Thus identified, inhibitory interneurons responded to most odors with an increase in spiking (lifetime sparseness: 0.11; Figure 9D–F). This broadly tuned activation of inhibitory cells is consistent with the widespread suppression we observe across the population (Figure 1I).

Dynamics of cortical inhibition indicates their role in shaping piriform responses.

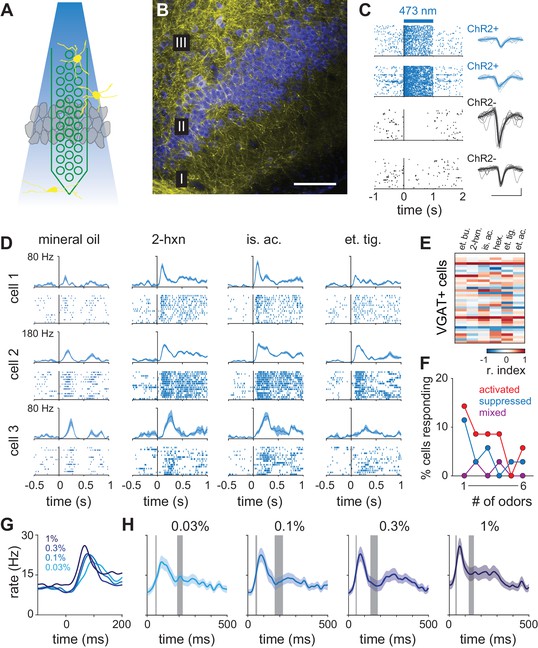

(A) Schematic of experiment. Optogenetic identification of ChR2-expressing neurons in piriform cortex of VGAT-ChR2-EYFP transgenic mice. (B) Coronal section of anterior piriform cortex of VGAT-ChR2-EYFP mouse showing dense innervation of layer II/III, consistent with feedback inhibition (yellow, anti-GFP; blue, neurotrace). Scale bar, 100 μm. (C) One second laser pulses (2.5 mW/mm2) evoke sustained responses in presumptive ChR2-expressing neurons (blue raster plots) but sustained suppression in most other cells (black). Scale bar, 50 μV, 1 ms. (D) PSTHs and raster plots for three VGAT+ cells responding to mineral oil control or three different odors. (E) Response matrix for all recorded VGAT+ cells (n = 35) responding to six different odors. (F) Tuning for all recorded VGAT+ cells. Responses tended to be positive and broadly-tuned. (G–H) Average PSTHs for all VGAT+ cell responses (lines and shading are mean ± s.e.m; n = 70, 35 cells x 2 odors) at four concentrations. (G) PSTHs shown on a short time scale. Stronger and earlier peaks occur at higher concentrations. (H) Average VGAT+ PSTHs overlaid with the bootstrap confidence intervals (gray bars) for the first and second peaks of the piriform cortex response latency distributions from Figure 3.

https://doi.org/10.7554/eLife.22630.021

Identified inhibitory neurons had prolonged responses (Figure 9D). To determine the time course of inhibition in the cortex, we therefore averaged responses of all VGAT+ neurons to generate inhibitory population PSTHs (Figure 9G). These revealed a sharp peak that rapidly decayed and then sustained at a lower level for the duration of the sniff. The peak amplitude of the PSTH increased systematically with concentration. Onset time was ~25 ms at all concentrations. However, latency to peak decreased (0.03%, 91 ms; 1%, 65 ms) and the initial peak became narrower (FWHM: 0.03%, 89 ms; 1%, 50 ms), indicating that cortical inhibition occurs earlier and sharpens at higher concentrations. This concentration dependence could arise from increased bulb input in the case of feedforward inhibition, or from the small increase in the initial peak of the population PSTH (Figure 3) in the case of feedback inhibition, or a combination of these. Future studies are required to dissociate the contribution of these two inhibitory processes.

Does this shift in inhibition play a role in controlling the dynamics of the cortical odor response? To address this question, we compared the inhibitory PSTHs with the timing of the two phases of the population response (Figure 9H). The first peak of the population response immediately preceded the increase in inhibition. Importantly, the second phase of the population response, whose timing changes with concentration, occurs immediately after the initial, sharp increase in inhibition has ended. This suggests that the onset of the second phase of the population response is shaped by intracortical inhibition.

Discussion

We proposed a multiplexed cortical odor-coding model in which odor identity is represented by specific ensembles of odor-responsive neurons while odor intensity is encoded using spike time information. In support of this model we find that odor identity can be decoded simply by knowing which cells respond (Figure 4B,E). Interestingly, information about spike count, spike time and odor-evoked suppression appear redundant for identity coding. By contrast, accurate and efficient odor intensity decoding requires information about spike times but is not improved by knowing spike counts (Figure 4C). Thus, knowing when a cell responds provides more information about odor intensity than knowing how strongly it responded. We note, however, that ensembles are not concentration-invariant, as concentration can be decoded reasonably well even when using a simple membership code. This indicates that intensity information is not exclusively temporal. Thus, the features used to represent identity and intensity are not fully independent. Nevertheless, we identify different and complementary coding strategies for representing these two stimulus features in piriform cortex.

Bulb-to-piriform coding transformation

Different odors activate subsets of mitral cell responses with odorant-specific sequences (Spors and Grinvald, 2002; Bathellier et al., 2008; Cury and Uchida, 2010; Shusterman et al., 2011) and concentration-dependent latencies (Cang and Isaacson, 2003; Margrie and Schaefer, 2003; Sirotin et al., 2015). Our results are partially consistent with a prevailing model, initially proposed by Hopfield, for how odor representations are transformed and encoded in olfactory bulb, and could be decoded in piriform cortex (Hopfield, 1995; Schaefer and Margrie, 2007; Junek et al., 2010; Schaefer and Margrie, 2012; Uchida et al., 2014; Wilson et al., 2015). This model gives rise to several predictions: (1) The earliest-activated mitral cells will largely define the odor representation, and thus the ensemble of activated cortical cells, with later responses suppressed or ‘discriminated against’ (Hopfield, 1995); (2) Odor identity can be extracted from the sequence of the earliest-activated mitral cell responses and transformed into a representation that is robust to changes in concentration; (3) Spike time information should not inform representations of odor identity in cortex; (4) Odor intensity can be extracted from the latency to spike of the earliest-activated mitral cells. Consistent with these predictions, we find that piriform responds reliably to the early mitral cell responses but significant suppression within piriform cortex reduces the impact of mitral cells that spike later in the sniff (Figure 8A); that odor identity can be represented across concentrations without spike time information (Figure 5E; also Miura et al., 2012); and that spike time information is important for representing odor intensity (Figure 4, Figure 5C). However, if the earliest-activated mitral cells provide information about both odor identity and intensity then a relatively simple decoder should be able to classify identity and intensity simultaneously. However, we found that identity could be decoded nearly immediately after inhalation while accurate intensity decoding was restricted to the later phase of the response (Figure 6). This is consistent with our finding that concentration-dependent changes in response latencies were substantially more pronounced in the later phase of responses (Figure 4D–F). This dissociation of identity and intensity representations suggests that these may not be encoded as a single process upstream of the cortex and therefore requires some revision of the Hopfield model.

Sparse coding in piriform cortex

Odor representations in piriform cortex have previously been described as ‘sparse’ or ‘moderately sparse’ (Poo and Isaacson, 2009; Miura et al., 2012). These conclusions were drawn from measurements of the odor selectivity of individual cells and the ‘sparseness’ metric originally developed by Rolls and Tovee (Rolls and Tovee, 1995). It remains true in our dataset that very few neurons responded statistically significantly to any stimulus, and our sparseness measurements are not substantially different from those previously reported for awake rodents (Miura et al., 2012). However, whether or not a neural code is sparse is supposed to reflect strategies for representing a large array of stimuli in a neural network. In a sparse code only a very small set of cells is sensitive to any given stimulus. Reducing overlap between stimuli increases representational capacity (Olshausen and Field, 2004). The key feature of a sparse code is therefore that most cells don’t respond to any one stimulus. Here, we used our decoding analysis to specifically determine whether information about a given odor is encoded by a privileged set of neurons. We found that different features of the odor could always be decoded using small randomly selected pseudopopulations. These results do not support the conclusion that piriform representations are sparse.

Representations of odor intensity

We find that temporal information is used for intensity decoding, and that some cells’ response latencies decrease systematically at higher concentrations. Absolute response latencies could therefore be used to represent odor intensity using, for example, response times after inhalation. A general problem with latency codes is that a decoder must know when the stimulus started. However, the rapid concentration-invariant responses provide an internal time reference that obviates this problem in piriform cortex. A fast invariant and slower concentration-dependent response increases population synchrony at higher concentrations. Downstream neurons with distinct integration properties could therefore extract different features of the odor stimulus from this multiplexed representation (Blumhagen et al., 2011; Haddad et al., 2013). However, other strategies could also be used to represent identity and intensity. For example, Roland et al. (2017) found distinct subpopulations of neurons within piriform that have concentration-dependent or concentration-invariant responses.

Mechanisms of temporal encoding

Multiple mechanisms, partially inherited from the bulb, could temporally distribute response latencies according to odorant concentration. First, glomerular response latencies in mirror-symmetric medial and lateral glomeruli become increasingly synchronous at higher odorant concentrations (Zhou and Belluscio, 2012). Second, although olfactory bulb mitral and tufted cells are typically conflated, these cells differ considerably in their spike thresholds, response latencies, and concentration dependence (Nagayama et al., 2004; De Saint Jan et al., 2009; Gire et al., 2012). We also find two distributions of response latencies in undifferentiated olfactory bulb recordings, again with a rapid and concentration-invariant peak and a later peak that shifts forward at higher concentrations (Figure 7). The fast and slow responses we see in piriform cortex could occur because individual anterior piriform cortex neurons receive converging inputs directly from both mitral and tufted cells, either directly (c.f. Igarashi et al., 2012), or through disynaptic routing through the anterior olfactory nucleus. In fact, the fast cortical response can help impose distinct phases in the bulb response via centrifugal projections (Boyd et al., 2012; Kato et al., 2012; Markopoulos et al., 2012; Otazu et al., 2015).

However, the concentration-dependent shift in response latencies in piriform cortex is not a simple reflection of biphasic bulb input. Concentration-dependent latencies change more steeply in piriform cortex than in olfactory bulb, indicating an active sharpening of cortical responses. Our data suggest this sharpening could be imposed by inhibition. Odors evoke an envelope of cortical inhibition that peaks earlier and is more narrow at higher concentrations. Direct, optogenetic activation of inhibitory interneurons suppresses both spontaneous (Figure 9C) and odor-evoked piriform spiking (not shown). Thus, a concentration-dependent sharpening of inhibition can gate the onset of the second, slower set of responses. Inhibition could be driven by direct input from olfactory bulb (Luna and Schoppa, 2008; Poo and Isaacson, 2009; Stokes and Isaacson, 2010; Suzuki and Bekkers, 2012), although feedback inhibitory interneurons may also contribute substantially to the inhibition envelope (Franks et al., 2011; Suzuki and Bekkers, 2012; Large et al., 2016).

Other strategies to differentially represent odor features

Although piriform cells have often been treated as a homogenous population, there are at least three grossly different types of principal piriform neurons that differ in their position, morphology and connectivity (Suzuki and Bekkers, 2011). Different subtypes can be distinguished genetically (Diodato et al., 2016) or by their projection targets (Chen et al., 2014). We now identify multiple functionally distinct cell types. We find that some cells have almost no spontaneous activity and respond very selectively with rapid, reliable and brief bursts of spikes, similar to odor responses in the mushroom body, a homologous structure in insects (Perez-Orive et al., 2002). However, we also find over-represented subsets of broadly tuned cells. Segregation of these outputs could project different types of odor information to separate downstream targets. Furthermore, cells can either respond with activation or suppression, but individual cells are rarely activated by one odor and suppressed by another. This suggests the existence of distinct activated and suppressed cell classes. However, the finding that identity can be decoded with a binary, membership code excluding all information about suppression indicates this information is largely redundant, at least for identity coding. We find that spike count does not improve intensity or identity coding. This suggests that spike count may therefore represent other features of the stimulus, such as salience or valence (Gire et al., 2013).

Odor-driven behaviors require that an animal can extract different salient features of the odor stimulus from olfactory bulb output. We have identified complementary strategies giving rise to non-interfering representations of odor identity and odor intensity. A similar dissociation of different features of neural activity has been found in analogous structures. In hippocampus, for example, a cell’s membership within a CA1 ensemble and its actual firing rate can differentiate between spatial and episodic representations (Leutgeb et al., 2005). Furthermore, multiplexed spike rate and spike time codes separately represent an animal’s location and its speed traversing that location (Huxter et al., 2003). This dissociation of neural activity into membership, rate and time codes may thus be a general strategy for increasing bandwidth in cortical circuits.

Materials and methods

All experimental protocols were approved by Duke University Institutional Animal Care and Use Committee. Unless stated otherwise all data are shown as mean ± s.e.m.

Mice

Mice were adult (>P60, 20–24 g) offspring of Emx1-cre (+/+) breeding pairs obtained from The Jackson Laboratory (005628). Optical tagging experiments used VGAT-ChR2-EYFP mice (Slc32a1-COP4*H134R/EYFP; 014548).

Headpost implantation procedure

Mice were anesthetized with ketamine (50 mg/kg)/xylazine (2 mg/kg) and maintained on isoflurane anesthesia (1–1.5% in O2) during headpost implantation. An incision was made on the midline and the periosteum was removed from the entire skull surface. Recording penetration sites were marked on the skull and a custom titanium headpost was lowered into place with a stereotaxic arm and fixed to the skull with Metabond (Parkell, Inc.). Animals received buprenorphine 0.1 mg/kg s.c. at the end of the surgical procedure and recovered 2–4 days before head-fixed procedures.

Head-fixation

Mice were habituated to head-fixation and tube restraint for 15–30 min on each of the two days prior to experiments. The head post was held in place by two clamps attached to ThorLabs (Newton, NJ) posts. A hinged 50 ml Falcon tube on top of a heating pad (FHC, Bowdoin, ME) supported and restrained the body allowing maintenance of body temperature during anesthesia in the head-fixed apparatus.

Data acquisition

Electrophysiological signals were acquired with a 32-site polytrode acute probe (A1 × 32-Poly3-5mm-25s-177, Neuronexus, Ann Arbor, MI) through an A32-OM32 adaptor (Neuronexus) connected to a Cereplex digital headstage (Blackrock Microsystems, Salt Lake City UT). Unfiltered signals were digitized at 30 kHz at the headstage and recorded by a Cerebus multichannel data acquisition system (BlackRock Microsystems). Experimental events and respiration signal were acquired at 2 kHz by analog inputs of the Cerebus system. Respiration was monitored with a microbridge mass airflow sensor (Honeywell AWM3300V, Morris Plains, NJ) positioned directly opposite the animal’s nose. Negative airflow corresponds to inhalation and negative changes in the voltage of the sensor output.

Electrode placement

The recording probe was positioned in the anterior piriform cortex using a Patchstar Micromanipulator (Scientifica, UK). Coordinates marked on the skull were used to align the skull in the head-fixed apparatus for stereotaxic targeting. On the day of recording, mice were lightly anesthetized with isoflurane (1% in O2), a craniotomy was opened over the recording site, the dura mater was removed, and the probe was positioned at 1.32 mm anterior and 3.8 mm lateral from bregma. Recordings were targeted 3.5–4 mm ventral from the brain surface at this position with adjustment according to the local field potential (LFP) and spiking activity monitored online. Electrode sites on the polytrode span 275 µm along the dorsal-ventral axis. The probe was lowered until a band of intense spiking activity covering 30–40% of electrode sites near the correct ventral coordinate was observed, reflecting the densely packed layer II of piriform cortex. Recording sites ventral to the layer were nearly silent and, under light anesthesia, LFP signals across all electrode sites often showed some synchronization with respiration. Prior to recording, the back of the probe was painted with a fluorescent dye (diI, Life Technologies) and probe position was confirmed post hoc in histological sections.

For simultaneous olfactory bulb recordings, a craniotomy was opened over the ipsilateral olfactory bulb. A micromanipulator holding the recording probe was set to a 10-degree angle in the coronal plane, targeting the ventrolateral mitral cell layer. The probe was initially positioned above the center of the olfactory bulb and then lowered along this angle through the dorsal mitral cell and granule layers until encountering a dense band of high-frequency activity signifying the targeted mitral cell layer, typically between 1.2 and 1.8 mm from the bulb surface.

Spike sorting and waveform characteristics

Individual piriform units were isolated using the Klusta Suite (https://github.com/kwikteam). Spikes were identified by Spikedetekt when the high-pass filtered voltage trace crosses threshold on adjacent electrode sites. Spikes were automatically sorted into clusters with a ‘Masked Expectation-Maximization’ algorithm (Kadir et al., 2014), and the identified clusters are manually adjusted using the Phy interface (Rossant et al., 2016). Clusters with large numbers of refractory period violations (<2 ms) in the autocorrelogram were removed from the dataset. Pairs of units with similar waveforms and coordinated refractory periods in the cross-correlogram were combined into single clusters. Isolation distance (Schmitzer-Torbert et al., 2005) was calculated using the IsolationDistance function from the FMAToolbox (http://fmatoolbox.sourceforge.net). To allow comparison with previous studies that used the first three principal components of waveform from tetrode recordings, isolation distance was computed using combinations of 12 principal component-based waveform features derived from a subset of the 32 polytrode channels. Extracellular waveform features were characterized according to standard measures: half-width, trough-to-peak time, trough-to-peak amplitude, and peak amplitude asymmetry (Barthó et al., 2004). Unit position with respect to electrode sites was characterized as the average of all electrode site positions weighted by the wave amplitude on each electrode.

Spontaneous firing rate and phase distributions

Spontaneous firing rates were assessed during inter-trial time segments greater than 4 s after stimulus offset. To determine phase preferences of spontaneous activity each spike was assigned a phase in the respiration cycle by linear interpolation between 0 (the start of inhalation) and π (the start of exhalation). Phase histograms (10° bins) for each isolated unit were then constructed from spontaneous spiking and sorted according to peak phase.

Respiration alignment

Respiration traces sampled at 2 kHz were smoothed with a second-order Savitzky-Golay filter in 200 ms frames and locally detrended in 1.5 s windows with 1 s overlap. The start of inhalation and exhalation were defined as zero-crossings before and after large negative peaks in the smoothed, detrended signal, respectively.

Odor stimuli

The odor stimulus set consisted of hexanal (Aldrich 115606), ethyl butyrate (Aldrich E15701), ethyl acetate (Sigma-Aldrich [St. Louis, MO], 34858), 2-hexanone (Fluka [Mexico], 02473), isoamyl acetate (Tokyo Chemical Industry [Cambridge, MA], A0033), and ethyl tiglate (Alfa Aesar [Haverhill, MA], A12029). All odorants were diluted to 0.6% v./v. in mineral oil and further air-diluted to 0.3% during odor delivery. To examine intensity coding, additional dilutions of 0.06%, 0.2%, and 2% were prepared for ethyl butyrate and hexanal, creating two concentration series with final dilutions of 0.03%, 0.1%, 0.3% and 1%% v./v. The complete odor panel therefore consisted of 12 different odor stimuli.

Odor delivery

Odors were delivered using a custom olfactometer. Charcoal filtered air was routed into three flowmeters, one of which carried a neutral air stream at 1 LPM and the other two of which carried 0.5 LPM each to two eight-valve banks. Air passing through one of the valve banks continued to one of eight 20 mL amber vials containing 5 mL of odorant solution or pure mineral oil, then through a Teflon, eight-inlet manifold, and then the two separate valve bank streams were recombined to produce a 1 LPM odorized air stream. One valve containing mineral oil on either bank was always open and diluted the output of the opposite bank by half. The neutral and odorized airstreams were routed to a three-way isolation ‘final’ valve (NResearch PN: SH360T042, West Caldwell, NJ) situated near the head-fixed apparatus. Normally, the neutral stream was routed to the nose and the odor stream to a vacuum exhaust. Unless stated otherwise all odorants were delivered at a final concentration of 0.3%. In between trials the odor stream consisted of air passing through two ‘blank’ vials containing only mineral oil.

A custom MATLAB script controlled the opening and closing of valves in valve banks and the switching of the final valve. During an odor presentation, the odor valve was selected at the valve bank and the odor stream flowing to exhaust became equilibrated for one-second while respiration was sampled to determine the mean of the respiration signal. Final valve switching was triggered on the beginning of exhalation, indicated by a positive-going mean crossing of the respiration signal following a negative peak. Final valve switching simultaneously rerouted the odor stream to the animal’s nose and the neutral stream to exhaust, and switched back after 1 s. The olfactometer was regularly calibrated such that final valve switching produced minimal changes in the signal from a flow sensor situated at the nose outlet of the final valve. Consistent odor delivery was confirmed with a photoionization detector (PID) reading from the exhaust. Each stimulus was presented 10–15 times in a given experimental condition. In pilot experiments we presented odors over a range of inter trial intervals and found responses were stable when presented every 5 s or more (not shown). Odors were presented every 10 s.

Individual cell-odor responses

We computed smoothed kernel density functions (KDF) with a 10 ms Gaussian kernel (using the psth routine from the Chronux toolbox: www.chronux.org) to visualize trial-averaged firing rates as a function of time from inhalation onset and to define response latencies for each cell-odor pair. To define peak latencies, KDFs were computed from spike times occurring with a 500 ms response window following inhalation. Peak latency was the time of the maximum of this KDF. In cases where the KDF maximum was at the window edge, indicating falling from or rising to a peak outside of the response window, peak latency was undefined. Response duration was the width at 25 or 50% of the maximum of this peak. The reliability of differences between responses to odor and mineral oil in a given time window or breath cycle were quantified by computing the area under the receiver operating characteristic curve (auROC) using the distributions of spike counts under the two stimulus conditions. The response index was obtained by multiplying the auROC by 2 and subtracting 1. A response index of −1 reflects unequivocal suppression, 0 reflects no change, and 1 reflects unambiguous activation of responses versus blank. We identified responses that were significantly different between odor and mineral oil using a Wilcoxon rank-sum test with these same spike count distributions.

Population response vectors and total spiking output

The pattern of spiking activity in response to odor across all neurons within a time window is represented as a population spike count vector. To identify patterns in the overall spiking activity of simultaneously recorded neurons we also define total spiking output as the re-aggregation of spike trains of all sorted units integrated over the first sniff.

Tuning and sparseness

Tuning selectivity was characterized by the percent of cells significantly responding to increasing numbers of odors. To compare the observed tuning curves to the expectation of randomly assigned responses, we shuffled cell identities within an odor 100 times (see Figure 1—figure supplement 3), preserving the total response distribution for each stimulus, and recomputed tuning selectivity using these shuffled population responses.

Lifetime sparseness is a measure of the non-uniformity, or peakedness, of the distribution of responses to different odors for a given cell, whereas population sparseness measures the same for the distribution of cell responses for a given odor (Rolls and Tovee, 1995). Lifetime sparseness (SL) for each cell was calculated as in (Vinje and Gallant, 2000):

SL={1[(Σri/n)2/Σ(ri2/n)]}/[1(1/n)]

where ris the trial-averaged response to the ith odor and n is the number of odors. Population sparseness (SP) for each odor was calculated with the same formula, with ras the trial-averaged response of the ith cell (averaged across trials) and n as the number of cells.

Trial-trial population vector correlations

The similarity of population odor responses, defined as spike count vectors within the first sniff, was quantified using Spearman’s rank correlation coefficient to account for the non-normal distribution of spike counts across the population. Qualitatively similar, but higher, correlations were obtained using Pearson’s correlation coefficient. Within an experiment, correlations for all trial-pairs were calculated (i.e. 10 trials for two odors = 100 correlations). The correlation between two stimuli or between a stimulus and itself was then taken as the average of these correlations.

Classifiers

Linear classifiers were implemented using custom MATLAB scripts and the Statistics and Machine Learning Toolbox. Odor classification accuracy based on population responses was measured using a Euclidean distance classifier with Leave-One-Out cross-validation (Campbell et al., 2013). Mean population responses were computed for all odors across trials, excluding one trial. The excluded trial was then classified to the odor with the mean population response with the minimum Euclidean distance from the trial population response. This process was repeated for all trials of all odors. Accuracy was computed as the average percent of correct classifications across odor categories. Results were qualitatively similar using a support vector machine with a linear kernel (Error-correcting output codes multiclass model, MATLAB Statistics and Machine Learning Toolbox).

Classification tasks

Decoding of different features of the odor stimulus from neural activity was assessed using three different classification tasks. First, for odorant classification, responses to six distinct monomolecular odorants presented at 0.3% were used as the training and testing data. Second, for concentration classification, responses to a single odorant at four concentrations, ranging from 0.03–1% were used. Our stimulus panel contained two odorants presented at multiple concentrations. The classifier was trained and tested separately for each odorant and the concentration classification accuracy was averaged for the two odorants. Third, for odor identity generalization, we excluded all trials for a given stimulus concentration from the training set, so that the training set consisted of 11 stimuli, three of which were different dilutions of the same identity as the excluded stimulus. Accuracy in this task was then measured by presenting the classifier with trials of the excluded stimulus and scoring as correct any predictions that match the odor identity regardless of concentration (chance accuracy = 3/11). This was repeated for each stimulus belonging to a concentration series (8 total) and accuracy was averaged across these stimuli.

Classification features

The feature vectors for spike count classification were the spike counts for each cell during the 480 ms following inhalation. For binned classification, trial PSTHs for each cell were computed with 30 ms bins up to 480 ms after inhalation onset, and then concatenated to form a feature vector. For binary feature vectors, a threshold of mean +1 st. dev. of the response on blank trials was set for each cell, and spike counts for each trial were recoded as responding (1) or not (0) based on comparison to this threshold. To assess the effect of population size on classification accuracy, randomly selected cells from our entire recorded data set were combined to form a pseudo-population of a given size. For each population size, the random selection and classification was repeated 200 times, and the results were averaged. Decoding analyses of the temporal evolution of odor representations used pseudo-population vectors assembled from all recorded cells. Classification was performed as described with feature vectors that consisted of either an expanding window of increasing numbers of 30 ms bins or in 30 ms windows at increasing times after inhalation up to 480 ms.

Classification was also performed on shuffled data in which the trial labels were randomly assigned to new odor categories. Repeating this shuffling procedure 200 times and averaging the results produced accuracy indistinguishable from the theoretical chance level of accuracy, (# of stimuli) −1.

Fitting Gaussian mixture distributions

Response latencies were taken as the peak of the trial-average kernel density function (computed with a at 10 ms Gaussian kernel) for each cell-odor pair. Latencies were included in this analysis if peak was found between 0 and 0.5 s for each concentration for a given cell-odor pair. For this analysis response latencies were combined across all recording before attempting to fit. The distributions of response latencies in olfactory bulb and piriform cortex were fit separate at each concentration with a mixture of Gaussian distributions (each of which was truncated between 0 and 0.5 s) using the maximum likelihood estimation (mle) function in the Statistics and Machine Learning Toolbox in MATLAB. The model was initialized with cluster assignments obtained using k-means clustering (k = number of mixture components). For each fit, the algorithm was allowed to run to convergence of until completion of 8000 iterations or function evaluations. Fits that did not converge were labeled and removed from further analysis. For each set of latencies and parameters, the algorithm was reinitialized five times.

We obtained confidence intervals for parameter estimates by creating 1000 bootstrap samples for each set of latencies, sampling with replacement to create an equivalent sized surrogate sample. The fitting procedure was repeated as above and confidence intervals were defined as the 2.5–97.5th percentile for each parameter estimate.

For certain analyses, the distributions of latencies were re-fit while some parameters were held constant and others were allowed to vary. In these cases, the fixed parameters were held at the mean of parameter estimates across all concentrations from the original fitting procedure.

Fitting concentration-dependence of response latencies

We measured the concentration-dependence of mean response latencies for each simultaneously recorded population and each odor as the slope of a regression line fit to the mean of response latencies within a population-odor pair across concentrations. To allow analysis of first spike latency, latencies in this analysis were computed on a trial-by-trial basis. For each cell-concentration pair, we measured both the time to the first spike after inhalation for each trial and the time to peak of the trial’s kernel density function and then averaged these values across trials. For either measure, responses were included if latencies could be measured on more than one trial. Concentration-specific latencies were then averaged across cells and a regression line was fit to obtain a concentration-latency slope. For one piriform population, no latencies could be retrieved for either odor, leaving eight piriform recordings and six olfactory bulb recordings for statistical comparison.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    In vivo whole-cell recording of odor-evoked synaptic transmission in the rat olfactory bulb
    1. J Cang
    2. JS Isaacson
    (2003)
    Journal of Neuroscience 23:4108–4116.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Sparseness of the neuronal representation of stimuli in the primate temporal visual cortex
    1. ET Rolls
    2. MJ Tovee
    (1995)
    Journal of Neurophysiology 73:713–726.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Neural coding of perceived Odor Intensity
    1. YB Sirotin
    2. R Shusterman
    3. D Rinberg
    (2015)
    eNeuro, 2, 10.1523/ENEURO.0083-15.2015, 26665162.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Primacy Coding of Odor Identity Across Concentrations
    1. C Wilson
    2. G Serrano
    3. A Koulakov
    4. DM Rinberg
    (2015)
    Chicago, Unites States: Society for Neuroscience.
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Upinder S Bhalla
    Reviewing Editor; National Centre for Biological Sciences, India

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Complementary codes for odor identity and intensity in olfactory cortex" for consideration by eLife. Your article has been favorably evaluated by a Senior Editor and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal his identity: Dmitry Rinberg (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors record ensembles of individual neurons in the anterior piriform cortex of awake head-fixed rats using polytrode probes, while changing identity and concentration of different odorants. They investigate possible coding strategies for odor identity and intensity, and propose that two different codes – a rate code (for identity) and a time code (for intensity) are used in a multiplexed fashion to extract these stimulus features. All reviewers agreed that the study was potentially a valuable advance in our understanding of odor and concentration representations in the piriform cortex. They felt that the data analysis and presentation could be strengthened.

Essential revisions:

1) The authors should analyze the concentration coding using a formal model that quantifies fit and confidence. This should address the observations of latency, inhibitory contributions, and synchrony.

2) The classifier analysis should be should be extended to establish whether the coding is sparse.

3) The authors should revisit the temporal analysis and conclusions, and clearly state how strong is the confidence in them.

4) Some details of methodology need further elaboration: e.g., analysis, bulb recordings, and unit isolation.

The outcome of the analysis above may suggest that the claims in the title should be reconsidered.

Additional specific comments are also indicated in individual reviewer comments below.

Reviewer #1:

This is a systematic and large study of single-unit activity in anterior piriform cortex of awake mice. The authors examine odor response patterns for monomolecular odorants. This is a valuable dataset as it covers many neurons, in awake animals, and over several odors. Consistent with previous data, the authors find a spectrum of response strengths, precision, and selectivity.

The authors have a key result on concentration-dependent coding. This is valuable but could be sharpened. There is quite a bit of data here, which is potentially very informative, however the analysis could probably be taken a bit further.

Then the authors pursue an analysis of concentration-dependent latency. There are two aspects to this, both of which could be strengthened.

1) First, can the concentration-dependence be explained simply by bulbar concentration-dependent latency? To their credit, the authors have directly recorded and shown the bulbar concentration-dependence. At present it isn't clear if the piriform is doing any substantial transformation of the response.

2) There is a nice experiment wherein the authors investigate the mechanisms behind concentration coding by optogenetically targeting inhibitory interneurons and delivering light pulses to identify the neurons from the recorded dataset. They characterized the responses of these neurons. Using this, the authors seem to have an implicit model whereby the inhibitory timing in the piriform acts to separate out the second peak in excitatory neurons from the first one. This implies that concentration dependence of the inhibitory peaks (Figure 6G) should account for the shift in second peak timing for the remaining cells (Figure 6H, Figure 3J and K). Does such a model work? Does it improve on the already present concentration-dependent latency response from the bulb? Whether or not my interpretation is what the authors had in mind, it would be useful for the authors to make their response model explicit, and test it.

Reviewer #2:

Bolding & Franks in 'Complementary codes for odor identity and intensity in olfactory cortex' record ensembles of individual neurons in the anterior piriform cortex of awake head-fixed rats using polytrode probes, while changing identity and concentration of different odorants. They investigate possible coding strategies for odor identity and intensity, and propose that two different codes – a rate code (for identity) and a time code (for intensity) are used in a multiplexed fashion to extract these stimulus features. Consistent with previous reports, the authors find sparse odor representations in the cortex. Individual responsive neurons were unambiguously suppressed, or activated, and only on rare occasions, the same neurons showed both types of responses. Across a 30-fold concentration range, cortical neurons had diverse and non-monotonic responses, more neurons becoming suppressed with increases in concentration. The latency of the early responding principal cells (within 100 ms from odor onset) was generally not affected by changes in concentration, while late responders showed decreased average latency with increasing concentration. Expressing ChR2 in inhibitory interneurons (VGAT+), enabled the authors to determine that their response latency decreases with increasing concentration. Using three coding strategies (ensemble membership, summed spike count and binned spike count), the identity and concentration of odorants could be extracted with high accuracy by pooling together the ~450 recorded neurons. On average, for same number of cells included in the analysis, the decoding accuracy was higher for odor identity vs. intensity. Using a time-based coding strategy (binned spike count) substantially increased accuracy compared to a rate code (summed spike count) for intensity decoding, and only to a less degree for identity decoding. Using either an expanding or a sliding window strategy, the authors find that identity decoding accuracy is highest early after stimulus onset (~100ms), while intensity decoding accuracy is poor to begin with and steadily increases over the next 100 ms.

In my opinion this is a very interesting study that brings novel, and exciting information about cortical neurons responds to changes in odor identity and intensity. The experiments are carefully executed, and the data appears rich and of high quality.

However, I disagree with the current interpretation of the results and main message of the manuscript, as described by its title. I think the data presented here does not support some of the central claims made by the authors. I will explain below my concerns.

The claim for a temporal code to extract odor intensity is weak. The main result plotted in Figure 4C shows that the binned cumulative curve reaches higher accuracy with fewer cells compared to the summed count, or ensemble membership coding. However, even for identity decoding, the trend is the same (superior accuracy for binned spike count). The claim rests on the observation that including temporal information only marginally improves identity decoding but substantially improves intensity decoding. But to begin with, the classification accuracy for odor identity is superior for the same number of included cells, perhaps leading to a ceiling effect.

To support a strong claim regarding the existence of two complementary and multiplexed codes in which odor identity is represented by specific ensembles of odor responsive neurons (using a rate code) and odor intensity is encoded using spike time information, the evidence in the data has to indicate that a rate-code is better for decoding odor identity and a time-code is superior for concentration. Importantly, the authors find, in fact, that including timing information increases the performance for decoding both odor identity and concentration. So, why not conclude that time-based code is superior to rate-based one for decoding both concentration and identity?

To my mind, the data presented here indicates that the accuracy of concentration decoding (as assessed by this classifier) is poorer than odor identity decoding in the piriform cortex. However, accuracy of classification for both stimulus features can be improved by including time information.

The authors observe that the latency of early responding cells remains invariant to changes in concentration. In principle, this could be an important component of coding odor identity, irrespective of concentration. It suggests that temporal information (lack of change in response latency) is important for coding odor identity, since the early responding cells provide an invariant reference to a potential downstream decoder. Furthermore, this finding, together with changes in response latency of later responding cells imposes certain constraints on the validity of theories in the field on primacy coding for odor identity. To my mind, this is an important observation that is unfortunately not clearly emphasized in the current version of the manuscript.

Reviewer #3:

This manuscript by Bolding et al. provides an account of odor representations in piriform cortex using electrophysiological recordings. The manuscript demonstrates that both odor identity and concentration information is encoded in this network. Through the use of linear classification of neural activity vectors, the authors compare potential coding schemes that may be used by the brain to decode odor identity and make the case that odor identity and concentration information are best encoded using different schemes. Odor identity information is encoded well with a "membership" code that eschews fine temporal and spike count information, while temporal information is much more useful for decoding concentration. By classifying cropped activity vectors, they demonstrate that concentration information in their recorded population is available later following inhalation than information needed to decode odor identity. Finally, the authors demonstrate that inhibitory network elements are responsible for attenuating late responses, which they claim increases synchrony with increases in odor concentration.

Overall this work is an important addition to our understanding of olfactory cortex and it coding schemes. However, I have some issues that I feel must be addressed before it is published.

1) Classifier analysis is used to build an argument that late representations contain more concentration information. This argument is true only for the authors' recorded units and using linear classification. While this methodology is sufficient to demonstrate that information is present within the network, it is not sufficient to prove the absence, or relative absence, of information in the network. The authors should discuss this in the manuscript.

2) Piriform cortical representations are sparse. Thus at least two factors need to be considered in the analysis. First, the authors demonstrated that early activity is useful for generalizable odor identity by training the classifier on 3 concentrations and testing on the left-out concentration. Using this training/testing paradigm, a linear classifier will weight stable dimensions (i.e. neurons) over dimensions that are unreliable across concentrations. Only a small subset of neurons may be encoding odor identity despite large variance within the population. Can authors provide an analysis of the degree to which their classifier is using sparse weightings in this task? Can they identify the best performing neurons?

3) Second, the authors presented the dependence of the classifier performances as a function of number of neurons, n. The classification analysis may not accurately represent the information contained in the population. It is possible that a discriminator with input from specific combinations of n neurons performs much better than an average performance of a discriminator for the same number of neurons. What is the distribution of the discriminator performances for a given number of neurons? How the dependencies on the Figure 4 change for the best (or almost the best) n performing neurons, but not for average subset of n neurons.

4) While I agree that the fitting of a mixture of 3 Gaussians to the latency data looks reasonable by eye, I would ask that the authors provide more formal model comparison to justify the model and the number of mixed Gaussians. Once this is established, the authors should provide some estimate of the confidence in the fit parameters, as this confidence is important in establishing how the latencies shift between the olfactory bulb and piriform and whether these differences are significant. Bootstrapping across units can be used to derive these statistics.

5) The authors find that concentration information in their recorded population of units is encoded later than that of identity. At the end of the subsection “Dissociating representations of identity and intensity”, they claim that this conveniently matches behavioral observations from Abraham et al. Such a comparison of discriminant performance with a behavioral result seems like a stretch – the cited paper attributed the longer reaction time to the difficulty of the task, rather than to a difference between identity and concentration discriminations. In addition, the authors may consider citing Resulaj 2015, which reported very fast concentration discrimination.

6) More description of the methods used in analysis would be helpful. Latency determination for neural responses should be described, especially given that many of these neurons' firing rates are non-stationary within the sniff cycle. Also, PSTH convolution methodology is not described well – uniform kernel or Gaussian? Are non-overlapping (invalid) portions of the signal discarded, and if so are the timings adjusted for the shift that this would incur?

7) No methodology for olfactory bulb recordings is given in the manuscript. Some statistics should also be provided about the recorded population (i.e. recording depths, number of units recorded).

8) The authors provided an argument that inhibition is responsible for an increase of synchrony in the network (Figure 6). I did not understand this argument. My impression was, that the authors demonstrated that inhibition attenuated the later response, thus making the earlier response more temporarily confined. How does this lead to increase of synchrony in early response?

https://doi.org/10.7554/eLife.22630.022

Author response

Essential revisions:

1) The authors should analyze the concentration coding using a formal model that quantifies fit and confidence. This should address the observations of latency, inhibitory contributions, and synchrony.

We have taken a formal model-fitting approach to determine an appropriate model for our latency distribution data. Our aim was to confirm and quantify the impression that two processes with differential concentration-sensitivity best explain the distribution of response latencies. However, when only two Gaussians are fit, extraneous, very late responses often distort the fit and pull the mean of the second Gaussian far to the right of the obvious peak in the histogram. A third stimulus-insensitive process can account for these late responses and improves the fits to the first and second peaks. This is now formally quantified by comparing the Bayesian Information Criterion (BIC), which quantifies goodness-of-fit while penalizing any increase in the number of free model parameters. Across multiple concentrations, bootstrap samples, and even across brain regions (i.e. piriform and bulb), a model with three Gaussians was identified as having the lowest BIC score. This justifies the use of three Gaussians in our mixture model.

Per reviewer 3’s suggestion, we used bootstrap analysis to establish confidence in fit parameters. We resampled our latency distributions 1000 times for each concentration and re-fit three Gaussian distributions to each bootstrap sample. These data show two populations of odor responses in piriform (Figure 4) and bulb (Figure 6) whose timing changes systematically with concentration; specifically, we find a population of fast responses whose timing only changes minimally with concentration and a slower population of responses whose latencies decrease substantially at higher concentration. Importantly, we point out that we can accurately fit the distribution of response latencies across concentration by changing only the mean and standard deviations of the first and second peak (i.e. the third Gaussian is invariant and we keep the proportion of responses in each phase constant).

We have now also measured and compared response latencies for populations of bulb and piriform neurons across concentrations within an experiment. Latency to first spike and latency to peak decreased in both bulb and piriform at higher concentrations (Figure 7). However, the steepness of this relationship is significantly greater in piriform than bulb. This result indicates that responses in piriform are not simply reflecting concentration-dependent changes in bulb.

Similarly, using the bootstrap data we determine 95% confidence intervals for the latencies of the first and second response. We find that these can be accurately predicted by spiking of piriform inhibitory interneurons. This finding considerably bolsters our conclusion that intracortical inhibition plays an important role in shaping piriform odor responses.

We have also elaborated and clarified our argument, and provided additional data and analyses, to support our finding that synchrony increases with concentration, as described in answer to reviewer 1 and 3’s comments below.

2) The classifier analysis should be should be extended to establish whether the coding is sparse.

This question has forced us to go back and look at our data, question our starting assumptions, and forced us to arrive at a different conclusion. Per reviewer 3’s suggestion, we examined the distribution of classifier accuracies achieved using different, random subsets of cells. If coding is sparse then most cells should provide little or no information about the stimulus. In this case, the distribution of classifier accuracies should be heavily skewed when classifying with small populations; classification should mostly be very poor because most cells do not respond to the few odors presented and occasionally be very good if just the right cells are selected. Instead, we see a normal distribution of accuracies (Figure 5), which indicates that most cells provide some information about the stimulus. We also find that we can almost always achieve relatively good classification (>80% accuracy) with only ~70 cells (>97.5% confidence).

We note that this contradicts our initial claim. We previously said: “In summary, we found that different odors activated distinct, sparse and overlapping ensembles of piriform cortex neurons.” We had used this term somewhat loosely, based on our measures of lifetime and population sparseness. In fact, our sparseness measures were slightly lower than Miura et al.’s (2012), who described representations as “moderately sparse”. In fact, we think that determining whether or not a representation is sparse by the ability to decode using small and random subsets of neurons is more appropriate than measures of lifetime and population sparseness. According to this analysis, we conclude that odor representations in piriform cortex are notsparse. We specifically thank reviewer 3 for forcing us to revisit and rethink this important point. We have changed the text in our Results and added to the Discussion to address this point.

3) The authors should revisit the temporal analysis and conclusions, and clearly state how strong is the confidence in them.

We have performed additional analyses of the temporal properties of responses and the role of spike-time information in cortical odor coding. We can confidently make the following statements (i.e. findings are statistically significant):

1) Response latencies decrease systematically at higher concentrations (Figure 4B).

2) The distribution of piriform responses can be described by two phases: a rapid and largely concentration-invariant phase and a slower phase whose latencies decrease with concentration (Figure 4D-F, Figure 4—figure supplement 1).

3) Responses are more synchronous at higher concentrations (Figure 3, 4D-F).

4) Spike time information does not improve decoding accuracy for odorant classification (Figure 5B, Figure 5—figure supplement 1) or odor identity generalization (Figure 5E; Figure 5—figure supplement 1).

5) Spike time information significantly improves odor concentration classification (Figure 5C; Figure 5—figure supplement 1).

6) The earliest responses provide little information about odor concentration (Figure 6).

7) The distribution of responses in bulb can also be described by a rapid, largely concentration- invariant phase and a slower concentration-dependent phase (Figure 7, Figure 7—figure supplement 1).

8) Response latencies are more steeply concentration-dependent in piriform than bulb (Figure 8).

9) The distribution of response latencies can be predicted by the spiking of piriform interneurons (Figure 9H).

4) Some details of methodology need further elaboration: e.g., analysis, bulb recordings, and unit isolation.

We have included additional information in the Methods section that describes our analyses procedures as requested by the reviewers, details about bulb recordings, and provided spike sorting statistics including the distribution of isolation distances and refractory period violations for all units recorded in bulb and cortex.

The outcome of the analysis above may suggest that the claims in the title should be reconsidered.

We have carefully considered the reviewers’ concerns and, now with additional analyses, stand by our original claim that there are complementary codes for representing odor identity and intensity.

Reviewer 2 makes the following argument:

“To support a strong claim regarding the existence of two complementary and multiplexed codes […] the evidence in the data has to indicate that a rate-code is better for decoding odor identity and a time-code is superior for concentration. Importantly, the authors find, in fact, that including timing information increases the performance for decoding both odor identity and concentration. So, why not conclude that time-based code is superior to rate-based one for decoding both concentration and identity?”

There are two issues here: whether spike time information is used for identity coding and whether a time code is better than a rate code for intensity coding. First, reviewer 2 is pointing to what appears to be slightly better average decoding accuracy for odorant classification using binned vs. summed response vectors (Figure 5B). However, as we state in the text, the generalization task, in which the decoder must “identify a familiar odor at a novel concentration”, provides a better way of testing an odor identity code than simply classifying responses to different odorants at a nominal concentration, and here the average performances overlap (Figure 5E). Nevertheless, we have now added additional analyses that show that differences in classification accuracy using different coding schemes never reach statistical significance (for this decoder) for either odorant classification or generalization. In fact, we see a trend for worse generalization for odor identity when spike time information is used. Therefore, we stand by our original point that an ensemble code is sufficient for encoding odor identity with little if any additional information provided by spike count or spike time information.

Second, we also find almost no statistically significant improvement in decoding accuracy when we add spike rate information to a membership code (Figure 5C, Figure 5—figure supplement 1B). However, adding spike time information to a rate code significantly increases decoding accuracy for pseudopopulations >250 cells (Figure 5C, Figure 5—figure supplement 1E). We feel this statistical analysis therefore indicates that a time-based code is superior to a rate-based code for representing concentration. We therefore feel confident claiming that there are complementary codes for odor identity and odor intensity in piriform cortex.

However, we do note that a membership code does provide considerable information about odor concentration. We therefore do not claim that these codes are independent or completely multiplexed, and we address this point in the Discussion.

Additional specific comments are also indicated in individual reviewer comments below.

Reviewer #1:

[…] The authors have a key result on concentration-dependent coding. This is valuable but could be sharpened. There is quite a bit of data here which is potentially very informative, however the analysis could probably be taken a bit further.

We have extended our analysis according to, and beyond, the suggestion of all three reviewers. We think this strengthens the manuscript considerably, and we thank the reviewers for their helpful suggestions.

Then the authors pursue an analysis of concentration-dependent latency. There are two aspects to this, both of which could be strengthened.

1) First, can the concentration-dependence be explained simply by bulbar concentration-dependent latency? To their credit, the authors have directly recorded and shown the bulbar concentration-dependence. At present it isn't clear if the piriform is doing any substantial transformation of the response.

We have extended our data analysis to clearly show that bulb input is actively transformed in piriform cortex. First, we have added a figure that overlays the distributions of response latencies in bulb and piriform at different concentrations (Figure 8A). If piriform cells were simply following the bulb, then these distributions should overlap substantially. We see a rapid peak in bulb responses that is reflected in piriform. However, bulb cells continue to respond throughout the sniff, consistent with previous findings (Bathellier et al., 2008; Cury & Uchida, 2010; Shusterman et al., 2011). By contrast, there is a marked decrease in later piriform responses (100-300 ms after inhalation) in piriform versus bulb. This result indicates that early bulb inputs are better able to drive responses in piriform cortex than later inputs, and the most parsimonious explanation for this suppression is inhibition within piriform cortex. Therefore, our data show that piriform cortex is substantially transforming input from bulb.

Next, we specifically demonstrate that the concentration-dependent change in response timing is significantly steeper in cortex than bulb. This is true using either the distribution of latencies to first spike (Figure 8B, D) or latencies to peak (Figure 8C, E) for each cell. Figures 8B, C shows data from an example experiment with simultaneously recorded populations of bulb and piriform cells. (All 6 populations of bulb recordings have paired piriform recordings but 3 of the 9 piriform populations were recorded alone. Data are pooled across experiments in Figures 8D, E.) Again, if piriform cortex were simply following input from bulb then these should change together. In fact, our data suggest that the second phase of piriform responses peaks slightly before the second phase in bulb, although this did not reach statistical significance, even with the bootstrapping analysis.

2) There is a nice experiment wherein the authors investigate the mechanisms behind concentration coding by optogenetically targeting inhibitory interneurons and delivering light pulses to identify the neurons from the recorded dataset. They characterized the responses of these neurons. Using this, the authors seem to have an implicit model whereby the inhibitory timing in the piriform acts to separate out the second peak in excitatory neurons from the first one. This implies that concentration dependence of the inhibitory peaks (Figure 6G) should account for the shift in second peak timing for the remaining cells (Figure 6H, Figure 3J and K). Does such a model work? Does it improve on the already present concentration-dependent latency response from the bulb? Whether or not my interpretation is what the authors had in mind, it would be useful for the authors to make their response model explicit, and test it.

The reviewer’s interpretation is mostly what we have in mind. That is, we propose that the concentration-dependence of the inhibitory response (i.e. shorter latencies and more synchronous spiking at higher concentrations, Figure 9G) plays a role in shifting the timing of the second phase of the response in the remaining cells. As per the reviewer’s suggestion, we now show inhibitory spiking as curves instead of heatmaps (Figure 9H) and we have overlaid these with the 2.5-97.5% confidence intervals for times of the first and second peak derived from the bootstrapping analysis suggested by reviewer 3. This representation clearly indicates how inhibition peaks shortly after the peak of the first phase and that the second phase of the response peaks during the subsequent trough in inhibition. These data suggest that shifts in the timing of inhibition partially account for the shift in timing of the cortical responses.

However, we do not claim that the timing of the inhibition can fully account for the shift in response latencies. We tried convolving bulb output with the spiking of VGAT+ cells but could not accurately predict either the distribution of piriform response times or the population PSTH (not shown). This is not surprising. Such a convolution should work in a simple feedforward circuit in which both piriform cells and inhibitory interneurons were only, or largely, driven by bulb input. However, principal cells in piriform cortex are interconnected by extensive recurrent collateral connections that also drive strong feedback inhibition, and we (Franks et al., 2011) and others (Davison & Ehlers, 2011; Poo & Isaacson, 2011; Large et al., 2016) have shown that recurrent/intracortical excitation and feedback inhibition can strongly and dynamically shape piriform output. Consequently, a considerably more complex model would be required to accurately predict piriform spiking from bulb output. We now state this point explicitly in the manuscript. A detailed spiking network model that captures the statistics of bulb output and the specific organization of piriform circuitry can shed more light on how this transformation is implemented (Stern, Abbott, Franks; Cosyne, 2014; Stern, Bolding, Abbott, Franks, Cosyne, 2015; Stern et al., in prep.), but this is beyond the scope of the present study.

Reviewer #2:

[…] However, I disagree with the current interpretation of the results and main message of the manuscript, as described by its title. I think the data presented here does not support some of the central claims made by the authors. I will explain below my concerns.

The claim for a temporal code to extract odor intensity is weak. The main result plotted in Figure 4C shows that the binned cumulative curve reaches higher accuracy with fewer cells compared to the summed count, or ensemble membership coding. However, even for identity decoding, the trend is the same (superior accuracy for binned spike count). The claim rests on the observation that including temporal information only marginally improves identity decoding but substantially improves intensity decoding. But to begin with, the classification accuracy for odor identity is superior for the same number of included cells, perhaps leading to a ceiling effect.

To support a strong claim regarding the existence of two complementary and multiplexed codes in which odor identity is represented by specific ensembles of odor responsive neurons (using a rate code) and odor intensity is encoded using spike time information, the evidence in the data has to indicate that a rate-code is better for decoding odor identity and a time-code is superior for concentration. Importantly, the authors find, in fact, that including timing information increases the performance for decoding both odor identity and concentration. So, why not conclude that time-based code is superior to rate-based one for decoding both concentration and identity?

To my mind, the data presented here indicates that the accuracy of concentration decoding (as assessed by this classifier) is poorer than odor identity decoding in the piriform cortex. However, accuracy of classification for both stimulus features can be improved by including time information.

We have addressed this question above. In summary, odor identity coding is best tested using the generalization task, in which decoding accuracy is equivalent using binary, summed and binned response vectors. Moreover, we found no statistically significant differences between decoding accuracy using these different types of input for either generalization or simple odorant classification. We therefore conclude that our data indicate spike time information does not contribute to odor identity coding. Second, we show that there is almost no significant improvement in decoding accuracy when spike count information is added to a membership code, but considerable improvement when spike time information is added to a rate code, which indicates that spike time information is superior to spike count for intensity coding.

The authors observe that the latency of early responding cells remains invariant to changes in concentration. In principle, this could be an important component of coding odor identity, irrespective of concentration. It suggests that temporal information (lack of change in response latency) is important for coding odor identity, since the early responding cells provide an invariant reference to a potential downstream decoder. Furthermore, this finding, together with changes in response latency of later responding cells imposes certain constraints on the validity of theories in the field on primacy coding for odor identity. To my mind, this is an important observation that is unfortunately not clearly emphasized in the current version of the manuscript.

We are glad the reviewer agrees that these observations are important and we have emphasized them more clearly in both the Results and Discussion sections. We have also attempted to discuss them more clearly in the context of a primacy code.

Reviewer #3:

[…] Overall this work is an important addition to our understanding of olfactory cortex and it coding schemes. However, I have some issues that I feel must be addressed before it is published.

1) Classifier analysis is used to build an argument that late representations contain more concentration information. This argument is true only for the authors' recorded units and using linear classification. While this methodology is sufficient to demonstrate that information is present within the network, it is not sufficient to prove the absence, or relative absence, of information in the network. The authors should discuss this in the manuscript.

While we suspect that the ~500 cells we recorded from are reasonably representative, we concede that this constitutes less than 1% of the piriform cells in any one animal and that there may well be cells that are early encoders of concentration, or many other odor features. We now discuss this in the manuscript, stating that other cells, other coding strategies, or even other brain areas may decode olfactory information differently, allowing, for example, early intensity representations.

2) Piriform cortical representations are sparse. Thus at least two factors need to be considered in the analysis. First, the authors demonstrated that early activity is useful for generalizable odor identity by training the classifier on 3 concentrations and testing on the left-out concentration. Using this training/testing paradigm, a linear classifier will weight stable dimensions (i.e. neurons) over dimensions that are unreliable across concentrations. Only a small subset of neurons may be encoding odor identity despite large variance within the population. Can authors provide an analysis of the degree to which their classifier is using sparse weightings in this task? Can they identify the best performing neurons?

We have discussed the issue of sparseness in the general comments above. With respect to this specific comment, in the generalization task the classifier was trained on stimuli individually and the three concentrations of the target odor were not lumped together until after classification. So, the classifier does not know which dimensions are stable across stimuli.

3) Second, the authors presented the dependence of the classifier performances as a function of number of neurons, n. The classification analysis may not accurately represent the information contained in the population. It is possible that a discriminator with input from specific combinations of n neurons performs much better than an average performance of a discriminator for the same number of neurons. What is the distribution of the discriminator performances for a given number of neurons? How the dependencies on the Figure 4 change for the best (or almost the best) n performing neurons, but not for average subset of n neurons.

This is an excellent suggestion and we have followed it to provide an important clarification on sparseness of cortical odor representations. Please see above.

4) While I agree that the fitting of a mixture of 3 Gaussians to the latency data looks reasonable by eye, I would ask that the authors provide more formal model comparison to justify the model and the number of mixed Gaussians. Once this is established, the authors should provide some estimate of the confidence in the fit parameters, as this confidence is important in establishing how the latencies shift between the olfactory bulb and piriform and whether these differences are significant. Bootstrapping across units can be used to derive these statistics.

We have formalized our justification for 3 Gaussians using the Bayesian Information Criterion, and then provided confidence for these conclusions. Please see above.

5) The authors find that concentration information in their recorded population of units is encoded later than that of identity. At the end of the subsection “Dissociating representations of identity and intensity”, they claim that this conveniently matches behavioral observations from Abraham et al. Such a comparison of discriminant performance with a behavioral result seems like a stretch – the cited paper attributed the longer reaction time to the difficulty of the task, rather than to a difference between identity and concentration discriminations. In addition, the authors may consider citing Resulaj 2015, which reported very fast concentration discrimination.

We find that early piriform responses are relatively concentration-invariant over the first 100 ms before they become more concentration-dependent. Note that this is not only true for the discriminant analysis but also for the actual spiking data (Figure 3). We therefore think it is valid to propose that the slower evolution of concentration-dependent differences in piriform responses can account for at least some of the difference in reaction times. We nevertheless agree with the reviewer that it is a stretch to attribute differences in reaction times entirely to differences in piriform odor responses and we have softened our statement to say that this difference in cortical representations may account for some of the differences in behavior, and we have cited the Resulaj paper as a counter-example.

6) More description of the methods used in analysis would be helpful. Latency determination for neural responses should be described, especially given that many of these neurons' firing rates are non-stationary within the sniff cycle. Also, PSTH convolution methodology is not described well – uniform kernel or Gaussian? Are non-overlapping (invalid) portions of the signal discarded, and if so are the timings adjusted for the shift that this would incur?

The following paragraph from the Methods section states that we used a Gaussian kernel for smoothing:

“We computed smoothed kernel density functions (KDF) with a 10 ms Gaussian kernel (using the psth routine from the Chronux toolbox: www.chronux.org) to visualize trial-averaged firing rates as a function of time from inhalation onset and to define response latencies for each cell-odor pair. Peak latency was defined as the maximum of the KDF within a 500-ms response window following inhalation.”

The resulting KDF reflects only spike times that occurred within the boundaries of the response window, but is computed over a wide enough time span to accommodate the spread of Gaussian kernels near the edges of the window. We have adjusted our description to clarify this:

“To define peak latencies, KDFs were computed from spike times occurring with a 500-ms response window following inhalation. Peak latency was the time of maximum of this KDF. In cases where the KDF maximum was at the window edge, indicating falling from or rising to a peak outside of the response window, peak latency was undefined.”

7) No methodology for olfactory bulb recordings is given in the manuscript. Some statistics should also be provided about the recorded population (i.e. recording depths, number of units recorded).

We have provided further descriptions, including the recording depths and total number of isolated units.

8) The authors provided an argument that inhibition is responsible for an increase of synchrony in the network (Figure 6). I did not understand this argument. My impression was, that the authors demonstrated that inhibition attenuated the later response, thus making the earlier response more temporarily confined. How does this lead to increase of synchrony in early response?

We apologize for lack of clarity here. As we discuss above, we are quantifying synchrony here as the distribution of response times over the 500 ms sniff. Therefore, and consistent with the reviewer’s impression, as increasing inhibition at higher concentrations attenuates more of the later response a greater fraction of the total response occurs earlier. We are not defining population synchrony here as synchrony of the early response specifically. Nevertheless, it is important to note that there is indeed an increase in the synchrony of the early response, and that this could be responsible for stronger and more synchronous recruitment of inhibition. In principle, this increased early synchrony could be used to encode concentration, however our sliding-window decoding analysis does not support this. Importantly, and to the reviewer’s question, we are not claiming a role for inhibition in synchrony of the early response.
