Identification of a pre-active conformation of a pentameric channel receptor

  1. Anaïs Menny
  2. Solène N Lefebvre
  3. Philipp AM Schmidpeter
  4. Emmanuelle Drège
  5. Zaineb Fourati
  6. Marc Delarue
  7. Stuart J Edelstein
  8. Crina M Nimigean
  9. Delphine Joseph
  10. Pierre-Jean Corringer Is a corresponding author
  1. Institut Pasteur, France
  2. Centre National de la Recherche Scientifique, France
  3. Université Pierre et Marie Curie, Cellule Pasteur, France
  4. Weill Cornell Medicine, United States
  5. Université Paris-Sud, CNRS, Université Paris-Saclay, France
  6. Institute of Biology, Ecole Normale Supérieure, France
Research Article
Cited
0
Views
856
Comments
0
Cite as: eLife 2017;6:e23955 doi: 10.7554/eLife.23955

Abstract

Pentameric ligand-gated ion channels (pLGICs) mediate fast chemical signaling through global allosteric transitions. Despite the existence of several high-resolution structures of pLGICs, their dynamical properties remain elusive. Using the proton-gated channel GLIC, we engineered multiple fluorescent reporters, each incorporating a bimane and a tryptophan/tyrosine, whose close distance causes fluorescence quenching. We show that proton application causes a global compaction of the extracellular subunit interface, coupled to an outward motion of the M2-M3 loop near the channel gate. These movements are highly similar in lipid vesicles and detergent micelles. These reorganizations are essentially completed within 2 ms and occur without channel opening at low proton concentration, indicating that they report a pre-active intermediate state in the transition pathway toward activation. This provides a template to investigate the gating of eukaryotic neurotransmitter receptors, for which intermediate states also participate in activation.

https://doi.org/10.7554/eLife.23955.001

eLife digest

In the nervous system, proteins of the pLGIC family are found in the membrane that surrounds each neuron. These proteins have channels that can allow ions to pass through the membrane and are responsible for transmitting electrical signals from one neuron to the next. Small molecules called neurotransmitters interact with the pLGICs to open or close the ion channel. If the ability of the pLGIC channels to open is altered, it can lead to behavioral changes like addiction, or diseases such as schizophrenia or epilepsy.

For a pLGIC channel to switch between the “open” and “closed” states, specific parts of the protein need to move in relation to each other. However, to study these transitions researchers have previously relied on comparing the three-dimensional structures of open and closed pLGICs extracted out of the cell membrane. Different techniques are needed to directly follow these movements within membranes.

Bacteria also have proteins belonging to the pLGIC family, and Menny et al. have now investigated one such bacterial protein to understand how pLGICs open. First, a small fluorescent molecule that glows differently if the environment around it changes was attached to various parts of the bacterial channel. These fluorescent markers revealed how several parts of the protein move and they also made it possible to measure how quickly these movements take place. Some of these movements happen before the channel opens, suggesting that the activation of this pLGIC protein happens in stages and involves the protein adopting a temporary intermediate state.

The next step will be to better understand the structure of the intermediate state, which could help us to understand how pLGICs work in the nervous systems of animals. In future this may aid the design of new drugs that can modify the activity of these channels in patients with neurological conditions or addictions.

https://doi.org/10.7554/eLife.23955.002

Introduction

Pentameric ligand-gated ion channels (pLGICs) mediate fast chemical signaling between cells. Prominent members of the family include nicotinic acetylcholine (nAChRs), serotonin-type-3 (5-HT3Rs), glycine (GlyRs) and γ-aminobutyric acid-A (GABAARs) receptors that are widely expressed in the nervous system. Their mutation can cause congenital myasthenia, epilepsy, hyperekplexia and possibly autistic and schizophrenic syndromes (Steinlein, 2012). They are the target of major classes of therapeutic substances, including anxiolytics and sedatives, general anesthetics, smoking cessation drugs and antiemetics (Corringer et al., 2012). Hence, understanding the molecular mechanisms underlying their chemo-electric conversion is currently the matter of intensive work.

Following the medium resolution structure of the Torpedo marmorata nAChR by electron microscopy in lipids (Miyazawa et al., 2003), the first X-ray structures of full-length pLGICs were obtained on the bacterial homologs Erwinia chrysanthemi Ligand-gated Ion Channel (ELIC) (Hilf and Dutzler, 2008) and Gloeobacter violaceus Ligand-gated Ion Channel (GLIC) (Bocquet et al., 2009; Hilf and Dutzler, 2009; Sauguet et al., 2014), followed by structures of eukaryotic members: the GluClαR (Hibbs and Gouaux, 2011; Althoff et al., 2014), the β3GABAAR (Miller et al., 2014), the 5-HT3R (Hassaine et al., 2014), the α1GlyR (Du et al., 2015) by electron microscopy, the α3GlyR (Huang et al., 2015) by crystallography and the α4β2 nAChR (Morales-Perez et al., 2016) showing a highly conserved fold from bacteria to mammals. pLGICs are composed of five identical or homologous subunits arranged pseudosymmetrically around a central ion-conducting channel. They bind neurotransmitters within their extracellular domain (ECD), promoting remote opening of an intrinsic ion channel within their transmembrane domain (TMD). Each subunit’s ECD is composed of a rigid β-sandwich. The orthosteric binding sites for neurotransmitters are located at the subunit interface, halfway between the membrane and the top of the ECD. Each subunit’s TMD is composed of four membrane-spanning α-helices named M1–4. M2 lines the ion channel, its upper part contributing to the gate that shuts the pore in the closed conformation. The well-conserved loops 2, 7 and M2–M3 are found at the ECD-TMD interface (Figure 1A).

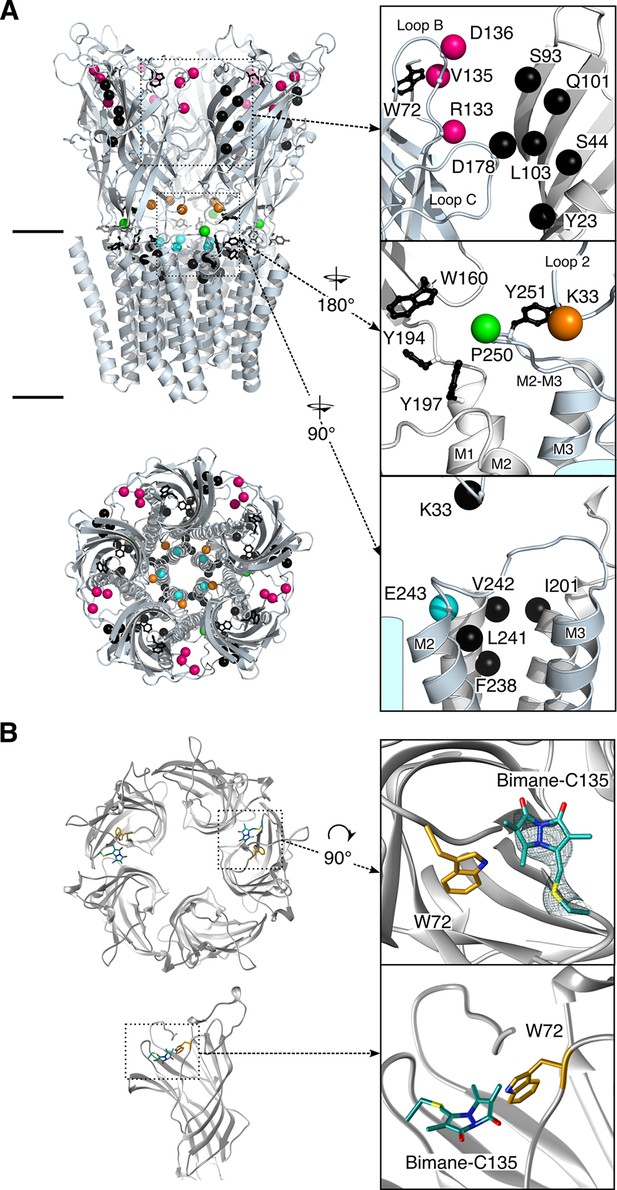

Structure of GLIC.

(A) Positions for fluorophore and quencher insertion. Top panel: side view of GLIC crystalized at pH 7. Lower panel: Top-down view of GLIC. Insets show particular regions targeted for mBBr labeling. Positions where cysteines are engineered are represented in color and positions for tryptophan/tyrosine mutations are in black. All amino acids are represented by a sphere for the Cß carbon, to show the orientation of the side chain. Endogenous tryptophans and tyrosines are in stick representation. (B) X-ray structure of the V135C-Bimane. A top and side view are presented showing the localization of the two Bimane molecules resolved in the structure. Insets show a zoom for both the top and side view of the V135C-Bimane and the putative quencher W72. In the top zoom, the experimental 2Fo-Fc density map contoured at one sigma is shown in mesh for the Bimane.

https://doi.org/10.7554/eLife.23955.003

pLGICs exist in multiple allosteric states. The major states can be classified as: resting (with a closed channel and a low affinity for agonists), active (with an open channel) and desensitized (with a closed channel and a high affinity for agonists) (Changeux and Edelstein, 2005). In addition, ensemble and single-channel kinetic analyses identified short-lived intermediate states during activation of nAChRs and GlyRs. These states, named ‘flip’ and ‘prime’, display increased agonist affinity as compared to the resting state but still carry a closed channel (Burzomato et al., 2004; Lape et al., 2008; Mukhtasimova et al., 2009). Finally, desensitization was early described as involving multiple conformations, including fast and slow desensitized states (Sakmann et al., 1980).

Among pLGICs of known structures, GLIC (Bocquet et al., 2009; Prevost et al., 2012; Sauguet et al., 2014), GluClα (Hibbs and Gouaux, 2011; Althoff et al., 2014) and α1GlyR (Du et al., 2015) were each solved in three different conformations showing multiple tertiary and quaternary conformations that are difficult to assign to a particular allosteric state. Notably, all the structures were solved on detergent-solubilized proteins, most of them constrained in a crystal lattice that appears, in several cases, to be favoring a particular conformation regardless of the nature of bound ligands (Nury et al., 2011; Gonzalez-Gutierrez et al., 2012). Complementary methods are thus required to study the conformational changes of lipid-inserted, unconstrained receptors, in a time-resolved manner.

Here, we used the proton-gated ion channel GLIC (Bocquet et al., 2007) to identify the conformational changes that occur during gating in the family of pLGIC channels. GLIC has been crystallized in three conformations (called open, closed and locally-closed) (Bocquet et al., 2009; Prevost et al., 2012; Sauguet et al., 2014) and studied by molecular dynamics, normal mode analysis and EPR spectroscopy (Sauguet et al., 2014; Calimet et al., 2013; Velisetty et al., 2014). We used the tryptophan-induced (TrIQ) (Mansoor et al., 2002; Islas and Zagotta, 2006; Mansoor et al., 2010) and tyrosine-induced (TyrIQ) (Semenova et al., 2009; Jones Brunette et al., 2014) quenching methods to study short-range (5–15 Å) inter-residue, pH-elicited motions of GLIC. The methods consist in covalently linking the protein with a fluorophore, here the small and pH-insensitive bimane (Figure 2A), together with the insertion of a tryptophan or a tyrosine residue that quenches the fluorophore when the inter-residue Cα-Cα distances are less than approximately 15 Å and 10 Å, respectively. The Tr/TyrIQ approach was validated on the model system T4 lysosyme (Mansoor et al., 2002, 2010; Jones Brunette et al., 2014) and was previously used to follow the allosteric transitions of proteins such as the β2-adrenoceptor (Yao et al., 2006) and the lactose permease (Smirnova et al., 2014). Previous fluorescence-based studies on pLGICs have used large fluorophores to follow conformational changes (Talwar and Lynch, 2015), but the TrIQ method has the unique advantage of allowing the assignment of fluorescence changes to relative motions between a fluorophore and a quencher of small sizes (Yao et al., 2006; Smirnova et al., 2014).

Figure 2 with 5 supplements see all

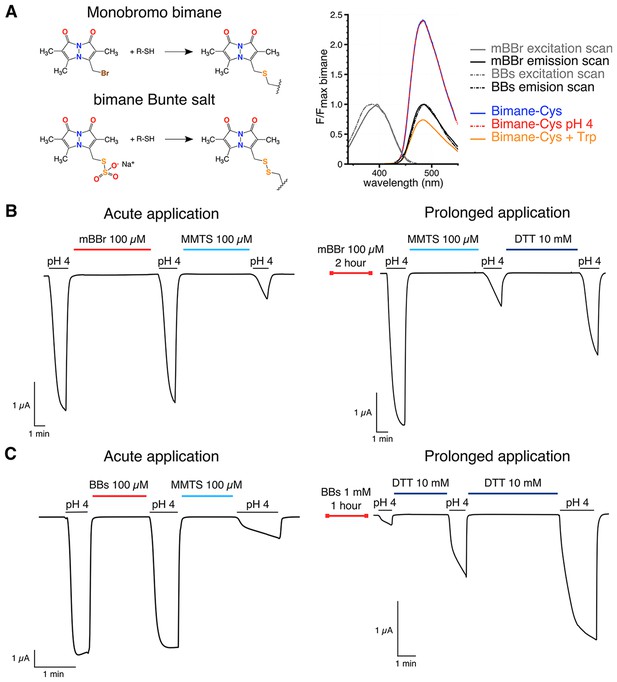

Bimanes characteristics and labeling of GLIC-expressing cells.

(A) Left: Structures of the Monobromo bimane (mBBr) and the bimane Bunte salt (BBs) before and after reaction with cysteines. Right: Excitation and emission spectra of both fluorophores and emission spectra of the mBBr (10 µM) after reaction with cysteines (1 mM), acidification of the medium (pH 4) or addition of tryptophan (25 mM). All spectra are normalized to the peak intensity of the mBBr emission spectrum. (B, C) Representative electrophysiological recordings of oocytes expressing GLIC Q193C mutant. Unless otherwise indicated, oocytes were perfused with a pH 7.3 solution. (B) Traces showing no functional inhibition of GLIC Q193C after mBBr exposure with acute (left) or prolonged application (right), whereas the same oocytes are inhibited by reaction with MMTS, which can be reversed by application of DTT. (C) Left: Trace showing the inhibition of GLIC Q193C after reaction with the MMTS but not the BBs after acute application. Right: Effective inhibition of GLIC Q193C after reaction with the BBs after the oocyte was incubated for 1 hr in presence of the fluorophore, followed by reduction of the Cys-BBs bond by DTT.

https://doi.org/10.7554/eLife.23955.004

Results

Bimane labeling strategy

We focused our analysis on regions known to contribute critically to allosteric transitions of pLGICs and that are solvent-accessible, starting from the most membrane-distal region (top) of the ECD. A bimane was introduced at: (1) the subunit interface at the top of the ECD (D136 and V135 on loop B) and the middle of the ECD (R133 on loop B, at the level of the orthosteric site), to monitor the quaternary reorganizations of this domain; and (2) at both sides of the ECD-TMD interface, at the bottom of the ECD (K33 on loop 2), on the M2-M3 loop (the most N-ter proline of the loop P250), and at the top of pore-lining M2 α-helix (E243, also termed E19’, which is nearby the channel gate residues I233/I9’ and I240/I16’) (Figure 1A). For each targeted position, a cysteine was engineered on the GLIC Cys-less background (C27S, which does not produce functional alterations [Table 1]), followed by bimane labeling through cysteine modification. Each mutant was first characterized by two-electrode voltage clamp electrophysiology in Xenopus oocytes before and after bimane labeling to verify the functionality of the channel. Mutants were then expressed and purified from E. coli membranes, labeled with bimane and studied by fluorescence in detergent (n-Dodecyl β-D-maltoside) or asolectin liposomes.

Electrophysiological characterizations of the bimane-labeled mutants

We first developed a labeling procedure in Xenopus oocytes. Indeed, we found that the currently used mBBr (Monobromo bimane) does not efficiently label surface receptors, since the reporter mutant GLIC Q193C (pre-M1), which is fully inhibited by reaction with methyl-methanethiosulfate (MMTS) (Figure 2B), is neither affected nor protected from MMTS inhibition by mBBr treatment. Control experiments on chinese hamster ovary (CHO) cells expressing GLIC-D136C showed no surface labeling, but clear accumulation of the fluorophore in the cytoplasm (Figure 2—figure supplement 1). To decrease the hydrophobicity of the reagent, we synthesized the bimane-derived Bunte salt (BBs), introducing a negatively charged SO3 leaving group (Figure 2A and Figure 2—figure supplements 2 and 3). After reaction with cysteine residues, the mBBr and BBs yield almost the same coupling product, with similar fluorescence and side-chain volume (Mansoor and Farrens, 2004) (Figure 2A). GLIC-expressing CHO cells show weak entry of the BBs in the cytoplasm and strong labeling at the membrane (Figure 2—figure supplement 1). Accordingly, BBs labeling of Q193C-expressing oocytes led to a severe loss of function indicating an efficient reaction with the surface receptors (Figure 2C).

Most mutants investigated herein were functional, generating robust pH-elicited currents, with few exceptions (Table 1 and Figure 2—figure supplements 4 and 5). For all functional mutants, after BBs labeling, currents showed wild-type like biphasic GLIC activation kinetics, with time constants ranging from 1 to 2.8 s (τ1) and 5 to 8.9 s (τ2) (Table 2 and Figure 2—figure supplement 4), except for P250C baring its endogenous quencher Y197 (termed P250C-Y197) which displays slower kinetics of activation (5.4 s and 50 s). pH-current relationship measurements show ∆pH50 (pH value for which half of the maximal electrophysiological response is recorded) of less than one between wild-type and BBs-labeled mutants (Table 1). Thus, the labeling with the small BBs probe weakly affects the gating in most cases.

Table 1

Dose dependence of currents and fluorescence. The table contains pH50 and nH values obtained through Hill equation fittings of current and fluorescence dose-response curves. Imax values represent the maximal current recorded. NF stands for not functional when maximal currents are smaller than 500 nA. NA stands for non-applicable and was used for mutants that did not elicit fluorescence variations bigger than 10% across the range of pH tested. NM stands for not measured. n represents the number of experiments. For all the data, mean values are presented and error values represent the standard deviations.

https://doi.org/10.7554/eLife.23955.010

Electrophysiology
non-labeled
Electrophysiology
labeled
Fluorescence
detergent
Fluorescence
liposomes
MutantpH50nHImaxnpH50nHImaxnpH50nHnpH50nHn
WT5.3 ± 0.21.29 ± 0.066 ± 14NANANANANMNMNMNMNMNM
C27S5.31 ± 0.071.6 ± 0.27.0 ± 0.455.3 ± 0.11.7 ± 0.27 ± 23NANA3NANA3
R133C5.3 ± 0.21.8 ± 0.17 ± 345.1 ± 0.22.14 ± 0.058 ± 335.4 ± 0.31.7 ± 0.655.5 ± 0.11.3 ± 0.23
R133C Y23W5.2 ± 0.42.0 ± 0.39.2 ± 0.835.1 ± 0.22.50 ± 0.076 ± 13NANA3NMNMNM
R133C Q101W4.9 ± 0.22.3 ± 0.14 ± 235.0 ± 0.12.49 ± 0.034.9 ± 0.93NANA3NMNMNM
R133C L103W5.1 ± 0.12.2 ± 0.46.8 ± 0.835.23 ± 0.091.7 ± 0.26 ± 235.2 ± 0.30.7 ± 0.245.50 ± 0.040.78 ± 0.073
V135C W725.6 ± 0.21.7 ± 0.37.0 ± 0.945.29 ± 0.082.0 ± 0.17.2 ± 0.736.31 ± 0.091.7 ± 0.276.05 ± 0.023 ± 14
V135C E67Q E75Q D91N5.11.87.315.1 ± 0.22.0 ± 0.46.5 ± 1.036.14 ± 0.031.8 ± 0.23NMNMNM
D136C5.3 ± 0.11.9 ± 0.27.0 ± 0.945.29 ± 0.042.0 ± 0.38.3 ± 0.93NANA3NANA3
D136C S93W4.50 ± 0.052.1 ± 0.43 ± 134.60 ± 0.061.5 ± 0.12.1 ± 0. 93NANA4NMNMNM
D136C Q101W5.17 ± 0.082.3 ± 0.18 ± 235.4 ± 0.22.2 ± 0.39 ± 335.85 ± 0.080.96 ± 0.0845.8 ± 0.11.3 ± 0.63
D136C D178W51.86.215.31.86.61NANA3NMNMNM
K33C W1605.88 ± 0.031.8 ± 0.19 ± 235.6 ± 0.21.8 ± 0.48 ± 236.22 ± 0.032.0 ± 0.445.95 ± 0.071.25 ± 0.096
K33C W160F4.55 ± 0.032.6 ± 0.23.0 ± 0.134.4 ± 0.12.2 ± 0.61 ± 14NANA3NANA3
P250C
Y197
5.1 ± 0.11.54 ± 0.097.0 ± 1.234.8 ± 0.22.3 ± 0.44.3 ± 0.835.88 ± 0.092.1 ± 0.855.5 ± 0.32.2 ± 0.64
P250C W160FNFNFNF3NFNFNF46.06 ± 0.061.9 ± 0.13NMNMNM
P250C Y194F5.1 ± 0.21.7 ± 0.46.4 ± 0.834.5 ± 0.21.8 ± 0.22 ± 135.97 ± 0.021.4 ± 0.44NMNMNM
P250C Y197F5.2 ± 0.11.3 ± 0.34.1 ± 0.154.73 ± 0.091.2 ± 0.21.5 ± 0.93NANA3NANA3
P250C Y251FNFNFNF7NFNFNF3NANA4NMNMNM
E243C5.1 ± 0.11.7 ± 0.38 ± 144.7 ± 0.21.7 ± 0.35 ± 434.5 ± 0.22.0 ± 0.244.8 ± 0.10.9 ± 0.36
E243C K33WNFNFNF4NFNFNF3NANA3NMNMNM
E243C I201WNFNFNF10NFNFNF35.67 ± 0.041.549 ± 0.00435.81.42
E243C F238W5.2 ± 0.21.4 ± 0.27 ± 144.7 ± 0.31.5 ± 0.55 ± 33NANA3NMNMNM
E243C L241W5.7 ± 0.20.69 ± 0.065.09 ± 0.0834.8 ± 0.10.61 ± 0.032 ± 13NANA3NMNMNM
E243C V242WNFNFNF4NFNFNF5NANA3NMNMNM
Table 2

Activation kinetics of GLIC mutants labeled with bimane. The τ values were obtained through a double exponential fit to the electrophysiology traces (see Materials and methods). n represents the number of recordings used for the analysis. For all the data, mean values are presented and error values represent the standard deviations.

https://doi.org/10.7554/eLife.23955.011
Mutantτ1 (s)τ2 (s)τw (s)n
R133C L103W1.0 ± 0.56 ± 53 ± 23
V135C W721.9 ± 0.49 ± 53 ± 13
D136C Q101W0.9 ± 0.25 ± 42 ± 23
K33C W1601.7 ± 0.67 ± 55 ± 33
P250C Y1975.4 ± 0.750 ± 830 ± 103
E243C2.80 ± 0.098.9 ± 0.63.57 ± 0.063

Analysis of bimane-quencher pairs in the ECD in DDM micelles

Emission spectra of DDM-solubilized mutants labeled with bimane were recorded under steady state conditions (30 s post proton-application, excitation at 385 nm [see Materials and methods]). Fluorescence intensities were measured at the emission peak at various pH values (from pH 7.3 to pH 3) (Figure 3—figure supplement 2) and normalized to the intensity of the respective bimane-mutant under denaturing conditions (1% SDS). GLIC being activated by protons, we additionally performed control experiments to confirm that, as previous studies have shown (Jones Brunette et al., 2014), both the bimane fluorescence and its quenching by tryptophans are unaffected by proton concentrations ranging from pH 9 to pH 2 (Figure 3—figure supplement 1A,B) (see Materials and methods). Hence, the fluorescence variations of bimane-labeled mutants can be interpreted as reporting local structural reorganizations.

When the bimane is introduced on loop B (top of the ECD) at positions 133 or 136 (termed Bimane-133 and Bimane-136 [Figure 1A]), the fluorescence shows little variation in the pH 7.3–3 range, indicating that nearby putative quenching residues have a weak impact on the pH-dependent bimane fluorescence (Figure 3A,B). Bimane-133 shows a marked blue shift (15 nm) and a fluorescence two times higher than the denatured protein at pH 7.3 possibly indicating the probe when reacted to position 133 is located in a confined/hydrophobic environment (Kosower et al., 1982; Skjold-Jørgensen et al., 2015) (Figure 3A and Figure 3—figure supplement 2). To generate quenching pairs, we introduced tryptophan residues on the adjacent subunit β-sandwich (Figure 1A). For mutant Bimane-133, the introduction of W23 (β1 strand), W44 (β2 strand) and W101 (β6 strand) has little impact on the fluorescence at all pHs suggesting that these positions are never within quenching distances of the bimane (Figure 3A). For mutant Bimane-136, the introduction of W93 (β5 strand) produces a strong fluorescence decrease at all pHs indicating in this case that this residue is always within quenching distance of the bimane (Figure 3B). In contrast, both the Bimane-133-W103 and Bimane-136-W101 show a marked pH-dependent fluorescence decrease (Figure 3A,B). These data show that the residues at positions 133 and 103, and those at positions 136 and 101 come closer upon acidification of the receptors.

Figure 3 with 2 supplements see all

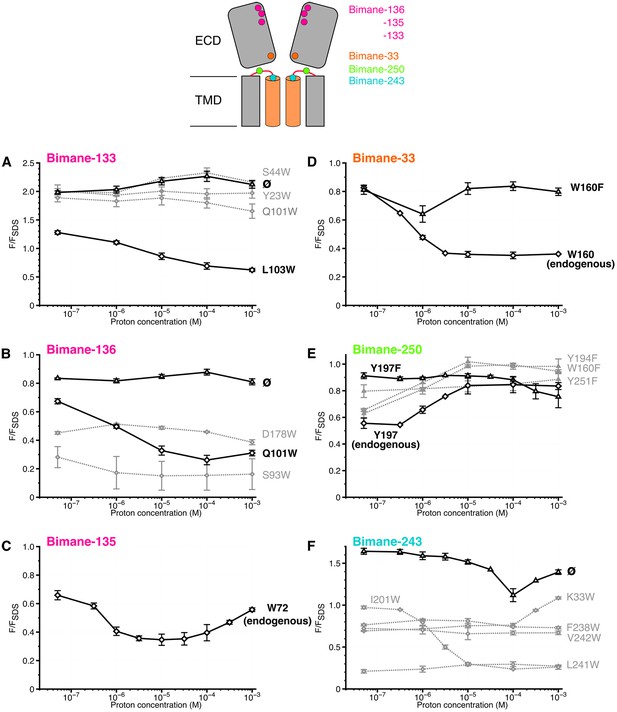

Steady-state variations of fluorescence of Bimane-GLIC mutants in detergent.

Top: Cartoon view of two subunits of GLIC, all the sites of bimane labeling are represented by a colored sphere. (A, B, C, D, E, F): The data show the fluorescence peak values as a function of the proton concentration, normalized to the peak intensity after SDS treatment. The same color code as the top cartoon was used to indicate the site of bimane labeling for each graph. Within one graph, the major quenching pairs with or without quencher are shown in bold black caption and secondary tryptophan quenchers are captioned in grey. The symbol ø was used for recordings made on receptors baring no other mutation than the one for bimane labeling and for which no endogenous quenchers were identified; otherwise the later are indicated in bold black caption. For all the points, mean values are presented and error bars represent the standard deviations.

https://doi.org/10.7554/eLife.23955.012

When the bimane is introduced at position 135 (loop B), the pH-fluorescence relationship curve shows an inverted bell-shape, starting after normalization at 0.7, decreasing down to 0.3 at pH 5–4, then increasing up to 0.6 at pH 3 (Figure 3C). The GLIC structures show a tryptophan (W72 on loop 4) on the same subunit that could play the role of an endogenous quencher (Figure 1A). W72 is a residue strictly conserved in all pLGICs (Corringer et al., 2012). To determine whether W72 has a role in the fluorescence phenotype while avoiding severe mutation-induced structural alteration that would result from the loss of W72, we solved the X-ray structure of Bimane-135 GLIC at pH 4 at 2.6 Å resolution (Figure 1B and Supplementary file 1A). The structure shows a protein conformation quasi-identical to the wild-type GLIC structure (Bocquet et al., 2009) at pH 4 (RMSD = 0.26 Å), with an additional electron density around C135 allowing unambiguous construction of a bimane moiety in two out of the five subunits. The data indeed show that the bimane is at a minimal 3.2 Å distance from the indole ring of W72, which is therefore most likely the major partner in the pH-elicited fluorescence changes of Bimane-135 (Figure 1B). As the 135 side chain projects at the subunit interface, the quenching of Bimane-135 by W72 seen up to pH 4 suggests a contraction of the domains interfaces, driving the bimane moiety toward W72, although other mechanisms are possible. At very low pH, the bimane appears to move away from the W72.

Finally, we investigated a local tertiary motion of the orthosteric site, by combining the Bimane-136 (loop B) mutation with the introduction of a tryptophan at position 178 at the tip of the loop C from the same subunit (Figure 1A). W178 leads to a 50% decrease in fluorescence at all pHs tested, indicating that both positions (136 and 178) are within quenching distance, and suggesting that their relative distance is unchanged upon increase of proton concentration (Figure 3B), in agreement with EPR measurements that suggest an immobility of this position upon pH drop (Velisetty and Chakrapani, 2012). It is noteworthy that loop C has been proposed to undergo a closing motion during activation of pLGICs, a feature not seen here with fluorescence.

Analysis of bimane-quencher pairs at the ECD/TMD interface in DDM micelles

First, we introduced a bimane at the tip of loop 2 in the ECD (Bimane-33), which lies on top of the M2 helix (Figure 1A). Bimane-33 shows a twofold pH-dependent decrease in fluorescence from pH 7.3 to pH 5 (Figure 3D). A putative quencher near Bimane-33, W160, is located on the adjacent subunit on the β9 strand at the bottom of the outer beta sandwich (Figure 1A). Its mutation (W160F) essentially abolishes the proton-elicited fluorescent decrease, with only a 20% decrease in intensity at pH 6, followed by a return to pH 7-like values at lower pHs, showing that Bimane-33 and W160 come closer together in the presence of protons.

Second, we introduced a bimane at position 250 within the M2-M3 loop (Figure 1A). Bimane-250 shows a 30% increase in intensity as the pH is decreased from 7.3 to 3 (Figure 3E). The effect of three surrounding tyrosines and a single tryptophan were investigated through mutation to phenylalanine (Figure 1A). Mutants Bimane-250-W160F (β9 strand) and -Y194F (pre-M1) both lead to a modest increase in fluorescence at all pHs suggesting that W160 and Y194 remain at similar quenching distances of the bimane, independently of the protein conformation (Figure 3E). In contrast, Y197F (M1 helix) and Y251F (M2-M3 loop) reduce the fluorescence quenching at high pHs, yielding a flat pH-dependent curve. The mutant Bimane-250-Y251F is non-functional (Table 1), which could result in its incapacity to visit different conformations and thus account for this phenotype. In contrast, the mutant Bimane-250-Y197F is functional, the unquenching phenotype showing that positions 250 and 197 move away from each other in the presence of protons (Figure 3E).

Third, we introduced a bimane on the top of the M2 α-helices (Bimane-243) (Figure 1A). Upon acidification, the fluorescence decreases slightly at pH 4 and then increases at pH 3, pointing to complex reorganizations. We introduced tryptophan residues around the probe but failed to engineer new pH-dependent quenching pairs (Figure 1A). Indeed, the mutants were either non-functional (Bimane-243-W33, -W201 and -W242) or functional but not eliciting pH-dependent fluorescence variations (Bimane-243-W238 and -W241) (Figure 3F and Table 1). Nonetheless, regardless of the functionality of the mutants, Bimane-243 is robustly quenched by all the introduced tryptophans at pH 7.3. As most introduced tryptophans are located in the TMD, the fluorescence data, in combination with GLIC structure inspection, suggests that the bimane fused bis-heterocycle at position 243 points toward the helix bundle of the adjacent subunit. In addition, the mutant Bimane-243 shows an emission blue shift (10 nm) and a fluorescence 1.6 times higher than the denatured protein at pH 7.3 possibly reporting a confined/hydrophobic environment of the probe (Figure 3F and Figure 3—figure supplement 2) adding more evidence to its presence inside the bundle of helix. Hence, the unassigned fluorescence variations at position 243 could account for motions of the top of the M2-helix relative to the rest of the subunit’s TMD.

The six fluorescent sensors report allosteric reorganizations of GLIC

Altogether, the TrIQ/TyrIQ analysis generates a series of fluorescent reporters spanning from the apex of the ECD to the top of the pore lining M2 helices. Sensors at positions 136–101, 135–72, 133–103, 33–160, 250–197 and 243 follow the reorganizations of fully functional channels and have been selected for further analysis. In contrast, some sensors, such as the 250–160 and 243–101, are of non-functional channels but still show specific quenching signals. This illustrates that particular conformational motions are not necessarily linked to pore opening. Since the molecular mechanisms impairing the function of these mutants are not known, they were not used for further analysis.

At each selected position, changes in bimane/quencher distances could be the result of: (1) local side chains reorganizations, for example due to the protonation of residues surrounding the fluorophore and/or quencher, possibly affecting their orientation, regardless of the allosteric state of the receptor, or (2) global allosteric protein motions, mainly comprising backbone reorganizations. Two sets of experiments strongly support the latter hypothesis. First, we generated the mutant Bimane-135-W72-E67Q-E75Q-D91N, for which all titratable residues surrounding the Bimane-135-W72 pair were removed (Figure 4A). This mutant shows the same pH-dependence of fluorescence as the simple mutant Bimane-135-W72 (Figure 4A), supporting the hypothesis that the fluorescence variations are independent of the protonation of surrounding titratable residues. Second, we measured fluorescence variations in the presence of propofol, a negative allosteric modulator of GLIC. Propofol binds to the transmembrane domain of GLIC with an IC50 ≈ 25 µM and stabilizes closed channel conformations (Nury et al., 2011). In presence of saturating concentrations of propofol, mutants Bimane-136-W101, Bimane-135-W72, Bimane-250-Y197 and Bimane-243 show a shift of the pH-fluorescence relationship curve toward higher proton concentrations, in agreement with the effect of an allosteric inhibitor (Figure 4B). The observation that the binding of an effector to the TMD influences the fluorescence variations at the top of the ECD, more than 50 Å away, establishes that the fluorescence sensors indeed report global allosteric motions.

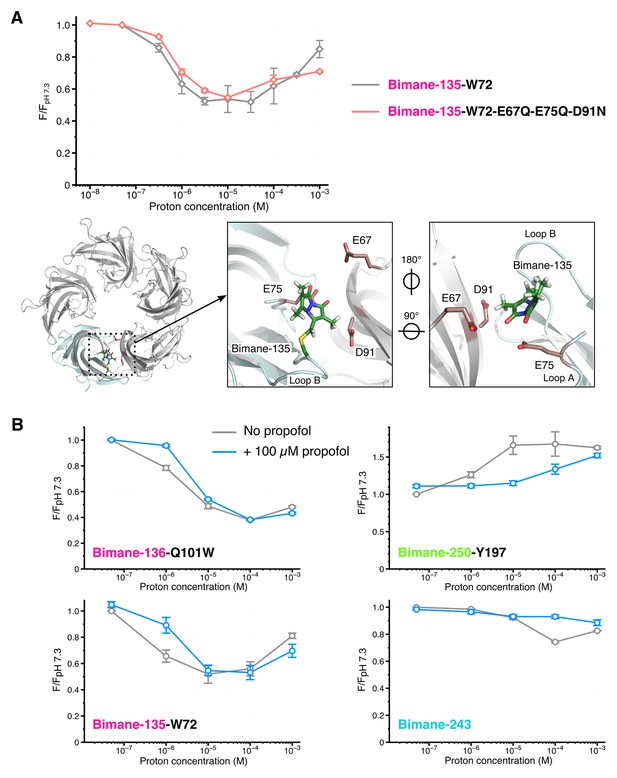

Effects of amino acid protonation and propofol on the fluorescence variations.

(A) Top: Fluorescence intensities of the mutants Bimane-135-W72 and Bimane-135-W72-E67Q-E75Q-D91N normalized on each mutant’s intensity at pH 7.3. Bottom, from left to right: Top view of the extracellular domain of GLIC Bimane-C135 showing one subunit in light blue, and the Bimane-C135 (green), E67, E75 and D91 (red) in stick representation; zoom on the subunits interface of the ECD, top view; zoom on the subunits interface viewed from the inside of the ECD. (B) For each pH, fluorescence recordings of Bimane-labeled mutants were first made without propofol, followed by addition of propofol at 100 µM final concentration and re-recording of the same samples. All the data were normalized on the value of fluorescence at pH 7.3 without propofol. For all the data, mean values are presented and error bars are calculated as standard deviations (n = 3 to 6).

https://doi.org/10.7554/eLife.23955.015

Interestingly, the quenching pairs in the ECD, each located across the subunits’ interface, were mostly introduced on rigid loops and β strands (e.g. loop B and β6 strand, Figure 1A). As they all show a decrease in fluorescence at low pH, the fluorescence variations likely reflect rigid body motions of the ECD’s β-sandwiches, thus coming closer to one another during allosteric transitions. In addition, the increase in fluorescence at low pH for the pair 250–197 reveals that another major allosteric reorganization of GLIC is the separation of loop M2-M3 (P250) from the top of M1 (Y197).

To link these motions to the gating transition of the receptor, we further studied GLIC in lipid bilayers, performing both steady state and real-time fluorescence measurements.

Detergent-solubilized and lipid-reconstituted GLIC show similar pH-elicited reorganizations

To examine the impact of the membrane environment on the receptor reorganizations, we reconstituted selected bimane-GLIC mutants in asolectin liposomes, which are a mixture of lipids that were successfully used to reconstitute GLIC in a functional state (Labriola et al., 2013; Velisetty and Chakrapani, 2012).

Strikingly, at the top and middle of the ECD (Bimane-133 ± W103, Bimane-135-W72 and Bimane-136 ± W101), steady-state fluorescence variations are similar, if not identical, in detergent micelles and liposomes (Figure 5A,B,C, Table 1 and Table 3), indicating that the corresponding movements are independent of the membrane environment.

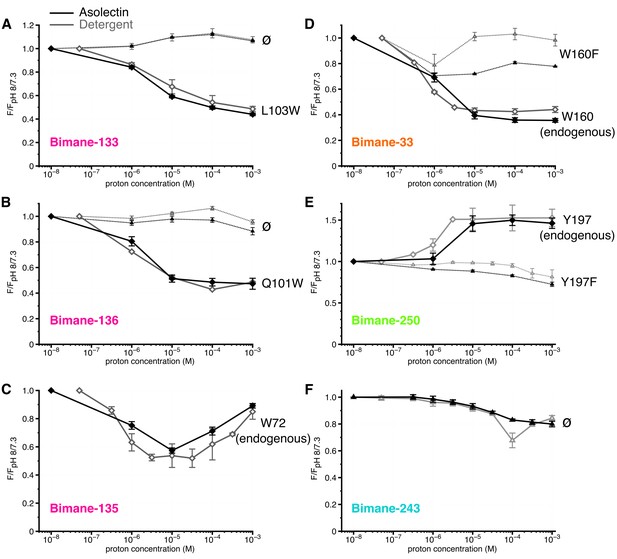

Steady-state fluorescence of Bimane-GLIC in liposomes.

(A,B,C,D,E,F) The data show the fluorescence peak value for a given pH, normalized to the peak intensity of each mutant at the highest pH recorded (pH 8 or 7.3). Black lines represent the fluorescence values in liposomes and grey lines in detergent, for comparison. Plain lines represent the major fluorescent sensor and dashed lines the corresponding mutant in absence of quencher. The symbol ø was used for recordings made on receptors baring no other mutation than the one for bimane labeling and for which no endogenous quenchers were identified; otherwise the later are indicated in black caption. For all the data, mean values are presented and error bars are calculated as standard deviations.

https://doi.org/10.7554/eLife.23955.016
Table 3

Fluorescence values at pH 7/8 in detergent or asolectin liposomes. The data presented are the values of fluorescence at the highest tested pH, normalized to the fluorescence after denaturation (1% SDS). n represents the number of experiments. For all the data, mean values are presented and error values represent the standard deviations.

https://doi.org/10.7554/eLife.23955.017
MutantF/FSDS in detergentnF/FSDS in asolectinn
Bimane-1331.98 ± 0.0341.91 ± 0.023
Bimane-133-W1031.28 ± 0.0341.182 ± 0.0033
Bimane-135-W720.66 ± 0.0370.76 ± 0.034
Bimane-1360.835 ± 0.00330.87 ± 0.033
Bimane-136-W1010.67 ± 0.0240.69 ± 0.024
Bimane-33-W1600.83 ± 0.0241.09 ± 0.036
Bimane-33-W160F0.81 ± 0.0830.87 ± 0.023
Bimane-2431.68 ± 0.0241.60 ± 0.016
Bimane-250-Y1970.55 ± 0.0540.60 ± 0.014
Bimane-250-Y197F0.93 ± 0.0131.42 ± 0.083

At the ECD-TMD interface, liposome reconstitution causes a significant increase in fluorescence of Bimane-33 and Bimane-250-Y197F mutants at pH 8/7, as compared to detergent conditions (30% and 50%, respectively) (Table 3). To better visualize the pH-dependent changes, the data were normalized to the pH 8/7 values, showing that the marked pH-dependent changes of Bimane-250 and Bimane-33 are conserved in lipids, although Bimane-33-W160F is significantly brighter in detergent (Figure 5D,E). Additionally, Bimane-243 shows similar pH-dependent variations in fluorescence in detergent and lipids (Figure 5F). The data thus suggest that the relative movements at positions 33–160 and 250–197 are also essentially conserved in lipids.

We propose that the differences in fluorescence intensity at certain positions between detergent and lipids are in line with their proximity to the membrane. Indeed, the GLIC structure at pH 4 shows the presence of a bundle of detergent within the pore and of a bound lipid in the upper part of the TMD (Bocquet et al., 2009). These bound molecules could contribute to the differences in microenvironment observed here.

It is noteworthy that, contrary to GLIC, most pLGICs are highly sensitive to the membrane environment. For instance, CHAPS-solubilized muscle nAChRs are strongly stabilized in a desensitized conformation (Martinez et al., 2002) and their reconstitution in the absence of anionic lipids or cholesterol (PC liposomes) yields an ‘uncoupled’ conformation that binds agonist with resting state–like low affinity, but does not undergo agonist-evoked conformational transitions (daCosta et al., 2013). GLIC does not exhibit the same propensity to adopt an uncoupled conformation and, contrary to ELIC, retains the ability to undergo proton-elicited conformational change and to activate in PC liposomes and other lipid mixtures (Labriola et al., 2013; Velisetty and Chakrapani, 2012; Dellisanti et al., 2013). A cluster of Trp residues, strengthening M4 interactions with M1/M3, was found to critically contribute to this robustness of GLIC function in various lipid environments (Hénault et al., 2015; Carswell et al., 2015). Our data show similar pH-elicited movements in detergent and liposomes, suggesting that this robustness also applies to detergent-solubilized GLIC, at least at the level of the positions herein investigated.

Rapid kinetic analyses of selected lipid-reconstituted pairs by stopped-flow

We analyzed the time-course of the conformational motions using a stopped-flow apparatus. Bimane-labeled GLIC mutants reconstituted in liposomes at pH 8 were either kept at pH 8 or mixed with acidic solutions buffering the proton concentration to final pH values of 6, 5 and 4, and followed by fluorescence. In all cases, the signal recorded 30 s after mixing was in the same range as in steady-state conditions (Table 4).

Table 4

Comparison of stopped-flow and steady-state fluorescence variations. The two columns show the maximal fluorescence variation recorded in the steady-state conditions or after 30 s of stopped-flow recordings. (+) indicates an increase of fluorescence and (−) indicates a decrease. n represents the number of experiments. For all the data, mean values are presented and error values represent the standard deviations.

https://doi.org/10.7554/eLife.23955.018
MutantpHMaximal ∆F steady-state (%)nMaximal ∆F stopped-flow (%)n
Bimane-133-W103pH 6(−) 16 ± 13(−) 11 ± 34
pH 5(−) 41 ± 13(−) 28 ± 93
pH 4(−) 50 ± 13(−) 38 ± 54
Bimane-135-W72pH 6(−) 25 ± 34(−) 20 ± 76
pH 5(−) 43 ± 24(−) 29.9 ± 0.96
pH 4(−) 29 ± 34(−) 20 ± 34
Bimane-136-W101pH 6(−) 20 ± 43(−) 12 ± 34
pH 5(−) 49 ± 33(−) 43 ± 44
pH 4(−) 53 ± 25(−) 45 ± 44
Bimane-33-W160pH 6(−) 31 ± 46(−) 28 ± 53
pH 5(−) 61 ± 36(−) 55 ± 44
pH 4(−) 64 ± 26(−) 56 ± 33
Bimane-250-Y197pH 6(+) 3 ± 74(+) 15 ± 84
pH 5(+) 46 ± 94(+) 60 ± 204
pH 4(+) 50 ± 64(+) 70 ± 404
Bimane-243pH 6(−) 2 ± 26(−) 13 ± 104
pH 5(−) 7 ± 26(−) 19 ± 94
pH 4(−) 17.0 ± 0.86(−) 18 ± 94

For most positions, the changes in fluorescence (as compared to the fluorescence at pH 8) are found to mainly occur in the dead-time of the instrument, during the first 2 ms of solution mixing (Figure 6A). While this very fast component is not resolved here, completion of the fluorescence variations in 2 ms indicates an upper value of the time constant below 1 ms. The subsequent variations of fluorescence were subjected to multi-exponential fits, excluding the first 3 ms of recording that show high variability (see Materials and methods and Figure 6—figure supplement 1). The binning analysis of all multi-exponentials allows the separation of kinetic values in three phases with time constants ranging from 5–24 ms (fast), to 24–966 ms (intermediate) and 966 ms–30 s (slow) (Figure 6B and Table 5). At positions 133, 136, 33 and 250, the dead-time 2 ms (‘very fast’) component, evaluated at the start of the multi-exponential fit at 5 ms, accounts for the majority of the fluorescence variation, especially at pH 4 where 72% to 90% of the fluorescence changes are completed (Figure 6C and Table 5). Therefore, the motion of positions 136–101, 133–103 and 33–160 moving closer together, and the separation of 250–197 occur with very fast kinetics.

Figure 6 with 1 supplement see all

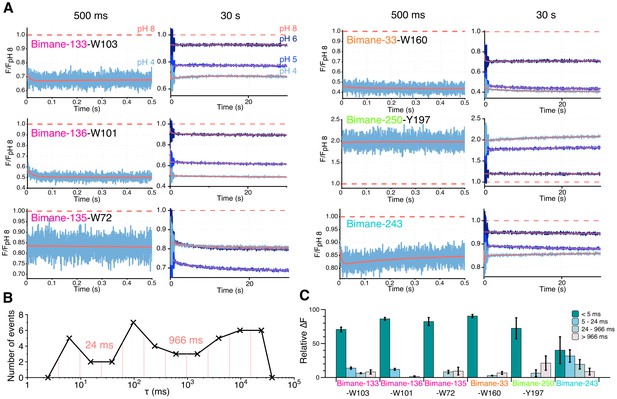

Stopped-flow fluorescence measurements.

(A) Each panel shows representative traces of the major quenching mutants with a zoom on the first 500 ms (left) and the entire recording (right). All traces are fitted to a multi-exponential (see Methods) represented in red. The color code is identical in each panel with a blue gradient starting from pH 6 (dark) to pH 4 (light). The red dash line represents the starting fluorescence at pH 8 after normalization, for the raw pH 8 trace see Figure 6—figure supplement 1. (B) Binning of τ values extracted from the stopped-flow multi-exponential fit (all pHs and all constructs were used for the plot). The log time binning interval is of 0.4 and the resulting bins are shown by red dashed lines on the plot. The distribution shows three major clusters for which the according τ value is indicated on the plot. (C) Fluorescence variations (calculated as a % of the overall variation at 30 s) for each time interval extracted from the binning plot. In this graph, mean values are presented and error bars are calculated as standard deviations.

https://doi.org/10.7554/eLife.23955.019
Table 5

Kinetic and fluorescence parameters of real-time measurements. All the values presented in the table were extracted from multi-exponential fits of the real-time measurements (see Materials and methods). The relative ∆F for each exponential fit were calculated using the maximal F variation of each curve. In the case fluorescence variations were ‘bi-directional’, the respective amplitudes of each phases were added to determine the maximal F variation value. (+) indicates an increase of fluorescence and (−) indicates a decrease. NA stands for non-applicable and was used when a single or double exponentials were sufficient to fit the data. For Bimane-133-W103 at pH 6, no fluorescence variations were measured after the 5 ms non-exploited data; hence no exponential fits were made for this particular condition. n represents the number of experiments. For all the data, mean values are presented and error values are calculated as standard deviations.

https://doi.org/10.7554/eLife.23955.021


Dead-time (<5 ms)Exponential 1Exponential 2Exponential 3
MutantpHRelative ∆F (%)τ1 (ms)Relative ∆F (%)τ2 (ms)Relative ∆F (%)τ3 (ms)Relative ∆F (%)n
Bimane-133-W103pH 6(−) 94 ± 6NANANANANANA4
pH 5(−) 72 ± 110 ± 4(−) 11.6 ± 0.7290 ± 40(+) 11 ± 521,000 ± 6000(−) 5 ± 43
pH 4(−) 71 ± 310 ± 7(−) 14 ± 2600 ± 400(+) 6 ± 126,000 ± 18,000(−) 8 ± 34
Bimane-135-W72pH 6(−) 53 ± 950 ± 40(−) 12 ± 4700 ± 400(−) 17 ± 63000 ± 1000(−) 19 ± 46
pH 5(−) 50 ± 20100 ± 100(−) 8 ± 51000 ± 1000(−) 19 ± 88000 ± 4000(−) 21 ± 66
pH 4(−) 82 ± 6700 ± 400(−) 8 ± 230,000 ± 40,000(−) 9 ± 6NANA4
Bimane-136-W101pH 6(−) 40 ± 309 ± 4(−) 30 ± 10100 ± 10(−) 10 ± 102900 ± 600(−) 14 ± 74
pH 5(−) 60 ± 109 ± 3(−) 30 ± 1040 ± 20(−) 5 ± 218,500 ± 900(−) 7 ± 24
pH 4(−) 86 ± 211 ± 3(−) 12 ± 14000 ± 5000(−) 1.6 ± 0.9NANA4
Bimane-33-W160pH 6(−) 73 ± 99 ± 5(−) 19 ± 9100 ± 100(−) 6.1 ± 0.73000 ± 4000(−) 3.2 ± 0.63
pH 5(−) 88.3 ± 0.9100 ± 100(−) 5 ± 21000 ± 1000(−) 2.9 ± 0.416,000 ± 9000(−) 4 ± 24
pH 4(−) 90 ± 2100 ± 100(−) 2.8 ± 0.42000 ± 2000(−) 3.6 ± 0.810,000 ± 2000(−) 4.1 ± 0.53
Bimane-250-Y197pH 6(+) 90 ± 10300 ± 500(+) 10 ± 10NANANANA4
pH 5(+) 86 ± 5200 ± 100(+) 5 ± 29000 ± 3000(+) 9 ± 4NANA4
pH 4(+) 70 ± 20100 ± 100(+) 6 ± 56000 ± 5000(+) 20 ± 10NANA4
Bimane-243pH 6(−) 80 ± 208000 ± 10,000(−) 8 ± 712,000 ± 3000(−) 21 ± 7NANA4
pH 5(−) 60 ± 209 ± 7(−) 11 ± 4270 ± 40(+) 22 ± 816,000 ± 6000(−) 12 ± 74
pH 4(−) 40 ± 205 ± 1(−) 32 ± 9150 ± 20(+) 19 ± 714,000 ± 7’000(+) 9 ± 54

Interestingly, Bimane-243 shows a distinctive kinetic pattern, as its very fast component accounts for only 40% of the fluorescence variation. This is followed by fast and intermediate components accounting for 30% and 20% of the fluorescence variation, respectively (Figure 6C and Table 5). Although the fluorescence changes at position 243 could not be assigned to particular conformational motions, these data suggest that the upper part of the channel moves over a broad time scale.

Finally, at all positions, slow components of fluorescence variations were recorded with time constants ranging from 1 to 30 s, particularly at positions V135 at the top of the ECD, P250 on the M2-M3 loop, and E243 on the top of the M2 α-helix (Figure 6C). As the slow components at all positions (except E243) show fluorescence variations in the same direction as the very fast component, it may suggest that the whole protein follows the previously described motions under prolonged applications of protons.

Ion flux assays in liposomes and comparison with fluorescence data

We next investigated how the kinetics of the conformational changes measured above compare with kinetics of activation/desensitization of GLIC. For this, we recorded channel activity from purified GLIC reconstituted in asolectin liposomes, using a fluorescence-based sequential-mixing stopped-flow assay (Rusinova et al., 2014; McCoy et al., 2014; Posson et al., 2015). GLIC Cys-less and mutant Bimane-136-W101 were reconstituted in liposomes containing the water-soluble fluorophore 8-aminonaphthalene-1,3,6-trisulfonic acid (ANTS) and mixed sequentially, first with protons to activate the channels (step 1), and then with the channel-permeable ANTS-fluorescence-quencher thallium to assess the flux through open channels (step 2). By including a variable delay time (10–200 ms) between the two steps, we are able to capture the channels in various levels of activation and/or desensitization and thus populate different functional states. Upon thallium influx into the liposomes via active GLIC the ANTS fluorescence gets quenched, and the quenching rate is proportional to channel activity. Due to intrinsic variations in liposome sizes (the mean diameter of vesicles is ~ 150 nm [Ingólfsson and Andersen, 2010]) and different numbers of channels per liposome, the data were fit with a stretched exponential in order to obtain the average quenching rate at 2 ms, a measure of channel activity (see Materials and methods [Ingólfsson and Andersen, 2010; Rusinova et al., 2014]).

Both GLIC Cys-less and mutant Bimane-136-W101 show fast fluorescence decay with a rate of ≈ 80 s−1 after incubation for 15 ms at pH 4.5 and 4.2 (Figure 7—figure supplement 1). This indicates robust activation of GLIC under these acidic conditions. The quenching kinetics at both pH values are identical (Figure 7B), suggesting that activation is already maximal at pH 4.5.

Figure 7 with 1 supplement see all

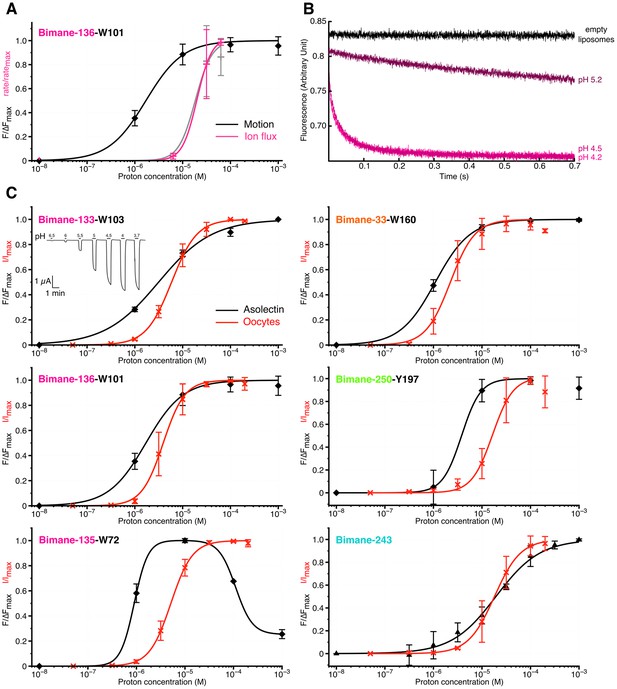

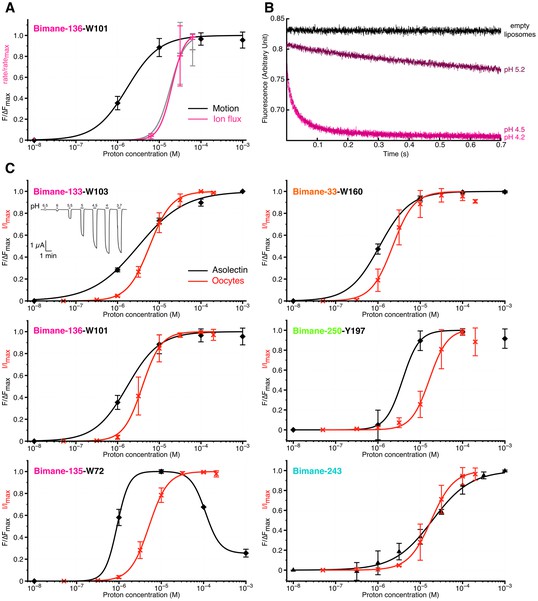

Comparison of GLIC motions and function.

(A) Fits to the Hill equation of fluorescence values in asolectin liposomes (black) and rate values extracted from the thallium flux assay (pink), both normalized to their respective maximum, for the Bimane-136-W101 mutant (n = 3). For comparison the ΔIf (thallium flux assay) curve of GLIC Cys-less is shown in grey (n = 3). (B) Stopped-flow recordings of the thallium fluxes quenching assay for the Bimane-136-W101 mutant. The pre-mix time was 15 ms for the empty and pH 5.2 liposomes and of 15.5 ms for the pH 4.5 and 4.2 recordings. (C) Fits to the Hill equation for electrophysiological currents (red) and fluorescence values in asolectin liposomes (black) for all major quenching pair mutants. The current and fluorescence are normalized to their respective maximum; pH 3.7 current values were excluded from the fits for mutants Bimane-250-Y197 and Bimane-33-W160 as they were systematically smaller than the maximal current. For all the data except panel B, mean values are presented and error bars are calculated as standard deviations.

https://doi.org/10.7554/eLife.23955.022

In contrast, very slow kinetics (≈ 3 s−1) are observed after incubating the channels for 15 ms at pH 5.2 (Figure 7B and Figure 7—figure supplement 1) which indicates that these conditions lead to little channel activation. According to these data the pH50 for GLIC Cys-less and GLIC Bimane-136-W101 is estimated at pH 4.6 and pH 4.7, respectively (Figure 7A).

Increasing the pre-mix time did not increase the rates of fluorescence quenching at any of the pH values tested, suggesting that 15 ms are sufficient to reach the maximal activation of GLIC. On the contrary, prolonged incubation (above 25 ms) at low pH reduced the rates of quenching, possibly reflecting GLIC desensitization in asolectin liposomes (Figure 7—figure supplement 1).

For the Bimane-136-W101 mutant in asolectin liposomes, the pH-fluorescence relationship (∆F curves), which reports on protein motions, and the pH-ion flux relationship (∆If curves), which reports on activity, are separated by more than one order of magnitude (Figure 7A). Indeed, at pH 5, the majority of the fluorescence changes are completed, whereas almost no receptors are yet active. This directly reveals an intermediate conformation of the protein, where the quaternary motion of positions 136 and 101 moving closer together has occurred, but where the channel is still closed. Interestingly, a similar scenario is seen at other positions, for which activation curves in oocytes (∆I curves) are significantly shifted to higher proton concentrations as compared to ∆F curves, especially at positions 135 and 250 (Figure 7C). Since ∆I curves are shifted to the left as compared to ∆If curves (for GLIC Cys-less and Bimane-136-W101), it is expected that ∆If and ∆F would be even more separated for the other mutants. Hence, our data suggest that the intermediate conformation involves global motions of the protein, notably the adjacent subunits moving closer at the level of the ECD (positions 136–101 and 135–72) as well as the separation between positions 250 and 197 and thus the outward motion of the M2-M3 loop.

Discussion

We developed a series of allosteric sensors of the conformation of GLIC using the TrIQ/TyrIQ method. Upon pH drop, GLIC undergoes a cascade of allosteric transitions from the resting to the active and desensitized states. This method allows the investigation, in a time resolved manner, of the global evolution of this mixture of states depending on the proton concentration.

While the quenching method follows the fate of mixed populations of receptors, it is informative to compare these ensemble conformational motions to those inferred from the static structures of GLIC solved by crystallography. GLIC was solved at a low proton concentration in a closed-channel conformation (pH 7) (Sauguet et al., 2014) and at a high proton concentration in an apparently open-channel conformation (pH 4) (Bocquet et al., 2009; Hilf and Dutzler, 2009). Interestingly, measurement of the variation of Cβ-Cβ distances between the pH 7 and pH 4 structures parallel the motions inferred from fluorescence measurements at positions 136–101, 133–103 and 33–160 in the ECD, that are reporting the subunits moving closer together, and positions 250–197 that follow the separation of the M2-M3 loop from the top of M1 (Supplementary file 1B). It is thus likely that the molecular reorganizations inferred from the comparison of the two X-ray structures are contributing to the ensemble motions followed by fluorescence. However, at other positions, namely at pairs 243–238 (top of the TMD) and 136–178 (Loop C), no correlation between the structures and the population ensembles can be observed. This suggests that, at these levels, the receptors might undergo different reorganizations when GLIC is outside of the crystal, and/or that additional conformational states are contributing to the overall fluorescence signal.

A key finding of the work is the identification of an intermediate state, where the ECD compaction and the outward movement of the M2-M3 loop, monitored by bimane quenching, are not concerted with channel opening. This is directly demonstrated with the 136/101 pair, that reports nearly complete ECD compaction in steady-state conditions, at pH 5, when no ion fluxes are yet recorded (Figure 7A). We also show that the isomerization toward this intermediate state is very fast, since 60% of the transition is achieved in less than 2 ms at pH 5 (Table 5). This suggests that the isomerization toward this intermediate state precedes or is at least concomitant with activation. Indeed, previous studies identify GLIC as a slow activating channel within the pLGIC family. For GLIC reconstituted in asolectin liposomes recorded in the inside-out configuration, the activation time constant (τ) is in the 10 ms range upon activation by a very high proton concentration (pH 2.5) (Velisetty and Chakrapani, 2012). Likewise, in HEK cells, out-side-out patch clamp recordings under fast perfusion, at pH 4, reveal activation time constants ranging from 30 to 150 ms (Laha et al., 2013). While the activation kinetics of GLIC in liposomes could not be resolved in the present study, it is likely that the very fast transition toward the intermediate state is part of the activation mechanism. Altogether, we propose a kinetic scheme where a global ‘pre-activation’ step first occurs in under 2 ms, involving the whole ECD compaction and the outward motion of the M2-M3 loop, followed by a slower and more localized transition for channel opening (Figure 8). This latter motion may plausibly be related to the fluorescence changes observed in the 5–966 ms ranges, that are particularly marked for the 243 reporter which is located near the channel gate.

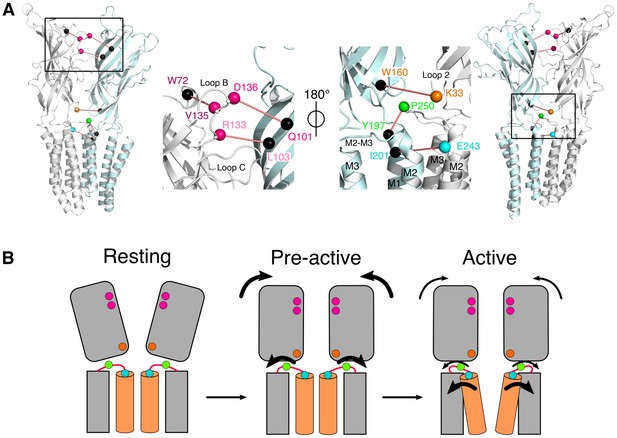

Conformational motions summary.

(A) Global and zoomed in view of the GLICpH 7 structure, representing only two subunits, with the left structures viewed from the outside of the pentamer and the right structures from the inside. All major quenching pairs are represented by a sphere, colored for the mutation to cysteine and bimane labeling, and black for the corresponding quencher. All pairs are captioned in the same color and joined by a red line. (B) Hypothetic kinetic scheme for the GLIC structural reorganizations. The large arrows represent the major recorded fluorescence variations and the small arrows represent minor variations.

https://doi.org/10.7554/eLife.23955.024

Several mutants and a wild-type GLIC C-terminally tagged with 10 histidines, were found to crystallize in different locally-closed ‘LC’ conformations characterized by an overall conformation of the ECD nearly identical to GLICpH 4, but with a closed channel (Prevost et al., 2012; Gonzalez-Gutierrez et al., 2013). Among these, the structures of GLIC bearing a disulphide bridge C33-C245, as well as the single mutant GLIC E243P, show a particularity with the M2-M3 loop revolved outwards, identically as for GLICpH 4, but still with a closed ion channel. Hence, we may speculate that this particular LC conformation could be a candidate for the pre-active state of GLIC, since it shows compaction of the ECD and motion of the M2-M3 loop without channel opening.

We also observe molecular reorganizations occurring on longer time scale. First, quenching experiments show small fluorescence changes in the 966 ms–30 s range for all positions. Second, ion flux experiments show a decrease in channel activity when GLIC is pre-incubated with protons for a more than 100 ms. These events could thus be linked to receptor desensitization. Indeed, in HEK cells, out-side-out patch clamp recordings show desensitization to be biphasic, with a fast component observed on half of the patches (τ around 200 ms), followed by a slow component observed in all patches (τ around 10 s) (Laha et al., 2013). Interestingly, previous analysis of the desensitization mechanism of GLIC by EPR (Velisetty and Chakrapani, 2012), and of other pLGICs by mutagenesis (Gielen et al., 2015) and NMR (Kinde et al., 2015), support the view that desensitization proceeds through a narrowing of the lower part of the channel. Additionally, recently published X-ray structures of a GABAA receptor (Miller et al., 2014) and of the α4β2 nAChR (Morales-Perez et al., 2016) were proposed to correspond to a desensitized conformation and show a channel constriction in the bottom part of the ECD. Therefore, desensitization might occur through reorganizations in the TMD, with comparatively smaller motion at the ECD and particularly at the ECD-TMD interface.

In conclusion, the monitoring of electrophysiologically silent states by the TrIQ/TyrIQ method allows us to structurally describe an intermediate state and propose a pre-activation mechanism. Interestingly, available structures of eukaryotic pLGICs, namely the GluClαR (Hibbs and Gouaux, 2011; Althoff et al., 2014) and the α1GlyR (Du et al., 2015), also suggest a quaternary compaction of the ECD upon agonist binding, as well as outward motions of the M2-M3 loop upon channel opening that are similar to that observed on GLIC. In addition, ϕ-value analysis following extensive mutational analysis of the muscle nAChR further suggest that the top of the ECD around the orthosteric pocket, as well as the M2-M3 loop move early in the course of the gating transition toward the active state (Purohit et al., 2013). The present study thus not only sheds light on the gating mechanism of the pLGIC model GLIC, but also provides a structural template to investigate the gating of eukaryotic and mammalian receptors.

Materials and methods

Buffers and chemicals

Buffer A consists of 20 mM Tris and 300 mM NaCl, adjusted to pH 7.4 unless otherwise stated.

Buffer B consists of 300 mM NaCl, 2.7 mM KCl, 5.3 mM Na2HPO4 and 1.5 mM KH2PO4, adjusted to pH 8 unless otherwise stated. Both buffers were supplemented with 0.02% DDM (Anatrace, Maumee, OH) when specified.

Buffer C consists of 15 mM Na2HPO4, 150 mM NaNO3 adjusted to pH 7.

Pre-mix buffer consists of 10 mM Na2HPO4, 140 mM NaNO3 adjusted to pH 7 unless otherwise stated.

Quenching buffer consists of 10 mM Na2HPO4, 90 mM TlNO3, 50 mM NaNO3 adjusted to pH 7 unless otherwise stated.

MBS buffer consists of 88 mM NaCl, 1 mM KCl, 2.5 mM NaHCO3, 5 mM HEPES, 0.7 mM CaCl2 and 1 mM MgSO4.

MES buffer consists of 100 mM NaCl, 3 mM KCl, 1 mM CaCl2, 1 mM MgCl2 and 10 mM MES.

CHO labeling buffer consists of 150 mM NaCl, 8.1 mM Na2HPO4, 1.9 mM NaH2PO4, 0.1 mM CaCl2 and 1 mM MgCl2, adjusted to pH 7.4.

CHO conservation buffer consists of 160 mM NaCl, 4.5 mM KCl, 2 mM CaCl2, 1 mM MgCl2, 10 mM HEPES and 8 mM glucose, adjusted to pH 7.4.

Monobromo bimane (ThermoFisher Scientific, Pittsburgh, PA) was dissolved in 100% DMSO at 10 mM and stored at −20° C.

Bimane Bunte salt was dissolved at 50 mM in water and stored at −80° C.

Unless otherwise stated, all chemicals were purchased from Sigma Aldrich (St Louis, MO).

Mutagenesis

All GLIC constructs were generated using the molecular probe mutagenesis kit (ThermoFisher Scientific) on the Cys-less background (C27S) in two vectors previously described (Bocquet et al., 2007), constructed as follows:

  • The pmt3 vector for eukaryotic expression with an α7 peptide signal and an HA-tag in the C-terminal of GLIC.

  • The pet20b vector for prokaryotic cells, expressing GLIC as an MBP (in the N-terminal) fusion protein.

Protein production and fluorophore labeling

MBP-GLIC was produced as previously described (Bocquet et al., 2009), in BL21 E.Coli strains. Briefly, MBP-GLIC was produced at 20° C in BL21 bacteria after IPTG (20 mM) induction. After cell disruption by sonication, membranes were separated through ultracentrifugation (40,000 rpm) and MBP-GLIC extracted in buffer A 2% DDM overnight. MBP-GLIC was purified on an amylose resin and eluted by maltose addition in buffer A 0.02% DDM. Proteins were run on a gel filtration (superpose 6 10/300 GL (GE Healthcare, Chicago, IL)) column for removal of remaining maltoporin contaminants. The MBP was subsequently cleaved from GLIC by addition of thrombine (Merck Millipore, Billerica, MA) overnight, and GLIC purified again through gel filtration in buffer A 0.02% DDM. For receptors with the K33C and E243C mutations, the protein was incubated for 1 hr with 10 mM DTT prior to the gel filtration to reduce potential disulfide bridges. Pentameric GLIC was then incubated with mBBr at a five molar excess ratio (monomer 1:5 mBBr) while ensuring the final DMSO concentration did not exceed 1%, overnight, under agitation, at 4°C. Excess fluorophore was removed by gel filtration and GLIC-labeled samples flash frozen for storage at −80°C.

Liposome reconstitution

Powdered asolectin extracted from soybean (Sigma Aldrich) was solubilized in buffer B at a concentration of 10 mg/mL using a potter, and either used fresh or aliquoted and frozen at −20°C for later uses. GLIC was reconstituted in liposomes with a 1:5 GLIC/asolectin w:w ratio. For 200 µg of protein reconstitution, the following procedure was used and all the steps performed at room temperature: 1 mg of asolectin in buffer B was mixed with DDM to reach a final DDM concentration of 0.7% and the solution equilibrated for 40 min to solubilize the pre-formed multilayered liposomes. The 200 µg of protein in buffer A 0.02% DDM was added to the solution and the overall volume brought to 1 mL to lower the DDM concentration to 0.2%, followed by equilibration for 1.5 hr under gentle agitation. For liposome formation and gentle inclusion of the protein, detergent was removed by incremented step addition of SM2 Bio-Beads (50 mg, 150 mg and 300 mg (Bio-Rad, Hercules, CA)) pre-activated using methanol. Bio-beads were removed through light centrifugation and the proteoliposomes were either used fresh or stored at 4°C for a maximum of 4 days.

Steady-state fluorescence recordings

All fluorescence recordings were done on a Jasco 8200 fluorometer (MD, USA). Buffers and proteins were equilibrated at room temperature before each recording which were made at 20°C. mBBr and Bimane-GLIC samples were excited at 385 nm and their emission spectra were recorded from 420 to 530 nm through 2.5 nm slits at excitation and emission. Scan speed, sampling and PMT values were kept constant for all measures for subsequent comparisons. The membrane receptor GLIC being activated by protons (pH50 = 5.3)(Bocquet et al., 2007), we confirmed that both the mBBr fluorescence and its quenching properties are identical in proton concentrations ranging from pH 9 to pH 2 (Figure 3—figure supplement 1A,B). Control experiment with the Cys-less GLIC treated with mBBr show negligible non-specific fluorescence (Figure 3—figure supplement 1C). All measurements were made on 1 mL of protein sample in disposable UV transparent 2.5 mL cuvettes (Sigma). As a consequence to the small volumes used, it was not possible to precisely acidify the protein sample using concentrated acid, or diluted acid without considerably changing the final concentrations of ions and protein. Hence, measurements were made after mixing one volume of protein in buffer A 0.02% DDM, with one volume of buffer B 0.02% DDM previously acidified by 1 M HCl to reach, after mixing, the desired pH value. The time necessary for the sample mixing and recording of fluorescence was evaluated to be approximately 30 s; this time is sufficient to reach steady-state conditions as shown by the plateau of fluorescence variations recorded on the stopped-flow after 20 s (Figure 6A). The same mixing protocol was used for the protein samples reconstituted in asolectin. For every recording, the fluorescence emission spectra were stable over multiple recordings, not showing signs of fluorophore bleaching. For each pH tested, tryptophan emission spectra were recorded (excitation at 280 nm) to ensure the proteins did not suffer denaturation and all fluorescence changes were reversible upon return to pH 7 (Figure 3—figure supplement 2). For the propofol recordings, the bimane-labeled mutants were recorded, followed by addition of propofol to a final concentration of 100 µM, and re-recording of the sample. In these experiments, the tryptophan fluorescence was not followed as the propofol produces a strong contamination signal at these excitation and emission wavelengths.

Stopped-flow fluorescence recordings

Recordings were made on a SFM-300 stopped-flow apparatus (Bio-Logic, Seyssinet-Pariset, France). To ensure lamp and temperature stability, the apparatus was turned on and equilibrated at 20°C by temperature-controlled circulating water for at least 1 hr before recordings. Excitation was set at 385 nm through an 8 nm slit and emission fluorescence recorded through a 420 nm high-pass filter. A two-syringe injection system was used where syringe one was loaded with the protein sample in buffer B at pH 8, and syringe two loaded with buffer B equilibrated at specified pHs. The injection volume was 150 µL for each syringe at an injection speed of 8.7 mL/s (total speed of 17.4 mL/s). The filling of the FC15 recording flow cell (0.15 × 0.15 cm, 35 µL total) was thus achieved after a theoretical 2.1 ms mixing dead-time (manufacturer’s information). To follow with good time resolution the first fast events, 30 s long recordings were made through three sampling times: the first 500 ms were recorded with a 100 µs sampling time, followed by 0.5 to 1.5 s with a 1 ms sampling time, and 1.5 to 30 s with a 50 ms sampling time. The first 3 ms of recordings were excluded from the analysis because of non-reproducibility, yielding a 5.1 ms total ‘non-analyzed’ data (3 ms + 2.1 ms dead-time). For each condition, a mean of 10 recordings was counted as n = 1 and all conditions were recorded with n = 3 or 4. Each data set at pH 6, pH 5 and pH 4 was normalized to the integral 30 s recording made at pH 8 on the same day and same batch of proteoliposomes, to correct potential unspecific drifting/bleaching of fluorescence during the recordings. Each mean of 10 was analyzed individually using Datagraph (Visual data tools) and fitted over the total 30 s of recording to a maximum three exponentials equation:

y(x)=F+F1*ek1*x+F2*ek2*x+F3*ek3*x

where F represents the final fluorescence intensity, F1,2,3 represent the ∆fluorescence of a particular exponential phase and k1,2,3 the kinetic constant for each exponential phase in s−1. Systematic background fluorescence recordings of buffers were done and subtracted from the data. For residuals of the fits, see Figure 6—figure supplement 1.

Thallium fluxes assay

A sequential-mixing stopped flow spectrofluorimeter (SX.20, Applied Photophysics) was employed to assay GLIC channel activity by measuring the Tl+-induced fluorescence quenching of a liposome-encapsulated ANTS (8-Aminonaphthalene-1,3,6-Trisulfonic Acid, Disodium Salt, Life Technologies, NY) fluorophore via Tl+ influx through channels as previously described (Rusinova et al., 2014; McCoy et al., 2014; Posson et al., 2015).

Proteoliposomes preparation

Asolectin lipids (Sigma-Aldrich) were dissolved in chloroform, dried to a thin layer under a constant N2 flow in round bottom flasks and further dried over night under vacuum. Lipids were rehydrated to a concentration of 10 mg/ml in buffer C with 33 mM CHAPS by sonication. Water-solubilized ANTS was added to a final concentration of 25 mM followed by GLIC Cys-less or Bimane-136-W101 to a concentration of 30 µg/mg lipid. Detergent was removed by incubating the mix in the presence of 25% SM-2 BioBeads (Bio-Rad) for 2 hr under constant agitation followed by a 20 s sonication in a bath sonicator. After extrusion (Mini extruder, Avanti Polar Lipids, 0.1 μm membrane (AL, USA)) the vesicles have a mean diameter of 150 nm (Ingólfsson and Andersen, 2010). Extra liposomal ANTS was removed via a PD-10 desalting column (GE Healthcare) and the buffer was exchanged to the pre-mix buffer. For the recordings, the proteoliposome solutions were diluted fourfold to ensure a good signal-to-noise ratio and allow multiple experiments using the same reconstitution.

Stopped-flow recordings

Recordings were made using a SX20 stopped-flow (Applied Photophysics, Surrey, UK). Proteoliposomes and pre-mix buffer, pre-equilibrated to reach final pH values of 7 to 3.6 after mixing, were injected with a 1:1 dilution in the aging loop. After delay times ranging from 10 to 200 ms, the solution of the aging loop was mixed with the quenching buffer in a second injection step (1:1 dilution) still maintaining the pH value reached after the first mixing. Taking in account the machine dead-time, the shortest experimental delay time reached was of 15 ms. Reference measurements were performed in the absence of Tl+ using pre-mix buffer for the second injection. ANTS fluorescence was recorded for 1 s through a 455 nm high-pass filter after excitation at 352 nm. Picrotoxinin block experiments were performed as described above by supplementing the pre-mix buffer with 800 µM and the quenching buffer with 400 µM picrotoxinin, respectively. Identical control experiments were performed using protein-free liposomes. Three independent reconstitutions into liposomes were analysed for each GLIC variant and at least seven repeats were recorded for every condition tested. The day-to-day variations of quenching rates obtained from different reconstitutions were smaller than 10%.

Fluorescence traces (first 100 ms) were fit with a stretched exponential as previously described (Ingólfsson and Andersen, 2010; Rusinova et al., 2014) (Equation 1) in Matlab (MathWorks, Natick, MA) (Rusinova et al., 2014) and the quenching rates at 2 ms were calculated (Equation 2) (Berberan-Santos et al., 2005) and averaged over all repeats.

(1) F(t) =F+ (F0F)e(tτ0)β
(2) k(2 ms)= (βτ0)  (2 msτ0)(β1)

with F and F0 denoting for the final and the initial fluorescence values, respectively, τ0 the time constant, β the exponential-stretch parameter, and k (2 ms) the rate constant at 2 ms.

Electrophysiological recordings

Functional recordings of GLIC were made on Xenopus oocytes provided by the Centre de Ressources Biologiques Xénopes–Rennes (France). Electrophysiological recordings were made as previously described (Duret et al., 2011) after 48–96 hr of expression, with the difference that oocytes were clamped at −40 mV for recordings. For all mutants, with the exception of P250C-Y197F (see below), currents were recorded on non-labeled oocytes, followed by BBs labeling and re-recording on the same oocytes. Independent mutants-expressing oocytes were also used for current recordings after labeling without prior non-labeled recordings. Both methods led to similar results and the pH50 and nH values are given for a mix of oocytes recorded with the different methods. The P250C-Y197F mutant showed a notable run-down after activation preventing several consecutive recordings of the same cell. In this case, currents after BBs labeling were recorded using the second method only. BBs labeling of oocytes was obtained after a 1 hr incubation at room temperature, under very gentle agitation, in MBS 1 mM BBs. Oocytes expressing mutants K33C or E243C were treated with 10 mM DTT 10 min prior to BBs labeling. After labeling, all oocytes were rinsed in MBS buffer and recorded within 1 hr post-labeling. Mutants leading to currents smaller than 500 nA at high proton concentrations (pH 4) were categorized as non-functional. For all non-functional mutants, expression tests were performed through immunolabeling of oocytes (Figure 2—figure supplement 5). Electrophysiological recordings were analyzed using AxoGraph X and ClampFit (Molecular Devices, Sunnyvale, CA). The Hill equation was used for the dose-response fits:

y(x)=a*xnHxnH+EC50nH

where a represents the maximal current value after normalization, nH represents the hill number and EC50 the proton concentration for which half of the maximal electrophysiological response is recorded. A double exponential equation was used to fit the activation currents of GLIC labeled with bimane:

y=A1*(1etτ1)+A2*(1etτ2)+C

where t is time, A1/A2 represent the current amplitude of the fast and slow activation phases respectively, C accounts for the current value at the end of the fit and τ1/τ2 represent the activation kinetics. A weighted activation constant was also calculated using the following equation:

τw=((A1A1+A2)*τ1)+((A2A1+A2)*τ2)

Xenopus oocytes immunolabeling

Immunolabeling on Xenopus oocytes expressing GLIC WT or mutants was performed as previously described (Sauguet et al., 2014). Briefly, oocytes were co-injected in the nucleus with a mix of two separate pmt3 vectors containing either the cDNA of GLIC-HA (80 ng/µl) or GFP (10 ng/µl). Control oocytes were injected with the GFP alone. After 72 hr of protein expression, GFP positive cells were fixed in 4% paraformaldehyde (4°C, O/N), blocked in PBS + 4% horse serum (30 min, RT [Sigma Aldrich]), and immunolabeled in PBS + 2% horse serum using a rabbit anti-HA primary antibody (1.5 hr) and an anti-rabbit Cy5 coupled secondary antibody (1 hr, RT ([ThermoFisher Scientific]). Oocytes were then re-fixed with 4% paraformaldehyde (4°C, O/N), placed into 3% low-melting agarose blocks, and subsequently sliced at 40 µm intervals. Slices of three different oocytes per constructs were analyzed using epi-fluorescence microscopy with constant exposure times.

CHO culture, transfection and labeling

Chinese hamster ovary (CHO-K1 CCL-16 from ATCC, USA) cells were cultured in Ham’s F-12K Kaighn’s modification medium (ThermoFisher Scientific) supplemented with 10% fetal calf serum and containing penicillin (100 U/mL) and streptomycin (100 µg/mL). As the CHO cells were solely used for the bimane membrane-permeability test, they were not tested for mycoplasma contamination. Cells were plated in 35 mm diameter polystyrene plates (Corning, Corning, NY) and transfected with GLIC cDNA and mCherry cDNA, as a transfection control, using a JetPRIME kit (Polyplus Transfection, Illkirch, France) according to the manufacturer’s instructions. Protein expression was allowed for 48–72 hr before cell labeling. Throughout the labeling process, cells and buffers were kept at 4°C to avoid endocytosis of the fluorophore. For labeling with BBs, cells were rinsed three times (5–10 min, gentle agitation, 4°C) in labeling buffer and incubated for 1 hr with 1 mM BBs in labeling buffer. They were then rinsed two times with labeling buffer (5–10 min, gentle agitation, 4°C) and kept in conservation buffer at room temperature during the imaging process. Each observation was made at least three times on different cell batches.

Confocal microscopy

Confocal laser scanning of fluorescence was performed using an Ultima scanning head (Bruker Fluorescence Microscopy, Middleton, USA) mounted on an Olympus BX61W1 microscope and equipped with a 60x (1.1 NA, Olympus Optical, Tokyo, Japan) water immersion objective. Bimane and mCherry were excited at 405 nm with a laser power of 1.5–2.5 µW and at 561 nm with a laser power of 0.8–4 µW, respectively. Emitted fluorescence was collected through the same objective lens, and focused on a 150 or 100 μm pinhole (≈ 1 to 1.5 Airy unit), placed on a conjugate image plane (the confocal pinhole). Fluorescent emission from Bimane was filtered with a 525/50 nm band pass filter and detected in gallium arsenide phosphide-based photocathode photomultiplier tube (H7422P, Hamamatsu Photonics, Hamamatsu, Japan). mCherry fluorescence was filtered with a 605/70 band pass filter (all filters were from Chroma, Taoyuan City, Taiwan) and detected in a side-on multi-alkali PMT (3896, Hamamatsu Photonics).

Crystallography

The bimane labeled GLIC V135C was crystallized in the same conditions as WT GLIC (Sauguet et al., 2013). The crystals were directly flash-frozen in liquid nitrogen prior to data collection. Data sets were collected on the PROXIMA1 beamline of the SOLEIL synchrotron, Gif-sur-Yvette, France. Reflections were integrated using XDS (Kabsch, 2010) and further processed using programs from the CCP4 suite (Winn et al., 2011). As expected, the crystals were isomorphous to the previously described crystal lattice of the open receptor and belonged to space group C121 (unit-cell parameters: a = 182.034 Å, b = 134.075 Å, c = 159.945 Å, α = γ = 90.00°, β = 102.51°) with one pentamer in the asymmetric unit (see Supplementary file 1A).

The phases were directly calculated by performing rigid-body refinement with REFMAC5 (Murshudov et al., 2011) using PDB entry 3EAM (Bocquet et al., 2009) as a starting model. The structure was then subjected to restrained refinement with REFMAC5 using NCS restraints. As the covalent link between the bimane and the cysteine side chain is non-standard, its description was defined in an additional library and incorporated in the pdb file. The resulting model was subsequently refined by BUSTER (Blanc et al., 2004). The final structure was validated using the MolProbity web server (Chen et al., 2010).

The PDB accession code is 5IUX.

Bimane bunte salt synthesis

General

Commercially available reagents were used throughout without further purification. Analytical thin layer chromatography was performed on Merck 60 F-254 precoated silica (0.2 mm) on glass and was revealed by UV light. 1H and 13C NMR spectra were recorded on a Bruker AC 300 apparatus at 300 MHz and 75 MHz, respectively. The chemical shifts for 1H NMR were given in ppm downfield from tetramethylsilane (TMS) with the solvent resonance as the internal standard. HRMS (ESI) analysis was performed with a time-of-flight mass spectrometer yielding ion masse/charge (m/z) ratios in atomic mass units. Purity of synthesized compound was determined by reverse phase HPLC using a 150 mm x 2.1 mm (3.5 µm) C18-column: the compound was eluted over 24 min with a gradient from 95% ACN/5% (H2O + 0.1% HCO2H) to 5% ACN/95% (H2O + 0.1% HCO2H). Note that the use of formic acid in elution solvent gave the corresponding thiosulfonic acid.

Typical procedure for bimane bunte salt (BBs) (Reeves et al., 2014)

To a solution of bromobimane (50 mg, 0.18 mmol, 1.0 equiv.) in a mixture of water (105 µL) and MeOH (300 µL), was added sodium thiosulfate pentahydrate (54.6 mg, 0.22 mmol, 1.2 equiv.). The reaction was stirred at 65°C for 5 hr and cooled to room temperature. After evaporation of the solvent under reduced pressure, the crude reaction product was treated with MeOH (0.5 mL), heated to 50°C and filtered. The filtrate was concentrated in vacuo to furnish a yellow solid which was tritured with hexane, filtered and dried at 50°C under vacuum providing the expected BBs in 80% yield (47 mg) as a yellowish solid. The 81.4% purity of BBs (tR = 11.65 min) was determined by reverse phase HPLC (λ = 235 nm). This solid did not display a melting point but rather decomposition. 1H NMR (300 MHz, D2O): δ 4.43 (s, 2 hr), 2.47 (s, 3 hr), 1.93 (s, 3 hr), 1.83 (s, 3 hr); 13C NMR (75 MHz, D2O/MeOD): δ 164.0, 163.4, 150.8, 148.2, 115.3, 112.7, 12.1, 7.1, 6.6; HRMS (m/z): [M + H]+ calculated for C10H13N2O5S2, 305.0260; found 305.0260.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    XDS
    1. W Kabsch
    (2010)
    Acta Crystallographica. Section D, Biological Crystallography 66:125–132.
    https://doi.org/10.1107/S0907444909047337
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61

Decision letter

  1. Baron Chanda
    Reviewing Editor; University of Wisconsin-Madison, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Identification of a pre-active conformation of a pentameric channel receptor" for consideration by eLife. Your article has been favorably evaluated by Richard Aldrich (Senior Editor) and three reviewers, one of whom, Baron Chanda (Reviewer #1), is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Lucia Sivilotti (Reviewer #2); Ryan Hibbs (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The proton gated GLIC channels have become excellent model systems to understand how structural changes determine the function of pentameric ligand-gated ion channels. Despite the fact that there are now multiple high-resolution structures of GLIC channels and its mutants, our understanding of how proton activates these channels remain limited. This is in large part due to absence of experimental studies to probe dynamics of GLIC channels. Current models of ligand activation are based on studies of other pentameric ion channels which, on the other hand, are not as well characterized from a structural standpoint. In this study, Menny et al., map the time-resolved structural changes in GLIC using fluorescent probes and stopped flow kinetics. The authors find that the GLIC channels transition into a pre-active conformation within the first few milliseconds when activated by pH jump and that these transitions in the ligand binding domain precedes channel opening. This clearly is an important contribution to the field and provides new insight into the nature of the flipped state. Nevertheless, the reviewers have few key concerns that should be addressed in the revised version.

Essential revisions:

1) It is not clear whether the authors have conclusively ruled out the possibility that these effects on fluorescence quenching is not due to titration of di-amide group in bimane. I am not sure what the pKa of this group is but pKa of amide carbonyl is pH 3.0 and it is important to rule out the possibility that these changes in fluorescence are not due to protonation/deprotonation. For instance, one could argue that the differences in pH sensitivity just reflects the changes in pKa of the di-amide carbonyls due to the local environment rather than a conformational change. Although, the authors have shown that the fluorescence is unaffected going from pH 4.0 to pH 7.0, they cannot conclusively rule out the alternate possibility. This can be addressed by discussing these caveats when interpreting their data. In addition, the authors may want to show that the dye fluorescence is unaffected even the pH titration is extended by at least one pH unit on both ends.

2) It is nice to see that the 243 position shows additional slow kinetics that is in the same range as channel opening but actual change compared to the large baseline noise is pretty small. Can the authors rule out alternate possibility that this small decrease is not due to bleaching, for instance? The fact that the pH titration curves at 243 position for TRIQ and Tl+ flux overlaps, is a strong evidence that this position probably reports on channel opening.

3) Introduction, last paragraph: quenches the fluorophore when the distance is less than… Could you expand on that? Once you get below 15 Å for Trp, is there a relation between the effectiveness of quenching and the distance? For instance – D136 is always quenched by W93. This suggests that their distance is less than 15 Å in all conditions, but does it exclude this distance changing during activation, while remaining below 15?

4) Steady state quenching measurements at pH values < 5 are likely reporting on a desensitized conformation, correct? The results in the steady-state sections are framed largely from a context of understanding activation, but at low pH, from studies on patches, I would expect the receptor to be desensitized. Clarification of this point in a rebuttal and/or in the text (e.g. see subsection “The six fluorescent sensors report allosteric reorganizations of GLIC”, first paragraph) would be helpful to me.

5) Presumably, in liposome reconstitution experiments beginning at the subsection “Detergent-solubilized and lipid-reconstituted GLIC show similar pH-elicited reorganizations”, ~50% of the receptors have their ECDs (and H+ binding sites) inside the vesicle. Protons should permeate the channel (correct?) but the kinetic response would likely be different (delayed) from those receptors with their ECDs facing the solution exchange directly. Reconstitution was performed with labeled receptors, so fluorescence signal will be coming from both 'inward' and 'outward' oriented receptors. How does this complication affect analysis and interpretation of the time constants derived from multi-exponential fitting?

6) The concept of the intermediate state at intermediate pH, the pre-activation step, is compelling. One idea is that this intermediate state is a broadly-relevant point along the resting-activation pathway. What do the authors think of an alternative hypothesis, that the intermediate state results from partial occupancy of proton agonists at multiple sites that have different pKa values?

7) How does the locally closed model (Prevost NSMB 2012 and Gonzalez-Gutierrez PNAS 2013) fit into the concept of this new pre-activated conformation? Please also consider citing that 2013 PNAS paper.

https://doi.org/10.7554/eLife.23955.028

Author response

Essential revisions:

1) It is not clear whether the authors have conclusively ruled out the possibility that these effects on fluorescence quenching is not due to titration of di-amide group in bimane. I am not sure what the pKa of this group is but pKa of amide carbonyl is pH 3.0 and it is important to rule out the possibility that these changes in fluorescence are not due to protonation/deprotonation. For instance, one could argue that the differences in pH sensitivity just reflects the changes in pKa of the di-amide carbonyls due to the local environment rather than a conformational change. Although, the authors have shown that the fluorescence is unaffected going from pH 4.0 to pH 7.0, they cannot conclusively rule out the alternate possibility. This can be addressed by discussing these caveats when interpreting their data. In addition, the authors may want to show that the dye fluorescence is unaffected even the pH titration is extended by at least one pH unit on both ends.

The referee is right to point out that this was not properly discussed in the text but only in the Methods section. We have now added the following text at the beginning of the Results section: “GLIC being activated by protons, we additionally performed control experiments to confirm that, as previous studies have shown (Jones Brunette and Farrens 2014), both the bimane fluorescence and its quenching by tryptophans are unaffected by proton concentrations ranging from pH 9 to pH 2 (Figure 3—figure supplement 1A, B) (see Methods). Hence, the fluorescence variations of bimane-labeled mutants can be interpreted as reporting local structural reorganizations.”

As suggested by the referees, we extended our measurements of the fluorescence and tryptophan quenching of Bimane-Cys to pH 9 and pH 2 (Figure 3—figure supplement 1). The data show that both the fluorescence intensity and the quenching efficiency are unaffected, notably at a pH as low as 2. Clearly, the pH does not influence the bimane fluorescence and it is very likely that the bimane moiety is not protonated at any pH tested. This is consistent with its chemical structure. As amide carbonyl typically display pKa values lower than 0, it is reasonable to speculate that the pKa of the bimane imide carbonyls should be in the same negative range. In addition, simulations of pKa using ACDLab, ChemAxon or JChem base show that the bimane may be protonated at pHs lower than -9 on the remote hydrazide nitrogen. Moreover, the effects that are relevant to the GLIC allosteric transitions are essentially observed at pH 5 and pH 4, several orders of magnitude lower than the putative proton concentration necessary to protonate the bimane.

Lastly, we see that for quenching couples (e.g. Bimane-136 +/- W101 or Bimane-133 +/- W103) the bimane fluorescence is unaffected by pH variations up to pH 3 in absence of quencher (see Figure 3). The differences in bimane fluorescence are solely recorded when a tryptophan is at a quenching distance from the bimane, and thus the fluorescence variations discussed in the manuscript are due to the presence of a tryptophan and not to the protonation/deprotonation of the bimane.

2) It is nice to see that the 243 position shows additional slow kinetics that is in the same range as channel opening but actual change compared to the large baseline noise is pretty small. Can the authors rule out alternate possibility that this small decrease is not due to bleaching, for instance? The fact that the pH titration curves at 243 position for TRIQ and Tl+ flux overlaps, is a strong evidence that this position probably reports on channel opening.

In order to assess the possibility of fluorophore bleaching during stopped-flow experiments (30 s), we systematically performed control recordings of every mutant at pH 8, a pH for which there are no protein reorganizations. For most mutants, including the mutant Bimane-243 (shown in Figure 6—figure supplement 1), these recordings do not show fluorescence variation over the 30 s, indicating there is no significant bleaching of the bimane.

In addition, to be thorough and remove from the data any minor participation of fluorescence bleaching to the recorded variations, all the recordings performed at lower pHs were normalized to the pH 8 trace, as described in the Methods: “Each data set at pH 6, pH 5 and pH 4 was normalized to the integral 30 s recording made at pH 8 on the same day and same batch of proteoliposomes, to correct potential unspecific drifting/bleaching of fluorescence during the recordings.” (This protocol was applied for all mutants).

We wish to point out though, that the dose-response curves presented in Figure 7 for mutant 243 represent in black the fluorescence variations and in red the oocyte-recorded electrophysiological response rather than the thallium flux. It is likely that, as observed at position 136, the thallium flux dose-response curve would be slightly shifted to lower pHs as compared to the electrophysiological response in oocytes. This speculation would imply that the ΔF curve would be left-shifted as compared to ΔI curve, in agreement with the stopped-flow recordings that suggest that position 243 follows reorganizations both prior (very-fast component) and during (slower components) activation.

3) Introduction, last paragraph: quenches the fluorophore when the distance is less than… Could you expand on that? Once you get below 15 Å for Trp, is there a relation between the effectiveness of quenching and the distance? For instance – D136 is always quenched by W93. This suggests that their distance is less than 15 Å in all conditions, but does it exclude this distance changing during activation, while remaining below 15?

For molecules in solution with free diffusion/rotation, the relationship between the degree of quenching and the donor-acceptor distance in electron transfer mechanisms (both photoinduced or Dexter) is exponential (Dexter D.L., J Chem Phys 21, 836, 1953 and Strauch S. et al., J Phys Chem, 87, 3579 1983). However, when they are tied to a structured protein, the rate-distance relationship cannot simply be described by an exponential as it depends on the orientation of the fluorophore (Williams R.M. Photochem Photobiol Sci, 2010). This complexity, and thus the need for approximations in solving quenching equations, is the main reason why we never extrapolate the fluorescence variations to numerical values of distances. To evaluate distances changes, we used the empirical values collected by Jones Brunette and Farrens (2014) on the lysozyme, where tryptophan and tyrosine quench the fluorophore when the donor-acceptor Cα-Cα distances are less than approximately 15 Å and 10 Å, respectively, as stated in the Introduction.

In the specific case of the mutant Bimane-136-W93, the data indeed suggest that both the fluorophore and quencher are always at quenching distances from pH 7.3 to pH 3. There is a small variation between pH 7.3 and pH 6 that suggests a significant, although minor, distance variation. The signal is then stable from pH 6 to 3, and approximately corresponds to an 80% of fluorescence quenching. Thus, the quenching is not complete, since the theoretical maximal quenching is 100% when the fluorophore and quencher are always in contact. The stable 80% quenching can thus be interpreted in two ways: 1) there are no allosteric reorganizations occurring in this region from pH 6 to pH 3 or, 2) the region does undergo structural reorganizations but, on average, the mean quenching, that is the mean fluorophore/quencher distance of all the GLIC molecules in solution, is constant. The present data cannot discriminate between these two possibilities.

4) Steady state quenching measurements at pH values < 5 are likely reporting on a desensitized conformation, correct? The results in the steady-state sections are framed largely from a context of understanding activation, but at low pH, from studies on patches, I would expect the receptor to be desensitized. Clarification of this point in a rebuttal and/or in the text (e.g. see subsection “The six fluorescent sensors report allosteric reorganizations of GLIC”, first paragraph) would be helpful to me.

As stated in the Discussion, the desensitization of GLIC is not well understood, as illustrated by the patch clamp study of Laha et al. (2013) that shows that only half of the patches show macroscopic desensitization of the pH-elicited response. It is thus evident that in steady state conditions, fluorescence recordings are following reorganizations from the resting state towards the active and desensitized states, but we do not know the proportion of each of these states at the end of the equilibration. This is why in the Results section, we were careful to interpret the data in terms of pH-elicited reorganization but without referring to activation and desensitization.

We only address these questions in the last section of the Results and in the Discussion, as it is the combination of steady state and kinetics experiments that gives a coherent picture and allows us to discriminate between activation and desensitization.

At all positions except 243, we show that most of the fluorescence variations occurred with very fast kinetics, compatible with their contribution to the activation transition, particularly with regards to the known kinetics of GLIC published in the literature. We then conclude that the remaining minor quenching changes are linked to the transition from the active to the desensitized state.

These considerations, which are based on the entire set of experimental data, are stated in the Discussion, and could thus not be introduced earlier in the body of the Results section.

5) Presumably, in liposome reconstitution experiments beginning at the subsection “Detergent-solubilized and lipid-reconstituted GLIC show similar pH-elicited reorganizations”, ~50% of the receptors have their ECDs (and H+ binding sites) inside the vesicle. Protons should permeate the channel (correct?) but the kinetic response would likely be different (delayed) from those receptors with their ECDs facing the solution exchange directly. Reconstitution was performed with labeled receptors, so fluorescence signal will be coming from both 'inward' and 'outward' oriented receptors. How does this complication affect analysis and interpretation of the time constants derived from multi-exponential fitting?

The question of the referee is quite pertinent. As stated in the Methods section, we used two different reconstitution protocols for the thallium fluxes and the bimane-quenching experiments, yielding two types of liposomes with the same lipidic composition but large (150 nm in diameter) and small (70 nm in diameter), respectively.

In the thallium flux experiments, the ANTS fluorescence variations report on the fraction of open-channel receptors at the membrane, regardless of their orientation. We used these measurements not for the absolute value of thallium rate entry but to compare the fraction of active receptors between different pHs. In this frame, as the orientation of GLIC pentamers in the liposomes would be identical at all pHs, the possibility of delayed activation of receptors would not impact our conclusions.

However, in the case of the stopped-flow recordings of bimane, a delayed activation of GLIC could have a strong impact on the analysis and conclusions drawn. To address this issue, we performed three sets of experiments:

1) We evaluated the orientation of GLIC into liposomes. To this end, we reconstituted separately two unlabeled GLIC mutants for which a cysteine was introduced either at the top of the ECD (D136C), or at the bottom of the TMD facing the cytoplasmic side (T219C). After reconstitution, the proteoliposomes were labeled with the non-permeant fluorescent dye Alexa Fluor 546 maleimide for 10 minutes and the reaction was then stopped by addition of excess cysteines. The samples were subjected to SDS-PAGE, and gels were successively imaged by fluorescence and analyzed by Coomassie blue staining. In parallel, an identical labeling protocol was performed on the same DDM-solubilized mutants to measure the maximal labeling efficiency of each position. By analysis of each band’s intensity in fluorescence and Coomassie blue, we could calculate the fraction of labeled receptors (Alexa fluorescence intensity/Coomassie blue intensity) of both mutants. The data in the author response Figure 1A shows that, as compared to DDM-solubilized protein, 75 ± 11% of the D136C mutant and 35 ± 6% of the T219C mutant are labeled in liposomes, meaning that their mutated cysteine is facing the outside of liposomes. Our results thus strongly suggest a preferential orientation of GLIC with the ECD outside of the liposomes.

2) We measured the kinetics of proton entry into the liposome using stopped-flow recordings with identical injection volume and speed parameters as the ones used for bimane fluorescence recordings. We generated asolectin liposomes in the absence or presence of GLIC, which were loaded with the fluorescent pH-sensitive dye 8-HydroxyPyrene-1,3,6-Trisulfonic Acid (HPTS). When excited at 372 nm this dye shows a 1.7 fold increase in fluorescence intensity from pH 7.3 to pH 4 (Author response image 1C). Rapid mixing experiments from pH 7.3 to pH 4 show a slow proton entry into the liposomes (without GLIC), with time constants in the second to tens of seconds range (Author response image 1D). In sharp contrast, similar experiments with proteoliposomes (with GLIC) show very fast proton entry, which occurs with sub-millisecond kinetics, in the dead-time of the apparatus. As a control, we performed additional recordings under conditions for which GLIC is non-conducting, either of proteoliposomes going from pH 7.3 to pH 6 (pH too high for channel opening), or going from pH 7.3 to pH 4 in presence of the pore blocker picrotoxin. These recordings showed similar very-fast entry of the proton in the proteoliposomes indicating that this entry does not require GLIC-channel opening.

3) We evaluated the radius of the liposomes using dynamic light scattering. The data shows that the liposomes display a mean radius of approximately 70 nm, while proteoliposomes are smaller, with a mean radius around 35 nm (Author response image 1B). These data also show that our samples do contain formed mono-dispersed proteoliposomes and not individual lipidated GLIC particles.

In conclusion, we show that a non-negligible portion of the reconstituted proteins have an “inside-out” configuration with their ECD facing the inside of the vesicles. However, the proteoliposomes are permeant to protons with very fast kinetics. Therefore, in our recording conditions, the inner solution of the proteoliposomes is entirely equilibrated with the outer solution, in terms of proton concentration, within the mixing dead-time. Thus, all receptors, regardless of their orientation in the liposomes, will be protonated with sufficiently fast kinetics such that there is no impact on the observed bimane stopped-flow kinetics at the current time resolution.

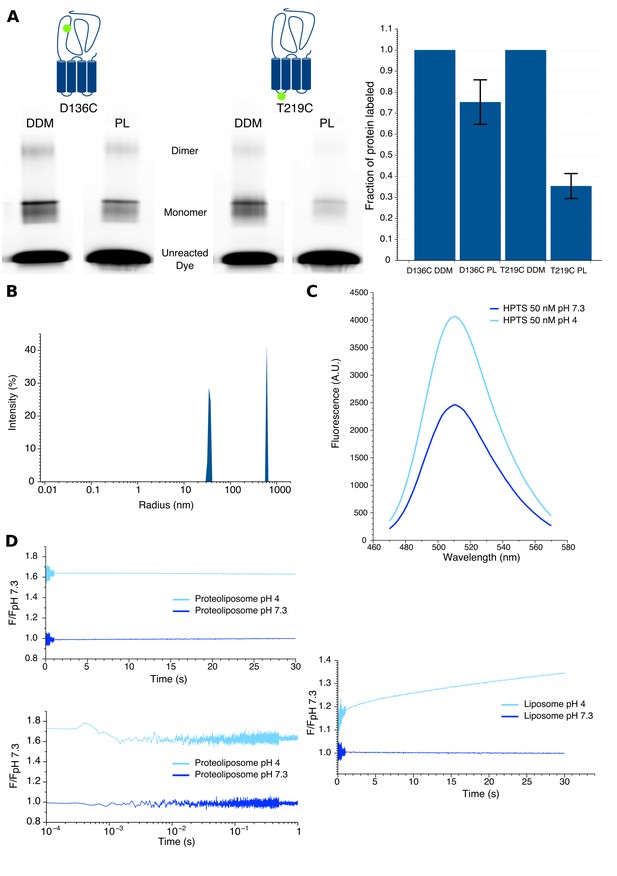

Author response image 1
Characteristics of proteoliposomes used for Bimane quenching studies.

(A) SDS-PAGE gel fluorescence scan (left) and labeling quantification (right) of GLIC mutants D136C and T219C reconstituted in liposomes (PL) or in detergent (DDM) and labeled with Alexa Fluor 546. (B) Dynamic light scattering profile of GLIC proteoliposomes. The peaks are represented with the standard radius-weighted intensity and the radius on a log scale. The first peak represents GLIC proteoliposomes (which are the major species of objects) and the second peak represents aggregates (very minor species). (C) Emission spectra of the HPTS fluorophore in proteoliposome buffer, excited at 372 nm at pH 7.3 and pH 4. (D) Stopped-flow recordings of HTPS loaded GLIC proteoliposomes (left) or empty liposomes (right). The lower left panel shows a zoom of the first second of the GLIC proteoliposomes recordings, represented using a log scale for better visualization of the first milliseconds. For all recordings, the excitation was set at 372 nm and the fluorescence recorded through a 505 nm high-pass filter after a 2.1 ms mixing dead-time to reach either pH 7.3 or pH 4.

https://doi.org/10.7554/eLife.23955.026

6) The concept of the intermediate state at intermediate pH, the pre-activation step, is compelling. One idea is that this intermediate state is a broadly-relevant point along the resting-activation pathway. What do the authors think of an alternative hypothesis, that the intermediate state results from partial occupancy of proton agonists at multiple sites that have different pKa values?

The question is interesting and quite pertinent, but in light of the present data we can only speculate on alternative models. A number of different mechanisms can account for the fluorescence data, and two have been proposed by the referees:

1) The simplest one is described in the “Additional Note by one of the reviewers”. In this case, a single class of “proton activation site” is present, one per subunit, five per pentamer. As shown by the theoretical curves provided by the referee, the concerted model of R to pre-O to O nicely accounts for the experimentally measured dose response curves, notably for the left shift of the △F curves as compared to the △I curve.

2) It is also possible that more than one “proton activation site” per subunit exists. Each subunit could carry a low sensitivity and a high sensitivity site, and it is possible that the transition towards the pre-active state would reflect the protonation of the high sensitivity sites, the activation requiring further protonation of the low sensitivity sites.

Future work, notably by mutagenesis, would be required to discriminate between these possibilities.

7) How does the locally closed model (Prevost NSMB 2012 and Gonzalez-Gutierrez PNAS 2013) fit into the concept of this new pre-activated conformation? Please also consider citing that 2013 PNAS paper.

We added a section (Discussion, fourth paragraph) discussing the possibility that one particular LC conformation could be a candidate for the pre-active state. This remains highly speculative and is stated as such in the text: “Several mutants and a wild-type GLIC C-terminally tagged with 10 histidines, were found to crystallize in different locally-closed “LC” conformations characterized by an overall conformation of the ECD nearly identical to GLICpH 4, but with a closed channel (Prevost et al. 2012; Gonzalez-Gutierrez et al. 2013). […] Hence, we may speculate that this particular LC conformation could be a candidate for the pre-active state of GLIC, since it shows compaction of the ECD and motion of the M2-M3 loop without channel opening.”

MINOR POINTS:

1. How do the authors rule out that the ion influx kinetics is not limited by the number of functional channels? There should be some discussion about this. Please provide information regarding the size of the liposomes, number of dye molecules per liposome etc.

The ion flux kinetics are dependent on the number of functional/active channels as documented in previous reports establishing this technique (Ingolfsson and Andersen 2010). The amount of protein used for the reconstitution thus has to be adjusted to yield quenching kinetics that can be resolved at the highest and the lowest channel activity under the specific conditions of the experiment. Since all the experiments comparing kinetics under different activating conditions are measured using vesicles from the same reconstitution, the differences in kinetics can be safely assigned to differences in the pH dependent activation. Moreover, in the experiments shown here, the recorded channel activity from different reconstitutions shows a variation of quenching rates of less than 10%. This point is now addressed in the method section for the flux assay p.29 l27-28.The LUVs prepared according to this protocol are extruded through a 100 nm filter and have a mean diameter of 150 nm after extrusion (Ingolfsson and Andersen 2010). This is now specifically stated p.19 l14. Thus the mean volume of the vesicles is 1.7671 mm3 ·10-12 = 1.767x10-12 ml. With 25 mM ANTS present during the reconstitution (see Methods p.29), the actual number of ANTS molecules inside the vesicles is 4.4175x10-14 mol or 2.66x1010 molecules. In every experiment shown here, fluorescence is quenched to about 70% of the initial fluorescence (under these particular conditions fluorescence quenching cannot decrease to less than 40% of the initial fluorescence (Ingolfsson and Andersen 2010)). Thus the amount of ANTS molecules is not limiting for the quenching reaction.

2. 100% labeling efficiency seems unlikely. In cases where labeling results in a non-functional channel, is there a concern that some experiments are measuring function from the fraction of receptors that are unlabeled?

The referee is right to point out this issue. First, for mutations at positions E243 or P250, we found that bimane labeling altered the pH50 of activation and/or the shape of the current traces. In these cases, as there is a difference in the currents, electrophysiology clearly does record labeled receptors.In contrast, at position 133, 135, 136 and 33, there is no such significant change in the pH50 or current kinetics observed after bimane labeling. In addition, in all cases bimane labeling did not decrease the maximal currents evoked by proton (see Table 1). Since positions 133, 135 and 136 are far away from the transmembrane domain, it is likely that their labeling with bimane is similar between the membrane-anchored protein and the DDM-solubilized protein. We thus evaluated the extent of bimane labeling in DDM-purified protein (Author response table 1). To this end, we calculated the efficacy of bimane labeling by dividing the fluorescence of the bimane-labeled proteins in denatured condition (SDS) by the amount of protein. This FSDS/protein ratio calculated for all the mutants indicates that the position Q193C has the lowest labeling efficiency (37 units of fluorescence per mg of receptor), in particular as compared to the major quenching pairs D136C Q101W (85 units) V135C (119 units), R133C L103W (53 units) and K33C (113 units). Functional recordings of the mutant Q193C shows that our labeling protocol produces almost 100% of function loss. Therefore, we can extrapolate that at all other positions, as the labeling efficiency is higher, if bimane labeling were to lead to a complete loss of function we would, as for Q193C, record it in oocytes. We conclude that, in these cases, bimane labeling did not significantly impair the function of the channel.

Author response table 1

Labeling efficiency of GLIC mutants by Bimane. n stands for number of experiments. All the data represent mean values and error values were calculated as standard deviations.

https://doi.org/10.7554/eLife.23955.027
MutantFSDS/proteinn
K33C113 ± 414
K33C W160F54 ± 413
D136C155 ± 353
D136C S93W522
D136C D178W106 ± 43
D136C Q101W85 ± 144
R133C60 ± 44
R133C Y23W482
R133C Q101W60 ± 83
R133C L103W53 ± 74
V135C119 ± 367
V135C E67Q E75Q D91N108.6 ± 0.63

Q193C

37 ± 33
P250C70 ± 154
P250C W160F70.9 ± 0.63
P250C Y194F52.6 ± 0.4

3

P250C Y197F60 ± 43
P250C Y251F68.1 ± 0.63
E243C113 ± 24
E243C K33W102 ± 23
E243C I201W118 ± 53
E243C F238W69.7 ± 0.73
E243C V242C16 ± 13
E243C L241W101 ± 73
https://doi.org/10.7554/eLife.23955.029

Article and author information

Author details

  1. Anaïs Menny

    1. Channel Receptors Unit, Institut Pasteur, Paris, France
    2. Unité Mixte de Recherche 3571, Centre National de la Recherche Scientifique, Paris, France
    3. Université Pierre et Marie Curie, Cellule Pasteur, Paris, France
    Contribution
    AM, Designed most experiments, Carried out all aspects of mutagenesis, biochemistry, bimane fluorescence and electrophysiology experiments, Analyzed all the data, Wrote the manuscript and its revision
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-6044-4119
  2. Solène N Lefebvre

    1. Channel Receptors Unit, Institut Pasteur, Paris, France
    2. Unité Mixte de Recherche 3571, Centre National de la Recherche Scientifique, Paris, France
    3. Université Pierre et Marie Curie, Cellule Pasteur, Paris, France
    Contribution
    SNL, Assisted with liposome experiments and data analysis, Participated in the revision of the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  3. Philipp AM Schmidpeter

    1. Departments of Anesthesiology, Physiology and Biophysics, Biochemistry, Weill Cornell Medicine, New York, United States
    Contribution
    PAMS, Performed thallium flux experiments and data analysis, Assisted with preparing the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  4. Emmanuelle Drège

    1. BioCIS, Université Paris-Sud, CNRS, Université Paris-Saclay, Châtenay-Malabry, France
    Contribution
    ED, Designed and Synthetized the bimane Bunte salt
    Competing interests
    The authors declare that no competing interests exist.
  5. Zaineb Fourati

    1. Unité de Dynamique Structurale des Macromolécules, Institut Pasteur, Paris, France
    2. Unité Mixte de Recherche 3528, Centre National de la Recherche Scientifique, Paris, France
    Contribution
    ZF, Performed crystallographic data collection, Crystallographic data analysis
    Competing interests
    The authors declare that no competing interests exist.
  6. Marc Delarue

    1. Unité de Dynamique Structurale des Macromolécules, Institut Pasteur, Paris, France
    2. Unité Mixte de Recherche 3528, Centre National de la Recherche Scientifique, Paris, France
    Contribution
    MD, Supervised crystallographic experiments, Data validation
    Competing interests
    The authors declare that no competing interests exist.
  7. Stuart J Edelstein

    1. Biologie Cellulaire de la Synapse, Institute of Biology, Ecole Normale Supérieure, Paris, France
    Contribution
    SJE, Assisted in stopped-flow data analysis, Assisted with preparing the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  8. Crina M Nimigean

    1. Departments of Anesthesiology, Physiology and Biophysics, Biochemistry, Weill Cornell Medicine, New York, United States
    Contribution
    CMN, Designed thallium flux experiments and supervised data analysis, Assisted with preparing the manuscript and its revision
    Competing interests
    The authors declare that no competing interests exist.
  9. Delphine Joseph

    1. BioCIS, Université Paris-Sud, CNRS, Université Paris-Saclay, Châtenay-Malabry, France
    Contribution
    DJ, Designed the bimane bunte salt, Assisted with preparing the manuscript and its revision
    Competing interests
    The authors declare that no competing interests exist.
  10. Pierre-Jean Corringer

    1. Channel Receptors Unit, Institut Pasteur, Paris, France
    2. Unité Mixte de Recherche 3571, Centre National de la Recherche Scientifique, Paris, France
    Contribution
    P-JC, Designed most experiments, Supervised the project, Wrote the manuscript and its revision
    For correspondence
    1. pjcorrin@pasteur.fr
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-4770-430X

Funding

Agence Nationale de la Recherche (Pentagate)

  • Anaïs Menny
  • Solène N Lefebvre
  • Emmanuelle Drège
  • Zaineb Fourati
  • Marc Delarue
  • Delphine Joseph
  • Pierre-Jean Corringer

Centre National de la Recherche Scientifique (UMR 3571)

  • Anaïs Menny
  • Solène N Lefebvre
  • Pierre-Jean Corringer

Institut Pasteur

  • Anaïs Menny
  • Solène N Lefebvre
  • Zaineb Fourati
  • Marc Delarue
  • Pierre-Jean Corringer

Université Pierre et Marie Curie (PhD student fellowship)

  • Anaïs Menny
  • Solène N Lefebvre

Fondation pour la Recherche Médicale (DEQ20140329497)

  • Anaïs Menny
  • Pierre-Jean Corringer

Centre National de la Recherche Scientifique (UMR 8076)

  • Emmanuelle Drège
  • Delphine Joseph

Centre National de la Recherche Scientifique (UMR 3528)

  • Zaineb Fourati
  • Marc Delarue

National Institutes of Health (R01 GM088352)

  • Crina M Nimigean

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Alain Chaffotte for his help in setting up the bimane stopped-flow experiments and DJ Posson for assistance with initial double mixing stopped-flow experiments. We thank OS Andersen and R Rusinova for providing us with time at the SX.20 stopped-flow instrument, which is maintained by the NIH grant R01GM021342 to OS Andersen. We thank Nelson Rebola and David DiGregorio for assistance in the confocal microscopy recordings. We also thank Karima Medjebeur for aid in protein production and Jean-Pierre Changeux, Marc Gielen and Akos Nemecz for critical reading of the manuscript. We acknowledge financial support by the Agence Nationale de la Recherche ‘ANR pentagate’ (AM) and the Foundation de la Recherche Médicale ‘Equipe FRM DEQ20140329497’.

Reviewing Editor

  1. Baron Chanda, Reviewing Editor, University of Wisconsin-Madison, United States

Publication history

  1. Received: December 7, 2016
  2. Accepted: March 14, 2017
  3. Accepted Manuscript published: March 15, 2017 (version 1)
  4. Version of Record published: April 20, 2017 (version 2)
  5. Version of Record updated: May 9, 2017 (version 3)

Copyright

© 2017, Menny et al

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 856
    Page views
  • 315
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Genomics and Evolutionary Biology
    2. Microbiology and Infectious Disease
    Kevin S Bonham et al.
    Research Article
