O-GlcNAc on NOTCH1 EGF repeats regulates ligand-induced Notch signaling and vascular development in mammals

  1. Shogo Sawaguchi
  2. Shweta Varshney
  3. Mitsutaka Ogawa
  4. Yuta Sakaidani
  5. Hirokazu Yagi
  6. Kyosuke Takeshita
  7. Toyoaki Murohara
  8. Koichi Kato
  9. Subha Sundaram
  10. Pamela Stanley Is a corresponding author
  11. Tetsuya Okajima Is a corresponding author
  1. Nagoya University Graduate School of Medicine, Japan
  2. Albert Einstein College of Medicine, United States
  3. Nagoya City University, Japan
  4. Institute for Molecular Science and Okazaki Institute for Integrative Bioscience, National Institutes of Natural Sciences, Japan
Research Article
Cited
0
Views
861
Comments
0
Cite as: eLife 2017;6:e24419 doi: 10.7554/eLife.24419

Abstract

The glycosyltransferase EOGT transfers O-GlcNAc to a consensus site in epidermal growth factor-like (EGF) repeats of a limited number of secreted and membrane proteins, including Notch receptors. In EOGT-deficient cells, the binding of DLL1 and DLL4, but not JAG1, canonical Notch ligands was reduced, and ligand-induced Notch signaling was impaired. Mutagenesis of O-GlcNAc sites on NOTCH1 also resulted in decreased binding of DLL4. EOGT functions were investigated in retinal angiogenesis that depends on Notch signaling. Global or endothelial cell-specific deletion of Eogt resulted in defective retinal angiogenesis, with a mild phenotype similar to that caused by reduced Notch signaling in retina. Combined deficiency of different Notch1 mutant alleles exacerbated the abnormalities in Eogt−/− retina, and Notch target gene expression was decreased in Eogt−/−endothelial cells. Thus, O-GlcNAc on EGF repeats of Notch receptors mediates ligand-induced Notch signaling required in endothelial cells for optimal vascular development.

https://doi.org/10.7554/eLife.24419.001

eLife digest

As an embryo develops, its cells undergo a series of divisions and transformations until they specialize to form distinct cell types. These transformations are regulated by many molecules and signaling pathways. Often one cell will release signaling molecules that are then recognized by specialized receptor proteins on other cells that then trigger a reaction in the receiving cell. A signaling molecule that binds to a receptor is often referred to as a ligand.

Specific chains of sugar molecules known as glycans are attached to receptor proteins and help to regulate the signaling pathways that control how cells develop in an embryo. One of these receptors is called the Notch receptor, which carries several types of glycans. Mutations that prevent the glycans from being attached to this receptor can lead to congenital diseases. For example, EOGT is an enzyme that attaches a sugar molecule onto the Notch receptor, and mutations in the gene that encodes EOGT are found in people with Adams-Oliver syndrome – a rare condition that causes their skin and limbs to fail to develop properly. However, it was not clear what exact role the attachment of the sugar molecule (referred to as O-GlcNAc) plays and if it regulates Notch signaling.

Sawaguchi et al. studied animal cells grown in the laboratory to investigate ligand binding to Notch receptors and Notch signaling. The experiments showed that if the gene for the EOGT enzyme was deleted, some ligand molecules could not bind well to the Notch signaling receptor. This affected how the receptor became activated and how it triggered a signaling reaction in the receiving cell. In mutant mice that lacked EOGT, the blood vessels of the developing retina had reduced Notch signaling. Blood vessels are important for the normal development of the retina. Together, the results suggest that O-GlcNAc on Notch receptors are important for specific aspects of Notch signaling, including the signals that lead to the normal development of retinal blood vessels.

A next step will be to identify other roles of the O-GlcNAc glycans on Notch receptors and to explore how they affect Notch signaling during development. A better understanding of these mechanisms will extend our knowledge of Adams-Oliver syndrome, which at the moment remains a poorly understood condition.

https://doi.org/10.7554/eLife.24419.002

Introduction

N-acetylglucosamine linked to Ser or Thr (O-GlcNAc) is a rare form of post-translational modification specifically modifying epidermal growth factor-like (EGF) domains in secreted or membrane proteins (Alfaro et al., 2012; Matsuura et al., 2008; Stanley and Okajima, 2010). In contrast to O-GlcNAc modification of nuclear and cytoplasmic proteins (Ma and Hart, 2014), EGF-specific O-GlcNAcylation occurs in the endoplasmic reticulum (ER) by the action of the EGF-domain-specific O-GlcNAc transferase, EOGT (Sakaidani et al., 2011). To date, only a small number of secreted or membrane proteins have been shown to be O-GlcNAcylated, including Notch receptors and their ligands (Alfaro et al., 2012; Müller et al., 2013; Tashima and Stanley, 2014). Notch receptors are also modified by O-fucose and O-glucose glycans at independent consensus sites on EGF repeats (Figure 1A), and both types of O-glycan regulate the strength of Notch signaling (Haltom and Jafar-Nejad, 2015). Loss of O-fucose, but not O-glucose glycans reduces binding of canonical Notch ligands to Notch receptors, and consequently Notch signaling. Removing one class of O-glycan will affect many EGF repeats but is not expected to affect modification of EGF repeats by unrelated O-glycans. In this paper, we report that Notch receptors lacking only O-GlcNAc glycans have reduced ligand-induced Notch signaling.

Figure 1 with 1 supplement see all

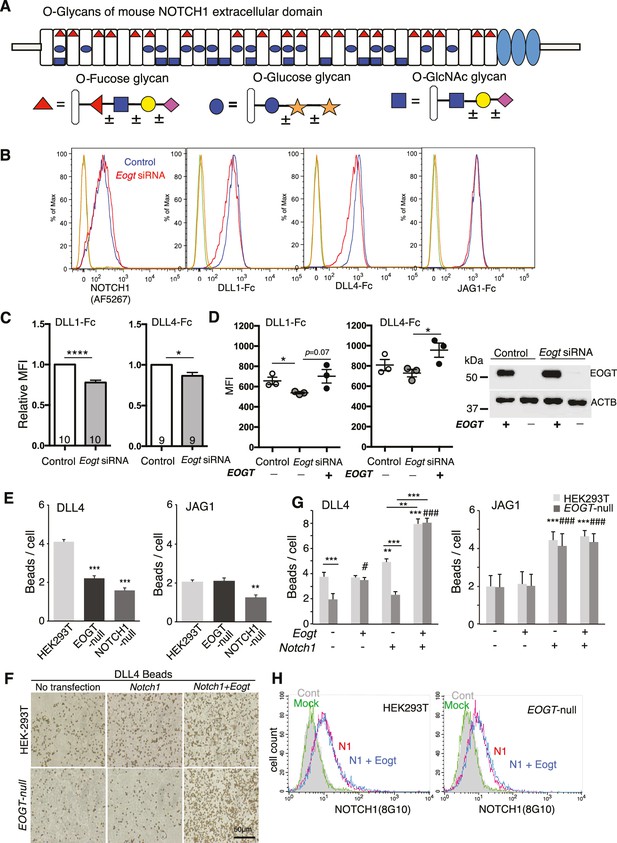

EOGT promotes NOTCH1 binding to Delta ligands.

(A) Diagram of predicted O-glycans on mouse NOTCH1: red triangle, O-fucose glycans; blue circle, O-glucose glycans; blue square, O-GlcNAc glycans. Individual sugar residues that may extend O-fucose, O-glucose or O-GlcNAc to varying degrees are: yellow circle, galactose; pink diamond, sialic acid; orange star, xylose. (B) Flow cytometry of Lec1 CHO cells expressing vector control or Eogt siRNA with NOTCH1 mAb, DLL1-Fc, DLL4-Fc or JAG1-Fc. (C) Relative mean fluorescence index (MFI) for binding of DLL1-Fc and DLL4-Fc to control and Eogt-siRNA Lec1 cells. Concentrations of ligand varied from 100 to 750 ng/ml. MFI values for binding to control cells taken as 1.0 were 455 ± 55 (DLL1-Fc) and 1215 ± 49 (DLL4-Fc). Data from 9 to 10 independent experiments are average, normalized MFI ± SEM; significance determined by paired, two-tailed Student’s t-test, *p<0.05, ****p<0.0001. (D) MFI values obtained for binding of DLL1-Fc or DLL4-Fc (750 ng/ml) to control and Eogt knockdown Lec1 CHO cells, before and after transfection of a human EOGT cDNA. Data are mean ± SEM from three independent experiments. Significance determined by unpaired, two-tailed Student’s t-test, *p<0.05. Western blot analysis of transfectants. (E) DLL4 and JAG1 beads bound to wild-type, EOGT-null, or NOTCH1-null HEK293T cells were observed by microscopy and counted (n = 50). Data are mean ± S.D. from three independent experiments. Statistical analysis was by Welch's t-test. **p<0.01; ***p<0.001. (F) Wild-type or EOGT-null HEK293T cells were transfected with Notch1 alone or together with Eogt followed by incubation with DLL4 beads. The number of DLL4 beads bound to cells was markedly increased by co-transfection of Eogt and Notch1. (G) Wild-type or EOGT-null HEK293T cells or cells transiently transfected with Notch1 with or without Eogt, were incubated with DLL4 or JAG1 beads. The number of Dynabeads bound per transfected cell marked by GFP expression was determined (n = 50). Data are mean ± S.D. from three independent experiments. *p<0.05; **p<0.01; ***p<0.001; #p<0.05; ###p<0.001 compared with the left-most wild type (*) or EOGTnull (#) bar by Welch's t test. (H) Wild-type or EOGT-null HEK293T cells were transfected with Notch1 with or without Eogt and subjected to flow cytometry using 8G10 NOTCH1 Ab. Mock transfectants were analyzed with (Mock) or without primary antibody (Cont).

https://doi.org/10.7554/eLife.24419.003

The physiological importance of EOGT was revealed in patients with Adams-Oliver syndrome (AOS), a rare congenital disorder characterized by aplasia cutis congenita and terminal transverse limb defects, often accompanied by cardiovascular malformations and brain anomalies (Algaze et al., 2013; Piazza et al., 2004). Although the pathogenesis of AOS is broad, it could arise from small-vessel vasculopathy (Piazza et al., 2004). AOS is a heterogeneous disorder caused by mutation in one of at least six different genes. Among these, loss-of-function mutations of EOGT and DOCK6 were identified as the basis of an autosomal-recessive form of AOS (Shaheen et al., 2013, 2011). In addition, autosomal dominant mutations of NOTCH1, RBPJ, DLL4 and ARHGAP31 give rise to AOS (Aminkeng, 2015; Hassed et al., 2012; Meester et al., 2015; Southgate et al., 2015; Stittrich et al., 2014). Gain-of-function mutation of ARHGAP31 and loss-of-function mutation of DOCK6 suggested that inactivation of Cdc42/Rac1 functions underlies the molecular basis for AOS. In contrast, loss-of-function mutations of DLL4, RBPJ and NOTCH1 in AOS patients suggest that impaired Notch signaling is an alternative basis of the pathogenesis of AOS. Here, we investigate the hypothesis that loss of EOGT affects Notch signaling using cell-based Notch ligand binding and signaling assays and Eogt mutant mice. We show that EOGT-catalyzed NOTCH1 O-GlcNAcylation potentiates DLL1- and DLL4-NOTCH1 binding and Notch signaling, whereas JAG1-NOTCH1 binding remains unaffected. Using retinal angiogenesis as a sensitive assay of Notch signaling in vivo (Roca and Adams, 2007), we show that mice lacking EOGT have impaired retinal vascular development, with a phenotype characteristic of Notch pathway deficiencies in retina (Benedito et al., 2009). Moreover, we show that endothelial functions of EOGT are responsible for the retinal vascular phenotype. Thus, O-GlcNAc on the EGF repeats of Notch receptors is required for optimal Notch signaling in developing retina, and likely in other Notch-dependent processes in mammals.

Results

EOGT regulates DLL1 and DLL4 binding to NOTCH1

To address whether EOGT regulates physical interactions between Notch receptors and ligands, Notch ligand binding assays were performed on control and Eogt–siRNA Lec1 Chinese hamster ovary (CHO) cells. Eogt transcripts determined by quantitative RT-PCR were reduced by ~60%. Eogt-siRNA Lec1 cells exhibited reduced binding of soluble DLL1-Fc and DLL4-Fc (Figure 1B and Figure 1C). However, binding of soluble JAG1-Fc was not altered by knockdown of Eogt (Figure 1B). Overexpression of an EOGT cDNA rescued DLL1 and DLL4 binding (Figure 1D). Moreover, cell surface expression of NOTCH1 was not reduced in Lec1 cells with reduced Eogt (Figure 1B).

A second ligand binding assay used soluble Notch ligands attached to Protein A Dynabeads via their Fc domain, and EOGT- and NOTCH1-null HEK293T cells generated by CRISPR/Cas9 gene editing (Figure 1—figure supplement 1). Deletion of EOGT was verified using anti-EOGT antibody and by the lack of O-GlcNAc on a NOTCH1 extracellular domain fragment (Figure 1—figure supplement 1). Both DLL4 and JAG1 beads/cell were decreased in NOTCH1-null cells (Figure 1E), confirming that NOTCH1 mediates ligand biding in HEK293T cells. The residual binding capacity of NOTCH1-null cells implicated the contribution of other Notch receptors. Similar to Eogt-siRNA CHO Lec1 cells, EOGT-null HEK293T cells exhibited decreased binding to DLL4 beads, but not to JAG1 beads (Figure 1E).

To determine whether overexpression of EOGT potentiates DLL4-NOTCH1 binding, HEK293T cells or EOGT-null cells were transfected with Notch1 and Eogt cDNA individually or together, and the ligand binding assay was performed. Notch1 overexpression led to increased binding of both DLL4 and JAG1 beads to HEK293T cells (Figure 1F and G). In addition, the effect of Notch1 overexpression on DLL4 bead binding was selectively impaired in EOGT-null cells (Figure 1F and G). Furthermore, simultaneous expression of Notch1 and Eogt enhanced DLL4 but not JAG1 bead binding, in both HEK293T and EOGT-null cells (Figure 1F and G). The synergistic effect of Notch1 and Eogt on DLL4 bead binding provide strong evidence that EOGT potentiates DLL4-NOTCH1 physical interactions.

As observed in Lec1 CHO cells (Figure 1B), neither Eogt overexpression nor EOGT loss affected cell surface NOTCH1 expression (Figure 1H). Thus, EOGT is not required for NOTCH1 trafficking to the plasma membrane.

O-GlcNAc on NOTCH1 promotes DLL4-NOTCH1 interactions

To determine whether it is the O-GlcNAc transferred by EOGT to NOTCH1 that directly affects the binding of DLL4, we generated NOTCH1 site-specific mutants by Ala substitution of Ser/Thr in predicted O-GlcNAcylation sites. Alignment of previously reported O-GlcNAc-modified proteins including Notch and Dumpy in Drosophila, and Hspg2, Nell1, Lama5, and Pamr1 in mouse brain suggested that the potential consensus sequence is C5XXG(Y/F/L)(T/S)GX2-3C6 (Alfaro et al., 2012; Sakaidani et al., 2011). A relatively small number of the EGF domains in mouse NOTCH1 contain the consensus sequence C5XXG(Y/F)(T/S)GXXC6, and these are conserved among mouse, human, rat, Chinese hamster and zebrafish in EGF10, 14, 15, 17, 20, 23, 26, 27 and 29 (Figure 2—figure supplement 1). Mutation of two or four Ser/Thr to Ala in EGF2, 10, 17 and 20 (Notch1Δ2xO-GlcNAc; Notch1Δ4xO-GlcNAc; Figure 2A), outside the canonical ligand-binding region (EGF11 and 12), was performed. Cell surface expression of the NOTCH1 mutants was indistinguishable from wild-type NOTCH1 (Figure 2B), consistent with unchanged NOTCH1 cell surface expression in EOGT-null HEK293T cells (Figure 1H). Decreased O-GlcNAcylation of Notch1Δ2xO-GlcNAc and Notch1Δ4xO-GlcNAc mutants was confirmed by immunoblotting with CTD110.6 O-GlcNAc antibody (Figure 2C). Expression of Notch1Δ4xO-GlcNAc in Eogt-transfected cells resulted in an ~80% decrease in O-GlcNAc immunostain signal (Figure 2D). By contrast, Ala substitution in only EGF2 and 10 (Notch1Δ2xO-GlcNAc) removed ~60% of the signal in Eogt transfectants (Figure 2D). Moreover, the number of DLL4 beads bound to NOTCH1Δ4xO-GlcNAc transfectants was significantly decreased relative to wild-type NOTCH1 (Figure 2E), similar to the decrease observed in EOGT-null cells (Figure 1E). This suggests that O-GlcNAc in EGF2, 10, 17 and/or 20 are important contributors to DLL4/NOTCH1 interactions. When NOTCH1Δ4xO-GlcNAc was simultaneously expressed with Eogt, Notch1Δ4xO-GlcNAc/Eogt cotransfectants also exhibited impaired binding to DLL4 beads. These results demonstrate that DLL4/NOTCH1 interactions mediated by EOGT require O-GlcNAc on sites that are located outside the canonical ligand-binding region. In contrast, the number of JAG1 beads bound to Notch1 transfectants was not reduced in Notch1Δ4xO-GlcNAc transfectants, irrespective of Eogt overexpression (Figure 2E). These results provide strong evidence that O-GlcNAc on NOTCH1 EGF2, 10, 17 and/or 20 selectively affect DLL4/NOTCH1 but not JAG1/NOTCH1 physical interactions. The substantial decrease in O-GlcNAc signal following removal of only four of the nine potential O-GlcNAcylation sites, suggests that a limited number of sites are O-GlcNAcylated in NOTCH1.

Figure 2 with 1 supplement see all

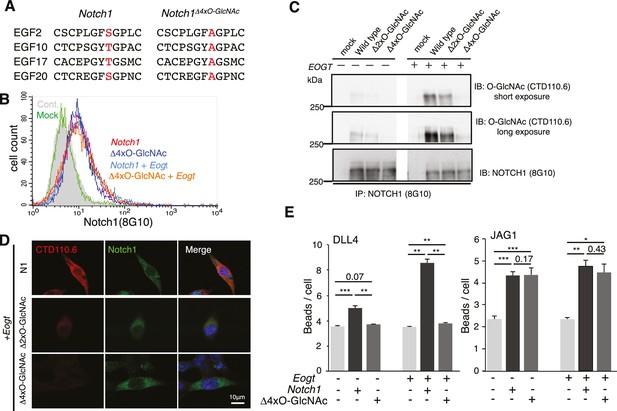

O-GlcNAc on NOTCH1 EGF repeats promotes DLL4-NOTCH1 interactions.

(A) Ala substitution of Thr/Ser in the O-GlcNAc consensus site C5XXG(Y/F)(T/S)GXXC6 in EGF2, 10, 17, and 20 in the NOTCH1Δ4xO-GlcNAc mutant. (B) Cell surface expression of NOTCH1Δ4xO-GlcNAc is comparable to that of wild-type NOTCH1. EOGT-null transfectants expressing Notch1 or Notch1Δ4xO-GlcNAc with or without Eogt were subjected to flow cytometry using 8G10 NOTCH1 antibody. Control transfectants were with (Mock) or without (Cont) primary antibody. Similar results were obtained for wild-type HEK293T cells (not shown). (C) Expression and O-GlcNAcylation of Notch1, Notch1Δ2xO-GlcNAc and Notch1Δ4xO-GlcNAc were analyzed by immunoprecipitation (IP) using NOTCH1 (8G10) antibody, followed by immunoblotting with CTD110.6 O-GlcNAc or NOTCH1 antibodies. (D) HEK293T transfectants expressing NOTCH1, NOTCH1Δ2xO-GlcNAc or NOTCH1Δ4xO-GlcNAc were immunostained for O-GlcNAc (CTD110.6 mAb; red) or NOTCH1 (8G10 mAb; green). Merged images include DAPI (blue) staining. Note that CTD110.6 mAb binding is markedly decreased in the NOTCH1Δ4xO-GlcNAc mutant. (E) Quantification of the number of DLL4- or JAG1-coated Dynabeads bound to Notch1 versus Notch1Δ4xO-GlcNAc transfected cells (marked with GFP), in the presence and absence of Eogt. Data are mean ± S.D from three independent experiments. Each experiment analyzed 50 cells. *p<0.05; **p<0.01; ***p<0.001 (Welch's t test).

https://doi.org/10.7554/eLife.24419.006

Knockdown of EOGT reduces Notch signaling

To investigate effects of EOGT on Notch ligand-induced signaling, we analyzed NOTCH1 activation and signaling in HeLa and Lec1 CHO cells with reduced Eogt. HeLa cells stably expressing four different shRNA constructs targeted to the coding or 3’UTR region of human EOGT were co-cultured with L cells, or DLL1-expressing L cells (D1/L), in the presence and absence of a gamma-secretase inhibitor (GSI). Ligand-induced activation of NOTCH1 generates the release of NOTCH1 intracellular domain (ICD), identified by Western analysis using mAb Val1744 specific for the cleaved N-terminus of NOTCH1 ICD (Huppert et al., 2000). NOTCH1 cleavage was stimulated poorly, or not at all, by L cells (Figure 3A). However, co-culture with D1/L cells caused robust NOTCH1 activation in cells expressing a GAPDH control shRNA (Figure 3A). Importantly, NOTCH1 cleavage was inhibited in D1/L co-cultures containing the GSI (Figure 3A). All four EOGT-targeted shRNA constructs specifically reduced NOTCH1 activation. These findings were replicated and also reproduced in an independent set of HeLa cell transductants. Because endogenous levels of EOGT were not readily detectable in HeLa cells by Western analysis, and reduced transcript levels do not reflect enzyme activity, knockdown efficiency was determined by Western blot detection of the O-GlcNAc product of EOGT. The TA197 and TA198 shRNAs that were most effective at reducing NOTCH1 activation (Figure 3A), exhibited marked loss of O-GlcNAc on species comigrating with NOTCH1 (Figure 3B; the lower band of the O-GlcNAc-positive doublet). HeLa cells express NOTCH2 and NOTCH3, which may also be modified by O-GlcNAc. Alternatively, the O-GlcNAc mAb may detect a glycoform of NOTCH1 that is not detected by the NOTCH1 extracellular domain (ECD) mAb. Image J analysis of immunoprecipitated Notch1-MycHis using CTD110.6, NOTCH1 and Myc mAbs confirmed the reduction in O-GlcNAc on NOTCH1 in EOGT-knockdown HeLa cells. To investigate specificity, HeLa cells expressing GAPDH or TA197 shRNA against the 3’UTR of EOGT, were transfected with empty vector or a human EOGT cDNA, and DLL1-induced activation of NOTCH1 was determined. Overexpression of EOGT increased the amount of activated NOTCH1 induced by D1/L cells in control HeLa cells, including in the presence of the GSI (Figure 3CD). Partial rescue of EOGT knockdown by TA197 (and TA198, not shown) was achieved by a human EOGT cDNA (Figure 3CD; representative of three independent experiments).

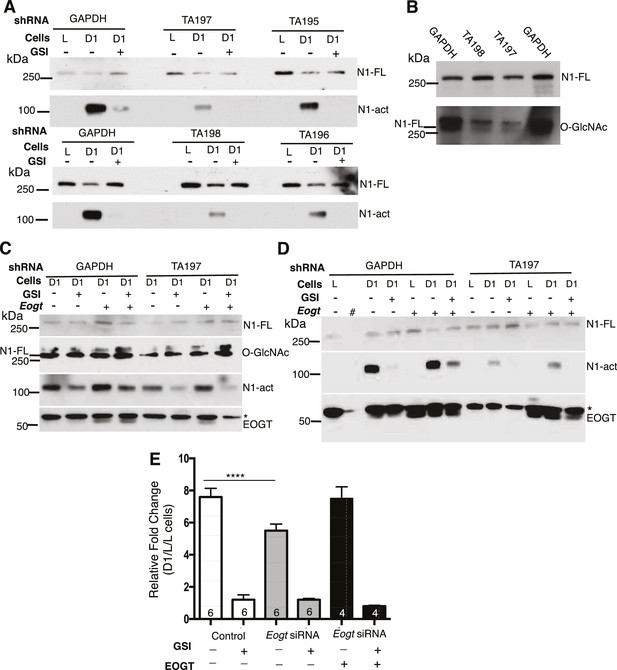

Notch signaling is reduced in EOGT-deficient cells.

(A) Knockdown of EOGT inhibits NOTCH1 activation cleavage. HeLa cells stably expressing shRNAs targeting GAPDH or EOGT (TA195, TA196, TA197, TA198) were co-cultured with L cells or D1/L (D1) cells in the presence and absence of 1 µM DAPT (GSI). After 6 hr, lysates were subjected to Western blot analysis using Abs to detect activated NOTCH1 (N1-act) and NOTCH1 full length (N1–FL) on the relevant section of the PVDF membrane. (B) Western blot analysis of samples from (A) using Ab to detect O-GlcNAc, followed after stripping by Ab to detect N1-FL. (C) HeLa cells stably expressing shRNA against GAPDH or EOGT (TA197) were transfected with vector control or a human EOGT cDNA. After 4 days, co-culture was performed with D1/L (D1) cells in the presence and absence of the DAPT. After ~7 hr, lysates were subjected to Western analysis to detect N1-FL, N1-act and EOGT on the relevant section of the PVDF membrane. O-GlcNAc was detected after stripping the N1-FL membrane section. * non-specific band. (D) The same as (C) except co-culture was with L cells or D1/L cells (D1). The second lane (#) was left empty. * non-specific band. (E) Knockdown of Eogt reduces ligand-induced Notch signaling. Lec1 CHO cells stably expressing siRNAs targeted against Eogt were transfected with TP1-luciferase and TK-renilla luciferase, co-cultured for 30 hr with L cells or D1/L cells, with and without GSI IX (12.5 μM) or a human EOGT cDNA, and dual firefly and renilla luciferase assays were performed. Normalized firefly luciferase activity in L versus D1/L cell co-cultures was plotted as fold-change. The number of independent experiments, each performed in duplicate, are shown in the histogram. Error bars are mean ± standard error and p values were determined by two-tailed paired Student’s t-test (****p<0.0001).

https://doi.org/10.7554/eLife.24419.009

Ligand-induced Notch signaling was also investigated in CHO Lec1 Eogt-siRNA cells (Tashima and Stanley, 2014) using the NOTCH1 ICD-responsive TP1-luciferase reporter. Reduction of Eogt correlated with reduced Notch signaling (Figure 3E) and transfection of a human EOGT cDNA largely rescued signaling in the Eogt knockdown cells. Taken together, the combined data provide strong evidence that EOGT regulates DLL1-induced Notch signaling.

Generation of Eogt-targeted mice

To investigate biological functions of O-GlcNAc on EGF repeats in vivo, Eogt mutant mice were generated. A floxed Neo allele (EogtflNeo) with loxP sites flanking exon 10 and a Neo cassette flanked by loxP/FRT sites was constructed (Figure 4A). Southern blotting showed successful homologous recombination in an EogtflNeo mouse (Figure 4B). EogtflNeo mice were crossed to Flp-deleter mice to obtain an EogtF mouse (Figure 4A). Alternatively, EogtflNeo mice were crossed to global Cre-deleter mice to delete exon 10 (Figure 4C). The amino acid sequence encoded by exon 10 constitutes part of the putative catalytic domain, and Cre recombinase-mediated excision of the sequence between the loxP sites would cause a frame-shift mutation, generating a catalytically inactive protein (Figure 4—figure supplement 1). RT-PCR detected low levels of aberrant transcripts lacking exon 10 (Figure 4D) and quantitative RT (qRT)-PCR confirmed that Eogt transcripts were low, possibly due to nonsense-mediated mRNA decay (Figure 4E). Therefore, the Eogt gene lacking exon 10 is effectively a null allele. Indeed, immunoblotting confirmed the absence of EOGT protein in the lungs of Eogt−/− mice (Figure 4F).

Figure 4 with 2 supplements see all

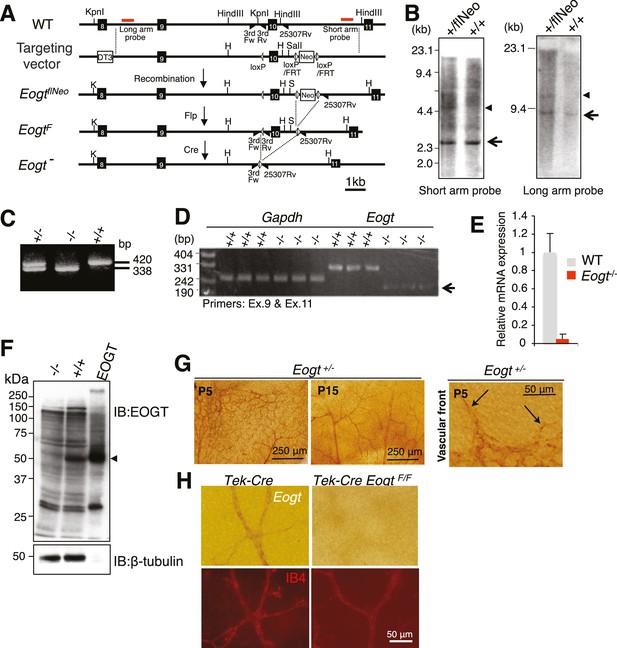

Generation of Eogt-targeted mice.

(A) Schematic drawing of the wild-type mouse Eogt allele (WT), the targeting vector, the floxed allele with the neomycin (Neo)-resistance gene (EogtflNeo), the floxed allele without Neo (EogtF), and the deleted allele (Eogt). Eogt exons (closed boxes); Neo and diphtheria toxin (DT3) genes served as positive and negative selection markers, respectively (open boxes); loxP sites (gray triangles); FRT sites (open triangles); KpnI (K), HindIII (H), and SalI (S) restriction sites. Homologous recombination between the WT allele and the targeting vector generated the EogtflNeo allele. The EogtF and Eogt alleles were obtained by Flp-mediated and Ayu1-Cre-mediated recombination, respectively. Red lines indicate positions of probes used for Southern blotting. Positions of primers used for genotyping are indicated by closed triangles. (B) HindIII- or KpnI/SalI-digested genomic DNA isolated from WT (+/+) or heterozygous floxed neo (+/flNeo) ES cells was analyzed by Southern blotting using the short arm or long arm probe, respectively. In addition to signal from the WT allele (arrow), the flNeo mouse shows an additional band corresponding to the recombinant allele (arrowhead). (C) Genomic DNA isolated from WT, Eogt+/−, and Eogt−/− mice was subjected to genotyping using 3rdloxFw, 3rdloxRv, and 25307Rv primers. (D) Semi-quantitative RT-PCR analysis of total RNA from WT or Eogt−/− brain ECs using primers targeting exons 9 and 11. Minor transcripts lacking exon 10 were detected in Eogt−/− mice (arrow). Gapdh was amplified as an internal control. (E) Quantification of Eogt transcripts in Eogt−/− and WT mouse. qRT-PCR analysis of brain ECs showed a marked decrease in Eogt transcripts. Data are mean ± S.D. from three independent experiments performed in triplicate. Each experiment analyzed pooled total RNA obtained from 10 mice. (F) Lack of EOGT protein expression in Eogt−/− mouse. Lung lysates prepared from adult WT or Eogt−/− mice were analyzed in parallel with cell lysates from HEK293T cells overexpressing Eogt. Immunoblotting was performed using anti-EOGT or β-tubulin antibodies. (G) Whole-mount in situ hybridization for Eogt in the P5 or P15 retina. Vascular staining of Eogt is evident in Eogt+/− retina. Eogt expression in vascular sprouts is indicated by arrows. (H) P5 control Tek-Cre and Tek-Cre EogtF/F retinas were subjected to in situ hybridization. Counter staining with Dylight 594-conjugated IB4 is shown below.

https://doi.org/10.7554/eLife.24419.011

Previous studies revealed that Eogt is widely expressed in various tissues in the mouse, although specific cell types expressing Eogt were not identified (Sakaidani et al., 2012). We now show by in situ hybridization that Eogt is expressed in endothelial cells (EC) of retinal arteries, capillaries and veins at P5, and mainly in arteries and veins at P15 (Figure 4G). At the P5 vascular front, Eogt signal was apparent in tip cells (Figure 4G). These signals were absent in Eogt−/− retinas and control retinas stained with sense probes (Figure 4—figure supplement 2A). To prove EC expression of Eogt, in situ hybridization was performed in retinas from conditional mutant mice in which Eogt expression was specifically eliminated in ECs. Tek-Cre;EogtF/F retinas exhibited a marked decrease in vascular staining with the Eogt probe (Figure 4H and Figure 4—figure supplement 2B). Consistently, double staining showed that Eogt signal partially overlaps with the signal from isolectin-B4 (IB4) that stains ECs (Figure 4H), confirming Eogt expression in ECs. Residual staining in tissue surrounding the retinal vasculature suggested weaker Eogt expression in neuronal tissues.

Eogt is required for optimal retinal angiogenesis

Eogt−/− mice were obtained at the expected Mendelian ratio of ~25% (total n = 244), and did not exhibit obvious abnormalities. Since Eogt is highly expressed in ECs, and retinal angiogenesis requires Notch signaling (Roca and Adams, 2007), we focused our analysis on angiogenesis and vessel formation in the postnatal mouse retina. Retinal angiogenesis is induced just after birth in mice when a single layer of superficial retinal plexus grows from the center toward the periphery until P7. Although a vascular plexus was formed in P5 Eogt−/− retina, vascular progression toward the periphery was delayed (Figure 5A). Vessel maturation measured by the association of blood vessels with mural cells was compromised, as evident by the reduced length of αSMA-positive vessels in P5 Eogt−/− retinas (Figure 5A). However, the distribution of anti-NG2-positive pericytes was unaffected at P5 in Eogt−/− retinas (data not shown). By contrast, the density and number of branch points were increased in P5 Eogt−/− retinas (Figure 5B). At the vascular front, the number of filopodia was also increased in P5 Eogt−/− retinas (Figure 5C). An increase in vascular branching was also observed in P15 Eogt−/− retinas (Figure 5D). While some variation in retinal angiogenesis was observed in heterozygote Eogt+/− retinas, the phenotype was not autosomal dominant. These data suggest that EOGT is required for optimal retinal vascular development. Moreover, the phenotype exhibited by Eogt−/− retinas is similar to, although weaker than, that observed in retinas of Notch pathway mutants (Benedito et al., 2009; Kofler et al., 2015; Phng and Gerhardt, 2009).

Figure 5 with 1 supplement see all

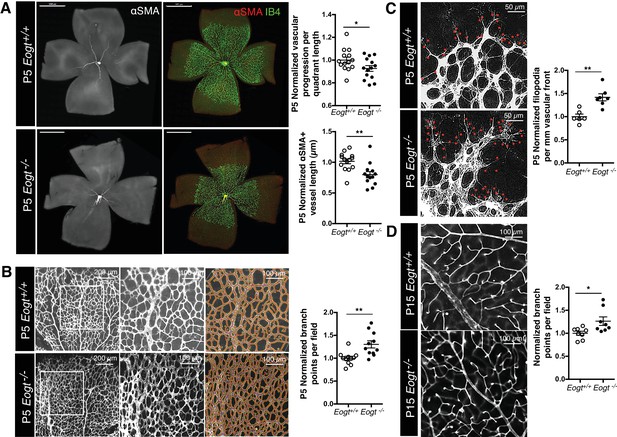

EOGT regulates retinal angiogenesis.

(A) Whole-mount images of Eogt+/+ or Eogt−/− P5 retinas stained with IB4 and anti-αSMA antibody. Bars represent 1000 μm. Scatter plots at right show vascular progression per quadrant length, per retina, and αSMA+ vessel length from the optic nerve per retina, normalized to Eogt+/+ retinas (taken as 1.0). Each symbol represents average vessel progression from 3 to 4 quadrants, or the average length from the optic nerve of 3–4 αSMA+ vessels, per retina. For Eogt+/+, average vascular progression was 0.63 ± 0.03, and the average αSMA+ vessel length was 962 ± 58 µm. (B) Images of P5 vascular front of Eogt+/+ or Eogt−/− retinas stained with IB4. Scatter plot at right shows the normalized number of vascular branch points (500 × 500 µm field (n = 3–8 fields per retina), N = 11 mice). Each symbol represents the average per retina, per mouse. The average Eogt+/+ branch points were 302 ± 27 per retina, taken as 1.0 for normalization. (C) Images of filopodia emanating from tip cells (red dots) at the vascular front. The scatter plot at right shows the number of filopodia in P5 retinas (250 × 250 µm field (n = 4–12 fields per retina), N = 6 mice). The average filopodia per mm vascular front for Eogt+/+ was 33 ± 2 per mm, taken as 1.0 for normalization. (D) Images of P15 retinas stained with IB4. The scatter plot at right shows number of branch points in P15 retinas (500 × 500 µm field (n = 3–8 fields per retina), N = 8 mice). The average for Eogt+/+ was 74 ± 3 per field. Data were normalized from mean ± standard error; p values were calculated by unpaired two-tailed Student’s TTEST. *p≤0.05; **p≤0.01; ***p≤0.001.

https://doi.org/10.7554/eLife.24419.015

Loss of Notch signaling specifically in ECs also results in an increase in vascular branching (Hellström et al., 2007; Leslie et al., 2007; Lobov et al., 2007; Ridgway et al., 2006; Siekmann and Lawson, 2007; Suchting et al., 2007). To investigate Eogt functions in ECs, retinas with EC-specific deletion of Eogt were examined. In both P5 and P15 retinas, vessel branching was increased in Tek-Cre:EogtF/F retinas compared with control Tek-Cre retinas (Figure 5—figure supplement 1). Therefore, EOGT in ECs regulates vascular branching during retinal angiogenesis. Interestingly, however, the length of αSMA-positive vessels and vessel progression in P5 Tek-Cre:EogtF/F retinas were not significantly changed compared with Tek-Cre control retinas (data not shown). Since Notch signaling in pericytes and macrophages also regulates retinal angiogenesis (Kofler et al., 2015; Outtz et al., 2011), this result suggests additional Eogt functions in other cell types that were not affected in the EC-specific knockout of Eogt.

Loss of Eogt phenocopies Notch1 haploinsufficiency and compound mutants display an enhanced vascular phenotype

To investigate whether EOGT interacts with NOTCH1 to control retinal angiogenesis, we determined the effects of decreasing NOTCH1 or Notch signaling on the retinal vascular phenotype in an Eogt-null background. We chose mutant alleles of Notch1 and Rbpj for these analyses because their haploinsufficiency causes AOS, as does mutant EOGT homozygosity. As expected from previous reports (Hellström et al., 2007; Kofler et al., 2015), Notch1 heterozygous retinas showed increased vessel branching at P5, and a higher number of filopodia (Figure 6A,B and C), similar to that observed in retinas of Eogt-null mice (Figure 5). These phenotypes were exaggerated in an Eogt−/− background. Enhanced vascular defects in Eogt−/−Notch1+/− compound mutant retinas were also observed in P15 retinas (Figure 6D and E). Similar to Notch1 heterozygotes, Rbpj+/− retinas exhibited elevated vessel branching at P5, which was further enhanced in Eogt−/−Rbpj+/− compound mutant retinas (Figure 6A and B). These results are consistent with EOGT and Notch signaling acting in the same or parallel pathways. However, heterozygotes expressing the hypomorphic alleles Notch112f and Notch1lbd (Ge and Stanley, 2008, 2010) did not have a retinal phenotype and yet, they augmented the Eogt−/− phenotype at P5 and P15, respectively (Figures 6B, C, D and E). The enhancement in the Eogt−/− retinal vascular phenotype in two different Notch1 hypomorphic backgrounds that do not themselves exhibit retinal defects, strongly suggests that the addition of O-GlcNAc by EOGT is important in regulating the Notch signaling pathway.

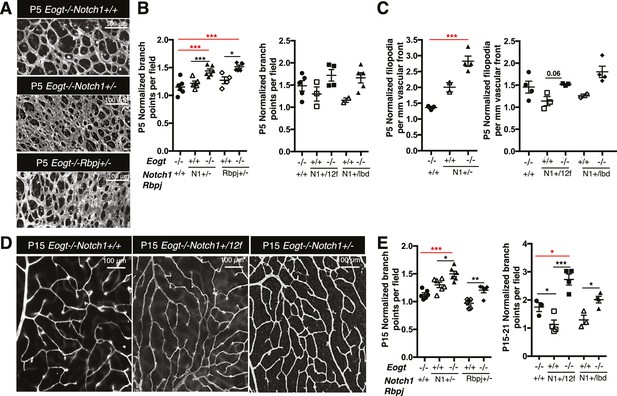

Reduced Notch signaling augments the loss of Eogt in retinal angiogenesis.

(A) Images of vessel density in P5 retinas from Eogt−/− compared to compound mutant mice. (B) Scatter plots represent branch point numbers in P5 retinas from Eogt−/− compared with compound mutant mice, normalized to Eogt+/+ mice. The average number of branch points for the Eogt+/+ used to compare mice with an N1 or Rbpj allele was 237 ± 5, and for the Eogt+/+ compared to mice with an N12f or N1lbd allele was 380 ± 36 (500 X 500 μm field (n = 3–8 fields per retina), N = 2–6 mice). (C) Scatter plots showing the number of filopodia in P5 compound mutant mice as compared to Eogt−/− mice, normalized to Eogt+/+ mice. Each symbol represents the average number of filopodia per mouse (250 × 250 µm field (n = 4–12 fields per mouse), N = 2–4 mice. The average for Eogt+/+ compared to mice with a N1- or Rbpj- allele was 30 ± 1 per mm and for mice with a N112f or N1lbd allele was 36 ± 4 per mm, taken as 1.0 for normalization. (D) Images of branch points in P15 retinas comparing Eogt−/− to compound mutant mice as indicated. (E) Scatter plots shows branch points in compound mutants compared to Eogt−/− P15 retinas, normalized to Eogt+/+ mice. The average of the Eogt+/+ used to compare mice with a with a N1 or Rbpj allele was 73 ± 3, and for mice with a N112f or N1lbd allele it was 69 ± 12 (500 x 500 µm field (n = 3–8 fields per retina), N = 3–6 mice. Data represent mean ± standard error except for P5 Eogt+/+Notch1+/− filopodia and P5 Eogt+/+Notch1+/lbd branch points and filopodia that are represented as mean ± range; p values were calculated by unpaired two-tailed Student’s t-test. *p≤0.05; **p≤0.01; ***p≤0.001.

https://doi.org/10.7554/eLife.24419.017

EOGT is required for retinal vascular integrity

Notch is an essential contributor to vascular integrity (Hofmann and Iruela-Arispe, 2007). Increased vascular permeability is manifested by extravasation of plasma proteins such as plasminogen, fibrinogen and albumin. Immunostaining of P15 wild-type retina with anti-fibrinogen antibody detected sporadic signals in the vascular area, whereas no extravascular signal was observed. In contrast, Eogt−/− retina exhibited diffuse fibrinogen staining outside blood vessels, and prominent staining on vessel walls (Figure 7A and B), showing the leakage of plasma proteins. Similar to the blood-brain barrier, retinal vessels limit nonspecific transport between circulating blood and neural tissues of the retina (Campbell et al., 2009). Accordingly, perfused sulfo-NHS-LC-biotin remained within vessels in control P15 retinas, confirming an intact blood-retina barrier. In contrast, sulfo-NHS-LC-biotin was occasionally detected in extravascular spaces in perfused Eogt−/− retinas (Figure 7C). Taken together, these data suggested a partly impaired vascular integrity in the absence of Eogt.

Figure 7 with 1 supplement see all

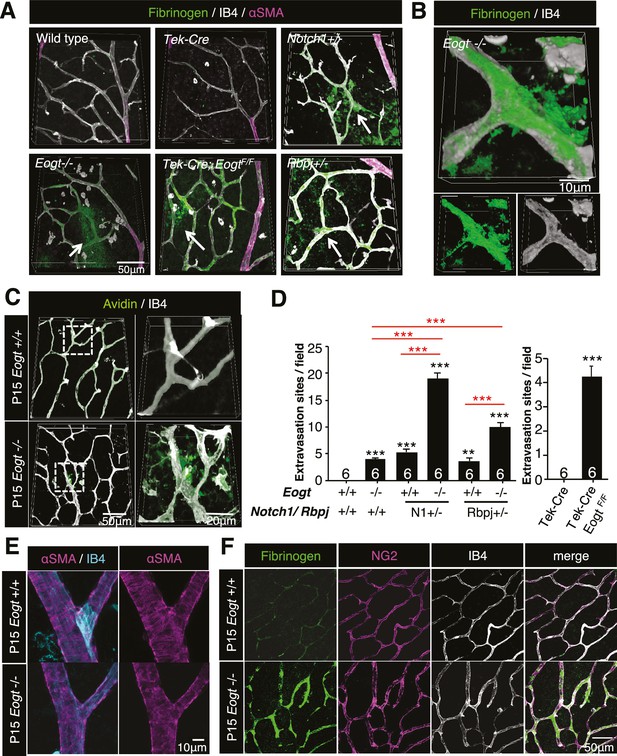

Reduced vessel integrity in the Eogt−/− retina.

(A) Immunostaining with fibrinogen (green) and α-SMA (magenta) antibodies in P15 wild-type, Eogt−/−, Tek-Cre, Tek-Cre:EogtF/F, Notch1+/−, and Rbpj+/− retinas. Arrows indicate fibrinogen staining outside vessels stained by IB4 (white). Three-dimensional images were constructed from confocal images by maximum intensity projection. (B) Higher magnification three-dimensional images of Eogt−/− retina constructed from confocal images using the Alpha-blend method. Below, single channel images showing fibrinogen (green) and IB4 (white) staining. (C) Sulfo-NHS-LC-biotin was perfused into P15 wild-type and Eogt−/− mice and extravasation determined immediately after perfusion by staining with CF488A-conjugated streptavidin (green) and Dylight594-conjugated IB4 (white). Three-dimensional reconstructions were created by maximum intensity projection. Enlarged images of boxed area are shown (right). (D) Sulfo-NHS-LC-biotin was perfused into P15 wild-type, Eogt−/−, Notch1+/−, Eogt−/−Notch1+/− mice as in (C). Quantification of the number of extravasation sites in 210 × 210 μm squares (n = 6 per retina per mouse) is shown. Note that sulfo-NHS-LC-biotin extravasation in Eogt−/− retina is augmented in compound mutant mice. Data represent mean ± standard error; p values determined by Welch's t test. ***p≤0.001. (E) Whole-mount images of wild-type or Eogt−/− P15 retinas stained with IB4 (cyan) and anti-αSMA (magenta) antibody. (F) Whole-mount staining of wild-type and Eogt−/− P15 retinas using IB4 (white) together with anti-fibrinogen (green) and anti-NG2 (magenta) antibodies.

https://doi.org/10.7554/eLife.24419.018

Similar to Eogt−/− retinas, extravascular fibrinogen staining and extravasation of perfused sulfo-NHS-LC-biotin were observed in Notch1+/− or Rbpj+/− retinas (Figure 7A and Figure 7—figure supplement 1). Importantly, the combined loss of Eogt and a single Notch1 allele in compound mutant Eogt−/−Notch1+/− retinas gave a synergistic increase in extravasation of sulfo-NHS-LC-biotin along vessels (Figure 7D). The synergistic effect was also observed in Eogt−/−Rbpj+/− retinas (Figure 7D). These results suggest that Eogt interacts with the Notch signaling pathway, thereby affecting retinal vascular integrity.

It has been reported that Notch activity is required for coverage of mural cells and vascular integrity (Henshall et al., 2015; Liu et al., 2010; Wang et al., 2014). In particular, lack of Notch3 expression in mural cells results in decreased coverage of arteries with vascular smooth muscle cells (VSMC) (Henshall et al., 2015; Liu et al., 2010) and capillaries with pericytes (Kofler et al., 2015) in retinal vasculatures. Unlike Notch3−/− retinas, αSMA staining revealed intact coverage of retinal arteries with VSMC in P15 Eogt−/− mice (Figure 7E). Moreover, apparently normal pericyte investment was observed in P15 Eogt−/− retinas, regardless of the presence or absence of elevated fibrinogen staining (Figure 7F), suggesting that sufficient Notch activity is maintained in mural cells. In contrast, inactivation of Eogt in ECs in P15 Tek-Cre:EogtF/F retinas showed aberrant fibrinogen staining and sulfo-NHS-LC-biotin extravasation (Figure 7A and Figure 7—figure supplement 1). Taken together, these results show that Eogt functions in ECs contribute to the integrity of retinal vessels by acting on Notch signaling activity.

Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling

To investigate whether reduced EOGT directly impacts Notch target genes in ECs, brain ECs were isolated using anti-CD31 beads and gene expression was analyzed by qRT-PCR. Eogt−/− ECs showed reduced expression of Notch pathway targets (Shawber et al., 2003), including Hes1 and Hey1 (Figure 8A). Given that Notch signaling positively regulates Dll4 expression (Sacilotto et al., 2013) (Figure 8—figure supplement 1), loss of EOGT would disrupt a positive feedback loop sustaining Dll4 expression and Notch signaling. In fact, Dll4 expression was markedly decreased in Eogt−/− ECs, whereas expression of Jag1 and Notch receptors was maintained (Figure 8A). Previous reports showed that Notch signaling represses expression of vascular endothelial growth factor receptors (VEGFR) in ECs (Ehling et al., 2013; Jakobsson et al., 2010; Suchting et al., 2007; Tammela et al., 2008), which have crucial roles in the formation, function and maintenance of the vasculature (Simons et al., 2016). In Eogt−/− ECs, expression of Vegfr2 and Vegfr3, but not Vegfr1, was slightly increased compared with wild-type ECs. In cerebral ECs, Notch and TGF-β signaling regulate the expression of N-cadherin, which is associated with maintaining vascular integrity (Li et al., 2011). Similarly, N-cadherin expression was relatively decreased in Eogt−/− ECs (Figure 8A).

Figure 8 with 1 supplement see all

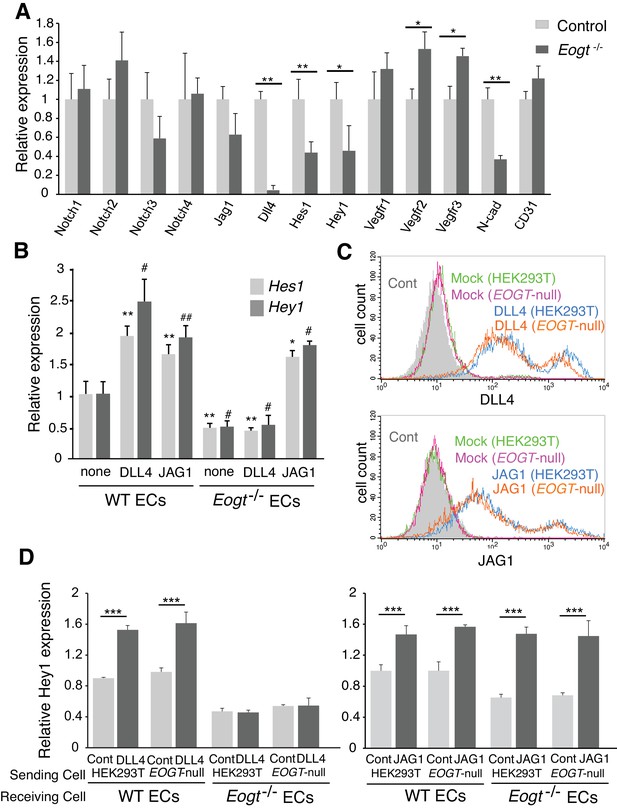

EOGT acts on Notch receptors to regulate ligand-induced Notch signaling in ECs.

(A) Relative mRNA expression in purified brain EC cells. WT (gray) and Eogt−/− (dark gray) EC cells isolated from cerebrum using anti-CD31 antibody were analyzed for gene expression related to the Notch signaling pathway. Gene transcript levels were normalized to Gapdh. Data are mean ± S.D. from three independent experiments performed in triplicate. Each experiment analyzed pooled total RNA obtained from 10 mice. *p<0.05; **p<0.01 (Welch's t test). (B) qRT-PCR analysis of Hes1 and Hey1 in wild type or Eogt−/− lung EC cells following stimulation with immobilized DLL4-Fc or JAG1-Fc. Gene transcripts were normalized to Gapdh. Data are mean ± S.D. from three independent experiments performed in triplicate. Each experiment analyzed total RNA obtained from a single mouse. Significance determined by Welch's t-test. *p<0.05; **p<0.01; #p<0.05; ##p<0.01 compared with the left-most Hes1 (*) or Hey1 (#) histogram. (C) Cells were transfected to express Dll4 or Jag1 and subjected to flow cytometry using DLL4 or JAG1 antibody, respectively. Comparison with mock-transfected cells indicated the amount of exogenously expressed DLL4 and JAG1 on the cell surface in wild-type or EOGT-null HEK293T cells. Mock-transfected HEK293T cells were labeled without primary antibody (Cont.). (D) Dll4/Jag1-transfected cells or Mock transfectants (signal-sending cells) were co-cultured with wild type or Eogt−/− lung EC cells (signal-receiving cells). qRT-PCR analysis of mouse Hey1 expression suggested that EOGT is required for the ability to receive DLL4-mediated Notch signaling, and that EOGT is dispensable for DLL4 and JAG1 as inducers of Notch signaling. Gene transcript levels were normalized to PECAM1 (CD31). Data are mean ± S.D. from three independent experiments performed in triplicate. Significance determined by Welch's t-test. ***p<0.001.

https://doi.org/10.7554/eLife.24419.021

To further investigate effects of EOGT on Notch target gene expression in ECs, DLL4-Fc or JAG1-Fc were coated on culture dishes and incubated with ECs derived from wild type or Eogt−/− lung. In unstimulated, control ECs, the expression level of Notch target genes including Hey1 and Hes1 was higher in wild type compared with Eogt-null cells (Figure 8B). Upon DLL4 or JAG1 stimulation, a further increase in Hey1 and Hes1 expression was observed in wild-type ECs (Figure 8B). In contrast, DLL4 failed to induce Hey1 and Hes1 expression in Eogt−/− ECs, whereas JAG1 induced a robust induction of these genes (Figure 8B). Taken together, these data suggest that EOGT acts as a positive regulator for DLL4-induced Notch signaling in EC cells.

Eogt acts on Notch receptors to regulate ligand-induced Notch signaling

It has been reported that Notch ligands are also modified with O-glycans, which could affect Notch signaling activity (Serth et al., 2015; Thakurdas et al., 2016). To address the possibility that EOGT regulates Notch ligand function, HEK293T and EOGT-null cells were transfected to express JAG1 or DLL4 for co-culture with wild-type or Eogt−/− ECs. Exogenously expressed DLL4 and JAG1 in EOGT-null cells were expressed at the cell surface similarly to control HEK293T cells (Figure 8C). Thus, Notch ligands are presented on the cell surface in the absence of EOGT.

To determine if Notch ligands lacking O-GlcNAc stimulate Notch receptors, control and EOGT-null cells expressing DLL4 or JAG1 (Sending cells) were cultured with WT or Eogt-null ECs (Receiving cells), and the expression of Notch target gene Hey1 was determined (Figure 8D). Both DLL4 and JAG1 lacking O-GlcNAc induced upregulation of Hey1 in WT ECs similarly to controls. Thus, neither ligand needs O-GlcNAc to induce Notch signaling. Hey1 expression was reduced in Eogt−/− ECs that also failed to respond to DLL4 sending cells. By contrast, co-culture of Eogt−/− ECs with JAG1 sending cells induced mouse Hey1 expression to a level comparable with wild-type ECs (Figure 8D). Thus, Notch receptors in Eogt-null cells responded similarly to controls to JAG1 sending cells. These results suggest that EOGT is dispensable for DLL4 and JAG1 as inducers of Notch signaling, and that O-GlcNAc on Notch receptors is required for optimal DLL- but not JAG-induced Notch activation.

Discussion

Here, we show that O-GlcNAc on Notch EGF repeats is a functional modification of Notch receptors that regulates Notch signaling and is required for optimal stimulation by DLL ligands. DLL4 constitutes the critical Notch ligand in regulating angiogenesis and vascular development (Benedito et al., 2009; Hellström et al., 2007). By contrast, JAG1 antagonizes Notch signaling during vasculogenesis (Benedito et al., 2009; Pedrosa et al., 2015). We show here that EOGT-catalyzed O-GlcNAc modification potentiates DLL1- and DLL4-mediated NOTCH1 signaling in co-culture assays and is required in vivo during retinal angiogenesis and the maintenance of retinal vascular integrity in mice. Site-directed mutagenesis of O-GlcNAc consensus sites in mouse NOTCH1 revealed that O-GlcNAc on EGF repeats located outside the canonical ligand-binding region affects DLL4-NOTCH1 binding. This O-GlcNAc in one or more EGF repeats may function directly in the binding of DLL4. Alternatively, O-GlcNAcylation may induce a conformational change of NOTCH1 that promotes DLL4 binding. Future structural analysis of O-GlcNAcylated NOTCH1 in complex with DLL4 will reveal how O-GlcNAc potentiates DLL4-NOTCH1 interactions. Such a study revealed that DLL4 makes specific contacts with the O-fucose glycan in the ligand binding domain (EGF11 and 12) of NOTCH1 (Luca et al., 2015). O-fucose glycans on EGF12 affect both Delta and Jagged ligand-induced signaling as evidenced by the EGF12 O-fucosylation site mutant of NOTCH1 which has reduced signaling in response to DLL1 and JAG1 ligands (Rampal et al., 2005; Shi et al., 2007). An O-GlcNAc consensus site is present in EGF11, but not EGF12 in mammals, but the EGF11 site is not conserved among vertebrates.

The ability of EOGT to potentiate Delta ligands is similar to that of Fringe, a glycosyltransferase that transfers GlcNAc to O-fucose on Notch receptors (Brückner et al., 2000; Moloney et al., 2000). In mammals, three Fringe genes, Mfng, Lfng, and Rfng, are expressed in endothelial cells (Benedito et al., 2009). Lfng−/− mice exhibit enhanced sprouting and increased density of the vascular area in retinal angiogenesis (Benedito et al., 2009), a similarly mild phenotype to that in Eogt−/− retina. Thus, Fringe and Eogt might play complementary functions during retinal angiogenesis. However, Mfng inhibits JAG1-Notch signaling (Benedito et al., 2009), whereas we found no effect on JAG1-induced Notch signaling in assays using Eogt-deficient or Eogt-overexpressing cells. Thus, the distinct effects of the different GlcNAc modifications of Notch receptors indicate that EOGT and Fringe glycosyltransferases possess different physiological functions. Indeed, we observed no obvious abnormality in the skeleton (data not shown) of Eogt-null mice, making them phenotypically distinguishable from Lfng−/− mice (Evrard et al., 1998; Zhang and Gridley, 1998).

The phenotypic similarity and genetic interaction between Eogt and Notch1 in retinas suggest that decreased Notch signaling caused by Eogt mutation is mediated by impaired O-GlcNAcylation of Notch1. However, we cannot formally exclude the possibility of involvement of other Notch receptors as EOGT substrates. In fact, all Notch receptors are potentially modified with O-GlcNAc and NOTCH2 was reported to be O-GlcNAcylated in mouse cerebrocortical tissue (Alfaro et al., 2012). Although roles for Notch2 in vascular morphogenesis are not reported, Notch1 and Notch4 have partially overlapping roles (Krebs et al., 2000). However, a recent report revealed that DLL4 and JAG1 may fail to activate NOTCH4 (James et al., 2014). A detailed analysis will be required to address the contribution of other Notch receptors to EOGT-dependent regulation of Notch signaling.

The GlcNAc transferred by Fringe or EOGT can be extended with galactose (Chen et al., 2001; Sakaidani et al., 2012). Interestingly, inactivation of galactosyltransferase B4galt1 in Lec20 CHO cells abrogated the effects of LFNG on Notch signaling (Hou et al., 2012). Consistent with roles for galactose in Notch regulation, embryos lacking B4galt1 exhibit subtle Notch signaling defects during somitogenesis (Chen et al., 2006). It would be of interest to investigate roles for galactose in retinal angiogenesis and vascular integrity.

Our prediction of O-GlcNAc sites on Notch receptors relied on the consensus sequence C5XXG(Y/F/L)(T/S)GX2-3C6 derived from previously reported O-GlcNAcylated sequences (Alfaro et al., 2012; Sakaidani et al., 2011). In the course of preparation of this manuscript, a study in Drosophila Notch revealed that a Y/F/L residue at the −1 site is not absolutely required for the modification (Harvey et al., 2016). Therefore, C5XXGX(T/S)GX2-3C6 can be proposed as a broad consensus site. Nonetheless, removing only four modification sites (EGF2, 10, 17, 20) out of 11 C5XXG(Y/F)(T/S)GXXC6 sequences drastically decreased the O-GlcNAc level on NOTCH1 (Figure 2). These results suggest that preferred O-GlcNAcylation requires additional constraints. Consistent with this view, five domains (EGF4, 11, 12, 14 and 20) out of 15 Drosophila Notch EGF repeats containing the C5XXG(Y/F)(T/S)GXXC6 consensus were found to be major O-GlcNAcylation sites in embryos (Harvey et al., 2016) (Figure 2—figure supplement 1). It is also noteworthy that Drosophila Eogt mutants fail to display an obvious loss of Notch signaling phenotypes (Müller et al., 2013; Sakaidani et al., 2011). Nevertheless, Notch pathway mutations were found to suppress the wing blistering phenotype in Eogt knockdown flies (Müller et al., 2013). Thus, Eogt may affect Notch signaling in a tissue-specific manner. However, O-GlcNAc consensus sites on EGF repeats are poorly conserved between Drosophila Notch and mammalian NOTCH1. Moreover, the elongation of O-GlcNAc by galactose is not observed in Drosophila embryos (Harvey et al., 2016). It would be of interest to determine whether the O-GlcNAc Notch-ligand interaction we report here is conserved in Drosophila.

The combined data on roles for O-glycans in Notch signaling suggest that each of the responsible glycosyltransferases may have different effects on Notch receptor functions. Thus, POFUT1 (Ofut1 in Drosophila) and POGLUT1 (Rumi in Drosophila), which catalyze O-fucosylation and O-glucosylation, respectively, regulate the strength of Notch activation. Genetic inactivation of Pofut1/ofut1 in Drosophila results in diminished ligand binding to Notch and Poglut1/rumi mutation results in impaired Notch processing (Haltom and Jafar-Nejad, 2015; Stanley and Okajima, 2010). Subsequent additions to O-fucose and O-glucose regulate subcellular localization or change the affinity toward Notch ligands. In Drosophila, xylose on O-glucose negatively regulates Notch signaling by reducing cell surface expression of Notch (Lee et al., 2013). The distinct effects of O-glycans on Notch receptors, coupled with differential expression of the relevant glycosyltransferases explain why different human diseases arise from mutation of POFUT1 (Dowling-Degos disease), LFNG (Spondylocostal Dysostosis) and EOGT (AOS) (Basmanav et al., 2014). Unexpectedly, Eogt-null mice do not exhibit abnormalities predicted from the symptoms of AOS patients. This was also the case in Eogt-null mice homozygous for Eogt gene disruption by a neo cassette (H. Yagi and K. Kato, personal communication). However, the vascular defects observed in Eogt−/− mice are consistent with the view that small-vessel vasculopathy may be a basis for pathologies in AOS.

Materials and methods

Antibodies

Antibodies used in microscopy, flow cytometry and Western blot experiments: biotinylated isolectin B4 (IB4; Vector [B-1105]), Cy3-conjugated anti–α-smooth muscle actin (αSMA) antibody (clone 1A4; Sigma [C6198] or fluorescein isothiocyanate(FITC)-conjugated anti-αSMA antibody (clone 1A4; Sigma [F3777]), rabbit anti-human EOGT antibody (Sigma [HPA019460]), mouse anti-O-GlcNAc antibody (CTD110.6; Thermo Scientific [24565] or Sigma [07764]) (Comer et al., 2001), hamster anti-mouse NOTCH1 ECD antibody (8G10, Santa Cruz [sc-32756]), sheep anti-hamster NOTCH1 ECD antibody (R and D Systems, AF5267), rabbit anti-human NOTCH1 ECD antibody (H-131, Santa Cruz [sc-9170]), rabbit anti-human NOTCH1 ICD antibody (D6F11, Cell signaling), rabbit anti-mouse activated NOTCH1 (Val1744, Cell Signaling Technology [4147]) (Huppert et al., 2000), sheep anti-BiP antibody (BD Biosciences [51–9001980]), rabbit anti-NG2 chondroitin sulfate antibody (Millipore [AB5320]), rat anti-NG2 chondroitin sulfate antibody (R and D Systems [MAB6689]), mouse anti-Myc antibody (4A6, Upstate [05-724]), hamster anti-mouse JAG1 antibody (HMJ1-29; Biolegend [130902]), goat anti-mouse DLL4 antibody (R and D Systems [AF1389]), rabbit anti-fibrinogen antibody (Dako [A0080]), FITC-conjugated anti-hamster IgG antibody (Cappel [55400]), CF488A-conjugated anti-goat IgG antibody (Sigma [SAB4600032]), Dylight488–conjugated anti-rabbit IgG (Vector Labs [DI-1488]), CF488A-conjugated streptavidin (Biotium [29034]), CF640R-conjugated anti-rat IgG (Sigma [SAB4600156]), Rhodamine Red-X-conjugated donkey anti-sheep IgG (Jackson ImmunoResearch), Dylight649-conjugated streptavidin (Vector Labs [SA5649]), horseradish peroxidase (HRP)-conjugated goat anti-mouse IgM (Thermo Scientific [31444]), HRP-conjugated goat anti-rabbit IgG (Invitrogen [65–6120]), HRP-conjugated goat anti-Armenian hamster IgG (Santa Cruz [sc-2443]), HRP-conjugated horse anti-mouse IgG antibody (Cell signaling [7076S]), alkaline phosphatase (AP)-conjugated anti-FITC antibody (Roche [11-426-338-910]), FITC-conjugated IB4 (Vector Labs [FL-1201]), and Dylight594-conjugated IB4 (Vector Labs [DL-1178]). A new antibody was raised in rabbit against mouse EOGT lacking the first 19 amino acids (aa 20–527), produced in E. coli. For the purification of IgG, the rabbit serum was subjected to affinity chromatography on Protein A–Sepharose CL-4B (GE Healthcare Life Science).

Plasmids

A mouse Notch1 expression plasmid (pTracer-CMV/Notch1) encoding full-length native Notch1 (nucleotide numbers from −82 to 9378) was obtained from S. Chiba. For generating in situ hybridization probes, full length mouse Eogt cDNA created by PCR was cloned into pBluscript II SK(-) vector. For transfection of Eogt, the cDNA was cloned into pSectag2-IRES-GFP and pEF1 vectors (Sakaidani et al., 2012). A human EOGT cDNA in pCR3.1 was previously described (Tashima and Stanley, 2014). Notch1 with O-GlcNAc site mutations were generated by the Site-Directed Mutagenesis Kit (Stratagene [200518]) to introduce the following mutations: 280T→G (S94A in EGF2); 1213A→G (T405A in EGF10); 2011A→G (T671A in EGF17); 2350AG→GC (S784A in EGF20). An expression vector for Dll4 (pSport6-DLL4) and Jag1 (pBOB-Jag1) were obtained from DNAFORM (Clone ID: 4017786) or provided by Gerry Weinmaster, respectively.

Cell culture and transfection

HEK293T cells were kindly provided by Professor Tsukasa Matsuda (Nagoya University) and maintained in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 7.5% fetal bovine serum (FBS). Transfection into HEK293T cells was performed using polyethylenimine, MW 4000 (Polysciences [24885]). In brief, 4 µg of plasmid DNA was diluted in 200 µl of Opti-MEM I medium (Gibco [31985]), which was then mixed with 12 µg of polyethylenimine and incubated for 30 min. Prior to transfection, HEK293T cells cultured in 6-well dish were pretreated with 800 µl of Opti-MEM I medium and supplemented with the DNA/ polyethylenimine mixture. After 4 hr of incubation, the medium was replaced with 2 ml of 7.5% FBS in DMEM containing penicillin/streptomycin followed by incubation for 48 hr before analysis. HeLa and CHO Lec1 cells were maintained in α-MEM containing 10% FBS. Transfection into HeLa and CHO Lec1 cells was performed using X-treme Gene 9 (Roche [06365779001]) as described by the manufacturer. Absence of mycoplasma contamination was confirmed upon receipt of the cell lines, and all the experiments were completed within 6 months from the contamination test.

Generation of knockout cells using CRISPR/Cas9 and knockdown cells using shRNA

EOGT targeted by CRISPR/Cas9

HEK293T cells were transiently transfected with GFP-Cas9 and guide RNA (gRNA) expression plasmid (Sigma), encoding a single gRNA (5’-GCCAGCATCCGCTTGCCAGAGG-3’) targeting the fourth coding exon of EOGT. Single Cas9-GFP-positive cells were obtained by limiting dilution in 96-well plates. GFP-positive clones were expanded and analyzed for deletion of the targeted genomic region by PCR (forward primer: 5’-CCATTTGCTAACGTGGTGCC-3’, reverse primer: 5’-GCAGAACCTGTAAGCCACCT-3’) and sequencing. Absence of EOGT was demonstrated by immunoblotting with CTD110.6 O-GlcNAc antibody and our new rabbit Eogt antibody.

Notch1 targeted by CRISPR/Cas9

HEK293T cells were transiently transfected with GFP-Cas9 together with gRNA expression plasmid encoding a single gRNA (5’-GGTTGGGGTCCTGGCATCGCGG-3’), which targets the third exon of NOTCH1. Individual clones were screened for deletion of the target sequence by PCR (forward primer: 5’-CCGCGATGCCAGGACCCCAACC-3’, reverse primer: 5’- GTCAGGCAGAGGGGCCCAGAGA-3’). Genomic sequence at Notch locus was analyzed by sequencing of a PCR-amplified fragment (forward primer: 5’-GGCATGTGTCTGGTTCCAGA-3’, reverse primer: 5’-CCCGCCAAGTACCTCAAGTT-3’).

EOGT targeted by shRNA or siRNA

Four shRNA constructs targeting human EOGT were prepared in Lentivirus for transduction of HeLa cells. TA197 and TA198 shRNAs in pGIPZ were from the GIPZ Lentiviral Human shRNAmir library (Open Biosystems, ThermoScientific), and TA195 and TA196 shRNAs in pLKO.1 were from the TRC Lentiviral Human Genome shRNA library (RNAi Consortium). The EOGT sequences target the coding region (TA196 and TA198) or the 3'UTR (TA195 and TA197) as follows: TA195: AGAGTGTTCCAACTTGTTT; TA196: AGACCTATAGAAGATGCTA; TA197: GCATGAAAGTATTCCAGTCTT; TA198: GACAGATTTAAGGAGGACTTT. HEK293T cells on a 10 cm dish were transfected with 10 μg shRNA plasmid, 3 μg ENV plasmid (VSV-G), 5 μg pMDLg/pRRE (Packaging plasmid III Gen. Pack) and 2.5 μg REV plasmid combined in a calcium phosphate precipitate as described (Follenzi and Naldini, 2002). Plasmids were obtained from Ana Maria Cuervo, Albert Einstein College Medicine. After incubation at 37°C in 5% CO2 for 12–14 hr, DMEM medium (Life Technologies [11965–092]) containing 10% heat-inactivated fetal calf serum (FCS; Gemini [100-800]) was added. After 36 hr, medium containing Lentivirus was collected, centrifuged at 2000 rpm for 10 min, filtered through a 0.45 μm filter, and frozen at −80°C in 1 ml aliquots. For transduction, HeLa cells on a 60 mm dish were incubated with 1 ml virus diluted with 5 ml RPMI medium (GIBCO [11875–093]) containing 10% FCS, 8 μg/ml Polybrene (Sigma [10768–9]) and penicillin and streptomycin (GIBCO [15140–122]). After 2 hr at 37°C, medium was removed and fresh Lentivirus in Polybrene was added. After 2 hr at 37°C, the medium was replaced with fresh RPMI, 10% FCS with antibiotics, and incubation continued for 44 hr. To select stable cell populations, the transduced HeLa cells were trypsinized and replated in 1–2 μg/ml puromycin (Sigma [P8833]). Puromycin-resistant cell populations were expanded and stored frozen in medium containing 10% FCS and 10% dimethylsulfoxide (DMSO; Fisher Scientific [D128-500]) at −135°C. Three independent preparations of HeLa cells expressing the GAPDH shRNA, or each of the four EOGT-targeting shRNAs, were used in experiments. Lec1 CHO cells expressing siRNAs targeting hamster Eogt were previously described (Tashima and Stanley, 2014). Eogt transcript levels in Lec1 and HeLa cells were determined by qRT-PCR using the Super Script First Strand synthesis kit (Invitrogen [11904–018]) for reverse transcription and SYBR green (Thermo Scientific [AB-1453]) for real time PCR, following the manufacturer’s instructions.

Notch ligand binding assays

Flow cytometry assay

Cells were washed with ligand binding buffer (Hanks’ buffered salt solution, pH 7.4, 1 mM CaCl2, 1% (w/v) BSA (Gemini [700–100P]), 0.05% NaN3), fixed in 4% PFA in PBS-CMF at RT for 10 min and stored in ligand binding buffer at 4°C. Fixed cells (2 × 105) were incubated with 50 μl ligand binding buffer containing 100-750 ng/ml DLL1-Fc, DLL4-Fc or JAG1-Fc at 4°C for 1 hr. Soluble ligands were prepared as described previously (Stahl et al., 2008; Song et al., 2016). After incubation, cells were washed twice with 0.5 ml ligand binding buffer and incubated with phycoerythrin (PE)-conjugated goat anti-human IgG (Fc-specific) antibody (Jackson ImmunoResearch [109-116-170], 1:100 in ligand binding buffer) at 4°C for 30 min in the dark. The cells were then washed twice with 1 ml of ligand binding buffer and analyzed in a FACSCalibur flow cytometer. For detection of NOTCH1 at the cell surface, fixed cells were incubated with sheep anti-mouse NOTCH1 antibody AF5267 (1:50 in ligand binding buffer) at 4°C for 1 hr, washed and incubated with Rhodamine Red-X-conjugated donkey anti-sheep IgG (1:100 in ligand binding buffer) at 4°C for 30 min in the dark. Cells were washed twice with 1 ml of ligand binding buffer, and analyzed using a FACSCalibur flow cytometer.

Dynabead assay

A Notch1 expression vector (pTracer-CMV/Notch1) was transfected alone or together with a vector expressing mouse Eogt (pSecTag2/Hygro/Eogt) into wild type or EOGT-null HEK293T cells. To identify transfected cells, a GFP-expression vector (pMX-GFP) was included at 1/8 the total DNA transfected. After 48 hr, 20 µl Protein A Dynabeads (Veritas [10002D]) pre-coated with 500 ng of DLL4-Fc (Invitrogen [10171 H02H]) or JAG1-Fc (Invitrogen [11648 H02H]) were added to the culture media, and incubated for 2 hr at 37°C. Transfected cells were rinsed 10 time with PBS, and fixed with 4% PFA in PBS for 20 min at RT. The number of beads bound per 50 GFP-positive cells was counted for quantification.

Immunofluroescence microscopy

HEK293T cells were fixed with 4% paraformaldehyde in PBS for 20 min and ice-cold methanol for 5 min. After washing with PBS, cells were blocked with 5% FBS in PBS for 30 min. Immunostaining was performed overnight at 4°C by incubation with anti-O-GlcNAc mAb CTD110.6 (1:1000) and anti-NOTCH1 ECD Ab 8G10 (1:200) diluted in 5% FBS/PBS. After washing with cold PBS, cells were incubated with Alexa Fluor 555-conjugated goat anti-Mouse IgM heavy chain antibody (2 µg/ml; Invitrogen [A21426]) and DyLight 488-conjugated goat anti-rabbit IgG antibody (3 µg/ml; Vector Labs [DI-1488]) diluted in 5% FBS/PBS for 2 hr at RT, washed with cold PBS. Cells were mounted on slides using DAPI-Fluoromount-G (Southern Biotech, [0100–20]) for observation with a FSX 100 fluorescent microscope (Olympus).

Flow cytometry

Cultured HEK293T cells were detached by pipetting 10 times. After washing with cold PBS, cells were incubated with hamster anti-Notch1 (8G10; 4 µg/ml) antibody, goat anti-DLL4 (0.1 μg/ml), or hamster anti-JAG1 (0.5 μg/ml) antibody diluted in 5% FBS in PBS on ice for 30 min. After washing with cold PBS, cells were incubated with FITC-labeled anti-hamster IgG (40 µg/ml) or FITC-labeled anti-goat IgG (10 μg/ml) antibody in 5% FBS in PBS on ice for 30 min, washed with cold PBS, and subjected to flow cytometry using a FACSCalibur cytometer (Becton Dickinson).

Immunoprecipitation

For immunoprecipitation of mouse NOTCH1 from transfected HEK293T cells, cells were lysed in Cell Lysis Buffer (Cell signaling [9803S]). Cell lysates were incubated with 8G10 Notch1 antibody at the concentration of 2 μg/ml for 2 hr at 4°C, and incubated with Protein G Sepharose (GE Healthcare [17-0618-01]) for 2 hr at 4°C. After extensive wash with 50 mM Tris-HCl, pH 7.4, 150 mM NaCl, and 0.25% Triton X-100, NOTCH1 was eluted with SDS-PAGE sample buffer containing 2% SDS and 70 mM 2-mercaptoethanol. Immunoblotting for the detection of O-GlcNAc on NOTCH1 was performed using CTD110.6 O-GlcNAc (1:2000) or 8G10 NOTCH1 (1:500) antibodies, followed by HRP-conjugated anti-mouse IgM (1:4000) or anti-hamster IgG antibodies (1:1000), respectively, and enhanced chemiluminescence as described previously (Ogawa et al., 2015).

For purification of NOTCH1 EGF repeats (Notch1-EGF1-36-MycHis) from cell lysates, cells were transfected with pSegtag2/Hygro/Notch1-EGF:mycHis (Hou et al., 2012) alone or together with pSecTag2/Hygro/Eogt. Cell lysates were added with 2 μg of anti-Myc antibody (4A6). After incubation for 2 hr at 4°C, Protein G Sepharose was added to the lysates, which were then incubated for 2 hr at 4°C. Immunoprecipitates were washed and eluted with SDS-PAGE sample buffer as described above. Immunodetection was performed using anti-Myc antibody (1:1000) or CTD110.6 (1:2000) antibodies, followed by HRP-conjugated anti-mouse IgM (1:4000) or anti-mouse IgG antibodies (1:2000), respectively, and enhanced chemiluminescence.

Ligand-induced Notch signaling assays

NOTCH1 activation assay

HeLa cells stably expressing Lentivirus with an shRNA targeted against EOGT or GAPDH were plated in 6-well plates at 2 × 105 cells/well in RPMI containing 10% FCS. After 24 hr, the medium was replaced with 2 ml medium containing either DMSO (vehicle) or gamma-secretase inhibitor (GSI) in DMSO for 1 hr. The GSIs L-685,458 (Sigma [L1790]) or N-[N-(3,5-difluorophenacetyl)-L-alanyl]-S-phenylglycine t-butyl ester (DAPT; Sigma [D5942]) were used at 1–2 μM for HeLa. Co-culture was initiated by overlaying puromycin-resistant HeLa cells with 2.4 × 106 L cells, or L cells expressing DLL1 (D1/L) in medium containing vehicle or GSI, as described previously (Lu et al., 2010). After 6–8 hr at 37°C, less adherent L cells were partially removed by washing twice with 2 ml PBS containing 1 mM CaCl2 and 1 mM MgCl2, pH 7.2. Remaining cells were lysed in 0.5 ml RIPA buffer (Millipore [20-188]) containing 0.1% SDS and Complete mini, EDTA-free protease inhibitors (Roche [11836170001]), and scraped into a microfuge tube. After centrifugation at 15,000g for 15 min at 4°C, the supernatant was added to 120 μl glycerol, mixed and frozen at −80°C in 100 μl aliquots. For SDS-PAGE, SDS gel loading buffer with fresh dithiothreitol (DTT, 30 mM) was added, and the samples heated at 80°C for 15 min prior to separation on a 7.5% SDS-PAGE gel. Proteins were transferred to polyvinylidene fluoride (PVDF) membranes in transfer buffer containing 10% methanol. Membranes were blocked in 5% non-fat dry milk in 0.05% Tween-20% and 1% Thimerosal (Sigma [T5125]), and washed twice in TBS/Tween (10 mM Tris HCl, 0.15 M NaCl, 0.05% Tween 20). Membranes were cut into three sections and incubated in primary antibodies to detect NOTCH1 full length (~280 kDa), activated, cleaved NOTCH1 (~110 kDa) and EOGT (~52 kDa). Antibody against NOTCH1 ECD (AF5267) was used at 1:250 in TBS containing 3% cold fish gelatin, 1% BSA and 1% Thimerosal and incubated overnight at 4°C. After four washes in TBS/Tween, the membrane was incubated in rabbit anti-sheep IgG conjugated to HRP diluted 1:5000 in blocking solution. All buffer reagents were from Sigma. Antibodies to detect activated NOTCH1 (Val1744) and EOGT were incubated in the same manner at ~1:1000 dilution. Secondary Ab was 1:2000–10,000 goat anti-rabbit IgG-HRP. Detection of O-GlcNAc was performed after stripping NOTCH1 mAb using mAb CTD110.6 diluted ~1:1000–1:5000, incubated as above and detected by 1:5000 goat anti-mouse IgM-HRP. After four washes in TBS/Tween, membranes were treated with ECL reagent from Pierce (West-Pico [34095] or West-Femto [34080]) for 5 min, the membrane sections reassembled, and exposed for various times to film (Denville Scientific [E3018]). Stripping for reprobing membranes was performed as described (Yeung and Stanley, 2009).

Notch reporter assay

To assay ligand-induced stimulation of the Notch reporter gene TP1-luciferase, co-culture assays using Lec1 CHO cells stably expressing siRNA targeted against Eogt (Tashima and Stanley, 2014) overlaid with L cells or L cells expressing DLL1, were performed as described previously (Lu et al., 2010; Stahl et al., 2008). TP1-luciferase activity was normalized against co-transfected Renilla luciferase. Cultures were performed in duplicate with and without 12.5 μM GSI IX (Calbiochem [565784]) in DMSO. Rescue of Eogt knockdown was performed by inclusion of a human EOGT cDNA in the transfection mix.

Notch target gene assay with solid-phase ligand

To assay ligand-induced activation of Notch target genes, each well of a 96-well MicroWell plate (Thermo Scientific, [442404]) was coated with 500 ng of DLL4-Fc or JAG1-Fc in PBS and incubated for 16–18 hr at 4°C. Lung ECs (1 × 105) from wild-type or Eogt−/− mice were plated into each well in 200 μl complete HuMedia-EG2. After 16 hr incubation at 37°C in a 5% CO2 incubator, total RNA was isolated from the stimulated ECs using TRIzol Reagent (Ambion, [15596018]) for qRT-PCR analysis.

Notch target gene assay by co-culture

Wild type or EOGT-null HEK293T cells were transiently transfected with pSport6-Dll4 or pBOB-Jag1 plasmid. After 24 hr, 1.0 × 105 ligand-expressing cells were added onto wild type or Eogt−/− lung ECs plated in 96-well dish and incubated for 24 hr at 37°C in a 5% CO2 incubator. Total RNA was isolated using PureLink RNA Mini Kit (Ambion, [12183020]) for qRT-PCR analysis.

Eogt targeting vector

BAC clone RP24-388B15 derived from C57BL/6J mice and containing a genomic region that encodes Eogt was obtained from the BACPAC Resource Center. Conditional knockout (cKO) targeting vector (pDT-loxP-loxP-FRT-PGKneo-loxPFRT) was obtained from Satoru Takahashi (Tsukuba University).

Mouse genomic DNA fragments including Eogt exon 10, a 7.8 kb upstream region (long arm), or 1.9 kb downstream region (short arm) were amplified by PCR with PrimeSTAR Max polymerase (Takara [R045A]). Each fragment was cloned into the PmlI site, PmeI/KpnI sites, or the XhoI site of the cKO vector, respectively, using the In-Fusion Advantage PCR Cloning Kit (Clontech [639619]). All insert sequences were confirmed by DNA sequencing.

Eogt-targeting vector DNA was linearized with AscI, and introduced into C57BL/6J ES cells (Tanimoto et al., 2008) by electroporation. Genomic DNA isolated from G418-resistant clones was subjected to PCR screening to confirm homologous recombination using KOD FX polymerase (Toyobo [KFX-101]), followed by a second screening to confirm the position of the third loxP sequence using LA Taq polymerase (Takara [RR002A]). Selected ES clones were subjected to Southern blotting using long-arm (900 bp) or short-arm (1 kb) probes radiolabelled with [32P]dCTP using the Megaprime Kit (GE Healthcare [RPN1606]). Genomic DNA was digested with KpnI/SalI and hybridized with the long-arm probe, or digested with HindIII and hybridized with the short-arm probe. Two clones were microinjected into blastocysts that were implanted into pseudopregnant female mice in the Tsukuba University transgenic core facility using standard methodologies. Primers used for PCR are shown in Table 1.

Table 1

Primers used for cloning DNA fragments, screening ES cells, or genotyping by PCR.

https://doi.org/10.7554/eLife.24419.024
Target region
Exon10 Fw 5’–ATACGAAGTTATCACCGAACCTAGCCCATATTT–3’
Exon10 Rv2 5’–ACGAAGTTATGTCGACGACTGAGCATTGCTGTT–3’
Long arm region
Long arm Fw1 5’–CGAATCAAGCTGTTTGGTCCATTCTCTGCTCCA–3’
Long arm Rv 5’–ACGAAGTTATGGTACGGTCAACTTGAAGAAGTA–3’
Short arm region
Short arm Fw 5’–TAGGAACTTCCTCGAAATTCAGTGCTTAGAAGT–3’
Short arm Rv1 5’–GCGCGCCTTTCTCGAACACTGTGTACAGTGACA–3’
Long-arm probe
larm16380Fw 5’–CTGCCTCAGCTTCCTGAGTG–3’
larm17196Rv 5’–CATGTCAGATCAGACAGTTC–3’
Short-arm probe
sarm26294Fw 5’–CTGAGCTATGTACTGGATGC–3’
AscI-sarmRv2 5’–TGAAGAGGCGCGCCCAGAGACAGAAAAAGCAC–3’
ES cells first screening
PGK S1 5’–CCTCCCCTACCCGGTAGAATTGACC–3’
GL1 typing RV2 5’–GAACTGTCAGATTTGGTGACACAGAAAGGC–3’
ES cells second screening
3rdlox Fw 5’–CCACCCGACCCCTGCCAGAACATAATGCTCTCTTGCATC–3’
3rdlox Rv 5’–GCTGTCGCCAGAGGAGAGAGTGGGTGCTTACTTAC–3’
Eogt mice genotyping
3rdloxFw 5’–CCACCCGACCCCTGCCAGAACATAATGCTCTCTTGCATC–3’
3rdloxRv2 5’–GCTGTCGCCAGAGGAGAGAGTGGGTGCTTACTTAC–3’
25307Rv 5’–CCAAGGCGGTCTTGGCCCAT–3’
RT-PCR for Eogt
Exon 9 Fw 5’– AGGCTACACGCAGCTCAATT –3’
Exon 11 Rv 5’– AGAAGCCGTGTTTTCGTTGC –3’
qRT-PCR for Eogt
Exon 1 Fw 5’–AAGCTGCAGGTCCGTGAAAA–3’
Exon 2 Rv 5’–TAGGTTAGGCTACCGCGTCT–3’
  1. Underlined sequences are 15 bp homologous overlaps required for In-Fusion cloning.

Mice

Eogtfloxed/neo mice were crossed with Ayu1-Cre (Niwa et al., 1993) or FLPe mice (B6;SJL-Tg(ACTFLPe)9205Dym/J backcrossed more than nine times to C57BL/6J) to generate mice carrying floxed or exon 10-deleted Eogt alleles, respectively, in collaboration with Satoru Takahashi (Moriguchi et al., 2006). Mice with a floxed Rbpj allele or a Tek-Cre transgene were obtained from T. Honjo (Han et al., 2002) and M. Yanagisawa (Kisanuki et al., 2001), respectively, and provided by the RIKEN BRC through the National Bio-Resource Project of the MEXT, Japan. Rbpj-null mice were generated by mating RbpjF/F mice with Ayu1-Cre deleter mice. Tek-Cre: EogtF/F mice were generated in collaboration with Kenji Uchimura (Nagoya University). Notch1 null mice (Notch1tm1Con/J) (Conlon et al., 1995) were obtained from the Jackson laboratory. Mice with a ligand binding domain mutation in Notch1 (Notch1lbd) and mice lacking the O-fucose site in EGF12 of Notch1 (Notch112f) were previously described (Ge and Stanley, 2008, 2010). Notch112f mice were used after backcrossing >10 times to C57Bl/6. Backcrossed Notch112f/12f progeny die around mid-gestation (manuscript in preparation).

All experimental procedures were performed in accordance with the Guidelines for Animal Experimentation in Nagoya University Graduate School of Medicine and Japanese Government Animal Protection and Management Law (Permit Number: 26397). Animal experiments at the Albert Einstein College of Medicine were performed with the approval of the Institutional Animal Care and Use Committee (Permit Number: 20140803).

Whole mount staining of retina

Whole mount staining of mouse retina was performed as reported previously (Tual-Chalot et al., 2013), unless otherwise noted. Briefly, eyes were fixed with 4% paraformaldehyde (PFA) in phosphate buffered saline without divalent cations (PBS-CMF), pH 7.4 at room temperature (RT) for 15 min, except for preserving filopodia at the vascular front, eyes were fixed in 4% PFA in PBS-CMF at 4°C for 2 hr. After dissection of retinas in PBS-CMF, flat retinas were prepared by dropping cold methanol. After washing with PBS-CMF, retinas were incubated with Perm/Block solution containing PBS-CMF, pH 7.4, 0.3% TritonX-100, and 0.2% bovine serum albumin (BSA) supplemented with 5% donkey or goat serum for 1 hr at RT. Immunostaining was performed overnight at 4°C by incubation with biotin-IB4 (1:100 or 1:250) and Cy3- or FITC-conjugated anti-αSMA diluted in Perm/Block solution (1:200), followed by four washes with PBS-CMF containing 0.3% TritonX-100 (PBSTX) for 10 min at RT, followed by incubation overnight at 4°C in SA-488 (1:200) or Dylight649-conjugated streptavidin (1:250) in Perm/Block solution. Alternatively, retinas were directly labeled with Dylight594-conjugated IB4 (2.5 µg/ml in Perm/Block). After four washes with PBSTX for 15 min at RT and a rinse with PBS-CMF, retinas were mounted using prolong diamond anti-fade mounting medium (Life Sciences, [1664835]) for observation using a TiE-A1R-KT5 microscope (Nikon) or a P250 High Capacity Slide Scanner (Perkin Elmer [1S10OD019961-01]). Whole mount staining for NG2+ pericytes was performed following the procedure described above using rabbit anti-NG2 antibody (1:200) or rat anti-NG2 antibody (1:1000), and DyLight488-conjugated anti-rabbit IgG (1:200) or CF640R-conjugated anti-rat IgG (1:200) as primary and secondary antibodies, respectively. Whole mount staining of extravasated fibrinogen was performed as described above using rabbit anti-fibrinogen antibody (1:200) as a primary antibody and DyLight488-conjugated anti-rabbit IgG (1:200) as a secondary antibody.

Quantification of retinal angiogenesis

The length of αSMA+ blood vessels was calculated by determining the average of the 3–4 longest αSMA+ vessels per retina. The number of vascular branch points was measured by analyzing 3–8 fields of 500 × 500 µm per retina which were chosen randomly to cover the region under the vascular front for P5, or central regions for P15 retinas. AngioTool (Zudaire et al., 2011) was used to calculate branch points. For counting the number of filopodia, 4–12 random fields of 250 × 250 µm per retina at the vascular front, and the number of filopodia were counted by eye and marked with a red dot in NIH ImageJ (Schneider et al., 2012).

In situ hybridization

Eyes from newborn mice were fixed with 4% PFA/PBS for 15 min at RT. Retinas were dissected in 4% PFA in PBS. Flat retinas were prepared by dropping cold methanol onto the retina and stored in methanol at −20°C. In situ hybridization was performed as described previously (Powner et al., 2012) with modifications. In brief, flat retinas were washed with PBS, incubated with 1 µl of FITC-labeled probe in diluted in 1 ml of hybridization buffer overnight at 65°C, washed with formamide wash buffer for 15 min 3 times at 65°C, followed by PBS containing 0.1% Tween-20 for 20 min, twice at RT. Retinas were incubated in 500 µl IHC blocking buffer (3% Triton X-100, 0.5% Tween-20, 1% FBS in 2x PBS) for 20 min at RT, followed by AP-conjugated anti-FITC antibody (1:200 dilution) in IHC blocking buffer. Counter staining was performed by incubating retinas in Dylight 594-conjugated IB4 (2.5 µg/ml) in IHC blocking buffer. After incubation overnight at 4°C on a slow shaker, retinas were washed with PBS containing 0.1% Tween-20 (PTW) for 20 min twice at RT, and incubated with BCIP/NBT solution (Roche [11681460001]) at RT. Light field images were acquired using FSX100 (Olympus).

Sulfo-NHS-LC-biotin perfusion in retina

Deeply anesthetized P15 mice were perfused with 0.75 µg/g (mouse weight) of Sulfo-NHS-LC-biotin (Thermo Fisher Scientific [21335]) dissolved in 10 ml PBS-CMF for 10 min, followed immediately by 10% formalin in sodium phosphate, pH7.4. Eyes were post-fixed in 4% PFA in PBS for 15 min on ice, washed with PBS, and soaked in 2xPBS for 15 min on ice. Dissected retina were flattened by dropping cold methanol and kept at −20°C. The flat retinas were washed with PBS, incubated with Perm/Block solution including 5% goat serum prior to immunostaining with CF488A-conjugated streptavidin (10 µg/ml) and Dylight594-conjugated IB4 (2.5 µg/ml) for 4 hr at RT or overnight at 4°C. After four washes with PBS, retinas were mounted and observed using confocal microscope A1R-TiE (Nikon).

Isolation of murine brain and lung microvascular endothelial cells and qRT-PCR

Brain microvascular ECs were isolated as described previously (Ruck et al., 2014). In brief, 10 mice at P14 were sacrificed, and brains were isolated and transferred to 5 ml of PBS. Cerebellum and brainstem were removed with forceps. Meninges were detached by rolling the brains on sterile blotting paper. Meninges-free brains were transferred to a 50 ml Falcon tube filled with 13.5 ml of DMEM, minced first with a 25 ml pipette, then with a 10 ml pipette until the medium became milky. Tissue homogenates were digested by adding 0.6 ml of 10 mg/ml collagenase type 2 (Worthington [4174]) in DMEM and 0.2 ml of 1 mg/ml DNase I (Boehringer Mannheim [104159]) in PBS for 1 hr at 37°C on an orbital shaker at 180 rpm. After digestion, 10 ml of DMEM was added and the tissue suspension was centrifuged at 1000 x g for 10 min at 4°C. The pellet was resuspended using a 25 ml pipette in 25 ml of 20% (w/v) BSA in DMEM approximately 25 times, and centrifuged at 1000 x g for 20 min at 4°C. The pellet was resuspended in 9 ml of DMEM and supplemented with 1 ml of 10 mg/ml collagenase type 2 and 0.1 ml of 1 mg/ml DNase. After digestion for 1 hr at 37°C, 15 ml of 20% FBS in DMEM containing penicillin/streptomycin was added to stop digestion. After centrifugation at 400x g for 5 min, the pellet was resuspended with 3 ml of 0.1% BSA in PBS, mixed with 22.5 µl of Dynabeads Biotin Binder (Veritas [11047]) precoated with 5 µg of biotin-labeled anti-CD31 antibody (clone 390; Biolegend [102404]). The mixture was incubated with rotation at RT for 15 min. Beads with bound ECs were collected using a magnet, washed with PBS, and subjected to total RNA isolation using PureLink RNA Mini Kit (Ambion [12183020]). Quantitative RT (qRT)-PCR was performed using M-MLV Reverse Transcriptase (Invitrogen [28025–013]) for reverse transcription, and SsoAdvanced Universal SYBR Green Supermix (Biorad [172–5271]) for real-time PCR analysis according to the manufacturer's instructions. Primers used for PCR are shown in Table 2.

Table 2

Primers used for qRT-PCR.

https://doi.org/10.7554/eLife.24419.025
TargetForwardReverse
Notch1AGTGTGACCCAGACCTTGTGAAGTGGCTGGAAAGGGACTTG
Notch2CCCAAGGACTGAGAGTCAGGGGCAGCGGCAGGAATAGTGA
Notch3ATTTGAGGGGTGCTGAAGTGGAAGGCTGGGACAGAGAGAA
Notch4TCCGGACTTTTAAGGCCAAATTCCCATTGCTGTGCATACTCT
Dll4CCCACAATGGCTGTCGTCATAACCCTTTGGCCCACTGTTG
N-cadherinAGGGTGGACGTCATTGTAGCCTGTTGGGGTCTGTCAGGAT
CD31AGCCAACAGCCATTACGGTTAAGCCTTCCGTTCTCTTGGTG
GAPDHGGTGCTGAGTATGTCGTGGACCTTCCACCATGCCAAAGTT
Jag1TCTCTGACCCCTGCCATAACTTGAATCCATTCACCAGATCC
Hes1ACACCGGACAAACCAAAGACCGCCTCTTCTCCATGATAGG
Hey1CATGAAGAGAGCTCACCCAGACGCCGAACTCAAGTTTCC
Hey1 (mouse specific)TGAATCCAGATGACCAGCTACTGTTACTTTCAGACTCCGATCGCTTAC
Vegfr1ACATTGGTGGTGGCTGACTCTCCCTCTCCTTCGGCTGGCATC
Vegfr2GCGGGCTCCTGACTACACCCAAATGCTCCACCAACTCTG
Vegfr3CCGCAAGTGCATTCACAGAGTCGGACATAGTCGGGGTCTT

Lung microvascular ECs were isolated as described previously (Ruck et al., 2014) unless otherwise noted. In brief, mice at 3 months were sacrificed, and lungs were minced and digested with 1 mg/ ml of collagenase/dispase (Roche [10 269 638 001]) in DMEM for 45 min at 37°C. A single cell suspension was passed through a 70 μm cell strainer, collected by centrifugation, and resuspended in 1 ml 0.1% BSA/PBS. ECs were isolated using Dynabeads Biotin Binder precoated with biotin-labeled anti-CD31 antibody (clone 390; Biolegend [102404]). Beads were resuspended in HuMedia-EG2 (Kurabou, [KE-2150S]) containing 2% FCS and 10 ng/ml hEGF, 5 ng/ml hFGF-b, 1.34 μg/ml hydrocortisone hemisuccinate, 10 μg/ml heparin, 50 μg/ml gentamycin, 50 ng/ml Amphotericin B, and then, plated on CellBIND Surface Culture Dish (Corning, [3295]). After reaching 70–80% confluent, cells were detached using 0.05% Trypsin/EDTA, collected by centrifugation, and resuspended in 1 ml 0.1% BSA/PBS. ECs were subsequently purified using Dynabeads Biotin Binder precoated with biotin-labeled anti-CD102 antibody (clone 3C4; Biolegend [105604]). Beads were resuspended with complete HuMedia-EG2 media, and cultured onto CellBIND Surface Culture Dish.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Notch1 is required for the coordinate segmentation of somites
    1. RA Conlon
    2. AG Reaume
    3. J Rossant
    (1995)
    Development 121:1533–1545.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Notch signaling is essential for vascular morphogenesis in mice
    1. LT Krebs
    2. Y Xue
    3. CR Norton
    4. JR Shutter
    5. M Maguire
    6. JP Sundberg
    7. D Gallahan
    8. V Closson
    9. J Kitajewski
    10. R Callahan
    11. GH Smith
    12. KL Stark
    13. T Gridley
    (2000)
    Genes & Development 14:1343–1352.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
    Embryonic stem cells derived from C57BL/6J and C57BL/6N mice
    1. Y Tanimoto
    2. S Iijima
    3. Y Hasegawa
    4. Y Suzuki
    5. Y Daitoku
    6. S Mizuno
    7. T Ishige
    8. T Kudo
    9. S Takahashi
    10. S Kunita
    11. F Sugiyama
    12. K Yagami
    (2008)
    Comparative Medicine 58:347–352.
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80

Decision letter

  1. Holger Gerhardt
    Reviewing Editor; Max Delbrück Centre for Molecular Medicine, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "O-GlcNAc on NOTCH1 EGF Repeats Regulates Ligand-Induced Notch Signaling and Vascular Development in Mammals" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Janet Rossant as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Holger Gerhardt (Reviewer #2).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The reviewers were supportive of the overall concept that O-GlcNacylation could be another form of glycosylation with impact on Notch signaling. However, in their reviews and in the online discussion between the editor and the reviewers, there was concern that the in vivo phenotype reported was very mild and not fully substantiated. Also, the in vitro demonstration of EOGT function in modulating Notch signaling used cell lines that were not related to the in vivo endothelial function. It was felt that this study needs a complete revision with careful analysis of EOGT biochemistry and effects on Notch signaling in endothelial cells in vitro, and a much better characterization of the in vivo phenotypes. As it stands, this work does not provide the same level of rigorous validation provided by the published papers on the effects of other glycosylation enzymes in Notch biology. Because the paper will need substantial additional work to achieve the required quality for publication in eLife, we are unable to accept the manuscript at this time. We hope that the referees' comments will help you improve the paper for future publication.

Reviewer #1:

Sawaguchi and colleagues present a rigorous study that describes the regulatory role of EGF O-GlcNAc transferase (EOGT) in the mammalian Notch signaling pathway. Previous studies from Okajima and Stanley laboratories reported that loss of eogt in flies does not impair Notch signaling but shows a dosage-sensitive genetic interaction with components of the Notch pathway, suggesting that eogt might be a modulator of the Notch pathway. More recently, loss-of-function mutations of EOGT were identified in an autosomal recessive form of Adams-Oliver Syndrome (AOS), a disease which is also caused by dominant mutations in several Notch pathway components. Despite these observations, to my knowledge, no functional links had been established between Eogt and mammalian Notch signaling. To address this issue, the authors generated germline and conditional Eogt alleles and showed that although Eogt-/- animals are viable, they exhibit phenotypes compatible with impaired Notch signaling during retinal angiogenesis and genetically interact with Notch pathway components during this process. Conditional loss of Eogt in endothelial cells indicated that the observed phenotypes are primarily, although not exclusively, caused by loss of Eogt from endothelial cells. The authors complement their in vivo observations with a number of cell-based assays and provide strong evidence that the vascular phenotype observed in the EOGT mutants is mediated through its effect on Notch1-DLL4 binding and signaling. Of note, EOGT does not seem to affect JAG1-Notch1 binding and signaling. Finally, by introducing mutations in four conserved O-GlcNAc sites outside of the core ligand-binding domain of Notch1, the authors show that O-GlcNAc moieties on specific EGF repeats of mammalian Notch1 likely enhance Notch1-DLL4 interaction. It is somewhat surprising that EOGT-null mice fail to recapitulate any of the gross clinical pathologies observed in AOS patients, and it might be a genetic background issue. Nevertheless, the study proves that EOGT is a regulator of the Notch1 signaling during mouse angiogenesis and indicates that addition of O-GlcNAc to the Notch1 receptor promotes its binding to and signaling in response to DLL4 but not JAG1.

In my opinion, the manuscript addresses an important biological question, with potential implications to a human disease. The authors provide mechanistic insight into the regulation of mammalian Notch signaling by EOGT. The major conclusions of the study are well supported by the data. It might have been better to introduce T-to-V mutations in EGF repeats 10 and 17 instead of T-to-A, as T is more similar to V than to A, and therefore the chance for seeing a result due to altered amino acid structure rather than lack of sugar might be somewhat higher in T-to-A mutation. However, the severe decrease in O-GlcNAc Western blot band on mutant Notch1 and all the other data in the manuscript do not leave much doubt that the observed effects are due to the loss of O-GlcNAc saccharides.

Reviewer #1 (Minor Comments):

Specific issues:

1) Introduction, second paragraph: The reference "Shaheen, 2011" seems out of place here since the cited article does not mention EOGT. It seems that the authors/word-processor may have inadvertently swapped "Shaheen, 2013" from earlier in the paragraph, with this one.

2) Subsection “Loss of Eogt phenocopies Notch1 haploinsufficiency and compound mutants display an enhanced vascular phenotype”, last paragraph: Please rewrite these sentences to address the following issues: (1) The authors write "data not shown", but they have shown quantifications for the hypomorphic alleles in 3B and 3C. (2) I do not agree with the authors' interpretation of the genetic interaction studies. First, in the case of Eogt interaction with Rbpj+/- and N1+/-, both components of the genetic interaction have a phenotype by themselves, one functional copy of Rbpj and N1 remain, and the interaction is not synergistic. Therefore, it is hard to draw conclusions. If Eogt and N1/Rbpj acted in parallel and independently of each other, the authors might still have seen similar results. Second, the results with the hypomorphic alleles are stronger and strongly suggest that EOGT regulates Notch pathway in this context (because they don't have a phenotype by themselves). However, it does not inform us about the actual target of EOGT in the pathway. Even if O-GlcNAc residues on DLL4 were important, a similar genetic interaction might have been observed. Therefore, it cannot be concluded that "EOGT modification of NOTCH1 is important in regulating the Notch signaling pathway."

3) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”, first paragraph: "These results suggested that EOGT affects Notch signaling mediated by DLL4" – although this is a reasonable conclusion at the end of the paper, the results presented up to this point only suggest that Notch signaling is suppressed but do not seem to provide an indication that the effect is limited to one particular ligand.

4) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”, third paragraph: an siRNA.

5) Subsection “EOGT regulates DLL1 and DLL4 binding to NOTCH1”: In Figure 6E, it looks like DLL4 binding is slightly decreased. But in Figure 6F, the decrease does not seem to be statistically significant. Please clarify.

6) Subsection “O-GlcNAcylation of NOTCH1 promotes DLL4-Notch1 interaction”, first paragraph: "Thus it appears that multiple sites are O-GlcNAcylated in NOTCH1." Although this conclusion is correct, I think an equally if not more important conclusion is that the consensus is probably too wide. Notch1 has more than 20 predicted sites or 11 sites based on the more stringent consensus sequence. However, mutating 4 sites almost abolished the O-GlcNAc band in Western blot (Figure 7—figure supplement 1). This strongly suggests that only some sites are modified.

7) Discussion, first paragraph: The logic of this section is not clear to me. Yes, removing one enzyme should not affect other sugars, but I don't understand how this leads to the last sentence. I suggest that instead of these sentences, the authors add a few sentences about the previous two studies on the fly eogt from their labs, mention that eogt null flies did not have Notch phenotypes, and eogt RNAi in the wing showed some genetic interaction with Notch pathway components and then end by what they have. In my opinion, this should not affect the novelty of their work at all, but provides a better framework for the paper. It will also serve as an example to the readers that when a posttranslational modification regulates mammalian Notch signaling in a tissue-specific manner, it might not show overt Notch loss of function phenotypes in Drosophila.

8) Discussion, second paragraph: "DLL4 constitutes the critical Notch ligand in regulating angiogenesis and vascular development". This sentence gives the impression that DLL4 is the only important Notch ligand in vascular development. However, JAG1 is also important in vascular development. Please modify to make the sentence more accurate.

9) Discussion, third paragraph: The authors have previously reported that at least in mammalian cells, O-GlcNAc on EGF repeats can be extended by the addition of a galactose. Given that in this paragraph the authors highlight some similarities between the functions of Eogt and Fringe proteins, and because Fringe adds the second sugar not the first one, it is tempting to speculate that the Eogt phenotype might result from the loss of galactose. Of note, to my knowledge, this elongation has not been observed in flies (for example, see Harvey et al., JBC, 2016). Therefore, this hypothesis can also explain why eogt mutant flies do not show any obvious Notch loss of function phenotypes. It will be up to the authors whether they want to incorporate this hypothesis in their Discussion or not.

10) Discussion, third paragraph: "JAG1-Notch1 interactions were not evident in our assays employing Eogt-deficient.…" Instead of evident, I think affected or something like that should be used.

11) Discussion, last paragraph: "we generated mice homologous for Eogt gene". Homozygous?

12) Subsection “Materials and mice”, first paragraph: It is hard for the reader to understand from the rest of the article exactly which Cre mouse line was used to generate the global KO (I'm assuming it was Ayu1-Cre). I suggest rewriting this sentence more clearly. Also, in the first paragraph of the subsection “Generation of Eogt-targeted mice” the authors use "Alternatively" to describe the generation of global knockout mice. Do they mean "In addition"?

13) Figure 1A: Please show a scale bar for the schematic so that the predicted length of the Southern blot bands can be estimated.

14) Figure 5A: Please provide labels for wt versus mutant in the figure.

Reviewer #2:

The biology of Notch signalling in development and disease, and in vascular morphogenesis in particular, is highly relevant and of broad general interests. Understanding the multiple layers of transcriptional, translational and post-translational regulation of Notch signalling is a major challenge, and the present work adds by addressing the role of O-GlcNacylation via the enzyme EOGT.

The authors study effects of general or endothelial specific loss of function using mouse mutants and the model of post-natal retinal vascularisation. The same model has been extensively studied and the effects of loss of function of the ligands Dll1, Dll4, Jagged1, the receptors Notch1, and various modifiers as well as signalling components including RBPJ are very well understood. The authors here demonstrate a very mild hypervascularization, claiming similarities to other Notch mutants. In addition, the general EOGT knockout shows reduced aSMA staining indicating deficient smooth muscle coverage. Furthermore, the authors claim reduced vessel integrity. The authors then move on to investigate the mechanism and identify reduced Dll1 or Dll4 mediated Notch activation, correlating with reduced Notch O-GlcNAcylation. Various cell lines including Hela, HEK, CHO are used for an array of assays to confirm reduced signalling, ligand binding and investigate whether Dll4 and Jagged1 show similarly reduced binding when EOGT is deficient. Finally, the authors show by mutation of the putative glycosylation sites the these indeed affect Dll4, but not Jagged1.

Overall, this is a potentially interesting piece of work, mostly clearly written and concise. However, I have several major concerns that reduce my confidence in the conclusions and in the general relevance of the findings. The retinal analysis shows a very mild if any phenotype, and this is not at all comparable to other pathway mutants.

The quality of the images, magnifications, microscopy technique etc. undermine the ability to appreciate what the authors claim. For example, the filopodia quantification images do not allow visualisation of filopodia therefore making it difficult to appreciate the quantifications.

The same is true for the leakage data. This is not a standard BRB assay and what the authors show as leakage cannot be appreciated in those images. Why would this be focal? Not diffuse?

Why do the authors then choose Hela, HEK and CHO cells for functional studies, with the odd choice of GAPDH shRNA as control?

The WB panels in Figure 5 are oddly assembled with mismatch between the grey line and the actual gel cuts. I am not suggesting this is attempted image manipulation, but it is either not careful enough or indeed indicative of multiple gels that are assembled together. This needs clarification.

The evidence of Notch1 O-GlcNacylation in Figure 5 also seems over interpreted as co-migration is not evident.

The authors also use 3 different GSI, but do not mention why and where in the text.

The binding assay with beads needs Notch null controls as the lack of O-GlcNacylation will not be Notch specific and other effects might interfere with the adherent of the beads.

Overall, although I am generally positive about the topic and the ideas in the work, I feel this study needs a complete revision with careful analysis of EOGT biochemistry and effects in endothelial cells in vitro, and a much better illustration of the in vivo effects.

Also, whether this is Notch1 selective or generally affects Notch receptor affinities, importantly also in vascular smooth muscle, needs to be addressed. Furthermore, as also ligands have these EGF repeats, it would seem important to include analysis of potential effects here. As it stands, this work is not equally convincing as the published effects of other glycosylation enzymes in Notch biology and requires substantial additional work to achieve the required quality. Given the policy of eLife for revisions, I feel that the extent of work required to clarify and improve is beyond what would constitute a normal revision.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "O-GlcNAc on NOTCH1 EGF Repeats Regulates Ligand-Induced Notch Signaling and Vascular Development in Mammals" for further consideration at eLife. Your article has been favorably evaluated by Fiona Watt (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The reviewers appreciate the value of restructuring the manuscript and data organisation, and believe the core conclusions are sufficiently supported by your new experiments. They also state your work exposes an interesting contrast between the functions of Fringe proteins and EOGT. Previous studies showed that addition of GlcNAc to O-linked fucose on Notch1 by Fringe proteins promotes DLL-induced signaling and simultaneously reduces JAG1-mediated signaling. However, your work identifies that addition of O-linked GlcNAc to Notch1 by EOGT seems to promote DLL-Notch1 binding and signaling without reducing JAG1-Notch1 binding. Therefore, although the EOGT loss of function phenotypes in vivo are rather weak, the reviewers agree that linking the function of EOGT to mammalian Notch signaling for the first time and this nuance in ligand-specific activity of EOGT will make your paper of significant interest to eLife readership.

Having said that, we ask you to make the following minor revisions, which should not necessarily require further experiments:

1) In Figure 3, the western blots showing EOGT expression are poor. It is difficult to discern endogenous EOGT band, because it is obscured by a non-specific band. It is important to corroborate the (extent of) ablation of EOGT expression in the shRNA-expressing cell lines, but it is difficult to evaluate this in the present data.

2) In Figure 3E, the cells are indicated to stably express siRNAs. Should this be shRNAs? Please clarify/correct.

3) We recommend to revise Figure 1A based on Rana et al. (JBC, 2011), which reported the identification of O-glucose glycans on 17 EGF repeats of the mouse Notch1.

4) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”: "In contrast, Eogt-/- ECs showed a significant decrease in the induction of Notch target genes stimulated by DLL4, but not JAG1 (Figure 8B)." It might be more accurate to say that "DLL4 fails to induce Notch target genes Hey1 and Hes1 in Eogt-/- endothelial cells, but JAG1 results in a robust induction of these genes".

5) You cite a proteomic study (Alfaro et al., PNAS, 2012) that identified a cohort of membrane proteins modified by GlcNac. One of these proteins identified was Notch2. It would be useful to add a discussion on this to the manuscript: can EOGT-mediated modification of Notch2 explain the phenotypes observed in the current manuscript?

https://doi.org/10.7554/eLife.24419.027

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

We note that Reviewer #1 concludes “Nevertheless, the study proves that EOGT is a regulator of the Notch1 signaling during mouse angiogenesis….” and that “the major conclusions are well supported by the data”. We thank this reviewer for pointing out certain discrepancies that need clarification, which we have addressed as follows:

Reviewer #1 (Minor Comments):

Specific issues:

1) Introduction, second paragraph: The reference "Shaheen, 2011" seems out of place here since the cited article does not mention EOGT. It seems that the authors/word-processor may have inadvertently swapped "Shaheen, 2013" from earlier in the paragraph, with this one.

Corrected (Introduction, second paragraph).

2) Subsection “Loss of Eogt phenocopies Notch1 haploinsufficiency and compound mutants display an enhanced vascular phenotype”, last paragraph: Please rewrite these sentences to address the following issues: (1) The authors write "data not shown", but they have shown quantifications for the hypomorphic alleles in 3B and 3C. (2) I do not agree with the authors' interpretation of the genetic interaction studies. First, in the case of Eogt interaction with Rbpj+/- and N1+/-, both components of the genetic interaction have a phenotype by themselves, one functional copy of Rbpj and N1 remain, and the interaction is not synergistic. Therefore, it is hard to draw conclusions. If Eogt and N1/Rbpj acted in parallel and independently of each other, the authors might still have seen similar results. Second, the results with the hypomorphic alleles are stronger and strongly suggest that EOGT regulates Notch pathway in this context (because they don't have a phenotype by themselves). However, it does not inform us about the actual target of EOGT in the pathway. Even if O-GlcNAc residues on DLL4 were important, a similar genetic interaction might have been observed. Therefore, it cannot be concluded that "EOGT modification of NOTCH1 is important in regulating the Notch signaling pathway."

The text is revised to modify the interpretation of genetic interaction data as recommended, by explaining that enhancement of heterozygous Notch1 and Rbpj phenotypes in Eogt[-/-] retinas could reflect additive effects of independent pathways, whereas enhancement observed in Notch1[12f] or Notch1[lbd] backgrounds, that lack a heterozygous phenotype, is genetic evidence that it is the loss of O-GlcNAc on NOTCH1 which is responsible for the enhanced phenotype (subsection “Loss of Eogt phenocopies Notch1 haploinsufficiency and compound mutants display an enhanced vascular phenotype”).

3) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”, first paragraph: "These results suggested that EOGT affects Notch signaling mediated by DLL4" – although this is a reasonable conclusion at the end of the paper, the results presented up to this point only suggest that Notch signaling is suppressed but do not seem to provide an indication that the effect is limited to one particular ligand.

The reorganized Results section now presents the DLL4-NOTCH1 binding data before the mouse data.

4) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”, third paragraph: an siRNA.

Corrected (subsection “Knockdown of EOGT reduces Notch signaling”, last paragraph).

5) Subsection “EOGT regulates DLL1 and DLL4 binding to NOTCH1”: In Figure 6E, it looks like DLL4 binding is slightly decreased. But in Figure 6F, the decrease does not seem to be statistically significant. Please clarify.

We reviewed all our ligand binding data and now include data obtained with different concentrations of ligands. Panel C of revised Figure 1 compares control and Eogt KD cells and Panel D shows data for the three experiments in which rescue of the knockdown phenotype was performed.

6) Subsection “O-GlcNAcylation of NOTCH1 promotes DLL4-Notch1 interaction”, first paragraph: "Thus it appears that multiple sites are O-GlcNAcylated in NOTCH1." Although this conclusion is correct, I think an equally if not more important conclusion is that the consensus is probably too wide. Notch1 has more than 20 predicted sites or 11 sites based on the more stringent consensus sequence. However, mutating 4 sites almost abolished the O-GlcNAc band in Western blot (Figure 7—figure supplement 1). This strongly suggests that only some sites are modified.

The new western analysis (Figure 2C) confirmed the point raised by the reviewer that O-GlcNAcylation occurs on a limited number of EGF repeats. We have revised the manuscript accordingly (end of subsection “O-GlcNAc on NOTCH1 promotes DLL4-NOTCH1 interactions”). We also added a paragraph in the Discussion (fifth paragraph) and updated Figure 2—figure supplement 1A, accordingly.

7) Discussion, first paragraph: The logic of this section is not clear to me. Yes, removing one enzyme should not affect other sugars, but I don't understand how this leads to the last sentence. I suggest that instead of these sentences, the authors add a few sentences about the previous two studies on the fly eogt from their labs, mention that eogt null flies did not have Notch phenotypes, and eogt RNAi in the wing showed some genetic interaction with Notch pathway components and then end by what they have. In my opinion, this should not affect the novelty of their work at all, but provides a better framework for the paper. It will also serve as an example to the readers that when a posttranslational modification regulates mammalian Notch signaling in a tissue-specific manner, it might not show overt Notch loss of function phenotypes in Drosophila.

We have clarified the logic in the first paragraph of the Introduction. We also added a few sentences as suggested by the reviewer in the Discussion (fifth paragraph).

8) Discussion, second paragraph: "DLL4 constitutes the critical Notch ligand in regulating angiogenesis and vascular development". This sentence gives the impression that DLL4 is the only important Notch ligand in vascular development. However, JAG1 is also important in vascular development. Please modify to make the sentence more accurate.

We have modified the revised text to take this point into account (Discussion, first paragraph).

9) Discussion, third paragraph: The authors have previously reported that at least in mammalian cells, O-GlcNAc on EGF repeats can be extended by the addition of a galactose. Given that in this paragraph the authors highlight some similarities between the functions of Eogt and Fringe proteins, and because Fringe adds the second sugar not the first one, it is tempting to speculate that the Eogt phenotype might result from the loss of galactose. Of note, to my knowledge, this elongation has not been observed in flies (for example, see Harvey et al., JBC, 2016). Therefore, this hypothesis can also explain why eogt mutant flies do not show any obvious Notch loss of function phenotypes. It will be up to the authors whether they want to incorporate this hypothesis in their Discussion or not.

We have included this point raised by the reviewer and also noted that B4GALT1 knockout mice exhibit only a mild reduction in the expression of some Notch target genes during somitogenesis in which O-fucose glycans extended by Lfng and GalT are essential for skeletal and tail development (Discussion, fourth paragraph). There is no obvious skeletal or tail phenotype in Eogt[-/-] mice.

10) Discussion, third paragraph: "JAG1-Notch1 interactions were not evident in our assays employing Eogt-deficient.…" Instead of evident, I think affected or something like that should be used.

Corrected (Discussion, second paragraph).

11) Discussion, last paragraph: "we generated mice homologous for Eogt gene". Homozygous?

Corrected (Discussion, last paragraph).

12) Subsection “Materials and mice”, first paragraph: It is hard for the reader to understand from the rest of the article exactly which Cre mouse line was used to generate the global KO (I'm assuming it was Ayu1-Cre). I suggest rewriting this sentence more clearly. Also, in the first paragraph of the subsection “Generation of Eogt-targeted mice” the authors use "Alternatively" to describe the generation of global knockout mice. Do they mean "In addition"?

Corrected in Methods (subsection “Mice”). “Alternatively” is correct and has not been changed.

13) Figure 1A: Please show a scale bar for the schematic so that the predicted length of the Southern blot bands can be estimated.

Included (Figure 4A).

14) Figure 5A: Please provide labels for wt versus mutant in the figure.

Labels added (Figure 8A).

Reviewer #2:

[…] Overall, this is a potentially interesting piece of work, mostly clearly written and concise. However, I have several major concerns that reduce my confidence in the conclusions and in the general relevance of the findings. The retinal analysis shows a very mild if any phenotype, and this is not at all comparable to other pathway mutants.

The Notch pathway comprises Notch receptors, Notch ligands, enzymes such as presenilin, Pofut1 and Fringe, and transcription modulators including RBP-Jk and Mastermind. Conditionally removing NOTCH1, DLL4 or RBP-Jk has a dramatic effect on retinal angiogenesis but removing Lunatic Fringe gives a mild phenotype (Benedito et al. 2009). Since the latter report, the consequences of removing any other glycosyltransferase in the Notch pathway have not been published. As explained in the revised text, our experiments removed only one of three classes of O-glycans, so we were expecting a very mild phenotype. Both O-fucose and O-glucose glycans are important in promoting Notch signaling in many contexts, including angiogenesis in the case of the O-fucose glycans that are extended by LFNG. Manic and Radical Fringe are also expressed in retina but retinal angiogenesis experiments in Mfng[-/-] or Rfng[-/-] mice have not been reported. We have examined Eogt[-/-] retinas from numerous mice at P5 and P15 and found significant differences from wild type retinas in several parameters. The combined data convincingly demonstrate changes consistent with reduced Notch signaling. We have included a diagram of the predicted O-glycans based on known consensus sequences in the extracellular domain of mouse Notch1 to highlight the point that knocking out EOGT removes only one of three types of O-glycan (Figure 1A).

The quality of the images, magnifications, microscopy technique etc. undermine the ability to appreciate what the authors claim. For example, the filopodia quantification images do not allow visualisation of filopodia therefore making it difficult to appreciate the quantifications.

We have worked with our analytical imaging facilities to improve all images in the manuscript. In particular, the images of filopodia which showed how they were counted now clearly show the increased numbers generated in Eogt[-/-] retinas.

The same is true for the leakage data. This is not a standard BRB assay and what the authors show as leakage cannot be appreciated in those images. Why would this be focal? Not diffuse?

As pointed out by the reviewer, the leakage of sulfo-NHS-LC-biotin is diffusive in the case of a severe phenotype. However, in the case of a milder phenotype, it looks focal rather than diffuse. Please refer to the following literature: Figure 1E (SIRS vs. SIRS+2-BP), Richard S. Beard Jr. et al. Nature Communications: 12823 (2016) doi:10.1038/ncomms12823. Non-diffusive sulfo-NHS-biotin staining in retinal vasculature was also reported (Xuwen Liu Am. J. Pathol. 2016). Sulfo-NHS-LC-biotin reacts with proteins that have primary amines. Therefore, a small amount of sulfo-NHS-LC-biotin, once it is extravasated, will be easily trapped in the extracellular matrix or on cell surface proteins. That may be the reason the staining patterns differ depending on the amount of the tracers leaked from vessels. To clarify the extravascular sulfo-NHS-LC-biotin staining, we added 3D images in higher resolution (Figure 7C) and moved the original images to Figure 7—figure supplement 1. As an independent measure for increased vascular permeability, we performed staining for fibrinogen, as analyzed in Notch3-/- retinas (Henshall TL et al. Arterioscler Thromb Vasc Biol. (2015) 35:409-420). In Eogt HO retinas, the staining looks more diffuse (Figure 7A and B). Similar extravascular staining was also observed in Eogt EC KO, Notch1 HT, and Rbpj HT retinas (Figure 7A).

Why do the authors then choose Hela, HEK and CHO cells for functional studies, with the odd choice of GAPDH shRNA as control?

The revised manuscript explains our rationale. We began our studies with

HeLa, CHO and HEK-293T cells to determine if we could see effects of knocking down or knocking out Eogt in cell-based assays. We note that Benedito et al. (2009) also used HeLa cells to investigate Fringe effects in co-culture Notch signaling assays. Also, it was important to show that effects we saw were not confined to a single cell line. The combined experiments provide comprehensive data that reducing EOGT causes a reduction in Notch1 activation (HeLa), reduced Notch1 signaling (CHO) and reduced Notch1 binding to Delta ligands, but no change to Jagged1 binding (CHO and HEK-293T). We also isolated endothelial cells (EC) from Eogt[-/-] mouse brain and lung and showed that Notch pathway target gene transcripts are reduced in Eogt[-/-] versus Eogt[+/+] ECs (see new Figure 8).

The technical concerns of the reviewer have been addressed as follows:

The WB panels in Figure 5 are oddly assembled with mismatch between the grey line and the actual gel cuts. I am not suggesting this is attempted image manipulation, but it is either not careful enough or indeed indicative of multiple gels that are assembled together. This needs clarification.

The western blots in revised Figure 3 were performed on sections of PVDF membrane cut from a single membrane and probed with the relevant antibody. The panel probed for Notch1 was stripped and probed for O-GlcNAc. The single membrane was then reassembled for the figure. We now present the panels separately and explain more clearly how the western blots were probed.

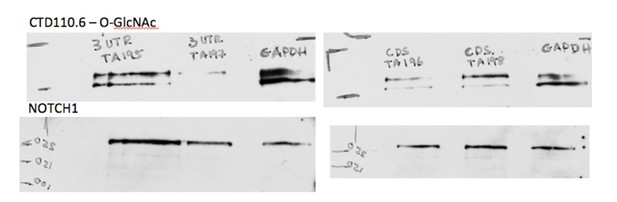

The evidence of Notch1 O-GlcNacylation in Figure 5 also seems over interpreted as co-migration is not evident.

Co-migration was evident from the markers on the original gels which are now included in the figure.

The authors also use 3 different GSI, but do not mention why and where in the text.

We used different GSIs for no particular reason other than they were on hand in our two laboratories. It is now made clear in the figure legends which GSI was used in each experiment. L-685,458 was used in some experiments but not those shown.

The binding assay with beads needs Notch null controls as the lack of O-GlcNacylation will not be Notch specific and other effects might interfere with the adherent of the beads.

We now included NOTCH1-null control data in Figure 1E. The fact that Notch1 transfection increases JAG1- and DLL4-bead binding provides good evidence that our assay indeed measures NOTCH1 recognized by DLL4 and JAG1. In contrast to Notch1-null cells, DLL4 binding but not JAG1 binding was markedly diminished in Notch1- transfected Eogt-null cells. Similarly, removal of O-GlcNAc sites in Notch1 decreased DLL4 binding. These data clearly show that the specific effect of O-GlcNAc on NOTCH1 which affects DLL4-NOTCH1 binding.

Overall, although I am generally positive about the topic and the ideas in the work, I feel this study needs a complete revision with careful analysis of EOGT biochemistry and effects in endothelial cells in vitro, and a much better illustration of the in vivo effects.

Now the manuscript is completely revised by performing additional analysis of the effect of EOGT on endothelial cells (Figure 8D), including the improved biochemical data for Notch1 O-GlcNAcylation by EOGT (Figure 3D), improved images (e.g. Figure 5C, 7C), additional data on retinas (e.g. Figure 7A, 7E, 7F), and better illustration of in vivoeffects in the Results and Discussion.

Also, whether this is Notch1 selective or generally affects Notch receptor affinities, importantly also in vascular smooth muscle, needs to be addressed. Furthermore, as also ligands have these EGF repeats, it would seem important to include analysis of potential effects here. As it stands, this work is not equally convincing as the published effects of other glycosylation enzymes in Notch biology and requires substantial additional work to achieve the required quality. Given the policy of eLife for revisions, I feel that the extent of work required to clarify and improve is beyond what would constitute a normal revision.

Eogt[-/-] retinas were analyzed for vascular smooth muscle cells and pericytes by staining with aSMA and NG2 antibodies in P15. The results revealed that the coverage with vascular smooth muscle and pericyte investment are unaffected (Figure 7E and 7F), which suggests that cellular basis for impaired vascular integrity is distinct from Notch3[-/-] retina (subsection “EOGT is required for retinal vascular integrity”, last paragraph) and thus Notch3 appears to function without Eogt in this context. As also suggested by the reviewer, we analyzed the requirement for EOGT in ligand function. EOGT-null cells were transfected to express Notch ligands and their ability to send signals was compared with wild-type cells. The results showed that EOGT is dispensable for the ability of DLL4 and JAG1 to send signals (Figure 8C and 8D).

[Editors’ note: the author responses to the re-review follow.]

[…] Having said that, we ask you to make the following minor revisions, which should not necessarily require further experiments:

1) In Figure 3, the western blots showing EOGT expression are poor. It is difficult to discern endogenous EOGT band, because it is obscured by a non-specific band. It is important to corroborate the (extent of) ablation of EOGT expression in the shRNA-expressing cell lines, but it is difficult to evaluate this in the present data.

As is often the case with glycosyltransferases, endogenous EOGT levels are too low to be readily detected by Western analysis in CHO and HeLa cell lysates. Similarly, it has been shown that levels of glycosyltransferase gene transcripts may not reflect protein levels or enzyme activity. Thus, we decided that the best test of EOGT knockdown was reduction in

O-GlcNAc (the product of EOGT activity), as detected by the anti-O-GlcNAc Ab CTD110.6. Western blots of each construct are shown in Author response image 1. All constructs showed reduced O-GlcNAc signal, consistent with the data from an independent experiment shown in Figure 3B for TA197 and TA198 shRNAs. The latter constructs were the most effective at reducing ligand-induced NOTCH1 activation as shown in Figure 3A, and so subsequent experiments were pursued with these two constructs. This explanation has been included in the revised text (subsection “Knockdown of EOGT reduces Notch signaling”, first paragraph).

Characterization of Eogt-siRNA CHO cells were published in Tashima and Stanley, JBC, (2014) as mentioned in the last paragraph of the aforementioned subsection.

2) In Figure 3E, the cells are indicated to stably express siRNAs. Should this be shRNAs? Please clarify/correct.

Figure 3E reports experiments with Lec1 CHO cells stably expressing siRNA against CHO Eogt as stated in the figure legend. The characterization of these siRNA knockdown cells was reported in Tashima and Stanley, JBC, 2014 as noted in the Methods.

3) We recommend to revise Figure 1A based on Rana et al. (JBC, 2011), which reported the identification of O-glucose glycans on 17 EGF repeats of the mouse Notch1.

Changes were made as suggested.

4) Subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”: "In contrast, Eogt-/- ECs showed a significant decrease in the induction of Notch target genes stimulated by DLL4, but not JAG1 (Figure 8B)." It might be more accurate to say that "DLL4 fails to induce Notch target genes Hey1 and Hes1 in Eogt-/- endothelial cells, but JAG1 results in a robust induction of these genes".

Changes were made as suggested (subsection “Eogt regulates Notch pathway target genes in ECs and ligand-induced Notch signaling”, last paragraph).

5) You cite a proteomic study (Alfaro et al., PNAS, 2012) that identified a cohort of membrane proteins modified by GlcNac. One of these proteins identified was Notch2. It would be useful to add a discussion on this to the manuscript: can EOGT-mediated modification of Notch2 explain the phenotypes observed in the current manuscript?

NOTCH1 and NOTCH4 have been implicated in angiogenesis and vasculogenesis, but not NOTCH2 to our knowledge. We have revised the sentences in Discussion as follows: “In fact, all Notch receptors are potentially modified with O-GlcNAc and NOTCH2 was reported to be O-GlcNAcylated in mouse cerebrocortical tissue (Alfaro et al., 2012). Although roles for Notch2 in vascular morphogenesis are not reported, Notch1 and Notch4 have partially overlapping roles (Krebs et al., 2000).” The potential contribution of O-GlcNAc in NOTCH4 regulation is also discussed (Discussion, third paragraph).

https://doi.org/10.7554/eLife.24419.028

Article and author information

Author details

  1. Shogo Sawaguchi

    1. Department of Molecular Biochemistry, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    SSa, Conceptualization, Resources, Data curation, Investigation, Methodology, Writing—original draft, Writing—review and editing, Performed and interpreted in vitro experiments, Collected data for Eogt-deficient, Notch1+/- and Rbpj+/- compound mice
    Contributed equally with
    Shweta Varshney and Mitsutaka Ogawa
    Competing interests
    The authors declare that no competing interests exist.
  2. Shweta Varshney

    1. Department of Cell Biology, Albert Einstein College of Medicine, New York, United States
    Contribution
    SV, Conceptualization, Resources, Data curation, Investigation, Methodology, Writing—original draft, Writing—review and editing, Performed and interpreted in vitro experiments, Collected data for Eogt-deficient, Notch1 12f and Notch1 lbd compound mice
    Contributed equally with
    Shogo Sawaguchi and Mitsutaka Ogawa
    Competing interests
    The authors declare that no competing interests exist.
  3. Mitsutaka Ogawa

    1. Department of Molecular Biochemistry, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    MO, Conceptualization, Resources, Data curation, Funding acquisition, Investigation, Methodology, Writing—original draft, Writing—review and editing, Collected data for Eogt-deficient, Notch1+/- and Rbpj+/- compound mice, Obtained funding
    Contributed equally with
    Shogo Sawaguchi and Shweta Varshney
    Competing interests
    The authors declare that no competing interests exist.
  4. Yuta Sakaidani

    1. Department of Molecular Biochemistry, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    YS, Resources, Investigation, Writing—review and editing, Generated and analyzed Eogt-deficient mice, Assisted with preparing the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  5. Hirokazu Yagi

    1. Graduate School of Pharmaceutical Sciences, Nagoya City University, Nagoya, Japan
    Contribution
    HY, Resources, Funding acquisition, Methodology, Writing—review and editing, Contributed unpublished materials and information, Assisted with preparing the manuscript, Obtained funding
    Competing interests
    The authors declare that no competing interests exist.
  6. Kyosuke Takeshita

    1. Department of Cardiology, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    KT, Resources, Funding acquisition, Methodology, Writing—review and editing, Contributed materials and interpretation of data, Assisted with preparing the manuscript, Obtained funding
    Competing interests
    The authors declare that no competing interests exist.
  7. Toyoaki Murohara

    1. Department of Cardiology, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    TM, Resources, Methodology, Writing—review and editing, Contributed materials and interpretation of data, Assisted with preparing the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  8. Koichi Kato

    1. Graduate School of Pharmaceutical Sciences, Nagoya City University, Nagoya, Japan
    2. Institute for Molecular Science and Okazaki Institute for Integrative Bioscience, National Institutes of Natural Sciences, Okazaki, Japan
    Contribution
    KK, Resources, Funding acquisition, Methodology, Writing—review and editing, Contributed unpublished materials and information, Assisted with preparing the manuscript, Obtained funding
    Competing interests
    The authors declare that no competing interests exist.
  9. Subha Sundaram

    1. Department of Cell Biology, Albert Einstein College of Medicine, New York, United States
    Contribution
    SSu, Resources, Methodology, Writing—review and editing, Performed and interpreted in vitro experiments, Assisted with preparing the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  10. Pamela Stanley

    1. Department of Cell Biology, Albert Einstein College of Medicine, New York, United States
    Contribution
    PS, Conceptualization, Data curation, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing, Supervised the project, Obtained funding
    For correspondence
    1. pamela.stanley@einstein.yu.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-5704-3747
  11. Tetsuya Okajima

    1. Department of Molecular Biochemistry, Nagoya University Graduate School of Medicine, Nagoya, Japan
    Contribution
    TO, Conceptualization, Data curation, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing, Supervised the project, Obtained funding
    For correspondence
    1. tokajima@med.nagoya-u.ac.jp
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-3677-648X

Funding

Japan Society for the Promotion of Science (JP15K15064)

  • Mitsutaka Ogawa
  • Tetsuya Okajima

Takeda Science Foundation

  • Tetsuya Okajima

Japan Foundation for Applied Enzymology

  • Tetsuya Okajima

National Institutes of Health (RO1 GM106417)

  • Pamela Stanley

Japan Society for the Promotion of Science (JP26110709)

  • Tetsuya Okajima

Japan Society for the Promotion of Science (JP26291020)

  • Kyosuke Takeshita
  • Tetsuya Okajima

Japan Society for the Promotion of Science (JP15K18502)

  • Mitsutaka Ogawa

Japan Society for the Promotion of Science (JP16J00004)

  • Mitsutaka Ogawa

Japan Society for the Promotion of Science (JP15K07935)

  • Hirokazu Yagi

Japan Society for the Promotion of Science (JP26110716)

  • Hirokazu Yagi

Japan Society for the Promotion of Science (JP25102008)

  • Koichi Kato

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank T Honjo for providing Rbpj mice, M Yanagisawa and RIKEN BioResource Center for providing Tek-Cre mice, K Uchimura for collaborative work, N Hattori for technical assistance, K Furukawa for supporting and supervising the project, M Nakakura and T Kawai for experiments in the initial phase of the project.

Ethics

Animal experimentation: All experimental procedures were performed in accordance with the Guidelines for Animal Experimentation in Nagoya University Graduate School of Medicine and Japanese Government Animal Protection and Management Law (Permit Number: 26397). Animal experiments at the Albert Einstein College of Medicine were performed with the approval of the Institutional Animal Care and Use Committee (Permit Number: 20140803).

Reviewing Editor

  1. Holger Gerhardt, Reviewing Editor, Max Delbrück Centre for Molecular Medicine, Germany

Publication history

  1. Received: December 22, 2016
  2. Accepted: March 10, 2017
  3. Version of Record published: April 11, 2017 (version 1)

Copyright

© 2017, Sawaguchi et al

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 861
    Page views
  • 178
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
