Essential role for SUN5 in anchoring sperm head to the tail

  1. Yongliang Shang
  2. Fuxi Zhu
  3. Lina Wang
  4. Ying-Chun Ouyang
  5. Ming-Zhe Dong
  6. Chao Liu
  7. Haichao Zhao
  8. Xiuhong Cui
  9. Dongyuan Ma
  10. Zhiguo Zhang
  11. Xiaoyu Yang
  12. Yueshuai Guo
  13. Feng Liu
  14. Li Yuan
  15. Fei Gao  Is a corresponding author
  16. Xuejiang Guo  Is a corresponding author
  17. Qing-Yuan Sun  Is a corresponding author
  18. Yunxia Cao  Is a corresponding author
  19. Wei Li  Is a corresponding author
  1. Institute of Zoology, Chinese Academy of Sciences, China
  2. University of Chinese Academy of Sciences, China
  3. The First Affiliated Hospital of Anhui Medical University, China
  4. Anhui Medical University, China
  5. Nanjing Medical University, China
Research Article
  • Cited 4
  • Views 1,212
  • Annotations
Cite as: eLife 2017;6:e28199 doi: 10.7554/eLife.28199

Abstract

SUN (Sad1 and UNC84 domain containing)-domain proteins are reported to reside on the nuclear membrane playing distinct roles in nuclear dynamics. SUN5 is a new member of the SUN family, with little knowledge regarding its function. Here, we generated Sun5−/− mice and found that male mice were infertile. Most Sun5-null spermatozoa displayed a globozoospermia-like phenotype but they were actually acephalic spermatozoa. Additional studies revealed that SUN5 was located in the neck of the spermatozoa, anchoring sperm head to the tail, and without functional SUN5 the sperm head to tail coupling apparatus was detached from nucleus during spermatid elongation. Finally, we found that healthy heterozygous offspring could be obtained via intracytoplasmic injection of Sun5-mutated sperm heads for both male mice and patients. Our studies reveal the essential role of SUN5 in anchoring sperm head to the tail and provide a promising way to treat this kind of acephalic spermatozoa-associated male infertility.

https://doi.org/10.7554/eLife.28199.001

Introduction

The SUN domain proteins were named for their shared homologous sequences with Sad1 and UNC-84 (Malone et al., 1999); the former is an essential component of the spindle body in fission yeast (Hagan and Yanagida, 1995), and the latter is a nuclear membrane protein that mediates nuclear migration and positioning in the nematode Caenorhabditis elegans (Malone et al., 1999). In mammals, at least five SUN domain proteins have been reported, and three of these genes in mice have been named Sun1, Sun2, and Sun3 (Malone et al., 1999; Crisp et al., 2006). Two other SUN domain proteins were originally named rat sperm-associated antigen 4 (SPAG4) (Tarnasky et al., 1998; Shao et al., 1999) and SPAG4-like (SPAG4L) (Jiang et al., 2011), by sequentially, and they are coded by Sun4 and Sun5.

The SUN domain proteins possess transmembrane domains in their N-terminus and a conserved SUN domain in their C-terminus (Mans et al., 2004). The transmembrane domain has been proven to integrate the SUN proteins into the inner membrane of the nuclear envelope, with their N-terminus facing the nucleoplasm (Hodzic et al., 2004). It is thought that the nucleoplasmic N-terminus of SUN proteins could interact with nuclear lamin proteins and fasten the linkage between the nuclear envelope and the nucleoplasm or chromatins (Crisp et al., 2006; Haque et al., 2006; Wang et al., 2006). The SUN domain in the C-terminus of SUN proteins has been reported to interact with various components in the outer nuclear membrane, mainly cytoskeleton-associated proteins (Apel et al., 2000) that contain a conserved KASH (Klarsicht, ANC-1 and Syne homology) domain (Starr and Han, 2002). In this way, the SUN family builds a bridge between the nucleoskeleton and the cytoskeleton, forming the so-called LINC complexes (linker of nucleoskeleton and cytoskeleton) (Crisp et al., 2006; Stewart-Hutchinson et al., 2008) and mediating nuclear dynamics during mitosis or meiosis (Stewart et al., 2007; Fridkin et al., 2004; Tapley and Starr, 2013; Kracklauer et al., 2013).

SUN1 and SUN2 are two well-studied SUN proteins that are broadly expressed in both mitotic and meiotic cells (Padmakumar et al., 2005). SUN1 is linked to F-actin filaments across the outer nuclear membrane-residing Nesprine1/2 to stabilize the nuclear anchorage and maintain nuclear envelope integrity (Yu et al., 2011). SUN1 is also linked to microtubules via KASH5 on the outer nuclear membrane, mediating telomere attachment to the nuclear envelope during meiosis (Morimoto et al., 2012; Ding et al., 2007; Penkner et al., 2009). Recent studies have found that SUN1 could mediate mammalian mRNA export (Li and Noegel, 2015). SUN2 shares similar interactors with SUN1 and performs related functions in nuclear envelope integrity and telomere attachment. In addition, it is thought that SUN1 and SUN2 play several redundant roles in this anchoring mechanism (Lei et al., 2009).

SUN3, SUN4 and SUN5, which are shorter than SUN1 and SUN2, are expressed restrictively in testes (Hiraoka and Dernburg, 2009). SUN3 has been reported to localize to the manchette in elongating spermatids, which is distinct from the classical nuclear membrane localization of the SUN family proteins, and its expression begins at postnatal D15. It is associated with Nesprine1, facilitating sperm head shaping during spermiogenesis (Göb et al., 2010). SUN4, which is also distributed in the manchette, can interact with SUN3, indicating the association of their localization and physiological functions. Male mice deficient in SUN4 are infertile due to globozoospermia, and SUN4 can bind to ODF1 (outer dense fiber protein 1), a sperm flagellum protein, suggesting that it might function in either nuclear remodeling (Calvi et al., 2015) or sperm integrity (Shao et al., 1999) during spermiogenesis.

The story of SUN5 is much more complicated. SUN5 was first found to be localized on the spermatid nuclear membrane facing the acrosome, and it was predicted to participate in acrosome biogenesis or to attach the acrosome to the nuclear envelope (Frohnert et al., 2011). However, a recent study in Dpy19l2 knockout mice found that neither the expression nor the localization of SUN5 was altered, suggesting that it might not be associated with the acrosome; instead, they found that SUN5 localizes to the sperm head-tail junction (Yassine et al., 2015). Whether SUN5 is involved in acrosome biogenesis, head-tail integration or nuclear dynamics similar to the functional role of SUN1/2 remains elusive, due to the lack of animal models.

To address the above question, we generated a Sun5 knockout mouse model via the CRISPR-Cas9 system to study its physiological functions during spermatogenesis. We found that Sun5−/− females were fertile, but the Sun5−/− male mice were sterile. Normal spermatozoa were not found in the epididymis of Sun5−/− male mice, as most of them were round-headed like spermatozoa; a few normal sperm heads could be found, but they were all separated from the sperm flagellum. Further studies uncovered that the so-called round-headed like spermatozoon from Sun5−/− male mice does not contain chromatin or acrosome; instead, it was filled with unremoved cytoplasm and misarranged mitochondria. Therefore, we proposed to name this phenotype of spermatozoa as pseudo-globozoospermia. Ultrastructural studies of spermatogenesis in Sun5−/− male mice revealed that the sperm head-tail coupling apparatus could be successfully assembled during the early stage of spermiogenesis, but without functional SUN5, the coupling apparatus together with the basal plate disassociated from the implantation fossa during the elongation of the spermatids. Most importantly, we found that healthy offspring could be obtained from Sun5−/− sterile male mice and patients by microinjection of the tailless sperm head into the oocyte. Our investigations not only settled the dispute about the physiological function of SUN5 but also provided a successful therapeutic strategy for SUN5-deficient patients. Our studies suggest that the sperm head needs to be carefully evaluated before ICSI for teratozoospermia patients to avoid this type of pseudo-globozoospermia.

Results

The generation of Sun5 knockout mice

To investigate the expression pattern of Sun5, we tested the mRNA level of Sun5 in various tissues from adult mice, finding that Sun5 was strictly expressed in testes (Figure 1—figure supplement 1A). Further examination of testes from different-aged mice found that SUN5 expression began in the 3-week-old mouse testes, suggesting that it might participate in certain processes of spermiogenesis (Figure 1—figure supplement 1B).

Because Sun5 is restricted to the testis, we applied the CRISPR-Cas9 system to achieve Sun5 knockout. One Cas9-targeting sequence was found in exon 10 of the Sun5 locus, which encodes the conserved SUN domain together with exon 11 and exon 12 (Figure 1—figure supplement 1C). One SacII site was found near the PAM (protospacer-adjacent motif) sequence, which is the only SacII site in approximately 500 bp both upstream and downstream of the Cas9-targeting sequence. For genotyping of the mutated mice, a 538 bp fragment harboring the PAM sequence and SacII site was amplified from the genome and then digested using the SacII enzyme. The WT genome was cut into two fragments, a 303 bp and a 235 bp fragment, while the mutated genome remained undigested.

This strategy yielded Sun5 mutated mice with relatively high efficiency (Figure 1—figure supplement 1D), five founders were identified among eight pups. After cloning and subsequent sequencing, the mutated sequences were identified: four of the five founders were biallelic mutants, while one was a heterozygous-mutated mouse (Figure 1—figure supplement 1E). All of the Sun5 mutated mice were viable and developed normally, but all of the male biallelic mutants failed to produce offspring, while the female biallelic mutants and heterozygous-mutated males were fertile (Figure 1—figure supplement 1F). To establish the Sun5 mutant strain, we chose the fertile heterozygous-mutated male mouse (Sun5+/−13bp) to keep the mutated allele and breed Sun5 knockout mice. Therefore, all of the Sun5−/− mice used in this study were Sun513bp /13bp mice.

Defects of spermiogenesis in Sun5−/− mice

We found that the SUN5 protein was completely depleted in the Sun5−/− strain but not in the WT and Sun5+/− males (Figure 1A), and there were no significant differences in the viability and testis weight among the three strains (Figure 1B and Figure 1—figure supplement 2A–B). Next, we performed a systematic fertility test and found that the Sun5−/− male mice were sterile, in contrast with the Sun5+/− and WT mice (Figure 1C–D). Histologically, the testicular component of Sun5−/− mice was similar to that of Sun5+/− and WT mice (Figure 1E), while the contents in the epididymis of Sun5−/− mice were different from that of Sun5+/− and WT mice. The Sun5+/− and WT mouse epididymides were filled with blue-stained sperm heads as well as red-stained flagella and droplets, but in the Sun5−/− mouse epididymis, blue-stained sperm heads could hardly be found. Instead, red round-headed spermatozoa were observed (Figure 1F), suggesting that Sun5 knockout might affect sperm head formation. Further analysis of the spermatozoa from the caudal epididymis did not reveal an obvious difference in the sperm concentration among the Sun5−/−, Sun5+/− and WT mice (Figure 1G), while the percentage of motile spermatozoa was significantly decreased in the Sun5−/− mice (Figure 1H), and most of the motile Sun5-null spermatozoa belonged to medium- or slow- moving groups according to the CASA (Computer-aided sperm analysis) (Figure 1—figure supplement 2C). Further examinations did not find healthy spermatozoa in the epididymis of Sun5−/− mice, most of them were round-headed and only a few normal sperm heads were observed, but they were all separated from the sperm flagella, which were rarely observed in Sun5+/− and WT mice (Figure 1I–J). The proportion of the round-headed spermatozoa and tailless heads were shown in Figure 1J. We then evaluated the three sterile founders and observed similar staining patterns in the testis and epididymis of these male mice (Figure 1—figure supplement 3A). Additionally, the spermatozoa in these mice were also round-headed (Figure 1—figure supplement 3B), indicating that the sterile phenotype of all Sun5-mutated male mice resulted from the same reason, thus ensuring that Sun513bp /13bp mice could be used in the following mechanistic studies. As round-headed spermatozoa or globozoospermia usually result from an acrosome biogenesis defect or a complete loss of acrosome, these results appear to support a physiological function for SUN5 in acrosome biogenesis.

Figure 1 with 3 supplements see all
Ablation of SUN5 leads to male infertility and sperm malformation.

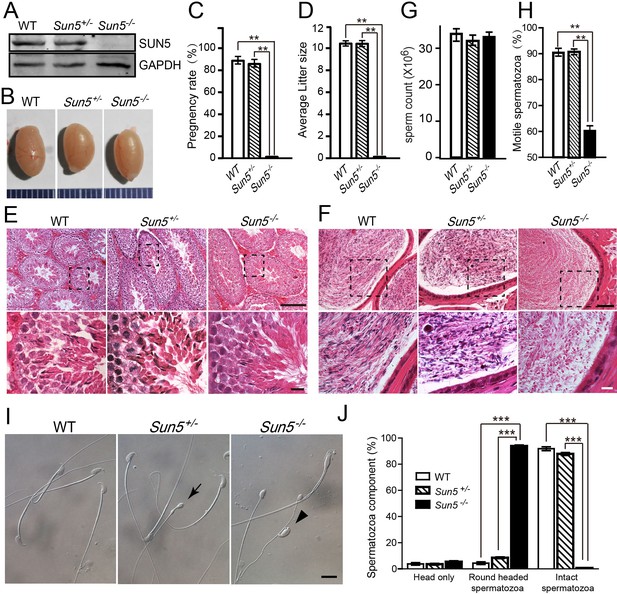

(A) Immunoblotting of SUN5 in WT, Sun5+/− and Sun5−/− testes. (B) The size of the testes was not altered in the Sun5+/−and Sun5−/− mice. (C) The pregnancy rate of WT (92.46 ± 3.39%), Sun5+/− (88.33 ± 3.73%) and Sun5−/− (0) male mice (n = 6). p(WT VS Sun5-/-)= 1.24 × 10−6, p(Sun5+/- VS Sun5-/-)= 1.37 × 10−7, p(WT VS Sun5+/-)= 0.29. (D) The average litter size of WT (10.65 ± 0.21), Sun5+/− (10.27 ± 0.38) and Sun5−/− (0) male mice (n = 6). p(WT VS Sun5-/-)= 9.85 × 10−27, p(Sun5+/- VS Sun5-/-)= 5.47 × 10−25, p(WT VS Sun5+/-)= 0.39. (E) HE (hematoxylin-eosin) staining of testes from WT, Sun5+/− and Sun5−/− mice, seminiferous tubules shown in the figures were at stage IV-VI. Scale bar: upper panel, 100 μm; lower panel, 10 μm. (F) HE staining of the caudal epididymis from WT, Sun5+/− and Sun5−/− mice. Scale bar: upper panel, 50 μm; lower panel, 10 μm. (G) The sperm concentration of WT (33.92 ± 1.71 × 106), Sun5+/− (31.29 ± 0.93 × 106) and Sun5−/− (33.03 ± 1.67 × 106) male mice (n = 5). p(WT VS Sun5−/−)= 0.65, p(Sun5+/−VS Sun5−/−)= 0.41, p(WT VS Sun5+/−)= 0.17 (H) The percentage of motile spermatozoa in WT (90.20 ± 0.63%), Sun5+/ -(90.40 ± 0.14%) and Sun5−/− (60.2 ± 1.98%) male mice (n = 5). p(WT VS Sun5-/-)= 0.0001, p(Sun5+/- VS Sun5-/-)= 0.0005, p(WT VS Sun5+/-)= 0.92. (n = 5) (I) Caudal epididymal spermatozoa of WT, Sun5+/− and Sun5−/− mice. The arrow indicates the round-headed spermatozoon in Sun5+/− mice, and the arrowhead indicates the tailless head spermatozoon in Sun5−/− mice. Scale bar: 10 μm. (J) The percentage of different spermatozoon components in WT, Sun5+/− and Sun5−/− caudal epididymides (n = 5). The first group of columns show the percentage of isolated sperm heads in WT (3.78 ± 0.90%), Sun5+/− (3.60 ± 0.62%) and Sun5−/− (5.44 ± 0.79%) mice, p(WT VS Sun5-/-)= 0.32, p(Sun5+/- VS Sun5-/-)= 0.07; The 2nd group of columns show the percentage of round headed spermatozoon in WT (4.38 ± 0.96%), Sun5+/− (8.56 ± 0.06%) and Sun5−/− (93.86 ± 0.79%) mice, p(WT VS Sun5-/-)= 5.82 × 10−7, p(Sun5+/- VS Sun5-/-)= 2.73 × 10−7; The 3rd group of columns show the percentage of intact spermatozoon in WT (92.44 ± 1.63%), Sun5+/− (87.84 ± 1.13%) and Sun5−/− (0.7 ± 0.28%) mice, p(WT VS Sun5-/-)= 1.01 × 10−6, p(Sun5+/- VS Sun5-/-)= 7.63 × 10−8. Data represent mean ±SEM.

https://doi.org/10.7554/eLife.28199.002

The ‘round-headed’ Sun5-null spermatozoa are actually headless sperm flagella

To confirm whether the round-headed spermatozoa found in Sun5−/− mice are typical globozoospermatozoa, we examined the development of the acrosome, the key organelle of the spermatozoa. Acrosome biogenesis can be divided into four developmental phases according to its biogenesis: Golgi phase, cap phase, acrosome phase and maturation phase (Wang et al., 2014). To our surprise, we did not find any defect in acrosome biogenesis in the testis of Sun5−/− mice, and all of the four typical developmental phases could be found in both WT and Sun5−/− mice (Figure 2—figure supplement 1A). These results suggest that the round-headed spermatozoa in Sun5−/− male mice are not resulted from abnormal acrosome biogenesis, and SUN5 might not participate in this process.

To further test whether Sun5 knockout has any impact on the acrosome, single-sperm immunofluorescence was performed using the acrosome-specific marker sp56, and DAPI was co-stained to indicate the nucleus. As mentioned above, the Sun5-null spermatozoa contain both round-headed spermatozoa and tailless heads (their proportions were displayed in Figure 1J). To our surprise, the round-headed Sun5-null spermatozoa were negative for both sp56 and DAPI staining, indicating the absence of not only the acrosome but also the nucleus. After careful examination, we found some separated but morphologically normal sperm heads, most of them had an intact acrosome and a nucleus, and only a small amount of them had defective acrosomes (Figure 2A, Figure 2—figure supplement 1B). We then measured the width and length of WT and Sun5-null sperm heads (Fisher et al., 2016), finding that the Sun5-null sperm heads were wider and shorter than those of the WT ones (Figure 2—figure supplement 1C–E). This promoted us to investigate what exactly happened inside the so-called round-headed Sun5-null spermatozoa, so we performed transmission electron microscopy (TEM) analysis of the epididymis from both WT and Sun5−/− mice. As shown in Figure 2B, the WT sperm head was well shaped and filled with chromatin, and the sperm head and tail were tightly connected to each other, but this was never observed in the Sun5-null sperm head. The so-called round-headed Sun5-null sperm actually contained a residual droplet of cytoplasm at the top of the flagellum with misarranged mitochondria inside. In addition, the axoneme of Sun5-null sperm was also impaired (Figure 2B). Therefore, the Sun5-null spermatozoa are actually acephalic spermatozoa or sperm tails only. So we analyzed the ratio of sperm with head versus tails only in the caput, corpus and cauda epididymis, finding that the ratios were all very low in all three parts of Sun5−/− epididymis (Figure 2—figure supplement 1F). All these results suggest that the sperm heads have been detached from their tails before they enter into the epididymis, and the acephalic tails in Sun5 mutated mice might be the main reason for their infertility.

Figure 2 with 2 supplements see all
The absence of SUN5 has no effect on acrosome biogenesis but disrupts the development of the coupling apparatus between sperm head and tail.

(A) IF (immunofluorescence) staining of sp56 in WT and Sun5-null spermatozoon. The Sun5-null spermatozoa contains both round-headed spermatozoa and tailless heads (lower two panels). The proportion of these two types of spermatozoa were displayed in Figure 1J. Note that the round-headed Sun5-null spermatozoa do not contain nuclei and acrosomes, but the tailless Sun5-null sperm heads have nuclei and acrosomes. Scale bar: 5 μm. (B) Ultrastructure of WT and Sun5−/−caudal epididymides showing that the Sun5-null spermatozoon was filled with cytoplasm and misarranged mitochondria. Note that the axoneme of Sun5-null spermatozoon was also disrupted. Scale bar: left panel, 1 μm; right panel, 200 nm. (C) TEM analyses of the stepwise development of the coupling apparatus in WT and Sun5-null spermatozoa. In the round spermatid stage, the coupling apparatus can be assembled in both WT and Sun5-null spermatid, but the coupling apparatus could not be tightly attached to the nuclear envelope in Sun5-null spermatids. The asterisk indicates the gap between the nuclear (Nu) envelope and the basal plate (Bp). In the following developmental stages, the coupling apparatus was well-fixed on the nuclear envelope in WT spermatids, ensuring healthy spermatid differentiation. While in Sun5-null spermatids, the basal plate (Bp)-capitulum (Cp)-segmented column (Sc) together with the centriole (Pc) was detached from the nuclear envelope during spermatid elongation. An, annulus. Scale bar: the 1st and 3rd panel, 2 μm, 2nd and 4th panel, 0.5 μm.

https://doi.org/10.7554/eLife.28199.007

SUN5 is responsible for the attachment of the coupling apparatus to the sperm nuclear envelope

To determine when the sperm head and tail break apart and why they are separated in Sun5−/− mice, we examined spermiogenesis stage by stage using Periodic Acid-Schiff (PAS) staining. According to the component of the spermatids the seminiferous tubules could be divided into 12 stages (I-XII) (Hess and Renato de Franca, 2008). No obvious defects were found at any stage of spermiogenesis, and all of the components in the WT testes could be found in the Sun5−/− testes (Figure 2—figure supplement 2A). However, with careful examination of stage VII-VIII tubules, we observed a difference between WT and Sun5−/− testes. In the WT testis, the well-shaped spermatozoa had migrated to the edge of the seminiferous epithelium with their head and acrosomic system oriented toward the basement membrane (Figure 2—figure supplement 2B, Top). In Sun5−/− testes, it was quite different; although the shape of sperm head was normal, they were not oriented toward the basement membrane, as most of their heads were oriented toward the lumen of the seminiferous tubules (Figure 2—figure supplement 2B, Bottom); peanut agglutinin (PNA, staining acrosome specifically) staining of testis sections also confirmed the mis-orientation of sperm heads (Figure 2—figure supplement 2C). Stage VII-VIII is the so-called spermiation phase when mature spermatozoa are ready to be released. This indicates that the Sun5-null sperm head and tail might break apart during spermiation so that the separated sperm head cannot align itself in the right orientation.

These observations allowed us to determine what occurred before the sperm release in Sun5−/− testes. For the differentiation of haploid spermatids could be divided into 16 steps, and each step could be recognized via TEM (Shang et al., 2016). We then investigated the differentiation of spermatids and the assembly of the head-tail coupling apparatus step by step via TEM. In round spermatids, the head-tail coupling apparatus in both WT and Sun5−/− testes was fully developed and consisted of a well-assembled segmented column that united the centrioles at the anterior and formed the capitulum. In WT spermatid, the well-assembled segmented column together with the capitulum and basal plate was tightly attached to the nuclear envelope in the implantation fossa (Figure 2C, Top), whereas in the Sun5-null spermatid, although the segmented column with the capitulum and basal plate was accurately assembled, it was only partially connected with the nuclear envelope; a large part of the coupling apparatus was missing. With the elongation of the spermatid, the WT spermatid coupling apparatus together with the flagellum was always tightly attached to the nuclear envelope until the final step of spermatid differentiation, producing structurally normal spermatozoon. In Sun5−/− testes, the elongation of the spermatid destroyed the unstable interaction between the nuclear envelope and the coupling apparatus, resulting in the separation of the basal plate-capitulum-segmented column complex from the nuclear envelope. Therefore, in the Sun5−/− testes, the decapitated flagella are released while the sperm heads remain in the seminiferous epithelium. These results indicate that SUN5 is responsible for the tight attachment of the coupling apparatus to the sperm nuclear envelope.

SUN5 is localized at the sperm head-tail coupling apparatus

All of the observations above led us to rethink the exact function of SUN5 during spermiogenesis. In the mouse testis, we found that in mature spermatozoon, SUN5 was predominantly located in the coupling apparatus between the sperm head and tail, thus supporting its function in sperm head and tail integrity (Figure 3A). Using a testis smear, we found that during spermiogenesis, SUN5 was first expressed in the nuclear envelope and later migrated to the coupling apparatus of the sperm during sperm head elongation and differentiation (Figure 3B). In mature spermatozoa, SUN5 was localized to the coupling apparatus of the sperm head and tail in the implantation fossa (Figure 3C). These results suggest that the function of SUN5 is to connect the sperm head to the tail, thus integrating them into a spermatozoon. Additionally, the results suggest that SUN5 is not associated with acrosome biogenesis or nuclear remodeling.

SUN5 localizes to the coupling apparatus between the sperm head and tail in mammals.

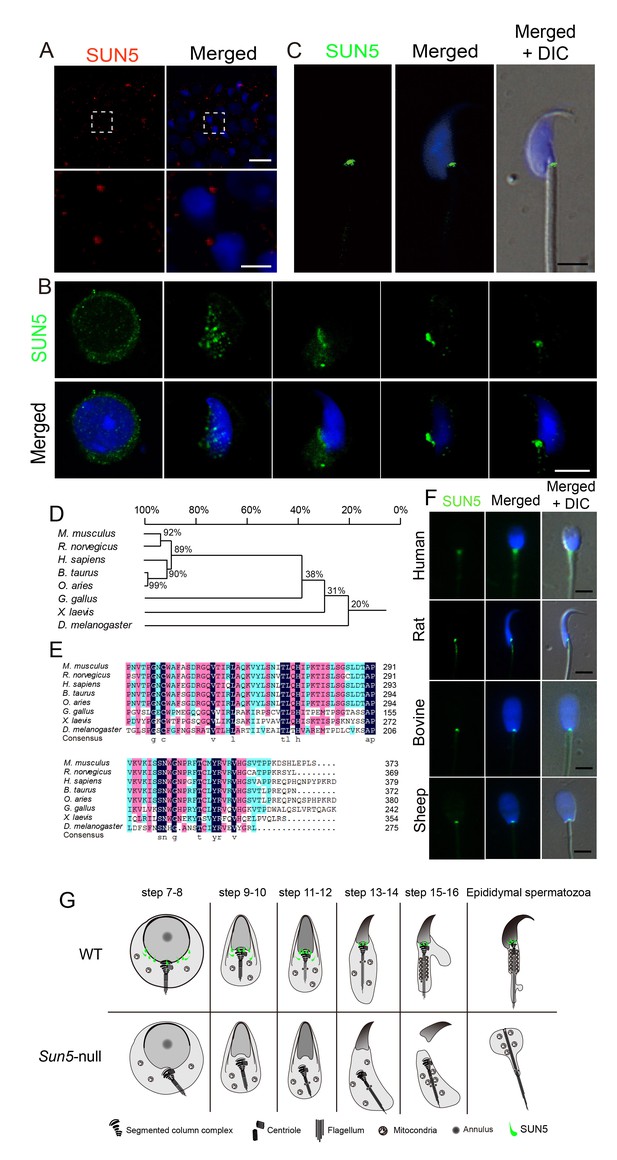

(A) IF of SUN5 in testes. Scale bar: upper panel, 10 μm; lower panel, 2.5 μm. (B) IF of SUN5 in spermatids at different developmental stages. Scale bar: 5 μm. (C) Single-sperm immunofluorescence of SUN5. Scale bar: 5 μm. (D) Phylogenetic tree of the SUN5 homolog proteins from different species. (E) Sequence alignment of the conserved SUN domain of SUN5 in different species. The dark blue labeled sequences showed 100% identity among species, pink labeled ones showed lower identity than the dark blue ones, then the green labeled ones showed lower identity than the pink ones. (F) SUN5 localizes to the sperm head-tail coupling apparatus in all tested mammals. Scale bar: 5 μm. (G) Schematic representation of the role of SUN5 in the development of the coupling apparatus in WT and Sun5-null spermatids based on TEM analyses and immuno-staining.

https://doi.org/10.7554/eLife.28199.010

Protein sequence alignment has found that SUN5 is evolutionarily conserved in mammals, and the phylogenic tree shows that SUN5 has sequence identity over 90% in most mammals such as mouse, rat, human, bovine and sheep (Figure 3D–E). We then collected spermatozoa from various mammals including rat, human, bovine and sheep and performed single-sperm immunofluorescence analysis using anti-SUN5 antibody. As expected, the SUN5 antibody could recognize all of the homologues of the SUN5 protein, and all of the proteins localized to the neck of the mammalian spermatozoa (Figure 3F). These results suggest that the function of SUN5 protein might be evolutionarily conserved in mammals. We summarized the stepwise development of WT and Sun5-null spermatids and indicated the potential function of SUN5 during spermiogenesis in Figure 3G.

Overcoming SUN5 defect by ICSI

Consistent with our analysis, our recent survey of some acephalic spermatozoa patients found a series of biallelic mutations in the SUN5 gene that affected 47.06% of the investigated patients (Zhu et al., 2016). And the majority of the SUN5-mutated spermatozoa were actually sperm tails with low motility (Figure 2—figure supplement 1F, Figure 4—source data 1), so an effective method to produce a healthy baby for these infertile patients and their families is urgently needed. Since the Sun5−/− mice are quite similar to the SUN5-mutated patients in terms of the phenotype of their spermatozoa, this mouse model provides a good platform upon which to find the proper therapeutic strategy for those patients. Given that Sun5-null spermatozoa are actually pseudo-globozoospermia that do not contain chromatin in the round head, the regular ICSI protocol cannot be applied to these mice or patients. The traditional ICSI method favors the selection of relatively intact spermatozoa, then, after sonication, the tailless heads are injected into the oocyte, which is not applicable to the Sun5 mutants.

To achieve a successful pregnancy, we selected the tailless heads of Sun5-null spermatozoa rather than the pseudo-globozoospermatozoa and injected them into WT oocytes; this strategy resulted in healthy offspring from Sun5−/− mice (Figure 4A–B). As expected, the genotypes of the offspring mice were Sun5+/− (Figure 4B). Similar results were achieved for WT mice (Figure 4C–D). The offspring of the Sun5−/− mice and WT mice showed no significant differences in body mass and testis weight (Figure 4—figure supplement 1A–B). This strategy might also be suitable for patients with SUN5 mutation-associated acephalic spermatozoa syndrome, and therefore, we selected the sperm heads rather than those with motile flagella and performed ICSI for two patients with SUN5 mutations (Figure 4E and G) (Porcu et al., 2003; Emery et al., 2004; Gambera et al., 2010; Saïas-Magnan et al., 1999). Two women became pregnant, and two healthy babies were born (Figure 4E and G), the babies were confirmed to be heterozygous for the SUN5 mutation (Figure 4F and H). These results suggest that Sun5 mutation-associated infertility could be successfully resolved by ICSI.

Figure 4 with 1 supplement see all
Infertility caused by SUN5 mutations could be overcome by ICSI.

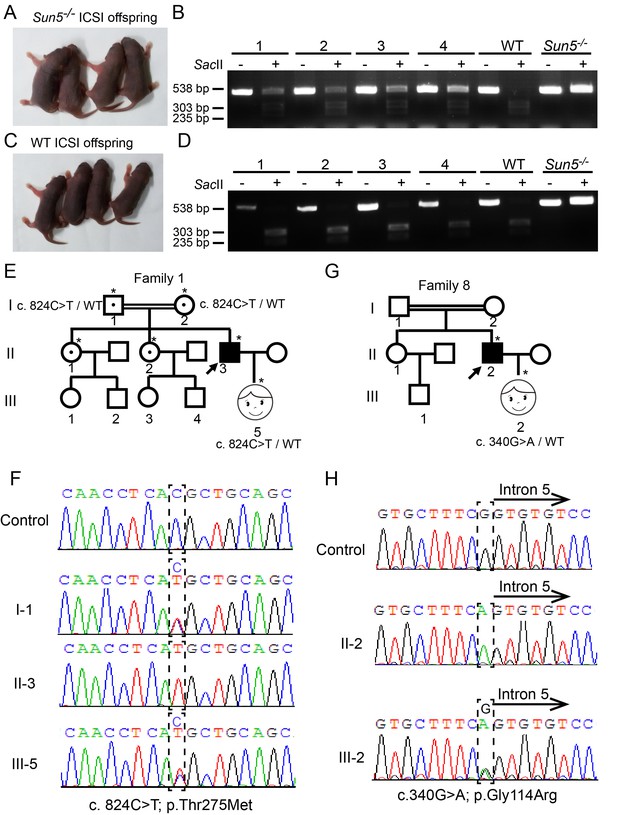

(A) Representative images and (B) genotypes of the Sun5-null ICSI offspring. (C) Representative images and (D) genotypes of the WT ICSI offspring. (E) Pedigree of family 1 with inherited SUN5 mutations, and the healthy baby of the infertility patient after ICSI. The individuals with a single star were Sanger sequenced. (F) Sequences of the SUN5 mutation sites of the representative individuals from each generation of family 1. (G) Pedigree of family 8 with inherited SUN5 mutations, and the health baby of the infertility patient after ICSI. The individuals with a single star were Sanger sequenced. (H) Sequences of the SUN5 mutation sites of the representative individuals from each generation of family 8.

https://doi.org/10.7554/eLife.28199.011

Discussion

In humans, the acephalic spermatozoa syndrome has been reported for decades, and it is characterized by semen that mostly contains sperm flagella without heads; a subtype of this syndrome has been reported in some infertile man with predominantly decapitated or acephalic spermatozoa (Perotti and Gioria, 1981; Perotti et al., 1981; Baccetti et al., 1984; Chemes et al., 1987; Chemes and Alvarez Sedo, 2012). They are sometimes wrongly denominated globozoospermatozoa; they are actually isolated, headless tails with globular drops of residual cytoplasm, and the etiology of this syndrome subtype is far from complete. Our results showed that the ablation of SUN5 leads to globozoospermatozoa-like acephalic spermatozoa in the mouse model. Together with our previous report and other’s paper about SUN5-associated mutations in acephalic spermatozoa syndrome patients (Zhu et al., 2016; Elkhatib et al., 2017), our studies demonstrate that defects in SUN5 may be the major cause of the acephalic spermatozoa syndrome.

Several acephalic spermatozoa-related genes, such as Odf1 (Yang et al., 2012), Hook1(named by the hook like phenotype) (Mendoza-Lujambio et al., 2002), and Oaz3 (ornithine decarboxylase antizyme 3) (Tokuhiro et al., 2009), have been reported in animal models. However, spermatozoa from the abovementioned gene knockout models are mostly fragile, and none of them uniformly yield 100% acephalic spermatozoa, suggesting that the head-tail coupling apparatus in these spermatozoa is still able to be formed, although it is unstable. Spata6 (spermatogenesis associated 6) knockout mice were the first mouse model to produce nearly 100% acephalic spermatozoa (Yuan et al., 2015). Spata6 is exclusively expressed in testes and is localized to the coupling apparatus. In the absence of SPATA6, the head-tail coupling apparatus is poorly assembled, and all of the sperm heads and tails are separated during the late stage of spermiogenesis. SUN5 is distinct from all of the above genes, as SUN5 may be localized in the inner membrane of the sperm nuclear envelope, and while the head-tail coupling apparatus can be well-assembled without SUN5, it cannot attach to the nuclear envelope. Therefore, SUN5 might be the inner-most element for flagellum anchoring; in other words, SUN5 is the root of the whole flagellum.

Sperm heads are rarely found in the Sun5−/− epididymis because most heads are retained in the seminiferous epithelium when they are separated from the flagellum during spermiation. In addition, due to the loss of efficient anchoring in the last step of spermiogenesis, the last portion of the sperm cytoplasm is not able to be timely removed, which is why all Sun5-null spermatozoa carry a portion of cytoplasm at the top of the flagellum. Without normal anchoring and stable orientation, we found that the mitochondrial sheath fails to be properly arranged, and therefore, the axoneme assembly is also affected. A typical cytoplasmic droplet (CD) can be found in the normal ejaculated spermatozoa, while when cytoplasm around the sperm midpiece is present in large amounts, it may impair the sperm function (Rengan et al., 2012). From the TEM analysis we can see that the retained cytoplasm droplet in Sun5-null spermatozoa is large and contains materials other than mitochondria, which may further impair sperm motility, so the retained cytoplasm droplet may not only be a result of failed spermiogenesis, but also be a second reason for infertility. All the Sun5 mutated mouse and human spermatozoa are less motile than WT ones, structurally we think it is caused by the mis-arranged mitochondria inside the mutated spermatozoa, and as mentioned above, the large amount of cytoplasm might also be an obstacle for sperm motility.

Most of the spermatozoa in our recently reported infertile patients with SUN5 mutations are ‘pin headed,’ and thus, they are different from the mice model. This difference might come from a partial loss of SUN5 function in those patients. There are two nonsense, one frameshift, two splice-site and five missense mutations in the infertile patients, most of which are homologous mutations or compound heterozygous mutations. The effect of these mutations might be slightly weaker than the frame-shift 13 bp deletion in the mice. The phenotype of the affected individuals was acephalic spermatozoa with a variable but low proportion of abnormal head-tail junctions and tailless heads. Some of the sperm heads in SUN5-mutated human sperm samples are linked to the tail but exhibit abnormal structures; these sperm heads do not have implantation fossa and have lost the linear alignment of the sperm axis. Therefore, depletion of Sun5 leads to the loss of the key element in the sperm head-tail junction, the implantation fossa and basal plate, which is consistent with the phenotype observed in our mouse model.

Due to the conserved SUN domain, SUN5 was expected to function in meiosis, as is the case with SUN1 and SUN2, and its unclear localization in previous reports led to increased confusion regarding the role of SUN5. SUN1 and SUN2 proteins are relatively larger than the SUN3-SUN5 proteins (Razafsky and Hodzic, 2009), and the former play roles in both mitosis and meiosis (Ding et al., 2007; Crisp et al., 2006; Padmakumar et al., 2005) while the latter are restricted to haploid cells (Göb et al., 2010; Calvi et al., 2015; Frohnert et al., 2011). SUN1 and SUN2 directly mediate the movement of chromosomes and the migration of the whole nuclei, while SUN3-SUN5 mainly function in nuclear modeling and integrity. It has been hypothesized that the relatively larger SUN1 and SUN2 might be replaced by the smaller SUN3-SUN5 after meiosis, because with the condensation of the sperm nucleus, the space between the outer and inner layers of the nuclear envelope must be decreased, and therefore, it might not be suitable for the larger SUN1 and SUN2 proteins but is suitable for SUN3-SUN5 (Sosa et al., 2013). Our investigations shed light on the bona fide function of SUN5 during spermatogenesis. We found that knockout of Sun5 has no effects on mouse meiosis, acrosome biogenesis or sperm nuclear remodeling, but it specifically destroyed the integrity of the spermatozoa, ultimately resulting in acephalic spermatozoa.

Our current investigation, together with the evaluation of SUN5-mutated patients, revealed that SUN5-deficient acephalic spermatozoa syndrome is an autosomal-recessive syndrome, and this type of patient could achieve healthy offspring by ICSI. For the treatment of this type of acephalic spermatozoa syndrome, our studies raised at least two very important issues. First, some Sun5-null spermatozoa look very similar to globozoospermatozoa, but there is no chromatin in the top of the flagellum. Since this type of sperms with headless flagella are still motile, they are easily regarded as globozoospermatozoa. To attract more attention, we propose to call this type of spermatozoa pseudo-globozoospermatozoa. In addition, globozoospermia-like sperms need to be carefully checked to see whether there are nuclei, as only those with real heads are able to fertilize oocytes. Second, once a male patient has been diagnosed as having SUN5 mutations, SUN5 mutation testing will need to be performed on a genomic sample from his wife before undergoing ICSI to avoid recessive homozygous mutations in their offspring. Our results, together with the previous report about SUN5 mutations, reveal that SUN5 is essential for the integration of the sperm head to the tail, confirming that SUN5 is one of the main causes of the acephalic spermatozoa syndrome, and most importantly, we successfully found a therapeutic strategy with which to overcome infertility in the affected individuals.

Materials and methods

Patients and clinical samples

Consent authorisation for publication has been obtained from the two couples involved in the research. All the research on human subjects have got ethical approval given by Biomedical Research Ethics Committee of Anhui Medical University (Reference number: 20140183). The patients (Family 1:II3 and Family 8:II2) were referred to us for semen analysis after 6 and 10 years of sexual intercourse without conception, respectively. Analyses of more than three semen samples, obtained by masturbation after 3 days of sexual abstinence, showed severe teratozoozpermia. Papanicolaou staining and transmission electron micrographs revealed acephalic spermatozoa (or decapitated tails) with a variable but low proportion of intact spermatozoa with an abnormal head-tail junction. Normal-shaped acrosomes were found on the sperm heads. A DNA fragmentation assay using the flow cytometric sperm chromatin structure assay (SCSA) revealed normally condensed chromatin (Larson et al., 2000).

Patient 1 (Family 1:II3)

The patient and his wife were 28 and 27 years old, respectively. They had been unable to conceive over a period of 6 years. Both had a normal phenotype, no history of significant illness and a normal karyotype. The wife had regular menses, normal hysterosalpingography and a normal hormonal assessment. The man is from a family of three children, and his father and mother are first cousins. Both of his sisters have two children without fertility problems.

Patient 2 (Family 8:II2)

The patient and his wife were 34 and 35 years old, respectively. They had been unable to conceive over a period of 10 years. Both had a normal phenotype, no history of significant illness and a normal karyotype. The spouse had regular menses, normal hysterosalpingography and a normal hormonal assessment. The man is from a family of two children, and his father and mother are first cousins. His sister has one child without fertility problems.

The generation of Sun5 knockout mice

Production of Cas9 mRNA and sgRNA was as performed as previously described (Shen et al., 2013; Chang et al., 2013). The T7 promoter and the guiding sequence were added to the sgRNA by PCR amplification using the following primers: SUN5 For: 5’TAATACGACTCACTATAGGTCACCTGGCCGCGGTCACGTTTTAGAGCTAGAAATAGC3’ and Tracr rev: 5’AAAAAAAGCACCGACTCGGTGCCAC3’. B6D2F1 (C57BL/6 X DBA2, RRID:IMSR_JAX:100006) female mice and ICR mice were used as embryo donors and foster mothers, respectively. Superovulated female B6D2F1 mice (6–8 weeks old) were mated with B6D2F1 stud males, and the fertilized embryos were collected from the oviducts. Cas9 mRNA (100 ng/μl) and sgRNA (20 ng/μl) were injected into the cytoplasm of fertilized eggs with well-recognized pronuclei in M2 medium (Sigma, M7167-50ml, Santa Clara, CA). The injected zygotes were cultured in KSOM (modified simplex-optimized medium, Millipore) with amino acids at 37°C under 5% CO2 in air, and then, 15–25 blastocysts were transferred into the uterus of pseudopregnant ICR females. To genotype the newborns, a 538 bp fragment harboring the PAM sequence and a SacII site was amplified from the genome and digested by the SacII enzyme. The WT genome digests into two fragments (303 bp and 235 bp) while the mutated genome remains undigested, as illustrated in Supplemental Figure 1. The genotyping primers were as follows: forward: 5’CAAGTCTAGGACTCGGGGTGACAGTG3’ and reverse: 5’CCTAACTAGGTCACATCACCCCAGC3’. All of the animal experiments were performed according to approved institutional animal care and use committee (IACUC) protocols (#08–133) of the Institute of Zoology, Chinese Academy of Sciences.

Antibodies

The rabbit anti-SUN5 polyclonal antibody (17495–1-AP, RRID:AB_1939754) was purchased from Proteintech (Rosemont, IL). The mouse anti-GAPDH antibody (ab1019t)was purchased from Boaoruijing (Beijing, China).The mouse anti-sp56 antibody (55101, RRID:AB_130101) was purchased from QED Bioscience (San Diego, CA). The Afaf antibody was as acquired as previously described (Wang et al., 2014).

Fertility

Fertility was tested in the male mice of the different genotypes (8–12 weeks, n = 6). Each male mouse was caged with two wild-type CD1 females (4–6 weeks), and vaginal plug was checked every morning. Once a vaginal plug was identified (day 1 postcoitus), the male was allowed to rest for 2 days, after which another female was placed in the cage for another round of mating. The plugged female was separated and single caged, and the pregnancy results were recorded. If a female did not generate any pups by day 22 postcoitus, it was deemed as not pregnant and euthanized to confirm that result. The fertility test lasted for 3 weeks.

Epididymal sperm count and sperm motility assays

The caudal epididymis was dissected from adult mice. Sperms were squeezed out from the caudal epididymis and incubated for 30 min at 37°C in 5% CO2. The incubated sperm medium was then diluted 1:500 and transferred to a hemocytometer for counting. The sperm motility assay was performed as previously described (Shang et al., 2016); unfixed sperms were spread onto precoated slides for morphological observation.

Semen sample analysis of human subjects were performed as described (Tang et al., 2017), Semen volume and sperm concentration and motility were evaluated according to the World Health Organization (WHO) guidelines. The percentages of morphologically normal and abnormal spermatozoa were evaluated according to the WHO guidelines.

Transmission electron microscopy.

The transmission electron microscopy samples were prepared as previously described (Shang et al., 2016). Ultrathin sections were cut on an ultramicrotome, stained with uranyl acetate and lead citrate, and observed using a JEM-1400 transmission electron microscope (JEOL, Tokyo, Japan).

Immunofluorescence (IF) and immunohistochemistry (IHC)

The immunofluorescence and immunohistochemical assays were performed as previously described (Liu et al., 2016). The IF images were taken immediately using an LSM 780/710 microscope (Zeiss, Oberkochen, Germany) or SP8 microscope (Leica, Wetzlar, Germany). The IHC images were acquired using a Nikon 80i inverted microscope equipped with a CCD camera (Nikon, Tokyo, Japan).

Immunoblotting

Immunoblotting was performed as previously described (Shang et al., 2016). The protein lysates (25 mg) were separated by SDS-PAGE and electrotransferred onto a nitrocellulose membrane. The membrane was blocked in 5% skim milk (BD, 232100) and then incubated with corresponding primary antibodies and detected by Alexa Fluor 680 or 800-conjugated goat anti-mouse or Alexa Fluor 680 or 800-conjugated goat anti-rabbit secondary antibodies. Finally, they were scanned using the ODYSSEY Sa Infrared Imaging System (LI-COR Biosciences, Lincoln, NE, RRID:SCR_014579).

Testis smear

The indicated mice (8-week-old) were euthanized by cervical dislocation. The testes were surgically removed and the tunica albuginea was removed from the testes. Then, the testes were digested with 1 mg/ml collagenase and 1 mg/ml hyaluronidase. Cells were dissociated by gentle pipetting, filtered through a 70 μm filter and then pelleted by centrifugation at 500 x g for 10 min. Cells were suspended in 1 ml of phosphate-buffered saline (PBS; Gibco, C14190500BT) and fixed with 4% paraformaldehyde (PFA) solution, washed with PBS and, finally, spread onto polylysine-coated slides for staining.

Periodic acid-schiff (PAS) staining

PAS staining was performed as previously described (Lu et al., 2010). Briefly, testes were fixed by perfusing mice with Bouin’s fixatives (Polysciences, Warrington, PA). Paraffin sections (5 μm) were cut and then stained with periodic acid-Schiff (PAS) and hematoxylin. Stages of seminiferous epithelium cycle and spermatid development were determined as previously described (Hess and Renato de Franca, 2008).

ICSI

Eight- to twelve-week-old CD1 and B6D2F1 mice (C57BL/6 × DBA/2) were used to prepare mature oocyte donors. Spermatozoa were released from the caudal epididymis using HTF (human tubal fluid) medium. WT spermatozoa were decapitated by mild sonication. WT and SUN5-null sperm heads were collected by centrifugation in 70% Percoll (Sigma, P4937, Santa Clara, CA) followed by three washes in M2 medium. Single sperm heads were picked up from the sperm suspension and injected into WT oocytes using a micromanipulator with a Piezoelectric actuating pipette at RT. Injected oocytes were transferred to the KSOM medium under mineral oil and cultured at 37°C in a humidified atmosphere with 5% CO2. The injected oocytes were analyzed 5–8 hr after ICSI and transferred into the oviducts of pseudo-pregnant CD1 females that had been mated during the previous night with vasectomized males. Full-term pups derived from ICSI embryos were obtained through natural labor.

ICSI for SUN5 mutation-associated infertile patients

Written informed consent was provided by the couples who decided to undergo intracytoplasmic sperm injection (ICSI) at our reproductive medicine center. After pituitary desensitization with Triptorelin (Decapepthl 0.05 mg/d, 14d, Ferring Pharmaceuticals, Switzerland), the patients’ wives were stimulated using follicle stimulating hormone (FSH) (Puregon, N.V. Organon, The Netherlands). Estradiol plasma levels and follicle growth were monitored every two days, and human chorionic gonadotrophin (HCG, Livzon Pharmaceutical, China) was administered when three or more follicles reached 18 mm in diameter. Oocyte retrieval was performed 36 hr after HCG injection. Sperms were prepared by discontinuous density gradient centrifugation, and the resulting suspension was diluted in 10 μl drops of polyvinyl pyrolidine (PVP) covered with oil.

For patient I, 18 oocytes were retrieved, and there were 17 mature oocytes (MII). After ICSI, we obtained four day 6 blastocysts (4BB, 4BB, 4BB, and 3BB) according to the scoring system of Gardner and Schoolcraft (Gardner and Schoolcraft, 1999), and all embryos were frozen. After 5 months, two of the embryos were thawed and transferred in one artificial cycle, using estradiol valerate. Clinical pregnancy was confirmed by the ultrasonographic evidence of a gestational sac with a fetal heartbeat at the seventh week, which led to the birth of a healthy boy, whose birth weight at full-term was 3200 g.

For patient II, eight oocytes were retrieved 36 hr after HCG injection, and all oocytes were at the MII stage. After ICSI, we obtained two day 6 blastocysts (4AB and 3BB) according to the scoring system of Gardner and Schoolcraft (Gardner and Schoolcraft, 1999), one embryo (4AB) was fresh transferred, and the other was cryopreserved. An ongoing pregnancy occurred, leading to the birth of a healthy boy, whose birth weight at full-term was 3400 g.

Statistical analysis

Statistical analyses were conducted using GraphPad PRISM version 5.01 (GraphPad Software, Inc. RRID:SCR_002798). All data were presented as the means ± SEM. The statistical significance of the differences between the mean values for the different genotypes was measured by Student’s t-test with a paired, 2-tailed distribution. The data were considered significant when the P value was less than 0.05 (*), 0.01 (**) or 0.001(***).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    Lack of a head in human spermatozoa from sterile patients: a syndrome associated with impaired fertilization
    1. HE Chemes
    2. C Carizza
    3. F Scarinci
    4. S Brugo
    5. N Neuspiller
    6. L Schwarsztein
    (1987)
    Fertility and Sterility 47:310–316.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    In-vitro culture of human blastocysts
    1. DK Gardner
    2. WB Schoolcraft
    (1999)
    In: R Jansen, D Mortimer, editors. Towards Reproductive Certainty: Fertility and Genetics Beyond. New York: Parthenon Publishing Group. pp. 378–388.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    UNC-84 localizes to the nuclear envelope and is required for nuclear migration and anchoring during C. elegans development
    1. CJ Malone
    2. WD Fixsen
    3. HR Horvitz
    4. M Han
    (1999)
    Development 126:3171–3181.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58

Decision letter

  1. Fiona M Watt
    Reviewing Editor; King's College London, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Essential role for SUN5 in anchoring sperm head to the tail" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Fiona Watt as the Senior Editor and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Aminata Toure (Reviewer #1); John J.M. Bergeron (Reviewer #2); Katerina Dvorakova-Hortova (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript the authors describe the sperm phenotype of Sun5-/- mutant mice and the localization of SUN5 in sperm cells during spermiogenesis. They also identify the co-chaperone DNAJB13, as an interactor of SUN5 protein. The authors provide a novel and exhaustive dataset on SUN5 protein and its function. They demonstrate that SUN5 is necessary for anchoring the sperm head to the flagellum, and that the absence of SUN5 in the mouse causes male infertility due to acephalic-spermatozoa. The authors also confirm in mouse and in humans that the use of the detached sperm head is successful in ICSI treatment of the male infertility. The manuscript is well written and the experiments are clearly described.

Essential revisions:

1) Several publications have previously characterized DNAJB13 localization and spatio-temporal distribution at sperm annulus during spermiogenesis. DNAJB13 is also well-known to co-localize with Septin proteins at the annulus. The authors state that DNAJB13 localises to the coupling apparatus; however the immunofluorescence labelling seems to indicate staining at annulus. To establish convincingly that DNAJB13 does not locate to the annulus the authors could perform co-immunodetection experiments of SUN5 with one of the septin proteins known to locate at the annulus (Sept1, 4, 6, 7 or 12) in wild type sperm.

2) In the legend to Figure 4, the authors claim that "The SUN5-DNAJB13 interaction is responsible for sperm head-tail integration". However, the authors do not provide sufficient data supporting this hypothesis. AP MS should be done on n=3 separate biological experiments with appropriate quantification of the proteins (ion currents, spectral (peptide) counts). DNAJB13 appears to be lacking in Supplementary file 1 and the Y2H data is too preliminary. Moreover, the spatio-temporal distribution of DNAJB13 is not much altered in Sun5-/- sperm cells during spermiogenesis. The authors should check the distribution pattern of septin protein in Sun5-/- mutant sperm (Sept1, 4, 6, 7 or 12).

3) The authors need to improve the sperm motility analysis. It is not clear whether mouse and/or human SUN5 null sperm are motile. CASA data should be provided from both KO mice and human SUN5 deficient sperm, and motility should be discussed.

4) The authors should provide statistical data showing the percentage of tails with sperm heads versus tails only, in both cauda as well as caput and corpus epididymis for mouse sperm and human ejaculate, to deliver bigger picture of phenotype and feasibility of the ICSI approach.

5) The reviewers were not convinced that SUN5-null head shape is totally normal. In Figure 2 the SUN5 null sperm heads appear smaller length-wise and/or differ in hook and post acrosomal shape. They seem more like immature sperm. Morphometric analysis is required to resolve this point. Moreover, the Figure 2—figure supplement 2 images should be larger and all the abbreviations used in panel A should be explained in the legend. Specific immunofluorescence markers should be used to complement the histology. In addition, the orientation of the late spermatids should be discussed: is it due to a lack of possible interaction of SUN5 and DNAJB13 or is it a secondary effect due to the altered position in the seminiferous tubule?

6) Regarding the statement “Because the antibodies against SUN5 and DNAJB13 were both generated from rabbits, we could not directly test their co-localization by immunofluorescence”, there are other commercial antibodies on the market, and the colocalization analysis including Pearson coefficient using super-resolution should be carried out. Co-immunoprecipitation experiments should be performed in order to support the conclusions.

7) Please discuss this paper as it is relevant: Elkhatib RA et al., Homozygous deletion of SUN5 in three men with decapitated spermatozoa. Hum Mol Genet. 2017 May 25. doi: 10.1093/hmg/ddx200).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Essential role for SUN5 in anchoring sperm head to the tail" for further consideration at eLife. Your revised article has been favourably evaluated by Fiona Watt as the Senior Editor and Reviewing Editor, and two reviewers.

The reviewers all agreed that the manuscript has been improved. However, the new data on DNAJB13 is not compelling, specifically, iBAC of the GST pulldown of SUN5 in wt mice. Although DNAJB13 may be the most abundant testis specific protein, it is not the most abundant protein overall, and making sense of Supplementary file 1 is not straightforward. For example, pyruvate dehydrogenase appears to be the most dominant. In Figure 4A, it appears the pull down was only done once. In that case are the iBAC data technical repeats as opposed to different pull downs? The authors should do n=3 pull downs with GST Sun5 and the necessary reciprocal experiment of GST pulldown of DNAJB13 in wt and Sun5-/- mice (again n=3). The Y2H, mass spectrometry and GST pulldown studies are equivocal and most DNAJB13 does not colocalize with Sun5. In view of these concerns, the reviewers request that you delete the section on DNAJB13 from the manuscript.

Further points are as follows. The mass spectrometry data i.e., MaxQuant and iBAC folders (e.g. raw, peaklist, etc.) should be deposited in a public repository, e.g. http://www.proteomexchange.org.

The Figure 2A figure legend is incomplete. Both normal and abnormal heads are revealed in Sun5-/-mice but not indicated in the legend. The text of the Results indicates a minority were normal heads – what is the proportion?

The legend to Figure 4F needs clarification. Has the indicated separation of DNA JB13 in Sun5-/-been measured with quantification as compared to wt?

The supplementary tables need more description in the legends, especially the supplementary file with the mass spectrometry results.

https://doi.org/10.7554/eLife.28199.015

Author response

Essential revisions:

1) Several publications have previously characterized DNAJB13 localization and spatio-temporal distribution at sperm annulus during spermiogenesis. DNAJB13 is also well-known to co-localize with Septin proteins at the annulus. The authors state that DNAJB13 localises to the coupling apparatus; however the immunofluorescence labelling seems to indicate staining at annulus. To establish convincingly that DNAJB13 does not locate to the annulus the authors could perform co-immunodetection experiments of SUN5 with one of the septin proteins known to locate at the annulus (Sept1, 4, 6, 7 or 12) in wild type sperm.

Thanks for your suggestions. DNAJB13 was found to co-localize with SEPT4 in annulus, but only in developing spermatids, not mature spermatozoa (Guan J, et al. BMC Dev Biol. 2009): DNAJB13 and SEPT4 localize in the neck region at step 9 spermatids, and DNAJB13 signals migrate with annulus moving towards distal position at step 15. This is similar to our findings. To reveal the possible relationship between SUN5 and SEPT4, we performed co-immunofluorescence of them in wild type spermatozoa. We found that SUN5 and SEPT4 were first detected in the neck region of developing spermatids, and Sept4 then migrated along the annulus, but SUN5 stayed still in the neck region. In the late stage spermatids, SEPT4 was detected partially in the annulus, and partially in the neck region next to the SUN5 signal (Figure 4—figure supplement 2B). The localization and migration of SEPT4 in our result were consistent with the previous results, the overlapping of SUN5 signals and SEPT4 signals implies the possible interaction between them, but using yeasts two hybrid we found that there was no direct interaction between SUN5 and SEPT4 (Figure 4—figure supplement 2C). So, our results together with others reveal that SUN5, DNAJB13 and SEPT4 all localize to the neck region in the developing spermatids, then DNAJB13 and SEPT4 migrate to the annulus. So, DNAJB13 might have multiple functions, which might be dependent on its interaction with SUN5 or SEPT4.

2) In the legend to Figure 4, the authors claim that "The SUN5-DNAJB13 interaction is responsible for sperm head-tail integration". However, the authors do not provide sufficient data supporting this hypothesis. AP MS should be done on n=3 separate biological experiments with appropriate quantification of the proteins (ion currents, spectral (peptide) counts). DNAJB13 appears to be lacking in Supplementary file 1 and the Y2H data is too preliminary. Moreover, the spatio-temporal distribution of DNAJB13 is not much altered in Sun5-/- sperm cells during spermiogenesis. The authors should check the distribution pattern of septin protein in Sun5-/- mutant sperm (Sept1, 4, 6, 7 or 12).

a) We realized that it is overstated, so we changed it to “SUN5 interacts with DNAJB13 during spermiogenesis”.

b) As suggested, we have repeated the GST pulldown assay and MS analysis, and the identified proteins were quantified as required. DNAJB13 is included in the Supplementary file 1 and its Protein ID is Q80Y75. The Y2H data further confirmed the MS results, and provided strong evidence for SUN5-DNAJB13 interaction. Consistent with the Y2H data, the interaction between SUN5 and DNAJB13 was further confirmed by immunoprecipitation of endogenous SUN5 by DNAJB13 antibody in testis. We also overexpressed DNAJB13 and SUN5 in Hela cells, DNAJB13 could be partially recruited to the nuclear envelop by SUN5, but DNAJB13 itself could not be recruited to the nuclear envelope (Figure 4—figure supplement 2A).

c) The distribution of DNAJB13 was altered in SUN5-null spermatids, as illustrated in Figure 4 and the manuscript. In WT spermatids, DNAJB13 was rapidly enriched in the coupling apparatus with the elongation of the spermatid, and it was tightly attached to the nucleus during the maturation of the spermatid (Figure 4E, top), which is almost exactly the same as the distribution of SUN5. While in Sun5-null spermatids, although DNAJB13 was enriched to the coupling apparatus, its tight association with the nucleus was never observed, and in the late-stage spermatid, DNAJB13 was only found in the headless tail spermatozoa (Figure 4E, bottom). In the revised version we marked the gap between nucleus and DNAJB13 in SUN5-null spermatids to make this defect could be easily found.

As required, we also examined the distribution pattern of SEPT4 in SUN5-null spermatids (Figure 4—figure supplement 2B). In SUN5-null spermatids, SEPT4 firstly appeared as a dot inside the spermatid, but different from WT, SEPT4 did not localize to the neck region of SUN5-null spermatids, because the neck region has been departed from the nucleus. Structural details of the sperm head and tail separation can be found in Figure 2. Despite the altered position of SEPT4 in SUN5-null spermatids, the absence of SUN5 does not influence the maturation of annulus and the migration of SEPT4, since SEPT4 can also be found in annulus in late stage spermatids (Figure 4—figure supplement 2B).

3) The authors need to improve the sperm motility analysis. It is not clear whether mouse and/or human SUN5 null sperm are motile. CASA data should be provided from both KO mice and human SUN5 deficient sperm, and motility should be discussed.

The sperm motility of the mouse and human SUN5-null spermatozoa was measured by CASA, which showed that SUN-defective mouse and human spermatozoa were motile, but their motility was lower than that of the WT spermatozoa. In this revised version, we provided details of sperm motility from CASA, the percentage of Rapid/Medium/Slow/Static spermatozoa were all shown, and the main part of WT and SUN5+/- spermatozoa were Rapid spermatozoa, while most of the SUN5-null mouse spermatozoa were Medium or Slow spermatozoa (Figure 1—figure supplement 2C). The motility of SUN5 mutant human spermatozoa was also shown in Figure 5—figure supplement 1, human sperm motility was assessed according to the WHO criteria (4th Edition). From these results we can find that over 70% of the SUN5 mutant human spermatozoa belonged to Grade D (which means static spermatozoa). The motility defects caused by SUN5 knockout or mutations were discussed in the Discussion section.

4) The authors should provide statistical data showing the percentage of tails with sperm heads versus tails only, in both cauda as well as caput and corpus epididymis for mouse sperm and human ejaculate, to deliver bigger picture of phenotype and feasibility of the ICSI approach.

Because spermatozoa in cauda epididymis were considered as mature ones which represents the final phase of sperm development, so usually cauda epididymal spermatozoa were examined to reveal any developmental defects. As to the development of acephalic spermatozoa, the sperm head and tail might breakup during any possible steps, so we examined the spermatozoa from different parts of the epididymis. As required, the percentage of tails with sperm heads versus tails only was measured in both cauda as well as caput and corpus epididymis for mouse sperm and human ejaculate (Figure 2—figure supplement 1F), we can hardly find any sperm with head in any part of SUN5 mutant mouse epididymis and human ejaculate. These results indicate that 1) the breakup of the SUN5-null sperm head and tail occurred most possibly in the seminiferous tubules rather than the duct of epididymis because spermatozoa with heads were seldom seen in the caput epididymis; 2) ICSI is the only way to treat the SUN5 mutations associated patients because nearly no intact sperm could be found in the ejaculate.

5) The reviewers were not convinced that SUN5-null head shape is totally normal. In Figure 2 the SUN5 null sperm heads appear smaller length-wise and/or differ in hook and post acrosomal shape. They seem more like immature sperm. Morphometric analysis is required to resolve this point. Moreover, the Figure 2—figure supplement 2 images should be larger and all the abbreviations used in panel A should be explained in the legend. Specific immunofluorescence markers should be used to complement the histology. In addition, the orientation of the late spermatids should be discussed: is it due to a lack of possible interaction of SUN5 and DNAJB13 or is it a secondary effect due to the altered position in the seminiferous tubule?

Thanks for your suggestions. We have performed morphometric analysis of the WT and SUN5-null sperm heads as recommended. For the morphometric analysis of the sperm head, the width and length of the sperm heads were measured according to a published method (Fisher HS, et al. Nat Commun. 2016), and we found that SUN5-null sperm heads were somehow different from the WT ones, the SUN5-null sperm heads were shorter but wider than the WT, and the length/width ratio was smaller than the WT ones (Figure 2—figure supplement 1C-E). We also analyzed the sp56 staining pattern in SUN5-null sperm heads, finding that over 80% of sperm heads showed normal sp56 staining indicating the well-formed acrosome, while only less than 20% of the spermatozoa showed impaired sp56 staining with different patterns (Figure 2—figure supplement 1B).

Back to the question “whether SUN5-null sperm heads are immature sperms”, from the current data we cannot say yes or no, from the acrosome development (sp56 in single sperm and AFAF staining in testis) the SUN5-null sperm head seemed mature, and the disrupted sp56 distribution and altered length/width ratio might be resulted from the transportation in the duct of epididymis, because tail-less heads are actually dead heads which should be degraded by the Sertoli cells. But one fact should not be ignored, that is the sperm head and tail are separated in the late stage seminiferous tubules before the final maturation of the sperm in epididymis. So we intend not to judge whether the SUN5-null sperm heads are mature or not, but to discuss the specific function of SUN5 in acrosome biogenesis and the whole spermiogenesis.

As suggested, we have adjusted the images in Figure 2—figure supplement 2 and provided explanations for abbreviations in the figure. Images in Figure 2—figure supplement 2A are PAS staining rather than HE staining which could stain the developing acrosome, and acrosome itself could serve as a marker of the spermatid development. As a complement to the PAS staining we also stained the acrosome by FITC labeled PNA (Peanut agglutintin) to show the orientation of the sperm head (Figure 2—figure supplement 2C).

Spermatids in the late stage tubules especially in stage VII-VIII were well aligned with their heads and acrosomic system oriented toward the basement membrane, this orientation required the well-assembled sperm head-coupling apparatus-tail. The coupling apparatus was destroyed in the late stage SUN5-null spermatid, the sperm tail was separated from the head, and the head could not align itself as the WT sperm, so we think it’s the loss of the coupling apparatus and sperm tail that leads to the miss-alignment of the sperm head in SUN5-null spermatids.

6) Regarding the statement “Because the antibodies against SUN5 and DNAJB13 were both generated from rabbits, we could not directly test their co-localization by immunofluorescence”, there are other commercial antibodies on the market, and the colocalization analysis including Pearson coefficient using super-resolution should be carried out. Co-immunoprecipitation experiments should be performed in order to support the conclusions.

Thanks for your suggestions, we tried to find other non-rabbit originated commercial antibodies, but failed. One goat poly-antibody against DNAJB13(F-20) was cited in a published paper, but the production has been stopped by the company (Santa Cruz). So we have to immunize mice for 6 weeks using His-FLAG tagged DNAJB13, and the anti-serum against DNAJB13 recovered from mouse blood was tested (Figure 4—figure supplement 1) and then used in the following experiments (Figure 4D-E). The interaction between SUN5 and DNAJB13 was further confirmed by immunoprecipitation of endogenous SUN5 by DNAJB13 antibody in testis (Figure 4D). In single developing spermatids, co-localization of SUN5 and DNAJB13 in the sperm head to tail coupling apparatus was observed (Figure 4E), and Pearson coefficient is 0.47 ± 0.06.

7) Please discuss this paper as it is relevant: Elkhatib RA et al., Homozygous deletion of SUN5 in three men with decapitated spermatozoa. Hum Mol Genet. 2017 May 25. doi: 10.1093/hmg/ddx200).

Thanks for your reminder, we have cited this recently published paper in Results and Discussion.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The reviewers all agreed that the manuscript has been improved. However, the new data on DNAJB13 is not compelling, specifically, iBAC of the GST pulldown of SUN5 in wt mice. Although DNAJB13 may be the most abundant testis specific protein, it is not the most abundant protein overall, and making sense of Supplementary file 1 is not straightforward. For example, pyruvate dehydrogenase appears to be the most dominant. In Figure 4A, it appears the pull down was only done once. In that case are the iBAC data technical repeats as opposed to different pull downs? The authors should do n=3 pull downs with GST Sun5 and the necessary reciprocal experiment of GST pulldown of DNAJB13 in wt and Sun5-/- mice (again n=3). The Y2H, mass spectrometry and GST pulldown studies are equivocal and most DNAJB13 does not colocalize with Sun5. In view of these concerns, the reviewers request that you delete the section on DNAJB13 from the manuscript.

We have deleted the section on DNAJB13 from the manuscript, and related information has been deleted in figures, legends, and figure supplements. Related descriptions have been corrected.

Further points are as follows. The mass spectrometry data i.e., MaxQuant and iBAC folders (e.g. raw, peaklist, etc.) should be deposited in a public repository, e.g. http://www.proteomexchange.org.

The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium (http://www.proteomexchange.org) via the PRIDE partner repository with the dataset identifier PXD007815. Project name: Identification of SUN5 interactors from mouse testis lysate; Project accession: PXD007815.

The Figure 2A figure legend is incomplete. Both normal and abnormal heads are revealed in Sun5-/- mice but not indicated in the legend. The text of the Results indicates a minority were normal heads – what is the proportion?

We have rewritten the Figure 2A figure legend, both normal and abnormal heads were included. The proportion of the normal heads had been provided in Figure 1J. In the revised version, this information is also provided in the text relating to Figure 2, and the figure legend.

The legend to Figure 4F needs clarification. Has the indicated separation of DNA JB13 in Sun5-/- been measured with quantification as compared to wt?

In WT spermatids, the DNAJB13 signal was tightly adjacent to the nucleus, it is hard to measure the distance between them; while in the Sun5-null spermatid, DNAJB13 signal is obviously detached from the nucleus, and their distances were dynamic according to developmental stages, so the quantification of these distances may not be necessary.

The supplementary tables need more description in the legends, especially the supplementary file with the mass spectrometry results.

We have supplied the necessary descriptions to Figure 1—source data 1 and Figure 4—source data 1 including the MS results and the sperm motility and morphology analysis of the two patients underwent ICSI.

For MS results:

The list showed the proteins uniquely identified in top and bottom band with statistical differences by intensity based absolute quantification (iBAQ), and their Gene ontology annotation. Noting that DNAJB13 is the most abundant identified testis-specific protein, and the only gene annotated to be related to “sperm flagellum”, “axoneme”, or “motile cilium”. Blank gels at corresponding molecular weight in lane 2 of Figure 4A were used as control in the iBAQ analysis. (However, because this part is related to DNAJB13, we deleted it in this version.)

For sperm motility and morphology analysis of the two patients:

The sperm motility and the percentages of morphologically normal and abnormal spermatozoa were evaluated according to the World Health Organization (WHO) guidelines. Most of the SUN5-mutation associated spermatozoa were acephalic sperms with low motility.
