Excitatory motor neurons are local oscillators for backward locomotion

  1. Shangbang Gao  Is a corresponding author
  2. Sihui Asuka Guan
  3. Anthony D Fouad
  4. Jun Meng
  5. Taizo Kawano
  6. Yung-Chi Huang
  7. Yi Li
  8. Salvador Alcaire
  9. Wesley Hung
  10. Yangning Lu
  11. Yingchuan Billy Qi
  12. Yishi Jin
  13. Mark Alkema
  14. Christopher Fang-Yen
  15. Mei Zhen  Is a corresponding author
  1. College of Life Science and Technology, Huazhong University of Science and Technology, China
  2. Mount Sinai Hospital, Canada
  3. University of Toronto, Canada
  4. School of Engineering and Applied Science, University of Pennsylvania, United States
  5. University of Massachusetts Medical School, United States
  6. University of California, United States
  7. University of Pennsylvania, United States
Research Article
  • Cited 4
  • Views 1,318
  • Annotations
Cite as: eLife 2018;7:e29915 doi: 10.7554/eLife.29915

Abstract

Cell- or network-driven oscillators underlie motor rhythmicity. The identity of C. elegans oscillators remains unknown. Through cell ablation, electrophysiology, and calcium imaging, we show: (1) forward and backward locomotion is driven by different oscillators; (2) the cholinergic and excitatory A-class motor neurons exhibit intrinsic and oscillatory activity that is sufficient to drive backward locomotion in the absence of premotor interneurons; (3) the UNC-2 P/Q/N high-voltage-activated calcium current underlies A motor neuron’s oscillation; (4) descending premotor interneurons AVA, via an evolutionarily conserved, mixed gap junction and chemical synapse configuration, exert state-dependent inhibition and potentiation of A motor neuron’s intrinsic activity to regulate backward locomotion. Thus, motor neurons themselves derive rhythms, which are dually regulated by the descending interneurons to control the reversal motor state. These and previous findings exemplify compression: essential circuit properties are conserved but executed by fewer numbers and layers of neurons in a small locomotor network.

https://doi.org/10.7554/eLife.29915.001

Introduction

Central pattern generators (CPGs) are rhythm-generating neurons and neural circuits with intrinsic oscillatory activities. Across the animal phyla, CPGs underlie rhythm of motor behaviors that are either continuous, such as breathing and heartbeat, or episodic, such as chewing and locomotion (Grillner, 2006; Grillner and Wallén, 1985; Kiehn, 2016; Marder and Bucher, 2001; Marder and Calabrese, 1996; Selverston and Moulins, 1985). CPGs that drive locomotor behaviors generally require signals from the central or peripheral nervous systems for initiation or reconfiguration (Pearson, 1993).

The concept of locomotor CPGs originated from the observation that decerebrate cats could sustain rhythmic hind limb muscle contraction (Brown, 1911, Brown, 1914). In deafferented locusts, flight motor neurons (MNs) exhibited rhythmic activity in response to non-rhythmic electrical stimulation (Wilson, 1961). Isolated nerve or spinal cords from the leech (Briggman and Kristan, 2006), lamprey (Wallén and Williams, 1984), rat (Juvin et al., 2007; Kiehn et al., 1992) and cat (Guertin et al., 1995) are able to generate rhythmic MN activity and/or fictive locomotion. These findings imply that locomotor systems can intrinsically sustain rhythmic and patterned electrical activitives, independent of inputs from the descending neural networks or sensory organs.

Locomotor CPGs have been located in several animals. For most invertebrates, they consist of premotor interneurons (INs) that drive MN activity (Marder and Bucher, 2001). In vertebrates, they reside in the spinal cords, where multiple pools of premotor INs instruct and coordinate the output of different MN groups (Grillner, 2006; Kiehn, 2006, 2016). MNs can retrogradely regulate the activity of CPG INs or premotor INs in the crayfish (Heitler, 1978), leech (Rela and Szczupak, 2003; Szczupak, 2014), C. elegans (Liu et al., 2017) and zebrafish (Song et al., 2016) in a conserved, mixed electric and chemical synapse configuration.

C. elegans generates rhythmic and propagating body bends that propel either forward or backward locomotion. Synaptic wiring of the adult locomotor system has been depicted by serial electron microscopy (White et al., 1976, White et al., 1986). There are five MN classes: A, B, D, AS and VC in the ventral nerve cord. The A (A-MN), B (B-MN), and D (D-MN) classes contribute the vast majority of neuromuscular junctions (NMJs) in the body. Each class is divided into subgroups that innervate dorsal or ventral muscles. Repeated motor units comprised of the A-, B- and D-MNs make tiled dorsal and ventral NMJs along the body.

Both B- and A-MNs are cholinergic and excitatory, potentiating muscle contraction (Gao and Zhen, 2011; Liu et al., 2011; Nagel et al., 2005; Richmond and Jorgensen, 1999; White et al., 1986), whereas D-MNs are GABAergic and inhibitory, promoting muscle relaxation (Gao and Zhen, 2011; Liewald et al., 2008; Liu et al., 2011; McIntire et al., 1993). B- and A-MNs form dyadic synapses, with body wall muscles and D-MNs that in turn contralateral muscles as co-recipients. This configuration supports reciprocal dorsal-ventral cross-inhibition for body bending (White et al., 1986).

Descending and ascending premotor INs innervate excitatory MNs. Three pairs of INs - AVA, AVB, and PVC - extend axons along the ventral nerve cord, and form synapses to all members of the MN classes that they partner with. They contribute to two sub-circuits: a forward movement-promoting unit, where AVB and PVC make electrical and chemical synapses with the B-MNs, respectively, and a backward movement-promoting unit, where AVA innervate the A-MNs through both electrical and chemical synapses (Chalfie et al., 1985; White et al., 1986; illustrated in Figure 1A). Reciprocal inhibition between the two sub-circuits underlies stabilization of, and transition between the forward and reversal motor states (Kato et al., 2015; Kawano et al., 2011; Roberts et al., 2016).

Figure 1 with 1 supplement see all
Body bends persist upon the ablation of premotor INs.

(A) The removal of premotor INs or MNs exerts different effects on body bends. Upper panel: schematics of the C. elegans motor circuit components and connectivity in wildtype animals (i) and upon ablation of respective neuronal populations (ii, iii). Hexagons and circles represent premotor INs and ventral cord MNs, respectively. Orange and blue denote components of the forward and reversal motor circuit, respectively. Taupe denotes neurons that participate both forward and backward locomotion. Lower panel: a snap shot of representative body posture exhibited by adult C. elegans with intact motor circuit (i), and upon the ablation of premotor INs (ii) or MNs (iii). (B) Representative curvature kymograms along the body of moving animals in respective genetic backgrounds. The upper and lower panels denote animals without (Control) and with (Ablated) LED illumination-induced neuron ablation during development. Black arrows on kymograms denote the direction of body bend propagation. (i) Wildtype (N2) animals exhibit a preference for continuous forward locomotion, consisting of anterior to posterior body bend propagation, with occasional and short backward locomotion, exhibited as posterior to anterior body bend propagation; (ii) ablation of all premotor INs (Ablated) leads to stalled body bending that prevents the propagation of head bending; (iii) simultaneous ablation of three major MN classes largely eliminates body bending in regions posterior to head. (C) Distribution of body curvatures posterior to head (33–96% anterior-posterior of body length) in wildtype (i), premotor INs-ablated (ii), and MNs-ablated (iii) animals, with (Control) and without (Ablated) LED illumination-induced neuronal ablation. Premotor INs ablation leads to an increase (ii) whereas MN ablation a decrease (iii) of the bending curvature. (D) Distribution of instantaneous velocity, represented by centroid displacement, in wildtype (i) premotor INs-ablated (ii) and MNs-ablated (iii) animals, with (Control) and without (Ablated) neuronal ablation. The ablation of either premotor INs or MNs leads to a drastic reduction of velocity. n = 10 animals per group (C, D). p>0.05 (not significant), ***p<0.001 against the respective non-ablated Control group by the Kolmogorov-Smirnov test.

https://doi.org/10.7554/eLife.29915.002

However, a fundamental question remains unanswered: the origin of motor rhythm. Despite an extensive understanding of C. elegans anatomy and physiology (Duerr et al., 2008; McIntire et al., 1993; Pereira et al., 2015; Rand, 2007; White et al., 1986), the existence and identity of its locomotor CPGs remain speculative. CPGs were proposed to reside in the head, based on an observation that flexion angles decay toward the tail during both forward and backward locomotion (Karbowski et al., 2008). Several INs affect bending (Bhattacharya et al., 2014; Donnelly et al., 2013; Hu et al., 2011; Li et al., 2006), but none are essential for activation or rhythmicity of locomotion. The remarkable biomechanical adaptability of C. elegans locomotion (Fang-Yen et al., 2010) implied a prominent role of proprioceptive feedback, irrespective of the presence or location of oscillators (Gjorgjieva et al., 2014). Indeed, B-MNs were modeled to be activated solely by proprioception to propagate body bends during forward locomotion (Cohen and Sanders, 2014; Wen et al., 2012). However, there has been no direct experimental evidence on whether C. elegans oscillators exist, where they are encoded, and how they contribute to motor rhythm (reviewed in Zhen and Samuel, 2015).

Here, we addressed these questions through cell ablation, electrophysiology, genetics, and calcium imaging. We reveal that C. elegans has multiple oscillators, and different oscillators drive forward or backward locomotion. For backward locomotion, the A-MNs themselves constitute a distributed network of oscillators. Inhibition and potentiation of their intrinsic activities, either through manipulating UNC-2, the C. elegans P/Q/N-high-voltage-activated calcium channel (VGCC) that underlies their oscillation, or, through manipulating the synaptic inputs from their descending premotor INs AVA, alter the velocity, propensity and maintenance of the reversal motor state. We conclude that the C. elegans motor circuit is a CPG-driven locomotor network, except that its rhythm is derived from excitatory MNs.

In most locomotor networks, the CPG premotor INs and MNs exhibit rhythmic action potential bursts that correlate with fictive or non-fictive locomotion (Grillner, 2006; Kiehn, 2016), but all examined C. elegans neurons to date do not fire classic action potentials (Bargmann, 1998; C. elegans Sequencing Consortium, 1998; Goodman et al., 1998; Kato et al., 2015; Liu et al., 2017; Xie et al., 2013). Results from this study, together with findings that C. elegans body wall muscles generate calcium-dependent action potential bursts (Gao et al., 2015; Gao and Zhen, 2011; Liu et al., 2013), unveil a simplified, but fundamentally conserved underpinning of locomotion: the ventral cord MNs assume the role of rhythm generators, instructing action potential bursting in the body wall muscles (see Discussion).

Findings from these studies, and other systems (see Discussion) support the notion that compression - a single neuron or neuron class assuming the role of multiple layers in complex neural circuits - is a general property of small circuits. This property allows small nervous systems to serve as compact models to dissect the organizational logic of neural circuits, exemplified by the intricate roles of a mixed synapse configuration conserved not only at the locomotory, but also other motor circuits (see Discussion).

Results

Motor neurons sustain body bends in the absence of premotor INs

To address whether and where C. elegans oscillators are present, we first examined the behavioral consequence of ablating MNs or premotor INs. In previous studies, ablation was restricted to a few neurons and in a small number of animals (Chalfie et al., 1985; Kawano et al., 2011; Rakowski et al., 2013; Roberts et al., 2016; Wicks and Rankin, 1995; Zheng et al., 1999). With a flavoprotein miniSOG, which induces acute functional loss, subsequent death and anatomic disappearance of neurons by photo-activation (Qi et al., 2012), we ablated the entire population of premotor INs or the A/B/D-MNs (Materials and methods).

We describe their impact on locomotion by two parameters: velocity, defined as the mid-point displacement over time; curvature, defined as the bending angles of body segments (Materials and methods; Figure 1A–D). Without premotor INs, animals lost motility, as represented by reduced mid-point displacement (Figure 1Dii; Figure 1—figure supplement 1Aiv; Video 1). These animals, however, were not paralyzed. Their posture recapitulated that of a class of mutants called kinkers (Kawano et al., 2011): the head oscillates, but oscillation does not propagate along the body; the body bends, but bending is disorganized (Figure 1Aii–Cii; Figure 1—figure supplement 1Ai-iii). In kinker animals, the stalled mid-point displacement is not caused by a lack of motor activity, but instead by the competiton between the antagonistic forward- and reversal-driving motor neuron activity (Kawano et al., 2011). The kinker-like posture indicates that animals without premotor INs retain locomotor activity (Figure 1Dii; Figure 1—figure supplement 1Aiv,B). Indeed, calcium imaging confirmed that these animals exhibited robust activity in body wall muscles (Video 1).

Video 1
Locomotor behaviors (Part 1 and Part 2) and calcium imaging of the body wall muscles (Part 3) of C. elegans without premotor INs.

(Part 1, 2) Upon ablation of all premotor INs, animals exhibit kinked posture and uncoordinated local body bends; head oscillations persist but fail to propagate along the body. (Part 3) Calcium imaging of body wall muscles was carried out in transgenic animals after the ablation of all premotor INs. Calcium activity persists in muscles, and high calcium activity corroborates with body bending. Left panel: RFP signals in body wall muscles (with extra signals in the gut from the miniSOG transgene). Right panel: GCaMP3 signals in body wall muscles.

https://doi.org/10.7554/eLife.29915.004

Upon the removal of all A/B/D-MNs, animals also lost motility (Figure 1Diii, Figure 1—figure supplement 1B). Similar to animals without premotor INs, their head oscillation persisted. Unlike the premotor IN-less animals, however, their body bending was attenuated, resulting in an oscillating head pulling forward a non-bending body (Figure 1Biii). Attenuation of body bends concurs with the anatomy - the A/B/D-MNs together contribute the majority of NMJs to body wall muscles.

The persistence of head oscillations upon ablation of either all premotor INs or most ventral cord MNs implicates a separation of oscillators for the head and body. CPGs for head oscillation may promote forward locomotion (Karbowski et al., 2008; Pirri et al., 2009). The persistence of body bends in premotor INs-less animals suggests that some ventral cord MNs may be intrinsically active.

A-MNs generate rhythmic backward locomotion in the absence of premotor INs

To identify the MN groups with autonomous activity, we next ablated premotor INs in conjunction with the A-, B-, or D-MNs, respectively, to compare their effects on locomotion.

Ablation of individual MN classes in premotor IN-less animals resulted in drastically different motor outputs. Upon ablation of premotor INs and A-MNs, animals exhibited predominantly sluggish forward locomotion: an oscillating head slowly pulled a body with shallow bending (Figure 2Aii,Bii; Video 2 part 3–4). When premotor INs and B-MNs were removed, animals exhibited predominantly backward locomotion with robust body bending (Figure 2Ai,Bi; Video 2 part 1–2). Their reversals were periodically stalled by the forward-promoting head oscillations that interfered with the mid-point displacement (Video 2 part 1–2). Removing D-MNs in premotor IN-less animals did not reduce bending – they maintained a kinker-like posture without directional movements (Figure 2Aiii,Biii; Video 2 part 5–6).

A-MNs execute directional, rhythmic locomotion without premotor INs.

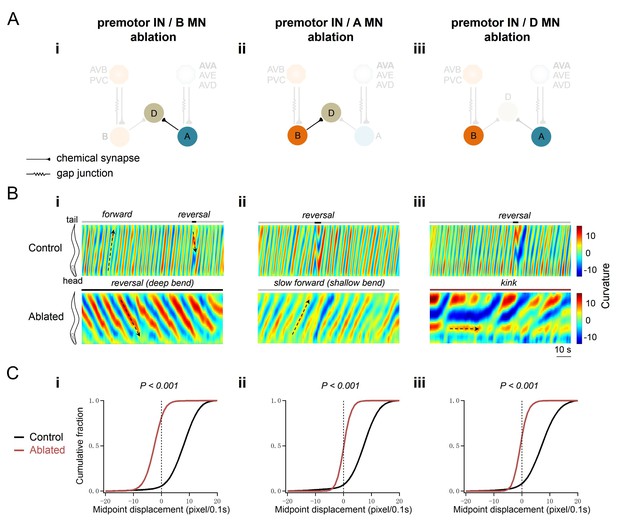

(A) Schematics of the motor circuit components and connectivity of animals of respective genotypes, upon co-ablation of premotor INs and B-MNs (i), premotor INs and A-MNs (ii), or premotor INs and D-MNs (iii). (B) Representative curvature kymograms along the entire length of moving animals, without (Control) and with (Ablated) LED illumination-induced neuronal ablation. Black arrows pointing upwards and downwards on kymograms denote posteriorly or anteriorly propagating body bending, respectively. The horizontal arrow denotes the absence of bending propagation. Animals without premotor INs and B-MNs (i, lower panel) exhibit backward locomotion, as posterior to anterior propagating deep body bends, regardless of the propagation direction of head bending. Those without premotor INs and A-MNs (ii, lower panel) often exhibit slow forward locomotion, consisted of slowly propagating, anterior to posterior, shallow body bends. Animals without premotor INs and D-MNs (iii, lower panel) lead to kinker postures as in premotor INs-ablated animals. (C) Distribution of instantaneous velocity of animals of respective genotypes, represented by the mid-point displacement. The forward velocity (ii) is drastically reduced, whereas reversal velocity (i) is less affected than upon abaltion of premotor INs. n = 10 in each group, p<0.001 against the respective non-ablated Control group by the Kolmogorov-Smirnov test.

https://doi.org/10.7554/eLife.29915.005
Video 2
Co-ablation of premotor INs with either A-, B- or D-MNs leads to different locomotor behaviors.

(Parts 1, 2) Upon co-ablation of the premotor INs and B-MNs, animals exhibit sluggish forward locomotion where the body passively follows head oscillation. (Parts 3, 4) Upon the co-ablation of premotor INs and A-MNs, animals exhibit exclusively reversallocomotion, with active body bending, robust rhythmicity, and velocity. Periodically, reversals were interrupted, when, with exaggerated head oscillation, the anterior and posterior body segments are pulled into opposing directions. (Parts 5, 6) Upon the co-ablation of premotor INs and D-MNs, animals exhibit kinker-like postures.

https://doi.org/10.7554/eLife.29915.006

These results indicate that, in the absence of all premotor INs, body bends primarily originate from the A-MNs (see Discussion). Strikingly, A-MNs drive backward locomotion with robust bending in the absence of premotor INs (Figure 2, Figure 1—figure supplement 1C), implying that their endogenous activities suffice for both execution of body bends, and organization of bending propagation.

Sparse removal of A-MNs alters, but does not abolish, backward locomotion

Because A-MNs can organize backward movements without premotor INs, they may function as either a chain of phase-locked oscillators, or as flexors, where each neuron is sequentially activated by bending of its neighboring body segment. These possibilities can be distinguished by examining the effect of sparse removal of A-MNs. In the former case, the removal of individual A-MNs should alter, but not prevent, bending propagation during backward locomotion. In the latter case, bending propagation shall stall at most posterior body segments that the ablated A-MNs innervate.

Our ablation results (Figure 3; Figure 3—figure supplement 1; Video 3) favor the oscillator hypothesis. Removal of A-MNs in anterior body segments did not prevent the initiation and propagation of reversal waves in the mid- and posterior body segments (Figure 3C–1i, 1ii; Figure 3—figure supplement 1B–1iii). The head and tail exhibited independent reversal bending waves upon the ablation of mid-body A-MNs. When most or all mid-body A-MNs were ablated, the head exhibited either high (Figure 3C–2i, 2ii; Figure 3—figure supplement 1B–1i) or low (Figure 3—figure supplement 1B–2i) frequency oscillations that were uncoupled in phase with slow tail-led bending. Ablation of a few mid-body MNs also led to uncoupling between the anterior and posterior body bends, but many tail-initiated bending waves propagated through to the head (Figure 3—figure supplement 1B–2iii). When posterior A-MNs were removed, bending initiated and propagated from body segments anterior to ablated areas (Figure 3C–3i, 3ii; Figure 3—figure supplement 1B–1ii, 2ii).

Figure 3 with 1 supplement see all
Sparse removal of A-MNs alters, does not abolish backward locomotion.

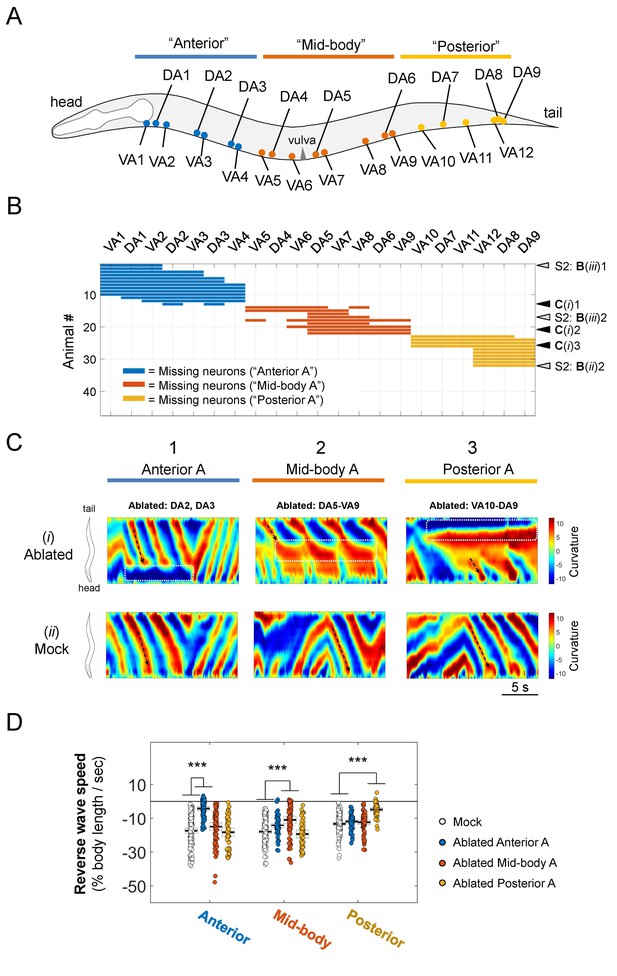

(A) Schematic of the approximate locations of all A-MNs and regions of targeted ablation. An ablation is classified as ‘Anterior’, 'Mid-body’, or ‘Posterior’ when at least one neuron from each region was ablated, and no neurons from other regions were ablated. (B) Missing A-MNs for each animal that was classified as Anterior (n = 13), Mid-body (n = 9), Posterior (n = 10), or Mock (n = 17) ablated. Black and gray arrowheads denote animals whose curvature kymograms are shown in (C) and Figure 3—figure supplement 1, respectively. (C) Representative curvature kymograms for each ablation type (upper panels) and mock controls for three strains from which pooled ablation data were quantified (lower panels). (D) The rate of reversal bending wave propagation in the anterior, mid- and posterior body for each ablation class. Each dot represents one bout of reversal movement > 3 s. Black bars indicate the mean, and white boxes denote the 95% confidence interval of the mean. Ablation decreases bending frequency locally, but not in other body regions. ***p<0.001 by one-way ANOVA followed by Bonferroni post-hoc comparisons.

https://doi.org/10.7554/eLife.29915.007
Video 3
Local ablation of some A-MNs does not prevent body bends in other segments.

During reversals, localized ablations of a fraction of the A-MNs lead to defective local bends, but do not abolish bending in other segments. Example movies for the behavioral consequence of ablating anterior, mid-body, and posterior A-MNs are shown.

https://doi.org/10.7554/eLife.29915.009

Quantitatively, ablation of A-MNs from either the anterior, mid-body, or posterior segments (Figure 3A; Figure 3—figure supplement 1A) caused significantly decreased local reversal wave speed, but modest or negligible change in wave speed in other body segments (Figure 3D). Thus, rhythmic body bends can arise from multiple locations, further supporting the presence of a chain of reversal oscillators.

A-MNs exhibit oscillatory activities independent of premotor IN inputs

CPGs should exhibit self-sustained oscillatory activity. We sought experimental evidence for such a property by performing electrophysiology and calcium imaging analyses on A-MNs.

First, we examined a dissected neuromuscular preparation consisting of an exposed ventral nerve cord and the body wall muscles that they innervate (Gao et al., 2015Richmond and Jorgensen, 1999). The majority of excitatory NMJs are made by the A- and B-MNs in this preparation. Prior to ablation of premotor INs and B-MNs, whole-cell voltage clamp of the ventral body wall muscles revealed ~25 Hz, ~ -10 pA miniature postsynaptic currents (mPSCs) (Figure 4—figure supplement 1A,B). Upon ablation, the mPSC frequency exhibited a moderate ~30% reduction (Figure 4—figure supplement 1A,B). More important, however, was that in 70% of preparations (n = 10), we observed periodic rhythmic PSC (rPSC) bursts (Gao et al., 2015) at ~90 s intervals (Figure 4A–C). The rPSC bursts were distinct from high frequency mPSCs: each lasted 2–3 s, consisting of 3–10 Hz, -50 - -300 pA depolarizing currents (Figure 4A–C; Figure 6A). By contrast, only in 10% non-ablated preparations (n = 10), we observed PSC bursts of similar characteristics, but as sporadic single-unit events. These results suggest that A-MNs generate periodic electrical activities without premotor INs, and premotor INs may inhibit A-MN rhymthic activity.

Figure 4 with 2 supplements see all

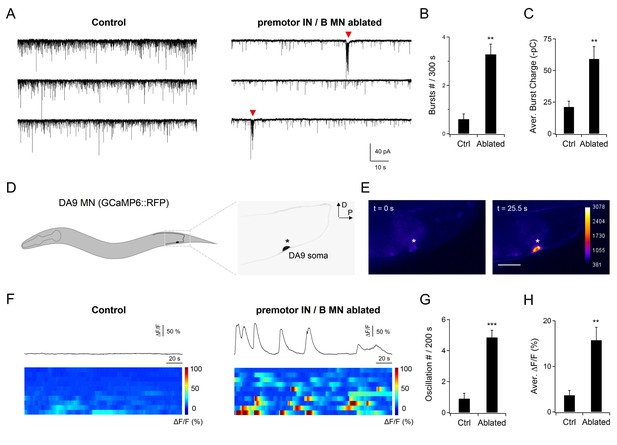

A-MNs exhibit rhythmic activities upon the ablation of premotor INs .

(A) A representative post-synaptic PSC recording at the NMJ preparation of the same genotype, without (Control, left panel) or with (Ablated, right panel) LED illumination-induced ablation of premotor INs and B-MNs. Rhythmic PSC burst events (arrowheads) were consistently observed upon the removal of premotor INs and B-MNs. (B, C) Quantification of the rPSC burst frequency (B) and discharge (C), without (Ctrl) or with (Ablated) ablation. Both the rPSC bursts frequency and discharge are significantly increased in Ablated animals. n = 10 animals each group. (D) Schematics of the morphology and trajectory of the DA9 MN soma and processes, visualized by an A-MN GCaMP6s::RFP Ca2+ reporter. (E) Fluorescent signals during oscillatory Ca2+ changes in the DA9 soma. (F) Examples of the DA9 soma Ca2+ transient traces, and raster plots of recordings from individual animals of the same genotype, without (Control) and with (Ablated) the ablation of premotor INs and B-MNs. n = 10 animals each group. (G, H) Quantification of the Ca2+ oscillation frequency and mean total Ca2+ activities, without (Ctrl) and with (Ablated) the ablation of premotor INs and B-MNs. Both the oscillation frequency and total activity of DA9 are significantly increased in ablated animals. **p<0.01, ***p<0.001 against the respective non-ablated Control group by the Mann-Whitney U test. Error bars, SEM.

https://doi.org/10.7554/eLife.29915.010

In the current clamp configuration, we observed periodic action potential bursts that corresponded to the rPSC bursts after premotor INs and B-MNs were ablated (Figure 4—figure supplement 1C–E). Muscle action potentials correlate with contraction (Gao and Zhen, 2011), confirming the physiological relevance of the autonomous MN activity to locomotion. The notion that most periodic rPSC bursts originate in A-MNs was confirmed by comparing with preparations in which premotor INs and A-MNs were ablated: they exhibited 60% reduction in mPSC frequency, but only sporadic PSC bursts were detected in 17% preparations (n = 11).

CPGs exhibit oscillatory activity in the presence of sustained inputs. We further examined the effect of direct stimulation of excitatory MNs by a light-activated rhodopsin Chrimson (Klapoetke et al., 2014). In these preparations, sustained activation of the ventral muscle-innervating both A- and B-MNs at high light intensity led to high-frequency PSCs, reflecting potentiated synaptic vesicle release (Figure 4—figure supplement 2). Upon sequential reduction of the light intensities, however, the stimulation of A-MNs, but not of B-MNs, began to exhibit rPSC bursts (Figure 4—figure supplement 2A).

Results from A-MN calcium imaging in intact animals also support their oscillatory property. To reduce potential effects of proprioceptive coupling, we recorded the A-MN activity from intact animals that were fully immobilized using the surgical glue. While sporadic calcium activities were occasionally observed for some A-MNs in non-ablated wildtype control animals, robust calcium oscillation was revealed in A-MNs in all animals after the co-ablation of premotor INs and B-MNs (Figure 4D–F). Individual A-MNs exhibited large variations in amplitudes of calcium oscillation (Figure R2; see Response letters), but shared the ~50 s oscillatory cycle (Figure 4F–H). DA9, which innervates the most posterior dorsal muscles (Figure 4DVideo 4 ), exhibited the highest calcium activity.

Video 4

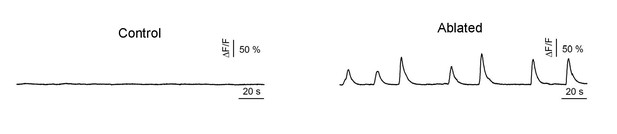

The DA9 soma exhibits robust Ca2+ oscillation upon the co-ablation of all premotor INs and B-MNs.

An example video of Ca2+ oscillation at the DA9 motor neuron in an animal without premotor INs and B-MNs.

https://doi.org/10.7554/eLife.29915.013

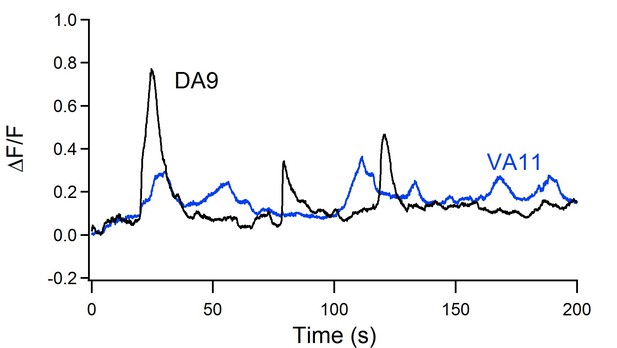

Lastly, we performed simultaneous calcium imaging of a cluster of posteriorly positioned A-MNs in moving animals, after we removed all premotor INs and B-MNs (Figure 5A). Consistent with the notion that A-MNs’ endogenous activities suffice for organized bending propagation, A-MNs exhibited phase relationships consistent with the temporal activation pattern of their muscle targets. The dorsal muscle-innervating DA7 exhibited anti-phasic activity change with that of ventral muscle-innervating VA10 and VA11 (Figure 5B,C), whereas the activity change of the more posterior muscle-innervating VA11 preceded that of VA10 (Figure 5B,C). Their oscillation frequency, positively correlated with the crawling speed, typically fell below 50 s (see Figure 5B for a sample trace and quantifications in later sections).

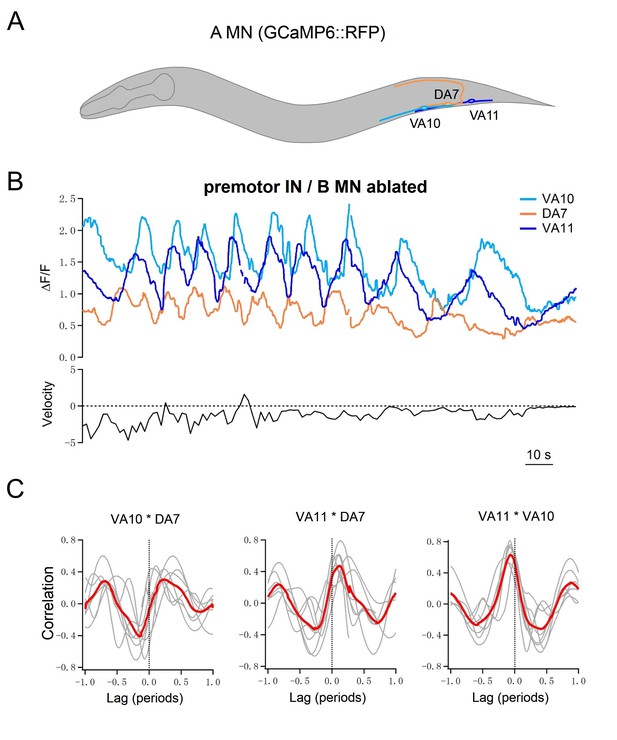

Multiple A-MNs are phase coupled to generate backward locomotion in the absence of premotor INs and B-MNs.

(A) Schematics of the morphology and trajectory of the VA10, DA7, VA11 MN somata and processes. (B) Upper panel: example traces of calcium activities of three A-MNs, in animals where all premotor INs and B-MNs have been ablated. The VA10 and VA11 innervate adjacent ventral body wall muscles; the DA7 innervates dorsal muscles in opposition to those by the VA10 and VA11. Periodic Ca2+ oscillations were observed in all neurons, represented by changes in the GCaMP6/RFP ratio (Y-axis) over time (X-axis). Lower panel: the animal’s instantaneous velocity (Y-axis) simultaneously recorded during calcium imaging, was represented by the displacement of the VA11 soma. Values above and below 0 indicate forward (displacement toward the head) and backward (displacement toward the tail) locomotion, respectively. This animal exhibited continuous reversals. Note that the speed of Ca2+ change during oscillation correlates with reversal velocity. (C) Phasic relationships among DA7, VA10, and VA11. DA7's activity change is anti-phasic to that of VA10 and V11, whereas the activity changes of VA10 and VA11 exhibit a small phase shift, with VA11 preceding VA10. The red line denotes the mean of all recordings. n = 7 animals.

https://doi.org/10.7554/eLife.29915.014

The difference between the frequency of A-MN-dependent rPSC bursts in dissected preparations, and A-MN calcium oscillation in immobilized versus crawling C. elegans, similar to what has been reported for the spinal cord preparations versus immobilized or mobile vertebrates (Goulding, 2009) may reflect the effect of motor and proprioceptive feedback.

A-MN’s oscillatory activity is potentiated by optogenetically activated premotor INs

A-MNs receive synaptic inputs from several premotor INs, most prominently from a pair of descending INs AVA. The AVA INs make both chemical and electrical synapses with all A-MNs (White et al., 1986). Optogenetic stimulation of AVA activates and maintains backward locomotion, and induces rPSCs in dissected preparations (Gao et al., 2015).

These results raise the possibility that premotor IN activation can promote the reversal motor state through potentiating A-MNs’ oscillatory activitives. Indeed, AVA activation-induced rPSCs exhibited similar amplitude and frequency to A-MN-dependent endogenous rPSC bursts, albeit with less variability (Figure 6A). Importantly, upon the removal of A-MNs, AVA-evoked rPSC bursts were abolished (Figure 6B); this effect was not observed when either B-MNs, or their input premotor INs AVB were ablated (Figure 6B–D). Therefore, both evoked and intrinsic rPSC bursts in these preparations primarily originated from A-MNs, consistent with stimulated descending premotor IN inputs potentiating A-MN’s intrinsic oscillation.

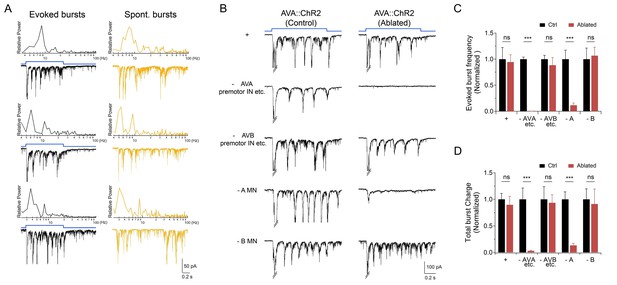

Activation of premotor INs AVA potentiates A-MN-dependent rPSC bursts.

(A) The evoked and spontaneous rPSC bursts share frequency spectrum characteristics. Black traces: frequency spectrum analyses (upper panel) for three rPSC traces upon the optogenetic activation of AVA premotor INs (lower panel); Yellow traces: frequency spectrum analyses (upper panel) for three spontaneous rPSC bursts exhibited by animals upon the co-ablation of premotor INs and B-MNs (lower panel). (B) Representative traces of AVA-evoked rPSC bursts in respective genotypic backgrounds, both in the presence (Control) or absence (Ablated) of specific neuronal groups. +: hpIs270 (AVA-specific ChR2 activation upon exposure to LED, in wildtype background); - AVA: hpIs270; hpIs321 (upon expsure to LED, after a subset of premotor INs including AVA were ablated); - AVB: hp270; hpIs331 (upon exposure to LED, after several INs including AVB were ablated); - A: hpIs270; hpIs371 (upon exposure to LED, after A-MNs were ablated); - B: hpIs270; hpIs604 (upon exposure to LED, after B-MNs were ablated). (C) Quantification of rPSC burst frequencies evoked by AVA activation in respective genetic backgrounds. (D) Quantification of total discharge of rPSC bursts evoked by AVA in respective genetic backgrounds. Both are diminished upon the ablation of AVA, but are not affected by ablation of the AVB premotor INs. They are both significantly decreased in A-, but not B-MN-ablated animals (n ≥ 5 in each data set). ns, not significant (p>0.05), ***p<0.001 against the respective non-ablated Control group by the students’ t - test. Error bars, SEM.

https://doi.org/10.7554/eLife.29915.015

Evoked and intrinsic A-MN oscillations require a P/Q/N-type VGCC

Because A-MN’s oscillatory activity was robustly evoked by optogenetic stimulation of premotor INs, we used this preparation to screen for potential cation channels that underlie locomotor CPG’s intrinsic membrane oscillation (Harris-Warrick, 2002). We examined three channels known to be expressed by MNs, the P/Q/N-type VGCC (Mathews et al., 2003; Schafer and Kenyon, 1995), the L-type VGCC (Lee et al., 1997), and the sodium leak channel (Xie et al., 2013).

rPSC bursts were readily evoked in mutants containing a partial loss-of-function (lf) allele for the pore-forming α-subunit of the L-VGCC CaV1α EGL-19 (Figure 7—figure supplement 1), as well as in mutants without the sodium leak channel’s pore-forming NCA-1 and NCA-2 (Gao et al., 2015), and the auxiliary UNC-79 and UNC-80 (Figure 7—figure supplement 1) subunits. By contrast, in a partial lf mutant for the α-subunit of the P/Q/N-VGCC CaV2α UNC-2, AVA stimulation failed to evoke rPSC bursts, despite increasing the mPSC frequency (Figure 7—figure supplement 1). We observed similar effects in mutants that lack auxiliary subunits of the P/Q/N-type VGCC, UNC-36 and CALF-1 (Saheki and Bargmann, 2009) (Figure 7—figure supplement 1). The specific loss of evoked rPSC bursts implicates a requirement of the P/Q/N-type VGCC for A-MN’s intrinsic oscillatory activity. Indeed, endogenous rPSC bursts, which we observed upon the removal of all premotor INs and B-MNs in wildtype animals, were also diminished in unc-2(lf) mutants (Figure 7A–C).

Figure 7 with 2 supplements see all
An endogenous UNC-2 channel activity regulates A-MN’s rhythmic activity.

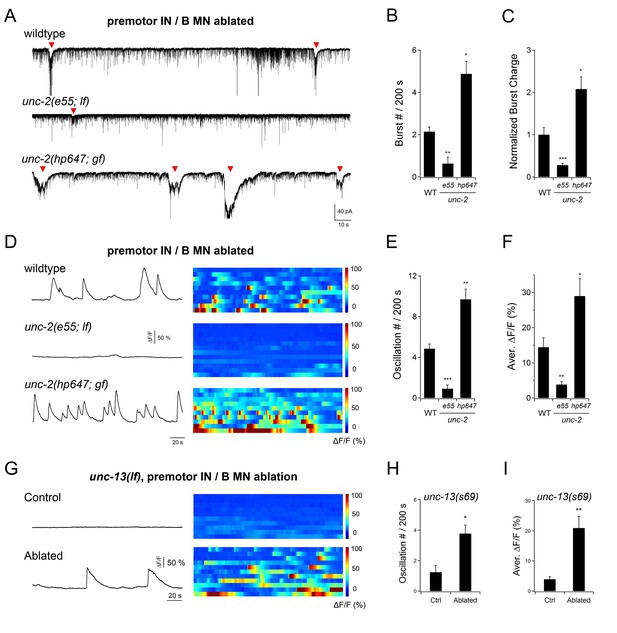

(A) Representative PSC recordings of the NMJ preparations of respective genotypes, after the co-ablation of premotor INs and B-MNs. The amplitude and frequency of periodic rPSC bursts (arrowheads) were reduced in unc-2(e55; lf), and increased in unc-2(hp647; gf) mutant animals. (B) Quantification of the rPSC burst frequency in respective genotypes. (C) Quantification of the total discharge of rPSC bursts in respective genotypes. Both were reduced in unc-2(e55; lf), and increased in unc-2(hp647; gf) mutants (n ≥ 7 in each dataset). (D) Example traces of the DA9 soma Ca2+ recording (left panels), and raster plots of all Ca2+ recordings (right panels) in wildtype animals (n = 10), unc-2(e55; lf) (n = 12), and unc-2(hp647; gf) (n = 10) mutants upon the co-ablation of premotor INs and B-MNs. (E) Quantification of DA9’s Ca2+ oscillation frequency in respective genotypes upon the co-ablation of premotor INs and B-MNs ablation. (F) Quantification of the overall DA9 Ca2+ activity in respective genotypes upon premotor INs and B-MNs. When compared to wildtype animals, both the frequency and activity of Ca2+ oscillation are significantly reduced in unc-2(e55; lf) and increased in unc-2(hp647; gf) mutant animals. (G) Example DA9 soma Ca2+ traces (left panels) and raster plots of all Ca2+ traces (right panels) in unc-13(lf) mutants, without (Control, n = 10) and with (Ablated) the co-ablation of premotor INs and B-MNs (Ablated, n = 11). (H, I) Quantification of the Ca2+ oscillation frequency (H) and overall activities (I) in unc-13 mutants. *p<0.05, **p<0.01, ***p<0.001 against the respective non-ablated Control group by the Mann-Whitney U test.

https://doi.org/10.7554/eLife.29915.016

The P/Q/N-type VGCC underlies A-MN oscillation independently of synaptic transmission

UNC-2 is expressed exclusively in neurons. Like the vertebrate P/Q- and N-type VGCCs, it mediates presynaptic calcium influx, subsequently activating synaptic vesicle fusion and neurotransmitter release (Mathews et al., 2003). The loss of endogenous and evoked rPSC bursts in unc-2, unc-36, and calf-1 lf mutants implicate three possibilities: first, UNC-2-conducted high-voltage-activated calcium current is part of A-MN intrinsic membrane oscillation; second, A-MN’ oscillation is dependent on synaptic transmission between premotor INs and A-MNs; third, in these mutants, A-MNs oscillate, but reduced synaptic transmission between premotor INs and A-MNs, and/or between A-MNs and muscles led to reduced rPSCs.

We can distinguish these possibilities by examining the calcium activity of A-MN somata. Specifically, we compared DA9’s activity in intact but immobilized wildtype and unc-2(lf) animals, after co-ablating premotor INs and B-MNs. Devoid of premotor IN inputs, wildtype DA9 exhibited periodic calcium oscillations (Figure 7D–F, wild type). In unc-2(lf) mutants, both the amplitude and frequency of these oscillations were severely reduced (Figure 7D–F, unc-2(e55; lf)). Restoration of UNC-2 in A-MNs alone mutants was sufficient to restore oscillation of DA9’s calcium signals in unc-2(lf) mutants (Figure 7—figure supplement 2). These results argue that independent of its role in exocytosis, UNC-2-mediated high-voltage-activated calcium current is an intrinsic component of A-MN membrane oscillation.

In this case, genetic impairement of exocytosis should not result in A-MN oscillatory defects. UNC-13 is a conserved and essential effector of presynaptic calcium influx to trigger exocytosis and neurotransmitter release (Brose et al., 1995; Gao and Zhen, 2011; Richmond and Jorgensen, 1999). Strikingly, in unc-13(lf) near null mutants, when premotor INs and B-MNs were ablated, DA9 exhibited periodic calcium oscillations as in wildtype animals (Figure 7G–I). This result not only confirms that UNC-2 has an exocytosis-independent function, but also reinforces the notion that A-MNs generate and sustain oscillatory activity in the absence of chemical synaptic input.

Lastly, if UNC-2 directly contributes to A-MN membrane oscillation, it should exhibit physical presence outside the presynaptic termini. We examined the subcellular localization of UNC-2 by inserting GFP at the endogenous unc-2 locus (Materials and methods). Indeed, in addition to the presynaptic localization along the neuronal processes in both the central (Figure 8E, nerve ring) and peripheral (Figure 8E, VNC) nervous system (Saheki and Bargmann, 2009; Xie et al., 2013), punctate signals decorate the plasma membrane of neuron somata, including those of A-MNs (Figure 8E), consistent with UNC-2 conducting extracellular calcium influx in somata.

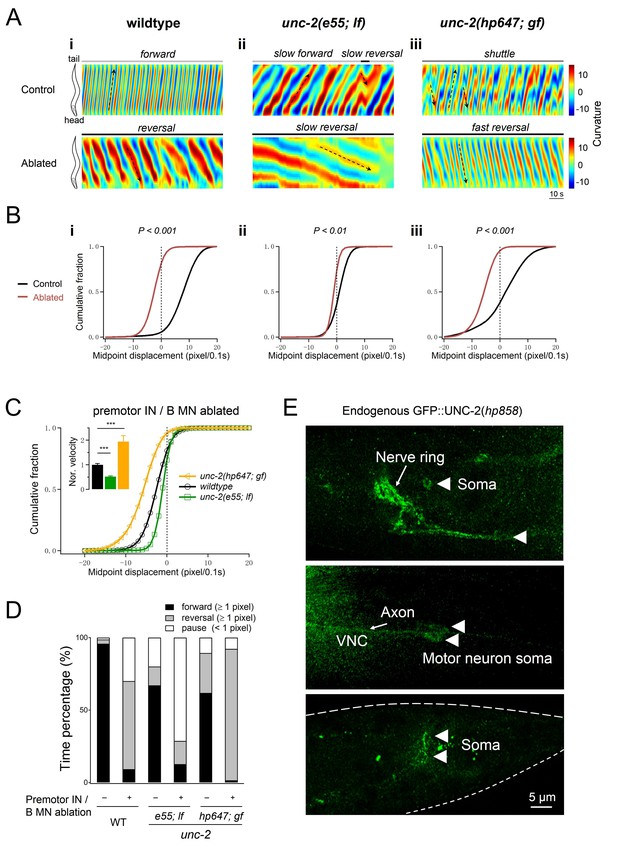

Increased UNC-2 activity leads to increased reversal velocity and duration.

(A) Representative curvature kymograms of wildtype and unc-2 mutant animals, without (Control) and with (Ablated) the co-ablation of premotor INs and B-MNs. Black arrows on kymograms denote directions of bending propagation. (B) Distribution of instantaneous velocity exhibited by animals of respective genotypes, presented by the animal’s mid-point displacement where the positive and negative values represent the forward and backward locomotion, respectively. While all animals exhibit backward locomotion upon the co-ablation of premotor INs and B-MNs, the speed of bending wave propagation, representing the reversal velocity, is significantly reduced and increased in unc-2(lf) and unc-2(gf) mutants, respectively. n = 10 animals per group. **p<0.01, ***p<0.001 against the non-ablated animals of the same genotype by the Kolmogorov-Smirnov test. (C) Distribution of the instantaneous velocity of wildtype, unc-2(lf), and unc-2(gf) mutant animals, upon the removal of premotor INs and B-MNs. Decreased UNC-2 activity leads to drastic reduction of velocity, whilst increased UNC-2 activity leads to increased velocity. ***p<0.001 against premotor IN and B-MN-ablated wildtype animals by the Kolmogorov-Smirnov test. Error bars, SEM. (D) Propensity of directional movements in animals of respective genotypes, quantified by the animal’s mid-point displacement. Upon the removal of premotor INs and B-MNs, all animals shift to a bias for backward locomotion; Note that unc-2(lf) mutants also exhibit a significant increase of pauses, whereas unc-2(gf) mutants eliminate forward locomotion. (E) The expression pattern of endogenous UNC-2, determined by a GFP::UNC-2(hp858) knock-in allele, stained with antibodies against GFP. Dense, punctate signals decorate the nerve processes of the central and peripheral nervous systems, as well as somata in central nervous system (top panel) and ventral cord motor neurons (middle panel), including the DA8 and DA9 soma (bottom panel). VNC, ventral nerve cord. Scale bar: 5 μm.

https://doi.org/10.7554/eLife.29915.019

Altering A-MN’s oscillatory property leads to changes in the reversal velocity and propensity

For channels that produce membrane oscillation, mutations that alter their kinetics should lead to corresponding changes in properties of oscillators and behaviors.

Consistent with this notion, unc-2(lf) mutants exhibited drastically reduced A-MN- dependent rPSC bursts (Figure 7A–C), and DA9’s calcium oscillation was reduced in both amplitude and frequency (Figure 7D–F). We further isolated and examined the effect of unc-2 gain-of-function (gf) mutations (Materials and methods) that reduce the channel inactivation kinetics, resulting in prolonged channel opening (Huang and Alkema; to be submitted; Alcaire and Zhen, unpublished). In contrast to the case of unc-2(lf) mutants, upon ablation of premotor INs and B-MNs, unc-2(gf) exhibited endogenous rPSC bursts with strikingly higher frequency and amplitude than wildtype animals (Figure 7A–C). DA9’s calcium oscillation exhibited drastically increased frequency and amplitude in unc-2(gf) animals when compared to wildtype animals (Figure 7D–F). Moreover, in unc-2(lf) mutants, specific restoration of wildtype UNC-2(WT) or Gain-of-function UNC-2(GF) in A-MNs was sufficient to rescue the frequency and amplitude of DA9’s oscillation (Figure 7—figure supplement 2).

Altered A-MN oscillatory property corresponded with changes in reversal velocity and propensity. Upon the ablation of premotor INs and B-MNs, unc-2(lf) and unc-2(gf) mutants exhibited substantially reduced and increased reversal velocities, respectively, than ablated wildtype animals (Figure 8A–C). The decrease and increase of reversal velocity was accompanied by a decreased and increased propensity for backward locomotion, respectively (Figure 8D).

Therefore, not only UNC-2 conducts currents that support A-MN’s membrane oscillation, modification of A-MN oscillatory property by either decreasing or increasing UNC-2’s activity, is sufficient to alter the property of backward locomotion.

Descending INs utilize a mixed synapse configuration to exert state-dependent inhibition and potentiation of A-MN oscillation to regulate the reversal motor state

When intrinsic A-MN activity drives backward locomotion, premotor IN inputs can control the reversal motor state by regulating their activities. The AVA descending premotor INs make both gap junctions and chemical synapses to all A-MNs (Kawano et al., 2011; Liu et al., 2017; Starich et al., 2009; White et al., 1986). Previous studies showed that AVA exert state-dependent and opposite effects on reversals: at rest, AVA-A gap junctions reduce spontaneous reversal propensity (Kawano et al., 2011), whereas optogenetic stimulation of AVA results in sustained backward locomotion (Gao et al., 2015; Kato et al., 2015). Therefore, AVA may control the reversal motor state through dual regulation - inhibition and potentiation - of A-MN oscillatory activity through the mixed gap junction and chemical synapse configuration.

To address whether at rest, AVA-A gap junctions dampen A-MN’s intrinsic activity, we examined an unc-7 innexin null mutant, in which gap junction coupling between AVA and A-MNs is disrupted (Kawano et al., 2011; Liu et al., 2017). DA9 exhibited low-calcium activity in both wildtype animals (Figure 9D) and the chemical synaptic transmission defective unc-13(lf) mutants (Figure 7G), in which AVA-A coupling remains intact. By contrast, DA9 exhibited robust calcium oscillation in unc-7(lf) mutants, despite the presence of AVA (Figure 9D). When UNC-7 was restored specifically in AVA (Materials and methods), DA9’s calcium oscillation was dampened in unc-7(lf) mutants (Figure 9D–F). When premotor INs and B-MNs were ablated, robust DA9 calcium oscillations were observed across the wildtype animals (Figure 4F), unc-13(lf) (Figure 7G–I), and unc-7(lf) mutants (Figure 9—figure supplement 1A–C), confirming that A-MN’s intrinsic oscillatory property was unaltered by the unc-7 mutation. Together, these results demonstrate that descending INs AVA inhibit A-MN’s intrinsic oscillation via gap junction coupling.

Figure 9 with 1 supplement see all

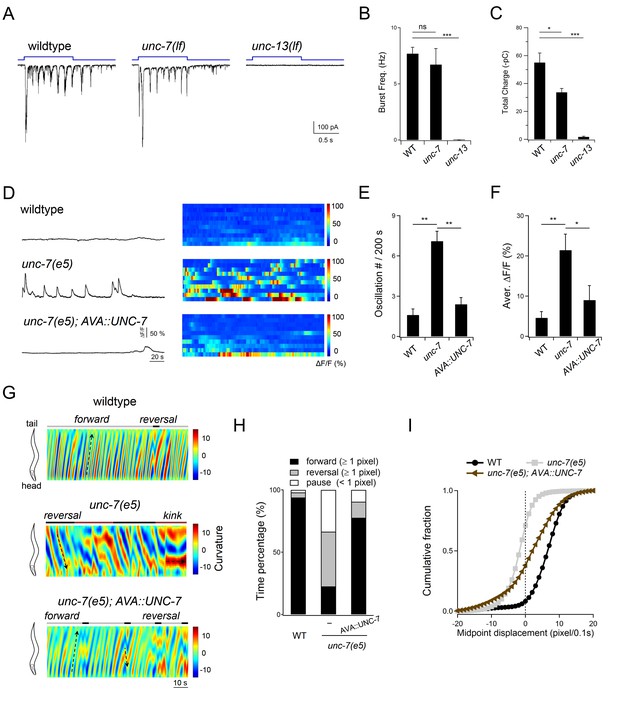

Descending premotor INs AVA exert dual modulation - inhibition and potentiation - of A-MN’s oscillatory activity to control the reversal motor state.

(A) Representative rPSC recordings in wildtype, unc-7(lf) and unc-13(lf) animals upon the optogenetic stimulation of premotor INs AVA. (B, C) Quantification of the frequency (B) and total discharge (C) of rPSC bursts in respective genotypes. n = 16, 7 and 3 animals for wildtype, unc-7 and unc-13, respectively. (D) Representative DA9 soma Ca2+ traces and raster plots of all Ca2+ traces in wildtype, unc-7(lf) and AVA-specific UNC-7-rescued animals, all with the presence of premotor INs and B-MNs. n = 10 animals each group. (E, F) Quantification of the Ca2+ oscillation frequency (E) and mean overall activities (F) in respective genotypes. DA9’s activity exhibits significant increase in unc-7(lf) mutants in the presence of premotor INs and B-MNs. *P<0.05,**p<0.01, ***p<0.001 against the rspective wildtype Control group by the Mann-Whitney U test. Error bars, SEM. (G) Representative curvature kymograms of wildtype, unc-7(lf) and AVA-specific UNC-7-rescued animals in the presence of premotor INs and B-MNs. Upward and downward pointing black arrows on kymograms denote posterior- and anterior-propagating body bends; the horizontal black arrow denotes the absence of propagation. (H) Propensity of directional movements in animals of respective genotypes, quantified by the animal’s mid-point displacement. A specific restoration of UNC-7 in AVA significantly rescued unc-7 mutant animal's bias for backward movement and pause. (I) Distribution of instantaneous velocity of respective genotypes, presented by the animal’s mid-point displacement. AVA-specific UNC-7 expression also partially rescued the mobility of unc-7(lf) mutant. n = 10 animals per group.

https://doi.org/10.7554/eLife.29915.020

Such an inhibition reduces propensity for the reversal motor state. As reported (Kawano et al., 2011; Starich et al., 2009), unc-7 mutants display a kinker posture and drastically increased spontaneous reversals, in contrast to wildtype animal’s strong bias for forward locomotion (Figure 9G,H; Figure 9—figure supplement 1D). When UNC-7 was restored specifically in the AVA premotor INs (Materials and methods), the unc-7 mutant’s spontaneous reversals were inhibited, accompanied by a restored bias for forward locomotion (Figure 9G,H). Their forward velocity was lower than that of wildtype animals (Figure 9I), which may reflect UNC-7’s presence (Altun et al., 2009; Starich et al., 2009), hence potential requirement in other neurons to fully rescue the unc-7 mutant’s motor defects. As expected, after premotor INs and B-MNs ablation, the unc-7 mutant exhibited continuous backward locomotion (Figure 9—figure supplement 1D,F).

Consistent with the notion that activated AVA potentiate A-MN oscillation, optogenetic activation of AVA evoked robust A-MN-dependent rPSC bursts (Figure 6B–D), and sustained reversals (Gao et al., 2015). AVA potentiate A-MNs primarily through chemical synapses, because AVA-evoked rPSC bursts exhibited normal frequency, with a modestly reduced total charge transfer in the unc-7 mutant (Figure 9A–C). As expected, rPSCs were abolished in a chemical synaptic transmission defective mutant unc-13 (Figure 9A–C). Thus, AVA’s dual action – attenuation and potentiation – on the reversal motor state correlates with an inhibition and stimulation of A-MN’s oscillatory activity, respectively.

In summary, we show that A-MNs exhibit intrinsic and oscillatory activity that is sufficient for backward locomotion. Positive and negative regulation of their oscillatory activity, through either manipulation of an endogenous oscillatory calcuim current, or, by altering the synaptic inputs of descending premotor INs AVA, lead to changes in the propensity, velocity, and duration of the reversal motor state (Figure 10).

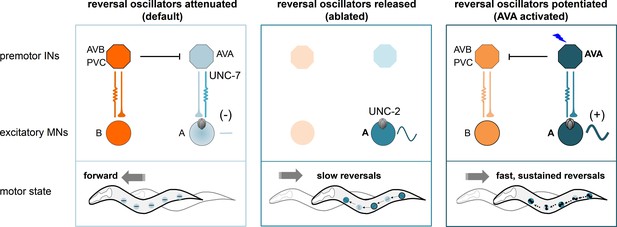

A model for a distributed reversal oscillator-driven motor circuit, dually regulated by the descending premotor INs to modulate the reversal motor state.

Multiple A-MNs represent distributed and phase-coordinated intrinsic oscillators to drive backward locomotion. The descending premotor INs AVA exert state-dependent dual regulation - inhibition and activation – on A-MN’s oscillatory activity to determine the initiation and substation of the reversal motor state through a mixed electrical and chemical synapse configuration. Left panel: at rest, A-MN intrinsic activity is inhibited by AVA through UNC-7 innexin-dependent coupling. Center panel: the ablation of premotor INs removes AVA-A coupling, releasing UNC-2 VGCC-dependent A-MN calcium oscillation, and permitting slow backward locomotion. Right panel: upon stimulation, AVA potentiate A-MN’s oscillatory activity, primarily through chemical synapses, with a minor contribution from electrical synapses, permitting sustained reversals.

https://doi.org/10.7554/eLife.29915.022

Discussion

We show that multiple oscillators underlie C. elegans locomotion. For the motor circuit that promotes reversals, the excitatory A-MNs are both motor executors and rhythm generators. Through a mixed synapse configuration, the descending AVA premotor INs exert state-dependent inhibition and activation of their intrinsic activity to regulate the reversal motor state. We discuss that results from this and previous studies reconcile previously conceived differences on the electrophysiological properties and anatomic organization between C. elegans and other locomotor networks. We further discuss that these results exemplify circuit compression: the C. elegans motor circuit operates with fundamental similarities to large locomotor networks, but with fewer neurons and circuit layers.

Separate oscillators of different properties drive forward and backward locomotion

C. elegans locomotion involves the orchestration of at least three independent rhythm generators that underlie the head and body movements. Forward locomotion consists of head oscillations that pull the body forward and body oscillations that are driven by B-MNs. Backward locomotion consists of body oscillations that are driven by multiple A-MNs, and may be antagonized by the head oscillation.

Separating the forward- and reversal-driving oscillators at the motor neuron level offers a different strategy for directional movements. In the lamprey and Drosophila larvae, the same motor neuron group underlies body movements; a directional change is achieved through reversing the direction of propagation.

In the absence of premotor INs, C. elegans generates deeper body bends during backward than forward locomotion. This suggests that reversal-driving A-MNs have intrinsically higher activity than the forward-promoting B-MNs. This predicts potential differences in their relationships with the respective regulatory premotor INs. Indeed, establishing the forward movement as a preferred motor state requires the descending premotor INs of the reversal-promoting motor circuit AVA to attenuate A-MN’s activity through electrical coupling (Kawano et al., 2011; this study). We speculate that motor neurons with high intrinsic activities are advantageous for reversal, a motor state that is frequently incorporated in adverse stimuli-evoked behaviors such as escape and avoidance.

A-MNs are rhythm generators

The following evidence supports that motor neurons that execute backward locomotion are themselves the oscillators: they exhibit intrinsic and oscillatory activity; their intrinsic activity is sufficient to drive backward locomotion; their oscillatory frequency is positively correlated with the reversal velocity; premotor IN-mediated attenuation and potentiation of their activities determine the propensity and maintenance of the reversal motor state.

In other locomotor circuits, MNs are thought to provide feedbacks to the rhythm generating premotor INs (Heitler, 1978; Song et al., 2016; Szczupak, 2014). This study describes the first example of MNs performing both motor and rhythm-generating roles in a locomotor circuit. These findings bear resemblance to the lobster pyloric circuit, where two pyloric MNs, both capable of intrinsic membrane oscillation and bursting, are integral components of an oscillatory network that underlies constitutive food filtering (Marder and Bucher, 2001; Selverston and Moulins, 1985).

High-voltage-activated calcium currents are a conserved component of oscillation

In addition to a role in exocytosis, the P/Q/N-type calcium conductance produces A-MN membrane oscillation. In unc-2(lf), but not unc-13(lf) mutants in which synaptic transmission was abolished (Richmond and Jorgensen, 1999), A-MN calcium oscillation was compromised. Endogenously tagged UNC-2 resides at both the presynaptic termini and soma of MNs. Restoring UNC-2 in A-MNs in unc-2(lf) – simultaneously rescuing their oscillation and NMJ activities – restores backward locomotion in the absence of premotor INs.

An exocytosis-independent role of high-voltage-activated calcium channels in membrane oscillation has been noted in vertebrates. In isolated lamprey spinal neuron somata, the N-type calcium currents prominently potentiate action potential bursts, and are coupled with calcium-activated potassium currents that terminate the bursts (el Manira et al., 1994; Wikström and El Manira, 1998). The intrinsic, high-frequency gamma band oscillation of the rat pedunculopontine nucleus (PPN) requires high-threshold N- and/or P/Q-type calcium currents, a finding that is consistent with dendritic and somatic localization of VGCC channels in cultured PPN neurons (Hyde et al., 2013; Kezunovic et al., 2011; Luster et al., 2015). Voltage-activated calcium conductance may be a shared property of neurons with oscillatory activity.

Calcium-driven oscillators and bursters underlie C. elegans motor rhythm

C. elegans is superficially at odds with several fundamental features of CPG-driven networks: its genome does not encode voltage-activated sodium channels that typically drive action potential bursts, and all examined neurons to date, MNs and premotor INs included, are non-spiking. Instead, MNs and premotor INs exhibit plateau potentials upon stimulation (Kato et al., 2015; Liu et al., 2014).

Results from this and previous studies reveal a simplified, but fundamentally conserved cellular and molecular underpinning of rhythmicity in C. elegans locomotion. B- and A-MNs exhibit calcium oscillations (Kawano et al., 2011; Wen et al., 2012; this study). Muscles alone fire calcium-driven action potentials (Gao and Zhen, 2011; Jospin et al., 2002; Liu et al., 2011, 2009; Raizen and Avery, 1994). Activation of premotor INs or MNs triggers rhythmic bursting in body wall muscles, a pattern of physical relevance (Gao et al., 2015). Further, not only are A-MNs required for muscle bursting; altering A-MN oscillation changes the frequency and duration of bursting (this study).

We propose that the C. elegans locomotor network utilizes a combinatory oscillatory and bursting property of MNs and muscles to generate motor rhythm. In the absence of voltage-activated sodium channels, high-voltage-activated calcium channels, specifically, the UNC-2 P/Q/N- and L-type VGCCs that drive MN oscillation and muscle spiking, respectively, take deterministic roles in the rhythmic output.

Functional and anatomic compression at the C. elegans motor circuit

In the spinal cords, distinct pools of spinal premotor INs and MNs play dedicated roles in rhythm generation, pattern coordination, proprioceptive and recurrent feedback, and execution of different motor patterns (Grillner, 2006; Kiehn, 2016). C. elegans operates with a remarkably small number of neurons. Despite the numeric simplicity, C. elegans exhibits remarkable adaptability and repertoire of motor behaviors. Its motor infrastructure has to compress multiple functions into a smaller number of cells and fewer layers of neurons.

Indeed, body wall muscles are the only bursting cells. Excitatory MNs absorb the role of rhythm generators. Previous (Wen et al., 2012) and this study suggest that C. elegans MNs are likely proprioceptive. The anatomy, where only the MN somata reside at the ventral nerve cord, supports the notion that C. elegans MNs and muscles perform all essential functions of the large locomotor CPG networks including the spinal cords.

Anatomical constraints may have necessitated functional compression. When a nervous system consists of a small number of neurons, instead of being simple, it is more compact. The numeric complexity, reflected by both increased neuronal subtypes, numbers and layers in large circuits, is compensated by a cellular complexity that endows individual neuron or neuronal class multi-functionality in a small nervous system.

A mixed synapse configuration regulates dynamics of rhythm-generating circuits

Mixed chemical and electrical synaptic connectivity between INs and MNs may be a universal feature of rhythm-generating circuits. Not only do locomotor circuits in the crayfish, leech, C. elegans, Drosophila (Matsunaga et al., 2017), and zebrafish exhibit this conserved configuration, a similar organization has been found in other motor systems, including the lobster cardiac and stomatogastric ganglia (Hartline, 1979; Marder, 1984), and the snail feeding system (Staras et al., 1998). Prevalent gap junctions have also been reported at the mature rodent spinal cords (Kiehn and Tresch, 2002).

In several preparations, gap junctions allow MNs to retrogradely regulate the activity of premotor INs (Heitler, 1978; Liu et al., 2017; Song et al., 2016; Staras et al., 1998). This, however, may be an overly simplified interpretation on their physiological functions. When arranged in combination with chemical synapses, gap junctions can exert diverse effects on circuit dynamics and flexibility (Marder et al., 2017; Rela and Szczupak, 2004). In the crustacean’s pyloric network, the Anterior Burster (AB) IN, Pylorid Dilator (PD) MN, and Ventricular Dilator (VD) MN are electrically coupled. Mixed electrical coupling and inhibitory chemical synapses between AB and VD allows VD and PD MNs to fire out-of-phase despite their electrical coupling (Marder, 1984). In the gastric network, a descending interneuron MCN1 tonically activates the LG gastric mill neurons and DG dorsal gastric neurons; a mixed electrical coupling and reciprocal chemical synapse wiring between LG and MCN1 contribute to the alternate firing of LG and DG (Coleman et al., 1995). In the leech swimming circuit, mixed electrical coupling and inhibitory chemical synapses between premotor INs and MNs facilitate recurrent inhibition on MNs (Szczupak, 2014). A full understanding of their physiological functions requires examination of their impact on behaviors.

C. elegans innexin mutants have permitted direct behavioral assessment of the role of gap junctions. Combined with electrophysiological and optogenetic examination, innexin mutants that selectively disrupt premotor IN and MN gap junctions (Kawano et al., 2011; Liu et al., 2017; this study) reveal sophisticated roles for a mixed, heterotypic and rectifying gap junction and excitatory chemical synapse configuration in locomotion.

In the reversal motor circuit, this configuration allows the AVA premotor INs to exert state-dependent inhibition and activation on its oscillators. At rest, AVA-A gap junctions dampen the excitability of premotor INs (Kawano et al., 2011), and the oscillatory activity of A-MNs (this study) to reduce the propensity for spontaneous reversals. Upon activation, AVA potentiate A-MNs predominantly through chemical synapses, with a minor contribution from gap junctions (this study). The weakly rectifying gap junctions (Liu et al., 2017; Starich et al., 2009) may allow activated A-MNs to antidromically amplify the excitatory chemical synaptic inputs from AVA, prolonging evoked reversals (Liu et al., 2017). Because genetic studies for gap junctions are lacking in most experimental systems, we may continue to be surprised by the sophistication and diversity of such a configuration.

Remaining questions

Our analyses indicate that A-MNs function as a chain of phase-coupled local oscillators to organize and execute backward locomotion. The following questions should be addressed to verify and refine this model.

First, how A-MNs are phase-coupled to execute backward locomotion in the absence of premotor interneurons. Forward-promoting B-MNs are strongly activated by proprioception (Wen et al., 2012). In the reversal-promting circuit, proprioception may, as in other motor circuits, serve as feedbacks to regulate A-MN oscillation and to organize their phasic relationship. Such a model proposes that A-MNs integrate the role of not only rhythm generating, but also proprioceptive INs in other locomotor circuits.

Second, which molecular mechanisms underlie the multiple identities of excitatory MNs. Comparing the intrinsic difference between properties of A- and B-MNs, and potentially among individual members of each MN class, provides a starting point to evaluate this hypothesis.

Third, the molecular identities of other channels, in addition to UNC-2, that endow A-MN oscillatory membrane property. Previous studies characterized membrane properties of lamprey locomotor oscillators pharmacologically: the depolarization initiated by sodium and calcium conductance, potentiated and maintained by voltage- or glutamate-activated calcium conductance, and terminated by calcium- and voltage-activated potassium currents (Grillner et al., 2001). C. elegans genetics should allow us to reveal the precise molecular identity and channel composition. This pursuit may further delineate mechanisms that underlie circuit compression.

Fourth, in the lamprey spinal cord, the fastest oscillator entrains other oscillators and leads propagation (Grillner, 2006). DA9, the most posterior unit that exhibits the highest activity, poises to be a leading oscillator of the C. elegans reversal motor circuit. A-MNs serve as a genetic model to address circuit and molecular mechanisms that endow the property of the leading CPG, and underlie the entrainment and coupling of trailing oscillators.

Lastly, as in all other motor systems, A-MN oscillators must coordinate with those that drive other the motor states. Circuit and molecular mechanisms that underlie their coordination must be addressed in this system.

Closing remarks

Our studies contribute to a growing body of literature that small animals can solve similar challenges in organizing locomotor behaviors faced by larger animals, with a conserved molecular repertoire, and far fewer neurons. They serve as compact models to dissect the organizational logics of neural circuits, where all essential functions are instantiated, but compressed into fewer layers and cells.

Materials and methods

Constructs, transgenic arrays and strains

The complete lists of constructs, transgenic lines and strains generated or acquired for this study are provided in Table 1 and Table 2. All C. elegans strains were cultured on the standard Nematode Growth Medium (NGM) plates seeded with OP50, and maintained at 15°C or 22°C. Unless stated otherwise, the wildtype animal refers to the Bristol N2 strain. Strains that contain optogenetic transgenes (hpIs166, hpIs270, hpIs569 and hpIs578) were cultured in darkness on NGM plates supplemented with or without ATR (Liewald et al., 2008). Strains that contain miniSOG transgenes (hpIs321, hpIs331, hpIs366, hpIs371, hpIs376, juIs440, hpIs583, hpIs590, hpIs481 and hpIs603) were maintained in darkness on NGM plates.

Table 1
Constructs and transgenic arrays generated or acquired for this study.
https://doi.org/10.7554/eLife.29915.023
PurposePlasmidDescriptionHost strain/
Injection marker
TransgeneStrain
Neuron AblationpJH2843Punc-4::tomm20::miniSOG-SL2::RFP
(A-MNs/others)*
lin-15/Lin-15hpIs366*ZM7690*
hpIs371*ZM7691*
pJH2842Pacr-5::tomm20-miniSOG-SL2::RFP
(B-MN/others)
lin-15/Lin-15hpIs372ZM7798
pJH2844Punc-25::tomm20-miniSOG-SL2::RFP
(D-MN/others)
lin-15/Lin-15hpIs376ZM7696
pJH2827Pnmr-1::tomm20-miniSOG-SL2::RFP
(AVA/E/D/others)
lin-15/Lin-15hpIs321ZM7054
pJH2890Plgc55B::tomm20::miniSOG-SL2::RFP
(AVB/others)
lin-15/Lin-15hpIs331ZM7297
 Psra-11::tomm20-miniSOG/
Psra-11::RFP (AVB/others)
 juIs440CZ19093
pJH3626Pacr-2(s)::tomm20-miniSOG-SL2::RFP
(A-/B-MN-specific)
lin-15/Lin-15hpIs583ZM9062
pJH3458Pttr-39::tomm20-miniSOG-SL2::BFP
(D-MN-specific)
lin-15/Lin-15hpIs590ZM9123
pJH3409/pJH3410Pceh-12::tomm20-miniSOG-SL2::BFP/
Punc-129(DB)::tomm20-miniSOG-SL2::BFP
(B-MN-specific)
lin-15/Lin-15hpIs481ZM8607
pJH3449/pJH3453/pJH3456Plgc-55B::tomm20-miniSOG-SL2::BFP/
Pnmr-1::tomm20-miniSOG-SL2::BFP/
Pacr-5::tomm20-miniSOG-SL2::BFP
(all premotor IN/B MN/others)
lin-15/Lin-15hpIs603ZM9176
Neuron IDpJH1841Pacr-2::RFPdpy-20/Dpy-20qhIs4YX146
Optogenetic Stimulation of NeuronspJH1697Pglr-1::ChR2(H134R)::YFP
(AVA/AVE/AVD/others)
lin-15/Lin-15hpIs166ZM4624
pJH2690/pJH2673Prig-3::FRT ::ChR2(H134R)::RFP/
Pnmr-1::FLP
(AVA-specific)
lin-15/Lin-15hpIs270ZM6804
pJH3558Punc-4::Chrimson::Cherry
(A-MNs/others)*
lin-15/Lin-15hpIs569*ZM8958*
pJH3577Pceh-12::Chrimson::Cherry
(VB-MNs)
lin-15/Lin-15hpIs578ZM8983
UNC-2 LocalizationpJH3931/pJH3932sgRNA and repair template for GFP
insertion at the unc-2 locus
N2hp858ZM9583
UNC-2 RescuepJH3916Punc-4::GFP::UNC-2 (WT)unc-2(e55); hpIs603; hpIs459/
Pmyo-2::RFP
hpEx3856ZM9495
pJH3917Punc-4::GFP::UNC-2 (L653F; gf)unc-2(e55); hpIs603; hpIs459/
Pmyo-2::RFP
hpEx3859ZM9498
AVA-specific
UNC-7 Rescue
pJH4119/pJH2673Prig-3::FRT::UNC-7::GFP/
Pnmr-1::FLP
(AVA)
unc-7(e5)/
Pmyo-3::RFP
hpEx3969ZM9816
Calcium ImagingpJH3137Punc-4::GCaMP6::RFP*
(A-MNs/others)
lin-15/Lin-15hpIs459aZM8428*
hpIs460*ZM8429*
 Pmyo-3::GCaMP3::RFP
(body wall muscles)
 ljIs131ZM7982
  1. *In adults, Punc-4 expression is more prominent in VC-MNs than A-MNs. We did not observe rhythmic calcium signals in VCs as in A-MNs (Gao and Zhen, unpublished). Mini-SOG ablation was performed in late L2 larvae; optogenetic stimulation in young L4 larvae, to ensure A-MN-specific ablation and activation.

    Acquired. Information about the construct, transgene and strain was described in Qi, Y. B. et al. Photo-inducible cell ablation in Caenorhabditis elegans using the genetically encoded singlet oxygen generating protein miniSOG. Proc Natl Acad Sci U S A 109, 7499–504 (2012).

  2. Acquired. Information about the construct, transgene and strain was described in Butler, V. J. et al. A consistent Muscle activation strategy underlies crawling and swimming in Caenorhabditis elegans. J R Soc Interface 12, 20140963 (2015).

Table 2
Additional strains that were generated using the transgenic arrays in Table 1.
https://doi.org/10.7554/eLife.29915.024
StrainGenotypePurpose/NotesFigure/Video
For behavior analyses upon sparse A-MN ablation
YX167hpIs366/qhIs4; qhIs1** A transgene irrelevant to this studyFigure 3; Video 3
YX148qhIs4; qhIs1** A transgene irrelevant to this studyFigure 3; Video 3
For behavior and electrophysiology analyses upon neuron ablation
ZM7971hpIs321; hpIs331All premotor IN ablationFigure 1; Video 1
ZM9133hpIs583 hpIs589A-/B-/D-MN ablationFigure 1
ZM8415hpIs321; juIs440All premotor IN ablationFigure 1—figure supplement 1
ZM7862hpIs321; hpIs331; hpIs372All premotor IN/B-MN ablationFigure 2; Video 2; Figure 4
ZM7870hpIs321; hpIs331; hpIs371All premotor IN/A-MN ablationFigure 2; Video 2
ZM7921hpIs321; hpIs331; hpIs376All premotor IN/D-MN ablationFigure 2; Video 2
ZM8668unc-2(e55; lf); hpIs321; hpIs331; hpIs372All premotor IN/B-MN ablationFigure 8
ZM9022unc-2(hp647; gf); hpIs321; hpIs331; hpIs372All premotor IN/B-MN ablationFigure 8
ZM9999unc-7(e5); hpIs603All premotor IN/B-MN ablationFigure 9—figure supplement 1
For Ca22+imaging and/or behavior analyses
ZM7465hpIs321; hpIs331; ljIs131Muscle Ca2+ imaging, upon all
premotor IN ablation
Video 1
ZM9228hpIs603; hpIs459A-MN Ca2+ imaging, upon all
premotor IN/B-MN ablation
Figures 4 and 5; Video 4
ZM9229unc-2(e55; lf); hpIs603; hpIs459A-MN Ca2+ imaging and behavior,
upon all premotor IN/B-MN ablation
Figure 7
ZM9495unc-2(e55; lf); hpIs603; hpIs459; hpEx3856A-MN Ca2+ imaging, UNC-2 (WT)
 rescue in A-MN
Figure 7—figure supplement 2
ZM9498unc-2(e55; lf); hpIs603; hpIs459; hpEx3859A-MN Ca2+ imaging, UNC-2 (GF)
 rescue in A-MN
Figure 7—figure supplement 2
ZM9231unc-2(hp647; gf); hpIs603; hpIs459Same as aboveFigure 7
ZM9557unc-13(s69; lf); hpIs603; hpIs459Same as aboveFigure 7
ZM8654unc-7(e5; lf); hpIs460Same as aboveFigure 9
ZM9885unc-7(e5; lf); hpIs460; hpEx3966Same as aboveFigure 9
ZM9657unc-7(e5; lf); hpIs603; hpIs460Same as aboveFigure 9—figure supplement 1
For optogenetic stimulation and electrophysiology analyses
ZM7920hpIs321; hpIs270AVA ChR2 stimulation, upon
AVA/AVE/AVD/others ablation
Figure 6
ZM7861hpIs331; hpIs270AVA ChR2 stimulation, upon
AVB/others ablation
Figure 6
ZM8408hpIs371; hpIs270AVA ChR2 stimulation, upon
A-MN/others ablation
Figure 6
ZM9093hpIs481; hpIs166AVA/others ChR2 stimulation,
upon B-MN/others ablation
Figure 6
ZM7615unc-2(e55; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM6646unc-2(ra612; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM7608unc-36(e251; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM7780calf-1(ky867; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM6646unc-79(e1068; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM7533unc-80(e1069; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM7509elg-19(n582; lf); hpIs166AVA/others ChR2 stimulationFigure 7—figure supplement 1
ZM6639unc-13(e1091; lf); hpIs166AVA/others ChR2 stimulationFigure 9
ZM4728unc-7(e5; lf); hpIs166AVA/others ChR2 stimulationFigure 9

Genetic mutants

unc-2(hp647; gf) was identified in a suppressor screen for the 'fainter' motor defects of unc-80(e1069) mutants. Both e1069; hp647 and hp647 animals exhibit hyperactive locomotion with high movement velocity and frequent alternation between forward and backward locomotion (shuttling) (Alcaire and Zhen, unpublished results). hp647 was mapped between egl-17 and lon-2 on the X chromsome. Co-injected fosmids WRM0628cH07 and WRM0616dD06 rescued the shuttling phenotype exhibited by hp647 and reverted unc-80(e1069); hp647 to unc-80(e1069)-like fainter phenotypes. Subsequent exon and genomic DNA sequencing revealed a causative, gf L653F mutation in unc-2(hp647). unc-2(hp858) is an insertion allele where GFP was fused immediately in front of the ATG start codon of the unc-2 locus by CRISPR. hp858 animals exhibit wildtype motor behaviors. Other genetic mutants used for constructing transgenic lines and compound mutants were obtained from the Caenorhabditis Genetics Center (CGC); all were backcrossed at least four times against N2 prior to analyses.

Constructs and molecular biology

All promoters used in this study were generated by PCR against a mixed-stage N2 C. elegans genomic DNA. Promoters include the 5.1 kb Pnmr-1, 4.8 kb Prig-3, 2.8 kb Psra-11, 1.8 kb Pacr-2s, 2.5 kb Punc-4, 4.2 kb Pacr-5, 0.9 kb Pttr-39, 2.8 kb Pceh-12, 2.7 kb Punc-129(DB), and 0.86 kb Plgc-55B genomic sequence upstream of the respective ATG start codon. The Pnmr-1 used in this study excluded a 2 kb internal fragment that encodes cex-1, which interferes with reporter expression (Kawano et al., 2011).

For calcium imaging constructs, the genetic calcium sensor GCaMP3 and GCaMP6s were used for muscle and neuronal calcium imaging, respectively. The GCaMP6s sequence (Chen et al., 2013) was codon-optimized for expression in C. elegans. The synthesized gene also contains three C. elegans introns and contain restriction enzyme sites to facilitate subsequent cloning. In all constructs, GCaMP6 was fused in frame with a C. elegans codon-optimized mCherry at the C-terminus to allow ratio metric measurement via simultaneous imaging of GFP and RFP.

For neuronal ablation constructs, MiniSOG (Shu et al., 2011) fused with an outer mitochondrial membrane tag TOMM20 (tomm20-miniSOG or mito-miniSOG) (Qi et al., 2012) was used. An intercistronic sequence consisting of a U-rich element and Splice Leader sequence (UrSL) was inserted between the coding sequence of tomm20-miniSOG and Cherry or BFP to visualize neurons that express miniSOG and the efficacy of ablation. Inter-cistronic region consisting of a U-rich element and Splice Leader sequence (UrSL) between gpd-2 and gpd-3 was PCR amplified with OZM2301 (AAGCTAGCGAATTCGCTGTCTCATCCTACT TTCACC) and OZM2302 (AAGGTACCGATGCGTTGAAGCAGTTTC CC) using pBALU14 as the template. Two sets of bicistronic expression reporters used in this study, codon-optimized mCherry and EBFP, were gifts of Desai (University of California, San Diego) and Calarco (University of Toronto), respectively. They were used for behavioral analyses and to be combined with calcium imaging analyses, respectively.

The FRT-FLP system was used to generate two constructs that are co-injected to achieve AVA-specific UNC-7 expression. Prig-3 was used to drive the expression of a UNC-7::GFP cassette, and Pnmr-1 was used to drive FLP expression.

Transgenetic arrays and strains

Transgenic animals that carry non-integrated, extra-chromosomal arrays (hpEx) were generated by co-injecting an injection marker with one to multiple DNA construct at 5–30 ng/μl. Animals that carry integrated transgenic arrays (hpIs) were generated from the hpEx animals by UV irradiation, followed by outcrossing against N2 at least four times. L4-stage or young adults (24 hr post L4) hermaphrodites were used in all experiments.

On plate whole population neuron ablation

To distinguish the role of different classes of neurons in locomotion modulation, we expressed mito-miniSOG into the A-, B-, D-MNs, premotor INs (AVA, AVE, PVC, AVD, AVB) and a few other unidentified neurons, respectively (Table 1 and Table 2). On plate ablation of all members of MNs and premotor INs was performed using a homemade LED box, where the standard NGM culture plates, without lid, were exposed under 470 nm blue LED light box for 30–45 min. To monitor the specificity and efficacy of cell ablation, cytoplasmic RFP was co-expressed with miniSOG (tomm-20-miniSOG-SL2-RFP) in targeted neurons by the same promoter. Ablation was performed when most animals were in the L2 stage. Late L4 stage animals were recorded for behavioral analyses. Afterwards, they were mounted individually on agar pads to be examined for RFP signals; only recordings from animals where RFP signals were absent were analyzed.

On plate locomotion analyses

A single 12–18 hr post-L4 stage adult hermaphrodite, maintained on standardculture conditions, was transferred to a 100 mm imaging plate seeded with a thin layer of OP50. One minute after the transfer, a 2-minute video of the crawling animal was recorded on a modified Axioskop 2 (Zeiss, Germany) equipped with an automated tracking stage MS-2000 (Applied Scientific Instruments, Eugene, OR) and a digital camera (Hamamatsu, Japan).

Imaging plates were prepared as follows: a standard NGM plate was seeded with a thin layer of OP50 12–14 hr before the experiment. Immediately before the transfer of worms, the OP50 lawn was spread evenly across the plate with a sterile bent glass rod. Movements exhibited by C. elegans were recorded using an in-house developed automated tracking program. All images were captured with a 10X objective at 10 frames per second. Data recorded on the same plate and on the same day were pooled, quantified and compared.

Post-imaging analyses utilized an in-house developed ImageJ Plugin (Kawano et al., 2011) and in-house written MATLAB scripts. Images from each animal were divided into 33 body segments. The mid-point was used to track and calculate the velocity and direction of movements between each frame. The percentage of total frames exhibiting pausing, backward or forward locomotion was defined by the mid-point displacement: between –1 pixel/second (- movements toward the tail) and + 1 pixel/second (+ movements toward the head) was defined as pause, less than –1 pixel/second backward, and more than + 1 pixel/s forward movement. The angle between three joint points was used to calculate the curvature of the middle point loci. The curvature value for each body segment was plotted, from the head to tail over time, and converted as a color map of movements.

Calcium imaging of immobilized or crawling animals

DA9 recording from immobilized intact animals (all calcium imaging figures except Figure 5) was carried out as follows: animals were glued as described for electrophysiological recording (Gao et al., 2015), and imaged with a 60X water objective (Nikon, Japan) and sCMOS digital camera (Hamamatsu ORCA-Flash 4.0V2, Japan) at 100 ms per frame. Data were collected by MicroManager and analyzed by ImageJ.

Simultaneous imaging of multiple A-MNs (VA10, VA11, and DA7) in moving animals (Figure 5) was performed as described in a previous study (Kawano et al., 2011). Animals were placed on a 2% agarose pad on a slide, suspended in the M9 buffer, covered by a coverslip, and imaged with a 63X objective. Neurons were identified by their stereotypic anatomical organization. Multiple Regions Of Interest (ROI) containing the MN soma of interest were defined using an in-house developed MATLAB script. Videos were recorded with a CCD camera (Hamamatsu C2400, Japan) at 100 ms per frame. Simultaneous velocity recording at each time point was measured using an Image J plug-in developed in-house (Gao et al., 2015; Kawano et al., 2011).

In both preparations, GCaMP and RFP signals were simultaneously acquired using the Dual-View system (Photometrics, Tucson, AZ), and the GCaMP/RFP ratios were calculated to control for motion artifacts and fluorescence bleaching during recording. Late L4 stage animals were used for all calcium imaging experiments, when the Punc-4 promoter exhibits strongest expression in A-MNs.

Region-specific light-ablation of MNs and behavioral analyses

Data in Figure 3 and Figure 3—figure supplement 1 were collected from animals where A-type MNs were ablated using three strains, where A- or A/B-MNs were labeled by RFP. For miniSOG-based ablation, ZM9062 hpIs583 (A- and B-MNs miniSOG) or YX167 hpIs366/qhIs4; qhIs1 (A-MNs miniSOG) L2 larva were immobilized on a 4% agar pad with 5 mM tetramisole. Region-specific illumination was performed by targeting a 473 nm laser at an arbitrary portion of the animal using a digital micromirror device (DMD) through a 20X objective (Leifer et al., 2011). The final irradiance at the stage was approximately 16 mW/mm2. The DMD was set to pulse the laser with a duty cycle of 1 s on, 0.8 s off, for a total of 300 of total ON time. Each animal was immobilized for a maximum of 30 min.

Most posterior MNs (VA12-DA9) ablation was also performed in YX148 qhIs4; qhIs1 (A/B RFP) by a pulsed infrared laser illumination system (Churgin et al., 2013) modified with increased output power. L2 animals were immobilized in the same manner. A single 2 ms pulse was applied to each neuron through a 60X objective visualized by RFP. This procedure never affected VA11, the nearest non-targeted neuron. Following ablation, each animal was transferred to an OP50-seeded NGM plate and allowed to grow to the day 1 adult stage. Controls were animals of the same genotype treated identically except without blue or infrared laser illumination.

For behavior recordings, each animal was transferred to an unseeded NGM plate, and on plate crawling was recorded for at least 5 min under bright field illumination. If the animal became sluggish or idle, the plate was agitated using the vibration motor from a cell phone. After recordings, each animal was imaged at 40X for RFP pattern for the entire body and we manually assigned present and missing neurons based on their relative positions and commissural orientation (White et al., 1976; White et al., 1986). For YX167, where A- and B-MNs were labeled, two researchers independently analyzed the same image and discussed, and agreed on the identification. We only included data from animals where we were confident of the identity of neurons.

Analyses of locomotion of ablated and control animals were carried out using WormLab (MBF Bioscience, Williston, VT) and in-house Matlab codes. Data from all three ablation methods were pooled to generate the summary statistics. Bouts of reversals that lasted at least 3 s were analyzed for the speed of wave propagation. Curvature segmentations from the behavioral recordings were constructed using WormLab (MBF Bioscience, Williston, VT). Wave speed was measured as a function of body coordinate and time, by taking the derivative of each curvature map with respect to time (dκ/dt), and to body coordinate (dκ/dC). Wave speed was defined as the ratio between these gradients (body coordinate/s). Wave speed was averaged over the length of each bout, and binned for the anterior (5–25% of body length from the head), mid-body (40–60%), and posterior (75–95%) region in each bout.

Electrophysiology and optogenetic stimulation

Dissection and recording were carried out using protocols and solutions described in (Gao and Zhen, 2011), which was modified from (Mellem et al., 2008; Richmond and Jorgensen, 1999). Briefly, 1- or 2-day-old hermaphrodite adults were glued (Histoacryl Blue, Braun, Germany) to a sylgard-coated cover glass covered with bath solution (Sylgard 184, Dowcorning, Auburn, MI). After clearing the viscera by suction through a glass pipette, the cuticle flap was turned and gently glued down using WORMGLU (GluStitch Inc., Canada) to expose the neuromuscular system. The integrity of the anterior ventral body muscle and the ventral nerve cord were visually examined via DIC microscopy (Eclipse FN1, Nikon), and muscle cells were patched using 4–6 MΩ-resistant borosilicate pipettes (1B100F-4, World Precision Instruments, Sarasota, FL). Pipettes were pulled by micropipette puller P-1000 (Sutter, Novato, CA), and fire-polished by microforge MF-830 (Narishige, Japan). Membrane currents and action potentials were recorded in the whole-cell configuration by a Digidata 1440A and a MultiClamp 700A amplifier, using the Clampex 10 and processed with Clampfit 10 software (Axon Instruments, Molecular Devices, Sunnyvale, CA). Currents were recorded at holding potential of –60 mV, while action potentials were recorded at 0 pA. Data were digitized at 10–20 kHz and filtered at 2.6 kHz. The pipette solution contains (in mM): K-gluconate 115; KCl 25; CaCl2 0.1; MgCl2 5; BAPTA 1; HEPES 10; Na2ATP 5; Na2GTP 0.5; cAMP 0.5; cGMP 0.5, pH7.2 with KOH,~320 mOsm. cAMP and cGMP were included to maintain the activity and longevity of the preparation. The bath solution consists of (in mM): NaCl 150; KCl 5; CaCl2 5; MgCl2 1; glucose 10; sucrose 5; HEPES 15, pH7.3 with NaOH,~330 mOsm. Chemicals and blockers were obtained from Sigma unless stated otherwise. Experiments were performed at room temperatures (20–22oC).

Optogenetic stimulation of transgenic animals was performed with an LED lamp, at 470 nm (from 8 mW/mm2) for hpIs166 and hpIs279, and at 625 nm (from 1.1 mW/mm2), for hpIs569 and hpIs578, respectively, controlled by the Axon amplifier software. One-second light exposure, a condition established by our previous study (Gao et al., 2015), was used to evoke the PSC bursts. The frequency power spectrum of rPSC bursts was analyzed using Clampfit 10.

Statistical analysis

The Mann-Whitney U test, two-tailed Student’s t test, one-way ANOVA test, or the Kolmogorov-Smirnov test were used to compare data sets and specified in figure legends. p<0.05 was considered to be statistically significant; *, ** and *** denote 0.01<p<0.05, 0.001<p<0.01, p<0.001, respectively. Graphing and subsequent analysis were performed using Igor Pro (WaveMetrics, Portland, OR), Clampfit (Molecular Devices), Image J (National Institutes of Health), R (http://www.R-project.org.), Matlab (MathWorks, Natick, MA), and Excel (Microsoft, Seattle, WA). For electrophysiology and calcium imaging, unless specified otherwise, each recording trace was obtained from a different animal; data were presented as the mean ± SEM.

References

  1. 1
    High resolution map of Caenorhabditis elegans gap junction proteins
    1. ZF Altun
    2. B Chen
    3. ZW Wang
    4. DH Hall
    (2009)
    Developmental Dynamics : An Official Publication of the American Association of Anatomists 238:1936–1950.
    https://doi.org/10.1002/dvdy.22025
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    The Intrinsic Factors in the Act of Progression in the Mammal
    1. TG Brown
    (1911)
    Proceedings of the Royal Society B: Biological Sciences 84:308–319.
    https://doi.org/10.1098/rspb.1911.0077
  7. 7
  8. 8
    Genome sequence of the nematode C. elegans: a platform for investigating biology
    1. C. elegans Sequencing Consortium
    (1998)
    Science 282:2012–2018.
  9. 9
    The neural circuit for touch sensitivity in Caenorhabditis elegans
    1. M Chalfie
    2. JE Sulston
    3. JG White
    4. E Southgate
    5. JN Thomson
    6. S Brenner
    (1985)
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 5:956–964.
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
    Calcium-dependent potassium channels play a critical role for burst termination in the locomotor network in lamprey
    1. A el Manira
    2. J Tegnér
    3. S Grillner
    (1994)
    Journal of Neurophysiology 72:1852–1861.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Principles of rhythmic motor pattern generation
    1. E Marder
    2. RL Calabrese
    (1996)
    Physiological Reviews 76:687–717.
  55. 55
  56. 56
    Roles for electrical coupling in neural circuits as revealed by selective neuronal deletions
    1. E Marder
    (1984)
    The Journal of Experimental Biology 112:147–167.
  57. 57
    Critical residues of the Caenorhabditis elegans unc-2 voltage-gated calcium channel that affect behavioral and physiological properties
    1. EA Mathews
    2. E García
    3. CM Santi
    4. GP Mullen
    5. C Thacker
    6. DG Moerman
    7. TP Snutch
    (2003)
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 23:6537–6545.
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    Coactivation of motoneurons regulated by a network combining electrical and chemical synapses
    1. L Rela
    2. L Szczupak
    (2003)
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 23:682–692.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
    Pattern-generating role for motoneurons in a rhythmically active neuronal network
    1. K Staras
    2. G Kemenes
    3. PR Benjamin
    (1998)
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 18:3669–3688.
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
    Integration of mechanosensory stimuli in Caenorhabditis elegans
    1. SR Wicks
    2. CH Rankin
    (1995)
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 15:2434–2444.
  86. 86
  87. 87
    The central nervous control of flight in a locust
    1. DM Wilson
    (1961)
    The Journal of Experimental Biology 38:471–490.
  88. 88
  89. 89
  90. 90

Decision letter

  1. Ronald L Calabrese
    Reviewing Editor; Emory University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Excitatory Motor Neurons are Local Central Pattern Generators in an Anatomically Compressed Motor Circuit for Reverse Locomotion" for consideration by eLife. Your article has been favorably evaluated by Eve Marder (Senior Editor) and three reviewers, one of whom, Ronald L Calabrese (Reviewer #1), is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Akinao Nose (Reviewer #2); David Biron (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is a very interesting manuscript that is very important for the C. elegans model system, but has real general interest as well. It dissects the motor system of C. elegans by selective cell ablation and mutant analysis and uses behavior and electrophysiology as assays to identify and define the reverse locomotion "CPG". While CPG may not be the right term in the minds of many, the authors do indeed identify a source of endogenous oscillation in motor neurons that underlies rhythmic reverse locomotion. For reverse locomotion the conclusion must be that the A-MNs, which are known to be dedicated to reverse locomotion, form a chain of motor neuron oscillators. The implication is that the B-MNs motor neurons, which are known to be dedicated to forward locomotion, form a similar chain of oscillators, but it is not nailed down completely and a head oscillator certainly exists that is not characterized. The limitation of the detailed analysis to reverse locomotion is not a real drawback, however, because the analysis uncovers important properties of the reverse locomotion circuit. Membrane potential oscillations are supported by HVA Ca channels (UNC-2), and very interestingly, premotor interneurons are not necessary for reverse (or forward) locomotion but exert state dependent control over A-MN oscillations and reverse locomotion initiation and maintenance. A-type-INs make mixed heterotypic and rectifying gap junction and excitatory chemical synapses on A-MNs to exert this control. At rest, AVA-A gap junctions dampen the excitability of coupled premotor INs and oscillatory activity of MNs to reduce propensity for reversals. Upon activation, AVA potentiate AMNs predominantly through excitatory chemical synapses, with a minor contribution from gap junctions. This is a truly interesting and important finding and should be more front and center in Discussion.

The work is very carefully and thoroughly done with appropriate controls, and the data analyzed appropriately. Necessary data appear in figures in an easily accessible form.

Essential revisions:

1) Please explain why B-MNs, in addition to premotor INs, have to be ablated for the A-MN to show intrinsic rhythmic activity (Figure 4). If the authors' model (Figure 7J) is correct, the presence or absence of B-MNs should have no consequence on the intrinsic activity of the A-MN.

2) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, last paragraph: The authors state that all A-MNs show oscillating activity but with differences in the intensity. However, the authors only show results on DA9 in the figure (Figure 4). Can other A-MNs be illustrated, perhaps in supplementary figures to this figure? We also wonder what the phase relations are among the A-MNs in different segments and between antagonistic A-MNs (e.g., VA10 and DA7). Are they activated simultaneously, with phase difference, or with no phasic relationship? This is an important point in considering the nature of the CPG.

3) The full distributions of velocities (e.g., Figure 2D) are useful. It would be convenient to also have summary statistics available at a glance. Could mean velocities and respective standard deviations be added to each of the velocity distribution panels throughout the manuscript? Preferably, on the figure itself as opposed to the caption/text. This seems more useful than p<0.001, which is quite obvious from the plot.

4) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, fourth paragraph: the data in Figure 5—figure supplement 1 is interpreted without much justification. Why did peaks in A-20% qualify as rPSC bursts while peaks in B-1% didn't? What were the criteria?

5) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, last paragraph: calcium imaging was performed in L4 larvae as opposed to measuring rPSCs in adult preps. Was this due to body thickness? Could development have contributed to the difference in the frequencies? Is there a difference in reversal behavior between L4 and adult B-MN / INs ablated worms?

6) The Results section "UNC-2 is an endogenous constituent of A-MN oscillation" is not sufficiently clear regarding the calcium flows. The second paragraph states that loss of function of the VGCC UNC-2 severely reduces calcium oscillations. Prior to explaining Figure 6D-F, it bears mentioning that UNC-2 is thought to play two separable roles in A-MNs: promoting synaptic transmission and somatic Ca oscillations. This notion is supported by localizing UNC-2 to MN somas but that is only mentioned at the end of the section. Similarly, adding "despite the somatic oscillations remaining intact" to the end of the first paragraph would clarify. Finally, could the authors comment about the origin of the calcium they observe? The key role of UNC-2 seems to suggest that it is predominantly extracellular. Is this a valid conclusion?

7) A simple prediction of the model is that in the absence of B-MNs/INs or if AVA is optogenetically activated, unc-7 mutants should exhibit increased reversal speed and/or persistence. Unfortunately, Figure 7 does not contain unc-7 behavioral (reversal velocity/persistence) data. The optogenetic experiment may well be too onerous. Scoring reversal speed/persistence for an existing strain or explaining why the simple prediction is wrong may fall within the scope of this work.

8) "[P]ersistent body bends in premotor IN-less animals mainly originated from A-MN activity." Figure 2 seems to suggest that B-less worms are quite persistent (albeit slow) in their forward motion. Are the authors referring to the higher curvature of the backward-motion body waves here? If so, it is not clear. Similarly, Figure 2C shows that ~25% of forward motion is replaced by pauses (as compared to reversals). Could this just be a result of the fact that the independent oscillator(s) in the head are somewhat effective at interfering with forward body waves while no equivalent independent oscillator resides in the tail?

9) The manuscript does not comment on the ~50s calcium oscillation cycle in A-MNs. Does it correspond to some behavioral timescale or have a hypothesized significance? Do the mean velocities seem related? It may be the case that there is not much to say on the subject.

10) The writing needs reconsideration. Much of the important information is in the figure legends and the paper is thus tedious to follow. Putting more description of the figure in the text would help. The figures are very complicated and the data could be separated out into smaller figures. Word choice is not always the best and led to confusion for this reviewer. Many detailed examples of words that need clarifying are made on the manuscript pdf in Discussion and Introduction. The kymograms could be better explained so that readers unfamiliar with them can understand what the complex patterns in these kymograms from ablated and mutant animals mean.

11) The concept of CPG is not well articulated and its meaning is stretched a bit. You are really dealing with individual neuronal oscillators and not CPGs and equating the structure of the reverse locomotion circuit in C. elegans with vertebrate spinal cord or even invertebrate networks like that for leech swimming will be a hard sell to a veteran CPG person like myself. To my mind this is not the real interest of the paper. There are two major impacts arising from this work. 1) You have solved a pressing problem in C. elegans neurobiology which has plagued the field for over a decade. This should be emphasized. 2) You have made a truly brilliant discovery of the state dependent regulation of A-MN oscillations by the conjoint electrical and chemical synapses of premotor interneurons. This should be a centerpiece of the paper. The ideas on circuit compression are not compelling. Is the circuit compressed in C. elegans or is it expanded by evolution in leech? The first neurons in evolution were probably multifunctional (sensory-motor) and then evolution led to proliferation of neurons and specialization. That invertebrate neurons are very multifunctional has to be a truism since I was a graduate student and that motor neurons can be oscillatory has also been known as long. These arguments should be deemphasized.

12) Title could be shortened and refocused to match the revised Discussion.

https://doi.org/10.7554/eLife.29915.032

Author response

Summary:

This is a very interesting manuscript that is very important for the C. elegans model system, but has real general interest as well. It dissects the motor system of C. elegans by selective cell ablation and mutant analysis and uses behavior and electrophysiology as assays to identify and define the reverse locomotion "CPG". While CPG may not be the right term in the minds of many, the authors do indeed identify a source of endogenous oscillation in motor neurons that underlies rhythmic reverse locomotion.

Thank you. We are pleased to make contributions to our understanding on how motor circuits operate. We agree that in most context of this study, oscillator is a more suitable choice. We have made these changes, and are grateful for the suggestion.

For reverse locomotion the conclusion must be that the A-MNs, which are known to be dedicated to reverse locomotion, form a chain of motor neuron oscillators. The implication is that the B-MNs motor neurons, which are known to be dedicated to forward locomotion, form a similar chain of oscillators, but it is not nailed down completely and a head oscillator certainly exists that is not characterized. The limitation of the detailed analysis to reverse locomotion is not a real drawback, however, because the analysis uncovers important properties of the reverse locomotion circuit.

Indeed. Although we chose to focus on oscillators for the reverse motor circuit, we could not address it without first knowing that different oscillators underlie forward and reverse movements (Figure 1 and Figure 2). This concept may sound trivial, but it was not established when we began the study.

Another critical piece of information from Figure 2 is that although both A- and B-class motor neurons may function as oscillators, they differ in their intrinsic physiological properties: A-class motor neurons exhibit high intrinsic oscillatory activities in the absence of premotor interneurons.

Such a distinction alludes to a potential difference in the functional relationships between the two classes of motor neurons with their respective input interneurons. More important is the notion that only when the A-MNs activity was removed could the intrinsic property of the B-MNs to be addressed in isolation (Figure 2). Establishing these conceptual frameworks allowed we and others to design mechanistic studies to probe either the forward or reverse motor circuit.

We had chosen to focus on the reverse motor circuit for two reasons: 1) examining the functional relationship between A motor neurons and the descending premotor interneurons has been a long-standing goal of our group; 2) we would like to collaborate with and help other groups who are interested in the C. elegans motor circuit.

Membrane potential oscillations are supported by HVA Ca channels (UNC-2), and very interestingly, premotor interneurons are not necessary for reverse (or forward) locomotion but exert state dependent control over A-MN oscillations and reverse locomotion initiation and maintenance. A-type-INs make mixed heterotypic and rectifying gap junction and excitatory chemical synapses on A-MNs to exert this control. At rest, AVA-A gap junctions dampen the excitability of coupled premotor INs and oscillatory activity of MNs to reduce propensity for reversals. Upon activation, AVA potentiate AMNs predominantly through excitatory chemical synapses, with a minor contribution from gap junctions. This is a truly interesting and important finding and should be more front and center in Discussion.

Thank you. We have revised the Abstract, Introduction, and Discussion to emphasize this finding. Further, we present additional calcium imaging and behavioural results that support the state-dependent dual-regulation model (Figure 9 and Figure 9—figure supplement 1 in the revised manuscript).

The work is very carefully and thoroughly done with appropriate controls, and the data analyzed appropriately. Necessary data appear in figures in an easily accessible form.

Essential revisions:

1) Please explain why B-MNs, in addition to premotor INs, have to be ablated for the A-MN to show intrinsic rhythmic activity (Figure 4). If the authors' model (Figure 7J) is correct, the presence or absence of B-MNs should have no consequence on the intrinsic activity of the A-MN.

Sorry for the confusion. A-MN’s intrinsic activity does not depend on the presence or absence of B-MNs; B-MNs only interfere with their propagation after premotor INs are removed. In Figure 4 and others, the purpose of removing B-MNs along with premotor interneurons was to ensure that rPSC signals that we examined were from A-MNs.

The behavioural phenotype of premotor IN ablated animals (Kawano et al., 2011; this study), either alone or in combination with A-MNs or B-MNs (Figure 1; Figure 2) indicate that in the absence of premotor INs, A-MNs and B-MNs underlie the antagonizing driving force for reverse and forward movements, respectively. The shallow bending after the co-ablation of premotor interneurons and A-MNs indicates that B-MNs have lower intrinsic activity. A previous study showed that body bending can activate B-MNs (Wen et al., 2012). Hence, if A-MNs remain active in the absence of premotor interneurons, the resulted body bending may subsequently activate B-MNs that reside at the region. Without removing B-MNs, we could not be certain that the observed oscillatory signals were from A-MNs.

Consistent with this notion, we performed the complementary experiment. In preparations where we removed A-MNs along with premotor INs, the mini frequencies were drastically reduced, but the rPSC burst was not increased (Author response image 1). These results confirmed that rPSCs we observed upon removing premotor INs were primarily driven by A-MNs. We explained this point (subsection “A-MNs exhibit oscillatory activities independent of premotor IN inputs”, third paragraph).

Author response image 1

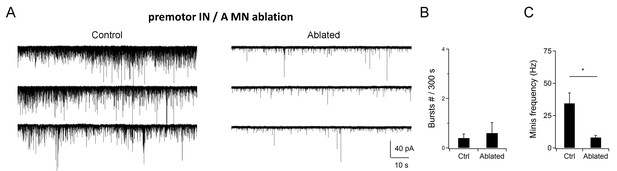

Co-ablation of premotor INs and A-MNs did not increase the rPSC burst.

(A) Example traces of postsynaptic currents (recorded at -60 mV) in animals without (Control) and with (Ablated) premotor IN- and A-MN-ablation.(B, C) Quantification of the PSC burst and minature PSC (mPSC) frequency, without (Ctrl) and with (Ablated) the ablation of premotor INs and A-MNs. PSC events were rare in both preparations, while the mPSC frequency was drastically reduced. n = 10 animals (Control), n = 11 animals (Ablated). * P < 0.05 against Control by the Mann-Whitney U test. Error bars, SEM.

https://doi.org/10.7554/eLife.29915.027

2) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, last paragraph: The authors state that all A-MNs show oscillating activity but with differences in the intensity. However, the authors only show results on DA9 in the figure (Figure 4). Can other A-MNs be illustrated, perhaps in supplementary figures to this figure? We also wonder what the phase relations are among the A-MNs in different segments and between antagonistic A-MNs (e.g., VA10 and DA7). Are they activated simultaneously, with phase difference, or with no phasic relationship? This is an important point in considering the nature of the CPG.

In Figure 4, the DA9 calcium imaging experiments were performed in animals immobilized by glue. This preparation was to examine A-MN activity with minimal proprioceptive feedback or coupling. DA9 exhibited the most robust calcium signals than other A-MNs (Author response image 2).

Author response image 2
An example trace of simultaneous DA9 and VA11 calcium oscillation in an immobolized animal after the ablation of premotor INs/B-MNs.
https://doi.org/10.7554/eLife.29915.028

We thought that the phasic relationships among multiple A-MNs should be analyzed in moving animals. This was why we performed simultaneous calcium imaging data for three A-MNs (VA10, DA7 and VA11) in animals where we removed all premotor INs and B-MNs, and when animals were moving (Figure 2E, F in the original manuscript, Figure 5 in the revised manuscript). We show that these A-MNs exhibited phasic relationships that correlated with alternative dorsal/ventral bending and anterior/posterior propagation during movement. Specifically, DA7, which activates dorsal muscles, exhibited activity changes that were anti-phasic to that of ventral muscle activators (VA10 and VA11), whereas VA11’s activity changes preceded that of VA10.

To clearly convey the information, we now show these results in a separate figure, with an illustration of the spatial relationship of these neurons(Figure 5 in the revised manuscript).

3) The full distributions of velocities (e.g., Figure 2D) are useful. It would be convenient to also have summary statistics available at a glance. Could mean velocities and respective standard deviations be added to each of the velocity distribution panels throughout the manuscript? Preferably, on the figure itself as opposed to the caption/text. This seems more useful than p<0.001, which is quite obvious from the plot.

Thank you for this helpful suggestion. We added mean velocities and deviations in figures where they help to clarify their effect on animals’ motility (Figure 1) or velocity (Figure 8). The key message for other figures such as Figure 2 was the change in preference of direction: in the absence of premotor interneurons, ablation of B-MNs (Figure 2i) or A-MNs (Figure 2ii) led to predominantly forward or reversal movements, whereas ablating D-MNs (Figure 2iii) did not change the ‘kink’ state. So we did not show mean velocities in these figures.

4) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, fourth paragraph: the data in Figure 5—figure supplement 1 is interpreted without much justification. Why did peaks in A-20% qualify as rPSC bursts while peaks in B-1% didn't? What were the criteria?

Sorry for the confusion. We applied the criteria that were defined in a previous study (Gao et al., 2015). Briefly, rPSC bursts consisted of a train of depolarization events (-50 – -300 pA, 3–10 Hz), which is distinct from the high-frequency monophasic and multiphasic mPSC events (subsection “A-MNs exhibit oscillatory activities independent of premotor IN inputs”, second paragraph). Events in Figure 5—figure supplement 1 (B-1%) fell in the second category (Author response image 3).

Author response image 3

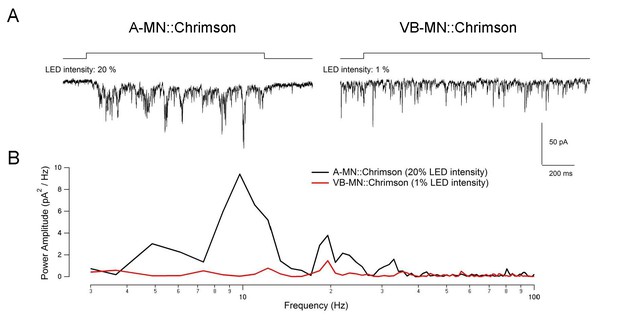

Power spectrum analysis of the current traces in Figure 5—figure supplement 1 A-20% and B-1% revealed no ~10Hz rPSCs burst phase in B-1%.
https://doi.org/10.7554/eLife.29915.029

5) Subsection “A-MNs exhibit oscillatory activity independent of premotor IN inputs”, last paragraph: calcium imaging was performed in L4 larvae as opposed to measuring rPSCs in adult preps. Was this due to body thickness? Could development have contributed to the difference in the frequencies? Is there a difference in reversal behavior between L4 and adult B-MN / INs ablated worms?

We used L4 animals for calcium imaging analyses for two reasons: 1) we used L4 animals for behavioural analyses; 2) the Punc-4 promoter that we used to express the calcium sensor is strong in A-MNs in L4, but falls off sharply afterwards, making recording in adults more noisy. We don’t think that the developmental difference leads to the two-fold difference of the frequency of rPSC and calcium oscillation. In a few DA9 calcium imaging recordings that we obtained in young adults (Author response image 4), they exhibited similar frequency as in L4.

Author response image 4
Example traces of DA9 calcium oscillation in a young adult before (Control) and after ablation (Ablated) of premotor INs/B-MNs.
https://doi.org/10.7554/eLife.29915.030

6) The Results section "UNC-2 is an endogenous constituent of A-MN oscillation" is not sufficiently clear regarding the calcium flows. The second paragraph states that loss of function of the VGCC UNC-2 severely reduces calcium oscillations. Prior to explaining Figure 6D-F, it bears mentioning that UNC-2 is thought to play two separable roles in A-MNs: promoting synaptic transmission and somatic Ca oscillations. This notion is supported by localizing UNC-2 to MN somas but that is only mentioned at the end of the section. Similarly, adding "despite the somatic oscillations remaining intact" to the end of the first paragraph would clarify.

Thank you. We have revised this section accordingly.

Finally, could the authors comment about the origin of the calcium they observe? The key role of UNC-2 seems to suggest that it is predominantly extracellular. Is this a valid conclusion?

These results are indeed consistent with UNC-2 being the origin of extracellular calcium. We did not make an explicit claim previously because of the possibility that release from the intracellular calcium store, upon such an extracellular entry, also contribute to the observed calcium profile in DA9 soma. We have now clarified this point (e.g. subsection “The P/Q/N-type VGCC underlies A-MN oscillation independently of synaptic transmission”, second paragraph).

7) A simple prediction of the model is that in the absence of B-MNs/INs or if AVA is optogenetically activated, unc-7 mutants should exhibit increased reversal speed and/or persistence. Unfortunately, Figure 7 does not contain unc-7 behavioral (reversal velocity/persistence) data. The optogenetic experiment may well be too onerous. Scoring reversal speed/persistence for an existing strain or explaining why the simple prediction is wrong may fall within the scope of this work.

Thank you for these suggestions. We performed new experiments on unc-7 mutants, results from which further validate the hypothesis that AVA premotor INs inhibit A-MN activity through gap junctions to reduce propensity for the reverse motor state.

First, AVA-specific restoration of UNC-7 was sufficient to restore inhibition of A-MN oscillation in unc-7 mutants (Figure 9D-F in revised manuscript). Previously, we showed that in unc-7 mutants, DA9 exhibited calcium oscillation in the presence of premotor INs, implicating that AVA failed to inhibit A-MN’s activity in the absence of gap junction coupling. Because UNC-7 expression is not restricted to AVA, we performed the rescue experiment to confirm that this effect was due to the specific loss of UNC-7 in AVA. Through the FLT-FRT system, we generated AVA-specific restoration of UNC-7 in unc-7 mutants, and found that DA9 calcium oscillation was indeed attenuated (Figure 9D-F in revised manuscript).

Next, we performed behavioural analyses to examine the effect of AVA-A gap junction coupling. In the presence of premotor INs/B-MNs (Figure 9G-I in revised manuscript), as predicted from the model, unc-7 mutants exhibited a drastic increase in the propensity for reverses at the expense of forward movement; the restoration of UNC-7 in AVA alone restored the animal’s preference for the forward movement.

8) "[P]ersistent body bends in premotor IN-less animals mainly originated from A-MN activity." Figure 2 seems to suggest that B-less worms are quite persistent (albeit slow) in their forward motion. Are the authors referring to the higher curvature of the backward-motion body waves here? If so, it is not clear.

Sorry about the lack of clarity. We reworded relevant sections in the revised manuscript; a more detailed explanation follows.

In the absence of premotor INs, animals continued to exhibit body bends (Figure 1). When we further ablated A-MNs, animals were able to move forward slowly, but with little bending (Figure 2Bii). When we further ablated B-MNs, premotor INs-less animals executed reverse movement with body bending. These results suggest that A-MNs have higher intrinsic activities than B-MNs.

But in the absence of premotor interneurons, B-MNs strongly antagonize A-MN-driven reverse movements. Because B-MNs are activated by body bending (Wen et al., 2012), a simple interpretation is that in the absence of premotor INs, body bending primarily results from the high intrinsic A-MNs, which may subsequently potentiate B-MNs that reside in the body segment to interfere with their propagation.

Similarly, Figure 2C shows that ~25% of forward motion is replaced by pauses (as compared to reversals). Could this just be a result of the fact that the independent oscillator(s) in the head are somewhat effective at interfering with forward body waves while no equivalent independent oscillator resides in the tail?

While the ‘pause’ (Figure 2C) describes the lack of centroid displacement in either A- or B-ablated animals, causes for pauses were different. We consistently observed that 1) premotor IN/A-MN ablated animals moved forward slowly and stalled frequently; 2) premotor IN/B-MN ablated animals reversed with deep body bends, but their reversals were often interrupted by head bends that tried to pull the anterior body forward, and the pull hindered mid-point displacement (Video 2).

We agree with the reviewer that these behaviour results suggest that there is no equivalent independent reversal oscillator in the tail. Consistent with this notion, animals without premotor INs or MNs could exhibit high frequency oscillation of the head, but not of the tail (Figure 1A-C).

We refrained from elaborating on these hypotheses because they suggest complex, yet-to-be addressed relationships between the forward and reversal oscillators. We hope to resolve it in future studies.

9) The manuscript does not comment on the ~50s calcium oscillation cycle in A-MNs. Does it correspond to some behavioral timescale or have a hypothesized significance? Do the mean velocities seem related? It may be the case that there is not much to say on the subject.

In our calcium imaging experiments on crawling animals, after the ablation of premotor INs/B-MNs, they exhibited ~10s reversal undulation cycle on plates (Figure 5 in revised manuscript). DA9’s ~50s oscillatory cycle was observed in glued animals; the 5-fold difference in frequency likely reflects the effect of proprioceptive feedback.

Despite the difference in their absolute value, A-MN’s calcium oscillation is positively correlated with the animal’s undulation frequency, hence velocity in crawling animals (Figure 5 in revised manuscript). The loss and gain-of-function unc-2 mutants exhibited lengthened and shortened DA9’s oscillation, respectively (Figure 7 in revised manuscript); they exhibited decreased and increased reversal undulation frequency and velocity (Figure 8 in revised manuscript). The difference between DA9 calcium oscillation and undulation frequency was also ~5 fold for unc-2(gf) mutants. We commented on the correlation between A-MN calcium oscillation and velocity (e.g. subsection “A-MNs exhibit oscillatory activities independent of premotor IN inputs”, last paragraph; subsection “A-MNs are rhythm generators”, first paragraph).

10) The writing needs reconsideration. Much of the important information is in the figure legends and the paper is thus tedious to follow. Putting more description of the figure in the text would help. The figures are very complicated and the data could be separated out into smaller figures. Word choice is not always the best and led to confusion for this reviewer. Many detailed examples of words that need clarifying are made on the manuscript pdf in Discussion and Introduction. The kymographs could be better explained so that readers unfamiliar with them can understand what the complex patterns in these kymographs from ablated and mutant animals mean.

Thank you for the careful, constructive editorial comments. We thrive to make the description and illustration of ours and other’s work precise and clear. We have incorporated suggested editions, provided more descriptions for behavioural analyses, and reorganized figures to convey key messages.

11) The concept of CPG is not well articulated and its meaning is stretched a bit. You are really dealing with individual neuronal oscillators and not CPGs and equating the structure of the reverse locomotion circuit in C. elegans with vertebrate spinal cord or even invertebrate networks like that for leech swimming will be a hard sell to a veteran CPG person like myself. To my mind this is not the real interest of the paper.

We appreciate these comments. In the previous manuscript, we indeed did not make sufficient distinction between the usage of ‘CPG’ and ‘oscillator’. This in part reflects where the field was: the presence of oscillators was debated. Establishing that C. elegans motor rhythm is CPG-driven is important for C. elegans motor circuit, but we agree with you that ‘oscillator’ is a more appropriate word to define A-MNs’ activity.

There are two major impacts arising from this work. 1) You have solved a pressing problem in C. elegans neurobiology which has plagued the field for over a decade. This should be emphasized. 2) You have made a truly brilliant discovery of the state dependent regulation of A-MN oscillations by the conjoint electrical and chemical synapses of premotor interneurons. This should be a centerpiece of the paper. The ideas on circuit compression are not compelling. Is the circuit compressed in C. elegans or is it expanded by evolution in leech? The first neurons in evolution were probably multifunctional (sensory-motor) and then evolution led to proliferation of neurons and specialization. That invertebrate neurons are very multifunctional has to be a truism since I was a graduate student and that motor neurons can be oscillatory has also been known as long. These arguments should be deemphasized.

Thank you for the compliment to our work. We have revised the title, Abstract, Introduction, figures, and Discussion to emphasize and elaborate on the regulatory mechanisms on A-MN’s oscillatory activity. We further highlighted the similarity between our findings and previous discoveries in other small motor circuits.

We understand and respect your reservation with the usage of the word ‘compression’. We did not mean to use it in the context of evolution, but wanted to describe a nervous system property that we feel to be more specific than ‘multifunctionality’ (e.g. Getting, 1989). To our understanding, multifunctionality could also be used to describe the same group of neurons or connections to be reconfigured or recruited to generate different motor programs in the same animal. When C. elegans excitatory motor neurons play not only the roles of inducing muscle contraction, but also rhythm-generation, and possibly proprioceptive feedback and coupling, we feel that ‘compression’ better emphasizes the reduction of circuit layers by packing their functions into a single class of neurons.

12) Title could be shortened and refocused to match the revised Discussion.

The title has been shortened.

https://doi.org/10.7554/eLife.29915.033

Article and author information

Author details

  1. Shangbang Gao

    Key Laboratory of Molecular Biophysics of the Ministry of Education, College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan, China
    Contribution
    Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    sgao@hust.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-5431-4628
  2. Sihui Asuka Guan

    1. Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Physiology, University of Toronto, Toronto, Canada
    Contribution
    Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Anthony D Fouad

    Department of Bioengineering, School of Engineering and Applied Science, University of Pennsylvania, Philadelphia, United States
    Contribution
    Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Jun Meng

    1. Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Physiology, University of Toronto, Toronto, Canada
    Contribution
    Formal analysis, Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Taizo Kawano

    Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    Present address
    Graduate School of Science, Kobe University, Kobe, Japan
    Contribution
    Software, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Yung-Chi Huang

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  7. Yi Li

    Key Laboratory of Molecular Biophysics of the Ministry of Education, College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Salvador Alcaire

    1. Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Physiology, University of Toronto, Toronto, Canada
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  9. Wesley Hung

    Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    Contribution
    Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Yangning Lu

    1. Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Physiology, University of Toronto, Toronto, Canada
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  11. Yingchuan Billy Qi

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, United States
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-4267-4770
  12. Yishi Jin

    Neurobiology Section, Division of Biological Sciences, University of California, San Diego, United States
    Contribution
    Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-9371-9860
  13. Mark Alkema

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  14. Christopher Fang-Yen

    1. Department of Bioengineering, School of Engineering and Applied Science, University of Pennsylvania, Philadelphia, United States
    2. Department of Neuroscience, University of Pennsylvania, Philadelphia, United States
    Contribution
    Supervision, Funding acquisition, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-4568-3218
  15. Mei Zhen

    1. Lunenfeld-Tanenbaum Research Institute, Mount Sinai Hospital, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Physiology, University of Toronto, Toronto, Canada
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    zhen@lunenfeld.ca
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-0086-9622

Funding

Canadian Institutes of Health Research (MOP93619 MOP123250)

  • Mei Zhen

Natural Sciences and Engineering Research Council of Canada (262112-12)

  • Mei Zhen

National Institutes of Health (R01-NS-082525)

  • Mei Zhen

National Natural Science Foundation of China (31671052)

  • Shangbang Gao

Junior Thousand Talents Program of China (0222170004)

  • Shangbang Gao

Wuhan Morning Light Plan of Youth Science and Technology (2017050304010295)

  • Shangbang Gao

National Institutes of Health (GM084491)

  • Mark Alkema

National Institutes of Health (R01-NS-035546)

  • Yishi Jin

National Institutes of Health (R01-NS-084835)

  • Christopher Fang-Yen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Y. Wang, A. Liu, S. Teng, and J. R. Mark for technical assistance, the Caenorhabditis Genetics Center and National Bioresource Project for strains, C. Bargmann for the UNC-2 cDNA clone, S. Takayanagi-Kiya for juIs440. We thank Q. Wen, A. Samuel and A. Chisholm for discussions and comments on the manuscript. This work was supported by The National Natural Science Foundation of China (NSFC 31671052), Wuhan Morning Light Plan of Youth Science and Technology (2017050304010295) and the Junior Thousand Talents Program of China (S Gao), the National Institute of Health (C F-Y, MA, YJ, MZ), and the Canadian Institute of Health Research and the Natural Sciences and Engineering Research Council of Canada (MZ).

Reviewing Editor

  1. Ronald L Calabrese, Reviewing Editor, Emory University, United States

Publication history

  1. Received: June 26, 2017
  2. Accepted: October 22, 2017
  3. Version of Record published: January 23, 2018 (version 1)

Copyright

© 2018, Gao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,318
    Page views
  • 186
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Arnaldo Carreira-Rosario et al.
    Research Article Updated
    1. Neuroscience
    Tom Alisch et al.
    Tools and Resources
