Cryo-EM structures reveal specialization at the myosin VI-actin interface and a mechanism of force sensitivity

  1. Pinar S Gurel
  2. Laura Y Kim
  3. Paul V Ruijgrok
  4. Tosan Omabegho
  5. Zev Bryant
  6. Gregory M Alushin  Is a corresponding author
  1. The Rockefeller University, United States
  2. National Heart, Blood, and Lung Institute, National Institutes of Health, United States
  3. Stanford University, United States
Research Article
  • Cited 1
  • Views 1,707
  • Annotations
Cite as: eLife 2017;6:e31125 doi: 10.7554/eLife.31125

Abstract

Despite extensive scrutiny of the myosin superfamily, the lack of high-resolution structures of actin-bound states has prevented a complete description of its mechanochemical cycle and limited insight into how sequence and structural diversification of the motor domain gives rise to specialized functional properties. Here we present cryo-EM structures of the unique minus-end directed myosin VI motor domain in rigor (4.6 Å) and Mg-ADP (5.5 Å) states bound to F-actin. Comparison to the myosin IIC-F-actin rigor complex reveals an almost complete lack of conservation of residues at the actin-myosin interface despite preservation of the primary sequence regions composing it, suggesting an evolutionary path for motor specialization. Additionally, analysis of the transition from ADP to rigor provides a structural rationale for force sensitivity in this step of the mechanochemical cycle. Finally, we observe reciprocal rearrangements in actin and myosin accompanying the transition between these states, supporting a role for actin structural plasticity during force generation by myosin VI.

https://doi.org/10.7554/eLife.31125.001

eLife digest

Like miniature motors, proteins called myosins generate the forces needed for cells to move and for muscles to contract. Myosins use the energy stored in a chemical called ATP to move along filaments made from another protein called actin and produce force. The same part of the myosin protein that binds to and uses ATP also contacts actin. As a myosin protein consumes ATP, it cycles through a series of shape changes to drive the motor protein forward, altering how it interacts with the actin filament in the process.

Although all myosins use ATP in fundamentally the same way, individual members of this protein family have specialized properties that enable them to carry out different roles. It is not clear whether each type of myosin makes unique contacts with the actin filament, which could help determine these properties. Furthermore, mechanical forces can control the activity of myosin motors in ways that are poorly understood.

Gurel et al. have now looked at a family member called myosin VI, which moves in the opposite direction along actin filaments relative to other myosins, to better understand the properties of these proteins. An imaging technique called cryo-electron microscopy (cryo-EM) was used to determine the three-dimensional structure of myosin VI bound to actin at two steps in its cycle. Gurel et al. found that myosin VI formed specific interactions with actin that were very different from another myosin family member called myosin IIc, whose structure bound to actin was already known. In addition, the structural changes observed between the two stages of myosin VI’s cycle provided insight into how force could be used to control the motor.

Together these findings give a more detailed picture of how myosins work. They suggest that the surface of myosin that contacts actin can evolve to change the properties of a specific myosin. Studies of other myosins bound to actin will provide further insight into how distinct interactions relate to motor-specific properties. Future studies could also help scientists to understand how mutations in genes for myosins – which have been linked to a number of diseases in humans – alter the way in which myosins interact with actin filaments. This in turn could give insight into how these mutations disrupt the proteins’ activities.

https://doi.org/10.7554/eLife.31125.002

Introduction

Myosin motor proteins are responsible for movement and force generation across multiple scales of biology ranging from muscle contraction to cell migration to intracellular transport (Cheney and Mooseker, 1992; Huxley, 1969; Syamaladevi et al., 2012). Defects in myosin genes have been linked to muscular dystrophies, cardiac disease, cancer, and deafness, highlighting the critical role of myosins in cell function and human health (Hirokawa and Takemura, 2003). In efforts to better understand disease mechanisms and develop potential therapeutics, these motors have been the subject of extensive biophysical, biochemical, and structural characterization (Cope et al., 1996; Houdusse and Sweeney, 2016; Sweeney and Houdusse, 2010). However, as the myosin superfamily features over 20 classes, a detailed understanding of each motor and its specific mechanisms remains incomplete (Sellers, 2000).

Despite this diversity, the enzymatic mechanism of ATP-dependent force generation on filamentous actin (F-actin) is fundamentally conserved (Figure 1A) (Geeves, 2016; Holmes, 1997; Lymn and Taylor, 1971; Sweeney and Houdusse, 2010). The motor domain (MD) binds and hydrolyzes ATP, which allosterically produces conformational changes enabling low-affinity engagement with F-actin (Figure 1A, Pre-power stroke state). The transient opening of the small switch II loop (swII) adjacent to the nucleotide binding cleft allows phosphate to escape (Figure 1A, Pi release state), triggering the transition to a moderate F-actin binding affinity ADP state (Figure 1A, ADP state) accompanied by large-scale rearrangements in the converter region which are propagated through the lever arm to generate the power stroke (Llinas et al., 2015). Subsequent ADP release results in the highest affinity actin-myosin interaction (Figure 1A, rigor state). Re-binding of ATP into the nucleotide cleft then promotes myosin dissociation from the filament (Figure 1A, post-rigor state) and primes the motor for a successive cycle.

Figure 1 with 1 supplement see all
High-resolution reconstructions of myosin VI bound to actin.

(A) Schematic depicting myosin VI states in the force generation cycle. Filament polarity is indicated throughout the paper with pointed end as '-' and barbed end as '+'. Cryo-EM reconstructions of actomyosin VI in the nucleotide-free (rigor) state (left), MgADP (ADP) state (middle), and actin alone (right). Actin, light blue; myosin VI, magenta (rigor) and dark magenta (ADP). (B) Atomistic model of actomyosin VI (rigor) colored corresponding to treatment during HR MDFF. Blue (actin), large side chains and backbone atoms subjected to fitting guided by density map; Green (MD), backbone atoms only subjected to fitting guided by density map; Red (MD loop 2 residues 622–636 and HCM loop residues 397–405), density term disabled due to conformational variability; Grey (ADP and Magnesium ion in actin), fixed atoms. (C) Superposition of the actin nucleotide-binding cleft from all six actomyosin interfaces in the HR MDFF rigor model, docked into the density map and colored by heteroatom. Large side chains and ADP are displayed.

https://doi.org/10.7554/eLife.31125.003

Sequence divergence of the MD across the superfamily has modulated the kinetics of the various steps of this cycle to tune biophysical parameters including duty cycle, ATPase rate, and force sensitivity, and enabled regulation by post-translational modifications (Uyeda et al., 1994). Significant sequence diversity is found on the surface of the MD which contacts F-actin, suggesting that modulation of this interface may enable optimization of these parameters for different cellular roles (Berg et al., 2001). However, until very recently (von der Ecken et al., 2016, 2015), the inaccessibility of MD-F-actin complexes to near atomic-resolution structural characterization has been refractory to the detailed mechanistic dissection of this hypothesis.

In this study, we focus on the MD of myosin VI, an unconventional myosin motor unique in its ability to walk ‘backwards’ towards actin filament pointed ends (Wells et al., 1999). The large insert two in the myosin VI lever arm confers reverse directionality to the motor (Bryant et al., 2007; Park et al., 2007) and the adjacent converter region adopts a unique conformation contributing to the large motor step size (Ménétrey et al., 2007; Ovchinnikov et al., 2011), while the rest of the MD, including the actin binding domains, retains a high degree of structural similarity to barbed-end directed motors (Buss et al., 2004). In contrast to ‘rower’ myosins (Leibler and Huse, 1993) that generate bulk contractile forces along actin filaments through assembly into filaments, myosin VI operates as either a processive dimeric transporter (Dunn et al., 2010; Sweeney et al., 2007) or as a monomeric tether (Lister et al., 2004). Myosin VI functions in endocytosis (Altman et al., 2007; Buss et al., 2001; Morris et al., 2002), intracellular transport (Inoue et al., 2008), and stereocilia maintenance (Avraham et al., 1995; Hertzano et al., 2008; Melchionda et al., 2001; Seiler et al., 2004), and it has been implicated in deafness (Ahmed et al., 2003; Melchionda et al., 2001; Mohiddin et al., 2004) and cancers (Dunn et al., 2006; Wang et al., 2016; Yoshida et al., 2004). Extensive crystallographic analysis of myosin VI in the absence of actin has produced high-resolution snapshots of many key states (Llinas et al., 2015; Ménétrey et al., 2005; Ménétrey et al., 2008; Ménétrey et al., 2007), laying the groundwork for a complete structural description of the mechanochemical cycle of this motor, which serves as a model for the structural biochemistry of the myosin superfamily.

Despite extensive structural and functional characterization, important details of myosin VI mechanism remain unresolved. It remains unclear how precisely phosphate release is coupled to an increase in actin-binding affinity in the ADP state, which is critical for ensuring the MD remains bound to the filament during the power stroke, and how subsequent ADP release further increases actin affinity. The conformation of the ADP state, which dominates the kinetic cycle of the motor and plays a central role in the basic mechanism of force generation (De La Cruz et al., 2001; Robblee et al., 2004), has not been characterized at high resolution. Additionally, the detailed mechanism by which force asymmetrically influences transitions between the ADP and rigor states is unknown. Mechanically gated acceleration of ADP binding has been reported to enable the motor to switch between anchor and transport functions (Altman et al., 2004; Chuan et al., 2011; Robblee et al., 2004), and force-dependent inhibition of ADP release has also been reported based on single-molecule measurements of monomers (Oguchi et al., 2008). Gating of ADP release has been considered as a mechanism for coordinating heads during processive walking (Dunn et al., 2010; Elting et al., 2011; Oguchi et al., 2008), although kinetic measurements of dimers have favored an alternative ATP-gating model (Sweeney et al., 2007). Pioneering low-resolution cryo-EM studies suggested that a minor repositioning of the lever arm accompanies the transition from ADP to rigor (Wells et al., 1999), but it is unclear how this is coupled to nucleotide-dependent rearrangements within the motor domain, modulation of actin binding affinity, and force sensitivity.

In addition to regulating the mechanochemical cycle, myosin-generated forces have been implicated in influencing actin conformation (Anson et al., 1995; Orlova and Egelman, 1997; Prochniewicz et al., 2010; Prochniewicz and Thomas, 2001), the functional implications of which remain unclear. Myosin II filaments induce severing events in F-actin (Vogel et al., 2013), and the cryo-EM structure of rigor myosin IIC bound to actin reveals subtle actin conformational changes in response to myosin binding (von der Ecken et al., 2016). Moderate-resolution cryo-EM reconstructions of myosin V bound to F-actin in nucleotide-free and ADP states suggest that binding by this motor may induce changes in actin twist, without further modulation of actin conformation during the mechanochemical cycle; however, the level of detail in the maps presented in this study precluded a detailed description of actin conformational changes (Wulf et al., 2016). Actin structural rearrangements, such as altered helical twist, were also proposed to play a role in myosin VI motor activity and step size on the basis of early single-molecule tracking and negative-stain electron microscopy studies (Nishikawa et al., 2002) that predated our current structural understanding of the myosin VI dimer (Houdusse and Sweeney, 2016). It is unknown how myosin VI binding modulates the conformation of F-actin, and if actin assumes multiple conformations throughout the force generation cycle. Furthermore, it remains to be determined if myosin-induced conformational changes in actin are uniform among different myosin classes, or if this is an additional element of motor specialization. High-resolution structural snapshots of myosins in multiple actin-bound states are necessary to clarify this issue.

Here we present cryo-EM reconstructions of myosin VI bound to F-actin in the rigor state at 4.6 Å resolution and the ADP state at 5.5 Å resolution along with corresponding atomistic models. Implementing novel adaptations of the Iterative Helical Real Space Reconstruction (IHRSR) and Molecular Dynamics Flexible Fitting (MDFF) approaches, we present a detailed model of the myosin VI-F-actin interface, and provide the first structure of myosin VI in the ADP state, to our knowledge the highest-resolution structure of any myosin in this state. We compare our rigor structure to the recent high-resolution structure of the myosin IIC-F-actin interface, finding that while the contact surface is conserved, the specific interactions differ substantially between the two myosins. By comparing our myosin VI-F-actin structures in the ADP and rigor states to each other and pre-existing crystal structures of the motor in actin-free states, we clarify the structural transitions of the force generation cycle and propose a structural mechanism for mechanical regulation of ADP affinity. Finally, by comparing the conformation of actin in the myosin VI-bound ADP and rigor state structures to bare filaments, we find that actin structural deformations accompany motor conformational changes during the force-generation cycle. This suggests that actin structural plasticity plays a role in actomyosin VI activity, an F-actin property which previous studies suggest is also likely to be exploited by other myosins, potentially by distinct mechanisms (Anson et al., 1995; De La Cruz et al., 2001, 1999; Drummond et al., 1990; Kim et al., 2002; Llinas et al., 2015; Noguchi et al., 2012; Oztug Durer et al., 2011; Prochniewicz et al., 2010; Prochniewicz and Thomas, 2001; von der Ecken et al., 2016; Wulf et al., 2016).

Results

Cryo-EM analysis and atomistic model of the myosin-VI-MD-actin interface

We utilized an engineered myosin VI construct comprising the MD with 1 IQ fused to an RNA-binding L7Ae kink-turn domain (Figure 1—figure supplement 1A,C). The L7Ae kink-turn domain is oriented such that RNA-binding extends the lever arm and can tune motor activity (Omabegho et al., 2017). Combining datasets with and without RNA bound improved the resolution of our reconstruction considerably, suggesting that RNA binding does not alter motor conformation (Figure 1—figure supplement 1B). Thus, we have excluded the engineered regions from our present structural analysis.

For image analysis and 3D reconstruction, we developed a hybrid procedure consisting of initial alignment using an adapted EMAN2/SPARX (Hohn et al., 2007; Tang et al., 2007) protocol for IHRSR (Egelman, 2007), which implements refinement and reconstruction of independent half-datasets to minimize noise bias in resolution estimation and alignment, followed by polishing refinement and reconstruction of the full dataset using FREALIGN (Lyumkis et al., 2013). Utilizing this approach, we obtained a 3D reconstruction of the myosin VI MD in the nucleotide-free (rigor) state bound to F-actin at an average resolution of 4.6 Å in the actin filament and bound MD (Figure 1B and Figure 1—figure supplement 1D). As is often the case with helically symmetric specimens, the level of detail in the map decays radially outward from the center of the filament (Kucukelbir et al., 2014). Local resolution analysis suggests a gradient from slightly better than 4 Å in the actin region of the map, where large side-chains are definitively resolved, to around 6 Å resolution in the converter and lever arm, where only the contour of the backbone is visible (Figure 1—figure supplement 1D,E). This presents a challenge for analysis, common with cryo-EM reconstructions, where heterogeneity in the map resolution necessitates caution in the generation and interpretation of atomistic models (Kucukelbir et al., 2014).

We therefore adapted the molecular dynamics flexible fitting (MDFF) (Trabuco et al., 2008) approach to generate a continuous atomistic model which captures high-resolution features in the best-resolved regions of the map by enabling fitting of large side-chains (Figure 1C, blue) while avoiding over-interpretation of lower-resolution areas, where the influence of the map was restricted to backbone conformation (Figure 1C, green, see Materials and methods for details). To model the MD-actin interface, we assembled eight actin subunits from the cryo-EM structure of the actin-tropomyosin complex (pdb 3J8A [von der Ecken et al., 2015]) and 6 MDs from the X-ray structure of nucleotide-free myosin VI (pdb 2BKI [Ménétrey et al., 2005]), which were truncated to exclude the converter and lever arm regions. No density was present for two regions of the MD, loop two and the Hypertrophic Cardiomyopathy (HCM) loop, consistent with flexibility, and only the molecular dynamics force field influenced their conformation (Figure 1C, red). The resulting atomistic model (‘HR’, high-resolution) converged well with a molprobity score of 1.44 and a clash score of 0.41 (Table 1). Comparison of the HR MDFF rigor model to the crystal structure of myosin VI in rigor-like state in the absence of actin (2BKI) demonstrates increased jaw closure to relieve a clash with the filament (Figure 1—figure supplement 1F), highlighting the importance of visualizing the motor bound to actin to determine the structure of the rigor state.

Table 1
Data collection and refinement statistics, related to Figure 1 and Figure 1—figure supplement 1
https://doi.org/10.7554/eLife.31125.005
Data collection
EMTecnai F20
Voltage (kV)200
DetectorGatan K2 Summit
Pixel size (Å/pixel)1.27
Electron dose (e-2)36
Defocus range (μm)−1.5 – −3.0
ConditionsMyosin VI (Rigor)Myosin VI (ADP)Actin
Number of micrographs778377442
Reconstruction and Refinement
SoftwareEMAN2/SPARX and FREALIGN
Segments56,11636,11463,139
Asymmetric Units168,348108,342189,417
Rise (Å)28.0628.0628.11
Twist (°)−166.73−166.69−166.65
MapsHR RigorLPF RigorHR ADPLPF ADPHR Actin
Resolution (Å)4.67.55.57.55.5
Map sharpening B- factor (Å2)−150−150−200−200−350
Model Building
SoftwareDirex, Coot, MDFF, Phenix
Validation
Molprobity score1.441.781.401.421.63
Clash score0.412.810.330.391
Ramachandran statistics (%)
Favored90.2693.391.3191.0190.87
Outlier1.361.121.291.520.76
Structure Deposition
PDB Accession Code6BNP6BNV6BNQ6BNW6BNO
EMDB Accession CodeEMD-7116EMD-7117EMD-7115

Interactions at the myosin-actin interface are distinct between different classes of myosins

Cryo-EM structural studies and modelling analyses of diverse actomyosin complexes in strongly-bound states (Behrmann et al., 2012; Fujii and Namba, 2017; Lorenz and Holmes, 2010; Wells et al., 1999; Wulf et al., 2016) as well as hydroxyl-radical foot-printing studies (Oztug Durer et al., 2011) suggest that all myosins studied thus far engage essentially the same surface on F-actin. However, the lack of MD conservation in actin-binding regions suggests differences may exist in how specific interactions with this F-actin surface are formed by different classes of myosins, which could facilitate tuning of motor properties. To assess the level of conservation at the actomyosin interface, we undertook a detailed comparison of the myosin VI rigor HR MDFF model to the recent 3.9 Å structure of the myosin IIC-F-actin rigor complex, as this structure contains side-chain level resolution at the MD-actin interface (von der Ecken et al., 2016). For this analysis, we present the superposition of all six actomyosin interfaces from the HR MDFF model, facilitating visualization of the clustering of side-chain positions and thereby providing a means of assessing confidence in specific contacts despite the limitations of the map resolution. Particularly well-resolved density regions, such as the actin nucleotide-binding cleft, demonstrate uniform positioning of large side-chains in density peaks, consistent with our resolution assessment (Figure 1D). As with myosin IIC, the actomyosin interface is comprised of several myosin surface loops (HCM loop, loop 2, loop 3, loop 4, and helix-loop-helix) located within the upper 50 KD (U50) and lower 50 KD (L50) domains of myosin which interact with subdomains 1 and 3 of one actin, and subdomain 2 of an adjacent actin (Figure 2A), supporting overall conservation of the interface architecture (Behrmann et al., 2012; Holmes et al., 2003; Rayment et al., 1993; Várkuti et al., 2012; von der Ecken et al., 2016).

Figure 2 with 1 supplement see all
Interactions composing the actomyosin VI interface in rigor.

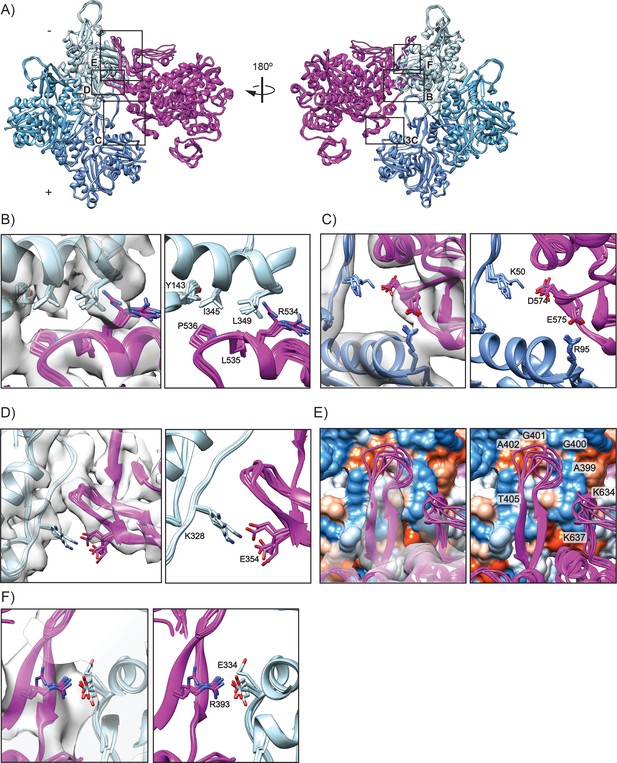

(A) All six actomyosin interfaces from the HR MDFF rigor model, superimposed based on the Cα coordinates of the dark-blue actin subunits. MD, magenta; actin subunits, varying shades of blue. (B–D) Detail views of interface contacts suggested by MDFF, colored as in A; EM density map is displayed on left side in transparent grey. (B) Hydrophobic interface between MD HLH and actin SD1/SD3. (C) Milligan contact interactions between MD loop 3 and actin D-loop/SD1. (D) Electrostatic interaction between MD loop 4 and actin SD3. (E) Interface between MD HCM loop and loop 2 with actin surface, colored by hydrophobicity from most hydrophobic (orange) to most hydrophilic (blue). (F) Salt bridge formation between the base of the MD HCM loop with actin SD1.

https://doi.org/10.7554/eLife.31125.006

Regarded as central to all actomyosin interactions (Kojima et al., 2001; Sasaki et al., 2002), one of the initial contacts between myosin and actin is predicted to occur between the myosin helix-loop-helix (HLH, I525-K550) motif in the L50 domain and an actin hydrophobic patch between actin SD1 and SD3 (Figure 2B). In myosin VI we find that the hydrophobic residues P536 and L535 of the HLH are embedded in a groove comprised of I345, L349, and Y143 in actin SD1 (Figure 2B), with clear density peaks to support positioning of these side chains. This interface is consistent with hydroxyl radical foot-printing studies demonstrating a hydrophobic interaction between this actin surface and skeletal muscle myosin (Oztug Durer et al., 2011). R534 is oriented with its guanidinium group pointing away from the hydrophobic pocket, with the aliphatic portion potentially contributing to the hydrophobic interaction (Figure 2B). The HLH for myosin IIC fits into a similar hydrophobic pocket in actin, with a conserved proline (P561) contributing to this interaction. However, the other specific residues involved in the interaction differ substantially (Figure 2—figure supplement 1B). In contrast to myosin VI, the myosin IIC HLH is comprised of aromatic side chains, with F560 playing a critical role in the interaction with actin (von der Ecken et al., 2016).

Interactions between myosin loop 3 (H551-G576) in the L50 domain and actin SD1 and the D-loop of the adjacent actin subunit form the Milligan contact (Milligan, 1996; Milligan et al., 1990; Rayment et al., 1993), whose precise role in actin engagement is unclear. Studies of other myosins suggest that this interface is formed by complementary charged surfaces rather than specific salt bridges and thus plays only an ancillary role in the generating the high affinity interaction for the rigor state (Houdusse and Sweeney, 2016; von der Ecken et al., 2016). Indeed, for myosin IIC, this seems to be the case (Figure 2—figure supplement 1C). However, the size of loop three varies among myosins, which prior studies have suggested may relate to its prominence in the actomyosin interface (Van Dijk et al., 1999). Consistent with this prediction, the large loop 3 of myosin VI likely makes more extensive contacts at this interface than myosin IIC, with MDFF suggesting probable interactions formed between D574 in loop three and K50 in the actin D loop, and E575 and R95 in actin SD2 (Figure 2C). The E575 residue is not conserved among any other myosin isoforms, suggesting that this interaction may be specific to myosin VI (Zhang and Liao, 2012). For myosin IIC, the actin D loop interaction occurs through E570 in the HLH, whereas for myosin VI the interaction with the actin D loop is likely through D574 in loop 3 (Figure 2C and Figure 2—figure supplement 1C). An additional unanticipated contact is made by myosin VI R561, which forms a cation-π interaction with Y91 in actin in our model (Figure 3C), discussed further in the next section. The actin residues R95 and Y91 have also been implicated myosin strong-binding interactions by hydroxyl radical foot-printing studies (Oztug Durer et al., 2011). Some studies suggest the residue homologous to myosin VI S563 also interacts with actin in other myosins (von der Ecken et al., 2016; Zhang and Liao, 2012), but in our model this residue points away from the interface and could instead potentially play a role in stabilizing loop 3 (not shown).

Figure 3 with 6 supplements see all
A unique contact is established upon transition from ADP to rigor.

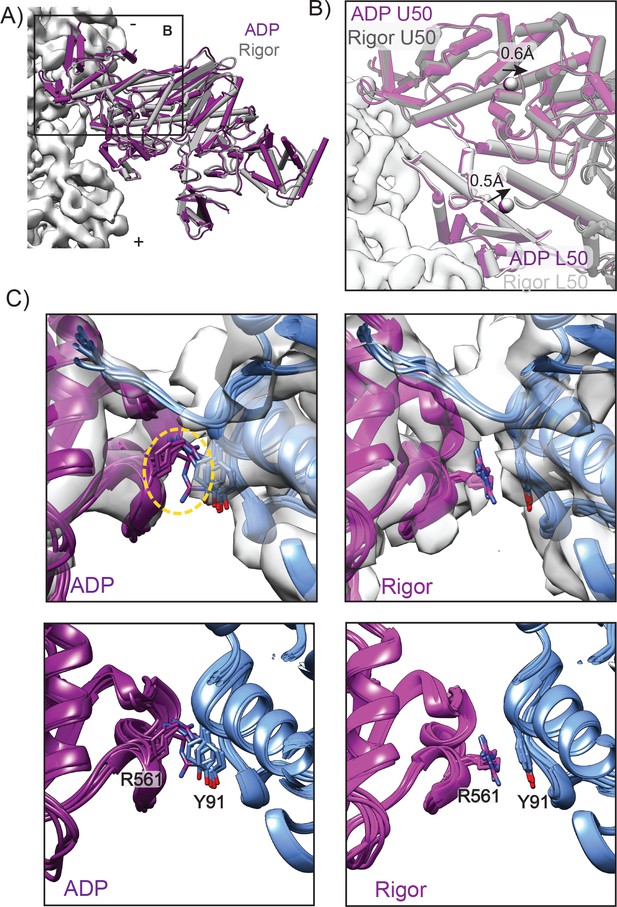

(A) View of the LPF APD MDFF model (dark magenta) and LPF rigor MDFF model superimposed in the reference frame of the actin filament (light gray density). To generate this superposition, the ADP and rigor density maps were aligned, then their corresponding atomistic models were rigid body fit into the aligned maps. (B) Minimal actin binding cleft rearrangements are observed between ADP and rigor, superimposed as described in A. ADP U50, magenta; ADP L50, dark magenta; rigor U50, dark grey; rigor L50, light grey; actin density, white. Arrows denote displacements of domain centroids (spheres) from ADP to the rigor state. Centroids were determined for U50 (residues 180–206, 229–397, and 405–441) and L50 (residues 467–597 and 638–661) domains. (C) MDFF indicates the Milligan contact cation-π interaction between R561 in the MD loop 3 and Y91 in the adjacent actin is absent in ADP (left) but is established upon transition to the rigor state (right), with clear density for these sidechains in the rigor map. For both states, all six actomyosin interfaces in the corresponding HR MDFF model are displayed superimposed on one actin subunit as described in Figure 2A. Density maps are displayed in transparent grey in the upper panels. Orange dotted circle indicates absence of density for R561 in the ADP map, while density for Y91 is still present.

https://doi.org/10.7554/eLife.31125.008

In addition to the Milligan contact interactions, MDFF suggests myosin VI makes another unique electrostatic interaction with F-actin. E354 in loop 4 (A355-C362) of the U50 domain of myosin likely forms a salt bridge with K328 in actin SD3 (Figure 2D) as supported by clear density for side chains in this region. In contrast, D387 in myosin IIC is reported to interact with a similar charged region in actin comprised of K325 and K327 (Figure 2—figure supplement 1E). However, our interpretation of the structure suggests that N385 is interacting with the charged actin pocket, since D387 is not oriented in a manner to make contacts with actin in this region (Figure 2—figure supplement 1D).

The hypertrophic cardiomyopathy (HCM) loop (T392-P410), which protrudes from the U50 domain, features numerous disease mutations (Sellers, 2000), highlighting the importance of this region for stabilizing interactions with actin. In our reconstruction, we observe both an ordered segment of the HCM loop, which forms an anti-parallel β-sheet comprising residues 392–396 and 406–410, here referred to as the ‘base’, as well as a flexible ‘tip’ for which no density was present in our reconstruction (residues 397–405). As no density was present for the tip, the HR MDFF model exhibits structural variability in this region, and we cannot confidently assign specific orientations to side chains. However, we find that tip residues A399-A402 lie adjacent to a small hydrophobic patch in actin between SD1 and SD2 (Figure 2E), which mutagenesis studies in yeast actin have suggested contributes to the strong-binding myosin interface through residue I341 (Miller et al., 1996). This is similar to the myosin IIC-actin interface, where the HCM loop docks on to the same hydrophobic patch in actin and is predominantly stabilized by hydrophobic interactions (Figure 2- Figure Supplement E). While the myosin IIC HCM loop has weak electrostatic interactions at the tip with R424 fitting into a charged pocket of actin, the myosin VI HCM tip lacks charged residues (Figure 2—figure supplement 1E) (von der Ecken et al., 2016). A similar electrostatic contact with actin could occur via T405 (Figure 2E), a phosphorylation site implicated in regulating directional transport of endocytic clusters (Buss and Kendrick-Jones, 2008; Naccache and Hasson, 2006).

In contrast with myosin IIC, the ordered myosin VI HCM base likely forms an electrostatic interaction with actin, as MDFF suggests a potential salt bridge between R393 and E334 of actin SD1 (Figure 2F). An analogous arginine in myosin IIC, R419, is a disease-related residue important for stabilizing interactions between actin and myosin (Lorenz and Holmes, 2010); however, this residue does not interact with F-actin and instead stabilizes the HCM loop through interactions with Y426 on the opposing strand (Figure 2—figure supplement 1F)(von der Ecken et al., 2016).

Loop 2 (F621-S642) bridges the U50 and L50 domains and has been implicated as the region responsible for initiating binding with actin (Preller and Holmes, 2013). While we cannot identify specific interactions due to the structural variability of this loop, for which density was not present, L638-I641 at the base of loop 2 are in close proximity to an actin hydrophobic patch, similar to myosin IIC (Figure 2E and Figure 2—figure supplement 1E). Neighboring the hydrophobic base, charged loop residues K634 and K637 lie adjacent to an actin acidic patch comprised of D24-D25 and the acidic N-term (Figure 2E) which has been reported to be important for weak-binding actomyosin interactions in yeast actin based on mutagenesis analysis (Miller et al., 1996). The homologous region in myosin IIC forms an electrostatic belt with this actin acidic patch that stabilizes the base of loop 2, and similar interactions with D24-D25 are predicted for myosin V (von der Ecken et al., 2016; Wulf et al., 2016). Although the resolution of loop 2 is poor in our map, likely due to flexibility of this segment, myosin VI could potentially form similar types of electrostatic interactions in this region. While higher resolution reconstructions may clarify specific loop two and HCM tip interactions with actin, intrinsic disorder is also likely to limit visualization of these interfaces.

Overall, our analysis reveals a notable lack of conservation at the actomyosin interface between myosin VI and myosin IIC. This is consistent with a model in which the enzymatic core of the MD has been preserved, while a mutable actin-binding surface provides a platform for tuning motor properties. Future structural studies of additional divergent myosin-actin complexes will facilitate the development of a theoretical framework linking specific interface features to biophysical parameters of the MD.

A unique contact is established upon transition from the ADP state to the rigor state

To investigate the link between myosin nucleotide state, actin binding affinity, and force sensitivity, we obtained a reconstruction of actin bound to myosin VI in the ADP state at an average resolution of 5.5 Å (Figure 1C, middle, Video 1). The challenge of obtaining high-quality micrographs of this lower-affinity actin-bound state limited the number of segments incorporated into this reconstruction. This, along with the ADP state’s higher level of flexibility in the converter and lever arm regions suggested by biophysical and modelling studies (Reifenberger et al., 2009; Sun et al., 2007; Wulf et al., 2016) likely limited the overall resolution of this reconstruction.

Video 1
Morph of cryo-EM reconstructions between ADP and rigor, related to Figure 1.

Morph from the ADP to the rigor reconstruction, low-pass filtered at 7.5 Å to facilitate visualization of secondary structure rearrangements. To generate this morph, the density maps were aligned to each other. Myosin, magenta; actin, blue.

https://doi.org/10.7554/eLife.31125.015

As with the rigor state reconstruction, the ADP state yielded a multi-resolution map (Figure 1—figure supplement 1D,E) with an estimated resolution of 4.7 Å at the actomyosin interface. We observe a clear density peak in the cleft (Figure 3—figure supplement 1) that is absent from the rigor density map, as expected for bound ADP; however, the limited resolution precludes detailed modelling of the nucleotide. The ADP-bound Pi Release (PiR) state X-ray structure of myosin VI (4PFO [Llinas et al., 2015]) was used as the initial model for MDFF, as it contains ADP in the nucleotide-binding pocket. Because of the overall lower resolution at the interface, only backbone atoms were subject to positioning by the density map during the MDFF simulation, again excluding loop two and the HCM loop. The resulting atomistic model (HR) converged well with a molprobity score of 1.40 and a clash score of 0.33 (Table 1). To monitor global rearrangements of the MD between nucleotide states, we used low-pass filtered density maps and MDFF to extend our models for the ADP and rigor state actomyosin complexes to include the converter and lever arm regions (details in Materials and methods). Due to the overall lower resolution of the filtered maps, we limit our analysis to backbone motions and represent these ‘LPF’ (low-pass filtered) MDFF models as backbone averaged structures instead of a superimposed ensemble (Video 2).

Video 2
Morph of atomistic models from ADP to rigor, related to Figures 2, 3 and 4.

Morph from the LPF ADP MDFF model to the LPF rigor MDFF model. To generate this morph, the ADP and rigor density maps were aligned, then their corresponding atomistic models were rigid body fit into the aligned maps. Myosin, magenta, three actin subunits, varying shades of blue.

https://doi.org/10.7554/eLife.31125.016

As a control for bias imposed by the starting model (4PFO) for the ADP MDFF structures, we also fit the rigor-like myosin VI (PDB 2BKI) structure, which we had previously used as the initial model for our rigor atomistic model, into the ADP state density map. This produced a final model (ADP starting from 2BKI) more closely resembling the ADP state starting from 4PFO (Cα RMSD 0.8 Å) than either the 2BKI starting model (Cα RMSD 1.8 Å) or our MDFF model of the rigor state (Cα RMSD 1.1 Å) (Figure 3—figure supplement 2, Table 2). Regardless of the starting model, MDFF models of the ADP state more closely resemble each other than the rigor state, suggesting our fitting procedure is capturing structural differences between these states that are represented in the maps.

Table 2
RMSD of Cα positions between models, related to Figure 2.
https://doi.org/10.7554/eLife.31125.017
RigorADPADP starting from 2BKI2BKI (rigor-like)4PFO (PiR)
Rigor1.31.11.64.4
ADP1.30.81.93.8
ADP starting from 2BKI1.10.81.83.9
2BKI (rigor-like)1.61.91.84.5
4PFO (PiR)4.43.83.84.5

Myosin VI affinity for actin increases as it progresses through the force generation cycle, with the rigor state exhibiting approximately 10-fold higher affinity for actin than the ADP state (De La Cruz et al., 2001; Robblee et al., 2004). However, it has been unclear how myosin nucleotide state affects actin affinity once the MD has engaged the filament. Prior comparisons of myosin VI crystal structures representing the states preceding (Pre-power stroke, PPS and Pi Release, PiR) and following (rigor-like) the ADP state demonstrated that major actin binding cleft rearrangements, reminiscent of a jaw closing, must occur between PiR and rigor to establish interactions with the actin filament (Llinas et al., 2015; Ménétrey et al., 2005; Ménétrey et al., 2008). While pyrene quenching data (Llinas et al., 2015) indicated that cleft closure occurs immediately after Pi release, it remained possible that the ADP state displays an actin-binding cleft structure that is overall closed but distinct from the rigor state, which could be related to the lower affinity of the ADP state compared to the rigor state.

We find very few changes in the actin binding cleft between the ADP and rigor state atomistic models, which are predominantly subtle local rearrangements which do not impact overall cleft closure (Figure 3A and B, Figure 3—figure supplement 3, and Figure 3—figure supplement 4). The Cα RMSD between the U50 and L50 from the rigor and ADP states are 1.5 Å and 1.1 Å, respectively. Additionally, centroid distances of the U50 and L50 between the two states are 0.6 Å and 0.5 Å, demonstrating that there is minimal cleft movement (Figure 3B). Atomistic models derived from intermediate-resolution cryo-EM reconstructions for myosin V bound to F-actin also showed minimal cleft rearrangements between the ADP and rigor states (Wulf et al., 2016), in agreement with our findings that the major structural changes leading to actin-binding cleft closure must precede the ADP state. As actin binding cleft changes are minimal, alternative mechanisms may also be involved in increasing the affinity of the rigor state. In myosin V, the transducer, a large β-sheet linking the nucleotide-binding cleft to the actin-binding cleft, was reported to adopt a strained conformation in the ADP state, which is relieved upon nucleotide release (Wulf et al., 2016). This motivated a model in which an effective increase in actin binding affinity resulted from relief of intramolecular strain in the MD as opposed to a conformational change which modifies contacts with actin. We observe a similar rearrangement of the transducer in myosin VI (Figure 3—figure supplement 5); however, we reasoned that subtle modulation of the actin-binding interface could also contribute to differential binding affinity between these states.

Analysis of side chain interactions suggested by MDFF shows that nearly all interactions are likely to be maintained between the two states (Figure 3—figure supplement 3 and Figure 3—figure supplement 4), with the exception of a single residue pair at the Milligan contact. The cation-π interaction between R561 in loop three with Y91 of actin SD2 is not present for the ADP state, suggesting that this contact is likely to form upon the transition from ADP to rigor (Figure 3C). Supporting this model, density for R561 is present in the rigor state reconstruction, but notably absent in the ADP state, consistent with R561 being disordered in this state (Figure 3C). This cation-π interaction is also absent in the ADP from 2BKI model we generated for validation purposes (Figure 3—figure supplement 6). Previous sequence analysis suggests R561 is conserved with only one other human myosin (Zhang and Liao, 2012), and a similar interaction is absent in both myosin IIC and myosin V structures (Figure 3—figure supplement 6), suggesting that this interaction may have evolved to support the specialized properties of myosin VI. Formation of this contact could play a role in increasing affinity for actin in the ADP to rigor transition of myosin VI; future high-resolution structural studies will be required to establish if analogous minor adjustments to the filament binding interface play a role in myosin V, as well as other myosins during this transition.

The converter adopts the post-power stroke conformation in the ADP state accompanied by swII and actin-binding cleft closure

The initiation of force generation occurs once the motor hydrolyzes ATP but has not yet released phosphate, leading to a weak interaction with actin termed the pre-power stroke state (PPS, Figure 1A). Crystallographic analysis revealed a subsequent phosphate release state (PiR) representing the state immediately preceding the ADP state where phosphate has been released through a proposed escape tunnel (Llinas et al., 2015), but the lever arm has not yet swung (Figure 1A). Comparison of the PiR structure to our ADP structure thus facilitates a detailed analysis of the structural transitions accompanying the primary power stroke of myosin VI (Figure 4A).

Figure 4 with 1 supplement see all
The converter adopts the post-power stroke conformation in the ADP state accompanied by switch II closure.

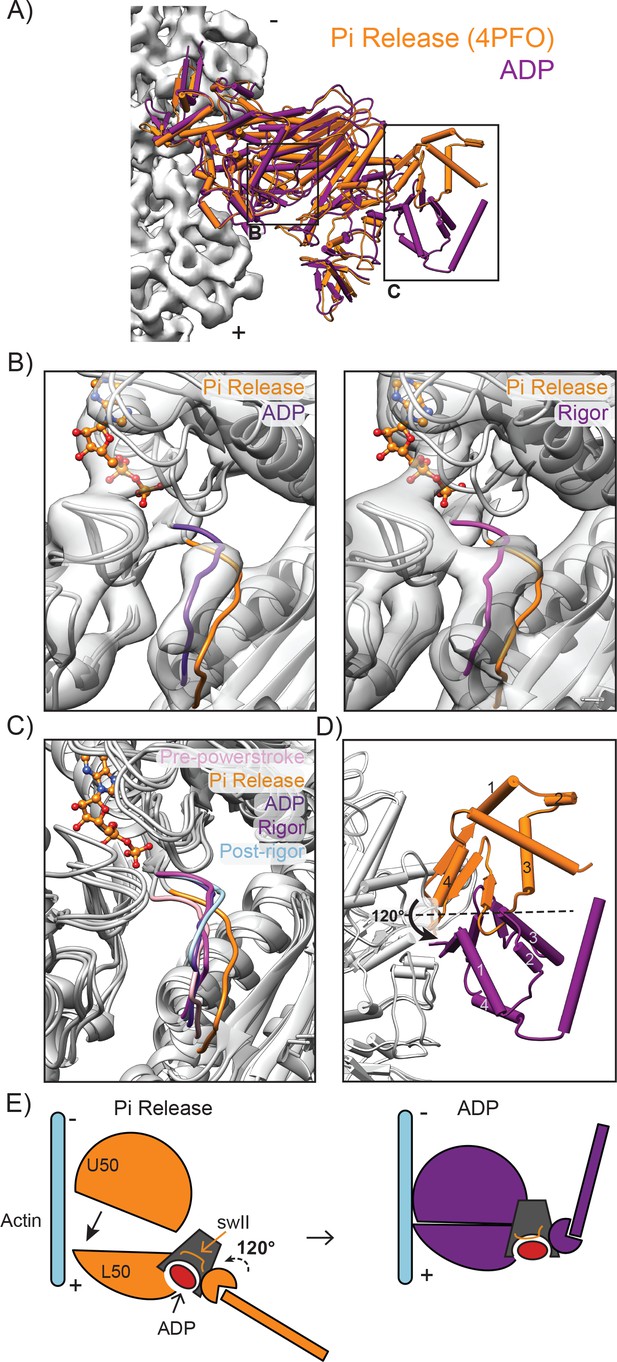

(A) View of the crystal structure of the PiR state (orange, 4PFO) superimposed on the LPF ADP MDFF model (dark magenta) based on the Cα coordinates of the full motor domain. Actin density is displayed in light grey. (B) Comparison of swII orientation between the PiR and ADP (left) and PiR and Rigor (right), superimposed as described in A. Density maps for ADP (left) and rigor (right) are displayed. ADP from PiR state is displayed in ball and stick representation and colored by heteroatom. (C) Comparison of swII orientations (various colors) between five states in the force generation cycle. The ADP and rigor maps were aligned, then their corresponding atomistic models were rigid body fit into the aligned maps. MDs from crystal structures were then superimposed based on the Cα coordinates of the full motor domain utilizing ADP as the reference for PiR and PPS, and rigor as the reference for Post-rigor. ADP from PiR is displayed in ball and stick representation and colored by heteroatom. (D) Magnified view of the 120° rotation of the converter and lever arm upon the transition from the PiR state to the ADP state as displayed in A. (E) Schematic depicting the myosin VI transition from PiR to ADP.

https://doi.org/10.7554/eLife.31125.018

The switch II loop (swII) plays an important role in arranging and stabilizing the myosin nucleotide-binding pocket. The PiR structure revealed that swII adopts an open conformation in this state, opening a path that would allow phosphate escape from the nucleotide binding pocket (Llinas et al., 2015). This observation lead to the hypothesis that swII would transiently open only in the PiR state, closing immediately after to prevent phosphate re-binding and thereby enforcing the forward directionality of the mechanochemical cycle (Llinas et al., 2015). Consistent with this model, we find that in both the ADP and rigor states, as with the PPS and post-rigor state structures, swII adopts a closed conformation when compared to the PiR state (Figure 4B and C).

To execute the power stroke, movement of the nucleotide binding cleft is propagated via the transducer, the relay helix, and the SH1 helix, leading to converter rearrangements which amplify these subtle motions into the swing of the lever arm. Unlike other myosins, the myosin VI PPS converter adopts an unusual conformation and must undergo rearrangements to transition into the rigor state (Ménétrey et al., 2007; Ovchinnikov et al., 2011). However, it has been unclear whether the ADP converter also adopts this unique PPS conformation and how converter rearrangements are propagated into lever arm movement prior to and after the ADP state. By comparing all previously crystalized converter conformations with our density maps (Figure 4—figure supplement 1), we confirm that the major converter rearrangement occurs from PiR to ADP, with the converter adopting a post-power stroke, rigor-like conformation in this state (Figure 4D). Our structural data are thus consistent with a model in which the major power stroke is accomplished by a converter rearrangement licensed by cleft closure immediately upon phosphate release (Figure 4E) (Llinas et al., 2015).

MD rearrangements facilitating ADP release are accompanied by a lever arm bend which could be regulated by force

Previous studies have predicted that forces propagated through the lever arm can allosterically control ADP release by gating conformational transitions in the motor domain required for nucleotide escape (Altman et al., 2004; Oguchi et al., 2008). Early low-resolution cryo-EM structures of myosin VI were consistent with this hypothesis, demonstrating that a small lever arm swing (~15–20°) accompanies the transition from ADP to rigor, presumably due to nucleotide-dependent rearrangements in the MD (Wells et al., 1999). However, the nature of these rearrangements and the mechanism coupling them to lever arm dynamics remain unclear.

We observe a ~ 30° rotation of the converter around an axis nearly parallel to the actin filament upon the transition from ADP to rigor (Figure 5—figure supplement 1, Video 3). This repositioning is sterically coupled to nucleotide cleft opening by opposing motions in the SH1 helix, which transitions from an extended to compact conformation, and the long relay helix, which exhibits winding at the end proximal to the converter (Figure 5A and B, Figure 5—figure supplement 2, and Video 4). The relay helix contacts the transducer, which coordinates movement of the switch I (residues 193–205) and N-terminal loops (residues 96–106 and 305–312) away from the nucleotide-binding pocket (Figure 5A, Video 2, and Video 5). The SH1 helix is connected to an unnamed loop we here refer to as the cleft loop (residues 670–681), which unexpectedly displays coherent displacement away from the cleft in the opposite direction (Figure 5A and B). This remodeling is accompanied by smaller rearrangements in the P-loop (residues 151–156) and insert 1 (residues 278–303), which likely do not play a major role in this step of the mechanochemical cycle (Figure 5A, and Video 5).

Figure 5 with 3 supplements see all
Nucleotide release promotes a converter rotation coupled to lever arm bending.

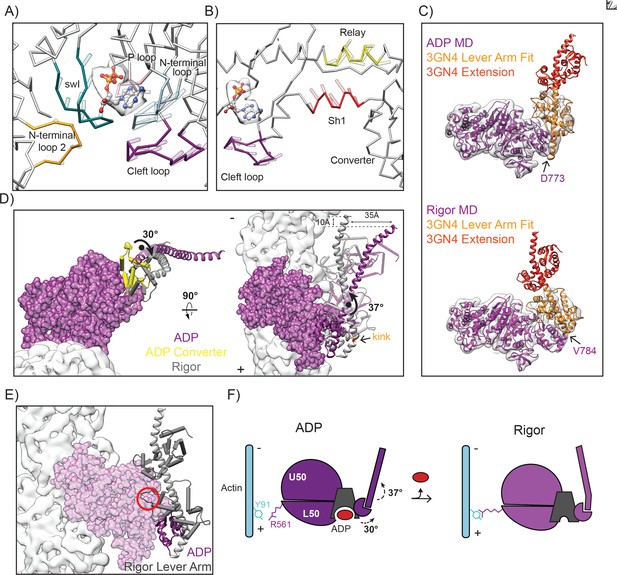

(A) Opening of the MD nucleotide-binding cleft depicted by vector traces of Cα displacement from the ADP to the rigor LPF MDFF model of highlighted loops, after aligning the models as described in Figure 3A. Displacement vectors are scaled by 1.5 and depicted as transparent rods extending from the ADP LPF MDFF model protein backbone. Coloring is as follows: N-term loop 1 (residues 96–106), blue; N-term loop 2 (residues 305–312), yellow; switch I (residues 193–205), teal; P loop (residues 151–156), pink; cleft loop (residues 670–684), dark magenta, non-highlighted areas, grey. An ADP molecule (ball and stick representation colored by heteroatom) is provided as a visual guide to orient the view. Segmented density from the ADP reconstruction attributable to nucleotide is displayed in transparent grey. (B) Shifted view from A, highlighting the winding of the relay helix (yellow) and translocation of the SH1 helix (red) coupled to opening of the cleft loop (dark magenta). (C) Fit of models with lever arms grafted from crystal structure 3GN4 (orange and red) into their respective density maps filtered at 7.5 Å: ADP (left, magenta), rigor (right, dark magenta). Sites where models were joined are indicated. Orange portion of 3GN4 indicates region that was rigid-body fit into the density maps. Positioning of the red portion is extrapolated from the crystal structure. (D) Converter rotation parallel to filament axis (left) and lever arm bend perpendicular to filament axis (right) between ADP (purple) and rigor (grey). The ADP MD is displayed in surface representation; actin density is light grey. To highlight converter rearrangements, converters are depicted in pipe and plank representation, with the ADP converter in yellow. Extended lever arm models are shown in ribbon representation, with calmodulins depicted in transparent pipe and plank. To generate the displayed superposition, the maps of the ADP and rigor state were aligned, then the LPF MDFF models were rigid-body fit into the corresponding map. The extended lever arm model from each state was then superimposed on its corresponding LPF MDFF model based on common Cα coordinates. (E) A clash (red circle) between calmodulin (gray pipes and planks) and the MD (transparent purple surface) in the bent state lever arm (gray ribbon) would prevent it from adopting this conformation in the ADP state due to the orientation of the converter (purple ribbon). This analysis was conducted by superimposing the Cα coordinates of the converters (residues 706–773) of the extended-lever arm models shown in C. The converter and MD of the ADP model are displayed. (F) Schematic depicting myosin VI transition from ADP to rigor.

https://doi.org/10.7554/eLife.31125.020
Video 3
Morph of converter and lever arm domains between cryo-EM reconstructions of ADP and rigor, related to Figure 4.

Morph of segmented density maps from the ADP to the rigor reconstruction, low-pass filtered at 7.5 Å aligned in the reference frame of the actin filament. To generate this morph, the full ADP and rigor density maps were aligned, then the segmented maps were aligned to their corresponding full density maps. Motor domain, dark magenta, converter, yellow, lever arm, dark grey. Actin reconstruction is shown in light-grey for orienting the view.

https://doi.org/10.7554/eLife.31125.024
Video 4
Morph of the relay and SH1 helices between cryo-EM reconstructions of ADP and rigor, related to Figure 4.

Morph from the ADP to rigor reconstruction, low-pass filtered at 7.5 Å, focusing on the relay helix (yellow) and SH1 helix (red). To generate this morph, density maps were aligned to each other.

https://doi.org/10.7554/eLife.31125.025
Video 5
Morph of the nucleotide-binding cleft between cryo-EM reconstructions of ADP and rigor, related to Figures 3 and 4.

Morph from the ADP to rigor reconstruction, low-pass filtered at 7.5 Å focusing on the myosin VI nucleotide binding cleft with density corresponding to ADP nucleotide colored orange (left panel). To generate this morph, density maps aligned to each other. Right panel includes the LPF rigor MDFF model rigid body fit into the rigor density map.

https://doi.org/10.7554/eLife.31125.026

To examine the coupling between these rearrangements and the lever arm, we grafted the X-ray structure of the ordered segment of the myosin VI lever arm (PDB 3GN4 [Mukherjea et al., 2009]) on to the distal end of insert two present in our LPF models (Figure 5C) (details in experimental procedures). As was observed in the rigor-like crystal structure (Ménétrey et al., 2005), the rigor lever arm displays a prominent bend between insert 2 residues 784 and 785, which our map and model reveals to be absent in the ADP state (Figure 5C and D, Figure 4—figure supplement 1). Based on these grafted models, bending produces a 30° reorientation of the lever arm, which protrudes off the filament axis in the ADP state but is almost perfectly parallel to the filament in the rigor state, providing a new explanation for early EM observations (Wells et al., 1999). The converter rotation and lever arm bending results in a ~ 35 Å displacement of the tip of our modeled lever arm, with a ~ 10 Å projected displacement along the filament axis towards the pointed end (Figure 5D). Although a similar magnitude displacement (9 Å) was observed to accompany this sub-step in single-molecule optical trapping assays of full-length monomeric myosin VI (Lister et al., 2004), the construct employed in this study featured additional sequence contributing to the lever arm and thus cannot be directly compared to our truncated model.

While our maps and models do not contain atomistic detail in this region, it is tempting to speculate that bending is driven by an electrostatic interaction between negatively charged residue E14 in the proximal light chain bound to insert two and positive residues K736 and R732, which can be seen in the high-resolution rigor-like crystal structure (Figure 5—figure supplement 3). A bent lever arm and this interaction are sterically incompatible with the ADP converter position, which would cause severe clashes between the proximal light chain and the MD (Figure 5E).

Our models suggest that nucleotide release is coupled to a converter rotation that licenses a lever arm bend in myosin VI, contributing to the displacement observed in previous structural and functional studies of the ADP to rigor transition (Lister et al., 2004; Wells et al., 1999) (Figure 5F). This mechanism is clearly not responsible for the small lever arm swing recently reported to be coupled to ADP release in myosin V, which lacks insert 2 (Wulf et al., 2016); rather, it provides a distinct, additional mechanism for myosin VI to reposition the lever arm between the ADP and rigor states. Myosin VI thus seems to have evolved unique conformational changes contributing to both the major power stroke, in which a rearrangement of the converter leads to a larger stroke size than would otherwise be obtained (Ménétrey et al., 2007), and the subsequent ADP release sub-step, which amplifies converter rearrangements along the filament axis with a straight-to-bent transition in the lever arm. Furthermore, we propose that force could gate nucleotide engagement by regulating lever arm bending and the associated converter repositioning, with differential effects depending on the geometry (see Discussion).

Actin rearrangements accompany the myosin VI force generation cycle

F-actin has the capacity for structural polymorpshim (Galkin et al., 2010), and has been observed to adopt distinct conformational states when in complex with several binding partners, notably becoming severely distorted when decorated with the severing factor cofilin (McGough et al., 1997). Extensive biochemical and biophysical studies have suggested that myosin binding induces actin structural rearrangements and that actin structural plasticity is critical for proper myosin activity (Anson et al., 1995; Drummond et al., 1990; Kim et al., 2002; Nishikawa et al., 2002; Noguchi et al., 2012; Oztug Durer et al., 2011; Prochniewicz et al., 2010; Prochniewicz and Thomas, 2001). Several recent structural studies have described subtle conformational changes in actin when bound by nucleotide-free myosin motor domain (von der Ecken et al., 2016; Wulf et al., 2016). Differences between conformations of actin filaments decorated with myosin V in the nucleotide-free and ADP states have also been described at intermediate resolution (Wulf et al., 2016). Furthermore, an indirect reporter of actin conformation based on changes in pyrene fluorescence quenching (De La Cruz et al., 2001; De La Cruz et al., 1999; Kim et al., 2002; Llinas et al., 2015; Prochniewicz et al., 2010; Wulf et al., 2016) has suggested that actin rearrangements accompany transitions between different states in the myosin mechanochemical cycle for myosin V and VI. However, the absence of high-resolution structures of the same myosin in multiple states bound to actin has hampered direct visualization of these rearrangements and an interpretation of their functional relevance during force generation.

As we expected actin conformational changes to be subtle, we obtained a reconstruction of F-actin alone at 5.5 Å (Figure 1B, right), as well as a corresponding MDFF model to control for error in micrograph pixel size calibration and differences in processing procedures with previously reported structures (Galkin et al., 2015; von der Ecken et al., 2015). The lower resolution of this reconstruction vs. those bound to myosin suggests that myosin binding may rigidify the filament and reduce inherent conformational flexibility (Galkin et al., 2012). The myosin-bound density maps were then aligned in the reference frame of the actin-alone reconstruction, followed by re-docking of the corresponding MDFF models, a procedure which we found revealed regular patterns of actin protomer rearrangements which were masked when the MDFF models were superimposed based on the Cα coordinates of individual actin subunits (data not shown).

The refined helical parameters are essentially identical for all three filament states we report here (Table 1), in contrast to both myosin IIC and myosin V, where myosin binding has been reported to induce a 0.5–0.8° change in azimuthal rotation (von der Ecken et al., 2016; Wulf et al., 2016). Despite this preservation of filament architecture, the actin protomer adopts a unique conformation in each of the three states, with local deformations occurring at the actomyosin interface mediated by the D loop and, intriguingly, at distal lateral contacts in the interior of the filament mediating the interaction between the two strands of the actin filament (Figure 6, Figure 6—figure supplement 1, Videos 6 and 7).

Figure 6 with 2 supplements see all
Actin rearrangements accompany force generation.

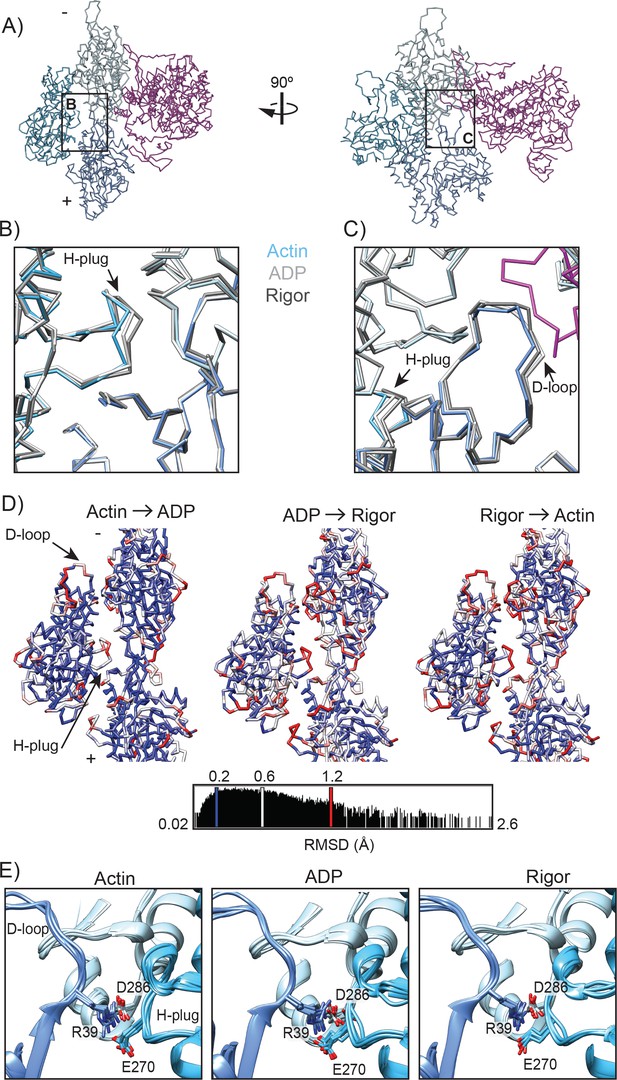

(A) Backbone averaged trace of the HR MDFF rigor interface consisting of 1 MD (magenta) and three actin subunits (shades of blue). (B) Actin hydrophobic plug repositioning between actin alone (blue), ADP (light grey), and rigor (grey). To generate the displayed superposition, the full ADP and rigor density maps were aligned to the actin alone density map, and then the back-bone averaged HR MDFF model of each state was rigid-body fit into its corresponding density map. (C) View of D-loop displacements coupled to H-plug motion, colored and aligned as in B. Region of myosin contacting the D-loop from the rigor structure is displayed in magenta for reference. (D) Per-residue Cα RMSD is displayed between superpositions of backbone-averaged HR MDFF models, aligned as described in B. The backbone of the first state indicated is displayed and colored. Rearrangements of the largest magnitude occur in the D-loop and H-plug. (E) Superpositions of all six inter-strand interfaces from the indicated HR MDFF atomistic models (not averaged) displaying the interaction between D-loop R39 on actin protomer one with H-plug E270 on protomer two and D286 in SD3 of protomer 3. The interfaces were superimposed based on the Cα coordinates of actin protomer 1 (dark-blue) subunits, as described in Figure 2A. Colors are as in A.

https://doi.org/10.7554/eLife.31125.027
Video 6
Morph of the H-plug and D-loop between cryo-EM reconstructions of actin alone, ADP, and rigor, related to Figure 6.

Morphs from actin alone to ADP, ADP to rigor, and rigor to actin alone focusing on the H-plug (red) and D-loop (orange). Right panels: Morphs of density maps, low-pass filtered to 7.5 Å and aligned to each other. Left panels: Morphs between backbone-averaged HR MDFF models. To generate the morphs of atomistic models, the density maps were aligned, then their corresponding atomistic models were rigid-body fit into the aligned maps.

https://doi.org/10.7554/eLife.31125.030
Video 7
Morph between 3 states of actin, related to Figure 6.

Morph between the backbone-averaged HR MDFF actin alone, ADP, and rigor models. Morphs generated as in Video 6.

https://doi.org/10.7554/eLife.31125.031

The D-loop is a flexible region of actin SD2 that can adopt a range of conformations to facilitate longitudinal contacts during actin polymerization (Dominguez and Holmes, 2011; Galkin et al., 2010; Otterbein et al., 2001) and engage with actin binding partners (Dominguez and Holmes, 2011). As discussed earlier, the D-loop forms interactions with myosin VI loop three as a part of the Milligan contact. Consistent with what has previously been reported for myosin IIC (von der Ecken et al., 2016) and IE (Behrmann et al., 2012), this flexible loop also shifts upon myosin VI binding, orienting slightly towards the MD (Figure 6B–C and Video 3). Both the ADP and rigor states exhibit excursions of the D-loop relative to the unbound state, with a Cα RMSD of 1.0 Å in both cases (Figure 6D). The Cα RMSD between the ADP and rigor states is also of a similar magnitude (0.9 Å, Figure 6D), demonstrating that the D-loop adopts distinct conformational states as the myosin force generation cycle proceeds.

The historically named hydrophobic plug (H-plug, residues 263–273) adjoins three actin subunits within the filament lattice, fitting into the groove created by the interface between two actin subunits on the adjacent filament strand (Chen et al., 1993; Holmes et al., 1990). Unexpectedly, myosin VI engagement shifts the H-plug towards the two actins located on the opposite strand, with an increasing deviation of position from the unbound actin state as the motor proceeds from the ADP state (Cα RMSD 0.9 Å) to rigor (Cα RMSD 1.6 Å, Figure 6B–D and Videos 6 and 7).

Although the D-loop and H-plug are distal from one another within a single subunit, they are brought into close proximity between laterally adjacent protomers within the filament, and a single side-chain pair, D-loop residue R39 and H-plug residue E270, makes a direct contact between them across the interface (Figure 6E). The geometry is incompatible with these residues forming a canonical head-to-head interaction with their charged groups due to their close proximity; instead, they pack together through what may be a mixed electrostatic/Van der Waals interaction. R39 additionally forms a canonical head-to-head salt-bridge interaction with D286 of subdomain 3 of a longitudinally adjacent subunit, placing this residue at a vertex that connects three actin subunits along and across the strands of the filament (Figure 6E). We propose that this bi-partite interaction acts as an allosteric relay. As myosin VI remodels its binding site on actin, primarily through rearrangements of the D-loop, movement of the R39-D286 bridge necessitates repositioning of E270 due to steric exclusion. However, the electrostatic attraction between E270 and R39 prevents rotameric exchange of E270, producing instead a distortion of the H-plug.

Discussion

Despite the fundamental conservation of enzymatic mechanism across the myosin superfamily, our studies unambiguously demonstrate that the actomyosin interface is a highly evolvable interaction surface. Comparing myosin IIC and myosin VI, we observe only a single identical actin-binding residue, myosin IIC P561/myosin VI P536 in the HLH; all other interfacial residues have diverged despite the high degree of conservation of the nucleotide-binding pocket (Figure 7A). The myosin VI interface residues we have identified are essentially completely conserved between species (Figure 7A), and likely contribute to this motor’s specialization. The most notable difference is the large increase in the number of loop 3 – actin contacts in myosin VI vs. IIC. This includes a proliferation of specific electrostatic interactions and the unanticipated myosin R561 – actin Y61 cation-π interaction which forms upon the transition from ADP to rigor in our models. These residues are poorly conserved among other myosin isoforms, suggesting that this interaction may have evolved to support the specialized properties of myosin VI. Future comparative structural studies of diverse myosins in complex with actin will be required for a detailed dissection of how modulation of the actomyosin interface correlates with motor-specific biophysical properties. Furthermore, our data suggest that the mechanisms of disease-causing interfacial mutations in other myosins will be difficult to predict from sequence analysis alone, and thus will likely require structural characterization.

Conceptual models summarizing implications of the ADP to rigor transition.

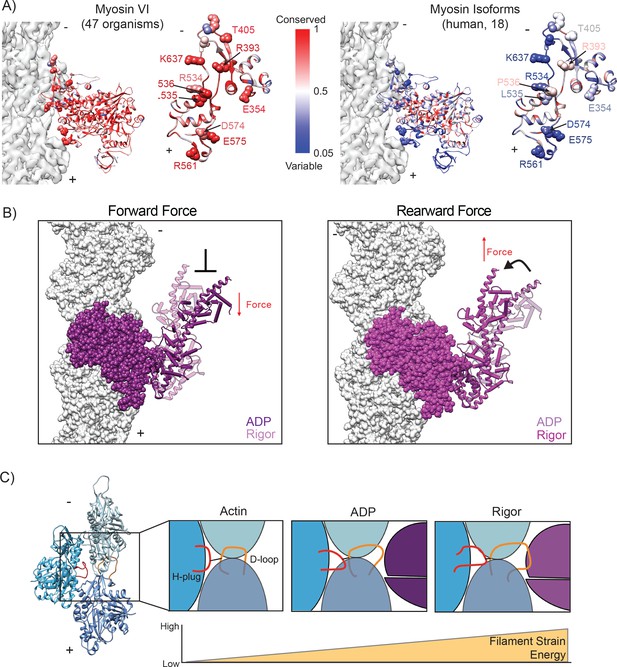

(A) Conservation of myosin VI between 47 organisms (left, Source Data 1) and among 18 human myosin isoforms (right, Source Data 2). Left, full MD; Right, en face view of actin binding interface with space-filling representation of critical residues mediating actin interaction. Actin density is displayed in transparent grey for reference. (B) Schematic of potential effects of force on the ADP to rigor transition. Due to the displacement associated with the lever arm bend, a rearward load should favor ADP engagement and a forward load should disfavor it. The displayed superposition was generated as in Figure 5D. (C) Cartoon depicting increased actin strain during myosin force generation. The MD (magenta) - D-loop (orange) interaction facilitates remodeling of the H-plug (red).

https://doi.org/10.7554/eLife.31125.032

Comparing our actin-bound reconstructions of the ADP and rigor states to previous structures of myosin VI in isolation in both pre- and post-power stroke states enables us to clarify the sequence of structural transitions which transduce ATP binding and hydrolysis into force production (Video 8). Nevertheless, the exact causal connections between nucleotide state, myosin conformation, and actin filament engagement remain to be fully resolved. Visualization of transient actin-binding interfaces in both pre-power stroke and post-rigor states that facilitate coordination of rearrangements in the nucleotide-binding cleft, actin-binding cleft, and converter will be necessary. The low-affinity of these high-energy states for actin renders this technically challenging; nevertheless, we optimistically anticipate that continued developments in cryo-EM methodology, including emerging methods for reconstructing filament – binding partner complexes with substoichiometric binding density (Kim et al., 2016; Liu et al., 2017), will render these as tractable structural targets in the future.

Video 8
The myosin VI mechanochemical cycle.

Morph between indicated states of the myosin VI mechanochemical cycle, aligned in the reference from of the actin filament. To generate this morph, the full ADP and rigor density maps were aligned, and then the LPF ADP MDFF and LPF rigor MDFF models were rigid body fit into their corresponding densities. The grafted lever arm models were then superimposed on the LPF MDFF models using overlapping Cα coordinates. For the Pre-Powerstroke (2V26) and PiR (4PFO) states, the X-ray structures were superimposed on the LPF ADP MDFF model based on the Cα coordinates of the full motor domain. For the post-rigor (2VAS) state, the x-ray structure was superimposed on the LPF rigor MDFF model based on the Cα coordinates of the full motor domain. The lever arms of crystal structures were extended in a manner analogous to the procedure described in the Experimental Methods after superposing 3GN4 utilizing overlapping Cα coordinates. Myosin, magenta, actin density map, grey. Nucleotides and ions are displayed in ball and stick representation and colored by heteroatom.

https://doi.org/10.7554/eLife.31125.035

While the major lever arm swing from the PiR to the ADP state generates directional motion, we propose that the second, smaller lever arm bend upon the ADP to rigor transition contributes to the force sensitivity of the motor. We hypothesize that the directional strain on the myosin head can regulate the lever arm bending observed in our models during transitions between ADP and rigor (Figure 5D). Lever arm bending is coupled to converter rearrangements, which, through the SH1 and relay helices, promotes nucleotide cleft opening and ADP release (Figures 5A, B and 7B). Rearward force applied to the lead head would disfavor the lever arm bend and thus promote the ADP-bound state; conversely, forward load would promote bending and thus favor the rigor state (Figure 7B). This framework is consistent with a model wherein extreme rearward force locks the motor in the ADP state, facilitating a transition from processive transporter to actin-bound tether (Altman et al., 2004; Chuan et al., 2011).

This proposal agrees with biochemical data demonstrating an increase in ADP dissociation rate under forward load and increased affinity for ADP under rearward load (Altman et al., 2004; Oguchi et al., 2008), and it is also consistent with recent simulation studies suggesting the converter can adopt a post-powerstroke conformation in the presence of force (Mugnai and Thirumalai, 2017). Kinetic measurements have suggested that ATP-binding is the force-sensitive step that coordinates the heads of a dimer via intramolecular strain (Sweeney et al., 2007); a structure of the post-rigor actomyosin VI transition complex would be required to develop a detailed mechanistic framework for force sensitivity in the rigor to post-rigor transition.

Mechanoregulated ADP release has also been reported for the processive dimeric transporter myosin V (Oguchi et al., 2008; Wulf et al., 2016), as well as the monomeric tethering motor myosin IC (Greenberg et al., 2012), and a small lever arm swing has also been reported for myosin V during this transition (Veigel et al., 2002). However, these motors each have a distinct structural topology linking the lever arm to the converter, with insert 2 of myosin VI, the site of lever arm bending, being a unique feature of myosin VI. Thus, further studies will be required to reveal mechanistic consonance and dissonance between these motors and themes in myosin force sensitivity. Additionally, our high-resolution actomyosin VI structures provide a foundation for future motor engineering studies. Motor design represents a complementary route for investigating structural features conferring specific biophysical properties, including force sensitivity, which may additionally produce novel cytoskeletal motors with applications in biotechnology and biomedicine. Our studies suggest it may be feasible to alter stepping behaviors and force-sensitivity by exploring alternative lever-arm geometries which modulate bending and thereby the relative positioning of the lever-arm in ADP and rigor.

The structural transitions we observe in actin may play an important role in the actomyosin VI force generation cycle. The anomalously high level of conservation in actin has been ascribed to a requirement for allosteric coordination between subunits (Galkin et al., 2010; Galkin et al., 2015), as we indeed observe, leading us to speculate at potential functional roles for these rearrangements. As the unbound actin state represents the conformation adopted by F-actin in the absence of exogenous factors, we propose that our free actin model represents a low-energy conformation of the H-plug and D loop in the context of the filament. As we observe the conformation of the H-plug becomes increasingly deformed as the motor proceeds from ADP to rigor, with increasing RMSD relative to the ground-state of unbound actin (Figure 6D), we speculate that this segment is adopting an increasingly unfavorable conformation as the binding affinity of the actomyosin interface increases, suggesting strain energy may be stored in the filament as the force generation cycle proceeds (Figure 7A). We propose that the D-loop acts as a ‘handle’ which enables myosin VI, and potentially other actin-binding proteins, to transmit conformational changes from the filament surface through an allosteric relay to the H-plug (Figure 7A), converting binding energy into strain energy. As our data suggest that the filament is maximally strained when the motor is most stably bound in rigor, one possibility we envision is that strain energy stored in the filament facilitates MD displacement as ATP rebinds during the transition to post-rigor, with elastic recoil in the actin filament helping to drive this transition forward (Figure 7A). Examination of the actomyosin IIC rigor complex suggests that D-loop remodeling by this motor does not produce H-plug distortion (Figure 6—figure supplement 2), indicating that this mechanism may be selectively employed by different myosins and represents another avenue for motor specialization. This model is consistent with previous functional data suggesting differential F-actin conformational dynamics in the presence of myosin V and muscle myosin S1 (Prochniewicz et al., 2010)

An additional and non-exclusive possibility is that myosin VI-induced actin conformational states are also modulated through additional mechanisms to regulate the activity of the motor in a context-dependent manner. Actin nucleotide state, a marker of filament age within the cell, influences myosin VI processivity (Zimmermann et al., 2015), and could exert its effects via such a mechanism. Finally, conformational changes generated at a single actomyosin VI interface could be allosterically communicated along a filament to influence the binding interactions or activity of other actin binding partners at distal sites, consistent with previous reports of myosin VI influencing the structural dynamics and mechanical rigidity of actin (Prochniewicz et al., 2011). While our structural data clearly suggest that conformational changes should propagated across the lateral interface between strands, the technical necessity of saturating the filaments with myosin for high-resolution reconstruction is not compatible with visualizing rearrangements induced at a distance. Future structural studies of myosin VI bound to F-actin trapped in different nucleotide states, as well as filaments sparsely decorated with this motor, will facilitate experimental testing of these proposals.

Materials and methods

Buffers

KMEI: 50 mM KCl, 1 mM MgCl2, 1 mM EGTA, 10 mM imidazole, pH 7.0. G-Mg: 2 mM Tris, pH 8, 0.5 mM DTT, 0.2 M ATP, 0.1 mM MgCl2, 0.01% NaN3.

Protein expression and purification

Myosin VI was engineered and purified as previously described (Omabegho et al., 2017). Briefly, a DNA construct for protein expression was assembled from fragments encoding porcine myosin VI (residues 1–817) and Archaeoglobus fulgidus L7Ae (residues 9–118), cloned into a pBiex-1 (Novagen-Millipore, Burlington, MA) expression vector modified to include codons for a C-terminal eYFP, and FLAG tag (DYKDDDDK) with intervening GSG repeats (see Figure 1—figure supplement 1). Proteins were expressed by direct transfection of SF9 cells and affinity purified as previously described (Elting et al., 2011; Liao et al., 2009). Rabbit skeletal muscle actin was prepared as previously described (Pardee and Spudich, 1982). F-actin was prepared by polymerizing 10 μM actin monomers in KMEI + G-Mg buffer overnight at 4°C.

Cryo-EM sample preparation

F-actin and myosin constructs were diluted to 0.3–0.6 μM and 2–4 μM, respectively, in KMEI. For nucleotide free conditions, myosin samples were supplemented with 10 U/mL apyrase (Sigma); for ADP conditions, myosin samples were supplemented with 5 mM Mg-ADP (Sigma-Aldrich, St. Louis, MO) pH 7.0. F-actin (3 μL) was applied to a plasma-cleaned 1.2/1.3 200-mesh C-flat holey carbon grid (Protochips, Morrisville, NC) in the humidified chamber of a Leica GP plunge freezer and incubated for 60 s at 25°C. Myosin (3 μL) was then applied and incubated for 60 s. Solution (3 μL) was then removed and an additional 3 μL of myosin was applied. After an additional 60 s, 3 μL of solution was removed, and then the grid was blotted for 2–3 s from the back with filter paper (Whatman no 5.) and plunge-frozen in liquid ethane.

Cryo-EM data collection

Cryo-EM data were collected with the Leginon software on a Tecnai F20 operating at 200 kV using a Gatan K2 Summit direct electron detector in counting mode. Movies were collected with an exposure of 0.25 s/frame for a total of 6.0 s (24 frames) at a dosage of 6 e-2/s (7.6 e-/pixel/s) yielding a total cumulative dose of 36 e-2. Data were collected at 1.5–3 μm underfocus at a nominal magnification of 29,000x, corresponding to a calibrated pixel size of 1.27 Å at the specimen level.

Image processing

For initial processing steps, image frames were aligned and summed with Unblur (Grant and Grigorieff, 2015) without dose-weighting. Contrast transfer function (CTF) estimation and extraction of segments was performed in the Appion data-processing environment (Lander et al., 2009). Unless otherwise specified, 2D image processing operations were carried out using proc2d from the EMAN processing package (Ludtke et al., 1999). CTF parameters were estimated with CTFFIND3 (Mindell and Grigorieff, 2003). Segments were windowed in 512-pixel boxes with 81 Å of non-overlap corresponding to a step-size of 3 actin protomers, normalized with xmipp_normalize (Scheres et al., 2008), then binned by 2. Segments were extracted for each state: ADP (36,114), rigor (56,116), and actin alone (63,139).

For 3D refinement and reconstruction, we adapted the IHRSR protocol recently described in Kim et al. (Kim et al., 2016), performing initial refinement and reconstruction using functions from the SPARX/EMAN2 (Hohn et al., 2007; Tang et al., 2007) libraries and helical search using the program hsearch_lorentz (Egelman, 2007), followed by final refinement and reconstruction using FREALIGN (Lyumkis et al., 2013). Briefly, segments were extracted from phase-flipped images, then refined against an initial model generated by low-pass filtering an actin reconstruction (EMD-1990 [Behrmann et al., 2012]) to 35 Å. The reconstruction obtained from this refinement run was then low-pass filtered to 35 Å and used as the initial model for a second round of refinement, where poorly aligning segments were excluded using a cross-correlation cutoff of 1.5 σ. Segments with correlation scores above the cutoff were then divided into two random half-datasets, and independent refinement of these half-datasets (to minimize noise bias [Scheres and Chen, 2012]) was re-initialized using the same low-pass filtered initial model. After each round of refinement, the asymmetric reconstructions of the half-datasets were summed, and the sum was used to calculate new helical parameters. These helical parameters were then applied to each half-reconstruction independently, which were then compared and low-pass filtered based on the Fourier Shell Correlation (FSC) to provide the references for the next round of refinement.

After refinement in EMAN2/SPARX, un-binned segments were generated using alignparts_lmbfgs (Rubinstein and Brubaker, 2015) on all acquired frames to correct for non-uniform beam-induced drift (motion correction) and apply an exposure-dependent filter to maximize signal at all spatial frequencies (Grant and Grigorieff, 2015). Data from all frames were included in segments extracted at this stage. Parameters from the half-data sets were recombined, then final refinement and reconstruction was performed with FREALIGN v 9.11 using fixed helical parameters and a strict low-pass filter of 10 Å, as we found including higher-resolution information in the refinement did not improve the reconstructions (data not shown). The final average resolutions reported were determined based on the FSC 0.143 criterion (Rosenthal and Henderson, 2003) as 4.6 Å (rigor), 5.5 Å (ADP), and 5 Å (actin alone) (Figure 1—figure supplement 1). The maps were sharpened using a B-factor peaking at the nominal average resolution as indicated in Table 1 using the program BFACTOR.

Local resolution assessment was performed in two independent fashions. Since it was clear that the resolution decayed radially from the core of the filament, we calculated a series of reconstructions with cylindrical masks of radii chosen to exclude certain portions of the map: 120 Å radius for the full map, 90 Å radius to exclude the converter and lever arm (which was used to calculate the overall resolution reported), and 40 Å radius for the actomyosin interface (Figure 1—figure supplement 1). Resolutions were determined for each individual reconstruction based on the FSC 0.143 criterion. Local resolution was also estimated for strong-bound ADP and rigor states using ResMap (Kucukelbir et al., 2014) on the full density maps revealing a resolution gradient of better than ~4 Å (actin) to worse than 5–6 Å (myosin lever arm).

Building atomic models with MDFF

Atomistic models for the cryo-EM density maps were generated using the Molecular Dynamics Flexible Fitting (MDFF) procedure. Initial models were built from eight actin subunits (3J8A) and six myosins (2BKI for rigor state, 4PFO ADP-strongbound). Two models were generated for each state: A high resolution (HR) model for actomyosin interface analysis and a low pass filtered (LPF) model for analysis of global MD rearrangements. For the HR model, the MD was truncated to exclude the lever arm and converter regions, and the electron density maps used were B-factor sharpened and filtered to nominal resolution as indicated in Table 1. As there is no pre-existing structural information for the flexible loops, loop 2 and the HCM loop, we manually constructed these regions using Coot (Emsley et al., 2010). Initial models were then assembled through rigid body docking in Chimera, followed by flexible fitting with DIREX (Wang and Schröder, 2012).

MDFF was performed with explicit solvent, 50 mM KCl, and symmetry restraints imposed on Cα of actin. The simulation was run in three steps: a brief energy minimization step to remove severe clashes from the starting model, then molecular dynamics with low map weighting (250ns simulation), followed by a longer energy minimization (2000 steps) using a higher map-weighting. To accommodate the multi resolution maps and the different resolutions of each density map, each state was subjected to MDFF differently: Due to the higher resolution of the rigor state density map, backbone atoms and large side chain atoms in actin (Phe, Tyr, Trp, His, Arg, Gln, Lys, Met) were subjected to fitting by the electron density map potential. For all other models (ADP, actin alone, and ‘low resolution’ models), only backbone atoms were permitted to feel map potential. Loop two and the HCM loop were excluded from flexible fitting and only subjected to molecular dynamics, and the positions of ADP and magnesium ions were kept fixed during the molecular dynamics simulation due to the limited resolution of the reconstructions. We tested various values of the weighting factor ‘g’ for both the molecular dynamics and the long energy minimization stages and selected the optimal value by assessing quality using Molprobity (Chen et al., 2010) as implemented in Phenix (Adams et al., 2010) as described previously (Kim et al., 2016).

To generate the LPF models, for both ADP and rigor state, the lever arm and converter (and CaM for the rigor structure) from 2BKI were grafted onto the HR atomistic models, and electron density maps were B-factor sharpened and filtered to 7.5 Å resolution to accommodate the lower resolution portions of the map consisting of the converter and lever arm. Initial fitting was carried out through rigid body docking in Chimera and then flexible fitting with Direx. The MDFF was carried out in the same manner as the ‘high resolution’ models with the filtered density maps guiding fitting for only the protein main-chain atoms. Due to the overall lower resolution of the filtered maps, atomistic models were backbone averaged in Phenix (Adams et al., 2010) and side chains were truncated to poly-alanine. An analogous backbone averaging procedure was applied to actin subunits from the HR models to visualize conformational changes in actin between states in the force generation cycle (Figure 6).

To create the extended lever arm models, the lever arm and 2 calmodulins from 3GN4 (truncated at K848) were fit as a rigid body into the 7.5 Å resolution filtered density maps, which were segmented to only include the motor domain, converter, calmodulin and ordered region of the lever arm. After fitting, the lever arm was truncated, then grafted onto the LPF model at a site chosen to match the local path of the density. As the fits were dependent on the correspondence between the first IQ and calmodulin from the crystal structure and our density maps, only the lever arm and one calmodulin were fit into the density; thus, the second calmodulin and extension of the lever arm are extrapolations based on the crystal structure. The lever arm was grafted at V784 for the rigor model and D773 for the ADP model.

Conservation analysis

Conservation analysis was carried out through sequence alignment using the EMBL-EBI Clustal Omega server (Sievers et al., 2011) of human myosin VI sequence with myosin VI sequences from 46 other organisms or 18 other human myosin isoforms obtained through a NCBI BLAST search. Conservation mapping onto the myosin VI structure was conducted in Chimera.

Quantification and statistical analysis

Density map alignments, structural superpositions of atomistic models, RMSD calculations, centroid determinations, and displacement calculations were conducted in UCSF Chimera (Pettersen et al., 2004). Inter-domain rotation axes and angles were calculated using DynDom3d (Poornam et al., 2009). Cα displacement vectors were calculated using a Python script which has previously been described (Alushin et al., 2014).

Data and software availability

Cryo-EM density maps and corresponding atomistic models for rigor, ADP, and actin alone reconstructions have been deposited in the Electron Microscopy Data Bank (EMDB) and Protein Data Bank (PDB). Electron Microscopy Data Bank accession codes: EMD-7115 (actin alone), EMD-7116 (rigor), EMD-7117 (ADP). Protein Data Bank accession codes: Actin alone: 6BNO (HR MDFF), 6BNU (averaged HR MDFF); Rigor: 6BNP (HR MDFF), 6BNV (LPF MDFF); ADP: 6BNQ (HR MDFF), 6BNW (LPF MDFF). All custom software utilized in structure determination and analysis are available at: https://github.com/alushinlab/goldhelix (Alushin, 2017; copy archived at https://github.com/elifesciences-publications/goldhelix).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Features and development of Coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica Section D Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
    Controllable molecular motors engineered from myosin and RNA
    1. T Omabegho
    2. PS Gurel
    3. CY Cheng
    4. LY Kim
    5. PV Ruijgrok
    6. R Das
    7. GM Alushin
    8. Z Bryant
    (2017)
    Nature Nanotechnology, 10.1038/s41565-017-0005-y, 29109539.
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
    Myosins: a diverse superfamily
    1. JR Sellers
    (2000)
    Biochimica et Biophysica Acta (BBA) - Molecular Cell Research 1496:3–22.
    https://doi.org/10.1016/S0167-4889(00)00005-7
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117
  118. 118
  119. 119

Decision letter

  1. Edward H Egelman
    Reviewing Editor; University of Virginia, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cryo-EM structures reveal specialization at the myosin VI-actin interface and a mechanism of force sensitivity" for consideration by eLife. Your article has been favorably evaluated by Andrea Musacchio (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: Anne Houdusse (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is a very nice study, presenting a comparison of Cryo-EM structures of myosin VI bound to actin under rigor conditions (free of nucleotides), and in the presence of MgADP. The observed changes between myosins bound to actin in these two states are novel. They lead the authors to propose an interesting mechanosensitivity role for the ADP-to-rigor structural transition, speculating about a connection between lever arm bending and the nucleotide cleft state (in +/- ADP) in myosin VI. One of the interesting conclusions when a comparison is made with other myosins is the extent to which myosin residues at the actin interface have not been conserved. Another interesting conclusion involves the extent of actin conformational changes, particularly those distant from the myosin-binding sites.

Essential revisions:

1) Reviewers were surprised by the statement in the Abstract: "suggesting a previously unanticipated role for F-actin structural plasticity during force generation." This would only be surprising if one were unaware of a fairly extensive literature on this topic. Consider Drummond et al., "Alteration in crossbridge kinetics caused by mutations in actin", Nature (1990). They stated "One of the mutations is not in the putative myosin-binding site, demonstrating the importance of long-range effects of amino acids on actin function" and "amino acid 336… is distant from the nearest known myosin or tropomyosin contact… suggesting that E316K may be affecting the interaction with myosin through a conformational change in the actin." Current high-resolution models of actin-tropomyosin-myosin are consistent with the lack of any such possible direct interaction. Sparrow and colleagues went on (in Anson et al., 1995) to show that the E316K mutation has no change in rigor affinity for myosin S1 but a greatly reduced in vitro motility.

Or consider Prochniewicz and Yanagida (JMB, 1990), "Inhibition of sliding movement of F-actin by crosslinking emphasizes the role of actin structure in the mechanism of motility". Or Prochniewicz et al. (Biophysical Journal, 1993) where they state: "These results suggest that the interaction of actin with myosin involves cooperative structural changes in F-actin propagated through intermonomer bonds along the filament." Or Schwyter et al., (JCB, 1990): "These results suggest that the motility of actin filaments can be uncoupled from the activation of myosin ATPase activity and is dependent on the structural integrity of actin and perhaps, dynamic changes in the actin molecule." Or Kim et al. (Biochemistry, 1998): "These results show the uncoupling between force generation and other events in actomyosin interactions and emphasize the role of actin filament structure and dynamics in the contractile process." A number of these observations are summarized in a Minireview (Galkin et al., Current Biology, 2012): "But a number of papers have shown that actin can be modified, either chemically [27-30], by mutation [31] or by proteolysis [32], in a way that inhibits myosin force generation without inhibiting either the binding of myosin to actin or the actin-induced activation of myosin's ATPase activity. The simplest explanation for these observations is that actin must undergo structural transitions during actomyosin force generation, and these modifications of actin inhibit such structural transitions."

Also, one might consider the cooperativity of such changes, as in Orlova and Egelman, "Cooperative rigor binding of myosin to actin is a function of F-actin structure", (JMB, 1997): "Thus, while the cooperative binding of myosin to actin during muscle activation has been widely studied, we think that the results reported here suggest that one component of this cooperativity is within actin itself." This has been extended by several papers from Uyeda, which discuss myosin-induced cooperative conformational changes in actin.

There are also Reisler's observations on intermolecular dynamics in actin filaments (Kim and Reisler; Biophys. Chem. 2000), and on cofilin induced cooperative effects on actin structure and dynamics as documented by AFM in Uyeda work (and by Bobkov et al., JMB 2006) can be included in this context. It is noteworthy that the title of Ngo et al. is "Allosteric regulation by cooperative conformational changes of actin filaments drives mutually exclusive binding with cofilin and myosin".

The authors should also look at the pyrene quenching data in F-actin. Nucleotide effects in actomyosin-II were reported with probes (PMID: 15311925), and the Wulf et al. 2016 paper also described a change in F-actin parameters depending on whether ADP or Rigor conditions are used.

We would therefore suggest that a revision be made, replacing "suggesting a previously unanticipated role for F-actin structural plasticity during force generation" with "supporting many previous observations and suggestions about an important role for F-actin structural plasticity during force generation".

2) There were substantial concerns that some results are over-interpreted given the relatively modest resolution (by the new standards in cryo-EM). For example: "The Cα RMSD between the U50 and L50 from the rigor and ADP states is 1.467 Å and 1.118 Å". This appears silly. There is a resolution in this region of ~ 4.7 Å. Do they really expect that they can determine rms deviations to a precision of 1/1000 of an Å? All such rmsd values in the paper should probably be rounded to the nearest integer. Or: "The cation-pi interaction between R561 in loop 3 with Y91 of actin SD2 is not present for the ADP state, suggesting that this contact forms upon the transition from ADP to rigor (Figure 2I)." But Figure 2I is a model. Do the authors think that the density map shows this directly? If so, this should be shown. If not, such statements in the paper need to be advanced with much more caution and with the proper caveats.

It is critical that the authors do a better job in describing and illustrating the EM map rather than its interpretation whenever they discuss small differences that would be critical for motor function. By showing only the model built into the modest resolution map, there is no way the reader can assess whether the differences come from various possible models that can be built or whether they are intrinsic to a well-defined change in the structure of the ADP strong state. There is no figure and description of the nucleotide-binding site to ascertain of the presence (StrongADP) or absence (Rigor) of the nucleotide in these structures. Similar for the transducer for which it is not clear whether the maps have the resolution to support a change in the transducer and how large this change is. The only density map shown is that of the nucleotide binding site of the actin filament, which is a good part of the map although there is clearly lack of precision to position the Calpha and side chain unambiguously at this resolution. The resolution of these reconstructions are not as high as those reported for NM2C.

The current figures do not provide access to the EM data itself and its interpretation for the converter, the relay, the SH1 helix and Switch II whose conformations are described in detail as undergoing important changes during the transition between Strong ADP and Rigor.

The authors build a longer lever arm (including the IQ motif) from an Xray structure while this is not present in their map (since the sample studied is a chimera) – how good is the density to properly orient the converter and to describe its conformation? This should be presented in a zoom of this region (movie), directly comparing the position of the density in rigor versus strong ADP.

The elongation of a particular orientation via addition of the rest of the lever arm magnifies the changes which seem overall rather small in the region of the converter and inser-2/Cam and which also suffer from lack of continuous density. There is no direct data supporting the orientation of the lever arm after the Cam bound to insert-2 for which the density is rather poor – thus the angle measurements provided seem speculative, or should be carefully presented.

Note also that the reference to Lister et al. 2004 to validate the change between ADP and Rigor is not appropriate since the molecule studied under optical trap is the full myosin VI in which the lever arm is much longer than what is presented in Figure 4A – thus the 10 A coincidence between the model shown in Figure 4A and the optical trap data (Lister et al) is not appropriate and should be removed.

3) The previously reported ADP release related lever arm swing in myosin V, which doesn't contain the insert 2 region, calls for greater caution in the interpretation of present results.

4) It is also puzzling that a lot of previous publications on the role of specific sites on actin in the binding of myosin (+/- nucleotides), as examined by mutational and structural approaches (from Rubenstein, Thomas, Reisler, and other groups), including the publication on hydroxyl radical mapping (footprinting) of myosin II sites on actin (Otzug-Durer et al.) are not considered here. Because the authors don't expect significant variations in actin binding sites for different myosins, this weakness should be corrected in the revised manuscript.

5) What differs between Strong ADP and Rigor are the main new data presented in this paper so it should be the main focus of the result presentation, avoiding speculative statements and clearly describing these differences and their link to the presence or absence of ADP in the molecule.

The authors should rewrite the comparison between Strong ADP and Rigor and be conservative about what is clearly demonstrated by their new EM data and what comes from a speculation pushing its interpretation. When it comes to speculation, this should be described in Discussion rather than the Results and more caution should be clearly stated.

To validate the model of the Strong ADP map interpretation, since it is of lower resolution, it is critical to compare different models one would obtain upon starting from different myosin VI models (post-rigor or rigor-like, in addition to the start as PiR already presented). Whether the final models after fitting would all converge in critical regions that differ between the Strong ADP and Rigor states or whether they would end up showing different interpretations need to be described. Regions that vary should indicate either a lack of restraint from the EM map, which could be linked to variability of the region, or just lack of resolution of the current data. It would be important to describe whether there is sufficient information to place the Calpha (and/or side chain) unambiguously whenever the authors use the differences to suggest consequences in motor function (strong ADP/Rigor transition and actin structure changes during the powerstroke). The detailed descriptions at atomic level (actin interface, in particular for the Milligan cation-pi interaction that would differ in Rigor and Strong ADP states should only be included if the EM density gives more confidence that the data support such atomic descriptions.

6) How can the authors guarantee that the Strong ADP data used correspond to mainly one state despite the lack of resolution in particular for the regions that are distal (relay / SH1 helix / lever arm)? What limits the resolution of the current studies? More detail should be provided about motion correction and the selection of frames used to calculate the EM maps. How can the authors ascertain that the lack of resolution for the Strong ADP is not linked to population of different conformers which should thus raise caution in the interpretation of the map? The density of the converter and the insert2/Cam allowing the building of the model is poorly described as well as the limitations that result from it. The authors should be careful in avoiding over-interpretation based on careful description of the quality and validation of the model in different parts of the molecule. In this sense, they should also describe more carefully whether there are changes at the actin/myosin interface that would be associated also with this transition. If they don't have the resolution to say so, (since the HCM loop and loop2 density is missing from their map), they should state that higher resolution of the reconstruction is likely required to access these important details of the actin/myosin interface.

https://doi.org/10.7554/eLife.31125.057

Author response

Essential revisions:

1) […] We would therefore suggest that a revision be made, replacing "suggesting a previously unanticipated role for F-actin structural plasticity during force generation" with "supporting many previous observations and suggestions about an important role for F-actin structural plasticity during force generation".

We thank the reviewers for this suggestion and the very detailed review of relevant literature. We have revised our Abstract in accordance with the reviewers’ suggestion, clarifying that the specific new contribution of our study in this area is direct visualization of structural changes in actin during force generation by myosin VI. Additionally, we have expanded our Introduction to include discussion of previous literature suggesting a role for actin structural plasticity in force generation (last paragraph), and have incorporated several of the references the reviewers suggested at other locations throughout the manuscript.

2) There were substantial concerns that some results are over-interpreted given the relatively modest resolution (by the new standards in cryo-EM). For example: "The Cα RMSD between the U50 and L50 from the rigor and ADP states is 1.467 Å and 1.118 Å". This appears silly. There is a resolution in this region of ~ 4.7 Å. Do they really expect that they can determine rms deviations to a precision of 1/1000 of an Å? All such rmsd values in the paper should probably be rounded to the nearest integer.

The reviewers’ point in this regard is well-taken. We have revised the manuscript so that all RMSD values are rounded to a single decimal place.

Or: "The cation-pi interaction between R561 in loop 3 with Y91 of actin SD2 is not present for the ADP state, suggesting that this contact forms upon the transition from ADP to rigor (Figure 2I)." But Figure 2I is a model. Do the authors think that the density map shows this directly? If so, this should be shown. If not, such statements in the paper need to be advanced with much more caution and with the proper caveats.

We agree with the reviewers that caution must be employed when claiming side-chain level detail at our resolution, which we have clarified at appropriate locations in the text (Results section). We have revised the language in the referenced paragraph, and also now provide the corresponding density maps for this figure, which do demonstrate clear density for this contact in the rigor state (visible due to the large size of the side-chains involved), but absent in the ADP state. In the revised manuscript, this figure is now Figure 3C.

It is critical that the authors do a better job in describing and illustrating the EM map rather than its interpretation whenever they discuss small differences that would be critical for motor function. By showing only the model built into the modest resolution map, there is no way the reader can assess whether the differences come from various possible models that can be built or whether they are intrinsic to a well-defined change in the structure of the ADP strong state.

We now systematically provide images of the EM density maps in order to better interpret the differences between ADP and rigor (Figure 2B-2F, Figure 3C, Figure 3—figure supplements 1, 3, 5, Figure 4B, Figure 5C, Figure 5—figure supplement 1, 2, and Figure 6—figure supplement1).

There is no figure and description of the nucleotide-binding site to ascertain of the presence (StrongADP) or absence (Rigor) of the nucleotide in these structures.

In Figure 3—figure supplement 1 and Video 5, we now show the nucleotide binding cleft of myosin VI, as the reviewers have requested, and observe clear density in the ADP map that is notably absent in the rigor map. Thus, there is a clear density peak for the nucleotide, supporting our claim that we have visualized an ADP state. However, it is not possible to build a detailed model of a protein-ligand interaction at our resolution. We have therefore clarified in our figure legends that the ADP displayed in the myosin binding pocket is a visual guide; we do not intend to make any claims about the detailed stereochemistry of the interaction.

Similar for the transducer for which it is not clear whether the maps have the resolution to support a change in the transducer and how large this change is.

We have also now included density for the transducer in Figure 3—figure supplement 5, to directly show the data supporting the rearrangements we describe in the text.

The only density map shown is that of the nucleotide binding site of the actin filament, which is a good part of the map although there is clearly lack of precision to position the Calpha and side chain unambiguously at this resolution. The resolution of these reconstructions are not as high as those reported for NM2C.

The current figures do not provide access to the EM data itself and its interpretation for the converter, the relay, the SH1 helix and Switch II whose conformations are described in detail as undergoing important changes during the transition between Strong ADP and Rigor.

We now provide EM density maps for all of the following motor regions: Converter (Figure 4—figure supplement 1), relay, SH1 helix (Figure 4—figure supplement 2), and Switch II (Figure 5).

The authors build a longer lever arm (including the IQ motif) from an Xray structure while this is not present in their map (since the sample studied is a chimera).

Yes, this point has been clarified in our revised Figure 5C, which provides a visual guide to the modelling of the lever arm. Distinct colors are used to label the portion of the model that is not present in our map. Also, we have expanded the Materials and methods section to provide more details on how the extended lever arm models were constructed (subsection “Building atomic models with MDFF”, last paragraph).

How good is the density to properly orient the converter and to describe its conformation? This should be presented in a zoom of this region (movie), directly comparing the position of the density in rigor versus strong ADP.

In our revision we show the atomistic models of the converter and lever arm fit into their respective densities in Figure 5, Figure 5—figure supplement 1, and Video 3. We believe the density quality is sufficient to properly orient the converter and describe its conformation in both states. We also believe the density is sufficient to distinguish between kinked and straight lever arm models, with clear density for the kinked lever arm in rigor vs. straight in ADP. We provide a zoom of this region (Figure 5—figure supplement 1) and a movie (Video 3) to directly compare the density between ADP and rigor, as the reviewers requested.

The elongation of a particular orientation via addition of the rest of the lever arm magnifies the changes which seem overall rather small in the region of the converter and inser-2/Cam and which also suffer from lack of continuous density.

The density for the insert-2/CaM region is less detailed than the actomyosin interface, but sufficient to orient this portion of the lever arm at sub-nanometer resolution. As shown in Figure 4 and Figure 4—figure supplement 1, we observe clear density for the insert-2 helix and CaM for both the ADP and rigor states.

There is no direct data supporting the orientation of the lever arm after the Cam bound to insert-2 for which the density is rather poor – thus the angle measurements provided seem speculative, or should be carefully presented.

As noted above, we have used coloring in our revised figure to highlight the portion of the model that is not present in our map, and we have been careful to describe the proposed structures as grafted models throughout the third paragraph of the subsection “MD rearrangements facilitating ADP release generate are accompanied by a lever arm bend which could be regulated by force”.

Note also that the reference to Lister et al. 2004 to validate the change between ADP and Rigor is not appropriate since the molecule studied under optical trap is the full myosin VI in which the lever arm is much longer than what is presented in Figure 4A – thus the 10 A coincidence between the model shown in Figure 4A and the optical trap data (Lister et al) is not appropriate and should be removed.

We thank the reviewer for pointing this out; a direct comparison is indeed not appropriate. However, we believe a large fraction of our readership will be single-molecule biophysicists who will be interested in knowing how our structural results compare with previous single-molecule measurements. We have re-written this section to make explicit the differences in the constructs employed in the studies (subsection “MD rearrangements facilitating ADP release generate are accompanied by a lever arm bend which could be regulated by force”, third paragraph).

3) The previously reported ADP release related lever arm swing in myosin V, which doesn't contain the insert 2 region, calls for greater caution in the interpretation of present results.

We have added a paragraph (subsection “MD rearrangements facilitating ADP release generate are accompanied by a lever arm bend which could be regulated by force”, first paragraph) to clarify the proposed mechanism and point out that myosin V is able to achieve a small lever arm reorientation upon ADP release without the benefit of this insert-2-dependent effect, as the reviewer notes.

4) It is also puzzling that a lot of previous publications on the role of specific sites on actin in the binding of myosin (+/- nucleotides), as examined by mutational and structural approaches (from Rubenstein, Thomas, Reisler, and other groups), including the publication on hydroxyl radical mapping (footprinting) of myosin II sites on actin (Otzug-Durer et al.) are not considered here. Because the authors don't expect significant variations in actin binding sites for different myosins, this weakness should be corrected in the revised manuscript.

We thank the reviewer for the specific suggestions of prior literature mapping the actomyosin interface for comparison to our structural data. We have surveyed mutational analyses of myosin-binding residues (primarily in yeast actin) from the labs noted by the reviewer, and we find most of this work has focused on acidic residues in the N-terminus of actin, e.g.:

Stark…Rubinstein, Lord. JBC. 2011. (PMID: 21757693)

McCane…Rubinstein. JBC. 2006. (PMID: 16882670)

Hansen…Rubinstein, Reisler. Biochemistry. 2000. (PMID: 10677229)

Solomon…Rubinstein. JBC. 1988. (PMID: 3198644)

Cook…Rubinstein. JBC. 1992. (PMID: 1349604)

As we do not visualize an ordered conformation of the N-terminus of actin in our reconstructions, we do not believe it is appropriate to include this category of references.

Additional residues reported to affect actomyosin in gliding filament assays such as yeast actin residues E99A/E100A (corresponding to residues E99/E100 in our model), reported in Miller…Rubinstein, Reisler, Biochemistry, 1996 (PMID: 8987990), are not in a position to interact with the myosin motor domain in either of our strong-bound actomyosin VI reconstructions (nor are they in the Raunser structure of actomyosin IIc). We think these residues are likely relevant for weakly-bound, intermediate states, which have not yet been visualized, consistent with the conclusions of this and related studies from the Thomas lab (Prochniewicz and Thomas, Biochemistry, 2001 (PMID: 11705383). Actin residues E24/E25 (D24/D25 in our model), also reported in Miller…Rubinstein, Reisler, Biochemistry, 1996, are in a position to feasibly interact with myosin loop 2 (which we do not visualize in our density maps due to disorder), and we now include a reference to this paper when we discuss these residues (subsection “Interactions at the myosin-actin interface are distinct between different classes of myosins”, fifth paragraph).

Several mutagenesis studies have included the strong-binding actin mutant I341A (corresponding to residue I341 in our model), originally reported in Miller…Reisler, Biochemistry, 1996. (PMID: 8619986). We indeed observe this residue contributing to the hydrophobic interface with the myosin HCM, and now include this reference in the Results section discussing this interface..

Additionally, we have now indicated explicit areas of consonance between our results and the Oztug-Durer foot-printing study (subsection “Interactions at the myosin-actin interface are distinct between different classes of myosins”).

We do note that there are several EM structures of actomyosin complexes in the literature, which we have referenced. We now emphasize that these structures do broadly report a consistent interaction surface with actin, as expected (subsection “Interactions at the myosin-actin interface are distinct between different classes of myosins”). However, for a detailed comparison at the residue level, we believe it is appropriate to focus on the other highest-resolution actomyosin structure (myosin IIC), which contains high-confidence sidechain-level information.

We believe a comprehensive comparison of structural studies of diverse actomyosin interfaces would most appropriately be the subject of a future review, particularly as more and more high-resolution reconstructions of divergent myosins bound to actin are likely to emerge in the next several years.

5) What differs between Strong ADP and Rigor are the main new data presented in this paper so it should be the main focus of the result presentation, avoiding speculative statements and clearly describing these differences and their link to the presence or absence of ADP in the molecule.

The authors should rewrite the comparison between Strong ADP and Rigor and be conservative about what is clearly demonstrated by their new EM data and what comes from a speculation pushing its interpretation. When it comes to speculation, this should be described in Discussion rather than the Results and more caution should be clearly stated.

We thank the reviewers for the suggestion to focus on this comparison. To clarify the experimental support for our conclusions, we have supplemented all comparisons of regions between ADP and rigor with the cryo-EM density maps in addition to the MDFF models. Additionally, we have revised the language in the manuscript to clarify what is speculative vs. clearly shown by the density maps (Results section).

To validate the model of the Strong ADP map interpretation, since it is of lower resolution, it is critical to compare different models one would obtain upon starting from different myosin VI models (post-rigor or rigor-like, in addition to the start as PiR already presented). Whether the final models after fitting would all converge in critical regions that differ between the Strong ADP and Rigor states or whether they would end up showing different interpretations need to be described. Regions that vary should indicate either a lack of restraint from the EM map, which could be linked to variability of the region, or just lack of resolution of the current data.

It would be important to describe whether there is sufficient information to place the Calpha (and/or side chain) unambiguously whenever the authors use the differences to suggest consequences in motor function (strong ADP/Rigor transition and actin structure changes during the powerstroke).

We agree with this cautionary note, and we had in fact included such a validation comparison in our original manuscript. We now expand upon this analysis, which was originally reported in the text only, in Figure 3—figure supplements 2 and 6. To validate the model of the ADP map, we generated an ADP model built from the rigor-like (2BKI) as an initial model for MDFF, as detailed in the manuscript. We find that both ADP models, built from PiR (4PFO) or rigor-like (2BKI), are more similar to each other than either starting model, which validates the fitting of our models and our MDFF procedure. Furthermore, this analysis also suggests a detailed model of ADP occupying the nucleotide-binding pocket is not necessary to capture the protein rearrangements in this region at the backbone level. In Figure 3—figure supplements 2 and 6, we provide a local RMSD analysis of this comparison and find that all models converge in critical regions that differ between ADP and rigor. Additionally, we find that the R561-Y91 cation-pi interaction is also absent from the ADP model when utilizing 2BKI as the starting model.

The detailed descriptions at atomic level (actin interface, in particular for the Milligan cation-pi interaction that would differ in Rigor and Strong ADP states should only be included if the EM density gives more confidence that the data support such atomic descriptions.

As mentioned above in Essential revision 2, we have provided density map figures to support our model of the Milligan contact R561-Y91cation-pi interaction.

6) How can the authors guarantee that the Strong ADP data used correspond to mainly one state despite the lack of resolution in particular for the regions that are distal (relay / SH1 helix / lever arm)?

In general, two types of structural heterogeneity may contribute to lower resolution in distal regions: heterogeneity produced by the superposition of discrete states, and continuous heterogeneity, representing some level of conformational flexibility around an average structure. We favor the latter, for the following reasons. We observe a continuous gradient of resolution from the core of the actin filament out to the distal end of Insert 2 (Figure 1—figure supplement 1). Low-pass filtering the ADP map to 7.5 Angstroms allows unambiguous positioning of the lever arm in this density, which is consistent with structural fluctuations around this average position. Indeed, revealing such average positions by low-pass filtering a map is a hallmark of continuous heterogeneity, and is consistent with previous expectations of conformational heterogeneity in the ADP state based on simulation and biophysical studies. It therefore likely that an atomic-resolution “snapshot” of the converter and lever arm of myosin VI would be very difficult to achieve without substantial advances in image processing, particularly in the ADP state, even with a substantially larger dataset utilizing better instrumentation.

We have now included an explicit sentence regarding potential sources of the lower resolution of the ADP reconstruction in the text (subsection “A unique contact is established upon transition from the ADP state to the rigor state”).

What limits the resolution of the current studies?

We believe a major limiting factor for the resolution of the ADP state structure is the number of images collected and corresponding number of segments used for 3D reconstruction (discussed in the next section in more detail). Obtaining high-quality grids with completely decorated filaments in the ADP state was substantially more challenging than the nucleotide-free state, due to the lower affinity of the myosin for F-actin in this state. Since we were limited in the number of images we could collect per session due to using an F20 / Gatan 626 holder, we were ultimately unable to obtain as many high-quality micrographs for the ADP state. As shown in Table 1, approximately 1/2 as many movies and 2/3 as many segments were used for the ADP reconstruction as the rigor state reconstruction. We thus believe this reconstruction may be, to some extent, signal limited by the number of segments.

In general, we believe the major limitations on the resolution of our study were:

a) Intrinsic heterogeneity of the specimen (discussed in previous section)

b) Relatively limited dataset size imposed by the length of sessions we could conduct with an F20 microscope and Gatan 626 cryo holder, as well as the optical quality and stage stability afforded by this instrumentation.

In defense of assertion b, we provide FSC curves for an unpublished reconstruction (from a different filament specimen) we have recently obtained from a 300 kV Titan Krios microscope since moving to Rockefeller (Author response image 1). These data were collected in super resolution mode on a K2 detector with a slightly smaller pixel size (1.0 Angstroms vs. 1.27). Otherwise, identical software was used to obtain the final reconstruction: Frealign v9.11, working with dose-weighted segments generated with per-particle alignments from alignparts_lmbfgs.

We calculated reconstructions from ~900,000 ASUs, utilizing both frames 2-50, corresponding to a cumulative dose of ~80 electrons, as well as frames 2-10, corresponding to a cumulative dose of ~16 electrons/Å2, a “traditional” low dose (in both cases, the full video was used for alignment). Reconstructions with nearly identical reported resolution of 3.6-3.7 Å were obtained, with essentially identical density quality by inspection (not shown). Indeed, the full-dose reconstruction has more signal across all resolution shells, suggesting incorporating signal from more frames improves the map. This suggests that, at least to around 3.5 Å resolution, dose-weighting is quite effective, with minimal benefit to be gained by excluding frames (and perhaps a small price to pay). Furthermore, these unpublished results suggest that our image processing pipeline is not a limiting factor in the resolution of the reconstructions presented in this study.

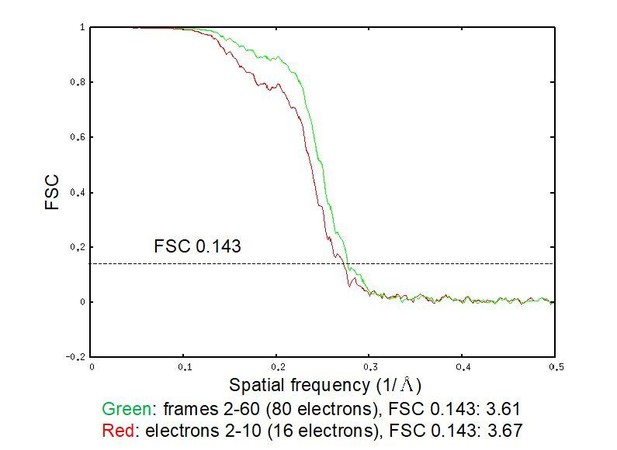

Author response image 1
FSC curves for an unpublished reconstruction obtained from a 300 kV Titan Krios.

Reconstructions calculated utilizing both frames 2-60 (green), corresponding to a cumulative dose of ~80 electrons, as well as frames 2-10 (red), corresponding to a cumulative dose of ~16 electrons/Å2, resulted in nearly identical resolution assessments of 3.6-3.7 Å. The full-dose reconstruction has more signal across all resolution shells, suggesting incorporating signal from more frames improves the map.

https://doi.org/10.7554/eLife.31125.038

More detail should be provided about motion correction and the selection of frames used to calculate the EM maps.

We have now provided additional detail in the experimental methods about motion correction for frame alignment. We use Unblur for initial full-frame alignments, followed by per-particle drift correction and dose-weighting with alignparts_lmbfgs of Rubinstein. We used all frames collected (24) to calculate the EM maps and did not exclude or omit any frames.

How can the authors ascertain that the lack of resolution for the Strong ADP is not linked to population of different conformers which should thus raise caution in the interpretation of the map? The density of the converter and the insert2/Cam allowing the building of the model is poorly described as well as the limitations that result from it. The authors should be careful in avoiding over-interpretation based on careful description of the quality and validation of the model in different parts of the molecule. In this sense, they should also describe more carefully whether there are changes at the actin/myosin interface that would be associated also with this transition. If they don't have the resolution to say so, (since the HCM loop and loop2 density is missing from their map), they should state that higher resolution of the reconstruction is likely required to access these important details of the actin/myosin interface.

This is a point well taken, and potential reasons for the lower resolution of the ADP reconstruction were detailed in the previous 2 sections. Despite lower resolution in the distal portions of the map, we are able to unambiguously place secondary structural elements (Insert2 / Cam) in this region of the 7.5 Å filtered maps, which is sufficient for an overall description of the conformational changes we elaborate in the text and the conclusions we draw from them.

We have revised the text to advance our descriptions of interactions at the actomyosin interface with appropriate caution, and explicitly state when higher-resolution maps would be required to definitively establish specific side-chain level interactions (subsection “Interactions at the myosin-actin interface are distinct between different classes of myosins”).

https://doi.org/10.7554/eLife.31125.058

Article and author information

Author details

  1. Pinar S Gurel

    1. Laboratory of Structural Biophysics and Mechanobiology, The Rockefeller University, New York, United States
    2. Cell Biology and Physiology Center, National Heart, Blood, and Lung Institute, National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Laura Y Kim

    Cell Biology and Physiology Center, National Heart, Blood, and Lung Institute, National Institutes of Health, Bethesda, United States
    Contribution
    Data curation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Paul V Ruijgrok

    Department of Bioengineering, Stanford University, Stanford, United States
    Contribution
    Resources, Data curation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Tosan Omabegho

    Department of Bioengineering, Stanford University, Stanford, United States
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
  5. Zev Bryant

    1. Department of Bioengineering, Stanford University, Stanford, United States
    2. Department of Structural Biology, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Funding acquisition, Validation, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Gregory M Alushin

    Laboratory of Structural Biophysics and Mechanobiology, The Rockefeller University, New York, United States
    Contribution
    Conceptualization, Software, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    galushin@rockefeller.edu
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-7250-4484

Funding

W. M. Keck Foundation

  • Zev Bryant

Human Frontier Science Program (Long-Term Fellowship)

  • Paul V Ruijgrok

National Heart, Lung, and Blood Institute

  • Gregory M Alushin

Rockefeller University (Women & Science Fellowship)

  • Pinar S Gurel

National Institutes of Health (F32GM094420)

  • Tosan Omabegho

National Institutes of Health (1DP2 OD004690)

  • Zev Bryant

National Institutes of Health (5DP5OD017885)

  • Gregory M Alushin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We gratefully acknowledge Jenny Hinshaw (NIDDK) for sharing equipment and microscope usage. We also thank Jim Sellers and Harry Takagi (NHLBI) for thoughtful comments and discussion. This work was supported by a Women and Science Fellowship from the Rockefeller University to PSG, an NIH Fellowship (F32GM094420) to TO, and a Human Frontiers Science Program Long-Term Fellowship to PVR. Additional funding was provided by the Division of Intramural Research of the National Heart, Lung, and Blood Institute to GMA, a grant from the WM Keck Foundation to ZB, and NIH High-Risk High-Reward Research Grants 1DP2 OD004690 to ZB and 5DP5OD017885 to GMA.

Reviewing Editor

  1. Edward H Egelman, Reviewing Editor, University of Virginia, United States

Publication history

  1. Received: August 9, 2017
  2. Accepted: December 2, 2017
  3. Accepted Manuscript published: December 4, 2017 (version 1)
  4. Version of Record published: January 10, 2018 (version 2)

Copyright

© 2017, Gurel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,707
    Page views
  • 354
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Michael D Healy et al.
    Research Article Updated
    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Evelyn Schubert et al.
    Research Article Updated
