1. Evolutionary Biology
Download icon

Destructive disinfection of infected brood prevents systemic disease spread in ant colonies

  1. Christopher D Pull  Is a corresponding author
  2. Line V Ugelvig
  3. Florian Wiesenhofer
  4. Anna V Grasse
  5. Simon Tragust
  6. Thomas Schmitt
  7. Mark JF Brown
  8. Sylvia Cremer  Is a corresponding author
  1. IST Austria (Institute of Science and Technology Austria), Austria
  2. University of Regensburg, Germany
  3. University of Würzburg, Germany
  4. Royal Holloway University of London, United Kingdom
Research Article
  • Cited 8
  • Views 5,355
  • Annotations
Cite as: eLife 2018;7:e32073 doi: 10.7554/eLife.32073

Abstract

In social groups, infections have the potential to spread rapidly and cause disease outbreaks. Here, we show that in a social insect, the ant Lasius neglectus, the negative consequences of fungal infections (Metarhizium brunneum) can be mitigated by employing an efficient multicomponent behaviour, termed destructive disinfection, which prevents further spread of the disease through the colony. Ants specifically target infected pupae during the pathogen’s non-contagious incubation period, utilising chemical ‘sickness cues’ emitted by pupae. They then remove the pupal cocoon, perforate its cuticle and administer antimicrobial poison, which enters the body and prevents pathogen replication from the inside out. Like the immune system of a metazoan body that specifically targets and eliminates infected cells, ants destroy infected brood to stop the pathogen completing its lifecycle, thus protecting the rest of the colony. Hence, in an analogous fashion, the same principles of disease defence apply at different levels of biological organisation.

https://doi.org/10.7554/eLife.32073.001

eLife digest

Ants live in crowded societies where disease can spread rapidly and take a heavy toll on the community. Ants have a number of ways to prevent these outbreaks before they become a problem. Like many other social species, they practice good hygiene and groom nest mates that have picked up a pathogen, which helps them to recover and to reduce the likelihood of the disease spreading.

Unlike other social species, ants appear to have evolved collective disease defence, or social immunity, because their colonies behave like a ‘superorganism’, in which the society behaves much like a single organism would. Like an individual animal that has an infection, the colony needs to be able to eliminate infections collectively when a nest mate falls ill, to prevent the disease from spreading.

To understand how an ant colony protects itself when the care fails and a colony member contracts a lethal infection, Pull et al. infected the brood of the invasive garden ant with a common soil fungus. Using a combination of chemical analyses and behavioural observations, it was shown that the infected pupae emitted a chemical cue, which the tending ants could detect. Using a microscopic camera, Pull et al. found that when the ants sensed the cue, they would unpack the infected pupae from their cocoons and bite them. They then sprayed them with an antiseptic poison, which entered the hole in the pupae’s body, killing both the pupae and the fungus inside, before it had a chance to spread.

This process of destructive disinfection may seem like a large sacrifice, but it helps to protect the rest of the colony from a fungus that could lead to much greater damage. The tending ants were acting within the superorganism of the colony much like immune cells act within an individual’s body – honing in on infected cells and destroying them before the pathogen can spread to other cells. This suggests that the ability to detect and destroy harmful elements was necessary for both the evolution of multicellular organisms, and from single animals to superorganisms.

https://doi.org/10.7554/eLife.32073.002

Introduction

Pathogen replication and transmission from infectious to susceptible hosts is key to the success of contagious diseases (Schmid-Hempel, 2011). Social animals are therefore expected to experience a greater risk of disease outbreaks than solitary species, because their higher number of within-group interactions will promote pathogen spread (Nunn and Altizer, 2006; Schmid-Hempel, 2017; Alexander, 1974). As a consequence, evolutionary immunology predicts that traits mitigating this cost, such as detecting sick conspecifics and using that information to prevent self-infection, should have been selected for in group-living animals as an essential adaptation to social life (Hamilton, 1987; Ezenwa et al., 2016).

Social animals, including lobsters, tadpoles, mice and mandrills, can use conspicuous disease-associated changes in the physical appearance, behaviour and chemical odour of conspecifics to identify sick group members (Shakhar and Shakhar, 2015; Arakawa et al., 2011; Lopes, 2014; Bozza, 2015). Upon detection, healthy animals usually respond by interacting with sick conspecifics less or avoiding them completely (Poirotte et al., 2017; Kiesecker et al., 1999; Behringer et al., 2006; Anderson and Behringer, 2013). In addition, they may prophylactically increase the expression of their immune defences in preparation for a potential immune challenge (Hernández López et al., 2017), and a similar phenomenon is observed in animals and plants in response to chemicals released by wounded conspecifics (Heil and Silva Bueno, 2007; Peuß et al., 2015). Because there are downsides to being socially excluded, sick animals may, under some circumstances, attempt to hide their illness (Lopes, 2014; Lopes et al., 2012). However, signalling infection to others should be adaptive if (i) this elicits care from conspecifics that improves the chance of recovery (Hart, 1990) or (ii) if the infection is otherwise likely to spread and infect kin (Shakhar and Shakhar, 2015). This is because individuals can gain indirect fitness by enhancing the propagation of shared genes, present in relatives, into the next generation (Hamilton, 1964). Hence, in a closely related social group, an animal that warns its relatives if it is sick is likely to have a greater inclusive fitness than an animal that does not, since fewer of its kin will fall sick and suffer reductions in fitness (Shakhar and Shakhar, 2015). Hence, in closely related social groups, there may be selection for both the detection of illnesses by healthy group members (Curtis, 2014) and the advertisement of an animal’s disease status by sick individuals themselves (Shakhar and Shakhar, 2015).

In the social insects (termites and ants and the social bees and wasps), colonies are typically single families, comprised of a queen and her daughters, the workers (Queller and Strassmann, 2003). They typically have an irreversible reproductive division of labour, with the two castes being highly interdependent: the queens are morphologically specialised for reproduction and cannot survive without the assistance of the workers; conversely, the workers cannot reproduce, but gain fitness indirectly by raising the queen’s offspring (Queller and Strassmann, 2003). Consequently, social insect societies have become indivisible, reproductive units, where natural selection acts on the colony instead of its individual members (Bourke, 2011; West et al., 2015). This has parallels to the evolution of complex multicellular organisms, that is metazoan bodies, where sterile somatic tissue and germ line cells form an indivisible reproducing body. Hence, social insect colonies are often termed ‘superorganisms’ and their emergence is considered a major evolutionary transition (Bourke, 2011; West et al., 2015; Wheeler, 1911; Boomsma and Gawne, 2017). Since evolution favours the survival of the colony over its members, selection has resulted in a plethora of cooperative and altruistic traits that workers perform to protect the colony from harm (Hamilton, 1987; Bourke, 2011; Cremer et al., 2007; Shorter and Rueppell, 2012; Rosengaus et al., 2011; Boomsma et al., 2005; Cremer et al., 2017). In particular, social insects have evolved physiological and behavioural adaptations that limit the colony-level impact of infectious diseases, which could otherwise spread easily due to the intimate social interactions between colony members (Cremer et al., 2007; Rosengaus et al., 2011; Boomsma et al., 2005; Cremer et al., 2017; Stroeymeyt et al., 2014; Meunier, 2015). These defences are performed collectively by the workers to form an emergent layer of protection known as social immunity that, like the immune system of a body, protects the colony from invading pathogens (Cremer et al., 2007; Rosengaus et al., 2011; Cremer et al., 2017; Cremer and Sixt, 2009).

Our understanding of how social immunity functions is based mostly on the behaviours social insects perform to prevent infection in contaminated colony members, referred to as sanitary care (Cremer et al., 2007; Rosengaus et al., 2011; Tragust et al., 2013a; Wilson-Rich et al., 2009). In ants, sanitary care involves grooming and the use of antimicrobial secretions to mechanically remove and chemically disinfect pathogens, reducing the likelihood that pathogen exposure leads to the development of an infection (Tragust et al., 2013a; Graystock and Hughes, 2011). During sanitary care, protection of the colony is aligned with the protection of the individual colony member. In contrast, this is not the case if an individual is infected with a contagious disease, since they risk infecting the rest of the colony if the pathogen spreads (Cremer et al., 2017). Hence, social immunity is characterised by a care-kill dichotomy, where colony members should be cared for when possible but sacrificed if necessary, both of which benefit the colony (Cremer et al., 2017; Cremer and Sixt, 2009). Although the kill-component is an unique feature of social immunity that is not present in the disease defence repertoire of other forms of sociality (e.g. non-superorganismal family groups, communal breeders or aggregations [Cremer et al., 2017]), it is rarely studied in comparison to the care-component. Hence, what happens when sanitary care fails and a pathogen successfully infects a colony member, with the consequent potential to create an epidemic, remains poorly understood (but see [Rothenbuhler, 1964; Ugelvig et al., 2010; Tragust et al., 2013b]). To effectively protect the colony, we predict that infections should be detected quickly and accurately by nestmates, in order to overcome the pathogen before it has time to replicate and produce propagules that can infect others. Once detected, the colony should respond by eliminating the infection as effectively as possible, by preventing any further opportunities for disease transmission. This is especially pertinent in the ants and termites, because their sedentary and territorial lifestyle makes it likely infectious corpses are encountered again, even if they are removed from the colony (Boomsma et al., 2005; Cremer et al., 2017; Schmid-Hempel, 1998). For example, previous studies have shown that fungus-infected ants become highly contagious to nestmates after death and can cause epidemics that result in colony collapse (Hughes et al., 2002; Loreto and Hughes, 2016).

To address the above gaps in our knowledge of social immunity, we investigated how ants detect and respond to infections. To that end, we exposed the immobile brood of the invasive garden ant, Lasius neglectus, to a generalist fungal pathogen, Metarhizium brunneum. When the infectious conidiospores of this fungus come into contact with insect cuticle, they attach, germinate and penetrate the host cuticle within 24–48 hr to cause internal infections (Vestergaard et al., 1999; Walker and Hughes, 2009). During a short, non-infectious incubation period following infection, the fungus goes through a single-cell blastospore stage, which lasts 1–2 days. Once the host has died, the fungus enters a saprophytic mycelial phase, then grows out of the corpse, 1–3 days later, releasing millions of new infectious conidiospores, in a process called sporulation (Hughes et al., 2002; Deacon, 2006). Previous work found that brood infected with Metarhizium is removed from the brood chamber (Ugelvig et al., 2010; Tragust et al., 2013b), however, it is unknown how the ants then respond to the infection. Hence, in this study, we performed a series of behavioural and chemical experiments to test how ants detect and prevent infected brood from causing a systemic colony infection.

Results

Destructive disinfection of lethally infected pupae

We exposed ant pupae to one of either three dosages of Metarhizium conidiospores or a sham control. We observed that ants tending pathogen-exposed pupae prematurely removed the pupae from their cocoons in a behaviour we termed ‘unpacking’, whereas control pupae were left cocooned (Figure 1A–B, Video 1; Cox proportional hazards regression: likelihood ratio test (LR) χ2= 55.48, df = 3, p<0.001; hazard ratios (x greater chance of unpacking compared to control): low dose = 18, medium = 53, high = 111; post-hoc comparisons: control vs. low, p=0.004; low vs. medium, p=0.006; medium vs. high = 0.024; all others, p=0.001). Unpacking occurred between 2 and 10 days after pathogen exposure, but sooner and more frequently at higher conidiospore dosages (Figure 1B). As unpacking was a belated response to pathogen exposure and we were unable to remove any conidiospores from the majority of the cocoons or the unpacked pupae (number of colony forming units [mean ± 95% CIs]: cocoons = 0.6 ± 0.9; pupae = 0.1 ± 0.35; Figure 1—figure supplement 1), we concluded that the ants were not performing unpacking to simply dispose of contaminated cocoons. Instead, we postulated that unpacking was a response to successful infection of the pupae. At the time of unpacking, the majority of pupae were still alive (i.e. had an active dorsal aorta pulse; Figure 1—figure supplement 2) and fungal outgrowth had not yet occurred (Figure 1F). Hence, to test if the ants were reacting to early-stage infections, we removed both unpacked and non-unpacked pathogen-exposed cocooned pupae from the ants and incubated them under optimal conditions for fungal outgrowth. We found that, on average across the conidiospore dosages, 85% of unpacked pupae harboured infections that sporulated in the absence of the ants. In contrast, only 25% of non-unpacked pupae were infected (Figure 1—figure supplement 3; generalised linear model [GLM]: overall LR χ2 = 26.48, df = 5, p<0.001; cocooned vs. unpacked pupae: LR χ2 = 18.5, df = 1, p=0.001; conidiospore dose: LR χ2 = 0.42, df = 2, p=0.81). We therefore concluded that the ants were detecting and unpacking pupae with lethal infections during the asymptomatic incubation period of the pathogen’s lifecycle. At this time point, the fungus growing inside the pupae is non-infectious and essentially no viable conidiospores are leftover from the pathogen exposure on their cuticle (Figure 1—figure supplement 1), so there is very little risk of the ants contracting the disease whilst unpacking the pupae.

Figure 1 with 4 supplements see all

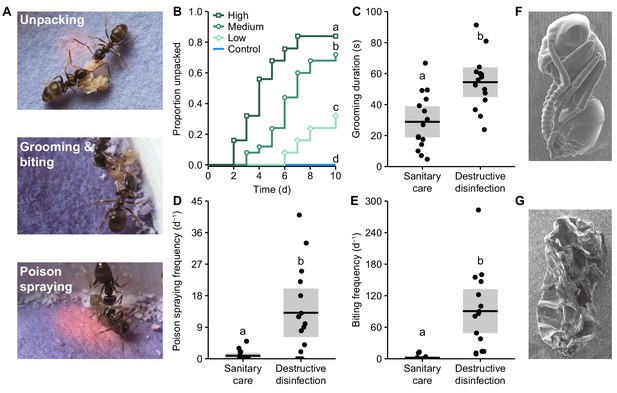

Ants perform destructive disinfection in response to lethal fungal infections of pupae.

(A) Destructive disinfection starts with the unpacking of pupae from their cocoons and is followed by grooming, biting and poison spraying (ants housed on blue pH-sensitive paper to visualise acidic poison spraying, which shows up pink). (B) Unpacking occurred when pupae were exposed to fungal conidiospores and was dose-dependent, happening sooner and in higher amounts as the dose of conidiospores increased (letters denote groups that differ significantly in post-hoc comparisons [model revelling; p<0.05]). (C–E) Comparison of the ants’ behaviour between sanitary care and destructive disinfection. Destructive disinfection is characterised by increases in grooming duration, poison spraying frequency and biting frequency (all data points displayed; lines ± shaded boxes show mean ± 95% confidence intervals [CI]; letters denote groups that differ significantly in logistic regressions [p<0.05]). (F) Scanning electron micrographs (SEM) of an asymptomatic infected pupa immediately after unpacking, and (G) of a destructively disinfected pupa 24 hr later.

https://doi.org/10.7554/eLife.32073.003
Video 1
Ants performing destructive disinfection of an infected pupa.

Video shows Lasius neglectus ants performing destructive disinfection towards a Metarhizium-infected pupa. Video playback is 8 x normal speed.

https://doi.org/10.7554/eLife.32073.008

Next, we filmed ants presented with pathogen-exposed pupae and compared their behaviour before and after unpacking. Prior to unpacking, we observed the typical sanitary care behaviours reported in previous studies (Graystock and Hughes, 2011Tragust et al., 2013a; Hughes et al., 2002; Reber et al., 2011; Okuno et al., 2012). Namely, the ants groomed the pupae (Figure 1C), which has the dual function of removing the conidiospores and applying the ants’ antimicrobial poison (Tragust et al., 2013a). In L. neglectus, the poison is mostly formic acid and is emitted from the acidopore at the abdominal tip, where the ants actively suck it up and transiently store it in their mouths until application during grooming. Additionally, the ants can spray their poison directly from the acidopore; yet, this behaviour is rarely expressed during sanitary care (about once every 28 hr; Figure 1D[Tragust et al., 2013a]). However, after unpacking, we observed a set of behaviours markedly different to sanitary care (Figure 1A, Video 1). The ants sprayed the pupae with poison from their acidopore approx. 15-times more frequently than during sanitary care (~13 times/d; Figure 1D; generalised linear mixed model [GLMM]: LR χ2 = 17.04, df = 1, p<0.001), and grooming duration doubled (Figure 1C; linear mixed effects regression [LMER]: LR χ2 = 145.26, df = 1, p<0.001). Given that there was no fungus to remove at the time of unpacking, the increase in grooming probably functioned solely to apply poison from the oral store (Tragust et al., 2013a). Furthermore, the ants repeatedly bit the pupae to make perforations in their cuticles and to remove their limbs (Figure 1E; GLMM: LR χ2 = 39.44, df = 1, p<0.001). Together these three behaviours resulted in the death of the pupae and left their corpses heavily damaged and coated in the ants’ poison (Figure 1G, Figure 1—figure supplements 2 and 4). Accordingly, we named the combination of unpacking, grooming, poison spraying and biting ‘destructive disinfection’, and performed a series of experiments to determine its function.

Chemical detection of internal infections

Firstly, we wanted to know how the ants identify internal infections during the pathogen’s non-contagious incubation period, when pupae were still alive and showed no external signs of disease. As ants use chemical compounds on their cuticles to communicate complex physiological information to nestmates (Leonhardt et al., 2016), we speculated that infected pupae may produce chemical sickness cues. We washed infected pupae in pentane to reduce the abundance of their cuticular hydrocarbons (CHCs). When pentane-washed pupae were presented to ants, there was a 72% reduction in unpacking compared to both non- and water-washed infected pupae (Figure 2A; GLM: LR χ2 = 12.2, df = 2, p=0.002; Tukey post hoc comparisons: water-washed vs. non-washed, p=0.79; all others, p=0.009). As pentane-washed pupae had lower abundances of CHCs (Figure 2—figure supplement 1), this result indicates that the ants use one or more cuticular compounds to detect the infections.

Figure 2 with 4 supplements see all

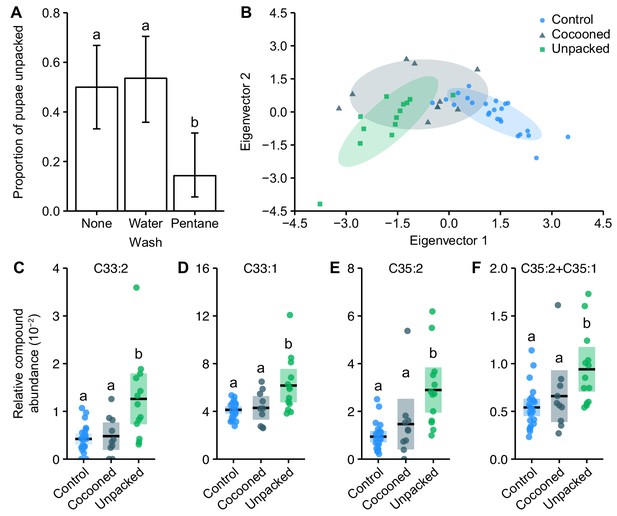

Destructive disinfection is induced by changes in the chemical profile of infected pupae.

(A) Pupae washed in pentane solvent to reduce the abundance of their cuticular hydrocarbons (CHCs) were unpacked less than unwashed or water-washed pupae (positive and handling controls, respectively; error bars show ± 95% CI; letters specify significant Tukey post hoc comparisons [p<0.05]). (B) Unpacked pathogen-exposed pupae have distinct chemical profiles compared to sham-treated control pupae. Pathogen-exposed pupae that were not unpacked (cocooned group) have intermediate profiles (axes show discriminant analysis of principle components eigenvectors). (C–F) The four CHCs with higher relative abundances on unpacked pupae compared to both control and cocooned pupae: (C) Tritriacontadiene, C33:2 (D), Tritriacontene, C33:1 (E), Pentatriacontadiene, C35:2 (F) co-eluting Pentatriacontadiene and Pentatriacontene, C35:2 + C35:1 (all data points displayed; line ± shaded box show mean ± 95% CI; letters specify groups that differ significantly in KW test post hoc comparisons [p<0.05]).

https://doi.org/10.7554/eLife.32073.009

Gas chromatography-mass spectrometry (GC–MS) analysis of the solvent wash confirmed that unpacked pupae have distinct chemical profiles compared to non-infected control pupae, whilst cocooned (non-unpacked) pathogen-exposed pupae were intermediate (Figure 2B, Figure 2—figure supplement 2; perMANOVA: F = 1.49, df = 46, p=0.002; post-hoc perMANOVA comparisons: unpacked vs. control, p=0.003; unpacked vs. cocooned, p=0.79; cocooned vs. control, p=0.08). There were no novel compounds present on unpacked or cocooned pathogen-exposed pupae that were not also present on control pupae (Table 1; Figure 2—figure supplement 2), suggesting that these differences were not caused by odours emitted directly by the fungus, but were of pupal origin. By analysing the chemical profiles of each of the pathogen’s separate developmental stages (infectious conidiospores, post-infection blastospores, and saprophytic mycelium) and performing a direct comparison of the fungal compounds to the pupal chemical profiles, we confirmed that there were no fungus-derived peaks in the pupal profiles (see Materials and methods for more information).

Table 1
Compound identification of cuticular hydrocarbons (CHCs) from Lasius neglectus pupae.

Table shows all 24 CHCs, with peak numbers listed in the order of their retention time, as in Figure 3—figure supplement 2. For comparability across gas chromatography–mass spectrometry systems, modified Kovats indices are included. Peaks that were significantly higher on unpacked pupae are highlighted in bold. In peaks 17 and 18, two compounds co-eluted.

https://doi.org/10.7554/eLife.32073.014
Peak #Compound identificationRetention time (min)Modified Kovats index
1n-Heptacosane18.5212699
2n-Octacosane18.8832799
3n-Nonacosane19.2532902
43-Methylnonacosane19.5292974
5n-Triacontane19.6242999
6n-Hentriacontane20.0403100
73-Methylhentriacontane20.3873175
8Tritriacontadiene20.7643251
9Tritriacontene20.9103279
10Tritriacontene20.9583288
11n-Tritriacontane21.0193300
1213-Methyltritriacontane21.1743326
133-Methyltritriacontene21.3353353
143-Methyltritriacontane21.4563373
15n-Tetratriacontane21.6263402
16Pentatriacontadiene21.9373447
17Pentatriacontadiene + Pentatriacontene22.1343475
18n-Pentatriacontane + 13-Methylpentatriacontene22.3063500
1913,23-Dimethylpentatriacontane22.7403554
2011,25-Dimethylpentatriacontane22.7523556
217,11,23-Trimethylpentatriacontane23.0193589
22n-Hexatriacontane23.1253602
23Unknown23.6033652
24n-Heptatriacontane24.0233697

Most chemical messages in social insects are encoded by quantitative shifts of several compounds (Leonhardt et al., 2016). Correspondingly, we found that 8 out of the 24 CHCs identified (Table 1) had higher relative abundances on unpacked pupae compared to control pupae (Figure 2C–F, Figure 2—figure supplement 2; all Kruskal-Wallis [KW] test statistics and post-hoc comparisons in Table 2). Moreover, four of these CHCs were also present in relatively higher quantities on unpacked pupae compared to the non-unpacked cocooned pupae. Several specific CHCs are therefore probably accumulating on infected pupae over time, eventually reaching an amount that, relative to the other compounds, is sufficient to elicit destructive disinfection. This corresponds to current models of social insect behaviour, where the likelihood of a response depends on stimuli exceeding a certain threshold (Theraulaz et al., 1998; Beshers and Fewell, 2001).

Table 2
Compounds contributing most to the differences between pupal cuticular hydrocarbon (CHC) profiles.

Table gives the overall effect of treatment per CHC, corrected for multiple testing, and the post-hoc comparisons, corrected at the level of each compound for multiple comparisons. CHCs significantly increased specifically on unpacked pupae shown in bold. All multiple comparison corrections performed using the Benjamini-Hochberg procedure (α = 0.05).

https://doi.org/10.7554/eLife.32073.015
Peak #CompoundKW H
(df = 2)
Corrected KW
p value
Post-hoc comparisonAdjusted
p value
6n-Hentriacontane7.290.029Cocooned – Unpacked0.238
Cocooned – Control0.309
Unpacked – Control0.019
8Tritriacontadiene13.110.006Cocooned – Unpacked0.005
Cocooned – Control0.830
Unpacked – Control0.001
9Tritriacontene10.390.01Cocooned – Unpacked0.021
Cocooned – Control0.745
Unpacked – Control0.003
11Tritriacontane11.550.007Cocooned – Unpacked0.064
Cocooned – Control0.245
Unpacked – Control0.001
143-Methyltritriacontene7.630.028Cocooned – Unpacked0.428
Cocooned – Control0.143
Unpacked – Control0.021
16Pentatriacontadiene18.830.001Cocooned – Unpacked0.004
Cocooned – Control0.152
Unpacked – Control<0.001
17Pentatriacontadiene
+Pentatriacontene
12.090.007Cocooned – Unpacked0.039
Cocooned – Control0.301
Unpacked – Control0.001
18n-Pentatriacontane +
13-Methylpentatriacontene
10.120.01Cocooned – Unpacked0.083
Cocooned – Control0.312
Unpacked – Control0.003

To investigate the possibility that CHC changes on unpacked pupae are the result of an immune response developed by the host, we injected pupae with β−1,3-glucans – polysaccharides that are an integral component of fungal cell walls, including Metarhizium (Wang and St Leger, 2006). β-Glucans act as highly conserved major pathogen-associated molecular patterns (PAMPs) that are recognised by the immune system of invertebrates and can therefore be used to elicit an immune response in the absence of a pathogen (Brown and Gordon, 2005). We found that, within 2 days of injection, β-glucan , but not saline , caused an increase in the expression of immune genes, namely, an IMD signalling pathway regulator gene (PGRP-SC2 [Bischoff et al., 2006]) and a gene encoding for a protein that recognises and binds to β-glucans to elicit an immune response (β−1,3-GBP [Ma and Kanost, 2000; Gottar et al., 2006]), whilst expression of the gene encoding for the melanisation cascade enzyme phenoloxidase (proPO [Cerenius and Söderhäll, 2004]) was unaffected (Figure 2—figure supplement 3). β-glucan injection also altered the chemical profiles of pupae in a similar way to Metarhizium infection (Figure 2C–F). Two of the four compounds we identified as a potential sickness cue on the unpacked pupae (Tritriacontadiene and Tritriacontene) were also increased in abundance within 2 days of injection with β-glucan, whilst there was no such increase in control pupae (Figure 2—figure supplement 4). These data reveal that some of the changes in pupal chemical profile can be directly linked to a host reaction to an immune elicitor, similar to findings in honeybees (Richard et al., 2012; Richard et al., 2008), mice (Arakawa et al., 2011) and humans (Shirasu and Touhara, 2011).

Destructive disinfection prevents pathogen replication

We next tested if destructive disinfection prevents pupal infections from replicating and becoming infectious. Pathogen-exposed pupae were kept with groups of ants (eight ants per pupae per group) until unpacking. They were then left with the ants for a further 1 or 5 days before being removed and incubated for fungal growth. We compared the number that subsequently sporulated to pathogen-exposed pupae kept without ants. Whilst 88% of pupae contracted infections, destructive disinfection significantly reduced the proportion of pupae that sporulated and hence became infectious (Figure 3A; GLM: LR χ2 = 40.47, df = 2, p<0.001; Tukey post-hoc comparisons: 1 vs. 5 d, p=0.04; all others, p<0.001). After only 1 day, the number of destructively disinfected pupae that sporulated decreased by 65%. With more time, the ants could reduce the number of pupae sporulating even further by 95%. Since the pupae were removed from the ants for fungal incubation, we can conclude that destructive disinfection permanently prevents pathogen replication. We repeated this experiment with a smaller number of ants (three ants per pupae per group) to investigate how group size influences the success of destructive disinfection. Smaller groups of ants were less efficient than larger ones: although they could still inhibit >90% of pupal infections within 5 days of unpacking, pupae tested for infection after 1 day still sporulated 70% of the time (Figure 3—figure supplement 1; GLM: LR χ2 = 35.23, p<0.001; Tukey post-hoc comparisons: 0 vs. 1 day, p=0.2; 0 vs. 5 days, p<0.001; 1 vs. 5 days, p=0.002). As the effectiveness of destructive disinfection increased with the amount of time the ants had, as well as with the number of ants present, we inferred that there must be a limiting factor affecting the inhibition the pathogen.

Figure 3 with 4 supplements see all

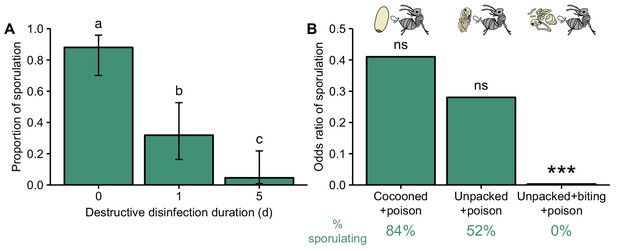

Destructive disinfection by ants prevents pathogen replication.

(A) Destructive disinfection greatly reduced the probability of pupae sporulating compared to pupae that received no destructive disinfection (time point 0), and its effectiveness increased with the length of time ants could perform destructive disinfection (1 vs. 5 days; error bars show ± 95% CI; letters denote groups that differ significantly in Tukey post-hoc comparisons [p<0.05]). (B) The individual components of destructive disinfection (unpacking, biting and poison spraying) interacted to inhibit pathogen replication (% of pupae sporulating in each treatment shown under graph in green). The odds of sporulation for cocooned and unpacked pupae treated with poison were not significantly different to those of control pupae (cocooned pupae treated with water). But when unpacking, biting and poison spraying were combined, the odds of sporulation were significantly reduced (logistic regression; ns = non-significant deviation from control, ***=p<0.001; complete data set of full factorial experiment displayed in Figure 3—figure supplement 3 and all statistics in Table 3).

https://doi.org/10.7554/eLife.32073.016

To study the underlying mechanisms of destructive disinfection, we performed its different components – unpacking, biting and poison spraying – in vitro to test for their relative importance and potential synergistic effects. We simulated unpacking by removing the cocoons of the pupae manually with fine forceps, and the cuticle damage caused by biting using dissection scissors. Previous work establishing the composition of L. neglectus poison (Tragust et al., 2013a) allowed us to create a synthetic version for use in this experiment (60% formic acid and 2% acetic acid, in water; applied at a dose equivalent to what ants apply during destructive disinfection; Figure 3—figure supplement 2), with water as a sham control. We then performed these ‘behaviours’ in different combinations in a full-factorial experiment. We found that all three behaviours must be performed in the correct order and interact to prevent pathogen replication (overview graph showing odds ratios of sporulation in Figure 3B, full data dataset displayed in Figure 3—figure supplement 3; GLM: overall LR χ2 = 79.9, df = 5, p<0.001; interaction between behaviours LR χ2 = 20.6, df = 2, p<0.001; all post-hoc comparisons in Table 3). As in sanitary care, the poison was the active antimicrobial compound that inhibited fungal growth (Figure 3—figure supplement 3, Table 3, Tragust et al., 2013aGraystock and Hughes, 2011). However, for the poison to function the pupae had to be removed from their cocoons and their cuticles damaged. Firstly, this is because the cocoon itself is hydrophobic and thus prevents the aqueous poison from reaching the pupae inside (Figure 3—figure supplement 4). Secondly, as the infection is growing internally at the time of unpacking, the cuticle must be broken in order for the poison to enter the hemocoel of the pupae. This is achieved with the perforations created by the ants biting the pupal cuticle. It is possible that in the wild biting also helps to desiccate the pupae, since high levels of humidity are important for Metarhizium growth (Doberski, 1981). However, in our experiments, the relative humidity inside the petri dishes was always a stable 95%, so desiccation cannot have played a role in fungal inhibition. As the active antimicrobial component, we concluded that the poison is probably the limiting factor determining whether destructive disinfection is successful. Because the poison has a slow biosynthesis and each ant can only store a limited amount (Tragust et al., 2013a; Hefetz and Blum, 1978), it would explain why destructive disinfection was more likely to be successful the longer the ants had to treat the pupae, and as the number of ants increased (Figure 3A, Figure 3—figure supplement 1). By sharing the task of poison synthesis and application, the ants probably increase their chances of preventing the pathogen becoming infectious.

Table 3
Tukey post-hoc comparisons between in vitro chemical treatments and pupa manipulations.

Following a GLM showing a significant interaction between chemical treatment (water or synthetic poison) and pupae manipulation (cocooned, experimentally unpacked or experimentally unpacked and bitten), we performed Tukey post-hoc comparisons to determine the influence of each behavioural component. Comparisons to pupae that received complete destructive disinfection (unpacked + poison + biting) are shown in bold. All p values are corrected for multiple testing using the Benjamini-Hochberg procedure (α = 0.05).

https://doi.org/10.7554/eLife.32073.021
Post-hoc comparisonCorrected p value
Cocooned + waterCocooned + poison0.26
Cocooned + waterUnpacked + water0.50
Cocooned + waterUnpacked + poison0.05
Cocooned + waterUnpacked + water + biting0.28
Cocooned + waterUnpacked + poison + biting0.002
Unpacked + waterUnpacked + poison0.02
Unpacked + waterCocooned + poison0.08
Unpacked + waterUnpacked + water + biting0.61
Unpacked + waterUnpacked + poison + biting0.001
Biting + waterUnpacked + poison + biting0.001
Biting + waterCocooned + poison0.04
Biting + waterUnpacked + poison0.01
Cocooned + poisonUnpacked + poison0.37
Cocooned + poisonUnpacked + poison + biting0.01
Unpacked + poisonUnpacked + poison + biting0.02

Disruption of the pathogen lifecycle stops disease transmission

Finally, we investigated the impact of destructive disinfection on disease transmission within a social group. We created mini-nests comprising two chambers and a group of ants (five ants per group). Into one of the chambers we placed an infectious sporulating pupa – simulating a failure of the ants to detect and destroy the infection – or a pupa that had been destructively disinfected, and was thus non-infectious. The ants groomed, moved around and sprayed both types of corpses with poison. In the case of the sporulating pupae, all conidiospores were removed from the corpse by the ants. As in previous studies, sporulating corpses were highly virulent (Hughes et al., 2002; Loreto and Hughes, 2016) and caused lethal infections that became contagious after host death in 42% of ants (Figure 4A). However, there was no disease transmission from destructively disinfected pupae (Figure 4A; GLM: LR χ2 = 31.32, df = 1, p<0.001). We therefore concluded that by preventing the pathogen from completing its lifecycle destructive disinfection stops intra-colony disease transmission (Figure 4B).

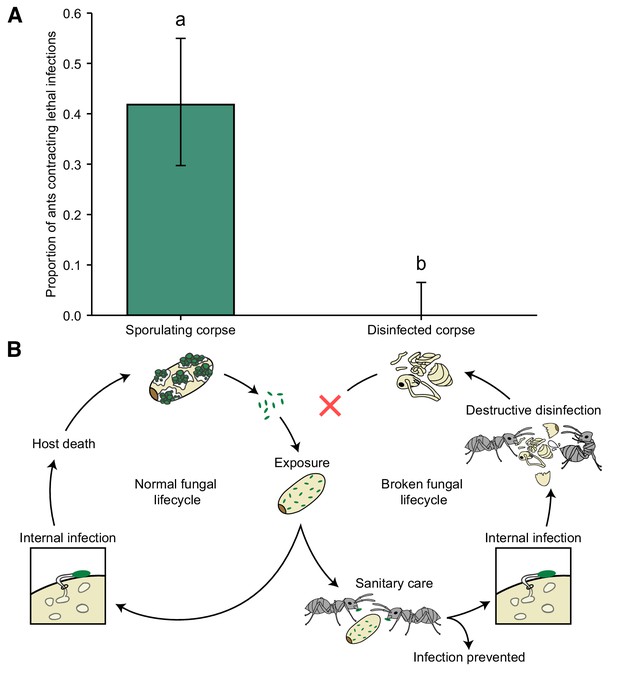

Destructive disinfection stops disease transmission.

(A) Ants that interacted with sporulating pupae contracted lethal infections and died from fungal infection in 42% of the cases, whilst there was no disease transmission from destructively disinfected pupae (error bars show ± 95% CI; letters denote groups that differ significantly in a logistic regression [p<0.05]). (B) Overview of normal fungal lifecycle resulting in infectious, sporulating corpses (left) and a broken lifecycle due to the interference of the ants (right). When sanitary care fails to prevent infection in pathogen-exposed individuals, the ants switch to colony-level disease control, that is destructive disinfection to stop pathogen replication, resulting in non-infectious corpses.

https://doi.org/10.7554/eLife.32073.022

Discussion

In this study, we show that the superorganismal societies of ants have evolved an efficient mechanism to specifically target and eliminate infections that have established in colony members, before they become contagious. This is achieved through the detection of chemical cues emitted by infected pupae during the non-transmissible incubation period of the pathogen (Figure 2). The ants then engage in destructive disinfection, a multicomponent behaviour that utilises the ants’ antimicrobial poison, in conjunction with cocoon removal and biting, to prevent pathogen replication within the body of the pupae (Figure 1, Figure 3). Ultimately, this prevented the pathogen from completing its lifecycle and infecting new hosts, thereby effectively reducing pathogen fitness to zero (Figure 4). These findings show that ants do not only avoid, groom and isolate pathogens (Cremer et al., 2007; Cremer et al., 2017) but can detect and eliminate infections developing inside the bodies of their nestmates, even before they have shown external disease symptoms.

Whilst the role of ant poison as a topical disinfectant by ants and other animals (i.e. ‘anting’ behaviour in birds) is well characterised (Clayton et al., 2010; Verderane et al., 2007; Tragust, 2016), its use as an internal disinfectant within the body of others during destructive disinfection is a novel and a rare example of the kill-component of social immunity (Cremer and Sixt, 2009). Eliminating infected kin to protect the rest of the group, observed in termites and honeybees as well (Rothenbuhler, 1964; Chouvenc and Su, 2012; Spivak and Gilliam, 1998), requires an unconditional level of altruism that is expected to be absent or at least rare in other forms of sociality (e.g. aggregations, non-superorganismal family groups and communal breeders [Cremer et al., 2017]), but has parallels to the immune system of the metazoan body (Cremer and Sixt, 2009). Both the immune system and social immunity have first lines of defences that reduce the risk of infection: pathogens that enter the body are met with mechanical and chemical defences, such as ciliated cells in the lung that move pathogens trapped in mucus out of the body (Cremer and Sixt, 2009), and in ants, sanitary care plays an analogous role (Tragust et al., 2013a; Graystock and Hughes, 2011). However, if a pathogen circumvents these first defences in the body and an infection occurs, the second line of defence is often a targeted elimination of the infected cells. This starts with immune cells detecting an infection and then transporting cell death-inducing and antimicrobial compounds into infected cells by creating pores in their membrane (Walch et al., 2014; Kägi et al., 1994; Chowdhury and Lieberman, 2008). Likewise, our experiments revealed that ants unpack infected pupae and make perforations in their cuticle, enabling the ants to spray their poison directly into the pupae’s body; hence they display mechanisms analogous to immune cell elimination. In both cases, this second line of defence destroys the infected cell/insect, along with the infection, to prevent transmission (Shore et al., 1976). Since the loss of both somatic cells and individual insect workers can be tolerated with negligible effects on fitness (Cremer and Sixt, 2009), these convergent strategies have likely evolved at both the multicellular and superorganismal levels of biological organisation, as an effective way to clear infections and avoid any further damage to the body and colony, respectively.

Animals from a variety of taxa are known to identify sick conspecifics based on odour signals (Bozza, 2015; Poirotte et al., 2017; Kiesecker et al., 1999; Anderson and Behringer, 2013; Shirasu and Touhara, 2011; Swanson et al., 2009), and although it has been hypothesised that ants should also use chemical cues to detect sick colony members, evidence has so far been lacking (Ugelvig et al., 2010; Leclerc and Detrain, 2016; Bos et al., 2012). To our knowledge, we have therefore observed ants using chemical information for the first time to rapidly and accurately target infected individuals. We found that the chemical compounds with increased abundances on infected pupae are distinct from those that induce the removal of corpses in ants (Diez et al., 2013; Qiu et al., 2015; Wilson et al., 1958), and, like in tapeworm-infected ants (Trabalon et al., 2000), are not pathogen-derived. This alteration of the hosts’ chemical profile may arise during infection from the breakdown of hydrocarbons by Metarhizium penetration (Lin et al., 2011) or after infection due to an immune response affecting the synthesis of specific hydrocarbons (Richard et al., 2012; Richard et al., 2008). The latter is more likely because the ants only display destructive disinfection once the fungus is growing inside the pupae and injection of a fungal immune elicitor in the absence of live pathogen induced similar changes. The four CHCs specifically increased on unpacked pupae are all long-chained CHCs (carbon chain length C33-35) with a low volatility, meaning that the ants have to be close to or touching the pupae to detect them (Sharma et al., 2015). As ants keep pupae in large piles, using low-volatility CHCs may be important so that the ants can accurately identify the infected pupae and do not mistakenly destroy healthy ones. Interestingly, two of the four CHCs that were increased on infected pupae, as well as on pupae that were injected with the fungal cell wall component, also had higher abundances on virus-infected honeybees (Tritriacontadiene [Baracchi et al., 2012]), or their brood when injected with a bacterial cell membrane component (Tritriacontene [Richard et al., 2012]). This raises the possibility that these hydrocarbons are evolutionarily conserved ‘sickness cues’ in Hymenopteran social insects. Such cues may have evolved into general sickness signals in social insects as they alert their kin to the presence of a developing infection that will harm the colony if it spreads (Shakhar and Shakhar, 2015). Relying on cues generated by an immune response to detect infections, over pathogen-specific cues, is likely more robust and general, similar to the expression of ‘find-me/eat-me’ signals by infected cells in vertebrate bodies (Ravichandran, 2010; Grimsley and Ravichandran, 2003), as well as the immune system responding to cell damage signals (danger signal hypothesis [Matzinger, 2007]). Such signals will be selected for in social insects because they can enhance colony fitness (and hence the indirect fitness of the sick individual) by preventing a systemic infection. Therefore, altruistic displays of sickness can evolve in superorganisms, even if this results in the destruction of the individual that expresses them (Cremer et al., 2017).

Our experiments show that destructive disinfection was highly effective and prevented 95% of infections becoming transmissible. Destructive disinfection will thus keep the average number of secondary infections caused by an initial infection low and the disease will die out within the colony (Schmid-Hempel, 2017). This may explain why infections of Metarhizium and other generalist entomopathogenic fungi like Beauveria, though common in the field (Reber et al., 2012; Hughes et al., 2004a; Cremer et al., 2008; Keller et al., 2003), do not seem to cause colony-wide epidemics in ants (Cremer et al., 2017), but are more numerous in solitary species that lack social adaptations to resist disease (Roberts and St Leger, 2004; Shimazu, 1989; Lomer et al., 1997). Behaviours like destructive disinfection that are able to reduce pathogen fitness to zero could have selected for host manipulation in fungi that specialise on infecting ants, for example Ophiocordyceps and Pandora (Hughes et al., 2016; Loreto et al., 2014; Małagocka et al., 2017). These fungi manipulate their ant hosts into leaving the nest before they become infectious and our study supports previous suggestions that this may be to avoid social immunity defences, like destructive disinfection, which would prevent them completing their lifecycle inside the nest (Loreto et al., 2014). In contrast to specialists, generalist pathogens like Metarhizium infect a broad range of solitary and social hosts, making it less likely that they evolve strategies to escape social immunity defences (Cremer et al., 2017; Agosta et al., 2010). We have also observed destructive disinfection in an unrelated supercolonial population of L. neglectus (Ugelvig et al., 2008) and another non-supercolonial/non-invasive Lasius species, L. niger (see Materials and methods for more information), suggesting that it may be a common behaviour that has evolved in Lasius, and possibly other ant genera, in response to the constant selection pressure applied by generalist pathogenic fungi (Cremer et al., 2017). Future work that investigates how social immunity disrupts typical host-pathogen dynamics will shed light on the co-evolution of pathogens and their social hosts (Schmid-Hempel, 2017).

Destructive disinfection has probably evolved in ants because the removal of corpses from the colony alone does not guarantee that disease transmission is prevented (Loreto et al., 2014). Ants are usually sedentary, building nests that remain in the same location until the colony dies (Boomsma et al., 2005; Schmid-Hempel, 1998). Additionally, they are highly territorial and forage mostly in the area around their nests, meaning that if they do not clear it of dead and potentially infectious nestmates, they are likely to be reencountered (Boomsma et al., 2005; Cremer et al., 2017). Ants tend therefore to place corpses onto specific midden (trash) sites that are located inside or outside near the nest, but these sites are still regularly visited by midden workers (Verza et al., 2017; Hart and Ratnieks, 2002; Farji-Brener et al., 2016). Consequently, although middens likely reduce a colony’s exposure to corpses, they still represent a potential route for disease transmission back into the colony; hence the need to destroy infected corpses rather than simply taking them out of the nest. This is in contrast to honeybees, where corpses are dumped randomly outside of the hive (Wilson-Rich et al., 2009). This behaviour is sufficient to prevent disease transmission because honeybees are unlikely to reencounter corpses whilst foraging on the wing (Spivak and Reuter, 2001). Termites on the other hand cannibalise their dead (Chouvenc and Su, 2012; Rosengaus and Traniello, 2001). Cannibalism is effective because the termite gut and/or its microbiome neutralises ingested pathogens (Chouvenc et al., 2009; Rosengaus et al., 2014; Rosengaus et al., 1998) and has likely evolved because dead nestmates are a source of valuable nitrogen in their cellulose-base diet (Rosengaus et al., 2011). The same selective pressure has driven this suite of independently evolved innovations – the need to eliminate or remove infected individuals early in the infectious cycle – with the ants expressing a particularly complex behavioural repertoire. This seems to be a general principle in disease defence, as cells are also rapidly detected and destroyed shortly after infection to prevent pathogen spread in multicellular organisms (Cremer and Sixt, 2009).

Understanding how natural selection can result in similar traits at different levels of biological organisation and in organisms with different life histories is a central question in evolutionary biology (Bourke, 2011). Studying the similarities and differences between organismal immunity and social immunity could therefore potentially lead to new insights about how disease defences evolve (Cremer and Sixt, 2009; Kennedy et al., 2017). For example, in most social animals, where relatedness is low or altruism is only conditionally expressed (e.g. by young that eventually disperse to reproduce themselves), disease defences tend to rely on self-protective infection avoidance (Curtis, 2014), mutually expressed sanitary care (Nunn and Altizer, 2006) and herd immunity only (John and Samuel, 2000). In contrast, the results of our study suggest that equivalent selection pressures during the major evolutionary transitions from unicellularity to multicellularity in the metazoans, and from sociality to superorganismality in the social insects, have resulted in convergent defences that protect multicellular organisms and superorganismal insect societies from systemic disease spread, by ensuring the survival of the whole over its parts (Cremer and Sixt, 2009).

Materials and methods

Ant host

We studied the invasive garden ant Lasius neglectus (Cremer et al., 2008) that forms large, underground nests in the soil. Populations of this species lack territorial structuring and instead consist of interconnected nests, forming a single supercolony between which there is a constant exchanging of individual ants (Cremer et al., 2008). We sampled more than one hundred queens, many thousands of workers and hundreds of brood items from a 320 m2 area of the supercolony in Seva, Spain (41°48'32.4"N 2°15'43.9"E), and reared them as stock colonies in the laboratory. All experiments were conducted in plastered petri dishes (Ø=33, 55 or 90 mm) with 10% sucrose solution provided ad libitum and environmental conditions were controlled throughout (23°C; 70% RH; 14/10 hr light/dark cycles). In addition, we directly measured the humidity of plastered petri dishes without ants for 2 weeks, by embedding a digital relative humidity sensor (Sensirion, Switzerland) into the lids of the dishes, finding that the relative humidity inside was always a stable 95%. The animal use protocol was performed in accordance with the IST Austria Ethics Committee guidelines. At present, the committee does not provide a specific approval numbers for invertebrate animal research. Animals used in this study, Lasius neglectus, do not belong to regulated or protected species.

Fungal pathogen

As a model pathogen, we used an obligately killing pathogen of Lasius ants, Metarhizium brunneum (CDP unpublished data; strain MA275, KVL 03–143). Entomopathogenic Metarhizium fungi occur at high densities in the soil (up to 5000 conidiospores/g soil [Keller et al., 2003]) and on sporulating cadavers (up to 12 million conidiospores/cadaver [Hughes et al., 2002, 2004b]) and are responsible for natural infections of ants in field populations (Reber et al., 2012; Hughes et al., 2004a). Metarhizium and other similar generalist fungi are therefore expected to have applied a persistent and pervasive selection pressure on ants over the course of their evolutionary history (Boomsma et al., 2005; Cremer et al., 2017). Multiple aliquots of conidiospore suspensions were kept in long-term storage at – 80°C. Prior to each experiment, the conidiospores were grown on sabaroud dextrose agar at 23°C until sporulation and harvested by suspending them in 0.05% sterile Triton X-100 (Sigma Aldrich, Austria). The germination rate of conidiospore suspensions was determined before the start of each experiment and was >90% in all cases. In addition to fungal conidiospores, we also cultured blastospores and mycelia to obtain the chemical profiles (see below) of all stages of the fungi’s lifecycle (Deacon, 2006). Blastospores were cultured by adding 50 µl of conidiospore suspension (109/ml) to 50 ml of Adámek liquid media (with Streptomycin sulphate [0.005 g/l] and Chloramphenicol [0.025 g/l]) added to inhibit bacterial growth) in a 300 ml Erlenmeyer flask, which was then incubated (72 hr, 200 rpm, 23°C) (Adámek, 1965; Kleespies and Zimmermann, 1992). After incubation, the liquid (which contains the blastospores) was pre-filtered using a flame-sterilised mesh and sieve and the liquid vacuum-filtered (40 µm mesh; Millipore Steriflip [Merck, Germany]). The resulting blastospore suspension was then washed (5 min, 3000 g, 23°C) three times in PBS. To produce mycelia, we added 50 µl of 106/ml conidiospore suspension to 100 ml of YPD liquid broth (Yeast extract Peptone Dextrose with Streptomycin sulphate [0.005 g/l] and Chloramphenicol [0.025 g/l]) in a 300 ml Erlenmeyer flask. We incubated the flask (5 days, 180 rpm, 27°C) and vacuum-filtered (40 µm mesh; Millipore Steriflip) the resulting fungal mass to remove the liquid broth. We then washed the mycelial mass three times in autoclaved distilled water.

Pupal pathogen exposure

Conidiospores were applied in a suspension of 0.05% autoclaved Triton-X 100 at a concentration of 106 conidiospores/ml in all experiments, unless otherwise stated. Throughout the study, we used cocooned worker pupae of approximately the same age, which was determined by assessing the melanisation of the eyes and cuticle. Single pupae were exposed by gently rolling them in 1 µl of the conidiospore suspension using sterile soft forceps. Pupae were then allowed to air dry for 5–10 min before being used in experiments. This exposure procedure resulted in pupae receiving ~1800 conidiospores, of which 5% (~95 conidiospore) passed through the cocoon and came into contact with the pupa inside (Figure 1—figure supplement 1). In all experiments, pupae were allocated to treatment groups haphazardly.

Statistical analysis

Statistical analyses were carried out in R version 3.3.2 (Core Team, 2012) and all tests were two-tailed. All General(ised) linear and mixed models were compared to null (intercept only) and reduced models (for those with multiple predictors) using Likelihood Ratio (LR) tests to assess the significance of predictors (Bolker et al., 2009). We controlled for the number of statistical tests performed per experiment to protect against a false discovery rate using the Benjamini-Hochberg procedure (α = 0.05). Moreover, all post-hoc analyses were corrected for multiple testing using the Benjamini-Hochberg procedure (α=0.05) (Benjamini and Hochberg, 1995; García, 2004). We checked the necessary assumptions of all tests that is by viewing histograms of data, plotting the distribution of model residuals, checking for non-proportional hazards, testing for unequal variances, testing for the presence of multicollinearity, testing for over-dispersion, and assessing models for instability and influential observations. For mixed effects modelling, we used the packages ‘lme4’ to fit models (Bates et al., 2014), ‘influence.ME’ to test assumptions (Nieuwenhuis and Pelzer, 2012), and, for LMERs, ‘lmerTest’ to obtain p values (Kuznetsova et al., 2015). All logistic regressions were performed using either generalised linear models (GLMs) or generalised linear mixed models (GLMMs), which had binomial error terms and logit-link function. The Cox proportional hazards regression was carried out using the ‘coxphf’ package with post-hoc comparisons achieved by re-levelling the model and correcting the resulting p values (Ploner and Heinze, 2015). For Kruskal-Wallis (KW) tests and subsequent post-hoc comparisons we used the ‘agricolae’ package, which implements the Conover-Iman test for multiple comparisons using rank sums (de Mendiburu, 2016). For the perMANOVA, we used the package ‘vegan’ and performed pairwise perMANOVAs for post-hoc comparisons (Oksanen et al., 2016). All other post-hoc comparisons were performed using the ‘multcomp’ package (Bretz et al., 2011). All graphs were made using the ‘ggplot2’ package (Wickham, 2009). Preliminary studies were performed for all major experiments to determine sample size. No data outliers were detected or removed and all replicate information represents biological replicates. Individual descriptions of statistical analyses are given for all experiments below.

Unpacking behaviour

To study how ants respond to infections, we exposed pupae to a low (104/ml), medium (106/ml) or high (109/ml) dose of conidiospores or autoclaved Triton X as a sham control (sham control, n = 24; all other treatments, n = 25). The pupae were then placed into individual petri dishes with two ants and inspected hourly for 10 hr/days for 10 days. When the ants unpacked a pupa, it was removed and surface-sterilised to ensure that any fungal outgrowth was the result of internal infections and not residual conidiospores on the cuticle. To surface-sterilise, pupae were dipped in 70% ethanol, washed in autoclaved distilled water and submerged in 0.05% sodium hypochlorite for 1 min, before being washed three times in autoclaved distilled water (Lacey and Brooks, 1997). After sterilisation, we transferred the pupae to a petri dish lined with damp filter paper at 23°C and monitored them for 2 weeks for Metarhizium sporulation to confirm the presence of an internal infection (low dose, n = 8; medium dose, n = 18; high, n = 21). In addition, any cocooned pupae that were not unpacked after 10 d were removed from the ants, surface sterilised and observed for sporulation, as above (low dose, n = 11; medium dose, n = 4; high, n = 4). Some pupae (control = 16, low dose = 6, medium dose = 3) successfully emerged from the cocoon as adult ants and were thus treated as non-unpacked in analyses. We analysed the effect of treatment on unpacking using a Cox proportional hazards model with Firth’s penalised likelihood, which offers a solution to the monotone likelihood caused by the complete absence of unpacking in the sham control treatment. We followed up this analysis with post hoc comparisons (model factor re-levelling) to test unpacking rates between treatments (Figure 1B). We compared the number of unpacked and cocooned pupae sporulating using a logistic regression, which included pupa type (cocooned, unpacked), conidiospore dose (low, medium, high) and their interaction as main effects. The interaction was non-significant (GLM: LR χ2 = 5.0, df = 2, p=0.084); hence, it was removed to gain better estimates of the remaining predictors.

Images and scanning electron micrographs (SEMs) of destructive disinfection

Photographs of destructive disinfection were captured (Nikon D3200 [Nikon, Japan]) and aesthetically edited (Adobe Photoshop [Adobe Systems, San Jose, California]) to demonstrate the different behaviours (Figure 1A). They were not used in any form of data acquisition. We also made representative SEMs of a pupa directly after unpacking and one after destructive disinfection (24 hr after unpacking; Figure 1F–G). As the pupae were frozen at – 80°C until the SEMs were made, we also examined non-frozen pupae taken directly from the stock colony and confirmed that freezing itself does not cause damage to the pupa (not shown).

Conidiospore load on unpacked pupae

We determined the number of conidiospores on unpacked pupae (n = 7) and their removed cocoons (n = 7) by placing them into separate vials containing 100 µl autoclaved 0.05% Trixton-X 100. The vials were then shaken for 10 m at 600 RPM (Vortex Genie 2 [Scientific Industries, Bohemia, New York]) and the resulting supernatant was plated onto selective medium agar. We counted the number of Metarhizium colony-forming units (CFUs) that subsequently grew on the plates after 7 d. As a control, we performed the same experiment on pupae directly after pathogen-exposure. We experimentally unpacked the pupae using sterile (ethanol wiped) forceps so that we could examine the number of CFUs present on the pupae (n = 16) and cocoon separately (n = 16). We analysed the number of CFUs on pupae and cocoons using Mann-Whitney U tests (Figure 1—figure supplement 1).

Comparison of sanitary care and destructive disinfection behaviours

To observe how the behavioural repertoire of the ants changes between sanitary care and destructive disinfection, we filmed three individually colour-marked ants tending a single pathogen-exposed pupa with a USB microscope camera (Di-Li 970-O [Di-Li, Germany]). To characterise the sanitary care behaviours of the ants, we analysed the first 24 hr of the videos following the introduction of the pupa. To study destructive disinfection behaviours, we analysed the 24 hr period that immediately followed unpacking. Videos were analysed using the behavioural-logging software JWatcher (Blumstein and Daniel, 2007). For each ant (n = 15), we recorded the duration of its grooming bouts, the frequency of poison application and the frequency of biting. Grooming duration was analysed using a LMER, having first log-transformed the data to fulfil the assumption of normality (Figure 1C). The frequency of poison spraying and biting (Figure 1D–E) were analysed using separate GLMMs with Poisson error terms for count data and logit-link function. We included an observation-level random intercept effect to account for over-dispersion in the poison spraying and biting data (Harrison, 2014). In all three models, we included petri dish identity as a random intercept effect because ants from the same dish are non-independent. Additionally, a random intercept effect was included for each ant as we observed the same individuals twice (before and after unpacking).

Comparison of pupal mortality after unpacking and destructive disinfection

We established a protocol to determine whether pupae were dead or alive because it is not generally obvious when death has occurred. To ensure that we examined pupae as soon as possible after unpacking, we checked pathogen-exposed pupae housed with ants every 45 min for 15 hr/d. When unpacking occurred, we either removed the pupa immediately (n = 33) or left it with the ants for a further 24 hr so that they could perform destructive disinfection (n = 44). To check the numbers of dead and alive pupae at the time point of unpacking and after destructive disinfection, we secured the pupae to glass slides using double-sided tape. The pupae were then gently prodded with a glass capillary whilst being examined under a bifocal microscope (10 x magnification; Leica DM 1000 [Leica Biosystems, Germany]). If pupae were alive, this resulted in contractions of their dorsal aorta (Broome et al., 1976), which is visible through the cuticle of the abdomen. If they were dead, no contractions occurred. Each examination lasted a maximum of 5 min. To confirm that this approach was sensitive, we examined experimentally unpacked pupae taken straight from a stock colony (n = 10). In all cases, these pupae were alive. They were then frozen at – 80°C for 1 day and examined again after defrosting, when they were all found to be dead. We compared the number of dead pupae at the time point of unpacking to the number that were dead after destructive disinfection using a logistic regression (Figure 1—figure supplement 2). We included the day of unpacking as a covariate to test if pupae unpacked sooner or later were more or less likely to have already died.

Estimation of poison load on pupae after destructive disinfection

As L. neglectus poison has a very high acidity (Tragust et al., 2013a), we could measure the pH of pupae to determine if ants apply higher amounts poison to pupae during destructive disinfection. We kept a pair of pathogen-exposed or sham control pupae with two ants. When one of the pathogen-exposed pupae in a pair was unpacked, we let the ants perform destructive disinfection for 24 hr (n = 25). In the control, we experimentally unpacked one pupa in a pair and placed it back with the ants for 24 hr (n = 17). After 24 hr, we removed the unpacked pupae in both treatments along with their discarded cocoons. At the same time, the second, still cocooned pupae in each pair was removed and experimentally unpacked so that pH measurements were consistent across pupal groups (pathogen exposed, n = 9; control, n = 16). All pupae and their cocoons were placed into individual vials containing 20 µl of autoclaved distilled water and a sterile glass pestle was used to crush each pupa and cocoon for 60 s. The pH of the resulting pupa/cocoon slurry was measured using a pH electrode meter (INLAB ULTRA-MICRO, SevenGo PRO pH SG8 pH-meter [Mettler-Toledo, Columbus, Ohio]). This gave us an indication of how much poison the ants had applied to each type of pupa (Figure 1—figure supplement 3). We used a LMER with Tukey post-hoc comparisons to compare the pH measurements of the pupae. Pupa treatment (pathogen-exposed or control), type (cocooned or unpacked) and their interaction were included as main effects. Petri dish was included as a random intercept effect as pairs of pupae from the same dish are non-independent. As we used a portion of this dataset in Figure 3—figure supplement 2, we corrected the overall model p value for multiple testing.

Chemical bioassay

We determined whether ants detect infected pupae through potential changes in the pupae’s cuticular chemical profile. We established internal infections in pupae by exposing them to the pathogen and leaving them for 3 days in isolation. In pilot studies, approx. 50% of these pupae were then unpacked within 4 hr of being introduced to ants. After 3 days, pupae were washed for 2.5 min in 300 µl of either pentane solvent to reduce the abundance of all CHCs present on the pupae (n = 28), or in autoclaved water as a handling control (n = 28). After washing, pupae were allowed to air dry on sterile filter paper. Additionally, non-washed pupae were used as a positive control (n = 30). Pupae were placed individually with a pair of ants in petri dishes and observed for unpacking for 4 hr. We used GC–MS (see below for methodology) to confirm that washing was effective at removing cuticular compounds, by comparing the total amount of chemicals present on pupae washed in pentane to non- and water-washed pupae (n = 8 per treatment; Figure 2—figure supplement 1). The number of pupae unpacked between the different treatments was analysed using a logistic regression (Figure 2A). As several researchers helped to wash the pupae, we included a random intercept for each person to control for any potential handling effects. Additionally, the experiment was run in two blocks on separate days, so we included a random intercept for each block to generalise beyond any potential differences between runs. The total peak area from the GC–MS analysis was compared between treatments using a KW test with post-hoc comparisons.

Chemical analysis of pupal hydrocarbon patterns

To confirm that infected pupae had chemical profiles that are different from pathogen-exposed cocooned and control pupae, we exposed pupae to the pathogen or a sham control. Pupae were then isolated for 3 days to establish infections in the pathogen-exposed treatment (as above). Following isolation, pupae were individually placed with ants and observed for unpacking for 4 hr. Unpacked pupae were immediately frozen at – 80°C with the removed cocoons (n = 13) and we also froze cocooned pathogen-exposed pupa that had not yet been unpacked (n = 10). Furthermore, we froze a pair of control pupae, of which one was cocooned (n = 12), whilst the other was first experimentally unpacked (to test if the cocoon affects cuticular compound extraction; n = 12). Cuticular chemicals were extracted from individual pupae and their cocoons in glass vials (1.8 ml [Supelco, Germany]) containing 100 µl n-pentane solvent for 5 min under gentle agitation. The vials were then centrifuged at 3000 rpm for 1 min to spin down any fungal conidiospores that might be remaining, and 80 µl of the supernatant was transferred to fresh vials with 200 µl glass inserts and sealed with Teflon faced silicon septa (both Supelco). The pentane solvent contained four internal standards relevant for our range of hydrocarbons (C27 – C37); n-Tetracosane, n-Triacontane, n-Dotriacontane and n-Hexatriacontane (Sigma Aldrich) at 0.5 µg/ml concentration, all fully deuterated to enable spectral traceability and separation of internal standards from ant-derived substances. We ran extracts from the different groups in a randomised manner, intermingled with blank runs containing only pentane, and negative controls containing the pentane plus internal standards (to exclude contaminants emerging for example from column bleeding), on the day of extraction, using GC–MS (GC7890 coupled to MS5975C [Agilent Technologies, Santa Clara, California]).

A liner with one restriction ring filled with borosilicate wool (Joint Analytical Systems, Germany) was installed in the programmed temperature vaporisation (PTV) injection port of the GC, which was pre-cooled to −20°C and set to solvent vent mode. 50 µl of the sample extractions were injected automatically into the PTV port at 40 µl/s using an autosampler (CTC Analytics, PAL COMBI-xt, , CHRONOS 4.2 software [Axel Semrau, Germany]) equipped with a 100 µl syringe (Hamilton [Sigma-Aldrich]). Immediately after injection, the PTV port was ramped to 300°C at 450 °C/min, and the sample transferred to the column (DB-5ms; 30 m × 0.25 mm, 0.25 μm film thickness) at a flow of 1 ml/min. The oven temperature program was held at 35°C for 4.5 min, then ramped to 325°C at 20°C/min, and held at this temperature for 11 min. Helium was used as the carrier gas at a constant flow rate of 3 ml/min. For all samples, the MS transfer line was set to 325°C, and the MS operated in electron ionisation mode (70 eV; ion source 230°C; quadrupole 150°C, mass scan range 35–600 amu, with a detection threshold of 150). Data acquisition was carried out using MassHunter Workstation, Data Acquisition software B.07.01 (Agilent Technologies).

Analytes were detected by applying deconvolution algorithms to the total ion chromatograms of the samples (MassHunter Workstation, Qualitative Analysis B.07.00 [Agilent Technologies). Compound identification (Table 1) was performed via manual interpretation using retention indices and spectral information, and the comparison of mass spectra to the Wiley 9th edition/NIST 11 combined mass spectral database (National Institute of Standards and Technologies). As the molecular ion was not detectable for all analytes based on electronic ionisation, we in addition performed chemical ionisation on pools of 20 pupae in 100 µl n-pentane solvent with 0.5 µg/ml internal standards. The higher extract concentration was needed to counteract the loss in ionisation efficiency in chemical ionisation mode. A specialised chemical ionisation source with methane as the reagent gas was used with the MS, while the chromatographic method was the same as in electronic ionisation mode. Use of external standards (C7-C40 saturated alkane mixture [Sigma Aldrich]) enabled traceability of all peaks, and thus comparison to runs of single pupae extracts made in electronic ionisation mode. Modified Kovats retention indices for the peaks in question were calculated based on those standards. To further aid identification, we separated the substances based on polarity using solid phase extraction fractionation. For this purpose, pools of 20 pupae were extracted in 500 µl n-pentane containing 0.2 µg/ml internal standard, and separated on unmodified silica cartridges (Chromabond SiOH, 1 ml, 100 mg) based on polarity. Prior to use, the cartridges were conditioned with 1 ml dichloromethane followed by 1 ml n-pentane. The entire extraction volume was loaded onto the silica and the eluent (fraction 1, highly apolar phase) collected. A wash with 1 ml pure n-pentane was added to fraction 1. Fraction 2 contained all substances washed off the silica with 1 ml 25% dichloromethane in n-pentane, and finally a pure wash with 1 ml dichloromethane eluted all remaining substances (fraction 3). The polarity thus increased from fraction 1 through 3, but no polar substances were found. All fractions were dried under a gentle nitrogen stream and re-suspended in 70 µl n-pentane followed by vigorous vortexing for 45 s. GC–MS analysis of all fractions was performed in electronic ionisation mode under the same chromatographic conditions as before.

To quantify the relative abundances of all compounds found on each pupa, analyte-characteristic quantifier and qualifier ions were used to establish a method enabling automatised quantification of their integrated peak area relative to the peak area of the closest internal standard. For each analyte, the relative peak area was normalised, that is divided by the total sum of all relative peak areas of one pupa, to standardise all pupa samples. Only analytes, which normalised peak area contributed more than 0.05% of the total peak area, were included in the statistical analysis. We compared the chemical profiles of the pupae using a perMANOVA analysis of the Mahalanobis dissimilarities between pupae, with post hoc perMANOVA comparisons. Since there was no difference between cocooned and unpacked control pupae we combined them into a single control group for the final analysis (perMANOVA: F = 1.09, df = 23, p=0.1). We also performed a discriminant analysis of principle components (Figure 2B) to characterise the differences between the pupal treatments (De Moraes et al., 2014; Jombart et al., 2010). To identify the compounds that differ between treatments, we performed a conditional random forest classification (n trees = 500, n variables per split = 4) (De Moraes et al., 2014; Strobl et al., 2009a; Strobl et al., 2009b). Random forest identified nine compounds that were important in classifying the treatment group, of which eight were significant when analysed using separate KW tests (results for significant compounds in Table 2). We followed up the KW tests with individual post hoc comparisons for each significant compound (Figure 2C–F, post-hoc comparisons in Table 2).

Comparison of fungal and pupal chemical profiles

One millilitre aliquots of conidiospore (109/ml in 0.05% TX) and blastospore (4 × 106/ml in PBS) suspensions and approx. 500 mg of mycelia (in 500 µl of autoclaved distilled water) were washed three times by briefly vortexing and centrifuging the samples (5 min, 5500 g), discarding the supernatants, and replacing with 1 ml of autoclaved distilled water for the first two washes, and 500 µl for the last wash. One hundred and fifty microliters of the conidiospore and blastospore suspensions and 155 µg of hyphae (n = 3 for each fungal stage) were transferred into 1.5 ml glass vials (La-Pha-Pack, Germany). All samples were centrifuged (2 min, 3000 g) and dried under a nitrogen stream for 2 hr. Once samples were dry, 200 µl n-pentane containing internal standards (as above) was added to the samples, which were vortexed for 2 min. Samples were centrifuged (5 min, 5000 g) and the supernatants transferred into 200 µl glass vials with inserts, and closed with aluminium crimper caps that had a silicone septum (both La-Pha-Pack). Fifty microliters of the samples were injected into a pre-cooled PTV inlet at – 20°C and GC–MS analysis carried out following the above protocol.

We determined if there was any overlap between the chemical profiles of pupae and the fungus by comparing the results of the fungal GC–MS analysis to the results of the pupal GC–MS. To that end, all fungal chromatograms were automatically de-convoluted and the mass-spectra of the compound peaks compared to a mass-spectral database, composed of the substances found on the pupae (Agilent Technologies MassHunter Qualitative Analysis, B.07.00, 2014). Twenty-seven compounds scored above 70 points, with 82.21 being the highest score. To determine if these peaks were identical to the peaks of the pupal samples, we calculated their Kovats retention time indices (RI) and compared them to that of the pupal substances. This analysis revealed that none of the fungal compound RIs were overlapping with the pupal compounds, hence confirming that the identified pupal substances are not of fungal origin.

Immune stimulation of pupae using β-glucans

We injected β−1,3-glucans to test whether the changes in the chemical profile of infected pupae may be caused by an immune stimulation (Vilcinskas and Wedde, 1997; Unestam and Söderhäll, 1977; Gunnarsson, 1988). Soluble β−1,3-glucans were acquired by suspending 5 mg of Zymosan-A (Saccharomyces cerevisiae cell wall fragments [Sigma-Aldrich]) in 1 ml of sterile physiological ant saline (as described in [Aubert and Richard, 2008]). The Zymosan suspension was vortexed for 1 hr at 3200 rpm before being centrifuged at 10000 rcf for 5 min. The supernatant that contains the soluble β-glucans (Vilcinskas and Wedde, 1997) was then removed and stored at 4°C until use. As a control we used sterile ant physiological saline (Aubert and Richard, 2008). Pupae were artificially unpacked from their cocoons (as above) and placed gently into a sponge harness. Using fine glass capillaries (with spike to aid injection; inner diameter = 25 µm [BioMedical Instruments, Germany]), a microinjector (parameters: pi = 120 hPa, ti = 0.3 s, pc = 20 hPa [FemtoJet, Eppendorf, Germany]) and a micromanipulator (Luigs and Neumann, Germany), we injected 46 nl of the β-glucan solution or ant physiological saline through the pupae’s first tergite, into their haemocoel. We cleaned the capillaries between injections using 96% ethanol. Half of the pupae were frozen at – 80°C immediately after injection whilst the remainder were kept alone in individual plaster dishes for a further 48 hr, before then also being frozen. Frozen pupae were then used for molecular and chemical analyses (below).

Immune gene expression of pupae injected with β−1,3-glucans

We employed a candidate gene approach to test if a β−1,3-glucan injection (above) elicits an immune response in pupae, with saline injected pupae as a control (n = 11, each for pupae frozen 0 hr and 48 hr after injection, for both saline and β-glucan treatments). Total RNA was extracted from pupae using the Maxwell RSC simply RNA tissue kit (Promega, Madison, Wisconsin) according to manufacturer’s instructions, with a final elution volume of 60 µl. Reverse transcription was performed using the iScript cDNA synthesis kit (Bio-Rad, Hercules, California) as per the manufacturer’s recommendations. Primer sequences were taken from (Konrad et al., 2012) or developed from cDNA sequence information of L. neglectus (Table 4). Gene expression analyses of 28S Ribosomal Protein S18a (used as housekeeping gene, which we had previously found to be stably expressed in pupae), Prophenoloxidase (proPO), Peptidoglycan Recognition Protein SC2 (PGRP-SC2) and β−1,3-glucan binding protein (β−1,3-GBP) were performed in 20 μl reaction volumes using KAPA SYBR Fast qPCR master mix (Kapa Biosystems, Wilmington, Massachusetts) and 0.2 μM each of specific primers (Sigma-Aldrich) on a Bio-rad CFX96 real-time PCR detection system. Two microliters of the cDNA sample were added per reaction and each sample was analysed in duplicate or triplicate wells. Each run contained an absolute negative as well as a no reverse transcription control. Primer efficiency was >95% for all primer sets using standard curves of 10-fold dilutions, and primer specificity was monitored based on a melting curve analysis following each run. We used the following program for amplification: 95°C for 5 min, followed by 40 cycles of 10 s of 95°C denaturation and 30 s of 60°C (55°C) annealing/extension. Normalised gene expression values (the average of technical replicates standardised to the housekeeping gene) were analysed using Mann-Whitney U tests and the resulting p values were corrected for multiple comparisons.

Table 4
Primer information.

Primer sequences, annealing temperatures and amplicon sizes for the immune genes proPO, PGRP-SC2 and β−1,3-GBP and the reference house keeping gene 28S RP S18a of the invasive garden ant, Lasius neglectus, as obtained from (Konrad et al., 2012) and cDNA sequence information (Meghan L. Vyleta, AVG, SC unpublished data).

https://doi.org/10.7554/eLife.32073.023
PrimerSequenceAmplicon lengthAnnealing temperature
proPOF: 5'-TCTTTCTCGCGGTCTTGACT
R: 5'-TTGTTGGCGACGATTCTGTA
99 bp60°C
PGRP-SC2F: 5'-GTGGAGTGGATAACGGCGAA
R: 5'-CTATCTCCGGGACAGACGGT
85 bp55°C
β−1,3-GBPF: 5'-CTGCGCATATCAATTCCCGAC
R: 5'-TTCGCTATCTGTCCCGCTTC
101 bp55°C
28S RP S18aF: 5'-CGGCTGTATGCTACCACGTA
R: 5'-AAGCCTGCTTTCTGAGCCAT
93 bp55°C

Chemical analysis of β-glucan injected pupae

The chemical profiles of β−1,3-glucan and saline-injected pupae were analysed using GC–MS, following the above protocols. We tested whether the four CHCs that were increased specifically on unpacked pupae were also increased on pupae 48 hr after injection with either β-glucans or saline. We used LMERs to compare the CHC abundances within treatments, on pupae immediately after injection (saline, n = 27; β-glucan, n = 26) and 48 hr later (saline, n = 22; β-glucan, n = 22), correcting the p values for multiple comparisons across the CHCs. CHC abundances were square root transformed to a normal distribution. Since this experiment was carried out on 2 separate days, run was included as a random intercept effect to account for any potential, uncontrollable differences. The assumption of homogeneity of variances was violated for the LMER analysing Tritriacontadiene, though visual inspection of the model residuals found this violation to be relatively minor. Still, to test for the robustness of the LMER result, we also analysed Tritriacontadiene using a non-parametric test that does not make any assumptions about data distribution, but is unable to account for the random effect. This test also found a strong, significant difference between the two time points (Mann-Whitney U test, U = 157, p=0.007); hence we report the result of the LMER.

Effect of destructive disinfection on pathogen replication

To test if destructive disinfection prevents Metarhizium from successfully replicating, we kept single pathogen-exposed pupae in petri dishes containing groups of 3 or 8 ants. This allowed us to assess how group size affects the likelihood of fungal inhibition. For the following 10 days, we observed the pupae for unpacking. When a pupa was unpacked, we left it with the ants for a further 1 or 5 days so that they could perform destructive disinfection. This allowed us to assess how the duration of destructive disinfection affects the likelihood of fungal inhibition. The destructively disinfected pupae were then removed and placed into petri dishes on damp filter paper at 23°C (8 ants 1 day and 5 days, n = 22 pupae each; 3 ants 1 and 5 days, n = 18 pupae each). We did not surface sterilise the pupae as this might have interfered with the destructive disinfection the ants had performed. Removed pupae were observed daily for Metarhizium sporulation for 30 days. To determine how many pupae sporulate in the absence of destructive disinfection, we kept pathogen-exposed pupae without ants as a control and recorded the number that sporulated for 30 d (n = 25). We compared the number of pupae that sporulated after 1 and 5 days and in the absence of ants using logistic regressions and Tukey post hoc comparisons, separately for the two ant group sizes (Figure 3A, Figure 3—figure supplement 1).

In vitro investigation of destructive disinfection

We examined the individual effects of unpacking, biting and poison application on destructive disinfection by performing these behaviours in vitro. Pathogen-exposed pupae were initially kept with ants so that they could perform sanitary care. After 3 days, we removed the pupae and split them up into three groups: (i) pupae that we left cocooned, (ii) experimentally unpacked and (iii) experimentally unpacked and bitten. We simulated the damage the ants achieve through biting by damaging the pupal cuticle and removing their limbs with micro scissors. The pupae were then treated with either synthetic ant poison (60% formic acid and 2% acetic acid, in water; applied at a dose equivalent to what ants apply during destructive disinfection; Figure 3—figure supplement 2) or autoclaved distilled water as a control, using pressurised spray bottles (Lacor, Spain) to evenly coat the pupae in liquid. Spraying was carried out at a distance of 36 cm from the pupae and lasted for 1 s. The pupae were allowed to air dry for 5 min before being rolled over and sprayed again and allowed to dry a further 5 min. All pupae were then placed into separate petri dishes and monitored daily for Metarhizium sporulation (cocooned + poison, n = 24; unpacked + poison + biting, n = 24; all other treatments, n = 25). The number of pupae sporulating was analysed using a logistic regression with Firth’s penalised likelihood, which offers a solution to the monotone likelihood caused by the complete absence of sporulation in one of the groups (R package ‘brglm’ [Kosmidis, 2013]). Pupal manipulation (cocooned/unpacked only/unpacked and bitten), chemical treatment (water or poison) and their interaction were included as main effects (Figure 3B, Figure 3—figure supplement 3). We followed up this analysis with Tukey post-hoc comparisons (Table 3).

Comparing synthetic and ant poison spraying

We confirmed that synthetic poison spraying resulted in pupae receiving an amount of poison within the natural range that is applied by ants during destructive disinfection. Pupae taken from a stock colony were experimentally unpacked and sprayed with synthetic poison. We then measured their pH (all as above; n = 21). To test if synthetic poison spraying was similar to natural ant spraying, we compared their pH to pupae destructively disinfected by ants (data from Figure 1—figure supplement 3) using a Mann-Whitney U test (Figure 3—figure supplement 2). We adjusted the p value to correct for using this dataset twice (here and in Figure 1—figure supplement 3).

The effect of the pupal cocoon on ant poison application

To test if the pupal cocoon limits the amount of the ants’ poison that reaches the pupae inside, we took pupae from a stock colony and sprayed half with synthetic ant poison (as above; n = 10) and left the other half untreated (n = 10). We then unpacked these pupae and measured their pH (as above). As an additional control, we first experimentally unpacked pupae before spraying them with synthetic poison (n = 10). We analysed pH pupae using a KW test with post hoc comparisons (Figure 3—figure supplement 4).

Disease transmission from infectious and destructively disinfected pupae

We tested the impact of destructive disinfection on disease transmission within groups of ants by keeping them with sporulating pupae or pupae that had been destructively disinfected. Infections were established in pupae (as above) and half were allowed to sporulate (n = 11), whilst the other half were experimentally destructively disinfected (as above; n = 11). Pupae were then kept individually with groups of five ants in mini-nests (cylindrical containers [Ø=90 mm] with a second, smaller chamber covered in red foil [Ø=33 mm]). Ant mortality was monitored daily for 30 days. Dead ants were removed, surface sterilised (as above) and observed for Metarhizium sporulation. The number of ants dying from Metarhizium infections in each treatment was compared using a logistic regression (Figure 4A). Mini-nest identity was included as a random intercept effect as ants from the same group are non-independent.

Observations of destructive disinfection in another supercolonial population and related species

To confirm that our findings are not an idiosyncrasy of our specific study population, we tested whether the destructive disinfection observed in the Seva L. neglectus population is also found in another, genetically distinct supercolonial population (Ugelvig et al., 2008) and a related (congeneric), non-supercolonial/non-invasive species, Lasius niger. We sampled hundreds of queens and many thousands of workers from a 300 m2 area of L. neglectus in the botanical gardens in Jena, Germany (50°55'54.6"N 11°35'08.4"E). The studied L. niger colony was raised from a single founding queen collected after a natural mating flight in Harpenden, UK (51°48'48.9"N 0°22'51.5"W) and reared in the laboratory for 3 years, by which point it contained several hundred workers. To test if these ants also perform destructive disinfection, we kept two workers with single, pathogen-exposed or control-treated pupae (following the same protocols as above; Jena supercolony, n = 23 replicates per treatment; L. niger, n = 20 per treatment). We observed the ants on a daily basis to record the occurrence of destructive disinfection for 10 d. In both the Jena population and L. niger, no control-treated pupae were destructively disinfected (proportion ± 95% CIs: Jena = 0 ± 0–0.14; L. niger = 0 ± 0–0.16), whilst >60% of the pathogen-exposed pupae were destructively disinfected (proportion ± 95% CIs: Jena = 0.61 ± 0.41–0.78; L. niger = 0.95 ± 0.76–0.99).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Controlling the false discovery rate: a practical and powerful approach to multiple testing
    1. Y Benjamini
    2. Y Hochberg
    (1995)
    J R Stat Soc 57:289–300.
  11. 11
  12. 12
  13. 13
    Quantifying behavior the JWatcher way
    1. DT Blumstein
    2. JC Daniel
    (2007)
    Sinauer Associates: Sunderland.
  14. 14
  15. 15
    Superorganismality and caste differentiation as points of no return: how the major evolutionary transitions were lost in translation
    1. JJ Boomsma
    2. R Gawne
    (2017)
    Biological Reviews, 10.1111/brv.12330, 28508537.
  16. 16
    Insect Evolutionary Ecology. Wallingford: CABI Publishing
    1. JJ Boomsma
    2. P Schmid-Hempel
    3. WOH Hughes
    (2005)
    139–176, Life histories and parasite pressure across the major groups of social insects, Insect Evolutionary Ecology. Wallingford: CABI Publishing, 10.1079/9780851998121.0139.
  17. 17
  18. 18
  19. 19
  20. 20
    Multiple Comparisons Using R
    1. F Bretz
    2. T Hothorn
    3. P Westfall
    (2011)
    Boca Ration: CRC Press.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    R: A Language and Environment for Statistical Computing
    1. R Core Team
    (2012)
    Vienna: R Foundation for Statistical Computing.
  29. 29
  30. 30
    Social immunity: emergence and evolution of colony-level disease protection
    1. S Cremer
    2. CD Pull
    3. MA Fürst
    (2017)
    Annual Review of Entomology, 10.1146/annurev-ento-020117-043110, 28945976.
  31. 31
    Analogies in the evolution of individual and social immunity
    1. S Cremer
    2. M Sixt
    (2009)
    Philosophical Transactions of the Royal Society B: Biological Sciences 364:129–142.
    https://doi.org/10.1098/rstb.2008.0166
  32. 32
  33. 33
  34. 34
    agricolae: Statistical procedures for agricultural research
    1. F de Mendiburu
    (2016)
     R Foundation for Statistical Computing.
  35. 35
  36. 36
    Fungal Biology
    1. JW Deacon
    (2006)
    Malden: Blackwell Publishing.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
    Kinship, recognition, disease, and intelligence: constraints of social evolution
    1. WD Hamilton
    (1987)
    In: Y Ito, J Brown, J Kikkawa, editors. Animal Societies: Theories and Facts. Tokyo: Japan Scientific Societies Press. pp. 81–102.
  64. 64
  65. 65
  66. 66
    brglm: Bias reduction in binomial-response generalized linear models
    1. I Kosmidis
    (2013)
    R Foundation for Statistical Computing.
  67. 67
  68. 68
    Manual of Techniques in Invertebrate Pathology
    1. LA Lacey
    2. WM Brooks
    (1997)
    Initial handling and diagnosis of diseased invertebrates, Manual of Techniques in Invertebrate Pathology, San Diego, Academic Press, 10.1016/B978-012432555-5/50004-X.
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
    When is it socially acceptable to feel sick?
    1. PC Lopes
    (2014)
    Proceedings of the Royal Society B: Biological Sciences 281:20140218.
    https://doi.org/10.1098/rspb.2014.0218
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
    Social immunity and the evolution of group living in insects
    1. J Meunier
    (2015)
    Philosophical Transactions of the Royal Society B: Biological Sciences 370:20140102.
    https://doi.org/10.1098/rstb.2014.0102
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
    coxphf: Cox regression with Firth’s penalized likelihood
    1. M Ploner
    2. G Heinze
    (2015)
    R Foundation for Statistical Computing.
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
    Behavior and evolution of disease resistance in termites
    1. RB Rosengaus
    2. JFA Traniello
    3. MS Bulmer
    (2011)
    In: D. E Bignell, Y Roisin, N Lo, editors. Biology of Termites: A Modern Synthesis. New York: Springer. pp. 165–191.
  100. 100
  101. 101
    Parasites in Social Insects
    1. P Schmid-Hempel
    (1998)
    Princeton: Princeton University Press.
  102. 102
    Evolutionary Parasitology: The Integrated Study of Infections, Immunology, Ecology, and Genetics
    1. P Schmid-Hempel
    (2011)
    New York: Oxford University Press.
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
    Party on!
    1. C Strobl
    2. T Hothorn
    3. A Zeileis
    (2009a)
    R Journal 1:14–17.
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117
  118. 118
  119. 119
  120. 120
    External immune defence in ant societies (Hymenoptera: Formicidae): the role of antimicrobial venom and metapleural gland secretion
    1. S Tragust
    (2016)
    Myrmecological news 23:119–128.
  121. 121
  122. 122
  123. 123
  124. 124
  125. 125
  126. 126
  127. 127
  128. 128
  129. 129
  130. 130
  131. 131
  132. 132
  133. 133
  134. 134
  135. 135

Decision letter

  1. Diethard Tautz
    Reviewing Editor; Max-Planck Institute for Evolutionary Biology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Destructive disinfection of infected brood prevents systemic disease spread in ant colonies" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Rebeca Rosengaus (Reviewer #1).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The main point that led to the reject decision is not so evident from the text of the reviews, but became clear in the discussion session. Although the paper presents interesting and very careful work, it does not provide a big step forward in the field, in particular not in light of your previous publications on this topic. Although the destructive disinfection was considered to be novel, its exact mechanism is not very clear. As pointed out in review #1, the CHC profile would need to be further studied to ensure where it comes from. In fact, since this is the crucial signal, it would require deeper analysis to understand how it comes about. If it emanates indeed from the pupae, it would constitute an early phase immune response that would need to be clarified in more depth. In case you can substantially improve the paper on this aspect, you are welcome to submit a new version.

Reviewer #1:

This is an interesting manuscript in which the authors studied a previously unreported behaviour of "destructive disinfection" of ant pupae by Lasius workers. The authors report on serially linked behavioural acts that involve the removal of fungally infected pupae from its cocoon, followed by the perforation of the pupa's cuticle and finally the administration of poison secretions with antimicrobial properties. These coupled tasks ultimately reduce the risk of disease transmission/infection within a colony. The authors did a nice job in systematically addressing and tackling many of the aspects involved in this novel behaviour. Their methods, sample sizes and data analyses provide convincing evidence that this behaviour is inducible and adaptive. My major concern lays on the experimental design of the CHC. It appears the authors did not run chemical signature analyses on the triton+conidia suspension only? If this is the case, then they cannot ascertain that the changes in CHC profile of infected pupae represents "sickness cues" given off by the pupae. The possibility exists that those changes are of fungal (and not ant) origin. Given this and several other minor concerns, I cannot recommend this work for publication in its present form. Below some suggestions and hopefully constructive criticisms that I think may improve the clarity of their work. A pleasure reading such thorough research.

Reviewer #2:

Overview

Social insects have served for the past two decades as models to understand the evolution of immunocompetence (in the broad sense) in animal societies. Many social insect species face significant immune challenges due to their densely populated and large colonies in which disease transmission can be facilitated. Hymenopteran species may be genetically compromised due to haplodiploidy, and polyandrous mating may enhance worker disease resistance. Social immunity involves colony-level prophylactic response (sanitation) and/or the upregulation of immune factors related to vaccination-like effects resulting from social interactions, collectively reducing infection risk.

Current submission

In the present study, Lasius neglectus ants are described as using "destructive disinfection" to limit disease transmission of a fungal pathogen by removing pupae within which the pathogen is undergoing non-contagious incubation. Workers appear to be able to detect chemical cues emitted by pupae, recognizing disease risk and treating such pupae with antimicrobial secretions from the poison gland.

Evaluation

Colonies of social insects are known to identify, and sanitize, by allogrooming and/or antimicrobial secretion distribution, and/or remove infected larvae or workers, elevating colony temperature and generating "fever" and/or signalling the presence of pathogens following their detection. The authors' work extends our understanding of how individuals may serve immune-cell like functions to achieve colony-level resistance to disease. The finding that "the same principles of disease defence apply at different levels of biological organization" does not in and of itself appear to be unusual and/or highly novel and unexpected; it is a well-used superorganism analogy. As the authors note, previous studies have shown that workers (of several social insect species) remove infected brood. I do not see the response now reported to be substantially different in terms of how it advances our understanding of infection control in animal societies, although the authors coin a new term for their phenomenon. Overall, the "multicomponent behaviour' appears to be to remove infected individuals and sanitize them, killing them in the process (intentionally or unintentionally). This category of response to infection has been previously been shown in other social insects, for example, in the general context of undertaking behaviour. A more novel and significant result would be if workers did not destructively disinfect, but rather identified pre-contagious pupae and "medically" treated them with poison gland secretion, improving their survival.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Destructive disinfection of infected brood prevents systemic disease spread in ant colonies" for further consideration at eLife. Your revised article has been favourably evaluated by Diethard Tautz (Reviewing editor) and two reviewers.

The reviewers have no further comments on the experimental side, but reviewer #2 (and after the discussion of these comments reviewer #1 agreed to them as well) suggests putting the results into a broader context. Please look through your text (i.e. Introduction/Discussion) and include these perspectives where it seems appropriate.

Reviewer #1:

The authors have addressed all my concerns and I believe that adding those extra experiments on the CHC has made this a robust and complete contribution to the field of social insect eco-immunology. I recommend this work for publication in its current form.

Reviewer #2:

In their revised manuscript, the authors have effectively responded to reviewer comments by adding new data and refining the narrative. The new studies add details absent in the initial submission that demonstrate chemicals used to disinfect brood are not of fungal origin, and workers thus detect cues associated with disease symptoms. Independent of the potential impact of the study in the broader analysis of social immunocompetence, the work is rigorous, advances our understanding of mechanisms underpinning social responses to infection control, and is to be applauded. However, the question remains as to whether adding details of the mechanisms regulating the disinfection process in ants is broadly significant or serves a more specialized audience. Here it can also be noted that the first sentence of the revised Abstract focuses the study in social insect biology, rather than the broader ecological immunology of animal social systems, and "completing the (superorganism) analogy" similarly accentuates insect sociobiology. My sense is that most practitioners in the field would agree that "the same principles of disease defence apply at different levels of biological organization" is already understood, at the level of analogy. The authors draw parallels and note variation among honey bee and ant systems of disease control. The more general message for the analysis of social and ecological immunology should be clarified. For example, aside from the mechanistic details, do the present results offer deeper insights into the concept of herd immunity, applied across diverse taxa? If so, the authors should state so clearly, as it this would be more informative than "completing the superorganism analogy."

https://doi.org/10.7554/eLife.32073.028

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

The main point that led to the reject decision is not so evident from the text of the reviews, but became clear in the discussion session. Although the paper presents interesting and very careful work, it does not provide a big step forward in the field, in particular not in light of your previous publications on this topic. Although the destructive disinfection was considered to be novel, its exact mechanism is not very clear. As pointed out in review #1, the CHC profile would need to be further studied to ensure where it comes from. In fact, since this is the crucial signal, it would require deeper analysis to understand how it comes about. If it emanates indeed from the pupae, it would constitute an early phase immune response that would need to be clarified in more depth. In case you can substantially improve the paper on this aspect, you are welcome to submit a new version.

We have performed additional experiments and chemical analyses that reveal the chemical changes observed in infected, unpacked pupae are not of fungal origin and can be similarly elicited by an experimental immune challenge with fungal cell wall material, which induces both an immune reaction and a change in the cuticular hydrocarbon profile. We have addressed this point using separate approaches that have produced complimentary results.

Firstly, we used GC–MS to analyse the chemical profiles of all of the separate life stages of the fungus: the conidiospores, blastospores and mycelia. By comparing the chemical profiles of the fungus to those of the pupae, we find that there are no peaks of fungal origin in the pupae profiles. Hence, this analysis provides strong evidence that the changes in the CHC profile of infected, unpacked pupae are indeed of pupal origin.

Secondly, we injected pupae with a fungal immune elicitor, β-1,3-glucans, which act as a major pathogen-associated molecular pattern (PAMP) for the invertebrate immune system. β-1,3-glucans are highly conserved components of fungal cell walls, including Metarhizium, known to trigger the major antimicrobial immune defences of invertebrates. Hence, they can be used to elicit an immune reaction in the absence of an actual pathogen. Using qPCR, we found that β-glucan injected pupae had increased expression of immune genes; namely, an IMD pathway regulator gene and a β-glucan binding protein gene that specifically recognises fungal cell wall components. Injection of fungal PAMPs also altered the chemical profile of the pupae, resulting in an increase in two out of the four CHCs that were also in higher abundance on Metarhizium-infected, unpacked pupae. Interestingly, these are also the same type of CHCs that are increased on sick honeybees, again suggesting that they may act as conserved “sickness cues” within the social Hymenoptera.

We have added the fungal chemical analysis to the manuscript:

1) Description of the fungal life stages in the Introduction: “Penetration is followed by a short, non-infectious incubation period of a few days, during which single cell fungal blastospores produce toxins that suppress the host’s immune system and eventually cause host death. The fungus then enters a second, non-infectious mycelial stage that grows saprophytically throughout the corpse. Once all available nutrients have been consumed by the mycelia, the fungus grows out of the corpse and releases millions of new infectious conidiospores in a process called sporulation, about 1-3 days after host death [Hughes, Eilenberg and Boomsma, 2002]”.

2) The methodology for the cultivation of the different fungal life stages: “In addition to fungal conidiospores, we also cultured blastospores and mycelia to obtain the chemical profiles (see below) of all stages of the fungi’s lifecycle [Deacon, 2006]. […] We incubated the flask (5 days, 180 rpm, 27°C) and vacuum-filtered (40µm mesh; Millipore Steriflip) the resulting fungal mass to remove the liquid broth. We then washed the mycelial mass three times in autoclaved distilled water”.

3) The chemical analysis and comparison to pupae: “Comparison of fungal and pupal chemical profiles. One millilitre aliquots of conidiospore (109/ml in 0.05% TX) and blastospore (4x106/ml in PBS) suspensions and approx. 500 mg of mycelia (in 500 µl of autoclaved distilled water) were washed three times by briefly vortexing and centrifuging the samples (5 min, 5500 g), discarding the supernatants, and replacing with 1 ml of autoclaved distilled water for the first two washes, and 500 µl for the last wash. […] This analysis revealed that none of the fungal compound RIs were overlapping with the pupal compounds, hence confirming that the identified pupal substances are not of fungal origin”.

4) And added in new results: “There were no novel compounds present on unpacked or cocooned pathogen-exposed pupae that were not also present on control pupae (Table 1; Figure 2—figure supplement 2), suggesting that these differences were not caused by odours emitted directly by the fungus, but were of pupal origin. By analysing the chemical profiles of each of the pathogen’s separate developmental stages (infectious condiospores, post-infection blastospores, and saprophytic mycelium) and performing a direct comparison of the fungal compounds to the pupal chemical profiles, we confirmed that there were no fungus-derived peaks in the pupal profiles (see Materials and methods for more information)”.

We have added the experimental injection of the fungal cell wall stimulus and its effect on the pupal chemical profile and immune gene expression:

1) The results of this experiment: “To investigate the possibility that CHC changes on unpacked pupae are the result of an immune response developed by the host, we injected pupae with β-1,3-glucans – polysaccharides that are an integral component of fungal cell walls, including Metarhizium. […]These data reveal that some of the changes in pupal chemical profile can be directly linked to a host reaction to an immune elicitor, similar to findings in honeybees [Richard, Holt and Grozinger, 2012; Richard, Aubert and Grozinger, 2008], mice [Arakawa, Cruz and Deak, 2011] and humans [Shirasu and Touhara, 2011]”.

2) The methodology for this experiment: “Immune stimulation of pupae using β-glucans. We injected β-1,3-glucans to test whether the changes in the chemical profile of infected pupae may be caused by an immune stimulation [Vilcinskas and Wedde, 1997; Unestam and Söderhäll, 1977; Gunnarsson, 1988]. […] This test also found a strong, significant difference between the two time points (Mann-Whitney U test, U = 157, p = 0.007); hence we report the result of the LMER”.

3) Two new supporting figures and legends: “Figure 2—figure supplement 3 and Figure 2—figure supplement 4.

Reviewer #1:

This is an interesting manuscript in which the authors studied a previously unreported behaviour of "destructive disinfection" of ant pupae by Lasius workers. The authors report on serially linked behavioural acts that involve the removal of fungally infected pupae from its cocoon, followed by the perforation of the pupa's cuticle and finally the administration of poison secretions with antimicrobial properties. These coupled tasks ultimately reduce the risk of disease transmission/infection within a colony. The authors did a nice job in systematically addressing and tackling many of the aspects involved in this novel behaviour. Their methods, sample sizes and data analyses provide convincing evidence that this behaviour is inducible and adaptive. My major concern lays on the experimental design of the CHC. It appears the authors did not run chemical signature analyses on the triton+conidia suspension only? If this is the case, then they cannot ascertain that the changes in CHC profile of infected pupae represents "sickness cues" given off by the pupae. The possibility exists that those changes are of fungal (and not ant) origin. Given this and several other minor concerns, I cannot recommend this work for publication in its present form. Below some suggestions and hopefully constructive criticisms that I think may improve the clarity of their work. A pleasure reading such thorough research.

As detailed above, we can now show that the chemical changes are not of fungal origin, having analysed the chemical profiles of all the fungi’s developmental stages and comparing them to those of infected, unpacked pupae. Instead, we can show that these changes are ant-derived and occur in response to an immune stimulation caused by fungal material inside their body.

Reviewer #2:

Overview

Social insects have served for the past two decades as models to understand the evolution of immunocompetence (in the broad sense) in animal societies. Many social insect species face significant immune challenges due to their densely populated and large colonies in which disease transmission can be facilitated. Hymenopteran species may be genetically compromised due to haplodiploidy, and polyandrous mating may enhance worker disease resistance. Social immunity involves colony-level prophylactic response (sanitation) and/or the upregulation of immune factors related to vaccination-like effects resulting from social interactions, collectively reducing infection risk.

Current submission

In the present study, Lasius neglectus ants are described as using "destructive disinfection" to limit disease transmission of a fungal pathogen by removing pupae within which the pathogen is undergoing non-contagious incubation. Workers appear to be able to detect chemical cues emitted by pupae, recognizing disease risk and treating such pupae with antimicrobial secretions from the poison gland.

Evaluation

Colonies of social insects are known to identify, and sanitize, by allogrooming and/or antimicrobial secretion distribution, and/or remove infected larvae or workers, elevating colony temperature and generating "fever" and/or signalling the presence of pathogens following their detection. The authors' work extends our understanding of how individuals may serve immune-cell like functions to achieve colony-level resistance to disease. The finding that "the same principles of disease defence apply at different levels of biological organization" does not in and of itself appear to be unusual and/or highly novel and unexpected; it is a well-used superorganism analogy. As the authors note, previous studies have shown that workers (of several social insect species) remove infected brood. I do not see the response now reported to be substantially different in terms of how it advances our understanding of infection control in animal societies, although the authors coin a new term for their phenomenon. Overall, the "multicomponent behavior' appears to be to remove infected individuals and sanitize them, killing them in the process (intentionally or unintentionally). This category of response to infection has been previously been shown in other social insects, for example, in the general context of undertaking behavior. A more novel and significant result would be if workers did not destructively disinfect, but rather identified pre-contagious pupae and "medically" treated them with poison gland secretion, improving their survival.

We agree that the concept of the supercolony analogy of social immunity has been established in a previous review (Cremer and Sixt, 2009). Yet we feel that the current work provides an experimental proof of concept that substantially extends the previously reported removal of infected brood (“hygienic behaviour”), as it includes a novel destruction phase, which is required to kill the pathogen. Hence, only this last step completes the analogy and also reveals very similar mechanisms to the find me/eat me signal emitted by infected cells, and the cell membrane piercing by perforins from the immune cells, followed by the injection of cytotoxins. As discussed, conventional hygienic behaviour, i.e. only the removal of infected brood in the absence of destructive disinfection, seems sufficient in honeybees, as they drop the infected brood to the ground, where they will not be re-encountered and hence the risk of re-infection is minimal. Ants, on the contrary, will re-encounter the dead they remove in the ‘two-dimensional’ territory surrounding their nest, hence potentially applying a stronger selection pressure for them to evolve effective mechanisms to prevent pathogen replication and re-infection of the colony. However, existing studies (Ugelvig et al. 2010, Tragust et al. 2013) failed to observe ant handling of the infected brood after its removal. In both honeybees and ants, these behaviours occur before host death, and are performed in addition to regular undertaking behaviours, such as removing and sometimes burrowing the dead (though, to our knowledge, disinfection has never been reported as a component of undertaking behaviour so far; see Sun and Zhou, 2013 for a recent review). As detailed in the third paragraph of the Introduction, we previously described that ants use their poison as a sanitary treatment, which acts as a first line of defence to prevent contaminated pupae from contracting infections (Tragust et al. 2013). Here, we describe a second, distinct line of defence, which requires the use of poison in a more complex, combination of behaviours, when this first line of defence fails. We therefore feel that our work is a significant advancement for the field, given that few animals are known to actively prevent successful infections from developing and transmitting to new hosts; generally infected individuals are simply avoided.

[Editors' note: the author responses to the re-review follow.]

The reviewers have no further comments on the experimental side, but reviewer #2 (and after the discussion of these comments reviewer #1 agreed to them as well) suggests putting the results into a broader context. Please look through your text (i.e. Introduction/Discussion) and include these perspectives where it seems appropriate.

We agree that the previous Introduction and Discussion of our work was very social insect focused. We have now added text to the Introduction and Discussion to make it broader and to place it into the established conceptual framework of ecological immunology. We have also amended our discussion to make the relations between our findings and those in other social systems more explicit.

Reviewer #1:

The authors have addressed all my concerns and I believe that adding those extra experiments on the CHC has made this a robust and complete contribution to the field of social insect eco-immunology. I recommend this work for publication in its current form.

We thank the reviewer very much for their positive appraisal of our work and additional findings.

Reviewer #2:

In their revised manuscript, the authors have effectively responded to reviewer comments by adding new data and refining the narrative. The new studies add details absent in the initial submission that demonstrate chemicals used to disinfect brood are not of fungal origin, and workers thus detect cues associated with disease symptoms. Independent of the potential impact of the study in the broader analysis of social immunocompetence, the work is rigorous, advances our understanding of mechanisms underpinning social responses to infection control, and is to be applauded. However, the question remains as to whether adding details of the mechanisms regulating the disinfection process in ants is broadly significant or serves a more specialized audience. Here it can also be noted that the first sentence of the revised Abstract focuses the study in social insect biology, rather than the broader ecological immunology of animal social systems, and "completing the (superorganism) analogy" similarly accentuates insect sociobiology. My sense is that most practitioners in the field would agree that "the same principles of disease defence apply at different levels of biological organization" is already understood, at the level of analogy. The authors draw parallels and note variation among honey bee and ant systems of disease control. The more general message for the analysis of social and ecological immunology should be clarified. For example, aside from the mechanistic details, do the present results offer deeper insights into the concept of herd immunity, applied across diverse taxa? If so, the authors should state so clearly, as it this would be more informative than "completing the superorganism analogy."

We thank the reviewer for directing us to the importance of the broader ecological immunology framework, and agree that the previous version was indeed too focused on social insects, likely hiding the relevance of our findings for the wider field as a whole. In the new Abstract, Introduction and Discussion, we compare and contrast our findings in ants to other group-living animals, but make explicit why some social insects are different from other social groups, given that they have made the transition to superorganismality. We consider this an important addition, as it highlights that (i) defences such as destructive disinfection are likely to only evolve in superorganisms, due to workers typically gaining all their fitness indirectly, and (ii) that this should promote the evolution of explicit sickness signalling by infected group members, as we find in our study. In this new version we hence discuss our work much more conceptually, which we hope proves interesting for both specialists and non-specialists alike.

https://doi.org/10.7554/eLife.32073.029

Article and author information

Author details

  1. Christopher D Pull

    IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    Present address
    School of Biological Sciences, Royal Holloway University of London, Egham, United Kingdom
    Contribution
    Conceptualization, Data curation, Investigation, Visualization, Methodology, Writing—original draft, Statistical analyses
    For correspondence
    chris.pull@rhul.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-1122-3982
  2. Line V Ugelvig

    IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    Present address
    Centre for Social Evolution, Department of Biology, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Funding acquisition, Methodology, Writing—review and editing, Chemical analyses
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-1832-8883
  3. Florian Wiesenhofer

    IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    Present address
    Department of Pediatrics and Adolescent Medicine, Medical University of Vienna, Vienna, Austria
    Contribution
    Methodology, Writing—review and editing, Chemical analyses
    Competing interests
    No competing interests declared
  4. Anna V Grasse

    IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    Contribution
    Methodology, Writing—review and editing, Gene expression analysis
    Competing interests
    No competing interests declared
  5. Simon Tragust

    1. IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    2. Evolution, Genetics and Behaviour, University of Regensburg, Regensburg, Germany
    Present address
    General Zoology/Institute of Biology, University of Halle, Halle/Saale, Germany
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Thomas Schmitt

    Department of Animal Ecology and Tropical Biology, University of Würzburg, Würzburg, Germany
    Contribution
    Writing—review and editing, Chemical analyses
    Competing interests
    No competing interests declared
  7. Mark JF Brown

    School of Biological Sciences, Royal Holloway University of London, Egham, United Kingdom
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Sylvia Cremer

    IST Austria (Institute of Science and Technology Austria), Klosterneuburg, Austria
    Contribution
    Conceptualization, Supervision, Funding acquisition, Visualization, Writing—original draft, Project administration
    For correspondence
    sylvia.cremer@ist.ac.at
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-2193-3868

Funding

European Research Council Seventh Framework Programme (ERC Starting Grant 243071)

  • Sylvia Cremer

European Research Council Seventh Framework Programme (MC-IEF 302004)

  • Line V Ugelvig

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank L Lovicar for producing SEMs, B Leyrer and E Flechl for help with the chemical analysis and RNA extraction, respectively, B Milutinović and M Bračić for assistance with the chemical bioassay, and the Social Immunity group at IST Austria for ant collection and comments on earlier drafts of the manuscript. We are grateful to M Sixt, D Siekhaus and J J Boomsma for discussion of the project throughout. Finally, we thank R Rosengaus and an anonymous referee for their very helpful comments on an earlier version on the manuscript.

Ethics

Animal experimentation: The animal use protocol was performed in accordance with the IST Austria Ethics Committee. At present, the committee does not provide a specific approval numbers for invertebrate animal research. Animals used in this study, Lasius neglectus, do not belong to regulated or protected species.

Reviewing Editor

  1. Diethard Tautz, Max-Planck Institute for Evolutionary Biology, Germany

Publication history

  1. Received: September 16, 2017
  2. Accepted: November 17, 2017
  3. Version of Record published: January 9, 2018 (version 1)

Copyright

© 2018, Pull et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,355
    Page views
  • 280
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Evolutionary Biology
    Nagayasu Nakanishi, Mark Q Martindale
    Research Article Updated
    1. Evolutionary Biology
    2. Plant Biology
    Suvi Honkanen et al.
    Research Article Updated
