Cis-regulatory evolution integrated the Bric-à-brac transcription factors into a novel fruit fly gene regulatory network

  1. Maxwell J Roeske
  2. Eric M Camino
  3. Sumant Grover
  4. Mark Rebeiz
  5. Thomas Michael Williams  Is a corresponding author
  1. University of Dayton, United States
  2. University of Pittsburgh, United States
Research Article
  • Cited 0
  • Views 1,019
  • Annotations
Cite as: eLife 2018;7:e32273 doi: 10.7554/eLife.32273

Abstract

Gene expression evolution through gene regulatory network (GRN) changes has gained appreciation as a driver of morphological evolution. However, understanding how GRNs evolve is hampered by finding relevant cis-regulatory element (CRE) mutations, and interpreting the protein-DNA interactions they alter. We investigated evolutionary changes in the duplicated Bric-à-brac (Bab) transcription factors and a key Bab target gene in a GRN underlying the novel dimorphic pigmentation of D. melanogaster and its relatives. It has remained uncertain how Bab was integrated within the pigmentation GRN. Here, we show that the ancestral transcription factor activity of Bab gained a role in sculpting sex-specific pigmentation through the evolution of binding sites in a CRE of the pigment-promoting yellow gene. This work demonstrates how a new trait can evolve by incorporating existing transcription factors into a GRN through CRE evolution, an evolutionary path likely to predominate newly evolved functions of transcription factors.

https://doi.org/10.7554/eLife.32273.001

Introduction

Transcription factors play central roles in the development and evolution of animal traits by binding to cis-regulatory elements to spatially and temporally regulate patterns of gene expression (Davidson, 2006; Levine, 2010). Collectively, the complex web of connections between transcription factors and CREs form vast gene regulatory networks (GRN) that govern a tissue’s development. As transcription factor genes are generally much older than the traits they impact, a central question of evolutionary developmental biology is the relative role that gene duplication, protein coding and CRE sequence evolution play in the evolution of GRNs for novel traits (Carroll, 2008; Stern and Orgogozo, 2008). Answers to this question require studies of recently evolved traits for which the derived and ancestral states of genes and gene components can be inferred through manipulative studies of GRN function (Rebeiz and Williams, 2011).

One such experimentally tractable trait is the rapidly evolving pigmentation patterns that adorn the abdominal cuticle of Drosophila melanogaster and its close relatives (Rebeiz and Williams, 2017). The melanic pigmentation of the dorsal cuticle tergites covering the A5 and A6 abdominal segments of males has been inferred to be a novelty that evolved in the D. melanogaster lineage after it diverged from an ancestral monomorphically pigmented lineage within the Sophophora subgenus (Jeong et al., 2006). Within the GRN controlling this trait, the Hox gene Abd-B plays an important role in activating the expression of terminal enzyme genes that are required for pigment formation (Figure 1). One enzyme, encoded by the yellow gene is activated through a CRE known as the ‘body element’ (Camino et al., 2015; Wittkopp et al., 2002) that possesses at least two binding sites for the Hox factor Abd-B (Jeong et al., 2006). In D. melanogaster females, yellow expression is repressed in the A5 and A6 segments through its regulation by the tandem duplicate bab1 and bab2 genes (Figure 2A) (Jeong et al., 2006), collectively referred to as Bab. Both paralogs encode proteins that possess a conserved BTB domain that functions in homodimerization and heterodimerization, and a conserved domain with pipsqueak (psq) and AT-hook domains that together confer a similar in vitro DNA-binding capability (Lours et al., 2003). In contrast to the 78% amino acid identity observed for both BTB and conserved domain of the paralogs, amino acid identity drops to ~26% throughout the remainder of these proteins (Couderc et al., 2002) (Figure 2—source data 1). Elsewhere, it was reported that a high amino acid identity exists between the conserved domains of the D. melanogaster paralogs and the Bab orthologs for the mosquito A. gambiae and honeybee A. mellifera, and most of the amino acid differences being conservative (Lours et al., 2003). Although the Bab proteins are suspected to function as transcription factors, no direct targets of regulation are known (Jeong et al., 2006).

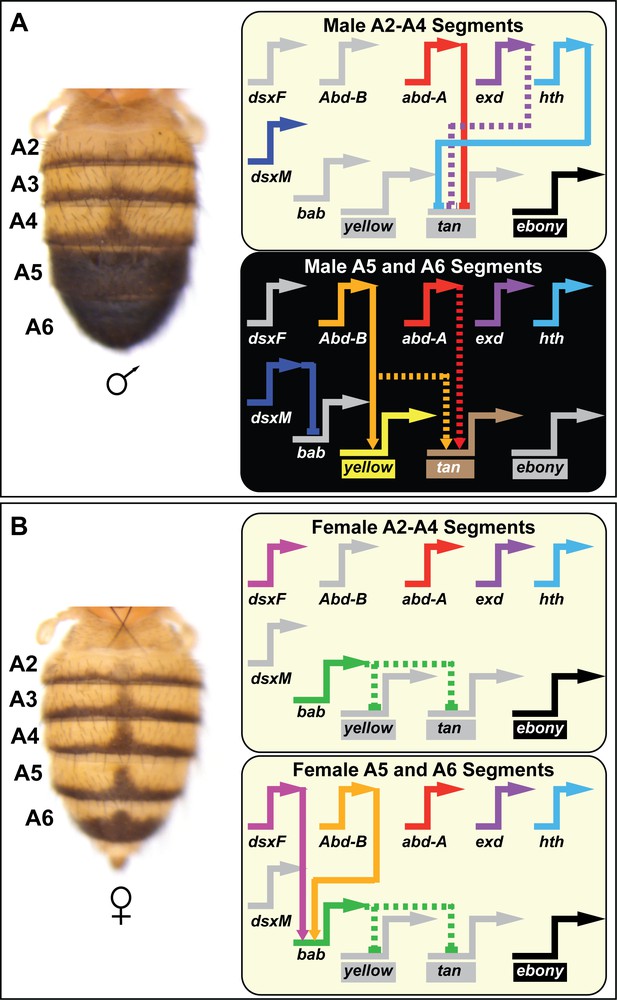

Contemporary model for the D. melanogaster tergite pigmentation Gene Regulatory Network.

Melanic tergite pigmentation requires the specific expression of the pigmentation genes yellow and tan, while blocking the expression of the yellow-pigment promoting ebony gene. (A) Tergite pigmentation pattern for a D. melanogaster male and the regulatory interactions experienced in the non-melanic male A2-A4 segments (top) and the melanic A5 and A6 segments (bottom). Abd-B is not expressed in the anterior A2-A4 segments and resultantly yellow and tan lack the direct and indirect activating input. In these anterior segments, Abd-A acts as a direct repressor of tan in combination with (direct or indirect) repressive effects of exd and hth. Abd-B is expressed in the posterior A5 and A6 segments, where it functions as a direct activator of yellow and an indirect activator of tan. In these segments, Abd-A acts as an indirect activator of tan. (B) Tergite pigmentation pattern of a D. melanogaster female and the key regulatory inputs experienced in the A2-A4 segments (top) and the A5 and A6 segments (bottom). In the female abdomen, Bab acts as a dominant repressor of yellow and tan expression, overriding the presence of Abd-B and Abd-A. In the GRN schematics, inactive genes are indicated in gray coloring, solid lines connecting genes indicate established direct interactions between a transcription factor and a target gene’s CRE, and dashed connections indicate indirect regulatory interactions or interactions not yet shown to be direct. Lines terminating with an arrowhead indicate regulation in which the transcription factor functions as an activator, and lines terminating in a nail-head shape indicate repression.

https://doi.org/10.7554/eLife.32273.002
Figure 2 with 1 supplement see all
The tandemly duplicated bab genes perform a derived role in repressing a CRE controlling male-specific expression of the gene yellow.

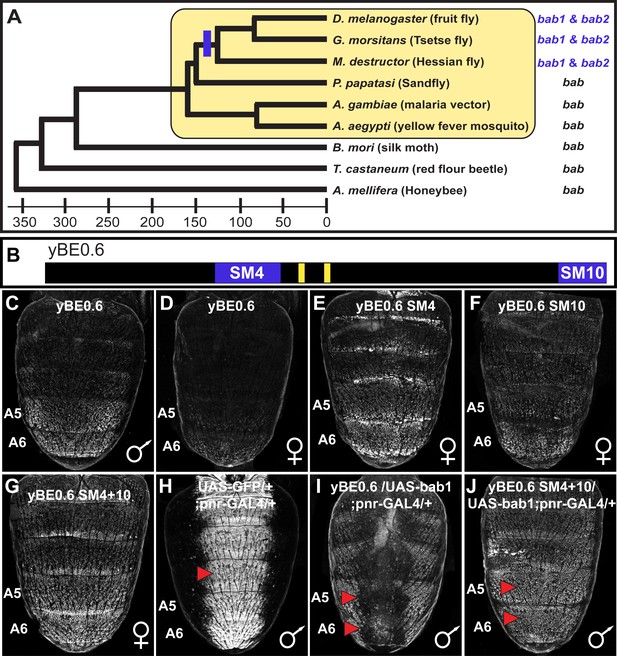

(A) An ancestral bab gene was duplicated into the paralogous bab1 and bab2 genes in a Dipteran lineage that includes Drosophila fruit flies. The time scale indicates approximate divergence times in millions of years ago. (B) Male-specific expression of yellow in the abdominal epidermis is under the control of the yBE0.6 CRE that possesses two binding sites for Abd-B that are shown as yellow rectangles. Blue bars delimit the SM4 and SM10 regions required to suppress CRE activity in females. (C and D) The yBE0.6 EGFP reporter transgene is elevated in the male A5 and A6 abdomen segments (C) but is only barely detected females (D). (E–G) Ectopic reporter expression occurs in the female abdomen when either the SM4, SM10, or both regions are mutated. (H) The pnr-GAL4 driver activates dorsal midline expression of the UAS-EGFP gene, demarcating its domain of misexpression. (I) Dorsal midline expression of the yBE0.6 CRE is lost when bab1 is ectopically expressed by pnr-GAL4. (J) When the SM4 and SM10 regions are mutated, the yBE0.6 CRE can activate reporter expression in midline regions in spite of ectopically expressed bab1.

https://doi.org/10.7554/eLife.32273.003

In the lineage of D. melanogaster, Bab expression is suspected to have evolved from a monomorphic pan-abdominal pattern to a sexually dimorphic expression pattern in which both paralogs are female-limited, and absent from males during the latter half of pupal development when enzymes of the pigmentation GRN are deployed (Kopp et al., 2000; Salomone et al., 2013). This dimorphic pattern of Bab expression required changes to two CREs controlling Bab’s abdominal epidermis expression (Williams et al., 2008). Although this dimorphic pattern of regulation allows yellow to be expressed in the epidermis underlying the pigmented male A5 and A6 segment tergites, several questions remain unanswered pertaining to how and when Bab was incorporated into the sexually dimorphic pigmentation GRN. Specifically, is yellow a direct target of Bab repression, and was it a target of regulation prior to the evolution of the dimorphic trait (Gompel and Carroll, 2003)? Moreover, to what extent did gene duplication, protein coding sequence, and CRE evolution contribute to this derived trait?

In this study, we sought to characterize the derived functions of Bab1 and Bab2 in the D. melanogaster pigmentation GRN and determine the extent to which this derived pigmentation function additionally required evolutionary changes to Bab protein coding sequences and the 5’ cis-regulatory region of yellow that contains its abdominal CRE. We found that Bab1 and Bab2 bind directly to the yellow body CRE to a region required for male-limited enhancer activity. Moreover, the capability of Bab paralogs to function in this repressive manner appears to result not from protein-coding changes, but instead through the evolution of these binding sites which arose contemporaneously with the derived pattern of dimorphic Bab expression. Thus, the origin of the male-specific pigmentation of D. melanogaster is an example where evolutionarily conserved transcription factors gained a new function through their integration into a GRN by CRE evolution.

Results

Bab1 suppresses yellow expression through cis-regulatory element encodings

We sought to characterize how Bab1 exerts its influence on a minimal 0.6 kb body element CRE (yBE0.6) (Camino et al., 2015) (Figure 2B) that drives male-limited GFP reporter transgene expression in the dorsal epidermis of the A5 and A6 abdominal segments (Figure 2C and D). This reporter transgene activity matches the spatial, sex-limited, and temporal pattern of abdominal expression of yellow (Camino et al., 2015). We designed a set of 10 mutant yBE0.6 CREs (Figure 2—source data 2) to localize regions responsible for this element’s sex-limited activity. In each mutant yBE0.6, we introduced a block of ~70–85 base pairs in which every other base pair possessed non-complementary transversion mutations and compared its activity to the wild type CRE in transgenic D. melanogaster (Camino et al., 2015). While 8 of 10 ‘scanning mutant’ CREs showed wild type reporter repression in the female abdomen (Figure 2—figure supplement 1), we observed increased expression in the A5 and A6 segments of the SM4 and SM10 mutants (Figure 2E and F). Moreover, the increased expression was more pronounced when the SM4 and SM10 mutations were combined in the same reporter (Figure 2G). These results identified two CRE sub-regions that are required to suppress yellow expression in the posterior female abdomen, likely through the recruitment of a transcriptional repressor protein.

We speculated that the sequences altered by the SM4 and SM10 mutations normally function to respond either directly or indirectly to the repressive Bab proteins. When Bab1 was ectopically expressed in the dorsal midline of the male abdomen by the GAL4/UAS system (Brand and Perrimon, 1993; Calleja et al., 2000), yBE0.6 reporter expression was largely suppressed (Figure 2H and I). However, a yBE0.6 CRE containing the SM4 and SM10 mutations, was unresponsive to ectopic Bab1 expression (Figure 2J). These data reveal that the SM4 and SM10 CRE regions encode inputs that respond to regulation by Bab proteins.

Bab1 directly interacts with multiple yellow CRE binding sites

Bab proteins may suppress the yBE0.6 CRE activity through two major routes: indirect or direct regulations. Bab may indirectly regulate the yBE0.6 CRE by controlling the expression of a transcription factor that interacts with binding sites in the SM4 and SM10 regions. On the other hand, Bab may directly interact with binding sites in the yBE0.6 CRE, acting as a transcriptional repressor. To distinguish between these mechanisms, we performed gel shift assays to see whether Bab specifically interacts with sequences within the SM4 and SM10 regions in vitro. Previously, it was shown that the DNA-binding domain (DBD) of Bab1 and Bab2 bound to similar DNA sequences (Lours et al., 2003); therefore, we chose to perform our experiments with the Bab1 DBD.

The SM4 region is 70 base pairs (bp) in length (Figure 3A), which we divided into three overlapping sub element regions that were tested for binding by serial two-fold dilutions of a GST fusion protein possessing the Bab1 DNA-binding domain (Bab1 DBD, Figure 3B). Of the three regions, only the third probe was substantially bound by the Bab1 DBD (Figure 3C–E). This binding was DNA-sequence specific, as a scanning mutant probe version failed to similarly shift (Figure 3F). Thus, it seems likely that this 25 base pair segment possesses a site or sites capable of Bab1 DNA-binding.

The yBE0.6 possesses a binding site for Bab in the SM4 region.

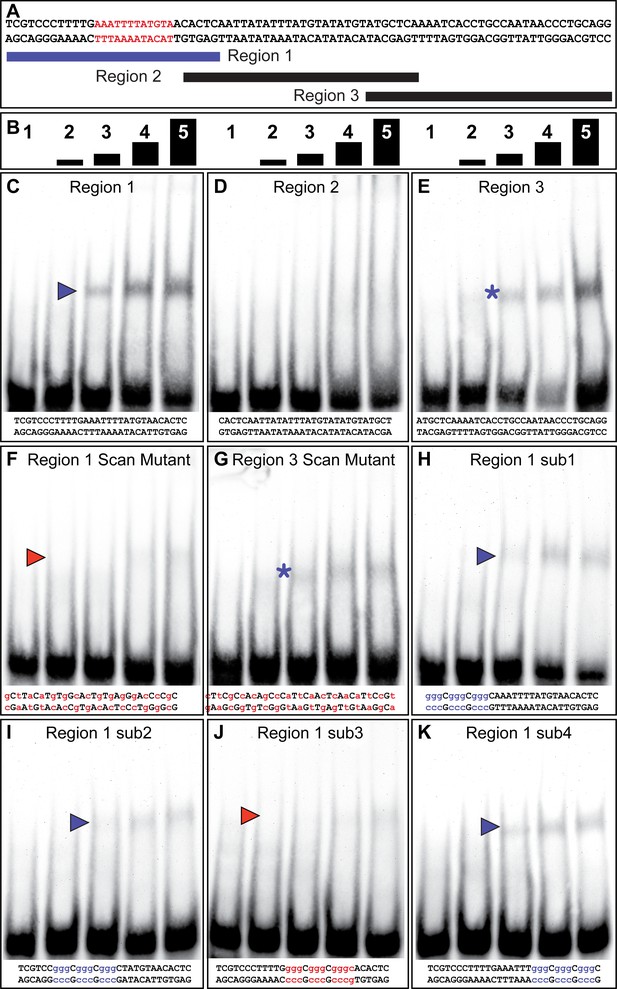

(A) The wild type DNA sequence of the SM4 region is shown, which was subdivided into three smaller regions annotated below that were used as double stranded probes in gel shift assays with the GST-Bab1 DNA-binding Domain (Bab1-DBD). Red text delimits the inferred Bab-binding site. (B) Each probe was tested in gel shift assay reactions for binding with five different amounts of Bab1-DBD. These were from left to right: 0, 500, 1000, 2000, and 4000 ng. (C–E) Gel shift assays using wild type probe sequences. (F–K) Gel shift assays using mutant probe sequences. Lower case blue letters indicate probe mutations that did not noticeably alter protein binding. Probe base pairs in lower case red letters are changes that altered protein binding. Blue and red arrowheads indicate the location of shifted probe, with red arrowheads indicating cases where the quantity of shifted probe was noticeably reduced.

https://doi.org/10.7554/eLife.32273.007

A previous study showed that the Bab1 DBD preferably bound A/T-rich sequences, specifically those with TAA or TA repeats (Lours et al., 2003). Within region three are several TA motifs, several of which are part of TAA motifs (Figure 3A). We created a TA > GA mutant probe that removed each TA motif. This probe was not noticeably bound by the Bab1 DBD indicating that some or all these motifs are necessary features of a Bab1 binding site or sites (Figure 3G). To further localize the sequences necessary for the Bab1 binding, we created four mutant probes within the region (sub1-sub4). We found that three of these mutant probes were still bound and shifted by the Bab1 DBD (Figure 3H–K). However, the sub2 probe that spanned nine base-pairs and disrupted two of the TA motifs was not noticeably shifted (Figure 3I). Collectively, this set of gel shift assays supports a direct Bab1 binding mechanism to suppress this CRE sequence (Figure 3A, red sequence).

We performed a similar set of gel shift assays to localize Bab1 binding within the 85 bp SM10 region (Figure 4). We tested three overlapping sub element regions for an interaction with the Bab1 DBD (Figure 4C–E), and observed mobility shifts for the first and third regions (Figure 4C and E). A scanning mutant version of the third region was bound, albeit to a lesser extent, by Bab1 (Figure 4G), indicating that this in vitro binding was not sequence-specific or that the mutant probe created a weak Bab-binding site. Therefore, we focused our attention on the first region for which a scan mutant probe was not noticeably bound by the Bab1 DBD (Figure 4F). We next analyzed four small mutant versions (sub1-sub4) of the first region (Figure 4H–K). While each mutant probe appeared to be bound to a lesser extent than the wild type probe, the sub3 mutant probe showed little-to-no binding (Figure 4J). These results suggest the presence of at least one additional Bab-binding site in the SM10 region. Collectively, our results support a direct model of regulation in which Bab1 functions as a DNA-binding transcription factor that interacts with at least two sites within the yBE0.6 CRE and thereby represses the expression of this CRE in the female abdomen where Bab1 is highly expressed.

The yBE0.6 possesses a binding site for Bab in the SM10 region.

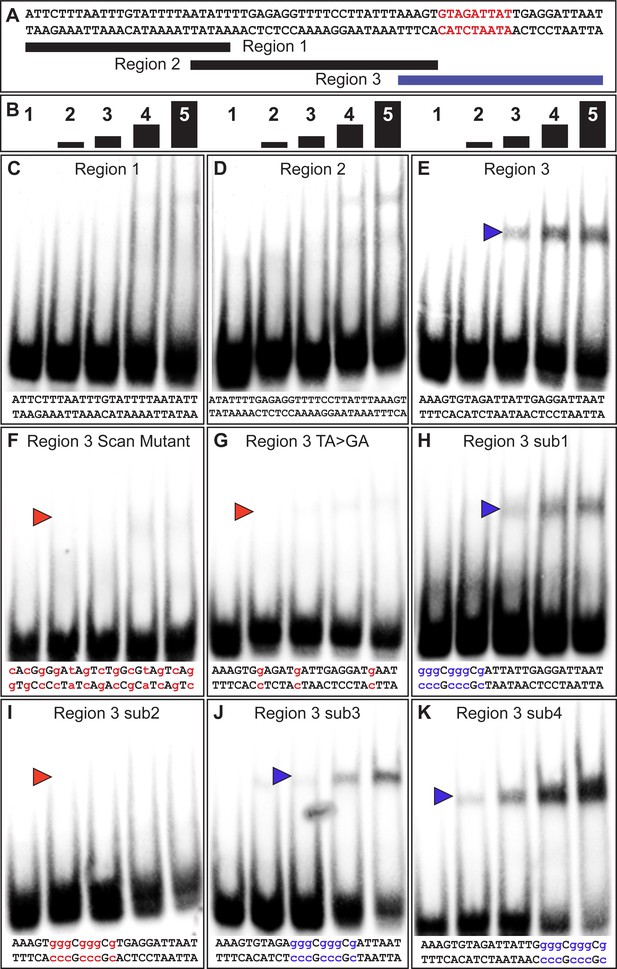

(A) The wild type DNA sequence of the SM10 region is shown, which was subdivided into three smaller regions annotated below that were used as double stranded probes in gel shift assays with the GST-Bab1 DNA-binding Domain (Bab1-DBD). Red text delimits the inferred Bab binding site. (B) Each probe was tested in gel shift assay reactions for binding with five different amounts of Bab1-DBD. These were from left to right: 0, 500, 1000, 2000, and 4000 ng. (C–E). Gel shift assays using wild type probe sequences. (F–K) Gel shift assays using mutant probe sequences. Lower case purple letters indicate probe mutations that did not noticeably alter protein binding. Probe base pairs in lower case red letters are changes that altered protein binding. Purple and red arrowheads indicate the location of shifted probe, with red arrowheads indicating cases where the quantity of shifted probe was noticeably reduced. Asterisks indicate a situation where binding was non-specific as both the wild type and mutant probes were bound by the Bab1-DBD.

https://doi.org/10.7554/eLife.32273.008

The biochemical activity of Bab predates its duplication event

While the bab genes have been shown to be sufficient to suppress D. melanogaster tergite pigmentation when ectopically expressed (Couderc et al., 2002; Kopp et al., 2000), the individual necessities of bab1 and bab2 paralogous genes have not been fully resolved. We created two short hairpin/miRNA (shmiR) transgenic lines that can conditionally and specifically target sequences unique to bab1 (Table 1) and separately two lines targeting bab2 (Table 2) for RNA-interference (RNAi). These shmiR transgenes are under the cis-regulatory control of Upstream Activating Sequences (UAS), and thus expression can be induced by the GAL4 transcription factor (Haley et al., 2008). Using a GAL4 insertion into the pannier (pnr) gene, we drove hairpins specific to a negative control gene (targeting the mCherry reporter gene) and to either or both bab1 and bab2 along the dorsal midline of the body. Relative to the control (Figure 5A), the bab1 shmiR transgene containing the siRNA id #3 sequence (Table 1) led to a conspicuous increase in the dorsal medial pigmentation of the female A5 and A6 tergites (Figure 5B), whereas the transgene including the siRNA id #4 sequence (Table 1) resulted in a phenotype not noticeably different from that of the negative control (Figure 5C). For bab2, the individual ectopic expression of the shmiR transgenes containing either the siRNA id #12 or #16 sequences (Table 2) resulted in ectopic dorsal medial tergite pigmentation in females (Figure 5D and E). Hence, these results demonstrate that suppression of tergite pigmentation in D. melanogaster females requires individual contributions from both bab1 and bab2.

RNA-interference reveals a necessity for both bab1 and bab2 in suppressing female tergite pigmentation.

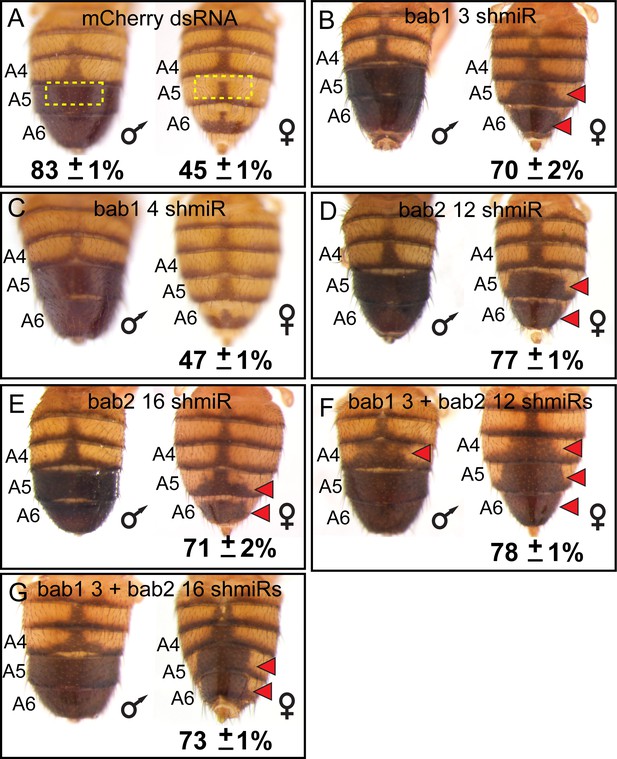

(A–G) Double-stranded (ds) RNA transgenes with UAS binding sites were expressed in the dorsal midline abdomen region driven by GAL4 that was expressed in the midline pattern of the pnr gene. (A) Expression of a negative control dsRNA that targets a gene (mCherry) that does not naturally exist in the D. melanogaster genome resulted in no apparent pigmentation phenotype from RNA-interference (RNAi). (B and C) Two different dsRNAs specific to bab1 and to (D and E) bab2 were tested for pigmentation phenotypes from RNAi. (F and G) Simultaneous RNAi for bab1 and bab2 was accomplished by expressing ‘chained’ transgenes. Red arrowheads indicate tergite regions where RNAi caused the development of ectopic pigmentation. The anterior midline tergite regions (illustrated in panel A by dashed yellow rectangles) were quantified for their darkness percentage for replicate specimens (n = 4). These percentages and their standard error of the mean (±SEM) are provided below a representative image.

https://doi.org/10.7554/eLife.32273.009
Table 1
Design of small interfering RNA output for the bab1 ORF.
https://doi.org/10.7554/eLife.32273.011
siRNA idPositionSS sequence (Passenger)AS sequence (Guide)Corrected score
1560GGAUAGCUGAGAUGUUGAAAGUUCAACAUCUCAGCUAUCCUG99.7
21442CCGAUGACUUGGAGAUCAAGCUUGAUCUCCAAGUCAUCGGCG85.7
3278GGAACAACUAUCAGACGAACCUUCGUCUGAUAGUUGUUCCAG97.6
4162GAGUCAAGGUCAUGCUGUAGCUACAGCAUGACCUUGACUCUC95.2
51483CGAGAGGAAGAAAGGGUAAGUUUACCCUUUCUUCCUCUCGGA81.8
6150CGAGGACAAGGAGAGUCAAGGUUGACUCUCCUUGUCCUCGUC94.6
71473CGAGAUGAUCCGAGAGGAAGAUUCCUCUCGGAUCAUCUCGGC78.9
8219GGGCAGGAGUUCUUCGGUAGCUACCGAAGAACUCCUGCCCUG89.5
9359GCGAUGGUCGGUCCAUGAAGGUUCAUGGACCGACCAUCGCAU88.2
10664CCCAAGGAGAGCACUUCAACUUUGAAGUGCUCUCCUUGGGCG84.7
11368GGUCCAUGAAGGCCCACAAGAUUGUGGGCCUUCAUGGACCGA87.5
Table 2
Design of small interfering RNA output for the bab2 ORF.
https://doi.org/10.7554/eLife.32273.012
siRNA
_id
PositionSS sequence (Passenger)AS sequence (Guide)Corrected score
616GAUUGUGGACUUUGAAAUAAAUAUUUCAAAGUCCACAAUCUG98.1
12279CGGAGCUGGUGAAGUCCAAGGUUGGACUUCACCAGCUCCGUU94.5
2051GCGAAAUCGAUCAGUUCGAGGUCGAACUGAUCGAUUUCGCCG94.4
18155AGAAAGUACUCACCCGAAAGGUUUCGGGUGAGUACUUUCUGU93.6
19202AAGUGAGGUGGUUGAUCAAAUUUGAUCAACCACCUCACUUGG92.5
23241CGUUGGAGAAGUCAAGUCACCUGACUUGACUUCUCCAACGCU92.3
421GGACAUGACCAAACAGAUUGUAAUCUGUUUGGUCAUGUCCAU91.7
4314CAGAUUGUGGACUUUGAAAUAUUUCAAAGUCCACAAUCUGUU91.6
4563AGUUCGAGGCGAGUGACUACAUAGUCACUCGCCUCGAACUGA91.4
40154CAGAAAGUACUCACCCGAAAGUUCGGGUGAGUACUUUCUGUU90.7
4913ACAGAUUGUGGACUUUGAAAUUUCAAAGUCCACAAUCUGUUU90.7
28306CGAUGAACGACCAAGCUUUGAAAAGCUUGGUCGUUCAUCGGA90.6
46140CUAGAGGACCAGAACAGAAAGUUCUGUUCUGGUCCUCUAGAU90.4
13625GACCAAUGUCUUUGACGAACUUUCGUCAAAGACAUUGGUCAG90.3
5512AACAGAUUGUGGACUUUGAAAUCAAAGUCCACAAUCUGUUUG90.3
38297AGGCGAGUCCGAUGAACGACCUCGUUCAUCGGACUCGCCUUG89.8
27443CAGCCUCAACCAAAUCUUAAGUAAGAUUUGGUUGAGGCUGUG89.6
10822UGGUGGAGUUCAUGUACAAGGUUGUACAUGAACUCCACCAGG88.9
41099GGACUUGAAUCAGCGACAAAGUUGUCGCUGAUUCAAGUCCAA88.8

The RNAi knockdown of bab1 and bab2 each increased pigmentation, suggesting that we would obtain a more expressive phenotype if both paralogs’ expression were suppressed. To test this prediction, we created ‘chained’ shmiRs (Haley et al., 2010) to co-express the effective bab1 shmiR (Id #3) separately with each bab2 shmiR (Id #12 and #16). We found that these chained shmiR transgenes, when ectopically expressed in the dorsal midline resulted in more expansive ectopic pigmentation phenotypes (Figure 5F and G). Notably, for one chained combination, ectopic pigmentation included the A4 tergites of males and females (Figure 5F, red arrowheads). These results show that bab1 and bab2 paralog expression are necessary to fully suppress tergite pigmentation, including the A4 segment of males and females.

Not surprisingly, the RNAi phenotypes were most extreme in the female abdomen as the pupal male abdomen lacks significant bab1 and bab2 expression (Salomone et al., 2013). Previous studies have shown that both bab1 and bab2 are sufficient to suppress male tergite pigmentation when ectopically expressed (Couderc et al., 2002; Kopp et al., 2000). However, direct comparisons of the individual paralogs were hampered by the positional effects associated with random insertion of bab paralog open-reading frame (ORF) transgenes into different genomic sites (Couderc et al., 2002; Kopp et al., 2000). Here, we created transgenes with the D. melanogaster bab1 and bab2 ORFs under UAS regulation that were integrated site-specifically into the attP40 site on the second chromosome. In the absence of a GAL4 driver, leaky expression of these transgenes resulted in reduced pigmentation of the male A5 and A6 tergites (Figure 6A and B). When we drove ectopic expression of these ORFs in the dorsal midline by the pnr-GAL4 chromosome, we failed to recover viable adult males which possessed the UAS-bab1 ORF transgene, indicating that the ectopic-expression phenotype was lethal. While we obtained fewer than expected offspring with ectopic expression of the bab2 ORF than expected for independent assortment (Figure 6—figure supplement 1), some adults were identified. For these specimens, tergite pigmentation was eliminated in the dorsal midline of males, and a non-specific split tergite phenotype was seen for both males and females (Figure 6—figure supplement 2). These outcomes show that bab1 and bab2 have a strong pigment-suppressing capability, although in the genetic background tested, bab1 ectopic expression was lethal.

Figure 6 with 4 supplements see all
Bab1 and Bab2 are sufficient to suppress tergite pigmentation as DNA-binding transcription factors.

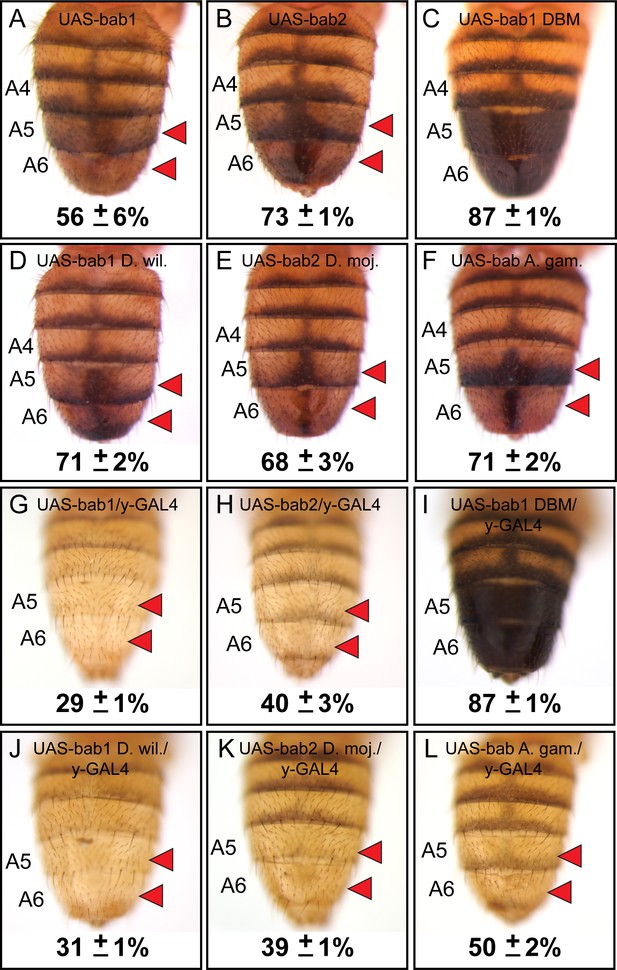

(A–L) Ectopic expression assays for various bab protein coding sequences. (A and G) D. melanogaster bab1, (B and H) D. melanogaster bab2, (C and I) a DNA-binding compromised version of D. melanogaster bab1 (bab1 DBM), (D and J) D. willistoni bab1, (E and K) D. mojavensis bab2, and (F and L) A. gambiae bab. (A–F) Leaky expression of transgenes from the attP40 transgene insertion site. (G–L) Ectopic expression of protein coding sequences in the male abdomen under the control of the y-GAL4 transgene. Red arrowheads indicate tergite regions with conspicuously reduced tergite pigmentation. The A5 and A6 tergite regions were quantified for their darkness percentage for replicate specimens (n = 4). These percentages and their standard error of the mean (±SEM) are provided below a representative image.

https://doi.org/10.7554/eLife.32273.013

The lethality encountered in the ectopic-expression assays likely stems from expressing the bab ORFs in the spatial and temporal pattern of the pnr gene (Calleja et al., 2000) which drives strong expression from embryonic stages through pupal development. In order to better visualize the specific effects of bab ORF expression on tergite pigmentation, we utilized the y-GAL4 transgene (Hart, 2013) to drive expression in the abdominal epidermis pattern of the yellow gene which begins around 70 hours after puparium formation (hAPF) (Figure 6—figure supplement 3) based on a 100-hour period of pupal development (Rogers and Williams, 2011). Expression of the bab1 and bab2 ORFs driven by the y-GAL4 chromosome eliminated both lethality and tergite developmental defects, resulting in male adults which entirely lacked melanic pigmentation on the A5 and A6 tergites (Figure 6G and H). These data show that Bab1 and Bab2 are both potent suppressors of pigmentation in two very different regimes of ectopic expression.

Bab1 ectopic-expression phenotypes require DNA-binding capability

The Bab1 and Bab2 proteins possess a conserved domain that includes both pipsqueak (psq) and AT-Hook motifs that function as an in vitro DNA-binding domain or DBD (Lours et al., 2003), supporting the notion that these paralogs function as transcription factors in vivo. However, bona fide direct targets of either Bab1 or Bab2 have yet to be discovered. Previously, it was shown that the Bab1 DBD failed to bind DNA in vitro when possessing non-synonymous mutations in the pipsqueak (psq) motif converting Alanine and Isoleucine amino acids to Glycine and Proline, respectively (AI576GP), or when non-synonymous mutations altered a stretch of Arginine, Glycine, and Arginine amino acids in the AT-Hook motif to Aspartic acid, Glycine, and Aspartic acid (RGR627DGD), respectively (Lours et al., 2003). To test whether this compromised ability to bind DNA in vitro has in vivo significance, we created a bab1 ORF transgene that possesses both the psq and AT-Hook mutations (called bab1 DNA-binding mutant or bab1 DBM, Figure 6—source data 1) and incorporated this transgene into the same genomic site as our other UAS transgenes. We found that leaky expression of the bab1 DBM was insufficient to suppress tergite pigmentation (Figure 6C). Moreover, ectopic expression of the Bab1 DBM by the pnr-GAL4 driver resulted in detectable accumulation of nuclear protein (Figure 6—figure supplement 4) which did not induce lethality or a pigmentation phenotype (Figure 6—figure supplements 1 and 2). Similarly, expression of the Bab1 DBM in the y-GAL4 pattern resulted in males with the wild type melanic tergites (Figure 6I). Collectively, these results lend further support to a model in which DNA binding is required for the D. melanogaster Bab paralogs to repress tergite pigmentation.

Functional equivalence of bab homologs for the suppression of tergite pigmentation

The currently favored model for the origin of the D. melanogaster sexually dimorphic tergite pigmentation posits that it evolved from an ancestor that expressed Bab in a sexually monomorphic manner, and for which melanic pigmentation in males and females was limited (Jeong et al., 2006; Kopp et al., 2000; Salomone et al., 2013). Moreover, CRE evolution has prominently factored into the origin of this dimorphic pigmentation trait, as changes in CREs of bab have been previously identified (Williams et al., 2008). The possibility that Bab protein coding sequence evolution has additionally contributed has largely remained untested. To investigate whether the Bab1 and Bab2 proteins have functionally evolved, we created UAS-regulated transgenes possessing the D. willistoni bab1 and D. mojavensis bab2 ORFs (Figure 6—source data 1). These orthologous protein coding sequences come from fruit fly species presumed to possess the ancestral sexually monomorphic patterns of pigmentation and Bab expression. At the time this study was initiated, the D. willistoni bab2 ORF included far fewer codons than the D. melanogaster ortholog, indicating that the full ORF remained uncharacterized. Thus, we opted to use the ORF for the D. mojavensis ortholog. As seen for the D. melanogaster ORF transgenes, leaky expression from the attP2 genomic site of transgene insertion resulted in a similar reduction in male A5 and A6 tergite pigmentation (Figure 6D D. willistoni bab1; and 6E, D. mojavensis bab2). Pigmentation was dramatically suppressed when these orthologous proteins were ectopically expressed in the dorsal medial midline pattern of pnr-GAL4, (Figure 6—figure supplement 2) and y-GAL4 (Figure 6J D. willistoni bab1; and 6K, D. mojavensis bab2). These results suggest that the ability of the Bab1 and Bab2 proteins to regulate dimorphic pigmentation did not require the evolution of an altogether new biochemical capability.

The origin of the Bab1 and Bab2 paralogs likely resulted from a duplication event that occurred in the evolutionary history of the Dipteran order (Figure 2A). This scenario is supported by the findings that all species of fruit flies with sequenced genomes and the Tsetse fly Glossina morsitans possess bab1 and bab2 paralogs, whereas basally branching Dipteran species such as Anopheles (A.) gambiae and Aedes aegypti only possess a single paralog. Moreover, the genomes of the flour beetle Tribolium castaneum and the moth Bombyx mori, from orders closely related to Diptera, each possess a single bab gene. We were curious as to whether the pigmentation and gene regulatory functions of the derived bab paralogs were present in the pre-duplication bab gene. To test this hypothesis, we created a UAS-regulated ORF transgene for the A. gambiae bab gene to use as a surrogate for the pre-duplication ancestral bab gene. We found that like all other bab orthologs tested in this study, leaky expression of the A. gambiae bab gene resulted in reduced pigmentation in the male A5 and A6 tergites (Figure 6F). Moreover, forced ectopic expression driven by pnr-GAL4 and y-GAL4 both resulted in more extensive repression of tergite pigmentation (Figure 6—figure supplement 2, and Figure 6L). These outcomes are consistent with the interpretation that the general functional capability of these proteins was ancient and has been conserved during the 100 million years or more since the gene duplication event occurred. However, these experiments cannot rule out the possibility that some changes have occurred in the bab protein coding sequences that cause incremental differences in the ability to regulate dimorphic pigmentation. In fact, the further reduced pigmentation caused by the Bab1 orthologs compared to those for Bab2, and A. gambiae Bab suggests that such incremental enhancements have indeed occurred (Figure 6).

We sought to determine whether the functional equivalence of the distantly related Bab orthologs can also be seen at the level of target gene regulation. Here, we focused on the capability of the orthologs to repress the expression of the Enhanced Green Fluorescent Protein (EGFP) reporter transgene expression driven by the sequence 5’ of yellow exon one that contains the wing element and body element CREs (Figure 7A) from the dimorphic species D. melanogaster (Figure 7B–G) and D. malerkotliana (Figure 7H–M). Orthologs were ectopically expressed in the pupal abdomens of D. melanogaster under the control of the y-GAL4 transgene and the intensity of EGFP expression in the A5 and A6 segment epidermis relative to that for specimens ectopically expressing the Bab1 DBM was measured (Figure 7B and H). We observed the Drosophila and Anopheles orthologs were similarly capable of repressing reporter transgenes regulated by the yellow regulatory regions of both dimorphic species. Thus, it can be concluded that the functional equivalency of distantly related Bab orthologs extends to the ability to regulate a derived target gene in a Drosophila lineage.

The Bab paralogs can suppress the male-specific activity of the regulatory region containing the wing element and body element CREs.

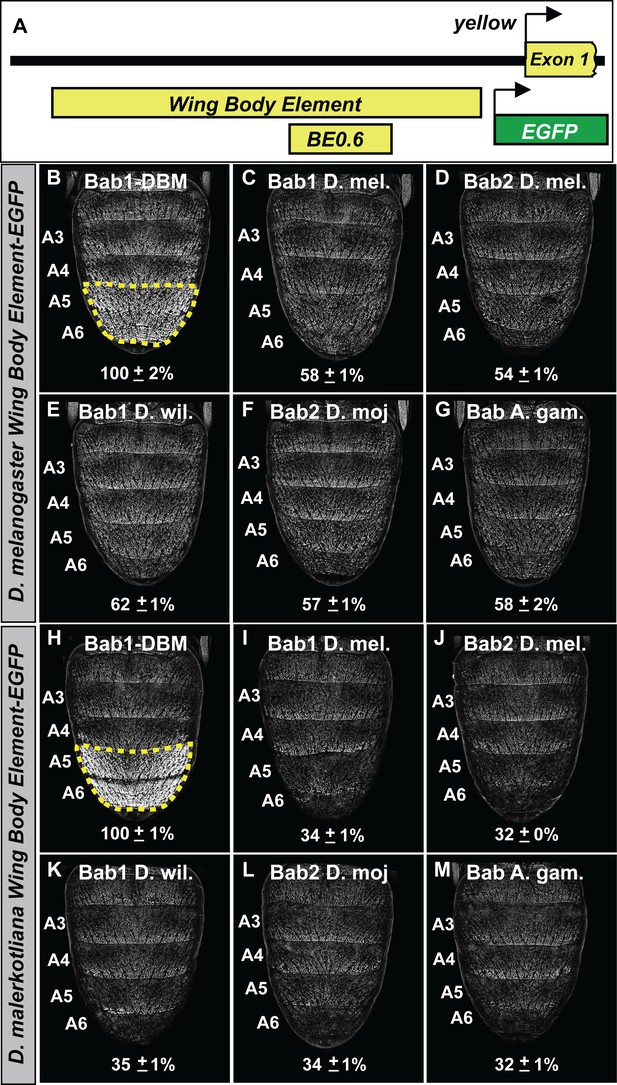

(A) 5’ of yellow exon one resides the wing element and body element CREs, and the position of the D. melanogaster yBE0.6 is shown below the to-scale representation of the partial locus. (B–G) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the Wing Body Element of D. melanogaster. (H–M) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the Wing Body Element of D. malerkotliana. The levels of EGFP expression are represented as the % of the mean ±SEM for samples in which the Bab1-DBM was expressed. (B and H) Robust EGFP reporter expression in samples ectopically expressing the Bab1-DBM protein in the y-GAL4 pattern. (C and I) Ectopic expression of Bab1 in the y-GAL4 pattern reduced A5 and A6 expression compared to the control. (D and J) Ectopic expression of Bab2 in the y-GAL4 pattern reduced A5 and A6 expression compared to the control. (E and K) Ectopic expression of D. willistoni Bab1 in the y-GAL4 pattern reduced A5 and A6 expression compared to the control. (F and L) Ectopic expression of D. mojavensis Bab2 in the y-GAL4 pattern reduced A5 and A6 expression compared to the control. (G and M) Ectopic expression of A. gambiae Bab in the y-GAL4 pattern reduced A5 and A6 expression compared to the control.

https://doi.org/10.7554/eLife.32273.020

The gain of direct Bab regulation required CRE evolution for yellow

The male-specific pigmentation of the A5 and A6 tergites is thought to be a derived state in the lineage of D. melanogaster after it diverged from monomorphic lineages such as that of the willistoni and possibly the obscura species groups (Figure 9). This may have occurred by two distinct possible routes. First, the regulation of yellow expression by Bab might predate the dimorphic pattern of tergite pigmentation, and thus, when Bab expression evolved dimorphism, the yellow gene became restricted to males. Alternately, the regulation of yellow by Bab may have originated contemporaneously with the evolution of dimorphic Bab expression. We compared the D. melanogaster Bab-binding sites from the SM4 and SM10 regions to the orthologous gene regions from species descending from either a dimorphic or monomorphic pigmented ancestor (Figure 9A). This analysis revealed orthologous sequences with several conserved nucleotides among the body elements of species descending from a dimorphic pigmented common ancestor (Figure 9A, node 1). This pattern of sequence conservation is similar to what was found for the derived binding sites for the Hox transcription factor Abd-B that were shown to be a key event in the evolution of male-limited yellow expression (Jeong et al., 2006). However, these orthologous sequences possess numerous divergent nucleotides among species that share a dimorphic pigmented ancestor (Figure 9A, node 1), and a near complete absence of sequence conservation with species possessing the ancestral monomorphic trait. Thus, it is possible that an ancestral regulatory linkage between Bab and yellow is obscured by the turnover and displacement (Hare et al., 2008; Ludwig et al., 2000; Swanson et al., 2011) of Bab-binding sites to other regions of the body element.

To infer the antiquity of Bab-repression at yellow, we compared the capabilities of the D. melanogaster Bab orthologs to affect the CRE activities of yellow 5’ regulatory regions (containing both the wing and body elements) from dimorphic species (D. melanogaster and D. malerkotliana) and ancestrally monomorphic species (D. pseudoobscura and D. willistoni) (Figure 8). For regulatory sequences derived from dimorphic species, reporter expression in A5 and A6 segments was strikingly reduced in the presence of either ectopic Bab1 or Bab2 compared to the Bab1 DBM control (Figure 8A–A’’ and and B–B’’). In contrast, the regulatory sequences from monomorphic species showed modest and no apparent reduction of D. pseudoobscura and D. willistoni CREs, respectively. Two additional observations can be made. One being the even greater level of regulatory-activity repression for the D. malerkotliana yellow regulatory region (33 ± 0% and 33 ± 1% in the presence of ectopic Bab1 or Bab2, respectively) than for D. melanogaster (56 ± 1% and 53 ± 0% in the presence of ectopic Bab1 and Bab2, respectively). Second, the regulatory activity of the D. pseudoobscura CRE was modestly repressed in the presence of Bab (85 ± 2% and 70 ± 1% in the presence of ectopic Bab1 and Bab2, respectively).

Figure 8 with 1 supplement see all
The evolved repression by Bab for cis-regulatory regions 5’ of yellow.

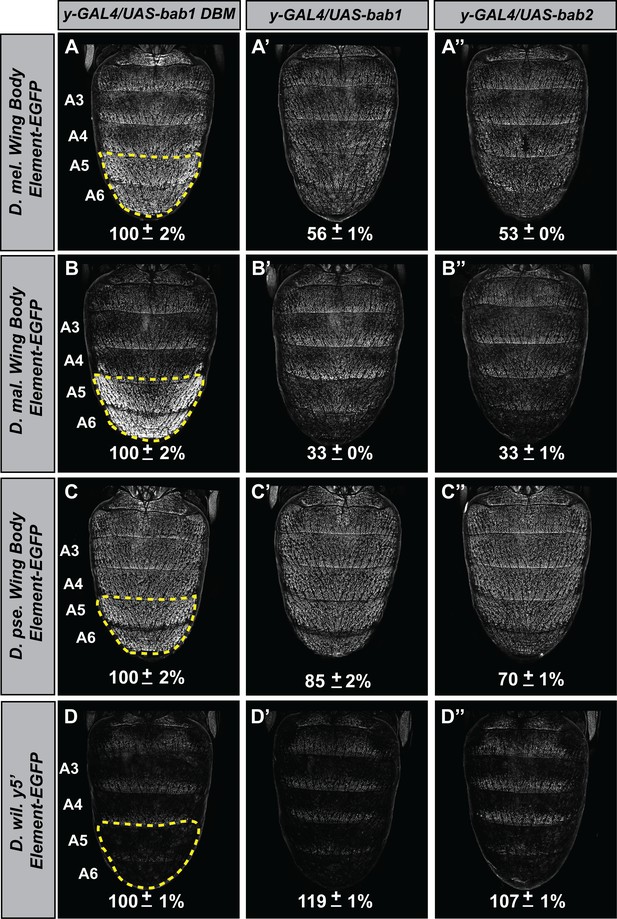

(A–A’’) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the Wing Body Element of D. melanogaster. (B–B’’) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the Wing Body Element of D. malerkotliana. (C–C’’) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the Wing Body Element of D. pseudoobscura. (D–D’’) Comparison of the levels of EGFP-reporter expression in the male A5 and A6 segments driven by the 5’ non-coding region of D. willistoni yellow. For each comparison, the level of EGFP expression are expressed as the percentage of the mean ±SEM for samples in which the Bab1-DBM was expressed. (A–D) Ectopic expression of the Bab1-DBM in the y-GAL4 pattern. (A’–D’) Ectopic expression of Bab1 in the y-GAL4 pattern. (A’’–D’’) Ectopic expression of Bab2 in the y-GAL4 pattern.

https://doi.org/10.7554/eLife.32273.022

While A5 and A6 yellow expression is largely governed by the body element in males, the wing element does direct moderate levels of expression throughout the abdomen and strong expression in posterior stripes of each segment. To see whether the wing element might also respond to Bab expression and thus harbor Bab-binding sites, we compared the levels of expression for the reporter transgenes in the A3 segment in which expression is driven exclusively by the wing element (Figure 8—figure supplement 1). While the D. melanogaster wing element showed a slight reduction in activity when in the presence of ectopic Bab1 or Bab2 compared to the Bab1 DBM control, no apparent reduction in activity was observed for the transgenes with either the D. malerkotliana, D. pseudoobscura, or D. willistoni yellow regulatory sequences (Figure 8—figure supplement 1). These results can be explained by two evolutionary scenarios. First, the linkage between Bab and yellow could have been present in a common ancestor of D. melanogaster, D. pseudoobscura, and D. willistoni and was subsequently reduced and lost in the latter two species’ lineages, respectively. On the other hand, direct regulation of yellow by Bab evolved specifically within the body element, coincident with the evolution of the dimorphic pigmentation trait. This second scenario is consistent with the favored model of Sophophora pigmentation evolution (Jeong et al., 2006; Rebeiz and Williams, 2017). In the future, deeper taxon sampling in Sophophora may shed light on which of the two scenarios reflects the true evolutionary history for this dimorphic pigmentation trait.

Discussion

Here, we investigated the functions and evolution of the paralogous D. melanogaster Bab1 and Bab2 proteins that perform a key regulatory role in a GRN controlling a male-specific pigmentation trait. Although these two paralogs descend from an ancient duplication event (Figure 2A), our results show that their ability to function in D. melanogaster pigmentation required little-to-no alteration in the functional capability of the Bab proteins. Rather, our data point to the evolution of binding sites in a CRE of a key pigmentation gene, yellow, to which these proteins bind through their DNA binding domains (Figure 9A). These conclusions are supported by multiple lines of evidence: (1) identification of regions in the yellow body CRE that mediate sexual dimorphism, (2) in vitro binding of Bab proteins to these sequences, (3) the ability of pre-duplicate Bab proteins to suppress the yellow body CRE of dimorphic species, and (4) the relative inability of these proteins to exert similar effects on CREs of species whose lineages predate the evolution of this trait. These findings represent the first-documented direct target sites of the Bab proteins, sites which arose coincident with the evolution of sexually dimorphic Bab expression patterns in the abdomen (Figure 9B). Thus, our results provide a clear example in which multiple tiers of a complex GRN evolved to produce a Hox-regulated trait while preserving the genetic toolkit of regulatory and differentiation genes.

The evolution of male-specific pigmentation required the gain of a regulatory linkage between Bab and the newly evolved body element CRE controlling yellow expression.

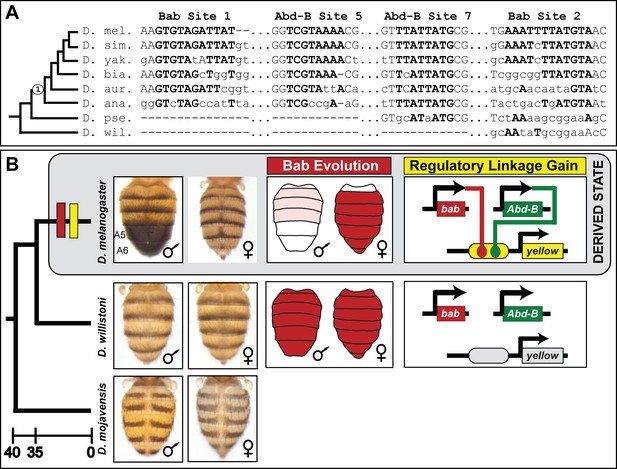

(A) An alignment of the Bab-bound sequences in the SM4 (site 1) and SM10 (site 2) regions and for the two previously identified binding sites for Abd-B in the yBE0.6 CRE (Jeong et al., 2006). ‘Node 1’ on the phylogeny indicates the most recent common ancestor suspected to have possessed the derived male-specific pattern of pigmentation. Time scale shown is in millions of years ago. Bold capital letters indicate the bases bound by the transcription factor in the D. melanogaster CRE, and those which are conserved in the orthologous regions for related species. (B) Model for the derivation of a dimorphic pigmentation trait where dimorphic pigmentation required the evolution of a dimorphic Bab expression and the gain of a regulatory linkage between Bab and yellow through gains of binding sites in the body element CRE.

https://doi.org/10.7554/eLife.32273.025

The evolution of the Bab paralogs

The D. melanogaster bab locus provides an interesting example in which the protein-coding and regulatory divergence of duplicated genes can be compared. The phylogenetic distribution of bab paralogs supports an estimated timing of the duplication event to around 125 million years since the common ancestor of the fruit fly, Tsetse fly, and Hessian fly split from the lineage of the sandfly and mosquitoes (Figure 2A) (Wiegmann et al., 2011). Duplicate genes may sub-functionalize, neo-functionalize, or be lost through pseudogenization (Lynch and Conery, 2000). Since this duplication event, both bab paralogs have been maintained in the genomes of distantly related fruit fly species (Clark et al., 2007; Richards et al., 2005), and in species from related families whose genomes have been sequenced (Giraldo-Calderón et al., 2015; Kriventseva et al., 2015). Here, we showed that both D. melanogaster bab paralogs and orthologs from other fly and mosquito lineages can similarly impact the development of melanic tergite pigmentation when ectopically expressed in D. melanogaster (Figure 6), and each gene can induce a similar non-specific split tergite phenotype (Figure 6—figure supplement 2). These outcomes suggest for at least for body pigment regulation, that their protein coding regions are functionally equivalent.

In contrast to the conserved protein functionality that we observed for the Bab paralogs, some divergent patterns of expression have been found for the paralogs in D. melanogaster, consistent with a role for neo- or sub-functionalization (Couderc et al., 2002). Yet, the majority of bab paralog expression patterns appear to be common to both paralogs (Couderc et al., 2002; Rogers et al., 2013; Salomone et al., 2013), including the pupal abdominal epidermis, for which expression is governed by two shared CREs (Williams et al., 2008). It has been found that heterozygous bab null females express a male-like pattern of tergite pigmentation compared to wild type females, and the homozygous null pigmentation phenotype is more or less equivalent to that of males. (Rogers et al., 2013). Here, we showed that the RNAi reduction of expression for either bab1 or bab2 resulted in more male-like pigmentation pattern on the female abdomen, and RNAi for both paralogs simultaneously resulted in a more pronounced male-like phenotype (Figure 5). While qualitative differences through CRE functional divergence must have occurred to drive the divergent paralog expression in some tissues, the need for a higher overall quantity of expressed Bab protein seems to be key for Bab’s role in the GRN generating the derived dimorphic pattern of abdomen pigmentation.

Bab and its history in a pigmentation gene regulatory network

The stark dimorphism between the melanic pigmentation of D. melanogaster male and female abdominal tergites represents a trait whose origin has now been resolved to the level of its GRN connections. Dimorphic pigmentation is thought to have derived from a monomorphic ancestral state in the lineage of D. melanogaster after it diverged from that for D. willistoni and perhaps even as recently as the D. pseudoobscura split in the Sophophora subgenus (Jeong et al., 2006; Salomone et al., 2013). Assuming this scenario is generally correct, then when and how did Bab become a part of this GRN? One plausible explanation is that Bab regulated the expression of pigmentation genes prior to the emergence of this dimorphic trait, perhaps as a part of an antecedent dimorphic GRN. One study provided data consistent with this scenario, showing that Bab2 expression often, but not always, displayed an anti-correlation to where melanic pigmentation developed on fruit fly tergites, including non-Sophophora species (Gompel and Carroll, 2003). If Bab had an ancient role in regulating the expression of pigmentation genes such as yellow, then dimorphic pigmentation could have evolved by re-deploying a conserved Bab-responsive CRE in the abdomen. Furthermore, it was demonstrated that an abdominal epidermis CRE activity is present in the yellow gene intron of the monomorphic pigmented species such as D. pseudoobscura, D. willistoni, and the non-Sophophoran species D. virilis (Kalay and Wittkopp, 2010). Thus, it is conceivable for the Bab-body element linkage to have been present, while the monomorphic activity of this second yellow CRE masked the dimorphic regulation of the body element.

However, various data are difficult to reconcile with this re-deployment model. First, the melanic species D. virilis expresses Bab1 and Bab2 throughout the male and female abdomens suggesting an inability of Bab to suppress pigmentation genes such as yellow in this species (Salomone et al., 2013). Furthermore, the regulation of yellow by Bab in D. melanogaster is limited to the body element CRE in which we found Bab binding sites. This is significant as clearly identifiable orthologs to the D. melanogaster body element remains difficult to identify in more distantly related fruit fly species hailing from monomorphically pigmented lineages (Figure 9A), although the wing element and its activity has remained well-conserved by comparison. Thus, there is no evidence for an ancient linkage between Bab and an antecedent of the yellow body element. While an ancestral bab-yellow linkage may exist for a yet unidentified trait, the activation of yellow in the well-studied male-specific spot that adorns the wings of D. biarmipes is bab-independent (Arnoult et al., 2013; Gompel et al., 2005). Finally, the D. melanogaster body element possesses derived binding sites for both Bab and the Hox factor Abd-B (Figure 9A) (Jeong et al., 2006). Thus, the co-option of either Bab or Abd-B would be insufficient to account for the origin of this dimorphic trait.

Based upon the available data, it seems much more likely that Bab was integrated into an antecedent GRN to play a key role in differentiating the expression outcomes between males and females. This integration involved the remodeling of existing CREs controlling Bab expression in the abdominal epidermis (Rogers et al., 2013; Williams et al., 2008), and the acquisition of yellow as a direct target of regulation through the formation of binding sites in the emergent body element (Figure 9). At this point, it is unclear whether dimorphic Bab expression preceded the evolution of Bab sites in the yellow body element CRE or if the Bab sites evolved first. One hint to this puzzle may lie in D. pseudoobscura, a species whose yellow body element CRE is mildly Bab-responsive (Figure 8 and Figure 8—figure supplement 1), but for which Bab expression retains its ancestral monomorphic expression. This might suggest that the capability to respond (albeit weakly) to Bab evolved first, followed by the evolution of dimorphic Bab expression patterns. Further, the evolutionary connections identified here represent a subset of the connections downstream of Bab. While the yellow body CRE contains separable activating and repressing inputs, the gene tan, which is co-expressed with yellow appears to have a very different encoding for dimorphism (Camino et al., 2015). Extensive mutagenesis of the tan MSE failed to find any mutations that relaxed dimorphic expression, suggesting that activating and repressing inputs are overlapping, or are closely situated in this CREs DNA sequence. Future studies of this GRN will illuminate how the network downstream of Bab was elaborated.

The incorporation of old transcription factors into new networks

We suggest that the increased complexity of the dimorphic pigmentation GRN through the integration of the Bab transcription factors by CRE evolution will exemplify a common mechanism whereby increasingly sophisticated GRNs have come about to regulate traits throughout the animal kingdom. The vast majority of transcription factor binding specificities remain conserved over long evolutionary periods (Nitta et al., 2015), and many of these factors are functionally equivalent between distantly related taxa. The exceptions to this trend may represent rare examples of transcription factor diversification that occurred in the distant past, and thus are limited to a vanishingly small number of traits, or may represent examples of developmental systems drift in which the molecular mechanisms change, but the outcome remains the same (True and Haag, 2001). Studying more recent trait divergence allows one to more clearly discern phenotypically relevant evolutionary changes from those involving systems drift. Tests of regulatory sequence divergence are particularly hampered by drift, as sequence divergence is rapid and CREs from distantly related taxa often work poorly in heterologous transgenic environments. Thus, further comparisons of genetically tractable traits that arose over similarly recent timescales, in which protein coding and cis-regulatory divergence can be directly compared in vivo are required to unveil the nature of this broader trend.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiers
Gene (Drosophila melanogaster)bab1FLYB:FBgn0004870
Gene (D. melanogaster)bab2FLYB:FBgn0025525
Gene (D. melanogaster)yellowFLYB:FBgn0004034
Genetic reagent (D. melanogaster)pnr-Gal4Bloomington Drosophila Stock CenterBDSC:3039
Genetic reagent (D. melanogaster)y-Gal4Bloomington Drosophila Stock CenterBDSC:44267; FLYB:FBst0044267; RRID:BDSC_44267
genetic reagent (D. melanogaster)UAS-GFP-nlsBloomington Drosophila Stock CenterBDSC:4776
Genetic reagent (D. melanogaster)UAS-mCherry dsRNABloomington Drosophila Stock CenterBDSC:35785
Genetic reagent (D. melanogaster)UAS-bab1 ORF of D. melanogasterthis paper
Genetic reagent (D. melanogaster)UAS-bab2 ORF of D. melanogasterthis paper
Genetic reagent (D. melanogaster)UAS-bab1 DBM ORF of D. melanogasterthis paper
Genetic reagent (D. melanogaster)UAS-bab1 ORF of D. willistonithis paper
Genetic reagent (D. melanogaster)UAS-bab2 ORF of D. mojavensisthis paper
Genetic reagent (D. melanogaster)UAS-bab Anopheles gambiaethis paper
Genetic reagent (D. melanogaster)UAS-bab1 siRNA id #3this paper
Genetic reagent (D. melanogaster)UAS-bab1 siRNA id #4this paper
Genetic reagent (D. melanogaster)UAS-bab2 siRNA id #12this paper
Genetic reagent (D. melanogaster)UAS-bab2 siRNA id #16this paper
Genetic reagent (D. melanogaster)UAS-bab1 siRNA id #3 + bab2 siRNA id#12this paper
Genetic reagent (D. melanogaster)UAS-bab1 siRNA id #3 + bab2 siRNA id#16this paper
Genetic reagent (D. melanogaster)yBE0.6-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yBE0.6 SM4-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yBE0.6 SM10-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yBE0.6 SM4 + SM10 EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yWing + Body Element (D. melanogaster)-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yWing + Body Element (D. malerkotliana)-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)yWing + Body Element (D. pseudoobscura)-EGFP reporterPMID:25835988
Genetic reagent (D. melanogaster)y5'1 (D. willistoni)-EGFP reporterPMID:25835988
Antibodyanti-Bab1 (rabbit polyclonal)PMID:18724934
AntibodyAlexa 647-secondaryInvitrogenA-21244
Recombinant DNA reagentGST-Bab1 DNA Binding Domain (DBD)this paper

Fly stocks and genetic crosses

All fly stocks were cultured at 22°C using a sugar food medium (Salomone et al., 2013). The yBE0.6, yBE0.6 SM4, yBE0.6 SM10, and SM4 +10 reporter transgenes utilized in GAL4/UAS experiments were each inserted into the attP40 site (Camino et al., 2015; Markstein et al., 2008). GAL4 expression was driven in the pattern of the pannier (pnr) gene using the pnr-GAL4 chromosome (Calleja et al., 2000) and the pupal abdominal epidermis pattern (Jeong et al., 2006; Wittkopp et al., 2002) of the yellow gene using the y-GAL4 transgene (Hart, 2013). The pnr-GAL4 (BDSC ID#3039) and y-GAL4 (BDSC ID#44267) fly stocks were obtained from the Bloomington Drosophila Stock Center. A UAS-mCherry dsRNA line (BDSC ID#35785) was used as a negative control in the RNA-interference experiments. The reporter transgenes containing orthologous sequences 5’ of the yellow first exon adjacent to a minimal hsp70 promoter and the coding sequence of the EGFP-NLS reporter protein were integrated into the attP2 site on the D. melanogaster third chromosome whose construction was previously described (Camino et al., 2015; Groth et al., 2004).

Recombinant protein production and gel shift assays

The protein coding sequence for amino acids 490–672 of the D. melanogaster Bab1protein was cloned into the BamHI and NotI sites of the pGEX4T-1 vector in order to express an N-terminal GST-fusion protein that has the AT-Hook and psq domains and that possesses DNA binding capability (Lours et al., 2003). This vector was transformed into the BL21 DE3 E. coli strain (New England Biolabs) and recombinant protein was purified by a standard protocol (Williams et al., 1995) with slight modifications. In brief, an overnight bacterial culture was grown at 37°C in LB media with 200 μg/ml Ampicillin. This culture was added to 225 ml of a rich LB media (2% Tryptone, 1% Yeast Extract, and 1% sodium chloride) and grown at 37°C. After 1 hour (hr) of growth, protein expression was induced by adding IPTG to a final concentration of 0.5 mM, and cultured for an additional 3 hr. Bacteria were then pelleted by centrifugation, media decanted, and bacterial pellets frozen at −74°C. Bacteria pellets were thawed on ice and resuspended in ice cold STE buffer containing protease inhibitors (Thermo Scientific, Waltham MA. After a 15 minute (min) incubation on ice, DTT was added to 5 mM and Sarkosyl to 1.5%. The bacterial suspension was subjected to 4 rounds of sonication on ice at 33 amps for 1 min each round with, and a 1-min rest between rounds. 1 ml of glutathione agarose (Thermo Scientific) was then added to the suspension and allowed to mix for 15 min with nutation at 4°C. The glutathione-agarose was then washed seven times with ice cold PBS. GST-Bab1 DNA-binding domain (DBD) fusion protein was eluted from the glutathione-agarose by seven 1.5 ml aliquots of protein elution buffer (75 mM Hepes pH 7.4, 150 mM NaCl, 20 mM reduced glutathione, 5 mM DTT, and 0.1% Triton X-100). Collected aliquots were combined and concentrated using Vivaspin 20 spin columns with a 100,000 MWCO (Sartorious). The purified GST-Bab1 DBD protein was snap frozen using a dry ice ethanol bath, and stored in aliquots at −74°C.

Reverse complementary oligonucleotides were synthesized (Integrated DNA Technologies) that contain wild type or mutant yBE0.6 sequences (Tables 3 and 4). Gel shift assays were done as previously described (Camino et al., 2015; Rogers et al., 2013). In brief, all oligonucleotides were biotin-labeled on their 3’ end using the DNA 3’ End Biotinylation Kit (Thermo Scientific, Waltham MA) using the manufacture’s protocol. Biotin-labeled complementary oligonucleotides were annealed to form double stranded probes, and labeling efficiency was evaluated by the manufacturer’s quantitative Dot Blot assay. Binding reactions included 25 fmol of probe and GST-Bab1 DBD protein in General Footprint Buffer (working concentration of 50 mM HEPES pH 7.9, 100 mM KCl, 1 mM DTT, 12.5 mM MgCl2, 0.05 mM EDTA, and 17% glycerol). For each probe, separate binding reactions were done that included 4000 ng, 2000 ng, 1000 ng, 500 ng, and 0 ng of the GST-Bab1 DBD protein. Binding reactions were carried out for 30 min at room temperature and then size separated by electrophoresis through a 5% non-denaturing polyacrylamide gel for 60 min at 200 V. Following electrophoresis, the samples were transferred and cross linked to a Hybond-N +membrane (GE Healthcare Amersham) for chemiluminescent detection using the Chemiluminescent Nucleic Acid Detection Module and manufacture’s protocol (Thermo Scientific). Chemiluminescent images were recorded using a BioChemi gel documentation system (UVP).

Table 3
Oligonucleotides used to make Scan Mutant four region gel shift probes.
https://doi.org/10.7554/eLife.32273.026
ProbeSequence (5’ to 3’)Oligo name
SM4 Region 1ATTCTTTAATTTGTATTTTAATATTyBE 4i1 Top
AATATTAAAATACAAATTAAAGAATyBE 4i1 Bottom
SM4 Region 2ATATTTTGAGAGGTTTTCCTTATTTAAAGTyBE 4i2 Top
ACTTTAAATAAGGAAAACCTCTCAAAATATyBE 4i2 Bottom
SM4 Region 3AAAGTGTAGATTATTGAGGATTAATyBE 4i3 Top
ATTAATCCTCAATAATCTACACTTTyBE 4i3 Bottom
SM4 Region 3 Scan MutantcAcGgGgAtAgTcTgGcGtAgTcAgy4i3 T Scrm
cTgAcTaCgCcAgAcTaTcCcCgTgy4i3 B Scrm
Region 3 TA > GAAAAGTGgAGATgATTGAGGATgAATyBE 4i3 TA > GA Top
ATTcATCCTCAATcATCTcCACTTTyBE 4i3 TA > GA Bottom
SM4 Region 3 sub1gggCgggCgATTATTGAGGATTAATy4i3 sub1 T
ATTAATCCTCAATAATcGgggGcccy4i3 sub1 B
SM4 Region 3 sub2AAAGTgggCgggCgTGAGGATTAATy4i3 sub2 T
ATTAATCCTCAcGcccGcccACTTTy4i3 sub2 B
SM4 Region 3 sub3AAAGTGTAGAgggCgggCgATTAATy4i3 sub3 T
ATTAATcGcccGcccTCTACACTTTy4i3 sub3 B
SM4 Region 3 sub4AAAGTGTAGATTATTGgggCgggCgy4i3 sub4 T
cGcccGcccCAATAATCTACACTTTy4i3 sub4 B
Table 4
Oligonucleotides used to make Scan Mutant 10 region gel shift probes.
https://doi.org/10.7554/eLife.32273.027
ProbeSequence (5’ to 3’)Oligo name
SM10 Region 1TCGTCCCTTTTGAAATTTTATGTAACACTCyBE 10i1 Top
GAGTGTTACATAAAATTTCAAAAGGGACGAyBE 10i1 Bottom
SM10 Region 2CACTCAATTATATTTATGTATATGTATGCTyBE 10i2 Top
AGCATACATATACATAAATATAATTGAGTGyBE 10i2 Bottom
SM10 Region 3ATGCTCAAAATCACCTGCCAATAACCCTGCAGGyBE 10i3 Top
CCTGCAGGGTTATTGGCAGGTGATTTTGAGCATyBE 10i3 Bottom
SM10 Region 1 Scan MutantgCtTaCaTgTgGcAcTgTgAgGgAcCcCgCy10i1 T Scrm
GcGgGgTcCcTcAcAgTgCcAcAtGtAaGcy10i1 B Scrm
SM10 Region 3 Scan MutantcTtCgCcAcAgCcCaTtCaAcTcAaCaTtCcGty10i3 T Scrm
aCgGaAtGtTgAgTtGaAtGgGcTgTgGcGaAgy10i3 B Scrm
SM10 Region 1 sub1gggCgggCgggCAAATTTTATGTAACACTCy10i1 sub1 T
GAGTGTTACATAAAATTTGcccGcccGcccy10i1 sub1 B
SM10 Region 1 sub2TCGTCCgggCgggCgggCTATGTAACACTCy10i1 sub2 T
GAGTGTTACATAGcccGcccGcccGGACGAy10i1 sub2 B
SM10 Region 1 sub3TCGTCCCTTTTGgggCgggCgggCACACTCy10i1 sub3 T
GAGTGTGcccGcccGcccCAAAAGGGACGAy10i1 sub3 B
SM10 Region 1 sub4TCGTCCCTTTTGAAATTTgggCgggCgggCy10i1 sub4 T
GcccGcccGcccAAATTTCAAAAGGGACGAy10i1 sub4 B

bab1 and bab2 shmiR expressing transgenes

The ORFs for D. melanogaster bab1 and bab2 were obtained from NCBI accession numbers NM_206229 and NM_079155.3 respectively. From these, nucleotide guide sequences were designed using the Designer of Small Interfering RNA (DSIR) algorithm (Vert et al., 2006) that is accessible at: http://biodev.extra.cea.fr/DSIR/DSIR.html. For bab1, the eleven rows of output were included in Table 1. For bab2, there were 54 rows of output, sorted by descending Corrected Score, and the top 19 rows of output presented in Table 2. To make sure shmiRs lack the same seed residues (nucleotides 2–8) as those present in known miRNAs, we searched candidate guide sequences against a miRNA database (http://mirbase.org/search.shtml). Search sequences were set to ‘Mature miRNAs, E-value cutoff of ‘10’, Maximum hits of 100, and results were shown for ‘fly’.

Previously it was shown that a shmiR can induce phenotypes in transgenic flies when the guide shares at least 16–21 base pairs of contiguous sequence to the target gene (Haley et al., 2010). Thus, we sought the highest scoring ‘Guide’ sequences for which fewer than 16 contiguous bases match a heterologous exon sequence in the D. melanogaster genome. Guide sequences were evaluated in a BLAST search of the D. melanogaster genome (http://flybase.org/blast/) with the word size set to 7. The genomic position of the BLAST hits were identified using the GBrowse feature. An RNAi transgene targeting bab1 was created by the Transgenic RNAi Project (TRiP) at Harvard Medical School that included the sequence identified here as siRNA_id 1 (Table 1) that we have found to be ineffective at suppressing bab1 expression. Thus, this guide sequence was excluded from further consideration here. For bab1, we elected to create shmiRs with the siRNA three and siRNA four sequences which each have a 21 base pair match to a sequence in the bab1 first exon. For bab2, we elected to create shmiRs with the siRNA 16 and siRNA 12 sequences, each which have a 21 base sequence that matches a sequence in the second exon of bab2. The bab1 and bab2 shmiRs were designed to possess two essential mismatches to maintain a miR-1 stem-loop structure (Haley et al., 2010), and oligonucleotides were designed for annealing that have NheI and EcoRI overhangs for cloning into the pattB-NE3 vector (Table 5). The annealed oligonucleotides were cloned into the NheI and EcoRI sites of the pattB-NE3 vector, and successful cloning was verified by Sanger sequencing using the pUASTR1 primer (5’ CCCATTCATCAGTTCCATAGGTTG 3’). pattB-NE3 vectors containing an shmiR guide sequence were site-specifically integrated into the D. melanogaster attP2 landing site (Groth et al., 2004) by standard protocol (Best Gene Inc.).

Table 5
Oligonucleotides for cloning bab1 and bab2 shRNAs into NheI and EcoRI sites of pattB-NE3 vector.
https://doi.org/10.7554/eLife.32273.028
siRNA name and sequenceOligo nameOligo sequence (5’ – 3’)
bab1 siRNA 3
TTCGTCTGATAGTTGTTCCAG
b1_3 Top b1_3
Bottom
ctagcagtCTGGAACAACAATCAGACGTAtagttatattcaagcataTTCGTCTGATAGTTGTTCCAGgcg aattcgcCTGGAACAACTATCAGACGAAtatgcttgaatataactaTACGTCTGATTGTTGTTCCAGactg
bab1 siRNA 4
TACAGCATGACCTTGACTCTC
b1_4
Top b1_4
bottom
ctagcagtGAGAGTCAAGCTCATGCTGAAtagttatattcaagcataTACAGCATGACCTTGACTCTCgcg aattcgcGAGAGTCAAGGTCATGCTGTAtatgcttgaatataactaTTCAGCATGAGCTTGACTCTCactg
bab2 siRNA 16
TATTTCAAAGTCCACAATCTG
b2_16
Top b2_16
Bottom
ctagcagtCAGATTGTGGTCTTTGAAAAAtagttatattcaagcataTATTTCAAAGTCCACAATCTGgcg aattcgcCAGATTGTGGACTTTGAAATAtatgcttgaatataactaTTTTTCAAAGACCACAATCTGactg
bab2 siRNA 12
TTGGACTTCACCAGCTCCGTT
b2_12
Top b2_12
Bottom
ctagcagtAACGGAGCTGCTGAAGTCCTAtagttatattcaagcataTTGGACTTCACCAGCTCCGTTgcg aattcgcAACGGAGCTGGTGAAGTCCAAtatgcttgaatataactaTAGGACTTCAGCAGCTCCGTTactg
bab2 siRNA 20
TCGAACTGATCGATTTCGCCG
b2_20
Top b2_20
Bottom
ctagcagtCGGCGAAATCCATCAGTTCCAtagttatattcaagcataTCGAACTGATCGATTTCGCCGgcg aattcgcCGGCGAAATCGATCAGTTCGAtatgcttgaatataactaTGGAACTGATGGATTTCGCCGactg

Chaining shmiRs to target bab1 and bab2

shmiR chains were created in two steps. First, the bab1_3 shmiR was removed from the pattB-NE3 vector by HindIII and BamHI digestion and the excised piece was subcloned into the pHB vector (Haley et al., 2010, 2008). The shmiR piece was then amplified from the pHB vector using the M13F and M13R primers. This PCR product was digested with KpnI and SpeI restriction endonucleases and then cloned into the KpnI and XbaI sites of the pattB-NE3 vectors containing the bab2 siRNA 16 and the vector containing the bab2 siRNA 12 sequence. For each vector, the presence of the tandem shmiR sequences was verified by Sanger sequencing in separate reactions with the PUASTR1 (5’ CCCATTCATCAGTTCCATAGGTTG 3’) and PUASTF1 (5’ ACCAGCAACCAAGTAAATCAACTG3’) primers. These chained shmiR transgenes were injected into D. melanogaster embryos for site-specific integration into the attP2 site on the third chromosome to make transgenic stocks (Groth et al., 2004).

Bab open-reading frame transgenes

The ORFs for D. melanogaster bab1 and bab2, D. willistoni bab1 (GK16863-PA), D. mojavensis bab2 (GI12710), and Anopheles (A.) gambiae bab (AGAP006018-RA) were customized for gene synthesis by GenScript Incorporated. We added a Syn21 translational enhancer (Pfeiffer et al., 2012) 5’ of each ORF’s initiator ATG, and an additional nonsense codon was added just 3’ of the endogenous one. The ORFs were flanked by a 5’ EcoRI site and a 3’ NotI site. The A. gambiae ORF had the coding sequence for the V5 epitope tag added after the initiator codon. The DNA sequences were modified with synonymous substitutions as needed in order to optimize for gene synthesis. The synthesized sequences can be found in Figure 6—source data 1 After synthesis, the ORFs were removed from the pUC57 vector backbone and subcloned into the EcoRI and NotI sites of a pUAST vector modified to possess an attB site (called pUMA) for site-specific transgene integration. All ORFs are under the regulatory control of the vector’s upstream activating sequences (UAS sites) to allow for conditional ORF expression by the GAL4/UAS system (Brand and Perrimon, 1993).

A bab1 DNA-binding mutant (DBM) ORF was created that possesses non-synonymous mutations in the Pipsqueak and AT-Hook motifs that results in a protein lacking it’s in vitro DNA-binding capability (Lours et al., 2003). The coding sequence for the bab1 Pipsqueak and AT-Hook motifs are flanked by AscI and BamHI restriction endonuclease sites. We designed a coding sequence within this sequence that includes mutations altering codons with these two protein domains (Figure 6—source data 1). After synthesis, this mutant sequence was removed from the pUC57 vector by BamHI and AscI digestion. The liberated fragment was swapped into the place of the wild type sequence in the pUC57 bab1 ORF vector. The full length bab1 DBM ORF was then removed from the pUC57 vector by EcoRI and NotI digestion and subcloned into the pUMA vector. All ORF transgenes were site-specifically integrated into the D. melanogaster attP40 site (Markstein et al., 2008) on the second chromosome.

Alignment of nucleotide and protein coding sequences

The nucleotide sequences of the wild-type D. melanogaster yBE0.6 CRE and scan mutant versions were aligned using the CHAOS ad DIALIGN software system (Brudno et al., 2004) (Figure 2—source data 2). The protein coding sequences for Bab homologs were aligned using the Clustal Omega multiple sequence alignment program (Sievers et al., 2011) (Figure 6—source data 1). These homologs were D. melanogaster Bab1 (gbAAF47439.2) and Bab2 (AAF47442.2), D. ananassae Bab1 (GF10081-PB) and Bab2 (XP_001956730.1), D. willistoni Bab1 (GK16863-PB), D. mojavensis Bab2 (XM_002007001.1), Glossina morsitans Bab1 (GMOY011079) and Bab2 (GMOY011080-RA), and A. gambiae Bab (AGAP006018-RA).

Imaging and analysis of abdomens

Images of the adult D. melanogaster abdomen pigmentation patterns were taken with an Olympus SZX16 Zoom Stereoscope equipped with an Olympus DP72 digital camera. Specimens were prepared from 2- to 5-day-old adults. To measure the mean darkness of adult tergite pigmentation phenotypes, for each genotype four replicate images were converted to grayscale in Photoshop CS3 (Adobe). These grayscale images were opened in the Image J program (Abràmoff et al., 2004), and with the freehand selection tool tergite regions were specified to obtain the grayscale darkness value from that lies on a 0–255 scale. For each measurement, the % darkness was calculated as: (255-grayscale darkness)/255 × 100 (Rebeiz et al., 2009). From the percent darkness values, standard error of the means (SEM) were determined. Measurements and calculations provided in Figure 5—source data 1 and Figure 6—source data 1.

The expression patterns of EGFP-NLS reporter transgenes were recorded as projection images by an Olympus Fluoview FV 1000 confocal microscope and software. The regulatory activities of the yellow 5’ sequences were imaged at ~85 hAPF, a time point when endogenous yellow expression occurs in the abdominal epidermis (Camino et al., 2015; Jeong et al., 2006). Representative images were selected from the replicate specimens for display in figures presenting reporter transgene expressions. All images underwent the same modifications as the control specimens using Photoshop CS3 (Adobe).

Quantitative comparisons of the levels of EGFP-NLS reporter expression were performed similar to that previously described for another CRE (Camino et al., 2015; Rogers et al., 2013; Rogers and Williams, 2011; Williams et al., 2008). In brief, for each reporter transgene in a genetic background ectopically expressing a Bab protein, EGFP expression was imaged from five independent replicate specimens at developmental stage of ~85 hr after puparium formation (hAPF) for D. melanogaster grown at 25°C. Imaging was done with confocal microscope settings optimized so that few pixels were saturated when EGFP-NLS expression was driven in a control background ectopically expressing the DNA-binding mutant form of Bab1 (Bab1 DBM) under the regulation of the y-GAL4 chromosome. For each confocal image, a pixel value statistic was determined for the dorsal epidermis of the A4 and A5 segments and separately the A3 segment using the Image J program (Abràmoff et al., 2004). In Figures 7 and 8, the mean pixel values were converted into a % regulatory activity with its SEM. The activities were normalized to the activity in the background expressing the Bab1-DBM which were considered to be 100%. Measurements and calculations provided in Figure 7—source data 1 and Figure 8—source data 1. Pixel values of replicate specimens are presented in Figure 8—figure supplement 1.

References

  1. 1
    Image processing with imageJ
    1. MD Abràmoff
    2. I Hospitals
    3. PJ Magalhães
    4. M Abràmoff
    (2004)
    Biophotonics Int 11:36–42.
  2. 2
  3. 3
    Targeted gene expression as a means of altering cell fates and generating dominant phenotypes
    1. AH Brand
    2. N Perrimon
    (1993)
    Development 118:401–415.
  4. 4
  5. 5
    Generation of medial and lateral dorsal body domains by the pannier gene of Drosophila
    1. M Calleja
    2. H Herranz
    3. C Estella
    4. J Casal
    5. P Lawrence
    6. P Simpson
    7. G Morata
    (2000)
    Development 127:3971–3980.
  6. 6
  7. 7
  8. 8
    Evolution of genes and genomes on the Drosophila phylogeny
    1. AG Clark
    2. MB Eisen
    3. DR Smith
    4. CM Bergman
    5. B Oliver
    6. TA Markow
    7. TC Kaufman
    8. M Kellis
    9. W Gelbart
    10. VN Iyer
    11. DA Pollard
    12. TB Sackton
    13. AM Larracuente
    14. ND Singh
    15. JP Abad
    16. DN Abt
    17. B Adryan
    18. M Aguade
    19. H Akashi
    20. WW Anderson
    21. CF Aquadro
    22. DH Ardell
    23. R Arguello
    24. CG Artieri
    25. DA Barbash
    26. D Barker
    27. P Barsanti
    28. P Batterham
    29. S Batzoglou
    30. D Begun
    31. A Bhutkar
    32. E Blanco
    33. SA Bosak
    34. RK Bradley
    35. AD Brand
    36. MR Brent
    37. AN Brooks
    38. RH Brown
    39. RK Butlin
    40. C Caggese
    41. BR Calvi
    42. A Bernardo de Carvalho
    43. A Caspi
    44. S Castrezana
    45. SE Celniker
    46. JL Chang
    47. C Chapple
    48. S Chatterji
    49. A Chinwalla
    50. A Civetta
    51. SW Clifton
    52. JM Comeron
    53. JC Costello
    54. JA Coyne
    55. J Daub
    56. RG David
    57. AL Delcher
    58. K Delehaunty
    59. CB Do
    60. H Ebling
    61. K Edwards
    62. T Eickbush
    63. JD Evans
    64. A Filipski
    65. S Findeiss
    66. E Freyhult
    67. L Fulton
    68. R Fulton
    69. AC Garcia
    70. A Gardiner
    71. DA Garfield
    72. BE Garvin
    73. G Gibson
    74. D Gilbert
    75. S Gnerre
    76. J Godfrey
    77. R Good
    78. V Gotea
    79. B Gravely
    80. AJ Greenberg
    81. S Griffiths-Jones
    82. S Gross
    83. R Guigo
    84. EA Gustafson
    85. W Haerty
    86. MW Hahn
    87. DL Halligan
    88. AL Halpern
    89. GM Halter
    90. MV Han
    91. A Heger
    92. L Hillier
    93. AS Hinrichs
    94. I Holmes
    95. RA Hoskins
    96. MJ Hubisz
    97. D Hultmark
    98. MA Huntley
    99. DB Jaffe
    100. S Jagadeeshan
    101. WR Jeck
    102. J Johnson
    103. CD Jones
    104. WC Jordan
    105. GH Karpen
    106. E Kataoka
    107. PD Keightley
    108. P Kheradpour
    109. EF Kirkness
    110. LB Koerich
    111. K Kristiansen
    112. D Kudrna
    113. RJ Kulathinal
    114. S Kumar
    115. R Kwok
    116. E Lander
    117. CH Langley
    118. R Lapoint
    119. BP Lazzaro
    120. SJ Lee
    121. L Levesque
    122. R Li
    123. CF Lin
    124. MF Lin
    125. K Lindblad-Toh
    126. A Llopart
    127. M Long
    128. L Low
    129. E Lozovsky
    130. J Lu
    131. M Luo
    132. CA Machado
    133. W Makalowski
    134. M Marzo
    135. M Matsuda
    136. L Matzkin
    137. B McAllister
    138. CS McBride
    139. B McKernan
    140. K McKernan
    141. M Mendez-Lago
    142. P Minx
    143. MU Mollenhauer
    144. K Montooth
    145. SM Mount
    146. X Mu
    147. E Myers
    148. B Negre
    149. S Newfeld
    150. R Nielsen
    151. MA Noor
    152. P O'Grady
    153. L Pachter
    154. M Papaceit
    155. MJ Parisi
    156. M Parisi
    157. L Parts
    158. JS Pedersen
    159. G Pesole
    160. AM Phillippy
    161. CP Ponting
    162. M Pop
    163. D Porcelli
    164. JR Powell
    165. S Prohaska
    166. K Pruitt
    167. M Puig
    168. H Quesneville
    169. KR Ram
    170. D Rand
    171. MD Rasmussen
    172. LK Reed
    173. R Reenan
    174. A Reily
    175. KA Remington
    176. TT Rieger
    177. MG Ritchie
    178. C Robin
    179. YH Rogers
    180. C Rohde
    181. J Rozas
    182. MJ Rubenfield
    183. A Ruiz
    184. S Russo
    185. SL Salzberg
    186. A Sanchez-Gracia
    187. DJ Saranga
    188. H Sato
    189. SW Schaeffer
    190. MC Schatz
    191. T Schlenke
    192. R Schwartz
    193. C Segarra
    194. RS Singh
    195. L Sirot
    196. M Sirota
    197. NB Sisneros
    198. CD Smith
    199. TF Smith
    200. J Spieth
    201. DE Stage
    202. A Stark
    203. W Stephan
    204. RL Strausberg
    205. S Strempel
    206. D Sturgill
    207. G Sutton
    208. GG Sutton
    209. W Tao
    210. S Teichmann
    211. YN Tobari
    212. Y Tomimura
    213. JM Tsolas
    214. VL Valente
    215. E Venter
    216. JC Venter
    217. S Vicario
    218. FG Vieira
    219. AJ Vilella
    220. A Villasante
    221. B Walenz
    222. J Wang
    223. M Wasserman
    224. T Watts
    225. D Wilson
    226. RK Wilson
    227. RA Wing
    228. MF Wolfner
    229. A Wong
    230. GK Wong
    231. CI Wu
    232. G Wu
    233. D Yamamoto
    234. HP Yang
    235. SP Yang
    236. JA Yorke
    237. K Yoshida
    238. E Zdobnov
    239. P Zhang
    240. Y Zhang
    241. AV Zimin
    242. J Baldwin
    243. A Abdouelleil
    244. J Abdulkadir
    245. A Abebe
    246. B Abera
    247. J Abreu
    248. SC Acer
    249. L Aftuck
    250. A Alexander
    251. P An
    252. E Anderson
    253. S Anderson
    254. H Arachi
    255. M Azer
    256. P Bachantsang
    257. A Barry
    258. T Bayul
    259. A Berlin
    260. D Bessette
    261. T Bloom
    262. J Blye
    263. L Boguslavskiy
    264. C Bonnet
    265. B Boukhgalter
    266. I Bourzgui
    267. A Brown
    268. P Cahill
    269. S Channer
    270. Y Cheshatsang
    271. L Chuda
    272. M Citroen
    273. A Collymore
    274. P Cooke
    275. M Costello
    276. K D'Aco
    277. R Daza
    278. G De Haan
    279. S DeGray
    280. C DeMaso
    281. N Dhargay
    282. K Dooley
    283. E Dooley
    284. M Doricent
    285. P Dorje
    286. K Dorjee
    287. A Dupes
    288. R Elong
    289. J Falk
    290. A Farina
    291. S Faro
    292. D Ferguson
    293. S Fisher
    294. CD Foley
    295. A Franke
    296. D Friedrich
    297. L Gadbois
    298. G Gearin
    299. CR Gearin
    300. G Giannoukos
    301. T Goode
    302. J Graham
    303. E Grandbois
    304. S Grewal
    305. K Gyaltsen
    306. N Hafez
    307. B Hagos
    308. J Hall
    309. C Henson
    310. A Hollinger
    311. T Honan
    312. MD Huard
    313. L Hughes
    314. B Hurhula
    315. ME Husby
    316. A Kamat
    317. B Kanga
    318. S Kashin
    319. D Khazanovich
    320. P Kisner
    321. K Lance
    322. M Lara
    323. W Lee
    324. N Lennon
    325. F Letendre
    326. R LeVine
    327. A Lipovsky
    328. X Liu
    329. J Liu
    330. S Liu
    331. T Lokyitsang
    332. Y Lokyitsang
    333. R Lubonja
    334. A Lui
    335. P MacDonald
    336. V Magnisalis
    337. K Maru
    338. C Matthews
    339. W McCusker
    340. S McDonough
    341. T Mehta
    342. J Meldrim
    343. L Meneus
    344. O Mihai
    345. A Mihalev
    346. T Mihova
    347. R Mittelman
    348. V Mlenga
    349. A Montmayeur
    350. L Mulrain
    351. A Navidi
    352. J Naylor
    353. T Negash
    354. T Nguyen
    355. N Nguyen
    356. R Nicol
    357. C Norbu
    358. N Norbu
    359. N Novod
    360. B O'Neill
    361. S Osman
    362. E Markiewicz
    363. OL Oyono
    364. C Patti
    365. P Phunkhang
    366. F Pierre
    367. M Priest
    368. S Raghuraman
    369. F Rege
    370. R Reyes
    371. C Rise
    372. P Rogov
    373. K Ross
    374. E Ryan
    375. S Settipalli
    376. T Shea
    377. N Sherpa
    378. L Shi
    379. D Shih
    380. T Sparrow
    381. J Spaulding
    382. J Stalker
    383. N Stange-Thomann
    384. S Stavropoulos
    385. C Stone
    386. C Strader
    387. S Tesfaye
    388. T Thomson
    389. Y Thoulutsang
    390. D Thoulutsang
    391. K Topham
    392. I Topping
    393. T Tsamla
    394. H Vassiliev
    395. A Vo
    396. T Wangchuk
    397. T Wangdi
    398. M Weiand
    399. J Wilkinson
    400. A Wilson
    401. S Yadav
    402. G Young
    403. Q Yu
    404. L Zembek
    405. D Zhong
    406. A Zimmer
    407. Z Zwirko
    408. DB Jaffe
    409. P Alvarez
    410. W Brockman
    411. J Butler
    412. C Chin
    413. S Gnerre
    414. M Grabherr
    415. M Kleber
    416. E Mauceli
    417. I MacCallum
    418. Drosophila 12 Genomes Consortium
    (2007)
    Nature 450:203–218.
    https://doi.org/10.1038/nature06341
  9. 9
    The bric à brac locus consists of two paralogous genes encoding BTB/POZ domain proteins and acts as a homeotic and morphogenetic regulator of imaginal development in Drosophila
    1. JL Couderc
    2. D Godt
    3. S Zollman
    4. J Chen
    5. M Li
    6. S Tiong
    7. SE Cramton
    8. I Sahut-Barnola
    9. FA Laski
    (2002)
    Development 129:2419–2433.
  10. 10
    The Regulatory Genome: Gene Regulatory Networks in Development and Evolution (2nd edn)
    1. EH Davidson
    (2006)
    Academic Press.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    FlyBase
    1. CM Hart
    (2013)
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Experimental Approaches to Evaluate the Contributions of Candidate Cis- regulatory Mutations to Phenotypic Evolution
    1. M Rebeiz
    2. TM Williams
    (2011)
    In: V Orgogozo, M Rockman, editors. Methods in Molecular Biology (Methods and Protocols), Vol. 772. Humana Press. pp. 351–375.
  32. 32
  33. 33
  34. 34
  35. 35
    Quantitative comparison of cis-regulatory element (CRE) activities in transgenic Drosophila melanogaster
    1. WA Rogers
    2. TM Williams
    (2011)
    Journal of Visualized Experiments 58:3395.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
    Expression of foreign proteins in E. coli using plasmid vectors and purification of specific polyclonal antibodies
    1. JA Williams
    2. JA Langeland
    3. BS Thalley
    4. JB Skeath
    5. SB Carroll
    (1995)
    In: D. M Glover, D. B Hames, editors. DNA Cloning 2. a Proactical Approach. Expression Systems. Oxford: Oxford University Press. pp. 15–57.
  44. 44
  45. 45

Decision letter

  1. Patricia J Wittkopp
    Reviewing Editor; University of Michigan, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cis-regulatory evolution integrated the Bric-à-brac transcription factors into a novel fruit fly gene regulatory network" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Patricia Wittkopp as the Senior and Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, the authors study how an ancient transcription factor became integrated into a gene regulatory network (GRN) underlying the novel sexually dimorphic abdominal pigmentation in Drosophila species. Specifically, the authors elucidate the regulatory linkage between the two key TFs in this GRN, the Bab paralog pair, and the effector pigmentation pathway gene, yellow. They address two main questions: 1) How and when was Bab incorporated into the dimorphic pigmentation GRN? 2) To what extent did gene duplication, protein coding sequence and CRE evolution contribute to the derived trait? The experiments conducted to address these questions were well-designed and the paper is well written. We have a few major requests for revision.

Essential revisions:

1) Please provide a more complete introduction to the GRN under study. For example, Abd-B is mentioned throughout the text, but the exact role of this TF in this network is rather unclear. Either elaborating Figure 8B, or having a diagram of the whole GRN in (or as) Figure 1 will better contextualize the Bab-yellow regulatory linkage and will help orient the readers, when discussing the different components of the GRN in the text.

2) Tone down the language related to the evolutionary conservation of Bab functions after duplication. Over-expressing a gene with the GAL4-UAS system produces protein levels that are not in the physiological range. So, it is likely that the amount of bab in epidermal cells is saturating. Indeed, this might be the reason why the level of suppression of yBE0.6 is so similar for all bab homologs (Figure 6). With the assay used, it cannot be claimed that the function of these genes has been conserved and that the suppressive capabilities of homologs are similar. For example, DNA binding affinity might have changed, but this wasn't visible because of the over-expression of these proteins, which might pass a threshold. To be clear, we are not asking for additional experiments to address this point given the time and effort required. Rather, we are asking you to solve this issue by softening the conclusions. A sequence comparison showing there have not been radical amino acid changes in Bab homologs would also be helpful to include. The following three sentences, for example, should be modified: "by these ectopic expression assays, we find that not only are the Bab paralogs sufficient to suppress pigmentation when ectopically expressed, but that their suppressive capabilities are similar"; "These results suggest that the ability of the Bab1 and Bab2 proteins to regulate dimorphic pigmentation did not require noteworthy changes in their protein coding sequences"; "These outcomes are consistent with the interpretation that the general functional capability of these proteins was ancient and has been generally conserved during the 100 million years or more since the gene duplication event occurred".

3) Refine your conclusions regarding Bab evolution. The regulation of this enhancer by Bab (bab1+bab2) is probably a derived condition, and the regulation of yellow by Bab evolved at roughly the same time as the regulation of bab by Abd-B (another regulatory linkage that contributes to sexually dimorphic pigmentation). However, this conclusion comes with the caveat that taxon sampling in this study is very limited. It remains possible that the bab-yellow linkage is more ancient but has been lost/reduced in some clades.

https://doi.org/10.7554/eLife.32273.031

Author response

Essential revisions:

1) Please provide a more complete introduction to the GRN under study. For example, Abd-B is mentioned throughout the text, but the exact role of this TF in this network is rather unclear. Either elaborating Figure 8B, or having a diagram of the whole GRN in (or as) Figure 1 will better contextualize the Bab-yellow regulatory linkage and will help orient the readers, when discussing the different components of the GRN in the text.

We made changes to help clarify the role of Abd-B. As suggested, we created a new Figure 1 that represents what we consider to be the contemporary understanding of the D. melanogaster abdominal tergite pigmentation GRN. A key part of this GRN is the role of Abd-B as an upstream activator of melanic pigmentation genes such as yellow and tan. We also modified a sentence in the Introduction to now read: “Within the GRN controlling this trait, the Hox gene Abd-B plays an important role in activating the expression of terminal enzyme genes that are required for pigment formation (Figure 1).”

2) Tone down the language related to the evolutionary conservation of Bab functions after duplication. Over-expressing a gene with the GAL4-UAS system produces protein levels that are not in the physiological range. So, it is likely that the amount of bab in epidermal cells is saturating. Indeed, this might be the reason why the level of suppression of yBE0.6 is so similar for all bab homologs (Figure 6). With the assay used, it cannot be claimed that the function of these genes has been conserved and that the suppressive capabilities of homologs are similar. For example, DNA binding affinity might have changed, but this wasn't visible because of the over-expression of these proteins, which might pass a threshold. To be clear, we are not asking for additional experiments to address this point given the time and effort required. Rather, we are asking you to solve this issue by softening the conclusions. A sequence comparison showing there have not been radical amino acid changes in Bab homologs would also be helpful to include. The following three sentences, for example, should be modified: "by these ectopic expression assays, we find that not only are the Bab paralogs sufficient to suppress pigmentation when ectopically expressed, but that their suppressive capabilities are similar"; "These results suggest that the ability of the Bab1 and Bab2 proteins to regulate dimorphic pigmentation did not require noteworthy changes in their protein coding sequences"; "These outcomes are consistent with the interpretation that the general functional capability of these proteins was ancient and has been generally conserved during the 100 million years or more since the gene duplication event occurred".

We added an amino acid alignment for diverse Bab homologs as a Figure 2—source data 1.

We changed the sentence "Thus, by these ectopic expression assays, we find that not only are the Bab paralogs sufficient to suppress pigmentation when ectopically expressed, but that their suppressive capabilities are similar.” to “These data show that Bab1 and Bab2 are both potent suppressors of pigmentation in two very different regimes of ectopic expression.”

We changed the sentence “These results suggest that the ability of the Bab1 and Bab2 proteins to regulate dimorphic pigmentation did not require noteworthy changes in their protein coding sequences.” to “These results suggest that the ability of the Bab1 and Bab2 proteins to regulate dimorphic pigmentation did not require the evolution of an altogether new biochemical capability.”

We changed the sentence “These outcomes are consistent with the interpretation that the general functional capability of these proteins was ancient and has been generally conserved during the 100 million years or more since the gene duplication event occurred.” to “These outcomes are consistent with the interpretation that the general functional capability of these proteins was ancient and has been conserved during the 100 million years or more since the gene duplication event occurred. However, these experiments cannot rule out the possibility that changes have occurred in the bab protein coding sequences that cause incremental differences in the ability to regulate dimorphic pigmentation. In fact, the further reduced pigmentation caused by the Bab1 orthologs compared to those for Bab2, and A. gambiae Bab suggests that such incremental enhancements have indeed occurred (Figure 6).”

We made an additional change in the Abstract to further tone down the language. Specifically, we changed “Here we show that Bab gained a role in sculpting sex-specific pigmentation through the evolution of binding sites in a CRE of the pigment-promoting yellow gene and without any noteworthy changes to Bab protein coding sequences.” to “Here we show that the ancestral transcription factor activity of Bab gained a role in sculpting sex-specific pigmentation through the evolution of binding sites in a CRE of the pigment-promoting yellow gene.”

3) Refine your conclusions regarding Bab evolution. The regulation of this enhancer by Bab (bab1+bab2) is probably a derived condition, and the regulation of yellow by Bab evolved at roughly the same time as the regulation of bab by Abd-B (another regulatory linkage that contributes to sexually dimorphic pigmentation). However, this conclusion comes with the caveat that taxon sampling in this study is very limited. It remains possible that the bab-yellow linkage is more ancient but has been lost/reduced in some clades.

We changed the sentence “Collectively, these results suggest that the direct Bab regulation of yellow evolved specifically within the dimorphic body element, coincident with the evolution of the dimorphic pigmentation trait.” to read as “These results can be explained by two evolutionary scenarios. […] In the future, deeper taxon sampling in Sophophora may shed light on which of the two scenarios reflects the true evolutionary history for this dimorphic pigmentation trait.”

We think this clarification fits well with our soon to follow Discussion section on “Bab and its history in a pigmentation gene regulatory network.”

https://doi.org/10.7554/eLife.32273.032

Article and author information

Author details

  1. Maxwell J Roeske

    Department of Biology, University of Dayton, Dayton, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Eric M Camino
    Competing interests
    No competing interests declared
  2. Eric M Camino

    Department of Biology, University of Dayton, Dayton, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft
    Contributed equally with
    Maxwell J Roeske
    Competing interests
    No competing interests declared
  3. Sumant Grover

    Department of Biology, University of Dayton, Dayton, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Mark Rebeiz

    Department of Biological Sciences, University of Pittsburgh, Pittsburgh, United States
    Contribution
    Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Thomas Michael Williams

    1. Department of Biology, University of Dayton, Dayton, United States
    2. Center for Tissue Regeneration and Engineering at Dayton, University of Dayton, Dayton, United States
    Contribution
    Formal analysis, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    twilliams2@udayton.edu
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-1363-0637

Funding

National Science Foundation (IOS-1555906)

  • Mark Rebeiz
  • Thomas Michael Williams

National Institutes of Health (5R01GM114093-02)

  • Mark Rebeiz

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study benefited from stocks obtained from the Bloomington Drosophila Stock Center (NIH P40OD018537), the San Diego Drosophila Stock Center, and from Sean B Carroll. We are grateful for Michael Levine sharing the pattB-NE3 and pHB vectors to make shmiR transgenes. MJR was supported in part by the Berry Summer Thesis Institute and Honors Program at the University of Dayton. EMC and SG were supported by fellowships from the University of Dayton Graduate School. TMW and MR were supported by a grant from the National Science Foundation (IOS-1555906). MR’s work on Drosophila pigmentation was supported by a grant from the National Institutes of Health (5R01GM114093-02). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Reviewing Editor

  1. Patricia J Wittkopp, Reviewing Editor, University of Michigan, United States

Publication history

  1. Received: September 25, 2017
  2. Accepted: December 19, 2017
  3. Version of Record published: January 3, 2018 (version 1)

Copyright

© 2018, Roeske et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,019
    Page views
  • 135
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Zaijun Ma et al.
    Research Article Updated
    1. Chromosomes and Gene Expression
    2. Computational and Systems Biology
    Bryan J Matthews, David J Waxman
    Research Article Updated
