Distinct myocardial lineages break atrial symmetry during cardiogenesis in zebrafish

  1. Almary Guerra
  2. Raoul FV Germano
  3. Oliver Stone
  4. Rima Arnaout
  5. Stefan Guenther
  6. Suchit Ahuja
  7. Verónica Uribe
  8. Benoit Vanhollebeke
  9. Didier YR Stainier
  10. Sven Reischauer  Is a corresponding author
  1. Max Planck Institute for Heart and Lung Research, Germany
  2. ULB Neuroscience Institute, Université libre de Bruxelles, Belgium
  3. Cardiovascular Research Institute, University of California, San Francisco, United States
Research Article
Cite this article as: eLife 2018;7:e32833 doi: 10.7554/eLife.32833
7 figures, 1 video, 1 table, 3 data sets and 2 additional files

Figures

Figure 1 with 1 supplement
Asymmetric expression of atrial-specific transcription factor genes in adult zebrafish.

(a) Comparison of different vertebrate hearts showing the emergence of distinct left and right chamber identities and atrial septation. (b) Schematic representation of the workflow for the identification of cardiac chamber-specific transcription factor gene expression. (c) Atrial gene expression level (signal intensity) and chamber-specific enrichment in the atrium (fold change >0) or ventricle (fold change <0). Red line marks 2.5 (log2) fold cutoff. Highly enriched atrial transcription factor genes (blue), ventricular (myh7l) and atrial (myh6) chamber-specific myosin genes (orange) are shown. (d) Atrial enriched transcription factor genes (log2 fold change >2.5). (e–f) Whole-mount in situ hybridization on adult zebrafish hearts; myh6 expression covers the entire atrium while meis2b expression is restricted to the left side of the atrium. (g–h) In situ hybridization on adult cardiac sections; myl7 is expressed in all cardiomyocytes while meis2b is expressed on the left side of the atrium in the wall and trabeculae (see Figure 1—figure Supplement 1a for higher magnification). (i–i’) Brightfield and fluorescence images of a 4 mpf Tg(meis2b-reporter) zebrafish atrium. (j–j’) High-magnification confocal projections of a 4 mpf Tg(meis2b-reporter) heart showing expression of the Tg(meis2b-reporter) in the myocardium (Tg(meis2b-reporter)+/MF20+/Fli cells) but not the endocardium (Tg(meis2b-reporter)-/MF20-/Fli1+cells). (e–f, i–i’) Red and white dotted lines delineate the atrium; (i’) yellow line delineates Tg(meis2b-reporter) expression. Scale bars: (e–i) 1 mm, (j’) 50 µm.

https://doi.org/10.7554/eLife.32833.002
Figure 1—figure supplement 1
Validation of the meis2b reporter line.

(a) High magnification of Figure 1g showing the asymmetric expression of meis2b in the atrium of the adult zebrafish heart (red arrow, meis2b + atrial domain; black arrow, meis2b- atrial domain). (b) Schematic of the TgBAC(meis2b:GAL4FF);Tg(5xUAS:EGFP) meis2b reporter system. (c–f) Comparison of meis2b expression as detected by whole-mount in situ hybridization and Tg(meis2b-reporter) expression at 24 and 48 hpf. Note: in situ hybridization staining reaction was stopped before spinal CNS expression was fully detected in order to avoid overstaining of the head region. Scale bars: 500 µm.

https://doi.org/10.7554/eLife.32833.003
The zebrafish atrium is divided into two transcriptionally distinct domains.

(a) Schematic illustrating the dissection of a Tg(meis2b-reporter) atrium into Tg(meis2b-reporter)-positive and -negative domains for RNAseq analysis. (b) Global heatmap depicting Z-score of differentially expressed genes between Tg(meis2b-reporter)-positive and -negative domains (m2b-pos and m2b-neg, respectively). Red color indicates higher expression and blue color lower expression in the respective sample listed at the bottom of each column. (c) Schematic representation of asymmetrically expressed transcripts in mouse atria as determined by microarray analysis (Kahr et al., 2011); only significantly differentially expressed genes included (3695/25697 probes). Green: significantly left atrial enriched transcripts; grey: significantly right atrial enriched transcripts. (d–h) RT-qPCR analysis of left vs. right atria in adult mouse shows that the orthologues of the most significantly enriched genes in the Tg(meis2b-reporter)-positive domain are also significantly enriched in the left atrium in mouse. Plots show relative gene expression in left atrium with respect to right atrium (n = 5). (i–i’’’) Wholemount fluorescent in situ hybridization (RNAscope) for pitx2c expression on a Tg(meis2b-reporter) zebrafish atrium [DAPI in blue, Tg(meis2b-reporter) in white, pitx2c in red]. (b–c, e) si:ch211-117c9.5 is a zebrafish orthologue of Slc6a2. (i–i’’) Red and white dotted lines delineate the atrium; (i’) yellow line delineates Tg(meis2b-reporter) expression. (d–h) Two-tailed student t-tests were performed, *p<0.05; **p<0.005; ***p<0.0005; error bars indicate ±SD. Scale bars: (i) 100 µm, (i’’’) 25 µm.

https://doi.org/10.7554/eLife.32833.004
Figure 2—source data 1

Ct values obtained in RT-qPCR experiments for adult mouse heart.

https://doi.org/10.7554/eLife.32833.005
Figure 3 with 8 supplements
Myocardial morphogenesis establishes left-right laterality from two distinct antero-posterior fields.

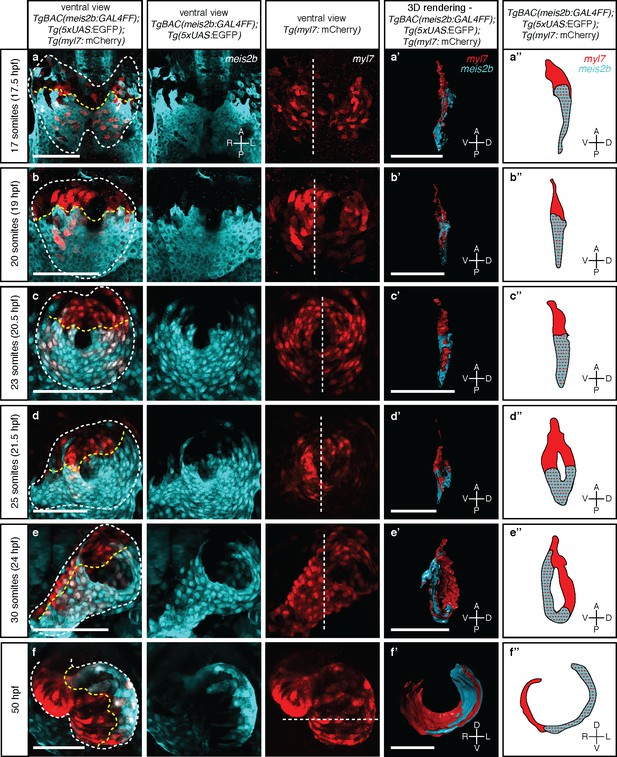

Confocal projections of Tg(meis2b-reporter);Tg(myl7:mCherry) embryos between the 17 ss (16 hpf) and 50 hpf. (a-c) Myocardial progenitors migrate to the midline and form the cardiac disc, where Tg(meis2b-reporter) expression is confined to the posterior compartment of the cardiac disc (PDC). (d) Cardiomyocytes forming the cardiac disc appear to migrate clock-wise, rotating the forming heart tube. (e) Tg(meis2b-reporter)-expressing cells are located on the ventral side of the heart tube. (f) At 50 hpf, Tg(meis2b-reporter) expression appears on the left side of the atrium, and in a small part of the ventricle near the AV canal. (a’-f’) 3D rendered sections (as indicated in the third column, white dotted lines) of the hearts shown in a-f (see Figure 3—videos 16 for full reconstructions). (a’’-f’’) Schematic representation of Tg(meis2b-reporter);Tg(myl7:mCherry) expression from (a’-f’). White dotted lines delineate the heart, yellow dotted lines delineate Tg(meis2b-reporter) expression. White dotted lines in third column indicate the level of the sagittal and transverse views. First to third columns: ventral views, anterior up; (a’-e’, a’’-e’’) sagittal views, anterior up; (f’, f’’) transverse views, dorsal up. Scale bars: (a-e’) 100 µm, (f’) 50 µm.

https://doi.org/10.7554/eLife.32833.006
Figure 3—figure supplement 1
meis2b is expressed in the cardiogenic anterior lateral plate mesoderm.

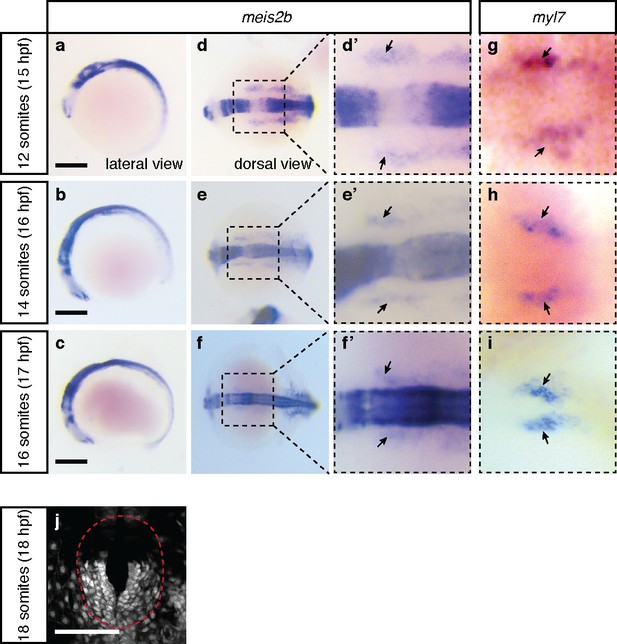

Whole-mount in situ hybridization for meis2b (a–f’) and myl7 (g–i) expression at several embryonic stages. Arrows point to expression of meis2b (d’–f’) and the cardiomyocyte marker myl7 (g–i) in the same region of the ALPM. (j) Confocal projection of Tg(meis2b-reporter) expression at 18 ss. (a–c) Lateral views, anterior to the left; (d–i) Dorsal views, anterior to the left; (j) red dotted line delineates the cardiac disc. Scale bars: 100 µm.

https://doi.org/10.7554/eLife.32833.007
Figure 3—figure supplement 2
Tg(meis2b-reporter) expression with respect to the endothelium during the cardiac disc and heart tube stages.

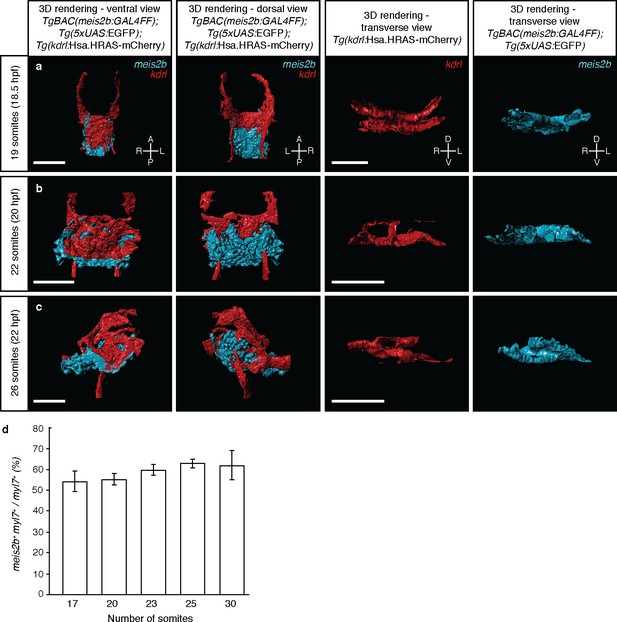

3D surface rendering of Tg(meis2b-reporter);Tg(kdrl:Hsa.HRAS-mCherry) embryos at 19 to 26 ss. (a) At 19 ss, endocardial cells are located ventral to the myocardium and pass through the ring of myocardial cells to connect dorsally to the aortic arches. (b) At 22 ss, endocardial cells cover most of the ventral side of the myocardium in the cardiac disc. (c) At 26 ss, Tg(meis2b-reporter) expression is observed in the ventral side of the heart tube, while endocardial cells are lining the interior of the heart tube. Left column: ventral views, anterior up. Second column: dorsal views, anterior up. Third and fourth column: transverse views, dorsal up. (d) Percentage of Tg(meis2b-reporter)-positive cardiomyocytes with respect to the total number of myl7+ cardiomyocytes from 17 to 30 ss. Scale bars: 100 µm.

https://doi.org/10.7554/eLife.32833.008
Figure 3—video 1
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 17 somite stage from Figure 3a.
https://doi.org/10.7554/eLife.32833.009
Figure 3—video 2
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 20 somite stage from Figure 3b.
https://doi.org/10.7554/eLife.32833.010
Figure 3—video 3
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 23 somite stage from Figure 3c.
https://doi.org/10.7554/eLife.32833.011
Figure 3—video 4
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 25 somite stage from Figure 3d.
https://doi.org/10.7554/eLife.32833.012
Figure 3—video 5
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 30 somite stage from Figure 3e.
https://doi.org/10.7554/eLife.32833.013
Figure 3—video 6
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 50 hpf from Figure 3f.
https://doi.org/10.7554/eLife.32833.014
Figure 4 with 2 supplements
meis2b expression unveils an atrial asymmetry throughout development.

(a) At 72 hpf, Tg(meis2b-reporter) expression is observed near the sinus venosus (white arrow), the dorsal and distal sides of the atrium, and a small part of the ventricle near the atrioventricular canal (red arrow) (n = 8) (Figure 4—video 1). (b) At 6 dpf Tg(meis2b-reporter) expression is found exclusively in the anterior-left compartment of the atrium at (n = 5) and in adult stages (c) in the left side of the atrium (n = 15) (Figure 4—video 2). (d-h’) Schematic of Tg(meis2b-reporter) expression throughout heart development [Tg(meis2b-reporter) expression in cardiomyocytes (cyan); meis2b-negative myocardium (red); (e) dotted line indicates the atrioventricular boundary]. (a, d–f) ventral views, anterior up; (b–c, g–h) lateral views, anterior to the left; (f’) dorsal view, anterior up; (h’) lateral view, anterior to the right. A, atrium; V, ventricle. (b–c) white dotted lines delineate the heart, yellow dotted lines delineate Tg(meis2b-reporter) expression. Scale bars: (a–b) 100 µm, (c) 500 µm.

https://doi.org/10.7554/eLife.32833.016
Figure 4—video 1
3D rendering of a 72 hpf Tg(meis2b-reporter) heart from Figure 4a.
https://doi.org/10.7554/eLife.32833.017
Figure 4—video 2
3D surface rendering of Tg(meis2b-reporter);Tg(myl7:mCherry) expression at 6 dpf from Figure 4b.
https://doi.org/10.7554/eLife.32833.018
Figure 5 with 5 supplements
Atrial laterality is established from distinct antero-posterior fields without contribution from the second heart field.

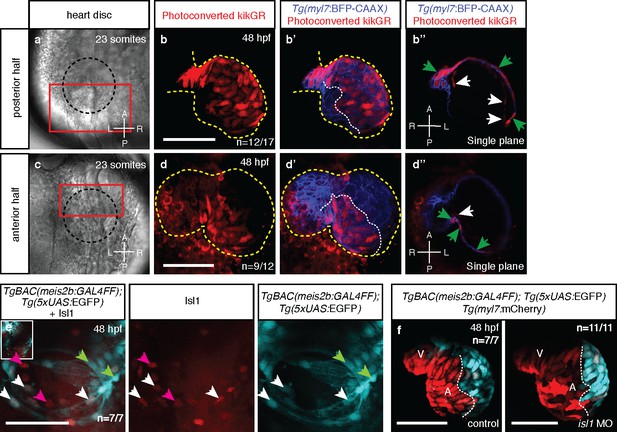

(a, c) Cardiac disc (dotted circle) at 23 ss. (b–b’) Confocal projections of photoconverted kikGR with Tg(myl7:BFP-CAAX) hearts (yellow lines) show that cells from the PDC populate the left side of the atrium while (d–d’) cells from the ADC populate the right side of the atrium (white dotted lines). (b’’, d’’) Single optical planes from b’ and d’, respectively (cardiomyocytes, green arrows; endocardial cells, white arrows). (e) Tg(meis2b-reporter) expression and antibody staining for Isl1 in the 48 hpf heart [meis2b+/Isl1+ (white arrows), meis2b+/Isl1- (green arrows) and meis2b-/Isl1+ (pink arrows) cardiomyocytes]. (f) Confocal projections of control uninjected and isl1 MO injected 48 hpf Tg(meis2b-reporter);Tg(myl7:mCherry) hearts [white lines delineate Tg(meis2b-reporter) expression]. Scale bars: 100 µm.

https://doi.org/10.7554/eLife.32833.019
Figure 5—figure supplement 1

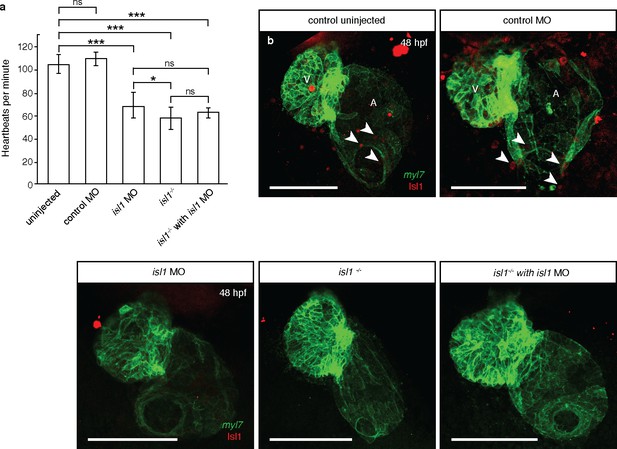

isl1 morphants have reduced levels of Isl1 protein and phenocopy isl1 mutants.

(a) At 48 hpf, the heart rate of isl1 morphants (n = 10) is significantly lower than that of uninjected (n = 13) or control morpholino injected (n = 12) embryos, and similar to that of isl1 mutant embryos (n = 14), in agreement with previously published data (de Pater et al., 2009). The heart rate of isl1 mutants that were injected with isl1 morpholino (n = 3) do not show significant difference with that of isl1 mutants or morphants. (b) Antibody staining for Isl1 in 48 hpf Tg(myl7:HRAS-EGFP) hearts (arrowheads) showing decreased levels of Isl1 protein in isl1 morphants and mutants. Altogether, these data suggest that the observed cardiac phenotypes in isl1 morphants are not caused by non-specific effects from the morpholino injections. Student t-tests were performed, *p<0.05; **p<0.005; ***p<0.0005; ns, not significant; error bars indicate ±SD. Scale bars: 100 µm.

https://doi.org/10.7554/eLife.32833.020
Figure 5—video 1
3D surface rendering of photoconverted kikGR with Tg(myl7:BFP-CAAX) expression at 48 hpf from Figure 5b’.
https://doi.org/10.7554/eLife.32833.021
Figure 5—video 2
3D surface rendering of photoconverted kikGR with Tg(myl7:BFP-CAAX) expression at 48 hpf from Figure 5d’.
https://doi.org/10.7554/eLife.32833.022
Figure 5—video 3
3D rendering of a 48 hpf Tg(meis2b-reporter);Tg(myl7:mCherry) heart from Figure 5f, control.
https://doi.org/10.7554/eLife.32833.023
Figure 5—video 4
3D rendering of a 48 hpf Tg(meis2b-reporter);Tg(myl7:mCherry) heart from Figure 5f, isl1 morphant.
https://doi.org/10.7554/eLife.32833.024
Figure 6 with 2 supplements
Loss of meis2b causes dysmorphic atrial growth and conduction defects.

(a) meis2b-/- larvae exhibit a significant increase in the ratio of atrial to ventricular surface area, while (b) ventricular surface area and (c) body length are not affected compared to WT siblings. (d) Analysis of Tg(myl7:LIFEACT-GFP) fish reveals no obvious defects in atrial myofibrillar architecture in 4 wpf meis2b-/-. (e–h) Adult meis2b-/- display pericardial bulging (arrow) due to abnormal atrial growth. (i) meis2b-/- exhibit a significant increase in atrial cardiomyocyte (CM) proliferation at 3 mpf. (j–k) Cardiac physiology assessed using electrocardiography (ECG) at 5 and 12 mpf. (j) meis2b-/- exhibit a significant increase in PR-segment variability compared to WT siblings, while P-duration and ventricular conduction (QRS) appear unaffected at 5 mpf. (k) At 12 mpf, PR-segment, P-duration and QRS interval are significantly affected in meis2b-/-. (l–m) Representative ECGs of 12 mpf animals show reduced PR-segment duration (red line) and multiple P-waves (arrow) in meis2b-/-. Scale bars: (d) 100 µm, (e–h) 1 mm. (a–c, i) One-tailed student t-tests were performed. (j–k) F-test and Bartlett’s test were performed. Significant differences compared with control are indicated (*p<0.05; **p<0.005; ***p<0.0005); error bars indicate ± SD. A, atrium; V, ventricle; ns, not significant.

https://doi.org/10.7554/eLife.32833.025
Figure 6—source data 1

Quantification of proliferating atrial cardiomyocytes in meis2b mutants and WT siblings.

https://doi.org/10.7554/eLife.32833.028
Figure 6—figure supplement 1
Generation of a meis2b mutant allele by TALEN mutagenesis.

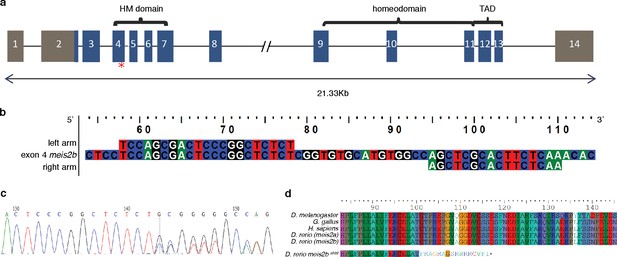

(a) Illustration of the genomic structure of meis2b. Exon 4 (red asterisk), which encodes part of the Hth/Meis (HM) domain, was targeted by site directed mutagenesis with a TAL effector nuclease (TALEN). (b) Sequence of the left and right TALEN arms. (c) Chromatogram showing the induced frameshift allele which carries a 10 base pair deletion and three base pair insertion. (d) Alignment of the translated coding sequence of the HM-domain of different species, illustrating the high level of conservation from arthropods to mammals at the site of the lesion. Translated meis2bs988 coding sequence shows a premature stop 16 amino acids after the induced frameshift mutation. The resulting predicted protein lacks most functional domains, including the DNA-binding domain and the C-terminal transactivation domain (TAD).

https://doi.org/10.7554/eLife.32833.026
Figure 6—figure supplement 2

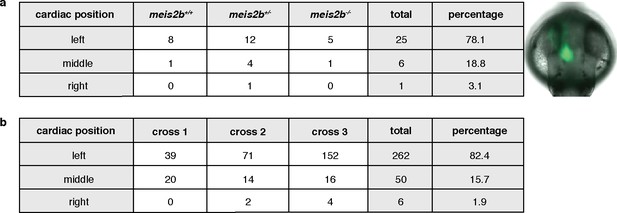

Cardiac positioning (jogging) appears unaffected in meis2b mutants.

General body laterality is not affected in meis2b-/-. Cardiac jogging was assessed from the dorsal side (anterior to the top) using the Tg(myl7:LIFEACT-GFP) line, as shown in the picture on the right. (a) Cardiac jogging is not affected in meis2b-/-. (b) Assessment of cardiac jogging in three independent crosses of Tg(myl7:LIFEACT-GFP) WT fish.

https://doi.org/10.7554/eLife.32833.027
Figure 7 with 2 supplements
Meis2b positively regulates cardiac pitx2c expression.

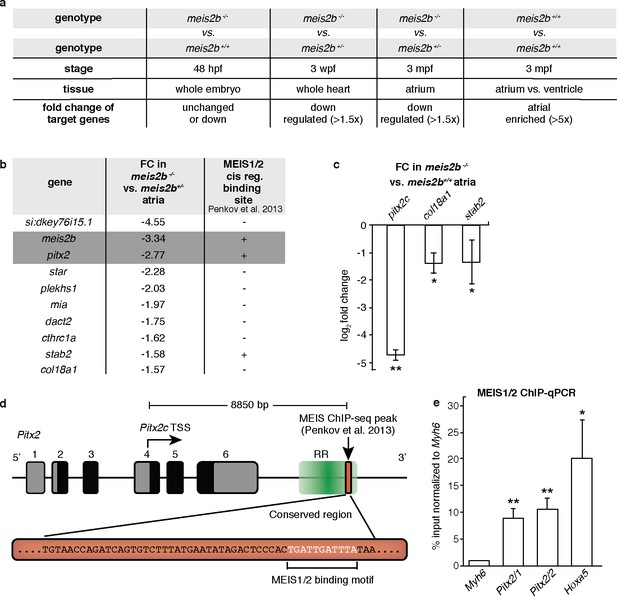

(a) Overview of the different samples used for microarray comparison, showing the stage, type of tissue and genotype of the compared samples. The bottom row shows the expected outcome of downstream genes potentially regulated by Meis2b. (b) Table showing the 10 genes fitting all selection criteria (for genes with n > 1, the values are averaged). Cis-regulatory MEIS1/2 DNA binding sites in orthologous mouse genes were extracted from (Penkov et al., 2013). (+, proximal binding site detected; -, no proximal binding site detected)]. (c) RT-qPCR analysis in meis2b-/- vs WT sibling atria. (d) Representation of the Pitx2 locus in mouse indicating the location of a previously reported MEIS1/2 ChIP-seq peak at the 3’ end of the regulatory region (RR) (ENSMUSR00000406450) (Penkov et al., 2013). A 53 bp conserved sequence inside the ChIP-seq peak is shown together with the MEIS1/2 binding motif. (e) ChIP-qPCR analysis on E12 embryonic mouse trunks of MEIS1/2 on the Pitx2 locus shown in (d), on the Hoxa5 locus (a known MEIS1/2 direct target), and on Myh6 locus (used as a negative control). One-tailed student t-tests (c), and one-sample t-tests (e) were performed, significant differences compared with control are indicated (*p<0.05; **p<0.005); error bars indicate ±SD.

https://doi.org/10.7554/eLife.32833.029
Figure 7—source data 1

Ct values obtained in RT-qPCR experiments for adult zebrafish heart.

https://doi.org/10.7554/eLife.32833.032
Figure 7—source data 2

Ct values obtained in ChIP-qPCR experiments for MEIS on E12 embryonic mouse trunks.

https://doi.org/10.7554/eLife.32833.033
Figure 7—figure supplement 1

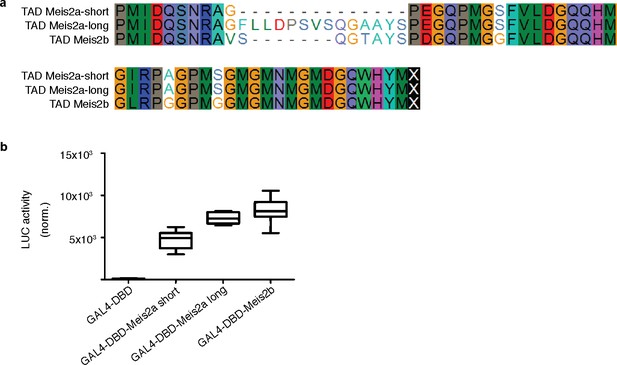

Transactivation potential of Meis2a/b C-terminal domains.

The transactivation potential of cardiac Meis2 isoforms was investigated in vitro. (a) Alignment of the C-terminus of all Meis2a/b isoforms as detected by PCR in adult cardiac cDNA pools. (b) HEK293T cells were transiently co-transfected with plasmids encoding GAL4-DBD alone or GAL4-DBD fused to each of the Meis2 C-terminus shown in (a) together with an UAS:Luciferase reporter plasmid. Luciferase induction represents respective transactivation potential. Bar = median, box = 95% CI, whiskers = min/max, TAD = Transactivation domain. Error bars indicate ±SD.

https://doi.org/10.7554/eLife.32833.030
Figure 7—figure supplement 2

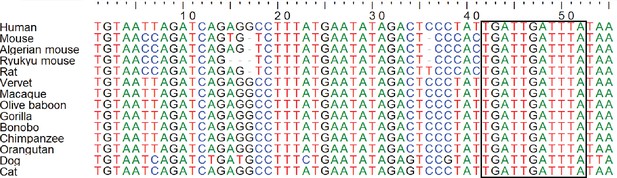

Conserved element inside ChIP-seq peak.

The 53 bp long element found inside the MEIS1/2 ChIP-seq peak is highly conserved in many mammalian species and contains the MEIS1/2 binding motif (black square).

https://doi.org/10.7554/eLife.32833.031

Videos

Video 1
3D surface rendering of Tg(meis2b-reporter);Tg(kdrl:Hsa.HRAS-mCherry) expression at 22 somite stage from Figure 3—figure supplement 2a.
https://doi.org/10.7554/eLife.32833.015

Tables

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiers
Strain (Danio rerio)Tg(5xUAS:EGFP)nkuasgfp1adoi: 10.1073/pnas0.0704963105ZFIN_ZDB-GENO-080528–1
Strain (Danio rerio)Tg(myl7:mCherry)chb1doi: 10.1016/j.ydbio.2011.12.004ZFIN_ZDB-GENO-110720–1
Strain (Danio rerio)meis2bs988This paperZFIN: ZDB-ALT-180327-7
Strain (Danio rerio)TgBAC(meis2b:Gal4FF)bns15This paperZFIN: ZDB-ALT-180330-1
Strain (Danio rerio)Tg(myl7:BFP-CAAX)bns193This paperZFIN: ZDB-ALT-180327-8
Antibodyanti-Fli1 Rabbit PolyclonalAbcam, UK.ab133485;
RRID: AB_2722650
Antibodyanti-MF20 Mouse MonoclonalDevelopmental Studies Hybridoma Bank, US.MF20-s;
RRID: AB_2147781
AntibodyAnti-MEIS1/2doi: 10.1016/j.celrep.2013.03.029Produced at CNIC. K830; K844
Sequence-based reagentisl1 ATG morpholinodoi: 10.1242/dev.02355; Gene Tools, LLC, US.ZFIN_ZDB-MRPHLNO-060728–3
Commercial assay or kitRNAscopeAdvanced Cell Diagnostics, US.Multiplex Fluorescent kit
SoftwareZEN Black and Blue 2012Zeiss, Germany.
SoftwareNIS-ElementsNikon Instruments Inc.
SoftwareImaris - Version 8.4.0.Bitplane, UK.
SoftwareLabChart 8ADInstruments, Australia.
SoftwarePerlPrimer - Version 7doi: 10.1093/bioinformatics/bth254
OtherDynabeads Protein GInvitrogen, Germany.10003D

Data availability

The following data sets were generated
  1. 1
The following previously published data sets were used
  1. 1
    Genome-wide analysis of atrial left-right differences in two different mouse strains
    1. Kahr PC
    2. Piccini I
    (2011)
    Publicly available at the NCBI Gene Expression Omnibus (accession no: GSE29500).
  2. 2
    TALE transcription factors binding and transcriptional effect
    1. Penkov D
    2. Mateos San Martín D
    3. Fernandez-Díaz LC
    4. Rosselló CA
    (2013)
    Publicly available at the NCBI Gene Expression Omnibus (accession no: GSE39609).

Additional files

Supplementary file 1

Set of primers used to genotype meis2b mutant and WT alleles, and to generate TgBAC(meis2b:Gal4FF)bns15.

Set of primers used to clone in situ hybridization probes. Set of primers employed for RT-qPCR and qPCR analyses.
