MPDZ promotes DLL4-induced Notch signaling during angiogenesis

  1. Fabian Tetzlaff
  2. M Gordian Adam
  3. Anja Feldner
  4. Iris Moll
  5. Amitai Menuchin
  6. Juan Rodriguez-Vita
  7. David Sprinzak
  8. Andreas Fischer  Is a corresponding author
  1. German Cancer Research Center (DKFZ), Germany
  2. Heidelberg University, Germany
  3. Tel Aviv University, Israel
  4. Heidelberg University Hospital, Germany
Research Article
  • Cited 0
  • Views 979
  • Annotations
Cite as: eLife 2018;7:e32860 doi: 10.7554/eLife.32860

Abstract

Angiogenesis is coordinated by VEGF and Notch signaling. DLL4-induced Notch signaling inhibits tip cell formation and vessel branching. To ensure proper Notch signaling, receptors and ligands are clustered at adherens junctions. However, little is known about factors that control Notch activity by influencing the cellular localization of Notch ligands. Here, we show that the multiple PDZ domain protein (MPDZ) enhances Notch signaling activity. MPDZ physically interacts with the intracellular carboxyterminus of DLL1 and DLL4 and enables their interaction with the adherens junction protein Nectin-2. Inactivation of the MPDZ gene leads to impaired Notch signaling activity and increased blood vessel sprouting in cellular models and the embryonic mouse hindbrain. Tumor angiogenesis was enhanced upon endothelial-specific inactivation of MPDZ leading to an excessively branched and poorly functional vessel network resulting in tumor hypoxia. As such, we identified MPDZ as a novel modulator of Notch signaling by controlling ligand recruitment to adherens junctions.

https://doi.org/10.7554/eLife.32860.001

eLife digest

Blood vessels transport oxygen and nutrients to all our organs and also remove waste products. New blood vessels form – in a process called angiogenesis – when a tissue is not receiving enough oxygen. This happens during normal development and wound healing, but also during tumor growth. Cells at the tip of a branching blood vessel sense when a tissue lacks oxygen and use proteins on their cell surfaces to help new vessels to grow.

During this process, the tip cells of an existing vessel relay the signal from the tissue to other cells ‘behind’ them, in the so-called stalk of the vessel. It is known that tip- and stalk cells communicate by using specific proteins at their interfaces. The tip cells activate proteins called Notch ligands, such as DLL4, while stalk cells express the Notch receptor. During a process called Notch signaling, the ligands bind to the receptor, which becomes active and helps to control angiogenesis. It also hinders excessive vessel branching and so prevents the blood vessels from becoming leaky and inefficient. However, it was not known exactly how Notch ligands interact with their receptors on neighboring cells, and Notch signaling is regulated.

Here, Tetzlaff et al. sought to answer these questions by using blood vessel cells from the human umbilical cord grown in the laboratory and blood vessel cells in mice. The results showed that the proteins DLL1 and DLL4 interacted with a protein called MPDZ. This interaction stabilized the DLL proteins at the cell membrane, which increased the Notch-signaling activity.

When Tetzlaff et al. experimentally reduced the amount of MPDZ in the laboratory-grown cells, the Notch signaling decreased. Furthermore, the cells with less MPDZ formed more branching structures. And when MPDZ was genetically removed in mice, the embryos had more branched blood vessels in their developing brains. Lastly, when mice without MPDZ were transplanted with tumor cells, the tumors contained more, but leakier, blood vessels and were not supplied with enough oxygen.

This suggests that MPDZ is an important factor that helps to regulate angiogenesis by enhancing Notch signaling between tip and branch cells in a new blood vessel. The increased activity of the Notch limits new blood vessels from branching too much. A better understanding of how blood vessels form or become leaky may help to find ways to prevent tumors from growing.

https://doi.org/10.7554/eLife.32860.002

Introduction

Angiogenesis, the process of forming new blood vessels from pre-existing ones is essential for embryonic development, tissue growth, wound healing, and regeneration. However, angiogenesis also substantially contributes to the pathogenesis of several diseases, most notably tumor progression (Potente et al., 2011). Angiogenesis is stimulated by vascular endothelial growth factor (VEGF), which activates quiescent endothelial cells (EC). These cells subsequently degrade the extracellular matrix and migrate toward the VEGF gradient. A new vessel sprout is guided by the tip cell, which expresses high amounts of VEGF receptors (Siekmann et al., 2013). VEGF signaling induces the expression of the Notch Delta-like ligand 4 (DLL4) on activated ECs. This transmembrane protein activates Notch receptors on adjacent cells, which adopt the stalk cell phenotype and form the new vessel lumen.

Notch signaling requires ligand binding in trans that triggers Notch receptor cleavage to release the intracellular domain (NICD). NICD translocates to the nucleus where it acts as a transcriptional regulator. Prototypical Notch target genes are the HES and HEY transcriptional repressors. These inhibit VEGF receptor expression which limits responsiveness to VEGF, tip cell formation and vessel branching (Bray, 2016; Fischer et al., 2004).

Inhibition of DLL4/Notch signaling is a powerful tool to interfere with angiogenesis as it results in the formation of excessive tip cell numbers and vessel branches. This chaotic vessel network precludes proper blood perfusion leading to severe tumor hypoxia. Interestingly, inactivation of the Notch ligand Jagged1 (JAG1) results in a reduced sprouting angiogenesis, indicating that JAG1 and DLL4 have opposing roles during blood vessel formation (Benedito et al., 2009; Kangsamaksin et al., 2015; Kofler et al., 2011).

It remains poorly understood which factors modulate and control Notch activity during angiogenesis. To become fully competent for Notch receptor activation, Notch ligands need to gain several posttranslational modifications, for example ubiquitinylation (D'Souza et al., 2008). In addition, Notch ligands need to be presented on the cell surface at an area, that is likely to be in contact with Notch receptors on adjacent cells (Shaya et al., 2017). Delta-like and Jagged proteins contain different PDZ binding motifs at their intracellular carboxyterminus, which enable binding to certain PDZ domain containing proteins. There are some indications that binding of Notch ligands to PDZ domain proteins, for example DLL1 to MAGI1 and SYN2BP as well as JAG1 to AF6 control their cellular localization or their protein stability (Adam et al., 2013; Ascano et al., 2003; Mizuhara et al., 2005). Interestingly, these proteins are associated with either adherens or tight junctions. Notch receptors are also localized at adherens junctions in several cell types (Batchuluun et al., 2017; Benhra et al., 2011; Hatakeyama et al., 2014; Sasaki et al., 2007). Therefore, clustering ligands and receptors at cellular junctions might increase the rate of physical binding events and subsequent Notch signaling activity.

In yeast, two-hybrid screening approaches the Notch ligands DLL1 and DLL4, but not JAG1, interacted with the multiple PDZ domain protein (MPDZ) also known as MUPP1 (Adam et al., 2013; Estrach et al., 2007). Also a synthetic DLL1 peptide containing the 27 carboxyterminal amino acids interacted with PDZ proteins including MPDZ (Wright et al., 2004). However, this interaction had not yet been confirmed by independent methods and any potential functional consequences are elusive. MPDZ contains 13 PDZ domains and a single L27 domain (Ullmer et al., 1998). It lacks an intrinsic catalytic function, and it is assumed that its function is to cluster proteins at the cell membrane or at adherens and tight junctions (Adachi et al., 2009). Such clustering of proteins was shown to affect the strength of melatonin or the AMPA transmembrane receptor signaling (Guillaume et al., 2008; Krapivinsky et al., 2004). As Notch receptor expression is often enriched at cellular junctions (Batchuluun et al., 2017; Benhra et al., 2011; Hatakeyama et al., 2014; Sasaki et al., 2007), we analyzed how the protein interaction of MPDZ with the Notch ligands DLL1 and DLL4 affects Notch signaling during angiogenesis.

Results

MPDZ physically interacts with the Notch ligands DLL1 and DLL4 and promotes Notch signaling

MPDZ has been identified in screening approaches as a putative binding partner of the Notch ligands DLL1 and DLL4 (Adam et al., 2013; Estrach et al., 2007; Wright et al., 2004). To verify this, we performed co-immunoprecipitation studies in HEK293T cells. Full-length DLL1 and DLL4 or mutants thereof lacking the carboxyterminal PDZ-binding site (amino acids IATEV) were co-expressed with MPDZ fused with an amino-terminal fluorescent Citrine. Co-immunoprecipitation revealed that MPDZ associated with DLL1 and DLL4 proteins. However, DLL1 or DLL4 lacking their PDZ-binding site did not interact with MPDZ (Figure 1A and B), indicating that the carboxyterminus of Delta-like ligands binds to MPDZ. This protein-protein interaction could also be detected in primary human umbilical venous endothelial cells (HUVEC) as well as in whole murine kidney lysates using a co-immunoprecipitation approach (Figure 1C and D, Figure 1—figure supplement 1A and B).

Figure 1 with 1 supplement see all

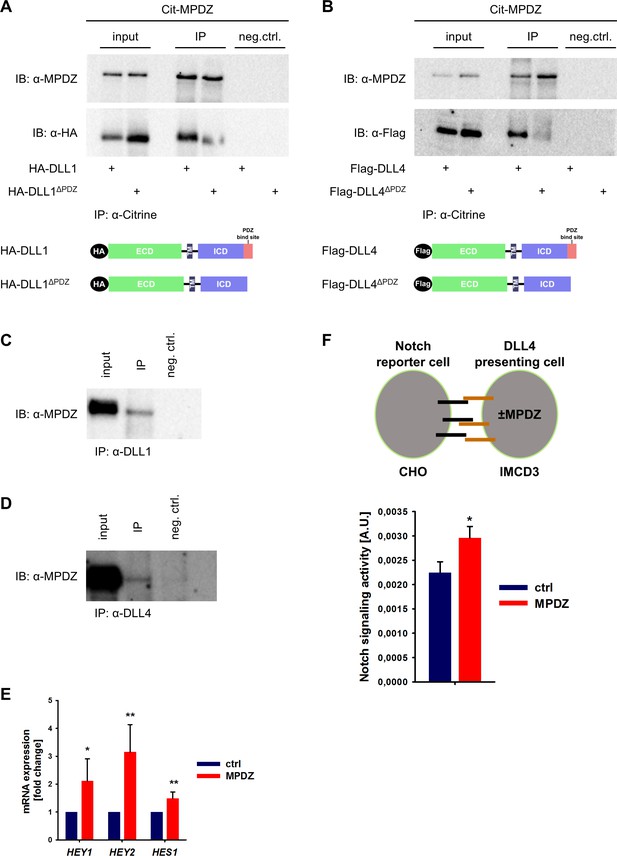

MPDZ interacts with DLL1 and DLL4.

(A, B) HEK293T cells were transfected with Citrine-MPDZ together with HA-tagged DLL1, HA-tagged DLL1ΔPDZ (lacking the PDZ-binding site), Flag-tagged DLL4 or Flag-tagged DLL4ΔPDZ. Antibodies against Citrine were used to immunoprecipitate Citrine-MPDZ. HA and FLAG-tagged proteins as well as MPDZ were detected by immunoblot (IB). Scheme shows structures of the constructs used for co-immunoprecipitation. Input, 10% of the immunoprecipitate. Cit-MPDZ, Citrine-MPDZ; IP, immunoprecipitation; neg.ctrl., negative control. (C, D) MPDZ was co-expressed with either DLL1 or DLL4 in primary endothelial cells (HUVEC). DLL1 and DLL4 were pulled down by using specific antibodies. DLL1, DLL4 and MPDZ were detected by immunoblot (IB). Input, 5% of the immunoprecipitate. IP, immunoprecipitation; neg.ctrl., negative control. (E) HUVEC were either transduced with adenovirus expressing GFP (ctrl) or MPDZ (MPDZ). Expression level of Notch target genes HEY1, HEY2 and HES1 were analyzed by qPCR 48 hr after transduction. Data are presented as mean ±SD. n = 4; *, p<0.05; **, p<0.01 unpaired Student’s t-test. (F) Scheme of the co-culture Notch reporter assay. IMCD3 cells expressing the Notch ligand DLL4 were co-cultured with CHO-N1-CIT cells carrying a Notch luciferase reporter construct. The IMCD3 sender cells were modified by expression of MPDZ or an empty vector control. After 48 hours, cells were lysed and the light emission of the luciferin and the Renilla luciferase activities were measured. Signaling activity is calculated by normalizing the luciferase signal with the Renilla signal. Data are presented as mean ± SEM. n = 5; *, p<0.05 unpaired Student’s t-test.

https://doi.org/10.7554/eLife.32860.003

Since SYNJ2BP binds also to DLL1 and DLL4 via the PDZ-binding motif and induces Notch signaling, a competition between SYNJ2BP and MPDZ might be possible. However, pull-down studies showed that the absence of MPDZ did not overtly affect the binding of SYNJ2BP to DLL1 or DLL4 (Figure 1—figure supplement 1C and D).

The activity of Notch signaling depends critically on the amount of active DLL1/4 molecules on the cell surface. We tested whether the MPDZ-DLL1/4 protein interaction could alter Notch signaling activity. Forced expression of MPDZ promoted Notch signaling in HUVEC as indicated by higher expression levels of the Notch target genes HEY1, HEY2 and HES1 (Figure 1E). To test if MPDZ would alter the ability of DLL4 to activate Notch receptors in trans, IMCD3 cells expressing DLL4 (sender cells) were transfected with plasmids encoding MPDZ cDNA or empty vector control. A Notch luciferase reporter CHO cell line (receiver cells) was co-cultured with the IMCD3 sender cells (Figure 1F). This showed that higher amounts of MPDZ in the DLL4 expressing sender cells resulted in increased Notch signaling activity in receiver cells (Figure 1F).

Loss of MPDZ impairs endothelial Notch signaling in vitro and in mice

To test if MPDZ contributes to basal Notch signaling in ECs, we silenced MPDZ expression in HUVEC using established lentiviruses expressing independent shRNAs (Feldner et al., 2017). The reduction of MPDZ expression (93 ± 3%, n = 4, p<0.001) resulted in a significant reduction of mRNA expression of the Notch target genes HEY1, HEY2 and HES1 (Figure 2A), indicating diminished Notch activity.

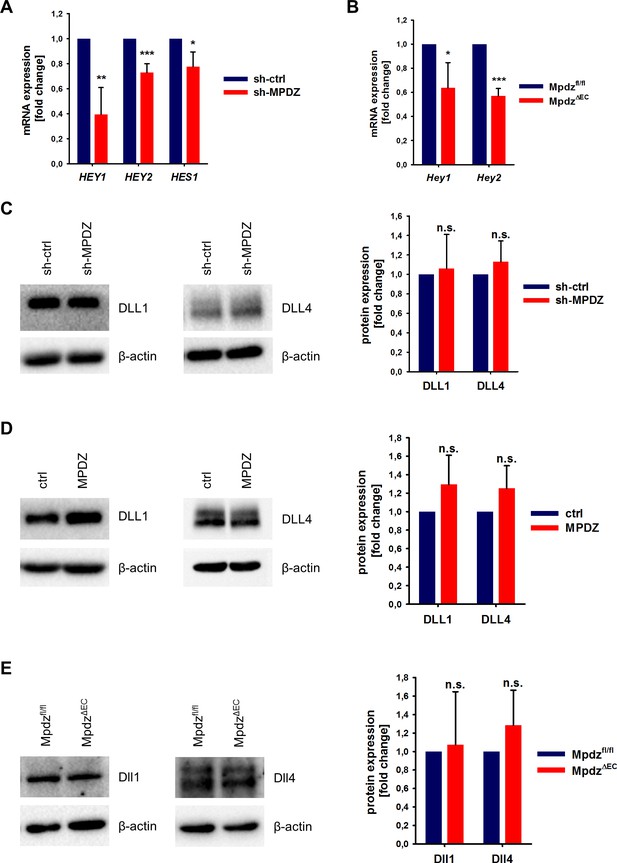

MPDZ promotes Notch signaling activity.

(A) HUVECs were either transduced with lentivirus expressing GFP (sh-ctrl) or with lentivirus expressing shRNA against MPDZ (sh-MPDZ). Expression level of Notch target genes HEY1, HEY2 and HES1 were analyzed by qPCR 48 hr after transduction. Data are presented as mean ±SD. n ≥ 3; *, p<0.05; **, p<0.01; ***, p<0.001 unpaired Student’s t-test. (B) Cardiac endothelial cells were isolated from Mpdzfl/fl and MpdzΔEC mice by magnetic beads bound with CD31 antibodies. Expression levels of Notch target genes Hey1 and Hey2 were analyzed by qPCR. Data are presented as mean ±SD. n = 3; *, p<0.05; ***, p<0.001 unpaired Student’s t-test. (C) HUVECs were either transduced with lentivirus expressing GFP (sh-ctrl) or with lentivirus expressing shRNA against MPDZ (sh-MPDZ). Expression levels of DLL1 and DLL4 were analyzed by immunoblotting 48 hr after transduction. β-actin served as loading control. Data are presented as mean ±SD. n ≥ 3; n.s., not significant. (D) HUVECs were either transduced with adenovirus expressing GFP (ctrl) or with adenovirus expressing MPDZ. Expression levels of DLL1 and DLL4 were analyzed by immunoblotting 48 hr after transduction. β-actin served as loading control. Data are presented as mean ±SD. n ≥ 3; n.s., not significant. (E) Lung endothelial cells were isolated from Mpdzfl/fl and MpdzΔEC mice by CD31 magnetic beads. Protein amounts of Dll1 and Dll4 were analyzed by immunoblotting. β-actin served as loading control. Data are presented as mean ±SD. n = 3; n.s., not significant.

https://doi.org/10.7554/eLife.32860.006

This could also be observed in cardiac CD31-positive ECs derived from EC-specific Mpdz-deficient mice (Tek-Cre;Mpdzfl/fl referred to as MpdzΔEC) (Feldner et al., 2017). qPCR analysis revealed that the reduction of Mpdz expression (69 ± 12%, n = 4, p<0,001) resulted in a diminished Notch signaling activity as the relative Hey1 and Hey2 mRNA amounts were lower compared to Cre-negative littermate controls (Figure 2B).

MPDZ promotes cell surface localization of DLL1 and DLL4

Next, we aimed at elucidating the mechanism of how MPDZ alters the activity of Notch ligands. The total expression levels of DLL1 and DLL4 proteins in HUVEC lysates were not altered upon silencing of MPDZ (Figure 2C). The same was observed after adenoviral MPDZ overexpression (Figure 2D). Lung ECs derived from MpdzΔEC mice also did not show changes in total Dll1 and Dll4 protein expression levels compared to controls (Figure 2E).

MPDZ is able to cluster several transmembrane proteins at tight and adherens junctions. For instance, MPDZ facilitates RhoA signaling by recruiting Syx to endothelial junctions (Ngok et al., 2012). The activation of Notch receptors requires the interaction with Notch ligands presented on the cell surface. MPDZ is expressed in ECs derived of arteries, veins and microvessels with pronounced localization at the cell membrane (Figure 3—figure supplement 1). To address whether MPDZ affects the cell surface expression of the Notch ligands DLL1 and DLL4, we first tested if the carboxyterminal PDZ-binding sites of these Notch ligands are important for cell surface presentation. Constructs in which either full length DLL1 and DLL4 or versions lacking the PDZ-binding motifs were fused to a mCherry tag were generated. Those constructs were expressed in HUVEC and cell surface expression was analyzed by flow cytometry. Only mCherry-positive HUVEC were gated and the cell surface presentation of the Notch ligands was analyzed using specific antibodies against the extracellular domains of DLL1 and DLL4, respectively. Cell surface expression levels of full length DLL1 and DLL4 were higher than those of their mutants lacking the PDZ-binding site (Figure 3A). This indicates that protein-protein interactions via the PDZ-binding site could influence the localization of Delta-like proteins.

Figure 3 with 1 supplement see all

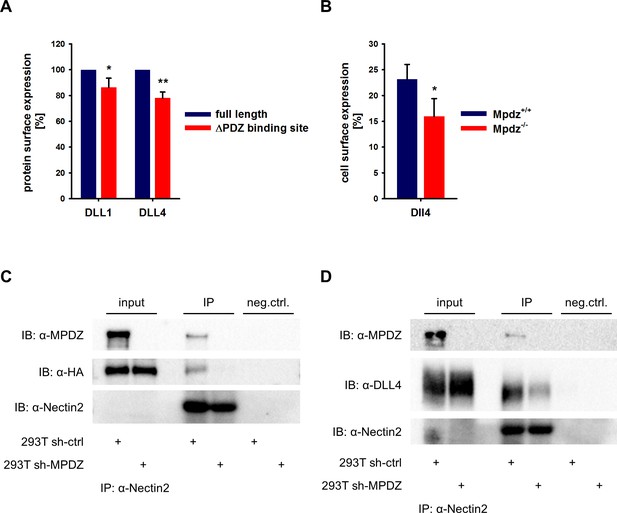

MPDZ recruits DLL1 and DLL4 to Nectin-2.

(A) DLL1 and DLL4 full length and such lacking the PDZ-binding site (ΔPDZ) constructs containing a mCherry tag were expressed in HUVEC. Cells were stained with antibodies against DLL1 or DLL4. DLL1 and DLL4 surface expression of mCherry positive cells was analyzed by flow cytometry. n = 3; *, p<0.05; **, p<0.01 unpaired Student’s t-test. (B) Endothelial cells were isolated from Mpdz+/+ embryos and Mpdz-/- littermates at embryonic day E11.5. Cells were purified by CD31 magnetic dynabeads and stained with anti-CD34 and anti-Dll4 antibodies for flow cytometric analysis. n = 4; *, p<0.05; unpaired Student’s t-test. (C, D) HEK293T control cells (293T sh-ctrl) as well as MPDZ-silenced HEK293T cells (293T sh-MPDZ) were transfected with Nectin-2 and HA-tagged DLL1 or Flag-tagged DLL4. For immunoprecipitation a Nectin-2 antibody was used and HA-tagged DLL1, Flag-tagged DLL4 and MPDZ were detected by western Blotting. Input, 10% of immunoprecipitate. IB, Immunoblot; IP, Immunoprecipitation; neg.ctrl., negative control.

https://doi.org/10.7554/eLife.32860.008

To test whether indeed MPDZ is involved in regulating DLL4 cell surface localization, we analyzed cell surface presentation on isolated mouse embryonic EC at the developmental stage E11.5 by flow cytometry. This revealed that the Dll4 cell surface expression of CD34-positive ECs was lower in Mpdz-deficient cells compared to wild type littermate controls (Figure 3B).

MPDZ recruits DLL1 and DLL4 to the adherens junction protein nectin-2

MPDZ binds to the intracellular domain of the single-pass type I membrane glycoprotein Nectin-2, which is a component of adherens junctions (Adachi et al., 2009) and is expressed in the endothelium (Rehm et al., 2013; Wallez and Huber, 2008). Thus, MPDZ could be involved in recruiting DLL1 and DLL4 to Nectin-2 containing adherens junctions. To test this, we performed co-immunoprecipitation studies in HEK293 cells. This revealed that DLL1 and DLL4 could be co-immunoprecipitated with Nectin-2. However, silencing of MPDZ expression abolished the interaction of DLL1 and DLL4 with Nectin-2 (Figure 3C and D).

Interestingly, loss of Mpdz in mice did not affect the overall formation of vascular tight junctions (e.g. staining patterns of Claudin-5 and Occludin were unremarkable), as well as adherens junctions (VE-Cadherin) and Nectin-2-containing junctions (Figure 4, Figure 4—figure supplement 1), similar as observed before (Feldner et al., 2017). In vitro experiments indicated that the co-localization of DLL1 and DLL4 with the adherens junction protein Nectin-2 at the cell membrane was diminished upon silencing MPDZ expression in ECs (Figure 4—figure supplement 2A,B), whereas silencing of Nectin-2 did not affect localization of DLL1 and DLL4 (Figure 4—figure supplement 2C). Taken together, the data suggest that MPDZ stabilizes the cell surface presentation of DLL1 and DLL4 through recruitment to the adherens junction protein Nectin-2.

Figure 4 with 2 supplements see all

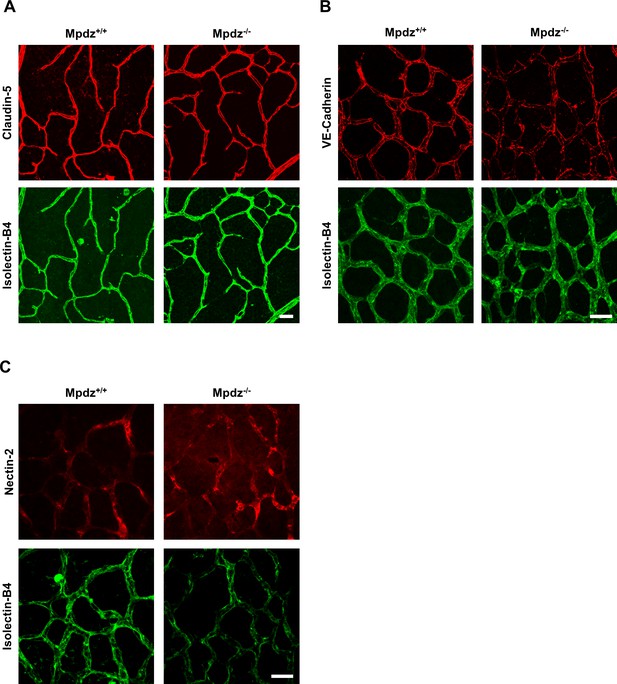

Mpdz does not affect cell cell junction assembly.

(A) Retinae isolated from 14 days old Mpdz-/- pups and control littermates (Mpdz+/+) were stained with Isolectin-B4 and antibodies against Claudin-5. Images were acquired with the confocal microscope LSM 700. Scale bar: 25 µm. (B, C) Retinae were isolated 9 days old Mpdz-/- pups and control littermates. Staining for endothelial cells with Isolectin-B4 and VE-Cadherin or Nectin-2. Images were acquired with the confocal microscope LSM 700. Scale bar: 25 µm.

https://doi.org/10.7554/eLife.32860.011

MPDZ regulates sprouting angiogenesis in vitro and ex vivo

DLL4/Notch signaling restricts sprouting angiogenesis and cells with high Notch signaling activity adopt the stalk cell phenotype in a growing vessel sprout (Blanco and Gerhardt, 2013; Eilken and Adams, 2010; Pitulescu et al., 2017). As such, the protein interaction of MPDZ with the Notch ligand DLL4 and its promotion of Notch signaling activity could potentially be important to control angiogenesis. To address this, MPDZ was silenced or over-expressed in HUVEC, which were embedded as spheroids into a collagen matrix to analyze endothelial sprout formation. HUVEC silenced for MPDZ expression had increased angiogenic potential and formed more capillary-like sprouts compared to control cells, both under basal conditions and after VEGF stimulation (Figure 5A). Oppositely, forced MPDZ expression resulted in impaired sprout formation under both conditions (Figure 5B). Furthermore, MPDZ-expressing cells, which exhibit increased Notch signaling activity, preferred the stalk cell position in the sprouting angiogenesis assay. In line with this result, MPDZ silenced cells, which showed less Notch signaling activity, adopted preferentially the tip cell position in a growing sprout (Figure 5C).

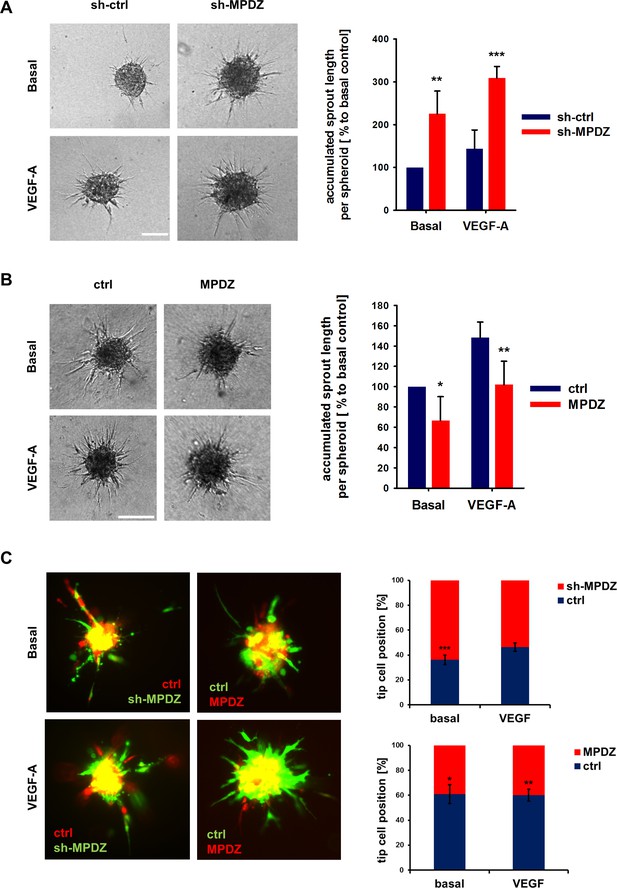

MPDZ inhibits sprouting angiogenesis in vitro.

(A) HUVEC were transduced with lentivirus-expressing shRNA against MPDZ (sh-MPDZ) or expressing GFP (sh-ctrl). Sprouting angiogenesis of collagen-embedded spheroids was analyzed 72 hr after transduction. Spheroids were cultured under basal conditions or stimulated with VEGF-A (25 ng/ml). Quantification shows length of all sprouts of each spheroid. n = 4 experiments with 10 spheroids per condition. **, p<0.01; ***, p<0.001 one-way ANOVA (Holm-Sidak method). (B) HUVEC were transduced with control (ctrl) or MPDZ-expressing adenovirus. Sprouting angiogenesis of collagen-embedded spheroids was analyzed 72 hr after transduction. Spheroids were cultured under basal conditions or stimulated with VEGF-A (25 ng/ml). Quantification shows length of all sprouts of each spheroid. n = 5 experiments with 10 spheroids per condition. *, p<0.05; **, p<0.01; One Way ANOVA (Holm-Sidak method). (C) Mixed spheroids of HUVEC transduced with lentivirus expressing shRNA against MPDZ (sh-MPDZ) or expressing mCherry (ctrl) or spheroids of HUVEC transduced with control (ctrl) or MPDZ-expressing (MPDZ) adenovirus were embedded in a collagen matrix and analyzed 72 hr after transduction. Cells at the most distal end were considered as tip cells. Tip cell numbers were analyzed under basal conditions or after stimulation with VEGF-A (25 ng/ml). n = 3 experiments with 10 spheroids per condition. *, p<0.05; **, p<0.01; ***, p<0.001 unpaired Student’s t-test.

https://doi.org/10.7554/eLife.32860.014

The increased angiogenic potential of Mpdz-deficient cells could also be shown in the aortic ring assay, in which slices of the mouse aorta from MpdzΔEC or littermate control mice (Mpdzfl/fl) were embedded into Matrigel. Aortic ECs from MpdzΔEC mice showed a significantly higher outgrowth rate compared to control (Figure 6A).

Loss of Mpdz leads to increased vessel branching in the embryonic mouse hindbrain.

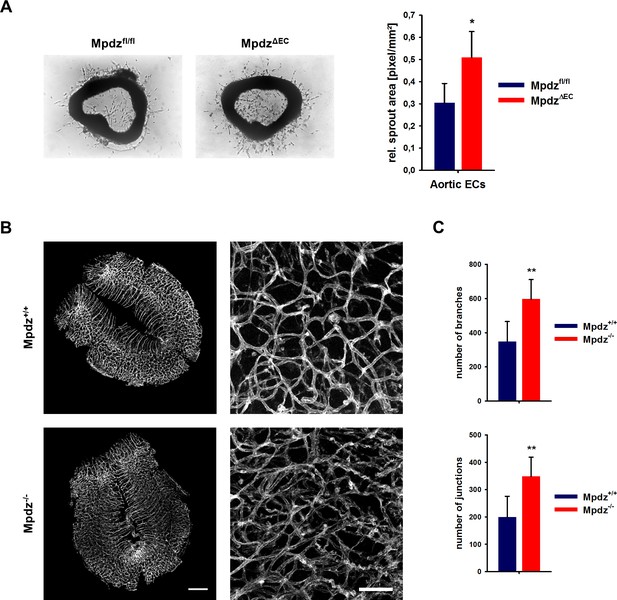

(A) Aortae were isolated from Mpdzfl/fl and MpdzΔEC mice. Aortic rings were embedded in Matrigel and EC outgrowth was analyzed 24 hr after embedding. n = 4 mice per genotype; *, p<0.05 unpaired Student’s t-test. (B) Embryos at developmental stage E12.5 were used for IsolectinB4-FITC staining (endothelial cells). Left panel shows whole hindbrains of Mpdz+/+ and Mpdz-/- embryos. Right panel shows zoom-ins. Left panel: scale bar, 500 µm; Right panel: scale bar, 100 µm. (C) Quantification of vessel branches and junctions per area. n ≥ 6 mice per genotype; **, p<0.01 unpaired Student’s t-test.

https://doi.org/10.7554/eLife.32860.016

Loss of MPDZ promotes angiogenesis during brain development

Based on the in vitro and ex vivo data, we tested whether MPDZ also affects angiogenesis during mouse development. Vascularization of the hindbrain occurs in a stereotypic manner and is ideally suited to examine sprouting angiogenesis (Fantin et al., 2013). Hindbrains were resected at developmental stage E12.5 to analyze the vasculature. This revealed a much denser vessel network in Mpdz-/- embryos compared to wild-type littermates (Figure 6B). Mpdz-/- embryos had a significant higher number of vessel junctions and branches compared to littermate controls (Figure 6C). This indicates that Mpdz is needed to limit developmental angiogenesis.

Endothelial-specific loss of Mpdz alters tumor angiogenesis

Angiogenesis is a hallmark of cancer and therefore we examined how genetic inactivation of Mpdz specifically in the endothelium would affect tumor growth and tumor angiogenesis. B16F10 melanoma and Lewis lung carcinoma (LLC) cells were injected subcutaneously into syngeneic MpdzΔEC and control mice. No significant differences in the tumor growth rates were observed between Mpdzfl/fl and MpdzΔEC mice (Figure 7A and B). The resected tumors were stained against the EC marker CD31 and α-SMA (smooth muscle cells, myofibroblasts) (Figure 7C). Microvessel density was significantly higher in MpdzΔEC compared to Mpdzfl/fl mice (Figure 7D), whereas vessel coverage was not altered (Figure 7D), similar as observed after blocking Dll4-induced Notch signaling in the tumor vasculature (Kangsamaksin et al., 2015).

Figure 7 with 1 supplement see all
Excessive tumor angiogenesis upon endothelial-specific inactivation of Mpdz.

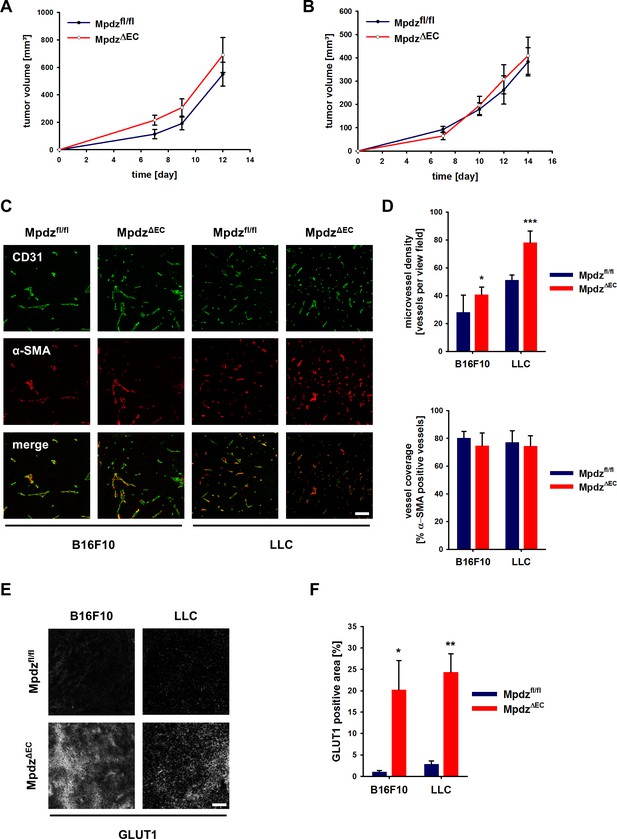

Tumor growth curve of B16F10 (A) and LLC (B) tumors subcutaneously implanted into Mpdzfl/fl and MpdzΔEC mice. n ≥ 5; Results are shown as mean ±SEM. (C) Representative images of B16F10 and LLC tumors grown in Mpdzfl/fl and MpdzΔEC mice, stained against CD31 (endothelial cells) and α-SMA (smooth muscle cells). Scale bar: 100 µm (D) Quantification of the vessel staining. Microvessel density was determined by counting the CD31-positive vessels per area. For the analysis of vessel coverage, the percentage of α-SMA-positive vessels was determined. n ≥ 5; results are shown as mean ±SD; *, p<0.05; ***, p<0.001; unpaired Student’s t-test. (E) Representative images of B16F10 and LLC tumors stained for Glut1 (hypoxia marker) grown in Mpdzfl/fl and MpdzΔEC mice. Scale bar: 100 µm (F) Quantification of the Glut1-positive area. n ≥ 4; results are shown as mean ±SEM; *, p<0.05; **, p<0.01; unpaired Student’s t-test. Figure legends – figure supplements.

https://doi.org/10.7554/eLife.32860.018

Increased numbers of blood vessels can support tumor growth, whereas too many vessel branches disturb the functionality of the vessel network, impair proper perfusion, inhibit tumor growth and can lead to tissue hypoxia. For instance, this was observed after inhibition of endothelial Dll4/Notch signaling in tumors (Kangsamaksin et al., 2015; Noguera-Troise et al., 2006; Ridgway et al., 2006). Indeed, both B16F10 and LLC tumors grown in MpdzΔEC mice contained larger hypoxic areas compared to controls, as indicated by Glut1 expression (Figure 7E and F). To elucidate whether tumor perfusion is impaired, we injected Hoechst 33342 and FITC-labeled Lycopersicon Esculentum lectin into a tail vein and resected the tumors 5 min later. This revealed that B16F10 as well as LLC tumors were less well perfused in MpdzΔEC mice compared to control littermates (Figure 7—figure supplement 1A and B). In the melanoma model, the percentage of Lectin-positive tumor blood vessels was reduced in MpdzΔEC mice (Figure 7—figure supplement 1C), whereas in the LLC model, which contains a better structured vasculature than the melanoma model, the Hoechst dye was delivered to a lesser extend into the tumor mass in MpdzΔEC mice compared to control littermates (Figure 7—figure supplement 1D).

Discussion

Notch signaling is of utmost importance to control numerous cell differentiation steps during development. The activation of Notch receptors depends on physical contact with Notch ligands expressed on the adjacent cell. This study describes a novel mechanism that improves presentation of Delta-like ligands on the cell surface. MPDZ could be identified as a protein that mediates intracellular protein interactions with DLL1, DLL4 and Nectin-2 to facilitate presentation of DLL1 and DLL4 at the EC surface and to strengthen Notch signaling activity.

Upon posttranslational modifications, Notch ligands are transported to the plasma membrane. It is not yet clear how Notch ligands are recruited to the plasma membrane or to cellular junctions. Previous studies have shown that PDZ domain proteins interact with Notch ligands (Adam et al., 2013; Ascano et al., 2003; Mizuhara et al., 2005; Pfister et al., 2003; Six et al., 2004; Wright et al., 2004). However, the functional consequences of these are mostly elusive. The interaction of DLL1 with SYNJ2BP acts via a different mechanism on Notch signaling strength. SYNJ2BP prevents lysosomal degradation of DLL1 (Adam et al., 2013). The interaction with MPDZ however promotes cell surface presentation. Based on this, one can assume that changes in expression levels of Notch ligand-interacting PDZ proteins influence strongly the behavior of Notch ligands.

Here, we demonstrated that MPDZ interacts with Delta-like ligands and the transmembrane protein Nectin-2, a component of adherens junctions. This is interesting as also Notch receptors can be enriched at adherens junctions (Batchuluun et al., 2017; Benhra et al., 2011; Hatakeyama et al., 2014; Sasaki et al., 2007) to facilitate the physical interactions with ligands. Indeed, we found evidence that MPDZ mediates Notch signaling in cultured cells and isolated ECs derived from Mpdz-deficient mice. Whereas forced MPDZ expression enhanced Notch target gene expression, inactivation of the MPDZ gene resulted in a lower Notch target gene expression which might be due to the reduced DLL1 and DLL4 localization at the cell surface.

The reduction of endothelial Notch signaling activity in MpdzΔEC mice was only moderate. One possible explanation is the redundancy between PDZ proteins that bind the same motif. For example, MPDZ shares large structural homology with the INADL protein (Adachi et al., 2009) and the Notch ligands can be bound also by several other PDZ domain proteins (Adam et al., 2013; Estrach et al., 2007; Pfister et al., 2003; Six et al., 2004; Wright et al., 2004). As such it is not surprising that Mpdz-deficient mice did not exhibit major angiogenesis defects, which would cause embryonic lethality. The vascular phenotype is similar to Notch1 heterozygous mice. These mutants develop normally and show only slight vascular abnormalities (higher microvessel density and vessel branching) during phases of rapid vessel growth (Huppert et al., 2000).

Pharmacological Notch inhibition also leads to excessive tumor vessel sprouting and the formation of a poorly functional vessel network due to too many branches (Funahashi et al., 2008; Noguera-Troise et al., 2006; Ridgway et al., 2006). This is in particular achieved by DLL4-specific, but not JAG1-specific inhibition of Notch signaling (Kangsamaksin et al., 2015). We could also observe an increased tumor vessel sprouting in mice lacking Mpdz expression in the endothelium. Tumor vessel density was significantly increased, tumor perfusion impaired and this led to larger hypoxic tumor areas. Again, similar as after DLL4 blockade, vessel coverage with mural cells was not altered in tumors grown in MpdzΔEC mice (Funahashi et al., 2008; Kangsamaksin et al., 2015). Taken together, this work shows that MPDZ is a novel modulator of DLL4-induced Notch signaling in the vasculature by recruiting DLL1 and DLL4 to Nectin-2 on the cell surface.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background
(Mus musculus)
Mpdz-/-DOI: 10.15252/emmm.201606430
Strain, strain background
(Mus musculus)
MpdzΔECDOI: 10.15252/emmm.201606430
Genetic reagent
(Homo sapiens)
MPDZ shRNABiocatV2LHS_3656, 16945 16946
Genetic reagent (Homo sapiens)Nectin-2 siRNAOrigeneSR321541
AntibodyMPDZSigma-AldrichHPA020255Western Blot (1:500)/ICC
(1:50) on methanol
fixed cells
AntibodyMpdzInvitrogen42–2700Western Blot (1:500)
AntibodyHACell Signaling#3724Western Blot (1:1000)
AntibodyFlagSigma-AldrichF3165Western Blot (1:1000)
AntibodyDLL1abcamab85346Western Blot (1:1000)/ICC
(1:100) on PFA fixed cells
AntibodyDll1R and D SystemsAF3970Western Blot (1:500)
AntibodyDLL4Cell Signaling#2589Western Blot (1:1000)
AntibodyDLL4Sigma-AldrichWH0054567M4ICC (1:100) on PFA
fixed cells
AntibodyDll4R and D SystemsAF1389Western Blot (1:500)
AntibodySYNJ2BPabcamab69431Western Blot (1:250)
AntibodyGFPabcamab290Western Blot (1:2500)
AntibodyNectin-2abcamab135246ICC (1:50) on PFA
fixed cells
AntibodyNectin-2Santa Cruz Biotechnologysc-32804Western Blot (1:500)/ICC
(1:50) on PFA fixed cells
AntibodyNectin-2abcamab16912ICC (1:100) on fresh
frozen sections
Recombinant DNA reagentMPDZBioCatclone BC140793
Recombinant DNA reagentCitrine-MPDZthis paperCitrine tag fused to the
N-terminus of MPDZ
(BioCat, clone BC140793)
Recombinant DNA reagentDLL1OpenBiosystemsOHS4559-99847851
Recombinant DNA reagentHA-DLL1this paperGateway cloning: Dll1
(OHS4559-99847851)
into pDest26-HA
Recombinant DNA reagentDLL1-mCherrythis papermCherry inserted between
extracellular and
transmembrane domain of
DLL1. Gateway vector: pLenti6.2
Recombinant DNA reagentHA-DLL1ΔPDZthis paperStop codon inserted before
PDZ-binding site by
site-directed mutagenesis.
Gateway vector: pDest26-HA
Recombinant DNA reagentDLL1-mCherryΔPDZthis paperStop codon inserted before PDZ-binding site by site-directed mutagenesis. Gateway vector: pLenti6.2
Recombinant DNA reagentDLL4PMID:17045587cDNA cloned into pEntr3C
Recombinant DNA reagentFlag-DLL4this papercDNA cloned into pCS2p-FLAG
Recombinant DNA reagentDLL4-mCherrythis papermCherry inserted between extracellular and transmembrane domain of DLL4. Gateway vector: pLenti6.2
Recombinant DNA reagentFlag-DLL4ΔPDZthis paperStop codon inserted before PDZ-binding site by site-directed mutagenesis. Vector: pCS2p-FLAG
Recombinant DNA reagentDLL4-mCherryΔPDZthis paperStop codon inserted before PDZ-binding site by site-directed mutagenesis. Gateway vector: pLenti6.2
Recombinant DNA reagentNectin-2DKFZ Genomics and
Proteomics Core Facility
BC003091 (cDNA). Gateway vector: pLenti6.2

Animal experiments

Mice were kept under pathogen-free barrier conditions. All animal procedures were performed in accordance with the institutional and national regulations and approved by the local committees for animal experimentation and the local government (reference number: 35–9185.81/G-30/14 and 35–9185.81/G-259/12). Generation of global Mpdz-/- mice and conditional Tek-Cre;Mpdzfl/fl mice was previously described (Feldner et al., 2017). Mice had been backcrossed on a C57Bl/6 background for 10 generations. For tumor experiments, 500,000 syngeneic tumor cells (B16F10 or LLC) in 100 µl PBS were injected subcutaneously in the abdominal flanks of mice. To analyze tumor perfusion, 100 µl of fluorescein-labeled lectin (1 mg/ml, FL-1171, Vector Laboratories, Burlington, CA) and Hoechst 33342 (5 mg/ml, H3570, Life Technologies, Carlsbad, CA) was injected into the tail vein 5 min prior to sacrifice.

Cell culture

B16F10, LLC and HEK293T cells were cultured in DMEM containing 10% fetal calf serum, 100 units/ml penicillin and 100 μg/ml streptomycin. Primary human umbilical cord endothelial cells (HUAEC and HUVEC) were freshly isolated and cultured in Endopan-3 medium with supplements (P04-0010K, PAN Biotech, Aidenbach, Germany) and used until passage five. HUVEC of three donors were pooled. Human brain microvascular endothelial cells were also cultured in Endopan-3 medium with supplements (P04-0010K, PAN Biotech). Standardized multiplex cell contamination and cell line authentication testing (Multiplexion, Heidelberg, Germany) were conducted on a regular basis.

Expression plasmids, viral transduction, transfection

HUVECs were transduced with lentivirus and adenovirus as described (Brütsch et al., 2010). For MPDZ silencing three different lentiviral shRNA vectors (Biocat V2LHS_3656, 16945 16946) were used (Feldner et al., 2017). Forced MPDZ expression was achieved by lentiviral or adenoviral transduction expressing MPDZ cDNA (BioCat clone BC140793). Forced expression of Nectin-2 was achieved by transient over-expression of Nectin-2 cDNA in HEK293T cells (DKFZ clone BC003091). SYNJ2BP, DLL1 and DLL4 expression constructs were described (Adam et al., 2013; Diez et al., 2007). Mutations in cDNAs were introduced by site-directed mutagenesis using the QuickChange XL Kit (Agilent, Santa Clara, CA). Mutagenesis primers for the deletion of the DLL1-PDZ-binding site were as follows: 5'-gagaaggatgagtgcgtctaagcaactgaggtgtaagg-3', 5'-ccttacacctcagttgcttagacgcactcatccttctc-3'. Mutagenesis primers for the deletion of the DLL4-PDZ-binding site were as follows: 5'-gaggagaggaatgaatgtgtctatgccacggaggtataagg-3', 5'-ccttatacctccgtggcatagacacattcattcctctcctc-3', 5'-ggagaggaatgaatgtgtctaagccacggaggtat-3', 5'-atacctccgtggcttagacacattcattcctctcc-3'.

HUVECs were transfected with siRNA using RNAiMAX transfection reagent (Life Technologies). For Nectin-2 silencing, three different siRNAs were used (SR321541, Origene, Rockville, MD).

Immunoprecipitation and western blot analysis

Cells were lysed with Cell Lysis Buffer (9803S, Cell Signaling Technology, Danvers, MA) complemented with 1 mM PMSF. Proteins were separated by SDS-PAGE and blotted on nitrocellulose membranes. Membranes were blocked with 5% skim milk in PBS containing 0.05% Tween-20. Following primary antibodies were used: anti-HA (#3724, Cell Signaling Technology, 1:1000), anti-FLAG (F3165, Sigma-Aldrich, St. Louis, MO, 1:1000), anti-DLL1 (ab85346, abcam, Cambridge, UK, 1:1000), anti-DLL4 (#2589S, Cell Signaling Technology, 1:1000), anti-beta-actin (A5441-.2ML, Sigma-Aldrich, 1:2500), anti-DLL1 (AF3970, R & D Systems, Minneapolis, MN, 1:500), anti-DLL4 (AF1389, R & D Systems, 1:250), anti-MPDZ (HPA020255, Sigma-Aldrich, 1:500), anti-Mpdz (42–2700, Invitrogen, Carlsbad, CA, 1:500), anti-GFP (ab290, abcam, 1:1000), anti-SYNJ2BP (ab69431, abcam, 1:500), anti-Nectin-2 (sc-32804, Santa Cruz Biotechnology, Dallas, TX, 1:500). Membranes were incubated overnight at 4°C with primary antibodies. HRP-conjugated secondary antibodies (DAKO, Santa Clara, CA) were added for 1 hr at room temperature. Chemoluminescence was detected by Aceglow ECL Western Blotting Substrate (PEQL37-3420, VWR International, Darmstadt, Germany) using a ChemiDoc imaging system (Bio-Rad Laboratories, Hercules, CA). Western Blots were quantified with Image Lab 3.0 software (Bio-Rad Laboratories).

For immunoprecipitation, primary antibodies were added to protein lysates and incubated overnight at 4°C. Protein-G-coupled dynabeads (10003D, Invitrogen) were added to the protein lysates at the next day and were incubated for 30 min at 4°C. Precipitated dynabeads were washed three times with ice-cold PBS and denatured in Laemmli sample buffer at 95°C for 5 min. Samples were then subjected to Western blotting.

Quantitative Real-Time-PCR mRNA was isolated with the innuPrep RNA Mini Kit (845-KS-2040250, Jena Analytics, Jena, Germany) and transcribed into cDNA (High Capacity cDNA Reverse Transcription Kit; 4368814, Applied Biosystems, Foster City, CA). POWER SYBR Green Master Mix (4368708, Applied Biosystems) was used to perform qPCR on an ABI StepOnePlus cycler (Applied Biosystems). Rpl32 and OAZ1 were used for normalization. Primers: hOAZ (fw): 5’-gagccgaccatgtcttcatt-3’, hOAZ (rev): 5’-ctcctcctctcccgaagact-3’; mRpl32 (fw): 5’-aggcattgacaacagggttc-3’, mRpl32 (fw): 5’-gttgcacatcagcagcactt-3’; hHEY1 (fw): 5’-gagaaggctggtacccagtg-3’, hHEY1 (rev): 5’-cgaaatcccaaactccgata-3’; mHey1 (fw): 5’-gaaaagacggagaggcatca-3’, mHey1 (rev): 5’-gtgcgcgtcaaaataacctt-3’; hHEY2 (fw): 5’-cttgtgccaactgcttttga-3’, hHEY2 (rev): 5’-gcactctcggaatcctatgc-3’; mHey2 (fw): 5’- tgagaagactagtgccaacagc-3’, mHey2 (rev): 5’-tgggcatcaaagtagccttta-3’; hHES1 (fw): 5’-tcaacacgacaccggataaa-3’, hHES1 (rev): 5’-ccgcgagctatctttcttca-3’. All experiments included two technical and three biological replicates.

Luciferase co-culture assay

A Notch expressing cell line, CHO-N1-CIT, was transfected in 24-well dishes using TransIT-LT1 (Mirus Bio, Madison, WI) with a TP1-firefly Notch luciferase reporter (800 ng) together with SV-40 Renilla luciferase (10 ng) (Shaya et al., 2017). IMCD3 cells were transfected under similar conditions with either an MPDZ construct or empty vector (pORI) as control. 24 hr after transfection, cells were trypsinized and the CHO-N1-CIT cells were co-cultured with either IMCD3 cells transfected with MPDZ or pORI. The cells were plated in a ratio of 40:60 (IMCD3: CHO-N1-CIT) and were incubated for 48 hr, after which the cells were lysed with lysis buffer (E1960, Promega, Madison, WI). The light emission of the luciferin and the Renilla luciferase activities were measured from cell lysates using a dual luciferase kit (E1960, Promega) and a Veritas luminometer (Promega). The assay was repeated five independent times.

Spheroid-based sprouting angiogenesis

HUVECs were suspended in growth medium containing 20% methocel (Sigma-Aldrich). Endothelial cells were cultured as hanging drops for 24 hr to form spheroids. Each spheroid contained approximately 400 cells. Spheroids were suspended in 2 ml methocel containing 20% FCS and 2 ml rat collagen at neutral pH. The collagen matrix polymerized for 30 min and hereon 0.1 ml basal culture medium or 0.1 ml basal culture medium containing VEGF-A (final concentration 25 ng/ml; Peprotech, Hamburg, Germany) was added. After 24 hr, cells were fixed with 10% formaldehyde. The lengths of all sprouts of at least 10 spheroids per condition were measured using an inverted microscope (Leica DM IRB, Leica Microsystems, Wetzlar, Germany). Image analysis was done by using Fiji software.

To determine which cells prefer the tip or stalk cell position, a sprouting assay with a co-culture of endothelial cells was performed. Cells expressed either a fluorophore (GFP or mCherry) or were labeled with Cell Tracker Red (C34552, Life Technologies). Equal amount of each cell type were cultured as hanging drops. Sprouting assay was performed as described above. Using the inverted microscope (Leica DM IRB), the number of green or red fluorescent cells in the tip cell position was determined. Per condition at least 10 spheroids were analyzed.

Hindbrain analysis

Embryonic hindbrains were isolated as described previously (Fantin et al., 2013). Samples were fixed with 4% PFA overnight at 4°C and hereon permeabilized in blocking buffer (0.3% Triton X-100% and 1% BSA in PBS) overnight at 4°C. Samples were washed three times for 20 min with Pblec buffer at room temperature and stained with FITC-IsolectinB4 (1:100; L2895, Sigma-Aldrich) in Pblec overnight at 4°C. After washing, samples were mounted using fluorescence mounting medium (S3023, DAKO). Z-stack images were acquired using a confocal microscope (Zeiss LSM 700, Zeiss, Oberkochen, Germany) and image analysis was done by Fiji software.

Aortic ring assay

Aortae were isolated from mice (8 weeks old) and cut into ~25 rings each. Aortic rings were embedded in matrigel (356234, BD Biosciences, Franklin Lakes, NJ), and stimulated with 30 ng/ml VEGF-A165(450–32, Peprotech). Images were taken after 24 hr with a Nikon SMZ800 microscope.

Immunofluorescence

Freshly dissected tumors were embedded in Tissue-Tek (4583, Sakura), frozen and stored at −80°C. Sections (7 µm) were cut and fixed in methanol for 20 min at −20°C. The primary antibodies against CD31 (550274, BD Biosciences, 1:50), α-SMA (C6198, Sigma-Aldrich, 1:100) and Glut1 (ab40084, abcam, 1:200) were incubated over night at 4°C and secondary antibodies (Thermo Fisher Scientific, 1:400) for 1 hr at room temperature. Sections were washed three times with TBS-T and mounted with Fluoromount (S3023, Dako). Confocal images were obtained using an LSM 700 microscope (Zeiss) and analyzed using Fiji software.

Retinae were isolated, fixed and processed as previously described (Yang et al., 2015). Specimens were stained for IsolectinB4 (1:100; L2895, Sigma-Aldrich), Claudin 5 (1:100, ab53765, abcam), VE-Cadherin (1:100, 555289, BD Biosciences), Nectin-2 (1:50, ab16912, abcam).

HUVEC were seeded on glass slides coated with 0.5% gelantine. Cells were washed twice with PBS, fixed with 4% PFA for 10 min, washed three times with PBS, permeabilized with PBS-T (containing 0.1% TritonX) and washed again three times with PBS. Alternative to PFA fixation, cells were fixed with ice-cold methanol for 20 min at −20°C and then washed three times with PBS. After blocking with 3% BSA in PBS, cells were incubated with the primary antibodies against MPDZ (HPA020255, Sigma-Aldrich, 1:50), DLL1 (ab85346, abcam, 1:100), DLL4 (WH0054567M4, Sigma-Aldrich, 1:100), Nectin-2 (ab135246, abcam, 1:50), Nectin-2 (sc-32804, Santa Cruz Biotechnology, 1:50) over night at 4°C and secondary antibodies (Thermo Fisher Scientific, 1:400) for 1 hr at room temperature. Sections were counterstained with DAPI, washed three times with PBS and mounted with Fluoromount (S3023, Dako). Confocal images were obtained using an LSM 700 microscope (Zeiss) and analyzed using Fiji software.

Flow cytometry

HUVECs were detached from cell culture plates using trypsin-EDTA (25300054, Thermo Fisher Scientific, Waltham, MA). Mouse embryos were minced and incubated with 0.5 mg/ml collagenase type II (LS004177, Worthington, Lakewood, CA) for 45 min at 37°C. Tissue suspensions were mashed twice through cell strainers (BD Biosciences; 100 and 40 μm). Endothelial cells were enriched by CD31 magnetic beads. Cells were suspended (106 cells/ml) and incubated with different fluorophores coupled to primary antibodies against DLL1 (FAB1818A, R & D Systems), DLL4 (FAB1506A, R & D Systems), Dll4 (563802, BD Biosciences), CD34 (553733, BD Biosciences) for 20 min on ice. Concentration of the different antibodies was determined by titration, in order to get optimal compensation during acquisition.

Statistical analysis

Statistical analysis was performed with SigmaPlot software 12.5 (Systat Software Inc., San Jose, CA). Statistical significance was calculated using unpaired Student’s t-test and one-way ANOVA, as adequate. p-values<0.05 were considered as significant.

Study approval

All animal works were approved by the local committees for animal experimentation and the local government (reference number: 35–9185.81/G-30/14 and 35–9185.81/G-259/12). This work is not considered ‘Human Subjects Research’.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Notch signalling in context
    1. SJ Bray
    (2016)
    Nature Reviews Molecular Cell Biology 17:722–735.
    https://doi.org/10.1038/nrm.2016.94
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39

Decision letter

  1. Elisabetta Dejana
    Reviewing Editor; FIRC Institute of Molecular Oncology, Italy

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "MPDZ promotes DLL4-induced Notch signaling during angiogenesis" for consideration by eLife. Your article has been favorably evaluated by Didier Stainier (Senior Editor) and three reviewers, one of whom, Elisabetta Dejana, is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: Lena Claesson-Welsh. The Reviewing Editor has drafted this decision to help you prepare a revised submission.

As you will see from their comments both reviewers liked your work and acknowledge the novelty and the relevance of your observations. However, both reviewers ask for some additional experimental data that, to our view, would strongly improve the quality and the strength of the paper. After discussion among the reviewers, we ask you to consider the specific recommendation #1 of reviewer 1 and #4 of reviewer 2 as essential. We ask you to consider the other remarks but view them as advisory rather than essential.

Reviewer #1:

In this paper the authors present novel data on the Notch signaling system and cell-to-cell junctions. In particular, they found that MPDZ (multiple PDZ protein) associates to Dll1 and Dll4 promoting their interaction with Nectin-2 and modulating signaling. Although of interest, the paper presents some weak experimental aspects that do not fully support the conclusions.

More specifically:

1) The authors should show immunofluorescence junctional staining of endothelial cells with Dll1 and Dll4 in the presence or absence of MPDZ and in the presence or absence of Nectin-2, in sparse and confluent conditions. This is required to support immuno- precipitation data and to exclude any possible in vitro association of MPDZ, nectin and Dll1 and 4.

These experiments would be even more convincing by performing the analysis of junction organization and composition in vivo in MPDZ ECKO mice.

2) The results presented do not exclude that Nectin-2 could associate to Dll4 also in absence of MPDZ (see Figure 3E using 293 T cells). The amount of DLL4 co-immunoprecipitated with Nectin-2 in absence of MPDZ is lower but still easily detectable.

3) Along the paper the authors use a quite large spectrum of different cell lines (HEK293T, HUVEC, cardiac and lung EC). It is conceivable that each cell line may express other proteins able to modulate Notch signaling. I fully understand the difficulties in transfecting different types of endothelial cells but, for sake of clarity, I would make an effort to maintain the same endothelial cell line along the work.

Reviewer #2:

The study by Tetzlaff et al., follows up on a yeast-two hybrid screen for Dll interacting proteins in which the authors identified the multiple PDZ domain protein (MPDZ). They now verify this interaction in cell models and show that MPDZ gain-/loss of function leads to increased/decreased expression of HEY2 and HES1 indicating that MPDZ modulates Notch signalling activity. At least in part, this effect is exerted by regulation of the subcellular localization of Dll ligands as their complex formation with the adherens junction protein Nectin-2 is dependent on MPDZ. The authors probe for the effect of MPDZ on vessel formation using in vitro (sprouting collagen assay), ex vivo (aortic rings with and without siRNA silencing) and in vivo models, developmental (hindbrain) as well as pathological (cancer). The data are neatly presented, well controlled and of interest to the vascular biology field.

1) In a yeast-two hybrid screen for proteins interacting with the intracellular domains of Dll ligands, the authors previously identified SYNJ2BP and MUPP1/MPDZ. Forced lentiviral SYNJ2BP expression led to increased transcription of the HEY1 and LFNG, indicating increased Notch activity (Adam et al., Circ Res 2013) similar to the data in this study for MPDZ. What is the relationship between SYNJ2BP and MPDZ? Are they part of the same multiprotein complex? Do they compete for binding to Dll ligands? Which other proteins does MPDZ interact with in endothelial cells? It is likely that such multiprotein complexes are established at junctions and it is important to address these complexes in a comprehensive manner to understand their biology.

2) MPDZ has been described as a tight junction component in epithelial cells and as a Claudin-5 partner in Schwann cells, alternatively, as a gap junction protein. Please show the expression pattern of MPDZ in endothelial cells. Which types of vessels express MPDZ (arteries, veins, capillaries) and what is its subcellular localization?

3) Does MPDZ interact with Dll ligands in vivo? Can the authors use e.g. tumor lysates to ip for one and blot or do mass spectrometry to detect the other component?

4) The authors show that loss of MPDZ expression in endothelial cells leads to an increase in sprouting angiogenesis ex vivo (aortic rings, Figure 4) and during development (hindbrain angiogenesis, Figure 5). In cancer, the microvessel density is increased in the absence of MPDZ (Figure 6). Loss of MPDZ leads to higher Notch signalling and therefore increased angiogenesis which very nicely explains the findings in Figures 4-6. However, in none of these data sets are we informed about the morphology of the vasculature in the Mpdz-deficient condition compared to wt. Are MPDZ expressing ECs preferentially found at the tip cell position? Are the MPDZ LOF ECs tip cells? The tumors lacking MPDZ do not grow bigger but has a substantial hypoxic zone that is lacking in the wild type condition. Are the abundant vessels formed due to MPDZ-deficiency not functional? What is the phenotype of the tumor vasculature in Figure 6?

https://doi.org/10.7554/eLife.32860.024

Author response

Reviewer #1:

In this paper the authors present novel data on the Notch signaling system and cell-to-cell junctions. In particular, they found that MPDZ (multiple PDZ protein) associates to Dll1 and Dll4 promoting their interaction with Nectin-2 and modulating signaling. Although of interest, the paper presents some weak experimental aspects that do not fully support the conclusions.

More specifically:

1) The authors should show immunofluorescence junctional staining of endothelial cells with Dll1 and Dll4 in the presence or absence of MPDZ and in the presence or absence of Nectin-2, in sparse and confluent conditions. This is required to support immuno- precipitation data and to exclude any possible in vitro association of MPDZ, nectin and Dll1 and 4.

These experiments would be even more convincing by performing the analysis of junction organization and composition in vivo in MPDZ ECKO mice.

We have addressed this point in several ways. First, we silenced MPDZ in HUVEC with lentiviral shRNA expression constructs and cultured the cells under sparse and confluent conditions. Cells were stained to detect DLL1, DLL4 and Nectin-2. Further staining against MPDZ was not possible, as this requires fixation in methanol whereas the other antibodies require PFA fixation. Only GFP positive cells were analyzed (indicating that they are expressing the transduced construct). Staining analysis revealed that the knock-down of MPDZ (verified by qPCR, WB and by the fact that lentiviral transduced cells express GFP) resulted in lesser co-localization of Nectin-2 with DLL1 or DLL4 (see Figure 4—figure supplement 2). Under confluent conditions, in particular the co-localization at the cell membrane was disturbed upon MPDZ silencing.

Next, we analyzed the localisation of Nectin-2 and DLL1/4 in HUVEC. Since Nectin-2 was transiently knocked-down, analysis under fully confluent conditions was not possible. We detected co-localization at the cell membrane. Silencing of Nectin-2 revealed that DLL1 and DLL4 were still at the same localization (see Figure 4—figure supplement 2). As such, MPDZ promotes the co-localization of DLL1/4 with Nectin-2, whereas Nectin-2 is not absolutely required for cell surface presentation of Notch ligands.

Secondly, we analyzed the junctional organization in retinal vessels of Mpdz-/- and Mpdz+/+ mice (see new Figure 4) as well as in cryosections of brain derived from Mpdz∆EC and Mpdzfl/fl mice (see Figure 4—figure supplement 1). This revealed that loss of Mpdz does not affect the overall junctional organization and composition, what is not surprising as the mice are viable and do not show signs of edema. These data are also in line with our previous publication (Feldner et al., 2017).

2) The results presented do not exclude that Nectin-2 could associate to Dll4 also in absence of MPDZ (see Figure 3E using 293 T cells). The amount of DLL4 co-immunoprecipitated with Nectin-2 in absence of MPDZ is lower but still easily detectable.

We agree. However, this is difficult to address as the function of MPDZ can be compensated by INADL which shows high homology with MPDZ and which most likely interacts with the same proteins. For instance it has been shown that INADL also binds to Nectin-2 (Adachi et al., 2009). As such it might be possible that INADL compensates the loss of MPDZ. To investigate this in detail, we are currently generating Mpdz and Inadl double knock-out mice. Detailed analysis will be time consuming and goes beyond the scope of this manuscript.

3) Along the paper the authors use a quite large spectrum of different cell lines (HEK293T, HUVEC, cardiac and lung EC). It is conceivable that each cell line may express other proteins able to modulate Notch signaling. I fully understand the difficulties in transfecting different types of endothelial cells but, for sake of clarity, I would make an effort to maintain the same endothelial cell line along the work.

We fully agree that it would be ideal to perform all experiments in a single cell line. Therefore, we used HUVEC cells for almost all in vitro experiments. Only for biochemical studies we used HEK293T cells, since expression of cDNA constructs is more efficient. Nevertheless we wanted to confirm critical data also in ex vivo settings. Therefore we isolated also cardiac or lung EC from the KO mice. Here the isolation of two different EC types had at least the advantage of being able to perform mRNA expression (cardiac EC) together with protein expression (lung EC) in the same animal.

Reviewer #2:

[…] 1) In a yeast-two hybrid screen for proteins interacting with the intracellular domains of Dll ligands, the authors previously identified SYNJ2BP and MUPP1/MPDZ. Forced lentiviral SYNJ2BP expression led to increased transcription of the HEY1 and LFNG, indicating increased Notch activity (Adam et al., Circ Res 2013) similar to the data in this study for MPDZ. What is the relationship between SYNJ2BP and MPDZ? Are they part of the same multiprotein complex? Do they compete for binding to Dll ligands? Which other proteins does MPDZ interact with in endothelial cells? It is likely that such multiprotein complexes are established at junctions and it is important to address these complexes in a comprehensive manner to understand their biology.

SYNJ2BP as well as MPDZ are PDZ-domain proteins which bind to DLL1 and DLL4 via their PDZ-binding site. To investigate whether MPDZ and SYNJ2BP compete for binding to the Notch ligands, we performed a Co-IP study with HEK293T control and MPDZ-silenced HEK293T cells (see Figure 1—figure supplement 1). DLL1 or DLL4 and SYNJ2BP were over-expressed and the Notch ligands were immunoprecipitated. Immunoblot analysis revealed that the absence of MPDZ does not affect the interaction of SYNJ2BP with the Notch ligands. Hence, we concluded that MPDZ and SYNJ2BP do not compete for binding to the Notch ligands. We fully agree with the reviewer that there will be most likely competition of PDZ proteins for binding to DLL ligands. However, at the moment we do not have the tools to study this in detail. We had reported before that SYNJ2BP prevents DLL1 lysosomal degradation. Here we propose that MPDZ promotes its localization at the cell membrane. Therefore it could indeed be that these binding proteins act at different subcellular localization. Unfortunately, the quality of the antibodies preclude any further investigation at this stage.

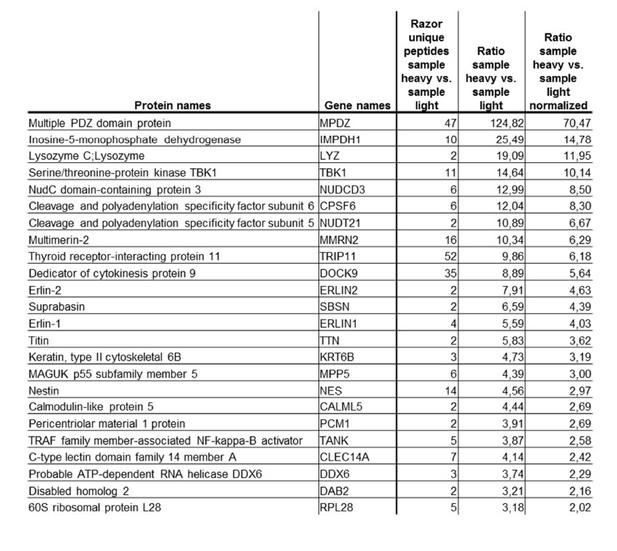

To address the question which proteins are also interacting with MPDZ in endothelial cells, we performed a mass spectrometry screen. MPDZ was immunoprecipitated in HUVEC lysates and the washed precipitate was analyzed by mass spectrometry (see Author response image 1). With this method we could show that the antibody indeed binds MPDZ and that we can verify the interaction with MPP5 (String database). However, in this screening approach we could not detect any of the known interactions with transmembrane proteins (e.g. Claudin-5, JAM-A or DLL4). The method of cell lysis or the composition of the precipitation buffer might be responsible for this. Therefore we suggest not to put this data set into the manuscript.

2) MPDZ has been described as a tight junction component in epithelial cells and as a Claudin-5 partner in Schwann cells, alternatively, as a gap junction protein. Please show the expression pattern of MPDZ in endothelial cells. Which types of vessels express MPDZ (arteries, veins, capillaries) and what is its subcellular localization?

We could show that MPDZ is expressed in endothelial cells derived from veins, arteries and microvessels (see Figure 3—figure supplement 1). We studied the subcellular localization in freshly isolated venous and arterial ECs (cell passage 0). This demonstrated that MPDZ is mainly expressed at the cell membrane but can be also found in the cytoplasm. In microvessel ECs we could not analyze the subcellular localization, since we had to use a commercial available cell line at a higher cell passage number (cell passage 4). Our previous experiments have clearly shown that MPDZ can only be detected robustly at the cell membrane in freshly isolated ECs (cell passage 0), ideally under confluent conditions.

3) Does MPDZ interact with Dll ligands in vivo? Can the authors use e.g. tumor lysates to ip for one and blot or do mass spectrometry to detect the other component?

To address this question we prepared total protein lysates from kidneys, which express high amounts of MPDZ, which is required for barrier integrity under high osmotic stress (Lanaspa et al., 2007). We immunoprecipitated DLL1 and DLL4 and immunoblotted for MPDZ. This revealed that MPDZ also interacted with DLL1 and DLL4 in this mouse tissue (Figure 1—figure supplement 1).

4) The authors show that loss of MPDZ expression in endothelial cells leads to an increase in sprouting angiogenesis ex vivo (aortic rings, Figure 4) and during development (hindbrain angiogenesis, Figure 5). In cancer, the microvessel density is increased in the absence of MPDZ (Figure 6). Loss of MPDZ leads to higher Notch signalling and therefore increased angiogenesis which very nicely explains the findings in Figures 4-6. However, in none of these data sets are we informed about the morphology of the vasculature in the Mpdz-deficient condition compared to wt. Are MPDZ expressing ECs preferentially found at the tip cell position? Are the MPDZ LOF ECs tip cells? The tumors lacking MPDZ do not grow bigger but has a substantial hypoxic zone that is lacking in the wild type condition. Are the abundant vessels formed due to MPDZ-deficiency not functional? What is the phenotype of the tumor vasculature in Figure 6?

To address the question whether MPDZ expressing cells prefer the tip or stalk cell position, we performed an in vitro tip-stalk-cell sprouting assay (new Figure 5C). MPDZ-deficient endothelial cells preferred the tip cell position whereas MPDZ-expressing cells adopted the stalk cell phenotype. This result is in accordance with a recent paper by the Adams laboratory showing that cells with high Notch signaling activity preferentially adopt the stalk cell phenotype (Pitulescu et al., 2017).

To further investigate the functionality of the tumor vessels, we repeated the tumor experiments and injected Hoechst 33342 and FITC-Lectin into the tail vein 5 min prior to sacrifice. Tumors were stained for CD31 and vessel perfusion and Hoechst extravasation was analyzed (Figure 7—figure supplement 1). The experiments in the wildtype control animals revealed that LLC tumors were better perfused than B16F10 tumors. In LLC tumors almost all of the CD31+ vessels were also Lectin positive. This was also the case in Mpdz∆EC mice. However the rate of Hoechst dye penetration into the tumor mass was significantly reduced in Mpdz∆EC mice compared to Mpdzfl/fl control littermates. In B16F10 melanoma the Hoechst staining was very weak, which precluded further analysis. However, analysis of the Lectin-positive vessels revealed lower rates in Mpdz∆EC mice compared to Mpdzfl/fl littermates.

References:

Lanaspa, MA, Almeida, NE, Andres-Hernando, A, Rivard, CJ, Capasso, JM, and Berl, T. (2007). The tight junction protein, MUPP1, is up-regulated by hypertonicity and is important in the osmotic stress response in kidney cells. Proc. Natl. Acad. Sci. U. S. A. 104, 13672–13677.

https://doi.org/10.7554/eLife.32860.025

Article and author information

Author details

  1. Fabian Tetzlaff

    1. Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    2. European Center for Angioscience, Medical Faculty Mannheim, Heidelberg University, Mannheim, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  2. M Gordian Adam

    Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    Present address
    Metanomics Health GmbH, Berlin, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Anja Feldner

    Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Iris Moll

    Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Amitai Menuchin

    Department of Biochemistry and Molecular Biology, Wise Faculty of Life Science, Tel Aviv University, Tel Aviv, Israel
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Juan Rodriguez-Vita

    Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    Contribution
    Supervision, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-9547-5508
  7. David Sprinzak

    Department of Biochemistry and Molecular Biology, Wise Faculty of Life Science, Tel Aviv University, Tel Aviv, Israel
    Contribution
    Resources, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-6776-6957
  8. Andreas Fischer

    1. Division of Vascular Signaling and Cancer, German Cancer Research Center (DKFZ), Heidelberg, Germany
    2. European Center for Angioscience, Medical Faculty Mannheim, Heidelberg University, Mannheim, Germany
    3. Medical Clinic I, Endocrinology and Clinical Chemistry, Heidelberg University Hospital, Heidelberg, Germany
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Project administration
    For correspondence
    a.fischer@dkfz.de
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-4889-0909

Funding

Deutsche Forschungsgemeinschaft (SFB-TR23 (A7))

  • Andreas Fischer

Deutsches Krebsforschungszentrum and the Israeli Ministry of Science (Cooperation Program in Cancer Research CA156)

  • Fabian Tetzlaff
  • Amitai Menuchin
  • David Sprinzak
  • Andreas Fischer

Helmholtz-Gemeinschaft

  • Andreas Fischer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Christian Clappier, Fabienne Podieh and Maaike Schilperoort for excellent technical support, Damir Krunic (DKFZ, light microscopy core facility) for help with FIJI software data analysis, Bernd Heßling (DKFZ, genomics and proteomics core facility) and members of the DKFZ Laboratory Animal Facility for support.

Ethics

Animal experimentation: Mice were kept under pathogen-free barrier conditions. All animal procedures were performed in accordance with the institutional and national regulations and approved by the local committees for animal experimentation (Heidelberg University and DKFZ) and the local government (Regierungspräsidium Karlsruhe, Germany).(reference number: 35-9185.81/G-30/14 and 35-9185.81/G-259/12).

Reviewing Editor

  1. Elisabetta Dejana, Reviewing Editor, FIRC Institute of Molecular Oncology, Italy

Publication history

  1. Received: October 16, 2017
  2. Accepted: April 4, 2018
  3. Accepted Manuscript published: April 5, 2018 (version 1)
  4. Version of Record published: May 3, 2018 (version 2)

Copyright

© 2018, Tetzlaff et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 979
    Page views
  • 180
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Cancer Biology
    Geulah Livshits et al.
    Research Article
    1. Cancer Biology
    2. Computational and Systems Biology
    Jia-Ren Lin et al.
    Tools and Resources
