Gq activity- and β-arrestin-1 scaffolding-mediated ADGRG2/CFTR coupling are required for male fertility

  1. Dao-Lai Zhang
  2. Yu-Jing Sun
  3. Ming-Liang Ma
  4. Yi-jing Wang
  5. Hui Lin
  6. Rui-Rui Li
  7. Zong-Lai Liang
  8. Yuan Gao
  9. Zhao Yang
  10. Dong-Fang He
  11. Amy Lin
  12. Hui Mo
  13. Yu-Jing Lu
  14. Meng-Jing Li
  15. Wei Kong
  16. Ka Young Chung
  17. Fan Yi
  18. Jian-Yuan Li
  19. Ying-Ying Qin
  20. Jingxin Li
  21. Alex R B Thomsen
  22. Alem W Kahsai
  23. Zi-Jiang Chen
  24. Zhi-Gang Xu
  25. Mingyao Liu
  26. Dali Li  Is a corresponding author
  27. Xiao Yu  Is a corresponding author
  28. Jin-Peng Sun  Is a corresponding author
  1. Shandong University School of Medicine, China
  2. Binzhou Medical University, China
  3. School of Medicine, Duke University, United States
  4. School of Basic Medical Sciences, Peking University, China
  5. Sungkyunkwan University, Korea
  6. National Health and Family Planning Commission, China
  7. Shandong University, China
  8. Shandong University School of Life Sciences, China
  9. Institute of Biomedical Sciences, East China Normal University, China
  10. Texas A&M University Health Science Center, United States
15 figures, 2 tables and 4 additional files

Figures

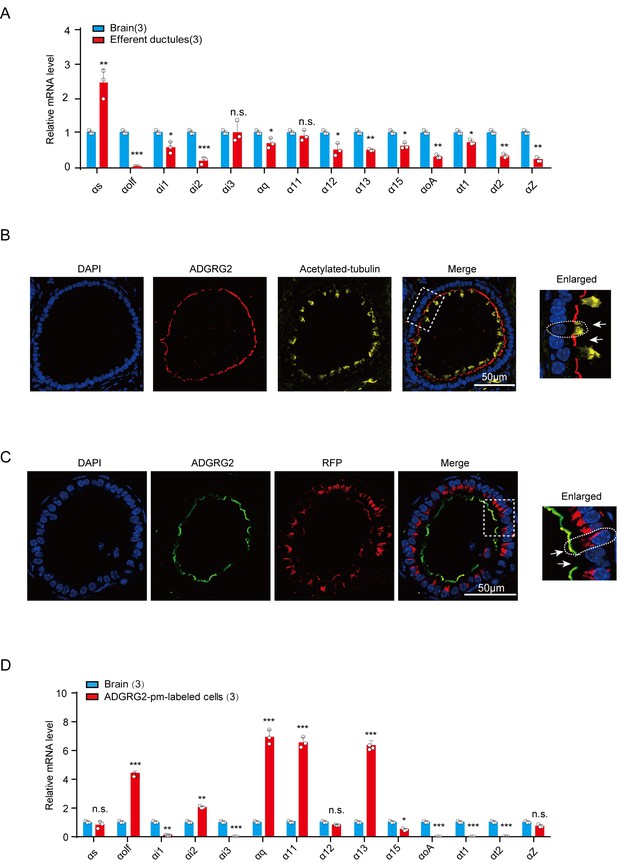

Figure 1 with 2 supplements
The expression of G protein subtypes in the efferent ductules and ADGRG2 promoter-labeled non-ciliated cells.

(A) qRT-PCR analysis of mRNA transcription profiles of G proteins in brain tissues and the efferent ductules of WT (n = 3) male mice. Expression levels were normalized to GAPDH levels. *p<0.05, **p<0…

https://doi.org/10.7554/eLife.33432.002
Figure 1—figure supplement 1

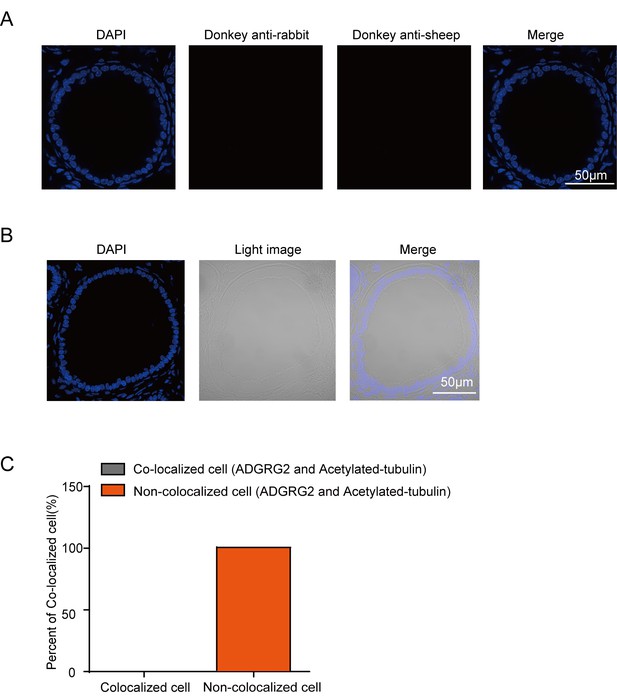

ADGRG2 is specifically expressed in non-ciliated cells.

(A) Control experiments: Direct immunofluorescence staining of secondary antibodies used in the manuscript (including donkey anti-sheep, red fluorescence; and donkey anti-rabbit, green fluorescence) …

https://doi.org/10.7554/eLife.33432.003

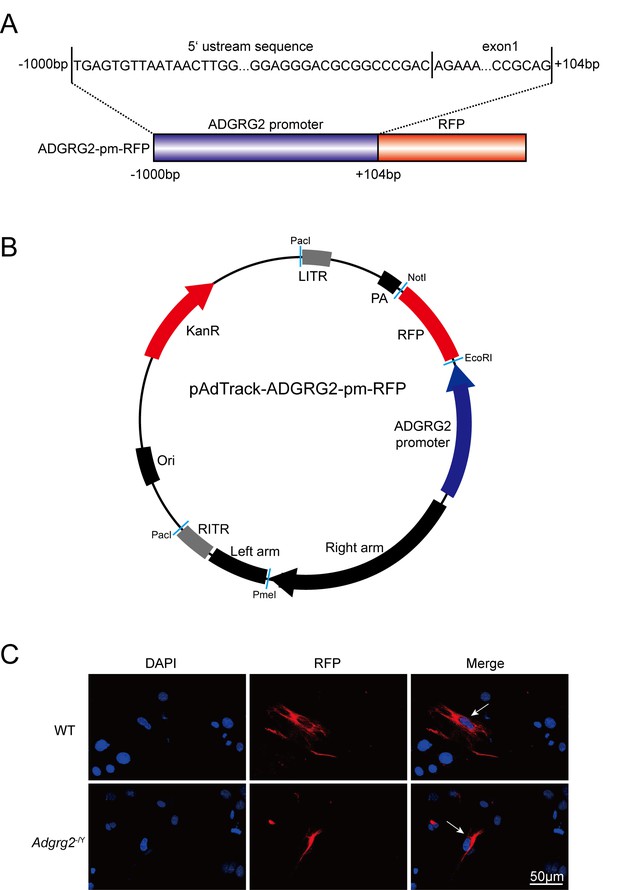

Figure 1—figure supplement 2
The construction of the mouse ADGRG2-promoter-RFP used in the labeling of ADGRG2-expressed cells.

(A–B) Schematic representation of the construction of the mouse ADGRG2-promoter-RFP used in the labeling of ADGRG2 expressed cells in the epididymal efferent duct epithelium. Sub-cloning strategy of …

https://doi.org/10.7554/eLife.33432.004

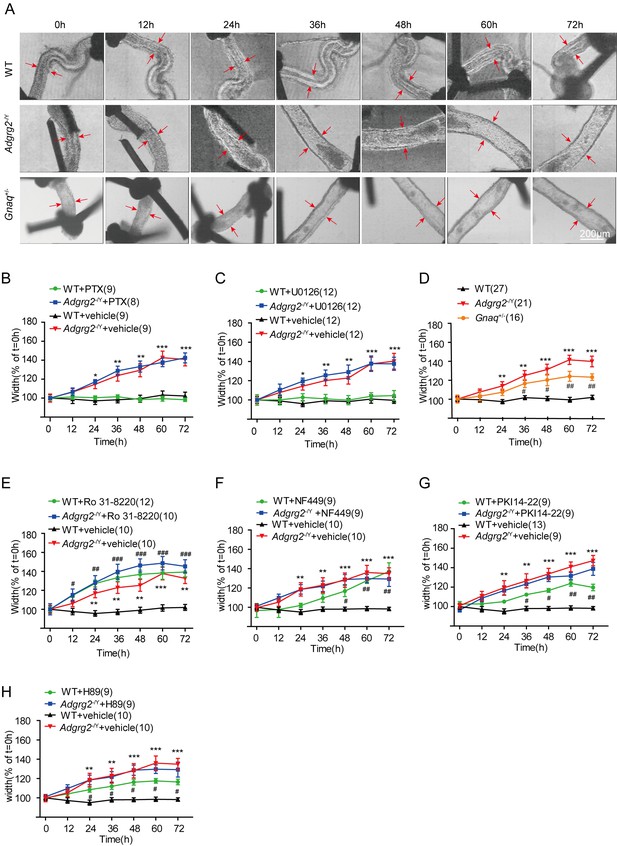

Figure 2 with 2 supplements
Gq activity is required for fluid reabsorption.

(A) Images of cultured ligated efferent ductules derived from WT male mice, Adgrg2-/Y mice and Gnaq+/- male mice. Ductule segments were selected by examination of the ciliary beat, which is a marker …

https://doi.org/10.7554/eLife.33432.005

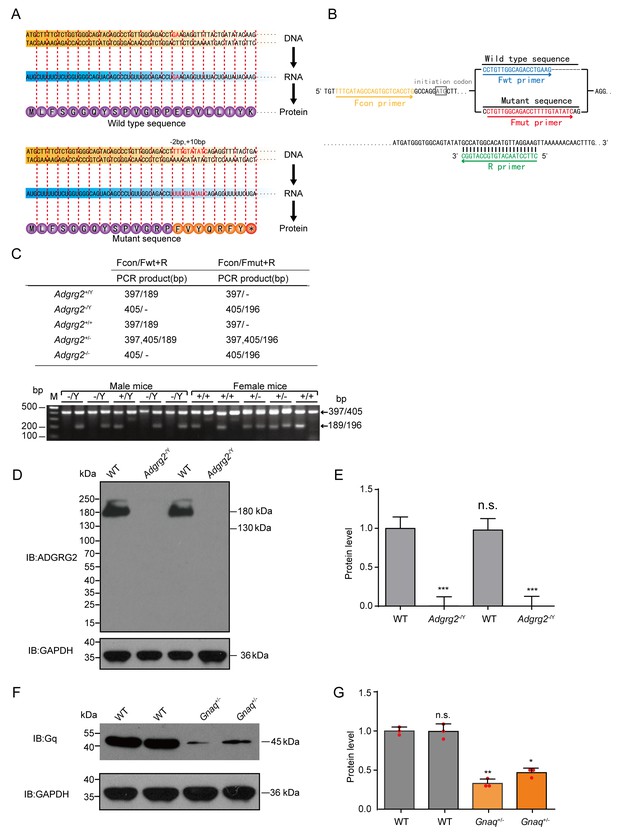

Figure 2—figure supplement 1
The ADGRG2 protein knockout strategy, PCR strategy and western blot results of Adgrg2-/Y and Gnaq+/- mice.

(A) Schematic representation of the ADGRG2 knockout strategy for the Adgrg2-/Y mice. 2 bp nucleotides were removed and 10 bp nucleotides were inserted in the first exon of the ADGRG2 gene in the …

https://doi.org/10.7554/eLife.33432.006

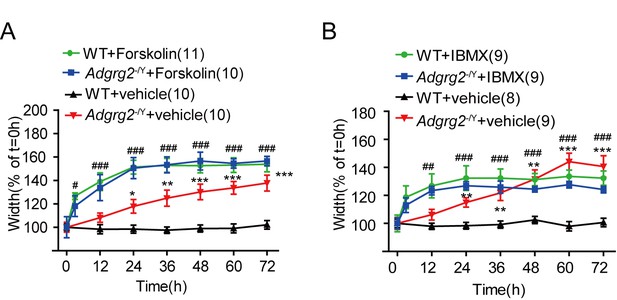

Figure 2—figure supplement 2
Effects of Forskolin and IBMX on the diameters of ligated efferent ductules derived from WT or Adgrg2-/Y mice.

(A) Effects of forskolin (10 μM), an adenylyl cyclase (AC) activator, on the diameters of ligated efferent ducts; WT(n = 11) or Adgrg2-/Y (n = 10). (B) Effects of IBMX(100 μM), a non-specific …

https://doi.org/10.7554/eLife.33432.007

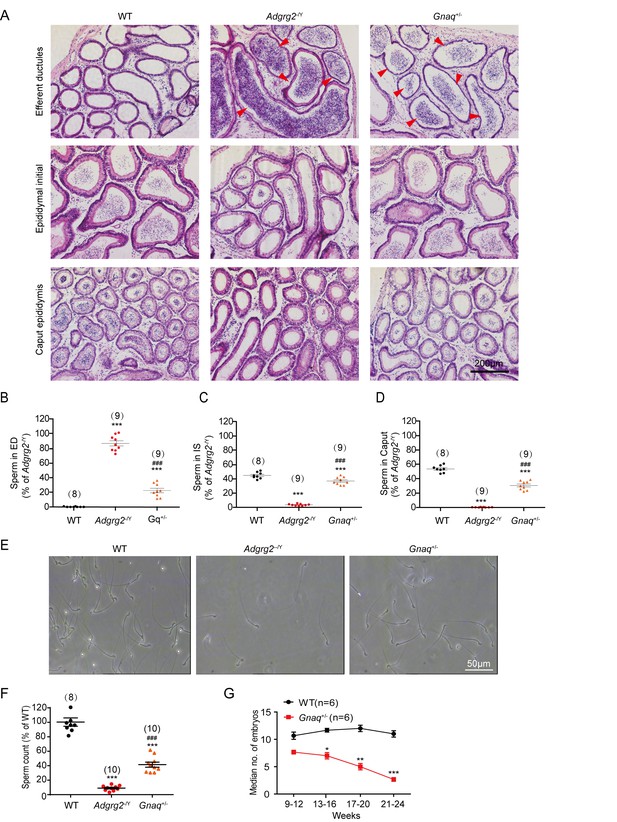

Gq expression is required for sperm transportation and male fertility.

(A) Representative hematoxylin and eosin staining of WT, Adgrg2-/Y or Gnaq+/- mice. Scale bars, 200 μm. (B–D) Corresponding bar graphs demonstrating the accumulation of spermatozoa according to the …

https://doi.org/10.7554/eLife.33432.008
Figure 4 with 1 supplement
Inhibition of CFTR activity in the efferent ductules pheno-copied the activity in Adgrg2-/Y mice.

(A) qRT-PCR analysis of the mRNA transcription profiles of potential osmotic drivers including selective ion channels and transporters in ADGRG2 promoter-labeled cells, non-ADGRG2 promoter-labeled …

https://doi.org/10.7554/eLife.33432.009
Figure 4—figure supplement 1

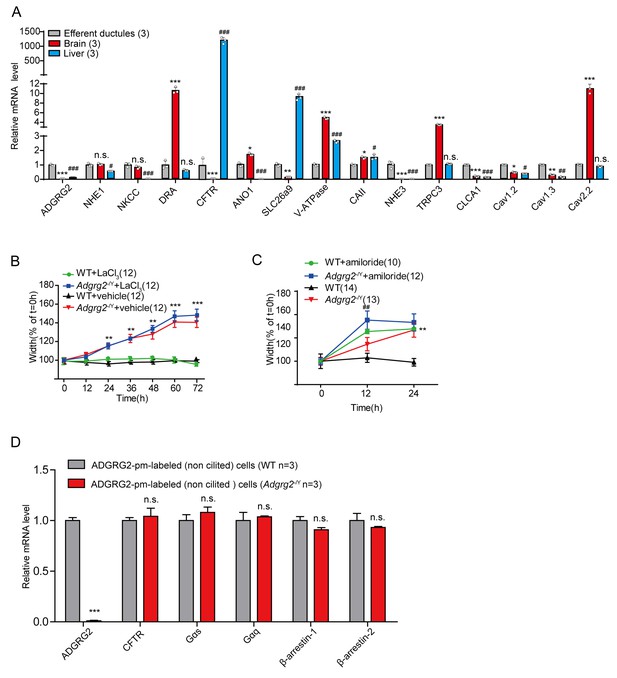

Expression and functional analysis of potential osmotic drivers in efferent ductules.

(A) Quantitative RT-PCR (qRT-PCR) analysis of mRNA transcription profiles of potential osmotic drivers including selective ion channels and transporters in efferent ductules, brain and liver of …

https://doi.org/10.7554/eLife.33432.010
Figure 5 with 4 supplements

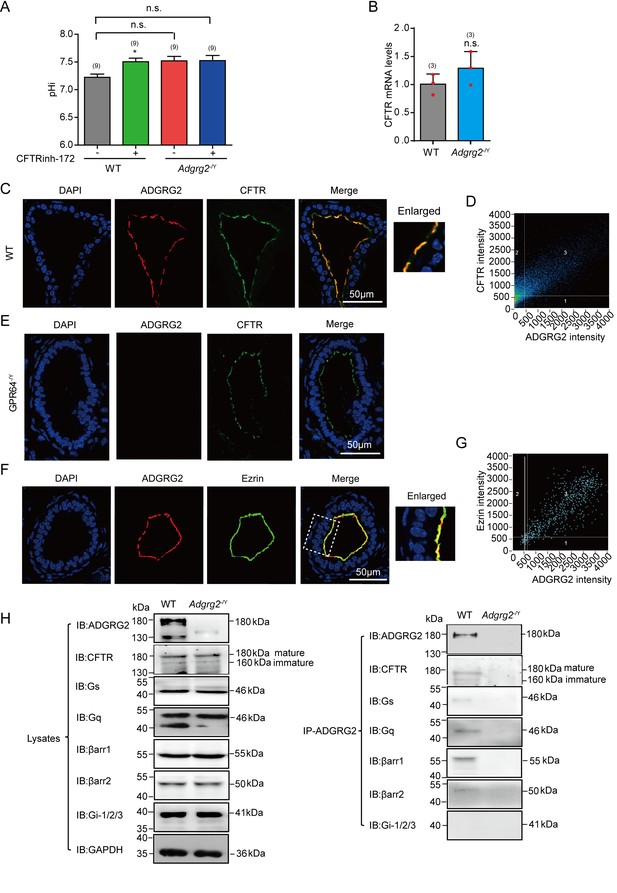

Functional coupling and co-localization of CFTR and ADGRG2 on the apical membrane in the efferent ductules.

(A) Intracellular pH (pHi) of the ligated efferent ductules from WT (n = 9) mice and Adgrg2-/Y (n = 9) mice were measured by carboxy-SNARF (5 μM), with or without incubation with the CFTR inhibitor …

https://doi.org/10.7554/eLife.33432.011

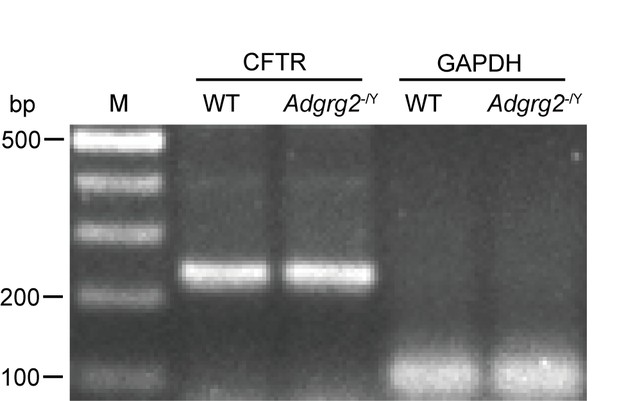

Figure 5—figure supplement 1
Representative agrose gel for the reverse transcription PCR analysis of CFTR mRNA level in efferent ductules of WT or Adgrg2-/Y mice.

The upper band (220 bp PCR product) in each lane represents CFTR, whereas the lower band (100 bp product) represents GAPDH (This figure was related to Figure 5B).

https://doi.org/10.7554/eLife.33432.012
Figure 5—figure supplement 2

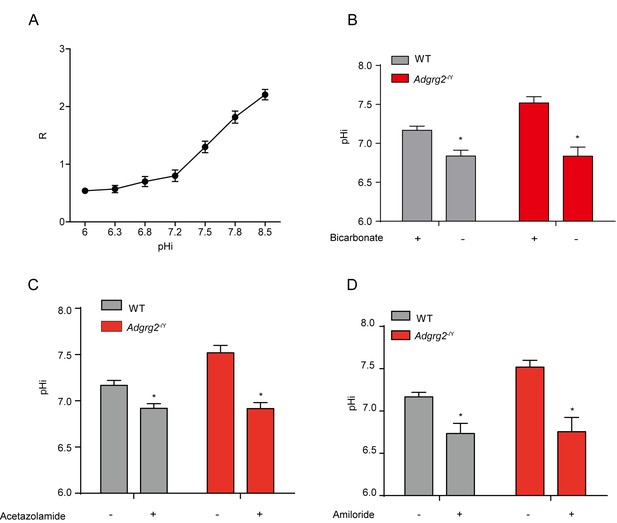

pH homeostasis in the efferent ductules was impaired in Adgrg2-/Y mice.

(A) The relationship between R value (fluorescence emission intensity at 635nm/fluorescence emission intensity at 590 nm) and pHi for the indicator 5'(and …

https://doi.org/10.7554/eLife.33432.013

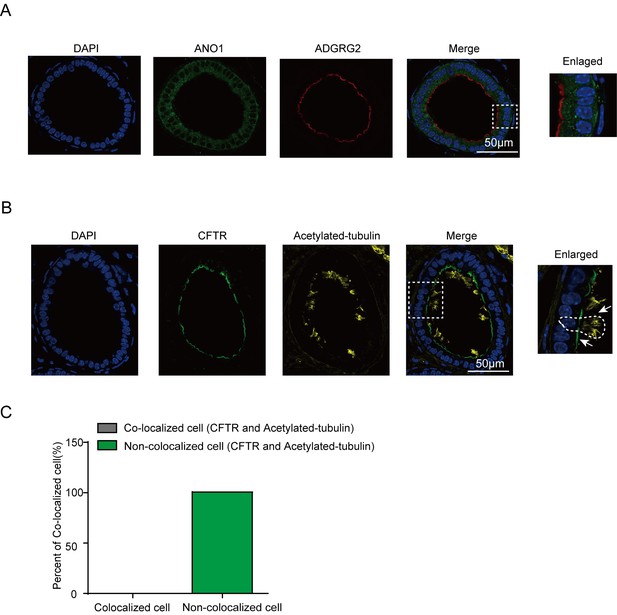

Figure 5—figure supplement 3
Immunostaining experiments for CFTR location in efferent ductules.

(A) Co-Immunofluorescence staining of ADGRG2 (red fluorescence) and ANO1(green fluorescence) in WT male mice efferent ductules. Scale bars, 50 μm. (B) Immunofluorescent staining of CFTR (sc-8909, …

https://doi.org/10.7554/eLife.33432.014
Figure 5—figure supplement 4

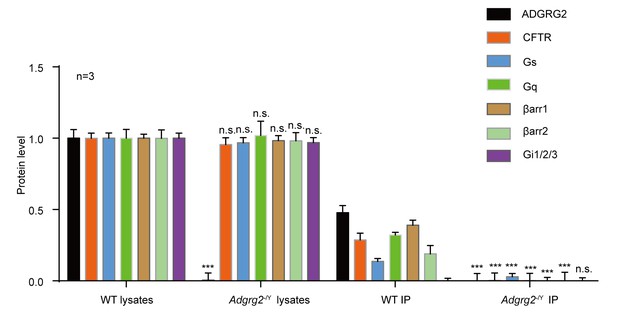

Bar graph representation and statistical analyses of Figure 5H.

***p<0.001, Adgrg2-/Y lysates or IP protein were compared with WT lysates or IP protein respectively. n.s., no significant difference.

https://doi.org/10.7554/eLife.33432.015

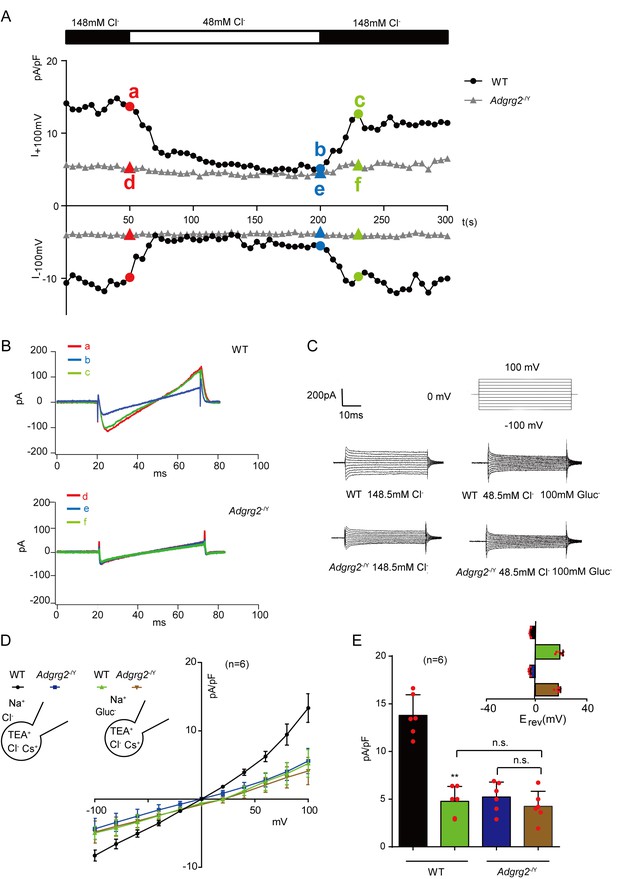

The whole-cell Cl- current recording of ADGRG2 promoter-labeled efferent ductule cells.

(A) Time course of whole-cell Cl- current (IADGRG2-ED) at +100 and −100 mV in ADGRG2 promoter-labeled efferent ductule cells derived from Adgrg2-/Y mice or their littermates. An ‘a’ or ‘d’ indicates …

https://doi.org/10.7554/eLife.33432.016
Figure 7 with 3 supplements
Cl- currents in the non-ciliated cells of the efferent ductules through CFTR.

(A, D and F) Corresponding I-V curves of the whole-cell Cl- IADGRG2-ED currents recorded in Figure 6 and (A, D and F) Corresponding I-V curves of the whole-cell Cl- IADGRG2-ED currents recorded in Fi…

https://doi.org/10.7554/eLife.33432.018
Figure 7—figure supplement 1
Effects of different stimulators or inhibitors of osmotic drivers on I ADGRG2-ED Cl- currents of efferent ductule cells derived from Adgrg2-/Y mice and their wild type littermates.

(A) The whole cell Cl- current of I ADGRG2-ED elicited by voltage steps between −100 mV and +100 mV in a representative ADGRG2-promoter-RFP-labeled efferent ductule cells derived from the Adgrg2-/Y

https://doi.org/10.7554/eLife.33432.019

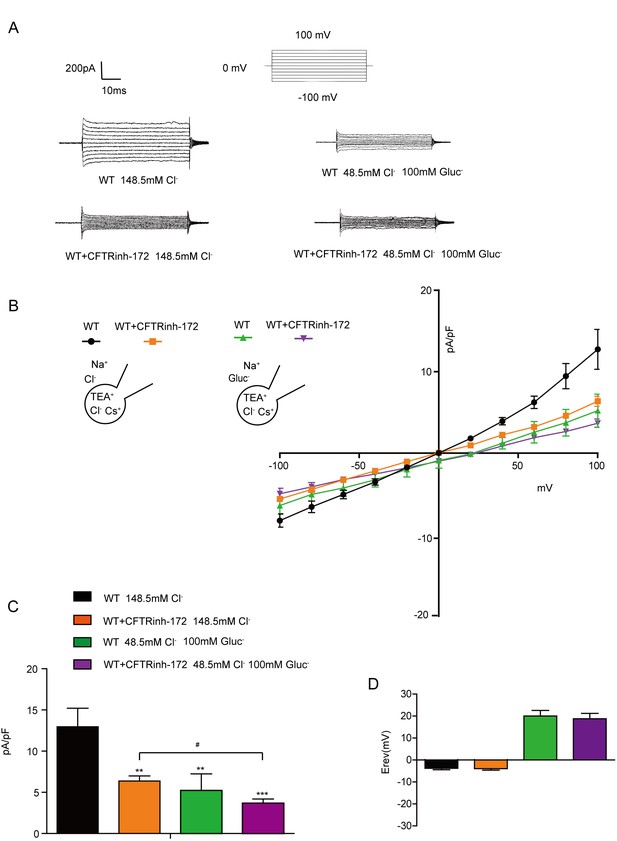

Figure 7—figure supplement 2
Effects of Cl- concentration change and CFTRinh-172 on the IADGRG2-ED Cl- currents.

(A) The whole cell Cl- current of IADGRG2-ED elicited by voltage steps between −100 mV and +100 mV in a representative ADGRG2-promoter-RFP-labeled efferent ductule cells derived from the Adgrg2-/Y

https://doi.org/10.7554/eLife.33432.020

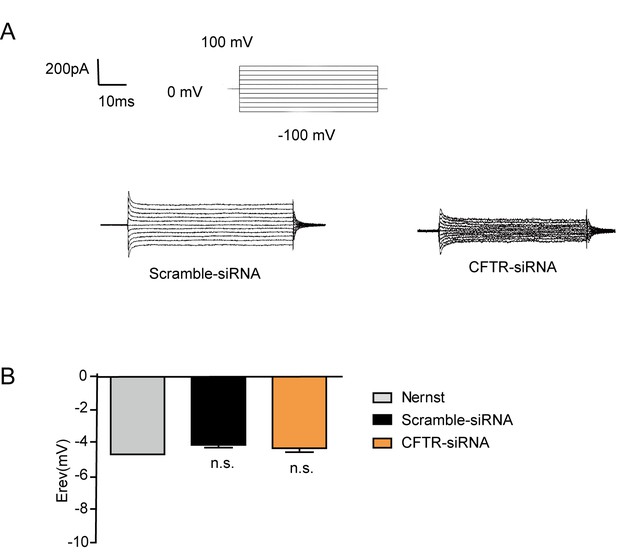

Figure 7—figure supplement 3
Effects of CFTR knocked down on the I ADGRG2-ED Cl- currents.

(A) The whole cell Cl- current of I ADGRG2-ED elicited by voltage steps between −100 mV and +100 mV of primary efferent ductile cells after CFTR-siRNA or Scramble-siRNA treatment. (B) Corresponding …

https://doi.org/10.7554/eLife.33432.021

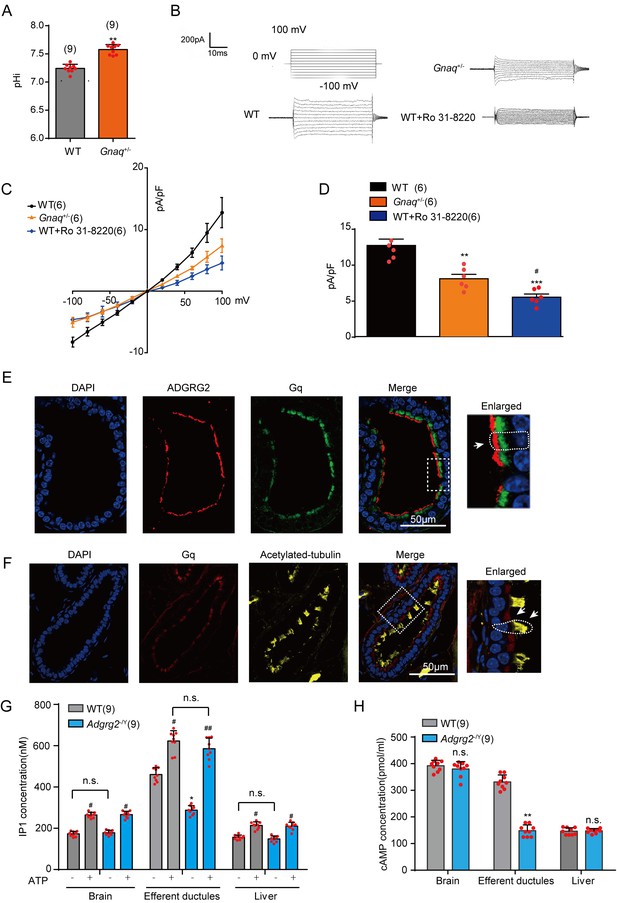

Figure 8 with 3 supplements
Gq activity regulated Cl- current and pH homeostasis in the efferent ductules.

(A) Intracellular pH (pHi) of the ligated efferent ductules from WT (n = 9) mice or Gnaq+/- (n = 9) mice was measured by carboxy-SNARF. (B). The whole-cell Cl- current of the IADGRG2-ED elicited by …

https://doi.org/10.7554/eLife.33432.022
Figure 8—figure supplement 1
Effects of G protein signaling on the I ADGRG2-ED Cl- currents.

(A) The whole cell Cl- current of IADGRG2-ED elicited by voltage steps between −100 mV and +100 mV in a representative ADGRG2-promoter-RFP-labeled efferent ductule cells derived from the Gnaq+/-

https://doi.org/10.7554/eLife.33432.023
Figure 8—figure supplement 2

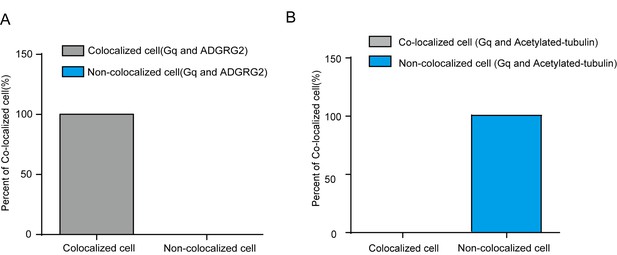

Gq is localized in the ADGRG2 expressed cells, but not the acetylated-tubulin-labeled cells in efferent ductules.

(A) Bar graph representation and statistical analyses of co-localization of Gq and ADGRG2 in WT male mice efferent ductules (corresponding to Figure 8E), n = 3 mice per group; 4–10 random areas were …

https://doi.org/10.7554/eLife.33432.024
Figure 8—figure supplement 3

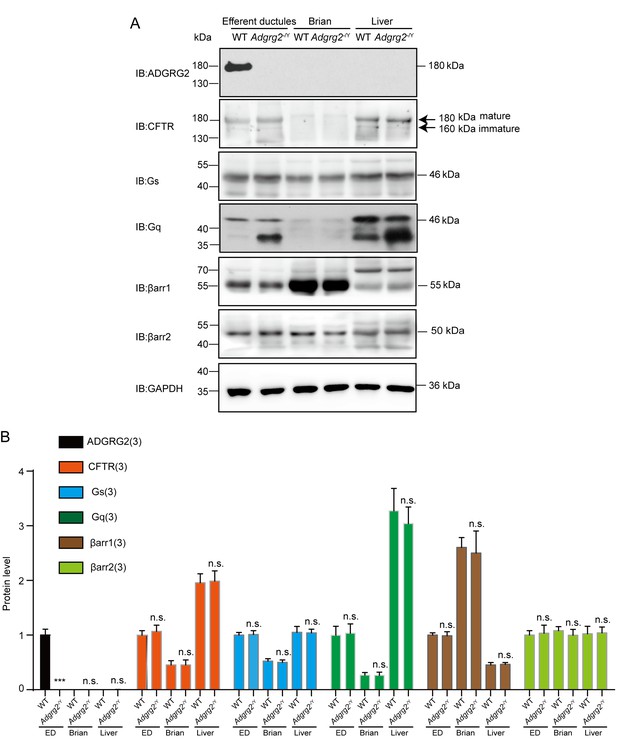

The expression of ADGRG2, CFTR, Gs, Gq, β-arrestin-1, β-arrestin-2 in efferent ductules, brain and liver tissue of WT and Adgrg2-/Y mice.

(A) Western blot analysis of ADGRG2, CFTR, Gs, Gq, β-arrestin-1, β-arrestin-2 expression in efferent ductules, brain and liver tissue of WT and Adgrg2-/Y mice. A representative western blot from at …

https://doi.org/10.7554/eLife.33432.025

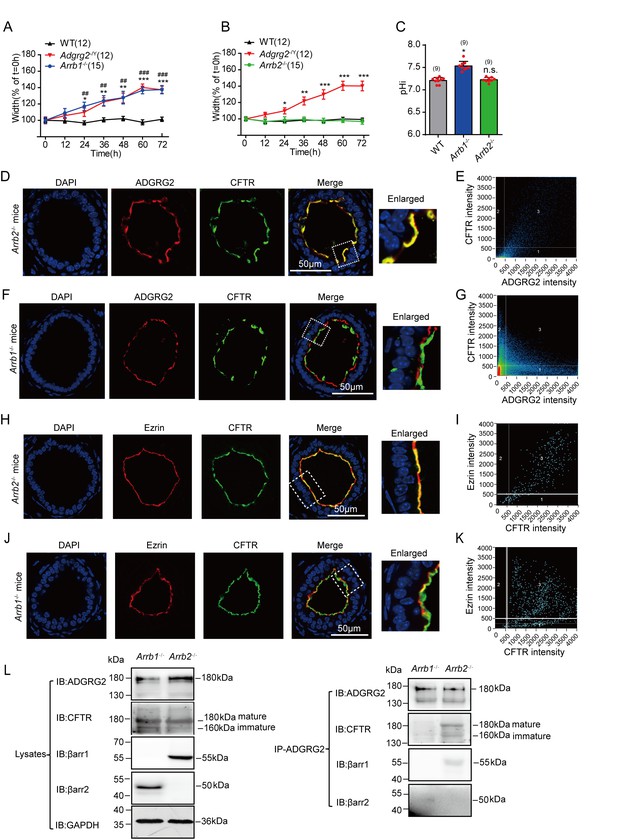

Figure 9 with 3 supplements
β-arrestin-1 is required for fluid reabsorption in the efferent ductules via scaffolding ADGRG2/CFTR complex formation.

(A) Diameters of the luminal ductules derived from WT (n = 12), Adgrg2-/Y (n = 12) or Arrb1-/- (n = 15) mice. (B) Diameters of the luminal ductules derived from WT (n = 12), Adgrg2-/Y (n = 12) or Arr…

https://doi.org/10.7554/eLife.33432.026
Figure 9—figure supplement 1

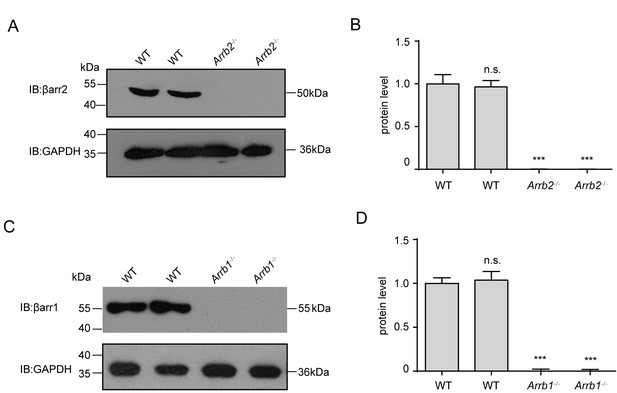

Western blot analysis of β-arrestin1/2 expression in the efferent duct tissue.

(A,C) Western blot analysis of β-arrestin1/2 expression in the efferent duct tissue of WT and Arrb2-/-(A) or Arrb1-/-(C) mice. A representative western blot from at least three independent …

https://doi.org/10.7554/eLife.33432.027

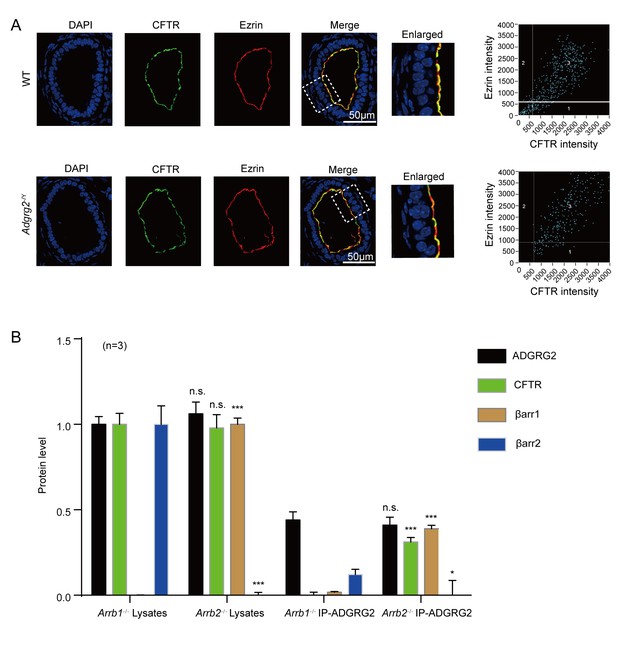

Figure 9—figure supplement 2
β-arrestin-1 is an essential component in a signaling complex encompassing the ADGRG2 and CFTR in efferent ductules.

(A) Co-localization of Ezrin (red fluorescence) and CFTR (sc-8909, Santa Cruz, green fluorescence) in male efferent ductules of the WT mice and Adgrg2-/Y mice. Scale bars, 50 μm. Analysis of Ezrin …

https://doi.org/10.7554/eLife.33432.028
Figure 9—figure supplement 3
The complex formation between ADGRG2, β-arrestin-1 and CFTR in HEK293 cells.

(A) HEK293 cells were transfected with equal amount plasmids encoding ADGRG2, CFTR, β-arrestin-1 or β-arrestin-2 plasmids. The Flag- ADGRG2 were pulled down by M2-Flag beads and the associated CFTR, …

https://doi.org/10.7554/eLife.33432.029

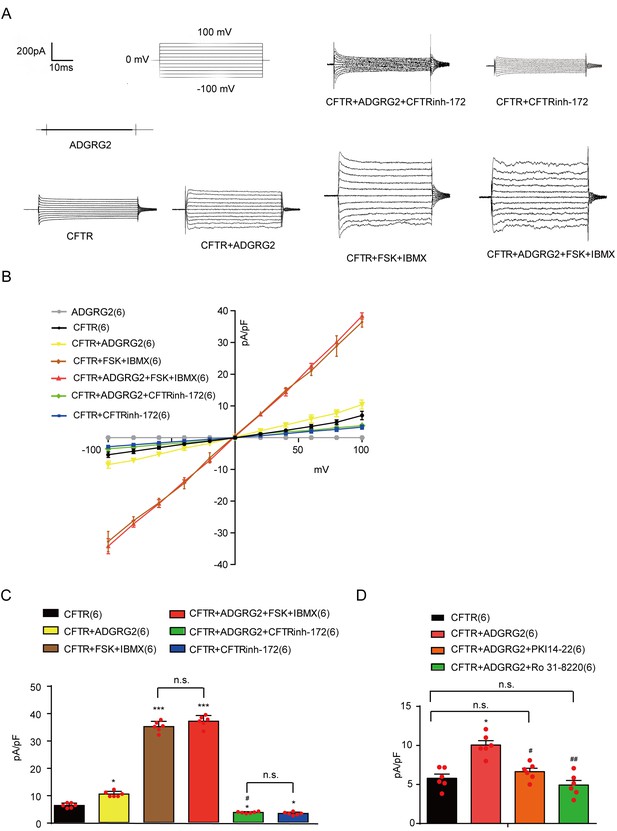

Figure 10 with 5 supplements
ADGRG2 upregulates CFTR Cl- currents through G protein signaling.

(A) Whole-cell Cl- currents recorded with a CsCl pipette solution in HEK293 cells transfected with plasmids encoding ADGRG2 or/and CFTR, with or without CFTR inhibitor CFTRinh-172(10 μM) or its …

https://doi.org/10.7554/eLife.33432.030

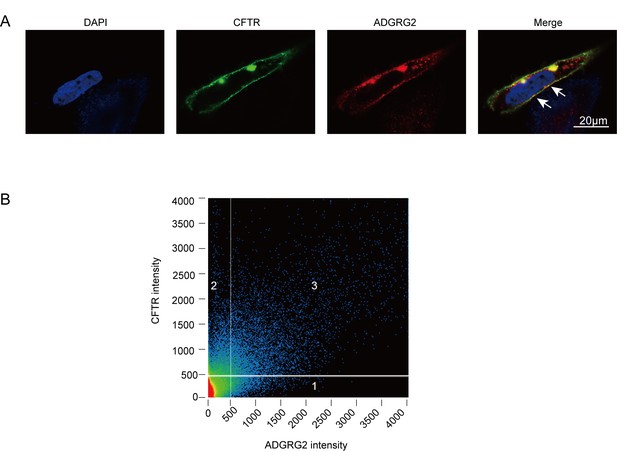

Figure 10—figure supplement 1
Co-localization analysis of ADGRG2 and CFTR in HEK293 cells.

(A) Co-localization of ADGRG2 (red fluorescence) and CFTR (green fluorescence) in HEK293 cells. Scale bars, 20 μm. A representative figure from at least three independent experiments was shown. (B) …

https://doi.org/10.7554/eLife.33432.031
Figure 10—figure supplement 2

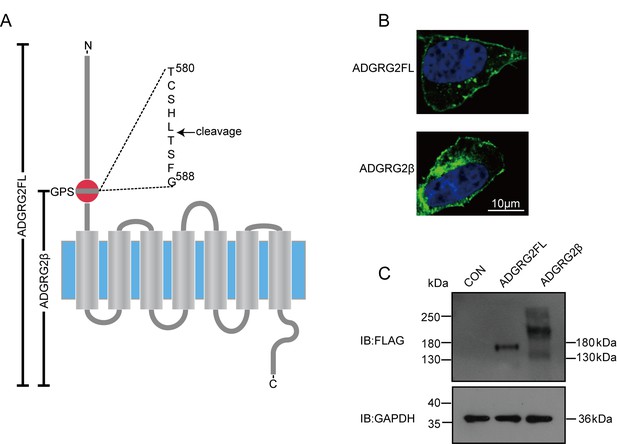

Construction and expression of ADGRG2-full length (ADGRG2FL) and a truncated form ADGRG2β.

(A–C) Construction and expression of ADGRG2-full length (ADGRG2FL) and a truncated form ADGRG2β. (A) Schematic illustration of the structure of the ADGRG2FL and the ADGRG2β used in the current …

https://doi.org/10.7554/eLife.33432.032
Figure 10—figure supplement 3
Overexpression of ADGRG2FL and ADGRG2β lead to constitutive increased cellular cAMP levels.

(A–C) Overexpression of ADGRG2FL leads to constitutively increased intracellular cAMP levels. HEK293 cells were co-transfected with the GloSensor plasmid and the control pcDNA3.1 vector or the …

https://doi.org/10.7554/eLife.33432.033

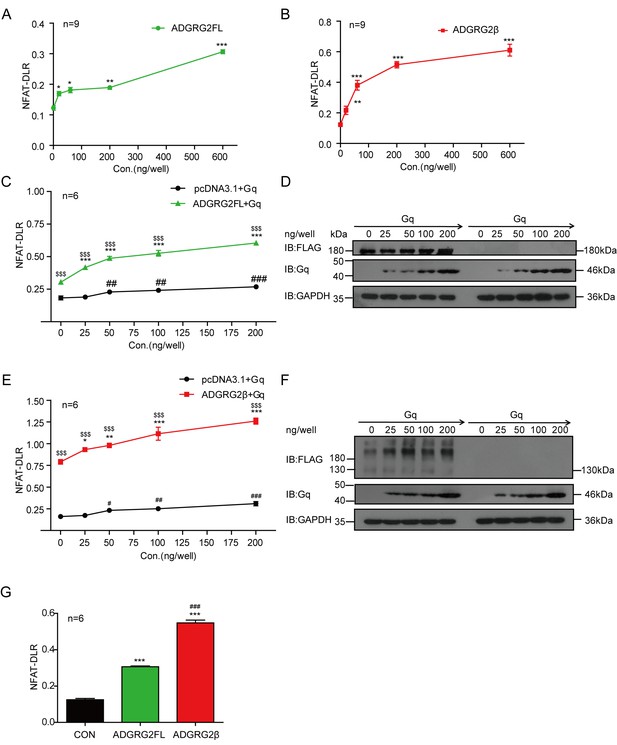

Figure 10—figure supplement 4
Overexpression of ADGRG2FL and ADGRG2β have constitutive Gq-NFAT signaling activities.

(A–B) Dose-dependent effect of ADGRG2FL (A) or ADGRG2β (B) overexpression on the luciferase activity of the NFAT-DLR. *p<0.05, **p<0.01, ***p<0.001, the ADGRG2 transfected cells were compared to …

https://doi.org/10.7554/eLife.33432.034
Figure 10—figure supplement 5

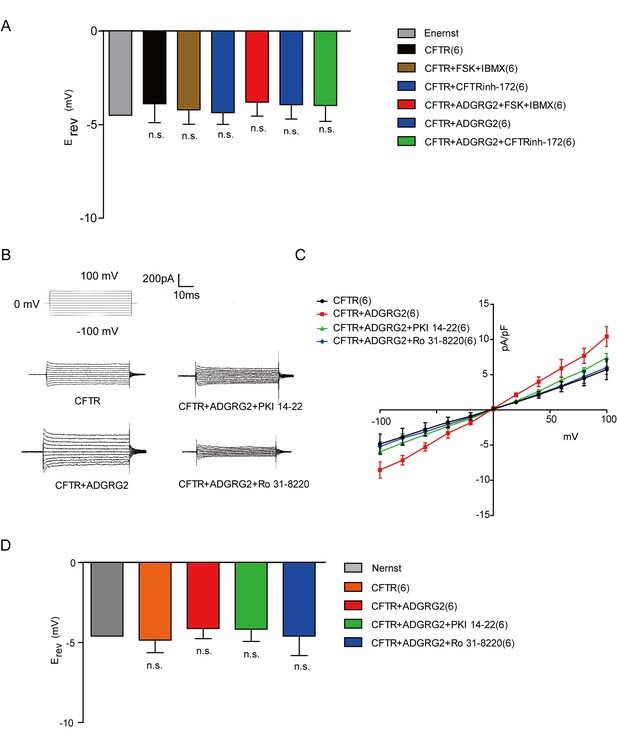

ADGRG2 upregulates CFTR Cl- currents and Cl- efflux through G protein signaling.

(A) Corresponding bar graph of average reversal potential(Erev) (±s.e.m., n = 6 for each condition) in HEK293 cells transfected with plasmids encoding ADGRG2 or/and CFTR,with or without CFTR …

https://doi.org/10.7554/eLife.33432.035
Figure 11 with 3 supplements

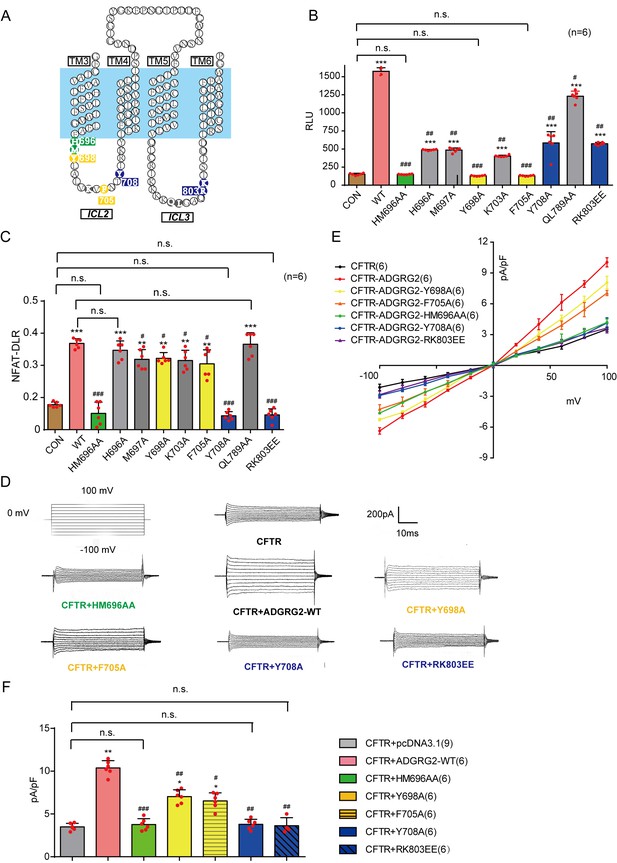

Key mutations of ADGRG2 downregulates CFTR Cl- currents through G protein signaling.

(A) Schematic representation of the location of the selected ADGRG2 mutants in intracellular loop 2 and loop 3 of ADGRG2. (B) Effects of the overexpression of ADGRG2 (n = 6) and its mutations (n = 6)…

https://doi.org/10.7554/eLife.33432.036
Figure 11—figure supplement 1

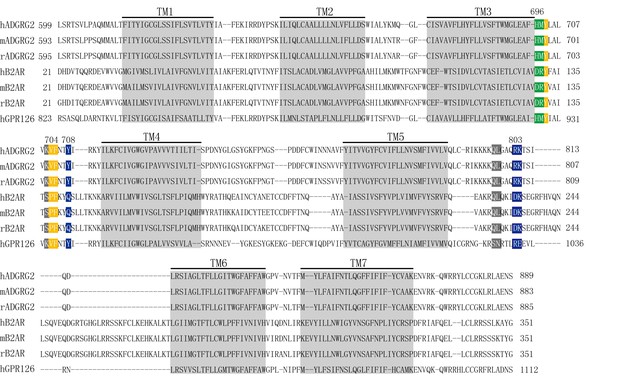

Sequence alignment of the transmembrane domains of ADGRG2 (Homo sapiens, Mus musculus, Rattus norvegicus), β2AR (H. sapiens, M. musculus, and R. norvegicus), and GPR126 (H. sapiens).

The ADGRG2 mutation sites studied in the current work were highlighted. The green color indicated that the mutants caused both Gs and Gq defects of ADGRG2 coupling; the yellow color indicated that …

https://doi.org/10.7554/eLife.33432.037

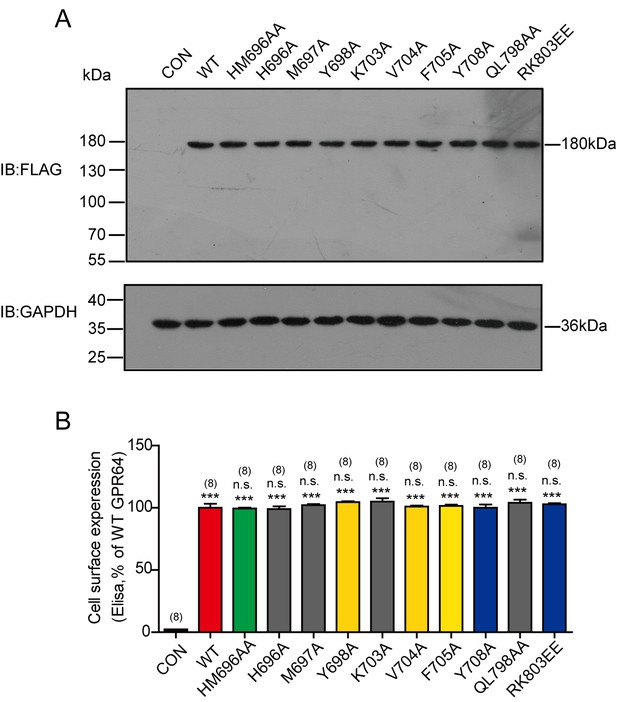

Figure 11—figure supplement 2
Western blot and ELISA analysis of the expression of these mutants in the cell membrane.

(A) Western blot of ADGRG2 WT and its mutations (HM696AA, H696A, M697A, Y698A, K703A, V704A, F705A and Y708A in intracellular loop 2; and QL798AA and RK803EE in intracellular loop 3). Representative …

https://doi.org/10.7554/eLife.33432.038

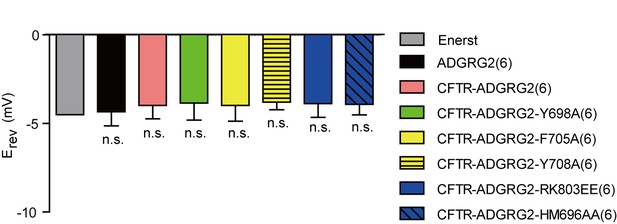

Figure 11—figure supplement 3
Corresponding bar graph of average reversal potential(Erev) (±s.e.m., n = 6 for each condition) recorded in Figure 11D–11E and calculated Nernst potential.

ns., no significant difference; the Erev were compared with calculated Nernst potential.

https://doi.org/10.7554/eLife.33432.039

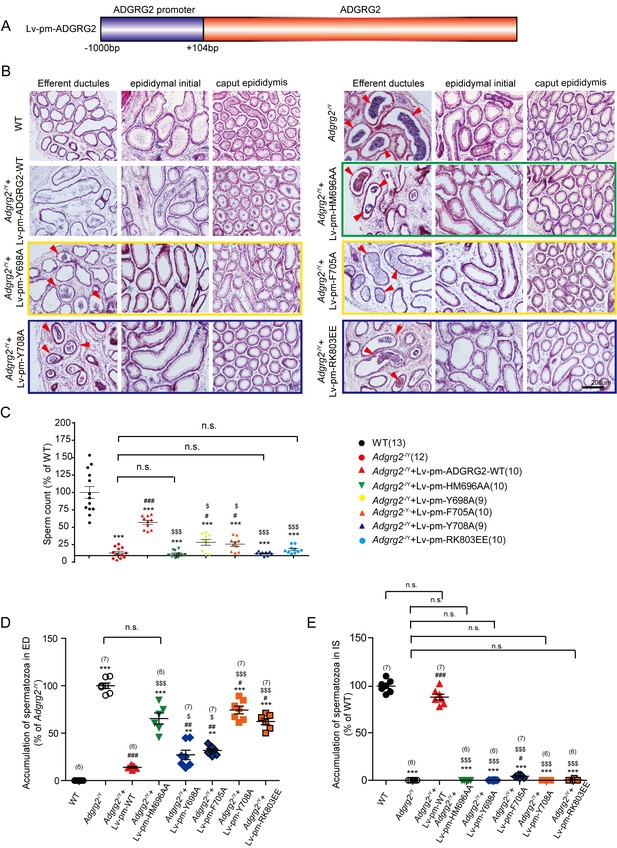

Figure 12 with 1 supplement
Conditional expression of ADGRG2 wild-type or its selective G-subtype signaling mutants in the efferent ductules in Adgrg2-/Y mice and their effects on the morphology, sperm maturation of efferent ductules.

(A) Schematic representation of the mouse ADGRG2 promoters used in the rescue experiment. (B) Representative hematoxylin-eosin staining of the WT mice, Adgrg2-/Y mice or Adgrg2-/Y mice infected with …

https://doi.org/10.7554/eLife.33432.040

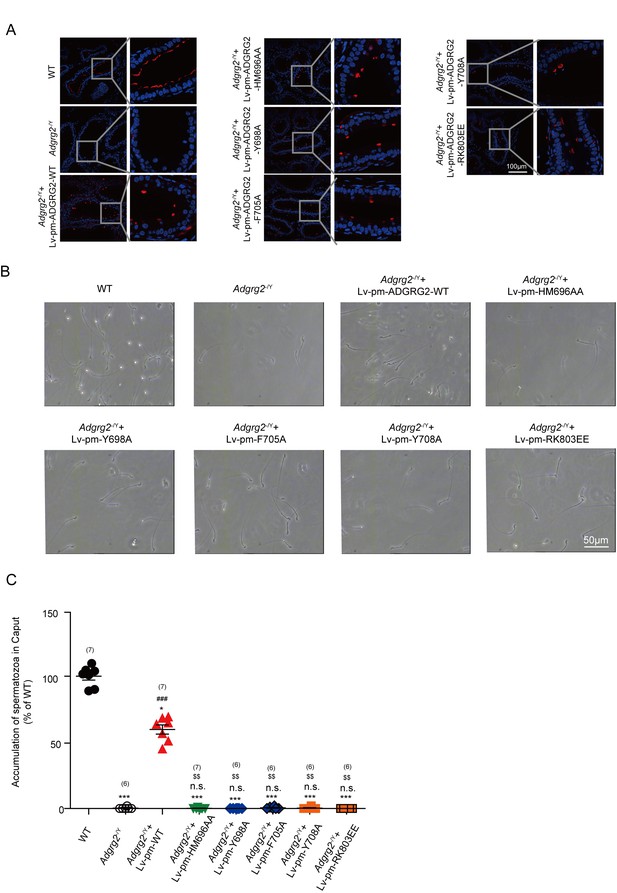

Figure 12—figure supplement 1
Effect of the conditional expression of ADGRG2-WT or its selective G-subtype signaling mutants on the rescue of reproductive defects in Adgrg2-/Y mice.

(A) The enlarged images of the ADGRG2 expression in the epididymal initial segment at 3 weeks after the injection of the lentivirus of ADGRG2-WT or mutants. Scale bars, 100 μm. (B) Photographs of …

https://doi.org/10.7554/eLife.33432.041

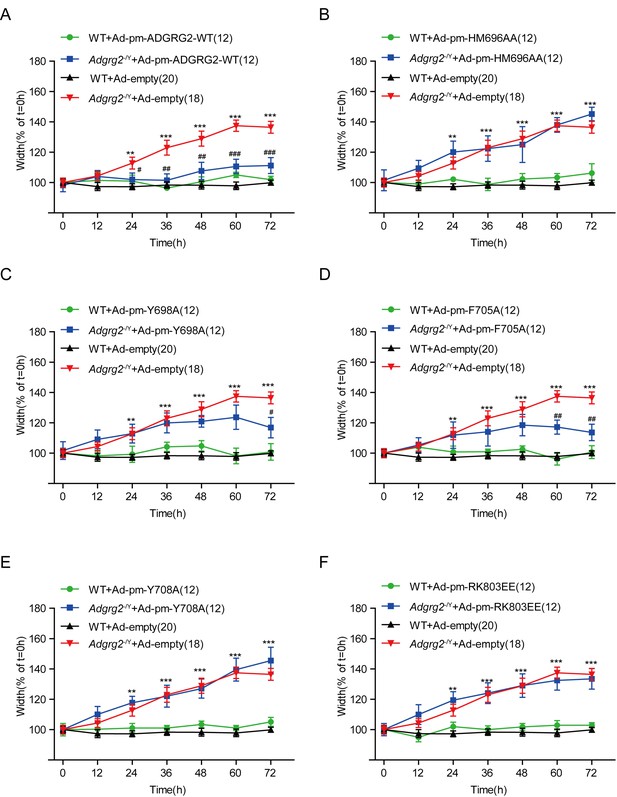

Effects of conditional expression of ADGRG2 wild-type or its selective G-subtype signaling mutants in Adgrg2-/Y mice on the fluid reabsorption of efferent ductules.

(A) Effects of the expression of the ADGRG2-WT adenovirus on the diameter of the ligated efferent ductules derived from the WT or Adgrg2-/Y mice. (B–F) Effects of the expression of adenovirus …

https://doi.org/10.7554/eLife.33432.042

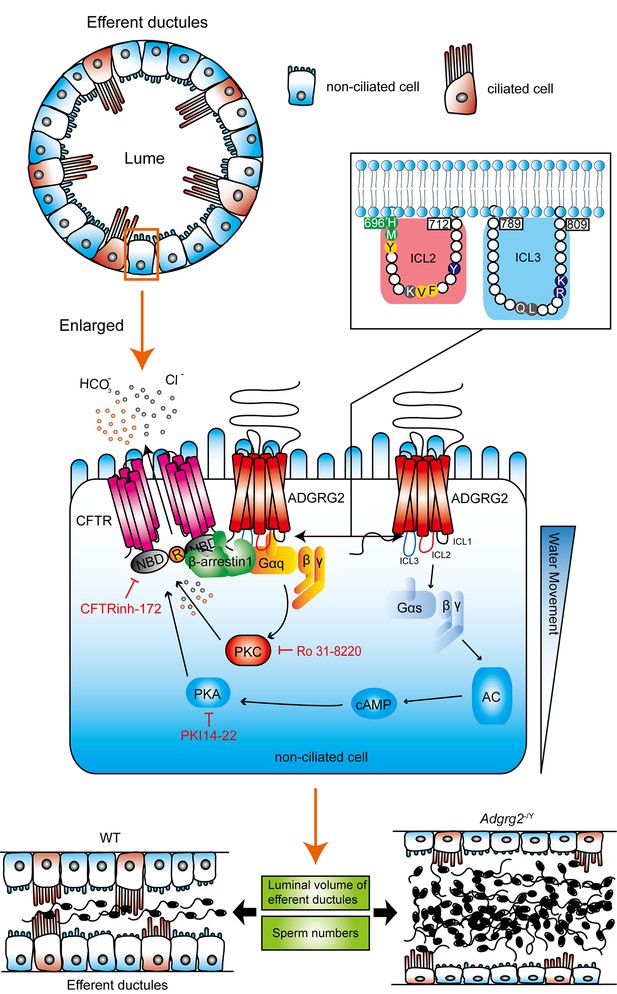

Schematic diagram depicting the GPCR signaling pathway in the regulation fluid reabsorption in the efferent ductules.

The ADGRG2 and CFTR localized at cell plasma membrane, whereas Gs and Gq localize at the inner surface of non-ciliated cells. Deficiency of ADGRG2 in Adgrg2-/Y mice, reducing the Gq protein level by …

https://doi.org/10.7554/eLife.33432.043

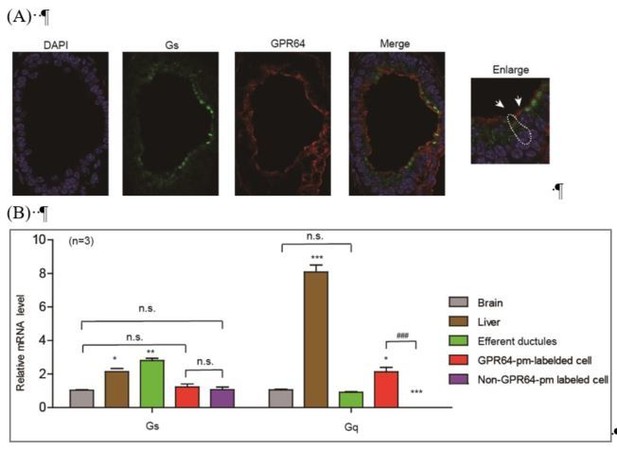

Author response image 1
Expression and localization of Gs in different types of efferent ductule cells.

(A) The Gs was expressed in both GPR64-expressed cells and non-GPR64-expressed cells revealed by co-immunostaining. (B) The Gs expression in GPR64-promoter labeled cells and non GPR64-promoter …

https://doi.org/10.7554/eLife.33432.049

Tables

Table 1
Average reversal potential calculated at different Cl- concentrations for Figure 6C.

Average reversal potential(Erev) (±s.e.m., n = 8 for each condition) in Figure 6C and calculated Nernst potential at different Cl- concentrations. The Nernst equation was: Erev=-RT/Z [Ln (Cl-)in/(Cl-

https://doi.org/10.7554/eLife.33432.017
GroupErev[Cl-]o148.5 mM(mV)Erev[Cl-]o48.5 mM(mV)
Nernst−4.625.3
WT−4.0 ± 0.5120.1 ± 2.52
Adgrg2-/Y−4.1 ± 0.3619.4 ± 2.47
Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Chemical compound, drugPTXEnzoCat#:BML-G100100 ng/ml
Chemical compound, drugU0126SigmaCat#:U12010 μM
Chemical compound, drugRo 31–8220AdooqCat#:A13514500 nM
Chemical compound, drugNF449TocrisCat#:13911 μM
Chemical compound, drugPKI14-22AdooqCat#:A16031300 nM
Chemical compound, drugH89BeyotimeCat#:S1643500 nM
Chemical compound, drugbumetanideAladdinCat#:B12994210 μM
Chemical compound, drugAni9SigmaCat#:SML1813150 nM
Chemical compound, drugNiflumic acid (NFA)AladdinCat#:N12959720 μM
Chemical compound, drugDIDSSigmaCat#:D351420 μM
Chemical compound, drugGlyH-101AdooqCat#:A1372310 μM
Chemical compound, drugCFTRinh-172AdooqCat#:A1289710 μM
Chemical compound, drugEGTAAladdinCat#:E1044345 mM
Chemical compound, drugSKF96365SigmaCat#:S780910 μM
Chemical compound, drugRuthenium redSigmaCat#:R275110 μM
Chemical compound, drugNicardipineSigmaCat#:N751020 μM
Chemical compound, drugLaCl3SigmaCat#:449830100 μM
Chemical compound, drugIBMXSigmaCat#:I7018100 μM
Chemical compound, drugU73122SigmaCat#:U675610 μM
Chemical compound, drugForskolinBeyotimeCat#:S161210 μM
Chemical compound, drugPD123319AdooqCat#:A132011 μM
Chemical compound, drugCandesartanAdooqCat#:A101751 μM
Chemical compound, drugAmilorideAladdinCat#:A1295451 mM
Chemical compound, drugAcetazolamideMedchem expressCat#:HY-B0782500 μM
Peptide, recombinant proteinANGIIChina Peptides100 nM
Commercial assay or kitCarboxy SNARF−1, acetoxymethyl esterInvitrogenCat#:C-12725 μM
Commercial assay or kitLipofectamine TM2000InvitrogenCat#:11668–019
Commercial assay or kitCollagenase IsigmaCat#:C0130
Commercial assay or kitcAMP ELISA kitR and D systemsCat#:KGE012B
Commercial assay or kitIP1 ELISA assayShanghai Lanpai Biotechnology Co., LtdCat#:lp034186
Commercial assay or kitThe dual-luciferase reporter assay systemPromegaCat#:E1960
AntibodyADGRG2 antibody(rabbit polyclonal)SigmaRRID:AB_1078923
AntibodyADGRG2 antibody(rabbit polyclonal)SigmaRRID:AB_2722557
AntibodyADGRG2 antibody(sheep polyclonal)R and D systemsRRID:AB_2722556
AntibodyCFTR antibody(goat polyclonal)Santa CruzRRID:AB_638427
AntibodyCFTR antibody(rabbit polyclonal)ProteintechRRID:AB_2722558
AntibodyGq antibody(goat polyclonal)Santa CruzRRID:AB_2279038
AntibodyGq antibody(rabbit polyclonal)ProteintechRRID:AB_2111647
AntibodyFlag antibody(mouse monoclonal)SigmaRRID:AB_259529
AntibodyHA antibody(mouse monoclonal)Santa CruzRRID:AB_627809
AntibodyGAPDH(rabbit monoclonal)Cell SignalingRRID:AB_10622025
AntibodyGs antibody(rabbit polyclonal)ProteintechRRID:AB_2111668
AntibodyGi antibody(mouse monoclonal)Santa CruzRRID:AB_2722559
Antibodyβ-arrestin-1 antibody(rabbit polyclonal)Dr R.J. LefkowitzA1CT
Antibodyβ-arrestin-2 antibody(rabbit polyclonal)Dr R.J. LefkowitzA2CT
AntibodyANO1 antibody(rabbit polyclonal)ProteintechRRID:AB_2722560
AntibodyEzrin antibody(rabbit polyclonal)ProteintechRRID:AB_2722561
AntibodyAcetylated Tubulin(Lys40) Antibody(mouse monoclonal)ProteintechRRID:AB_2722562
AntibodyDonkey anti-sheep IgG(H + L) (secondary antibody)AbcamRRID:AB_2716768
AntibodyDonkey anti-rabbit IgG(H + L) (secondary antibody)InvitrogenRRID:AB_2534017
AntibodyDonkey anti-mouse IgG(H + L) (secondary antibody)InvitrogenRRID:AB_141607
AntibodyDonkey anti-goat IgG(H + L) (secondary antibody)InvitrogenRRID:AB_142672, RRID:AB_141788
AntibodyHRP-conjugated Affinipure Rabbit Anti-Sheep IgG(H + L)ProteintechRRID:AB_2722563
AntibodyHRP-conjugated Affinipure Goat Anti-Rabbit IgG(H + L)ProteintechRRID:AB_2722564
AntibodyHRP-conjugated Affinipure Goat Anti-Rabbit IgG(H + L)ProteintechRRID:AB_2722565
  1. All other chemicals or reagents were from Sigma unless otherwise specified.

Additional files

Supplementary file 1

Primers for the Quantitative RT-PCR (qRT-PCR) analysis of mRNA transcription profiles of G protein subtypes and β-arrestins.

https://doi.org/10.7554/eLife.33432.044
Supplementary file 2

Primers for the Quantitative RT-PCR (qRT-PCR) analysis of mRNA transcription profiles of potential osmotic drivers including selective ion channels and transporters.

https://doi.org/10.7554/eLife.33432.045
Supplementary file 3

Primers for the construction of ADGRG2FL mutants (HM696AA, H696A, M697A, Y698A, K703A, V704A, F705A, Y708A, QL798AA, RK803EE).

https://doi.org/10.7554/eLife.33432.046
Transparent reporting form
https://doi.org/10.7554/eLife.33432.047

Download links
