Abstract

Formins are major regulators of actin networks. They enhance actin filament dynamics by remaining processively bound to filament barbed ends. How biochemical and mechanical factors affect formin processivity are open questions. Monitoring individual actin filaments in a microfluidic flow, we report that formins mDia1 and mDia2 dissociate faster under higher ionic strength and when actin concentration is increased. Profilin, known to increase the elongation rate of formin-associated filaments, surprisingly decreases the formin dissociation rate, by bringing formin FH1 domains in transient contact with the barbed end. In contrast, piconewton tensile forces applied to actin filaments accelerate formin dissociation by orders of magnitude, largely overcoming profilin-mediated stabilization. We developed a model of formin conformations showing that our data indicates the existence of two different dissociation pathways, with force favoring one over the other. How cells limit formin dissociation under tension is now a key question for future studies.

https://doi.org/10.7554/eLife.34176.001

Introduction

The diversity of actin filament networks in cells stems from a few key nucleators, such as formins and the Arp2/3 complex, which have very specific activities (Blanchoin et al., 2014; Bovellan et al., 2014; Wales et al., 2016). In cells, formins are responsible for the generation of elongated, unbranched actin filament structures such as the ones found in filopodia, stress fibers, the cytokinetic ring, and within the nucleus (Isogai and Innocenti, 2016). Formin malfunction is linked to a number of pathologies, such as angiogenesis (Phng et al., 2015), neuropathies (Roos et al., 2015) and cancer (Choi et al., 2016).

Formins function as homodimers and most isoforms share a similar mode of activation, where the interaction of activators with N-terminal domains releases auto-inhibition and mediates the anchoring of formins to membranes. Formin functional domains, Formin Homology Domains 1 (FH1) and 2 (FH2), are responsible for their most salient features: their ability to track both growing and depolymerizing filament barbed ends and to accelerate their elongation from profilin-actin (Higashida et al., 2004; Jégou et al., 2013; Kovar and Pollard, 2004; Mizuno et al., 2011; Romero et al., 2004). Rapid elongation is achieved by the FH1 domains, seen as flexible chains containing polyproline tracks, which bind profilin-actin complexes and deliver them to the barbed end (Higashida et al., 2004; Kovar and Pollard, 2004; Romero et al., 2004). Barbed end tracking is achieved by the translocation of the FH2 dimer, which encircles the actin subunits at the barbed end (Otomo et al., 2005).

Formin processivity, quantified by the dissociation rate of the formin from the barbed end, determines for how long filaments interact with a formin. While a formin resides at the barbed end, it decreases barbed end affinity for Capping Protein (Bombardier et al., 2015; Shekhar et al., 2015; Zigmond et al., 2003), modulates its elongation, and can maintain it anchored to a membrane. Processivity is thus a pivotal characteristic, determining formins’ ability to shape filament networks and transmit forces.

Formin processivity has long been identified as an essential feature of formins and occasional measurements have revealed quantitative differences between isoforms (Bilancia et al., 2014; Kovar et al., 2006; Paul and Pollard, 2008; Romero et al., 2004; Vizcarra et al., 2014). Negative regulators bind to FH2 to displace formin from filament barbed ends (Chesarone et al., 2009; Chesarone-Cataldo et al., 2011), whereas Ena/VASP, via its EVH1 domain, is able to bind to FH1 domains without impacting formin processivity (Bilancia et al., 2014). While processivity seems mainly governed by FH2-actin interactions, the DAD domain (or ‘tail’), found next to the FH2 domain at the C-terminus, has been reported to contribute to the processivity of Drosophila formin Capuccino (Vizcarra et al., 2014). The dissociation rate of yeast formin Bni1p has been proposed to scale with filament elongation velocity, suggesting the existence of a transient, weakly bound state occurring upon actin subunit addition (Paul and Pollard, 2008).

Today, many important aspects of formin processivity remain unclear. The possible involvement of formin’s other domains and the modulation of formin processivity by various physiological factors have yet to be determined. In particular, pulling forces such as the ones exerted on actin filaments in cells (Romet-Lemonne and Jégou, 2013) have been reported to modulate formin elongation (Courtemanche et al., 2013; Jégou et al., 2013; Kubota et al., 2017; Yu et al., 2017; Zimmermann et al., 2017) but their impact on processivity is an open question.

Here, we systematically quantify the dissociation rate of mammalian formins mDia1 and mDia2 in different in vitro conditions. Using microfluidics to monitor and manipulate individual actin filaments (Figure 1), we find that the dissociation rate is modulated by ionic strength (Figure 2) as well as by actin and profilin concentrations (Figure 3). Profilin prolongs formin residence at the barbed end via its interaction with the FH1 domain, allowing rapid elongations without enhancing formin dissociation. We find that tension applied on filaments has a dramatic impact on the formin dissociation rate, which increases by several orders of magnitude, independently of other parameters (Figure 4). We compare the impact of these different factors on the typical lengths reached by the formin-elongated filaments (Figure 5). A mathematical model describing the possible formin states at the barbed end is developed and confronted to our experimental data (Figure 6). It indicates that, when an actin subunit is added to the barbed end, the formin goes through a dissociation-prone transition, which is relatively insensitive to force, and which can be stabilized by FH1-profilin-barbed end interactions.

Figure 1

Download asset Open asset

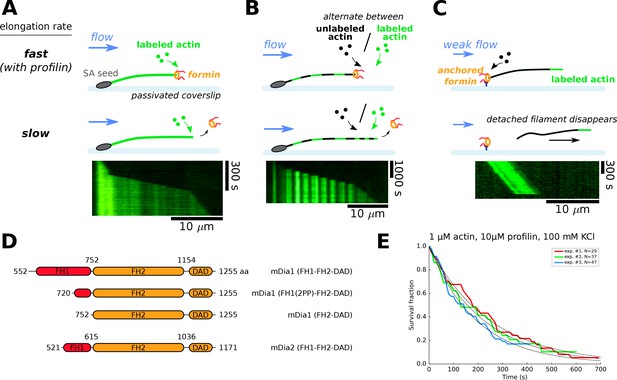

Single-filament microfluidics experimental configurations to measure formin processivity.

(**A–C**) Different experimental configurations using microfluidics for the study of formin processivity, showing sketches of the side view (top) and typical kymographs of individual filaments (bottom). (A) Alexa 488 labeled actin filaments are elongated from surface-anchored spectrin-actin seeds. Transient exposure to a formin solution puts formins on filament barbed ends, which elongate faster (here in the presence of 1 µM 15% Alexa 488 labeled actin +5 µM profilin, at 100 mM KCl). Upon formin dissociation, the barbed end elongates slower. Images were acquired in TIRF microscopy. See Video 1. (B) Same configuration as in (A), but the filaments are exposed to a periodic alternation of different conditions: here a solution of unlabeled actin (0.3 µM actin, 50 mM KCl) for 100 s and a solution of 15% Alexa 488 labeled actin (0.5 µM actin +2 µM profilin, 50 mM KCl) for 20 s. Images were acquired in epifluorescence while exposing to unlabeled actin. See Video 2. (C) Configuration where formins are anchored to the surface by their C-terminus. Filaments were nucleated using a solution of labeled actin and elongated by flowing in a solution of unlabeled actin (here, 0.3 µM actin, at 50 mM KCl), until the filaments eventually detached and disappeared. The viscous drag applied on the filaments was kept low (<0.1 pN) by working with low flow rates. Images were acquired in epifluorescence. See Video 3. (D) Domain architecture and boundaries for the mDia1 and mDia2 formin constructs used in this study. (E) Survival fractions of mDia1(FH1-FH2-DAD) formin-bound barbed ends as a function of time, obtained from three independent experiments performed in the same conditions, in the experimental configuration shown in (A). Curves are fitted by a mono-exponential decay to obtain formin dissociation rate *k_off*.

https://doi.org/10.7554/eLife.34176.002

Video 1

Download asset

posterframe for video — Actin filaments elongating with 1 µM 15% Alexa 488-labeled actin and 5 µM profilin, at 100 mM KCl, are transiently exposed to a solution of 20 nM mDia1(FH1-FH2-DAD) for 20 s (during frames 27–30).

Images were acquired in TIRF. Full field of view is 137 × 137 µm. Interval between images is 5 s (movie is accelerated 75x). The solution flows from left to right. Corresponds to Figure 1A of the main text.

https://doi.org/10.7554/eLife.34176.003

Video 2

Download asset

Video 3

Download asset

Figure 2 with 1 supplement see all

Download asset Open asset

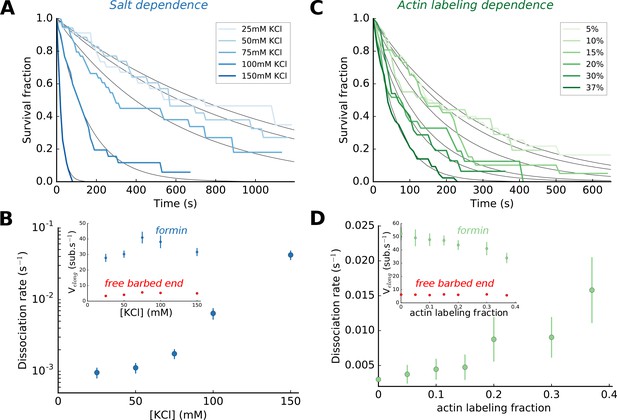

Impact of salt and actin labeling fraction on mDia1 formin processivity.

(**A,B**) Effect of salt concentration on the survival fraction of formin-bound barbed ends (A), on the formin dissociation rates (B, log-linear scale) as well as on the barbed end elongation rates (B, inset). The dissociation rates in (B) result from the exponential fits (black lines) shown in (A). Each data point corresponds to a population of 30–40 filaments. (**C,D**) Effect of the actin Alexa 488 labeling fraction on the survival fraction of formin-bound barbed ends (C), on the formin dissociation rates (D) and on the barbed end elongation rates (D, inset). Each data point in (D) corresponds to a population of 30–40 filaments. Error bars on formin dissociation rates indicate 65% confidence intervals based on exponential fits and sample size (see Materials and methods), and error bars on elongation rates indicate standard deviations.

https://doi.org/10.7554/eLife.34176.006

Figure 2—source data 1 Spreadsheet containing the data plotted in Figure 2 and Figure 2—figure supplement 1. Units and conditions are indicated in the figure legends. The data are on separate sheets, as indicated on the thumbnails.: https://doi.org/10.7554/eLife.34176.008
Download elife-34176-fig2-data1-v1.xlsx

Figure 3 with 2 supplements see all

Download asset Open asset

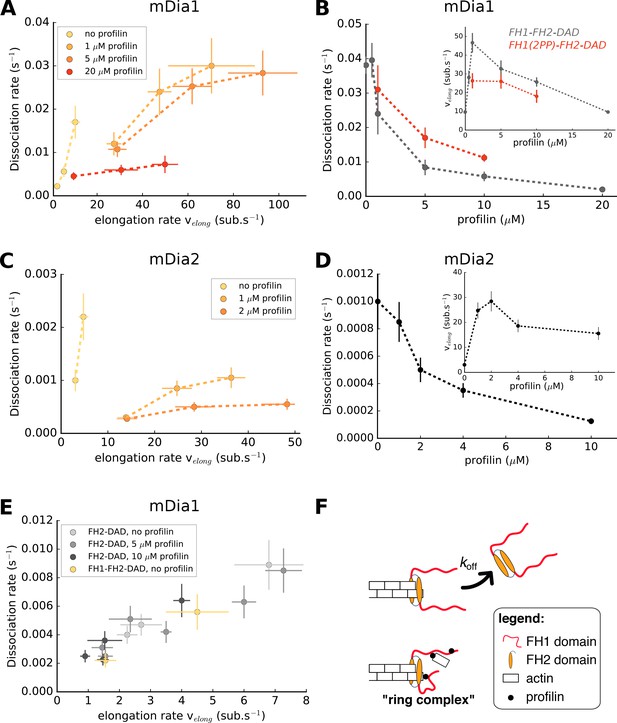

Formin dissociation is enhanced by G-actin concentration, and slowed down by profilin.

(**A, C**) Variation of the mDia1 (A) or mDia2 (C) formin dissociation rate as a function of the barbed end elongation rate. Each data set (N = 30–40 filaments) was obtained with a fixed profilin concentration and different actin concentrations, at 100 mM KCl. Each point corresponds to an independent experiment, performed with 15% Alexa 488-labeled actin, except for the data of mDia1 without profilin which were acquired with unlabeled actin (as described in Figure 1B). (**B, D**) Variation of the formin dissociation rate and the barbed end elongation rate (inset) as a function of profilin concentration, (B) for mDia1 formins with a full length FH1 (FH1-FH2-DAD) and with a truncated FH1 containing only two polyproline tracks (FH1(2PP)-FH2-DAD), and (D) for mDia2(FH1-FH2-DAD). The data was obtained with 15% Alexa 488-labeled actin, at 100 mM KCl. The same profilin dependence was observed using unlabeled actin, for both 50 and 100 mM KCl (Figure 2—figure supplement 1). Each data point corresponds to the average of 1–3 independent experiments. (E) Variation of the formin dissociation rate as a function of the barbed end elongation rate: for mDia1(FH2-DAD) homodimers in the presence or absence of profilin, and for mDia1(FH1-FH2-DAD) in the absence of profilin, all with unlabeled actin. (F) Sketch illustrating the profilin-mediated interaction between FH1 and the barbed end, forming the ‘ring complex’, which appears to prevent the dissociation of formin from the barbed end. Error bars on formin dissociation rates indicate 65% confidence intervals based on exponential fits and sample size (see Materials and methods), and error bars on elongation rates indicate standard deviations.

https://doi.org/10.7554/eLife.34176.009

Figure 3—source data 1 Spreadsheet containing the data plotted in Figure 3, Figure 3—figure supplement 1, and Figure 3—figure supplement 2. Units and conditions are indicated in the figures legends. The data are on separate sheets, as indicated on the thumbnails.: https://doi.org/10.7554/eLife.34176.012
Download elife-34176-fig3-data1-v1.xlsx

Figure 4 with 3 supplements see all

Download asset Open asset

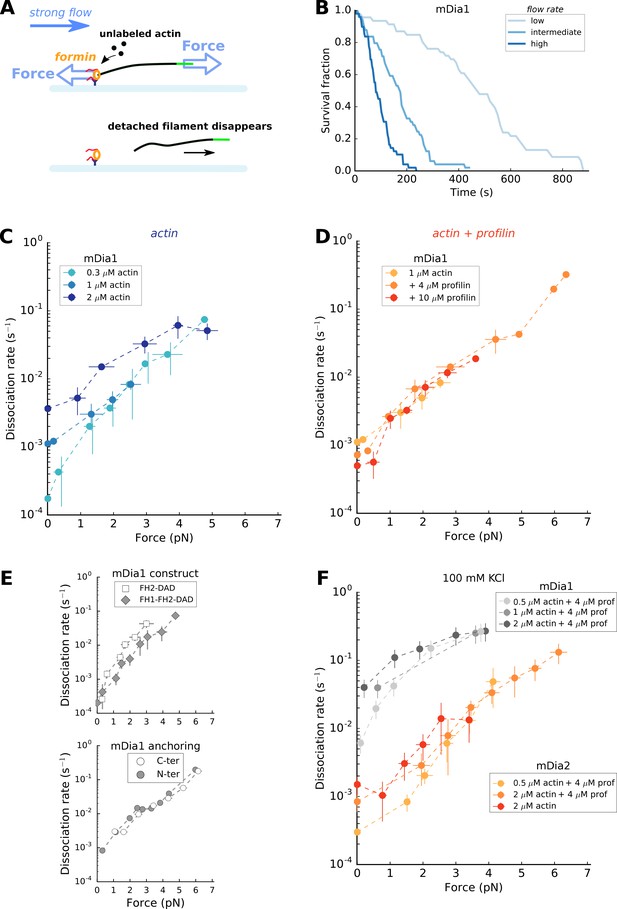

Force has a great impact on formin processivity.

(A) Sketch of the experimental configuration, similar to that of Figure 1C, but where significant forces are applied using various flow rates. The applied force scales with the filament length. (B) Survival fractions of mDia1-anchored filaments, elongating with 1 µM actin +10 µM profilin, using different flow rates to reach different force ranges: each filament underwent 0.051 pN/µm (initial filament length = 4.9 µm, N = 46 filaments), 0.204 pN/µm (initial filament length = 3.2 µm, N = 49) or 0.501 pN/µm (initial filament length = 2.6 µm, N = 49) for ‘low’, ‘medium’ and ‘high’ flow rate curves, respectively. (**C–E**) mDia1 formin dissociation rate as a function of applied force (log-linear plots), for different actin concentrations in the absence of profilin (C); for 1 µM actin with different profilin concentrations (D); for 0.3 µM actin in presence or absence of FH1 domains (E, top); and for 1 µM actin, 4 µM profilin for mDia1 (FH1-FH2-DAD) formins either anchored by their FH1 N-terminus or FH2 C-terminus (E, bottom). Experiments were carried out by elongating the filaments with unlabeled actin, at 50 mM KCl. (F) mDia1 and mDia2 formin dissociation rates as a function of applied force (log-linear plots), for different profilin and unlabeled actin concentrations, at 100 mM KCl. Dissociation rates were obtained by local fits of the slope in survival fractions similar to the ones shown in (B) (see Materials and methods). Each data point is either obtained from a single experiment or is the average of 2–3 independent experiments. The data points at zero force were measured independently, using the configuration shown in Figure 1B (striped filaments). The error bars indicate standard deviations when several independent experiments were grouped (data from individual experiments for (C) and (D) are shown in Supp. Figure 4—figure supplement 2).

https://doi.org/10.7554/eLife.34176.013

Figure 4—source data 1 Spreadsheet containing the data plotted in Figure 4, Figure 4—figure supplement 1, Figure 4—figure supplement 2, and Figure 4—figure supplement 3. Units and conditions are indicated in the figures legends. The data are on separate sheets, as indicated on the thumbnails.: https://doi.org/10.7554/eLife.34176.017
Download elife-34176-fig4-data1-v1.xlsx

Figure 5

Download asset Open asset

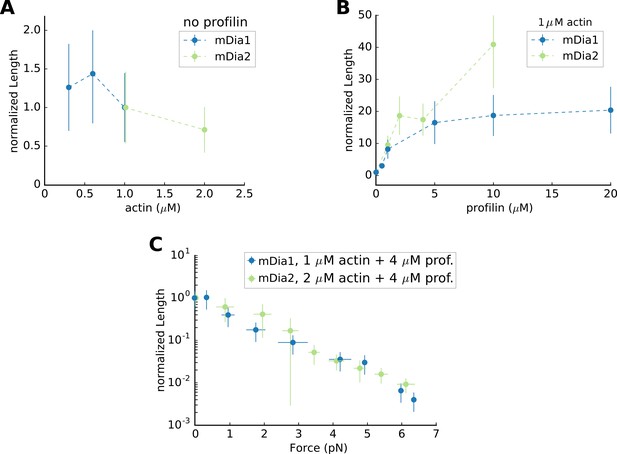

Mean Filament Length generated by mDia1 or mDia2 formins.

Mean flament length (A) as a function of actin concentration, in the absence of profilin, normalized by its value at 1 µM actin (which equals 0.65 µm for mDia1 and 8.22 µm for mDia2); (B) mean length as a function of profilin concentration, at 1 µM actin, normalized by its value in the absence of profilin; (C) mean length as a function of force, at 2 µM actin 4 µM profilin for mDia2, and at 1 µM actin 4 µM profilin for mDia1, normalized by its value in the absence of force (83.7 µm for mDia2 and 7.45 µm for mDia1). All data were acquired at 100 mM KCl. Error bars indicate standard deviations.

https://doi.org/10.7554/eLife.34176.018

Figure 5—source data 1 Spreadsheet containing the data plotted in Figure 5. Units and conditions are indicated in the figures legends. The data are on separate sheets, as indicated on the thumbnails.: https://doi.org/10.7554/eLife.34176.019
Download elife-34176-fig5-data1-v1.xlsx

Figure 6

Download asset Open asset

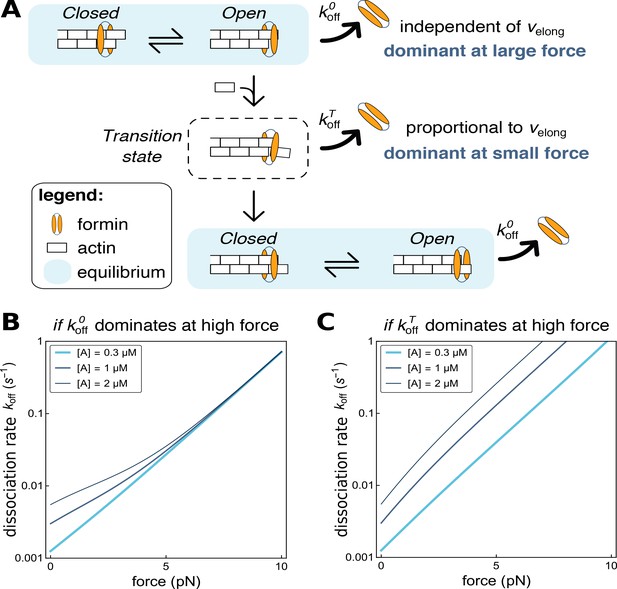

Modeling formin dissociation, in the absence of profilin.

(A) Sketch summarizing the conformations adopted by the FH2 dimer and the actin filament barbed end in our model, in the absence of profilin (for a complete description of the model, see Appendix 1). The system is in rapid equilibrium between an open and a closed state (depicted here as in the ‘stair-stepping’ model) and only the open state allows the addition of a new actin subunit at the barbed end. Following this elongation event, the system is in a transition state, which decays rapidly into a new open-closed rapid equilibrium. Formin dissociation from the barbed end can occur while the system is in the open state (with rate k_off^O) or in the transition state (rate k_off^T). The global, observable dissociation rate k_off comprises these two routes. (**B,C**) Predictions of the model for the variation of the dissociation rate k_off as a function of force, in log-linear representations. In both cases, k_off^T is the dominant contribution at zero force. In B, k_off^O increases more strongly than k_off^T when force is applied and thus becomes dominant at high force (computed with working distances δ_O=δ and δ_T=0, see Appendix 1). In C, k_off^T increases more strongly than k_off^O when force is applied (δ_O=0 and δ_T=δ, see Appendix 1).

https://doi.org/10.7554/eLife.34176.020

Results

Single-filament Microfluidics is an efficient means to measure formin processivity under various conditions

We have carried out experiments using a standard microfluidics chamber with three inlets, in different configurations (Figure 1A–C and Materials and methods). Using anchored spectrin-actin seeds we have monitored the growth of free actin filaments barbed ends, which we exposed to a solution of formin for typically ten seconds and resumed exposing to constant concentrations of actin and profilin. The presence of formin at the barbed end was visible thanks to its faster elongation (in the presence of profilin). This configuration was used with fluorescently labeled actin (Figure 1A) or alternating exposure to labeled actin with unlabeled actin, producing striped filaments, which allowed us to measure formin related rate constants when incorporating fully unlabeled actin segments (Figure 1B, Materials and methods). Another configuration consisted in anchoring formins to the coverslip surface, nucleating and elongating filaments from these formins (Figure 1C). This allowed us to monitor the elongation of filaments from unlabeled actin, and the dissociation of the formin from the barbed end was revealed by the detachment of the filament which is then carried away by the flow. This configuration applies calibrated forces to the filament-formin interaction (Jégou et al., 2013), which can be kept very low (<0.1 pN) using a low microfluidics flow rate, or made significant, up to several pN, by increasing the flow rate (Figure 4). Except for the variant with striped filaments, we have used these experimental configurations in earlier studies (Jégou et al., 2013; Montaville et al., 2014; Shekhar et al., 2015).

These different configurations allowed us to measure, under a given set of conditions, the survival fraction of filaments that still bear a formin at their barbed end as a function of time (Figure 1E), giving access to the formin dissociation rate constant k_off. The experimental configurations shown in Figure 1B and C were specifically used to determine k_off with unlabeled actin or with no profilin. We have verified that the results were not affected by our choice of experimental configuration.

We used purified actin from rabbit muscle, either unlabeled or labeled on lysine 328 with Alexa 488 (Tóth et al., 2016). We used recombinant formin constructs (Figure 1D): mDia1(FH1-FH2-DAD) with full length functional domains; a truncated mDia1(FH1(2PP)-FH2-DAD) with an FH1 domain that contained only the two polyproline (PP) tracks closest to the FH2 domain; mDia1(FH2-DAD) which contained no FH1 domain at all; and mDia2(FH1-FH2-DAD).

Impact of ionic strength and actin labeling on formin processivity

Varying KCl concentration in our assay buffer (see Materials and methods), we found that the ionic strength had a strong impact on formin dissociation (Figure 2A,B). In comparison, the same variations of the ionic strength had a limited impact on the barbed end elongation rate, with or without formins (Figure 2B, inset). In order for formin dissociation rates to be in a range that could be measured accurately, we have used either 50 or 100 mM KCl depending on whether we were studying mDia1 or mDia2 formins, and whether mechanical tension was applied. We have verified that the effects we report in the rest of this paper are not qualitatively affected by the choice of ionic strength (Figure 2—figure supplement 1).

Labeling actin with a fluorophore can hinder its polymerization or its interaction with regulatory proteins (Chen et al., 2012; Kuhn and Pollard, 2005) and lead to unsuspected artefacts (Niedermayer et al., 2012). Here, our labeling of actin on lysine 328 with Alexa 488 fluorophore had no measurable impact on the elongation rate of formin-free barbed ends, but slowed down their elongation with formins significantly and enhanced formin dissociation rate (Figure 2C,D). Using our microfluidics setup to measure reaction rates with unlabeled actin (Figure 1B,C), we have verified that the conclusions we drew from the observation of 15% Alexa 488-labeled actin filaments were not biased by labeling (Figure 2—figure supplement 1).

Profilin increases formin processivity, involving FH1 domains

For a given profilin concentration, the barbed end elongation rate v_elong scales with the actin concentration (with or without formin, Figure 3—figure supplement 1) and we observed that the formin dissociation rate k_off increased with actin concentration, and thus with the elongation rate (Figure 3A,C). This confirmed earlier observations on yeast formin Bni1p (Paul and Pollard, 2008). However, for both mDia1 and mDia2, the amplitude of the increase of the formin dissociation rate with actin concentration appeared to depend significantly on profilin concentration (Figure 3A,C). As a result, there is no universal scaling of k_off with the elongation rate. In fact, using different sets of actin and profilin concentrations, one can obtain identical elongation rates with very different formin dissociation rates.

To investigate this point further, we measured the formin dissociation rate as a function of profilin concentration at a fixed actin concentration and found that k_off decreased with increasing profilin concentration (Figure 3B,D). In contrast with actin, the modulation of the elongation rate by profilin is biphasic (Kovar et al., 2006): low profilin concentrations increase v_elong as actin becomes profilin-actin, while higher concentrations slow down elongation as excess profilin competes with profilin-actin for polyproline binding sites on FH1 domains and barbed ends (Figure 3B,D insets). Importantly, the decrease of k_off was also observed in the lower range of profilin concentrations, where the elongation rate greatly increases with profilin. It thus appears that profilin itself reduces formin detachment, independently of the barbed end elongation rate.

In order to estimate the role of the FH1 domains in the profilin-induced reduction of the dissociation rate, we repeated these measurements using a truncated mDia1 formin construct, FH1(2PP)-FH2-DAD, where both FH1 domains of the formin homodimer only contained two profilin-binding polyproline tracks. We found that the truncated formin still enhanced filament elongation from profilin-actin, though not as strongly as the formin with full-length FH1 (Figure 3B inset). It still exhibited a reduction of k_off with profilin concentration (Figure 3B), but the dissociation rate of FH1(2PP)-FH2-DAD was consistently higher than of wild type FH1-FH2-DAD for all profilin concentrations tested. These results confirm that the formin dissociation rate does not generally scale with the elongation rate. They also suggest that FH1 polyproline tracks, which are responsible for rapid elongation, are also responsible for the decrease of k_off in the presence of profilin.

To further investigate the contribution of the FH1 domains, we then asked whether the reduction of the dissociation rate by profilin required its binding to the FH1 domain, or if the rapid equilibrium of profilin with the barbed end was enough to stabilize its interaction with the formin. We reasoned that if the latter hypothesis was correct, the processivity of mDia1(FH2-DAD) dimers (with no FH1 domains) should be enhanced by the binding of profilin to the barbed end. To test this, we compared the FH2 dimer dissociation rate for different barbed end elongation rates, obtained in the presence or absence of profilin (Figure 3E). We found that the presence of a large excess of profilin, which significantly puts the barbed end in a profilin-bound state and slows down its elongation (Jégou et al., 2011; Pernier et al., 2016), led to the same FH2 dimer dissociation rate as when the same elongation rates were reached without profilin. Thus, in the absence of FH1 domains, profilin simply reduces the dissociation rate of the FH2 dimer by slowing down barbed elongation. These results indicate that FH1 is required in order for profilin to decrease the formin dissociation rate k_off independently of the barbed end elongation rate. In the absence of profilin, FH1-FH2 behaved like FH2 (Figure 3E), indicating that the presence of FH1 domains alone, in the absence of profilin, has no impact on processivity. Mutant profilin-R88E, which binds to FH1 but not to actin (Kovar et al., 2006; Lu and Pollard, 2001), has no impact on processivity (Figure 3—figure supplement 2), indicating that the interaction of profilin with G-actin and/or filament barbed ends is required in order to decrease the formin dissociation rate.

Mechanical tension strongly decreases formin processivity

In cells, anchored formins are exposed to mechanical tension applied to actin filaments, typically as a consequence of myosin activity. We thus investigated the impact of such forces on formin processivity. To do so, we performed experiments with surface-anchored formins, in the configuration shown in Figure 1C, but using higher flow rates in order to apply significant tension to the filaments (Figure 4A). In a previous study, we have shown that the force at the anchoring point scales with the filament length (Jégou et al., 2013), and thus increases as the filaments elongate over time. Here, the sigmoidal shape of the survival fractions over time indicated an increase of the dissociation rate k_off with the applied force (Figure 4B). In order to avoid making assumptions regarding the force-dependence of the dissociation rate k_off, we determined k_off at different forces by local fits of the survival fractions (see Materials and methods). We verified that the filament detachment events observed during the experiment corresponded to filament-formin dissociations (as sketched in Figure 4A) by checking that formins were still on the surface at the end of the experiment (see Materials and methods and Figure 4—figure supplement 1).

We found that mechanical tension had a dramatic impact on the formin dissociation rate, which increased by a few orders of magnitude when piconewton forces were applied (Figure 4C–F). Interestingly, the differences in dissociation rate linked to differences in actin concentrations seemed to disappear when force is applied: the weaker values of k_off increased more steeply with force, resulting in a convergence of the dissociation rates when tension was applied (clearly visible for mDia1, in the log-linear representation of Figure 4C and Figure 4—figure supplement 2A). Likewise, the dissociation constant increased with tension in a seemingly identical fashion whether the filaments were elongating from actin alone or with an excess of profilin (Figure 4D,F and Figure 4—figure supplement 2B).

We found a similar increase of k_off with tension for mDia1 FH2 dimers (i.e. without FH1 domains), and for mDia1 FH1-FH2 dimers anchored via their FH1 or their FH2 domains (i.e. whether force is applied to FH2 alone or to FH1 as well) (Figure 4E). These observations indicate that FH1 domains do not participate in the mechanical modulation of formin processivity.

Discussion

Processivity mostly relies on FH2-filament interactions, with an unexpected contribution of FH1 domains

Formin control of actin filament elongation at the barbed end is mediated by its homology domains FH1 and FH2, as well as its tail domain, DAD (Gould et al., 2011; Vizcarra et al., 2014). We quantified formin processivity by measuring its dissociation rate k_off. Our data indicate that FH2-barbed end interactions are destabilized by ions (Figure 2A). These results confirm that salt bridges mediating FH2-actin interactions, which have been predicted from molecular dynamics simulations (Baker et al., 2015), are essential determinants of the residence time of formin at the barbed end. Our data also indicate that FH2-actin interactions are destabilized by the presence of a fluorescent label on actin subunits (Figure 2C), consistent with the notion that the lateral contacts of FH2 with actin subunits are essential to maintain the formin at the barbed end (Otomo et al., 2005).

Unexpectedly, we show here that FH1 domains also contribute to keeping formin at the barbed end (Figure 3). Since both FH1 domains and profilin-actin interactions (Figure 3—figure supplement 2) are required for profilin to reduce formin dissociation, our results appear in good agreement with the proposition that FH1 delivers profilin-actin to the barbed end by forming a ‘ring complex’ (Vavylonis et al., 2006), where profilin simultaneously interacts with the barbed end and one polyproline track of one of the two FH1 domains. The ring complex is also likely formed when profilin is brought to the barbed end by FH1 without an actin monomer. It seems natural that, in such a configuration, the FH1 domains would constitute an obstacle to the dissociation of the FH2 dimer from the filament barbed end (Figure 3F). It is difficult to estimate the frequency at which the ring complex is formed, based on the low affinity of profilin for polyproline tracks (Perelroizen et al., 1994) and actin barbed ends (Pernier et al., 2016). However, we can assume that the ring complex is formed at least when delivering profilin-actin to the barbed end, and this may be enough to significantly decrease the rate of detachment associated with the addition of new actin subunits (i.e., detachment from the transition state, later discussed and illustrated in Figure 6).

This contribution of FH1 domains also confers a new function to profilin: not only does it allow a rapid barbed end elongation, it also helps maintain formin at the barbed end. If rapid elongation were to be achieved without profilin, formins would dissociate very rapidly (Figure 3A,C).

We have also shown that, when mDia1 FH1 domains were severely truncated, reducing their number of polyproline tracks from 14 to 2, they were still able to perform their tasks regarding both the acceleration of elongation and the reduction of dissociation in the presence of profilin (Figure 3B). These observations are consistent with earlier results on yeast formin Bni1p showing that polyproline tracks located closest to the FH2 domain can mediate a robust polymerization rate in absence of the other polyproline tracks (Courtemanche and Pollard, 2012; Paul and Pollard, 2008).

This FH1-profilin-mediated stabilization does not seem to resist pulling forces, since the formin dissociation rate increases equally fast in the presence of profilin as without profilin (Figure 4C,D and F), or even when FH1 domains are absent (Figure 4E).

The different factors that we report here to affect formin processivity may also modulate the resulting average filament length (i.e. the filament elongation rate divided by the formin dissociation rate) in a non-trivial way (Figure 5). An increase in actin concentration increases the elongation rate while reducing processivity, and as a result the filament length varies moderately (Figure 5A). In contrast, increasing the profilin concentration efficiently generates longer filaments (Figure 5B) since both processivity and elongation rates are strongly increased. The application of mechanical tension drastically decreases the resulting filament length (Figure 5C) because the increase in elongation rate (see Jégou et al., 2013) for mDia1, Figure 4—figure supplement 3 for mDia2) is very moderate compared to the decrease in processivity. For both mDia1 and mDia2, filament length is typically reduced ten-fold every 3 pN. Compared to mDia1, mDia2 elongates filaments more slowly in all the conditions we tested, but it is far more processive, resulting in the formation of much longer filaments. This feature appears to reflect differences in their FH2-DAD domains since it persists in the absence of profilin.

Modeling FH2 conformations at the barbed end

Putting the contributions of FH1 domains and profilin aside, our results show that the elongation velocity, hence the addition of actin subunits, enhances formin dissociation from the barbed end (Figure 3A). This suggests that the FH2 dimer goes through a transient, weakly bound state, every time a new actin subunit is added (Figure 6A), as already proposed by (Paul and Pollard, 2008). Based on this idea, we have built a mathematical model predicting the elongation velocity v_elong and dissociation rate k_off for a barbed-end associated formin as a function protein concentrations and force. This model and its predictions are presented in detail in Appendix 1.

As our model includes a substantial number of chemical reactions and associated reaction rates, we focus less on obtaining precise fits to the experimental data - which are somewhat trivial and uninformative when a large number of adjustable parameters are involved - and instead demonstrate that the qualitative shape of the curves predicted by our model is consistent with our experimental measurements. This shows that the agreement between our model and the data is essential, and not an accident of a specific set of values for the fitting parameters.

Our model, while it does not attempt to explicitly describe the details of FH1 activity, as done by Vavylonis and colleagues (Vavylonis et al., 2006), does include an effective affinity of profilin for barbed ends, and is able to account for our experimental data on profilin by simply considering that the presence of profilin at the barbed end blocks formin dissociation (Appendix 1 and figures therein). Our model thus ties together our observations in a global, consistent description. It also provides insights into the FH2 dimer conformations and the effect of applied tension, which we now summarize here.

Structural details of Bni1p(FH2)-actin interactions (Otomo et al., 2005) have led to the proposal that, as they wait for the addition of a new actin subunit, the FH2 dimer and the barbed end are in a rapid equilibrium between an elongation-competent ‘open’ state and an elongation-forbidding ‘closed’ state. In the frame of the subsequently proposed ‘stair-stepping’ model, FH2 hemidimer translocation (along the filament’s main axis and over a distance of one actin monomer size) is associated to this rapid equilibrium. In contrast, the ‘stepping-second’ model proposes that the open-closed equilibrium involves no such FH2 hemidimer translocation, which would instead take place after each subunit addition and thus be related to the aforementioned transition state (Paul and Pollard, 2008).

Our earlier work showing that tension accelerates mDia1-mediated elongation (Jégou et al., 2013) and more recent work applying tension with magnetic tweezers (Yu et al., 2017), both indicate that the open-closed equilibrium corresponds to a working distance of one monomer size, consistent with the stair-stepping model. We have thus chosen this model for our schematic representations of the open-closed equilibrium (Figure 6), even though our data on formin dissociation does not favor one model over the other. The conclusions we draw from our present model of formin dissociation do not require the stair-stepping context.

Our model for dissociation primarily includes the notion that the FH2 dimer goes through a transient, dissociation-prone conformation every time a new actin subunit is added. As sketched in Figure 6A, formin can thus dissociate following two routes: (1) the FH2 dimer unbinds from the barbed end from the open state during its rapid open-closed equilibrium, with a rate k_off^O(f), or (2) the FH2 dimer unbinds during the transition state that follows subunit addition, with a rate k_off^T(f).

In the absence of force, our data show a strong dependence of formin dissociation on actin concentration, i.e. on elongation rate (Figure 3A and C) meaning that k_off^T(f = 0) is the dominant contribution to the global k_off(f = 0). When pulling forces are applied, the formin dissociation rates for different actin concentrations converge, i.e. k_off(f) does not depend on actin concentration anymore (Figure 4C and F). The model predicts such a behavior when k_off^O(f) increases with force more strongly than k_off^T(f), and thus becomes dominant at high forces (Figure 6B). In contrast, the situation where k_off^T(f) remains the dominant contribution to dissociation results in curves for k_off(f) at different actin concentrations that remain well separated at high forces (Figure 6C). Together our model and data thus indicate that, while dissociation from the transition state is the dominant route at low force, it is the dissociation from the open state that dominates at high force.

How do cells manage formin dissociation in a mechanical context?

Our results show that mechanical tension plays a dominant role in the modulation of formin processivity. The dramatic enhancement of formin dissociation, upon application of piconewton forces, appears difficult to compensate with the other factors we have tested, such as actin and profilin concentrations. In cells, where filaments are likely to be tensed mainly because of myosin activity, our results raise questions regarding how these filaments may remain in interaction with membrane-anchored formins. Since it seems unlikely that filaments detach from membranes as soon as moderate forces are applied, they may cumulate alternative anchoring strategies, or see their interaction with formins reinforced by other factors.

In cells, formin-elongated filaments are often found in bundles, a situation which could allow dissociated formins to rapidly rebind to barbed ends. Also, recent studies have shown that regulatory proteins could directly bind to formins and modulate their activity (e.g., Ena/VASP (Bilancia et al., 2014), CLIP170 (Henty-Ridilla et al., 2016), or Spire/FMN2 interactions (Montaville et al., 2014)). The stabilization of formin-filament interactions in a mechanical context by such proteins is a hypothesis that should be addressed in future experiments.

Materials and methods

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Strain, strain background (E. coli)	BL21(DE3)	Thermo Fischer	Cat# C600003
Biological sample (Rabbit)	Rabbit muscle	INRA Jouy-en-Josas	N/A
Peptide, recombinant protein	Mouse mDia1(FH1-FH2-DAD)	Uniprot	O08808	seq. 552–1255 aa
Peptide, recombinant protein	Mouse mDia2(FH1-FH2-DAD)	Uniprot	Q9Z207	seq. 521–1171 aa
Peptide, recombinant protein	Human profilin-1	Uniprot	P07737
Antibody	PentaHis Biotin conjugate	Qiagen	34440
Chemical compound, drug	Alexa Fluor 488 succinimidyl ester	Life Technologies	Cat#A20000
Commercial assay or kit	Protino Ni-NTA Agarose beads	Macherey-Nagel	Cat#745400.25
Commercial assay or kit	HiLoad 16/60 Superdex 200 gel filtration column	GE Healthcare	Cat#28-9893-35
Software, algorithm	numpy/scipy packages	Python

Proteins and buffers

Request a detailed protocol

Skeletal muscle actin was purified from rabbit muscle acetone powder (Pel-freeze) following the protocol described in (Wioland et al., 2017), adapted from the original protocol (Spudich and Watt, 1971). Actin was fluorescently labeled on accessible surface lysine 328 of F-actin (Tóth et al., 2016), using Alexa 488-NHS (LifeTechnologies).

Recombinant mouse formins mDia1(SNAP-FH1-FH2-DAD-6xHis) and mDia2(SNAP-FH1-FH2-DAD-6xHis) were expressed in E. Coli Rosetta 2 (DE3) and purified following the protocol described in (Romero et al., 2004).

Recombinant human profilin I was expressed in E. Coli BL21 Star (DE3) and purified following the protocol described in details in Wioland et al. (2017), based on the original protocol by Gieselmann et al. (2008).

Spectrin-actin seeds were purified from human erythrocytes as described in Wioland et al. (2017), based on the original protocol by Casella et al. (1986).

Experiments were performed in F-buffer (5 mM Tris-HCl pH 7.8, 1 mM MgCl2, 0.2 mM EGTA, 0.2 mM ATP, 10 mM DTT and 1 mM DABCO) with various concentrations of KCl, as indicated in the main text and figures.

Microfluidics setup and experiments

Request a detailed protocol

Protein solutions were injected into a Poly-Dimethyl-Siloxane (PDMS, Sylgard) chamber, 20 µm or 40 µm in height, 800 µm in width and 1 cm in length. Chambers were mounted on glass coverslips previously cleaned for 20 min in ultrasonic baths of 1M KOH, ethanol and dH20. PDMS chambers and glass coverslips were UV-treated (UVO cleaner, Jelight) to allow them to bind tightly to each other. We used cross-shaped channels with three inlets. We controlled the pressure in the reservoir and measured the flow rate in each channel using an MFCS and Flow Units (Fluigent).

For experiments with anchored pointed ends (configurations shown in Figure 1A,B) the chamber was first filled with F-buffer without KCl. We then injected actin-spectrin seeds, 10 pM for 5 min, which adsorbed to the glass surface non-specifically. The surface was then passivated with 5% bovine serum albumin for at least 10 min.

The anchoring of formins to the coverslip surface (configurations shown in Figures 1C and 4A) was achieved in various ways, with similar results. Surfaces were first passivated and functionalized with biotin, either with PLL-PEG containing a fraction of PLL-PEG-biotin (SuSoS, Switzerland) or with a mixture of BSA and biotinylated BSA. The surfaces were then incubated for 5 min with neutravidin (20 µg/mL) and rinsed. The various formin constructs all contained a C-terminal 6xHis tag to anchor them via a biotinylated anti-His (penta-His, Qiagen). To anchor specifically the mDia1 (FH1-FH2-DAD) via its N-terminus, we used a biotinylated SNAP-tag construct.

Microscopy and image acquisition

Request a detailed protocol

The microfluidic setup was placed on a Nikon TiE inverted microscope, equipped with a 60x oil-immersion objective. We either used TIRF, HiLo or epifluorescence depending on the background fluorophore concentration in solution. Two different TiE microscope setups were used. The TIRF setup was controlled by Metamorph, illuminated in TIRF or epifluorescence by 100 mW tunable lasers (iLAS2, Roper Scientific), and images were acquired by an Evolve EMCCD camera (Photometrics). The other TiE setup was controlled by micromanager (Edelstein et al., 2014), illuminated with a 200W Xcite lamp (Lumen dynamics) and images were acquired by an sCMOS Orca-Flash4.0 V2+ camera (Hamamatsu).

Images were analyzed using ImageJ software.

The experiments were performed at room temperature, in an air-conditioned environment. We nonetheless measured day-to-day variations of room temperature, between 19°C and 23°C, and found that these temperature changes correlated with variations in filament elongation rates and formin dissociation rates: higher temperatures favored faster elongation and faster dissociation. To minimize the impact of such variations, and obtain consistent data, experiments and their controls were systematically repeated on the same day.

Data analysis

Request a detailed protocol

To avoid any bias related to the selection of filaments during analysis, a rectangular region containing a few tens of filaments was randomly chosen in the microscope field of view, and all the filaments in this region were analyzed. Within this population, filaments were excluded from our analysis only in the following specific cases. We excluded filaments whose ends were difficult to locate because they overlapped with other filaments. We also excluded filaments that sometimes seemed to stick to the surface or, in the case of experiments with anchored formins, appeared to stall (see Supp. Movies).

Movies were analyzed with ImageJ. The Subtract Background plugin was sometimes used to enhance the contrast, with a rolling ball radius of 50 pixels.

Quantifying formin dissociation rates and their error bars, in the absence of force

Request a detailed protocol

For each experiment, from a randomly chosen filament population, we noted the time at which each individual formin dissociated from the barbed end. The survival fraction of each experiment was then fitted by a single exponential using the numpy/scipy numerical packages of Python.

In order to quantify the statistical uncertainty in the estimation of the dissociation rate k_off resulting from the exponential fits of the survival fractions S(t) (shown for example in Figures 1,2A; Figure 2C), we performed numerical simulations of the experiment (using Python). The program simulated a large number (M = 10,000) of experiments, each consisting in N filaments randomly losing their formin with rate constant k₀. The survival fraction of each simulated experiment was fitted by a single exponential, resulting in the generation of M estimated rates k_est. The distribution of these k_est, centered on k₀, allowed us to compute the width of the confidence intervals. We could thus verify that a 65% confidence interval corresponded to errors of approximately k₀/N^0.5.

Analysis of experiments with striped filaments

Request a detailed protocol

Our standard experiment (Figure 1A) relied on the ability to image filaments and on the acceleration of their elongation by formins in order to assess their presence at the barbed end. In order to determine the elongation velocity and the formin dissociation rate in conditions where actin could not be directly imaged (i.e. unlabeled actin) and/or when the presence of formin was not readily detected by a change in elongation velocity (i.e. in the absence of profilin), other configurations were used. A possible alternative was to anchor the formins to the coverslip surface and work with low forces (Figure 1C). In order to obtain results with unanchored formins and zero force, we have used a ‘striped filaments’ protocol (illustrated in Figure 1B). It consisted in exposing filaments to alternating conditions: a duration ∆t₁ with condition 1 (the condition of interest, with unknown elongation rate v₁ and formin dissociation rate k₁), and a duration ∆t₂ with condition 2 (containing profilin and labeled actin, with predetermined elongation rate v₂ and formin dissociation rate k₂). The resulting, striped filament population was imaged at interval (∆t₁+∆t₂) and had a measurable elongation rate v=(∆t₁ v₁+∆t₂ v₂)/(∆t₁+∆t₂) and formin dissociation rate k=(∆t₁ k₁+∆t₂ k₂)/(∆t₁+∆t₂). Knowing v₂ and k₂, we could thus determine v₁ and k₁. The results we obtained were consistent with those from experiments with anchored formins, at very low force.

Analysis of experiments with pulling forces

Request a detailed protocol

We measured the fraction S(t) of filaments growing from surface-anchored formins that remained attached over time, while force was applied on the filaments by viscous drag. The observed filament detachment rate k_obs(t) = (dS/dt)/S(t) increases over time, as the filaments get longer and the average force exerted on them thus increases. This force has been calibrated (Jégou et al., 2013) and we can compute the average force f(t) exerted on the population of filaments, homogeneous in length.

An important point is to verify whether the filament detachment events that we observe during our experiment do correspond to formin-filament dissociation events. We thus sought to estimate what percentage of the monitored formins were still present and functional at the end of an experiment. To do so, following the experiment, we exposed the surface to a solution of actin to test which formins could nucleate new filaments. We observed that ~74% of formins were still present and able to nucleate filaments during this test (Figure 4—figure supplement 1), regardless of the force applied during the experiment (between 0 and 6 pN). This indicated that at least 74% of the formins monitored during the experiment were still anchored and functional when their filament was observed to detach from the surface. The measured filament detachment rate k_obs thus reflected the formin dissociation rate k_off within a reasonable error: 0.74 k_obs < k_off < k_obs (corresponding to the vertical error bars shown in Figure 4—figure supplement 2).

We could thus plot the formin dissociation rate k_off as a function of the applied force f. Each individual experiment generated a survival fraction S(t) (as in Figure 4B) from which we deduced a number of points k_off(f), as shown in Figure 4—figure supplement 2. The horizontal error bars indicate the standard deviations in f, based on the length dispersion of the filaments. Experiments carried out with different microfluidics flow rates explored different ranges of force, with some overlap between experiments. For clarity, data points were grouped in bins of similar force, and averaged. The resulting plots are shown in Figure 4, where the error bars indicate the standard deviations for f and for k_off within each bin.

Appendix 1

Mathematical modeling

Here we describe a mathematical model predicting the elongation velocity $v_{e l o n g}$ and dissociation rate of a barbed-end associated formin as a function of actin and profilin concentrations $c_{a}$ and $c_{p}$ , as well as the force $f$ applied to the formin in the direction of filament elongation. We present the model in Model description and derive its general predictions in Elongation and dissociation rates. We then specialized these results to the measurements performed in the main text in Specific predictions.

As our model includes a substantial number of chemical reactions and associated reaction rates, we focus less on obtaining precise fits to the experimental data—which are somewhat trivial and uninformative when a large number of adjustable parameters are involved—and instead demonstrate that the qualitative shape of the curves predicted by our model is always consistent with our experimental measurements. This demonstrates that the agreement between our model and the data is essential, and not and accident of a specific set of values for the fitting parameters.

Model description

The model is a kinetic description of the barbed end-formin complex based on transitions between three basic states. Following (Otomo et al., 2005), we assume that formin can be associated with the filament barbed end in either a “closed” or an “open” conformation, of which only the latter allows for further filament elongation. These two states, henceforth abbreviated as $C$ and $O$ are assumed to be in rapid equilibrium, implying that their probabilities $P_{c} a n d P_{o}$ are constrained by the detailed balance condition

\frac{P_{O}}{P_{C}} = \frac{e x p (- β ε_{O} + β f δ)}{e x p (- β ϵ_{C})} = e x p (- β ϵ + β f δ),

where $β = \frac{1}{k_{B}} T$ is the inverse thermal energy, $ϵ = ϵ_{O} - ϵ_{C}$ is the energy difference between states $O$ and $C$ and $δ$ is the average distance over which the formin moves along the filament as it transitions from $C$ to $O$ . Only state $O$ allows the recruitment of a new actin monomer to the barbed end, which happens irreversibly with a rate $k_{a} c_{a}$ proportional to the actin concentration in solution. This monomer addition takes the system to a short-lived transient state, denoted by $T$ . As schematized in Appendix 1—figure 1(a), this state decays with a rate $\frac{1}{τ}$ into a new fast $C \overset{}{⇌} O$ equilibrium with one more actin monomer, implying that the new $C$ state is shifted with respect to the original one by a $δ$ distance, and similarly for $O$ .

Appendix 1—figure 1

Download asset Open asset

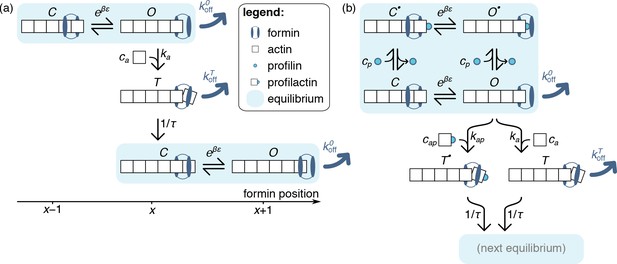

Model of formin function based on transitions between discrete states, as described in the text.

Unlike those of the main text, the schematics presented here only picture one actin protofilament for simplicity, without any implications for the model itself. In both panels, formin dissociation from states $O$ and $T$ is indicated by thick dark blue arrows. The FH1 domains, which lead to the formation of a ring complex that hampers this dissociation in profilin-associated states, is not explicitely represented here. (a) Simplified, no-profilin model introducing the notion of rapid equilibrium between monomer additions, and transit through a short-lived state $T$ upon monomer addition. (b) Model taking into account the association of profilin with the filament barbed end.

https://doi.org/10.7554/eLife.34176.023

While the formin is bound to the actin in all three states, thermal agitation and the force $f$ may pull it to the right and off the filament, implying formin dissociation. This may happen in state $O$ or $T$ , but not in state $C$ , reflecting the fact that a formin starting from state $C$ must first go through $O$ before it can leave the filament. Denoting by $δ_{O}$ and $δ_{T}$ the distance over which the formin must be pulled to be ripped off the filament when in state $O$ or $T$ respectively, we assimilate the dissociation process to a simple Kramers escape problem and write the associated dissociation rates

k_{o f f}^{O} (f) = k_{o f f}^{O} (O) \times e^{β j δ_{0}}, k_{o f f}^{T} (f) = k_{o f f}^{T} (O) \times e^{β j δ_{T}} .

To account for the possibility of profilin-actin association, we introduce profilin-associated versions of each of the aforementioned states, which we denote as $C^{∙}$ , $O^{∙}$ and $T^{∙}$ . In these states, the last actin on the filament barbed end is bound toa profilin, which sterically prevents the addition of any new actin monomer to the filament prior to its detachment. We denote by $K_{d}$ the equilibrium dissociation constant of the following reaction

(profilinated barbed end) ⇌ (barbed end) + (profilin) .

Combined with the assumption that states $C^{∙}$ and $O^{∙}$ are at a rapid equilibrium with states $C$ and $O$ , this implies

\frac{P_{C^{∙}}}{P_{C}} = \frac{P_{O^{∙}}}{P_{O}} = \frac{c_{p}}{K_{d}},

which we combine with Equation (A1 ) and the normalization condition $P_{C^{∙}} + P_{C} + P_{O^{∙}} + P_{O} = 1$ to obtain

P_{C^{∙}} = \frac{e^{β ϵ} c_{p} / K_{d}}{(1 + c_{p} / K_{d}) (e^{β ϵ} + e^{β f δ})}

P_{C} = \frac{e^{β ϵ}}{(1 + c_{p} / K_{d}) (e^{β ϵ} + e^{β f δ})}

P_{O^{∙}} = \frac{e^{β f δ} c_{p} / K_{d}}{(1 + c_{p} / K_{d}) (e^{β ϵ} + e^{β f δ})}

P_{O} = \frac{e^{β f δ}}{(1 + c_{p} / K_{d}) (e^{β ϵ} + e^{β f δ})}

State $T^{∙}$ , on the other hand, can only be reached by adding a profilactin to a filament barbed end in the $O$ state, which occurs with rate $k_{a p} c_{a p}$ , where $c_{a p}$ denotes the profilactin concentration in solution. Similar to the behavior of state $T$ , we assume that state $T^{∙}$ quickly transitions into a new $C^{∙} ⇌ C ⇌ O ⇌ O^{∙}$ equilibrium with a rate $1 / τ$ .

As discussed in the main text, we assume that none of the profilinated states is amenable to formin dissociation, as the interactions between formin’s FH1 domain and the filament-bound profilin helps stabilize its attachment to the filament.

Elongation and dissociation rates

To compute the filament’s average elongation rate, we compute the average time $1 / v_{elong}$ required to add a monomer to it. When in the $C^{∙} ⇌ C ⇌ O ⇌ O^{∙}$ equilibrium, the system spends a fraction $P_{O}$ of its time in the $O$ state. During this time, it may transition into the $T$ and $T^{∙}$ states with respective rates $k_{a} c_{a}$ and $k_{a p} c_{a p}$ , implying an overall escape rate out of the equilibrium of $k_{a} c_{a} P_{O} + k_{a p} c_{a p} P_{O}$ . Following our assumption that states $T^{∙}$ and $T$ are short-lived, the time scale $τ$ is negligible in front of the escape time and thus the elongation velocity (measured in number of monomers per unit time) reads

v_{e l o n g} = k_{a} c_{a} P_{O} + k_{a p} c_{a p} P_{O} .

Our model allows for two sources of formin dissociation. First, formin may leave the filament while in the $O$ state. As formin spends a fraction $P_{O}$ of its time in this state, the associated dissociation rate reads $k_{{off}^{O} (f) P_{O}}$ . Second, formin may leave the filament while in the $T$ state. While this state is very transient, it has been argued that it is also highly unstable (Paul and Pollard, 2008) and thus that the associated dissociation rate may be significant. To estimate this dissociation rate, we first consider a system that has just transitioned into the $T$ state. The system may escape this state through either one of two mechanisms, namely a transition into the $C^{∙} ⇌ C ⇌ O ⇌ O^{∙}$ equilibrium (with rate $1 / τ$ ), or dissociation [with rate $k_{{off}^{T} (f)}$ ]. Since both of these rates are constant over time, it is easy to show that the probability to escape the $T$ state through dissociation is $k_{{off}^{T} (f) τ} / [1 + k_{{off}^{T} (f) τ]}$ . Similarly, starting from the $C^{∙} ⇌ C ⇌ O ⇌ O^{∙}$ equilibrium the probability of entering the $T$ state rather than the $T^{∙}$ state reads $k_{a} c_{a} / (k_{a} c_{a} + k_{a p} c_{a p})$ , implying that the probability of losing the formin while transitioning from one equilibrium to the next reads

\frac{k_{a} c_{a}}{k_{a} c_{a} + k_{a p} c_{a p}} \times \frac{k_{{off}^{T} (f) τ}}{1 + k_{{off}^{T} (f) τ}}

Finally, as there is on average one such transition per time interval of duration $1 / v_{elong}$ , the overall dissociation rate of the formin reads

\begin{array}{ll} k_{o f f} & = k_{o f f}^{O} (f) P_{O} + v_{e l o n g} \frac{k_{a} c_{a}}{k_{a} c_{a} + k_{a p} c_{a p}} \frac{k_{o f f}^{T} (f) τ}{1 + k_{o f f}^{T} (f) τ} \\ = \frac{e^{β f δ}}{e^{β ϵ} + e^{β f δ}} \frac{1}{1 + c_{p} / K_{d}} [k_{o f f}^{O} (f) + k_{a} c_{a} \frac{k_{o f f}^{T} (f) τ}{1 + k_{o f f}^{T} (f) τ}], \end{array}

where the first and second terms in the square brackets relate to the dissociation rate in the open and transient state, respectively.

Specific predictions

Here we specialize the results of Equations (A6) and (A8) to experimentally relevant situations, showing robust agreement with the data of the main text. In the following we make the simplifying assumption that the equilibrium dissociation constant $≃ 0.1 μ M$ of the chemical equilibrium

G - profilactin ⇌ G - actin + profilin

in solution is much smaller than the other relevant concentrations in the system (typically a few $μ M$ ), or equivalently that an excess of profilin in solution with respect to actin implies that essentially all actin is associated with profilin, with a negligible concentration of residual non-associated actin. Denoting by [A] and [P] the nominal concentrations of actin and profilin initially introduced in the solution, this implies

c_{a} = {\begin{matrix} [A] - [P] & i f [A] > [P] \\ 0 & i f [A] < [P] \end{matrix}, c_{p} = {\begin{matrix} 0 & i f [A] > [P] \\ [P] - [A] & i f [A] < [P] \end{matrix}, a n d c_{a p} = {\begin{matrix} [P] & i f [A] > [P] \\ [A] & i f [A] < [P] \end{matrix}

Using this assumption, in the following sections we derive theoretical predictions corresponding to the three main experimental curves of the main text.

Profilin concentration dependence of the elongation velocity

Plugging Equation (A10) into Equation (A6), we obtain

v_{e l o n g} = {\begin{array}{cc} \frac{k_{a} [A] + (k_{a p} - k_{a}) [P]}{1 + e^{β ϵ}} & if [A] > [P] \\ \frac{k_{a p} [A]}{1 + e^{β ϵ}} \frac{1}{1 + ([P] - [A]) / K_{d}} & if [A] < [P] \end{array}

We represent this function in Appendix 1—figure 2(a). Qualitatively, at low profilin the monomer addition rate is modest, with its pace set by the actin addition rate through the $T$ pathway. As the profilin concentration is increased, the availability of profilactin subunits increases, leading to elongation with the faster rate $k_{a p}$ through the $T^{∙}$ pathway. As the profilin concentration [P] exceeds the actin concentration [A], excess profilin accumulates in the solution, shifting the rapid equilibrium of Appendix 1—figure 1 towards the $C^{∙}$ and $O^{∙}$ states, thus depleting the addition-competent $O$ state and slowing down elongation.

Appendix 1—figure 2

Download asset Open asset

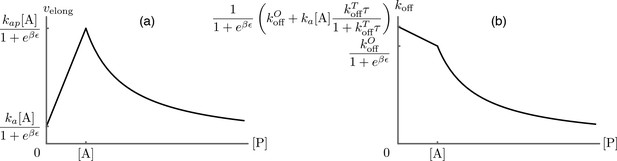

Predictions for the elongation velocity $v_{elong}$ (a) and the formin dissociation rate $k_{off}$ (b) as functions of the profilin concentration within the approximation of strong actin-profilin binding of Eq.(**A13**).

While the exact position of the curves is dependent on the choice of parameters as indicated on the figure, their qualitative shapes are a robust prediction of the model, and agree well with the experimental data presented in Figure 3B of main text.

https://doi.org/10.7554/eLife.34176.024

Profilin concentration dependence of the dissociation rate

Plugging Equation (A10) into Equation (A8), we obtain

k_{o f f} = {\begin{array}{cc} \frac{1}{1 + e^{β ϵ}} [k_{o f f}^{O} + k_{a} ([A] - [P]) \frac{k_{{off}^{T} τ}}{1 + k_{{off}^{T} τ}}] & if [A] > [P] \\ \frac{k_{o f f}^{O}}{1 + e^{β ϵ}} \frac{1}{1 + ([P] - [A]) / K_{d}} & if [A] < [P] \end{array}

which we plot in Appendix 1—figure 2(b). Qualitatively, the formin dissociation rate is maximal at low profilin concentration, where all monomer additions occur through the dangerous $T$ pathway. As [P] increases, an increasing number of $T$ transitions are replaced by the safe $T^{∙}$ transitions, until at $[P] = [A]$ the $T$ transitions are entirely abrogated. At this and higher concentration, the only remaining cause of formin dissociation is through the $O$ state, and as the profilin concentration is increased above [A], the occupancy of the $O$ state decreases as described in Profilin concentration dependence of the elongation velocity, leading to a further decrease of the dissociation rate.

Force dependence of the dissociation rate

To describe the force dependence of the formin dissociation rate, we introduce the force-dependent dissociation laws of Equation (A2) into the dissociation rate of Equation (A8) at $[P] = 0$ . Based on our experimental observations, we restrict our discussion to situations where the formin stays bound to the barbed end for a number of monomer addition steps that is much larger than one, and thus to the regime $k_{o f f}^{T} (f) τ ≪ 1$ , yielding

k_{off} = \frac{e^{β f δ}}{e^{β ϵ} + e^{β f δ}} [k_{o f f}^{O} (0) e^{β f δ_{O}} + k_{a} [A] k_{o f f}^{T} (0) e^{β f δ_{T}} τ]

The two terms in the parenthesis of Equation (A8) respectively correspond to dissociation from the $O$ and from the $T$ state. While both rates can contribute at small forces, for large forces the dominant contributor to the dissociation rate will be the process with the largest length scale $δ_{X}$ (with $X = O$ or $T$ ), i.e., dissociation through $O$ if $δ_{O} > δ_{T}$ , or dissociation through $T$ if $δ_{T} > δ_{O}$ . In the former case, the large-force asymptotic dissociation rate $k_{off} \sim k_{off}^{O} (0) e^{β f δ_{O}}$ will be independent of the actin concentration, while in the latter $k_{off} \sim k_{a} [A] k_{off}^{T} (0) e^{β f δ_{T}} τ$ is proportional to it. As discussed in the main text, the dissociation vs. force curves for different actin concentrations converge at large force, indicating that the former hypothesis is correct, i.e., that the force dependence of the dissociation rate in the $O$ state is significantly larger than that in the $T$ state. The corresponding theoretical curves are shown in Figure 5 of the main text.

Data availability

Source data files are microscope movies. Three are provided as Videos 1-3 and more can be shared upon request to the corresponding authors (romet@ijm.fr or antoine.jegou@ijm.fr). The totality of the files has not been made available at this point due to the size and volume of the raw data and the extensive level of detail (frame rate, pixel size, change of chemical conditions, etc.) that would be required in order for each movie to be exploitable.

References

(2015) Electrostatic interactions between the Bni1p Formin FH2 domain and actin influence actin filament nucleation
Structure 23:68–79.

https://doi.org/10.1016/j.str.2014.10.014
- PubMed
- Google Scholar
1. Bilancia CG
2. Winkelman JD
3. Tsygankov D
4. Nowotarski SH
5. Sees JA
6. Comber K
7. Evans I
8. Lakhani V
9. Wood W
10. Elston TC
11. Kovar DR
12. Peifer M
(2014) Enabled negatively regulates diaphanous-driven actin dynamics in vitro and in vivo
Developmental Cell 28:394–408.

https://doi.org/10.1016/j.devcel.2014.01.015
- PubMed
- Google Scholar
(2014) Actin dynamics, architecture, and mechanics in cell motility
Physiological Reviews 94:235–263.

https://doi.org/10.1152/physrev.00018.2013
- PubMed
- Google Scholar
1. Bombardier JP
2. Eskin JA
3. Jaiswal R
4. Corrêa IR
5. Xu MQ
6. Goode BL
7. Gelles J
(2015) Single-molecule visualization of a formin-capping protein 'decision complex' at the actin filament barbed end
Nature Communications 6:8707.

https://doi.org/10.1038/ncomms9707
- PubMed
- Google Scholar
1. Bovellan M
2. Romeo Y
3. Biro M
4. Boden A
5. Chugh P
6. Yonis A
7. Vaghela M
8. Fritzsche M
9. Moulding D
10. Thorogate R
11. Jégou A
12. Thrasher AJ
13. Romet-Lemonne G
14. Roux PP
15. Paluch EK
16. Charras G
(2014) Cellular control of cortical actin nucleation
Current Biology 24:1628–1635.

https://doi.org/10.1016/j.cub.2014.05.069
- PubMed
- Google Scholar
(1986)
Purification and initial characterization of a protein from skeletal muscle that caps the barbed ends of actin filaments

The Journal of Biological Chemistry 261:10915–10921.
- PubMed
- Google Scholar
1. Chen Q
2. Nag S
3. Pollard TD
(2012) Formins filter modified actin subunits during processive elongation
Journal of Structural Biology 177:32–39.

https://doi.org/10.1016/j.jsb.2011.10.005
- PubMed
- Google Scholar
(2009) Displacement of formins from growing barbed ends by bud14 is critical for actin cable architecture and function
Developmental Cell 16:292–302.

https://doi.org/10.1016/j.devcel.2008.12.001
- PubMed
- Google Scholar
(2011) The myosin passenger protein Smy1 controls actin cable structure and dynamics by acting as a formin damper
Developmental Cell 21:217–230.

https://doi.org/10.1016/j.devcel.2011.07.004
- PubMed
- Google Scholar
1. Choi JA
2. Jung YS
3. Kim JY
4. Kim HM
5. Lim IK
(2016) Inhibition of breast cancer invasion by TIS21/BTG2/Pc3-Akt1-Sp1-Nox4 pathway targeting actin nucleators, mDia genes
Oncogene 35:.

https://doi.org/10.1038/onc.2015.64
- PubMed
- Google Scholar
(2013) Tension modulates actin filament polymerization mediated by formin and profilin
PNAS 110:9752–9757.

https://doi.org/10.1073/pnas.1308257110
- PubMed
- Google Scholar
1. Courtemanche N
2. Pollard TD
(2012) Determinants of Formin Homology 1 (FH1) domain function in actin filament elongation by formins
Journal of Biological Chemistry 287:7812–7820.

https://doi.org/10.1074/jbc.M111.322958
- PubMed
- Google Scholar
(2014) Advanced methods of microscope control using μManager software
Journal of Biological Methods 1:10.

https://doi.org/10.14440/jbm.2014.36
- PubMed
- Google Scholar
(2008) Distinct biochemical characteristics of the two human profilin isoforms
European Journal of Biochemistry 229:621–628.

https://doi.org/10.1111/j.1432-1033.1995.0621j.x
- Google Scholar
1. Gould CJ
2. Maiti S
3. Michelot A
4. Graziano BR
5. Blanchoin L
6. Goode BL
(2011) The formin DAD domain plays dual roles in autoinhibition and actin nucleation
Current Biology 21:384–390.

https://doi.org/10.1016/j.cub.2011.01.047
- PubMed
- Google Scholar
(2016) Accelerated actin filament polymerization from microtubule plus ends
Science 352:1004–1009.

https://doi.org/10.1126/science.aaf1709
- PubMed
- Google Scholar
(2004) Actin polymerization-driven molecular movement of mDia1 in living cells
Science 303:2007–2010.

https://doi.org/10.1126/science.1093923
- PubMed
- Google Scholar
1. Isogai T
2. Innocenti M
(2016) New nuclear and perinuclear functions of formins
Biochemical Society Transactions 44:1701–1708.

https://doi.org/10.1042/BST20160187
- PubMed
- Google Scholar
(2013) Formin mDia1 senses and generates mechanical forces on actin filaments
Nature Communications 4:1883.

https://doi.org/10.1038/ncomms2888
- PubMed
- Google Scholar
(2011) Individual actin filaments in a microfluidic flow reveal the mechanism of ATP hydrolysis and give insight into the properties of profilin
PLoS Biology 9:e1001161.

https://doi.org/10.1371/journal.pbio.1001161
- PubMed
- Google Scholar
1. Kovar DR
2. Harris ES
3. Mahaffy R
4. Higgs HN
5. Pollard TD
(2006) Control of the assembly of ATP- and ADP-actin by formins and profilin
Cell 124:423–435.

https://doi.org/10.1016/j.cell.2005.11.038
- PubMed
- Google Scholar
1. Kovar DR
2. Pollard TD
(2004) Insertional assembly of actin filament barbed ends in association with formins produces piconewton forces
PNAS 101:14725–14730.

https://doi.org/10.1073/pnas.0405902101
- PubMed
- Google Scholar
1. Kubota H
2. Miyazaki M
3. Ogawa T
4. Shimozawa T
5. Kinosita K
6. Ishiwata S
(2017) Biphasic Effect of Profilin Impacts the Formin mDia1 Force-Sensing Mechanism in Actin Polymerization
Biophysical Journal 113:461–471.

https://doi.org/10.1016/j.bpj.2017.06.012
- PubMed
- Google Scholar
1. Kuhn JR
2. Pollard TD
(2005) Real-time measurements of actin filament polymerization by total internal reflection fluorescence microscopy
Biophysical Journal 88:1387–1402.

https://doi.org/10.1529/biophysj.104.047399
- PubMed
- Google Scholar
1. Lu J
2. Pollard TD
(2001) Profilin binding to poly-L-proline and actin monomers along with ability to catalyze actin nucleotide exchange is required for viability of fission yeast
Molecular Biology of the Cell 12:1161–1175.

https://doi.org/10.1091/mbc.12.4.1161
- PubMed
- Google Scholar
1. Mizuno H
2. Higashida C
3. Yuan Y
4. Ishizaki T
5. Narumiya S
6. Watanabe N
(2011) Rotational movement of the formin mDia1 along the double helical strand of an actin filament
Science 331:80–83.

https://doi.org/10.1126/science.1197692
- PubMed
- Google Scholar
1. Montaville P
2. Jégou A
3. Pernier J
4. Compper C
5. Guichard B
6. Mogessie B
7. Schuh M
8. Romet-Lemonne G
9. Carlier MF
(2014) Spire and Formin 2 synergize and antagonize in regulating actin assembly in meiosis by a ping-pong mechanism
PLoS Biology 12:e1001795.

https://doi.org/10.1371/journal.pbio.1001795
- PubMed
- Google Scholar
(2012) Intermittent depolymerization of actin filaments is caused by photo-induced dimerization of actin protomers
PNAS 109:10769–10774.

https://doi.org/10.1073/pnas.1121381109
- PubMed
- Google Scholar
1. Otomo T
2. Tomchick DR
3. Otomo C
4. Panchal SC
5. Machius M
6. Rosen MK
(2005) Structural basis of actin filament nucleation and processive capping by a formin homology 2 domain
Nature 433:488–494.

https://doi.org/10.1038/nature03251
- PubMed
- Google Scholar
1. Paul AS
2. Pollard TD
(2008) The role of the FH1 domain and profilin in formin-mediated actin-filament elongation and nucleation
Current Biology 18:9–19.

https://doi.org/10.1016/j.cub.2007.11.062
- PubMed
- Google Scholar
(1994) Interaction of profilin with G-actin and poly(L-proline)
Biochemistry 33:8472–8478.

https://doi.org/10.1021/bi00194a011
- PubMed
- Google Scholar
1. Pernier J
2. Shekhar S
3. Jegou A
4. Guichard B
5. Carlier MF
(2016) Profilin Interaction with Actin Filament Barbed End Controls Dynamic Instability, Capping, Branching, and Motility
Developmental Cell 36:201–214.

https://doi.org/10.1016/j.devcel.2015.12.024
- PubMed
- Google Scholar
1. Phng LK
2. Gebala V
3. Bentley K
4. Philippides A
5. Wacker A
6. Mathivet T
7. Sauteur L
8. Stanchi F
9. Belting HG
10. Affolter M
11. Gerhardt H
(2015) Formin-mediated actin polymerization at endothelial junctions is required for vessel lumen formation and stabilization
Developmental Cell 32:123–132.

https://doi.org/10.1016/j.devcel.2014.11.017
- PubMed
- Google Scholar
1. Romero S
2. Le Clainche C
3. Didry D
4. Egile C
5. Pantaloni D
6. Carlier MF
(2004) Formin is a processive motor that requires profilin to accelerate actin assembly and associated ATP hydrolysis
Cell 119:419–429.

https://doi.org/10.1016/j.cell.2004.09.039
- PubMed
- Google Scholar
1. Romet-Lemonne G
2. Jégou A
(2013) Mechanotransduction down to individual actin filaments
European Journal of Cell Biology 92:333–338.

https://doi.org/10.1016/j.ejcb.2013.10.011
- PubMed
- Google Scholar
1. Roos A
2. Weis J
3. Korinthenberg R
4. Fehrenbach H
5. Häusler M
6. Züchner S
7. Mache C
8. Hubmann H
9. Auer-Grumbach M
10. Senderek J
(2015) Inverted formin 2-related Charcot-Marie-Tooth disease: extension of the mutational spectrum and pathological findings in Schwann cells and axons
Journal of the Peripheral Nervous System 20:52–59.

https://doi.org/10.1111/jns.12106
- PubMed
- Google Scholar
1. Shekhar S
2. Kerleau M
3. Kühn S
4. Pernier J
5. Romet-Lemonne G
6. Jégou A
7. Carlier MF
(2015) Formin and capping protein together embrace the actin filament in a ménage à trois
Nature Communications 6:8730.

https://doi.org/10.1038/ncomms9730
- PubMed
- Google Scholar
1. Spudich JA
2. Watt S
(1971)
The regulation of rabbit skeletal muscle contraction. I. biochemical studies of the interaction of the tropomyosin-troponin complex with actin and the proteolytic fragments of myosin

The Journal of Biological Chemistry 246:4866–4871.
- PubMed
- Google Scholar
1. Tóth MÁ
2. Majoros AK
3. Vig AT
4. Migh E
5. Nyitrai M
6. Mihály J
7. Bugyi B
(2016) Biochemical Activities of the Wiskott-Aldrich Syndrome Homology Region 2 Domains of Sarcomere Length Short (SALS) Protein
Journal of Biological Chemistry 291:667–680.

https://doi.org/10.1074/jbc.M115.683904
- PubMed
- Google Scholar
(2006) Model of formin-associated actin filament elongation
Molecular Cell 21:455–466.

https://doi.org/10.1016/j.molcel.2006.01.016
- PubMed
- Google Scholar
(2014) The role of formin tails in actin nucleation, processive elongation, and filament bundling
Journal of Biological Chemistry 289:30602–30613.

https://doi.org/10.1074/jbc.M114.588368
- PubMed
- Google Scholar
1. Wales P
2. Schuberth CE
3. Aufschnaiter R
4. Fels J
5. García-Aguilar I
6. Janning A
7. Dlugos CP
8. Schäfer-Herte M
9. Klingner C
10. Wälte M
11. Kuhlmann J
12. Menis E
13. Hockaday Kang L
14. Maier KC
15. Hou W
16. Russo A
17. Higgs HN
18. Pavenstädt H
19. Vogl T
20. Roth J
21. Qualmann B
22. Kessels MM
23. Martin DE
24. Mulder B
25. Wedlich-Söldner R
(2016) Calcium-mediated actin reset (CaAR) mediates acute cell adaptations
eLife 5:e19850.

https://doi.org/10.7554/eLife.19850
- PubMed
- Google Scholar
(2017) ADF/Cofilin Accelerates Actin Dynamics by Severing Filaments and Promoting Their Depolymerization at Both Ends
Current Biology 27:1956–1967.

https://doi.org/10.1016/j.cub.2017.05.048
- PubMed
- Google Scholar
1. Yu M
2. Yuan X
3. Lu C
4. Le S
5. Kawamura R
6. Efremov AK
7. Zhao Z
8. Kozlov MM
9. Sheetz M
10. Bershadsky A
11. Yan J
(2017) mDia1 senses both force and torque during F-actin filament polymerization
Nature Communications 8:1650.

https://doi.org/10.1038/s41467-017-01745-4
- PubMed
- Google Scholar
1. Zigmond SH
2. Evangelista M
3. Boone C
4. Yang C
5. Dar AC
6. Sicheri F
7. Forkey J
8. Pring M
(2003) Formin leaky cap allows elongation in the presence of tight capping proteins
Current Biology 13:1820–1823.

https://doi.org/10.1016/j.cub.2003.09.057
- PubMed
- Google Scholar
1. Zimmermann D
2. Homa KE
3. Hocky GM
4. Pollard LW
5. De La Cruz EM
6. Voth GA
7. Trybus KM
8. Kovar DR
(2017) Mechanoregulated inhibition of formin facilitates contractile actomyosin ring assembly
Nature Communications 8:703.

https://doi.org/10.1038/s41467-017-00445-3
- PubMed
- Google Scholar

Article and author information

Author details

Luyan Cao

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Resources, Formal analysis, Validation, Investigation, Visualization

Contributed equally with
Mikael Kerleau

Competing interests
No competing interests declared
Mikael Kerleau

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Formal analysis, Validation, Investigation, Visualization

Contributed equally with
Luyan Cao

For correspondence
mikael.kerleau@ijm.fr

Competing interests
No competing interests declared
Emiko L. Suzuki

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Formal analysis, Validation, Investigation, Visualization

For correspondence
emiko.suzuki@ijm.fr

Competing interests
No competing interests declared
Hugo Wioland

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Software, Formal analysis, Funding acquisition

For correspondence
hugo.wioland@ijm.fr

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0001-5254-9642
Sandy Jouet

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Resources, protein purification and characterization

For correspondence
sandy.jouet@ijm.fr

Competing interests
No competing interests declared
Berengere Guichard

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Resources, protein purification and characterization

For correspondence
berengere.guichard@ijm.fr

Competing interests
No competing interests declared
Martin Lenz

LPTMS, CNRS, Université Paris-Sud, Université Paris-Saclay, Orsay, France

Contribution
Software, Formal analysis, Funding acquisition, Validation, Methodology, Writing—original draft

For correspondence
martin.lenz@u-psud.fr

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-2307-1106
Guillaume Romet-Lemonne

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing

For correspondence
guillaume.romet-lemonne@ijm.fr

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-4938-1065
Antoine Jegou

Institut Jacques Monod, CNRS, Université Paris Diderot, Paris, France

Contribution
Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing

For correspondence
antoine.jegou@ijm.fr

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-0356-3127

Funding

Fondation ARC pour la Recherche sur le Cancer (Postdoctoral fellowship)

Hugo Wioland

Fondation pour la Recherche Médicale (DEI20151234415)

Martin Lenz
Guillaume Romet-Lemonne

H2020 European Research Council (StG-677532)

Martin Lenz

Human Frontier Science Program (RGY0066)

Guillaume Romet-Lemonne

H2020 European Research Council (StG-679116)

Antoine Jegou

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank David Kovar and Dennis Zimmermann for the plasmids of formin mDia2 and mutant profilin-R88E. The authors acknowledge funding from the Fondation pour la Recherche Médicale (grant to GRL and ML), the Human Frontier Science Program (grant RGY0066 to GRL), the H2020 European Research Council (grant StG-679116 to AJ, grant StG-677532 to ML) and the Fondation ARC pour la Recherche sur le Cancer (postdoctoral fellowship to HW).

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
