Microbial eukaryotes have adapted to hypoxia by horizontal acquisitions of a gene involved in rhodoquinone biosynthesis

  1. Courtney W Stairs
  2. Laura Eme
  3. Sergio A Muñoz-Gómez
  4. Alejandro Cohen
  5. Graham Dellaire
  6. Jennifer N Shepherd
  7. James P Fawcett
  8. Andrew J Roger  Is a corresponding author
  1. Dalhousie University, Canada
  2. Gonzaga University, United States
Research Article
  • Cited 0
  • Views 1,373
  • Annotations
Cite as: eLife 2018;7:e34292 doi: 10.7554/eLife.34292

Abstract

Under hypoxic conditions, some organisms use an electron transport chain consisting of only complex I and II (CII) to generate the proton gradient essential for ATP production. In these cases, CII functions as a fumarate reductase that accepts electrons from a low electron potential quinol, rhodoquinol (RQ). To clarify the origins of RQ-mediated fumarate reduction in eukaryotes, we investigated the origin and function of rquA, a gene encoding an RQ biosynthetic enzyme. RquA is very patchily distributed across eukaryotes and bacteria adapted to hypoxia. Phylogenetic analyses suggest lateral gene transfer (LGT) of rquA from bacteria to eukaryotes occurred at least twice and the gene was transferred multiple times amongst protists. We demonstrate that RquA functions in the mitochondrion-related organelles of the anaerobic protist Pygsuia and is correlated with the presence of RQ. These analyses reveal the role of gene transfer in the evolutionary remodeling of mitochondria in adaptation to hypoxia.

https://doi.org/10.7554/eLife.34292.001

Introduction

In aerobic eukaryotes, complexes I (CI) and II (CII) of the mitochondrial electron transport chain (ETC) oxidize reduced cofactors generated by the tricarboxylic acid (TCA) cycle (NADH and FADH2 respectively) and reduce the lipid-soluble electron carrier ubiquinone (UQ) to ubiquinol (UQH2). Complex III (CIII) oxidizes UQH2 and transfers electrons to cytochrome c oxidase (Complex IV, CIV; via cytochrome c) and eventually to O2, converting it to H2O (Figure 1A). In the process, CI, CIII, and CIV generate a proton gradient across the inner mitochondrial membrane that fuels oxidative phosphorylation of ADP to ATP by the F1-Fo ATP synthase (Complex V, CV). However, the ETCs of facultative anaerobes have adapted to function in the absence of oxygen by utilizing alternative terminal electron acceptors (Kita et al., 1988; Tielens, 1994; Müller et al., 2012). For example, in the adult stage of Ascaris suum, CIII and CIV are down-regulated but CI continues to oxidize NADH and pump protons (Sakai et al., 2012). In this organism, CI transfers electrons from NADH to the quinone, rhodoquinone (RQ), generating rhodoquinol (RQH2). RQH2 is reoxidized by CII functioning as a fumarate reductase (FRD), reducing fumarate to succinate. Thus, the adult Ascaris mitochondrial ETC is still able to generate a proton gradient to fuel ATP synthesis, even in the absence of oxygen (Figure 1B). RQ is structurally similar to UQ but possesses an amino group instead of a methoxy group on the quinone ring (Figure 1B). The lower electron potential of RQ (−63 mV), compared to UQ (+100 mV), favors the FRD reaction (Castro-Guerrero et al., 2005). RQ has also been detected in other eukaryotes that experience hypoxia including Caenorhabditis elegans (Takamiya et al., 1999), parasitic helminths (Kita et al., 1988; Van Hellemond et al., 1996), Euglena gracilis (Castro-Guerrero et al., 2005) and Nyctotherus ovalis (Boxma et al., 2005). However, the presence of RQ in mitochondria or related organelles of other anaerobic eukaryotes has not been established.

Structure and function of ubiquinone and rhodoquinone in mitochondria.

(A) Under aerobic conditions, electrons from NADH or succinate (Suc) are shuttled to ubiquinone (UQ) via Complex I (I) or Complex II (II) respectively to generate NAD (NAD+), fumarate (fum) and ubiquinol (UQH2). The electron transfer via Complex I fuels the transport of protons from the mitochondrial matrix into the intermembrane space (IMS). Electrons from UQH2 are transferred to Complex III, cytochrome c, and ultimately O2 via Complex IV with the concomitant pumping of protons. Complex V (V) uses this proton gradient to synthesize ATP. (B) In anaerobic eukaryotes, electrons from NADH are shuttled to rhodoquinone (RQ) to generate rhodoquinol (RH2). The RQ pool is regenerated via CII functioning as a fumarate reductase.

https://doi.org/10.7554/eLife.34292.002

Mitochondrion-related organelles (MROs) are specialized mitochondria found in anaerobic protistan lineages that have evolved to function in low oxygen conditions (Stairs et al., 2015). The properties of MROs vary between organisms ranging from the simple ‘mitosomes’ of Giardia intestinalis, that appear to function solely in iron-sulfur (Fe-S) cluster generation, to the ‘hydrogenomes’ of Trichomonas vaginalis, or ‘hydrogen-producing mitochondria’ of Nyctotherus ovalis that couple ATP generation to hydrogen production (for review see Stairs et al., 2015Müller et al., 2012). Of the various adaptations to anaerobiosis, the reduction or remodeling of the respiratory chain is of central importance to the ATP-generating function of the resulting organelles. Some anaerobic protists have completely lost all components of the respiratory chain, while others have maintained all or parts it (Stairs et al., 2015;Gawryluk et al., 2016). While RQ has been proposed to function as an electron carrier in the respiratory chains of some of these protists (Müller et al., 2012; Gawryluk et al., 2016), the presence of RQ has not been described. Recently, biochemical and genetic investigations of the alphaproteobacterium Rhodospirillum rubrum have demonstrated that UQ is a precursor to RQ (Brajcich et al., 2010), and that a putative methyltransferase (since named RquA) is essential for RQ biosynthesis and anaerobic growth (Lonjers et al., 2012). Here, we explore the distribution, evolutionary origins of RquA and RQ in microbial eukaryotes.

Results

The phylogenetic distribution of rquA

RquA homologs were retrieved from various publicly available databases using the Rhodospirillum rubrum sequence as the query in sequence similarity searches. We retrieved a total of 182 sequences from unique taxonomic units (i.e., NCBI taxonomy ID) and reduced this dataset to 166 sequences based on a sequence identity cutoff of less than 90%. The rquA gene is extremely rare in bacteria and eukaryotes, and we could not identify homologs in any publicly available archaeal genomes. RquA genes are found among sparse representatives of only seven different orders of alpha-, beta- and gammaproteobacteria (Burkholderiales, Magnetococcales, Neisseriales, Rhizobiales, Rhodobacteriales, Rhodocyclales and Rhodospirillales). To investigate the phyletic distribution of rquA in alphaproteobacteria specifically, we performed a phylogenomic analysis of rquA-containing genomes and their rquA-lacking relatives (discussed below).

Within eukaryotes, we identified rquA homologs in 24 representatives of four of the five super-groups of eukaryotes (Obazoa, Amoebozoa, Sar, and Excavata; Supplementary file 1). The gene could not be found in the vast majority of eukaryotic genomes and transcriptome surveys available on Genbank (summarized in Supplementary file 1). Note that the absence of rquA in some of these data (particularly the transcriptomes) may be due to a lack of depth of sequence sampling. Within breviates, we identified rquA in Pygsuia biforma, but not in its close relatives, Breviata anathema and Lenisia limosa, despite the ample genomic and transcriptomic data available for the latter (Hamann et al., 2016). We identified spliceosomal introns in the rquA genes in eukaryotic taxa for which genomic records were available (i.e., Proteromonas lacertae, Mastigamoeba balamuthi, Brevimastigomonas motovehiculus, Reticulomyxa filosa, and all the Blastocystis subtype genomes) indicating that these are in fact eukaryotic sequences and not prokaryotic contaminants (Figure 2—figure supplement 1). The Proteromonas and Blastocystis rquA gene sequences showed conservation of intron position and size. But none of the other eukaryotic rquA gene sequences (for which genomic sequence was available) shared intron positions. We did identify a potential contaminating sequence in the mollusk Aplysia (Bioproject:PRJNA77701, Accession number:GBCZ01101516). This homolog was 89% identical to the Neoparamoeba amino acid sequence and could derive from a Neoparamoeba-related parasite present in the Aplysia tissue. Indeed, we were able to identify small subunit sequence (GBCZ01078303.1) that is 93% identical to Neoparamoeba aestuarina in this sequencing project. For this reason, we excluded the latter from all subsequent analyses. Despite the presence of RQ in some animals (e.g., A. suum and C. elegans) we were unable to detect homologues of rquA in these genomes.

Phylogenetic analysis of bacterial and eukaryotic RquA homologs

Preliminary phylogenetic analyses showed that prokaryotic and eukaryotic RquA homologs formed a maximally supported clade that emerged from within a group of bacterial ubiquinone/menaquinone biosynthesis C-methyltransferase proteins (Supplementary file 2, tree 1). To explore the evolutionary history of this protein, the dataset was reduced to include only the RquA sequences for subsequent analyses (Figure 2, Supplementary file 2, tree 2). The deepest split in the RquA clade as shown is between two distinct groups of homologs (here referred to as Group A and B) composed of prokaryotic and eukaryotic sequences of mixed taxonomic affinities (Figure 2, Supplementary file 2, tree 2). This split receives maximal support in both ML and Bayesian analyses in the unrooted RquA tree (Figure 2, Supplementary file 2, tree 2), as well as the larger analysis (Supplementary file 2, tree 1).

The Group A clade comprises sequences from alphaproteobacteria, betaproteobacteria and metagenome samples, as well as five distinct eukaryote lineages (the breviate Pygsuia, the stramenopiles Blastocystis and Proteromonas, three amoebozoans Mastigamoeba, Copromyxa and a Neoparamoeba + Paramoeba group, euglenids and the rhizarian Brevimastigamonas). Group B contains alpha-, beta- and gammaproteobacterial homologs, candidate phylum radiation (CPR) bacterial sequences and four independent lineages of eukaryotes (the opisthokont Monosiga ovata, a ciliate clade, a diatom group and a rhizarian amoebae group). Although some branches within Group A and Group B subtrees were weakly supported by bootstrap analysis and posterior probabilities, other features appeared somewhat more robust.

In Group A, Blastocystis + Proteromonas (gut stramenopile protists) grouped strongly with the parasitic amoebozoan Neoparamoeba + Paramoeba clade and the euglenids, despite the fact that none of these lineages are closely related in the tree of eukaryotes (i.e. they branch from within the three fundamental eukaryotic ‘mega-groups’ of Diaphoretickes, Amorphea and Excavata respectively). A weakly supported sister group to this eukaryotic subtree was formed by a clade of homologs from six metagenome assembled genomes (MAGs) from a human gut metagenome study (Nielsen et al., 2014). These appear to be a subgroup of the Rhodospirillales alphaproteobacteria (see below and Figure 2—figure supplement 2), that we henceforth refer to as ‘MAG Azo/Aceto’ alphaproteobacteria. All other eukaryotes in Group A branch in distinct positions in the A-subtree, with very poor support in the backbone of the tree. The breviate Pygsuia, the rhizarian Brevimastigamonas and the amoebozoans Mastigamoeba and Copromyxa were also weakly excluded from the above eukaryote + ‘MAG Azo/Aceto’ alphaproteobacteria grouping; each of these instead branched independently amongst bacterial groups in Group A. Group B was similarly poorly resolved, although a number of branches separating the eukaryote groups from each other did receive ultrafast bootstrap support of >90% (Figure 2).

Figure 2 with 3 supplements see all

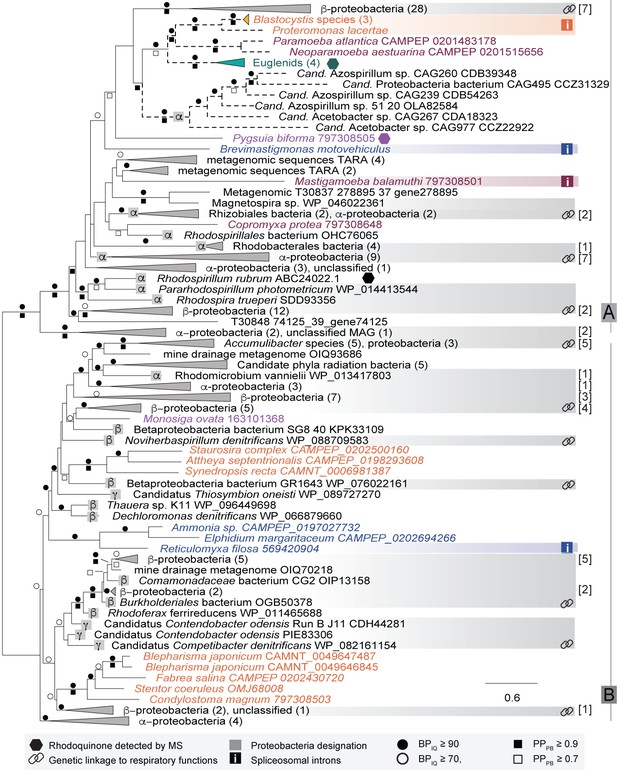

Maximum-likelihood phylogeny of RquA proteins constructed from an alignment of homologs from 166 organisms and 197 aligned sites.

Eukaryotic proteins are coloured based on their phylogenetic affiliations: Obazoa (purple), Stramenopiles-Alveolata (orange), Excavata (green), Amoebozoa (magenta) and Rhizaria (blue). Hexagons represent taxa where RQ has been detected experimentally. Proteobacterial designations (α,β,γ) are indicated in the grey squares. Genetic linkage of rquA and genes related to respiratory function (complex I-IV, cytochrome c metabolism, or heme metabolism) are shown with chain-links and detailed in Supplementary file 1. When these indications are in a collapsed node, the number of genomes showing linkage are shown in brackets. Bootstrap values (or posterior probability) greater than 70 (0.7) and 90 (0.9) are shown with open circles (squares) or closed circles (squares) respectively. The presence of spliceosomal introns in the eukaryotic sequences are indicated with ‘i' in a box. Dashed branches were made shorter by 50% to facilitate visualization.

https://doi.org/10.7554/eLife.34292.003

We tested if several phylogenetic hypotheses could be significantly rejected by the data using approximately unbiased (AU) topology tests (Shimodaira, 2002) (Table 1, Supplementary file 2, trees 3–21). The first set of tests focused on the separate branching positions of eukaryotes in the overall RquA tree. A topology in which Group A and B eukaryotes were constrained to form a single clade in the tree to the exclusion of the bacterial sequences was strongly rejected (p-value = 3×10−37, Table 1, Supplementary file 2, tree 2). We further tested topologies constraining the monophyly of each of the major lineages of eukaryotes coloured in Figure 2 including: stramenopiles + alveolates (SA), stramenopiles + alveolates + rhizarians (SAR), opisthokonts + breviates, amoebozoans, Amorphea, Rhizaria, and Diaphoretickes. All topologies, except monophyletic amoebozoans (found only in Group A) were rejected with p-values < 0.05 (Table 1, Supplementary file 2 trees 2–15). Tests of relationships within Group A or within Group B separately revealed that monophyletic eukaryotes in each subtree could not be rejected if each were constrained one at a time (p-value = 0.253 for Group A eukaryote monophyly and p-value = 0.179 for Group B eukaryote monophyly).

Table 1
Approximate unbiased topology tests for RquA analyses.
https://doi.org/10.7554/eLife.34292.007
Monophyly TestedTree fileCONSEL p-AUa
Group A and Group B
Maximum likelihood treeFigure 2; Supplementary file 2 - tree 20.743
Group A eukaryotes + Group B
eukaryotes
Supplementary file 2 - tree 33.00E-37***
Group A1 eukaryotes: Blastocystis, Proteromonas,
Neoparamoebids, Euglenids, Pygsuia
Supplementary file 2 - tree 40.622
Group A1 eukaryotes + BrevimastigamonasSupplementary file 2 - tree 50.46
Group A1 eukaryotes + Brevimastigamonas
+ Mastigamoeba
Supplementary file 2 - tree 60.294
Group A eukaryotesSupplementary file 2 - tree 70.253
Group B eukaryotesSupplementary file 2 - tree 80.179
Obazoa (Pygsuia + Monosiga)Supplementary file 2 - tree 90.002**
Amoerphea (Obazoa + Amoebozoa)Supplementary file 2 - tree 101.00E-32***
AmoebozoaSupplementary file 2 - tree 110.206
Stramenopiles + AlveolatesSupplementary file 2 - tree 120.004**
Stramenopiles + Alveolates +
Rhizaria (SAR)
Supplementary file 2 - tree 130.034*
Diaphoretickes
(SAR + Euglenids)
Supplementary file 2 - tree 140.018*
RhizariaSupplementary file 2 - tree 151.00E-60***
Eukaryotes + MAG
alphaproteobacteria
Supplementary file 2 - tree 162.00E-41***
Group A eukaryotes + MAG
alphaproteobacteria
Supplementary file 2 - tree 170.227
AlphaproteobacteriaSupplementary file 2 - tree 185.00E-34***
Eukaryotes + alphaproteobacteriaSupplementary file 2 - tree 198.00E-43***
Group A eukaryotes +
Group A alphaproteobacteria
Supplementary file 2 - tree 203.00E-31***
Group B eukaryotes +
Group B alphaproteobacteria
Supplementary file 2 - tree 214.00E-05***
Group A
Maximum likelihood treeSupplementary file 3 - tree 10.892
EukaryotesSupplementary file 3 - tree 20.225
AmoebozoaSupplementary file 3 - tree 30.315
Pygsuia + Amoebozoa (Amorphea)Supplementary file 3 - tree 40.22
Eukaryotes + alphaproteobacteriaSupplementary file 3 - tree 53.00E-59***
Eukaryotes + MAG
alphaproteobacteria
Supplementary file 3 - tree 60.226
Group B
Maximum likelihood treeSupplementary file 4 - tree 10.827
EukaryotesSupplementary file 4 - tree 20.081
Stramenopiles + AlveolatesSupplementary file 4 - tree 30.287
SARSupplementary file 4 - tree 40.281
Eukaryotes + alphaproteobacteriaSupplementary file 4 - tree 52.00E-75***
  1. aitalicized values indicate topologies that could not be rejected (p<0.05).

    * 0.05 > p > 0.01

  2. ** 0.01 > p > 0.001

    *** p < 0.001

Given that rquA is found in many different alphaproteobacteria, one possible explanation for the origin of these genes in these protists is that they were introduced into eukaryotes by the endosymbiotic alphaproteobacterial progenitor of mitochondria. A number topology tests were conducted to address this possibility. We first tested the monophyly of alphaproteobacteria as a whole (Supplementary file 2, tree 18) and found this was firmly rejected (p-value = 5×10−34), confirming our observation that alphaproteobacteria were phylogenetically interspersed throughout the RquA tree. We then tested: (i) the monophyly of eukaryotes + all alphaproteobacteria, (ii) the monophyly of all Group A eukaryotes + all Group A alphaproteobacteria, and the monophyly of all Group B eukaryotes + all Group B alphaproteobacteria. All of these topologies were rejected with p-values < 0.01 (Supplementary file 2, trees 18–21). However, a topology containing a clade of all Group A eukaryotes + ‘MAG Azo/Aceto’ alphaproteobacteria was not rejected (p-value = 0.227; Supplementary file 2, tree 17).

To improve resolution of the RquA phylogeny by including more aligned sites, we analyzed Groups A and B independently (Supplementary file 3, Tree 1; Supplementary file 4, Tree 1). As in the full dataset analysis, all eukaryote lineages in each of Group A and B did not form single monophyletic groups and showed similar branching patterns to the full analysis. However, tests did not reject topologies constraining eukaryotes to form higher-order clades within each group (Table 1). Like in the full data set analysis, the Group A eukaryotes + ‘MAG Azo/Aceto’ alphaproteobacteria topology was not rejected, but the Group A eukaryotes + all Group A alphaproteobacteria (including the MAGs) topology was strongly rejected (p-value = 3×10−59). For Group B there were no alphaproteobacterial lineages particularly close to the eukaryotes in the phylogeny; eukaryotes tend to group with disparate betaproteobacteria in different parts of Group B). The test of a topology containing a clade of Group B eukaryotes + all Group B alphaproteobacteria resulted in strong rejection (p-value = 2×10−75).

The distribution of rquA amongst alphaproteobacteria

To further investigate whether Group A or Group B eukaryotic rquA homologs originated from the alphaproteobacterial mitochondrial endosymbiont, we investigated the representation and phylogenetic distribution of available rquA-containing alphaproteobacterial genomes. We assembled a phylogenomic matrix of 200 conserved ‘core’ proteins from the alphaproteobacteria (Wang and Wu, 2013) to place the rquA-containing alphaproteobacterial taxa from our analyses within the context of a representative alphaproteobacterial species tree. Note that the matrix was assembled in such a way to always represent rquA-containing taxa, with the remainder of alphaproteobacterial taxa sub-selected from available genomes to maximize diversity. A maximum likelihood phylogeny estimated from this matrix shows that rquA-encoding alphaproteobacterial genomes are patchily distributed, emerging as numerous isolated groups within several orders of the alphaproteobacteria (Figure 2—figure supplement 2). Group A- and Group B-containing taxa are interspersed. Genomes encoding the gene are extremely rare within the alphaproteobacterial orders. Five alphaproteobacterial orders (Rickettsiales, Holosporales, Pelagibacterales, Sphingomonadales, and Caulobacterales) had no rquA-containing taxa (out of a total of 455 genomes examined). The remaining three orders had rquA-containing taxa in 7 out of 514 (Rhizobiales), 6 out of 513 (Rhodobacterales) and 21 out of 217 (Rhodospirillales). The rquA-encoding ‘MAG Azo/Aceto’ alphaproteobacteria branch from within the Rhodospirillales as sister to another rquA-containing group. It is notable that these latter taxa branch separately the RquA phylogeny (Figure 2).

Genomic context and primary sequence analysis of RquA

To determine if rquA is genetically linked to other potential RQ biosynthesis genes, the genomic context of rquA in the various bacterial genomes was investigated (chain link icons in Figure 2, Supplementary file 1). RquA genes do not appear to be located near genes encoding other hypothetical proteins or candidate quinone biosynthesis enzymes. However, in many of the bacterial genomes, rquA is encoded close (i.e., within 15 genes) to the genes encoding respiratory complexes (e.g., complex I, II, or III), respiration-associated functions (e.g., cytochrome, ubiquinone, and heme biosynthesis) (Figure 2, Supplementary file 1), and/or anaerobiosis-associated proteins (e.g., [NiFe]-hydrogenase, nitrate reductase, [FeFe]-hydrogenase). The genetic proximity we observed between rquA and genes encoding CII and other respiratory subunits suggests they could be transcriptionally linked in an operon in these bacteria. Furthermore, in 12 of these bacteria, there is second frd/sdh operon located elsewhere in the genome suggesting that a different complex might be expressed under low versus high oxygen conditions, as was shown for E. coli (Jones and Gunsalus, 1985) and Ascaris suum (Iwata et al., 2008).

Examination of the primary sequence of the bacterial and eukaryotic RquA homologs suggest that these proteins belong to a family of Class I S-adenosyl methionine (SAM) methyltransferases, which includes the UQ methyltransferases UbiE (pfam08241). A survey of methyltransferases identified four distinct motifs common to most class I SAM methyltransferases (motif I, motif post-I, motif II and motif post-II) that are crucial for protein folding and SAM binding (Petrossian and Clarke, 2009). While three of these motifs are conserved in RquA sequences, the SAM-binding motif I is different when compared to other Class I SAM-methyltransferases (Figure 2—figure supplement 3). Like the bacterial RquA sequences discussed by Lonjers and colleagues (Lonjers et al., 2012), the eukaryotic RquA sequences have substitutions in key SAM binding sites (Figure 2—figure supplement 3).

The distribution of quinone-utilizing enzymes in eukaryotes

RQ is known to function as an electron carrier between complex I, complex II and other UQ-utilizing enzymes such as electron transferring flavoprotein dehydrogenase (Ma et al., 1993). If RquA is in fact synthesizing RQ in the eukaryotes presented here, then these organisms must encode at least two types of RQ-utilizing enzymes: those that reduce RQ and others that reoxidize it. To test this hypothesis, we searched for genes encoding the following quinone-utilizing enzymes that could possibly interact with RQ in the rquA-containing eukaryotic genomes and transcriptomes: the respiratory complexes (CI, CIII); quinone biosynthesis enzymes, COQ1-7; alternative oxidase (AOX); dihydroorotate dehydrogenase (DHOD); electron transferring flavoprotein system (ETF) (made up of ETFα and β; ETF dehydrogenase, ETFDH); glycerol-3-phosphate dehydrogenase (G3PDH); and sulfide:quinone oxidoreductase (SQO). All rquA-containing eukaryotes including the MRO-containing protists (e.g., Pygsuia, Mastigamoeba and Blastocystis) possess at least CII and ETF as well as up to four other quinone-utilizing complexes (Figure 3; Supplementary file 1). Whereas most aerobic model system eukaryotes possess the majority of these Q-utilizing systems in their mitochondria (Marreiros et al., 2016), the anaerobic protists that completely lack them, such as Giardia intestinalis, Trichomonas vaginalis and Entamoeba histolytica, also lack rquA (Figure 3).

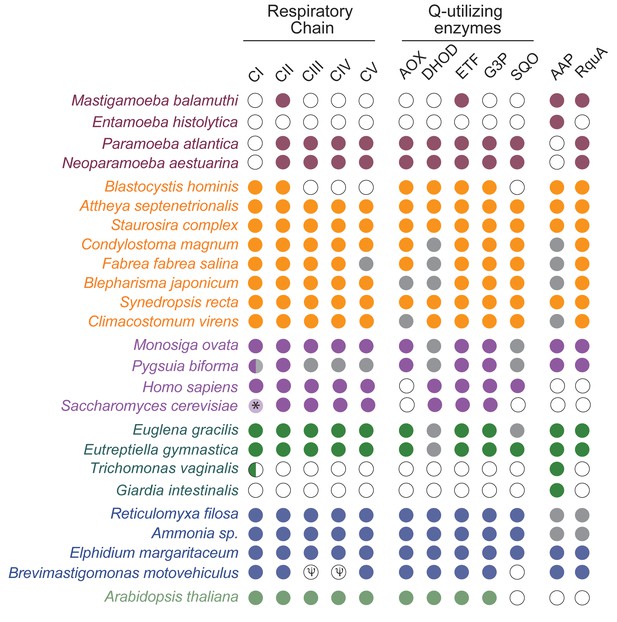

RquA co-occurs with quinone-utilizing enzymes.

Eukaryotic genomes and transcriptomes were surveyed for homologs of respiratory chain components (Complexes I-V, CI-CV), alternative oxidase (AOX), dihydroorotate dehydrogenase (DHOH), electron-transferring flavoprotein system (ETF), glycerol-3-phosphate dehydrogenase (G3P), sulfite:quinone oxidoreductase (SQO), RquA, and one or more anaerobiosis-associated protein (AAP; detailed in Supplementary file 1). Grey and white circles indicate that homologs were not detected in transcriptome and genome sequence data respectively. Half circle in CI for Pygsuia biforma and Trichomonas vaginalis indicates only two subunits (NUOE and NUOF) were identified. ‘ψ ‘indicates pseudogenes.

https://doi.org/10.7554/eLife.34292.011

Subcellular localization of RquA and RQ production in Pygsuia biforma

In many eukaryotes, UQ biosynthesis occurs in the mitochondrion (Tran and Clarke, 2007), and since UQ is a known precursor to RQ in R. rubrum (Brajcich et al., 2010) it is possible that RQ biosynthesis (and therefore RquA) would also be localized to mitochondria (or MROs). To test if eukaryotic RquA homologs could function in mitochondria, we evaluated the presence of N-terminal mitochondrial targeting signals (MTS) using publically available software tools (Claros and Vincens, 1996; Emanuelsson et al., 2000; Fukasawa et al., 2015). Each eukaryotic sequence that was full-length had a predicted MTS by at least two of these predictors (Supplementary file 1). To experimentally test these predictions, we used spinning-disk confocal microscopy to localize RquA by indirect immunofluorescence microscopy in the anaerobic protist Pygsuia biforma. The immunofluorescence detection of RquA using antibodies raised against Pygsuia RquA produced puncta that co-localized with the mitochondrion-reactive stain MitoTracker in Pygsuia (Figure 4, Figure 4—figure supplement 1), which indicates this protein functions in the MROs of this organism.

Figure 4 with 3 supplements see all

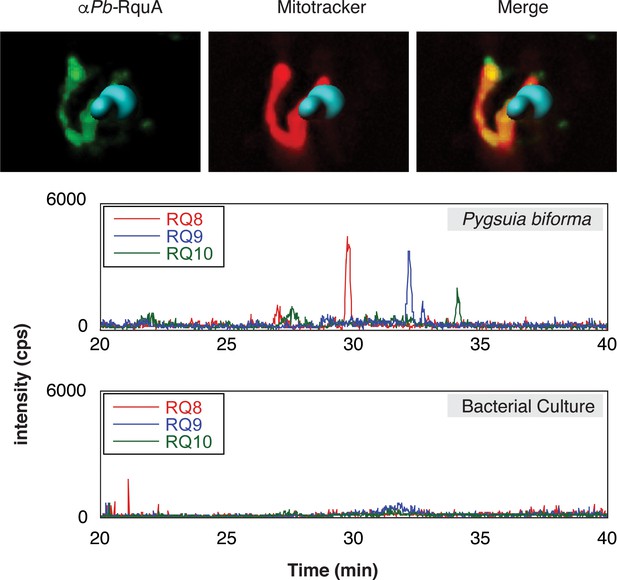

Subcellular localization of RquA and rhodoquinone production in Pygsuia biforma.

(A) Antibodies raised against RquA (green) colocalized with MitoTracker (red). Confocal slices (0.3 μm) were deconvoluted (using a constrained interative algorithm) and combined to render a 3D image. DAPI stained nuclei (blue) were volume rendered in Imaris for clarity. (B) Lipid extracts were separated by liquid chromatography and analyzed with selected-reaction monitoring mass spectrometry. Rhodoquinone species eluted from the column in roughly 3 min intervals as chain length increases (RQ8-10). Diagnostic product ions corresponding to the rhodoquinone head group (182.1 m/z) following fragmentation of parent ions were detected.

https://doi.org/10.7554/eLife.34292.012

To test whether the presence of rquA in Pygsuia correlates with the production of RQ, we examined its quinone content by selected-reaction monitoring (SRM) mass spectrometry. We first determined the high-performance liquid chromatography retention times and fragmentation patterns of different isoprenylated states of rhodoquinone and ubiquinone (e.g., RQ3, RQ8-10, and UQ8-10; Figure 4, Figure 4—figure supplement 2). With these parameters determined, we investigated the lipid components of Pygsuia biforma (grown with a mixed culture of prokaryotes) and the prokaryote community (grown without Pygsuia). In the first community, but not the second, we observed three species that correlated with the retention times and fragmentation profiles of RQ8-10 (Figure 4, Figure 4—figure supplement 3) suggesting that Pygsuia biforma synthesizes RQ.

Discussion

Origin of RquA and rhodoquinone biosynthesis

The ability to produce RQ and use fumarate as a terminal electron acceptor in the mitochondrial ETC appears to be an adaptation to low-oxygen conditions that is present in many independent eukaryote lineages. Our examinations of publicly available genome and transcriptome sequence data, revealed genes encoding the RQ biosynthesis protein RquA in multiple, and yet sparsely distributed, lineages of eukaryotes and bacteria. Our preliminary phylogenetic analysis revealed that all RquA homologs evolved from within a larger clade of proteobacterial Class I SAM-dependent methyltransferases. The closest homologs of RquA are, in fact, members of the UQ biosynthesis pathway. Interestingly, previous reports have demonstrated that RQ is synthesized from UQ, and not a precursor of UQ in R. rubrum (Brajcich et al., 2010). Therefore, it seems plausible that RquA originally evolved from a family of proteins already capable of binding UQ or similar molecules and eventually gained a new enzymatic activity to function in RQ biosynthesis.

Within the eukaryote domain, interactions between redox proteins and RQ have only been investigated in detail in Ascaris suum, Caenorhabditis elegans, and Euglena gracilis (Kita et al., 1988; Takamiya et al., 1999; Hoffmeister et al., 2004; Castro-Guerrero et al., 2005). While rquA is found in the transcriptome of E. gracilis, we could not detect homologs in the genomes of A. suum, C. elegans or closely related helminths and nematodes. This suggests that the RQ biosynthesis pathway of these metazoans may not be related to the RquA-based system and that these organisms have convergently evolved the capacity to synthesize and utilize RQ in adaptation to hypoxia.

Eukaryotic RquA likely functions in mitochondria

The terminal steps of UQ biosynthesis typically occur in mitochondria (Tran and Clarke, 2007). Assuming that UQ is a precursor of RQ (Brajcich et al., 2010), RQ biosynthesis could also occur in the mitochondrion or MROs of eukaryotes. However, not all of the eukaryotes shown to have rquA have the genetic repertoire necessary for endogenous UQ biosynthesis (Supplementary file 1). While the exact mechanisms of how exogenous UQ is transported into model eukaryotic cells is unknown (Padilla-López et al., 2009), studies have demonstrated that mouse cells preferentially incorporate exogenously supplied UQ into mitochondrial membranes (Lapointe et al., 2012). We propose that these heterotrophic protists obtain UQ from their bacterial prey, and convert this UQ to RQ by RquA in their MROs.

All of the eukaryotic homologs of RquA with complete N-termini have predicted mitochondrial targeting signals suggesting mitochondrial localization (Supplementary file 1). These predictions were experimentally validated for Pygsuia biforma using immunofluorescence microscopy; RquA localizes to the MRO in these cells (Figure 4). In model organisms, most of the enzymes that use UQ as an electron carrier are also found in mitochondria, such as CI, CII, alternative oxidase, and the electron transferring flavoprotein/dehydrogenase system (Wang and Hekimi, 2016). Interestingly, every eukaryotic organism that encodes RquA (including anaerobes with a reduced electron transport chain) also encodes CII and at least one other UQ-utilizing enzyme (minimally CII and ETF; Figure 3, Supplementary file 1). Since some of these proteins have been shown to interact with RQ in Ascaris suum (Ma et al., 1993; Iwata et al., 2008), it seems likely that the UQ-utilizing complexes of RquA-containing eukaryotes, are also capable of using RQ as a cofactor under certain conditions (i.e., anoxia).

The evolutionary history of RquA in bacteria

Our detailed analyses of the RquA phylogeny revealed that the relationships between sequences is incongruent with expected organismal relationships for both the eukaryotes and bacteria. RquA is extremely rare and patchily distributed over the backbone phylogeny of the groups of organisms in which it is found. Amongst bacteria, rquA is found in only 36 genomes of 2040 alphaproteobacteria, 59 out of 946 genomes of betaproteobacteria, and 2 out of 2493 genomes of gammaproteobacteria present in Genbank (September 2017). If one were to explain the bacterial rquA distribution by vertical inheritance alone, the gene would have had to have been present in the common ancestor of alpha-, beta- and gammaproteobacteria, and been lost potentially hundreds of times independently in the various members of the phyla that do not encode rquA. Our investigation of the phylogenetic distribution of rquA amongst alphaproteobacterial genomes specifically confirms this interpretation; the gene is extremely patchily distributed amongst orders of alphaproteobacteria and is completely absent from five of these orders. This is consistent with the rejection of alphaproteobacterial monophyly in the RquA phylogeny (Table 1). It is therefore extremely difficult to determine in which group of bacteria rquA might have originated. The ‘scrambled’ phylogenetic affinities amongst bacterial rquA homologs is a relatively common phenomenon for genes encoding enzymes in bacteria because of the high rate of LGT in prokaryotic genome evolution (Eisen, 2000; Ochman et al., 2000; Kunin and Ouzounis, 2003).

The evolutionary history of RquA in eukaryotes

The non-monophyly of all eukaryote RquA homologs coupled with the rarity and patchy distribution of the gene amongst eukaryotes (Figure 2) argues against a simple vertical inheritance explanation. Our topology tests clearly indicate that a single global eukaryotic rquA clade and any higher-order grouping of Group A and B eukaryote sequences are strongly rejected by the data. However, within Group A and Group B, the monophyly of eukaryotic homologs cannot be rejected. Therefore, at the very least, Group A and Group B rquAs were introduced as different genes into eukaryotic genomes. The presence of rquA in some alphaproteobacterial genomes makes an endosymbiotic origin of eukaryote rquA an attractive hypothesis. If both A- and B-types of rquA had an endosymbiotic origin and were strictly vertically inherited within eukaryotes, then the endosymbiotic progenitor of mitochondria must have encoded both types. This is improbable given that no bacterium or eukaryote currently known (out of 182 organisms possessing the gene) encodes both types. However, it is also possible that either Group A or Group B rquAs in eukaryotes had an endosymbiotic origin and the other type was later re-acquired by bacteria-to-eukaryote LGT after loss of the ancestral endosymbiotic type. Of the two types, Group A rquA seems to be a more likely candidate for a mitochondrial origin since a Group A eukaryotes + ‘MAG Azo/Aceto’ alphaproteobacteria clade is not rejected in RquA topology tests. However, there are several problems with this scenario. First, ‘MAG Azo/Aceto’ alphaproteobacteria are a subgroup emerging from within the Rhodospirillales alphaproteobacteria (Figure 2—figure supplement 2) and are not recovered as the sister group of mitochondria in recent phylogenomic analyses. Such analyses suggest that mitochondria are either related to the Rickettsiales (Wang and Wu, 2015) and/or Pelagibacteriales (Thrash et al., 2011), or emerge as an independent deep branch within alphaproteobacteria (Martijn et al., 2018 ). Since rquA is completely absent from Rickettsiales and Pelagibacteriales, and is very unlikely to be ancestral to alphaproteobacteria as a whole (Figure 2—figure supplement 2), a mitochondrial origin for eukaryotic homologs seems unlikely.

It is also improbable that either Group A or Group B rquA is ancestral to all eukaryotes. For example, if Group A rquA genes were ancestral to all eukaryotes, many parallel secondary loss events would have to be postulated. Considering the absence of the gene in genome sequence data of diverse eukaryotes (Sibbald and Archibald, 2017), the list of eukaryotic groups that would have to have lost A-type rquA includes multiple amoebozoan lineages except Mastigamoeba and neoparamoebids, lineages of stramenopiles besides Blastocystis and Proteromonas (e.g. diatoms, ochrophytes, oomycetes), lineages of Rhizaria besides Brevimastigamonas (e.g. Bigelowiella and Reticulomyxa), multiple Excavata lineages besides euglenids (e.g. Kinetoplastida, Metamonada, Heterolobosea), and the common ancestors of opisthokonts, apusomonads, alveolates, haptophytes, cryptophytes and Archaeplastida. The number of secondary losses required to explain Group B rquA as an ancestral eukaryotic gene is similarly large. Both secondary loss lists become considerably longer if the absence of the gene from transcriptomes of diverse eukaryotes (Sibbald and Archibald, 2017) (Supplementary file 1) is considered as evidence.

Collectively these lines of evidence suggest that neither A- nor B-types of rquA are of mitochondrial origin and neither were present in the last eukaryotic common ancestor. Instead, these observations are more consistent with an LGT-based explanation, especially given that all of the eukaryotes that possess rquA genes are either anaerobes or facultative anaerobes. Although the role of LGT in eukaryotes has recently been questioned (Ku et al., 2015; Martin, 2017), there is now abundant evidence for prokaryote-to-eukaryote and eukaryote-to-eukaryote LGT (Andersson, 2009; Jerlström-Hultqvist et al., 2013; Stairs et al., 2014; Karnkowska et al., 2016; Eme et al., 2017; Husnik and McCutcheon, 2018; Leger et al., 2018). An LGT scenario for rquA, would require at least two bacteria-to-eukaryote LGTs (minimally one for Group A and one for B) followed by events of eukaryote-to-eukaryote LGT within groups A and B (Figure 2). The scrambled phylogenetic relationships amongst the rquA-containing bacterial groups in the RquA tree makes it difficult to discern potential donors of eukaryotic rquAs. However, for the eukaryote sequences of the A-type, the affinities of the ‘MAG Azo/Aceto’ alphaproteobacteria to some of the eukaryotic sequences could implicate this gut-dwelling lineage of the Rhodospirillales as donors. This is particularly intriguing since the same genomes encode other enzymes of anaerobic metabolism including [FeFe]-Hydrogenase and its maturase enzymes HydE-G (Degli Esposti et al., 2016; Leger et al., 2016). Although several of these ‘MAG Azo/Aceto’ alphaproteobacterial homologs of hydrogenase metabolism show affinities to some (but not all) eukaryotic homologs, others appear to be more distantly related to eukaryotes (and to each other) suggesting multiple independent origins by LGT (see supplementary figures S3-S6 from Leger et al., 2016). We propose that the ‘MAG Azo/Aceto’ alphaproteobacteria acquired the hydrogen and rhodoquinone metabolism genes from other anaerobic bacteria relatively recently in a series of LGT events.

In any case, after the initial lateral transfer of A- and B-type genes into recipient eukaryotes, the rquA sequences must then have acquired mitochondrial targeting sequences (MTS). The subsequent transfers of MTS-containing rquA genes between different eukaryotes could then have allowed them to adapt their mitochondrial ETCs to low-oxygen conditions. Additional data from more eukaryotic and prokaryotic taxa harbouring rquA (perhaps from metagenomic investigations of low-oxygen environments) should improve the resolution of the phylogeny and will allow the relative merits of the various evolutionary origin scenarios to be re-assessed in future.

RquA function and the ‘transferability’ of RQ biosynthesis between organisms

The role and enzymatic activity of RquA in this reaction is currently unclear. Lonjers et al. (2012) outline three hypotheses for the role of RquA in RQ biosynthesis. The first hypothesis is that RquA could serve a regulatory role in the expression of currently unknown RQ biosynthesis proteins. Since the vast majority of mitochondrial proteins (and all of those involved in quinone biosynthesis) are encoded by nuclear genes and we have shown that RquA functions in mitochondria, it is unlikely that RquA has a role in regulating the expression of such genes in the nucleus (although it could participate in post-transcriptional, or post-translational regulation).

A second hypothesis is that UQ and RQ are synthesized by different multi-enzyme complexes in R. rubrum that share some components. Therefore, the removal of one of these components (RquA) results in a non-functional complex in their rquA knockout experiments. This is based on the observation that some components of the yeast UQ biosynthesis complex are necessary for stabilization of the complex independent of their catalytic role (Baba et al., 2004). If this were the case for RQ biosynthesis, one would expect all organisms that encoded RquA would also have to encode UQ biosynthesis proteins. However, many of the eukaryotes that encode RquA do not encode any components of the UQ biosynthesis pathway (Supplementary file 1). These organisms either synthesize UQ by an unknown mechanism, or rely on exogenous sources of UQ as discussed above. It is therefore very improbable that RquA serves to stabilize a UQ/RQ biosynthesis complex.

The final hypothesis is that RquA is directly involved in catalyzing the conversion of UQ to RQ. Since RquA is related to the quinone biosynthesis enzyme UbiE/Coq5 (Supplementary file 2, tree 1), RquA very likely can bind to UQ-like molecules. Although it is tempting to suggest that RquA directly converts UQ to RQ in one step, no enzyme is known that catalyzes a one-step amino-transfer reaction with a methoxy leaving group. It seems more plausible that either: (i) RquA alone catalyzes a multi-step reaction sequence, or, (ii) is one enzyme in a multi-step pathway involving at least a demethylation step followed by an amino-transfer reaction. We were unable to find any other enzyme with the same restricted phylogenetic distribution as rquA amongst bacterial or eukaryotic homologs using phylogenetic profiling (i.e., assessing co-presence of genes within rquA-containing but not rquA-lacking organisms). Therefore, it seems likely that, if option (ii) were correct, another broadly-conserved enzyme with a different main biochemical function in bacteria and in mitochondria could, as a moonlighting side-reaction, catalyze a step of RQ biosynthesis. Under either of these scenarios, then, the lateral transfer of the rquA gene could, in principle, confer on the recipient the ability to convert UQ to RQ. Clearly, further experimental work will be needed to test these hypotheses.

Remodeling of the electron tansport chain

Some of us have previously advanced a hypothetical scenario that proposes evolutionary steps by which the diverse types of anaerobic mitochondrion-related organelles might have evolved in protistan lineages adapted to transient or permanent hypoxia from predominantly aerobic ancestors (Stairs et al., 2015). The acquisition of rquA by LGT as described herein, was a key early step in these transitions; the selective benefit of this acquisition seems relatively clear. For example, assuming that the ancestral mitochondrial metabolism of many aerobic protistan groups resembled that of modern model system eukaryotes (Figure 5, ‘aerobic mitochondria’), it is likely that they would occasionally encounter transient low-oxygen conditions regardless of whether they are in marine, freshwater, or terrestrial environments. During transient exposure to anoxia, it is known from model systems that CIII and CIV fail to function efficiently and are downregulated (Vijayasarathy et al., 2003; Fukuda et al., 2007). Furthermore, under hypoxic conditions (e.g., in ischemia-reperfusion injury or solid tumours), shifts in mitochondrial metabolism occur: reduced UQ (UQH2) builds up because of the lack of CIII/CIV activity, the NADH/NAD + ratios increase as CI throughput is repressed, and part of the TCA cycle reverses (Tomitsuka et al., 2010; Chouchani et al., 2014). Under these conditions, malate is imported from the cytosol (or produced in mitochondria) and is converted to fumarate by fumarase. At sufficiently high UQH2 and fumarate concentrations, CII will function in fumarate reduction to regenerate UQ (Ackrell et al., 1993) and succinate. This ‘NADH:fumarate reductase system’ allows CI to continue to function to pump protons and oxidize NADH (Tomitsuka et al., 2010). Under these conditions, however, it is known that CI and CII produce high levels of toxic reactive oxygen species (ROS) Tomitsuka et al., 2010; Chouchani et al., 2014. Thus, if an organism frequently encountering these low-oxygen conditions were to acquire rquA by LGT and express the gene, the organism would able to synthesize and utilize low electron potential RQ as an electron carrier. RQ would greatly enhance the efficiency of the LGT recipient’s NADH:fumarate reductase system leading to an increase in proton pumping of CI, restoration of ATP synthesis and decreased ROS production.

The interactions of rhodoquinone with other mitochondrial redox reactions in different eukaryotes with mitochondrion-related organelles.

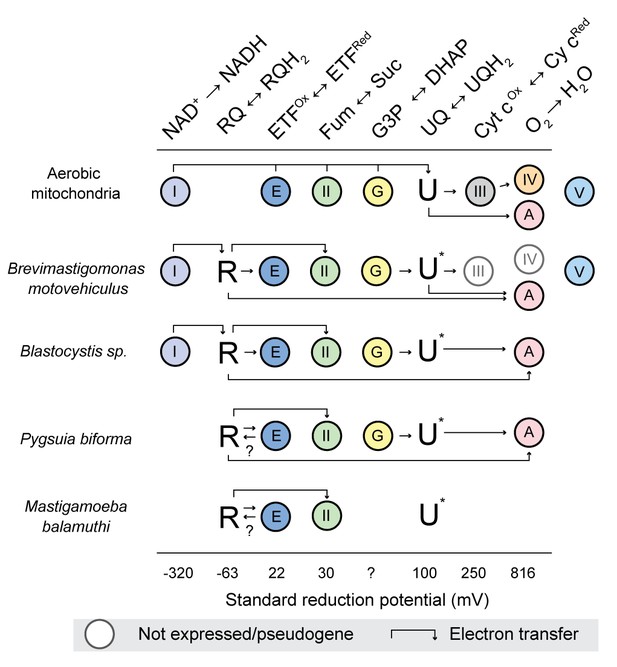

Standard reduction potentials for each major reaction involved in rhodoquinone (R)) and ubiquinone (U) metabolism are shown in increasing order of potential. Half reaction equations are detailed in supplementary file 1. The electron transfer is more favourable when passed to a species with a more positive standard reduction potential (i.e. from left to right). Abbreviations: I, Complex I; II, Complex II; III, Complex III; IV, Complex IV; V, Complex V; E, electron transferring flavoprotein dehydrogenase; G, glycerol-3-phosphate (G3P) dehydrogenase; A alternative oxidase; Fum, fumarate; Suc, succinate; DHAP, dihydroxyacetone phosphate; and Cyt c, cytrochrome c. U* Indicates that the involvement of ubiquinone is unknown, ? indicates the direction of electron transfer is unknown. Absence of a circle indicates that no homologs were detected in the organism. Genes undergoing pseudogenization are shown in white cirlces.

https://doi.org/10.7554/eLife.34292.016

The foregoing scenario is likely why rquA was retained after acquisition by protists with canonical mitochondria that can function aerobically and anaerobically such as Euglena (Hoffmeister et al., 2004; Castro-Guerrero et al., 2005) and a number of the ciliates (Figure 2). We propose that the acquisition of rquA is likely one of the first steps in the evolution of anaerobic MROs found in protists such as Brevimastigamonas, Blastocystis, Mastigamoeba, and Pygsuia. In these lineages, there has been further reductive evolution in their ETC, as they have adapted to thrive predominantly in hypoxic environments. For example, CIII and CIV of the electron transport chain of the recently described rhizarian anaerobe Brevimastigamonas motovehiculus appears to be degenerating with components missing or becoming pseudogenes (Gawryluk et al., 2016). The parasites Blastocystis spp. have gone further in this reduction; they completely lack CIII-CV (Lantsman et al., 2008; Stechmann et al., 2008; Gentekaki et al., 2017) and therefore none of their ATP is produced by oxidative phosphorylation. The most reduced ETCs amongst organisms with RquA occur in Pygsuia biforma and Mastigmoeba balamuthi (Figure 5), as both completely lack CI, CIII, CIV and CV. In the absence of CI, it is unclear how these two organisms can be reducing the oxidized RQ produced by CII. Most of their quinone-binding proteins typically catalyze redox reactions with reduction potentials far greater than RQ reduction and thus would be expected to oxidize RQH2 rather than do the opposite. One possibility is that the electron transferring flavoprotein (ETF)/ETF-dehydrogenase (ETF-DH) systems of these organisms (which usually function in fatty acid oxidation) are able to gain electrons by oxidizing reduced NADH. This could occur by electron bifurcation with butyryl-CoA dehydrogenase, as is known to occur in some bacteria (Chowdhury et al., 2014; Chowdhury et al., 2015). These bacterial ETF alpha and beta subunits can coordinate two FAD cofactors (instead of one as in mitochondrial ETF), allowing for electron bifurcation (Roberts et al., 1996; Chowdhury et al., 2015). An alternative possibility in Pygsuia is that NADH oxidation could be achieved by two remaining conserved subunits of CI, NuoE and NuoF (Stairs et al., 2015), working together with ETF/ETF-DH system. NuoE and F are thought to be involved in oxidation of NADH and ferredoxin in conjunction with [FeFe]-hydrogenase in many anaerobic protists to produce molecular hydrogen (Stairs et al., 2015; Hamann et al., 2016). In any case, if ETF could oxidize a low redox potential cofactor (e.g., NADH and/or ferredoxin), it could pass the electrons on ETF-DH (present in both Pygsuia and Mastigameoba) that could replenish the RQH2 pool in these organisms (shown by arrows in Figure 5). Biochemical studies of the ETCs in these anaerobic protists will be critical to test these hypotheses.

Conclusions

The gene encoding RquA, an enzyme required to synthesize RQ, was likely transferred from bacteria to various eukaryote lineages by multiple independent events of LGT, well after the establishment of mitochondria within eukaryotes. RquA was then subsequently transferred between some eukaryotes via LGT, although the directions of these transfers cannot be easily discerned. Regardless, these LGTs likely conferred the ability to biosynthesize RQ in mitochondria, making it possible for complex II to efficiently reduce fumarate to succinate, allowing the recipient eukaryotes to respire in the absence of oxygen. This is a stark example of how laterally acquired enzymes can interface with ancestral pathways in mitochondria to rapidly adapt these organelles to low oxygen conditions (Stairs et al., 2014; Nývltová et al., 2015).

Materials and methods

Culturing and microscopy

Cultures of Pygsuia biforma were maintained in American Type Culture Collection medium 802 prepared in natural seawater as described previously (Brown et al., 2013; Stairs et al., 2014). Cells were grown in 15 mL culture tubes filled with media and supplemented with Klebsiella pneumonia. The protein sequence of Pygsuia RquA was provided to Genscript for antigen design and the most antigenic peptide sequence (CGGKAVFIDYGRPST) was selected for optimal for immunization. Antibodies were generated in rabbits and affinity purified by Genscript. A dilution of 1:200 as used for immunofluorescence on Pygsuia cells as described previously (Stairs et al., 2014) . Fluorescence micrographs were deconvolved using a constrained interative algorithm in Slidebook 6 (Intelligent Imaging Innovations, Boulder, CO) and 3D images was rendered using Imaris 7.1 software (Bitplane Inc. South Windsor, CT).

Molecular biology

The Pygsuia rquA gene was amplified from cDNA using primers designed with BamHI restriction enzyme recognition sites near their 5’-ends (Pb-rquA-forward CCGGATCCATGAATTCTTTAAGAATTAC and Pb-rquA-reverse CCCGGATCCTGCAATGCGGTGTGCAACAACC; restriction enzyme recognition sites are underlined). The amplicons were purified and cloned into the sequencing vector pCR4 (Life Technologies, Carlsbad, California) by TA-cloning. Plasmids (pCR4-Pb-rquA) were purified from transformed E. coli using the Nucleospin plasmid purification kit (Machery Nagel, Germany) and screened for correct sequence (Genewiz, South Plainfield, New Jersey). Destination plasmid pGEX-4T-1 (GE healthcare, Chicago, Illinois ) and pCR4-Pb-rquA were digested with BamHI (ThermoFisher, Waltham, Massachusetts). Fragments were purified using the Extract II kit (Machery Nagel) and cloned by standard protocols to generate pGEX-Pb-rquA.

Heterologous expression of proteins in E. coli and immunoblotting

Plasmids (pGEX-Pb-rquA) were transformed into E. coli (strain BL21) for protein expression. Protein expression was induced by the addition of 1 mM isopropyl β-D-1-thiogalactopyranoside (Sigma, Saint Louis, Missouri) to the culture medium of exponentially growing cells and allowed to grow for an additional 4–6 hr. Proteins were isolated from E. coli cells: (i) induced to express the Pygsuia protein (GST-RquA) or (ii) induced to express only the GST protein or (iii) that were not induced to express protein. After protein expression, E. coli cells were collected by centrifugation (4000 x g, 5 min, 4°C) and lysed by French press (7000 psi). Unbroken cells and debris were removed by centrifugation (4000 x g, 5 min, 4°C). The resulting supernatant was saved for subsequent analysis and recombinant protein was isolated using glutathione-magnetic beads (ThermoFisher; GST-tag) according to the protocol of the manufacturer. Crude cell lysates and purified RquA were denatured in sample loading buffer (Sigma), boiled for 5 min, and resolved by SDS-PAGE (12%). Proteins were transferred to PVDF membranes (Turbo Blot membranes, Biorad, Hercules, California) that were then incubated in blocking buffer (5% skim milk powder, TBS, 0.5% Tween 20) for 1 hr. Anti-Pygsuia RquA antibodies were diluted in blocking buffer (1:500) and incubated with membranes overnight. Following three washes in TBS-tween (TBS, 0.5% Tween 20), membranes were incubated with horseradish peroxidase-conjugated goat anti-rabbit secondary antibodies in blocking buffer (1:50000, Sigma), washed in TBS-tween and incubated with enhanced chemiluminesence substrate (GE Healthcare) and visualized using a charge-coupled-device chemiluminescence detector (Protein Simple, San Jose, California).

Phylogenetic dataset construction and sequence analysis

For the phylogenomic analysis of alphaproteobacteria, predicted proteomes were downloaded from National Centre for Biotechnology and Information (http://www.ncbi.nlm.nih.gov/) protein database. Gene markers were identified using the Phyla-AMPHORA pipeline (Wang and Wu, 2013). Phya-AMPHORA identified 200 'phylum-specific' gene markers in the phylum-level bacterial phylogenetic marker database that are phylogenetically congruent for the Alphaproteobacteria.

For evolutionary analyses of RquA, eukaryotic and prokaryotic homologs of RquA, and close homologs of the UBIE family, were retrieved via BLASTP and TBLASTN (Altschul et al., 1997) using the R. rubrum RquA sequence as a query against the expressed sequence tag (EST), whole genome shotgun contigs, transcriptome shotgun assemblies and nr databases available at the National Centre for Biotechnology and Information (http://www.ncbi.nlm.nih.gov/). The reads for Euglena mutabilis (bioproject ERR351290) were assembled using DNA strider. Since only genomic data was available for Proteromonas lacertae, spliceosomal introns were manually predicted based on homology with Blastocystis protein sequences. Sequences were retrieved from the iMicrobe database (Marine Microbial Eukaryotic Transcriptome sSquencing Project)(https://www.imicrobe.us/#/projects/104) and in-house sequencing projects for Mastigamoeba balamuthi, Blastocystis hominis, Condylostoma magnum (provided by Dr. Eleni Gentekaki and Dr. Denis Lynn) and Copromyxa protea (provided by Dr. Matthew Brown). These sequences were aligned with MAFFT-linsi 7.273 (Katoh and Toh, 2008) and used as a seed alignment for building a hidden markov model (HMM) using hmmer3 (Eddy, 1998). This HMM model was used to query the nr database (Genbank, Februrary 2018) using hmmsearch. To remove false positives, the resulting sequences were used as queries for hmmscan using a modified Pfam database (supplemented with the RquA hmm), and only those sequences that had a reciprocal best hmmscan hit to RquA were kept for further analyses.

Mitochondrial targeting sequences were predicted for each sequence using MitoProt, TargetP v1.1, and MitoFates v1 (Claros and Vincens, 1996; Emanuelsson et al., 2000; Fukasawa et al., 2015). Sequences were tentatively annotated as ‘mitochondrial’ if two or more software programs predicted mitochondrial localization scores greater than 0.5. The gene context of rquA in bacterial genomes was determined by manual investigation of the relevant genome sequences deposited in GenBank (Supplementary file 1).

Phylogenetic analyses

Alphaproteobacterial proteins were aligned based on their HMM profiles in the Phyla-AMPHORA database and ambiguously aligned regions removed using Zorro as implemented in Phyla-AMPHORA (Wang and Wu, 2013). Initial single gene trees were constructed using the LG4X model implemented in IQ-TREE 1.5.5 and manually inspected for in-paralogues. These 200 marker genes were concatenated to generate a supermatrix of 54 400 sites and 210 taxa. An initial phylogenetic inference was performed with IQ-TREE v1.5.5 under the LG4X model, followed by reanalysis with the using the model LG + C60 + F (PMSF)+ Γ4 and using a guide tree inferred with the LG4X model (Minh et al., 2013; Nguyen et al., 2015; Wang et al., 20172018). Datasets are available at on dryad at DOI: https://doi.org/10.5061/dryad.qp745/4.

For the RquA analyses, sequences were aligned using MAFFT-linsi version 7.273 (Katoh and Toh, 2008) and regions of ambiguous alignment were removed using BMGE 1.12 (Criscuolo and Gribaldo, 2010) with default settings. Evolutionary model selection for maximum-likelihood analysis was performed on all C-series mixture models (C10-C60) with the LG exchangeability matrix, with and without the four-category discrete gamma distribution (+Γ), invariable sites (+I) and empirical amino acid frequencies (+F) options. The best-scoring models under the Akaike Information Criterion (Posada and Buckley, 2004) corrected for small sample size (AICc) were (i) LG + C60 + Γ for the Group A + Group B data set and Group A data set and (ii) LG + C60 + Γ + I for the Group B data set. Phylogenies were estimated with IQ-TREE 1.5.5 (Nguyen et al., 2015) with branch support estimated by 1000 ultra-fast bootstrap replicates. Bayesian inference was conducted using PhyloBayes 3.2 (Lartillot et al., 2009) by running four Markov chain Monte Carlo (MCMC) chains (-catfix C20, -poisson options).

Previous reports hypothesized that RquA evolved from a methyltransferase (UBIE) involved in UQ biosynthesis (Lonjers et al., 2012). Indeed, initial phylogenies of RquA and UBIE sequences revealed RquA to emerge from within a larger clade of UBIE sequences (SuppFile 1). Bootstrap support for branches was determined from a total of 1000 ultrafast bootstrap replicates and values were mapped onto the best-scoring ML tree. MCMC chains were run sampling every 10th tree until all four chains converged with a maximum-difference (max-diff = 0.049) with maximum discrepancy less than 0.05 and effective size estimates greater than 3300 for each parameter as calculated with tracecomp. The final consensus tree with posterior probabilities was generated from 2800 trees with a manually determined burn-in of 2000, sampling every 2nd tree. Posterior probabilities (PP) for splits were mapped onto the ML topology estimated with IQ-TREE, using the Dendropy package (Sukumaran and Holder, 2010). Datasets are available at on dryad at DOI: https://doi.org/10.5061/dryad.qp745/4.

We tested multiple topologies for the full RquA, Group A and Group B datasets (Supplementary files 24) using IQ-TREE and CONSEL. Briefly, maximum likelihood trees for various topologies were generated in IQTREE. Using the ML tree, the constrained trees, and 100 ultrafast bootstrap trees, we computed the site log likelihood values with IQ-TREE (-wsl option) and performed the approximate unbiased test using CONSEL (Shimodaira and Hasegawa, 2001). Topologies with an AU p-value less than 0.05 were rejected. Datasets are available at on dryad at DOI: https://doi.org/10.5061/dryad.qp745/4.

Identification of quinone-utilizing enzymes in eukaryotes

Sequences from respiratory chain complexes (CI, CIII, CIV), quinone biosynthesis enzymes (COQ1-10), alternative oxidase (AOX), dihydroorotate dehydrogenase, sulfite:quinone reductase, electron transferring flavoprotein, (ETFα and β) and ETF dehydrogenase (ETFDH) were manually retrieved from Arabidopsis thaliana, Dictyostelium discodeum, Saccharomyces cerevisiae and Escherichia coli the Kyoto Encyclopedia of Genes and Genomes. These Q-utilizing enzyme sequences were used as queries to search each eukaryotic genome or transcriptome than also encoded rquA using BLAST or TBLASTN. We tried to identify additional genes that could be linked to rquA function using phylogenomic profiling methods. We looked for genes shared with different combinations of rquA-containing organisms that are not found in rquA-deficient organisms (e.g. E. coli, yeast) using the phylogenomic profiling toolkit at the Joint Genome Institute (https://img.jgi.doe.gov/cgi-bin/m/main.cgi?section=PhylogenProfiler&page=phyloProfileForm).

Genetic linkage in bacteria

When possible, the genomic record for each bacterial genome was retrieved from GenBank via the e-utilities toolkit (https://www.ncbi.nlm.nih.gov/books/NBK25501/) in GTF format using an in-house python script. Accession numbers for the 15 neighbouring genes upstream and downstream of rquA were used to retrieve the protein sequences of each of these genes. PFAM domains were assigned to each of these proteins using hmmscan in the hmmer3 (http://hmmer.org) (Eddy, 1998). Neighbouring genes were manually examined and genes related to respiration (e.g., electron transport complexes) or associated proteins (e.g., cytochrome, heme and ubiquinone metabolism) were annotated in Supplementary file 3).

Lipid extraction and mass spectrometry

Pygsuia biforma cells or bacterial (Pygsuia’s bacterial prey or Rhodospirillum rubrum) were collected by centrifugation at 500 x g for 10 min, or 14 000 x g for 5 min, respectively at 4°C. Cell pellets were resuspended in 2 mL of methanol before adding 2 mL of petroleum ether (with 10 μM butylated hydroxytoluene, Sigma), vortexed vigorously, and separated by centrifugation at 1000 x g for 5 min. Etherial layers were collected and a second extraction with 2 mL of petroleum ether was performed. The ether extracts were combined and evaporated under N2. The resulting extract was resuspended in 100 μL of ethanol and filtered using a spin column equipped with a 100,000 MWCO filter (Millipore).

Initial method development of the liquid chromatograph (LC) and mass spectrometer (MS) parameters was performed using UQ10 (400 pg; Sigma), crude quinone extracts from R. rubrum and synthetic RQ3 (400 pg) standards (Lonjers et al., 2012). Optimal separation of lipid components was observed using a 60 min gradient of increasing acetonitrile (ACN) concentrations (60%, 5 min; 60–99%, 30 min.; 99%, 5 min; 99–60%, 2.5 min; 60%, 17.5 min) using a flow rate of 15 µL/min on a Ultimate 3000RS LC nano system (Thermo Scientific, Fremont, CA) using a Jupiter C4 column (Phenomenex, Torrence, California; 150 × 0.50 mm, 00F-4167-AF) coupled to a triple quadrupole tandem mass spectrometer (QTRAP 5500,AB Sciex, Concord, Ontario, Canada) equipped with a TurboIonSpray heated electrospray source (Sciex). The source temperature was set at 50°C, declustering potential was set at 80 V, collision energy was set to 20, CAD gas to High and the Gas 1 (nitrogen) nebulizer parameter at 13 (arbitrary units). To determine the diagnostic fragmentation product ions of the RQ or UQ species, we infused RQ3 or UQ10 standards directly into the MS and acquired the product ion (MS/MS) spectra of their precursor ions at m/z 372 and 863, respectively (Figure 4—figure supplement 1). From these spectra we were able to detect two predominant diagnostic product ions at m/z 182 and 197, corresponding to the head groups of RQ3 and UQ10, respectively. These product ions are diagnostic to the RQ and UQ series, regardless of their chain length. Other product ions were also detected, confirming the structure of the standards, but discarded for our subsequent analyses due to their low intensity. We next developed a Selected Reaction Monitoring method (SRM) taking into account the precursors ions of both UQ and RQ series with chain lengths of 8, 9 and 10 repetitive isoprenylated units as follows. Transitions for RQ10, RQ9, and RQ8, were 848.7, 780.6, and 712.6 m/z yielding 182.1 m/z daughter ion corresponding to the RQ head group; transitions for UQ10 UQ9 UQ8 863.7, 795.6, and 727.6 m/z yielding a 197.1 m/z daughter ion corresponding to the UQ head group. We next analyzed the lipid components of wild type R. rubrum by LC-SRM-MS/MS to determine the composition of RQ or UQ species in each one of our samples. In general, the different isoprenylated chain length species eluted in 3 min intervals and RQ species eluted ~1 min before the analogous UQ species, consistent with the expected retention times according to the standards and chain lengths. With these elution times and fragmentation patterns as a reference we analyzed the lipid content of Pygsuia biforma or its bacterial prey.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Transcription of the Escherichia coli fumarate reductase genes (frdABCD) and their coordinate regulation by oxygen, nitrate, and fumarate
    1. HM Jones
    2. RP Gunsalus
    (1985)
    Journal of Bacteriology 164:1100–1109.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
    Purification and characterization of electron-transfer flavoprotein: rhodoquinone oxidoreductase from anaerobic mitochondria of the adult parasitic nematode, Ascaris suum
    1. YC Ma
    2. M Funk
    3. WR Dunham
    4. R Komuniecki
    (1993)
    The Journal of Biological Chemistry 268:20360–20365.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72

Decision letter

  1. John McCutcheon
    Reviewing Editor; University of Montana

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Microbial eukaryotes have adapted to hypoxia by a horizontal acquisition of a gene involved in rhodoquinone biosynthesis" for consideration by eLife. Your article has been favorably evaluated by Gisela Storz (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal her identity: Julie Dunning-Hotopp (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

All reviewers think this is an interesting paper, and all were particularly impressed with the author's microscopy and biochemical work showing that the gene in question was localized to the organelle and that the metabolite profile was consistent with the predicted function. Overall the reviewers thought this paper will make a valuable contribution to the literature. It is a clear example of an HGT having a critically important role in the evolution of the anaerobic lifestyle, and it adds to a fairly short list of inbound eukaryotic HGTs that have been shown to have a clear and specific function. Five major points were raised, however, that need to be addressed in a revision.

Essential revisions:

1) This paper argues that rquA has been laterally transferred between bacteria and eukaryotes in some combination. The precise origin of the enzyme and the direction of transfer are unclear at present. While some reviewers thought the case for HGT was convincing and carefully and conservatively argued, there was some concern about the interpretation of the patchy appearance of rquA in the eukaryotic tree. In particular, there does not appear to be a large amount of sequence data (genome or transcriptome) from these organisms in the databases. Please try to quantify, or at least explain, when there has been enough sequencing to expect the gene to be recovered (for example, see https://www.biorxiv.org/content/early/2017/12/05/229468).

2) Some reviewers wanted more discussion about the possibility of gene loss generating the patterns seen in rquA distribution. In particular, it seems plausible that this gene was present in the ancestor of all eukaryotes, and has been lost in aerobic eukaryotes. Could the taxonomic distribution be explained by the gene being present in the ancestor of all eukaryotes but one significant, key loss in a lineage like Opisthokonts? The current taxonomic disparities could then be explained as eukaryote to bacteria LGT, as well as other explanations. The idea of eukaryote-to-bacteria LGT may have been addressed in the second paragraph of the subsection “Phylogenetic Analysis of Bacterial and Eukaryotic RquA Homologs”, however there is some concern that the prokaryotic genes may be confounding the tests.

3) Please address whether some of these rquA genes might have been obtained from the mitochondrial endosymbiont. There are a number of alphaproteobacterial sequences in the tree, and it would be useful to test whether an alphaproteobacterial origin of the eukaryotic sequences can be rejected (e.g. taking the closest alphaproteobacterial sequence or clade in each case).

4) All three reviewers were concerned that the genome/transcriptome and database searches performed with rquA were too insensitive. BLASTP is a great start but what should be done is to build an HMM with diverse examples of the protein to search more sensitively (using HMMER, most likely), and perhaps iterate and rebuild the HMM if new examples are found. The reviewers don't think this will change the fundamental story but rquA distribution is an important part of this paper (and it's not much work) so it should be done to give the reader confidence that this gene is indeed sparsely distributed.

5) Some reviewers wanted more detail about the conservation of introns in the eukaryotic versions of rquA. Are these introns found at conserved positions within the rquA genes (suggesting a single origin and "eukaryotification" of the gene) or at different sites, which would be consistent with multiple independent acquisitions by LGT?

https://doi.org/10.7554/eLife.34292.027

Author response

Essential revisions:

1) This paper argues that rquA has been laterally transferred between bacteria and eukaryotes in some combination. The precise origin of the enzyme and the direction of transfer are unclear at present. While some reviewers thought the case for HGT was convincing and carefully and conservatively argued, there was some concern about the interpretation of the patchy appearance of rquA in the eukaryotic tree. In particular, there does not appear to be a large amount of sequence data (genome or transcriptome) from these organisms in the databases. Please try to quantify, or at least explain, when there has been enough sequencing to expect the gene to be recovered (for example, see https://www.biorxiv.org/content/early/2017/12/05/229468).

We thank the reviewers for raising this concern. Indeed, it is difficult to clearly demonstrate the absence of a gene from a transcriptome or a draft genome. To help illustrate the breadth of our search, we have summarized the number of complete genomes and transcriptomes surveyed from the highest level of taxonomy on NCBI (Author response table 1 below and Supplementary file 1).

Unfortunately, we are unable to assess the completeness of the transcriptomes available on the NCBI transcriptome shotgun assembly database (TSA) without performing the completeness estimates (using BUSCO for instance). This would involve retrieving and analyzing over 2000 transcriptomes, and we believe that this is beyond the scope of our study. However, we are able to provide information on the completeness estimates of the MMETSP data from https://github.com/ljcohen/MMETSP. Over 50% of the transcriptomes available on MMETSP are greater than 66% complete according to BUSCO measurements (see Author response image 1).

We have added the following sentences to the Results section to indicate the databases surveyed.

“Within eukaryotes, we identified rquA homologs in 21 representatives of four of the five super-groups of eukaryotes (Obazoa, Amoebozoa, Sar, and Excavata;Figure 2—figure supplement 2). […] Note that the absence of rquA in some of these data (particularly the transcriptomes) may be due to a lack of depth of sequence sampling.”

Author response image 1

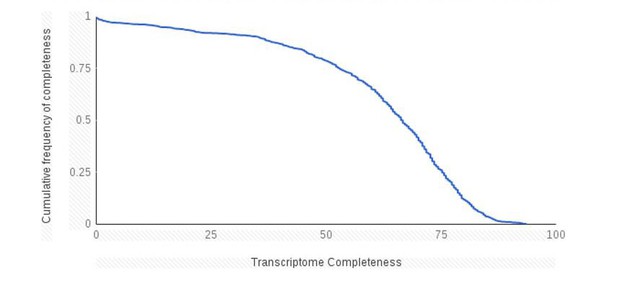

Cumulative frequency plot of transcriptome completeness for the marine microbial eukaryotes sequencing projects.
https://doi.org/10.7554/eLife.34292.023
Author response table 1
Numbers of complete genomes and transcriptome projects surveyed from each of the major lineage of eukaryotes.
https://doi.org/10.7554/eLife.34292.024

RquA detecteda

NCBI Genomesb

NCIB TSA nrc

MMETSPd

Alveolata710532134
Amoebozoa441108
Apusozoa0100
Breviatea1110
Centroheliozoa0010
Cryptophyta08125
Euglenozoa

2e

5535
Fornicata0220
Glaucocystophyceae0403
Haptophyceae05261
Heterolobosea0512
Jakobida0600
Malawimonadidae0200
Opisthokonta19,240139510
Oxymonadida0110
Parabasalia0210
Rhizaria412421
Rhodophyta0124158
Stramenopiles515049279
Viridiplantae02,46149972
unclassified00319
Multispecies with undefined taxa ID008219
Total24122252102647
a Source: this study
b Source: NCBI Taxonomy Browser, selecting “Genomes” – January 28, 2018

c Source NCBI Trace Archive for the transcriptome shotgun assembly database availble at https://www.ncbi.nlm.nih.gov/Traces/wgs/?term=tsa Taxonomy ID were extracted and taxonomy parsed with ete-toolkit. Only non-redundant taxonomy IDs are shown.

d Source: iMicrobe; Taxonomy ID were extracted and taxonomy assigned with ete-toolkit. Only non-redundant taxonomy IDs are shown.
e Three copies were identified in Eutriptiella and 1 in Euglena

2) Some reviewers wanted more discussion about the possibility of gene loss generating the patterns seen in rquA distribution. In particular, it seems plausible that this gene was present in the ancestor of all eukaryotes, and has been lost in aerobic eukaryotes. Could the taxonomic distribution be explained by the gene being present in the ancestor of all eukaryotes but one significant, key loss in a lineage like Opisthokonts? The current taxonomic disparities could then be explained as eukaryote to bacteria LGT, as well as other explanations. The idea of eukaryote-to-bacteria LGT may have been addressed in the second paragraph of the subsection “Phylogenetic Analysis of Bacterial and Eukaryotic RquA Homologs”, however there is some concern that the prokaryotic genes may be confounding the tests.

We understand the reviewers concerns. We note that any potential case of LGT can always be explained by an alternative vertical descent scenario that involves ancestral presence, gene duplications and massive differential loss. So we suggest that the question is not whether RquA in eukaryotes can be explained by such a scenario, but rather what is the most likely explanation for the origins of these genes in eukaryotes. Our analyses show unequivocally that there are two robust clades of RquA: A and B. There are eukaryotic sequences and multiple bacterial sequences that branch within each of these clades. The chances that RquA is ancestral to all eukaryotes seems quite remote given the extreme rarity and patchiness of the gene; of 12225 eukaryotic genomes (in NCBI), 2102 genome shotgun projects (in NCBI TSA database) and 647 transcriptomes in the MMETSP only 24 eukaryote homologs of the RquA gene were found. The eukaryotes that encode the RquA protein are lineages adapted to permanent or transient anoxia that emerge from within predominantly aerobic groups in the global eukaryotic tree. Furthermore, they are distantly related to one another. It is therefore very unparsimonious to posit of all of the ancestors of these organisms going back to the last eukaryotic common ancestor (LECA) retained this gene but, then after these lineages diverged from other eukaryotes (some quite recently), there was widespread loss in dozens of disparate eukaryotic lineages giving rise to the gene presence/absence patterns observed. For example, even if transcriptome data were discounted, for group A RquA enzymes, secondary loss events would have had to happen in manydifferent eukaryote lineages for which complete genome data is available. Assuming for the sake of argument a ‘Opimoda/Diphoda’ root for the tree of eukaryotes (Derelle et al. (2015) Proc. Natl. Acad. Sci. USA 112:E693-699), the secondary loss list would include at least several Amoebozoan lineages except Mastigamoeba and neoparamoebids (e.g. Acanthamoeba, Entamoeba, dictyostelids, Physarum), other lineages of stramenopiles besides Blastocystis/Proteromonas (e.g. diatoms, Ectocarpus, Phytophthora), the common ancestor of all opisthokonts, Thecamonas, other lineages of Rhizaria besides Brevimastigamonas and foraminifera (e.g. Bigelowiella) and common ancestors of Heteroloboseans (e.g. Naegleria), Metamonada (Giardia, Trichomonas, Monocercomonoides), Alveolates, Cryptophytes (e.g. Guillardia) and Archaeplastida. The corresponding list for group B rquA is similarly long. Both lists get considerably longer if the absence of the gene from transcriptome data for diverse eukaryotes is considered as evidence.

Furthermore, a strictly vertical descent and gene duplication scenario would require that the ancestral eukaryote (LECA) and the mitochondrial endosymbiont (assuming a mitochondrial origin) had at least two copies of the rquA gene (at least one of the A family and one of the B family). No organism (prokaryote or eukaryote) currently known (out of 182 organisms rquA (166 organism with rquA sequences less than 90% identical) encodes both an A-type and B-type in their genome, so this scenario also seems rather unlikely. The idea that eukaryotes donated some of the genes to bacteria also seems implausible because most of the rquA-containing eukaryotes for which genomic data is available possess spliceosomal introns in their rquA genes. Such introns provide a barrier to successful eukaryote-to-prokaryote gene transfer (at least if transfer occurs on the DNA level).

For these reasons it is more plausible, in our view, that recent independent gains of the gene occurred by prokaryote-to-eukaryote LGT followed by eukaryote-to-eukaryote LGT events during adaptation of these organisms to facultative anaerobiosis.

We have substantially revised the Discussion section of our manuscript to try to clarify our reasoning and include the foregoing arguments.

3) Please address whether some of these rquA genes might have been obtained from the mitochondrial endosymbiont. There are a number of alphaproteobacterial sequences in the tree, and it would be useful to test whether an alphaproteobacterial origin of the eukaryotic sequences can be rejected (e.g. taking the closest alphaproteobacterial sequence or clade in each case).

We investigated whether some of the rquA genes might have been obtained from the mitochondria symbiont by doing two kinds of analyses:

Analyses (1): We performed a number of additional topology tests. For the full dataset we tested: (i) the monophyly of eukaryotes + all alphaproteobacteria, (ii) the monophyly of Group A eukaryotes + Group A alphaproteobacteria, and the monophyly of Group B eukaryotes + Group B alphaproteobacteria. Each of these topologies was rejected with a p-value << 0.01.

Our further mining of databases (point #4 below) yielded some metagenome-assembled genomes (MAGs) of new alphaproteobacteria (Candidatus ‘Azospirillum’ and Candidatus ‘Acetobacter’ metagenome clusters that we refer to as ‘MAG Azo/Aceto alphaproteobacteria’). In our new phylogenies this new group branched closely to a number of Group A eukaryote sequences (e.g. Blastocystis, Proteromonas, neoparamoebids, euglenids and Pygsuia that we refer to as ‘Group A1 eukaryotes’). In any case, for the full data set we tested the specific affinity of all Group A eukaryotes (A1 and others in group A) to MAG alphaproteobacteria specifically and could not reject this topology (p = 0.227).

We further tested the affinities of the various taxa using Group A- and Group B-specific data sets. As expected, the Group A eukaryotes + MAG Azo/Aceto alphaproteobacteria topology was not rejected, but the Group A eukaryotes + all Group A alphaproteobacteria (including MAGs) topology was strongly rejected (p-value = 3 x 10-59). For Group B there were no alphaproteobacterial lineages particularly close to the eukaryotes in the phylogeny (eukaryotes tend to group with disparate betaproteobacteria in different parts of Group B), and the test of the Group B eukaryotes + all Group B alphaproteobacteria topology resulted in strong rejection (p-value = 2 x 10-75).

Conclusions from (1): Topologies that have all the alphaproteobacteria grouping together in a clade with eukaryotes from both Groups A and B, or individually within Group A or Group B are firmly rejected by topology tests. Note that such monophyletic eukaryotes + alphaproteobacterial topologies (or topologies consistent with them) are usually recovered for alphaproteobacterial-derived mitochondrial proteins (e.g. chaperones, PDH subunits, ETC subunits, FtsZ etc.). Group A and Group B eukaryote homologs (and alphaproteobacterial homologs in these groups) clearly have distinct origins from each other. However, the possibility that eukaryotes are monophyletic within each of these groups cannot be rejected. Group A eukaryote homologs could have originated from transfer from an ancestral ‘MAG Azo/Aceto’ alphaproteobacteria specifically. This would be evidence of a mitochondrial origin only if these alphaproteobacteria (a sub-group of Rhodospirillales) were candidate for mitochondrial sister groups. However, phylogenomic analyses do not implicate these taxa as mitochondrial sisters; instead they suggest mitochondria are related to either Rickettsiales, Holosporales, Pelagibacteriales or as a deep independent branch of alphaproteobacteria. It seems, therefore, unlikely that the Group A eukaryotes + MAG Azo/Aceto alphaproteobacteria relationship is suggestive of a mitochondrial origin. Group B eukaryotic homologs have no specific affinities to alphaproteobacteria and their alphaproteobacterial origin seems unlikely.

Analyses (2): If either Group A or Group B eukaryotic rquAs originated from the mitochondrial endosymbiont, then the only positive evidence for this would be if these genes were either widespread and ancient within the alphaproteobacterial tree and/or the genes was present in the genomes of the closest alphaproteobacterial relatives to mitochondria. To address this we assembled a phylogenomic matrix of 200 conserved ‘core’ proteins from this phylum to place the rquA-containing alphaproteobacterial taxa from our analyses within the context of a representative alphaproteobacterial species tree (note that the tree was constructed in such a way to always represent rquA-containing taxa, but the remainder of taxa were sub-seletcted from available genomes to maximize diversity). That phylogeny (now shown as Figure 2—figure supplement 2) shows that many rquA-containing alphaproteobacterial genomes occur patchily as derived lineages throughout the various order of the alphaproteobacterial tree. Group A- and Group B-containing taxa are interspersed. The extreme rarity of the enzyme within each of the major α groups for which genomes are available is also shown in this figure. The frequency of rquA-containing genomes in each alphaproteobacterial order ranged from 0% (for 5 out of 8 orders) to 9.6% (Rhodospirillales).

Conclusions from (2): Based on the extreme rarity and patchy distribution of rquA across alphaproteobacteria it is very unlikely that either the A-type or B-type gene was encoded in ancestral alphaproteobacterial genomes. Furthermore, no alphaproteobacteria (nor any organism so far known) encodes both an A-type or a B-type enzyme, making a single mitochondrial origin for both types very unlikely. The candidate sister groups to mitochondria based on phylogenomic evidence are the Rickettsiaciae, Holosporales, Pelagibacteriales or mitochondria emerge as the deepest branch in the alphaproteobacterial tree (see Box 1 of Roger et al. (2017) Curr. Biol.27: R1177-R1192 and references therein). None of these first three groups contain rquA-encoding species, and, since it is unlikely that rquA is an ancestral alphaproteobacterial gene, there is no positive evidence for a mitochondrial origin of rquA in eukaryotes.

As a result of these analyses, we have substantially changed the sections of the Results discussing the topology tests (Phylogenetic Analysis of Bacterial and Eukaryotic RquA Homologs)and added a new section discussing Analysis (2) above entitled: “The distribution of rquA amongst alphaproteobacteria”.

We also now explicitly discuss the implications of analyses (1) and (2) in the Discussion.

4) All three reviewers were concerned that the genome/transcriptome and database searches performed with rquA were too insensitive. BLASTP is a great start but what should be done is to build an HMM with diverse examples of the protein to search more sensitively (using HMMER, most likely), and perhaps iterate and rebuild the HMM if new examples are found. The reviewers don't think this will change the fundamental story but rquA distribution is an important part of this paper (and it's not much work) so it should be done to give the reader confidence that this gene is indeed sparsely distributed.

We thank the reviewers for this helpful suggestion. To address this concern, we used our existing RquA alignment and masked N-terminal and C-terminal regions to generate a specific RquA hmmer profile (RquA.hmm). We then generated profiles for COG2226 (the best scoring domain for many RquA and related UBIE/methyltransferase homologues on NCBI conserved domains [NCBI CDD]). To capture sequence diversity we generated two COG2226 profiles: (i) using the NCBI CDD alignment and (ii) retrieved the UniRef90 records for COG2226 and generated an alignment resulting in two HMMs: COG2226_CDD.hmm and COG2226_UniRef90.hmm. Using the RquA.hmm profile and hmmsearch, we retrieved 22174 protein sequences from NCBI GenBank (February 7 2018). We then performed a hmmscan of these 22174 against a custom database of PFAM, RquA and COG2226 profiles. Of these 22174 proteins, only 284 sequences had a best scoring hit to the RquA-specific profile (summarized in Supplementary file 1), 245 of which were deposited at the time of our original analysis (September 2017). Of the 284, the majority represent sequences that are >90% identical to sequences in our existing dataset. However, we did identify some new sequences that were not within this similarity threshold (n=79). We generated a phylogenetic tree of these new sequences together with UBIE and RquA sequences and found that many of the HMM-retrieved sequences belonged to non-RquA clades (Supplementary file 2 – Tree 1; Mycobacterium sequences were excluded since they were extremely divergent and could lead to long-branch related artefacts).

Throughout the procedure, we noticed that some of the HMM-retrieved sequences did indeed branch within the RquA clade and so we reanalysed the phylogenetic history of RquA using these newly identified sequences. In particular, we observed six sequences from metagenomics sequencing projects belonging to genomes annotated as Candidatus ‘Azospirillum’ and ‘Acetobacter’ species discussed in the answer to point 3 above.

5) Some reviewers wanted more detail about the conservation of introns in the eukaryotic versions of rquA. Are these introns found at conserved positions within the rquA genes (suggesting a single origin and "eukaryotification" of the gene) or at different sites, which would be consistent with multiple independent acquisitions by LGT?

To address this concern, we have generated an alignment indicating where in the eukaryotic sequences we detected introns in genomic data (Supplementary file 3). We observed that closely related sequences (e.g., 2 Blastocystis subtypes and Proteromonas) shared conserved intron positions – although Blastocystis subtype 1 has lost the third intron. However, we were unable to observe conservation of intron positions in any of the other species. We were unable to find introns in the genomic rquAsequence from Stentor. However, the Stentor genome has a low intron density with only 9325 introns identified in the 34506 gene models Slabodnick et al. (2017) Curr. Biol. 20:569-575.

This result is consistent with multiple interpretations of the origins of these proteins. It is well known that intron loss can occur via reverse transcription of spliced messages and recombination with the parental genomic copy. Intron gain can subsequently occur at different intron positions in the same gene (e.g. see Huff et al. (2016) Nature 538:533-536). Thus, both of these phenomena can happen even if the gene evolves by ‘vertical descent’ within eukaryotes. Therefore the lack of intron conservation across the eukaryotic taxa cannot be taken as strong evidence that these homologs had separate bacterial origins, but it is consistent with it.

We have added the following figure and explanation in the Results section:

“We identified spliceosomal introns in the rquA genes in eukaryotic taxa for which genomic records were available (i.e., Proteromonas lacertae, Mastigamoeba balamuthi, Brevimastigomonas motovehiculus, Reticulomyxa filosa, and all the Blastocystis subtype genomes) indicating that these are in fact eukaryotic sequences and not prokaryotic contaminants (Figure 2—figure supplement 1). The Proteromonas and Blastocystis rquA gene sequences showed conservation of intron position and size. But none of the other eukaryotic rquAgene sequences (for which genomic sequence was available) shared intron positions.”

https://doi.org/10.7554/eLife.34292.028

Article and author information

Author details

  1. Courtney W Stairs

    Centre for Comparative Genomics and Evolutionary Bioinformatics (CGEB), Department of Biochemistry and Molecular Biology, Dalhousie University, Halifax, Canada
    Present address
    Department of Cell and Molecular Biology, Uppasala University, Uppsala, Sweden
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-6650-0970
  2. Laura Eme

    Centre for Comparative Genomics and Evolutionary Bioinformatics (CGEB), Department of Biochemistry and Molecular Biology, Dalhousie University, Halifax, Canada
    Present address
    Department of Cell and Molecular Biology, Uppasala University, Uppsala, Sweden
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Sergio A Muñoz-Gómez

    Centre for Comparative Genomics and Evolutionary Bioinformatics (CGEB), Department of Biochemistry and Molecular Biology, Dalhousie University, Halifax, Canada
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Alejandro Cohen

    Proteomics Core Facility, Life Sciences Research Institute, Dalhousie University, Halifax, Canada
    Contribution
    Resources, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Graham Dellaire

    1. Department of Pathology, Dalhousie University, Halifax, Canada
    2. Department of Biochemistry and Molecular Biology, Dalhousie University, Halifax, Canada
    Contribution
    Resources, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-3466-6316
  6. Jennifer N Shepherd

    Department of Chemistry and Biochemistry, Gonzaga University, Spokane, United States
    Contribution
    Resources, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  7. James P Fawcett

    1. Proteomics Core Facility, Life Sciences Research Institute, Dalhousie University, Halifax, Canada
    2. Department of Pharmacology, Dalhousie University, Halifax, Canada
    3. Department of Surgery, Dalhousie University, Halifax, Canada
    Contribution
    Resources, Supervision, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Andrew J Roger

    Centre for Comparative Genomics and Evolutionary Bioinformatics (CGEB), Department of Biochemistry and Molecular Biology, Dalhousie University, Halifax, Canada
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Andrew.Roger@Dal.Ca
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-1370-9820

Funding

Canadian Institutes of Health Research (MOP 142349)

  • Andrew J Roger

National Institutes of Health (1R15GM096398-01)

  • Jennifer N Shepherd

Natural Sciences and Engineering Research Council of Canada (NSERC-CGS-D)

  • Courtney W Stairs

Killam Trusts

  • Courtney W Stairs
  • Courtney W Stairs

Natural Sciences and Engineering Research Council of Canada (RGPIN 05616)

  • Graham Dellaire

Canadian Institutes of Health Research (MOP 341174)

  • James P Fawcett

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research, and CWS and LE, were supported by a grant from the Canadian Institutes of Health Research (CIHR) MOP 142349 awarded to AJR. CWS was also supported by the Natural Sciences and Engineering Council of Canada Canadian Graduate Studentship (NSERC-CGS-D) and the Killiam Trusts (Level 2). JNS was supported by the National Institutes of Health (award no. 1R15GM096398-01). Any opinions, findings, and conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of the National Institutes of Health. Work in the GD laboratory was supported by an NSERC Discovery Grant (RGPIN 05616). Work from JPF laboratory was supported by a CIHR (MOP 341174). The authors would also like to acknowledge Dr. Dale Corkery for assistance in microscopy; and Drs. Eleni Gentekaki (Mae Fah Luang University), Denis Lynn (University of Guelf), and Matthew Brown (Mississippi State University) for providing sequences; Dr. Barbara Karten (Dalhousie University) for providing equipment and expertise in lipid extractions; Dr. Melanie Dobson (Dalhousie University) for providing pGEX plasmids; and Dr. Joran Martijn for discussion on alphaproteobacterial phylogeny.

Reviewing Editor

  1. John McCutcheon, University of Montana

Publication history

  1. Received: December 12, 2017
  2. Accepted: April 25, 2018
  3. Accepted Manuscript published: April 26, 2018 (version 1)
  4. Version of Record published: May 15, 2018 (version 2)
  5. Version of Record updated: May 18, 2018 (version 3)

Copyright

© 2018, Stairs et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,373
    Page views
  • 249
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Evolutionary Biology
    2. Plant Biology
    Suvi Honkanen et al.
    Research Article Updated
    1. Evolutionary Biology
    Fabien Duveau et al.
    Research Article Updated
