Active avoidance requires inhibitory signaling in the rodent prelimbic prefrontal cortex

  1. Maria M Diehl  Is a corresponding author
  2. Christian Bravo-Rivera
  3. Jose Rodriguez-Romaguera
  4. Pablo A Pagan-Rivera
  5. Anthony Burgos-Robles
  6. Ciorana Roman-Ortiz
  7. Gregory J Quirk
  1. University of Puerto Rico School of Medicine, Puerto Rico
  2. Massachusetts Institute of Technology, United States
Research Article
  • Cited 20
  • Views 2,908
  • Annotations
Cite this article as: eLife 2018;7:e34657 doi: 10.7554/eLife.34657

Abstract

Much is known about the neural circuits of conditioned fear and its relevance to understanding anxiety disorders, but less is known about other anxiety-related behaviors such as active avoidance. Using a tone-signaled, platform-mediated avoidance task, we observed that pharmacological inactivation of the prelimbic prefrontal cortex (PL) delayed avoidance. Surprisingly, optogenetic silencing of PL glutamatergic neurons did not delay avoidance. Consistent with this, inhibitory but not excitatory responses of rostral PL neurons were associated with avoidance training. To test the importance of these inhibitory responses, we optogenetically stimulated PL neurons to counteract the tone-elicited reduction in firing rate. Photoactivation of rostral (but not caudal) PL neurons at 4 Hz impaired avoidance. These findings suggest that inhibitory responses of rostral PL neurons signal the avoidability of a potential threat and underscore the importance of designing behavioral optogenetic studies based on neuronal firing responses.

https://doi.org/10.7554/eLife.34657.001

Introduction

Core symptoms of post-traumatic stress disorder and other anxiety disorders include excessive fear and avoidance (American Psychiatric Association, 2013). The neural mechanisms of excessive fear have been well-characterized in rodents using Pavlovian fear conditioning (Johansen et al., 2011Duvarci and Pare, 2014; Herry and Johansen, 2014; Giustino and Maren, 2015; Do Monte et al., 2016), yet the mechanisms of active avoidance are just beginning to emerge. Previous work in rats has shown that the prefrontal cortex, amygdala, and striatum are all necessary for the expression of active avoidance (Martinez et al., 2013; Moscarello and LeDoux, 2013; Beck et al., 2014; Jiao et al., 2015; LeDoux et al., 2017). Using a tone-signaled, platform-mediated avoidance task, we observed that pharmacological inactivation of the prelimbic prefrontal cortex (PL) impaired the expression of avoidance without affecting freezing (Bravo-Rivera et al., 2014). Furthermore, avoidance that persisted following extinction was correlated with excessive PL activity, as indicated by the immediate early gene cFos (Bravo-Rivera et al., 2015), suggesting that PL activity may drive the expression of active avoidance.

Important questions remain, however, regarding the role of PL in avoidance. First, how do PL neurons signal avoidance? Fear conditioning mainly induces excitatory responses to conditioned tones in PL that correlate with freezing (Baeg et al., 2001; Burgos-Robles et al., 2009; Sotres-Bayon et al., 2012; Isogawa et al., 2013; Pendyam et al., 2013; Chang et al., 2010), but the firing properties of PL neurons in active avoidance have not been studied. In platform-mediated avoidance, PL signaling of avoidance may differ from PL signaling of freezing or foraging for food (Burgos-Robles et al., 2013), both of which can interfere with platform avoidance. Second, does avoidance involve all of PL or only specific subregions?

We addressed these questions by recording PL neurons during tone-signaled, platform-mediated avoidance. We then optogenetically silenced or activated PL neurons based on the observed firing patterns. We found that inhibitory (rather than excitatory) tone responses of rostral PL neurons were associated with avoidance. Opposing these inhibitory responses with photoactivation delayed or prevented active avoidance, suggesting that prefrontal inhibition signals the ‘avoidability’ of danger.

Results

Pharmacological inactivation of PL delays avoidance

We first replicated our prior findings that pharmacological inactivation of PL with the GABA-A agonist muscimol (MUS) impaired avoidance in this task (Bravo-Rivera et al., 2014), with two modifications: (1) we used fluorescently labeled MUS to assess spread to adjacent regions, and (2) we analyzed the time course of avoidance behavior across the 30 s tone. Because the 2 s shock co-terminates with the tone, the rat has 28 s to stop pressing the lever for food and step onto the platform to escape the shock. Furthermore, in this task, avoidance comes at a cost, as it competes with access to food. Thus, the involvement of PL could vary with changes in the cost and/or urgency of avoidance as the tone progresses (Zeeb et al., 2015; Hosking et al., 2016).

Histological analysis showed that MUS was confined to PL in its mid rostral-caudal extent (Figure 1A). Rats with substantial spread to adjacent infralimbic cortex were excluded (n = 3). In some cases, MUS reached the ventral half of cingulate cortex (Cg1), and these cases were included due to similar functions of Cg1 and PL in conditioned fear (Courtin et al., 2014) and avoidance (Orona and Gabriel, 1983; Freeman et al., 1996). Following surgical implantation of cannulas, rats were trained in platform-mediated avoidance over 10 days as previously described (Figure 1B, Bravo-Rivera et al., 2014; Rodriguez-Romaguera et al., 2016). On Test 1 (Day 11), we infused MUS into PL at the same concentration as our prior studies using fluorescent MUS (Do-Monte et al., 2015b; Rodriguez-Romaguera et al., 2016) and waited 45 min before commencing a 2-tone test of avoidance expression (without shock). Figure 1C shows that MUS inactivation significantly reduced the time spent on the platform during the tone, as compared to saline (SAL) infused controls (SAL 92% vs. MUS 57%, t(28) = −4.019, p<0.001, Bonferroni corrected). An analysis of avoidance across the tone in 3 s bins (Figure 1D) indicated that MUS-infused rats were significantly delayed in their initiation of avoidance (repeated measures ANOVA, F(1,9) = 4.076, p<0.001; post hoc, 0–15 s **p<0.01, 15–21 s *p<0.05), and 2/13 rats never avoided (Mann Whitney U Test, p<0.001, Figure 1E). MUS also increased tone-induced freezing (Figure 1E top inset; SAL = 36% vs. MUS = 55% freezing, t(28) = 2.460, p=0.020) but had no effect on suppression of bar pressing (Figure 1E bottom inset; SAL = 0.922 vs. MUS = 0.984 suppression ratio, t(28) = 0.194, p=0.848). Inactivation of PL had no effect on locomotion, as indicated by distance traveled during a 5 min open field test (SAL n = 10, 13.23 m vs. MUS n = 10, 12.53 m, t(18) = 0.513, p=0.614, Figure 1—figure supplement 1). Nor was there an effect on anxiety, as assessed with time spent in the center of the open field (SAL = 15.69 s vs. MUS = 18.76 s, t(18) = 0.933, p=0.363, Figure 1—figure supplement 1). Thus, pharmacological inactivation of PL delayed the expression of active avoidance.

Figure 1 with 1 supplement see all

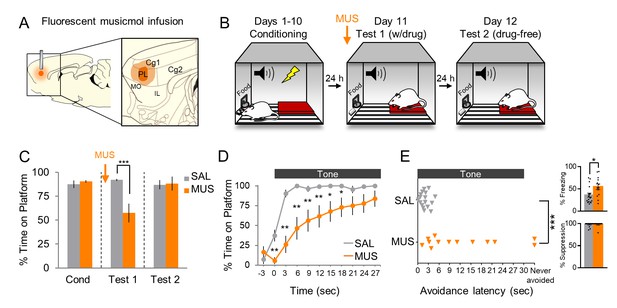

Pharmacological inactivation of prelimbic cortex delays avoidance.

(A). Schematic of MUS infusion showing the minimum (dark orange) and maximum (light orange) extent of infusion into PL. (B). Rats were trained across 10 days to avoid a tone-signaled foot-shock by stepping onto a platform. On Day 11, rats received two tone presentations (without shock) 45 min after MUS infusion. On Day 12, rats received a second 2-tone test drug free. (C). Percent time on platform during Tone 1 on Days 10, 11, and 12 for MUS and saline controls (SAL, n = 17; grey) and MUS rats (n = 13, orange). (D). Time spent on platform in 3 s bins for Test 1 (Tone 1) revealed that MUS rats were significantly delayed in their avoidance compared to SAL controls (repeated measures ANOVA, post hoc Tukey). (E). Latency of avoidance for each rat (Mann Whitney U test, Tone 1, Test 1). Inset: Effect of MUS inactivation (Tone 1, test 1) on freezing (top) and percent suppression of bar pressing (bottom) during the tone (unpaired t-test). Data are shown as mean ± SEM; *p<0.05, **p<0.01, ***p<0.001.

https://doi.org/10.7554/eLife.34657.002

Photosilencing of PL glutamatergic neurons does not delay avoidance

Because pharmacological inactivation of PL delayed avoidance, we reasoned that tone-induced activity in PL would be essential for avoidance early in the tone. To assess this, we used an optogenetic approach, expressing the microbial opsin archaerhodopsin (ArchT) in PL, which causes a hydrogen proton efflux to hyperpolarize neurons when exposed to 532 nm (green) light (Chow et al., 2010; Han et al., 2011). We delivered ArchT by infusing an adeno-associated virus (AAV) encoding both ArchT and enhanced yellow fluorescent protein (eYFP) under the control of the CAMKIIα promoter to target glutamatergic neurons (Jones et al., 1994, AAV5:CaMKIIα::eArchT3.0-eYFP; Liu and Jones, 1996, Van den Oever et al., 2013, Warthen et al., 2016). We first confirmed in anesthetized rats that ArchT silences PL neurons by recording extracellular activity from ArchT-infused rats exposed to green light (Figure 2A). Laser illumination significantly decreased the firing rate of 38/70 neurons and increased the firing rate of 9/70 neurons (Wilcoxon signed-ranks test comparing pre-laser vs laser activity of each unit using 1 s time bins, all p’s <0.05).

Figure 2 with 1 supplement see all
Optogenetic silencing of prelimbic neurons does not delay avoidance.

(A). Left: Schematic of ArchT expression and optrode placement in anesthetized rats (n = 2). Middle: Rasters and peristimulus time histogram of a single PL neuron showing a decrease in firing rate during laser illumination (8–10 mW, 532 nm, 10 s ON, 10 s OFF, 10 trials). Right: Proportion of PL neurons that exhibited a decrease (blue, n = 38), increase (gold, n = 9), or no change (grey, n = 23) in firing rate. (B). Schematic of virus infusion, location of min/max expression of AAV in rPL (pink) and cPL (purple), followed by avoidance training and test. At Test, 532 nm light was delivered to rPL or cPL during the entire 30 s tone presentation (Tone 1). (C). Left: Micrograph of ArchT expression and optical fiber placement in rPL. Right: Percent time on platform at Cond (Day 10, Tone 1) and Test (Day 11, Tone 1 with laser ON and Tone 2 with laser OFF) for rPL-eYFP control (n = 15, grey) and rPL-ArchT rats (n = 17, green). Inset: There was no effect of rPL photosilencing (Tone 1 at Test) on freezing (top) and percent suppression of bar pressing (bottom) during the tone (unpaired t-test). (D). Left: Micrograph of ArchT expression and optical fiber placement in cPL. Right: Percent time on platform during Cond and Test for cPL-eYFP control (n = 7, grey) and cPL-ArchT rats (n = 9, green). Inset: There was no effect of cPL photosilencing (Tone 1 at Test) on freezing (top) and percent suppression of bar pressing (bottom) during the tone (unpaired t-test). (E). Left: Time spent on platform in 3 s bins (Tone 1 at Test) revealed no effect of silencing rPL-ArchT neurons compared to eYFP controls (repeated measures ANOVA). Right: Latency of avoidance for each rat (Tone 1 at Test). rPL-ArchT rats showed a decrease in avoidance latency (Mann Whitney U test, p=0.021). (F). Timeline of avoidance (left) and latency (right) for cPL-eYFP control rats and cPL-ArchT rats. All data are shown as mean ± SEM; *p<0.05.

https://doi.org/10.7554/eLife.34657.005

Next, we infused ArchT bilaterally into PL, distinguishing rostral PL (rPL; defined as dorsal to medial orbitofrontal cortex and anterior to the infralimbic cortex) from caudal PL (cPL; defined as dorsal to the infralimbic cortex; Figure 2B) based on distinct connectivity of these subregions (Floyd et al., 2000; Floyd et al., 2001). 4–6 weeks after viral infusion, 10 days of avoidance training commenced. Rats were then given a 2-tone test of avoidance expression, with laser illumination concurrent with the first tone only. Surprisingly, avoidance was not impaired by photosilencing of either rPL (Figure 2C; t(30) = 0.792, p=0.435) or cPL (Figure 2D; t(14) = 0.471, p=0.646). Photosilencing also had no effect on the time course of avoidance in rPL (Figure 2E left) or cPL (Figure 2F left). However, rPL-ArchT rats avoided significantly earlier than eYFP controls, as measured by avoidance latency (Figure 2E right, Mann Whitney U test, p=0.021). With respect to freezing, there was no significant effect of photosilencing in rPL (Figure 2C top inset, t(30) = 1.939, p=0.062) or cPL (Figure 2D top inset, t(14) = 0.590, p=0.565). Suppression of bar pressing was also unaffected by photosilencing in either location (Figure 2C bottom inset, rPL: t(30) = 0.415, p=0.681; Figure 2D bottom inset, cPL: t(14) = 0.984, p=0.342). The lack of impairment of avoidance may suggest that we failed to sufficiently inhibit PL activity via ArchT photosilencing. However, photosilencing rPL neurons during early avoidance training (on day 2) significantly reduced tone-induced freezing (eYFP-control: 31% (n = 9) vs. eYFP-ArchT: 7% (n = 8), t(15) = 0.288, p=0.012, Figure 2—figure supplement 1).

Thus, contrary to our initial hypothesis, excitatory activity of PL projection neurons does not appear to be necessary for avoidance behavior. Instead, silencing rPL tended to facilitate avoidance (as indicated by the decrease in avoidance latency), raising the possibility that avoidance signaling may involve rPL inhibition rather than excitation.

Inhibitory tone responses of PL neurons are specific to avoidance

An assumption of our photosilencing approach was that increased activity in PL neurons is correlated with avoidance; however, this hypothesis had never been tested. We therefore performed extracellular single unit recordings in PL of well-trained rats during avoidance expression. Units were recorded from the full rostral-caudal extent of PL (Figure 3A). We first characterized PL responses to tone onset. Both excitatory responses (Z > 2.58, first 500 ms) and inhibitory responses (Z < −1.96, in the first or second 500 ms) were observed (Figure 3B right). This tone response latency (<1 s) was selected to ensure that the activity of PL neurons reflected the tone rather than platform entry, which occurred later than 1 s in 91% of the trials (median = 3.55 s). Figure 3C shows the proportions of neurons that were significantly responsive (at each 500 ms bin) throughout the tone. The black dots above the graph indicate the time of platform entry relative to tone onset. Out of 205 neurons, 30 were excited (14%) and 22 were inhibited (11%) at tone onset, relative to 10 s of pre-tone activity (Figure 3D). Normalized activity throughout the tone for all neurons is shown in Figure 3—figure supplement 1A–B.

Figure 3 with 1 supplement see all

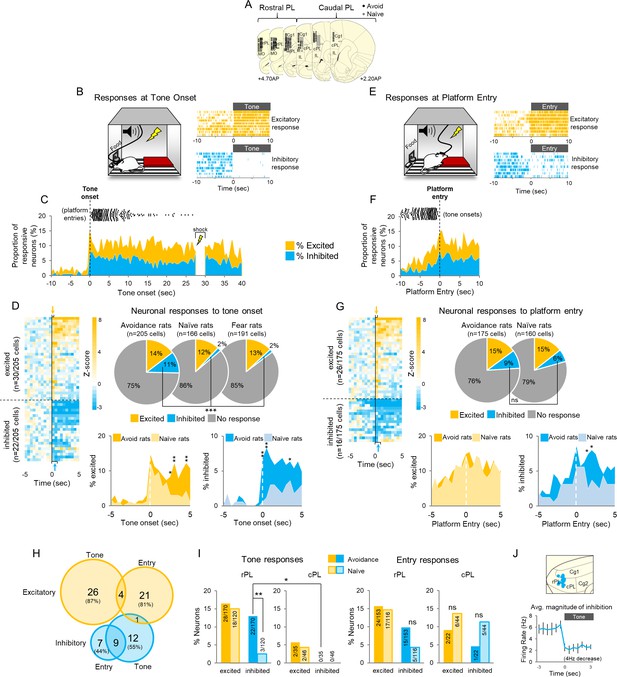

Active avoidance is correlated with inhibition in rostral PL neurons.

(A). Location of recordings across PL (n = 6 avoidance-trained and n = 8 naïve rats). (B). Left: Schematic of rat behavior at tone onset during unit recordings. Right: single unit examples of excitatory (gold rasters) and inhibitory (blue rasters) tone responses. Each row represents a single trial. (C). Proportion of excitatory (gold) or inhibitory (blue) neurons at each 500 ms bin across the tone. Time of platform entry (black dots), for all successful trials (n = 284) in avoidance rats is indicated relative to tone onset. (D). Left: Heat map of normalized (z-score) responses to tone onset (Time = 0 s) of neurons in avoidance rats. Each row represents one neuron, bin = 0.5 s. Arrows indicate bins used to determine excitatory (gold, first 500 ms bin), or inhibitory (blue, first or second 500 ms bin) tone responses. Right: Pie charts showing proportions of excited, inhibited, or non-responsive neurons at tone onset in avoidance (n = 30, 22, 153, respectively), naïve (n = 20, 3, 143, respectively), and fear conditioned (n = 25, 3, 163, respectively) rats. Proportions of inhibitory responses were significantly greater in avoidance rats compared to naïve and fear conditioned rats (Chi Square test). Bottom: Percentage of cells that were excited in avoidance (gold) or naïve (light gold) rats (left) or inhibited in avoidance (blue) or naïve (light blue) rats (right) around tone onset (Fisher exact tests). (E). Left: Schematic of rat entering platform after tone onset during unit recordings. Right: single unit examples of excitatory (gold rasters) and inhibitory (blue rasters) platform entry responses. (F). Proportion of excitatory (gold) or inhibitory (blue) neurons at platform entry. Time of tone onset (black dots), for all successful trials (n = 284) in avoidance rats is indicated relative to platform entry. (G). Left: Heat map of normalized responses to platform entry (Time = 0 s) of neurons in avoidance rats. Right: Pie charts showing proportions that were excited, inhibited, or non-responsive neurons at platform entry in avoidance (n = 26, 16, 133, respectively) and naïve rats (n = 23, 10, 127, respectively). Bottom: Percentage of cells that were excited in avoidance (gold) or naïve (light gold) rats (left) or inhibited in avoidance (blue) or naïve (light blue) rats (right) after platform entry (Fisher exact tests). (H). Venn diagram illustrating the number (and percentage) of excitatory and inhibitory responsive cells responding to tone onset, platform entry, or both. (I). Left: Proportion of neurons responding to tone onset in rostral PL (left) and caudal PL (right) in avoidance (dark bars) and naïve (light bars) groups. There were significantly more inhibitory tones responses in rPL vs cPL (Fisher Exact test). Right: Proportion of neurons responding to platform entry in rostral PL (left) and caudal (right) PL in avoidance and naïve rats. (J). Top: Sagittal view of location of inhibitory tone responsive neurons (blue). Bottom: Average inhibitory response of neurons decreased from a baseline firing rate of 5.8 Hz to 1.98 Hz at tone onset. Data are shown as mean ± SEM; *p<0.05, **p<0.01, ***p<0.001.

https://doi.org/10.7554/eLife.34657.008

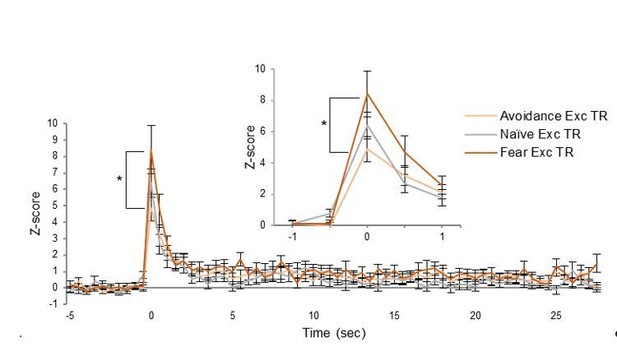

To determine if these tone responses were correlated with avoidance rather than simply auditory processing, we compared PL responses in this group of rats with those of a naïve control group trained to press for food and presented with tones in the same chamber with the platform. Naïve rats were free to mount the platform and explore the chamber but were never shocked. In addition, to determine whether activity at tone onset might represent the conditioned aversiveness of the tone, we compared responses in avoidance rats with responses in rats subjected to auditory fear conditioning in the same chamber (re-analysis of data from Burgos-Robles et al., 2009). Surprisingly, there were no significant differences in the percentage of excitatory tone responses in the avoidance group compared to the naïve or fear conditioned groups (Figure 3D top right; avoidance-trained: 30/205 (14%), naïve: 20/166 (12%), fear: 25/191 (13%), Chi Square = 0.547, p=0.761). Inhibitory responses, however, occurred more frequently in avoidance-trained rats compared to the other two groups (avoidance-trained: 22/205 (11%), naïve: 3/166 (2%), fear: 3/191 (2%), Chi Square = 22.545, p<0.001). Group differences between tone responses are shown for the first 5 s of the tone in Figure 3D (bottom). Note the marked differences between avoidance and naïve groups for inhibitory, but not excitatory, responses at tone onset.

Platform entry responses are not specific to avoidance

We next examined PL activity at platform entry, defined as the moment at which the rat’s head entered the platform zone (Figure 3E–G), compared to the same baseline used for tone onset. Both excitatory (Z > 2.58 in the first 500 ms) and inhibitory (Z < −1.96 in the first or second 500 ms) responses to platform entry were observed (Figure 3E right). Figure 3F shows the proportion of neurons that were responsive at each 500 ms time bin around platform entry (black dots above the graph show tone onsets). PL neurons showed excitation (n = 26/175; 15%) and inhibition (n = 16/175; 9%) at platform entry (Figure 3G left), but neither differed significantly from the naïve group (Figure 3G right: n = 23/160 excited, p=0.331; n = 10/160 inhibited, p=0.197 Fisher Exact). Platform responses across the first 5 s after platform entry are shown in Figure 3G (bottom). Cells showing excitatory responses to the tone were largely distinct from cells showing excitatory responses to platform entry, but there was some overlap between responses showing inhibition (Figure 3H). Together, these results suggest that responses to platform entry represent sensory perception and/or motor responses rather than avoidance of threat (Amir et al., 2015).

We next asked if the latency of PL inhibition to the tone correlated with the latency of platform entry. Inhibition latency was defined as the start of the first inter-spike interval (ISI) that was significantly longer than the average pre-tone ISI (Z > 1.65; p<0.05). 133/205 neurons showed at least one ISI that satisfied this criterion. The latency of inhibition showed no correlation with the latency of platform entry (r = 0.022, Pearson correlation, Figure 3—figure supplement 1E). For each cell, we averaged its inhibitory latency across all the trials in which successful avoidance was observed (out of nine trials in each session, n = 284 trials), as well as the avoidance latency on those trials. The inhibitory response in most cells preceded platform entry (88/133 cells) but was not correlated with the latency of platform entry (r = 0.078, Figure 3—figure supplement 1F). In fact, similar inhibition was observed in trials where the rat chose not to avoid (n = 107 trials, dashed orange line in Figure 3—figure supplement 1F). The latency of headturn, which was the first movement the rat made before proceeding to the platform, also did not correlate with the latency of inhibitory responses (Figure 3—figure supplement 1E). Rather than signaling avoidance behavior, therefore, inhibitory responses in PL appear to signal that shock can be avoided (an avoidance option), regardless of whether the rat chose to avoid on that trial.

Opposing inhibition within rostral PL delays or prevents avoidance

Further analysis revealed that all neurons showing inhibition to the tone were located in rPL (blue, n = 22), with none in cPL (Figure 3I–J). Most inhibitory responses (n = 18/22) were brief, ending by ~10 s after tone onset, whereas a smaller proportion were sustained throughout the tone (n = 4/22, Figure 3—figure supplement 1C). Neurons showing inhibition reduced their firing rate from 6 to 2 Hz on average (Figure 3J) and were putative projection neurons based on their spike width and baseline firing rate (>225 µs, <15 Hz, from our previous study of PL neurons; Sotres-Bayon et al., 2012, see Figure 3—figure supplement 1D).

If inhibition within rPL signals the avoidability of a tone-signaled shock, we reasoned that opposing this inhibition should remove this option and impair avoidance. To oppose inhibition, we used channelrhodopsin (ChR2) targeting CAMKIIα-positive neurons to activate rPL neurons throughout the tone at 4 Hz, to counter the tone-induced decrease from 6 to 2 Hz. To validate our method, we first measured extracellular unit activity in anesthetized rats from ChR2-expressing rPL neurons exposed to blue light (473 nm, Figure 4A). Figure 4B shows a representative rPL neuron increasing its firing rate with photoactivation. We found that 4 Hz photoactivation increased the firing rate in 38% of the neurons and decreased the firing rate in 24% of the neurons (Figure 4C left; n = 112, 4 Hz, 30 s duration, 5 ms pulse width, 8–10 mW illumination, p<0.05). Photoactivation induced less than 4 Hz activity (3.33 Hz) suggesting that neurons failed to respond to some light pulses (Figure 4C right), as has previously been observed for ChR2 (Warden et al., 2012). Photoactivation at 2 Hz had an even weaker effect, increasing the firing rate from 0.4 to 1.19 Hz on average (Figure 4D–E).

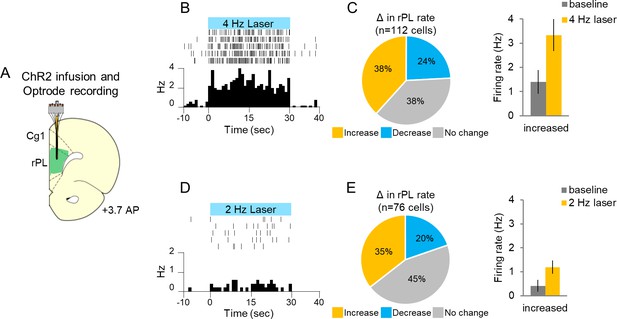

Single-unit recording with photoactivation in rostral PL neurons of anesthetized rats.

(A). Schematic of ChR2 expression and optrode placement (n = 4 rats). (B). Rasters and peristimulus time histograms of a representative single neuron showing increased firing rate during 4 Hz laser illumination (8–10 mW, 473 nm, 30 s ON, 30 s OFF, five trials). (C). Left: Proportion of neurons showing an increase (gold, n = 43), decrease (blue, n = 27), or no change (grey, n = 42) in firing rate with laser ON. Right: Average firing rate at baseline (dark grey) and 4 Hz photoactivation for neurons showing increased (gold) changes in firing rate. (D). Rasters and peristimulus time histograms of a representative single neuron showing increased firing rate during 2 Hz laser illumination (8–10 mW, 473 nm, 30 s ON, 30 s OFF, five trials). (E). Left: Proportion of neurons showing an increase (n = 27), decrease (n = 15), or no change (n = 34) in firing rate with laser ON. Right: Average firing rate at baseline, and 2 Hz photoactivation for neurons showing increased changes in firing rate. Data are shown as mean ± SEM.

https://doi.org/10.7554/eLife.34657.011

We next infused ChR2 bilaterally into either the rPL or cPL and began avoidance conditioning 3–4 weeks after AAV infusion (Figure 5A). Following 10 days of avoidance training, rats were exposed to two tones presented in the absence of shock. PL neurons were illuminated throughout the first tone (4 Hz, 30 s). Photoactivation of rPL neurons at 4 Hz markedly reduced avoidance expression as reflected in the time spent on the platform (Figure 5B; eYFP-control, n = 9, 87% vs. ChR2-eYFP, n = 14, 27%, t(21) = −4.779, p<0.001, Bonferroni corrected; see Video 1). In contrast to rPL, photoactivation of cPL had no significant effect on avoidance (Figure 5C, t(14) = 1.531, p=0.148) or its time course (Figure 5E).

Figure 5 with 1 supplement see all

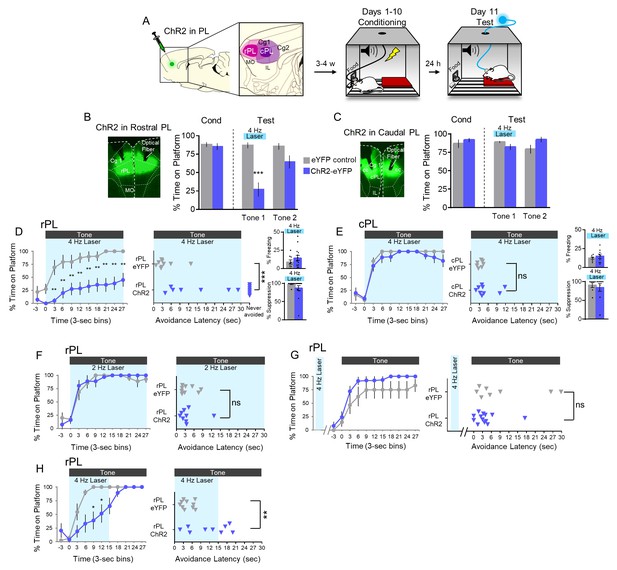

4 Hz photoactivation of neurons in rostral PL delays or prevents avoidance.

(A). Schematic of viral infusion and location of min/max spread of AAV expression in rPL (pink) and cPL (purple), followed by avoidance training. At Test, 473 nm light was delivered to rPL or cPL during the 30 s tone presentation (Tone 1). (B). Left: Micrograph of ChR2 expression and optical fiber placement in rPL. Right: Percent time on platform at Cond (Day 10, Tone 1) and Test (Day 11, Tone 1 with laser ON and Tone 2 with laser OFF) for rPL-eYFP control rats (grey, n = 9) and rPL-ChR2 rats (blue, n = 14). (C). Left: Micrograph of ChR2 expression and optical fiber placement in cPL. Right: Percent time on platform during Cond and Test for cPL-eYFP control rats (grey, n = 7) and cPL-ChR2 rats (blue, n = 9). (D). Left: Time spent on platform in 3 s bins (Tone one at Test) revealed that rPL-ChR2 rats were significantly delayed in their avoidance compared to eYFP controls (repeated measures ANOVA, post hoc tukey). Right: Latency of avoidance for each rat (Mann Whitney U test, Tone 1 at Test). 7/14 rats never avoided. Inset: There was no effect of rPL photoactivation (Tone 1 at Test) on freezing (top) and percent suppression of bar pressing (bottom) during the tone (unpaired t-test). (E). Timeline of avoidance (left) and latency (right) for ChR2-cPL rats and eYFP controls revealed no effect of 4 Hz photoactivation of cPL. Inset: There was no effect of cPL photoactivation (Tone 1 at Test) on freezing (top) and percent suppression of bar pressing (bottom) during the tone (unpaired t-test). (F). Timeline of avoidance (left) and latency (right) for rPL-ChR rats (blue, n = 9) and rPL-eYFP controls (grey, n = 9) revealed no effect of 2 Hz photoactivation. (G). Timeline of avoidance (left) and latency (right) for rPL-ChR2 rats (blue, n = 13) and rPL-eYFP controls (grey, n = 8) revealed no effect of 4 Hz photoactivation (30 s) during the ITI period. (H). Timeline of avoidance (left) and latency (right) for and rPL-ChR2 rats (blue, n = 9) and rPL-eYFP controls (grey, n = 10) revealed a delay in avoidance with 4 Hz photoactivation during the first 15 s of the tone (Mann Whitney U test for time course and avoidance latency). All data are shown as mean ± SEM; *p<0.05; **p<0.01; ***p<0.001.

https://doi.org/10.7554/eLife.34657.013

Examination of the time course of avoidance showed that photoactivation of rPL significantly reduced avoidance throughout the tone (Figure 5D left; repeated measures ANOVA, main effect (Group), F(1) = 18.642, p<0.001, interaction effect (Group x Time) F(9) = 1.156, p=0.326, post hoc, 3–30 s, all p’s < 0.01). Photoactivation delayed avoidance in 7/14 rats and blocked avoidance entirely in 7/14 rats (Figure 5D right; Mann Whitney U test, p<0.001). Photoactivation had no significant effect on freezing or suppression of bar pressing in either rPL (Figure 5D insets, freezing: t(21) = 1.121, p=0.275; suppression: t(21) = 1.343, p=0.194) or cPL (Figure 5E insets, freezing: t(14) = 0.0702, p=0.494; suppression: t(14) = 0.483, p=0.636). Photoactivation at 2 Hz had no effect on avoidance expression (Figure 5F). Furthermore, shifting the 4 Hz photoactivation to the inter-tone interval did not impair avoidance (Figure 5G). Thus, the photoactivation-induced impairment of avoidance showed specificity with respect to location, time, and frequency. Finally, reducing the duration of 4 Hz photoactivation to the first 15 s of the tone delayed, but did not prevent, avoidance as indicated by time on platform (Figure 5H left; Mann Whitney U test, p’s <0.05 at 9–15 s) and avoidance latency (Figure 5H right, t(17) = 3.363, p=0.004). 4 Hz photoactivation of rPL had no effect on locomotion, as indicated by distance traveled in an open field (eYFP-control n = 11, 2.71 m vs. ChR2-eYFP, n = 15, 2.25 m, t(24) = 0.941, p=0.356, Figure 5—figure supplement 1). Nor did it have any effect on anxiety levels, as assessed by time spent in the center of the open field (eYFP-control = 2.6727 s vs. eYFP-ChR2 = 2.6733 s, t(24) = 4.82e-4, p=0.999, Figure 5—figure supplement 1). Thus, preventing inhibition in rPL glutamatergic neurons severely impaired avoidance expression.

Discussion

In this study, we investigated the mechanisms of prefrontal control over active avoidance. Whereas pharmacological inactivation of PL delayed avoidance, optogenetic silencing of rostral PL accelerated avoidance. Single-unit recordings revealed that avoidance training was associated with inhibitory, rather than excitatory, tone responses in rostral PL neurons. Consistent with this, opposing tone-induced inhibition by optogenetically activating rPL neurons delayed or prevented avoidance. These findings add to a growing body of evidence that inhibition within PL is key for conditioned behavior (Ehrlich et al., 2009; Ciocchi et al., 2010; Sotres-Bayon et al., 2012; Sparta et al., 2014) and highlight the importance of using in vivo recordings to guide optogenetic behavioral manipulations.

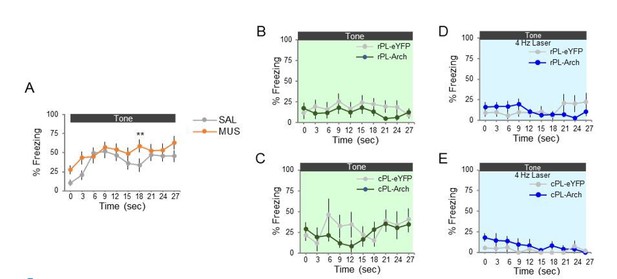

Previous work has shown that lesions or inactivation of PL reduces freezing in Pavlovian fear conditioning tasks (Baeg et al., 2001; Vidal-Gonzalez et al., 2006; Sierra-Mercado et al., 2011). In our platform-mediated avoidance task, however, there was no reduction in freezing following pharmacological or optogenetic inhibition of PL (present study; Bravo-Rivera et al., 2014). Thus, PL activity is no longer necessary for freezing following avoidance training. It is therefore unlikely that inhibitory responses in PL promote avoidance by decreasing freezing. In fact, freezing levels increased following MUS inactivation, consistent with loss of avoidance as a possible response to the tone. It is well-established that early stages of avoidance training depend on Pavlovian conditioning (acquisition of tone-shock association), whereas later stages of training shift to instrumental learning (platform entry; Mowrer and Lamoreaux, 1946; Kamin et al., 1963; LeDoux et al., 2017). In agreement with this shift, we did, in fact, observe a decrease in freezing following optogenetic silencing of PL early in avoidance training.

We observed both excitatory and inhibitory signaling in PL during avoidance. Excitatory responses to platform entry are consistent with prior cFos studies showing that active avoidance is correlated with increased PL activity (Martinez et al., 2013; Bravo-Rivera et al., 2015). Inhibitory responses to the tone were observed following avoidance training, but not fear conditioning, suggesting that inhibition is specific to avoidance. However, inhibitory tone responses were not correlated with platform entry and persisted in trials in which the rat did not avoid. Instead of signaling avoidance behavior, we suggest that rPL inhibition is a training-induced property of the tone, indicating that shock is avoidable and that the rat has the option to avoid. ‘Avoidability’ in this task resembles ‘controllability’ when rats learn that they can terminate a shock by running in a wheel (Maier and Seligman, 1976; Maier, 2015). In that task, rats’ control of shock reduced the activation of serotoninergic neurons in the dorsal raphe, a phenomenon blocked by PL inactivation (Amat et al., 2005). Thus, inhibition in PL may reduce its effects on target structures such as the raphe, thereby signaling avoidability/controllability in a variety of contexts.

We impaired avoidance by photostimulating at 4 Hz, which clamped PL glutamatergic neurons to their basal firing rate and prevented tone-induced inhibition. This rate of stimulation is much lower than the 20 Hz used in most behavioral studies employing channelrhodopsin (Liu et al., 2012; Felix-Ortiz and Tye, 2014; Marcinkiewcz et al., 2016; Villaruel et al., 2017; Burgos-Robles et al., 2017; Warlow et al., 2017). This impairment in avoidance with 4 Hz stimulation was surprising given that photoactivation of the adjacent infralimbic cortex required stimulation rates ≥ 10 Hz to reduce conditioned freezing (Do-Monte et al., 2015a). As 4 Hz approximates the average firing rate of mPFC putative projection neurons (Jung et al., 1998; Baeg et al., 2001; Burgos-Robles et al., 2009; Sotres-Bayon et al., 2012), the impairment in avoidance was likely due to abolishment of inhibitory responses. Excitatory responses coupled with the loss of inhibitory responses to the tone would cause PL responses in avoidance-trained rats to resemble those in fear conditioned rats, indicating that the shock is not avoidable. An important caveat, however, is that CaMKIIα-expressing neurons were activated by ChR2 indiscriminately and were not limited to neurons showing inhibitory responses to the tone. Thus, in addition to reducing inhibitory responses in one population of cells, we likely induced some degree of excitation in a separate population of cells. Both mechanisms would have the effect of increasing tone-induced activity at rPL targets, but ChR2 photoactivation would be expected to have a greater effect (as we observed). Whereas MUS inactivation would non-specifically inhibit all neuronal types, it may resemble our 4 Hz photoactivation by preventing any further inhibition at tone onset.

Neurons in PL project to the basolateral amygdala (BLA) and ventral striatum (VS; Sesack et al., 1989; Vertes, 2004), both necessary for active avoidance (Darvas et al., 2011; Bravo-Rivera et al., 2014; Ramirez et al., 2015; Hormigo et al., 2016). Inhibition of excitatory inputs from rPL to VS may be permissive for avoidance behavior, which would resemble inhibition of VS during food seeking (Rada et al., 1997; Saulskaya and Mikhailova, 2002; Do-Monte et al., 2017). rPL activity may also modulate avoidance via projections to BLA, thereby activating BLA projections to VS, which have been shown to drive shuttle avoidance (Ramirez et al., 2015). One possibility is that inputs to VS from PL and BLA drive different aspects of avoidance: rPL for avoidance early in the tone when it is less urgent, and BLA for avoidance later in the tone when it is more urgent. In support of this, PL inhibition often delayed but did not block avoidance, revealing the effect of other inputs to VS later in the tone.

Excessive avoidance is clinically relevant for PTSD and other anxiety disorders. Rodent PL is considered to be homologous to the human dorsal anterior cingulate cortex (dACC; Bicks et al., 2015; Heilbronner et al., 2016). In humans, active avoidance is correlated with functional coupling of the rostral dACC with the striatum (Collins et al., 2014), and the ability to control aversive stimuli is associated with decreased activity in the rostral dACC (Wood et al., 2015), consistent with the rPL inhibition we observed. Furthermore, excessive avoidance in PTSD patients is correlated with increased activity in rostral dACC (Marin et al., 2016). Thus, reduced inhibition in rostral dACC and its striatal targets may bias individuals toward avoidance, despite behavioral costs and a low probability of danger.

Materials and methods

Subjects

A total of 155 adult male Sprague Dawley rats (Harlan Laboratories, Indianapolis, IN) aged 3–5 months and weighing 320–420 g were housed and handled as previously described (Bravo-Rivera et al., 2014). Rats were maintained on a restricted diet (18 g/day) of standard laboratory rat chow to facilitate pressing a bar for food on a variable interval schedule of reinforcement (VI-30). All procedures were approved by the Institutional Animal Care and Use Committee of the University of Puerto Rico School of Medicine in compliance with the National Institutes of Health guidelines for the care and use of laboratory animals.

Surgery

Request a detailed protocol

Rats were anesthetized with isofluorane inhalant gas (5%) first in an induction chamber, then positioned in a stereotaxic frame (Kopf Instruments, Tujunga, CA). Isofluorane (2–3%) was delivered through a facemask for anesthesia maintenance. For pharmacological inactivations, rats were implanted with 26-gauge double guide cannulas (Plastics One, Roanoke, VA) in the prelimbic prefrontal cortex (PL; +3.0 mm AP; ±0.6 mm ML; −2.5 mm DV to bregma, 0° angle). For optogenetic experiments, rats were bilaterally implanted with 22-gauge single guide cannulas (Plastics One, Roanoke, VA) in the prelimbic prefrontal cortex (PL; +2.6–2.8 mm AP; ±1.50 mm ML; −3.40 mm DV to bregma, 15°angle). An injector extending 2 mm beyond the tip of each cannula was used to infuse 0.5 μl of virus at a rate of 0.05 μl/min. The injector was kept inside the cannula for an additional 10 min to reduce back-flow. The injector was then removed and an optical fiber (0.22 NA, 200 nm core, constructed with products from Thorlabs, Newton, NJ) with 1 mm of projection beyond the tip of each cannula was inserted for PL illumination. The guide cannula and the optical fiber were cemented to the skull (C and B metabond, Parkell, Brentwood, NY; Ortho Acrylic, Bayamón, PR). For unit recording experiments, rats were implanted with a moveable array of 9 or 16 microwires (50 μm spacing, 3 × 3 or 2 × 8, Neuro Biological Laboratories, Denison, TX) targeting regions of PL along the rostral-caudal axis. After surgery, triple antibiotic was applied topically around the surgery incision, and an analgesic (Meloxicam, 1 mg/Kg) was injected subcutaneously. Rats were allowed a minimum of 7 days to recover from surgery prior to behavioral training.

Behavior

Request a detailed protocol

Rats were initially trained to press a bar to receive food pellets on a variable interval reinforcement schedule (VI-30) inside standard operant chambers (Coulbourn Instruments, Whitehall, PA) located in sound-attenuating cubicles (MED Associates, St. Albans, VT). Bar-pressing was used to maintain a constant level of activity against which avoidance and freezing could reliably be measured. Rats were trained until they reached a criterion of ≥15 presses/min. Rats pressed for food throughout all phases of the experiment.

For platform-mediated avoidance, rats were trained as previously described (Bravo-Rivera et al., 2014). Briefly, rats were conditioned with a pure tone (30 s, 4 kHz, 75 dB) co-terminating with a scrambled shock delivered through the floor grids (2 s, 0.4 mA). The inter-trial interval was variable, averaging 3 min. An acrylic square platform (14.0 cm each side, 0.33 cm tall) located in the opposite corner of the sucrose pellet–delivering bar protected rats from the shock. The platform was fixed to the floor and was present during all stages of training (including bar-press training). Rats were conditioned for 10 days, with nine tone-shock pairings per day with a VI-30 schedule maintained across all training and test sessions. The availability of food on the side opposite to the platform motivated rats to leave the platform during the inter-trial interval, facilitating trial-by-trial assessment of avoidance. Once rats learned platform-mediated avoidance, rats underwent a 2-tone expression test (two tones with no shock). Tone 2 served as an unstimulated within-subject control and was included in the experimental design to identify any persistent effects of the laser activation. In all optogenetic experiments, the response to Tone 1 was statistically compared to the eYFP control group at Tone 1.

Drug infusions

Request a detailed protocol

The GABA-A agonist muscimol (fluorescent muscimol, BODIPY TMR-X conjugate, Sigma-Aldrich) was used to enhance GABA-A receptor activity, thereby inactivating target structures. Infusions were made 45 min before testing at a rate of 0.2 µl/min (0.11 nmol/ 0.2 µl/ per side), similar to our previous studies (Do-Monte et al., 2015b; Rodriguez-Romaguera et al., 2016).

Viruses

The adeno-associated viruses (AAVs; serotype 5) were obtained from the University of North Carolina Vector Core (Chapel Hill, NC). Viral titers were 4 × 1012 particles/ml for channelrhodopsin (AAV5:CaMKIIα::hChR2(H134R)-eYFP) and archaerhodopsin (AAV5:CaMKIIα::eArchT3.0-eYFP) and 3 × 1012 particles/ml for control (AAV5:CaMKIIα::eYFP). Rats expressing eYFP in PL were used to control for any nonspecific effects of viral infection or laser heating. The CaMKIIα promoter was used to enable transgene expression favoring pyramidal neurons (Liu and Jones, 1996) in cortical regions (Jones et al., 1994; Van den Oever et al., 2013; Warthen et al., 2016). Viruses were housed in a −80°C freezer until the day of infusion.

Laser delivery

Request a detailed protocol

Rats expressing channelrhodopsin (ChR2) in PL were illuminated using a blue diode-pump solid state laser (DPSS, 473 nm, 2 or 4 Hz, 5 ms pulse width, 8–10 mW at the optical fiber tip; OptoEngine, Midvale, UT), similar to our previous study (Do-Monte et al., 2015a). Rats expressing archaerhodopsin (ArchT) in PL were bilaterally illuminated using a DPSS green laser (532 nm, constant, 10–12 mW at the optical fiber tip; OptoEngine). For both ChR2 and ArchT experiments, the laser was activated at tone onset and persisted throughout the 30 s tone presentation. Laser light was passed through a shutter/coupler (200 nm, Oz Optics, Ontario, Canada), patchcord (200 nm core, ThorLabs, Newton, NJ), rotary joint (200 nm core, 2 × 2, Doric Lenses, Quebec city, Canada), dual patchcord (0.22 NA, 200 nm core, ThorLabs), and bilateral optical fibers (made in-house with materials from ThorLabs and Precision Fiber Products, Milpitas, CA) targeting the specific subregions in PL. Rats were familiarized with the patchcord during bar press training and during the last 4 d of avoidance training before the expression test.

Single-unit recordings

Request a detailed protocol

Rats implanted with moveable electrode arrays targeting PL/Cg1 were either avoidance conditioned as previously described or exposed to the training environment (platform, tone presentations, behavior box) in the absence of the shock. Extracellular waveforms that exceeded a voltage threshold were digitized at 40 kHz and stored on a computer. Waveforms were then sorted offline using three-dimensional plots of principal component and voltage vectors (Offline Sorter; Plexon, Dallas, TX) and clusters formed by individual neurons were tracked. Timestamps of neural spiking and flags for the occurrence of tones and shocks were imported to NeuroExplorer for analysis (NEX Technologies, Madison, AL). Because we used a high impedance electrode in the current study (~750–1000 kOhm), we were unable to sample interneurons. Single units were recorded across the extent of Cg1, Cg2, and PL. We excluded any units in Cg2 based on histological verification. Portions of Cg1 dorsal to rPL were grouped together for analyses, and portions of Cg1 dorsal to cPL were grouped together for analyses, ensuring that the proportion of Cg1 units was similar across both PL regions. Data was recorded during the entire session except during the 2 s shock. After conditioning, rats were tested for avoidance expression.

For avoidance assessment, rats received full conditioning sessions (with shocks) across days. Inclusion of the shock prevented extinction of avoidance. After each day, electrodes were lowered 150 µM to isolate new neurons for the following session the next day. To detect tone-elicited changes in PL activity, we assessed whether neurons changed their firing rate significantly during the first 500–1000 ms after tone onset across the first five trials. A Z-score for each 500 ms bin was calculated relative to 20 pre-tone bins of equal duration (10 s pretone). PL neurons were classified as showing excitatory tone responses if the initial bins exceeded 2.58 z’s (p<0.01, two-tailed). PL neurons were classified as showing inhibitory tone responses across time if any of the initial two tone bins exceeded −1.96 Z’s (p<0.05, two-tailed). A longer response latency for inhibition was chosen to take into account multi-synaptic pathways that are present in inhibitory circuits.

To detect changes in PL activity during platform entry, we employed the same procedure used for assessing tone responses. We assessed whether neurons changed their firing rate significantly during the first 500–1000 ms after platform entry. A Z-score for each 500 ms bin was calculated relative to the same pretone baseline. Heat maps of single unit data were generated with Z-scores from baseline through the 28 s after tone onset or platform entry.

To assess the relations between inhibition and avoidance on a trial-by-trial basis, we compared the latency of inhibition with the latency of platform entry. The latency of the inhibitory response to the tone was identified as the start of the first interspike interval (ISI) that was significantly longer than the average ISI in 30 s of pre-tone activity (Z > 1.65; p<0.05) recorded in all cells for each trial. We then computed the average latency of inhibition and platform entry for each cell recorded across all the trials in which successful avoidance was observed (nine trials per session). Avoidance latency was also averaged on those trials for each cell.

Optrode recordings

Request a detailed protocol

Rats expressing ArchT or ChR2 in PL were anesthetized with urethane (1 g/Kg, i.p.; Sigma Aldrich) and mounted in a stereotaxic frame. An optrode consisting of an optical fiber surrounded by 8 or 16 single-unit recording wires (Neuro Biological Laboratories) was inserted and aimed at PL (AP, +2.8 mm; ML: −0.5; DV: −3.5). The optrode was ventrally advanced in steps of 0.03 mm. Single-units were monitored in real time (RASPUTIN, Plexon). After isolating a single-unit, a 532 nm laser was activated for 10 s within a 20 s period, at least 10 times for ArchT-infected PL neurons. For ChR2-infected PL neurons, a 473 nm laser was activated for 30 s at a rate of 2 or 4 Hz (5 ms pulse width) within a 90 s period (60 s ITI), at least five times. Single-units were recorded and stored for spike sorting (Offline Sorter, Plexon) and spike-train analysis (Neuorexplorer, NEX Technologies). Excitatory and inhibitory responses were calculated by comparing the average firing rate of each neuron during the 10 s of laser OFF with the 10 s of laser ON for ArchT neurons and during 30 s laser OFF just prior to the 30 s of laser ON for ChR2 neurons (Wilcoxon signed-rank test, 1 s bins).

Open field task

Request a detailed protocol

Locomotor activity in the open field arena (90 cm diameter) was automatically assessed (ANY-Maze) by comparing the total distance travelled between 30 s trials (laser off versus laser on), following a 3 min acclimation period for optogenetic experiments. The distance traveled was used to assess locomotion and time in center was used to assess anxiety. For pharmacological inactivation experiments, distance traveled and time in center was measured over a 5 min period following a 3 min acclimation period 45 min after MUS or SAL was infused prior to sacrificing animals.

Histology

Request a detailed protocol

After behavioral experiments, rats were deeply anesthetized with sodium pentobarbital (450 mg/kg i.p.) and transcardially perfused with 0.9% saline followed by a 10% formalin solution. Brains were removed from the skull and stored in 30% sucrose for cryoprotection for at least 72 hr before sectioning and Nissl staining. Histology was analyzed for placement of cannulas, virus expression, and electrodes.

Data collection and analysis

Request a detailed protocol

Behavior was recorded with digital video cameras (Micro Video Products, Peterborough, Ontario, Canada). Freezing and platform avoidance was quantified by observers blind to the experimental group. Freezing was defined as the absence of all movement except for respiration. Avoidance was defined as the rat having at least three paws on the platform. We calculated percent suppression of bar pressing for each tone as previously described (Bravo-Rivera et al., 2014):

(pretone ratetone rate)(pretone rate+tone rate)100

A value of 0% indicates no suppression, where a value of 100% indicates complete suppression. To calculate pretone rates, we used the 60 s before tone onset. In a subset of animals, AnyMaze software was available for recording and calculating freezing, avoidance, and suppression of bar pressing (Stoelting, Wood Dale, IL). The time spent avoiding during the tone (percent time on platform) was used as our avoidance measure. Avoidance and freezing to the tone was expressed as a percentage of the 30 s tone presentation. Our experimental groups typically consisted of approximately 15 animals. This is typical of other laboratories and results in sufficient statistical confidence. Moreover, it also agrees with the theoretical minimum sample size given by:

n=z2σ2d2

where z = the level of confidence desired (in standard deviations), σ = the estimate of the population standard deviation, and d = the acceptable width of the confidence interval. Technical replications, testing the same measurement multiple times, and biological replications, performing the same test on multiple samples (individual rats or single units), were used to test the variability in each experiment. Statistical significance was determined with Student’s two-tailed t-tests, Fisher Exact tests, Chi Square tests, Pearson’s correlation, Mann Whitney U tests, or repeated-measures ANOVA, followed by post hoc Tukey analyses, and Bonferroni corrections, where appropriate using STATISTICA (Statsoft, Tulsa, OK) and Prism (Graphpad, La Jolla, CA).

Video 1
4 Hz photoactivation of rostral PL neurons during the tone impairs avoidance.

Video of an individual rat with ChR2 infused into rPL showing avoidance behavior on the last day of avoidance training (Day 10) at Tone 1, followed by the rat’s behavior at Test (Day 11) with the laser on during the tone (4 Hz, 30 s duration, 5 ms pulse width, 8–10 mW light intensity).

https://doi.org/10.7554/eLife.34657.016

References

  1. 1
  2. 2
    Diagnostic and Statistical Manual of Mental Disorders: DSM-5 (5th edn)
    1. American Psychiatric Association
    (2013)
    Washington, DC: American Psychiatric Association.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68

Decision letter

  1. Geoffrey Schoenbaum
    Reviewing Editor; National Institute on Drug Abuse, National Institutes of Health, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Active avoidance requires inhibitory signaling in the rodent prelimbic prefrontal cortex" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Geoffrey Schoenbaum, is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Michael Frank as the Senior Editor. Michael McDannald has agreed to reveal his identity as one of the other reviewers.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study examines the role of the prelimibic cortex (PL) in active avoidance. The authors use fluorescent-tagged muscimol to extend a previous finding that PL inhibition delays already established active avoidance. To the author's surprise, optogenetic PL inhibition at the time of cue in this same task had no effect on avoidance – or even sped avoidance initiation when the rostral PL was photo-inhibited. Using single-unit recording they uncovered a novel, inhibitory signal in rostral PL neurons that only emerged during tone presentation in avoidance rats. Accounting for the magnitude of firing decrease observed by these neurons, the authors show that 4 Hz photo-stimulation via channelrhodopsin at only the time of the tone – cancelling out the observed inhibitory – delayed inhibitory avoidance. Collectively the results point to an unappreciated role of inhibition in PL in controlling the initiation of the decision to avoid. The topic is timely, the results are quite novel, and technically these experiments are excellent. Further, using neural activity to calibrate the optogenetic manipulation is smart and would be a good practice for the field. Overall, this is a very strong manuscript, mostly requiring just some clarifying analyses.

Essential revisions:

In our discussion, the reviewers identified three key areas that some additional information would be helpful. I have left the comments below intact, but these three revisions are the ones that are most important to us. The first is to provide additional detail on what behavior the rats do instead of avoiding when PL is manipulated. This is interesting in its own right and also will help to identify the role of PL – for example what happens might be different depending on whether PL is actually involved in triggering the decision versus evoking fear. All three reviewers agreed this was useful, though it is described by R1. In addition, we also thought additional detail on the single unit data would be helpful. R2 would like more information regarding the excitatory correlates and their relation or lack thereof to behavior, since they are presumably affected by the inhibitory tone. R3 is interested in developing stronger correlative relationships between firing activity and the actual decision. In part, the question here is whether there is any better metric than is provided and/or if not to discuss in more detail what is meant here, given that the actual decision to avoid is so hard to define experimentally – how can you say this is really what the neurons are doing?

Reviewer #1:

In this study, the authors examine the roles of rostral and caudal PL in active avoidance. Rats were trained to avoid a cue-signaled shock by interrupting their ongoing responding for food and stepping onto a platform. Prior work had shown that inactivating PL disrupted this behavior without affecting the cue-induced freezing. The current study replicated this effect with muscimol and then explored the neural correlates and effects of more temporally specific optogenetic manipulations. Contrary to expectations, they found that optogenetic inhibition of PL had minimal effects on expression of the active avoidance response. Subsequent recording work suggested that this was because the activity in rPL correlated with the response was inhibitory rather than excitatory. Based on this, the authors optogenetically activated PL during the cue, modestly to counteract the normal inhibition. Activation of rPL (but not cPL) impaired avoidance selectively and completely.

This is a remarkable set of studies. The authors do an excellent job of exploring a puzzling initial result, showing as they note the importance of linking optogenetic manipulations to known firing patterns in areas of interest in relevant behaviors. A particular strength of the study is the match between the effect of the effective activation on unit activity and the size of the suppression, as well as the remarkable specificity of the findings to rostral but not caudal PL, which provides a very effective control for general effects. I was a bit confused as to what the precise role of the PL contribution was to avoidance and how this related to its role in fear/freezing, which led to the following suggestions.

1) Probably the most important one is that I'd like to see the alternative behaviors plotted in detail similar to the one of interest – platform time. While I do not doubt the specificity of the role of rPL, it remains a question from the current data whether disrupting this function makes the rats no longer fearful or fearful but just incapable of organizing the escape response. There is an increase in freezing in one experiment but no effect I think in a later experiment…… but the freezing is very low. Does this mean that the rats continue to barpress for food? This question can be resolved simply by comparing the different behaviors across time – freezing, barpressing, platform. As they can be defined to be mutually exclusive, this more complete analysis may be quite interesting.

2) A second related minor suggestion – which I understand may not be worth doing – is that it would be interesting to see what happens to the response if the rPL is activated later in the cue, when the rat is on the platform. That is, in the final experiment, the rPL was activated from the start of the cue, and the escape response was essentially put on hold until the stimulation was terminated. This suggests that the area is triggering the response to avoid. But does it have an ongoing role? This could be addressed by waiting until a platform response was executed and then activating the rPL – do the rats leave the platform? And what do they do – resume barpressing? Freeze?

3) Lastly, I think the authors might provide a bit more overview as to how these results fit with the existing data regarding how PL is involved in simple fear conditioning. They seem to suggest that the entire network has been altered by the avoidance training. And yet there are still neurons that seem to signal the fear. How does the lack of effect here fit with effects in experiments lacking avoidance. Some integration with the simpler picture would be helpful.

Reviewer #2:

In this manuscript, Diehl and colleagues performed a set of experiments examining the role of the prelimibic cortex (PL) in active avoidance. The authors use fluorescent-tagged muscimol to extend a previous finding that PL inhibition delays already established active avoidance. To the author's surprise, optogenetic PL inhibition at the time of cue in this same task had no effect on avoidance – or even sped avoidance initiation when the rostral PL was photo-inhibited. Using single-unit recording they uncovered a novel, inhibitory signal in rostral PL neurons that only emerged during tone presentation in avoidance rats. Accounting for the magnitude of firing decrease observed by these neurons, the authors show that 4 Hz photo-stimulation via channelrhodopsin at only the time of the tone – cancelling out the observed inhibitory – delayed inhibitory avoidance. By contrast, 4 Hz stimulation outside of cue presentation and 2 Hz photo-stimulation during the same cue period had no effect on avoidance. Collectively, the results reveal a new role for the rostral PL in active avoidance that is underpinned by inhibition of firing by presumptive output neurons.

The topic is timely, and avoidance is severely understudied compared to fear conditioning. This might be due to the notorious difficulty in establishing avoidance behavior in the lab. The procedure used here is very clever and looks to produce robust avoidance behavior. Technically these experiments are excellent. Further, using neural activity to calibrate the optogenetic manipulation is smart and would be a good practice for the field. Overall, this is a very strong manuscript. My primary concern is the single-unit recording results. Actually, I am not so much concerned as I am convinced that there is a lot more information in the firing than is presented. The manuscript would be greatly improved by digging into this a bit more. Specific comments are below.

1) The authors convincingly show that the proportion of excitatory neurons recruited by tone onset does not differ between avoidance, naïve and fear groups. However, the authors do not directly compare neural activity over tone presentation between these three groups. This is a major oversight. In Figure 3D (bottom left) it is clear that while Avoidance and Naïve rats show similar proportions on at tone onset, neuron # falls off dramatically for Avoidance but not Naïve. It would be most informative to plot Z firing (as in Figure 3H) for entirety of tone presentation for the excitatory neurons of the three groups (Avoidance, Naïve and Fear). This is critical not only for understanding what these neurons are doing in the task, but for interpreting the optogenetic stimulation results. As the authors point out, the optogenetic manipulation affects both the excitatory and inhibitory populations. For this reason, it is essential to see the full 28-s excitatory response (as is shown for the inhibitory response in Figure 4A). ANOVA with factors of time and group would be capable of revealing differential firing (main effect of group or group x time interaction) or supporting the author's claim of no differential firing by revealing only a main effect of time.

2) A recurring claim (e.g. subsection “Inhibitory responses in rostral PL neurons correlate with the initiation of avoidance”, subsection “Countering inhibitory responses in rostral PL neurons delays or prevents avoidance” and the Discussion section) is that initiation of avoidance is correlated with inhibitory tone responses of rostral PL neurons. This claim is based on of the observation that a significantly greater proportion of inhibitory neurons are observed in the Avoidance group, compared to Naïve and Fear. It is further shown that within this population, the majority of neurons show inhibition linked to cue onset (20/25) whereas a smaller population maintains inhibition for the cue duration (5/25). However, given the analyses performed, it would be more accurate to say that inhibitory tone responses are a correlate observed only in Avoidance rats. If the authors wish to claim that avoidance is correlated with activity, then they need to perform an analysis that directly addresses this. For example, showing that the magnitude of the firing decrease (or some other aspect of firing) predicts the latency of platform entry – percent time on platform – on a trial-by-trial basis. Finding a significant correlation would support the author's claim. However, failing to observe a significant correlation would provide more information about this signal. For that matter, failing to observe a correlation would not dampen my enthusiasm for this manuscript. Inhibitory PL neurons may signal that, within a given context, shock can be avoided. If this were the case, one would expect the population activity observed in Figure 4A, but would not necessarily expect PL activity to predict avoidance on a trial-by-trial basis.

3) The analysis and visualization methods used to show that neural activity to the tone and platform entry were not optimal. The population data shown in Figure 3H are a good start, but this is only a small part of the story. For example, the authors do not show the corresponding population activity for the platform entry responsive neurons. Even further, it is clear from Figure 4H that there was variability in the platform response by tone neurons, indicating that some when responsive to platform entry. It could be that the magnitude of the tone response predicts the magnitude of the platform response, but that the tone response was higher across the board. The authors note that activity to platform entry could simply result from a continuing response to tone. A simple way to address this would be to compare differential tone firing (tone onset – baseline) against differential platform entry firing (platform entry onset vs last 10 s of tone). This would provide a more thorough description of the relationship between these two signals.

Reviewer #3:

Diehl et al. is an interesting, well-designed, appropriately-controlled study that uses electrophysiology and optogenetics to provide compelling evidence for the importance of PL inhibitory activity during active avoidance. I think this manuscript will be appropriate for publication in eLife following relatively modest revisions and will make a valuable contribution to the literature.

1) It is not clear that the authors addressed their primary question: Is PL activity correlated with the initial decision to avoid? They showed PL inhibitory activity is associated with tone onset, and disrupting this activity pattern impairs avoidance, but I think they can't yet make the jump to this inhibitory activity being correlated with the decision-making process. Further support for this claim could potentially be gained by further analysis- e.g. looking in individual animals at whether presence/frequency of inhibitory unit activity is correlated with latency/likelihood to avoid. Alternatively, the scope of the question to be addressed could be changed so it's more limited.

2) Similarly, the authors state that inhibitory responses at tone onset correlated with avoidance initiation. However, this seems to be inferred via comparison with control groups instead of being temporally evident from their data- in fact, the data suggest the inhibitory responses are not correlated with avoidance initiation (e.g. Figure 3G). Please clarify. On a related note, it is difficult to confidently assign the inhibitory responses to avoidance initiation, since it's not clear what that behavior would look like- the first movement to the platform? a mental decision with no observable behavioral correlate? cessation of lever pressing? are we looking at the correlate of one of these other behaviors, instead of avoidance initiation? This can potentially be addressed via examination of behavioral correlates of single unit activity at tone onset if they have the data, or by limiting the interpretation.

3) Rats were included whose viral expression spread into Cg1, due to the rationale that Cg1 and PL perform similar functions. While this has been shown in fear conditioning (Courtin et al., 2014), it has not been examined in active avoidance. More discussion of this is warranted, since many of the caudal PL recording placements in Figure 3A are in Cg1, not cPL.

4) The authors optogenetically stimulate or inhibit PL neurons during the first of two extinction tones, but the rationale is not discussed. If Tone 2 is meant to serve as an unstimulated within-subject control, they should discuss potential confounding factors that could affect behavior during Tone 2 (short-term plasticity, rebound excitation, etc.)

5) Rationale for stimulating at 4Hz instead of 6Hz isn't clear. Is there evidence to indicate optogenetic stimulation at a certain frequency has an additive effect on a cell's current frequency, rather than causing entrainment at the stimulation frequency?

6) The authors should discuss differences between rPL and cPL further and provide a stronger rationale for analyzing them independently. Where does cPL project? What might explain why rPL, not cPL, is involved in active avoidance? Is there a different breakdown in rPL and cPL in their previous cFos studies?

7) One of the major reasons for selecting the brief post-tone latency for analysis was to ensure PL neuron activity is limited to tone, and not subsequent behavior. However, this is not convincing, given there seems to be significant avoidance even at that point. Expanding the Figure 3C x-axis around the time of tone onset will help evaluate this issue.

https://doi.org/10.7554/eLife.34657.022

Author response

Essential revisions:

In our discussion, the reviewers identified three key areas that some additional information would be helpful. I have left the comments below intact, but these three revisions are the ones that are most important to us. The first is to provide additional detail on what behavior the rats do instead of avoiding when PL is manipulated. This is interesting in its own right and also will help to identify the role of PL – for example what happens might be different depending on whether PL is actually involved in triggering the decision versus evoking fear. All three reviewers agreed this was useful, though it is described by R1. In addition, we also thought additional detail on the single unit data would be helpful. R2 would like more information regarding the excitatory correlates and their relation or lack thereof to behavior, since they are presumably affected by the inhibitory tone. R3 is interested in developing stronger correlative relationships between firing activity and the actual decision. In part, the question here is whether there is any better metric than is provided and/or if not to discuss in more detail what is meant here, given that the actual decision to avoid is so hard to define experimentally – how can you say this is really what the neurons are doing?

Reviewer #1:

[…] This is a remarkable set of studies. The authors do an excellent job of exploring a puzzling initial result, showing as they note the importance of linking optogenetic manipulations to known firing patterns in areas of interest in relevant behaviors. A particular strength of the study is the match between the effect of the effective activation on unit activity and the size of the suppression, as well as the remarkable specificity of the findings to rostral but not caudal PL, which provides a very effective control for general effects. I was a bit confused as to what the precise role of the PL contribution was to avoidance and how this related to its role in fear/freezing, which led to the following suggestions.

1) Probably the most important one is that I'd like to see the alternative behaviors plotted in detail similar to the one of interest – platform time. While I do not doubt the specificity of the role of rPL, it remains a question from the current data whether disrupting this function makes the rats no longer fearful or fearful but just incapable of organizing the escape response. There is an increase in freezing in one experiment but no effect I think in a later experiment…… but the freezing is very low. Does this mean that the rats continue to barpress for food? This question can be resolved simply by comparing the different behaviors across time – freezing, barpressing, platform. As they can be defined to be mutually exclusive, this more complete analysis may be quite interesting.

The reviewer logically asks, “what is the rat doing if it is not avoiding?” when rPL is manipulated. To address this, we further assessed freezing and suppression of bar pressing when PL was manipulated with MUS, ARCH, or ChR2. Neither freezing nor suppression were significantly reduced by any of the manipulations, indicating that the reduction in avoidance was not accompanied by a reduction in fear. We have added insets to all the behavioral figures (Figure 1, Figure 2 and Figure 6) showing freezing and suppression of bar pressing. As we had originally reported, MUS in PL actually increased freezing during the tone (see inset to Figure1). Analysis of 3-second bins revealed that this effect reached significance only at seconds 18-21 (repeated measures ANOVA, post hoc Tukey, panel A below), making it unlikely that the reduction in avoidance early in the tone was due to increased freezing. A similar 3-second bin analysis of freezing for ARCH (B- rostral PL, C- caudal PL) or ChR2 (D- rostral PL, E- caudal PL) is in Author response image 1.

2) A second related minor suggestion – which I understand may not be worth doing – is that it would be interesting to see what happens to the response if the rPL is activated later in the cue, when the rat is on the platform. That is, in the final experiment, the rPL was activated from the start of the cue, and the escape response was essentially put on hold until the stimulation was terminated. This suggests that the area is triggering the response to avoid. But does it have an ongoing role? This could be addressed by waiting until a platform response was executed and then activating the rPL – do the rats leave the platform? And what do they do – resume barpressing? Freeze?

This is an interesting question that would tell us if PL signaling is needed for the maintenance of avoidance behavior. Our single-unit data demonstrate that most of the inhibitory responses at platform entry terminated soon after entry (see Figure 3—figure supplement 1C), suggesting that sustained inhibition may not be necessary for maintaining avoidance.

3) Lastly, I think the authors might provide a bit more overview as to how these results fit with the existing data regarding how PL is involved in simple fear conditioning. They seem to suggest that the entire network has been altered by the avoidance training. And yet there are still neurons that seem to signal the fear. How does the lack of effect here fit with effects in experiments lacking avoidance. Some integration with the simpler picture would be helpful.

The reviewer wants to know how the current findings, that manipulations of PL have little effect on freezing, can be reconciled with previous studies of ours and others demonstrating PL’s critical role in expression of Pavlovian conditioned freezing. It is well-established that early in avoidance training, rats use Pavlovian conditioning to learn that the tone signals shock, and then switch to instrumental avoidance learning as training continues. We suggest, therefore, that PL was serving the well-established role of supporting freezing in the early stages of training. In fact, we observed that silencing rPL during the second day of avoidance conditioning significantly reduced freezing (see subsection “Photosilencing of PL glutamatergic neurons does not delay avoidance”). However, as rats learn the avoidance response, freezing decreases and is no longer susceptible to PL manipulations. We initially reported this in our 2014 MUS study (Bravo-Rivera, et al., 2014) and observed it again here with MUS and ARCH inhibition of PL. Thus, the circuit for conditioned freezing changes dramatically with avoidance training. We now emphasize this in the Discussion section.

Reviewer #2:

[…] The topic is timely, and avoidance is severely understudied compared to fear conditioning. This might be due to the notorious difficulty in establishing avoidance behavior in the lab. The procedure used here is very clever and looks to produce robust avoidance behavior. Technically these experiments are excellent. Further, using neural activity to calibrate the optogenetic manipulation is smart and would be a good practice for the field. Overall, this is a very strong manuscript. My primary concern is the single-unit recording results. Actually, I am not so much concerned as I am convinced that there is a lot more information in the firing than is presented. The manuscript would be greatly improved by digging into this a bit more. Specific comments are below.

1) The authors convincingly show that the proportion of excitatory neurons recruited by tone onset does not differ between avoidance, naïve and fear groups. However, the authors do not directly compare neural activity over tone presentation between these three groups. This is a major oversight. In Figure 3D (bottom left) it is clear that while Avoidance and Naïve rats show similar proportions on at tone onset, neuron # falls off dramatically for Avoidance but not Naïve. It would be most informative to plot Z firing (as in Figure 3H) for entirety of tone presentation for the excitatory neurons of the three groups (Avoidance, Naïve and Fear). This is critical not only for understanding what these neurons are doing in the task, but for interpreting the optogenetic stimulation results. As the authors point out, the optogenetic manipulation affects both the excitatory and inhibitory populations. For this reason, it is essential to see the full 28-s excitatory response (as is shown for the inhibitory response in Figure 4A). ANOVA with factors of time and group would be capable of revealing differential firing (main effect of group or group x time interaction) or supporting the author's claim of no differential firing by revealing only a main effect of time.

The reviewer wants to know if the magnitude of excitatory tone responses across time differ between the avoidance, naïve, and fear groups. To address this issue, we examined the z-scores of the excitatory tone responses in each group across the entire tone (see Author response image 2). Using a repeated measures ANOVA, there was no main effect of Group (F(2,55)=1.17, p=0.316), but a main effect of time (p<0.001), and an interaction of Group x Time (F(2,110)=1.245, p=0.0443), which revealed that the fear conditioned group was significantly higher than the avoidance group at the first 500 ms time point (post hoc Tukey, p<0.001; see Author response image 2). Because the differences in Figure 3D (bottom left) do not reflect changes in magnitude of firing, we have added Figure 3—figure supplement 1A-B: a heat map of the average Z-scores across the entire tone of both excitatory and inhibitory tone responses as well as a graph of the average Z-score activity of all responses to tone onset recorded from the avoidance-trained rats. The heat maps show that some cells have sustained elevated firing (see top rows of excitatory tone responsive cells in Figure 3—figure supplement 1A). The group differences in proportions of excitatory responses later in the tone (Figure 3D, bottom left) may be due to signaling of other avoidance-related behaviors that are not present in naïve rats (anticipation of shock, waiting to exit the platform to continue seeking food, etc.).

2) A recurring claim (e.g. subsection “Inhibitory responses in rostral PL neurons correlate with the initiation of avoidance”, subsection “Countering inhibitory responses in rostral PL neurons delays or prevents avoidance” and the Discussion section) is that initiation of avoidance is correlated with inhibitory tone responses of rostral PL neurons. This claim is based on of the observation that a significantly greater proportion of inhibitory neurons are observed in the Avoidance group, compared to Naïve and Fear. It is further shown that within this population, the majority of neurons show inhibition linked to cue onset (20/25) whereas a smaller population maintains inhibition for the cue duration (5/25). However, given the analyses performed, it would be more accurate to say that inhibitory tone responses are a correlate observed only in Avoidance rats. If the authors wish to claim that avoidance is correlated with activity, then they need to perform an analysis that directly addresses this. For example, showing that the magnitude of the firing decrease (or some other aspect of firing) predicts the latency of platform entry – percent time on platform – on a trial-by-trial basis. Finding a significant correlation would support the author's claim. However, failing to observe a significant correlation would provide more information about this signal. For that matter, failing to observe a correlation would not dampen my enthusiasm for this manuscript. Inhibitory PL neurons may signal that, within a given context, shock can be avoided. If this were the case, one would expect the population activity observed in Figure 4A, but would not necessarily expect PL activity to predict avoidance on a trial-by-trial basis.

The reviewer raises the valid question of whether or not the inhibitory response correlates with avoidance behavior on a trial-by-trial basis. To address this, we performed a new analysis comparing the latency of inhibition with the latency of platform entry, on a trial-by-trial basis. For a given cell on a given trial, the latency of the inhibitory response to the tone was identified as the start of the first interspike interval (ISI) that was significantly longer than the average ISI in 30 seconds of pre-tone activity (Z>1.65; p<0.05). 133/205 neurons showed at least one ISI that satisfied this criterion. For 133 neurons, the correlation between the latency of inhibition and latency of platform entry was only r=0.022 (not correlated). We then computed for each cell the average latency of inhibition and platform entry. For each cell, we averaged its inhibitory latency across all the trials in which successful avoidance was observed (n=284 trials; 9 trials in each session). We also averaged the avoidance latency on those trials. The correlation between these two averages across cells was r=0.078 (also no correlation). This result is plotted in new Figure 3—figure supplement 1E-F. Figure 3—figure supplement 1E shows that the inhibitory response of the majority of cells preceded platform entry (88/133 cells) but was not correlated with platform entry. The frequency distribution shown in Figure 3—figure supplement 1F confirm that most inhibition preceded platform entry. For trials in which the rat did not avoid (n=107 trials), there was a similar latency of inhibition (see dashed line in Figure 3—figure supplement 1F). Thus, these new analyses do not support our original hypothesis that PL inhibition initiates avoidance and is more consistent with the reviewer’s suggested hypothesis: that PL inhibitory responses signal that, within a given context, footshocks can be avoided (regardless of whether the rat chooses to avoid on that trial). We thank the reviewer for suggesting this analysis and the alternative interpretation of our results. We have modified the text throughout.

3) The analysis and visualization methods used to show that neural activity to the tone and platform entry were not optimal. The population data shown in Figure 3H are a good start, but this is only a small part of the story. For example, the authors do not show the corresponding population activity for the platform entry responsive neurons. Even further, it is clear from Figure 4H that there was variability in the platform response by tone neurons, indicating that some when responsive to platform entry. It could be that the magnitude of the tone response predicts the magnitude of the platform response, but that the tone response was higher across the board. The authors note that activity to platform entry could simply result from a continuing response to tone. A simple way to address this would be to compare differential tone firing (tone onset – baseline) against differential platform entry firing (platform entry onset vs last 10 s of tone). This would provide a more thorough description of the relationship between these two signals.

To more clearly indicate whether neurons were responsive to tone onset, platform entry or both, we removed the original population graph in 3H, and now show a Venn diagram indicating the number of neurons that overlapped across response categories (new Figure 3H). Only a small proportion of excitatory cells were responsive to both tone onset and platform entry, suggesting that these were generated by separate groups of cells. However, the inhibitory responses show more overlap between tone onset and platform entry responses: out of 22 inhibitory tone responsive and 16 inhibitory entry responsive, 9 cells were responsive to both events. The suggestion by the reviewer of comparing platform entry responses to activity during the last 10 seconds of the tone may not reveal any differences because PL activity at the end of the tone may reflect other factors such as tone duration, anticipation of shock, anticipation of platform exit to resume food-seeking, and is therefore not a reliable baseline.

Reviewer #3:

Diehl et al. is an interesting, well-designed, appropriately-controlled study that uses electrophysiology and optogenetics to provide compelling evidence for the importance of PL inhibitory activity during active avoidance. I think this manuscript will be appropriate for publication in eLife following relatively modest revisions and will make a valuable contribution to the literature.

1) It is not clear that the authors addressed their primary question: Is PL activity correlated with the initial decision to avoid? They showed PL inhibitory activity is associated with tone onset, and disrupting this activity pattern impairs avoidance, but I think they can't yet make the jump to this inhibitory activity being correlated with the decision-making process. Further support for this claim could potentially be gained by further analysis- e.g. looking in individual animals at whether presence/frequency of inhibitory unit activity is correlated with latency/likelihood to avoid. Alternatively, the scope of the question to be addressed could be changed so it's more limited.

The reviewer raises the valid question of whether or not the inhibitory response correlates with avoidance behavior on a trial-by-trial basis. To address this, we performed a new analysis comparing the latency of inhibition with the latency of platform entry, on a trial-by-trial basis. For a given cell on a given trial, the latency of the inhibitory response to the tone was identified as the start of the first interspike interval (ISI) that was significantly longer than the average ISI in 30 seconds of pre-tone activity (Z>1.65; p<0.05). 133/205 neurons showed at least one ISI that satisfied this criterion. For 133 neurons, the correlation between the latency of inhibition and latency of platform entry was only r=0.022 (not correlated). We then computed for each cell the average latency of inhibition and platform entry. For each cell, we averaged its inhibitory latency across all the trials in which successful avoidance was observed (n=284 trials; 9 trials in each session). We also averaged the avoidance latency on those trials. The correlation between these two averages across cells was r=0.078 (also no correlation). This result is plotted in new Figure 3—figure-supplement 1E-F. Figure 3—figure supplement 1E shows that the inhibitory response of the majority of cells preceded platform entry (88/133 cells) but was not correlated with platform entry. The frequency distribution shown in Figure 3—figure supplement 1F confirm that most inhibition preceded platform entry. For trials in which the rat did not avoid (n=107 trials), there was a similar latency of inhibition (see dashed line in Figure 3—figure supplement 1F).

2) Similarly, the authors state that inhibitory responses at tone onset correlated with avoidance initiation. However, this seems to be inferred via comparison with control groups instead of being temporally evident from their data- in fact, the data suggest the inhibitory responses are not correlated with avoidance initiation (e.g. Figure 3G). Please clarify. On a related note, it is difficult to confidently assign the inhibitory responses to avoidance initiation, since it's not clear what that behavior would look like- the first movement to the platform? a mental decision with no observable behavioral correlate? cessation of lever pressing? are we looking at the correlate of one of these other behaviors, instead of avoidance initiation? This can potentially be addressed via examination of behavioral correlates of single unit activity at tone onset if they have the data, or by limiting the interpretation.

See response to your point #1 above. Figure 3G show responses at platform entry – the time at which the rat’s head entered the platform zone after the action to avoid had already commenced. We therefore searched for behavioral correlates that might precede platform entry, focusing on the first headturn after tone onset – which is the first movement the rat makes before proceeding to the platform. We compared the average inhibition latency with average the time of headturn for each cell showing inhibition, shown in Figure 3—figure supplement 1E-F. This analysis revealed similar results: 82/133 cells showed inhibition prior to headturn, but there was no correlation between inhibition latency and headturn latency (r=0.054).

3) Rats were included whose viral expression spread into Cg1, due to the rationale that Cg1 and PL perform similar functions. While this has been shown in fear conditioning (Courtin et al., 2014), it has not been examined in active avoidance. More discussion of this is warranted, since many of the caudal PL recording placements in Figure 3A are in Cg1, not cPL.

The reviewer wants to know if Cg1 and PL have a similar function during avoidance, as our PL viral expression reaches into Cg1. Previous studies in rabbits have found that neuronal firing in both the anterior cingulate cortex and PL correlate with avoidance learning, in which rabbits must activate a running wheel to prevent a tone-signaled footshock (Orona and Gabriel, 1983; Freeman and Gabriel, 1996). Regarding our single units, we re-assessed our histology and found that one of the cPL rats had all its units located in Cg1. Removing this rat reduced the number of Cg1 units in cPL, so that the percentage of Cg1 units is now more similar in rPL and cPL (~36%). We now state this in the Materials and methods section. With this rat removed, all cells showing inhibitory responses were located in rPL, with none in cPL (see revised Figure 3I-J).

4) The authors optogenetically stimulate or inhibit PL neurons during the first of two extinction tones, but the rationale is not discussed. If Tone 2 is meant to serve as an unstimulated within-subject control, they should discuss potential confounding factors that could affect behavior during Tone 2 (short-term plasticity, rebound excitation, etc.)

As the reviewer surmised, Tone 2 served as an unstimulated within-subject control. In terms of confounding factors, rebound excitation is unlikely as Tone 2 was presented 3 minutes after Tone 1. Short-term plasticity may have affected the behavioral response to Tone 2; however, in both ARCH and ChR2 experiments, the response to Tone 1 was statistically compared to the eYFP control group at Tone 1. Tone 2 is simply added to identify any persistent effects of the laser activation (none were observed). The rationale of Tone 2 is now discussed in the Materials and methods section.

5) Rationale for stimulating at 4Hz instead of 6Hz isn't clear. Is there evidence to indicate optogenetic stimulation at a certain frequency has an additive effect on a cell's current frequency, rather than causing entrainment at the stimulation frequency?

Yes, our intention was that naturally-occurring and optogenetically-induced spikes would sum, so that 4 Hz stimulation would cause a neuron normally firing at 2 Hz to fire at 6 Hz. However, as shown in Figure 4C, this was not the case. In anesthetized rats, cells firing at an average of 1.5 Hz baseline rate only increased to 3.3 Hz with 4 Hz optogenetic stimulation. This may be due to entrainment, as the reviewer suggests, or poor frequency following at the current levels we used. Prior studies have reported that entrainment tends to occur at low levels of ChR2 stimulation (Warden, et al., 2012). It is therefore difficult to predict exactly how cortical neurons will respond to ChR2 stimulation. Suffice it to say that our 4Hz stimulation significantly increased the rate of the PL neurons expressing ChR2 (see figure 4C). We now discuss this in the Results section.

6) The authors should discuss differences between rPL and cPL further and provide a stronger rationale for analyzing them independently. Where does cPL project? What might explain why rPL, not cPL, is involved in active avoidance? Is there a different breakdown in rPL and cPL in their previous cFos studies?

Very few studies have examined anatomical (Floyd et al., 2000; 2001) or functional (Parent et al., 2015) differences between rostral and caudal portions of PL. We investigated anatomical differences in projections of rPL and cPL within broader anatomical studies on prelimbic prefrontal cortex, which show that rPL projects less densely to ventral striatum compared to cPL (Sesack, 1989). With respect to midbrain structures, rPL projects more densely to vlPAG whereas cPL projects more densely to dlPAG (Floyd, et al., 2000), which could be a factor in selecting freezing vs. flight. Although our previous Fos studies have not differentiated rPL from cPL, we are currently examining our cFos findings in light of the new differences we have observed in rPL and cPL.

7) One of the major reasons for selecting the brief post-tone latency for analysis was to ensure PL neuron activity is limited to tone, and not subsequent behavior. However, this is not convincing, given there seems to be significant avoidance even at that point. Expanding the Figure 3C x-axis around the time of tone onset will help evaluate this issue.

The reviewer is concerned that some of the tone onset responses may be due to avoidance behavior since some avoidance latencies were <1 second. However, in only 25/284 (9%) trials did avoidance occur prior to 1000ms. Below is an expanded view of the Figure 3C showing the times of platform entry (black dots, Author response image 3). Because 91% of avoidance trials occurred after 1000ms, we believe it is the best criteria we can use to identify both excitatory (500ms) and inhibitory (up to 1000ms) tone responses. Some overlap may have occurred, and it is possible that these are the cells that showed responses to both tone onset and platform entry (see new Venn diagram in Figure 3H).
