Lateral interactions between protofilaments of the bacterial tubulin homolog FtsZ are essential for cell division

  1. Fenghui Guan
  2. Jiayu Yu
  3. Jie Yu
  4. Yang Liu
  5. Ying Li
  6. Xin-Hua Feng
  7. Kerwyn Casey Huang
  8. Zengyi Chang  Is a corresponding author
  9. Sheng Ye  Is a corresponding author
  1. Zhejiang University, China
  2. Zheijiang University, China
  3. Peking University, China
  4. Stanford University, United States
  5. Stanford University School of Medicine, United States
  6. Chan Zuckerberg Biohub, United States
Research Article
Cite this article as: eLife 2018;7:e35578 doi: 10.7554/eLife.35578
7 figures, 3 tables, 1 data set and 1 additional file

Figures

Figure 1 with 1 supplement

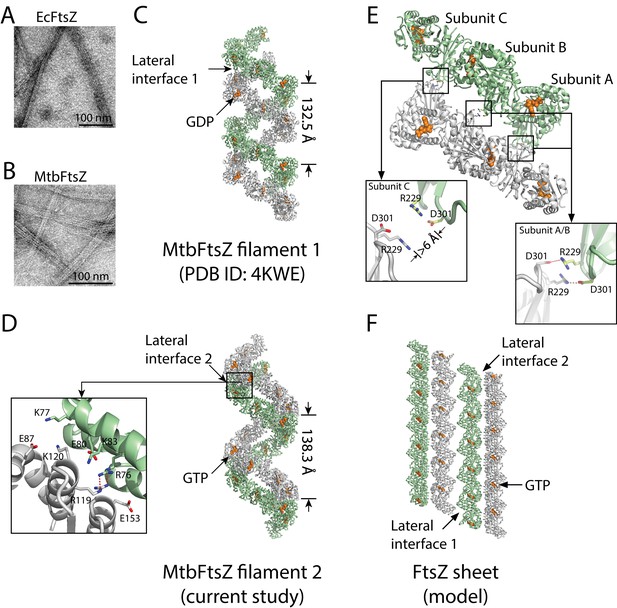

Structures of double-stranded MtbFtsZ-GDP and MtbFtsZ -GTP protofilaments reveal lateral contacts across FtsZ protofilaments.

(A, B) Electron micrographs of protofilament bundles of EcFtsZ-GTP (A) and MtbFtsZ-GTP (B). Both were polymerized with the addition of 0.6 mg/mL DEAE-Dextran, and in the presence of 2 mM GTP. (C, D) Cartoon representations of double-stranded MtbFtsZ-GDP (C; PDB ID: 4KWE) and MtbFtsZ-GTP (D; this study) protofilaments containing a total of 24 subunits. The helices have a pitch of 132.5 Å for MtbFtsZ-GDP (C) and 138.3 Å for MtbFtsZ-GTP (D) protofilaments. Each structure reveals unique lateral interactions across the protofilaments. Inset: atomic details of the lateral interface of the double-stranded MtbFtsZ-GTP protofilaments. (E) Molecular details of the lateral interface of the double-stranded MtbFtsZ-GDP protofilaments shown in (C). Inset: atomic details of the lateral interactions. (F) A structural model for sheet-like bundles of FtsZ protofilaments. Ribbon representation of four straight FtsZ-GTP protofilaments (each containing six subunits, arranged in an antiparallel fashion).

https://doi.org/10.7554/eLife.35578.003
Figure 1—figure supplement 1

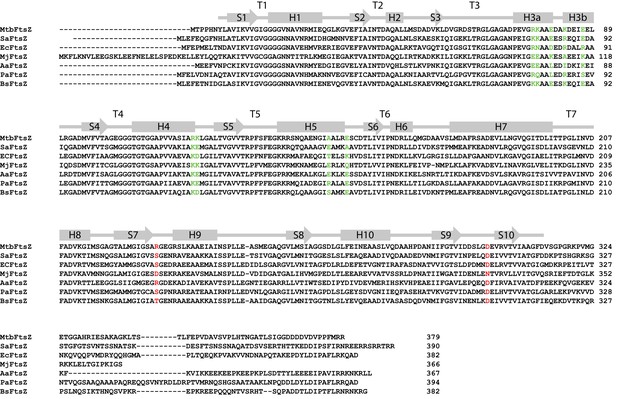

Multiple sequence alignment of FtsZ and secondary structure elements.

Amino acid sequence alignment of FtsZ from Mycobacterium tuberculosis (MtbFtsZ), Staphylococcus aureus (SaFtsZ), Escherichia coli (EcFtsZ), Methanococcus jannaschii (MjFtsZ), Aquifex aeolicus (AaFtsZ), Pseudomonas aeruginosa (PaFtsZ), and Bacillus subtilis (BsFtsZ). The secondary structures of α-helices, β-strands, and loops in MtbFtsZ are shown as cylinders, arrows, and lines, respectively. Residues from the observed lateral interfaces in EcFtsZ are highlighted in red (interface 1) and green (interface 2). These residues were subjected to mutagenesis in EcFtsZ in the present study.

https://doi.org/10.7554/eLife.35578.004

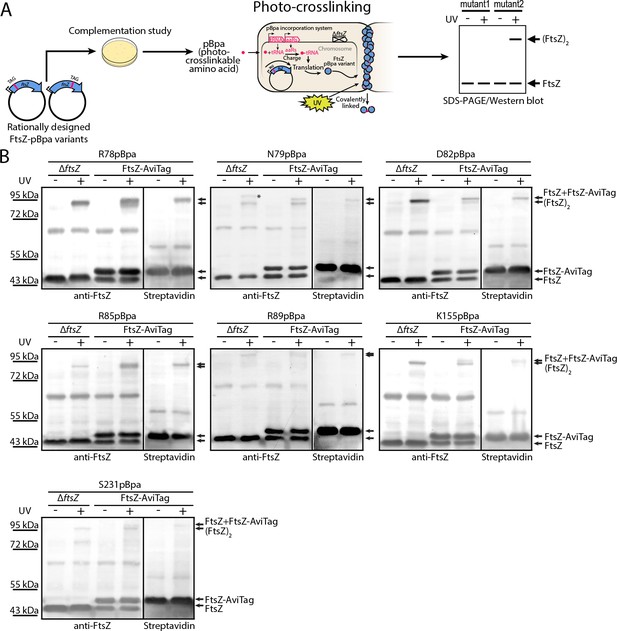

In vivo photocrosslinking characterization of EcFtsZ variants in which pBpa was introduced at specific sites validates inter-protofilament lateral interactions.

(A) Schematic illustrating the rationale of in vivo photocrosslinking analysis via incorporation of the unnatural amino acid pBpa at specific residue positions of FtsZ. (B) Results of blotting analyses of photocrosslinked products with lysates of E. coli cells (LY928-ΔftsZ or LY928-FtsZ-AviTag) expressing the indicated pBpa variant of FtsZ, using antibodies against EcFtsZ (left) or using alkaline phosphatase-conjugated streptavidin (right). Indicated on the right of each gel are the positions of the non-photocrosslinked monomers and the photocrosslinked dimers of the pBpa variant of FtsZ with or without the AviTag. The asterisk indicates the position of a crosslinked product of FtsZ and another as yet unidentified protein.

https://doi.org/10.7554/eLife.35578.006
In vivo photocrosslinking characterization of randomly generated EcFtsZ pBpa variants.

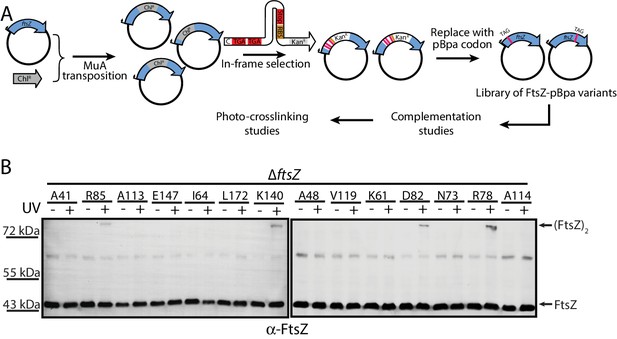

(A) Schematic illustrating the random in vivo photocrosslinking screening strategy for unbiased identification of amino acid positions mediating subunit interactions. (B) Immunoblotting analysis of the photocrosslinked products in lysates of E. coli LY928-ΔftsZ cells that were transformed with the library of plasmids within which the in-frame TAG amber codon was randomly inserted throughout the ftsZ gene, as probed with antibodies against EcFtsZ.

https://doi.org/10.7554/eLife.35578.007
Figure 4 with 2 supplements
Complementation characterization of EcFtsZ mutants at inter-protofilament lateral interfaces.

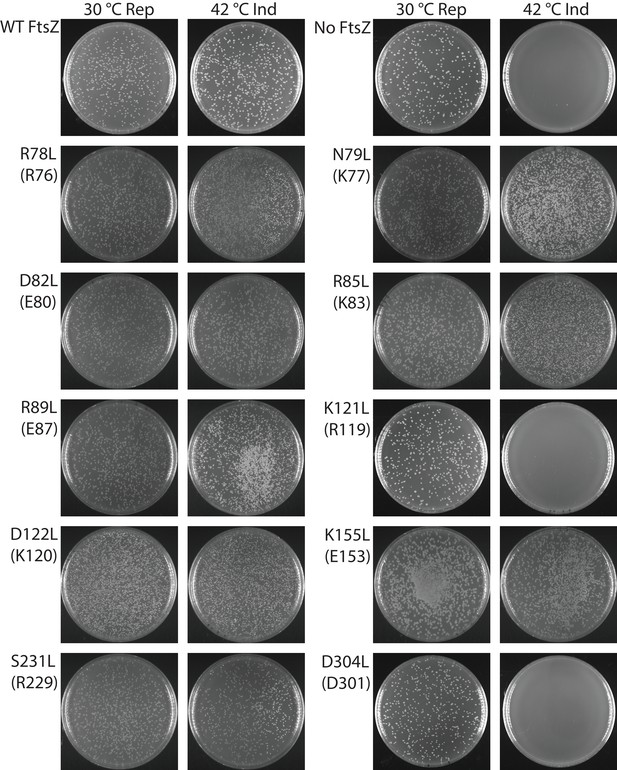

Ten EcFtsZ mutants were selected based on our crystallographic observations. Mutations were introduced by altering hydrophilic residues to hydrophobic leucine. The division phenotype was characterized using a ΔftsZ strain expressing the EcFtsZ mutants, with conditional expression of wild-type FtsZ from a plasmid at 30°C but not 42°C. ‘Rep’ and ‘Ind’ indicate repression and induction media, respectively. For each mutant, the complementation assay was repeated three times.

https://doi.org/10.7554/eLife.35578.008
Figure 4—figure supplement 1
Complementation characterization of pBpa-incorporated EcFtsZ variants.

Ten replacements of EcFtsZ were selected based on our crystallographic observations. pBpa-incorporated variants were created by altering the corresponding sense codon to an amber TAG stop codon. The FtsZ expression plasmid pTet-FtsZ carrying an in-frame amber mutation was used to transform E. coli LY928-ΔftsZ (pJSB100) cells. Cell division, and thus cell growth, could only occur when an FtsZ variant was functional and in the addition of glucose and pBpa.

https://doi.org/10.7554/eLife.35578.009
Figure 4—figure supplement 2

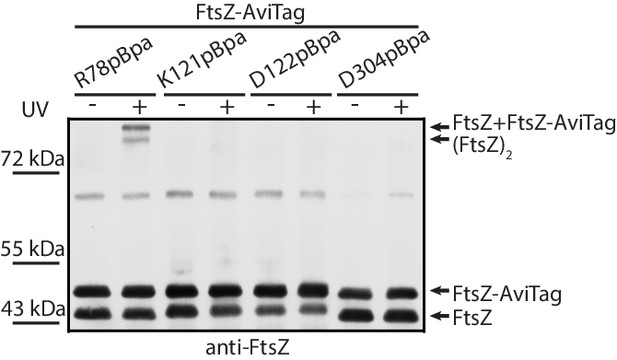

Immunoblotting analysis of three pBpa variants of EcFtsZ that failed to complement the ftsZ conditional-null strain shows absence of crosslinked dimers.

The variants were expressed in LY928-FtsZ-AviTag cells and crosslinked by UV irradiation. Lysate from cells expressing the R78pBpa variant of FtsZ was analyzed as a positive control for photocrosslinked FtsZ dimers.

https://doi.org/10.7554/eLife.35578.010

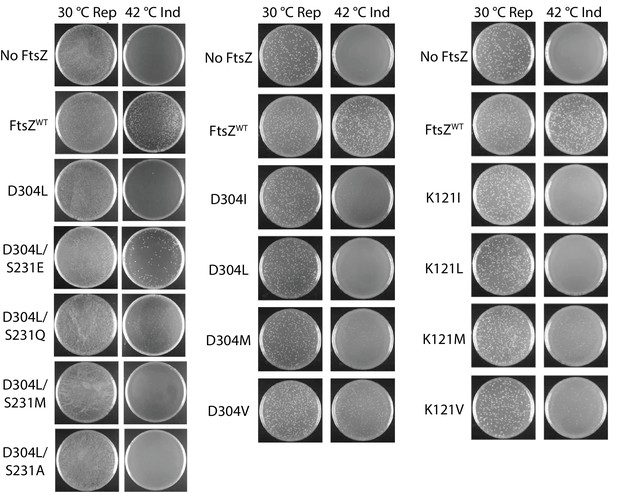

Complementation characterization of EcFtsZ mutants.

Mutations were introduced by altering D304 and K121 to different hydrophobic residues. In addition to the D304L mutation, S231 was replaced several other amino acids. The division phenotype was characterized using a ΔftsZ strain with expression of the EcFtsZ mutants, and conditional expression of wild-type FtsZ from a plasmid at 30°C but not 42°C. ‘Rep’ and ‘Ind’ indicate repression and induction media, respectively. For each mutant, the complementation assay was repeated three times.

https://doi.org/10.7554/eLife.35578.012

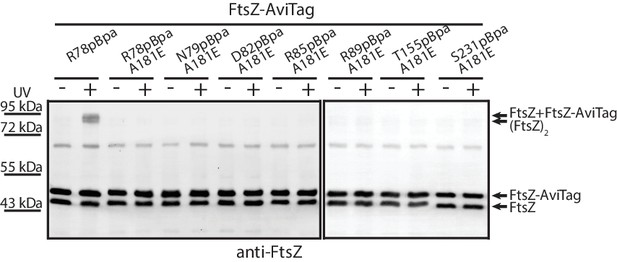

Protofilament formation is required for FtsZ lateral interactions to occur.

Streptavidin blotting analyses of photocrosslinked products of EcFtsZ variants in which pBpa was incorporated at the lateral interface in addition to replacement of alanine 181 with glutamate, which is known to disrupt protofilament formation. The R78pBpa variant (with no disrupting replacement at position 181) was analyzed as a positive control.

https://doi.org/10.7554/eLife.35578.013
Figure 7 with 2 supplements
Disruption of the integration of lateral interaction-impaired protofilaments into the Z-ring.

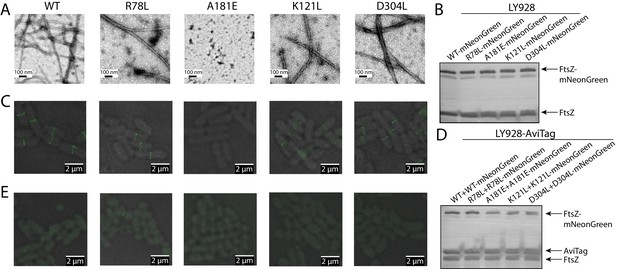

(A) Electron microscopy analysis of GTP-dependent polymerization (with the addition of 0.6 mg/ml DEAE-Dextran) of wild-type or mutated EcFtsZ in which all mutants except A181E form protofilaments similar to wild-type. (B) Western blot analysis of levels of mNeonGreen fusions to wild-type EcFtsZ and mutants. The cellular proportions of mutant FtsZ were ~40%. (C) Fluorescence microscopy demonstrates that low-level expression of laterally disruptive EcFtsZ mutants fused to mNeonGreen does not affect protofilament integration into the Z-ring. (D) Western blot analysis of levels of mNeonGreen fusions to wild-type EcFtsZ and mutants, as well as the AviTagged version. The cellular proportions of mutant FtsZ (mNeonGreen-tagged and untagged) were ~60%. (E) Dominant expression of disruptive EcFtsZ mutants fused to mNeonGreen hinders protofilament integration into the Z-ring, unlike wild-type or the non-disruptive interfacial mutant EcFtsZ R78L.

https://doi.org/10.7554/eLife.35578.014
Figure 7—figure supplement 1

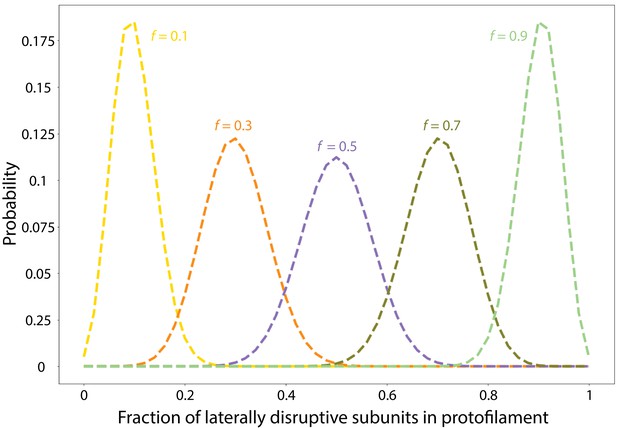

Laterally disruptive FtsZ subunits incorporate into FtsZ protofilaments following a binomial distribution.

Shown are the results of a model in which we assume that all FtsZ protofilaments are 50 subunits long and compute the fraction X of each protofilament that is composed of laterally disruptive subunits, as a function of the overall proportion f of laterally disruptive subunits in a cell. The probability density function is the Binomial distribution P(X=k)=(50k)fk(1f)50k.

https://doi.org/10.7554/eLife.35578.015
Figure 7—figure supplement 2

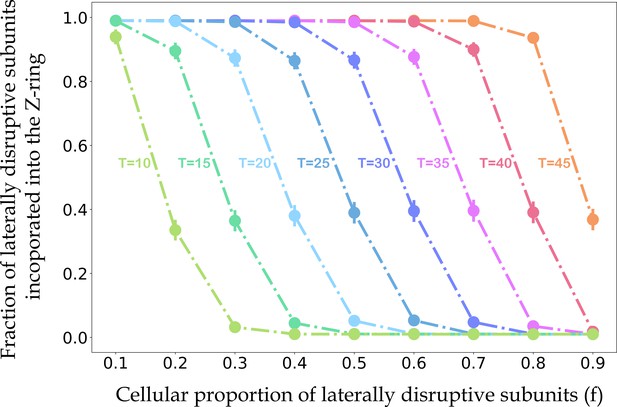

The relationships between the fraction of laterally disruptive subunits incorporated into the Z-ring, the cellular proportion of disruptive subunits, and the maximum number of disruptive subunits that still allow for efficient Z-ring lateral association.

For each value of the cellular proportion of disruptive subunits (f) and threshold for efficient Z-ring incorporation (T), we performed 10,000 independent simulations. In each simulation, we generated a vector X = (x1, x2,. .., x200), where xi represents the number of laterally disruptive subunits in the ith protofilament, selected from the Binomial distribution with mean 50f (Figure 7—figure supplement 1). For a protofilament with more or less laterally disruptive subunits than the threshold T, we set the probability of Z-ring incorporation to 0.01 or 0.99, respectively. The Boolean vector V represents the incorporation state of each protofilament. We then calculated the percentage of laterally disruptive subunits incorporated into the Z-ring as XVi=1200xi. Circles indicate the mean percentages of laterally disruptive subunits in the Z-ring across simulations with a given value of f and T, and solid vertical lines represent the standard deviations. As the total proportion of laterally disruptive subunits increases, the proportion of laterally disruptive subunits incorporated into the Z-ring decreases, consistent with our experimental results showing a faint or non-existent Z-ring with dominant expression of laterally disruptive mutants (Figure 7E).

https://doi.org/10.7554/eLife.35578.016

Tables

Table 1
X-ray data and refinement statistics.
https://doi.org/10.7554/eLife.35578.005
Data set
Space group
Unit cell
Resolution (Å)
Measured reflections
Unique reflections
Redundancy
Completeness (%, highest shell)
Mean I/σI (highest shell)
Rsym (%, highest shell)
P6522
a = 100.5 Å, c = 138.3 Å
2.7
167,791
11,805
14.2
99.3 (99.5)
44.1 (1.6)
10.7 (100)
Refinement
Resolution (Å)
Number of reflections |F| > 0 σF
R-factor/R-free (%)
Number of protein atoms
Number of GTP molecules
Number of water molecules
rmsd bond lengths (Å)
rmsd bond angles (°)
2.7
10,593
21.1/25.3
2203
1
0
0.008
0.97
Table 2
Complementation effects of inter-protofilament interface mutants.
https://doi.org/10.7554/eLife.35578.011
Corresponding amino acid in MtbFtsZComplementation on platesComplementation in liquid culture
WildtypeYesYes
R78LR76YesYes
N79LK77YesYes
D82LE80YesYes
R85LK83YesYes
R89LE87YesYes
K121LR119NoNo
D122LK120YesYes
K155LE153YesYes
S231LR229YesYes
D304LD301NoNo
N78pBpaYesYes
N79pBpaYesYes
D82pBpaYesYes
R85pBpaYesYes
R89pBpaYesYes
K121pBpaNoNo
D122pBpaNoNo
K155pBpaYesYes
S231pBpaYesYes
D304pBpaNoNo
Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Escherichia coli)FtsZNAUniprot ID: P0A9A6
Gene (Mycobacterium
tuberculosis)
FtsZNAUniprot ID: P9WN95
Gene (Branchiostoma
lanceolatum)
mNeonGreenPMID:23524392Uniprot ID: A0A1S4NYF2
Stain, strain background
(Escherichia coli)
W3110 ftsZ::kan recA56 ΔftsZPMID:2045370JKD7-1/pKD3, ftsZ conditional
null strain with pKD3 rescue
plasmid
Stain, strain background
(Escherichia coli)
BW25113 ΔinsH11::
pBpa-tRNA synthetase
/tRNA-pBpa
PMID:27298319
Stain, strain background
(Escherichia coli)
BW25113 ΔinsH11::
pBpa-tRNA synthetase
/tRNA-pBpa ΔftsZ
This paperftsZ conditional null strain
with pBpa incorporation
system
Stain, strain background
(Escherichia coli)
BW25113 ΔinsH11::pBpa-
tRNA synthetase/tRNA-
pBpa ftsZ::ftsZ-AviTag
This paperThe endogenous ftsZ gene
was modified to encode FtsZ
linked with an AviTag at the
C-terminus
AntibodyRabbit anti-EcFtsZ
polyclonal antibody
This paperThe antibody was harvested
by immuning rabbit with
the purified EcFtsZ protein.
Dilution: 1:10000, for western blot
AntibodyAlkaline phosphatase-
conjugated streptavidin
BeyotimeA0312Dilution: 1:5000, for western blot
Recombinant DNA reagentpJSB100PMID:12896999pJSB2-FtsZ
Recombinant DNA reagentpTet-FtsZThis paperbla pBR322 P tet::ftsZ, P tet incates
Tet-on/Tet-off promoter and the
expression of FtsZ in this plasmid
via leaky expression
Recombinant DNA reagentpTac-L3-FtsZ-mNeonGreenThis paperbla pBR322 P L3::ftsZ-mNeonGreen,
P L3 incates a synthetic constitutive
promoter selected from Anderson
promoter collection
Recombinant DNA reagentpTac-0.16-FtsZ-TAG-
mNeonGreen
This paperbla pBR322 P0.16::ftsZ-TAG-
mNeonGreen, P0.16 indicates a
synthetic constitutive promoter
selected from Anderson promoter
collection and TAG amber condon
was inserted into FtsZ-TAG-
mNeonGreen fusion protein
Chemical compound, drugp-benzoyl-L-phenylalanine
(pBpa)
BachemF-2800

Data availability

Diffraction data have been deposited in PDB under the accession code 5ZUE.

The following data sets were generated
  1. 1
    GTP-bound, double-stranded, curved FtsZ protofilament structure
    1. Guan F
    2. Yu J
    3. Yu J
    4. Liu Y
    5. Li Y
    6. Feng XH
    7. Huang KC
    8. Chang Z
    9. Ye S
    (2018)
    Publicly available at the RCSB Protein Data Bank (accession no: 5ZUE).
