Cryo-EM structure of alpha-synuclein fibrils

  1. Ricardo Guerrero-Ferreira
  2. Nicholas MI Taylor
  3. Daniel Mona
  4. Philippe Ringler
  5. Matthias E Lauer
  6. Roland Riek
  7. Markus Britschgi
  8. Henning Stahlberg  Is a corresponding author
  1. University of Basel, Switzerland
  2. Roche Innovation Center Basel, Switzerland
  3. ETH Zürich, Switzerland
Research Article
Cite this article as: eLife 2018;7:e36402 doi: 10.7554/eLife.36402
5 figures, 1 video, 1 table and 3 data sets

Figures

Figure 1 with 3 supplements
Structure of α-Syn(1-121) fibril.

(A) Schematic depicting the sequence of human α-Syn. The positions of the known familial mutations are indicated. β-strand regions are indicated by arrows colored from blue to red. (B) Cryo-EM micrograph depicting the distribution and general appearance of α-Syn fibrils. (C) Cryo-EM reconstruction of α-Syn(1-121) fibrils showing two protofilaments (orange and blue). (D) Cross-section of (C) illustrating the clear separation of the β-strands, also shown in Figure 1—figure supplement 3A and B. (E) Cross-section of a fibril (along the axis) illustrating the arrangement of the two protofilaments (orange and blue) and fitted atomic model. Positions of the initial (L38) and final (V95) residues fitted are indicated, as well as the initial and final residue of the NAC region (E61 to V95). Arrows indicate the location of four of the five α-Syn residues where familial mutations associated with PD occur. (F) Distribution of β-strands in a single protofilament of the α-Syn fibril, corresponding to residues 42 to 95. Color scheme, as in (A). (G) As in (F) but a perpendicular view to the fibril axis illustrating height differences in some areas of a single protofilament.

https://doi.org/10.7554/eLife.36402.003
Figure 1—figure supplement 1
Negative stain TEM images of α-Syn strains.

(A) Wildtype. (B) Ser129 Phosphorylated. (C) N-terminally acetylated. (D) C-terminally truncated (α-Syn(1-119)). (E) C-terminally truncated (α-Syn(1-121)). (F) C-terminally truncated (α-Syn(1-122)). 0.5 mg/ml fibril preparations were stained with 2% uranyl acetate. Scale bars: 100 nm.

https://doi.org/10.7554/eLife.36402.004
Figure 1—figure supplement 2

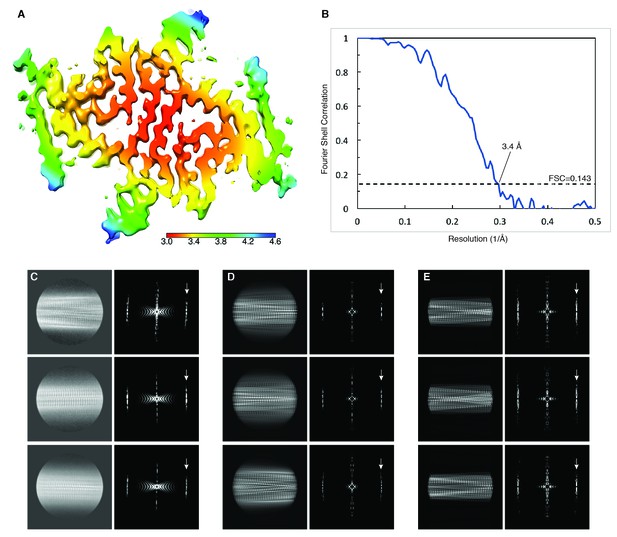

Local resolution estimation and FSC curves.

(A) Cryo-EM map with local resolution estimation; the color scale indicates resolution ranging from 3.0 Å to 4.6 Å. (B) Fourier shell correlation curve between two independently-refined half-maps, indicating an overall resolution of 3.4 Å. (C) Three examples of reference-free 2D class averages from the original dataset with their respective power spectra on the right. (D) 2D projections and power spectra of the 3D map. (E) 2D projections and power spectra of the atomic model. Arrows in power spectrum panels show the layer line at 1/ (4.9 Å) with peak intensities on both sides of the meridian (Bessel order n = 1), resulting from an approximate 21 screw symmetry between adjacent α-Syn subunits.

https://doi.org/10.7554/eLife.36402.005
Figure 1—figure supplement 3

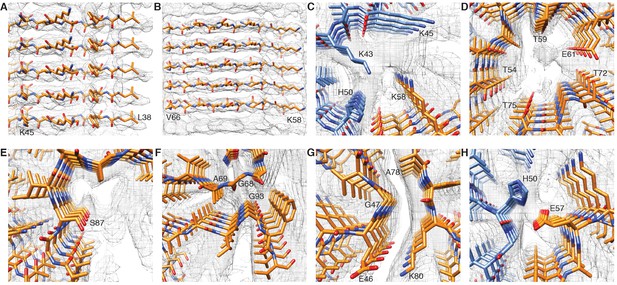

Details of atomic model and density.

(A) (B) Clearly resolved separation of individual β-strands along the fibril. (C) Extra density at the interface of adjacent protofilaments between the positively charged lysines K43 and K45 and lysine K58. (D) Hydrophilic region surrounding a tunnel filled with an additional density. (E) Phosphorylation site S87 showing the location of this residue towards the outside of the fibril. (F) Distal loop of a protofilament indicating residues G68, A69 and G93, which may contribute to loop stability. (G) Arrangement of G47 and A78, which may contribute to the interaction between E46 and K80. (H) Interaction between H50 and E57 in the interface region of two protofilaments, which may contribute to the stability of protofilament interaction.

https://doi.org/10.7554/eLife.36402.006
Figure 2 with 1 supplement
Interface region between two protofilaments of the α-Syn(1-121) fibril.

(A) View along the axis of the fibril as indicated by the red rectangle on the ribbon diagram (bottom right). (B) (C) Side views of the fibril with orientations indicated by arrowheads in (A) and the ribbon diagram (bottom right). Panels (B) and (C) clearly illustrate the 21 screw symmetry that results from the staggered arrangement of subunits.

https://doi.org/10.7554/eLife.36402.007
Figure 2—figure supplement 1

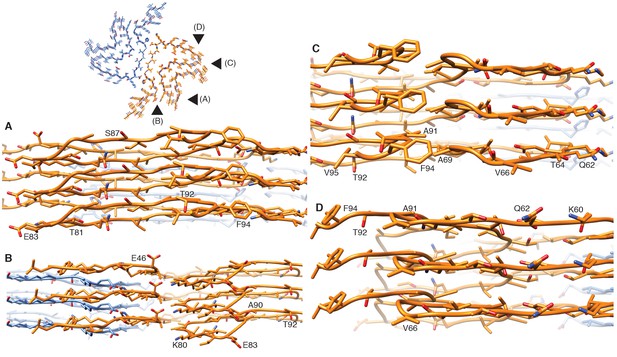

Stacking of β-strands.

(AD) Close-up side views of the α-Syn fibril illustrating homo- and hetero-steric zippers present in the structure. Pointers in the cross-section panel (top left) indicate the points of view for panels (A) to (D).

https://doi.org/10.7554/eLife.36402.008
Hydrophobicity of α-Syn(1-121) fibrils.

(A) Top view (fibril axis) of the hydrophobic regions (brown) in a fibril where the hydrophobic pocket at the interface between two protofilaments is evident. Hydrophobicity score from hydrophilic (−4.5, blue) to hydrophobic (4.5, brown) is indicated by the color bar. Hydrophobic residues on the outer surface of the fibril are indicated. (B) Close-up of the region highlighted in (A) indicating the hydrophobic core composed of alanines, valines and a single isoleucine (I88). Residues forming the hydrophilic region (blue) that surrounds the hydrophobic region of the core are also visible.

https://doi.org/10.7554/eLife.36402.010
Comparison of α-Syn(1-121) fibrils with previous α-Syn fibril structures.

(A) Overlay with the solid-state NMR structure from Tuttle et al. (2016) (green). Our α-Syn structure is orange in both overlays. (B) Overlay with the preNAC segment obtained by micro-ED by Rodriguez et al. (2015) (purple). The red square in (A) indicates the area of our structure shown in (B). Residue 53 is mutated (i.e. A53T) in the micro-ED structure.

https://doi.org/10.7554/eLife.36402.011
Hydrophobic cleft at the growing end of α-Syn(1-121) fibrils.

(A) Views of opposite ends of α-Syn fibrils with the two protofilaments colored orange and blue. Regions corresponding to the location of the hydrophobic cleft are shown in a lighter shade. (B) Residues forming the hydrophobic cleft, including V49, V52, I88, A89 provide an entry point for residues V74-V82 of an incoming α-Syn molecule (atoms shown). Area shown in panel (B) is marked in panel (A) with a square.

https://doi.org/10.7554/eLife.36402.012

Videos

Video 1
Cryo-EM structure of alpha-synuclein fibril.

Details of the cryo-EM reconstruction of an alpha-synuclein fibril at 3.4 Å resolution, illustrating the interaction between two protofilaments, the 4.9 Å spacing between β-strands of a single protofilament and monomer topology in the protofilament core.

https://doi.org/10.7554/eLife.36402.009

Tables

Table 1
Cryo-EM structure determination and model statistics.
https://doi.org/10.7554/eLife.36402.013
Data collection
Magnification165000 x
Pixel size (Å)0.831
Defocus Range (µm)−0.8 to −2.5
Voltage300 kV
Exposure time (s per frame)0.2
Number of frames50
Total dose (e/Å2)69 to 128
Reconstruction
Box size (pixels)280
Inter-box distance (pixels)28
Micrographs118
Manually picked fibrils792
Initial extracted segments18860
Segments after 2D classification18371
Segments after 3D classification13390
Resolution after 3D refinement (Å)3.8
Final resolution (Å)3.42
Estimated map sharpening B-factor (Å2)−82.6
Helical rise (Å)2.45
Helical twist (°)179.5
Atomic model
Initial model used (PDB code)2N0A
Model resolution (Å)
FSC threshold
2.94/4.08
FSC = 0.143/FSC = 0.5
Model resolution range (Å)116.34–2.94
Map sharpening B-factor (Å2)−82.6
Model composition
Non-hydrogen atoms
Protein residues
Ligands

3960
580
0
B-factors (Å2) (non-hydrogen atoms)
Protein
Ligand

29.85
N.A.
R.m.s. deviations
Bond lengths (Å)
Bond angles (°)

0.008
1.088
Validation
MolProbity score
Clashscore
Poor rotamers (%)

1.49
1.24
0.00
Ramachandran plot
Favored (%)
Allowed (%)
Disallowed (%)

85.71
14.29
0.00

Data availability

The cryo-EM image data are available in the Electron Microscopy Public Image Archive, entry number EMPIAR-10195. The 3D map is available in the EMDB, entry number EMD-0148. The atomic coordinates are available at the PDB, entry number PDB 6H6B.
