A bacterial immunomodulatory protein with lipocalin-like domains facilitates host–bacteria mutualism in larval zebrafish

  1. Annah S Rolig
  2. Emily Goers Sweeney
  3. Lila E Kaye
  4. Michael D DeSantis
  5. Arden Perkins
  6. Allison V Banse
  7. M Kristina Hamilton
  8. Karen Guillemin  Is a corresponding author
  1. University of Oregon, United States
  2. Canadian Institute for Advanced Research, Canada
Research Article
Cite this article as: eLife 2018;7:e37172 doi: 10.7554/eLife.37172
6 figures, 3 tables, 1 data set and 3 additional files

Figures

Figure 1 with 1 supplement
Aeromonas secretes a protein that regulates intestinal neutrophil response to a general model of inflammation.

(A) Intestinal neutrophil response to conventional (CV), germ free (GF), and mono-associations of wild-type Aeromonas (Aer ΔT2C), and an isogenic mutant of the type II secretion system (ΔT2). ΔT2 induces a greater neutrophil response that is rescued by addition of cell free supernatant (CFS) from the wild-type Aeromonas strain. Ammonium sulfate fractionation narrowed potential candidates down to two proteins, an unidentified protein (UP) or chitin binding protein (CBP). (B) E. coli BL21 carrying pET21b expression vector overexpression of the candidate proteins of interest. (C) Addition of CFS containing UP rescued the increased neutrophil response induced by ΔT2. EV: empty vector control CFS. Letters denote p<0.05, ANOVA followed by Tukey’s post hoc test. Each box represents the first to third quartiles, center bar the median, and whiskers the maximum and minimum. Each dot represents one fish; data collected from at least two independent experiments; n ≥ 24.

https://doi.org/10.7554/eLife.37172.003
Figure 1—source data 1

Aeromonas secretes a protein that regulates intestinal neutrophil response to a general model of inflammation.

https://doi.org/10.7554/eLife.37172.005
Figure 1—figure supplement 1
Colonization of A. veronii strain Hm21 type two secretion mutant.

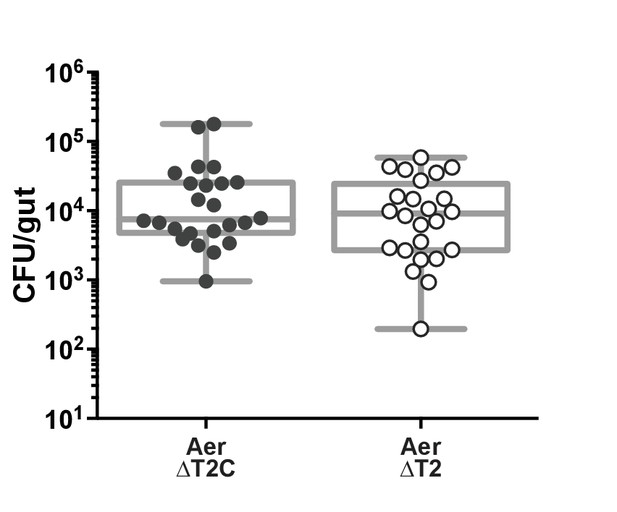

(A) veronii strain Hm21 isolates ΔT2, the type two secretion mutant, and ΔT2C, the compliment isolate with a wild-type phenotype, colonize the fish to similar levels. Each dot represents one fish. n ≥ 24, from two independent experiments.

https://doi.org/10.7554/eLife.37172.004
Figure 1—figure supplement 1—source data 1

Colonization of A. veronii strain Hm21 type 2 secretion mutant.

https://doi.org/10.7554/eLife.37172.006
Figure 2 with 2 supplements
The crystal structure of AimA reveals two calycin domains.

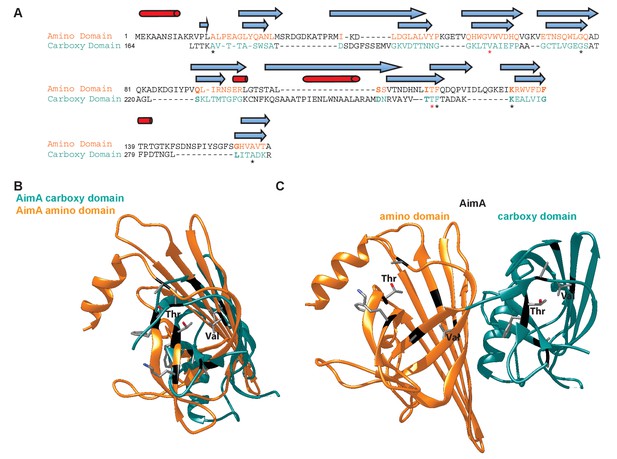

(A) The 2.3 Å structure of AimA displays two calycin domains (PDB ID 6B7L). (B) The amino terminal domain (orange) of AimA is connected by a short linker to the carboxy terminal domain (teal) and both contain an eight-stranded full (C-term) or partial (N-term) β-barrel.

https://doi.org/10.7554/eLife.37172.009
Figure 2—figure supplement 1
Structural homology of the two domains of AimA to avidins.

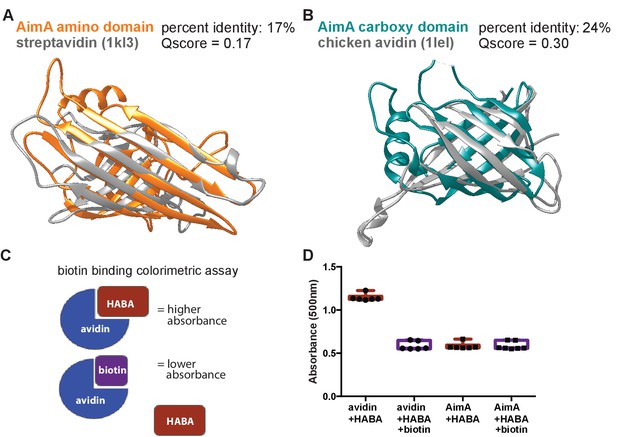

(A) Structural overlay of N-term domain of AimA with top structural homology hit from PDBeFold search (Supplemental Table 2), Streptomyces avindinii streptavidin (PDB ID 1KL3). (B) Structural overlay of C-term domain of AimA with top structural homology hit from PDBeFold search (Supplemental Table 2), Gallus gallus avidin (PDB ID 1LEL). (C) Schematic of the biotin binding colorimetric assay. Biotin has higher affinity for avidins than HABA does, so it replaces HABA in the binding site, thereby decreasing the absorbance at 500 nm. (D) Results from the biotin binding colorimetric assay. Biotin replaces HABA binding in avidin, corresponding to a decrease in absorbance when biotin is present. With AimA, there is no difference in absorbance with or without biotin, indicating no biotin binding.

https://doi.org/10.7554/eLife.37172.010
Figure 2—figure supplement 2
A paired refinement demonstrates that the extended resolution improves the quality of the model.

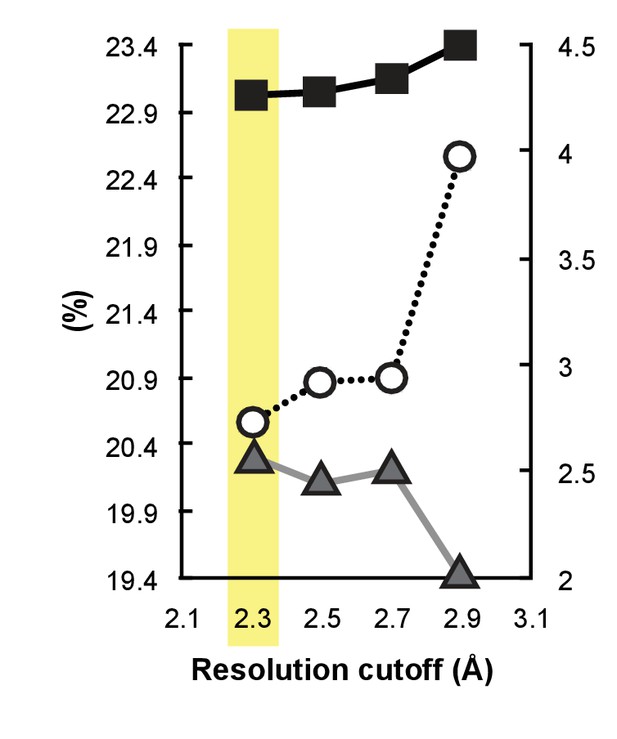

Shown are Rfree (black line, solid squares), Rwork, (gray line, solid triangles), and Rfree-Rwork (dotted line, open circles) calculated at 2.9 Å for paired refinements in which the model was first refined against either 2.9, 2.7, 2.5, or 2.3 Å data. The chosen resolution cutoff of 2.3 Å (highlighted in yellow) show a decrease in Rfree and increase in Rwork, which proves that using the extra resolution improves the model.

https://doi.org/10.7554/eLife.37172.011
Figure 3 with 1 supplement
AimA contains regions structurally conserved with the lipocalin family and reduces soysaponin induced inflammation.

(A) Feeding zebrafish soy saponin induces increased intestinal neutrophil response, and treating those fish with 100 ng/mL purified AimA prevents the increased intestinal neutrophil response. Letters indicate significantly different groups; ANOVA with multiple comparisons. Each dot represents one fish; data collected from at least two independent experiments; n ≥ 24. (B) Structural overlay of mouse lipocalin (PDB ID 3S26) and AimA C-term domain using PDBeFold. Qscore is a structural overlay quality score that takes into account both the root mean standard deviation (RMSD) of the Cα carbons and the alignment length. Qscore of 1 is perfect alignment, 0 is no alignment. The residues highlighted in orange are conserved in both the sequences and the structures (see table below). Displayed are the sequences of Structurally Conserved Regions (SCR) 1 and 3 of a representative set of kernel and outlier lipocalins, with PDB IDs in parenthesis. The C-term domain of AimA is included and contains a subset of conserved SCR residues. Bold residues are conserved across the sequences. Orange residues are conserved across the sequences and in the structures of mLCN and the C-term domain of AimA. (C) Treatment of conventionally raised (CV) fish with soysaponin and lipocalin prevents AimA from reducing the neutrophil response. Each dot represents one fish; n ≥ 20 from at least three independent experiments. Letters indicate significantly different groups; ANOVA with multiple comparisons.

https://doi.org/10.7554/eLife.37172.012
Figure 3—source data 1

AimA contains regions structurally conserved with the lipocalin family and reduces soysaponin induced inflammation.

https://doi.org/10.7554/eLife.37172.014
Figure 3—figure supplement 1
AimA does not bind enterobactin.

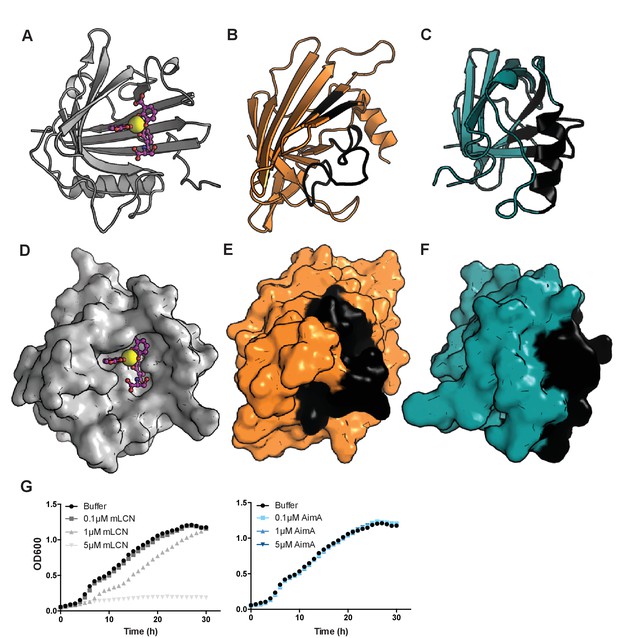

(A) Shown is a ribbon diagram of the structure of human LCN2 (PDB ID 1L6M) with ferric enterobactin bound. Enterobactin is shown in pink with oxygen in red, nitrogen in blue, and iron as a yellow ball. (B) After overlay with LCN2 from panel A, shown is a ribbon diagram of the structure of AimA N-term domain in the same orientation. The regions colored black indicate residues that would occlude enterobactin binding. (C) After overlay with LCN2 from panel A, shown is a ribbon diagram of the structure of AimA C-term domain in the same orientation. The regions colored black indicate residues that would occlude enterobactin binding. (D–F) Shown are the surface representations of LCN2, N-term AimA and C-term AimA from panels A-C, respectively. Note the deep calyx formed by LNC2 for enterobactin binding is missing in both the N-term and C-term AimA domains. (G) E. coli K12 grown in the presence of the iron chelator dipyridyl experiences a dose dependent growth inhibition upon addition of purified mouse LCN2 protein (left), but does not experience growth inhibition upon addition of the same range of purified AimA concentrations to the E. coli cultures (right).

https://doi.org/10.7554/eLife.37172.013
Figure 3—figure supplement 1—source data 1

AimA does not bind enterobactin.

https://doi.org/10.7554/eLife.37172.015
Figure 4 with 1 supplement
Both domains of AimA retain neutrophil modulating function.

(A) Overlay of C-term and N-term domains of AimA using PDBeFold. (B) Conventionally raised (CV) fish fed soysaponin (SS) and treated with either purified full-length AimA or purified N-term (NT) or C-term (CT). Each dot represents the average percent of neutrophil influx in a flask of 15 fish from the average neutrophil influx of a control flask (soysaponin only) of 15 fish. n ≥ 9 flasks from at least three independent experiments. Letters indicate significantly different groups; ANOVA with multiple comparisons. (C) Overlay of C- and N-term domains of AimA and mLCN using PDBeFold.

https://doi.org/10.7554/eLife.37172.016
Figure 4—source data 1

Both domains of AimA retain neutrophil modulating function.

https://doi.org/10.7554/eLife.37172.018
Figure 4—figure supplement 1
Structural comparison of N-term and C-term domains of AimA.

(A) Structure-based sequence alignment of N-term and C-term domains of AimA. Black text indicates regions that don’t align in the structures, colored text are regions that do. Blue arrows, β-strands, and red cylinders, α-helices, above the text represent the secondary structure, with the top symbols corresponding to the N-term domain. Stars show the seven residues that align in the structures, with red stars indicating the Val and Thr that may be functionally relevant. (B) Overlay of N-term (orange) and C-term (teal) domain of AimA. The seven structurally conserved residues are mapped on and shown as sticks (gray = carbon, red = oxygen, blue = nitrogen). (C) Full length AimA structure with the seven structurally conserved regions shown as sticks.

https://doi.org/10.7554/eLife.37172.017
Figure 5 with 2 supplements
AimA reduces neutrophil influx and promotes colonization of Aeromonas.

(A) Structural overlay (PDBeFold) of AimA (blue) and the model of AimB (purple) generated by I-TASSER using AimA as a threading structure. (B) Colonization level of wild-type ZF Aeromonas and ZF Aer ΔAimA. The colonization defect of ZF Aer ΔAimA is rescued by treatment with 100 ng/mL purified AimA. (C) Colonization level of wild-type Aeromonas, ΔAimA, ΔAimB, and ΔAΔB. Each of the single mutants colonizes as well as wild type, while the double mutant has a significantly reduced colonization level. This phenotype is rescued by treatment with 100 ng/mL purified AimA. (D) Intestinal neutrophil response to ZF Aer and the colonization defect of ZF Aer ΔAimA. (E) Intestinal neutrophil response to wild-type Aeromonas, ΔAimA, ΔAimB, and ΔAΔB. Each of the single mutants induces a similar neutrophil response to wild type, while the double mutant induces significantly greater response. This phenotype is rescued by treatment with 100 ng/mL purified AimA for both Aeromonas isolates. For all graphs, each dot represents one fish; n ≥ 23 from at least three independent experiments. Letters indicate significantly different groups, ANOVA with multiple comparisons.

https://doi.org/10.7554/eLife.37172.019
Figure 5—source data 1

AimA reduces neutrophil influx and promotes colonization of Aeromonas.

https://doi.org/10.7554/eLife.37172.022
Figure 5—figure supplement 1
Homologues to AimA are found across the Aeromonas genus.

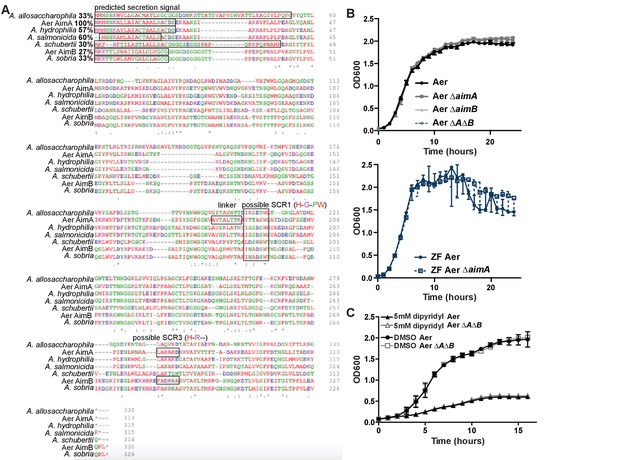

(A) Clustal Omega alignment of six AimA homologues with AimA. The predicted secretion signal, the linker between the N- and C-term, and two possible lipocalin SCRs are indicated on the alignment. (B) In vitro growth curves of Aer ΔaimA, Aer ΔaimB, and Aer ΔAΔB in A. veronii strain Hm21, and ZF Aer ΔaimA in the zebrafish Aeromonas background do not have growth defects in vitro. (C) In vitro growth curves of wild type Aeromonas (Aer) and Aer ΔAΔB grown in iron limiting conditions (+dipyridyl) or with a vehicle control (DMSO).

https://doi.org/10.7554/eLife.37172.020
Figure 5—figure supplement 1—source data 1

Homologues to AimA are found across the Aeromonas genus.

https://doi.org/10.7554/eLife.37172.023
Figure 5—figure supplement 2
ZF Aer ΔAimA suffers the greatest colonization defect seven dpf.

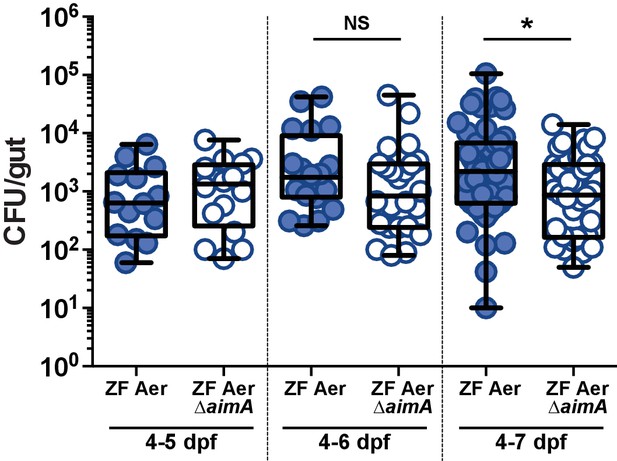

Comparison of WT ZF Aeromonas (ZOR001) and ZF Aer ΔAimA colonizing the zebrafish intestine for 24 hr (4–5 dpf), 48 hr (4–6 dpf), or 72 hr (4–7 dpf). *p<0.05, Students T test. N > 14, from at least two independent experiments.

https://doi.org/10.7554/eLife.37172.021
Figure 5—figure supplement 2—source data 1

ZF Aer DAimA suffers the greatest colonization defect 7 dpf.

https://doi.org/10.7554/eLife.37172.024
The increased neutrophil response to Aeromonas ΔAΔB causes decreased survival rate.

(A) The per capita effect of wild-type Aeromonas, ΔAimA, ΔAimB, and ΔAΔB. Each dot represents the average neutrophil response from a flask of 15 fish divided by the average colonization level from a flask of 15 fish, normalized to 104. (B) Survival curve of zebrafish mono-associated with wild-type A. veronii (N = 163), ΔAimA (N = 139), ΔAimB (N = 174), ΔAΔB (N = 148), and ΔAΔB + AimA (N = 60). *indicates significant difference from the survival curve with wild-type Aeromonas, Mantel-Cox test. (C) myd88-/- transgenic fish lack a neutrophil response to bacteria. Each dot represents one fish. (D) ΔAΔB colonization is rescued to wild-type colonization levels in myd88-/- transgenic fish. Further, both wild-type Aeromonas and ΔAΔB reach significantly higher colonization levels in the myd88-/- transgenic fish compared to wild-type fish, indicating that the innate immune response limits commensal bacterial growth. (E) Survival curves of myd88-/- zebrafish over a 3 day infection. GF myd88-/- (N = 45), CV myd88-/- (N = 120), Aer myd88-/- (N = 100), ΔAΔB myd88-/- (N = 124). (F) Survival curve of conventionally raised (CV) fish treated with LPS (N = 163), with LPS and AimA (N = 163), with LPS and AimB (N = 121), or with LPS and mLCN (N = 69). Letters next to key indicate significant difference between the survival curves, Mantel-Cox test. For all graphs, letters indicate significance by ANOVA with multiple comparisons.

https://doi.org/10.7554/eLife.37172.025
Figure 6—source data 1

The increased neutrophil response to Aeromonas ΔAΔB causes decreased survival rate.

https://doi.org/10.7554/eLife.37172.026

Tables

Table 1
Strain table.
https://doi.org/10.7554/eLife.37172.007
StrainCharacteristicsRef. or
source
Manuscript abbreviation
Hm21SParent strain, SmRGraf, 1999Aer
HE-1095Hm21S::interrupted exeM mTn5 KmR SmRMaltz and Graf, 2011Aer ΔT2
HEC-1344HE-1095::Tn7 containing TpR exeMN + promoter
region
Maltz and Graf, 2011Aer ΔT2C
ASRC7Hm21S aimA::cmRThis studyAer ΔaimA
ASRD5Hm21S ΔaimBThis studyAer ΔaimB
ASRD4Hm21S aimA::cmR; ΔaimBThis studyAer ΔAΔB
ZOR0001Zebrafish Aeromonas isolateStephensZF Aer
ASRC9ZOR0001 aimA::cmRThis studyZF Aer ΔaimA
Table 2
Data Collection and Refinement Statistics for Deposited Model.
https://doi.org/10.7554/eLife.37172.008
Data collectionIodideNative
space groupP622P622
unit cell a, b, c (Å)161.4161.466.6160.5160.566.2
alpha, beta, gamma (degrees)90901209090120
resolution (Å)50.0–2.7 (2.75–2.70)41.1–2.30
completeness (%)100 (100)100 (100)
no. unique reflections14772 (711)22818 (3244)
multiplicity37.7 (38.1)70.2 (71.6)
I/sigma>44.2 (3.5)16.1 (1.4)
CC1/210.8611.0 (0.9)
CC1/2 anomolous10.873
R merge (%)19.6 (486)19.1 (574)
Refinement
R work (%)17.2
R free (%)20.4
no. of molecules in the asymetric unit1
no. protein residues290
no. of waters69
rmsd for lengths (Å)0.008
rmsd for angles (deg)1.1
Ramachandran plot (%)
preferred96.2
allowed3.4
outliers0.4
Avg. B factor (Å^2)
mainchain*81
waters75
new PDB entry6B7L
  1. * Several loop regions display high mobility but have been modeled due to a visible chain path in the electron density, resulting in an increase in the average observed B-factors of the main chain

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain
background (Escherichia coli)
BL21 DE3New England BiolabsC2527
Strain, strain
background (E. coli)
K12 strain (MG1655)doi: 10.1128/JB.188.3.928–933.2006Dr. Matthew Mulvey,
Univ. of Utah
Strain, strain
background (Aeromonas veronii)
HM21S; Aer;
Aeromonas Hm21; Hm21
doi:10.1128/AEM.01621–10Parent strain, SmR
Strain, strain
background (A. veronii)
HE-1095; Aer DT2doi:10.1128/AEM.01621–10Hm21S::interrupted
exeM mTn5
KmR SmR
Strain, strain
background (A. veronii)
HEC-1344; Aer DT2Cdoi:10.1128/AEM.01621–10HE-1095::Tn7
containing TpR
exeMN + promoter
region
Strain, strain
background (A. veronii)
ASRC7; Aer DaimAthis studyHm21S aimA::cmR
Strain, strain
background (A. veronii)
ASRD5; Aer DaimBthis studyHm21S DaimB
Strain, strain
background (A. veronii)
ASRD4;
Aer DADB
this studyHm21S aimA::cmR;
DaimB
Strain, strain
background (A. veronii)
ZOR0001;
ZF Aer
doi:10.1038/ismej.2015.140Zebrafish Aeromonas
isolate
Strain, strain
background (A. veronii)
ZOR0001;
ZF Aer DaimA
this studyZOR0001 aimA::cmR
Genetic
reagent (Danio rerio)
AB x Tu strain;
wild type zebrafish
UO Zebrafish facility
Genetic
reagent (Danio rerio)
myd88-/-PMID: 28973938
Genetic
reagent (Danio rerio)
Tg(BACmpx:GFP)
i114; mpx:GFP
doi:10.1182/blood
-2006-05-024075
Recombinant
DNA reagent
pET21BGenscript
Chemical
compound, drug
LPS, E. Coli
O111:B4
SigmaL2630
Peptide,
recombinant protein
Lipocalin 2, LCN2,
Siderocalin
Biolegend588002
Peptide,
recombinant protein
AimAthis studyNCBI hypothetical
protein WP_021230730.1
see Materials
and Methods
Peptide,
recombinant protein
AimBthis studyNCBI hypothetical
protein WP_021230165.1
see Materials
and Methods
Peptide,
recombinant protein
mLCN2this studyNCBI gene NM_008491.1see Materials
and Methods

Data availability

Diffraction data have been deposited in PDB under the accession code 6B7L.
