Neurocalcin regulates nighttime sleep and arousal in Drosophila

  1. Ko-Fan Chen  Is a corresponding author
  2. Simon Lowe
  3. Angélique Lamaze
  4. Patrick Krätschmer
  5. James Jepson  Is a corresponding author
  1. UCL Institute of Neurology, United Kingdom
Research Article
  • Cited 0
  • Views 987
  • Annotations
Cite this article as: eLife 2019;8:e38114 doi: 10.7554/eLife.38114

Abstract

Sleep-like states in diverse organisms can be separated into distinct stages, each with a characteristic arousal threshold. However, the molecular pathways underlying different sleep stages remain unclear. The fruit fly, Drosophila melanogaster, exhibits consolidated sleep during both day and night, with night sleep associated with higher arousal thresholds compared to day sleep. Here we identify a role for the neuronal calcium sensor protein Neurocalcin (NCA) in promoting sleep during the night but not the day by suppressing nocturnal arousal and hyperactivity. We show that both circadian and light-sensing pathways define the temporal window in which NCA promotes sleep. Furthermore, we find that NCA promotes sleep by suppressing synaptic release from a dispersed wake-promoting neural network and demonstrate that the mushroom bodies, a sleep-regulatory center, are a module within this network. Our results advance the understanding of how sleep stages are genetically defined.

https://doi.org/10.7554/eLife.38114.001

Introduction

Sleep is a widely conserved behavior that influences numerous aspects of brain function, including neuronal development (Kayser et al., 2014), clearance of metabolic waste (Xie et al., 2013), synaptic plasticity (Havekes et al., 2016; Kuhn et al., 2016; Li et al., 2017; Yang et al., 2014), and complex behaviors (Kayser et al., 2015; Kayser et al., 2014). The fruit fly, Drosophila, exhibits a sleep-like state characterized by immobility, altered posture and elevated arousal threshold during both day and night (Hendricks et al., 2000; Shaw et al., 2000). Similarly to mammals, sleep in Drosophila is regulated by circadian and homeostatic processes (Huber et al., 2004; Liu et al., 2014). Furthermore, just as human sleep can be separated into stages of differing arousal thresholds (REM and three non-REM sleep stages) (Rechtschaffen et al., 1966), sleep in Drosophila also varies in intensity throughout the day/night cycle, with night sleep having a higher arousal threshold relative to day sleep (Faville et al., 2015; van Alphen et al., 2013).

The molecular mechanisms by which sleep is partitioned into stages remain poorly understood. In Drosophila, mutations in a select number of genes modulate either day or night sleep, suggesting that distinct genetic pathways may promote or inhibit these sleep stages (Ishimoto et al., 2012; Tomita et al., 2015). Yet it is still unclear which properties of sleep/wake these genes are influencing, and how the timing of when they affect sleep is controlled.

The identification of new genes selectively impacting day or night sleep will help address such questions. Previously, large-scale screens of EMS-mutagenized (Cirelli et al., 2005; Stavropoulos and Young, 2011), P-element insertion (Koh et al., 2008), or transgenic RNAi knockdown lines (Rogulja and Young, 2012) have been used to identify Drosophila sleep mutants. However, such approaches are highly laborious, requiring screening of thousands of fly lines to identify a limited number of bona fide sleep genes. Thus, targeted screening strategies of higher efficiency may represent a useful complement to unbiased high-throughput, yet low yield, methodologies.

We uncovered a novel sleep-relevant gene in Drosophila using a guilt-by-association strategy. Our approach was based on comparative phenotyping of human and Drosophila mutants of homologous genes, KCTD17/insomniac, both of which encode a Cullin-3 adaptor protein involved in the ubiquination pathway (Mencacci et al., 2015; Pfeiffenberger and Allada, 2012; Stavropoulos and Young, 2011). In humans, a KCTD17 mutation has been associated with myoclonus dystonia, a disorder characterized by repetitive movements, contorted postures and non-epileptic myoclonic jerks in the upper body (Mencacci et al., 2015). In Drosophila, null or hypomorphic mutations in the KCTD17 homolog insomniac result in profound reductions in sleep (Pfeiffenberger and Allada, 2012; Stavropoulos and Young, 2011).

Genotype-to-phenotype relationships arising from conserved cellular pathways can differ substantially between divergent species such as Drosophila and humans (Lehner, 2013; McGary et al., 2010; Wangler et al., 2017). In this context, it is interesting to note that dystonia in humans and sleep in Drosophila are linked by a common cellular mechanism: synaptic downscaling. This process occurs during sleep in both mammals and Drosophila, and is suppressed at cortico-striatal synapses in murine dystonia models (Bushey et al., 2011; Calabresi et al., 2016; Gilestro et al., 2009; Martella et al., 2009; Tononi and Cirelli, 2014). Thus, we hypothesized that homologs of other human dystonia-associated genes might also influence sleep in Drosophila.

To test this hypothesis, we examined whether homologs of dystonia-associated genes influenced sleep in Drosophila. Through this strategy we identified a previously unappreciated role for the HPCA/Hippocalcin homolog Neurocalcin (Nca) in regulating night sleep. Hippocalcin and NCA are neuronal calcium sensors, cytoplasmic proteins that bind calcium via EF hand domains and translocate to lipid membranes via a calcium-dependent myristoylation switch. This in turn alters interactions with membrane-bound proteins such as ion channels and receptors (Braunewell et al., 2009; Burgoyne and Haynes, 2012). In murine hippocampal neurons, Hippocalcin facilitates the slow afterhyperpolarisation (a calcium-dependent potassium current) (Tzingounis et al., 2007), and glutamate receptor endocytosis during LTD (Jo et al., 2010; Palmer et al., 2005). In humans, rare missense and null mutations in HPCA have been linked to DYT2 primary isolated dystonia, a hyperkinetic movement disorder affecting the upper limbs, cervical and cranial regions (Atasu et al., 2018; Carecchio et al., 2017; Charlesworth et al., 2015). Drosophila NCA has been shown to be expressed in synaptic regions throughout the fly brain (Teng et al., 1994). However, the neuronal and organismal functions of NCA have remained elusive. Here, we demonstrate a role for NCA in suppressing nocturnal arousal and locomotor activity in Drosophila, thus facilitating nighttime sleep.

Results

Identification of neurocalcin as a sleep-promoting factor

Drosophila NCA is highly homologous to the mammalian neuronal calcium sensor Hippocalcin, sharing >90% amino-acid identity (Figure 1—figure supplement 1). To test whether Nca influences sleep or wakefulness we initially used transgenic RNAi. Using the pan-neuronal driver elav-Gal4, we found that neuronal expression of three independent RNAi lines targeting Nca mRNA (kk108825, hmj21533 and jf03398; termed kk, hmj and jf respectively) reduced night sleep but not day sleep in adult male flies housed under 12 hr light: 12 hr dark conditions (12L: 12D) at 25°C (Figure 1—figure supplement 2A–E), as measured by the Drosophila Activity Monitoring (DAM) system (Pfeiffenberger et al., 2010). In this work we define a Drosophila sleep bout as ≥5 min of inactivity, the common standard in the field (Pfeiffenberger et al., 2010).

We performed a series of experiments to further validate a specific role of NCA in promoting night sleep. Sleep loss in flies expressing Nca RNAi correlated with significant reductions in Nca expression (Figure 1—figure supplement 2F). In contrast, expression of the cg7646 locus, which shares 5’ regulatory elements with Nca and encodes a neuronal calcium sensor more closely related to mammalian Recoverin than Hippocalcin, was unaffected by Nca knockdown (Figure 1—figure supplement 2A,G). Night-specific sleep loss following Nca knockdown was also observed in virgin adult female flies and in male flies expressing the kk Nca RNAi using other pan-neuronal or broadly expressed drivers (Figure 1—figure supplement 2H–J), whereas knockdown of cg7646 by RNAi did not impact night sleep (Figure 1—figure supplement 2K).

Sleep architecture in Drosophila is generally studied in 12L: 12D conditions. Interestingly, we found that night sleep in Nca knockdown males appeared even further reduced under short photoperiod conditions (8L: 16D) (Figure 1A). Similarly to 12L: 12D, in 8L: 16D day sleep was unaffected whilst night sleep was reduced (Figure 1A–C), due to fragmentation of consolidated sleep bouts during the middle of the night (Figure 1—figure supplement 3). Nocturnal sleep loss in 8L: 16D was again observed in flies expressing the independent hmj and jf Nca RNAi lines in neurons (Figure 1—figure supplement 4A–C), but not in flies expressing the kk Nca RNAi line in muscle cells (Figure 1—figure supplement 4D–F), supporting a role for NCA in neurons.

Figure 1 with 8 supplements see all

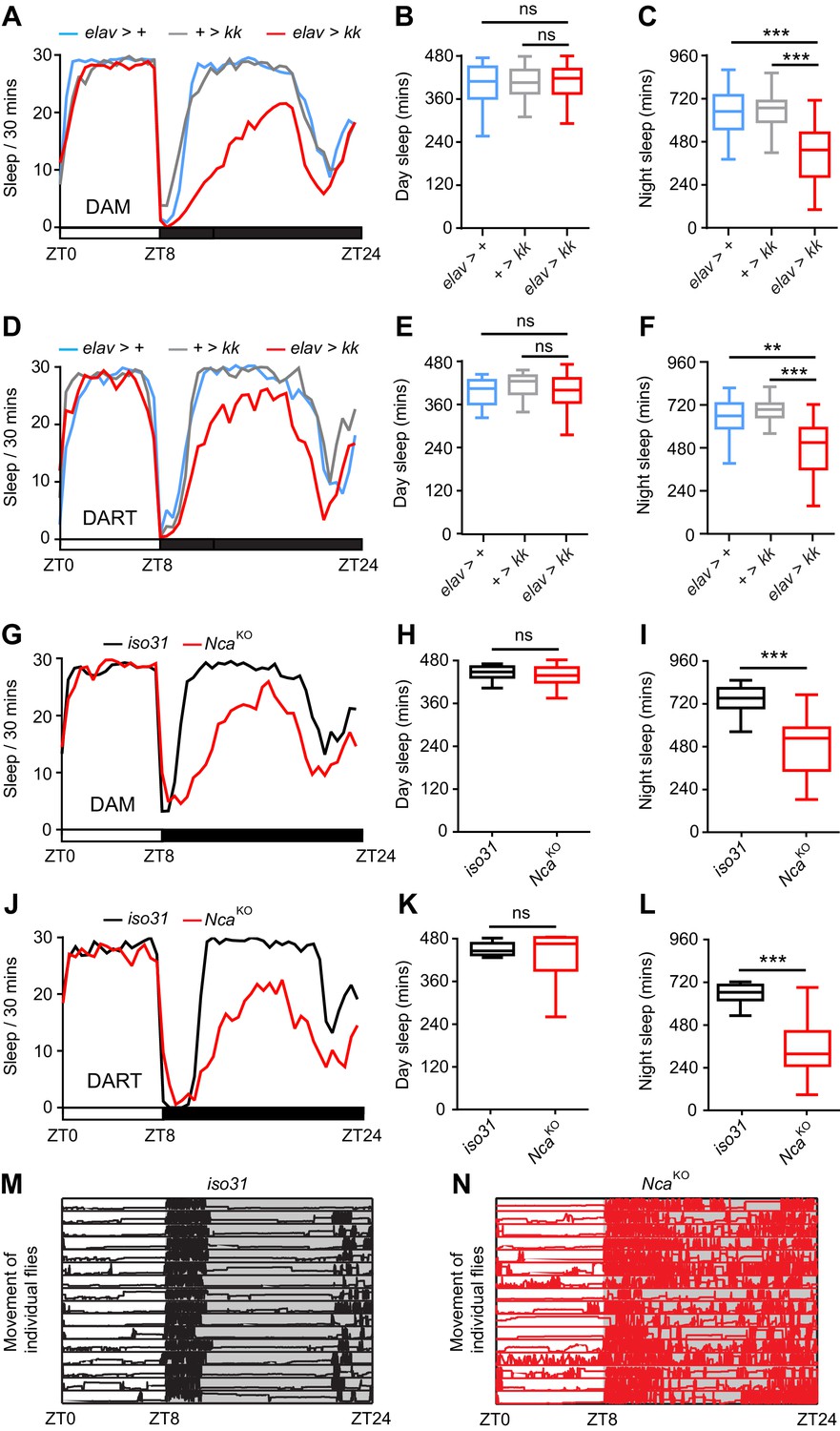

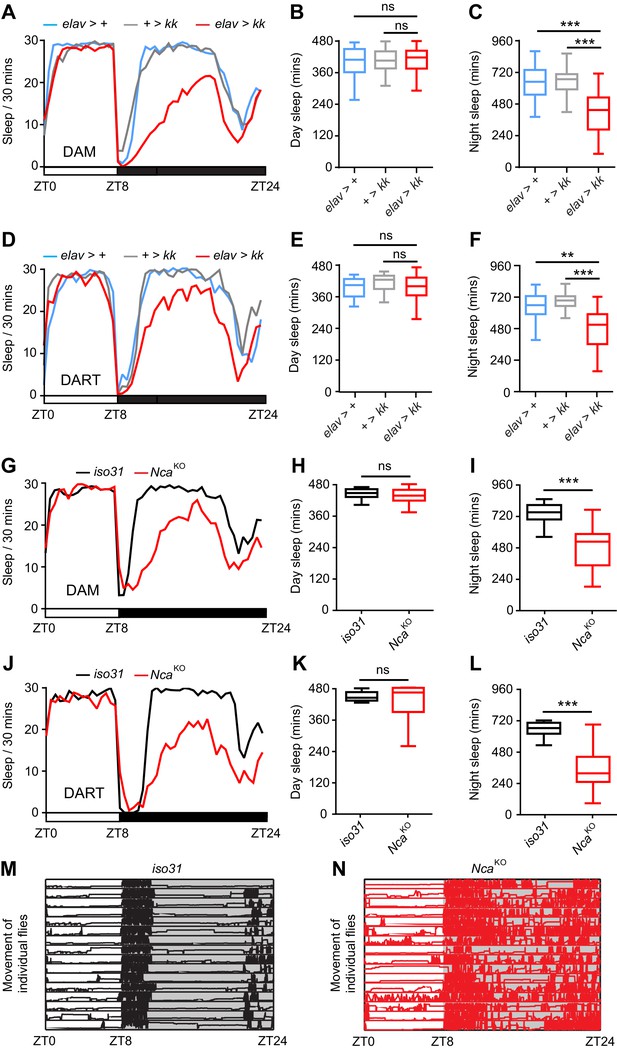

Neurocalcin promotes night sleep.

(A) Mean sleep levels measured using the DAM system under 8L: 16D conditions for adult male pan-neuronal Nca knockdown flies (elav > kk) and associated controls (elav-Gal4 driver or kk RNAi transgene heterozygotes). (B–C) Median day (B) and night (C) sleep levels in the above genotypes. n = 54–55. Data are presented as Tukey box plots. The 25th, Median, and 75th percentiles are shown. Whiskers represent 1.5 x the interquartile range. Identical representations are used in all subsequent box plots. (D) Mean sleep levels measured using the DART system in 8L: 16D conditions for male adult pan-neuronal Nca knockdown flies (elav > kk) and associated controls. (E–F) Median day (E) and night (F) sleep levels in the above genotypes. n = 20 per genotype. (G) Mean sleep levels in 8L: 16D conditions for NcaKO adult males and iso31 controls measured using the DAM. (H–I) Median day (H) and night (I) sleep levels in the above genotypes. n = 32 per genotype. (J) Mean sleep levels in 8L: 16D conditions for NcaKO adult males and iso31 controls measured by DART. (K–L) Median day (K) and night (L) sleep levels in the above genotypes. n = 16 per genotype. (M–N) The longitudinal movement for individual iso31 (M) and NcaKO (N) flies are shown as rows of traces plotting vertical position (Y-axis) over 24 hr (X-axis) under 8L: 16D condition. ns (not significant) - p>0.05, **p<0.01, ***p<0.001, Kruskal-Wallis test with Dunn’s post-hoc test (B–C, E–F) or Mann-Whitney U-test (H–I, K–L).

https://doi.org/10.7554/eLife.38114.002

Given the limited spatial resolution of the DAM system, which measures activity via a single infra-red beam, we undertook a higher resolution analysis of sleep using a video-tracking method - the DART (Drosophila ARousal Tracking) system (Faville et al., 2015). DART recordings confirmed night-specific sleep loss in in Nca knockdown flies housed under 8L: 16D (Figure 1D–F).

To test whether sleep loss caused by neuronal Nca knockdown flies was due to an indirect effect on the circadian clock, we examined whether Nca knockdown altered circadian patterns of locomotor activity in constant dark (DD) conditions. Importantly, knockdown of Nca in neurons did not alter circadian rhythmicity (Figure 1—figure supplement 5). Furthermore, knockdown of Nca specifically in clock neurons did not affect night sleep (see below). Thus, it is unlikely that sleep loss in Nca knockdown flies is due to circadian clock dysfunction.

To provide further genetic evidence that NCA is a sleep-regulatory factor, we generated three independent Nca null alleles by replacing the entire Nca locus (including 5’ and 3’ UTRs) with a mini-white+ sequence using ends-out homologous recombination (Baena-Lopez et al., 2013). The mini-white+ is flanked by loxP sites, allowing removal by Cre recombinase and leaving single attP and loxP sites in place of the Nca locus (Figure 1—figure supplement 6A–C). As expected, no Nca mRNA expression was detected in homozygotes for the deleted Nca locus (Figure 1—figure supplement 6D–E). Thus, we term these alleles NcaKO1-3 (Nca knockouts 1–3). Following outcrossing into an isogenic iso31 control background, male homozygotes and transheterozygotes for the three Nca knockout alleles were viable to the adult stage and exhibited normal day sleep but reduced night sleep, as measured by both DAM and DART systems (Figure 1G–L, Figure 1—figure supplement 7), similarly to Nca knockdown flies.

By examining locomotor patterns in individual flies using the DART system, we found that NcaKO1 males consistently displayed prolonged activity relative to controls following lights-off and frequent bouts of movement even in the middle of the night – a period of quiescence in iso31 controls (Figure 1M,N). Video-based analysis of waking locomotor velocities revealed that loss of NCA led to a reduction in average locomotor velocity across 24 hr (Figure 1—figure supplement 8A,B). This was primarily driven by reduced locomotor activity during the evening activity peak and following lights-off, suggesting loss of NCA mildly reduces peak levels of activity (Figure 1—figure supplement 8C). In contrast, locomotor velocities during normally quiescent periods of the night were greatly enhanced in NcaKO1 males compared to iso31 controls (Figure 1—figure supplement 8D), consistent with a perturbed sleep state.

Collectively, the above data demonstrate that NCA promotes night sleep in Drosophila and does so by acting in neurons. For simplicity, we use the kk Nca RNAi line and the NcaKO1 knockout line for all subsequent experiments, and refer to these flies as NcaKD (Nca knockdown) and NcaKO (Nca knockout) respectively.

NCA suppresses nighttime arousal

Sleep is characterized by a reduced responsiveness to stimuli (Campbell and Tobler, 1984). Recent studies have shown that responsiveness during sleep stages in Drosophila is dynamically regulated, with night sleep exhibiting a higher arousal threshold relative to day sleep (Faville et al., 2015; van Alphen et al., 2013). Since knockout or knockdown of NCA specifically impacted night sleep, we were interested to test whether NCA might also influence the arousal threshold during the night. To do so, we used the DART system to subject NcaKD flies and respective controls to a mechanical stimulus consisting of five consecutive 50 Hz vibrations of 200 ms duration, each separated by 800 ms, at either Zeitgeber Time (ZT) 4 (the middle of the day) or ZT16 (the middle of the night) in 8L: 16D (see Methods). This paradigm has previously been shown to induce startle responses the majority of white mutant flies sleeping during the day, and a correspondingly smaller proportion when applied during the night (Faville et al., 2015).

At ZT4, we found that the majority of adult males from both control lines exhibited startle responses in response to vibration stimuli, and that Nca knockdown did not significantly alter the arousal threshold at this time point (Figure 2A,B). In contrast, the percentage of NcaKD flies responding to vibration stimulus was significantly higher at ZT16 relative to both control lines (Figure 2C,D). Furthermore, whereas the percentage of control flies responding to vibration stimulus was significantly higher during the day compared to the night (elav > + and + > kk: p<0.0005, Binomial test with Bonferonni correction for multiple comparisons), there was no significant day/night difference in responsiveness in NcaKD flies (p=0.1). Similar results were also observed in NcaKO flies (Figure 2E,F). These data suggest that NCA is a molecular regulator of nighttime arousal in Drosophila.

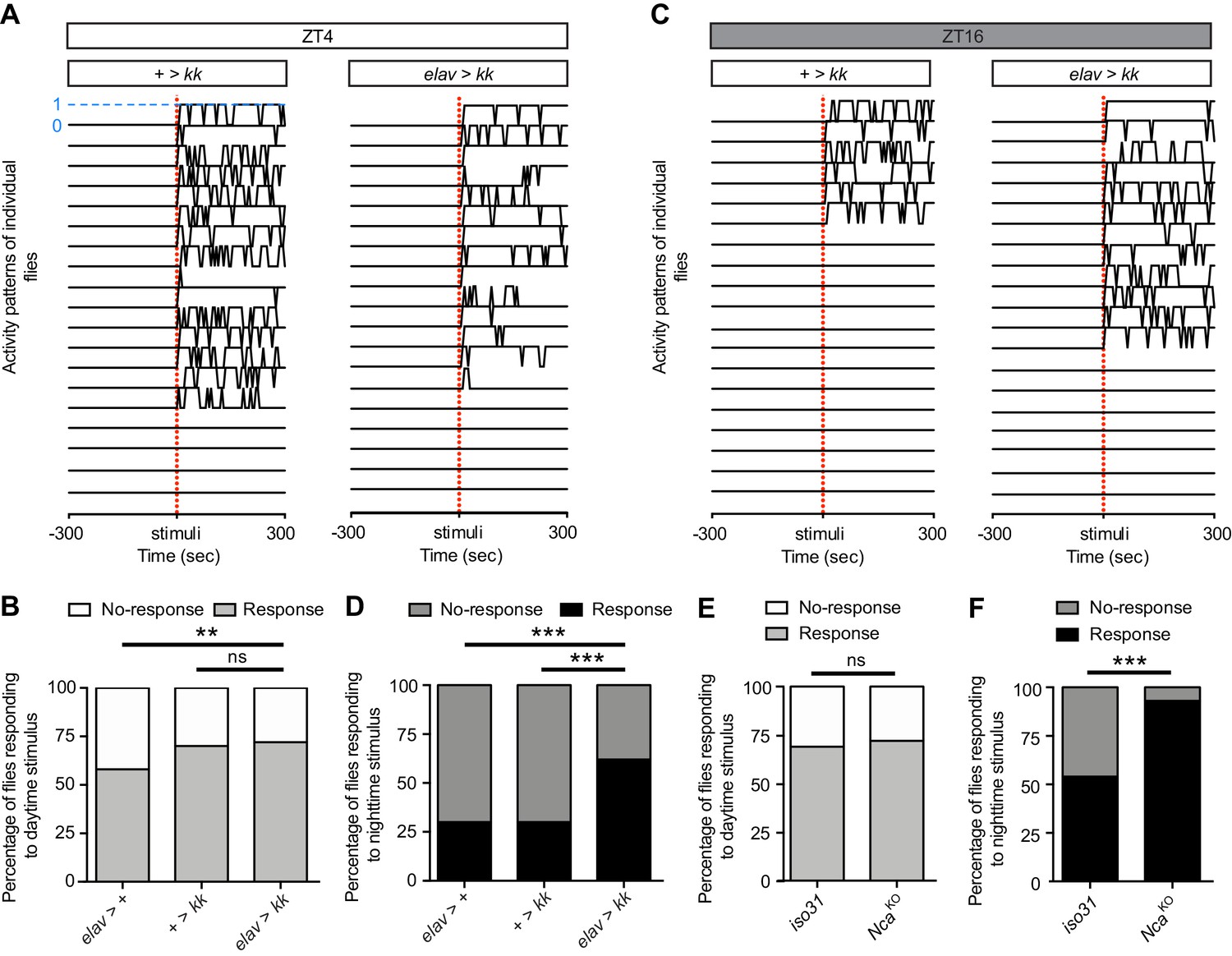

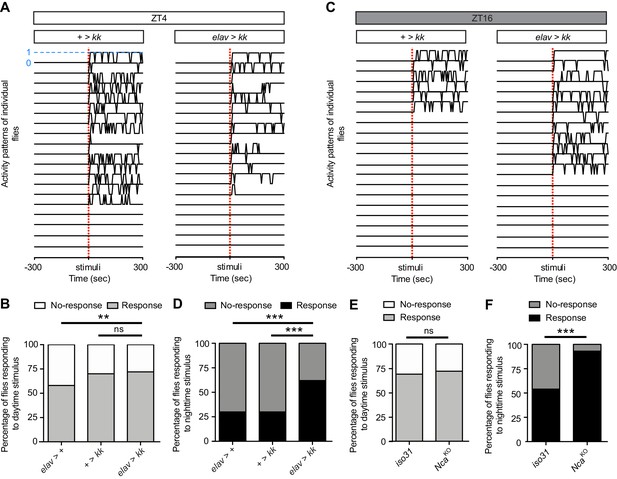

NCA reduces responsiveness to stimuli at night under 8L: 16D conditions.

(A, C) Locomotor activity in twenty representative control (+ > kk) and NcaKD (elav > kk) adult male flies at either ZT4 (A) or ZT16 (C), as measured using the DART system. X-axis denotes 300 s before and after a vibration stimulus (red dotted line). Y-axis represents movement of individual flies in a binary manner (1 = movement, marked by blue dotted line for one fly; 0 = immobility). Only flies that were immobile for five mins preceding the stimulus were selected for analysis. (B, D) Percentage of NcaKD and control flies responding or not responding to vibration stimulus at either ZT4 (B) or ZT16 (D). ZT4: elav > +: n = 24, + > kk: n = 33, elav > kk: n = 33. ZT16: elav > +: n = 23, + > kk: n = 30, elav > kk: n = 29. (E, F) Percentage of NcaKO and iso31 control flies responding or not responding to vibration stimulus at either ZT4 (E) or ZT16 (F). ZT4: iso31: n = 48, NcaKO: n = 53. ZT16: iso31: n = 48, NcaKO: n = 44. ns – p>0.05, **p<0.01, ***p<0.001, Binomial test with Bonferonni correction for multiple comparisons.

https://doi.org/10.7554/eLife.38114.012

Light-sensing and circadian pathways define when NCA promotes sleep

The night-specificity of sleep loss and heightened arousal in NcaKO and NcaKD flies prompted us to test whether circadian and/or light-sensing pathways determine when NCA impacts sleep. Initially, we examined sleep patterns in NcaKD flies under DD conditions, in which the circadian clock alone distinguishes subjective day from night. Interestingly, in DD robust sleep loss in NcaKD flies was still restricted to the subjective night (Figure 3A,B). These data suggest that the circadian clock intersects with NCA and demonstrate that sleep loss in NcaKD flies is not simply due to darkness-induced hyperactivity.

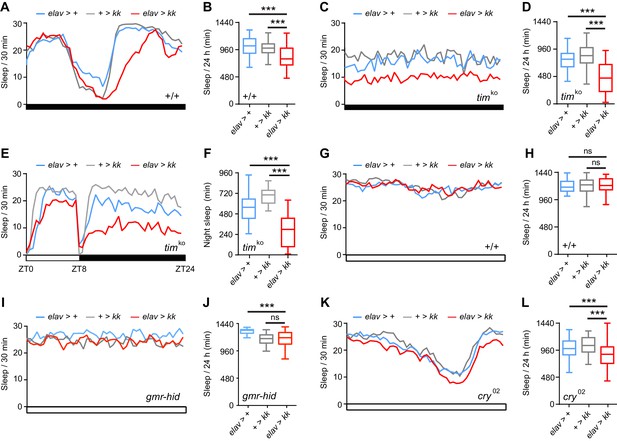

Circadian clock and light-sensing pathways define when NCA promotes sleep.

(A–B) Mean sleep levels in NcaKD and control adult males across 24 hr in constant-dark (DD) conditions (A), and total median sleep levels in the above genotypes (B). n = 44–47. Note the reduced sleep in the subjective night in NcaKD relative to control adult males, but not the day. (C–D) Mean sleep levels in NcaKD and control adult males across 24 hr in DD conditions in a timeless knockout (timKO) background (C), and total median sleep levels (D). n = 32–39. (E–F) Mean sleep levels in NcaKD and control adult males across 24 hr in 8L: 16D conditions in a timKO background (E), median night sleep levels (F). n = 22–26. (G–H) Mean sleep levels in NcaKD and control adult males across 24 hr in constant-light (LL) conditions (G), and total median sleep levels (H). n = 44–47. (I–J) Mean sleep levels in NcaKD and control adult males across 24 hr in LL conditions in a gmr-hid background (I), and total median sleep levels (J). elav > kk, gmr-hid/+: n = 51; + > kk, gmr-hid/+: n = 48; elav > +, gmr-hid/+: n = 24. (K–L) Mean sleep levels in NcaKD and control adult males across 24 hr in LL conditions in a cryptochrome null (cry02) background (K), and total median sleep levels in the above genotypes (L). n = 61–72. Note the small but consistent reduction in sleep in NcaKD, cry02 males (K), leading to a significant decrease in total median sleep levels relative to controls (L). ns - p>0.05, ***p<0.001, as compared to driver and RNAi alone controls via Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.014

To confirm that the circadian clock influences NCA’s sleep-promoting role, we analyzed sleep in NcaKD flies under arrhythmic conditions. In a timeless knockout (timKO) background in DD (Lamaze et al., 2017), where the clock no longer demarcates subjective day from night, sleep loss in NcaKD flies was observed throughout the 24 hr dark period (Figure 3C,D). Intriguingly, in a timKO background in 8L: 16D conditions, significant sleep loss in NcaKD flies was observed during the night (Figure 3E,F), but not during the day (elav > kk, timKO vs elav > +, timKO: p=0.75, Kruskal-Wallis test with Dunn’s post-hoc test). Thus, light is also capable of inhibiting sleep loss in NcaKD flies. Consistent with this finding, under constant light (LL) conditions, in which the circadian clock becomes arrhythmic due to light-dependent degradation of Timeless (Hunter-Ensor et al., 1996; Koh et al., 2006; Peschel et al., 2006), sleep loss in NcaKD flies was completely suppressed (Figure 3G,H). From the above data we draw two conclusions. Firstly, that the circadian clock is not required for NCA to regulate sleep per se, but instead defines when NCA promotes sleep. Secondly, that light-sensing pathways suppress enhanced wakefulness resulting from reduced NCA expression.

We thus sought to determine which light-sensing pathways restrict sleep loss in NcaKD flies to the night. We reasoned that removing relevant photoreceptive molecules, cells or transduction pathways might restore sleep loss in NcaKD flies during LL. Ablation of photoreceptor cells through expression of the pro-apoptotic gene hid (gmr-hid) did not alter sleep in NcaKD flies in LL (Figure 3I,J). In contrast, using a loss of function allele of cry (cry02), we found that loss of CRY in LL resulted in a small but significant loss of sleep in NcaKD flies (Figure 3K,L). CRY is a blue-light photoreceptor and has dual roles in synchronization of the circadian clock by light and light-dependent regulation of clock cell excitability (Fogle et al., 2011; Stanewsky et al., 1998). One or both of these pathways may therefore modulate the timing of sleep loss in NcaKD flies. However, the reduction in sleep in NcaKD, cry02 flies in LL is lower in magnitude compared to NcaKD flies in DD or 8L: 16D (Figures 1B and 3A), suggesting that additional light-sensing pathways act in concert with CRY to inhibit wakefulness in NcaKD flies in the presence of light. The restoration of clock function in cry02 homozygotes in LL may also contribute to sleep loss in NcaKD, cry02 flies under LL (Stanewsky et al., 1998).

NCA acts in two neuronal subpopulations to promote night sleep

Does NCA act in restricted neuropil regions to promote night sleep? To address this question, we used transgenic RNAi to knock down Nca expression in sleep relevant neuronal subpopulations defined by numerous promoter-Gal4 driver lines (Figure 4—figure supplement 1). These include clock neurons, neurotransmitter- and receptor-specific subtypes, fan-shaped body, mushroom body (MB), mechano-sensory, and visual pathway neurons (Donlea et al., 2011; Guo et al., 2018; Jenett et al., 2012; Jiang et al., 2016; Joiner et al., 2006; Lamaze et al., 2018; Lamaze et al., 2017; Liu et al., 2014; Pitman et al., 2006; Seidner et al., 2015; Sitaraman et al., 2015). However, in contrast to broadly expressed drivers (elav-, nsyb- and inc-Gal4), Nca knockdown in neurotransmitter- or neuropil-specific subsets was insufficient to significantly reduce night sleep (Figure 4—figure supplement 1A).

These results suggested that NCA might act in multiple neuropil regions to modulate sleep. Consistent with this hypothesis, we generated a series of driver line combinations and found that Nca knockdown using two enhancer-Gal4 lines (R72C01 – an enhancer in the Dop1R1 locus, and R14A05 – an enhancer in the single-minded locus; we refer to these drivers as C01 and A05 respectively) strongly reduced night sleep in 8L: 16D conditions (Figure 4A,B) (Jenett et al., 2012). Nca knockdown using either enhancer alone did not affect night sleep (Figure 4—figure supplement 2A–D), nor in combination with dopaminergic, Dop1R1-expressing or cry-expressing neurons, or components of the anterior visual pathway (Figure 4—figure supplement 1B).

Figure 4 with 2 supplements see all
NCA acts in a two distinct neural subpopulations to regulate night sleep.

(A–F) Sleep patterns in adult male flies with Nca knockdown (using the kk Nca RNAi) in two neural domains defined by the A05- and C01-Gal4 drivers in varying light/dark regimes, compared to controls. (A–B) A: mean sleep patterns in 8L: 16D conditions. B: median night sleep in Nca knockdown flies compared to heterozygote drivers and transgene alone controls. + > kk: n = 80; C01/A05 > +: n = 42; C01/A05 > kk: n = 71. (C–D) Mean sleep patterns (C) and median subjective night sleep (D) in constant dark (DD) conditions. + > kk: n = 64; C01/A05 > +: n = 47; C01/A05 > kk: n = 51. (E–F) Mean sleep patterns (E) and median total sleep (F) in constant light (LL) conditions. + > kk: n = 76; C01/A05 > +: n = 26; C01/A05 > kk: n = 28. (G–H) Percentage of C01/A05 > kk and control flies responding or not responding to vibration stimuli at either ZT4 (G; C01/A05 > kk, n = 38, + > kk, n = 61 and C01/A05 > +, n = 26) or ZT16 (H; C01/A05 > kk, n = 24, + > kk, n = 54 and C01/A05 > +, n = 28) under 8L: 16D conditions. ns – p>0.05, *p<0.05, **p<0.01, ***p<0.001, compared to driver and RNAi alone controls, Kruskal-Wallis test with Dunn’s post-hoc test (B, D, F) or Binomial test with Bonferonni correction for multiple comparisons (G–H).

https://doi.org/10.7554/eLife.38114.016

The above data indicate that NCA expression in both C01- and A05-neurons is necessary for normal levels of night sleep. Similarly to pan-neuronal NcaKD flies, knockdown of Nca in C01- and A05-neurons also resulted in sleep loss during the subjective night in DD (Figure 4C,D), no sleep loss in LL (Figure 4E,F), no alteration in daytime arousal threshold (Figure 4G), and a reduced arousal threshold during the night (Figure 4H). Thus, we were able to recapitulate the sleep/arousal phenotypes of NcaKD flies by combinatorial Nca knockdown in C01- and A05-neurons.

The A05 enhancer drives expression in approximately 70 neurons (70.3 ± 4.7, n = 3), as quantified using a fluorescent nuclear marker (Barolo et al., 2004). These include a subset of MB Kenyon cells (MB-KCs), a cluster of cell bodies adjacent to the anterior ventrolateral protocerebrum (AVP), and two visual domains: the optic lobe (OL) and anterior optic tubercle (AOTU) (Figure 5A). The C01 enhancer drives expression in approximately 240 neurons (239.7 ± 7.8, n = 3) which encompass MB-KCs as well as neurons projecting to the MB γ-lobes, the antennal mechanosensory and motor center (AMMC), and the superior medial protocerebrum (SMP) (Figure 5B). Both drivers label additional cells of unknown identity.

Figure 5 with 2 supplements see all
Distribution of A05- and C01-neurons in the adult Drosophila brain.

(A–B) Confocal z-stacks of adult male brains expressing genetically-encoded fluorophores labelling either neuronal processes (CD4::TdTom or CD8::GFP) or nuclei (Red-stinger) under the A05- (A) or C01-Gal4 (B) drivers. Neuropil regions are labelled with anti-Bruchpilot (BRP). Nuclei are co-labelled with DAPI. Scale bars, 100 µm. Arrows point to neuropil centers. AOTU: anterior optic tubercle. MBNs: mushroom body neurons. OL: optic lobe. AMMC: antennal mechanosensory and motor center. AVP: anterior ventrolateral protocerebrum. SMP: superior medial protocerebrum.

https://doi.org/10.7554/eLife.38114.020

The shared expression of C01 and A05 within the MBs raised the possibility that sleep loss in C01/A05 >Nca RNAi flies was due to strong NCA knockdown in neurons labelled by both enhancers. If so, driving Nca RNAi with two copies of either C01 or A05 should mimic sleep loss in C01/A05 > Nca RNAi flies. However, this was not the case (Figure 5—figure supplement 1). Thus, NCA is required in two non-overlapping neuronal populations defined by the C01 and A05 enhancers to promote night sleep. Furthermore, since sleep-promoting NCA activity can largely be mapped to approximately 310 neurons but not to wider populations such as cholinergic or GABAergic neurons (Figure 4—figure supplement 1), these results argue that sleep loss in Nca knockdown and knockout flies is not simply due to broad neuronal dysfunction.

NCA functions in the mushroom bodies to regulate sleep and arousal

Detailed examination within MB-KCs using standardized confocal images from the Virtual Fly Brain indicated that the C01 and A05 enhancers label non-overlapping regions of the MB, with C01 expressed in the αβ-KCs, and A05 expressed in α’β’-KCs (Figure 5 and Figure 5—figure supplement 2A). Given the known sleep regulatory role of the MB-KCs (Joiner et al., 2006; Pitman et al., 2006; Sitaraman et al., 2015), we examined whether the MB-KCs were an important constituent of either the C01 and A05 expression domains.

Similarly to Nca knockdown in C01- and A05-neurons alone (Figure 4—figure supplement 2A–D), Nca knockdown in the MB-KCs using the ok107-Gal4 driver did not alter day or night sleep in 8L: 16D (Figure 5—figure supplement 2B,C). However, simultaneous knockdown of Nca in ok107- and A05-neurons significantly reduced night sleep (Figure 5—figure supplement 2D,E), whereas Nca knockdown in both ok107- and C01-neurons did not (Figure 5—figure supplement 2F,G). Since Nca knockdown in ok107- and A05-neurons partially phenocopies the sleep-inhibiting effect of Nca knockdown in C01- and A05-neurons, these data suggest that the MB-KCs are a relevant component of the C01 expression domain.

We were also interested to examine whether NCA might act in the MB-KCs to regulate nighttime arousal threshold as well as sleep. Using the DART system, we found that Nca knockdown in either C01-neurons or in the MB-KCs (using ok107-Gal4) significantly increased the number of flies aroused by mechanical stimuli during the night but not the day (Figure 6A–D). Since the MB αβ-KCs are labelled by both the ok107-Gal4 and C01-Gal4 drivers, the above data collectively suggest that NCA acts within the MB αβ-KCs to suppress nocturnal arousal, and that additional circuits within the A05-positive domain are required in concert with C01-neurons (including MB αβ-KCs) to drive nocturnal hyperactivity when Nca expression is reduced.

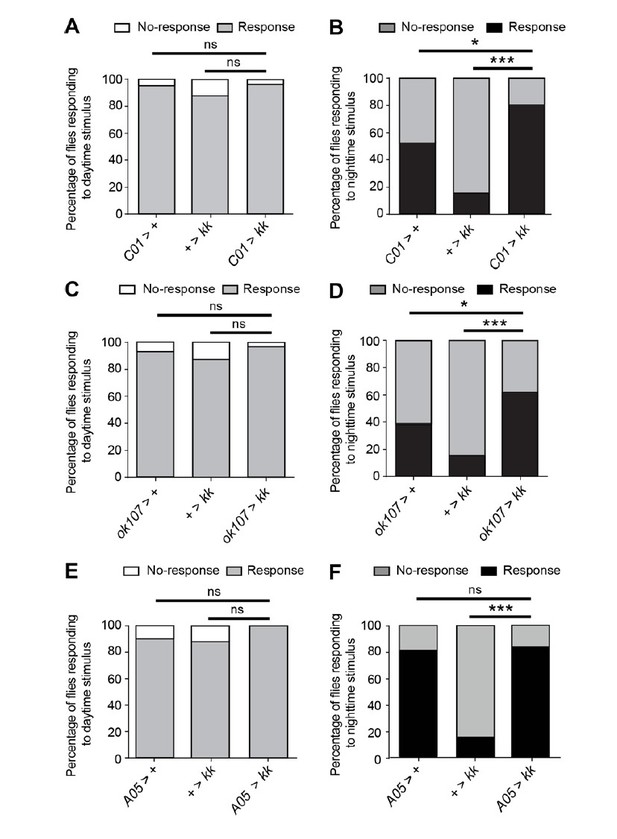

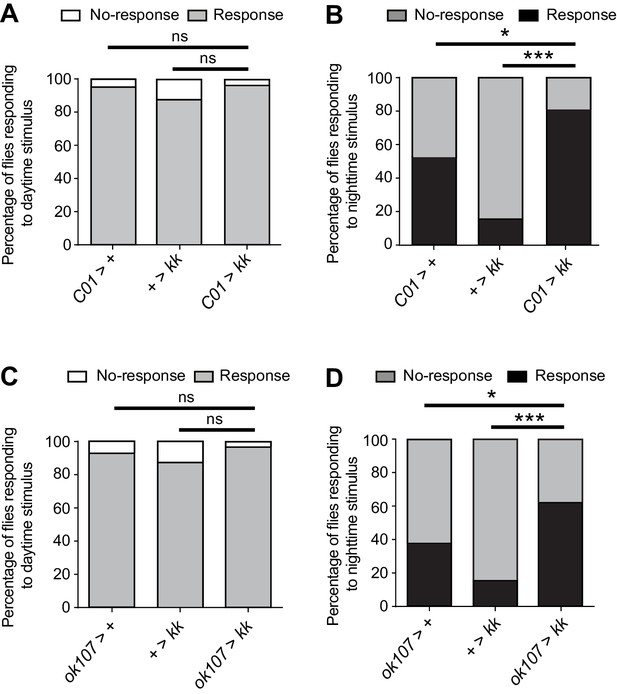

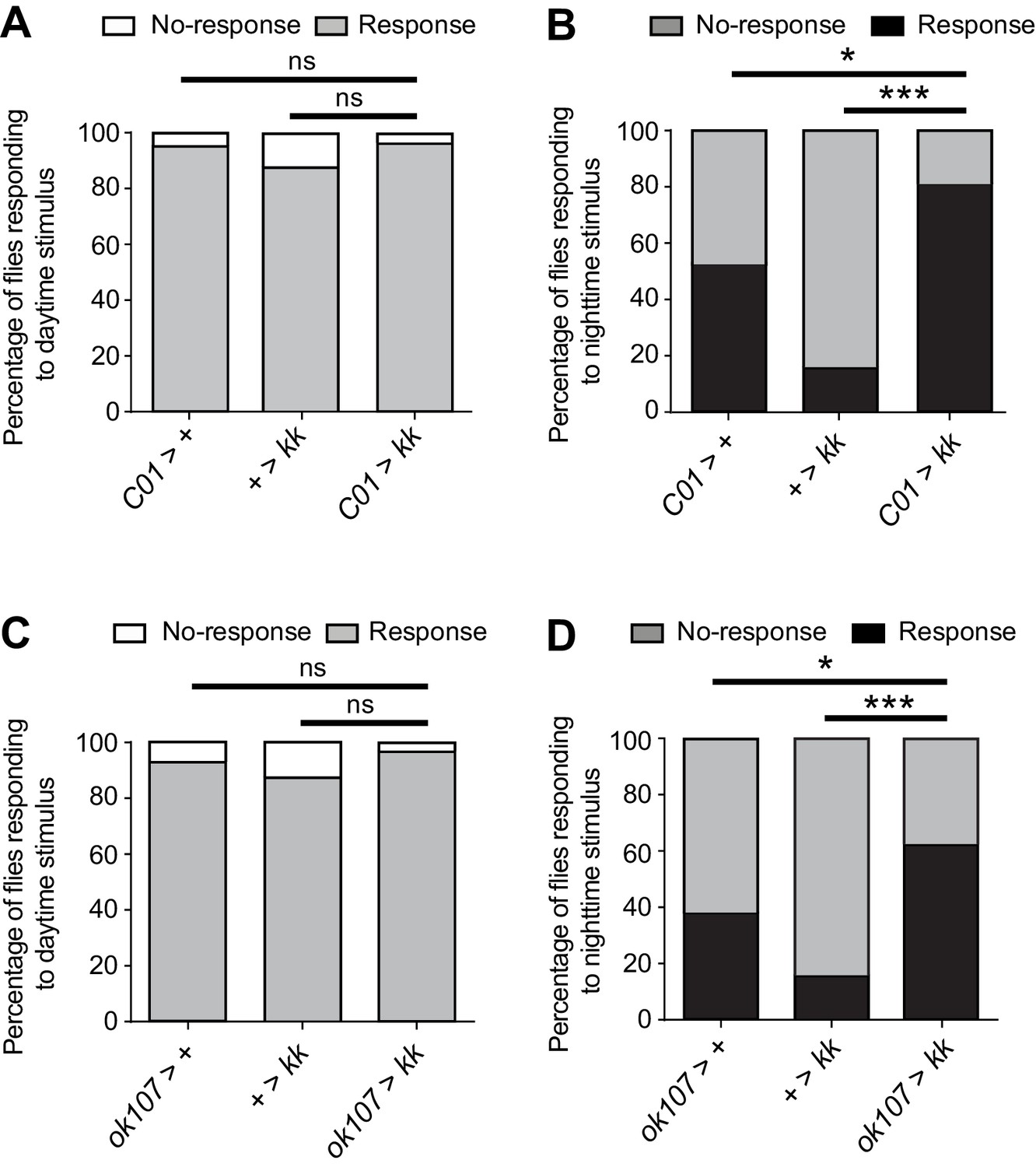

NCA acts in the mushroom bodies to regulate nocturnal arousal.

(A–B) Percentage of adult male flies expressing Nca RNAi (kk) in C01-neurons (C01 > kk) and control flies responding or not responding to vibration stimulus at either ZT4 (day; A) or ZT16 (night; B). ZT4: C01 > +, n = 22, + > kk, n = 61, C01 > kk, n = 27. ZT16: C01 > +, n = 19, + > kk, n = 54, C01 > kk, n = 21. (C–D) Percentage of adult male flies expressing Nca RNAi (kk) in MB-KCs (ok107 > kk) and control flies responding or not responding to vibration stimulus at either ZT4 (day; C) or ZT16 (night; D). ZT4: ok107 > +, n = 26, + > kk, n = 47, ok107 > kk, n = 28. ZT16: ok107 > +, n = 26, + > kk, n = 44, ok107 > kk, n = 27. ns – p>0.05, *p<0.05, ***p<0.001, Binomial test with Bonferonni correction for multiple comparisons.

https://doi.org/10.7554/eLife.38114.024

NCA inhibits synaptic output in a dark-dependent manner

We next examined whether NCA influences the excitability of C01- and A05-neurons. To do so, we expressed a genetically encoded fluorescent indicator of neurotransmitter release, UAS-synaptopHluorin (spH), in C01- and A05-neurons with or without Nca RNAi. spH localizes to synaptic vesicles and increases in fluorescence in a pH-dependent manner upon vesicle fusion with the presynaptic membrane, providing an optical read-out of neurotransmitter release (Miesenböck, 2012). We measured spH fluorescence in four neuropil regions prominently labelled by the C01- and A05-drivers: the MB αβ-lobes, the antennal mechanosensory and motor center (AMMC), presynaptic innervations of the MB γ-lobes, and the superior medial protocerebrum (SMP). At ZT9-11 in 8L: 16D conditions, Nca knockdown in C01- and A05-neurons resulted in significantly enhanced synaptic release from the MB αβ-lobes and the AMMC (Figure 7A,B) but not the MB γ-lobe region or the SMP (Figure 7C,D), demonstrating that NCA inhibits synaptic release from a subset of C01- and A05-neurons and supporting a physiological role for NCA in the MB αβ-lobes.

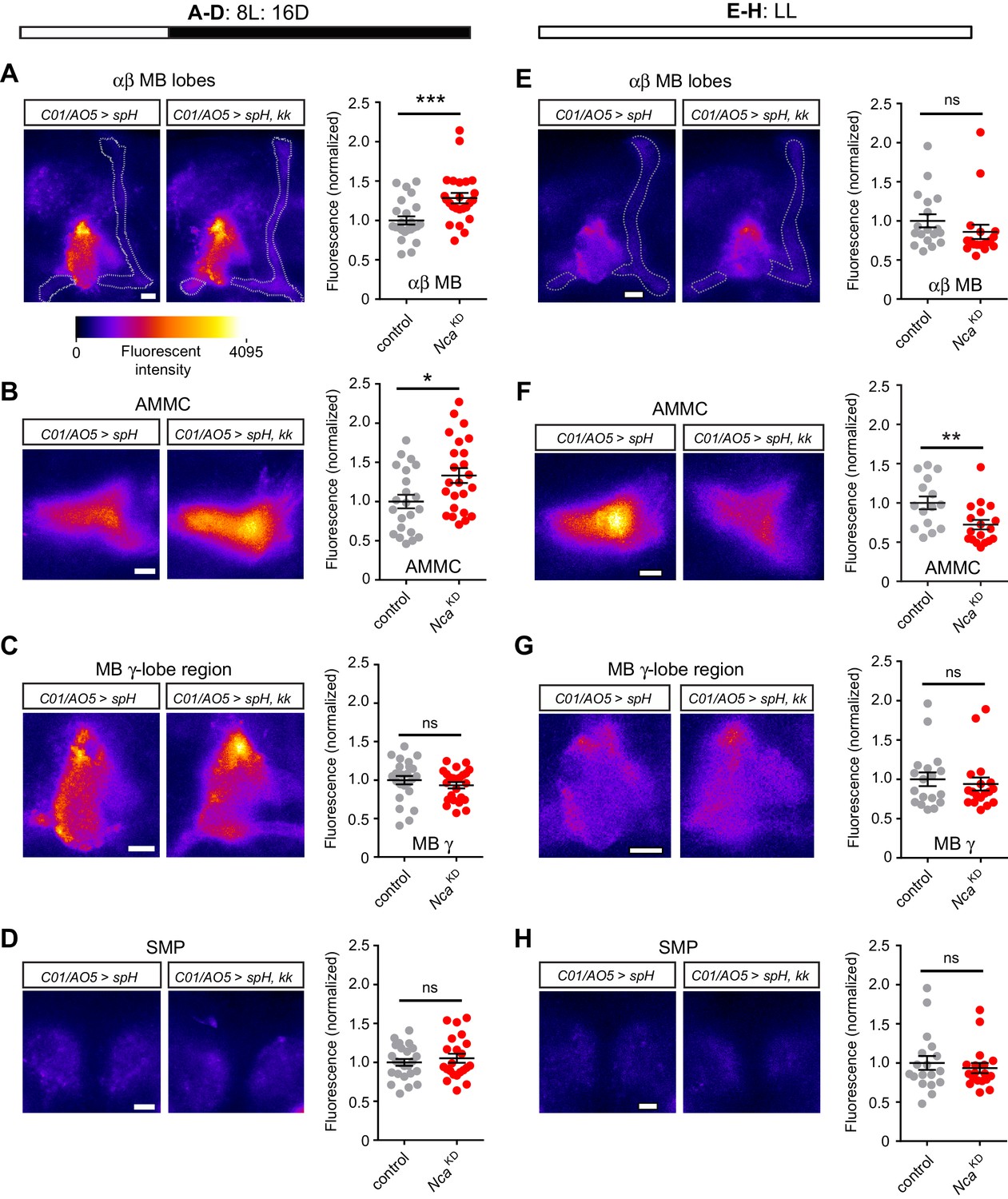

NCA suppresses synaptic release in subsets of C01/A05-neurons during darkness.

(A–D) Fluorescence of an optical reporter of synaptic release (synapto-pHluorin, spH) in neuropil regions labelled by the C01- and A05-drivers, in control adult males (C01/A05 > spH) or following Nca knockdown in C01- and A05-neurons (C01/A05 > spH, kk). Flies were housed under 8L: 16D conditions, in which Nca knockdown in C01- and A05-neurons causes robust nighttime sleep loss. (E–G) spH fluorescence in control adult males or following Nca knockdown in C01- and A05-neurons (C01/A05 > spH, kk). Flies were housed in LL conditions, in which Nca knockdown in C01- and A05-neurons has no effect on sleep levels. In each panel, representative confocal images of spH fluorescence (left) and mean fluorescent intensity (right, normalized to the mean of C01/A05 > spH controls) are shown. Dots within dot plots represent individual brain hemisphere measurements. A-D: n = 22–24. E-H: n = 15–18. Neuropil regions are noted. MB: mushroom body. AMMC: antennal mechanosensory motor center. SMP: superior medial protocerebrum. ns – p>0.05, *p<0.05, **p<0.01, ***p<0.001, Mann-Whitney U-test.

https://doi.org/10.7554/eLife.38114.026

Since Nca knockdown in C01- and A05-neurons reduces night sleep in 8L: 16D but not in LL conditions (Figure 4A–B,E–F), we were interested to test whether the above increases in synaptic release were suppressed in LL. Indeed, at Circadian Time (CT) 9–11 in LL conditions, Nca knockdown in C01- and A05-neurons did not enhance synaptic release from the MB αβ-lobes, the MB γ-lobe region or the SMP, and surprisingly, reduced synaptic release from the AMMC (Figure 7E–H). Thus, light-sensing pathways suppress both sleep loss (Figure 4E,F) and elevated synaptic release in the MB αβ-lobes and AMMC following Nca knockdown in C01- and A05-neurons.

NCA acts in wake-promoting neurons

Our results suggested a model in which loss of NCA causes aberrant excitation of a neural network that promotes wakefulness in the absence of light. This model yields two predictions. Firstly, that artificial activation of C01- and A05-neurons should promote wakefulness. Secondly, that reducing excitability of C01- and A05-neurons should suppress sleep loss in Nca knockdown flies.

To test our first prediction, we stimulated C01- and A05-neurons by expressing the temperature-sensitive cation channel TrpA1 in either neuronal subset or both and shifting flies from a non-activating temperature (22°C) to an activating temperature (27°C) (Hamada et al., 2008) (Figure 8A). At the non-activating temperature, over-expression of TrpA1 in either neuronal population or both did not affect sleep (Figure 8B). At the activating temperature, excitation of A05-neurons did not alter night sleep (Figure 8C,D). In contrast, excitation of C01-neurons profoundly reduced night sleep (Figure 8C,D) as well as day sleep (Figure 8C). Interestingly, simultaneous activation of C01- and A05-neurons further reduced night but not day sleep relative to activation of C01-neurons alone, despite activation of A05-neurons alone having no impact on sleep in 8L: 16D (Figure 8C,D). C01- and A05-neurons thus synergistically interact to modulate night sleep.

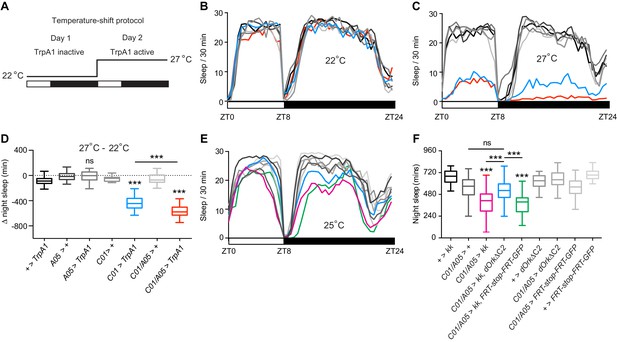

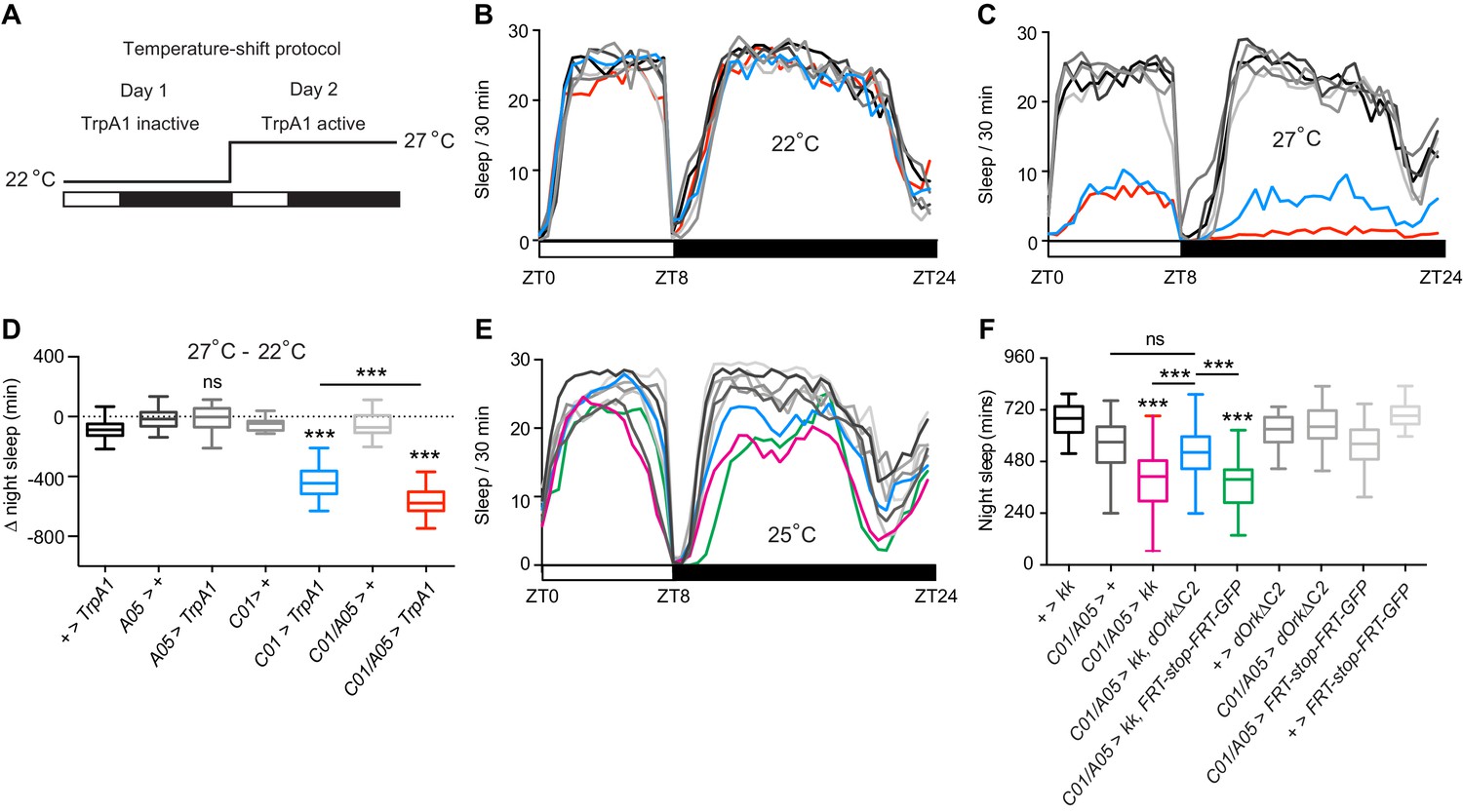

Sleep loss in Nca knockdown flies is caused by enhanced excitability of C01/A05-neurons.

(A) Experimental paradigm for acute activation of A05 or C01-neurons. 22°C: non-activating temperature for TrpA1. 27°C: activating temperature. Sleep levels were recorded over two days in 8L: 16D conditions. (B–C) Mean sleep levels across 8L: 16D following expression of TrpA1 in A05-, C01- or A05- and C01-neurons (and associated controls) at 22°C (B) or 27°C (C). (D) Median change in night sleep levels (Δ night sleep) following the shift from 22°C on day 1°C to 27°C on day 2. + > TrpA1: n = 53, A05 > +: n = 23, A05 > TrpA1: n = 68, C01 > +: n = 24, C01 > TrpA1: n = 40, C01/A05 > +: n = 33, C01/A05 > TrpA1: n = 40. ns – p>0.05, ***p<0.001, as compared to TrpA1 or driver alone controls by Kruskal-Wallis test with Dunn’s post-hoc test (for C01 > TrpA1, A05 > TrpA1, or C01/A05 > TrpA1 compared to controls) or Mann-Whitney U-test (for C01/A05 > TrpA1 compared to C01 > TrpA1). (E–F) Inhibition of C01/A05-neurons by expressing dORKΔC2 rescues sleep loss due to Nca knockdown, while expression of dORKΔC2 does not change baseline sleep. Mean sleep patterns in 8L: 16D conditions are shown in (E). Median night sleep levels are shown in (F).+ > kk: n = 72, C01/A05 > +: n = 85, C01/A05 > kk: n = 95, C01/A05 > dORKΔC2, kk: n = 77, C01/A05 > kk, FRT-stop-FRT-GFP: n = 39, + > dORKΔC2: n = 57, C01/A05 > dORKΔC2: n = 73, C01/A05 > FRT-stop-FRT-GFP: n = 49, + > FRT-stop-FRT-GFP: n = 36. ns – p>0.05, ***p<0.001, Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.028

To test our second prediction, we over-expressed a non-inactivating outward rectifying potassium channel (dORKΔC2) in C01- and A05-neurons with and without Nca knockdown via RNAi. Here, expression of dORKΔC2 is predicted to suppress neuronal firing by hyperpolarizing the resting membrane potential (Nitabach et al., 2002; Park and Griffith, 2006). Silencing C01- and A05-neurons with dORKΔC2 in an otherwise wild type background did not alter day or night sleep levels (Figure 8E,F; p>0.99 compared to dORKΔC2/+controls, Kruskal-Wallis test with Dunn’s post-hoc test). However, consistent with the above prediction, expression of dORKΔC2 in concert with Nca RNAi significantly suppressed night sleep loss relative to male flies expressing Nca RNAi alone or alongside an innocuous transgene (UAS-FRT-stop-FRT-GFP) (p<0.0005). Thus, NCA promotes night sleep by limiting synaptic output from arousal- and wake-promoting neurons within the C01- and A05-Gal4 domains that include the MB αβ-KCs.

Discussion

Human sleep can be partitioned into stages characterized by unique electroencephalographic signatures and differing arousal thresholds (Rechtschaffen et al., 1966; Rechtschaffen and Kales, 1968). Across the day/night cycle, Drosophila sleep is similarly characterized by dynamic alterations in arousal threshold, with day sleep associated with lower arousal thresholds relative to night sleep (Faville et al., 2015; van Alphen et al., 2013). However, molecular pathways underlying distinct sleep stages are poorly defined. Here we demonstrate a role for the neuronal calcium sensor NCA as a regulator of nocturnal sleep and arousal, thus providing a novel entry point to address this issue.

Previous genetic screens have identified an array of sleep-promoting factors in Drosophila (Tomita et al., 2017). However, despite extensive circuit analyses, the complete neural substrates in which these factors function have yet to be determined (Afonso et al., 2015; Rogulja and Young, 2012; Shi et al., 2014; Stavropoulos and Young, 2011; Tomita et al., 2015; Wu et al., 2014). Our results are consistent with these findings and offer a tentative explanation for the difficulties in defining circuit requirements for sleep-relevant proteins in Drosophila. We show that NCA is not required within a single cell-type or neuropil region to inhibit nighttime arousal and wakefulness. Instead, sleep-relevant NCA activity is necessary within two distinct domains of the Drosophila nervous system defined by the A05- and C01-Gal4 drivers (Jenett et al., 2012).

Ex vivo imaging demonstrates that Nca knockdown enhances synaptic output from subsets of C01- and A05-neurons innervating the MB αβ-lobes and the AMMC. Reversing this effect via dORKΔC2-mediated electrical silencing suppresses sleep loss in Nca knockdown flies, suggesting that enhanced synaptic output from C01- and A05-neurons via drives nighttime wakefulness. We note that while dORKΔC2 expression does not grossly effect the development or axonal guidance of particular clock neurons in Drosophila (Nitabach et al., 2002), prior work has shown that potassium channel overexpression can reduce the viability of mammalian hippocampal neurons (Nadeau et al., 2000). Thus, we cannot entirely rule out an effect of dORKΔC2 expression that is secondary to electrical silencing. However, adult-stage excitation via heat-activated TrpA1 channels reveals a clear capacity of C01-neurons to promote wake during both day and night, whereas A05-neurons promote nighttime wakefulness only when C01-neurons are concurrently activated. Since this thermo-genetic approach avoids unforeseen effects of chronic alterations in excitability on cellular processes (Depetris-Chauvin et al., 2011), the above data collectively support a model in which reduced NCA activity in C01- and A05-neurons causes a mild elevation in neurotransmitter release from neuronal subsets within the C01- and A05-domains. Reduced NCA activity in C01- or A05-neurons alone is insufficient to promote wakefulness. Yet when NCA expression is inhibited in C01- and A05-neurons simultaneously, the resulting enhancement of synaptic output within this wider network is sufficient to reduce night sleep.

While the precise identities of the wake-promoting circuits within the C01- and A05-domains remain enigmatic, our data suggests a role for NCA in the MB αβ-lobes in suppressing arousal during the night. The MB-KCs have been shown to exert a multifaceted influence on Drosophila sleep (Joiner et al., 2006; Pitman et al., 2006; Sitaraman et al., 2015). Recent data has shown that thermo-genetic activation of MB αβ-lobes does not affect sleep levels (Sitaraman et al., 2015). Similarly, we find that Nca knockdown in MB-KCs or in C01-neurons (which overlap in the MB αβ-lobes) does not impact sleep in 8L: 16D. Nonetheless, either manipulation is sufficient to reduce the arousal threshold in the context of a mechanical stimulus. Thus, NCA plays dual functions in modulating arousal and wakefulness, likely by acting in distinct circuits within the fly brain.

Two questions arise from these results. Firstly, how might NCA inhibit synaptic output? The mammalian NCA homolog Hippocalcin modulates neuronal excitability and plasticity through multiple pathways. Hippocalcin facilitates NMDA receptor endocytosis during LTD and gates the slow afterhyperpolarisation, a calcium-activated potassium current controlling spike frequency adaptation (Andrade et al., 2012; Jo et al., 2010; Tzingounis et al., 2007). Recent data suggest that Hippocalcin also inhibits calcium influx through N- and P/Q-type voltage-gated calcium channels (Helassa et al., 2017). Given the strong homology between Hippocalcin and NCA, it will be intriguing to test whether NCA limits excitatory synaptic input and reduces spike frequency and/or neurotransmitter release through similar pathways in Drosophila. Indeed, cell-type-specific expression of homologous NCA-binding proteins may explain why synaptic output is enhanced in only a subset of C01- and A05-neurons following Nca knockdown, despite previous results showing that NCA is broadly expressed in the Drosophila brain (Teng et al., 1994).

Secondly, how is the sleep-promoting role of NCA limited to the night? Our results show that both internal and external cues regulate when NCA impacts sleep. Nca knockdown reduces sleep solely during the subjective night in DD, but throughout 24 hr in DD when the circadian clock is disrupted. Thus, our data demonstrate a role for the clock in timing when NCA promotes sleep. However, light also acts in parallel as an environmental signal capable of suppressing enhanced wakefulness when NCA activity is reduced, in part through the CRY photoreceptor. At the circuit-level, our results suggest that constant light suppresses increased neurotransmitter release from neurons in the MB αβ-lobes and AMMC following Nca knockdown, further supporting a role for the MB αβ-KCs as a component of the neural network through which NCA influences sleep and suggesting a potential contribution from neurons innervating the AMMC. Elucidating the identity of clock- and light-regulated circuits (including CRY-expressing neurons) that gate when and whether NCA promotes sleep will prove a fruitful avenue of future research. More broadly, our work provides a framework to study how complex interactions between genes, neural circuits and the environment influence a critical behavior such as sleep.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Drosophila melanogaster)kk108825Vienna Drosophila Resource CenterRRID:FlyBase_FBst0481000
Genetic reagent (Drosophila melanogaster)y[1]v[1]; P{y[+t7.7] v[+t1.8]=TRiP.HMJ21533}attP40Bloomington Stock CenterRRID:BDSC_54814
Genetic reagent (Drosophila melanogaster)y[1]v[1]; P{y[+t7.7] v[+t1.8]=TRiP.JF03398}attP2Bloomington Stock CenterRRID:BDSC_29461
Genetic reagent (Drosophila melanogaster)w[*]; P{w[+mC]=ple-GAL4.F}3Bloomington Stock CenterRRID:BDSC_8848
Genetic reagent (Drosophila melanogaster)w[1118];P{w[+mC]=ChAT-GAL4.7.4}19B/CyO, P{ry[+t7.2]=sevRas1 .V12}FK1Bloomington Stock CenterRRID:BDSC_6798
Genetic reagent (Drosophila melanogaster)w[1118]; P{w[+mW.hs]=GawB}VGlut[OK371]Bloomington Stock CenterRRID:BDSC_26160
Genetic reagent (Drosophila melanogaster)P{w[+mC]=Gad1 GAL4.3.098}2/CyOBloomington Stock CenterRRID:BDSC_51630
Genetic reagent (Drosophila melanogaster)w[1118]; P{w[+mC]=Ddc-GAL4.L}4.3DBloomington Stock CenterRRID:BDSC_7010
Genetic reagent (Drosophila melanogaster)w[*]; P{w[+mC]=GAL4 ninaE.GMR}12Bloomington Stock CenterRRID:BDSC_1104
Genetic reagent (Drosophila melanogaster)w[1118]; P{w[+mC]=Trh-GAL4.long}2Bloomington Stock CenterRRID:BDSC_38388
Genetic reagent (Drosophila melanogaster)w[*]; P{w[+mC]=Tdc2 GAL4.C}2Bloomington
Stock Center
RRID:BDSC_9313
Genetic reagent (Drosophila
melanogaster)
w[*]; P{w[+mW.hs]=GawB}cv-c[C5]Bloomington Stock CenterRRID:BDSC_30839
Genetic reagent (Drosophila melanogaster)w[*];
P{w[+mW.hs]=GawB}OK107 ey[OK107]/In(4)ci[D], ci[D] pan[ciD] sv[spa-pol]
Bloomington Stock CenterRRID:BDSC_854
Genetic reagent (Drosophila melanogaster)y[1] w[1118]; PBac{w[+mC]=5HPw[+]}Nca[A502]Bloomington Stock CenterRRID:BDSC_16130
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR23E10-GAL4}attP2Bloomington Stock CenterRRID:BDSC_49032
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR55B01-GAL4}attP2Bloomington Stock CenterRRID:BDSC_39100
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR52 H12-GAL4}attP2Bloomington Stock CenterRRID:BDSC_38856
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR17 F12-GAL4}attP2Bloomington Stock CenterRRID:BDSC_48779
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72B05-GAL4}attP2Bloomington Stock CenterRRID:BDSC_39611
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72B07-GAL4}attP2Bloomington Stock CenterRRID:BDSC_39764
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72B08-GAL4}attP2Bloomington Stock CenterRRID:BDSC_46669
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72 C01-GAL4}attP2Bloomington Stock CenterRRID:BDSC_41358
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72 C01-GAL4}attP2Bloomington Stock CenterRRID:BDSC_47729
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR72 C02-GAL4}attP2/TM3, Sb[1]Bloomington Stock CenterRRID:BDSC_46672
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR78B07-GAL4}attP2Bloomington
Stock Center
RRID:BDSC_39989
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR88A06-GAL4}attP2Bloomington Stock CenterRRID:BDSC_46847
Genetic reagent (Drosophila melanogaster)w[1118]; P{y[+t7.7] w[+mC]=GMR91A07-GAL4}attP2/TM3, Sb[1]Bloomington Stock CenterRRID:BDSC_47147
Genetic reagent (Drosophila melanogaster)cg7674 RNAi 1 (chromosome III)NIG-FLY stock centerAccession number: NM_140910.2
Genetic reagent (Drosophila melanogaster)cg7674 RNAi 2 (chromosome II)NIG-FLY stock centerAccession number: NM_140910.2
Genetic reagent (Drosophila melanogaster)nompC-Gal4Kamikouchi et al., 2009
Genetic reagent (Drosophila melanogaster)inc-Gal4:2Stavropoulos and Young, 2011
Genetic reagent (Drosophila melanogaster)ppk-Gal4Zhong et al., 2012
Genetic reagent (Drosophila melanogaster)TrpA1-CD-Gal4Zhong et al., 2012
Genetic reagent (Drosophila melanogaster)timKOLamaze et al., 2018
Genetic reagent (Drosophila melanogaster)GMR14A05-Gal4Janelia Research Campus FlyLight Project26432
Genetic reagent (Drosophila
melanogaster)
w[1118];+; Nca[ko1]/TM2This paperNull allele of Nca
Genetic reagent (Drosophila melanogaster)w[1118];+; Nca[ko2]/TM2This paperNca null allele (second allele)
Genetic reagent (Drosophila melanogaster)w[1118];+; Nca[ko3]/TM2This paperNca null allele
(third allele)
Strain, strain background (Drosophila melanogaster)Canton-SBloomington Stock CenterRRID:BDSC_64349
AntibodyRabbit anti-DsRedClontechRRID:AB_10013483(1:2000)
AntibodyMouse anti-BruchpilotDevelopmental Studies Hybridoma BankRRID:AB_2314866(1:200)
AntibodyRabbit anti-GFPInvitrogenRRID:AB_221569(1:1000)
AntibodyGoat anti-Mouse Alexa Fluor-647ThermoFisherRRID:AB_141725(1:500)
AntibodyAlexa Fluor 488
goat anti-rabbit IgG
ThermoFisherRRID:AB_2576217(1:2000)
AntibodyAlexa Fluor 555 goat anti-rabbit IgGThermoFisherRRID:AB_2633281(1:2000)
AntibodyDAPISigma-AldrichD9542-10MG
Commercial assay or kitWizard SV Gel and PCR Clean-Up SystemPromegaCat. #: A9281
Commercial assay or kitZero Blunt TOPO PCR Cloning KitThermoFisher ScientificCat. #: 450245
Commercial assay or kitTRIzolThermoFisher ScientificCat. #: 15596026
Commercial assay or kitMMLV RTPromegaCat. #: M170A
Commercial assay or kitPower SYBR Green Master MixThermoFisher
Scientific
Cat. #: 4367659

Fly husbandry

Request a detailed protocol

Flies were maintained on standard fly food at constant temperature 25°C under 12 hr: 12 hr light-dark cycles (12L: 12D). The following strains were obtained from the Bloomington, VDRC and NIG-FLY stock centers: kk108825 (100625), hmj21533 (54814), jf03398 (29461), ple-Gal4 (8848), Chat-Gal4 (6798), vGlut-Gal4 (26160), GAD-Gal4 (51630), Ddc-Gal4 (7010), GMR-Gal4 (1104), Trh.1-Gal4 (38388), Tdc2-Gal4 (9313), C5-Gal4 (30839), ok107-Gal4 (854), NcaA502 (16130), cg7646 RNAi 1 (7646R-1) and cg7646 RNAi 2 (7646R-2). The remaining lines obtained from the Bloomington stock center are part of the Janelia Flylight collection with identifiable prefixes: R23E10-Gal4, R55B01-Gal4, R52H12-Gal4, Hdc-Gal4 (R17F12-Gal4), R14A05-Gal4, R72B05-Gal4, R72B07-Gal4, R72B08-Gal4, R72B11-Gal4, R72C01-Gal4, R72C02-Gal4, R78B07-Gal4, R91A07-Gal4, and R88A06-Gal4. The following lines were generous gifts from Kyunghee Koh: elav-Gal4, nsyb-Gal4, tim-Gal4, TUG-Gal4 and cry-Gal4:16; Joerg Albert: nompC-Gal4 (Kamikouchi et al., 2009) and Nicolas Stavropouplos: inc-Gal4:2 (Stavropoulos and Young, 2011). ppk-Gal4 and TrpA1-CD-Gal4 were described previously (Zhong et al., 2012). GMR-hid, timKO and cry02 were previously described in Lamaze et al. (2017). Except for Ddc-Gal4, Trh.1-Gal4, Tdc2-Gal4, nompC-Gal4 and Hdc-Gal4, all Drosophila strains above were either outcrossed five times into an isogenic control background (iso31) or insertion-free chromosomes were exchanged with the iso31 line (hmj21533 and jf03398) before testing for sleep-wake activity behavior. Note: R14A05-Gal4 was initially mislabelled as R21G01-Gal4 in the Bloomington shipment. The mismatch between the image of R21G01 > GFP in the FlyLight database and our immuno-staining data (A05, Figure 5A) led us to clarify the actual identity of the line as R14A05-Gal4 by sequencing genomic PCR product using the following primers pair: pBPGw_ampF: agggttattgtctcatgagcgg and pBPGw_Gal4R: ggcgcacttcggtttttctt.

Generation of Neurocalcin knockout alleles

Request a detailed protocol

Null alleles of Nca were generated using homologous recombination as described previously (Baena-Lopez et al., 2013). Briefly, genomic DNA was extracted from 20 wild type flies (Canton S) using the BDGP buffer A-LiCl/KAc precipitation protocol (http://www.fruitfly.org/about/methods/inverse.pcr.html). The 5’ (Arm 1) and 3’ (Arm 2) genomic regions flanking the Nca coding sequence were PCR amplified via high fidelity DNA polymerase (Q5 high-fidelity 2X master mix, M0492S, NEB) with the following primers: NotI_Arm1F1: gcggccgctaatttgcagctctgcatcg, NotI_Arm1R1: gcggccgcatggtaagaagcacgcaacc, AscI_Arm2F1: ggcgcgccttatgaccgttccaaaacacc, AvrII_Arm2R1: cctaggggctaaatacgttgaccaagc. The corresponding Arm1 and Arm2 fragments (~2.5 kb) were gel purified (Wizard SV Gel and PCR Clean-Up System, A9281, Promega) and cloned into pCR-Blunt II-TOPO vector (Zero Blunt TOPO PCR Cloning Kit, 450245, ThermoFisher Scientific), and subsequently sub-cloned via NotI (R3189S, NEB) and AscI/AvrII digestion (R0558S and R0174S, NEB) and T4 ligation (M0202S, NEB) into the pTVcherry vector, a P-element construct containing the mini-white+ marker and UAS-reaper flanked by FRT and I-SceI sites (Baena-Lopez et al., 2013). The sequence identifies of Arm one and Arm two fragments within the pTVcherry vector were verified via Sanger sequencing using the following primers: nca1_f: cagctctgcatcgctttttgt, nca1_3_f: ccctcgcgcatggtacttta, nca1_r: agcgtcacataagttctccca, nca1_4_f: tggacgaaaataacgatggtca, nca1_5_f: agactacttagccatgttttcatact, nca1_2_f: tgacgaagccacaattaaagagtg, nca1_1_f: gcaaccctgttcccctttca, nca2_f: gaccgttccaaaacaccca, nca2_3_f: ttgttgtgcgccacgttttc, nca2_r: acgtatgctccatgattcctct nca2_4_f: tgcaggtcggttaatcaatgc, nca2_5_f: tcaatcgatttggggccagg, nca2_2_f: ccttctccaggctcagcaaa, nca2_1_f: actctgcatttcgataagattagcc. Donor lines containing the pTV vector with Arm1 and Arm2 homologous fragments (pTV_nca1 + 2) were then generated via embryonic injection and random P-element mediated genomic insertions (Bestgene inc CA, USA). To initiate homologous recombination between pTV_nca1 + 2 and the endogenous Nca locus, donor lines were crossed to yw; hs-flp, hs-I-SceI/CyO and the resulting larvae were heat shocked at 48 hr and 72 hr after egg laying for 1 hr at 37°C. Around 200 female offspring with mottled/mosaic red eyes were crossed in pools of three to ubiquitin-Gal4[3xP3-GFP] males to remove nonspecific recombination events (via UAS-reaper-mediated apoptotic activity). The crossings were flipped once over and the progeny (~12000 adults) was screened for the presence of red-eyed and GFP-positive flies. Three independent GFP+ red-eyed lines (ko1, ko2, and ko3) were identified. The exchange of endogenous Nca locus with pTV_nca1 + 2 fragments was confirmed by detecting a 2.6 kb PCR product (Figure 1—figure supplement 1C) in the genomic DNA samples of the above three lines (pre-digested by EcoRI/NotI) using the following primer pairs: ncaKO-F2: tgggaattgactgatacagcct; ncaKO-R2: ggcactacggtacctgcat. ncaKO-F2 matches to the region between 24 bp and 2 bp upstream of Arm1 and ncaKO-R2 overlaps with attP site (Figure 1A). The absence of endogenous Nca mRNA in ko1 flies was confirmed by standard and quantitative RT-PCR (Figure 1—figure supplement 5D,E; also see below). The min-white+ cassette and majority of pTV vector sequences were further removed from the ko1 genome via Cre-loxP recombination (Figure 1A). This ‘Cre-out’ strain was then backcrossed five times to a NcaA502 line (where A502 is a P-element insertion two kbp upstream of the Nca CDS) that was outcrossed previously into the iso31 background (see Fly husbandry section). Before testing for changes in sleep/wake behaviour, the resulting line, termed Nca knockout (NcaKO1), was lastly verified by sequencing a 576 bp genomic PCR product (using primer pair: nca1_5_f and nca2_r), confirming the absence of Nca CDS sequence and the insertion of an attP site in the Nca locus. Two independent ‘Cre-out’ lines derived from the ko2 and ko3 alleles were also outcrossed to NcaA502 for two generations (NcaKO2 and NcaKO3) and tested for sleep-wake behaviour.

RNA extraction and quantitative PCR

Request a detailed protocol

For RNA extractions, 10–20 fly heads per genotype were collected with liquid nitrogen and dry ice. Total RNA was extracted using TRIzol reagent following manufacturer’s manual (Thermo Fisher Scientific). cDNA was reverse transcribed from 250 or 500 ng of DNase I (M0303S, NEB) treated RNA via MMLV RT (M170A, Promega). A set of five or six standards across 3125-fold dilution was prepared from the equally pooled cDNA of all genotypes in each experiment. Triplicated PCR reactions were prepared in 96-well or 384-well plates for standards and the cDNA sample of each genotype (20- to 40-fold dilution) by mixing in Power SYBR Green Master Mix (Thermo Fisher Scientific) and the following primer sets: ncaqF2: acagagttcacagacgctgag, ncaqR2: ttgctagcgtcaccatatggg; cg7646F: gcctttcgaatgtacgatgtcg, cg7646R: cctagcatgtcataaattgcctgaac or rp49F: cgatatgctaagctgtcgcaca, rp49R: cgcttgttcgatccgtaacc. PCR reactions were performed in Applied Biosystems StepOne (96-wells module) or QuantStudio 6Flex instruments (384 wells module) using standard thermocycle protocols. Melting curve analysis was also performed to evaluate the quality of the PCR product and avoid contamination. The Ct values were exported as csv files and a standard curve between Ct values and logarithm of dilution was calculated using the liner regression function in Graphpad Prism. The relative expression level for Nca, cg7646 and rp49 of each sample were estimated by interpolation and anti-logarithm. The expression levels of Nca and cg7646 for each genotype were further normalized to their respective average rp49 expression level. Statistical differences between the normalized expressions levels of each genotype were determined by Mann-Whitney test or Kruskal-Wallis test with Dunn’s post-hoc test using Graphpad Prism.

Sleep-wake behavioral analysis

Request a detailed protocol

Three to five day old male or virgin female flies were collected and loaded into glass tubes containing 4% sucrose and 2% agar (w/v). Sleep-wake behavior was recorded using the Drosophila Activity Monitor (DAM, TriKinetics inc MA, USA) system or Drosophila ARousal Tracking (DART, BFKlab, UK) in the designated LD regime (12L: 12D, 8L: 16D, DD or LL) at 25°C. Behavioral recordings from the third day of the given LD/DD/LL regime were then analyzed. All flies were entrained to 12L: 12D prior to entering designated LD regimes. For ectopic activation experiments involving UAS-TrpA1, flies were cultured in 18°C during development and then entrained to 8L: 16D at 22°C before entering 8L: 16D condition at 27°C. Drosophila activity (or wake) is measured by infra-red beam crosses in DAM or by direct movement tracking in DART. A sleep bout is defined by 5 min of inactivity (where inactivity is defined as no beam crosses during 1 min in the DAM or less than 3 mm movement in 5 s in the DART). As a readout of the arousal threshold at ZT4 and ZT16, we measured the proportion of immediate movement initiation in sleeping fly populations (flies that had been immobile for >5 mins before stimulus) upon 5 s of vibration stimuli (five 200 ms 50 Hz pulses with 800 ms intervals) provided by the motors installed within DART system. The csv output files with beam crosses (DAM) or velocity data (DART) were processed by a customized Excel calculators (Supplementary file 1) and R-scripts (https://github.com/PatrickKratsch/DAM_analysR) to calculate the following parameters for individual flies: Onset and offset of each sleep bout, sleep bout length, day and night sleep minutes, daily total sleep minutes, and daily sleep profile (30 min interval).

Analysis of circadian rhythm strength

Request a detailed protocol

An established MATLAB based tool, Flytoolbox, was used for circadian rhythmicity analysis (Levine et al., 2002a; Levine et al., 2002b). Flies from control and experimental genotypes developed and eclosed under 12L: 12D conditions (25°C). After 3 days of entrainment in 12L: 12D, adult males were transferred into DAM tubes, and circadian rhythmicity of locomotor activity was assessed over eleven days of constant dark (DD) following one initial day of 12L: 12D within the experimental incubator. The strength of rhythmicity (RI) was estimated using the height of the third peak coefficient in the auto-correlogram calculated for the activity time series of each fly. Rhythmic Statistics values were then obtained from the ratio of the RI value to the 95% confidence interval for the correlogram (2/√N, where N is the number of observations, which correlatively increase with the sampling frequency), in order to determine statistical significance of any identified period (RS is ≥1).

Immunohistochemistry and confocal microscopy

Request a detailed protocol

Adult male flies were anesthetized in 70% ethanol before brains were dissected in PBT (0.1M phosphate buffer with 0.3% Triton-X100) and collected in 4% paraformaldehyde/PBT on ice. The fixation was then performed at room temperature for 15 min before washing 3 times with PBT. The brain samples were blocked using 5% goat serum/PBT for 1 hr at room temperature before incubation with primary antibodies. The samples were washed 6 times with PBT before incubated with Alexa Fluor secondary antibodies in 5% goat serum/PBT at 4°C over 24 hr. After washing 6 times with PBT, the samples were mounted in SlowFade Gold antifade reagent (S36936, Thermo Fisher Scientific) on microscope slides and stored at 4°C until imaged using an inverted confocal microscope Zeiss LSM 710. Primary antibody concentrations were as follows: mouse anti-BRP (nc82, Developmental Studies Hybridoma Bank) - 1:200; rabbit anti-GFP (Invitrogen) - 1:1000; rabbit anti-dsRED (Clontech) - 1:2000. Alexa Fluor secondaries (Invitrogen) were used as follows: Alexa Fluor 647 goat anti-mouse IgG - 1:500, Alexa Fluor 488 goat anti-rabbit IgG - 1:2000, Alexa Fluor 555 goat anti-rabbit IgG - 1:2000. For quantification of nuclei number in C01 >red stinger and A05 >red stinger brains, unstained Red-Stinger fluorescence was captured via confocal microscopy. DAPI (Sigma Aldrich) was used to counterstain nuclei (at a dilution of 1:5000). The number of Red-Stinger-positive nuclei in each brain was subsequently quantified using the ImageJ 3D Objects Counter tool, with a variable threshold used to incorporate all of the visible Red-Stinger-positive nuclei. Standardized images from the Virtual Fly Brain can be found in the following files (Milyaev et al., 2012Manton et al., 2014):

SynaptopHluorin imaging

Request a detailed protocol

Synaptic activity of C01/A05 neurons was monitored in ex vivo fly brains using UAS- super-ecliptic synaptopHluorin construct (UAS-spH) (Miesenböck, 2012). Adult male C01/A05 > UAS spH or C01/A05 > UAS spH, kk flies were housed in normal behaviour tubes (see behaviour analysis section) and entrained for 3 days in 8L: 16D or LL conditions at 25°C. Individual flies of either genotype were carefully captured between ZT/CT9 and ZT/CT11 and fly brains were immediately dissected in HL3 Drosophila saline (70 mM NaCl, 5 mM KCl, 1.5 mM CaCl2, 20 mM MgCl2, 10 mM NaHCO3, 5 mM Trehalose, 115 mM Sucrose and 5 mM HEPES, pH 7.2) at room temperature. Fly brains were transferred into 200 μl HL3 in a poly-lysine treated glass bottom dish (35 mm, 627860, Greiner Bio-One) before imaging using an inverted confocal Zeiss LSM 710 microscope (20x objective with maximum pinhole). Three to five image stacks (12 bits and 16 bits) were taken within two minutes to minimize tissue degradation and to cover the depth of all spH-positive anatomical regions. Z-projections of the image stacks of each brain were generated by ImageJ software before the fluorescent intensity of the indicated neuropil centers was quantified using freely drawn ROIs. Background fluorescence measured by the same ROIs from areas with no brain tissue was then subtracted to obtain the final fluorescent value. Mean fluorescent values of the indicated neuropil regions in each hemisphere were calculated and normalized to the average value of corresponding controls. Medians of the normalized value are compared between genotypes. The statistical difference was determined by Mann-Whitney U-test using Graphpad Prism.

Bioinformatics

Request a detailed protocol

Conservation of amino acid residues between Drosophila Neurocalcin and human Hippocalcin was determined using ClustalW2 software for multiple sequence alignment. Amino-acid identity and similarity was visualized using BOXSHADE.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    A Manual of Standardized Terminology, Techniques and Scoring System of Sleep Stages in Human Subjects
    1. A Rechtschaffen
    2. A Kales
    (1968)
    Los Angeles: Brain Information Service/Brain Research Institute.
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
    A highly conserved homologue of bovine neurocalcin in Drosophila melanogaster is a ca(2+)-binding protein expressed in neuronal tissues
    1. DH Teng
    2. CK Chen
    3. JB Hurley
    (1994)
    The Journal of Biological Chemistry 269:31900–31907.
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77

Decision letter

  1. Hugo J Bellen
    Reviewing Editor; Baylor College of Medicine, United States
  2. K VijayRaghavan
    Senior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
  3. Hugo J Bellen
    Reviewer; Baylor College of Medicine, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for choosing to send your work, "The Drosophila dystonia gene homolog Neurocalcin facilitates sleep by inhibiting a movement-promoting neural network", for consideration at eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. Although the work is of interest, we regret to inform you that the findings at this stage are too preliminary for further consideration at eLife.

Specifically, the reviewers are in agreement that more experiments need to be done in order to elucidate the role of dopamine in the circuit while one reviewer argues that the circuit is really ill defined. We suggest that you carefully read the reviewers’ comments and if you are willing to resubmit this manuscript to eLife that you address many of the comments to ensure that the reviewers are satisfied. If you resubmit to eLife we will send the manuscript to the same reviewers.

Reviewer #1:

The paper is well-constructed and well-written. I'm not sure about its relevance for dystonia, and therefore the overall significance and importance. However, it’s easy to read and follow the logic, and I imagine that the findings also have relevance for people interested in circuits and sleep.

My main comment is to query the importance for dystonia given that there is only a single study linking HPCA to dystonia. The relationship has not been confirmed by multiple groups and/or additional patient cohorts. This should be better explained; some of the dystonia genes mentioned in the Introduction are confirmed as causal, while for others (including HPCA) the causal relationship remains controversial.

The second issue relating to the relevance for dystonia is that it is difficult to know how this dissection of the fly circuitry that utilizes Nca relates to mammalian circuity that is relevant for dystonia. Instead, the most important finding (with respect to to dystonia) is the genetic interaction between Nca and the dopamine receptor. This is intriguing, however, I don't feel the data establish that the interaction occurs in individual neurons. Instead, it remains possible that KD of the dopamine receptor promotes sleep through a different set of neurons/ circuit – which would represent an indirect interaction rather than the interpretation implied here (genes acting in a common pathway). This issue should be discussed or (better) solved, particularly given the large number neurons/ circuits that affect sleep. Ideally the authors can test whether RNAi KD of Dop1R1 in CO1 and A05 neurons is sufficient to rescue sleep defects of Nca animals. This would provide strong support for a 'direct' molecular relationship between the genes.

A final point is to better explain the relationship between the behavioral assays (that monitor frequency of movement) as a pure read out of animal sleep vs. wake. Is a primary defect in sleep the only possible explanation, or could a different primary defect increase/ cause animal movement in the dark cycle? For example, that Nca KD/KO impairs animal ability to detect light/dark, or causes an increased need to feed?

Reviewer #2:

In general this appears to be a well done paper. But I have two issues.

1) The genetics is not really up to standard. The authors generated mutants but then only show data from a single homozygosed allele. This is really dangerous. Even "specific" techniques like CRISPR or HR can generate second site mutations. They should show data from a second allele and from transheterozygotes. The fact that the single allele phenocopies RNAi allays a lot of concern, but if you have made the mutants why not use them in a rigorous manner? This is a minor fix to the paper since they report isolating multiple alleles.

2) The circuit analysis is really unsatisfying and a much bigger problem. I am not sure that there is really a "circuit" since the authors have not actually shown any direct connectivity of the implicated cell groups. It is ill-defined and hand-wavy.

I also think there are some other possible interpretations of these results that have not been explicated. One thing that I worry about is that they are just screwing up the brain in some non-specific way. One thing that argues against this (and perhaps bears mention in the paper) is that there are a number of very broad drivers (VGluT, GAD, Tim) that apparently do not have effects- this means that the phenotype is not directly proportional to the number of neurons expressing the RNAi. That is good.

What is less good is that there are other lines that do have phenotype and how those cell groups relate to the A and C lines is not explained. Do they overlap with one or both of these lines? How do they act in combination with these lines? C5GAL4 is a FSB line I think that this neuropil is never mentioned in the context of A and C. Are there multiple "circuits"? Are there hotspots for Neurocalcin function? I just am not sure this is very specific.

One thing authors mention is "neurons that innervate the γ-lobes". Are these MBON? Have the authors looked at this? If the gene is required in multiple MBONs this might explain the additivity since MBONs are thought to summate. This should probably be explicitly tested.

I think that until there is a real, connected set of neurons they should not be talking about a circuit. I am not sure that holding the authors to this standard would allow publication of the paper as a revision i.e. there would be too many additional experiments required.

Reviewer #3:

This is a very interesting paper that I would be excited to see in print and to recommend to my colleagues – it uses a number of creative approaches to demonstrate a complex, multi-component circuit through which neurocalcin controls sleep. However, because of the broad scope, there are some loose ends that need to be addressed.

First, the importance of dopamine in this circuit has not been demonstrated. Although panel 2G suggests that Dop1R1 is involved in the loss of nighttime sleep, there are no results which directly show that knockdown of Dop1R1 rescues the sleep loss caused by knockdown of neurocalcin specifically in the A05/C01 circuit implicated in this paper.

Second, Figure 5E and F, which test the prediction that "silencing C01 and A05 neurons should suppress sleep loss in Nca knockdown in flies", requires some additional controls. The fact that the using C01/A05 to drive both kk and dOrk results in a significant change from sleep from using these Gal4 drivers to drive dOrk alone suggests that there may be some dilution effects (from having two UAS sequences). To control for this, they need to simultaneously drive knockdown of kk with some other gene with a UAS (such as GFP or synaptophluorin). In addition, they do not show that rescuing neurocalcin in the A05/C01 circuit alone is sufficient to restore baseline sleep activity.

Lastly, in Figure 2—figure supplement 4C, an n=3 of triplicated qPCR reactions (representing a single biological sample per timepoint) is not sufficient to draw any conclusions. In order to demonstrate that neurocalcin does not cycle, more biological samples are necessary. However, a lack of Neurocalcin cycling in the wild type case seems to be tangential to their main point here, that knockdown of Neurocalcin does not affect rest activity rhythms. Thus, it may be better to remove the panel altogether.

This paper also focuses extensively on dystonia on a movement disorder, but the data focus primarily on sleep – while the connection between the two is well explained in the last paragraph of the Discussion, revising the Introduction, the description of the results (subsection “NCA promotes sleep by suppressing synaptic output from a wake -promoting circuit”, second paragraph, for instance), and the first paragraph of the Introduction will be helpful for the reader. Alternately, describing locomotor activity in addition to sleep in Figures 2 through 5 (through measurements such as speed and activity counts per minute) will help emphasize locomotion, rather than sleep. In Figure 1—figure supplement 2, activity counts per waking minute should be reported, not total beam breaks.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your article "Neurocalcin regulates nighttime sleep and arousal in Drosophila" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Hugo Bellen, is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Vijay Raghavan as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This manuscript identifies a novel function for the gene, Neurocalcin (Nca) in Drosophila. The data presented support a role for Nca in specifically promoting nighttime sleep and identify some neurons, predominantly in the mushroom bodies, which are required for this phenotype.

Summary:

It has been previously noted that dystonia in humans and sleep in Drosophila share a common molecular pathway. Therefore in an attempt to find new genes that regulate sleep in Drosophila, the authors began by looking for sleep defects in flies after disrupting the fly homolog of human dystonia associated genes. This led to the identification of Nca, as pan-neuronal RNAi knockdown of Nca caused a significant decrease in the amount of nighttime sleep. This phenotype was confirmed with the use of multiple CRISPR generated alleles which knockout the entire Nca coding sequence. Furthermore, Nca's control of sleep/arousal during the 'night' is dependent both on the circadian clock and the ability to sense light. In an attempt to identify the specific neurons that require Nca to regulate sleep, they used RNAi to screen a number of GAL4 drivers that expresses in specific neuronal subsets looking for drivers that were able to phenocopy the sleep defect seen with pan-neuronal knockdown. While they did not find a single driver that could phenocopy, they did find that co-expression with C01 and A05 drivers (both enhancer GAL4 lines) was able to cause a deficit in nighttime sleep. Both of these drivers are expressed in a subset of mushroom body neurons. Using Synapto-pHluorin as a measure of synaptic release suggested that there was less synaptic release in the AMMC and α/β lobes of the mushroom body with RNAi knockdown of Nca. In fact, excitation of the C01 neurons, using TrpA1, alone can promote wakefulness while silencing both C01 and A05 neurons is necessary to suppress the loss of nighttime sleep with Nca KD. Together their model suggests that Nca regulates synaptic activity in a subset of mushroom body neurons to regulate sleep/arousal.

Overall, the manuscript is well written and interesting and will expand our understanding of sleep regulation. The authors have done a good job in addressing the concerns of the reviewers from the initial evaluation. However, many of the conclusions have changed from the original manuscript and therefore, we have a number of suggestions to improve this version of the manuscript.

Essential Revisions:

1) The story would benefit from a more mechanistic explanation, especially linking the data in Figure 3 to the data in Figure 6. One such experiment would be to manipulate the A05, C01, and OK107 knockdowns of neurocalcin (and relevant combinations) in the arousal assay, in DD, and in LL, similar to what was done in Figure 2 and Figure 3A and G for the pan-neuronal knockdown, and possibly combining the LL treatment with some of the functional imaging presented in Figure 5.

2) While doing the experiments described in (1) would make the story more comprehensive, more detail may be necessary to link the findings related to cryptochrome to the neuronal populations described in Figure 6. Is neurocalcin's response to light also happening within the cryptochrome positive neurons, or are the responses of cryptochrome positive neurons interacting with the populations described in Figure 6 to regulate sleep?

3) The explanation for Figure 3 is somewhat confusing. Do control flies in the LL case exhibit similar quantities of sleep to neurocalcin knockdown because light inhibits neurocalcin function in the wild type case? This seems unlikely since in the presence of light, the controls do not show a reduction in sleep. The fact that the flies sleep more in constant light than in constant dark also seems extremely unusual.

4) Which neurons express Nca protein, is it really expressed by all neurons as the authors indicate is previously shown? Teng et al., 1994, which is the only report of Nca expression in the fly, simply states that Nca is expressed "throughout the central nervous system" but only looked at adult brain slices with images that are too low quality to make any claim that all neurons express this protein. Furthermore, do Nca protein levels vary between sleep-wake states to explain why it is only important during sleep? Rat and likely other mammalian Hippocalcin antibodies are commercially available, given that the Teng et al. paper successfully used a rat antibody to label fly brains, it would be worth trying one or more of these antibodies both for immunohistochemistry to determine expression pattern and western blots to assess if Nca cycles circadian or in response to light/dark.

5) How does Nca inhibit neuronal activity in the context of sleep/wake or light/dark? The previous manuscript suggested it was dopamine receptors, now the Discussion mentions NMDA receptor internalization. Can this be tested genetically and/or by looking at protein localization?

6) The Results and Discussion points about the distinct roles of A05 and C01 (pro-arousal and modulatory, respectively) feel over-interpreted.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Neurocalcin regulates nighttime sleep and arousal in Drosophila" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan as the Senior Editor, a Reviewing Editor, and three reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below. Please address these to the best of your ability.

1) Figure 4H: was the axis label supposed to read "percentage of flies responding to night time stimulus" (rather than daytime stimulus)?

2) There was a typo in an earlier review when it was requested the authors report the combinations of Gal4 drivers that did not yield negative results. This should have asked what combinations of Gal4 drivers the authors did test, since this kind of negative data is useful for interpreting how exclusive the network of neurons involved is. As it stands, the reason why the C01 and A05 Gal4 drivers were chosen as the specific combinations seems a little odd.

3) Results section, fifth paragraph: "To test whether sleep loss caused by neuronal Nca knockdown flies was due to [...]"

The authors ask if the clock is affected by NCA KD and show constant dark records. Under what light conditions were those flies entrained? It would be useful to also show the activity patterns under LD conditions, preceding release into DD.

4) The authors test a model of NCA action in A05 and C01 neurons in two ways. First with TrpA1 activation. Second with dORK silencing. I find the first experiment reasonable, but the second experiment much less compelling. The model postulates that A05/C01 neuron activity is regulated by NCA and that more activity by those neurons promotes waking and disrupts night time sleep. However, constitutive dORK expression is known to irreversibly damage neurons. The dORK over-expression experiment shows that the loss of sleep in the Nca KD requires A05/C01 neurons, but does not distinguish between suppression of neuronal activity, or a non-specific decline in neuron health. As I understand it, either outcome could produce the observed result.

5) "Instead, sleep-relevant NCA activity can largely be localized to two distinct domains of the Drosophila nervous system defined by the A05- and C01-Gal4 drivers"

This conclusion is based on spatially limiting the RNAi effects, thus defining brain regions that are necessary. It does not preclude involvement of other regions. Therefore this conclusion over-interprets the data.

6) Figure 1—figure supplements 2 & 6: the cartoon representations of Nca and its immediate neighbor CG7646 are confusing. In supplement 2, Nca and CG7646 appear to share two 5'UT exons in common. In supplement 6, CG7646 appears to be distinct and non-overlapping. Which is true? Did the authors test the sleep/activity behaviors of flies with CG7646 KD by RNAi?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Neurocalcin regulates nighttime sleep and arousal in Drosophila" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan (Senior Editor), a Reviewing Editor, and one reviewer.

The manuscript has been improved but there are still some remaining issues that need to be addressed with before acceptance. Please make textual changes according to the suggestions of the reviewer as outlined below:

The authors have addressed all the points raised in the last round of review. For the most part, I feel the responses were appropriate. In some cases, I have continued questions.

Interpretation of dORK effects - The authors make a forceful argument against the possibility of prolonged dORK mis-expression causing irreversible developmental effects. They suggest that the lethality observed with driving hid or reaper transgenes contrasts with the viability of driving dORK and hence the neurons must be "healthy". I disagree because such lethality may well result from damage to non-neuronal tissues: the fly-light lines are described for their neural expression patterns, but non-neuronal expression is not generally described or precluded. Hence this result does not bear on the question of neuronal health following prolonged dORK expression. Likewise, it is not clear why locomotor activity levels in flies would necessarily be affected if C01- and A05 neurons were partially damaged.

The use of UAS-shi[ts] in the Nca knockdown background is more compelling because it is a conditional design and because it provides a result in line with the hypothesis. However, it is not included in the paper for technical reasons so it cannot stand as a "complete" result, and likewise it cannot serve as a sub-textual proxy to justify inclusion and interpretation of the prolonged dORK expression experiment.

I was wrong in stating the literature documents irreversible damage to Drosophila neurons with prolonged dORK expression and so I agree with the authors in their statement to that regard. However, the literature is clear in documenting the irreversible damage to Drosophila neurons with prolonged Kir expression, which as shown by White and colleagues, works in comparable fashion to dORK by imposing a hyperpolarized state. I suggest the important issue is whether prolonged hyperpolarization of Drosophila neurons is (beyond reasonable doubt) an effective means to exclusively affect neurotransmission. Ceriani and colleagues in 2011 showed that prolonged expression of Kir in LNv pacemaker neurons irreversibly affected molecular oscillations, structural maturation and neuropeptide content. In contrast, restricting Kir expression to adult stages, led to outcomes that were at least partially reversible. Therefore, I hold to the opinion that the present dORK experiment is not compelling, in spite of the additional observations provided. If the authors insist on its inclusion, then I think it's important to share with readers a clear caveat based on the Ceriani work.

Consideration of CG7646 - I appreciate the clarification of the complicated genomic arrangement of CG7646 and Nca. It is helpful to know they share 5'UTR sequences but different CDS exons. I think it would be useful to make this point clear in the text - for example on line 111 of the revision, CG7646 is described as a "neighboring" locus. I interpret "neighbor" as independent or free-standing. These two genes are overlapping or in some fashion "compound". I recommend the text include a clear description of this genomic arrangement and be re-examined to ensure clarity on this point in all mentions. Likewise, I suggest inclusion of the RNAi knockdown results of CG7646 as supplemental information to allay concerns on this point. Regarding that experiment, one other minor point: in the response and author response images, the authors describe using two different RNAi's from NIG. However, my reading of the NIG site indicates availability of only one RNAi for CG7646, albeit offered as a II and III chromosome insertion. The figure leads the reader to think two different RNAis were tested. The text should be clear as to whether the same RNAi at different insertion sites, or different RNAi's were tested.

https://doi.org/10.7554/eLife.38114.042

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Specifically, the reviewers are in agreement that more experiments need to be done in order to elucidate the role of dopamine in the circuit while one reviewer argues that the circuit is really ill defined. We suggest that you carefully read the reviewers’ comments and if you are willing to resubmit this manuscript to eLife that you address many of the comments to ensure that the reviewers are satisfied. If you resubmit to eLife we will send the manuscript to the same reviewers.

We sincerely thank the reviewers for their insightful comments relating to our manuscript. Collectively, these have prompted us to strengthen the focus of the paper more appropriately towards the role of Neurocalcin as a novel sleep gene in Drosophila. As noted by reviewer 1, current data suggest that Hippocalcin mutations are rare amongst dystonia patients. In our revised manuscript, we therefore place less emphasis on the potential role of the human Neurocalcin homolog Hippocalcin/HPCA in dystonia. Correspondingly, we have altered our title to underscore this change of focus, which now reads: ‘Neurocalcin regulates nighttime sleep and arousal in Drosophila’.

Nonetheless, the potential genetic links between human dystonia and Drosophila sleep were in fact highly relevant to how we initially identified Neurocalcin as a sleep gene. For brevity, we initially omitted the actual screening strategy that led us to focus on Neurocalcin, but we now describe this in more detail in our Introduction as we believe this approach will be of interest to the community.

Importantly, our revised manuscript not only addresses the reviewer concerns detailed below but also contains abundant new mechanistic data regarding how Neurocalcin solely promotes night sleep.

Firstly, in our revised Figure 2, we combine video tracking with mechanical stimulation to probe daytime versus night time arousal in Neurocalcin knockdown, knockout and respective control flies. We find that knockdown or knockout of Neurocalcin does not impact the probability of response to a mechanical stimulus during the day (Figure 2A-B, E), but significantly lowers the arousal threshold during the night (Figure 2C-D, F). Arousal thresholds are known to dynamically vary over 24 h in Drosophila, with day sleep having a lower arousal threshold than night sleep (Faville et al., 2015; van Alphen et al., 2013). However, known genetic regulators of this day/night difference in arousal are scarce. Our identification of Neurocalcin as a specific regulator of night time arousal will therefore be of substantial interest to the sleep field.

Secondly, we have investigated how this night-specific effect is gated. We show in our revised Figure 3 that both the circadian clock and light are capable of gating when Neurocalcin promotes sleep, likely via inhibiting the wake-promoting effect of loss of Neurocalcin during the day. We also present data showing that the CRY blue-light photoreceptor is involved in this process.

Collectively, these new data combined with alterations to the manuscript significantly enhance both our mechanistic understanding of how Neurocalcin impacts night sleep and the overall robustness of our work. Below, we further respond to each individual reviewer comment.

Reviewer #1:

The paper is well-constructed and well-written. I'm not sure about its relevance for dystonia, and therefore the overall significance and importance. However, it’s easy to read and follow the logic, and I imagine that the findings also have relevance for people interested in circuits and sleep.

My main comment is to query the importance for dystonia given that there is only a single study linking HPCA to dystonia. The relationship has not been confirmed by multiple groups and/or additional patient cohorts. This should be better explained; some of the dystonia genes mentioned in the Introduction are confirmed as causal, while for others (including HPCA) the causal relationship remains controversial.

We fully agree with the reviewer. We have therefore made the rare nature of HPCA mutations in dystonia clear in both the Introduction (subsection “Identification of Neurocalcin as a sleep-promoting factor”, second paragraph) and in the Discussion (last paragraph), alongside appropriate references.

The second issue relating to the relevance for dystonia is that it is difficult to know how this dissection of the fly circuitry that utilizes Nca relates to mammalian circuity that is relevant for dystonia. Instead, the most important finding (wrt to dystonia) is the genetic interaction between Nca and the dopamine receptor. This is intriguing, however, I don't feel the data establish that the interaction occurs in individual neurons. Instead, it remains possible that KD of the dopamine receptor promotes sleep through a different set of neurons/ circuit – which would represent an indirect interaction rather than the interpretation implied here (genes acting in a common pathway). This issue should be discussed or (better) solved, particularly given the large number neurons/ circuits that affect sleep. Ideally the authors can test whether RNAi KD of Dop1R1 in CO1 and A05 neurons is sufficient to rescue sleep defects of Nca animals. This would provide strong support for a 'direct' molecular relationship between the genes.

We performed a series of experiments to address this important question. However, before describing these, it is relevant to give a brief overview of the particular mutant lines used to examine epistatic interactions between Neurocalcin and Dop1R1.

In our initial experiments we used two transposon insertions in the Dop1R1 locus (on chromosome III of Drosophila) as independent alleles that were likely loss-of-function. Due to the known importance of genetic background on sleep in Drosophila (Cirelli et al., 2005), we swapped chromosomes I and II from these mutant lines with corresponding chromosomes derived from our isogenic iso31 control strain. However, we could not outcross chromosome III itself while easily following the Dop1R1 alleles themselves, as there was no visible marker within the transposons that could be observed in the iso31 background.

To both better control for genetic background and achieve cell-specific Dop1R1 knockdown, we therefore used two complementary approaches. Firstly, we outcrossed a transgenic RNAi line targeting Dop1R1 for 5 generations into the iso31 background. Secondly, we outcrossed a previously characterised hypomorphic allele of Dop1R1 called dumb2 (Kim et al., 2007), also for 5 generations. However, in contrast to our previous results where heterozygosity for either Dop1R1 allele rescued sleep loss in Neurocalcin knockdown flies, neither expression of outcrossed Dop1R1 RNAi, nor homozygosity for the outcrossed dumb2 allele, suppressed the effect of pan-neuronal Neurocalcin knockdown (Author response image 1A-D; original results are shown in Author response image 1E-F for reference).

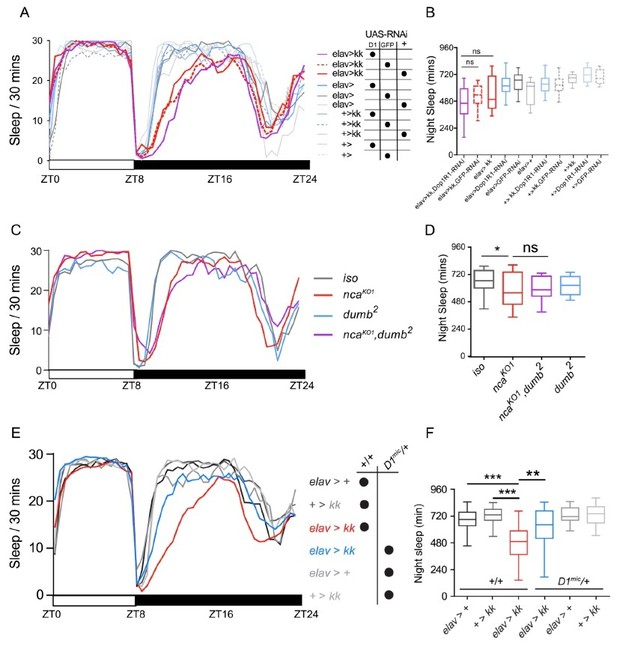

Author response image 1
Sleep loss in NcaKO or NcaKD flies is not modified by altered expression of Dop1R1.

(A-B) Night sleep levels in NcaKD (elav > kk) adult males co-expressing control UASGFP RNAi (GFP, dashed red lines) are significantly reduced compared to controls (grey lines).However, this profile does not differ from flies co-expressing UAS-Dop1R1 and kk (Nca) RNAi (D1, purple lines). Mean sleep levels are shown in (A) across 24 h in L8: D16 conditions, while median night sleep levels are shown in (B). n = 16-24. (C-D) Night sleep levels in NcaKO (red lines) flies are reduced as compared to iso31 controls (grey line). However, this sleep loss is not suppressed by homozygosity for the hypomorphic dumb2 allele of Dop1R1 (purple line). n = 19-24. (E-F) heterozygosity of the non-isogenized hypomorphic Dop1R1 allele Dop1R1MI03085-GFST.2(D1mic/+) suppressed sleep loss in NcaKD adult males. Mean sleep patterns were shown in the original Figure 2G. Median total night sleep levels were shown in the original Figure 2H. n = 15-48. *p < 0.05, ** p <0.01, *** p <0.001, ns– p > 0.05, Kruskal-Wallis test with Dunn’s post-hoc test. Control and experimental genotypes are indicated by color scheme and black dots.

https://doi.org/10.7554/eLife.38114.032

Given these conflicting results, which we assume are due to differences in genetic background between the fully and partially outcrossed Dop1R1 alleles and RNAi insertions, we have removed Figure 2G, H from the manuscript. Importantly, despite this removal the overall mechanistic strength of our paper has been strongly enhanced due to our new analyses of how Neurocalcin differentially regulates day/night arousal thresholds and how circadian/light-sensing pathways in turn gate when Neurocalcin impacts sleep, detailed above and in the revised manuscript as Figures 2 and 3.

A final point is to better explain the relationship between the behavioral assays (that monitor frequency of movement) as a pure read out of animal sleep vs. wake. Is a primary defect in sleep the only possible explanation, or could a different primary defect increase/ cause animal movement in the dark cycle? For example, that Nca KD/KO impairs animal ability to detect light/dark, or causes an increased need to feed?

Several independent lines of evidence argue for a role for Neurocalcin in regulating sleep rather than an independent physiological variable that could cause nighttime hyperactivity.

Firstly, our new data analysing arousal thresholds in Neurocalcin knockdown and knockout flies (Figure 2 in our revised manuscript) strongly argue that Neurocalcin is acting to specifically modulate the arousal threshold during the night, providing a mechanistic basis by which Neurocalcin impacts sleep (described in the subsection “NCA suppresses nighttime arousal”).

Secondly, the fact that sleep loss in Neurocalcin knockdown flies only occurs in the subjective night of constant dark conditions (new data presented in Figure 3A in our revised manuscript) shows that loss of Neurocalcin does not simply cause hyperactivity in the absence of light. Instead, sleep loss is clearly regulated by the circadian clock. This again supports a direct sleep-regulatory role of Neurocalcin, since sleep onset is gated by the circadian clock (Borbely, 1982). We have made this point clear in the first paragraph of the subsection “Light-sensing and circadian pathways define when NCA promotes sleep”.

Finally, the clear and sustained startle-responses to lights-off in Neurocalcin knockout males (Figure 1N, O of revised manuscript) also strongly suggests that these mutants are able to detect the absence of light.

We cannot fully rule out the possibility that Neurocalcin regulates hunger specifically during the night, but this hunger would have to be gated by the clock and light in such a way that it was suppressed during constant light conditions, as we observe no sleep loss in Neurocalcin knockdown flies under this condition (see Figure 3G, H in revised text). We consider it far more likely that Neurocalcin is indeed a bona fide sleep-promoting gene.

Reviewer #2:

In general this appears to be a well done paper. But I have two issues.

1) The genetics is not really up to standard. The authors generated mutants but then only show data from a single homozygosed allele. This is really dangerous. Even "specific" techniques like CRISPR or HR can generate second site mutations. They should show data from a second allele and from transheterozygotes. The fact that the single allele phenocopies RNAi allays a lot of concern, but if you have made the mutants why not use them in a rigorous manner? This is a minor fix to the paper since they report isolating multiple alleles.

To address this point we have now measured sleep levels in three additional combinations of Nca knockout alleles (Figure 1—figure supplement 6). Homozygosity for the NcaKO2 allele or trans-heterozygous combinations between the NcaKO1 allele and either NcaKO2 or NcaKO3 all exhibited significant reductions in night sleep (Figure 1—figure supplement 6A, B). Thus, in total we have shown using four combinations of Nca knockout alleles and three independent Nca RNAi lines that reducing NCA expression consistently results in night-specific sleep loss. Collectively, these results robustly support a role for NCA in regulating night sleep.

2) The circuit analysis is really unsatisfying and a much bigger problem. I am not sure that there is really a "circuit" since the authors have not actually shown any direct connectivity of the implicated cell groups. It is ill-defined and hand-wavy.

I also think there are some other possible interpretations of these results that have not been explicated. One thing that I worry about is that they are just screwing up the brain in some non-specific way. One thing that argues against this (and perhaps bears mention in the paper) is that there are a number of very broad drivers (VGluT, GAD, Tim) that apparently do not have effects- this means that the phenotype is not directly proportional to the number of neurons expressing the RNAi. That is good.

We agree with the reviewer that Neurocalcin knockdown in several broad neuronal subsets argues against a generalised neuronal dysfunction, and have made this point more explicit in the revised text (subsection “NCA acts in two neuronal subpopulations to promote night sleep”, third paragraph). The fact that we have narrowed down Neurocalcin’s sleep-relevant activity to approximately 350 neurons argues against a generalised ‘neuropathy-like’ effect of Neurocalcin knockdown/knockout.

What is less good is that there are other lines that do have phenotype and how those cell groups relate to the A and C lines is not explained. Do they overlap with one or both of these lines? How do they act in combination with these lines? C5GAL4 is a FSB line I think that this neuropil is never mentioned in the context of A and C. Are there multiple "circuits"? Are there hotspots for Neurocalcin function? I just am not sure this is very specific.

To clarify, in our mini-screen of individual neuronal subpopulations, there was no subset in which Neurocalcin knockdown resulted in night sleep loss, including C5Gal4 and two other FSB-positive driver lines (see Figure 4—figure supplement 1 of revised manuscript). We believe the colour scheme in our original figure may have been slightly confusing, so we have changed the colour-coding and the text within the figure accordingly to emphasise that only Neurocalcin RNAi driven by elav-, nsyb- and inc-Gal4 yielded significant sleep loss relative to both driver and transgene alone controls.

Although we have narrowed the number of neurons in which Neurocalcin acts to impact sleep from > 100000 to approximately 350, it is clear from our results that Neurocalcin is required in multiple neuronal regions. This is consistent with many studies of sleep genes in Drosophila, including sleepless, insomniac, taranis and cyclin-A, all of which failed to identify a single neuropil region that fully accounted for sleep loss in these mutants. We note that previously studied sleep regions such as the fan-shaped body (Donlea et al., 2011), large LNv neurons (Parisky et al., 2008; Shang et al., 2008), and ellipsoid body (Liu et al., 2016), are not present in either C01- and A05-neurons, suggesting novel sleep-regulatory circuits are present within these expression domains. Identifying these subdomains will be a fruitful avenue of future investigation.

One thing authors mention is "neurons that innervate the γ-lobes". Are these MBON? Have the authors looked at this? If the gene is required in multiple MBONs this might explain the additivity since MBONs are thought to summate. This should probably be explicitly tested.

We agree with the reviewer that this is an interesting question. To properly clarify the involvement of MBONs in NcaKD mediated sleep loss, a detailed investigation of the overlap between MBONs (Aso et al., 2014) and R14A05- (A05-) or R72C01-positive (C01-) neurons via orthogonal labelling will be required. However, this approach is currently unavailable to us due to the lack of A05-LexA or C01-LexA driver lines that could be combined with MBON-Gal4 lines.

Nonetheless, since we observed no clear difference between our own images of C01- and A05-Gal4 expression within the MB region (Figure 4A, C) and those acquired by the Janelia Flylight team (Jenett et al., 2012), we used the standardised published images available from Virtual Fly Brain (www.virtualflybrain.org) to digitally examine the overlap between C01- and A05-Gal4 in the MB region (Figure 5—figure supplement 2A).

Using this approach, it is clear that A05- and C01-Gal4 label the α’β’ and αβ lobes of MB intrinsic Kenyon cells respectively (Figure 5—figure supplement 2A, Author response image 2B). We also observed potential labelling of β’1γ3 MBONs by C01-Gal4, while β’1-2 and γ1-2 MBONs may be labelled by A05-Gal4. Finally, despite lacking their characteristic tiling pattern (Aso et al., 2014), we cannot rule out the possibility that A05- and C01-Gal4 express in the α1-3 or α’1-3 MBONs (Aso et al., 2014).

In our original manuscript, we combined the pan-MB driver ok107-Gal4 with A05Gal4 to show that Nca knockdown in all MB KCs and potentially components of α’β’ and γ1-2 MBONs neurons (A05/ok107 > kk) causes modest but significant night sleep loss (shown in Author response image 2C). We have now combined ok107-Gal4 with C01-Gal4 to show that Nca knockdown in all MB KCs potentially alongside β’1 γ3 MBONs (C01/ok107 > kk) has no impact on night sleep (Figure 5—figure supplement 2G). For comparisons of effect sizes, the reduction in night sleep caused by Nca knockdown in A05- and C01-neurons is shown in Author response image 2E. These findings suggest that MB-KCs as well as parts of the α’1-3, β2’ and γ1-2 MBONs may modestly contribute to Nca-mediated sleep, while the β’1γ3 MBONs are likely not involved.

We have set out to further examine this hypothesis as a separate follow-up project by using A05-Gal4 in parallel with an array of defined MBON split-Gal4 drivers. Initially, we reduced Nca levels in β’1γ3, γ2α’1 and α2p MBONs alone. These manipulations did not result in night sleep loss (Author response image 2F). We then combined the A05Gal4 driver with one of 3 defined MBON drivers. We found that only simultaneous Nca knockdown using A05-Gal4 and the α2p MBON split-Gal4 driver resulted in significant night sleep loss (Author response image 2F).

Author response image 2
Modestcontribution of MB output neurons (MBONs) to NCA-mediated sleep.

(A) Confocal stacks labelling R14A05- (A05, green) and R72C01- (C01, magenta) positive neurons. Images are from (Jenett et al., 2012) and deposited at Virtual Fly Brain (www.virtualflybrain.org). Images were downloaded and digitally superimposed (Merged) onto a standardised fly brain (active zones are labelled in blue using the nc82 antibody; the image source data is distributed under a CC BY-NC-SA 4.0 license). (B) Tiling scheme of MBONs adapted from (Aso et al., 2014). The A05- (green) and C01-Gal4 (magenta) drivers potentially label complementary parts of MBONs (blue letters), though there is potential limited overlap within the β’1 region. C01-Gal4 clearly labels the αβ lobe of MB intrinsic Kenyon cells αβ-KC, black letters), while A05-Gal4 labels α’β’-KC. (C) Simultaneous Nca knockdown in A05-neurons (potentially including α’β’-KC and α’β’-MBONs) and all KC neurons (using ok107Gal4) results in limited night sleep loss. (D) Simultaneous Nca knockdown in C01-neurons (including αβ-KC and γ3-MBONs) and all KC neurons (using ok107-Gal4) did not result in significant night sleep loss. (E) Nca knockdown in both A05- and C01-positive neurons results in robust night sleep loss. For (C-E), please see Figure 5—figure supplement 2G for nvalues. (F) Knockdown of Nca in A05-neurons (which potentially include α’β’-KCs and α’β’MBONs) and in 3 distinct MBON regions potentially labelled by A05-Gal4 (γ2α’1) or C01-Gal4 (β’1γ3 and α2p) does not cause sleep loss. Simultaneous Nca knockdown in both A05-neurons and in α2p MBONs results in modest sleep loss (A05/MB542B > kk, red). In contrast, no sleep reduction was observed following Nca knockdown in A05 (β’1γ3 MBON or A05/γ2α’1 MBONs. n = 16-28. *p < 0.05, **p < 0.01, ***p < 0.001, ns – p > 0.05, compared to driver and RNAi alone controls by Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.033

These initial results are in concordance with the reviewer’s proposition and indicate that the αβ- and α’β’- KCs, and perhaps their downstream β’2 and α2 MBONs, may additively contribute to sleep loss in Nca knockdown flies. Nonetheless, it is important to note that the contribution of these neurons is modest.

While these results have provided us with potential insights into the contribution of subsets of MBONs to sleep loss in Nca knockdown flies, a comprehensive Nca knockdown screen with higher resolution within KCs and MBONs without involving A05- and C01-Gal4 will be required in the long term. Moreover, we interpret this data with caution because the MBON split-Gal4 driver lines have not been outcrossed into the iso31 background. Since the effect of Nca knockdown on sleep appears to be susceptible to modification by genetic background (Author response image 1), we will solely include data from the outcrossed A05-, C01-, and ok107-Gal4 lines in our manuscript, and follow up these studies once the individual components of the MBON split-Gal4 lines are fully outcrossed and subsequently recombined.

I think that until there is a real, connected set of neurons they should not be talking about a circuit. I am not sure that holding the authors to this standard would allow publication of the paper as a revision i.e. there would be too many additional experiments required.

We concur with the reviewer. We have therefore removed explicit mention of ‘circuits’ in the text, which might imply that the C01- and A05-domains are functionally connected. We have instead emphasised that Neurocalcin is required in a dispersed network consisting of multiple neuropil domains (see Discussion, second paragraph). This conclusion is more strongly supported by our Neurocalcin knockdown data presented in Figure 4 and associated figure supplements 1-4.

Reviewer #3:

This is a very interesting paper that I would be excited to see in print and to recommend to my colleagues – it uses a number of creative approaches to demonstrate a complex, multi-component circuit through which neurocalcin controls sleep. However, because of the broad scope, there are some loose ends that need to be addressed.

First, the importance of dopamine in this circuit has not been demonstrated. Although panel 2G suggests that Dop1R1 is involved in the loss of nighttime sleep, there are no results which directly show that knockdown of Dop1R1 rescues the sleep loss caused by knockdown of neurocalcin specifically in the A05/C01 circuit implicated in this paper.

We attempted to perform cell-specific knockdown experiments to examine this interesting question. However, as described above and in Author response image 1, due to inconsistencies between different Dop1R1 alleles and RNAi lines (likely due to differences in genetic background) we have decided to remove the data shown originally in Figure 2 describing a genetic interaction between Neurocalcin and Dop1R1. To compensate, we now add substantial mechanistic data revealing a specific role for Neurocalcin in regulating arousal during the night but not the day, and illustrating a dual role for circadian and light-sensing pathways in gating the timing of this effect (presented as Figures 2 and 3 in revised text).

Second, Figure 5E and F, which test the prediction that "silencing C01 and A05 neurons should suppress sleep loss in Nca knockdown in flies", requires some additional controls. The fact that the using C01/A05 to drive both kk and dOrk results in a significant change from sleep from using these Gal4 drivers to drive dOrk alone suggests that there may be some dilution effects (from having two UAS sequences). To control for this, they need to simultaneously drive knockdown of kk with some other gene with a UAS (such as GFP or synaptophluorin).

We have repeated the silencing experiment using UAS-FRT-stop-FRTCD8::GFP as an irrelevant control transgene expressed alongside Neurocalcin RNAi (Figure 8E, F). Importantly, co-expression of dOrk suppresses sleep loss in Neurocalcin knockdown flies when compared to flies expressing both Neurocalcin RNAi and UASFRT-stop-FRT-CD8::GFP.

In addition, they do not show that rescuing neurocalcin in the A05/C01 circuit alone is sufficient to restore baseline sleep activity.

We attempted to address this point. We first generated a UAS-Nca transgenic fly line using a clone derived from BDGP Tagged ORF Collection (UFO04182). Surprisingly, expression of this transgene failed to rescue Nca knockout flies. We therefore made V5-tagged or untagged UAS-Nca transgenes in-house and generated a second set of stable transgenic fly lines. These also failed to rescue the Nca knockout or knockdown phenotypes when expressed in neurons using the elav-Gal4 driver.

We believe we now understand the reason for this lack of rescue. The Nca sequence within these transgenes contained both 5’ and 3 UTR sequences as documented in the Drosophila genome browser (http://flybase.org/cgi-bin/gbrowse2/dmel/?Search=1;name=FBgn0013303) (FB2018_02). However, there is a conserved element upstream of the documented 5’ UTR that was not included within the transgene sequence. Our recent data suggests that the lack of this sequence may be drastically limiting expression of transgenic NCA in neurons, thus limiting the ability to rescue the mutant/knockdown phenotypes.

Confocal images showing adult male brain expressing either CD8::GFP (A) or UAS-Nca-V5 (B) under control of the R72C01-Gal4 (C01) driver. A negative control for leaky transgene expression (transgene insertion alone in the absence of the C01 driver) is shown in (C).

In Author response image 3, we show either UAS-CD8::GFP or UAS-Nca-V5 expressed via the same Gal4 driver, C01-Gal4. C01-driven CD8::GFP can be observed in multiple neuropil regions, including the AMMC, mushroom bodies and many isolated cell bodies (Author response image 7A). In contrast, C01-driven NCA-V5 could only be observed in the AMMC (Author response image 7B). This staining was specific as an anti-V5 antibody alone did not label any neuropil region (Author response image 7C). Clearly, there is an unknown element lacking in our transgene sequence that is limiting Neurocalcin protein expression, which we are now attempting to identify.

Unfortunately, these complications have precluded addition of rescue data in our current manuscript. Nonetheless, it is important to note that four combinations of independent Neurocalcin knockout alleles (see Figure 1—figure supplement 6) and three independent RNAi lines all yield consistent night-specific sleep phenotypes. Thus, the link between Neurocalcin and night sleep is genetically robust.

Lastly, in Figure 2—figure supplement 4C, an n=3 of triplicated qPCR reactions (representing a single biological sample per timepoint) is not sufficient to draw any conclusions. In order to demonstrate that neurocalcin does not cycle, more biological samples are necessary. However, a lack of Neurocalcin cycling in the wild type case seems to be tangential to their main point here, that knockdown of Neurocalcin does not affect rest activity rhythms. Thus, it may be better to remove the panel altogether.

We have removed this panel from the manuscript.

This paper also focuses extensively on dystonia on a movement disorder, but the data focus primarily on sleep – while the connection between the two is well explained in the last paragraph of the Discussion, revising the Introduction, the description of the results (subsection “NCA promotes sleep by suppressing synaptic output from a wake -promoting circuit”, second paragraph, for instance), and the first paragraph of the Introduction will be helpful for the reader. Alternately, describing locomotor activity in addition to sleep in Figures 2 through 5 (through measurements such as speed and activity counts per minute) will help emphasize locomotion, rather than sleep.

As noted above, we have rewritten the manuscript to focus on the sleep-regulatory role of Neurocalcin. Therefore, we have removed the locomotor activity plots previously described in Figure 1—figure supplements 2 and 4 in order to focus more appropriately on the sleep phenotype of Neurocalcin knockout and knockdown flies.

In Figure 1—figure supplement 2, activity counts per waking minute should be reported, not total beam breaks.

Using video-tracking velocity data from the DART system, we previously provided waking velocity data during the evening activity peak and the normally quiescent period during the night. We have also now included average velocity data across the entire 24 h period, showing reduced overall wake velocity in NcaKO flies. These data are included in Figure 1—figure supplement 8A-D of the revised text.

[Editors' note: the author responses to the re-review follow.]

Essential Revisions:

1) The story would benefit from a more mechanistic explanation, especially linking the data in Figure 3 to the data in Figure 6. One such experiment would be to manipulate the A05, C01, and OK107 knockdowns of neurocalcin (and relevant combinations) in the arousal assay, in DD, and in LL, similar to what was done in Figure 2 and Figure 3A and G for the pan-neuronal knockdown, and possibly combining the LL treatment with some of the functional imaging presented in Figure 5.

We thank the reviewers for these excellent suggestions. The resulting experiments (described in detail below, with data shown for the reviewer’s ease) have uncovered intriguing environment-specific effects of the two NCA-expressing neurons that we describe (termed C01- and A05- neurons), and demonstrated a role for light in regulating the excitability of neuropil regions within these domains.

Initially, we examined the effect of RNAi-mediated Nca knockdown in both C01- and A05- neurons in DD and LL. Similarly to pan-neuronal Nca knockdown (Figure 3A-B, G-H, manuscript), we found that Nca knockdown in C01- and A05- neurons in DD resulted in sleep loss during the subjective night, whereas sleep loss was suppressed in LL (Figure 4C-F). We also examined whether the nighttime arousal threshold was altered by Nca knockdown in C01- and A05- neurons. This was indeed the case, while daytime arousal was unaffected (Figure 4G-H). Thus, Nca knockdown in C01- and A05- neurons phenocopies the nighttime sleep loss and increased arousal observed in Nca mutants or following pan-neuronal Nca knockdown.

These data confirm the importance of NCA within C01- and A05- neurons for regulating night sleep/arousal, and are included in the main text in Figure 4C-H, described in the second paragraph of the subsection “NCA acts in two neuronal subpopulations to promote night sleep”.

Next, we reduced Nca expression in either C01-, A05- or ok107-neurons alone and assessed sleep in DD or LL. Surprisingly, Nca knockdown in C01-neurons did not impact sleep in DD but instead significantly reduced sleep in LL (Author response image 4A-B, G-H). In striking contrast, Nca knockdown in both A05- and ok107-neurons reduced sleep in DD but not LL (Author response image 4C-H).

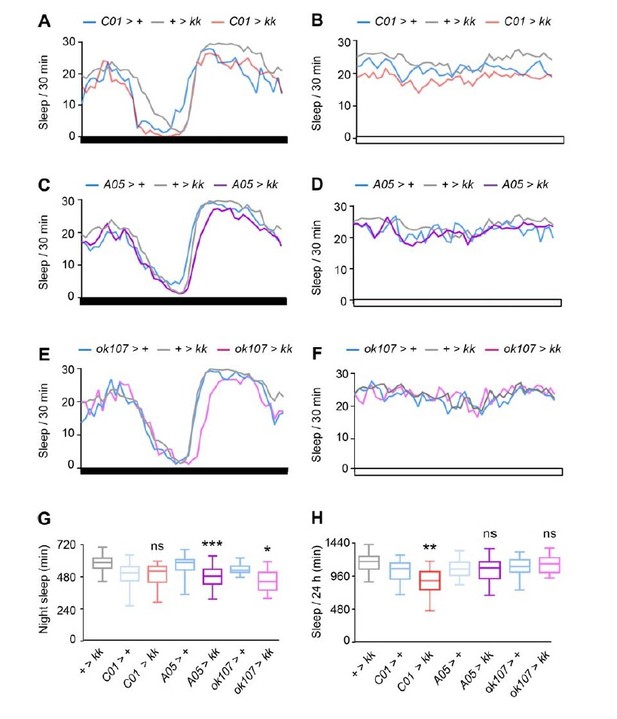

Author response image 4
Effect of Nca knockdown in C01-, A05- and ok107-neurons on sleep in LL and DD.

(A-B) Mean sleep patterns following Nca knockdown in C01-neurons in constant dark (DD) (A) and constant-light (B) conditions. A: + > kk, n = 64, C01 > +, n = 24, C01 > kk, n = 24. B: + > kk, n = 76, C01 > +, n = 51, C01 > kk, n = 52.(C-D) Mean sleep patterns following Nca knockdown in A05-neurons in constant dark (DD) (C) and constant-light (D) conditions. C: + > kk, n = 64, A05 > +, n = 51, A05 > kk, n = 54. D: + > kk, n = 76, A05 > +, n = 28, A05 > kk, n = 32.(E-F) Mean sleep patterns following Nca knockdown in ok107-neurons in constant dark (DD) (E) and constant-light (F) conditions. E: + > kk, n = 64, ok107 > +, n = 24, ok107 > kk, n = 19. F: + > kk, n = 76, ok107 > +, n = 24, ok107 > kk, n = 21.(G-H) Median subjective night sleep (G) or total sleep (H) for the above genotypes in either constant-dark (G) or constant light (H). ns – p > 0.05, *p < 0.05, **p < 0.01, ***p < 0.001, compared to driver and RNAi alone controls, Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.035

These experiments reveal a highly complex interaction between NCA levels in C01-, A05- and ok107-neurons and the external environmental condition, and suggest that the absence/presence of light, potentially in combination with circadian arrhythmicity in LL, increases or decreases the relative ability of C01-, A05- and ok107-neurons to promote wakefulness.

However, while these results are intriguing and will certainly form a platform for further interesting experiments, we feel that these data will likely confuse the readers of our paper, as we do not currently possess a robust understanding of how clock and light-sensing pathways differentially interact with each sub-circuit under LL or DD conditions.

Our manuscript will thus focus on simultaneous Nca knockdown in C01- and A05-neurons (or in one section, ok107- and A05-neurons) in either 8L: 16D or LL. In these genetic/environmental conditions, we possess sleep and optical imaging experiments that are well correlated (see below for synaptopHluorin data performed in LL) and which provide a mechanistic explanation for the suppression of Nca-knockdown-mediated sleep loss in LL.

In parallel to the above experiments we also examined whether Nca knockdown in C01-, A05- or ok107-neurons impacted arousal in 8L: 16D (Figure 6A-D). We found that Nca knockdown in either C01- or ok107-neurons significantly enhanced arousal during the night, resulting in the nighttime arousal threshold becoming more similar to the daytime arousal threshold (Figure 6A-D). Since ok107-Gal4 labels the mushroom body Kenyon cells (MB-KCs), and C01-Gal4 is expressed within the αβ-lobes of the MBs, these new data strongly suggest that NCA acts with MB αβ-KCs to regulate arousal during the night. This is exciting new data, and we have included these results in our manuscript in Figure 6, described in the subsection “NCA functions in the mushroom bodies to regulate sleep and arousal”.

We also examined whether NCA acts in A05-neurons to alter daytime or nighttime arousal (Author response image 5E-F). Relative to controls, we found no significant difference in arousal following Nca knockdown in A05-neurons during the day or night (Author response image 5E-F). However, we note that the A05-Gal4/+ control exhibits an unusually high degree of arousal during the night (Author response image 5F). This has prevented us from drawing robust conclusions regarding the role of NCA in A05-neurons in regulating nighttime arousal, and thus in our manuscript we have focused on the role of NCA within the C01/ok107-domain in regulating nighttime arousal.

Author response image 5
NCA acts in the mushroom bodies to regulate nocturnal arousal.

(A-B) Percentage of adult male flies expressing Nca RNAi (kk) in C01-neurons (C01 > kk) and control flies responding or not responding to vibration stimulus at either ZT4 (day; A) or ZT16 (night; B). ZT4: C01 > +, n = 22, + > kk, n = 61, C01 > kk, n = 27. ZT16: C01 > +, n = 19, + > kk, n = 54, C01 > kk, n = 21. (C-D) Percentage of adult male flies expressing Nca RNAi (kk) in MB-KCs (ok107 > kk) and control flies responding or not responding to vibration stimulus at either ZT4 (day; C) or ZT16 (night; D). ZT4: ok107 > +, n = 26, + > kk, n = 47, ok107 > kk, n = 28. ZT16: ok107 > +, n = 26, + > kk, n = 44, ok107 > kk, n = 27. (D-E) Percentage of adult male flies expressing Nca RNAi (kk) in A05-neurons (A05 > kk) and control flies responding or not responding to vibration stimulus at either ZT4 (day; A) or ZT16 (night; B). ZT4: A05 > +, n = 19, + > kk, n = 61, A05 > kk, n = 29. ZT16: A05 > +, n = 20, + > kk, n = 54, A05 > kk, n = 31.

ns – p > 0.05, *p < 0.05, ***p < 0.001, Binomial test with Bonferonni correction for multiple comparisons.

https://doi.org/10.7554/eLife.38114.036

The reviewers also requested us to examine how LL conditions impact neural excitability in C01- and A05-neurons following Nca knockdown. As shown in Figure 7A-B, Nca knockdown in C01- and A05- neurons in 8L: 16D enhanced neurotransmitter release from the MB αβ-KCs and neurons innervating the antennal mechanosensory motor center (AMMC). Since Nca knockdown in C01- and A05- neurons causes robust night sleep loss in 8L: 16D and DD but not in LL, we hypothesized that constant light might suppress this enhanced synaptic output. This was indeed the case (Figure 7E-H). In LL, synaptic output in the MB αβ lobes did not increase following Nca knockdown (Figure 7E), while in the AMMC synaptic output was actually reduced, not increased (Figure 7F). As in 8L: 16D, synaptopHlourin fluorescence was unchanged following Nca knockdown in LL in the MB γ-lobe region and the superior medial protocerebrum (SMP) (Figure 7G, H).

The data suggest that constant light suppresses the wake-promoting effect of Nca knockdown by blocking enhanced neurotransmitter release in the C01/A05 circuit. Since the MB αβ-lobes and AMMC are components of the C01-Gal4 domain (Figure 5), and our new data shows that NCA acts in C01-neurons to regulate the arousal threshold during the night (Response Figure 3B, Manuscript Figure 6B), C01-positive domains such as the MB αβ-KCs and AMMC may be key regions that mediate the sleep-promoting effect of NCA.

These results are included in the main text in Figure 7E-H and described in the subsection “NCA inhibits synaptic output in a dark-dependent manner”.

2) While doing the experiments described in (1) would make the story more comprehensive, more detail may be necessary to link the findings related to cryptochrome to the neuronal populations described in Figure 6. Is neurocalcin's response to light also happening within the cryptochrome positive neurons, or are the responses of cryptochrome positive neurons interacting with the populations described in Figure 6 to regulate sleep?

We examined the above questions by knocking down Nca expression via transgenic RNAi in cry-positive neurons alone using the most widely expressed cry-Gal4 (cry-Gal4:16; Zao et al., 2003, Cell) alone or in combination with either C01- or A05-Gal4. We did not observe sleep loss in any of the above genotypes (cry > kk, cry/C01 > kk or cry/A05 > kk, Author response image 6). This suggests that cry-positive neurons are not a sleep-relevant component of C01/A05 neurons. One possibility, therefore, is that cry-neurons interact with C01- and/or A05-neurons to partially mediate the suppressive effect of light on sleep loss in Nca knockdown/mutant flies. However, given that the circuit logic of this effect remains unclear, we have not included these data in our manuscript.

Author response image 6
NCA expression in cry-neurons is not required for NcaKD-mediated sleep loss.

(A-B) Mean sleep pattern in 8L: 16D conditions (A) and median night sleep (B) for the indicated genotypes (see text). n= 20-51, ns – p > 0.05, Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.037

3) The explanation for Figure 3 is somewhat confusing. Do control flies in the LL case exhibit similar quantities of sleep to neurocalcin knockdown because light inhibits neurocalcin function in the wild type case? This seems unlikely since in the presence of light, the controls do not show a reduction in sleep. The fact that the flies sleep more in constant light than in constant dark also seems extremely unusual.

We agree that light is unlikely to inhibit NCA function directly. Instead, our new data (Figure 7E-H) support a model in which light-sensing circuits intersect with C01- and/or A05-neurons and suppress their activity, which is normally enhanced by Nca knockdown to increase arousal and wakefulness.

To address the reviewers concern about constant light increasing sleep levels compared to constant dark, we first examined whether this could be due to a genetic background effect. We measured sleep levels in isogenic iso31 flies (our control stock) or in non-isogenic Canton-S male flies. In both cases, total sleep levels were significantly increased in LL compared to DD (Author response image 7). We performed identical experiments on males from driver- or transgene-containing stocks outcrossed into iso31 (elav-Gal4/+ or Nca RNAi/+) and found identical results (Author response image 7). Thus, in our recording conditions, constant light enhances sleep.

Author response image 7
Constant light increases total sleep in adult male Drosophila.

Median total sleep across 24 h in either constant-dark (DD) or constant-light (LL) are shown for adult males from four different genetic backgrounds. n = 15-64. *p < 0.05, ***p < 0.001, Kruskal-Wallis test with Dunn’s post-hoc test, with LL compared to both LD and DD.

https://doi.org/10.7554/eLife.38114.038

While sleep levels in LL, LD and DD are rarely compared in the literature, other manuscripts support our observations. For example, in work performed by the Koh lab (Afonso et al., 2015; see Figure 2D and Supplementary figure 2), iso31 males and females do indeed appear to exhibit increased sleep in LL compared to DD. Other groups have also investigated sleep levels in constant light, for example, the Griffith lab (Parisky et al., 2016, Current Biology) and the Rosbash lab (Shang et al., 2008, PNAS). The baseline sleep levels under LL in these works do appear to be lower than our own. However, in both cases females rather than males were studied under LL. Given that male flies exhibit more daytime sleep compared to females (i.e. sleep during the light phase), this may contribute to the difference between our work and previous studies.

4) Which neurons express Nca protein, is it really expressed by all neurons as the authors indicate is previously shown? Teng et al., 1994, which is the only report of Nca expression in the fly, simply states that Nca is expressed "throughout the central nervous system" but only looked at adult brain slices with images that are too low quality to make any claim that all neurons express this protein. Furthermore, do Nca protein levels vary between sleep-wake states to explain why it is only important during sleep? Rat and likely other mammalian Hippocalcin antibodies are commercially available, given that the Teng et al. paper successfully used a rat antibody to label fly brains, it would be worth trying one or more of these antibodies both for immunohistochemistry to determine expression pattern and western blots to assess if Nca cycles circadian or in response to light/dark.

We agree that the NCA immuno-staining published in Teng et al., 1994, does not provide enough resolution to accurately define the precise expression pattern of NCA in the fly brain.

We undertook several independent approaches to attempt to fill this knowledge gap. We initially combined injection of two NCA peptide fragments (KIFRQMDRNKDGKLS and KMPEDESTPEKRTDK) in rabbits to raise a new NCA antibody (antibody service, Eurogentec inc). However, using these custom antibodies we were unable to detect NCA protein in the fly brain by western blot or immuno-staining.

Since the antibody generated by Teng et al. is raised against Drosophila full-length NCA (see Teng et al., 1994, Methods), we contacted the authors to request this antibody. However, we were unable to obtain this antibody. We also followed the reviewers’ suggestion to use an antibody against full-length human Hippocalcin (ab168214, Abcam plc UK), which is suitable for Immunohistochemistry. Unfortunately, we did not detect NCA-specific signals in the fly brain with this antibody.

Because of these technical constraints, we have been unable to characterise the expression pattern of NCA in the fly brain, and have therefore amended to text to state that NCA is ‘expressed in synaptic regions throughout the fly brain’ rather than ‘expressed in all neurons’.

We are in the process of generating knock-in flies with V5-tagged NCA under the control of the endogenous Nca promoter, which will enable the cellular and sub-cellular expression of NCA to be defined in detail. However, due to time constraints we are unable to add this data to the manuscript.

5) How does Nca inhibit neuronal activity in the context of sleep/wake or light/dark? The previous manuscript suggested it was dopamine receptors, now the Discussion mentions NMDA receptor internalization. Can this be tested genetically and/or by looking at protein localization?

To examine genetic interactions between NMDARs and Nca, we crossed a P-element insertion in NMDAR1 (NMDAR1MI11796) into the Nca knockdown background and tested for an epistatic interaction between the NMDAR1 and Nca loci. Adding one copy of NMDAR1MI11796 mutation resulted in further reduction of night sleep in Nca knockdown flies (Author response image 8, red asterisks). However the same NMADR1 mutation also caused significant sleep loss in the presence of the elav-Gal4 insertion (Author response image 8, blue asterisks). Hence, the enhancement of sleep loss in Nca knockdown flies appears to be additive. In our Discussion, we have clarified the text to make clear that NCA may be acting through multiple molecular pathways (potentially involving post-synaptic receptors and presynaptic ion channels) to regulate neurotransmitter release, similarly to its mammalian homologue Hippocalcin.

Author response image 8
Nca and NMDAR1 mutations additively affect sleep.

(A) Mean sleep patterns of NcaKD males (elav > kk) and heterozygous controls with and without one copy of the NMDAR1MI11796 (NMDAR1MI/+) allele in 8L: 16D conditions. (B) Median night sleep levels in the above genotypes. Heterozygosity for NMDAR1MI11796 resulted in sleep loss in the background of elav-Gal4/+ controls, and reduced sleep further in an additive manner in elav > kk males. elav > kk; NMDAR1MI/+: n = 32; elav > +; NMDAR1MI/+: n = 26; + > kk; NMDAR1MI/+n = 38; elav > kk: n = 32; elav > +: n = 30; + > kk: n = 34. ns – p > 0.05, *p < 0.05, **p < 0.01, ***p <0.001, Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.039

6) The Results and Discussion points about the distinct roles of A05 and C01 (pro-arousal and modulatory, respectively) feel over-interpreted.

We agree with the reviewers that the assignment of A05- and C01-neurons as either pro-arousal or modulatory is over-simplified. In 8L: 16D, thermogenetic excitation of these neurons using TrpA1 (Figure 8) suggests that C01-neurons are strongly wake-promoting, whereas activation of A05-neurons only promotes wakefulness in the context of parallel C01-neuron activation. However, the reviewer’s suggestions have led us to find that both neuronal subsets appear capable of promoting wakefulness following Nca knockdown depending on the environmental condition (LD, DD or LL). Thus, in the Discussion we have avoided referring to A05-neurons as ‘modulatory’. Because of the complexity of interpreting the above DD/LL data, in this paper we will focus specifically on 8L: 16D and LL, and throughout the manuscript we are careful to state which environmental condition our results pertain to.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

1) Figure 4H: was the axis label supposed to read "percentage of flies responding to night time stimulus" (rather than daytime stimulus)?

We thank the reviewer for highlighting this error, which we have now corrected.

2) There was a typo in an earlier review when it was requested the authors report the combinations of Gal4 drivers that did not yield negative results. This should have asked what combinations of Gal4 drivers the authors did test, since this kind of negative data is useful for interpreting how exclusive the network of neurons involved is. As it stands, the reason why the C01 and A05 Gal4 drivers were chosen as the specific combinations seems a little odd.

We have added negative data from eight additional combinations of driver lines to Figure 4—figure supplement 1B.

We chose these combinations, as well as the C01/A05 driver combination, in a hypothesis-based manner. Firstly, we posited that dopaminergic circuits (either dopamine-releasing (ple-Gal4) or Dop1R1-expressing (C01-Gal4 and R72B07-Gal4) neurons) might be involved in the regulation of sleep by NCA, since these circuits are known to influence sleep/wakefulness in Drosophila (Kume et al., (2005); Ueno et al., (2012); Liu et al., (2012)). Secondly, since light-sensing pathways modulates the wakefulness in Nca knockdown flies, we investigated two circuits that transmit light information: tubercular-bulbar neurons, subsets of which we and others have demonstrated are sleep promoting (Lamaze et al., (2018); Guo et al., (2018)), and cry-expressing neurons. Tubercular-bulbar neurons are labelled by the A05-Gal4 driver and additional drivers shown in Figure 4—figure supplement 1B.

Of these combinations, only expression of Nca RNAi in C01/A05-neurons reduced night sleep, suggesting that NCA expression within specific neuronal components of the C01- and A05-Gal4 domains regulate night sleep.

3) Results section, fifth paragraph: "To test whether sleep loss caused by neuronal Nca knockdown flies was due to [...]"

The authors ask if the clock is affected by NCA KD and show constant dark records. Under what light conditions were those flies entrained? It would be useful to also show the activity patterns under LD conditions, preceding release into DD.

We have modified Figure 1—figure supplement 5 to more clearly show the first day in LD preceding release into DD, and have included details of how these flies were entrained in the Materials and methods section. Briefly, flies were entrained in 12L: 12D cycles for three days before transfer to DAM tubes, after which fly activity was recorded for one day in 12L: 12D before release to DD.

4) The authors test a model of NCA action in A05 and C01 neurons in two ways. First with TrpA1 activation. Second with dORK silencing. I find the first experiment reasonable, but the second experiment much less compelling. The model postulates that A05/C01 neuron activity is regulated by NCA and that more activity by those neurons promotes waking and disrupts night time sleep. However, constitutive dORK expression is known to irreversibly damage neurons. The dORK over-expression experiment shows that the loss of sleep in the Nca KD requires A05/C01 neurons, but does not distinguish between suppression of neuronal activity, or a non-specific decline in neuron health. As I understand it, either outcome could produce the observed result.

While we appreciate the reviewer’s concerns regarding the potential of dORK-∆C2 to damage neurons, we have been unable to find evidence in the prior literature for an irreversible damage of neurons by expression of this transgene. In contrast, multiple lines of evidence indicate that dORK-∆C2 does not alter neuronal development or formation of synaptic contacts. For example, Nitabach et al., (2002) showed that expression of dORK-∆C2 in PDF-expressing clock neurons (the s-LNvs) does not alter their development or axonal path-finding. Similarly, Kremer et al., (2010) showed that expression of dORK-∆C2 in olfactory projection neurons suppresses action potential firing but does not impact expression of the active zone protein Bruchpilot or prevent their proper synaptic innervation of the mushroom body calyx region. We further note that dORK-∆C2 has previously been used to study sleep circuitry in Drosophila (for example, Tabuchi et al., (2015)).

Nonetheless, we have attempted to allay the reviewer’s concerns by investigating whether the phenotypes associated with silencing of C01- and A05-neurons with dORK-∆C2 are consistent with ‘irreversible damage’ to these cells.

Firstly, as a positive control to assess the impact of damaging C01- and A05- neurons, we expressed the pro-apoptotic genes hid and reaper in either C01- or A05-neurons alone. Inducing cell death in either population resulted in 100% lethality prior to the adult stage. In stark contrast, expression of dORK-∆C2 in both C01- and A05-neurons simultaneously had no apparent impact on adult-stage viability.

Secondly, we complemented the above experiment by re-analysing our sleep data to determine whether expression of dORK-∆C2 in C01- and A05-neurons impacted adult locomotor patterns. Since ablation of C01- or A05-neurons is lethal, if dORK-∆C2 indeed resulted in partial yet irreversible damage, we would likely observe an effect on locomotor patterns despite the viability of these flies. Author response image 9A-B shows activity patterns of otherwise wildtype iso31 flies expressing dORK-∆C2 in C01- and A05-neurons compared to driver and transgene alone controls. Expression of dORK-∆C2 in C01- and A05-neurons did not impact overall activity levels (Author response image 9A) or peak activity levels at ZT8 (Author response image 9B). These results are inconsistent with the postulate of dORK-∆C2 causing irreversible damage to C01- and A05-neurons.

Thirdly, we complemented our experiments with constitutive dORK-∆C2 expression by expressing a temperature-sensitive inhibitor of synaptic vesicle endocytosis (shi[ts]) in C01- and A05-neurons alongside the kk Nca RNAi construct. By shifting flies to 31ºC we can suppress neurotransmitter release from C01- and A05-neurons in a Nca knockdown background. Our dORK-∆C2 results predict that this manipulation should inhibit sleep loss due to Nca knockdown. However, if this phenotype was solely due to a non-specific decline in neuronal health rather than an inhibition of synaptic release, we would expect acute silencing of C01- and A05-neurons to have no impact on sleep levels following Nca knockdown.

As shown in Author response image 9C-D, compared to control flies expressing an FRT-stop-FRT-GFP transgene, expression of shi[ts] alongside kk Nca RNAi significantly increases sleep levels at 31ºC, suggesting that Nca is required acutely to regulate sleep in C01- and A05-neurons.

We note that night sleep in Drosophila is strongly reduced at 31ºC (Lamaze et al., (2017)), likely limiting the rescuing effect shi[ts]. Therefore, we would ideally repeat these experiments at a slightly lower temperature of 29ºC, alongside controls expressing shi[ts] in C01- and A05-neurons in the absence of kk Nca RNAi. Therefore, we have not included this data in the manuscript.

Collectively, the above data support the premise that constitutive dORK-∆C2 expression in C01- and A05-neurons does not result in cell death/damage during the time-window in which we recorded sleep (early adulthood). Rather, dORK-∆C2 suppresses neurotransmitter release (similarly to UAS-shi[ts] but constitutively rather than acutely), and this counteracts the enhanced neurotransmitter release caused by Nca knockdown that normally results in enhanced wakefulness during the night.

Author response image 9
Acute silencing of C01- and A05-neurons suppresses sleep loss induced by Nca knockdown.

(A) Activity in adult male flies expressing UAS-dORK-∆C2 in C01/A05-neurons, as quantified by infrared beam breaks using the DAM system. Driver and transgene alone controls are also shown. (B) Box plots comparing median peak activity at ZT8 (the evening activity peak). No significant difference in peak activity was found following constitutive silencing of C01/A05-neurons. C01/A05 > +, n = 38; + > dORK-∆C2, n = 26, C01/A05 > dORK-∆C2, n = 34. ns: p>0.05, Kruskal-Wallis test with Dunn’s post-hoc test. (C-D) Average sleep patterns (C) and total night sleep levels (D) in 8L: 16D at 31ºC of adult males expressing kk Nca RNAi in C01/A05-neurons alongside the acute inhibitor of synaptic vesicle endocytosis (shi[ts]) or a control transgene (FRT-stop-FRT-GFP). Note the significant increase in night sleep upon inhibiting synaptic release from C01/A05-neurons with reduced NCA levels (D). C01/A05 > kk, FRT-stop-FRT-GFP, n = 25; C01/A05 > kk, shi[ts] n = 22. *p

https://doi.org/10.7554/eLife.38114.040

5) "Instead, sleep-relevant NCA activity can largely be localized to two distinct domains of the Drosophila nervous system defined by the A05- and C01-Gal4 drivers"

This conclusion is based on spatially limiting the RNAi effects, thus defining brain regions that are necessary. It does not preclude involvement of other regions. Therefore this conclusion over-interprets the data.

We have modified the Discussion to state that “sleep-relevant NCA activity is necessary within two distinct domains of the Drosophila nervous system defined by the A05- and C01-Gal4 drivers”, rather than “largely localized to”.

6) Figure 1—figure supplements 2 & 6: the cartoon representations of Nca and its immediate neighbor CG7646 are confusing. In supplement 2, Nca and CG7646 appear to share two 5'UT exons in common. In supplement 6, CG7646 appears to be distinct and non-overlapping. Which is true? Did the authors test the sleep/activity behaviors of flies with CG7646 KD by RNAi?

To clarify, Figure 1—figure supplement 2A shows the mRNA transcript isoforms of Nca and its neighbour, cg7646, since the kk, hmj and jf dsRNAs target Nca mRNA rather than the Nca genomic DNA. Nca and cg7646 do indeed share common upstream 5’ UTR elements. These are shown in Figure 1—figure supplement 2A, where each Nca and cg7646 mRNA isoform is shown. We have modified this figure to remove any irrelevant non-transcribed regions from each of the Nca and cg7646 isoforms shown in Figure 1—figure supplement 2A. We also modified the corresponding figure legend to emphasise that transcript isoforms are shown in this figure supplement.

In Figure 1—figure supplement 6A we depict the genomic region (and surrounding sequences) corresponding to the targeting arms used for homologous recombination. The two common 5’ UTR elements depicted in Figure 1—figure supplement 2A are not contained within the targeting arm sequences and are therefore not shown in Figure 1—figure supplement 6A.

Finally, we did test whether knockdown of cg7646 impacted sleep using two NIG RNAi lines. As shown in Author response image 10, in contrast to Nca knockdown, neither RNAi line targeting cg7646 altered total night sleep levels.

Author response image 10
Median night sleep levels following pan-neuronal expression of two independent RNAi lines targeting cg7646 mRNA compared to driver (elavGal4/+) and RNAi transgene alone controls.

No significant difference in night sleep following cg7646 knockdown using either RNAi construct. n = 12-15. Ns: p>0.05, Kruskal-Wallis test with Dunn’s post-hoc test.

https://doi.org/10.7554/eLife.38114.041

[Editors' note: further revisions were requested prior to acceptance, as described below.]

[...] I suggest the important issue is whether prolonged hyperpolarization of Drosophila neurons is (beyond reasonable doubt) an effective means to exclusively affect neurotransmission. Ceriani and colleagues in 2011 showed that prolonged expression of Kir in LNv pacemaker neurons irreversibly affected molecular oscillations, structural maturation and neuropeptide content. In contrast, restricting Kir expression to adult stages, led to outcomes that were at least partially reversible. Therefore, I hold to the opinion that the present dORK experiment is not compelling, in spite of the additional observations provided. If the authors insist on its inclusion, then I think it's important to share with readers a clear caveat based on the Ceriani work.

We respect the reviewer’s concerns regarding potential detrimental effects of constitutive dORK-∆C2 and have endeavoured to modify the text accordingly to include such a caveat.

Regarding the work by Ceriani and colleagues (Depetris-Chauvin et al., 2011), the authors of this manuscript show that prolonged (but not acute) Kir2.1 expression impacts molecular clock oscillations in PDF neurons. Yet importantly, they also show that action potential firing in adult PDF neurons constitutively expressing Kir2.1 can be acutely restored to wild-type levels by application of 200 µM Ba2+, a Kir2.1 channel blocker (see Figure 2B, Depetris-Chauvin et al., 2011). From this, the authors conclude the following: “Therefore, these results demonstrate that both transient and persistent expression of kir2.1 reliably abolish firing of PDF neurons without affecting their viability” (our italics). Given this conclusion, we hope the reviewer understands that we are reticent to cite this manuscript as evidence that prolonged Kir2.1 expression impacts neuronal viability.

However, the same authors indeed later postulate that prolonged Kir2.1 expression may “ultimately impinge on cell viability” (Discussion). Yet the data shown in this manuscript solely pertains to the function of the circadian oscillator, and there is no evidence presented of an effect of Kir2.1 on noncircadian cellular processes critical for neuronal viability.

Combined with data from Nitabach et al., (2012) (see Figure 2), the current literature suggests that prolonged Kir2.1 expression in PDF neurons does not impact either their ability to fire action potentials nor their development or axon guidance. We also note that other work from the Nitabach lab (Figure 1, Wu et al., (2008)) indicates that dORK-∆C2 reduces the resting membrane potential of PDF neurons by ~ 16 mV while Kir2.1 reduces RMP by ~ 27 mV. Thus, the dORK-∆C2 transgene that we use has a subtler effect on neuronal excitability compared to Kir2.1.

Nonetheless, the reviewer is correct that there is evidence in the literature for a negative impact of constitutive expression of specific ion channels on the viability of certain neuronal subtypes. For example, Nadeau et al., (2000) showed that Kir1.1 expression induces apoptosis of mammalian hippocampal neurons. We have therefore inserted the following text in the Discussion that cites both Nadeau et al., and Depetris-Chauvin et al., 2011 and includes caveats regarding constitutive ion channel expression. We hope the reviewer finds this alteration acceptable.

“Ex vivo imaging demonstrates that Nca knockdown enhances synaptic output from subsets of C01- and A05-neurons innervating the MB αβ-lobes and the AMMC. [...] Yet when NCA expression is inhibited in C01- and A05-neurons simultaneously, the resulting enhancement of synaptic output within this wider network is sufficient to reduce night sleep.”

Consideration of CG7646 - I appreciate the clarification of the complicated genomic arrangement of CG7646 and Nca. It is helpful to know they share 5'UTR sequences but different CDS exons. I think it would be useful to make this point clear in the text - for example on line 111 of the revision, CG7646 is described as a "neighboring" locus. I interpret "neighbor" as independent or free-standing. These two genes are overlapping or in some fashion "compound". I recommend the text include a clear description of this genomic arrangement and be re-examined to ensure clarity on this point in all mentions. Likewise, I suggest inclusion of the RNAi knockdown results of CG7646 as supplemental information to allay concerns on this point. Regarding that experiment, one other minor point: in the response and author response images, the authors describe using two different RNAi's from NIG. However, my reading of the NIG site indicates availability of only one RNAi for CG7646, albeit offered as a II and III chromosome insertion. The figure leads the reader to think two different RNAis were tested. The text should be clear as to whether the same RNAi at different insertion sites, or different RNAi's were tested.

We have altered the text to emphasise that cg7646 and Nca share common 5’ regulatory elements and removed any description of the two loci as ‘neighboring’. We have included data showing the effect of cg7646 RNAi on sleep in Figure 1—figure supplement 2K. In the figure legend of Figure 1—figure supplement 2K we have stated that two different chromosomal insertions of the same RNAi hairpin were used to knockdown cg7646. These lines are also described in the Key Resources Table and the Materials and methods sections.

https://doi.org/10.7554/eLife.38114.043

Article and author information

Author details

  1. Ko-Fan Chen

    Department of Clinical and Experimental Epilepsy, UCL Institute of Neurology, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    kofan.chen@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7305-6254
  2. Simon Lowe

    Department of Clinical and Experimental Epilepsy, UCL Institute of Neurology, London, United Kingdom
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Angélique Lamaze

    Department of Clinical and Experimental Epilepsy, UCL Institute of Neurology, London, United Kingdom
    Contribution
    Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Patrick Krätschmer

    Department of Clinical and Experimental Epilepsy, UCL Institute of Neurology, London, United Kingdom
    Contribution
    Software, Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  5. James Jepson

    Department of Clinical and Experimental Epilepsy, UCL Institute of Neurology, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    j.jepson@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3357-2801

Funding

Wellcome (Synaptopathies Strategic Award, 104033)

  • James Jepson

Medical Research Council (MRC New Investigator Award, MR/P012256/1)

  • James Jepson

Wellcome (Graduate Student Fellowship 109003/Z/15/Z)

  • Patrick Krätschmer

Biotechnology and Biological Sciences Research Council (BB/R02281X/1)

  • James Jepson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jason Somers for technical support on infrared camera and DART system installation, Jack Humphrey for performing initial work on Neurocalcin knockdown flies, and Kyunghee Koh for helpful comments on the manuscript. This study was supported by the Wellcome Trust (Synaptopathies strategic award [104033]), the MRC [New Investigator Grant MR/P012256/1] and the BBSRC (BB/R02281X/1). PK is supported by a Wellcome Trust Neuroscience PhD studentship (109003/Z/15/Z).

Senior Editor

  1. K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Reviewing Editor

  1. Hugo J Bellen, Baylor College of Medicine, United States

Reviewer

  1. Hugo J Bellen, Baylor College of Medicine, United States

Publication history

  1. Received: May 4, 2018
  2. Accepted: January 29, 2019
  3. Version of Record published: March 13, 2019 (version 1)

Copyright

© 2019, Chen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 987
    Page views
  • 161
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
