Fizzy-Related dictates A cell cycle switch during organ repair and tissue growth responses in the Drosophila hindgut

  1. Erez Cohen
  2. Scott R Allen
  3. Jessica K Sawyer
  4. Donald T Fox  Is a corresponding author
  1. Duke University School of Medicine, United States
Research Article
  • Cited 0
  • Views 777
  • Annotations
Cite as: eLife 2018;7:e38327 doi: 10.7554/eLife.38327

Abstract

Ploidy-increasing cell cycles drive tissue growth in many developing organs. Such cycles, including endocycles, are increasingly appreciated to drive tissue growth following injury or activated growth signaling in mature organs. In these organs, the regulation and distinct roles of different cell cycles remains unclear. Here, we uncover a programmed switch between cell cycles in the Drosophila hindgut pylorus. Using an acute injury model, we identify mitosis as the response in larval pyloric cells, whereas endocycles occur in adult pyloric cells. By developing a novel genetic method, DEMISE (Dual-Expression-Method-for-Induced-Site-specific-Eradication), we show the cell cycle regulator Fizzy-related dictates the decision between mitosis and endocycles. After injury, both cycles accurately restore tissue mass and genome content. However, in response to sustained growth signaling, only endocycles preserve epithelial architecture. Our data reveal distinct cell cycle programming in response to similar stimuli in mature vs. developmental states and reveal a tissue-protective role of endocycles.

https://doi.org/10.7554/eLife.38327.001

eLife digest

How does an injured organ replace cells that have died as a result of the damage? Making new cells might seem like the best option, because this would restore the organ to how it looked before the injury. To make new cells, existing cells in the organ divide. But not all organs make new cells to repair damage. Instead, some organs make their remaining cells bigger – a process known as hypertrophy – to fill the space created by the injury.

Cohen et al. have now developed a technique to investigate which method of repair a damaged organ uses. The technique uses genetic engineering to create an injury in a specific tissue in fruit flies, while also altering the activity of other genes that might affect how the tissue responds to the injury. Using the technique to study injuries to part of the gut that remains the same throughout a fly's life revealed that fly larvae repair this damage by creating new cells. However, adult flies repair the same injuries using hypertrophy.

Cohen et al. found that a gene known as ‘fizzy-related’ helps to control how the organ repairs damage. The fizzy-related gene produces a protein that stops cells dividing, which forces the cells to grow to repair any injuries to the organ. Adult flies that lacked the gene repaired their guts through cell division instead of by hypertrophy. This did not affect how well minor injuries to the gut were repaired. However, under conditions of more extreme tissue injury cell division distorted the gut and led to leakiness of gut contents.

Hypertrophy has been seen in injured human organs, including the heart, liver and kidneys. This was thought to be an abnormal response, but the results presented by Cohen et al. suggest that hypertrophy may instead help to protect the organs during repair. Further research into the role of hypertrophy could reveal ways to regenerate damaged organs, perhaps by targeting the activity of the fizzy-related gene.

https://doi.org/10.7554/eLife.38327.002

Introduction

Throughout development, cell cycle regulation is altered to build tissues and organs. Examples include the lack of gap phases to rapidly increase cell number in embryos of many species (Edgar and O'Farrell, 1990; Graham and Morgan, 1966; McKnight and Miller, 1977; Newport and Kirschner, 1982), ploidy-reducing meiotic divisions to produce haploid gametes (Kleckner, 1996), or ploidy-increasing cycles that enable rapid post-mitotic tissue growth (Calvi, 2013; Fox and Duronio, 2013; Hua and Orr-Weaver, 2017; Edgar et al., 2014).

After development is completed, a diversity of cell cycle regulation is also found in mature adult tissues during injury repair. In many stem cell-based tissues, or in highly regenerative organs/organisms, mitotic cell cycles restore pre-injury cell number and size (Jiang et al., 2009; Mascré et al., 2012; Mauro, 1961; Poss et al., 2002; Ryoo et al., 2004; Yan et al., 2012). In contrast, we and others previously defined injury responses in the adult Drosophila hindgut and abdomen, tissues that lack mitotic divisions (Fox and Spradling, 2009; Losick et al., 2013; Sawyer et al., 2017). In these adult tissues, injury leads to an increase in cellular ploidy through endocycles (G/S cycles without M phase, see cell cycle nomenclature section of Materials and methods). These Drosophila responses have clear parallels in the hypertrophic tissue injury repair of mammals. Injured mammalian hearts alter their cell cycle programming from mitotic to ploidy-increasing cell cycles during defined periods in development (Porrello et al., 2011). As a result, cardiac cells typically undergo hypertrophy instead of hyperplasia in response to injury or sustained tissue growth signals such as from the Ras/Raf pathway (Hunter et al., 1995; Porrello et al., 2011; Wu et al., 2011; Yu et al., 2015). In the liver, injury can cause either mitotic or ploidy-increasing cell cycle responses (Gentric et al., 2015; Miyaoka et al., 2012; Nagy et al., 2001). Recently, the mouse kidney was discovered to endocycle in response to acute injury (Lazzeri et al., 2018). Thus, both during development and in post-development injury contexts, diverse cell cycle responses can occur.

Little is known about the molecular programming or functional consequence of distinct cell cycles used in injured adult tissues. One technical limitation to studying this question is the ability to conduct carefully targeted injury experiments while simultaneously performing genetic studies. Here, we introduce a new system termed Dual-Expression-Method-for-Induced-Site-specific-Eradication (DEMISE), which enables us to finely control and independently manipulate both injury and genetics in our system. Using this system, we uncover developmental regulation and functional differences between two injury-induced cell cycle programs in the Drosophila hindgut pyloric epithelium.

The pyloric epithelium is the only segment of the hindgut to persist throughout the lifespan of the fly. Taking advantage of this persistence, we uncover that when injured the same way, pyloric cells undergo mitotic cycles in larvae but undergo endocycles in mature adults. Further, using this tissue model and our new genetic system, we demonstrate that active inhibition of mitotic cyclins by the conserved Anaphase Promoting Complex/Cyclosome (APC/C) regulator Fizzy-related (Fzr) underlies the alteration in injury-induced cell cycle programs in the pyloric epithelium. We identify that by blocking entry into mitosis, Fzr-mediated endocycles protect the adult pylorus against disruptions in epithelial architecture and permeability under conditions of sustained tissue growth signaling. Together, our results suggest that in some mature tissues, endocycles may represent a tradeoff between loss of regenerative capacity and preservation of tissue architecture.

Results

Drosophila hindgut pyloric cells accurately replace lost genome content using two developmentally distinct responses

We previously demonstrated that the adult Drosophila hindgut pyloric epithelium (hereafter- pyloric cells) provides an accessible model to study tissue injury repair through endocycles (Fox and Spradling, 2009; Losick et al., 2013; Sawyer et al., 2017). Unlike many adult intestinal cells, pyloric cells are also a constituent segment of the larval hindgut. During metamorphosis, pyloric cells act as facultative progenitor cells, as they remodel the hindgut by undergoing mitotic cell division to both expand the larval pylorus into its adult form while also producing cells of the adult ileum, which replace the histolysed larval ileum (Figure 1A, Fox and Spradling, 2009; Robertson, 1936; Sawyer et al., 2017; Takashima et al., 2008). Thus, pyloric cells are capable of distinct cell cycles- mitotic cycles during organ remodeling (at metamorphosis) and endocycles during tissue injury repair (at adulthood).

Figure 1 with 1 supplement see all

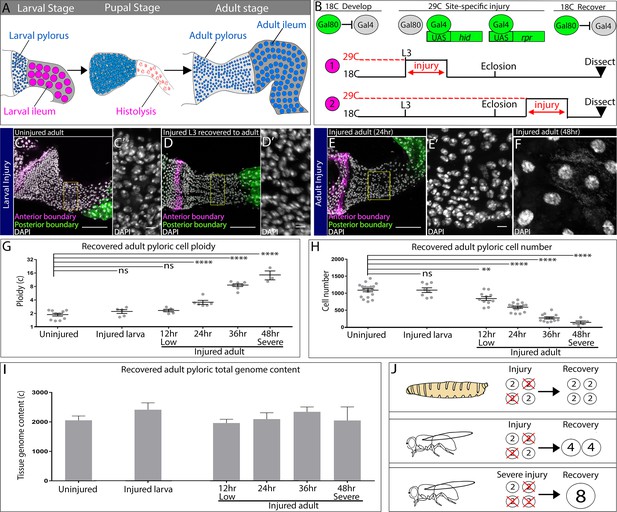

Injured hindgut pyloric cells replace lost genome content using two distinct responses.

(A) Schematic of pyloric development. (B) Experimental injury scheme (see Results and Materials and methods). Numbers 1 and 2 are referenced in the text. (C–F) Adult pylori. Anterior boundary marked by wg-LacZ (magenta), posterior boundary marked by Vha16-GFP (green), and nuclei (DAPI, white). Yellow box highlights the region shown in the adjacent high magnification inset (C’,D’,E’). (C–C’) Uninjured adult pylorus. (D–D’) Injured L3 recovered to adult (E–F). Adult pylorus injured for 24 hr (E–E’) or 48 hr (F) and recovered for 5 days. (G–H) Quantification of pyloric ploidy (G) and cell number (H). (I) Quantification of pyloric total genome content. (J) Model of larval vs adult recovery from injury. For panels (G–I) data represent mean ± SEM, N ≥ 5 animals, at least two replicates. ANOVA, Dunnett’s multiple comparisons. Scale bars (C,D,E) 50 µm, (C’,D’,E’,F’) 5 um.

https://doi.org/10.7554/eLife.38327.003

We tested two possible models for the difference in pyloric cell cycle programs. In one model, pyloric cell cycle program is dictated by the stimulus: that is, induced apoptotic injury promotes endocycles while developmental gut histolysis promotes cell division. In a second alternative model, developmental status of the pylorus may solely govern cell cycle status, regardless of the type of injury. To distinguish between these possibilities, we injured the larval pylorus at the last developmental stage before metamorphosis (wandering third larval instar, L3) and allowed the animals to progress to adulthood. For tissue injury, we used temporal and spatial control of the pro-apoptotic genes head involution defective (hid) and reaper (rpr), as before (Materials and methods, Figure 1B, ‘1’, Fox and Spradling, 2009; Losick et al., 2013; Sawyer et al., 2017). As a comparison, we injured adult pyloric cells using the same scheme (Figure 1B, ‘2’). In both cases, we confirmed that our injury protocol causes pyloric cell death (Figure 1—figure supplement 1A–E). To clearly demarcate the recovered pylorus, we used reporters of pyloric boundaries (Figure 1C–E). We then compared adult flies recovered from either larval or adult injury to identify any differences in the mode of pyloric recovery.

While animals recovered from both larval and adult injury show no obvious defects in recovery of pyloric tissue mass, the response to larval and adult injury is strikingly different. When compared against uninjured animals (Figure 1C–C’), adult pyloric cells recovered from a larval injury (Figure 1D–D’) show no change in cell ploidy and remain diploid (Figure 1G). Additionally, larval injury does not change the number or size of cells recovered in adults (Figure 1H, Figure 1—figure supplement 1F–F’,H). The ability to produce an adult gut of normal cell number and ploidy was impressive given that we eliminated a high percentage of larval pyloric cells by injury (Figure 1—figure supplement 1E). In contrast, comparable injury to the adult pylorus persistently increases ploidy, decreases cell number, and increases cell size, as we previously reported (Figure 1E,G,H, Losick et al., 2013). However, it remained possible that the number of surviving cells following tissue injury dictates the pyloric response. To test this idea, we took advantage of the ability to finely tune injury level in our system (Materials and methods) and used varying durations (12–48 hr) of apoptotic gene expression to produce a linear decrease in cell survival (Figure 1F,H). Regardless of the severity of adult injury, cell number does not recover, whereas cell ploidy and cell size increases (Figure 1F,G, Figure 1—figure supplement 1G–I). Thus, developmental stage and not injury severity dictates the pyloric cell cycle response.

Our quantitation of adult pyloric ploidy after injury revealed a proportional tissue injury response- ploidy increases closely track with the degree of cell number loss (Figure 1G–H, R2 = 0.97, p<0.002). These results suggested that regardless of developmental stage, the pylorus remains capable of closely replacing the number of genomes lost to injury. To test this model, we quantified the total genome content per pylorus (number of cells x ploidy) following injury recovery (Materials and methods). Our data show that regardless of injury severity or developmental stage, the pre-injury pyloric total genome content is fully recoverable (Figure 1I). These results indicate that through developmentally distinct cell cycle injury responses, the pylorus accurately restores genomic content in proportion to the injury stimulus (Figure 1J).

Distinct cell cycle programs underlie the distinct pyloric injury responses

We next analyzed the cell cycle responses of the two distinct pyloric injury recovery modes. Our cell ploidy and cell number quantitation suggest that larval pyloric cells are capable of producing new cells to regenerate the injured gut during metamorphosis, whereas adult pyloric cells have lost this regenerative ability. To assess this, we first traced the lineage of uninjured and injured larval hindgut cells during metamorphosis (Figure 2A, Figure 2—figure supplement 1A). We previously used a low-background, low-frequency clonal marking system to demonstrate that single larval pyloric cells produce, on average, either ~5 adult pyloric cells or two adult ileal cells during metamorphosis, and afterwards cease to divide (Fox and Spradling, 2009). We reproduced these data in uninjured animals (Materials and methods, Figure 2C, Figure 2—figure supplement 1B–E). By comparison, in adults recovered from larval injury, clone size increases by ~3 fold on average (Figure 2D–D’, G,H, uninjured: 5.389 ± 0.5725 SEM, injured: 16.54 ± 1.863 SEM, p<0.0001). Our clonal data coupled with our cell counts suggest that approximately 75% of larval cells were eliminated using our injury protocol and were then recovered by compensatory proliferation. Clone size in the ileum also increases in response to injury, consistent with the model that these cells derive from the larval pylorus (Figure 2—figure supplement 1C–E). Further, these data show that remaining larval pyloric cells (approximately 25%) have the capability of increasing their mitotic capacity to completely regenerate the adult hindgut pylorus and ileum following acute injury.

Figure 2 with 1 supplement see all
Distinct cell cycle programs underlie the distinct pyloric injury responses.

(A–B) Schematic of clone and injury induction in larvae (A) and adults (B). (C–F’) Clones in adult pylori. Clones (LacZ, green) and nuclei (DAPI, magenta). Yellow box highlights the region shown in the adjacent high magnification inset (C’,D’,E’, F’). (C–D’) Clones induced at L3 stage without injury (C–C’) or with injury (D–D’). (E–F’) Clones induced at adult stage without injury (E–E’) or with injury (F–F’). (G) Quantification of pyloric clone size ±injury. Data represent mean ± SEM, N ≥ 13 clones per condition,≥13 animals per condition, at least two replicates. Unpaired two-tailed t-tests. (H) Fold change in clone size. (I–K’) Fly-FUCCI animals expressing GFP-E2F1_1–230 (green), RFP-CycB_1–266 (magenta) and nuclei (DAPI, white). (I–I’) Fly-FUCCI in the larval pylorus. (J) Cell cycle stages in larval pyloric cells. Yellow hash marks cell outline. (K–K’) Fly-FUCCI in the adult pylorus. (L) Model of cell cycle utilized by larvae vs adults after injury. Scale bars (C,D,E,F,I,K) 50 µm, (C’,D’,E’,F’,J) =10 µm.

https://doi.org/10.7554/eLife.38327.005

In contrast to larvae, inducing clones in adult pylori (Figure 2B) produces only single labeled cells (27/27 clones, Figure 2E). Our marking system does not require a cell division to generate single-labelled cells (Figure 2—figure supplement 1A). Using this system, we did not see any expansion of single labeled cells into mitotic clones even after 20–30 days of recovery from a severe injury (Figure 2F–H, uninjured: 1.00 ± 0 SEM, injured: 1.07 ± 0.07 SEM, p=0.99 and Figure 2—figure supplement 1F–H). In further support of our lineage data, the M-phase marker Phospho-Histone H3 (PH3) does not label adult pyloric cells (data not shown, Fox and Spradling, 2009; Sawyer et al., 2017), while it frequently labels larval pyloric cells (Figure 2—figure supplement 1I). However, both larvae and adult pyloric cells incorporate the S-phase marker EdU following injury (Figure 2—figure supplement 1J,K). Taken together, our cell cycle marker, lineage, and cell ploidy/number quantitation show that only larval pyloric cells divide while adult pyloric cells instead endocycle after injury.

Having determined the two distinct post-injury pyloric cell cycle responses, we next analyzed the pre-injury cell cycle status of both larval and adult pyloric cells. For this analysis, we used the Fly Fluorescent Ubiquitin-based Cell Cycle Indicator (Fly-FUCCI) system (Zielke et al., 2014). In the pylorus of uninjured larvae, the FUCCI components E2F11-230-GFP and Cyclin B1-266-mRFP are expressed in patterns consistent with the presence of G1, S, and G2/M cells (Figure 2I–J). Coupled with our M phase data (Figure 2—figure supplement 1I), we find that both before and after injury, larval pyloric cells undergo mitotic cycles, although injury leads to additional rounds of mitotic cycles (Figure 2L). In contrast, 100% of uninjured adult pyloric cells are E2F11-230-GFP positive and Cyclin B1-266-mRFP negative (Figure 2K), indicative of a quiescent/arrested G0/G1 state of these cells prior to their entry into injury-activated endocycles. Thus, pyloric injury at distinct developmental stages induces distinct cell cycle changes (Figure 2L).

DEMISE, a new method for dual control of site specific genetic ablation and transgene expression

Having identified developmental stage as a determinant of the distinct pyloric cell cycle injury responses, we next sought to identify molecular regulation of these responses. Our apoptotic injury system takes advantage of the temperature sensitive Gal80ts repressor to control Gal4-mediated expression of apoptotic genes (Brand and Perrimon, 1993; McGuire et al., 2004). While this enables fine control over the developmental stage, tissue location, and degree of injury, it also prevents use of the numerous Gal4-mediated gene knockdown tools such as the large collection of transgenic UAS-RNAi and now CRISPR lines (Dietzl et al., 2007; Lin et al., 2015; Ren et al., 2013; Wu et al., 2011). This is because any transgene-expressing cell would be dead using our standard apoptotic method. An ideal system would instead allow for separate control over injury and transgene expression.

We thus developed such a system, which we term DEMISE (Dual-Expression-Method-for-Induced-Site-specific-Eradication). DEMISE combines the Gal4/Gal80ts and FLP/FRT systems to induce developmentally-timed, tunable tissue-specific injury in a mosaic fashion while independently expressing any UAS-driven transgene of interest in the same tissue. Compared to our previous injury system, DEMISE adds an FRT-Stop-FRT cassette between a UAS promoter and the apoptotic rpr gene (Figure 3A). Thus, cell death and transgene expression are still under control of a tissue-specific Gal4 and temperature inactivation of Gal80ts (Figure 3A’) but cell death also requires FLP-mediated removal of the Stop cassette. Temporal control of injury, as well as injury strength, is then achieved by timing expression of FLP under heat shock (hs) control (Figure 3A’’). In parallel, Gal4/Gal80ts drives expression of a transgene of interest independent of FLP-mediated cell death (Figure 3A’,A’’). The result is that all cells of a given tissue can express a transgene (such as a gene knockdown RNAi), while a fraction of these cells (determined by degree of FLP induction) will be eliminated by injury (Figure 3A’’’). This experimental design enables one to use the vast UAS-driven Drosophila transgene collection while also inducing a precise injury.

Figure 3 with 1 supplement see all

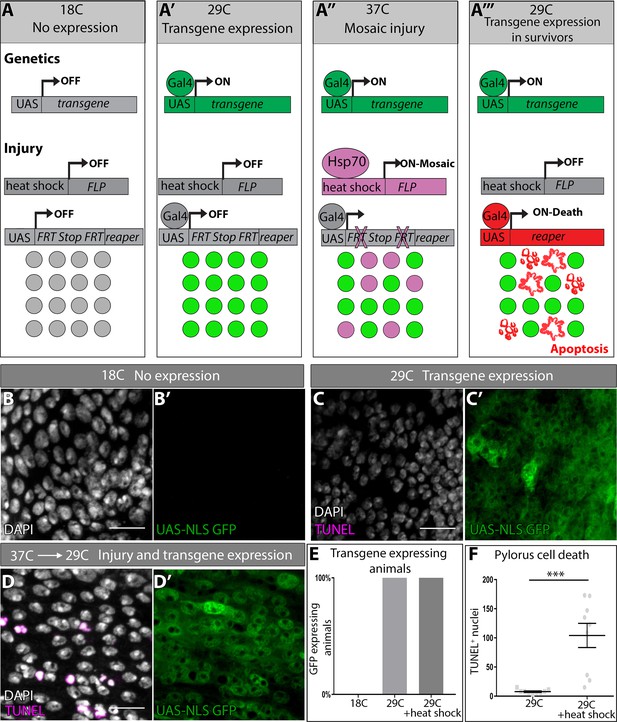

DEMISE, a novel tool for dual control of site-specific genetic ablation and transgene expression.

(A–A’’’) DEMISE method and components (see Results and Materials and methods). (B–D) Adult pylori. Transgene expression marked by UAS-NLS GFP (green), cell death (TUNEL, magenta), and nuclei (DAPI, white). (B–B’) No transgene expression at 18C. (C–C’) Transgene expression and no injury at 29C. (D–D’) Transgene expression and injury following heat shock (37C). (E) Quantification of pyloric transgene expression at different DEMISE stages. N ≥ 5 animals. (F) Quantification of pyloric cell death following heat shock. Data represent mean ± SEM, N ≥ 5 animals, at least two replicates. Unpaired two-tailed t-test. Scale bars (B–D’) 10 µm.

https://doi.org/10.7554/eLife.38327.007

To test the efficacy of DEMISE, we generated a series of UAS-FRT-Stop-FRT-reaper insertions in the Drosophila genome (Materials and methods). We identified FLP/DEMISE combinations with both low background cell death (lack of leaky Stop cassette excision) along with robust apoptosis induction upon heat shock (Table 1). We began by examining larval wing imaginal discs, a frequently used model to study tissue regeneration in response to apoptotic injury (Halme et al., 2010; Harris et al., 2016; Smith-Bolton et al., 2009). We drove DEMISE expression in the posterior wing disc compartment with engrailed (en) > Gal4. Using temperature shifts and a UAS-GFP reporter, transgene expression is induced in the expected pattern (Figure 3—figure supplement 1A–C). Our transgene expression conditions do not induce cell death, as assayed by TUNEL (Figure 3—figure supplement 1B). However, upon heat shock to induce FLP expression, robust cell death occurs in a mosaic pattern specifically in the engrailed domain (Figure 3—figure supplement 1C–D, Materials and methods).

Table 1
DEMISE combinations tested in the hindgut
https://doi.org/10.7554/eLife.38327.009
Flip-out reaper
insertion
Genotype[ry[+t7.2]=hsFLP]1[ry[+t7.2]=hsFLP]12
UAS-rprFLPout 10–3pUAST-FRT-STOP-FRT-rpr/CyO #Insertion 10–3LeakyNot leaky
(used in paper)
UAS-rprFLPout 9–1pUAST-FRT-STOP-FRT-rpr/TM3Sb #Insertion 9–1LeakyNot leaky
UAS-rprFLPout 5–1pUAST-FRT-STOP-FRT-rpr/TM3Sb #Insertion 5–1Leaky
UAS-rprFLPout 4–1pUAST-FRT-STOP-FRT-rpr/TM3Sb #Insertion 4–1Not leaky
UAS-rprFLPout 10–1pUAST-FRT-STOP-FRT-rpr/CyO #Insertion 10–1LeakyLeaky
UAS-rprFLPout 10–2pUAST-FRT-STOP-FRT-rpr/TM3Sb #Insertion 10–2LeakyLeaky

We then returned to the hindgut system and performed similar transgene expression controls (Figure 3B–D). Again, using our most efficacious DEMISE/FLP combination in the hindgut, we can achieve a low background level of cell death (Figure 3C,D,F), followed by robust induction of cell death upon heat shock that occurs independently of transgene expression (Figure 3C–F, Materials and methods). Our results establish DEMISE as a new method for inducing temporal and site-specific injury while maintaining independent control of transgene expression.

DEMISE reveals fizzy-related as a regulator of injury-mediated cell cycle programming

After establishing DEMISE as a novel system to study molecular regulators of injury responses, we sought to identify genes that dictate which pyloric cell cycle program is induced by injury. Our pre-injury FUCCI data (Figure 2I–K) provided a potential clue, as larval but not adult uninjured pyloric cells co-express the GFP-E2F11-230 and RFP-CycB1-266 FUCCI reporters, indicative of a G2/M state (Zielke et al., 2014). This led us to hypothesize that inhibition of mitotic cyclins in the adult pylorus may prevent entry into mitotic cycles after injury. Fizzy-related (Fzr), the Drosophila homolog of mammalian FZR1/CDH1, is a binding partner of the APC/C, which facilitates degradation of mitotic cyclins including Cyclin B. Fzr is also a well-known regulator of the endocycle in many cell types (Lehner and O'Farrell, 1989; Schaeffer et al., 2004; Sigrist and Lehner, 1997; Stormo and Fox, 2016) and fzr mutant cells can ectopically undergo mitotic cycles instead of endocycles (Schaeffer et al., 2004; Schoenfelder et al., 2014; Sigrist and Lehner, 1997). Thus, increased fzr expression in the adult pylorus is a plausible mechanism for the altered injury responses we observe.

We first asked whether fzr is upregulated in the adult pylorus. Indeed, using two independent fzr enhancer traps, fzr expression is high in the adult pylorus, whereas fzr is undetectable in the larval pylorus (Figure 4A–B’, Figure 4—figure supplement 1L–M’). We next asked if elimination of fzr is sufficient to revert the adult pyloric injury response (endocycles) to the larval injury response (mitotic cycles). Using DEMISE, we expressed fzr RNAi in the hindgut throughout development (Figure 4C). Without injury, fzr knockdown did not noticeably alter hindgut development with the exception of the rectal papillae, where we previously identified a role for fzr in the pre-mitotic endocycles (Schoenfelder et al., 2014, Figure 4—figure supplement 1A–B). Following apoptotic injury induction, both control and fzr RNAi-expressing animals contain both TUNEL positive nuclei and pycnotic nuclei (Figure 4D–F), which are more prevalent at the anterior pylorus as previously described (Fox and Spradling, 2009; Sawyer et al., 2017). Further, lack of fzr does not alter the number of adult pyloric cells entering the cell cycle as seen by BrdU staining (Figure 4—figure supplement 1C).

Figure 4 with 1 supplement see all

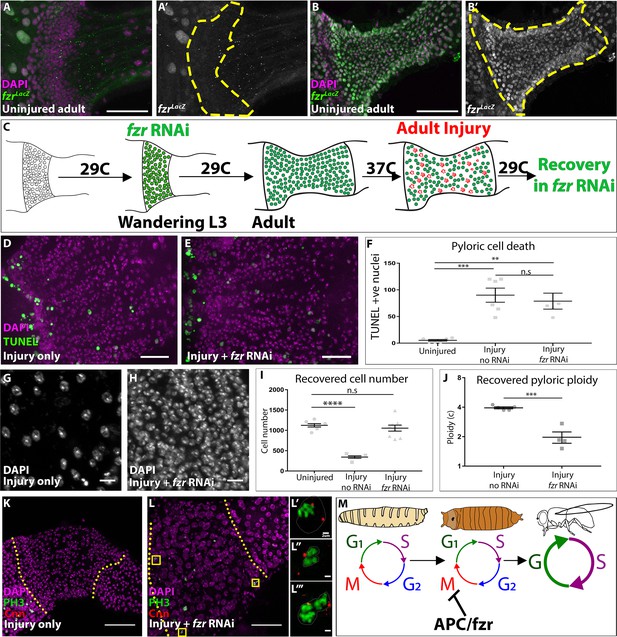

fizzy-related is a regulator of injury-mediated cell cycle programming.

(A–B’) Expression of the fzrG0418 enhancer trap (LacZ expression, green or grey), nuclei (DAPI, magenta) in uninjured larval pylorus (A–A’) or adult pylorus (B–B’). Yellow dashed line marks pyloric boundaries. (C) Schematic of DEMISE, apoptosis (red) and fzr RNAi expression (green). (D–E) Adult pylori. Cell death (TUNEL, green) and nuclei (DAPI, magenta). (D) Injury only (E) injury +fzr RNAi. (F) Quantification of pyloric cell death ±fzr RNAi. Data represent mean ± SEM, N ≥ 5 animals, at least two replicates. ANOVA with Tukey’s multiple comparisons. (G–H) Pyloric nuclei (DAPI, white) after injury and 5 days recovery. (G) injury only. (H) Injury + fzr RNAi. (I) Quantification of pyloric cell number after 5 days recovery. Data represent mean ± SEM, N ≥ 5 animals, at least two replicates per condition. ANOVA with Dunnett’s multiple comparisons. (J) Quantification of pyloric ploidy after 5 days recovery. Data represent mean ± SEM, N ≥ 4 animals, at least two replicates. Unpaired two-tailed t-test. (K–L’’’) Injured adult pylori. PH3 (green), Centrosomin (red), and nuclei (DAPI, magenta). Dashed line indicates pyloric boundaries. (K) Injury only (L) Injury + fzr RNAi. Yellow boxes highlight the region shown in adjacent high magnification insets (L’–L’’). (M) Proposed model for the role of APC/Fzr(Cdh1) in regulation of injury cell cycle responses. Scale bars (D,E) 20 µm, (G,H) 5 µm, (K,L) 50 µm (L’–L’’’) 2 µm.

https://doi.org/10.7554/eLife.38327.010

Strikingly, following 5 days of recovery from adult injury, the adult pylorus of fzr flies completely restores pre-injury cell number and ploidy (Figure 4G–J). Further, during injury recovery, mitotic cells are visible in the adult fzr pylorus (5/7 animals), but not in control animals (0/17 animals, as assayed by PH3 and the centrosomal marker Centrosomin- Cnn, Figure 4K–L’’’). We noted one additional cell cycle alteration in fzr animals. Endocycles frequently exhibit under-replication of late-replicating sequences, which in Drosophila cluster in a DAPI ‘bright-spot’ (Belyaeva et al., 1998; Endow and Gall, 1975; Fox and Duronio, 2013; Gall et al., 1971; Nordman et al., 2011; Schoenfelder and Fox, 2015; Edgar et al., 2014). In control adults, pyloric cells undergoing injury-induced endocycles only exhibit early replication patterns (as assayed by BrdU, Figure 4—figure supplement 1D), consistent with the S-phase pattern of many endocycling cells that undergo under-replication. In agreement with this idea, DNA FISH shows that a satellite DNA repeat that is commonly under-replicated in endocycling cells (Endow and Gall, 1975) does not increase in intensity in proportion to the obvious nuclear size increase induced by adult pyloric injury (Figure 4—figure supplement 1N–O). In contrast, fzr animals instead exhibit both early and late-S patterns after injury (Figure 4—figure supplement 1E). This pattern suggests that fzr loss may also enable progression through late S-phase, possibly due to a role for the fzr target cyclin A in promoting late replication (SalleSallé et al., 2012). Taken together, we find the two distinct injury-induced cell cycle programs in the pylorus are dictated by the action of Fzr, a conserved negative regulator of mitotic cyclins (Figure 4M).

Previous work on developmentally programmed switches from mitotic cycles to endocycles in Drosophila follicle cells also implicated a role for Fzr (Schaeffer et al., 2004). In this context, fzr is regulated upstream by Notch signaling and its transcriptional target Hindsight. Further, Notch frequently promotes endocycles in development and in adult tissue homeostasis (Deng et al., 2001; Guo and Ohlstein, 2015; Von Stetina et al., 2018). Therefore, we sought to determine if Notch is also used in an acute injury context to regulate the pyloric cell cycle program. Either with or without injury, adult pyloric cells do not express Hindsight, suggesting that this Notch target is not involved in the pyloric cell cycle injury response (Figure 4—figure supplement 1F–G). Further, expressing dominant negative Notch receptor throughout pupation using DEMISE does not prevent injury-mediated endocycles in the adult pylorus (Figure 4—figure supplement 1H–I), despite the fact that we observe expected Notch phenotypes in the rectal papillae (Figure 4—figure supplement 1J–K, Fox et al., 2010; Schoenfelder et al., 2014). Thus, unlike previous studies on developmental endocycles, our results suggest a Notch-independent, fzr-dependent alteration in injury cell cycle responses in the Drosophila pylorus.

Endocycles preserve intestinal architecture in response to sustained tissue growth signaling

Our studies of fzr animals showed that the normally diploid adult pylorus is primed to endocycle rather than maintain cellular ploidy under injury conditions. Both mitotic cycles and endocycles are capable of restoring pre-injury genome number throughout the tissue. This raises the question of whether there are any benefits to the switch away from mitosis and towards endocycles following cell cycle re-entry in the adult pylorus. One possibility that we considered is that, in response to pro-growth signaling, endocycles may be better at preserving tissue architecture than mitotic cycles. Activation of the pro-growth signaling Ras pathway, which is well-known to drive cell number increases in many contexts, is also linked to ploidy increases in cardiac tissue in flies and mammals (Hunter et al., 1995; Wu et al., 2011; Yu et al., 2015). We thus examined if constitutive activation of the small GTPase Ras (RasV12) could be used as an experimental tool to ask whether a tissue undergoing endocycles or mitotic cycles responds differently under conditions of sustained tissue growth signaling.

Using similar methods to our injury induction protocol (Figure 5A), we expressed RasV12 in larvae and then examined the resulting adults (Figure 5B, ‘1’). The pylorus of these animals is extremely expanded in size (Figure 5C,D). Cell number counts and size measurements show that larval RasV12 expression nearly triples the adult pyloric cell number without a substantial change in nuclear size (Figure 5G,H). This larval RasV12 response parallels the mitotic cell cycle response to injury in larvae, with the exception of a tissue overgrowth phenotype, which is likely due to sustained RasV12 expression overriding normal growth suppression signals. We next drove RasV12 expression in the adult (Figure 5B, ‘2’), again in the absence of injury. As with larval RasV12 expression, the adult pylorus expands in size following RasV12 expression (Figure 5C,E). However, and in parallel with our injury results, we observe no increase in cell number, while instead the nuclear size increases (Figure 5G,H). These data are consistent with RasV12 inducing endocycles in the mature adult pylorus. Thus, sustained growth signaling through RasV12 expression can be used to mimic both the larval and adult injury cell cycle responses found in the pylorus.

Figure 5 with 1 supplement see all

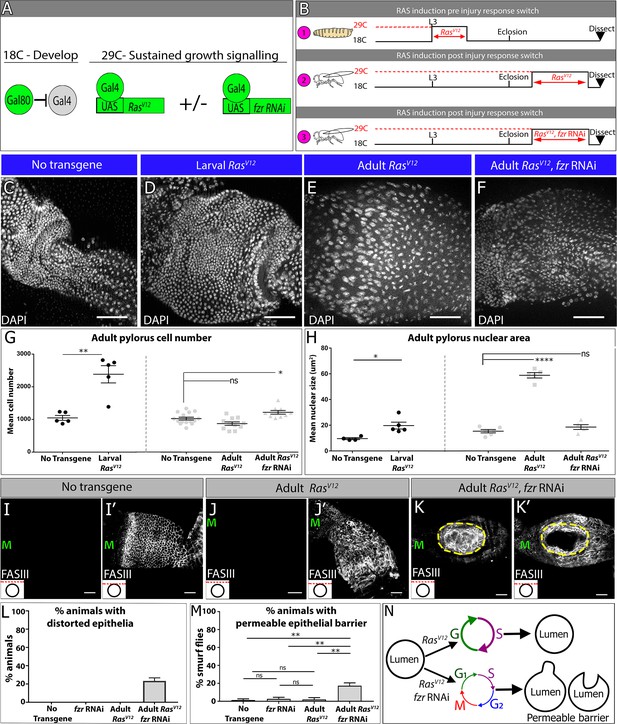

Endocycles preserve intestinal architecture in response to sustained tissue growth signaling.

(A) Schematic and (B) experimental design of sustained growth signaling expression. Numbers 1–3 in (B) are referenced in the text. (C–F) Adult pyloric nuclei (DAPI, white) ±RasVV12 expression. (C) No transgene expression. (D) 48 hr RasV12 expression at L3. (E) 6 days RasV12 expression in adults. (F) 6 days RasV12 expression in adults + fzr RNAi. (G–H) Quantification of adult pyloric cell number (G) and nuclear area (H). Data represent mean ± SEM. For adult induction, N ≥ 5 animals, at least two replicates. ANOVA with Dunnett’s multiple comparisons; For larval induction, N ≥ 4 animals, at least two replicates. Unpaired two-tailed t-test. (I–K) Adult pylorus lateral membranes highlighted by FasIII staining (white). Distinct Z-sections of the hindgut positions shown in each image are illustrated by a red line in an inset in the bottom left, where a black circle represents the hindgut epithelium. ‘M’ indicates midgut position. (I–I’) No transgene expressed. (J–J’) 14 days RasV12 expression in adults. (K–K’) 14 days RasV12 expression in adults + fzr RNAi. Yellow outline highlights distorted epithelia. (L) Quantification of % animals with epithelial distortions. Data represent mean ±SEM, N = 3 experiments, N ≥ 24 animals per condition. (M) Quantification of % animals with permeable epithelial barrier. Data represent mean ± SEM, N = 3 experiments, N ≥ 27 animals per condition. ANOVA with Tukey’s multiple comparisons. (N) Model of tissue architecture in conditions of sustained growth signaling. Scale bars (C–F,I–K’) 50 µm.

https://doi.org/10.7554/eLife.38327.012

We next used RasV12 expression as a model to examine whether endocycles or mitotic cycles confer any tissue-level difference in the adult pylorus under conditions of prolonged tissue growth signaling. To ask this question, we compared RasV12 expressing adults to adults expressing both RasV12 and fzr RNAi (Figure 5B ‘3’). As in our injury studies, fzr suppresses nuclear size expansion in RasV12 expressing adults (Figure 5C,F,H). These results are consistent with a requirement of fzr for RasV12-driven endocycles in this tissue. Further, the overall pyloric cell number increases ~20% above controls in fzr RNAi + RasVV12 animals, consistent with a role of fzr in preventing aberrant cellular hyperplasia in the adult pylorus (Figure 5C,E–G).

In further examination of RasV12 vs. fzr RNAi +RasVV12 animals, we noticed an important difference with regards to intestinal epithelial architecture. Normally, the pyloric epithelia consists of a single cylindrical layer surrounding the hindgut lumen (Figure 5I–I’’Figure 5—figure supplement 1A–A’). The tissue expansion caused by RasV12 expression does not substantially distort this epithelial architecture (Figure 5J–J’). In contrast, in fzr RNAi +RasVV12 animals, we noticed severe recurring abnormalities. Specifically, 23.3% (±3.3% SEM) of fzr RNAi +RasVV12 animals examined show severe distortions of the intestinal epithelial architecture, either into or away from the intestinal lumen (Figure 5K–K’, L, Figure 5—figure supplement 1B–C’’’). These distortions were not caused by increased tissue area in fzr RNAi +RasVV12 animals, as adult pyloric area actually decreases in these animals relative to animals expressing RasV12 alone (Figure 5—figure supplement 1D, see Discussion for proposed mechanism). One possible consequence of the altered intestinal epithelial architecture that we observe is a compromised epithelial barrier. We thus tested whether RasV12 and/or fzr RNAi expression alters intestinal barrier function. Using the well-established ‘Smurf’ assay (Rera et al., 2011; see Materials and methods) we observed that only fzr RNAi +RasVV12 animals show substantial permeability of the epithelial barrier. We note that the frequency of fzr RNAi +RasVV12 animals with a permeable epithelial barrier (17.33% ± 3.18% SEM, Figure 5M) is very similar to the proportion of animals of this same genotype with epithelial architecture distortions (Figure 5L vs. M), implying that these defects may be related. Thus, under conditions of prolonged growth signaling, endocycles protect the pyloric epithelium against hyperplasia, distortions in epithelial lumen architecture, and gut barrier permeability (Figure 5N).

Discussion

The diversity of cell cycle programming in mature tissues in response to tissue stresses such as injury or ectopic growth signaling are increasingly appreciated (Øvrebø and Edgar, 2018). Here, we use Drosophila pyloric cells as a model to understand not only the regulation, but also the implications, of using two different cell cycle programs in an adult tissue subject to injury/growth signaling stress. Capitalizing on this simplicity and our development of DEMISE as a highly manipulatable tissue injury system, here we delineated developmental and molecular parameters that determine whether Drosophila pyloric cells undergo mitotic cycles or ploidy-increasing endocycles. We then extended our findings by demonstrating that ploidy-increasing endocycles protect the adult pylorus, a normally quiescent tissue, from hyperplastic growth and epithelial architecture disruption. These findings highlight a potential protective effect of polyploidization over mitosis in a post-developmental setting, one that we suggest may prevent disease in diverse injured organs.

Polyploidy as a recurring tissue injury response and tissue architecture preservation mechanism

To date, many studies have viewed ploidy increases following tissue injury as either maladaptive or neutral. In the vertebrate heart, ploidy increases cause organ hypertrophy and overgrowth (González-Rosa et al., 2018; Li et al., 1996; Senyo et al., 2013; Steinhauser and Lee, 2011), a disease phenotype that increases heart wall thickness while decreasing valve size (Bonow et al., 2011). Unlike the vertebrate heart, tissue overgrowth does not commonly occur in the injured mammalian liver, which undergoes differing degrees of hepatocyte ploidy increases upon injury. However, likely due to competing contributions from mitosis of diploid hepatocytes or from liver stem cells, as well as an inherent flexibility in the cell cycles used to regenerate the liver (Chen et al., 2012; Diril et al., 2012; Lazzeri et al., 2018; Miyaoka et al., 2012; Nevzorova et al., 2009; Pandit et al., 2012) a role for ploidy in the repairing liver remains unclear. Relative to other tissue models involving ploidy increases, the adult pyloric response is simpler, as it does not occur in parallel to cell-cell fusion (Losick et al., 2013; Losick et al., 2016), divisions of diploid stem cells (Lin et al., 2018; Wang et al., 2015) and does not occur in cells that are already programmed to become polyploid regardless of injury (Tamori and Deng, 2013). Using our simpler system, we were able to more directly ask whether polyploidy has any advantage in tissue repair and tissue overgrowth, or rather is an aberrant response to injury.

Our work here suggests that polyploidy can represent a regulated and potential beneficial tissue injury response. First, using the simplicity of our system, we discovered that ploidy increases in the repairing pylorus are perfectly tuned to replace the pre-injury number of genomes. This result suggests that the number of post-injury endocycles is tightly regulated and can be responsive to injury severity. While diploid mitotic cycles replace pre-injury genomes in the larva, endocycles do the same in the adult. Further, reverting adult endocycles to mitotic cycles in the injured adult also leads to the correct number of pre-injury cells with no ploidy increase, suggesting that both mitotic cycles and endocycles are able to accurately replace lost tissue mass/genome content. Future work can determine whether endocycling is triggered by mechanical stress, as suggested by recent work in the repairing zebrafish epicardium (Cao et al., 2017). Additionally, it will be interesting to determine whether there is any advantage to skipping late S-phase replication during endocycles, which occurs in wild-type but not in fzr animals during repair. Our results also mirror findings in the injured Drosophila abdomen where ploidy matching was also observed. However, our analysis is not complicated by parallel cell-cell fusion events (Losick et al., 2016).

Second, using a RasV12 model, we present evidence that endocycles enable the pylorus to resist tissue malformation and permeability phenotypes under conditions of sustained tissue growth signaling. Our findings in the post-developmental pylorus may mimic the finding in developing glia of the Drosophila blood-brain barrier, in which endocycles preserve tissue integrity during growth (Unhavaithaya and Orr-Weaver, 2012; Von Stetina et al., 2018). As activated Ras/Raf signaling reproduces the injury responsive cell cycles in our system and in injured cardiac tissues, this model may suggest that endocycles are employed in some tissues to maintain epithelial integrity in the face of stresses such as injury or excess growth signaling. One form of tissue stress may come from cell shape changes during mitosis, which depend on regulated changes in cell adhesion (Kunda et al., 2008; Lancaster et al., 2013). Future work can determine if such mitotic shape changes are incompatible with preserving pyloric tissue architecture.

We note that the pylorus has a potentially important similarity to other tissues exhibiting injury-induced ploidy increases such as the mammalian heart, liver, and kidney: these tissues are all normally quiescent or exhibiting very low cell turnover. In such tissues, stem cell-based divisions are not quickly rejuvenating the cell population, and thus cells with de novo mutations (such as dominant Ras mutations) may accumulate during aging. As a result, these long-lived tissues may require a strategy to minimize mitosis of any cell. While such quiescent tissues are then less reliant on mitosis to restore tissue mass, they can still employ ploidy-increasing cycles to accomplish the same goal. In line with this idea, we note that of any organ, the heart has one of the lowest incidences of cancers (Bisel et al., 1953; Leja et al., 2011), and a recent study also showed a tumor-protective role of polyploidy in the liver (Zhang et al., 2017). Future work can determine whether tumor protection or preservation of epithelial integrity is a general property of tissues prone to injury- or growth signal-induced ploidy increases.

Developmental vs. stress-induced endoreplication

Our results show that, while both injury-induced and developmental endocycles rely on Fzr, the upstream regulation in the injury context does not involve regulation of Notch, a well-known developmental endoreplication regulator in flies and mammals (Cornejo et al., 2011; Deng et al., 2001; Domanitskaya and SchupbachSchüpbach, 2012; Mercher et al., 2008; Micchelli and Perrimon, 2006; Ohlstein and Spradling, 2006; Poirault-Chassac et al., 2010; Shcherbata et al., 2004; Sun and Deng, 2007; Von Stetina et al., 2018). Future work in our system can determine what factors converge on fzr regulation and the control of entry into mitosis or endocycles following pyloric injury. One candidate is the ecdysone steroid hormone receptor, which peaks in activity during metamorphosis, close to when the pyloric cell cycle injury response changes. It is somewhat surprising that loss of fzr alone is sufficient to restore pyloric mitosis, as the cyclin dependent kinase 1 (Cdk1) activator Cdc25/String is often required (Schaeffer et al., 2004; Von Stetina et al., 2018). Thus, in the pylorus, Cdk1 may be primed for activity but is kept inactive without its cyclin binding partners, which are negatively regulated by high levels of APC/Fzr. More broadly, further study of the mechanisms that alter cell cycle programming after tissue injury may also improve therapeutic efforts to regenerate injured organs.

Another question raised by our work is whether there are functional benefits to the altered pyloric cell cycle injury response. As our data suggest, in the normally quiescent adult stage, induced cell proliferation may be more detrimental for tissue integrity than induced endocycles. However, building new tissues during intestinal development necessitates the use of cell division. For poorly understood reasons, the Dipteran intestine is completely remodeled during metamorphosis, and cell divisions from the pylorus are the source of the majority of new hindgut cells (Aghajanian et al., 2016; Bodenstein, 1950; Fox and Spradling, 2009; Robertson, 1936; Sawyer et al., 2017; Takashima et al., 2008). This need for wholescale organ remodeling necessitates the ability to divide during larval/early pupal stages. Once organ remodeling is complete, the pylorus, which lacks stem cells, then ceases to divide (Fox and Spradling, 2009; Sawyer et al., 2017). Our data suggest that at this point, high fzr levels prevent any future cell division. Following injury, there may be an increased negative regulation of mitotic entry, as we and others have shown that polyploid cell division causes genomic instability (Davoli et al., 2010; Duncan et al., 2010; Fox et al., 2010; Hassel et al., 2014; Schoenfelder et al., 2014; Storchová et al., 2006). Future work can determine if mitotic integrity is compromised during mitotic re-entry in the adult pylorus.

DEMISE- a versatile tool for tissue injury and cell death studies

In addition to the new tissue injury biology presented here, we also introduce DEMISE as a method for dual control over tissue injury and transgene expression. We show that this system is amenable to injury studies in the imaginal disc, a widely used tissue injury system (Harris et al., 2016; Smith-Bolton et al., 2009). Other tissues with injury responses that we have not tested but that would benefit from DEMISE as a tool include the stem cell-based midgut (Apidianakis and Rahme, 2009; Buchon et al., 2009; Chatterjee and Ip, 2009; Jiang et al., 2009), the brain (Moreno et al., 2015), the abdomen (Losick et al., 2013; Losick et al., 2016), the muscle (Chaturvedi et al., 2017) and ovarian follicle cells (Tamori and Deng, 2013). Beyond studies of tissue injury, our inducible reaper transgene can be used in studies of apoptotic signaling, such as the regulation of ‘undead’ cells which contain active caspase signaling but persist and influence the behavior of neighboring cells (Deveraux et al., 1998; Fan and Bergmann, 2014; Hay et al., 1994; Ryoo et al., 2004).

While many dual transgene systems in flies combine Gal4 with either LexA or Q systems (Kockel et al., 2016; Lai and Lee, 2006; Potter et al., 2010), there are vastly more currently available Gal4 and partner UAS lines than for these other systems, making our system more immediately employable for the most cell types/transgenes. Additionally, the use of a single Gal4 promoter for both injury and transgene activation provides tissue specificity and ensures both injury and transgenes are expressed in the same population of cells. However, use of the same promoter to drive injury and transgenes also creates a limitation to our system if one wants to study the response of cell population A on injury to population B. In such case, combining LexA/Q system injury with Gal4 transgene induction (or vice versa) would be necessary. Beyond Drosophila, we note that our system could be adapted for use in other organisms, by adapting existing FLP and Cre-mediated injury and gene knockout models.

In summary, this study highlights the utility of the Drosophila pylorus in identifying regulation and purposes of specific cell cycle programs induced by tissue injury. Future work in this system can continue to illuminate the role and regulation of variant cell cycles and polyploidy in tissue injury biology.

Materials and methods

Key resources table
Reagent type
(species)
DesignationSource or referenceIdentifiersAdditional information
gene
(D. melanogaster)
fzrNAFBgn0262699
genetic reagent
(D. melanogaster)
byn > Gal4Singer et al.,1996FBal0137290P{GawB}bynGal4
genetic reagent
(D. melanogaster)
act >> LacZBDSCStock 6355P{ry[+t7.2]=Act5C
(FRT.polyA)lacZ.nls1}3, ry[506]
genetic reagent
(D. melanogaster)
hsFLP12;Sco/CyOBDSCStock 1929P{ry[+t7.2]=hsFLP}
12, y[1] w[*]; sna[Sco]/CyO
genetic reagent
(D. melanogaster)
UAS fzr RNAiVDRCStock 25550w1118; P{GD9960}v25550
genetic reagent
(D. melanogaster)
UAS-Ras85DV12BDSCStock 4847w[1118];
P{w[+mC]=UAS-Ras85D.V12}TL1
genetic reagent
(D. melanogaster)
UAS-hid, UAS-reaperZhou et al 1997
antibodyanti-Fasciclin IIIDSHB7G10
antibodyanti-Phospho-Histone H3Cell Signalingab9706
antibodyanti-BrdUSerotec3J9
antibodyanti-Beta-GalactosidaseAbcamab9361
recombinant
DNA reagent
pUAST-FRT-Stop
-FRT-rpr (DEMISE) plasmid
this paperprogenitor:
pUAST-FRT-Stop-FRT-mCD8-GFP
recombinant
DNA reagent
pUAST-FRT-Stop-
FRT-mCD8-GFP plasmid
Potter et al., 2010addgene #24385
commercial
assay or kit
TUNELRoche#12156792910

Fly stocks

Full genotypes are described at flybase.org. Except where indicated, flies were raised at 25C on standard Drosophila media (Archon Scientific, Durham). For larval experiments, animals were collected at wandering 3rd instar stage (L3). All adults dissected were older than 4 days. The following publicly available stocks were used in the study: wg > LacZ (#BS 1567), act >> LacZ(#BS 6355), hsFLP12;Sco/CyO (#BS 1929), UAS fzr RNAi (#VDRC 25550), fzrG0418 (#BS12297), fzrG0326 (BS#12241) and UAS-Ras85DV12 (#BS) where BS = Bloomington Stock Center and VDRC = Vienna Drosophila Resource Center. The following fly stocks were generously gifted to us: byn >Gal4 (Shigeo Takashima- UCLA, Singer et al., 1996), fz3RFP (Andrea Page-McCaw, Vanderbilt), P(Vha16-1CA06708)/CyO (Carnegie Protein Trap Collection), UAS-hid, UAS-reaper (Zhou et al., 1997, Toshie Kai, Temasek Laboratory), UAS N RNAi and UAS N-DN (Sarah Bray, University of Cambridge).

Drosophila genetics

All UAS transgenes were induced by byn > Gal4 or en > Gal4. All temporally controlled UAS-transgene experiments involved culturing flies with a Gal80ts repressor driven by the tubulin promoter in the genetic background at 18C except during the desired period of expression, during which they were transferred to 29C as described in the appropriate figure panel and accompanying text. For adult injury, after eclosion, all animals were aged 4–7 days at 18C before injury as done previously (Fox and Spradling, 2009; Losick et al., 2013; Sawyer et al., 2017). For larval injury, we shifted animals at L3 stage to 29C for 16 hr, a sub lethal level of injury induction. Heat shock conditions to induce FLP were performed at 37C by heat shocking either three times for 45 min each with a 1–2 hr recovery in between (DEMISE experiments) or a single time for 25 min (cell lineage tracing experiments).

DEMISE

The DEMISE plasmid was generated by restriction digest of pUAST > Stop > mCD8-GFP plasmid (addgene #24385, Potter et al., 2010) using XhoI and StuI. An insert containing a rpr-cDNA, SV40NLS and SV40PolyA sequences was then synthesized to make a final vector pUAST-FRT-Stop-FRT-rpr (Bio Basic Inc, New York). The construct was then injected to embryos and six fly lines were selected to include the construct on either the 2nd or 3rd chromosome. DEMISE flies (pUAST-FRT-Stop-FRT-rpr/CyO; byn >Gal4,Tub >Gal80/TM6) were raised at 25C unless otherwise noted. Flies were crossed to hsFLP[12] to induce cell death. Apoptotic death was observed in the wing disc in less than 48 hr, while in the hindgut it was observed in less than 24 hr.

Antibodies and cell markers

Markers for ileal cells (Vha16[Ca06708]) and the hindgut-midgut boundary (wg-LacZ or fz3-RFP) were used to specify the pylorus from adjacent regions of the gut. BrdU labeling and colcemid (Sigma) feeding were performed as in Sawyer et al. (2017). For cell death quantifications, TUNEL was performed using in situ cell death detection kit (Roche, Basel, Switzerland) as described previously (Schoenfelder et al., 2014). For antibody staining, tissues were dissected in 1X PBS and immediately fixed in 1XPBS, 3.7% paraformaldehyde, 0.3% Triton-X for 30–45 min. Immunostaining was performed as described in Sawyer et al. (2017). The following antibodies were used in this study: Fasciclin III (FasIII, DSHB, 7G10, 1:50), Beta-Galactosidase (Abcam, ab9361, 1:1000), DCP1 (Cell Signaling, Asp261, 1:1000), BrdU (Serotec, 3J9, 1:200), Phospho-Histone H3 (Cell Signaling, #9706, 1:1000), Centrosomin (generous gift from Nasser Rusan lab, NIH/NHLBI, 1:10,000). All secondary antibodies used were Alexa Fluor dyes (Invitrogen, 1:500). Tissues were mounted in Vectashield (Vector Laboratories Inc.). Images were acquired with the following: an upright Zeiss AxioImager M.2 with Apotome processing (10X NA 0.3 EC Plan-Neofluar air lens or 20X NA 0.5 EC Plan-Neofluar air lens) or inverted Leica SP5 (40X NA 1.25 HCX PL APO oil immersion). Image analysis was performed using ImageJ (Schneider et al., 2012), including adjusting brightness/contract, Z projections, cell counts, cell area and integrated density quantification. DNA FISH was performed as in Beliveau et al. (2014). Cy5-labeled oligo-probes to the AACAC repeat were synthesized by Integrated DNA Technologies.

Ploidy measurements

For ploidy measurements, guts were dissected in 1X PBS and prepared as described previously (Losick et al., 2013). Total tissue ploidy was calculated by timing the average animal ploidy per injury condition with the average recovered cell number ± STERR (DNA content * cell count).

Smurf assay for epithelial barrier integrity measurements

For measuring epithelial barrier integrity, we adapted the established Smurf assay (Rera et al., 2011). Flies were raised at 18C on standard Drosophila media (Archon Scientific, Durham) until 4–7 days post eclosion. Flies were then shifted to vials containing standard Drosophila media mixed with 0.5% Bromophenol blue, and were then kept at 29C and scored for gut permeability every 24 hr for 14 days.

Cell cycle nomenclature

(C)refers to the haploid DNA content. We define a ‘polyploid’ cell as a somatic cell that contains more than the diploid number of chromosome sets. We define the ‘endocycle’ as any programmed cell cycle in which the genome reduplicates without any sign of mitotic entry. We define ‘endoreplication’ as a broader term encompassing any truncated cycle that generates polyploid cells. We note the use of other terms in the literature that refer to similar processes, and also note that such terms are not always used consistently. We thus adopt the terms used most consistently in the current literature (Edgar et al., 2014).

Statistical analysis and reporting

Statistical analysis was performed using GraphPad Prism 7. Statistical tests and adjustments of P-values for multiple comparisons are detailed in figure legends. For all tests, P value reporting is as follows: (p>0.05,ns); (p<0.05,*); (p<0.01,**); (p<0.001,***); (p<0.0001, ****). Regression analysis for ploidy measurements and cell number was done using the formula log2(ploidy)x cell number, and a Pearson correlation analysis.

References

  1. 1
  2. 2
  3. 3
    Visualizing genomes with oligopaint FISH probes
    1. BJ Beliveau
    2. N Apostolopoulos
    3. CT Wu
    (2014)
    Current Protocols in Molecular Biology, 105, 10.1002/0471142727.mb1423s105, 24510436.
  4. 4
  5. 5
  6. 6
    Biology of Drosophila
    1. D Bodenstein
    (1950)
    275–367, The postembryonic development of Drosophila, Biology of Drosophila.
  7. 7
    Braunwald's Heart Disease E-Book: A Textbook of Cardiovascular Medicine
    1. RO Bonow
    2. DL Mann
    3. DP Zipes
    4. P Libby
    (2011)
    Elsevier Health Sciences.
  8. 8
    Targeted gene expression as a means of altering cell fates and generating dominant phenotypes
    1. AH Brand
    2. N Perrimon
    (1993)
    Development 118:401–415.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    Notch-Delta signaling induces a transition from mitotic cell cycle to endocycle in Drosophila follicle cells
    1. WM Deng
    2. C Althauser
    3. H Ruohola-Baker
    (2001)
    Development 128:4737–4746.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Expression of baculovirus P35 prevents cell death in Drosophila
    1. BA Hay
    2. T Wolff
    3. GM Rubin
    (1994)
    Development 120:2121–2129.
  39. 39
  40. 40
  41. 41
  42. 42
    Meiosis: how could it work?
    1. N Kleckner
    (1996)
    Proceedings of the National Academy of Sciences 93:8167–8174.
    https://doi.org/10.1073/pnas.93.16.8167
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Primary cardiac tumors
    1. MJ Leja
    2. DJ Shah
    3. MJ Reardon
    (2011)
    Texas Heart Institute Journal 38:261.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
    Drosophila brachyenteron regulates gene activity and morphogenesis in the gut.
    1. JB Singer
    2. R Harbecke
    3. T Kusch
    4. R Reuter
    5. JA Lengyel
    (1996)
    Development 122:3707–3725.
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103

Decision letter

  1. Bruce Edgar
    Reviewing Editor; University of Utah, United States
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States
  3. Norman Zielke
    Reviewer; University of Helsinki, Finland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A Cell Cycle Switch Dictates Organ Repair and Tissue Growth Responses in the Drosophila Hindgut" for consideration by eLife. Your article has been reviewed by Marianne Bronner as the Senior Editor, a Reviewing Editor, and three reviewers. The following individual involved in review of your submission has agreed to reveal his identity: Norman Zielke (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript details the responses to injury of the larval and adult pyloris of Drosophila, and highlights two different modes of tissue repair, one employing mitotic cell proliferation (in the larva) and the other employing endocycling (in the adult). The authors provide ample, high quality data showing that this cell cycle switch is controlled mediated by Fizzy-related (Fzr), a known regulator of mitotic to endocycle transitions. The three reviewers were uniformly enthusiastic about the quality and significance of the manuscript and suggested relatively minor clarifications be added in revision.

Essential revisions:

1) The revisions suggested in the reviews, appended below in full, are nearly all editorial and should be simple to address in revision. Hopefully you can address all of the clarifications and corrections not requiring new data in your revision.

As reviewing editor, I also suggest that you try the gut permeability experiment requested by reviewer 3. This should be straightforward as protocols for such assays (the "smurf" assay) already exist. However, if this experiment proves technically difficult, too time consuming, or uninformative, it will not be required for publication.

2) In addition, I'd like to mention one point that the reviews did not address, namely how Fzr is controlled developmentally. Is the switch to a Fzr-regulated endocycle mediated by induction of Fzr sometime during metamorphosis? Although I did see that you rule out hindsight and Notch as regulators, and propose a potential role for Ecdysone and EcR, I did not find data on Fzr protein or RNA expression in the pyloris during the transition. I believe such data are important for this story and should be included in some form. In your revision, please describe the pattern of Fzr expression by including new data, or the relevant citations if they exist. If these data are already included, I apologize for the oversight.

Reviewer #1

The manuscript "A Cell Cycle Switch Dictates Organ Repair and Tissue Growth Responses in The Drosophila Hindgut" by Cohen et al., describes the cell cycle response to acute cell ablation in the Drosophila hindgut. The manuscript is well written and the included data are of very high quality and accurately reflects the conclusions in the text. However, most of the obtained results are somewhat expected from the data that have been obtained in other model systems and/or context. The most striking finding of this study is the observation that tissue regeneration upon acute cell ablation in the adult pylorus of Fzr-depleted animals is mediated by mitotic cycles although these cells are normally primed to regenerate via endocycles. This is a significant finding, and thus this manuscript should qualify for publication in eLife after the minor problems listed below have been addressed.

- To manipulate the tissue in a precise manner the authors have developed a new Flp/FRT-Gal80ts-based method termed DEMISE, which enables spatiotemporally controlled induction of the pro-apoptotic gene reaper as well as independent expression of UAS-transgenes such as Fzr-RNAi. This is a very elegant approach, but in my opinion does acute cell ablation with reaper not exactly reflect the kind of damage to which the cells in the hindgut are normally exposed? A hallmark of ageing is loss of intestinal integrity due to accumulation of cells with damaged DNA. Earlier work in hepatocytes with dysfunctional telomeres (Lazzerini-Denchi et al., 2006) demonstrated that liver regeneration in presence of DNA damage signals is mediated by endocycles, which led to the notion that damaged, but viable cells utilize endocycles instead of mitotic cycles to avoid mitotic errors and propagation of the damaged DNA. Therefore, the finding that acute cell ablation in the larval pylorus is compensated by additional mitotic cycles, could be rather a normal response to cell ablation in developing tissues, and thus not per se exclude that these cells could regenerate through endocycles. Therefore, it would be advisable to replace reaper by Cas9 and a "sloppy"-gRNA that introduces DSBs throughout the genome, to re-evaluate (perhaps in a further study) the question whether the cells in the larval pylorus have the capacity to regenerate by endocycles.

- In subsection “DEMISE reveals fizzy-related as a regulator of injury-mediated cell cycle programming”, the authors state "Our pre-injury FUCCI data (Figure 2I-K) provided a potential clue, as larval but not adult uninjured pyloric cells express the mitotic regulator CyclinB", which is misleading as the Fly-FUCCI system doesn't reflect the expression levels of endogenous CyclinB. To make this statement the authors should utilize a Cyclin B antibody or a GFP-Trap.

- In subsection “Developmental vs. Stress-induced endoreplication”, the authors state "It is somewhat surprising that loss of fzr alone is sufficient to restore pyloric mitosis, as the cyclin dependent kinase 1 (Cdk1) activator Cdc25/String is often required (Schaeffer et al., 2004; Von Stetina et al., 2018)". Stg/Cdc25 is an APC/C-Fzr target in the Drosophila embryo (Reber et al., 2006), so provided the Stg/Cdc25 transcript is present in these cells, Fzr-depletion could potentially lead also to accumulation Stg/Cdc25 and thereby promote the G2/M transition. Therefore, the authors should evaluate Stg/Cdc25 levels by antibody staining or GFP-trap.

Reviewer #2

A variety of distinct cell cycle types apart from the canonical mitotic cell division cycle are encountered in eukaryotes. The manuscript by Cohen et al. reports experimental work addressing regulation and purpose of a switch from canonical to endocycle. The same lab has previously published a series of papers on this and related issues, primarily focusing on the hindgut in Drosophila larvae and adults. The current study builds on their steadily accumulated outstanding expertise. Their previous work has shown that pylorus cells in the adult hindgut respond to experimentally induced apoptosis that kills a substantial fraction of these cells. The surviving cells repair and restore the lost tissue mass by re-growing while progressing through endocycles. Here Cohen et al. compare the response to analogous experimentally induced apoptosis in the larval and adult pylorus. Well controlled experiments (expression of pro-apoptotic proteins in a tissue-specific and temporally controlled manner with the help of GAL4/GAL80ts) resulting in highly convincing data demonstrate clearly that tissue mass and in particular total gene content (DNA amount) is restored in both cases but via different routes: cell proliferation (growth paralleled by progression through mitotic cell cycles) in larvae versus endocycles (growth paralleled by genome amplification in the absence of mitosis) in adults.

In the second part of the manuscript the authors switch to a more sophisticated control of induced apoptosis. By combining GAL4/GAL80ts with Flp/FRT regulation they achieve experimental induction of apoptosis in a few random cells within a tissue where additional transgenes (including UAS-RNAi for knock down of some gene of interest) can be expressed (with tissue-specific and temporal control). They designate their control system as DEMISE. They exploit DEMISE for an analysis of the role of a particular cell cycle regulator that has been most consistently implicated in mitotic->endocycle switching in many labs and experimental systems. They arrive at a convincing demonstration that knockdown of this APC/C regulator Fzr/Cdh1 in the adult pylorus converts the repair route from adult to larval style.

Cohen et al., do not report about efforts towards clarification whether this change in the repair mode in the adult pylorus has any physiological consequences on the function of the repaired organ. Instead they switch to another type of damage in the final part of the manuscript. Instead of expressing a pro-apoptotic protein they now express activated Ras (RasV12) in larval or adult pylorus cells. This is shown to result in excessive growth accompanied by progression through mitotic cycles in larvae and through endocycles in adults. Again Fzr/Cdh1 knockdown is shown to convert these endocycles into mitotic cycles in adults. Finally, it is shown that repair of adult pylorus via mitotic cycles results in morphological organ deformations that are not observed after repair via endocycles, suggesting that an increased risk of tissue destabilization by mitosis/cytokinesis might explain why evolution might have favored repair by endocycles. While this proposal is not really new, I am not aware of any supportive evidence that comes anywhere close to what is nicely demonstrated here. While it can be debated whether the experimentally induced damage has much to do with physiological insults, it has certainly allowed precise and conclusive analyses. The writing is equally precise and convincing.

Reviewer #3

The manuscript by Cohen et al., reports that the Drosophila pylorus has different types of regeneration after injury that depends on developmental stage. The larval pylorus regenerates by mitosis, whereas the adult pylorus regenerates by endoreplication cell cycles. They show that the ubiquitin ligase Fzr (Cdh1), but not Notch, promotes endoreplication in the adult. Knockdown of Fzr caused adult pylorus cells to regenerate tissue mass by mitotic cell cycles instead of endoreplication cycles. They also showed that endoreplication cycles, but not mitotic cycles, in the adult pylorus resist perturbation of epithelial architecture caused by promotion of RasV12 over-expression. Along the way they develop a new system they call DEMISE, which permits independent induction of transgene expression and cell death to evaluate the contribution of genes and growth programs to tissue regeneration.

This is a quality study that reports very interesting findings relevant to the question of how the response to tissue injury differs during development. It should be of interest to a fairly broad readership. The experiments are well controlled, the manuscript is well-written, and it contains provocative ideas, but the discussion is a tad on the long side. I suggest below one simple experiment and have a few suggestions and questions.

1) A major finding is that adult pyloric epithelial architecture is altered after Fzr RNAi and RasV12 overexpression. The authors speculate that this may compromise epithelial integrity. The authors should assess whether the hyperplasia increases pyloric epithelial permeability using standard dye or other assays.

2) Is the epithelial outpouching/inpouching in RasV12 Fzr RNAi animals associated with piling up of epithelial cells?

3) Was the combined effect of RasV12 over-expression and cell death tested, +/- Fzr RNAi, using the new DEMISE injury system?

4) The authors discuss that polyploid cycles in the adult "skip" late replication. Please be clear whether this means a change in replication timing of genomic regions or under-replication as in other polyploid cells. It seems that the EdU labeling does not distinguish between these possibilities.

5) The authors define their cell cycle nomenclature in the methods: "We define the "endocycle" as any programmed cell cycle in which the genome reduplicates but chromosomes are not segregated into two daughter cells." That seems like too broad of a definition that would include cells that pass through various stages of an abortive mitosis / cytokinesis but fail to divide. These types of cycles are often called endomitotic. I know that there is not unanimity on the use of this terminology in the field, but are the authors promoting that all polyploid cycles with periodic S phase be called endocycles?

https://doi.org/10.7554/eLife.38327.016

Author response

[…] Essential revisions:

1) The revisions suggested in the reviews, appended below in full, are nearly all editorial and should be simple to address in revision. Hopefully you can address all of the clarifications and corrections not requiring new data in your revision.

As reviewing editor, I also suggest that you try the gut permeability experiment requested by reviewer 3. This should be straightforward as protocols for such assays (the "smurf" assay) already exist. However, if this experiment proves technically difficult, too time consuming, or uninformative, it will not be required for publication.

As requested, we now include the experiment suggested by reviewer 3. In agreement with our finding that ~20% of RasV12 + fzr RNAi animals have perturbed architecture, we now show that ~20% of RasV12 + fzr RNAi animals also have lost gut permeability, whereas we observed no substantial permeability phenotypes with either RasV12 or control animals. We include these new data in Figure 5M. (Previous Figure 5M changed to Figure 5L).

2) In addition, I'd like to mention one point that the reviews did not address, namely how Fzr is controlled developmentally. Is the switch to a Fzr-regulated endocycle mediated by induction of Fzr sometime during metamorphosis? Although I did see that you rule out hindsight and Notch as regulators, and propose a potential role for ecdysone and EcR, I did not find data on Fzr protein or RNA expression in the pyloris during the transition. I believe such data are important for this story and should be included in some form. In your revision, please describe the pattern of Fzr expression by including new data, or the relevant citations if they exist. If these data are already included, I apologize for the oversight.

As requested, we now include data on Fzr expression in the pylorus. Using two previously established fzr transcriptional reporters, we find that fzr levels are undetectable in the larval pylorus, but are detectable in adjacent endocycling cells. In contrast, fzr is easily detectable in adult pyloric cells. These data mirror our functional data, which suggested that fzr is up-regulated in adult pyloric cells. We include these new data in Figure 4 and Figure 4—figure supplement 1.

Reviewer #1:

[…] To manipulate the tissue in a precise manner the authors have developed a new Flp/FRT-Gal80ts-based method termed DEMISE, which enables spatiotemporally controlled induction of the pro-apoptotic gene reaper as well as independent expression of UAS-transgenes such as Fzr-RNAi. This is a very elegant approach, but in my opinion does acute cell ablation with reaper not exactly reflect the kind of damage to which the cells in the hindgut are normally exposed? A hallmark of ageing is loss of intestinal integrity due to accumulation of cells with damaged DNA. Earlier work in hepatocytes with dysfunctional telomeres (Lazzerini-Denchi et al., 2006) demonstrated that liver regeneration in presence of DNA damage signals is mediated by endocycles, which led to the notion that damaged, but viable cells utilize endocycles instead of mitotic cycles to avoid mitotic errors and propagation of the damaged DNA. Therefore, the finding that acute cell ablation in the larval pylorus is compensated by additional mitotic cycles, could be rather a normal response to cell ablation in developing tissues, and thus not per se exclude that these cells could regenerate through endocycles. Therefore, it would be advisable to replace reaper by Cas9 and a "sloppy"-gRNA that introduces DSBs throughout the genome, to re-evaluate (perhaps in a further study) the question whether the cells in the larval pylorus have the capacity to regenerate by endocycles.

Thank you for this suggestion, which we agree would be best suited for a further study. However, we note that as part of our previous study of DSB responses in the hindgut (Bretscher and Fox, 2016), we noted that the pylorus of larvae subjected to high levels (20 Gy) of X-irradiation, which also induces DSBs throughout the genome, appears to remain diploid. We noted the same result for animals which expressed the endonuclease ICre, which creates DSBs throughout the rDNA. These data indirectly support the idea that DSBs do not induce endocycles in the larval pylorus. Future in-depth studies can clarify whether the DSB response in the larval pylorus mirrors the apoptotic response that we report here.

- In subsection “DEMISE reveals fizzy-related as a regulator of injury-mediated cell cycle programming”, the authors state "Our pre-injury FUCCI data (Figure 2I-K) provided a potential clue, as larval but not adult uninjured pyloric cells express the mitotic regulator CyclinB", which is misleading as the Fly-FUCCI system doesn't reflect the expression levels of endogenous CyclinB. To make this statement the authors should utilize a Cyclin B antibody or a GFP-Trap.

Thank you for pointing this out. We were unable to detect CyclinB protein in the hindgut with either an available DSHB CyclinB antibody or in animals expressing Ubi-CyclinB GFP. These data may suggest that CyclinB levels in the hindgut are lower than in other tissues, or that technical challenges prevented us from visualizing CyclinB in this tissue. In line with this reviewer’s comment #5 (see below), we have resolved this issue by revising all references to the cyclinB-based FUCCI transgene in the text to say “Cyclin B1-266-mRFP.”

- In subsection “Developmental vs. Stress-induced endoreplication”, the authors state "It is somewhat surprising that loss of fzr alone is sufficient to restore pyloric mitosis, as the cyclin dependent kinase 1 (Cdk1) activator Cdc25/String is often required (Schaeffer et al., 2004; Von Stetina et al., 2018)". Stg/Cdc25 is an APC/C-Fzr target in the Drosophila embryo (Reber et al., 2006), so provided the Stg/Cdc25 transcript is present in these cells, Fzr-depletion could potentially lead also to accumulation Stg/Cdc25 and thereby promote the G2/M transition. Therefore, the authors should evaluate Stg/Cdc25 levels by antibody staining or GFP-trap.

As requested, we performed the reviewer’s suggested experiment. Much like the CyclinB experiment, we were unable to detect Stg protein in the hindgut of fzr animals (using an antibody to Stg generated by our colleague Stefano Di Talia). However, we were also unable to detect Stg in ANY tissue outside of the embryo. We also obtained similar negative results in the hindgut with available stg transgenic reporters, and thus we are hesitant to make any conclusions about Stg levels in the hindgut at this time.

Reviewer #3

[…] This is a quality study that reports very interesting findings relevant to the question of how the response to tissue injury differs during development. It should be of interest to a fairly broad readership. The experiments are well controlled, the manuscript is well-written, and it contains provocative ideas, but the discussion is a tad on the long side. I suggest below one simple experiment and have a few suggestions and questions.

1) A major finding is that adult pyloric epithelial architecture is altered after Fzr RNAi and RasV12 overexpression. The authors speculate that this may compromise epithelial integrity. The authors should assess whether the hyperplasia increases pyloric epithelial permeability using standard dye or other assays.

Please see the response to “essential revisions”, #1.

2) Is the epithelial outpouching / inpouching in RasV12 Fzr RNAi animals associated with piling up of epithelial cells?

Thank you for this question. We hope to investigate this question in depth in the future using light sheet microscopy.

3) Was the combined effect of RasV12 over-expression and cell death tested, +/- Fzr RNAi, using the new DEMISE injury system?

We attempted to construct these 6-transgene animals prior to our first manuscript submission. However, in multiple attempts to construct these flies, we were unable to obtain viable animals needed to do this experiment. In parallel, we also attempted to synthesize this genotype in a clonal pattern using FLP/FRT but were also unsuccessful due to transgene leakage issues.

4) The authors discuss that polyploid cycles in the adult "skip" late replication. Please be clear whether this means a change in replication timing of genomic regions or under-replication as in other polyploid cells. It seems that the EdU labeling does not distinguish between these possibilities.

As requested, we now include new data using DNA FISH, which supports our prior claim that adult pyloric cells skip late replication during injury-induced endocycles. These new data are included in Figure 4—figure supplement 1.

5) The authors define their cell cycle nomenclature in the methods: "We define the "endocycle" as any programmed cell cycle in which the genome reduplicates but chromosomes are not segregated into two daughter cells." That seems like too broad of a definition that would include cells that pass through various stages of an abortive mitosis / cytokinesis but fail to divide. These types of cycles are often called endomitotic. I know that there is not unanimity on the use of this terminology in the field, but are the authors promoting that all polyploid cycles with periodic S phase be called endocycles?

As requested, we revised our endocycle definition to say “any programmed cell cycle in which the genome reduplicates without any sign of mitotic entry.”

https://doi.org/10.7554/eLife.38327.017

Article and author information

Author details

  1. Erez Cohen

    Department of Cell Biology, Duke University School of Medicine, Durham, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-2390-3707
  2. Scott R Allen

    Department of Cell Biology, Duke University School of Medicine, Durham, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-4809-0493
  3. Jessica K Sawyer

    Department of Pharmacology & Cancer Biology, Duke University School of Medicine, Durham, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared
  4. Donald T Fox

    1. Department of Cell Biology, Duke University School of Medicine, Durham, United States
    2. Department of Pharmacology & Cancer Biology, Duke University School of Medicine, Durham, United States
    3. Regeneration Next Initiative, Duke University School of Medicine, Durham, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    don.fox@duke.edu
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-0436-179X

Funding

National Institutes of Health (GM118447)

  • Donald T Fox

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jumana Abed, Nasser Rusan, and Ting Wu for providing useful reagents and technical advice. We thank Bernard Mathey-Prevot, David MacAlpine, Jingli Cao, and Fox laboratory members for comments on the manuscript. This project was supported by NIGMS grant GM118447 to DF.

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Bruce Edgar, University of Utah, United States

Reviewer

  1. Norman Zielke, University of Helsinki, Finland

Publication history

  1. Received: May 12, 2018
  2. Accepted: August 16, 2018
  3. Accepted Manuscript published: August 17, 2018 (version 1)
  4. Version of Record published: September 10, 2018 (version 2)

Copyright

© 2018, Cohen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 777
    Page views
  • 184
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Developmental Biology
    2. Cell Biology
    Ariel M Pani, Bob Goldstein
    Research Article Updated
    1. Developmental Biology
    2. Evolutionary Biology
    Nagayasu Nakanishi, Mark Q Martindale
    Research Article
