Figures and data in Calcium-dependent electrostatic control of anion access to the pore of the calcium-activated chloride channel TMEM16A

Version of Record

Accepted for publication after peer review and revision.

Download
Cite
Share
CommentOpen annotations (there are currently 0 annotations on this page).

Version of Record updated: December 7, 2018 (This version)
Version of Record published: October 19, 2018 (Go to version)
Accepted Manuscript published: October 12, 2018 (Go to version)
Accepted: October 11, 2018
Received: June 14, 2018

Figures
Tables
Additional files

8 figures, 1 table and 1 additional file

Figures

Figure 1 with 3 supplements

Download asset Open asset

TMEM16A structure and conduction properties of constitutively active mutants.

(A) Ribbon representation of the Ca²⁺-bound mouse TMEM16A channel viewed from within the membrane (PDB: 5OYB), subunits are shown in unique colors. Black solid lines, outer- and innermost membrane boundaries, black dashed lines, boundaries of the hydrophobic core; blue spheres, Ca²⁺ ions; violet surface, molecular surface of the pore (generated in HOLE [Smart et al., 1996] with a solvent probe radius of 0.7 Å). (B) Close-up of the intracellular vestibule with selected residues displayed as sticks and labelled. Green sphere, Cα of Gly 644. α3 and α4 are removed for clarity. (C) Instantaneous I-V relations of the constitutively active mutant G644P from pre-pulses at 80 mV in the presence of the indicated intracellular Ca²⁺ concentrations. Solid lines are fits to Equation 2. Data were normalized to the fitted amplitude factor (A in Equation 2) and were subsequently normalized to the current amplitude at 120 mV at zero Ca²⁺ (I/I _{+120mV 0Ca}). Data are mean values of normalized I-V plots from 5 to 13 individual patches, errors are s.e.m. (D) Relative energy profiles (at 0 mV) of the ion conduction path at the indicated intracellular Ca²⁺ concentrations (colors as in C). Barriers are visualized as a sum of three Gaussians with the peaks and amplitudes indicating their locations and relative barrier heights respectively. (E) Relative rate of barrier crossing at the indicated location (σ_h and σ_β) as a function of intracellular Ca²⁺ concentration. Solid lines are fits to the Hill equation. Data are best-fit values and errors are 95% confidence intervals. (F) Instantaneous I-V relations of the mutant Q649A from pre-pulses at 100 mV (left) and −60 mV (right) in the presence of the indicated intracellular Ca²⁺ concentrations. Solid lines are fits to Equation 2. Data were normalized as in C and are mean values of normalized I-V plots from five individual patches, errors are s.e.m. (G) Relative rate of barrier crossing at the intracellular pore entrance (σ_β) as a function of both intracellular Ca²⁺ concentration and voltage. Solid lines are fits to the Hill equation.

https://doi.org/10.7554/eLife.39122.002

Figure 1—figure supplement 1

Download asset Open asset

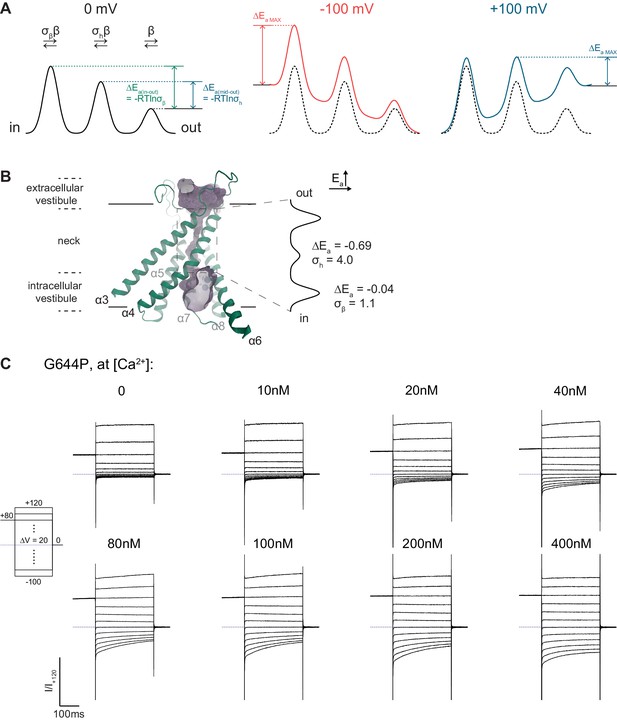

Permeation model and G644P currents.

(A) Energy profile indicating the relationship between the relative rate constants (σ_h and σ_β) and the energy difference between the middle or inner barrier and the outer barrier at 0 mV (ΔE_{a (mid-out)} and ΔE_{a (in-out)}, left). The effect of a constant electric field across the channel is shown (center, right). (B) Relationship between the pore and the energy profile of WT. The molecular surface of the pore is shown in violet. Blue spheres, calcium ions. Selected helices are shown and are labelled. View is from within the membrane. (C) Rundown-corrected and normalized current responses of G644P used to construct the I-V relations shown in Figure 1C.

https://doi.org/10.7554/eLife.39122.003

Figure 1—figure supplement 2

Download asset Open asset

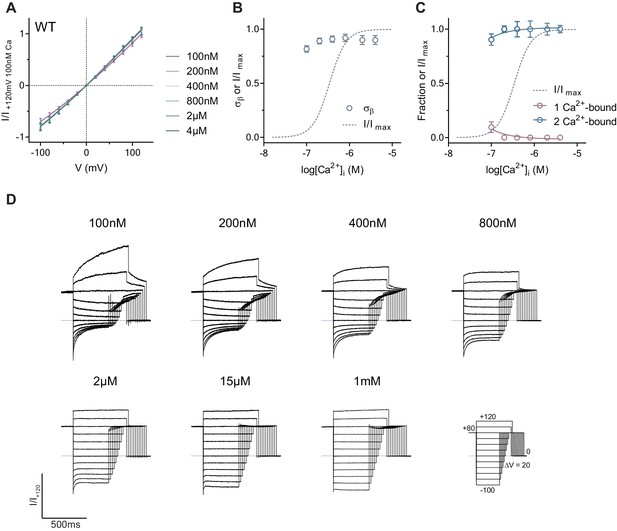

Relative contribution of open states with various Ca²⁺occupancy to the activation of WT.

(A) Instantaneous I-V relations from pre-pulses at 80 mV in the presence of the indicated intracellular Ca²⁺ concentrations for WT. Solid lines are fits to Equation 2. Data were processed as in Figure 1C and are mean values of normalized I-V plots from 7 to 8 individual patches, errors are s.e.m. (B) Relative rate of barrier crossing at the intracellular pore entrance (σ_β) of WT as a function of intracellular Ca²⁺ concentration. Dashed lines are the concentration-response relation of WT at 80 mV. Data are best-fit values and errors are 95% confidence intervals. (C) Relative contribution of open states with various Ca²⁺ occupancy during activation. Data are best-fit values obtained from fitting the data in A to Equation 7, errors are 95% confidence intervals. Solid lines describe the trend and have no theoretical meaning. (D) Rundown-corrected and normalized current responses of WT used to construct the I-V relations shown in A. .

https://doi.org/10.7554/eLife.39122.004

Figure 1—figure supplement 3

Download asset Open asset

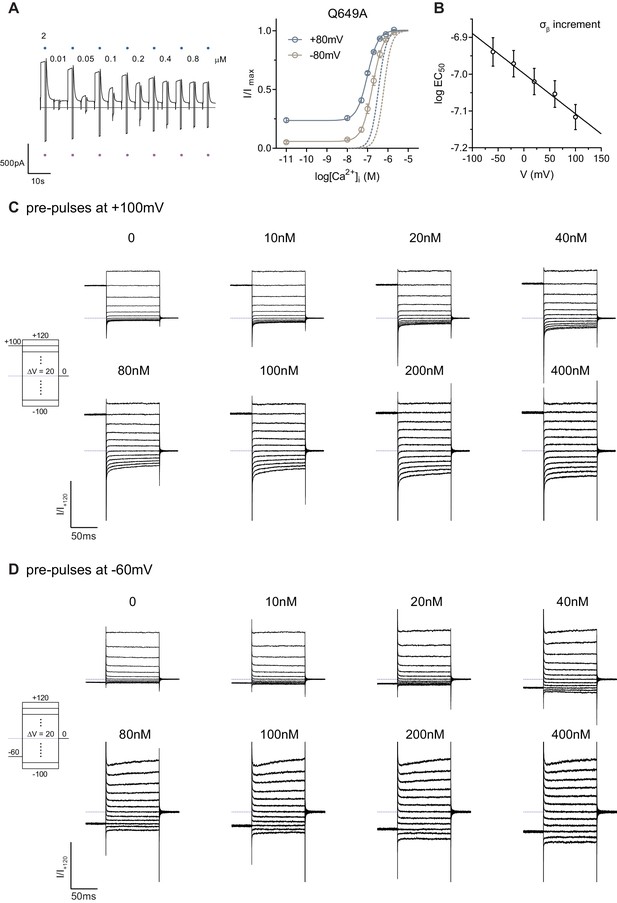

Characterization of the mutant Q649A.

(A) Representative current trace (left) and concentration-response relations (right) of Q649A recorded at +/-80 mV using a rundown-correction protocol. Solid lines are fits to the Hill equation. Dashed lines are the relations of WT. Data are mean values of normalized concentration-response relations from 6 individual patches, errors are s.e.m. Blue and violet dots on the current trace indicate the reference pulses used for rundown correction. (B) EC₅₀ for σ_β increment (Figure 1G) as a function of voltage. Solid line is a fit to Equation 1 . Data are best-fit values and errors are 95 % confidence intervals. The electrical distance ( $f_{V}$ ) was estimated to be 0.032 ± 0.007. C-D. Rundown-corrected and normalized current responses of Q649A with pre-pulses at, (C), 100 mV and, (D), -60 mV.

https://doi.org/10.7554/eLife.39122.005

Figure 2 with 2 supplements

Download asset Open asset

Conduction properties of the constitutively active mutant G644P in the presence of intracellular Mg²⁺.

(A) Instantaneous I-V relations of the constitutively active mutant G644P from pre-pulses at 80 mV in the presence of the indicated intracellular Mg²⁺ concentrations. Solid lines are fits to Equation 2. Data were normalized to the fitted amplitude factor (A in Equation 2) and were subsequently normalized to the current amplitude at 120 mV at zero Mg²⁺ (I/I _{+120mV 0Mg}). Data are mean values of normalized I-V plots from 9-11 individual patches, errors are s.e.m. (B) Relative rate of barrier crossing at the intracellular pore entrance (σ_β) as a function of intracellular Mg²⁺ concentration. Solid line is a fit to the Hill equation for one binding site. The relation with Ca²⁺ is shown as dashed line for comparison. Data are best-fit values and errors are 95% confidence intervals. (C) Experimental relationship between the assumed net charge of the Ca²⁺ binding site (valence) and anion conduction energetics (ΔE_{a (in-out)}). Data are transforms of σ_β, using Equation 3, at zero and saturating Mg²⁺ and Ca²⁺ concentrations. Dashed Line is a fit to Equation 4. The relative permittivity ( $ε_{r}$ ) for occupancy by divalent cations was estimated to be 64.8 ± 35.1.

https://doi.org/10.7554/eLife.39122.006

Figure 2—figure supplement 1

Download asset Open asset

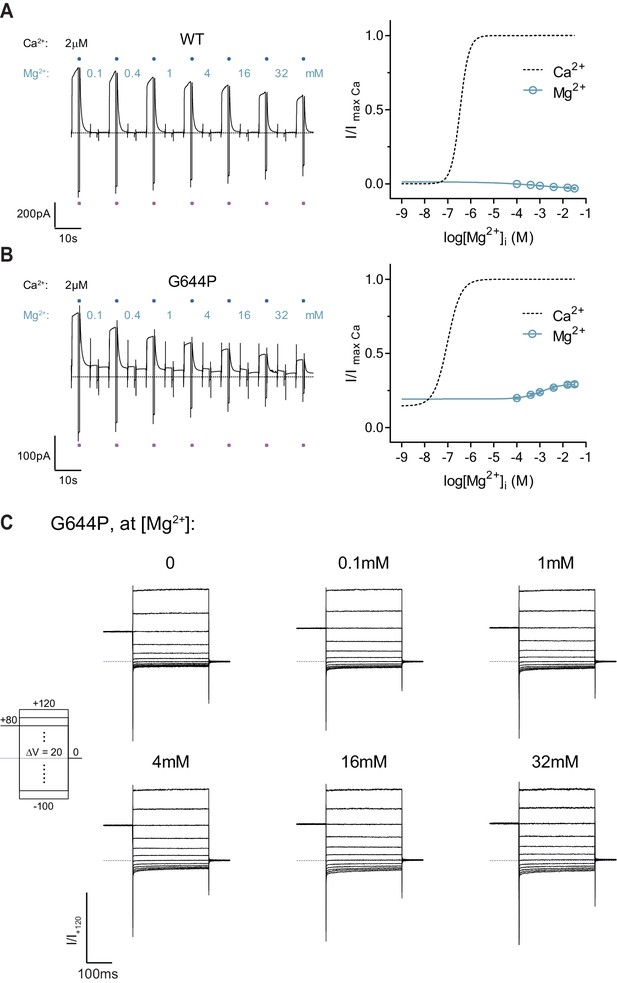

Mg²⁺concentration-response relations of WT and G644P.

A-B, Representative current traces (left) and concentration-response relations (right) of WT (A) and G644P (B) recorded at ±80 mV using a rundown-correction protocol. Solid lines are fits to the Hill equation for one binding site. Dashed lines are the relations with Ca²⁺ shown for comparison. Data are mean values of normalized concentration-response relations from 5 and 7 individual patches respectively, errors are s.e.m. Blue and violet dots on the current traces indicate the reference pulses used for rundown correction. (C) Rundown-corrected and normalized current responses of G644P at the indicated Mg²⁺ concentrations used to construct the I-V relations shown in Figure 2A.

https://doi.org/10.7554/eLife.39122.007

Figure 2—figure supplement 2

Download asset Open asset

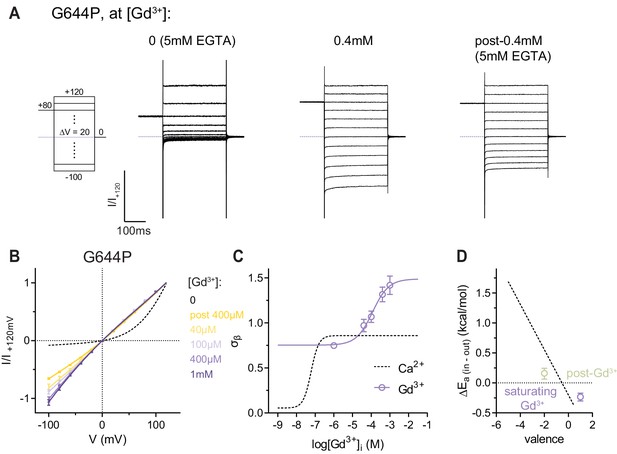

Conduction properties of G644P in the presence of intracellular Gd³⁺.

(A) Rundown-corrected and normalized current responses of G644P at the indicated Gd³⁺ concentrations. A slowly dissociating occupancy persists upon a jump to 5 mM EGTA post-0.4 mM Gd³⁺. (B) Instantaneous I-V relations of G644P from pre-pulses at 80 mV in the presence of the indicated intracellular Gd³⁺ concentrations. Solid lines are fits to Equation 2. Data were normalized to the respective current amplitudes at 120 mV (I/I₊₁₂₀). Data are mean values of normalized I-V plots from 3 to 9 individual patches, errors are s.e.m. (C) Relative rate of barrier crossing at the intracellular pore entrance (σ_β) as a function of intracellular Gd³⁺ concentration. Solid line is a fit to the Hill equation for one binding site. The relation with Ca²⁺ is shown as dashed line for comparison. Data are best-fit values and errors are 95% confidence intervals. (D) Anion conduction energetics (ΔE_{a (in-out)}) at saturating Gd³⁺ concentrations and after a jump to 5 mM EGTA post-0.4mM Gd³⁺. Data are transforms of σ_β, using Equation 3, at the two plateaus determined in C. Dashed line indicates the relation between divalent occupancy and anion conduction energetics determined with Mg²⁺ and Ca²⁺ from Figure 2C. The extra valence due to Gd³⁺ binding were assigned as 3 and 6, which might not necessarily be the case as a mixed occupancy by Gd³⁺ and other trace di/trivalent cations cannot be ruled out under the recording conditions.

https://doi.org/10.7554/eLife.39122.008

Figure 3 with 1 supplement

Download asset Open asset

Conduction properties of the constitutively active mutant G644P with additional mutations at the Ca²⁺binding site.

A-E, Top, instantaneous I-V relations from pre-pulses at 80 mV in the presence of the indicated intracellular Ca²⁺ concentrations for mutants G644P/E654Q (A), G644P/E654R (B), G644P/E654R/E702Q (C), G644P/E654Q/E705Q (D) and G644P/E654R/E705Q (E). Solid lines are fits to Equation 2. Data were normalized to the current amplitude at +120 mV of each curve and are mean values of normalized I-V plots from 6, 7, 5–10, 5 and 7 individual patches respectively, errors are s.e.m. Bottom, relative rate of barrier crossing at the intracellular pore entrance (σ_β) as a function of intracellular Ca²⁺ concentration for mutants G644P/E654Q (A), G644P/E654R (B) G644P/E654R/E702Q (C), G644P/E654Q/E705Q (D) and G644P/E654R/E705Q (E). Solid lines are fits to the Hill equation for one binding site. Data in red were omitted from the fit (see Materials and methods). Dashed lines are the relations of the indicated mutant shown for comparison. Data are best-fit values and errors are 95% confidence intervals. F-G, Left, relative activation energies at the intracellular pore entrance (ΔE_{a (in-out)}) for the indicated mutants at saturating Ca²⁺ concentrations (F) and zero Ca²⁺ (G). Data are transforms of σ_β, using Equation 3, at saturating and zero Ca²⁺ concentrations obtained from the fits shown in A-E. Right, energetic changes from the parent mutant G644P/E654Q (PQ) in a double-mutant cycle for the indicated mutants at saturating Ca²⁺ concentrations (F) and zero Ca²⁺ (G).

https://doi.org/10.7554/eLife.39122.009

Figure 3—figure supplement 1

Download asset Open asset

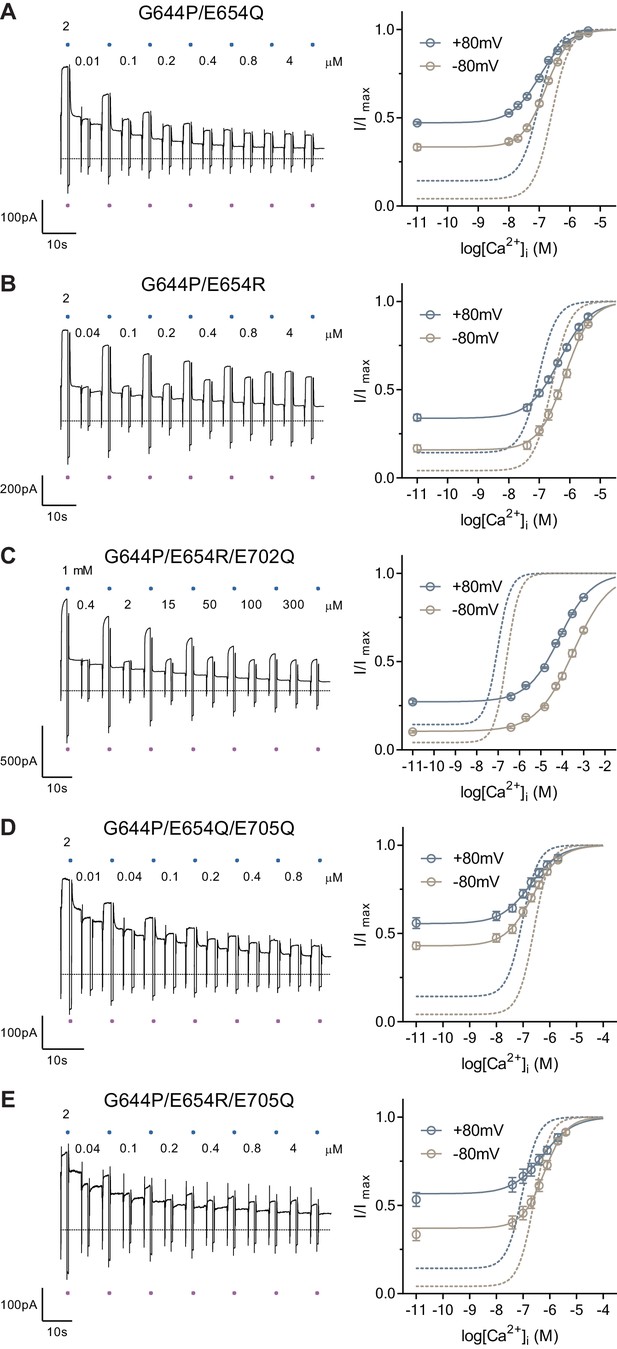

Concertation-response relations of mutants.

Representative current traces (left) and concentration-response relations (right) of mutants G644P/E654Q (A), G644P/E654R (B) G644P/E654R/E702Q (C), G644P/E654Q/E705Q (D) and G644P/E654R/E705Q (E) recorded at ±80 mV using a rundown-correction protocol. Solid lines are fits to the Hill equation. Dashed lines are the relations of G644P shown for comparison. Data are mean values of normalized concentration-response relations from 4 to 12, 8 – 11, 5 – 7, 6 – 7 and 10 individual patches respectively, errors are s.e.m. Blue and violet dots on the current traces indicate the reference pulses used for rundown correction.

https://doi.org/10.7554/eLife.39122.010

Figure 4

Download asset Open asset

Electrostatic profiles.

(A) System in which the electrostatic profile of the pore was calculated. Selected helices are shown and view is from within the membrane on one of the two pores in the dimeric protein. Black solid lines, outer- and innermost membrane boundaries (OB and IB, respectively); black dashed lines, boundaries of the hydrophobic core; blue spheres, Ca²⁺ ions; yellow spheres, points at which the electrostatic potential (Φ) was plotted. Magenta sphere corresponds to the z position of the nitrogen atom of Lys 588. B-C. Electrostatic potential along the pore in the Ca²⁺-bound structure containing the indicated number of Ca²⁺ ions (B) and carrying the indicated *in silico* mutations with only the upper Ca²⁺ ion bound (C). Vertical dashed lines indicate the membrane boundaries. The position of Lys 588 at the intracellular pore entrance is indicated. (D) Experimental relationship between the assumed net charge of the Ca²⁺ binding site (valence) and anion conduction energetics (ΔE_{a (in-out)}). Data are transforms of σ_β, using Equation 3, at saturating and zero Ca²⁺ concentrations for all the mutants on the G644P background (Figure 2). Lines are fits to Equation 4. The relative permittivity ( $ε_{r}$ ) for the 0 Ca²⁺-bound and 1 Ca²⁺-bound states were estimated to be 162.7 ± 127.2 and 96.7 ± 6.3 respectively.

https://doi.org/10.7554/eLife.39122.011

Figure 5 with 1 supplement

Download asset Open asset

Activation properties of pore mutants.

(A) Location of the pore residues Lys 588 and 645 relative to the Ca²⁺ binding site (distances in Å). B-E. Concentration-response relations of K588S (B), K645S (C), K588E/E702Q (D) and K645E/E702Q (E) recorded at +/-80 mV using a rundown-correction protocol. Solid lines are fits to the Hill equation. Dashed lines are the relations of WT (**B–C**) and E702Q (**D–E**). Data are mean values of normalized concentration-response relations from 8-11, 7-8, 10 and 5-7 individual patches respectively, errors are s.e.m. (F) Relationship between the electrostatic potential of the intracellular pore entrance (ΔQ) and Ca²⁺ binding energetics (ΔΔG_obs) for the indicated residues. Data are transforms of EC_{50 mutant}/EC_{50 background} at +80 mV using Equation 6. Solid lines are fits to Equation 5. The relative permittivity ( $ε_{r}$ ) for Lys 588 and 645 were estimated to be 131.9 ± 12.3 and 71.2 ± 6.1 respectively.

https://doi.org/10.7554/eLife.39122.012

Figure 5—figure supplement 1

Download asset Open asset

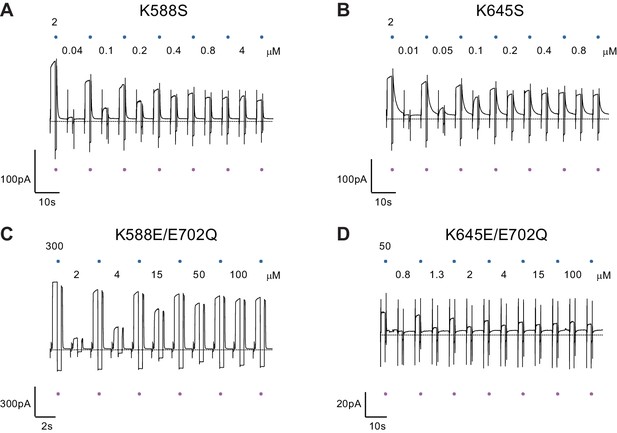

Current traces of mutants at the neck region.

Representative current traces of mutants K588S (A), K645S (B), K588E/E702Q (C) and K645E/E702Q (D). Blue and violet dots indicate the reference pulses used for rundown correction.

https://doi.org/10.7554/eLife.39122.013

Figure 6 with 1 supplement

Download asset Open asset

Mechanism.

Schematic depiction of gating in G644P (A) and WT (B). In the apo state of the mutant G644P, the negative electrostatic potential strongly favors the access of Ca²⁺ over Cl^-. In contrast, the positive electrostatic potential in the doubly occupied state strongly favors the access of Cl^-. A similar mechanism is expected to occur in WT, which requires Ca²⁺ for the activation of α6 and the opening of a steric gate located above the intracellular vestibule. When activated, the major conducting state in WT is the open state with two Ca²⁺ ions bound. Green cylinders, selected helices delimiting the pore; blue spheres, Ca²⁺ ions; red spheres, Cl^- ions. Red, orange and blue backgrounds depict negative, mildly negative and positive electrostatic potential in the pore.

https://doi.org/10.7554/eLife.39122.014

Figure 6—figure supplement 1

Download asset Open asset

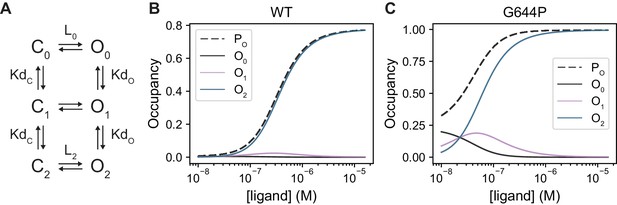

Contribution of apo-, singly- and doubly occupied states in WT and G644P in a model of activation.

(A) Minimal model for TMEM16A activation. C and O indicate closed and open states, respectively; the subscript indicates the number of bound Ca²⁺ ions. $K d$ , equilibrium dissociation constant; $L$ , forward equilibrium constant of gating transitions. Microscopic reversibility requires that ${K d}_{O} = {K d}_{C} \sqrt{\frac{L_{0}}{L_{2}}}$ . B-C. Occupancy of open states in relation to the open probability (P_O) as a function of Ca²⁺ concentration. $L_{0}$ = 5 x 10⁻³, $L_{2}$ = 3.5 and ${K d}_{C}$ = 6 x 10⁻⁷ M for WT (B) and $L_{0}$ = 0.3, $L_{2}$ = 210 and ${K d}_{C}$ = 6 x 10⁻⁷ M for G644P (C). The gating constants were set 60 times larger in (C) while the affinity was kept unchanged. Parameters were chosen to account for the qualitative behaviour of the constructs and may not be quantitatively exact. Nonetheless, this model is consistent with the degree of cooperativity observed in steady-state responses and our experimental estimates on the relative contribution of open states with various occupancy in WT.

https://doi.org/10.7554/eLife.39122.015

Author response image 1

Download asset Open asset

Model calculations based on the energy profile of G644P at zero Ca²⁺ (top) and a WT-like channel with a totally symmetric energy profile (bottom).

Left, Ion occupancy in the model channel relative to that at the outermost wells ( $p_{n}$ or $p_{0}$ ) as a function of voltage at the indicated locations. Right, Shape of the I-V relation at steady state. At zero voltage, the relative occupancy is 1 for all cases because our model assumes no binding affinity when no voltage gradient is present. The curves on the left panels were calculated using
$\frac{p_{1}}{v c} = ϕ + \frac{J}{v c β_{V}}$ $\frac{p_{n - 1}}{v c} = ϕ^{n - 1} + \frac{J}{v c β_{V}} (ϕ^{n - 2} + \frac{1}{σ_{h}} (\frac{1 - ϕ^{n - 2}}{1 - ϕ}))$
and those on the right panels using
$I = z F J$
where
$J = \frac{β_{V} v c (1 - ϕ^{n})}{ϕ^{n - 1} + \frac{1}{σ_{h}} ϕ (\frac{1 - ϕ^{n - 2}}{1 - ϕ}) + \frac{1}{σ_{β}}}$ $ϕ = e^{- \frac{z F V}{n R T}}$ $β_{V} = β_{0} e^{\frac{z F V}{2 n R T}}$
under symmetrical ionic conditions. The number of barriers $n$ is 3 in this model. This has been determined to describe the conduction properties of mutants in our previous study (Paulino et al., 2017). $β_{V}$ is the voltage-dependent rate constant of the outermost barrier. The rate constant of the innermost barrier is defined as $σ_{β} β_{V}$ and that of the middle barrier as $σ_{h} β_{V}$ where both fitted parameters $σ_{β}$ and $σ_{h}$ are independent of voltage. $p_{i}$ ’s are the probabilities of occupying the i^th wells (from $p_{0}$ to $p_{n}$ ). $v$ is a proportionality factor that has a dimension of volume and may be interpreted as the hypothetical volume for outermost well at the channel entrance. $V$ is the membrane potential, $z$ is the valence of the ion, and $R$ , $T$ and $F$ have their usual meanings.

https://doi.org/10.7554/eLife.39122.018

Author response image 2

Download asset Open asset

Relationship between experimental $σ_{β}$ and RI (I_-100/+120) for the G644P family of constructs.

Horizontal error bars indicate S.E.M and vertical error bars indicate the 95% confidence interval.

https://doi.org/10.7554/eLife.39122.019

Tables

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Gene (Mus musculus)	TMEM16A or Ano1 splice variant ac	DOI: 10.1038/ nature13984	UniProt identifier: Q8BHY3-1
Cell line (Homo sapiens)	HEK293T	ATCC	ATCC CRL-1573	Obtained directly from ATCC; tested negative for myc oplasma contamination
Transfected construct (Mus musculus)	G644P	this paper		generated using a modified QuikChange protocol as described in Methods
Transfected construct (Mus musculus)	Q649A	this paper		as G644P
Transfected construct (Mus musculus)	G644P/E654Q	this paper		as G644P
Transfected construct (Mus musculus)	G644P/E654R	this paper		as G644P
Transfected construct (Mus musculus)	G644P/E6 54R/E702Q	this paper		as G644P
Transfected construct (Mus musculus)	G644P/E6 54Q/E705Q	this paper		as G644P
Transfected construct (Mus musculus)	G644P/E654R/E705Q	this paper		as G644P
Transfected construct (Mus musculus)	K588S	this paper		as G644P
Transfected construct (Mus musculus)	K645S	this paper		as G644P
Transfected construct (Mus musculus)	K588E/E702Q	this paper		as G644P
Transfected construct (Mus musculus)	K645E/E702Q	this paper		as G644P
Recombinant DNA reagent	modified pcDNA3.1 vector	Invitrogen, DOI: 10.1085/jgp.201611650		bearing a 5′ untranslated region (UTR) of hVEGF (from pcDNA4/ HisMax; Invitrogen)
Software, algorithm	Clampex 10.6	Molecular devices
Software, algorithm	Clampfit 10.6	Molecular devices
Software, algorithm	Prism 5/6	GraphPad
Software, algorithm	Excel	Microsoft
Software, algorithm	NumPy	http://www.numpy.org/
Software, algorithm	CHARMM	https://www. charmm.org/
Software, algorithm	VMD	https://www.ks.uiuc.edu/Research/vmd/
