Calcium-dependent electrostatic control of anion access to the pore of the calcium-activated chloride channel TMEM16A

  1. Andy KM Lam
  2. Raimund Dutzler  Is a corresponding author
  1. University of Zurich, Switzerland
Research Advance
  • Cited 4
  • Views 1,123
  • Annotations
Cite this article as: eLife 2018;7:e39122 doi: 10.7554/eLife.39122

Abstract

TMEM16A is a ligand-gated anion channel that is activated by intracellular Ca2+. This channel comprises two independent pores and closely apposed Ca2+ binding sites that are contained within each subunit of a homodimeric protein. Previously we characterized the influence of positively charged pore-lining residues on anion conduction (Paulino et al., 2017a). Here, we demonstrate the electrostatic control of permeation by the bound calcium ions in mouse TMEM16A using electrophysiology and Poisson-Boltzmann calculations. The currents of constitutively active mutants lose their outward rectification as a function of Ca2+ concentration due to the alleviation of energy barriers for anion conduction. This phenomenon originates from Coulombic interactions between the bound Ca2+ and permeating anions and thus demonstrates that an electrostatic gate imposed by the vacant binding site present in the sterically open pore, is released by Ca2+ binding to enable an otherwise sub-conductive pore to conduct with full capacity.

https://doi.org/10.7554/eLife.39122.001

Introduction

The calcium-activated chloride channel TMEM16A is part of a large family of membrane proteins that encompasses ion channels and lipid scramblases with a common conserved molecular architecture (Brunner et al., 2016; Caputo et al., 2008; Picollo et al., 2015; Schroeder et al., 2008; Terashima et al., 2013; Whitlock and Hartzell, 2017; Yang et al., 2008). With respect to their fold, the TMEM16 family is related to mechanosensitive channels of the OSCA and TMC families (Ballesteros et al., 2018; Pan et al., 2018; Zhang et al., 2018). TMEM16A is widely expressed and contributes to important physiological processes including the transport of chloride across epithelia and the control of electrical signal transduction in smooth muscle and certain neurons (Huang et al., 2012; Oh and Jung, 2016; Scudieri et al., 2012). Recent investigations have defined the structural basis for ion permeation and gating in TMEM16A and revealed features that distinguish this ion channel from other homologues working as lipid scramblases (Brunner et al., 2014; Dang et al., 2017; Paulino et al., 2017a; Paulino et al., 2017b). TMEM16A harbors two ion conduction pores, each contained within a single subunit of a homodimeric protein (Figure 1A). Both pores function independently and are activated by the binding of two Ca2+ ions to a site embedded within the membrane-inserted part of each subunit close to the ion conduction path (Jeng et al., 2016; Lim et al., 2016). In the open conformation, anions access the narrow neck of an hourglass-shaped pore via water-filled vestibules from the extra- and intracellular sides and permeate through the constricted part presumably after shedding most of their coordinating water molecules (Betto et al., 2014; Dang et al., 2017; Ni et al., 2014; Paulino et al., 2017a; Qu and Hartzell, 2000). During this process, the energetic penalty for dehydration is surmounted by positive charges placed on both sides of the neck (Paulino et al., 2017b). In the apo conformation, the Ca2+ binding site is accessible from the cytoplasm (Paulino et al., 2017a). The binding of Ca2+ favors conformational changes in the pore-lining helix α6, which provides polar and acidic sidechains that coordinate the bound cations and thus directly couples ligand binding to pore opening (Paulino et al., 2017a; Peters et al., 2018). The subsequent closure of the aqueous access pathway to the ligand binding site buries the bound calcium ions within the transmembrane electric field, which mechanistically accounts for the observed voltage dependence of activation by modulating the binding affinity of Ca2+ (Arreola et al., 1996; Brunner et al., 2014; Xiao et al., 2011). The movement of the helix relays a conformational change towards the neck to release a steric barrier, which acts as a gate in the closed conformation of the channel (Paulino et al., 2017a). Additionally, the bound Ca2+ ions change the charge distribution at the wide intracellular vestibule thereby removing a second, electrostatic barrier that specifically hinders the access of anions in the ligand-free state (Paulino et al., 2017a). Here we have used electrophysiology and Poisson-Boltzmann calculations to characterize the electrostatic control of anion permeation by the bound Ca2+ ions. Our results reveal a strong and favorable Coulombic interaction of permeant anions with the positively charged Ca2+ at the intracellular pore entry. These long-range interactions underlie an electrostatic gating mechanism that acts through space and that is synergistic with the opening of a steric gate, allowing an otherwise sub-conductive pore to conduct with full capacity.

Figure 1 with 3 supplements see all

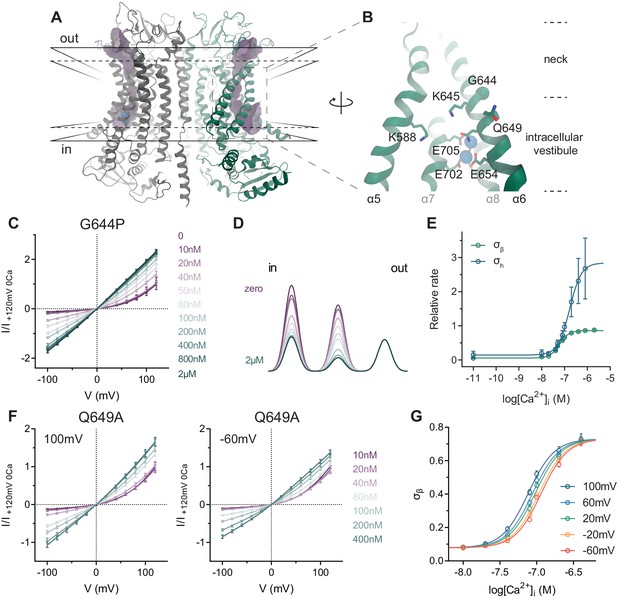

TMEM16A structure and conduction properties of constitutively active mutants.

(A) Ribbon representation of the Ca2+-bound mouse TMEM16A channel viewed from within the membrane (PDB: 5OYB), subunits are shown in unique colors. Black solid lines, outer- and innermost membrane boundaries, black dashed lines, boundaries of the hydrophobic core; blue spheres, Ca2+ ions; violet surface, molecular surface of the pore (generated in HOLE [Smart et al., 1996] with a solvent probe radius of 0.7 Å). (B) Close-up of the intracellular vestibule with selected residues displayed as sticks and labelled. Green sphere, Cα of Gly 644. α3 and α4 are removed for clarity. (C) Instantaneous I-V relations of the constitutively active mutant G644P from pre-pulses at 80 mV in the presence of the indicated intracellular Ca2+ concentrations. Solid lines are fits to Equation 2. Data were normalized to the fitted amplitude factor (A in Equation 2) and were subsequently normalized to the current amplitude at 120 mV at zero Ca2+ (I/I +120mV 0Ca). Data are mean values of normalized I-V plots from 5 to 13 individual patches, errors are s.e.m. (D) Relative energy profiles (at 0 mV) of the ion conduction path at the indicated intracellular Ca2+ concentrations (colors as in C). Barriers are visualized as a sum of three Gaussians with the peaks and amplitudes indicating their locations and relative barrier heights respectively. (E) Relative rate of barrier crossing at the indicated location (σh and σβ) as a function of intracellular Ca2+ concentration. Solid lines are fits to the Hill equation. Data are best-fit values and errors are 95% confidence intervals. (F) Instantaneous I-V relations of the mutant Q649A from pre-pulses at 100 mV (left) and −60 mV (right) in the presence of the indicated intracellular Ca2+ concentrations. Solid lines are fits to Equation 2. Data were normalized as in C and are mean values of normalized I-V plots from five individual patches, errors are s.e.m. (G) Relative rate of barrier crossing at the intracellular pore entrance (σβ) as a function of both intracellular Ca2+ concentration and voltage. Solid lines are fits to the Hill equation.

https://doi.org/10.7554/eLife.39122.002

Results

Ca2+ binding to the transmembrane site alleviates energy barriers for anion conduction

We have previously used a simple rate model to characterize ion conduction in TMEM16A (Läuger, 1973; Paulino et al., 2017b). In this model, a central small energy barrier originating from the diffusion of an anion across the narrow neck is sandwiched between two larger barriers resulting from the desolvation of the anion upon entering the constricted part of the channel from the aqueous vestibules located on either side of the pore (Figure 1A, Figure 1—figure supplement 1A,B). The diffusion path does not contain deep energy wells and the model does not account for saturation of the pore, which is generally consistent with the high KM for chloride conduction. This model allowed us to phenomenologically interpret the effect of mutations of positively charged residues on current-voltage (I-V) relationships. Whereas single mutations in the wide vestibules do not exert a recognizable effect on conduction, mutations at the border of the neck region result in a pronounced rectification of currents whose shape depends on the location of the altered residues (Paulino et al., 2017b). The rectification is a consequence of both pore occupancy and the rate of barrier crossing at the applied potential. Here we use a similar analysis to investigate the influence of the bound calcium ions on anion conduction by characterizing the properties of the mutant G644P. In this mutant, the replacement of a flexible glycine at a hinge in α6 (Gly 644, Figure 1B) with a rigid proline increases the potency of Ca2+ and concomitantly results in constitutive activity (Paulino et al., 2017a). The basal current of this mutant is highly outwardly rectifying but it progressively loses its rectification at increasing Ca2+ concentrations until it becomes pseudo-linear in saturating conditions (Figure 1C, Figure 1—figure supplement 1C). This differs from the instantaneous currents of WT, which are linear in the entire Ca2+ concentration range (Figure 1—figure supplement 2). When analyzed with our described minimal model of ion permeation, this effect seems to originate from the alleviation of local energy barriers for anion conduction at the intracellular entrance and the center of the pore as a function of Ca2+ concentration (Figure 1D). This is consistent with a change in long-range interactions affecting permeant anions entering and traversing the narrow neck region upon binding of the positively charged Ca2+. The lowering of the energy barriers can be described by a binding isotherm with EC50 values of 60 nM and 170 nM, and Hill coefficients of 2.1 and 1.7 at 80 mV for the inner and the central barriers respectively (Figure 1E). As the rate constants are not strongly coupled, the similarity of their respective EC50’s and their consistency with data from steady-state current responses provide independent evidence for a saturable effect associated with the binding of Ca2+ to the transmembrane site identified in the structure.

Besides G644P, we have characterized the mutant Q649A that also causes constitutive activity. Located about one helix turn below Gly 644, the residue is not directly involved in Ca2+ coordination (Figure 1B). Like G644P, this mutant displays a left-shifted EC50 and basal current that is equally outwardly rectifying (Figure 1—figure supplement 3A). Since the current magnitude of this mutant is larger and the kinetics of irreversible rundown is slower compared to G644P, we were able to examine the influence of the membrane potential on Ca2+ binding by recording instantaneous currents with pre-pulses at different voltages on the same patch (Figure 1F and Figure 1—figure supplement 3B—D). At the membrane potentials tested, we observed a similar effect of Ca2+ on the energetics of anion conduction as in G644P (Figure 1C–F) and as with steady-state concentration-responses, the potency of Ca2+ is increased upon depolarization (Figure 1F–G, Figure 1—figure supplement 3B–D). Therefore, these results provide further evidence that Ca2+ alleviates local energy barriers for anion conduction at the intracellular entrance and the middle of the pore by binding to the transmembrane site.

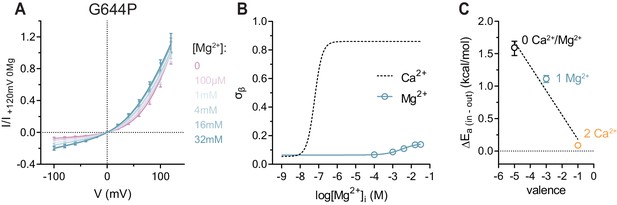

The effect of the competitive antagonist Mg2+, and the trivalent cation Gd3+ on conduction

To confirm that the charge of Ca2+, rather than its ability to promote gating-associated conformational changes, accounts for the observed effect, we characterized the I-V relations of G644P in the presence of the divalent cation Mg2+ (Figure 2). Although Mg2+ is incapable of activating WT even at high concentrations (Figure 2—figure supplement 1A), it acts as a low affinity competitive antagonist that lowers the potency of Ca2+, indicating that it might occupy the Ca2+ binding site (Ni et al., 2014). This is confirmed in the mutant G644P, for which we observed a concentration-dependent reduction of the outward rectification in the presence of Mg2+ (Figure 2A). Mg2+ thus appears to ‘activate’ G644P, by primarily increasing its conductance but not its open probability (Figure 2—figure supplement 1B and C). Although we cannot exclude a non-specific effect of Mg2+ due to the screening of surface charges, this is unlikely, as alanine mutations of positive charges in the wide vestibule have previously been shown to exert little effect on conduction (Paulino et al., 2017b). Interestingly, although Mg2+ exerts a qualitatively similar effect on G644P as Ca2+, the current remains rectifying even at saturating concentrations (Figure 2B). Moreover, in contrast to Ca2+, the activation by Mg2+ proceeds with a Hill coefficient close to unity and a maximum conduction rate at the intracellular entrance (σβ) that saturates at an intermediate value, suggesting that the binding site is likely occupied by a single Mg2+ ion (Figure 2B and C). Taken together, our data show three discrete levels of conductance that correspond to the possible occupancies of the binding site with zero, one and two divalent cations bound (Figure 2C), consistent with a scenario where sequential Ca2+ binding lowers the energy barriers for anion conduction in a stepwise manner, as predicted by a simple Coulombic interaction. The model also describes the effect upon addition of the trivalent cation Gd3+, which strongly increases the conductance at saturating concentrations even beyond the level induced by Ca2+. This is likely a consequence of the increased positive charge density in the binding site and is manifested in the observed inward rectification of currents (Figure 2—figure supplement 2).

Figure 2 with 2 supplements see all
Conduction properties of the constitutively active mutant G644P in the presence of intracellular Mg2+.

(A) Instantaneous I-V relations of the constitutively active mutant G644P from pre-pulses at 80 mV in the presence of the indicated intracellular Mg2+ concentrations. Solid lines are fits to Equation 2. Data were normalized to the fitted amplitude factor (A in Equation 2) and were subsequently normalized to the current amplitude at 120 mV at zero Mg2+ (I/I +120mV 0Mg). Data are mean values of normalized I-V plots from 9-11 individual patches, errors are s.e.m. (B) Relative rate of barrier crossing at the intracellular pore entrance (σβ) as a function of intracellular Mg2+ concentration. Solid line is a fit to the Hill equation for one binding site. The relation with Ca2+ is shown as dashed line for comparison. Data are best-fit values and errors are 95% confidence intervals. (C) Experimental relationship between the assumed net charge of the Ca2+ binding site (valence) and anion conduction energetics (ΔEa (in-out)). Data are transforms of σβ, using Equation 3, at zero and saturating Mg2+ and Ca2+ concentrations. Dashed Line is a fit to Equation 4. The relative permittivity (εr) for occupancy by divalent cations was estimated to be 64.8 ± 35.1.

https://doi.org/10.7554/eLife.39122.006

Ca2+ increases anion conductance by an electrostatic mechanism

Our results suggest that Ca2+ and other di- and trivalent cations gate anion conduction in both constitutively active mutants by an electrostatic mechanism that involves neutralization of the negative charges in the vacant binding site. To gain further insight into this process, we investigated the effect of mutations of residues at the Ca2+ binding site introduced in the G644P background and initially focused on E654Q located on α6. Whereas on a WT background, E654Q exhibits the most severe phenotype among binding site mutants and does not show any activity even at high Ca2+ concentrations (Brunner et al., 2014; Lim et al., 2016; Tien et al., 2014), we observed basal and outwardly-rectifying currents in the mutant G644P/E654Q (PQ) whose steady-state current increases in response to Ca2+ addition (Figure 3—figure supplement 1A). We examined the instantaneous I-V relations at increasing Ca2+ concentrations and found a moderate concentration-dependent reduction of rectification that eventually saturates (Figure 3A). The much lower conduction rate of the PQ mutant compared to G644P at saturating Ca2+ concentrations and a Hill coefficient close to one both suggest that in this mutant the binding of a single calcium ion to the transmembrane site promotes anion permeation, although less efficiently than the binding of two calcium ions in G644P, similar to the effect of Mg2+ (Figures 2 and 3A).

Figure 3 with 1 supplement see all

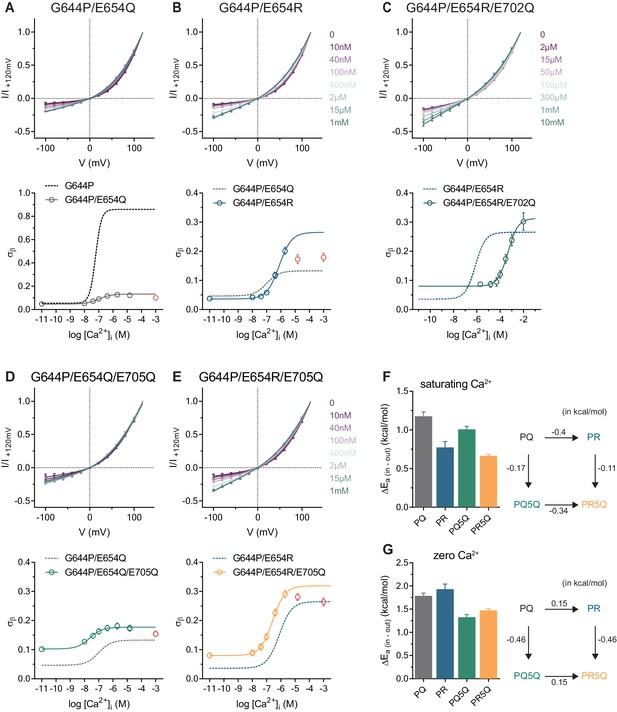

Conduction properties of the constitutively active mutant G644P with additional mutations at the Ca2+binding site.

A-E, Top, instantaneous I-V relations from pre-pulses at 80 mV in the presence of the indicated intracellular Ca2+ concentrations for mutants G644P/E654Q (A), G644P/E654R (B), G644P/E654R/E702Q (C), G644P/E654Q/E705Q (D) and G644P/E654R/E705Q (E). Solid lines are fits to Equation 2. Data were normalized to the current amplitude at +120 mV of each curve and are mean values of normalized I-V plots from 6, 7, 5–10, 5 and 7 individual patches respectively, errors are s.e.m. Bottom, relative rate of barrier crossing at the intracellular pore entrance (σβ) as a function of intracellular Ca2+ concentration for mutants G644P/E654Q (A), G644P/E654R (B) G644P/E654R/E702Q (C), G644P/E654Q/E705Q (D) and G644P/E654R/E705Q (E). Solid lines are fits to the Hill equation for one binding site. Data in red were omitted from the fit (see Materials and methods). Dashed lines are the relations of the indicated mutant shown for comparison. Data are best-fit values and errors are 95% confidence intervals. F-G, Left, relative activation energies at the intracellular pore entrance (ΔEa (in-out)) for the indicated mutants at saturating Ca2+ concentrations (F) and zero Ca2+ (G). Data are transforms of σβ, using Equation 3, at saturating and zero Ca2+ concentrations obtained from the fits shown in A-E. Right, energetic changes from the parent mutant G644P/E654Q (PQ) in a double-mutant cycle for the indicated mutants at saturating Ca2+ concentrations (F) and zero Ca2+ (G).

https://doi.org/10.7554/eLife.39122.009

We extended our investigation on Glu 654 and mutated this residue to an arginine (PR) to add a further positive charge to the binding site. Similar to PQ, this mutant likely binds only one calcium ion as the Hill coefficient is close to unity and the I-V relation retains its strong rectification even at saturating Ca2+ concentrations (Figure 3B, Figure 3—figure supplement 1B). However, consistent with the hypothesis that a more positive potential at the binding site lowers the energy barrier for anion permeation, the rate of chloride conduction at the intracellular entrance at saturating Ca2+ concentrations is significantly higher than that observed for PQ (Figure 3B). Next, we removed an additional negative charge in the binding site of the PR mutant by exchanging Glu 702 with Gln (PR2Q), which, similar to the equivalent mutation on the WT background (Brunner et al., 2014), reduces the potency of Ca2+ (Figure 3C, Figure 3—figure supplement 1C). As expected, the rate of chloride conduction at the intracellular pore entrance in the triple mutant PR2Q is increased compared to the double mutant PR both in the absence of Ca2+ and at saturating Ca2+ concentrations (Figure 3C). Together these observations consolidate the notion of the dependence of anion conduction on the electrostatic potential around the binding site.

For electrostatic interactions, we expect the contribution of individual charges in the binding site to conduction to be additive. This hypothesis was tested by analyzing the effect of the removal of a negative charge in the binding site mutant E705Q in the PQ (PQ5Q) and PR (PR5Q) backgrounds. At maximum Ca2+ occupancy, E705Q increases the rate of anion conduction to the same extent in both PQ5Q and PR5Q irrespectively of its background (Figure 3D,E), which emphasizes the orthogonal contributions of individual mutations (Figure 3F). The same mutations also exhibit a similar degree of additivity in the Ca2+-free state (Figure 3G), further supporting an electrostatic mechanism for the functional interaction between the Ca2+ binding site and the anion conduction path.

Electrostatic interactions are evident in calculations

To further strengthen our proposal of an electrostatic interaction between the bound Ca2+ and permeating anions, we investigated the effect of the binding site mutations and the altered Ca2+ occupancy on the electrostatic profile of the pore using Poisson-Boltzmann calculations on the Ca2+-bound mouse TMEM16A structure (Figure 4A). Consistent with the quantal effect of Ca2+ on anion conduction, removal of a single calcium ion from the binding site partially decreases the positive potential observed in the fully bound structure (Figure 4B). We also found that stepwise removal of charges in the binding site exerts progressively larger effects according to the number of charges neutralized (Figure 4C), as observed in our experiments. Although we cannot exclude the possibility that the detailed geometric arrangement of the Ca2+ binding site and nearby helices might be influenced by the introduced mutations, local changes in backbone and sidechain conformations are unlikely to drastically affect the calculated electrostatic potential given the long-range nature of Coulombic interactions. Because several mutants described above seem to bind only one calcium ion (Figure 3 and Figure 3—figure supplement 1), it is possible to estimate from our experimental data the effective dielectric constant of the intracellular vestibule that propagates the electric field originating from the binding site to the pore. When the above mutants are analyzed collectively, we observed an inverse and linear relationship between the energy barrier for chloride conduction at the intracellular pore entrance and the valence of the binding site (Figure 4D). Assuming a Coulombic potential and using the distance measured from the Ca2+-bound structure, we estimated an effective dielectric constant of around 160 in the vacant and 90 for the single Ca2+-bound state. Although potentially inaccurate and physically unreasonable due to experimental limitations, these values indicate bulk solution-like aqueous properties that are consistent with the large water-filled intracellular vestibule observed in the Ca2+-bound structure (Figure 4D). This also suggests that the vestibule is functionally shielded from the membrane.

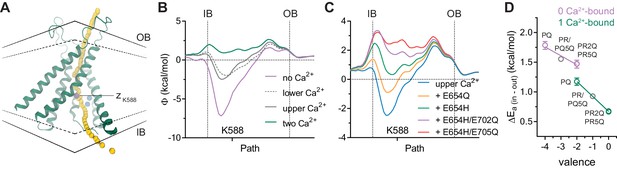

Electrostatic profiles.

(A) System in which the electrostatic profile of the pore was calculated. Selected helices are shown and view is from within the membrane on one of the two pores in the dimeric protein. Black solid lines, outer- and innermost membrane boundaries (OB and IB, respectively); black dashed lines, boundaries of the hydrophobic core; blue spheres, Ca2+ ions; yellow spheres, points at which the electrostatic potential (Φ) was plotted. Magenta sphere corresponds to the z position of the nitrogen atom of Lys 588. B-C. Electrostatic potential along the pore in the Ca2+-bound structure containing the indicated number of Ca2+ ions (B) and carrying the indicated in silico mutations with only the upper Ca2+ ion bound (C). Vertical dashed lines indicate the membrane boundaries. The position of Lys 588 at the intracellular pore entrance is indicated. (D) Experimental relationship between the assumed net charge of the Ca2+ binding site (valence) and anion conduction energetics (ΔEa (in-out)). Data are transforms of σβ, using Equation 3, at saturating and zero Ca2+ concentrations for all the mutants on the G644P background (Figure 2). Lines are fits to Equation 4. The relative permittivity (εr) for the 0 Ca2+-bound and 1 Ca2+-bound states were estimated to be 162.7 ± 127.2 and 96.7 ± 6.3 respectively.

https://doi.org/10.7554/eLife.39122.011

Bidirectional electrostatic interaction between the binding site and the intracellular pore entrance

In previous experiments, we have demonstrated that the bound Ca2+ ions influence ion permeation by affecting the electrostatics at the narrow neck region via long-range Coulombic interactions. Reciprocally, changes in the charge distribution at the neck should affect Ca2+ binding. To test this hypothesis, we have investigated the effect of mutations of two residues, Lys 588 and Lys 645 (Figure 5A) located at the boundary between the intracellular vestibule and the neck, which lower the energy barrier for chloride conduction by contributing to the positive electrostatics of the pore (Paulino et al., 2017b). As expected, we found an increase in the potency of Ca2+ in neutralizing mutations of the respective residues to serine (Figure 5B,C), which is further enhanced upon the reversal of the charge by mutations to glutamate (Figure 5D,E). Assuming that only the binding affinity of Ca2+ is affected, we observed a linear relationship between the change in binding energy and the valence at the intracellular pore entrance (Figure 5F), with a stronger sensitivity for Lys 645, which is in closer proximity to the Ca2+ binding site (Figure 5A) and thus might experience less solvent screening. In summary, the described effects further confirm the long-range interactions between the Ca2+ binding site and the narrow neck region, which underlie the electrostatic control of ion permeation.

Figure 5 with 1 supplement see all

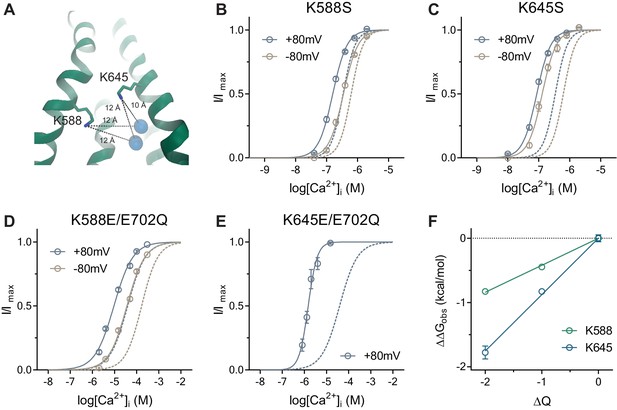

Activation properties of pore mutants.

(A) Location of the pore residues Lys 588 and 645 relative to the Ca2+ binding site (distances in Å). B-E. Concentration-response relations of K588S (B), K645S (C), K588E/E702Q (D) and K645E/E702Q (E) recorded at +/-80 mV using a rundown-correction protocol. Solid lines are fits to the Hill equation. Dashed lines are the relations of WT (B–C) and E702Q (D–E). Data are mean values of normalized concentration-response relations from 8-11, 7-8, 10 and 5-7 individual patches respectively, errors are s.e.m. (F) Relationship between the electrostatic potential of the intracellular pore entrance (ΔQ) and Ca2+ binding energetics (ΔΔGobs) for the indicated residues. Data are transforms of EC50 mutant/EC50 background at +80 mV using Equation 6. Solid lines are fits to Equation 5. The relative permittivity (εr) for Lys 588 and 645 were estimated to be 131.9 ± 12.3 and 71.2 ± 6.1 respectively.

https://doi.org/10.7554/eLife.39122.012

Discussion

Our study demonstrates the strong electrostatic influence of bound Ca2+ ions on anion conduction in the Ca2+-activated Cl- channel TMEM16A. A direct effect of the ligand on the permeation properties of the open state is unique among ligand-gated ion channels and it is a consequence of the high positive charge density of Ca2+ and the location of its binding site in the immediate vicinity of the permeation path. The described effect is synergistic with a conformational change upon Ca2+ binding that opens a steric gate in the narrow part of the pore (Paulino et al., 2017a). In the absence of Ca2+, even in a sterically released conformation, which in this study was stabilized by mutations, an electrostatic gate imposed by the vacant binding site would impede the access of chloride ions to the intracellular vestibule (Figure 6). The binding of Ca2+ releases this second gate by neutralizing the negative charges, enabling the open channel to conduct with full capacity (Figure 6). Our findings thus provide novel mechanistic insight into the regulation of anion permeation in Ca2+-activated Cl- channels of the TMEM16 family and demonstrate that these channels are dually gated by both steric and electrostatic mechanisms. Moreover, they also provide a conceivable explanation for how the oppositely charged substrates, in this case permeating anions and Ca2+ ions, access their respective site of action via the same intracellular vestibule (Figure 6). The observation that the conductance of the open channel can be electrostatically regulated by Ca2+ in a stepwise manner also offers a unique opportunity to examine the relative contribution of open states with partial Ca2+ occupancy during activation. The currents in such partially occupied states would be rectifying and thus be readily identifiable in the current-voltage relationships. In WT, the instantaneous I-V plots are all approximately linear and their shape is only mildly sensitive to Ca2+ in the entire activation range (Figure 1—figure supplement 2). Since these plots reflect the weighted sum of the I-V relations of the open states with different Ca2+ occupancy, our results indicate that, during activation, the major conducting state in WT is the open state with two Ca2+ ions bound, whereas the contribution of open states with submaximal Ca2+ occupancy is minimal (Figure 1—figure supplement 2 and Figure 6—figure supplement 1A,B). A similar but less pronounced distribution of states is also evident in the constitutively active mutant G644P (Figure 6—figure supplement 1C), where the apo and the singly occupied channel make a larger contribution to conduction at low Ca2+ concentrations. These observations thus provide direct evidence for the high cooperativity of TMEM16A activation.

Figure 6 with 1 supplement see all

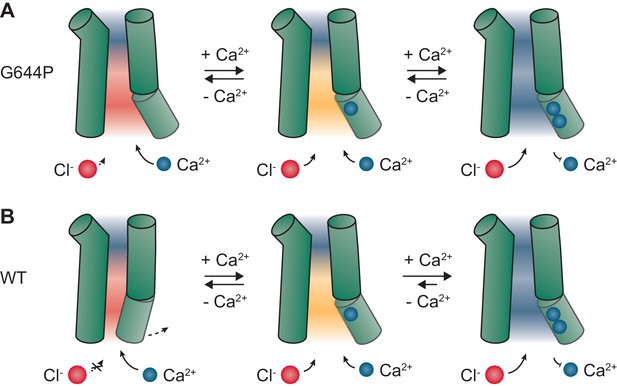

Mechanism.

Schematic depiction of gating in G644P (A) and WT (B). In the apo state of the mutant G644P, the negative electrostatic potential strongly favors the access of Ca2+ over Cl-. In contrast, the positive electrostatic potential in the doubly occupied state strongly favors the access of Cl-. A similar mechanism is expected to occur in WT, which requires Ca2+ for the activation of α6 and the opening of a steric gate located above the intracellular vestibule. When activated, the major conducting state in WT is the open state with two Ca2+ ions bound. Green cylinders, selected helices delimiting the pore; blue spheres, Ca2+ ions; red spheres, Cl- ions. Red, orange and blue backgrounds depict negative, mildly negative and positive electrostatic potential in the pore.

https://doi.org/10.7554/eLife.39122.014

Aside from their impact on membrane biophysics, our findings are particularly relevant for the development of allosteric activators of TMEM16A that may be beneficial for the treatment of obstructive airway diseases such as Cystic Fibrosis (Li et al., 2017; Mall and Galietta, 2015). Although we anticipate that small molecules have the potential to increase the low open probability of the channel at low Ca2+ concentration, this might not suffice to promote robust Cl- efflux required to compensate for the loss of the chloride channel CFTR unless at the same time the electrostatic barrier at the intracellular pore entry is released, which would be the case for compounds with a positive net-charge or ones that at the same time increase the potency of Ca2+.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
Gene (Mus musculus)TMEM16A or
Ano1 splice
variant ac
DOI: 10.1038/
nature13984
UniProt
identifier:
Q8BHY3-1
Cell line
(Homo sapiens)
HEK293TATCCATCC CRL-1573Obtained directly
from
ATCC;
tested
negative for myc
oplasma contamination
Transfected
construct
(Mus musculus)
G644Pthis papergenerated
using a
modified QuikChange
protocol
as described
in Methods
Transfected
construct
(Mus musculus)
Q649Athis paperas G644P
Transfected
construct
(Mus musculus)
G644P/E654Qthis paperas G644P
Transfected
construct
(Mus musculus)
G644P/E654Rthis paperas G644P
Transfected
construct
(Mus musculus)
G644P/E6
54R/E702Q
this paperas G644P
Transfected
construct
(Mus musculus)
G644P/E6
54Q/E705Q
this paperas G644P
Transfected
construct
(Mus musculus)
G644P/E654R/E705Qthis paperas G644P
Transfected
construct
(Mus musculus)
K588Sthis paperas G644P
Transfected
construct
(Mus musculus)
K645Sthis paperas G644P
Transfected
construct
(Mus musculus)
K588E/E702Qthis paperas G644P
Transfected
construct
(Mus musculus)
K645E/E702Qthis paperas G644P
Recombinant
DNA reagent
modified
pcDNA3.1
vector
Invitrogen,
DOI: 10.1085/jgp.201611650
bearing a
5′ untranslated
region (UTR) of hVEGF
(from pcDNA4/
HisMax;
Invitrogen)
Software,
algorithm
Clampex 10.6Molecular
devices
Software,
algorithm
Clampfit
10.6
Molecular
devices
Software,
algorithm
Prism 5/6GraphPad
Software,
algorithm
ExcelMicrosoft
Software,
algorithm
NumPyhttp://www.numpy.org/
Software,
algorithm
CHARMMhttps://www.
charmm.org/
Software,
algorithm
VMDhttps://www.ks.uiuc.edu/Research/vmd/

Molecular biology and cell culture

Request a detailed protocol

HEK293T cells (ATCC CRL-1573) were maintained in Dulbecco’s modified Eagle’s medium (DMEM; Sigma-Aldrich) supplemented with 10 U/ml penicillin, 0.1 mg/ml streptomycin (Sigma-Aldrich), 2 mM L-glutamine (Sigma-Aldrich), and 10% FBS (Sigma-Aldrich) in a humidified atmosphere containing 5% CO2 at 37 °C. HEK293T cells were transfected with 3 μg DNA per 6 cm Petri dish using the calcium phosphate co-precipitation method, and were used within 24–96 hr after transfection. Mutants were generated with a modified QuikChange method (Zheng et al., 2004) using the wild-type mouse TMEM16A(ac) as the template. Double and triple mutants were generated sequentially. All constructs were verified by sequencing.

Electrophysiology

Request a detailed protocol

Recordings were performed on inside-out patches excised from cells expressing the construct of interest. Recording pipettes were pulled from borosilicate glass capillaries (O.D. 1.5, I.D. 0.86, Sutter Instrument) and were fire-polished with a microforge (Narishige) before use. Pipette resistance was typically 3–8 MΩ when standard recording solutions were used. Seal resistance was typically 4 GΩ or higher. Voltage-clamp recordings were performed using Axopatch 200B and Digidata 1550 (Molecular devices). Analogue signals were filtered through the in-built 4-pole Bessel filter at 5 kHz and were digitized at 10–20 kHz. Data acquisition was performed using Clampex 10.6 (Molecular devices). Solution exchange was achieved using a double-barreled theta glass pipette mounted on an ultra-high speed piezo-driven stepper (Siskiyou). Liquid junction potential was found to be consistently negligible given the ionic composition of the solutions and was therefore not corrected. All experiments were performed at 20 °C.

Recordings were performed under symmetrical ionic conditions. Stock solution with Ca2+-EGTA contained 150 mM NaCl, 5.99 mM Ca(OH)2, 5 mM EGTA and 10 mM HEPES at pH 7.40. Stock solution with EGTA contained 150 mM NaCl, 5 mM EGTA and 10 mM HEPES at pH 7.40. Free Ca2+ concentrations were adjusted by mixing the stock solutions at the required ratios, which were calculated using the WEBMAXC program (http://web.stanford.edu/~cpatton/webmaxcS.htm). Recording pipettes were filled with stock solution with Ca2+-EGTA, which has a free Ca2+ concentration of 1 mM.

For Mg2+ experiments, stock solution with Mg2+-EGTA contained 75 mM MgCl2, 23 mM (NMDG)2SO4, 5 mM EGTA and 10 mM HEPES at pH 7.40. Free Mg2+ concentrations were adjusted by mixing the stock solutions with Mg2+-EGTA and EGTA at the required ratios. For Gd3+ experiments, the final Gd3+ concentrations were reconstituted from a 1 M GdCl3 stock in a solution containing 150 mM NaCl, 10 mM HEPES at pH 7.40 with no added Ca2+ and metal chelators. In all cases, solutions were prepared in ultrapure molecular biology grade water having a resistivity of 15–18 MΩ cm at 25 °C (ELGA or Millipore).

Concentration-response relations were constructed from steady-state current responses recorded using a rundown-correction protocol as described previously (Lim et al., 2016; Paulino et al., 2017a). For instantaneous I-V relations, current responses were measured at the time points (within milliseconds) where the capacitive current at 0 mV, the membrane potential at which the current reverses, has decayed. The sequence of the applied voltage steps was from −100 to +120 mV to minimize the effect of rundown on the smaller inward current (Figure 1—figure supplements 13, Figure 2—figure supplement 1). In a typical recording, the magnitude of the steady-state current at +80 mV would have decayed irreversibly by 10–15% by the time the test pulse at +120 mV is applied. To correct for this effect, the I-V plots were normalized to the current amplitude of the pre-pulses (Paulino et al., 2017b) before their normalization (I/I+120). When used judiciously, this procedure allows one to recover the true I-V relation and to correct for current fluctuation. Before and after each recording at the Ca2+ concentration of interest, we also recorded in zero Ca2+ to ensure that the quality of the patch did not deteriorate over time. Background subtraction was performed for constructs that do not display visible basal activity but was not possible for the mutants that do. In all cases, leaky patches were discarded.

A similar procedure was used for experiments with Mg2+ and Gd3+. In contrast to the divalent cations Ca2+ and Mg2+, Gd3+ binding appears to be biphasic consisting of a reversible phase and an irreversible component that both affect the I-V relation of the instantaneous current (Figure 2—figure supplement 2A). In order to titrate the second reversible site, we first incubated the patch with a submaximal concentration of Gd3+ (0.4 mM) to saturate the irreversible binding site. We then recorded at the test concentration of Gd3+ to obtain the corresponding instantaneous I-V relations (Figure 2—figure supplement 2B,C).

Data analysis

Request a detailed protocol

Concentration-response data were fitted to the Hill equation

IImax=11+10(logEC50-log[Ca2+])h

where I/Imax is the normalized current, EC50 is the concentration at which I/Imax equals 0.5 and h is the Hill coefficient. For the case of one binding site, h was set to equal 1. The voltage dependence of EC50 was fitted to

(1) logEC50=logEC500-12.303zCafVVFRT

where zCa is the valence of Ca2+, fV is the electrical distance, V is the membrane potential, R, T and F have their usual meanings, and EC500 is the value of EC50 when V= 0.

I-V data were fitted to a minimal permeation model that accounts for the most fundamental biophysical behavior of mouse TMEM16A as described previously (Läuger, 1973; Paulino et al., 2017b),

(2) I=zFAezFV2nRTci-coe-zFVRTe-zFVn-1nRT+1σh1-e-zFVn-2nRT ezFVnRT-1+1σβ

where I is the current, n is the number of barriers, ci and co are the intracellular and extracellular concentrations of the charge carrier, z is the valence of Cl- and V, R, T and F are defined as above. A=β0v is a proportionality factor where β0 is the value of β when V= 0 and v is a proportionality coefficient that has a dimension of volume. σh and σβ are respectively the rate of barrier crossing at the middle and the innermost barriers relative to that at the outermost barrier (β),

σh=hVβV=h0ezFV2nRTβ0ezFV2nRT=h0β0
σβ=δVβV=δ0ezFV2nRTβ0ezFV2nRT=δ0β0

where h0 is the rate of barrier crossing at the middle barrier and δ0 at the innermost barrier in the absence of voltage. Thus, for a linear voltage drop as is the case in our model, σh and σβ are intrinsically voltage-independent and represent the relative rates when V= 0. σβ appears to be voltage-dependent in Figure 1G because σβ is a function of Ca2+ binding whose EC50 exhibits voltage dependence.

In this model, current rectification is governed by the two parameters σh and σβ. Values of σh and σβ that alter the symmetry of the energy profile (as exemplified in Figure 1—figure supplement 1A ) results in asymmetric I-V relations depending on the directionality of symmetry mismatch (Paulino et al., 2017b). We have previously shown that the model describes the behavior of WT best when the number of barriers nequals 3 (Paulino et al., 2017b), which was used as a fixed parameter. This leaves σh, σβ and the amplitude factor A as the only free parameters to be fitted. In this study, we focused on σβ because its best-fit value is generally better defined and it increases monotonically with the asymmetry of the I-V relation (rectification index (RI), I-100/+120), which allows a straightforward comparison with the I-V data.

The Ca2+ dependence of σβ and σh was fitted to

σi= σi(min)+σi(max)-σi(min)1+10(logEC50-log[Ca2+])h

where the subscript i indicates β or h. We observed for mutants G644P/E654Q, G644P/E654R, G644P/E654Q/E705Q and G644P/E654R/E705Q a low affinity decay of σβ at high Ca2+ concentrations (Figure 3A, B, D, E). Since this decay might be related to processes not intrinsic to the transmembrane binding site (Lim et al., 2016), only the high affinity phase was analyzed. The best-fit values of σβ at zero and saturating Ca2+ concentrations were used to calculate ΔEa (inout), the difference between the activation energy at the innermost barrier relative to that of the outermost, using

(3) ΔEa (inout)=RTlnσβ

The relationship between ΔEa (inout) and the valence of the binding site (zbs) at different discrete Ca2+ occupancies (0, 1 or 2) was fitted to the Coulombic potential

(4) ΔEa (inout)=NAzbsq24πε0εrr+ΔEa (inout) zbs=0

where NA is the Avogadro’s number, q is the electronic charge, ε0 is the permittivity of vacuum, εr is the relative permittivity of the medium, and r is the distance between the binding site and the location of the innermost barrier. zbs was considered 0 when the five acidic residues (Glu 654, 702, 705, 734 and Asp 738) in the binding site are neutralized. εr was estimated by setting r to the measured distance between the center of the two calcium ions in the binding site and the sidechain oxygen atom of Ser 592 (r= 13.6 Å) in the structure of mouse TMEM16A in the Ca2+-bound state.

An analogous expression was used to account for the changes in the energy of Ca2+ binding as a function of valence of the intracellular pore entrance,

(5) ΔΔGobs=NAΔzporezCaq24πε0εrr+ΔΔGobs Δzpore=0

where ΔΔGobs is the observed change in the free energy of Ca2+ binding when only affinity is affected, zpore is the valence at the intracellular pore entrance and zCa is the valence of Ca2+. zpore was considered 0 for the WT protein. εr was estimated by setting r to the measured distance between the center of the two calcium ions in the binding site and the sidechain nitrogen atoms of Lys 588 or 645 (r= 11.9 Å or 10.6 Å) in the structure of mouse TMEM16A in the Ca2+-bound state. ΔGobs was calculated using

(6) ΔΔGobs=RTlnEC50EC50(bg)

where EC50(bg) is the EC50 of the background (WT or E702Q) on which the mutation of interest was constructed. We have constructed the K588E and K645E mutations on the E702Q background to improve the expression of the constructs. ΔGobs is equivalent to ΔGbinding when the affinities of all binding reactions are affected equally without affecting conformational transitions, which is a general property of linked equilibria.

To estimate the contribution of open states with various Ca2+ occupancy to the ensemble current, the I-V data for WT were fitted to a weighted sum of I-V curves corresponding to zero, one and two calcium ions bound at the binding site,

(7) Itotal=iI0Ca+jI1Ca+kI2Ca

where I0CaI1Ca and I2Ca are in the form of Equation 2 with parameters from G644P at zero Ca2+, G644P/E654Q at saturating Ca2+ and G644P at saturating Ca2+ respectively. Since WT does not display noticeable basal activity, the contribution of current corresponding to zero occupancy was considered negligible and the iI0Ca term was omitted.

Data analysis was performed using Clampfit 10.6 (Molecular devices), Excel (Microsoft), and Prism 5 and 6 (GraphPad). Numerical calculations were performed using the NumPy package (http://www.numpy.org/). Data are presented as mean ± s.e.m. Fitted parameters are plotted and are reported as best-fit value ± 95% confidence interval.

Poisson-Boltzmann calculations

Request a detailed protocol

The electrostatic potential along the pore, identified using Hole (Smart et al., 1996), was calculated by solving the linearized Poisson-Boltzmann equation in CHARMM (Im et al., 1998; Brooks et al., 1983) on a 240 Å x 240 Å x 260 Å grid (1 Å grid spacing) followed by focusing on a 160 Å x 160 Å x 160 Å grid (0.5 Å grid spacing). Partial protein charges were derived from the CHARMM36 all-hydrogen atom force field (MacKerell et al., 1998). Hydrogen positions were generated in CHARMM. In silico mutagenesis was carried out in CHARMM. The protein was assigned a dielectric constant (εr) of 2. The membrane was represented as a 35-Å-thick slab (εr= 2). A 5-Å-thick slab was included on each side of the membrane to account for the headgroup region (εr= 30). The bulk solvent on either side of the membrane and the solvent-filled conduit were represented as an aqueous medium (εr= 80) containing 150 mM mobile monovalent ions. Electrostatic calculations were carried out in the absence of an applied voltage. Although the structure of the protein used for calculations might not display a fully activated conformation, conformational changes are assumed to be small and would mainly affect the narrow neck region for which the dielectric constant is uncertain (Paulino et al., 2017a). The region most relevant for this study concerns the wide intracellular vestibule, which was assigned bulk-like dielectric properties. In calculations of mutants, positively charged residues were introduced as protonated histidines instead of arginines for modeling purposes.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Cellular functions of TMEM16/anoctamin
    1. U Oh
    2. J Jung
    (2016)
    Pflügers Archiv - European Journal of Physiology 468:443–453.
    https://doi.org/10.1007/s00424-016-1790-0
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Anoctamins/TMEM16 Proteins: Chloride Channels Flirting with Lipids and Extracellular Vesicles
    1. JM Whitlock
    2. HC Hartzell
    (2017)
    Annual review of physiology, 79, 10.1146/annurev-physiol-022516-034031, 27860832.
  31. 31
  32. 32
  33. 33
  34. 34

Decision letter

  1. Baron Chanda
    Reviewing Editor; University of Wisconsin-Madison, United States
  2. Richard Aldrich
    Senior Editor; The University of Texas at Austin, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Ligand-dependent electrostatic control of anion access to the pore of the calcium-activated chloride channel TMEM16A" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Criss Hartzell (Reviewer#1) and Alessio Accardi (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Lam and Dutzler discover that the negatively charged residues that form the Ca2+-binding sites act as an electrostatic barrier for the flow of anions once the pore has adopted the open conformation, thus acting as an additional activation gate in the absence of Ca2+. By introducing mutations in the Ca2+-sites in constitutively active mutants of TMEM16A and measuring their I-V relations at various Ca2+concentrations, the authors show that the binding of calcium reduces the two innermost energy barriers of an open channel through an electrostatic mechanism, allowing ions to flow. In the absence of Ca2+, the constitutively active mutants display pronounced outward rectification due to this electrostatic effect. Overall, these studies highlight a novel mechanism of regulation of ion permeation by a ligand. Nevertheless, the reviewers raise several concerns that should be addressed in the revised version.

Essential revisions:

1) I am not sure that I understand the permeation model. Why do the electrostatics of Ca2+ affect only inward and not outward current? The energy profile in Figure 1D could not lead to rectification, because the height of each energy barrier is the same whether the ion is coming from the inside or the outside. Outward rectification requires an energy well between the barriers h and β so that the height of β is greater from the out>in than the in>out direction. It would seem that the depth of this well would be significant considering the degree of rectification observed.

2) Furthermore, the second paragraph of the subsection “Data analysis” states that σh and σβ are voltage-independent, but Figure 1G seems to show that σβ is voltage-dependent. The statement in the next paragraph is rather inscrutable, as is the subsequent explanation about why the "decay" was omitted from the fits. What does "inaccurate estimation of σβ" mean? It would be useful to know how the conclusions are affected by changing n in Equation 2. And why is σh not shown beyond Figure 1?

3) Even though the G644P and Q649A mutations increase the baseline open probability of the channel, it is unclear whether the protein with any of these mutations still undergoes some gating-associated conformational changes. If this were the case, some of the effects of Ca2+-binding on the rectification of the mutant channels could arise from these conformational changes rather than the simple electrostatic influence of the site and the bound Ca2+ ions. To test for this possibility, the authors could use Mg2+ instead of Ca2+, as it is reported to compete with Ca2+ without activating the channel. The authors should test whether the presence of internal magnesium in the context of either of the constitutively active mutants has the same effect as Ca2+, as expected from their proposed mechanism. Although it is not necessary, I think it would be also interesting to test whether a trivalent cation could also bind and have a larger effect than Ca2+.

4) Large portions of the data shown depend on the use of a permeation model for analysis, together with the use of several equations for permeation and electrostatics. I think these play such a central role in the manuscript that it would make the reading easier if some of these models and equations were described with more detail in the main text, rather than the Materials and methods section.

https://doi.org/10.7554/eLife.39122.021

Author response

Essential revisions:

1) I am not sure that I understand the permeation model. Why do the electrostatics of Ca2+ affect only inward and not outward current? The energy profile in Figure 1D could not lead to rectification, because the height of each energy barrier is the same whether the ion is coming from the inside or the outside. Outward rectification requires an energy well between the barriers h and β so that the height of β is greater from the out>in than the in>out direction. It would seem that the depth of this well would be significant considering the degree of rectification observed.

In our analysis, we rely on a simple rate theory model proposed by Peter Läuger (Lauger, 1973). We have explained this model in detail in our previous manuscript published in eLife, to which this work refers to (Paulino et al., 2017). In this model, ions surmount energy barriers in a pore that does not contain deep energy wells and that cannot be saturated. We think that such model is appropriate for our analysis since we have not found evidence for tight ion binding sites in our structures and we have measured a KM of chloride conduction between 300-400 mM, thus underlining that there is no saturation in the applied conditions (Paulino et al., 2017). The energy profile displayed in Figure 1D or Figure 1—figure supplement 1 represents the potential of mean force for permeation in the absence of an applied electric field, where, in symmetric ion concentrations, the system is at equilibrium and there is no net flux in either direction. Upon application of a potential difference, the model predicts ionic currents. In such case, rectification is a consequence of the asymmetric free energy profile. The location of the barrier maximum governs the shape of the I-V relation, which becomes increasingly outwardly rectifying when the barrier maximum moves closer to the inner end. We note that the I-V relation is a function of both occupancy and rate of barrier crossing. Unlike the pseudo-ohmic cases, in case of low symmetric barriers, where the total occupancy remains approximately constant, ion depletion occurs in cases of an increased intracellular barrier at negative voltages where the channel is less conductive while ion accumulation occurs at positive voltages (Author response image 1). Both behaviors likely account for the resulting outward rectification and the general reduction in ion conductance. The latter corresponds to an effect that also affects the outward current (as indicated by the reduction of current at positive voltages in the I-V profiles in Author response image 1).

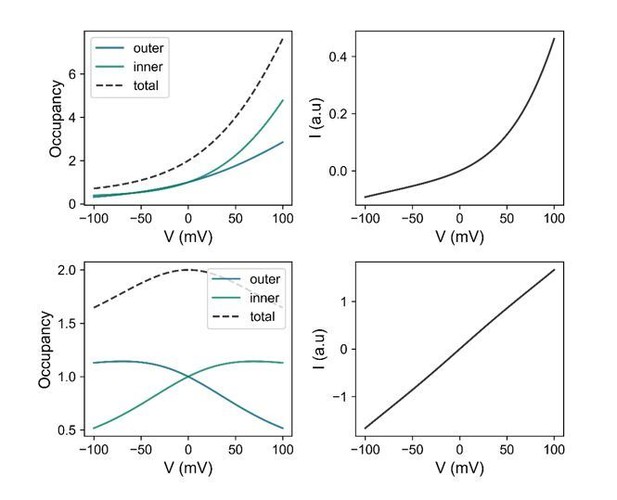

Author response image 1
Model calculations based on the energy profile of G644P at zero Ca2+ (top) and a WT-like channel with a totally symmetric energy profile (bottom).

Left, Ion occupancy in the model channel relative to that at the outermost wells (pn or p0) as a function of voltage at the indicated locations. Right, Shape of the I-V relation at steady state. At zero voltage, the relative occupancy is 1 for all cases because our model assumes no binding affinity when no voltage gradient is present. The curves on the left panels were calculated using

p1vc=ϕ+JvcβV
pn1vc=ϕn1+JvcβV(ϕn2+1σh(1ϕn21ϕ))

and those on the right panels using

I=zFJ

where

J=βVvc(1ϕn)ϕn1+1σhϕ(1ϕn21ϕ)+1σβ
ϕ=ezFVnRT
βV=β0ezFV2nRT

under symmetrical ionic conditions. The number of barriers n is 3 in this model. This has been determined to describe the conduction properties of mutants in our previous study (Paulino et al., 2017). βV is the voltage-dependent rate constant of the outermost barrier. The rate constant of the innermost barrier is defined as σββV and that of the middle barrier as σhβV where both fitted parameters σβ and σh are independent of voltage. pi’s are the probabilities of occupying the ith wells (from p0 to pn). v is a proportionality factor that has a dimension of volume and may be interpreted as the hypothetical volume for outermost well at the channel entrance. V is the membrane potential, z is the valence of the ion, and R, T and F have their usual meanings.

https://doi.org/10.7554/eLife.39122.018

2) Furthermore, the second paragraph of the subsection “Data analysis” states that σh and σβ are voltage-independent, but Figure 1G seems to show that σβ is voltage-dependent.

σh and σβ are both not intrinsically voltage-dependent as they denote the ratio of the rate constants in the case of a linear voltage drop (also see equation above). In Figure 1G they are only voltage-dependent because they change as a function of calcium binding and calcium binding itself is voltage-dependent. We have added the following sentences to our manuscript:

σh and σβ are respectively the rate of barrier crossing at the middle and the innermost barriers relative to that at the outermost barrier (β),

σβ=δVβV=δ0ezFV2nRTβ0ezFV2nRT=δ0β0

where h0 is the rate of barrier crossing at the middle barrier and δ0 at the innermost barrier in the absence of voltage. Thus, for a linear voltage drop as is the case in our model, σh and σβ are intrinsically voltage-independent and represent the relative rates when V=0. σβ appears to be voltage-dependent in Figure 1G because σβ is a function of Ca2+ binding whose EC50 exhibits voltage dependence.”

The statement in the next paragraph is rather inscrutable, as is the subsequent explanation about why the "decay" was omitted from the fits. What does "inaccurate estimation of σβ" mean? It would be useful to know how the conclusions are affected by changing n in Equation 2.

We note that the decay phase in general does not follow the same trend as the high affinity phase and occurs an order of magnitude above the concentration range where activation takes place (Author response image 2). The decay might be related to additional processes conferred by Ca2+ not intrinsic to its high affinity binding, as we have observed in a previous study (Lim et al., 2016). As we are interested in the effect of calcium binding to the high affinity transmembrane site, the low affinity phase becomes irrelevant and was therefore omitted from analysis. Since the same treatment was applied consistently, this does not affect the outcome of the analysis. The number of barrier n is kept equal to that determined for the WT channel in our previous manuscript. This energy profile presents a minimal model required for a phenomenological description of ion permeation across a narrow neck region with two flanking barriers that account for the entry of ions into the neck whose heights are modulated by long-range electrostatics. It is reasonable to assume that the barrier heights are affected by the introduction of mutations, whereas the overall architecture of the energy profile remains similar.

We have added the following sentences:

“We have previously shown that the model describes the behavior of WT best when the number of barriers n equals 3 (Paulino et al., 2017b), which was used as a fixed parameter. This leaves σh, σβ and the amplitude factor Aas the only free parameters to be fitted.”

“We observed for mutants G644P/E654Q, G644P/E654R, G644P/E654Q/E705Q and G644P/E654R/E705Q a low affinity decay of σβ at high Ca2+ concentrations (Figure 3A, B, D, E). Since this decay might be related to processes not intrinsic to the transmembrane binding site (Lim et al., 2016), only the high affinity phase was analyzed.”

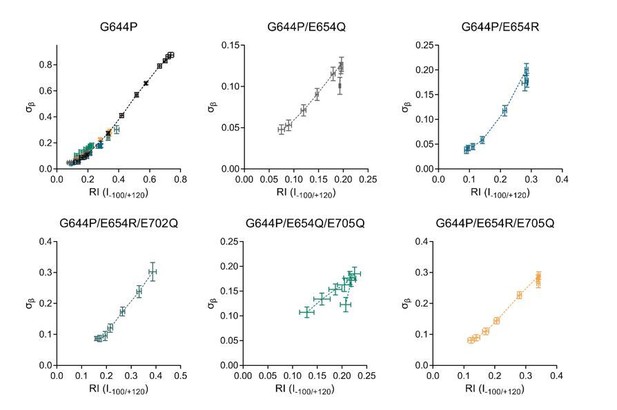

Author response image 2
Relationship between experimental σβ and RI (I-100/+120) for the G644P family of constructs.

Horizontal error bars indicate S.E.M and vertical error bars indicate the 95% confidence interval.

https://doi.org/10.7554/eLife.39122.019

And why is σh not shown beyond Figure 1?

We have selected σβ for most of our graphs since it was determined with higher precision than σh. As shown in Figure 1E, the 95% confidence interval of σh is much wider than that of σβ, indicating that the best-fit value of σh is less well defined. In addition, the value of σβ increases monotonically (and almost linearly for the experimental range) with the rectification index (I-100/+120) (Author response image 2), which allows a straightforward comparison with the I-V data.

3) Even though the G644P and Q649A mutations increase the baseline open probability of the channel, it is unclear whether the protein with any of these mutations still undergoes some gating-associated conformational changes. If this were the case, some of the effects of Ca2+-binding on the rectification of the mutant channels could arise from these conformational changes rather than the simple electrostatic influence of the site and the bound Ca2+ ions. To test for this possibility, the authors could use Mg2+ instead of Ca2+, as it is reported to compete with Ca2+ without activating the channel. The authors should test whether the presence of internal magnesium in the context of either of the constitutively active mutants has the same effect as Ca2+, as expected from their proposed mechanism. Although it is not necessary, I think it would be also interesting to test whether a trivalent cation could also bind and have a larger effect than Ca2+.

We agree that gating-associated conformational changes may still exist. However, since for our analysis we characterize instantaneous currents following a voltage jump prior to any conformational changes, the I-V relations correspond to the open populations of the channel.

In our revised version, we have now investigated the effect of Mg2+ binding on the conductance. For that purpose, we have recorded data at varying Mg2+ concentration in the absence of Ca2+. Consistent with previous observations by Chen and colleagues (Ni et al., 2014), we found that Mg2+ binds with an apparent affinity of around 1-2 mM. Although Mg2+ addition does not lead to activation of WT, its binding to the mutant G644P lowers the energy barrier for anion conduction at the intracellular part of the pore, consistent with the presence of a single Mg2+ ion in the site (as judged by the remaining rectification at high Mg2+ concentration). This result thus further confirms our proposed mechanism on the influence of divalent cations in the transmembrane binding site on the energetics of anion conduction in the open channel. In another set of experiments, we have also investigated the effect of the trivalent metal ion Gd3+ and found that the application of this ion at high µM concentrations exerts an even stronger effect than Ca2+, leading to slight inward rectification of currents. This behavior is consistent with a larger increase in the positive charge density after the binding of two Gd3+ ions. However, in this case the effect was not completely reversible upon washout indicating an unmeasurably slow off-rate for one of the bound ions. It should also be noted that in the case of Gd3+, we could not buffer residual Ca2+ in the solutions by addition of EGTA and we can thus not exclude the presence of traces of Ca2+ in the solutions. In light of our new data, we have added another subsection to our manuscript “The effect of the competitive antagonist Mg2+, and the trivalent cation Gd3+ on conduction”) and an additional accompanying figure (see the new Figure 2 and Figure 2—figure supplements 1 and 2).

4) Large portions of the data shown depend on the use of a permeation model for analysis, together with the use of several equations for permeation and electrostatics. I think these play such a central role in the manuscript that it would make the reading easier if some of these models and equations were described with more detail in the main text, rather than the Materials and methods section.

We have added two sentences to the Results where we discuss general features of the model and extended its description in the methods. However, we have already explained the same model in great detail in our preceding study, which the current manuscript is referring to, and think that the link to this previous study would help interested readers to gain in-depth insight. We also think that a more extended description of the model in the main part of the manuscript might distract readers from the main findings of the work.

The following sentences were added to the Results section:

“The diffusion path does not contain deep energy wells and the model does not account for saturation of the pore, which is generally consistent with the high KM for chloride conduction.”

“The rectification is a consequence of both pore occupancy and the rate of barrier crossing at the applied potential.”

https://doi.org/10.7554/eLife.39122.022

Article and author information

Author details

  1. Andy KM Lam

    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2983-3044
  2. Raimund Dutzler

    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Project administration, Writing—review and editing
    For correspondence
    dutzler@bioc.uzh.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2193-6129

Funding

H2020 European Research Council (ERC no 339116 AnoBest)

  • Raimund Dutzler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank all members of the Dutzler lab for help at various stages of the project.

Senior Editor

  1. Richard Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Baron Chanda, University of Wisconsin-Madison, United States

Publication history

  1. Received: June 14, 2018
  2. Accepted: October 11, 2018
  3. Accepted Manuscript published: October 12, 2018 (version 1)
  4. Version of Record published: October 19, 2018 (version 2)
  5. Version of Record updated: December 7, 2018 (version 3)

Copyright

© 2018, Lam and Dutzler

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,123
    Page views
  • 307
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Xiaodi Yu et al.
    Short Report Updated
    1. Structural Biology and Molecular Biophysics
    Ruth A Pumroy et al.
    Research Article Updated
