Intergenerational epigenetic inheritance of cancer susceptibility in mammals

  1. Bluma J Lesch  Is a corresponding author
  2. Zuzana Tothova
  3. Elizabeth A Morgan
  4. Zhicong Liao
  5. Roderick T Bronson
  6. Benjamin L Ebert
  7. David C Page  Is a corresponding author
  1. Whitehead Institute, United States
  2. Brigham and Women’s Hospital, Harvard Medical School, United States
  3. Broad Institute of MIT and Harvard, United States
  4. Yale School of Medicine, United States
  5. Tufts University School of Medicine and Veterinary Medicine, United States
  6. Massachusetts Institute of Technology, United States
  7. Howard Hughes Medical Institute, Whitehead Institute, United States

Abstract

Susceptibility to cancer is heritable, but much of this heritability remains unexplained. Some ‘missing’ heritability may be mediated by epigenetic changes in the parental germ line that do not involve transmission of genetic variants from parent to offspring. We report that deletion of the chromatin regulator Kdm6a (Utx) in the paternal germ line results in elevated tumor incidence in genetically wild type mice. This effect increases following passage through two successive generations of Kdm6a male germline deletion, but is lost following passage through a wild type germ line. The H3K27me3 mark is redistributed in sperm of Kdm6a mutants, and we define approximately 200 H3K27me3-marked regions that exhibit increased DNA methylation, both in sperm of Kdm6a mutants and in somatic tissue of progeny. Hypermethylated regions in enhancers may alter regulation of genes involved in cancer initiation or progression. Epigenetic changes in male gametes may therefore impact cancer susceptibility in adult offspring.

https://doi.org/10.7554/eLife.39380.001

eLife digest

Many diseases, such as certain cancers, run in families. Often, this is because several related individuals inherit a version of a gene that is faulty and causes the condition. But in a number of families with high rates of cancer, scientists are unable to pinpoint such disease-causing gene versions.

Instead, it is possible that individuals inherit healthy genes that are not read and interpreted correctly by the cells. This could be because of epigenetic changes, modifications that do not alter the genetic code but can instead turn genes on or off temporarily by adding or removing certain marks on the genetic information.

For a long time, researchers thought that epigenetic changes could not be passed from one generation to the next, but recent studies have revealed this is actually possible. However, it had never been shown that this could be associated with having a higher risk of developing cancer.

Now, Lesch et al. show that epigenetic changes passed from male mice to their offspring make these animals more likely to develop tumors than typical mice. In the experiments, mouse sperm were genetically engineered to have a mutation in a gene called Kdm6a (also called Utx by cancer researchers), which controls the placement of epigenetic marks. Male mice carrying a defective Kdm6a gene were then mated to normal females. The resulting offspring developed more tumors than mice produced from normal sperm, even though they inherited a normal copy of the Kdm6a gene from their mother. Lesch et al. also show that the offspring have epigenetic marks similar to the ones found in the mutant sperm. This may change whether genes that stop or promote tumor formation are switched on or off.

Certain cancer treatments work by targeting epigenetic changes. The results by Lesch et al. therefore call for more research into whether cancer patients exposed to these drugs could transmit these modifications if they have children soon after the end of their treatment. Ultimately, knowing more about how epigenetic changes are involved in inherited diseases may start to provide answers to families affected by cancer.

https://doi.org/10.7554/eLife.39380.002

Introduction

Intergenerational inheritance of epigenetic state may significantly impact disease susceptibility in animals, including humans. In addition to genetic information, male and female gametes transmit epigenetic regulatory information, in the form of covalent DNA modification, histone modification, and small RNAs, to the zygote at fertilization. Accumulating evidence indicates that the epigenetic information inherited from both maternal and paternal gametes can modulate gene expression and phenotype in progeny throughout the metazoan lineage (Arico et al., 2011; Carone et al., 2010; Ciabrelli et al., 2017; Greer et al., 2011; Morgan et al., 1999; Siklenka et al., 2015). In mammals, these transcriptional effects can manifest phenotypically as defects in early development (Chong et al., 2007; Siklenka et al., 2015) or as altered metabolic or behavioral states during adulthood (Carone et al., 2010; Dias and Ressler, 2014; Ng et al., 2010).

Consistent with these findings, there is mounting evidence that mature mammalian sperm carry an information-rich epigenome. Although the final stages of testicular sperm development involve extensive nuclear rearrangement, including widespread replacement of histones with protamines and nucleus-wide chromatin compaction, mammalian sperm are more than motile packages of DNA. Mature mammalian sperm exhibit relatively high levels of DNA methylation (Monk et al., 1987), contain populations of small RNAs (Sharma et al., 2016; Siklenka et al., 2015), and retain 5–10% of their histones (Hammoud et al., 2009; Jung et al., 2017), which bear extensive post-translational modifications (Erkek et al., 2013; Hammoud et al., 2009; Luense et al., 2016). Specific histone modifications at some loci in the male germ line have been conserved during mammalian evolution, implying a biologically important function (Lesch et al., 2016). Recent evidence suggests that mature mouse sperm also retain elements of large-scale three-dimensional genomic domains found in somatic cells (Jung et al., 2017; Ke et al., 2017).

Altered epigenetic states play a significant role in cancer pathogenesis, making cancer a strong candidate for sensitivity to intergenerational epigenetic effects. Many cancers are highly heritable, meaning that the presence of a given tumor or set of tumors in one individual increases the risk of developing the same tumors among close relatives (Goldgar et al., 1994; Lichtenstein et al., 2000). However, despite extensive genetic studies of many human cancers, a large fraction of this heritability remains unexplained by specific genetic mutations or variants (Lichtenstein et al., 2000; Mucci et al., 2016). Meanwhile, investigations into tumor biology have revealed that cancer is in part a disease of epigenetic dysregulation. Many tumors are characterized by significantly perturbed gene regulatory states and exhibit abnormal genome-wide histone methylation and DNA methylation profiles (Dawson and Kouzarides, 2012). Cancer genetics studies over the last decade have revealed that, when susceptibility genes can be identified, many encode chromatin regulators, implying that epigenetic changes contribute either to tumor initiation or tumor progression (Baylin and Jones, 2011; Dawson and Kouzarides, 2012).

Kdm6a (Utx) has been identified as a candidate tumor suppressor in cancer genetics studies. The KDM6A protein has histone demethylase activity toward lysine 27 on histone H3 (H3K27), as well as demethylase-independent functions in establishment of enhancer regions (Hong et al., 2007; Lan et al., 2007; Wang et al., 2017). KDM6A mutations are found in a variety of human cancers, including multiple myeloma, renal cell carcinoma, bladder carcinoma, acute myeloid leukemia (AML), acute lymphoid leukemia (ALL), prostate cancer, and medulloblastoma (Jones et al., 2012; Ntziachristos et al., 2014; Van der Meulen et al., 2014; van Haaften et al., 2009). KDM6A has been mechanistically implicated as a tumor suppressor in ALL (Ntziachristos et al., 2014; Van der Meulen et al., 2015), AML (Gozdecka et al., 2018), and lung cancer (Wu et al., 2018), and also plays important developmental roles, especially in the heart (Lee et al., 2012; Welstead et al., 2012) and blood (Beyaz et al., 2017; Thieme et al., 2013). Because KDM6A functions primarily as a chromatin regulator, these studies imply that the epigenetic sequelae of KDM6A loss contribute to tumor initiation or progression.

Here, we delete Kdm6a specifically in the male germ line of the mouse, and evaluate gene regulatory and phenotypic effects in genetically wild type offspring. We find that offspring of Kdm6a male germline knockouts exhibit an increased incidence of tumors, and that this effect is enhanced when Kdm6a is deleted in the germ line in two successive generations. Because these effects are provoked by a single genetic lesion in the parent, we were able to define specific epigenetic changes resulting from this manipulation. We find widespread perturbation of H3K27 methylation state in the Kdm6a mutant male germ line, as well as increased levels of DNA methylation at specific loci. Some of the changes in DNA methylation observed in the mutant germ line are retained in somatic tissue of wild type progeny, and may affect the transcriptional regulation of genes involved in cancer susceptibility.

Results

Generation of wild type offspring from Kdm6a conditional germline knockout males

We designed a breeding strategy to produce genetically wild type male offspring from a Kdm6a mutant male germ line. We generated a germline-specific Kdm6a conditional knockout (Kdm6a cKO) in male mice by crossing a Cre recombinase driven by the Ddx4 (Mvh) promoter (Gallardo et al., 2007) to a conditional allele of Kdm6a (Welstead et al., 2012). The Cre transgene is expressed in the prenatal germ line, and excision of the conditional allele is complete by the time postnatal spermatogenesis begins (Hu et al., 2013). Kdm6a is encoded on the X chromosome, so recombination of a single allele is sufficient to generate a complete knockout. Because developing spermatogenic cells are linked by cytoplasmic bridges until just before sperm are released, and therefore share cytoplasmic factors, loss of Kdm6a expression from the X chromosome affects both X- and Y-bearing spermatogenic cells even after meiosis (Braun et al., 1989) . Mating Kdm6a cKO males to wild-type females produced genetically wild type male offspring (‘Kdm6a F1’) and heterozygous female offspring (Figure 1A). Cre-negative littermates of Kdm6a cKO males were mated to age-matched wild type females, and the male offspring of these crosses were used as controls (‘control F1’). Critically, Kdm6a F1 males are genetically wild type, but generated from a paternal germ line lacking KDM6A activity.

Figure 1 with 10 supplements see all

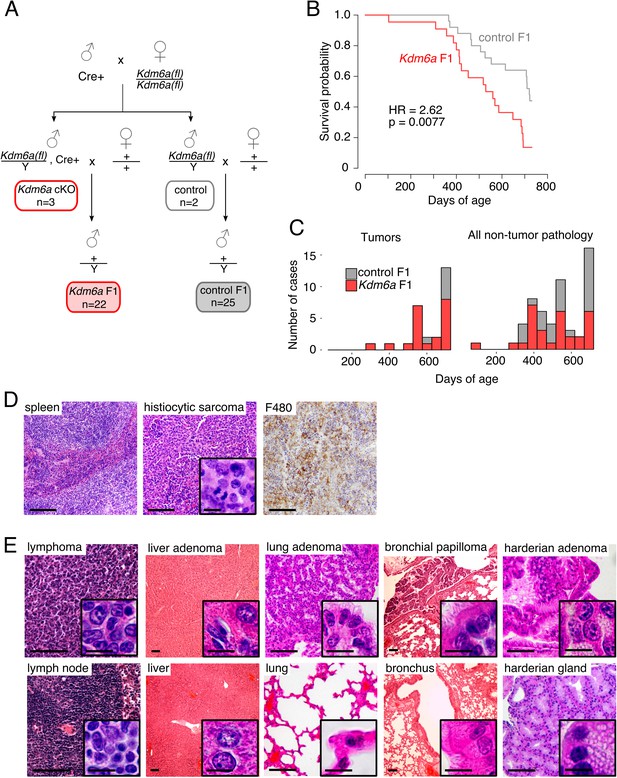

Reduced lifespan and increased tumor incidence in Kdm6a F1s.

(A) Cross for Kdm6a F1 and control F1 mice. All Kdm6a cKO (n = 3) and control (n = 2) mice were littermates. (B) Survival curve for Kdm6a F1 and control F1 males. Hazard ratio (HR) and p-value calculated by a Cox proportional hazards model. (C) Raw counts of tumors (p=0.0071) and non-tumor phenotypes (p=0.69) in Kdm6a F1 vs. control F1 males at necropsy (p-values, one-sample test of proportions). (D) Left to right, hematoxylin and eosin (H&E) staining of normal spleen in control F1; H&E of histiocytic sarcoma in spleen of Kdm6a F1, showing diffuse infiltration of red pulp with nuclear pleomorphism and frequent mitotic figures (inset); immunohistochemistry of monocyte-lineage marker F4/80 in spleen histiocytic sarcoma. (E) H&E of representative tumors in Kdm6a F1s (top) and matched normal tissues from control F1s (bottom). Scale bars, 100 um (large images), 10 um (insets). See Figure 1—source data 1.

https://doi.org/10.7554/eLife.39380.003
Figure 1—source data 1

Survival and phenotype of Kdm6a F1s.

https://doi.org/10.7554/eLife.39380.014

Kdm6a cKO males were fertile, produced male and female offspring at Mendelian ratios, and exhibited normal spermatogenesis (Figure 1—figure supplement 1). We confirmed the high efficiency of Cre recombinase activity (>97%) by genotyping the heterozygous female offspring of these crosses (Figure 1—figure supplement 2). Male Kdm6a and control F1s were housed with littermates and followed until natural death or morbidity requiring euthanasia, at which time all animals underwent complete necropsy. Mice surviving past 24 months of age were considered healthy survivors.

Reduced survival and increased tumor incidence in Kdm6a F1 compared to control F1 males

We found that lifespans of Kdm6a F1 males were shorter than those of control F1s (Figure 1B, Figure 1—figure supplement 3). This effect was independent of whether the animal carried the Ddx4-Cre transgene (Figure 1—figure supplement 4) and of mode of death (Figure 1—figure supplement 5). There was no significant difference in weight and a mild reduction in body length for Kdm6a F1s compared to control F1s at the time of death (Figure 1—figure supplement 6).

We evaluated cumulative necropsy data to define pathological correlates of the difference in survival between Kdm6a F1s and control F1s (Figure 1—figure supplement 7). We found that Kdm6a F1s that died between 12 and 18 months of age did not exhibit evidence of a unifying disease process. In contrast, Kdm6a F1s that died between 18 and 24 months of age exhibited an increased tumor burden compared to age-matched control F1s (Figure 1C, Figure 1—figure supplement 8). The spectrum of tumors identified was similar to that observed in normally aging mice (Haines et al., 2001), but appeared earlier and at higher frequencies. The most common cancer type was histiocytic sarcoma, a blood tumor of the monocyte/macrophage lineage (Figure 1D; 6/22 vs. 1/25 mice, p=0.040, Fisher’s Exact test); this tumor was found in Kdm6a F1s at a mean age of 624 ± 61 days, and in a single control F1 at 722 days. Flow cytometry of bone marrow from these mice revealed expanded populations of monocyte-lineage cells, consistent with histiocytic sarcoma. In addition, Kdm6a F1 mice not identified as having histiocytic sarcoma by histopathology also had a moderate increase in monocyte-lineage cell populations, indicating subtle skewing of hematopoietic lineages even in the absence of full-blown disease (Figure 1—figure supplement 9). Kdm6a F1 mice also developed a variety of other solid and blood tumors (Figure 1E, Figure 1—figure supplement 10, Figure 2—source data 2).

Increased tumor susceptibility in Kdm6a F2 males

We then asked whether this effect could be transmitted to a second generation. We designed a breeding strategy in which wild type males were generated from male germ cells that had passed through two successive generations of Kdm6a conditional deletion (‘Kdm6a F2’), or through one generation of Kdm6a deletion followed by one generation with an intact Kdm6a gene (‘control F2’) (Figure 2A). F2 males were followed under the same protocol as F1 males. We found that, like Kdm6a F1s, Kdm6a F2s exhibited reduced survival relative to the original control F1 cohort, whereas survival of control F2 males was more variable (Figure 2B, Figure 2—figure supplement 1). Also like Kdm6a F1s, Kdm6a F2s had an increased tumor burden relative to the F1 control cohort (Figure 2C and D, Figure 2—figure supplement 2). We did not find evidence for increased tumor burden in control F2 males. We conclude that repeated loss of Kdm6a in the male germ line is required to maintain the intergenerational tumor susceptibility phenotype.

Figure 2 with 2 supplements see all

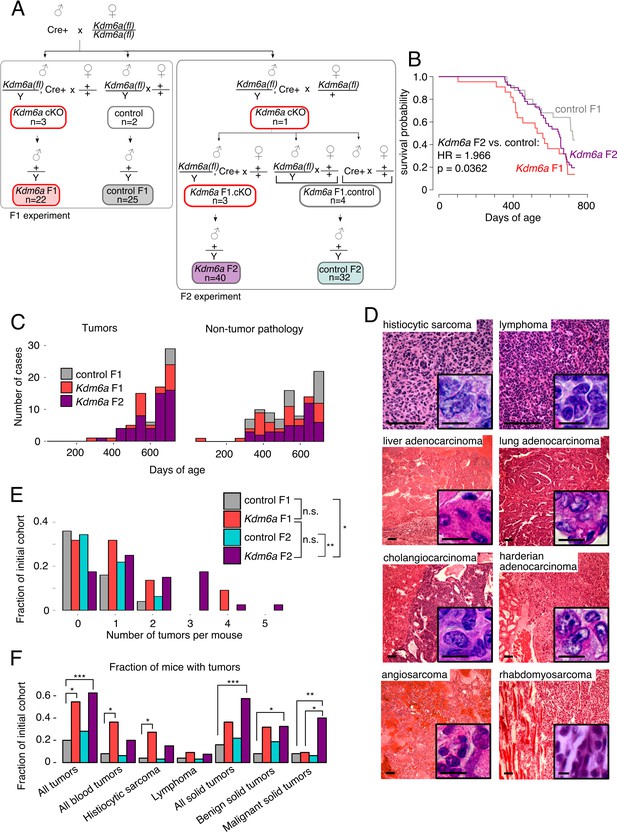

Reduced lifespan and increased tumor incidence in Kdm6a F2s.

(A) Cross for Kdm6a F2s and control F2s. The Kdm6a cKO male used in this experiment was littermate to the 3 Kdm6a cKO and two control males used in the F1 experiment. Control F2s, combined progeny of Cre-only or only Kdm6a(fl)-only F1s. (B) Survival curve for Kdm6a F1s, control F1s, and Kdm6a F2s. Hazard ratio and p-value calculated by a Cox proportional hazards model. (C) Raw counts of tumors (p=3.45e-9) and non-tumor phenotypes (p=0.13) in control F1s, Kdm6a F1s, and Kdm6a F2s at necropsy (p-values, Kdm6a F2s vs. control F1s, one-sample test of proportions). (D) H&E staining of representative tumors in Kdm6a F2s. Scale bar, 100 um (large images), 10 um (insets). (E) Tumor count per individual at necropsy. *p<0.05, **p<0.01, Fisher’s exact test. (F) Fraction of mice with tumors. *p<0.05, **p<0.01, ***p<0.001, Fisher’s exact test. See Figure 2—source data 1.

https://doi.org/10.7554/eLife.39380.015
Figure 2—source data 1

Survival and cancer phenotype of Kdm6a F2s.

https://doi.org/10.7554/eLife.39380.018
Figure 2—source data 2

All tumors identified in F1 and F2 cohorts.

Counts represent total tumors including multiple tumors per mouse. Tumor rate (tumors/mouse) in parentheses. Kdm6a F2.controlA mice generated from a Cre-only sire; Kdm6a F2.controlB mice generated from a Kdm6a(fl)-only sire.

https://doi.org/10.7554/eLife.39380.019

Notably, the tumor phenotype was more pronounced in Kdm6a F2s compared to Kdm6a F1s: Kdm6a F2s developed more tumors per mouse (overall tumor rate: 0.24 control, 0.95 Kdm6a F1, 1.30 Kdm6a F2; Figure 2—source data 2), and when present, tumors were more aggressive. Thirty-eight percent (15/40) of Kdm6a F2 mice had more than one independent tumor at death, compared to 23% (5/22) of Kdm6a F1 mice and 4% (1/25) of control F1 mice (Figure 2E). In addition, a higher fraction of Kdm6a F2 tumors were malignant (Figure 2F). We conclude that exposure of male germ cells to loss of Kdm6a across multiple generations confers a cumulative risk of tumor development on offspring. These findings imply that the molecular changes mediating this effect accumulate across generations, but can be reset when germline Kdm6a expression is restored.

Altered epigenetic profiles in Kdm6a cKO male germ cells

We then turned our attention to the molecular mechanism by which loss of Kdm6a in the germ line might affect tumor susceptibility in the next generation. An advantage of our experimental strategy is that any epigenetic perturbation in germ cells is a consequence of a single defined genetic lesion, knockout of Kdm6a. We could therefore predict the nature of epigenetic changes in the Kdm6a cKO germ line based on the known molecular functions of the KDM6A protein. KDM6A is an H3K27me3 histone demethylase, and also plays a demethylase-independent role in promoting assembly of active enhancer regions (Hong et al., 2007; Lan et al., 2007; Shpargel et al., 2012; Wang et al., 2017). We first examined the effect of Kdm6a deletion on H3K27 methylation in male germ cells. We collected H3K27me3 ChIP-seq data from two biological replicates of epididymal sperm from Kdm6a cKO and littermate control males (Figure 3—source data 2, Figure 3—figure supplement 1). ChIP-seq data were strongly correlated between sperm replicates (Figure 3—figure supplement 2).

We examined H3K27me3 signal in 2-kilobase (kb) tiles throughout the genome. Genome-wide, we observed an increase in H3K27me3 signal in Kdm6a cKO sperm relative to control sperm after normalizing for library size, as expected for loss of an H3K27me3 demethylase (Figure 3A). We confirmed a global gain in H3K27me3 by Western blot (Figure 3B). However, this effect was not uniform throughout the genome. While H3K27me3 signal increased in the majority of tiles in Kdm6a cKO sperm, those tiles with the highest overall H3K27me3 signal exhibited a paradoxical loss of H3K27me3 in Kdm6a cKOs (Figure 3C, Figure 3—figure supplement 3). The result is an apparent flattening of the H3K27me3 profile: a decrease in H3K27me3 at regions with high signal, accompanied by an increase in H3K27me3 in adjacent regions (Figure 3D–E, Figure 3—figure supplements 45). This effect is compatible with several explanations. First, it may reflect genuine loss of signal in some regions accompanied by gain in adjacent regions. Second, widespread gain of H3K27me3 due to loss of KDM6A demethylase activity could result in the false appearance of signal loss at regions where H3K27me3 levels are actually unchanged. Finally, this effect may represent a more homogeneous signal at the population level due to increased variability between individual sperm. Allowing for each of these explanations, we conclude that loss of KDM6A increases H3K27me3 overall and alters the normal pattern of distribution of H3K27me3 during spermatogenesis.

Figure 3 with 8 supplements see all

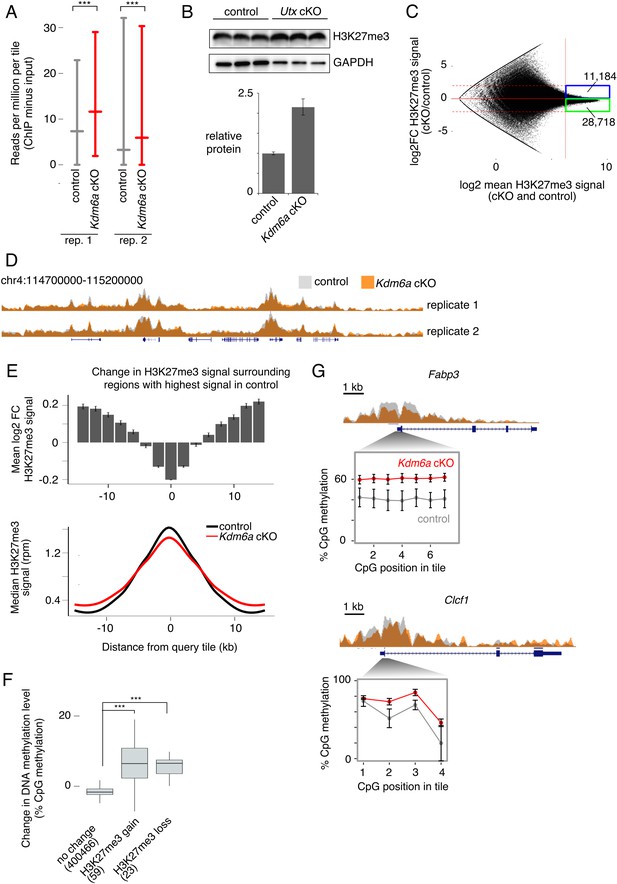

Redistribution of H3K27me3 in Kdm6a cKO germ cells.

(A) Median and interquartile range (IQR) for H3K27me3 signal in 2 kb tiles for each of two sperm ChIP-seq replicates. ***p<2.2×10−16, Mann-Whitney U test. (B) Western blot for H3K27me3 in germ cell-enriched testis samples from control and Kdm6a cKO mice. Bottom plot shows quantitation relative to GAPDH. Image is representative of two biological replicates. (C) MA plot of change in H3K27me3 signal vs. mean signal in Kdm6a cKO vs. control sperm, based on the mean of two biological replicates. Dashed horizontal lines, log2 fold change (log2FC) =±2. (D) Browser tracks of H3K27me3 signal in Kdm6a cKO and control sperm. (E) Top, mean log2FC in H3K27me3 signal for the 5% of tiles with greatest H3K27me3 signal in sperm and for surrounding tiles, based on mean values from two biological replicates. Error bars,±SE. Bottom, metagene of median H3K27me3 signal for the same set of tiles. (F) Change in DNA methylation level in Kdm6a cKO vs. control sperm for regions where log2FC H3K27me3 > 0.5 (‘H3K27me3 gain’), log2FC H3K27me3 < −0.5 (‘H3K27me3 loss’), or with no change in H3K27me3 (−0.5 < logFC < 0.5). Numbers of tiles in each category are shown. Horizontal bars, median; boxes, IQR. ***p<10−11, Mann-Whitney U test. (G) ChIP and RRBS data at two regions with altered H3K27me3 and DNA hypermethylation in sperm. Error bars, SEM of three replicates. See Figure 3—source data 2.

https://doi.org/10.7554/eLife.39380.020

Because we deleted Kdm6a early in spermatogenesis, we then considered the possibility that some epigenetic changes carried by Kdm6a cKO sperm might be indirect effects of early KDM6A loss. Deposition of H3K27 methylation has been associated with both gain and loss of cytosine DNA methylation, depending on the genomic and cellular context (Brinkman et al., 2012; Neri et al., 2013; Viré et al., 2006). DNA methylation is stable across long developmental time periods and is retained at high levels in sperm (Monk et al., 1987; Smallwood et al., 2011; Smith et al., 2012). We therefore asked if DNA methylation levels changed in regions of the genome where H3K27me3 was most perturbed in Kdm6a cKO relative to control sperm. We collected reduced representation bisulfite sequencing (RRBS) data from epididymal sperm of three control and three Kdm6a cKO males (Figure 4—source data 2). Overall levels of DNA methylation did not differ between control and cKO sperm (65% and 66% methylation, respectively). However, regions where H3K27me3 was altered, defined as those tiles with log2 fold change >0.5 or<−0.5 and false discovery rate <0.1 in both ChIP-seq replicates and which were not called as different in comparisons between the two control or two cKO datasets, were associated with increased DNA methylation (Figure 3F and G, Figure 3—figure supplement 6, Figure 3—figure supplement 7). Both increased and decreased H3K27me3 were associated with a gain in DNA methylation, possibly due to secondary alterations in histone methylation after establishment of an initial change in DNA methylation. These regions were enriched near gene bodies (p=9.898×10−6 for H3K27me3 gain and p=5.892×10−4 for H3K27me3 loss, Fisher’s exact test), and regions of H3K27me3 loss were also weakly enriched at transcription start sites (p=0.01368, Fisher’s exact test). Genes exhibiting loss of H3K27me3 and gain of DNA methylation were enriched for functions such as ‘negative regulation of myeloid dendritic cell activation’ and ‘positive regulation of immune effector process’ (Figure 3—figure supplement 8). Together, our results indicate that deletion of Kdm6a early in spermatogenesis induces redistribution of H3K27me3, and that regions strongly affected by H3K27me3 redistribution gain DNA methylation in mature sperm.

Differential DNA methylation persists from Kdm6a cKO sperm to Kdm6a F1 soma

We then asked if the changes in DNA methylation evident in Kdm6a cKO sperm could also be detected in somatic tissues of aging Kdm6a F1 adults. We collected RRBS data from bone marrow of Kdm6a F1 and control F1 males (Figure 4—source data 2), and compared it to the RRBS data from Kdm6a cKO and control sperm. We identified differentially methylated regions (DMRs: 100 bp tiles with false discovery rate <0.05) in Kdm6a cKO vs. control sperm and in Kdm6a F1 vs. control F1 bone marrow (Figure 4A). To avoid the confounding effect of disease on DNA methylation, we excluded F1 mice with any histopathological abnormality in the blood lineage. DMRs in both Kdm6a cKO sperm and Kdm6a F1 bone marrow were more likely to be hypermethylated than hypomethylated relative to their respective controls (4725 hypermethylated vs. 323 hypomethylated DMRs in sperm and 3156 hypermethylated vs. 1122 hypomethylated DMRs in bone marrow). Two hundred and ninety-nine regions were differentially methylated in both Kdm6a cKO sperm and Kdm6a F1 bone marrow, significantly more than expected by chance (57 regions expected, p=4.22e-121, hypergeometric test) (Figure 4B). Considering all 299 shared DMRs, there was a positive correlation between the magnitude of DNA methylation change in sperm and in F1 bone marrow (R = 0.17, p=0.0026) (Figure 4C). Two hundred and twenty-six individual DMRs (76%) were positively correlated between sperm and F1 bone marrow, including 207 (69%) hypermethylated and 19 (6%) hypomethylated regions (Figure 4—source data 3, Figure 4—source data 2). Given the overall hypermethylation of DMRs in both Kdm6a cKO sperm and Kdm6a F1 bone marrow, we focused our attention on the 207 hypermethylated regions. We considered these positively-correlated hypermethylated DMRs as candidates for direct inheritance of DNA methylation state from the paternal germ line, and refer to them as ‘persistent’ DMRs. We validated our RRBS findings using pyrosequencing in Kdm6a cKO sperm and Kdm6a F1 bone marrow, and confirmed hypermethylation at 12 of 13 tested DMRs in at least one tissue and at seven of 13 DMRs in both tissues (Figure 4—figure supplement 1).

Figure 4 with 5 supplements see all

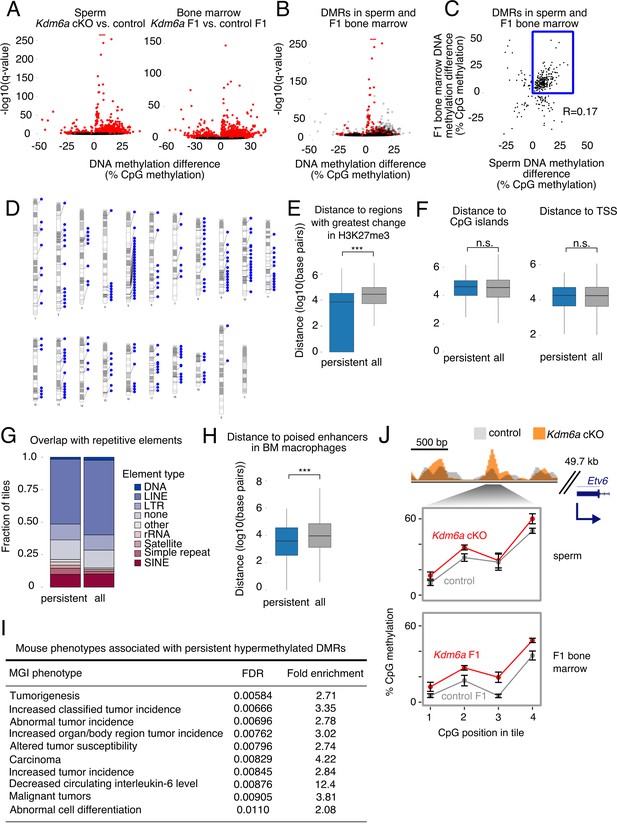

Persistent DMRs are associated with altered H3K27me3 and enhancer regions.

(A) Left, differentially methylated regions (DMRs) in sperm. Right, DMRs in F1 bone marrow. Red, false discovery rate (FDR) < 0.05. (B) Sperm volcano plot from (A); DMRs with FDR < 0.05 in both sperm and F1 bone marrow are in red. (C) Magnitude of DNA methylation difference (Kdm6a cKO vs. control or Kdm6a F1 vs. control F1) for the 299 DMRs shared between sperm and F1 bone marrow. Box, persistent DMRs. (D) Distribution of persistent DMRs in the mouse genome. (E) Distance from persistent DMRs to the 25% of regions with greatest change in H3K27me3 in sperm. ‘All’ refers to the complete set of tiles covered by RRBS. ***p<0.001, Mann-Whitney U test. (F) Left, distance to CpG islands. Right, distance to transcription start sites (TSS). (G) Fraction of DMRs overlapping repetitive elements. (H) Distance to poised enhancers in sorted bone marrow macrophages. ***p<0.001, Mann-Whitney U test. (I) Top 10 mouse phenotypes associated with persistent DMRs. (J) Representative persistent DMR in the enhancer of a cancer-associated gene (Etv6). Error bars, SEM of three replicates. See Figure 4—source data 1.

https://doi.org/10.7554/eLife.39380.031
Figure 4—source data 1

DNA methylation in Kdm6a cKO sperm and Kdm6a F1 bone marrow.

https://doi.org/10.7554/eLife.39380.037
Figure 4—source data 2

RRBS libraries.

https://doi.org/10.7554/eLife.39380.038
Figure 4—source data 3

DMRs shared between Kdm6a cKO sperm and Kdm6a F1 bone marrow.

https://doi.org/10.7554/eLife.39380.039
Figure 4—source data 4

Genes within 1 kilobase of persistent DMRs.

https://doi.org/10.7554/eLife.39380.040

Persistent Kdm6a DMRs overlap enhancers associated with tumorigenesis

We then asked what genomic and regulatory features were associated with persistent DMRs. We found that persistent DMRs were distributed throughout the genome (Figure 4D) and frequently overlapped the regions of greatest H3K27me3 change in Kdm6a cKO sperm (Figures 3F and 4E). In contrast, there was no association between persistent DMRs and various other features, including CpG islands, imprinted regions, and transcription start sites (TSS) (Figure 4F, Figure 4—figure supplement 2). Although repetitive elements such as retrotransposons can be resistant to DNA methylation reprogramming in the germ line (Guibert et al., 2012), persistent DMRs were not more likely to overlap repetitive elements compared to the complete set of genomic regions covered by our RRBS data (Figure 4G). We conclude that the location of persistent DMRs is strongly associated with regions of altered H3K27me3 in sperm, implying that loss of Kdm6a in the male germ line sensitizes these regions to DNA hypermethylation. Some of these sensitive regions may retain their methylation state during somatic development in the next generation.

We next asked whether persistent DMRs might be functionally important to the tumor susceptibility phenotype observed in Kdm6a F1s. We examined the proximity of persistent DMRs to enhancer regions in whole bone marrow and in sorted bone marrow macrophages (mouse ENCODE project) (Yue et al., 2014) and in round spermatids, the last stage of spermatogenesis at which there is active transcription (our data, Figure 3—source data 2; Figure 4—figure supplement 3). We found that persistent DMRs were close to or overlapping both poised (marked by H3K4me1) and active (marked by both H3K4me1 and H3K27ac) enhancer regions in all three of these tissues or cell types (Figure 4H, Figure 4—figure supplement 2). We then used GREAT (Genomic Regions Enrichment of Annotations Tool) to identify enriched phenotypes, defined by the Mouse Genome Informatics (MGI) phenotype ontology, associated with the set of 207 persistent DMRs (Blake et al., 2009; McLean et al., 2010). The top ten most strongly enriched mouse phenotypes were all related to tumorigenesis, including ‘increased classified tumor incidence’, ‘altered tumor susceptibility’, and ‘malignant tumors’ (Figure 4I–J, Figure 4—figure supplements 45). We conclude that Kdm6a-dependent hypermethylated persistent DMRs affect enhancer regions relevant to tumorigenesis in mice. We note that the edges of a ChIP-seq peak do not represent precise boundaries for functional enhancer regions, meaning that DMRs that are close to but not directly overlapping enhancers in our analysis may still affect their function, for example by altering local transcription factor binding affinities or long-range chromatin interactions (Tiwari et al., 2008; Yin et al., 2017; Onuchic et al., 2018).

To test the hypothesis that methylation changes persisted from sperm through the early embryo to adult tissue, we also evaluated DNA methylation changes in spleens of five control F1 and three Kdm6a F1 mice, and in liver tumors from two control F1s and two Kdm6a F1s. Of the 207 persistent DMRs detected in bone marrow, 140 (67%, OR 87.32, p<2.2e-16) were also found in liver tumors, and 68 (35%, OR 408.65, p<2.2e-16) were also found in spleen, and the magnitudes of DNA methylation changes were positively correlated: R = 0.232 (liver) and R = 0.786 (spleen). The similarity of methylation changes across different tissues supports the model that these changes were present in the early embryo and persisted during lineage commitment and organ differentiation.

Persistent Kdm6a DMRs can alter transcription factor binding at enhancers

One effect of DNA methylation at enhancers is to modulate the binding affinities of recruited transcription factors (TFs), thereby altering downstream regulatory circuitry (Yin et al., 2017). We therefore investigated the possibility that the set of persistent DMRs contains methylation-sensitive TF binding sites that can impact expression of nearby genes. We used AME (Analysis of Motif Enrichment) (McLeay and Bailey, 2010) to find enriched TF binding motifs in the set of persistent DMRs. We detected enrichment of binding sites corresponding to the ETS transcription factors ELK1, ELK4, and GABPA (Figure 5A). DNA methylation reduces the affinity of all three of these factors for their binding sites (Yin et al., 2017), implying that persistent hypermethylation at these sites can impact expression of downstream genes in F1 somatic tissue.

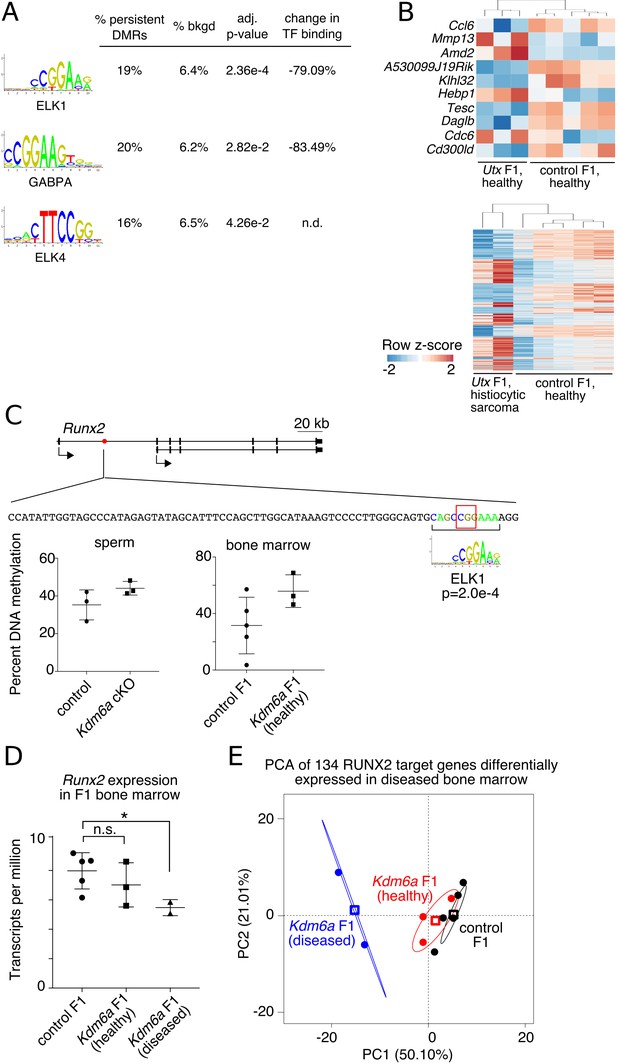

Persistent DMRs affect F1 bone marrow expression profiles.

(A) Transcription factor (TF) binding sites enriched in persistent DMRs. ‘Adjusted p-value’: Bonferroni-corrected AME p-value. ‘% persistent DMRs’, ‘% background’: percentage of tiles containing the TF binding site. ‘Change in binding’, relative enrichment of mCpGs in bisulfite-SELEX data from Yin et al. (2017). (B) Genes differentially expressed in healthy Kdm6a F1 (top) or diseased Kdm6a F1 (bottom) vs. control F1 bone marrow. (C) Top, gene model of Runx2 with location of a persistent DMR in the first intron (red circle). Middle, sequence of the DMR including ELK1 binding site and affected CpG (red box). Bottom, RRBS DNA methylation levels at the boxed CpG in sperm and F1 bone marrow. (D) Expression of Runx2 in F1 bone marrow. *p<0.05, Welch’s t-test. (E) Principal component analysis of 134 differentially expressed RUNX2 target genes. Circles, individual samples; open squares, centroid; ellipses, 95% confidence interval. See Figure 5—source data 1.

https://doi.org/10.7554/eLife.39380.041
Figure 5—source data 1

Runx2 expression and regulation in Kdm6a F1 bone marrow.

https://doi.org/10.7554/eLife.39380.042

To evaluate this possibility, we collected RNA-seq data from bone marrow of healthy Kdm6a F1s (n = 3), Kdm6a F1s with abnormal histiocytic proliferation or sarcoma (n = 2), and healthy control F1s (n = 5), and looked for transcriptional signatures consistent with altered regulation by ELK1, ELK4, or GABPA. We called differentially expressed genes (adjusted p-value<0.05) for healthy Kdm6a F1s vs. control F1s and for diseased Kdm6a F1s vs. control F1s separately (Figure 5B). In keeping with our prediction, four of ten differentially expressed genes in healthy Kdm6a F1 bone marrow and 134 of 1404 differentially expressed genes in diseased Kdm6a F1 bone marrow were targets of the hematopoiesis-associated transcription factor RUNX2, a direct target of ELK1 (p=0.00492 and p=0.00102 for healthy and diseased Kdm6a F1 bone marrow, respectively, Fisher’s exact test) (Matys et al., 2003; Zhang et al., 2009). An ELK1 binding site in the first intron of Runx2 falls within a persistent hypermethylated DMR and exhibits increased DNA methylation in both Kdm6a cKO sperm and Kdm6a F1 bone marrow (Figure 5C). Expression of Runx2 itself was decreased in diseased Kdm6a F1 compared to control F1 bone marrow (Figure 5D). Principal component analysis of expression data for the 134 differentially expressed RUNX2 target genes placed healthy Kdm6a F1 between diseased Kdm6a F1 and control F1 bone marrow, revealing potential underlying similarities in regulation of the Runx2 transcriptional network among Kdm6a F1 samples (Figure 5E). Although the observed effect was small and should be confirmed in additional tissues, this result implies that altered regulation of transcriptional networks downstream of DNA methylation-sensitive transcription factors could result from persistent DNA hypermethylation transmitted from the Kdm6a cKO germ line to F1 somatic tissue.

Discussion

A model for epigenetic inheritance of cancer susceptibility

We propose a model (Figure 6) wherein loss of Kdm6a results in extensive redistribution of the H3K27me3 mark during male germ cell development. Retention of H3K27me3 at regions where it would ordinarily be turned over leaves some of these loci vulnerable to DNA methylation, leading to hypermethylation in sperm. Early in embryogenesis, when most DNA methylation is removed from the paternal genome, some of these hypermethylated regions may resist reprogramming, such that methylation persists in somatic tissue during development; alternatively, hypermethylation may be lost at these loci during reprogramming and reestablished later in development following transmission through an epigenetic intermediate. When these regions coincide with functional enhancers, the altered epigenetic state inherited from the paternal gamete can have transcriptional consequences.

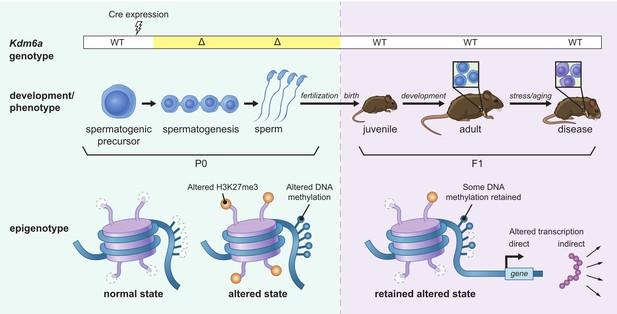

Model for intergenerational epigenetic inheritance following deletion of Kdm6a in the male germ line.

Kdm6a excision occurs in early spermatogenic precursors, resulting in genome-wide changes in H3K27me3 distribution. Altered H3K27me3 distribution biases nearby regions toward gain of DNA methylation. Both H3K27me3 and DNA methylation changes are retained in mature sperm. At fertilization, H3K27me3 and most DNA methylation changes are reset, but some DNA methylation gains persist. DNA methylation gains influence expression of nearby genes during development in genetically wild type F1 offspring. Effects on phenotype occur when downstream gene regulatory circuits are subjected to environmental or aging-associated stress.

https://doi.org/10.7554/eLife.39380.043

Importantly, because each sperm carries only one copy of a given locus, the relatively modest shift we observe in DNA methylation levels must reflect variability among individual sperm. Such variability is consistent with the heterogeneous tumor profiles and other pathological phenotypes seen in our F1 population. Similarly, in F1 somatic tissues, we propose that the effects of DNA methylation on downstream gene regulation manifest as a shift in the probability of transcription factor binding, resulting in subtle changes to transcriptional networks that impact tissue function only in the context of stressors, or cumulatively over time.

Several key questions remain to be answered. First, it will be important to define the role of Uty, the Y-linked homolog of Kdm6a that lacks histone demethylase activity, in this phenomenon (Hong et al., 2007). Second, while we have focused on adult cancer phenotypes, it is possible that additional developmental phenotypes are also affected. We did observe some developmental anomalies in adult Kdm6a progeny, including ectopic tissue rests, tail kinks, scoliosis, and a thyroglossal duct cyst. Third, the extent to which premature appearance of age-associated tumors might reflect a more generalized premature aging phenotype should be examined in more depth.

It will be critical to dissect the underlying molecular mechanism in more detail. While we suggest that DNA methylation changes induced during spermatogenesis persist during reprogramming in the early embryo, we have not yet directly demonstrated that this is the case. It is also possible that DNA hypermethylation is lost during reprogramming, but that epigenetic information is transmitted through an alternative chromatin mark or RNA intermediate to reestablish DNA hypermethylation later in development. Assessment of DNA methylation in early Kdm6a F1 embryos will help to resolve this question.

The relationship between Kdm6a loss, redistribution of H3K27me3, and gain of DNA methylation also remains to be defined. The simplest explanation for our data is that dysregulation of H3K27me3 leads to DNA hypermethylation at vulnerable loci, but it is also possible that KDM6A acts through an independent mechanism to regulate DNA methylation. Determination of the stage of spermatogenesis (proliferating spermatogonia, meiotic spermatocytes, or haploid spermatids) at which the observed changes in H3K27me3 and DNA methylation first appear will help to delineate the relationship between the different epigenetic consequences of Kdm6a loss.

Intriguingly, a recent study of H3K27me3 in mouse embryonic stem cells (mESCs) grown in 2i compared to serum-containing media described flattening of H3K27me3 signal very similar to the effect we observed in Kdm6a cKO sperm (van Mierlo et al., 2019). In 2i mESCs, H3K27me3 flattening was also associated with altered DNA methylation. A closer examination of the relationship between the phenomenon we observe in sperm and that reported in 2i mESCs may shed light on the mechanisms underlying both phenomena.

Finally, a critical experiment will be to examine the sperm of Kdm6a F1s to test the prediction that changes in DNA methylation at persistent DMRs are amplified in the second generation of gametes. At least two persistent DMRs are located in or near genes encoding components of the DNA methylation machinery (Dnmt3a and Tdg), raising the possibility that DNA hypermethylation at these sites in sperm amplifies the changes in DNA methylation in offspring. Dnmt3a is frequently mutated in hematological tumors and has been defined as an important tumor suppressor (Yang et al., 2015).

We restricted our study to progeny of a single male founder in order to limit the amount of genetic variation in the experiment and thereby reduce the potential contribution of genetic heterogeneity, given a moderate number of experimental animals (~100 F1s and F2s total). However, our findings should be tested in a larger study including several founder males. Likewise, a larger study would allow recovery of more diseased samples for transcriptional analysis. It will also be critical to exclude the possibility that loss of KDM6A in the male germ line leads to increased DNA damage and accumulation of genomic mutations that could contribute to a tumor phenotype in the next generation. Since increased DNA damage during spermatogenesis frequently leads to meiotic arrest and impaired fertility, the normal spermatogenesis and fertility of Kdm6a cKO mice argue against a strong mutator phenotype (Hunt and Hassold, 2002). However, a more subtle effect should be ruled out by sequencing of genomic DNA in multiple F1 progeny and careful assessment of mutation rates.

Implications for human disease

Virtually nothing is known about the contribution of epigenetic perturbations in the male germ line to human disease susceptibility. Specifically, while increased attention is being paid to the possible impacts of diet and environmental exposure on male fertility and epigenetic inheritance (Anway et al., 2005; Carone et al., 2010; Kaati et al., 2002; Ly et al., 2017), the role of mutations that arise in the male germ line but are not transmitted to the next generation is entirely unknown and unexplored. Spermatogenic stem cells continue to divide and to accumulate de novo mutations throughout a man’s lifetime. De novo germline mutations linked to advanced paternal age have been implicated in the pathogenesis of autism and schizophrenia; in these cases, the causative mutations arise in the germ line and are inherited by the affected progeny (Awadalla et al., 2010; de Kluiver et al., 2017; Girard et al., 2011; Iossifov et al., 2014; Nybo Andersen and Urhoj, 2017). Our results imply that de novo mutations in the male germ line in genes such as Kdm6a may have phenotypic consequences for progeny, even when they are not inherited. Intergenerational paternal effects on development have also been reported for heterozygous autosomal mutations in genes encoding chromatin regulators in the mouse (Chong et al., 2007), suggesting that the effects of non-inherited paternal germline mutations do not depend on complete loss of gene function in the germ cells. Interestingly, a paternal age effect has been reported for ALL, a tumor shown to be sensitive to epigenetic regulation by KDM6A, but increased rates of inherited de novo mutations have not yet been demonstrated for ALL patients (Sergentanis et al., 2015).

Many patients with cancer are now being treated with drugs that target epigenetic regulators. If these drugs alter the epigenetic state of germ cells, these treatment protocols could have long-term consequences for offspring of fertile patients. Based on the findings reported here and previously (Carone et al., 2010; Chong et al., 2007; Kaati et al., 2002; Pembrey et al., 2006; Siklenka et al., 2015), we suggest that paternal epigenetic state should be evaluated as an important risk factor in human disease susceptibility.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Mus musculus)Kdm6aNAMGI:1095419Also called Utx
Genetic reagent
(Mus musculus)
Ddx4-CreHu et al., 2013B6-Ddx4tm1.1(cre/mOrange)Dcp
RRID:MGI:5554603
Also called Mvh-Cre
Genetic reagent
(Mus musculus)
Kdm6a(fl)Welstead et al., 2012B6;129S4-Kdm6atm1c(EUCOMM)Jae/J
RRID:IMSR_JAX:021926)
AntibodyMouse monoclonal
anti-H3K27me3
Abcamab6002
RRID:AB_305237
1:1000
AntibodyRabbit polyclonal
anti-H3K27me3
Millipore Sigma07–449
RRID:AB_310624
1:1000
AntibodyRabbit polyclonal
anti-H3K4me1
Abcamab8895
RRID:AB_306847
1:1000
AntibodyRabbit polyclonal
anti-H3K27ac
Abcamab4729
RRID:AB_2118291
1:1000
AntibodyMouse monoclonal
anti-Gapdh
Santa Cruz
Biotechnology
sc-32233
RRID:AB_627679
1:1000
AntibodyRat monoclonal
anti-F4/80
SerotecMCA497GA
RRID:AB_323806
clone CI:A3-1; 1:5000
AntibodyRabbit monoclonal
anti-VEGF-A
Abcamab52917
RRID:AB_883427
clone EP1176Y; 1:100
AntibodyRabbit monoclonal
anti-ERG
Abcamab133264
RRID:AB_11156852
1:250
AntibodyRabbit monoclonal
anti-TTF-1
Abcamab76013
RRID:AB_1310784
1:250
AntibodyRabbit polyclonal anti-GSAbcamab73593
RRID:AB_2247588
1:1000
AntibodyMouse monoclonal
anti-CD20
DakoM0755
RRID:AB_2282030
clone L26; 1:500
AntibodyRabbit polyclonal
anti-CD3
DakoA0452
RRID:AB_2335677
clone F7.2.38; 1:250
Sequence-based
reagent
RT-qPCR primer, Actb-Fthis paperAGAAGGACTCCTATGTGGGTGA
Sequence-based
reagent
RT-qPCR primer, Actb-Rthis paperCATGATCTGGGTCATCTTTTCA
Sequence-based
reagent
RT-qPCR primer, Sycp2-Fthis paperAGTCTGAGCTGATGTTATCATA
Sequence-based
reagent
RT-qPCR primer, Sycp2-Rthis paperGAAGCAGAAGTAGAAGAGGC
Sequence-based
reagent
RT-qPCR primer, Prm2-Fthis paperGCTGCTCTCGTAAGAGGCTACA
Sequence-based
reagent
RT-qPCR primer, Prm2-Rthis paperAGTGATGGTGCCTCCTACATTT
Sequence-based
reagent
RT-qPCR primer, Aqp8-Fthis paperGGATGTCTATCGGTCATTGAG
Sequence-based
reagent
RT-qPCR primer, Aqp8-Rthis paperGAATTAGCAGCATGGTCTTGA
Sequence-based
reagent
RT-qPCR primer, Lin28a-Fthis paperTGGTGTGTTCTGTATTGGGAGT
Sequence-based
reagent
RT-qPCR primer, Lin28a-Rthis paperAGTTGTAGCACCTGTCTCCTTT
Commercial
assay or kit
Zymo ChIP Clean and Concentrator kitZymo ResearchD5201
Commercial
assay or kit
Accel-NGS 2S plus DNA library kitSwift Biosciences21024
Commercial
assay or kit
DNEasy Blood andTissue kitQiagen69504
Commercial
assay or kit
Ovation RRBS Methyl-Seq SystemNuGen0353
Commercial
assay or kit
RNEasy Plus Mini kitQiagen74134
Commercial assay or kitTruSeq RNA
library prep kit
IlluminaRS-122–2001
Software, algorithmRR Core TeamRRID:SCR_001905https://http://www.R-project.org/
Software, algorithmFastx toolkit v0.0.14http://hannonlab.cshl.edu/fastx_toolkit/commandline.htmlRRID:SCR_005534
Software, algorithmMACS v1.4Zhang et al., 2008RRID:SCR_013291
Software, algorithmMACS v2.1Zhang et al., 2008RRID:SCR_013291
Software, algorithmbowtie v1.2Langmead et al., 2009RRID:SCR_005476
Software, algorithmbowtie v2.0Langmead and Salzberg, 2012RRID:SCR_016368
Software, algorithmtrim-galore v0.4.2https://www.bioinformatics.babraham.ac.uk/projects/trim_galore/RRID:SCR_011847
Software, algorithmbismark v0.16.3Krueger and Andrews, 2011RRID:SCR_005604
Software, algorithmphenogramhttp://visualization.ritchielab.psu.edu/phenograms/document
Software, algorithmDESeq2 (R package)Love et al., 2014RRID:SCR_015687
Software, algorithmkallisto v0.43.0Bray et al., 2016RRID:SCR_016582
Software, algorithmAMEMcLeay and Bailey, 2010RRID:SCR_001783
Software, algorithmmethylKit (R package)Akalin et al., 2012RRID:SCR_005177
Software, algorithmrms (R package)https://cran.r-project.org/web/packages/rms/index.html
Software, algorithmsurvival (R package)https://CRAN.R-project.org/package=survival
Software, algorithmFactoMineR (R package)Le et al., 2008RRID:SCR_014602

Experimental design

Request a detailed protocol

This experiment was designed to test the hypothesis that epigenetic changes in the germ line resulting from loss of KDM6A could induce gross phenotypic or survival changes in genetically wild type offspring. The F1 experiment was 80% powered to detect a survival hazard ratio of 2.5 and 90% powered to detect a 2.5-fold change in phenotype incidence. The F2 experiment was 90% powered to detect a survival hazard ratio of 2.5 and 95% powered to detect a 2.5-fold change in phenotype incidence. Type I error rate (alpha) was 5% for all power calculations.

Statistical analysis

Request a detailed protocol

Survival hazard ratios were calculated using a Cox proportional hazards model. Fisher’s exact test was used to compare proportions. Welch’s t-test was used to compare continuous, normally-distributed variables. A Mann-Whitney U test was used for continuous variables when a normal distribution could not be assumed.

Mouse breeding and husbandry

Request a detailed protocol

All mice were maintained at the Whitehead Institute animal facility. Mice were kept under standard conditions and all experiments were conducted in compliance with the Animal Welfare act and approved by the Animal Care and Use Committee at the Massachusetts Institute of Technology. Kdm6a cKO, control, and all F1 and F2 mice were generated with breeding schemes described in the main text using Ddx4-Cre (B6-Ddx4tm1.1(cre/mOrange)Dcp) (Hu et al., 2013) and Kdm6a(fl) (B6;129S4-Kdm6atm1c(EUCOMM)Jae/J) (Welstead et al., 2012) alleles. Experiments were carried out on a mixed C57BL/6, 129S4 background. We controlled for background effects by generating all experimental mice from a single founder male, generating experimental F1s and F2s from littermate Kdm6a cKO and control males, and by removing loci containing known B6/129 variants from downstream analysis of DMRs. To generate F1 and F2 mice, single males were continuously co-housed with single C57BL/6 females, and litters were weaned at three weeks of age. All control and experimental mice were housed with littermates in adjacent cages on the same rack and subjected to identical handling protocols.

Necropsy and histopathology

Request a detailed protocol

F1 and F2 mice were checked daily for morbidity and mortality beginning at 6 months of age. Mice that died spontaneously were recovered within 24 hr to avoid autolysis and underwent a full necropsy. Mice that were independently identified by the MIT veterinary staff as requiring euthanasia due to morbidity were euthanized using CO2 and then underwent complete necropsy. For each mouse, adrenal gland, bone, bone marrow, brain, heart, small and large intestine, kidney, liver, lungs, pancreas, spleen, testes, thymus, and any additional tumors or gross abnormalities identified were embedded and sectioned, and a single representative slide was stained with hematoxylin and eosin and examined by a trained veterinary pathologist (R.T.B.). The pathologist was blinded to the experimental condition of the animals (e.g. Kdm6a F1, control F1, Kdm6a F2, or control F2). When possible, the entire organ was included on the slide. The complete set of conditions identified in F1 and F2 mice was tabulated once all mice had undergone necropsy.

Immunohistochemistry

Request a detailed protocol

All IHC was performed on the Leica Bond III automated staining platform. Anti-CD3 (A0452, clone F7.2.38, Dako, Santa Clara, CA) was run at 1:250 dilution using the Leica Biosystems Refine Detection Kit with EDTA antigen retrieval. Anti-CD20 (M0755, clone L26, Dako) was run at 1:500 dilution using the Leica Biosystems Refine Detection Kit with citrate antigen retrieval. Anti-VEGF (ab52917, clone EP1176Y, Abcam) was run at 1:100 dilution using the Leica Biosystems Refine Detection Kit with EDTA antigen retrieval. Anti-F4/80 (MCA497GA, clone CI:A3-1, Serotec, Hercules, CA) was run at 1:5000 dilution using the Leica Biosystems Refine Detection Kit with enzymatic antigen retrieval.

Bone marrow sample collection

Request a detailed protocol

To collect bone marrow for flow cytometry analysis, RRBS, and RNA-seq, mice were euthanized by an overdose of carprofen (25 mg/kg) by intraperitoneal injection. The sternum was removed and fixed in 10% formalin for histological analysis. The spinal column, pelvic bone, and both femurs, fibulas, and tibias were stripped of muscle tissue and macerated in wash buffer (PBS + 2% FBS) using a mortar and pestle. All liquid was pipetted off of the remaining solid tissue and passed through a 100 micrometer (um) filter into a 50 mL Falcon tube, then spun down at 1200 rpm for 5 min at 4C. Supernatant was removed, and cells were resuspended in 10 mL red blood cell lysis buffer (#555899, Becton Dickinson, Mountain View, CA) and incubated for 5 min on ice. 20 mL wash buffer was added and the cells were passed through a 70 um filter into a fresh tube, then spun down again. The supernatant was removed, cells were resuspended in 20 mL wash buffer and passed through a 40 um filter into a fresh tube. Approximately 1 mL of this cell suspension was removed for DNA isolation for RRBS (see below). The remaining suspension was spun down one more time, then resuspended in freeze solution (90% FBS +10% DMSO), aliquoted to cryotubes and stored in liquid nitrogen.

Flow cytometry

Request a detailed protocol

Peripheral blood, bone marrow, spleen and tumor cells were analyzed using the LSRII-Fortessa instrument (Becton Dickinson) using anti-mouse CD11b (clone M1/70, BioLegend, San Diego, CA), anti-mouse Gr1 (clone RB6-8C5, BioLegend) and LIVE/DEAD Fixable Aqua Dead Cell Stain Kit (Life Technologies, Carlsbad, CA). Figures were prepared using FCSalyzer version 0.9.13.

Western blotting

Request a detailed protocol

To collect germ cell-enriched mouse testis tissue, Kdm6a cKO and control male littermates were euthanized and testes transferred to 3 cm culture dish on ice, keeping individuals separate. The tunicae were removed and 450 ul cold collagenase solution (0.1% (w/v) hyaluronidase (#H3506, Sigma Aldrich, St. Louis, MO), 0.2% (w/v) collagenase (#C5138, Sigma Aldrich), 1:500 DNAse I (#07900, Stem Cell Technologies, Vancouver, Canada) in PBS was added. Testes tubules were teased apart using forceps for 7 min at room temperature. Liquid was removed and the sample was washed twice for 3 min in 450 ul wash solution (1:1000 DNAse I in PBS), with continued teasing. After the last wash, liquid was removed and tubules were resuspended in 700 ul trypsin solution (0.2% collagenase, 0.25% trypsin, 0.1 mM EDTA, 1:1000 DNAse I in water) and pipetted vigorously to break up clumps. Samples were shaken for 10–15 min at room temperature and then quenched with 700 ul Cosmic Calf Serum, and any remaining tissue chunks were allowed to settle. The cell suspension was transferred to a new tube and spun down at 3000xg, 4 min, 4C. The supernatant was removed and cells were resuspended in RIPA buffer containing protease inhibitor cocktail (sc-24948, Santa Cruz Biotechnology). The protein concentration was measured with Pierce BCA protein assay kit (#23225, Thermo Scientific). 30 ug of total protein was used for each blot and was incubated overnight with primary antibody against H3K27me3 (#07–449, Millipore Sigma) and GAPDH (#sc-32233, Santa Cruz Biotechnology). Blots were imaged on a FluorChem E System (ProteinSimple, San Jose, CA). Relative protein expression levels were quantitated using ImageJ and normalized to GAPDH. Blots were performed in triplicate for two biological replicates.

Round spermatid collection

Request a detailed protocol

Dissociated testis cells were collected from Kdm6a cKO and control littermates as described above. The supernatant was removed and cells were resuspended in 1 mL cold resuspension solution (1% BSA in PBS). 2 ul DyeCycle Green (#V35004, Thermo Fisher, Waltham, MA) was added, and the cell suspension was mixed by inversion and then incubated for 30 min at 37C in the dark. Cells were then passed through a 40 ul filter. Round spermatids were recovered by flow cytometry using a FACSJazz (Beckton Dickinson) after sorting for cells with 1C DNA content and large size (to differentiate elongating from round spermatids). The purity of the cell population was verified by fluorescence microscopy (≥95% round spermatids) and by qPCR (Figure 4—figure supplement 3). qPCR primer sequences are listed in the Key Resources table.

Sperm collection

Request a detailed protocol

Epididymal sperm for ChIP-seq and RRBS was collected by swim-up as follows: cauda epididymi were recovered from euthanized mice and cut 4–6 times on parafilm, then transferred to 6 cm culture dishes containing 5 mL of Donner’s medium (135 mM NaCl, 5 mM KCl, 1 mM MgSO4, 2 mM CaCl2, 30 mM HEPES, 25 mM NaHCO3, 20 mg/mL BSA, 1 mM sodium pyruvate, 0.53% (v/v) sodium DL-lactate), keeping tissue from each mouse separate. Epididymes were incubated at 37C for 1 hr with periodic gentle agitation, then passed through a 40 um filter, washed 1x in cold 0.45% NaCl to lyse any red blood cells and 1x in cold PBS. Sperm were resuspended in PBS, and 10 ul were removed for counting following standard procedures.

Pyrosequencing

Request a detailed protocol

Pyrosequencing for three control sperm samples, three Kdm6a cKO sperm samples, three control F1 bone marrow samples, and three Kdm6a F1 bone marrow samples was performed at 13 loci by EpigenDx (Hopkinton, MA) according to the company’s standard protocols. EpigenDx was blinded to tissue and experimental condition.

Chromatin immunoprecipitation

Round spermatids

Request a detailed protocol

Following isolation by flow cytometry, round spermatid samples were spun down and resuspended in 500 ul cold PBS, then fixed in 1% formaldehyde for 10 min at room temperature and quenched with 2.5 M glycine for 5 min at room temperature. Samples were then washed twice in cold PBS, resuspended in 100 ul ChIP lysis buffer (1% SDS, 10 mM EDTA, 50 mM Tris-HCl [pH 8]), snap frozen in liquid nitrogen, and stored at −80C. For H3K4me1 ChIP, Kdm6a cKO and control samples (approximately 5 × 105 cells each, with samples from individual males kept separate) were thawed on ice and ChIP performed as previously described for round spermatid samples (Lesch et al., 2016). Briefly, samples were sonicated in a BioRuptor (Diagenode, Liege, Belgium) and then immunoprecipitated overnight at 4C, using 1 ug anti-H3K4me1 (ab8895, Abcam) or 1 ug anti-H3K27ac (ab4729, Abcam). The following morning, samples were incubated with Protein G Dynabeads (#10004D, Life Technologies) for 2 hr, washed, then eluted and reverse cross-linked. Following incubation with RNAse A and proteinase K, DNA was purified using a ChIP Clean and Concentrator kit (#D5201, Zymo Research, Irvine, CA). Spermatids from a single male were used to generate each ChIP library.

Sperm

Request a detailed protocol

ChIP-seq in sperm was performed using a native ChIP protocol according to Hisano et al. (2013). Briefly, sperm were resuspended in 1 mL cold PBS. 50 ul of 1M DTT was added and samples were incubated for 2 hr at room temperature. 120 ul 1M N-ethylmaleimide (#P4557, Sigma Aldrich) was added and the sample was incubated for another 20 min at room temperature. An aliquot was removed as a pre-MNase control, the sample was digested with 10 units of MNase (#10107921001, Sigma Aldrich) for 5 min at 37C, and 2 ul 0.5M EDTA was added to stop the digest. The chromatin solution was precleared for 1 hr with pre-blocked Protein G Dynabeads, then removed from the beads. 100 ul was set aside as a pre-ChIP control, and the remainder of the sample was incubated with 5 ug anti-H3K27me3 (ab6002, Abcam) overnight at 4C. The following day, chromatin samples were incubated for 8 hr with pre-blocked beads, then washed, eluted from the beads, and treated with RNAse A and proteinase K. DNA was purified using a Zymo ChIP Clean and Concentrator kit. Two biological replicates were prepared for each of the control and Kdm6a cKO genotypes. For each replicate, sperm from five males was pooled in a single ChIP experiment in order to recover enough histones for robust ChIP.

Library preparation and sequencing

Request a detailed protocol

Both sperm and spermatid ChIP libraries were prepared using the Accel-NGS 2S Plus DNA Library Kit (#21024, Swift Biosciences, Ann Arbor, MI) according to the manufacturer’s instructions, except that size selection was performed after (instead of before) PCR amplification. All libraries were sequenced on an Illumina HiSeq2500 with 40-base-pair single-end reads (Supplementary file 1).

Data analysis

Request a detailed protocol

ChIP-seq reads were filtered using fastq_quality_filter from FASTX Toolkit version 0.0.14 with parameters –q 20 –p 80, and aligned to the mm10 mouse genome using bowtie version 1.2 with parameters –m 1 –k 1 –n 1 -l 40. We called sperm H3K27me3 peaks using MACS version 2.1.0 with parameters –-broad –-broad-cutoff 0.01 –-keep-dup 1 -–nomodel, and spermatid H3K4me1 peaks using MACS version 1.4.2 with parameters –p 1e-5 –-keep-dup 1 –-nomodel (Zhang et al., 2008). For sperm data, we used the pre-ChIP control sample as input. We also quantitated sperm H3K27me3 ChIP-seq signal in two kilobase tiles across the genome using methods from Hisano et al. (2013). We scaled ChIP and input data to get reads per million, then subtracted input from ChIP signal for each tile and set any negative values to zero. To avoid damping the variation in signal between regions, we then re-scaled each dataset using the inverse of the reads-per-million scaling parameter originally used for the ChIP sample. Only those regions called as different in both replicates were used in downstream analyses. Log fold change (logFC) for H3K27me3 ChIP data was calculated by dividing the scaled, input-subtracted ChIP signal from Kdm6a cKO by the scaled, input-subtracted ChIP signal from control samples, and taking the log2 of the resulting quantity. Peak coordinates and tiled ChIP signal values are available at GEO under accession number GSE102313.

Reduced representation bisulfite sequencing (RRBS)

Sample collection and library preparation

Request a detailed protocol

Reduced representation bisulfite sequencing was performed on DNA prepared using the Qiagen DNEasy Blood and Tissue Kit (#69504, Qiagen, Hilden, Germany). Sperm were isolated by swim-up as described above and resuspended in 100 ul PBS. 100 ul buffer X2 (20 mM Tris-HCl [pH 8.0], 20 mM EDTA, 200 mM NaCl, 4% SDS, 80 mM DTT, 12.5 ul/ml Proteinase K from Qiagen DNEasy Blood and Tissue kit) was added and the sample was incubated for 2 hr at 56C on a shaking heat block. Samples were then treated with 2 mg/ml RNAse A for 2 min at room temperature. 200 ul buffer AL and 200 ul 100% ethanol were added, vortexing between each. Samples were transferred to DNEasy spin columns, and the remainder of the extraction was carried out according to the kit protocol. Aliquots of bone marrow, spleen, and liver tumor cells were spun down and resuspended in 200 ul PBS, and DNA was extracted according to the kit protocol. RRBS libraries were prepared using the NuGen Ovation RRBS Methyl-Seq System (#0353, NuGen, San Carlos, CA) according to the manufacturer’s protocol, using 200 ng of DNA from each sample. Libraries were sequenced on an Illumina HiSeq2500 with 75 bp single-end reads and using 12 rounds of index sequencing. Equal numbers of Kdm6a cKO and control sperm samples, or Kdm6a F1 and control F1 bone marrow samples, were prepared and sequenced in parallel. Sperm and bone marrow libraries were prepared and sequenced on different days. Each RRBS library was derived from a single male (Figure 4—source data 2).

Data analysis

Request a detailed protocol

We used trim_galore version 0.4.2 to remove adapter sequences from RRBS reads, trimmed diversity sequences using a script provided with the NuGen Ovation RRBS kit, and aligned reads to the mm10 genome using Bismark version 0.16.3 (Krueger and Andrews, 2011) and bowtie2 (Langmead and Salzberg, 2012). PCR duplicates were removed using the unique molecular identifiers (UMIs) added during library prep. Percent methylation at individual CpGs and in 100 bp tiles across the genome was called using the methylKit package in R, and only tiles covered by at least 10 reads were considered in further analyses (Akalin et al., 2012). Differential methylation between Kdm6a cKO and control sperm and between Kdm6a F1 and control F1 bone marrow was called using the calculateDiffMeth function in methylKit. To prevent confounding of bisulfite conversion by genomic variants between strains, we excluded all tiles containing known C > T or G > A variants between C57BL/6 and 129S4. When more than two tiles called as significant were less than 1 kb apart, one was selected at random to represent the genomic region, in order to avoid weighting a single region too heavily during characterization of associated features. Figure 4D, showing distribution of DMRs across the genome, was generated using the Phenogram tool (Ritchie, 2012; http://visualization.ritchielab.psu.edu/phenograms/document). Tables of percent methylation at individual CpGs are available at GEO under accession number GSE102313.

RNA-seq

Sample and library preparation

Request a detailed protocol

One vial of viably frozen bone marrow cells was thawed for each sample and washed once in PBS. One fifth of each sample (2−6 × 106 cells per sample) was used for RNA extraction using the RNEasy Plus Mini Kit (#74134, Qiagen) according to the kit protocol. Libraries were prepared using the Illumina TruSeq RNA library prep kit (#RS-122–2001, Illumina, San Diego, CA) and sequenced on an Illumina HiSeq2500 with 40 bp paired-end reads. All RNA-seq libraries were prepared and sequenced in parallel.

Data analysis

Request a detailed protocol

RNA-seq data was quantified using kallisto version 0.43.0 (Bray et al., 2016) with default parameters and with Ensembl build 85 transcripts (Yates et al., 2016) as the set of target sequences. Transcripts per million for individual transcripts from a single gene were summed to get one value per gene, and differentially expressed genes were called using DESeq2 in R (Love et al., 2014), after excluding immunoglobulin variable region transcripts and genes with total expression level <1 TPM across all samples. Genes were considered significantly differentially expressed for adjusted p-value<0.05. Heatmaps were generated using the heatmap.2 function in the gplots package in R (Warnes et al., 2016). TPM tables are available at GEO under accession number GSE102313.

Survival analysis

Request a detailed protocol

Kaplan-Meier curves were generated in R (R Development Core Team, 2015) using the package rms (Harrell, 2016). Hazard ratios and p-values for survival were calculated using a Cox proportional hazards model, using the R package survival (Therneau, 2015).

Motif enrichment

Request a detailed protocol

Transcription factor binding motifs enriched in persistent hypermethylated DMRs were identified using AME (McLeay and Bailey, 2010) with the motif databases UniPROBE mouse (386 motifs) (Badis et al., 2009; Berger et al., 2008), JASPAR CORE vertebrates (519 motifs) (Mathelier et al., 2016) and human/mouse HT-SELEX (843 motifs) (Jolma et al., 2013). The full set of 100 bp tiles covered by at least 10 RRBS reads (263820 total) was used as the control set. Fisher’s exact test was used to determine significance.

Principal component analysis

Request a detailed protocol

Principal component analysis was carried out using the PCA function in the FactoMineR package in R (Le et al., 2008).

Data availability

Request a detailed protocol

All sequencing datasets are available at GEO under accession number GSE102313.

Data availability

ChIP-seq, RRBS, and RNA-seq data generated in this study have been deposited in GEO under accession code GSE102313.

The following data sets were generated
    1. Lesch BJ
    2. Page DC
    (2019) NCBI Gene Expression Omnibus (GEO)
    ID GSE102313. Epigenetic profiling in Utx germline conditional knockouts and F1 offspring.
The following previously published data sets were used
    1. ENCODE Consortium/Bing Ren
    (2012) ENCODE
    ID ENCSR000CCL. H3K27ac ChIP-seq on 8-week mouse bone marrow.
    1. ENCODE Consortium/Bing Ren
    (2012) ENCODE
    ID ENCSR000CFD. H3K27ac ChIP-seq on 8-week BMDM.
    1. ENCODE Consortium/Bing Ren
    (2012) ENCODE
    ID ENCSR000CAG. H3K4me1 ChIP-seq on 8-week mouse bone marrow.
    1. ENCODE Consortium/Bing Ren
    (2012) ENCODE
    ID ENCSR000CFE. H3K4me1 ChIP-seq on 8-week mouse BMDM.

References

    1. de Kluiver H
    2. Buizer-Voskamp JE
    3. Dolan CV
    4. Boomsma DI
    (2017) Paternal age and psychiatric disorders: a review
    American Journal of Medical Genetics Part B: Neuropsychiatric Genetics 174:202–213.
    https://doi.org/10.1002/ajmg.b.32508
    1. Le S
    2. Josse J
    3. Husson F
    (2008)
    FactoMineR : an R package for multivariate analysis
    Journal of Statistical Software 25:1–18.
    1. Monk M
    2. Boubelik M
    3. Lehnert S
    (1987)
    Temporal and regional changes in DNA methylation in the embryonic, extraembryonic and germ cell lineages during mouse embryo development
    Development 99:371–382.
    1. R Development Core Team
    (2015) R: A Language and Environment for Statistical Computing
    R: A Language and Environment for Statistical Computing, Vienna, Austria, http://www.R-project.org/.

Article and author information

Author details

  1. Bluma J Lesch

    Whitehead Institute, Cambridge, United States
    Present address
    1. Department of Genetics, Yale School of Medicine, New Haven, United States
    2. Yale Cancer Center, Yale School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    bluma.lesch@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6689-0240
  2. Zuzana Tothova

    1. Department of Medicine, Division of Hematology, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    2. Broad Institute of MIT and Harvard, Cambridge, United States
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Elizabeth A Morgan

    Department of Pathology, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Formal analysis, Validation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Zhicong Liao

    1. Department of Genetics, Yale School of Medicine, New Haven, United States
    2. Yale Cancer Center, Yale School of Medicine, New Haven, United States
    Contribution
    Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Roderick T Bronson

    Department of Pathology, Tufts University School of Medicine and Veterinary Medicine, North Grafton, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Benjamin L Ebert

    1. Department of Medicine, Division of Hematology, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    2. Broad Institute of MIT and Harvard, Cambridge, United States
    Contribution
    Resources, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  7. David C Page

    1. Whitehead Institute, Cambridge, United States
    2. Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    3. Howard Hughes Medical Institute, Whitehead Institute, Cambridge, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    dcpage@wi.mit.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9920-3411

Funding

Howard Hughes Medical Institute

  • David C Page

Burroughs Wellcome Fund

  • Bluma J Lesch

Hope Funds for Cancer Research

  • Bluma J Lesch

National Institutes of Health (5K12CA087723-12)

  • Zuzana Tothova

Leukemia and Lymphoma Society (3363-13)

  • Zuzana Tothova

American Society of Clinical Oncology

  • Zuzana Tothova

American Society of Hematology

  • Zuzana Tothova

National Institutes of Health (R01HL082945)

  • Benjamin L Ebert

National Institutes of Health (P01CA108631)

  • Benjamin L Ebert

Edward P. Evans Foundation

  • Benjamin L Ebert

Gabrielle's Angel Foundation for Cancer Research

  • Benjamin L Ebert

Leukemia and Lymphoma Society

  • Benjamin L Ebert

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank P Nicholls, M Kojima, and M Mikedis for help with experiments, G Welstead and R Jaenisch for the Kdm6a mouse strain, M Goodheart for help with mouse procedures, and M Gehring, T Jacks, R Young, Y Stelzer, and K Stansifer for helpful discussions and advice. We thank the Whitehead Genome Technology Core for sequencing and the Koch Institute Histology Core for histological sample preparation and immunohistochemistry. We also thank Dana-Farber/Harvard Cancer Center in Boston, MA, for the use of the Specialized Histopathology Core, which provided histology and immunohistochemistry service. Dana-Farber/Harvard Cancer Center is supported in part by an NCI Cancer Center Support Grant # NIH 5 P30 CA06516.

Ethics

Animal experimentation: All mice were maintained at the Whitehead Institute animal facility. Animal care, breeding, and experiments were conducted in compliance with the Animal Welfare Act and with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. The protocol was approved by the Animal Care and Use Committee at the Massachusetts Institute of Technology (protocol #0714-074-17).

Copyright

© 2019, Lesch et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 6,549
    views
  • 927
    downloads
  • 49
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Bluma J Lesch
  2. Zuzana Tothova
  3. Elizabeth A Morgan
  4. Zhicong Liao
  5. Roderick T Bronson
  6. Benjamin L Ebert
  7. David C Page
(2019)
Intergenerational epigenetic inheritance of cancer susceptibility in mammals
eLife 8:e39380.
https://doi.org/10.7554/eLife.39380

Share this article

https://doi.org/10.7554/eLife.39380

Further reading

    1. Chromosomes and Gene Expression
    2. Microbiology and Infectious Disease
    Zeinab M Chahine, Mohit Gupta ... Karine G Le Roch
    Research Article

    The environmental challenges the human malaria parasite, Plasmodium falciparum, faces during its progression into its various lifecycle stages warrant the use of effective and highly regulated access to chromatin for transcriptional regulation. Microrchidia (MORC) proteins have been implicated in DNA compaction and gene silencing across plant and animal kingdoms. Accumulating evidence has shed light on the role MORC protein plays as a transcriptional switch in apicomplexan parasites. In this study, using the CRISPR/Cas9 genome editing tool along with complementary molecular and genomics approaches, we demonstrate that PfMORC not only modulates chromatin structure and heterochromatin formation throughout the parasite erythrocytic cycle, but is also essential to the parasite survival. Chromatin immunoprecipitation followed by deep sequencing (ChIP-seq) experiments suggests that PfMORC binds to not only sub-telomeric regions and genes involved in antigenic variation but may also play a role in modulating stage transition. Protein knockdown experiments followed by chromatin conformation capture (Hi-C) studies indicate that downregulation of PfMORC impairs key histone marks and induces the collapse of the parasite heterochromatin structure leading to its death. All together these findings confirm that PfMORC plays a crucial role in chromatin structure and gene regulation, validating this factor as a strong candidate for novel antimalarial strategies.

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Bethany M Bartlett, Yatendra Kumar ... Wendy A Bickmore
    Research Article

    During oncogene-induced senescence there are striking changes in the organisation of heterochromatin in the nucleus. This is accompanied by activation of a pro-inflammatory gene expression programme - the senescence associated secretory phenotype (SASP) - driven by transcription factors such as NF-κB. The relationship between heterochromatin re-organisation and the SASP has been unclear. Here we show that TPR, a protein of the nuclear pore complex basket required for heterochromatin re-organisation during senescence, is also required for the very early activation of NF-κB signalling during the stress-response phase of oncogene-induced senescence. This is prior to activation of the SASP and occurs without affecting NF-κB nuclear import. We show that TPR is required for the activation of innate immune signalling at these early stages of senescence and we link this to the formation of heterochromatin-enriched cytoplasmic chromatin fragments thought to bleb off from the nuclear periphery. We show that HMGA1 is also required for cytoplasmic chromatin fragment formation. Together these data suggest that re-organisation of heterochromatin is involved in altered structural integrity of the nuclear periphery during senescence, and that this can lead to activation of cytoplasmic nucleic acid sensing, NF-κB signalling, and activation of the SASP.
