Translation attenuation by minocycline enhances longevity and proteostasis in old post-stress-responsive organisms

  1. Gregory M Solis
  2. Rozina Kardakaris
  3. Elizabeth R Valentine
  4. Liron Bar-Peled
  5. Alice L Chen
  6. Megan M Blewett
  7. Mark A McCormick
  8. James R Williamson
  9. Brian Kennedy
  10. Benjamin F Cravatt
  11. Michael Petrascheck  Is a corresponding author
  1. The Scripps Research Institute, United States
  2. The Skaggs Institute for Chemical Biology, The Scripps Research Institute, United States
  3. The Buck Institute for Research on Aging, United States
Research Communication
  • Cited 0
  • Views 1,455
  • Annotations
Cite this article as: eLife 2018;7:e40314 doi: 10.7554/eLife.40314

Abstract

Aging impairs the activation of stress signaling pathways (SSPs), preventing the induction of longevity mechanisms late in life. Here, we show that the antibiotic minocycline increases lifespan and reduces protein aggregation even in old, SSP-deficient Caenorhabditis elegans by targeting cytoplasmic ribosomes, preferentially attenuating translation of highly translated mRNAs. In contrast to most other longevity paradigms, minocycline inhibits rather than activates all major SSPs and extends lifespan in mutants deficient in the activation of SSPs, lysosomal or autophagic pathways. We propose that minocycline lowers the concentration of newly synthesized aggregation-prone proteins, resulting in a relative increase in protein-folding capacity without the necessity to induce protein-folding pathways. Our study suggests that in old individuals with incapacitated SSPs or autophagic pathways, pharmacological attenuation of cytoplasmic translation is a promising strategy to reduce protein aggregation. Altogether, it provides a geroprotecive mechanism for the many beneficial effects of tetracyclines in models of neurodegenerative disease.

Editorial note: This article has been through an editorial process in which the authors decide how to respond to the issues raised during peer review. The Reviewing Editor's assessment is that all the issues have been addressed (see decision letter).

https://doi.org/10.7554/eLife.40314.001

Introduction

Pharmacologic activation of longevity mechanisms to increase stress resistance and improve proteostasis capacity appears to be an attractive treatment strategy for degenerative diseases (Balch et al., 2008). While the exact mechanism(s) of neuronal death in Alzheimer’s disease, Parkinson’s disease and related maladies remain elusive, there is compelling genetic evidence for an age-associated collapse of proteostasis that contributes to protein aggregation and degenerative phenotypes (Taylor and Dillin, 2011). Most longevity mechanisms crucially depend on the ability to activate stress signaling pathways (SSPs) and proteostatic mechanisms (Steinkraus et al., 2008; Tullet et al., 2008; Henis-Korenblit et al., 2010; Lapierre et al., 2013). For example, a comprehensive study in Caenorhabditis elegans by Shore et al. showed that the induction of SSPs is central and necessary for inducing longevity by 160 different RNAis (Shore et al., 2012). Others have shown that as animals age, their ability to respond to stress dramatically declines (Labbadia and Morimoto, 2015; Dues et al., 2016). As a consequence, longevity pathways whose mechanisms depend on the activation of SSPs can be predicted to become nonresponsive with aging.

Indeed, most longevity mechanisms, like the reduction of insulin/IGF signaling or a reduction in electron transport chain activity, do not extend lifespan when initiated past day 5 of C. elegans adulthood (Dillin et al., 2002a; Dillin et al., 2002b; Rangaraju et al., 2015). Proper timing is also required in Ames Dwarf mice, where growth hormone deficiency during the first 6 weeks of pre-pubertal development is critical for longevity (Panici et al., 2010).

Ideally one would like to be able to enhance proteostasis capacity and to extend life- and healthspan by pharmacologically treating older organisms at the first appearance of neurodegenerative symptoms or disease biomarkers (e.g. protein aggregates). Fortunately, some longevity mechanisms such as dietary restriction or rapamycin treatment remain responsive later in life (Weindruch and Walford, 1982; Harrison et al., 2009). However, little is known about what distinguishes timing-specific longevity mechanisms from longevity mechanisms that remain responsive throughout life.

In this study, we identified minocycline, a drug known to have neuroprotective and anti-inflammatory properties in mammals (Mitra et al., 1975; Choi et al., 2005; Festoff et al., 2006; Seabrook et al., 2006; Choi et al., 2007; Noble et al., 2009; Zheng et al., 2010; Cai et al., 2011; Ferretti et al., 2012; Obici et al., 2012; Cai et al., 2013; Garrido-Mesa et al., 2013), to extend lifespan and to reduce protein aggregation even in old C. elegans that have lost their capacity to activate SSPs. Subsequent elucidation of the mechanism of action (MOA) shows minocycline to attenuate cytoplasmic translation independently of the integrated stress response (ISR), but mimicking its beneficial effects. We propose that the neuroprotective and aggregation-preventing effects of minocycline, observed in preclinical mouse models as well as in human clinical trials, are explained by its attenuation of cytoplasmic protein synthesis. Reducing the concentration of newly synthesized aggregation-prone proteins relieves demands on the proteostasis network even in older individuals in which SSPs and protein degradation pathways have already been compromised due to advanced age.

Results

Minocycline extends C. elegans lifespan in both young and old animals

Previous studies have shown that the capacity for C. elegans to respond to stress declines with age (Bansal et al., 2015; Labbadia and Morimoto, 2015). To expand on previous studies and to define the age at which major SSPs lose their capacity to respond to stress, we exposed transcriptional GFP-reporter strains that respond to oxidative stress (gst-4p::GFP) or unfolded proteins in the endoplasmic reticulum (hsp-4p::GFP, UPRER), in the mitochondria (hsp-6p::GFP, UPRmt), or in the cytosol (hsp-16.2p::GFP) to their respective stressors -arsenite, tunicamycin, paraquat or heat- at increasing ages. On the first day as reproductive adults, herein defined as day 1, stressors increased GFP expression relative to untreated controls (Figure 1A,B). The exception was hsp-6p::GFP which was strongly activated at the L2 larval stage (Figure 1—figure supplement 1A) but responded poorly on day 1. By day 5 of adulthood, SSP activity was reduced and by day 8 was nearly undetectable (Figure 1A,B). Thus, 8 days after reaching adulthood C. elegans no longer induce SSPs in response to stress despite dying from its negative effects. We will refer to day 8 as the ‘post-stress-responsive’ age.

Figure 1 with 1 supplement see all

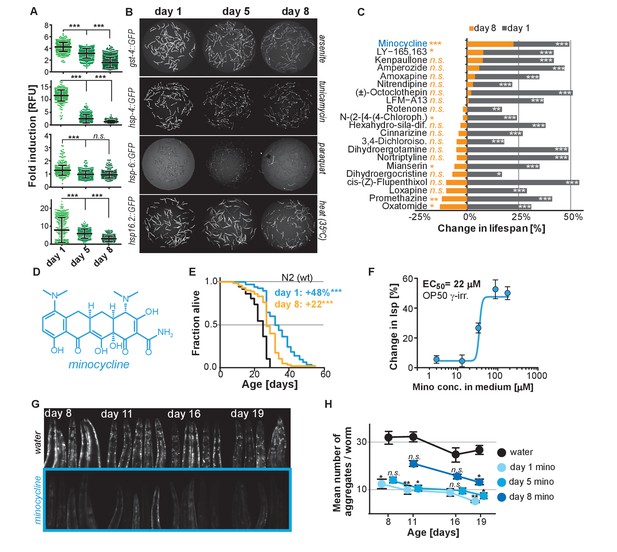

Stress signaling pathway activity declines with age.

(A) Scatter plots show fold induction of GFP fluorescence induced by stressors compared to untreated animals in gst-4p::GFP (oxidative stress), hsp-4p::GFP (UPRER), hsp-6p::GFP (UPRmt) and hsp-16.2p::GFP (heat stress) C. elegans at 1, 5 and 8 days of age. We define day 1 as the first day of adulthood. Error bars show mean ± S.D., each dot represents one animal with all n > 300 for each reporter strain and age. Significance determined by ANOVA followed by Dunett’s test. Total of four independent experiments. (B) Representative fluorescent microscopy images of 100 randomly selected animals for each condition and strain. Stressors indicated to right of each image panel. Images for each strain were taken in parallel on the same day using identical settings. Total of four independent experiments. (C) Bar graphs show % change in lifespan for 21 small molecules when treatment was initiated on day 1 of adulthood (gray) or on day 8 of adulthood (orange). Note that some compounds that extend lifespan when treatment is initiated on day 1 become slightly toxic at later ages. One independent experiment with at least 53 animals per condition. Significance determined by the log-rank test. (D) Structure of minocycline. (E) Survival curves for untreated (black line) and minocycline-treated wild-type N2 animals when treatment was initiated on day 1 (blue line) or day 8 (orange line) of adulthood. OP50 were killed by γ-irradiation to separate antibiotic from lifespan effects. Total of five independent experiments. Significance determined by the log-rank test. (F) Percent change in lifespan as a function of minocycline concentration for N2. OP50 were γ-irradiated. Total of four independent experiments. (G) Representative fluorescence microscopy images showing heads of C. elegans at increasing ages expressing the α-synuclein::YFP fusion protein. Top: water-treated control, bottom: minocycline-treated (100 μM). Note the increase in punctuate staining with age indicative of protein aggregation. (H) Graph shows the average number of α-synuclein::YFP aggregates per worm as a function of age for water- or minocycline-treated animals. Age when minocycline treatment is initiated for each color is shown right of the graph. Error bars indicate S.E.M. For each data point, n > 15. Total of four independent experiments. Asterisks indicate significance *<0.05, **<0.01, ***<0.001, n.s. not significant. Source data for N2 lifespan experiments are available in the Figure 1—source data 1.

https://doi.org/10.7554/eLife.40314.002

We next asked whether longevity and proteostasis mechanisms exist that remain drugable in post-stress-responsive adults. To this end, we treated 8-day-old C. elegans adults with 21 different molecules that we previously identified to extend lifespan (Ye et al., 2014). All 21 molecules extended lifespan when treatment was initiated on day 1 of adulthood. However, only minocycline extended lifespan when treatment was initiated on day 8 (Figure 1C; Figure 1—figure supplement 1B). For some of the inactive drugs, a xenobiotic-responsive cyp-34A9p::GFP strain was used to confirm drug uptake in old C. elegans (Figure 1—figure supplement 1C) (Anbalagan et al., 2012).

Minocycline is a regulatory agency-approved tetracycline antibiotic used to treat acne vulgaris and has long been known to reduce tumor growth, inflammation and protein aggregation in mammals by an unknown MOA (Figure 1D) (Garrido-Mesa et al., 2013). Minocycline still extended lifespan when treatment was initiated on day 8, albeit by 22% instead of the 48% observed when treatment commenced on day 1 (Figure 1E). Subsequent control experiments showed that the lifespan extension by minocycline was independent of the method of sterilization, cultivation temperature (Figure 1—figure supplement 1D,E) and whether the animals were fed live or dead bacteria (OP50). Recording dose response curves we determined an EC50 of 22 μM and an optimal concentration of 50 – 100 μM, as compared to therapeutic concentrations measured in patient serum of 5 – 10 μM (Figure 1F; Figure 1—figure supplement 1E) (Agwuh and MacGowan, 2006; Garrido-Mesa et al., 2013). To investigate the MOA of minocycline independently of its antibiotic activity, all subsequent experiments were conducted using only dead, γ-irradiated bacteria. Taken together, minocycline extends lifespan independently of its antibiotic activity, even when treatment is initiated in old, post-stress-responsive C. elegans.

Minocycline attenuates protein aggregation in both young and old C. elegans

We next tested minocycline for its ability to modulate protein aggregation, a common molecular characteristic of many neurodegenerative diseases. We treated animals that express human α-synuclein fused to YFP in the muscle (van Ham et al., 2008) with water or minocycline on day 1 of adulthood and imaged them on days 8, 11, 16 and 19. Minocycline suppressed the age-dependent increase in α-synuclein aggregation. It also reduced α-synuclein aggregation even when added to post-stress-responsive adults at a late age (day 8), when unfolded protein responses were no longer induced (Figure 1G,H; Figure 1—figure supplement 1F). To confirm this effect extended beyond α-synuclein aggregation, we tested another model of protein aggregation and determined minocycline also reduced the paralysis caused by temperature-induced Aβ1-42 misfolding that leads to aggregation in C. elegans’ body-wall muscle (Figure 1—figure supplement 1G) (Jiang et al., 2012; McColl et al., 2012). Thus, minocycline treatment reduced both age-dependent and temperature-induced protein aggregation in C. elegans.

Minocycline extends C. elegans lifespan in mutants defective for SSP or autophagy activation

As minocycline extends lifespan of post-stress-responsive C. elegans, its activity should be independent of SSP activation. This prediction was tested in two ways. First, we repeated the GFP reporter-based stress response activation experiments, pretreating day-5-old adults for 2 hr with minocycline before subjecting them to stress (Figure 2A). As expected, minocycline alone did not induce any SSP reporter (Figure 2B,C). Unexpectedly, pretreatment with minocycline suppressed stressor-induced activation of all SSP reporters compared to stressor alone. This was particularly surprising as previous studies have shown that treating larvae with minocycline activates the hsp-6p::GFP reporter (Figure 2—figure supplement 1A,B) (Houtkooper et al., 2013). In contrast, in adults, minocycline inhibited the activation of all SSPs. Minocycline-induced inhibition of SSPs did not result in an increased susceptibility to stress. Minocycline-treated adults survived heat stress (35°C) much better than untreated adults, with 60% of the minocycline-treated animals still alive when nearly all control animals had died (Figure 2—figure supplement 1C). Furthermore, minocycline-treated adults were also much more resistant to paraquat-induced oxidative stress (Figure 2—figure supplement 1D). This is consistent with the observation that minocycline also protects neuronal-like rat pheochromocytoma (PC12) cells from paraquat-induced cell death (Huang et al., 2012). Thus, despite inhibiting SSP activation, minocycline protects from stress, suggesting a protective mechanism that bypasses SSP activation.

Figure 2 with 1 supplement see all

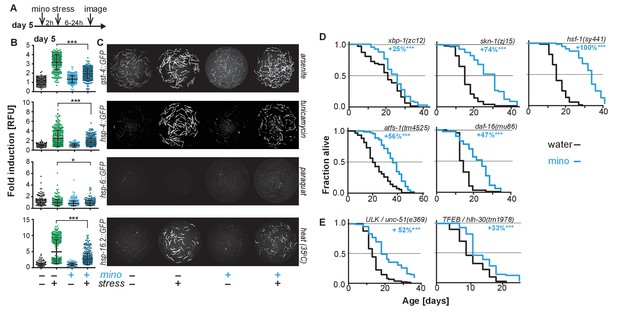

Minocycline suppresses stress signaling pathway activity.

(A) Experimental timeline to monitor stress response activation of 5-day-old adult C. elegans GFP-reporter strains induced by stressor and/or minocycline. Minocycline (100 μM) was added 2 hr prior to each stressor. (B) Scatter plots show fold induction of GFP fluorescence induced by stressors and/or minocycline treatment compared to untreated animals in 5-day-old adults. Pretreatment with minocycline suppresses stress response activation. Reporters: gst-4p::GFP (oxidative stress), hsp-4p::GFP (ER UPR), hsp-6p::GFP (UPRmt) and hsp-16.2p::GFP (heat stress). Error bars show mean ± S.D., each dot represents one animal with all n > 300. Significance determined by the Mann-Whitney t-test. At least three independent experiments. (C) Representative fluorescence microscopy images of 100 randomly selected animals for each condition and strain. Stressors indicated to the right of each panel. Images for each strain were taken in parallel on the same day using identical settings. (D) Survival curves. Minocycline significantly extends lifespan in strains carrying mutations in regulators of stress and proteostasis responses. Statistical significance determined by the log-rank test. Number of animals n ranging from 35 to 218. Total of at least three independent experiments per strain. (E) Survival curves. Minocycline significantly extends lifespan in two strains carrying mutations in regulators of lysosomal and autophagic pathways. Statistical significance determined by the log-rank test. Number of animals n ranging from 56 to 138. Total of at least three independent experiments per strain. Asterisks indicate significance *<0.05, **<0.01, ***<0.001, n.s. not significant. Source data for all lifespan experiments in (D) and (E) are available in the Figure 2—source data 1.

https://doi.org/10.7554/eLife.40314.005

Second, we measured the lifespan of water- and minocycline-treated strains carrying mutations in genes encoding transcription factors that regulate SSP activity, including the FOXO transcription factor daf-16, the UPRER transcriptional activator xbp-1, the UPRmt transcriptional activator atfs-1, the oxidative stress response factor skn-1, and the universally conserved heat shock transcription factor hsf-1. Minocycline extended lifespan in all C. elegans mutants (Figure 2D). Remarkably, minocycline extended lifespan in hsf-1(sy441) mutants by up to +159%, a relative extension clearly greater than what was observed in wild-type N2 animals and almost reaching absolute lifespans of minocycline-treated N2 animals (Figure 1E; Figure 2—source data 1). This enhanced extension suggests that minocycline not only extends lifespan as in N2 but also rescues some of the defects associated with mutated hsf-1(sy441).

One way how minocycline could rescue hsf-1-associated defects would be to clear misfolded proteins by inducing autophagy and lysosomal pathways (Kumsta et al., 2017). To determine if autophagy is required for the lifespan extension by minocycline, we measured lifespan in minocycline-treated strains harboring mutations in the Atg1/ULK1 ortholog unc-51 and the TFEB ortholog hlh-30, key factors critical for autophagy and lysosomal activity. In both strains, minocycline significantly increased lifespan (Figure 2E). Despite the severe behavioral and morphological phenotypes observed in the unc-51(e369) mutants, the mutation did not reduce the ability of minocycline to extend lifespan. Minocycline also extended the lifespan of hlh-30(tm1978) mutants, but less than the 45% observed in N2. These genetic results, and the previous finding that activation of autophagy in already old C. elegans is likely to be detrimental (Wilhelm et al., 2017), are consistent with a mechanism of minocycline that acts independently of the activation of autophagy. However, as unc-51 is essential, the residual activity remaining in the unc-51(e369) mutants does not allow us to draw a definitive conclusion.

Minocycline reduces reactive cysteine labeling at the ribosome

In contrast to minocycline, lifespan extension induced in C. elegans by the conserved longevity paradigms including dietary restriction, reduced mitochondrial activity, germline ablation, sensory perception, reduced insulin signaling or the inhibition of mTOR all depend on at least one of the above tested factors (Steinkraus et al., 2008; Robida-Stubbs et al., 2012; Houtkooper et al., 2013; Lapierre et al., 2013; Weir et al., 2017). To gain insight into the MOA of minocycline, we conducted activity-based protein profiling using iodoacetamide (IA) as a probe, followed by isotopic tandem orthogonal proteolysis (isoTOP-ABPP). IA binds specifically to reactive cysteine residues, including catalytic sites within enzymes, post-translational modification sites, cysteine oxidation sites, and other types of regulatory or functional domains across the proteome (Roberts et al., 2017). We hypothesized that minocycline treatment would directly, by binding near a reactive cysteine, or indirectly, by modulating the activity of a pathway, alter IA labeling of reversible, post-translational cysteine modifications.

To determine minocycline-induced changes in cysteine labeling patterns, 5-day-old adult C. elegans were treated with water or minocycline for 3 days and their proteome was subsequently labeled with the IA probe and analyzed by mass spectrometry (Figure 3—figure supplement 1A). Analysis of the isoTOP-ABPP data by the Cytoscape plugin ClueGO (Bindea et al., 2009), which allows visualization of biological terms for large clusters of genes in a functionally grouped network, showed that minocycline treatment reduced IA labeling of proteins involved in cytoplasmic translation, specifically proteins involved in ribosome assembly and peptide metabolic processes (Figure 3A). These results suggested that minocycline directly or indirectly targets cytoplasmic translation, an MOA consistent with lifespan extension and that explained how minocycline prevented SSP reporter induction (Figure 2B,C) (Vellai et al., 2003; Kapahi et al., 2004; Kaeberlein et al., 2005; Hansen et al., 2007; Pan et al., 2007; Syntichaki et al., 2007; McQuary et al., 2016).

Figure 3 with 1 supplement see all

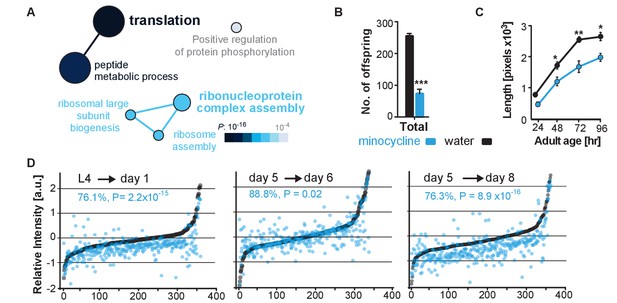

Minocycline attenuates translation in C. elegans.

(A) Network analysis by ClueGO of isoTOP-ABPP results corresponding to protein-probe labeling changes that decrease with minocycline treatment. Size of the circle is proportional to the number of proteins identified and the color represents significance. Total of three independent experiments. (B) Graph shows total number of offspring for water- or minocycline-treated C. elegans over 5 days after minocycline addition. Significance determined by the Mann-Whitney t test n = 15. Total of five independent experiments. (C) Graph shows C. elegans length in pixels as a function of age in hours after minocycline addition. Significance determined by the Mann-Whitney Student's t test n > 50. Total of five independent experiments. (D) Graphs show relative intensity ratios of 14N incorporation to total 14N +15N -labeled proteins in water (black circles) or minocycline-treated (blue circles) animals as a function of abundance in water-treated animals at different ages. Length and age of labeling indicated above each graph. Total of two independent experiments. Significance determined by a paired t test. Asterisks indicate significance *<0.05, **<0.01, ***<0.001, n.s. not significant. Source data for isoTOP-ABPP and quantitative mass spectrometry experiments are available in Figure 3—source datas 1 and 2, respectively.

https://doi.org/10.7554/eLife.40314.008

Minocycline attenuates cytoplasmic mRNA translation in C. elegans

We next set out to determine the effect of minocycline treatment on cytoplasmic mRNA translation. Consistent with reducing translation, minocycline treatment reduced C. elegans growth and reproduction (Figure 3B,C; Figure 3—figure supplement 1B,C) (Hansen et al., 2007; Pan et al., 2007). To quantify mRNA translation in the presence or absence of minocycline, we measured incorporation of 14N and 15N -labeled amino acids into the proteome by quantitative mass spectrometry. In a first series of experiments, synchronized populations of animals at the L4 larval stage were treated for 24 hr with either water or minocycline and fed 14N-labeled bacteria. To quantify differences in protein levels, a 15N standard was added to determine a 14N to (14N + 15N) intensity ratio. The majority of proteins (85%) in the minocycline-treated samples showed a significant reduction in intensity compared to controls, revealing that minocycline treated animals contained ~24% less protein (Figure 3D,L4→ day 1). These effects on the proteome were not likely the result of increased protein degradation, as minocycline reduced rather than increased proteosomal activity (Figure 3—figure supplement 1D). At least in adult C. elegans these data were inconsistent with a model in which minocycline selectively reduced translation, as has been shown for ifg-1 (Rogers et al., 2011). The few factors that showed higher expression levels in minocycline-treated animals had no known link to stress resistance or were shown to increase lifespan when knocked down by RNAi.

In a second series of experiments, we made use of a previous observation showing that mRNA translation rates in C. elegans decline with age (Gomez-Amaro et al., 2015). Thus, if minocycline acted by attenuating translation, its effect on 14N incorporation into the proteome should depend on the translation rate and should be smaller in 5-day-old adult animals than in young, L4 larvae. To test this prediction, we initiated minocycline treatment on day 5 of adulthood and harvested protein 24 hr and 72 hr later. As predicted, the effect of minocycline on mRNA translation depended on the age of the animals. While a 24 hr minocycline treatment initiated in L4 larvae reduced protein synthesis by ~24% (Figure 3D,L4→day 1), the same length of treatment initiated in day-5-old adults showed only an ~11% reduction on mRNA translation (Figure 3D, day 5→day 6). However, a 72-hr minocycline treatment initiated on day 5 allowed enough mRNA translation to occur to observe a significant suppression of ~24% (Figure 3D, day 5→day 8). In addition, we observed the suppressive effect of minocycline to correlate with protein abundance, suppressing the production of highly expressed proteins to a greater extent than lowly expressed proteins (Figure 3—figure supplement 1E). Taken together, these results show that minocycline-treated animals contain less protein, consistent with an attenuation of mRNA translation.

Minocycline attenuates mRNA translation in human cells

To determine if minocycline treatment also can reduce mRNA translation in human cells, we measured basal mRNA translation by monitoring incorporation of [35S]-methionine/cysteine in untreated and minocycline-treated HeLa cells. A 6 hr pretreatment with minocycline reduced mRNA translation by ~30% at 100 μM as monitored by [35S]-methionine/cysteine incorporation (Figure 4A; Figure 4—figure supplement 1A). This experiment was repeated in murine NIH 3T3 cells with similar results (Figure 4—figure supplement 1B). The magnitude of the effect was similar to what we observed in C. elegans (Figure 3D), but less than the effect of cycloheximide (Figure 4A). As the bioavailability of minocycline is close to 100%, in vivo and in vitro concentrations are expected to be similar (Garrido-Mesa et al., 2013).

Figure 4 with 1 supplement see all

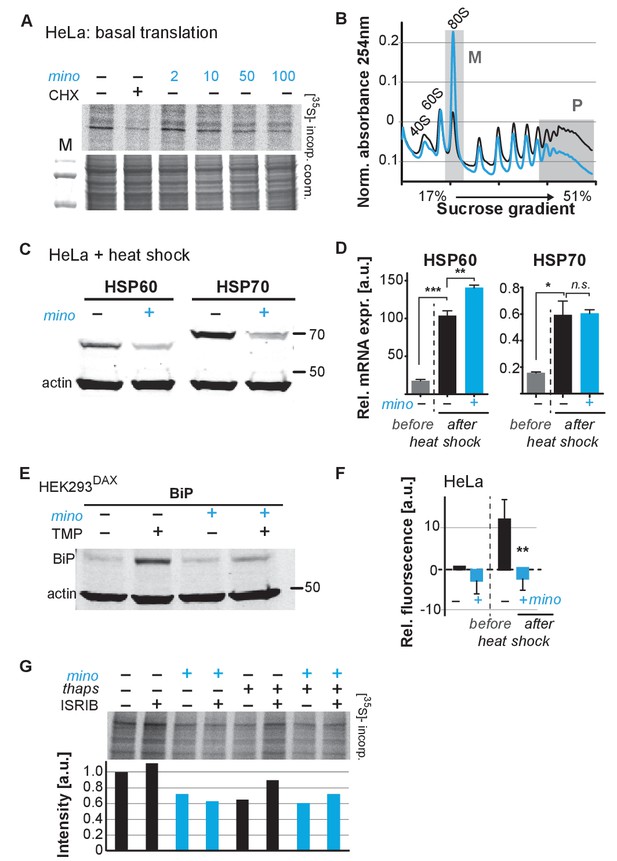

Minocycline attenuates translation and reduces ribosomal load of highly translated mRNAs.

(A) Autoradiograph (top) monitoring 35S incorporation over 1 hr of HeLa cells treated for 6 hr with cycloheximide or increasing concentrations of minocycline. Coomassie gel (bottom) is shown as a loading control. Total of four independent experiments. (B) Polysome profile analysis of 12 hr water- (black) or minocycline-treated (blue) HeLa cells. High molecular weight polysomes (P) and 80S monosomes (M) regions are shaded in gray. An increase in monosomes and a decrease in high-molecular-weight polysomes are indicative of translation attenuation. Total of three independent experiments. (C) Immunoblots probing for HSP60 and HSP70 expression of water- or minocycline-treated (100 μM) HeLa cells after a 1 hr, 43°C heat shock. Total of three independent experiments. (D) qRT-PCR analysis of HSP60 and HSP70 mRNA expression in HeLa cells treated with or without minocycline (100 μM) before and after a 1 hr, 43°C heat shock. Minocycline treatment was initiated 12 hr prior to the heat shock. Data are represented as mean ± S.E.M. Significance determined by the Mann-Whitney t-test. Total of three independent experiments. (E) Immunoblots probing for BiP expression of water- or minocycline-treated (100 μM) HEK293DAX cells engineered to allow UPRER activation by trimethoprim treatment (TMP). Water or 100 μM minocycline was added alone or in combination with 20 uM trimethoprim for 12 hr prior to cell lysis. Samples were normalized by RNA concentration. Total of three independent experiments. (F) Bar graph shows change in protein aggregate formation, as measured by the ProteoStat assay, before and after a 1 hr, 43°C heat shock in control (black) and minocycline-treated (blue) HeLa cells. Data are represented as mean ± S.E.M. Significance determined by the Mann-Whitney t-test. Total of four independent experiments. (G) Autoradiograph (top) monitoring 35S incorporation of HeLa cells treated with the ISR inhibitor ISRIB (200 nM), minocycline (100 μM), thapsigargin (thaps, 200 nM) and a combination of the three. Coomassie gel (bottom) is shown as a loading control. Total of two independent experiments. Asterisks indicate significance *<0.05, **<0.01, ***<0.001, n.s. not significant. Figure 5. Lifespan extension by minocycline depends on cytoplasmic translation.

https://doi.org/10.7554/eLife.40314.012

To gain further insight on how minocycline reduces mRNA translation, we recorded polysome profiles from untreated and minocycline-treated HeLa cells. Minocycline treatment caused a pronounced increase in the 80S monosome peak (M) indicative of stalled translation initiation (Figure 4B). It further showed a disproportionally strong reduction in the heavy polysome fraction (P), suggesting that minocycline reduced ribosomal load, the number of ribosomes per mRNA, of highly translated mRNAs. Thus, the observed reduction of ribosomal load by minocycline results in a substantial attenuation of highly translated mRNAs. The preferential effect on the heavy polysome fraction (P) provided a potential explanation for the greater inhibitory effect of minocycline on highly expressed proteins that we observed in the C. elegans metabolic labeling experiment (Figure 3—figure supplement 1E).

Upon heat shock, polysome-mediated translation allows cells to quickly synthesize large quantities of chaperones like HSP60 and HSP70. If minocycline attenuates polysome-mediated translation it should substantially suppress the heat shock-induced expression of HSP60 and HSP70 at the protein but not at the mRNA level. To test this, we pretreated HeLa cells with water or minocycline and subjected them to heat shock to measure HSP60 and HSP70 protein expression levels by western blot. As expected, HeLa cells strongly induced expression of HSP60 and HSP70 in response to a heat shock while pretreatment with minocycline dramatically reduced it (Figure 4C). However, minocycline only reduced HSP60 and HSP70 expression at the protein level and had no effect on the induction of their mRNAs (Figure 4D). Similarly, we revisited C. elegans and confirmed that minocycline suppressed the activation of hsp-16.2p::GFP at the protein but not at the mRNA level (Figure 2B; Figure 4—figure supplement 1C). Thus, minocycline-treated cells activate stress responses at the level of mRNA but are unable to rapidly translate them into proteins as minocycline strongly attenuates polysome-mediated translation.

To extend these results to other stress responses such as the UPRER, we repeated these experiments using HEK293DAX cells. HEK293DAX cells allow ligand-induced activation of the UPRER in the absence of stress, as they express the UPRER transcriptional activator ATF6 fused to mutant destabilized dihydrofolate reductase (DHFR). Because the DHFR domain is largely unfolded, the ATF6-DHFR fusion protein is continually degraded by the proteasome. The addition of trimethoprim (TMP) stabilizes the ATF6-DHFR fusion, leading to a dose-dependent expression of the chaperone BiP (Shoulders et al., 2013). As expected, TMP treatment dramatically induced BiP expression that was completely suppressed by minocycline co-treatment (Figure 4E; Figure 4—figure supplement 1D). These results show that minocycline strongly suppresses activation of multiple stress responses at the level of translation in both C. elegans and human cells irrespective of whether expression was induced by stress or an artificial ligand like TMP.

As we did before in C. elegans, we asked if the suppression of stress responses by minocycline impaired the ability of a cell to deal with heat stress and protein aggregation (Figure 1—figure supplement 1G; Figure 2—figure supplement 1C). Using the aggregation-specific dye ProteoStat, we measured protein aggregation in HeLa cells before and after a 1 hr heat shock. The protein aggregate-induced fluorescence only increased in control cells upon heat shock (~12%), but not in minocycline-pretreated cells (Figure 4F). Thus, as already observed in C. elegans, minocycline treatment protects from heat-shock-induced protein aggregation despite suppressing activation of the heat-shock response (Figure 1—figure supplement 1G; Figure 2—figure supplement 1C).

Minocycline attenuates translation independent of the ISR

SSP activation leads to the phosphorylation of the eukaryotic translation initiation factor eIF2α, globally inhibiting translation initiation of all but a few mRNAs, generally referred to as the integrated stress response (ISR) (Pakos-Zebrucka et al., 2016). Minocycline could either attenuate translation through activation of the ISR or by directly targeting the cytoplasmic ribosome to interfere with translation. To distinguish between those possibilities, we made use of the ISR inhibitor ISRIB that prevents eIF2α phosphorylation-mediated translational inhibition (Sidrauski et al., 2015). If minocycline activates the ISR to attenuate translation, co-treatment with ISRIB should restore normal translation even in the presence of minocycline. HeLa cells were treated with ISRIB, minocycline or both agents. Monitoring translation by [35S]-methionine/cysteine incorporation showed that co-treatment with ISRIB did not impair the ability of minocycline to attenuate translation (Figure 4G; Figure 4—figure supplement 1E). In contrast, translation attenuation by thapsigargin, a known inducer of the ISR, was restored by the co-treatment with ISRIB (Sidrauski et al., 2015). Thus, minocycline attenuates translation by an ISR-independent mechanism. Comparing the bacterial 16S rRNA to the cytoplasmic 18S rRNA of C. elegans and H. sapiens revealed a conserved tetracycline binding site in helix 34 (h34) (Figure 4—figure supplement 1F) (Brodersen et al., 2000). A recent paper by the Meyers group identified doxycycline to directly bind to key 18S rRNA substructures of the cytoplasmic ribosome and showed different tetracyclines to discriminate between different 18S rRNA binding sites (Caballero et al., 2011; Mortison et al., 2018). Thus, we concluded that minocycline directly targets the 18S rRNA, leading to the observed stalled ribosomes (80S peak) and attenuation of translation (Figure 4A,B).

Minocycline extends lifespan by attenuating translation

Translation of mRNA is essential and ‘null’ mutants lacking 18S rRNA are not viable, preventing us from directly testing the necessity of mRNA translation for the minocycline-induced longevity. In contrast to our studies in C. elegans and human cells, studies investigating the effects of tetracyclic antibiotics in S. cerevisiae have shown them to only attenuate mitochondrial but not cytoplasmic translation. Consistent with a model in which minocycline needs to attenuate cytoplasmic translation to extend lifespan, minocycline did not extend replicative lifespan in S. cerevisiae, and at higher concentrations reduced it (Figure 5A) (Clark-Walker and Linnane, 1966; Caballero et al., 2011; McCormick et al., 2015).

Figure 5 with 1 supplement see all

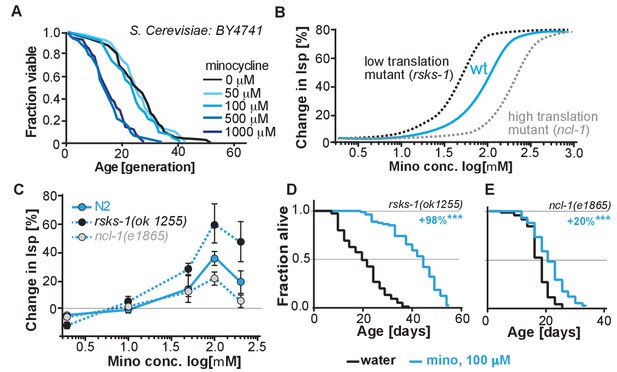

(A) Replicative lifespan of S. cerevisae treated with increasing concentrations of minocycline.

Data were analyzed using the Wilcoxon rank-sum test. (B) Depicts expected dose response curve shifts for mutants with lower (black curve) or higher (gray curve) translation rates treated with minocycline compared to wild-type (blue curve). As translation is essential, translation mutants must retain some translation activity, albeit less than in wild type. Thus, in mutants with reduced translation like rsks-1, less minocycline should be necessary to optimally lower translation and to increase lifespan resulting in a left-shifted dose-response curve. If minocycline targets the 18S rRNA, an excess of rRNA and an increase in translation as in ncl-1 mutants should result in a right-shifted dose-response curve. (C) Dose response curves show the % change in lifespan as a function of increasing minocycline concentrations for N2, rsks-1(ok1255) and ncl-1(e1865) mutants. Total of four independent experiments performed. Data are represented as mean ± S.E.M. (D) Survival curves for water- or minocycline- (100 μM) treated rsks-1(ok1255) C. elegans mutants. At least four independent experiments performed. (E) Survival curves for water- or minocycline- (100 μM) treated ncl-1(e1865) C. elegans mutants. Statistical significance determined by the log-rank test. Number of animals n ranging from 42 to 87, total of four independent experiments. Asterisks indicate significance *<0.05, **<0.01, ***<0.001, n.s. not significant. Source data for N2, rsks-1 and ncl-1 lifespan experiments are available in Figure 5—source data 1.

https://doi.org/10.7554/eLife.40314.014

To more directly link translation inhibition by minocycline to its effect on longevity, we reasoned that if minocycline extends lifespan by reducing translation directly at the ribosome, its dose-response curve should be shifted to the left in mutants with already reduced translation and shifted to the right in mutants with increased translation (Figure 5B).

For a mutant with reduced translation, we used the rsks-1(ok1255) strain (Hansen et al., 2007; Pan et al., 2007). The rsks-1(ok1255) strain carries a deletion in the homolog of the S6 kinase, a regulator of translation initiation. Genetic data have shown that rsks-1 extends lifespan by a mechanism dependent on hlh-30, and thus different from the mechanisms underlying minocycline (Lapierre et al., 2013). By measuring protein concentrations by Bradford assay in young adults, prior to the generation of eggs, we further confirmed the independence of the two mechanisms. In rsks-1 mutants, protein concentration was reduced by 18% (±8%) compared to N2. Treatment of rsks-1(ok1255) mutants with minocycline had an additive effect and further reduced protein concentration by an additional 26%, resulting in a total reduction of 44% (±8%, p=0.0018, Dunett) compared to N2. Thus, minocycline and the rsks-1 mutation additively reduced protein concentrations. For a mutant with increased translation, we used the ncl-1(e1865) strain (Frank and Roth, 1998). Strains carrying mutations in ncl-1 express twice as much 18S rRNA and produce 22% more protein than wild-type animals. As our and the Mortison data (Mortison et al., 2018) suggest that minocycline directly binds to the C. elegans 18S rRNA, a two-fold increase in the 18S rRNA level and the associated increase in translation should shift the dose-response curve to the right and diminish minocycline’s effect on lifespan (Figure 5B).

As depicted in Figure 5C, lifespan extension by minocycline was reduced in ncl-1(e1865) mutants with a right-shifted dose-response curve (Figure 5C,E). In contrast, in long-lived rsks-1(ok1255) mutants, we observed a left-shifted dose-response curve (Figure 5C,D). Thus, less minocycline was required in rsks-1(ok1255) mutants to achieve the same level of lifespan extension compared to wild-type animals, as the translation levels are already reduced by the mutation. However, two aspects of the dose-response curves were unexpected. First, minocycline increased lifespan by an average of more than 60% and up to 98% in the already long-lived rsks-1 mutant. Second, the dose-response curves for all three strains started to decline between 100 and 200 μM (Figure 5—figure supplement 1). In theory, this decline could be caused by too much translation inhibition, which at some point becomes detrimental. However, since all strains, irrespective of whether they translate at wild-type (N2) rates, lower rates (rsks-1) or higher rates (ncl-1) show this drop at the same concentration, this effect is unlikely the result of too much translation inhibition, but more likely the result of a toxic off-target (Figure 5—figure supplement 1).

Discussion

Ameliorating pathological protein aggregation requires pharmacological mechanisms that improve proteostasis, even under circumstances when SSPs are compromised, as in aging. To identify such mechanisms, we searched for a geroprotective compound capable of extending lifespan and improving proteostasis in post-stress-responsive C. elegans. These efforts identified minocycline, a regulatory agency-approved antibiotic also known to reduce inflammation and protein aggregation in mice and humans by a hitherto unknown MOA (Supplementary file 1; Supplementary file 2). Using an unbiased chemo-proteomic approach, we identified the MOA by which minocycline extends lifespan and enhances proteostasis. Our ABPP data show that minocycline targets the ribosome (Figure 3A) to attenuate translation (Figure 3D; Figure 4A), preferentially reducing polysome formation (Figure 4B), mimicking the protective effects of the ISR without working through this pathway (Figure 4G; Figure 6). Notably, this MOA also provides a unifying explanation for the many other seemingly unrelated effects of minocycline observed in preclinical and clinical studies, including its ability to reduce tumor growth, inflammation, and improve symptoms of fragile X. In fact, Mortison et al. arrived at the same MOA studying the effects of doxycycline on inflammation and tumor growth (Garrido-Mesa et al., 2013; Mortison et al., 2018).

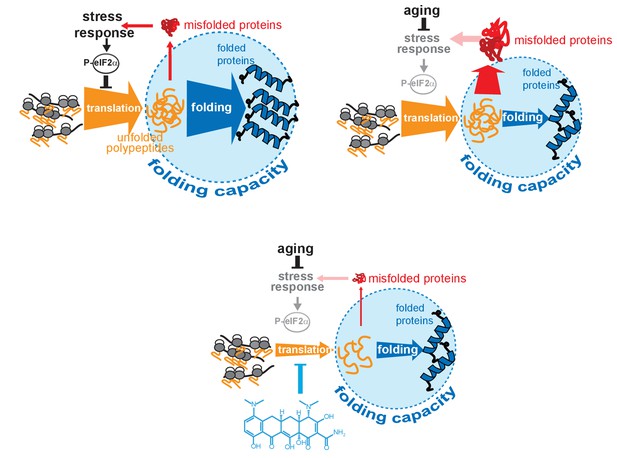

Model on how minocycline rebalances proteostatic load with the decreased folding capacity in older organisms.

Top left: In young animals stress responses and the ISR act as feedback mechanisms to control proteostatic load driven by mRNA translation. Translation is prevented from overburdening the folding machinery as accumulation of unfolded proteins leads to the induction of stress responses, triggering attenuation of translation through eIF2α phosphorylation, acting as a feedback control to reduce protesostatic load. Top right: Age-associated decline of stress response signaling compromises the translational feedback attenuation, allowing a relative excess in mRNA translation compared to the declining folding capacity in older adults. Thus, in old organisms cellular signals (i.e. inflammatory signals) that induce widespread gene expression changes and protein synthesis may lead to an excessive proteostatic load that can no longer be handled by the existing folding capacity. Bottom: Minocycline targets the ribosome to attenuate translation, thus aligning proteostatic load with folding capacity, mimicking the effect of the ISR. The thickness of the ‘translation’ and ‘folding’ arrows are drawn to signify the relative capacity of each system.

https://doi.org/10.7554/eLife.40314.017

Directly lowering translation through mutations, pharmacological agents or RNAi is a geroprotective mechanism that extends lifespan across taxa (Kapahi et al., 2004; Kaeberlein et al., 2005; Hansen et al., 2007; Harrison et al., 2009; Selman et al., 2009; Han et al., 2017). Our study reveals that the many beneficial effects of minocycline in eukaryotes are elicited by directly attenuating translation and that this mechanism is capable of reducing protein aggregation even when initiated in old, SSP-deficient C. elegans (Figure 1G,H). While the effect on longevity in old organisms is similar between minocycline and rapamycin, our epistasis analysis shows that minocycline differs with regards to some genetic requirements. Inhibition of mTOR signaling or S6 phosphorylation does not extend lifespan of TFEB/hlh-30 mutants and requires the hsf-1-mediated heat-shock response to extend lifespan and to prevent protein aggregation (Robida-Stubbs et al., 2012; Lapierre et al., 2013; Seo et al., 2013). In contrast, minocycline extends lifespan of hlh-30(tm1978) and of hsf-1(sy441) mutants (Figure 2) and prevents protein aggregation in C. elegans and human cells despite inhibiting the activation of the heat-shock response by hsf-1 (Figure 2B–D; Figure 4C–F) (Prahlad et al., 2008; Steinkraus et al., 2008). These differences raise the question on how translation attenuation by minocycline extends longevity independently from SSPs that are required for other translation-related mechanisms. A likely explanation stems from the way minocycline attenuates translation. Any mechanism that targets the 18S rRNA, the catalytic site of the ribosome, must non-selectively attenuate translation. In contrast, many other well-investigated interventions target translation initiation, which in principle allows for selective attenuation of translation of subgroups of mRNAs. For example, knock down of eIF4G/ifg-1 has been shown to lead to a general attenuation of translation but also to a selective increase in translation of SSP-related mRNAs, which play a role in the protective effect (Rogers et al., 2011). Thus, whether or not interventions lower translation selectively or non-selectively and thus involve SSPs is likely to depend on whether they target translation initiation or aspects of peptide bond formation. Previous studies used cycloheximide to show that blocking translation by interfering with the translocation step protects from protein aggregation, as newly synthesized proteins are the main protein species susceptible to damage and to collateral misfolding under stress. An obvious testable prediction of our minocycline data is that the protective effect of cycloheximide should also be independent of any SSPs (Medicherla and Goldberg, 2008; Zhou et al., 2014; Xu et al., 2016). If minocycline acts non-selectively, how is its effect greater on polysomes than on monosomes? Any single ribosome slowed down by minocycline will negatively affect all subsequent ribosomes on the same mRNA, thus amplifying the effect in a manner dependent on ribosome number. Future studies will be necessary to precisely elucidate these details.

Similar to minocycline, Smith et al. have shown that bacterial deprivation initiated in day-8-old C. elegans also extends lifespan, even as much as when initiating it at day 4 (Smith et al., 2008). Although not directly measured in this study, bacterial deprivation is also likely to dramatically reduce cytoplasmic translation, as suggested by Steinkraus et al. (2008). From a therapeutic perspective, mechanisms that prevent protein aggregation independently of the activation of the HSF1 network are especially interesting as the presence of pathological protein aggregates during disease already suggests an overtaxed protein folding machinery (Balch et al., 2008).

Attenuation of translation is a core cellular protection mechanism. In response to stress, SSPs activate the ISR, which, through phosphorylation of eIF2α, selectively attenuates translation (Novoa et al., 2003; Martin et al., 2014; Pakos-Zebrucka et al., 2016). Attenuation of translation provides the cell with a recovery period to restore proteostasis before translation resumes after dephosphorylating eIF2α. Recovery after stress is marked by intense translation of chaperone mRNAs like HSP70 or BiP that involves the formation of polysomes, taxing the preexisting proteostasis network (Novoa et al., 2003; Das et al., 2015). Commencing translation after a stressful event, before proteostasis is restored, results in the production of ROS and caspase-3-mediated apoptosis (Han et al., 2013). By attenuating translation, minocycline prolongs the period for proteostasis to recover similar to what has been observed for the PPP1R15A inhibitor Sephin1 (Das et al., 2015). By preferentially reducing polysome formation (Figure 4B), minocycline generally reduces peak load on the proteostasis network while still allowing for sufficient translation to maintain cellular function. Our discovery of the MOA of minocycline confirms the previous predictions made by Han et al. (Han et al., 2013) that limiting protein synthesis should protect from protein aggregation (Choe et al., 2016).

Our proposed MOA also explains why the geroprotective effect of minocycline remains inducible into later age compared to many other mechanisms. Longevity mechanisms like reduced insulin/IGF signaling elicit geroprotective effects through the activation of SSPs. As SSPs are no longer inducible in post-stress-responsive adults, their geroprotective effects can no longer be activated in older animals, excluding the possibility that minocycline extends lifespan when initiated in post-stress responsive adults by directly inhibiting mitochondrial translation and the subsequent activation of the mitochondrial UPR (Dillin et al., 2002a; Dillin et al., 2002b; Baker et al., 2012; Labbadia and Morimoto, 2015; Rangaraju et al., 2015). Minocycline bypasses the activation of SSPs or the ISR (Figure 2; Figure 4) to attenuate translation, eliciting geroprotective effects by lowering the concentration of newly synthesized, aggregation-prone proteins, aligning proteostatic load with the lower proteostasis network capacity in older adults (Figure 6) (Balch et al., 2008; Plate et al., 2016).

While it is not known whether minocycline extends lifespan in mammals, its geroprotective effects reduce age-associated protein aggregation and inflammation as evidenced by numerous preclinical and clinical studies (Supplementary file 1; Supplementary file 2). The multitude of seemingly unrelated effects has been used to argue that tetracyclines act by a wide variety of distinct MOAs. Excitement about several clinically relevant findings was dampened by the lack of a clear MOA necessary to design eukaryote specific derivatives of these drugs (Metz et al., 2004; Lampl et al., 2007). Our results shed new light on these observations. Translation attenuation by reducing ribosomal load as an MOA provides a simple and compelling explanation for these seemingly unrelated beneficial effects.

For example, minocycline reduces inflammation in peripheral tissues as well as in the central nervous system (Ferretti et al., 2012). Initiation of the inflammatory cascade is similar to the initiation of other stress responses and leads to the activation of the transcription factors NF-κB and AP1 that induce expression of pro-inflammatory cytokines such as interleukin-1 (IL-1), interleukin-6 (IL-6), TNF-α or nitric oxide synthase (NOS). While it has been previously suggested that the anti-inflammatory effects of minocycline are achieved by the inhibition of MMP9, translational attenuation of pro-inflammatory factors provides a compelling alternative. Similarly, the beneficial effects of minocycline in treating fragile X syndrome could also be explained by translational attenuation, as fragile X is caused by the failure to properly express the translational repressor FMRP (Li et al., 2001).

However, it is also important to note that minocycline showed some detrimental effects in a trial of amyotrophic lateral sclerosis (ALS) (Gordon et al., 2007). As expected from an antibiotic, minocycline-treated patients showed more adverse gastrointestinal effects such as nausea, diarrhea and constipation. Whether or not minocycline was detrimental for ALS patients was later questioned on the basis that the used dosage was too high, exacerbating the negative side effects (Leigh et al., 2008). Given that ALS patients show a hypermetabolic phenotype, the gastrointestinal adverse side effects may have masked beneficial effects (Jésus et al., 2018), making a minocycline-like compound that lacks the antibiotic activity highly desirable.

Repurposing FDA-approved drugs such as minocycline using phenotypic screens reveals promising effects outside the primary indication (antibiotic) of minocycline and inevitably leads to promising new drug target(s) and MOAs. Our data suggest that the antibiotic activity of minocycline compel a minocycline structure-activity relationship (SAR) campaign to improve eukaryotic translational attenuation while eliminating antibiotic and other activities. In summary, our studies on minocycline shed light on the plasticity of longevity mechanisms upon aging and reveal an MOA for minocycline that explains its geroprotective effects.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional
information
Strain,
strain background
(Caenorhabditis
elegans)
N2Caenorhabditis Genetics CenterRRID:WB-STRAIN:N2_(ancestral)wild-type (Bristol)
Strain, strain background (C. elegans)CL2166CGCRRID:WB-STRAIN:CL2166dvIs19 [(pAF15)gst
-4p::GFP::NLS] III
Strain, strain background (C. elegans)SJ4005CGCRRID:WB-STRAIN:SJ4005zcIs4 [hsp-4::GFP] V
Strain,
strain background
(C. elegans)
SJ4100CGCRRID:WB-
STRAIN:SJ4100
zcIs13 [hsp-6::GFP]
Strain, strain background (C. elegans)CL2070CGCRRID:WB-STRAIN:CL2070dvIs70 [hsp-16.2p::GFP + rol-6(su1006)]
Strain,
strain background (C. elegans)
SJ17CGCRRID:WB-S
TRAIN:SJ17
xbp-1(zc12) III; zcIs4 V
Strain, strain background (C. elegans)QV225CGCRRID:WB-
STRAIN:QV225
skn-1(zj15) IV
Strain,
strain background (C. elegans)
PS3551CGCRRID:WB-STRAIN:PS3551hsf-1(sy441) I
Strain, strain background (C. elegans)CF1038CGCRRID:WB-STRAIN:CF1038daf-16(mu86) I
Strain, strain background (C. elegans)CB369CGCRRID:WB-STRAIN:CB369unc-51(e369) V
Strain, strain background (C. elegans)RB1206CGCRRID:WB-STRAIN:RB1206rsks-1(ok1255) III
Strain, strain background (C. elegans)CB3388CGCRRID:WB-STRAIN:CB3388ncl-1(e1865) III
Strain, strain background (C. elegans)CL2006CGCRRID:WB-STRAIN:CL2006dvIs2(pCL12(unc-54:hu-Aβ 1–42)+pRF4)
Strain, strain background (C. elegans)NL5901CGCRRID:WB-STRAIN:NL5901pkIs2386 [α-synuclein::YFP unc-119(+)]
Strain, strain background (C. elegans)MAH93Otherglp-1(ar202), unc-119(ed3), ItIs38[pAA1; pie-1/GFP::PH(PLCdelta1); unc-119 (+)] III; ItIs37[pAA64; pie-1/mCHERRY::his-58, unc-119 (+)]IV); gift from
M. Hansen
Strain, strain background (C. elegans)MAH686Otherhlh-30(tm1978) IV; gift from M. Hansen
Strain, strain background (C. elegans)CMH5DOI: 10.1371/
journal.pone.0159989
atfs-1(tm4525) V
Strain,
strain background (C. elegans)
BC20306Baillie Genome
GFP Project, Simon
Fraser University
RRID:WB:-STRAIN:BC20306cyp-34A9::GFP
Cell line (Homo sapiens)HeLaATCCCat # CCL-2,
RRID:CVCL_0030
Cell line (Mus musculus)NIH 3T3ATCCCat # CRL-1658,
RRID:CVCL_0594
Cell line (H. sapiens)HEK293DAXDOI: 10.1016/j.celrep.2013.03.024
Antibodyanti-actin (mouse monoclonal)MP BiomedicalsCat # 08691001,
RRID:AB_2335127
(1:500)
Antibodyanti-Hsp60
(mouse monoclonal)
ThermoFisherCat # MA3-012,
RRID:AB_2121466
(1:250)
Antibodyanti-Hsp70/72 (mouse monoclonal)EnzoCat # ADI-SPA-810,
RRID:AB_10616513
(1:1000)
Antibodyanti-GRP78 (BiP) (rabbit polyclonal)AbcamCat # ab21685,
RRID:AB_2119834
(1:1000, from1 mg/ml)
AntibodyIRDye 800CW (secondary)Li-CorCat # 926–32210,
RRID:AB_621842
(1:10000)
AntibodyIRDye 800CW
(secondary)
Li-CorCat # 926–32211,
RRID:AB_621843
(1:10000)
Sequence-based reagentHSP60 forward
primer, 5'-
GCAGAGTTCCTCAGAAGTTGG-3'
DOI: 10.1186/
s12974-016-0486-x
qRT-PCR
Sequence-
based reagent
HSP60 reverse primer, 5'-
GCATCCAGTAAGGCAGTTCTC-3'
DOI: 10.1186/
s12974-016-0486-x
qRT-PCR
Sequence-based reagentHSPA1A (HSP70)
forward primer, 5'-
GGAGGCGGAGAAGTACA-3'
DOI: 10.1021/
cb500062n
qRT-PCR
Sequence-based reagentHSPA1A (HSP70)
reverse primer, 5'-
GCTGATGATG
GGGTTAACA-3'
DOI: 10.1021/cb500062nqRT-PCR
Sequence-based reagenthsp-16.1/.11 forward
primer, 5'-
ACCACTATTTC
CGTCCAGCT-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagenthsp-16.1/.11 reverse primer, 5'-
TGACGTTCCATCTGAGCCAT-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagenthsp-16.2 forward primer, 5'-
TCGATTGAAGCGCCAAAGAA-3'
DOI: 10.7554/eLife.08833qRT-PCR
Sequence-based reagenthsp-16.2 reverse primer, 5'-
TCTCTTCGACGATTGCCTGT-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagenthsp-16.41 forward primer, 5'-
TCTTGGACGAACTCACTGGA-3'
DOI: 10.7554/eLife.08833qRT-PCR
Sequence-
based reagent
hsp-16.41 reverse primer, 5'-
AGAGACATCGAGTTGAACCGA-3'
DOI: 10.7554/eLife.08833qRT-PCR
Sequence-based reagenthsp-16.48/.49
forward primer, 5'-
CTCATGCTCCGTTCTCCATT-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagenthsp-16.48/.49 reverse primer, 5'-
GAGTTGTGATCAGCATTTCTCCA-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagentGFP forward primer, 5'-
GGTCCTTCTTGAGTTTGTAAC-3'
DOI: 10.1074/
jbc.C100556200
qRT-PCR
Sequence-
based reagent
GFP reverse
primer, 5'-
CTCCACTGACA
GAAAATTTG-3'
DOI: 10.1074/jbc.C100556200qRT-PCR
Sequence-based reagentSDHA forward
primer, 5'-
TGGTGCTGGTTGTCTCATTA-3'
DOI: 10.1134/
S0003683813090032
qRT-PCR
Sequence-
based reagent
SDHA reverse
primer, 5'-
ACCTTTCGCCTTGACTGTT-3'
DOI: 10.1134/
S0003683813090032
qRT-PCR
Sequence-
based reagent
HSPC3 forward
primer, 5'-
ATGGAAGAGA
GCAAGGCAAA-3'
DOI: 10.1134/
S0003683813090032
qRT-PCR
Sequence-based reagentHSPC3 reverse
primer, 5'-
AATGCAGCAAG
GTGAAGACA-3'
DOI: 10.1134/
S0003683813090032
qRT-PCR
Sequence-
based reagent
crn-3 forward
primer, 5'-
GAATGCACTCAT
GAACAAAGTC-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-
based reagent
crn-3 reverse
primer, 5'-
TAATGTTCGACT
GATGAACCG-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-
based reagent
xpg-1 forward
primer, 5'-
ATTGAGAACAG
GATCATGAGG-3'
DOI: 10.7554/eLife.08833qRT-PCR
Sequence-
based reagent
xpg-1 reverse
primer, 5'-ACTAGCA
ACTCGTTTATCATCC-3'
DOI: 10.7554/
eLife.08833
qRT-PCR
Sequence-based reagentrpl-6 forward primer, 5'-ACTAGCAACTCGTTTATCATCC-3'DOI: 10.7554/eLife.08833qRT-PCR
Sequence-based reagentrpl-6 reverse
primer, 5'-
GACAGTCTTGGAATGTCCGA-3'
DOI: 10.7554/eLife.08833qRT-PCR
Commercial
assay or kit
20S Proteasome Activity Assay KitChemicon InternationalCat # APT280
Commercial assay or kitRNeasy Mini KitQiagenCat # 74104
Commercial assay or kitiScript RT-SupermixBio-RadCat # 170–8841
Commercial assay or kitSsoAdvanced SYBR Green SupermixBio-RadCat # 172–5264
Commercial assay or kitPROTEOSTAT Prot. aggregation assayEnzoCat # ENZ-51023
Chemical compound, drugminocyclineMp BiomedicalsCat # 0215571891
Chemical compound, drugmethyl viologen hydrate (paraquat)Acros OrganicsCat # 227320010
Chemical compound, drugtunicamycinLKT LaboratoriesCat # T8153
Chemical compound, drugthapsigarginCayman ChemicalCat # 10522
Chemical compound, drugISRIBR and D SystemsCat # 5284/10
Chemical compound, druglevamisoleMp BiomedicalsCat # 0215522810
Chemical compound, drugsodium arseniteSpectrum
Chemical
Cat # S1135
Chemical compound, drugcycloheximideAlfa AesarCat # J66901-03
Software,
algorithm
CellProfilerBroad InstituteRRID:SCR_007358α-synuclein::YFP aggregate number and worm size analyses
Software,
algorithm
Bio-Rad
CFX Manager
Bio-RadqRT-PCR analysis
Software,
algorithm
ImageQuantGE Healthcare
Life Sciences
RRID:SCR_01424635S incorporation analysis

C. elegans strains

The Bristol strain (N2) was used as the wild-type strain. The following worm strains used in this study were obtained from the Caenorhabditis Genetics Center (CGC; Minneapolis, MN) unless otherwise noted. CL2166 [dvIs19 [(pAF15)gst-4p::GFP::NLS]], SJ4005 [zcIs4 [hsp-4p::GFP]], SJ4100 [zcIs13 [hsp-6p::GFP]], CL2070 [dvIs70 [hsp-16.2p::GFP + rol-6(su1006)]], SJ17 [xbp-1(zc12); zcIs4], QV225 [skn-1(zj15)], PS3551 [hsf-1(sy441)], CF1038 [daf-16(mu86)], CB369 [unc-51(e369)], RB1206 [rsks-1(ok1255)], CB3388 [ncl-1(e1865)], CL2006 [dvIs2(pCL12(unc-54:hu-Aβ 1–42)+pRF4)], NL5901 [pkIs2386 [α-synuclein::YFP unc-119(+)]]. Strains were backcrossed at least three times prior to experimental analysis. MAH93 [glp-1(ar202), unc-119(ed3), ItIs38[pAA1; pie 1/GFP::PH(PLCdelta1); unc-119 (+)]; ItIs37[pAA64; pie-1/mCHERRY::his-58, unc-119 (+)]] and MAH686 [hlh-30(tm1978)] were gifts from Malene Hansen and Caroline Kumsta and atfs-1(tm4525) V was a gift from Cole Haynes (Nargund et al., 2012). BC20306 [cyp-34A9p::GFP] was received from Baillie Genome GFP Project (Simon Fraser University, Burnaby, Vancouver, Canada).

Worm stress imaging

1000 – 2000 age-synchronized L1 GFP reporter animals were plated into 6 cm culture plates with liquid medium (S-complete medium with 50 µg/ml carbenicillin and 0.1 μg/ml fungizone [Amphotericin B]) containing 6 mg/ml Escherichia coli OP50 (1.5 × 108 colony-forming units [cfu]/ml, carbenicillin-resistant to exclude growth of other bacteria), freshly prepared 4 days in advance, as previously described (Solis and Petrascheck, 2011), and were maintained at 20°C. The final volume in each plate was 7 ml. To prevent self-fertilization, 5-fluoro-2’-deoxyuridine (FUDR, 0.12 mM final) (Sigma-Aldrich, cat # 856657) was added 42 – 45 hr after seeding. With day 1 being the first day of young adulthood (first day past the L4 stage), various stressors were added to each strain at different time points: 0.5 mM arsenite to day 1/day 5/day 8 CL2166 gst-4p::GFP and imaged 5 hr later, 0.5 mM paraquat to the late L4/day 4/day 7 stage of SJ4100 hsp-6p::GFP and imaged 24 hr later, 5 μg/ml tunicamycin to day 1/day 5/day 8 SJ4005 hsp-4p::GFP and imaged 8 hr later and a 1.5 hr heat shock at 35°C followed by recovery at 20°C to day 1/day 5/day 8 CL2070 hsp-16.2p::GFP and imaged 8 hr later. Worm GFP intensity was quantified using a COPAS FP BIOSORT (Union Biometrica) and animals were sorted into 96-well plates and imaged using an ImageXpress Micro XL High-Content screening system (Molecular Devices) with a 2x objective. To determine minocycline’s affect on GFP expression, 100 μM minocycline was added 2 hr prior to each stressor at the day 4/day 5 stage.

Lifespan assay

Age-synchronized C. elegans were prepared in liquid medium (S-complete medium with 50 µg/ml carbenicillin and 0.1 μg/ml fungizone) in flat-bottom, optically clear 96-well plates (Corning, cat # 351172) containing 150 μl total volume per well, as previously described (Solis and Petrascheck, 2011). Plates contained ~10 animals per well in 6 mg/ml OP50. All experiments with minocycline were prepared with γ-irradiated OP50. Age-synchronized animals were seeded as L1 larvae and grown at 20°C. Plates were covered with sealers to prevent evaporation. To prevent self-fertilization, FUDR (0.12 mM final) was added 42 – 45 hr after seeding. Drugs were added on the days indicated and survival was scored manually by visualizing worm movement using an inverted microscope 3x/week. When used, DMSO was kept to a final concentration of 0.33% v/v. Statistical analysis was performed using the Mantel–Haenszel version of the log-rank test as outlined in Petrascheck and Miller (Petrascheck and Miller, 2017).

α-synuclein::YFP imaging

NL5901 (pkIs2386 [α-synuclein::YFP unc-119(+)]) age-synchronized animals were treated with water on day 1 or 100 μM minocycline on days 1, 5 or 8. On days 8, 11, 16 or 19, 10 – 15 water- and minocycline-treated animals of each treatment stage were transferred to glass slides containing 3% agarose pads and paralyzed by adding a drop of a 1 mM levamisole solution dissolved in M9 buffer. Brightfield and fluorescence images were taken with a 20x objective using the ImageXpress Micro XL. The number of α-synuclein aggregates in the pharynx region of each worm (25% of total body length) were determined by analyzing images using a custom pipeline created in CellProfiler software.

CL2006 abeta paralysis

Day 1 CL2006 (dvIs2(pCL12(unc-54:hu-Aβ 1–42)+pRF4)) synchronized animals were treated with water or 100 μM minocycline. On day 4, 50 – 100 animals each were transferred to three NGM plates and placed at 37°C for 2 hr. After heat shock, animals were scored to determine the number of paralyzed animals. Animals were marked as paralyzed if they did not show mid-body movement upon light touch to the pharynx with a worm pick.

Thermotolerance

Age-synchronized N2 animals were prepared in 6 cm culture plates and treated with water or 100 μM minocycline on day 1. On evening day 4, 30 – 50 animals each were transferred to 6 cm NGM plates in triplicate for each condition and heat stress was induced at 35°C. The first survival measurement was taken 8 hr later by lightly touching animals with a worm pick and scoring for movement. Plates were kept at 35°C and measurements of survival were taken every 2 hr until nearly all water-treated N2s were dead.

Paraquat stress resistance assay

Resistance to oxidative stress was determined by measuring survival of untreated and minocycline-treated animals after a 24 hr exposure to the ROS-generator paraquat (methyl viologen hydrate; Acros Organics, cat # 227320010). Experimental C. elegans cultures were set up as described in Lifespan Assay. Water or 100 μM minocycline was added on day 1. Paraquat was added to a final concentration of 0, 15, 25, 50, 75 and 100 mM on day 5 of adulthood and survival of animals was assessed 24 hr after paraquat addition. It’s important to note, we only saw protection from paraquat-induced death when using dead, γ-irradiated OP50 and did not see protection when using live OP50.

Iodoacetamide isoTOP-ABPP

20,000 age-synchronized N2 C. elegans were grown in liquid culture in 15 cm culture plates (Corning, cat # 351058), two plates per condition. Animals were treated with water or 100 μM minocycline on day 5. Animals were collected on day 8, washed 3x with cold DPBS (Gibco, cat # 14190 – 136) and flash-frozen in liquid nitrogen. 50 μl 1.4 mm zirconium oxide beads (Precellys, cat # 03961-1-103) and 50 μl 0.5 mm glass beads (Precellys, cat # 03961-1-104) were added to each sample and animals were lysed using a Precellys 24 tissue homogenizer. Bradford assay (Bio-rad, cat # 5000002) was used to determine protein concentration for each sample for normalization. Proteome sample (1 mg) was treated with 100 mM IA-alkyne probe by adding 5 ml of a 10 mM probe stock (in DMSO). The labeling reactions were incubated at room temperature for 1 hr, after which the samples were conjugated to isotopically labeled, TEV-cleavable tags (TEV tags) by copper-catalyzed azide-alkyne cycloaddition (CuACC or ‘click chemistry’). Heavy click chemistry reaction mixture (60 ml) was added to the water-treated control sample, and light reaction mixture (60 ml) was added to the minocycline-treated sample. The click reaction mixture consisted of TEV tags [10 ml of a 5 mM stock, light (minocycline-treated) or heavy (water treated)], CuSO4 (10 ml of a 50 mM stock in water), and tris(benzyltriazolylmethyl) amine (30 ml of a 1.7 mM stock in 4:1 tBuOH/DMSO), to which tris(2- carboxyethyl)phosphine (10 ml of a 50 mM stock) was added. The reaction was performed for 1 hr at room temperature. The light- and heavy-labeled samples were then centrifuged at 16,000 x g for 5 min at 4°C to harvest the precipitated proteins. The resulting pellets were resuspended in 500 ml of cold methanol by sonication, and the heavy and light samples were combined pairwise. Combined pellets were then washed with cold methanol, after which the pellet was solubilized by sonication in DPBS with 1.2% SDS. The samples were heated at 90°C for 5 min and subjected to streptavidin enrichment of probe-labeled proteins, sequential on-bead trypsin and TEV digestion, and liquid chromatography–tandem mass spectrometry.

RAW Xtractor (version 1.9.9.2; available at http://fields.scripps.edu/ downloads.php) was used to extract the MS2 spectra data from the raw files (MS2 spectra data correspond to the fragments analyzed during the second stage of mass spectrometry). MS2 data were searched against a reverse concatenated, nonredundant variant of the C. elegans UniProt database (release, 2017_09) with the ProLuCID algorithm (publicly available at http://fields.scripps.edu/downloads.php). Cysteine residues were searched with a static modification for carboxyamidomethylation (+57.02146) and up to one differential modification for either the light or heavy TEV tags (+464.28595 or+470.29976, respectively). Peptides were required to have at least one tryptic terminus and to contain the TEV modification. ProLuCID data were filtered through DTASelect (version 2.0) to achieve a peptide false-positive rate below 1%.

The quantification of light/heavy ratios (isoTOP-ABPP ratios, R values) was performed by in-house CIMAGE software using default parameters (three MS1s per peak and a signal-to-noise threshold of 2.5). See Figure 3—source data 1 for additional filtering parameters.

Offspring assay

N2 animals were age-synchronized and allowed to grow in liquid medium in a 6 cm plate. By the L4 stage, a single worm was transferred into each well in the first column of a 96-well plate (eight animals) containing liquid medium without FUDR, two plates per condition. On day 1, animals were treated with water or 100 μM minocycline. Every 24 hr, the adult animals were transferred to the well in the next column over and progeny was scored from the previous well using an inverted microscope. This process was continued until day 5 of adulthood.

Worm size assay

Animals prepared as in the lifespan assay and treated with water or 100 μM minocycline on day 1 were imaged across 4 days using a 10x objective with the ImageXpress Micro XL and the length in pixels of each worm measured was determined using CellProfiler analysis software.

Metabolic mass spectrometry

Animals and bacteria were metabolically labeled with the desired nitrogen isotope (14N or 15N) as previously described (Gomez-Amaro et al., 2015). After a minimum of three generations, ~20,000 age-synchronized larvae per condition were transferred to 15 cm culture dishes and cultured in liquid medium plus metabolically labeled 14N (experimental) or 15N (mixed-population standard) bacteria (6 mg/ml). Water or 100 μM minocycline were added and animals were collected at different time points (L4→day 1, day 5→day 6, day 5→day 8). To control for differences in protein content due to minocycline treatment, samples were normalized by RNA concentration.

Lysed animals were prepared for mass spectrometry by precipitation in 13% trichloroacetic acid (TCA) overnight at 4°C. The protein pellet was collected by centrifugation at maximum speed for 20 min. The pellet was washed with 10% TCA and spun again for 10 min at 4°. The pellet was then washed with ice cold acetone and spun for an additional 10 min at 4°. The protein pellet was resuspended in 100 – 200 μl of 100 mM ammonium bicarbonate with 5% (v/v) acetonitrile. Then 10% (by volume) of 50 mM DTT was added and the sample was incubated for 10 min at 65°. This incubation was followed by the addition of 10% (by volume) of 1 mM iodoacetic acid (IAA) and a 30 min incubation at 30° in the dark. A total of 5 μg of trypsin was added to each sample and incubated overnight at 37°. Trypsinized samples were then cleaned up for mass spectrometry using PepClean columns (Pierce) following the manufacturer’s directions. Clean samples were dried in a speed vacuum and then resuspended in 10 μl of 5% acetonitrile with 0.1% (v/v) formic acid. Samples were spun at high speed to remove particulates before placing in mass spectrometry tubes for analysis.

Samples were analyzed on an ABSCIEX 5600 Triple time of flight (TOF) mass spectrometer coupled to an Eksigent nano-LC Ultra equipped with a nanoflex cHiPLC system. Conditions on the ABSCIEX 5600 were as follows: The source gas conditions were optimized for each experiment and were generally set to GS1 = 8–12, GS2 = 0, and curtain gas = 25. The source temperature was set to 150°. Information dependent acquisition experiments were run with a 2 s cycle time, with 0.5 ms accumulation time in the MS1 scan and up to 20 candidate ions per MS/MS time period. The m/z range in the MS1 scans was 400 – 1250 Da, and 100 – 1800 Da for the MS/MS scans. Target ions were excluded after two occurrences for 12 s to increase sequencing coverage. Target ions with +2 to+5 charge were selected for sequencing once they reached a threshold of 100 counts per second.

Conditions for the Eksigent nano-HPLC were as follows: Gradients were run with a trap-and-elute setup with water plus 0.1% (v/v) formic acid as the mobile phase A and acetonitrile with 0.1% (v/v) formic acid as mobile phase B. Samples were loaded onto a 200 μm × 0.5 mm ChromXP C18-CL 3 μm 120 Å Trap column at 2 μl/min. Gradients were run from 5% mobile phase A to 40% mobile phase B over 2 hr on a 75 μm × 15 cm ChromXP C-18-CL 3 μm 120 Å analytical column. This was followed by a rapid jump to 80% B for 10 min to clean the column and a 20 min reequilibration at 95% A. Water sample blanks were run between samples to rid the column of any residual interfering peptides, including a short gradient, followed by the 80% B and 20 min reequilibration with 5% A.

Data were converted using the ABSCIEX conversion software to mgf format and MZML format. The peak list was generated by searching a SwissProt database using MASCOT, with the taxonomy set to C. elegans and E. coli simultaneously (Matrix Science). An MS/MS Ion search was performed using the 15N quantification, with a peptide mass tolerance of ±0.1 Da and a fragment mass tolerance of ±0.1 Da. The maximum number of missed cleavages was set to 2. MS1 scans for identified peptides were fit to three isotope distributions using ISODIST.

20S proteasome assay

2500 age-synchronized animals were grown on 10-cm culture plates (Corning, cat # 351029) per condition in liquid medium. Water or 100 μM minocycline were added on day 1. On day 5, animals were collected and washed 3x with cold DPBS, then once with 1x assay buffer (Chemicon International, cat # APT280). Animals were lysed with Precellys homogenizer and spun down at 12,000 x g for 5 min. Protein concentrations were measured and normalized using Bradford assay. 20S proteasome activity was measured for each lysate according to the protocol (Chemicon International, cat # APT280). 200 μg of samples were loaded with assay mixture into each well of a UV-transparent 96-well plate and incubated for 1 hr at 37°C. Fluorescence was measured on the Tecan Safire II with a 380/460 nm filter set.

Cell culture authentication and testing

HeLa cells (ATCC CCL-2) or NIH 3T3 cells (ATCC CRL-1658) were directly obtained from ATCC. Mycoplasma testing was done every 6 months through TSRI. The identity of the HEK293DAX cells was verified by the induction of ATF6 through TMP.

35S Incorporation

HeLa cells (ATCC CCL-2) or NIH 3T3 cells (ATCC CRL-1658) were grown at 37°C and plated onto a six-well plate (Corning, cat # 353046) in DMEM (Life Technologies, cat # 11995073) supplemented with 10% FBS (ATCC, cat # 30 – 2021) and penicillin-streptomycin and the indicated concentrations of cycloheximide or minocycline were added to 70% confluent cells and incubated for 6 hr. DMEM culture media was removed and wells were washed 2x with warm DPBS. 2 ml of a DMEM solution without methionine or cysteine (Life Technologies, cat # 21013024) supplemented with 10% dialyzed FBS (VWR Intl., cat # 101301 – 494) and [35S]-methionine/cysteine (PerkinElmer, cat # NEG772002MC) was added to each well for 1 hr. Media was removed and wells were washed 2x with cold DPBS and 200 μl of cold RIPA buffer (Fisher Scientific, cat # 507513771) with protease inhibitor (cOmplete mini EDTA-free, Sigma-Aldrich, cat # 11836170001) was added to each well for 15 min on ice. Lysates were collected and spun down at 5000 g for 10 min. Samples normalized by protein concentration, determined by Bradford assay, were run on an SDS-PAGE gel. The gel was stained with Coomassie Brilliant Blue G-250 (MP Biomedicals, cat # 0219034325), imaged for loading control, dried and exposed overnight to a phosphor screen and imaged again using a Typhoon 9400 imager. Lanes were quantified using ImageQuant software (GE Healthcare Life Sciences).

Polysome profile

HeLa cells were grown on 10 cm culture plates (Olympus Plastics, #25 – 202) at 37°C in DMEM culture media supplemented with 10% FBS and penicillin-streptomycin and water or 100 μM minocycline was added to 70% confluent cells for 12 hr. 100 μg/ml cycloheximide was added to each plate for 10 min. On ice, medium was removed, plates were washed 2x with cold wash buffer (DPBS supplemented with 100 μg/ml cycloheximide) and cells were removed in 1 ml wash buffer using a cell scraper. Cells were transferred to eppendorf tubes and spun down for 5 min at 2300 g at 4°C. Supernatant was removed and 300 μl cold hypotonic buffer (1.5 mM KCl, 10 mM MgCl2, 5 mM Tris-HCl, pH 7.4, 100 μg/ml cycloheximide) was added and gently mixed. 300 μl cold hypotonic lysis buffer (2% sodium deoxycholate, 2% Triton X-100, 2.5 mM DTT, 100 μg/ml cycloheximide, and 10 units of RNAsin/ml in hypotonic buffer) was added and cells were homogenized by using 10 strokes with a glass dounce homogenizer on ice. Samples were spun down at 2300 x g for 10 min at 4°C. Supernatants were transferred to fresh eppendorf tubes and RNA concentration was determined by measuring the A260. 2 mg RNA were loaded onto 17 – 51% sucrose gradients prepared with a gradient maker in SW41 tubes (Denville, cat # U5030). Tubes were centrifuged at 40,000 rpm for 2.5 hr at 4°C using an SW41 rotor. OD260 was measured for each sample using an online Isco Model UA-5 Absorbance/Fluorescence Monitor.

HSP western blot

HeLa cells were grown on 10 cm culture plates at 37°C in DMEM supplemented with 10% FBS and penicillin-streptomycin and water or 100 μM minocycline was added for 12 hr to 70% confluent cells. Cells were transferred to 43°C for a 1 hr heat shock, then returned to 37°C for a 6 hr recovery period. Plates were washed 2x with cold DPBS, then 500 μl cold RIPA buffer containing protease inhibitor was added for 15 min on ice. Lysates were collected, normalized by RNA concentration, run on an SDS-PAGE gel and transferred for immunoblot detection. Anti-actin (MP Biomedicals, cat # 08691001), anti-Hsp60 (ThermoFisher, cat # MA3-012) and anti-Hsp70/72 (Enzo, cat # ADI-SPA-810) primary antibodies and IRDye 800CW secondary antibody (Li-Cor, cat # 926 – 32210) were used for detection.

Quantitative real-time PCR (qRT-PCR) and data analysis

All qRT-PCR experiments were conducted according to the MIQE guidelines (Bustin et al., 2009), except that samples were not tested in a bio-analyzer, but photometrically quantified using a Nanodrop. HeLa cells were grown as described above to 70% confluency and treated with or without 100 μM minocycline, two 10 cm plates per condition. 12 hr after treatment, one each of the untreated and minocycline-treated plates were subjected to a 1 hr heat shock at 43°C and returned to 37°C for a 3 hr recovery. Cells were collected and RNA was extracted as described in the Qiagen RNeasy mini kit protocol (Qiagen, cat # 74104). Cell culture plates were washed two times with warm DPBS, followed by addition of Buffer RLT. Cells were removed from plates with a cell scraper and collected in eppendorf tubes. RNeasy spin columns were used to purify RNA and on-column DNase digestion was performed. For C. elegans samples,~2000 age-synchronized day 1 CL2070 hsp-16.2p::GFP animals cultured in 10 cm plates were treated with water or 100 μM minocycline for 2 hr prior to inducing heat shock at 35°C for 1.5 hr, and harvested immediately after. Harvested animals were washed three times in ice cold DPBS and frozen in liquid nitrogen. To extract RNA, frozen animals were re-suspended in ice-cold Trizol (Qiagen, cat # 79306), zirconium beads, and glass beads in the ratio of 5:1:1 respectively, and disrupted in Precellys lysing system (6500 rpm, 3 × 10 s cycles) followed by chloroform extraction. RNA was precipitated using isopropanol and washed once with 75% ethanol followed by DNAse (Sigma-Aldrich, cat # AMPD1-1KT) treatment.

For all RNA samples, reverse transcription was carried out using iScript RT-Supermix (Bio-Rad, cat # 170 – 8841) at 42°C for 30 min. Quantitative PCR reactions were set up in 384-well plates (Bio-Rad, cat # HSP3901), which included 2.5 µl Bio-Rad SsoAdvanced SYBR Green Supermix (cat # 172 – 5264), 1 µl cDNA template (2.5 ng/µl, to final of 0.5 ng/µl in 5 µl PCR reaction), 1 µl water, and 0.5 µl of forward and reverse primers (150 nM final concentration). Quantitative PCR was carried out using a Bio-Rad CFX384 Real-Time thermocycler (95°C, 3 min; 40 cycles of 95°C 10 s, 60°C 30 s; Melting curve: 95°C 5 s, 60–95°C at 0.5°C increment, 10 s). Gene expression was normalized to two references genes for the HeLa cell samples, SDHA and HSPC3, and three reference genes for C. elegans samples, crn-3, xpg-1 and rpl-6, using the Bio-Rad CFX Manager software. Statistical significance was determined using Student’s t-test

HEK293DAXwestern blot

HEK293DAX cells were grown on 6-well plates at 37°C in DMEM supplemented with 10% FBS and penicillin-streptomycin. Water or 100 μM minocycline was added with or without 20 uM trimethoprim for 12 hr to 70% confluent cells. Plates were washed 2x with cold DPBS, then 200 μl cold RIPA buffer containing protease inhibitor was added for 15 min on ice. Lysates were collected, normalized by RNA concentration, run on an SDS-PAGE gel and transferred for immunoblot detection. Anti-actin and anti-GRP78 BiP primary (Abcam, cat # ab21685) antibodies and IRDye 800CW (Li-Cor, anti-mouse, cat # 926 – 32210 and anti-rabbit, cat # 926 – 32211) secondary antibodies were used for detection.

ProteoStat aggregation assay

~70% confluent HeLa cells plated on two 6-well plates were treated for 6 hr with water or 100 μM minocycline, three wells per treatment. One plate was heat shocked for 1 hr at 43°C followed by a 1 hr recovery period at 37°C. Wells were washed two times with cold DPBS and then incubated on ice for 15 min with cold RIPA +protease inhibitor. Lysate for each well was collected and spun down at 5000 x g for 10 min. Protein concentration was measured for each sample using and all samples were normalized. Aggregation was measured using the PROTEOSTAT detection reagent (Enzo, cat # ENZ-51023) for 10 μg protein of each sample. Fluorescence was measured with excitation of 550 nm and emission at of 600 nm on a Tecan Sapphire two plate reader over a 30-min period, with one reading per minute. Fluorescence values for each sample were averaged over the 30-min period to determine a corresponding aggregate value normalized to the water treated samples.

ISRIB translation

HeLa cells were plated onto a 6-well plate in DMEM culture media supplemented with 10% FBS and penicillin-streptomycin and ISRIB (200 nM) (R and D Systems, cat # 5284/10). Minocycline (100 μM), thapsigargin (200 nM) (Cayman Chemical, cat # 10522) or different combinations of the three were added to 70% confluent cells and incubated for 3 hr (ISRIB and/or thapsigargin-treated samples) or 6 hr (minocycline-treated samples). 35S incorporation was measured using the protocol described above (35S incorporation).

Yeast lifespan assay

Yeast RLS assays were performed by isolating virgin daughter cells of the BY4741 strain and then allowed to grow into mother cells while their corresponding daughters were microdissected and counted, until the mother cell could no longer divide. Data were analyzed using the Wilcoxon rank-sum test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Tetracyclines Modify Translation by Targeting Key Human rRNA Substructures
    1. JD Mortison
    2. M Schenone
    3. JA Myers
    4. Z Zhang
    5. L Chen
    6. C Ciarlo
    7. E Comer
    8. SK Natchiar
    9. SA Carr
    10. BP Klaholz
    11. AG Myers
    (2018)
    Cell Chemical Biology, 10.1016/j.chembiol.2018.09.010, 30318461.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
    Measuring Caenorhabditis elegans life span in 96 well microtiter plates
    1. GM Solis
    2. M Petrascheck
    (2011)
    Journal of Visualized Experiments, 10.3791/2496, 21445049.
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85

Decision letter

  1. Matt Kaeberlein
    Reviewing Editor; University of Washington, United States
  2. Philip A Cole
    Senior Editor; Harvard Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter, peer reviews, and accompanying author responses.

[Editorial note: This article has been through an editorial process in which the authors decide how to respond to the issues raised during peer review. The Reviewing Editor's assessment is that all the issues have been addressed.]

Thank you for submitting your article "Translation attenuation by minocycline enhances longevity and proteostasis in old post-stress-responsive organisms" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Matt Kaeberlein as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Philip Cole as the Senior Editor. The following individuals involved in review of your submission have also agreed to reveal their identity: Aric Rodgers (Reviewer #2) and Jan Gruber (Reviewer #3).

The Reviewing Editor has highlighted the concerns that require revision and/or responses, and we have included the separate reviews below for your consideration. If you have any questions, please do not hesitate to contact us.

Summary:

All of the reviewers are quite enthusiastic about the importance of this work and quality of the data. No major concerns were identified, although several minor concerns about interpretation and overstating the data were noted. The authors are encouraged to consider these referee comments and revise the text accordingly.

Separate reviews (please respond to each point):

Reviewer #1:

Solis et al. present a compelling model for the late life pro-longevity effects of minocycline: that it acts to selectively reduce translation of highly expressed, aggregation prone proteins, thereby delaying proteostatic collapse in aged cells and animals. The experiments appear to be well-conducted and there are several interesting and cool observations here that move the field forward. I have only relatively minor suggestions.

Minor Comments:

1) It is mentioned that CR and rapamycin can both extend lifespan when initiated late in life in mice. It would be worth noting in the Discussion that this has also been shown to be true for bacterial deprivation in C. elegans (Smith et al., Caenorhabditis elegans2008) where initiating food deprivation at day 8 extends lifespan as much as initiating the treatment at day 4 or day 2. This could conceivably work via a similar mechanism to minocycline as complete food deprivation is almost certain to dramatically reduce cytoplasmic translation.

2) It is perhaps an overstatement to say that minocycline "did not result in an increased susceptibility to stress", when this is only shown for heat stress. Were other stressors tested? If not, then perhaps qualify this statement a bit.

3) Figure 2—figure supplement 1C is missing the legend.

4) The interpretation of the autophagy experiments may also be a bit overstated. Unless you are working with autophagy null mutations, the fact that minocycline can still extend these mutants can't be definitively interpreted. Perhaps better to say that the data are consistent with the model that the MOA for minocycline does not act through autophagy. If you really want to strengthen this, you could look for induction of autophagy via a variety of methods.

5) I would soften the statement in the Discussion that the "MOA of minocycline is clearly distinct from other interventions targeting translation". While I agree that the genetic epistasis data support this model, they do not rule out the possibility that there are overlapping but partially distinct mechanisms at play. It is also possible that some interventions require HSF-1 and/or HLH-30 for indirect reasons without those factors being causally downstream in the mechanism of lifespan extension.

6) I would be careful about saying that mechanisms like "the UPRmt elicit geroprotective effects through the activation of SSPs". Multiple labs have now shown that the UPRmt (or at least induction of all the factors commonly referred to as the UPRmt) is not in fact geroprotective. Indeed, the UPRmt (or at least induction of all the factors commonly referred to as the UPRmt) is neither necessary nor sufficient to extend lifespan. I realize that the Dillin and Auwerx labs choose to ignore these data and propagate their own "alternative facts" rather than address the gaping holes in their model, but perhaps you want to pick a different example stress response pathway for this particular phrase.

Reviewer #2:

Results in Figures 1E and 2B are quite remarkable and the study is of high interest. Greatest concerns are about interpretation, with a couple of minor issues regarding study design:

From the Abstract, the authors ".. propose that minocycline lowers the concentration of newly synthesized aggregation-prone proteins, resulting in a relative increase in protein-folding capacity without the necessity to induce protein-folding pathways." It is easy to rationalize that translation suppression, itself, is the protective mechanism important for mitigating damage from unfolded proteins by allowing chaperones to focus on maintaining conformation of, or eliminating, pre-existing proteins. This sounds very nice, but there is little evidence because translation is inhibited during stress regardless of addition of translational suppressors. So, what is the mechanism? Yes, minocycline reduces translation, but how certain are the authors that its translational suppression, per se, that is protective? Is it possible that mino helps prevent aggregation directly? Perhaps this could be tested in vitro? Its ability to extend lifespan in a sick (hsf-1) mutant is especially provocative. Is its function somehow bypassing the need for some HSF-1 gene targets? The possibility that the mechanism involved is simply preventing de novo synthesis of aggregation-prone proteins is not convincing. Where is the evidence for that? Select changes in protein synthesis (i.e., differential translation) pointed to selective depletion of factors for ribosome biosynthesis (Figure 3) as well as other highly translated factors according to polysome status (Figure 4). Is that what is meant by "aggregation prone proteins?" I suppose that is one way of characterizing them (and a lot of other factors). All of this should be more thoroughly argued in the manuscript.

Results show near-instantaneous protection (2 hour treatment with minocycline), so why measure proteome after 3 days of treatment? If protection is conferred so rapidly, what is the point at reading the proteome 3 days after treatment? Rapid (2 hour) protection from unfolded protein stress is highly unlikely to be proteome based unless it is through post-translational modification (e.g., phosphorylation). This should be more thoroughly addressed in the manuscript.

Minor Comments:

Given that minocycline is inhibiting translation, it may be better to measure transcription of stress response pathway genes directly as opposed to using transcriptional reporters (Figure 1), which depend on translation to produce fluorescence.

"growth" is misspelled, end of the first paragraph of the Discussion.

It is important to consider differential translation and de novo synthesis when doing western blots to look at changes in HSPs in a system that suppresses total cellular translation. Alternative methods of measuring de novo synthesis should be considered.

"Minocycline is a tetracycline antibiotic regulatory agency-approved for the treatment of acne". Odd sentence, consider revising.

Reviewer #3:

This, in my opinion, is really exciting and important work. The approach of specifically targeting post-stress response animals for lifespan extension is elegant and, importantly, worked to identify what looks like a drug with a very unique MOA.

The amount and quality of work done to explore this MOA and to identify targets is impressive and the result appears quite conclusive (although I am not an expert on some of the techniques involved).

I do have some very minor comments, suggestions and questions (see below) – however, none of these substantially impact the main conclusions.

My comments mainly pertain to minor issues of interpretation or emphasis. In summary, I think this is an impressive piece of work and I am quite excited about it.

Minor Comments:

It is true that the upshift from 20 °C to 25 °C triggers the Ab phenotype of the CL2006 strain, but I think this is a specific interaction between the Ab1-42 peptide and temperature and I do not think that it is completely correct to equate this with an effect on general heat shock induced protein aggregation.

Similarly, the authors only show that minocycline has a protective effect on one of the SSP tested (heat shock) but the discussion makes it sound like this is a general effect (That SSP responses are blunted but survival under challenge is improved nonetheless).

Unless I am mistaken, only the first part (blunting) is demonstrated for all four challenges while improved survival is only shown for heat shock. That being said, I understand why heat shock was chosen (the attenuation of the GFP response is most convincing and so the fact that there is a protective effect is most impressive).

The authors emphasize the lifespan effect in the hsf-1 background. While this is an interesting observation with an impressive lifespan extension that, at least in terms of% , is indeed larger than in WT, the hsf-1 strain, even when treated, still appears shorter lived than WT (or, at best, identical to untreated WT). The% effect is large, precisely because this mutant is so short lived.

I think based on these data alone it is hard to determine if minocycline mainly acts to rescue hsf-1 or rescues the mutation and extends lifespan (as suggested). On a related note, the lifespan benefits in skn-1 and maybe even daf-16 background, while statistically maybe not as large (at least in terms of percent extension), seem even more surprising and impressive to me (in that these animals are more long-lived that WT controls).

In the Discussion, it may be worthwhile to re-iterate the observation that rapamycin also has benefits in aged animals and relate this to the role of rsks-1 on translation downstream of mTOR.

Also, looking at minocycline and its use in humans, in addition to the protective / beneficial effects listed in Table 1, there are some reports of detrimental effects, especially in the context of some auto-immune diseases. Maybe it would be worth discussing evidence (if any) whether these may be related to the effect on translation, its antibiotic efficacy or are completely unrelated. I appreciate that nothing may be known about this, but it strikes me as a point worth touching on when discussing translational potential.

It may be worth comparing the doses used here (e.g. in tissue culture) to typical therapeutic concentrations in humans (e.g. in plasma).

https://doi.org/10.7554/eLife.40314.022

Author response

Reviewer #1:

Solis et al. present a compelling model for the late life pro-longevity effects of minocycline: that it acts to selectively reduce translation of highly expressed, aggregation prone proteins, thereby delaying proteostatic collapse in aged cells and animals. The experiments appear to be well-conducted and there are several interesting and cool observations here that move the field forward. I have only relatively minor suggestions.

Minor Comments:

1) It is mentioned that CR and rapamycin can both extend lifespan when initiated late in life in mice. It would be worth noting in the Discussion that this has also been shown to be true for bacterial deprivation in C. elegans (Smith et al., 2008) where initiating food deprivation at day 8 extends lifespan as much as initiating the treatment at day 4 or day 2. This could conceivably work via a similar mechanism to minocycline as complete food deprivation is almost certain to dramatically reduce cytoplasmic translation.

Thank you for the suggestion. We have added the following sentences to the Discussion:

“Similar to minocycline, Smith et al. have shown that bacterial deprivation initiated in day-8-old C. elegans also extends lifespan, even as much as when initiating it at day 4 (Smith et al., 2008). Although not directly measured in this study, bacterial deprivation is also likely to dramatically reduce cytoplasmic translation, as suggested by Steinkraus et al. (Steinkraus et al., 2008).”

2) It is perhaps an overstatement to say that minocycline "did not result in an increased susceptibility to stress", when this is only shown for heat stress. Were other stressors tested? If not, then perhaps qualify this statement a bit.

To address this point, which was also raised by reviewer #3 (second point), we have added additional data. We have now included an experiment showing minocycline protects from paraquat-induced oxidative stress despite blocking the stress reporter response to paraquat. After 24 hour 100mM PQ treatment, 75% of 100 μm minocycline-treated animals are still alive compared to 44% in control animals. We have also provided additional references in the literature with examples of minocycline protecting from paraquat-induced cell death.

Amended text inserted into the Results section:

“Furthermore, minocycline-treated adults were also much more resistant to paraquat-induced oxidative stress (Figure 2—figure supplement 1D). This is consistent with the observation that minocycline also protects neuronal-like rat pheochromocytoma (PC12) cells from paraquat-induced cell death (Huang et al., 2012).”

3) Figure 2—figure supplement 1C is missing the legend.

We have now added a legend in-between both panel C and D (new figure).

4) The interpretation of the autophagy experiments may also be a bit overstated. Unless you are working with autophagy null mutations, the fact that minocycline can still extend these mutants can't be definitively interpreted. Perhaps better to say that the data are consistent with the model that the MOA for minocycline does not act through autophagy.

To remedy our overstatement we changed the text describing the results as follows:

“Despite the severe behavioral and morphological phenotypes observed in the unc-51(e369) mutants, the mutation did not reduce the ability of minocycline to extend lifespan. Minocycline also extended the lifespan of hlh-30(tm1978) mutants, but less than the 45% observed in N2. These genetic results, and the previous finding that activation of autophagy in already old C. elegans is likely to be (Wilhelm et al., 2017) are consistent with a mechanisms of minocycline that acts in part independently of the activation of autophagy. However, as unc-51 is essential, the residual activity remaining in the unc-51(e369) mutants does not allow us to draw a definitive conclusion.”

5) I would soften the statement in the Discussion that the "MOA of minocycline is clearly distinct from other interventions targeting translation". While I agree that the genetic epistasis data support this model, they do not rule out the possibility that there are overlapping but partially distinct mechanisms at play. It is also possible that some interventions require HSF-1 and/or HLH-30 for indirect reasons without those factors being causally downstream in the mechanism of lifespan extension.

All three reviewers had similar concerns regarding the relation of the mechanism of minocycline to other translation-related mechanisms. After some considerations we agree that minocycline is likely to act on a mechanism that overlaps with previous mechanisms. The observed differences are likely the result of whether translation is inhibited during the initiation step or during the elongation/translocation steps during peptide bond formation. Targeting the initiation step can conceivably lead to selective inhibition of translation that allows translation of stress response factors as shown for igf-1 while targeting the peptide bond formation with drugs such as minocycline or cycloheximide will be non-selective. We have replaced the previous section with a longer, and hopefully more nuanced explanation. We amended the passage as follows:

“While the effect on longevity in old organisms is similar between minocycline and rapamycin, our epistasis analysis shows that minocycline differs with regards to some genetic requirements. Inhibition of mTOR signaling or S6 phosphorylation does not extend lifespan of TFEB/hlh-30 mutants and requires the hsf-1-mediated heat shock response to extend lifespan and to prevent protein aggregation (Robida-Stubbs et al., 2012; Lapierre et al., 2013; Seo et al., 2013). In contrast, minocycline extends lifespan of hlh-30(tm1978) and of hsf-1(sy441) mutants (Figure 2)and prevents protein aggregation in C. elegans and human cells despite inhibiting the activation of the heat shock response by hsf-1 (Figure 2B-D; Figure 4C-F) (Prahlad et al., 2008; Steinkraus et al., 2008). These differences raise the question on how translation attenuation by minocycline extends longevity independently from SSPs that are required for other translation-related mechanisms. A likely explanation stems from the way minocycline attenuates translation. Any mechanism that targets the 18S rRNA, the catalytic site of the ribosome, must non-selectively attenuate translation. In contrast, many other well-investigated interventions target translation initiation which in principle allows for selective attenuation of translation of subgroups of mRNAs. For example, knock down of eIF4G/ ifg-1 has been shown to lead to a general attenuation of translation but also to a selective increase in translation of SSP-related mRNAs, which play a role in the protective effect (Rogers et al., 2011). Thus, whether or not interventions lower translation selectively or non-selectively and thus involve SSPs is likely to depend on whether they target translation initiation or aspects of peptide bond formation. Previous studies used cycloheximide to show that blocking translation by interfering with the translocation step protects from protein aggregation, as newly synthesized proteins are the main protein species susceptible to damage and to collateral misfolding under stress. An obvious testable prediction of our minocycline data is that the protective effect of cycloheximide should also be independent of any SSPs (Medicherla and Goldberg, 2008). If minocycline acts non-selectively, how is its effect greater on polysomes than on monosomes? Any single ribosome slowed down by minocycline will negatively affect all subsequent ribosomes on the same mRNA, thus amplifying the effect in a manner dependent on ribosome number. Future studies will be necessary to precisely elucidate these details.”

6) I would be careful about saying that mechanisms like "the UPRmt elicit geroprotective effects through the activation of SSPs". Multiple labs have now shown that the UPRmt (or at least induction of all the factors commonly referred to as the UPRmt) is not in fact geroprotective. Indeed, the UPRmt (or at least induction of all the factors commonly referred to as the UPRmt) is neither necessary nor sufficient to extend lifespan. I realize that the Dillin and Auwerx labs choose to ignore these data and propagate their own "alternative facts" rather than address the gaping holes in their model, but perhaps you want to pick a different example stress response pathway for this particular phrase.

We have addressed this concern by amending the sentence as follows:

“Longevity mechanisms like reduced insulin/IGF signaling elicit geroprotective effects through the activation of SSPs.”

Reviewer #2:

Results in Figures 1E and 2B are quite remarkable and the study is of high interest. Greatest concerns are about interpretation, with a couple of minor issues regarding study design:

From the Abstract, the authors ".. propose that minocycline lowers the concentration of newly synthesized aggregation-prone proteins, resulting in a relative increase in protein-folding capacity without the necessity to induce protein-folding pathways." It is easy to rationalize that translation suppression, itself, is the protective mechanism important for mitigating damage from unfolded proteins by allowing chaperones to focus on maintaining conformation of, or eliminating, pre-existing proteins. This sounds very nice, but there is little evidence because translation is inhibited during stress regardless of addition of translational suppressors. So, what is the mechanism? Yes, minocycline reduces translation, but how certain are the authors that its translational suppression, per se, that is protective?

Because reviewer #1 had a related concern we have tried to incorporate much of the answers following below into a new and hopefully more nuanced paragraph in the revised manuscript. See reviewer #1 point 5. The major point that we have to concede that we cannot knock out, or even mutate the 18S rRNA (there are over 100 copies), to show that when missing, minocycline fails to protect. We have increased the 18 rRNA level using the nCl-1 mutant to show that the dose response curve shifts to the left. This constitutes a quantitative prediction which few models are able to make. Our current, long-term strategy is to generate new compounds that attenuate translation like minocycline but are non-antibiotic, but this is well beyond the scope of the current work.

Translational suppression per se is protective: We completely agree that stress reduces translation and that this is a major part of the cells protective response. We respectfully disagree on the notion that there is little evidence that inhibition of translation per se improves protein folding. The following papers show that newly synthesized proteins are the ones most susceptible to damage and protein aggregation, and thus, that reducing de-novo synthesis per se will reduce protein aggregation.

The earliest paper we are aware of is from A. Goldberg’s group that shows that stressors like heat or paraquat lead to the preferential degradation of newly-synthesized proteins that are less than 1 hour old. If degradation of newly-synthesized proteins upon stress is prevented, they aggregate. Older proteins (> 1 hr old), despite being measurably damaged by fore example paraquat, do not tend to aggregate. This finding reveals that for a protein, being newly-synthesized contributes more to the propensity to aggregate than being damaged. Pretreatment with the translation inhibitor cycloheximide prevents the synthesis of new proteins and thus protein aggregation, clearly showing that inhibition of translation per se prevents protein aggregation. (Medicherla and Goldberg, 2008). Later, Borchelt’s group came to the same conclusions using in mammalian cells (Xu et al., 2016) by showing again that pretreating HEK293 and other cells with cycloheximide prevents protein aggregation. These results cannot be explained by any model requiring a selective translation of, for example, chaperone mRNAs, as cycloheximide indiscriminately blocks translation directly within the ribosome and because only newly synthesized proteins are affected. These studies provide clear evidence that newly synthesized proteins are the ones mostly prone to aggregation and that reducing protein synthesis per se is protective. To extend the data regarding minocycline we now provided a new figure that shows that minocycline not only increases resistance to heat but also to paraquat as was shown in the Goldberg study. Protection from paraquat is achieved despite the data in Figure 2 that show that minocycline inhibits the oxidative stress response and the response to paraquat directly. It is also remarkable that minocycline reduces protein aggregation, despite also reducing proteasome activity, which clearly should increase the formation of aggregates.

While this has not been shown in the above cited papers, our data would predict that cycloheximide would also block activation of the heat shock and oxidative stress responses. Work by Rong Li’s lab goes one step further and suggests that reducing protein synthesis not only protects from protein aggregation by reducing the folding load but that protein aggregation requires new polypeptide synthesis (Zhou et al., 2014). Additional studies to that effect come from Bertolotti and colleagues (Das et al., 2015) and Kaufman and colleagues (Han et al., 2013). These previous studies by multiple different labs clearly confirm the notion that inhibition of translation per se is protective.

Selective vs. non-selective inhibition of translation: As we outlined in the new paragraph (see reviewer #1 point 5), a likely explanation on how the longevity genetics of interventions that target translation differ, is that targeting initiation factors can lead to a selective attenuation of translation as shown for ifg-1, while targeting the peptide forming machinery directly does not (minocycline, cycloheximide). Interventions directly targeting the peptide-forming activity within the ribosome, as we suggest for minocycline, cannot depend on the activation of a stress response, as the stress response factors will not be expressed at the protein level. Any model that requires the induction of a pathway and hence protein synthesis can be excluded as the mechanism of action for inhibitors that directly target the catalytic site of the ribosome.

We agree however that it is counterintuitive that inhibition of translation per se directly at the ribosome is protective. While this can be explained easily for short-term interventions like the use of cycloheximide, long-term use is certainly more problematic. We show that a well tolerated FDA-approved drug that is known to have beneficial effects in aggregation diseases in humans in clinical trials acts by such a mechanism and that directly targeting the ribosome may be a valuable therapeutic strategy, provided that it attenuates translation and does not shut it down completely.

Is it possible that mino helps prevent aggregation directly? Perhaps this could be tested in vitro?

In principle this could be tested, but for what protein? To prevent heat shock-induced protein aggregation for all proteins, as shown in Figure 4F, one would have to postulate that minocycline selectively binds any misfolded protein and then restores folding. The much simpler explanation, especially since reviewer #2 agrees that minocycline attenuates translation, is that minocycline prevents protein aggregation in the same manner as was shown for cycloheximide, by preventing de novo protein synthesis as newly synthesized proteins are the ones most prone to aggregation.

Its ability to extend lifespan in a sick (hsf-1) mutant is especially provocative. Is its function somehow bypassing the need for some HSF-1 gene targets? The possibility that the mechanism involved is simply preventing de novo synthesis of aggregation-prone proteins is not convincing. Where is the evidence for that? Select changes in protein synthesis (i.e., differential translation) pointed to selective depletion of factors for ribosome biosynthesis (Figure 3) as well as other highly translated factors according to polysome status (Figure 4). Is that what is meant by "aggregation prone proteins?" I suppose that is one way of characterizing them (and a lot of other factors). All of this should be more thoroughly argued in the manuscript.

Results show near-instantaneous protection (2 hour treatment with minocycline), so why measure proteome after 3 days of treatment? If protection is conferred so rapidly, what is the point at reading the proteome 3 days after treatment? Rapid (2 hour) protection from unfolded protein stress is highly unlikely to be proteome based unless it is through post-translational modification (e.g., phosphorylation). This should be more thoroughly addressed in the manuscript.

We have re-written a part of the Discussion (see also reviewer #1 point 5), highlighting previous findings that show that blocking translation protects from protein aggregation. In mammalian cells, even a 30 min pretreatment with cycloheximide confers the same near instantaneous protection from protein aggregation as we see with minocycline because newly-synthesized proteins are the protein species most susceptible to damage, misfolding and protein aggregation (Medicherla and Goldberg, 2008; Xu et al., 2016). Blocking protein synthesis per se by cycloheximide is protective because it is the newly synthesized proteins that have a much larger propensity to aggregate. Minocycline and cycloheximide target the catalytic center of the ribosome, making it difficult to envision how such an effect could lead to selective translation. The pronounced effect on polysomes is caused by a collateral effect in which a single slow ribosome slows all subsequent ribosomes thus amplifying any effect in a manner dependent on the number for ribosomes per mRNA.

Different timings: To test if minocycline generally inhibits translation we used a 2 hr incubation (Figure 2, GFP and Figure 4, 35S) to mirror image the experiments previously done with cycloheximide. However, in Figure 3 we also considered the existence of selective translation and whether there are proteins whose translation is not inhibited by minocycline. Even if changes in translation are instantaneous, to be able to detect changes using proteomics depends on translation and degradation rates and thus the differences will take much longer to become detectable. Because of the near proteome-wide reduction of translation, which could have been the result of a normalization problem, a serious difficulty regarding all experiments in which translation is inhibited globally, we asked if the effect of minocycline depends on the translation rates of the animals. From our previous work and work by others we knew that translation rates are substantially reduced by day 5 of adulthood. Thus, if minocycline acts on translation, it must take longer to detect effects on the proteome in older animals (low translation) than in younger animals (high translation), which is what we observed. It is also noteworthy that the few proteins that show higher levels in minocycline-treated animals, like RPS-15, are negatively associated with lifespan, in that they extend lifespan when their expression is lowered (Rodrigues et al., 2012;). The three proteasome-related factors that showed an increase in expression had no functional consequence since measuring proteasomal activity was reduced (Figure 3—figure supplement 1). While this needs experimental confirmation, the higher levels of these factors are more likely to be result of the reduced proteasome activity resulting from minocycline treatment. To clarify this, we have added the following paragraph to the manuscript:

“These data were largely inconsistent with a model in which minocycline selectively reduced translation, as has been shown for ifg-1. The few factors that showed higher expression levels in minocycline-treated animals had no known link to stress resistance or were shown to increase lifespan when knocked down by RNAi.”

Minor Comments:

Given that minocycline is inhibiting translation, it may be better to measure transcription of stress response pathway genes directly as opposed to using transcriptional reporters (Figure 1), which depend on translation to produce fluorescence.

Thank you for this point. In the previous version of the manuscript we have only done this for the cell culture experiments but in the revised version we have now measured transcriptional levels of a panel of heat shock proteins. These are all activated in response to heat shock as shown in the new Figure 4—figure supplement 1C. While we have not verified the expression of these factors upon heat shock on the protein level, the proteomic data suggest that in the un-induced state all “hsp-” proteins are expressed at a lower level in minocycline-treated animals than in untreated animals.

"growth" is misspelled, end of the first paragraph of the Discussion.

Thanks for the catch, corrected.

It is important to consider differential translation and de novo synthesis when doing western blots to look at changes in HSPs in a system that suppresses total cellular translation. Alternative methods of measuring de novo synthesis should be considered.

Yes, we agree. We attempted to identify differentially-translated components in the proteomics experiments in Figure 3, which revealed a general reduction of translation but provided no evidence for selective translation. The coverage of these experiments was limited and a riboseq profile will certainly provide a much wider coverage. However, our results showing that minocycline acts independently of any of the known major stress response transcription factors strongly argues against the selective translation of stress response factors and clearly favors the model in which reduced translation per se is protective.

"Minocycline is a tetracycline antibiotic regulatory agency-approved for the treatment of acne". Odd sentence, consider revising.

We have revised the sentence as follows:

“Minocycline is a regulatory agency-approved tetracycline antibiotic used to treat acne vulgaris and has long been known to reduce tumor growth, inflammation and protein aggregation in mammals by an unknown MOA.”

Reviewer #3:

This, in my opinion, is really exciting and important work. The approach of specifically targeting post-stress response animals for lifespan extension is elegant and, importantly, worked to identify what looks like a drug with a very unique MOA.

The amount and quality of work done to explore this MOA and to identify targets is impressive and the result appears quite conclusive (although I am not an expert on some of the techniques involved).

I do have some very minor comments, suggestions and questions (see below) – however, none of these substantially impact the main conclusions.

My comments mainly pertain to minor issues of interpretation or emphasis. In summary, I think this is an impressive piece of work and I am quite excited about it.

Minor Comments:

It is true that the upshift from 20 °C to 25 °C triggers the Ab phenotype of the CL2006 strain, but I think this is a specific interaction between the Ab1-42 peptide and temperature and I do not think that it is completely correct to equate this with an effect on general heat shock induced protein aggregation.

We have amended the paragraph as follows:

“To confirm this effect extended beyond α-synuclein aggregation, we tested another strain model of protein aggregation and determined minocycline also reduced the paralysis caused by temperature-induced Aβ1-42 misfolding that leads to aggregation in C. elegans’body-wall muscle (Figure 1—figure supplement 1G) (Jiang et al., 2012; McColl et al., 2012). Thus, minocycline treatment reduced both age-dependent and temperature-induced protein aggregation in C. elegans.”

Similarly, the authors only show that minocycline has a protective effect on one of the SSP tested (heat shock) but the discussion makes it sound like this is a general effect (That SSP responses are blunted but survival under challenge is improved nonetheless).

Unless I am mistaken, only the first part (blunting) is demonstrated for all four challenges while improved survival is only shown for heat shock. That being said, I understand why heat shock was chosen (the attenuation of the GFP response is most convincing and so the fact that there is a protective effect is most impressive).

We have now also tested the resistance to paraquat (Figure 2—figure supplement 1D). See Reviewer #1 (point 2).

The authors emphasize the lifespan effect in the hsf-1 background. While this is an interesting observation with an impressive lifespan extension that, at least in terms of% , is indeed larger than in WT, the hsf-1 strain, even when treated, still appears shorter lived than WT (or, at best, identical to untreated WT). The% effect is large, precisely because this mutant is so short lived.

I think based on these data alone it is hard to determine if minocycline mainly acts to rescue hsf-1 or rescues the mutation and extends lifespan (as suggested). On a related note, the lifespan benefits in skn-1 and maybe even daf-16 background, while statistically maybe not as large (at least in terms of percent extension), seem even more surprising and impressive to me (in that these animals are more long-lived that WT controls).

We apologize because there has been a mistake in the data representation on our part. When assembling the paper, our table (Figure 2—source data 1) showed a 59%, 81% and 100% increase in lifespan for hsf-1. We therefore decided to show the middle, representative experiment in Figure 1 (+81%). However, the table should have said +159%, + 81% and +100%. The previous Figure 1 in the paper therefore shows the lowest lifespan extension observed in hsf-1 mutants. In the amended version we show the correct middle representative experiment of a +100% increase. The absolute lifespans of minocycline-treated hsf-1 mutants are 23 days, 31days and 32 days, clearly longer than the absolute lifespan of untreated N2 and for the latter two experiments close to even minocycline-treated N2 animals. This is a rather dramatic extension of lifespan in the presence of a mutation that shortens lifespan across many other longevity paradigms. Given the observation that minocycline reduces protein aggregation, the most likely cause for the short lifespan of hsf-1 mutants, it seemed sensible to suggest a partial rescue. We agree however that this is somewhat speculative and hence we used the word “suggest” rather than “show” in our text. The passage was amended as follows:

“Remarkably, minocycline extended lifespan in hsf-1(sy441) mutants by up to +159%, a relative extension clearly greater than what was observed in wild-type N2 animals and almost reaching absolute lifespans of minocycline-treated N2 animals (Figure 1E; Figure 2—source data 1). This enhanced extension suggests that minocycline not only extends lifespan as in N2 but also rescues some of the defects associated with mutated hsf-1(sy441).”

In the Discussion, it may be worthwhile to re-iterate the observation that rapamycin also has benefits in aged animals and relate this to the role of rsks-1 on translation downstream of mTOR.

Please see our revised paragraph in the Discussion starting with:

“While the effect on longevity in old organisms is similar between minocycline and rapamycin, our epistasis analysis…”

Also, looking at minocycline and its use in humans, in addition to the protective / beneficial effects listed in Table 1, there are some reports of detrimental effects, especially in the context of some auto-immune diseases. Maybe it would be worth discussing evidence (if any) whether these may be related to the effect on translation, its antibiotic efficacy or are completely unrelated. I appreciate that nothing may be known about this, but it strikes me as a point worth touching on when discussing translational potential.

Thank for this point. As an example for problematic effects we chose to discuss the ALS trials with minocycline that actually showed some detrimental effects:

However, it is also important to note that minocycline showed some detrimental effects in a trial of amyotrophic lateral sclerosis (ALS) (Gordon et al., 2007). As expected from an antibiotic, minocycline-treated patients showed more adverse gastrointestinal effects such as nausea, diarrhea and constipation. Whether or not minocycline was detrimental for ALS patients was later questioned on the basis that the used dosage was too high, exacerbating the negative side effects (Leigh et al., 2008). Given that ALS patients show a hypermetabolic phenotype, the gastrointestinal adverse side effects may have masked beneficial effects (Jesus et al., 2018), making a minocycline-like compound that lacks the antibiotic activity highly desirable.”

It may be worth comparing the doses used here (e.g. in tissue culture) to typical therapeutic concentrations in humans (e.g. in plasma).

The following sentence was added to the manuscript:

“Recording dose response curves we determined an EC50 of 22 μM and an optimal concentration of 50-100 μM, as compared to therapeutic concentrations measured in patient serum of 5-10 μM (Figure 1F; Figure 1—figure supplement 1E) (Agwuh and MacGowan, 2006; Garrido-Mesa et al., 2013).”

https://doi.org/10.7554/eLife.40314.023

Article and author information

Author details

  1. Gregory M Solis

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. Department of Neuroscience, The Scripps Research Institute, La Jolla, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3347-5980
  2. Rozina Kardakaris

    Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    Contribution
    Formal analysis, Investigation, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Elizabeth R Valentine

    1. Department of Integrative Structural and Computational Biology, The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    2. Department of Chemistry, The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  4. Liron Bar-Peled

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  5. Alice L Chen

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  6. Megan M Blewett

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  7. Mark A McCormick

    The Buck Institute for Research on Aging, Novato, United States
    Present address
    Department of Biochemistry and Molecular Biology, School of Medicine, University of New Mexico Health Sciences Center, New Mexico, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  8. James R Williamson

    1. Department of Integrative Structural and Computational Biology, The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    2. Department of Chemistry, The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8772-468X
  9. Brian Kennedy

    The Buck Institute for Research on Aging, Novato, United States
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  10. Benjamin F Cravatt

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. The Skaggs Institute for Chemical Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Resources, Supervision
    Competing interests
    Reviewing editor, eLife
  11. Michael Petrascheck

    1. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    2. Department of Neuroscience, The Scripps Research Institute, La Jolla, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    pscheck@scripps.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1010-145X

Funding

Lawrence Ellison Foundation (AG-NS-0928-12)

  • Michael Petrascheck

National Institutes of Health (DP2 OD008398)

  • Michael Petrascheck

National Science Foundation (NSF/DGE-1346837)

  • Gregory M Solis

National Institutes of Health (R21NS107951)

  • Michael Petrascheck

Glenn Foundation for Medical Research

  • Michael Petrascheck

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Lars Plate and Kelly Rainbolt for technical help, the Hansen lab for the MAH93 and MAH686 strains, Luke Wiseman for experimental advice, HEK293DAX cells and 35S isotope, and Jeffery Kelly, Malene Hansen, Anabel Perez, and Alan To for critical comments to the manuscript. This work was supported by grants to M.P from the NIH (DP2 OD008398, R21NS107951), the Ellison Foundation (AG-NS-0928 – 12) and the Glenn Foundation and a fellowship to G.S from the NSF (NSF/DGE-1346837).

Senior Editor

  1. Philip A Cole, Harvard Medical School, United States

Reviewing Editor

  1. Matt Kaeberlein, University of Washington, United States

Publication history

  1. Received: July 21, 2018
  2. Accepted: November 2, 2018
  3. Version of Record published: November 27, 2018 (version 1)

Copyright

© 2018, Solis et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,455
    Page views
  • 221
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Hannes Mutschler et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    Sebastian Kwiatkowski et al.
    Research Article
