The Drosophila larval neuromuscular system provides an ideal context in which to study synaptic partner choice, because it contains a small number of pre- and postsynaptic cells connected in an invariant pattern. The discovery of interactions between two subfamilies of IgSF cell surface proteins, the Dprs and the DIPs, provided new candidates for cellular labels controlling synaptic specificity. Here we show that DIP-α is expressed by two identified motor neurons, while its binding partner Dpr10 is expressed by postsynaptic muscle targets. Removal of either DIP-α or Dpr10 results in loss of specific axonal branches and NMJs formed by one motor neuron, MNISN-1s, while other branches of the MNISN-1s axon develop normally. The temporal and spatial expression pattern of dpr10 correlates with muscle innervation by MNISN-1s during embryonic development. We propose a model whereby DIP-α and Dpr10 on opposing synaptic partners interact with each other to generate proper motor neuron connectivity.

https://doi.org/10.7554/eLife.42690.001

Introduction

The proper wiring of neural circuits is essential for animal behavior, and alterations in connectivity are linked to neurological disease phenotypes in humans (Rowe, 2010). Thus, identifying cell-surface molecules involved in neural wiring is critical for understanding biological mechanisms in normal development and in diseased states. Using genetics to uncover these mechanisms has been difficult, partially due to the fact that achieving the necessary precision appears to require partially redundant biochemical interactions.

One of the simplest and most accessible systems in which to study the genetic determination of synaptic connectivity patterns is the Drosophila larval neuromuscular system. In each larval abdominal hemisegment, 35 identified motor neurons innervate a set of 30 muscle fibers. Each motor neuron chooses one or more specific muscle fibers as synaptic targets, and the map of connections is almost invariant. Drosophila neuromuscular junction (NMJ) synapses are glutamatergic and use orthologs of mammalian AMPA receptors for synaptic transmission. Many scaffolding and regulatory proteins that modulate these receptors are conserved between insects and vertebrates. The sizes and strengths of Drosophila NMJs are regulated by retrograde signaling from their postsynaptic muscle targets. In addition to this developmental plasticity, NMJ synapses also exhibit short-term and homeostatic plasticity. These features make the Drosophila NMJ a useful genetic model system for excitatory glutamatergic synapses in the mammalian brain (Broadie and Bate, 1993; Keshishian et al., 1996; Menon et al., 2013).

Although many molecules involved in axon guidance, NMJ morphology, and synaptic activity have been identified through forward and reverse genetic experiments, we still lack an understanding of the mechanisms by which individual larval muscle fibers are recognized as synaptic targets by Drosophila motor axons. Gain-of-function (GOF) experiments suggest that individual muscles are labeled by cell-surface proteins (CSPs) that can define them as targets for motor axons. 30 CSPs have been identified that cause motor axons to mistarget when they are ubiquitously expressed in muscles. These proteins contain a variety of extracellular domain (XCD) types, including immunoglobulin superfamily (IgSF) domains and leucine-rich repeat (LRR) sequences. Some of these proteins are normally expressed on subsets of muscles in embryos, suggesting that they could act as molecular signatures during motor axon targeting (Kurusu et al., 2008). However, none of the CSPs identified thus far are required for innervation of the muscles that express them, suggesting that they have partially redundant functions (Chiba et al., 1995; Inaki et al., 2007; Kurusu et al., 2008; Taniguchi et al., 2000; Winberg et al., 1998). In loss-of-function (LOF) mutants lacking CSPs expressed on muscle fibers or the receptors for these proteins on motor axons, innervation occurs normally in most cases. To our knowledge, there are no published LOF mutations in CSP genes that cause high-penetrance failures of innervation of specific muscle fibers.

A network of new candidates for synaptic targeting molecules was recently identified through a global in vitro ‘interactome’ screen (Özkan et al., 2013). In this network, the ‘Dpr-ome’, a set of 21 proteins with two IgSF domains, the Dprs, interact in a complex pattern with a set of 11 proteins with three IgSF domains, called DIPs (Cosmanescu et al., 2018; Özkan et al., 2013). We and others have examined the expression patterns of many Dprs and DIPs, and found that each is expressed in a small and unique subset of neurons in the larval ventral nerve cord and pupal brain (Carrillo et al., 2015; Cosmanescu et al., 2018; Tan et al., 2015).

We studied the functions of one Dpr–DIP binding pair, Dpr11–DIP-γ, in both the larval neuromuscular system and the pupal optic lobe. Loss of either dpr11 or DIP-γ produced phenotypes affecting NMJ morphology and retrograde bone morphogenetic protein (BMP) signaling, but did not alter NMJ connectivity patterns. DIP-γ is expressed in most motor neurons, so it is unlikely to be involved in recognition of targets by specific motor neurons. In the optic lobe, however, DIP-γ is selectively expressed in amacrine neurons that are postsynaptic to photoreceptor neurons that express Dpr11, suggesting that Dpr11–DIP-γ interactions may be important in determining synaptic connectivity patterns (Carrillo et al., 2015). For several other Dpr–DIP in vitro binding pairs, optic lobe neurons expressing a Dpr are also synaptically connected to neurons expressing the cognate DIP (Tan et al., 2015); Xu et al., 2018). In the antennal lobe, Dprs and DIPs regulate adhesion and sorting of axons of olfactory receptor neurons (Barish et al., 2018).

Based on these findings, we surveyed DIP expression in the larval neuromuscular system, in order to identify DIPs whose expression is restricted to subsets of motor neurons. Remarkably, DIP-α is expressed by only two motor neurons in each hemisegment. There are two types of glutamatergic motor neurons in the larval neuromuscular system: 1b (big boutons) and 1s (small boutons). Larval muscle fibers are divided into four fields: the ventral, ventrolateral, lateral, and dorsal fields. Each 1b motor neuron innervates one or two muscle fibers. The three 1s motor neurons have multiple branches, and each 1s neuron forms branches on most or all of the fibers within a specific muscle field (Hoang and Chiba, 2001). DIP-α is expressed in MNISN-1s, which synapses on dorsal muscles, and in MNISNb/d-1s (also referred to as MNSNb/d-1s), which synapses on ventral and ventrolateral muscles. Fate determination and axon guidance of MNISN-1s have been extensively studied in embryos, where it is known as RP2 (Frasch et al., 1987; Landgraf et al., 1997; Patel et al., 1989; Schmid et al., 1999; Sink and Whitington, 1991).

A subset of muscles innervated by MNISN-1s axon branches are muscles 4, 3, and 2, which are arranged in a ventral→dorsal sequence (Figure 1C). In DIP-α mutant larvae, the interstitial axon branch onto muscle 4 (m4) is always missing, and the branch onto m3 is usually absent. The branch onto m2, however, is always present. MNISN-1s filopodia are observed in the m4 target area in both wild-type and DIP-α mutant embryos, but 1s boutons never form on m4 in mutants. This suggests that nascent axonal projections onto m4 fail to stabilize and convert into NMJs in the absence of DIP-α.

Figure 1 with 1 supplement see all
DIP-α is expressed in a subset of neurons that includes MNISN-1s/RP2.

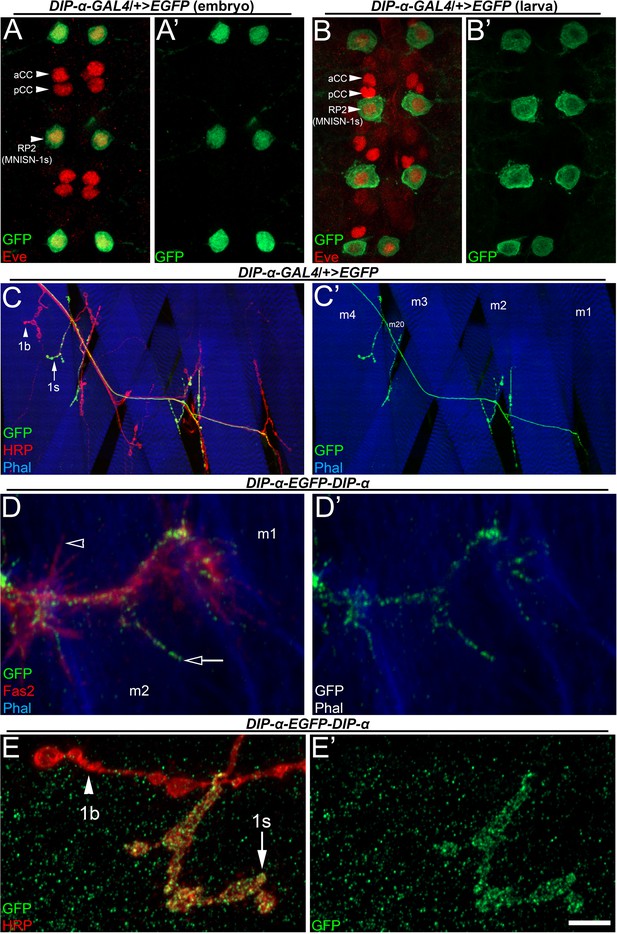

(A–B) DIP-α-T2A-GAL4 driving EGFP expression in (A) embryonic and (B) third instar larval ventral nerve cords labeled with anti-GFP (green) and anti-Eve (red). Arrowheads denote segmentally repeating Eve expressing neurons, including RP2/MNISN-1s. (C) Dorsal larval body wall hemisegment labeled with anti-GFP (green), anti-HRP (red) and phalloidin (blue). DIP-α is only expressed in 1s neurons (arrow in C) and not 1b neurons (arrowhead). Muscles are labeled as m1-4 and m20 in C’. (D) DIP-α-EGFP-DIP-α protein trap embryo labeled with anti-GFP (green) anti-Fas2 (red), and phalloidin (blue), showing that DIP-α is enriched in MNISN-1s filopodia (arrow) but absent in others (arrowhead). (E) DIP-α-EGFP-DIP-α protein trap reveals DIP-α localization to 1s (arrow) NMJ and not 1b boutons (arrowhead), labeled with anti-GFP (green) and anti-HRP (red). Calibration bar is 16 µm in A, 13 µm in B, 50 µm in C, 3 µm in D and 4 µm in E. See also Figure 1—figure supplement 1.

https://doi.org/10.7554/eLife.42690.002

The ‘Dpr-ome’ revealed that DIP-α binds to Dpr6 and Dpr10. We examined phenotypes in the larval neuromuscular system caused by loss of these Dprs, and found that in dpr10 null mutant larvae the MNISN-1s axon branch onto m4 is missing, mimicking the DIP-α mutant phenotype. In third instar larvae, dpr10 is expressed in almost all muscle fibers. However, during motor axon outgrowth in embryos, dpr10 expression initiates in two muscle fibers in the immediate vicinity of m4, and then comes on in m4 itself around the time at which axon branches appear on this muscle. These results suggest that Dpr10 is a muscle recognition cue whose binding to DIP-α on the motor axon triggers recognition and stabilization of the MNISN-1s filopodia on specific muscles.

The accompanying paper (Venkatasubramanian et al., 2019) shows that DIP-α and Dpr10 have expression patterns in adult leg motor neurons and muscles that are qualitatively similar to those seen in the larval neuromuscular system, and that loss of DIP-α or Dpr10 causes failure of DIP-α-expressing leg motor neurons to innervate a subset of their normal muscle targets. Thus, in both of these neuromuscular systems, interactions between DIP-α and Dpr10 control formation of synapses on specific muscle targets.

Results

DIP-α is selectively expressed by two identified motor neurons

In a previous study, we showed that several Dprs and DIPs, including DIP-α, are expressed in subsets of neurons in the larval ventral nerve cord (VNC). DIP-α reporter expression was observed in a subset of neurons (Figure 1—figure supplement 1B), including a segmentally repeated pair of motor neurons (Carrillo et al., 2015). Here we sought to investigate the identity of these DIP-α-expressing neurons and to determine if DIP-α is required for their targeting to specific muscles. We monitored DIP-α expression with reporters driven by a gene trap GAL4 in embryos and third instar larvae (Figure 1A,B, respectively). The GAL4 line was generated by replacing a splice-trap MiMIC transposable element, MI02031 (Venken et al., 2011), in the first DIP-α coding intron with a T2A-GAL4 cassette (Diao and White, 2012), using recombination-mediated cassette exchange (RMCE). It has been demonstrated that most MiMIC-derived GAL4 cassettes faithfully reproduce the expression patterns of the genes into which they are inserted (Nagarkar-Jaiswal et al., 2015b). T2A-GAL4 cassettes in coding introns have the additional feature that GAL4 expression is from a transcript whose translation initiates at the normal ATG of the gene. This means that the expression pattern of GAL4 should correspond to that of the nascent endogenous protein. However, proteins are also subject to post-translational control, so GAL4-driven reporter expression may not necessarily mimic the expression pattern of an accumulated protein as observed by antibody staining (Diao et al., 2015; Venken et al., 2011).

The first cells to express the DIP-α-T2A-GAL4>UAS-EGFP reporter (DIP-α-GAL4>EGFP) include a pair of segmentally repeated neurons in the stage 14 (st14) embryonic VNC (Figure 3—figure supplement 1A). DIP-α expression persists into late embryonic development, and the segmentally repeated pair of dorsal DIP-α+ cells also express the transcription factor Even-skipped (Eve) by st16 (Figure 1A). The three prominent medially located pairs of Eve+ neurons correspond to the well-characterized aCC, pCC, and RP2 neurons (Landgraf et al., 1997; Patel et al., 1989; Schmid et al., 1999). pCC is an interneuron, and aCC is the Ib-type motor neuron that innervates m1. RP2, known as MNISN-1s during larval development (Figure 1B), innervates the dorsal muscle field. Based on the stereotyped positions of the neuronal cell bodies in the VNC that express DIP-α, we conclude that DIP-α is selectively expressed in MNISN-1s/RP2 (hereafter referred to as MNISN-1s).

In order to prove that the medial DIP-α+ cell is MNISN-1s, we examined its muscle innervation pattern in third instar larvae. Motor neurons make stereotyped connections with their muscle targets, allowing us to utilize the innervation pattern of the DIP-α+ Eve+ neuron to identify it. Using the same DIP-α-GAL4>EGFP reporter, we observe two axons that exit the VNC in each hemisegment; thus, DIP-α expression persists through embryonic and larval development. One of these axons innervates the dorsal muscles (Figure 1C), corresponding to the known connectivity map of MNISN-1s (Hoang and Chiba, 2001). The other axon innervates ventral and ventrolateral muscles, corresponding to the connectivity map of MNISNb/d-1s (Figure 1—figure supplement 1C). The MNISNb/d-1s cell body is located ventrally within the VNC (Figure 1—figure supplement 1A) and is not Eve+. When NMJs on all muscles are visualized with anti-HRP, it is observed that only 1s boutons express the DIP-α-GAL4>EGFP reporter. Not all 1s boutons are labeled with the reporter, however. There is a third 1s motor neuron that innervates lateral muscles, and this does not express DIP-α. In summary, DIP-α is expressed by two of the three 1s motor neurons in each abdominal hemisegment, and not by any 1b motor neurons.

DIP-α is a cell surface protein, and analysis of its subcellular localization might provide insights into its function. To address where DIP-α localizes within MNISN-1s, we used a ‘protein trap’, DIP-α-EGFP-DIP-α, constructed by using RMCE to insert GFP into the reading frame of DIP-α, using the same MiMIC as for the T2A-GAL4 replacement (Nagarkar-Jaiswal et al., 2015a). If such protein traps are expressed well, they usually are transported to the subcellular compartments where the endogenous protein is located. During late embryonic development, DIP-α-EGFP-DIP-α localized to growth cones prior to muscle innervation (Figure 1D) and remained distributed to all larval MNISN-1s NMJs (Figure 1—figure supplement 1E), including m4 (Figure 1E). We were unable to determine if DIP-α-EGFP-DIP-α also localizes to MNISN-1s dendrites due to the abundant signal in the VNC neuropil (Figure 1—figure supplement 1D).

DIP-α is required for MNISN-1s targeting specificity

Previously, we and others reported expression patterns that support a role for Dpr-DIP interactions in synaptic partner choice (Carrillo et al., 2015; Tan et al., 2015). Given the selective expression of DIP-α in two 1s motor neurons within the neuromuscular system and the localization of DIP-α to presynaptic terminals, we speculated that DIP-α may be involved in targeting of motor axons to muscle fibers. The innervation pattern of the larval musculature is almost invariant, so we can readily evaluate changes in connectivity due to alterations in gene function. MNISN-1s innervates most of the dorsal muscles, including muscles 1, 2, 3, 4, 9, 10, 19, and 20 (Hoang and Chiba, 2001).

The DIP-α-GAL4 reporter that we used for expression studies is also an LOF allele, since the splice-trap into the GAL4 cassette creates a truncated DIP-α. Conveniently, due to the fact that DIP-α is an X-linked gene, we could use DIP-α-GAL4>EGFP/+ heterozygous females as controls and DIP-α-GAL4>EGFP/Y hemizygous males as LOF mutants. In controls, the MNISN-1s branch onto m4, hereafter referred to as m4-1s, is easily identifiable and reproducibly found (Figure 2A). Remarkably, loss of DIP-α produces a unique phenotype in which the MNISN-1s branch on m4 is always missing (the m4-1s phenotype; Figure 2B). In control DIP-α heterozygous animals, MNISN-1s innervates m4 with a frequency of 77%, but we never observed m4-1s branches in DIP-α-GAL4>EGFP hemizygous males (Figure 2B,D). We confirmed the loss of innervation with a targeted null deletion mutation in DIP-α (DIP-α1-178; Figure 2D) produced by CRISPR. Thus, DIP-α is necessary for innervation of m4 by MNISN-1s. By contrast, examination of MNISNb/d-1s, the other motor neuron that expresses DIP-α, revealed no obvious highly penetrant phenotype upon loss of DIP-α.

Figure 2 with 1 supplement see all
DIP-α is required for MNISN-1s branch formation on m4.

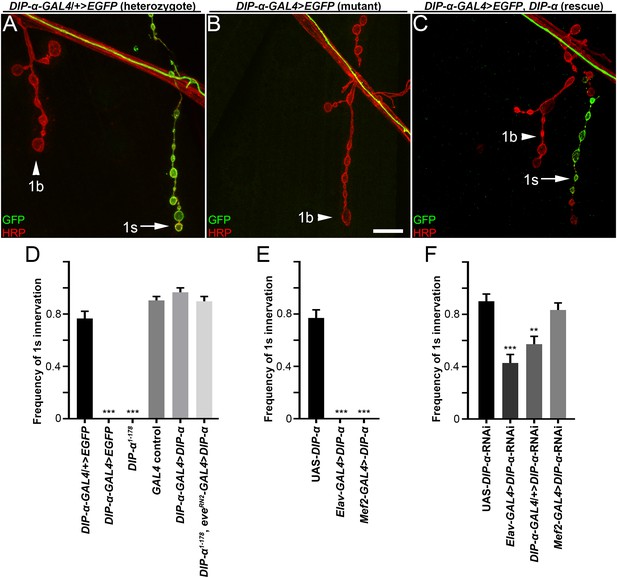

(A–C) Larval neuromuscular junctions labeled with anti-GFP (green) and anti-HRP (red) from (A) heterozygous DIP-α-GAL4 animals, (B) homozygous DIP-α-GAL4 mutants and (C) rescue of homozygous DIP-α-GAL4 mutants by expressing a UAS-DIP-α construct in DIP-α expressing cells, including MNISN-1s. DIP-α is only expressed in 1s neurons (green) (arrows in A,C) and not 1b neurons (arrowhead). (D–F) Frequency of 1s innervation of m4 from (D) mutants and rescue, (E) overexpression of UAS-DIP-α or (F) UAS-DIP-α-RNAi. n (animals/hemisegments) = (D) (12/60), (10/30), (18/100), (18/96), (9/56), (14/69), (E) (8/48), (6/30), (9/54), (F) (6/30), (12/71), (10/60), (10/59) (respectively). Calibration bar is 9 µm in A-C. **p<0.001, ***p<0.0001. Error bars represent SEM. See also Figure 2—figure supplement 1.

https://doi.org/10.7554/eLife.42690.004

DIP-α is required presynaptically for proper MNISN-1s connectivity

Although DIP-α reporters demonstrate that DIP-α is expressed in MNISN-1s and localizes to MNISN-1s terminals, we cannot rule out low-level expression in muscles. To define the cells in which DIP-α is required for proper MNISN-1s innervation, we performed rescue experiments by expressing a C-terminally Myc-tagged UAS-DIP-α construct in a DIP-α mutant background. First, we confirmed that the tagged DIP-α is able to localize to MNISN-1s NMJs on m4 by staining with anti-Myc and anti-DIP-α antibodies (Figure 2—figure supplement 1A,B). The lack of DIP-α in the MNISN-1s axon in the intersegmental nerve (Figure 2—figure supplement 1A,B) also suggests that DIP-α is actively targeted to the NMJ. We then performed GOF controls to ensure that overexpression of DIP-α in MNISN-1s had no adverse effects on targeting. Overexpression of DIP-α utilizing two drivers that are expressed in subsets of motor neurons (eveRN2-GAL4, expressed in MNISN-1s and aCC, plus interneurons; and DIP-α-GAL4, expressed in MNISN-1s and MNISNb/d-1s, plus interneurons) produced normal m4-1s NMJs. We expressed these same constructs in a DIP-α null background and found complete rescue of the m4-1s phenotype (Figure 2C,D), suggesting that DIP-α functions in MNISN-1s. We confirmed that DIP-α is required in MNISN-1s using RNAi-mediated knock down of DIP-α. Utilizing either Elav-GAL4 (pan-neuronal) or DIP-α-GAL4 to drive RNAi expression, we observed significant reductions in the frequency of m4-1s innervations (Figure 2F). Knockdown of DIP-α in muscles using Mef2-GAL4-driven RNAi had no effect on m4-1s, indicating that DIP-α is required only in the presynaptic neuron.

Interestingly, driving pan-neuronal expression of DIP-α with Elav-GAL4 in a wild-type background produced a complete loss of m4-1s, similar to DIP-α LOF. The same result was observed when DIP-α was expressed in muscles using Mef2-GAL4 (Figure 2E). Possible models to explain these surprising results are considered in the Discussion.

DIP-α does not control MNISN-1s axon guidance or defasciculation

Motor neuron axons exit the VNC during embryonic st13-14 and begin to innervate their muscle targets prior to hatching (Sánchez-Soriano et al., 2007). During the larval instars, NMJs formed during embryogenesis expand in order to keep pace with the growth of the muscle fibers. We investigated whether DIP-α is expressed at the appropriate embryonic stage to function in MNISN-1s muscle targeting. MNISN-1s begins to express DIP-α-GAL4>EGFP at st13/14 (Figure 3—figure supplement 1A) and this expression continues through embryonic st17 and then persists during larval development (Figure 1). The proper wiring of MNISN-1s requires the coordination of axon guidance, fasciculation, defasciculation, and synaptic partner choice. Thus, the striking loss of m4-1s observed upon removal of DIP-α could result from defects in various developmental processes.

Axon guidance requires the integration of attractive and repulsive external cues through cell surface proteins. MNISN-1s innervates the dorsal muscles, the most distal of which is m1. To determine the gross progression of MNISN-1s muscle innervation, we quantified terminal ‘swellings’ which precede varicosity formation in st15-16 embryos in distal (m1, 2, 9, and 10) and proximal (m3, 4, 19, and 20) muscle fields. MNISN-1s rarely formed terminal swellings in the proximal muscle field at this stage, unlike distal muscles, suggesting that MNISN-1s innervates muscles distal to proximal (Figure 3—figure supplement 1B). Thus, if DIP-α is required for axon guidance we would expect to observe defects in MNISN-1s axons in the vicinity of m1 and m2 in mutants. In control st15 embryos, the MNISN-1s growth cone is easily identifiable in the m1/m2 target area (Figure 3A). DIP-α nulls are indistinguishable from controls, suggesting that axon guidance is likely not affected (Figure 3B). Additionally, in third instars, we observe proper MNISN-1s innervation of m2 in DIP-α mutants (Figure 4).

Figure 3 with 1 supplement see all
MNISN-1s axons in DIP-α mutants produce protrusions on m4 but are unable to form stable 1s branches.

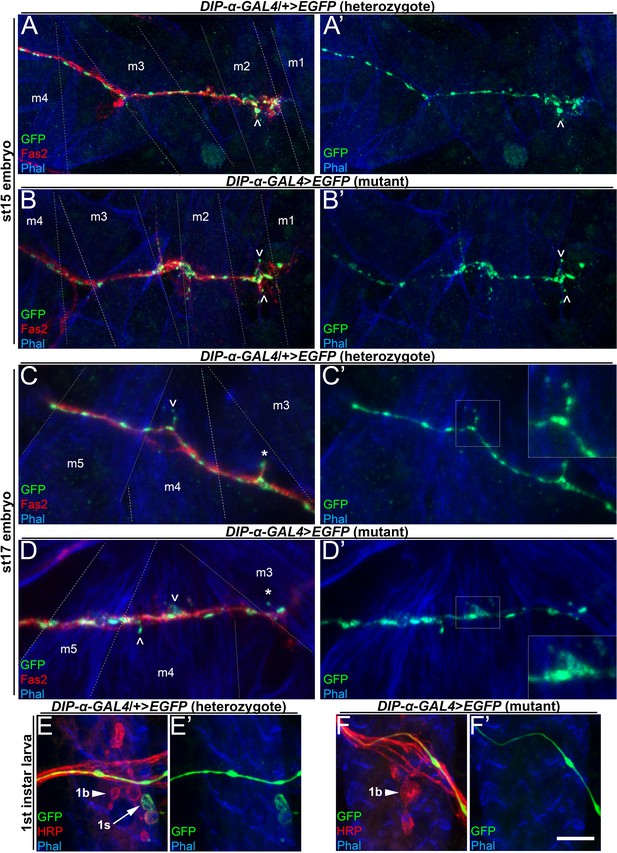

(A–D) Embryonic NMJs labeled with anti-GFP (green), anti-HRP (red) and phalloidin (blue) from (A,C) heterozygous and (B,D) hemizygous DIP-α-GAL4 mutants. (A–B) are st15 embryos; (C–D) are st17 embryos. MNISN-1s protrusions over m4 form late in embryonic development (C) while protrusions over m2 form earlier (A). Note that MNISN-1s axon protrusions form properly over dorsal muscles, including m2, at st15 in (A) controls and (B) DIP-α mutants and over m4 at st17 in controls (C) and DIP-α mutants (D). Also, ^ indicates all filopodia in (A) and (B), and m4 filopodia in (C) and (D); * indicates st17 non-m4 filopodia. (E–F) First instar larva labeled with anti-GFP (green), anti-HRP (red) and phalloidin (blue) from DIP-α-GAL4 heterozygous animals and (F) DIP-α-GAL4 homozygous mutants. Note 1b boutons present in both first instar larvae (arrowhead in E,F), but only heterozygous animals have 1s boutons (arrow in E). Calibration bar is 8 µm in A,B, 4 µm in C,D and 6 µm in E,F. See also Figure 3—figure supplement 1.

https://doi.org/10.7554/eLife.42690.007
Figure 4 with 1 supplement see all
Loss of DIP-α causes selective loss of MNISN-1s branches on proximal muscles and ectopic innervation of distal muscles.

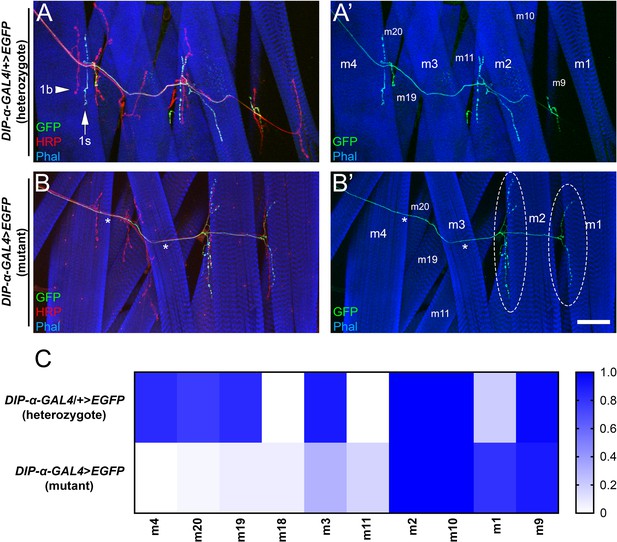

(A,B) Dorsal body wall hemisegments labeled with anti-GFP (green), anti-HRP (red) and phalloidin (blue) from (A) heterozygous DIP-α-GAL4 animals, and (B) homozygous DIP-α-GAL4 mutants. Arrow denotes 1s boutons in (A), arrowhead denotes 1b boutons, and * denote muscles in mutant that have lost 1s innervation. Overgrown 1s arbors on m2 and m1 are circled in mutants. (C) Quantification of the frequency of innervation of MNISN-1s neurons on the respective muscles from the above genotypes. n (animals/hemisegments) = (16/30), (12/30) (respectively). Calibration bar is 60 µm. See also Figure 4—figure supplement 1.

https://doi.org/10.7554/eLife.42690.010

Another critical step in establishing neuromuscular wiring is the defasciculation of motor neuron axons from the main nerve. This process requires the appropriate balance of adhesion between axons and repulsive signals that facilitate separation of axons from the nerve bundle. Defasciculation is typically initiated by filopodia emanating from the growth cone (when an entire axon leaves the bundle) or from the axon shaft (when an interstitial branch is being formed). We investigated whether DIP-α was required for MNISN-1s filopodia to leave the nerve bundle. In control st17 embryos, there are obvious motor neuron filopodia, including MNISN-1s filopodia (identified by their selective expression of DIP-α-GAL4>EGFP) that defasciculate from the ISN throughout the dorsal body wall (Figure 3C). We observed similar filopodial projections in age-matched DIP-α null embryos (Figure 3D caret), ruling out a function for DIP-α in general defasciculation (Figure 3C,D asterisk).

We then looked more closely at MNISN-1s axon defasciculation and bouton formation at m4, since this would address whether the m4-1s branch initially forms and then retracts or never forms at all in DIP-α mutants. During axon pathfinding, filopodia extend and contact both target and non-target muscles. The developmental time course for MNISN-1s innervation of m4 is not known, so we examined MNISN-1s axons at various embryonic stages and in first instar larvae. In control embryos, we observe MNISN-1s axon defasciculation and filopodia at m4 beginning in st17 (Figure 3C). MNISN-1s filopodia at more dorsal muscles are evident at earlier stages (Figure 3A). In DIP-α LOF st17 embryos, we still observe MNISN-1s axon protrusions at m4 (Figure 3D), suggesting that the m4-1s branch initially extends but is not properly stabilized due to loss of DIP-α. In first instar larvae, 1s boutons are found on m4 in wild-type (Figure 3E), but we never observed a 1s bouton on m4 in DIP-α mutants (Figure 3F; 64 hemisegments examined). These data suggest that MNISN-1s filopodia still contact m4 in the absence of DIP-α, but fail to establish a stable interstitial branch.

Loss of DIP-α selectively reduces and expands MNISN-1s connectivity

The localization of DIP-α to all MNISN-1s boutons prompted us to perform a more exhaustive analysis of MNISN-1s targeting to determine if there were any subtle changes in connectivity. Previous studies reported that MNISN-1s innervates eight dorsal muscles (1, 2, 3, 4, 9, 10, 19, and 20) (Hoang and Chiba, 2001). A detailed analysis of innervation shows that MNISN-1s targets m2, 3, 4, 9, 10, 19, and 20 almost invariantly (Figure 4A,C). However, m1, the most dorsal muscle, is usually not innervated in control animals.

We repeated this analysis in a DIP-α null background and observed interesting alterations in connectivity. First, m1, which rarely has 1s innervation, consistently had 1s branches (Figure 4B,C). Second, two muscles, m11 and m18, which are never innervated by MNISN-1s in controls, now sometimes receive ectopic 1s branches upon removal of DIP-α. Third, muscles adjacent to m4 also lose 1s innervation in mutants (Figure 4B,C). Specifically, m3, 19, and 20 show major reductions in 1s branch frequency. It is interesting to note that the more dorsal muscles in the dorsal muscle field gain 1s branches (m1, 2, 11, 18), while more ventral muscles (m3, 4, 19, 20) lose innervation. m2, for example, has an approximately 2-fold increase in the number of MNISN-1s branches (Figure 4—figure supplement 1A).

Expression of DIP-α binding partners, Dpr6 and Dpr10, in the neuromuscular system

DIP-α binds to only two of the 21 Dprs, Dpr6 and Dpr10 (Cosmanescu et al., 2018; Özkan et al., 2013). We sought to determine where dpr6 and dpr10 are expressed, in order to ascertain if either could potentially function with DIP-α to control MNISN-1s targeting. dpr6-T2A-GAL4>EGFP shows dpr6 expression in subsets of cells in the embryonic VNC, including MNISN-1s and aCC (Figure 5A), and analysis of the larval bodywall reveals that dpr6 is expressed in type 1b and 1s motor neurons (Figure 5B). Thus, dpr6 and DIP-α are co-expressed in MNISN-1s.

Figure 5 with 1 supplement see all
Dpr10 is expressed in muscles and can localize to the SSR and bind to DIP-α.

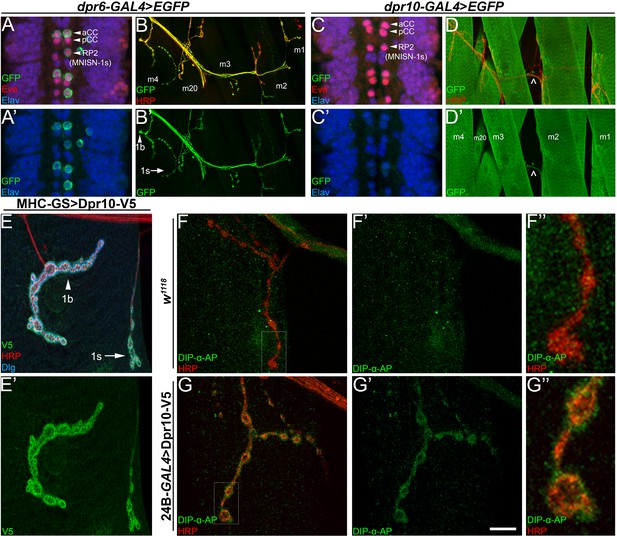

(A,C) Embryonic ventral nerve cord from (A) dpr6-GAL4 and (C) dpr10-GAL4 driving EGFP expression, labeled with anti-GFP (green), anti-Eve (red) and anti-Elav (blue). dpr6 is expressed in aCC and RP2 (MNISN-1s) neurons, while dpr10 is not expressed in these Eve+ cells (see also Figure 5—figure supplement 1A). (B,D) Larval dorsal body wall hemisegments from (B) dpr6-GAL4 or (D) dpr10-GAL4 driving EGFP expression, labeled with anti-GFP (green), and anti-HRP (red). Muscles are labeled m4-m1, m20. Dpr10 is also expressed in unknown neurons ( ^ in 5D denotes axon). (E) Larval m4 NMJ from animals expressing Dpr10-V5 using MHC-GeneSwitch-GAL4 in the absence of RU486 (low-level muscle expression only), labeled with anti-V5 (green), anti-HRP (red) and anti-Dlg (blue). 1b and 1s neurons are marked with arrowhead and arrow, respectively. (F,G) Larval m4 NMJ from either (F) control w1118 or (G) 24B-GAL4>UAS-Dpr10-V5 (high level pan-muscle expression). Live tissue was incubated with DIP-α-AP5 protein (see Materials and methods) and then labeled with anti-AP (green) and anti-HRP (red). Calibration bar is 15 µm in A,C, 60 µm in B,D, 12 µm in E, and 18 µm in F,G. See also Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.42690.013

We next investigated dpr10 expression using a dpr10-T2A-GAL4 reporter. dpr10 is found in subsets of cells in the embryonic VNC (Figure 5—figure supplement 1A) but, unlike dpr6 and DIP-α, it is not expressed in embryonic MNISN-1s (Figure 5C). dpr10 is prominently expressed in third instar larval muscles, including m4 (Figure 5D). As the GFP signal is very high within muscles, we were unable to determine if dpr10 was expressed in motor neurons with the current reporter. Some signal is detected in the nerves (Figure 5D caret), suggesting that dpr10 is expressed in neurons that have axons in the periphery. To define Dpr10 localization, we expressed a UAS-Dpr10-V5 construct in muscles. Remarkably, V5 staining was selectively found at NMJs, surrounding both 1b and 1s boutons, indicating that the protein localizes to the postsynaptic side of NMJs (Figure 5E; see Figure 5—figure supplement 1B for anti-V5 staining of control NMJs).

Dpr10 is able to bind DIP-α in tissue

Based on DIP-α localization to MNISN-1s terminals, we hypothesize that DIP-α interacts in trans with another cell surface protein on m4 to confer specificity. An attractive candidate for this role is Dpr10, which is expressed in muscles and interacts biochemically with DIP-α. We sought to determine if DIP-α–Dpr10 interactions could occur in the larval tissue. We used a recombinant DIP-α fused with pentameric alkaline phosphatase (DIP-α-AP5) to probe dissected, unfixed third instar larvae. After subsequent fixation, DIP-α-AP5 was then detected by immunofluorescence, using antibodies against the AP epitope. In wild type animals, DIP-α-AP5 shows minimal binding to tissue (Figure 5F). However, upon ectopic postsynaptic expression of Dpr10-V5 in muscles, we observed strong labeling of the postsynaptic membrane surrounding boutons (Figure 5G), suggesting that DIP-α is able to directly bind to Dpr10. This observation supports a model whereby endogenous muscle Dpr10 interacts transsynaptically with DIP-α in MNISN-1s terminals.

dpr10 is required for MNISN-1s innervation of m4

Since Dpr10 interacts with DIP-α, both in vitro and in tissue, and is able to localize to the postsynaptic membrane, we decided to investigate the requirement of dpr10 for MNISN-1s innervation of m4. In order to distinguish 1s and 1b terminals, we stained for a subsynaptic reticulum (SSR) marker, Discs-Large (Dlg), and identified 1s boutons by their less extensive SSR relative to 1b boutons (Guan et al., 1996) (Figure 6A). We examined a CRISPR-generated null deletion mutant of dpr10, dpr1014-5. In this mutant, we observed loss of almost 100% of 1s boutons on m4 (Figure 6B and D), similar to the DIP-α null phenotype (Figure 2B). Dorsal MNISN-1s innervation (m1, 2, 9, and 10) was largely unaltered (Figure 6—figure supplement 1A). 1b boutons were still present on m4 (Figure 6B), indicating that Dpr10 is specifically required for MNISN-1s innervation.

Figure 6 with 1 supplement see all

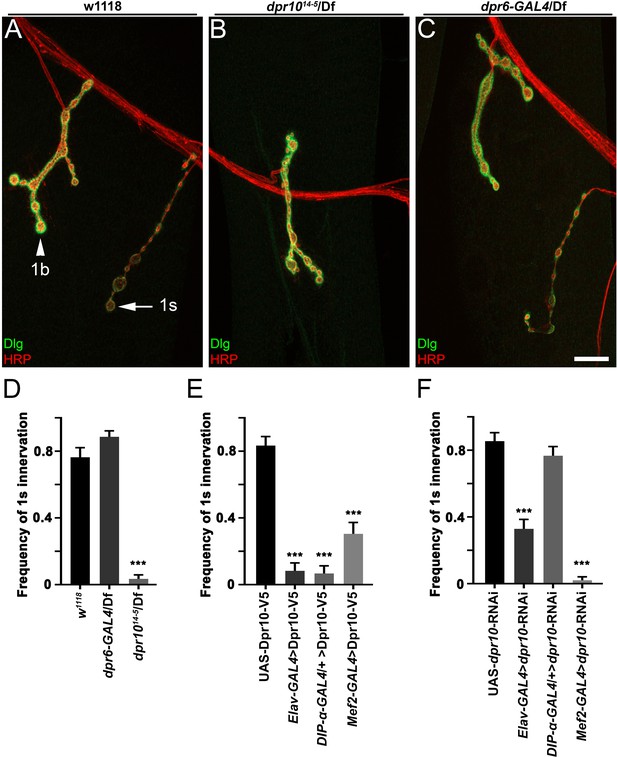

Dpr10 is required for MNISN-1s innervation of muscle 4.

(A–C) Larval m4 NMJs labeled with anti-DLG (green) and anti-HRP (red) from (A) control w1118 animals, (B) dpr1014-5/Df null mutants and (C) dpr6-GAL4/Df. The difference in anti-Dlg staining intensity allows us to differentiate 1b and 1s NMJs. 1b and 1s neurons are marked with arrowhead and arrow, respectively. (D–F) Frequency of 1s innervation of m4 from (D) dpr6 and dpr10 mutants and (E) overexpression of UAS-Dpr10-V5 and (F) UAS-dpr10-RNAi. n (animals/hemisegments) = (D) (8/62), (12/70), (11/60) and (E) (8/48), (6/36), (5/30), (8/47), (F) (8/48), (8/48), (10/60), (8/48) (respectively). Calibration bar is 16 µm in A-C. Error bars represent SEM. ***p<0.0001. See also Figure 6—figure supplement 1.

https://doi.org/10.7554/eLife.42690.015

Since dpr6 is expressed in 1b and 1s motor neurons, and DIP-α is in 1s motor neurons, whose axons fasciculate with 1b axons, axon-axon contact through Dpr6–DIP-α interactions could potentially affect MNISN-1s targeting to m4. However, as shown above, MNISN-1s is able to properly defasciculate without DIP-α (Figure 3C,D). Also, dpr6-T2A-GAL4/Df mutants have no m4-1s phenotype, and do not produce any other detectable alterations in MNISN-1s (Figure 6C and D). Thus, the role of DIP-α in formation of the m4-1s branch is likely to be mediated through its interactions with Dpr10.

In the neuromuscular system, we found that dpr10 is expressed in neurons (Carrillo et al., 2015) and in muscles (Figure 5D). To determine which cells require Dpr10 function for normal formation of the m4-1s branch, we used cell type specific RNAi knockdown of dpr10. Presynaptic expression of dpr10-RNAi with DIP-α-GAL4 did not affect MNISN-1s targeting to m4 (Figure 6F). However, driving dpr10-RNAi in muscles (Mef2-GAL4) phenocopied the dpr10 null mutation, producing an almost complete loss of m4-1s branches (Figure 6F). This result indicates that dpr10 is required in muscles. Interestingly, pan-neuronal expression of dpr10-RNAi produced a partial loss of m4-1s (Figure 6F), suggesting that Dpr10 expression in a non-1s neuron also contributes to proper targeting.

We also attempted to rescue the m4-1s phenotype using the UAS-Dpr10-V5 construct described above. Dpr10-V5 localizes to NMJs when it is expressed in muscles. However, we observed that expression of Dpr10-V5 from pan-neuronal (Elav-GAL4) or muscle (Mef2-GAL4) drivers reduced the frequency of m4-1s branches, even in a wild-type background (Figure 6E), similar to DIP-α GOF. Pan-neuronal expression of Dpr10 almost eliminated m4-1s branches. We asked whether this was likely to be a cis or trans effect by expressing Dpr10 only in 1s neurons. We observed that expression of Dpr10-V5 in MNISN-1s using DIP-α-GAL4 also produced loss of M4-1s branches (Figure 6E), suggesting that a GOF cis DIP-α–Dpr10 interaction can interfere with the DIP-α–Dpr10 trans interactions that are important for branch formation.

dpr10 is dynamically expressed in muscle subsets during embryonic development

In third instar larvae, dpr10 is expressed in almost all abdominal muscles, but loss of branches in DIP-α or dpr10 mutants is only observed for m4 and adjacent muscles. This led us to examine if dpr10 expression in muscles was temporally and spatially regulated during the period of embryonic development in which the neuromuscular circuit is established. We used the dpr10-GAL4>EGFP reporter and focused on three time points: late 14/early 15, late 15/early 16, and late 16/early 17. Using confocal images of embryos stained for the axonal marker Fasciclin II (Fas2; used to more accurately determine developmental stage) and GFP, we qualitatively scored samples, where muscle GFP signal above background received a score of 1, and anything at background levels received a score of 0. Figure 7G thus represents the probability that dpr10-GAL4>EGFP is expressed in each muscle examined.

Temporal and spatial expression of dpr10 in embryonic muscles.

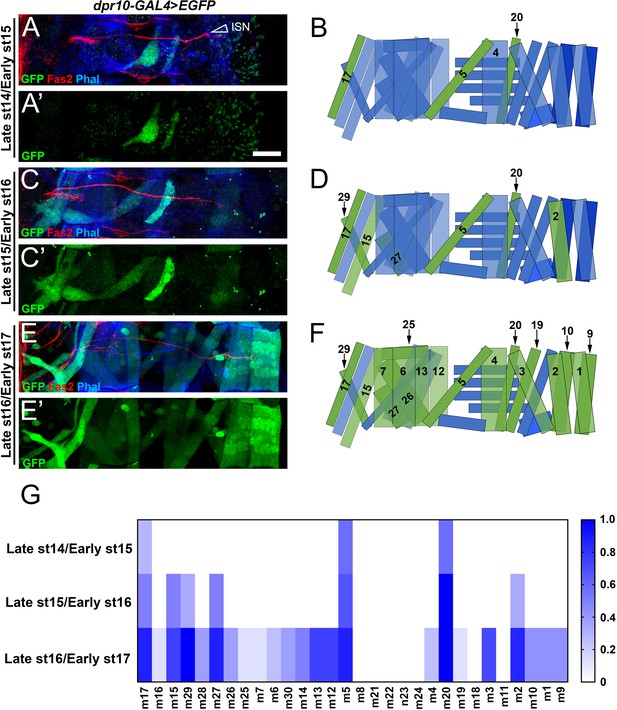

(A,C,E) Embryonic dpr10-GAL4>EGFP abdominal body wall hemisegments labeled with anti-GFP (green), anti-Fas2 (red) and phalloidin (blue) from (A) late st14/early st15, (C) late st15/early st16, and (E) late st16/early st17. Open arrowhead denotes Intersegmental Nerve (ISN), which carries dorsal neurons. (B,D,F) Cartoon representation of an embryonic hemisegment. Green muscles are those that express dpr10 at the respective developmental stage while blue muscles do not express dpr10. (G) Heat map quantification of the frequency of dpr10-GAL4>EGFP expression in each muscle at each developmental stage, where 1 represents 100% probability of expression. n (embryos) = 7, 6, 8 (respectively). Calibration bar is 19 µm.

https://doi.org/10.7554/eLife.42690.018

The first muscles that reproducibly show dpr10 expression are m5 and m20, which flank m4 (Figure 7A,B and G). In late st15/early st16 embryos, dpr10 expression becomes more consistent in m5 and m20 and expands to m2 in the dorsal muscle field and several muscles in the ventral muscle field (Figure 7C,D and G). By late st16/early st17, most muscles, including m4, express dpr10 (Figure 7E–G). The first MNISN-1s filopodia in the vicinity of m4 are observed in late st16/early st17 embryos, and the first discernable 1s boutons on m4 are found in early first instar larvae (Figure 3). Thus, dpr10 expression in m4 coincides with MNISN-1s innervation. The earlier expression of dpr10 in muscles adjacent to m4 (m5 and m20) might mean that these muscles provide cues for formation or stabilization of an MNISN-1s axon branch in this area. Innervation of m20 is also lost in DIP-α mutants. m5, however, lacks 1s innervation even in wild-type. Interestingly, m18 and m11 do not express dpr10 even in st17 embryos (Figure 7G). These muscles are among those that are not innervated by either of the DIP-α positive motor neurons (Figure 4C). Some of these muscles do receive 1s innervation from the third 1s motor neuron, which does not express DIP-α.

Discussion

In this paper, we show that interactions between DIP-α and its in vitro binding partner, Dpr10, are essential for innervation of a specific subset of larval muscle fibers by branches of the MNISN-1s motor axon. DIP-α is expressed by only two motor neurons, and the protein localizes to the NMJs of those neurons (Figure 1, Figure 1—figure supplement 1). MNISN-1s innervates most of the muscles in the dorsal muscle field, but only the proximal (most ventral) branches of its axon are affected in DIP-α mutants. The branch innervating m4, m4-1s, is absent in 100% of hemisegments in mutants. DIP-α is required in the MNISN-1s neuron to direct innervation of m4 (Figure 2). Examination of the MNISN-1s axon during embryonic development shows that its filopodia explore the surface of m4 and surrounding muscles in a normal manner in DIP-α mutants, but a stable m4 NMJ never forms (Figure 3). Innervation of muscles near m4 is also reduced in DIP-α mutants, while innervation of more dorsal muscles is increased (Figure 4). One of DIP-α’s two binding partners, Dpr10, is expressed at high levels in muscles and can localize to the postsynaptic side of NMJs (Figure 5), and the m4-1s branch is also absent in dpr10 mutants. RNAi knockdown experiments show that Dpr10 is required in muscles (Figure 6). By examination of the temporal and spatial expression patterns of dpr10 in embryos, we found that its earliest expression is on muscles flanking m4, some of which also lack 1s NMJs in DIP-α mutants (Figure 7). This suggests that recognition of Dpr10 on these muscles by DIP-α on the MNISN-1s growth cone is a cue for branch formation or stabilization.

A model for control of muscle innervation by interactions between DIP-α and Dpr10

A number of mutant screens for alterations in the morphologies and patterning of NMJs in the larval neuromuscular system have been performed (Aberle et al., 2002; Kraut et al., 2001; Valakh et al., 2012). LOF mutations in a few genes, including those encoding the cell-surface IgSF domain protein Sidestep and its binding partner, Beaten Path, cause motor axons to fail to arborize normally onto any muscle fibers, resulting in large-scale alterations in innervation patterns (Kinold et al., 2018; Pipes et al., 2001; Siebert et al., 2009; Sink et al., 2001). However, there are no prior reports (to our knowledge) of LOF mutations in single genes that cause high-penetrance changes in targeting of single larval motor axons to individual, or groups of, muscle fibers.

The failure to find genes required for innervation of specific muscles in LOF screens has suggested that individual muscles may be labeled by multiple targeting cues, and that neurons express receptors for more than one of these cues. Loss of any one neuronal receptor or muscle targeting cue does not cause strong phenotypes because they have partially redundant functions. The remaining receptors and cues may substitute for the missing proteins in mutants and allow normal muscle targeting to occur.

It has been difficult to identify neuronal receptors whose expression is specific to particular subsets of motor axons. Neuronal CSPs that have been previously studied in the context of motor axon guidance and arborization onto muscles (e.g., Receptor Tyrosine Phosphatases (RPTPs), Beaten Paths, Fasciclin II, Netrin receptors, Semaphorin receptors) are usually expressed by most or all motor neurons. Not surprisingly, then, mutations in genes encoding these proteins usually produce guidance or arborization phenotypes that affect many motor axons and muscles. By contrast, DIP-α is expressed in only two of the 35 motor neurons that innervate muscles in each larval abdominal hemisegment. These are the 1s motor neurons MNISN-1s (RP2) and MNISNb/d-1s. This finding suggested that any phenotypes caused by loss of DIP-α might be specific to the axons of these two motor neurons.

Like other motor axons, the two DIP-α-expressing axons probably express binding partners for many muscle cell-surface proteins. Neuronal and muscle binding partners could act as signaling receptors, ligands for receptors, or adhesion molecules. The 1s motor axons that express DIP-α have multiple branches, and each axon innervates most of the muscles within a muscle field. MNISN-1s innervates muscles in the dorsal field (Hoang and Chiba, 2001; Landgraf et al., 1997; Nose, 2012). One might expect that targeting phenotypes would be observed in DIP-α LOF mutants only if binding of DIP-α to one of its Dpr binding partners was essential for recognition of specific muscle fibers by individual branches of a 1s motor axon. In fact, we observed that the loss of DIP-α causes a high-penetrance loss of branches onto a particular group of dorsal muscle fibers innervated by MNISN-1s. These are internal m4 and m3, and external m19 and m20, which are underneath m4 and m3 in embryonic and larval fillet preparations. However, the branches of the MNISN-1s axon onto internal dorsal m2 and external m9 and m10, which lie underneath m2, are still present in DIP-α mutants.

MNISN-1s branches are also lost with high penetrance in dpr10 null mutants, indicating that Dpr10 is the DIP-α binding partner relevant to innervation of these muscles. In larvae, dpr10 is expressed at high levels in most muscle fibers. Knockdown of dpr10 by RNAi in all muscles affects formation of the same MNISN-1s branches that are eliminated in dpr10 mutants. Therefore, binding of neuronal DIP-α to muscle Dpr10 is likely to underlie recognition of specific muscles as targets for proximal MNISN-1s axon branches. In embryos, dpr10 expression is initiated in m20 and m5, which flank m4. NMJs on m20 are also absent in DIP-α mutants; m5 does not receive 1s innervation. dpr10 expression begins in m4 around the time at which we observe exploration of this muscle by filopodia emerging from the MNISN-1s axon (Figure 7).

The gene encoding DIP-α’s other binding partner, Dpr6, is expressed by most motor neurons, but is not detectably expressed by muscle fibers. Although dpr6 is expressed by MNISN-1s in embryos, dpr6 mutants do not have m4-1s phenotypes. This suggests that Dpr6 does not play a direct role in the targeting of MNISN-1s to m4. DIP-α can also bind homophilically, but with reduced affinity relative to its heterophilic binding affinities for Dpr10 and Dpr6 (Cheng et al., 2019; Cosmanescu et al., 2018). However, during normal development DIP-α would not have the opportunity to mediate homophilic interactions between motor axons, since it is expressed only on the MNISN-1s axon and not on the other motor axons with which it fasciculates during outgrowth.

Correct innervation of m4 and the other muscles in its immediate vicinity may require a balance between the expression levels of DIP-α’s binding partner Dpr10 on muscles relative to axons. As described above, knocking down Dpr10 in muscles eliminates innervation of m4 (Figure 6), suggesting that transsynaptic interactions between neuronal DIP-α and muscle Dpr10 are essential for recognition of this muscle by an interstitial MNISN-1s growth cone. There is also a 50% reduction in m4 innervation when Dpr10 is knocked down in all neurons, while knockdown in MNISN-1s produces no innervation defects. This suggests that interactions between DIP-α on MNISN-1s axons and Dpr10 on other axons with which it fasciculates also contribute to correct m4 innervation.

Driving high-level expression of DIP-α or Dpr10 in all neurons abolishes m4 innervation by MNISN-1s. Normally DIP-α is not expressed in other axons in the ISN fascicle, so upon DIP-α expression ectopic axon-axon interactions mediated by homo- and heterophilic binding may alter MNISN-1s connectivity. Interestingly, these GOF phenotypes are also seen when Dpr10, but not DIP-α, is increased in MNISN-1s only. High-level expression of DIP-α or Dpr10 on muscles also eliminates (DIP-α) or reduces (Dpr10) innervation of m4. Some of these phenotypes may be due to cis Dpr10–DIP-α interactions on the same membrane, which could reduce the amount of DIP-α or Dpr10 that is available to interact with its partner in trans. Excessive adhesion between the MNISN-1s axon and the other axons in its bundle (in the case of Dpr10 overexpression in all neurons), or between the MNISN-1s axon and the muscles it traverses during its outgrowth (in the case of Dpr10 overexpression in muscles) may also affect the ability of a branch to separate from the axon and form an NMJ. Overexpression of Dpr10 in muscles may similarly cause excessive MNISN-1s adhesion to distal muscles, and this model is supported by the exuberant number of branches on m2 (Figure 6—figure supplement 1B).

Knockdown or overexpression of DIP-α or Dpr10 in neurons or in muscles does not reduce the frequency of innervation of the most dorsal muscles by MNISN-1s, indicating that these muscles are recognized as targets via other cues. Interestingly, however, m1, which is adjacent to m2 and rarely innervated by MNISN-1s, gains innervation in DIP-α mutants, and the 1s NMJ on m2 becomes larger. These results suggest that MNISN-1s is normally specified to make a certain number of synaptic boutons, and that loss of boutons on proximal muscles m4, m3, m19, and m20 results in an increased number of boutons on distal muscles.

Using these results, we have constructed a model that can explain how interactions between DIP-α and Dpr10 specify targeting of MNISN-1s axon branches to m4 and the other muscles in its vicinity. DIP-α begins to be expressed in MNISN-1s (RP2) in st14 embryos, during the period of motor axon guidance. The MNISN-1s axon reaches its terminus in the vicinity of m1/m2 at st16, before it forms interstitial branches onto m20, where Dpr10 is already expressed. After the m20-1s branch forms, Dpr10 appears on m4, and binding of DIP-α on MNISN-1s to Dpr10 on m4 and surrounding muscles results in the formation of stable branches that differentiate into NMJs. During this process, DIP-α on MNISN-1s might switch from interacting with Dpr10 on fasciculated axons within the ISN bundle to binding to Dpr10 on muscles.

Functions of the Dpr-DIP network in formation of synaptic circuits

The Dpr-ome binding network was defined by a global in vitro ‘interactome’ screen for binding interactions among all Drosophila cell-surface and secreted proteins containing three common extracellular domain types: IgSF, Fibronectin Type III, and LRR. There are 21 Dpr proteins, each containing two IgSF domains, 11 DIP proteins, each containing three IgSF domains, and an LRR protein called cDIP that binds to many Dprs and DIPs (Carrillo et al., 2015; Cosmanescu et al., 2018; Özkan et al., 2013).

Analysis of expression of individual dpr and DIP genes revealed remarkable and unprecedented patterns in the larval ventral nerve cord and pupal brain. Each dpr and DIP is expressed by a small and unique subset of interneurons. In the pupal optic lobe, neurons expressing a particular Dpr are often presynaptic to neurons expressing a DIP to which that Dpr binds in vitro (Carrillo et al., 2015; Tan et al., 2015; Xu et al., 2018). These findings suggested that Dpr-DIP interactions might be important for formation of synaptic circuits during brain and ventral nerve cord development.

In our earlier work, we examined the expression and function of DIP-γ and its binding partner Dpr11. Dpr11 is selectively expressed in ‘yellow’ R7 photoreceptors, which make the Rh4 rhodopsin, and DIP-γ is expressed in a subset of Dm8 amacrine neurons in the optic lobe medulla. Dm8s receive more synapses from R7 than any other neuron. DIP-γ is required for survival of the Dm8 neurons that express it (Carrillo et al., 2015). The fact that loss of DIP-γ causes loss of brain neurons that express these proteins suggests that DIP–Dpr interactions can transmit trophic signals. This does not appear to be the case for either DIP in the larval or adult neuromuscular system, however, since there are no missing motor neurons in DIP-γ or DIP-α mutants.

The expression patterns of DIP-γ and DIP-α suggest that they may be involved in similar processes during optic lobe development. In addition to yellow R7s, Dpr11 is expressed in a subset of motion-sensitive T4 and T5 neurons, which synapse onto large cells called Lobula Plate Tangential Cells (LPTCs). Dpr11-expressing T4 and T5 cells project to the layers 1 and 2 of the lobula plate, and DIP-γ is expressed in a small number of LPTCs that arborize in those layers (Carrillo et al., 2015). In the optic lobe lamina, L3 and L5 neurons express Dprs 6 and 10, while L2 expresses only Dpr6. These L cells are synaptically connected to Dm4, Dm12, and Dm1 cells in the medulla, which express DIP-α (Tan et al., 2015). Loss of DIP-α or of both Dprs 6 and 10 causes death of some Dm4 neurons and affects synaptic targeting of Dm12 neurons (Xu et al., 2018).

In the larval neuromuscular system, however, the functions of DIP-γ appear to be very different from those of DIP-α. DIP-γ and Dpr11 are both expressed by most or all motor neurons. In DIP-γ and dpr11 LOF mutants, there are no alterations in muscle targeting, but NMJs have phenotypes characterized by the presence of small clustered boutons called satellites. Retrograde BMP signaling is upregulated in these mutants (Carrillo et al., 2015). By contrast, DIP-α is expressed by only two motor neurons, and its interactions with Dpr10 expressed on muscles control formation and/or targeting of a specific set of interstitial axon branches.

The functions of DIP-α and Dpr10 appear to be conserved between the larval neuromuscular system and the adult leg neuromuscular system. The accompanying paper from Richard Mann’s group (Venkatasubramanian et al., 2019) shows that DIP-α is expressed in a subset of motor neurons that innervate specific leg muscles, while Dpr10 is expressed in muscles. In DIP-α and dpr10 mutants, the axonal branches onto the muscles targeted by the DIP-α-expressing axons are absent. In summary, Dpr10 appears to be one of the long-sought targeting cues that direct recognition of specific muscle fibers as targets, while DIP-α is the corresponding receptor on the motor neurons that innervate these muscles.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent
(D. melanogaster)
w1118Bloomington Drosophila
Stock center (BDSC)
Genetic reagent
(D. melanogaster)
Mef2-GAL4PMID: 9671578Gift of Hugo
Bellen
Genetic reagent
(D. melanogaster)
DIP-α-T2A-GAL4PMID: 21985007Gift of Hugo
Bellen
Genetic reagent
(D. melanogaster)
DIP-α-EGFP-DIP-αPMID: 26687361Gift of Hugo
Bellen
Genetic reagent
(D. melanogaster)
DIP-α1-178PMID: 30467079Gift of Lawrence
Zipursky
Genetic reagent
(D. melanogaster)
dpr1014-5PMID: 30467079Gift of Lawrence
Zipursky
Genetic reagent
(D. melanogaster)
UAS-DIP-α-MycPMID: 30467079Gift of Lawrence
Zipursky
Genetic reagent
(D. melanogaster)
UAS-Dpr10-V5PMID: 30467079Gift of Lawrence
Zipursky
Genetic reagent
(D. melanogaster)
dpr10-T2A-GAL4PMID: 21985007Gift of Hugo
Bellen
Genetic reagent
(D. melanogaster)
dpr6-T2A-GAL4PMID: 21985007Gift of Hugo Bellen
Genetic reagent
(D. melanogaster)
UAS-2XEGFPPMID: 12324968BDSC #6874
Genetic reagent
(D. melanogaster)
Elav-GAL4PMID: 22319582BDSC #8765
Genetic reagent
(D. melanogaster)
24B-GAL4PMID: 8223268BDSC #1767
Genetic reagent
(D. melanogaster)
MHC-GeneSwitchPMID: 11675495Gift of Haig
Keshishian
Genetic reagent
(D. melanogaster)
EveRN2-GAL4PMID: 14624243BDSC #7470
Genetic reagent
(D. melanogaster)
UAS-dpr10-RNAiPMID: 17625558Vienna Drosophila
Resource Center
#103511
Genetic reagent
(D. melanogaster)
UAS-DIP-α-RNAiPMID: 26320097BDSC #38965
Genetic reagent
(D. melanogaster)
Df(3L)BSC673BDSC #26525Deficiency covering dpr6 and dpr10
AntibodyGoat anti-HRP-TRITC
Jackson Immunological
Research
#123-025-0211:50
AntibodyGoat anti-HRP-Alexa405
Jackson Immunological
Research
#123-475-0211:50
AntibodyMouse anti-Dlg
Developmental Studies
Hybridoma Bank

#4F3
1:100
AntibodyMouse anti-Fas2
Developmental Studies
Hybridoma Bank
#1D41:100
AntibodyMouse anti-DIP-α
PMID: 30467079Gift of Lawrence
Zipursky
1:20
AntibodyMouse anti-V5
ThermoFisher
#R960-25
1:400
AntibodyRabbit anti-GFP
ThermoFisher
#A11122
1:1000
AntibodyRabbit anti-Dlg
PMID: 9354326Gift of Vivian
Budnik
1:40,000
AntibodyRabbit anti-Myc
Cell Signaling Technology
#71D10
1:200
AntibodyGoat
anti-Mouse-Alexa488
ThermoFisher#A110291:500
AntibodyGoat
anti-Mouse-Alexa568
ThermoFisher#A110311:500
AntibodyGoat
anti-Rabbit-Alexa488
ThermoFisher#A110081:500
AntibodyGoat
anti-Rabbit-Alexa568
ThermoFisher#A110361:500
Chemical
compound, drug
Phalloidin-Alexa647ThermoFisher#A222871:100
AntibodyRabbit anti-alkaline
phosphatase
Abcam#ab166951:100

Transgenic and T2A-Gal4 lines

For construction of UAS-DIP-α-Myc, the Myc sequence (gaacaaaaacttatttctgaagaagatctg) was inserted two amino acids before the end of DIP-α protein sequence, following a GGS linker sequence, and cloned into JFRC28 vector. The final construct was injected into BDSC stock #9744, and inserted into chromosome 3R via PhiC31 mediated integration (Bestgene, Inc.). Plasmid and primer design were carried out using the software Snapgene.

T2A-GAL4 lines were generated as described in (Diao et al., 2015). Briefly, flies carrying the MiMIC insertion were crossed with the flies bearing the triplet donor (T2A-GAL4 for all three phases of DNA). The F1 males from this progeny carrying both components were then crossed to females carrying germline transgenic sources of Cre and ΦC31. The F2 males with all four components were crossed to a UAS-2XEGFP reporter line and progeny larvae were screened for T2A-GAL4 transformants. The GFP+ larvae were confirmed by PCR.

Dissection and immunocytochemistry

Embryonic dissections were performed as in (Lee et al., 2009). Egg laying chambers were setup with adult flies and grape juice plates (3% agar, 1.3% sucrose, 25% grape juice in water) and left in the dark at room temperature to lay eggs for 2 hr. Embryos were incubated overnight at 18°C, and then raised to 29°C for 2 hr to maximize GFP expression. Under a Zeiss V20 stereoscope with fluorescence, embryos were transferred to a microscope slide with double sided tape and staged using the autofluorescence and shape of the gut (Bownes, 1975; Hartenstein et al., 1987). Embryos were dechorionated on the double sided tape with a sharpened metal probe and transferred to a small agar slab. A dissection chamber was then prepared on Superfrost Plus slides (ThermoFisher #22-037-246) by outlining a rectangle with a PAP pen (Research Products International, #195506) to create a dissecting area. Embryos were transferred to a small piece of double sided tape placed into the dissection area, and then covered with phosphate buffered saline (PBS) (0.01M Sodium Phosphate, 150 mM Sodium Chloride). Using a 0.1 mm electrolytically sharpened tungsten wire held in a pin vice, the embryos were carefully opened along their dorsal surface, and removed from the vitellin membrane. Dissected embryos were then trasferred to the adherent charged slide. When all embryos were dissected, the well was washed once with PBS, and then fixed for 1 hr at room temperature using 4% paraformaldehyde (20% paraformaldehyde solution (Electron Microscopy Sciences) diluted into PBS). After fixation, samples were washed three times, 15 min each, in 0.05% PBST (PBS with 0.05% TritonX100), and then blocked for 1 hr in 5% normal goat serum (5% Goat serum in 0.05% PBST). Slides were incubated in primary antibody solutions overnight at 4°C in a humidified chamber. Samples were then washed three times, 15 min each, with PBST, and incubated for two hours at room temperature with secondary antibodies. After incubation, samples were washed three times, 15 min each, with PBST and mounted in vectashield (Vector Laboratories).

Larval dissections were performed as in (Menon et al., 2015). Wandering third instar larvae were dissected in PBS on Sylgard dishes, and pinned down using 0.1 mm Insect Pins (FST #26002–10). Samples were then fixed for 30 min using 4% paraformaldehyde (see above). After fixation samples were washed three times, 15 min each, in PBST. Samples were then blocked for 1 hr in 5% normal goat serum (5% Goat serum in 0.05% PBST), and then incubated in primary antibodies overnight at 4°C. On the second day, the larval preps were treated as embryo samples above. All larval washes and antibody incubations were performed with mild agitation on a nutator.

For in vivo staining of larvae (Figure 5F,G), we modified a previously described embryo protocol in (Bali et al., 2016; Fox and Zinn, 2005; Lee et al., 2013). Supernatant from S2 cell culture containing the DIP-α-AP5 fusion protein was concentrated 5-fold (Amicon Ultra-4 Filter Unit, 100 kDa cutoff). After larvae were dissected in sylgard dishes, the area surrounding each larva was patted dry with a Kimwipe. The DIP-α-AP5 (75 μl) was applied to each prep and incubated for 1.5 hr at room temperature in a humidified chamber. Following incubation, the standard larval immunocytochemistry protocol (above) was followed.

Microscopy and analysis

Third instar samples that were quantified for 1s bouton presence or absence were examined using a Zeiss AxioImager M2 and a 40X plan-neofluar 1.3NA objective. Boutons were examined using HRP and scored as 1s or 1b based on Dlg signal, as 1s boutons have a smaller and dimmer Dlg signal than 1b boutons. For DIP-α-GAL4>EGFP studies, 1s boutons were scored based on the presence of GFP although Dlg staining was also present. To count embryonic MNISN-1s terminal swellings, we grouped dorsal muscles into the distal (m1, 2, 9, 10) and proximal (m3, 4, 19, 20) fields and scored bulbous endings that were at least twice the thickness of the neurite shaft. Primary and secondary branches on m2 were scored and the total reported.

All imaging was done on a Zeiss LSM800 confocal microscope with 20X plan-apo 0.8NA objective, 40X plan-neofluar 1.3NA objective, or 63X plan-apo 1.4NA objective. All samples were imaged under similar conditions. Some embryo images were imaged using a Zeiss LSM880 with Airyscan to improve resolution of small axonal processes.

For dpr10-GAL4>EGFP embryonic analysis, LSM800 confocal images were acquired from embryos labelled with Fas2 (to visualize embryonic stage and nerve processes), GFP (to confirm Dpr10 expression), and Phalloidin (to visualize the muscles). Embryonic stage was determined by the number of Fas2 positive longitudinal nerves on either side of the ventral nerve cord midline (1–1.5 longitudinal nerves = st14/15, 1.5–2 = st15/16, 2.5–3 = st16/17). Each muscle was scored 1 or 0 based on the presence or absence of GFP expression, respectively, and the resulting numbers pooled into a table. The mean of each muscle subtype was then calculated, and the resulting numbers plotted in a heat map using Prism seven software (Graphpad Software).

All statistical analysis was performed using Prism seven software (Graphpad), for multiple comparisons one-way ANOVA analysis was performed with Dunnett’s test. For each data point at least three samples per genotype were dissected and at least two biological replicates were examined.

References

  1. 1
  2. 2
  3. 3
  4. 4
    A photographic study of development in the living embryo of Drosophila melanogaster
    1. M Bownes
    (1975)
    Journal of Embryology and Experimental Morphology 33:789–801.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Live dissection of Drosophila embryos: streamlined methods for screening mutant collections by antibody staining
    1. HK Lee
    2. AP Wright
    3. K Zinn
    (2009)
    Journal of Visualized Experiments, 10.3791/1647.
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    The beat generation: a multigene family encoding IgSF proteins related to the beat axon guidance molecule in Drosophila
    1. GC Pipes
    2. Q Lin
    3. SE Riley
    4. CS Goodman
    (2001)
    Development 128:4545–4552.
  33. 33
    Connectivity analysis is essential to understand neurological disorders
    1. JB Rowe
    (2010)
    Frontiers in Systems Neuroscience, 4, 10.3389/fnsys.2010.00144, 20948582.
  34. 34
  35. 35
    Clonal analysis of Drosophila embryonic neuroblasts: neural cell types, axon projections and muscle targets
    1. A Schmid
    2. A Chiba
    3. CQ Doe
    (1999)
    Development 126:4653–4689.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. K VijayRaghavan
    Senior and Reviewing Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
  2. Durafshan Sakeena Syed
    Reviewer; UC Santa Barbara, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Transsynaptic interactions between IgSF proteins DIP-α and Dpr10 are required for motor neuron targeting specificity" for consideration by eLife. Your article has been reviewed by K VijayRaghavan as the Senior Editor, a Reviewing Editor, and three reviewers. The following individual involved in the review of your submission has agreed to reveal their identity: Durafshan Sakeena Syed (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Carillo, Zinn and others have previously characterized two groups of interacting immunoglobulin superfamily adhesion proteins, DIPs and dprs, and implicated them in synaptic development in the Drosophila neuromuscular and visual systems. Here, they provide an in-depth analysis of one pair in one system – DIP-α, expressed in a small group of larval motor neurons, and dpr10, expressed in a set of larval muscles. They analyze expression of the genes and localization of the proteins, then use genetic methods to demonstrate that interactions of DIP-α with dpr10 are required for specific connectivity of the DIP-α-expressing neurons with some of the dpr10-expressing muscles. The idea that pre- and postsynaptic cells express interacting adhesion molecules that play critical roles in the formation of a specific synaptic connection is a widely accepted dogma. Yet decisive evidence for this model is sparse. The importance of this paper is that it provides such compelling evidence. The paper is through, including detailed analysis of expression, documentation of global effects on connectivity in the relevant muscle group (some muscles gain inputs at the expense of those that lose it in mutants), proof that DIP-α acts pre- and dpr10 postsynaptically, and consideration of the stages and steps at which the critical interactions occur. It is well-illustrated, the results are thorough, if excessively, described, and the few caveats are considered and discussed in detail. Although the conclusion is not entirely novel, this really is a textbook demonstration of an extremely important concept in developmental neurobiology. Its publication will be important for the field.

Essential revisions:

The following comments should be speedily addressed before acceptance. Comments 1-3: additional data, if available or speedily doable, will be welcome. Else, the points may simply be discussed.

1) DIP-α is expressed in only 2 out of the 35 MNs: MNISN-1s that innervates the dorsal muscles and MNSNb/d-1s that innervates the ventral muscles. How does the innervation pattern of MNSNb/d look like in DIP-α mutants?

2) Authors use DIP-α protein trap to reveal DIP-α localization in 1s boutons. Is it localized to boutons of all or specific muscle fibers? What is the expression profile of DIP-α during development? Is it localized to the growth cones or all over the axon during earlier stages?

3) Filopodia for most dorsal muscles are evident at earlier stages and later in the proximal ones (Figure 3). Are the boutons formed simultaneously in different muscle fibers or first in the dorsal-most? Does it imply that the branches are formed progressively from the distal-most region of an axon to the proximal end?

4) Authors mention that MNISN-1s innervates the dorsal muscles, the most distal of which is m1 (subsection “DIP-α does not control MNISN-1s axon guidance or defasciculation”), and at St15 MNISN-1s growth cone is visible in the m1/m2 target area (Figure 3). Later on, they show that MNISN-1s does not innervate m1 (Figure 4). If that is the case, then the growth cone visible at St15 might belong to m9 rather than m1, then it should be referred to as m2/m9 target area.

5) Authors show a differential effect on MNISN-1s innervation in DIP-α mutants. More dorsal muscles in the dorsal muscle field gain 1s branches, while more ventral muscles lose innervation. Among the dorsal-most muscles, m9 and m10 seem oblivious to DIP-α expression, while as m1 and m2 gain innervation. All these muscle fibers express Dpr10. Other dorsal-most muscles, that gain innervation are m11 and m18, do not express Dpr10. More ventral muscles (m3, 4, 19, 20) lose innervation; all these fibers express Dpr10. Although the innervation loss could be explained by the loss of adhesion, how is the gain in innervation explained? Does this phenotype also imply that the branching starts from the distal-most regions of the axon and proceeds towards the proximal end? How is the number of branches specified?

6) In the Dpr10 mutants, how is the MNISN-1s innervation in dorsal-most muscles?

7) Subsection “DIP-α is selectively expressed by two identified motor neurons”: For completeness, what are the non-MN DIP-α cells.

8) Figure 2B: Where are the 1b endings?

9) Subsection “Dpr10 is able to bind DIP-α in tissue”: Presumably lack of staining in wild-types reflects limited sensitivity of the DIP-α-AP probe but this should be made explicit, along with some estimate of the degree of overexpression needed for detection. There is also a bit of a conundrum here: It seems that considerable overexpression is required to detect the dpr10, yet it remains confined to synaptic sites even though one might expect that the sites would be saturated and excess dpr10 would be present extrasynaptically. Can the authors provide an explanation.

10) Figure 5E: Need a control (wild-type?) for the V5 staining.

11) The data is well documented, except in the case of Dpr10. In the Dpr10 case to identify its spatiotemporal expression authors use Dpr10-Gal4 reporter line only. This is surprising as this GAL4 line (like many others) may not fully reproduce endogenous gene expression. It is essential to use other tools (in situ hybridization if antibodies are not available) to show how Dpr10 is really expressed. Consequently, the validity of all author's comments related to Dpr10 expression and its correlation with that of DIP-α depends on this analysis.

https://doi.org/10.7554/eLife.42690.022

Author response

Essential revisions:

The following comments should be speedily addressed before acceptance. Comments 1-3: additional data, if available or speedily doable, will be welcome. Else, the points may simply be discussed.

1) DIP-α is expressed in only 2 out of the 35 MNs: MNISN-1s that innervates the dorsal muscles and MNSNb/d-1s that innervates the ventral muscles. How does the innervation pattern of MNSNb/d look like in DIP-α mutants?

We have examined MNSNb/d-1s in DIP-α mutants, and we found no obvious high penetrance loss of innervation of any of its target muscles. We add a line to the text to highlight that there is no highly penetrant phenotype upon loss of DIP-α (subsection “DIP-α is required for MNISN-1s targeting specificity”).

2) Authors use DIP-α protein trap to reveal DIP-α localization in 1s boutons. Is it localized to boutons of all or specific muscle fibers? What is the expression profile of DIP-α during development? Is it localized to the growth cones or all over the axon during earlier stages?

We will address this comment with additional experiments. We determined that DIP-α localizes to boutons on all muscles and include an additional panel, Figure 1—figure supplement 1E (subsection “DIP-α is selectively expressed by two identified motor neurons”). DIP-α seems to be continuously expressed throughout embryonic and larval development, based on our analysis of DIP-α gene trap and protein trap lines. In the current Figure 1 and Figure 3, we show three stages of development, and DIP-α is expressed at each stage. We explicitly state in the text that DIP-α is expressed during embryonic st14 through the end of larval development (subsection “DIP-α is selectively expressed by two identified motor neurons” and subsection “DIP-α does not control MNISN-1s axon guidance or defasciculation”). Finally, we dissected and imaged DIP-α protein trap embryos and determined that DIP-α localizes to growth cones. This data is included as an additional panel, Figure 1D (subsection “DIP-α is selectively expressed by two identified motor neurons”).

3) Filopodia for most dorsal muscles are evident at earlier stages and later in the proximal ones (Figure 3). Are the boutons formed simultaneously in different muscle fibers or first in the dorsal-most? Does it imply that the branches are formed progressively from the distal-most region of an axon to the proximal end?

Based on our observations, it seems that MNISN-1s first contacts dorsal muscles before making contact with more proximal muscles. To address this thoroughly, a detailed time-lapse analysis is required. This level of detail is beyond the scope of this manuscript, but to provide additional data to support our observations, we focused on st16/17 embryos and scored the appearance of motor neuron terminal ‘swellings’ in the distal vs. proximal muscle field. A bar graph is added to Figure 3—figure supplement 1B (subsection “DIP-α does not control MNISN-1s axon guidance or defasciculation”).

4) Authors mention that MNISN-1s innervates the dorsal muscles, the most distal of which is m1 (subsection “DIP-α does not control MNISN-1s axon guidance or defasciculation”), and at St15 MNISN-1s growth cone is visible in the m1/m2 target area (Figure 3). Later on, they show that MNISN-1s does not innervate m1 (Figure 4). If that is the case, then the growth cone visible at St15 might belong to m9 rather than m1, then it should be referred to as m2/m9 target area.

We thank the reviewer for bringing this to our attention. However, when selecting a representative image to include in Figure 4, it was very difficult to obtain an MNISN-1s that has the perfect innervation pattern. m1 is innervated infrequently by MNISN-1s (Figure 4C) so the growth cone in Figure 3 could be m1/m2 or m2/m9. We prefer to keep the m1/m2 designation.

5) Authors show a differential effect on MNISN-1s innervation in DIP-α mutants. More dorsal muscles in the dorsal muscle field gain 1s branches, while more ventral muscles lose innervation. Among the dorsal-most muscles, m9 and m10 seem oblivious to DIP-α expression, while as m1 and m2 gain innervation. All these muscle fibers express Dpr10. Other dorsal-most muscles, that gain innervation are m11 and m18, do not express Dpr10. More ventral muscles (m3, 4, 19, 20) lose innervation; all these fibers express Dpr10. Although the innervation loss could be explained by the loss of adhesion, how is the gain in innervation explained? Does this phenotype also imply that the branching starts from the distal-most regions of the axon and proceeds towards the proximal end? How is the number of branches specified?

In the Discussion section, we propose that MNISN-1s may be programmed to form a certain number of connections (boutons and/or active zones). In the absence of DIP-α, appropriate connections are not formed, and this could lead to gain of innervations, or branches, at inappropriate and appropriate muscles, even if the muscles do not express Dpr10 (m11 and m18). DIP-α-Dpr10 interactions may be required to stabilize branches on specific muscles, but the underlying mechanism of branch formation is not well understood and beyond the scope of this study. However, we counted branches on m2 in DIP-α mutants and controls, and include an additional graph in Figure 4—figure supplement 1A (subsection “Loss of DIP-α selectively reduces and expands MNISN-1s connectivity”).

6) In the Dpr10 mutants, how is the MNISN-1s innervation in dorsal-most muscles?

We quantified innervation of m1, m2, m9, and m10 and include a graph in Figure 6—figure supplement 1B (subsection “dpr10 is required for MNISN-1s innervation of M4”).

7) Subsection “DIP-α is selectively expressed by two identified motor neurons”: For completeness, what are the non-MN DIP-α cells.

While it would be interesting to identify what other cells express DIP-α in the VNC, it is beyond the scope of this study. In Carrillo et al., 2015, we show that a subset of these cells are cholinergic interneurons.

8) Figure 2B: Where are the 1b endings?

We should have been more diligent in labeling of this Figure. The 1B ending is present but we did not label it. We have updated this Figure with the appropriate labels.

9) Subsection “Dpr10 is able to bind DIP-α in tissue”: Presumably lack of staining in wild-types reflects limited sensitivity of the DIP-α-AP probe but this should be made explicit, along with some estimate of the degree of overexpression needed for detection. There is also a bit of a conundrum here: It seems that considerable overexpression is required to detect the dpr10, yet it remains confined to synaptic sites even though one might expect that the sites would be saturated and excess dpr10 would be present extrasynaptically. Can the authors provide an explanation.

Dpr10-V5 seems to be targeted specifically to the postsynapse based on anti-V5 immunohistochemistry (Figure 5E) and the DIP-α-AP probe (Figure 5G). We observe minimal extrasynaptic Dpr10 upon overexpression. There are several reasons why this may be the case. First, the extent of overexpression may not be sufficient to saturate the postsynaptic site. Also, staining with anti-V5 is more sensitive than the DIP-α-AP probe so any extrasynaptic Dpr10-V5 would more likely be detectable with anti-V5; however, we do not observe this (Figure 5E). Thus, if excess Dpr10 does not localize properly to the postsynapse, it may be degraded.

10) Figure 5E: Need a control (wild-type?) for the V5 staining.

This was an oversight on our part, as the anti-V5 labeling in control animals is almost nonexistent. This is now included in Figure 5—figure supplement 1B (subsection “Expression of DIP-α binding partners, Dpr6 and Dpr10, in the neuromuscular system”).

11) The data is well documented, except in the case of Dpr10. In the Dpr10 case to identify its spatiotemporal expression authors use Dpr10-Gal4 reporter line only. This is surprising as this GAL4 line (like many others) may not fully reproduce endogenous gene expression. It is essential to use other tools (in situ hybridization if antibodies are not available) to show how Dpr10 is really expressed. Consequently, the validity of all author's comments related to Dpr10 expression and its correlation with that of DIP-α depends on this analysis.

It is true that many GAL4 lines do not recapitulate endogenous gene expression. However, the dpr10-T2A-GAL4 line that we utilize is a direct gene trap insertion within a dpr10 coding intron derived from a MiMIC insertion (see Venken et al., 2011; Diao et al., 2015). In T2A-GAL4 lines in coding introns, GAL4 can only be expressed when translation of the gene product (Dpr10, in this case) is initiated from its normal ATG. The T2A-GAL4 insertion element is aberrantly spliced into the dpr10 transcript due to the strong splice acceptor in the element. This hybrid dpr10 transcript is then translated from the normal Dpr10 ATG to the T2A element, which then directs ribosome skipping and reinitiation, so as to generate GAL4. Therefore, GAL4 will be made under control of all endogenous dpr10 transcriptional control elements, and will only be produced when Dpr10 translation is initiated from the normal ATG. It should therefore accurately reflect normal Dpr10 protein expression, except for three issues: (1) the reporter will not display the same subcellular localization as the protein; (2) there will be a delay caused by the time required for GAL4 to activate reporter expression and for reporter to be translated; (3) the reporter will not be subject to any post-translational control of Dpr10 expression, such as protein degradation, so it may have a different lifetime than normal Dpr10. In situ hybridization experiments could provide information about dpr10 mRNA expression, but they would not add anything to the conclusions we can draw from the GAL4 reporter. In situs report the presence of RNA, which does not necessarily represent protein expression, so they provide less information than T2A-GAL4 reporters. A better experiment, as the reviewer suggests, would be immunohistochemistry with a Dpr10 antibody. However, since this antibody is a polyclonal mouse antibody (see Xu et al., 2018), we were only able to obtain a very small quantity from the Zipursky lab. We have not utilized this antibody for embryo immunohistochemistry so some optimization is required to obtain reproducible data. Also, the detailed developmental studies (Figure 7) will require many samples at several embryonic stages to accurately depict Dpr10 temporal expression, and the antibody may not be sufficient. We hope that this explanation is sufficient to address the reviewers concerns.
