We previously reported that mitosis can drive tracheal invagination, alone or in combination with EGFR signaling (Kondo and Hayashi, 2013). Although all embryonic cells undergo multiple cell divisions, mitosis-induced invagination occurs only in the tracheal placode. Non-tracheal epidermal cells quickly recover their flat epithelial architecture after mitosis, suggesting that the tracheal placode cells possess a special ability to couple mitosis with invagination and tubule formation (Kondo and Hayashi, 2013). Since trh is considered a master regulator of tracheal morphogenesis (Isaac and Andrew, 1996; Wilk et al., 1996), we reasoned that trh is involved in this mitosis-induced invagination.

Previous studies showed that in trh mutants, the tracheal tissue is completely missing in late-stage embryos, and no invagination occurs (Isaac and Andrew, 1996; Wilk et al., 1996; Younossi-Hartenstein and Hartenstein, 1993). However, in the stage-10 tracheal placode, di-phosphorylated ERK, a hallmark of EGFR activation, was detected even in trh mutants (Figure 1—figure supplement 1) (Ogura et al., 2018), suggesting that some early tracheal development processes were taking place. Live imaging of trh¹ (an EMS-induced missense allele) mutants at single-cell resolution revealed an unexpected finding: apical constriction forming a tracheal pit appeared in the center of the placode region, followed by mitosis in the pit cells and rapid, deep invagination as seen in the control, although the onset of invagination was delayed (Figure 1B,C). Over the next 90 min, the invaginated structure gradually returned to the surface epidermal layer and merged with these cells to form a segmental furrow, leaving no trace of the tracheal structure (Figure 1C). Consistent with this live imaging analysis of trh¹, in fixed samples with a heteroallelic combination of TALEN-induced trh null alleles (trh^A14-3/trh^B16-11, Figure 1—figure supplement 2) (Kondo et al., 2014), would-be tracheal placode cells labeled with the R14E10 trh primary enhancer (containing the trh66 STAT-responsive element that mediates stage-10 trh expression in the placode (Sotillos et al., 2010), Figure 1D) also formed a tracheal pit (Figure 1E) and formed invaginated structures during stages 11–13 (Figure 1F). These R14E10-positive cells returned to the surface epidermal layer at stage 15 (Figure 1G). The appearance of invaginated structures at stage 12 and the disappearance of these structures at stages 15–16 were observed, as shown in Figure 1F and G, respectively, with 100% penetrance (stage 12: eight embryos, stage 15–16: ten embryos). In addition, the overexpression of trh (trh-OE) by R14E10-GAL4 in the trh mutants rescued the phenotype (Figure 1—figure supplement 3A). One of the Trh target genes is breathless (btl), which encodes an FGF receptor (Ohshiro and Saigo, 1997), and we reported that FGF signaling through Btl is able to trigger invagination independent of EGF signaling and mitotic rounding (Kondo and Hayashi, 2013). However, the btl-OE in the trh mutants using R14E10-GAL4 did not rescue tracheal formation from the transiently invaginated tracheal placodes (Figure 1—figure supplement 3B), indicating that other trh target genes are required to support FGF signaling-triggered tracheal morphogenesis. In addition, inhibiting apoptosis by p35 did not prevent the transiently invaginated cells from returning to the epidermis, indicating that apoptotic cell removal is not the major cause of this anomaly (Figure 1—figure supplement 3C). These results demonstrated that trh is essential for maintaining the invaginated structure, whereas it is dispensable for initiating invagination. Thus, tracheal formation proceeds by two successive and genetically separable steps: (1) invagination triggered by the mechanical forces generated through the combined activities of mitosis, EGFR, and FGFR signaling; and (2) maintenance of the invaginated structure controlled by trh. Since mitosis-triggered invagination was maintained in rho bnl mutants (Kondo and Hayashi, 2013), EGFR and FGFR signaling are dispensable for the maintenance of the invaginated structure.

For Trh to function as a determinant of the invaginated structures, its expression must be tightly sustained only in the invaginated cells but not in the surface epidermal cells. To reveal the relationship between trh expression and epithelial geometry, we attempted to analyze the impact of reducing the number of invaginated tracheal cells on Trh expression. In rho bnl double mutants that lose both EGF and FGF signaling in tracheal cells, tracheal invagination is impaired, and the trachea is composed of a smaller number of cells than that of the control. If a similar number of cells initiates trh expression in control and rho bnl mutants, some trh-positive placode cells are expected to remain in the surface epidermis, and these cells may face a conflict between their fate and tissue geometry.

JAK-STAT signaling induces trh expression through a STAT-responsive trh enhancer in the tracheal placodes at stage 10 of embryogenesis before invagination (Figure 2A) (Brown et al., 2001; Sotillos et al., 2010). After invagination, Trh is detected only in all invaginated cells, including the most proximal spiracular branch (Figure 2C,F). The number of initial Trh+ cells in the tracheal placode before invagination (stage 10) was 58.2 ± 5.1 (mean ±S.D.) in controls and 67.2 ± 8.5 in the rho bnl mutants, respectively, indicating that tracheal fate specification was not compromised in the rho bnl mutants (Figure 2A,B,G). The increase in the number of initial Trh+ cells in the rho bnl placodes reflects the expansion of the tracheal placode due to the earlier role of rho in restricting the size of tracheal placode (Raz and Shilo, 1993). The R14E10 fragment contains the trh66 STAT-responsive element that mediates stage9-10 trh expression (Sotillos et al., 2010), and the number of initial R14E10 + cells (57.9 ± 2.7 cells, monitored by using the R14E10-lacZ transgene at stage 10) is almost the same as the number of initial Trh+ cells. In contrast, after cycle-16 mitosis and invagination, the resultant tracheae of the rho bnl mutants were composed of a smaller number of Trh+ cells (trh-on cells, 31.2 ± 6.2 cells) than those of the controls (87.6 ± 6.3 cells) (Figure 2C,D,G). These findings demonstrate that in the rho bnl mutants, the number of initial Trh+ cells at stage 10 was reduced at stages 13–14. This reduction is due to either the disappearance of Trh+ cells from the epithelium or the loss of Trh expression in cells that failed to invaginate.

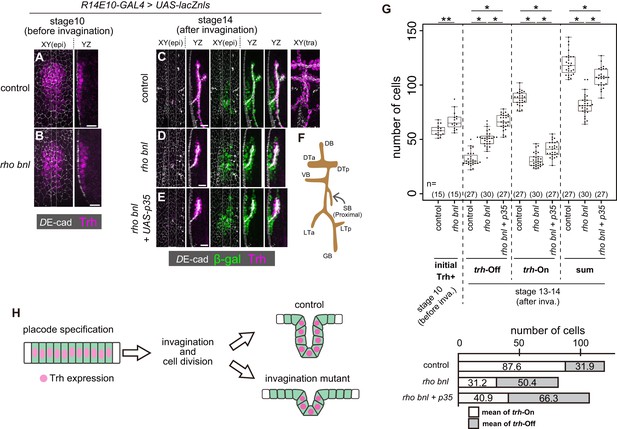

Figure 2 with 1 supplement see all

Download asset Open asset

Figure 2—source data 1

Source data for Figure 2G and Figure 2—figure supplement 1B.

https://doi.org/10.7554/eLife.45145.009

Download elife-45145-fig2-data1-v1.xlsx

To discriminate these possibilities, we traced the fate of cells initiating trh expression by labeling them with nls-lacZ driven by R14E10. The R14E10-GAL4-induced nls-lacZ product (β-galactosidase, β-gal) persisted in the initial trh+ cells after termination of R14E10-GAL4 transcription, allowing us to distinguish trh-off (Trh^–, LacZ⁺) and trh-on (Trh⁺) cells derived from the initial trh-on cell population after invagination (from stage 13 onward). Even in control embryos, there were trh-off cells (31.9 ± 6.7 cells) in the epidermis (Figure 2C,G), while all of the trh-on cells were found in the invaginated tubule region (87.6 ± 6.3 cells). The sum of the trh-on and trh-off cells (119.5 ± 10.5 cells) agreed well with the prediction from the number of initial Trh+ cells (58.2 ± 5.1 cells) and the number of initial R14E10 + cells (57.9 ± 2.7 cells, Figure 3—figure supplement 2B,C) after one round of cycle-16 mitosis during invagination. The results showed that 27% of the initial trh+ cells lost their Trh expression, all of which remained in the epidermis. Many of the trh-off cells remained during the rest of embryogenesis and formed trichomes on their apical surface (data not shown), suggesting that they adopted the epidermal fate.

We next asked if the loss of trh expression in trh-off cells was due to their failure to become part of the tube by tracing the fate of trh-expressing cells in the rho bnl mutants. After invagination, the resultant tracheae were composed of a smaller number of trh-on cells (31.2 ± 6.2 cells), as mentioned above, and surrounded by an increased number of epidermal trh-off cells (50.4 ± 7.2 cells) than those of the controls, with a total of 81.6 ± 9.8 cells (Figure 2D,G). Blocking apoptosis by p35 in the rho bnl mutants increased the number of both trh-on and trh-off cells (Figure 2E,G). In the rho bnl mutants with or without p35, 62% of the surviving initial trh+ cells remained in the epidermis and lost their trh expression. These findings indicated that the reduction in trh-on cells in the rho bnl mutants was not simply due to their disappearance from the epithelium. Losses of EGF, FGF, and mitosis in the rho CyclinA (CycA) bnl triple mutant caused a more severe invagination defect (Kondo and Hayashi, 2013). The initial trh expression at stage 10 was nearly normal even in the triple mutant (53.9 ± 7.1 cells (Figure 2—figure supplement 1A,B). If the cells maintaining Trh expression and forming tubes are predetermined before invagination, the triple mutants are supposed to possess half the number of trh-on cells observed in the rho bnl double mutants because the CycA mutation eliminates cycle-16 mitosis. However, although all the invaginated cells were Trh-positive, the number of Trh-on tracheal cells in these triple mutants was much smaller than expected (6.0 ± 2.5 cells, Figure 2—figure supplement 1A,B), which strongly argues against the model in which the tube-forming trh-on cells are predetermined before invagination. These observations support the possibility that the trh expression in the stage 10 tracheal placodes is maintained only in the successfully invaginated tubule cells, independent of the depth of invagination. The placode cells that failed to invaginate and remained in the epidermis lost their trh expression. These results imply that a mechanism exists to maintain trh expression only in the invaginated tubule cells and extinguish it in the superficial epidermal cells (Figure 2H).

A transcriptional reporter of trh [1-eve-1, a lacZ enhancer trap of trh (Perrimon et al., 1991; Wilk et al., 1996) elicited reporter β-gal expression that was limited to the invaginated tracheal cells (Figure 3B), suggesting that the epidermal expression of trh is repressed at the level of transcription. We then tested the properties of several previously identified trh enhancers (Sotillos et al., 2010). Among the eight trh upstream regions with phylogenetically conserved STAT-binding sites, trh47 and trh66 drive reporter expression from the early stage of tracheal development, and trh67 is proposed to be a trh-dependent auto-regulatory element (Sotillos et al., 2010). We found that the two primary enhancers, trh47 (Figure 3A, Figure 3—figure supplement 1A) and trh66 (covered by R14E10, Figure 3A, Figures 1D and 2C), were active in both tubule cells and the surrounding epidermal cells, suggesting that they did not reproduce the epidermal extinction of trh. In contrast, trh67 did not drive reporter expression in all of the Trh-positive invaginated cells, suggesting that additional cis-elements control the tube-specific maintenance of trh expression (Figure 3—figure supplement 1B).

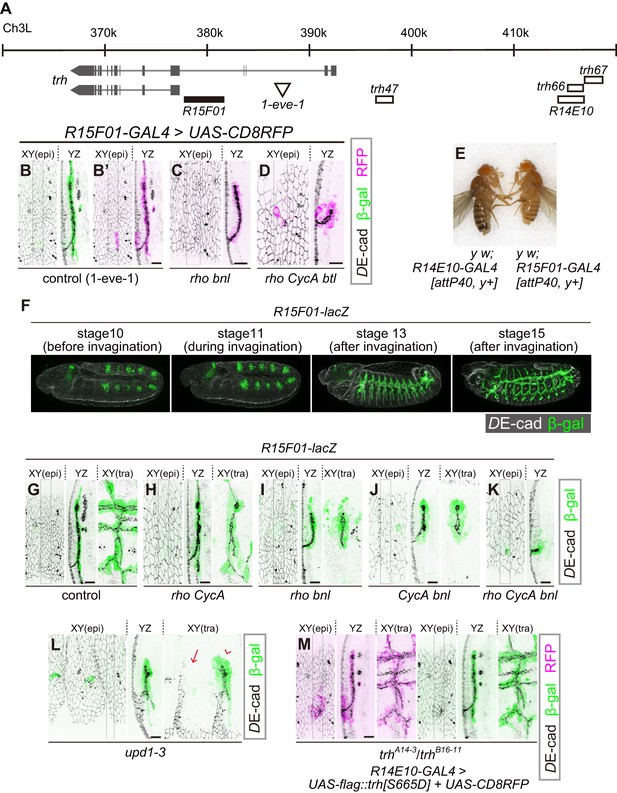

Figure 3 with 3 supplements see all

Download asset Open asset

We then searched for additional trh enhancers from a systematic enhancer mapping resource (the FlyLight project: https://www.janelia.org/project-team/flylight) (Jenett et al., 2012; Jory et al., 2012; Manning et al., 2012) and identified another enhancer immediately upstream of the proximal trh promoter (R15F01, Figure 3A). R15F01 showed strict tube-specific activity after invagination, and its activity was maintained in the invaginated tubule cells throughout embryogenesis (Figure 3B’, G) and in postembryonic stages (not shown), in contrast to trh47 and trh66 (R14E10), which show transient activity only from embryonic stage 10 to 11 (Sotillos et al., 2010). We note that a few epidermal cells sporadically showed leaked R15F01 activity, especially when we monitored the activity using R15F01-GAL4 reporter transgenes (Figure 3B’). In addition, when we used a direct lacZ reporter (R15F01-lacZ), R15F01’s activity became detectable in part of the tracheal placode before invagination (Figure 3F, Figure 3—figure supplement 2G), slightly later than that of the other early enhancers (trh47 or R14E10). In addition, we noticed that R15F01 repressed the function of an adjacent mini-yellow gene (mini-y included in attP40 or attP2, a transgene landing site on chromosome 2L or chromosome 3L, respectively [Groth et al., 2004]) in the adult epidermis (Figure 3E and Figure 3—figure supplement 2A). The function of the endogenous yellow gene on chromosome X was not affected (data not shown), suggesting that R15F01 represses mini-y expression in cis. These results suggested that R15F01 is a cis-regulatory module (CRM) that simultaneously functions as an enhancer in tracheal tube cells and a silencer in epidermal sheet cells.

Using the mutant combinations that prevented invagination to various degrees (combinations of rho, bnl and CycA), no or only a few epidermal cells showed R15F01 activity, while the small tracheal tubes were R15F01-positive irrespective of the depth of invagination (Figure 3C,D,H–K). In the rho bnl mutants, R15F01 activation was detected at stage 10 before invagination. The number of initial R15F01 + cells in the rho bnl mutants before cycle-16 mitosis and invagination (39.5 ± 4.7 cells, Figure 3—figure supplement 2D,G) is smaller than that of control embryos (47.3 ± 6.1, Figure 3—figure supplement 2G), indicating that EGF signaling is involved in the initial activation but is not essential. In addition, the number is larger than the number of invaginated cells with Trh expression after cycle-16 mitosis (Trh-on cells) in the rho bnl mutants (two times 37.7 ± 6.3 cells VS trh-on cells 31.2 ± 6.2 cells (Figure 2G); note that the number of cells is doubled after cycle-16 mitosis), suggesting that R15F01 activity is controlled by a multistep mechanism. Even in unpaired 1 (upd1), upd2, and upd3 triple mutants (Df(1)BSC352), which are deficient for all Upd cytokines and are unable to activate JAK-STAT signaling, invaginated trachea appeared in some segments, and only these invaginated cells became R15F01-active (Figure 3L). These results indicate that the tubule-specific maintenance of R15F01 activity after invagination is independent of JAK-STAT, EGFR, and FGFR signaling. These results also support the idea that the tube-forming trh-on cells are not predetermined before invagination and that only the successfully invaginated cells secondarily sustain the R15F01 activity for Trh expression independent of the initial induction of its activation.

To analyze the contribution of trh to tube-specific R15F01 maintenance, we monitored R15F01 activity in trh mutants. R15F01 activation was detected in the trh mutants before invagination, but the number of β-gal-positive cells (29.4 ± 6.7) was smaller than that of the control (47.3 ± 6.1) (Figure 3—figure supplement 2E,G), indicating that trh is involved in the initial activation of R15F01 but is not essential. After mitosis cycle 16, transient invagination and disappearance of invaginated architecture in the trh mutants, 19.1 ± 6.8 cells still maintained R15F01 reporter expression at stage 15 (Figure 3—figure supplement 2F,H). Because this number is smaller than the number of initially activated cells, R15F01 activity could be maintained in a trh-independent manner. As mentioned above, in addition, trh-OE in the trh mutants by R14E10-GAL4 (early transient activation of trh in placodes, and no secondary regulation of trh expression) could rescue tracheal morphogenesis, and more cells took on a tubular architecture than in the trh mutants (Figure 1—figure supplement 3A). We found that all these invaginated cells showed R15F01 activity (Figure 3M, β-gal), while some trh-OE cells did not take part in invagination, and these surface-remaining cells did not show R15F01 reporter expression even when we overexpressed a phosphomimetic active form of Trh (Figure 3M, RFP + epidermal cells). These results strongly suggest that Trh is not sufficient to maintain longer R15F01 activity and that secondary regulatory mechanisms that are potentially associated with invagination are required. trh-OE by R15F01-GAL4 in the trh mutants could also partially rescue tracheal morphogenesis (Figure 3—figure supplement 3). Because of the later onset of R15F01 and/or the smaller number of R15F01-active cells than in R14E10 (Figure 3—figure supplement 2), the invagination defect of the trh mutants was not rescued at stage 12. On the other hand, in later stage 15, R15F01-positive cells were able to maintain invaginated structures, although they showed an incomplete branching pattern, possibly due to a limited number of R15F01-positive cells.

To identify functional elements within the 3963 bp fragment of R15F01, we divided R15F01 into eight fragments (D1-D8), constructed four deletions (del1-del4) and assayed their regulatory activity before invagination (stage-10 tracheal placode), their activity in the trachea and epidermis after invagination (from stage 13 onward), and their cis-inhibition effect on mini-yellow in adult flies (Figure 4A). The results showed that the enhancer activity for tracheal expression was mapped to two sub-fragments: D7, which was sufficient to drive expression in the tracheal placode and invaginated tracheal tubules (Figure 4A,D,H,I), and D1, which drove tracheal expression after invagination in a somewhat sporadic manner (Figure 4A,C,F,G). No other sub-fragment showed tracheal enhancer activity (Figure 4—figure supplement 1B–G). In addition, fragment D7 also drove expression in the epidermal region near the tracheal pit (Figure 4D,I), indicating that D7 drives both tracheal and epidermal expression and is not sufficient to reproduce the tube-restricted pattern after invagination. Second, the mini-y silencer activity was mapped to sub-fragment D1, and its removal from R15F01 (i.e., the del4 construct) abrogated this mini-yellow silencing (Figure 4A, Figure 4—figure supplement 1A).

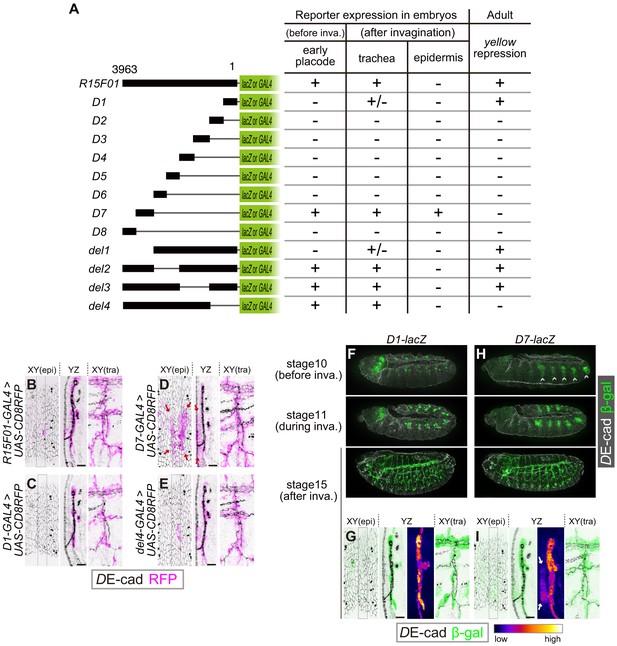

Figure 4 with 1 supplement see all

Download asset Open asset

The epidermal enhancer activity of D7 in embryos was not detected in full-length R15F01, suggesting that an epidermal silencer that represses D7’s epidermal activity must reside in another part of R15F01. D1 is likely to contain this activity, since it possesses the silencer activity for mini-yellow, and the combination of D1 with D7 in constructs del2 and del3 reproduced the expression pattern of R15F01 (Figure 4A, Figure 4—figure supplement 1I,J). In addition, the del4 construct, which did not contain the D1 or D2 fragment, also showed epidermal suppression of D7 activity (Figure 4A,E, Figure 4—figure supplement 1K). These data indicated that silencer elements reside in at least two regions, one in the D1-D2 fragment with mini-y silencer activity and the other in the region included in del4 (in the D3 to D6 and/or D8 fragment).

To examine whether these silencers could act on a heterologous epidermal enhancer, we constructed chimeric reporters consisting of the shavenbaby (svb) epidermal enhancer and sub-fragments of R15F01 (Figure 5A). The svb E6B element enhances reporter gene expression in the dorsal epidermal cells that form trichomes (Figure 5B,D) (Frankel et al., 2011). We found that the fragments containing D1 and D2 (D1-D2), from D3 to D6 (D3-D6), and from D1 to D6 (in the del1 construct) were able to silence the svb E6B activity (Figure 5C,E,F). Since the D1-D2 and D3-D6 inserts have no overlap, these data confirmed that R15F01 contains multiple and redundant silencer elements that act dominantly over the svb E6B epidermal enhancers.

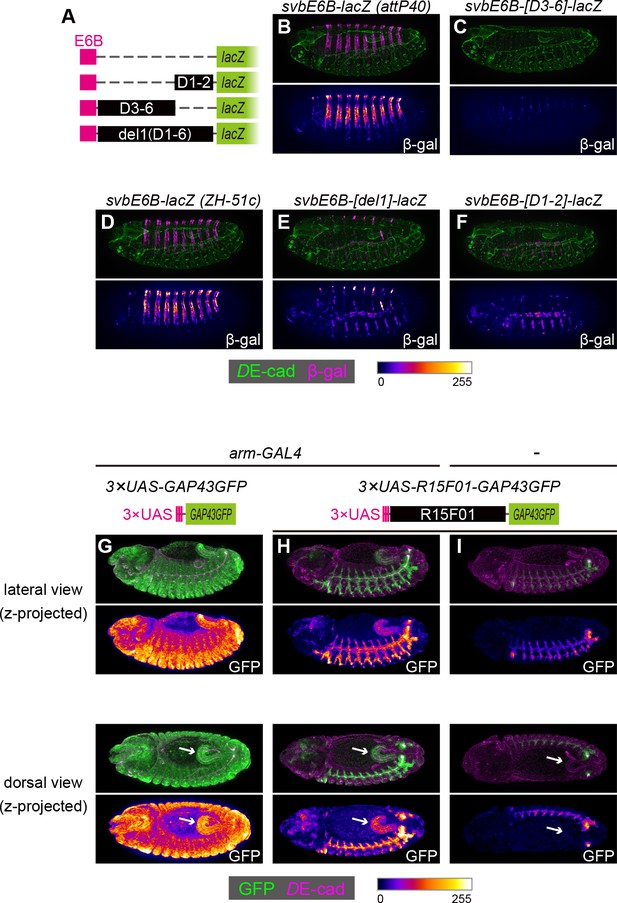

Figure 5

Download asset Open asset

To further characterize the difference in the silencing activity of R15F01 between epidermal and internal epithelial tissues, we constructed another chimeric reporter in which the UAS element was fused to R15F01. When we crossed the 3×UAS-GFP reporter with arm-GAL4, which is an epithelial ubiquitous GAL4 driver (Sanson et al., 1996), GFP expression was detected ubiquitously, with an intense signal in epidermal and hindgut cells (Figure 5G). Then, we crossed the 3×UAS-R15F01-fused GFP reporter with arm-GAL4, and epidermal GFP expression was nearly undetectable, while hindgut GFP expression was still detectable (Figure 5H). The tracheal GFP signal was enhanced, possibly due to the tracheal enhancers in R15F01. Embryos harboring only the 3×UAS-R15F01 reporter without arm-GAL4 showed the tracheal GFP signal but not hindgut GFP expression (Figure 5I), indicating that the hindgut activity was driven by arm-GAL4. These results are also consistent with the notion that R15F01 silences enhancer activities in the surface epidermis but not in internal tubular organs.

We found that in trh mutants, a subset of the would-be tracheal placode cells undergo invagination but fail to maintain the invaginated structure. This observation contradicts previous reports claiming that trh is required for invagination (Isaac and Andrew, 1996; Wilk et al., 1996). We consider that our results based on live imaging of early tracheal invagination processes identified crucial tracheal cell behavior that was missed in previous works that mainly focused on late embryonic phenotypes. The phenotype of trh mutants indicates that the conversion of the epithelial sheet of the tracheal placode into a tube through invagination and the stabilization of the invaginated structures are genetically separable steps. In addition, inductive signals, such as JAK/STAT signaling, are considered to prime both tracheal differentiation (i.e., trh expression) and invagination separably. This finding is also consistent with the idea that morphogenetic movement and cell differentiation can be uncoupled (Ip et al., 1994). We suggest that epithelial tissue can assume two alternative stable structures, sheet or tube, and according to cell fate, each epithelial tissue assumes one of these structures. In the tracheal system, invagination forces include the contraction of myosin cables regulated by EGF signaling and a cell migratory force stimulated by FGF signaling (Kondo and Hayashi, 2013; Nishimura et al., 2007; Ogura et al., 2018). If both signaling pathways are absent, transient tissue instability caused by clustered mitosis allows invagination (Kondo and Hayashi, 2013). This mitotic cue is sufficient for the conversion of the Trh + placodes from the sheet state to the more stable tube state. Once invaginated by any driving forces, the tracheal cells robustly maintain the invaginated structure under the control of Trh.

In trh mutants, although the placode cells are able to initiate invagination, the degree of invagination is much smaller than that of the control. This is consistent with our recent report that trh controls the propagation of EGFR activation but not the initial activation of EGFR in the placodes (Ogura et al., 2018), indicating that trh contributes to tracheal invagination through EGFR signaling propagation in part. However, even when both EGFR and FGFR signaling are lost, Trh+ cells are able to maintain the invaginated structure. In addition, although btl, which encodes an FGFR, is one of the important downstream genes of trh and FGFR signaling can trigger invagination when EGFR signaling and mitosis 16 are eliminated in the placodes, the btl-OE in the trh mutants was not sufficient to rescue invagination and tubule maintenance. These results indicate that the maintenance of the invaginated structure is largely dependent on trh in an EGFR and FGFR signaling-independent manner.

While canonical tissue-folding processes are driven by apically concentrated myosin through active apical constriction (Martin and Goldstein, 2014), tracheal invagination has unique properties, including passive apical constriction under centripetal pressure from neighboring cells, the acceleration of the invagination through mitotic cell rounding (Kondo and Hayashi, 2013), and a lack of apically concentrated myosin localization in the invaginating cells (Kondo and Hayashi, 2013). This is consistent with a recent report that myosin regulatory light chain depletion using the deGradFP system does not cause significant abnormalities in tracheal morphogenesis (Ochoa-Espinosa et al., 2017). Candidates for Trh-downstream effectors that maintain invaginated structures are Crossveinless-c (cv-c), a Rho family GTPase-activating protein (RhoGAP), and Crumbs (Crb), both of which are expressed in the tracheal cells under the control of trh (Brodu and Casanova, 2006; Letizia et al., 2011; Röper, 2012). However, both cv-c mutants and crb mutants are able to maintain their tubular tracheal geometry (Cela and Llimargas, 2006; Letizia et al., 2011), suggesting that trh controls the epithelial tissue geometry through the activation of multiple genes. It has recently been reported that in the salivary gland, the overexpression of a constitutive active form of Arp2/3 activator causes reversal of invaginated structures into epidermis (Chung et al., 2017), suggesting that the difference in F-actin organization is also important to stabilize epithelial structure (sheet or tube). In addition, trh is also known to re-organize microtubule structures (Brodu et al., 2010). During dorsal fold formation in the gastrulating fly embryo, the invaginating cells do not show apical myosin enrichment, whereas the apical microtubule network plays an important role in cell shortening through a polarity-dependent basal shift of AJs (Takeda et al., 2018; Wang et al., 2012). Therefore, re-organization of both F-actin and microtubule architectures, but not apically concentrated myosin, might synergistically support the maintenance of invaginated structures. Further investigation of the trh-downstream transcriptome profile and tubule stabilization mechanisms will be important for understanding the diversity of cellular mechanisms of epithelial morphogenesis.

We found that trh expression is strictly maintained only in invaginated cells, whereas it is extinguished in cells remaining in the adjacent surface epidermis, irrespective of the depth of invagination. Because some of the initial Trh-expressing cells do not invaginate and lose their Trh expression, the initial priming of Trh expression is not sufficient for cells to take part in invagination and does not result in autocatalytic maintenance of its expression. Therefore, there should be a mechanism that determines cells that maintain Trh expression after the initial primed state. One possibility is that these cells are predetermined independent of initial priming of trh expression before invagination and then form the tubular architecture precisely. The other possibility is that maintenance of Trh expression is tightly associated with invagination. Our data using various invagination mutants (especially the comparison between rho bnl mutants and rho CycA bnl mutants, Figure 2 and Figure 2—figure supplement 1, as mentioned in the results section above) strongly suggest that the cells that retain trh expression and invaginated structures are not predetermined, and tissue-geometry-dependent mechanisms are involved in tight coupling of invaginated structures and Trh expression. Since Trh is essential for stabilizing invaginated structures, this coupling may ensure that only invaginated cells canalize robustly into the tracheal fate and further supports the formation of a tubular tracheal system after invagination.

Our findings strongly suggest that the R15F01 CRM is crucial for invagination-restricted Trh expression and is composed of multiple enhancers and redundant epidermal silencers. We also note that because R15F01 is activated in part of the placode cells before invagination, there should be a mechanism for this transient activation, regardless of tissue architecture. After invagination, R15F01 activity is maintained only in invaginated cells independent of the degree of invagination, suggesting that R15F01 senses both initial placode activation cues and morphogenetic invagination cues for trh expression. In addition, R15F01 is also reported to be a conserved Polycomb response element (PRE) (Hauenschild et al., 2008; Schuettengruber et al., 2014). ChIP signals for several Polycomb factors, such as Polycomb, Pleiohomeotic, Polyhomeotic distal, and Dorsal switch protein 1, are highly concentrated along the R15F01 region, especially in the D1 region, which shows strong silencer activity for mini-y, and this pattern is conserved across Drosophila species (Schuettengruber et al., 2014) (ChIP atlas; http://chip-atlas.org and GSE60428). Since these analyzes were performed using whole embryos, it is still unclear in which cells these Polycomb factors associate with the R15F01 locus. It was also recently reported that some developmental enhancers can also function as PREs (Erceg et al., 2017). These findings suggest that R15F01 functions as a developmental enhancer in tracheal cells, while it operates as a PRE in other cells, including epidermal cells. If so, counteracting this PRE activity at the trh locus only in invaginated cells may be the critical step for coupling Trh expression and tubular architecture.

The terminal differentiation of tracheal cells is likely to be a consequence of the relocation of tracheal primordial cells from the surface epidermis to the inside of the trachea and the suppression of the epidermal silencer activity of trh. An essential remaining question is how the tracheal cells couple Trh expression with invaginated structures during morphogenesis. This study showed that known signaling pathways involved in early tracheal morphogenesis, such as JAK-STAT, EGFR and FGFR signaling, are dispensable for maintaining R15F01 activity only in invaginated cells. One possible mechanism is sensing the change in epithelial geometry from sheet to tube through mechano-transduction pathways. Cells are known to sense rigidity in their environment, mechanical stress, and their own morphology and cytoskeletal architecture and to control gene expression and chromatin organization in response to these factors (Chan et al., 2017; Kirby and Lammerding, 2018; Kumar et al., 2017; Panciera et al., 2017). Another possibility is that the cell can detect geometrical conversion through a change in the local concentration of secreted molecules (Gilmour et al., 2017). Buckling and bending of the intestinal epithelium affect the local concentration of Sonic hedgehog (Shh) to help define the positions of stem cells in chicks (Shyer et al., 2015). In addition, lumen formation and the luminal accumulation of FGF promote differentiation at the zebrafish lateral line (Durdu et al., 2014). At present, we do not have evidence that any signaling pathways affected by secreted ligands or known mechano-transduction pathways, such as Hippo, Src-Arm, or Ca²⁺, are involved in invagination-responsive Trh expression. In addition, it is still unclear whether cells directory sense the invaginated structure to terminally differentiate into tracheal cells or whether the relocation from the surface epidermis to the inside of the embryos just allows cells to acquire a non-epidermal fate. It remains a future challenge to discriminate among these possibilities.

Because all tissues and organs must match their architecture with their cellular phenotype to function properly, similar canalization mechanisms that couple gene expression, cell fate, and tissue geometry may play fundamental roles in shaping functional organs. Although morphogenetic feedback is proposed to be important for organogenesis, the cellular mechanisms for sensing tissue geometry have only begun to be elucidated. Further study into the cellular and genetic mechanisms by which tracheal cells monitor the process of morphogenesis and adjust their cell fate would help us understand the robustness of animal morphogenesis.

The fly strains used in this study are listed in the Key Resources Table.

Plasmids were constructed using PrimeSTAR max or PrimeSTAR HS (Takara Bio) and an in-fusion PCR cloning kit (Clontech) unless otherwise noted. For pBPGUw-R15F01 and pBPGUw-R14E10, each corresponding region was amplified from genomic DNA, subcloned into pENTR-TOPO, and recombined into pBPGUw [pBPGUw was a gift from Gerald Rubin (Addgene plasmid #17575) (Pfeiffer et al., 2008) using LR recombinase. For pBPGUw-lacZ, the lacZ coding sequence (CDS) was amplified from pCaSpeR-hs-lacZ and subcloned into HindIII-digested pBPGUw. For pBPGUw-R15F01-lacZ, the R15F01 fragment was recombined into pBPGUw-lacZ from pENTR-TOPO-R15F01 using LR recombinase. For pBPGUw-(D1 ~D8 or del1 ~del4)-lacZ, each truncated fragment of R15F01 was amplified from pBPGUw-R15F01 and subcloned into AatII/NaeI-digested pBPGUw-R15F01-lacZ. For pBPGUw-(D1, D7, or del4)-GAL4, each truncated fragment of R15F01 was amplified and subcloned into AatII/NaeI-digested pBPGUw-R15F01. For pBPGUw-trh47 or trh67, each fragment (Sotillos et al., 2010) was amplified from genomic DNA and subcloned into AatII/NaeI-digested pBPGUw-R14E10. For pBPGUw-svbE6B-(D1-2, D3-6 or D1-6)-lacZ, each chimeric fragment was amplified from genomic DNA and plasmids containing a R15F01 fragment and subcloned into AatII/NaeI-digested pBPGUw-R15F01-lacZ. For pBPGUw-3×UAS-GAP43GFP and pBPGUw-3×UAS-R15F01-GAP43GFP, the GFP CDS with the GAP43 palmitoylation sequence was amplified from pUbi-GAP-CAAX (Kondo and Hayashi, 2013) by PCR and subcloned into HindIII-digested pBPGUw (pBPGUw-GAP43GFP). A 3×UAS fragment were generated by annealing two oligo DNAs and subcloned into AatII/NeaI-digested pBPGUw-GAP43GFP. A R15F01 fragment fused to 3×UAS was amplified by PCR and subcloned into AatII/NeaI-digested pBPGUw-GAP43GFP. The primer sequences used in this study are listed in Supplementary file 1.

Transgenic strains were generated by φC31-mediated transgene integration into the attP target sites of attP2, attP40, or ZH-51C (Bischof et al., 2007; Groth et al., 2004) using plasmid DNAs constructed as described above. Plasmid DNA injections were performed in our laboratory or by BestGene. Information about DNA constructs using the attP landing site is included in the table of fly strains. Most of the lacZ reporters were integrated into the attP40 site, except for del1-lacZ, svbE6B-D1-2-lacZ, and svbE6B-D1-6-lacZ. Although one strain of del1-lacZ integrated at the attP40 site was obtained, it had a frame-shift mutation in the lacZ CDS. Therefore, we used this attP40 line with the frameshift to observe the adult body color (Figure 4—figure supplement 1A) and the ZH-51C line to analyze the embryonic β-gal expression (Figure 4—figure supplement 1H). svbE6B-D1-2-lacZ and svbE6B-D1-6-lacZ were also integrated into the ZH-51C site because we could not obtain transformants in which these transgenes were integrated into the attP40 site.

Embryos were prepared for live imaging as previously reported (Kondo and Hayashi, 2013). Imaging was performed using an Olympus FV-1000 with a 60x oil immersion objective (PLAPON 60XO, numerical aperture 1.42, Olympus) at 25°C (Figure 1C) or a Zeiss LSM800 with a 63x oil immersion objective (Objective Plan-Apochromat 63x/1.4 Oil DIC, Zeiss) (Figure 1B) at 25°C with a setting below saturated signal intensity. Images were processed using FIJI software (https://fiji.sc/), and all projection views were generated using the custom FIJI plugin CoordinateShift (written by Housei Wada, https://signaling.riken.jp/en/en-tools/imagej/). ‘XY’ showed the Z-projection view. ‘YZ’ and ‘XZ’ showed the X-projection and Y-projection views of a boxed area in the ‘XY’ panels. The range of intensity was adjusted using FIJI software, avoiding saturation of the signal.

Embryos were dechorionated in 50% bleach for 2 min and fixed in 1:1 4% PFA containing 1 mM CaCl₂ and heptane for 20 min at room temperature. The vitelline membrane was removed by shaking in 1:1 methanol and heptane. Embryos were washed in PBSTwx (PBS with 0.2% Tween 20% and 0.2% Triton X-100) 3 times for 15 min each and blocked in PBSTwx with 1% BSA for 60 min at room temperature. Samples were stained with the primary antibody at 4 °C overnight and washed in PBSTwx 3 times for 15 min each. Secondary antibody or phalloidin staining was performed at room temperature for 3 hr. The antibodies used in this study are listed in the Key Resources Table. For dpERK antibody staining, the fluorescent signal was amplified using the Tyramide Signal Amplification system with anti-mouse IgG-biotin, Reagents A and B in the ABC kit, and Cy3 Tyramide. After staining, the embryos were washed in PBSTwx 3 times for 15 min each and mounted in Vectashield Mounting Medium with DAPI (Vector Laboratories) or SlowFade Diamond Antifade Mountant with DAPI (Molecular Probes).

Images of fixed embryos were taken using a Zeiss Apotome.2 equipped with ORCA-Flash V2 (Hamamatsu Photonics) and a 20x dry objective (Objective Plan-Apochromat 20x/0.8, Zeiss) or a 63x water immersion objective (Objective C-Apochromat 63x/1.20 W, Zeiss) with a setting below saturated signal intensity unless otherwise noted. For Figure 1—figure supplement 1, images of fixed embryos were taken using an Olympus FV-1000 with a 20x objective lens (UPLSAPO 20X numerical aperture 0.75, Olympus). Images were processed using FIJI software, and all projection views were generated using a custom FIJI plugin CoordinateShift (https://signaling.riken.jp/en/en-tools/imagej/). The Z-projection, X-projection, and Y-projection regions were manually determined for each image. ‘XY(epi)’ showed the Z-projection view at the surface-epidermis level, and ‘XY(tra)’ showed the Z-projection view at the level inside the trachea. ‘YZ’ and ‘XZ’ showed the X-projection and Y-projection views of a boxed area in the ‘XY’ panels. All images were acquired with a 63x water immersion objective (Objective C-Apochromat 63x/1.20 W, Zeiss) were smoothed with a 1-Sigma (radius) Gaussian Blur filter. The dynamic range of intensity was adjusted while avoiding saturation of the signal. For the DE-cad signal, the intensity was adjusted to show the epithelial tissue geometry more clearly; therefore, some dense signals were oversaturated. For the svbE6B chimeric reporter analyzes in Figure 5B–F, the β-gal signal was collected and adjusted using the same parameters among strains using the same transgene landing site (attP40 or ZH-51c). For the 3 × UAS chimeric reporter analyzes in Figure 5G–I, the GFP signal was collected and adjusted using the same parameters. All images were converted into 8-bit images and assembled using Adobe Illustrator for figures. In all images, the anterior side is to the left, and the dorsal side is up. Since tracheal morphogenesis is left-right symmetric, right-side images were flipped to adjust the directions of the anterior-posterior and dorsal-ventral axes.

The numbers of Trh-positive cells and β-gal-positive cells were counted manually using Z-stack images taken by a Zeiss ApoTome.2 and FIJI software with the Cell Counter plug-in. The 4th, 5th, and 6th tracheal metameres of each embryo were used for this quantification. Boxplots and beeswarms were drawn, and statistical analyzes were performed using R software (https://www.r-project.org/). Exact Wilcoxon-Mann-Whitney Tests were performed using the Wilcox_test function from the coin package. Steel-Dwass tests were performed using pSDCFlig from the NSM3 package with the Asymptotic method.

Images of 1-day-old adult flies were taken using a Leica S8APO stereomicroscope equipped with an Olympus AIR01 digital camera. Images were adjusted using Adobe Photoshop and assembled using Adobe Illustrator for figures.
