Amidst multiple binding orientations on fork DNA, Saccharolobus MCM helicase proceeds N-first for unwinding

  1. Himasha M Perera
  2. Michael A Trakselis  Is a corresponding author
  1. Baylor University, United States
Research Article
  • Cited 0
  • Views 407
  • Annotations
Cite this article as: eLife 2019;8:e46096 doi: 10.7554/eLife.46096

Abstract

DNA replication requires that the duplex genomic DNA strands be separated; a function that is implemented by ring-shaped hexameric helicases in all Domains. Helicases are composed of two domains, an N- terminal DNA binding domain (NTD) and a C- terminal motor domain (CTD). Replication is controlled by loading of helicases at origins of replication, activation to preferentially encircle one strand, and then translocation to begin separation of the two strands. Using a combination of site-specific DNA footprinting, single-turnover unwinding assays, and unique fluorescence translocation monitoring, we have been able to quantify the binding distribution and the translocation orientation of Saccharolobus (formally Sulfolobus) solfataricus MCM on DNA. Our results show that both the DNA substrate and the C-terminal winged-helix (WH) domain influence the orientation but that translocation on DNA proceeds N-first.

https://doi.org/10.7554/eLife.46096.001

Introduction

The hexameric MCM complex is conserved throughout archaea and eukaryotic species as the DNA helicase that unwinds the duplex genome providing leading and lagging strand templates for replication. The MCM proteins themselves are bilobal with a N-terminal domain (NTD) that acts to stabilize binding to single-strand DNA (ssDNA), a C-terminal domain (CTD) that contains the conserved AAA+ (ATPases associated with diverse cellular activities) motor domain that provide energy for translocation and DNA unwinding, and a winged-helix (WH) domain for DNA binding (Trakselis, 2016). DNA unwinding proceeds by encircling and translocating along the leading strand in the 3’−5’ direction, while sterically excluding the lagging strand template (Kelman et al., 1999; Chong et al., 2000; Bochman and Schwacha, 2009).

In eukaryotes, six homologous proteins comprise the MCM2-7 heterohexameric complex (Yuan et al., 2016). MCM2-7 interacts with Cdc45 and the GINS heterotetramer (Psf1, 2, 3, Sld5) to form the active unwinding CMG complex (Moyer et al., 2006). GINS binds primarily to the AAA+ CTD of MCM5 bringing in Cdc45 to interact with and close the interface with MCM2, aligning the motor domains into a proper configuration for activity (Costa et al., 2011). Archaea have a single MCM protein that is equally homologous to the six eukaryotic MCM2-7 proteins (Makarova et al., 2012; Goswami et al., 2015), and in contrast to eukaryotes, the archaeal MCM helicase is active on its own in vitro and does not require accessory proteins for robust DNA unwinding (Chong et al., 2000; Marinsek et al., 2006). Archaeal MCM forms a homohexameric complex but can also interact with orthologs of Cdc45 (RecJ) and the GINS (GINS23, GINS15) complex to stimulate the helicase activity further (Yoshimochi et al., 2008; Lang and Huang, 2015; Xu et al., 2016), although Cdc45 (i.e. GAN) is not required for viability in the euryarchaea,Thermococcus kodakarensis, possibly implicating this protein as a redundant nuclease for Okazaki fragment maturation (Burkhart et al., 2017).

Loading of the MCM complexes onto and encircling of double-stranded DNA (dsDNA) origins have been a subject of intense experimentation (Remus et al., 2009; Ticau et al., 2015; Frigola et al., 2017; Ticau et al., 2017), but the consensus origin loaded double hexamer state places the NTDs together with the CTDs facing outwards (Sun et al., 2013). This head-to-head orientation achieved during initiation is also conserved with the analogous Large-T antigen of SV40 virus (Valle et al., 2000; Gomez-Lorenzo et al., 2003). There are still remaining questions as to how the MCM or CMG complex goes from encircling dsDNA to selecting one of the ssDNA strands for translocation. Recent data in the eukaryotic system shows this will involve cyclin dependent kinases (CDK) firing factors, additional components including MCM10, and ATP hydrolysis by MCM subunits to untwist the dsDNA to give two independent CMGs that have encircled opposing strands (Douglas et al., 2018). Because the CMG complex translocates 3’ to 5’, the selection of one strand over the other will dictate whether the two hexamers dissociate from each other or pass over each other for elongation. These two mechanisms will be distinguished by whether the CTD or the NTD, respectively, are leading the way for unwinding. In yeast, the N-first mechanism of CMG translocation has been confirmed, which involves a physical passing of each helicase to regulate origin firing before establishing the replisome progression complex (RPC) (Georgescu et al., 2017; Douglas et al., 2018), but this has not been confirmed in other species that contain MCM.

The binding orientation of the single archaeal MCM hexamer bound on fork DNA has been shown previously to place the CTD near the fork junction, suggesting a C-first mechanism of unwinding (McGeoch et al., 2005; Rothenberg et al., 2007; Costa et al., 2014). An X-ray structure of an NTD construct of an archaeal MCM shows ssDNA binding orthogonal to the central channel consistent with either N-first or C-first translocation (Froelich et al., 2014). C-first translocation for MCM was analogous to the orientation of the homohexameric Escherichia coli (E. coli) DnaB, which although it has opposite unwinding polarity (5’−3’), also places its CTD RecA motor domain near the duplex region (Jezewska et al., 1998). This is now directly challenged by the cryoEM data from higher order eukaryotic systems (Georgescu et al., 2017). The strong homology between the archaeal and eukaryotic DNA replication systems would not suggest significant differences in translocation and unwinding mechanisms of the MCM complexes (Barry and Bell, 2006).

This report characterizes both the distribution of archaeal MCM binding to the ssDNA regions of fork DNA as well as the translocation orientation of the MCM complex during active unwinding to compare the mechanistic properties between Domains. Many studies have focused on examining the static structural features of helicase binding to DNA or the mechanistic aspects of DNA translocation and unwinding polarity, but few have simultaneously examined both. Using multiple site-specific DNA footprinting techniques, the orientation population distribution of the DNA fork bound Saccharolobus (formally Sulfolobus [Sakai and Kurosawa, 2018]) solfataricus (Sso) MCM complex was determined. We show that SsoMCM can bind both strands of fork DNA in multiple orientations complicating interpretations, however the NTD adjacent to the duplex region (N@duplex) on a 3’-long arm fork is significantly favored, providing more insight into the productive orientation. Binding to fork DNA is affected by the WH domain at the C-terminus that influences the binding orientation. Deletion of the WH domain results in a loss of orientation specificity on 3’-long arm fork substrates mimicking the initial stages of helicase activation. Single-turnover DNA unwinding experiments reveal the stoichiometry of productively bound SsoMCM orientations that are influenced by the WH domain and correlate with an N-first translocation and unwinding mechanism. Finally, presteady-state fluorescence resonance energy transfer (FRET) experiments that directly monitor the translocation and unwinding direction of productive SsoMCM complexes confirm an N-first mode of unwinding.

Results

The orientation distribution of SsoMCM is mapped directly on equal arm fork DNA by localized footprinting

Previously, our group and others have shown that SsoMCM loads onto fork DNA with the CTD towards the duplex (C@duplex) binding orientation (McGeoch et al., 2005; Rothenberg et al., 2007; Costa et al., 2014), however, its active translocation orientation has yet to be determined. This C@duplex binding orientation has been used to speculate that MCM also translocates in a C-first orientation (Remus et al., 2009; Graham et al., 2011; Zhou et al., 2012; Bell and Botchan, 2013; Costa et al., 2013; Costa et al., 2014; Miller and Enemark, 2015; Martinez et al., 2017). However, more recent evidence has shown that when assembled within a leading strand holoenzyme complex, yeast MCM2-7 helicase assembles with the NTD leading the way (N-first) (Georgescu et al., 2017). In order to more specifically quantify the binding orientation distribution of SsoMCM on model fork substrates, we utilized two separate and specific DNA cleavage strategies.

Single free cysteines within the CTD, at either C642 or C682, were utilized by mutating the other to alanine, releasing an inherent disulfide (McGeoch et al., 2005). Either cysteine was then labelled independently with the photoactivatable crosslinker, 4-azidophenacyl bromide (APB). APB attachment at C682 (C642A mutant) provided the greatest signal shift in mobility when crosslinked to DNA (Figure 1—figure supplement 1). APB crosslinking to DNA bases is generally non-specific after activation by UV light (Pendergrast et al., 1992; Nodelman et al., 2017), yet we detected significant crosslinking and subsequent ssDNA cleavage even in the absence of direct UV light (Figure 1—figure supplement 2). This was dependent on specific attachment of APB to SsoMCM (lanes 5 vs. 3 or 4), and it was enhanced after exposure to UV light and alkaline digestion (lanes 9–11). Overall, SsoMCM-APB had many cut sites along the length of both ssDNA substrates favoring positioning at the middle of the ssDNA substrate, implicating nonspecific binding orientation at multiple positions.

To further investigate the orientation of SsoMCM on equal arm fork DNA, APB (for crosslinking/digestion) or FeBABE (for a localized hydroxyl radical Fenton footprinting reaction; Owens et al., 1998) were conjugated at C682 using SsoMCM(C642A) mutant. Cleavage could be induced specifically with UV light/NaOH (APB) (Figure 1A or D) or hydrogen peroxide and ascorbic acid (FeBABE) (Figure 1B or E) on two separate forks labelled with 5’-Cy3 or 3’-Cy5 at the duplex end. In all situations, multiple cleavage sites were detected on the ssDNA region of the labelled strand (indicated by arrows), suggesting different orientation populations and positioning of SsoMCM. SsoMCM can bind 3’ or 5’ ssDNA arms with similar affinities to fork DNA, however when noncomplementary 3’ and 5’ fork arms are available, there is a preference for binding/encircling the 3’-arm (Rothenberg et al., 2007). SsoMCM has a significantly lower binding efficiency (~4 fold less) for duplex DNA over fork substrates measured at the single molecule level (Rothenberg et al., 2007), essentially eliminating the possibility of SsoMCM encircling the duplex region and contributing significantly to cutting the ssDNA arms. Furthermore, anisotropy experiments performed with SsoMCM and duplex DNA also show a larger dissociation constant (Kd) over fork substrates (Figure 1—figure supplement 3), suggesting that SsoMCM preferentially binds ssDNA arms of the fork DNA. Moreover, stoichiometric (~1:1 MCM6:DNA) concentration ratios were maintained throughout to promote binding to the highest affinity site and limit nonspecific binding to the duplex region. To test this directly, DNaseI footprinting experiments and Electrophoretic Mobility Shift Assays (EMSA) were performed and confirmed complete DNA binding without protection of the duplex region (Figure 1—figure supplement 4). Previously, we have shown that the 5’-excluded strand is protected from ssDNA nuclease digestion upon SsoMCM binding (Graham et al., 2011) and that titration of large amounts of SsoMCM on fork substrates does not compete off the external excluded strand to favor two hexamers binding (Carney and Trakselis, 2016). Therefore, the predominate bound species is a stoichiometric single SsoMCM hexamer encircling one ssDNA arm and interacting with the other on the exterior surface, but other minor populations also exist.

Figure 1 with 4 supplements see all
SsoMCM orientation mapping onto equal arm fork DNA substrates.

(A) APB or (B) FeBABE orientation mapping of the 3’- encircled strand labelled at the 5’- duplex end with Cy3 on an equal arm fork DNA substrate with a 20 base duplex (DNA164/165-3). SsoMCM was labelled with APB or FeBABE at C682 (within the C-term WH motif) specifically. DNA cleavage was induced and enhanced with UV light [for APB: (A), lane 6] or H2O2 and ascorbic acid (AA) [for FeBABE; (B), lane 5). Arrow thickness indicates the relative amount and position of DNA cleavage. (C) Quantification of the relative amount of DNA cleavage for bases 20-35 or 36-50 from the 5’- end indicate the relative orientation for placing the N-term (N@duplex, orange) or C-term (C@duplex, blue), respectively, closer to the duplex junction for either APB or FeBABE mapping. Similarly, (D) APB or (E) FeBABE orientation mapping of the 5’- excluded strand labelled at the 3’- duplex end with Cy5 (164-5/165). (F) Quantification of the relative amount of DNA cleavage for bases 20-35 or 36-50 from the 5’- end indicate the relative orientation for N@duplex or C@duplex, respectively, closer to the duplex junction for either APB or FeBABE mapping. DNA markers (M) indicate 18 and 50 bases and fork DNA. Error bars represent standard error from 3-5 independent experiments. The products were run on a 20% native PAGE gel. p-values are defined as *< 0.05, **< 0.01 ***<0.001.

https://doi.org/10.7554/eLife.46096.002

Using either cleavage agent, there is evidence for footprinting of the CTD of SsoMCM towards the duplex end (C@duplex) or the free ends (N@duplex) for either labelled substrate. Cleavage can occur on the encircled strand or the excluded strand consistent with the flexibility of the WH domain to interact with either strand at the fork junction. We quantified and compared the relative footprinting of the CTD delineated by the midpoint of the ssDNA region (Figure 1C and F). The midpoint of a ssDNA arm was selected for quantification based on a void in cleavage there and the strong preference for binding ssDNA over duplex DNA at stoichiometric concentrations to describe only binary binding orientations. For either agent (APB or FeBABE), there was a significant ~3:1 preference for placing the CTD closer to the duplex region (C@duplex) independent of which strand is labelled.

The orientation of SsoMCM on asymmetric arm fork DNA by localized footprinting has preference for N@duplex

Although footprinting on equal arm fork DNA favors C@duplex, it is probable that some proportion of SsoMCM is encircling the 5’-arm, complicating our analysis and interpretation. Therefore, asymmetric arm fork DNA substrates that have a 3’-long arm with different length (0 nucleotide (nt) or eight nt) 5’-arms were designed. Fluorescence anisotropy binding experiments show that SsoMCM binds a 5’-long arm substrate with similar affinity to 3’-long arm substrates (Figure 1—figure supplement 3). Some archaeal species have a MCM central channel that can occupy both ss and dsDNA (Fletcher et al., 2003; Pape et al., 2003). Therefore, SsoMCM when loaded onto the 3’-long arm fork substrate containing a 0 nt 5’-arm has the possibility of being translocated over the duplex DNA region and then cleaving outside of our boundaries. In order to overcome this, substrates were designed with an 8 nt short 5’-arm. This length was designed to be long enough to prevent translocation over duplex DNA and short enough to prevent helicase loading onto the 5’-arm. It has been previously shown that archaeal MCM requires > 16 nts for productive binding/unwinding (Haugland et al., 2006).

Therefore, these orientation mapping experiments were repeated with APB labelled at C682 but limiting the 5’-arm to eight nts to enforce encircling of the 3’-arm. APB footprinting studies of the 3’-long arm substrate instead show that there is nearly a 1.5:1 preference of placing the NTD closer to the duplex region (N@duplex) (Figure 2A–B). There is a significant increase and reversed preference for orientating N@duplex for the 3’-long arm fork substrate over the equal arm fork substrate (Figure 1C). This suggests that the 5’-long arm either impacts the helicase orientation or that multiple populations of helicases can exist bound on either the 3’- or 5’-arm of the equal arm fork. Therefore, we repeated APB mapping experiments on an opposite 5’-long arm substrate with a shorter 8 nt 3’-arm (Figure 2C–D). Here, the footprinting orientations were reversed, with a >3:1 preference for C@duplex (Figure 2D). Therefore, on these long arm fork DNA substrates, SsoMCM can bind either the 3’- or 5’-arm in both orientations, but the preferred 3’-5’ polarity is CTD-NTD.

SsoMCM orientation mapping onto 3’-(DNA171/165-3) or 5’-(DNA172/164-5) long arm fork DNA substrates.

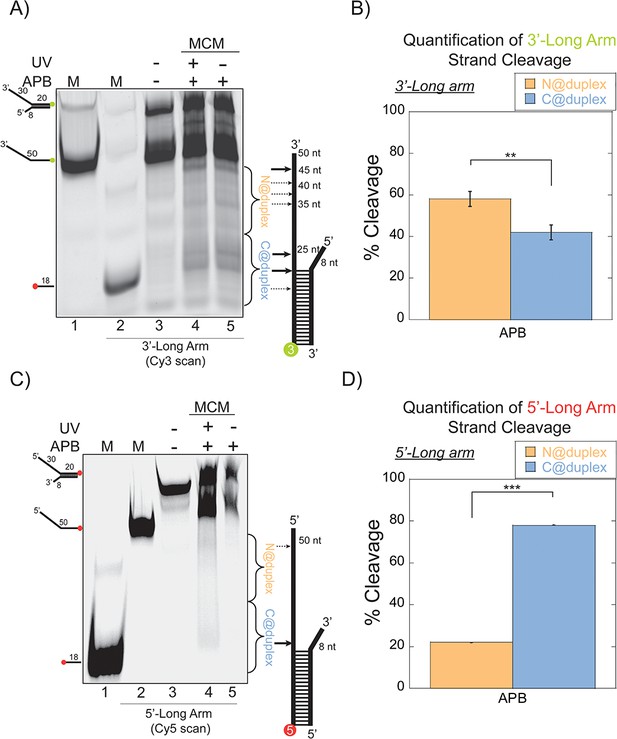

(A) APB orientation mapping of the 3’-encircled strand labelled at the 5’ duplex end with Cy3 on a 3’-long arm fork DNA substrate with a 20 base duplex. SsoMCM was labelled with APB at C682 (within the C-term WH motif) specifically. (B) Quantification of the relative amount of DNA cleavage for bases 20–35 or 36–50 from the 5’-end indicate the relative orientation for placing the N@duplex (orange) or C@duplex (blue), respectively closer to the duplex junction. Similarly, (C) APB orientation mapping of the 5’-excluded strand labelled at the 3’-duplex end with Cy5 on a 5’-long arm fork DNA substrate with a 20 base duplex. (D) Quantification of the relative amount of DNA cleavage for bases 20–35 or 36–50 from the 3’-end indicate the relative orientation for N@duplex or C@duplex, respectively, closer to the duplex junction. DNA cleavage was induced and enhanced with UV light [(A), lane 4, (C), lane 4]. Arrow thickness indicates the relative amount and position of DNA cleavage. DNA markers (M) indicate 18 and 50 bases and fork DNA. Error bars represent standard error from 3 to 5 independent experiments. The products were run on a 20% native PAGE gel. p-values are defined as *<0.05, **<0.01 ***<0.001. shorter 8 nt 3’-arm (Figure 2C–D). Here, the footprinting orientations were reversed, with a > 3:1 preference for C@duplex (Figure 2D). Therefore, on these long arm fork DNA substrates, SsoMCM can bind either the 3’- or 5’-arm in both orientations, but the preferred 3’−5’ polarity is CTD-NTD.

https://doi.org/10.7554/eLife.46096.007

The C-terminal WH domain influences the binding orientation of SsoMCM on fork DNA

The WH domain at the C-terminus of SsoMCM is suggested as a substrate recognition or localization domain (Aravind et al., 2005). Moreover, the WH domain in both archaea and eukaryotes is considered important for determining MCM helicase loading and initiation during replication (Samson et al., 2016a; Martinez et al., 2017; Goswami et al., 2018) and mediates DNA binding (Gaudier et al., 2007). Thus, we hypothesized that the WH domain may have regulatory effect on directing the orientation of SsoMCM helicase on DNA. To determine this, we utilized SsoMCM-WH mutant (aa 1–612) with two separate cysteine mutations at the CTD (G452C and S456C) (Figure 3A). Footprinting experiments were repeated with APB labelled at either C452 or C456 of SsoMCM–WH on equal arm (Figure 3B) or 3’-long arm (Figure 3D) substrates. The results show a loss of orientation specificity (Figure 3C and E) compared with Figure 1C or 2B.

SsoMCM (-WH) orientation mapping onto fork DNA substrates.

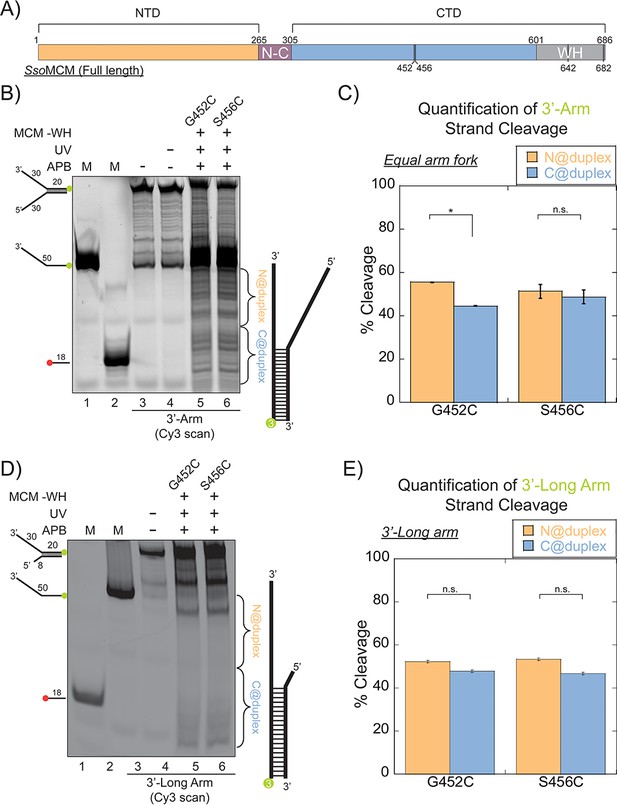

(A) Schematic of full length SsoMCM highlighting the NTD (orange), CTD (blue), and the WH domain (grey) and cysteine sites of conjugation used. (B) Orientation mapping of SsoMCM labelled at C452 or C456 with APB for the 3’-encircled strand labelled at the 5’-duplex end with Cy3 on a forked DNA substrate with a 20 base duplex. DNA cleavage was enhanced with UV light and the products run on a 20% native PAGE gel. The brackets indicate the regions quantified (bases 20-35 or 36-50) for (C) the relative amount and position of DNA cleavage and correspond with the relative orientation of the SsoMCM hexamer; N@duplex (orange) or C@duplex (blue). (D) 3’-encircled strand labelled at the 5’-duplex end with Cy3 on a 3’-long arm fork DNA substrate (E) the relative amount and position of DNA cleavage and correspond with the relative orientation of the SsoMCM hexamer. DNA markers (M) indicate 18 and 50 bases and fork DNA. Error bars represent standard error from 3-5 independent experiments. p-values are defined as *< 0.05, **< 0.01 ***<0.001. n.s. is not significant.

https://doi.org/10.7554/eLife.46096.008

As shown above, SsoMCM-WH is likely bound on the equal arm fork DNA in at least four populations (two orientations and on either strand). SsoMCM WT on equal arm fork substrates (Figure 1C) specifically loads C@duplex, but when SsoMCM-WH binds the same substrate, it loses a binding preference (Figure 3C). When ABP footprinting experiments were repeated with the 3’-long arm substrate, there is a complete loss of orientation specificity on both mutants (Figure 3E). These results show that the WH domain of SsoMCM influences the binding orientation of this helicase on equal arm fork DNA to place C@duplex but that this WH domain is less important for when engaging ssDNA for translocation.

Single-turnover DNA unwinding experiments determine relative productive occupancy

Previously, multiple reports have shown that the fraction unwound by SsoMCM generally hovers between 0.3 and 0.5 depending on the substrate and conditions (Barry et al., 2007; Graham et al., 2011; Graham et al., 2018). The proportion of SsoMCM bound in a productive orientation and state can be determined in a single-turnover DNA unwinding experiment. Single-turnover unwinding conditions were initiated by the simultaneous addition of a 20-fold excess of unlabelled ssDNA and ATP to a prebound SsoMCM/DNA complex. The proportion of productive translocating SsoMCM hexamers will correlate with the total unwound DNA fraction. Different Cy3 or Cy5 labelled DNA substrates comprised of equal 30 nt fork arms or asymmetric 30 and 8 nt arms were used for unwinding experiments with WT SsoMCM (Figure 4A). The fork DNA substrate has four possible SsoMCM binding orientations (N@duplex or C@duplex on either the 5’ or 3’-arms) and unwinds 0.26 ± 0.01 fraction of DNA. Instead, restricting loading to only the 3’-long arm (8 nt 5’-arm) with only two possible orientations significantly increased the unwound fraction to 0.54 ± 0.03. When experiments were repeated with 0 nt at the 5’ end, there was 2-fold decrease in unwound product confirming that SsoMCM can translocate over the duplex region of the substrates in the absence of any 5’-arm (Figure 4—figure supplement 1). Background unwinding on the 5’-long arm (with 0 or 8 nt 3’-arm) displays only 0.08 ± 0.01 or 0.13 ± 0.01 fraction unwound, respectively (Figure 4—figure supplement 1). Therefore, an 8 nt 3’-arm is not long enough to facilitate unwinding to any significant degree. Hence, the 3’-long arm (with 8 nt 5’-arm) fork substrate enables the most productive fraction of SsoMCM helicases competent for unwinding.

Figure 4 with 1 supplement see all
Single turnover DNA unwinding.

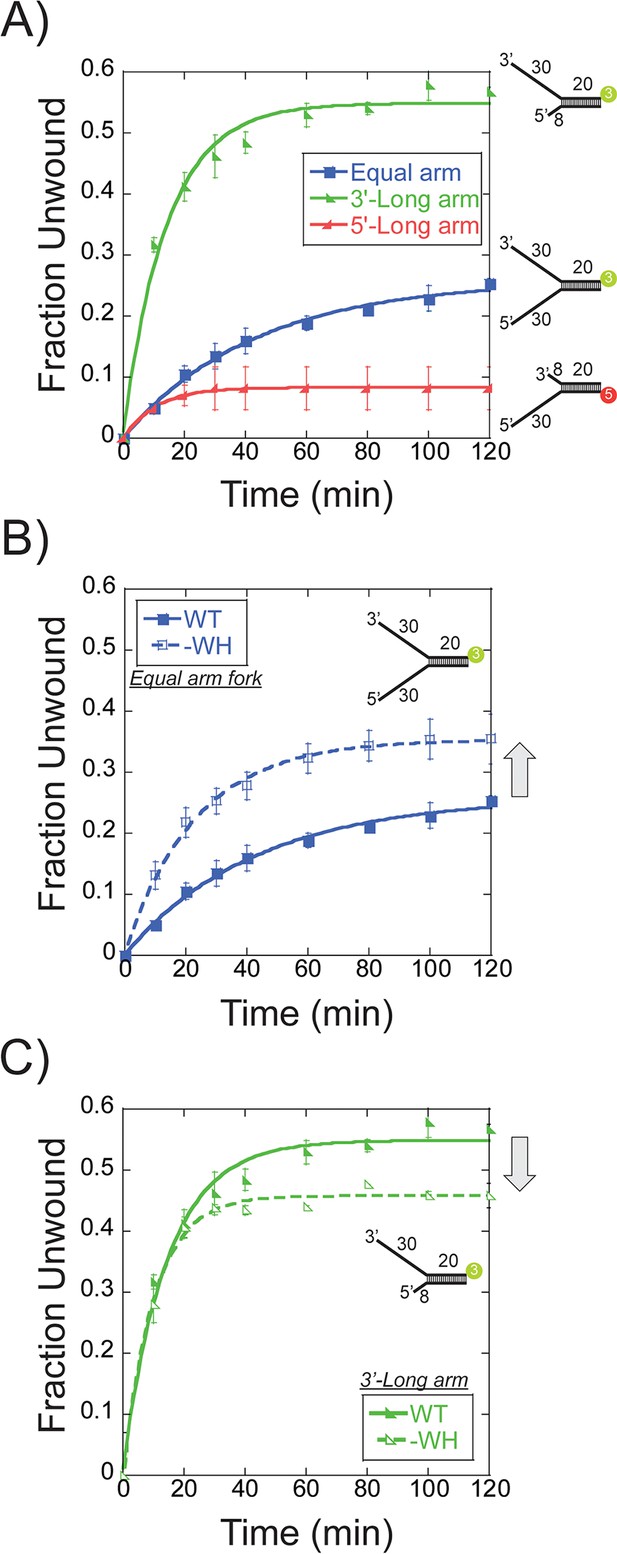

(A) DNA unwinding of equal arm (in blue boxes -■-, 5’-Cy3 labelled at the duplex), 3’-long arm (in green lower left triangle -◣-, 5’-Cy3 labelled at the duplex), 5’-long arm (in red lower right triangle -SsoMCM WT. Experiments were simultaneously initiated with ATP and an unlabelled ssDNA trap oligo identical to the labelled strand as described in the Materials and methods. (B) DNA unwinding of equal arm fork DNA substrate (5’-Cy3 labelled at duplex) with SsoMCM WT (in closed boxes -■-) and –WH (in open boxes -□-). There is an increase in total DNA unwound with –WH compared to WT (grey arrow). (C) DNA unwinding of 3’-long arm fork DNA substrate (5’-Cy3 labelled at duplex) with SsoMCM WT (in lower left closed triangle -◣-) and –WH (in lower left open triangle -◺ -). There is a decrease in the total DNA unwound with –WH compared to WT (grey arrow). Error bars represent standard error from 3 to 5 independent experiments and data was fit to Equation 3.

https://doi.org/10.7554/eLife.46096.009

As the WH domain was shown above to influence the binding orientation, DNA unwinding was repeated on the fork and 3’-long arm with SsoMCM-WH. Previously, deletion of the WH motif had no effect on DNA binding affinity but significantly increased DNA unwinding in a steady-state experiment (Barry et al., 2007). The –WH mutant showed a significant increase in the unwound product with the fork (0.35 ± 0.01) (Figure 4B) but a slight decrease with the 3’-long arm (0.46 ± 0.01) (Figure 4C) compared with WT. An increased amount of unwound product with the fork substrate suggests a loss in specificity for SsoMCM orientation and correlates with the near equal N@duplex and C@duplex cleavage mapping (Figure 3C). The slight decrease in unwound product with the 3’-long arm correlates with the fraction of N@duplex mapped for WT (0.57 ± 0.03) (Figure 2B) or –WH (0.52 ± 0.01) (Figure 3E) on the same substrate. Therefore, the flexible WH domain influences the population distribution of binding SsoMCM on fork DNA.

Further comparison of DNA unwinding and footprinting results can lead to the identification of the proportion of SsoMCM bound in a productive orientation. The fraction unwound for the equal arm fork substrate, 0.26 ± 0.01 (Figure 4A), corresponds with a similar footprinting ratio of 0.23 ± 0.03 for N@duplex (Figure 1C) implicating an N-first translocation orientation. The fraction unwound for the 3’-long arm fork substrate, 0.54 ± 0.03 (Figure 4A), also corresponds with a footprinting ratio of 0.57 ± 0.03 for N@duplex (Figure 2B) again correlating with an N-first translocation mechanism.

Steady-state FRET monitors SsoMCM loading on fork DNA at the duplex

To more directly monitor orientation and translocation, we turned to fluorescence assays. Steady-state FRET experiments were designed to qualitatively detect SsoMCM binding to forked DNA in a stalled and loaded state from the duplex region. The DNA substrate contains a biotin on the translocating strand (nine bases from the duplex junction) that when bound with streptavidin has been shown to inhibit DNA unwinding (Graham et al., 2011) (Figure 5A). A fluorescein-dT (FAM) is placed six nts beyond the biotin on the complementary strand and is used to detect FRET upon binding SsoMCM labelled at either the N-terminus or C682 with Cy3. SsoMCM is able to bind to this substrate in multiple orientations on either the 30mer 3’- or 20mer 5’-strands that will give drastically different FRET signals. The absolute FRET values will depend on the exact spatial location of Cy3 at the N or C-termini and the relative binding orientation distributions. The labelling of SsoMCM was controlled by dye stoichiometry and reaction time to give 0.4–0.6 Cy3 labels per SsoMCM protein. This puts on average 2–3 Cy3 molecules in the SsoMCM hexamer. The experimental FAM quenching result shows an overall small but significant quenching in fluorescence at 518 nm for both labelled SsoMCMs (Figure 5B) that is consistent with multiple binding populations. The distance of the FAM dye to Cy3 labels near the duplex is modelled to be less than the R0 value for this dye pair (~60 Å) and should be quenched vastly more for one construct over the other if there is a binding preference for either C@duplex or N@duplex. However, results from Figure 1 and 2 indicate that multiple binding orientations predominate favoring C@duplex when there is a long 5’-arm. Qualitatively, the larger quenching for the C-terminally labelled SsoMCM is consistent with a greater distribution that places C@duplex on this semi equal arm fork substrate (Figure 1).

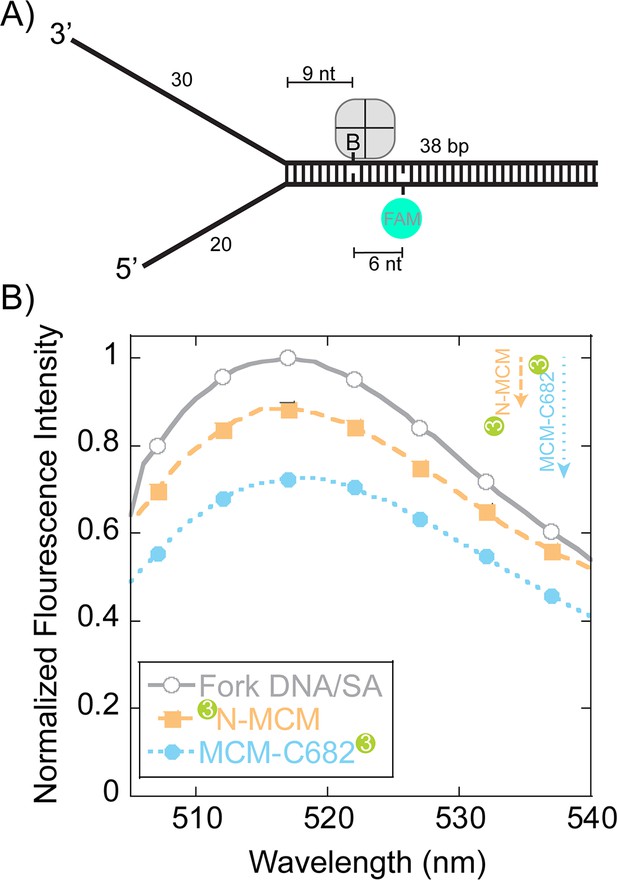

Steady-state FRET quenching of SsoMCM bound to a fork DNA.

(A) Schematic of the DNA fork substrate that includes a 30 nt 3’-arm, 20 nt 5’-arm, a biotin placed nine nt from the duplex junction and a dT-FAM placed a further six nt downstream. The Tm of the duplex was calculated to be greater than 75°C. (B) Normalized FAM quenching effects upon addition of SsoMCM labelled with Cy3 at the N-terminus (closed boxes, orange) or C682 (closed circles, blue). Background changes in fluorescence upon addition of unlabelled SsoMCM were subtracted prior to normalization.

https://doi.org/10.7554/eLife.46096.011

Unwinding directionality determined by presteady-state FRET is confirmed to be N-first

In order to more directly monitor the orientation directionality during unwinding, we changed the experiment setup to monitor presteady-state fluorescence changes in a stopped-flow instrument capable of monitoring loading and translocation of the helicase at 57°C. The 5’-arm was shortened to seven nts to limit loading on that strand and distinguish between translocation orientations solely on the 3’-arm. Binding/loading of SsoMCM labelled at C682 or the N-terminus with Cy3 to fork DNA bound by streptavidin showed similar double exponential increases in Cy3 sensitization with rates of 0.57 ± 0.03 s−1 and 0.030 ± 0.001 s−1 or 0.65 ± 0.02 s−1 and 0.043 ± 0.01 s−1, respectively. (Figure 6—figure supplement 1). Exclusion of ATP in the experiment did not significantly change the exponential results, 0.62 ± 0.01 s−1 and 0.043 ± 0.001 s−1, for N-terminally labelled SsoMCM showing that binding is independent of nucleotide as shown previously (McGeoch et al., 2005). Increases in fluorescence are noted for both N and C-terminal labelled SsoMCM consistent with both orientations bound.

When we preloaded SsoMCM on DNA and instead initiated translocation with ATP in the second syringe, we can monitor directionality of movement by FRET up to the streptavidin block. The design of this experiment relies on the longitudinal length of SsoMCM (>85 Å), the loading orientation (N@duplex or C@duplex), the placement of dyes at the N or C-terminal ends, and the known 3’−5’ unwinding polarity. Although MCM helicases have been shown to displace streptavidin from biotin on the translocating strand, the rate of this displacement in is on the order of hours. Our experimental time courses for these assays are 5 min, where no streptavidin displacement was shown previously (Graham et al., 2011). Therefore upon addition of ATP, the MCM helicase will translocate into the duplex region (~9 nts), stall at the streptavidin block, resulting in an increased FRET value only for a fluorescent label on the leading face. The length and sequence of the duplex (36 bases) was designed such that separation of ~9 base pairs would not result in a thermodynamically unstable intermediate at 57°C.

When the Cy3 is labelled at C682, translocation N-first would show a minimal to no increase in fluorescence because of the large distance spanning the length of the SsoMCM hexamer; whereas translocation C-first will show a large increase in FRET upon stalling at the streptavidin block. When the stopped-flow experiment was performed, an initial increase (0.53 ± 0.05 s−1) within the first 10 s was noted followed by a slower and more significant decrease in fluorescence (1.1 ± 0.2×10−3 s−1) (Figure 6A). The first faster increase is consistent with more SsoMCM molecules being bound to the DNA template upon addition of ATP (Figure 6—figure supplement 1). The second slower change is consistent with dissociation, but not with C-first translocation.

Figure 6 with 1 supplement see all
Presteady-state stopped-flow measure of SsoMCM translocation/unwinding.

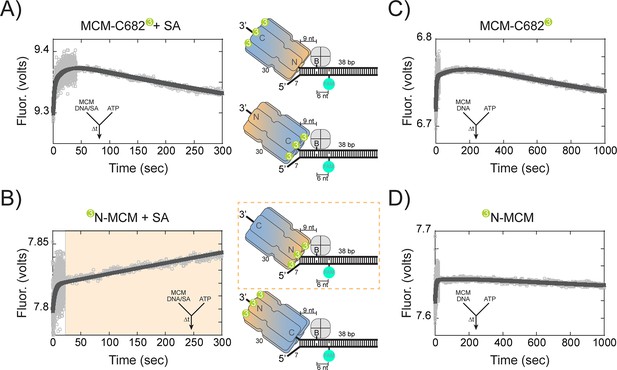

SsoMCM (167 nM hexamer) labelled at (A, C) C682 or (B, D) the N-terminus was preassembled onto 3’-long arm fork DNA (125 nM) with a 30 base 3’-arm and a 7 base 5’-arm in the (A, B) presence or (C, D) absence of streptavidin (375 nM) as indicated. Translocation was initiated through rapid mixing of ATP (1 mM) and the change in fluorescence above 570 nm was monitored using a split time base at 57 oC. Data was fit to Equation 5. The blue shaded region in (B) highlights the N-first translocation mode (boxed).The following figure supplements are available for Figure 6:Figure supplement 1. Presteady-state loading of SsoMCM on DNA. SsoMCM (167 nM hexamer) labelled at (A) C682 or (B) the N-terminus and preincubated with 1 mM ATP was mixed vs 3’-long arm fork DNA (13 nM) with a 30 base 3-’arm and a 7 base 5’-arm blocked with streptavidin (38 nM) as indicated. (C) Experiments in the absence of ATP for SsoMCM labelled at the N-terminus with Cy3. The change in fluorescence above 570 nm was monitored using a split time base at 57 oC. Data was fit to Equation 5.

https://doi.org/10.7554/eLife.46096.012

Conversely, when Cy3 is located at the N-terminus, translocation C-first would show little to no change; whereas, translocation N-first would show a large increase in FRET. In the stopped-flow experiment with N-terminal labelled Cy3, there was an initial increase (0.26 ± 0.02 s−1) similar to that seen with the label at C682, followed by a larger and slower increase (1.5 ± 0.4×10−3 s−1) in fluorescence (Figure 6B). The second rate in both experiments (at 57°C) is consistent with the translocation/unwinding rate of SsoMCM at 60°C (Figure 4A). The single turnover unwinding rate for the 3’-long arm substrate (Figure 4A) is 0.07 ± 0.01 min−1 (or ~ 1.1 ± 0.16 x 10−3 s−1) and is for complete separation of the duplex. The second exponential rate in these presteady-state experiments is extremely similar to the single-turnover experiments and only measures translocation up to nine nts or one fourth of the duplex.

When stopped-flow experiments were performed in the absence of streptavidin, similar initial increases are shown for both C682 (0.27 ± 0.01 s−1) and N-terminal (0.21 ± 0.01 s−1) labelled SsoMCM, but now slower and similar decreases are shown for both labelled constructs (0.85 ± 0.05×10−3 s−1 and 1.0 ± 0.5×10−3 s−1), respectively, consistent with unwinding past the biotin and FAM (Figure 6C and D). SsoMCM is known to unwind over small adducts such as biotin on the translocating strand (Graham et al., 2011) and movement past the FAM label on the excluded strand for both labelled SsoMCMs would result in an increase followed by a larger decrease in FRET upon strand separation that would be stochastically blurred in this time scale.

Translocation orientation on ssDNA determined by presteady-state FRET is consistent with N-first

The fluorescent DNA substrates for the presteady-state FRET experiments were varied to limit duplex length (to 20 bp) and lengthen the single-strand region (to 80 bases) to reduce the possibility of binding and translocating on duplex DNA and complicating our interpretation. Biotin was incorporated four nucleotides prior to the duplex region where a FAM label was placed. Translocation of SsoMCM along the ssDNA region would stall when streptavidin was included prior to reaching the duplex but close enough to elicit an increase in FRET when SsoMCM is labelled on the leading face with Cy3.

When stopped-flow experiments were repeated with this substrate that included a long 3’-tail, FRET only increased significantly when SsoMCM was labelled on the N-terminus with Cy3 and when ATP was included (Figure 7A). An initial increase was noted for all experiments consistent with more complex formation as also seen in Figure 6. The second rate constant, 5.4 ± 0.2×10−3 s−1, represents ssDNA translocation by SsoMCM. The ssDNA translocation rate is ~5 fold greater than when DNA unwinding is required for a FRET increase (Figure 6B). Similar experiments with a long 5’-tail showed minimal changes in FRET (Figure 7B). However, when SsoMCM is labelled at C682 with Cy3, there is a small decrease in FRET (at a similar ssDNA translocation rate of 2.0 ± 0.3×10−3 s−1) consistent with the C-terminus moving away from the FAM label in a 3’ to 5’ manner. No significant change was noted when Cy3 was labelled at the N-terminus on this substrate.

Presteady-state stopped-flow measure of SsoMCM translocation.

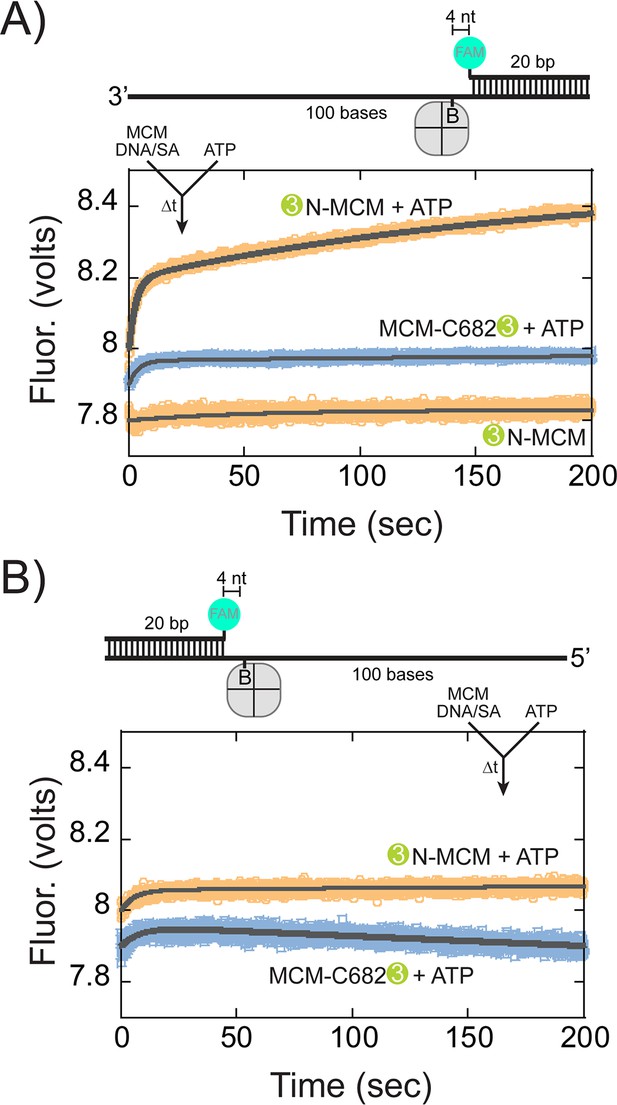

SsoMCM (120 nM hexamer) labelled at C682 (orange) or the N-terminus (blue) was preassembled onto (A) 3’- or (B) 5’long arm ssDNA (100 nM) with a flanking 20 bp duplex with 375 nM streptavidin. A FAM label was incorporated at the 5’ or 3’ end of the duplex, respectively, and four bases from a biotin in the long ssDNA. Translocation was initiated through rapid mixing of ATP (1 mM) and the change in fluorescence above 570 nm was monitored over time at 57°C. Data was fit to Equation 5.

https://doi.org/10.7554/eLife.46096.014

Therefore, our results show that SsoMCM can be organized on fork DNA in both orientations with particular probabilities depending on the presence of the excluded strand and the C-terminal WH domain, but translocation and unwinding proceeds N-first in the 3’−5’ direction.

Discussion

SsoMCM translocates in the 3’−5’ direction, however the orientation during translocation with respect to N or C-first has come under question. Binding assays for archaeal and yeast MCMs on fork or ssDNA show a global orientation preference for the C@duplex (McGeoch et al., 2005; Costa et al., 2014), however, higher order complexes that include additional yeast replisome components orientate CMG with N@duplex, instead hypothesizing an N-first translocation mechanism (Georgescu et al., 2017). This has also been recently confirmed with a x-ray structure of SsoMCM bound to ssDNA in an N-first confirmation (Meagher et al., 2019). The Costa and Diffley laboratories have provided some guidance that synergizes these two seemingly opposing results as intermediates during the loading, activation, and translocation steps (Douglas et al., 2018) that we can better explain mechanistically here.

According to our footprinting assays, there is evidence for placing either CTD or NTD of SsoMCM towards the duplex end. Our site specific footprinting experiments show that SsoMCM has a 3:1 preference for binding equal arm fork DNA with C@duplex, essentially consistent with our previous results (McGeoch et al., 2005; Rothenberg et al., 2007). When 3’-long arm fork DNA were used instead, there was a total reversal in orientation preference of 1.5:1 for binding N@duplex. Therefore, we suggest that a large proportion of the C@duplex in the equal arm fork DNA must have been contributed by the SsoMCM encircling the 5’- strand DNA (Figure 1D–F) but cutting the 3’-strand in proximity. Comparing relative intensities of footprinting for the 5’-strand strand on the equal arm fork substrate (Figure 1D) to the 5’-long arm substrate (Figure 2C), there is a higher intensity for equal arm fork DNA confirming that SsoMCM loaded on the 3’-encircled strand can cut the excluded strand from flexibility rendered by WH domain.

According to previous studies, the C-terminal WH domain of MCM is important for loading the helicase at origins (Samson and Bell, 2016b), but the overall DNA binding affinity of SsoMCM is not impaired with the WH deletion (Barry et al., 2007). Therefore, SsoMCM constructs with a deleted WH domain should have no preference for binding DNA in a particular orientation. Footprinting studies with SsoMCM-WH show an almost 1:1 nonselection of loading onto equal arm or asymmetric arm fork substrates in either orientation, suggesting that along with the DNA polarity, the WH domain influences the orientation of SsoMCM at the loaded state.

Coupling footprinting fractions with single-turnover unwinding experiments helped determine the orientation fraction of SsoMCM involved in active unwinding. The unwinding fraction for equal arm fork DNA substrate is 0.26 and a fractional preference of 0.23 for binding with N@duplex suggesting an N-first translocation orientation. Although SsoMCM has a preference for loading on the 3’-arm of a fork substrate (Rothenberg et al., 2007), we now show a significant population bound to the 5’-arm, however, SsoMCM bound to the 5’-arm is not productive with these substrates. Therefore, a 3’-long arm fork DNA substrate was used to restrict binding/loading onto only the translocating strand. On this substrate, SsoMCM has a 0.57 fractional preference for binding with N@duplex and also corresponds with single-turnover unwinding fraction of 0.54 corroborating an N-first unwinding translocation orientation and 3’−5’ polarity.

This SsoMCM loaded state (C@duplex) is analogous to an initial double hexamer converting to encircling one strand and excluded the other (Figure 8). Based on the accepted structure of the MCM double hexamer loaded onto dsDNA origins, the NTDs interact in a head-to-head conformation (Remus et al., 2009; Li et al., 2015). From that state, there are two possible mechanisms for encircling either the 5’−3’ or 3’−5’ strands (Abid Ali et al., 2017); however in each case, the individual hexamers are still initially orientated in a C@duplex orientation, when both DNA strands are present. Once the excluded strand is melted and displaced outside of the central channel, it can engage with the exterior surface of MCM in a steric exclusion and wrapping (SEW) mechanism (Graham et al., 2011). This preloaded and sequestered state is what we have detected in this report using footprinting studies on equal-arm fork DNA (C@duplex). Interestingly, SsoMCM may have a higher affinity for bubble substrates over fork or ssDNA substrates (Pucci et al., 2004), which may be achieved through direct double hexamer interactions and/or alternative binding configurations with the bubble region to promote conformational activation.

SsoMCM loading at origins.

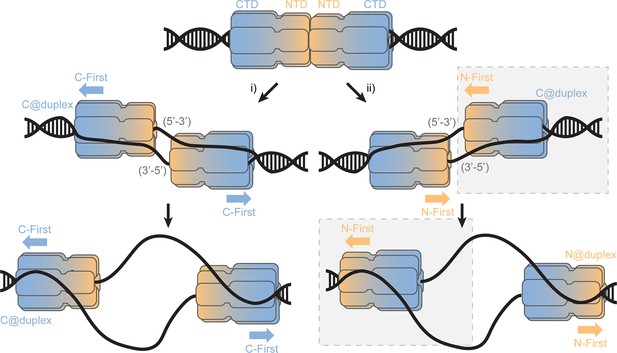

Model for loading double hexamer MCM at an origin of replication and the two pathways (i or ii) for encircling the 5’-3’ or 3’-5’ strands placing the CTD at the duplex (C@duplex). Translocation from (i) would proceed C-first separating hexamers, while translocation from (ii) would proceed N-first bypassing each hexamer. The shaded (grey) box identifies the conformations and states consistent in this report.

https://doi.org/10.7554/eLife.46096.015

From there, translocation may proceed in the N-first mode bypassing each hexamer as has recently been observed (Georgescu et al., 2017) and indirectly detected (Douglas et al., 2018) or in a C-first mode upon separation which had been speculated (McGeoch et al., 2005; Rothenberg et al., 2007; Costa et al., 2014; Trakselis et al., 2017). Our presteady-state FRET experiments were performed to directly detect the orientation of the SsoMCM hexamer during active translocation and unwinding to be absolutely certain. Using this approach, we could directly monitor the translocation orientation between the NTD of SsoMCM and DNA to verify an N-first translocation mechanism.

Combining the results from footprinting, single-turnover unwinding, and presteady-state FRET studies now all support an N-first translocation/unwinding mechanism for SsoMCM. After loading at an origin, our results agree with the second pathway (Figure 8, ii) for translocation, where two hexamers that have converted to encircling only one DNA strand have to bypass each other to proceed N- first. Similarly, AAA+ papillomavirus E1 helicase which also translocates with 3’−5’ polarity employs a strand exclusion mechanism to unwind DNA proceeding N-first (Enemark and Joshua-Tor, 2006; Lee et al., 2014). As suggested previously, this would provide an inherent physical control mechanism for DNA unwinding to regulate precise elongation timing (Li and O'Donnell, 2018). If pathway i) is incorrectly selected, the N-first 3’−5’ translocation mechanism would inherently block unwinding and render those loaded MCM origins inactive. The consequences of this nonproductive orientation cannot be determined from our current experiments.

The sole selection and encircling of one strand over the other and the conformational steps necessary within the MCM double hexamer remain to be determined and are actively being pursued by a number of laboratories. Some insight into strand selection has be gleamed from a closer examination of the CMG assembly and activation process in eukaryotes (Douglas et al., 2018), where ATP binding initiates CMG hexamer separation and early origin melting where DNA becomes underwound in preparation for ssDNA selection. Whether archaeal GINS and Cdc45 influences the binding population orientation on model forks remains to be determined, but the translocation orientation of N-first confirmed here will remain unchanged. Based on a cryo-EM structures of the T7 replisome (Gao et al., 2019) and CMG (Georgescu et al., 2017) that include ssDNA, it is likely that a helical conformation of DNA will contact multiple subunits in the interior of the hexamer to not only engage one DNA strand to encircle but also for translocation. How the other excluded ssDNA strand slides out between subunits is not yet known but may include contributions of Cdc45 and MCM10 in eukaryotes to remodel CMG and engage that excluded strand on the exterior surface for stability (Petojevic et al., 2015; Mayle et al., 2019).

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Plasmid construct (E. coli)pET30a-SsoMCM (C642A)McGeoch et al. (2005)
Plasmid construct (E. coli)pET30a-SsoMCM (C682A)McGeoch et al. (2005)
Plasmid construct (E. coli)pET30a-SsoMCM 1–612 (G452C)This paperSite- directed mutagenesis using primers listed in Materials and methods
Plasmid construct (E. coli)pET30a-SsoMCM1–612 (S456C)This paperSite- directed mutagenesis using primers listed in Materials and methods
Expression strainRosetta 2Novagen
Chemical compound4-azidophenacyl bromide (APB)Sigma-Aldrich57018-46-9
Chemical compoundATPInvitrogen51963-61-2
Chemical compound1-(p-Bromoacetamidobenzyl) ethylenediamine N, N,N (Fe-BABE)Dojindo186136-50-5
Chemical
compound
DNaseINew England BiolabsM0303S
Chemical compoundStreptavidinInvitrogen800-955-6288
Chemical compoundCy3 succinimidyl esterThermoFisher57757-57-0
Chemical compoundCy3 maleimideThermoFisher45-001-273
Sequence-based reagentDNA primers and substratesSigma-Aldrich and
IDT
Refer to Materials and methods
Software, algorithmKaleidagraphwww.synergy.comV4.5

Materials

ATP was obtained from Invitrogen (Carlsbad, CA). Azidophenacyl bromide (APB) was from Sigma-Aldrich (St. Louis, MO). 1-(p-Bromoacetamidobenzyl) ethylenediamine N, N,N (Fe-BABE) was from Dojindo (Rockville, Maryland). Streptavidin was from Invitrogen (Carlsbad, CA). Cy3 succinimidyl ester and maleimide were from ThermoFisher (Pittsburgh, PA). DNaseI was from NEB (Ipswich, MA). All other materials were from commercial sources and were analytical grade or better. Helicase buffer was used in all unwinding and binding reactions and consists of 125 mM potassium acetate, 25 mM Tris acetate (pH 7.5), and 10 mM magnesium acetate. DNA primers and substrates (Supplementary file 1) were all synthesized by Sigma-Aldrich (St. Louis, MO) or IDT (Coralville, IA) and gel purified using crush and soak method (Maniatis et al., 1989). Preformed fork substrates: equal arm (DNA164/165), 3’-long arm/5’-(n)nts (n = 0; DNA165/189, n = 8; DNA165/171), 5’-long arm/3’-(n)nts (n = 0; DNA164/190, n = 8; DNA164/172), duplex (DNA180/188), DNA14-B/179 F, DNA14-B/182 F, DNA60-F/202-B and DNA204-F/203-B were heated to 95°C and cooled at a rate of 1 °C /min to room temperature in a PCR instrument.

Cloning and purification of SsoMCM mutants

Request a detailed protocol

A cysteine was introduced into SsoMCM (1-612) (-WH) at G452C or S456C using a standard QuikChange protocol (Agilent, Santa Clara, CA) with KAPA HiFi DNA polymerase (KAPA Biosystems, Woburn, MA) with oligos in Supplementary file 1. Mutations were initially confirmed by silent mutations to create unique restriction sites and then by the DNA Sequencing Faculty at The University of Texas at Austin (Austin, TX). SsoMCM full-length (WT, C642A, and C682A) or 1–612 (-WH: WT, G452C, G456C) were purified as previously described (McGeoch et al., 2005; Graham et al., 2011). Briefly, autoinduced SsoMCM was heat-treated at 70°C for 20 min, and the supernatant was applied to MonoQ, heparin, and S-200 gel filtration columns by use of AKTA Pure (GE Healthscience) to isolate the purified hexameric species.

Site-specific DNA footprinting using APB

Request a detailed protocol

APB was dissolved in 100% DMF at a concentration of 40 mM and then diluted to 4 mM in 20 mM Tris pH 7.5, 75 mM NaCl, 10% glycerol and 20% DMF, in the dark. APB was then added to a sample of SsoMCM protein (~10 µM monomer) containing a single cysteine in full length (at either C642 or C682) or in –WH (at either C452 or C456) (in 20 mM Tris [pH 7.5], 75 mM NaCl, 10% glycerol), to achieve a final concentration of 4 mM APB and 1% DMF. Labelling proceeded for 2–3 hr at room temperature. APB labelled SsoMCM was incubated with fluorescent (Cy3 or Cy5 as indicated) fork DNA (150 nM) for 10–20 min in 1x CB buffer (20 mM TrisOAc, 25 mM KOAc, 10 mM MgOAc, 0.1 mg/ ml BSA, 1 mM DTT) in 50 µl volumes (maintaining ~ 1:1 MCM6:DNA ratio). For cross-linking, samples were transferred to silanized cover slips and UV irradiated for 15 s before adding 150 µl of post irradiation buffer (20 mM Tris- HCl [pH 8.0], 0.2% SDS, 50 mM NaCl), vortexed, and placed at 70°C for 20 min. Next, 1 µl of 10 mg/ ml Salmon sperm DNA, 30 µl of 3.0 M NaOAc, 750 μl of ice cold 100% ethanol was added, vortexed, left on ice for 1–2 hr at −80°C. Samples were then spun in microfuge at 4°C, 12,000 rpm for 30 min. The supernatant was discarded, and the pellet was washed twice with ice cold 70% ethanol. Ethanol was removed and the pellets were air dried by inverting on bench for 1 hr and then resuspended in 100 µl: 20 mM NH4OAc, 2% SDS, 0.1 mM EDTA pH 8.0 by vortexing. Samples were spun in microfuge at room temperature for 10 min. Supernatants were transferred into fresh tubes, placed in heat block at 90°C for 2 min. Then, 1 µl of 2 M NaOH was added, vortexed briefly, and incubated at 90°C for 20 min. After incubation, samples were pulse spun, added 101 µl 20 mM Tris- HCl pH 8.0, 1 µl of 2 M HCl, 1 µl of 2 M MgCl2, 480 µl 100% ethanol, vortexed, and placed at −80°C for 1–2 hr. The samples were pelleted in microfuge at 4°C for 30 min, washed two times with ice cold 70% ethanol, and air dried on bench for 1 hr. The DNA pellet was resuspended with 5 µl of 40% glycerol loading buffer containing Orange G dye for gel loading, run on a 20% TBE- PAGE (native PAGE), and visualized on a Typhoon FLA 9000 imager (GE Healthsciences).

Site-specific DNA cutting using FeBABE

Request a detailed protocol

SsoMCM proteins containing a single cysteine at either 642 or 682 for full-length or at 452 or 456 for -WH were dialyzed overnight at 4°C into conjugation buffer (30 mM MOPS, 100 mM NaCl, 1 mM EDTA, 5% glycerol, pH 8.0). Conjugation was performed by mixing 400 µM of FeBABE with 20 µM SsoMCM and incubating at 37°C for 1 hr in the dark. After 1 hr incubation, FeBABE-protein conjugate sample was dialyzed against the cutting buffer (50 mM MOPS, 120 mM NaCl, 0.1 mM EDTA, 10 mM MgCl2, 10% glycerol). Then FeBABE-protein conjugate was mixed with fluorescent DNA (150 nM, as indicated) and incubated at room temperature for 30 min maintaining ~ 1:1 MCM6:DNA ratio. 2.5 µl of ascorbic acid solution (40 mM ascorbic acid, 10 mM EDTA, pH 8.0) was added, vortexed for 2–3 s, and H2O2 solution (40 mM H2O2, 10 mM EDTA) was added immediately and vortexed for 2–3 s. The reaction mixture was then incubated for 30 s and quenched by adding Orange G dye loading buffer with 40% glycerol. The samples were electrophoresed on a 20% TBE-PAGE gel and visualized on a Typhoon FLA 9000 imager (GE Healthsciences). Calculation of both the APB and FeBABE footprinting was performed by quantifying the relative density (minus background) for the labelled strand, divided at the midpoint on the ssDNA arm according to the following equation

(1) F=(X@duplex-Control)(N@duplex-Control+C@duplex-Control), X=C,N

A standard two-tailed equal variance student’s T-test was used to determine significant differences of C@duplex versus N@duplex. P-values are reported for each experimental condition.

Single turnover unwinding assays

Request a detailed protocol

Single turnover helicase unwinding assays were assembled in helicase buffer with 15 nM concentration of fluorescent forked DNA (as indicated) incubated with 2 µM SsoMCM (WT or WH mutant) at 60°C for 5 min before initiating with 2 mM ATP and a 300 nM ssDNA trap (unlabelled strand with the same sequence as the fluorescently labelled strand). Three different fork DNA substrates with a 20 bp duplex region with either Cy3 or Cy5 labels at the duplex end and either 30 nt equal arms or 30 and 8 nt asymmetric arms were used. Unwinding reactions were quenched using an equal volume of quench solution (1.6% SDS, 50% glycerol, 0.1% w/v bromophenol blue, 100 mM EDTA) and an additional 300 nM ssDNA trap at various times. Reactions were placed on ice until loading and were electrophoresed on native 20% TBE-PAGE. The gels were visualized on a Typhoon FLA 9000 imager (GE Healthsciences). The fraction unwound was calculated using the equation:

(2) F=Is(t)Is(t)+ID(t)-Is(0)Is(0)+ID(0)/Is(b)Is(b)+ID(b)-Is(0)Is(0)+ID(0)

where Is(t) and ID(t) are the intensities of the single and double-stranded bands, respectively, at time t; subscript 0 and b indicate equivalent counts at t = 0 and the boiled sample, respectively. The fraction unwound was fit to a single exponential equation as a function of time according to:

(3) k=C+Ae-kt

where C is a constant for the amplitude, A is the amplitude change, and k is the rate (min−1). The amplitude change denotes the fraction of productive and processive unwinding complexes.

Fluorescence anisotropy

Request a detailed protocol

Anisotropy experiments were performed using a Cary Eclipse Spectrophotometer (Agilent, Santa Clara, CA) in CB buffer. The four forked DNA substrates (with equal arms or asymmetric arms) and the duplex substrate were labelled at the duplex end with either Cy3 at the 5’ or Cy5 at the 3’ were annealed as described above. Anisotropy measurements were made at each concentration after a 2 min incubation after protein was added. Anisotropy values were collected with a 0.5 s integration time for three consecutive readings. Final values from at least three independent experiments were averaged and fit to a cooperative binding equation:

(4) Y=Amax × [MCM]n(Kdn+[MCM]n)

in which Y is the measured anisotropy, Amax is the maximal anisotropy and n is the Hill coefficient using the Kaleidagraph (Synergy Software, v 4.2).

DNaseI footprinting

Request a detailed protocol

DNaseI footprinting experiments were performed in stoichiometric MCM6:DNA concentration ratios. Equal arm forked DNA substrates (DNA164-5/DNA165) labelled at the duplex end with Cy5 were incubated with SsoMCM in 1x CB buffer 15 min at room temperature in 10 µl reaction volumes to facilitate protein-DNA complex formation. The complexes were then digested by 0.1 U/µl DNaseI in 1x DNaseI reaction buffer incubated at 37°C for 30 s. Reaction were then quenched by 5 mM EDTA and heating to 75°C for 10 min. An equal volume of 100% formamide was added and separated on a 20% denaturing PAGE.

Electrophoretic Mobility Shift Assay (EMSA)

Request a detailed protocol

EMSAs were performed in stoichiometric MCM6:DNA concentration ratios. Equal arm forked DNA substrates (DNA164-5/DNA165) labelled at the duplex end with Cy5 were incubated with SsoMCM in 1x CB buffer 15 min at room temperature in 10 µl reaction volumes to facilitate protein-DNA complex formation. 2 µl of loading buffer (30% v/v glycerol) was added to the reaction prior to being resolved on 5% native PAGE.

Presteady-State FRET

Request a detailed protocol

Stopped-flow fluorescence experiments were performed on an Applied Photophysics (Leatherhead, UK) SX.20MV in fluorescence mode at a constant temperature of 57°C.

DNA14 was annealed to either DNA179 or DNA182 using to generate two fork substrates with a 30 base 3’-arm and a 20 or 7 base 5’-arm; DNA60 was annealed to DNA202 to give a 3’-long tail substrate; or DNA204 was annealed to DNA203 to give a 5’-long tail substrate. 5’SsoMCM(C642A) was labelled at the N-terminus or at C682 with Cy3 as described previously (McGeoch et al., 2005). Final concentrations of components after mixing were SsoMCM (500 nM or 83 nM hexamer), DNA (50–63 nM), streptavidin (0 or 188 nM), and ATP (0.5 mM), unless indicated otherwise. The samples were excited at 490 nm, and a 570-nm-cutoff filter was used to collect 4000 oversampled data points detecting only Cy3 emission over single or split-time bases. The slits were set at 3 mm for both excitation and emission. At least seven traces were averaged for each experiment and performed multiple times and on multiple occasions. The observed averaged traces were fit to one, two, or three exponentials using the supplied software. Below is the equation for a double exponential fit:

(5) v=a1e-k1t+a2e-k2t+C

where a is the amplitude change, k is the exponential rate, t is time, and C is a constant for the amplitude.

References

  1. 1
  2. 2
  3. 3
  4. 4
    DNA replication in the archaea
    1. ER Barry
    2. SD Bell
    (2006)
    Microbiology and Molecular Biology Reviews 70:876–887.
    https://doi.org/10.1128/MMBR.00029-06
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Molecular Cloning: A Laboratory Manual
    1. TE Maniatis
    2. F Fritsch
    3. J Sambrook
    (1989)
    Plainview, NY: Cold Spring Harbor Laboratory Press.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62

Decision letter

  1. James M Berger
    Reviewing Editor; Johns Hopkins University School of Medicine, United States
  2. Cynthia Wolberger
    Senior Editor; Johns Hopkins University School of Medicine, United States
  3. Eric J Enemark
    Reviewer; St. Jude Children's Research Hospital, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Acceptance summary:

The polarity by which MCM helicases bind to and translocate along DNA has been highly debated. The current work provides an important biochemical study of an archaeal MCM that reinforces recent findings from homologous systems showing that the N-terminal region of the helicase advances into a DNA fork during unwinding. Collectively, these findings help settle the question of MCM orientation on DNA, providing important insights into replisome organization.

Decision letter after peer review:

[Editors’ note: this article was originally rejected after discussions between the reviewers, but the authors were invited to resubmit after an appeal against the decision.]

Thank you for submitting your work entitled "Amidst multiple binding orientations on fork DNA, Sulfolobus MCM helicase proceeds N-first for unwinding" for consideration by eLife. Your article has been reviewed by a Senior Editor, a Reviewing Editor, and two reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Eric J Enemark (Reviewer #1).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The primary basis for this decision is that neither reviewer felt the data convincingly prove or disprove past work from other laboratories that debate the orientation of MCMs at the replication fork. They note that the overall design of the studies are similar to other experiments that use a double-stranded piece of DNA attached to various single-stranded tails, and which then use the position of the double-stranded region as the means to illustrate MCM orientation. They felt that this approach does not take into account the possibility that the double-stranded region itself helps dictate the MCM:DNA orientation, rather than the polarity of an encircled single strand (they note that the cited Li and O'Donnell structure is also based on this design and therefore is subject to the same concerns). Put another way, the sentiment was that the approach is based on a binary premise, namely, that the ring encircles one single-stranded tail, leaving the N-terminal tier or C-terminal tier will be proximal to the duplex, but that the data actually do not exclude scenarios in which the ring can encircle the duplex region of the DNA as well (which MCM rings are known to bind avidly). This uncertainty dampened confidence in the proposed model.

Reviewer #1:

The MCM complex of eukaryotes (MCM2-7) and archaea (MCM) is the "engine" that drives DNA translocation at the replication forks of all eukaryotes and archaea. The manuscript by Perera and Trakselis investigates the orientation of the MCM hexamer of the archaeal organism Sulfolobus solfataricus (SsoMCM) in complex with DNA, especially forked DNA. Multiple earlier manuscripts indicated that the MCM complex translocates single-stranded DNA (ssDNA) with the C-terminal domain leading. More recent reports have indicated a reversed orientation such that the MCM complex translocates DNA with the N-terminal domain leading. The translocation orientation is vitally important because it has profound implications for replication initiation where two hexamers of a double-hexamer separate to independent single hexamers to initiate DNA replication in two bidirectional replication forks. The manuscript therefore addresses an important and timely topic, but a few alternative scenarios to the provided interpretation appear highly plausible, and these would continue to confuse assignment of MCM:DNA orientation.

The manuscript provides a likely means to reconcile the opposite translocation orientations observed previously: that the MCM ring is able to bind DNA species in multiple fashions, and that some of these might not be appropriate for DNA translocation. The manuscript develops this conceptual point by evaluating two scenarios of proximity of a duplex DNA portion to the N-terminal side or the C-terminal side of the MCM ring. Based on strand polarities, one of these should be appropriate for 3'-5' DNA translocation (the known polarity of the MCM helicase) while the other would not. The opposite orientation of these binding orientations would thus provide a basis to reconcile previous orientation studies that have led to opposite conclusions on translocation orientation.

However, this treatment does not consider all unproductive species that may have historically confused orientation experiments. In particular, a species where the ring encircles the double-stranded DNA (dsDNA) should be considered. This is not anticipated to be a non-productive unwinding complex due to strand polarity but rather because the MCM ring has not adopted the appropriate strand exclusion topology needed for unwinding (See Fu et al., 2011 for demonstration of strand-exclusion during unwinding). Encircling of dsDNA could occur predominantly at the ATPase tier side or at the N-terminal tier side. In general, if the ring exclusively interacts with the duplex region, the overall 2-fold symmetry of duplex DNA predicts that both binding orientations will be degenerate and should therefore be observed in equal proportion. However, tailed or forked substrates (as used in this study) could develop a specific orientation preference if duplex DNA is encircled at one tier while the ssDNA region binds predominantly at the other tier (for example). Both tiers are known to bind to dsDNA and to ssDNA. Along these lines, the relative affinities of the respective tiers for different structural forms of DNA might have species-specific differences and account for previous differences in assigned orientation. Based on this possibility, the midpoint of the labelled strand may not accurately define the orientation of binding.

To further confuse orientation interpretation, the N-terminal tier of archaeal MCM rings binds single-stranded DNA roughly in the plane of the ring and approximately perpendicular to the channel (Froelich et al., (2014)). Although this binding occurs with a specific polarity, the coplanar MCM:DNA arrangement could be achieved with either 5'- or 3'- extensions to duplex DNA.

Additional comments:

1) Papillomavirus E1 (a close relative of SV40 T-antigen) also forms a dumbbell-shaped double-hexamer with N-terminal sides facing each other. Ultimately, the two hexamers pass over one another in generating two bidirectional replication forks with the N-terminal domains leading in a "strand exclusion" mechanism. The description is essentially identical to "pathway 2" discussed in the present manuscript. Please see Figure S5 of Enemark and Joshua-Tor, (2006) and Figure 7 of Lee et al., 2014. These similarities should be cited. Notably, MCM2-7, MCM, and E1 all belong to the AAA+ family of ATPases and translocate DNA with a 3' to 5' polarity. MCM2-7 and E1 both serve a strand-exclusion helicase function during eukaryotic DNA replication.

2) Discussion section: The manuscript Froelich et al., (2014) reports the structure of the hexameric MCM N-terminal domain bound to single-stranded DNA. As no double-stranded DNA is present, this structure does not illustrate a preferred side for double-stranded DNA. Within its discussion, Froelich et al., (2014) places the structure in a mechanistic framework of DNA translocation with the C-terminal domain leading. The orientation used for this discussion was exclusively based on orientation determinations published in earlier manuscripts (i.e. McGeoch et al., 2005), which showed an orientation with the C-terminal domain leading. This was the best information available at the time. However, the structure itself is consistent with placing duplex DNA at either side, as illustrated in Figure 7B (middle panel) of Froelich et al., (2014), where double-stranded DNA is depicted "above" and "below" the hexameric ring. As such, Froelich et al., (2014) is consistent with both scenarios (placement of the N-terminal domain or the C-terminal domain proximal to double-stranded DNA).

3) For orientation purposes, the manuscript classifies the 3'-extension of a substrate as the "encircled" strand and a 5'-extension as the "excluded" strand (see manuscript's Figure 1). This is the correct assignment when presuming that the helicase preferentially moves towards the double-stranded region due to its 3'-5' polarity. However, the helicase could encircle a 5'-extension strand and follow its intrinsic 3'-5' polarity by moving away from the double-stranded region. The assignment that a given strand is encircled versus excluded implies that the ring somehow recognizes which end possesses a double-stranded region and that the double-stranded region (rather than strand polarities) dictates orientation. The simplest means for this to occur is if the ring actually encircles and binds the dsDNA portion (see main comments). Importantly, this would not be the productive unwinding species because it does not have a "strand excluded" topology.

4) The timescales of unwinding (Figure 4) differ dramatically from those of Figure 7. This could suggest that the generation of a species that is in the appropriate form for unwinding (MCM:DNA in the correct polarity/orientation, strand-excluded, and perhaps other attributes) may generally take a very long time to develop. Such a situation would be consistent with the overall notion that the MCM ring can bind DNA in multiple non-productive configurations. If so, the rapidly formed species examined in Figure 7 would likely represent one of the non-productive conformations or even a mixture of these.

Reviewer #2:

The manuscript aims in addressing the question of the polarity of the MCM helicase from the archaeon Sulfolobus solfataricus at the replication fork. The archaeal MCM is composed of two major parts: N-terminal and C-terminal catalytic domains. Using predominantly fluorescence techniques, the study suggests that the helicase N-terminal portion points toward the fork.

The results of this manuscript are in sharp contrast to two previously published studies from the Bell and Ha laboratories (McGeoch et al., 2005; Rothenberg et al., 2007). There is very little discussion of why the studies are reaching completely different conclusions. Based on the data and experiments reported I am not convinced the current manuscript conclusions are correct. Some of my comments are listed below.

The rationale for the study, as outlined in the Introduction, is the eukaryotic CMG EM structure from the Li and O'Donnell laboratories suggesting that the helicase N-terminal domain is pointing toward the fork. However, unlike eukaryotic helicases, most archaeal MCM are active on their own and do not need an assistance of other proteins, such as the CMG complex, for speed and processivity (for example see Schermerhorn et al., 2016). In fact, the archaeal Cdc45 is dispensable for viability (Burkhart et al., 2017). The study does not examine a complex, however, but only the archaeal MCM protein. However, S. solfataricus is one of the two organisms studied to date that show an in vitro stimulatory effect on MCM activity by the archaeal GINS and Cdc45 (for example see Xu et al., 2016; Nagata, 2017). Why wasn't the CMG complex included in this study? This is especially important as the rationale for the study and to challenge the previous work was the comparison to the eukaryotic CMG complex. The authors state that "strong homology between the archaeal and eukaryotic DNA replication systems would not suggest significant differences in translocation and unwinding mechanisms of the MCM complexes" in the Introduction. Therefore, the CMG complex should be included in the study.

In subsection “The orientation of SsoMCM on asymmetric arm fork DNA by localized footprinting has preference for N@duplex.” it is stated that "it is probable that some proportion of SsoMCM is encircling the 5'-arm, complicating our analysis and interpretation. Therefore, these orientation mapping experiments were repeated with APB labelled at C682 but limiting the 5'-arm to 8 bases and forcing encircling of the 3'-arm. It has been previously shown that archaeal MCM requires >15 nucleotides for productive binding/unwinding (Haugland et al., 2006)". There are several issues with this statement. It was shown with many archaeal species, including S. solfataricus, that a 5' overhang ssDNA region is not required for helicase activity (for examples see Barry et al., 2007; Chong et al., 2000; Grainge et al., 2003). Why not remove the 5' overhang region altogether? Why leave 8 nucleotides (or 5 nucleotides, in some of the experiments)? If, as stated by the authors, the 5' ssDNA is a problem, it can and should be removed. And, the paper by Haugland et al. describes a unique case among the archaeal species studied. This is the only archaeal MCM that is stimulated by binding to the Cdc6 proteins. The activity of all other archaeal MCMs is inhibited by the Cdc6 proteins. In addition, the study by Haugland et al., did not test a 15 nucleotide ssDNA overhang region as stated in the current manuscript.

Past studies clearly show that the archaeal MCM from different species can displace streptavidin from biotin during translocation along the DNA (for example see: Shin et al., 2013) including a paper from Dr. Trakselis' group on the S. solfataricus MCM (Graham et al., 2011). Therefore, it is not clear what the value is of the experiments shown in Figure 5 and Figure 6, as the premise of the experiments is the blocking of DNA unwinding by the biotin/streptavidin complex. If the experimental conditions are different than those previously reported (and therefore no displacement can be observed) then, at a minimum, a control experiment with a biotin trap should be performed to demonstrate this. Dr. Trakselis' group is clearly aware that streptavidin is displaced from biotin by the helicase as they performed such an experiment in a previous publication (Graham et al., 2011).

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for choosing to send your work entitled "Amidst multiple binding orientations on fork DNA, Sulfolobus MCM helicase proceeds N-first for unwinding" for consideration at eLife. Your letter of appeal has been considered by a Senior Editor and a Reviewing editor, and we are prepared to consider a revised submission without guarantees of acceptance.

The reviewers have evaluated the revised manuscript. Both still share a general concern on the use of double-strand-containing substrates in assigning orientation, and the premise that all species examined are in a "strand excluded" topology. The basis for this concern derives from the fact that MCM rings are capable of interacting with DNA in multiple ways. Biologically, the ring initially encircles double-stranded DNA, and ultimately encircles only one single strand of DNA. Biochemical and structural studies show that the N-terminal tier and the C-terminal AAA+ tier are both able to bind double-stranded DNA and single-stranded DNA, which leads to many possible MCM:DNA structural forms when hybrid single/double-stranded DNA substrates are mixed with an MCM ring. Some alternative binding scenarios with fork DNA include:

1) Species where the ring does not establish a "strand-excluded" topology. Numerous variations are possible-- with the double-stranded DNA portion either at either the N-terminal side, the C-terminal side, or throughout the ring. In the first two cases, it cannot be ruled out that the double-stranded DNA dictates binding orientation rather than encircled strand polarity. The response argues against the presence of these species based on stronger binding to fork substrates versus duplex substrates. This is not an effective argument because the fork substrates could still adopt a topology that is not "strand excluded"-- such as binding of the dsDNA portion at one tier and ssDNA portion(s) at the other(s).

2) Events where the fork binds with an appropriate "strand excluded" topology, but the ssDNA binds exclusively at the N-terminal tier and not the translocating modules (presumably at the AAA+ tier). The N-terminal tier might have a different binding polarity preference than the AAA+ tier, and such a species would then not have the form used for translocation/unwinding.

In the response, the authors state, "…it is our position that duplex DNA would also aid in the positioning of the hexamer along the ssDNA substrate."-- this is the precise concern that the reviewers have when interpreting MCM orientation studies.

For the translocation orientation experiments (Figure 5 and Figure 6), a species in which the ring encircles the 38 bp duplex region at the right cannot be ruled out. Also, species where the ring encircles both arms of the fork at the left cannot be ruled out. Neither is in the correct topology for translocation.

An experiment to determine DNA translocation orientation needs to ensure that the orientation is dictated by the polarity of encircled ssDNA in a binding form derived from the translocating modules (presumably in the AAA+ tier), and that the "lagging strand" (if included) is fully excluded from the ring. These concerns could be resolved by using single-strand-only substrates for the FRET experiment in which the experiment also requires ATPase driven translocation. This could probably be achieved by using a "reasonably long" strand. Such a substrate would remove all the potential points of confusion associated with the possibility of dsDNA driving orientation instead of strand polarity. The attached PDF illustrates the basis for the concern and how this might possibly be resolved with reasonably long single-strand-only substrates. Experiments with this substrate (or an alternative experiment capable of resolving the stated issues) would need to be conducted before a recommendation concerning publication could be made.

https://doi.org/10.7554/eLife.46096.019

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

The primary basis for this decision is that neither reviewer felt the data convincingly prove or disprove past work from other laboratories that debate the orientation of MCMs at the replication fork. They note that the overall design of the studies are similar to other experiments that use a double-stranded piece of DNA attached to various single-stranded tails, and which then use the position of the double-stranded region as the means to illustrate MCM orientation. They felt that this approach does not take into account the possibility that the double-stranded region itself helps dictate the MCM:DNA orientation, rather than the polarity of an encircled single strand (they note that the cited Li and O'Donnell structure is also based on this design and therefore is subject to the same concerns). Put another way, the sentiment was that the approach is based on a binary premise, namely, that the ring encircles one single-stranded tail, leaving the N-terminal tier or C-terminal tier will be proximal to the duplex, but that the data actually do not exclude scenarios in which the ring can encircle the duplex region of the DNA as well (which MCM rings are known to bind avidly). This uncertainty dampened confidence in the proposed model.

A few simple additional experiments and some better explanations in the text can answer all of the reviewers concerns regarding orientation of the SsoMCM hexamer during translocation. We want to stress that there are many examples of MCM hexamers binding to duplex DNA and this is an important step during origin binding, but our present studies address the translocation direction during the elongation phase of DNA replication. Even more, we have identified the WH motif at the C-terminal domain of MCM to be important in orientating the bound MCM complex with C@duplex. This explains C@duplex bound orientations (McGeoch, 2005 and Rothenberg, 2008) from our previous work that has confused the field with regards to perceived translocation orientation. In this manuscript, we have directly reconciled binding orientation with that of translocation orientation on fork substrates by quantifying both.

We feel that this updated manuscript has better clarity, explanation, and discussion on the importance of the possible binding orientations that lead to one productive translocation orientation along ssDNA.

Reviewer #1:

The MCM complex of eukaryotes (MCM2-7) and archaea (MCM) is the "engine" that drives DNA translocation at the replication forks of all eukaryotes and archaea. The manuscript by Perera and Trakselis investigates the orientation of the MCM hexamer of the archaeal organism Sulfolobus solfataricus (SsoMCM) in complex with DNA, especially forked DNA. Multiple earlier manuscripts indicated that the MCM complex translocates single-stranded DNA (ssDNA) with the C-terminal domain leading. More recent reports have indicated a reversed orientation such that the MCM complex translocates DNA with the N-terminal domain leading. The translocation orientation is vitally important because it has profound implications for replication initiation where two hexamers of a double-hexamer separate to independent single hexamers to initiate DNA replication in two bidirectional replication forks. The manuscript therefore addresses an important and timely topic, but a few alternative scenarios to the provided interpretation appear highly plausible, and these would continue to confuse assignment of MCM:DNA orientation.

The manuscript provides a likely means to reconcile the opposite translocation orientations observed previously: that the MCM ring is able to bind DNA species in multiple fashions, and that some of these might not be appropriate for DNA translocation. The manuscript develops this conceptual point by evaluating two scenarios of proximity of a duplex DNA portion to the N-terminal side or the C-terminal side of the MCM ring. Based on strand polarities, one of these should be appropriate for 3'-5' DNA translocation (the known polarity of the MCM helicase) while the other would not. The opposite orientation of these binding orientations would thus provide a basis to reconcile previous orientation studies that have led to opposite conclusions on translocation orientation.

However, this treatment does not consider all unproductive species that may have historically confused orientation experiments. In particular, a species where the ring encircles the double-stranded DNA (dsDNA) should be considered.

Previously, we had directly measured at the single molecule level a preference for binding/encircling the 3’-arm over that of the 5’ arm. (Rothenberg et al., 2007). In that same paper, we also measured a significantly lower SsoMCM binding efficiency (~4fold less) for duplex DNA over fork substrates. However, this was not articulated well in the previous manuscript to justify the interpretation of our experiments. It is now (Results section).

Furthermore, anisotropy experiments performed with SsoMCM and duplex DNA also show a higher dissociation constant (Kd) over fork substrates (Figure 1—figure supplement 3), suggesting that SsoMCM preferentially binds ssDNA arms of the fork DNA. Moreover, titration of large amounts of SsoMCM on fork substrates does not compete off the external excluded strand to favor two hexamers binding (Graham et al., 2011. For our footprinting experiments, we are careful to be stoichiometric or sub-stoichiometric (MCM6:DNA) to promote binding to the highest affinity site and limit nonspecific binding. Interestingly, we do measure footprinting into the duplex a few bases (Figure 1 and Figure 2), however there is never any indication of cleavage past that towards the duplex end that would be consistent with specific duplex binding. Therefore, the predominate bound species is a stochiometric single SsoMCM hexamer encircling the 3’-arm and interacting with the excluded 5’-arm on the exterior surface, but other minor populations also exist.

This is not anticipated to be a non-productive unwinding complex due to strand polarity but rather because the MCM ring has not adopted the appropriate strand exclusion topology needed for unwinding (See Fu et al., 2011 for demonstration of strand-exclusion during unwinding). Encircling of dsDNA could occur predominantly at the ATPase tier side or at the N-terminal tier side. In general, if the ring exclusively interacts with the duplex region, the overall 2-fold symmetry of duplex DNA predicts that both binding orientations will be degenerate and should therefore be observed in equal proportion.

Duplex DNA binding of MCM to origin DNA is known to occur prior to the engagement of a single strand for translocation (as illustrated in Figure 7). However, in this manuscript we are not attempting to answer that question. Rather we are restricting our experiments to test the translocation orientation along ssDNA that is competent for DNA unwinding.

However, tailed or forked substrates (as used in this study) could develop a specific orientation preference if duplex DNA is encircled at one tier while the ssDNA region binds predominantly at the other tier (for example). Both tiers are known to bind to dsDNA and to ssDNA. Along these lines, the relative affinities of the respective tiers for different structural forms of DNA might have species-specific differences and account for previous differences in assigned orientation. Based on this possibility, the midpoint of the labeled strand may not accurately define the orientation of binding.

The midpoint of the ssDNA tail is selected as a convenient place for assigning MCM orientation in a binary fashion. It may not be perfect, but in our footprinting experiments, there is a void in this region that allows us to be confident of this binary distinction in orientation. We were careful to design the length of the ssDNA to be consistent with the site size on DNA and the lateral length of the central channel from available structures. It is possible that part of the N-terminal tier could be encircling duplex DNA (as in Langston and O’Donnell, 2017) however the rest of the complex will be encircling and translocating on ssDNA. This would require further structural/mechanistic confirmation.

To further confuse orientation interpretation, the N-terminal tier of archaeal MCM rings binds single-stranded DNA roughly in the plane of the ring and approximately perpendicular to the channel (Froelich et al., (2014)). Although this binding occurs with a specific polarity, the coplanar MCM:DNA arrangement could be achieved with either 5'- or 3'- extensions to duplex DNA.

With respect to the reviewer, this structure (Froelich et al., 2014), while informative in identifying a MSSB binding motif, does not attempt to address the orientation question. Rather ssDNA binding is visualized with only 7 nucleotides of a 30 base poly dT substrate with a single N-terminal domain protein from another species. We have included this reference in the Introduction. As the reviewer knows, there are several other DNA binding motifs contained within the full length MCM hexamer that would direct ssDNA longitudinally through the entire central channel. Moreover, it is our position that duplex DNA would also aid in the positioning of the hexamer along the ssDNA substrate. A coplanar MCM:DNA arrangement is not expected to occur with full length protein and is instead a better indication of helical engagement of ssDNA within the central channel either for melting of the duplex or translocation (Abid, Diffley and Costa et al., 2017).

Additional comments:

1) Papillomavirus E1 (a close relative of SV40 T-antigen) also forms a dumbbell-shaped double-hexamer with N-terminal sides facing each other. Ultimately, the two hexamers pass over one another in generating two bidirectional replication forks with the N-terminal domains leading in a "strand exclusion" mechanism. The description is essentially identical to "pathway 2" discussed in the present manuscript. Please see Figure S5 of Enemark and Joshua-Tor, (2006) and Figure 7 of Lee et al., 2014. These similarities should be cited. Notably, MCM2-7, MCM, and E1 all belong to the AAA+ family of ATPases and translocate DNA with a 3' to 5' polarity. MCM2-7 and E1 both serve a strand-exclusion helicase function during eukaryotic DNA replication.

The reviewer has correctly pointed out the similarities between different organisms that belong to the same AAA+ family of ATPases. We have cited these similarities in the Materials and methods section(Enemark and Joshua-Tor, (2006): Lee et al., (2014)).

2) Discussion section: The manuscript Froelich et al., (2014) reports the structure of the hexameric MCM N-terminal domain bound to single-stranded DNA. As no double-stranded DNA is present, this structure does not illustrate a preferred side for double-stranded DNA. Within its discussion, Froelich et al., (2014) places the structure in a mechanistic framework of DNA translocation with the C-terminal domain leading. The orientation used for this discussion was exclusively based on orientation determinations published in earlier manuscripts (i.e. McGeoch et al., 2005), which showed an orientation with the C-terminal domain leading. This was the best information available at the time. However, the structure itself is consistent with placing duplex DNA at either side, as illustrated in Figure 7B (middle panel) of Froelich et al., (2014), where double-stranded DNA is depicted "above" and "below" the hexameric ring. As such, Froelich et al., (2014) is consistent with both scenarios (placement of the N-terminal domain or the C-terminal domain proximal to double-stranded DNA).

In the previous manuscript, Froelich et al., 2014 was cited under MCM showing a preference for C@duplex (Discussion section). As described by the reviewer #2, this is in accordance with the discussion in Froelich et al., 2014 which speculates that the orientation would be leading the C-terminal domain at the duplex DNA. This sentence is not meant to justify or refute the reviewers own work but to attempt to put the available literature in perspective. We appreciate that their structure does not define the orientation directly and is only built on the available data at the time. We have taken out their reference in that sentence and instead moved to the Introduction to describe this interaction.

3) For orientation purposes, the manuscript classifies the 3'-extension of a substrate as the "encircled" strand and a 5'-extension as the "excluded" strand (see manuscript's Figure 1). This is the correct assignment when presuming that the helicase preferentially moves towards the double-stranded region due to its 3'-5' polarity. However, the helicase could encircle a 5'-extension strand and follow its intrinsic 3'-5' polarity by moving away from the double-stranded region. The assignment that a given strand is encircled versus excluded implies that the ring somehow recognizes which end possesses a double-stranded region and that the double-stranded region (rather than strand polarities) dictates orientation. The simplest means for this to occur is if the ring actually encircles and binds the dsDNA portion (see main comments). Importantly, this would not be the productive unwinding species because it does not have a "strand excluded" topology.

The reviewer is correct in their interpretation here which is why we utilized the terms C@duplex and N@duplex to define orientation which could include encircling either the 3’-arm or the 5’-arm. However, we recognize that some of our labelling in the figures (Encircled or Excluded) could be misinterpreted. Therefore, we have changed these labels to be 3’-arm and 5’-arm for better clarity.

4) The timescales of unwinding (Figure 4) differ dramatically from those of Figure 7. This could suggest that the generation of a species that is in the appropriate form for unwinding (MCM:DNA in the correct polarity/orientation, strand-excluded, and perhaps other attributes) may generally take a very long time to develop. Such a situation would be consistent with the overall notion that the MCM ring can bind DNA in multiple non-productive configurations. If so, the rapidly formed species examined in Figure 7 would likely represent one of the non-productive conformations or even a mixture of these.

The reviewer is actually incorrect here with regards to dramatic differences in rates, but we did not adequately describe that in the original manuscript causing confusion. We better explained these time scales and rates by including s-1 value in parentheses. Single turnover DNA unwinding at 60 oC (Figure 4) had a global unwinding rate of 1.1 ms-1, while the stopped flow FRET translocation at 57 oC of ~9 base pairs had a rate of 1.5 ms-1 (Figure 6). These rates are considered to be equivalent.

Reviewer #2:

The manuscript aims in addressing the question of the polarity of the MCM helicase from the archaeon Sulfolobus solfataricus at the replication fork. The archaeal MCM is composed of two major parts: N-terminal and C-terminal catalytic domains. Using predominantly fluorescence techniques, the study suggests that the helicase N-terminal portion points toward the fork.

The results of this manuscript are in sharp contrast to two previously published studies from the Bell and Ha laboratories (McGeoch et al., 2005; Rothenberg et al., 2007). There is very little discussion of why the studies are reaching completely different conclusions. Based on the data and experiments reported I am not convinced the current manuscript conclusions are correct. Some of my comments are listed below.

We respectively disagree that there is little discussion throughout. In fact, this whole manuscript attempts to reconcile discrepancies in binding and translocation orientation across multiple papers and groups. McGeoch et al., 2005 describes the major orientation of MCM loaded onto a Y-shaped equal arm DNA substrate (similar to that in Figure 1) placing the C-terminal domain at the double stranded DNA region. We can validate that binding orientation (C@duplex) on fork substrates by site-specific footprinting in Figure 1.

However, McGeoch, (2005) or Rothenberg, (2007) does not monitor the orientation of MCM during translocation (which will indicate the productive orientation) but rather only at a loaded state (which will include both productive and unproductive). The orientation differences between loaded and translocation states are distinguished through this manuscript and are well visualized in Figure 7.

In McGeoch, (2005), since they observe a majority C-terminal domain at the duplex it had been speculated that the translocation would be performed with the motor domain (C-terminal domain) facing the double stranded DNA. However, it is more relevant to monitor the hexamer orientation during translocation. Therefore, we utilized direct (pre-steady state FRET) and indirect (footprinting coupled with single turnover unwinding experiments) methods of determining the translocation orientation of MCM in our current manuscript.

The rationale for the study, as outlined in the Introduction, is the eukaryotic CMG EM structure from the Li and O'Donnell laboratories suggesting that the helicase N-terminal domain is pointing toward the fork. However, unlike eukaryotic helicases, most archaeal MCM are active on their own and do not need an assistance of other proteins, such as the CMG complex, for speed and processivity (for example see Schermerhorn et al., 2016). In fact, the archaeal Cdc45 is dispensable for viability (Burkhart et al., 2017). The study does not examine a complex, however, but only the archaeal MCM protein. However, S. solfataricus is one of the two organisms studied to date that show an in vitro stimulatory effect on MCM activity by the archaeal GINS and Cdc45 (for example see Xu et al., 2016; Nagata, 2017). Why wasn't the CMG complex included in this study? This is especially important as the rationale for the study and to challenge the previous work was the comparison to the eukaryotic CMG complex. The authors state that "strong homology between the archaeal and eukaryotic DNA replication systems would not suggest significant differences in translocation and unwinding mechanisms of the MCM complexes" in the Introduction. Therefore, the CMG complex should be included in the study.

The papers Xu et al., 2016 mostly use Sulfolobus acidocaldarius and Sulfolobus islandicus in their in vitro and in vivo studies whereas Nagata, 2017 uses Thermococcus kodakarensis to show Cdc45 and GINS together as a stable complex that stimulate the MCM helicase activity. None of these used Sulfolobus (Saccharolobus) solfataricus proteins. It is very challenging to purify Cdc45 and can only be done from an in vivo endogenous locus in Sac with only nanogram yields from 6L of culture (Xu, 2016). Increased purification yields were found with in vivo expression in Sulfolobus islandicus. No purified SsoCdc45 has been shown possible. And we are hesitant to mix species in these experiments as interpretations may be difficult and with artifacts.

We feel that because the SsoMCM hexameric complex is active in translocation and unwinding on its own and in the absence of Cdc45 and GINS, that these additional experiments are outside the scope of this manuscript to determine the active translocation orientation.

In subsection “The orientation of SsoMCM on asymmetric arm fork DNA by localized footprinting has preference for N@duplex.” it is stated that "it is probable that some proportion of SsoMCM is encircling the 5'-arm, complicating our analysis and interpretation. Therefore, these orientation mapping experiments were repeated with APB labelled at C682 but limiting the 5'-arm to 8 bases and forcing encircling of the 3'-arm. It has been previously shown that archaeal MCM requires >15 nucleotides for productive binding/unwinding (Haugland et al., 2006)". There are several issues with this statement. It was shown with many archaeal species, including S. solfataricus, that a 5' overhang ssDNA region is not required for helicase activity (for examples see Barry et al., 2007; Chong et al., 2000; Grainge et al., 2003). Why not remove the 5' overhang region altogether? Why leave 8 nucleotides (or 5 nucleotides, in some of the experiments)? If, as stated by the authors, the 5' ssDNA is a problem, it can and should be removed.

The 8-base 5’-tail was included to exclude the possibility raised by reviewer 2 that MCM could be binding to and encircling duplex DNA and cleaving in the duplex region. This 8-base length was designed to be long enough to prevent translocation over duplex DNA and short enough to prevent helicase loading onto the 5’-arm.

However, in response to this reviewer, we performed additional single turnover DNA unwinding (Figure 4—figure supplement 1) and fluorescent DNA binding (Figure 1—figure supplement 3) experiments with 0 nt 5’-arm. These experiments show ~2-fold decrease in unwound product with 0 nt at the 5’-arm compared to a 8 nt 5’-arm. With no 5’ arm, SsoMCM can translocate over the duplex region (approx. 40% of the time) which is what we are attempting to prevent. Therefore, asymmetric fork arm substrates with 3’-long arm and a 8 nt short 5’-arm are the best substrate to define the orientation.

And, the paper by Haugland et al. describes a unique case among the archaeal species studied. This is the only archaeal MCM that is stimulated by binding to the Cdc6 proteins. The activity of all other archaeal MCMs is inhibited by the Cdc6 proteins. In addition, the study by Haugland et al., did not test a 15 nucleotide ssDNA overhang region as stated in the current manuscript.

We apologize for this mistake (15 vs 16 nts) in our previous manuscript. The current manuscript has been corrected “It has been previously shown that archaeal MCM requires >16 nucleotides for productive binding/unwinding.” (subsection “The orientation of SsoMCM on asymmetric arm fork DNA by localized footprinting has preference for N@duplex”).

Past studies clearly show that the archaeal MCM from different species can displace streptavidin from biotin during translocation along the DNA (for example see: Shin et al., 2013) including a paper from Dr. Trakselis' group on the S. solfataricus MCM (Graham et al., 2011). Therefore, it is not clear what the value is of the experiments shown in Figure 5 and Figure 6, as the premise of the experiments is the blocking of DNA unwinding by the biotin/streptavidin complex. If the experimental conditions are different than those previously reported (and therefore no displacement can be observed) then, at a minimum, a control experiment with a biotin trap should be performed to demonstrate this. Dr. Trakselis' group is clearly aware that streptavidin is displaced from biotin by the helicase as they performed such an experiment in a previous publication (Graham et al., 2011).

Although MCM helicases have been shown to displace streptavidin from biotin on the translocating strand, the rate of this displacement is on the order of hours. Our experimental time courses for these assays are 5 minutes, where no streptavidin displacement was shown previously (Graham et al., 2011). A linear rate of SA displacement was calculated as 0.0067 min-1, whereas our measured translocation rate is 0.0015 s-1 or 0.09 min-1 (~13-14 fold faster translocation than SA displacement in this manuscript).

Therefore, upon addition of ATP, the MCM helicase will translocate into the duplex region (~9 nts), stall at the streptavidin block, resulting in an increased FRET value only for a fluorescent label on the leading face before displacing SA.

[Editors’ note: the author responses to the re-review follow.]

The reviewers have evaluated the revised manuscript. Both still share a general concern on the use of double-strand-containing substrates in assigning orientation, and the premise that all species examined are in a "strand excluded" topology. The basis for this concern derives from the fact that MCM rings are capable of interacting with DNA in multiple ways. Biologically, the ring initially encircles double-stranded DNA, and ultimately encircles only one single strand of DNA. Biochemical and structural studies show that the N-terminal tier and the C-terminal AAA+ tier are both able to bind double-stranded DNA and single-stranded DNA, which leads to many possible MCM:DNA structural forms when hybrid single/double-stranded DNA substrates are mixed with an MCM ring. Some alternative binding scenarios with fork DNA include:

We appreciate the opportunity to submit a revised manuscript with further supporting data in response to the reviewer comments. We are cognizant to the fact that MCM interacts with DNA in multiple ways; a fact that is recognized by the Title of this manuscript and something we intended to quantify as best we can here. We hope that with the additional requested experiments that were performed, this manuscript is now ready for publication by eLife.

1) Species where the ring does not establish a "strand-excluded" topology. Numerous variations are possible-- with the double-stranded DNA portion either at either the N-terminal side, the C-terminal side, or throughout the ring. In the first two cases, it cannot be ruled out that the double-stranded DNA dictates binding orientation rather than encircled strand polarity. The response argues against the presence of these species based on stronger binding to fork substrates versus duplex substrates. This is not an effective argument because the fork substrates could still adopt a topology that is not "strand excluded"-- such as binding of the dsDNA portion at one tier and ssDNA portion(s) at the other(s).

We agree with the reviewers’ concern regarding the ability of the two tiers of SsoMCM to accommodate both ss and dsDNA. This is the same concern we set out to address at the beginning of this manuscript by carefully maintaining stoichiometric or sub-stoichiometric MCM6:DNA ratios (~1:1) to promote binding of SsoMCM to the highest affinity site, which is the ssDNA region (Rothenberg, 2007 and anisotropy data here, Figure 1—figure supplement 3) and limit non-specific binding to duplex regions (Rothenberg 2007) in our site-specific footprinting experiments. This will prevent SsoMCM loading onto both ssDNA arms or duplex regions of a given fork substrate at the same time and instead favor encircling of the ssDNA arms adjacent to the duplex.

In order to experimentally support the above hypothesis, we performed new DNaseI footprinting coupled with EMSAs on a fluorescently labeled fork DNA substrate (Figure 1—figure supplement 4). DNaseI can cleave both ss and dsDNA, however the specific activity for cleaving dsDNA is 500-fold more efficient than ssDNA. Protection by SsoMCM bound to a dsDNA region will prevent its digestion by DNaseI. Our new data shows that at MCM6:DNA @1:1 up to 1:1.5 ratios, the duplex region is not protected in the presence of SsoMCM. Therefore, SsoMCM is not binding the duplex region specifically. EMSAs confirm that at these ratios, there is complete formation of a MCM6:DNA complex.

2) Events where the fork binds with an appropriate "strand excluded" topology, but the ssDNA binds exclusively at the N-terminal tier and not the translocating modules (presumably at the AAA+ tier). The N-terminal tier might have a different binding polarity preference than the AAA+ tier, and such a species would then not have the form used for translocation/unwinding.

We have already addressed this specific situation using our site-specific footprinting experiments coupled with single-turnover unwinding experiments. In our footprinting studies, we have observed two different populations of SsoMCM which we term as C@duplex and N@duplex that load onto ssDNA regions (Figure 1 and Figure 2). This nomenclature actually represents at least 4 possible binding confirmations (encircling either ss arm and in both orientations). Using the fraction from the single-turnover unwinding data (Figure 4), we correlated the footprinting data with the productive orientation populations utilized for unwinding to confirm productive unwinding for N@duplex in a 3’-5’ translocation polarity (already described).

In the response, the authors state, "…it is our position that duplex DNA would also aid in the positioning of the hexamer along the ssDNA substrate."-- this is the precise concern that the reviewers have when interpreting MCM orientation studies.

This statement was made in reference specifically for the WH domain influencing the orientation C@duplex or N@duplex (Figure 1 and Figure 2 vs Figure 3) for which we describe.

For the translocation orientation experiments (Figure 5 and Figure 6), a species in which the ring encircles the 38 bp duplex region at the right cannot be ruled out.

Agreed, as this is most likely the confirmation that would be expected upon origin binding (Figure 8, top). The substrate used in Figure 5 and Figure 6 does have 38 bp duplex, however, it also includes a FAM label and Biotin. Once streptavidin is bound to this substrate, the available duplex binding region would shrink substantially.

Nevertheless, we have performed the exact experiments as suggested by the reviewer and incorporated them as Figure 7 in the main text. Of course, we are limited in the duplex length based on the temperature of the activity assays (Tm) but were able to design a 20bp duplex that is stable at the reaction temperature of 57oC along with an 80 base ssDNA region that has minimal secondary structure. (See further explanation below).

Also, species where the ring encircles both arms of the fork at the left cannot be ruled out. Neither is in the correct topology for translocation.

This an interesting yet unconventional idea for which the reviewer may be eluding to a modified steric exclusion (MSE, i.e. O’Donnell) or a side channel extrusion (SCE, i.e. Chen and LargeT) modes. Previously, we had used biotin/ streptavidin on either strand of a fork substrate and verified that SsoMCM unwinds via a Steric Exclusion mode (Graham, 2011, Figure 1C and D). Even though the SsoMCM central channel can accommodate duplex DNA, if SsoMCM was to encircle both noncomplementary arms of the fork, unwinding of dsDNA would not be possible via a steric exclusion mode as determined previously with strand specific streptavidin blocks. Whether SsoMCM can encircle both noncomplementary strands as one possible mode of binding cannot be ruled out with our current experiments and would be outside the scope of this work.

An experiment to determine DNA translocation orientation needs to ensure that the orientation is dictated by the polarity of encircled ssDNA in a binding form derived from the translocating modules (presumably in the AAA+ tier), and that the "lagging strand" (if included) is fully excluded from the ring.

Again, streptavidin blocks confirmed that the lagging strand is fully excluded from the central channel (i.e. Steric exclusion) during unwinding (Graham et al., 2011).

These concerns could be resolved by using single-strand-only substrates for the FRET experiment in which the experiment also requires ATPase driven translocation. This could probably be achieved by using a "reasonably long" strand. Such a substrate would remove all the potential points of confusion associated with the possibility of dsDNA driving orientation instead of strand polarity. The attached PDF illustrates the basis for the concern and how this might possibly be resolved with reasonably long single-strand-only substrates. Experiments with this substrate (or an alternative experiment capable of resolving the stated issues) would need to be conducted before a recommendation concerning publication could be made.

As suggested by the reviewers and to resolve the concerns described above, new presteady-state FRET experiments were conducted with 80 nucleotide long ssDNA with a biotin (+streptavidin) placed at either end acting as a steric block to translocation polarity (new Figure 8). A FAM label on the adjacent duplex end is utilized for detecting FRET from a translocating SsoMCM labelled with Cy3 at the N or C-terminal tiers.

When N-terminally Cy3 labeled SsoMCM with 3’-long arm was used, we observed an increase in FRET in the presence of ATP suggesting that SsoMCM moves along ssDNA 3’-5’ towards the duplex end, while C-terminally labeled SsoMCM does not show an increase in FRET (Figure 8). These results corroborate directly with Figure 7, suggesting a N-first translocation mechanism. Interestingly, a substrate with reverse polarity shows a decrease in FRET only when C-terminally labeled SsoMCM is used again suggesting 3’-5’ translocation. These results correlate with a specific translocation orientation polarity preference of the two MCM tiers, where N-tier is facing the 5’-end and C-tier facing the 3’-end. This validates a 3’-5’ translocation polarity for SsoMCM, where the N-tier is leading the way.

These additional experiments do not change our initial interpretation that SsoMCM has multiple binding orientations but proceeds N-first, but they help to confirm this conclusion.
