During hippocampal inactivation, grid cells maintain synchrony, even when the grid pattern is lost

  1. Noam Almog
  2. Gilad Tocker
  3. Tora Bonnevie
  4. Edvard I Moser
  5. May-Britt Moser
  6. Dori Derdikman  Is a corresponding author
  1. Technion – Israel Institute of Technology, Israel
  2. Bar Ilan University, Israel
  3. Norwegian University of Science and Technology, Norway
Short Report
  • Cited 0
  • Views 500
  • Annotations
Cite this article as: eLife 2019;8:e47147 doi: 10.7554/eLife.47147

Abstract

The grid cell network in the medial entorhinal cortex (MEC) has been subject to thorough testing and analysis, and many theories for their formation have been suggested. To test some of these theories, we re-analyzed data from Bonnevie et al., 2013, in which the hippocampus was inactivated and grid cells were recorded in the rat MEC. We investigated whether the firing associations of grid cells depend on hippocampal inputs. Specifically, we examined temporal and spatial correlations in the firing times of simultaneously recorded grid cells before and during hippocampal inactivation. Our analysis revealed evidence of network coherence in grid cells even in the absence of hippocampal input to the MEC, both in regular grid cells and in those that became head-direction cells after hippocampal inactivation. This favors models, which suggest that phase relations between grid cells in the MEC are dependent on intrinsic connectivity within the MEC.

https://doi.org/10.7554/eLife.47147.001

Introduction

The mechanism responsible for the emergence of grid cell periodicity is arguably one of the best-tested and best-established mechanisms, across neural circuits in the mammalian central nervous system, thanks to extensive testing and analysis (Hafting et al., 2005; Moser et al., 2008; Derdikman and Knierim, 2014; Rowland et al., 2016). Modeling work has suggested that either grid cells are generated intrinsically in the medial entorhinal cortex (MEC), for example by a continuous attractor network model (Burak and Fiete, 2009; Couey et al., 2013; Fuhs, 2006; Giocomo et al., 2011; Moser et al., 2014; Zilli, 2012) or alternatively have their properties form through an interaction with another region, such as the hippocampus (Dordek et al., 2016; Kropff and Treves, 2008; Stachenfeld et al., 2017). To dissociate between these possibilities, we re-analyzed data from Bonnevie et al. (2013), who inactivated hippocampal input to the MEC, and found that under this condition, the grid pattern of individual grid cells deteriorated significantly or disappeared entirely. Here we investigated whether the firing associations of grid cells depend on hippocampal inputs. Specifically, we examined correlations in the firing times of simultaneously recorded grid cells before and during hippocampal inactivation, including grid cells that acquired head directional tuning during inactivation. Our analysis yielded evidence of network coherence in grid cells even in the absence of hippocampal input to the MEC.

Results

We reanalyzed data from Bonnevie et al. (2013) in which grid cells were recorded before, during and after hippocampal inactivation (Figure 1A–C). A total of 301 well-separated cells were recorded in the MEC and parasubiculum across 40 sessions including pre-, during and post-hippocampal inactivation, with 2–18 cells recorded simultaneously per session. While the runs of pre- and post-inactivation were analyzed in their entirety, for runs during inactivation we used only the time period starting at 15 minutes or later, up to 45 minutes, during which the most data were available across all recordings. The analysis showed similar effects on grid behavior in longer trials as in the first 45 minutes; the average grid score was −0.063 ± 0.193 for the first 15–45 minutes and −0.051 ± 0.180 for the remaining minutes.

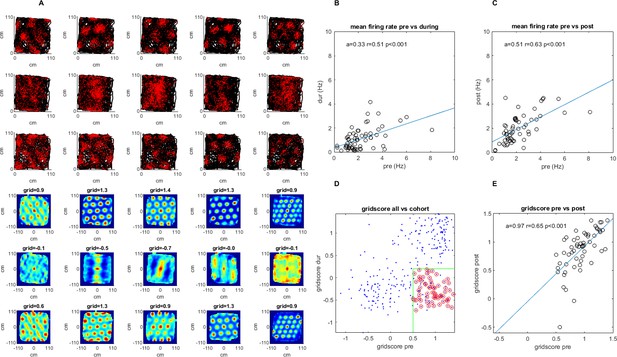

A survey of the grid cell population included in the study.

Recordings were made pre-, during, and post-injection of muscimol to the hippocampus. (A) A sample group of 5 simultaneously recorded grid cells, one cell per column. The first three plots in each column show the location of a single cell firing (red) along the rat’s trajectory (black) in a square arena pre-, during, and post-hippocampal inactivation, respectively. The last three plots in each column show the autocorrelation of the firing rate map and the grid score of that session pre-, during, and post inactivation. (B) The mean firing rate for the 63 grid cells included in the study pre- vs. during inactivation. (C) Same as (B) but for pre- vs. post-inactivation. (D) The grid score of all cells in the dataset vs. those included in the study. Red circles show the cells from the total population that were ultimately included in the study meeting the minimum and maximum grid score threshold pre- and during inactivation, respectively (green), as well as the additional criteria specified in the Materials and methods section (note that cells whose grid scores could not be calculated were set to 0). (E) Grid score pre- and post-inactivation of the cells included in the study.

https://doi.org/10.7554/eLife.47147.002

We searched for evidence of network activity between grid cells in the absence of hippocampal input. Consequently, we examined spike time correlations and spatial firing correlations between simultaneously recorded cells whose gridness was high under normal conditions, but deteriorated during hippocampal inactivation (Figure 1D and E). To select only cells with significant gridness before inactivation and minimal gridness during inactivation, we used a minimum grid score threshold of 0.5 pre-inactivation, and a maximum of 0.2 during inactivation. Doing the same analysis with different thresholds, ranging from 0.2 to 0.9 pre-inactivation, and 0 to 0.4 during inactivation, did not change the central finding of the analysis, showing persistence of temporal correlations between cell pairs during hippocampal inactivation (Figure 3—figure supplement 5).

The mean grid score of the selected cells was 0.92 ± 0.24 pre-inactivation and −0.30 ± 0.24 during inactivation. Additionally, to ensure that the same cell was not recorded on different electrodes, we removed any cells from a single recording session whose individual spike times overlapped within a 1 millisecond window more than 5% of the time (this mostly removed cases with very large overlap that were suspected as originating from the same cell on different tetrodes). The mean spike overlap after exclusion was 0.57% ± 0.65 of the total spike strain. In total, 63 of 301 cells from 17 of 41 recording sessions met our criteria (Figure 1D), producing 107 pairs of simultaneously recorded cells, on which the results of this study are based. In our cohort, firing rates decreased by 50.0% during inactivation, and returned to 90.5% of original levels post-inactivation (pre 2.21 Hz ± 1.39, during 1.11 Hz ± 0.90, and post 2.00 Hz ±1.16). However, overall, neither the firing rate, nor the grid score seemed to correlate to temporal or spatial correlations both pre and during inactivation (Figure 4—figure supplement 1).

Temporal correlations are maintained during loss of gridness

We found that several simultaneously recorded grid cell pairs consistently maintained temporal correlations even as their gridness score deteriorated (Figure 2A and B). Compared to random shuffling (n = 1000, α = 0.01), these correlations were statistically significant; 57%, 26%, and 53% of correlations passed the shuffling significance test pre-, during, and post-inactivation, respectively. Of the statistically significant correlations, 41%, 8%, and 27% were negative for the three respective recording phases, while 16%, 19%, and 22% were positive. Temporal correlations pre- vs. during inactivation were correlated at r = 0.58 (Figure 3A, p<0.001; although also in this case the distributions were different, Wilcoxon signed-rank p<0.001), and pre- vs. post-inactivation were correlated at r = 0.86 (Figure 3A, p<0.001). The results were very similar when analyzing the period of the recordings after 45 minutes (Figure 3—figure supplement 1). The strength of the correlations, both before and during inactivation, demonstrated a slight non-significant positive dependence on the grid score (Figure 3—figure supplement 2). For comparison, the correlation coefficient of temporal correlations pre- vs. during inactivation for each cell from our cohort against each cell not from the same recording session (1854 pairs in total) was r = −0.03 (p=0.21).

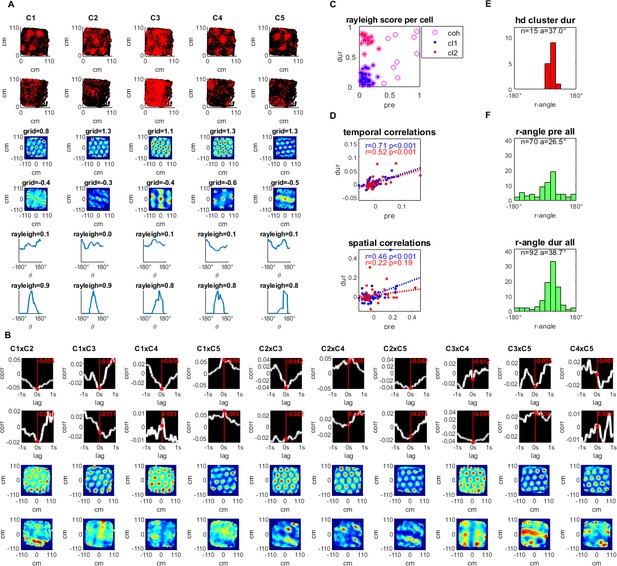

Temporal and spatial cross correlations of simultaneously recorded grid cells pre- and during hippocampal inactivation.

(A) An example of a pair of simultaneously recorded grid cells (columns 1, 2); the location of the cell firing (red) plotted over the rat’s trajectory (black) in a square arena. Columns 3 and 4 show the temporal and spatial cross correlation of the firing rate maps of the cells, respectively. Rows show the same analysis pre- and during inactivation. (B) The temporal and spatial cross correlations of cell pairs of an entire group of simultaneously recorded grid cells (one pair per column). Rows 1, 2 show temporal correlations pre- and during inactivation; rows 3, 4 show the same for spatial cross correlations.

https://doi.org/10.7554/eLife.47147.003
Figure 3 with 6 supplements see all

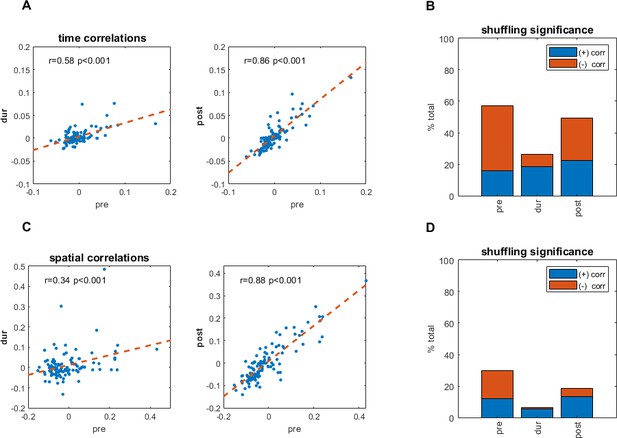

Temporal and spatial correlations pre- and during inactivation, for simultaneously recorded cell pairs.

(A) Temporal cross correlations pre- and during inactivation, and pre- and post-inactivation, with correlation value (r), and corresponding p-value. (B) Proportions of significant temporal correlations, according to shuffling measures, pre-, during, and post-inactivation, including the sign (positive, negative) of the correlation value. (C) Same as (A) but for spatial correlations of the firing pattern in the arena at [0,0]. (D) Same as (B) but for spatial correlations of the firing pattern in the arena at [0,0].

https://doi.org/10.7554/eLife.47147.004

Spatial correlations are maintained during loss of gridness

To examine whether short-range spatial correlations were maintained also during hippocampal inactivation, we compared the correlation coefficient of the 2D firing rate maps at the same position (x,y = 0,0). Overall, spatial correlations did not persist as consistently as temporal correlations during hippocampal inactivation; however, some degree of persistence was present between simultaneously recorded cell pairs. Spatial correlations were correlated to each other pre-inactivation vs. during inactivation at r = 0.34 (Figure 3C, p<0.001), while pre- vs. post-spatial correlations were correlated at r = 0.88 (Figure 3C, p<0.001). For a control comparison, the correlation coefficient of spatial correlations pre- vs. during inactivation for each cell from our cohort correlated against each other cell not from the same recording session, was lower (r = 0.10, p<0.001). The shuffling significance test (n = 1000, α = 0.01) found that 30%, 7%, and 22% of spatial correlations were significant pre-, during, and post-inactivation, respectively. Of the correlations, 18%, 1%, and 6% were negatively significant for all three recording phases, respectively, while 12%, 6%, and 13% were positive (Figure 3B,D). We note though that the amount of significant cell pairs was significantly lower during inactivation (χ2 = 12.2, p<0.001). The angular direction of the nearest peak in the spatial correlations was not maintained (Figure 3—figure supplement 6: while pre-inactivation vs. post-inactivation difference in angle was very non-uniform (Rayleigh non-uniformity test, p<0.001), the difference in angle between pre-inactivation and during inactivation did not diverge from uniformity (Rayleigh non-uniformity test, p=0.974), however when performing a time-windowed analysis of spatial correlations (see Materials and methods), at least in the 1 s range there were comparable correlations between spatial patterns before and during inactivation to those after inactivation (Figure 3—figure supplement 4). Although the statistical significance was lower overall for spatial correlations than for temporal correlations, the results for spatial correlations were consistent with those for temporal correlations. Additionally, plotting temporal and spatial correlations against each other demonstrated a clear linear relationship; the correlations of temporal to spatial correlations were r = 0.90 (p<0.001), r = 0.72 (p<0.001), and r = 0.90 (p<0.001) for pre-, during, and post-inactivation, respectively (Figure 3—figure supplement 3).

Grid-turned head direction cells maintain temporal but not spatial correlations during inactivation

In the original Bonnevie et al. (2013) study, it was reported that a subset of the grid cells became head direction cells during hippocampal inactivation. Cells within our cohort showed a bi-modal distribution of Rayleigh head-direction tuning scores during inactivation (Figure 4C). This enabled selecting the cells that became head-direction cells, defined as having a Rayleigh score smaller than 0.4 pre-, and greater than 0.4 during inactivation (15 of the 63 cells in our cohort, from 3 of the 17 recording sessions in two rats; 37 pairs out of the 107 pairs) and those which did not, defined as staying below 0.4 both pre- and during inactivation (39 of the 63 cells in our cohort, from 13 of the 17 recording sessions in six rats; 46 pairs out of the 107 pairs) (Figure 4C,D and E). Figure 4A depicts an example of these grid-turned head direction cells from the same recording session. Examining these two clusters separately, looking at temporal correlations pre- and during inactivation, non-head direction pairs were more correlated at r = 0.71, than the head direction pairs at r = 0.52, though both were correlations were significant (p<0.001; Figure 4D). For spatial correlations, pre-inactivation compared to during inactivation, had a correlation coefficient of r = 0.46 (p<0.001) in the non-head directional cluster, and r = 0.22 in the head direction cluster, though this latter correlation was not significant with p=0.19 (Figure 4D). In conclusion, while spatial correlations were probably less persistent in grid-turned head direction cells, temporal correlations persisted similarly in both regular and grid-turned head direction cells, during hippocampal inactivation. There did seem to be a bias in the tuning angle for the grid turned head direction cells whose average was 37.0° ± 3.5 during inactivation, which was also seen in the rest of the cells in the population, whose Rayleigh score was also above the same threshold of 0.4 pre- and during inactivation. Their averages were 26.5° ± 6.1, and 38.7° ± 4.5 respectively (Figure 4E and F). This bias is consistent with the fact that all the grid-turned head direction cells were recorded in the same room (room 3), as were the majority of the rest of the cells (Figure 4—figure supplement 2).

Figure 4 with 2 supplements see all
Simultaneously recorded grid cells that became head directional during hippocampal inactivation.

(A) A sample group of 5 simultaneously recorded grid cells, one cell per column. The first two plots in each column show the location of a single cell firing (red) along the rat’s trajectory (black) in a square arena pre- and during hippocampal inactivation. Next, two plots show the autocorrelation of the firing rate map and the associated grid score pre- and during inactivation. The last two plots in the column show the firing rate by head direction with an associated Rayleigh score, pre- and during inactivation. (B) Temporal and spatial cross correlations for each cell pair of the group, pre- and during inactivation by column. (C) Rayleigh scores pre- and during inactivation for all cells in the cohort (magenta circles) clustered by low head directionality (Rayleigh score <0.4 pre- and during inactivation, blue) and high head directionality (Rayleigh score <0.4 pre- and >0.4 during inactivation, red) (D) Temporal and spatial correlations (at 0,0) pre- and during inactivation grouped by head directionality clusters defined in (C), with the trendline slope (a) correlation coefficient (r), and corresponding p-value (p). (E) Histogram of Rayleigh angles for the cells in the HD cluster (red cluster in panels C and D) during inactivation (angles pre-inactivation are not shown since these cells had low Rayleigh scores for that period). (F) Rayleigh angles for all cells in population with Rayleigh score >0.4 pre-, and during inactivation.

https://doi.org/10.7554/eLife.47147.011

Discussion

This study reanalyzed data from Bonnevie et al. (2013), in which hippocampal input to the MEC was inactivated. The aim was to examine possible evidence of local grid cell coordination. We found that despite the disappearance of the grid pattern of these cells during hippocampal inactivation, temporal correlations between grid cells remained, at least partially, as did local spatial correlations, although to a lesser, yet still statistically significant degree. A time-windowed version of the spatial correlations suggests a window of about 1 s in which spatial structure remained.

First, these findings assert that hippocampal input does not completely account for spatially and temporally correlated activity between grid cells. Second, the slow decay of the correlations at a timescale in the order of magnitude of 1 s indicates that this effect is not due solely to direct synaptic connectivity, but to recurrent network activity of dense networks in behavioral timescales. Last, some grid cells became head-direction cells during hippocampal inactivation, and their spatial correlations were less dominant; nonetheless, temporal correlations persisted. Taken together, this paper is adding another piece of evidence to a line of results that support continuous attractor dynamics (Burak and Fiete, 2009; Couey et al., 2013; Fuhs, 2006; Giocomo et al., 2011; Moser et al., 2014; Zilli, 2012; Yoon et al., 2013; Heys et al., 2014; Gu et al., 2018; Trettel et al., 2019; Gardner et al., 2019) while being less supportive of feedforward models creating grid cells through summation of information from the hippocampus (Dordek et al., 2016; Kropff and Treves, 2008; Stachenfeld et al., 2017). We cannot preclude, though, the possibility that grid cells are formed through a different feedforward process, not involving the hippocampus, or that they are generated through a recurrent loop involving information from both the hippocampus and the entorhinal cortex (Donato et al., 2017).

A network model for grid cell firing pattern at least strongly predicts, if not implicitly requires, a significant level of synchronicity in temporal firing between two connected grid cells (Moser et al., 2014). The attractor manifold model for grid pattern generation predicts that even when the network is deprived of spatial input, in this case from the hippocampus, the activity pattern that is maintained (though no longer anchored to physical space) would cause nearby cells in the manifold to fire with high correlation, and more distant cells not to fire (Burak and Fiete, 2009; Dunn et al., 2014; Fuhs, 2006; Tocker et al., 2015). This aligns with our observations of both correlated and anticorrelated activity during inactivation.

In addition to the evidence of network coordination, we found that the distinct subset of cells that became head direction-tuned during inactivation, maintained temporal but not spatial correlations during hippocampal inactivation. Interestingly, the head-direction selectivity of these cells was very biased (Figure 4E). The large overlap in Rayleigh angle between these cells enabled the temporal correlations to remain significant despite the transformation to head-direction cells. This subset of grid-turned head direction cells is likely defined by strong input from the retrosplenial cortex, or the pre- or para- subiculum, which also project into the MEC, and which dominate these cells’ spatial tuning and firing time synchronization in the absence of input from the hippocampus (Clark and Taube, 2012). Because the grid-turned head-direction cells originated from recordings that did not contain grid cells that did not turn into head-direction cells we did not observe direct evidence of a temporal correlation between grid cells that became head-direction cells and those that did not. Notably, both groups were similar in their temporal correlation values before and during inactivation, regardless of their differences in spatial correlations. This suggests that despite receiving additional spatial input, the grid cells that became head-direction cells were part of the grid-cell network.

Several other experiments have investigated grid cell activity when spatial input was curtailed, specifically following removal of visual input. In their original paper that described grid cells, Hafting et al. (2005) observed rat grid cells in darkness, and found that the grid pattern did not deteriorate. More recently, two studies, by Pérez-Escobar et al. (2016) and Chen et al. (2016) that examined mouse grid cells in darkness reported that the grid pattern deteriorated without visual input. Furthermore, both studies found that significant temporal correlations were maintained during impaired spatial input to the entorhinal cortex, in accordance with our findings. Similarly, two new studies have demonstrated that grid cell temporal correlations remain during sleep (Trettel et al., 2019; Gardner et al., 2019).

The steady synchronicity in our study suggests an underlying network structure in the MEC that is responsible for grid cell formation. This corroborates the idea of an attractor manifold involved in grid cell formation.

Materials and methods

The following sections describe the acquisition of the original data from Bonnevie et al. (2013), and the analytical methods we applied to the data. All code was written in MATLAB (V. 2018b). The code was uploaded to GitHub at https://github.com/derdikman/Almog-et-al.-Matlab-code (Derdikman, 2019; copy archived at https://github.com/elifesciences-publications/Almog-et-al.-Matlab-code). The data files, in Matlab format, are available through Dryad at https://doi.org/10.5061/dryad.bk3j9kd6d.

Input data

Request a detailed protocol

Briefly, the original experiment by Bonnevie et al. (2013) was performed with eight male, 3–5 month old Long-Evans rats, with water available ad libitum. The rats were kept on a 12 hour light, 12 hour dark schedule and tested in the dark phase. Rats were implanted with a microdrive connected to four tetrodes of twisted 17 μm platinum-iridium wire; one bundle was implanted in the MEC in all rats, anteroposterior 0.4–0.5 mm in front of the transverse sinus, mediolateral 4.5–4.6 mm from the midline, and dorsoventral 1.4–1.8 mm below the dura. Tetrodes were angled 10° in the sagittal plane. For hippocampal inactivation, cannulae were implanted at a 30° angle in the posterior direction towards the dorsal hippocampus; 0.24–0.30 μl of the GABAA receptor agonist muscimol (5-aminomethyl-3-hydroxyisoxazole) diluted in PBS was used to inactivate the hippocampus.

Rats were run in an open-field 100 cm, 150 cm, or 170 cm square arena, size depending on which of the three recording rooms were used (rooms 3, 9 and 10), polarized by a single white que card in an otherwise black environment for a 20 minute period, after which muscimol was infused. Subsequently, the firing rate of all principal cells recorded in the dorsal CA1 region decreased rapidly,~2.2 mm posterior and lateral to the infusion site (82 cells, all of which were place cells), with firing rates dropping to 1% of the baseline rate in 79% of the recorded cells within 20 minutes. Inactivation of the hippocampus had only minimal impact on the behavior of the rats. Rats then ran for an average of 160 minutes in the open field. After 6–24 hours, the rats were run for 20 minutes to check for cell recovery and grid stability.

Quantifying gridness and head direction selectivity

Request a detailed protocol

For this analysis, we were interested in specifically examining grid cells whose spatial firing pattern was significantly degraded. To quantify this, we used the generally accepted measure of grid score, which essentially measures the extent the cell’s firing pattern repeats itself at 60o intervals on a two-dimensional (2D) plane (how hexagonal the firing pattern is). The procedure undertaken to achieve this calculation is as follows (based on the procedure described in Sargolini et al., 2006; Tocker et al., 2015):

The arenas were divided into 50x50 equally sized square bins. First, a 2D map of neuron spiking was generated by creating a matrix where the index [i, j] represents the location in the arena, and the value represents the number of spikes in that location. The equivalent matrix for time spent at each location was also created. These two matrices were divided by each other element-wise, creating a matrix of firing rates at each location bin.

Next, a 2D normalized spatial autocorrelation was performed on the rate map matrix accounting for non-existent values in the rate map, as described in Tocker et al. (2015). Firing fields were identified using a method that treated the smoothed (2D Gaussian smoothing with σ = 2) autocorrelation matrix as an image, and identified distinct regions bounded by a given pixel value of x in all eight directions whose external values are all less than x. Typical grid cell autocorrelations have at least six firing fields, at approximately 60° intervals (Hafting et al., 2005). Typical grid cell activity was manifested as equidistant firing fields at 60° intervals from each other.

The final step in calculating the grid score was to create a ring around the center of the smoothed autocorrelation (2D Gaussian smoothing with σ = 2), with an inner radius small enough to contain the innermost firing field, and the outer radius large enough to contain the outermost edge of the sixth closest field. Next, the ring was rotated 60° and correlated to the original (using a normalized correlation, accounting for empty matrix values as described above). This value was then subtracted by the value of the ring correlated at a 30° rotation. Since both correlations have values in the range of [−1,1], the range of grid scores is [−2, 2]. Cells whose autocorrelation did not create six distinct firing fields for calculating the annulus using the above method were set to a default grid score of 0.

A Rayleigh score from 0 to 1 was used to quantify head directionality of cells, similar to that described in Tocker et al. (2015).

Cell pair correlations

Request a detailed protocol

To quantify temporal correlations between cells, we calculated the Pearson correlation of their spike trains (lag = 0 ms). For spatial correlations, a 2D Pearson correlation of the rate maps (see Quantifying gridness) was performed and compared at [0,0]. Spatial cross correlations were done following the Pearson moment formula accounting for missing values in the rate map as described in Tocker et al. (2015). Smoothing was done on the spike trains prior to both temporal and spatial correlations using a moving average window of 25 ms. Varying the smoothing windows from 1 ms to 1000 ms had little or no impact on the correlation results.

Shuffling to measure significance

Request a detailed protocol

To measure the statistical significance of the correlations, we employed a shuffling method in which spike train times were shifted cyclically n times by total_spike_train_time/n to create pseudo random spike trains (n = 1000 unless stated otherwise) and their correlations recalculated. Correlations were considered significant if they were in the 99th percentile when compared to the shuffled correlations.

Time-windowed spatial correlation analysis

Request a detailed protocol

In order to measure spatial correlations at a smaller time-scale during inactivation, we analyzed spike to spike locations relative to the first cell in a cell pair within a given time window. For a given cell pair, each spike was treated as the origin in two dimensional space [0,0], and a 2D binned rate map (see above) consisting of all spikes in a given time window [±1s; ±2s; ±3s; ±5s or ±10s], was constructed. This collection of rate maps for a given cell pair was aggregated into a single rate map by adding up the values at a given bin location in the rate map. This procedure was done for each recording session [pre- during post-inactivation]. These cell pair maps were then spatially correlated against each other by session [pre- vs. during inactivation; pre- vs. post-inactivation], where [pre- vs. post-inactivation] represented the control in which we expected to see stable maps for cell pairs between pre -and post- and therefore high correlations.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    Network mechanisms of grid cells
    1. EI Moser
    2. M-B Moser
    3. Y Roudi
    (2014)
    Philosophical Transactions of the Royal Society B: Biological Sciences 369:20120511.
    https://doi.org/10.1098/rstb.2012.0511
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27

Decision letter

  1. Laura L Colgin
    Senior and Reviewing Editor; University of Texas at Austin, United States
  2. Ila R Fiete
    Reviewer
  3. Kevin Allen
    Reviewer; Heidelberg University, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "During hippocampal inactivation, grid cells maintain their synchrony, even when the grid pattern is lost" for consideration by eLife. Your article has been reviewed by Laura Colgin as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Ila R. Fiete (Reviewer #1); Kevin Allen (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. The individual reviews are included in their entirety toward the end of this decision letter for your information, but your rebuttal letter only needs to address the "Essential Revisions" listed below (i.e., you do not need to repeat your responses to individual reviewers' major comments).

Summary:

The authors show that patterns of correlation among grid cells observed prior to hippocampal inactivation persist during hippocampal inactivation. These findings are consistent with predictions of continuous attractor models, in which grid cell responses are predicted to be formed through intrinsic interactions within the grid cell network. The present paper demonstrates that the structure of correlated activity within the grid cell network, which has been reported in other papers, is not inherited from the hippocampus.

Essential revisions:

1) The paper should appropriately credit other previous works that have subsequently tested and found support for the continuous attractor hypothesis, as well as the key idea that the examination of cell relationships and their preservation across conditions where the inputs are modified is a key test of intrinsic pattern formation dynamics within the circuit.

2) Computing the correlations with different smoothing windows is unnecessary (Figure 2B). In this particular example, it is clear that correlation decays within more or less 1second, and that it is the only relevant timescale. This correlation can thus be captured by any choice of binning smaller than 0.5 seconds and the right filtering parameters (as in any sampling procedure). In addition, it cannot be concluded that this is consistent across time scales (as stated in the Discussion section). See the studies of HD/grid cell correlation during sleep for related analyses.

3) An additional analysis should be performed to address the question of which underlying spatial processes are preserved. One analysis that could be informative is to determine whether other pairwise spatial properties are maintained, e.g. the direction of the nearest peak in the spatial cross-correlograms.

4) The authors should investigate whether the grid scores of the cross-correlograms are higher when shorter bouts of exploration are analyzed. One possibility is that mutual grid patterns are preserved while individual grid cells lose their periodic structure because absolute phase drifts over time (see reviewer #2's comment below for specific analysis suggestions).

5) The study is presented as if it tested whether grid cells depend on local MEC circuits or external inputs (Abstract, Introduction and Discussion section). Because there are still many intact inputs to the MEC during hippocampal inactivation, this question can't be directly addressed with the current experiment. The authors should focus more on whether the firing associations of grid cells depend on hippocampal inputs.

6) In Figure 3A, the slope of the regression line appears to be less than 1. Was this significant or did one outlier cell pair only drive it? Is there a significant difference between the distribution of time correlations from "pre" and "during" (Wilcoxon signed-rank test)?

7) Figure 3B, there appear to be fewer significant cell pairs during inactivation (46% vs. 72%)? The authors should determine if this difference is significant. Since the recording time was longer during inactivation than for pre or post, one may have expected the opposite. Could this suggest that the grid cell correlation structure was not entirely stable during hippocampal inactivation?

8) A more thorough analysis of "grid cells turned HD" cells was requested. See reviewer #3's comment below for specific analysis suggestions. Also, the question of whether grid cells turned HD cells and pure grid cells were recorded in the same animals and whether grid cells turned HD cells were recorded in several animals.

9) It is not clear at which time the inactivation period starts. Is it immediately after injection or at the time of CA1 inactivation? Since 45 minutes of data is available, would it be possible to compare the firing associations during two non-overlapping periods (early vs. late inactivation)? This analysis would ensure that the correlations with the "pre" are maintained throughout the inactivation period.

Reviewer #1:

In this short, sweet, clear paper, Derdikman and colleagues examine the relationships between comodular grid cells before and during hippocampal (HPC) inactivation. They show that patterns of correlation among grid cells observed during spatial firing pre-inactivation persist during HPC inactivation, even in cells that lost most spatial tuning and turned into HD-like cells (at least temporal correlations are preserved for the HD-turned cells, while temporal and spatial correlations are preserved for the rest), consistent with the predictions of continuous attractor models in which cell responses are predicted to be largely formed through intrinsic interactions within the grid cell network rather than being inherited from another source like HPC input. This finding is at odds with the predictions of alternative models proposed by Treves, Derdikman, and others, in which the grid cell patterning is based on place cell input. It is definitely fit for publication in eLife, as it establishes a quantitative result, helps eliminate hypotheses, and contributes by further adding to accumulating support to the dominant hypothesis for the generation of grid cell responses. I also don't see any technical issues with the analyses, including the choice of cell selection criteria.

I do, however, have a suggestion that is closely related to my positive comments above, and is not unique to this paper, but is one that I would hope that this paper and subsequent ones by other authors following the example will follow. That is, it is unfortunately endemic to our field to start out papers by posing the question under study as one that has long been "mysterious" and "unanswered", and to pose the current work as the answer to this question. In this vein, the paper starts with "The means by which grid cells form regular, hexagonal spatial firing patterns has been an enigma since their discovery in the medial entorhinal cortex (MEC)." and "Since their discovery in the medial entorhinal cortex (MEC) (Hafting et al., 2005) the location and means by which grid cells form their eponymous hexagonal spatial firing patterns has been elusive." The current situation is not exactly this, however (though it once was!), as by now the grid cell mechanism is arguably one of the best-tested and best-established mechanisms, across neural circuits in the mammalian CNS, thanks to extensive testing and analysis. The current paper appropriately cites models that propose various grid cell mechanisms, but could do a much better job of appropriately crediting works that have subsequently tested and found support for the continuous attractor hypothesis, as well as the key idea that the examination of cell relationships and their preservation across conditions where the inputs are modified is a key test of intrinsic pattern formation dynamics within the circuit.

In sum, it will not diminish the paper's own results, and will rather greatly enhance the fidelity with which it represents our current understanding of grid cells, to state clearly in the Abstract and Introduction that this paper is adding another piece of evidence to a line of results that support continuous attractor dynamics, and citing these results. It's great that this is how the scientific edifice is built, and this work is a lovely contribution in that direction!

Reviewer #2:

Almog and collaborators have reanalyzed MEC recordings from Bonnevie et al., (2013) during which the hippocampus was transiently inactivated. While observing as in the original study a clear decrease in grid scores, the authors show that temporal and spatial coordination are maintained. They conclude that these observations support attractor (or at least local connectivity-based) models of grid cells. Overall, the idea and the results are interesting. The analyses could be improved a bit to strengthen the message.

Computing the correlations with different smoothing windows is unnecessary (Figure 2B). In this particular example, it is clear that correlation decays within more or less 1s, and that it is the only relevant timescale. This correlation can thus be captured by any choice of binning smaller than 0.5 seconds and the right filtering parameters (as in any sampling procedure). In addition, it cannot be concluded that this is consistent across time scales (as stated in the discussion). See the studies of HD/grid cell correlation during sleep for related analyses.

The fact that spatial correlations are maintained above chance level begs the question of which underlying spatial processes are preserved. One analysis that could be informative is to determine whether other pairwise spatial properties are maintained, e.g. the direction of the nearest peak in the spatial cross-correlograms.

Along the same lines, are the grid scores of the cross-correlograms higher when shorter bouts of exploration are analyzed? One possibility is that mutual grid patterns are preserved while individual grid cells lose their periodic structure because absolute phase drifts over time. One can also imagine to compute a time-limited spatial cross-correlogram: the idea would be to populate a 2D histogram of animal's positions at times of a neuron A spikes relative to the positions at times of neuron B spikes and within a window of +/- 1 second. This would correspond to a 2D histogram of all the pairs (xA-xB,yA-yB) for |tB-tA|<1s, with 'xi,yi' the position of the animal at times 'ti' of neuron 'i' spikes.

Reviewer #3:

This study by Almog and colleagues tests whether the correlation structure of grid cells is maintained after inactivation of the hippocampus with local muscimol injections. As previously reported (Bonnevie et al., 2013), grid cell periodicity and spatial selectivity are strongly reduced during hippocampal inactivation. In the current manuscript, the authors report that the firing associations between simultaneously recorded grid cells are maintained during inactivation.

This manuscript comes at the right time as two important studies addressing the stability of the grid cell correlation structure during sleep were just published. The results of the current manuscript provide convincing evidence that the firing associations between grid cells do not depend on hippocampal inputs.

One concern I have with the manuscript is that the study is presented as if it tested whether grid cells depends on local MEC circuits or external inputs (Abstract, Introduction and Discussion section). Because there are still many intact inputs to the MEC during hippocampal inactivation, this question can't be directly addressed with the current experiment. Perhaps the authors should focus more on whether the firing associations of grid cells depend on hippocampal inputs.

In Figure 3A, the slope of the regression line appears to be less than 1. Was this significant or did one outlier cell pair only drive it? Is there a significant difference between the distribution of time correlations from "pre" and "during" (Wilcoxon signed-rank test)?

Figure 3B, there appear to be fewer significant cell pairs during inactivation (46% vs. 72%)? Is this difference significant? Since the recording time was longer during inactivation than for pre or post, I would have expected the opposite. Could this suggest that the grid cell correlation structure was not entirely stable during hippocampal inactivation?

I find the results with "grid cells turned HD" cells interesting, but I am not sure how to interpret the findings. More analysis could be helpful here. For example, one could perform cross-correlations between the HD tuning curves during inactivation. Is map similarity during "pre" correlated with similarity in preferred HD during inactivation? In Figure 4A, the HD tuning curves during inactivation all look relatively similar (last row) despite the cells often having non-overlapping firing fields (top row). Theoretically, if grid cells are organized as a lattice with fixed connectivity, how can they become HD cells without modifying their firing associations with other grid cells? Would it be like trying to reorganize the grid cell lattice as a ring (typical HD attractor network)? Or do all grid cells turned HD cells inherit the same preferred direction during inactivation but fire at different times?

It is not clear at which time the inactivation period starts. Is it immediately after injection or at the time of CA1 inactivation? Since 45 minutes of data is available, would it be possible to compare the firing associations during two non-overlapping periods (early vs. late inactivation)? This analysis would ensure that the correlations with the "pre" are maintained throughout the inactivation period.

Were grid cells turned HD cells and pure grid cells recorded in the same animals? It would also be informative to know whether grid cells turned HD cells were recorded in several animals.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "During hippocampal inactivation, grid cells maintain their synchrony, even when the grid pattern is lost" for further consideration at eLife. Your revised article has been favorably evaluated by Laura Colgin (Senior Editor), a Reviewing Editor, and two reviewers.

The manuscript has been improved but there are some remaining issues that should be addressed before acceptance, as outlined below:

Reviewer #3:

The authors have answered most of the concerns that I had raised during the initial review.

I still have one point that I think should be addressed. The authors now report that the distribution of temporal firing associations before inactivation is significantly different from that observed during inactivation (Figure 3A). Also, the number of significant temporal firing associations is lower during inactivation (Figure 3B). These two new findings should be given more considerations. Some grid cell pairs might maintain their firing associations (subsection “Temporal correlations are maintained during loss of gridness”), but as a population, there seem to be some modifications taking place in the firing associations during hippocampal inactivation. Perhaps the appropriate conclusion is that the firing associations (or synchrony) between grid cells are partially preserved during hippocampal inactivation. Maybe the title should be adjusted to reflect these findings.

https://doi.org/10.7554/eLife.47147.018

Author response

Essential revisions:

1) The paper should appropriately credit other previous works that have subsequently tested and found support for the continuous attractor hypothesis, as well as the key idea that the examination of cell relationships and their preservation across conditions where the inputs are modified is a key test of intrinsic pattern formation dynamics within the circuit.

We have now changed the first sentence in the Abstract: “The grid cell network in the MEC has been subject to thorough testing and analysis, and many theories for their formation have been suggested”.

Furthermore, we now use the reviewer’s words in the Introduction: “the grid cell mechanism is arguably one of the best-tested and best-established mechanisms, across neural circuits in the mammalian CNS, thanks to extensive testing and analysis.”

The relation of this work to attractor dynamics is now noted in the discussion: “this paper is adding another piece of evidence to a line of results that support continuous attractor dynamics”.

(Although we note in reservation that organized common synaptic input not from the hippocampus could also explain the results in the paper.)

Following the reviewers' comments, we have added the following citations to the paper: Yoon et al., (2013), Heys et al., (2014), Dunn et al., (2015), Gu et al., (2018), Trettel et al., (2019) and Gardner et al., (2019).

2) Computing the correlations with different smoothing windows is unnecessary (Figure 2B). In this particular example, it is clear that correlation decays within more or less 1second, and that it is the only relevant timescale. This correlation can thus be captured by any choice of binning smaller than 0.5 seconds and the right filtering parameters (as in any sampling procedure). In addition, it cannot be concluded that this is consistent across time scales (as stated in the Discussion section). See the studies of HD/grid cell correlation during sleep for related analyses.

Following this point, the analysis and discussion of different smoothing windows in the context of time scales has been taken out.

We now note in the Discussion section “the slow decay of the correlations at a timescale in the order of magnitude of 1 second” instead of the different smoothing windows, as was described before.

3) An additional analysis should be performed to address the question of which underlying spatial processes are preserved. One analysis that could be informative is to determine whether other pairwise spatial properties are maintained, e.g. the direction of the nearest peak in the spatial cross-correlograms.

We have now added the analysis of the direction of the nearest peak in the spatial cross-correlograms (Figure 3—figure supplement 6. As can be seen, comparing “PRE” vs. “During” to “Pre” vs. “Post”, the marked diagonal and long tail in the angle difference, seen in the latter case is seen less in the former (P<0.001 for the PRE-POST vs. non-significant for the PRE-DURING when comparing the angle difference to the uniform distribution). This analysis suggests that there isn't a strong relation between the direction of the peaks in the “Pre” condition and in the “During” condition in the cross correlograms.

4) The authors should investigate whether the grid scores of the cross-correlograms are higher when shorter bouts of exploration are analyzed. One possibility is that mutual grid patterns are preserved while individual grid cells lose their periodic structure because absolute phase drifts over time (see reviewer #2's comment below for specific analysis suggestions).

As suggested, we looked at the time-windowed spatial cross-correlations, trying out different time windows (1 second, 2 seconds, 3 seconds, 5 seconds and 10seconds). The procedure we used is now detailed in the description of Figure 3—figure supplement 4, and in the Materials and methods section.

In the 1 second time window case, we found examples of similar spatial cross-correlation patterns in the “PRE” vs. “During” condition. Comparing the correlations of these maps between the “Pre” and the “During” conditions vs. the “Pre” and the “Post” conditions suggests that in the 1-second window case (and not in longer windows) there was a significant correspondence in the correlations between those cases.

5) The study is presented as if it tested whether grid cells depend on local MEC circuits or external inputs (Abstract, Introduction and Discussion section). Because there are still many intact inputs to the MEC during hippocampal inactivation, this question can't be directly addressed with the current experiment. The authors should focus more on whether the firing associations of grid cells depend on hippocampal inputs.

This was now corrected in the Abstract and in the main text, as suggested.

6) In Figure 3A, the slope of the regression line appears to be less than 1. Was this significant or did one outlier cell pair only drive it?

Removing outlier changed slope from 0.41 to 0.50, still well below 1.

Is there a significant difference between the distribution of time correlations from "pre" and "during" (Wilcoxon signed-rank test)?

Indeed, the time correlations have a significant difference in the “pre” vs. the “during” phases (P<0.001, Wilcoxon signed-rank test). This is now mentioned in subsection “Temporal correlations are maintained during loss of gridness”.

7) Figure 3B, there appear to be fewer significant cell pairs during inactivation (46% vs. 72%)? The authors should determine if this difference is significant. Since the recording time was longer during inactivation than for pre or post, one may have expected the opposite. Could this suggest that the grid cell correlation structure was not entirely stable during hippocampal inactivation?

We performed a chi square test (1 DOF) and it showed that indeed the amount of cell pairs was significantly lower during inactivation (χ2=12.2, P<0.001). This is now noted in subsection “Spatial correlations are maintained during loss of gridness”.

8) A more thorough analysis of "grid cells turned HD" cells was requested. See reviewer #3's comment below for specific analysis suggestions.

Following reviewer’s #3 comment, we have now added a more thorough analysis of the head-direction cells in our data.

As pointed out by the reviewer, the Rayleigh direction of the grid-turned head direction cells was extremely biased. This panel is now in new Figure 4E.

We suggest that this huge overlap in the firing direction of the cells could potentially explain how pairs of cells could maintain their correlation even after they became head-direction cells.

We also looked at the direction of other head-direction cells in the population (classified as those with a Rayleigh score > 0.4 and more than 100 spikes). Surprisingly, these cells were also biased to some extent in all phases of the experiment (Figure 4F).

The unidirectional trend of the bias was recording-room dependent, as most of the cells were recorded from a single room (Room 3), Figure 4—figure supplement 2):

We note that also all 15 grid-turned HD cells were recorded in Room 3.

Thus, we believe the bias is related to an anisotropy in Room 3 (such as a cue card – we did not manage to check this, though).

These results are interesting and have been added to main Figure 4. The new results are now discussed in subsection “Temporal correlations but not spatial correlations persisted during inactivation for grid-turned head directional cells”, with an added sentence in the Discussion section.

Also, the question of whether grid cells turned HD cells and pure grid cells were recorded in the same animals and whether grid cells turned HD cells were recorded in several animals.

Grid cells turned HD cells were recorded in 2/8 animals from our cohort. In these two animals all grid cells turned into head-direction cells. This caveat is now highlighted in subsection “Temporal correlations but not spatial correlations persisted during inactivation for grid-turned head directional cells”.

9) It is not clear at which time the inactivation period starts. Is it immediately after injection or at the time of CA1 inactivation?

The inactivation period starts about 15 minutes after injection. Thus, all analysis was now updated to be aligned to the 15 minute start.

Since 45 minutes of data is available, would it be possible to compare the firing associations during two non-overlapping periods (early vs. late inactivation)? This analysis would ensure that the correlations with the "pre" are maintained throughout the inactivation period.

The figure comparing early vs. late inactivation has now been updated, demonstrating that the correlation phenomena exist also during the later phases of the inactivation: This was now updated in the paper as Figure 3—figure supplement 1.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "During hippocampal inactivation, grid cells maintain their synchrony, even when the grid pattern is lost" for further consideration at eLife. Your revised article has been favorably evaluated by Laura Colgin (Senior Editor), a Reviewing Editor, and two reviewers.

The manuscript has been improved but there are some remaining issues that should be addressed before acceptance, as outlined below:

Reviewer #3:

The authors have answered most of the concerns that I had raised during the initial review.

I still have one point that I think should be addressed. The authors now report that the distribution of temporal firing associations before inactivation is significantly different from that observed during inactivation (Figure 3A). Also, the number of significant temporal firing associations is lower during inactivation (Figure 3B). These two new findings should be given more considerations. Some grid cell pairs might maintain their firing associations (subsection “Temporal correlations are maintained during loss of gridness”), but as a population, there seem to be some modifications taking place in the firing associations during hippocampal inactivation. Perhaps the appropriate conclusion is that the firing associations (or synchrony) between grid cells are partially preserved during hippocampal inactivation. Maybe the title should be adjusted to reflect these findings.

We agree that the message of the paper should be slightly changed.

This point has been updated in the conclusion of the Discussion section as follows:

“We found that despite the disappearance of the grid pattern of these cells during hippocampal inactivation, temporal correlations between grid cells remained, at least partially,…”

We also now write that: “these findings assert that hippocampal input does not completely account for spatially and temporally correlated activity between grid cells”

To account for this change, we have made a subtle change I the Title, by taking out the word “their”. The updated Title reads: “During hippocampal inactivation, grid cells maintain synchrony, even when the grid pattern is lost”.
