We showed previously that Tbx1-null embryos lack ESM, wherein Isl1-derived myogenic progenitors fail to colonize and pattern the esophagus (Gopalakrishnan et al., 2015). The absence of seeding of Isl1-derived ESM progenitors in the anterior esophagus of Tbx1-null mice could originate from cell-autonomous or non-autonomous defects. To distinguish between these possibilities, we generated two types of chimeric embryos to explore the epistatic relationship between Tbx1 and Isl1 during ESM formation. Embryonic chimeras are well-established tools that have provided key insights into the tissue-specific requirement of genes during mammalian development (Tam and Rossant, 2003).

We first generated chimeras by injection of Isl1^lacZ (KI) ES cells (Sun et al., 2007) in Tbx1^-/- and control (Tbx1^+/-) blastocysts to determine if Tbx1/Isl1-positive cells can colonize the esophagus in a Tbx1-null environment. Here, β-galactosidase (β-gal) expression is under the control of the Isl1 promoter to trace the ES-derived cells in vivo (Figure 1—figure supplement 1A,B). All Tbx1-null chimeric embryos analyzed between E14.5 and E15.5 lacked thymus glands (n=9) and 77% of them were edemic and lacked the outer ear pinna indicating that the contribution of Isl1^lacZ ES cells (Tbx1^wildtype) was not extensive enough to fully rescue the Tbx1 knockout phenotype (Figure 1—figure supplement 1C,D). Whole mount X-gal staining showed that 5/5 chimeric Tbx1^-/- embryos analyzed contained β-gal+ cells in the esophagus (Figure 1—figure supplement 1E), though to variable extent in individual embryos when compared to heterozygous controls. Apart from its expression in ESM progenitors, Isl1 is expressed in peripheral neurons (Pfaff et al., 1996) and in the pharyngeal and esophageal epithelium (Cai et al., 2003; Harel et al., 2009; Nathan et al., 2008). Therefore, we analyzed tissue sections to assess β-gal expression pattern at the cellular level. We observed that β-gal+ cells were present within the smooth muscle layers of the esophagus of Tbx1-null embryos (8/8 chimeras analyzed), and colocalised within Tnnt3+/Tuj1- (myogenic/non-neurogenic) cells (Figure 1—figure supplement 1F,G). While ESM colonization in chimeric Tbx1^-/- embryos appeared to be less efficient than in controls (determined by number of β-gal+ cells/section and Tnnt3+ muscle area/section), the relative number of β-gal+ cells/Tnnt3+ muscle area was non-significantly altered (Figure 1—figure supplement 1H–J). Taken together, these data indicate that Isl1^lacZ ES cells can colonize an overall Tbx1-null esophageal environment suggesting cell autonomous potential of Tbx1+/Isl1+ progenitors to seed and pattern the ESM. Of note, cells expressing lower levels of β-gal were present in the esophagus epithelia and connective tissue layers of both control and chimeric Tbx1-null embryos suggesting that, in these cells, expression from the endogenous Isl1 locus was downregulated, and therefore the extent of the contribution of Isl1^lacZ ES cells (Tbx1^wildtype) cannot be unambiguously assessed. To circumvent this issue, we generated a second series of chimeras to address the intrinsic role of Isl1 during fetal esophagus myogenesis.

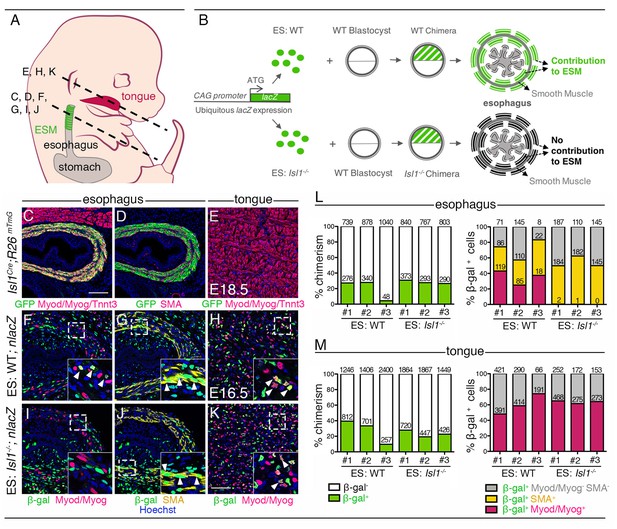

To bypass the early embryonic lethality of Isl1-null embryos (Cai et al., 2003), we generated chimeric fetuses by injection of Isl1-null ES cells into wildtype (WT) mouse blastocysts. We targeted Isl1-null and control (WT) ES cells with a constitutive lacZ expression cassette (pCAG-nlacZ; nuclear β-gal activity) to trace ES cell derivatives ubiquitously and independently of Isl1 expression (Figure 1A–B). Macroscopic examination of chimeras at E16.5 did not reveal obvious developmental defects in Isl1-null chimeras compared to controls. Immunostainings on sections were then performed to evaluate the contribution of Isl1-null (ES: Isl1^-/-; nlacZ) and control (ES: WT; nlacZ) β-gal+ ES-derived cells to the esophagus myogenic population. For reference, contribution of β-gal+ ES-derived cells was compared with Isl1 lineage tracing (Isl1^Cre/+;R26^mT/mG/+ embryos), whereby GFP+ Isl1-derived CPM cells contribute to the esophagus myogenic population (Myod/Myog/Tnnt3+), but not to the esophagus smooth muscle (SMA+) and striated muscle of tongue that develop in an Isl1-independent context (Figure 1C–E). We then quantified the percentage of chimerism and percentage of β-gal+ cells in the esophagus SMA+ and Myod/Myog+ populations and in myogenic cells of the tongue (n = 3, Figure 1F–K). In both Isl1-null and control chimeras, the overall percentage of chimerism in the tongue was similar to that observed in the muscularised layers of the esophagus (Figure 1L–M, left panels). In the esophagus of control chimeras, β-gal+ cells gave rise to both SMA+ (31–46%) and Myod/Myog+ populations (25–43%) (Figure 1F,G,L). In contrast, Isl1-null/β-gal+ cells were excluded from the esophagus Myod/Myog+ cells (Figure 1I,J,L), whereas they contributed to a similar extent to esophagus smooth muscle and tongue myogenic cells in both Isl1-null and control chimeras. These results show that Isl1 is necessary cell-autonomously for progenitor cells to adopt a myogenic cell fate in the esophagus (Figure 1B).

Figure 1 with 1 supplement see all

Download asset Open asset

ESM development occurs in a biphasic mode, with initial seeding of Isl1-positive myogenic progenitors at the anterior esophagus followed by anterior-posterior migration and differentiation that proceeds to postnatal stages (Gopalakrishnan et al., 2015). Isl1 is known to maintain cells in an undifferentiated state in branchiomeric muscle progenitors (Cai et al., 2003; Nathan et al., 2008). To determine the expression level of Isl1 in ESM progenitors relative to lineage committed MRF genes, we performed RT-qPCR analysis at key stages of ESM development: at E15.5 and E17.5 when one third and two thirds of the esophagus is populated by ESM progenitors, respectively; then at 3 weeks postnatally when the entire esophagus is muscularised. Isl1 and Myf5 transcripts were detected in the anterior, middle and posterior esophagus as ESM progenitors colonize the structure from E15.5 to 3 weeks postnatally (Figure 2A–C). Isl1 expression was also detected in the stomach, as already described for the gastric epithelium (Das and May, 2011). We next performed RT-qPCR analysis for Isl1 in myogenic cells isolated from Tg:Pax7-nGFP mice where Pax7+ progenitors can be isolated from mid-embryonic stages (Sambasivan et al., 2009) (Figure 2D). Isl1 was expressed in Pax7-nGFP+ esophagus progenitors, whereas expression was low or undetectable in those isolated from the masseter at all stages analyzed. Therefore, Isl1 expression is maintained in myogenic progenitors throughout ESM development.

Figure 2 with 2 supplements see all

Download asset Open asset

We then asked what molecular pathways would guide ESM progenitors to undergo A-P migration. Given the key role for MET/HGF signaling during delamination and long distance migration of hypaxial muscle progenitors (Bladt et al., 1995; Dietrich et al., 1999; Maina et al., 1996; Prunotto et al., 2004), we performed RT-qPCR analysis for Met in isolated Pax7-nGFP+ myogenic cells of the esophagus, as well as for Met, Hgf and SMA (as a landmark for the smooth muscle scaffold) in anterior, middle and posterior whole esophagus portions. Notably, Pax7-nGFP+ ESM progenitors showed transcript abundance of Met at fetal stages and lower expression levels postnatally when ESM colonization was complete (Figure 2E). Along the anterior-posterior axis, Met levels were higher in the anterior esophagus portion at E13.5 and E15.5, and become upregulated also in the middle part by E17.5 (Figure 2—figure supplement 1A). Hgf levels seemed initially constant along the esophagus length at E13.5, but appeared downregulated anteriorly in parallel with SMA at later stages (Figure 2—figure supplement 1B,C). Taken together, these data suggest that MET/HGF signaling might be implicated in A-P migration of ESM progenitors from fetal to postnatal stages.

To address the role of MET/HGF signaling during ESM formation, we examined Met^D/D and Hgf-null mutants (Maina et al., 1996; Schmidt et al., 1995). We first analyzed the esophagus phenotype of Met and Hgf mutants at E16.5 by immunostainings on tissue sections for early myogenic and myofiber markers (Myod/Myog/Tnnt3), for smooth muscle (SMA) and lumen epithelium (E-Cad) markers. Interestingly, Met^D/D and Hgf-null fetuses showed absence of striated muscles in the esophagus, while the smooth muscle layers and lumen epithelium appeared unaffected (Figure 2F–K). As expected, these mutants lacked limb muscles typical of the Met^D/D and Hgf-null phenotypes (Figure 2—figure supplement 2A–F). However, RT-qPCR analysis in the esophagus and limb of Met mutants at E15.5 revealed a decrease but not loss of Isl1 and Myf5 expression compared to absence of Pax7 and Myf5 observed at limb level (Figure 2—figure supplement 2G).

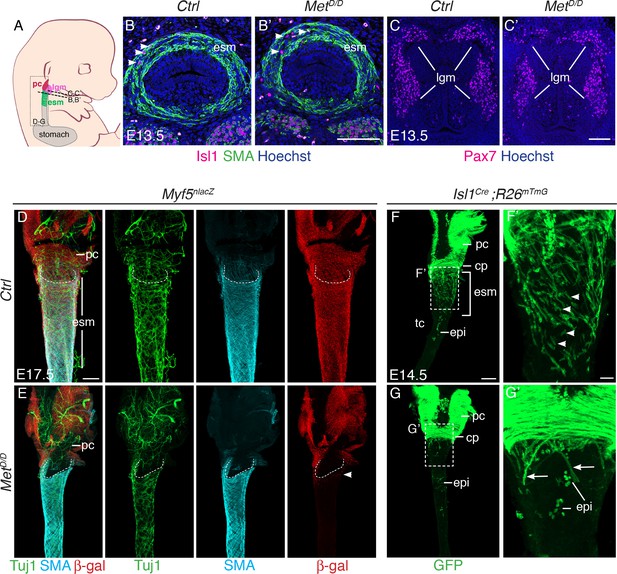

Given this observation, we investigated whether myogenic cells are present at the anterior-most part of the esophagus and in adjacent Isl1-derived muscles in the Met^D/D fetuses (Figure 3A–C). Analysis on tissue sections revealed that the number of Isl1+ cells in the upper esophagus of E13.5 controls and Met mutants was not significantly different (n = 3) (Figure 3A–B’, Figure 3—figure supplement 1A–A’’). Thus, the myogenic progenitors had seeded the anterior esophagus in mutant embryos similarly to controls at this initial stage. Moreover, analysis of Met^D/+ ; Myf5^nlacZ/+ (control) and Met^D/D ; Myf5^nlacZ/+ (mutant) esophagi at E15.5 (Figure 3—figure supplement 1B,C) and E17.5 (Figure 3D,E; Figure 3—figure supplement 1D,E) showed that Myf5+ myogenic cells were also present in the anterior-most portion of the esophagus in the mutant, whereas colonization had proceeded posteriorly only in the controls. Of note, the neuronal and smooth muscle lineages were present and patterned in mutants (Figure 3D,E).

Figure 3 with 1 supplement see all

Download asset Open asset

Next, we investigated the fate of the sporadic myogenic cells remaining in the anterior esophagus of Met-null fetuses. To this end, we combined the Met^D/D mutant with Isl1 lineage tracing. Analysis of E14.5 Met^D/+; Isl1^Cre/+;R26^mT/mG/+ control embryos showed that mGFP+ mononucleated cells were abundant in between myofibers (Figure 3F). However, very few mononucleated mGFP+ cells were detected between the residual myofibers in the anterior-most part of the esophagus in the Met mutant (Figure 3G). Strikingly, the adjacent Isl1-derived laryngeal and pharyngeal muscles were unaffected in the Met-null fetuses (Figure 3C,C’,D–G; Figure 3—figure supplement 1B–E). Therefore, these observations indicate that MET/HGF loss of function affect only a subset of posterior CPM-derived progenitors that are critical for colonization of the esophagus but not for the development of adjacent Isl1-lineage-derived muscles. Taken together, these results indicate that Met acts downstream of Isl1 in the molecular hierarchy of ESM formation and that MET/HGF signaling is not implicated in initial seeding of Isl1-derived progenitors in the anterior esophagus, but rather during the second phase of myogenic migration. This is in agreement with the biphasic mode of ESM development postulated previously (Gopalakrishnan et al., 2015).

To rule out the possibility that the defect in ESM formation in Met mutants is due to increased cell death in the anterior-most portion of the esophagus as opposed to aberrant migration of ESM cells, we tested if Isl1+ progenitors undergo apoptosis at the seeding stage in Met mutant embryos. TUNEL analysis in E13.5 controls and Met mutants revealed that Isl1+ progenitors in the upper esophagus were not apoptotic at this stage (Figure 4—figure supplement 1A,A’).

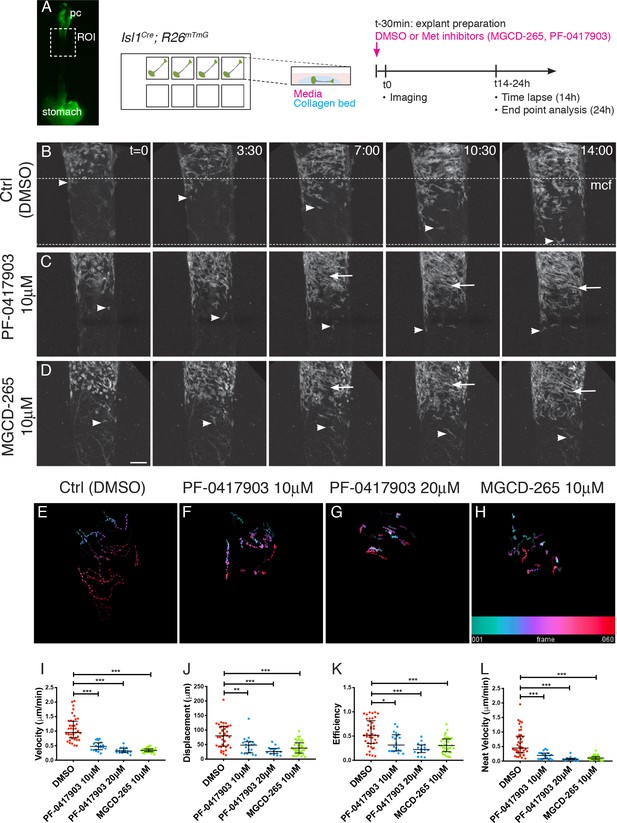

Next, we investigated the role of MET in the migration of mGFP+ cells in an ex vivo esophagus explant culture system once they had colonized the upper esophagus (Figure 4A). To this end, we employed static cultures and time-lapse confocal microscopy on E14.5 Isl1^Cre;R26^mT/mG esophagus in combination with two selective ATP-competitive inhibitors of MET, PF-0417903 and MGCD-265 or DMSO as control (Figure 4B–D). On control static cultures (followed up to 24 hr) and time-lapse imaging (up to 14 hr), we observed a mGFP+ mononucleated cell front that remained throughout the entire culture period (Figure 4—figure supplement 1B, Figure 4B, Figure 4—video 1). In addition, time-lapse movies showed that mGFP+ cells explored the esophagus scaffold repeatedly changing their direction of migration, but had a net movement posteriorly towards the stomach (Figure 4E, Figure 4—video 1). Upstream of the mononucleated cell front, mGFP+ cells also migrated posteriorly in between forming fibers (Figure 4—video 1). In contrast, upon addition of MET inhibitors, mGFP+ cells progressed less towards the posterior end (Figure 4C,D, Figure 4—videos 2 and 3) and had shorter cell trajectories (Figure 4F–H). Quantification of migration parameters revealed that in presence of MET inhibitors, mGFP+ cells had a reduced velocity, displacement, efficiency, and net velocity compared to control cultures (Figure 4I–L). Interestingly, mGFP+ fibers appeared rapidly in the inhibitor treated cultures in positions where the cell density appeared higher (Figure 4C,D, Figure 4—figure supplement 1C), a phenotype that resembled Met-null embryos (Figure 3G, Figure 3—figure supplement 1E). To confirm this, we examined the proliferation and differentiation status of ESM myogenic cells in vivo by EdU labelling. Analysis of E14.5 and E15.5 embryos showed that myogenic cells in the esophagus of Met^D/D mutant embryos have a proliferation rate that was one third of controls (45,6% for Ctrl; 12,5% for Mutant at E14.5, Figure 4—figure supplement 1D) and a higher predisposition to differentiation as assessed by Myogenin expression (33% for Ctrl; 66% for Mutant at E14.5, Figure 4—figure supplement 1E).

Figure 4 with 4 supplements see all

Download asset Open asset

Figure 4—source data 1

This. zip file contains excel tables with the individual tracking parameters.

https://doi.org/10.7554/eLife.47460.011

Download elife-47460-fig4-data1-v1.zip

In summary, our ex vivo and in vivo analyzes indicate that MET/HGF signaling promotes A-P migration of ESM myogenic progenitors during fetal development and possibly maintains Isl1-derived progenitors in an undifferentiated state once they have colonized the upper esophagus.

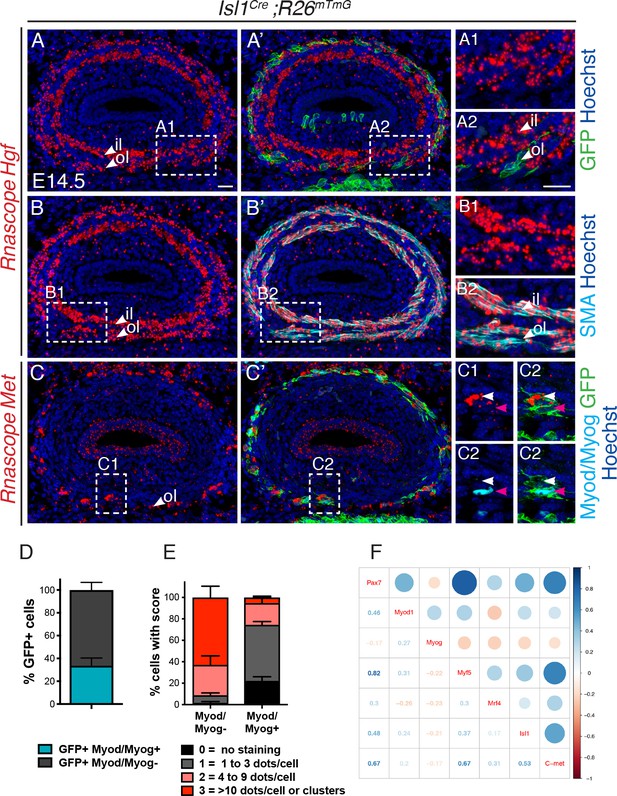

We then decided to examine in detail the expression pattern of Hgf and Met in relation to Isl1-derived progenitors. Owing to the limited diffusion efficiency of HGF in vivo, both receptor and ligand expressing cells are expected to be found in close proximity to each other (Dietrich et al., 1999). Whole mount in situ hybridization (RNAscope) on Isl1^Cre;R26^mT/mG embryos showed that Hgf transcripts were present along the entire length of the esophagus, preceeding and following the myogenic cell front, at the seeding stage (E13.5) and during myogenic migration (E14.5) (Figure 5—figure supplement 1A,B). In situ hybridization on sections revealed that Hgf was expressed adjacent to mGFP+ cells in a bilayered concentric pattern overlapping with the smooth muscle layers of the esophagus (Figure 5A,B; Figure 5—figure supplement 1). Initially at E14.5, although a bilayered pattern of Hgf is observed, myogenic cells colonized exclusively the outer smooth muscle layer (Figure 5A). At E16.5, expression of Hgf appeared to be downregulated anteriorly in the outer layer (level 1; Figure 5—figure supplement 1E), concomitant with the described regression of smooth muscle in the anterior esophagus from late fetal stages (Figure 2—figure supplement 1B–C) (Zhao and Dhoot, 2000a). At this stage, myogenic cells started to colonize the inner layer anteriorly (Zhao and Dhoot, 2000b), and this corresponded to downregulation of Hgf expression in the outer layer (Figure 5—figure supplement 1E–E”). Quantifications of the amount of Hgf transcripts per smooth muscle area corroborated these observations and revealed uniform levels between the myogenic cell front and more posterior levels (E13.5 and E14.5, levels 1–3; E16.5, levels 2–4; Figure 5—figure supplement 1F). Altogether, our data indicate that the smooth muscle layers of the esophagus are the major source of Hgf for anterior-posterior migration of myogenic progenitors. As such, this Hgf dynamic pattern might contribute to myogenic cell progression from the outer to inner layer, and anterior to posterior levels.

Figure 5 with 2 supplements see all

Download asset Open asset

Figure 5—source data 1

Excel table containing individual countings from three independent experiments to generate the histograms in panels 5D-E.

https://doi.org/10.7554/eLife.47460.018

Download elife-47460-fig5-data1-v1.xlsx

Figure 5—source data 2

This folder contains the initial single cell count matrix of the Ct values (tab2_3_sc_edge_allGenes_Ct.R), and the R source code (eso_t2_t3__analysis.R) used to filter, log-transformed, normalized, calculate the correlation coefficient and generate the correlogram on this figure.

https://doi.org/10.7554/eLife.47460.019

Download elife-47460-fig5-data2-v1.zip

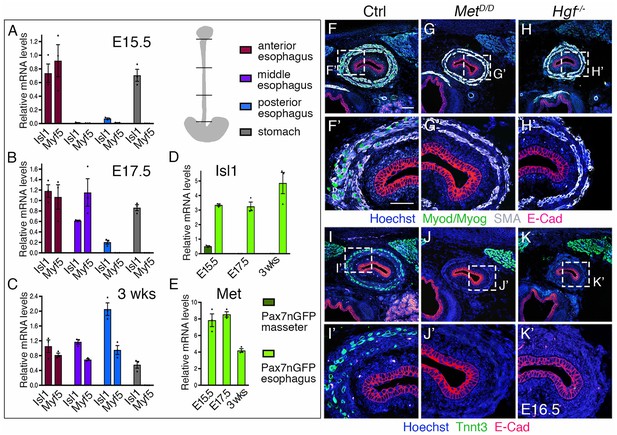

In turn, Met was expressed at high levels anteriorly in Isl1-derived mGFP+ myogenic cells, and also in luminal epithelial cells (Figure 5C, Figure 5—figure supplement 1G,H). However, the levels of Met transcript in mGFP+ cells were heterogeneous. Co-immunostaining with Myod and Myog antibodies to detect differentiating myogenic cells, revealed that 34% of mGFP+ cells were Myod+/Myog+ and that 74% of these Myod+/Myog+ cells had low levels of Met transcript (score 0 and 1; Figure 5C1,C2,D,E). Conversely, 91% of the Myod-/Myog- cells, expressed high levels of Met (score 3 and 4) (Figure 5C1,C2,E). Therefore, expression of Met was inversely correlated with the differentiation status of Isl1-derived cells.

To investigate the relative expression status of these myogenic markers in more detail, we performed single cell RT-qPCR analysis of Isl1-derived ESM progenitors. The mononucleated cell front in the esophagus of E15.5 Isl1^Cre;R26^mT/mG mice was dissected and the expression of myogenic markers was examined in mGFP+ isolated by fluorescence-activated cell sorting (FACS) (Figure 5—figure supplement 2A). The normalized relative expression of the studied genes for all the filtered cells was annotated in a heatmap (Figure 5—figure supplement 2B) and revealed two groups of genes. The first group included Isl1, Met, Pax7 and Myf5 which were detected in nearly all the single cells analyzed. The second group included Mrf4, Myog and Myod which were expressed in a subset of cells. To assess the degree of relatedness between genes, we calculated the Spearman’s correlation between all pairs of genes and noted that the expression of Isl1, Met, Pax7 and Myf5 was significantly positively correlated (Figure 5F). In contrast, Isl1 expression showed no significant correlation with the expression of more downstream MRF genes (Myod, Myog, and Mrf4). This indicates that Isl1 is associated with the upstream state, and that Isl1 and Met likely act concomitantly in myogenic progenitors during ESM formation.

Recent genetic studies revealed that neck muscles including pharyngeal and laryngeal muscles, the trapezius and the esophagus originate from posterior pharyngeal arch mesoderm derived from an Isl1-lineage (Gopalakrishnan et al., 2015; Heude et al., 2018; Lescroart et al., 2015; Tabler et al., 2017). We previously demonstrated that Tbx1 and Isl1 genes play key upstream roles during ESM formation (Gopalakrishnan et al., 2015). In Tbx1-null embryos, Isl1-derived ESM fail to form, indicating that Tbx1 acts upstream of Isl1 during esophagus myogenesis (Gopalakrishnan et al., 2015). Given that Isl1 promotes cell proliferation and represses myogenic differentiation, Isl1 has been proposed to exert a conserved role in the specification of CPM progenitors (Cai et al., 2003; Diogo et al., 2015; Harel et al., 2009). However, the intrinsic role of Isl1 in CPM derivatives has not been addressed due to early embryonic lethality (Cai et al., 2003). Here, by means of chimeric analysis, we show that Isl1-null ES cells are specifically excluded from the ESM indicating that Isl1 acts cell-autonomously during ESM formation at fetal stages, further supporting its role in the specification of branchiomeric myogenic progenitors.

During development, positional information that includes migration cues is often imparted to cells through intercellular signaling to allow proper spatio-temporal patterning. Several studies have uncovered the role of MET receptor and its ligand HGF in the proliferation and long-range migration of myogenic progenitors (Trusolino et al., 2010). The Met allele used here (Met^D) carries a mutation in two phosphotyrosines (Tyr1349, Tyr1356) in the carboxy-terminal tail, which completely abrogates MET function and recapitulates the Met null phenotype (Bladt et al., 1995; Maina et al., 1996; Maina et al., 2001). Previous work showed that in Met and Hgf mutants, Pax3-derived hypaxial muscles are missing, while other epaxial trunk muscle groups appear unaffected (Bladt et al., 1995; Dietrich et al., 1999; Maina et al., 1996; Prunotto et al., 2004).

In the trunk, Hgf is first expressed adjacent to somites, and subsequently along the migratory route and at target sites in limb connective tissue (Dietrich et al., 1999). In the esophagus, we identified the smooth muscle layer, which serves as a scaffold for myogenic progenitor migration, to be a major source of Hgf. This finding is in agreement with a recent study showing that HGF is mainly localized in smooth muscle cells in endodermal organs including the stomach and esophagus (Jangphattananont et al., 2019). Thus, our data highlight the functional coordination between adjacent but distinct smooth and striated muscle progenitors that facilitate ESM patterning which is unique compared to muscle patterning elsewhere.

How HGF levels are precisely controlled in the ESM developmental context to allow A-P muscle progenitor cell migration is unknown. In the limb, Hgf transcripts retreat in the subectodermal region, but a proximo-distal Hgf transcript gradient along the migration route of Met+ myogenic progenitors is not clearly observed (Birchmeier and Gherardi, 1998; Bladt et al., 1995; Dietrich et al., 1999; Yang et al., 1996). In the ESM, we observed by in situ hybridization on whole mount and sections that Hgf is expressed throughout the length of the esophagus at the time of seeding (E13.5) and ongoing migration (E14.5, E16.5) in a bilayered pattern. Unexpectedly, we observed seemingly constant transcript levels between the migratory front and more posterior levels raising the question of how directed migration is promoted. Interestingly, we observed by qRT-PCR and in situ hybridization that Hgf levels are diminished anteriorly in the outer layer at fetal stages, upstream to the front, concomitant with a decrease in SMA transcript and protein levels. Thus, it is possible that a gradient for migration is established by a decrease of Hgf source anteriorly, given the decrease in size and number of smooth muscle cells that occurs cranially from fetal stages (Zhao and Dhoot, 2000a). The fate of smooth muscle cells has been debated, nevertheless a combination of cell loss and distal compaction of smooth muscle cells, appear to be contributing factors (Krauss et al., 2016; Rishniw et al., 2007). Thus, the observed Hgf dynamics with respect to the localization of myogenic cells are in agreement with the outer to inner layer and anterior to posterior myogenic cell progression (Zhao and Dhoot, 2000a; Zhao and Dhoot, 2000b).

In addition to transcriptional control, directional migration may also rely on a gradient of active two-chain HGF heterodimer. HGF bioavailability depends on a number of factors including HGF activators and inhibitors that exert essential roles during embryonic development and muscle regeneration (Rodgers et al., 2017; Sisson et al., 2009; Tanaka et al., 2005; van Adelsberg et al., 2001) and heparin sulfate proteoglycans that can enhance MET/HGF signaling (Gutiérrez et al., 2014). In addition, myogenic cells at the migratory front might sequester active HGF, thereby limiting its bioavailability. As such, net caudal movement could result from a self-generated localized signaling gradient as has been observed in other developmental contexts (Cai and Montell, 2014).

In our time-lapse movies, we noted that Isl1-derived progenitors navigate the esophageal scaffold, switching directions, but with a net caudal displacement as differentiated myofibers are deposited in its wake. Thus, another possibility is that HGF does not act as a directional migration cue, but rather maintains ESM myogenic progenitors in a scattered status to reach a ‘myogenic free’ zone. The functional validation for these diverse scenarios awaits further investigation.

It has been proposed that a prolonged interaction between MET and HGF may be required to prevent cell re-aggregation, thereby maintaining cell motility and preventing expression of the MRFs (Dietrich et al., 1999). The first obvious deficiency observed in Met^D/D embryos is seen at the time Isl1+ progenitors colonize the smooth muscle scaffold (by E14.5). In controls, colonization progresses posteriorly and myofibers are formed while maintaining a pool of progenitor cells. In the mutant, only few Isl1-derived myofibers are present in the upper esophagus. Similarly, our pharmacological inhibition studies of MET receptor activity in esophagus explants resulted in impaired progenitor cell migration and precocious differentiation. Thus, MET/HGF signaling might have a role in maintenance of the undifferentiated state of migratory muscle progenitors to allow continuous progression of the myogenic front. It remains unclear if motility prevents or delays expression of the differentiation genes, or if expression of differentiation genes stops motility. However, it has been shown that precocious expression of MRFs in dermomyotomal muscle progenitors prevents their migration into limb buds (Bonnet et al., 2010), while application of HGF results in reduction of Myod expression (Scaal et al., 1999).

During limb muscle development, the Met receptor was reported to be under the direct transcriptional regulation of Pax3 (Epstein et al., 1996). Interestingly, ESM development requires MET/HGF signaling in a Pax3-independent context. Hence the upstream modulator of Met expression in ESM progenitors remains an open question. Pax3 and its paralog Pax7 have partially redundant functions in muscle progenitors (Relaix et al., 2006). Given that common Pax3/Pax7 binding sites are found in Met regulatory regions in adult limb primary myoblasts (Soleimani et al., 2012), Pax7 could exert such a role in ESM progenitors. Interestingly, Pax7 knockout mice develop megaesophagus postnatally with striated muscle present in an abnormally proximal position (Chihara et al., 2015). Whether this impairment in ESM formation is solely due to reduced proliferation and precocious differentiation at the migratory front, or is concomitant to a reduced expression of MET is currently unknown. On the other hand, our in situ hybridization and single cell qPCR data showed that Isl1, Pax7 and Met are predominantly co-expressed in uncommitted ESM progenitors (Pax7+, Myf5+, Myod/Myog-), with decreased expression in committed cells. This observation is in agreement with the known role of Isl1 as negative regulator of muscle differentiation of CPM-derived muscles (Harel et al., 2009). It remains unclear if Isl1 also exerts a direct role in motility by regulation of Met. Interestingly, Isl1-Lhx3 fusion protein was shown to induce Met expression in motor neurons (Lee et al., 2012). Intriguingly, several putative Lhx binding sites including consensus Isl1-binding sites (cTAATg) were identified by in silico analysis of Met promoter elements using matinspector (Cartharius et al., 2005) (data not shown). It is therefore tempting to speculate a direct regulation of Met expression by Isl1.

Finally, a hierarchy in lineage progression could be inferred from phenotypes of mutant mice (Krauss et al., 2016). The myogenic front in the Pax7 knockout esophagus is localized more posteriorly than what we observed in Met-null embryos (Chihara et al., 2015). This suggests a possible temporal regulation of Met expression in ESM progenitors by Isl1 in the fetus, preempted by Pax7 in postnatal stages, and likely facilitated by temporally controlled transcriptional coactivators. Taken together, these observations warrant further studies including genome-wide ChIP-seq to explore if Pax7 and/or Isl1 directly regulate Met expression.

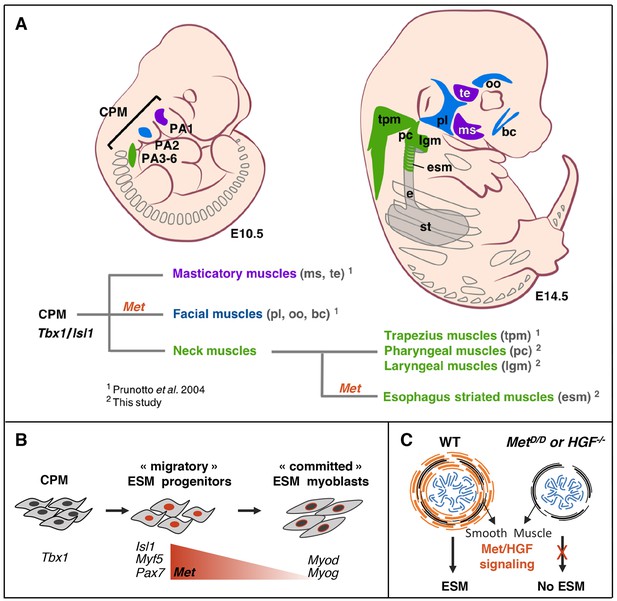

An unexpected finding from our work is that CPM muscles originating from posterior pharyngeal arches are differentially affected in Met mutants. Head muscles derived from the second pharyngeal arch and giving rise to branchiomeric facial muscles (orbicularis oculi, buccinator, platysma) appear either strongly reduced or absent, while first arch-derived masticatory (masseter, temporalis) and extraocular muscles are present in Met^D/D mutants (Prunotto et al., 2004). However, we show that posterior branchiomeric neck muscles, including pharyngeal and laryngeal muscles, are present in Met^D/D mutants while adjacent ESM is absent. Thus, we have established a unique Tbx1-Isl1-Met genetic hierarchy in ESM progenitors that is distinct from other posterior branchiomeric muscles (Figure 6).

The genetic regulatory pathways that give rise to functionally distinct groups of muscles has provided critical information to understand heterogeneity in response to genetic diseases, such as DiGeorge syndrome where mutations in TBX1 result in the impaired function of subsets of craniofacial and pharyngeal apparatus with varied degrees of severity. Understanding the functional dynamics of Tbx1 and Isl1 in specific muscles groups will help uncover differences between the ontogenically similar subsets of CPM-derived muscles. Uncoupling the genetic requirements of these distinct populations is necessary to provide a framework that will explain how human myopathies affect only subsets of muscles (Emery, 2002; Randolph and Pavlath, 2015).

Animals were handled as per European Community guidelines and the ethics committee of the Institut Pasteur (CTEA) approved protocols. Isl1^Cre (Srinivas et al., 2001), reporter mouse lines R26R^mT/mG (Muzumdar et al., 2007), Myf5^nLacZ (Tajbakhsh et al., 1996), Tg: Pax7nGFP (Sambasivan et al., 2009), and mutant mice carrying the Tbx1^tm1pa allele (referred to as Tbx1^-/-) (Jerome and Papaioannou, 2001), Hgf (Schmidt et al., 1995) and Met (referred as Met^D) (Maina et al., 1996) mutant alleles were described previously. To generate experimental embryos for Met^D/D together with Isl1 and Myf5 lineage tracings, Met^D/+: Isl1^Cre/+: Myf5^nlacZ/+ males were crossed with Met^{D /+}: R26R^mTmG/mTmG females. Mice were kept on a mixed genetic background C57BL/6JRj and DBA/2JRj (Janvier Labs). Mouse embryos and fetuses were collected between embryonic day (E) E12.5 and E18.5, with noon on the day of the vaginal plug considered as E0.5.

For derivation of Isl1-null ES cells, males and females from Isl1^Cre/+ genotype (Srinivas et al., 2001) were intercrossed to produce heterozygous and homozygous Isl1-null blastocysts. At E3.5, blastocysts were collected from uterine horns and put on culture for 3–6 days in ES derivation medium composed of GlutaMAX/DMEM (Gibco, 31966), 15% FBS (Biowest), 1% penicillin/streptomycin (Gibco, 15140, stock 100X), 1% sodium pyruvate (Gibco, 11360, stock 100 mM), 0.1% β-mercaptoethanol (Gibco, 31350–010, stock 50 mM), 1000 U/ml ESGRO recombinant mice leukemia inhibitory factor (LIF, Millipore, ESG1107, stock 10⁷ U/ml) and 2i (1 μM PD325; Axon Medchem 1408; and 1 μM CH99; Axon Medchem 1386) on gelatin-coated wells with primary Mouse Embryonic Fibroblasts (MEFs). The disaggregation of ICM was performed with 5 min of 0.05% trypsin-EDTA (GIBCO, 25300–054) treatment and the cell suspension put on culture in ES derivation medium on MEFs. Derived ES cells were then expanded and genotyped by PCR with specific primers for amplification of Isl1 WT and mutant sequences (WT primers: ccaagtgcagcataggcttcag; gcagaggccgcgctggatgcaagg, 230 bp; Mutant primers: tcatgcaagctggtggctgg; gcagaggccgcgctggatgcaagg, 633 bp).

To trace the ES clones, CAG-nlacZ and PGK-puro cassettes were cloned into a pBluescript to produce a nlacZ reporter puromycin resistant plasmid. Heterozygous and homozygous Isl1-null;nLacZ ES cells were electroporated (0.5–1 × 10⁷ cells) with 20 µg of linearized pCAGnlacZ-puro plasmid by using a BTX Harvard apparatus ECM830 electroporator with one pulse at 240V for 15 ms. Three days after transfection, positive clones were selected in ES derivation medium with puromycin (1.5 µg/ml) for 5 days. ES colonies were picked into 24-well plates and tested for expression of the nLacZ reporter (X-Gal/immunostaining).

For chimera production, the β-gal+ selected clones were further expanded in ES culture medium (ES derivation medium without 2i) on MEFs. C57BL/6N females were superovulated and mated with C57BL/6N males. At E3.5, blastocysts were collected, injected with wildtype (control) or homozygous Isl1-null;nlacZ ES cells (2–6 cells/blastocyst) and were subsequently transferred into the uterus of 0.5 or 2.5 dpc pseudopregnant B6CBAF1 females (15–17 blastocysts/females). Chimeric fetuses were harvested at E16.5 or E18.5 for analysis. The collected fetuses were dissected in PBS at 4°C to remove the caudal part below the stomach, then fixed 3 hr at 4°C in 4% paraformaldehyde (PFA, Electron Microscopy Sciences, 15710), 0.5% Triton X-100 (SIGMA, T8787) and extensively washed in PBS with 0.1% Tween 20 (PBST) (SIGMA, P1379). To evaluate the contribution of ES cells to specimens, X-gal staining was performed on the dissected lower part of the fetuses. The analysis was performed by immunofluorescent stainings on cryosections of the rostral part of the fetuses.

The Isl1 nuclear lacZ (nlacZ) knock-in mouse 129/SV ES line (Isl1^lacZ) was obtained from Sylvia Evans (Sun et al., 2007). ES cells were cultured on Mytomycin-C treated embryonic primary fibroblasts onto gelatin coated dishes in DMEM-KO media (Gibco, 10829–018) containing 15% FBS (Biowest), 0,5% penicillin/streptomycin (Gibco, 15140, stock100x), 0.1% β-mercaptoethanol (SIGMA, M7522, stock 100 mM in PBS), 1% L-Glutamine (Gibco, 25030024, stock 200 mM) and 1000 U/ml ESGRO recombinant mice leukemia inhibitory factor (LIF, Millipore, ESG1107, stock 10⁷ U/ml).

For ES cell injection and chimera production, 4-week-old Tbx1^+/- females were superovulated and mated with Tbx1^+/- males (on a mixed genetic background C57BL/6JRj and DBA/2JRj, Janvier Labs). At E3.5, blastocysts were collected, injected with Isl1^lacZ ES cells (6–12 cells/blastocyst) and were subsequently transferred into uteri of 0.5 or 2.5 dpc pseudopregnant B6CBAF1 females.

Chimeric fetuses were harvested at E14.5/E15.5 for analysis. The collected fetuses were fixed 2.5 hr at 4°C in 4% paraformaldehyde 0.2% Triton X-100 and extensively washed in PBS at 4°C. For genotyping of the chimeric embryos, the visceral yolk sac layers were separated using the trypsin/pancreatin method as described in Wallingford and Giachelli (2014) with modifications. Briefly, yolk sacs were collected and incubated in Ca²⁺/Mg²⁺-free Tyrode Ringer’s saline solution containing 0.5% Trypsin (Gibco, 15090–046) and 2.5% Pancreatin (SIGMA, P-3292) for 4 hr at 4°C on individual wells of a 12 well plastic dish. Yolk sacs were then washed in GlutaMAX/DMEM (Gibco, 31966021) media buffered with 25 mM HEPES (SIGMA, H0887) and then transferred into media containing 10% FBS for at least 30 min at 4°C. The visceral endoderm (VEnd) and extraembryonic mesoderm (ExM) tissue layers of the visceral yolk sac were mechanically separated for genotyping. The VEnd layer is contributed exclusively by the host embryo while the ExM has dual contribution from ES cells and host embryo. DNA extraction was performed using Proteinase K and PCR performed with the following primers: Tbx1_for: tgcatgccaaatgtttccctg, Tbx1_rs: gatagtctaggctccagtcca, Tbx1_rs_Neo: agggccagctcattcctcccac (WT band: 196 bp; Mutant band: 450 bp), lacZ_fw: atcctctgcatggtcaggtc, lacZ_rs: cgtggcctgattcattcccc.

For the analysis of lacZ+ chimeric embryos, the digestive tract including the pharynx, trachea, esophagus, heart, stomach and diaphragm was further dissected and X-Gal stained overnight at 37°C or embryos were processed for cryosections and immunostaining on sucrose/OCT as described above.

Wholemount samples were analyzed for β-galactosidase activity with 400 µg/ml X-Gal (SIGMA 15520–018; Stock solution 40 mg/ml in DMSO) in PBS buffer containing 4 mM potassium ferricyanide, 4 mM potassium ferrocyanide, 0.02% NP-40 and 2 mM MgCl₂ as previously described (Comai et al., 2014).

For immunostaining on cryosections, embryos and fetuses were fixed 3 hr in 4% PFA and 0,2–0,5% Triton X-100 at 4°C, washed overnight at 4°C in PBS, cryopreserved in 30% sucrose in PBS and embedded in OCT for cryosectioning. Cryosections (16–18 µm) were allowed to dry for 30 min and washed in PBS. For immunostaining on paraffin sections, samples were fixed overnight in 4% PFA, dehydrated in graded ethanol series, Histoclear II (HS-202, National Diagnostics) and embedded in paraffin. Paraffin blocks were sectioned at 12 µm using a Leica microtome. Sections were then deparaffinised and rehydrated by successive immersions in Histoclear, ethanol and PBS series. When needed, samples were then subjected to antigen retrieval with 10 mM Citrate buffer (pH 6.0) using a 2100 Retriever (Aptum Biologics).

Rehydrated sections were blocked for 1 hr in 10% normal goat serum, 3% BSA, 0.5% Triton X-100 in PBS. Primary antibodies were diluted in blocking solution and incubated overnight at 4°C. After 3 rounds of 15 min washes in PBST, secondary antibodies were incubated in blocking solution 1 hr at RT together with 1 μg/ml Hoechst 33342 to visualize nuclei. Antibodies used in the study are listed in the Key Resource Table. After 3 rounds of 15 min washes in PBST, slides were mounted in 70% glycerol in PBS for analysis. For EdU staining, immunostaining for primary and secondary antibodies was performed first, followed by the click chemical reaction using Alexa633 as a reactive fluorophore for EdU detection (Life Technologies C10350).

For whole mount immunostaining, embryos were fixed and washed as above. Esophagi were micro-dissected in PBST and incubated in blocking buffer (10% goat serum, 10% BSA, 0.5% TritonX-100 in 1X PBS) for 1 hr at RT in 2 ml Eppendorff tubes. The tissue was then incubated with primary antibodies in the blocking buffer for 4–5 days at 4°C with rocking. The tissue was washed extensively for 2-4hr in PBST and then incubated in Fab’ secondary antibodies for 2 days at 4°C with rocking. The tissue was washed as above, dehydrated in 50% Methanol in PBS, 100% Methanol and then cleared with BABB and mounted for imaging as in Yokomizo et al. (2012).

E14.5 embryos were collected, fixed overnight in 4% PFA, washed in PBS 3 × 15 min, equilibrated in 15% and 30% sucrose and embedded in OCT. Tissue blocks were stored at −80C. 18 µm thick cryosections were collected on Superfrost Plus slides and stored at −80 till use (less than 2 months).

RNAscope probes Mm-Hgf (315631) and Mm-Met (405301) were designed commercially by the manufacturer and are available from Advanced Cell Diagnostics, Inc. In situ hybridization was performed using the RNAscope Multiplex Fluorescent Reagent Kit V2 and RNAscope 2.5 HD Reagent Kit-RED according to manufacturer’s instructions (Wang et al., 2012) with some modifications. For sample pre-treatments: H2O2 treatment was 10 min at RT, retrieval was done for 2 min at 98°C and slides were digested with Protease Plus reagent for 15 min at 40°C. When the RNAscope 2.5 HD Reagent Kit-RED was used, the AMP1 to AMP6 steps were done as in the standard protocol. Before detection, samples were washed in PBS 3 × 5 min and immunostaining performed as above with fluorescent secondary antibodies. Sections were then washed in RNAscope Wash buffer, detection done with Fast-Red A/B mix and slides mounted in Fluoromount-G (InterBioTech, FP-483331). As the Fast-Red chromogenic precipitate is also visible by fluorescence microscopy using the 555 nm laser, sections were imaged using a 40x objective on a LSM700 microscope (Zeiss). When the RNAscope Multiplex Fluorescent V2 kit was used, detection of the probe was done with Opal570 reagent (Perkin Elmer, FP1488A, 1/1500 in TSA Buffer) prior to immunostaining. For quantitation of Met RNAscope staining, the number of individual signal dots or clusters per mGFP+ cell was counted manually on Fiji. Cells were attributed the score 1 (1 to 3 dots/cell), 2 (4 to 9 dots/cell) or 3 (more than 10 dots/cells or big clusters) and correlated to the presence or absence of Myod/Myog nuclear staining.

For quantitation of Hgf RNAscope staining per SMA area (Figure 5—figure supplement 1F), a manual ROI outlining the SMA+ layers was defined in Fiji. Segmentation of the channels was done using the defaut Auto Threshold for the Hgf/RNAscope channel and the Huang Auto Threshold for the SMA channel. The measure command was used to calculate the area of the ROI limited to the threshold for both channels.

The masseter muscles and esophagi from Tg:Pax7-nGFP timed embryos were dissected in cold PBS and kept in cold GlutaMAX/DMEM (Gibco, 31966) with 1% Penicillin–Streptomycin. For single cell qPCR analysis, only mGFP+ cells from the mononucleated cell front (mcf) of the esophagus of Isl1^Cre:R26^mTmG embryos were micro-dissected under a Zeiss SteREO Discovery V20 macroscope. Samples were processed with enzymatic digestion mix containing 0.1% Trypsin (15090–046,Gibco), 0,08% Collagenase D (Roche, 11088882001) and 10 μg/ml of DNAse I (04536282001, Roche) in DMEM/Glutamax. Samples were incubated for 15 min at 37°C under 300 rpm agitation and resuspended by gently pipetting up and down 10–15 times using a P1000 pipette. Incubation and resuspension by pipetting were repeated for two additional 15 min enzymatic treatments. The digests were passed through a 70 micron then 40 micron SmartCell Strainers (Milteny Biotec) and digestion was stopped with fetal bovine serum (FBS, Gibco). Cells were spun at 600 g 15 min at 4°C and the pellets resuspended in 300 µl of DMEM/2% FBS to be processed for FACS.

Total RNA from esophagus portions and limbs was extracted through manual pestle tissue disruption in TRIzol, followed by DnaseI treatment and purification with the Qiagen RNAeasy Mini purification Kit. Pax7-nGFP+ cells were isolated by FACS directly into cell lysis buffer (RLT) of the Qiagen RNAeasy Plus Micro purification Kit and total RNA extracted according to the kit instructions. cDNA was prepared from 0,4 µg up to 5 µg of total RNA by random-primed reverse transcription (SuperScript III, ThermoFisher 18010093) and real-time PCR was done using SYBR Green Universal Mix (Roche, 13608700) and StepOne-Plus Real Time PCR System (Applied Biosystems). TBP transcript levels were used for normalizations of each target (2ΔCT). At least three biological replicates and technical duplicates were used for each condition method (Schmittgen et al., 2008). For SYBR-Green, custom primers were designed using the Primer3Plus online software. Serial dilutions of total cDNA were used to calculate the amplification efficiency of each primer set according to the equation: E = 10–1/slope. Primer sequences used are detailed in the Key Resource Table.

Gene expression in single cells was analyzed using the Fluidigm Gene Expression Assay (BioMark). Briefly, oesophagus was dissected and digested with trypsin/collagenase to obtain a single cell suspension as described above. Single cells and bulk control (20 cells/well) were sorted directly on a FACS Aria III in 9 μl of Specific Target Amplification (STA) reaction mix from the CellsDirect One-Step qRT-PCR kit (Invitrogen) containing 0.2XTaqMan Gene Expression Assay mix. Pre-amplified cDNA (18 cycles) was obtained according to manufacturer's note and was diluted 1:5 in TE buffer for qPCR. Multiplex qPCR was performed using the microfluidics Biomark system on a Biomark HD for 40 cycles. The same TaqMan probes were used for both RT/STA and qPCR. TaqMan assays used in the study are listed in the Key Resource Table.

The heatmap (Figure 5—figure supplement 2B) was generated using the pheatmap R package (pheatmap_1.0.10) with default parameters, and the correlogram (Figure 5F) was generated using the corrplot R package (corrplot_0.84), with the p-values manually added. Violin plots (Figure 1—figure supplement 1H,J) were made in R using the ggplot2 package (ggplot2_3.1.0). R session info: R version 3.5.1 (2018-07-02), platform: x86_64-apple-darwin15.6.0 (64-bit), running under: macOS Sierra 10.12.6.

Images were acquired using the following systems: Zeiss SteREO Discovery V20 microscope for whole embryos, a Zeiss Axioplan equipped with an Apotome and ZEN software (Carl Zeiss) or a Leica TCS-SP8 with Leica Application Suite (LAS) software for tissue sections and a LSM 700 laser-scanning confocal microscope and ZEN software (Carl Zeiss) for tissue sections and whole mount immunostaining of cleared embryos. All images were assembled in Adobe Photoshop and InDesign (Adobe Systems). Volume-3D rendering of the z-stack series was performed in Imaris (version 7.2.1) software (Bitplane).

Esophagi from E14.5 Isl1^Cre/+:R26^mTmG/+ embryos were micro-dissected leaving the stomach and pharyngeal muscles attached in RT HBSS (Gibco, 14025). The esophagi were immobilized on individual wells of 8 well glass bottom dishes (Ibidi, 80826) at the stomach and pharyngeal ends using 0.3 μl of Vetbond tissue adhesive (3M, 1469 SB). The explants were immediately embedded in a collagen matrix as previously reported (Placzek and Dale, 1999) with slight modifications. 700 μl of collagen-I (Corning, 354236), 200 μl of reconstituted 5X DMEM-F12 (SIGMA, D2906) and 100 μl neutralization buffer (50 mM NaOH, 260 mM NaHCO3, 200 mM Hepes) were mixed and kept on ice. 200 μl of collagen matrix was added to each explant and allowed to polymerize for 10 min in a culture incubator at 37°C, 5% CO₂. Explant culture medium was composed of Opti-MEM (Gibco, 51985–026) with 1% P/S and 20% FCS. 250 µl of culture medium containing Met inhibitors or the equivalent amount of DMSO (control) was added to each well and allowed to equilibrate for 30 min in a culture incubator. The Met inhibitors used were MGCD-265 (10 μM, Selleck, 50 mM stock in DMSO) and PF-0417903 (10–20 μM, AbMole, 26.8 mM stock in DMSO).

For static cultures, images of individual wells were acquired at 6 to 12 hr intervals on a Zeiss SteREO Discovery V20 macroscope as Z-stacks and processed with the extended depth focus function on the ZEN software (Carl Zeiss).

For time-lapse imaging, the dish was placed in a microscope incubator chamber (37°C, 5% CO₂) and the mGFP signal imaged with the 488 laser on an Leica TCS-SP8 inverted microscope, equipped with a HC PL APO CS2 10X/0.40 dry objective and HyD hybrid detector (496–566 nm). Confocal imaging of optical Z-planes (2.41 μm) were acquired every 15 min over 14 hr using LAS X software. Z-stacks were projected as maximum intensity projection images, stitched and registered (linear registration) in Fiji. The migrating cells were tracked individually frame-by-frame using the ‘Manual Tracking’ plugin in Fiji. The following parameters were quantitated: total distance (μm, the distance covered by the whole track), velocity (μm/min, ratio between the total distance and total time of the track), displacement (μm, the length of the resultant vector between ti and tf of the track), efficiency (ratio between displacement and total distance), net velocity (μm/min, ratio between the displacement and total time of the track).

The muscle area on transverse esophagus cryosections (Figure 1—figure supplement 1I) was quantified on Fiji. Channels were split and threshold levels adjusted on the Tnnt3 channel. The freehand selection tool was used to trace the outline of each esophagus cross section (referred as Region of interest, ROI). Threshold levels were kept constant for all samples. The Analyze/Measure tool was set to calculate the area of the ROI limited to the threshold for the Tnnt3 channel.

For proliferation experiments in vivo, 5-ethyl-20-deoxyuridine (EdU; Invitrogen E10187) was injected intraperitoneally and detected as described in Comai et al. (2014).
