Origin and role of the cerebrospinal fluid bidirectional flow in the central canal

  1. Olivier Thouvenin
  2. Ludovic Keiser
  3. Yasmine Cantaut-Belarif
  4. Martin Carbo-Tano
  5. Frederik Verweij
  6. Nathalie Jurisch-Yaksi
  7. Pierre-Luc Bardet
  8. Guillaume van Niel
  9. Francois Gallaire  Is a corresponding author
  10. Claire Wyart  Is a corresponding author
  1. Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, France
  2. ESPCI Paris, PSL University, CNRS, Institut Langevin, France
  3. École Polytechnique Fédérale de Lausanne, Switzerland
  4. Institute of Psychiatry and Neuroscience of Paris, Hôpital Saint-Anne, Université Descartes, INSERM U1266, France
  5. Norwegian University of Science and Technology, Norway
Research Article
  • Cited 3
  • Views 1,324
  • Annotations
Cite this article as: eLife 2020;9:e47699 doi: 10.7554/eLife.47699

Abstract

Circulation of the cerebrospinal fluid (CSF) contributes to body axis formation and brain development. Here, we investigated the unexplained origins of the CSF flow bidirectionality in the central canal of the spinal cord of 30 hpf zebrafish embryos and its impact on development. Experiments combined with modeling and simulations demonstrate that the CSF flow is generated locally by caudally-polarized motile cilia along the ventral wall of the central canal. The closed geometry of the canal imposes the average flow rate to be null, explaining the reported bidirectionality. We also demonstrate that at this early stage, motile cilia ensure the proper formation of the central canal. Furthermore, we demonstrate that the bidirectional flow accelerates the transport of particles in the CSF via a coupled convective-diffusive transport process. Our study demonstrates that cilia activity combined with muscle contractions sustain the long-range transport of extracellular lipidic particles, enabling embryonic growth.

Introduction

Precise control of flow in biological systems allows efficient transportation of critical molecules throughout an organism. In order to respond to cellular demands, passive diffusion in tissues can be sufficient as long as cells are close enough to a supply source. For organisms larger than a few hundreds of microns, diffusion alone is too slow to achieve supply of nutrients or signaling molecules to all cells in the body. Therefore, organisms have developed a large variety of flows to accelerate and orient the transport of key molecules. Blood flow is the main carrier of glucose and oxygen in most organisms and is mostly driven by the pressure gradient caused by the heart pump (Fung, 2013). Intestine, esophageal, and lymph flows rely on peristalsis, where muscles contractions drive the fluid in the direction of propagation of the contraction wave (Fung and Yih, 1968; Goyal and Paterson, 2011; Hennig et al., 1999; Kim et al., 2017; Shapiro et al., 1969). Other flows involve asymmetric beating of motile cilia or flagella, which are efficient motors that generate directional flows at small scales and mix fluids in biological systems (Ferreira et al., 2017; McGrath et al., 2003; Shields et al., 2010; Supatto and Vermot, 2011). Cilia-driven flows are critical for left/right asymmetry in the developing embryos of many species including humans (Baker and Beales, 2009), in the Kupffer’s vesicle in zebrafish (Ferreira et al., 2017; Supatto et al., 2008), and in the embryonic node in mammals (Essner, 2005; Nonaka et al., 2005; Okada et al., 2005). Cilia-driven flows can also be observed in the pronephros (Kramer-Zucker et al., 2005; Obara et al., 2006), respiratory tract (Oldenburg et al., 2012), and nasal cavity (Reiten et al., 2017). The motility of cilia in brain ventricles is also correlated with the cerebrospinal fluid (CSF) flow in zebrafish (Grimes et al., 2016; Kramer-Zucker et al., 2005; Olstad et al., 2018), African clawed frog (Hagenlocher et al., 2013; Miskevich, 2010) and rodents (Faubel et al., 2016).

CSF circulation plays various roles in the development of the brain and spinal cord. The CSF provides the hydromechanical protection of the brain (Sakka et al., 2011), transports nutrients, waste (Sakka et al., 2011; Xie et al., 2013), exosomes (Bachy et al., 2008; Schneider and Simons, 2013; Sternberg et al., 2018; Tietje et al., 2014; Verweij et al., 2019), and signaling molecules that impact neurogenesis and neuronal migration (Lehtinen et al., 2011; Paul et al., 2017; Sawamoto et al., 2006; Silva-Vargas et al., 2016). CSF circulation was recently shown to be critical for body axis formation in the embryo and spine morphogenesis in zebrafish juveniles and adults (Grimes et al., 2016; Van Gennip et al., 2018; Zhang et al., 2018). During embryogenesis, mutations that affect cilia polarity or motility and ciliogenesis lead to defects in transport along the rostrocaudal axis and body axis formation (Boswell and Ciruna, 2017; Zhang et al., 2018).

Historically, it has been generally assumed that CSF flow along the walls of all cavities must be driven by motile cilia. Nonetheless, it has been formally demonstrated only in the brain ventricles, where the direction of beating cilia indeed correlates with the direction of CSF flow (Faubel et al., 2016; Olstad et al., 2018). However, in the long cylindrical central canal, the dynamics of CSF flow is strikingly different than in the brain ventricles. We recently showed in 24–30 hr post fertilization (hpf) zebrafish embryos that the CSF flows bidirectionally (Cantaut-Belarif et al., 2018; Sternberg et al., 2018). Interestingly, body-axis defects observed in mutants with defective cilia appear by 30 hpf, that is, a few hours before cilia of the brain ventricles become motile and a directed CSF flow emerges in the ventricles (Fame et al., 2016; Olstad et al., 2018). This result suggests that proper dynamics of CSF flow in the central canal, rather than in the brain ventricles, is critical for embryonic development. Such a symmetrical bidirectional flow in a single channel is not common in biological systems.

To determine the mechanisms leading to bidirectional CSF flow in the central canal, we developed an automated method to quantify CSF flow in the central canal of zebrafish embryos. We first show that motile cilia are required to form the lumen of the central canal, as the canal has a reduced diameter in mutants with defective cilia. We combined experimental, numerical, and theoretical approaches to demonstrate the role of the spatially-asymmetric distribution of motile cilia in the generation of a bidirectional flow. We developed a general hydrodynamic model to account for the contribution of cilia, and show that this model can be applied as a general tool for many cilia-driven flows in confined environments. Additionally, we show experimental and theoretical evidence for an intricate relationship between local flow and long-range transport of particles in the CSF. We demonstrate that this bidirectional CSF flow in the central canal is enhanced by muscle contractions, which accelerate bidirectional transport of particles both rostrally and caudally. Finally, we investigate the global CSF circulation beyond the sole central canal. We show that the CSF flows unidirectionally from the diencephalic/mesencephalic ventricle to the entrance of the central canal, and that in vivo two-photon ablation of this connection leads to a reduction in size of embryos. It suggests a role for long-range CSF transport in growth during embryogenesis.

Results

Quantification of CSF flow in the central canal

In order to understand the mechanisms driving CSF flow in the central canal (CC), we first developed a thorough in vivo quantification of CSF flow in the CC. The obtained flow profiles will later serve as a basis to compare to our theoretical model. To establish quantitative and reproducible flow profiles along the dorsoventral (D-V) axis of the CC, we carried out an improved automated analysis inspired by our previous manual kymograph measurements (Cantaut-Belarif et al., 2018; Sternberg et al., 2018). By co-injecting TexasRed-Dextran (3,000 MW) with 20 nm-diameter green fluorescent beads in the diencephalic/mesencephalic ventricle (DV/MV), we measured both the volume of cavities and particle trajectories. The dextran rapidly diffuses throughout all fluid-filled cavities, including the CC (Figure 1A), enabling its visualization and assessment of the injection quality. Fluorescent nanobeads follow the bidirectional CSF flow (Figure 1B) but also undergo random Brownian motion due to their small size (Video 1). Bead trajectories also show the presence of a few regions of recirculation, commonly referred to as vortices (Figure 1B, Video 1). From the videos of fluorescent beads trajectories (Video 1, Figure 1 C1), we generated kymographs at various D-V positions in the CC (Figure 1 C2, C3, C4, and Video 2). The typical velocity profile is bimodal with positive flow (rostral to caudal) in the ventral side and negative flow (caudal to rostral) in the dorsal side, and reverses close to the center of the CC (relative D-V position = 0.53, Figure 1D from 110 wild type (WT) embryos each imaged in two rostro-caudal positions).

Video 1
Representative example of CSF flow observed in a 30 hpf WT embryo acquired with a spinning disk microscope at 10 Hz.

The video is replayed at 35 frames per second (fps). Rostral (R) is to the left, ventral (V) is bottom.

Video 2
Representative example of the automatic kymograph analysis of CSF flow in the central canal of a 30 hpf WT embryo.

For all successive dorso-ventral positions, the unprocessed kymograph (top left panel) is binarized based on intensity threshold (top right panel). Only traces with adequate length, angle, and eccentricity are kept (bottom left panel) and their orientation was measured, converted in a corresponding bead velocity, and aggregated into a histogram (bottom right panel).

Automated CSF flow analysis in the central canal quantifies the bidirectional velocity profile in 30 hpf embryos.

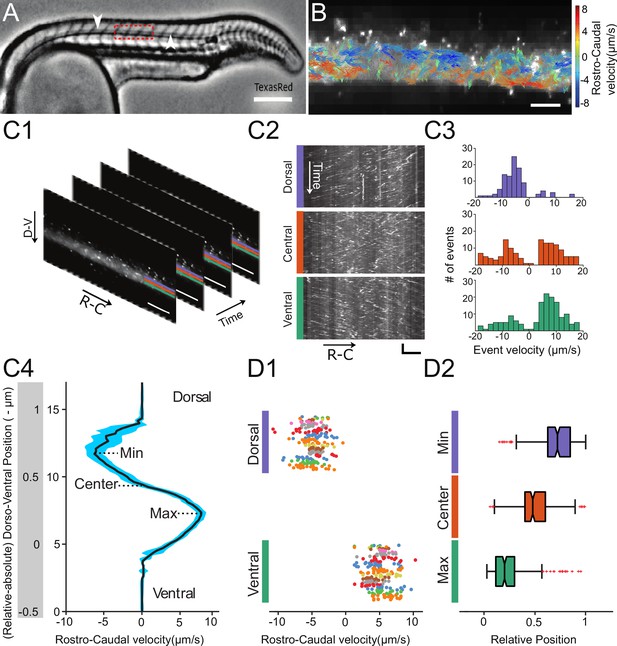

(A) Inverted contrast widefield image showing a 30 hpf zebrafish embryo injected with Texas Red: Texas Red fills all fluid-containing cavities, including ventricles, central canal (CC, white arrows), floor plate, somite boundaries, and blood vessels. (B) Instantaneous velocities of 20 nm fluorescent particles, as measured with a particle tracking velocimetry (PTV) algorithm, inside the central canal in a region corresponding to the red box in (A). The length, direction, and color of all arrows are coded according to the instantaneous bead velocity, ranging from −8 (blue) to 8 μm/s (red). (C1) Time series showing subsequent images of fluorescent beads injected in the DV and transported down the CC used to generate kymographs at different dorso-ventral (D–V) positions. (C2) Example kymographs computed in a dorsal, central, or ventral position in the CC. Each line represents the trajectory of one bead, projected along the rostro-caudal (R–C) axis. The slope of each trajectory gives a bead velocity projected onto the R-C axis. (C3) Histogram of velocities obtained at the three positions shown in (C2). (C4) Velocity profile (mean ± s.e.m. in blue) calculated for all D-V positions (expressed in absolute and relative position) in the CC for one WT embryo showing a maximum in the ventral side and a minimum in the dorsal side. (D1) Values of minimal (extremum in the dorsal part) and maximal velocities measured on 110 WT zebrafish embryos. Each dot represents the extremal values of one profile, and each color presents an experiment performed on siblings. 2 R-C positions are sampled per embryo. Extremal velocities are respectively 4.78 ± 0.79 μm.s-1 (ventral CC) and - 4.80 ± 0.82 μm.s-1 (dorsal CC). (D2) Values of relative D-V position of minimal, null, and maximal speed in the dorsal, center and ventral position in the CC (median positions are respectively 0.82, 0.53, and 0.29). Horizontal scale bar is 150 μm in (A), 15 μm in (B, C1, C2), and vertical scale bar is 5 s in (C2).

Automated kymographs show better reproducibility compared to particle tracking velocimetry (PTV) or particle imaging velocimetry (PIV), as discussed in Materials and methods section. Velocity profiles exhibit a maximal speed of 4.78 ± 0.79 μm.s−1 (relative D-V position = 0.29 on average) ventrally and a minimal speed of - 4.80 ± 0.82 μm.s−1 (relative D-V position = 0.82 on average) dorsally (Figure 1B1 and B2). The profiles are nearly symmetrical (relative D-V position at the zero-crossing = 0.53 on average). Similarly, the average speed throughout the CC is null (- 0.02 ± 0.15 μm.s−1). This implies that the average CSF flow rate through a section of CC is null as well. According to Poiseuille's relationship, this refutes the hypothesis of a global pressure gradient as the unique driver of the flow in the CC.

Central canal geometry and properties of the motile cilia

To build a theoretical model of CSF flow, essential parameters such as the canal geometry and the local cilia dynamics have to be quantified. The CC geometry, as estimated by TexasRed-Dextran (3,000 MW) injections, mostly corresponds to a cylinder (Figure 2A1 and A2) of diameter 8.9 ± 0.9 μm (129 WT embryos, Figure 2A3). The dynamics of motile cilia in the CC are investigated in 30 hpf Tg(β-actin:Arl13b-GFP) embryos in which GFP labels all cilia (Borovina et al., 2010; Cantaut-Belarif et al., 2018; Sternberg et al., 2018). Density and motility of cilia are higher in the ventral CC as previously reported (Borovina et al., 2010; Cantaut-Belarif et al., 2018; Sternberg et al., 2018). Movies recording the cilia beating illustrate the high density of cilia and diversity in ciliary length and beating frequency (Figure 2B, Video 3 and Figure 2—figure supplement 1). While some cilia beat at high frequency (up to45 Hz, see Materials and methods) with a single frequency pattern, others beat at lower frequency (~13 Hz) with more complex and irregular patterns. An automated quantification of cilia beating frequency using temporal Fourier transform (Figure 2B1) revealed distinct spots of constant frequencies (Figure 2B2). These regions likely correspond to the area traveled by a single cilium during one beating cycle. For each spot, we extracted the main frequency, orientation, length and height (Figures 2C1, 3, 4). We separated dorsal and ventral motile cilia based on their relative position to the center of CC (see Materials and methods). Motile ventral cilia were four times more numerous than the dorsal ones. Ventral motile cilia were typically 5.8 μm long and beat at 38.1 Hz with a caudal tilt of 62.6° towards the tail (median of the absolute value, see Materials and methods). This cilia length corresponds to a height of 2.7 μm in the CC, representing a bit less than half of the CC on the ventral side. We observed a caudal tilt, consistently with previous reports (Borovina et al., 2010; Cantaut-Belarif et al., 2018). The beating frequencies we measured were higher than the 12–15 Hz previously reported in zebrafish CC (Kramer-Zucker et al., 2005) (see Materials and methods for a possible explanation), but are consistent with beating frequencies of ependymal cilia located in the brain ventricles of rats (Smith et al., 2012) and zebrafish larvae (Olstad et al., 2018; Smith et al., 2012). Dorsal motile cilia were sparse and evenly distributed along the rostro-caudal axis: they beat with a slightly smaller central frequency (~32 Hz, Figure 2C2), but exhibited similar properties to ventral cilia otherwise (see Figure 2C3, 4, caudal polarization of 59.7 °, length of 5.5 μm).

Video 3
100 Hz video of the central canal where cilia are labeled with GFP in Tg (β-actin: Arl13b-GFP) transgenic embryos.

The video is replayed at 10 fps.

Figure 2 with 1 supplement see all

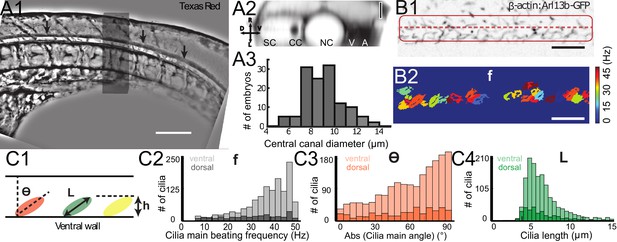

Geometry of the central canal and properties of motile cilia in 30 hpf embryos.

(A1, A2) Central canal filled with TexasRed injected in the brain ventricles shown laterally from maximal Z-projection stack of 75 inverted contrast images acquired with 1 μm Z-step (A1) and corresponding vertical profile (A2, 5x rescale on the axial dimension enabled similar pixel size in X/Y and Z): SC, spinal cord, CC, central canal (black arrows in (A1)), NC, notochord, V, vein and A, artery. (A3) Histogram of central canal diameter from n = 129 WT embryos, with a median value of 8.9 ± 0.9 μm (mean ± 0.5 s.t.d.). (B1, B2) Lateral view in the CC where cilia are labeled with GFP in Tg (β-actin:Arl13b-GFP) transgenic embryos (B1) used to draw a map of local main beating frequency (B2) from the fluorescence signal obtained by calculating the local Fourier transform. Regions of constant frequency are color-coded and most likely correspond to single cilium beating. (C1) Scheme presenting some parameters of interest extracted from regions of constant frequency obtained in (B2) and fitted as ellipses to obtain their mean orientation Θ, their major axis (L), associated with the cilia maximal length, and their height (h), that is their projection along the D-V axis. The latter parameter gives the portion of central canal occupied by beating cilia. (C2, C3, C4) Histograms of parameters extracted in many regions of constant frequency of n = 89 Tg(β-actin: Arl13b-GFP) 30 hpf embryos, for a total of 1704 motile cilia (298 dorsal cilia and 1406 ventral cilia) analyzed in total. A central frequency of 38.1 Hz (median frequency with s.d 10.0 Hz) (C2), a mean absolute orientation |Θ| 62.6° (s.d. 23.4°) (c3), a length L of 5.8 μm (s.d. 2.0 μm) (C4) as well as a beating height of 2.7 μm (s.d. 1.9 μm) (not shown) were found for ventral cilia. Dorsal motile cilia have a central frequency of 32.3 Hz ± 12.3 Hz, a caudal orientation of absolute value 59.7°± 25.8° and a length of 5.5 μm ± 3.0 μm. Scale bar is 50 μm in (A1), and 15 μm in (A2, B1, B2).

Figure 3 with 1 supplement see all
Theoretical and numerical results explain how motile cilia generate local CSF flow in 30 hpf embryos.

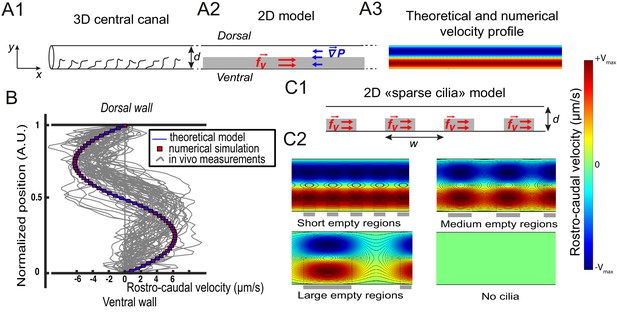

(A1) Schematic of the three-dimensional central canal that can be reduced to a quasi-cylinder whose ventral wall is paved by regularly positioned motile cilia, and whose dorsal wall is composed of more loosely distributed passive cilia. (A2) The model reduces the geometry to a bidimensional channel of thickness d, composed of two main regions occupying the ventral and dorsal halves of the channel. In the ventral region, the cilia contribution is modeled as a constant bulk force. A constant gradient of pressure, present in the whole central canal, opposes the cilia-induced force and ensures a global zero flux on a cross section. (A3) Numerically and theoretically calculated velocity maps, where dark blue represents highest rostral velocities (negative values), while dark red holds for the highest caudal velocities (positive values). (B) Numerical (red squares) and theoretical (blue line) velocity profiles, composed of two parabolas matched at the center of the cross-section (Relative position = 0.5). They are convincingly compared to a superimposition of in vivo measurements obtained on 57 WT siblings. (C1) ‘Sparse cilia’ model, accounting for the spatially inhomogeneous defects in cilia structure or motility (as observed in some mutants with defective cilia). The model reduces these defects to regions in the ventral side that are fully passive and where no force applies. Numerical simulations enable to derive the flow with an arbitrary distribution of these passive regions. (C2) Maps of characteristic streamlines obtained for various aspect ratios w/d of the repeat units. Small passive regions show most of the streamlines parallel to the walls. A central recirculation, or vortex, is gradually more present in between cilia regions as the lateral extension of the passive region increases. The corresponding distribution of pressure in the central canal for these different cases is represented in Figure 3—figure supplement 1.

Figure 4 with 1 supplement see all

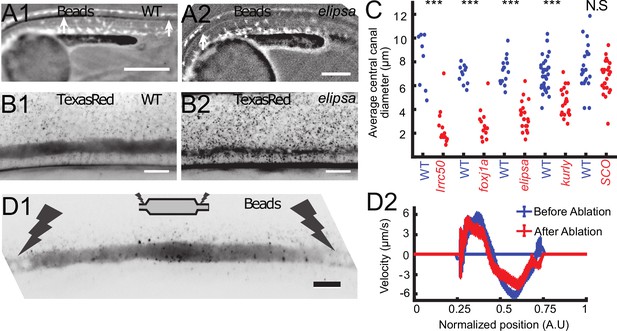

Cilia beating controls long-range transport, CC architecture, and local flow in zebrafish embryos.

(A1, A2) Progression of 20 nm fluorescent beads inside the CC 2 hr post injection (two hpi) in the diencephalic/mesencephalic ventricle in a WT 30 hpf embryo (A1) and in a ciliary mutant (elipsa) sibling (A2). The progression front is demarcated by the rightmost white arrow in (A1) and (A2), showing that beads barely propagate in central canal in ciliary mutants. (B1, B2) Central canal geometry in a WT embryo (B1) and in a ciliary mutant (elipsa) sibling (B2). The central canal was filled with Texas Red, and is displayed as the maximal projection image from a Z-stack of 30 images around CC. The CC appears collapsed in an elipsa mutant. (C) Quantification of CC diameter for different ciliary mutants (lrrc50, foxj1a, elipsa, kurly) and one curled down mutant with intact CSF flow (SCO) (red dots, right side) versus their WT siblings (blue dots, left side). (D1) Time average image of 20 nm fluorescence beads in inverted contrast of a central canal region where photoablation was performed on both sides (dark lightning bolt), closing the canal. (D2) Quantification of local CSF flow in the CC region in (D1) before (blue) and after (red) photoablation. CC geometry remains intact in the central region (D1), as well as the flow profile (D2). Scale bars represent 200 μm in (A1, A2), and 15 μm in panels (B1, B2, D1). P-values in (C) are respectively 2.2 10−6, 3.1 10−9, 3.5 10−6 1.82 10−8, 0.096 from left to right. The values for control WT siblings from all experiments are not statistically different.

The asymmetric distribution of beating cilia generates a bidirectional flow

The CC is roughly shaped like a cylinder (Figure 2A) and contains motile cilia that line primarily the ventral wall (Figure 2B). The broad distribution of cilia beating frequency and cilia length, as well as the high density of cilia in the CC that could interact with each other and thereby introduce non linearities, would make it extremely challenging to model the effect of each individual cilium beating. As a first approximation, since the CSF bidirectional flow does not vary over time and over rostro-caudal axis (Figure 1 C4), we built a two-dimensional model that homogenizes cilia contribution as a constant force. The model divides the CC into two regions of equal thickness h=d/2 (Figure 3 A1, A2). It is assumed that the influence of dorsal cilia can be neglected, while active ventral cilia generate a constant volume force fv within the ventral region. Dimensional analysis gives fv =αμf/h, where f  is the cilia mean beating frequency (40 Hz), μ is the CSF dynamic viscosity and α is a numerical factor of order unity. The Stokes equation controls flow at small scales as inertial terms are negligible in comparison to viscous terms, and simplifies in dorsal and ventral regions as:

(1)  dP/dx = μ y2vdorsal,
(2) dP/dx - fv = μ y2vventral

where x and y represent the coordinates respectively in the rostro-caudal and dorso-ventral directions. dP/dx  is the common pressure gradient applying in both regions, and y2vdorsal is the second y-derivative of the rostro-caudal velocity vdorsal(y). The derived flow obeys two parabolic profiles:

(3) vdorsal(y) = dP/dxμ(y2/2 yBy d2/2 +yBd),
(4) vventral(y) = dP/dx- fvμ(y2/2-yAy)

where yA and yB are two integration constants to be determined, and  dP/dx is the pressure gradient. Matching velocity and shear rate at the boundary between dorsal and ventral regions (y=h), two equations can link these three unknowns. To solve this system of equations, a third relation is provided by the null-flux condition across the diameter of the central canal as observed in vivo:

(5) ohvventral(y)dy = hdvdorsal(y)dy.

In the particular case of central canal geometry, the ventral ciliary region occupies about half of the diameter that is h = d/2. This enables to find: yA = d/4, yB = 3d/4 and dP/dx = fv/2, and the velocity profile adopts this symmetrical biparabolic form:

(6) vdorsal(y) = dP/dxμ(y2/2 -3yd/4 +d2/4 )
(7) vventral(y) = dP/dx - fvμ(y2/2-yd/4)

More details concerning the derivation of the velocity profile can be found in the Appendix 1. Note that this symmetry in the velocity profile, represented in Figure 3A3, is only obtained for the particular case h = d/2.

With a unique fitting parameter α that controls the amplitude of the constant volumetric force chosen as 0.5, (leading to fv=4000 N/m3), we obtain a symmetric bimodal flow with extreme velocities equal to ±5 μm/s (Figure 3B), and an axial pressure gradient  dP/dx=2000 N/m3. We additionally solved the 2D Stokes equation by Finite Element Method numerical simulations (Comsol Multiphysics software). Theoretical and numerical predictions are in good agreement with the 57 velocity profiles measured in vivo and tested here (Figure 3B).

The model is further refined to account for the spatial heterogeneity in the cilia distribution in the ventral region. We designed spots of constant volume force fv regularly distributed along the ventral wall of CC with a period w  (Figure 3C1), and added some regions without cilia in the ventral side. With this 'sparse cilia' model, numerical simulations show that recirculation regions appear between these spots (Figure 3C2). The amplitude of the recirculation regions is more pronounced as w increases. For large passive regions of rostro-caudal extension w larger than the diameter of the CC (w>d), all the streamlines are located within the vortices, and no directed flow is observed between the active regions. This model thus predicts that vortices appear due to the alternation of active and passive regions. Note that the presence of passive regions also decreases the pressure in the CC proportionally to the fraction of passive regions (Figure 3—figure supplement 1A), a direct consequence of the linearity of the Stokes equation. We can further show that differences in beating frequency between active neighboring cilia lead to the emergence of the same recirculation regions (Figure 3—figure supplement 1D).

Motile cilia control the long-range CSF transport and maintain the CC structure

To verify that asymmetric cilia beating is solely responsible for the bidirectional flow in vivo as proposed by our model, we aimed at measuring the CSF flow in several mutant embryos for which either ciliogenesis or ciliary motility is affected; The traf3iptp499 mutation, referred to as elipsa (Omori et al., 2008), affects a protein involved in the intraflagellar transport (IFT), which leads to early cilia degenerescence at ~30 hpf. The dnaaf1tm317b mutation, corresponding to the gene formally called lrrc50 (van Rooijen et al., 2008), leads to a complete loss of cilia motility by destabilizing the ciliary axoneme (van Rooijen et al., 2008). The cfap298tm304 mutation, referred to as kurly (Brand et al., 1996), affects in a thermosensitive manner a cytoplasmic protein necessary for cilia motility and polarity (Jaffe et al., 2016). This protein is partly inactivated at the temperature at which our experiments were conducted (28°C, Jaffe et al., 2016). The foxj1anw2 newly-generated mutation (see Materials and methods and characterization in Figure 4 – figure supplement 1) reported here for the first time affects a transcription factor, which does not affect primary cilia but cilia whose tubulin is glutamylated (Figure 4—figure supplement 1E1, E2). Cilia with glutamylated-tubulin in the CC of WT embryos are caudally-polarized and ventrally-located and most likely correspond to motile cilia (Figure 4—figure supplement 1E1, E2).

In all these mutants with defective cilia, we injected beads in the DV/MV, but we could not observe the beads transported inside the CC. In anaesthetized mutant embryos, no particles entered the CC even several hours post injection, as illustrated here in elipsa embryos (Figure 4A1 and A2). This observation is consistent with previous reports (Cantaut-Belarif et al., 2018; Zhang et al., 2018) showing that long-range transport of beads down the central canal is altered in mutants with defective cilia. To account for this reduced transport, we verified whether the CC geometry was affected in embryos with defective cilia. Surprisingly, we observed that the CC diameter was dramatically reduced in all mutants tested: elipsa, lrrc50, foxj1anw2, and kurly (Figure 4B,C). Although the CC forms in these mutants, it is flattened along the D-V axis and not as straight as control siblings (Figure 4B1, B2 and C). In order to evaluate whether these features could be due to the convex body curvature of the embryos, we analyzed the CC structure of mutant embryos scospondinicm15/icm15, which are also curled down but exhibit normal cilia activity (Cantaut-Belarif et al., 2018). For these mutants, we did not measure any difference in the CC diameter. This observation suggests that cilia integrity and motility are critical to properly form the CC and instruct its diameter and straightness.

As exogenous beads are not transported down the CC in anaesthetized mutants with defective cilia, we could not measure the local CSF flow, and hence test whether the cilia beating is directly responsible for CSF bidirectional flow. However, we noticed that allowing mutant embryos to spontaneously twitch (by not anesthetizing them before imaging) facilitated the transport of beads down the CC (see next section for the characterization of the effect of muscle contraction on CSF flow). By using the effect of muscle contractions, we were able to get beads down the CC in mutants with a moderate reduction of the CC diameter, such as elipsa and kurly. Fluorescent beads in the CC of elipsa and kurly mostly undergo random Brownian motion, but some allow to measure a residual flow with many recirculation zones (Video 4), in good agreement with the predictions of the sparse cilia model.

Video 4
Representative examples of CSF flow observed in intermediate ciliary mutants (elipsa mutants in the two top rows, and kurly mutant in the bottom row), showing either purely Brownian motion, or bidirectional flow with several vortices.

The raw data were acquired at 10 Hz, and the video is replayed at 20 fps.

It is also predicted that the bidirectional CSF flow in the CC is generated locally and does not rely on a global pressure gradient generated in the ventricles. This is confirmed by multiple observations: i) even after large regions without cilia and local flow, the CSF flow in more caudal regions can show a bidirectional flow, as long as motile cilia beat locally in the ventral region (as predicted by Figure 3C). ii) When a portion of the CC of around 200 μm in length is isolated by using photoablation to block flow on both extremities (see Materials and methods and Figure 4D1), the canal kept its diameter at the center and the CSF still flowed bidirectionally (Video 5) with a similar velocity profile (Figure 4D2).

Video 5
10 Hz video of 20 nm beads trapped between two ablated regions in central canal of a 30 hpf zebrafish embryo with spinning disk microscopy.

The video is replayed at 35 fps.

Muscle contraction transiently enhances CSF flow

So far, we mainly restricted our study to anaesthetized zebrafish embryos. However, muscle contractions can also generate several biological flows (Blatter et al., 2016). Recent results demonstrated that muscle contraction can create a massive transient flow in the brain ventricles of zebrafish embryos (Olstad et al., 2018). Consequently, we investigated CSF flow and transport on embryos without anesthesia, which have spontaneously contractions of the body wall muscles (spontaneous twitches). Animals were restrained in agar and contractions were identified from the notochord displacement (white arrow) on the transmitted image (Figure 5A). Following each contraction, rapid displacements of CSF (too fast to be properly characterized) were observed in either the caudal or rostral direction, followed by a slower counter-flow in the opposite direction, whose velocity decayed until the original bidirectional flow is recovered (Figure 5B and C, Video 6, Video 7). The average CSF flow throughout the entire CC section is correlated with the instantaneous muscle contractions (Figure 5D) and showed a sudden increase after contractions. By comparing the increase in CSF flow over 5 s after each contraction with the contraction strength, we observed a robust flow rate increase after each contraction (Figure 5E; 204 contractions from 22 WT embryos). However, we did not find any correlation between the flow direction and estimates of the contraction direction or strength. Body contractions also enhance transport of beads in mutants with defective cilia, as mentioned in the previous section (Video 4). As no significant difference in the CC diameter was detected during the muscle contractions, we propose that the reported enhancement of CSF flow is not due to a local variation of the CC diameter, but instead due to a change in the volume of the brain ventricles that occurs during muscle contraction at larval stage (Olstad et al., 2018).

Video 6
One representative example of CSF flow change after contraction in the central canal, acquired at 10 Hz with spinning disk microscopy.

The video is replayed at 25 fps.

Video 7
A second representative example of CSF flow change after contraction in the central canal, acquired at 10 Hz with spinning disk microscopy.

The video is replayed at 25 fps.

Muscle contraction transiently increases local CSF flow in the central canal.

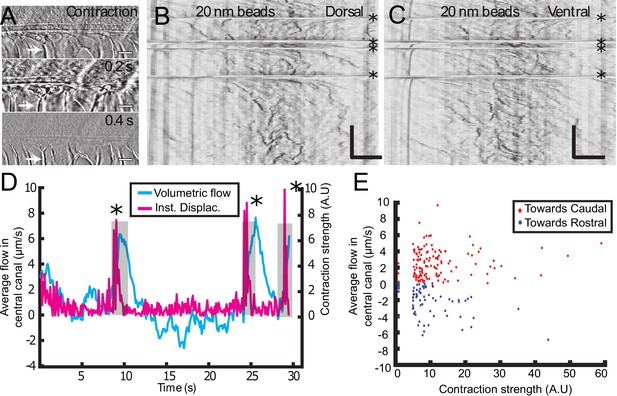

(A) Three successive images showing the time derivative of the transmitted image of a zebrafish embryo during muscle contraction. A fast contraction in one direction is followed by a slower decay back to the initial position, during which the notochord comes back more slowly to its original position (white arrows). (B, C) Dorsal (B) and ventral (C) kymographs obtained after spinning disk imaging of injected 20 nm beads. Contractions can be identified as the sharp horizontal lines and are emphasized by the four black asterisks. (D) Average volumetric flow across one section of the central canal versus time (cyan) for one representative embryo. The embryo instantaneous displacement (magenta) is superimposed. Contractions are also emphasized by dark asterisks and a gray background. (E) Quantification of the integral of the average volumetric flow during 2.5 s after each of the 204 contractions from n = 22 WT embryos. These values are plotted versus the contraction strength, that is the integral of intensity derivative during the time of contraction. The dataset is separated into positive flows (red dots), in which flow after contraction is directed towards the tail, and into negative flows (blue dots), in which CSF flow is directed towards the head. Horizontal scale bar is 15 μm in (A, B, C). The vertical bar in (B, C) is 4 s.

Bidirectional long-range transport of particles in the CC is accelerated by CSF flow

We characterized above the local CSF flow in the CC, but did not investigate its ability to transport particles over long distances, despite its importance for embryonic development (Chang et al., 2016). The rest of the study will focus on long-range circulation of CSF, first in the CC, and then in the entire CSF circulatory system. At the micrometric scale of the central canal, Brownian diffusion can be sufficient to spread molecules without requiring a flow advection. However, larger particles (of diameter larger than about 10 nm) are less sensitive to Brownian motion and the presence of a flow can dramatically increase their transport efficiency throughout the embryo body. It is at the crossover between these two qualitatively different transport phenomena that the influence of the bidirectional flow in the CC will be characterized.

Here, we first demonstrate experimentally that CSF long-range transport of nanoparticles has characteristics of both passive diffusion and active transport. The particle transport follows an apparent diffusive law, as the propagation front of nanoparticles progresses with the square root of time (Zhang et al., 2018) and this propagation is found to be slower for larger particle size (Figure 6A1 and A2). On the other hand, the propagation front of 20 nm-diameter fluorescent beads is accelerated by muscle contractions, when the local CSF flow velocity is increased (Figure 6A2 and A3). An estimation of orders of magnitude also suggests that CSF long-range transport originates from a combination of pure diffusion and flow advection. Indeed, 20 nm-diameter fluorescent beads injected in the DV/MV are found to travel through the entire length of CC (~2 mm) in about two hours (Figure 6A2), far from the timescales expected for passive diffusion (over one day) or pure ballistic transport at the speed of the flow (with V = 5 μm/s, this would lead to less than 10 min).

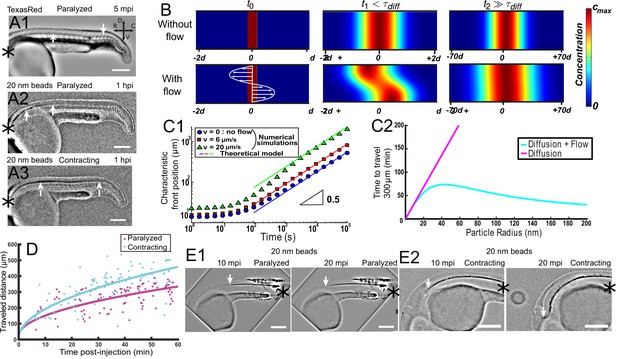

Local CSF flow accelerates bidirectional long-range transport along rostro-caudal axis in 30 hpf zebrafish embryos.

(A1) Inverted contrast fluorescence widefield image of the propagation front of Texas Red 5 min post-injection (mpi). (A2, A3) Inverted contrast fluorescence widefield image of the propagation front of 20 nm beads 1 hr post-injection in the DV/MV of a paralyzed (A2) and contracting (A3) embryo. White arrows in (A1, A2, A3) show CC and the propagation front. (B) Numerical simulation of Taylor Aris diffusion, accounting for long-range transport in central canal. A small region of high concentration is created at the beginning of the simulation (t0 – left column) with (bottom) and without (top) the flow. The propagation front first follows the local flow profile (t1, center column), but a Gaussian distribution is finally recovered with and without flow (t2, right column). However, the concentration front has propagated faster in the presence of flow. The color represents the local concentration in particles. (C1) Characteristic front position of 20 nm radius particles versus time for different bidirectional flow velocities in log scale (v = 0, 6, and 20 μm.s−1 for respectively the blue dots, the red boxes, and the green triangles), as calculated numerically. The colored solid lines correspond to the asymptotic prediction (0.5 line) of pure diffusion. (C2) Theoretical calculation of the average propagation time of a solution of spherical particles to travel 300 μm in central canal versus the particle radius with (cyan) and without (magenta) the bidirectional flow. (D) Experimental propagation front of injected 20 nm beads versus post-injection time, measured in 16 paralyzed (magenta) and 16 contracting (cyan) embryos. (E1, E2) Inverted contrast fluorescence widefield image of the propagation front of 20 nm beads injected in the caudal central canal of a paralyzed (E1) and active zebrafish embryo (E2), showing ‘reverse’ (caudal to rostral) transport between left (10 mpi) and right images (20 mpi). The black asterisks in (A1–A3, E1, E2) show the injection site. Scale bar is 200 μm in (A1, A2, A3, E1, E2).

To account for these observations, we developed theoretical and numerical calculations according to CC geometry. We modeled the transport of particles by including an advection term in the diffusion equation. In a bi-dimensional canal (Figure 3A2), the transport equation can be written as:

(8) tc + v(y)xc =D(y2c+x2c),

where c is the local concentration of particles, and t,x and y are respectively the time and spatial derivatives in the rostro-caudal (x) and dorso-ventral (y) directions. v(y) is the velocity profile (Equations 6, 7), and D is the Brownian diffusion coefficient of particles in CSF. For a spherical particle of radius r, the Stokes-Einstein relation gives:

(9) D=kBT6πrμ

 where T is the temperature and kB  is Boltzmann’s constant. As described by Taylor (1953) and Aris (1956), the presence of velocity gradients increases the effective diffusivity of solutes due to a coupling between classical Brownian diffusion and flow advection. Over long distances, transport still follows a diffusive process, but with an effective diffusivity enhanced by the shear flow (Aris, 1956; Taylor, 1953). From Equation 8, we performed the theoretical derivation of this effective diffusivity Deff  for particles of arbitrary size in the presence of a bidirectional flow (in Appendix 2, and Appendix 2—figure 1), based on the derivation done by Bruus for a unidirectional Poiseuille flow (Bruus, 2008). This leads to:

(10) DeffD(1+Pe´224)

where Pé=Vd/D is the dimensionless Péclet number, comparing the characteristic times for spanwise diffusion d2/D and convection d/V. The particle transport process in the CC thus follows a diffusion law whose diffusion coefficient is increased with the flow maximal velocity V. Note that the prefactor is larger here than for a unidirectional flow of similar velocity (Appendix 2).

This theoretical prediction is confirmed by numerical simulations, comparing the long-range transport of particles of diameter 40 nm (in the range of commonly observed embryonic extracellular secreted vesicles in the CSF [Bachy et al., 2008], without flow, and in the presence of a bidirectional flow (Figure 6B) of variable velocity. The simulations show that at times longer than the characteristic diffusion time d2/D  = 10 s, a diffusive-like gaussian concentration profile is recovered with a wider extent in the presence of a flow (Figure 6B). This diffusive transport is numerically obtained for three different maximal speeds of the flow: 0, 6 μm/s, and 20 μm/s (Figure 6C1), and shows that this effective diffusion is enhanced by the flow speed, as predicted by our theoretical derivation. Another interesting feature of this diffusivity enhancement is its weaker dependence on the size of the transported particles, as opposed to classical diffusion for which the diffusivity is inversely proportional to the particle size (Figure 6C2, Equation 7).

In vivo front tracking experiments illustrate this flow-induced accelerated transport of 20 nm nanoparticles in paralyzed and contracting zebrafish embryos (Figure 6D). While both contracting and paralyzed embryos exhibit a diffusive-like transport, the effective diffusivity is higher in the case of contracting embryos. It confirms that muscle contractions can increase the long-range transport efficiency (an increase of the steady bidirectional velocity would have similar effects, Figure 6C1). Interestingly, the transport is predicted to be enhanced in both rostro-caudal and caudo-rostral directions, which is confirmed by in vivo experiments. When injected locally in the caudal part of the CC, fluorescent nanobeads are indeed transported rostrally towards the brain ventricles (Figure 6E1). Similarly to rostral-to-caudal transport, the reverse transport is sped up incontracting embryos (Figure 6E2).

Embryonic CSF circulates between the brain ventricles and the central canal via a complex circulatory system

To understand how the CSF carries particles between CC and the brain ventricles at early stages, we imaged all the CSF-filled cavities by injecting the small dye Texas Red-Dextran (3,000 MW) in live 30 hpf embryos (Figure 7). At this stage, cilia in the brain ventricles are mostly non-motile (Olstad et al., 2018). At this stage, CSF flow in the brain ventricles is mostly Brownian, although the heart beat is responsible for a pulsatile component to the flow at the heart beat frequency (Video 8), as previously observed (Fame et al., 2016; Olstad et al., 2018). Our observations indicate that before 30 hpf CSF flow in the brain ventricles does not contribute to the overall CSF circulation. After the brain ventricles, we investigated how CSF flows in between the brain ventricles and the CC. During embryogenesis in rats (Sevc et al., 2009) and zebrafish (Kondrychyn et al., 2013, Ribeiro et al., 2017; Guo et al., 2018), the progressive closing of the neural plate gives rise to a ‘primitive lumen’(pL) that changes shape and volume over time. At 30 hpf in zebrafish embryos, we investigated here three transient paths where CSF flows in between the brain ventricles and the CC (Figure 7). First, the CSF circulates in a small ventral opening of the RV pL, in continuity with the ventral larger opening of the the CC pL. (as shown in histology in Fame et al., 2016). We measured that the diameter of this ventral opening is smaller than the CC diameter (7.1 ± 0.7 μm) and is 233 ± 24 μm long (Figure 7A and B – green arrow, 7C,11 embryos, Video 9) and that few motile cilia enable there a unidirectional flow from rostral to caudal, that is towards the CC (Video 10). This fast and unidirectional flow follows a parabolic Poiseuille-like velocity profile with a maximum speed of 15 μm / s (Figure 7D1 and D2). We also observed that CSF circulates in a ventrally-located small opening of the DV/MV pL connected with the TV (Figure 7B- red arrow, Video 9). Finally, we observed a small dorsal opening of the CC pL with a very narrow diameter (~2.5 μm, Figure 7A and E –blue arrow, Video 11). The CC pL is indeed composed of two main openings, with a very narrow but continuous connection between the two (Kondrychyn et al., 2013, Ribeiro et al., 2017). We observed that the apical domains of the two openings of the CC pL, marked with the tight junctions protein ZO-1, are closely-spaced, so that CSF flow is independent in each opening (Figure 7E). This is the reason why we neglected the influence of this dorsal opening of the CC pL to model the CSF flow in the larger opening, and we called the CC only its larger ventral opening. Interestingly, we found that the CC ventral and dorsal openings converge into a single opening, dense in motile cilia, in the caudal part of the spinal cord (Figure 7 E2, Video 12). During development, as it has already been partly described in rodents and zebrafish (Sevc et al., 2009; Kondrychyn et al., 2013, Ribeiro et al., 2017), dorsal and ventral openings of the CC pL converge ventrally at three dpf (Figure 7F) to finally merge into a single central canal lumen at five dpf (Figure 7G). Further histological investigations will be needed to clarify the geometry of all cavities where CSF flows in the embryo.

Video 8
10 Hz video of 20 nm beads in the rhombencephalic ventricle of two 30 hpf zebrafish embryos with (left panel) and without (right) heartbeat with spinning disk microscopy.

The heart was stopped using butanedione. The video is replayed at 10 fps.

Video 9
2-photon 3D imaging of CSF-filled primitive lumens around the brain of a 30 hpf zebrafish embryo.

The left part shows the diencephalic/mesencephalic ventricle (DV/MV), rhombencephalic ventricle (RV) lumens with their respective ventral openings filled with TexasRed injected in the DV/MV. The same structures can be observed in a fixed embryo immunolabeled with ZO-1 (tight junctions) and DAPI at the right part of the movie.

Video 10
10 Hz video of 20 nm beads entering the ventral opening of the RV lumen of a 30 hpf zebrafish embryo with spinning disk microscopy.

The video is replayed at 35 fps.

Video 11
2-photon 3D imaging of CSF-filled structures in the spinal cord of a 30 hpf zebrafish embryo.

The left part shows the lumen of the central canal (CC), with its large opening and a smaller dorsal opening (blue arrow). The two openings can be observed at the right part of the movie in a live 30 hpf Tg(beta-actin:Arl13b-GFP) embryo with labeled cilia, as characterized by a higher density of cilia.

Video 12
100 Hz video of the fork where the two openings of the CC primitive lumen merge in the filum terminale in the tail.

Cilia are labeled with GFP in Tg (β-actin: Arl13b-GFP) transgenic embryos. The video is replayed at 20 fps.

Embryonic CSF circulates between the brain ventricles and the central canal in the spinal cord through a complex circulation system.

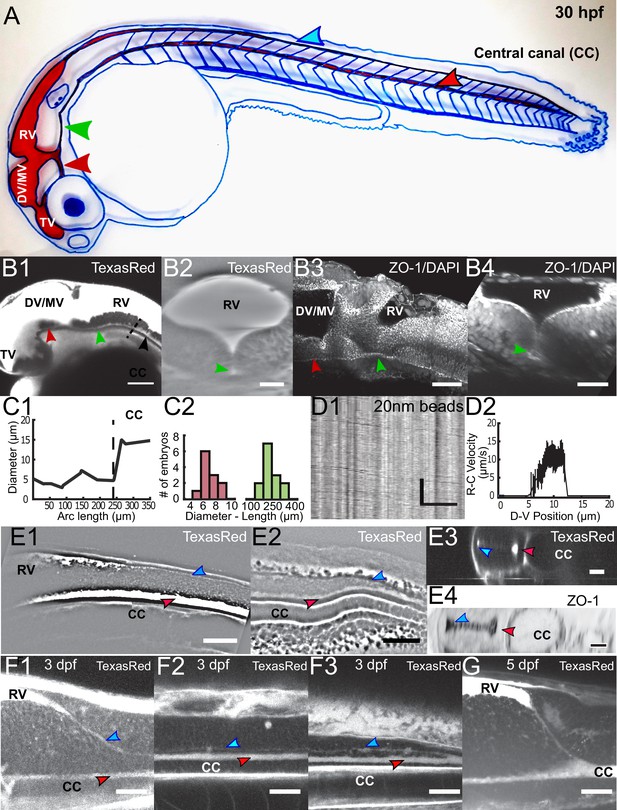

(A) Handmade schematic of CSF distribution in a 30 hpf zebrafish embryo with CSF colored in red. A path ventral to the DV/MV and the RV lets CSF flow and merges into the CC. Dorsal to the CC, a path that is continuous to the RV merges with the CC in the filum terminale. (B1, B2) 2-photon imaging of TexasRed injected in the DV/MV of 30 hpf embryos shows the ventral opening of the primitive lumen of DV/MV and RV in lateral (B1) and coronal (B2) views. The path ventral to RV merges into the CC and has a smaller diameter. (B3, B4) two photon imaging of tight junction (ZO-1) and nuclei (DAPI) labeling of fixed 30 hpf embryos in lateral (B3) and coronal (B4) views highlights the complex circulation system of CSF in primitive lumens. (C1) Experimental measurement of the ventral opening of the RV lumen relative to its arc length. The diameter sharply increases at the beginning of the CC (black dashed line). (C2) Histogram of the ventral opening of the RV lumen showing diameter and length measured in 11 WT 30 hpf embryos (diameter of 7.1 ± 0.7 μm, ratio relative to CC diameter of 0.55 ± 0.12, as discussed in Methods, and 233 ± 24 μm long median ± 0.5 s.d.). (D1) Inverse contrast kymograph of 20 nm beads flowing in the path ventral to RV lumen after injection in the DV/MV. (D2) CSF flow profile inside the path ventral to RV, captured with our automatic kymograph analysis. (E1, E2) 2-photon imaging of TexasRed injected in the DV/MV of a 30 hpf embryo showing the dorsal opening of the CC primitive lumen as it leaves the RV (E1) and as it connects to the main opening of the CC lumen in the filum terminale (E2). The dorsal opening of the CC primitive lumen in its rostral part is also shown in coronal view (E3) and in a fixed 30 hpf embryo after a ZO-1 staining (E4). (F1, F2, F3) 2-photon imaging of TexasRed injected in the DV/MV of a three dpf larva showing the CC lumen in rostral (F1), central (F2), and caudal positions (F3). (F4) 2-photon imaging of TexasRed injected in the DV/MV of a five dpf larva indicates that the caudal end of the RV is at this stage directly connected to the single opening of the CC. Scale bar is 100 μm in (B1), 50 μm in (B3, E1, E2), 30 μm in (B2, B4, F1, F2, F3, G), and 15 μm in (D1, E3, E4). The vertical scale bar in (D1) is 3 s.

The connection between the brain ventricles and central canal is critical for embryonic growth

In previous sections, we showed that long-range transport of particles in the CSF is accelerated by a fast and unidirectional flow between the ventricles and the CC, and by a slower but efficient bidirectional flow in the CC. We now investigate whether particle transport between the brain and the spinal cord is important for the development, or whether the ventricular and spinal CSF systems are independent at this stage. We performed 2-photon mediated photo-ablations at the beginning of the CC to disconnect the CC from the brain ventricles (Figure 8A1 and A2). We found that 30 hr after ablation, half of the ablated larvae were shorter in length than siblings that underwent a control ablation of the yolk extension or had no ablation (Figure 8B1 and B2). Larvae with the opening ablated had an increase in body-axis curvature (Figure 8C1 and C2). Similar effects on development were observed when CSF from the brain ventricles was drained (Chang et al., 2016), which affected the transport of CSF, including RBP4, a transport protein involved in the synthesis of Vitamin A. These experiments indicate that global CSF circulation contributes to embryonic growth, and suggest that the transport of particles between brain and spinal cord is a critical process for development.

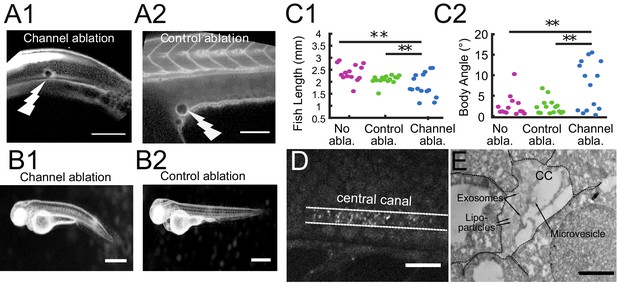

The connection between the brain ventricles and the central canal controls growth during embryogenesis.

(A1, A2) 2-photon image of fluid-filled cavities after Texas Red injection and after optical ablation at the rostral extremity of the CC connecting to the brain ventricles (A1), and in the yolk extension (A2 -control ablation). (B1, B2) Widefield transmitted images of 3 dpf zebrafish larvae 30 hr after the optical ablation of the CC rostral extremity (B1), or control ablation (B2). (C1, C2) Quantification of the fish total length (C1), and the main body angle (C2), 30 hr after Texas Red injection without ablation (magenta), after control (green) and CC rostral extremity l (blue) ablation with 14 larvae per category. P-values for length and angle are 1.3 10−3 and 3.0 10−3 respectively between the CC rostral extremity and no ablation, 9.6 10−3 and 6.4 10−3 between the CC rostral extremity and control ablation, and 0.066 and 0.89 (not significant) between the two controls. (D) Full field optical coherence tomography imaging of 30 hpf embryos reveals high density of secreted vesicles in central canal. (E) Electron microscopy with immunogold labeling of extracellular vesicles (EVs) in the CC of a one dpf zebrafish larva. Scale bar is 100 μm in (A1, A2), 15 μm in (D), and 500 nm in (E).

In order to find particles that could be efficiently transported by the bidirectional flow, we investigated the content of the CSF and identified abundant extracellular vesicles using the label-free imaging technique, full field optical coherence tomography (Figure 8D and Video 13). Numerous vesicles with high lipids or proteins content filled the CC, in agreement with previous observations (Sternberg et al., 2018). Fluorescent labeling of CD63 (Video 14, Materials and methods) and electron microscopy with immunogold labeling of exosomes suggested that some of these particles may correspond to exosomes in the CSF (Figure 8E, Materials and methods) (Verweij et al., 2019). Electron microscopy also reveals a variety of other extracellular vesicles, such as lipoparticles, microvesicles. The diameter of these vesicles ranges between 50 and 250 nm (Figure 8E), typically in a regime where Taylor-Aris dispersion is important. The bidirectional flow of endogenous extracellular vesicles can be put in evidence in the CC using full field optical coherence tomography as well as fluorescence live imaging (Video 13, Video 14). Altogether, our works suggests that the effective CSF circulation contributes to embryonic growth via the transport of extracellular vesicles between brain and spinal cord.

Video 13
10 Hz video of lateral view of a 30 hpf zebrafish embryo with full field optical coherence tomography.

The video is replayed at 15 fps.

Video 14
Real-time video of the central canal of a one dpf zebrafish embryo expressing CD63-pHluorin in the YSL.

The video is replayed at 35 fps.

Discussion

In this study, we performed quantification of cerebrospinal fluid (CSF) circulation in zebrafish embryos. By combining experiments and modeling, we demonstrated that a steady bidirectional CSF flow is driven by ventral motile cilia and that body movements create additional transient flows. These two driving forces accelerate the long-range transport of all particles larger than 10 nm, including the many macromolecules and extracellular vesicles present in the CC. This permits fast transport both from brain to spinal cord, and from spinal cord to the brain, which is critical for normal embryonic development. Our study focused on embryogenesis as this is a critical period when CSF is most concentrated in secreted extracellular lipid vesicles (Bachy et al., 2008; Tietje et al., 2014), and when blood flow along the body is not established to transport key molecules.

Our work predicts the establishment of a positive pressure in the CC, increasing linearly towards the caudal direction (Figure 3—figure supplement 1A). This inner pressure is decreased as the density of motile cilia is lower. These findings may be directly related to the reduced diameter of the CC reported for mutants with defective cilia (Figure 4C), an interesting observation reported for the first time here. This suggests that, among other roles related to transport of chemical cues or mechano-sensing, the cilia motility ensures the integrity of the CC, which is necessary for proper body axis formation. Interestingly, small veins have also been reported to collapse under a decrease of inner pressure (Fung, 2013). During some fixation processes, if the structure is not maintained fast enough, the loss of cilia activity should lead to a decrease of the inner pressure and to the collapse of the CC. It may explain previous observations of collapsed CC in histology (Orts-Del'Immagine et al., 2019).We report that mutants with defective cilia were unable to maintain an open CC. Elipsa and kurly embryos with partial loss of cilia motility show intermediate phenotypes, with some regions open and other constrained, and with open regions showing bidirectional flow with a higher density of recirculation zones. These flow patterns are predicted by the sparse cilia model (Figure 3C), since a few cilia remain motile in kurly embryos (Jaffe et al., 2016) and in elipsa between 24 hpf and 30 hpf (Cantaut-Belarif et al., 2018). It also accounts for the reduced long-range transport previously observed in kif3b mutants, where cilia density is reduced (Zhang et al., 2018). In contrast, foxj1a mutant embryos showing ependymal cells with defective cilia (Yu et al., 2008) (Figure 4—figure supplement 1) have an almost closed CC. This observation strongly suggests that the motile cilia generating the flow and maintaining the CC geometry originate from ependymal cells only, while the remaining cilia that probably belong to CSF-contacting neurons (Böhm et al., 2016) are too short and not dense enough to generate a stable CC (Figure 4—figure supplement 1).

In this study, we finally described the global circulation of CSF through transient openings of the pL of the brain ventricles and the CC, and showed that a specific circulation between the ventricles and the CC is established at embryonic stage. We showed that this circulation was required for normal development. This transient architecture and circulation within the primitive lumens in the developing brain and spinal cord may be specific to teleost species, where the neural tube and ventricles form by tissue internalization and cavitation (Guo et al., 2018). In contrast, in Amniotes such as mammals, the neural tube forms mainly by tissue folding and fusion (Araya et al., 2016; Cearns et al., 2016; Lowery and Sive, 2004). However, there are evidences for similar appositions of ventricular walls in Amniotes (in mouse: Chen et al., 2017 and; in chicken: Halasi et al., 2012), and these developing structures would be interesting to study in other species. In this study, we used a simple hydrodynamic model to account for our observations by modeling cilia contribution as a homogeneous volume force fv. The latter fits experimental data for an amplitude of 4000 N/m3, corresponding to a force of 10 pN generated by a single cilium occupying a volume of characteristic size 10 μm, in good agreement with the values reported in the literature (Hill et al., 2010). The force profile generated by the ciliary layer is most likely more complex spatially as well as temporally. Further refinements of the model may consist in changing the force profile fv for a linear static profile (Siyahhan et al., 2014), or more complex profiles (Blake, 1972; Blake, 1973Smith et al., 2007). We report that the inclusion of a linear force profile does not significantly alter the predicted velocity profile (Figure 3—figure supplement 1B), which shows the robustness of this averaged model. Interestingly, our model can efficiently predict flow profiles for many other aspect ratios between the cilia extension and any other channel diameter and heterogenous ciliary beating frequency (Figure 3—figure supplement 1C). It convincingly predicts the flow previously reported by Shields et al. (2010) in the context of artificial magnetic cilia in microchannels , where this aspect ratio is low. However, we could not account for the complexity of many interacting cilia beating at very different frequencies, and it is only the steady average flow that could be predicted. We also neglected the contribution of dorsal cilia (although they represent about 20 % of all motile cilia), and we now provide further justifications for this choice. Exploiting the linearity of the Stokes equation, which prevails at these small scales, the CSF flow can be described as the sum of the contribution of ventral and dorsal motile cilia. The dorsal cilia, also oriented in the caudal direction, tend to cancel the contribution of their neighboring ventral cilia. Locally, beating dorsal cilia can thus abolish the bidirectional flow and create recirculation regions. This is analogous to the reported flow patterns in mutants with decreased cilia activity. The bidirectional flow is thus affected by at most 20% due to the presence of sparse dorsal cilia.

The presence of the RF in the central canal was also neglected here, although it was proven to play a critical role in body axis straightening (Cantaut-Belarif et al., 2018). As the RF does not compartmentalize the fluid in 3D, its presence should not qualitatively modify the nature of the flow and its bidirectionality. This is confirmed by velocity profiles measured in scospondin mutants that lack a RF (Cantaut-Belarif et al., 2018). However, we expect a variation in the viscous stress in the vicinity of the fiber thereby changing the mechanical force applied by CSF flow on cells contacting the CC. As CSF-contacting neurons are known to be mechanosensitive (Jalalvand et al., 2016; Sternberg et al., 2018), a change of activity of these neurons in the absence of the RF may also occur. Our working model to account for the curved body axis of ciliary mutants is that the lack of motile cilia abolishes CSF flow, which leads to a reduction in CC diameter that alters RF polymerization (Cantaut-Belarif et al., 2018), and would alter the expression of URP peptides in CSF-contacting neurons (Zhang et al., 2018). The reason why RF would fail to form in a smaller CC remains an open question.

As a final thought, it might appear surprising that little is known about embryonic CSF flow today, but imaging this flow in vivo presents a daunting challenge. The CSF is a clear fluid with little endogenous contrast, and the CC is a small channel within the spinal cord that is difficult to access. In healthy young humans and other mammals in which the CC is open, the CC is often too small to be imaged with phase-contrast MRI (Enzmann and Pelc, 1991), unlike larger brain ventricles or subarachnoid spaces. Here, we take advantage of the transparency of zebrafish embryos to characterize CSF bidirectional flow and cilia dynamics in the CC. As the structure of the CC is very challenging to access with optical imaging in most species, but is well conserved among vertebrates (Orts-Del’Immagine and Wyart, 2017), we expect that our findings in zebrafish will guide future investigations in mammals. The thorough study of CSF flow and its role in larval, juvenile, and adult stages of life will be the object of future investigations. We expect the CSF flow to differ at later stages, as both the structure and the motility of cilia change over time in the CC.

Altogether, by combining models and quantitative data to demonstrate the origin and the role of the bidirectional flow, our study is a major step towards the understanding of CSF transport and its contribution to long-range communication between cells throughout the body that may well impact development, inflammatory response, and modulation of locomotor and postural functions carried by motor circuits.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Genetic reagent (D. rerio)hsc5Tg(Borovina et al., 2010)RRID: ZFIN_ZDB-ALT-100721-1referred to as Tg(β-actin: Arl13b-GFP)
Genetic reagent (D. rerio)dnaaf1tm317b/tm317b(van Rooijen et al., 2008)ZDB-FISH-150901–13987referred to as lrrc50
Genetic reagent (D. rerio)foxj1anw2/nw2This paperGenerated and characterized by N. Jurisch-Yaksi. See Material and methods,'CRISPR/Cas9-mediated mutagenesis for foxj1anw2 mutants'
Genetic reagent (D. rerio)traf3iptp49d(Omori et al., 2008)RRID: ZFIN_ZDB-ALT-980413-466referred to as elipsa
Genetic reagent (D. rerio)cfap298tm304(Brand et al., 1996; Jaffe et al., 2016)RRID: ZFIN_ZDB-ALT-980413-707referred to as kurly
Genetic reagent (D. rerio)scospondinicm15(Cantaut-Belarif et al., 2018)RRID: ZFIN_ZDB-ALT-181113-4referred to as SCO
Antibodymouse monoclonal IgG1 anti–ZO-1ThermoFisherRRID: AB_25331471/200
Catalog # 33–9100
Chemical compound, drugFluoSpheresTM size kit #2, carboxylate-modified microspheres, yellow-green fluorescent (505/515), 2% solids, six sizesMolecular ProbesF888820 nm beads were mostly used
Chemical compound, drugTexasRed, dextran 3,000 MW, NeutralThermoFisherD3329
Chemical compound, drugα-BungarotoxinTOCRIS2133
Software, algorithmMatlabThe MathWorksRRID:SCR_001622
Software, algorithmImageJPMID: 22930834RRID:SCR_003070
Software, algorithmCOMSOL, MultiphysicsRRID:SCR_014767

Animal husbandry

Request a detailed protocol

All procedures were performed on zebrafish embryos and larvae before 5 days post fertilization in accordance with the European Communities Council Directive (2010/63/EU) and French law (87/848) and approved by the Brain and Spine Institute (Institut du Cerveau et de la Moelle épinière). All experiments were performed on Danio rerio embryos of the AB strain, and were mitfa-/- (nacre) background. Animals were raised at 28.5°C under a 14/10 light/dark cycle until the start of the experiment.

Quantification and statistical analysis

Request a detailed protocol

All values are represented as median ± 0.5 standard deviation (s.d.) to evaluate the spread of each distribution, except for the error bars in the flow profiles showing the standard error of the mean (SEM), in which case we considered the average flow at one position. The speed distribution of particles depends on experimental errors and Brownian motion, and is therefore not considered. All statistics were performed using MATLAB. Statistical details related to sample size and p values, are reported in the figure legends. In figure panels, asterisks denote the statistical significance calculated by a two-tailed t test for samples with unequal variance (Welch t test): , p<0.05; ∗∗, p<0.01; ∗∗∗, p<0.001; ns, p>0.05.

Injection in the CSF

Request a detailed protocol

30 hpf embryos were manually dechorionated, mounted in 1.5% low-melting point agarose in the lateral position. A few nanoliters of a mix containing 20 nm beads, 3,000 MW TexasRed dextran, and alpha-bungarotoxin (TOCRIS) were injected in the center of the diencephalic ventricle in order to label CSF and anaesthetize the fish in a single injection. The injections were performed using a Picospitzer device (World Precision Instruments). 20 nm carboxylate FluoSpheres of center wavelength 505/515 nm (yellow/green, F8888, Molecular Probes) were diluted to a 2% concentration in artificial CSF (containing in mM: 134 NaCl, 2.9 KCl, 1.2 MgCl2, 10 HEPES, 10 glucose, 2 CaCl2; 290 mOsM + /- 3 mOsm, pH adjusted to 7.8 with NaOH), and then sonicated for 10 s. 3,000 MW Texas Red dextran (Excitation/Emission wavelength: 595/615/ThermoFisher Scientific D3329) was diluted at 0.2% mass/volume concentration and was used both to serve as a marker of injection, and to assess the boundaries of the ventricles and central canal. A final concentration of 100 μM of alpha-bungarotoxin was used. We could visually assess that such concentration, as well as the ventricle injection of alpha-bungarotoxin, although not conventional, were sufficient to paralyze the embryos. For experiments in contracting fish, the alpha-bungarotoxin was replaced by artificial CSF. Following the injection, we waited one hour before performing experiments to allow the particles to be transported down the central canal. Beads larger than 100 nm-diameter were restrained to brain ventricles, while beads of 20 and 45 nm diameter could enter the central canal.

Fluorescent beads imaging

Request a detailed protocol

For CSF flow experiments, time-lapse images were acquired at room temperature on an inverted Leica DMI8 spinning disk confocal microscope equipped with a Hamamatsu Orca Flash 4.0 camera, using a 40X water immersion objective (N.A. = 0.8, pixel size 189 nm). 300 images of the beads mostly in the rostral part of central canal were acquired at a frame rate of 10 Hz for 30 s using Metamorph software (www.moleculardevices.com). Some experiments in contracting fish were performed at a frame rate of 40 Hz for 20 s to more accurately follow the muscle contraction.

Particle tracking velocimetry

Request a detailed protocol

A MATLAB Particle Tracking Velocimetry (PTV) algorithm was adapted from a classical PTV algorithm (Crocker and Grier, 1996) and used to obtain instantaneous particle velocities. This algorithm was only used to produce Figure 1B as it only worked consistently in the best SNR conditions. The first crucial step was to segment the particles inside the region of interest corresponding to the central canal. This region was automatically inferred based on an intensity threshold on the low pass filtered mean image. Particle segmentation was more efficiently performed using a machine learning-based segmentation software (iLastik Sommer et al., 2011). Particle fine positioning was performed by fitting a 2D gaussian to each segmented region (particle) and by extracting the center position. A large matrix of particle position (X, Y, time) was obtained at this point. Then, the PTV algorithm itself was applied. The algorithm connects the particles found at successive times in order to minimize the total squared distance traveled by all beads. Note that this algorithm is optimized for purely Brownian displacements and limits the number of particles that one can track before saturating its computer memory, as the number of calculation scales as N²particles. Once the particles were tracked, each trace was obtained and kept only if it contained more than five time points. The instantaneous speed was calculated and plotted as a vector on the mean intensity image. An additional color code ranged from blue to red, corresponding to the minimal and maximal speed.

Automatic kymograph measurement of beads velocity and CSF flow profile

Request a detailed protocol

First, time lapses were automatically rotated and cropped with an extra manual step for fine adjustments to isolate a portion of the central canal and place it in a correct dorso-ventral orientation. A 2D wavelet filter (decomposition of level six with Haar wavelet coupled to a 2-D denoising scheme based on level-dependent thresholds penalizing low signal pixels) was applied to increase the local signal-to-noise ratio of the fluorescent beads. Stacked images were then re-sliced and particle trajectories were automatically tracked and analyzed for every successive dorso-ventral position. The average signal on three consecutive positions was calculated with a moving-window average. Each column was then divided by its average value to account for spatially or temporally inhomogeneous light illumination and photobleaching if there was any. Only pixels above the average signal were kept, and an internal Matlab segmentation algorithm (regionprops) was applied to extract regions of interest in each kymograph. In order to filter only the straight lines corresponding to particle motion, a few additional empirical filtering conditions were applied: Only regions with at least 15 pixels (to avoid random fluctuations), and corresponding to lines with eccentricity above 0.9 (to prevent from selecting big aggregates or any large objects) were kept. Additionally, to prevent selecting particles stuck in the canal (vertical line in the kymograph), or camera/illumination fluctuations (global change of intensity in the entire image, leading to a horizontal line in the kymograph), we filtered any region whose orientation was close to 0 or 90°± 180° (excluding regions whose cosine or sine of orientation were below 0.1). Note that the intensity threshold was not strong, but most of the particle filtering was made through these four last conditions. A few regions corresponding to individual particle rostro-caudal trajectory were thus obtained. The tangent of these line orientations was calculated, and corrected by pixel size and frame time, to obtain the individual particle velocity. All particles from one kymograph were aggregated to the average velocity and standard error to infer the local flow. Note that we refer to the number of events, or number of lines tracked, rather than the number of particles, as this algorithm cannot guarantee that one particle is not tracked several times if its dorsoventral position changes over time. The full MATLAB script can be found on Github. (Thouvenin, 2019https://github.com/wyartlab/eLife_2019_OriginAndRole; copy archived at https://github.com/elifesciences-publications/eLife_2019_OriginAndRole).

Extraction of parameters in the velocity profiles

Request a detailed protocol

We extracted some parameters from the flow profiles to compare the profile from many embryos. The maximal and minimal values, and their respective positions were extracted. The position at the center of the profile where the speed shifts from a positive to a negative value was also extracted. The position in the canal was normalized between 0 and 1, where 0 was the most ventral position where at least five moving particles were found and velocity exceeded 0.4, and one the most dorsal position where five moving particles were found and the velocity was not higher than −0.4.

Flow versus time analysis

Request a detailed protocol

In Figure 5D, the average flow versus time was plotted in embryos able to contract in agarose. The experimental protocol was similar as for the flow profile analysis, except that alpha-bungarotoxin was removed from the injection mix. The same automatic kymograph approach was used to obtain events corresponding to motion of the beads. For each event, each trace was kept and its speed, its central position in D-V and R-C axis, and its time of occurrence were extracted. If the speed profile was obtained by averaging all pixels over time along the D-V axis, the average flow versus time was obtained by averaging all particles from all D-V positions at a given time. When bidirectional flow was present (before contraction, or in an anaesthetized embryo), the average flow was close to 0. in order for the flow measurement to be meaningful, and for the Brownian motion to be averaged out, several events should be measured at each timepoint. It gives a constraint on the actual timescale we can probe for the average flow rate. In Figure 5D, the fish contraction strength was estimated to be correlated to the temporary increase in volumetric flow. To estimate such contraction, the average signal from all pixels within central was calculated and the absolute value of their time derivative was calculated (magenta curve in Figure 5D). An arbitrary threshold of four was empirically chosen to select points during contraction. The contraction strength used in Figure 5E was calculated as the sum of the displacement signal during one event with displacements values above threshold. This value mixes the instantaneous derivative value and the contraction duration, as they can both play a role in the establishment of different flows. In datasets where embryos did not move, the average flow and displacement were calculated over the entire time series. The average displacement value was calculated in order to avoid getting a large value due to the large time span of the dataset and the use of absolute value.

Comparison between methods to measure local flow (PTV/PIV/and kymograph approach)

Request a detailed protocol

Besides the PTV and kymograph approaches, we also tried to use a particle imaging velocimetry (PIV) algorithm, which is generally used to measure local flow (Raffel et al., 2007; Santiago et al., 1998). This section aims at comparing all these techniques qualitatively with respect to our imaging conditions. Before describing why we mainly used the automatic kymograph approach, we have to recall that we could not inject the particles directly in the central canal, and exogenous particles above 100 nm in diameter stayed confined inside the brain ventricles. Therefore, we could only image particles with diameter smaller than 100 nm, and mainly used 20 nm particles with fairly low signal, especially at high imaging frequencies. The Brownian motion of 20 nm beads is considerable and can generate instantaneous displacements of the same order of magnitude as the CSF flow itself. With that in mind, PIV should be efficient to measure the local flow even in low SNR conditions, as it uses a cross-correlation between successive frames. Nevertheless, because of the importance of Brownian motion, the cross-correlation fails at producing a peak of high SNR. Besides, because of the geometry of the canal and the bidirectional nature of CSF flow, we could not use a large square region-of-interest to calculate the cross-correlation, as typically used in PIV. As particles can move in opposite directions in a 6 × 6 μm² (32 × 32 pixels) square, the cross-correlation results in several small competing peaks. Asymmetric region of interests should be more adapted to take full advantage of the steady flow along the rostro-caudal direction, but performing a PIV with asymmetric regions is not standard and not trivial. On the other hand, PTV tracks every individual particle and should produce the trajectory of each particle versus time. One can expect that a given trajectory would then have a Brownian component plus a directed component, each of them being separable. Unfortunately, PTV was not very robust with low SNR, and not very efficient when particle density was quite high. The most critical part was to efficiently detect the particles without error. A first solution is to have a high threshold that selects only the brightest particles, as what was done in Figure 1. Nevertheless, only a few particles could be tracked for a given dataset, and the profile could not be inferred from only a few particle positions. If the threshold were lowered, it would increase the calculation time, and the probability of false detection. Since the PTV algorithm tends to minimize the distance traveled by particles, as the number of false detection increases, the false associations increased even more leading to an important underestimation of particle speed. In contrast, the automatic kymograph seemed more robust in this context because the flow is mostly steady in the rostro-caudal direction, allowing us to perform efficient averaging in this direction. Brownian motion was averaged out by averaging on 3–5 consecutive dorso-ventral positions, so that the particles produced traces long enough to be identified. The main strength of the kymograph approach was that many particles can be detected at every position, so that even if several mistakes were made, the standard error stayed small. The longer the total acquisition time, the more particles could be averaged, and the more precise the technique was, which was not true for both PTV and PIV in which all images were independent.

Nonetheless, most of our efforts focused on the automatic kymograph approach, and that probably PTV and PIV algorithms may be adapted to our configuration. We could not find any available PTV and PIV algorithm that could work with our data, and theories behind both techniques become more complicated in non-optimal configurations. In contrast, the kymograph just required to fit lines in an image, for which many solutions were available and just required small adjustments.

Manual central canal diameter measurement

Request a detailed protocol

A Z-Stack of 30 images around the central canal of 30 hpf zebrafish embryos filled with Texas Red was acquired. A custom MATLAB program (Thouvenin, 2019, Github, https://github.com/wyartlab/eLife_2019_OriginAndRole) was used to open, rotate, and crop the image around central canal, then to calculate the maximum intensity projection. The rotation was crucial to fit the central canal projection by a manually selected rectangle, whose width measured the canal average diameter. Even though the canal diameter was not constant along the rostro-caudal direction, the rectangle was placed in order to minimize the total error. The canal diameter was averaged on large rostro-caudal portions, to provide fairly good estimate of its size. Data from wild type and mutant siblings were randomly mixed to perform blind analysis. For Kurly embryos displayed in Figure 4, Texas Red was not injected, but we used the time average image of fluorescent beads filling the central canal. The results on WT siblings showed remarkably similar measurements as those obtained with Texas Red. Thus, we decided to combine all these datasets.

Live imaging of motile cilia in the central canal

Request a detailed protocol

30 hpf embryos from Tg(β-actin:Arl13b-GFP; scospondinicm13/+) incrosses were manually dechorionated, laterally mounted in 1.5% low-melting point agarose, and paralyzed by injecting 1–2 nL of 500 µM alpha-bungarotoxin (TOCRIS) in the caudal muscles of the trunk. A Leica spinning disk confocal microscope equipped with a 40X water immersion objective (N.A. = 0.8) was used to measure cilia dynamics at a 100 frames per second for 3 s. Note that our estimation of beating frequency were limited to 50 Hz. Because we found that the average frequency of cilia beating in the central canal was higher than the value of 12–15 Hz previously reported (Kramer-Zucker et al., 2005), we imaged cilia dynamics with three different microscopes (two commercial spinning disk microscopes from 3i and Leica, and one 2-photon scanning microscope using the scanning artifact, as previously described by Supatto and Vermot (2011), in order to validate our results). However, all the results displayed in this report were obtained with the same Leica commercial microscope to ensure data homogeneity. We can only postulate that the difference found in beating frequency reflects a bias for long cilia with possible slower kinematics when using differential interference contrast (DIC) to identify cilia.

Quantification of parameters related to cilia structure and dynamics

Request a detailed protocol

Datasets of cilia position over time were analyzed using custom MATLAB (Thouvenin, 2019, Github, https://github.com/wyartlab/eLife_2019_OriginAndRole) scripts based on Fourier transform. First, we opened, rotated, and cropped the image around the central canal. A straight line was manually drawn from the mean intensity image to define the center of the central canal. We also applied a 4 × 4 spatial sliding-average to increase the local signal-to-noise ratio. The temporal Fourier transform of each averaged pixel was calculated, and the position of its norm extracted and transformed into a frequency value. We could reconstruct 2D maps with the main frequency for each pixel (Figure 2B2). It drew distinct regions of interest of constant frequency, which we assumed to be the regions individual cilia could reach within one beating cycle. Within each region, the calculated main frequency can vary a few Hz, but was grouped around a central frequency with a narrow bandwidth. Successive mask images of pixels with main frequency within increasing bandwidth of 5 Hz (5–10 Hz, then 10–15 Hz, and so on until 50 Hz) were created, and analyzed using MATLAB image processing functions (regionprops). We selected as cilia only regions of constant frequency with area larger than 200 pixels (at least 3 μm in diameter). The position of each region was then compared to the position of the central line to label the cilia as dorsal or ventral cilia. First, the central frequency within each region was calculated. Because we extracted the average frequency over a large spatial scale, this measurement was independent of the cilium phase, and potentially free from sampling artifacts. Then, each region was associated to an ellipse, whose long axis was assumed to be the cilia length. After geometrical calculation, the ellipse orientation gave the angle between the cilia and the dorso-ventral axis. The values corresponding to the negative orientations may principally originate from the few beating dorsal cilia, also oriented towards the caudal end, but from dorsal to ventral (leading to a negative angle). To account for this, we calculated the median of the absolute value of the cilia orientation in the results section. Note that it gave the same value as the median of only the positive tilted cilia. Finally, we calculated a parameter called beating height, as the cilia length multiplied by the cosine of orientation (independent of the sign of the orientation), which gave an estimate of which portion of central canal was occupied by beating cilia. Although some reports (Smith et al., 2012) used the power spectral density to quantify the main beating frequency, we did not find a difference between the main frequency found with the Fourier transform versus the power spectral density calculation.

CRISPR/Cas9-mediated mutagenesis for foxj1anw2 mutants

Request a detailed protocol

foxj1a mutants were generated with CRISPR/Cas9 mediated mutagenesis as previously described Hwang et al. (2013); Olstad et al. (2018). The gRNA sequence for Foxj1a gene (GGACGTGTGCTGTCCTGTGC) was identified using ZiFiT Targeter website (http://zifit.partners.org/ZiFiT_Cas9) from the genomic DNA sequence obtained from Ensembl. Annealed oligos were cloned into the pDR274 plasmid (Addgene Plasmid #42250). The sgRNA was in vitro transcribed using MAXIscript T7 kit (Invitrogen). Cas9 mRNA was in vitro transcribed from pMLM3613 plasmid (Addgene Plasmid #42251) using mMessage mMachine T7 kit (Invitrogen) and polyA tailed with a polyA tailing reaction kit (Invitrogen). A mixture of 25 pg of sgRNA and 600 pg of Cas9 mRNA were injected in embryos at one-cell stage. CRISPR/Cas9-induced mutations and germ line transmission of the mutations were detected by T7EI assay and characterized by sequencing. Three separate alleles were recovered from one founder. All mutations resulted in a frame shift from amino acid 66 and an early stop codon, which was before the forkhead domain. All homozygous mutants for the allele exhibited a bent body axis. This study used the foxj1anw2 allele, which carries a 5 bp deletion. See more information on Figure 4—figure supplement 1. Heterozygous adults and mutant larvae were genotyped using a KASP assay (LGC genomics) on a qPCR machine (ABI StepOne). The generation of the Foxj1a mutant line and fin clipping procedure on adults were approved by the Norwegian Food Safety Authorities (FOTS applications 16425 and 12395).

Immunostaining and imaging of foxj1anw2mutants

Request a detailed protocol

For immunostaining, straight body axis and curved body axis embryos resulting from an incross of heterozygous adults were selected and processed separately. The genotype of the clutch was confirmed by KASP genotyping of siblings presenting a curved body axis. Dechorionated and euthanized embryos (collected between 26 and 30 hpf) were fixed in a solution containing 4% paraformaldehyde solution and 1% DMSO for at least 1 hr at room temperature. Embryos were washed with 0.3% PBSTx (3 × 5 min), permeabilized with acetone (100% acetone, 10 min incubation at −20°C), washed with 0.3% PBSTx (3 × 10 min) and blocked in 0.1% BSA/0.3% PBSTx for 2 hr. Embryos were incubated with either glutamylated tubulin (GT335, 1:400, Adipogen) or acetylated tubulin (6-11B-1, 1:1000, Sigma) [MOU1] overnight at 4°C. The next day samples were washed (0.3% PBSTx, 3 × 1 hr) and incubated with the secondary antibody (Alexa-labeled GAM555 plus, Thermo Scientific, 1:1,000) overnight at 4°C. Next, the samples were incubated with 0.1% DAPI in 0.3% PBSTx (Life Technology, 2 hr), washed (0.3% PBSTx, 3 × 1 hr) and transferred to a series of increasing glycerol concentrations (25% and 50%). Stained larvae were stored in 50% glycerol at 4°C and imaged using a Zeiss Examiner Z1 confocal microscope with a 20x plan NA 0.8 objective.

Central canal photodamage and photoablation

Request a detailed protocol

We intentionally damaged the central canal using different levels of light excitation in a few experiments. All experiments were performed after Texas Red injection. In experiments shown in Figure 4D1, a continuous medium intensity (25 mW) of green (565 nm) light was applied to the entire field of view 300 μm on the left and later 300 μm on the right of the displayed field of view for 5 min. After a few minutes of illumination, the central canal collapses, similarly to what was found in ciliary mutants (Figure 4B2). Debris were also seen, as shown on the sides in Figure 4D1. We never observed a breach in the central canal or fluorophores leaking out of it. A possible hypothesis is that TexasRed photobleaching due to the illumination may create damage to the central canal, cells surrounding it, or their motile cilia leading to an obstruction of the canal. In Figure 8A1 and A2, a light pulse of 200 mW (at a wavelength of 810 nm on a two-photon microscope) was scanned 200 times on 50 pixels lined along the dorso-ventral axis, right after the rostral extremity of the CC, or at the beginning of the yolk sac extension for control siblings. This reproducibly created a hole, and hence a breach in the central canal or in the yolk sac extension tissue, around which one can observe fluorescence leaking out in the surrounding tissue.

Bead transport analysis

Request a detailed protocol

To measure CSF transport, four groups of eight 30 hpf embryos (16 contracting and 16 paralyzed embryos) were injected with beads and TexasRed within a five minutes time frame. We recorded the exact injection minute for each embryo. Widefield fluorescence images of each embryo were acquired every 10 min for 60 min using an epifluorescence microscope (Nikon AZ100) equipped with a 2X air objective imaged the entire embryo in one image. The image creation time recorded by the computer was automatically extracted and subtracted from the injection time. The front propagation was obtained by applying a low-pass filter on all images and by manually drawing the contour from the rostral extremity of the CC to the propagation front with a MATLAB script. The contour was drawn by successive lines changing direction every time the canal changed direction. The total length was calculated as the sum of all individual length. As for other manual arbitrary measurements, a random permutation was applied to the different images to reduce bias.

Observation of CSF-filled cavities in 30 hpf embryos

Request a detailed protocol

We imaged CSF-filled cavitites with a 2-photon microscope (Vivo Multiphoton, 3i, Intelligent Imaging). Live embryos were injected with Texas Red and alpha-bungarotoxin in the diencephalic/mesencephalic ventricle. Other embryos were fixed in a solution containing 4% paraformaldehyde solution and 1% DMSO for at least 1 hr at room temperature. ZO-1 and DAPI immunostaining was then performed following a similar protocol as previously described. Z-stacks of between 30 and 300 μm (depending on the location) around either the brain ventricles or the central canal were obtained and displayed as a maximal projection to visualize the different lumens. Video 9 was obtained by calculating the mean intensity every eight planes. Similar protocol was followed for 3 dpf and five dpf zebrafish larvae.

Characterization of the ventral opening of the RV primitive lumen

Request a detailed protocol

30 hpf embryos were injected with Texas Red and alpha-bungarotoxin in the DV/MV and imaged with a confocal microscope (SP8, Leica). A Z-stack of 50 μm around the position of the ventral opening of the RV pL was obtained and displayed as a maximal projection to visualize its entire length as well as the beginning of central canal. A MATLAB script was used to perform measurement of this geometry. The contour of the ventral opening of the RV pL was manually drawn by drawing successive lines up to the most caudal part of the image for both the dorsal and ventral walls of this cavity. We could therefore measure the local diameter versus the curvilinear abscissa along the line. Its length was calculated between the initial point up to the point of maximal diameter derivative. Note that this method probably overestimated the lumen diameter, as proper alignment between the dorsal and ventral walls was not perfect. Nevertheless, the ratio of about two between the diameter of this ventral opening of the pL of the RV and the central canal should be in the right order of magnitude.

Full-field optical coherence tomography imaging

Request a detailed protocol

The full-field optical coherence tomography (FF-OCT) setup was previously described (Sternberg et al., 2018; Thouvenin et al., 2017). The FF-OCT path is based on a Linnik interference microscope configuration illuminated by a temporally and spatially incoherent light source. A high power 660 nm LED (Thorlabs M660L3, spectral bandwidth 20 nm) provided illumination in a pseudo Köhler configuration. A 90:10 beam splitter separates the light into sample and reference arms. Each arm contains a 40x water immersion objective (Nikon CFI APO 40x water NIR objective, 0.8 NA, 3.5 mm working distance). In the reference arm, the light is focused onto a flat silicon wafer with a reflection coefficient of about 23.5% at the interface with water. FF-OCT detects and amplifies any structure that reflects or backscatters light within the sample arm, showing a contrast based on differences in refractive index, including small extracellular vesicles with rich lipid content. The beams from sample and reference interfere only if the optical path length difference between both arms remains within the coherence length of the system, ensuring efficient optical sectioning. A 25 cm focal length achromatic doublet focuses the light to a high speed and high full well capacity CMOS camera (Adimec, Q-2HFWC-CXP). The overall magnification of the FF-OCT path is 50x. The measured transverse and axial resolutions were 0.24 μm and 4 μm, respectively. Camera exposure was 9.8 ms, and images were acquired at 100 Hz. We acquired sequences of consecutive direct images and computed the standard deviation on groups of images to cancel the incoherent light that does not produce interference. Here, we also take advantage of phase fluctuations caused by the vesicle displacements occurring in the 10–100 Hz range to specifically amplify the signal while backscattered signal from the surrounding tissue is more static.

Electron microscopy and secreted vesicles imaging

Request a detailed protocol

To induce expression of CD63-pHluorin, specifically labeling exosomes, embryos were injected at the 1000 cell stage. The following day, embryos were anesthetized with tricaine and embedded in 1.5% low melting point agarose. Live imaging recordings were performed at 28°C using a Nikon TSi spinning-wide (Yokagawa CSU-W1) microscope (Verweij et al., 2019). Other embryos were used for ultrathin cryosectioning and immunogold labeling, in which case they were fixed in 2% PFA, 0.2% glutaraldehyde in 0.1M phosphate buffer pH 7.4 at 3 dpf. Zebrafish were processed for ultracryomicrotomy and immunogold labeled against GFP using PAG 10. All samples were examined with a FEI Tecnai Spirit electron microscope (FEI Company), and digital acquisitions were made with a numeric camera (Quemesa; Soft Imaging System) (Verweij et al., 2019).

Computational Fluid Dynamics (CFD) and numerical methods for solving the equations

Request a detailed protocol

We used MATLAB to obtain the numerical resolution of the system of three coupled equations detailed in the Results subsection ‘A bidirectional flow generated by the asymmetric distribution of beating cilia’. Our simulations were performed by the finite element method solver COMSOL, using the Creeping Flow Module. The flow simulations were carried out by solving the Stokes equation in a rectangular domain composed of 120088 domain elements and 15046 boundary elements (corresponding to 630516 degrees of freedom). The simulations accounting for the transport of particles in the presence of a flow were performed by coupling the diffusion equation to the Stokes equation in the same rectangular domain, using the Transport of Diluted Species Module. Doubling the number of mesh elements did not affect the results obtained throughout this study, and all the simulations converged.

Data availability

Request a detailed protocol

Key datasets and custom MATLAB scripts used in this study can be found on Dryad server (14-04-2019-RA-eLife-47699) and on Github (Thouvenin, 2019, Github, https://github.com/wyartlab/eLife_2019_OriginAndRole).

Appendix 1

2D model for the cilia-driven bidirectional flow in the central canal

We here provide a more detailed derivation of the flow velocity profile in a model 2D central canal, with a diameter d and a ciliary region of height h. In the ciliary region (also called ventral region), the Stokes equation can be written:

(A1) dPdxfv=μd2vventraldy2

while in the non-ciliary region (also called dorsal region), the Stokes equation does not contain the bulk force fv, but only the common pressure gradient:

(A2) dPdx=μd2vdorsaldy2

Integration of Equation A1 between yA and y leads to:

(A3) dPdx(yyA)fv (yyA)=μdvventraldy

where y = yA corresponds to the y-position for which the shear dv/dy is zero. yA is a constant that will be derived in the following. Similar integration in the dorsal region [B] yields:

(A4) dPdx(yyB)=μdvdorsaldy

where yB is an analogous constant representing the y-position where a null shear is obtained.

In the ventral region [A], an additional integration of Equation A3, with the no-slip boundary condition (v = 0) at y = 0 (ventral wall) provides:

(A5) dPdx(y2/2yAy)fv (y2/2yAy)=μvventral(y)

Similarly in the region [B], with the no-slip b. c. (v = 0) at y = d, we get from Equation A4:

(A6) dPdx(y22yByd22+yBd)=μvdorsal(y)

In both Equations (A5) and (A6), three unknowns remain to be determined in order to get the velocity profile: dP/dx, yA and yB. At the border between the regions [A] and [B] (y = h), the continuity of velocity (vA(y = h)=vB(y = h)) and shear (dvA/dy(y = h)=dvB/dy(y = h)) can be written respectively:

(A7) (dPdxfv)yAhfvh22=dPdx(yBhd22+yBd)

and

(A8) (dPdxfv)yAfvh=dPdxyB

The last required equation to solve the system is provided by the condition of null global flux across a section of the channel, which is expressed in this bidimensional geometry:

(A9) 0dvydy=0

that is:

(A10) 0hvventral(y)dy=hdvdorsal(y)dy

which finally provides:

(A11) dPdx(h3/6yAh2/2)fv (h3/6yAh2/2)=dPdx(d3/3+yBd2/2h3/2+yBh2/2+hd2/2yBdh)

The system of three Equations A7, A8 and A11 contains three unknowns dP/dx, yA and yB, and may be solved numerically. In the specific case of a ciliary layer occupying half of the central canal diameter (l = d/2), the solution is simple and symmetrical: dP/dx = fv/2, yA = d/4 and yB = 3d/4 which leads to this symmetrical velocity profile:

(A12) vventral=dP/dxfvμ(y2/2yd/4)
(A13) vdorsal=dP/dxμ(y2/23yd/4+d2/4)

Appendix 2

2D model for the diffusive-convective transport of solutes in the central canal with a bidirectional flow

We here provide further details concerning the derivation of the effective diffusivity Deff of particles in the central canal in presence of a bidirectional flow.

In the CC, the motile cilia occupy the ventral half (Figure 2). From the flow model derived in Appendix 1 (Equations (A3) and (A4) of the main manuscript), one can rewrite the velocity profile changing the y-coordinate origin (y = 0 at the center of the channel) and using the maximal velocity Vmax = 6 µm/s:

(A14) v(y)=16Vmax(y2dy2d2)

in the dorsal region (positive values of y), and:

(A15) v(y)=16Vmax(y2d+y2d2)

in the ventral region (negative values of y). The full transport equation of particles of local concentration c writes:

(A16) tc + vxc =Dy2c+Dx2c,

where v(y) corresponds to the two velocity profiles written previously (Equations (A14) and (A15)), as the local velocity field is uniquely oriented in the rostro-caudal x-direction (see also Figure 3 of the main manuscript). D is the molecular diffusion coefficient, here taken as D = 10−11 m2/s, corresponding to particles of diameter 40 nm using the Stokes-Einstein law (Equation A7 in the main manuscript). Several terms of Equation (A16) can be neglected considering their order of magnitude. With L the length of the channel, and d its diameter, the Equation (A16) may be written in dimensional analysis for times of order T ' L2/D = τdiff (characteristic spanwise diffusion time):

(A17) cτdiff+VmaxcL=Dcd2+DcL2
(A18) DcL2+VmaxcL=Dcd2+DcL2,

or

(A19) 1+VmaxLD=L2d2+1

Both VmaxL/D and L2/d2 terms are much larger than unity, due to the high aspect ratio of the channel L/d. This allows to simplify Equation (A16) in the two dorsal (y > 0) and ventral (y < 0) regions, respectively, as follows:

(A20) 16Vmax(y2dy2d2)xc=Dy2c,

and

(A21) 16Vmax(y2d+y2d2)xc=Dy2c.

Adapting the derivation of Bruus (2008), that was done for a Poiseuille flow in a cylinder, we first assume that the axial derivative of the concentration xc is independent on y. This assumption will be verified a posteriori and confronted to numerical simulations. Consequently, Equations (A20) and (A21) are ordinary differential equations for c(y), that can be solved. A first integration between y and y = d/2 for Equation (A20) for y > 0 leads to

(A22) 16Vmaxd2(dy24y33d316+d324)xc=D(ycyc|y=d/2)

Similarly, integrating Equation (A21) between y = −d/2 and y for y < 0 leads to

(A23) 16Vmaxd2(dy24+y33d316+d324)xc=D(ycyc|y=d/2).

By antisymmetry, yc |y=d/2= −yc |y=−d/2. The equality of the concentration y-derivative in y = 0 then leads to yc |y=d/2= −yc |y=−d/2= 0, which simplifies Equations (A22) and (A23). A second integration between y = 0 and y of Equation (A22) for y > 0 leads to

(A24) 4Vmaxd23D(y3d3y4d4y4d)xc=(c(y)c(0)).

Similarly, a second integration between y = 0 and y of the Equation (A22) for y < 0 leads to

(A25) 4Vmaxd23D(y3d3+y4d4y4d)xc=(c(y)c(0)).

We now aim at expressing the concentration profile with respect to the average concentration c- over a cross section

(A26) c¯=1dd/2d/2c(y)dy,

which, using Equations (A24) and (A25), yields

(A27) c¯=4Vmaxdxc3D(d/20(y3d3+y4d4y4d)dy+0d/2(y3d3y4d4y4d)dy)+c(0)

and finally

(A28) c(0)=c.

This theoretical prediction is confirmed by numerical simulations solving the complete transport equation without the assumptions made for the theoretical model (Appendix 2—figure 1), for different times, positions in the canal and flow velocities.

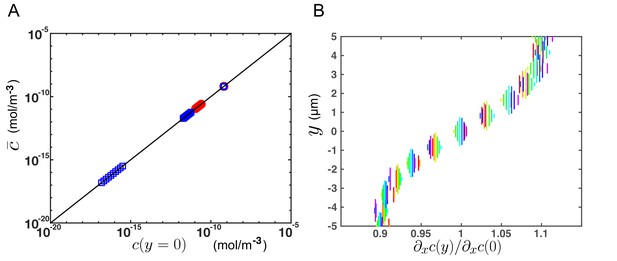

Appendix 2—figure 1
Additional results from numerical simulations supporting the theoretical model for transport.

(A) Average concentration over a cross section versus concentration at the center of the CC (y = 0), for different flow velocities (Vmax = 6 or 20 µm/s), at different times and for different x-position in the channel, obtained from numerical simulations (FEM, COMSOL) on a 2-D central canal. The black line corresponds to c-=c(0) and confirms the predictions of the theoretical model. (B) Relative variation of the axial gradient of concentration xc  over a cross section (y-position), at various x-positions (corresponding to different colors), from numerical simulations. xc varies of about 10% around its mean value over a cross section, which justifies the assumptions done in the model (from Equations (A7) and (A8) to Equations (A9) and (A10)) to neglect its variations in comparison with the strong variations of the other integrand (y3d3+y4d4-y4d).

Going back to our theoretical model, one can now derive the condition for having a y-independent axial gradient of concentration (condition required for recovering a diffusive-like concentration profile) by differentiating the Equations (A24) and (A25) with respect to x. The latter condition is consequently fulfilled only if xc = xc(0), which requires the third term to be negligible. In terms of order of magnitude, this implies that

(A29) 4Vmaxd23D1L1,

where L is the length of the central canal. This condition can be rewritten as a condition on the Péclet number Pe:

(A30) Pe=VmaxdD3L4d100.

This condition on the Péclet number is always fulfilled in the CC of zebrafishes for nanobeads or lipidic vesicles (D ∼ 10−11 m2/s), where Pe does not exceed 10.

We now aim at deriving the effective diffusivity of particles in the CC. We calculate the average current density J(¯x) through the cross-section, using the velocity profiles (Equations (A14) and (A15)) and the concentration profiles (Equations (A24) and (A25)):

(A31) J(¯x)=1dd/2d/2ρc(x,y)v(x,y)dy.

The zero average flux over the cross section leads to the vanishing of the constant component c- of Equations (A24) and (A25). The previous expression may then be simplified:

(A32) J(¯x)=64Vmax2d3D(d/20(y3d3+y4d4y4d)(y2d+y2d2)dy+0d/2(y3d3y4d4y4d)(y2dy2d2)dy)ρxc¯,
(A33) J(¯x)=64Vmax2d3D(d/20(y28d2y34d3+y42d4+3y52d5+y6d6)dy+0d/2(y28d2+y34d3+y42d43y52d5+y6d6)dy)ρxc¯,

which may be approximated to

(A34) J(¯x)Vmax2d224Dρxc¯.

The effective diffusivity Deff may then be directly derived from the effective Fick’s law

(A35) DeffVmax2d224D=Pe224D.

A more detailed calculation in a cylindrical channel was done by Aris (1956). It generalizes this result at intermediary Péclet numbers Pe ~ 1. Adapted to our geometry and flow, it yields

(A36) DeffD(1+Pe224)

For particles of radius 20 nm (corresponding to the size of injected nanobeads), we have D ~ 5·10−12 m2/s, which leads for Vmax = 6 µm/s to an effective diffusivity Deff ~2.5D. Similarly, the effective diffusivity of the same particles for a faster flow of amplitude Vmax = 20 µm/s is Deff ' 18D. These two theoretical predictions are in good agreement with the numerical simulations (Figure 6C of the main manuscript).

One strong assumption of the model that enabled to readily integrate Equations (A7) and (A8) considers that the axial derivative of the concentration xc is only weakly varying over a cross section, such that one can assume it is constant. The Appendix 2—figure 1 plots the relative variation of the normalized concentration gradient xc/∂xc (0) as a function of y. It shows that this quantity exhibits minor variations of about 10% over a cross section, demonstrating the relevance of the assumption in the derivation.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Making sense of cilia in disease: the human ciliopathies
    1. K Baker
    2. PL Beales
    (2009)
    American Journal of Medical Genetics Part C: Seminars in Medical Genetics 151C:281–295.
    https://doi.org/10.1002/ajmg.c.30231
  5. 5
  6. 6
    Mucus flows
    1. J Blake
    (1973)
    Mathematical Biosciences 17:301–313.
    https://doi.org/10.1016/0025-5564(73)90073-4
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Mutations affecting development of the midline and general body shape during zebrafish embryogenesis
    1. M Brand
    2. CP Heisenberg
    3. RM Warga
    4. F Pelegri
    5. RO Karlstrom
    6. D Beuchle
    7. A Picker
    8. YJ Jiang
    9. M Furutani-Seiki
    10. FJ van Eeden
    11. M Granato
    12. P Haffter
    13. M Hammerschmidt
    14. DA Kane
    15. RN Kelsh
    16. MC Mullins
    17. J Odenthal
    18. C Nüsslein-Volhard
    (1996)
    Development 123:129–142.
  12. 12
    Theoretical Microfluidics
    1. H Bruus
    (2008)
    Oxford University Press.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Peristaltic transport
    1. YC Fung
    2. CS Yih
    (1968)
    Journal of Applied Mechanics 35:669–675.
    https://doi.org/10.1115/1.3601290
  25. 25
    Esophageal motility
    1. RK Goyal
    2. WG Paterson
    (2011)
    In: R Terjung, editors. Comprehensive Physiology. John Wiley & Sons, Inc. pp. 865–908.
    https://doi.org/10.1002/cphy.cp060122
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
    Spatially organized ciliary beating compartmentalizes cerebrospinal fluid flow in the brain and regulates ventricular development
    1. EW Olstad
    2. C Ringers
    3. A Wens
    4. JN Hansen
    5. C Brandt
    6. E Yaksi
    7. N Jurisch-Yaksi
    (2018)
    SSRN Electronic Journal, 10.2139/ssrn.3199994.
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Anatomy and physiology of cerebrospinal fluid
    1. L Sakka
    2. G Coll
    3. J Chazal
    (2011)
    European Annals of Otorhinolaryngology, Head and Neck Diseases 128:309–316.
    https://doi.org/10.1016/j.anorl.2011.03.002
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    Ilastik: Interactive Learning and Segmentation Toolkit
    1. C Sommer
    2. C Straehle
    3. U Kothe
    4. FA Hamprecht
    (2011)
    IEEE International Symposium on Biomedical Imaging: From Nano to Macro. pp. 230–233.
    https://doi.org/10.1109/ISBI.2011.5872394
  66. 66
  67. 67
  68. 68
  69. 69
    Dispersion of soluble matter in solvent flowing slowly through a tube
    1. G Taylor
    (1953)
    Proceedings of the Royal Society A: Mathematical Physical and Engineering Sciences 219:186–203.
    https://doi.org/10.1098/rspa.1953.0139
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78

Decision letter

  1. Julien Vermot
    Reviewing Editor; Institut de Génétique et de Biologie Moléculaire et Cellulaire, France
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Andrej Vilfan
    Reviewer; Max Planck Institute for Dynamics and Self-Organization, Germany
  4. Martin Blum
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

How fluid flow and cilia motility modulate robust and reproducible patterning events in the embryo is of great interest to a large audience of scientists, both in developmental biology and more disease oriented disciplines. Cilia motility controls the embryonic cerebrospinal fluid circulating between the brain ventricles and the central canal in the spinal cord, failure of which could lead to congenital disease. This work studying cerebrospinal fluid dynamics in the living zebrafish embryo, exploiting imaging, genetics and modelling approaches, sheds new light on a particular mechanical integration between cilia motility and fluid movements within the cerebrospinal canal. Of particular interest is that deficiency in fluid movement can impairs robust morphogenesis and embryonic growth, raising the possibility that similar defects may compromise similar events in human. The precise effectors of cilia motility and the anatomy of the systems of canal where fluids flow will require future work. This study will certainly stimulate others in the field to build on the authors’ working model.

Decision letter after peer review:

Thank you for submitting your article "Origin of bidirectionality of cerebrospinal fluid flow and impact on long range transport between brain and spinal cord" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Didier Stainier as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Andrej Vilfan (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is a highly interesting study of fluid flow in the central canal. The paper first presents in vivo maps of the cilia and the flow, then provides a simple model for the bidirectional velocity distribution, showing that the cilia-induced pressure difference helps maintaining the shape of the canal and discussing the implications of the bi-directional flow for particle transport (which has the properties of enhanced diffusion) and embryogenesis. The study describes an automated workflow of bidirectional CSF flow assessment in the central canal (CC) of the zebrafish spinal cord as well as of CC geometry and cilia localization, which the authors can closely mimic in their modeling attempts. Mutant lines with defects in ciliary motility are analyzed using this workflow, demonstrating a reduced CC diameter (a collapse) in mutants. The manuscript concludes with the description of a novel, so-far overlooked, anatomical feature of the zebrafish central nervous system (Figure 7): while the central canal should run all the way from the ventral diencephalon to the caudal end of the spinal cord and is connected to the diencephalon by a newly discovered funnel cranially, the rhombencephalon extends a novel, much thinner canal dorsally which connects to the CC caudally by another thin canal. If this claim can be substantiated, this finding definitely warrants publication in eLife.

Essential revisions:

1) The existence of the newly described channel, that – if true – needs to be named, has to be proven beyond reasonable doubt, which requires in depth histology, ideally at TEM resolution. The brain anatomy in Figure 7A and Video 8 are not clear, particularly the identity and connection of brain ventricles to CC and the new canal, which is actually not displayed except as a thin line in the scheme in Figure 7A. In other vertebrates (amphibians through mammals), the diencephalon harbors a blind-ending ventral protrusion of the ventricle, which will give rise to the neural part of the hypophysis. Do we see flow in the hypophysis protrusion of the diencephalon in Video 8? Would the hypophysis then be connected to the CC? Why should the rhombencephalon not be connected to the CC, which is what we know from all other vertebrates? This might be an ancestral feature of basal vertebrates, which would be extremely interesting in an evolutionary context, but it needs to be proven. Known canal-like connections in vertebrate embryos include the buccohypophyseal (ventral diencephalon) and neurenteric canals (caudal neural tube/spinal cord). How do the described canals relate to the new one?

2) It is very interesting to see that in ciliary motility mutants the CC collapses and CC flow is abolished. The authors speculate about potential function of CC flow and exosomes transported along the CC. Based on the mutant phenotypes, what specific function of CC flow can be derived? One would really like to learn more about the physiological function of CC flow. A careful analysis/discussion of spinal cord phenotypes in mutants should provide the/an answer.

3) The authors argue that 30 hpf is the ideal time point for their analysis. With the improved automated workflow at hand, the descriptive part of this work would gain a lot by relating this stage to earlier and later time points, particularly with respect to the novel canal.

4) Is it possible to know more about the few motile dorsal cilia: how many are they? Are they polarized, i.e. would they contribute to bi-directional flow? Where are they found along the cranial-caudal axis?

5) Figure 2B, Figure 2—figure supplement 1:

The zig-zag pattern of some cilia in Figure 2—figure supplement 1A illustrates some challenges when inferring the ciliary beating frequency from a single pixel intensity, which is a highly non-linear function of the cilium's phase. In the middle of the zig-zag line, the principal peak in the power spectrum will likely correspond to the second harmonic of the beating frequency. Aliasing can be an additional problem (the 2nd harmonic of a cilium beating with 40 Hz appears at 20 Hz when sampled with 100 fps). The description in Materials and methods is unclear on how these problems were dealt with.

6) Equation (4): the force density fvchanged its sign between Equations (2) and (4).

7) Equation (5): The zero flux condition (5) must have been taken into account in the derivation of Equations (3) and (4), which always give v=0 at y=d/2. Yet it is only introduced afterwards.

In the subsequent text, the value of α is given, but not that of the viscosity mu. The pressure gradient, which is half the value of fv, is presented as a numerical result, rather than a basic symmetry property of the model.

8) "Counterintuitively, this model predicts that vortices may originate not from cilia dynamics, but rather from the local absence of motile cilia in the ventral side on a distance larger than d."

What is the basis for this statement? What is meant by "cilia dynamics"? It is clear that cilia and gaps between them are both needed to get recirculation.

Moreover, the solution shows an interesting mirror symmetry about the center of the channel, which is not discussed. But it is easy to understand, considering that the velocity profile remains unchanged if any force profile f(y,z)=f(z) (i.e., independent of y) is added to the channel. The force distribution in Figure 3 can therefore always be made antisymmetric with respect to the channel center.

9) Figure 7: the funnel and the loop through RV are very difficult to see – it would be helpful to redesign the figure and make a magnification of the relevant region.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Origin and role of the cerebrospinal fluid bidirectional flow in the central canal" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The key point is to solve the general issue of the presumed canal system, especially given its transient nature. Some guidelines are provided below to address this issue.

Reviewer #2:

I like to repeat myself and state again that this manuscript by Wyart, Gallaire and colleagues is mainly technical and descriptive in nature (it lacks a hypothesis). It describes a novel, transient canal system in the embryonic zebrafish CNS; an automated workflow of bidirectional CSF flow assessment in the central canal (CC) of the zebrafish spinal cord as well as of CC geometry and cilia localization, which the authors can closely mimic in their modeling attempts. Several of the features of CC flow described here have been previously reported (by the same authors), though not at the resolution achieved here.

The novelty that qualifies this manuscript for eLife lies primarily in the description of the presumed novel channel system in the embryonic CNS. The revised manuscript contains a limited set of additional histological data that should prove the existence of these canals. Unfortunately, rather than being convinced, I now have doubts as to their existence.

The most parsimonious explanation for these canals would be that they represent aspects of the ventricle in contact with the floor plate ('tel- and diencephalospinal canals') and roof plate ('rhombencephalospinal canal') of the developing brain and spinal cord, with a temporal occlusion in between due to lateral walls getting in close contact (explaining why there is no fluid flow). In the chick embryo, Gary Schoenwolf has studied such a temporal occlusion back in the 1980s already. A wealth of published histological sections in various vertebrate embryos attest that brain ventricle walls as well as lateral walls of the spinal cord approach each other temporarily during development (cf. examples below). The transversal sections shown in the new Figure 7B2 and B4 can be interpreted in exactly that way. Zooming in on the DSC – or perhaps ventricle close to the floor plate – the tear-drop (with flattened bottom) shape of the presumed canal actually argues that this structure is not closed dorsally, which is visible in the ZO-1 stained specimen in B4, in which staining is continuous from the ventral-most aspect (DSC/FP) all along the lateral walls into the wide lumen of the rhombencephalon. The 'similar geometry' of Reissner's fiber and the ventral canal in addition argues that this canal represents the ventral most part of the ventricle next to the floor plate.

Because this issue is of central importance for the main message of this (descriptive) manuscript, it needs to be addressed beyond reasonable doubt: we have to be one hundred percent certain as to the nature of the described items. I think this is feasible without much effort and would include conventional histology, immunofluorescence staining and the analysis of some marker genes. I would suggest to stain WT specimens for mRNA expression of floor and roof plate marker genes (shh, BMP4, etc.) as well as for genes that highlight the dorso-ventral pattering of the brain and neural tube (pax6, nkx2.2 or the like). Stained specimens should be analyzed by conventional histology through transversal sections, such as in Figure 7B4. IF-staining for basal lamina-specific markers should be applied in addition to prove or disprove the existence of these canals.

If it turned out that the canals represented indeed merely the continuation of the ventricle lumen next to floor and roof plate, the manuscript would need to be rewritten. Whether or not it would still qualify for eLife is hard to judge at this point; it would need another round of thorough reviewing.

Example 1: from G. Halasi et al., Developmental Biology 365 (2012) 118-132;

Figure 1. Neural tube of WT chick embryo. Lumina at floor and roof plate are reminiscent of presumed canals in zebrafish.

Figure 2. Temporal progression of CC development, demonstrating the temporal nature of separate lumina at floor and roof plate.

Example 2: from Chen et al., Toxicol. Pathol. 45, 705-744, 2017. Figure 9. Representative images of the transient neural lumen occlusion of the spinal cord in the E11.5 mouse embryo.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Origin and role of the cerebrospinal fluid bidirectional flow in the central canal" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below. The critical issues have been adequately addressed and the reviewers believe the work will receive considerable attention in the field. They however identified a few remaining points where simple text revisions will be required before acceptance, as outlined below. Overall, the authors are asked to eliminate the term canal and explain that further work is needed to clarify its geometry.

Reviewer #2:

Nature of the report:

As stated by the authors: we disagree on this point. Although the authors use state-of-the-art technology to visualize and model cilia and CSF flow in the developing zebrafish ventricular system, the main character of the study is descriptive; it lacks a conceptual advance, i.e. it remains unclear what the physiological meaning of bi-directionality is and how the specific pattern of flow relates to any ciliopathies.

Anatomy in question:

Unfortunately, the revised manuscript still lacks clarity. It now seems obvious that the structures the authors report – "conduction paths" (termed "canals" in the former versions of the manuscript, a term that persists in the revised manuscript as well) – represent the dorsal and ventral aspects of the developing ventricular system. This should be clearly stated in the manuscript, not only given as a possible explanation in the Discussion. Canals and conduction paths are confusing and imprecise; in addition, such terms tend to stick, which would be inappropriate. The cited paper by the Sive lab shows a parasagittal section, which does not resolve whether or not these structures are part of the ventricle and provides no proof for the existence of novel conduction paths. In addition, the Ribeiro et al. paper nicely shows that during transition of the neural tube primitive lumen into the central canal, the lumen becomes very narrow, but remains continuous between its dorsal and ventral aspects. If the authors insisted that their conduction paths and canals were independent entities, 3D imaging or morphing of histological sections and segmentation of the ventricular system would be required.

https://doi.org/10.7554/eLife.47699.sa1

Author response

Essential revisions:

1) The existence of the newly described channel, that – if true – needs to be named, has to be proven beyond reasonable doubt, which requires in depth histology, ideally at TEM resolution. The brain anatomy in Figure 7A and Video 8 are not clear, particularly the identity and connection of brain ventricles to CC and the new canal, which is actually not displayed except as a thin line in the scheme in Figure 7A. In other vertebrates (amphibians through mammals), the diencephalon harbors a blind-ending ventral protrusion of the ventricle, which will give rise to the neural part of the hypophysis.

We agree with the reviewer that the description of this “diencephalospinal” canal connecting the floor of the diencephalic ventricle at the level where it also connects to the rhombencephalic ventricle to the central canal (see revised Figure 7) required more investigation. Many small canals (2-5 microns in diameter) collapse when investigated in EM or histology. In order to elucidate the structure of small canals where the CSF circulates and small dyes can diffuse in zebrafish embryos, we find that the optimal approach is to image in living embryos the propagation of small fluorescent dyes. Without knowing the diffusion of small dyes in vivo, it is not clear to know where the CSF can flow. The complex 3D structure of the canals located ventrally from the ventricles would be difficult to capture in a whole embryo after fixation and slicing for histology, or even worse with TEM. The investigation of these channels with TEM and classical histology will be the focus of a future study.

We imaged CSF-filled structures by relying on TexasRed-Dextran 3,000 MW injected in vivoin the rhombencephalic ventricle and using optical sectioning from confocal and two photon laser scanning microscopies (see Materials and methods in revised manuscript). We also performed immunohistochemistry on ZO1 to label tight junctions along the CSF ventricles and canals, and compared our results to immunohistochemistry for DAPI to label nuclei. We drew a schematic summarizing our observations (Figure 7A), improved the illustrations in Figure 7 and added stacks in Videos 8 and 9.

Using this combination of approaches at the 30 hpf embryonic stage, we observed:

1) The telencephalospinal canal (see Figure 7A, Figure 7B, and new Video 8) previously referred to in the submitted manuscript as the “funnel”: this canal runs ventrally to the telencephalic, diencephalic and rhombencephalic ventricles, connecting telencephalic to diencephalic/mesencephalic ventricles, and then diencephalic/mesencephalic ventricle to central canal. The structural properties of this canal could only be quantified in the diencephalospinal portion. In this portion, the diencephalospinal canal differs from the central canal in terms of i) diameter (5 μm instead of 10 um) and ii) flow (unidirectional instead of bidirectional). Finally, note that this canal runs ventrally to the diencephalic ventricle and is therefore located several hundred microns more rostral than the rhomencephalon-spinal cord boundary where the central canal starts. These three arguments (diameter, flow and location) argue that the telencephalospinal canal is distinct from the central canal. Interestingly, the diencephalospinal canal is also the path where the Reissner Fiber forms from the aggregation of the scospondin by the subcommissural organ, the flexural organ and the floor plate (Cantaut-Belarif et al., 2018). Immunostaining for Reissner material shows a similar path in the diencephalospinal canal than what we described with fluorescent dyes, forming a curve before reaching the CC at 30 hpf, and straight in the larva after 48 hpf, as shown in Author response image 1.

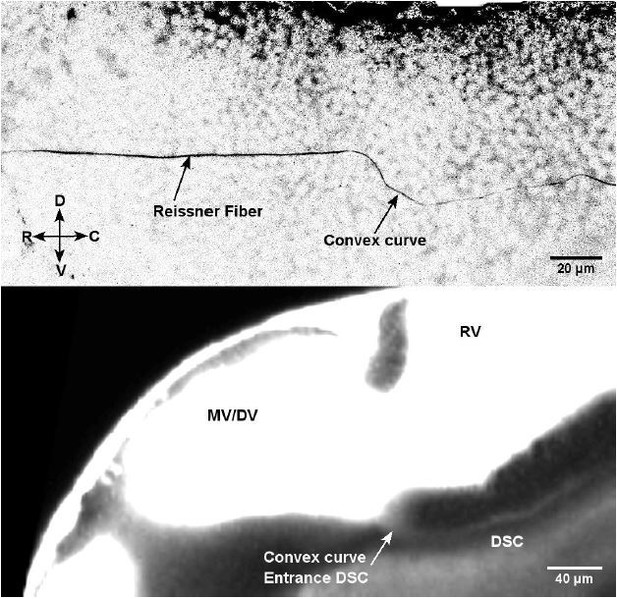

Author response image 1
Immunostaining for Reissner material in 30 hpf embryos (Top image) most likely forms through the diencephalospinal canal showing a similar geometry as this canal (TexasRed in living embryo – Bottom image).

The diencephalospinal canal is typically 7 μm in diameter and therefore too small for being easily identified after fixation in sagittal and transverse sections – although portion of this canal were already observed in Fame et al., Fluids and Barriers of the CNS 2016 – Figure 2B’, where fluorescein-labelled 2000 kDa dextran conjugated to fluorescein was injected in the ventricles of living 30 hours post fertilization (hpf) zebrafish embryo and the diencephalospinal portion of the canal was observed and classical histology with hematoxylin and eosin stain in Fame et al., Fluids and Barriers of the CNS 2016 – Figure 2C’’, showed over 50 μm the opening of diencephalospinal portion of the canal at the level. Our results i) corroborate these observations (see revised Figure 7B and 7C), ii) adds evidence for the anterior portion of the canal ventrally from telencephalic to diencephalic ventricle (Figure 7A, 7B), which was previously not described and iii) add the characterization of CSF flow in the posterior section of the canal (diencephalospinal canal) where 20 nm diameter fluorescent beads enter (Figure 7D). Note that this canal is now described and discussed with reference to the study of Fame et al., 2016 in the revised manuscript in a new section inside results named ‘The CSF circulates between the brain and the central canal inside the spinal through a complex system of channels at embryonic stage’.

2) A rhombencephalospinal canal (see revised Figure 7A, 7E and new Video 9) running dorsally from the rhombencephalic ventricle (RV) to the filum terminale in the caudal spinal cord where it can reach the central canal in the embryo. This canal could be named as well as an “accessory central canal”. This canal filled with fluorescent dyes is only 2.5 μm in diameter and runs for the entire length of the spinal cord in the dorsal spinal cord. At the larval stage 3 dpf and 5 dpf, we have evidence that this canal migrates ventrally (3 dpf, Figure 7F) to fuse with the central canal (5 dpf, Figure 7G). This observation corroborates previous images (Kondrychyn et al., 2013, Figure 3M to 3T). This canal present at the embryonic stage 30 hpf is to our knowledge reported here for the first time as an independent canal where CSF can flow. Nonetheless, two studies performing anti-ZO-1 immunostaining or DAPI staining (Kondrychyn et al., 2013; Ribeiro et al., Open Biology 2017) reported in transverse section a second lumen dorsal to the central canal in the embryonic stage. While these authors assumed that it could be a dorsal extension of central canal, our data indicates that it is a distinct canal as CSF does not flow along the dorso-ventral axis from the central canal to this canal, and as no CSF flow can be observed inside. We observe that the rhombencephalospinal canal connects to the RV rostrally and forms a fork when merging with the CC in the caudal end of the spinal cord (Figure 7E2, and 7F3, and new Video 10). This fork was also observed in living animals with cilia labeling in the Tg(beta-actin:arl13-GFP) (new Video 10).

Do we see flow in the hypophysis protrusion of the diencephalon in Video 8? Would the hypophysis then be connected to the CC?

The hypophysis indeed appears at this embryonic stage around the location where the telencephalospinal canal reaches the connection between diencephalic/mesencephalic ventricle and hindbrain ventricle (Pogoda and Hammerschmidt, Semin. Cell. Dev. Bio., 2007), though from images previously published it appears more ventral than the TSC at embryonic stage (Ning-Ai Liu et al., 2008, Dev. Bio). In our former Video 8 (now Video 11 in revised version), we did not observe flow in the brain ventricles at embryonic stage, except for vortexes observed where the diencephalospinal starts (Bend described in Author response image 1, and Video 12). Although we cannot rule out that this region is the infundibulum (the hypophysis’s protrusion), the precise location of the hypophysis would require an extensive study with molecular markers, which is out of the scope of our study.

Why should the rhombencephalon not be connected to the CC, which is what we know from all other vertebrates? This might be an ancestral feature of basal vertebrates, which would be extremely interesting in an evolutionary context, but it needs to be proven.

In zebrafish, the complex structure of multiple canals we describe, one running ventrally to the ventricles (TDS), one dorsalmost (RSC) and one (CC) ventral above the floor plate, is transient (Figure 7E, 7F, 7G). We observe these canals in the embryo at 30 hpf but it evolves by 5 dpf in the larva w here the rhombencephalospinal canal migrates ventrally towards the central canal in order to connect rhombencephalic ventricle to CC (Figure 7G – Fame et al., Fluids and Barriers of the CNS 2016, check Figure 2H), as observed in other vertebrates. We now illustrate these observations (Figure 7E, 7F, 7G) and discuss the transient nature of this structure in our revised manuscript and question whether similar mechanisms might occur in other Amniotes. In Anamniotes such as mammals where the neural tube and ventricles form in a very different manner (Massarwa et al., Development 2013; Massarwa et al., WIREs Dev Biol 2014), it is unlikely that the same transient architecture of canals form during development.

Known canal-like connections in vertebrate embryos include the buccohypophyseal (ventral diencephalon) and neurenteric canals (caudal neural tube/spinal cord). How do the described canals relate to the new one?

Our observations do not bring evidence that the canals we describe running ventrally to the telencephalic and diencephalic ventricles correspond to the buccohypophyseal canal (connecting to the mouth) nor the neurenteric canal (connecting to the intestine). Further characterization with molecular markers for these structures will be necessary in the future for validation.

2) It is very interesting to see that in ciliary motility mutants the CC collapses and CC flow is abolished. The authors speculate about potential function of CC flow and exosomes transported along the CC. Based on the mutant phenotypes, what specific function of CC flow can be derived? One would really like to learn more about the physiological function of CC flow. A careful analysis/discussion of spinal cord phenotypes in mutants should provide the/an answer.

The observation of a collapse of the central canal in mutants with defective cilia is novel and very interesting. We now added a paragraph in the Discussion of the revised manuscript:

“The observation of a collapse of the central canal in mutants with defective cilia is novel and very interesting. […] The mechanisms by which the collapse of CC and absence of RF contribute to the curled down phenotype will need to be further investigated.”

3) The authors argue that 30 hpf is the ideal time point for their analysis. With the improved automated workflow at hand, the descriptive part of this work would gain a lot by relating this stage to earlier and later time points, particularly with respect to the novel canal.

We agree with the reviewer that following the evolution of CSF flow during development is very interesting. We added elements to quantify our observations in embryos and larvae in Figure 7. A full quantification will however be the focus of a subsequent study as it would take us more than 6 months to properly complete.

4) Is it possible to know more about the few motile dorsal cilia: how many are they? Are they polarized, i.e. would they contribute to bi-directional flow? Where are they found along the cranial-caudal axis?

This is a great question. To answer points 4 and 5 of the reviewer, we performed novel live imaging experiments to quantify the properties of 1704 cilia in 40 embryos, and 89 fields of view. We improved our analysis workflow to classify automatically ventral versus dorsal motile cilia by drawing a line at the center of CC. Based on our analysis of ventral and dorsal cilia, the manuscript has been revised in the subsection Central canal geometry and properties of the motile cilia (Figure 2C see also Materials and methods ‘Quantification of parameters related to cilia structure and dynamics’) to describe dorsal cilia, as well as in the second section in Discussion to estimate how dorsal motile cilia can modify the local CSF flow.

We found that dorsal motile cilia represents 18% of all motile cilia and were evenly distributed along the rostro-caudal axis of CC. Dorsal cilia beat with a slightly smaller central frequency, but are otherwise quite similar to ventral cilia, with similar orientation and length. It indicates that the asymmetric distribution of motile cilia probably contributes the most to generate the bidirectional CSF flow, rather than a beating frequency difference.

We also discussed the contribution to the dorsal cilia to local CSF flow in the Discussion:

“We could estimate the effect of the dorsal cilia, which represent about 20% of all motile cilia (that we neglected in our model). […] The bidirectional flow is thus affected by at most 20% due to the presence of sparse dorsal cilia.”

As suggested by the sparse cilia model, we can also postulate that the local flow cancellation due to the presence of motile dorsal cilia is prone to generate areas of recirculation (vortices) where dorsal cilia are beating. We can also add that if the density of motile dorsal and ventral cilia were similar, it would completely cancel the CSF flow, as long as the flow rate keeps being 0.

5) Figure 2B, Figure 2—figure supplement 1:

The zig-zag pattern of some cilia in Figure 2—figure supplement 1A illustrates some challenges when inferring the ciliary beating frequency from a single pixel intensity, which is a highly non-linear function of the cilium's phase. In the middle of the zig-zag line, the principal peak in the power spectrum will likely correspond to the second harmonic of the beating frequency. Aliasing can be an additional problem (the 2nd harmonic of a cilium beating with 40 Hz appears at 20 Hz when sampled with 100 fps). The description in Materials and methods is unclear on how these problems were dealt with.

We thank the reviewer for having pointed out this potential source of artifacts. In fact, spatial averaging was achieved before and after the Fourier transform, as a 4x4 sliding spatial average was applied, and as we select only large ROIs of constant frequency. We therefore believe our measurements are independent of the cilium’s phase. Because it was probably not clear enough in the initial version, we modified the description in Materials and methods of the revised manuscript:

“Datasets of cilia position over time were analyzed using custom MATLAB software based on Fourier transform. […] The position of each region was then compared to the position of the central line to label the cilia as dorsal or ventral cilia..…“

We have multiple arguments supporting the fact that we are not subject to aliasing or non linear artifacts in our experiments. First, we included now many more experiments performed at 100 Hz. By increasing the number of cilia imaged by a factor of 5, we did not observe changes in the distributions of frequency, length or angle. If we were sensitive to artifacts in a small percentage of cilia, increasing the number of cilia should have reduced the influence of artifactual data points on the distribution. Second, in experiments acquired at the different frequencies of 80 Hz and 120 Hz, the frequency distribution was similar to the one obtained at 100 Hz, whereas the presence of aliasing should have shifted the frequency distribution (towards 0 Hz or 40 Hz respectively). Finally, from the Fourier analysis, we could extract several peaks, and compared the frequency of the first peak versus the frequency of the second to check whether they were separated by a factor of 2, as it should be the case if the 2nd harmonic component were strong. Except for a few cases (less than 5% of cilia) the frequencies of the first two peaks were not related, making us more confident that our measured frequencies were accurate with a limited amount of 2nd harmonic measured.

6) Equation (4): the force density fv changed its sign between Equations (2) and (4).

We thank the reviewer for this remark, as we made a typo in Equation (2). We modified accordingly such that a minus appears in front of the force fv.

7) Equation (5): The zero flux condition (5) must have been taken into account in the derivation of Equations (3) and (4), which always give v=0 at y=d/2. Yet it is only introduced afterwards.

In the subsequent text, the value of α is given, but not that of the viscosity mu. The pressure gradient, which is half the value of fv, is presented as a numerical result, rather than a basic symmetry property of the model.

The reviewer is right, this final expression of the velocity profile already accounted for the zero flux expression. The general expression before the zero flux constraint is now written in the supplementary information, and exhibits a more complex form depending on the combination of dP/dz and fv. Applying the zero flux constraint, but for a general expression of the ciliary region thickness h, we obtain the new Equations (3) and (4), that exhibit a central velocity at y=d/2 which is not necessarily zero. In the particular case of the zebrafish embryo, we assumed that the force created by the cilia is applied to one half of the channel, as h is taken as d/2. In this case only the central velocity becomes zero.

8) "Counterintuitively, this model predicts that vortices may originate not from cilia dynamics, but rather from the local absence of motile cilia in the ventral side on a distance larger than d."

What is the basis for this statement? What is meant by "cilia dynamics"? It is clear that cilia and gaps between them are both needed to get recirculation.

This sentence was indeed confusing and we apologize for this imprecision. Obviously, without cilia, i.e. without flow, there cannot be recirculation regions. The initial purpose was to distinguish the vorticity directly created by the cyclic 3D beating of a cilium, which our model cannot describe, and the less expected observed vortices created by the alternation of active and passive regions, that is a consequence of the confined geometry of the model central canal. As a consequence, our model predicts that the recirculation area should start not around to the active cilia, but where cilia are lacking. Note that this is consistent with the fact that the number of vortices increases in “intermediate” ciliary mutants (kurly, elipsa) that have a decreased density of motile cilia (but still have a few motile cilia). It was intriguing for us at first, because we expected the vortices to be created by the local beating of certain cilia, in which case we expected to have less vortices associated with a lower density of motile cilia. In the main text, we modified the above sentence by:

“This model thus predicts that vortices appear due to the alternation of active and passive regions, rather than due to the complex 3D beating of cilia. As a consequence, the vortices should not start around active cilia, but in regions with lower motile cilia density.”

Moreover, the solution shows an interesting mirror symmetry about the center of the channel, which is not discussed. But it is easy to understand, considering that the velocity profile remains unchanged if any force profile f(y,z)=f(z) (i.e., independent of y) is added to the channel. The force distribution in Figure 3 can therefore always be made antisymmetric with respect to the channel center.

It is a very interesting point that we have missed originally. We agree with the reviewer, yet only in the particular case of the force generated by cilia occupying one half of the channel, as is the case in the central canal of zebrafish. However our solution is made more universal (see the new Equations (3) and (4) where the universal h replaced the earlier d/2), accounting for arbitrary cilia-to-channel diameter aspect ratio, as illustrated in Supplementary Figure 1C. In the general case, this mirror symmetry disappears, which is why we decided not to develop further.

9) Figure 7: the funnel and the loop through RV are very difficult to see – it would be helpful to redesign the figure and make a magnification of the relevant region.

As mentioned earlier, Figure 7 was split into Figure 7 and Figure 8 in order to improve the number, quality and readability of the schematics.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The key point is to solve the general issue of the presumed canal system, especially given its transient nature. Some guidelines are provided below to address this issue.

Reviewer #2:

I like to repeat myself and state again that this manuscript by Wyart, Gallaire and colleagues is mainly technical and descriptive in nature (it lacks a hypothesis). It describes a novel, transient canal system in the embryonic zebrafish CNS; an automated workflow of bidirectional CSF flow assessment in the central canal (CC) of the zebrafish spinal cord as well as of CC geometry and cilia localization, which the authors can closely mimic in their modeling attempts. Several of the features of CC flow described here have been previously reported (by the same authors), though not at the resolution achieved here.

There are two points raised here that we address separately:

A) On the novelty of our results: let us agree to disagree.

Yes, we previously analyzed manually in two studies with mutants the flow of CSF showing that it was bidirectional in the central canal during embryogenesis (Cantaut-Belarif et al., 2018; Sternberg et al., 2018).

However, we tackle in the study of Thouvenin et al., the mechanistic question of how CSF bidirectional flow is generated in the central canal and what can it be useful for during embryogenesis.

By combining original data-descriptive automated analysis of flow coupled with manipulations such as the ablations in Figure 4D1 and Video 5 – and thorough modeling, our article:

1) demonstrates that motile and polar cilia that are inserted on the ventral floor of the central canal are sufficient to sustain the bidirectional flow in the central canal;

2) shows original evidence that motile cilia, in addition to generate a bidirectional flow of CSF, influence the shape of the central canal;

3) shows how bidirectionality of CSF flow together with muscle contractions enhance longrange transport in the CSF.

None of these three important points have been reported before.

The novelty that qualifies this manuscript for eLife lies primarily in the description of the presumed novel channel system in the embryonic CNS. The revised manuscript contains a limited set of additional histological data that should prove the existence of these canals. Unfortunately, rather than being convinced, I now have doubts as to their existence.

No, this finding does not constitute the novelty of our study and no, these structures had been described using the diffusion of small molecules as well as histology in the publications we cited here:

– The structures are described in Fame et al., Fluids Barriers CNS 2016 as well as Kondrychin et al., Plos One 2013, and

– Data showing the same structures are visible but not commented on in Ribeiro et al., Open Biol. 2017 and Guo et al., iScience 2018.

The novelty of our study here lies in two points:

1) We characterize the flow in the diencephalospinal conduction path and show that in contrast to the central canal, the flow is there unidirectional;

2) We show by performing 2-photon mediated ablation at the connection between the diencephalospinal conduction path and the central canal that transport between the ventricles and the central canal impacts growth of the embryo.

The most parsimonious explanation for these canals would be that they represent aspects of the ventricle in contact with the floor plate ('tel- and diencephalospinal canals') and roof plate ('rhombencephalospinal canal') of the developing brain and spinal cord, with a temporal occlusion in between due to lateral walls getting in close contact (explaining why there is no fluid flow). In the chick embryo, Gary Schoenwolf has studied such a temporal occlusion back in the 1980s already. A wealth of published histological sections in various vertebrate embryos attest that brain ventricle walls as well as lateral walls of the spinal cord approach each other temporarily during development (cf. examples below). The transversal sections shown in the new Figure 7B2 and B4 can be interpreted in exactly that way. Zooming in on the DSC – or perhaps ventricle close to the floor plate – the tear-drop (with flattened bottom) shape of the presumed canal actually argues that this structure is not closed dorsally, which is visible in the ZO-1 stained specimen in B4, in which staining is continuous from the ventral-most aspect (DSC/FP) all along the lateral walls into the wide lumen of the rhombencephalon. The 'similar geometry' of Reissner's fiber and the ventral canal in addition argues that this canal represents the ventral most part of the ventricle next to the floor plate.

Because this issue is of central importance for the main message of this (descriptive) manuscript, it needs to be addressed beyond reasonable doubt: we have to be one hundred percent certain as to the nature of the described items. I think this is feasible without much effort and would include conventional histology, immunofluorescence staining and the analysis of some marker genes. I would suggest to stain WT specimens for mRNA expression of floor and roof plate marker genes (shh, BMP4, etc.) as well as for genes that highlight the dorso-ventral pattering of the brain and neural tube (pax6, nkx2.2 or the like). Stained specimens should be analyzed by conventional histology through transversal sections, such as in Figure 7B4. IF-staining for basal lamina-specific markers should be applied in addition to prove or disprove the existence of these canals.

If it turned out that the canals represented indeed merely the continuation of the ventricle lumen next to floor and roof plate, the manuscript would need to be rewritten. Whether or not it would still qualify for eLife is hard to judge at this point; it would need another round of thorough reviewing.

Example 1: from G. Halasi et al. / Developmental Biology 365 (2012) 118-132;

Figure 1. Neural tube of WT chick embryo. Lumina at floor and roof plate are reminiscent of presumed canals in zebrafish.

Figure 2. Temporal progression of CC development, demonstrating the temporal nature of separate lumina at floor and roof plate.

Example 2: from Chen et al., Toxicol. Pathol. 45, 705-744, 2017. Figure 9. Representative images of the transient neural lumen occlusion of the spinal cord in the E11.5 mouse embryo.

B) On the nature of the structures where CSF flows in the embryo:

1) As mentioned in our original response to the reviewers: the observation of diffusion of molecules in the CSF by other paths connecting the telencephalic and diencephalic ventricles to the central canal in zebrafish embryos had been observed before:

A characterization of the conduction path between the diencephalic ventricle and the central canal was reported in Fame et al., 2016 as well as Kondrychin et al., 2013, and to a lesser extent: Ribeiro et al., Open Biol. 2017 and Guo et al., 2018 where the same structures are visible but not commented on. These four key publications have been uploaded to the eLife website as related material.

The novelty of our study lies in i) the measurement of CSF flow in these conduction paths (Figure 7) and ii) the relevance for growth of the embryo during development (Figure 8).

2) The experiments requested by reviewer 2 "conventional histology, immunofluorescence staining and the analysis of marker genes"have already been done for the spinal cord in zebrafish embryos:

a) Kondrychyn, I., Teh, C., Sin, M., and Korzh, V. (2013). Stretching Morphogenesis of the Roof Plate and Formation of the Central Canal. PLoS ONE, 8(2), 1-12.

b) Guo et al. (Apical Cell-Cell Adhesions Reconcile Symmetry and Asymmetry in Zebrafish Neurulation. 2008. Iscience, 3, 63-85)

If we were not explicit enough on the former evidence for these structures in our revision, these articles are now heavily-cited when we refer to the conduction paths of the CSF in zebrafish embryo.

3) We agree with reviewer 2 on the fact that the walls of the ventricles may be in contact with the floor plate for what we had described as 'tel- and di-encephalospinal canals' ventrally and roof plate for what we had referred to as 'rhombencephalospinal canal' dorsally in the developing brain and spinal cord, with a transient occlusion due to lateral walls getting in close contact, which could explain the absence of CSF flow. That's exactly our view as well.

Since we understand the concern of the reviewer regarding the choice of the word “canal”, we now edited the manuscript to refer to as “conduction path” bridging between the ventricles and the central canal referring to the 4 publications mentioned above for the histological description of these structures.

If the last version of our manuscript was not clear enough, we apologize and now provide a documented description of the previous findings with a possible interpretation for these conduction paths in the Discussion of the revised manuscript.

We added references to the studies performed in mouse and chicken suggested by the reviewer in the Discussion.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

[…]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below. The critical issues have been adequately addressed and the reviewers believe the work will receive considerable attention in the field. They however identified a few remaining points where simple text revisions will be required before acceptance, as outlined below. Overall, the authors are asked to eliminate the term canal and explain that further work is needed to clarify its geometry.

Thank you for your feedback. As requested, we implemented these changes in the revised manuscript: we removed the terms canals and conduction paths when describing the complex circulatory system where CSF flows, and stated that future work will be necessary to clarify the geometry of the cavities ventral to the ventricles in the brain and dorsal than the central canal in the spinal cord.

Reviewer #2:

Nature of the report:

As stated by the authors: we disagree on this point. Although the authors use state-of-the-art technology to visualize and model cilia and CSF flow in the developing zebrafish ventricular system, the main character of the study is descriptive; it lacks a conceptual advance, i.e. it remains unclear what the physiological meaning of bi-directionality is and how the specific pattern of flow relates to any ciliopathies.

Our work is indeed descriptive: we use modelling from experts in fluid mechanics and quantitative flow measurements in vivoto establish how bidirectional flow is established in the central canal. We show how the bidirectional flow enables fast transport across the CSF of particles above 20 nm, and demonstrate that disruption of the connection from the brain ventricles to the central canal leads to reduction in growth during embryogenesis.

Anatomy in question:

Unfortunately, the revised manuscript still lacks clarity. It now seems obvious that the structures the authors report – "conduction paths" (termed "canals" in the former versions of the manuscript, a term that persists in the revised manuscript as well) – represent the dorsal and ventral aspects of the developing ventricular system. This should be clearly stated in the manuscript, not only given as a possible explanation in the Discussion. Canals and conduction paths are confusing and imprecise; in addition, such terms tend to stick, which would be inappropriate. The cited paper by the Sive lab shows a parasagittal section, which does not resolve whether or not these structures are part of the ventricle and provides no proof for the existence of novel conduction paths. In addition, the Ribeiro et al. paper nicely shows that during transition of the neural tube primitive lumen into the central canal, the lumen becomes very narrow, but remains continuous between its dorsal and ventral aspects. If the authors insisted that their conduction paths and canals were independent entities, 3D imaging or morphing of histological sections and segmentation of the ventricular system would be required.

As requested by the reviewing editor, we removed the terms canals and conductions paths to describe the dorsal and ventral openings of the developing ventricular system in Figure 7: see text below.

“Embryonic CSF circulates between the brain ventricles and the central canal via a complex circulatory system

To understand how the CSF carries particles between CC and the brain ventricles at early stages, we imaged all the CSF-filled cavities by injecting the small dye Texas Red-Dextran (3,000 MW) in live 30 hpf embryos (Figure 7). […]During development, as it has already been partly described in rodents and zebrafish (Secv et al., 2009, Kondrychyn et al., 2013, Ribeiro et al., 2017), dorsal and ventral openings of the CC pL converge ventrally at 3 dpf (Figure 7F) to finally merge into a single central canal lumen at 5 dpf (Figure 7G).”

https://doi.org/10.7554/eLife.47699.sa2

Article and author information

Author details

  1. Olivier Thouvenin

    1. Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, Paris, France
    2. ESPCI Paris, PSL University, CNRS, Institut Langevin, Paris, France
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Investigation, Visualization, Methodology
    Contributed equally with
    Ludovic Keiser
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4853-7555
  2. Ludovic Keiser

    Laboratory of Fluid Mechanics and Instabilities, École Polytechnique Fédérale de Lausanne, Lausanne, Switzerland
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Visualization, Methodology
    Contributed equally with
    Olivier Thouvenin
    Competing interests
    No competing interests declared
  3. Yasmine Cantaut-Belarif

    Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  4. Martin Carbo-Tano

    Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Frederik Verweij

    Institute of Psychiatry and Neuroscience of Paris, Hôpital Saint-Anne, Université Descartes, INSERM U1266, Paris, France
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Nathalie Jurisch-Yaksi

    1. Kavli Institute for Systems Neuroscience, Centre for Neural Computation, The Faculty of Medicine, Norwegian University of Science and Technology, Trondheim, Norway
    2. Department of Clinical and Molecular Medicine, The Faculty of Medicine, Norwegian University of Science and Technology, Trondheim, Norway
    Contribution
    Data curation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8767-6120
  7. Pierre-Luc Bardet

    Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Project administration
    Competing interests
    No competing interests declared
  8. Guillaume van Niel

    Institute of Psychiatry and Neuroscience of Paris, Hôpital Saint-Anne, Université Descartes, INSERM U1266, Paris, France
    Contribution
    Supervision, Investigation
    Competing interests
    No competing interests declared
  9. Francois Gallaire

    Laboratory of Fluid Mechanics and Instabilities, École Polytechnique Fédérale de Lausanne, Lausanne, Switzerland
    Contribution
    Supervision, Funding acquisition, Investigation, Project administration
    For correspondence
    francois.gallaire@epfl.ch
    Competing interests
    No competing interests declared
  10. Claire Wyart

    Institut du Cerveau et de la Moelle épinière (ICM), Sorbonne Universités, UPMC Univ Paris 06, Inserm, CNRS, AP-HP, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Investigation, Methodology
    For correspondence
    claire.wyart@icm-institute.org
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1668-4975

Funding

Human Frontier Science Program (RGP00063/2018)

  • Francois Gallaire
  • Claire Wyart

NIH Blueprint for Neuroscience Research (U19NS104653)

  • Martin Carbo-Tano
  • Claire Wyart

European Research Council (311673)

  • Yasmine Cantaut-Belarif
  • Martin Carbo-Tano
  • Claire Wyart

New York Stem Cell Foundation (NYSCF-R-NI39)

  • Claire Wyart

Institut du Cerveau et de la Moelle Epinière

  • Olivier Thouvenin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Prof. Rebecca Burdine for the kurly (cfaptm304 allele) mutant, Prof. Jarema Malicki for the elipsa mutant (ift54/traf3ip) and Prof. Brian Ciruna for the Tg(beta-actin:Arl13b-GFP) line. We would like to acknowledge the kind and expert assistance of Aymeric Millecamps, Tudor Manoliu, and Basile Gurchenkov from the ICM. Quant imaging facility for instrument use and scientific assistance on optical imaging, as well as Sophie Nunes-Figueiredo, Bogdan Buzurin, and Monica Dicu from PHENOZFish platform for fish care. We are grateful to Martin Catala for advising us on zebrafish histology. We greatly thank Jenna Sternberg for article proofreading. We thank the Yaksi laboratory members and the fish facility support team for scientific and technical assistance to NJK. This work was funded by Human Frontier Science Program (HFSP) Research Grant (grant n° RGP063-2018), and the New York Stem Cell Foundation (NYSCF) (grant n° NYSCF-R-NI39) and an ICM postdoctoral fellowship kindly attributed to OT. The research leading to these results has also received funding from the program ‘Investissements d’avenir’ ANR-10-IAIHU-06 (Big Brain Theory ICM Program), ANR-11-INBS-0011 (NeurATRIS: Translational Research Infrastructure for Biotherapies in Neurosciences), and a Helse Midt-Norge Samarbeisorganet grant to NJY and the Kavli Institute for Systems Neuroscience at NTNU.

Ethics

Animal experimentation: All procedures were performed on zebrafish embryos before 2 days post fertilization in accordance with the European Communities Council Directive (2010/63/EU) and French law (87/848) and approved by the Brain and Spine Institute (Institut du Cerveau et de la Moelle épinière).

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Julien Vermot, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

Reviewers

  1. Andrej Vilfan, Max Planck Institute for Dynamics and Self-Organization, Germany
  2. Martin Blum

Publication history

  1. Received: April 15, 2019
  2. Accepted: January 7, 2020
  3. Accepted Manuscript published: January 9, 2020 (version 1)
  4. Version of Record published: January 29, 2020 (version 2)

Copyright

© 2020, Thouvenin et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,324
    Page views
  • 250
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Physics of Living Systems
    2. Structural Biology and Molecular Biophysics
    Srivastav Ranganathan, Eugene I Shakhnovich
    Research Article Updated
    1. Immunology and Inflammation
    2. Physics of Living Systems
    Marco Molari et al.
    Research Article Updated
