T-cell co-stimulation in combination with targeting FAK drives enhanced anti-tumor immunity

  1. Marta Canel
  2. David Taggart
  3. Andrew H Sims
  4. David W Lonergan
  5. Irene C Waizenegger
  6. Alan Serrels  Is a corresponding author
  1. University of Edinburgh, United Kingdom
  2. Boehringer Ingelheim RCV GmbH & Co KG, Austria
Research Article
  • Cited 2
  • Views 1,013
  • Annotations
Cite this article as: eLife 2020;9:e48092 doi: 10.7554/eLife.48092

Abstract

Focal Adhesion Kinase (FAK) inhibitors are currently undergoing clinical testing in combination with anti-PD-1 immune checkpoint inhibitors. However, which patients are most likely to benefit from FAK inhibitors, and what the optimal FAK/immunotherapy combinations are, is currently unknown. We identify that cancer cell expression of the T-cell co-stimulatory ligand CD80 sensitizes murine tumors to a FAK inhibitor and show that CD80 is expressed by human cancer cells originating from both solid epithelial cancers and some hematological malignancies in which FAK inhibitors have not been tested clinically. In the absence of CD80, we identify that targeting alternative T-cell co-stimulatory receptors, in particular OX-40 and 4-1BB in combination with FAK, can drive enhanced anti-tumor immunity and even complete regression of murine tumors. Our findings provide rationale supporting the clinical development of FAK inhibitors in combination with patient selection based on cancer cell CD80 expression, and alternatively with therapies targeting T-cell co-stimulatory pathways.

Introduction

Focal Adhesion Kinase (FAK) is a non-receptor protein tyrosine kinase that plays a pleotropic role in regulating cancer development and progression. Initially identified as a protein highly phosphorylated in response to integrin activation and primarily located at cell–extracellular matrix adhesion sites termed focal adhesions, FAK is now known to regulate a number of cellular processes linked to the malignant phenotype including migration, invasion, adhesion, polarity, proliferation, and survival (McLean et al., 2005; Sulzmaier et al., 2014). Furthermore, FAK can also translocate to the nucleus of cancer cells where it regulates inflammatory gene expression programs (Lim et al., 2012). This includes chemokines and cytokines, which orchestrate the composition of tumor microenvironment (TME), promoting immune evasion and resistance to immunotherapy at least in some scenarios (Jiang et al., 2016; Serrels et al., 2015; Serrels et al., 2017). Thus, FAK has emerged as a potentially promising target as a modulator of anti-cancer immunotherapy.

A number of small molecule FAK kinase inhibitors have now either completed, or are currently in, Phase-I clinical trials and results thus far suggest that they are generally well tolerated (de Jonge et al., 2019; Doi et al., 2019; Lee et al., 2015; Soria et al., 2012). Using panels of cancer cell lines, several studies have attempted to identify biomarkers that predict sensitivity to FAK inhibition. Loss of expression of the tumor suppressor protein Merlin (also known as Neurofibromin 2) and/or E-cadherin have both been suggested as potential markers of sensitivity to FAK inhibitors (Hirt et al., 2018; Kato et al., 2017; Shah et al., 2014; Shapiro et al., 2014). However, a clinical trial (ClinicalTrials.gov NCT01870609) testing Merlin as a predictive marker for sensitivity to the FAK inhibitor Defactinib did not prove successful. Therefore, biomarkers enabling identification of patient populations most likely to benefit from FAK kinase inhibitors are much needed.

The discovery of a role for FAK in regulating the immuno-suppressive TME in mouse models of skin squamous cell carcinoma (SCC) (Serrels et al., 2015) and pancreatic cancer (Jiang et al., 2016; Stokes et al., 2011) has resulted in a shift in the clinical development of FAK kinase inhibitors, with new focus towards immune oncology. There are now at least two clinical trials testing FAK kinase inhibitors in combination with immune checkpoint inhibitors targeting anti-PD-1, across multiple tumor types including pancreatic cancer, non-small cell lung cancer and mesothelioma (ClinicalTrials.gov NCT02758587, NCT02546531). These trials stem from our previous work showing that FAK knockout or the FAK kinase inhibitor VS-4718 can drive complete CD8 T-cell dependent regression of established SCC tumors through shifting the balance of CD8 T-cells: Regulatory T-cells (Tregs) in favor of tumor clearance (Serrels et al., 2015), and that of others showing that VS-4718 can drive reprogramming of the immuno-suppressive pancreatic TME, including a reduction in Tregs, CD206+ macrophages, myeloid-derived suppressor cells (MDSCs), and stromal fibroblasts. This renders pancreatic tumors responsive to the combination of dual immune checkpoint therapy and chemotherapy (anti-PD-1, anti-CTLA-4, and Gemcitabine) (Jiang et al., 2016).

Here, we show that expression of the T-cell co-stimulatory ligand CD80 on the surface of murine cancer cells sensitizes tumors to the highly selective and potent FAK kinase inhibitor BI 853520 (Hirt et al., 2018). Extrapolating these findings to human cancer, we show that murine CD80+ SCC cells that are highly responsive to BI 853520 co-express a number of genes associated with a cancer stem phenotype that has previously been identified in human SCC tumors (Miao et al., 2019; Oshimori et al., 2015) and that a substantial proportion of human cancer cell lines representing a broad range of cancer types express the CD80 transcript, supporting the potential for patient stratification based on cancer cell CD80 expression. Using murine CD80 negative SCC and pancreatic cancer cell lines that exhibit little response to BI 853520, we show that the combination of BI 853520 together with agonistic antibodies targeting other T-cell co-stimulatory receptors, in particular OX40 and 4-1BB, results in enhanced anti-tumor immunity and even complete CD8 T-cell dependent tumor regression leading to lasting immunological memory. Contributing to the enhanced anti-tumor efficacy of these combinations, we identify a novel role for FAK in regulating the expression of the immune checkpoint ligand PD-L2 on tumor-associated macrophages, monocytic-myeloid-derived suppressor cells (M-MDSCs) and cancer cells, and in regulating expression of the immune co-stimulatory receptor Inducible T-cell costimulator (ICOS) on effector CD8 T-cells. Therefore, FAK inhibition promotes greater responsiveness to the anti-tumor effects of T-cell co-stimulation through reprogramming multiple immune regulatory pathways, supporting further development of these combinations for clinical testing.

Results

Spectrum of responses to BI 853520

We have previously shown using a murine model of skin SCC that depletion of FAK expression or treatment with a small molecule FAK kinase inhibitor can result in immune-mediated tumor regression in syngeneic mice (Serrels et al., 2015). Using this same model system we first determined the anti-tumor efficacy of a different FAK kinase inhibitor, that is BI 853520 (Hirt et al., 2018), by monitoring tumor growth following injection of FAK-deficient cells (FAK-/-) or FAK-deficient cells that re-expressed wild-type FAK (FAK-wt) at comparable levels to endogenous. Daily treatment of SCC FAK-wt tumors with 50 mg/kg BI 853520 resulted in complete tumor regression with similar kinetics to that of SCC FAK-/-tumors (Figure 1A). Treatment of SCC FAK-/-tumors with BI 853520 had no effect on tumor growth.

Treatment of a range of tumor models with the FAK kinase inhibitor BI 853520 identifies a spectrum of responses.

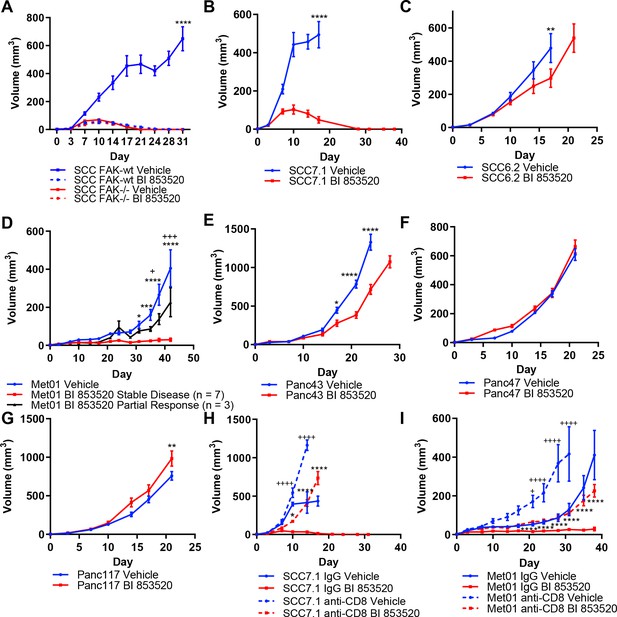

(A - G) Representative graphs of tumor growth in immune-competent mice treated with either Vehicle or 50 mg/kg BI 853520. *=comparison of Vehicle to BI 853520, + = comparison of Vehicle to BI 853520 partial response in graph (D) n = 8–10 tumors per group. (H and I) Tumor growth of SCC7.1 and Met01 cells treated with either Vehicle or BI 853520 and Isotype control antibody (IgG) or anti-CD8 T-cell depleting antibody. + = comparison of IgG Vehicle to IgG BI 853520, *=comparison of anti-CD8 Vehicle to anti-CD8 BI 853520. * or + = p ≤ 0.05, ** or ++ = p ≤ 0.01, *** or +++ = p ≤ 0.001, **** or ++++ = p ≤ 0.0001, two-way ANOVA with Tukey’s multiple comparison test. Data represented as mean + /- s.e.m. n = 6 tumors per group.

Having established that treatment of SCC FAK-wt tumors with BI 853520 could recapitulate our previously published observations with a different FAK inhibitor (Serrels et al., 2015), we next set out to further investigate the generality of such therapeutic efficacy using a panel of six syngeneic cancer cell lines derived from three commonly used mouse cancer models: (1) skin squamous cell carcinomas induced using the DMBA/TPA two-stage chemical carcinogenesis protocol (SCC cell lines) (Serrels et al., 2012), (2) a primary breast tumor arising on the MMTV-PyMT genetically engineered mouse (GEM) model of breast cancer (Met01 cell line) (Qian et al., 2011), and (3) Pancreatic Ductal Adenocarcinoma (PDAC) arising on the LSL-KrasG12D/+;LSL-Trp53R172H/+;Pdx1-Cre (KPC) GEM model of pancreatic cancer (Hingorani et al., 2005) (Panc cell lines). FVB/N mice were injected subcutaneously with SCC7.1 or SCC6.2 cells and treated daily with either Vehicle or 50 mg/kg BI 853520. We observed complete regression of SCC7.1 tumors by day 27 (Figure 1B), while in contrast a different SCC cell line, SCC6.2, tumors exhibited only a modest growth delay (Figure 1C). Subcutaneous injection of Met01 cells into FVB/N mice followed by daily treatment with either Vehicle or BI 853520 identified a heterogeneous response to BI 853520, with 3 out of 10 tumors showing only a growth delay and 7 out of 10 tumors displaying stable disease for the duration of the study (Figure 1D). Lastly, subcutaneous injection of Panc43, Panc47, or Panc117 cells into C57BL/6 mice followed by daily treatment with either Vehicle or BI 853520 identified that Panc43 tumors exhibit only a modest growth delay in response to FAK inhibition (Figure 1E), while Panc47 and Panc117 tumors exhibit no response (Figure 1F,G). Collectively, these results identify a spectrum of response to treatment with BI 853520.

CD8 T-cells mediate tumor regression/stable disease after BI 853520 treatment

Next we used antibody-mediated CD8 T-cell depletion to determine whether SCC7.1 tumor regression and Met01 stable disease was CD8 T-cell dependent. In mice treated with a CD8 T-cell depleting antibody, SCC7.1 and Met01 tumors exhibited only a modest growth delay in response to treatment with BI 853520 when compared to Vehicle treated controls, while in mice treated with an isotype control antibody all SCC7.1 tumors underwent complete regression and all Met01 tumors exhibited stable disease following treatment with BI 853520 (Figure 1H,I). Thus, FAK kinase inhibition acts via CD8 T-cell-mediated anti-tumor immunity to induce SCC7.1 tumor regression and Met01 stable disease.

Expression of CD80 correlates with response to BI 853520

A number of FAK kinase inhibitors, including BI 853520, are now in early-phase (I/II) clinical trials as experimental cancer therapies (de Jonge et al., 2019; Doi et al., 2019; Lee et al., 2015; Soria et al., 2012; Hirt et al., 2018; Shapiro et al., 2014). However, we do not know which patients are most likely to benefit from these inhibitors, and to-date there are no validated biomarkers. Based on our findings in Figure 1, we hypothesized that either CD8 T-cell infiltration or expression of immune regulatory molecules that can modulate CD8 T-cell function might underlie sensitivity to FAK inhibition. To test this, we established subcutaneous tumors from each of the cell line models, and 12 days after implantation used flow cytometry to profile the CD8 T-cell infiltrate. This identified that SCC7.1 and Met01 tumors have a higher frequency of CD8 T-cell infiltration than SCC6.2, Panc43 and Panc47 tumors (Figure 2—figure supplement 1A). However, Panc117 tumors also had a higher frequency of CD8 T-cell infiltration when compared to SCC6.2, Panc43, and Panc47 tumors. Therefore, CD8 T-cell infiltration alone does not accurately predict response to BI 853520.

CD8 T-cell function can be regulated in a number of ways, including by the modulation of immune checkpoint pathways (Marin-Acevedo et al., 2018). We therefore sought to determine whether differential expression of these pathways correlated with response to BI 853520. Initially, we used flow cytometry to show that the immune checkpoint receptor Programmed Death Receptor 1 (PD-1) was expressed on activated (CD44+) CD8 T-cells in all tumor types (Figure 2—figure supplement 1B). We next showed that none of the cell lines expressed PD-L1 or PD-L2 under basal culture conditions (not shown). However, when the cell lines were stimulated with 10 ng/ml interferon-gamma (IFNγ) for 24 hr all cell lines upregulated PD-L1 to a similar extent (Figure 2—figure supplement 1C), implying that all were capable of engaging the PD-1-PD-L1 axis. None of the cell lines upregulated the expression of PD-L2 in response to IFNγ treatment (not shown). Therefore, we did not identify any relationship between the PD-1-PD-L1 axis and response to BI 853520. PD-L1 and 2 belong to the family of B7 ligands that can engage coinhibitory and costimulatory receptors to regulate CD8 T-cell activity. We therefore profiled the expression of the B7 family of proteins across the tumor cell lines. While many of these ligands were not expressed by any of the cell lines, CD80 (also known as B7.1) was expressed exclusively by the SCC7.1 and Met01 cell lines that respond best to FAK inhibition (Figure 2A,B), thus correlating with response to BI 853520.

Figure 2 with 1 supplement see all
Expression of the immune costimulatory ligand CD80 renders tumors responsive to BI 853520.

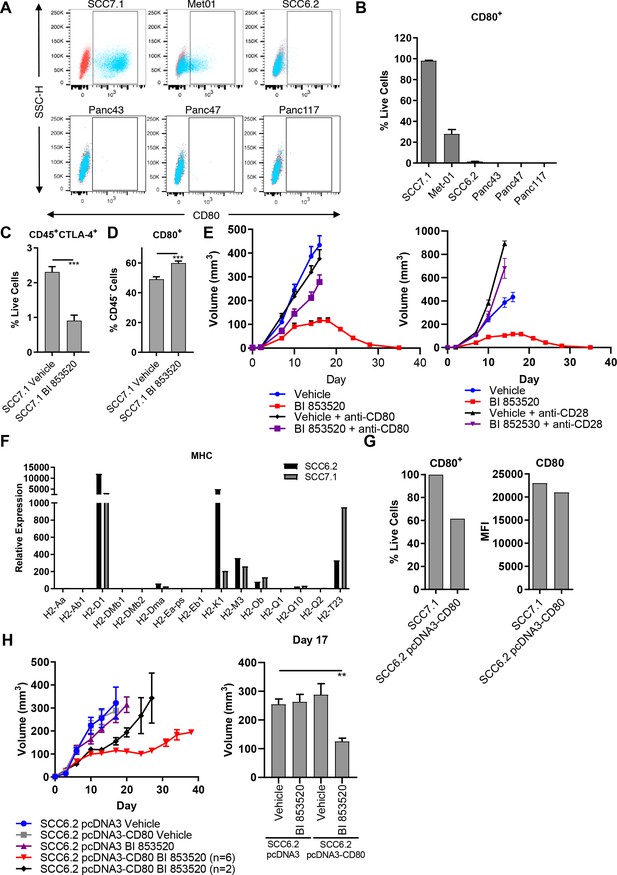

(A) Representative flow cytometry scatter plots of CD80 expression on SCC7.1, Met01, SCC6.2, Panc43, Panc47, and Panc117 cells under normal culture conditions. (B) Quantification of the percentage of live cells expressing CD80 in (A). Data represented as mean + /- s.e.m, n = 3. (C) Flow cytometry quantification of CD45+CTLA-4+ tumor infiltrating immune cells represented as a percentage of live cells. Data represented as mean + /- s.e.m. p≤0.001, two-tailed parametric unpaired t-test. (D) Flow cytometry quantification of CD45-CD80+ cells represented as a percentage of live cells. Data represented as mean + /- s.e.m. p≤0.001, two-tailed parametric unpaired t-test. (E) Left - Subcutaneous tumor growth of SCC7.1 cells treated with either Vehicle or 50 mg/kg BI 853520 ± 100 µg anti-CD80 antibody. Right – subcutaneous tumor growth of SCC7.1 cells treated with either Vehicle or 50 mg/kg BI 853520 ± 100 µg anti-CD28 antibody. Data represented as mean + /- s.e.m. Vehicle (blue) and BI 853520 (red) datasets are the same for both graphs. (F) Nanostring gene expression analysis of Major Histocompatibility Complex (MHC) genes in SCC7.1 and SCC6.2 cells. (G) Comparison of CD80 surface expression between SCC7.1 cells and SCC6.2 cells transfected with a pcDNA3-CD80 vector. Left - Flow cytometry analysis of the percentage of cells expressing CD80. Right - mean fluorescent intensity (MFI) of CD80 cell surface expression. (H) Left - Subcutaneous tumor growth of SCC6.2 cells transfected with either pcDNA3 empty vector or pcDNA3-CD80 vector and treated with either Vehicle or 50 mg/kg BI 853520. Right – Comparison of tumor volume on day 17 post-implantation of tumor cells. Data represented as mean + /- s.e.m. p≤0.01, one-way ANOVA with Dunnett’s multiple comparison. n = 8–10 tumors per group.

BI 853520 alters the balance of CD80: CTLA-4

CD80 is a ligand for two receptors, CTLA-4 and CD28 (Linsley et al., 1991; Linsley et al., 1990). CTLA-4 is a co-inhibitory receptor associated with suppression of anti-tumor immune responses and has a higher affinity than CD28 for binding CD80 (van der Merwe et al., 1997). Through the process of trans-endocytosis CTLA-4 can deplete CD80 from the surface of neighboring cells (Qureshi et al., 2011), preventing CD80 - CD28 interaction and resulting T-cell co-stimulation. Regulatory T-cells, which we have previously shown are depleted from the tumor environment in response to treatment with a FAK inhibitor (Serrels et al., 2015), represent a major cellular source of CTLA-4 (Walker and Sansom, 2015). We therefore postulated that treatment with BI 853520 may result in a reduction in CTLA-4 expressing cells within the TME and a concomitant increase in CD80 availability. To test this, FVB/N mice were injected subcutaneously with SCC7.1 cells and treated daily with either Vehicle or 50 mg/kg BI 853520. Mice were culled 12 days post-tumor cell implantation and tumors processed for analysis by flow cytometry (Supplementary file 1). Treatment with BI 853520 resulted in a significant decrease in CTLA-4+ immune cells (Figure 2C) and an increase in the frequency of CD45- cells expressing CD80 on their cell surface (Figure 2D). Therefore, treatment with a FAK inhibitor shifts the balance in favor of CD80 - CD28 interaction and T-cell co-stimulation.

CD80/CD28 blockade impairs the anti-tumor efficacy of BI 853520

To determine whether the CD80 - CD28 pathway was actually involved in regulating response to BI 853520, mice were injected subcutaneously with SCC7.1 cells and treated daily with either Vehicle, Vehicle + 100 µg anti-CD80 or 100 µg anti-CD28, 50 mg/kg BI 853520, or 50 mg/kg BI 853520 + 100 µg anti-CD80 or 100 µg anti-CD28. Both CD80 and CD28 blockade significantly impaired the anti-tumor efficacy of BI 853520 (Figure 2E), implying an important role for CD80 in regulating response to a FAK inhibitor.

Enforced expression of CD80 renders tumors responsive to FAK inhibition

To further investigate the relationship between CD80 expression on cancer cells and sensitivity of tumors to the BI 853520 FAK inhibitor, we next expressed CD80 into the BI 853520-resistant SCC6.2 cell line (Figure 1B). Using nanostring gene expression analysis we first confirmed that SCC6.2 cells have a similar expression profile of Major Histocompatibility Complex (MHC) molecules to that of CD80+ SCC7.1 cells that respond to BI 853520 (Figure 2F), ensuring that SCC6.2 cells express MHC-I molecules required for CD8 T-cell recognition and effective anti-tumor immunity. We next transfected SCC6.2 cells with either the mammalian expression vector pcDNA3, or pcDNA3-CD80 (Figure 2G), and injected the cells subcutaneously into FVB/N mice and monitored tumor growth in response to either treatment with Vehicle or BI 853520 (Figure 2H). Expression of CD80 had no impact on SCC6.2 tumor growth. However, SCC6.2 pcDNA3-CD80 tumors showed a significantly improved response to BI 853520 in comparison to either Vehicle treated controls or SCC6.2 pcDNA3 tumors treated with BI 853520. Thus, CD80 expression sensitizes SCC6.2 tumors to BI 853520. Collectively, these findings suggest that cancer cell expression of CD80, most likely in combination with MHC-I expression, has the potential to identify tumors with increased sensitivity to FAK kinase inhibition.

CD80+ SCC cells co-express genes associated with a cancer stem cell phenotype previously reported in murine and human SCC

CD80 is most notably expressed by antigen presenting cells. However, the prevalence of CD80 expression in human cancer cells has not been extensively characterized. Recent studies suggest that CD80 expression is upregulated in human colonic epithelial cells isolated from preneoplastic adenomas (Marchiori et al., 2019; Scarpa et al., 2015), while in skin SCC, a population of Cancer Stem Cells (CSCs) that express CD80 have been reported in both murine and human tumors (Miao et al., 2019). These murine skin CSCs are identified by expression of a number of genes including Cd34, Itga6, high expression of integrins in general, and responsiveness to TGFβ as indicated by activation of downstream signaling including expression of Cdkn1a (Miao et al., 2019; Oshimori et al., 2015; Schober and Fuchs, 2011). Furthermore, previous related studies have also shown that CD34+ skin CSCs reside near the tumor vasculature at the tumor stromal interface and express Vegfa (Beck et al., 2011). We therefore sought to determine whether the CD80+ SCC7.1 cells that respond to BI 853520 when grown as tumors had any resemblance to the CD80+ skin CSCs that have been previously reported (Miao et al., 2019). Nanostring gene expression analysis and flow cytometry identified that SCC7.1 cells express significantly more Cd34 and Itga6 (Integrin alpha-6) than SCC6.2 cells (Figure 3A,B). Furthermore, SCC7.1 cells also expressed higher levels of Itga2, Itgb1, Itgb2, Itgb4, Cdkn1a, and Vegfa when compared to SCC6.2 cells (Figure 3C–E). Thus, SCC7.1 cells express a gene signature that overlaps with that of CD80+ CSCs previously identified in murine and human SCCs.

CD80+ SCC cells express markers associated with Cancer Stem Cells.

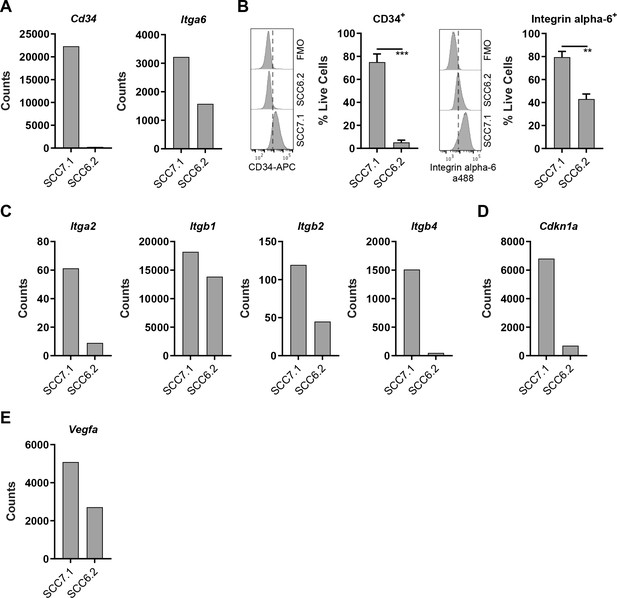

(A) Nanostring gene expression analysis using RNA isolated from SCC7.1 and SCC6.2 cells. (B) Histograms - representative flow cytometry histograms of fluorescent intensity in SCC7.1 and SCC6.2 cells stained with a combination of anti-CD34 APC and anti-integrin alpha-6 alexa488 conjugated antibodies. FMO control represented full stain minus the antibody of interest. Graphs – flow cytometry quantification of the percentage of live cells expressing either CD34 or integrin alpha-6. (C – E) Nanostring gene expression analysis using RNA isolated from SCC7.1 and SCC6.2 cells. Nanostring data normalised using nSolver software and represented as reporter probe counts. Flow cytometry data represented as mean + /- s.e.m. ***p≤0.001, **p≤0.01, unpaired two-tailed t-test.

CD80 is expressed by a broad range of human cancer cells

Attempts to more broadly define the extent of cancer cell CD80 expression using bulk tumor transcriptomics data, for example using the Cancer Genome Atlas (TCGA), are confounded by the fact that CD80 is also expressed by infiltrating antigen presenting cells. Therefore, we used publicly available transcriptomics data spanning a large number of human cancer cell lines available via the Human Cancer Cell Line Encyclopedia (Ghandi et al., 2019). This identified that CD80 transcript is present in a substantial proportion of cell lines from solid epithelial cancers, albeit a considerable proportion were also negative for CD80 expression (Figure 4A). PTK2 (FAK gene) was highly expressed in all cell lines originating from solid epithelial cancers (Figure 4B).

CD80 and PTK2 expression in human cancer cell lines.

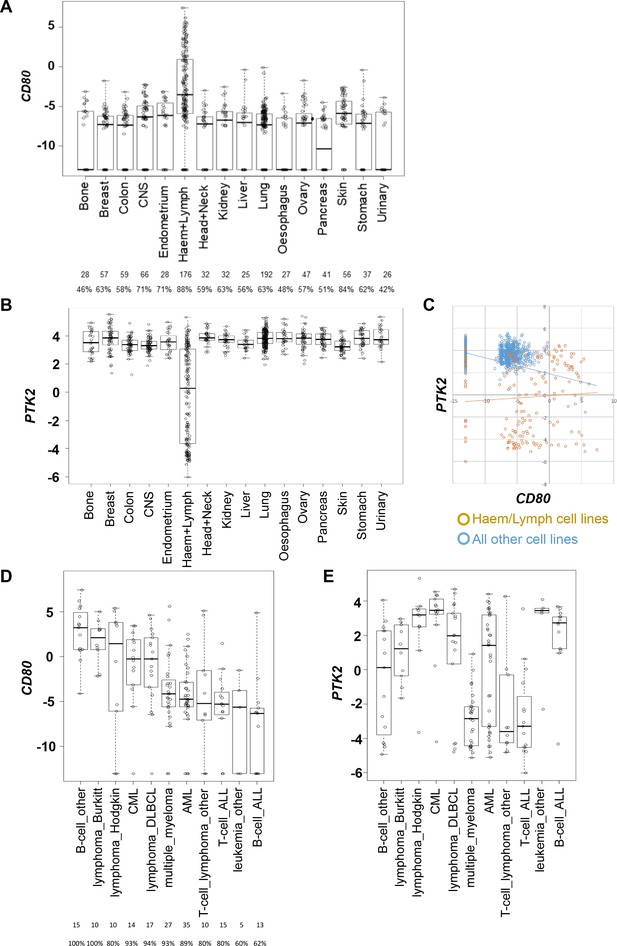

(A) Analysis of CD80 expression in RNAseq datasets derived from human cancer cell lines. The number of cell lines from each tumor type is listed below along with the percentage positive for expression. (B) Analysis of PTK2 expression in the same datasets from human cancer cell lines. (C) Scatter plot of CD80 expression against PTK2 expression in all cell lines. (D) Analysis of CD80 expression in human cancer cell lines from different types of hematological malignancies. (E) Analysis of PTK2 expression in human cancer cell lines from different hematological malignancies.

Interestingly, although perhaps not unexpected, this analysis also identified that hematological malignancies including lymphomas generally expressed higher levels of CD80 when compared to cell lines originating from solid epithelial cancers (Figure 4A). PTK2 was only expressed in a subset of cell lines from hematological malignancies (Figure 4B). Plotting CD80 expression against PTK2 expression further confirmed these findings (Figure 4C). Given that hematological malignancies represent a broad group of cancers we also determined whether co-expression of high CD80 and high PTK2 was restricted to particular hematological malignancies by subdividing this category based on origin (Figure 4D,E). These analyses suggested that co-expression of high levels of CD80 and PTK2 transcript occurs preferentially in cancer cell lines originating from patients with Burkitt’s Lymphoma, Hodgkin’s Lymphoma, Chronic Myeloid Leukemia, and Diffuse Large B-cell (DLBCL) Lymphoma. To our knowledge FAK inhibitors have not been tested in patients diagnosed with these cancer types. Collectively, these results suggest that CD80-expressing cancer cells are present in some solid epithelial cancers and some blood cancers, supporting the potential to select patients based on cancer cell CD80 expression for treatment with a FAK inhibitor.

BI 853520 enhances the effects of T-cell costimulatory receptor agonistic antibodies

Given that not all cancer cell lines expressed CD80, we next considered the concept of T-cell co-stimulation in combination with FAK inhibition using a number of agonistic antibodies targeting T-cell costimulatory receptors, including glucocorticoid-induced TNFR-related protein (GITR, also known as Tumor necrosis factor receptor superfamily member 18 (TNFRSF18)), CD40 (also known as Tumor necrosis factor receptor superfamily member 5 (TNFRSF5)), 4-1BB (also known as tumor necrosis factor receptor superfamily member 9 (TNFRSF9) and CD137), and OX40 (also known as Tumor necrosis factor receptor superfamily member 4 (TNFRSF4) and CD134). To investigate the potential anti-tumor efficacy of the FAK inhibitor in combination with these antibodies, SCC6.2 cells were injected subcutaneously into FVB/N mice and mice treated with either Vehicle, Vehicle + 100 µg/mouse anti-GITR, Vehicle + 100 µg/mouse anti-CD40, Vehicle + 100 µg/mouse anti-4-1BB, Vehicle + 100 µg/mouse anti-OX40, BI 853520 + 100 µg/mouse anti-GITR, BI 853520 + 100 µg/mouse anti-CD40, BI 853520 + 100 µg/mouse anti-4-1BB or BI 853520 + 100 µg/mouse anti-OX40 (treatment schedule shown in Figure 5A). Treatment of SCC6.2 tumors with Vehicle + anti-GITR agonistic antibody resulted in a small growth delay when compared to control treated tumors, which was not improved when the anti-GITR antibody was combined with BI 853520 (Figure 5B). Similar results were observed using an anti-CD40 agonistic antibody alone or in combination with BI 853520 (Figure 5C). However, treatment of SCC6.2 tumors with Vehicle + anti-4-1BB agonistic antibody resulted in 2 out of 8 tumors undergoing complete regression and the remaining six tumors exhibiting a delay in growth when compared to control treated tumors. Combining anti-4-1BB with BI 853520 further improved this response, resulting in 4 out of 8 tumors undergoing complete regression, and the remaining four tumors exhibiting an improved growth delay when compared with Vehicle + anti-4-1BB (Figure 5D). Treatment of SCC6.2 tumors with Vehicle + anti-OX40 agonistic antibody resulted in 2 out of 8 tumors undergoing complete regression, and the remaining six exhibiting a growth delay when compared to control treated tumors. Combining anti-OX40 with BI 853520 resulted in complete regression of all tumors (Figure 5E). Thus, the FAK kinase inhibitor in combination with activation of either OX40 or 4-1BB represents a potentially promising therapeutic strategy. To determine whether the potent anti-tumor efficacy of BI 853520 + anti-OX40 was dependent on CD8 T-cells, we depleted CD8 T-cells using an anti-CD8 antibody, and measured SCC6.2 tumor growth in FVB/N mice receiving either Vehicle or BI 853520 + anti-OX40 (Figure 5F). In mice receiving anti-CD8 antibody the combination of BI 853520 + anti-OX40 resulted in a growth delay when compared to mice treated with anti-CD8 antibody and Vehicle. However, only in mice receiving an isotype control antibody the combination of BI 853520 + anti-OX40 resulted in complete regression of all tumors, implying that tumor regression was dependent on CD8 T-cells. An anti-tumor CD8 T-cell response should also result in lasting immunological memory. We therefore aged mice for two months following regression of SCC6.2 tumors in response to treatment with BI 853520 + anti-OX40, and rechallenged these mice with a fresh preparation of SCC6.2 cells. All mice remained tumor free during the two months following initial regression of SCC6.2 tumors and following rechallenge no tumor growth was observed (Figure 5G). In contrast, subcutaneous injection of the same SCC6.2 cell preparation into FVB/N mice that had never previously been challenged resulted in robust growth of all tumors. Therefore, SCC6.2 tumor regression in response to BI 853520 + anti-OX40 resulted in lasting immunological memory that renders mice resistant to further tumor growth.

BI 853520 improves the response of SCC6.2 tumors to 4-1BB and OX40 agonistic antibodies.

(A) Dosing schedule. (B – E) Left - Subcutaneous growth of SCC6.2 tumors treated with either Vehicle or 50 mg/kg BI 853520 in combination with either 100 µg GITR, CD40, 4-1BB, or OX40 agonistic antibodies. Right - Comparison of tumor volume on day 24 post-implantation of tumor cells. Graph represents individual tumor measurements together with the mean + /- s.e.m. (F) Subcutaneous growth of SCC6.2 tumors treated with either Vehicle or BI 853520 + OX40 in combination with either isotype control or anti-CD8 T-cell depleting antibodies. (G) Subcutaneous growth of SCC6.2 tumors implanted into either naïve FVB mice (Control) or FVB mice from E in which treatment with BI 853520 + OX40 resulted in complete tumor regression and no tumor regrowth over a 2 month period off treatment (Rechallenge). (B – E) ns = not significant, *=p ≤ 0.05, ****=p ≤ 0.0001, unpaired t-test comparing immunotherapy to immunotherapy + BI 853520. Data represented as mean + /- s.e.m. n = 8–10 tumors per group.

BI 853520 and anti-OX40 have overlapping and distinct activity

To define the mechanism underpinning the improved efficacy of BI 853520 in combination with anti-OX40, we next profiled the tumor immune cell infiltrate in response to treatment with either Vehicle, anti-OX40, BI 853520, or BI 853520 + anti-OX40. SCC6.2 cells were injected subcutaneously into FVB/N mice and treatment administered as detailed in Figure 5A. Mice were culled 12 days post tumor cell implantation and tumors processed for analysis using flow cytometry (Figure 6—figure supplements 1 and 2; Supplementary files 1, 2, 3, and 4). Both anti-OX40 and BI 853520 treatment resulted in a reduction in Tregs, as did the combination of BI 853520 + anti-OX40 (Figure 6A). In tumors treated with anti-OX40 or anti-OX40 + BI 853520, this was accompanied by an increase in the frequency of non-Treg CD4+ T-cells (Figure 6B). Treatment with anti-OX40 or BI 853520 + anti-OX40 also resulted in an increase in effector CD8 T-cells (CD8eff) when compared to control treated and BI 853520 treated tumors (Figure 6C), implying that anti-OX40 is required to drive increased CD8eff T-cell numbers in SCC6.2 tumors. However, this did not explain why BI 853520 enhanced the anti-tumor immune response when used in combination with anti-OX40. We found no statistically significant difference in the frequency of CD8 T-cells co-expressing either PD-1 and LAG-3 or PD-1 and Tim-3 (Figure 6—figure supplement 3), although there was a trend towards increased PD-1+Tim-3+ CD8 T-cells in both OX40 and OX-40 + BI 853520 treated tumors. OX40 treatment has been reported to increase expression of ICOS on both CD4 and CD8 T-cells, and modulating this pathway can impact the therapeutic response to anti-OX40 antibodies in mouse models of cancer (Metzger et al., 2016). Treatment of SCC6.2 tumors with anti-OX40 resulted in an increase in ICOS expression on both non-Treg CD4 T-cells and CD8eff T-cells, and this was further increased, especially on CD8eff T-cells, when anti-OX40 was used in combination with BI 853520 (Figure 6D; Figure 6—figure supplement 4). Interestingly, increased expression of ICOS on CD8eff T-cells was also observed in response to BI 853520 treatment in SCC7.1 tumors that express the co-stimulatory molecule CD80 (Figure 6—figure supplement 5), suggesting that FAK inhibition may more broadly regulate expression of ICOS on CD8 T-cells when a T-cell co-stimulatory signal is present.

Figure 6 with 7 supplements see all
OX40 and BI 853520 display overlapping and distinct immune modulatory activity.

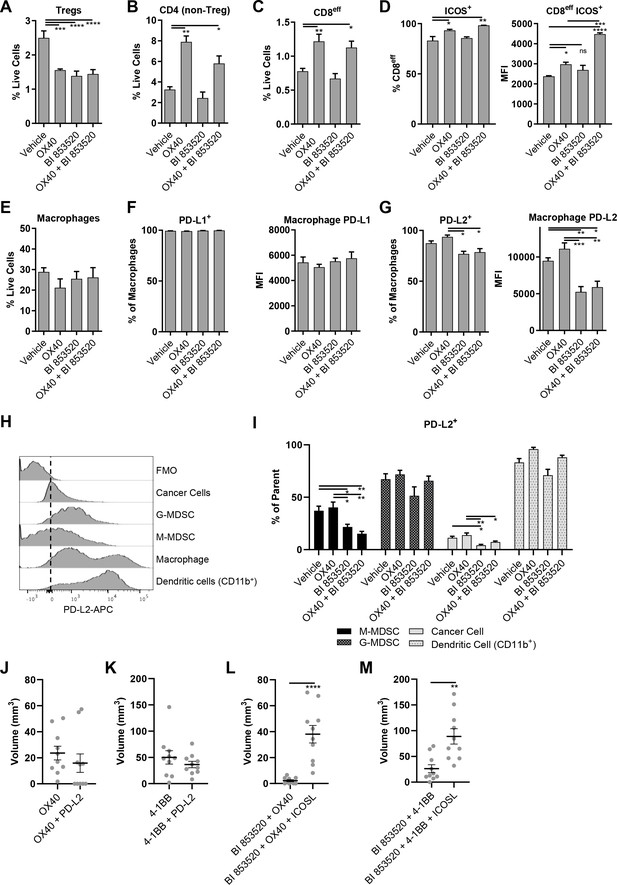

(A–C) Flow cytometry quantification of tumor infiltrating Tregs, CD4 (non-Treg) T-cells, and CD8eff T-cells. (D) Left – Flow cytometry quantification of the percentage of CD8eff T-cells expressing ICOS. Right - Flow cytometry quantification of the median fluorescent intensity (MFI) of ICOS expression on CD8eff T-cells. (E) Flow cytometry quantification of tumor infiltrating macrophages as a percentage of live cells. (F) Left - Flow cytometry quantification of the percentage of macrophages expressing PD-L1. Right - mean fluorescent intensity of PD-L1 expression on macrophages. (G) Left - Flow cytometry quantification of the percentage of macrophages expressing PD-L2. Right - mean fluorescent intensity of PD-L2 expression on macrophages. (H) Representative histogram of PD-L2 fluorescent intensity in cancer cells, G-MDSCs, M-MDSCs, Macrophages, and CD11b+Dendritic cells from a control sample stained with all antibodies. FMO is a fully stained samples except for PD-L2. (I) Flow cytometry quantification of the percentage of M-MDSCs, G-MDSCs, cancer cells, and dendritic cells positive for expression of PD-L2. (J) Comparison of subcutaneous tumor volume 21 days post-implantation of SCC6.2 cells. Tumors treated with either anti-OX40 or anti-OX40 + anti-PD-L2. (K) Comparison of subcutaneous tumor volume 21 days post-implantation of SCC6.2 cells. Tumors treated with either anti-4-1BB or anti-4-1BB + anti-PD-L2. (L) Comparison of subcutaneous tumor volume 21 days post-implantation of SCC6.2 cells. Tumors treated with either anti-OX40 or anti-OX40 + anti-ICOSL. (M) Comparison of subcutaneous tumor volume 21 days post-implantation of SCC6.2 cells. Tumors treated with either anti-4-1BB or anti-4-1BB + anti-ICOSL. (A - I) Data represented as mean + /- s.e.m. *=p ≤ 0.05, **=p ≤ 0.01, ***=p ≤ 0.001, ****=p ≤ 0.0001, ordinary one-way ANOVA with Tukey’s multiple comparison. n = 4–8 tumors per treatment condition. (J - M) Data represented as individual tumor measurements together with the mean + /- s.e.m. ***=p ≤ 0.001, unpaired nonparametric Mann-Whitney test. Dosing schedule identical to Figure 5A. n = 10 tumors per group.

Further immune profiling did not find significant differences in the frequency of macrophages, granulocytic myeloid-derived suppressor cells (G-MDSC), monocytic myeloid-derived suppressor cells (M-MDSC), or cancer cells (Figure 6E; Figure 6—figure supplement 6). However, we did observe a significant increase in CD11b+dendritic cells (DCs) in response to OX40, which was restored to control levels when OX40 was combined with BI 853520 (Figure 6—figure supplement 6D). Furthermore, we found that macrophage expression of the immune checkpoint ligand PD-L1 and was not altered (Figure 6F), but that BI 853520 either alone or in combination with OX40 resulted in a decrease in PD-L2 expression by macrophages (Figure 6G). Comparison of PD-L2 expression on cancer cells, G-MDSCs, M-MDSCs, macrophages, and CD11b+ DCs revealed that macrophages and DCs express the highest levels of PD-L2 from this range of cell types (Figure 6H). BI 853520 treatment either alone or in combination with anti-OX40 also resulted in a reduction in PD-L2+ cancer cells and M-MDSCs (Figure 6I). Therefore, BI 853520 treatment generally depletes the availability of PD-L2 within the tumor microenvironment, likely impacting on decrease of PD-L2-PD-1 signaling and ultimately escape of CD8 T-cells from exhaustion. To ascertain whether treatment with a FAK inhibitor could directly regulate expression of PD-L2 on macrophages, in vitro bone marrow-derived macrophages were treated with 100 nM BI 853520 and stimulated with 10 ng/ml interleukin-4 (IL-4) (Figure 6—figure supplement 7). BI 853520 treatment resulted in a small decrease in PD-L2 expression following stimulation with IL-4, however this did not appear to fully account for the substantial reduction observed in vivo (Figure 6G) suggesting that FAK-dependent regulation of PD-L2 expression in the TME may be more complex.

PD-L2 and ICOS contribute to the efficacy of BI 853520 + anti-OX40/4–1 BB

To investigate whether regulation of PD-L2 by BI 853520 might contribute to enhanced efficacy when used in combination with either anti-OX40 or anti-4-1BB, SCC6.2 tumors were implanted into FVB/N mice and treated with either anti-OX40, anti-OX40 + anti-PD-L2, anti-41BB, or anti-4-1BB + anti-PD-L2 (Figure 6J,K). By day 21, 5 out of 10 tumors treated with anti-OX40 + anti-PD-L2 had undergone complete regression, while in contrast all tumors treated with anti-OX40 alone were still present, albeit small. Anti-PD-L2 in combination with anti-4-1BB resulted in a small decrease in the mean tumor volume at day 21 when compared to anti-4-1BB alone. However, this was not statistically significant. Therefore, regulation of PD-L2 likely contributes more towards the anti-tumor efficacy of BI 853520 when used in combination with anti-OX40.

Similar experiments were performed to investigate the role of ICOS in the anti-tumor response to either BI 853520 + anti-OX40 or BI 853520 + anti-4-1BB. Signaling through ICOS has been reported to enhance the anti-tumor efficacy of OX40 (Metzger et al., 2016). We therefore used an ICOS-ligand (ICOSL) blocking antibody to inhibit ICOS signaling. Blocking ICOSL had a significant impact on the anti-tumor efficacy of both BI 853520 + anti-OX40 and BI 853520 + anti-4-1BB (Figure 6L,M), suggesting that enhanced T-cell expression of ICOS may be an important mechanism through which a FAK inhibitor can potentiate the anti-tumor activity of anti-OX40 and anti-4-1BB targeted therapies.

BI 853520 renders Panc47 tumors responsive to immune costimulatory antibodies

SCC6.2 cancer cells were generated using the DMBA/TPA chemical carcinogenesis protocol that results in a large number of somatic mutations (Nassar et al., 2015), and therefore likely increased immunogenicity. Hence, one would predict that these will respond better to immunotherapy than poorly immunogenic tumor models such as those derived from the KPC GEM model of pancreatic cancer. We therefore tested the same combinations of BI 853520 + /- immune costimulatory antibodies to determine whether a FAK inhibitor combined with T-cell co-stimulation could also influence a more poorly immunogenic tumor model. Panc47 cells were injected subcutaneously into C57BL/6 mice and mice treated with either Vehicle or BI 853520 + /- immune costimulatory antibodies (treatment schedule shown in Figure 5A). Anti-GITR alone had no effect on the growth of Panc47 tumors, while in combination with BI 853520 we observed a small growth delay (Figure 7A). In contrast, treatment with an anti-CD40 agonistic antibody resulted in a significant delay in the growth of Panc47 tumors, and this was not further enhanced when used in combination with BI 853520 (Figure 7B). Treatment of Panc47 tumors with an anti-4-1BB agonistic antibody had no effect on tumor growth, but a significant growth delay was observed when used in combination with BI 853520 (Figure 7C). Treatment with an anti-OX40 agonistic antibody had no effect on Panc47 tumor growth, but when used in combination with BI 853520 caused a significant growth delay (Figure 7D). Therefore, a FAK kinase inhibitor can render Panc47 tumors sensitive to anti-4-1BB and anti-OX40 immunotherapies, further supporting the development of these combinations as potential cancer therapies.

BI 853520 renders Panc47 tumors responsive to 4-1BB and OX40 agonistic antibodies.

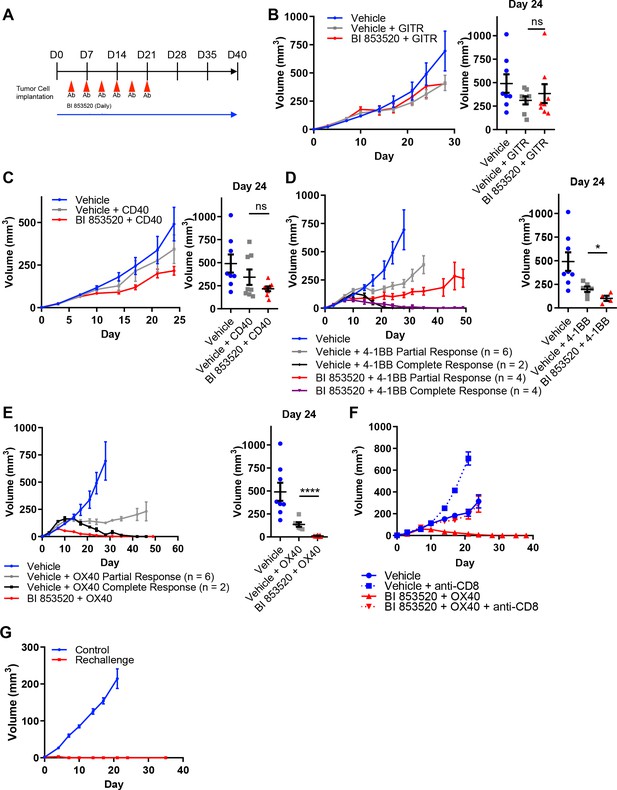

(A – D) Left - Subcutaneous growth of Panc47 tumors treated with either Vehicle or 50 mg/kg BI 853520 in combination with either 100 µg GITR, CD40, 4-1BB, or OX40 agonistic antibodies. Right - Comparison of tumor volume on day 25/28 post-implantation of tumor cells. Graph represents individual tumor measurements together with the mean + /- s.e.m. Dosing schedule identical to Figure 5A. (E) Left - Subcutaneous growth of Panc47 tumors treated with either Vehicle, Vehicle + 100 mg/kg Gemcitabine (GEM), 50 mg/kg BI 853520 + GEM, OX40 + GEM, or BI 853520 + OX40 + GEM. Right - Comparison of tumor volume on day 28 post-implantation of tumor cells. Graph represents individual tumor measurements together with the mean + /- s.e.m. Dosing schedule identical to Figure 5A. GEM dosed twice weekly I.P. for the duration of the experiment starting 3 days post-implantation of cancer cells. *=p ≤ 0.05, **=p ≤ 0.01, ***=p ≤ 0.001, ****=p ≤ 0.0001, unpaired t-test. n = 6 tumors per group.

In contrast to the response of SCC6.2 tumors to the combination of BI 853520 + anti-OX40 or BI 853520 + anti-4-1BB, we did not observe regression of Panc47 tumors when using either of these combinations. A FAK inhibitor, VS-4718, was previously found to sensitize pancreatic tumors to immune checkpoint therapy, specifically anti-PD-1 and anti-CTLA-4, when used in combination with the chemotherapy Gemcitabine (Jiang et al., 2016). We therefore tested Gemcitabine alone and in combination with either BI 853520, anti-OX40, or BI 853520 + anti-OX40. Panc47 cells were injected subcutaneously into C57BL/6 mice and tumor growth monitored in response to therapy (Figure 7E). Gemcitabine treatment of Panc47 tumors resulted in a significant growth delay that was not further enhanced by combination with either BI 853520 or anti-OX40. However, the triple combination of Gemcitabine + BI 853520 + anti-OX40 did improve response when compared to Gemcitabine alone, Gemcitabine + BI 853520, or Gemcitabine + OX40, and tumors were also smaller than corresponding measurements for BI 853520 + anti-OX40 (Figure 7D). Therefore, Gemcitabine exhibits anti-tumor efficacy that can add to that of BI 853520 + anti-OX40.

Discussion

We show that treatment with a FAK inhibitor can induce potent anti-tumor immune responses in murine models of cancer when used in combination with either endogenous or exogenous signals that promote activation of T-cell co-stimulatory pathways. In particular, we identify CD80, 4-1BB, and OX40 as promising candidate pathways for co-targeting with a FAK inhibitor and show that these combinations can unlock anti-tumor immune responses capable of driving complete regression of at least some mouse tumor models. We provide novel mechanistic insight into the complex immune modulation that occurs in response to a FAK inhibitor, identifying not only changes in immune cell recruitment to tumors, but also in the expression of molecular pathways including PD-L2 and ICOS that fine tune the efficacy of the anti-tumor T-cell response. These data identify new strategies for the development of FAK inhibitors and enhance our understanding of how FAK regulates the immuno-suppressive tumor environment that can modulate response to immunotherapy.

A number of Phase-I clinical trials have now been completed testing FAK inhibitors in patients with a broad range of solid tumor types (Sulzmaier et al., 2014; de Jonge et al., 2019; Doi et al., 2019; Lee et al., 2015; Soria et al., 2012). Alongside this, there have been a number of studies aimed at defining potential strategies for identification of patients most likely to benefit from a FAK inhibitor. Both Merlin and E-cadherin have been proposed as potential biomarkers in this context (Hirt et al., 2018; Kato et al., 2017; Shah et al., 2014; Shapiro et al., 2014). However, a Phase-II clinical trial in which patients with Mesothelioma were treated with the FAK inhibitor Defactinib and tested for Merlin expression was terminated early due to lack of improved efficacy as a maintenance therapy for Merlin-low tumors (ClinicalTrials.gov NCT01870609). To date, the relationship between E-cadherin status and sensitivity to FAK kinase inhibition has not been reported in the clinic. Our data provide a mechanistic justification supporting an alternative strategy for patient stratification based on cancer cell CD80 expression. CD80 has been linked to promoting anti-tumor immune responses in multiple mouse models of cancer (Marchiori et al., 2019; Scarpa et al., 2015; Baskar et al., 1993; Chen et al., 1992; Ganesan et al., 2007; Haile et al., 2011; Hodge et al., 1994; Liu et al., 2001; Townsend and Allison, 1993), and exogenous administration of recombinant CD80 protein can promote anti-tumor immunity (Horn et al., 2018). However, CD80 is a ligand for two receptors with opposing functions in regulating T-cell responses, namely CTLA-4 and CD28 (Linsley et al., 1991; Linsley et al., 1990). CTLA-4, which functions to suppress T-cell responses, has a higher avidity for CD80 (van der Merwe et al., 1997) and depletes CD80 availability by the process of trans-endocytosis (Qureshi et al., 2011), thereby impacting on CD80 - CD28 interaction and T-cell activation. We show that a FAK inhibitor can shift this balance in favor of CD80 - CD28 interaction, promoting an anti-tumor immune response that is dependent on both CD80 and CD28. The clinical translation of these findings will require an improved understanding of cancer cell CD80 expression in human malignancies. CD80 expressing cancer cells have been identified in human skin SCC (Miao et al., 2019) and pre-neoplastic colon lesions (Marchiori et al., 2019; Scarpa et al., 2015), and our analysis of human cancer cell line transcriptomics data further suggests that cancer cell CD80 expression is present in a broad range of solid epithelial cancers. However, further investigation will be required in order to fully understand the extent of CD80 protein expression in human malignancies. In addition to solid cancers, we also identified a number of hematological malignancies that co-express high levels of CD80 and PTK2, highlighting potential opportunities for the development of FAK inhibitors for the treatment of some blood cancers. To our knowledge, FAK kinase inhibitors have never been clinically tested in these tumor types.

Following the success of immune checkpoint inhibitors there has been growing interest in targeting T-cell co-stimulatory pathways as potential cancer therapies. Agonistic antibodies and/or RNA aptamers targeting receptors including 4-1BB, OX40, CD40, GITR, ICOS and CD28 are in pre-clinical development, and have shown anti-tumor activity in mouse models of cancer (Sanmamed et al., 2015). Humanized antibodies for several of these receptors have now progressed to clinical testing, with some results suggesting limited anti-tumor efficacy as a monotherapy. For example, a Phase-I clinical trial of the anti-4-1BB antibody PF-05082566 in patients with advanced solid tumors reported an objective response rate of 3.8% (Segal et al., 2018), while MOXR0916 (anti-OX40) achieved stable disease in some patients (Aaron Hansen et al., 2016). These and other antibodies are now being tested in combination with various other immune and non-immune targeted therapies (Sanmamed et al., 2015; Linch et al., 2015). Our data suggest that a FAK inhibitor represents a promising candidate for combination with either anti-OX40 or anti-4-1BB antibodies. We propose that it is the complex reprogramming of multiple immune regulatory mechanisms in response to FAK inhibition that complements the immune stimulatory effects of these antibodies in order to fine tune the efficacy of the anti-tumor response. In support of this, we found a novel role for FAK in regulating expression of the immune checkpoint ligand PD-L2 and showed that this may contribute to the improved efficacy of the FAK/anti-OX40 combination. Concurrent administration of anti-PD-1 has previously been reported to suppress the therapeutic effect of anti-OX40 (Messenheimer et al., 2017; Shrimali et al., 2017). Our findings suggest that these previous observations are likely due to blockade of PD-L1 - PD-1 signaling which is not regulated by FAK. We also identified a novel role for FAK in regulating the expression of ICOS, primarily on CD8eff T-cells, and showed that blocking ICOS ligand could impair the anti-tumor efficacy of both FAK/anti-OX40 and FAK/anti-4-1BB combinations. The ICOS pathway has previously been implicated in regulating the therapeutic response to anti-OX40, but not 4-1BB, leading to the conclusion that ICOS signaling on CD4 T-cells was important for anti-OX40 activity (Metzger et al., 2016). Our findings suggest that at least in some circumstances ICOS may also play an important role in regulating CD8 T-cell responses. These disparities may represent differences in the cancer models used, or may perhaps be explained by our observation that anti-OX40 alone only results in a relatively small upregulation of ICOS on CD8eff T-cells, while anti-OX40 in combination with a FAK inhibitor results in a much greater upregulation of ICOS expression. While much of the research into ICOS function has focused on its role in CD4 T-cells, there is evidence supporting a role for ICOS in CD8 T-cell effector function. Ectopic expression of ICOS ligand can result in CD8 T-cell co-stimulation and tumor regression in the absence of CD4 T-cells (Wallin et al., 2001). ICOS-deficient patients have a reduced number of CD8 memory T-cells and impaired CD8 T-cell interferon-γ production (Takahashi et al., 2009). Therefore, FAK-dependent induction of ICOS expression on CD8eff T-cells may represent an important and novel mechanism contributing to the efficacy of FAK/immunotherapy combinations that warrants further investigation.

Here, we have assessed individual co-stimulatory antibodies in combination with a FAK inhibitor. However, simultaneous administration of multiple co-stimulatory antibodies in combination with a FAK inhibitor may further improve efficacy. Pre-clinical studies have shown that anti-4-1BB when used in combination with anti-OX40 is more effective at boosting CD8 T-cell expansion, effector function, and anti-tumor immunity (Adler and Vella, 2013; Lee et al., 2004; Morales-Kastresana et al., 2013). Indeed, this combination is reported to have synergistic effects that not only enhance CD8 T-cell clonal expansion, but also endow CD8 T-cells with supereffector function (Lee et al., 2007). Our data strongly support further investigation of such combinations in conjunction with a FAK inhibitor with a view to clinical translation.

Materials and methods

Materials

BI 853520 was provided by Boehringer Ingelheim GmbH. pcDNA3 construct encoding the ORF for murine CD80 was synthesized by GeneArt (Invitrogen). All flow cytometry antibodies used are listed in Supplementary files 1, 2 and 3.

Cell lines

Request a detailed protocol

A selection of murine tumor derived cell lines were used in this study, namely, Squamous Cell Carcinoma cell lines (SCC7.1 and SCC6.2), an MMTV-PyMT mammary tumor cell line (Met01), and LSL-KrasG12D/+;LSL-Trp53R172H/+;Pdx-1-Cre derived pancreatic cancer cell lines (Panc43, Panc47, Panc117). Cells were pathogen tested in September 2016 using the ImpactIII test (Idex Bioresearch) and were negative for all pathogens. Cell lines are routinely tested for mycoplasma every 2–3 months in-house and have never been found to be mycoplasma positive. Cell lines are cultured for no more than 3 months following freeze thawing. SCC cell lines were generated and cultured as previously described (Serrels et al., 2015; Serrels et al., 2012). SCC6.2 cells stably expressing pcDNA3-CD80 were generated by transfection using Lipofectamine 2000 (Invitrogen) and selection with 0.6 mg/ml geneticin. Met01 and Panc cell lines were cultured in DMEM supplemented with 4500 mg/L glucose, L-glutamine, sodium pyruvate, sodium bicarbonate, and 10% FBS.

Subcutaneous tumor growth

Request a detailed protocol

All animal work were carried out in compliance with UK Home Office guidelines. 1 × 106 (SCC FAK-wt, SCC FAK-/-, and Met01) or 5 × 105 (SCC7.1, SCC6.2, Panc43, Panc47, and Panc117) cells were injected subcutaneously into each flank of either FVB/N (SCC and Met01 cell lines) or C57BL/6 mice (Panc cell lines), and tumor growth measured twice weekly using calipers. Animals were euthanized when tumors reached maximum allowed size, or more commonly when signs of ulceration, bleeding, or exudation were evident. For studies involving treatment with BI 853520, drug was prepared in 0.5% carboxymethyl cellulose (Vehicle) (Sigma-Aldrich), and mice were treated at 50 mg/kg QD by oral gavage daily, starting on the day of tumor cell implantation. Isotype control, anti-GITR (clone DTA-1), anti-CD40 (clone FGK4.5), anti-4-1BB (clone LOB12.3), anti-OX40 (clone OX-86), anti-CD28 (clone 37.51), anti-ICOSL (clone HK5.3), anti-CD80 (clone 16-10A1), and anti-PD-L2 (clone TY25) antibodies were dosed twice weekly by intraperitoneal injection at a concentration of 100 µg/mouse diluted in PBS (BioXcell). Animals were visually monitored for signs of toxicity and weighed prior to each dose of BI 853520 or antibody. No signs of toxicity or weight loss were observed. Group sizes ranged from 3 to 5 mice, each bearing two tumors, and tumor volume was calculated in Excel (Microsoft) using the formula V = ½(length x width2). Statistics and graphs were calculated using Prism (GraphPad).

Tumor growth following Re-Challenge

Request a detailed protocol

SCC6.2 cells were injected into both flanks of FVB/N mice and treatment administered as above. Following tumor regression, mice were maintained without treatment for 2 months prior to rechallenge with 5 × 105 SCC6.2 cells per flank. Tumor growth was measured twice-weekly as described above. At the time of rechallenge, an age-matched control cohort of mice that had not previously been challenged with tumor cells were injected on both flanks using the same cell preparation and tumor growth monitored as above. Tumor volume was calculated as described above.

CD8+ T cell depletion

Request a detailed protocol

Anti-mouse CD8 depleting antibody (clone 53–6.7) and isotype control were purchased from BioXcell. As described previously (Serrels et al., 2015), mice were treated with 150 μg of antibody administered by intraperitoneal injection for three consecutive days, followed by a rest period of 3 days. Following this, SCC or Met01 cells were injected subcutaneously into both flanks and T-cell depletion maintained by further administration of 150 μg depleting antibody at 3 day intervals for the remainder of the experiment. Tumor growth was measured twice-weekly as described above.

FACS analysis

Request a detailed protocol

Tumors established following subcutaneous injection of cells into mice were removed at day 12 into DMEM (Sigma-Aldrich). Tumor tissue was mashed using a scalpel and re-suspended in DMEM (Sigma-Aldrich) supplemented with 2 mg/ml collagenase D (Roche) and 40 units/ml DNase1 (Roche). Samples were incubated for 30 min at 37°C, 5% CO2 on an orbital shaker set at 120 rpm, and then pelleted by centrifugation at 1300 rpm for 5 min at 4°C. Samples were re-suspended in 5 ml of red blood cell lysis buffer (Pharm Lysis Buffer, Becton Dickinson) for 10 min at 37°C, pelleted by centrifugation at 1300 rpm for 5 min at 4°C, re-suspended in PBS and mashed through a 70 μm cell strainer using the plunger from a 5 ml syringe. The cell strainer was further washed with PBS. The resulting single cell suspension was pelleted by centrifugation at 1300 rpm for 5 min at 4°C and re-suspended in PBS. This step was repeated twice. The resulting cell pellet was re-suspended in PBS containing Zombie NIR viability dye [1:1000 dilution (BioLegend)] and incubated at 4°C for 30 min then pelleted by centrifugation at 1300 rpm for 5 min at 4°C. Cells were resuspended in FACS buffer (PBS + 1% FBS + 0.1% sodium azide) and pelleted by centrifugation at 1300 rpm for 5 min at 4°C. This step was repeated twice. Cell pellets were resuspended in 100 μl of Fc block [1:200 dilution of Fc antibody (eBioscience) in FACS buffer] and incubated for 15 min. 100 µl of antibody mixture [diluted in FACS buffer (antibody details listed in supplementary files 1, 2 and 3)] was added to each well and the samples incubated for 30 min in the dark. The cells were then pelleted by centrifugation at 1300 rpm for 5 min at 4°C and washed twice with FACS buffer as above. Finally, cells were re-suspended in FACS buffer and analyzed using a BD Fortessa. Data analysis was performed using FlowJo software. Statistics and graphs were calculated using Prism (GraphPad). For flow cytometry analysis of cell lines, growth medium was removed and cells washed twice in PBS. Adhered cells were dissociated from tissue culture flasks by incubating them in enzyme free cell dissociation solution (Millipore) for 10 min at 37°C, 5% CO2, and then scraping with a cell scraper. Cells were pelleted by centrifugation at 1300 rpm for 5 min at 4°C and washed with PBS. This step was repeated twice. Cells were then resuspended in viability dye and stained as above.

Nanostring analyses

Request a detailed protocol

RNA extracts were obtained using a RNeasy kit (Qiagen), following manufacturer’s instructions. 100 ng of RNA was analyzed using a mouse nanostring PanCancer Immune Profiling panel as per the manufacturer’s instructions. Hybridization was performed for 18 hr at 65°C and samples processed using the nanostring prep station set on high sensitivity. Images were analyzed at maximum (555 fields of view). Data were normalized using nSolver 4.0 software.

Analysis of CD80 expression in human cancer cell line data

Request a detailed protocol

The expression of CD80 and FAK were assessed across the panels of cell lines from the Cancer Cell Line Encyclopedia (Barretina et al., 2012) using data downloaded from The Broad Institute portal (https://portals.broadinstitute.org/ccle).

Generation of bone marrow-derived macrophages (BMDMs)

Request a detailed protocol

Bilateral tibias and femurs dissected from FVB/N mice were flushed with 5 ml of DMEM medium supplemented with 10% FBS and 1% Penicillin/Streptomycin into a 50 ml tube, washed in medium once and filtered through a 70 μm cell strainer. Cells were seeded at 1 × 106 per well in a 6-well plate and cultured in 2 ml of DMEM with 10% FBS and 25 ng/ml recombinant mouse M-CSF for 7 days. BMDMs generated this way were then washed with PBS followed by replacement with fresh media containing recombinant mouse IL-4 (10 ng/ml) and/or BI 853520 (100nM). BMDMs were cultured for a further 48 hr, washed with PBS and harvested using non-enzymatic dissociation buffer, stained with fluorescent conjugated antibodies and analyzed by Flow cytometry as described above.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Induction of antitumor immunity by recombinant vaccinia viruses expressing B7-1 or B7-2 costimulatory molecules
    1. JW Hodge
    2. S Abrams
    3. J Schlom
    4. JA Kantor
    (1994)
    Cancer Research 54:5552–5555.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54

Decision letter

  1. Yutaka Kawakami
    Reviewing Editor; Keio University School of Medicine, Japan
  2. Jeffrey Settleman
    Senior Editor; Pfizer, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The major concerns on this study were the clarification of new mechanistic insight particularly on the role of CD80 expression on cancer cells in the FAK inhibitor sensitivity, and the mechanisms of actions for the combination therapy with FAK inhibitors and agonistic antibodies to OX40 or 4-1BB.

In this revised manuscript, as suggested by the reviewers, the authors performed additional in vivo experiments. The results showed that anti-CD80 and anti-CD28 blocking antibody abrogated the anti-tumor activity of FAK inhibitor, indicating the importance of CD80-CD28 interaction in the anti-tumor effects of FAK inhibitor. In addition, CD80 expression in human cancer cells was clarified.

The FAK inhibitor's effect on PL-L2 expression on cancer cells and macrophages was a potential new finding. As suggested by the reviewers, the authors performed additional experiments. FAK inhibitor showed only a minor decrease of PD-L2 on macrophages, indicating that additional in vivo mechanisms exist. IFN-g did not induce PD-L2 on cancer cells, so the effects of FAK inhibitor on PD-L2 in cancer cells was not evaluated.

During these additional experiments, the authors found an additional new mechanism that is ICOS expression on CD8+ T-cells and non-Treg CD4+ T-cells were markedly increased following FAK inhibitor administration. ICOSL blocking antibody abrogated the anti-tumor effects of combination therapy with FAK inhibitor and OX40 or 4-1BB, indicating involvement of ICOS+ T-cells in this combination therapy.

The effects on the tumor infiltration of CD8+ T-cells by FAK inhibitor were found to be dependent on tumor cells, although the authors did not evaluate changes of tumor antigen specific T-cells.

Overall, in the revised manuscript, with new results of additional experiments, the authors clarified the role of CD80 on CD80 positive cancer cells in the sensitivity to FAK inhibitor, and also showed new mechanistic insight of the combination therapy (FAK inhibitor plus agonistic OX40/4-1BB antibodies), including the regulation of PD-L2 and ICOS by FAK inhibitor.

Decision letter after peer review:

Thank you for submitting your article "T-cell co-stimulation in combination with targeting FAK drives enhanced anti-tumor immunity" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jeffrey Settleman as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Canel et al. present a study where they propose that targeting tumor FAK drives anti-tumor immunity in combination with anti-CD80, anti-OX40, and anti-41BB in models. The authors showed that CD80 expression in cancer cells was correlated with sensitivity to FAK inhibitors, and combination of FAK inhibitors and anti-OX40 or 4-1BB agonistic Ab is also effective for CD80 negative epithelial cancers partly through down-regulation of PD-L2 expression on cancer cells and macrophages.

Essential revisions:

The major role of FAK and FAK inhibitors have been published in the context of cancer immunology and immunotherapy (Jiang et al., 2016; Serrels et al., 2015). The novelty and interest of the present study depends on whether the authors can convincingly show the mechanisms of combinatorial therapies and translational potential. In this regard, this manuscript is still descriptive with excessive association data, and lack of mechanistic analysis. If they had data demonstrating distinct mechanisms by which FAK inhibitor therapy can be utilized along with anti-CD80, anti-OX40, and anti-41BB, this would be an interesting observation, but such data was not provided. Therefore, further investigations are needed as described below to clarify the underlying mechanisms for both CD80 positive and negative cancers in murine and human cancers. Especially further clarification of the role of CD80 on CD80 positive cancer cells and PD-L2 on CD80 negative cancer cells in the sensitivity of FAK inhibitors by using gene manipulation or antibody study are essential for the revision.

The authors showed that CD80 expression in cancer cells was correlated with response to FAK inhibitors by comparing CD80 positive and negative murine cancer cell lines, and the anti-tumor activity was CD8+ T-cell dependent. The analysis of human cancer showed that high CD80 expression was only detected in hematological malignancies, not in epithelial cancers. The expression of both CD80 and PTK2 (FAK gene) was shown only in some of lymphomas including Burkitt's and Hodgkin's lymphoma, although the gene expression of CD80 and PTK2 is inversely correlated in general. Therefore, CD80 expression may be a marker for sensitivity to FAK inhibitors, although FAK inhibitors have not been evaluated before for hematologic malignancies. The authors did not evaluate the molecular mechanisms for high sensitivities of CD80+ cancer cells. The authors discussed the possibility that reduction of CTLA-4+ Treg by FAK inhibitors may increase the availability of CD80 to CD28 on T-cells, but anti-CD28 agonistic Ab did not enhance anti-tumor activity of FAK inhibitors, so the role of CD80/CD28 interaction in the FAK inhibitor activity is not clear. In human cancers, CD80 is expressed only in some of the lymphomas, not in epithelial cancers. The authors did not use CD80 positive lymphoma models to confirm their sensitivity to FAK inhibitors. So they have insufficient human data indicating how to select and target patient populations, and their suggested translation is not well justified.

For the major conclusion "CD80 expression on tumor cells plays a crucial role in the anti-tumor effects of FAK inhibitor", further studies may be necessary as follows: 1) Could the anti-tumor effects of FAK inhibitor be abrogated by a defect of CD80 on tumor cells by gene editing or blockade of CD80 by the injection with antagonistic mAb? 2) Is the interaction of CD80 with CD28 on T-cells important for the effects of FAK inhibitor? Do the anti-tumor effects of FAK inhibitor disappear in CD28-deficient mice? 3) The authors should investigate the effects of antagonistic anti-CD28 antibody on the tumor regression induced by administration of BI 853520 in various CD80-positive tumor cells including SCC7.1, Met01 or SCC6.2 pcDNA3-CD80, to evaluate a possible involvement of CD28 in BI 853520-mediated reinvigoration of anti-tumor immunity. The same is true for the study of combinatorial additive anti-tumor effects of BI 853520 and agonistic anti-OX40 or anti-4-1BB antibodies on CD80-negative and FAK (PTK2)-high tumor cells.

The authors should investigate various phenotypic changes by the treatment with BI 853520 in tumor micro environment (TME). If the authors would show the data obtained from any in vitro assay that can elucidate effects of BI 853520 on CD80+ FAK (PTK2) high cancer cells, immune cells and many other cells in TME, the significance of this study will be strengthened.

The authors evaluated immune-modulating and anti-tumor activities of FAK inhibitors also for FAK negative epithelial cancers, and found that OX40 or 4-1 BB agonistic Ab synergized with the FAK inhibitor for CD80 negative murine epithelial cancers. However, the authors did not show new mechanism for this combination other than their previously published findings such as reduction of Treg and MDSC/TAM. In this paper, they showed an interesting finding that FAK inhibitor decreased PD-L2, not PD-L1 on cancer cells and MDSC/TAM (Figure 6G and 6I), but the specific role of PD-L2 decrease in the anti-tumor effects by the combination treatment was not investigated. To address this question, anti-tumor effects of FAK inhibitor may be examined in the experiments using PD-L2-KO tumor cells or PD-L2-KO mice. To examine the direct effects of FAK inhibitor on tumor cells to down-regulate PD-L2 expression, in vitro experiment to test PD-L2 expression of tumor cells in the presence of FAK inhibitor needs to be performed. Similar experiments should be performed by using various human cancer cell lines to examine its applicability in clinical setting.

Data in Figure 1H and 1I suggested that the anti-tumor effects of FAK inhibitor are dependent on CD8 T-cells. On the other hand, Figure 6C indicated that treatment with FAK inhibitor did not increase the number of CD8 T-cells. To reconcile these results, the change of CD8 T-cell number in SCC7.1 or Met01 models should be shown. In addition, it may be better to analyze "tumor-specific" rather than "whole" CD8 T-cell number in these experiments.

In the first paragraph of the subsection “Spectrum of responses to BI 853520”, the authors claimed that BI 853520 did not show any off target effects on SCC FAK-wt tumor, because no significant effect on tumor growth was observed in SCC FAK-/- tumor. However because SCC FAK-/- did not grow well in vivo because they are sensitive to endogenous anti-tumor immunity, authors cannot exclude off target effects of BI 853520 by checking effects only on tumor growth.

The authors showed only similarity of cancer stem cell-associated gene expression in SCC7.1 cells, but they did not evaluate stem cell like biological characteristics of SCC7.1 on sensitivity to BI 853520 and subsequent enhancement of tumor immunity. To emphasize the cancer stem cell-like characteristics of SCC7.1, the authors should investigate the high transplantation rate of SCC7.1 in tumor transplantation experiment in vivo.

In Discussion section, the authors often repeated the results and did not describe much about the mechanisms of activated tumor immunity induced by BI 853520 alone or in combination with agonistic anti-OX40 or anti-4-1BB antibodies. If the authors describe this by referring appropriate publications instead of repeating the results, the readers may understand the significance of this study.

https://doi.org/10.7554/eLife.48092.sa1

Author response

Essential revisions:

The major role of FAK and FAK inhibitors have been published in the context of cancer immunology and immunotherapy (Jiang et al., 2016; Serrels et al., 2015). The novelty and interest of the present study depends on whether the authors can convincingly show the mechanisms of combinatorial therapies and translational potential. In this regard, this manuscript is still descriptive with excessive association data, and lack of mechanistic analysis. If they had data demonstrating distinct mechanisms by which FAK inhibitor therapy can be utilized along with anti-CD80, anti-OX40, and anti-41BB, this would be an interesting observation, but such data was not provided. Therefore, further investigations are needed as described below to clarify the underlying mechanisms for both CD80 positive and negative cancers in murine and human cancers. Especially further clarification of the role of CD80 on CD80 positive cancer cells and PD-L2 on CD80 negative cancer cells in the sensitivity of FAK inhibitors by using gene manipulation or antibody study are essential for the revision.

To-date there has been two manuscripts published that detail a role for FAK in regulating recruitment of immune cells with suppressive function into tumors. While this is clearly an important function, we believe the data presented here implies that FAK regulates the anti-tumor immune response in a more extensive and complex manner that has yet to be fully understood. FAK kinase inhibitors are currently in Phase I/II clinical trials, and the major interest here is in their potential as immune oncology agents in combination with other immune targeted therapies. In this context, we identify potential combinations with immune costimulatory agonists that are readily clinically translatable, and provide mechanistic insights into why they are more effective than either monotherapy alone. These findings not only have the potential to impact on the clinical development of FAK inhibitors, but also on immune co-stimulatory agents such as anti-OX40 and anti-4-1BB antibodies which have not shown significant anti-tumour activity as a monotherapy but remain of significant interest to the immune oncology field. We thank the reviewers for their insightful comments that have helped to strengthen the conclusions of this manuscript.

The authors showed that CD80 expression in cancer cells was correlated with response to FAK inhibitors by comparing CD80 positive and negative murine cancer cell lines, and the anti-tumor activity was CD8+ T-cell dependent. The analysis of human cancer showed that high CD80 expression was only detected in hematological malignancies, not in epithelial cancers. The expression of both CD80 and PTK2 (FAK gene) was shown only in some of lymphomas including Burkitt's and Hodgkin's lymphoma, although the gene expression of CD80 and PTK2 is inversely correlated in general. Therefore, CD80 expression may be a marker for sensitivity to FAK inhibitors, although FAK inhibitors have not been evaluated before for hematologic malignancies. The authors did not evaluate the molecular mechanisms for high sensitivities of CD80+ cancer cells. The authors discussed the possibility that reduction of CTLA-4+ Treg by FAK inhibitors may increase the availability of CD80 to CD28 on T-cells, but anti-CD28 agonistic Ab did not enhance anti-tumor activity of FAK inhibitors, so the role of CD80/CD28 interaction in the FAK inhibitor activity is not clear. In human cancers, CD80 is expressed only in some of the lymphomas, not in epithelial cancers. The authors did not use CD80 positive lymphoma models to confirm their sensitivity to FAK inhibitors. So they have insufficient human data indicating how to select and target patient populations, and their suggested translation is not well justified.

The analysis of human cancer cell line data (Figure 4) does not show that CD80 is only detected in hematological malignancies, rather it shows that CD80 is broadly expressed in human cancer cell lines but is generally higher in hematological malignancies. This interpretation is perhaps our fault for putting too much emphasis on hematological malignancies and the manuscript text has been modified as detailed in response to comments below to reflect the broad expression profile identified. The role of CD80 and potential mechanisms are also addressed below.

For the major conclusion "CD80 expression on tumor cells plays a crucial role in the anti-tumor effects of FAK inhibitor", further studies may be necessary as follows: 1) Could the anti-tumor effects of FAK inhibitor be abrogated by a defect of CD80 on tumor cells by gene editing or blockade of CD80 by the injection with antagonistic mAb? 2) Is the interaction of CD80 with CD28 on T-cells important for the effects of FAK inhibitor? Do the anti-tumor effects of FAK inhibitor disappear in CD28-deficient mice? 3) The authors should investigate the effects of antagonistic anti-CD28 antibody on the tumor regression induced by administration of BI 853520 in various CD80-positive tumor cells including SCC7.1, Met01 or SCC6.2 pcDNA3-CD80, to evaluate a possible involvement of CD28 in BI 853520-mediated reinvigoration of anti-tumor immunity. The same is true for the study of combinatorial additive anti-tumor effects of BI 853520 and agonistic anti-OX40 or anti-4-1BB antibodies on CD80-negative and FAK (PTK2)-high tumor cells.

To further investigate the importance of CD80 in the anti-tumor effects of the FAK inhibitor we have added two in vivo experiments (Figure 2E) using an antagonistic anti-CD80 antibody and an antagonistic anti-CD28 antibody. These data clearly show that blocking either CD80 or CD28 can abrogate the effects of the FAK inhibitor. It was not feasible to undertake these studies in multiple tumor models and so we have focused on the SCC7.1 tumor model which undergoes complete CD8 T-cell dependent regression in response to a FAK inhibitor. Furthermore, we have added flow cytometry data showing that treatment of SCC7.1 tumors with the FAK inhibitor results in a decrease in CTLA-4 expressing immune cells and an increase in CD80 surface expression on non-immune cells (Figure 2C, D). These findings further support the proposed mechanism i.e. FAK inhibition reshapes the tumor microenvironment to favor CD80: CD28 interaction through depleting immune cells such as regulatory T-cells that express CTLA-4.

The authors should investigate various phenotypic changes by the treatment with BI 853520 in tumor micro environment (TME). If the authors would show the data obtained from any in vitro assay that can elucidate effects of BI 853520 on CD80+ FAK (PTK2) high cancer cells, immune cells and many other cells in TME, the significance of this study will be strengthened.

Figure 6, Figure 6—figure supplements 3, 4, 5 and 6 detail a number of changes that occur in the tumor microenvironment in response to BI 853520. Figure 6—figure supplement 7 also shows the effects of BI 853520 on PD-L2 expression by macrophages in vitro. In terms of the effects of BI 853520 on CD80+ cancer cells, it is not clear what useful information would be generated from in vitro studies. The new and existing data presented in the manuscript implies that the mechanism of action of BI 853520 on CD80+ tumors is likely through shifting the balance of CD80 signaling in favor of CD28 and T-cell activation.

The authors evaluated immune-modulating and anti-tumor activities of FAK inhibitors also for FAK negative epithelial cancers, and found that OX40 or 4-1 BB agonistic Ab synergized with the FAK inhibitor for CD80 negative murine epithelial cancers. However, the authors did not show new mechanism for this combination other than their previously published findings such as reduction of Treg and MDSC/TAM. In this paper, they showed an interesting finding that FAK inhibitor decreased PD-L2, not PD-L1 on cancer cells and MDSC/TAM (Figure 6G and 6I), but the specific role of PD-L2 decrease in the anti-tumor effects by the combination treatment was not investigated. To address this question, anti-tumor effects of FAK inhibitor may be examined in the experiments using PD-L2-KO tumor cells or PD-L2-KO mice. To examine the direct effects of FAK inhibitor on tumor cells to down-regulate PD-L2 expression, in vitro experiment to test PD-L2 expression of tumor cells in the presence of FAK inhibitor needs to be performed. Similar experiments should be performed by using various human cancer cell lines to examine its applicability in clinical setting.

We have added new data investigating the role of PD-L2 in the combinatorial activity of the FAK inhibitor with either OX40 or 4-1BB.

We have used an anti-PD-L2 blocking antibody to determine the potential contribution of PD-L2 regulation on the activity of anti-OX40 and anti-4-1BB antibodies (Figure 6J, K). These data show individual tumor volumes and suggest that PD-L2 may contribute to the enhanced activity of OX40 with a FAK inhibitor but is less likely to contribute to combination with anti-4-1BB. The effects of anti-PD-L2 on anti-OX40 activity are not statistically significant. However, after 21 days 5 tumors in this group have undergone complete regression while none in the OX40 alone group have completely regressed. We believe that this is indicative of a role for PD-L2 in contributing to the enhanced activity of a FAK inhibitor in combination with anti-OX40.

We have addressed whether a FAK inhibitor regulates PD-L2 expression on macrophages directly (Figure 6—figure supplement 7). These studies have been performed using in vitro bone-marrow derived macrophages +/- treatment with interleukin-4 to stimulate PD-L2 expression. We observed a small decrease in IL-4 stimulated PD-L2 expression on macrophages following treatment with a FAK inhibitor. This regulation is not as extensive as we observe in vivo, implying that additional mechanisms may contribute to FAK-dependent regulation of PD-L2 expression in tumors. Similar studies were also undertaken using a variety of cancer cells, however none of these expressed PD-L2 in response to IL-4 stimulation.

We have also added new data showing a novel role for FAK in regulating ICOS expression, primarily on CD8eff T-cells, and have investigated the contribution of this to the combinatorial activity of the FAK inhibitor with OX40 and 4-1BB. Figure 6D shows that OX40 treatment increases ICOS expression on CD8eff T-cells and that this is markedly enhanced when OX40 is combined with the FAK inhibitor. An increase in ICOS expression is also observed on non-Treg CD4 T-cells (Figure 6—figure supplement 4). Further, regulation of ICOS on CD8eff T-cells in response to the FAK inhibitor is not restricted to combination with OX40, as we also identified this to occur in CD80+ SCC7.1 tumors (Figure 6—figure supplement 5). Using an ICOS ligand blocking antibody we show that ICOS plays an important role in the anti-tumor efficacy of both the FAK inhibitor in combination with OX40 and 4-1BB (Figure 6L, M).

These new data imply that regulation of PD-L2 and ICOS contributes to the mechanisms underlying improved anti-tumor activity of the FAK inhibitor in combination with OX40, and that ICOS plays an important role in the mechanism underpinning the combination with 4-1BB. Further, these studies are the first to identify a role for FAK in regulating molecular pathways, as opposed to immune cell recruitment, that contribute to immune suppression/activation and highlight the complexity of FAK-dependent immune modulation.

Data in Figure 1H and 1I suggested that the anti-tumor effects of FAK inhibitor are dependent on CD8 T-cells. On the other hand, Figure 6C indicated that treatment with FAK inhibitor did not increase the number of CD8 T-cells. To reconcile these results, the change of CD8 T-cell number in SCC7.1 or Met01 models should be shown. In addition, it may be better to analyze "tumor-specific" rather than "whole" CD8 T-cell number in these experiments.

We have previously published (Serrels et al., 2015) that treatment with a FAK inhibitor can increase CD8 T-cell number in the tumor model used in Figure 1A which also expresses CD80. The tumor models used in Figures 1B, C also express CD80 and therefore express a T-cell co-stimulatory signal that will drive T-cell expansion. In Figures 2C, D we show that the CD80, CTLA-4 pathway is modulated by a FAK inhibitor, likely in favor of CD80-CD28 interaction. This pathway is not present in CD80- tumors such as that used in Figure 6. Hence, in the absence of a T-cell co-stimulatory signal we do not see increased CD8 T-cell infiltration into tumors in response to a FAK inhibitor. The additional data included in Figure 6D, Figure 6—figure supplements 4, 5 also imply that a FAK inhibitor may regulate T-cell effector function through increasing expression of T-cell co-stimulatory receptors such as ICOS, and so it is not as simple as just increasing T-cell numbers. For example, Figure 6—figure supplement 5 shows that a FAK inhibitor increases ICOS expression on CD8eff T-cells in the CD80+ SCC7.1 tumors, while it does not in the SCC6.2 tumors which are negative for a T-cell co-stimulatory signal such as CD80 (Figure 6D).

In the first paragraph of the subsection “Spectrum of responses to BI 853520”, the authors claimed that BI 853520 did not show any off target effects on SCC FAK-wt tumor, because no significant effect on tumor growth was observed in SCC FAK-/- tumor. However because SCC FAK-/- did not grow well in vivo because they are sensitive to endogenous anti-tumor immunity, authors cannot exclude off target effects of BI 853520 by checking effects only on tumor growth.

We have removed this sentence.

The authors showed only similarity of cancer stem cell-associated gene expression in SCC7.1 cells, but they did not evaluate stem cell like biological characteristics of SCC7.1 on sensitivity to BI 853520 and subsequent enhancement of tumor immunity. To emphasize the cancer stem cell-like characteristics of SCC7.1, the authors should investigate the high transplantation rate of SCC7.1 in tumor transplantation experiment in vivo.

The purpose of the data presented in Figure 3 was not to prove that the SCC7.1 cells that respond to the FAK inhibitor are stem cells, but rather to show that they exhibit a gene expression profile similar to a population of CD80+ skin cancer cells already reported by others to be present in murine and human cancers. We therefore did not undertake limiting dilution assays as we believe this would represent an unnecessary use of animals that on this occasion would not strengthen the key conclusions from this figure. Rather, we have used flow cytometry to confirm the expression of CD34 and Integrin alpha-6, the key markers of the reported skin cancer cell population reported in Miao et al., 2019.

In Discussion section, the authors often repeated the results and did not describe much about the mechanisms of activated tumor immunity induced by BI 853520 alone or in combination with agonistic anti-OX40 or anti-4-1BB antibodies. If the authors describe this by referring appropriate publications instead of repeating the results, the readers may understand the significance of this study.

We apologize for the poor Discussion and have redrafted this to be less repetitive of the results and better discuss the findings in relation to the broader literature.
