A role for phagocytosis in inducing cell death during thymocyte negative selection

  1. Nadia S Kurd
  2. Lydia K Lutes
  3. Jaewon Yoon
  4. Shiao Wei Chan
  5. Ivan L Dzhagalov
  6. Ashley R Hoover
  7. Ellen A Robey  Is a corresponding author
  1. University of California, Berkeley, United States
Research Article
  • Cited 0
  • Views 606
  • Annotations
Cite this article as: eLife 2019;8:e48097 doi: 10.7554/eLife.48097

Abstract

Autoreactive thymocytes are eliminated during negative selection in the thymus, a process important for establishing self-tolerance. Thymic phagocytes serve to remove dead thymocytes, but whether they play additional roles during negative selection remains unclear. Here, using a murine thymic slice model in which thymocytes undergo negative selection in situ, we demonstrate that phagocytosis promotes negative selection, and provide evidence for the escape of autoreactive CD8 T cells to the periphery when phagocytosis in the thymus is impaired. We also show that negative selection is more efficient when the phagocyte also presents the negative selecting peptide. Our findings support a model for negative selection in which the death process initiated following strong TCR signaling is facilitated by phagocytosis. Thus, the phagocytic capability of cells that present self-peptides is a key determinant of thymocyte fate.

Introduction

During negative selection, thymocytes bearing self-reactive T cell receptors (TCR) are eliminated from the T cell repertoire, an important process for the establishment of self-tolerance. Thymocytes interact with a variety of thymic-resident cells that present self-peptide:MHC complexes, and thymocytes bearing TCRs with high affinity for self-ligands can receive apoptotic death signals (Starr et al., 2003). Apoptosis is an immunologically silent form of cell death that is generally thought to be cell-autonomous once initiated (Strasser et al., 2000). Although peptide-presenting cells provide the initial apoptotic stimulus to autoreactive thymocytes, whether additional cellular interactions are required to mediate thymocyte death remains unknown.

In addition to the affinity of TCR for self-peptide-MHC, the nature of the peptide-presenting cell is also an important determinant of T cell fate. For example, hematopoietic cells, especially dendritic cells (DC), are potent inducers of negative selection, whereas cortical thymic epithelial cells (cTEC) are specialized to mediate positive selection, promoting thymocyte maturation and survival (Gallegos and Bevan, 2004; Klein et al., 2014; McCaughtry et al., 2008; Ohnmacht et al., 2009; Proietto et al., 2008; Taniguchi et al., 2012; Wirasinha et al., 2019; Yap et al., 2018). Distinctive features of these cell types, including specialized peptide processing machinery in cTECs and high expression of costimulatory ligands in DCs, play an important role in instructing divergent thymocyte fates (Klein et al., 2014; Starr et al., 2003). Peptide repertoire and costimulation can contribute to the intensity of TCR signal experienced by a thymocyte, but whether the peptide-presenting cells provide additional TCR-independent signals to promote thymocyte death or differentiation is largely unknown.

A related question is whether a strong TCR signal is sufficient to commit thymocytes to die in a cell-autonomous fashion, or whether other cellular interactions are required. Early observations of apoptotic bodies within thymic phagocytes (Strasser et al., 2000; Surh and Sprent, 1994), together with time-lapse microscopy of thymocytes undergoing negative selection (Dzhagalov et al., 2013), suggest a close coupling between thymocyte death and phagocytosis. In particular, visualization of dying thymocytes and phagocytes within thymic tissue slices showed that the death of autoreactive thymocytes invariably occurred during close contact with phagocytes, and in most cases death appeared to occur after phagocytosis (Dzhagalov et al., 2013). However, it remained unclear whether phagocytes actually contributed to the death of thymocytes by serving as peptide-presenting cells and/or by actively inducing cell death.

Dendritic cells are the most potent antigen-presenting cells (APC) for priming naïve T cells and also present self-peptide for negative selection (Gallegos and Bevan, 2004; McCaughtry et al., 2008; Norbury et al., 2002; Ohnmacht et al., 2009; Proietto et al., 2008; Taniguchi et al., 2012), whereas thymic macrophages are known for their role in clearing away apoptotic thymocytes (Surh and Sprent, 1994). Nevertheless, there is considerable functional and phenotypic overlap between DC and macrophages. For example, the marker F4/80 is often used to identify macrophages, but also marks a population with substantial antigen presentation function (Guerri et al., 2013). Likewise, the marker CD11c is often used to identify DCs, but is co-expressed with F4/80 by a subset of DC-like cells in the thymus (Ladi et al., 2008). To what extent the functions of peptide presentation and phagocytic clearance reside within separate or overlapping thymic cell populations remains unclear.

Phagocytes recognize and uptake apoptotic cells via receptors for ‘eat-me’ signals displayed on the surface of dying cells (Arandjelovic and Ravichandran, 2015). For example, apoptosis induces asymmetry in the plasma membrane, leading to the exposure of phosphatidylserine (PS), which is then recognized by PS receptors on phagocytes. A variety of ‘eat-me’ receptors are expressed and functional in the thymus (Elliott et al., 2009; Miyanishi et al., 2007; Tacke et al., 2015), but the mechanisms that mediate the efficient removal of autoreactive thymocytes during negative selection have not yet been clearly defined.

Here, we used a thymic slice system in which thymocytes undergo negative selection in situ to address these questions. We show that depletion of thymic phagocytes or blocking phagocytosis impaired negative selection, allowing for the increased survival of thymocytes that experience strong TCR signals. We also identify the PS receptor Tim-4 as an important player during negative selection to tissue-restricted antigens (TRA), and provide evidence for reduced quiescence of CD8 T cells that developed in a Tim-4 deficient environment. Finally, we demonstrate that negative selection is most efficient when the same cell both presents the agonist peptide, and phagocytoses the self-reactive thymocyte. Taken together, our data suggest a model for thymocyte negative selection in which the apoptotic program initiated by strong TCR signals is facilitated by phagocytosis. Thus, thymic phagocytes are not merely ‘scavengers’, but rather play prominent roles in the induction of self-tolerance, both as peptide-presenting cells and as active inducers of self-reactive thymocyte death.

Results

Depletion of thymic phagocytes inhibits negative selection

To examine the role of phagocytes during negative selection, we used thymic tissue slices prepared from Macrophage-Associated Fas-Induced Apoptosis (MAFIA) mice. In these mice, an inducible suicide gene under the control of the colony stimulating factor one receptor (Csf1R) promoter is expressed in DC and macrophage subsets, rendering them susceptible to depletion upon exposure to the small molecule inducer AP20187 (Burnett et al., 2004). We have previously observed closely coupled thymocyte death and phagocytosis by GFP+ cells in thymic slices from LysMGFP reporter mice (Dzhagalov et al., 2013; Faust et al., 2000). Flow cytometric analysis of the thymus of LysMGFP mice revealed that GFP-expressing cells include a subset of F4/80hi macrophages that have been previously described as having potent phagocytic abilities, as well as a subset of CD11chi DCs (Figure 1—figure supplement 1) (Dzhagalov et al., 2013; Tacke et al., 2015). We confirmed expression of the MAFIA transgene in these subsets using flow cytometric analysis to measure expression of a linked GFP gene (Figure 1—figure supplement 2a). We observed that treatment of thymic slices for 16 hr of culture with AP20187 led to the depletion of approximately 50% of F4/80hi macrophages and CD11chi DC in MAFIA, but not WT, thymic slices (Figure 1—figure supplement 2b).

To assess the impact of phagocyte depletion on negative selection, we used a previously described peptide-induced model of negative selection (Au-Yeung et al., 2014; Dzhagalov et al., 2013). Total thymocytes from mice with a defined MHC class I-restricted TCR transgene (OT-I) were overlaid onto thymic slices with or without the cognate antigen (SIINFEKL, OVAp), along with a reference thymocyte population (either F5 TCR transgenic or polyclonal WT thymocytes) (Figure 1a). We used flow cytometry to determine the ratio of viable OT-I:reference thymocytes remaining in the slice as a measure of negative selection (Au-Yeung et al., 2014; Dzhagalov et al., 2013; Melichar et al., 2015) (Figure 1a). Consistent with our previous study (Dzhagalov et al., 2013), we observed a substantial reduction in the number of live OT-I thymocytes relative to reference thymocytes in thymic slices containing OVAp after 16 hr of culture (Figure 1b), with no difference between untreated WT and MAFIA slices (data not shown). In contrast, on phagocyte-depleted slices (MAFIA+AP20187) containing OVAp, the ratio of live OT-I:reference thymocytes was similar to that in control slices without antigen, consistent with the idea that phagocytes promote negative selection.

Figure 1 with 2 supplements see all

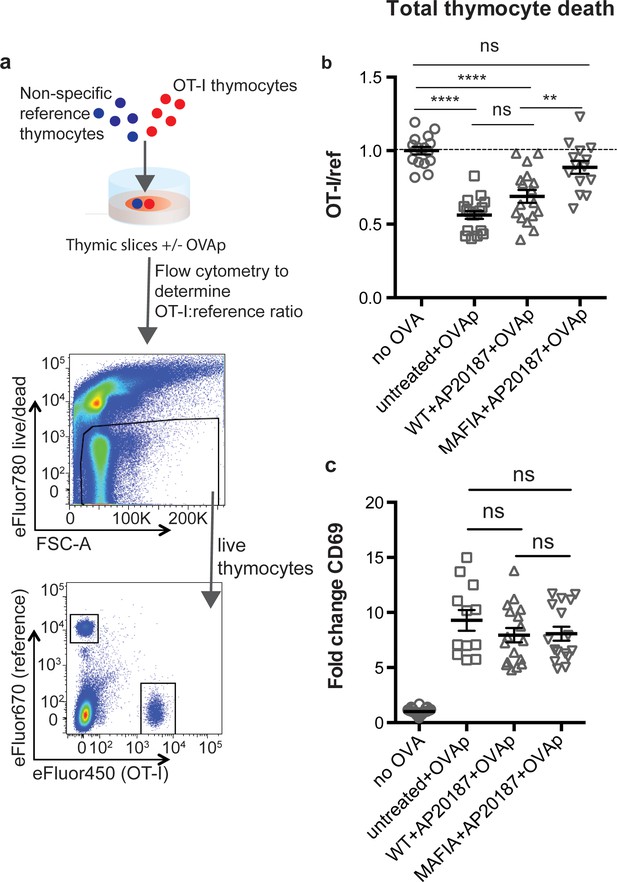

Depletion of phagocytes inhibits negative selection without dampening antigen recognition.

(a) Strategy to quantify negative selection: labeled OT-I and reference thymocytes (either wild type or F5 TCR transgenic) were overlaid onto thymic slices with or without OVA peptide, cultured for 16 hr, and then dissociated for analysis by flow cytometry. Lower panels show the flow cytometry gating strategy used to quantify live OT-I and reference thymocytes. (b–c) For depletion of phagocytes, WT or MAFIA thymic slices were treated with AP20187 and cultured for an additional 16 hr prior to the addition of thymocytes and peptide. (b) Thymocyte death displayed as the ratio of live OT-I thymocytes relative to live reference thymocytes present within the slice. We further normalized the ratios of OT-I:reference thymocytes in each experiment so that the average of the corresponding ‘no OVA’ samples was 1.0. (c) Fold change in expression of the activation marker CD69 by surviving OT-I thymocytes displayed as Mean Fluorescence Intensity (MFI) normalized so that the average MFI of the corresponding ‘no OVA’ samples is set to 1.0. ns not significant (p>0.05), **p<0.01, ****p<0.0001 (one-way ANOVA with Bonferroni’s correction with a 95% confidence interval) Data are pooled from three independent experiments, with mean and SEM of n = 12–39 total slices per condition, where each dot represents an individual slice.

Thymic phagocytes, including DCs, serve as APCs during negative selection (Guerri et al., 2013; Klein et al., 2014; Proietto et al., 2008; Taniguchi et al., 2012). This raises the possibility that the observed defect in negative selection on phagocyte-depleted slices could be the result of thymocytes receiving insufficient TCR signals. However, OT-I thymocytes on phagocyte-depleted slices did not show decreased levels of the TCR activation marker CD69, indicating that surviving thymocytes had received strong TCR signals, in spite of phagocyte depletion (Figure 1c). These results suggest that thymocytes on phagocyte-depleted thymic slices exhibit enhanced survival despite continuing to receive strong TCR signals.

Negative selection and phagocytosis in a model of tissue-restricted antigen presentation

Addition of agonist peptide directly to thymic tissue slices serves as a model for negative selection to ubiquitous self-antigen. To further characterize the relationship between thymocyte death and phagocytosis, we also examined a model of negative selection to TRA. In RIPmOVA transgenic mice, the model antigen ovalbumin (OVA), which provides the agonist peptide for OT-I thymocytes, is expressed in a subset of medullary thymic epithelial cells (mTECs), and is presented in the medulla by mTECs and hematopoietic-derived cells (Gallegos and Bevan, 2004; Kurts et al., 1996). Because approximately 50% of CD4+CD8+ double positive thymocytes, and all of the more mature CD8+ single positive thymocytes from OT-I mice express a medullary chemokine receptor pattern (CXCR4-CCR7+) and migrate to the medulla in thymic slices (Ehrlich et al., 2009; Halkias et al., 2013; Kurd and Robey, 2016; Yin et al., 2007), we expected that the majority of OT-I thymocytes would encounter OVA when added to RIPmOVA slices. We observed that approximately 50% of OT-I thymocytes were lost by 9 hr, and there was no further reduction through 48 hr of culture (Figure 2a). Thus, the timing and extent of negative selection in a TRA model are in line with our previous results using a ubiquitous model of negative selection (Dzhagalov et al., 2013).

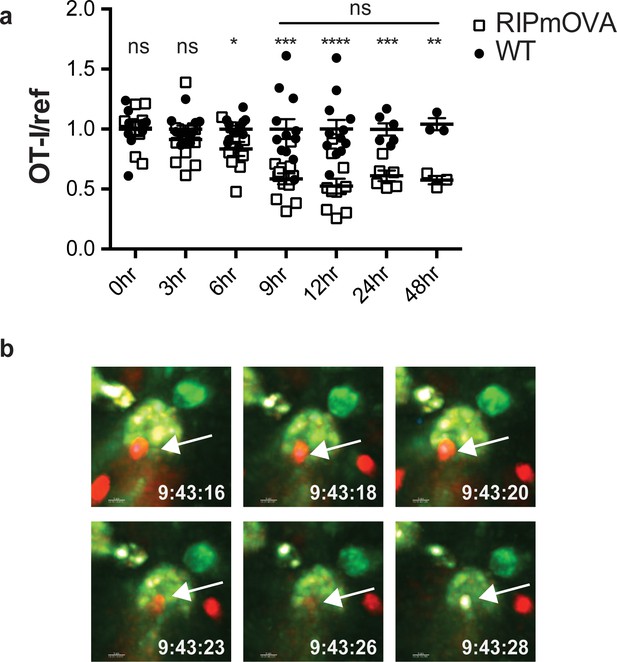

Thymocyte death and phagocytosis during negative selection to tissue-restricted antigen.

(a) Negative selection on RIPmOVA slices (open squares), displayed as the ratio of live OT-I thymocytes relative to live reference thymocytes present within the slice, normalized to no antigen controls (black squares). Data are pooled from 4 (0, 3, 6, 9, and 12 hr timepoints), 2 (24 hour timepoint), or 1 (48 hour timepoint) experiments, with mean and SEM of n = 3 (48hr WT and RIPmOVA), 6 (24hr WT and RIPmOVA), 9 (0hr WT and RIPmOVA), 7 (6hr RIPmOVA), 11 (12hr WT), 12 (3hr and 9 hr WT and RIPmOVA, 6 hr and 12 hr WT) total slices per condition, respectively, where each dot represents an individual slice. ns not significant (p>0.05), *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. Unpaired two-tailed Student’s t-test of WT vs RIPmOVA for each timepoint, or two-way ANOVA with 95% confidence interval with Tukey’s multiple comparisons test to compare RIPmOVA samples across timepoints (horizontal line). (b) Still images from a time-lapse series showing an example of OT-I thymocyte death. OT-I thymocytes were depleted of mature CD8 SP and labeled with Hoechst and SNARF before overlaying on LysMGFP RIPmOVA thymic slices. Slices were imaged by two-photon scanning laser microscopy. A 30 min movie was recorded in the medulla, with the time elapsed since thymocyte entry into the slice shown in white. Arrows indicate the position of the dying thymocyte.

We used 2-photon time-lapse microscopy to visualize the interactions between OT-I thymocytes and phagocytes on RIPmOVA thymic slices (Dzhagalov et al., 2013). To visualize thymocyte death, we used a previously described method in which thymocytes are double-labeled with a cytosolic dye (SNARF, shown in red) that escapes as cells lose membrane integrity, and a nuclear dye (Hoechst, shown in blue) that increases signal during apoptosis-associated chromatin changes (Dzhagalov et al., 2013; Mempel et al., 2006). OT-I thymocytes were overlaid onto thymic slices from LysMGFP RIPmOVA transgenic mice and imaged after 6–10 hr of culture. Consistent with our earlier study (Dzhagalov et al., 2013), cell death occurred while thymocytes were in close contact with, or engulfed by, GFP-expressing phagocytes (Figure 2b, Videos 12). Thus, the close coupling of autoreactive thymocyte death and phagocytosis occurs during negative selection to both tissue-restricted and ubiquitous self-antigen.

Video 1
Example 1 of thymocyte death occurring concurrently with phagocytosis.

OT-I thymocytes were depleted of mature CD8 SP and double labeled with Hoechst and SNARF before overlaying on LysMGFP RIPmOVA thymic slices. Slices were imaged by two-photon scanning laser microscopy at 9.5 hr after thymocyte addition to the slice.

Video 2
Example 2 of thymocyte death occuring concurrently with phagocytosis.

Phagocyte killing of autoreactive thymocytes is mediated by phosphatidylserine receptors

To determine whether phagocytes exert their effect on negative selection specifically through phagocytosis, we evaluated the efficiency of negative selection in an environment in which phagocytes are present, but impaired in their ability to phagocytose. Phosphatidylserine (PS) is exposed at the cell surface early in the apoptotic process, and serves as an ‘eat-me’ signal to phagocytes (Arandjelovic and Ravichandran, 2015). To determine whether PS mediates phagocytosis of self-reactive thymocytes, we used Annexin V (AnnV), a small protein that binds to PS, to block the interaction between PS and its receptors in thymic slices (Krahling et al., 1999). Negative selection on RIPmOVA thymic slices was completely blocked by treatment of thymic slices with AnnV (Figure 3a). This was not due to a failure of thymocytes to receive strong TCR signals, since CD69 upregulation on surviving thymocytes was not impaired (Figure 3b). AnnV addition had a similar effect on negative selection in response to OVAp (Figure 3c,d). These results confirm that phagocytosis promotes the death of autoreactive thymocytes, and suggest that PS receptors are important for this process.

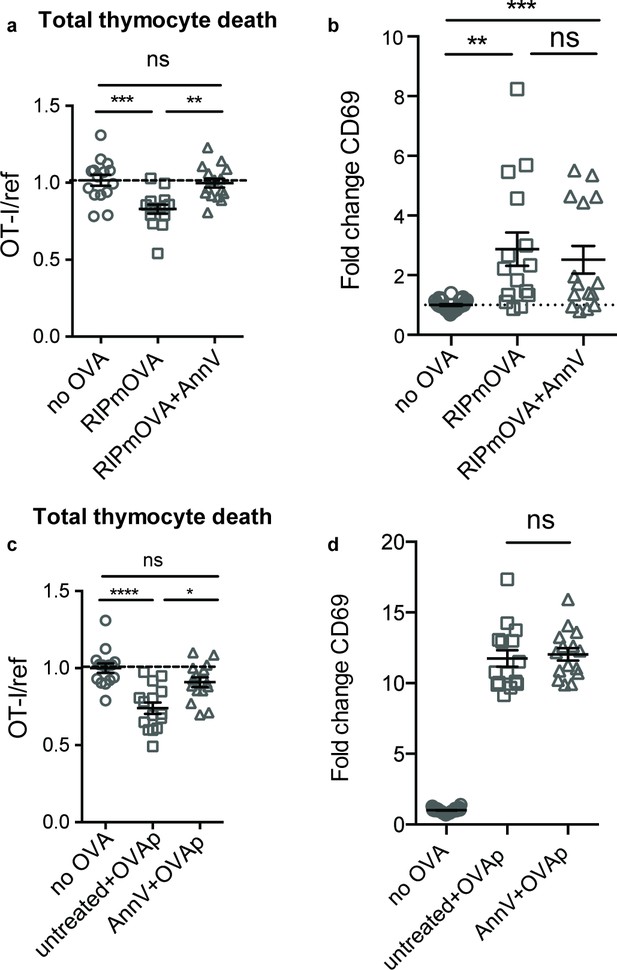

Phagocyte killing of autoreactive thymocytes is mediated by phosphatidylserine receptors.

(a-d) OT-I and reference thymocytes in AnnV buffer with or without AnnV were overlaid onto RIPmOVA slices (a,b) or WT slices treated with OVAp (c,d). Slices were then treated with AnnV and harvested 16 hr later for flow cytometric analysis. (a,c) Negative selection displayed as the ratio of live OT-I thymocytes relative to live reference thymocytes, normalized to no antigen controls. (b,d) Fold change in expression of the activation marker CD69 by surviving OT-I thymocytes displayed as Mean Fluorescence Intensity (MFI) normalized so that the average MFI of the corresponding ‘no OVA’ samples is set to 1.0. ns not significant (p>0.05), **p<0.01, ***p<0.001, ****p<0.0001 (one-way ANOVA with Bonferroni’s correction with a 95% confidence interval). Data are pooled from three independent experiments, with mean and SEM of n = 15–30 total slices per condition, where each dot represents an individual slice.

The phosphatidylserine receptor Tim-4 promotes negative selection of CD8 T cells in the thymus

Phagocytes express a number of receptors for PS, allowing them to recognize and uptake apoptotic cells (Arandjelovic and Ravichandran, 2015). These include Tim-4, a PS receptor previously reported to be expressed and functional in the thymus (Tacke et al., 2015). Using flow cytometry, we found that Tim-4 is expressed by almost all F4/80hi macrophages and ~30% of CD11chi DCs (Figure 4—figure supplement 1a). To investigate whether Tim-4 plays a role in negative selection, we prepared thymic tissue slices from Timd4-/- RIPmOVA transgenic mice, overlaid OT-I and reference thymocytes, and assessed the extent of negative selection after 16 hr of culture. OT-I thymocyte death was not detectable in Timd4-/- RIPmOVA thymic slices, but was readily detectable in thymic slices from age and sex-matched Timd4+/+ RIPmOVA controls (Figure 4a). Negative selection in response to OVAp was also slightly reduced on Timd4-/- thymic slices, although the difference did not reach statistical significance (Figure 4c). Normal CD69 upregulation by OT-I thymocytes suggested that surviving thymocytes received strong TCR signals, even when OVA is presented in the Timd4-/- thymic environment (Figure 4b,d). This is consistent with the normal number and phenotype of thymic phagocytes that we observed in Timd4-/- mice (Figure 4—figure supplement 1b,c,d). Taken together, these data support the idea that phagocytosis promotes effective negative selection, and suggest that Tim-4 is a relevant player in this process.

Figure 4 with 1 supplement see all

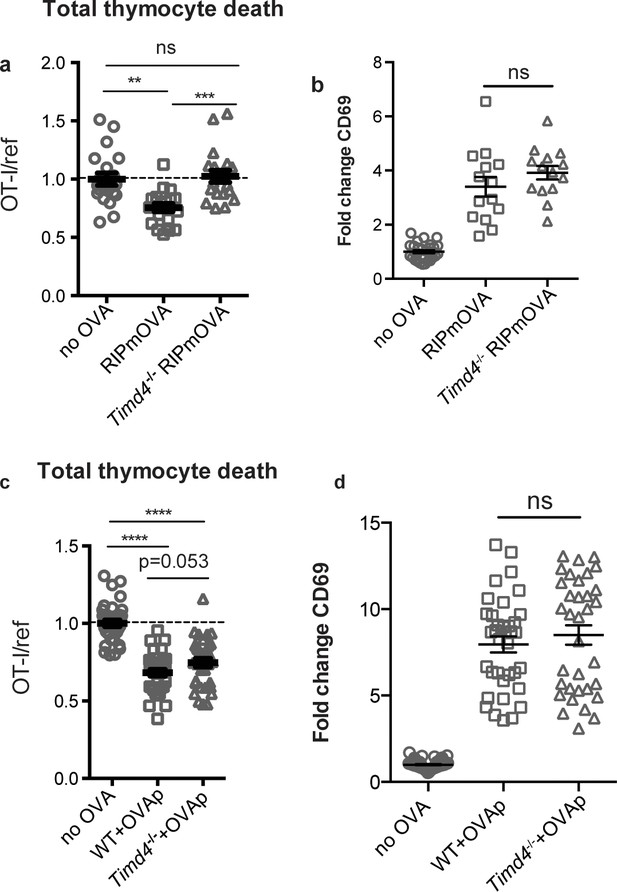

The phosphatidylserine receptor Tim-4 promotes negative selection to tissue-restricted antigens.

(a-d) OT-I and reference thymocytes were overlaid onto WT or Timd4-/- thymic slices with or without the RIPmOVA transgene. (a,b), or with or without addition of OVAp (c,d), and slices were dissociated and analyzed by flow cytometry 16 hr later. (a,c) Negative selection displayed as the ratio of surviving OT-I thymocytes relative to reference thymocytes, normalized to no antigen controls. (b,d) Fold change in expression of the activation marker CD69 by surviving OT-I thymocytes displayed as Mean Fluorescence Intensity (MFI) normalized so that the average MFI of the corresponding ‘no OVA’ samples is set to 1.0. ns not significant (p>0.05), **p<0.01, ***p<0.001, ****p<0.0001 (one-way ANOVA with Bonferroni’s correction with 95% confidence interval) Data are pooled from 4 (a,b) or 7 (c,d) independent experiments, with mean and SEM of n = 15–20 (a,b) or 35 (c,d) total slices per condition, where each dot represents an individual slice.

If Tim-4 mediated phagocytosis plays a role in negative selection, we might expect an increase in the escape of autoreactive T cells in Timd4-/- mice. Consistent with this, we observed an increase in CD8 T cells with an activated phenotype (CD44hiCD62Llo) in mature CD8 T cells in the spleens of Timd4-/- mice (Figure 5a). To investigate whether defective phagocytosis in the thymus might contribute to this increase, we isolated thymocytes from Timd4-/- and wild type mice and transferred them into T cell-deficient (Tcra-/-) mice. In this setting, mature thymocytes that had developed in an environment where thymic phagocytes lack Tim-4 were allowed to further mature as T cells in a peripheral environment with Tim-4-sufficient phagocytes. While the phenotype of T cells, including the proportion of dividing cells (Ki67hi), derived from Timd4-/- versus wild type mice were similar (Figure 5b,c and data not shown), we noted a reproducible increase in the level of Ki67 expression amongst ‘Ki67lo’ CD8 T cells derived from thymocytes of Timd4-/- mice (Figure 5b,d) indicative of more rapid transit through G0 (Hogan et al., 2013; Miller et al., 2018; Sobecki et al., 2017). This difference, which was also apparent in the blood of steady-state Timd4-/- animals (Figure 5—figure supplement 1), together with the increase in activated CD8 T cells in intact Timd4-/- mice (Figure 5a), is consistent with increased self-reactivity of CD8 T cells. Interestingly, these differences were not observed amongst CD4 T cells (Figure 5a,d). These data suggest that defective phagocytosis in the thymus of Timd4-/- mice leads to the escape of CD8 T cells with borderline self-reactivity, and support the idea that Tim-4-mediated phagocytosis in the thymus facilitates efficient negative selection of CD8 T cells.

Figure 5 with 1 supplement see all

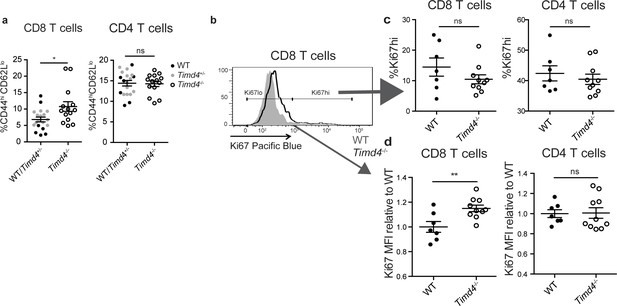

CD8 SP thymocytes that develop in a Tim4-deficient environment show signs of increased self-reactivity.

(a) Percent of CD8 (left) or CD4 (right) T cells with an activated phenotype (CD44hi CD62Llo), isolated from the spleens of age and sex-matched WT and Timd4-/- mice, or Timd4-/- and littermate Timd4+/- controls. Data are compiled from n = 14 Timd4-/- mice and n = 18 WT or Timd4+/- controls, where each dot represents an individual mouse. (b–d) Thymocytes from age and sex-matched Timd4-/- or WT mice were injected i.v. into Tcra-/- hosts. Blood was collected 9–10 weeks post-transfer and analyzed by flow cytometry. (b) Ki67 expression of CD8 T cells derived from Timd4-/- or WT mice. (c) Percent of CD8 or CD4 T cells expressing high levels of Ki67. (d) Relative levels of Ki67 within resting (Ki67lo) WT or Timd4-/- CD8 or CD4 T cells, represented as MFI normalized to WT levels, where each dot represents an individual mouse. Data are representative of (b) or pooled from (c,d) two independent experiments, with mean and SEM of n = 7 (WT) or 10 (Tim4-/-). ns not significant (p>0.05), *p<0.05, **p<0.01 (two-tailed Student’s t-test with 95% confidence interval).

Antigen presentation by phagocytes promotes efficient negative selection

The close association between autoreactive thymocytes and phagocytes just prior to their engulfment and death (Dzhagalov et al., 2013) (Figure 2c, Videos 12) suggests that phagocytes may also serve as APCs. Moreover, the ability of a peptide-presenting cell to phagocytose may make it more potent at inducing negative selection. To test this idea, we took advantage of the fact that bone marrow-derived dendritic cells (DCs) have phagocytic activity (Figure 6—figure supplement 1) and can serve as exogenous peptide presenting cells when overlaid and allowed to migrate into thymic slices (Melichar et al., 2013; Weist et al., 2015). We added OVA-loaded Timd4-/- or WT DCs onto thymic slices that had been previously overlaid with OT-I and reference thymocytes, and measured the extent of negative selection 16 hr later (Figure 6a). Interestingly, while OVA-loaded WT DCs induced a significant level of negative selection, Timd4-/- DCs failed to induce detectable negative selection (Figure 6b). This defect was not due to defective peptide presentation by Timd4-/- DCs, as surviving OT-I thymocytes strongly upregulated CD69 in the presence of OVA-loaded Timd4-/- DCs (Figure 6c). The fact that peptide-presenting cells defective in phagocytosis were unable to effectively induce negative selection, despite the fact that functional (non-presenting) endogenous phagocytes were present in the thymic slice, indicates that negative selection is more efficient when the same cell serves both as APC and phagocyte.

Figure 6 with 2 supplements see all

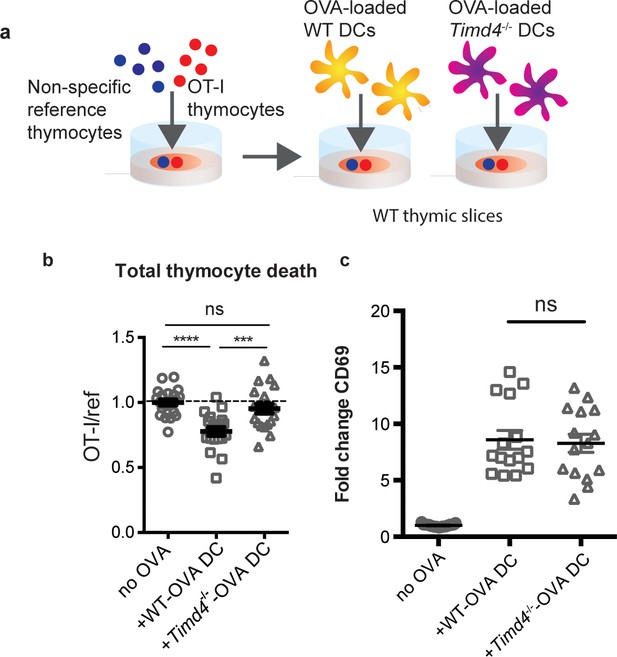

Peptide presentation by phagocytes promotes efficient negative selection.

(a) Schematic of the experimental setup: OT-I and reference thymocytes were overlaid onto WT thymic slices onto which OVA-loaded or unloaded WT or Tim-4-/- BMDCs were added. Slices were dissociated and analyzed by flow cytometry 16 hr later. (b) Negative selection displayed as the ratio of live OT-I thymocytes relative to live reference thymocytes, normalized to no antigen controls. (c) Antigen recognition of surviving OT-I thymocytes displayed as Mean Fluorescence Intensity (MFI) of the activation marker CD69. Data are pooled from 4 (b) or 3 (c) independent experiments, with mean and SEM of n = 15–20 total slices per condition, where each dot represents an individual slice. ns not significant (p>0.05), ***p<0.001, ****p<0.0001 (one-way ANOVA with Bonferroni’s correction with 95% confidence interval).

Discussion

While the importance of phagocytes in clearing dead thymocytes has long been appreciated, their role during negative selection prior to thymocyte death remained unknown. Here, we provide evidence for key roles for phagocytes as antigen presenting cells and as active inducers of thymocyte death. We demonstrate that phagocytosis promotes autoreactive thymocyte death, and that the recognition of PS is critical for this process. Additionally, we show that negative selection is most efficient when the phagocyte also presents the negative selecting peptide. Taken together, our data support a model for negative selection in which phagocytosis helps to enforce the ultimate death of thymocytes that have initiated the apoptotic process following a strong TCR signal. Moreover, the coupling of these two steps that occurs when phagocytes also serve as APCs leads to more efficient negative selection (Figure 6—figure supplement 2a).

In vitro studies of apoptosis support a model in which a death signal initiates a cell-autonomous program of cellular destruction involving protease and nuclease activation, PS exposure on the outer membrane, membrane blebbing, and the formation of apoptotic bodies (Strasser et al., 2000). Our current work adds to a growing body of evidence that the early events associated with apoptosis are not necessarily a death sentence. For example, activated T cells can transiently express active caspase-3 and expose PS at the cell surface, but ultimately avoid cell death (Alam et al., 1999; Elliott et al., 2005; Fischer et al., 2006; McComb et al., 2010; Miossec et al., 1997). Moreover, phagocyte-dependent killing is critical for regulating the size of T cell, erythrocyte, and neutrophil populations, as well as removal of transient structures during development (Albacker et al., 2010; Dalli et al., 2012; Hoeppner et al., 2001; Khandelwal et al., 2007; Lang and Bishop, 1993; Marín-Teva et al., 2004; Oldenborg et al., 2000; Park et al., 2008; Reddien et al., 2001). Thus, mounting evidence suggests that phagocytosis contributes to the extent of cell death in vivo. While it is possible that autoreactive thymocytes that are not phagocytosed would ultimately undergo a delayed death, our data indicating that CD8 T cells that develop in a Tim-4 deficient environment display reduced quiescence support the view that at least some of these cells may escape deletion and persist as mature T cells with increased self-reactivity. It is also possible that some thymocytes that escape phagocytosis and go on to give rise to alternative T cell lineages, such as CD8αα intraepithelial lymphocytes (Leishman et al., 2002; Mayans et al., 2014; McDonald et al., 2014).

The mechanism by which phagocytes actually kill their target cells remains unknown. Following phagocytosis, the engulfed cell would be exposed to lysosomal proteases and other degradative enzymes. Furthermore, under certain conditions phagocytes release reactive oxygen species (ROS) into the phagosome, and ROS have been shown to be important for the phagocytosis-induced death of neurons during development in the mouse brain (Marín-Teva et al., 2004). It is tempting to speculate that the cytotoxic environment that a cell encounters within the phagosome following engulfment is ultimately responsible for its death. Although indirect mechanisms such as retinoic acid and cytokine production by phagocytes (Sarang et al., 2013) and PS signaling (Elliott et al., 2005), might also impact thymocyte survival, the fact that we observe similar defects in negative selection upon phagocyte depletion, blocking PS, and mutation of a PS receptor, strongly suggests that phagocytes mediate thymocyte death directly via phagocytosis.

Our observation that negative selection is most efficient when phagocytes also serve as peptide-presenting cells implies that the phagocytic activity of a peptide-presenting cell is a key factor in determining thymocyte fate. Indeed, the inability to phagocytose could help to explain the relative inefficiency of thymic stromal cells to induce negative selection (McCaughtry et al., 2008; Melichar et al., 2013; Ohnmacht et al., 2009; Proietto et al., 2008; Wirasinha et al., 2019; Yap et al., 2018), in contrast to the phagocytic activity of many hematopoietic cells which are potent inducers of negative selection. It is worth noting that many thymic phagocytes, identified in this study by the expression of the LysM-GFP reporter, also express the DC marker CD11c (Ladi et al., 2008) (Figure 1—figure supplement 1). Thus, a subset of thymic hematopoietic cells with characteristics of both DCs and macrophages may be particularly important mediators of negative selection. Although some non-phagocytic subsets, including mTECs, thymocytes, and B cells, can induce negative selection (Gallegos and Bevan, 2004; Melichar et al., 2015; Yamano et al., 2015), this process may be rendered less efficient by the requirement for a second cellular encounter with a phagocyte in order to complete negative selection (Figure 6—figure supplement 2b).

The initiation of phagocytosis is dependent on the recognition of target cells via a variety of receptors for ‘eat me’ signals, including PS. We found that mutation of a single PS receptor, Tim-4, impaired negative selection to TRA, but had a less obvious impact on negative selection to exogenously added antigenic peptide. On the other hand, globally blocking PS significantly impaired both forms of negative selection. These results could indicate that Tim-4 plays a non-redundant role in phagocytosis in the medulla, the site of TRA presentation, whereas other PS receptors may participate in phagocytosis in the thymic cortex, where negative selection to ubiquitous antigen takes place (Daley et al., 2013; Klein et al., 2014; McCaughtry et al., 2008). Alternatively, negative selection to TRA might be more sensitive to perturbations in phagocytosis, given that TRA are typically expressed at low levels, and may deliver a relatively weak apoptotic signal. In line with this idea, cells receiving a weak apoptotic signal in C. elegans embryos are more dependent upon phagocytosis for their death than cells receiving a strong apoptotic signal (Hoeppner et al., 2001). This raises the intriguing possibility that phagocytes might be especially critical during negative selection to relatively low-affinity or rare self-antigens, which pose the greatest risk as targets of autoimmunity (Koehli et al., 2014).

A requirement for Tim-4 in negative selection involving relatively weak apoptotic stimuli is consistent with the mild autoimmune phenotype reported in Timd4-/- mice (Rodriguez-Manzanet et al., 2010). Although their hyperimmune phenotype was initially attributed to defective phagocytosis in the periphery (Albacker et al., 2010; Rodriguez-Manzanet et al., 2010), our data indicate that CD8 T cells that arise in a Tim-4 deficient thymic environment are less quiescent compared to normal CD8 T cells. Specifically, we observed that CD8 T cells that developed in a thymic environment lacking Tim-4, but then further matured in a Tim-4 sufficient peripheral environment, exhibited slightly elevated levels of Ki67. Although Ki67 is widely used as a binary marker of cell proliferation, recent studies indicate that Ki67 decays slowly after cell division, and thus can serve as measure of time spent in G0 (Hogan et al., 2013; Miller et al., 2018; Sobecki et al., 2017). In addition, CD8 T cells from intact Timd4-/- mice also exhibit slightly elevated levels of Ki67 and have an increased proportion of cells with an activated phenotype. These changes are consistent with increased homeostatic proliferation characteristic of T cells with elevated self-reactivity (Ge et al., 2004; Ge et al., 2001; Hogan et al., 2013). Interestingly, these changes were not observed in CD4 T cells (Figure 5). This is consistent with evidence that thymocyte death has a larger impact on the CD8, compared to the CD4, T cell lineage (Sinclair et al., 2013) and the relatively modest role of deletion in maintaining tolerance within CD4 lineage T cells, due to the diversion of self-reactive CD4 T cells into the regulatory T cell lineage (Legoux et al., 2015; Malhotra et al., 2016). Notably, Timd4-/- mice do not develop overt autoimmunity, likely due to the presence of other tolerance mechanisms, such as regulatory T cells and peripheral tolerance mechanisms.

Our current data contribute to emerging evidence that the context in which an autoreactive thymocyte encounters peptides, shaped largely by the characteristics of the peptide-presenting cell, has profound impacts on its fate. We recently reported that thymic dendritic cells that provide both high-affinity TCR ligands and a local source of IL-2 can efficiently support the development of regulatory T cells (Klein et al., 2018; Weist et al., 2015). Thus, the decision of an autoreactive thymocyte to die or differentiate may ultimately depend on whether it engages a peptide-presenting cell that promotes its death or supports its further development.

Materials and methods

Mice

All mice were bred and maintained under pathogen-free conditions in an American Association of Laboratory Animal Care-approved facility at the University of California, Berkeley. All procedures were approved by The University of California, Berkeley Animal Use and Care Committee under Animal Use Protocol #AUP-2016-07-9006-1. C57BL/6, C57BL/6-Tg(Ins2-TFRC/OVA)296Wehi/WehiJ (RIPmOVA), C567BL/6-Tg(Csf1r-EGFP-NGFR/FKBP1A/TNFRSF6)2Bck/J (MAFIA), and B6.129S2-Tcra(tm1Mom)/J (Tcra-/-) mice were from Jackson Labs. OT-I Rag2-/- mice were from Taconic Farms. LysMGFP, F5 Rag1-/-, and Timd4-/- mice have been previously described (Faust et al., 2000; Mamalaki et al., 1992; Wong et al., 2010). LysMGFP RIPmOVA and Timd4-/- RIPmOVA mice were generated by crossing LysMGFP or Timd4-/- mice to RIPmOVA mice. Mice were used from four to eight weeks of age.

Experimental design

Request a detailed protocol

No statistical method of sample size computation was used; 3–6 thymic slices per condition were used in thymic slice experiments, consistent with previous studies. Samples with low viability of the thymic slice or with very low proportions of overlaid thymocytes that had entered the slice were excluded. Experiments where no trend towards negative selection was observed in control conditions were excluded. For experiments where thymic slices from the same genotypic background received multiple treatments, slices were randomly allocated to treatment conditions.

Thymocyte isolation and labeling

Request a detailed protocol

Thymuses were collected from OT-I Rag2-/-, F5 Rag1-/-, or B6 mice and dissociated through a 70 μm cell strainer to yield a cell suspension. Thymocytes were then labeled with 1 μM Cell Proliferation Dye eFluor450 or 0.5 μM Cell Proliferation Dye eFluor670 (Thermo Fisher Scientific) at 107 cells/ml at 37°C for 15 min in PBS, then washed and resuspended in complete RPMI (containing 10% FBS, penicillin streptomycin, and 2-mercaptoethanol, cRPMI) for overlay onto thymic slices. Thymocytes do not proliferate at the timepoints collected, allowing overlaid thymocytes to be distinguished from slice resident thymocytes by Cell Proliferation Dyes (Figure 1a). In imaging experiments, OT-I thymocytes were depleted of mature CD8 single positives using the EasySep Biotin Positive Selection Kit (Stemcell Technologies) with anti-human/mouse β7 integrin antibody (FIB504, Biolegend) according to the manufacturer’s instructions. Thymocytes were then labeled with 3 μM SNARF (Thermo Fisher Scientific) at 107 cells/ml at 37°C for 15 min in PBS, then washed and labeled with 5 μM Hoechst 33342 (Thermo Fisher Scientific) at 107 cells/ml at 37°C for 15 min. For all other experiments, the total, unfractionated thymocyte population was used.

Thymic slices

Request a detailed protocol

Preparation of thymic slices has been previously described (Dzhagalov et al., 2012; Ross et al., 2016). Thymic lobes were cleaned of connective tissue, embedded in 4% agarose with a low melting point (GTG-NuSieve Agarose, Lonza), and sectioned into slices of 200–400 μm using a vibratome (1000 Plus sectioning system, Leica). Slices were overlaid onto 0.4 μm transwell inserts set in six well tissue culture plates with 1 ml cRPMI under the insert. 0.5−2 × 106 thymocytes in 10 μl cRPMI were overlaid onto each slice and allowed to migrate into the slice for 2 hr, then excess thymocytes were removed by gentle washing with PBS. Thymocytes actively migrate into the slice and localize as expected based on their maturation status (Ehrlich et al., 2009; Halkias et al., 2013; Kurd and Robey, 2016). For peptide-induced negative selection, 10 μl of 1 μM SIINFEKL (AnaSpec) in PBS was overlaid onto each slice for 30 min, then removed by pipetting. To quantify negative selection, we used a fluorescent live/dead stain (Ghost Dye Violet 510 or Fixable Viability Dye eFluor780) to identify live cells (as shown in Figure 1a). We then calculated the ratio of total live OT-I thymocytes to total live reference (either wild type thymocytes or thymocytes expressing an irrelevant TCR: F5) recovered from the thymic slice. In general, the ratio of OT-I to reference populations was close to 1.0 in the absence of OVA, however, there was some variability due to differential ability of the two populations to enter or survive in the tissue. We therefore further normalized the ratios of OT-I:reference thymocytes in each experiment so that the average of the corresponding ‘no OVA’ samples was always 1.0. For depletion of phagocytes, 1 μM AP20187 (Clontech) was added to the media under the transwell and 10 μl of 10 μM AP20187 in PBS was added on top of each slice overnight (16–18 hr). The drug was washed out from the top of the slice with PBS prior to overlaying thymocytes. For Annexin V treatment, thymocytes were resuspended in Annexin V binding buffer (Thermo Fisher Scientific) with purified Annexin V (BioLegend) at 200 μg/ml prior to overlaying on the slice. Following peptide treatment, 10 μl of purified Annexin V at 200 μg/ml in Annexin V binding buffer was overlaid onto each slice.

Bone marrow-derived dendritic cell cultures

Request a detailed protocol

Bone marrow was flushed from the femurs and tibias of mice into sterile PBS, and treated with ammonium chloride–potassium bicarbonate buffer for lysis of red blood cells. Cells were resuspended at 106/ml in cRPMI with 20 ng/ml granulocyte-macrophage colony-stimulating factor (GM-CSF, Peprotech) and plated for culture. Cells were cultured for 7 days, with replacement with fresh media containing GM-CSF on day 6. On day 7, semi-adherent cells were collected and loaded with 1 μM SIINFEKL at 107/ml in cRPMI at 37°C for 30 min. Some BMDCs were incubated without peptide, as indicated. Cells were then washed and 105 BMDCs were overlaid per slice, following washout of excess thymocytes.

Flow cytometry

Request a detailed protocol

Thymic slices, whole thymuses, and spleens were dissociated into FACS buffer (0.5% BSA in PBS) and filtered before staining. Splenocytes and blood samples were treated with ammonium chloride-potassium bicarbonate buffer for 5 or 10 min, respectively, at room temperature prior to staining to lyse red blood cells. Cells were stained for 10 min on ice in 24G2 supernatant containing the following antibodies: CD4 (GK1.5), CD8α (53–6.7), CD69 (H1.2F3), CD44 (IM7), CD62L (MEL-14). Cells were then washed in PBS and stained in Ghost Dye Violet 510 (Tonbo Biosciences) or Fixable Viability Dye eFluor780 (Thermo Fisher Scientific) for 10 min on ice. For intracellular staining, cells were then fixed and permeabilized using the Transcription Factor Staining Buffer Set (Thermo Fisher Scientific) according to manufacturer’s instructions and stained with Ki67 (SolA15) antibody (Thermo Fisher Scientific). For staining of thymic phagocyte populations, whole thymuses were minced and incubated in cRPMI containing 1 mg/ml collagenase Type IA (Sigma) and 400 μg/ml DNase I (Roche) at 37°C for 1 hr. After vigorous pipetting, samples were filtered, then stained in 24G2 supernatant containing the following antibodies: CD11b (M1/70), CD11c (N418), F4/80 (BM8), Tim-4 (RMT4-54), MHC I H-2Kd/H2-Dd (34-1-2S), MHC II I-A/I-E (M5/114.15.2), CD80 (16-10A1), CD86 (GL1), ICAM (YN1/1.7.4). Cells were then washed in PBS and stained in Fixable Viability Dye eFluor780 (Thermo Fisher Scientific) for 10 min on ice. All antibodies were from Thermo Fisher Scientific, Biolegend, or Tonbo Biosciences. Flow cytometry was performed with a LSRII or Fortessa X20 (BD Biosciences) and FlowJo software (TreeStar) was used for data analysis. Gating strategies are shown for thymocytes (Figure 1a) and thymic phagocyte populations (Figure 1—figure supplement 1).

Adoptive transfers

Request a detailed protocol

Thymuses were isolated from WT or Timd4-/- mice, dissociated and filtered through a 70 μm cell strainer to yield a cell suspension. 5 × 106 total WT or Timd4-/- thymocytes were injected i.v. into Tcra-/- hosts. Blood was collected at 9–10 weeks post-transfer and analyzed by flow cytometry.

Two-photon microscopy

Request a detailed protocol

Two-photon imaging of thymic slices has been described previously (Dzhagalov et al., 2013; Dzhagalov et al., 2012; Melichar et al., 2013). Briefly, thymic slices were glued to coverslips and fixed to a dish being perfused at a rate of 1 ml/minute with oxygenated, phenol red-free DMEM media warmed to 37°C. Imaging was performed with a Zeiss 7 MP two-photon microscope with a Coherent Chameleon laser tuned to 920 nm. Signals were separated using 495 nm and 560 nm dichroic mirrors. Imaging volumes were scanned every 30 s for 30 min, and images were processed with Imaris 7.3 software (Bitplane).

Statistics

Statistical analysis was carried out using Prism software (GraphPad). Specific statistical tests used are indicated in figure legends. P values of < 0.05 were considered significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67

Decision letter

  1. Shimon Sakaguchi
    Reviewing Editor; Osaka University, Japan
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

By using a thymic tissue slice system, this report demonstrates the impact of phagocytosis on negative selection of T-cells. It also shows that either blocking phosphatidylserine or one of its receptors reduces thymocyte death by affecting phagocytosis. The results facilitate our understanding of the cellular and molecular basis of thymic negative selection, which is important for the establishment of immunological self-tolerance.

Decision letter after peer review:

Thank you for submitting your article "A role for phagocytosis in inducing cell death during thymocyte negative selection" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Satyajit Rath as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

During T cell development, autoreactive thymocytes undergo apoptotic cell death induced by strong signals perceived through the T cell receptor (TCR). A number of distinct antigen presenting cell (APC) subsets present self-peptide on MHC and have been shown to facilitate this negative selection process. However, it has been shown that distinct APC subsets may promote different T cell developmental fates independent of TCR-peptide-MHC interactions. Here, Kurd et al. investigate additional cellular interactions that may facilitate thymocyte negative selection. Through the use of a thymic slice system, the authors demonstrate that thymic phagocytes aid in the removal of autoreactive thymocytes following clonal deletion in a phosphatidylserine-Tim-4 dependent manner. Thus, they propose a two-step model by which thymocytes first undergo high affinity self-peptide-MHC interactions, inducing phosphatidylserine on the cell surface. Second, uptake dependent on phosphatidylserine expression leads to subsequent cell death.

Essential revisions:

1) The authors suggest that phagocytosis in the thymus not only serves the purpose of removing dying cells, but in fact is an essential prerequisite for efficient negative selection. This is an extremely interesting and conceptually striking scenario. A major concern is that these conclusions are entirely based on (undoubtedly striking!) observations in the thymic slice model. However, it remains somewhat unclear in how far the thymic slice model reflects steady state clonal deletion. Evidence to support the authors' conclusions in a steady model of in vivo clonal deletion is unfortunately not provided in the manuscript (see comment to Figure 4; this is such an obvious thing to do) and is of crucial importance to meet the standards of eLife. The conclusion that phagocytosis mediates negative selection in vivo is perhaps overstated given that the scope of their work is entirely within the slice model system.

2) The reference population seems to be an unspecified mix of irrelevant TCR and polyclonal thymocytes. Individually these are relevant controls, but it is difficult to understand the rational for mixing them together. Evidence that these two populations have similar performance in the assay is required to justify this approach.

3) Figure 1: It would help the reader to better describe the composition of input (and remaining) cells in order to put into perspective that at best 'only' half of the OT-I cells are lost. Are the input cells CD8 SP cells, total cells from OT-I thymi including DP / DN cells or otherwise fractionated cells?

Wouldn't MAFIA + OVA without AP20187 (instead of WT with AP20187) be a necessary control for comparison to MAFIA + OVA with AP20187 in Figures1B and 1C?

4) Figure 1 (and other figures describing CD69 expression): The interpretation of unchanged CD69 expression of cells crucially relies on knowing at which time point this analysis was done. This information seems not to be included. Analyzing this at 16h is probably not a useful indication of what happens to cells that are prone to die before the 16h timepoint. (Are cells that have not died by 16h resistant to peptide induced cell death; see Figure 2? Which again relates to better describing the input population and the composition of cells that remain at 16h: is it preferentially DP cells that are lost?)

5) In addition, in Figure 1B and 1C the WT and WT+AP20187 groups show a trend to difference (every data point is lower in the AP20187 group) even if this does not reach statistical significance. It is also worth noting that many of the OT-I/ref graphs combine experiments to give n numbers in the range of 15-34 while the CD69 MFI graphs have n numbers of 5 and also use a non-parametric test with considerably lower power than the ANOVA applied to the OT-I/ref data. As a result, the statistical tests used on the CD69 MFI graphs are only able to detect much larger effect sizes than those of the OT-I/ref data and should be interpreted with great caution. In particular Figure 1C does not clearly demonstrate that CD69 is not reduced by AP20187 and combining the data from the un shown representative experiments should be considered.

6) Figure 2B: This shows an isolated event. Quantifying the fraction of all recorded death events occurring (a) 'in isolation', (b) in contact and (c) inside a GFP+ cell seems necessary to bolster the authors' claim that death and phagocytosis is closely coupled.

7) Figure 3: These are striking observations, but again: without knowing what the input population consists of, it seems surprising that the extent of death (as inferred from a change in the ratio of OT-I to ref cells) is so marginal (< 2-fold) (in particular when OVA peptide is used). In how far was this system tuned towards low doses of OVA peptide, or in other words, does the apparent rescue from apoptosis only occur when low doses of OVA peptide are used? This would be informative also in light of the question whether phagocytosis may be particularly (or only?) crucial in cases of relatively 'low' signal strengths.

8) Figure 4: The authors must have crossed RIPmOVA (Timd4-/- or Timd4+/+) to OT-I. This would be extremely important in order to show a role for Tim-4 in 'steady state' negative selection independent of the thymic slice system.

9) Currently the reduction in OT-I cells in Figures 4 and 5 is considered to be due to a loss of phagocytosis but a defect in phagocytosis is not demonstrated in their system. The authors demonstrate that DCs have phagocytic activity, it should be shown that this activity is reduced in Tim-4 KO DCs.

10) The authors propose that direct peptide presentation by a phagocyte results in more efficient negative selection (Figure 5). However, a thymic slice system in which phagocytes lack peptide presenting capability (MHC I), but are still capable of phagocytosis, is an experiment that could more robustly support this claim. The authors demonstrate in Figure 1 that thymocytes still receive strong signals through their TCR (based on CD69 MFI) in the absence of phagocytes, therefore direct peptide presentation by phagocytes may not be necessary for efficient negative selection.

11) In the Discussion, the authors point to several publications that report that cells may initiate early apoptosis programs (active caspase-3 and phosphatidylserine expression), but ultimately avoid cell death. The authors draw a similar conclusion here, but do not show that the thymocytes that would have otherwise undergone phagocytosis in this system are in fact viable and would go on to differentiate. The authors suggest that phagocytes may be the critical last step to thymocyte death, however they should discuss the possibility that phagocytes could just facilitate the efficient removal of dying cells and cell death may ultimately just be delayed in their absence.

12) Figure 1—figure supplement 2B. Control groups showing WT and MAFIA cells without AP20187 are needed.

https://doi.org/10.7554/eLife.48097.sa1

Author response

Essential revisions:

1) The authors suggest that phagocytosis in the thymus not only serves the purpose of removing dying cells, but in fact is an essential prerequisite for efficient negative selection. This is an extremely interesting and conceptually striking scenario. A major concern is that these conclusions are entirely based on (undoubtedly striking!) observations in the thymic slice model. However, it remains somewhat unclear in how far the thymic slice model reflects steady state clonal deletion. Evidence to support the authors' conclusions in a steady model of in vivo clonal deletion is unfortunately not provided in the manuscript (see comment to Figure 4; this is such an obvious thing to do) and is of crucial importance to meet the standards of eLife. The conclusion that phagocytosis mediates negative selection in vivo is perhaps overstated given that the scope of their work is entirely within the slice model system.

To address the in vivo relevance of our observations, we have performed additional analyzes of T cells from Timd4-/- mice (Figure 5, Figure 5—figure supplement 1, and subsection “The phosphatidylserine receptor Tim-4 promotes negative selection of CD8 T cells in the thymus”, and Discussion, paragraph six). We observe a significant increase in the% of spontaneously activated CD8 T cells in Timd4-/- mice. This is in line with previous reports that Timd4-/- mice display elevated anti-DNA antibodies and T cell hyperactivity following immunization (Rodriguez-Manzanet et al., 2010). While these mild autoimmune phenotypes were attributed to defects in peripheral phagocytosis (Rodriguez-Manzanet et al., 2010), our new data show that CD8 T cells that arise in a Tim-4-deficient thymus are intrinsically less quiescent compared to CD8 T cells that develop in wild type mice, even in a Tim-4-sufficient periphery. These new results support our conclusion that Tim-4-mediated phagocytosis promotes efficient negative selection, and in its absence T cells with borderline self-reactivity can escape deletion and survive long-term in the periphery. We have also edited our wording throughout the text to reflect that phagocytosis may not be an absolute requirement for thymocyte death during negative selection, but rather that phagocytosis promotes thymocyte death and increases the efficiency of negative selection (Introduction final paragraph, subsection “The phosphatidylserine receptor Tim-4 promotes negative selection of CD8 T cells in the thymus”, and Discussion paragraph one).

2) The reference population seems to be an unspecified mix of irrelevant TCR and polyclonal thymocytes. Individually these are relevant controls, but it is difficult to understand the rational for mixing them together. Evidence that these two populations have similar performance in the assay is required to justify this approach.

We regret any lack of clarity about our Materials and methods. We did not mix thymocytes with irrelevant TCR (F5 thymocytes) and polyclonal thymocytes (WT thymocytes) together as a reference population. Rather, after verifying that the choice of reference population did not impact the extent of negative selection measured (Author response image 1), we used either WT or F5 thymocytes as a reference population in each experiment depending on availability of mice. We have attempted to clarify this in the revised manuscript (Results section).

Author response image 1
No significant difference in quantitation of negative selection when F5 versus WT thymocytes are used as an irrelevant reference control.

OT-I and either F5 or WT thymocytes were overlaid onto WT thymic slices with or without addition of OVA peptide. 16 hours later, thymic slices were harvested for flow cytometric analysis. Negative selection is displayed as the ratio of live OT-I thymocytes relative to live F5 or WT reference thymocytes, as indicated, normalized to no OVA controls. ns not significant (p<0.05).

3) Figure 1: It would help the reader to better describe the composition of input (and remaining) cells in order to put into perspective that at best 'only' half of the OT-I cells are lost. Are the input cells CD8 SP cells, total cells from OT-I thymi including DP / DN cells or otherwise fractionated cells?

We regret the lack of clarity about our Materials and methods, and have attempted to describe this more clearly in the revised manuscript (Results and Discussion sections). To summarize, we used total, unfractionated, OT-I thymocytes from TCR transgenic H2b mice (positive selecting background) composed mostly of DP and CD8 SP thymocytes for all experiments in which we quantified the extent of OT-I thymocyte deletion. As mentioned in point 4, we did not attempt to separately quantify the loss of DP vs. CD8SP, because antigen encounter by DP thymocytes leads to a rapid downregulation of CD4 and CD8 (a phenomenon termed CD4/CD8 “dulling”)(McGargill and Hogquist, 1999), making it difficult to determine the separation between DP and CD8 SP populations for OT-I thymocytes exposed to OVA. For the imaging experiments (Figure 2B and videos), we depleted the most mature CD8 SP (Author response image 2) prior to adding OT-I thymocytes to the slice. This was done in order to ensure that imaging studies did not include interactions between fully mature CD8 thymocytes and thymic APCs.

Author response image 2

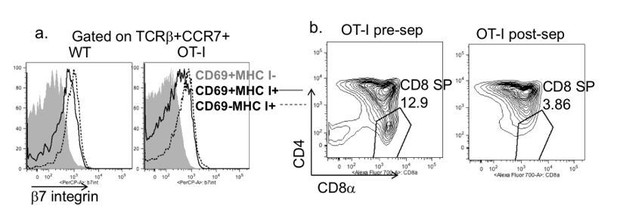

Depletion strategy used for experiments in Figure 2B and supplemental videos.

(a) Expression of β7 integrin on the indicated populations of increasing maturity (Hogquist et al., 2015) in wild type and OT-I TCR transgenic thymocytes. (b) CD4 vs. CD8 expression on OT-I thymocytes before and after depletion of β7 integrin expressing cells.

Wouldn't MAFIA + OVA without AP20187 (instead of WT with AP20187) be a necessary control for comparison to MAFIA + OVA with AP20187 in Figures 1B and 1C?

Without addition of the dimerization drug AP20187, there is no depletion of phagocytes in MAFIA thymic slices, and accordingly, there is no defect in negative selection as compared to a WT slice (Author response image 3). We did not show this data in the manuscript figure because we felt that it made the figure overly complicated and more difficult to assess the most relevant comparisons, but we have compiled the data from the untreated MAFIA and untreated WT slices in the new Figure 1B and pointed out the fact that there is no difference in negative selection between these two conditions in the revised manuscript (subsection “Depletion of thymic phagocytes inhibits negative selection” paragraph two). We would be happy to separate this data in the manuscript if the reviewers feel it is necessary.

Author response image 3
No significant difference in negative selection on untreated WT versus MAFIA thymic slices.

WT or MAFIA thymic slices were cultured with or without AP20187 for 16 hours. OT-I and reference thymocytes (either wild type or F5 TCR transgenic) were then overlaid onto the thymic slices with or without OVA peptide, and dissociated for analysis by flow cytometry after 16 hours of culture. Thymocyte death is displayed as the ratio of live OT-I thymocytes relative to live reference thymocytes present within the slice, normalized to the average ratio on no antigen control slices. ns not significant (p>0.05), **p<0.01, (Unpaired two-tailed t test). Data are pooled from 3 independent experiments with mean and SEM of n=16 total slices per condition (except for MAFIA+OVAp condition, n=6), where each dot represents an individual slice.

4) Figure 1 (and other figures describing CD69 expression): The interpretation of unchanged CD69 expression of cells crucially relies on knowing at which time point this analysis was done. This information seems not to be included. Analyzing this at 16h is probably not a useful indication of what happens to cells that are prone to die before the 16h timepoint. (Are cells that have not died by 16h resistant to peptide induced cell death; see Figure 2? Which again relates to better describing the input population and the composition of cells that remain at 16h: is it preferentially DP cells that are lost?)

The levels of CD69 shown in the figures are from the same samples in which death is measured, and were cultured for 16 hours. By measuring CD69 levels at 16 hours, our goal was to focus on thymocytes that had survived negative selection under conditions of impaired phagocytosis, in order to rule out that these cells escaped death due to insufficient TCR signals. We have reworded the relevant sections of the figure legends (for Figures 1C, 3B, 3D, 4B, 4D, and 6C) and Results section to clarify this point. We are currently preparing a separate manuscript describing the fate of thymocytes that survive negative selection after 16 hours, which provides evidence that these thymocytes undergo agonist selection into the CD8αα intraepithelial lymphocyte lineage, and describes factors which may protect some thymocytes from death and instead promote agonist selection into this lineage. As mentioned in point 3, we did not attempt to separately quantify the loss of DP vs. CD8SP, because antigen encounter by DP thymocytes leads to a rapid downregulation of CD4 and CD8 (a phenomenon termed CD4/CD8 “dulling”)(McGargill and Hogquist, 1999), making it difficult to determine the separation between DP and CD8 SP populations on slices where thymocytes are exposed to OVA.

5) In addition, in Figure 1B and 1C the WT and WT+AP20187 groups show a trend to difference (every data point is lower in the AP20187 group) even if this does not reach statistical significance. It is also worth noting that many of the OT-I/ref graphs combine experiments to give n numbers in the range of 15-34 while the CD69 MFI graphs have n numbers of 5 and also use a non-parametric test with considerably lower power than the ANOVA applied to the OT-I/ref data. As a result, the statistical tests used on the CD69 MFI graphs are only able to detect much larger effect sizes than those of the OT-I/ref data and should be interpreted with great caution. In particular Figure 1C does not clearly demonstrate that CD69 is not reduced by AP20187 and combining the data from the un shown representative experiments should be considered.

While there is a slight trend towards reduced death in the WT+AP20187+OVAp group in Figure 1B, there is a clear significant difference between this group and the MAFIA+AP20187+OVAp, suggesting that treatment with drug has the biggest impact on MAFIA slices, in which phagocytes are susceptible to deletion, and any potential off-target impacts of the drug on negative selection are relatively minimal. Moreover, our findings that negative selection is also impaired upon two additional conditions in which phagocytosis is impaired (blocking phosphatidylserine and in a Tim-4 deficient thymic environment), strongly suggest that the impairment in negative selection that we observe on MAFIA+AP20187+OVAp slices is driven mainly by a lack of phagocytosis as a result of phagocyte depletion, and not an off-target effect of the drug.

To provide a more robust measurement of CD69 upregulation, we have now combined the CD69 data from all independent experiments in Figure 1C, and in all additional figures demonstrating CD69 upregulation, and applied the same ANOVA statistical test that we applied to the OT-I/ref graphs (Figures 1C, 3B, 3D, 4B, 4D, and 6C, and corresponding figure legends).

6) Figure 2B: This shows an isolated event. Quantifying the fraction of all recorded death events occurring (a) 'in isolation', (b) in contact and (c) inside a GFP+ cell seems necessary to bolster the authors' claim that death and phagocytosis is closely coupled.

We have previously published an imaging study of negative selection to a ubiquitous self-antigen (peptide-induced)(Dzhagalov et al., 2013) in which we provided extensive quantification of cell death and phagocytosis. To summarize the relevant findings from the earlier study: we observed a total of 31 cell death events of which all 31 occurred while the dying thymocyte was in close contact with, or engulfed by, a phagocyte. In comparison, of the thymocytes from these same runs that did not die, 54% were in contact with, and 17% were engulfed by, a phagocyte. We also reported that for 14 examples of cell death (34%) we were also able to observe the initial contact with the phagocyte, and that the time between the initial contact with a phagocyte and death varied considerably from 2-56 minutes. We note that many of the experiments in the current manuscript use a peptide induced model of negative selection, so our earlier published imaging studies should provide a valid comparison to the functional studies presented here. We included Figure 2B and the videos only to make the point that simultaneous phagocytosis and death also occurs with AIRE-dependent negative selection.

7) Figure 3: These are striking observations, but again: without knowing what the input population consists of, it seems surprising that the extent of death (as inferred from a change in the ratio of OT-I to ref cells) is so marginal (< 2-fold) (in particular when OVA peptide is used). In how far was this system tuned towards low doses of OVA peptide, or in other words, does the apparent rescue from apoptosis only occur when low doses of OVA peptide are used? This would be informative also in light of the question whether phagocytosis may be particularly (or only?) crucial in cases of relatively 'low' signal strengths.

As mentioned in points 3 and 4, our input population consisted of total OT-1 thymocytes consisting of both DP and CD8SP thymocytes, and we were unable to separately quantify the loss of DP vs. CD8SP, due to CD4/CD8 “dulling” on OVA-containing thymic slices. With regard to the extent of negative selection, this was in line with a previously published study in which thymocytes were depleted of mature CD8 single positive cells prior to overlay on the slice (see Figure 5A from Dzhagalov et al., 2013). Thus it is unlikely that the use of an unfractionated thymocyte population greatly impacted the extent of negative selection in our system. While a relatively high concentration of OVA peptide was used in Figure 3 and 4, we agree with the reviewers point that phagocytosis may play a more important role in inducing thymocyte death under limiting antigen conditions. Indeed, we proposed this explanation for the observation that negative selection to a tissue-restricted antigen, which is present at low abundance, was more greatly impacted by Tim-4 deficiency than negative selection to exogenously added OVA peptide (Figure 4A and C, Discussion paragraph six).

8) Figure 4: The authors must have crossed RIPmOVA (Timd4-/- or Timd4+/+) to OT-I. This would be extremely important in order to show a role for Tim-4 in 'steady state' negative selection independent of the thymic slice system.

In the revised manuscript, we provide new in vivo evidence for an impact of Tim-4 deficiency on CD8 T cell thymic development (Figure 5, Figure 5—figure supplement 1, and subsection “The phosphatidylserine receptor Tim-4 promotes negative selection of CD8 T cells in the thymus”, and Discussion paragraph six). While the mild autoimmune phenotype of these mice had been previously attributed to defects in peripheral phagocytosis (Rodriguez-Manzanet et al., 2010), our new data show that CD8 T cells that arise in a Tim-4 deficient thymus are intrinsically less quiescent compared to CD8 T cells that develop in wild type mice, even in a Tim-4-sufficient peripheral environment. These new results support our conclusion that Tim-4-mediated phagocytosis is required for efficient negative selection, and in its absence T cells with borderline self-reactivity can escape deletion. Given that loss of Tim-4 had a modest impact on negative selection compared to Annexin V blocking or phagocyte depletion (likely due to the fact that other PS receptors remain intact in Timd4-/- animals), and given that there are also multiple tolerance mechanisms still in place (regulatory T cells and other peripheral tolerance mechanisms), we would not expect to observe overt autoimmunity in Timd4-/- mice.

With regard to the specific experiment suggested by the reviewer, we did not attempt to generate OT-IxRIPmOVAxTim-4-/- mice, since OT-IxRIPmOVA mice already have a high mortality rate shortly after birth (Koehli et al., 2014). As an alternative strategy, we attempted to examine the impact of Tim-4 deficiency on tolerance in the RIPmOVA model by generating neonatal partial hematopoietic chimeras in which OT-I bone marrow was injected into RIPmOVA or Tim-4-/- RIPmOVA neonates. Unfortunately, this experiment was not interpretable due to residual contaminating mature OT-I T cells from the bone marrow which were able to home to the thymus and expand in response to OVA expression there. Since these cells were mature at the time of transfer, they were not subject to negative selection in the thymus, making it impossible to discern whether any differences in negative selection existed between the RIPmOVA and Tim-4-/- RIPmOVA hosts.

9) Currently the reduction in OT-I cells in Figures 4 and 5 is considered to be due to a loss of phagocytosis but a defect in phagocytosis is not demonstrated in their system. The authors demonstrate that DCs have phagocytic activity, it should be shown that this activity is reduced in Tim-4 KO DCs.

Several studies have previously demonstrated that Tim-4 plays an important role in phagocytosis within several phagocyte populations, including thymic phagocytes (Miyanishi et al., 2007; Rodriguez-Manzanet et al., 2010; Wong et al., 2010).

10) The authors propose that direct peptide presentation by a phagocyte results in more efficient negative selection (Figure 5). However, a thymic slice system in which phagocytes lack peptide presenting capability (MHC I), but are still capable of phagocytosis, is an experiment that could more robustly support this claim. The authors demonstrate in Figure 1 that thymocytes still receive strong signals through their TCR (based on CD69 MFI) in the absence of phagocytes, therefore direct peptide presentation by phagocytes may not be necessary for efficient negative selection.

Several previous studies have demonstrated reduced efficiency of negative selection under conditions in which hematopoietic-derived cells (including phagocytes) cannot present antigen, but would be capable of phagocytosis, in line with our findings that antigen presentation by phagocytic cells promotes negative selection (McCaughtry et al., 2008; Melichar et al., 2013; Proietto and Wu, 2008; Wirasinha et al., 2019; Yap et al., 2018). Moreover, we believe that the experiment presented in Figure 5 addresses the same questions as the experiment proposed by the reviewer. In this setting, endogenous phagocytes do not present the antigenic peptide (because the peptide is exclusively loaded onto the APC population that is added to the thymic slice), but retain normal phagocytic activity. Under these conditions, the phagocytic ability of the peptide presenting population significantly impacts the efficiency of negative selection. Moreover, we did not intend to argue that peptide presentation by phagocytes is a requirement for negative selection. Rather, we interpret our data to indicate that the efficiency of negative selection is improved when the same cell can both present agonist peptide and phagocytose the self-reactive thymocytes, as outlined in the Discussion and Figure 6—figure supplement 2.

11) In the Discussion, the authors point to several publications that report that cells may initiate early apoptosis programs (active caspase-3 and phosphatidylserine expression), but ultimately avoid cell death. The authors draw a similar conclusion here, but do not show that the thymocytes that would have otherwise undergone phagocytosis in this system are in fact viable and would go on to differentiate. The authors suggest that phagocytes may be the critical last step to thymocyte death, however they should discuss the possibility that phagocytes could just facilitate the efficient removal of dying cells and cell death may ultimately just be delayed in their absence.

We have added additional text to the Discussion acknowledging that thymocyte death may be delayed, rather than completely blocked, in the absence of phagocytosis (paragraph two). We also note that the revised manuscript contains new in vivo data (Figure 5, Figure 5—figure supplement 1, and subsection “The phosphatidylserine receptor Tim-4 promotes negative selection of CD8 T cells in the thymus”, and Discussion, paragraph five) suggesting enhanced survival of autoreactive thymocytes due to defective thymic phagocytosis. Specifically, we show that CD8 T cells that arise in a Tim-4 deficient thymus have reduced quiescence weeks after residing in a Tim-4 sufficient peripheral environment. These data imply that impaired phagocytosis in the thymus has a long-lasting impact on T cells, likely due to the failure of some T cells with borderline self-reactivity to undergo negative selection.

12) Figure 1—figure supplement 2B. Control groups showing WT and MAFIA cells without AP20187 are needed.

In Figure 1—figure supplement 2, the values shown represent the proportion of viable macrophages or dendritic cells in the slice after 16-18 hours of AP20187 treatment normalized to the proportion of viable macrophages or dendritic cells present within untreated slices, therefore the mean for the untreated groups is set to 1. We have now added these groups for better visualization of the changes that occur in response to AP20187 treatment.

https://doi.org/10.7554/eLife.48097.sa2

Article and author information

Author details

  1. Nadia S Kurd

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Present address
    Department of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation
    Competing interests
    No competing interests declared
  2. Lydia K Lutes

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Jaewon Yoon

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Shiao Wei Chan

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Ivan L Dzhagalov

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Present address
    Institute of Microbiology and Immunology, National Yang-Ming University, Taipei, Taiwan
    Contribution
    Conceptualization, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Ashley R Hoover

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Present address
    Oklahoma Medical Research Foundation, Oklahoma, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  7. Ellen A Robey

    Division of Immunology and Pathogenesis, Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition
    For correspondence
    erobey@berkeley.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3630-5266

Funding

National Institutes of Health (R01AI064227)

  • Ellen A Robey

University of California (Cancer Research Coordinating Committee)

  • Nadia S Kurd

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank members of the Robey lab for technical advice and helpful discussion, H Melichar, B Weist, and BJ Fowlkes for critical reading of the manuscript, O Guevarra for technical assistance, P Herzmark for help with two-photon imaging, and Wenjun Ouyang (Genentech) for providing Tim4-/- mice. Supported by the National Institutes of Health (R01AI064227 to EAR) and a University of California Cancer Research Coordinating Committee Fellowship to NSK.

Ethics

Animal experimentation: All mice were bred and maintained under pathogen-free conditions in an American Association of Laboratory Animal Care-approved facility at the University of California, Berkeley. All procedures were approved by the University of California, Berkeley Animal Use and Care Committee under Animal Use Protocol #AUP-2016-07-9006-1.

Senior Editor

  1. Satyajit Rath, Indian Institute of Science Education and Research (IISER), India

Reviewing Editor

  1. Shimon Sakaguchi, Osaka University, Japan

Publication history

  1. Received: May 1, 2019
  2. Accepted: December 21, 2019
  3. Accepted Manuscript published: December 23, 2019 (version 1)
  4. Version of Record published: January 13, 2020 (version 2)
  5. Version of Record updated: February 14, 2020 (version 3)

Copyright

© 2019, Kurd et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 606
    Page views
  • 117
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Moran Cohen-Berkman et al.
    Research Article
