Rbfox1 up-regulation impairs BDNF-dependent hippocampal LTP by dysregulating TrkB isoform expression levels

  1. Francesco Tomassoni-Ardori
  2. Gianluca Fulgenzi
  3. Jodi Becker
  4. Colleen Barrick
  5. Mary Ellen Palko
  6. Skyler Kuhn
  7. Vishal Koparde
  8. Maggie Cam
  9. Sudhirkumar Yanpallewar
  10. Shalini Oberdoerffer
  11. Lino Tessarollo  Is a corresponding author
  1. Center for Cancer Research, National Cancer Institute, National Institutes of Health, United States
  2. Frederick National Laboratory for Cancer Research sponsored by the National Cancer Institute, United States
Research Article
  • Cited 1
  • Views 716
  • Annotations
Cite this article as: eLife 2019;8:e49673 doi: 10.7554/eLife.49673

Abstract

Brain-derived neurotrophic factor (BDNF) is a potent modulator of brain synaptic plasticity. Signaling defects caused by dysregulation of its Ntrk2 (TrkB) kinase (TrkB.FL) and truncated receptors (TrkB.T1) have been linked to the pathophysiology of several neurological and neurodegenerative disorders. We found that upregulation of Rbfox1, an RNA binding protein associated with intellectual disability, epilepsy and autism, increases selectively hippocampal TrkB.T1 isoform expression. Physiologically, increased Rbfox1 impairs BDNF-dependent LTP which can be rescued by genetically restoring TrkB.T1 levels. RNA-seq analysis of hippocampi with upregulation of Rbfox1 in conjunction with the specific increase of TrkB.T1 isoform expression also shows that the genes affected by Rbfox1 gain of function are surprisingly different from those influenced by Rbfox1 deletion. These findings not only identify TrkB as a major target of Rbfox1 pathophysiology but also suggest that gain or loss of function of Rbfox1 regulate different genetic landscapes.

https://doi.org/10.7554/eLife.49673.001

Introduction

Learning and memory depend on the establishment, maintenance, strengthening or regulated elimination of synapses between neurons. These processes are mediated by neuronal activity and the activity-dependent secretion of factors that act at synapses. BDNF is one of the most potent mediators of synaptic plasticity as it is secreted during Long Term Potentiation (LTP) induction and is functionally essential for acute signaling cascades leading to LTP [reviewed in Lu et al. (2013); Park and Poo (2013). As a consequence, BDNF has a crucial role in cognitive functions (Bambah-Mukku et al., 2014; Panja et al., 2014). Critical insights into BDNF activities in humans have been provided by the identification of a single-nucleotide polymorphism (SNP) in the BDNF gene that converts a valine to methionine at codon 66 (Val66Me) (Egan et al., 2003). This polymorphism impairs BDNF trafficking and synaptic localization, causes a reduction in activity-dependent BDNF secretion and is associated with alterations in brain structure and function leading to several neurological and psychiatric disorders (Greenberg et al., 2009; Lu et al., 2013). Genetic or pharmacological manipulations of the levels or activity of the BDNF receptor Ntrk2 (TrkB) also result in impaired LTP and reduced synapse numbers causing deficits in the formation and consolidation of hippocampus-dependent memory (Minichiello, 2009). TrkB receptor signaling depends on the precise pattern of expression of the different isoforms generated by the Ntrk2 gene, including the full-length tyrosine kinase receptor (TrkB.FL) and truncated receptors lacking the kinase domain (TrkB.T1). Hypomorphic expression of the TrkB.FL causes hyperphagia-induced obesity due to reduced hypothalamic BDNF signaling, while genetic deletion of TrkB.T1 leads to increased anxiety related behavior associated with structural alterations in neurites of the amygdala (Carim-Todd et al., 2009; Xu et al., 2003). Moreover, up-regulation of TrkB.T1 levels in brains of a mouse model with a Chromosome 16 trisomia (Ts16) leads to an increased sensitivity of hippocampal neurons to BDNF deprivation due to a block in TrkB.FL functions (Dorsey et al., 2006). Importantly, alterations in NTRK2 isoforms receptor levels have also been associated with neuropsychiatric and neurodegenerative disorders (Dwivedi et al., 2003; Ernst et al., 2009a; Ferrer et al., 1999). Because loss and gain of function experiments have stressed the importance of proper TrkB.T1 expression regulation for normal brain development and function, we elected to investigate this mechanism. We took advantage of the observation that the Ts16 mouse model has a TrkB.T1 upregulation, despite having an intact Ntrk2 locus on Chromosome 13, to identify genes on Chromosome 16 responsible for the dysregulation of TrkB isoforms expression (Dorsey et al., 2006). We identified Rbfox1 as an RNA binding protein that regulates TrkB.T1 receptor levels. Rbfox1 is expressed only in neurons, heart and skeletal muscle, sites with notable TrkB expression. Moreover, RBFOX1 dysregulation has been associated with intellectual disability, autism, epilepsy and Parkinson disease, pathologies that have been associated with alterations in BDNF signaling as well (Chao et al., 2006; Conboy, 2017; Lu et al., 2013). We found that Rbfox1 upregulation impairs hippocampal BDNF-dependent LTP by specifically increasing TrkB.T1 receptor levels. Although Rbfox1 can regulate the splicing and abundance of many gene isoforms in the nervous system, we show that genetic reduction of the TrkB.T1 isoform in animals with up-regulated Rbfox1 is sufficient to restore hippocampal BDNF-dependent LTP, suggesting that Ntrk2 is a major target of Rbfox1 pathological dysregulation (Fogel et al., 2012; Gehman et al., 2011; Lee et al., 2016; Li et al., 2007; Underwood et al., 2005). Importantly, RNA-seq analysis of hippocampi with Rbfox1 upregulation validates the abnormal TrkB.T1 isoform levels, and also shows that the genes affected by increased Rbfox1 levels are different than those changed by its loss of function, thus suggesting that Rbfox1 has broader genetic targets than previously established.

Results

We have previously reported that the trisomic TS16 mouse model, which has an extra copy of Chromosome (Chr) 16, has a neuronal upregulation of the TrkB.T1 receptor isoform level (Dorsey et al., 2006). Since, the Ntrk2 gene is located in Chr 13 (Tessarollo et al., 1993), these data suggested that one or multiple genes present in Chr16 are responsible for this phenotype. A comparison between the genes isolated from brain immunoprecipitation of the spliceosome and bio-informatics analysis of the Ts16 unique region identified two RNA binding proteins, Tra2b (Sfrs10) and Rbfox1 (A2bp1), as potential candidates of TrkB.T1 expression regulation (Li et al., 2007). Tra2b is a ubiquitously expressed splicing factor that contributes to alternative splicing processes in a concentration dependent manner (Elliott et al., 2012). Therefore, we first tested whether Tra2b overexpression in neurons can change TrkB isoforms expression levels. However, infection of primary hippocampal neurons with a Tra2b-expressing lentivirus did not cause any change in TrkB isoforms expression (Figure 1—figure supplement 1). Next, we tested the RNA binding protein Rbfox1 that, compared to Tra2b, has a more restricted and overlapping pattern of expression with TrkB in organs such as brain, heart and muscle (Li et al., 2007; Stoilov et al., 2002). Western blot analysis of primary hippocampal neurons transfected with a lentiviral vector expressing Rbfox1 showed increased truncated TrkB receptor levels associated with Rbfox1 overexpression while the TrkB.FL isoform was unaffected (Figure 1A,B). Although TrkB.T1 is the dominant truncated TrkB isoform in mouse brain, the potential presence of other truncated isoforms prompted us to test the identity of the upregulated truncated isoform. As shown in Figure 1A (right panel) western blot analysis with an antibody recognizing the specific 11 amino acid intracellular domain of TrkB.T1 confirmed that TrkB.T1 is the isoform upregulated by Rbfox1. Moreover, QPCR analysis also revealed an increased level of TrkB.T1-specific mRNA while TrkB.FL was unchanged, paralleling the results from the western analysis (Figure 1C).

Figure 1 with 3 supplements see all

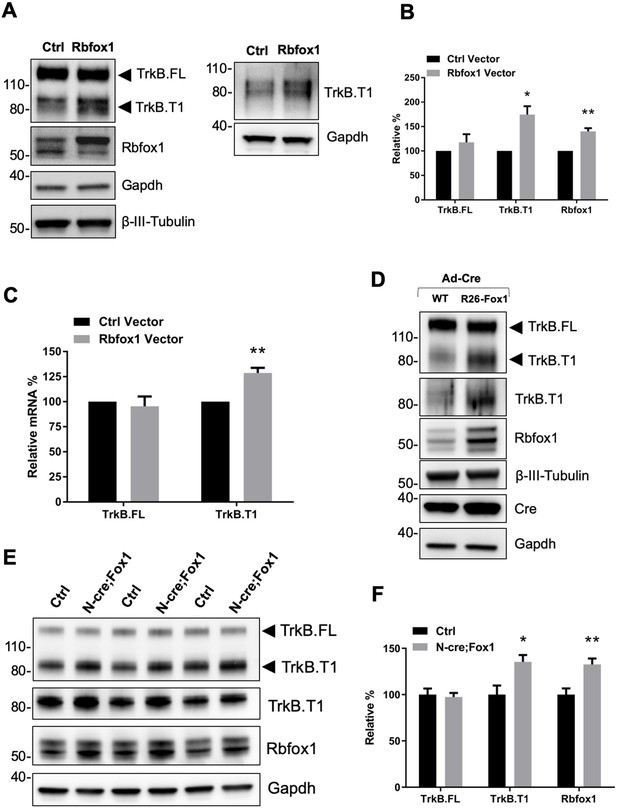

Rbfox1 upregulation increases truncated TrkB.

T1 receptor levels in vitro and in vivo. (A) Overexpression of Rbfox1 in mouse primary hippocampal neurons leads to a specific up-regulation of TrkB.T1. Western blot analysis of wild-type mouse primary hippocampal neurons transfected with a lentiviral vector expressing Rbfox1 (Rbfox1) or eGFP (Ctrl) as a control. Neurons were transfected after 4 days in vitro and analyzed 72 hr after transfection. Ntrk2 (TrkB) protein levels were tested with an antibody against the TrkB extracellular domain to detect all TrkB isoforms (left panel) or an antibody specifically recognizing TrkB.T1 (right panel). Antibodies against Rbfox1 were used to verify Rbfox1 overexpression; Gapdh and β-III-Tubulin were used as control of loading and as a neuronal marker respectively. (B) Quantification of TrkB full-length (TrkB.FL) and TrkB.T1 protein from experiments as in A; n = 3 ± SEM. * = p ≤ 0.05, ** = p ≤ 0.01 (Student’s t-test). (C) Quantitative PCR analysis of TrkB.FL and TrkB.T1 expression from mouse primary hippocampal neurons as in (A); n = 3 ± SEM; ** = p ≤ 0.01 (Student’s t-test). (D) Immunoblot analysis of littermates wild-type R26-Rbfox1+/+ (WT) and transgenic R26-Rbfox1+/flox (R26-Fox1) primary hippocampal neurons transfected with a Cre-expressing adenovirus (Ad-Cre) and analyzed as in (A). (E) Immunoblot of hippocampi derived from control Nes-Cre animals (Ctrl) and transgenic Nes-Cre;R26-Rbfox1+/flox animals (N-cre;Fox1) analyzed with antibodies as in (A). (F) Immunoblot quantification analysis of TrkB.FL, TrkB.T1 and Rbfox1 protein levels of N-cre;Fox1 relative to Ctrl as in (E); n = 6 ± SEM; * = p ≤ 0.05; ** = p ≤ 0.01 (Student’s t-test).

https://doi.org/10.7554/eLife.49673.002

To study the physiological significance of TrkB.T1 upregulation by Rbfox1 we generated a mouse model with an inducible gain of function Rbfox1 allele. By gene targeting of the Gt(ROSA)26Sor locus we introduced one copy of the Rbfox1 cDNA preceded by the CAG promoter to drive expression (R26-Fox1; Sakai and Miyazaki, 1997). A loxP-flanked stop cassette was inserted between the CAG promoter and the Rbfox1 c-DNA to allow for conditional activation of the gene (Figure 1—figure supplement 2A). Primary hippocampal neurons from heterozygous Rbfox1 transgenic mice (R26-Fox1) were isolated and transduced with a Cre-recombinase-expressing adenovirus (Ad-Cre) to delete the stop cassette and induce Rbfox1 expression. Compared to control neurons infected with the Ad-Cre, R26-Fox1 neurons showed increased Rbfox1 expression and subsequent TrkB.T1 upregulation (Figure 1D). These data suggest that this is an efficient model to up-regulate Rbfox1 and further validated our initial observation that lentiviral overexpression of Rbfox1 upregulates TrkB.T1 (Figure 1A–C).

Next, we tested whether Rbfox1 upregulation can regulate TrkB.T1 expression in vivo by crossing the R26-Fox1 model with the Nes-cre (N-cre) mouse (Tronche et al., 1999). First we tested Nes-cre expression in the hippocampus by crossing it with a Gt(ROSA)26Sor-LacZ (R26-LacZ) reporter mouse. β-Galactosidase staining (X-Gal) of the hippocampal area showed LacZ activity in granule cells of dentate gyrus (DG) and pyramidal cells of CA1 and CA3 regions, as previously reported (Chen et al., 2016; Schultz et al., 2011) (Figure 1—figure supplement 2B). Importantly, Nes-Cre (N-cre) crossing with the R26-Fox1 transgenic mouse (N-cre;Fox1) showed that hippocampal Rbfox1 expression is similar between N-cre and N-cre;Fox1 mice, and Rbfox1 expression does not co-localize with the glial marker, glial fibrillary acidic protein (GFAP) (Figure 1—figure supplement 2C,D). These data demonstrate the relevance of this model to study Rbfox1 neuronal up-regulation in vivo. N-cre;Fox1 animals showed a modest 25% increase of Rbfox1 mRNA level in the hippocampus (data not shown). At the protein level, similar to what observed in vitro, N-cre;Fox1 hippocampi had a significant 35% increase in TrkB.T1 associated with about 33% Rbfox1 protein upregulation, while TrkB.FL level was unaffected (Figure 1E,F). mRNA analysis also showed that TrkB.T1, but not TrkB.FL was significantly increased as a consequence of Rbfox1 upregulation (data not shown). Importantly, this model leads to a relatively modest up-regulation of Rbfox1 expression suggesting its validity to study the physiological consequences of Rbfox1 dysregulation.

To further test the specificity of this phenotype, we also investigated the protein levels of Ntrk3 (TrkC), another Ntrk family member also expressed in hippocampal neurons (Tessarollo et al., 1993), in the same N-cre;Fox1 hippocampi and found that the levels of TrkC isoform receptors were unaffected by in vivo Rbfox1 upregulation (Figure 1—figure supplement 3).

Since Rbfox1 upregulation increases TrkB.T1 expression in vivo (Figure 1E,F) we also tested whether lower levels of Rbfox1 cause a reduction of TrkB.T1 expression. Western blot analysis of hippocampi dissected from Rbfox1 heterozygous (Gehman et al., 2011) animals showed a significant 50% reduction in Rbfox1 protein levels. However, there was no change in TrkB.T1 or TrkB.FL receptor isoforms expression (Figure 2A,B). Therefore, we tested whether other Rbfox family members could compensate for the partial loss of Rbfox1. Hippocampal lysates from Rbfox1 heterozygous animals showed a significant 35% upregulation of Rbfox2 whereas Rbfox3 expression was unchanged [Figure 2A,B; (Vuong et al., 2018). This result strongly suggests that Rbfox1 is haploinsufficient. Moreover, it suggests that Rbfox2 is upregulated by Rbfox1 reduction providing a possible explanation for why TrkB receptor isoform expression is not altered in the hippocampus of Rbfox1 heterozygous mice. To further test compensatory mechanisms by other Rbfox genes, we overexpressed Rbfox2 and Rbfox3 in primary hippocampal neurons by lentiviral transduction. Interestingly, overexpression of Rbfox2 but not Rbfox3 caused TrkB.T1 upregulation as observed in N-cre-Rbfox1 transgenic mice (Figure 2C,D) suggesting functional redundancy at least in the context of TrkB.T1 receptor regulation. However, contrary to the upregulation of Rbfox2 caused by loss of one Rbfox1 allele, Rbfox2 expression was not downregulated in response to increased Rbfox1 expression (Figure 1—figure supplement 3).

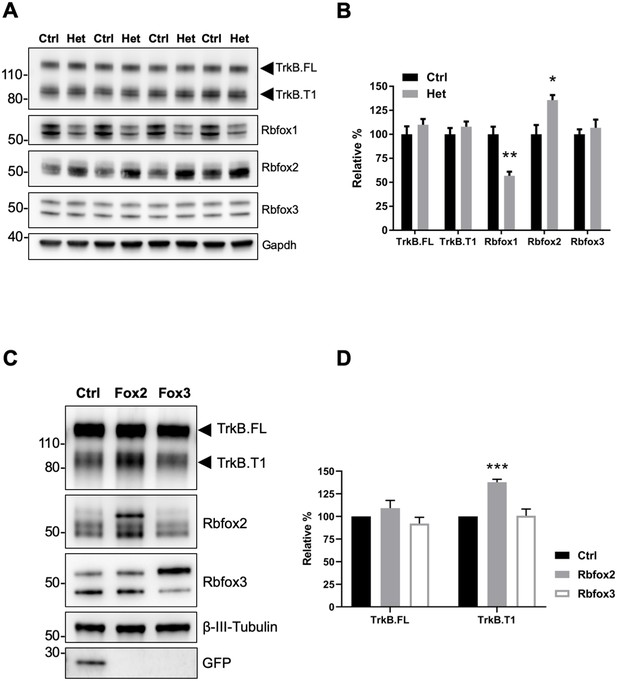

Rbfox2 compensates for Rbfox1 heterozygosity in vivo and its overexpression increases TrkB.

T1 receptor levels. (A) Western blot analysis of control (Ctrl) and Rbfox1+/- (Het) mouse hippocampus with antibodies against TrkB, Rbfox1, Rbfox2, Rbfox3 and Gapdh (used as loading control). (B) quantifications of immunoblots bands from (A) relative to Ctr (100%); n = 4 ± SEM; *p≤0.05; **p≤0.01 (Student’s t-test). (C) Overexpression of Rbfox2, but not Rbfox3 up-regulate TrkB.T1 expression in primary hippocampal neurons. Western blot analysis of wild-type mouse primary hippocampal neurons transfected with a lentiviral vector expressing eGFP as a control (Ctrl), Rbfox2 (Fox2) or Rbfox3 (Fox3). Neurons were transfected after 4 days in vitro and analyzed 72 hr after transfection by immunoblot with antibodies against TrkB extracellular domain to detect all TrkB isoforms, GFP, Rbfox2, Rbfox3 and β-III-Tubulin as loading control and neuronal marker. (D) Quantification of TrkB full-length (TrkB.FL) and TrkB.T1 protein from experiments as in (C); n = 3 ± SEM. *** = p ≤ 0.001 (Student’s t-test).

https://doi.org/10.7554/eLife.49673.006

The finding that overexpression of Rbfox1 causes a specific increase in the amount of TrkB.T1 mRNA without affecting the full-length receptor (TrkB.FL) suggests that Rbfox1 may act by increasing TrkB.T1 mRNA stability or expression and not as an alternative splicing factor. Therefore, we first analyzed Rbfox1 iCLIP datasets in brain to investigate the presence of Ntrk2 transcripts among the Rbfox1 targets (Figure 3A; Damianov et al., 2016). iCLIP experiments were performed from two distinct mouse brain nuclear fractions including a high molecular weight fraction (HMW) which is more intimately associated with chromatin and enriched in pre-mRNA species, and a more soluble nuclear fraction which excludes chromatin associated protein like histone H3 and is enriched in mature mRNAs (Damianov et al., 2016). Analysis of both HMW and soluble nuclear fractions showed several iCLIP-hits along the Ntrk2 sequence covering both intronic as well as 3’-UTR regions of the gene, suggesting direct binding of Rbfox1 to Ntrk2 transcripts (TrkB.FL and TrkB.T1) (Figure 3A).

Figure 3 with 2 supplements see all

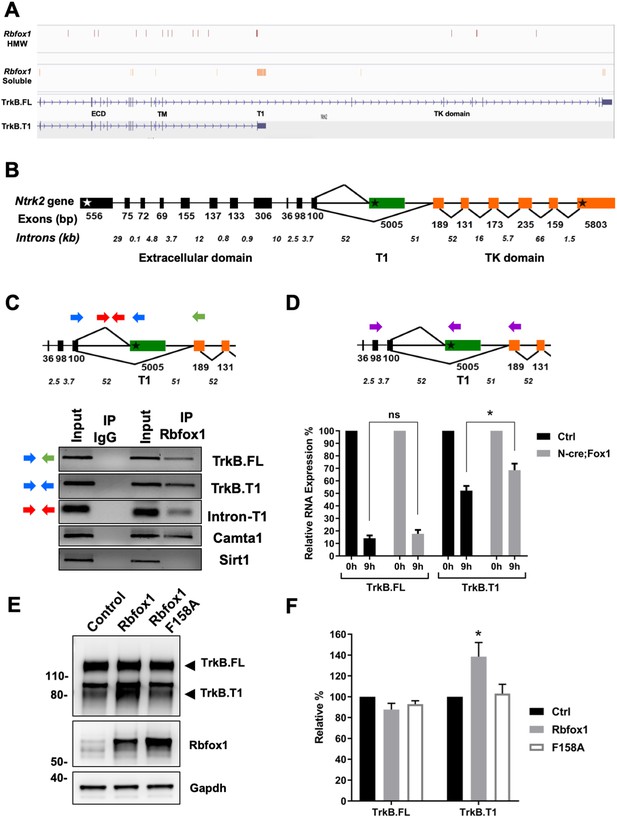

Rbfox1 upregulation increases mRNA stability of the TrkB.

T1-isoform and its RNA binding function is necessary to increase TrkB.T1 receptor levels. (A) Rbfox1 iCLIP analysis of mouse brain chromatin associated high molecular weight nuclear fraction (HMW) or soluble nuclear fraction (Soluble) (Damianov et al., 2016) showing association of Rbfox1 to TrkB transcripts in both HMW (vertical red bars) and soluble (vertical orange bars) nuclear fractions. Extracellular domain (ECD), specific TrkB.T1 region (T1) and tyrosine kinase domain (TK domain) are also indicated. (B) Schematic representation of the murine Ntrk2 gene. Exon lengths are indicated in base pairs (bp) while intron lengths are indicated as kilo-bases (kb). White and black stars indicate the start and stop codons respectively. (C) Agarose gels of RT-PCR amplification products from an RNA immunoprecipitation (RIP) analysis of wild type primary hippocampal neurons with an Rbfox1 antibody; input samples are from the PCR amplification of the RNA and antibody mixture before the immunoprecipition (IP) with mouse IgG or Rbfox1 antibodies. Indicated exonic (blue and green arrows) and intronic (red arrows) primers were used for the analysis. Note the presence of RT-PCR amplification bands following Rbfox1 IP for both TrkB.FL and TrkB.T1 and a proximal intronic region upstream of the specific TrkB.T1 exon, Camta1 (positive control; Gehman et al., 2011; Lee et al., 2016), but not Sirt1 (negative control). (D) Pulse-chase mRNA stability assay in primary hippocampal neurons derived from littermate control R26-Rbfox1+/flox (Ctrl) and Nes-Cre;R26-Rbfox1+/flox (N-cre;Fox1) embryos. Nascent RNA of primary neurons was labeled with 5-EU for 5 hr (pulsing) followed by QPCR analysis at 0 and 9 hr using c-DNA specific primers (purple arrows in schematic) for TrkB.FL and TrkB.T1. Values at 9 hr are expressed as percentage relative to 0 hr. n = 6 ± SEM; ns = p > 0.05; * = p ≤ 0.05 (Student’s t-test). (E); Rbfox1 RNA binding activity is required to promote TrkB.T1 up-regulation. Western blot analysis of wild-type mouse primary hippocampal neurons transfected with an adenovirus expressing WT Rbfox1 (Rbfox1) or an Rbfox1 with a mutation in the RNA binding domain (Rbfox1-F158A). Neurons were transfected after 4 days in vitro and analyzed 48 hr after transfection. (F) Quantification of TrkB.FL and TrkB.T1 protein from experiments as in E; n = 3 ± SEM. * = p ≤ 0.05, (Student’s t-test).

https://doi.org/10.7554/eLife.49673.007

To further validate Rbfox1 binding to Ntrk2 mRNAs we performed RNA immunoprecipitation (RIP) experiments (Figure 3C) (Jayaseelan et al., 2011). Lysates from wild type hippocampal neurons were subjected to immunoprecipitation (IP) with a Rbfox1 specific monoclonal antibody (1D10, a kind gift of Dr. Douglas Black) followed by RT-PCR analysis to detect bound RNA. While immunoprecipitation with control IgG failed to pull down any of the tested mRNA, IP with the anti-Rbfox1 antibody pulled down both the TrkB.FL and TrkB.T1 mRNA as well as a proximal intronic region upstream of the specific TrkB.T1 exon (Figure 3C), confirming the association found in the iCLIP experiments. Calmodulin-binding transcription activator 1 (Camta1) mRNA, used as positive control (Gehman et al., 2011; Lee et al., 2016), was also pulled down whereas Sirtuin 1 (Sirt1), used as a negative control, was not, even though it is present in the neuron lysates like all the other mRNAs (Figure 3C, Input lanes).

The iCLIP analysis also showed the presence of hit-clusters in the TrkB.T1 3’-UTR region of both TrkB.FL and TrkB.T1 (Figure 3A) suggesting a possible role for Rbfox1 in stabilizing TrkB mRNAs by antagonizing specific miRNAs binding to the 3' UTR (Lee et al., 2016). Therefore, we generated a HEK293 cell line with doxycycline-inducible Rbfox1 expression and transfected it with TrkB.T1 cDNA containing the 3’UTR sequence (Figure 3—figure supplement 1A,B). Surprisingly, despite the presence in the 3’UTR of six ‘GCATG’ Rbfox1 binding sites, expression of Rbfox1 caused no change in the level of expression of TrkB.T1 suggesting that the TrkB.T1 mRNA isoform is regulated by Rbfox1 through a different mechanism not involving the 3’UTR region. Similar experiments done in a mouse neuroblastoma cell line (Neuro-2a) confirmed that this result is independent of the cell type (Figure 3—figure supplement 1C,D).

Since Rbfox1 binds both TrkB.T1 and TrkB.FL mRNAs, we next tested whether Rbfox1 upregulation differentially regulates the stability of the two mRNA isoforms by using ethynyl-uridine (EU) to label new nascent RNA followed by purification and QPCR analysis. Measurements of newly synthesized Ntrk2 mRNAs levels with basal or up-regulated expression of Rbfox1 showed that TrkB.T1, but not TrkB.FL mRNA was significantly stabilized (p = 0.03) in primary hippocampal neurons by the increased levels of Rbfox1 (Figure 3D). Testing of the same samples for Ntrk3 (TrkC) mRNA transcripts, showed that neither TrkC.FL nor the truncated TrkC.T1 mRNA stability was affected by Rbfox1 upregulation (Figure 3—figure supplement 2). These data suggest a specific role of this RBP in stabilizing the TrkB.T1 mRNA receptor isoform.

We next asked whether Rbfox1 RNA binding activity is required for increasing TrkB.T1 levels. Adenoviruses containing a wild type or a Rbfox1 mutant lacking RNA binding capability (F158A) were used to transduce primary hippocampal neurons (Hakim et al., 2010; Jin et al., 2003). As shown in Figure 3E–F, overexpression of Rbfox1-mutant failed to increase TrkB.T1 levels suggesting that Rbfox1 RNA binding activity is essential for this function.

The findings that loss of function of Rbfox1 causes an upregulation of Rbfox2 and does not influence TrkB.T1 expression (Figure 2A,B) whereas Rbfox1 gain of function does not change Rbfox2 levels and increases TrkB.T1 expression (Figure 1—figure supplement 3) suggest that up or down regulation of Rbfox1 may target different genes. To test this hypothesis, we performed whole transcriptome deep coverage RNA-seq analysis of hippocampi (with an average of 100 million reads) from N-cre;Fox1 and control N-cre animals. The RNA-seq confirmed our findings that Rbfox2 mRNA is not modulated in N-cre;Fox1 transgenic animals (Supplementary file 1). More importantly, the RNA-seq analysis confirmed that TrkB.T1 mRNA was the only upregulated Ntrk2 isoform (Figure 4). It also showed that among all the Ntrk2 isoforms annotated in the Ensembl database the TrkB.T1 (Ntrk2-202) and TrkB.FL (Ntrk2-201) isoforms are by far the most highly expressed in the hippocampus with approximately 15,000 and 12,000 reads respectively, whereas the other isoforms combined represent only about 5% of the total TrkB transcripts (Figure 4B). In western blot analysis, an almost complete lack of signal at the level of the truncated isoform in the hippocampus of TrkB.T1 knockout mice also confirmed that TrkB.T1 is the main truncated isoform expressed in this region and no other truncated isoforms are present (Figure 4C).

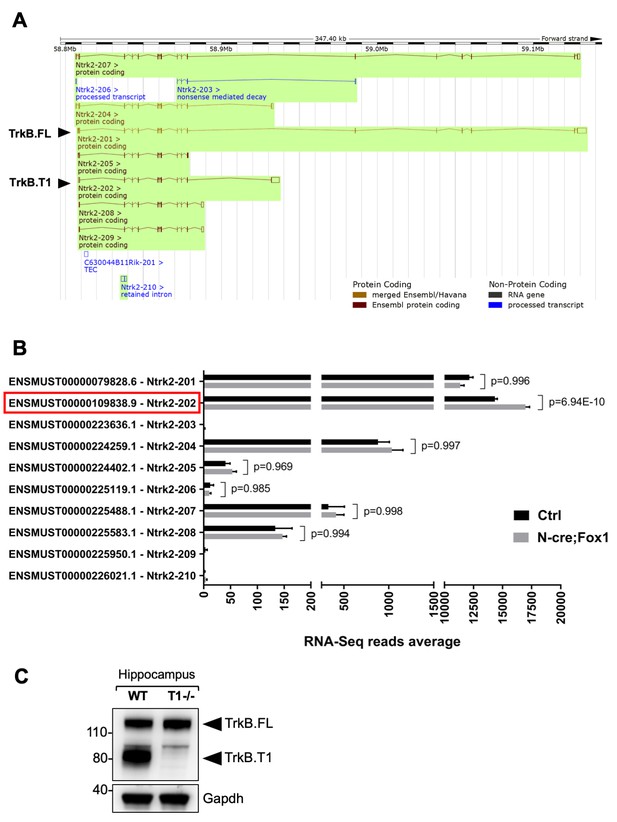

RNA-Seq deep coverage analysis of Ntrk2 (TrkB) transcripts shows specific increase of the TrkB.

T1 isoform levels in the hippocampus of Rbfox1 overexpressing animals. (A) Schematic representation of the murine Ntrk2 (TrkB) gene transcripts annotated from ENSEMBL (highlighted in green). In each transcript exons and introns are indicated with vertical and horizontal lines respectively. TrkB.FL (Ntrk2-201) and TrkB.T1 (Ntrk2-202) are indicated (Picture modified from Ensembl genome browser; ENSMUSG00000055254). (B) RNA-Seq specific analysis of the Ntrk2 transcripts in control (Ctrl; Nes-Cre) and N-cre;Fox1 hippocampus (Nes-Cre;R26-Rbfox1+/flox). Isoform IDs are indicated on the Y axis while the average of RNA-sequencing reads for every transcript is indicated on the X axis. TrkB.T1 (Ntrk2-202; red box) is the only TrkB isoform significantly modulated in the N-cre;Fox1 hippocampus. (C) Immunoblot analysis of wild type (WT) and TrkB.T1 knockout (T1-/-) hippocampus blotted with an antibody against the TrkB extracellular domain.

https://doi.org/10.7554/eLife.49673.010

Gene ontology (GO) term analysis of the RNA-seq data revealed that the major biological processes affected in the N-cre;Fox1 hippocampus are involved in important neuronal functions comprising synapse organization, neurotransmitter secretion, axonal development and many others (Figure 5A; Supplementary file 1). Interestingly, we found that the TrkB-receptor ligand Bdnf is upregulated in the N-cre;Fox1 mouse although it is not clear whether this is the result of a compensatory mechanism in response to the upregulation of TrkB.T1 or whether Bdnf is a direct target of Rbfox1 (Supplementary file 1). The most surprising result came from the parallel analysis, using identical parameters, of the Rbfox1-KO and the N-cre;Fox1 hippocampal RNA-seq raw data (Vuong et al., 2018). In fact, we found that the gene-isoforms that are differentially expressed in the hippocampus of N-cre;Fox1 mice are mostly different from the gene-isoforms affected by Rbfox1 deletion [Figure 5B; Supplementary file 1 and 2; (Vuong et al., 2018) (Gehman et al., 2011). These findings were further supported by the very limited or complete lack of overlap of genes that are dysregulated by hippocampal Rbfox1 gain of function (N-cre;Fox1) or Rbfox1 loss of function in brain (Rbfox1-KO) (Gehman et al., 2011) or hippocampal neurons lacking both Rbfox1 and Rbfox3 [(Figure 5—figure supplement 1) (Lee et al., 2016).

Figure 5 with 1 supplement see all

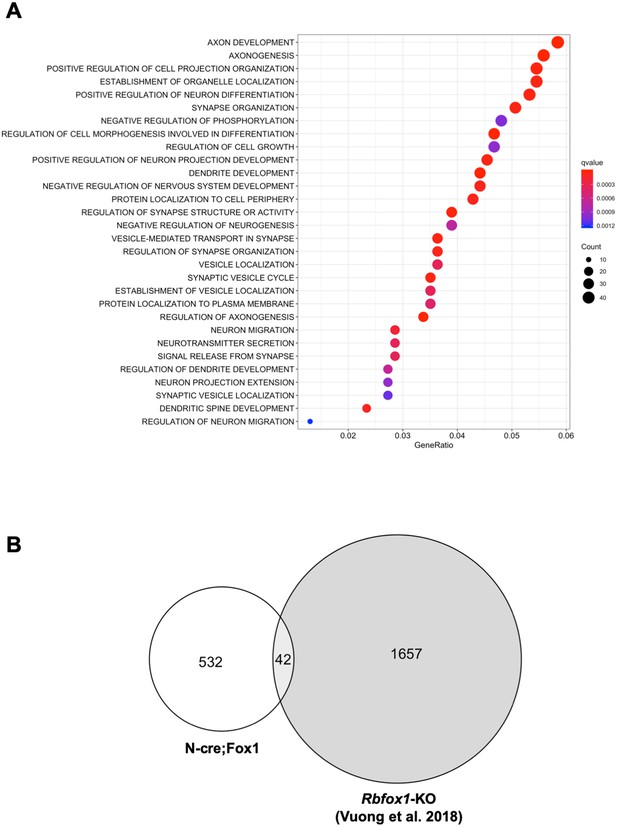

Upregulation or downregulation of Rbfox1 changes the expression of different gene-isoforms.

(A) Dot plot showing the top enriched biological process Gene Ontology (GO) terms. Note that significant over-represented GO terms (q-value <0.05) are neuronal related processes. GO terms are displayed on the left Y axis. (B) Venn diagram showing the number of overlapping gene-isoforms differentially expressed in N-cre;Fox1 and Rbfox1 knockout (Rbfox1-KO) hippocampus (Vuong et al., 2018).

https://doi.org/10.7554/eLife.49673.011

Next, we decided to investigate the physiological consequences of TrkB.T1 changes of expression. Rbfox1 upregulation causes a specific increase in the levels of TrkB.T1 without changing the expression of TrkB full-length (TrkB.FL). Therefore, we created an in vitro system to mimic this situation and study BDNF/TrkB signaling. We first generated a cell line with stable expression of TrkB.FL (HEK293-TrkB.FL) followed by transfection with a plasmid to express increasing amounts of TrkB.T1. Stimulation with BDNF showed an inverse correlation between TrkB.T1 expression levels and TrkB.FL (p-TrkB.FL) and ERK (p-ERK) phosphorylation suggesting an impairment in TrkB.FL signaling when TrkB.T1 is upregulated (Figure 6A). Importantly, deletion of TrkB.T1 in primary hippocampal neurons increased both basal as well as BDNF-stimulated p-TrkB.FL and p-ERK compared to control neurons suggesting that TrkB.T1 expression levels are potent regulators of TrkB.FL signaling (Figure 6B,C,D).

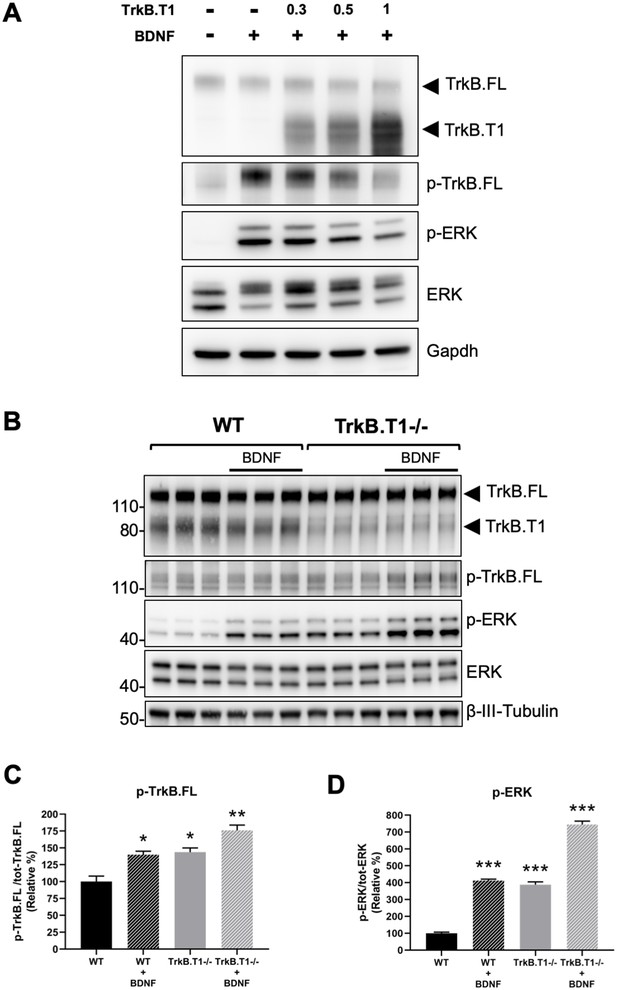

TrkB.T1 receptor expression regulates TrkB.FL signaling.

(A) TrkB activation by BDNF is decreased by increased levels of TrkB.T1. HEK293 cells stably expressing TrkB.FL were transfected with increasing amounts of a TrkB.T1 expressing plasmid (0.3 µg, 0.5 µg and 1 µg) before BDNF treatment (5 ng/ml for 5 min). Immunoblots were probed with antibodies against TrkB extracellular domain to detect both TrkB.FL and TrkB.T1, phospho-TrkB.FL at tyrosine 515 (p-TrkB.FL), phospho-ERK (p-ERK), ERK and Gapdh as controls. (B) TrkB.T1- /- neurons have increased BDNF signaling. Immunoblot analysis of E18.5 WT and TrkB.T1- /- primary hippocampal neurons cultured for 6 days in vitro before BDNF treatment (1 ng/ml for 5 min; black bar). Antibodies are as in (A) except for the β-III-tubulin antibody used as neuronal marker. (C, D) Immunoblot quantification analysis from (B) of p-TrkB.FL (C) and p-ERK (D) expressed respectively, as relative percentage of p-TrkB.FL over total TrkB.FL and phospho-ERK over total ERK. n = 3 ± SEM. * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001 (Student’s t-test).

https://doi.org/10.7554/eLife.49673.013

Since BDNF and TrkB are potent modulators of synaptic transmission and plasticity, we then tested whether TrkB.T1 upregulation would affect these brain activities [reviewed in Lu et al. (2013). Although we showed that TrkB.T1 is up-regulated in the hippocampus of N-cre;Fox1 mice, we investigated TrkB expression at the synaptic terminals by analyzing hippocampal synaptosomes (Figure 7). Immunoblot analysis of hippocampal synaptosomal fractions from controls and N-cre;Fox1 mice showed that Rbfox1 leads to a significant ~20% upregulation in TrkB.T1 but not TrkB.FL protein levels at the synaptic terminals. The synaptic protein PSD-95 used as control was enriched in the synaptosomal fraction but unaffected by Rbfox1 overexpression (Figure 7A,B).

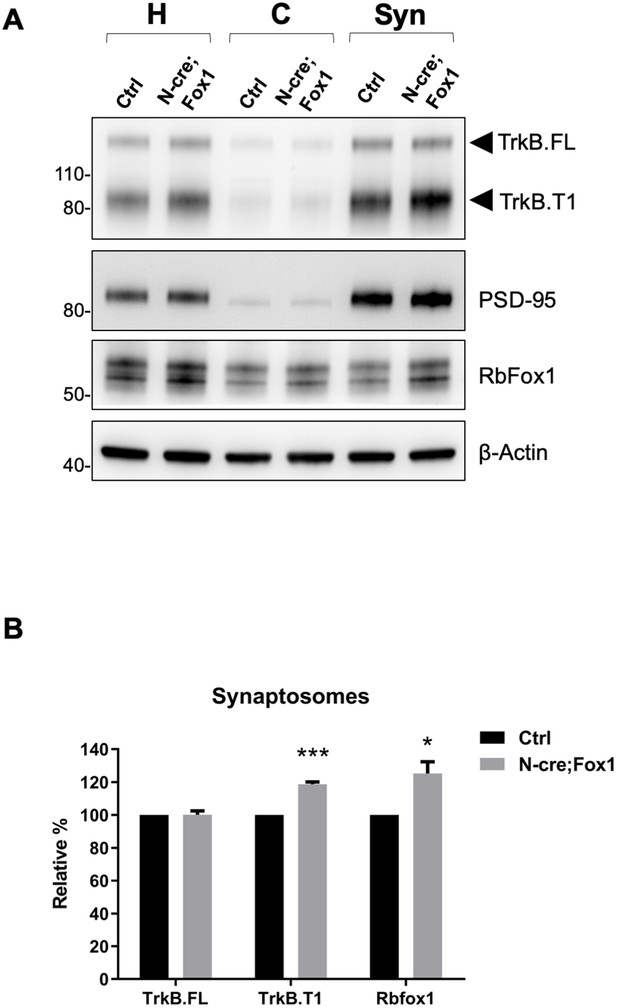

Upregulation of Rbfox1 leads to increased truncated TrkB.

T1 in synaptosomes. (A) Western blot analysis of TrkB isoform, PSD-95 and Rb-Fox1 expression in total homogenates (H), cytosolic (C) and synaptosome fraction (Syn) from hippocampus of control (Ctrl; Nes-Cre) and N-cre;Fox1 mouse brains. PSD-95 was used as control for enrichment of the synaptosomal fraction. (B) Immunoblot quantification of TrkB.FL, TrkB.T1 and Rbfox1 specific bands in the synaptosomal fraction as in (A); n = 3 ± SEM, *** = p ≤ 0.001, * = p ≤ 0.05 (Student’s t-test).

https://doi.org/10.7554/eLife.49673.014

Therefore, we tested the physiological significance and net outcome of Rbfox1-induced upregulation of TrkB.T1 by studying hippocampal synaptic plasticity (Figure 8). Due to the fact that Rbfox1 affects several genes regulating synaptic plasticity [Figure 5A; Supplementary file 1; (Gehman et al., 2011) we focused on BDNF-induced long term potentiation (LTP) at the Schaffer collateral-CA1 neuron synapses to dissect the specific effect on LTP caused by alterations in BDNF/TrkB signaling. We applied extracellular BDNF (20 ng/ml) to hippocampal slices from control mice for 20 min while the field excitatory postsynaptic potentials (fEPSPs) were elicited at 20 s intervals. As previously reported, BDNF induced a strong, gradual increase in the fEPSP in control N-cre (Ctrl) hippocampi (Kang and Schuman, 1995). Surprisingly, N-cre;Fox1 animals had a blunted induction of LTP in response to BDNF (Figure 8) and at 50 min this response was only about 30% of Ctrl (Ctrl 218.14 ± 22.42% vs. N-cre;Fox1 72.95 ± 12.82%) (Figure 8A–C). To test whether the BDNF-induced LTP deficit in the mutant animals was caused by the augmented TrkB.T1 expression, we introduced a TrkB.T1 KO allele in N-cre;Fox1 (N-cre;Fox1;T1+/-) mouse model to reduce its levels. As shown in Figure 8—figure supplement 1, this strategy led to a significant, although partial rescue of the BDNF-induced LTP deficit caused by Rbfox1 upregulation. Interestingly, analysis of BDNF-induced LTP in TrkB.T1 heterozygous animals (T1+/-) was similar to that of controls, suggesting that TrkB.T1 is not haploinsufficient and its levels influence BDNF-induced LTP only in the situation of upregulation (Figure 8—figure supplement 2). To further test whether TrkB.T1 levels are most critical in neurons, where Rbfox1 is expressed, we introduced a conditional TrkB.T1-loxP allele into the N-cre;Fox1 model (N-cre;Fox1;T1-Flx). This strategy allows for the simultaneous induction of Rbfox1 activation, which causes TrkB.T1 upregulation, and deletion of one copy of TrkB.T1 in the same neurons where Nes-cre is active. Importantly, this strategy also led to a partial rescue of BDNF-induced LTP over time, which became significant at 50 min (187.97 ± 49.26%) strongly suggesting that the TrkB.T1 up-regulation in neurons caused by Rbfox1 is causing the impairment in BDNF-induced LTP (Figure 8A–C). Analysis of the Shaffer collateral-CA1 excitability (Input/Output relationship Figure 8E) and presynaptic function with paired pulse stimulation (Figure 8F) showed no differences between the controls and mutant animals suggesting that hippocampal circuitries overall are not affected by the genetic manipulations. Taken together, these data strongly suggest that Rbfox1 upregulation leads to a deficit in the BDNF-induced LTP caused, at least in part, by an increase in TrkB.T1 receptor expression.

Figure 8 with 2 supplements see all

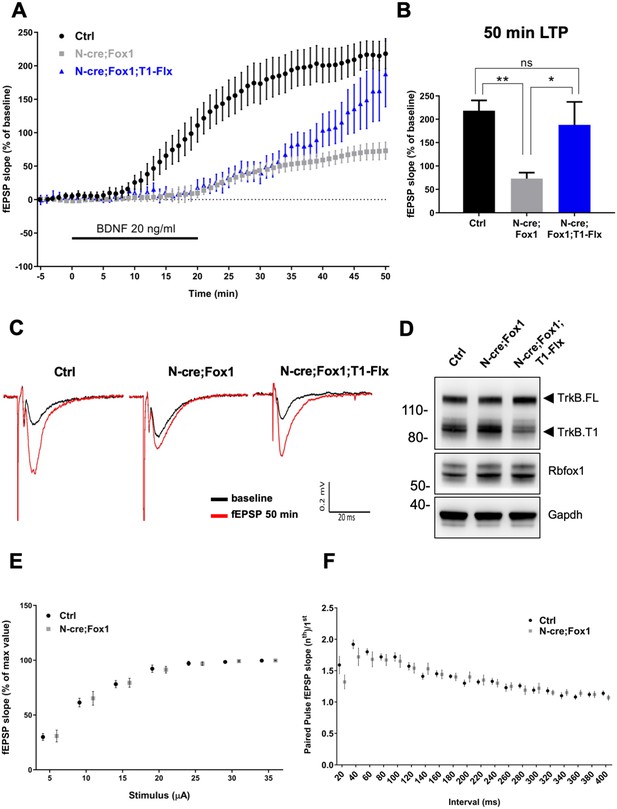

Rbfox1 overexpressing mice have impaired BDNF-induced LTP that is rescued by conditional removal of one TrkB.

T1 receptor allele. (A) Averaged time-course of the field excitatory postsynaptic potential (fEPSP) slope in hippocampal slices from control (Ctrl = Nes Cre, n = 10), N-cre;Fox1 (Nes-Cre;R26-Rbfox1+/flox, n = 10) and N-cre;Fox1;T1-Flx (Nes-Cre;R26-Rbfox1+/flox; TrkB.T1+/flox, n = 8) mice after extracellular application of BDNF (20 ng/ml). Values are expressed as fEPSP percentage of the baseline values (average of 5 min before BDNF application, mean ± SEM). BDNF application (20 min) is indicated by the black horizontal bar. (B) Histogram showing mean ± SEM of the fEPSP slope average at 50 min after BDNF infusion; ** = p ≤ 0.01; * = p ≤ 0.05; ns = p > 0.05 (One-way ANOVA followed by Tukey’s test). (C) Representative recording traces of slices before (baseline = black line) and 50 min after BDNF application (red line). (D) Western blot analysis of hippocampi from Ctrl, N-cre;Fox1 and N-cre;Fox1;T1-Flx mice probed with anti TrkB, Rbfox1 and Gapdh antibodies. (E) Input/Output relationship of Shaffer collateral projections on CA1 pyramidal neurons of Ctrl and N-cre;Fox1 hippocampal slices. Slope of fEPSP reported as percentage of the maximal recorded values plotted against the stimulation current. (F) Ratio between the second and first fEPSP evoked by the stimulation of Shaffer collateral and recorded in the CA1-radiatum at increasing time latency from 20 to 400 ms of Ctrl and N-cre;Fox1 hippocampal slices.

https://doi.org/10.7554/eLife.49673.015

Discussion

Genomic mutations affecting RBFOX1 expression have been associated with intellectual disability, epilepsy, autism and Parkinson’s disease (Bill et al., 2013; Conboy, 2017; Lin et al., 2016). Rbfox1 is an RBP that regulates the RNA metabolism of hundreds of genes expressed in neurons; thus, a major challenge has been to identify those genes that are in a nodal position downstream of Rbfox1 in transducing its normal and pathological functions (Gehman et al., 2011; Lee et al., 2016; Vuong et al., 2018; Weyn-Vanhentenryck et al., 2014). So far, the recognized experimental paradigms to identify and study genes targeted by Rbfox1 have been by downregulation or knockout experiments (Gehman et al., 2011; Lee et al., 2016). Here we show that Rbfox1 upregulation influences the neuronal expression level of the BDNF receptor TrkB.T1, a change not present in Rbfox1 deletion experiments, and this regulation has significant physiological consequences. Importantly, whole transcriptome RNA-seq analysis of hippocampi from mice with Rbfox1 upregulation revealed a completely different set of differentially expressed gene-isoforms when compared to those identified by Rbfox1 knock-out experiments. Although there are limitations associated with comparing data sets from different studies our conclusions are supported by the parallel analysis of raw data from all studies (Vuong et al., 2018) using uniform parameters and filtering, and similar findings from other independent models of Rbfox1 loss of function (Figure 5—figure supplement 1; Lee et al., 2016; Gehman et al., 2011).

These results suggest that upregulation or downregulation of a specific RBP can have different genetic outcomes and may be relevant to understanding how to approach pathologies caused by RBP dysregulation. A notable example is provided by Tra2b (Sfrs10), an RBP ubiquitously expressed but whose differences in cellular concentrations is believed to lead to tissue-specific pattern of splicing (Elliott et al., 2012). Moreover, in spinal muscular atrophy (SMA), a disease caused by deletion of the SMN1 gene, expression of the adjacent full-length SMN2 gene, that includes exon7, can ameliorate disease in some patients. Tra2b overexpression in transfected cells appears to increase splicing of SMN2 exon seven promoting the production of a full-length SMN2, thus suggesting that this strategy could ameliorate SMA disease (Hofmann et al., 2000). However, Tra2b deletion in mice (Sfrs10−/−) does not influence splicing of SMN2 exon 7 (Mende et al., 2010).

Upregulation of Rbfox1 causes increased expression of TrkB.T1 which in turn blunts BDNF-induced LTP. RNA-seq analysis, besides validating TrkB.T1 up-regulation, identified more than five hundred differentially expressed gene-isoforms in the hippocampus of N-cre;Fox1 animals, including many involved in important neuronal functions (Figure 5; Supplementary file 1). However, decreasing only TrkB.T1 levels in the same cells where Rbfox1 is up-regulated, is sufficient to restore BDNF-induced LTP (Figure 8). This is important because BDNF-induced LTP is a potent modulator of brain synaptic plasticity (Lu et al., 2013). Although alterations in BDNF signaling caused by disruptions in its expression or changes in levels of Ntrk2 receptor isoforms have been associated with neurodegeneration, psychiatric disorders, intellectual disabilities and autism, most studies have focused on the mechanisms regulating Bdnf expression and not its receptor TrkB (Qin et al., 2016; Zheng et al., 2016). For example, it has been shown that at the transcription level Bdnf expression is regulated by epigenetic factors and via the use of multiple promoters. Different transcription factors can bind to these promoters to generate transcripts containing the unique BDNF protein encoding exon. In addition, the neuronal spatially and temporally regulated processing of the pro-BDNF peptide provides another level at which BDNF function can be modulated (Reviewed in Hing et al. (2018)). The significance of this second regulatory mechanism has been validated by the Val66Met BDNF polymorphism in humans which affects the processing and trafficking of BDNF and causes phenotypes including profound impairments in synaptic and cognitive functions (Chen et al., 2005; Egan et al., 2003; Soliman et al., 2010). However, almost nothing is known about the mechanisms regulating Ntrk2 expression or the mechanisms leading to its pathological dysregulation (Kemppainen et al., 2012; Wong et al., 2012). Contrary to the Bdnf gene that has multiple promoters activated by different stimuli, the Ntrk2 locus has only one promoter. The NTRK2 gene spans over 350 Kb of DNA sequence and allows for the generation, by alternative splicing of at least 36 potential transcripts from 24 exons (Luberg et al., 2010). However, gene targeting experiments have shown that two isoforms, namely TrkB.FL and TrkB.T1, are the most highly expressed and phenotypically important during development [Figure 4; (Dorsey et al., 2006; Fulgenzi et al., 2015; Klein et al., 1993). To date, no RBPs have been shown to regulate Ntrk2 splicing or mRNA transcripts levels. Thus, Rbfox1 is the first gene shown to regulate Ntrk2 expression at the mRNA level. Its direct binding to Ntrk2 RNA (Figure 3C) and its function in promoting TrkB.T1 RNA stability, rather than splicing (Figure 3D) are strongly supported by: 1) the in vivo and in vitro Rbfox1 overexpression leading to up-regulation of only TrkB.T1 and no changes in TrkB.FL; 2) the confirmation of the change in expression of only TrkB.T1 by the RNA-seq analysis in N-cre-Fox1 mouse hippocampus; 3) the analysis of new nascent RNA showing that TrkB.T1, but not TrkB.FL RNA is more stable upon Rbfox1 overexpression. Nevertheless, the details of this newly identified molecular mechanism by which RbFox1 expression influences TrkB.T1 mRNA levels needs to be further elucidated since it appears to be independent of an action on the 3’UTR region (Figure 3—figure supplement 1). Importantly, this mechanism does not appear to be limited to TrkB.T1 since it has also been reported that in the hippocampus of Rbfox1 knock-out mice some genes lacking iCLIP clusters or GCAUG binding elements in the 3’UTR region can still be differentially expressed (Vuong et al., 2018) and Rbfox1 can increase the mRNA concentration of genes that lack identified 3’UTR miRNA binding sites (Lee et al., 2016).

While upregulation of Rbfox1 changes TrkB.T1 expression, a reduction in its level does not have an effect. The upregulation of Rbfox2 supports a compensatory mechanism by this family member since both genes are expressed in neurons and like all Rbfox proteins they bind to the same (U)GCAUG motif. However, the fact that only overexpression of Rbfox2, but not Rbfox3, can upregulate TrkB.T1 in primary neurons (Figure 2C,D) suggest that different, yet unknown binding partners might be part of this mechanism. Mass spectrometry analysis of Rbfox protein complexes should help identifying which molecular players can differentiate Rbfox protein functions.

Upregulation of Rbfox1 has an inhibitory function on BDNF-induced synaptic plasticity most likely by reducing the TrkB kinase signaling through an increase of TrkB.T1 expression. This is in line with the observation that nervous system–specific deletion of Rbfox1 results in heightened susceptibility to spontaneous and kainic acid–induced seizures which suggest increased neuronal excitability (Gehman et al., 2011). The presence of such regulatory mechanisms on TrkB function is important considering the increased evidence supporting a key role for TrkB activation in epileptogenesis caused by status epilepticus (McNamara and Scharfman, 2012). Thus, having TrkB activity under the control of Rbfox1, which also regulates the splicing of several synaptic function genes including ion channels, neurotransmitter receptors, structural proteins of the synapse and vesicle fusion proteins, suggests a unifying biological system to regulate neuronal function and excitation (Gehman et al., 2011; McNamara and Scharfman, 2012).

In humans, reduced RBFOX1 expression has been associated with autism, epilepsy and heart disease although the mechanistic relationship between RBFOX1 downregulation and these disorders is still unknown (Bill et al., 2013; Gao et al., 2016). Impaired BDNF signaling has also been associated with these diseases raising the interesting possibility that RBFOX1 regulation of the expression of TrkB receptors might, at least in part, be part of the pathogenetic mechanism. Increasing or decreasing TrkB.T1-receptor levels indeed affects BDNF/TrkB signaling (Figure 6). Although, we do not see changes in TrkB.T1 expression in Rbfox1 heterozygous mice, it is conceivable that the compensatory mechanisms between mice and humans are different. For example, Nedd4-2 heterozygous mice have minimal developmental abnormalities such as hyperactivity, increased basal synaptic transmission and enhanced sensitivity to inflammatory pain (Yanpallewar et al., 2016). However, human heterozygous missense mutations cause major malformations including periventricular nodular heterotopia leading to hypotonia, intellectual disability, seizures, syndactyly and cleft palate (Broix et al., 2016; Kato et al., 2017). In addition, Ntrk2 heterozygous mice do not show major abnormalities while loss of one NTRK2 (TrkB) allele in human leads to hyperphagic obesity and severe impairment in memory, learning and nociception (Klein et al., 1993; Yeo et al., 2004).

Most epidemiological studies associate gene loss of function caused by deletions or point mutations with disease. Indeed, even for RBFOX1 most studies have looked at RBFOX1 downregulation. However, our findings suggest the need to investigate causal relationship between RBFOX1 gain of function to specific pathologies. For example, it has been reported that neurons derived from iPSCs of Parkinson's disease (PD) patients have elevated RBFOX1 levels (Lin et al., 2016). Interestingly, there is already abundant data showing a role for BDNF/TrkB signaling in the etiology of Parkinson's disease, at least from in vivo animal models. For example, ablation of the Bdnf gene impairs the survival and/or maturation of substantia nigra (SN) dopamine (DA) neurons during development (Baquet et al., 2005); loss of one copy of Ntrk2 leads to an age-dependent increase in the levels of α-synuclein in the SN (von Bohlen und Halbach et al., 2005), and in a mouse model with a chronic reduction in TrkB signaling (~30% of WT) there is an age-dependent and selective degeneration of SN DA neurons and increased vulnerability of these neurons to neurotoxins (Baydyuk and Xu, 2014). Because it has also been reported that neurons of PD patients have an increase in TrkB.T1 expression (Fenner et al., 2014), it will be of interest to test whether sporadic PD patients have RBFOX1 upregulation and, if that is the case, an association with increased TrkB.T1 receptor levels. In another study, it has been reported that in the human population there is an intronic SNP affecting an enhancer in the fourth intron of RBFOX1 that leads to a substantial increase in expression (Carter et al., 2017). While this SNP has been identified in the context of a study evaluating how inherited polymorphisms carried in the germline affect the somatic evolution of a tumor, it will be important to study whether this SNP has other effects on cognitive brain functions and leads to an increase in the incidence of neurodegenerative disorders where TrkB.T1 upregulation has also been reported (Cai et al., 2006; Dwivedi et al., 2003; Ernst et al., 2009b; Karege et al., 2005a; Karege et al., 2005b). Most importantly, the change in TrkB.T1 level caused by Rbfox1 upregulation is not dramatic, but it is occurring at the synaptic terminals (Figure 7) which in turn can compromise critical BDNF functions on synaptic plasticity (Figure 8). Examples where small changes in the expression of specific genes are very detrimental and relevant to human pathology have already been described. For instance, gain of function mutations that facilitate or enhance the activation of protein kinase Cγ (PKC) by only approximately 10% have been associated with Alzheimer’s disease (Alfonso et al., 2016). PKC is required for the synaptic depression caused by amyloid-β (Aβ) and it has been suggested that a lifetime of slightly enhanced signaling may sensitize individuals to the detrimental effects of Aβ leading to AD (Newton, 2018).

In all, our study lays the foundation to investigate whether upregulation of Rbfox1 leads to alteration of brain functions or neurodegenerative disorders that are ultimately associated with a dysregulation in BDNF/TrkB signaling, a pathway that has already been convincingly associated with normal development of the nervous system.

Materials and methods

Key resources table
Reagent typeDescriptionReferenceIdentifiersAdditional
information
Genetic reagent
(M.musculus)
Rbfox1flox/flox(Gehman et al., 2011)
Jackson Laboratory
IMSR Cat# JAX:014089, RRID:IMSR_JAX:014089
Genetic reagent
(M.musculus)
Nes-creJackson LaboratoryIMSR Cat# JAX:003771, RRID:IMSR_JAX:003771
Genetic reagent
(M.musculus)
Gt(ROSA)26Sor-LacZJackson LaboratoryIMSR Cat# JAX:003309, RRID:IMSR_JAX:003309
PlasmidCAG-STOP-eGFP-ROSA26TVAddgeneRRID:Addgene_15912
AntibodyAnti-GFAP
(rabbit polyclonal)
Agilent (Dako)Agilent Cat# Z0334, RRID:AB_10013382IF
(1:200)
AntibodyAnti-TrkB
(rabbit polyclonal)
MilliporeMillipore Cat# 07–225, RRID:AB_310445WB
(1:1000)
AntibodyAnti-TrkB (C13)
(rabbit polyclonal)
Santa Cruz BiotechnologySanta Cruz Biotechnology Cat# sc-119, RRID:AB_632559WB
(1:500)
AntibodyAnti-TrkC
(rabbit monoclonal)
Cell Signaling TechnologyCell Signaling Technology Cat# 3376, RRID:AB_2155283WB
(1:1000)
AntibodyAnti-GAPDH
(mouse monoclonal)
MilliporeMillipore Cat# MAB374, RRID:AB_2107445WB
(1:2000)
AntibodyAnti-Cre
(rabbit monoclonal)
Cell Signaling TechnologyCell Signaling Technology Cat# 15036, RRID:AB_2798694WB
(1:1000)
AntibodyAnti-Rbfox1
(mouse monoclonal)
MilliporeMillipore Cat# MABE985, RRID:AB_2737389WB
(1:1000); IF (1:200)
AntibodyAnti-Rbfox2
(rabbit polyclonal)
Bethyl LaboratoriesBethyl Cat# A300-864A, RRID:AB_609476WB
(1:1000)
AntibodyAnti-Rbfox3
(mouse monoclonal)
MilliporeMillipore Cat# MAB377, RRID:AB_2298772WB
(1:1000)
AntibodyAnti-Tra2b
(rabbit polyclonal)
Bethyl LaboratoriesBethyl Cat# A305-011A, RRID:AB_2621205WB
(1:1000)
AntibodyAnti-PSD95
(rabbit polyclonal)
MilliporeMillipore Cat# AB9708, RRID:AB_2092543WB
(1:1000)
AntibodyAnti-phospho-TrkB
(rabbit polyclonal)
Cell Signaling TechnologyCell Signaling Technology Cat# 9141, RRID:AB_2298805WB
(1:1000)
AntibodyAnti-phospho-ERK
(mouse monoclonal)
Cell Signaling TechnologyCell Signaling Technology Cat# 9106, RRID:AB_331768WB
(1:1000)
AntibodyAnti-ERK
(rabbit polyclonal)
Cell Signaling TechnologyCell Signaling Technology Cat# 9102, RRID:AB_330744WB
(1:1000)
AntibodyAnti-β-Actin
(mouse monoclonal)
Santa Cruz BiotechnologySanta Cruz Biotechnology Cat# sc-47778 HRP, RRID:AB_2714189WB
(1:3000)
AntibodyAnti-β-III-Tubulin
(mouse monoclonal)
CovanceCovance Cat# MMS-435P, RRID:AB_2313773WB
(1:1000)
AntibodyDonkey Anti-mouse
Alexa Fluor 488 Conjugated
Thermo Fisher ScientificThermo Fisher Scientific Cat# A-21202, RRID:AB_141607IF
(1:1000)
AntibodyDonkey Anti-rabbit
Alexa Fluor 555 Conjugated
Thermo Fisher ScientificThermo Fisher Scientific Cat# A-31572, RRID:AB_162543IF
(1:1000)

Mouse models

Request a detailed protocol

The Rbfox1 transgenic mouse model (R26-Fox1) was generated by targeting the Gt(ROSA)26Sor locus (Chromosome 6) with a CTV vector (Addgene #15912) to conditionally express murine Rbfox1. Rbfox1 cDNA (ID:6821627, Dharmacon) was cloned into the CTV vector using the AscI restriction enzyme site. In the targeting vector, a removable STOP cassette flanked by loxP sites is present in between a CAG promoter and the Rbfox1 cDNA (Figure 1—figure supplement 2A). The targeting vector was electroporated in the CJ7 embryonic stem cell line (129/sv), as previously described (Tessarollo, 2001), and recombinant clones were injected into C57BL/6J blastocysts to produce chimeras that transmitted the targeted Gt(ROSA)26Sor allele to the progeny. Animals were backcrossed into a pure C57BL/6J background for about 10 generations. TrkB.T1 conditional knockout mice (TrkB.T1flox/flox) are from Dorsey et al. (2006), while Rbfox1 conditional knockout (Gehman et al., 2011), Nes-cre (JAX strain 003771) and Gt(ROSA)26Sor-LacZ transgenic mice (JAX strain 003309) were obtained from the Jackson Laboratory. Animals were bred in a specific, pathogen-free facility with food and water ad libitum. All experimental procedures followed the National Institutes of Health Guidelines for animal care and use, and were approved by the NCI-Frederick Animal Care and Use Committee.

X-Gal staining of brain sections (β-galactosidase activity)

Request a detailed protocol

Gt(ROSA)26Sor-LacZ mice and Nes-cre; Gt(ROSA)26Sor-LacZ mice were transcardially perfused with phosphate buffered saline (PBS), followed by PFA 4% in PBS at RT. Brains were dissected and cryoprotected in 30% sucrose solution (in PBS) overnight at 4°C. Floating brain sections (50 µm) were collected in PBS and stained with X-Gal staining solution for 5 min at 30°C in the dark and washed in PBS. X-Gal staining solution in PBS: 2 mg/ml X-Gal (ThermoFisher Scientific), 5 mM K3Fe(CN)6, 5 mM K4Fe(CN)6, 2 mM MgCl2, 0.25% Triton X-100.

Immunofluorescence of brain sections

Request a detailed protocol

Mice were perfused in PFA 4% in PBS and brains dissected and cryoprotected in 30% sucrose solution (in PBS) overnight at 4C. After sectioning, floating brain sections (50 µm) were collected in PBS, blocked 30 min at RT in blocking solution (10% normal donkey serum, 0.1% Triton X-100 in PBS) and incubated overnight at 4°C with primary antibodies. Sections were then washed three times with PBS and incubated with secondary antibodies in PBS for 2 hr at RT. Sections were washed again three times in PBS and stained with DAPI (Invitrogen) for 5 min at RT and imaged using Zeiss LCI 510 Meta confocal microscope. Primary antibodies were: anti-Rbfox1 (1D10, Millipore), anti-GFAP (Z0334, Dako). Secondary antibodies were: donkey-anti-mouse Alexa Fluor 488 (A21202, Invitrogen) and donkey-anti-rabbit Alexa Fluor 555 (A31572, Invitrogen).

Hippocampal neuron cultures

Request a detailed protocol

Hippocampi used to generate primary neurons were collected from E17.5/E18.5 fetuses. After removal of the meninges from each cortex, hippocampi were dissected and collected in DMEM serum free media (Gibco). The hippocampal tissue was minced into small pieces, digested with Trypsin-EDTA (Gibco) at 0.125% for 25 min at 37°C, transferred into a new tube containing 2 ml of DMEM containing 10% FBS to inactivate trypsin and dissociated using a sterile Pasteur glass pipette flamed to slightly narrow the opening, triturated up and down 6–8 times. A last passage to facilitate single cell dissociation was done using a flame-pulled Pasteur glass pipette, triturating up and down 1–2 times. 80–100 µl of cell suspension was counted using Trypan Blue for live staining while the remaining cell suspension was centrifuged at 2000 rpm for 5 min. The cell pellet was re-suspended in DMEM with 10% FBS to obtain a concentration of 5 × 105 cells in 200 µl. 5 × 105 cells (200 µl of cell suspension) were pre-plated in the center of 35 mm dishes previously treated with Poly-D Lysine (P6407, Sigma Aldrich) and incubated for 2 hr at 37°C before adding 2 ml of Neurobasal media with B27 supplement (Gibco) to each dish. After 24 hr, AraC 1 µM (C6645, Sigma Aldrich) was added only once to the cultured neurons to avoid proliferation of dividing cells. Half of the Neurobasal media supplemented with B27 was replaced every 2 days.

Lentiviral expressing vectors GFP control, Rbfox1 (ID:6821627, Dharmacon), Rbfox2 (ID:93686, Dharmacon), Rbfox3 (ID:52897, Dharmacon), Tra2b (ID:6594226, Dharmacon), together with adenoviral vectors expressing the recombinant Cre protein (Ad-Cre) were generated and obtained from the Protein Expression Laboratory (PEL) facility at the NCI-Frederick. Adenoviral vectors expressing Rbfox1 and mutant Rbfox1-F159A were obtained from Vigene Biosciences.

Primary neurons were starved in Neurobasal media without B27 supplement (Gibco) for 5 hr before BDNF treatment for 5 min (1 ng/ml; Alomone Labs, Cat# B-250).

Western blot analysis

Request a detailed protocol

Mouse hippocampi from 2 to 3 months old mice were quickly dissected in cold PBS and lysed in Precellys ceramic lysing kit tube with 0.5 ml of RIPA lysis buffer (20–188, Millipore) using three cycles of 20 s/cycle at 5000 rpm in PRECELLYS 24 (Bertin Technologies). Lysates were then incubated 20 min at 4°C. After the incubation, lysates were centrifuged at top speed (13,000 rpm) using a table-top centrifuge at 4°C. Only the top cleared part of the lysates was collected and transferred into new tubes. The total amount of protein was then quantified using BCA assay (23225, ThermoFisher Scientific) and samples were prepared using the same amount of total protein before adding Laemmli sample buffer 2X (S3401, Sigma-Aldrich). The samples were heated at 95°C for 5 min before being loaded in 4–12% NuPAGE (ThermoFisher Scientific) precast gels for western analysis.

Primary hippocampal neurons were lysed by adding 150 µl of Laemmli sample buffer 2X directly into the culture dishes after being washed with cold PBS. The lysed neurons were then transferred into 1.5 ml tubes and sonicated using Bioruptor-300 (Diagenode) to shred genomic DNA and eliminate sample viscosity. Samples were then heated at 95°C for 5 min before being loaded in 4–12% NuPAGE precast gels for western blot analysis. After being transferred to PVDF membranes (LC2005, ThermoFisher Scientific), blots were blocked in 5% non-fat milk in TBS-Tween (0.1%) and incubated overnight at 4°C with specific antibodies. Antibodies were: anti-TrkB (against the extracellular domain of TrkB and therefore recognizing all TrkB isoforms; Millipore 07–225), anti-TrkB.T1 C13 (sc-119; Santa Cruz), anti-TrkC (C44H5, Cell Signaling), anti GAPDH (MAB374; Millipore), anti-Cre (Cre recombinase, D7L7L Cell Signaling), anti-Rbfox1 (1D10, a kind gift of Dr. Doug Black, and Millipore), anti-Rbfox2 (A300-864A Bethyl Laboratories), anti-Rbfox3 (MAB377, Millipore) anti-Tra2β (A305-011A Bethyl Laboratories) anti-PSD-95 (Millipore AB9708), anti-phospho-TrkB (#9141, Cell Signaling), anti-phospho-ERK (#9106, Cell Signaling), anti-ERK (#9102, Cell Signaling), β-Actin (Santa Cruz sc-47778) and anti β-III-Tubulin (Tuj1, Covance). After incubation with the appropriate horseradish peroxidase (HRP)-conjugated secondary antibodies (Millipore), membranes were incubated with enhanced chemilumescent substrate (34076, ThermoFisher Scientific) for detection of HRP enzyme activity and visualized in a Syngene gel documentation system. Bands in immunoblots were quantified by Syngene software. Student t-test was applied for statistical significance assessment.

Synaptosomes preparation

Request a detailed protocol

Synaptosomes were obtained from the whole hippocampi of control animals (Nes-Cre; Ctrl) and N-cre;Fox1 animals (Nes-Cre;R26-Rbfox1+/flox). Synaptosomes were isolated using Syn-PER Synaptic Protein Extraction Reagent (ThermoFisher Scientific Cat.No. 87793): each hippocampus was homogenized in 700 µl ice-cold Syn-PER reagent previously added with EDTA-free protease inhibitors (Roche Cat.No. 04 693 159 001) using a tissue homogenizer at low speed for 5 s. Homogenate samples (H) were collected (100 µl) before proceeding to centrifuge the remaining homogenate at 2.1 rcf/10 min/ +4°C. Supernantant (500 µl) was collected, transferred to a new tube and centrifuged again at 16.1 rcf/10 min/ +4°C. 400 µl of supernatant was collected as cytosolic fraction (C) while the pellet was re-suspended in 200 µl of ice cold Syn-PER reagent as synaptosome suspension (Syn). All the fractions (homogenates, cytosolic fractions, synaptosome suspensions) were then sonicated at +4°C using Bioruptor-300 (Diagenode) [30 s ON/30 s OFF for 10 cycles] before using BCA assay (23225, ThermoFisher Scientific) for total protein quantification. Samples were then prepared for western blot using equal amounts of total protein before adding Laemmli sample buffer 2X (S3401, Sigma-Aldrich) and loaded on 4–12% NuPAGE precast gels. Student t-test was applied for statistical significance assessment.

qPCR

Request a detailed protocol

Total RNA was extracted from primary neurons or hippocampi using Qiagen RNeasy Mini kit (Cat.no 74104) according to manufacturer’s instruction. cDNA was then generated using SuperScript III First-Strand Synthesis System (Cat. No 18080–051, ThermoFisher Scientific). Real time PCR was performed using BioRad iTaq Universal SYBR-green Supermix (Cat.No. 172–5120) in a MX3000P (Agilent Technologies) apparatus with the following program: 95°C for 3 min; 95°C 10 s, 60°C 20 s for 40 cycles; 95°C 1 min and down to 55°C (gradient of 1°C) for 41 cycles (melting curve step). Delta Ct values were obtained using GAPDH as reference gene.

Student t-test was applied for statistical significance assessment.

Primers used:

TrkB common forward: 5’-AGCAATCGGGAGCATCTCT-3’

TrkB.FL reverse: 5’-CTGGCAGAGTCATCGTCGT-3’

TrkB.T1 reverse: 5’-TACCCATCCAGTGGGATCTT-3’

GAPDH forward: 5’-TGCGACTTCAACAGCAACTC-3’

GAPDH reverse: 5’-ATGTAGGCCATGAGGTCCAC-3’

Rbfox1 forward: 5’- TGGCCCCAGTTCACTTGTAT-3’

Rbfox1 reverse: 5’- GCAGCCCTGAAGGTGTTGTA-3’

RNA immunoprecipitation (RIP)

Request a detailed protocol

RNA immunoprecipitation was performed following the protocol from Jayaseelan et al. (2011). Briefly, primary hippocampal neurons were cultured 4 days in vitro before being lysed using PLB buffer (100 mM KCl, 5 mM MgCl2, 10 mM HEPES pH 7, 0.5% Nonidet P-40, 1 mM DTT, 200 U/ml RNase OUT, 1 tablet of EDTA-free Complete Mini Protease Inhibitor). Protein-G magnetic beads (Dynabeads – ThermoFisher Scientific) were washed twice in NET-2 buffer (150 mM Tris-HCl pH 7, 100 mM Tris-HCl pH 8, 750 mM NaCl, 5 mM MgCl2, 0.25% NP-40, 20 mM EDTA pH 8, 1 mM DTT, 200 U/ml RNase OUT) and then conjugated with Rbfox1 (1D10) antibody overnight at 4°C. Beads/antibody slurry was washed six times using NT-2 buffer (150 mM Tris-HCl pH 7, 100 mM Tris-HCl pH 8, 750 mM NaCl, 5 mM MgCl2, 0.25% NP-40) and finally resuspended in 900 µl of NET-2 buffer for each sample. Primary neuron lysates were centrifugated at top speed (benchtop centrifuge) for 10 min at 4°C and 100 µl of cleared top lysate were added to each IP sample and incubated at 4°C overnight in rotation. Part of the initial samples (1:10) were collected as Inputs or Total samples. After the incubation, beads were washed six times with NT-2 buffer and then resuspended in 150 µl of Proteinase-K digestion buffer (NT-2 buffer supplemented with: 1% SDS, 1.2 mg/ml Proteinase-K) and incubated at 55°C for 30 min in a thermomixer.

RNA was then extracted by adding an equal volume (150 µl) of buffer saturated phenol-chloroform pH 4.5 with isoamyl alcohol, vortexed and centrifuged at 20.000 g for 10 min. The aqueous upper part was carefully collected in a new tube before adding 150 µl of chloroform, vortexed and centrifuged again. The upper part was again transferred in a new tube and 50 µl of 5 M ammonium acetate, 15 µl of 7.5 M LiCl, 5 µl of 5 mg/ml glycogen and 1 ml of ice cold 100% ethanol were added before placing the samples at −80°C overnight to allow RNA precipitation. Samples were then centrifuged at 20.000 g/30 min at 4°C, washed once with 80% ethanol and centrifuged again. RNA pellets were finally resuspended in 20 µl of RNase-free water.

RNA was polyadenylated using Poly(A) Tailing Kit (AM1350, ThermoFisher Scientific) following the manufacturer instruction.

cDNA was generated using SuperScript III First-Strand Synthesis System (Cat. No 18080–051, ThermoFisher Scientific).

RT-PCR was performed using BioRad iTaq Universal SYBR-green Supermix (Cat.No. 172–5120) in a MX3000P (Agilent Technologies) apparatus with the following program: 95°C for 3 min; 95°C 10 s, 60°C 20 s for 40 cycles; 95°C 1 min and down to 55°C (gradient of 1°C) for 41 cycles (melting curve step).

RT-PCR products were run in agarose 2% gel.

Primers used:

TrkB common forward: 5’-CGTGGTGGTGATTGCATCTG-3’

TrkB.FL reverse: 5’-CCATTGGAGATGTGGTGGA-3’

TrkB.T1 reverse: 5’-CAGTGGGATCTTATGAAACAAAACAA-3’

TrkB.T1-upstream intron forward: 5’-TTTGAGCATGACTTACGTTTCG-3’

TrkB.T1-upstream intron reverse: 5’-CCCAGCCTTTGTCTTTCCTT-3’

Camta1 forward: 5’-CCGGAGTTACAAGAAGTGTGG-3’

Camta1 reverse: 5’-CTTGGTCCTGCTTTTTGGTC-3’

Sirt1 forward: 5’-GAGCTGGATGATATGACGCTG-3’

Sirt1 reverse: 5’-CAGAGACGGCTGGAACTGTC-3’

RNA stability

Request a detailed protocol

Primary hippocampal neurons for RNA stability studies were obtained by crossing Nes-Cre animals with R26-Rbfox1flox/flox animals. Embryos at E18.5 stage were dissected and fast genotyped by using EZ Fast Tissue Tail PCR Genotypying Kit (EZ Bioresearch) in order to group Nes-Cre;R26-Rbfox1flox/+ hippocampi and R26-Rbfox1flox/+ hippocampi. RNA stability was assessed in hippocampal neurons at 4 DIV using Click-iT Nascent RNA Capture Kit (C10365, ThermoFisher Scientific) following manufacturer’s instruction. Briefly, 0.2 mM 5-ethynyl uridine (EU) ribonucleotide homolog was added to the neurons media to label new nascent RNA for 5 hr (pulse). After 5 hr, the media was replaced with normal media (without EU) for 9 hr (chase). Neurons were lysed at time 0 hr (right after 5 hr EU pulse) and at time 9 hr (after 9 hr of EU free media) and the RNA isolated using Qiagen RNeasy Mini kit (Cat.no 74104) according to manufacturer’s instruction. Biotin azide was then chemically bound to the EU containing RNA molecules and streptavidin magnetic beads were used to capture the newly synthesized pool of RNA. cDNA was generated by using SuperScript VILO cDNA synthesis kit (11754–050, ThermoFisher Scientific).

Real time PCR was performed using BioRad iTaq Universal SYBR-green Supermix (Cat.No. 172–5120) in a MX3000P (Agilent Technologies) apparatus with the following program: 95°C for 3 min; 95°C 10 s, 60°C 20 s for 40 cycles; 95°C 1 min and down to 55°C (gradient of 1°C) for 41 cycles (melting curve step). Delta Ct values were obtained using β-Actin as reference gene.

Student t-test was applied for statistical significance assessment.

Primers used:

TrkB common forward: 5’-AGCAATCGGGAGCATCTCT-3’

TrkB.FL reverse: 5’-CTGGCAGAGTCATCGTCGT-3’

TrkB.T1 reverse: 5’-TACCCATCCAGTGGGATCTT-3’

TrkC common forward: 5’-CCTGACACAGTGGTCATTGG-3’

TrkC.FL reverse: 5’-CTTGTCTTTGGTGGGGCTTA-3’

TrkC.T1 reverse: 5’-GACACATCCCCACTCTGGAC-3’

β-Actin forward: 5’-TACCACAGGCATTGTGATGG-3’

β-Actin reverse: 5’-TCTCAGCTGTGGTGGTGAAG-3’

RNA seq analysis

Request a detailed protocol

RNA quality was assessed using an Agilent Bioanalyser. RNA integrity numbers (RIN) were observed to be greater than nine for all samples. Libraries were constructed from hippocampal total RNA using Illumina’s TruSeq Stranded Total RNA Kit (RS-122–2201). Three biological replicates were used for each of the two experimental groups: Ctrl mice (Nes-Cre) and N-cre-Fox1 mice (Nes-Cre;R26-Rbfox1flox/+) of about 3 months of age and in the C57BL/6 background. Deep-sequencing was performed on an Illumina HiSeq 4000 in paired-end mode with a read length of 150 base-pairs.

The sequencing quality of the 99–153 million reads per sample was evaluated using FastQC (version 0.11.5), Preseq (version 2.0.3), Picard tools (version 1.119) and RSeQC (version 2.6.4). Reads were trimmed using Cutadapt (1.18) to remove adapter sequences, prior to mapping to the mm10 mouse reference genome using STAR (version 2.5.2b) in two-pass mode. Gene and transcript expression levels were quantified using RSEM (version 1.3.0) with gencode’s M16 mouse annotation. EBSeq (version 1.22.1) was used to test for differential isoform expression between experimental conditions. Group-based TPM filtering was applied to remove lowly expressed transcripts. Significant differentially expressed isoforms were identified with a false-discovery rate ≤0.05. The R package clusterProfiler (version 3.10.1) was used for gene ontology (GO) enrichment analysis of the significant differential expressed gene-isoforms identified by EBSeq. Significant over-represented biological process GO terms were identified with a q-value less than 0.05. The RNA-seq data generated for this study have been deposited in NCBI's Gene Expression Omnibus and is accessible through GEO Series accession number GSE136253.

iCLIP analysis

Request a detailed protocol

CLIP sequencing data (Damianov et al., 2016) (GSE76475) was downloaded from SRA using sratoolkit (version 2.9.2). Sequencing was done on Illumina HiSeq-2000 and pooled libraries were sequenced at a sequencing depth of ~15–18 million reads per sample. Sequencing quality was assessed using FastQC (version 0.11.5), Preseq (version 2.0.3), Picard tools (version 1.119), and deeptools (version 2.5.0.1). Illumina sequencing adapters were trimmed from reads using cutadapt (version 1.14). Reads were aligned to the mouse genome version mm10 using BWA (version 0.7.15). Once the quality of the data was ensured, tracks suitable for viewing in IGV were downloaded from GEO (GSM1835189, GSM1835195). Bedops (version 2.4.30) and crossmap (version 0.2.7) were used to lift-over genomic coordinates from mm9 to mm10. BAM files were generated using bedtools (version 2.27.1).

Cell lines

Request a detailed protocol

A Rbfox1-inducible cell line was established by using Rbfox1 cDNA (ID:6821627, Dharmacon) and the Flp-In T-Rex 293 Cell Line system (R78007, ThermoFisher Scientific) according to the manufacturer instructions. Rbfox1 expression was induced by Doxycycline (D3447, Millipore-Sigma) 0.5 µg/ml. TrkB.T1 cDNA including the complete 3’UTR sequence (plasmid pLTM665) was transfected into the Rbfox1-Flp-In T-Rex 293 cells using X-tremeGENE 9 DNA Transfection Reagent (6365779001, Millipore-Sigma).

Neuro-2a (N2A) neuroblastoma cells (ATCC, CCL-131) were transfected using TrkB.T1 cDNA including the complete 3’UTR sequence (plasmid pLTM665) in order to generate a stable N2A line expressing TrkB.T1 w/3’UTR. Rbfox1 cDNA (ID:6821627, Dharmacon) was transiently transfected using X-tremeGENE 9 DNA Transfection Reagent (6365779001, Millipore-Sigma).

A HEK293 cell line with stable expression of TrkB.FL (HEK293-p618-2) was generated by transfecting HEK293 cells (ATCC, CRL-1573) with a TrkB.FL expression plasmid using X-tremeGENE 9 DNA Transfection Reagent (6365779001, Millipore-Sigma) and by puromycin selection. TrkB.FL expressing HEK293-p618-2 were transiently transfected with TrkB.T1 expressing plasmid by using X-tremeGENE 9 DNA Transfection Reagent (6365779001, Millipore-Sigma) and starved for 5 hr in serum free media (DMEM) before treatment with recombinant BDNF. All cell lines tested negative for mycoplasma.

Electrophysiology

Request a detailed protocol

Coronal mouse brain slice for electrophysiological recording containing dorsal hippocampus was prepared according to Ting et al. (2014). Briefly, 3 months-old mice were placed under deep Avertin anesthesia (250 mg/kg) and transcardially perfused with 25–30 mL of cold (10 C) carbogenated N-methyl-D-glucamine ACSF. Brains were extracted from the skull within 1 min, sectioned at 300 µm (Leica VT1200 vibratome) and appropriately incubated before recording (for all solutions and the complete procedure see section 2.1 on Materials and 3.1 Methods in Ting et al., 2014). For the electrophysiological recording, the slice was placed in a recording chamber under microscope (Zeiss Axioskop 2fs) and perfused with ACSF (2 ml/min; 28 C). A Teflon-coated concentric platinum–iridium electrode (FHC, ME USA) was placed in the stratum radiatum in the CA1 area of the dorsal HC, 300–400 µm from the recording electrode. Borosilicate glass recording electrodes were pulled (Sutter Instruments P90), ACSF filled to get 4–7 MΩ resistance, and placed in the apical dendritic region of CA1 pyramidal neurons. Field excitatory postsynaptic potentials (fEPSPs) were recorded in CA1 by activation of the Schaffer collaterals. An input-output curve was initially obtained by gradually increasing the stimulus intensity until the fEPSP reached a plateau. After which the stimulus was reduced to obtain an fEPSP that was 50% of the maximum level. Baseline recording was obtained by stimulating the slice every 20 s for approximately 45 min. Once the baseline was stabilized to obtain LTP, BDNF infusion was initiated and continued for 20 min (20 ng/ml; 2 ml/min). Recording was continued for 50 min. Field potential was recorded (Multiclamp 700b; Axon Instruments), digitized (10 kHz Digidata 1324), low-pass filtered (3 kHz, eight-pole Bessel), and stored (Clampex 9.2; Axon Instruments). Signals were analyzed off line (Clampfit 9.2; Axon Instruments), and the size of the fEPSP was evaluated by measuring the initial slope of the signal expressed as percentage of the variation from the baseline value (average of 5 min before the BDNF infusion). n = indicates the number of hippocampal slices analyzed (from ≥3 mice). One-way ANOVA followed by Tukey’s multiple comparisons test was applied for statistical significance assessment.

Statistics

Statistical significance was calculated using nonpaired two-tailed Student’s t-test. One-way ANOVA followed by Tukey’s multiple comparisons test was used for analysis of multiple groups (Figure 8, Figure 8—figure supplement 1). All data are reported as mean ± SEM. ns = p > 0.05, * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001. n values for each individual experiment are indicated in the figure legends. GraphPad-Prism software was used to analyze data.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    Jasper's Basic Mechanisms of the Epilepsies
    1. JO McNamara
    2. HE Scharfman
    (2012)
    Temporal Lobe Epilepsy and the Bdnf Receptor, TrkB, Jasper's Basic Mechanisms of the Epilepsies, Fourth Edition, Bethesda, Oxford University Press.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    trkC, a receptor for neurotrophin-3, is widely expressed in the developing nervous system and in non-neuronal tissues
    1. L Tessarollo
    2. P Tsoulfas
    3. D Martin-Zanca
    4. DJ Gilbert
    5. NA Jenkins
    6. NG Copeland
    7. LF Parada
    (1993)
    Development 118:463–475.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67

Decision letter

  1. Moses V Chao
    Reviewing Editor; New York University Langone Medical Center, United States
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "RbFox1 up-regulation impairs BDNF-dependent hippocampal LTP by dysregulating TrkB isoform expression levels" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Clive Bramham (Reviewer #1). Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

Summary:

This study focuses upon the regulation of a truncated TrkB species, TrkB.T1, by the RNA binding protein RbFox1. There was agreement among the three reviewers that the regulation of TrkB.T1 by RbFox1 is of considerable interest. However, a number of reservations were raised. The major issues are the need for more evidence for the role of truncated TrkB in BDNF-dependent LTP; a resolution of how the levels of RbFox1 impact upon TrkB.T1 expression; and whether there is a non-neuronal contribution of Rbfox1. These are valid concerns that will require more experimentation in order to validate the major conclusions. Specific comments by the reviewers follow this letter. Based upon the common concerns and recommendations from the referees, we have therefore decided to decline the manuscript.

Reviewer #1:

The study provides important insights into the mechanism and functional regulation TrkB signaling via selective modulation in the expression of truncated TrkB.T1 receptors at synaptic sites. Regulation of TrkB.T1 is mediated by the RNA-binding protein RbFox1. In a gain-of-function model, RbFox1 stabilizes TrkB.T1 mRNA and increases expression of TrkB.T1 protein. Surprisingly, stabilization occurs through an unknown mechanism involving binding of RbFox1 to the intronic region of TrkB.T1 pre-mRNA, and not by binding to cis-acting elements in the 3'UTR. Functional studies in acute hippocampal slices show that transgenic overexpression of TrkB.T1 greatly inhibits LTP in the induced by rapid bath perfusion of BDNF. BDNF-LTP is partly restored in heterozygous transgenic mice, strongly supporting a role of TrkB.B1 in regulating TrkB function and plasticity in the adult hippocampus. The background for this work is the observation of enhanced TrkB.T1 expression in chromosome 16 trisomy mice. By identifying regulation of TrkB.T1 by RbFox1 and showing differences between gain and loss-of-function of the RNA binding-protein, the study opens new avenues for pre-clinical translational research.

1) The effect on BDNF- LTP requires substantiation. Transgenic expression of TrkB.T1 modulates the response. To better evaluate the physiological role of TrkB.T1, BDNF-LTP should also be assessed in TrkB.T1 knockouts. TrkB inhibitors should be applied to confirm a TrkB-mediated response.

2) Data on the binding sites and mechanism of RNA stabilization would improve the paper.

Reviewer #2:

This manuscript presents interesting data examining the consequences of RbFox1 upregulation as an approach to identify downstream genes regulated by RbFox1 which may have significance for brain disorders associated with RbFox1 mutation. The authors begin by following up on their prior Trisomy 16 work, to identify RbFox1 as a chromosome 16-encoded gene that could produce their previously observed upregulated expression of a truncated form of the TrkB receptor, TrkB.T1. Data is presented to show that viral overexpression of RbFox1 in hippocampal neurons produces upregulation of TrkB.T1 protein and mRNA without changing levels of full-length TrkB (TrkB.FL), and differential binding of RbFox1 to TrkB mRNAs is assessed. A mouse model with inducible RbFox1 expression is used to assess effects on gene expression by immunoblotting and RNA-seq and to probe BDNF-induced LTP. The authors compare their RbFox1 induced expression RNA-seq dataset with a published dataset from another group studying the effects of RbFox1 deletion (Vuong et al., 2018) to support a main conclusion that genes affected by RbFox1 gain of function differ from genes affected by RbFox1 loss of function.

Several aspects of the data make it difficult to definitively conclude that gain and loss of RbFox1 produce regulation of different genes:

1) The comparisons of the results of RbFox1 overexpression and RbFox1KO in Figure 4B are hampered by the fact that there may be many differences in experimental design, mouse genetic background, sample preparation, sequencing, analysis and filters applied, etc., between the authors' dataset and data presented in Vuong et al., 2018. It's not clear that differences in seq data will all or even mostly be due to biological differences in the effects of Rbfox1 overexpression compared to Rbfox1 deletion. Insufficient details are provided in this manuscript to compare even major biological variables such as the age of mice used by the authors for the RNA-seq experiments.

2) A proposed mechanism for the difference in genes regulated by gain or loss of RbFox1 expression is incompletely defined. The authors show that an RbFox1 heterozygote with reduced RbFox1 expression has an increase in RbFox2 expression relative to a control mouse, while RbFox1 gain of function does not alter RbFox2 levels. It is not clear whether RbFox2 is changed in the RbFox1 deletion context (Vuong et al., 2018) though, or to what extent RbFox2 can interchange for RbFox1 binding sites and gene regulation.

If RbFox1 differentially elevates levels of newly synthesized TrkB.T1 mRNA compared to TrkB.FL mRNA (Figure 2D), then can the authors explain why this action of RbFox1 overexpression fails to produce any change in the level of TrkB.T1 protein (Figure 3—figure supplement 1) in the HEK293 dox-inducible cell line?

Greater explanation is needed for the determination of reads as TrkB.T1 compared to TrkB.FL, especially given that TrkB.FL contains the sequence of TrkB.T1.

In the BDNF-induced LTP experiments, it is not clear that the effect of 'inactivation' of one TrkB.T1 allele is specific to the context of RbFox1 upregulation. This manipulation should be symmetrically applied in the context of to the Ctrl mouse as well. The data presented are insufficient to conclude that RbFox1 upregulation leads to a deficit in the BDNF-induced LTP resulting from an increase in TrkB.T1 expression (as opposed to indicating possible distinct roles for both TrkB.T1 and RbFox1 upregulation in BDNF-induced LTP).

Reviewer #3:

In this manuscript, Tomassoni-Ardori et al. investigate the impact of Rbfox1 on the expression of different TrkB isoforms. The findings are somewhat interesting though the overall impact is somewhat limited by the many other recent manuscripts studying the function of this protein and the focus on Rbfox1 overexpression even though disease is associated with reduced functional Rbfox.

However, the work does provide new insight into the potential role of Rbfox1 and the data demonstrating it binds and regulates TrkB.T1 is pretty conclusive, though there are a few shortcomings that should be addressed that are outlined below.

1) In the second paragraph of the Results, the authors state that the observation that Rbfox1 specifically impacts TrkB.T1 mRNA without affecting full length suggests that it does not act by regulating splicing. I do not really understand this argument and think conducting experiments to rule out an effect on splicing (or some additional explanation) are warranted.

2) It would be helpful to confirm that the upregulation of Rbfox1 in brains of lox-stop-lox/nestin-Cre animals is limited to neurons. Depending on what nestin-cre driver was used, it is possible that Rbfox1 is also upregulated in non-neuronal cells which could contribute to the gene expression changes observed.

3) In order to demonstrate that TrkB.T1 was a key target of Rbfox1 despite the many other targets was to use a BDNF induced LTP paradigm. As responses in this setup would be expected to be dominated by BDNF/TrkB signaling, any regulator of TRkB levels would be expected to have strong phenotype here and dominate over the impact of other genes. Perhaps another complimentary functional experiment, if possible would be helpful here.

4) Related to the above, it could be interesting to determine whether any of the other RNA-seq hits were TrekB dependent, this could be another opportunity to support a key role for Rbfox1 dependent regulation of TrkB.T1 in downstream phenotypes.

5) The authors comment on potential differences between mouse and human, and it might be helpful to confirm that Rbfox1 similarly regulates TrkB.T1 in human neurons and determine whether knockdown of Rbfox1 is effective in that system.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

We are pleased to inform you that your article, "RbFox1 up-regulation impairs BDNF-dependent hippocampal LTP by dysregulating TrkB isoform expression levels", has been accepted for publication in eLife. A summary of the study and the reviewers' comments are included below.

The BDNF TrkB receptor is responsible for synaptic plasticity, obesity and learning and memory. In addition to the full length TrkB tyrosine kinase receptor, a truncated form of TrkB (TrkB.T1) exists in the central nervous system. However the regulation of TrkB.T1 receptors is not well understood. In this study, the RNA binding protein, RBFox1, was found to upregulate the expression of TrkB.T1, which resulted in a deficit in BDNF-dependent LTP. This paper provides a new mechanism to explain the effects of BDNF upon synaptic plasticity.

The revised manuscript has been evaluated by two prior reviewers. Both reviewers found the revised manuscript adequately addressed the previous criticisms and questions with additional experiments and analysis. They concluded the revision is suitable for publication. One remaining question was whether the regulation of truncated TrkB occurred through RNA stability or alternatively by a splicing event. this issue can be dealt with in the future, but it would be useful to acknowledge it in the text of the paper.

Reviewer #1:

In this manuscript, Tessarollo and colleagues identify that RbFox1 regulates levels of TrkB.T1, a TrkB isoform that regulates activity of TrkB.FL. The then go on to show that upregulation RbFox1 impacts LTP specifically through regulating TrkB/T1 levels.

I was a reviewer of the last version of this manuscript, and the changes made by the authors have adequately addressed many of the concerns raised with the original version. The revised manuscript represents a more cohesive story with a logical flow that was harder to see in the previous version.

There are still a few issues with the manuscript that should be addressed that are outlined below, but in general the revised manuscript is greatly improved and should be considered for publication.

1) Despite additional experiments conducted by the authors, the mechanism by which RbFox1 specifically regulates TrkB.T1 is still a mystery. In the eyes of this reviewer, the data does not necessarily confirm an RNA stability mechanism and could be due to regulation of splicing to favor the T1 UTR. Altered splicing to include the T1 UTR could result in more T1 mRNA after RbFox overexpression in the pulse chase experiment (Figure 3D) and is consistent with the observation that the 3'UTR does not increase mRNA stability (Figure 3—figure supplement 2). Additional experiments to look at splicing directly and/or experiments looking at stability using full mRNAs for TrkB.T1 and TrkB.FL would be ideal, but depending on the views of other reviewers it could also be acceptable to note that in the text that either mechanism is possible.

2) The authors have done an excellent job demonstrating that (A) the LTP deficits following RbFox1 upregulation are Trkb.T1 dependent and (B) that RbFox2 is at least semi-redundant with RbFox1. Therefore, the gene expression data shown by the authors is not likely to underlie any of the core phenotypes of interest in the study. Because of this, it may be best to put less emphasis on this data through removing/rewording the significance statement for example.

Reviewer #2:

The authors have done a thorough revision of their manuscript, which is much improved from the prior submission. I believe that the manuscript is suitable for eLife.

While the mechanism of action by which RbFox1 overexpression upregulates truncated TrkB.T1 remains unclear, the authors now show that this action is also achieved by RbFox2 but not RbFox3.

It should be made clear within the manuscript text and figure legend whether the experiments in Figure 3—figure supplement 1 utilize a construct containing only the TrkB.T1 3'UTR, or the entire cDNA transcript inclusive of the 3'UTR.

The authors have made gains in further understanding the relationship of RbFox1, TrkB.T1, and BDNF-dependent LTP. They have added data that TrkB.T1 deficient cultured hippocampal neurons display an increased response to BDNF. The manuscript also now includes data showing that conditional removal of one TrkB.T1 receptor allele in animals with up-regulated RbFox1 is sufficient to rescue hippocampal BDNF dependent LTP, suggesting that TrkB is a relevant target of RbFox1 in BDNF-dependent LTP.

This would be a more appropriate conclusion than the more broad: 'genetic reduction of the TrkB.T1 isoform in animals with up-regulated RbFox1 is sufficient to restore hippocampal BDNF dependent LTP, suggesting that TrkB is a major target of RbFox1 pathological dysregulation' particularly since the author's observe a broad variety of gene dysregulation in their RNA-seq experiments.

Statistical analysis and description of experimental design are improved. Analysis of RNA-seq data is improved for consistency across datasets being compared, although it remains unclear what biological variables exist between the authors' dataset and the previously published comparison dataset.

https://doi.org/10.7554/eLife.49673.026

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Summary:

This study focuses upon the regulation of a truncated TrkB species, TrkB.T1, by the RNA binding protein RbFox1. There was agreement among the three reviewers that the regulation of TrkB.T1 by RbFox1 is of considerable interest. However, a number of reservations were raised. The major issues are the need for more evidence for the role of truncated TrkB in BDNF-dependent LTP; a resolution of how the levels of RbFox1 impact upon TrkB.T1 expression; and whether there is a non-neuronal contribution of Rbfox1. These are valid concerns that will require more experimentation in order to validate the major conclusions. Specific comments by the reviewers follow this letter. Based upon the common concerns and recommendations from the referees, we have therefore decided to decline the manuscript.

Thank you very much for the constructive comments that were provided by the whole reviewing team to our previous submission. The comments are all valid and constructive and we felt the need to thoroughly address them through the use of new mouse models and experiments to strengthen and improve our manuscript. Specifically:

1) We have generated new information on the role of TrkB.T1 in BDNF-induced LTP by providing mechanistic information showing that up or down-regulation of TrkB.T1 modulates TrkB.FL signaling (new Figure 6), which has been shown to be the primary determinant of BDNF-induced LTP. In addition, we have performed BDNF-induced LTP experiments in a new triple transgenic mouse model (nestin- cre; R26-Rbfox1; TrkB.T1loxP) to demonstrate a direct role of TrkB.T1 function in neurons (new Figure 8), where RbFox1 is also expressed (new Figure 8—figure supplement 2).

2) To further understand how the levels of RbFox1 impact TrkB.T1 expression we have investigated the specificity of this function within the RbFox1 family members. The surprising finding that only RbFox1 and RbFox2, but not RbFox3, regulate TrkB.T1 despite the fact that all Fox proteins bind to the same RNA sequence suggests that other proteins are required for this phenomena (new Figure 2C, D). This observation is important because it steers the RNA biology field toward the investigation of a new molecular mechanism of RbFox protein function. In addition we have further strengthened our finding that RbFox1 gain or loss of function affects different genetic pools by re-doing our bioinformatics analysis starting from raw data from all studies and by employing the same parameters and filtering (new Figure 5).

3) We have validated that RbFox1 function is strictly neuronal by performing a detailed characterization of hippocampal nestin-cre/R26-RbFox1 activity (new Figure 1—figure supplement 2) and by performing BDNF- induced LTP experiments in a new transgenic nestin-cre; R26- Rbfox1; TrkB.T1loxP mouse model to demonstrate a direct role of TrkB.T1 function in neurons (new Figure 8).

Reviewer #1:

The study provides important insights into the mechanism and functional regulation TrkB signaling via selective modulation in the expression of truncated TrkB.T1 receptors at synaptic sites. Regulation of TrkB.T1 is mediated by the RNA-binding protein RbFox1. In a gain-of-function model, RbFox1 stabilizes TrkB.T1 mRNA and increases expression of TrkB.T1 protein. Surprisingly, stabilization occurs through an unknown mechanisms involving binding of RbFox1 to the intronic region of TrkB.T1 pre-mRNA, and not by binding to cis-acting elements in the 3'UTR. Functional studies in acute hippocampal slices show that transgenic overexpression of TrkB.T1 greatly inhibits LTP in the induced by rapid bath perfusion of BDNF. BDNF-LTP is partly restored in heterozygous transgenic mice, strongly supporting a role of TrkB.B1 in regulating TrkB function and plasticity in the adult hippocampus. The background for this work is the observation of enhanced TrkB.T1 expression in chromosome 16 trisomy mice. By identifying regulation of TrkB.T1 by RbFox1 and showing differences between gain and loss-of-function of the RNA binding-protein, the study opens new avenues for pre-clinical translational research.

1) The effect on BDNF- LTP requires substantiation. Transgenic expression of TrkB.T1 modulates the response. To better evaluate the physiological role of TrkB.T1, BDNF-LTP should also be assessed in TrkB.T1 knockouts. TrkB inhibitors should be applied to confirm a TrkB-mediated response.

We do agree with the reviewer that more experiments to strengthen the role of TrkB.T1 modulation in LTP ware important. Experiments with Trk inhibitors have already been performed and have suggested a key role for TrkB.FL signaling in BDNF induced LTP (Kang and Schuman, 1995). In addition, in our initial paper (Carim-Todd et al., 2009) where we evaluated LTP in TrkB.T1 KO mice we failed to detect any significant difference. Here, we have also reported that TrkB.T1 heterozygous mice do not show any defect in BDNF induced LTP (Figure 8—figure supplement 2). Since a key point of the paper is to evaluate whether neuronal TrkB.T1 upregulation (since RbFox1 is expressed only in neurons), disrupts BDNF-induced LTP we did test whether it is the TrkB.T1 up-regulation in neurons causing the impairment (a point also raised by reviewer 2 and 3). Therefore, we have generated a triple transgenic mouse with a conditional TrkB.T1loxP, R-26-RbFox1 and nestin-cre allele to test rescue of the BDNF induced LTP in neurons. The strategy led to a rescue (new Figure 8). Furthermore, to mechanistically address the role of TrkB.T1 modulation on TrkB.FL function, we have used an in vitro system and showed that increased TrkB.T1 levels reduced TrkB.FL and ERK phosphorylation levels (new Figure 6A). A modulatory role was also confirmed in pure TrkB.T1 KO primary hippocampal cultures where TrkB.FL signaling was increased (new Figure 6B-D).

2) Data on the binding sites and mechanism of RNA stabilization would improve the paper.

This is a valid point. So far, the data that we have accumulated show

1) by analysis of the iCLIP data, that RbFox1 associates along the TrkB transcripts in two different nuclear fractions of the mouse brain (Figure 3A). Direct binding is also confirmed by RIP analysis in primary hippocampal neurons (Figure 3C); 2) mechanistically, RbFox1 stabilizes specifically TrkB.T1 transcripts (Figure 3D) and 3) RbFox1 RNA-binding capability is required for regulation of TrkB.T1 (Figure 3E, F). (we have clarified this concept in the third paragraph of the Discussion). Importantly, during the revision process, we have found that in primary hippocampal neurons RbFox2, but not RbFox3 can substitute for RbFox1 (new Figure 2C, D). The implications of this finding are important because they suggest that other proteins binding to RbFox1 and/or RbFox2 confer specificity of action since all RbFox members bind to the same sequence ((U)GCAUG). We have added this important point in the Discussion (fourth paragraph). We think that future IP and proteomic analysis to identify proteins associated with the different RbFox gene products should help determine the identity of these proteins.

Reviewer #2:

This manuscript presents interesting data examining the consequences of RbFox1 upregulation as an approach to identify downstream genes regulated by RbFox1 which may have significance for brain disorders associated with RbFox1 mutation. The authors begin by following up on their prior Trisomy 16 work, to identify RbFox1 as a chromosome 16-encoded gene that could produce their previously observed upregulated expression of a truncated form of the TrkB receptor, TrkB.T1. Data is presented to show that viral overexpression of RbFox1 in hippocampal neurons produces upregulation of TrkB.T1 protein and mRNA without changing levels of full-length TrkB (TrkB.FL), and differential binding of RbFox1 to TrkB mRNAs is assessed. A mouse model with inducible RbFox1 expression is used to assess effects on gene expression by immunoblotting and RNA-seq and to probe BDNF-induced LTP. The authors compare their RbFox1 induced expression RNA-seq dataset with a published dataset from another group studying the effects of RbFox1 deletion (Vuong et al., 2018) to support a main conclusion that genes affected by RbFox1 gain of function differ from genes affected by RbFox1 loss of function.

Several aspects of the data make it difficult to definitively conclude that gain and loss of RbFox1 produce regulation of different genes:

1) The comparisons of the results of RbFox1 overexpression and RbFox1KO in Figure 4B are hampered by the fact that there may be many differences in experimental design, mouse genetic background, sample preparation, sequencing, analysis and filters applied, etc., between the authors' dataset and data presented in Vuong et al., 2018. It's not clear that differences in seq data will all or even mostly be due to biological differences in the effects of Rbfox1 overexpression compared to Rbfox1 deletion. Insufficient details are provided in this manuscript to compare even major biological variables such as the age of mice used by the authors for the RNA-seq experiments.

The reviewer raises a very valid point. Therefore, we have completely redone the comparative analysis of RNA-seq data using raw data from all studies, using the same parameters, and by applying the same filtering during the analysis. In addition, we have analyzed the changes in isoform expression and used the same cut-off between studies. This analysis greatly increased the number of genetic changes caused by RbFox1 loss of function (1657 from 967 of the previous submission, new Figure 5B) yet only 42 (from 38 of previous submission) overlap between that genetic model and our gain-of-function study. We have also changed our analysis to report changes in pathways rather than individual genes (new Figure 5A) which we think is more relevant to understanding the implications on brain function.

We apologize for not having included all the details about the mice used for the analysis. We have now amended the Materials and methods section (subsection “Mouse models”; subsection “RNA stability”) to indicate that mice were backcrossed into a pure C57BL/6 genetic background for at least 10 generations and the nestin-cre mice were from the same source (JAX) as reported in the study by Vuong et al., 2018. The age of the animals is also indicated. Lastly, we have added more details in the Materials and methods section for the RNA-seq analysis (subsection “RNA seq analysis”). While we cannot completely rule out differences between studies we feel that, if any, these should be minimal after the new analysis.

2) A proposed mechanism for the difference in genes regulated by gain or loss of RbFox1 expression is incompletely defined. The authors show that an RbFox1 heterozygote with reduced RbFox1 expression has an increase in RbFox2 expression relative to a control mouse, while RbFox1 gain of function does not alter RbFox2 levels. It is not clear whether RbFox2 is changed in the RbFox1 deletion context (Vuong et al., 2018) though, or to what extent RbFox2 can interchange for RbFox1 binding sites and gene regulation.

As indicated in our response to point 2 of reviewer 1 we have now shown that RbFox2 is not only upregulated in RbFox1 heterozygous mice but can also functionally compensate for RbFox1 (Results, fourth paragraph; new Figure 2C, D; Discussion, fourth paragraph). As suggested by the reviewer, we have also checked whether RbFox2 is up-regulated in the context of RbFox1 deletion (Vuong et al., 2018) and found that indeed it is. We have added the reference (Results, fifth paragraph), and also reported the data in Supplementary file 2. In addition, RbFox1 and RbFox3 knockdown experiments in primary neurons also show a 2- fold increase in RbFox2 protein (Lee et al., 2016), as also previously reported in RbFox1-KO brain (Gehman et al., 2011).

Indeed, as also indicated in our response to reviewer 1, point 2, we have made some progress with the new data toward the understanding of what might regulate the stability of different transcripts in a overexpression context but we think that showing the biological significance and importance of this new mechanism should be the first critical step to prompt the RNA biology community to dissect the molecular basis of this important phenotype.

If RbFox1 differentially elevates levels of newly synthesized TrkB.T1 mRNA compared to TrkB.FL mRNA (Figure 2D), then can the authors explain why this action of RbFox1 overexpression fails to produce any change in the level of TrkB.T1 protein (Figure 3—figure supplement 1) in the HEK293 dox-inducible cell line?

We apologize for not having been more clear in explaining the HEK293-dox inducible experiment and its significance. Since it has been reported that RbFox1 can stabilize mRNA species by binding to the 3’UTRs and antagonize specific miRNA activity (Lee et al., 2016), we have tested if RbFox1 could increase the stability of TrkB.T1 cDNA with the 3’UTR. Our data show that RbFox1 presence does not change the level of TrkB.T1 with the 3’UTR suggesting that it is the binding to the intronic regions of the TrkB.T1 that changes its level of expression. This is in agreement with our iCLIP analysis and RIP experiments that show Rbfox1 binding to the intronic regions of TrkB.T1 (Figure 3A, C). We have now clarified the concept in the manuscript (Results and Discussion, third paragraph).

Greater explanation is needed for the determination of reads as TrkB.T1 compared to TrkB.FL, especially given that TrkB.FL contains the sequence of TrkB.T1.

The reviewer is correct that more details are needed for how we determined the reads of TrkB.T1 and TrkB.FL since there is sequence overlap between the two isoforms. Even if TrkB.FL and TrkB.T1 share the same extracellular region, the unique TrkB.T1 exon and long 3’UTR provides specificity for the determination of reads as TrkB.T1 compared to TrkB.FL. We have added more details in the Materials and methods section about the RNA-seq analysis including the use of “EBSeq (version 1.22.1) to test for differential isoform expression between experimental conditions. Group-based TPM filtering was applied to remove lowly expressed transcripts. Significant differentially expressed isoforms were identified with a false-discovery rate £0.05”.

In the BDNF-induced LTP experiments, it is not clear that the effect of 'inactivation' of one TrkB.T1 allele is specific to the context of RbFox1 upregulation. This manipulation should be symmetrically applied in the context of to the Ctrl mouse as well. The data presented are insufficient to conclude that RbFox1 upregulation leads to a deficit in the BDNF-induced LTP resulting from an increase in TrkB.T1 expression (as opposed to indicating possible distinct roles for both TrkB.T1 and RbFox1 upregulation in BDNF-induced LTP).

We thank the reviewer for raising this very important point that also helped in addressing point 1 of reviewer 1. Specifically, we have generated a triple transgenic mouse with a conditional TrkB.T1loxP, R-26-RbFox1 and nestin-cre alleles to test the rescue of the BDNF induced LTP in the same cellular context where RbFox1 is upregulated (neurons); see new Figure 8. All manipulations are now symmetrically applied. The N-cre-Fox1 mouse had the R-26-RbFox1 and nestin-cre alleles, and the control (Ctrl) had the nestin-cre only allele. As indicated above, we also went further to better dissect the role of the TrkB.T1-isoform in the context of BDNF/TrkB signaling by showing that increasing TrkB.T1 levels reduces BDNF- induced signaling (new Figure 6).

Reviewer #3:

In this manuscript, Tomassoni-Ardori et al. investigate the impact of Rbfox1 on the expression of different TrkB isoforms. The findings are somewhat interesting though the overall impact is somewhat limited by the many other recent manuscripts studying the function of this protein and the focus on Rbfox1 overexpression even though disease is associated with reduced functional Rbfox.

The reviewer is correct that most studies have focused on RbFox1 loss of function though it is now emerging that there are pathological situations in humans where RbFox1 (and even RbFox2) is found to be up-regulated (see also comment above). Thus, we feel that we are covering a new understudied and yet important area of research.

However, the work does provide new insight into the potential role of Rbfox1 and the data demonstrating it binds and regulates TrkB.T1 is pretty conclusive, though there are a few shortcomings that should be addressed that are outlined below.

1) In the second paragraph of the Results, the authors state that the observation that Rbfox1 specifically impacts TrkB.T1 mRNA without affecting full length suggests that it does not act by regulating splicing. I do not really understand this argument and think conducting experiments to rule out an effect on splicing (or some additional explanation) are warranted.

We do understand the difficulty of this concept especially because RbFox1 is known as a regulator of splicing. The data that lead to our conclusion are the following: 1) in vivo and in vitro RbFox1 overexpression causes up-regulation of only TrkB.T1 and no changes in TrkB.FL. In situations of alternative splicing we should have seen TrkB.FL expression levels going down; 2) These data, i.e. change of only one isoform, is confirmed by the very sensitive RNA-seq analysis in N-cre-Fox1 mouse hippocampus. 3) Analysis of new nascent RNA showed that TrkB.T1 but not TrkB.FL RNA is more stable upon RbFox1 overexpression. We have now modified the Discussion to clarify these points (third paragraph).

2) It would be helpful to confirm that the upregulation of Rbfox1 in brains of lox-stop-lox/nestin-Cre animals is limited to neurons. Depending on what nestin-cre driver was used, it is possible that Rbfox1 is also upregulated in non-neuronal cells which could contribute to the gene expression changes observed.

We thank the reviewer for bringing up this very important point. As suggested, we have performed a very careful analysis of nestin-cre activity in the hippocampus. The characterization of cre-activity as well as of Fox1 expression and potential overlap with GFAP is reported in the new panels of Figure 1—figure supplement 2 and in the Results section (third paragraph).

3) In order to demonstrate that TrkB.T1 was a key target of Rbfox1 despite the many other targets was to use a BDNF induced LTP paradigm. As responses in this setup would be expected to be dominated by BDNF/TrkB signaling, any regulator of TRkB levels would be expected to have strong phenotype here and dominate over the impact of other genes. Perhaps another complimentary functional experiment, if possible would be helpful here.

The reviewer’s point is well taken and indeed there could be other genes that are regulated by RbFox1 and that could impact TrkB levels or signaling. To strengthen our observation and test the direct regulation of TrkB.T1 in BDNF-induced LTP, we have performed this experiment in the context of conditional TrkB.T1 deletion in neurons to clarify that the previous rescue effect was not caused by an indirect down-regulation of TrkB.T1 in glia (new Figure 8). Moreover, we have performed a new complementary functional experiment to show that increasing or decreasing TrkB.T1 modulates TrkB.FL signaling, which is key to BDNF-induced LTP (New Figure 6).

4) Related to the above, it could be interesting to determine whether any of the other RNA-seq hits were TrekB dependent, this could be another opportunity to support a key role for Rbfox1 dependent regulation of TrkB.T1 in downstream phenotypes.

We agree that it would be nice to know if there are some TrkB- dependent RNA-seq hits. However, we are afraid that it would be almost impossible to demonstrate a direct relationship between those hits and TrkB-induced LTP because there are so many genes/neuronal pathways that are dysregulated by Rb-Fox1. To convey this point, we have changed panel Figure 5A to indicate that many neuronal pathways are dysregulated. Yet, we hope that the reviewer will agree that it is remarkable that correcting only the expression of one isoform can rescue the BDNF-induced LTP.

5) The authors comment on potential differences between mouse and human, and it might be helpful to confirm that Rbfox1 similarly regulates TrkB.T1 in human neurons and determine whether knockdown of Rbfox1 is effective in that system.

Following the reviewer’s comment we have investigated the possibility of testing our hypothesis in human hippocampal neurons, which are available. However, National Institutes of Health (NIH) regulations do not allow such experiments since human hippocampal neurons are of fetal origin. We have also considered the possibility of differentiating human iPSCs or ES cells but, to our knowledge, there are, as yet, no good protocols specific to the differentiation of hippocampal neurons. In the future, it will be important to test RbFox1 in conjunction with TrkB levels in patients with specific neurodegenerative or neuropsychiatric disorders, studies that we think will be prompted by our report.

[Editors' note: the author responses to the re-review follow.]

We are pleased to inform you that your article, "RbFox1 up-regulation impairs BDNF-dependent hippocampal LTP by dysregulating TrkB isoform expression levels", has been accepted for publication in eLife. A summary of the study and the reviewers' comments are included below.

The BDNF TrkB receptor is responsible for synaptic plasticity, obesity and learning and memory. In addition to the full length TrkB tyrosine kinase receptor, a truncated form of TrkB (TrkB.T1) exists in the central nervous system. However the regulation of TrkB.T1 receptors is not well understood. In this study, the RNA binding protein, RBFox1, was found to upregulate the expression of TrkB.T1, which resulted in a deficit in BDNF-dependent LTP. This paper provides a new mechanism to explain the effects of BDNF upon synaptic plasticity.

The revised manuscript has been evaluated by two prior reviewers. Both reviewers found the revised manuscript adequately addressed the previous criticisms and questions with additional experiments and analysis. They concluded the revision is suitable for publication. One remaining question was whether the regulation of truncated TrkB occurred through RNA stability or alternatively by a splicing event. this issue can be dealt with in the future, but it would be useful to acknowledge it in the text of the paper.

We have included the modification requested by the reviewers and indicated that future experiments will be needed to address the mechanism by which TrkB.T1 is regulated. The paragraph with the requested modifications has been included in the Discussion.

https://doi.org/10.7554/eLife.49673.027

Article and author information

Author details

  1. Francesco Tomassoni-Ardori

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Gianluca Fulgenzi

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Conceptualization, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Jodi Becker

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Investigation, Performed experiments
    Competing interests
    No competing interests declared
  4. Colleen Barrick

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Investigation, Performed experiments
    Competing interests
    No competing interests declared
  5. Mary Ellen Palko

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Investigation, Performed experiments
    Competing interests
    No competing interests declared
  6. Skyler Kuhn

    1. CCR Collaborative Bioinformatics Resource (CCBR), Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    2. Advanced Biomedical Computational Science, Frederick National Laboratory for Cancer Research sponsored by the National Cancer Institute, Frederick, United States
    Contribution
    Formal analysis, Assisted with preparing manuscript
    Competing interests
    No competing interests declared
  7. Vishal Koparde

    1. CCR Collaborative Bioinformatics Resource (CCBR), Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    2. Advanced Biomedical Computational Science, Frederick National Laboratory for Cancer Research sponsored by the National Cancer Institute, Frederick, United States
    Contribution
    Formal analysis, Assisted with preparing manuscript
    Competing interests
    No competing interests declared
  8. Maggie Cam

    1. CCR Collaborative Bioinformatics Resource (CCBR), Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    2. Advanced Biomedical Computational Science, Frederick National Laboratory for Cancer Research sponsored by the National Cancer Institute, Frederick, United States
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
  9. Sudhirkumar Yanpallewar

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Shalini Oberdoerffer

    Laboratory of Receptor Biology and Gene Expression, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Bethesda, United States
    Contribution
    Formal analysis, Provided intellectual contribution
    Competing interests
    No competing interests declared
  11. Lino Tessarollo

    Neural Development Section, Mouse Cancer Genetics Program, Center for Cancer Research, National Cancer Institute, National Institutes of Health, Frederick, United States
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    tessarol@mail.nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6420-772X

Funding

National Cancer Center (Intramural Research Program)

  • Lino Tessarollo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Eileen Southon for critical reading of the manuscript and Douglas Black for generously sharing the 1D10 anti-Rbfox1 monoclonal antibody. This work was supported by the NIH Intramural Research Program, Center for Cancer Research, National Cancer Institute.

Ethics

Animal experimentation: All experimental procedures followed the National Institutes of Health Guidelines for animal care and use, and were approved by the NCI-Frederick Animal Care and Use Committee.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Moses V Chao, New York University Langone Medical Center, United States

Publication history

  1. Received: June 25, 2019
  2. Accepted: July 25, 2019
  3. Accepted Manuscript published: August 20, 2019 (version 1)
  4. Version of Record published: August 29, 2019 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 716
    Page views
  • 139
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
