Mouse retinal cell behaviour in space and time using light sheet fluorescence microscopy

  1. Claudia Prahst  Is a corresponding author
  2. Parham Ashrafzadeh
  3. Thomas Mead
  4. Ana Figueiredo
  5. Karen Chang
  6. Douglas Richardson
  7. Lakshmi Venkaraman
  8. Mark Richards
  9. Ana Martins Russo
  10. Kyle Harrington
  11. Marie Ouarné
  12. Andreia Pena
  13. Dong Feng Chen
  14. Lena Claesson-Welsh
  15. Kin-Sang Cho
  16. Claudio A Franco
  17. Katie Bentley  Is a corresponding author
  1. Center for Vascular Biology Research and Department of Pathology, Beth Israel Deaconess Medical Center, Harvard Medical School, United States
  2. The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Sweden
  3. The Francis Crick Institute, United Kingdom
  4. Department of Informatics, Faculty of Natural and Mathematical Sciences, Kings College London, United Kingdom
  5. Instituto de Medicina Molecular, Portugal
  6. Schepens Eye Research Institute of Massachusetts Eye and Ear, Department of Ophthalmology, Harvard Medical School, United States
  7. Harvard Center for Biological Imaging, Department of Molecular and Cellular Biology, Harvard University, United States
  8. Geriatric Research Education and Clinical Center, Office of Research and Development, Edith Nourse Rogers Memorial Veterans Hospital, United States
  9. Biomedical Engineering Department, Boston University, United States
Tools and Resources
  • Cited 2
  • Views 3,312
  • Annotations
Cite this article as: eLife 2020;9:e49779 doi: 10.7554/eLife.49779

Abstract

As the general population ages, more people are affected by eye diseases, such as retinopathies. It is therefore critical to improve imaging of eye disease mouse models. Here, we demonstrate that 1) rapid, quantitative 3D and 4D (time lapse) imaging of cellular and subcellular processes in the mouse eye is feasible, with and without tissue clearing, using light-sheet fluorescent microscopy (LSFM); 2) flat-mounting retinas for confocal microscopy significantly distorts tissue morphology, confirmed by quantitative correlative LSFM-Confocal imaging of vessels; 3) LSFM readily reveals new features of even well-studied eye disease mouse models, such as the oxygen-induced retinopathy (OIR) model, including a previously unappreciated ‘knotted’ morphology to pathological vascular tufts, abnormal cell motility and altered filopodia dynamics when live-imaged. We conclude that quantitative 3D/4D LSFM imaging and analysis has the potential to advance our understanding of the eye, in particular pathological, neurovascular, degenerative processes.

eLife digest

Eye diseases affect millions of people worldwide and can have devasting effects on people’s lives. To find new treatments, scientists need to understand more about how these diseases arise and how they progress. This is challenging and progress has been held back by limitations in current techniques for looking at the eye. Currently, the most commonly used method is called confocal imaging, which is slow and distorts the tissue. Distortion happens because confocal imaging requires that thin slices of eye tissue from mice used in experiments are flattened on slides; this makes it hard to accurately visualize three-dimensional structures in the eye.

New methods are emerging that may help. One promising method is called light-sheet fluorescent microscopy (or LSFM for short). This method captures three-dimensional images of the blood vessels and cells in the eye. It is much faster than confocal imaging and allows scientists to image tissues without slicing or flattening them. This could lead to more accurate three-dimensional images of eye disease.

Now, Prahst et al. show that LSFM can quickly produce highly detailed, three-dimensional images of mouse retinas, from the smallest parts of cells to the entire eye. The technique also identified new features in a well-studied model of retina damage caused by excessive oxygen exposure in young mice. Previous studies of this model suggested the disease caused blood vessels in the eye to balloon, hinting that drugs that shrink blood vessels would help. But using LSFM, Prahst et al. revealed that these blood vessels actually take on a twisted and knotted shape. This suggests that treatments that untangle the vessels rather than shrink them are needed.

The experiments show that LSFM is a valuable tool for studying eye diseases, that may help scientists learn more about how these diseases arise and develop. These new insights may one day lead to better tests and treatments for eye diseases.

Introduction

Eye diseases, such as diabetic retinopathy, age-related macular degeneration, cataracts, and glaucoma are becoming increasingly common with the increased age of the general population. Although advances in understanding and treating eye diseases have been made, the cellular and molecular mechanisms involved are still not fully understood. We believe that is partially due to the inadequate ability to image eye tissue in its natural, spherical state, to reveal the many distinct layers with interacting cell types oriented differentially within or between the layers. Optical coherence tomography (OCT) is an established medical imaging diagnostic tool that uses light to capture micrometre-resolution, three-dimensional images, non-invasively (Srinivasan et al., 2006; Huber et al., 2009). Its main strength lies in revealing information on tissue depth preserving the eyes natural state. However, its limitation lies in not being able to provide a wide field of view, cellular or molecular information. Furthermore, being a non-fluorescent method, specific proteins cannot be labelled and tracked to investigate mechanisms. Currently, only confocal microscopy can deliver this detailed fluorescently labelled information (del Toro et al., 2010), but the 3D nature of the tissue is likely distorted during flat-mounting and it is currently not known to what extent this might impact the obtained results. For instance, the vascular biology field is one clear example where these limitations can have a substantial impact. The mouse retina is a common model used to study vascular development and disease; confocal imaging approaches have been used to measure vessel morphology, vascular malformations, junctional organisation, and pathological tuft formation (Gerhardt et al., 2003; Bentley et al., 2014; Stahl et al., 2010). Moreover, vessel diameters are now being used to predict blood flow (Bernabeu et al., 2014; Baeyens et al., 2016). Distortions arising from confocal flat-mounting could therefore have important ramifications for the overall conclusions of several studies.

Changes in cellular and tissue morphology are a hallmark of many eye diseases. For instance, retinopathy of prematurity and diabetic retinopathy are characterised by excessive, bulbous and leaky blood vessels that protrude out of their usual layered locations. These malformed vessels cause many problems including the generation of abnormal mechanical traction, which pulls on the different layers, eventually leading to detachment of the retina (Nentwich and Ulbig, 2015; Hartnett, 2015). Yet, very limited information has arisen on the conformation and morphogenesis mechanisms of these vascular tuft malformations, despite a wealth of confocal studies of the related oxygen- induced retinopathy (OIR) mouse model (Connor et al., 2009).

Another limitation of confocal microscopy for imaging of mouse retinal angiogenesis is the inability to perform live imaging of endothelial cell dynamics. Endothelial cells move and connect in highly dynamic, complex ways to generate the extensive vascular networks required to perfuse the retina over time (angiogenesis). Live, in vivo imaging of murine intraocular vasculature has been reported using confocal microscopy (Ritter et al., 2005) and holds great promise for dynamic longitudinal studies of the growth/regression of large vessel such as hyaloid vessels. However, it does not as yet suit studies of smaller more dynamic cell and subcellular structures as being reliant on confocal currently limits such studies to slow frame rates (5–10 min intervals), limited z stack resolution with photobleaching issues and an apparent limited field of view. There are a small number of reports on ex vivo live-imaging of the retinal vasculature with confocal microscopy, but which clearly entails challenges as dissection of the retina for culture is time consuming, and moreover, the flatmounting is likely to disturb local tissue arrangement and mechanics (Sawamiphak et al., 2010; Rezzola et al., 2013). Furthermore, photobleaching, phototoxicity and long acquisition times continue to remain an issue.

A growing number of reports show that neurovascular interactions in the eye are important during development and disease progression (Akula et al., 2007; Narayanan et al., 2014; Nentwich and Ulbig, 2015; Usui et al., 2015; Verheyen et al., 2012). Neurons and vessels are however currently imaged with physical sectioning of paraffin or cryo-embedded retinas, which precludes concurrent visualisation of the vasculature, due to the orthogonal arrangement of neurons and vessels within or between retinal layers respectively. Likewise, current methods have limited potential for quantitative 3D and live imaging of fluorescently labelled neurons in neurodegenerative mouse models.

Recent advances in light-sheet fluorescence microscopy (LSFM) have demonstrated its strength for allowing the rapid acquisition of optical sections through thick tissue samples such as mouse brains (Stelzer, 2015). Instead of illuminating or scanning the whole sample through the imaging objective, as in wide-field or confocal microscopy, the sample is illuminated from the side with a thin sheet of light. Thus, in principle LSFM would require little interference with the original spherical eye tissue structure, avoiding distortion of the tissue with flat-mounting. Moreover, LSFM is becoming a gold-standard technique to perform live-imaging in whole organs/organisms because it permits imaging of thick tissue sections without disturbing the local environment, while also reducing photobleaching and phototoxicity (Stelzer, 2015; Reynaud et al., 2015). Thus, here we investigate the feasibility, advantages and disadvantages of LSFM for imaging the mouse eye for development or disease studies. We present an optimised LSFM protocol to rapidly image neurovascular structures, across scales from the entire eye to subcellular components in mouse retinas. We investigate the pros and cons of LSFM imaging of vessels over standard confocal imaging techniques in early mouse pup retinas. Importantly, we also demonstrate the benefits of LSFM using the OIR mouse model, where we discover previously unappreciated new spatial arrangements of endothelial cells in the onset of vascular tuft malformations due to the improved undistorted, 3D and 4D imaging capabilities of LSFM.

We conclude that LSFM quantitative 3D/4D imaging and analysis has the potential to advance our understanding of healthy and pathological processes in the eye, with a particular relevance for the vascular and neurovascular biology fields, as well as ophthalmology.

Results

LSFM enables rapid 3D imaging of mouse eyes, and in particular retinas, in their natural state

To visualise the retinal vasculature using epifluorescence or confocal microscopes, the retina is flat-mounted by making four incisions before adding a cover slip containing mounting medium onto glass slides (Figure 1a, upper panel). To image samples using LSFM, however, samples are suspended in their natural state in low-melting agarose (Figure 1a, lower panel). This enables imaging of the vasculature of large and intact samples such as the whole eyeball (minus the sclera and cornea) (Figure 1b), the iris (Figure 1c), or the optic nerve (Figure 1d). Using LSFM, it was possible to observe the superficial, intermediate and deep vascular plexus (Figure 1e and Figure 1—figure supplement 1b) of a retina in its native conformation (Figure 1f). Acquiring a stack of the entire retina using LSFM contains 200–300 images, still, yet the imaging time is much shorter than it would be using confocal (~1 min).

Figure 1 with 1 supplement see all

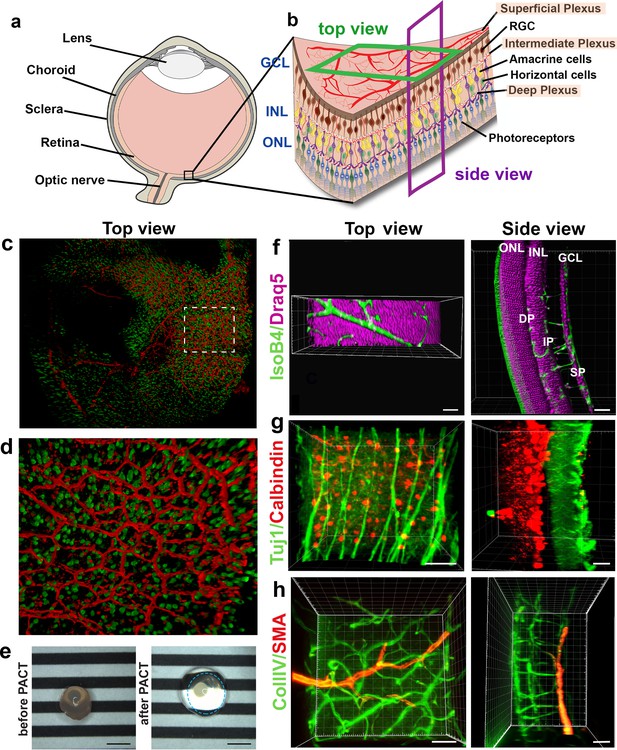

Imaging of the whole eye using light sheet microscopy.

(a) Schematic of retina preparation for imaging. For conventional confocal microscopy, four incisions are made to enable flat-mounting of the retina onto a cover slip. For LSFM, pieces of the retina are suspended and imaged from a right angle. (b) Maximum intensity projection (MIP) of a P15 mouse eyeball (z = 274 slices). Vessels were visualised with IsoB4 staining. Scale bar, 500 µm. (c) 3D-rendered image of the adult iris microvasculature (z = 263 slices). Vessels were visualised with IsoB4 (yellow arrows). Scale bar, 250 µm. (d) MIP of the optic nerve. Vessels were visualised with IsoB4 staining (z = 176 slices). Scale bar, 50 µm. (e) MIP of a cross section of a P10 mouse retina. Vessels were visualised with IsoB4 staining. Scale bar, 100 µm. (f) MIP of a whole P10 mouse retina suspended and imaged intact (z = 176 slices). Vessels were visualised with IsoB4 staining. Scale bar, 500 µm. See Figure 1—figure supplement 1 for additional images.

Imaging the iris microvasculature (Figure 1c) revealed that the vasculature network is immature at P15 (Figure 1b, Figure 1—figure supplement 1a), and that it remodels into a mature network in adulthood (Figure 1c). A network of capillaries was visible at P15, whereas the adult microvasculature consisted of radial branches of small vessels and capillaries in a relatively linear pattern. The major arterial circles (MICs) around the iris root were developed in both P15 and adult mice (Figure 1c and Figure 1—figure supplement 1a). The images generated from adult mice using LSFM are consistent with a previous report using OCT to image the iris microvasculature (Choi et al., 2014). Using LSFM, the vessels appeared straighter, and the MICs were not as close to the iris root, which could be because OCT involves live-imaging of the vasculature, without mechanically removing the sclera and cornea.

We next tested whether LSFM could resolve subcellular structures in the retinal vasculature such as the Golgi apparatus, which has recently been shown to be important for inferring cell polarity during vessel regression (Franco et al., 2015). We found it feasible to stain and image the Golgi organelle (Golph4, Alexa 647) and the collagen IV-containing basement membrane around the vessels (Figure 1—figure supplement 1c,d). Moreover, quantification of the nucleus-Golgi polarity axis was amenable when imaging the GNrep mouse (Barbacena et al., 2019), which expresses Golgi-localised mCherry and nucleus-localised eGFP upon Cre-mediated recombination, enabling visualisation of endothelial specific nuclei and Golgi apparatus. We measured the polarity of cells in 3D by drawing lines from the centre of their nuclei to the nearest Golgi body. We observed endothelial cells collectively polarising against the flow direction along an arterial network (Figure 1—figure supplement 1e), as previously described (Franco et al., 2016). The ability to 3D rotate the undistorted vascular image stacks obtained with LSFM revealed hidden cells whose polarity could be analysed, not visible when analysing the same image stack using standard confocal 2D imaging (i.e. viewed only from above) (Figure 1—figure supplement 1f–h). On static images of mice expressing Lifeact-enhanced green fluorescent protein (EGFP) (Riedl et al., 2010) we performed deconvolution to reduce the light scattering effects and found this gave a marked improvement to the resolution of actin bundles within endothelial cells (Figure 1—figure supplement 1i–l). Taken together, we concluded that LSFM can rapidly generate 3D images of the murine eye in its native form across scales, with tissue, cellular and subcellular resolution.

LSFM enables concurrent 3D imaging of retinal cell types within and between the retinal layers

Neurons are currently imaged by making vertical sections, orthogonal to the three vascular layers (the superficial, intermediate and deep plexus) (Figure 2a,b, ‘side view’), which necessarily means losing the ability to observe vascular branching in the horizontal layer in the same tissue. Likewise, studies focused on the retinal vasculature use whole mount images of the retina viewed from above (Figure 2b, ‘top view’) using horizontal optical sections (Usui et al., 2015), which does not allow proper imaging of retinal neurons spanning between the layers because of insufficient z-resolution in confocal microscopy. Thus, we next investigated whether concurrent imaging of neurons and vessels in the same sample might be achieved with the optical sectioning and rotational viewing capacity of LSFM.

We found that eye cups from P3 C57BL/6 Thy1-YFP mice, labelling retinal ganglion cells in yellow combined with IsolectinB4 labelled vasculature provided 3D high resolution images without the need for tissue clearing (Figure 2c,d, Video 1). However, we found that including lipid removal/permeabilisation as part of a full tissue clearing protocol further improves resolution for eye cups at later stages of development, when more of the retinal vascular layers have formed (Figure 2e–h), as it decreases the scattered light caused by imaging thicker tissue with the light sheet (Richardson and Lichtman, 2015). In order to establish whether LSFM could be used to quantify neuronal changes in a retinal degeneration model we imaged retinal cups from the Rho KO degeneration model (Figure 2—figure supplement 1Humphries et al., 1997). The LSFM images were easily segmented and quantification showed a significant decrease in neuronal density in the outer nuclear layer (ONL) at 4 weeks for Rho KO compared to control retinas, which worsened in the 8 weeks Rho KO (Figure 2—figure supplement 1c). Measuring ONL thickness showed no notable difference between control and Rho KO at 4 weeks, however, there was a significant reduction in thickness in the Rho KO at 8 weeks relative to both strains at 4 weeks (Figure 2—figure supplement 1d). The ONL had almost entirely lost its stable convex curvature by 8 weeks in the KO retina and the inner nuclear layer (INL) also appeared ruffled when viewed in 3D which may be due to the unevenness of dropout of photoreceptors (Figure 2—figure supplement 1a,b).

Video 1
3D-rendered LSFM z-stack of retinal eye cups expressing yellow fluorescent protein, YFP (green) harvest from Thy1-YFP mice and stained with Isolectin IB4 (red).

We tested several different clearing methods to see which was better suited to retinal tissue. Using the aqueous-based clearing methods ScaleA2 and FRUIT (Hou et al., 2015; Hama et al., 2011) did not result in higher quality images and made tissue-handling very difficult during imaging due to the high viscosity of the FRUIT clearing agent. We also tested the passive aqueous-based methods CUBIC-R (Kubota et al., 2017) and PROTOS (Murray et al., 2015), but again found little improvement. Since many studies use animals genetically engineered to express fluorescent markers such as Tomato or GFP, we decided not to pursue solvent-based clearing methods such as iDISCO, which do not maintain fluorescent protein emission for more than a few days after the clearing process (Renier et al., 2014). Overall, we found PACT was the most efficient and effective clearing method for retinal tissue, likely because it is relatively thin (Yang et al., 2014; Treweek et al., 2015). PACT cleared adult retinas with Draq5 staining, which stains all nuclei, visualising the INL and ONL (Figure 2f, Video 2). The deep vascular plexus, visualised by IsolectinB4 staining could be seen between the ONL and INL, whereas the intermediate vascular plexus bordered the INL as expected. The superficial vascular plexus is located on the inner retinal surface together with nuclei of the retinal ganglion cells (Figure 2f, Video 2). Adult retinas were co-immunostained for Tuj1 and Calbindin, markers for retinal ganglion cells and horizontal cells, respectively. This immunostaining made it possible to appreciate the distance between these two cell types in the fully developed retina (Figure 2g, Video 3). 3D-rendered images of co-staining for smooth muscle actin and collagenIV moreover showed arteries of the superficial vascular plexus covered with smooth muscle cells (Figure 2h, Video 4). Overall, LSFM holds great promise for concurrent studies of how different cell types interact during eye development and disease.

Video 2
3D-rendered LSFM z-stack of all nuclei (Draq5, magenta) visualises the inner nuclear layer and outer nuclear layer of the adult mouse retina.

Vessels were visualised by IsolectinB4 staining (green). The retinal pigment epithelium emits green autofluorescence.

Figure 2 with 1 supplement see all
3D reconstruction of nerves and vessels in one image.

(a) Schematic of an eyeball. (b) Schematic of the retina and its cell types. (c) Retinal eye cups expressing yellow fluorescent protein, YFP (green) were harvest from Thy1-YFP mice and stained with Isolectin IB4 (red). The retinal eye cups were mounted and imaged with LSFM. (d) Enlarged region of c. (e) Representative image of an eyeball before clearing (left panel), and an eyeball after PACT clearing (right panel). The circle around the cleared eyeball depicts the outline of the eyeball. Scale bar, 2 mm. (f) Draq5 staining (magenta) visualises the inner nuclear layer (INL) and outer nuclear layer (ONL) of the adult mouse PACT cleared retina. Vessels were visualised by IsoB4 staining (green). (g) Tuj1 (green) and calbindin (red) visualise the ganglion and horizontal cells in the mouse PACT cleared retina. (h) Smooth muscle actin (SMA, red) and Collagen IV staining (Coll.IV, green) visualise the three vascular layers and smooth muscle cells in the mouse PACT cleared retina. Scale bars, 50 µm.

Video 3
3D-rendered LSFM z-stack of an adult mouse retina stained for Tuj1 (green) and horizontal cells (calbindin, red) visualising the ganglion cells and horizontal cells, respectively.
Video 4
3D-rendered LSFM z-stack of an adult mouse retina stained for Smooth Muscle Actin (SMA, red) and CollagenIV staining (CollIV, green) visualises the three vascular layers and smooth muscle cells in the mouse retina.

Vessel distortion due to confocal flatmounting revealed by correlative LSFM-confocal imaging

As vascular measurements taken from confocal images are used as the standard for inferring the actual sizes of vascular structures in the retina, we next aimed to systematically quantify the 3D distortion of vascular structures incurred by flat-mounting and confocal imaging. In order to make direct, quantitative comparisons of the relatively small vessels in the superficial plexus, we used a correlative LSFM-confocal approach: we first imaged the retinal tissue with LSFM, which retains the natural tissue curvature, then we melted the agarose gel and flat-mounted the same retina onto a coverslip and imaged it again using confocal microscopy (Figure 3a). We first analysed the largest vessels near the optic nerve and then smaller capillaries in the sprouting vascular front from P4 WT retinas. Images obtained with our correlative LSFM-confocal approach were then brightness/contrast adjusted and cropped and surface rendered using Imaris to focus on small regions of same vessel segments in the corresponding confocal and LSFM images. Dramatically shallower side views and cross-sections of vessels were evident in the confocal images compared to LSFM (Figure 3b). We next quantified this shift in aspect ratio by measuring the diameter taken across the vessel in XY (hereafter ‘width’) and down through the Z-axis (hereafter ‘depth’) in the confocal (Figure 3c). For LSFM images, given the tissue can be at any orientation in the agarose with respect to the objective, the XYZ coordinate system of the image stack is not indicative of the equivalent width/depth measurement in confocal. Instead, the orientation of the surrounding vascular plexus at the point of the vessel segment was used as a reference surface ‘plexus plane’ to make the corresponding ‘width’ diameter measurement, as it is equivalent to the XY plane in the corresponding confocal image. Similarly, the ‘depth’ diameter in LSFM was defined as perpendicular to the plexus plane and width measurement (equivalent to the diameter through the z-stack in confocal). Vessels were significantly more elliptical (wider and shallower) under the confocal than LSFM, indicative of being compressed during flat-mounting (Figure 3d,e). Overall, vessels from retinas flat-mounted for confocal displayed significant distortion, and not in a simple ratio of depth to width changes, indicating LSFM as more reliable for quantitative 3D morphometric studies.

Vessel depth distortion in confocal due to flatmounting.

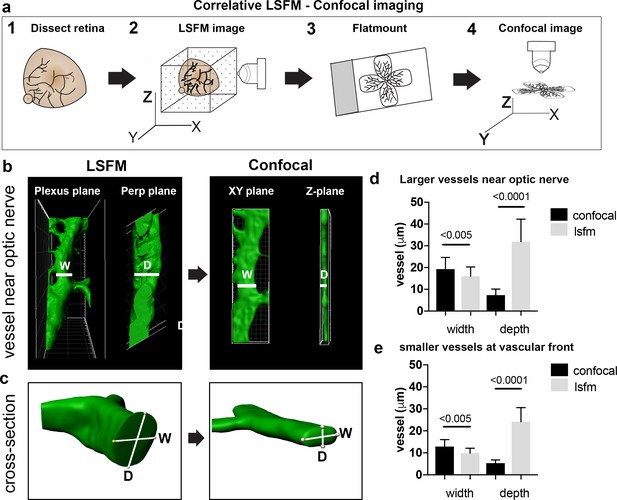

(a) Schematic showing the correlative LSFM-Confocal imaging approach used to quantify vessel distortion incurred by flatmounting. (b) The same large vessel segment imaged first with LSFM then confocal (surface rendered in Imaris). By orienting with the surrounding vessel connections to determine the plexus plane (equivalent to the XY plane in confocal) and the plane perpendicular to it (‘perp plane’), which is equivalent to the Z plane in confocal, comparative width (W) and depth (D) measurements can be made of the same vessel segment. (c) Cross sectional views of another representative large vessel near the optic nerve shows how the aspect ratio of W and D is shifted to an ellipse in confocal. Near Optic: n = 60 vessels from six retinas (seven images). Vascular Front n = 28 vessels in from four retinas (four images) for each confocal and LSFM.

LSFM enables 4D live-imaging with subcellular resolution, revealing rapid, transient ‘kiss and run’ tip cell adhesions at the sprouting front

Ex vivo live-imaging could be a useful tool to study tip cell guidance during the angiogenic sprouting process in the mouse retina, but it has proven to be challenging with conventional microscopy. Existing ex vivo confocal methods to live-image retinal vasculature, tissue handling leads to damage of the tissue, as it involves either flat-mounting the retinas onto a membrane and then submerging it in medium (Sawamiphak et al., 2010), or cutting the retina into fragments and embedding them in fibrin gels prior to imaging (Rezzola et al., 2013).

We therefore established a protocol for live-imaging of the growing retinal vasculature in ex vivo prepared retinas using LSFM. We first crossed mT/mG mice with Cdh5(PAC)-CreERT2 mice and injected them with tamoxifen to induce endothelial GFP expression (Muzumdar et al., 2007; Wang et al., 2010). Surprisingly, connections between ECs formed very rapidly (within 20 min) and regressed just as rapidly (Figure 4a, Video 5). Such transient ‘kiss and run’ adhesion and release style interactions between ECs (as opposed to full adhesions or anastomoses, where the connections stably remain) have only been previously reported in glycolysis-deficient ECs in vitro (Schoors et al., 2014). The dynamics in vivo were assumed to be slower and more stable than in vitro live-imaging, however our new ex vivo observations indicate a very different set of dynamics and inter-cellular behaviors may be at work in the complex in vivo tissue. Timing is crucial, as the VEGF gradient dissipates after the retinas are dissected and submerged in agarose, at room air and the tissue is therefore no longer hypoxic. However, the directed growth of the filopodia towards the vascular front in our LSFM Videos suggests that this gradient remains intact for at least the first few hours after dissection. Further back from the sprouting front, in the vascular plexus (Figure 4b, Video 6), we occasionally observed the formation of connections over the course of a few hours, however, branch formation was a rare occurrence. Notably, we did not observe EC apoptosis under these imaging conditions indicating conditions are viable.

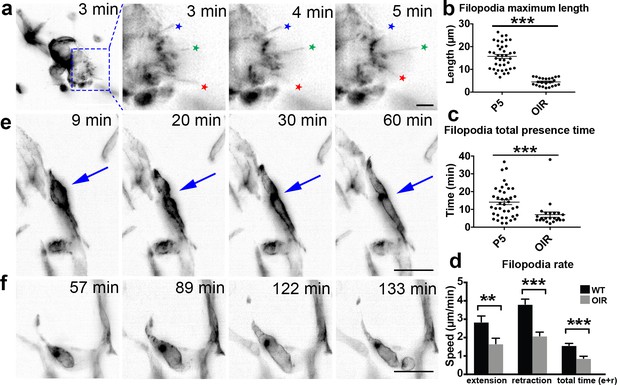

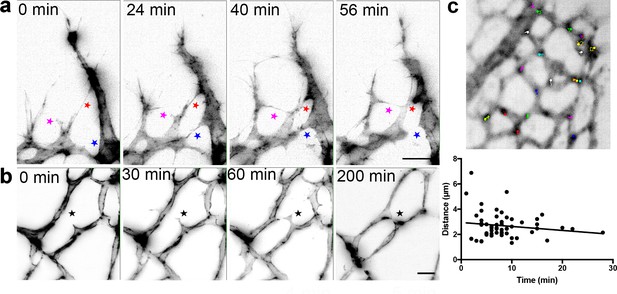

Live-imaging of the retinal vasculature.

(a) Single maximum intensity projections (MIP) of an hour time lapse Video show long, slender filopodia, and rapid fusion and disconnection of tip cells at the vascular front of mT/mG x Cdh5 (PAC) CreERT2 mice (stars). (b) MIPs of a time lapse Video reveal the connection between two branches in the capillary plexus (star). (c) lifeAct-EGFP mouse retina at P4/5 were live imaged for 40 min with an interval of one minute per frame. Actin-rich bundles were tracked manually using ImageJ/Fiji. Each color represents one bundle trajectory tracked over time, scale bar is 10 µm. Plot (below) shows each actin bundle’s distance travelled over time, average speed was 2.56 µm/min, n = 6 retinas (all uncleared).

Video 5
An hour time lapse LSFM Video showing long, slender filopodia, and rapid ‘kiss and run’ fusion and disconnection of tip cells at the vascular front of mT/mG x cdh5 (PAC) CreERT2 mice.

Frame rate: one image/45 s.

Video 6
A 9 hr time lapse LSFM Video showing a connection between two branches in the capillary plexus of mT/mG x cdh5 (PAC) CreERT2 mice.

Frame rate: one image/20 min.

We next assessed the feasibility of using LSFM to live-image intracellular processes in ex vivo prepared retinas. We dynamically imaged Lifeact-EGFP mice (Riedl et al., 2010) with LSFM and quantified the movements of actin-enriched bundles within the endothelial cell bodies in the sprouting front during developmental angiogenesis. Quantitative subcellular actin live-imaging was found feasible (n = 6 retinas) with the average distance travelled by each bundle found to be 2.56 µm (Figure 4c, Videos 7, 8 and 9).

Video 7
Representative tracking of a short-lived actin-rich bundle in life-Act-EGFP retina mice imaged with LSFM (7 min).

The tracking was performed manually using Manual Tracking plugin in Fiji/ImageJ.

Video 8
Representative tracking of a longer-lived actin-rich bundle in life-Act-EGFP retina mice imaged with LSFM (30 min).

The tracking was performed manually using Manual Tracking plugin in Fiji/ImageJ.

Video 9
Representative tracking of a long-lived actin-rich bundle track in life-Act-EGFP retina mice imaged with LSFM (40 min).

The tracking was performed manually using Manual Tracking plugin in Fiji/ImageJ.

Taken together, our LSFM permits the visualisation in real-time of cellular movements with subcellular resolution in the mouse retina, with minimal distortion.

Three subclasses of pathological retinal neovascular tufts revealed with LSFM

We next sought to image vessels that have grown pathologically, in order to determine whether this imaging method could be used to gain greater insights into eye disease. To this end, we used the OIR model, where mouse pups are placed in 75% oxygen from P7 to P12, and are then kept at room air from P12 to P17 (Connor et al., 2009). During the hyperoxia phase, the vasculature regresses, and in the subsequent normoxia phase, new vessels grow in an abnormally enlarged and tortuous manner (Connor et al., 2009). Furthermore, vessels also start to grow into the vitreal space forming bulbous vessels, known as ‘vascular tufts’, above the superficial vascular layer (Figure 5a). In the past, it has been difficult to analyse and characterise the growth of these tufts because they are large formations, which appear to be distorted by the flat-mounting process. By performing IsolectinB4 and ERG immunostaining to visualise endothelial cells (ECs) and their nuclei, we obtained 3D-reconstructions of the tufts and were able to first classify them into different groups by quantifying both volume and number of nuclei (Figure 5a,b). As expected, we found that the number of nuclei increased with the size of the tuft (R2 = 0.83). Interestingly, however we found many small tufts, and only very few large tufts. The smallest tuft we could identify had two nuclei parallel to each other, the cells growing straight up into the vitreous (Figure 5a, upper panel, Video 10). We found that most tufts have between 4 and 20 nuclei (‘Medium tufts’, Figure 5a, second panel row, Video 11). We also identified a few very ‘large tufts’ with over 20 nuclei (Figure 5a, third panel row, Video 12). Next, we quantified the number of connections between the vasculature and the tuft (Figure 5b). The large tufts had a higher number of connections to the existing vasculature (R2 = 0.61), Within the medium tuft class there is a linear increase of volume with nuclei number up to approximately 10 nuclei per tuft, but then the volume remained constant despite a doubling of the nuclei number to 20 at the top of this class. Within the large tuft class the volume remained unchanged despite a three-fold increase in nuclei (Figure 5b). Intriguingly, the number of connections to the plexus was approximately constant despite the increasing number of nuclei within these classes (Figure 5c). However, the number of connections and tuft volume transitioned sharply, to ~2.5 fold and ~3 fold respectively, when the number of nuclei in the tuft exceeded twenty. This indicates that proliferation or an influx of cells to the tuft does not increase tuft volume, but rather, tuft volume only significantly increases when the number of connections to the plexus also increases. Based on this observation, we propose that large tufts are in fact formed by fusion of 2 or three medium tufts.

Analysis of three subclasses of OIR vascular tuft.

(a) Representative 3D-rendered LSFM images of small (1st row), medium (2nd row), and large (3rd row) tufts showing the vasculature (IsoB4, green) and endothelial nuclei (ERG, magenta), scale bar = 10 µm. For all widefield images, scale bar = 40 µm, yellow box indicates tuft in situ; 4th row - representative 3D-rendered images showing curved nuclei in a medium tuft, yellow arrows indicate curved nuclei, blue arrows indicate flat nuclei parallel to each other. Scale bar, 10 um. 5th row: correlative LSFM-confocal microscopy of the same tuft reveals the tuft depth distortion (side view) incurred with confocal flatmounting versus LSFM. (b) The volume of the tufts versus the number of nuclei per tuft. (c) The number of vessel connections between the tuft and the underlying vascular plexus versus the number of nuclei. (d) Quantification of the number of curved nuclei per tuft versus the total number of total nuclei per tuft. (e) Quantifications of tuft depths per subclass size in LSFM vs confocal images, significant difference shown using unpaired t-test, *** means p<0.0001.

Video 10
3D-rendered LSFM z-stack of a ‘small tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (magenta).

The z-stack was rendered in Imaris.

Video 11
3D-rendered LSFM z-stack of a ‘medium tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (magenta).

The z-stack was rendered in Imaris.

Video 12
3D-rendered LSFM z-stack of a ‘large tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (magenta).

The z-stack was rendered in Imaris.

We observed that some of the vascular tufts contained highly curved nuclei (Figure 5a, fourth panel row, yellow arrow, Video 13). Quantification of the number of curved nuclei/total nuclei in a tuft showed that in small and medium tufts, the number of curved nuclei correlated well with the number of total nuclei (Figure 5d). In large tufts (over 20 total nuclei), the number of curved nuclei was stable suggesting actually a decline in curved nuclei as the number of cells in the tuft increased. Thus, the relative number of curved nuclei per tuft could also be used as a clear marker to distinguish medium and large tufts. As curved nuclei indicate cells are under severe mechanical strain, twisting or turning them around (Xia et al., 2018), this suggests that larger tufts may be more stable and mature, whereas the small and medium ones are under more tension, still forming with significant forces curving and pulling the cells around in the tuft. Interestingly, highly curved nuclei have been shown to result in rupture of the nucleus and DNA damage (Xia et al., 2018), which may further exacerbate dysfunctional cell behaviour in tuft formation. It should be noted that care should be taken to rotate the image stack to confirm nuclear curvature, as two nuclei parallel to each other can look like only one nucleus (Figure 5a, fourth panel row, blue arrow), emphasising the importance of 3D imaging with LSFM as rotating and viewing tufts from the side without distortion is not possible with confocal.

Video 13
3D-rendered z-stack showed a curved nuclei in a ‘medium tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (magenta).

The z-stack was rendered in Imaris.

Finally, to quantify the level of distortion of vascular tufts incurred by flat-mounting and confocal imaging, we compared tuft depth measurements between retinas imaged with confocal and LSFM (depth defined the tuft length orientated perpendicular to plexus plane). The change in depth was particularly striking and more pronounced for larger tuft structures (Figure 5a bottom panels, e).Taken together, this further confirmed that LSFM is superior to confocal to image larger structures in the eye.

LSFM OIR Case-study: Pathological retinal neovascular tufts have a swirling/knotted morphology

In order to gain better resolution to characterise the specific morphology of the different sized tufts we performed computational image deconvolution on cropped LSFM images of vascular tufts (see Materials and methods), which helped to decrease the scattered light caused by imaging thicker tissue with the light sheet without the need to clear the tissue (Richardson and Lichtman, 2015). Upon deconvolution a previously unappreciated ‘knotted’ morphology of the tufts was evident across all tuft classes; often tufts had one or more holes going through (Figure 6a,b; Figure 6—figure supplement 1a,b for more rotational views and original rotational Videos 14,S15). To describe these 3D tuft structures in detail, we first explored three systematic image analysis approaches: 1) by slowly shifting clipping planes through the tuft from the vitreous, facing side to the plexus-connecting side of the tuft, it was possible to better appreciate the upper and lower 3D organisation of the tuft; 2) carefully rotating and hand-drawing the tufts surface rendered structures from every angle and 3) comparing the colour-labelled positions of nuclei to indicate their depth position in the tuft. The first approach revealed that the tuft shown in Figure 5a fourth panel row, had a figure of eight knot, with two clear holes through the tuft and an unexpected vessel connecting the upper vitreous surface of the tuft to the plexus (Figure 6c and Figure 2—figure supplement 1b, Video 13). A combination of the second two approaches revealed a swirl structure to two tufts (small and medium in size), akin to a snake coiling upon itself in layers, with several highly curved nuclei (Figure 6d–i, Videos 16 and 17). We noted a central hole either through the entire tuft or evident in the upper vitreous facing portion, akin to a depression or invagination. A sprout-like protrusive tip with filopodia was often also evident (Figure 7a, Figure 6—figure supplement 1c). Overall, all three, 3D rotational image processing/analysis approaches were extremely useful for better interpreting these complex 3D structures, providing a much deeper understanding of tuft morphology than would be possible using a 2D analysis of distorted tufts, viewed from above in standard flat mount confocal microscopy.

Figure 6 with 3 supplements see all

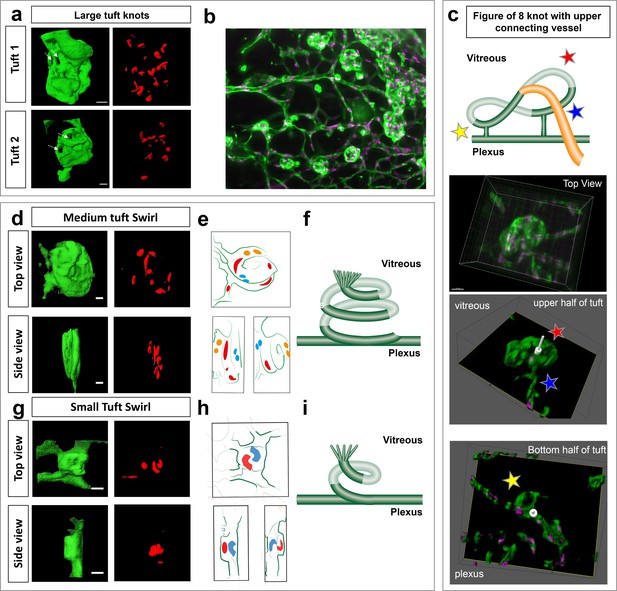

Knotted morphology of neovascular tufts revealed with LSFM.

(a,d,g) Representative 3D-rendered images (generated using IMARIS software) of large (upper panel), medium and small tufts showing the vasculature (IsoB4, green) and endothelial nuclei (ERG, red) from rotational Videos 14 and 15 See Figure 6—figure supplement 1a for further views from different angles of the large tufts. White dashed arrows indicates a hole through the tuft. Scale bar, 30 µm. (b) Widefield LSFM of OIR retina demonstrates that the knotted morphology is hard to discern from afar. (c) Detailed 3D clipping plane and 3D rotational drawings of an individual knot reveal a figure of eight structure with two clear holes through the tuft as well a vessel connecting from the upper, vitreous facing surface of the tuft to the plexus below (blue star). Stars mark corresponding regions from the illustration to the images - lower tuft loop nearer plexus (yellow star), upper tuft loop nearer vitreous (red star). See also Figure 6—figure supplement 1b for detailed 3D drawings made from each rotational view of this tuft with clipping planes, and Video 13. (e,h) 3D sketches made from rotational Videos 16 and 17 to better elucidate nuclei: blue nuclei - bottom of tuft (near plexus), red nuclei – middle of tuft (in e), top of tuft (facing vitreous) in (h) yellow nuclei - top of tuft (facing vitreous) in e, (f,i,) schematic illustrating the swirling tuft morphology observed in (d-h) with three layers for the medium tuft (f) and two for the small one (i).

OIR live imaging.

(a) Maximum intensity projections (MIPs) of a time lapse Video of a retinal tuft of a mouse in the oxygen-induced retinopathy (OIR) model visualise short, rapidly extending and retracting filopodia as compared to control retinas (stars). (b) The maximum length that each filopodia reached was measured for each filopodia over time in P5 and OIR conditions. (c) The total time that each filopodia was present during the experiment; this time is calculated from when one filopodia appeared and then disappeared. (d) Speed of extension and retraction of filopodia were calculated for P5 and OIR conditions. Total n = 67 and 23 filopodia in 8 and 3 cropped Videos from three independent P5 and 1 OIR experiment. (e) MIPs of a time lapse Video of mouse retinal vasculature in the OIR model reveal cell shuffling in real-time (arrow). (f) MIPs of a time lapse Video of mouse retinal vasculature in the OIR model reveal abnormal vessel growth in real-time. Scale bar, 20 µm.

Video 14
3D-rendered LSFM z-stack deconvolved in Huygens then reconstructed with surface rendering in Imaris of ‘Large tuft 1’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (red).
Video 15
3D-rendered LSFM z-stack deconvolved in Huygens then reconstructed with surface rendering in Imaris of ‘Large tuft 2’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (red).
Video 16
3D-rendered LSFM z-stack deconvolved in Huygens then reconstructed with surface rendering in Imaris of a ‘small tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (red).
Video 17
3D-rendered LSFM z-stack deconvolved in Huygens then reconstructed with surface rendering in Imaris of ‘a Medium swirl tuft’ from an OIR mouse retina stained for blood vessels (IsolectinB4, green), and the nuclear marker ERG (red).

To further validate these unexpected tuft morphologies with an independent high-resolution 3D imaging method, we performed microCT on intact health control and OIR retinas. We found microCT of mouse retinas entirely feasible and the OIR vascular tufts readily amenable to analysis by microCT, as they protrude into the vitreous (Figure 6—figure supplement 2a). On close inspection we indeed found tufts also appear to have holes/invaginations (Figure 6—figure supplement 2b–c) indicating further study of these complex 3D structures is warranted.

Next, we investigated whether LSFM could provide added benefits for OIR drug study quantifications, when compared to confocal microscopy. We therefore reproduced an OIR drug-treatment study using Everolimus, an inhibitor of the mammalian target of rapamycin (mTOR) and compared the feasibility of quantifications (primarily quantifying 2D avascular and/or tuft area/numbers) between LSFM and confocal microscopy (Yagasaki et al., 2014). In accordance to published data, we observed an evident increased avascular area and smaller tufts with drug treatment (Figure 6—figure supplement 3a). However, quantification of avascular area in LSFM was not feasible due to a lack of available computational tools to take account of the natural 3D curved retinal tissue surface, which suggests that confocal imaging is a more suitable imaging modality to quantify this 2D parameter. Yet, we found that LSFM was very practical to measure tuft volume and found that tufts in drug-treated retinas were markedly smaller than in untreated retinas, despite having comparable nuclear counts (Figure 6—figure supplement 3b,c). Furthermore, drug-treated retinal tufts showed a particular small swirl/ordered two-layer cup morphologies with distinctive wide-reading filopodia all around the tuft, suggesting they are highly active (Figure 6—figure supplement 3d–j), similar to our previous observations in OIR untreated retinas (e.g. Figure 6d). Thus, we concluded that LSFM is more suitable for 3D volume and tuft morphology characterisation to understand the mechanism of action of OIR drug treatments than confocal microscopy.

4D LSFM live-imaging of the OIR mouse model reveals altered cell dynamics

To gain insights into endothelial cell behaviour in vascular tufts, we next imaged the OIR-induced tufts dynamically with LSFM. Thereby, we observed that filopodia extended/retracted from abnormal vascular tufts, similar to what is seen in the extending vascular front during development of the retina vasculature. However, filopodia formed from vascular tufts remained very short (mean 4.3 µm) as compared to normoxia (mean 14.84 µm) (Figure 7a,b). In OIR, filopodia more rapidly extended and retracted, without making connections (Figure 7a,c,d, Video 18). As the VEGF gradient is expected to be disrupted in the OIR model, timing from dissection to imaging is not as crucial. However, most filopodia movements occurred in the first few hours under this pathological condition. When imaging other parts of the OIR retinas to the tufts, we observed intriguing, abnormal EC behaviour. Their movements were undirected and appeared to involve blebbing-based motility (Figure 7e,f, Video 19). We observed both cells that were dividing, and undergoing apoptosis (Figure 7e, Video 20), which was not observed during normal conditions. This first live imaging of altered cell behaviour in the OIR mouse model further highlights the potential of LSFM for new insights into disease processes.

Video 18
A 2.5 hr time lapse Video of a retinal tuft of a mouse in the OIR model using mT/mG x cdh5 (PAC) CreERT2 mice visualise short, rapidly extending and retracting filopodia as compared to control retinas.

Frame rate: one image/minute.

Video 19
A 2.5 hr time lapse Video of mouse retinal vasculature in the OIR model using mT/mG x cdh5 (PAC) CreERT2 mice reveal abnormal vessel growth in real-time.

Frame rate: one image/minute.

Video 20
A 2.5 hr time lapse Video of mouse retinal vasculature in the OIR model using mT/mG x cdh5 (PAC) CreERT2 mice reveal cell shuffling in real-time.

Frame rate: one image/minute.

Discussion

Although LSFM is becoming increasingly popular, studies to date have not attempted to use it to image mouse eye tissue. We have therefore established the first protocols to image and clear mouse eye tissue using LSFM. Because this protocol utilises optical sectioning of whole mount tissue, we found that LSFM is a very useful tool to rapidly image and reveal eye tissue at cellular and subcellular resolution without distortion of the sample due to flat-mounting, with the benefit to view, rotate and quantify structures in full 3D. As such, the present study provides a highly relevant and improved approach to examine the inter-relationships of normal neurovascular structures and the complex morphology of aberrant vascular structures in disease models, revealing for the first time an apparent knotted morphology to the vascular tufts in OIR. We have furthermore established an ex vivo 4D live-imaging method to follow angiogenic growth in the mouse retina in real-time, both during development and under pathological conditions, and feasibly quantified that these dynamics appear significantly altered in pathological conditions. The acquisition of 3D images of vascular structures at high spatial and temporal resolution within intact ocular tissue is both novel and significant. Overall, we strongly suggest the use of LSFM for 1) the study of larger or more complex 3D tissue structures reaching across the typical retinal layers, which are liable to distortion with standard approaches and 2) dynamic cell and subcellular processes in the mouse eye. Singh et al. (2017) established LSFM imaging of rat retinas while this manuscript was in preparation, they focussed on static 3D imaging and analysis of vessels. Taken together with our results here in mice demonstrating LSFM for static 3D, live imaging and neuronal retinal studies in health and disease, this strongly indicates LSFM can bring improved 3D insights across rodent species for ocular development and disease studies. We see far-reaching potential of the approach for deeper insights into eye disease mouse models in particular. For example, it would now be feasible to skeletonise larger portions of the vascular network (ultimately, the entire retina vasculature), with accurate vessel morphometrics in order to perform flow simulations and understand how the biomechanical feedback of flow impacts vessel growth in healthy and diseased eyes.

LSFM vs confocal: A balanced discussion

Benefits of LSFM:

Speed - in general image acquisition with LSFM is widely known to be far faster than confocal due to the illumination of the entire optical plane at once combined with the use of a camera instead of detectors, and an extensive stack of the entire mouse retina can be acquired very quickly using LSFM (~60 s).​ Cost – the instruments cost approximately the same, but as imaging is approximately ~10 x faster, the LSFM can be considered cheaper overall. Depth - LSFM is better for imaging thicker or very large tissues (such as the eye cup, which is thin, but topologically spherical), due to the fast acquisition rates and the large, rotatable sample holder, removing the limited single view point from above with upright microscopes and slide mounting. Phototoxicity - the illuminated plane generates less photobleaching and faster time frame rates for high temporal resolution live imaging of 3D/very thick tissues. We find LSFM imaging of the retina to be particularly informative over standard confocal microscopy when studying the following specific complex 3D and/or dynamic structures in the eye: 1) the adult retina in full - it is possible to visualise all three vascular layers in the LSFM, including direct cross-sectional viewing of the diving vessels oriented between layers by rotating the sample relative to the objective, which is not possible with confocal. Similarly, the iris and optic nerve can be observed in full, from any angle, undistorted with LSFM. 2) abnormally enlarged vessels/tufts - a new knotted morphological structure of tufts was apparent, and feasible to begin characterising due to the improved 3D imaging and rotational views possible with LSFM. With confocal imaging the tuft shape can only be inferred from above and we found the depths were significantly distorted and compressed, which is likely why knots have not been previously described. Interestingly, the VE-cadherin staining of endothelial junctions of several OIR tufts shown in Bentley et al. (2014) indicated there were ‘holes’ through tufts, as no junctional stains were found in clear pillars through them. However, the holes were not easy to confirm by isolectinB4 staining in those samples, likely due to spreading of the vascular structure when it was distorted during flat-mounting. We can confirm here with LSFM and microCT that holes and invaginations through tufts are evident and that tufts appear to consist of one or more long vessel structures intertwined, swirled and potentially looped upon themselves. 3) Neurovascular interactions in one sample, as neurons and vessels are oriented perpendicular to each other through the retina, they are normally imaged with separate physical sectioning or flattening techniques in either direction, prohibiting their concurrent observation. Optical sectioning of thick tissue and then rotating the undistorted image stacks allows both to be imaged together. Indeed, obtaining such images from one sample with LSFM will permit the quantification of vessels protruding through the neuronal layers, which is now only possible by performing time-consuming serial block-face scanning electron microscopy (Denk and Horstmann, 2004). 4) Subcellular level resolution in undistorted 3D retinal structures. We have shown that even in WT retinas, 3D analysis of subcellular structures such as the Golgi-nucleus polarity axis can be revealing, showing cells hidden beneath those that would be assumed as one using current 2D methods. However, we see the greatest potential for subcellular analysis in future studies analysing disruptions in cell polarity, or other processes at the subcellular level such as actin localisation in large pathological vessels or other retinal structures. 5) Live-imaging of developing mouse retinas – this has proven very difficult with in vitro methods providing more reliable assays, for example embryoid bodies (Kearney and Bautch, 2003; Jakobsson et al., 2010). Although embryoid bodies do form vessel-like structures, they are not perfused and do not fully reflect the complex and tissue specific in vivo retinal environment. Moreover, the embryoid bodies are treated with VEGF supplied to the culture medium, while in vivo, endothelial cells are exposed to a VEGF gradient from the astrocyte network below. Our images suggest that the VEGF gradient remains intact in the retina samples for several hours in LSFM imaging. Furthermore, our protocol enables us to follow and quantify filopodia movements from minute to minute, revealing movements never seen before. Thus, we observed astonishing abnormal cellular and subcellular level dynamics under pathological OIR conditions by 4D live LSFM imaging.

Benefits of confocal over LSFM

Confocal microscopy has a fundamentally higher spatial resolution with less light scatter than LSFM; clearer, more precise images of smaller structures can be obtained, such as endothelial junctions and tip cell filopodia morphology, provided the tissue sample is amenable to flat mounting without distortion or loss of information – i.e. it is naturally thin cross-sectionally and structures of interest have their main features in the XY plane, not in Z, XZ or YZ. Thus, confocal static imaging of normal developing vessels in a single layer of the retina will still yield better resolution images than LSFM and is very reliable for XY based quantifications such as branch point analysis and 2D vascular area measurements in disease models/drug studies. However, we find it is not reliable for acquiring accurate quantifications involving depth through Z such as vessel diameters or the morphology of cells that span between the layers (e.g. in the XZ or YZ planes). Thus, overall LSFM is not suggested to replace confocal for static developmental angiogenesis studies or 2D analysis metrics on retinas. However, to study and measure precise morphological attributes or dynamics of vessels with inherently 3D nature such as vessel radii, enlargements, malformations, diving vessels, iris, optic nerve or the deeper layers we find strong evidence to favor LSFM over confocal imaging.

In general, the quantification time was comparable between LSFM and confocal images but there is potential for image analysis to require more effort for LSFM as files can become quickly large due to the rapid imaging (~200 GB for static imaging and up to 4TB for live multichannel imaging). If an older eye is being imaged the three vascular layers will be somewhat visually overlapping (e.g. in Figure 1—figure supplement 1b), which could be hard to manually untangle due to the curvature, and as such represents a limitation. The preservation of the tissue depth information in the large Z-stack however, means by computationally fitting to the local curvature of the eye tissue one could computationally color code and subtract the retinal layers out for independent viewing and analysis, but this requires more investment than depth color coding of flat-mounted confocal images (Milde et al., 2013).

Vascular tuft formation

The OIR model is a commonly used to study retinopathies. The three-dimensional nature of vascular tufts makes them ideal for LFSM and though this is a widely studied mouse model, the improved three-dimensional imaging allowed us to identify several new features of the important pathological vessels it generates. Our observations of small, medium and large tuft classes with distinct properties and the observation of more complex knotted, swirling and looping morphologies than previously reported, suggest a new mechanistic explanation is required to understand how and why vessels twist and turn on themselves and why it appears that medium tufts reach a critical size then stop twisting and instead coalesce into larger more stable structures, akin to the development of blood islands in retinal development (Goldie et al., 2008).

Nuclei with unusual shapes have previously been identified in abnormally growing tissues, such as cancer (Hida et al., 2004; Kondoh et al., 2013; Versaevel et al., 2012), and to reflect mitotic instability (Gisselsson et al., 2001). It is remarkable that we observed the dramatically curved shape of EC nuclei in tufts. Although it remains unclear whether their unusual shape has consequences for EC function in the tuft, it is tempting to speculate that it would have some bearing on, or is at least be an indicator of abnormal cell behavior. Overall, the ability to rotate the tufts in 3D and view from the side, not just the top, gave a much clearer view of their structure potentiating a detailed analysis of their complex knotted structure in the future. It was particularly interesting that tufts in the Everolimus-treated OIR retinas appeared to conform to a specific swirl structure with many filopodia, suggesting that LSFM imaging could help reveal much greater information of the mechanism of action of many drugs targeting these or other complex 3D structures in the eye. LSFM therefore could greatly improve our understanding of these abnormal vascular formations, already opening up avenues for future studies.

Reproducible live-imaging of angiogenesis in ex vivo retinas

Current retinal studies must infer dynamics from static images by hypothesising what might have happened in real-time to generate the retina’s phenotype. For example, CollagenIV-positive and IsolectinB4-negative vessels are considered to be empty membrane sleeves where the vasculature has regressed. It is therefore important to establish reproducible live-imaging methods. It will be interesting to investigate in future live-imaging studies how pervasive the kiss and run behaviors are across the plexus and under different conditions, in order to fully elucidate their functional role. We furthermore demonstrated the potential to quantify diverse subcellular level movements in the cells and altered cell movements in the OIR disease model as proof of concept. Previously undirected vascular movements have been indicated as due to the loss of the underlying astrocyte template (Dorrell et al., 2010), LSFM now permits mechanisms involving multiple cell types to be investigated and confirmed live with fluorescent co-labelling studies of neurons/glial cells with vessels in the same retina. The LSFM live imaging protocol is sturdy as indicated from the testing in three different laboratories in three different countries (US, Sweden and Portugal) with different scientists performing the dissections and imaging, on different instruments. As such we can confirm that though challenging, the live imaging protocol has been optimised and is reproducible in different hands.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
AntibodyAnti-calretinin (Rabbit Polyclonal)AbcamCat#:ab702,
RRID: AB_305702
(1:50)
AntibodyAnti-ERG
(Rabbit Monoclonal)
AbcamCat#: ab92513,
RRID: AB_2630401
(1:200)
AntibodyAnti-calbindin (Rabbit Polyclonal)MilliporeCat#: AB1778
RRID: AB_2068336
(1:300)
AntibodyAnti-GFAP
(Rabbit Polyclonal)
Agilent, DakoCat#:Z0334
RRID: AB_10013382
(1:100)
AntibodyAnti-collagenIV
(Rabbit Polyclonal)
Bio-RadCat#:2150–1470, RRID: AB_2082660(1:500)
AntibodyNeuron-specific beta-III Tubulin Biotin MAb (Clone TuJ-1) (Mouse monoclonal)R and D SystemsCat#: BAM1195, RRID: AB_356859(1:50)
AntibodyAnti-Smooth Muscle Actin (Mouse monoclonal)Sigma-AldrichCat#: C6198,
RRID: AB_476856
(1:1000)
AntibodyAnti-MGOLPH4 (Rabbit Polyclonal)AbcamCat#: ab28049
RRID: AB_732692
 antibodyAnti-Mouse CD31/PECAM-1 (Goat polyclonal)R and D SystemCat#: AF3628
RRID: AB_2161028
(1:200)
Commercial assay or kitCyGELbiostatusCAT#: CY10500(1:400)
Software, algorithmArivis Vision 4Darivis AGN/A – (A new RRID has been requested as of paper submission).
Software, algorithmImarisBitplaneRRID:SCR_007370
Software, algorithmFIJIShcindelin, 2012RRID:SCR_002285StackReg plugin used
Software, algorithmZeiss Scout and Scan Control Reconstructor SoftwareZeissN/A
Software, algorithmDrishtiLimaye, 2012N/A – (A new RRID has been requested as of paper submission).
Software, algorithmZeiss ZenZeissRRID:SCR_013672
Software, algorithmHuygens SoftwareScientific Volume ImagingRRID:SCR_014237
OtherAlexa Fluor 568 isolectin GS-IB4 conjugateThermoFisher ScientificCat#:I21412Molecular probe.
OtherAlexa Fluor 488 isolectin GS-IB4 conjugateThermoFisher ScientifcCat#:I21411Molecular probe.
OtherAlexa Fluor 647 isolectin GS-IB4 conjugateThermoFisher ScientifcCat#: I32450Molecular probe.
OtherDraq5Thermo ScientificCat#: 62251Cell (DNA) stain

Mice

mT/mG mice (Wang et al., 2010) were crossed with cdh5 (PAC) CreERT2 mice. For live-imaging of retinal angiogenesis during development, mice were injected with 50 µg tamoxifen at postnatal day (P) 1, P2 and P3, and imaged at P4 (Wang et al., 2010). For live-imaging of oxygen-induced retinopathy (OIR) experiments, mice were injected with 100 µg tamoxifen at P13, P14 and P15. The retinal vasculature was imaged at P17 unless otherwise stated. Recombination was confirmed by GFP expression in ECs. GNrep mice (Barbacena et al., 2019) were injected with 4OH-tamoxifen at P3 and P4 (20 ug/g) and fixed in PFA 2%. Lifeact mice (Riedl et al., 2010) were a kind gift from Dr. Wedlich-Söldner, University of Münster, Germany. Mice used in experiments at Beth Israel Deaconess Medical Center were held in accordance with Beth Israel Deaconess Medical Center IACUC guidelines (protocol #009–2014). Animal work performed at Uppsala University was approved by the Uppsala University board of animal experimentation (ethics approval reference C134/14 and C116/15). Animal work performed at SERI was IACUC approved (protocol S467-1019). Animal work performed at FAS Harvard was IACUC approved (protocol 14-02-191). Transgenic mice were maintained at the Instituto de Medicina Molecular (iMM) under standard husbandry conditions and under national regulations (DGAV project license 0421/000/000/2016.

Antibodies

IsolectinB4 directly conjugated to Alexa488 and all corresponding secondary alexa conjugated antibodies were obtained from Invitrogen. Isolectin IB4 conjugated with an Alexa Fluor 568 dye was purchased from Thermo Fisher Scientific, MA. Anti-calretinin (ab702) and anti-ERG (ab2513) antibodies were obtained from Abcam. The antibody directed against Calbindin (AB1778) was acquired from Millipore. Anti-Glial Fibrillary Acidic Protein (GFAP) antibody was purchased from Dako (Z0334), anti-CollagenIV from AbD Serotec (2150–1470), biotinylated anti-neuron-specific b-III Tubulin from R and D Systems (Clone TuJ-1, BAM1195), and Cy3-conjugated anti-smooth muscle actin (SMA) antibody was obtained from Sigma Life Science (C6198). Draq5 was obtained from ThermoScientific. Anti-GOLPH4 (ab28049) from Abcam. GNrep mice were co-stained with CD31 (R and D, AF3628, 1/200) and anti-RFP antibody coupled to mCherry (Alfagene, M11240, 1/100) to further increase the signal. TO-PRO-3 stain for Rho KO neurodegeneration study (Thermo Fisher Scientific; diluted 3000x in PBS).

Immunohistochemistry

View detailed protocol

Retinas were dissected as previously described (del Toro et al., 2010). In brief, eyeballs were fixed for 18 min in 4% paraformaldehyde at room temperature. After dissection, retinas were blocked for 1 hr in blocking buffer (TNBT) or Claudio’s Blocking Buffer (CBB) for retinas with Golgi stained. CBB consists of 1% FBS (ThermoFisher Scientific), 3% BSA (Nzytech), 0.5% Triton X100 (Sigma), 0.01% Sodium deoxycholate (Sigma), 0,02% Sodium Azide (Sigma) in PBS pH = 7.4 for 2 hr in a rocking platform) for retinas stained for golgi. Thereafter, retinas were incubated overnight in primary antibody in blocking buffer. After extensive washing, retinas were incubated in the corresponding secondary antibody for 2 hr at room temperature. For confocal microscopy, retinas were mounted on glass slides, and for LSFM, retinas were mounted in 2% low-melting agarose. Agarose was melted at >65 °C, and then maintained at 42 °C before adding the tissue. To minimise curling of the retina, apply 1–2 drops of low melting agarose on retina and start uncurling the retina before the gel is solidified. It can then be transferred to the cylinder for imaging.

PACT clearing of retinas

Request a detailed protocol

PACT clearing was performed as previously described (Treweek et al., 2015). Retinas were dissected and fixed with 4% PFA at 4 °C overnight. Samples were incubated overnight at 4 °C in ice cold A4P0 (40% acrylamide, Photoinitiator in PBS). The following day, samples were degassed on ice by applying a vacuum to the tube for 30 min, followed by purging with N2 for 30 min. Thereafter, samples were incubated at 37 °C for 3 hr to allow hydrogel polymerisation. Excess gel was then removed from the samples, the samples washed in PBS, and incubated at 37 °C for 6 hr in 8% SDS/PBS, pH 7.5. Samples were then washed in PBST for 1–2 days, changing wash buffer 4–5 times to remove all of the SDS. Immunostaining was then performed following the same protocol without PACT clearing. Thereafter, the tissue was cleared by at least 48 hr incubation in RIMS (40 g histodenz in 30 ml of sterile-filtered 0.02 M phosphate buffer, 0.01% sodium azide). Cleared retinas were mounted in 5% low-melting agarose/RIMS for LSFM imaging.

Neuronal degeneration study on Rho KO retinas

Request a detailed protocol

Wild-type control and Rho knockout eye cups were incubated overnight in TO-PRO-3 stain (Thermo Fisher Scientific; diluted 3000x in PBS). Rho KO eye cups were then washed thoroughly with PBS for 24 hr prior to clearing with a modified iDISCO+ protocol (Renier et al., 2016). Briefly, eye cups were dehydrated through a methanol/water gradient (20%, 40%, 60%, 80%, 100%, 100%). Incubations were for 30 min at each concentration. Next, eye cups were incubated twice in 100% dichloromethane for 30 min. Finally, eye cups were transferred to 100% ethyl cinnamate and incubated for at least 1 hr prior to imaging. Eye cups were imaged in ethyl cinnamate using a Lightsheet microscope (Zeiss, Jena Germany) with modified optics designed for imaging 1.56 refractive index solutions. A 20 × 1.0 NA objective (RI = 1.56 corrected) was used for detection.

Live-imaging

Request a detailed protocol

For live-imaging, mice were imaged at P4 or P5. The sample chamber was filled with DMEM without phenol red containing 50% FBS and P/S and heated to 37 °C. Retinas were quickly dissected in prewarmed HBSS containing penicillin and streptomycin. After dissection, retinas were rapidly cut into quarters (mainly to minimise the datafile size created, the curved form was preserved) and immediately mounted in 1% low melting agarose in DMEM without phenol red containing 50% Fetal Bovine Serum (FBS) and 1x penicillin and streptomycin (P/S). To minimise curling of the retina, as with static imaging, apply 1–2 drops of low melting agarose on retina and start uncurling the retina before the gel is solidified. It can then be transferred to the cylinder for imaging.

MicroCT

Request a detailed protocol

Eyes were dissected and fixed for one hour in 4% PFA in 0.1 M PB pH 7.4. The retinas were isolated, and post-fixed overnight in 4% PFA plus 2.5% GA in 0.1 M PB pH 7.4 prior to storage in 1% PFA in 0.1 M PB. After washing in 0.1 M PB to remove fixative residues, secondary fixation was performed in 2% reduced osmium tetroxide (aqueous), followed by washes in H2O and storage at 4°C. For hydrated microCT imaging, individual retinas were mounted in CyGEL (Biostatus, Shepshed UK), and scanned using an Xradia 510 Versa (Zeiss). Scans were performed at 40 kV/3 W using an exposure of 10 or 20 s and 3001 projections (OIR overviews, 1.89 µm voxels,~3 mm field of view; WT overviews 3.78 µm voxels,~3 mm field of view). The data was reconstructed into 16-bit TIFF image sequences using Scout-and-Scan Control System Reconstructor software (Zeiss). For visualisation of retina overviews, the OIR datasets were binned in XYZ to reach a voxel resolution of 3.78 µm, thereby matching the WT datasets, and rendered in three dimensions using Drishti (Limaye, 2012). To visualise individual epiretinal tufts, the full resolution OIR datasets were cropped to smaller regions of interest, and rendered in three dimensions using the volume viewer plugin in Fiji, and Imaris.

Everolimus drug-treatment

Request a detailed protocol

Pups (P7) were put into the OIR chamber with the dam and exposed to 75% of O2 during 5 days (P11). At P11 animals were passed to normoxia conditions and injected with Everolimus (P11-P12-P13-P14) during four consecutive days. Sacrificed at P15 and retinas collected. Eyes were fixed with 2% of PFA for 5 hr. Everolimus (Selleckchem) treatment administered with subcutaneous injections of 5 ug/g of Everolimus and the Vehicle (DMSO + 30% PEG300).

LSFM equipment

Request a detailed protocol

All LSFM images were acquired with a Zeiss Z.1 light sheet microscope except for those detailed below. The Zeiss objectives used for uncleared tissue and live imaging were Zeiss, RI = 1.33, 5x/0.16, and 20x/1.0. For PACT cleared tissue, RI = 1.45, 20x/1.0 (5.5mm working distance) was used. The Luxendo-Bruker MuVi-SPIM was used for specialised subcellular imaging of Golgi (Figure 1—figure supplement 1e–h) and tuft morphology in Figure 6—figure supplement 3d–j. The Miltenyi-LaVision BioTec Ultramicroscope II light sheet microscopes is particularly good for larger samples and used for the overview images in Figure 6—figure supplement 3a. The Luxendo objectives used were Olympus, RI = 1.33, 20x/1.0 in combination with a 1.5x magnification changer. The LaVision objective used was a Olympus MV PLAPO 2XC/0.5 in combination with a 2x zoom.All raw data were handled on a high-end DELL workstation (Dual 8-core Xeon Processors, 196 GB RAM, NVIDIA Titan Black GPU, Windows 7 64 bit) running ZEISS ZEN (Light sheet edition) or equivalent. Confocal images were taken with the LSM 880 Confocal Microscope.

Image analysis

Visualisation of images in 3d

Request a detailed protocol

3D reconstructions of images up to 4 GB were obtained using Imaris software. Fiji was used for reconstruction of images larger than 4 GB. To quantify tuft volumes, Arivis Vision4D software was used.

Visualisation of live-imaging

Request a detailed protocol

To visualise live-images, the maximum intensity projection of each timepoint was made in ZEN (Zeiss). The Videos were corrected for drift correction in Fiji using the StackReg plugin and the background subtracted in Fiji using rolling ball background subtraction.

Deconvolution

Request a detailed protocol

In LSFM, when using a high NA (>~0.6) objective, the optical section is determined by the depth of field of the objective and not the light sheet. However, in our system the light sheet is thicker than the objective’s depth of field and substantial out-of-focus light is captured relative to confocal. Additionally, thick tissue samples have an intrinsic milky appearance. This lack of clarity undermines sharp images and becomes progressively more of an impediment the deeper one tries to look into a tissue volume. This translucency is caused by heterogeneous light scattering (Richardson and Lichtman, 2015). As the tissue used for imaging in LSFM is thick, fluorescent light originating from deep within the tissue is scattered during its travel through the tissue volume, back to the objective. This results in both in- and out-of-focus light arriving at an incorrect position on the camera causing objects to blur.

To deconvolve and reduce this light scatter computationally images were split into channels with their respective emission wavelength. Microscopic parameters (including pixel size, objective and excitation wavelength) were inserted into the settings of Huygens software for each channel followed by choosing the signal to noise ratio (SNR) for each image and run the deconvolution with the same settings. The resulted deconvolved images were inserted into Imaris for further analysis in 3D if needed. Huygens software was used for deconvolving all images.

Actin-rich bundles and filopodia tracking

Request a detailed protocol

Tracking was performed manually using ImageJ/Fiji. For filopodia tracking, each filopodia was tracked between each frame of imaging and different analysis was performed. For tracking the actin-rich bundles, the Manual Tracking plugin in Fiji was used to manually select the ROI (=region of interest) and follow the pathway of each trajectory. The trajectories and the pathway were overlaid. Each trajectory could be visualised using Montage function.

Neuronal degeneration rho KO mouse retinal analysis

Request a detailed protocol

Nuclei Density Method: Using freehand selection in FIJI to define the ONL area in a given image slice, we performed a particle analysis after thresholding to obtain an estimate of nuclei density (n = 1 retina per condition). This was performed at multiple points (n = approx. eight areas per condition) in the retina by incrementing the Z-dimension 50 slices and retaking the measurements, before averaging across the densities across slices. ONL Thickness Method: To measure average ONL thickness (n = 1 retina per condition), we used straight line selection in FIJI at three points along the ONL in a given slice and averaged the lengths. This was performed at multiple points (n = approx. eight slices per condition) in the retina by incrementing the Z-dimension 50 slices, before retaking the measurements and averaging across slices to obtain an estimate for the overall ONL thickness.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    In vivo OCT microangiography of rodent iris
    1. WJ Choi
    2. Z Zhi
    3. R Wang
    (2014)
    Opt Lett. 39(8): 2455–2458.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Anti-angiogenic effects of mammalian target of rapamycin inhibitors in a mouse model of Oxygen-Induced retinopathy
    1. R Yagasaki
    2. T Nakahara
    3. H Ushikubo
    4. A Mori
    5. K Sakamoto
    6. K Ishii
    (2014)
    Biological and Pharmaceutical Bulletin 37(11) 1838–1842.
  52. 52

Decision letter

  1. Anna Akhmanova
    Senior and Reviewing Editor; Utrecht University, Netherlands
  2. Michael Dorrell
    Reviewer; Point Loma Nazarene University - San Diego, United States
  3. Kathryn Pepple
    Reviewer; University of Washington, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this paper, the authors describe novel use of light sheet fluorescence microscopy for imaging and analysis of cellular and tissue morphology of mouse retinas during development and disease. The improvements described for ex vivo live imaging, as well as co-staining and analysis of neuronal and vascular systems together are particularly impressive and represent an important methodological advance in the field.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "3D/4D characterization of cell behavior in the mouse retina in health and disease" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Luisa Iruela-Arispe (Reviewer #2).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife. Although the reviewers found aspects of your study, particularly the methodology, to be of high quality the overall assessment was that the study was not sufficiently well developed for eventual publication in eLife.

Reviewer #1:

In their manuscript "3D/4D characterization of cellular behavior in the mouse retina in health and disease" Prahst and colleagues demonstrate the potential of Light Sheet Fluorescence Microscopy (LSFM) in imaging complex tissues such as the mouse retina in 3D and 4D.

In the first part the authors describe the establishment of this imaging technique, which they then directly and quantitatively compare to images obtained by standard confocal microscopy on fixed material. They further show that LSFM is a powerful technique to investigate retinopathies such as in the OIR model. Importantly, LSFM can applied to live imaging of retinas in ex-vivo preparations.

Overall, this work is of high quality and demonstrates that the application of LSFM microscopy will be a useful technique to study angiogenesis especially when improved 3D resolution is warranted. The potential for LSFM in live imaging appears to be limited in spatial resolution and time.

At this point I have three concerns.

1) In Figure 3 the authors perform comparative analyses of a sample image acquired by LSFM and confocal microscopy. The confocal image (Figure 3A) appears to be saturated, which makes quantitative analysis difficult. In general, the authors should provide histograms to ensure that comparable images are being analyzed. Also, the pixel depth of images should be specified. Generally, most of the data presented are rendered images. A better representation of less processed images would be helpful.

2) When considering alternatives to confocal imaging, e.g. live imaging. The authors should also discuss optical coherence tomography (OCT), which has also been successfully applied for in vivo imaging of the mouse retina.

3) To assess the spatial resolution of LSFM compared to other imaging techniques it would be helpful to examine finer morphological structures – for example cell junction, Golgi or mitochondria.

Reviewer #2:

The present manuscript communicates technology that enables visualization of the vasculature of the retina in the context of its 3D structure using light sheet microscopy. The authors argue that this technology is superior than observing the retina as a flatmounted structure. Basically, this is a methodological paper that provides a new approach on how to visualize angiogenesis, vascular dynamics and vascular pathological processes in a manner that respects the geometry of the eye.

Technical advancements go hand-and-hand with scientific progress, one pushing the other, thus I am happy to see that eLife submits to review cutting-edge methodologies that could significantly impact specific fields. A critical aspect of this manuscript is the value-added of this new technology. As an outside evaluator, I see both positives and negatives of this technology and it would be critical for the authors to provide a more balanced view of these. Or perhaps, if I am missing something, explain to the review team what is the misinterpretation on the aspects of the study indicated below.

1) A detailed evaluation of the images provided reveals the lack of a clear hierarchy when retinas are evaluated by LSFM versus confocal flat-mounted images. For example, Figure 1F shows the vasculature of a P10. At this time, the vessels should clearly depict hierarchic branching patterns with alternating arteries and veins. Instead, the image shows a mesh or vessels that lack hierarchical organization and absence of alternating arterial-vein vessels. Is this outcome due to the fact that three vascular layers are juxtaposed, providing excessive noise to the inner layer (the hierarchical layer)? If this is the case, there are several negatives associated with this approach, although again, there are several positives (important to bring balance to the manuscript).

2) For the visualization shown in Figure 3: Was this done using a flat mounted image? Or Having the eyeball as a curved structure? I believe it might be the former, and in this case, it is difficult to understand why there are differences in the evaluation. The authors offer that assessment of the vasculature using lighsheet shows wider vessels than confocal, but the problem with the out-of-focus light discussed by the authors brings a confounding factor on the metrics. Can the authors discuss this at greater length? Also how do these metrics compared to a perfusion-fixed transversal section of specific vessels?

3) It is hard to interpret Figure 4 without a full legend (missing in the manuscript) but the comparison between confocal and LSFM clearly shows the advantage of LSFM, as the tufts are not squeezed through mounting. However, I am having a hard time in really understanding what is a "mature" versus a "knotting" tuft. If a nomenclature is to be introduced, then a more detailed description, assessment of multiple retinas, etc should be provided.

4) Clearly a big advantage of LSFM is the live imaging shown in Figure 5. Because there are multiple image modalities, it will be important to clearly state how is the ex-vivo preparation (flat? Curved? With media? Without? Heat? Oxygen?).

Reviewer #3:

Prahst and co-authors report the advantages of using light-sheet fluorescence microscopy (LSFM) to image the mouse retina in its natural spherical conformation. The mouse eye is of particular interest to ophthalmology, neurosciences and vascular biology. Thus, methods improving the capacity to characterize the biological and cellular principles governing the development and function of the mouse eye will have a broad-spectrum impact.

Authors start by claiming that visualizing blood vessels in the retina's natural spherical conformation will be important for our understanding of vascular biology. Thus, a central point is to compare this new method with already existing methods, such as confocal microscopy. The only comparison done between both is related to vessel diameter, and no changes were found. Other quantitative information used in vascular biology includes: vascular density; number of branching points; number of endothelial tip cells; number of filopodia per tip cell; number of regressing branches; etc. Does LSFM improve the analysis of those parameters? It is likely not the case. Moreover, description of the deconvolution and segmentation parameters in Materials and methods is very vague and relies heavily on "experts" (subsections “Manual cropping of well-segmented regions” and “Isosurface extraction”).

Another advantage of LSFM could be that the new method is faster when coming to perform the same task (extract quantitative information of fluorescence images). However, authors did not discuss this aspect. It would be important therefore to include the amount of time needed to image and quantify these parameters per retina and compared it to confocal microscopy.

Authors also showed the capacity to perform live imaging of endothelial cells in the mouse retina. Despite being technically possible, the reviewer is sceptical on the value of the information that can be obtained in this way. Given the tremendous change in the environment, including oxygen concentrations, loss of vitreous humor, lack of blood flow, loss of intraocular pressure, which are known to affect endothelial cell biology, it is debatable how reliable can be any information acquired with this protocol. As a matter of fact, Sawamiphak et al., 2010 reported a similar protocol, but the impact in the field so far is very minor. Moreover, no quantification of cell migration or filopodia dynamics was attempted in order to illustrate the potential value of the method. The same holds true in regard to the pathological OIR model.

A potential interest of the report comes from the analysis of vascular malformations, so-called vascular tufts, in the OIR model. Authors describe in high detail different vascular structures including tufts of different sizes, ranging from 2 to >20 endothelial nuclei, including the presence of some curved nuclei. Despite the novelty aspect of the observations, the reviewer is not convinced that the same structures could not be observed in confocal microscopy following careful analysis. Within the same context, authors claimed "abnormal cell dynamics" in the context of pathological angiogenesis. However, the manuscript includes very limited data (one video on filopodia, and 2 videos on undefined vessels) and no quantitative information to back up authors' claims. They suggest that those observations confirm previous hypotheses (Bentley et al., 2014 and Ubezio et al., 2016) concerning the oscillatory behavior of endothelial cells in vascular tufts, however the amount of data provided are less than enough to make such associations.

Finally, the analysis of the neuronal compartment of the mouse retina is very limited, although it would be very beneficial for the impact of the report. Another application would be to skeletonizes larger portions of the vascular network (ultimately, the entire retina vasculature) in order to perform flow simulations. It would be interesting to understand the value of LSFM for those larger scale segmentations and the benefits for flow modelling.

Overall, this report shows that LSFM is an additional way to image the mouse retina. Nonetheless, authors failed to show that LSFM will bring strong benefits to our understanding of vascular biology when compared to existing methodologies. Thus, the impact and applicability of LSFM in this field is dubious.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Mouse retinal cell behaviour in space and time using light sheet fluorescence microscopy" for consideration by eLife. Your article has now been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Michael Dorrell (Reviewer #1); Kathryn Pepple (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In their article, Bentley and co-authors describe a novel use of LSFM for imaging and analyzing cellular and tissue morphology of mouse retinas during development and disease. As these models are frequently used to study retinal development and disease, as well as broader vascular disease, any model that improves upon current methodology will be highly beneficial. The improvements described for ex vivo live imaging, as well as co-staining and analysis of neuronal and vascular systems together are particularly impressive. The associated videos of endothelial dynamics were striking and of high quality. Adapting and expanding this technique to the visualization of additional intraretinal processes in ex-vivo samples holds exciting promise for the field of retinal biology and pathology. It is clear that the authors have made substantial improvements since the first version.

Essential revisions:

1) The shape of the 3D tufts is interesting, but the major use of the OIR model is to quantify changes in neovascularization, usually in response to gene alterations, protein agonists or antagonists, or various drugs. Certainly, differences in tuft size are observed by traditional confocal analysis and quantifiable changes have been made for decades with several novel adaptations over the years. The authors should compare the two methods in a study testing a drug or transgenic mouse known to affect tuft formation to see if there is indeed a dramatic improvement in quantification analysis in order to compare the two methodologies for this model system. While the structural analysis of the tufts (spirals, tuft fusion, etc.) are a very interesting finding, in terms of a broad improvement to the model, the benefits towards the OIR model's major purpose are less clear. If the authors choose not to perform the comparisons, the claims of their method being "better" would need to be appropriately tempered throughout the article.

2) The PACT analysis and description is good, along with the rational for choosing PACT. However, it is unclear if the authors ever tested that technique on transgenic mice where the fluorescence is innate to the tissue (not stained). Was the PACT procedure used for the live retinal vasculature studies in Figure 4? As one of the key parameters for choosing PACT, it seems that the maintenance of fluorescent protein emission should be tested and demonstrated using this procedure. Also, are clearing methods required for the vascular studies, or just for the neuronal studies and assessing retinal layers?

3) While the authors do a good job of demonstrating observations of subcellular structures like Golgi and actin dynamics, the authors should better discuss what might be learned from this level of resolution. For example, the authors mention using Golgi localization to study EC polarity in migration and regression, but the images shown in Figure 1—figure supplement 1A make it seem like any such interpretation would be difficult. Similarly, it is unclear what is shown with regards to the actin dynamics in Figure 4 and corresponding videos or the practical utility of such studies.

4) The data in Figures 5 and 6 are difficult to interpret in isolation and the 3D rotational videos only provided limited assistance. Ideally to support the morphologies proposed in the schematics in Figure 6C, F, and I, additional stains or some other form of validation of the author's interpretations could be provided (histology, perfusion/fixation?). Particularly if the "previously unappreciated knotted morphology of the tuft was evident across all tuft classes" is a truly significant and novel advance to the field. If no new data are added, it would be good to tone down the writing.

5) Current key limitations of flat mounting and confocal imaging are live imaging capabilities and quantifying neuronal cells like photoreceptors in models of degeneration (including the OIR model). The authors show great improvements in live imaging and 3D neuronal staining in the spherical eye cups. If the authors can show quantification of photoreceptors (or other neurons) in a degenerative model, that could greatly increase the applicability of the model system.

https://doi.org/10.7554/eLife.49779.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

[…]

Overall, this work is of high quality and demonstrates that the application of LSFM microscopy will be a useful technique to study angiogenesis especially when improved 3D resolution is warranted. The potential for LSFM in live imaging appears to be limited in spatial resolution and time.

We thank the reviewer for their positive response. To better assess the temporal/spatial resolution of live imaging we have now performed a much larger live imaging study, repeating imaging across spatial scales, thereby extending on the single examples given of WT and OIR in the previous version. Thereby, we have included more n and also show live imaging of subcellular actin dynamics using lifeact mice. Now our live imaging sample size is n=10, comprised of: mT/mG WT n=3, lifeact WT n = 6, mT/mG OIR n=1).

Furthermore, we found LSFM live imaging to be genuinely reproducible as we performed it across three different country locations with different collaborator teams to obtain the complete set (due to my own lab moving from the US to Sweden during the revisions and no longer having a mouse colony combined with technical issues with the Lightsheet microscope in Sweden). We have also developed a new method that limits curling up of the eye tissue permitting a wider field of tissue that can be live imaged (described in the Materials and methods: “To minimize curling of the retina, apply 1-2 drops of low melting agarose on retina and start uncurling the retina before the gel is solidified. It can then be transferred to the cylinder for imaging.”).

We find the approach is best suited to capture fast processes, given the high frame rates achievable with the LSFM over confocal. Altogether, the new cohort of data indicates the reverse of the reviewer’s comment – we do not find LSFM spatially restricted – subcellular processes across wide fields of view are entirely feasible, and we find high temporal resolution is also reliably achievable. The limitations rather lie currently with the overall length of a live imaging study (~2 hours with confidence). However, with a full optimization study of the tissue culture medium and conditions it may well be feasible to extend this window in the future, as the neurons in retinal explants are known to stably persist and grow in culture. The conditions used here may simply be too normoxic, to promote further angiogenesis.

At this point I have three concerns:

1) In Figure 3 the authors perform comparative analyses of a sample image acquired by LSFM and confocal microscopy. The confocal image (Figure 3A) appears to be saturated, which makes quantitative analysis difficult. In general, the authors should provide histograms to ensure that comparable images are being analyzed. Also, the pixel depth of images should be specified.

We thank the reviewer for this important comment. We have now removed the original Figure 3 and the entire section on automated image analysis of vessel diameters as we discovered some calibration issues and artifacts with the meshing software (holes and complications in the mesh). The software is undergoing a more thorough development and a refinement process before we publish it separately in the future.

However, to clarify, we apologize for the confusion over what the original images show in Figure 3. The images were not saturated as they were all the binary images from the thresholded original images. We are sorry this was unclear. The original image, binary image and histogram of the number of saturated pixels in each image is shown in Author response image 1 for posterity.

Author response image 1

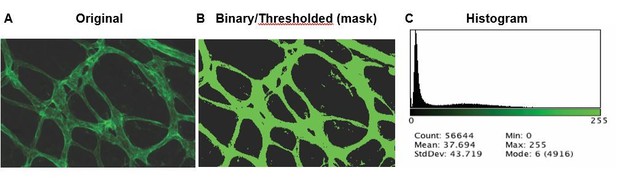

Representative of original maximum intensity projection (MIP) of IsoB4 stained vessels (A), followed by thresholding to make a mask of vessels (B).

Histogram of the original image showing the images are not saturated (C).

Generally, most of the data presented are rendered images. A better representation of less processed images would be helpful.

We appreciate the reviewer’s comments and have now included several unrendered images, for example Figure 1—figure supplement 1 and Figures 4, 6B and 7.

2) When considering alternatives to confocal imaging, e.g. live imaging. The authors should also discuss optical coherence tomography (OCT), which has also been successfully applied for in vivo imaging of the mouse retina.

The original section on OCT we agree was short and only focussed on prior live imaging work. Our reasoning for this is that we are primarily concerned with fluorescent imaging approaches that can provide molecular mechanism detail. But realize this needed to be made clearer. We have now included the following:

“Optical Coherence Tomography (OCT) is an established medical imaging technique that uses light to capture micrometer-resolution, three-dimensional images non-invasively, now widely used as a diagnostic tool (Srinivasan et al., 2006; Huber et al., 2009). […] Furthermore, being a non-fluorescent method, specific proteins cannot be labelled and tracked to investigate mechanism.”

3) To assess the spatial resolution of LSFM compared to other imaging techniques it would be helpful to examine finer morphological structures – for example cell junction, Golgi or mitochondria.

We have now included LSFM images of retinas showing Golgi, collagen and F-actin (lifeact), showing that these finer morphological structures can be successfully imaged with LSFM (Figure 1—figure supplement 1C-I).

Reviewer #2:

[…] A critical aspect of this manuscript is the value-added of this new technology. As an outside evaluator, I see both positives and negatives of this technology and it would be critical for the authors to provide a more balanced view of these.

We thank the reviewer for the positive and supportive comments on this study. To provide a clearer comparison of the pros and cons of both LSFM and confocal imaging of mouse retinas we have significantly extended the previous short Discussion section on into a full balanced Discussion. We also have now emphasized the inclusion of this clearer, balanced comparison to confocal in the Introduction, Abstract and Discussion, e.g. In the Abstract: “We compare our results to standard retinal imaging methods, in particular confocal microscopy. Through quantitative correlative Confocal-LSFM imaging we find that flat mounting retinas for confocal microscopy significantly distorts tissue morphology.”

Or perhaps, if I am missing something, explain to the review team what is the misinterpretation on the aspects of the study indicated below.

1) A detailed evaluation of the images provided reveals the lack of a clear hierarchy when retinas are evaluated by LSFM versus confocal flat-mounted images. For example, Figure 1F shows the vasculature of a P10. At this time, the vessels should clearly depict hierarchic branching patterns with alternating arteries and veins. Instead, the image shows a mesh or vessels that lack hierarchical organization and absence of alternating arterial-vein vessels. Is this outcome due to the fact that three vascular layers are juxtaposed, providing excessive noise to the inner layer (the hierarchical layer)? If this is the case, there are several negatives associated with this approach, although again, there are several positives (important to bring balance to the manuscript).

The vessels shown in Figure 1F are imaged from the outside of the eye, so you predominantly see the deeper vascular plexus, which has less hierarchical structure at P10 than the inner layer. This is not easily studied using confocal so represents a benefit if the deeper plexus is the object of the study. However, if the eye is rotated relative to the objective such that we view from above/inside – the superficial layer is closest and cross-sectional structures can be seen straight on. However, the reviewer is correct; if an older eye is being imaged the three layers will be somewhat visually overlapping (e.g. in Figure 1—figure supplement 1B), which could be hard to manually untangle due to the curvature, and as such represents a limitation. The preservation of the tissue depth information in the large z stack, however, means by computationally fitting to the local curvature of the eye tissue one could computationally colour code and subtract the retinal layers out for independent viewing and analysis. We have added a note on this to the balanced Discussion section.

2) For the visualization shown in Figure 3: Was this done using a flat mounted image? Or Having the eyeball as a curved structure? I believe it might be the former, and in this case, it is difficult to understand why there are differences in the evaluation. The authors offer that assessment of the vasculature using lighsheet shows wider vessels than confocal, but the problem with the out-of-focus light discussed by the authors brings a confounding factor on the metrics. Can the authors discuss this at greater length? Also how do these metrics compared to a perfusion-fixed transversal section of specific vessels?

We have now removed the original Figure 3 and the entire section on automated image analysis of vessel diameters as we discovered some calibration issues and artefacts with the meshing software (holes and complications in the mesh) so it is undergoing a more thorough development and a refinement process before we publish it separately in the future.

To answer the reviewers first question here and to better explain the tissue handling and correlative imaging process we added schematic Figure 3A. Indeed, the tissue was imaged curved first in LSFM and then flat mounted to view the same regions in confocal to compare any distortions directly.

To be completely confident of the comparative measurements we had two independent postdocs hand measure the width and depth of the same vessel segment in the corresponding images. We also re performed the analysis on LSFM vessels after deconvolution using Huygens but found no differences to the measurements made with the unprocessed LSFM images. Thus, to answer the reviewers second question we can confirm that out-of-focus light did not affect the measurements in these images. We suspect this is due the early postnatal stage of these retinas (P4) meaning they are very thin so have minimal light scatter.

To address the final point, we scoured the literature but could not find corresponding measurements of these very small vessels that we analyzed using perfusion-fixed transversal sections, but would be very open to comparing if a reference could be highlighted?

3) It is hard to interpret Figure 4 without a full legend (missing in the manuscript) but the comparison between confocal and LSFM clearly shows the advantage of LSFM, as the tufts are not squeezed through mounting. However, I am having a hard time in really understanding what is a "mature" versus a "knotting" tuft. If a nomenclature is to be introduced, then a more detailed description, assessment of multiple retinas, etc should be provided.

We apologize entirely for the lack of figure legend to Figure 4 (now Figure 5). This was a great disappointment as this figure really does indeed showcase one of the major benefits of LSFM as the reviewer points out – improved imaging and understanding of vascular malformations. Indeed, we have included quantification of the exact level of distortion confocal flatmounting incurs to tufts (Figure 5E).

The analysis was performed over multiple retinas, n=6 and each dot in the quantitative analysis (Figure 5B-D) is an individual tuft analysed.

To better explain the knotting nomenclature in response to the reviewer, we have now included a much deeper study of the 3D morphological structure (Figure 6), we explored deconvolution (reducing lightscatter using Huygens software) and using different 3D methods to view/understand, draw and analyse the 3D structures. This extra effort has turned out to be transformative, revealing nuances of complex vessel interlacing structures not before reported.

To simplify the nomenclature, we have changed to ‘small, medium and large’, instead of ‘initiating, knotting and mature’ as per reviewer 3’s request to avoid inferring too much temporal ordering of the process from static images until we know more. However, we make it clear in the discussion our assumption is that this is the likely ordering, based on the peak proportion of curved nuclei in medium sized tufts.

4) Clearly a big advantage of LSFM is the live imaging shown in Figure 5. Because there are multiple image modalities, it will be important to clearly state how is the ex-vivo preparation (flat? Curved? With media? Without? Heat? Oxygen?).

Information is in the Materials and methods section. In summary, Retina are curved in media containing 50% FCS with 5% CO2.

Reviewer #3:

[…]

Authors start by claiming that visualizing blood vessels in the retina's natural spherical conformation will be important for our understanding of vascular biology. Thus, a central point is to compare this new method with already existing methods, such as confocal microscopy. The only comparison done between both is related to vessel diameter, and no changes were found.

We agree and have committed to a major overhaul of the paper to strengthened and improve the comparison to confocal imaging throughout the paper. The revised version now includes many new quantifications, including comparative OIR tuft depth distortions across tuft sizes when imaged with confocal vs LSFM (Figure 5E); a substantial new vessel diameter analysis, performed by hand by two independent postdocs, following a correlative imaging approach to ensure precision and accuracy, that the exact same vessel diameter is directly compared between the imaging modalities. This study revealed that distortions are present in even very small developing vessels when imaged with a confocal (Figure 3). Furthermore, we have added a significant new section to the Discussion comparing the benefits and limitations of LSFM and confocal as suggested by reviewers 2 and 3.

Other quantitative information used in vascular biology includes: vascular density; number of branching points; number of endothelial tip cells; number of filopodia per tip cell; number of regressing branches; etc. Does LSFM improve the analysis of those parameters? It is likely not the case.

In the new Discussion section we point out that for such static quantifications of XY plane properties of developmental angiogenesis in just the superficial plexus, which all these quantifications relate to, confocal has better resolution and remains preferable to LSFM. We are not proposing LSFM to replace for this type of analysis, and go further to demonstrate with LSFM that the vessels in this superficial layer during development are not distorted, adding further confidence to the confocal approach in this setting. However, for pathological angiogenesis, where enlarged or abnormally oriented vessels grow, e.g. as in the tufts that protrude outside of the superficial plexus into the vitreous, we find a distinct advantage of LSFM over confocal. The tuft morphology is much less flattened and distorted, and the ability to image all around them and rotate in videos to view the tuft fully from the side or any angle helped to reveal the complex knotted morphology, not previously discovered across the many confocal studies of the OIR vasculature.

The key strength of LSFM is for rapid 3D-4D imaging, which can reveal many other important regions/processes in the retina that currently are less well studied or standardized, in vascular biology and opthalmology, beyond developmental angiogenesis in the superficial plexus. Analysis of deeper layers, diving vessels, interconnecting neurons and vessels with differential orientations in the tissue, abnormally enlarged or altered 3D structures such as vascular tufts, but potentially any region of the eye that has become abnormally shaped in 3D, might benefit from this type of imaging.

Moreover, description of the deconvolution and segmentation parameters in Materials and methods is very vague and relies heavily on "experts" (subsections “Manual cropping of well-segmented regions” and “Isosurface extraction”).

We have entirely removed the automated analysis pipeline which this comment relates to, while it undergoes more rigorous development and calibration due to some meshing artefacts that may have affected results. We have replaced the Materials and methods section on deconvolution, which was subsequently performed using Huygens software in this revised version, with a more detailed description of the process (Materials and methods).

Another advantage of LSFM could be that the new method is faster when coming to perform the same task (extract quantitative information of fluorescence images). However, authors did not discuss this aspect. It would be important therefore to include the amount of time needed to image and quantify these parameters per retina and compared it to confocal microscopy.

We agree with the reviewer, and have emphasized better the speed improvements with LSFM, indeed putting it as the first benefit listed, in the new Discussion section comparing LSFM and confocal. Generally speaking, while the image capture is dramatically faster for LSFM, we found that the quantification time (the time required to quantify the images) is comparable between LSFM and confocal, which has also been added to this section.

Authors also showed the capacity to perform live imaging of endothelial cells in the mouse retina. Despite being technically possible, the reviewer is skeptical on the value of the information that can be obtained in this way.

In the original version submitted we had only attempted live imaging a small number of times, including one video of WT and OIR as proof of concept and agree this did not demonstrate the full potential, reproducibility or quantitative value of the approach. We have thus significantly improved the live imaging Results section, repeating the WT live imaging with mT/mG mice so n=3 and including a new study using WT lifeact mice n=6 showing subcellular actin dynamics can be quantified. Given cell shape, migration, division and junctional dynamics all depend on actin this potentiates novel studies with many mouse mutants to gain quantifiable results. Furthermore, we have now included quantifications of the filopodia dynamics comparing the healthy retina to the OIR, which already indicated that the filipodia are dramatically altered in the OIR condition, worthy of greater study and indicating that live imaging with LSFM could generate data with dynamic insight and value for development and disease models.

Given the tremendous change in the environment, including oxygen concentrations, loss of vitreous humor, lack of blood flow, loss of intraocular pressure, which are known to affect endothelial cell biology, it is debatable how reliable can be any information acquired with this protocol.

We agree there are of course aspects that have changed, however compared to the standard use of in vitro assays for live imaging endothelial behaviour, such as bead sprouting assays and ES cell assays the tissue environment and cell behaviour within the largely intact local retinal tissue around the vessels is likely to yield more realistic cell behaviour than in vitro. Furthermore, if studying tip cell dynamics and filopodia, these are not perfused vessels, so the lack of blood flow is not likely a huge factor. We also see this as a first step in a longer goal were we or other labs can improve the tissue medium, dissection process and exploring micro pumps and fluidics to perfuse vessels via the optic nerve to get closer and closer to imaging longer time windows with in situ processes in an otherwise fully working ex vivo mouse eye.

As a matter of fact, Sawamiphak et al., 2010 reported a similar protocol, but the impact in the field so far is very minor.

We discuss this particular study in the Introduction section of the manuscript and point out their protocol involves significant delay between dissection and imaging due to the need to flatmount the tissue first. The flatmounting also creates more distorting and destruction of tissue gradients than our protocol.

Moreover, no quantification of cell migration or filopodia dynamics was attempted in order to illustrate the potential value of the method. The same holds true in regard to the pathological OIR model.

We agree and this has been significantly improved with the addition of more live imaging repeats. We have now included a full quantification study of filopodia comparing vessels in the healthy tissue and OIR, as well as subcellular actin dynamics, overhauling and extending the two live imaging Results sections significantly as well as updating Figure 5 and including the new Figure 6.

A potential interest of the report comes from the analysis of vascular malformations, so-called vascular tufts, in the OIR model. Authors describe in high detail different vascular structures including tufts of different sizes, ranging from 2 to >20 endothelial nuclei, including the presence of some curved nuclei. Despite the novelty aspect of the observations, the reviewer is not convinced that the same structures could not be observed in confocal microscopy following careful analysis.

We have substantially increased the study of OIR tufts (Figure 6) in the revised manuscript to better demonstrate the importance of LSFM and hope it now convinces the reviewer that the due to undistorted, 3D rotational viewing of tufts that it enables we can perceive their knotted, swirling morphology. We now quantitatively show that confocal microscopy distorted tuft depth significantly meaning the side view of tufts is almost impossible to interpret and unreliable in confocal images (as shown in Figure 5), which means the same structures could not be observed in confocal following the standard flatmounting procedures.

Furthermore, it would be much more difficult to see curved nuclei using confocal microscopy due to the potential for distortion to be curving them and the lack of the extra perspective side view to tell if they are truly curved. We have extended a sentence on this in the results to better emphasize: “It should be noted that care should be taken to rotate the image stack to confirm nuclear curvature, as two nuclei parallel to each other can look like only one nucleus (Figure 5A, fourth panel row, blue arrow), emphasizing the importance of 3D imaging with LSFM as rotating and viewing tufts from the side without distortion is not possible with confocal.”

Within the same context, authors claimed "abnormal cell dynamics" in the context of pathological angiogenesis. However, the manuscript includes very limited data (one video on filopodia, and 2 videos on undefined vessels) and no quantitative information to back up authors' claims.

We have included data from 7 and 3 videos for healthy and OIR tissues respectively together with their quantifications in comment #1. My lab moved location during the revision process and we no longer maintained a mouse colony or had an O2 chamber. We were able to work with collaborators and image mT/mG and lifeact mice available in these labs but could not for practical reasons continue the OIR experiments.

They suggest that those observations confirm previous hypotheses (Bentley et al., 2014 and Ubezio et al., 2016) concerning the oscillatory behavior of endothelial cells in vascular tufts, however the amount of data provided are less than enough to make such associations.

We have removed this reference.

Finally, the analysis of the neuronal compartment of the mouse retina is very limited, although it would be very beneficial for the impact of the report.

Through a new collaboration with neuronal Opthalmology researchers at Schepens Eye Institute (now co-authors on the paper – Dong Feng Chen et al.) we were able to investigate the neuronal compartment further, resulting in new images of RGCs and vascular interactions, now Figure 2C and D.

Another application would be to skeletonizes larger portions of the vascular network (ultimately, the entire retina vasculature) in order to perform flow simulations. It would be interesting to understand the value of LSFM for those larger scale segmentations and the benefits for flow modelling.

We agree this is a very interesting and useful application of the approach outside of the current manuscript scope however we have included it in the Discussion and we have plans for a new postdocs project to be to develop imageJ plugins that will help with skeletonizing the entire, curved vasculature.

Overall, this report shows that LSFM is an additional way to image the mouse retina. Nonetheless, authors failed to show that LSFM will bring strong benefits to our understanding of vascular biology when compared to existing methodologies. Thus, the impact and applicability of LSFM in this field is dubious.

We have better summarized the advantages of using LSFM compared to confocal imaging in the new Discussion section as noted. We do feel the approach has broad benefits for eye research beyond vascular biology, but also that is has several key benefits for vascular biology in terms of studying abnormally enlarged or dynamic structures as described in response to point 1 above.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

1) The shape of the 3D tufts is interesting, but the major use of the OIR model is to quantify changes in neovascularization, usually in response to gene alterations, protein agonists or antagonists, or various drugs. Certainly, differences in tuft size are observed by traditional confocal analysis and quantifiable changes have been made for decades with several novel adaptations over the years. The authors should compare the two methods in a study testing a drug or transgenic mouse known to affect tuft formation to see if there is indeed a dramatic improvement in quantification analysis in order to compare the two methodologies for this model system. While the structural analysis of the tufts (spirals, tuft fusion, etc.) are a very interesting finding, in terms of a broad improvement to the model, the benefits towards the OIR model's major purpose are less clear. If the authors choose not to perform the comparisons, the claims of their method being "better" would need to be appropriately tempered throughout the article.

The reviewer makes a very useful suggestion to better balance our claims of when exactly confocal or LSFM might be more appropriate given what the study might aim to quantify, e.g. as they note, in OIR studies. As this was a very interesting point, we took the reviewers advice and performed a comparative 3D analysis, LSFM study of a published OIR drug treatment (Yagasaki et al., 2014). We looked at the effects of Everolimus, an inhibitor of mammalian target of rapamycin (mTOR), previously analysed with standard confocal area metrics to see whether LSFM could a) match the confocal measures and/or b) improve upon the insights gained with 2D area measurements. We have added the following results to the text, Figure 6—figure supplement 3 and also added further discussion and clarification on when confocal is more appropriate for certain analyses such as 2D area measurements. Overall, we have also tried to temper the language and be more balanced throughout.

“Next, we investigated whether LSFM could provide added benefits for OIR drug study quantifications, when compared to confocal microscopy. […] Thus, we concluded that LSFM is more suitable for 3D volume and tuft morphology characterisation to understand the mechanism of action of OIR drug treatments than confocal microscopy.”

2) The PACT analysis and description is good, along with the rational for choosing PACT. However, it is unclear if the authors ever tested that technique on transgenic mice where the fluorescence is innate to the tissue (not stained).

Due to the high expression levels of mT/mG-YFP, and its proximity to the surface in these samples, PACT clearing of the tissue was not required. However, it was well established in the original PACT publication (Yang et al., 2014), and in many subsequent publications utilizing the PACT technique, that genetically encoded fluorescent proteins maintain their fluorescence throughout the PACT clearing protocol.

Was the PACT procedure used for the live retinal vasculature studies in Figure 4?

No, the PACT procedure was not used here. We have now indicated the images are of “uncleared” in the figure legend to clarify.

As one of the key parameters for choosing PACT, it seems that the maintenance of fluorescent protein emission should be tested and demonstrated using this procedure. Also, are clearing methods required for the vascular studies, or just for the neuronal studies and assessing retinal layers?

In general, the need for clearing increases with the developmental stage of the eye cup and the depth of the structure of interest within the tissue. Therefore, we only utilized clearing for the vascular and neuronal samples in Figure 2 and Figure 2—figure supplement 1. Currently, clearing of living tissue has not been demonstrated. Therefore, we were careful to calibrate our optical image system as close as possible to the refractive index of the tissue without impacting the viability of the living samples. This involved maintaining the sample in a physiological aqueous buffer, using a water dipping objective, and adjusting the Z-position of the light-sheet within the tissue to ensure optimal alignment with the focal plane of our imaging objective.

3) While the authors do a good job of demonstrating observations of subcellular structures like Golgi and actin dynamics, the authors should better discuss what might be learned from this level of resolution. For example, the authors mention using Golgi localization to study EC polarity in migration and regression, but the images shown in Figure 1—figure supplement 1 make it seem like any such interpretation would be difficult. Similarly, it is unclear what is shown with regards to the actin dynamics in Figure 4 and corresponding videos or the practical utility of such studies.

To address this concern, we have now improved on the subcellular section by performing a demonstration that LSFM allows for Golgi-nucleus polarity assignment. For this, we utilized a new Golgi and nuclear double reporter mouse (GNrep mouse) (Barbacena et al., 2019).

The following text has been added to the manuscript together with new in panels Figure 1—figure supplement 1E-H:

“Moreover, quantification of the nucleus-Golgi polarity axis was amenable when imaging the GNrep mouse (Barbacena et al., 2019), which expresses Golgi-localised mCherry and nucleus-localised eGFP upon Cre-mediated recombination, enabling visualisation of endothelial specific nuclei and Golgi apparatus. […] The ability to 3D rotate the undistorted vascular image stacks obtained with LSFM revealed hidden cells whose polarity could be analysed, not visible when analysing the same image stack using standard confocal 2D imaging (i.e. viewed only from above) (Figure 1—figure supplement 1F-H).”

We have also added further discussion on this, as suggested, to better explain the benefits that subcellular level LSFM studies of undistorted 3D eye tissue could bring:

“Subcellular level resolution in undistorted 3D retinal structures. […] However, we see the greatest potential for subcellular analysis in future studies analysing disruptions in cell polarity, or other processes at the subcellular level such as actin localisation in large pathological vessels or other retinal structures”

4) The data in Figures 5 and 6 are difficult to interpret in isolation and the 3D rotational videos only provided limited assistance. Ideally to support the morphologies proposed in the schematics in Figure 6C, F, and I, additional stains or some other form of validation of the author's interpretations could be provided (histology, perfusion/fixation?). Particularly if the "previously unappreciated knotted morphology of the tuft was evident across all tuft classes" is a truly significant and novel advance to the field. If no new data are added, it would be good to tone down the writing.

As suggested, we have now performed additional supportive 3D imaging using a different approach – we chose microCT imaging as it provides an independent high-resolution volumetric imaging of the undistorted 3D tissue structure with which to assess tuft structure and compare to LSFM. We found this feasible and assessed two retinas from control and OIR mice each finding that tufts indeed often had evident holes/invaginations and bridged connections to the plexus. We have added the following text and Figure 6—figure supplement 2:

“To further validate these unexpected tuft morphologies with an independent high-resolution 3D imaging method, we performed microCT on intact health control and OIR retinas. […] On close inspection we indeed found tufts also appear to have holes/invaginations (Figure 6—figure supplement 2B-C) indicating further study of these complex 3D structures is warranted.”

5) Current key limitations of flat mounting and confocal imaging are live imaging capabilities and quantifying neuronal cells like photoreceptors in models of degeneration (including the OIR model). The authors show great improvements in live imaging and 3D neuronal staining in the spherical eye cups. If the authors can show quantification of photoreceptors (or other neurons) in a degenerative model, that could greatly increase the applicability of the model system.

We appreciate the suggestion and have now included quantification of neuronal dropout in a Rho KO mouse model of neuronal degeneration when imaged with LSFM. The following text has been added to the manuscript and Figure 2—figure supplement 1.

“In order to establish whether LSFM could be used to quantify neuronal changes in a retinal degeneration model we imaged retinal cups from the Rho KO degeneration model (Figure 2—figure supplement 1) (Humphries et al., 1997). […] The ONL had almost entirely lost its stable convex curvature by 8 weeks in the KO retina and the inner nuclear layer (INL) also appeared ruffled when viewed in 3D which may be due to the unevenness of dropout of photoreceptors (Figure 2—figure supplement 1A, B).”

https://doi.org/10.7554/eLife.49779.sa2

Article and author information

Author details

  1. Claudia Prahst

    Center for Vascular Biology Research and Department of Pathology, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Project administration
    Contributed equally with
    Parham Ashrafzadeh and Thomas Mead
    For correspondence
    Claudia.prahst@gmail.com
    Competing interests
    No competing interests declared
  2. Parham Ashrafzadeh

    The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Uppsala, Sweden
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Claudia Prahst and Thomas Mead
    Competing interests
    No competing interests declared
  3. Thomas Mead

    1. The Francis Crick Institute, London, United Kingdom
    2. Department of Informatics, Faculty of Natural and Mathematical Sciences, Kings College London, London, United Kingdom
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Claudia Prahst and Parham Ashrafzadeh
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2728-670X
  4. Ana Figueiredo

    Instituto de Medicina Molecular, Lisbon, Portugal
    Contribution
    Software, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  5. Karen Chang

    Schepens Eye Research Institute of Massachusetts Eye and Ear, Department of Ophthalmology, Harvard Medical School, Boston, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  6. Douglas Richardson

    Harvard Center for Biological Imaging, Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Resources, Formal analysis, Supervision, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Lakshmi Venkaraman

    1. Center for Vascular Biology Research and Department of Pathology, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    2. The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Uppsala, Sweden
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  8. Mark Richards

    The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Uppsala, Sweden
    Contribution
    Resources, Formal analysis, Supervision, Investigation
    Competing interests
    No competing interests declared
  9. Ana Martins Russo

    Instituto de Medicina Molecular, Lisbon, Portugal
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  10. Kyle Harrington

    Center for Vascular Biology Research and Department of Pathology, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    Present address
    Virtual Technology and Design, University of Idaho, Moscow, United States
    Contribution
    Software, Formal analysis, Validation, Visualization, Methodology
    Competing interests
    No competing interests declared
  11. Marie Ouarné

    Instituto de Medicina Molecular, Lisbon, Portugal
    Contribution
    Resources, Supervision, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  12. Andreia Pena

    Instituto de Medicina Molecular, Lisbon, Portugal
    Contribution
    Resources, Supervision, Investigation, Methodology
    Competing interests
    No competing interests declared
  13. Dong Feng Chen

    Schepens Eye Research Institute of Massachusetts Eye and Ear, Department of Ophthalmology, Harvard Medical School, Boston, United States
    Contribution
    Resources, Supervision, Funding acquisition, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6283-8843
  14. Lena Claesson-Welsh

    The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Uppsala, Sweden
    Contribution
    Resources, Supervision, Funding acquisition, Validation, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4275-2000
  15. Kin-Sang Cho

    1. Schepens Eye Research Institute of Massachusetts Eye and Ear, Department of Ophthalmology, Harvard Medical School, Boston, United States
    2. Geriatric Research Education and Clinical Center, Office of Research and Development, Edith Nourse Rogers Memorial Veterans Hospital, Bedford, United States
    Contribution
    Resources, Formal analysis, Supervision, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4285-615X
  16. Claudio A Franco

    Instituto de Medicina Molecular, Lisbon, Portugal
    Contribution
    Resources, Supervision, Validation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2861-3883
  17. Katie Bentley

    1. Center for Vascular Biology Research and Department of Pathology, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    2. The Beijer Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Uppsala, Sweden
    3. The Francis Crick Institute, London, United Kingdom
    4. Department of Informatics, Faculty of Natural and Mathematical Sciences, Kings College London, London, United Kingdom
    5. Biomedical Engineering Department, Boston University, Boston, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Project administration
    For correspondence
    katie.bentley@kcl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9391-659X

Funding

National Eye Institute (1R21EY027067-01)

  • Claudia Prahst
  • Katie Bentley

Harvard Catalyst (UL1 TR001102)

  • Claudia Prahst
  • Katie Bentley

Beth Israel Deaconess Medical Center (startup funds)

  • Claudia Prahst
  • Lakshmi Venkaraman
  • Katie Bentley

Kjell och Märta Beijers Stiftelse

  • Parham Ashrafzadeh
  • Katie Bentley

Marfan Foundation (Victor A McKusick fellowship)

  • Lakshmi Venkaraman

European Molecular Biology Organization (ALTF 2016-923 fellowship)

  • Mark Richards

National Heart, Lung, and Blood Institute (T32 HL07893)

  • Kyle Harrington

National Eye Institute (EY025259)

  • Dong Feng Chen

National Eye Institute (P30 EY03790)

  • Dong Feng Chen

European Research Council (starting grant (679368))

  • Claudio A Franco

Fundação para a Ciência e a Tecnologia (IF/00412/2012)

  • Claudio A Franco

Fondation Leducq (17CVD03)

  • Claudio A Franco

National Eye Institute (EY027067)

  • Kin-Sang Cho

Knut och Alice Wallenbergs Stiftelse (KAW 2015.0030)

  • Lena Claesson-Welsh
  • Katie Bentley

Francis Crick Institute

  • Thomas Mead
  • Katie Bentley

Fundação para a Ciência e a Tecnologia (PRECISE-LISBOA-01-0145-FEDER-016394)

  • Claudio A Franco

Royal Swedish Academy of Sciences

  • Parham Ashrafzadeh

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Sven Terclavers (HCBI) for the excellent technical support; Alessandro Ciccarelli (The Francis Crick Institute, CALM STP) for LSFM imaging using the Luxendo and LaVision LSFM microscopes; Christopher Peddie and Lucy Collinson at The Francis Crick Institute (EM STP) for establishing and performing retinal microCT imaging; thanks also to Joe Brock and the Illustration team at The Francis Crick Institute for aiding with 3D drawing of tuft knots. CP and KB were supported by funding from Harvard Catalyst | The Harvard Clinical and Translational Science Center (National Center for Research Resources and the National Center for Advancing Translational Sciences, National Institutes of Health Award UL1 TR001102), the NEI (1R21EY027067-01), and BIDMC. K B and PA were supported by The Kjell and Märta Beijer Foundation. PA was additionally supported by a travel grant from The Royal Swedish Academy of Sciences (Kungl. Vetenskaps-Akademien). KB and LCW were supported by a grant from the Knut and Alice Wallenberg foundation (KAW 2015.0030). KB and TM were supported by The Francis Crick Institute, which receives its core funding from Cancer Research UK (FC001751), the UK Medical Research Council (FC001751), and the Wellcome Trust (FC001751). LV was supported by a Victor A McKusick fellowship from the Marfan Society. MR was supported by an EMBO fellowship (ALTF 2016–923). KIH was supported by institutional training grant T32 HL07893 from the NHLBI of the NIH. LV was funded by the Victor A McKusick Fellowship from the Marfan Foundation and BIDMC. DFC supported by EY025259, Lions Foundation, and NEI core grant P30 EY03790. K-S Cho: EY027067. CAF was supported by European Research Council starting grant (679368), the Fundação para a Ciência e a Tecnologia funding (grants: IF/00412/2012; PRECISE-LISBOA-01–0145-FEDER-016394; and a grant from the Fondation Leducq (17CVD03).

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. Mice used in experiments at Beth Israel Deaconess Medical Center were held in accordance with Beth Israel Deaconess Medical Center institutional animal care and use committee (IACUC) guidelines. Animal work performed at Uppsala University was approved by the Uppsala University board of animal experimentation. Transgenic mice were maintained at the Instituto de Medicina Molecular (iMM) under standard husbandry conditions and under national regulations.(ethics approval reference C134/14 and C116/15).

Senior and Reviewing Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewers

  1. Michael Dorrell, Point Loma Nazarene University - San Diego, United States
  2. Kathryn Pepple, University of Washington, United States

Publication history

  1. Received: June 29, 2019
  2. Accepted: February 11, 2020
  3. Accepted Manuscript published: February 19, 2020 (version 1)
  4. Version of Record published: April 16, 2020 (version 2)

Copyright

© 2020, Prahst et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,312
    Page views
  • 610
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Emmanuelle Steib et al.
    Research Article

    Centrioles are characterized by a nine-fold arrangement of microtubule triplets held together by an inner protein scaffold. These structurally robust organelles experience strenuous cellular processes such as cell division or ciliary beating while performing their function. However, the molecular mechanisms underlying the stability of microtubule triplets, as well as centriole architectural integrity remain poorly understood. Here, using ultrastructure expansion microscopy for nanoscale protein mapping, we reveal that POC16 and its human homolog WDR90 are components of the microtubule wall along the central core region of the centriole. We further found that WDR90 is an evolutionary microtubule associated protein. Finally, we demonstrate that WDR90 depletion impairs the localization of inner scaffold components, leading to centriole structural abnormalities in human cells. Altogether, this work highlights that WDR90 is an evolutionary conserved molecular player participating in centriole architecture integrity.

    1. Cell Biology
    Kanji Okumoto et al.
    Research Article Updated

    Most of peroxisomal matrix proteins including a hydrogen peroxide (H2O2)-decomposing enzyme, catalase, are imported in a peroxisome-targeting signal type-1 (PTS1)-dependent manner. However, little is known about regulation of the membrane-bound protein import machinery. Here, we report that Pex14, a central component of the protein translocation complex in peroxisomal membrane, is phosphorylated in response to oxidative stresses such as H2O2 in mammalian cells. The H2O2-induced phosphorylation of Pex14 at Ser232 suppresses peroxisomal import of catalase in vivo and selectively impairs in vitro the interaction of catalase with the Pex14-Pex5 complex. A phosphomimetic mutant Pex14-S232D elevates the level of cytosolic catalase, but not canonical PTS1-proteins, conferring higher cell resistance to H2O2. We thus suggest that the H2O2-induced phosphorylation of Pex14 spatiotemporally regulates peroxisomal import of catalase, functioning in counteracting action against oxidative stress by the increase of cytosolic catalase.
