Midkine is a dual regulator of wound epidermis development and inflammation during the initiation of limb regeneration

  1. Stephanie L Tsai
  2. Clara Baselga-Garriga
  3. Douglas A Melton  Is a corresponding author
  1. Harvard University, United States
Research Article
  • Cited 0
  • Views 483
  • Annotations
Cite this article as: eLife 2020;9:e50765 doi: 10.7554/eLife.50765

Abstract

Formation of a specialized wound epidermis is required to initiate salamander limb regeneration. Yet little is known about the roles of the early wound epidermis during the initiation of regeneration and the mechanisms governing its development into the apical epithelial cap (AEC), a signaling structure necessary for outgrowth and patterning of the regenerate. Here, we elucidate the functions of the early wound epidermis, and further reveal midkine (mk) as a dual regulator of both AEC development and inflammation during the initiation of axolotl limb regeneration. Through loss- and gain-of-function experiments, we demonstrate that mk acts as both a critical survival signal to control the expansion and function of the early wound epidermis and an anti-inflammatory cytokine to resolve early injury-induced inflammation. Altogether, these findings unveil one of the first identified regulators of AEC development and provide fundamental insights into early wound epidermis function, development, and the initiation of limb regeneration.

Introduction

Salamanders possess the impressive ability to regenerate their limbs with high fidelity throughout their lifespan (Tanaka, 2016; Flowers et al., 2017). While most mammals respond to traumatic limb injuries including amputation with a fibrotic scarring response, salamanders instead form a blastema, a transient cellular structure comprised of progenitors derived from different non-epithelial tissues (muscle, connective tissue etc.) that eventually reconstructs the new limb (Kragl et al., 2009; Sandoval-Guzmán et al., 2014; Fei et al., 2017; Gerber et al., 2018). Determining the mechanisms required for blastema formation has the potential to provide valuable insights into improving repair and regenerative outcomes in less regenerative-species including humans.

Classical salamander limb regenerative experiments determined that initiation of blastema formation requires the presence of a wound epidermis for both formation and maintenance of the blastema (Goss, 1956a; Thornton, 1957; Thornton, 1958; Mescher, 1976; Tassava and Garling, 1979). Immediately post-amputation, epithelial cells from the intact peripheral skin migrate radially over the exposed stump tissues and form a thin wound epithelium covering the amputation plane within 12 hours (Hay and Fischman, 1961). Unlike normal full thickness skin that contains two layers (epidermis and dermis), the wound epidermis only contains an epithelial layer comprised primarily of keratinocytes, allowing for direct communication between the wound epidermis and underlying stump tissues (Repesh and Oberpriller, 1978). This thin wound epidermis persists through the initial wound healing stages of regeneration. As the blastema forms during later stages of regeneration, the early wound epithelium gradually expands into a stratified epidermis commonly called the apical epithelial cap (AEC), which is a signaling structure that maintains blastemal outgrowth and directs patterning (Boilly and Albert, 1990; Christensen and Tassava, 2000; Han et al., 2001; Christensen et al., 2002). This expansion occurs primarily via proliferation and subsequent distal migration of epithelial cells in the peripheral skin (Hay and Fischman, 1961; Campbell and Crews, 2008). Classical studies showed that inhibiting early wound epidermis formation by either suturing or grafting full thickness skin over the amputation plane (Mescher, 1976; Tassava and Garling, 1979) or immediately inserting the amputated limb into the body cavity (Goss, 1956a) blocked blastema formation. However, if the amputated limb was inserted into the body cavity after the wound epidermis formed, regeneration proceeded normally, demonstrating an early need for the wound epithelium (Goss, 1956b). Furthermore, preventing AEC development by either continuous removal of the wound epidermis (Thornton, 1957) or daily irradiation to inhibit proliferative expansion also hindered limb regeneration (Thornton, 1958). Together, these findings established the necessity for a wound epidermis/AEC throughout different stages of limb regeneration.

The nature of wound epidermis dependence has been more well explored during later blastemal stages of regeneration. The AEC expresses mitogens and patterning factors that help to maintain blastemal cell proliferation and pattern the regenerate (Boilly and Albert, 1990; Campbell and Crews, 2008; Ghosh et al., 2008; Satoh et al., 2008). However, the roles of the wound epidermis during early stages of regeneration are less clear. Moreover, the early wound epidermis is likely to be functionally distinct from the AEC as the wound healing micro-environment differs substantially from that of the blastema. Preventing early wound epidermis formation was shown to affect the maintenance, but not the onset of proliferation of progenitors (Mescher, 1976; Tassava and Garling, 1979; Johnson et al., 2018), though it is worth noting that the early wound epidermis does express molecules capable of inducing proliferation (Sugiura et al., 2016). Additionally, some dedifferentiation of muscle, bone and cartilage tissue was still observed when wound epidermis formation was prevented, although not to the same extent as normal regenerating limbs. Altogether these studies indicated that the early wound epidermis is involved in maintaining progenitor cell cycling and may also play a role in tissue histolysis.

More recently, bulk and single cell transcriptional limb regeneration studies have further characterized gene expression in the early wound epidermis and AEC (Campbell et al., 2011; Leigh et al., 2018; Tsai et al., 2019). Yet, it remains unknown what gene expression programs in regenerating tissues depend on the presence of the early wound epidermis. The initiation of blastema formation is a complex event with inflammation, tissue histolysis, extracellular matrix (ECM) remodeling, and cell cycle re-entry of progenitors all transpiring concurrently (McCusker et al., 2015). Aside from the induction of proliferation, whether and to what extent the early wound epidermis may regulate these other processes remains relatively unexplored. Furthermore, little is known about the molecular mechanisms controlling the transition from the early wound epithelium into the AEC, a major milestone for successful limb regeneration.

To investigate these questions, we sought to deconvolute the functional roles of the wound epidermis from the rest of the regenerating limb tissues by revisiting the classical full skin flap surgical model to inhibit wound epidermis formation during limb regeneration. Using modern-day transcriptional approaches, we illuminate the roles of the early wound epidermis and identify distinct wound epidermis-dependent transcriptional programs in dividing progenitors and the surrounding regenerating tissues. In addition to the discovery of putative regulators of wound epidermis formation and function, our approach enabled us to identify midkine (mk) as a regulator of both AEC development and early inflammation, key events during the initiation of blastema formation. Altogether, these findings provide important insight into the molecular basis for wound epidermis dependence and further advance our understanding of wound epithelium/AEC biology during limb regeneration.

Results

The wound epithelium is a major regulator of inflammation, ECM remodeling, and tissue histolysis during early stages of regeneration

We previously developed a method leveraging differential DNA content during the cell cycle to enrich for dividing progenitors during early stages of regeneration (Tsai et al., 2019), facilitating analysis of the distinct transcriptional programs active in blastemal progenitors apart from those of the surrounding tissues (non-dividing cells in stump tissues and the wound epidermis). To examine the functional roles of the early wound epidermis, we asked how the transcriptional programs of these three populations changed when wound epidermis formation was prevented. To do this, we utilized the classical full skin flap (FSF) surgical model pioneered by Anthony Mescher (Mescher, 1976). We performed full skin flap surgeries on regenerating axolotl limbs to prevent epithelial cell migration and contact with exposed stump tissues, inhibiting both wound epidermis formation and limb regeneration (Figure 1—figure supplement 1A–B). Since preventing early wound epidermis formation via full skin flap surgery does not affect induction of proliferation (Mescher, 1976; Tassava and Garling, 1979; Johnson et al., 2018), we applied our method here to profile blastemal progenitors and the surrounding regenerating tissues in full skin flap sutured limbs at 5 days post-amputation (dpa), around the onset of proliferation. By leveraging the data generated from our previous analysis (Tsai et al., 2019), we were able to compare the gene expression programs in full skin flap sutured regenerating limbs to both intact limbs and normal regenerating limbs from the same time point (Figure 1A, Figure 1—figure supplement 1C). This approach allowed us to identify wound epidermis-dependent gene expression.

Figure 1 with 1 supplement see all
The early wound epidermis modulates inflammation, ECM remodeling, and tissue histolysis.

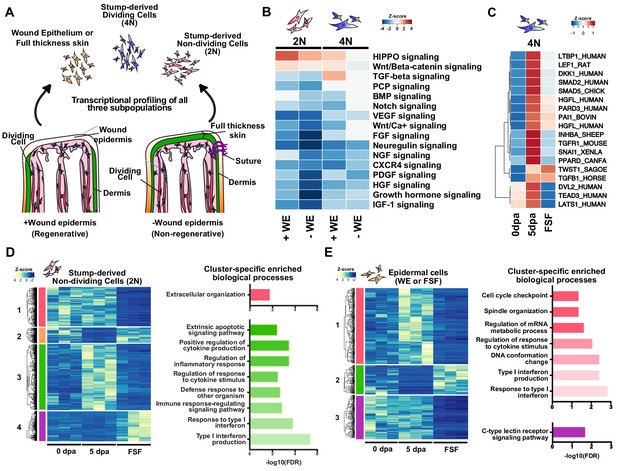

(A) Design of transcriptional profiling experiment. (B) Heatmap of Ingenuity Pathway Analysis (IPA) Z-score predictions for changes in signaling pathways in injured non-epithelial stump tissues (2N and 4N) in regenerative and full skin flap conditions. (C) Heatmap of normalized transcript levels of components/regulators of the canonical Wnt, TGF-beta, and HIPPO signaling pathways in dividing cells (4N). (D–E) Heatmaps and cluster-specific enriched biological processes of differentially expressed annotated transcripts in stump-derived non-dividing cells (2N) (D) and epithelial cells of the full skin flap (E) in regenerating vs. full skin flap conditions reveals global dysregulation of inflammation, ECM regulation, and tissue histolysis. Differentially expressed transcripts can be found in Supplementary files 13. Representative histological images of full skin flap sutured vs. normal regenerating limbs, PCA analysis of the samples, as well as enriched biological processes and related differentially expressed transcripts are shown in Figure 1—figure supplement 1. Z-score predictions shown in B from the IPA analysis are available in Figure 1—source data 1.

Preventing wound epidermis formation led to aberrant growth factor signaling pathway activation/repression in regenerating stump tissues (Figure 1B). Pathway analysis revealed that while non-dividing cells exhibited no major differences, dividing cells (i.e. enriching for progenitors) exhibited a loss in predicted activation of canonical Wnt, HIPPO, and TGF-beta signaling. Many components of these pathways were also expressed at lower levels (Figure 1C), indicating that the wound epidermis induces transcriptional activation of these pathways in dividing progenitors. Interestingly, some components of these pathways including tgfb1 and twist1 were not transcriptionally affected, suggesting that their expression in progenitors is wound epidermis-independent. Notably, the overall transcriptional profiles of dividing progenitors in both cases were relatively similar (596 differentially expressed transcripts, 313 annotated) (Supplementary file 1), signifying that while the wound epidermis activates key signaling pathways, the overall gene expression programs in early progenitors are largely wound epidermis-independent. This lends transcriptional evidence to reinforce the notion that the earliest transcriptional programs of progenitors are likely driven in response to the injury itself (Tassava and Loyd, 1977; Wagner et al., 2017; Johnson et al., 2018).

In contrast to the dividing progenitors, the transcriptional programs of the surrounding tissues diverged considerably. We found that 3911 transcripts (982 annotated) were differentially expressed in non-dividing cells in regenerating stump tissues (Figure 1D, Figure 1—figure supplement 1D–E, Supplementary file 2). The majority of these transcripts pertained to genes involved in ECM regulation, inflammation, and tissue histolysis. Many ECM-components and regulators that maintained expression in intact and normal regenerating tissues were aberrantly down-regulated (e.g. fbn2, finc, has2), and regenerative ECM components as well as degrading enzymes (e.g. tenascin, mmp2, and mmp13) failed to be induced, indicating defects in ECM remodeling. Furthermore, there was a high representation of mis-regulated immune-related transcripts, both pertaining to pro- and anti-inflammatory processes. In particular, components of pro-inflammatory signaling pathways including toll-like receptor (TLR) signaling and interferon α/β/γ signaling, as well as anti-inflammatory pathways including PPARα/RXRα signaling and anxa1 signaling were dysregulated (Figure 1—figure supplement 1D–E). Enzymes involved in tissue histolysis were mis-expressed as well. Notably, expression of the major bone matrix degrading enzyme catk failed to be induced, while the major bone and cartilage matrix component col1a1 maintained expression, indicating potential defects in bone resorption, a process that begins during the first week of regeneration (Fischman and Hay, 1962). Altogether, these data suggest that the wound epidermis is a major regulator of inflammation, ECM remodeling, and tissue histolysis in regenerating stump tissues during early stages of limb regeneration.

The presence of the dermis in full skin flap sutured limbs additionally presented a crude, yet effective opportunity to identify epithelial transcriptional programs dependent on direct contact between the wound epidermis and regenerating stump tissues. We found that 1060 transcripts (480 annotated) were differentially expressed (Figure 1E, Figure 1—figure supplement 1F, Supplementary file 3). Similar to the non-dividing cells in regenerating stump tissues, many transcripts involved in ECM regulation and inflammatory signaling (both pro- and anti-inflammatory) were also dysregulated in full skin flap epithelial cells (Figure 1—figure supplement 1F). Components of interferon and cytokine signaling failed to be induced in full skin flap derived epithelial cells, while anti-pathogenic mucins including muc5a and muc5b were overexpressed, suggesting dysregulation of inflammatory processes. Interestingly, mpeg1 commonly failed to be induced in the full skin flap epithelium as well as non-dividing cells in regenerating stump tissues, potentially indicating a defect in macrophage infiltration during early regeneration. Furthermore, ECM components expressed in intact skin (e.g. otoan, k1c15, k1c19, k2c5) lost expression in full skin flap epithelia, and other ECM regulators including finc, palld, and mmp3 were also differentially expressed. These data strongly suggest that direct communication between regenerating mesenchymal tissues and epithelial cells is crucial for proper modulation of early inflammatory responses and ECM remodeling.

Midkine is highly expressed in the basal layers of the wound epidermis/AEC and blastemal progenitors

Midkine (mk) is a pleiotropic growth factor cytokine that has been shown to regulate a variety of processes including development, tumorigenesis, inflammation, and tissue repair (Muramatsu, 2010; Weckbach et al., 2011; Gramage et al., 2015; Karaman and Alitalo, 2017). Interestingly, we noticed that mk expression was induced in the wound epidermis and highly upregulated in early regenerating stump tissues. In full skin flap sutured limbs, mk expression decreased across all transcriptionally profiled subpopulations (Figure 2—figure supplement 1A). Specifically, while mk expression in regenerating stump tissues was lower, mk failed to be transcriptionally induced in full skin flap epithelial cells. These data suggested that mk may modulate wound epidermis development/function. Hence, we chose to further explore the role of mk during limb regeneration.

To determine when and in which cell types mk is expressed during limb regeneration, we performed a series of single and double in situ hybridizations. Time course in situ hybridization of mk confirmed that it is highly expressed during limb regeneration, but not in full skin flap sutured regenerating limbs (Figure 2A–G). In non-regenerating intact limbs, mk was lowly expressed in cells interspersed throughout the muscle and dermis (Figure 2A–A’). During regeneration, mk became strongly expressed in both the basal layers of the wound epidermis and mesenchymal cells within regenerating stump tissues beginning at 3 dpa (Figure 2B–C’). To determine whether mk expression was first up-regulated in regenerating stump tissues or the wound epidermis, we performed a more detailed analysis of the onset of mk expression prior to 3 dpa. In situ hybridization of mk at 24 and 56 hours post-amputation (hpa) revealed a small population of mk+ cells interspersed throughout regenerating stump tissues with little to no expression of mk in the basal layers of the wound epidermis until 72 hpa (Figure 2—figure supplement 2A). Together, these data indicate that mk is first expressed in regenerating stump tissues prior to the induction of expression in the wound epidermis. During later stages of regeneration, mk expression persisted at high levels in the basal layers of the AEC and lower levels in the blastema (Figure 2D–F’). Interestingly, we also noticed relatively strong mk expression within the non-regenerating tissue at the base of the blastema (Figure F-F’), suggesting mk may play a role in differentiation during later stages of regeneration. Immunostaining of axolotl MK protein further revealed the presence of MK protein throughout the AEC and blastema, providing evidence that it is indeed secreted (Figure 2—figure supplement 1B–F’).

Figure 2 with 2 supplements see all
Midkine (mk) is highly expressed in the basal layers of the wound epidermis/AEC and blastemal progenitors.

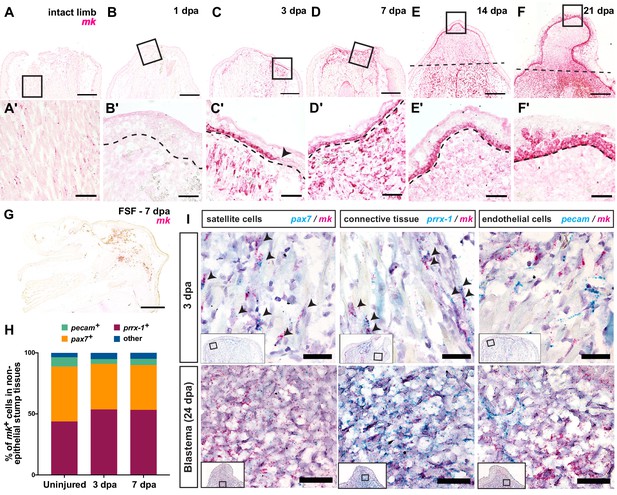

(A–F’) Timecourse RNAscope in situ hybridization of midkine at 0 (intact), 1, 3, 7, 14, and 21 dpa. Insets in A-F are shown in A’-F’ at higher magnification. Arrowhead in C’ denotes the beginning of the wound epidermis. Dotted line marks amputation plane in E and F or wound epidermis/AEC boundary in B’-F’. (G) In situ hybridization of mk in full skin flap sutured limbs at 7 dpa. Axolotl MK protein expression can be found in Figure 2—figure supplement 1. (H) Breakdown of the percentages of mk+ cells that are pax7+, prrx-1+, and pecam+ in regenerating stump tissues during early stages of regeneration. At 3 dpa, a total N of 1579, 444, and 1180 cells were counted for pax7, prrx-1, and pecam double in situs, respectively. At 7 dpa, a total N of 456, 1043, and 274 cells were counted for pax7, prrx-1, and pecam double in situs, respectively (Figure 2—source data 1). (I) Representative images of RNAscope double in situ hybridization of mk with pax7 (left), prrx-1 (middle), or pecam (right) at early (3 dpa) and later blastema (24 dpa) stages. Insets depict where higher magnification images were taken. Black arrowheads mark double positive cells. More detailed analysis of the onset of mk expression in early stages of regeneration, representative images of double in situ hybridization of mk with cell type-specific markers in uninjured tissue, as well as the analysis of mk co-expression with the monocyte marker csf1r can be found in Figure 2—figure supplement 2. Scale bars, A-G: 500 µm, A’-F’: 100 µm, I: 50 µm. dpa, days post-amputation, FSF, full skin flap.

Next, to identify which cell types expressed mk in regenerating stump tissues, we performed double in situ hybridization of mk with various cell type-specific markers in non-regenerating and regenerating limbs. Because we had observed mk+ cells interspersed in the muscle and dermis of intact tissues, we surmised that mk may be expressed at low homeostatic levels in subsets of connective tissue, muscle, or endothelial cells. To examine this possibility, we performed double in situ hybridization of mk with prrx-1, pax7, and pecam, which are markers for connective tissue cells (Gerber et al., 2018), muscle satellite cells (Sandoval-Guzmán et al., 2014), and endothelial cells (Whited et al., 2013), respectively. Indeed, our analysis revealed that approximately 96.4% of mk+ expressing cells in non-regenerating tissues were comprised of prrx-1+ connective tissue cells (~43.8% of mk+ cells), pax7+ satellite cells (~44.9% of mk+ cells), and pecam+ endothelial cells (~7.7% of mk+ cells) (Figure 2H, Figure 2—figure supplement 2B).

Interestingly, we observed a relatively similar breakdown of mk+ cells across all three cell types during early stages limb regeneration (Figure 2H–I). At both 3 and 7 dpa, mk-expressing cells could be divided into connective tissue cells (~53–54%), satellite cells (~36–37%), and a small percentage of endothelial cells (4–5%). Given heavy immune cell infiltration during wound healing stages of regeneration, we also investigated whether mk was expressed in monocytes by performing double in situ hybridization with csf1-r, a monocyte marker (Grayfer et al., 2014). We found that only a small percentage (~9%) of mk+ cells were csf1-r+ and only 3.7% of csf1-r+ monocytes were mk+ at 5 dpa (Figure 2—figure supplement 2C–D), indicating mk is not predominantly expressed in monocytes. In addition, while the densely packed cells within the blastema at 24 dpa precluded the accurate quantification of double positive cells, we did observe overlapping expression patterns between mk and both prrx-1 and pax7, but not pecam (Figure 2I), indicating mk expression persists in connective tissue and muscle-derived blastemal cells. Altogether, these data strongly indicated that mk expression is highly up-regulated during limb regeneration in the majority of blastemal cells, since satellite and connective tissue cells comprise most of the blastema (Fei et al., 2017; Gerber et al., 2018). As communication between blastemal cells and the basal layers of the wound epidermis/AEC is crucial for blastema formation (Stocum and Dearlove, 1972), the unique expression pattern of mk in both cell types suggested that mk may play an important role in facilitating signaling between the two tissues.

Chemical and genetic perturbation of mk impairs limb regeneration

We next examined whether mk loss-of-function affected limb regeneration using both chemical and genetic methods. We first performed drug treatments with a small molecule inhibitor of MK, iMDK (Masui et al., 2016) (Figure 3). Treatment with iMDK beginning at either 0 or 7 dpa completely inhibited limb regeneration (Figure 3A–B). Alcian blue staining of limbs at 60 dpa confirmed that no skeletal structures had regenerated in iMDK-treated limbs (Figure 3C–D). We also generated F0 mk CRISPR mutants to perturb mk genetically (Figure 3E). The slow development of axolotl embryos permits high penetrance of mutations allowing phenotyping to occur at the F0 stage (Fei et al., 2018). Mk F0 mutants generated by targeting the start codon with CRISPR technology (see Materials and methods) developed with no visible abnormalities and anatomically normal limbs (Figure 3—figure supplement 1). Many of these mutants had mosaic null genotypes. Upon amputation, mk F0 mutants exhibited delayed blastema formation and regeneration (Figure 3E–F). Notably, measurements of blastema length at 14 dpa revealed that the severity of delay in regeneration segregated based on genotype, with mk mosaic null animals (>99% mutant alleles) exhibiting the most severe delay compared to control animals (Figure 3G–I). These data demonstrate that both chemical and genetic perturbations of mk impair limb regeneration.

Figure 3 with 1 supplement see all
Chemical and genetic perturbations of mk impair limb regeneration.

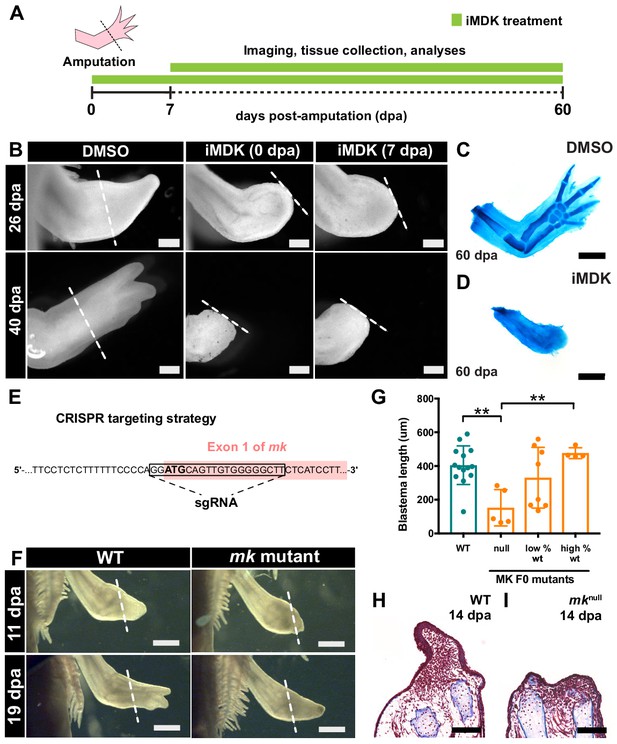

(A) Experimental design. (B) Brightfield images of DMSO- or iMDK-treated limbs (N = 4/4 iMDK-treated in each condition did not regenerate). (C–D) Alcian blue staining of DMSO- or iMDK-treated limbs at 60 dpa. (E) CRISPR strategy to target the start codon of mk to generate mutants. Control animals were generated using a non-targeted tracrRNA/cas9 complex and were unmodified at the mk locus. (F) Brightfield images of regenerating limbs from control animals or mk F0 mutants. (G) Quantification of blastema length at 14 dpa in control or mk mutant limbs. The severity of the delay in regeneration segregated based on genotype of the animal as either control (mkWT), mosaic null (mknull), or partially modified (low or high % WT alleles) (N = 14 control mkWT, 5 mknull, 8 low % WT, 4 high % WT). Graph is mean ± SD. (H–I) Representative images of picro-mallory stained sections of regenerating limbs in control animals or mk null mutants. Example genotyping analyses and mk null mutant immunofluorescence validation can be found in Figure 3—figure supplement 1. **p<0.005, two-tailed unpaired Student’s t-test was employed. Each N represents one limb from a different animal. White dotted lines mark amputation plane. Scale bars, B-D, H-I: 500 µm, F: 1 mm. WT, wildtype, dpa, days post-amputation.

Mk loss-of-function leads to impaired AEC development and persistent inflammation

To elucidate the cellular mechanism of the regeneration defect, we further characterized both iMDK-treated and mk null (mknull) mutant regenerating limbs (Figure 4). Interestingly, iMDK-treated regenerating limbs had significantly lower percentages of total EdU+ cells during late (14 dpa), but not early stages of limb regeneration (5 dpa) (Figure 4A–B). Furthermore, blastemal cells accumulated at the amputation plane in iMDK-treated limbs even at 40 dpa (Figure 4—figure supplement 1), however blastemal outgrowth never occurred, altogether suggesting that mk is involved in maintenance, but not induction of cellular proliferation. In addition, we observed a significantly thinner wound epidermis in both iMDK-treated and mknull mutant limbs during later stages of regeneration compared to controls (Figure 4C–H). These dual observations indicated a defect in wound epidermis expansion and function during AEC development.

Figure 4 with 1 supplement see all
Mk perturbations result in defective AEC development.

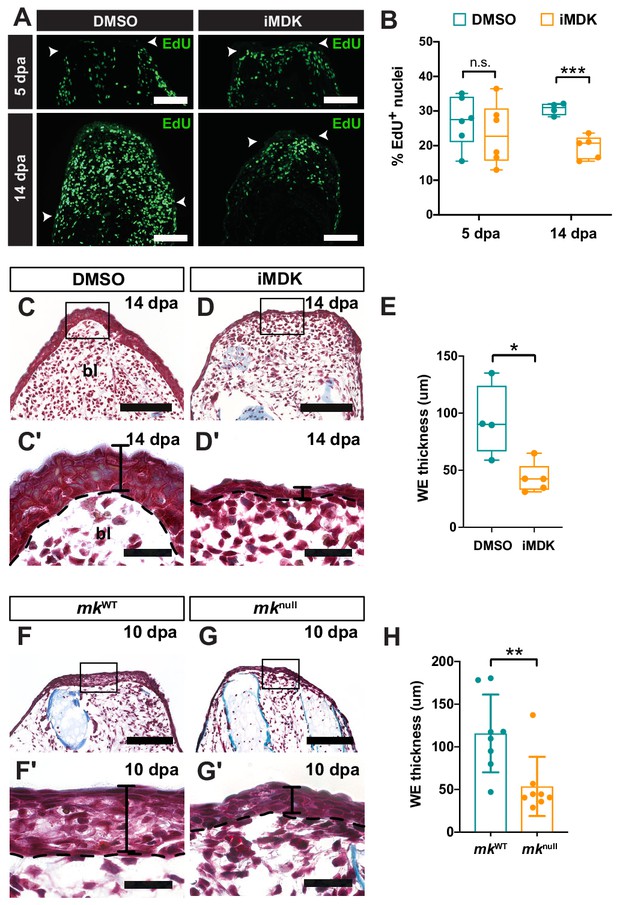

(A–B) EdU staining (A) and quantification (B) of the total percentage of EdU+ nuclei of DMSO/iMDK-treated limbs at 5 dpa (N = 6 DMSO, 6 iMDK) and 14 dpa (N = 4 DMSO, 5 iMDK). White arrowheads denote the amputation plane in A. (C–D’) Picro-mallory stained sections from regenerating limbs from DMSO/iMDK-treated animals. Higher magnification images of the AEC are shown in C’-D’. (E) Quantification of wound epidermis (WE) thickness in DMSO/iMDK-treated regenerating limbs at 14 dpa (N = 4 DMSO, 5 iMDK). (F–G’) Picro-mallory stained sections from regenerating limbs from regenerating limbs of control WT (mkWT) or mknull animals. Higher magnification images of the developing AEC at 10 dpa are shown in F’-G’. (H) Quantification of WE thickness in regenerating limbs of mkWT or mknull animals at 14 dpa (N = 8 mkWT, 8 mknull). Picro-mallory staining of a 40 dpa iMDK-treated limb is shown in Figure 4—figure supplement 1. Each N represents a limb from a different animal. Two-tailed unpaired student’s t-test was used for statistical analysis. Graphs are mean ± SD. *p<0.05, **p<0.005, ***p<0.001. Scale bars, A, C-D, F-G: 200 µm, C’-D’, F’-G’: 100 µm. bl, blastema, dpa, days post-amputation.

Further analysis of TUNEL staining in both mknull mutant and iMDK-treated regenerating limbs revealed that the defect in AEC development was primarily attributed to higher levels of cell death in the wound epidermis in both contexts (Figure 5). Altogether, these data indicate that mk mainly regulates early wound epidermis expansion by acting as a survival factor during the early wound epidermis transition to the AEC. In addition, while iMDK-treated limbs exhibited persistently high levels of cell death in blastemal cells, mknull mutants had higher levels of cell death during early stages that eventually resolved to that of wildtype limbs, suggesting mk is not required for blastemal cell survival (Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all
Mk acts as a critical survival factor during AEC development.

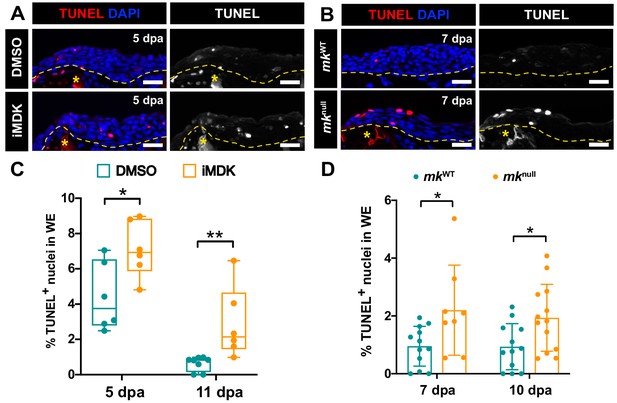

(A) Representative TUNEL-stained sections from limbs of DMSO and iMDK-treated limbs. (B) Representative TUNEL-stained sections from limbs of regenerating mkWT control or mknull mutants. (C) Quantification of the % TUNEL+ nuclei in the wound epidermis of DMSO or iMDK-treated limbs limbs at 5 dpa (N = 6 DMSO, 6 iMDK) or 11 dpa (N = 8 DMSO, 6 iMDK). (D) Quantification of the percentage of TUNEL+ nuclei in mkWT control and mknull mutants at 7 dpa (N = 12 mkWT, 8 mknull) and 10 dpa (N = 12 mkWT, 13 mknull). Asterisks mark auto-fluorescent bone. Each N represents a limb from a different animal. Quantification of levels of blastemal cell death in DMSO/iMDK-treated and mkWT/mknull regenerating limbs can be found in Figure 5—figure supplement 1. Two-tailed unpaired student’s t-tests were used for statistical analysis. Graphs are mean ± SD. *p<0.05, **p<0.005. Scale bars: 100 µm. dpa, days post-amputation.

To determine the extent of defective AEC development, we also examined other aspects of the wound epidermis including innervation, which has been shown to be important for the AEC transition (Satoh et al., 2008; Satoh et al., 2012). Interestingly, iMDK-treatment did not impact wound epidermis innervation (Figure 6A) and data from a published microarray dataset showed similar induction of mk expression in innervated vs. denervated regenerating limbs (Monaghan et al., 2009). These results collectively indicate that mk operates in a nerve-independent manner. However, while expression of the known wound epidermis/AEC marker WE3 was observed (Figure 6A), sequencing of DMSO- and iMDK-treated limbs at 11 dpa revealed transcriptional dysregulation of many wound epidermis genes, suggestive of impaired functionality (Figure 6B–C, Supplementary file 4) (Campbell et al., 2011; Gerber et al., 2018; Leigh et al., 2018).

Figure 6 with 3 supplements see all

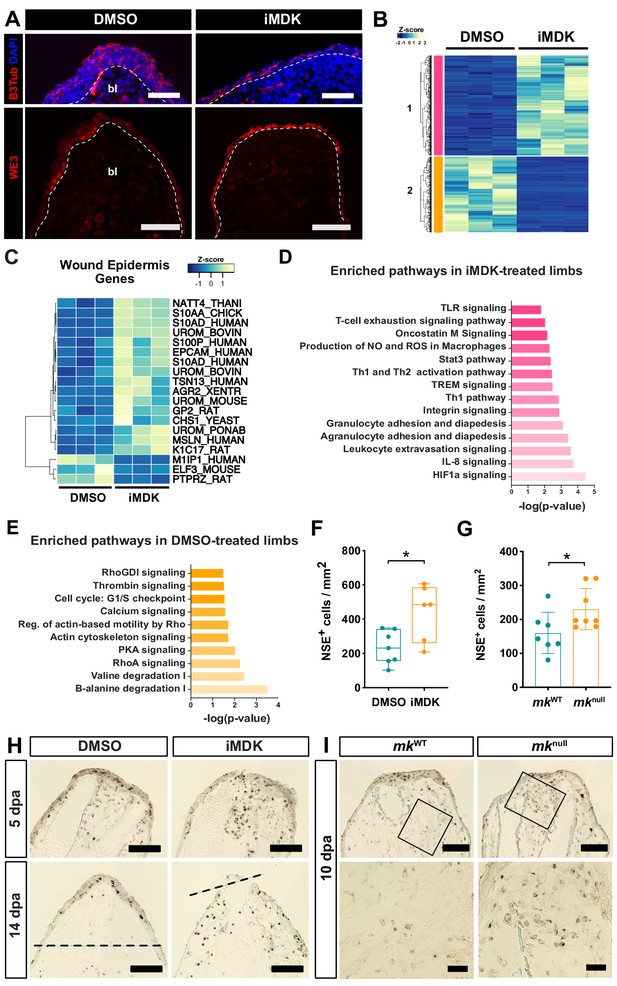

iMDK-treated and mk mutant regenerating limbs display dysregulated wound epidermis gene expression and persistent inflammation.

(A) Beta-III tubulin staining or WE3 staining of DMSO- or iMDK-treated limbs. White dotted line marks boundary of wound epidermis/AEC-blastema. (B) Heatmap of annotated differentially expressed transcripts in DMSO- and iMDK-treated limbs (N = 3 each) reveals two main clusters (colored pink and orange) of transcripts either enriched in DMSO or iMDK treatments. Transcript expression was normalized per row and plotted as a Z-score. Differentially expressed transcripts can be found in Supplementary file 4. (C) Heatmap of normalized TPM expression levels of wound epidermis genes in DMSO- or iMDK-treated regenerating limbs at 11 dpa. (D) Plot of enriched pathways in iMDK-treated limbs. (E) Plot of enriched pathways in DMSO-treated limbs. (F) Quantification of NSE+ monocytes at 5 dpa in DMSO/iMDK-treated limbs at 5 dpa (N = 7 DMSO, 6 iMDK). (G) Quantification of the density of NSE+ monocytes in mkWT control and mknull regenerating limbs at 10 dpa (N = 7 mkWT, 8 mknull). (H) NSE staining of DMSO- and iMDK-treated limbs at 5 dpa and 14 dpa. Dotted lines demarcate the amputation plane. (I) Representative NSE stained sections from regenerating limbs of mkWT control and mknull mutants at 10 dpa. Higher magnification insets are shown in bottom two panels. Each N represents a limb from a different animal. Data demonstrating rescue of mknull phenotypes via overexpression of mk during regeneration in mutant limbs as well as electroporation efficiency metrics can be found in Figure 6—figure supplements 1, 2 and 3. A two-tailed unpaired student’s t-test was used for statistical analysis. Graphs are mean ± SD. *p<0.05. Scale bars, A (top): 100 µm, A (bottom), H-I (top): 200 µm, I (bottom): 50 µm. bl, blastema, dpa, days post-amputation.

Notably, many pro-inflammatory pathways were enriched in inhibitor treated limbs (Figure 6D–E) and both mknull mutant and iMDK-treated regenerating limbs exhibited higher monocyte densities (Figure 6F–I), suggesting that functional perturbation of mk likely leads to prolonged inflammation. As we uncovered an immunomodulatory role for the early wound epidermis from our transcriptional data, it is possible that the persistent inflammation in mk loss-of-function contexts could be indirectly caused by impaired wound epidermis functionality from defective AEC development.

Most importantly, overexpression of mk in mknull mutant regenerating limbs rescued the delayed blastema formation and regeneration phenotype as well as the wound epidermis defects and high monocyte density (Figure 6—figure supplements 13), confirming that mk is indeed a regulator of both AEC development and the resolution of inflammation. As electroporation of constructs into limb epidermis is challenging and only occurs at a very low efficiency (Fei et al., 2016), the majority of mk was expressed and secreted from regenerating stump tissues. Therefore, these data further suggested that mk did not necessarily need to be produced in the wound epidermis to rescue AEC development.

Mk is sufficient to control proliferation and inflammation in regenerating limbs

As the AEC forms via epithelial cell proliferation in peripheral skin and subsequent migration to the amputation plane (Satoh et al., 2012), we also investigated whether perturbing mk affected proliferation in the wound epidermis. Interestingly, iMDK-treated limbs displayed both consistently lower levels of wound epidermis proliferation as well as defects in the maintenance, but not induction, of blastemal cell proliferation in stump tissues (Figure 7—figure supplement 1A,C). However, we unexpectedly did not observe any differences in the proliferation of the wound epidermis or blastemal cells of mk mutants, suggesting mk is not required for proliferation (Figure 7—figure supplement 1B,D). These phenotypic differences in addition to the earlier presented blastemal cell death data were likely the main contributing causes to the observed variance in the severity in phenotype between iMDK-treated and mknull regenerating limbs and suggested that genetic compensatory mechanisms may be at play in the mk mutants (El-Brolosy et al., 2019). Nevertheless, overexpression of mk in regenerating limbs beginning at 3 dpa induced visible dramatic overgrowth of the wound epidermis by as early as 7 dpa (Figure 7A–G, Figure 7—figure supplement 2). In some mk-overexpressing limbs, the bone also protruded through the expanded wound epidermis, indicating that the tissue integrity of the wound epidermis was likely compromised. Further analysis confirmed that this expansion was attributed to a significant increase in the percentage of EdU+ cells within the wound epidermis (Figure 7H–I), strongly suggesting that mk is sufficient, but not required, to induce proliferation in the wound epidermis.

Figure 7 with 4 supplements see all
Overexpression of mk in regenerating limbs leads to wound epidermis expansion, decreased blastemal cell proliferation, and improper resolution of inflammation.

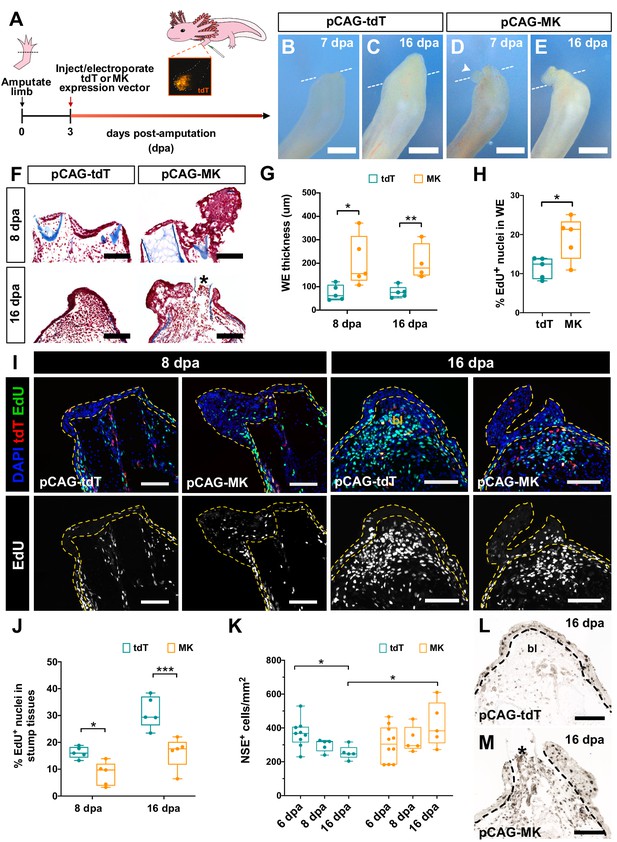

(A) Schematic of mk overexpression experiment. (B–E) Representative brightfield images of tdTomato (tdT)- (B–C) or mk-overexpressing (D–E) regenerating limbs at 7 and 16 dpa. White dotted line denotes amputation planes and white arrowhead in D denotes small aberrant skin growth. (F) Representative picro-mallory stained sections of tdT- or mk-overexpressing regenerating limbs. Asterisk marks protruding bone. (G) Quantification of wound epidermis thickness in tdTomato- or mk-overexpressing limbs at 8 dpa (N = 5 each) and 16 dpa (N = 5 tdT, N = 4 MK). (H) Quantification of the percentage of EdU+ nuclei in the wound epidermis of tdTomato- or mk-overexpressing limbs at 8 dpa (N = 5 each). (I) Representative images of EdU-stained sections of tdTomato- or mk-overexpressing limbs. Wound epidermis/AEC are outlined with yellow dotted lines. (J) Quantification of the percentage of EdU+ nuclei in regenerating stump tissues of tdT- or mk-overexpressing limbs. (K) Quantification of the density of NSE+ monocytes in tdT- or mk-overexpressing limbs. (L–M) Representative images of NSE-stained sections in tdT- or mk-overexpressing limbs. Black dotted line denotes wound epidermis boundary. Asterisk denotes protruding bone. Quantification of EdU+ cells in the wound epidermis and blastemal cells of DMSO/iMDK-treated and WT/mknull regenerating limbs is shown in Figure 7—figure supplement 1. Electroporation efficiency data can be found in Figure 7—figure supplement 2. Data showing that mk-overexpressing regenerating limbs display delayed regeneration is shown in Figure 7—figure supplement 3. Data demonstrating that overexpression of mk in non-regenerating intact limbs does not affect cellular proliferation or monocyte density can be found in Figure 7—figure supplement 4. Graphs are mean ± SD. Two-tailed unpaired student’s t-tests were used for statistical analysis. *p<0.05, **p<0.01, ***p<0.005. Scale bars, B-E: 500 µm, F, I, L-M: 200 µm. bl, blastema, dpa, days post-amputation.

We also observed lower levels of proliferation in blastemal cells of mk-overexpressing limbs (Figure 7J), indicating that high levels of mk during regeneration can have a suppressive effect on blastemal cell division. Furthermore, while control tdTomato-expressing limbs exhibited a significant decrease in monocyte density throughout regeneration, mk-overexpressing limbs displayed a persistently high monocyte density (Figure K-M), suggestive of prolonged inflammation. Together with our loss-of-function data, these results collectively suggest that mk levels must be tightly regulated during regeneration for proper resolution of inflammatory responses. Surprisingly, mk-overexpressing limbs eventually regenerated with a substantial delay, gradually resolving the overgrown wound epidermis/AEC and forming a blastema (Figure 7—figure supplement 3). Finally, in contrast to regeneration, overexpression of mk in intact limbs was not sufficient to affect cell proliferation or monocyte density (Figure 7—figure supplement 4), suggesting that the ability for mk to regulate these processes may be restricted to regenerative contexts.

Mk receptors are expressed throughout regenerating limb tissues

The strong multi-tissue expression pattern of mk in regenerating limbs led us to investigate whether mk may likely be acting through autocrine or paracrine signaling. Due to mk’s pleiotropic functional nature, mk has been shown to bind to many different receptors depending on the biological context, none of which have been shown to exclusively bind mk (Xu et al., 2014). To determine the expression levels and patterns of mk receptors, we first examined our dataset. We found that transcriptional isoforms of several known receptors were expressed in both intact and/or early regenerating tissues (Figure 8A). Clustering of normalized transcript levels revealed four main clusters of expression patterns: receptors that were enriched in both the intact skin and regenerating wound epidermis/AEC, and receptors that were either downregulated, up-regulated, or maintained expression in regenerating stump tissues during regeneration.

Figure 8 with 1 supplement see all
Mk receptors are expressed throughout regenerating tissues.

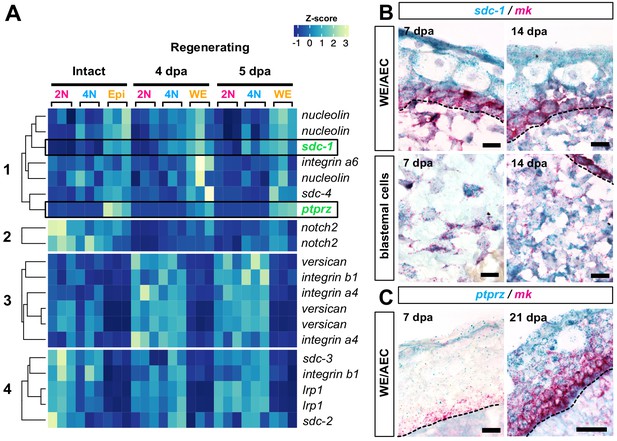

(A) Heatmap of normalized transcript levels for expressed mk receptors in intact and regenerating subpopulations from our RNA-seq dataset revealed four general patterns of expression (Figure 8—source data 1). (B–C) Double RNAscope in situ hybridization of mk (bright red puncta) with its cognate receptors sdc-1 (B) or ptprz (C) (dark blue puncta). Dotted black line denotes wound epidermis/AEC boundary. Since ptprz expression was low during early stages of regeneration, ptprz/mk in situs were performed without a hematoxylin counterstain to ease visualization of dark blue puncta in the wound epidermis at 7 dpa. Scale bars, B and C (left panel): 25 µm for 63x magnification, C (right panel): 50 µm for 40x magnification. WE, wound epidermis, AEC, apical epithelial cap, bl, blastema, dpa, days post-amputation.

We also examined data from published single cell limb regeneration studies and found that several of these receptors were identified as markers for various different cell types throughout homeostasis and regeneration (Gerber et al., 2018; Leigh et al., 2018). For example, syndecans (sdc-1,–2, −3,–4) and integrins (integrin alpha a4, a6, and b1) were detected at high levels in blastemal cells, basal and outer layers of the wound epidermis/AEC, endothelial cells, and schwann cells, indicating that mk likely directly signals to these cells. Surprisingly, most mk receptors were detected at low levels or not detected at all in myeloid cells, with the exception of integrin b1, which was moderately expressed (Figure 8—figure supplement 1). Although not a receptor, the extracellular chondroitin sulfate proteoglycan versican (cspg2) was also detected at moderate levels in myeloid cells. Versican is a high affinity binding partner of mk that can serve as an intermediary between mk and target receptors, potentially on immune cells (Zou et al., 2000; Muramatsu, 2014; Wight et al., 2014). Given the low expression of mk receptors in myeloid cells including monocytes/macrophages, these data altogether signify that mk may either directly signal through these or unidentified receptors, indirectly modulate inflammation through other tissues, or both.

Interestingly, one mk receptor, sdc-1 (Mitsiadis et al., 1995b), was expressed in both the blastemal cells and wound epidermis during early and later stages of regeneration, a pattern that seemed to overlap with that of mk. Double in situ hybridization of mk with sdc-1 indeed validated the co-expression of sdc-1 in mk+ blastemal and basal wound epidermal/AEC cells at 7 and 14 dpa (Figure 8B). Furthermore, sdc-1+ single positive cells were found in the outer layers of the wound epidermis/AEC, suggesting mk is capable of autocrine and paracrine signaling.

While sdc-1 exhibited a multi-cellular expression pattern throughout regenerating tissue, we noticed that the mk receptor ptprz exhibited restricted expression in the wound epidermis/AEC (Figure 8C, Figure 8—figure supplement 1). Double in situ hybridization of mk and ptprz revealed low levels of ptprz expression largely restricted to the outer layers of the wound epidermis at 7 dpa. By 21 dpa, ptprz expression increased in the AEC and overlapped with mk expression in the basal layers. Furthermore, we noticed that ptprz failed to be up-regulated in iMDK-treated limbs, suggesting ptprz expression may rely on a mk-dependent feedback mechanism (Figure 6C). As signaling through ptprz has been shown to be important for cell survival (Xia et al., 2019), its restricted epithelial expression suggests that it may be a key mk receptor for wound epidermis-specific signaling, potentially acting in conjunction with other mk receptors that are also expressed in the wound epidermis. In all, these expression data demonstrate the complexity of mk signaling in a wide range of cell types in both limb regeneration and homeostasis.

Discussion

While it is well known that the wound epidermis is a specialized epithelium required for the initiation of blastema formation and limb regeneration (Goss, 1956a; Thornton, 1957; Thornton, 1958; Mescher, 1976; Tassava and Garling, 1979), its roles during early stages of regeneration as well as the molecular mechanisms mediating its transition into the AEC remain largely unknown. Our study has revealed the functional roles of the early wound epithelium by examining how the separate transcriptional programs of blastemal progenitors and the surrounding tissues change in its absence. Here, we identified both early wound epidermis-dependent transcriptional programs as well as wound epithelial gene expression programs likely to be dependent on signaling from regenerating stump tissues. Importantly, our approach enabled us to identify mk as dual regulator of wound epidermis expansion during AEC development and the resolution of inflammation - two events that are essential for proper initiation of blastema formation.

The global transcriptional profiles of dividing progenitors are largely wound epidermis-independent during the initial stages of regeneration. Rather, we find that the transcriptional profiles of the surrounding tissues are more heavily affected when wound epidermis formation is prevented. A majority of these dysregulated transcripts are predominantly involved in inflammation, ECM remodeling, and tissue histolysis, indicating that the wound epidermis heavily modulates these processes during early stages of regeneration. Many characteristics of the initial wound healing stages post-amputation mirror those of mammals including activation of canonical inflammatory pathways (Godwin et al., 2013). Yet while most mammals activate a fibrotic scarring response post-wound healing, salamanders initiate blastema formation, suggesting there exist key differences during wound healing resolution. It is well known that differences in immune responses and ECM composition can tip the balance between scarring and regeneration (Godwin et al., 2013; Godwin et al., 2014). In light of our data, we propose that the early wound epidermis orchestrates the proper pro-regenerative niche during wound healing that is necessary for blastema formation by regulating early inflammation, ECM remodeling, and tissue histolysis.

Given that the initial cell cycle re-entry of progenitors during regeneration is independent of the wound epidermis (Mescher, 1976; Tassava and Garling, 1979; Johnson et al., 2018), our data provide transcriptional evidence to support the notion that the onset of progenitor activation is stimulated by processes inherent to the injury itself such as blood clotting (Tanaka and Brockes, 1998; Tanaka et al., 1999; Wagner et al., 2017). However, even though the overall transcriptional profile of early dividing progenitors is relatively wound epidermis-independent, we find that transcriptional activation of HIPPO, Wnt, and TGF-beta signaling in dividing progenitors is dependent on the wound epidermis. The loss of activation of not one, but all three pathways, when wound epidermis formation was prevented strongly suggests potential common regulation and synergism between these pathways, similar to other developmental and tumorigenic contexts (McNeill and Woodgett, 2010; Attisano and Wrana, 2013). As the wound epidermis/AEC is known to maintain blastemal cell proliferation (Mescher, 1976; Tassava and Garling, 1979), it is therefore possible that it does so by inducing and/or sustaining activation of HIPPO, canonical Wnt, and TGF-beta signaling in dividing progenitors. Thus, dissecting the functional interplay between these three pathways will likely elucidate the mechanisms that control early blastemal cell behaviors critical for the initial phases of blastema formation.

Common down-regulation of the macrophage marker mpeg1 in both the non-dividing cells and epithelia of full skin flap sutured limbs further indicates that the wound epidermis may play a role in macrophage recruitment during early stages of regeneration. Macrophage depletion during early stages of limb regeneration inhibits blastema formation and results in abnormal ECM deposition reminiscent of fibrosis (Godwin et al., 2013), suggesting a tight interplay between the immune system and scarring. We find that many critical regenerative ECM remodeling enzymes and components, including various matrix metalloproteinases (Vinarsky et al., 2005) and tenascin, fail to be strongly induced in regenerating stump tissues in the absence of the wound epidermis. Our data therefore suggest the possibility that the wound epidermis may mediate ECM remodeling indirectly through immune cells including macrophages. Interestingly, cross-talk between the wound epithelium and macrophages through interleukin one beta (il1b) signaling is important for early stages of fish fin fold regeneration (Hasegawa et al., 2017). Our data also indicate that contact between epithelial cells and underlying regenerating stump tissues is important for proper regulation of inflammation and ECM remodeling during salamander limb regeneration. In addition, we found signatures reminiscent of defects in bone resorption, indicating that the wound epidermis may play a role in mediating early skeletal remodeling. As this area has been understudied during limb regeneration, it will be interesting to explore the potential involvement of the wound epidermis in the regulation of this process in future studies.

Notably, we identify the pleotropic growth factor cytokine mk as a dual regulator of AEC development and the resolution of early inflammation. Mk is an important mediator of a variety of processes including development, tumorigenesis, and inflammation (Muramatsu, 2010; Weckbach et al., 2011; Sorrelle et al., 2017). We demonstrate that mk controls early wound epidermis expansion during AEC development by acting as a cell survival signal. Increased cell death in the wound epidermis of both iMDK-treated and mknull regenerating limbs leads to a thin wound epithelium that exhibits aberrant gene expression and likely impaired functionality. Mis-expression of wound epidermis genes including chs1, which is normally only expressed during wound healing (Leigh et al., 2018), also demonstrates a lack of normal wound epidermis progression from early to blastemal stages. Others have shown the role of mk as a survival factor in several contexts including neural crest cell development, immune cell maintenance, and tumorigenesis (Muramatsu, 2010; Cohen et al., 2012; Vieceli and Bronner, 2018), suggesting that it may be a conserved function. In fact, mk signaling through one of its most well-studied receptors ptprz regulates cell survival (Xu et al., 2014). Based on our data, it is likely that mk-dependent ptprz signaling similarly modulates cell survival during AEC development in limb regeneration given its wound epidermis-specific expression pattern. Furthermore, mk induced anti-apoptotic signaling has been linked to activation of the PI3K/AKT signaling cascade in B-cells (Cohen et al., 2012), neurons (Owada et al., 1999), and cancer (Dai et al., 2006). As the inhibitor iMDK also inhibits PI3K phosphorylation (Masui et al., 2016), it is possible that PI3K/AKT signaling acts downstream of mk in AEC development. Furthermore, ptprz modulates endogenous phosphorylated ß-catenin levels through its phosphatase activity, which becomes inactive upon ligand binding (Meng et al., 2000). Since Wnt signaling is essential for limb regeneration and Wnt ligands are also expressed in the wound epidermis (Kawakami et al., 2006; Yokoyama et al., 2007; Ghosh et al., 2008; Knapp et al., 2013), mk may also act in concert with and/or up-stream of Wnt signaling to regulate wound epidermis development.

In a variety of other contexts, mk also acts as a mitogen to stimulate tumor growth, tissue growth during organogenesis, and tissue repair/regeneration (Calinescu et al., 2009; Gramage et al., 2015; Masui et al., 2016; Karaman and Alitalo, 2017; Nagashima et al., 2019). For example, mk has been shown to induce proliferation of Müller glia in an autocrine manner during zebrafish photoreceptor regeneration (Gramage et al., 2015; Nagashima et al., 2019). Therefore, we were surprised to find that mknull mutants did not display differences in wound epidermis or blastemal cell proliferation, despite observing lower levels in iMDK-treated limbs. We also observed higher cell death in blastemal cells that eventually resolved in mknull mutants, but not iMDK-treated limbs. In all, these data suggested that genetic compensation may be occurring in the mutant and mk is likely not required for general proliferation or blastemal cell survival. While it is tempting to assume compensation is the sole cause for these differences, we cannot discount the possibility that they may have been caused by non-specific effects of the inhibitor given the exact inhibitory mechanism and direct target of iMDK remains unknown (Masui et al., 2016). Nevertheless, while not required for proliferation, mk was sufficient to affect proliferation at high levels. Most notably, overexpression during regeneration induced a striking ectopic expansion of the wound epidermis. Interestingly, innervation of the wound epidermis has also been shown to regulate keratinocyte proliferation in the AEC (Satoh et al., 2012). While our data suggest mk does not affect innervation, mk may act in parallel with nerve-derived factors to finely control cell death/proliferation dynamics during early wound epidermis expansion. Unexpectedly, overexpression of mk decreased blastemal cell proliferation. Despite ample evidence of the role of mk as a mitogen, mk has been shown to have anti-proliferative activities in some contexts. For example, MK exerts an anti-proliferative effect on dental mesenchyme during mouse tooth development, yet a proliferative effect if combined with FGF-2 (Mitsiadis et al., 1995a), indicating that MK activity can differ depending on the presence of other growth factors in the micro-environment. Hence, mk may act cooperatively with other secreted molecules that modulate blastema formation and growth (Kumar et al., 2007; Currie et al., 2016; Farkas et al., 2016; Sugiura et al., 2016; Tanaka, 2016; Bryant et al., 2017b) to exert stage- and cell-type specific effects during regeneration.

Notably, both loss- and gain-of-function of mk additionally led to signs of persistent inflammation including higher monocyte density, altogether suggesting that mk levels need to be tightly controlled for proper regulation of inflammation during early regeneration. Many relatively recent studies have focused on the pro-inflammatory role of mk, driving chronic inflammatory diseases including rheumatoid arthritis and atherosclerosis (Weckbach et al., 2011; Sorrelle et al., 2017). Removing or reducing mk activity in mouse models in these contexts led to less inflammation attributed to decreased leukocyte recruitment. In contrast, our data suggest that mk acts as an anti-inflammatory cytokine to resolve injury-induced inflammation during the initiation of limb regeneration. While inflammation is required for regeneration (Kyritsis et al., 2012; Hasegawa et al., 2017; Tsarouchas et al., 2018), prolonged inflammation can be detrimental. Recent studies have shown that macrophages play a role in resolving inflammation in both zebrafish and salamanders, by acting as a source of anti-inflammatory factors (Godwin et al., 2013; Hasegawa et al., 2017; Tsarouchas et al., 2018). Our data further suggest that both blastemal progenitors and the wound epidermis may be additional sources of anti-inflammatory molecules including mk that aid in resolving inflammation during early stages of limb regeneration. Moreover, it is possible that mk expression may be induced by macrophage-derived factors, an interesting future avenue of investigation. These findings thus highlight the need to advance our understanding of the complex molecular cross-talk between the immune system and various regenerating tissues during wound healing to gain insight into what leads to regenerative versus non-regenerative outcomes.

Finally, both overlapping and non-overlapping expression of mk and its receptors indicates that mk is likely acting through both autocrine and paracrine signaling in limb regeneration. The epithelial-mesenchymal dual expression of mk has been known for decades in the development of various organs including the lungs, gut, and limb buds of mice (Mitsiadis et al., 1995b). Although the expression pattern is suggestive of inductive signaling between the epithelium and developing mesenchyme, the exact functional nature of mk in these contexts remains largely unknown. While we did not examine mk expression in developing axolotl limbs, it is possible that mk exhibits a similar expression pattern in both the limb bud ectoderm and mesenchyme. As such, the up-regulation of mk in blastemal progenitors and the wound epidermis may signify the re-induction of a developmental program during the initiation of limb regeneration. Additionally, mk is first expressed in blastemal progenitors prior to the wound epidermis and failed to be strongly up-regulated when wound epidermis formation was prevented. Therefore, mk up-regulation during the initiation of limb regeneration may depend on positive feedback signaling between mk+ blastemal progenitors and the wound epidermis. Moreover, mk receptors are expressed in intact epithelial cells and our rescue data suggest the wound epidermis is responsive to mk from non-epithelial sources. Hence, it is possible that mk secreted from blastemal progenitors may first induce mk expression in the wound epidermis through paracrine signaling, which is then self-sustained through autocrine signaling.

While our mk receptor expression data suggest that mk likely directly signals to the wound epidermis to regulate AEC development, how mk regulates inflammation remains less clear. To the best of our knowledge, besides moderate levels of integrin b1, we were not able to identify robust expression of mk receptors on populations of immune cells in our data or published single cell data. Thus, it is possible that mk may regulate monocyte activity directly through the low expression of these or as of yet unidentified receptor(s), indirectly through other tissues, or both. Given the data, it is likely that both regulatory mechanisms are at play. As mk receptors are more highly expressed throughout many other cell types and tissues, it is possible that mk indirectly regulates the resolution of inflammation by stimulating the secretion of anti-inflammatory factors in these tissues that then signal directly to monocytes. One likely example of such a tissue may be the wound epidermis. As we have shown that the early wound epidermis is immunomodulatory, it is conceivable that the prolonged inflammation we observed in both mk loss- and gain-of-function contexts was indirectly or partially caused by an impaired wound epidermis/AEC, opening up the possibility that mk may regulate the resolution of inflammation in an indirect manner. In all, the widespread expression of mk receptors throughout regenerating limb tissues underscores the complexity of mk function and makes it clear that future studies using tissue-specific inducible mk and receptor knockout models will be necessary to deconvolute the exact nature of cell-type specific mk signaling during regeneration.

To conclude, we have revealed the functional roles of the early wound epidermis during the initial stages of limb regeneration and further identified mk as a key regulator of both AEC development and the resolution of inflammation. The early expression of mk in both blastemal progenitors and the basal wound epidermis, key cell types that coordinate limb regeneration, suggests its expression may be linked with the ability to regenerate. As mk is highly conserved in other vertebrates, examining whether it plays similar roles in other appendage regeneration models and if it is differentially activated in non-regenerative systems will be important future lines of questioning. In all, we believe the findings presented here provide a solid foundation to further elucidate the molecular underpinnings of wound epidermis biology in appendage regeneration.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene
(Ambystoma mexicanum)
Midkine (mk)
Strain, strain background
(Ambystoma mexicanum)
Axolotl, White (d/d)Ambystoma Genetic Stock Center (AGSC)
(RRID:SCR_006372)
Cat. #AGSC_1015Subadults and juveniles, used for FSF transcriptional analysis and functional experiments
Strain, strain background
(Ambystoma mexicanum)
Axolotl,
Albino (a/a)
Ambystoma Genetic Stock Center (AGSC)
(RRID:SCR_006372)
Cat. #AGSC_1025Subadults, used only for FSF transcriptional analysis
Genetic reagent (Ambystoma mexicanum)Mknull mutantsThis paperGenerated in d/d strain
Cell line
(Homo sapiens)
293T HEK CellsATCC
(RRID:SCR_001672)
Cat. #CRL-3216
(RRID:CVCL_0063)
For validation of MK overexpression construct
AntibodyPolyclonal goat anti-tdTomatoLS Bio
(RRID:SCR_013414)
Cat. #LS-C340696
(RRID:AB_2819022)
WB: 1:200
AntibodyPolyclonal chick anti-GAPDHMillipore
(RRID:SCR_008983)
Cat. #AB2302
(RRID:AB_10615768)
WB: 1:2000
AntibodyPolyclonal rabbit anti-midkine (axolotl-specific)This paper, NEPeptideIF: 1:500, WB: 1:2000
AntibodyMonoclonal mouse Anti-WE3DSHB
(RRID:SCR_013527)
Cat. #WE3
(RRID:AB_531902)
IF: 1:10
AntibodyMonoclonal mouse Anti-Beta III TubulinSigma Aldrich
(RRID:SCR_008988)
Cat. #T8578
(RRID:AB_1841228)
IF: 1:200
Recombinant DNA reagentpCAG-tdTomatoPathania et al., 2012Addgene: Cat. #83029Injected and electroporated at 500 ng/uL
Recombinant DNA reagentpCAG-MKThis paperInjected and electroporated at 500 ng/uL
Sequenced-based reagentCustom RNAscope axolotl prrx-1 probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl csf1r probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl pax7 probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl pecam probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl midkine probe (C2)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl ptprz probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentCustom RNAscope axolotl sdc1 probe (C1)This paperIn situ hybridization probe
Sequenced-based reagentAlt-R CRISPR-Cas9 crRNA (mk specific):
5’AAGCCCCCACAACTGCATCC −3’
This paperMidkine specific short guide RNA sequence
Sequenced-based reagentAlt-R CRISPR-Cas9 tracrRNAIntegrated DNA Technologies (IDT)Cat. #1072534
Sequenced-based reagentMk forward genotyping primer:
5’-TTGCTTATTCCTTGTGATCATGC-3’
This paperGenotyping primer
Sequenced-based reagentMk reverse genotyping primer:
5’- GGCACATTATTACACAGAAAGCTC-3’
This paperGenotyping primer
Sequenced-based reagentMk nested PCR forward primer:
5’- tctttccctacacgacgctcttccgatctGAGGTTTGATTGGACCCTGA-3’
This paperGenotyping primer
Sequenced-based reagentMk nested PCR reverse primer:
5’-tggagttcagacgtgtgctcttccgatctGGCACATTATTACACAGAAAGCTC-3’
This paperGenotyping primer
Peptide, recombinant proteinAxolotl Midkine blocking peptide (amino acids 126 to 142)This paper, NEPeptideUsed to validate custom polyclonal axolotl MK antibody
Chemical compound, drugiMDK (Midkine inhibitor)Tocris Bio
(RRID:SCR_003689)
Cat. #5126Used at 10 uM
Chemical compound, drugEdUThermofisher Scientific
(RRID:SCR_008452)
Cat. #A10044Used at 8 mg/mL concentration
Commercial assay or kitIn Situ Cell Death Detection Kit, TMR RedRoche
(RRID:SCR_001326)
Cat. #12156792910
Commercial assay or kitIn Situ Cell Death Detection Kit, FluoresceinRoche
(RRID:SCR_001326)
Cat.
#11684795910
Commercial assay or kitClick-iT EdU Cell Proliferation Kit for ImagingThermofisher Scientific
(RRID:SCR_008452)
Cat. #C10337
Commercial assay or kitα-Naphthyl Acetate Esterase (NSE) KitSigma Aldrich
(RRID:SCR_008988)
Cat. #91A
Commercial assay or kitRNAScope 2.5 HD Duplex AssayACD BioCat. #322430
Commercial assay or kitMiseq Reagent Nano Kit v2 (300-cycle)Illumina
(RRID:SCR_010233)
Cat. #MS-102–2002
Commercial assay or kitIllumina Nextera XT DNA Library Prep KitIllumina
(RRID:SCR_010233)
Cat. #FC-131–1024
Commercial assay or kitOvation RNA-seq System V2Integrated SciencesCat. #7102–32
Commercial assay or kitPrepX ILM 32i DNA Library Prep KitTakara BioCat. #400076
Software, algorithmTrinityGrabherr et al., 2011https://github.com/trinityrnaseq/trinityrnaseq/wiki
Software, algorithmKallistoBray et al., 2016https://pachterlab.github.io/kallisto/
Software, algorithmTrimmomaticBolger et al., 2014http://www.usadellab.org/cms/?page=trimmomatic
Software, algorithmDESeq2Love et al., 2014https://bioconductor.org/packages/release/bioc/html/DESeq2.html
Software, algorithmWEB GestaltWang et al., 2017http://www.webgestalt.org/
Software, algorithmCRISPRessoPinello et al., 2016http://crispresso.pinellolab.partners.org/
Software, algorithmComplex HeatmapsGu et al., 2016https://bioconductor.org/packages/release/bioc/html/ComplexHeatmap.html
Software, algorithmImageJSchindelin et al., 2012https://imagej.net/Fiji

Experimental model and subject details

Request a detailed protocol

Axolotl (Ambystoma mexicanum) husbandry and surgeries were performed in accordance with the Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC) and Institutional Animal Care and Use Committee (IACUC) guidelines at Harvard University. Sub-adult white and albino axolotls (15–18 cm) provided by the Ambystoma Genetic Stock Center (AGSC, University of Kentucky, KY) were used for the RNA-sequencing experiment of full skin flap sutured regenerating limbs. Juvenile white axolotls (3–6 cm animals) were utilized for the midkine inhibitor (iMDK) (Tocris Bio) experiments and mk overexpression experiments. Mk mutants were generated using CRISPR/Cas9 in the white background and genotyped/analyzed as juveniles as well.

Animal surgeries and drug treatments

Request a detailed protocol

For amputations, animals were anesthetized in 0.1% tricaine (Sigma Aldrich) until unresponsive to a tail pinch. The limb was then amputated at the mid-radius/ulna level using sterilized dissection scissors. All of the limb amputations were performed on naïve regenerating animals that is animals that had not regenerated before. The amputations for all functional experiments were performed at the mid-radius/ulna level of axolotl forelimbs. For the transcriptional profiling experiment of full skin flap sutured limbs, amputations were performed at the mid-zeugopodial level (radius/ulna or –tibia/fibula) and full skin flap surgeries were performed on all four limbs of nine animals immediately post-amputation as described in Mescher (1976). Briefly, limbs were amputated in the distal zeugopodial region and skin was carefully peeled back. The exposed underlying non-epithelial tissues were then amputated at the mid-zeugopodial level and the excess skin was sutured directly over the amputation plane using 9–0 sutures (Ethicon).

For iMDK experiments, limbs of animals were amputated and the animals were immersed in DMSO or 10 uM iMDK solution beginning at either 0 or 7 dpa. Drug solution was changed daily for the duration of the inhibitor experiments and animals were fed normally every other day.

RNA isolation and sequencing

Request a detailed protocol

For RNA-sequencing of full skin flap sutured limbs, approximately 2–3 mm of tissue directly proximal to the amputation plane was collected at 5 dpa. Twelve limbs (6 forelimbs and 6 hindlimbs) were pooled for each replicate per timepoint and the experiment was performed in triplicate. Pooling was necessary to collect enough cells for RNA isolation.. Dissociation, DAPI cell cycle analysis, and RNA isolation from the dividing and non-dividing cells in the non-epithelial stump tissues as well as the full thickness skin flap was performed as described in Tsai et al. (2019). Briefly, the wound epidermis or full skin flap at the distal amputation plane was carefully micro-dissected off of regenerating limb tissue and dissociated in 0.25% Trypsin-EDTA, while the remaining non-epithelial stump tissues along with some intact skin proximal to the amputation plane were dissociated in a mixture of collagenase, dispase, and glucose in 80% PBS. Both dissociated populations underwent DAPI staining and FACS was performed on the stained non-epithelial stump tissue fraction to sort the population into 2N and 4N fractions. RNA was isolated from the 3 DAPI stained cellular populations of wound/full skin flap epithelial cells, dividing cells (4N) and non-dividing cells (2N) from regenerating non-epithelial stump tissues. cDNA was synthesized using the NuGEN Ovation RNAseq System V2 protocol (Integrated Sciences) using 10 ng of starting material and cDNA libraries were generated using the Wafergen PrepX Complete ILMN DNA Library kit (Takara Bio). Library concentrations were measured using the Qubit dsDNA HS Assay kit (Thermofisher Scientific) and Kapa Illumina Library Quantification Kit (Kapa Biosystems). The samples (regenerating and full skin flap samples) were pooled altogether and sequenced on an Illumina Hiseq 2500 system (Illumina) (125 bp reads) at the Harvard Bauer Core Sequencing Facility. The regenerating dataset (data from 0 and 5 dpa) presented in this study used for comparison was previously published in Tsai et al. (2019), while the full skin flap samples are newly presented in this work.

Raw reads were filtered and trimmed using Trimmomatic (Bolger et al., 2014) and aligned to the axolotl transcriptome (Bryant et al., 2017a) using Kallisto (Bray et al., 2016). Raw TPM values from each sample were analyzed using DESeq2 (Love et al., 2014). Differentially expressed transcripts were filtered for fold change >2 and adjusted p-value<0.05. For pathway analysis, Uniprot IDs of blastx hits from different species for all differentially expressed transcripts were converted to human Uniprot IDs using HUGO Gene Nomenclature Committee (HGNC) and/or Uniprot ID conversion tools online. Ingenuity pathway analysis (IPA) analysis was performed on differentially expressed transcripts to determine growth factor signaling pathway activation or inhibition for the following comparisons: 0 dpa 2N vs 5 dpa 2N, 0 dpa 4N vs 5 dpa 4N, 0 dpa epi vs 5 dpa wound epidermis (WE), 0 dpa 2N vs 5 dpa FSF 2N, 0 dpa 4N vs 5 dpa FSF 4N, and 0 dpa epi vs 5 dpa FSF epi. Heatmaps of normalized TPM levels for differentially expressed transcripts in each fraction (2N, 4N, or epidermis) were generated in RStudio utilizing the ComplexHeatmap (Gu et al., 2016) or gplots packages (Warnes et al., 2015). Clusters of differentially expressed transcripts (5 dpa regenerating vs. 5dpa FSF) for each cellular fraction were analyzed using WebGestalt (Wang et al., 2017).

For sequencing of DMSO- or iMDK-treated limbs, RNA was isolated from DMSO or iMDK-treated regenerating limbs at 11 dpa. Tissue was homogenized in Trizol and RNA was purified using the Qiagen RNeasy mini kit. We collected the samples in biological triplicate for each condition. Quality and quantity of RNA were assessed using the Agilent RNA 6000 pico kit and run on a BioAnalyzer 2100 (Agilent). Sequencing libraries were then synthesized using the Illumina Nextera XT kit (Illumina) and sequenced on a Nextseq 500 at the Biopolymers Facility at Harvard Medical School. Fastq data were filtered, trimmed, and aligned as described above. Differential expression analysis was performed with DESeq2 (Love et al., 2014). For the differential expression analysis, the cutoff was set at an adjusted p-value<0.05 and fold change >2. K-means clustering of the transcripts was performed using the Complex Heatmap package (Gu et al., 2016) and pathway analysis of DMSO- or iMDK-enriched transcripts was performed on differentially expressed transcripts using Ingenuity Pathway Analysis (IPA) (Qiagen) software.

Generation of mk mutants and genotyping

Request a detailed protocol

In order to generate the mk mutants, CRISPR-cas9 technology was utilized and the start codon of the mk locus was targeted with a single guide RNA (sgRNA) (ATG start is bolded): 5’AAGCCCCCACAACTGCATCC −3’. This sequence was also unique within the axolotl genome. The mk crRNA and generic tracrRNA were ordered from IDT and reconstituted according to their instructions. One-cell stage embryos were injected with cas9 ribonucleoprotein (cas9 RNP) complexes to generate mutants. To generate the cas9 RNP complexes, mk crRNA and tracrRNA were mixed and annealed to form the mk sgRNA. Mk sgRNA (final concentration 200–400 ng/µL) was then mixed with concentrated cas9 (final concentration 500 ng/µL) (PNA Bio Inc) and incubated for 10 min at 37°C to generate the cas9 ribonucleoprotein (RNP) complex. For each fertilized egg, 2–3 nl of injection mix was injected. Control embryos were injected with cas9 RNPs that were complexed with tracrRNA only.

For genotyping, genomic DNA was collected from the original limbs that were amputated from regenerating tracrRNA controls and mk mutants. Tissue was incubated in 50 mM NaOH for 20 min. at 94°C and neutralized with TE buffer pH 7.5. The supernatant was then PCR purified using the Qiagen PCR purification kit according to the manufacturer’s instructions. Genomic PCR was performed to amplify the area surrounding the cut site with the following primers:

  • For 5’-TTGCTTATTCCTTGTGATCATGC-3

  • Rev 5’- GGCACATTATTACACAGAAAGCTC-3’

Next, two rounds of additional PCRs were performed to generate DNA sequencing libraries as described in Gagnon et al. (2014). Briefly, one round of nested PCR was performed using the following gene specific primers with universal overhangs:

  • For 5’- tctttccctacacgacgctcttccgatctGAGGTTTGATTGGACCCTGA-3’

  • Rev 5’- tggagttcagacgtgtgctcttccgatctGGCACATTATTACACAGAAAGCTC-3’

The next round of PCR was performed to add on i7 indices and P5/P7 sequences to generate DNA sequencing libraries. Up to 24 libraries were pooled together and sequenced on a department owned Miseq using the Miseq reagent nano kit v2 (300 cycle) (Illumina). Fastq data were then analyzed utilizing CRISPResso (Pinello et al., 2016). For the genotyping analysis, mutants in which less than 1% of wildtype alleles were detected were deemed null (most had mosaic null genotypes), with up to 10–15% wildtype alleles deemed low % wildtype, and greater than 15% deemed high % wildtype (most of these animals were actually closer to 80–90% wildtype). Only mosaic null mk mutants were considered for the downstream characterization.

RNAscope in situ hybridization and expression analysis

Request a detailed protocol

Tissue from intact or regenerating limbs was collected and fixed in 4% paraformaldehyde overnight, brought up a sucrose gradient, embedded in OCT, and cryo-sectioned at 12 μm. Chromogenic RNAscope in situ hybridization was performed utilizing the RNAscope 2.5HD Duplex Assay Kit (ACD Bio) according to the manufacturer’s instructions using custom axolotl RNAscope probes generated for mk in the C1 channel and pax7, prrx-1, pecam, ptprz, sdc1, and csf1r in the C2 channel.

For the quantification of the breakdown of cell types expressing mk, sections were quantified within the distal most 500 μm from the amputation plane. The total numbers of single positive mk+, pax7+, prrx-1+, and pecam+ cells as well as double positive cells were used to calculate the percentage of mk+ cells expressing each respective marker at 0, 3, and seven dpa. Although mk is lowly expressed in the blastema as well, the densely packed nuclei precluded accurate quantification of co-expression. For co-expression analysis of mk in csf1r+ monocytes, single and double positive cells were counted and the respective breakdown out of total counted cells was shown.

Histological characterization of mk mutants

Request a detailed protocol

Brightfield images of regenerating limbs were taken of tracrRNA controls and mk mutants during regeneration using an Olympus SZX16 dissecting microscope. Tissue was collected at 10 and 14 dpa for analyses. For the blastema length measurement analysis, picro-mallory staining was performed on sections and measured the length at 14 dpa. For wound epidermis thickness, the thickest part of the wound epidermis was measured and averaged across at least two sections from regenerating limbs of tracrRNA and mk mutants at 10 dpa.

α-Naphthyl acetate esterase (NSE) staining and analysis

Request a detailed protocol

NSE staining was performed using the α-Naphthyl Acetate Esterase staining kit (Sigma) according to the manufacturer’s instructions, except a 10 min fixation step was performed instead of 30 s to 1 min. The number of NSE+ monocytes/unit area mm2 within 500 µm of the amputation plane were quantified in DMSO/iMDK-treated, mkWT and mknull, as well as tdTomato- or mk-overexpressing intact and regenerating limbs.

TUNEL staining and analysis

Request a detailed protocol

TUNEL staining was performed using the In Situ Cell Death Detection Kit (Roche) according to the manufacturer’s instructions except for tissue permeabilization which was performed by incubation at −20°C for 5 min in 1:2 glacial acetic acid/ethanol solution. To quantify apoptotic cells in the wound epidermis, the percentage of TUNEL+ nuclei out of total DAPI+ cells was calculated in the wound epidermis within 500 µm of the amputation plane for each condition. To quantify the total percentage of apoptotic cells, the percentage of TUNEL+ nuclei out of total DAPI+ cells was calculated within 500 µm of the amputation plane.

Immunostaining and EdU analysis

Request a detailed protocol

Limb tissue was collected and fixed overnight in 4% paraformaldehyde, brought up a sucrose gradient, and embedded in OCT. Tissue was cryo-sectioned at a thickness of 12 μm. For MK immunostaining, a custom polyclonal rabbit antibody against the C-terminus (amino acids 125–142) of axolotl MK (New England Peptide) was generated and validated with a peptide blocking assay. Western blots were performed on 20 µg of 10 dpa protein extracts and blocked with increasing concentrations of the peptide used to generate the antibody to validate a depletion of signal from the anti-MK staining (1:2000) (Figure 2—figure supplement 1B). MK immunostaining was performed at a dilution of 1:500. For other stains, the following antibodies were used: Beta-III tubulin (Sigma, 1:200), WE3 (DSHB, 1:10), GAPDH (Millipore, 1:2000), tdTomato (LS Bio, 1:200). Sections were blocked for 1 hr at room temperature (0.1% triton-X, 0.3%BSA, 8% donkey serum in PBS), incubated in primary antibodies at 4°C overnight, and stained with secondary Alexafluor antibodies.

For EdU analysis, animals were injected with 100–200 µL of an 8 mg/mL solution of EdU (Thermofisher Scientific) and the Click-it EdU A488 Imaging Kit was utilized (Thermofisher Scientific) according to the manufacturer’s instructions. To quantify the proliferating cells in the wound epidermis, the percentage of EdU+ cells out of total DAPI+ cells in the wound epidermis was quantified within 500 µm of the amputation plane for each condition. For total EdU quantification, the percentage of EdU+ cells out of total DAPI+ cells across all tissues within 500 µm of the amputation plane was calculated.

Overexpression of mk in regenerating limbs

Request a detailed protocol

To generate the mk overexpression vector, the open reading frame of mk was cloned into the pCAG-tdTomato backbone using EcoRI and NotI (Addgene plasmid #83029) to generate a pCAG-MK overexpression vector. To validate the expression and secretion of mk, 293 T cells were transfected with either pCAG-tdTomato or pCAG-MK vectors. Transfected cells and media were collected at 72 hr post-transfection (hpt). Protein lysates from the transfected 293 T cells were collected using RIPA buffer and western blots were performed on each of the protein lysates and media samples using anti-tdTomato (1:1000) (LS Bio LS-C340696), our custom generated anti-MK (1:2000), and anti-GAPDH (1:2000) (Millipore AB2302) antibodies. The presence of axolotl mk was detected in both pCAG-MK transfected 293 T cell lysates and media (Figure 6—figure supplement 3A).

Limbs of regenerating animals were injected and electroporated at 3 dpa with either the pCAG-MK overexpression vector and/or the pCAG-tdTomato vector for both the mk rescue experiment in mknull mutants and the general mk overexpression experiments. The electroporation settings were: 3 × 5 ms poring pulses at 150 V with a pulse interval of 50 ms (+ polarity, 0% decay) and 5 × 50 ms transfer pulses at 50 V with a pulse interval of 999 ms (+ polarity, 0% decay). Approximately 1 μg total was injected into each limb. Comparison of electroporation efficiency between conditions was quantified both via calculation of the mean fluorescence intensity (MFI) and quantification of the percentage of tdTomato+ cells in tissues 500 µm proximal of the amputation plane. Brightfield images of regenerating limbs were taken using an Olympus SZX16 dissecting microscope. For quantification of proliferating cells in the wound epidermis, EdU+ cells were quantified out of total DAPI+ cells in the wound epidermis within 200 µm of the amputation plane.

Alcian staining

Request a detailed protocol

Regenerated limbs of DMSO/iMDK-treated limbs or tdT/mk-overexpressing limbs were collected at 60 dpa or 51 dpa, respectively, and fixed in 95% ethanol overnight. Limbs were then placed in acetone overnight and subsequently stained for 3–5 days at 37°C in Alcian blue/Alizarin red staining solution: 5% glacial acetic acid, 5% Alcian blue stock solution, and 5% Alizarin red stock solution in 70% ethanol. The tissue was then digested and cleared through a 1% KOH/glycerol gradient with increasing concentrations of glycerol.

Mk receptor single cell RNA-seq data analysis

Request a detailed protocol

The single cell RNA-seq data browser was utilized from Leigh et al. (2018), to identify expression patterns of mk receptors in different cell types during homeostasis and regeneration (https://singlecell.broadinstitute.org/single_cell/study/SCP422/transcriptomic-landscape-of-the-blastema-niche-in-regenerating-adult-axolotl-limbs-at-single-cell-resolution-intact-limb).

Quantification and statistical analysis

Request a detailed protocol

All of the imaging analysis in each functional experiment was conducted randomized and blinded to prevent bias. For statistical analysis in each experiment, an unpaired two-tailed t-test was conducted unless otherwise stated. Besides the initial full skin flap sequencing experiment, every sample (N) in each experiment was an independent biological replicate that is a limb from a different animal. All of the data were represented as the mean ± standard deviation. For quantification, the value from each biological replicate was an average of values from 2 to 3 sections from the same regions of the limb (using the radius and ulna as histological landmarks across different samples) to capture variability across the tissue.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Novel midkine inhibitor iMDK inhibits tumor growth and angiogenesis in oral squamous cell carcinoma
    1. M Masui
    2. T Okui
    3. T Shimo
    4. K Takabatake
    5. T Fukazawa
    6. K Matsumoto
    7. N Kurio
    8. S Ibaragi
    9. Y Naomoto
    10. H Nagatsuka
    11. A Sasaki
    (2016)
    Anticancer Research 36:2775–2781.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Expression of the heparin-binding cytokines, midkine (MK) and HB-GAM (pleiotrophin) is associated with epithelial-mesenchymal interactions during fetal development and organogenesis
    1. TA Mitsiadis
    2. M Salmivirta
    3. T Muramatsu
    4. H Muramatsu
    5. H Rauvala
    6. E Lehtonen
    7. M Jalkanen
    8. I Thesleff
    (1995b)
    Development 121:37–51.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Midkine inhibits caspase-dependent apoptosis via the activation of mitogen-activated protein kinase and phosphatidylinositol 3-kinase in cultured neurons
    1. K Owada
    2. N Sanjo
    3. T Kobayashi
    4. H Mizusawa
    5. H Muramatsu
    6. T Muramatsu
    7. M Michikawa
    (1999)
    Journal of Neurochemistry 73:2084–2092.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
    Gplots: Various R Programming Tools for Plotting Data
    1. GR Warnes
    2. B Bolker
    3. L Bonebakker
    4. R Gentleman
    5. WHA Liaw
    6. T Lumley
    7. M Maechler
    8. A Magnusson
    9. S Moeller
    10. M Schwartz
    11. B Venables
    (2015)
    Gplots: Various R Programming Tools for Plotting Data.
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. Phillip A Newmark
    Reviewing Editor; Morgridge Institute for Research, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Joshua Currie
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Limb regeneration requires interactions between the wound epidermis and underlying stump tissues. To help clarify the role of the wound epidermis in the early stages of limb regeneration, the authors use a classic full-skin-flap suture assay, which prevents wound epidermis formation, combined with transcriptional profiling of distinct cell populations to identify genes with wound epidermis-dependent expression in the axolotl limb. Here, they focus on one such gene, encoding the growth factor midkine. Genetic ablation of midkine results in impaired limb regeneration, defects in development of the wound epidermis, elevated cell death, and persistent inflammation. Overexpression of midkine also impaired regeneration, with overgrowth of the wound epidermis, decreased proliferation in the blastema, and prolonged inflammation. This work provides an important step in understanding the mechanisms by which the wound epidermis and underlying tissues signal to each other, as well as how inflammation is regulated during regeneration.

Decision letter after peer review:

Thank you for sending your article entitled "Midkine is essential for wound epidermis development during the initiation of limb regeneration" for peer review at eLife. Your article is being evaluated by three peer reviewers, and the evaluation is being overseen by Phillip Newmark as Reviewing Editor and Anna Akhmanova as the Senior Editor.

All of the reviewers recognized the significance of this work for understanding the role of the wound epidermis in regeneration, but agreed that more evidence was required to clarify the role of midkine. If such additional evidence is provided, this work would be suitable for publication in eLife.

The following essential revisions should be included in a revised manuscript:

1) Grafting experiments between wild-type and midkine null animals to examine whether wild-type epithelia can rescue the defects in midkine null limbs or if midkine-null epithelia would suffice to recapitulate the null phenotype;

2) Additional consideration should be given to the effects of midkine perturbations on immune cell recruitment and blastemal cells. Does midkine overexpression lead to increases in monocytes? How do midkine perturbations affect blastemal cell survival and proliferation? Why does skin flap suture lead to a loss of macrophages while midkine inhibition leads to increased monocytes? Could looking at midkine expression during earlier time points in regeneration provide hints about the order in which it is acting in different tissues?

3) The authors suggest that the discordance between phenotypes observed after iMDK treatment and in midkine null limbs is due to genetic compensation (subsection “Mk is sufficient, but not required, for wound epidermis proliferation”), however, it seems equally (or more) plausible that these differences are due to non-specific effects of the drug. According to PubChem, high-throughput studies have identified several other targets of this drug (https://pubchem.ncbi.nlm.nih.gov/compound/15991416). At a minimum, this caveat is worth mentioning. Depending on the drug's mode of action and the level at which midkine is overexpressed, would it be possible to partially rescue drug treatment with midkine overexpression to help rule out such specificity concerns? Alternatively, are there structurally related compounds that do not inhibit midkine that can serve as better specificity controls?

To help you address their comments and clarify aspects of the manuscript that may have been unclear to the reviewers, we have included the complete reviews below.

Reviewer #1:

Tsai and colleagues build on their former transcriptional analysis (Tsai et al., 2019) with a targeted look at the role of the wound epidermis during axolotl limb regeneration. The wound epidermis has been known to be one of the essential components that allows blastema formation, although little is known about the molecular mechanisms that make it so crucial for regeneration to occur. The authors perform a classic full thickness skin flap suture over the stump tissue which prevents migration of keratinocytes and formation of the specialized wound epidermis. The wound epidermis is marked by a thickened epithelia, and importantly, no basement membrane between the epithelia and the underlying limb mesenchyme. By transcriptional profiling they find that several major signaling pathways (Wnt, TGF-B, and Hippo) are suppressed as well as a host of other differentially-expressed genes. The authors focus on midkine, a heparin-binding growth factor that has pleiotropic effects on inflammation, tumorigenesis, and tissue repair. The authors find that pharmacological and genetic perturbation can inhibit or delay limb regeneration, respectively, and loss of midkine reduces the proliferation of epithelia and mesenchymal cells while increasing apoptosis of epithelial cells and leading to a reduced thickness of the wound epidermis.

Overall, the transcriptional analysis and insights derived from the authors' work are a wonderful resource for the community and the rationale for experiments and later analysis are every bit as well done as their previous work published this year.

My primary concern is the focus on midkine as a "critical regulator of blastema formation" (taken from the impact statement). In general, I find such a conclusion to be a bit lacking given the data presented. One of the most interesting insights from the author's transcriptional analysis is that preventing wound epidermis formation primarily effects recruitment of monocytes/immune cells and their downstream activities such as activation of inflammation pathways, tissue histolysis, and ECM degradation (via MMPs). This makes me wonder why the authors decided to focus on midkine instead of the immune-epithelial crosstalk that seems to be the primary transcriptional alteration. The phenotype seen in both the skin flap suture as well as the midkine perturbations could be directly related to the loss of immune cells during regeneration. The phenotype looks very similar to the macrophage depletion described in Godwin et al., 2013, including a reduction in MMP and TGFB expression and with no loss of Twist expression.

Additionally, there are some contradictory data that should be explained -

The skin flap suture shows a loss of macrophages (by loss of mpeg1 expression) and midkine expression. However, the mknull animals and pharmacologically-inhibited animals display higher densities of monocytes. This needs to be explained in some way, either as a technical difference in experiments or a difference in biology.

The authors propose that midkine is needed for epithelial survival and wound epidermis development. Yet, one of the most confusing aspects is the fact that midkine, a ligand, is expressed in the epithelial cells, suggesting that it may be signalling to another cell type. Or do the authors propose that midkine is signaling in an autocrine fashion? This should be explained. I also think it is a bit misleading that some of the strongest in situ signal for midkine comes from the stump tissue, which is not discussed. The high in situ signal for midkine in the stump tissue is also at timepoints (7 and 14days post amputation) that are later than the authors transcriptomic analysis (0 and 5 dpa).

The authors only briefly discuss the possibility of a role for midkine in immune cell function at the very end of the Discussion section. “Alternatively, it is also possible that mk may directly modulate the immune system" To my mind, this seems like the most logical conclusion that there is some immune-epithelial crosstalk mediated in part by midkine.

I think some possible revisions that could illuminate this would be:

– Does ectopic expression of midkine result in elevated monocytes or recruit immune cells? This should be done in a regenerating context as well as in intact limbs (injection of the constructs into non-regenerating tissue). Likewise, looking at monocyte numbers in the author's already-generated ectopic expression tissue (Figure 7) might give them some clues.

– Grafting experiments between mknull and wildtype animals. Taking advantage of one of the key aspects of the axolotl system, the authors could transplant epithelial tissue between a mknull animal and wildtype host animal (perhaps GFP+). This would inform you if 1) WT epithelia is sufficient to rescue the regeneration delay in mknull animals, and 2) if only lacking MK expression in the epithelia can lead to the same phenotypes (limited proliferation, increased apoptosis) observed in the completely null animal. I think this could go a long way toward proving the essential nature of midkine for AEC development.

– Does ablation of macrophages by chlodronate liposomes also inhibit midkine expression similarly to skin flap suture?

– Do midkine-disrupted animals form a proper wound epidermis without a basement membrane or is it similar to the full skin flap suture? Deposition of collagens along the wound epidermis was also observed after macrophage depletion (Godwin et al., 2013) and this could link midkine and regeneration phenotype observed.

Reviewer #2:

Overall, this is a significant study which introduces Midkine as a new player in the development of the wound epidermis, a critical signaling center for salamander limb regeneration. As such, it would be of interest to researchers studying regeneration, development and related topics. Nevertheless, there are a few issues to consider prior to the publication of this work:

– In order to substantiate that the phenotypes observed following chemical and genetic mk perturbation are due to the specific loss of mk -particularly given the discrepancies of phenotypes observed between mk-/- and iMDK-, a rescue experiment (eg overexpression of mk through electroporation in KO -expected to rescue- or iMDK-treated animals -expected not to rescue if the treatment is sustained-) should be conducted.

– To discard non-specific effects of CRIPR targeting, data from animals generated with a second gRNA (targeting a different site) should be presented.

– The authors show that iMDK treatment does not affect innervation, but does mk expression itself depend on innervation? This should be address by presenting mk analysis in denervated vs innervated limb blastemas.

– The authors focus on the role of MK during the expansion of the wound epidermis into the AEC, however they do not touch on the possible roles of MK itself in the blastema (notably, prrx1+ cells display substantial MK expression, and loss of MK leads to increased inflammation in the entire regenerate, which could significantly impact blastema cell behaviour). This should be discussed and supported by data whenever possible. For example, EdU and TUNEL data should be shown for blastema progenitors, not just for the wound epidermis, as mk is also expressed in blastemal prrx1+ connective tissue.

– Furthermore, they fail to explore a possible dynamic interaction between the wound epidermis and blastema cells through MK: this is evident on Figure 8, where MK receptors sdc-1 and ptprz are expressed at different times in either the wep and/or blastema cells. At 7dpa, it seems that ptprz is expressed in blastema cells exclusively (also, sdc-1 is expressed in blastema cells at 14dpa but not at 7dpa) and could represent an example of paracrine interaction where MK secreted by the wound epidermis affects blastema cells. Unfortunately, these issues are neither explored nor discussed, but are important in order to understand MK function.

– In this connection, it would be helpful to add additional timepoints between 1 and 3 dpa in Figure 2 in order to define whether mk expression comes first in the wound epidermis, in connective tissue cells, or in both at the same time.

Reviewer #3:

In this manuscript Tsai et al. use elegant techniques to identify genes expressed in the wound epidermis during regeneration. They identify midkine as a potential regulator of limb regeneration initiation.

The results are potentially interesting but I have concerns over the interpretation of some results.

1) The main results are that inhibition of midkine results in a loss of regeneration due to a loss of maintenance of proliferation. However in the CRISPR knockout the blastema still forms, it is smaller. Another possibility that is not considered is that cell division still proceeds but is slower. If the CRISPR regenerations are examined after much longer time periods does it complete regeneration?

2) In situ hybridization and immune identifies midkine to be expressed in blastema cells, which are also prxx positive, the interpretation is that 60% of the midkine positive cells are "connective tissue blastema cells". The authors need to look at other markers of cell types that contribute to the blastema like dermal fibroblasts (vimentin), satellite cells(Pax7). Figure 1A shows midkine expression in uninjured cells, what cells are these, maybe satellite cells?

3) Figure 7H claims that overexpression of midkine results in increased proliferation of wound epidermis cells, however in the figure it is clear that the Edu positive cells are in the blastema not the wound epidermis.

4) In what cells is midkine overexpressed? What percentage of the cells in the blastema is it overexpressed?

5) Can overexpression of midkine rescue the CRISPR knockout phenotype.

6) Are the limbs of the CRISPR knockout animal the same size as a wild type control and does the embryo develop at the same rate. A figure should be included to show these data.

7) The Discussion focuses a lot on the potential interplay between midkine and the immune system, although the RNA seq data suggests this there is very little data in the paper to support this. Does the overexpression of midkine then have an effect on the number of monocytes present or only on cell proliferation? The Discussion should be modified to reflect more the data present in the paper and then put in the broader context of regeneration

8) There is data from the zebrafish field on the role of midkine in retina regeneration this should be referred to in the Discussion.

9) In general the N for a lot of experiments is very low, in some animal experiments the N=4, which means the data are not statistically relevant. The n should be increased to a minimum of 10 for all animal experiments.

10) The Material and methods section is incomplete, RNAscope is used for several figure but there is no methods for it included.

https://doi.org/10.7554/eLife.50765.sa1

Author response

Reviewer #1:

[…]

I think some possible revisions that could illuminate this would be-

– Does ectopic expression of midkine result in elevated monocytes or recruit immune cells? This should be done in a regenerating context as well as in intact limbs (injection of the constructs into non-regenerating tissue). Likewise, looking at monocyte numbers in the author's already-generated ectopic expression tissue (Figure 7) might give them some clues.

We thank the reviewer for this suggestion. We performed additional experiments to address this point. We found that ectopic expression of midkine in a regenerating context also led to an elevated density of monocytes. While control tdT-overexpressing limbs exhibited a significant decrease in the number of monocytes, from 6 -16 dpa, mk-overexpressing limbs showed consistently high level of monocytes, indicating aberrantly high levels of mk can induce persistent inflammation. These additional data have now been included in Figure 7K-M. We also performed mk overexpression experiments in intact limbs and saw no difference in proliferation or monocyte density, suggesting mk overexpression in this context is not sufficient to regulate these processes during homeostasis. The data from these experiments are described in the manuscript and presented in Figure 7—figure supplement 4. Altogether, these data provide supportive evidence that mk levels must be tightly regulated for proper resolution of inflammation during regeneration.

– Grafting experiments between mk-null and wildtype animals. Taking advantage of one of the key aspects of the axolotl system, the authors could transplant epithelial tissue between a mk-null animal and wildtype host animal (perhaps GFP+). This would inform you if 1) WT epithelia is sufficient to rescue the regeneration delay in mk-null animals, and 2) if only lacking MK expression in the epithelia can lead to the same phenotypes (limited proliferation, increased apoptosis) observed in the completely null animal. I think this could go a long way toward proving the essential nature of midkine for AEC development.

We thank the reviewers for proposing this elegant experiment and agree that whether the presence of mk in the epithelia alone is sufficient to rescue the phenotype and vice versa is an interesting and important question. On this note, we had originally thought about conducting this exact experiment, however we decided for several reasons that the results from grafting experiments would be confounding. Grafting just the wound epidermis alone is technically difficult and has a very low success rate. To perform this experiment in the most reproducible manner, we would instead graft a cuff of full thickness skin from a mknull mutant to a wildtype intact limb and vice versa, then amputate through the graft and observe regeneration. Grafting full thickness skin would also include prrx1+ dermal fibroblasts that highly express mk and are major contributors to the blastema (Kragl et al., 2009, Gerber et al., 2018). Therefore, if we observed normal wound epidermis expansion when grafting wildtype epithelia onto mutant limbs, we could not conclude that the rescue in phenotype was due to the presence of mk in only the epithelia. While performing this grafting experiment could not directly address the question posed, we did agree that this was an important issue. Therefore, we asked the converse question of whether mk derived from stump tissues is sufficient to rescue the mutant phenotypes. To do this, we exploited the fact that electroporating constructs into the limb epidermis is difficult and only occurs at extremely low efficiency (Fei et al., 2016). We performed a rescue experiment, in which we overexpressed either tdTomato (as a control) and/or mk in mknull mutants. As expected, the majority of mk was expressed and secreted from regenerating stump tissues as can be seen in Figure 6—figure supplement 3. Overexpression of mk in mknull mutants was sufficient to rescue the delayed regeneration, AEC developmental defects (thin wound epidermis/high cell death), and high monocyte density. These data altogether suggest 1) that the wound epidermis is responsive to mk secreted from non-epithelial sources and 2) that mk from stump tissues is capable of signaling to the wound epidermis and likely vice versa. These additional data can be found in Figure 6—figure supplements 1 and 2.

– Does ablation of macrophages by chlodronate liposomes also inhibit midkine expression similarly to skin flap suture?

This is an interesting question to explore. In response, we attempted a small pilot experiment in a collaborative effort with Dr. Nicholas Leigh, a postdoctoral fellow in the Whited lab. The original dosage in Godwin et al., 2013, used 12.5 mg/kg and we therefore bracketed this using 2x, 1x, 0.5x mg/kg. Each condition had three animals (1 control, 2 experimental). Unfortunately, in our hands, treatment with clodronate caused severe edema at all three doses which we presumed was due to cytotoxicity associated with the clodronate and/or opportunistic infections in both the regenerating and intact hindlimbs of depleted animals. As a result, many animals had to be euthanized. These cytotoxic effects precluded the interpretation of the results on mk expression (data not shown) and the optimization of this method extends beyond the scope of the current manuscript. However, we do agree this is a possibility and have added this as a future direction in the Discussion (paragraph seven).

– Do midkine-disrupted animals form a proper wound epidermis without a basement membrane or is it similar to the full skin flap suture? Deposition of collagens along the wound epidermis was also observed after macrophage depletion (Godwin et al., 2013) and this could link midkine and regeneration phenotype observed.

Picro-mallory staining of the wound epidermis/AEC in both iMDK- and mknull mutants indicates a lack of a basement membrane similar to a normal wound epidermis (Figure 4D’ and G’, absence of blue collagen staining at the basal surface of the wound epidermis). On the other hand, picro-mallory staining of the full skin flap sutured limbs shows a clear blue collagen thick basement membrane and dermal layer (Figure 1—figure supplement 1B’). Therefore, mk-disrupted animals appear to form a proper wound epidermis with regards to this aspect. Furthermore, the basement membrane and blue collagen thick dermal layer could be seen re-forming at the amputation plane in iMDK-treated limbs much later at 40 dpa (now included in Figure 4—figure supplement 1), providing further evidence for its absence during earlier stages when AEC development normally occurs.

Reviewer #2:

– In order to substantiate that the phenotypes observed following chemical and genetic mk perturbation are due to the specific loss of mk -particularly given the discrepancies of phenotypes observed between mk-/- and iMDK-, a rescue experiment (eg overexpression of mk through electroporation in KO -expected to rescue- or iMDK-treated animals -expected not to rescue if the treatment is sustained-) should be conducted.

We thank the reviewer for this suggestion and agree that this is an important point to address given the difference in phenotypes between iMDK treatment and mknull mutants. As such, we performed a rescue experiment in which we overexpressed mk in mknull mutants beginning at 3 dpa (the time point when mk exhibits strong induction). Overexpression of mk, but not tdTomato (as a control), in mknull mutants was sufficient to rescue the associated phenotypes including delayed regeneration, defective AEC development (thin wound epidermis and higher cell death), as well as high monocyte density associated with persistent inflammation. We believe that these additional data (which can be found in Figure 6—figure supplements 1, 2 and 3) provide strong evidence that mk indeed regulates both AEC development and the resolution of inflammation.

– To discard non-specific effects of CRIPR targeting, data from animals generated with a second gRNA (targeting a different site) should be presented.

While targeting mk with a second gRNA against a different site would provide additional evidence to reinforce our conclusions, we believe that the correlation of phenotypes between two independent loss-of-function methods (chemical and genetic) in our study provides sufficient evidence for our claims. Additionally, our mk rescue experiment in the mutant further supports our conclusions that the phenotypes we observed were indeed due to mk deficiency and not off-target effects of CRISPR. Together, we believe these data are sufficient to support our conclusions that mk is a regulator of AEC development and inflammation.

– The authors show that iMDK treatment does not affect innervation, but does mk expression itself depend on innervation? This should be address by presenting mk analysis in denervated vs innervated limb blastemas.

We thank the reviewer for raising this interesting point. We have taken advantage of a previous published microarray dataset in both innervated and denervated regenerating axolotl limbs to answer this question. The data from this study determined that mk was up-regulated at a similar fold change in both innervated and denervated limbs indicating its upregulation is independent of innervation. We have now included this commentary in the Results (paragraph three in subsection “Mk loss-of-function leads to impaired AEC development and persistent inflammation”) along with referencing the appropriate study (Monaghan et al., 2009).

– The authors focus on the role of MK during the expansion of the wound epidermis into the AEC, however they do not touch on the possible roles of MK itself in the blastema (notably, prrx1+ cells display substantial MK expression, and loss of MK leads to increased inflammation in the entire regenerate, which could significantly impact blastema cell behaviour). This should be discussed and supported by data whenever possible. For example, EdU and TUNEL data should be shown for blastema progenitors, not just for the wound epidermis, as mk is also expressed in blastemal prrx1+ connective tissue.

We agree with the reviewer on this point and have conducted additional analyses on blastemal cell death and proliferation in iMDK-treated and mknull regenerating limbs. While we did observe decreased proliferation and persistently higher levels of cell death in blastemal cells of iMDK-treated limbs, we did not observe differences in blastemal cell proliferation or death in mknull mutants. These experimental data are shown in Figure 5—figure supplement 1 and Figure 7—figure supplement 1. Together, these data suggest that mk is not required for blastemal cell proliferation or cell survival. Alternatively, the discrepancies in the phenotypes could be attributed to off target effects of the inhibitor, which we state and elaborate on in the Discussion (paragraph six).

– Furthermore, they fail to explore a possible dynamic interaction between the wound epidermis and blastema cells through MK: this is evident on Figure 8, where MK receptors sdc-1 and ptprz are expressed at different times in either the wep and/or blastema cells. At 7dpa, it seems that ptprz is expressed in blastema cells exclusively (also, sdc-1 is expressed in blastema cells at 14dpa but not at 7dpa) and could represent an example of paracrine interaction where MK secreted by the wound epidermis affects blastema cells. Unfortunately, these issues are neither explored nor discussed, but are important in order to understand MK function.

We apologize if the initial ptprz in situ at 7 dpa was misleading. The strong blue signal shown in the stump tissues was non-specific background staining from the fibrin clot at the amputation plane. We have included new in situs at 7 dpa for ptprz that more clearly demonstrate low expression of ptprz (dark blue puncta) throughout the wound epidermis with minimal background staining in the clot (Figure 8C). This was also validated by single cell RNA-seq expression data from Leigh et al., 2018 (Figure 8—figure supplement 1). That said, we thank the reviewer for bringing this to our attention and agree that a more extensive analysis and discussion of the potential signaling mechanisms of mk was needed to put the findings in this study into a broader regenerative context.

We have now included a more comprehensive analysis of the expression of midkine receptors in our dataset as well as publicly available single cell data (Figure 8 and Figure 8—figure supplement 1). We find overlapping and non-overlapping expression patterns for mk receptors and mk, indicating mk is capable of both autocrine and paracrine signaling. Furthermore, we find the expression of multiple mk receptors in the wound epidermis, indicating mk likely directly binds to and regulates wound epidermis/AEC development. However, by mining the higher resolution single cell data, we were surprised to find that mk receptors were largely detected at low levels or not detected at all in myeloid cell populations, with the exception of integrin β 1. These data bring forth the possibilities that mk may: 1) directly regulate myeloid cell populations through the low expression of these or as of yet unidentified receptors, 2) indirectly regulate inflammation via signaling through other tissues, or 3) modulate inflammation through both. Given the mk receptor expression data, we speculate in the Discussion that mk is likely regulating the resolution of inflammation through both mechanisms and elaborate on how our functional and transcriptional data suggest that the wound epidermis may be an example of one tissue that may indirectly mediate resolution of inflammation.

– In this connection, it would be helpful to add additional timepoints between 1 and 3 dpa in Figure 2 in order to define whether mk expression comes first in the wound epidermis, in connective tissue cells, or in both at the same time.

We agree with the reviewer that a more in-depth analysis of the onset of mk expression in regenerating tissues would provide important clues as to the dynamics of mk signaling. In response, we have now included an additional timepoint, 56 hours post-amputation (hpa), and high magnification images of mk expression in both the wound epidermis and stump tissues at 24, 56, and 72 hpa demonstrating that mk is first expressed in cells within regenerating stump tissues prior to the wound epidermis (Figure 2—figure supplement 2A). These data therefore suggest that mk expression in the wound epidermis may first be induced through paracrine signaling from mk and/or other extracellular molecules in regenerating stump tissues.

Reviewer #3:

1) The main results are that inhibition of midkine results in a loss of regeneration due to a loss of maintenance of proliferation. However in the CRISPR knockout the blastema still forms, it is smaller. Another possibility that is not considered is that cell division still proceeds but is slower. If the CRISPR regeneration are examined after much longer time periods does it complete regeneration?

We agree with the reviewer on this point and now include data indicating that the mknull mutants do not exhibit defects in blastemal cell proliferation, indicating mk is likely not required for blastemal cell division. The mknull mutants do regenerate anatomically normal limbs, although delayed and we have now included time-lapse imaging in Figure 6—figure supplement 1 to demonstrate the delay in mutants compared to wildtype and mk-rescued animals.

2) In situ hybridization and immune identifies midkine to be expressed in blastema cells, which are also prxx positive, the interpretation is that 60% of the midkine positive cells are "connective tissue blastema cells". The authors need to look at other markers of cell types that contribute to the blastema like dermal fibroblasts (vimentin), satellite cells(Pax7). Figure 1A shows midkine expression in uninjured cells, what cells are these, maybe satellite cells?

We thank the reviewer for raising this issue and have conducted a more detailed double in situ hybridization analysis to identify the cell types that express mk during homeostasis and regeneration. The analysis shows that the majority of mk-expressing cells are pax7+ satellite cells and pecam+ endothelial cells, in addition to prrx1+ connective tissue cells, in both intact and regenerating tissues. We quantified the breakdown of cell types expressing mk in regenerating stump tissues and included representative images of mk double in situs in both intact and regenerating tissues (3, 7, and 24 dpa). In intact tissues, connective tissue cells, satellite cells, and endothelial cells comprised approximately 43.8%, 44.9% and 7.7% of mk-expressing cells in stump tissues, respectively. During regeneration, the majority of mk-expressing cells were connective tissue cells (~53-54%) and satellite cells (~36-37%) at 3 and 7 dpa. A smaller percentage (~4-5%) of mk-expressing cells were endothelial cells at both time points. These data are now included in the study and can be found in Figure 2H-I and in Figure 2—figure supplement 2B.

3) Figure 7H claims that overexpression of midkine results in increased proliferation of wound epidermis cells, however in the figure it is clear that the Edu positive cells are in the blastema not the wound epidermis.

We apologize if this was unclear in the figure. The EdU+ cells are indeed in the wound epidermis as outlined in the dotted yellow lines in each panel of Figure 7I. At 8 dpa, a blastema has not formed in both tdT- and mk-overexpressing limbs (this time point is pre-blastema formation). Furthermore, additional quantification of EdU+ cells in the regenerating stump tissues revealed a significant decrease, not increase in proliferation of blastemal cells at 8 and 16 dpa. The additional data quantifying proliferation in blastemal cells is shown in Figure 7J.

4) In what cells is midkine overexpressed? What percentage of the cells in the blastema is it overexpressed?

Overexpression of constructs via electroporation in axolotl limbs predominantly results in expression in stump tissues, as the electroporation into the epithelial tissues is difficult and occurs at exceedingly low efficiencies. The most obvious expression can be seen in myofibers, however other cell types can also uptake constructs through electroporation (Fei et al., 2016). We have included representative images of tdTomato staining in both our mk overexpression experiment during regeneration and our newly added mk rescue experiment in Figure 7—figure supplement 2 and Figure 6—figure supplement 3, respectively. In both experiments, quantification showed that up to 20% of cells constitutively expressed tdTomato or mk. We also show equivalent efficiencies by both cell quantification and mean fluorescence intensity across control and experimental conditions as supportive control data to discount the possibility that the phenotypic effects were due to varying electroporation efficiencies.

5) Can overexpression of midkine rescue the CRISPR knockout phenotype.

We thank the reviewer for raising this important point and have now included data indicating that overexpression of mk beginning at 3 dpa in our mknull mutants is sufficient to rescue the delayed regeneration, AEC developmental defects (thin wound epidermis and higher cell death), as well as higher monocyte density. These data can be found in Figure 6—figure supplement 1, 2 and 3.

6) Are the limbs of the CRISPR knockout animal the same size as a wild type control and does the embryo develop at the same rate. A figure should be included to show these data.

We have now included representative images of mkWT and mknull mutants indicating no visible difference in size of the animals as well as anatomically normal limbs. These data can be found in Figure 3—figure supplement 1.

7) The Discussion focuses a lot on the potential interplay between midkine and the immune system, although the RNA seq data suggests this there is very little data in the paper to support this. Does the overexpression of midkine then have an effect on the number of monocytes present or only on cell proliferation? The Discussion should be modified to reflect more the data present in the paper and then put in the broader context of regeneration

We agree that additional evidence is needed to support these claims. As such, we now include data showing that overexpression of mk during regeneration leads to consistently higher monocyte density compared to control limbs, indicative of chronic inflammation (Figure 7K-M). Together with the loss-of-function data, these data show that mk levels need to be tightly maintained to proper modulate the resolution of inflammation. We also present additional data showing that mk overexpression leads to decreased blastemal cell proliferation despite seeing the opposite effects in the wound epidermis (Figure 7J). We have expanded the Discussion section to incorporate all of these data into the broader context of the roles of mk in regeneration.

8) There is data from the zebrafish field on the role of midkine in retina regeneration this should be referred to in the Discussion.

We thank the reviewer for bringing this to our attention and have now included the relevant references in the Discussion (paragraph six) (Gramage et al., 2015, Nagashima et al., 2019).

9) In general the N for a lot of experiments is very low, in some animal experiments the N=4, which means the data are not statistically relevant. The n should be increased to a minimum of 10 for all animal experiments.

While the reviewer brings up a valid and important point, we note that similar statistically significant effects are observed across two different loss-of-function methods and corroborative gain of- function experimental evidence for the role of mk in both wound epidermis development and inflammation. Moreover, the results from the mk rescue experiment in the mutants provide new additional data to support our claims. The statistical methods utilized are included in the legend of each figure as well as the Quantification and Statistical Analysis section of the Materials and methods.

10) The Materials and methods section is incomplete, RNAscope is used for several figure but there is no methods for it included.

We thank the reviewer for pointing this out and have now included a detailed section in the Materials and methods on RNAscope.

https://doi.org/10.7554/eLife.50765.sa2

Article and author information

Author details

  1. Stephanie L Tsai

    1. Department of Stem Cell and Regenerative Biology, Harvard University, Cambridge, United States
    2. Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7549-3418
  2. Clara Baselga-Garriga

    1. Department of Stem Cell and Regenerative Biology, Harvard University, Cambridge, United States
    2. Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Douglas A Melton

    Department of Stem Cell and Regenerative Biology, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - review and editing
    For correspondence
    dmelton@harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1623-5504

Funding

Howard Hughes Medical Institute

  • Douglas A Melton

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Ionescu and J Lavecchio in the FACS core at the Harvard Department of Stem Cell and Regenerative Biology (HSCRB) for helping with the cell sorting, I Adatto, L Krug, and Harvard Office of Animal Resources (OAR) for their dedicated animal care, as well as both the Biopolymers Facility and Bauer Sequencing Core at Harvard for their sequencing services. We are also grateful to all of the members of the Melton lab, N Leigh, J Whited, C Tabin, and C Extavour for comments and suggestions on the project and manuscript. DAM is an investigator of the Howard Hughes Medical Institute (HHMI). This research was performed using resources and/or funding from the Harvard Stem Cell Institute (HSCI) and HHMI.

Ethics

Animal experimentation: Axolotl (Ambystoma mexicanum) husbandry and surgeries were performed in accordance with the Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC) and Institutional Animal Care and Use Committee (IACUC) guidelines at Harvard University. All procedures conducted under the axolotl animal protocol #11-32 were approved by Harvard IACUC. All surgeries were performed under tricaine-induced anesthesia and every effort was made to minimize suffering.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Phillip A Newmark, Morgridge Institute for Research, United States

Reviewer

  1. Joshua Currie

Publication history

  1. Received: August 1, 2019
  2. Accepted: December 23, 2019
  3. Version of Record published: January 14, 2020 (version 1)

Copyright

© 2020, Tsai et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 483
    Page views
  • 34
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Alfredo Llorca et al.
    Research Article Updated
    1. Developmental Biology
    2. Neuroscience
    Esther Klingler, Denis Jabaudon
    Insight
