Single-molecule observation of ATP-independent SSB displacement by RecO in Deinococcus radiodurans

  1. Jihee Hwang
  2. Jae-Yeol Kim
  3. Cheolhee Kim
  4. Soojin Park
  5. Sungmin Joo
  6. Seong Keun Kim  Is a corresponding author
  7. Nam Ki Lee  Is a corresponding author
  1. Department of Chemistry, Seoul National University, Republic of Korea
  2. Laboratory of Chemical Physics, National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health (NIH), United States
  3. Daegu National Science Museum, Republic of Korea
  4. Department of Physics, Pohang University of Science and Technology, Republic of Korea
https://doi.org/10.7554/eLife.50945
Share this article
Cite this article
  1. Jihee Hwang
  2. Jae-Yeol Kim
  3. Cheolhee Kim
  4. Soojin Park
  5. Sungmin Joo
  6. Seong Keun Kim
  7. Nam Ki Lee
(2020)
Single-molecule observation of ATP-independent SSB displacement by RecO in Deinococcus radiodurans
eLife 9:e50945.
https://doi.org/10.7554/eLife.50945
  2. Download BibTeX
  3. Download .RIS

Abstract

Deinococcus radiodurans (DR) survives in the presence of hundreds of double-stranded DNA (dsDNA) breaks by efficiently repairing such breaks. RecO, a protein that is essential for the extreme radioresistance of DR, is one of the major recombination mediator proteins in the RecA-loading process in the RecFOR pathway. However, how RecO participates in the RecA-loading process is still unclear. In this work, we investigated the function of drRecO using single-molecule techniques. We found that drRecO competes with the ssDNA-binding protein (drSSB) for binding to the freely exposed ssDNA, and efficiently displaces drSSB from ssDNA without consuming ATP. drRecO replaces drSSB and dissociates it completely from ssDNA even though drSSB binds to ssDNA approximately 300 times more strongly than drRecO does. We suggest that drRecO facilitates the loading of RecA onto drSSB-coated ssDNA by utilizing a small drSSB-free space on ssDNA that is generated by the fast diffusion of drSSB on ssDNA.

Introduction

DNA double-strand breaks (DSBs) are considered the most deleterious of DNA lesions, underlying various classes of damage that threaten genomic integrity among all living organisms. RecA-mediated homologous recombination (HR) is one of the major pathways for repairing DSBs, and a biological mechanism that is nearly universal from bacteria to humans (Kaniecki et al., 2018; Kowalczykowski, 2015; San Filippo et al., 2008). It involves three steps: end processing of the damaged DNA, presynaptic formation of RecA on single-stranded DNA (ssDNA), and RecA-mediated strand invasion of the intact homologous chromosome as a template for further repair processes. In the first step, the exonucleases and helicases generate a small region of exposed ssDNA in the 3′ overhang, which is immediately protected by ssDNA-binding protein (SSB). Strong interactions between ssDNA and SSB (Kd ~pM) hinder RecA assembly on ssDNA by blocking the initial binding of RecA to ssDNA (Inoue et al., 2011; Kowalczykowski, 2000).

Prokaryotes have two major pathways that load RecA onto SSB-coated ssDNA, that is the RecBCD and RecFOR pathways (Chung and Li, 2013; Cox, 2007; Kowalczykowski et al., 1994; Yu-Chin et al., 1994). In Escherichia coli (E. coli), the RecBCD system predominantly repairs damaged dsDNA, whereas the RecFOR pathway is mainly used for ssDNA gap repair and remains a backup machinery for repairing DSBs (Chung and Li, 2013; Kowalczykowski et al., 1994; Lloyd and Buckman, 1985; Yu-Chin et al., 1994). An analysis of bacterial genomes showed that only ~50% of bacteria contain recBCD, while 95% of bacterial genomes contain recO (Garcia-Gonzalez et al., 2013). This finding suggests that the RecOR (or RecFOR) pathway is used more frequently than the RecBCD pathway for RecA-mediated HR in bacterial species (Kowalczykowski, 2015; Rocha et al., 2005). Furthermore, the RecFOR pathway resembles the HR system found in humans, which is composed of Rad52 and BRCA2, more closely than does the RecBCD pathway (Kowalczykowski, 2015). However, the mechanistic details of RecFOR in the RecA nucleation process are largely unknown in all bacteria. RecFOR-mediated RecA nucleation is the rate-determining step of the early HR process because the RecFOR machinery must overcome the strong interactions between SSB and ssDNA in order to enable RecA loading on ssDNA (Bell et al., 2015; Bell et al., 2012; Hobbs et al., 2007). RecO is believed to play a key role in this step because RecO is able to interact with SSB, ssDNA, and dsDNA simultaneously (Handa et al., 2009; Hobbs et al., 2007; Inoue et al., 2011).

Here, we investigated the detailed molecular mechanism of D. radiodurans (DR) RecO (drRecO) in SSB displacement from ssDNA at the single-molecule level. DR is the toughest bacterium known, with outstanding resistance to ionizing radiation and DNA damage-inducing reagents (Blasius et al., 2008; Cox and Battista, 2005; Slade and Radman, 2011), which are the main causes of DSBs, a form of fatal biological damage at the genomic level (Yokoya et al., 2002). DR can survive doses of gamma radiation as high as approximately 15,000 Gy, whereas the minimal lethal doses of gamma radiation for E. coli and humans are 60 Gy and 5 Gy, respectively (Battista, 1997; Minton, 1994; Moseley and Mattingly, 1971). Previous studies found that DR does not have any distinctive mechanism for gene protection that is distinct from those of other bacteria (Battista et al., 1999). However, the entire repair process for DSBs is notably more efficient in DR than in other organisms; DR is able to restore hundreds of copies of damaged double strands in an hour (Daly et al., 1994; Lin et al., 1999). Despite this remarkable efficiency, the quantities and compositions of the proteins involved in the repair machinery of DR are not distinct from those of other bacteria (Lin et al., 1999; White, 1999). Thus, how DR achieves DSB repair with such high efficiency remains unclear. Interestingly, there is no evidence for the existence of RecB and RecC, the key proteins in the RecBCD process, in DR. RecF, RecO, and RecR, which play minor roles in E. coli, have, however, been identified by whole-genome sequencing as components of a major DSB repair system in DR (Makarova et al., 2001; White, 1999). Crystal structures and molecular dynamics simulations revealed conformational changes in the drRecOR complex upon single- and double-stranded DNA binding, suggesting that drRecO may lead to drSSB displacement from ssDNA (Radzimanowski et al., 2013; Timmins et al., 2007).

In this work, we directly observed competitive binding events between drRecO and drSSB on the same ssDNA in real time using single-molecule fluorescence resonance energy transfer (smFRET). drRecO eventually overcomes the strong binding between drSSB and ssDNA and completely dissociates drSSB from ssDNA. We found that drRecO effectively removes drSSB from ssDNA without consuming ATP, despite drSSB binding to ssDNA 300 times more strongly than drRecO does. drRecO binds to ssDNA in a two-step binding mode using its two DNA binding sites, and this two-step binding mode plays a key role in removing drSSB from ssDNA without using ATP. The first binding between drRecO and ssDNA occurs in the drSSB-free space of ssDNA and generates a heterotrimer of the drSSB-ssDNA-drRecO complex as an intermediate state. The second binding between drRecO and ssDNA induces the dissociation of drSSB from ssDNA by facilitating a conformational change in ssDNA.

Results

Observation of drSSB displacement from ssDNA by drRecO in solution

We introduced the alternating laser excitation fluorescence resonance energy transfer (ALEX-FRET) technique, which observes the FRET values of a freely diffusing ssDNA labeled with a donor and an acceptor dye (Figure 1A; Kapanidis et al., 2004; Lee et al., 2005). A partial duplex DNA containing an ssDNA overhang composed of 70-nucleotide (nt) poly-dT (dT70) was introduced to monitor the conformation of 70-nt ssDNA. A donor (Cy3B) and an acceptor (Cy5) dye were attached near the two ends of the ssDNA overhang (Figure 1A). The binding of drSSB and/or drRecO to a freely diffusing ssDNA was monitored by the change in the FRET value of the ssDNA (Figure 1B–E). It is well known that drSSB specifically binds to ssDNA using two oligonucleotide/oligosaccharide-binding (OB) fold domains per monomer and functions as a stable homodimer (Kozlov et al., 2010; Witte et al., 2005; Zhou et al., 2011). drSSB is wrapped by ssDNA longer than 50 nt, and the drSSB–ssDNA complex is very stable under high salt conditions (>200 mM) (Kozlov et al., 2010; Witte et al., 2005).

Figure 1 with 2 supplements see all
Download asset Open asset

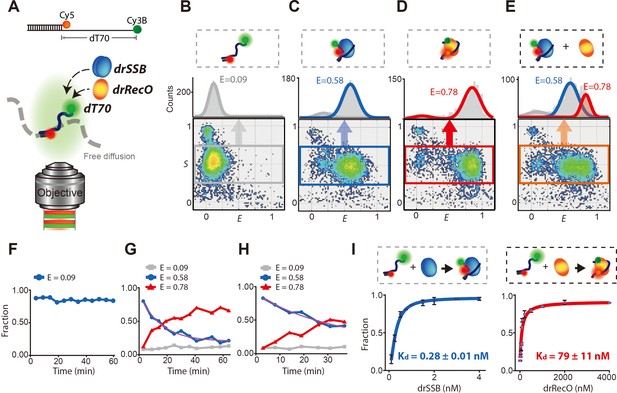

Displacement of drSSB from individual diffusing ssDNA by drRecO.

(A) Schematic illustration of the single-molecule FRET measurement for freely diffusing drSSB- and/or the drRecO–ssDNA complex by ALEX-FRET. Cy3B (donor) and Cy5 (acceptor) were attached to the ends of ssDNAs composed of 70 nucleotides (dT70) and a ssDNA–dsDNA junction, respectively. The donor and acceptor were 70 nt apart, which enabled the monitoring of drSSB or drRecO binding to ssDNA. (B–E) Two-dimensional E-S graphs obtained by ALEX-FRET. E-S graphs are used to select ssDNAs labeled with both donor and acceptor dyes (the gray box in panel B). The 1D FRET histogram of the selected ssDNAs is plotted above the E-S graph: (B) dT70, (C) dT70 + drSSB and (D) dT70 + drRecO. (E) After the formation of the drSSB–dT70 complex was allowed to proceed for 10 min, 500 nM drRecO were added to the mixture. Averaged E values were obtained by fitting 1D FRET histograms with Gaussian function. E = 0.09 (gray lines), 0.58 (blue lines) and 0.78 (red lines) for dT70, drSSB–dT70, and drRecO–dT70, respectively, were obtained. (F–H) Time-dependent population changes of dT70 (E = 0.09), drSSB–dT70 (E = 0.58), and drRecO–dT70 (E = 0.78). The final concentrations of drSSB and dT70 were 200 nM and 100 pM, respectively. In the absence of drRecO, drSSB–dT70 remained stable for more than 60 min (F). The addition of (G) 200 nM and (H) 100 nM drRecO into the preassembled dT70–drSSB complex facilitated drastic changes in the population ratios. The exchange rates (purple lines) were 1.10 × 10–3 s−1 and 5.02 × 10–4s−1 for panels (G) and (H), respectively (see 'Materials and methods'). (I) Measurement of the apparent dissociation constants (Kd) of drSSB–ssDNA and drRecO–ssDNA. The ALEX-FRET method allowed the measurement of the Kd values of drSSB–ssDNA and drRecO–ssDNA (see 'Materials and methods'). From the half-saturation, the Kd values were found to be 0.28 ± 0.01 nM and 79 ± 11 nM for drSSB–ssDNA and drRecO–ssDNA, respectively.

ALEX-FRET detects the FRET efficiency (E) of a freely diffusing molecule in solution, bypassing the surface immobilization of molecules (Figure 1—figure supplement 1). The result of ALEX-FRET is presented in a two-dimensional (2D) E-S graph (Figure 1B–E). Each dot in the E-S graph represents a detected single molecule. ssDNA labeled with both a donor and an acceptor dye is selected from the E-S graph (the gray box in Figure 1B), and then the 1D FRET histogram of the selected ssDNA is plotted on the upper side of the E-S graph. In the absence of drSSB and drRecO, the averaged E value of dT70 was 0.09 (Figure 1B). When we added drSSB to the solution containing dT70, the FRET histogram became heterogeneous, showing two populations at E = 0.09 and E = 0.58, corresponding to free and drSSB-coated dT70, respectively (Figure 1C). Then, we tested whether drRecO competitively interacts with drSSB-coated ssDNA. Interestingly, a new population, emerging at E = 0.78, was found upon the addition of drRecO to drSSB–dT70 (Figure 1E). Although the structure of the drRecO–ssDNA complex and the binding properties of drRecO to ssDNA have not yet been identified, we confirmed that the population at E = 0.78 corresponded to drRecO–dT70 by a control experiment using drRecO only (Figure 1D). To understand how the drRecO–ssDNA complex forms kinetically when drRecO is applied to the drSSB–ssDNA complex, we measured each fraction of ssDNA only, drSSB–ssDNA, and drRecO–ssDNA over time. First, drSSB was preincubated with dT70 for 10 min to form the fully bound drSSB–dT70 state, and then drRecO was added to the mixture (the final concentrations of drSSB, dT70, and drRecO were 200 nM, 50 pM, and 200 nM, respectively). The fraction of drSSB–dT70 at E = 0.58 in the absence of drRecO remained almost constant for more than 60 min (Figure 1F). On the other hand, the fraction of drSSB–dT70 (E = 0.58) gradually decreased and the fraction of drRecO–dT70 (E = 0.78) increased in a complementary manner (Figure 1G). When the concentration of drRecO was reduced to half of the drSSB concentration (100 nM drRecO and 200 nM drSSB), drSSB was still replaced by drRecO (Figure 1H). Furthermore, the exchange rates between drSSB–dT70 and drRecO–dT70 were highly dependent on the concentration of drRecO (Figure 1G–H).

It is known that SSB has an exceptionally slow off-rate on ssDNA. In particular, it has been reported that SSB from E. coli (ecoSSB), which has a largely conserved structure relative to that of drSSB, stays on ssDNA for more than several hours (Witte et al., 2005; Zhou et al., 2011). However, the dissociation rate of drSSB on ssDNA has not been reported. Thus, we measured the dissociation kinetics of drSSB–ssDNA at a single-molecule level (Figure 1—figure supplement 2). Only 5% of drSSB was dissociated from dT70 for 2 hr. When equal amounts of drSSB and drRecO were applied, half of the drSSB was displaced from ssDNA by drRecO in approximately 15 min (Figure 1G). The fast replacement by drRecO compared to the SSB dissociation rate indicates that drRecO actively induces the dissociation of drSSB from ssDNA. In addition, the dissociation constant (Kd) of the drRecO–dT70 complex is approximately 300 times larger than that of the drSSB–dT70 complex (Figure 1I). Our results suggest that drRecO can bind to drSSB-coated ssDNA despite drSSB interacting with ssDNA approximately 300 times more strongly than drRecO does.

Real-time observation of drSSB displacement by drRecO using single-molecule FRET

To observe the displacement of drSSB by drRecO in real time, we tethered ssDNA on a glass surface using a NeutrAvidin–biotin interaction, and employed a total internal reflection fluorescence (TIRF) microscope (Figure 2A). The apparent E value of the free ssDNA dT70 was approximately 0.2. When drSSB bound to the surface-immobilized dT70, the E value of dT70 increased from ~0.2 to ~0.6, and the drSSB–dT70 complex was stable throughout our observation time (up to 300 s) (Figure 2B and Figure 2—figure supplement 1A and B). In the same manner, the binding of drRecO to dT70 increased the E value from ~0.2 to ~0.8 (Figure 2C and Figure 2—figure supplement 1C and D). Then, we added drRecO to the preformed drSSB–dT70 complex. During the injection of drRecO, unbound drSSB was washed out in the surface-tethered experiments: the E value increased directly from ~0.6 to ~0.8 (Figure 2D and Figure 2—figure supplement 1E and F). The direct change in the E value from ~0.6 to ~0.8 implies that drSSB is displaced from dT70 by drRecO and that drRecO forms a complex with dT70. The association rate of drRecO to dT70 is more than 10 times larger than that of drSSB-coated dT70 (Figure 2E), which is consistent with previous work showing that SSB limits the interaction between RecO and ssDNA in E. coli (Handa et al., 2009). As the concentration of drRecO was increased, the fraction of drSSB–dT70 (E ~ 0.6) gradually decreased, while that of drRecO–dT70 (E ~ 0.8) increased during 4.5 min of reaction time (Figure 2F and G).

Figure 2 with 1 supplement see all
Download asset Open asset

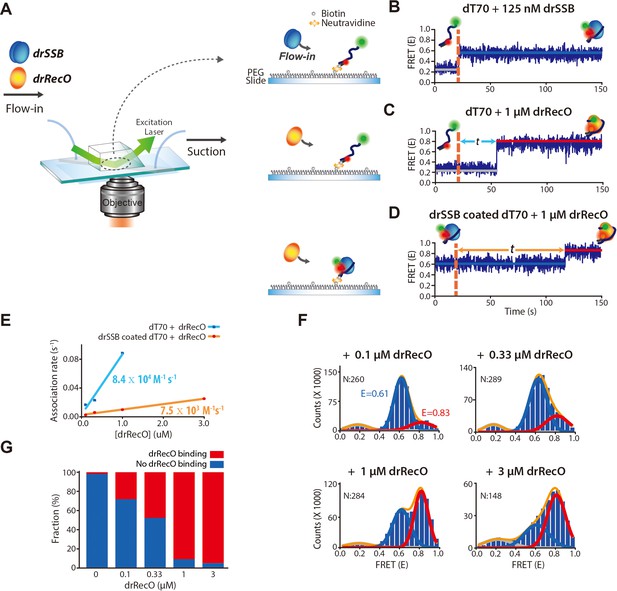

Real-time observation of drSSB displacement from immobilized ssDNA by drRecO.

(A) Schematic descriptions of TIRF microscopy and the experimental scheme for the real-time measurement of drRecO-mediated drSSB displacement from ssDNA. dT70 ssDNA was tethered to the glass surface using the NeutrAvidin–biotin interaction. Then, drSSB and drRecO were allowed to flow into the reaction chamber. All time traces were obtained for 5 min. (B) Single-molecule FRET time trace of dT70 binding to drSSB. drSSB (125 nM) was injected into the flow channel (the dashed line denotes the injection time of drSSB), where dT70 was immobilized on the surface. The FRET efficiency increased from ~0.2 (bare ssDNA) to ~0.6 (drSSB–ssDNA complex) in the time trace. The FRET peak centered at 0.62 for the cumulated histogram of all FRET efficiencies (Figure 2—figure supplement 1A). The FRET change occurred immediately after the addition of drSSB. (C) Single-molecule FRET time-trace of dT70 binding to drRecO. First, 1 μM drRecO was injected into the flow channel (the dashed line denotes the injection time of drRecO), and dT70 was immobilized on the surface. The FRET efficiency was increased from ~0.2 to ~0.8 (drRecO–ssDNA complex). The FRET peak was centered at 0.83 in the FRET distribution for all molecules (Figure 2—figure supplement 1B). The time required for drRecO to bind ssDNA (t) is longer than that for drSSB. (D) Single-molecule FRET time-trace of drSSB displacement from dT70 by drRecO. 125 nM drSSB was injected into the flow channel and incubated for 10 min for the formation of the drSSB–dT70 complex. Then, 1 μM drRecO was injected into the flow channel (the dashed line). During the injection of drRecO, unbound drSSB was washed out. The FRET efficiency increased from ~0.6 to ~0.8, which denote drSSB–dT70 and drRecO–dT70, respectively. Two populations were distinctively separated in the cumulative histogram of all FRET efficiencies (Figure 2—figure supplement 1C). (E) Comparison of the association kinetics of drRecO to dT70 and to the drSSB–dT70 complex. The time required for drRecO to bind ssDNA is marked as t in panels (C) and (D). From the average t, the association rates between drRecO and dT70 and between drRecO and drSSB-coated dT70 were obtained. As the concentration of drRecO increased, the association rates increased. The linear fits yielded the first-order rate constants of 8.4 × 104 M−1·s−1 and 7.5 × 103 M−1·s−1 for dT70 and drSSB-dT70, respectively. (F) 1D FRET histograms of drSSB displacement by drRecO at different concentrations of drRecO. The cumulative histograms of all FRET efficiencies were obtained by applying different drRecO concentrations to drSSB-coated dT70 in panel (D). N denotes the number of time traces accumulated. The Gaussian fit for each population was used to find the binding fraction of drRecO–dT70 (red lines at E = 0.83). The population at E = 0.61 denotes drSSB–dT70. (G) Fraction of drRecO binding to drSSB–ssDNA complex at various drRecO concentrations. We counted time traces that showed E = 0.8, which indicated the successful replacement of drSSB by drRecO on ssDNA within 5 min of observation time. The number of time traces analyzed is presented in panel (F).

Figure 2—source data 1

Data summary table for the results shown in Figure 2E.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig2-data1-v2.docx
Figure 2—source data 2

Data summary table for the results shown in Figure 2G.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig2-data2-v2.docx

Then, we measured the exchange (drSSB-displacement) rate by drRecO (Figure 3A–D). Again, the exchange rate was enhanced as the concentration of drRecO increased (Figure 3B–D). In the surface-tethered experiment, unbound drSSB was washed out during drRecO injection. Then, we tested whether the unbound drSSB could compete with drRecO for binding to drSSB-coated ssDNA (Figure 3E–H). We simultaneously added drRecO and drSSB and allowed them to bind competitively to ssDNA. The dotted orange line in the time-trace of Figure 3E represents the time point at which 0.2 μM drRecO and 0.2 μM drSSB were injected together. After adding drSSB and drRecO to the surface-tethered dT70, the E value increased immediately from ~0.2 to ~0.6, which was followed by a second increase in the E value from ~0.6 to ~0.8. This indicates that drSSB immediately binds to dT70 and forms the same initial state of the preincubated drSSB–ssDNA complex. This result is consistent with the measurement of the association rate of drSSB as being approximately 10,000 times larger than that of drRecO (Witte et al., 2005). Notably, when we added 0.2 μM drRecO in the presence of 0 μM, 0.2 μM, and 0.5 μM drSSB in solution (Figure 3B,F and G, respectively), the exchange rates were nearly invariant. However, the exchange rates increased as the concentration of drRecO increased from 0.2 μM to 0.5 μM in the presence of 0.5 μM drSSB (Figure 3G and H). The exchange rates were independent of drSSB concentration in solution. These results indicate that unbound drSSB in solution is not a competitor of drRecO for drSSB-coated ssDNA binding and that drRecO is able to displace drSSB from ssDNA regardless of whether unbound drSSB is present in solution.

Figure 3 with 1 supplement see all
Download asset Open asset

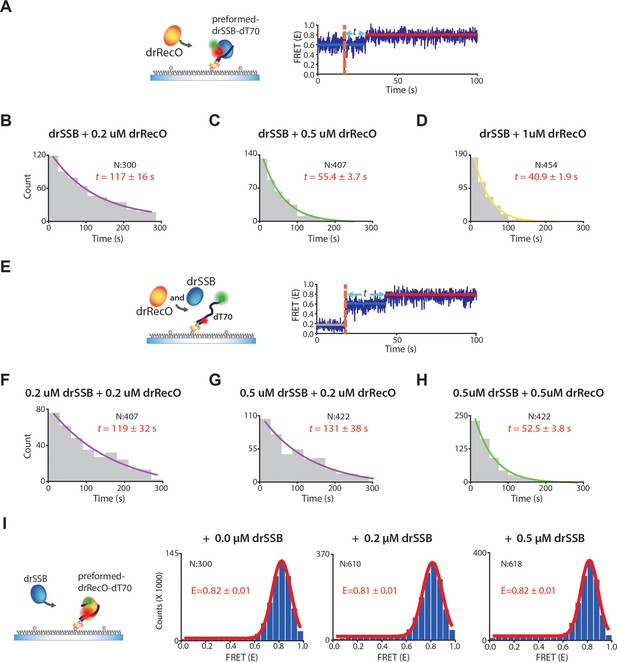

The exchange rates by drRecO in the preformed and competitive conditions.

(A) Schematic illustration of the preformed condition. (B–D) The concentration-dependent exchange rates by drRecO in the preformed condition. drSSB was washed out when drRecO was injected. We added 0.2 μM, 0.5 μM, and 1.0 μM drRecO, respectively. (E) Schematic illustration of the competitive condition. We added drRecO and drSSB simultaneously. (F–H) The concentration-dependent rates of drRecO exchange in the competitive condition. We added (F) 0.2 μM drSSB and 0.2 μM drRecO, (G) 0.5 μM drSSB and 0.2 μM drRecO SSB, and (H) 0.5 μM drSSB and 0.5 μM drRecO, respectively. The exchange rate is primarily affected by the concentration of drRecO, whereas the concentration of drSSB does not notably change the rate. (I) Schematic illustration and the FRET histogram at various concentrations of drSSB to confirm whether drSSB displaces drRecO from the preformed drRecO–dT70 complex in real-time TIRF measurement. FRET values of drRecO–dT70 were not affected by drSSB. Thus, drSSB does not displace drRecO from the preformed drRecO–dT70.

Next, we investigated whether drSSB removes resident drRecO from dT70 (Figure 3I). We incubated 500 nM drRecO with surface-tethered dT70s for 10 min, allowing drRecO to bind fully to dT70. The FRET value once again increased to ~0.8 upon the binding of drRecO to dT70. We then injected drSSB into the drRecO–dT70 complex (free drRecO was washed out during drSSB injection). We observed that the FRET value was maintained in the presence of 0.5 μM drSSB (Figure 3I). This result indicates that drSSB cannot remove drRecO from the drRecO–dT70 complex, whereas drRecO removes drSSB from ssDNA. It is possible that drSSB may not displace the resident drRecO from the preformed drRecO–ssDNA complex because drSSB requires a high number of free nucleotides for ssDNA binding compared to drRecO (Figure 3—figure supplement 1). drRecO completely dissociates drSSB from ssDNA.

Then, we investigated the details of the function of drRecO in drSSB replacement from ssDNA. On the basis of the suggested mechanisms of SSB removal by RecO in other bacteria, three models are possible (Figure 4A). The most intuitive model is that RecO replaces and fully dissociates SSB from ssDNA (Model 1). However, in Thermus thermophilus (tt), which is phylogenetically related to DR, ttRecO displaces ttSSB by strongly binding to the DNA, but the unbound ttSSB remains tethered (Model 2) (Inoue et al., 2008; Inoue et al., 2011). Model 2 could include an intermediate state prior to the full removal of SSB from ssDNA. In E. coli, ecoRecO forms a complex with ecoRecR and ssDNA-bound ecoSSB, which is expected to alter the conformation of ecoSSB-bound ssDNA without dissociation (Model 3) (Umezu and Kolodner, 1994). Similar to the process in E. coli, RecO found in Mycobacterium smegmatis (msRecO) does not fully dissociate msSSB from ssDNA. However, msRecO does not bind directly to the C-terminus of msSSB, where ecoRecO binding is well known (Ryzhikov et al., 2014). As with Model 2, it remains possible that Model 3 is an intermediate state that occurs prior to Model 2 and eventually Model 1, in which SSB is fully dissociated from ssDNA.

Figure 4 with 2 supplements see all
Download asset Open asset

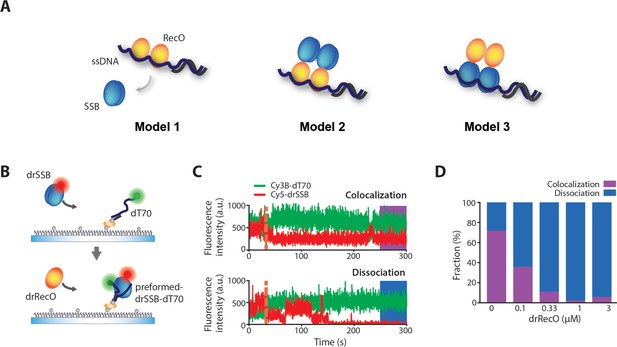

Colocalization of drSSB and ssDNA after drSSB displacement by drRecO.

(A) Three models of SSB displacement from ssDNA by RecO. In Model 1, SSB is completely dissociated from ssDNA by RecO. In Model 2, RecO displaces SSB, but SSB remains on the complex by binding to RecO. In Model 3, RecO does not dissociate SSB from ssDNA but alters the motion of SSB. (B) A schematic representation of the drRecO-dependent colocalization measurement of Cy5–drSSB and Cy3B–dT70 using two-color TIRF microscopy. Cy5–drSSB was preincubated with surface-tethered Cy3b–dT70 to form drSSB–dT70 complex. Then, drRecO was flowed through the reaction chamber. During the injection of drRecO, unbound drSSB was washed out. (C) Representative time trajectories of the colocalization of drSSB and dT70 (top panel) and the dissociation of drSSB from dT70 by drRecO (bottom panel). The orange dashed line indicates the time of drRecO injection. The ratio of colocalization was obtained from the trajectories at 4.5 min after the addition of drRecO. (D) Colocalization fractions of drSSB and dT70 at various concentrations of drRecO. Higher concentrations of drRecO induced more dissociation between drSSB and dT70, implying that drRecO induces the dissociation of drSSB from ssDNA, as shown in Model 1.

Figure 4—source data 1

Data summary table for the results shown in Figure 4D.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig4-data1-v2.docx

In other bacteria, it seems to be common that SSB remains in the RecO–ssDNA complex as an intermediate or final state. Thus, we first investigated whether drSSB completely dissociates from ssDNA or whether it remains tethered on ssDNA when replaced by drRecO. We measured the colocalization between fluorescently labeled drSSB (Cy5–drSSB) and ssDNA (Cy3B–dT70) after adding drRecO using a dual-color TIRF microscope (Figure 4B and Figure 4—figure supplement 1). A single point mutation was introduced into drSSB to allow fluorescent labeling (G120C). We measured the fraction of colocalization between Cy5–drSSB and Cy3B–dT70 under various concentrations of drRecO (Figure 4C and D). Without drRecO, 72% of Cy5–drSSB and Cy3B–dT70 were colocalized for 4.5 min. Because drSSBs were not dissociated from ssDNA during the observation time (Figure 1—figure supplement 2), most of the 28% non-colocalized population came from the photobleaching of acceptor dyes (Figure 4—figure supplement 2). When we applied various concentrations of drRecO, the colocalized fraction of drSSB–ssDNA decreased significantly after 4.5 min of reaction time (Figure 4D). When more than 1 μM drRecO was applied, a minor fraction of colocalization between drSSB–ssDNA was observed. These results imply that drSSB was completely dissociated from ssDNA by drRecO (Model 1). This is a unique feature of DR compared with other bacteria, in which SSB remains in the RecO–ssDNA complex.

Molecular mechanism of drSSB displacement from ssDNA by drRecO without consuming ATP: observation of an intermediate state in the process of drSSB displacement

Other proteins that displace SSB from ssDNA, such as translocase and helicase, use ATP to overcome the strong binding affinity between SSB and ssDNA (Lee et al., 2013; Lohman et al., 2008; Park et al., 2010). However, we found that drRecO can remove drSSB from ssDNA without consuming ATP, even though the binding (dissociation constant) of drRecO to ssDNA is more than two orders of magnitude weaker than that of drSSB. Thus, we further investigated the detailed mechanism by which drRecO displaces drSSB without using ATP.

When we applied drRecO to the drSSB–dT70 complex (Figure 2D), most of the molecules showed an increase in the E value from ~0.6 to ~0.8 (Figure 5B). Interestingly, some dT70 molecules occasionally presented an intermediate state with E ~ 0.2 before the transition to E ~ 0.8 (Figure 5C). The population of the time traces showing the intermediate state was smaller than 2%. Because drSSB typically maintains stable binding to dT70, the intermediate state could be the trimer of drRecO–dT70–drSSB that is formed before the dissociation of drSSB from dT70 (Figure 5D).

Figure 5
Download asset Open asset

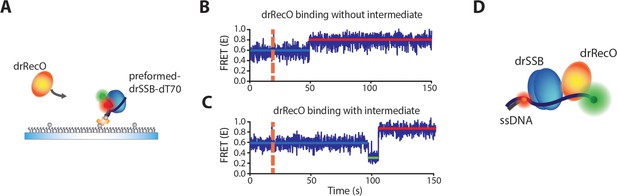

Observation of the intermediate state during drSSB displacement from ssDNA by drRecO.

(A) Schematic illustration of the binding of drRecO to the preassembled drSSB–dT70 complex. The same measurement is presented in Figure 2D. (B, C) FRET time traces of the binding of drRecO to the preassembled drSSB–dT70 complex. The orange dashed lines indicate the time at which 1 µM drRecO was applied. Most time traces exhibited no intermediate state, as shown in panel (B). Approximately 2% of the time traces presented an intermediate state with E = ~0.2, as shown in panel (C). (D) A possible model for the intermediate state of a trimer (drRecO–ssDNA–drSSB) formed before drSSB displacement from the complex. The low E value (~0.2) indicates that ssDNA has a relatively stretched form.

Real-time observation of drRecO binding to various lengths of ssDNA

Then, we further investigated the nature of the intermediate state, potentially a drRecO–ssDNA–drSSB trimer, to understand the detailed mechanism of drSSB displacement at the molecular level. If the intermediate state is the heterotrimer, as we suggested, the stability of the intermediate state would be affected by the length of ssDNA. For example, if the ssDNA is too short, there would be no room for the simultaneous stable binding of drRecO and drSSB, which would affect the dynamics of drSSB replacement by drRecO.

Prior to investigating drSSB displacement by drRecO on various lengths of ssDNA, we examined the binding modes of drRecO on ssDNA (Figure 6). When we applied 20-nt and 30-nt ssDNAs, a FRET change was observed in response to drRecO binding (Figure 3—figure supplement 1). However, the binding was not stable. When the ssDNA length was longer than 40 nt, however, most of the ssDNAs were in a high FRET state, reflecting the formation of stable complexes with drRecO (Figure 3—figure supplement 1). These results suggest that at least 40 nt is required for stable binding between ssDNA and drRecO.

Figure 6 with 2 supplements see all
Download asset Open asset

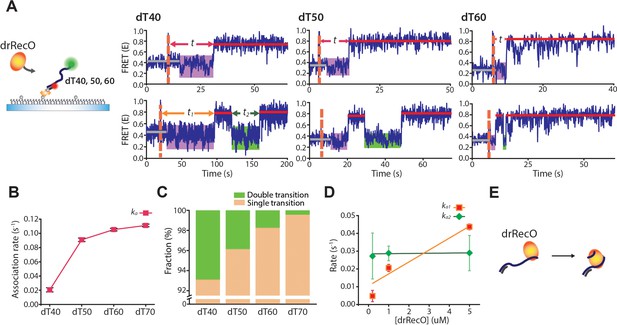

Real-time observation of drRecO binding to various lengths of ssDNA.

(A) Schematic illustration and representative FRET time trajectories for drRecO binding to dT40 (left), dT50 (middle), and dT60 (right). The orange dashed lines denote the time of drRecO injection. Average FRET values for ssDNA-only species and the fully bound drRecO–ssDNA complexes are indicated with gray and red solid lines. The substantial FRET fluctuations are indicated by the purple boxes. The time required to reach the fully bound state is indicated by t in the upper panels. The lower panels present FRET time traces with the second low FRET state after forming the fully bound drRecO–ssDNA complex (the green boxes). The dwell time of the second low FRET state is marked as t2. (B) The association rates between drRecO and ssDNA (ka) depending on the length of ssDNA. ka was obtained from the distribution of t in panel (A) (Figure 6—figure supplement 2B). (C) The fraction of time traces having multiple FRET transitions depending on the length of ssDNA. (D) The rates of the first and second transition to high FRET depending on drRecO concentration for drRecO binding to dT40. The distributions of the dwell times t1 and t2 were obtained from the single-molecule dwell time analysis. The transition rate was calculated as the reciprocal of the average life-time from a single-exponential fit for the dwell-time distribution. (E) Model of drRecO binding to ssDNA. drRecO binds to ssDNA by the sequential two-step binding mode.

Figure 6—source data 1

Data summary table for the results shown in Figure 6B.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig6-data1-v2.docx
Figure 6—source data 2

Data summary table for the results shown in Figure 6C.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig6-data2-v2.docx
Figure 6—source data 3

Data summary table for the results shown in Figure 6D.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig6-data3-v2.docx

Thus, we used dT40, dT50, and dT60 along with dT70 to observe drRecO binding on ssDNA in real time (Figure 6). When dT70 was used, a single-step FRET change from E ~ 0.6 to E ~ 0.8 was observed for most of the time traces (Figure 2C). In line with the results of dT70, most of the dT40, dT50, and dT60 molecules also presented a single-step FRET transition to E ~ 0.8 by the binding of drRecO (Figure 6A, upper panels). Interestingly, a substantial fluctuation in the E value was observed for dT40, dT50, and dT60 before the transition to E ~ 0.8 (the purple boxes in the time traces of Figure 6A). This state of FRET fluctuation is distinctive compared with the FRET fluctuation of bare ssDNA (Figure 6—figure supplement 1). This FRET fluctuation occurred before the formation of the fully bound drRecO–ssDNA complex, represented by the high E values. After drRecO reached the fully bound state, the FRET efficiency was stably maintained over 5 min (Figure 6A, upper panels). The time (t in Figure 6A, the upper panels) required to reach the fully bound state became longer as the length of the ssDNA decreased (Figure 6B and Figure 6—figure supplement 2).

Leiros et al. (2005) reported that drRecO interacts with both ssDNA and dsDNA by forming an ion pair between its positively charged residues and the negatively charged backbone of DNA, and they identified two DNA-binding sites in drRecO. The DNA-binding sites are the N-terminal OB fold domain and the positive ridge of the C-terminal. They suggested that these regions were positioned on either end of drRecO and were equally well suited to interact with DNA (Figure 6—figure supplement 2C; Leiros et al., 2005). The two DNA-binding sites of drRecO may explain the FRET fluctuation (Figure 6A, upper panels) and the association rates (Figure 6B). As there are two DNA-binding sites in drRecO positioned on both ends of drRecO, it is possible for one of the two ends to bind with ssDNA first, before the other end binds to the ssDNA sequentially. The state with substantial fluctuation of the E values (the purple boxes in Figure 6A) occurs when one end of drRecO binds to ssDNA before forming the fully bound complex. In this two-step binding scheme, a shorter ssDNA should have difficulty completing the second binding. As a result, the binding rate of ssDNA becomes slower as the length of ssDNA decreases. This explanation is further supported by RecO mutants that have a mutation on one of the DNA-binding sites, which will be shown later.

Another interesting finding is that a minor fraction of ssDNAs showed multiple FRET transitions, that is after reaching the fully bound state (E ~ 0.8), the E value dropped to the fluctuation state and then increased to ~0.8 again (Figure 6A, bottom panels). These multiple FRET transitions were observed for ssDNAs of all lengths, except for dT70, and the population increased as the length of the ssDNA became shorter (Figure 6C). As dT40 showed multiple FRET transitions, we analyzed the rates of the first and second transitions to high FRET. We found that the first transition rate (obtained from the dwell time, t1) was dependent on the drRecO concentration (Figure 6D, the red squares), whereas the second transition rate (obtained from t2) was independent of the drRecO concentration (Figure 6D, the green diamonds). Thus, the second low-FRET state (marked by the green boxes in Figure 6A, the bottom panels) appears because drRecO loses ssDNA binding from one of its two DNA-binding sites. As the length of ssDNA decreases, the probability of losing ssDNA binding increases. Taken together, our results indicate that drRecO binds to ssDNA by a sequential two-step binding mode (Figure 6E).

drRecO mutants reveal the binding mode of drRecO to ssDNA using its two DNA-binding sites

We showed that drRecO sequentially binds to ssDNA using two binding sites (Figure 6): the first binding of drRecO induces a partial stretching of ssDNA and the second binding is required to wrap ssDNA to achieve a high E value. To confirm this proposition, we prepared two drRecO mutants in the N-terminal and C-terminal regions, K35E/R39E drRecO and R195E/R196E drRecO, which were designed to have a lower binding affinity to ssDNA. Previous studies reported that drRecO binds to ssDNA and dsDNA with ionic interactions, in which its polar and positively charged residues contact the negatively charged phosphate backbone of DNA (Leiros et al., 2005). The K35 and R39 sites are positioned on the OB fold region of its N-terminal domain; thus, they are essential for binding to DNA. In the same manner, the R195 and R196 sites are essential for ssDNA binding to the C-terminal domain of drRecO.

We first tested the binding ability of drRecO mutants to ssDNA dT70 using ALEX-FRET (Figure 7A). Compared with the wild-type (wt)-drRecO, the population of the high-FRET state (E = 0.77), the fully wrapped drRecO–dT70, was reduced considerably for both drRecO mutants (Figure 7A, the red lines). The reduction was more significant for R195E/R196E drRecO. These results show that both mutants have weaker ability to bind to ssDNA than does wt-drRecO. Interestingly, the drRecO mutants showed a low-FRET state (E = 0.04), whose E value was slightly smaller than that of bare ssDNA dT70 (E = 0.09) (Figure 7A, the dotted gray line for bare dT70 and the dotted green line for the low-FRET state of drRecO mutants). The appearance of this low-FRET state was more clearly observed when we used dT40, the shorter length of ssDNA (Figure 7B). The E value of bare dT40 was 0.32. When wt-drRecO bound to dT40, the E value increased to 0.72. However, when the drRecO mutants were studied, a new peak at E = 0.03 appeared as a major population, and no high-FRET state (E = 0.72) was observed. The observation that the E values of the drRecO mutant–ssDNA complex are smaller than those of bare ssDNAs indicates that ssDNA interacting with drRecO mutants has a stretched conformation compared with that of bare ssDNA. Because of the short length of dT40, the drRecO mutants failed to bind both sides of dT40. As a result, no high-FRET state was observed (Figure 7B, the orange dotted line). When dT40 was used, even wt-drRecO showed a minor population at E = 0.03 (Figure 7B). This state occurs when wt-drRecO binds to dT40 using only one DNA-binding site. This result implies that if the ssDNA is too short, drRecO binds the ssDNA using only one DNA-binding site. The binding of wt-drRecO to ssDNA via one binding site induces the stretched form of ssDNA.

Figure 7
Download asset Open asset

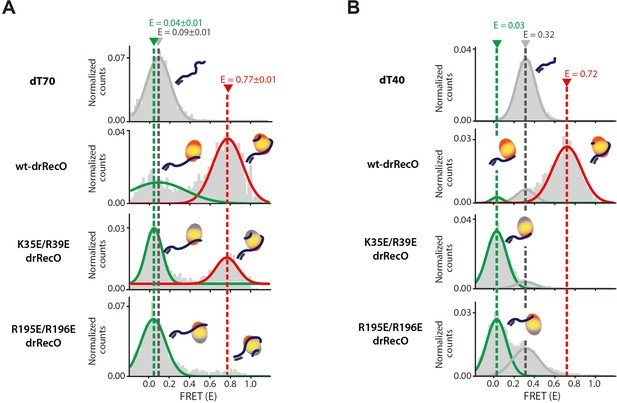

The binding modes of drRecO mutants to ssDNA.

(A) 1D FRET histograms for dT70 only, wt-drRecO–dT70, K35E/R39E drRecO (N-terminal mutation)–dT70, and R195E/R196E drRecO (C-terminal mutation)–dT70, obtained by ALEX-FRET. One of the ssDNA-binding sites was mutated in K35E/R39E drRecO and R195E/R196E drRecO. The gray, green, and red lines represent bare dT70 (E = 0.09), partially bound drRecO–dT70 (E = 0.04), and fully bound drRecO–dT70 (E = 0.77), respectively. (B) 1D FRET histograms for dT40 only, wt-drRecO–dT40, K35E/R39E drRecO–dT40, and R195E/R196E drRecO–dT40, obtained by ALEX-FRET. The gray, green, and red lines represent the bare dT40 (E = 0.32), the partially bound drRecO–dT40 (E = 0.03), and the fully bound drRecO–dT40 (E = 0.72), respectively. dT40 showed the partially bound state more clearly because its E value is significantly different from that of bare dT40.

All our results confirm that the first binding of drRecO induces partial stretching of ssDNA with a low E value and that the second binding is required to wrap ssDNA to obtain a high E value.

drSSB displacement from ssDNA by drRecO occurs more frequently via the low-FRET intermediate state for short ssDNAs

Since the binding of drRecO to ssDNA is heavily dependent on the length of the ssDNA (Figure 6), we investigated whether the length of ssDNA is also an important factor in the displacement of drSSB from ssDNA by drRecO. drSSB induced a high-FRET state (E ~ 0.7–0.8) with dT40, dT50, dT60 and dT70, and the association between drSSB and ssDNA occurred too fast to be resolved in our TIRF measurement (Figure 8A and Figure 8—figure supplement 1). When drSSB formed a complex with ssDNA, the complex was very stable during our observation time for all lengths of ssDNA. We note that the E values of drSSB–ssDNA are similar to those of drRecO–ssDNA for dT50 and dT60 (Figure 8—figure supplement 1A). Indeed, when we injected drRecO into the drSSB–ssDNA complex, the E values of the initial and final states for dT50 and dT60 were too close to be distinguished (Figure 8—figure supplement 1B). In the case of dT40, however, the E value for drSSB–ssDNA was ~0.8, whereas that of drRecO–ssDNA was ~0.74. Thus, we applied drRecO to the drSSB–dT40 complex (Figure 8B). We observed the transition to a low-FRET state more frequently and assigned the low-FRET state as an intermediate state of the drRecO–ssDNA–drSSB trimer (Figure 8B). Nearly 60% of dT40 time traces presented more than one FRET transition, which is a much larger percentage than the ~2% of the total dT70 population, as shown in Figure 5B. As multiple FRET transitions and a low-FRET state were not observed for drSSB binding to dT40, the low-FRET state corresponds to the intermediate state in the process of displacing drSSB from dT40. Interestingly, 24% of dT40 showed triple or quadruple FRET transitions to the low-FRET state by drRecO (Figure 8B). As the unbound drSSB was washed out while injecting drRecO, drSSB should be tethered on ssDNA in the intermediate state to obtain a triple or quadruple FRET transition to the high-FRET state of E ~ 0.8, that is the drSSB–dT40 complex. drRecO should also be tethered on dT40 to maintain the low-FRET state. Otherwise, as shown in Figure 8A, dT40 would move immediately to a high-FRET state when it interacts with drSSB. The presence of drRecO may hinder drSSB from fully wrapping dT40 (Figure 5D). Thus, the low-FRET intermediate state would be a trimer of drSSB–dT40–drRecO. At the intermediate state, if drRecO dissociates from the trimer, the E value reaches E ~ 0.8. On the other hand, if drRecO successfully removes drSSB, the E value reaches ~0.72 in the time traces presented in Figure 8B (the red lines). As the length of ssDNA decreases, drRecO has less chance to grab ssDNA with its second binding site. Thus, the low-FRET intermediate state occurs more frequently (Figure 8C).

Figure 8 with 1 supplement see all
Download asset Open asset

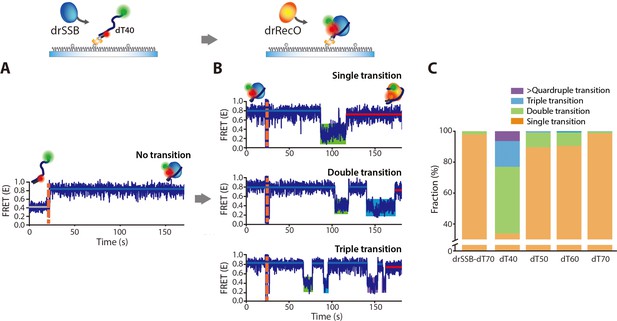

drRecO-mediated drSSB displacement depending on the length of ssDNAs.

(A, B) Representative time trajectories for (A) drSSB binding to dT40 and (B) drRecO-mediated drSSB displacement from dT40. The drSSB–dT40 complex was formed by adding 125 nM drSSB to surface-immobilized dT40. Immediate transition to high FRET was observed in panel (A). The FRET time trajectories of dT50 and dT60 are presented in Figure 8—figure supplement 1B. After the formation of the drSSB–dT40 complex, 1 µM drRecO was added as indicated by the orange dashed lines in panel (B). During the injection of drRecO, unbound drSSB was washed out. The transitions from the drSSB–dT40 complex (the blue lines) to the drRecO–dT40 (red lines) complex occur through the intermediate state of low E value (the green, cyan, and purple boxes). (C) The fraction of the time trajectories having transitions to the low-FRET state. As the length of ssDNA is shorter, multiple transitions to the low-FRET state appear more frequently.

Figure 8—source data 1

Data summary table for the results shown in Figure 8C.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig8-data1-v2.docx

drRecO displaces drSSB from ssDNA by using a sequential two-step binding mode without consuming ATP

Our results strongly suggest that the intermediate state of the drRecO–ssDNA–drSSB trimer is formed when only one of the binding sites of drRecO binds to ssDNA in the presence of drSSB (Figure 8). Then, we applied drRecO mutants to the drSSB–dT70 complex (Figure 9A–C). The populations of drSSB dissociated from dT70 by K35E/R39E drRecO and R195E/R196E drRecO were 22% and 7% of the total time traces, respectively, during our observation time of 5 min (Figure 9C, the sum of the red and green bars). These values are significantly lower than the 54% obtained for wt-drRecO (Figure 9C), which was consistent with the dT70-binding ability observed in Figure 7A. Considering that the probability of drSSB dissociation in the absence of drRecO is only 5% for 2 hr (Figure 1—figure supplement 2), both drRecO mutants still have the capability to displace drSSB from ssDNA during our observation period.

Figure 9 with 1 supplement see all
Download asset Open asset

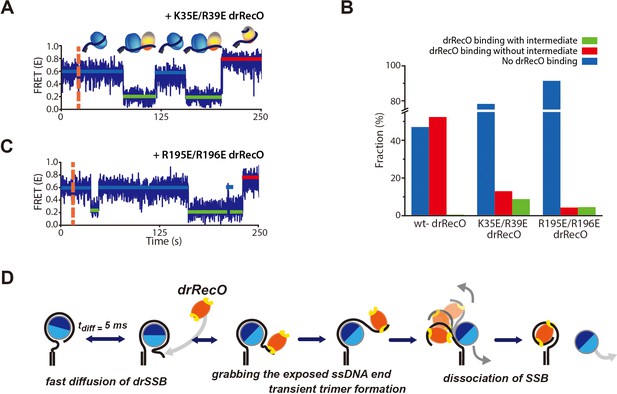

Real-time observation of drSSB displacement by drRecO mutants with lower ssDNA-binding affinity.

(A, B) Representative FRET time trajectories for the binding of K35E/R39E drRecO and R195E/R196E drRecO mutants to the preformed drSSB–dT70 complex. The injection time of the mutants is marked by the orange dashed lines. During the injection of drRecO, unbound drSSB was washed out. The blue, green, and red solid lines denote the average FRET values of drSSB–dT70, the heterotrimer of drSSB–dT70–drRecO, and drRecO–dT70, respectively. Because of the mutation on either end of drRecO, multiple transitions to the intermediate state were observed more frequently. (C) Fraction of drSSB displacement by drRecO and its mutants. For all measurements, 330 nM drRecO or drRecO mutants were applied to the preformed drSSB–dT70 complex. The blue, red, and green bars denote the time-trace populations with no drRecO binding (no drSSB displacement), drSSB displacement without the intermediate state, and drSSB displacement with the intermediate state, respectively. Mutation at either end of drRecO reduced the proportion of successful drSSB displacement from dT70 but increased the proportion of time traces showing multiple FRET transitions to the intermediate state. (D) A proposed model for the displacement of SSB from ssDNA by RecO in DR without consuming ATP.

Figure 9—source data 1

Data summary table for the results shown in Figure 9C.

https://cdn.elifesciences.org/articles/50945/elife-50945-fig9-data1-v2.docx

As the drSSB displacement ability diminished, the time traces showing the intermediate state of E ~ 0.2 (Figure 9A) significantly increased to 9% of the total time traces for K35E/R39E drRecO (Figure 9C, the green bar). Among the successful drSSB displacement events, 40% of the time traces represented the intermediate state (Figure 9C, the green bar/[the green bar + the red bar]). When R195E/R196E drRecO was applied to the drSSB–dT70 complex, 51% of the time traces of successful drSSB displacement events represented the intermediate state (Figure 9C, the green bar/[the green bar + the red bar])]. Again, double or triple FRET transitions to the low-FRET state by the drRecO mutants were clearly observed for the drSSB–dT70 complex (Figure 9A–B). As the unbound drSSB was washed out from the reaction channel during drRecO mutant injection, drSSB appeared to be tethered on dT70 in the intermediate state to recover to E ~ 0.6 of the drSSB–dT70 complex (Figure 9A–B). drRecO mutants should also be tethered on ssDNA to maintain the low-FRET state (E ~ 0.2). Otherwise, the E values of drSSB–dT70 would have moved to E ~ 0.6 immediately. When the drRecO mutants successfully removed drSSB, the E value reached ~0.8 in Figure 9A–B. These results clearly demonstrate that the occurrence of the low E intermediate state in the time trace is closely related to the binding capability of drRecO to ssDNA. The weak binding affinity of the drRecO mutants to ssDNA increased the fraction of the intermediate state and reduced the drSSB displacement ability. The intermediate state was generated by drRecO partially unwinding ssDNA from the drSSB–ssDNA complex, which results in a slightly stretched conformation of ssDNA before fully unwinding ssDNA from drSSB (Figure 9A–B).

Unlike E. coli SSB, no strong interactions exist between the drSSB C-terminus and drRecO in DR (Ryzhikov et al., 2011). However, Cheng et al. (2014), using a native PAGE assay, reported that the 121-arginine of drRecO can be a key residue for the drSSB–drRecO interaction. They observed the formation of the drRecO–drSSB complex at 5–25 µM concentrations without ssDNA. When we used R121A drRecO, no intermediate state was observed (Figure 9—figure supplement 1). It is possible that the heterotrimer becomes unstable due to the weakened interactions between R121A drRecO and drSSB, which renders the intermediate state difficult to observe at our time resolution.

In summary, our results demonstrate that drRecO binds to ssDNA sequentially using its two binding sites, which gives drRecO the ability to displace drSSB from ssDNA even though the binding affinity of drRecO for ssDNA is two orders of magnitude smaller than that of drSSB.

Discussion

Homologous recombination is an important process in the repair of damaged DNA and is found in most organisms from bacteria to humans. Although the overall mechanism of this process is identical among different species, each species has a distinct mechanism for the initial step in recombinational repair, that is the displacement of SSB from ssDNA to load the recombinase onto ssDNA (Inoue et al., 2008; Inoue et al., 2011). DR has the fastest and most accurate DSB repair in terms of repair capacity by HR and is expected to have an inherent superefficient mechanism to displace SSB in favor of the repair machinery.

In this work, we demonstrate that drSSB binds to exposed-ssDNA much faster than drRecO. drRecO subsequently removes drSSB from ssDNA without the help of ATPs, despite the 300-fold higher binding affinity between drSSB and ssDNA. The displacement is not affected by the presence of free drSSB in solution. Three factors may enable drRecO to displace drSSB from ssDNA without using ATPs. The first factor is the two-step binding of drRecO to ssDNA, which relies on the species-specific structure of drRecO. drRecO has two major DNA-binding sites that locate both ends of the protein (Leiros et al., 2005). One of them is well known as an OB fold located in the N-terminus, a highly conserved DNA binding site of RecO proteins. The other binding site, a positive ridge, is a species-specific DNA-binding domain around the Zn-finger domain in the C-terminus. Both positively charged regions cover large areas of the drRecO surface: the residues that are essential for drRecO binding with DNA run diagonally on the upper side of the protein (the C-terminal positive ridge), and the N-terminal positively charged residues are in the lower half of the protein (Figure 6—figure supplement 2C). It is possible that ssDNA wraps drRecO through the positively charged regions, forming a helical shape with this structure (Figure 6—figure supplement 2D). Using one of the two binding sites, drRecO is able to form a heterotrimer complex with drSSB–ssDNA as an intermediate, and then disengages drSSB from the heterotrimer using the second binding site to finally form a drRecO–ssDNA complex (Figure 9D).

The second factor is the fast diffusion of drSSB on ssDNA. Ha and coworkers reported that the diffusion of SSB on ssDNA (the back-and-forth movement of SSB on ssDNA) is a critical factor for loading other proteins related to DNA metabolism onto SSB-coated ssDNA, and that the diffusion of SSB can be hindered when the length of the ssDNA is shorter than the occluded site size of SSB in E. coli (Roy et al., 2009). In our previous work, we showed that drSSB diffuses approximately ten times faster than ecoSSB on ssDNA (Kim et al., 2015). This should provide more opportunities to expose ssDNA transiently, allowing drRecO to bind the end of the ssDNA (Figure 9D). In this work, 40-nt ssDNA, which had a shorter length than the occluded site size of drSSB, showed much more frequent FRET transition events than longer lengths of ssDNA (Figure 8) and more easily re-bound to drSSB in the intermediate state upon failing to make a successful interaction with drRecO. These results suggest that drRecO has difficulty displacing drSSB from a shorter ssDNA because the diffusion of drSSB plays an important role in the displacement process. Although drRecO binds one end of ssDNA, drSSB removes drRecO from ssDNA as it rolls back to the original position on ssDNA. However, drSSB may diffuse to the opposite end of ssDNA because of the physical presence of drRecO on ssDNA. As drSSB diffuses to the opposite side of ssDNA, drRecO uses its second binding site to bind the other end of the ssDNA, and drSSB completely dissociates from ssDNA. As a result, drRecO facilitates RecA loading onto drSSB-coated ssDNA even without using ATP. The fast RecA loading without consuming ATP may help DR to repair damaged DNA for survival in extreme DNA-damaging environments.

The third factor is the difference in the occluded site sizes of drSSB and drRecO for the initial binding to ssDNA. Ha and coworkers suggested that continuous diffusion over tens of nucleotides would be important for protecting small DNA gaps and allowing access to other proteins (Zhou et al., 2011). In competition, drRecO would have a better chance to bind to the small ssDNA gaps transiently exposed between diffusing drSSBs than unbound drSSB does, because drRecO can bind to a smaller region of free nucleotides than drSSB.

The process of SSB displacement by RecO is similar to the concentration-driven exchange mechanism (Duderstadt et al., 2016; Åberg et al., 2016; Lewis et al., 2017; Spenkelink et al., 2019) that arises from ssDNA-binding proteins that have multiple DNA-binding sites. In this model, partial dissociation of one side of the protein occurs without complete dissociation from ssDNA. Other ssDNA-binding proteins in solution then capture the nucleotides of ssDNA that were released by the resident protein, which accelerates the dissociation of the resident protein. In the case of drSSB–drRecO, the diffusion of drSSB may release nucleotides for the binding of drRecO, which allows the dissociation of drSSB. This process is comparable to the concentration-driven exchange mechanism. However, the reverse reaction, that is the dissociation of drRecO by a high concentration of drSSB, is different. Unlike the concentration-driven exchange, in which the concentration of each protein determines the direction of the exchange reaction, a high concentration drSSB is not able to dissociate drRecO from dT70 ssDNA (Figure 3I). It is possible that drSSB may fail to displace the resident drRecO from dT70 because drSSB requires a higher number of free nucleotides for ssDNA binding than does drRecO, and the movement of drRecO may not be active as drSSB on ssDNA (Figure 3—figure supplement 1). Two binding sites of drRecO may hinder its diffusion on ssDNA. Thus, the probability that drSSB binds enough ssDNA nucleotides would be much lower than that for drRecO. Although the drSSB–ssDNA complex is more stable than the drRecO–ssDNA complex thermodynamically, the formation of drRecO–ssDNA seems to be more favorable compared to that of drSSB–ssDNA kinetically (Figure 9D). As a result, concentration is not the only factor determining the direction of the exchange reaction in the drSSB–drRecO system, which is different from the concentration-driven exchange reaction.

In this work, we showed that drSSB binds to ssDNA much faster than drRecO does. Thus, when ssDNA is exposed, drSSBs will cover the ssDNA. drRecO subsequently removes drSSB from ssDNA, but the reverse reaction is not favored. The binding of drRecO to drSSB-coated ssDNA is relatively slow. Thus, a high concentration of drRecO may be required for the efficient removal of drSSB from ssDNA. Indeed, it has been reported that when DR is exposed to DNA damage, the expression level of drRecO significantly increases (Joe et al., 2011; Beaume et al., 2013). Thus, the reaction that we observed in vitro may occur in vivo.

Early genomic analysis reported that the genes for the RecFOR pathway are found more frequently than recBCD in bacterial genomes (Rocha et al., 2005). Among the genes of RecFOR, only 30% of bacterial genomes contain recF, whereas recO and recR were found in nearly 95% and 85% of bacterial genomes, respectively (Garcia-Gonzalez et al., 2013). Thus, it is possible that RecO together with RecR plays more important roles in the RecA-loading step for HR than does RecBCD through the RecOR pathway (Sakai and Cox, 2009). Our work shows how RecO removes SSB from ssDNA without the help of other recombination mediator proteins or ATP. Thus, bacteria that lack both recBCD and recF may use RecO to remove SSB from ssDNA, a process that might occur widely for DSB repair in bacteria.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Escherichia coli)BL21(DE3)InvitrogenCompetent cells
Genetic reagent (D. radiodurans)RecODOI:10.2210/pdb1U5K/pdb
Commercial assay kitPrimeSTAR DNA polymeraseTakara, JapanDNA polymerization for PCR
Software, algorithmMATLABMathworks Matlab Version R2018The source code is distributed by T.J Ha group (http://bio.physics.Illinois.edu/)
Sequence-based reagentDNA oligosDNA oligos were ordered from IDT

Preparation of proteins and oligonucleotides

Request a detailed protocol

The recO gene was cloned into the pET21a vector from pDRO5 (the kind gift of Dr Sergey Korolev) in the N-terminal His-tagged form (pNK-RecO). The plasmid was transformed into E. coli strain BL21(DE3) (Invitrogen), which was grown in LB broth in the presence of 50 μg/ml carbenicillin at 37°C to an optical density at 600 nm of 0.6. Cells were harvested by centrifugation and resuspended in lysis buffer containing 20 mM Tris-HCl (pH 7.4), 400 mM NaCl, 20 mM imidazole, 5 mM DTT and 2 mM AEBSF (4-[2-aminomethyl] benzenesulfonyl fluoride hydrochloride). After sonication on ice, cell debris and insoluble material were removed by centrifugation, and the protein was purified using a Ni-NTA column. The His-tagged protein was eluted with a buffer (15% glycerol [v/v], 20 mM Tris-HCl [pH 7.4], 100 mM NaCl, and 1 mM DTT) containing 500 mM imidazole and then dialyzed into storage buffer (15% glycerol [v/v], 20 mM Tris-HCl [pH 7.4], 100 mM NaCl, 1 mM DTT). The protein was divided into aliquots and stored at −80°C. The drSSB and drRecO mutants were expressed and purified using the same method described above.

K35E/R392, R195E/R196E drRecO mutants and drSSB (E120C) for fluorescent labeling were constructed by point mutations using PrimeSTAR DNA polymerase (TAKARA, Japan). Mutated plasmids were confirmed by sequence analysis (SOLGENT, Korea). drSSB (E120C) was labeled with maleimide-reactive Cy5 (GE healthcare, USA) according to the manufacturer's instructions and purified using a Sephadex-21 size exclusion column (GE Healthcare, USA).

DNA oligonucleotides were purchased from Integrated DNA Technologies (IDT), where 3AmMO and 5AmMC6 represent amine-modified thymine for fluorescent labeling, and 3Bio represents biotin modification for surface immobilization.

  1. /5AmMC6/TCG CTG CCG ACT CGA GAT CT/3Bio/

  2. AGA TCT CGA GTC GGC AGC GA (T)n/3AmMO/, where n = 20, 30, 40, 50, 60, and 70.

Both DNA oligonucleotides, (i) and (ii), were labeled with the NHS ester-reactive Cy3B and Cy5 (GE Healthcare, USA), respectively, according to the manufacturer's instructions. We carried out ethanol precipitation to remove unreacted free dyes and annealed (i) and (ii) by mixing 500 nM of each in 10 mM Tris-HCl (pH 8.0) and 250 mM NaCl, followed by slow cooling from 90°C to room temperature.

ALEX-FRET measurement

Request a detailed protocol

A schematic description of the ALEX microscope setup is presented in Figure 1—figure supplement 1. The ALEX setup that we used has been described extensively before (Kapanidis et al., 2004; Lee et al., 2005). To measure the FRET signal and the stoichiometry values between Cy3B and Cy5, we excited our samples with two lasers, a 532-nm solid-state green laser (Cobolt Samba, Cobolt AB) and a 633-nm He-Ne laser (25-LHP-925, Melles-Griot). The lasers were alternated using acoustic-optic modulators (23080–1, Neos Technologies) with a period of 100 μs, coupled by a dichroic mirror (z532bcm, Chroma). The lights were focused at 20 μm from the surface of a coverslip by a water-immersion objective (60×, 1.2 NA, Olympus) equipped in an inverted microscope (IX71, Olympus). Fluorescence emissions were collected through the objective, passed through a 100 μm pinhole and then separated by a beam-splitter (625DCLP, Chroma) and filtered by each signal, HQ580/60 m for Cy3b and HQ660LP for Cy5. The emissions were focused onto silicon avalanche photodiode detectors (APDs) (SPCM AQR-13, EG and G PerkinElmer) and measured for 10 min with a 0.6 ms bin time. All data were analyzed using home-built LABVIEW software (National Instruments).

To obtain the 2D E-S histogram, three different types of photons were analyzed from single-molecule bursts that were obtained by ALEX: a fluorescent emission of cy3B excited by the 532 -nm laser (IDD), a fluorescent emission of Cy5 excited by 532-nm laser (IDA), and a fluorescent emission of Cy5 excited by a 633-nm laser (IAA)). The E and S values were calculated by the following equations:

E=IDAIDD + IDA,S=IDD + IDAIDD + IDA+ IAA

S is the stoichiometric value, which was used as a sorting parameter. For example, S ~ 1 implies that no acceptor dye (donor-only species) is detected in a single molecule because IAA is 0. S ~ 0 implies that there is no donor dye (acceptor-only species) because IDD +IDA = 0. The bursts for which 0.25<S<0.75 contain both donor and acceptor dyes. Thus, ssDNAs labeled with both donor and acceptor dyes were selected from the 2D E-S graph using the selection criterion 0.25<S<0.75 (boxes in 2D E-S graphs in Figure 1B-E).

To ensure the detection of single-diffusing ssDNA, we diluted samples to 50–100 pM (Kim et al., 2012; Roy et al., 2008). In Figures 1C, E and F, 2 μM drSSB was incubated with 1 nM dT70 for 10 min to ensure that all dT70 molecules bind to drSSB, and then the reaction mixture was diluted by adding 10-fold buffer solution for ALEX-FRET measurement. The final concentrations of drSSB and ssDNA were 200 nM and 100 pM, respectively. To observe the drSSB displacement by drRecO at the single molecule level, the mixture of 2 μM drSSB and 1 nM dT70 was diluted with a buffer containing 200 nM (Figure 1G) or 100 nM drRecO (Figure 1H). The final concentrations of drSSB and dT70 were 200 nM and 100 pM, whereas that of drRecO was 200 nM or 100 nM, respectively. The buffer for the single-molecule imaging contained 20 mM Tris-HCl (pH 7.4), 400 mM NaCl, 5% glycerol (v/v), 1 mM DTT, 100 μg/mL BSA and 1 mM MEA.

Measurement of the apparent dissociation constants (Kd) of drSSB–ssDNA and drRecO–ssDNA by ALEX-FRET

Request a detailed protocol

The dissociation constants (Kd in Figure 1I) of drSSB–ssDNA and drRecO–ssDNA were determined using ALEX-FRET to compare the strength of the binding interactions between the drSSB–ssDNA complex and the drRecO–ssDNA complex (Kim et al., 2012). The subpopulations of the drSSB–ssDNA complex and ssDNA were obtained from the 2D E-S graph (Figure 1C). Thus, we applied various concentrations of drSSB to 50 pM 70-nt ssDNA (dT70) (Figure 1I, left panel). The subpopulation at E = 0.09 corresponds to ssDNA, while the subpopulation at E = 0.58 corresponds to the drSSB–ssDNA complex. The concentration-dependent binding fraction (θ), defined as θ = A1/[A1+A2] (where A1 and A2 are the areas of the drSSB–ssDNA complex and of ssDNA, respectively), was fitted with the Hill equation yielding the Kd values. We performed the same procedures using drRecO (Figure 1I, right panel).

TIRF (total internal reflection fluorescence) microscopy

Request a detailed protocol

We used a home-built prism-type TIRF for smFRET and colocalization assays. The experimental setup for TIRF microscopy was the same as described before (Roy et al., 2008). A 532-nm green laser (Cobolt Samba, Cobolt AB) and a 633-nm He-Ne laser (25-LHP-925, Melles-Griot) were used to excite fluorophores. Total internal reflection was obtained on the surface of the flow channel by adjusting the incident angle of the excitation lasers. Photons emitted from the fluorophores were collected by a water-immersion objective lens (N.A. = 1.2, 60x oil, Olympus) in an inverted microscope (IX71, Olympus) and divided by a dichroic mirror (FF650-Di01−25 × 36, Semrock) built in a dual viewer (DV2, Photometrics). The fluorescence signals of the donor and acceptor dyes were filtered by FF01-S13580/40 (Semrock) and FF01-685/40 (Semrock), respectively, and detected by an EMCCD camera (iXon DU-897, Andor Technology). The fluorescence signals were recorded with 100 ms time resolution and analyzed by software distributed by the T.J. Ha group (http://bio.physics.Illinois.edu/). The quartz slide and coverslip were coated with a mixture of PEG and ~2% biotinylated PEG (Nektar Therapeutics) (Rasnik et al., 2004), and a flow chamber with an inlet and outlet was used for solution exchange. DNA was immobilized on the glass surface using biotin–NeutrAvidin interaction. All experiments were performed at room temperature in buffer (20 mM Tris-HCl, 400 mM NaCl, 0.1 mg/ml bovine serum albumin, 1 mg/ml glucose oxidase, 0.04 mg/ml catalase, and 0.4% [w/v] β-D-glucose) and 2 mM Trolox. The FRET values (E) were calculated using the aforementioned equation. We selected smFRET traces on the basis of the E values, obtained from ALEX-FRET, that were minimally affected by dye bleaching owing to short excitation time. To exclude dye bleaching events on the binding fraction counts, we selected smFRET traces maintained over 3.5 min, which is enough to observe the RecO binding with a fairly slow association rate.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files (459GB video images) are available upon request.

References

    1. Cox MM
    (2007) Regulation of bacterial RecA protein function
    Critical Reviews in Biochemistry and Molecular Biology 42:41–63.
    https://doi.org/10.1080/10409230701260258
    1. Joe MH
    2. Jung SW
    3. Im SH
    4. Lim SY
    5. Song HP
    6. Kwon O
    7. Kim DH
    (2011)
    Genome-Wide response of Deinococcus radiodurans on cadmium toxicity
    Journal of Microbiology and Biotechnology 21:438–447.
    1. Umezu K
    2. Kolodner RD
    (1994)
    Protein interactions in Genetic-Recombination in Escherichia-Coli - Interactions involving reco and recr overcome the inhibition of reca by Single-Stranded DNA-Binding protein
    The Journal of Biological Chemistry 269:30005–30013.

Decision letter

  1. Jie Xiao
    Reviewing Editor; Johns Hopkins University, United States
  2. Cynthia Wolberger
    Senior Editor; Johns Hopkins University School of Medicine, United States
  3. Andrew Robinson
    Reviewer; University of Wollongong, Australia

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your work presents single-molecule FRET studies to probe the mechanism of SSB removal by RecO. It provides a two-step mechanism to bring new perspectives into RecO-mediated DNA repair and will be of interest to the broad audience of eLife.

Decision letter after peer review:

Thank you for submitting your article "Single-molecule observation of a mechanically-driven SSB displacement by RecO" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Cynthia Wolberger as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Andrew Robinson (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript by Hwang et al. used single-molecule FRET methods to study the mechanism of SSB removal by RecO. Because RecO loading on SSB-coated single stranded DNA is a key step in the repair of double strand break, the work is of potential interest to the broad audience of eLife. The authors found that RecO can efficiently displace stably bound SSB from ssDNA in 5 min without ATP, even when the binding of SSB to ssDNA is much tighter than RecO. Using cleverly designed RecO mutants and ssDNA substrates of different lengths, the authors showed that the exchange reaction like goes through a two-step mechanism, in which RecO first forms a heterotrimer intermediate with ssDNA and SSB using one of its two ssDNA binding sites, and then displaces SSB completely from ssDNA by wrapping around the ssDNA using its second binding site. In general, the work is clearly presented with impressive experimental design, execution and analysis, and will likely bring new mechanistic insight into RecO-mediated DNA repair.

Essential revisions:

1) The proposed mechanism of RecO-loading on SSB-coated ssDNA is contingent upon the presence of a critical heterotrimer intermediate ssDNA-SSB-RecO. The authors have provided convincing evidence showing that the low FRET state (intermediate state) became more frequently when shorter ssDNA or RecO mutant was used, and that this state was not from the transitory dissociation of SSB from ssDNA because SSB binding to ssDNA is very stable. Nevertheless, the reviewers would appreciate the authors to provide direct evidence demonstrating the presence/absence of the intermediate, such as a double-labeling experiment of both RecO and SSB, or adding RecO and SSB simultaneously to ssDNA in a competition experiment, which should have more of the intermediate state. Alternatively, the authors could address whether there is direction interaction between SSB and RecO on ssDNA, and whether such a direct interaction is important for the exchange reaction.

2) In order to determine the lifetime of SSB-ssDNA, the authors added excess unlabeled ssDNA so that once SSB dissociates it cannot bind to the FRET-labeled DNA and obtained a lifetime value close to an hour. However, just like RecO actively displacing SSB using multivalent binding, a new ssDNA could actively displace the resident ssDNA from the SSB molecule other than trapping spontaneously dissociated SSB passively. Therefore the true lifetime of SSB-ssDNA in the absence of excess ssDNA would be much longer. Determining the true dissociation constant of SSB and ssDNA is important for understanding the energetics of the proposed exchange mechanism. In fact, the authors can easily test this binding tethering ssDNA, adding SSB, rinsing free SSB away, and adding excess ssDNA. The high FRET species should return to the low FRET state rather quickly. If instead they stop after rinsing free SSB away, the high FRET species should remain for many hours or longer instead of just under an hour.

3) The authors need to formally test the possibility that SSB may also remove a resident RecO. What they see from such an experiment would be critical in coming up with a quantitative model. The current set of data do not clarify how RecO can easily remove SSB. One guess is that for initial loading of RecO requires much fewer numbers of free nucleotides than SSB so that the reaction in the other direction is not favored.

4) It appeared that all the experiments was conducted by adding excess amount of RecO to preformed ssDNA-SSB complex, but in several places it was not entirely clear. It is important to know whether the surface-based experiments have SSB present in solution as RecO (or its mutants) are introduced, or whether unbound SSB is washed out when RecO is injected. The authors' major conclusions and the interest of the field will be contingent upon sufficient details provided in the manuscript.

For example, the data in Figure 1 was collected with SSB present in solution at the same time as RecO. The solution FRET data displayed in Figure 1 suggest that RecO is displacing SSB from the ssDNA even when SSB is present in solution, although the only evidence of this is indirect – the transition to a 0.78 FRET state. In the surface measurements, RecO is clearly displacing labelled SSB from the ssDNA, but here there is no SSB in solution. The model that the authors proposed in Figure 8 provides a tangible explanation for replacement of SSB by RecO in the absence of SSB in solution, although it is important to note that this is essentially the same mechanism put forward by the van Oijen lab to explain concentration-driven exchange of proteins within the replisome. If RecO is able to chase SSB off the DNA while SSB remains in solution, in the absence of an external energy source, that would be truly remarkable given that SSB binds more tightly to ssDNA than RecO. It's hard to imagine how such a mechanism could work.

Additionally, does the condition of excess amount of RecO mimic what's happening in vivo? According to the in vitro measurements, RecO binds more slowly and weaker to ssDNA than SSB. Therefore, in order to displace SSB effectively, high concentration of RecO to compete off SSB is critical. In vivo the situation could be different and that SSB and RecO may compete for binding to ssDNA simultaneously. It would be helpful if the authors discuss such a scenario affect RecO's function in vivo.

5) The exchange mechanism is quite similar to a concentration-driven exchange mechanism described by the van Oijen lab (see Duderstadt et al., 2016; Åberg et al., 2016; Lewis et al., 2017; and see in particular Spenkelink et al., 2019, which concerns exchange reactions of the E. coli SSB protein). The van Oijen studies have focused on homo-exchanges; exchange of one SSB tetramer for another SSB tetramer, for example. The current study describes a hetero-exchange, in which one ssDNA-binding protein with multiple DNA-binding sites (SSB) is exchanged with another ssDNA-binding protein with multiple DNA-binding sites (RecO). The current work should discuss the similarity of the proposed mechanism with the ones mentioned above.

6) The authors need to interpret their results in the context of what actually takes place in cells v.s. what happens in vitro. First, the RecR protein is not present in the in vitro condition. In Deinococcus and other organisms, RecO operates as a complex with RecR. Second, the RecA protein is not present. Third, SSBs from other organisms bind ssDNA with a high degree of cooperativity. The short ssDNAs used in the study would presumably only accommodate a single SSB tetramer, thus cooperative SSB binding would not be possible. Fourth, although it appears that SSB is probably binding ssDNA in a fully wrapped mode (akin to the 65-mode of ecSSB) under these conditions, but this has not been determined. As their proposed mechanism relies on SSB binding in a fully wrapped mode, it is important to rule out the possibility that it is binding in a partially wrapped state (akin to the ecSSB 35-mode).

7) The authors attribute each of the models displayed in Figure 3 to behaviors associated with particular organisms. It is important to appreciate that each of the studies that the authors refer to had completely different experimental designs, each with its own limitations. According to Inouye et al. (to whom the authors refer in the context of Model 2), the state illustrated as Model 3 is actually an intermediate formed en route to the state pictured as Model 2. While they propose that the state shown as Model 2 exists, they do not claim that it is the end of the reaction. It seems likely that the states shown as Model 3 and Model 2 are simply intermediates towards the state shown in Model 1.

8) The observation that ATP is unnecessary is interesting. At the single molecule level, energy will be needed to drive the displacement of SSB from ssDNA, especially that the Kd of ssDNA with SSB is orders of magnitude higher than that with RecO. Can they authors discuss what energy source could be used to drive this process? Additionally, the word "mechanically-driven" in the title may not be appropriate. It appeared to refer to that there is no chemical energy such as ATP hydrolysis involved, but other chemical energy such as binding energies (most likely) are involved to drive the exchange reaction.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Single-molecule observation of ATP-independent SSB displacement by RecO in Deinococcus radiodurans" for further consideration by eLife. Your revised article has been evaluated by Cynthia Wolberger as the Senior Editor, and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below: (1) a more in-depth discussion of the physical basis for the irreversibility of the model in Figure 9, and (2) careful textual editing of the article. Please see specific comments of the reviewers below.

Reviewer #2:

This manuscript by Hwang et al. is a revised version of an earlier manuscript. The authors have done an excellent job in addressing concerns around experimental design and the description results that were raised in the first round of review. The authors now clearly demonstrate that drRecO can exchange for drSSB on ssDNA (at least for DNAs up to 70 nt), and that the exchange is non-reversible (at least on the timescale of the experiment). The authors have outlined factors that are likely to contribute to the mechanism of this process: rapid diffusion of drSSB, two-step binding of drRecO, smaller binding footprint of drRecO, etc. Exactly how these factors lead to the non-reversibility of the exchange reaction remains unclear to me. In Figure 9D, the model is outlined in a series of five steps. Steps 1 and 2 are depicted as reversible, while steps 3 – 5 are depicted as non-reversible. This depiction is consistent with the experimental data, however I do not understand what the physical basis for the non-reversibility is. I cannot understand it from a thermodynamics perspective. I could perhaps imagine a model driven by kinetics.

The current study provides a solid set of observations. Studies into the physical basis of the phenomenon will surely follow. I would like to see the work published as it stands (although I would recommend some careful editing throughout to correct grammar errors prior to publication).

Reviewer #3:

I have reviewed the authors' responses and revised manuscript carefully. They have performed a lot of new experiments that addressed all of the major concerns, and their analysis and conclusions are on a firm ground. I am satisfied with the revision and recommend publication.

https://doi.org/10.7554/eLife.50945.sa1

Author response

Essential revisions:

1) The proposed mechanism of RecO-loading on SSB-coated ssDNA is contingent upon the presence of a critical heterotrimer intermediate ssDNA-SSB-RecO. The authors have provided convincing evidence showing that the low FRET state (intermediate state) became more frequently when shorter ssDNA or RecO mutant was used, and that this state was not from the transitory dissociation of SSB from ssDNA because SSB binding to ssDNA is very stable. Nevertheless, the reviewers would appreciate the authors to provide direct evidence demonstrating the presence/absence of the intermediate, such as a double-labeling experiment of both RecO and SSB, or adding RecO and SSB simultaneously to ssDNA in a competition experiment, which should have more of the intermediate state. Alternatively, the authors could address whether there is direction interaction between SSB and RecO on ssDNA, and whether such a direct interaction is important for the exchange reaction.

We appreciate the valuable comments of the reviewers. We performed all three experiments, as suggested by the reviewers.

The direct method to observe the hetero-trimer is dual-labeling of drSSB and drRecO. Thus, we have considered dual-labeling of drSSB and drRecO to prove our hypothesis of the hetero-trimer. However, the replacement of drSSB by drRecO typically requires >10 nM drRecO to detect drSSB-displacement with a statistically meaningful number of events in our observation time window. Single-molecule detection of drRecO should be difficult at such a high concentration. Thus, we have proved that the intermediate state is the drRecO-ssDNA-drSSB trimer by showing the dynamics of drSSB replacement by drRecO using various lengths of ssDNAs and drRecO mutants. Nevertheless, we performed the direct-labeling experiment, as suggested by the reviewer. A single point mutation was introduced in drRecO (two mutants of A84C and A209C) and labeled with a fluorophore (Cy3 or Cy5). The drSSB mutant (G120C) that is shown in Figure 4 was used. As expected, we could not detect single molecule signal from dye-labeled drRecO in >10 nM concentrations due to the high background level. Thus, a dual-labeling scheme could not be employed in this study.

Next, to determine whether the intermediate state more frequently appears under competitive binding conditions of drRecO and drSSB, we simultaneously added and allowed drRecO and drSSB to competitively bind to ssDNA. Figure 3E presents the experimental scheme and FRET time trace. The dotted orange line in the time-trace represents the time point that drRecO and drSSB were injected together. After the addition of drSSB and drRecO to the surface-tethered dT70, the E value increased immediately from ~0.2 to ~0.6, which was followed by the second increment of the E value from ~0.6 to ~0.8. This indicates that drSSB immediately binds to dT70 and thus forms the same initial state of the pre-incubated drSSB-ssDNA complex. This result is consistent with the measurement that the association rate of drSSB is approximately 10,000 times larger than that of drRecO [Witte et al., 2005]. Thus, the effect of simultaneous addition of both drRecO and drSSB does not differ from that of using preformed drSSB-dT70. Indeed, the fraction that shows the intermediate state remained <2%, which is comparable to the preformed experiment. Overall, due to the significant differences in the association rates, the competition experiment results the same findings as using the pre-formed drSSB-ssDNA complex.

Next, we tested whether the unbound drSSB could be a competitor of drRecO for binding to drSSB-coated ssDNA (Figure 3F-H). For the purpose of comparison, we newly performed drSSB-displacement by drRecO using pre-formed drSSB-dT70 in Figure 3A-D. It is to be noted that drSSB was washed out in the pre-formed drSSB-dT70 experiment, as shown in Figure 3A-D. When 0.2 μM drRecO was added in the presence of 0 μM, 0.2 μM, and 0.5 μM drSSB in solution (Figure 3B, F, and G, respectively), the exchange rates were nearly invariant. However, the exchange rates increased as the concentration of drRecO increased from 0.2 μM to 0.5 μM in the presence of 0.5 μM drSSB (Figure 3G and H). The exchange rate was independent of the drSSB concentration in solution. These results indicate that unbound drSSB in solution is not a competitor of drRecO for drSSB-coated ssDNA binding. We further report the effects of unbound drSSB in solution in our response to Comment #3. We have added these results in Figure 3A-H of the revised manuscript and added text in the subsection “Real-time observation of drSSB displacement by drRecO using single-molecule FRET”.

Lastly, we investigated the effect of direct interactions between drRecO and drSSB. Unlike E. coli SSB, no strong interaction exists between drSSB C-terminus and drRecO in DR [Ryzhikov et al., 2011]. However, Cheng et al., using a native PAGE assay, reported that the 121-arginine of drRecO can be a key residue for the drSSB-drRecO interaction [Cheng et al., 2014]. They observed formation of the drRecO-drSSB complex in 5 – 25 µM concentrations without ssDNA. To investigate the role of direct interactions between drRecO-drSSB in the intermediate state, we constructed a R121A drRecO mutant (Figure 9—figure supplement 1A) and evaluated its binding properties to ssDNA (Figure 9—figure supplement 1). R121A drRecO showed weak ssDNA binding ability in the cumulative FRET histogram (Figure 9—figure supplement 1B), which is comparable to that of the C-/N-terminal mutants (Figure 7). This may be due to the position of the 121-arginine, which is located at the middle of the expected ssDNA wrapping structure (Figure 6—figure supplement 2) and blocks the full helical binding of ssDNA. A new peak around E = 0.6 was observed for R121A drRecO, which was not observed for the K35E/R39E and R195E/R196E drRecO mutants. This mid-FRET state may correspond to a half-ssDNA bound drRecO resulted by failed two-step binding. An important feature of R121A is the absence of the intermediate state during drSSB displacement, unlike with other mutants (Figure 9—figure supplement 1C). When R121A drRecO was added to the preformed drSSB-dT70 complex, R121A drRecO exhibited similar efficiency for drSSB displacement with R195E/R196E drRecO (Figure 9—figure supplement 1D), which is consistent with its ssDNA binding capability. We have shown that, when drSSB-displacement occurred by R195E/R196E drRecO, 51% of the time-traces exhibited the intermediate state (Figure 9—figure supplement 1D). However, when R121A drRecO was used, no intermediate state was observed for >200 time-traces. It is highly possible that the hetero-trimer becomes unstable due to the weakened interactions between R121A drRecO and drSSB, which renders the intermediate state difficult to observe given our time resolution. These results suggest that the weak direct interactions between drRecO and drSSB contribute to the formation of the intermediate state, which thus further supports our interpretation that the intermediate state is the hetero-trimer of drSSB-drRecO-ssDNA. However, these interactions must be weak to completely dissociate drSSB from the drRecO-ssDNA complex.

We added these results in Figure 9—figure supplement 1 and added text in the third paragraph of the subsection “drRecO displaces drSSB from ssDNA by using a sequential two-step binding mode without consuming ATP”.

2) In order to determine the lifetime of SSB-ssDNA, the authors added excess unlabeled ssDNA so that once SSB dissociates it cannot bind to the FRET-labeled DNA and obtained a lifetime value close to an hour. However, just like RecO actively displacing SSB using multivalent binding, a new ssDNA could actively displace the resident ssDNA from the SSB molecule other than trapping spontaneously dissociated SSB passively. Therefore the true lifetime of SSB-ssDNA in the absence of excess ssDNA would be much longer. Determining the true dissociation constant of SSB and ssDNA is important for understanding the energetics of the proposed exchange mechanism. In fact, the authors can easily test this binding tethering ssDNA, adding SSB, rinsing free SSB away, and adding excess ssDNA. The high FRET species should return to the low FRET state rather quickly. If instead they stop after rinsing free SSB away, the high FRET species should remain for many hours or longer instead of just under an hour.

We appreciate this comment and the excellent suggestion. We agree with the reviewer’s comments on the dissociation. According to the reviewer’s suggestion, we performed the surface-tethering experiment by employing a TIRF microscope to measure the dissociation rate of drSSB more accurately in the absence of the free dT70 (revised Figure 1—figure supplement 2). drSSB was incubated with the surface-tethered dT70 for 5 min and then the free drSSBs were washed out by injecting a buffer. We then measured the fraction of drSSB that was dissociated from dT70. To reduce the artifacts of photo-bleaching, we acquired the images for 40 sec at each time point and checked the non-bleaching of Cy5 by introducing an additional red laser (638 nm CW laser) for 10 sec. All data points in revised Figure 1—figure supplement 2 were acquired from >300 molecules. The fraction of drSSB that was dissociated from dT70 was only 5.2% for 2 hours. We sealed the channels and scavenged the dissolved oxygens to protect the fluorophore from damage induced by the oxygen due to long-term observation, but the bleaching and blinking of the fluorophores were drastically increased as the acquisition time proceeded over 2 hours. As the reviewer expected, we confirmed that drSSB binds more stably to ssDNA in the absence of free ssDNA compared to in the presence of free ssDNA. Thus, we modified the manuscript according to the result of revised Figure 1—figure supplement 2.

3) The authors need to formally test the possibility that SSB may also remove a resident RecO. What they see from such an experiment would be critical in coming up with a quantitative model. The current set of data do not clarify how RecO can easily remove SSB. One guess is that for initial loading of RecO requires much fewer numbers of free nucleotides than SSB so that the reaction in the other direction is not favored.

We appreciate this critical comment. Since SSB is the first protein that binds in a physiological environment to the exposed ssDNA during DNA metabolism, including the DNA repair process, we did not consider the reverse reaction, i.e., RecO-replacement by SSB, in this work. However, we fully agree with the reviewer’s opinion that further experimentation to confirm whether the reverse reaction occurs is required for quantitative modeling.

First, we investigated whether drSSB removes the resident drRecO from dT70 (Figure 3I). We incubated 500 nM drRecO with surface-tethered dT70s for 10 min, which allows drRecO to fully bind to dT70. The FRET value once again increased to ~0.8 by the binding of drRecO to dT70. We then injected drSSB to the drRecO-dT70 complex (free drRecO was washed out during drSSB injection). We observed that the FRET value was maintained in the presence of 0.5 μM drSSB (Figure 3I). This result indicates that drSSB cannot remove drRecO from the drRecO-dT70 complex.

Next, we performed additional experiments to understand why the reverse reaction was not favored. As the reviewer suggested, the number of free nucleotides may be an important factor. To check this possibility, we used ALEX-FRET to observe binding between the proteins and short ssDNAs and to measure how many nucleotides are required to load drSSB and drRecO onto ssDNA (Figure 3—figure supplement 1). Either 500 nM drSSB or 2 μM drRecO were incubated with ssDNAs (dT20, dT30 and dT40) for 30 min to construct fully bound complexes. We observed that drRecO changed the FRET values of all ssDNAs of dT20, dT30, and dT40, which indicates high and low FRET that correspond to fully bound and partially bound complexes. It is to be noted that drRecO does not bind to dT20, as shown Figure 5—figure supplement 1 of the original manuscript. In this figure, the incubation time was only 10 min, but when we increased the incubation time to 30 min, drRecO is found to partially bind to dT20. However, compared to drRecO, drSSB only changed the FRET value of dT40. Witte et al. reported that drSSB binds to ssDNA with 47-54 nt to form fully wrapped drSSB-ssDNA complex [Witte et al., 2005]. Thus, drSSB seemed to form a partially bound complex with dT40 and did not bind to dT20 and dT30. drRecO formed a nearly fully bound complex with dT30 and dT40 and a partially bound complex with dT20. Thus, drSSB may not displace the resident drRecO from the preformed drRecO-ssDNA complex because drSSB requires a high number of free nucleotides for ssDNA binding compared to drRecO.

By clarifying a reptation mechanism for SSB diffusion along ssDNA using optomechanical experiment, Ha and coworkers suggested that the continuous diffusion over tens of nucleotides would be important for protecting small DNA gaps and allowing access to other proteins [Zhou et al., 2011]. drRecO, compared to unbound drSSB, would be more efficient in binding to the transiently exposed small ssDNA gaps between diffusing drSSBs, as a smaller binding site size is required for drRecO in the active DNA repairing state of DR.

We included this result in Figure 3I and Figure 3—figure supplement 1 and discussed this result in the last paragraph of the subsection “Real-time observation of drSSB displacement by drRecO using single-molecule FRET”.

4) It appeared that all the experiments was conducted by adding excess amount of RecO to preformed ssDNA-SSB complex, but in several places it was not entirely clear. It is important to know whether the surface-based experiments have SSB present in solution as RecO (or its mutants) are introduced, or whether unbound SSB is washed out when RecO is injected. The authors' major conclusions and the interest of the field will be contingent upon sufficient details provided in the manuscript.

For example, the data in Figure 1 was collected with SSB present in solution at the same time as RecO. The solution FRET data displayed in Figure 1 suggest that RecO is displacing SSB from the ssDNA even when SSB is present in solution, although the only evidence of this is indirect – the transition to a 0.78 FRET state. In the surface measurements, RecO is clearly displacing labelled SSB from the ssDNA, but here there is no SSB in solution. The model that the authors proposed in Figure 8 provides a tangible explanation for replacement of SSB by RecO in the absence of SSB in solution, although it is important to note that this is essentially the same mechanism put forward by the van Oijen lab to explain concentration-driven exchange of proteins within the replisome. If RecO is able to chase SSB off the DNA while SSB remains in solution, in the absence of an external energy source, that would be truly remarkable given that SSB binds more tightly to ssDNA than RecO. It's hard to imagine how such a mechanism could work.

Additionally, does the condition of excess amount of RecO mimic what's happening in vivo? According to the in vitro measurements, RecO binds more slowly and weaker to ssDNA than SSB. Therefore, in order to displace SSB effectively, high concentration of RecO to compete off SSB is critical. In vivo the situation could be different and that SSB and RecO may compete for binding to ssDNA simultaneously. It would be helpful if the authors discuss such a scenario affect RecO's function in vivo.

We appreciate this important comment. As suggested by the reviewer’s comment, we provided more detailed information on the unbound drSSB of each experiment in the revised manuscript. In the surface-tethered experiments of the original manuscript, drSSB was washed out during drRecO injection. We added the following sentence: “During the injection of drRecO, unbound drSSB was washed out in the surface-tethered experiments.” “In the surface-tethered experiment, unbound drSSB was washed out during drRecO injection.” We also included the following sentence in the captions of Figure 2, Figure 4, Figure 8, and Figure 9, “During the injection of drRecO, unbound drSSB was washed out.”

Thanks to the reviewer’s comments, we newly showed in this revised manuscript that drRecO can displace drSSB in the presence of drSSB in solution. We performed drSSB-displacement by drRecO in the presence of 0 μM, 0.2 μM, and 0.5 μM drSSB in solution using surface-tethered measurements (Figure 3). The rate of drSSB-displacement by drRecO was nearly independent of drSSB, while the exchange rate increased as the concentration of drRecO increased (Figure 3). This result is further supported by the measurement of the reverse reaction, i.e., drRecO-displacement by drSSB in Figure 3I. After washing out drRecO in solution, we added 0.5 μM drSSB. Thus, drSSB could not displace drRecO from ssDNA. As the reviewer suggested in the comment #3, we investigated the effect of free nucleotides to understand why the reverse reaction was not favored (Figure 3—figure supplement 1). Here, we found that drRecO can bind to smaller nucleotides compared to drSSB. These results have been incorporated into the revised manuscript (subsection “Real-time observation of drSSB displacement by drRecO using single-molecule FRET”, last paragraph).

We appreciate the comment on the concentration-driven exchange. As for the concentration-driven exchange mechanism, this was discussed in our response to comment #5.

We also appreciate the comment on the in vivo. We showed that drSSB binds to ssDNA much faster than does drRecO. Thus, when ssDNA is exposed, drSSBs will cover ssDNA. drRecO subsequently removes drSSB from ssDNA, but the reverse reaction is not favored, as shown in Figure 3I. As the reviewer commented, the binding of drRecO to the drSSB-coated ssDNA is relatively slow. Thus, a high concentration of drRecO may be required for efficient removal of drSSB from ssDNA. Indeed, it has been reported that, when DR is exposed to DNA damage, the expression level of drRecO significantly increases [Joe et al., 2011; Beaume et al., 2013]. In these works, the expression levels of proteins that are related to DNA metabolism were quantified by detecting their transcriptosomes with qRT-PCR, as the dose of γ-radiation and chemical-induced DNA damage increased. The expression levels of drRecO increased up to 11.8-times and the increased level was higher than most of those of other proteins [Joe et al., 2011; Beaume et al., 2013]. Thus, the reaction that we observed in vitro is deemed to occur in vivo.

We compared our in vitro work and in vivo work in the “Discussion” section (fifth and sixth paragraphs).

5) The exchange mechanism is quite similar to a concentration-driven exchange mechanism described by the van Oijen lab (see Duderstadt et al., 2016l; Åberg et al., 2016; Lewis et al., 2017; and see in particular Spenkelink et al., 2019, which concerns exchange reactions of the E. coli SSB protein). The van Oijen studies have focused on homo-exchanges; exchange of one SSB tetramer for another SSB tetramer, for example. The current study describes a hetero-exchange, in which one ssDNA-binding protein with multiple DNA-binding sites (SSB) is exchanged with another ssDNA-binding protein with multiple DNA-binding sites (RecO). The current work should discuss the similarity of the proposed mechanism with the ones mentioned above.

We appreciate this important comment. As the reviewer commented, the concentration-driven exchange that was described by the van Oijen group arises from ssDNA-binding proteins that have multiple DNA-binding sites. In this model, a partial dissociation of one side of the protein occurs without complete dissociation from ssDNA. Other ssDNA-binding proteins in solution then capture the nucleotides of ssDNA that were released by the resident protein, which accelerates the dissociation of the resident protein.

The process of SSB displacement by RecO is similar to the concentration-driven exchange mechanism. In the case of the drSSB-drRecO system, the diffusion (moving on ssDNA without dissociation) of drSSB on ssDNA may release nucleotides for the binding of drRecO, which allows the dissociation of drSSB. This process is comparable to the concentration-driven exchange mechanism. However, the reverse reaction, i.e., the dissociation of drRecO by a high concentration of drSSB, is different. Unlike the concentration-driven exchange, in which the concentration of each protein determines the direction of the exchange reaction, a high concentration of drSSB was not able to dissociate drRecO from dT70 ssDNA. It is possible that drSSB could not displace the resident drRecO from dT70, because drSSB for the ssDNA binding requires a high number of free nucleotides compared to drRecO (Figure 3I and Figure 3—figure supplement 1). As drSSB diffuses on ssDNA (moving on ssDNA without dissociation), it has more chance to expose ssDNA for the binding of other proteins than drRecO does. As a result, the concentration is not the only determining factor for the direction of the exchange reaction in the drSSB-drRecO system, which is different from the concentration-driven exchange reaction. We clearly mentioned this in the “Discussion” section (fifth paragraph).

6) The authors need to interpret their results in the context of what actually takes place in cells v.s. what happens in vitro. First, the RecR protein is not present in the in vitro condition. In Deinococcus and other organisms, RecO operates as a complex with RecR. Second, the RecA protein is not present. Third, SSBs from other organisms bind ssDNA with a high degree of cooperativity. The short ssDNAs used in the study would presumably only accommodate a single SSB tetramer, thus cooperative SSB binding would not be possible. Fourth, although it appears that SSB is probably binding ssDNA in a fully wrapped mode (akin to the 65-mode of ecSSB) under these conditions, but this has not been determined. As their proposed mechanism relies on SSB binding in a fully wrapped mode, it is important to rule out the possibility that it is binding in a partially wrapped state (akin to the ecSSB 35-mode).

We appreciate this valuable comment. Indeed, RecO forms a complex with RecR in most bacterial species. However, each species has distinct features for the stoichiometry and structure of the RecOR complex and their functions are also diverse [Radzimanowski et al., 2013]. In E. coli, both ecoRecO and ecoRecR are required for ecoRecA-loading to ecoSSB-coated ssDNA [Umezu et al., 1994; Bell et al., 2012]. However, in Thermos thermophiles, ttRecO operates to displace ttSSB from ssDNA, and ttRecR then assists ttRecA loading to ssDNA [Inoue et al., 2008]. In Bacillus subtilis, bsRecO is essential and sufficient to load bsRecA onto bsSSB-coated ssDNA without bsRecR [Manfredi et al., 2008; Carrasco et al., 2015]. In DR, Radzimanowski J. et al. proposed a model for the assembly of the drRecOR complex on DNA by analyzing the structure of the drRecOR complex and its DNA binding mode and suggested that drRecO is involved in the binding and removal of SSB from DNA [Radzimanowski et al., 2013]. recO and recR were found in nearly 95% and 85% of bacterial genomes, respectively (Garcia-Gonzalez et al., 2013), which means that RecO does not always function with RecR. Our work suggests that drRecO is sufficient to dissociate drSSB from ssDNA. In our preliminary work, we observed that the addition of the drRecO-drRecR complex did not improve the efficiency of the drSSB displacement from ssDNA, which requires further investigation to obtain a definitive conclusion. In this study, we clarified the mechanism that underlies drSSB dissociation by drRecO without the aid of ATP for the efficient exchange in DR. Although the overall mechanism of the DNA repair process by HR is identical in most organisms, the detailed molecular mechanisms of the initial HR process differ across species. Thus, our study will be a mechanistic model for the ATP-independent SSB-displacement process by mediator proteins with multiple-DNA binding sites.

However, we agree that the present study does not incorporate all components for RecA-loading, which will require much further research. We currently focused on the function of drRecO and its unique mechanism of drSSB-displacement without the use of ATPs. As stated in this manuscript, this is the first study to show the function of individual proteins among the RecFOR pathway. We are currently investigating the function of the drRecOR complex with the aim to reveal the entire RecFOR pathway in the near future.

drSSB acts as a homo-dimer with two OB-folds per monomer, whereas ecoSSB acts as a homo-tetramer with one OB-fold per monomer. Moreover, ecoSSB shows a large difference in the occluded site size between binding modes depending on the salt concentration (35 nt at <200 mM NaCl and 65 nt at >200 mM NaCl). As for drSSB, the occluded site size is similar as 47 nt at <200 mM NaCl and 54 nt at >200 mM NaCl. Distinct features exist between species regarding SSB binding to ssDNA. In addition, as we mentioned in the “Discussion” section, additional species-specific features of drSSB, a rapid diffusion rate and lower ssDNA binding energy are factors that enable drRecO to replace SSB efficiently.

It has been previously reported that drRecO binds to ssDNA that is composed of poly dT with 70 nt in a fully wrapped mode using the binding-isotherm and stopped-flow kinetics experiments [Witte et al., 2005; Kozlov et al., 2010]. We used the experimental conditions to ensure the fully wrapping mode. In addition, drSSB is cooperative under low salt conditions, but not under high salt conditions [Witte et al., 2005; Kozlov et al., 2010]. Generally, the binding energy of drSSB at high salt concentrations is higher than that at low salt concentrations [Kozlov et al., 2010; Zhou et al., 2011]. In the present study, all experiments were performed in high salt conditions. Unfortunately, the FRET states of drSSB and drRecO were not distinguishable in low salt conditions.

7) The authors attribute each of the models displayed in Figure 3 to behaviors associated with particular organisms. It is important to appreciate that each of the studies that the authors refer to had completely different experimental designs, each with its own limitations. According to Inouye et al. (to whom the authors refer in the context of Model 2), the state illustrated as Model 3 is actually an intermediate formed en route to the state pictured as Model 2. While they propose that the state shown as Model 2 exists, they do not claim that it is the end of the reaction. It seems likely that the states shown as Model 3 and Model 2 are simply intermediates towards the state shown in Model 1.

We agree with the reviewer’s opinion that Model 2 and Model 3 could be intermediate states prior to full dissociation of SSB from ssDNA. Thus, we clearly mentioned that Model 2 and Model 3 could be intermediate states in the revised manuscript. We also toned down our classification of the models, as shown below.

“The most intuitive model is that RecO replaces and fully dissociates SSB from ssDNA (Model 1). However, in Thermus thermophilus (tt), which is phylogenetically related to DR, ttRecO displaces ttSSB by strongly binding to the DNA, but the unbound ttSSB remains tethered (Model 2) (Inoue et al., 2008; Inoue et al., 2011). […] It seems to be common in other bacteria that SSB remains in the complex of RecO-ssDNA as an intermediate or final state.”

8) The observation that ATP is unnecessary is interesting. At the single molecule level, energy will be needed to drive the displacement of SSB from ssDNA, especially that the Kd of ssDNA with SSB is orders of magnitude higher than that with RecO. Can they authors discuss what energy source could be used to drive this process? Additionally, the word "mechanically-driven" in the title may not be appropriate. It appeared to refer to that there is no chemical energy such as ATP hydrolysis involved, but other chemical energy such as binding energies (most likely) are involved to drive the exchange reaction.

We appreciate this comment. The reviewers also mentioned the concentration-driven exchange mechanism in comments #4 and #5. As we answered these questions in the revised manuscript, the mechanism of drSSB-displacement by drRecO is quite comparable to the concentration-driven exchange mechanism. However, unlike the concentration-driven exchange mechanism, in which the reaction direction is mostly determined by the concentration of reaction components, the reverse reaction, i.e., drRecO-displacement by drSSB, is not determined by the concentrations of drSSB and drRecO. This may be due to the different ssDNA-binding properties between drSSB and drRecO. We clearly mentioned this in the “Discussion” section fifth paragraph), following the reviewers’ comments.

We initially chose “mechanically-driven” with the aim to distinguish our work from the enzymatic processes of typical SSB displacement, which use chemical energy (i.e.ATP hydrolysis). Besides, the exchange reaction could not be explained by a simple comparison between the binding energies that were inferred from the Kd values of drSSB and drRecO. We showed that drRecO displaces drSSB from ssDNA using a sequential two-step binding mode without the aid of ATP. However, we agree that “mechanically-driven” may also be inappropriate. Thus, we changed the title of this manuscript to as follows: “Single-molecule observation of ATP-independent SSB displacement by RecO in Deinococcus radiodurans”.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below: (1) a more in-depth discussion of the physical basis for the irreversibility of the model in Figure 9, and (2) careful textual editing of the article. Please see specific comments of the reviewers below.

Reviewer #2:

This manuscript by Hwang et al. is a revised version of an earlier manuscript. The authors have done an excellent job in addressing concerns around experimental design and the description results that were raised in the first round of review. The authors now clearly demonstrate that drRecO can exchange for drSSB on ssDNA (at least for DNAs up to 70 nt), and that the exchange is non-reversible (at least on the timescale of the experiment). The authors have outlined factors that are likely to contribute to the mechanism of this process: rapid diffusion of drSSB, two-step binding of drRecO, smaller binding footprint of drRecO, etc. Exactly how these factors lead to the non-reversibility of the exchange reaction remains unclear to me. In Figure 9D, the model is outlined in a series of five steps. Steps 1 and 2 are depicted as reversible, while steps 3 – 5 are depicted as non-reversible. This depiction is consistent with the experimental data, however I do not understand what the physical basis for the non-reversibility is. I cannot understand it from a thermodynamics perspective. I could perhaps imagine a model driven by kinetics.

The current study provides a solid set of observations. Studies into the physical basis of the phenomenon will surely follow. I would like to see the work published as it stands (although I would recommend some careful editing throughout to correct grammar errors prior to publication).

We appreciate the reviewer #2’s comments.

A) We agree that drRecO-ssDNA is less stable compared with drSSB-ssDNA thermodynamically. We mentioned three factors, which may enable drRecO compete with drSSB, in the manuscript. These factors are linked with kinetics, as the reviewer #2 commented. It is highly possible that the formation of drRecO-ssDNA is favored kinetically. Thus, we added following sentences in the “Discussion” section.

“It is possible that drSSB may fail to displace the resident drRecO from dT70 because drSSB requires a higher number of free nucleotides for ssDNA binding than drRecO and the movement of drRecO may not be active as drSSB on ssDNA (Figure 3—figure supplement 1). […] As a result, the concentration is not the only determining factor for the direction of the exchange reaction in the drSSB-drRecO system, which is different from the concentration-driven exchange reaction.”

B) In order to correct grammatical errors, we received a commercial English editing service from Nature Research Editing Service in this revised manuscript.

https://doi.org/10.7554/eLife.50945.sa2

Article and author information

Author details

  1. Jihee Hwang

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared

  2. Jae-Yeol Kim

    Laboratory of Chemical Physics, National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health (NIH), Bethesda, United States
    Contribution
    Conceptualization, Data curation, Investigation
    Competing interests
    No competing interests declared

  3. Cheolhee Kim

    Daegu National Science Museum, Daegu, Republic of Korea
    Contribution
    Conceptualization, Data curation, Investigation
    Competing interests
    No competing interests declared

  4. Soojin Park

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Data curation, Validation, Investigation
    Competing interests
    No competing interests declared

  5. Sungmin Joo

    Department of Physics, Pohang University of Science and Technology, Pohang, Republic of Korea
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared

  6. Seong Keun Kim

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration
    For correspondence
    seongkim@snu.ac.kr
    Competing interests
    No competing interests declared

  7. Nam Ki Lee

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Project administration
    For correspondence
    namkilee@snu.ac.kr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6597-555X

Funding

National Research Foundation of Korea (NRF-2017R1A2B3010309)

  • Nam Ki Lee

National Research Foundation of Korea (NRF-2018R1A2B2001422)

  • Seong Keun Kim

National Research Foundation of Korea (NRF-2019R1A2C2090896)

  • Nam Ki Lee

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Jiwoong Kwon, Keewon Sung, Soyoung Bak, and Hye Ran Ko for discussion. This work was supported by grants from the Midcareer Research Program (NRF-2018R1A2B2001422 to SKK, NRF-2017R1A2B3010309 and NRF-2019R1A2C2090896 to NKL) of the National Research Foundation of Korea.

Senior Editor

  1. Cynthia Wolberger, Johns Hopkins University School of Medicine, United States

Reviewing Editor

  1. Jie Xiao, Johns Hopkins University, United States

Reviewer

  1. Andrew Robinson, University of Wollongong, Australia

Version history

  1. Received: August 8, 2019
  2. Accepted: April 15, 2020
  3. Accepted Manuscript published: April 16, 2020 (version 1)
  4. Version of Record published: May 5, 2020 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,492
    Page views
  • 223
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Jihee Hwang
  2. Jae-Yeol Kim
  3. Cheolhee Kim
  4. Soojin Park
  5. Sungmin Joo
  6. Seong Keun Kim
  7. Nam Ki Lee
(2020)
Single-molecule observation of ATP-independent SSB displacement by RecO in Deinococcus radiodurans
eLife 9:e50945.
https://doi.org/10.7554/eLife.50945

Categories and tags

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics

    The neuronal calcium sensor NCS-1 regulates the phosphorylation state and activity of the Ga chaperone and GEF Ric-8A

    Daniel Muñoz-Reyes, Levi J McClelland ... Maria Jose Sanchez-Barrena
    Research Article

    The Neuronal Calcium Sensor 1, an EF-hand Ca2+ binding protein, and Ric-8A coregulate synapse number and probability of neurotransmitter release. Recently, the structures of Ric-8A bound to Ga have revealed how Ric-8A phosphorylation promotes Ga recognition and activity as a chaperone and guanine nucleotide exchange factor. However, the molecular mechanism by which NCS-1 regulates Ric-8A activity and its interaction with Ga subunits is not well understood. Given the interest in the NCS-1/Ric-8A complex as a therapeutic target in nervous system disorders, it is necessary to shed light on this molecular mechanism of action at atomic level. We have reconstituted NCS-1/Ric-8A complexes to conduct a multimodal approach and determine the sequence of Ca2+ signals and phosphorylation events that promote the interaction of Ric-8A with Ga. Our data show that the binding of NCS-1 and Ga to Ric-8A are mutually exclusive. Importantly, NCS-1 induces a structural rearrangement in Ric-8A that traps the protein in a conformational state that is inaccessible to Casein Kinase II-mediated phosphorylation, demonstrating one aspect of its negative regulation of Ric-8A-mediated G-protein signaling. Functional experiments indicate a loss of Ric-8A GEF activity towards Ga when complexed with NCS-1, and restoration of nucleotide exchange activity upon increasing Ca2+ concentration. Finally, the high-resolution crystallographic data reported here define the NCS-1/Ric-8A interface and will allow the development of therapeutic synapse function regulators with improved activity and selectivity.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics

    Baited reconstruction with 2D template matching for high-resolution structure determination in vitro and in vivo without template bias

    Bronwyn A Lucas, Benjamin A Himes, Nikolaus Grigorieff
    Research Advance

    Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.

    1. Plant Biology
    2. Structural Biology and Molecular Biophysics

    Vicia faba SV channel VfTPC1 is a hyperexcitable variant of plant vacuole Two Pore Channels

    Jinping Lu, Ingo Dreyer ... Rainer Hedrich
    Research Article

    To fire action-potential-like electrical signals, the vacuole membrane requires the two-pore channel TPC1, formerly called SV channel. The TPC1/SV channel functions as a depolarization-stimulated, non-selective cation channel that is inhibited by luminal Ca2+. In our search for species-dependent functional TPC1 channel variants with different luminal Ca2+ sensitivity, we found in total three acidic residues present in Ca2+ sensor sites 2 and 3 of the Ca2+-sensitive AtTPC1 channel from Arabidopsis thaliana that were neutral in its Vicia faba ortholog and also in those of many other Fabaceae. When expressed in the Arabidopsis AtTPC1-loss-of-function background, wild-type VfTPC1 was hypersensitive to vacuole depolarization and only weakly sensitive to blocking luminal Ca2+. When AtTPC1 was mutated for these VfTPC1-homologous polymorphic residues, two neutral substitutions in Ca2+ sensor site 3 alone were already sufficient for the Arabidopsis At-VfTPC1 channel mutant to gain VfTPC1-like voltage and luminal Ca2+ sensitivity that together rendered vacuoles hyperexcitable. Thus, natural TPC1 channel variants exist in plant families which may fine-tune vacuole excitability and adapt it to environmental settings of the particular ecological niche.
