Opioids depress breathing through two small brainstem sites

  1. Iris Bachmutsky
  2. Xin Paul Wei
  3. Eszter Kish
  4. Kevin Yackle  Is a corresponding author
  1. Department of Physiology, University of California-San Francisco, United States
  2. Neuroscience Graduate Program, University of California-San Francisco, United States
  3. Biomedical Sciences Graduate Program, University of California-San Francisco, United States
https://doi.org/10.7554/eLife.52694
Share this article
Cite this article
  1. Iris Bachmutsky
  2. Xin Paul Wei
  3. Eszter Kish
  4. Kevin Yackle
(2020)
Opioids depress breathing through two small brainstem sites
eLife 9:e52694.
https://doi.org/10.7554/eLife.52694
  2. Download BibTeX
  3. Download .RIS

Abstract

The rates of opioid overdose in the United States quadrupled between 1999 and 2017, reaching a staggering 130 deaths per day. This health epidemic demands innovative solutions that require uncovering the key brain areas and cell types mediating the cause of overdose— opioid-induced respiratory depression. Here, we identify two primary changes to murine breathing after administering opioids. These changes implicate the brainstem’s breathing circuitry which we confirm by locally eliminating the µ-Opioid receptor. We find the critical brain site is the preBötzinger Complex, where the breathing rhythm originates, and use genetic tools to reveal that just 70–140 neurons in this region are responsible for its sensitivity to opioids. Future characterization of these neurons may lead to novel therapies that prevent respiratory depression while sparing analgesia.

eLife digest

Opioids such as morphine or fentanyl are powerful substances used to relieve pain in medical settings. However, taken in too high a dose they can depress breathing – in other words, they can lead to slow, shallow breaths that cannot sustain life. In the United States, where the misuse of these drugs has been soaring in the past decades, about 130 people die each day from opioid overdose. Pinpointing the exact brain areas and neurons that opioids act on to depress breathing could help to create safer painkillers that do not have this deadly effect. While previous studies have proposed several brain regions that could be involved, they have not been able to confirm these results, or determine which area plays the biggest role.

Opioids influence the brain of animals (including humans) by attaching to proteins known as opioid receptors that are present at the surface of neurons. Here, Bachmutsky et al. genetically engineered mice that lack these receptors in specific brain regions that control breathing. The animals were then exposed to opioids, and their breathing was closely monitored.

The experiments showed that two small brain areas were responsible for breathing becoming depressed under the influence of opioids. The region with the most critical impact also happens to be where the breathing rhythms originate. There, a small group of 50 to 140 neurons were used by opioids to depress breathing. Crucially, these cells were not necessary for the drugs’ ability to relieve pain.

Overall, the work by Bachmutsky et al. highlights a group of neurons whose role in creating breathing rhythms deserves further attention. It also opens the possibility that targeting these neurons would help to create safer painkillers.

Introduction

Nearly 400,000 people in the United States died from a drug overdose involving a prescription or illicit opioid between 1999 and 2017 (Scholl et al., 2018). This epidemic is not unique to the United States and with the increasing distribution of highly potent synthetic opioids like fentanyl, it has become a global public health emergency (Rudd et al., 2016). Death from opioid overdose results from slow and shallow breathing, also known as opioid induced respiratory depression (OIRD, Pattinson, 2008). Like humans, breathing in mice is severely depressed by opioids and this response is eliminated when the µ-Opioid receptor (Oprm1) is globally deleted (Dahan et al., 2001). Oprm1 is broadly expressed, in both the central and peripheral nervous systems, including sites that could modulate breathing such as: the cerebral cortex, brainstem respiratory control centers, primary motor neurons, solitary nucleus, and oxygen sensing afferents (Mansour et al., 1994; Kirby and McQueen, 1986). Therefore, either one or multiple sites could be mediating the depressive effects of opioids on breathing.

Indeed, multiple brain regions have been shown to independently slow breathing after local injection of opioid agonists (Kirby and McQueen, 1986; Montandon et al., 2011; Mustapic et al., 2010; Prkic et al., 2012). Although informative, doubts remain for which of these sites are necessary and sufficient to induce OIRD from systemic opioids for three reasons. First, injection of opioid agonists or antagonists into candidate areas modulates µ-opioid receptors on the cell body (post-synaptic) as well as receptors on incoming terminals (pre-synaptic). Second, these studies necessitate anesthetized and reduced animal preparations, which alter brain activity in many of the candidate Oprm1 expressing sites. And third, there is not a standard and quantitative definition for how breathing changes in OIRD, and this makes comparing studies that use different breathing metrics measured in different experimental paradigms challenging.

To address these limitations, we conducted a detailed quantitative analysis of OIRD in awake animals and identify two key changes to the breath that drive the depressive effects of opioids. These two metrics thereafter define OIRD in our study and can serve as a rubric for others. We then locally eliminate the µ-opioid receptor in awake mice, disambiguating pre and post-synaptic effects, and use these metrics to define two key brain sites that mediate OIRD. Recently, a similar approach demonstrated some role for these sites in OIRD (Varga et al., 2020). Among these two sites in our study, we find that one is dominant and driven by just 140 critical neurons in vitro and, importantly, these neurons are not required for opioid-induced analgesia, suggesting a neutral target for developing safer opioids or rescue strategies for opioid overdose.

Results

Up to now, OIRD has generally been described as a slowing and shallowing of breath (Pattinson, 2008). We therefore felt it was important to more precisely, quantitatively describe the changes in breathing in hopes of elucidating potential mechanisms of respiratory depression. We began by asking whether specific parameters of the breath are affected by opioids. We monitored breathing in awake, behaving mice by whole body plethysmography after intraperitoneal injection (IP) of saline for control and then 20 mg/kg morphine at least 24 hr later (Figure 1A). Compared to saline, breathing after morphine administration (in normoxia) became much slower and inspiratory airflow decreased, each by 60% (Figure 1B,C). This culminated in ~50% decrease in overall minute ventilation (MV = approximated tidal volume x respiratory rate, Figure 1C), demonstrating that 20 mg/kg morphine is, indeed, a suitable dose to model OIRD.

Figure 1 with 2 supplements see all
Download asset Open asset

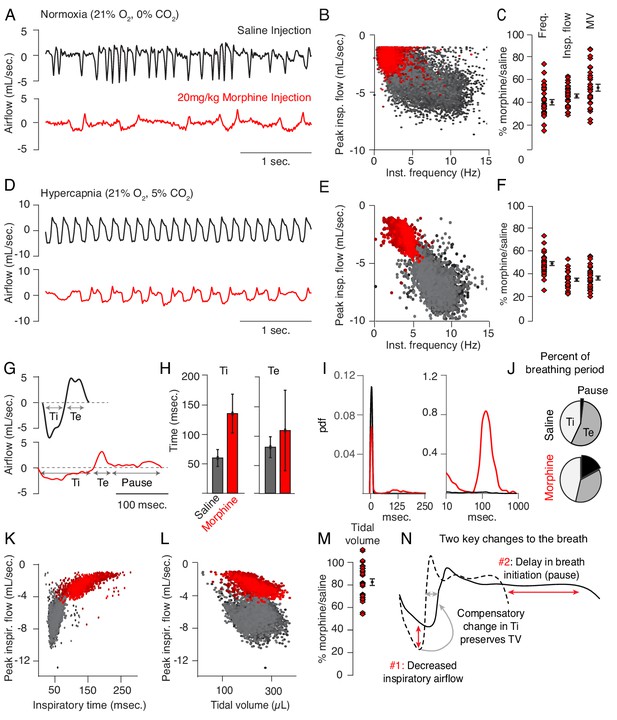

Changes to breathing during opioid-induced respiratory depression.

(A) Representative examples of the breathing airflow (mL/sec.) in normoxia (21% O2) measured by whole body plethysmography. 15 min before recordings, animals are intraperitoneally (IP) injected with either saline (black) or 20 mg/kg morphine (red). Morphine recordings are captured 1–7 days after saline. (B) Scatterplot of instantaneous breathing rate (Hz) versus airflow (mL/sec.) for each breath (dot) taken during the 40 min recordings. Morphine causes breathing to become slow and less forceful. (C) Ratio of average breathing parameters after IP injection of morphine-to-saline. Respiratory rate, peak inspiratory airflow, and minute ventilation (MV = approximated tidal volume*rate) for n = 29 animals in normoxia. Red diamond, single animal average. Black diamond, average of all animals. Error bar, standard error of mean (SEM). (D–E) Representative example of breathing airflow and instantaneous scatter plot (rate vs. airflow) from a 10 min whole body plethysmography recording of breathing in hypercapnia (21% O2, 5% CO2) to minimize changes in breathing due to differences in behavior after morphine injection. (F) Ratio of respiratory rate (p-value=1×10−19, Cohen’s d = 5.96), peak inspiratory airflow (p-value=1×10−22, Cohen’s d = 6.18), and minute ventilation (p-value=1×10−20, Cohen’s d = 5.31) after IP injection of morphine-to-saline for n = 29 animals in hypercapnia. (G) Representative single breath airflow trace for breaths in hypercapnia after saline (black) or morphine (red) IP injection. Hypercapnic saline breaths can be divided into two phases whose durations (msec.) can be measured: inspiration (Ti) and expiration (Te). Hypercapnic morphine breaths have a third phase after expiration where airflow is nearly 0 mL/sec., which we call a pause. (H) Bar graph of the average length ± standard deviation of Ti and Te for a single representative animal. (I) Probability density function plot of the pause length in breathing during hypercapnia after saline (black) or morphine (red) IP injection on a numerical (left) and logarithmic scale (right). Note, morphine selectively increases Ti and pause length. (J) Percent of the average breath period spent in inspiration, expiration, or pause for hypercapnic breaths after saline or morphine injection. (K) Scatterplot of inspiratory time (msec.) vs. peak inspiratory airflow (mL/sec.) for 10 min of hypercapnic breaths after saline (black) or morphine (red) IP injection. As inspiratory time increases, peak inspiratory flow decreases. (L) Scatterplot of tidal volume (µL.) vs. peak inspiratory airflow (mL/sec.) for 10 min of hypercapnic breaths after saline (black) or morphine (red) IP injection. Even though peak inspiratory airflow decreases after morphine, tidal volume is preserved due to prolonged Ti. (M) Ratio of tidal volume after IP injection of morphine-to-saline for n = 29 animals in hypercapnia (p-value=3×10−6, Cohen’s d = 1.13). (N) Schematic of the two key morphine induced changes to the breath: decreased inspiratory airflow and pause. Decreased inspiratory airflow prolongs Ti since negative feedback from the lung reflecting breath volume is slower. We interpret the pause as a delay in initiation of the subsequent inspiration.

Figure 1—source data 1

Average frequency, peak flow, minute ventilation, tidal volume and pause duration for 31 animals after intraperitoneal saline or morphine in normoxia and hypercapnia.

https://cdn.elifesciences.org/articles/52694/elife-52694-fig1-data1-v2.xlsx

Breath morphology in normoxia after IP saline versus morphine cannot be directly compared since activity of the mouse is different (exploring vs. sedated, Supplementary file 1), which significantly influences the types of breaths taken. This prevented a precise characterization of breath parameters that dictate OIRD. To overcome this, we measured breathing in hypercapnic air (21% O2, 5% CO2) which normalizes behavior and thus breathing (Figure 1D, Supplementary file 1). As in normoxia, morphine depressed respiratory rate (by 50%, Figure 1E,F), peak inspiratory airflow (by 60%, Figure 1E,F), and minute ventilation (by 60%, Figure 1F). Hypercapnic breaths after saline exhibited two phases, inspiration and expiration, each lasting about 50 msec. (Figure 1G,H). After morphine, only the inspiratory phase (measured as inspiratory time, Ti) became substantially longer (Figure 1G,H). Additionally, hypercapnic breaths showed a new, third phase after the initial expiration (measured as expiratory time, Te, Figure 1G,H) that was characterized by prolonged little to no airflow (<0.5 mL/sec.) preceding hypercapnia induced active expiration (Pisanski and Pagliardini, 2019). We define this new phase as a pause (low airflow + active expiration, Figure 1G, Figure 1—figure supplement 1). Such pauses lasted up to several hundred milliseconds (Figure 1I), accounting for about one-third of the average breath length (Figure 1J). Thus, the 50% decrease in respiratory rate after morphine administration is primarily due to prolonging of Ti and pause phases, and the increased prevalence of time spent in pause significantly contributes to the decrease in minute ventilation.

Typically the length of inspiratory time is determined by a stretch-evoked feedback signal from the lung which terminates inspiration (West, 2005). This reflex is represented by the correlation observed between Ti and peak inspiratory airflow (Figure 1K). Breaths in morphine still maintain this correlation despite having a longer Ti and decreased inspiratory airflow (Figure 1K). As a result, morphine breaths have a similar approximated tidal volume (TV) compared to saline control (Figure 1L,M). In other words, as opioids decrease inspiratory airflow, Ti displays a compensatory increase to preserve TV (Figures 1N and Hill et al., 2018). In summary, opioids cause only two primary changes to the breath, namely, 1) decreased inspiratory airflow and 2) addition of a pause phase that delays initiation of subsequent breaths (Figure 1N). These two parameters can both be controlled by the breathing central pattern generator, the preBötzinger Complex (preBötC), in the brainstem and suggest that this may be a key locus affected during OIRD (Smith et al., 1991; Feldman et al., 2013; Cui et al., 2016).

Indeed, the preBötC has been proposed to play a key role in OIRD since localized injection of opioids results in respiratory depression and localized naloxone reverses decreased breathing after administration of systemic opioids (Montandon et al., 2011; Montandon and Horner, 2014). However, such experiments fail to distinguish between the action of opioids on presynaptic terminals (Mudge et al., 1979) of distant neurons projecting into the preBötC versus direct action on preBötC neurons themselves (Figure 2A; Montandon et al., 2011; Dobbins and Feldman, 1994; Gray et al., 1999) To overcome this, we genetically eliminated the µ-Opioid receptor (Oprm1) from preBötC cells exclusively, sparing projecting inputs, by stereotaxic injection of adeno-associated virus constitutively expressing Cre (AAV-Cre-GFP) into the preBötC of Oprm1 flox/flox (Oprm1f/f) adult mice (Figure 2B). Injection site specificity was confirmed by the restricted expression of Cre-GFP (Figure 2—figure supplement 1), and subsequent Oprm1 deletion, was inferred. To establish a baseline, we first measured breathing after administration of saline and morphine in normoxia and hypercapnia in intact animals, as described above. At least one month after bilateral injection of virus into the preBötC, we then re-analyzed breathing (Figure 2C). With this protocol, each animal’s unique breathing and OIRD response serves as its own internal control, which is necessary due to the variability in OIRD severity between mice (Figure 1F). Deletion of Oprm1 in the preBötC did not affect breathing observed after saline injection (Figure 2D,E), suggesting that in this context, opioids do not exert an endogenous effect. In contrast, breathing was markedly less depressed by morphine administration (Figure 2D,E) compared to the intact control state: breaths were twice as fast (3 to 6 Hz, Figure 2F,H), the peak inspiratory flow was larger (Figure 2F,I), and pauses were nearly eliminated (Figure 2G,J). Notably, histological analysis confirmed that AAV-Cre-GFP expression was localized to the preBötC (Figure 2—figure supplement 1), and AAV-GFP or tdTomato injected control mice without removal of Oprm1 showed no change in OIRD compared to the pre-injected control state (Figure 2H–J), demonstrating that animals do not develop tolerance to opioids within our experimental timeline. Importantly, rescue of OIRD similarly occurred in normoxia (Figure 2—figure supplement 2) and was also specific to breathing since opioids induced analgesia in tail-flick assay after deletion of Oprm1 in the preBötC (Figure 2—figure supplement 3).

Figure 2 with 3 supplements see all
Download asset Open asset

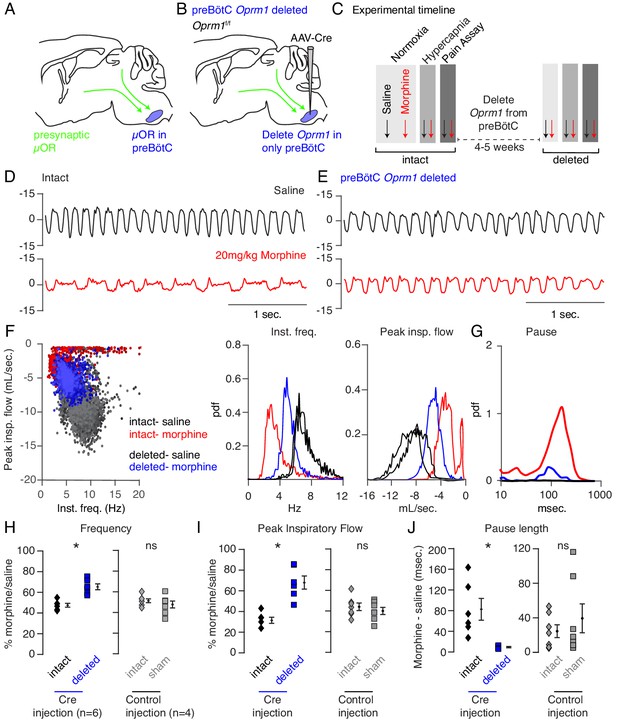

Necessity of preBötC ventrolateral brainstem in opioid-induced respiratory depression.

(A) Schematic of a sagittal section through the adult mouse brain. The µ-Opioid receptor (Oprm1) is expressed by a subset of preBötC neurons and is also expressed on presynaptic terminals of some neurons projecting to the preBötC. This confounds the effects observed after localized preBötC injection of opioid or naloxone to investigate its role in OIRD. (B) To overcome this, we eliminate Oprm1 only from the preBötC, and not the presynaptic inputs, to define the role of preBötC neurons in OIRD. (C) Experimental time-course. Breathing is measured 15 min after IP injection of saline or 20 mg/kg morphine in both normoxia and hypercapnia. Then Oprm1f/f animals are injected with a constitutive-Cre AAV into the preBötC bilaterally. After several weeks breathing is assayed again as above. In this way, each animal’s breathing before viral injection can serve as its own control breathing. Response to pain is also measured with a tail-flick assay before and after viral injection to ensure that analgesic response is unaffected. (D–E) Representative examples of the breathing airflow (mL/sec.) in hypercapnia after saline (black) or morphine (red) before (D) and after (E) Cre-virus injection. (F) Scatter plot of instantaneous respiratory frequency vs. airflow (ml/sec), as well as probability density function plots of both parameters for a representative animal during hypercapnia after saline (black) or morphine (red, blue) IP injection, before (red) and after (blue) Cre-injection. (G) Probability density function plot of pause length (msec.) for a representative animal during hypercapnia after IP morphine before (red) and after (blue) Cre-injection, log scale. Prevalence of long duration pauses is greatly reduced. (H–J) Ratio of average breathing parameters after IP injection of morphine-to-saline. Respiratory rate (H) p-value=0.003, Cohen’s d = 3.0), peak inspiratory airflow (I) p-value=0.0005, Cohen’s d = 3.01), and pause length (J) p-value=0.04, Cohen’s d = 2.0) for 6 Oprm1f/f animals with Cre-virus injected into the preBötC or 7 control animals with reporter-virus injected into the preBötC. All sham p-values were not significant (>0.09) and Cohen’s D < 0.6. For each experiment ‘intact’ values are before viral injection, with ‘deleted’ and ‘sham’ values representing post viral injection conditions in experimental and control animals, respectively. Diamond and square, single animal average. Mixed repeated two-way ANOVA comparing Cre vs. Sham injected was statistically significant for respiratory rate (F(1,11)=5.5, p-value=0.04) and pause (F(1,11)=6.2, p-value=0.03), but not for peak inspiratory airflow (F(1,11)=2.1, p-value=0.17) Black diamond, average of all animals. Error bar, standard error of mean (SEM). * indicates p-value<0.05. ns indicates p-value>0.05.

Figure 2—source data 1

Average frequency, peak flow and pause duration after intraperitoneal saline or morphine in hypercapnia at baseline or after Oprm1 deletion from the preBötC.

https://cdn.elifesciences.org/articles/52694/elife-52694-fig2-data1-v2.xlsx
Figure 2—source data 2

Average frequency, peak flow and pause duration after intraperitoneal saline or morphine in hypercapnia at baseline or after sham viral injection into the preBötC.

https://cdn.elifesciences.org/articles/52694/elife-52694-fig2-data2-v2.xlsx

Although key features of OIRD (inspiratory airflow and pause) were attenuated by preBötC AAV-Cre injection, rescue was incomplete. This could be explained by incomplete Oprm1 deletion within the preBötC, or participation of another brain site in OIRD. Injection of opioids into the parabrachial (PBN)/Kolliker-Fuse (KF) nucleus can also slow breathing, making it a candidate second site (Mustapic et al., 2010; Prkic et al., 2012). In fact, the PBN/KF has been proposed to be the key site mediating OIRD (Eguchi et al., 1987; Lalley et al., 2014). We therefore took a similar approach to test the role of the PBN/KF in OIRD (Figure 3A). AAV-Cre injection into the PBN/KF (Figure 3—figure supplement 1) produced a slight increase in the morphine-evoked respiratory rate (Figure 3—figure supplement 2, Figure 3D,E) and inspiratory airflow (Figure 3—figure supplement 2, Figure 3F,G), but had a more moderate effect than injection into the preBötC.

Figure 3 with 4 supplements see all
Download asset Open asset

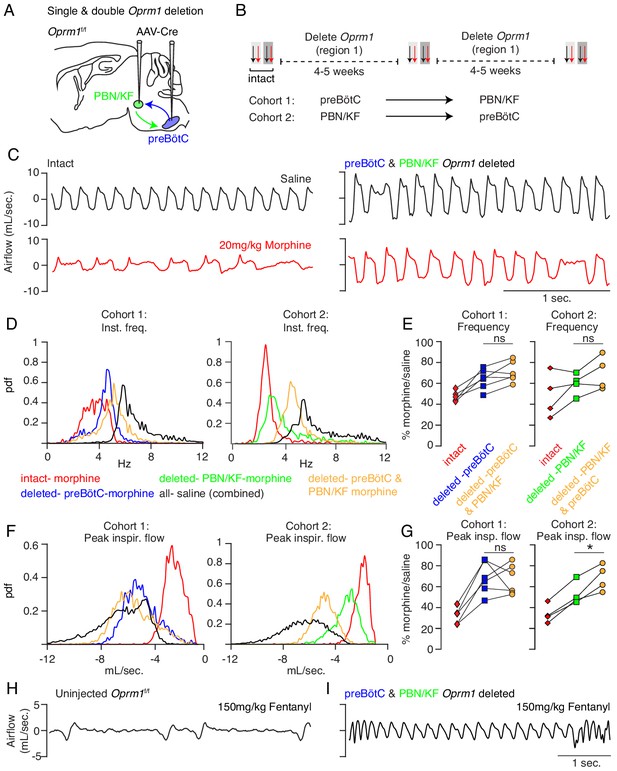

Necessity of Parabrachial/Kolliker Fuse nuclei and preBötC in opioid-induced respiratory depression.

(A) Schematic of a sagittal section through the adult mouse brain showing Cre-viral injection into the preBötC and PBN/KF to measure their individual and combined contribution to OIRD. (B) Like Figure 2, breathing was assayed before and after each time Cre-virus was injected into Oprm1f/f mice. In cohort 1, Cre-virus was first injected into the preBötC and then the PBN/KF and in cohort 2, Cre-virus was injected into the PBN/KF and then preBötC. (C) Representative examples of the breathing airflow (mL/sec.) in hypercapnia for an animal in cohort 1 after saline (black) or morphine (red) before either viral injection and after both preBötC and PBN/KF Cre-virus injections. (D–E) Probability density function plot of the instantaneous respiratory frequency for a representative animal from cohorts 1 and 2 (D) and ratio of average rate (E) after IP injection of morphine-to-saline for 6 animals in cohort 1 and 4 animals in cohort 2 before (pre) and after each Cre-virus injection into the preBötC (blue) or PBN/KF (green). Among the 2 cohorts, n = 6 PBN/KF injections were bilateral and n = 4 mostly unilateral. Cohort 1: preBötC vs. double p-value=0.07, Cohen’s d = 0.70. Cohort 2: PBN/KF vs. double p-value=0.1, Cohen’s d = 0.76. (F–G) Probability density function plot of the peak inspiratory airflow for a representative animal from cohorts 1 and 2 (F) and ratio of average peak inspiratory airflow (G) after IP injection of morphine-to-saline before (pre) and after each Cre-virus injection into the preBötC (blue) or PBN/KF (green). preBötC Cre-injection has a larger magnitude rescue and after preBötC and PBN/KF injections animals barely have any OIRD phenotype. Cohort 1: preBötC vs. double p-value=0.85, Cohen’s d = 0.10. Cohort 2: PBN/KF vs. double p-value=0.03, Cohen’s d = 1.32. (H–I) Representative plethysmography traces in normoxia from a control Oprm1f/f mouse (N) or a double Cre-injected Oprm1f/f mouse (preBötC and PBN/KF, (O) after IP injection of 150 mg/kg fentanyl. * indicates p-value<0.05. ns indicates p-value>0.05.

Figure 3—source data 1

Average frequency, peak flow and pause duration after intraperitoneal saline or morphine in hypercapnia at baseline or after Oprm1 deletion from the preBötC or PBN/KF and then the preBötC and PBN/KF.

https://cdn.elifesciences.org/articles/52694/elife-52694-fig3-data1-v2.xlsx

To determine if the preBötC and PBN/KF can completely account for OIRD (Figure 3A), we genetically deleted Oprm1 from the preBötC and then from the PBN/KF (Cohort 1) or vice versa (Cohort 2, Figure 3B). In either cohort, double deletion breathing after morphine administration looked nearly identical to that of saline control animals (Figure 3C), with breathing rate and inspiratory airflow depressed by only ~20% compared to saline (Figure 3D–G). Moreover, changes in breathing after viral injection at the second site appeared additive (Figure 3D–G) and equivalent to individual preBötC (Figure 2) or PBN/KF (Figure 3—figure supplement 2, Figure 3D–G) effects for each cognate cohort. The double deletion OIRD rescue was similar in normoxia (Figure 3—figure supplement 3). To our surprise, rescues also occurred in animals which happened to have mostly unilateral PBN/KF AAV-cre transduction (Figure 3—figure supplement 4), therefore these animals were still included in our double deletion analysis (Figure 3E,G). Breathing in double-deleted animals was even resilient to super-saturating doses of opioid that severely slow breathing in control animals (150 mg/kg fentanyl, Figure 3H,I). Taken together, our data are consistent with a model in which both the preBötC and PBN/KF contribute to opioid respiratory depression, with the former being predominant, and together account for OIRD.

Given the relative importance of the preBötC to OIRD, we sought to identify which Oprm1 expressing cells within this region depress breathing. Single cell transcriptome profiling of the ventral lateral brainstem of P0 mice (Figure 4A) showed that Oprm1 (mRNA) is expressed almost exclusively by neurons (Figure 4—figure supplement 1) and is remarkably restricted to just 8% of presumed preBötC neurons (Figure 4B). This alone is interesting, as it suggests that modulation of only a small subset of neurons with the preBötC is enough to significantly impact its ability to generate a rhythm. We also determined that within the preBötC, Oprm1 (mRNA) was expressed by glycinergic (Slc6a5 expressing), gabaergic (Gad2/Slc32a1 expressing), and glutamatergic (Slc17a6 expressing) neural types alike (Figure 4C) and therefore Oprm1 (mRNA) expression is not exclusive to any known rhythmogenic preBötC subpopulation.

Figure 4 with 3 supplements see all
Download asset Open asset

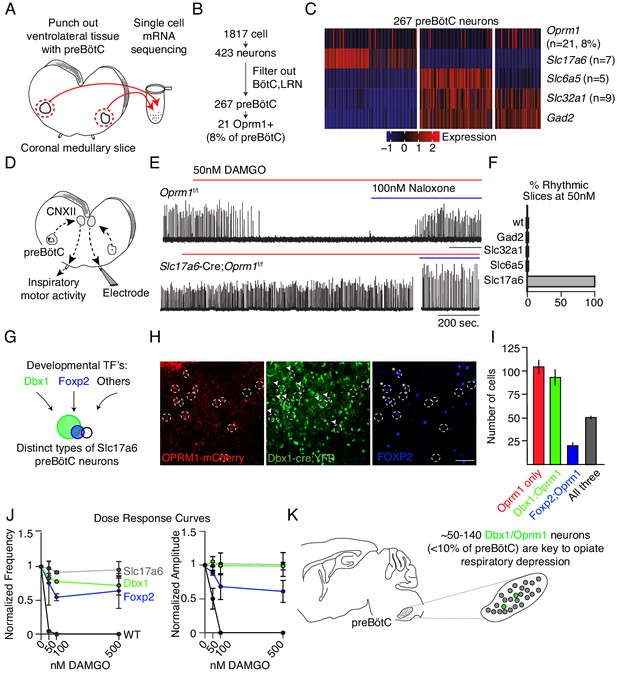

Deletion of µ-Opioid receptor from neural subtypes to define their contribution to opioid depression of preBötC burst rhythm and amplitude.

(A) Schematic of single-cell mRNA sequencing paradigm. Postnatal day 0 (P0) medullary brainstem slices containing the preBötC bilaterally (circled in red) were dissected and isolated for sequencing. (B), Single cell transcriptome profiling of cells isolated from P0 preBötC. Of 1817 cells isolated, only 267 were presumed preBötC neurons of which only 21 expressed Oprm1 mRNA. (C), Heatmap of scaled transcript abundance for Oprm1 and markers of glutamatergic, gabaergic, and glycinergic preBötC neurons. Oprm1 expressing cells are both excitatory and inhibitory. (D), Schematic of extracellular recordings of the preBötC rhythm in P0-4 medullary brainstem slices. The preBötC has input to the hypoglossal motor neurons which form the CN12 rootlet, relaying an inspiratory motor command to the tongue in intact animals. Due to its input from the preBötC, extracellular recording from this rootlet display autonomous rhythmic activity corresponding to in vitro respiration (Mansour et al., 1994). (E), Representative recording of bursting activity after application of 50 nM DAMGO and 100 nM Naloxone. Top: in control (Oprm1f/f) slices bath application of 50 nM DAMGO quickly slowed and decreased the amplitude from baseline bursting. After rhythm cessation, bath application of Naloxone restored the rhythm. Bottom: in Slc17a6-cre;Oprm1f/f mice 50 nM DAMGO did not stop, or even slow rhythmic activity. (F), Percent of slices from each genotype with rhythm cessation after 50 nM DAMGO application. Control (n = 11), Gad2-Cre;Oprm1f/f (n = 6), Slc32a1-Cre;Oprm1f/f (n = 2), Slc6a5-Cre;Oprm1f/f (n = 4), and Slc17a6-Cre;Oprm1f/f (n = 3). (G), Schematic showing three subpopulations of glutamatergic lineages delineated by transcription factors Dbx1 and Foxp2. Foxp2 neurons represents a smaller, and overlapping, population of Dbx1 neurons. (H,) Identification of molecular subtypes of Oprm1 preBötC excitatory neurons. Sagittal section of the preBötC from a P0 Oprm1-mCherry;Dbx1-Cre;Rosa-LSL-YFP mouse immunostained for mCherry (OPRM1 fused to mCherry, red), YFP (Green) and FOXP2 (Blue). About ~50% of Oprm1 preBötC neurons are glutamatergic/Dbx1 derived (arrowhead) and of those,~35% express FOXP2 (asterisk). Scale bar, 50 µM. (I,) Quantification of the number of preBötC for each molecular subtype identified in H. J), Dose response curve for the bursting rate and amplitude after bath application of 0, 50, 100, and 500 nM DAMGO applied to Slc17a6-Cre;Oprm1f/f (gray, n = 3), Dbx1-Cre;Oprm1f/f (green, n = 3), Foxp2-Cre;Oprm1f/f (blue, n = 4) and control (black, n = 11) P0-4 preBötC slices. Rate and amplitude for each slice are normalized to baseline. (K), Schematic summary showing that the key node for opioids to suppress breathing is the preBötC and within this site, elimination of Oprm1 from just a small subset of those neurons,~70–140 excitatory neurons, prevents opioid respiratory suppression.

Slices containing the preBötC autonomously generate respiratory-like rhythmic activity in vitro which is depressed in both rate and amplitude by bath administration of opioid agonists (Gray et al., 1999; Lorier et al., 2010), similar to opioid effects we observed on breathing in vivo. To determine which neural class mediates the depression of preBötC activity, we measured rhythmic bursting activity in vitro (Figure 4D) after selectively genetically deleting Oprm1 from each neural class. We achieved this deletion by crossing Oprm1f/f mice with each of the following: Slc17a6-Cre, Slc32a1-Cre, Gad2-Cre, or Slc6a5-Cre transgenic animals. preBötC slices from control mice (Oprm1f/f, Oprm1f/+, or Oprm1+/+) burst every 5–10 s and this activity was eliminated in 100% of slices by bath application of the selective µ-Opioid receptor agonist [D-Ala2, NMe-Phe4, Gly-ol5]-enkephalin (DAMGO, 50 nM), and subsequently rescued by opioid antagonist naloxone (Figure 4E,F). Strikingly, the bursting rhythm of Slc17a6-Cre;Oprm1f/f slices was not slowed by DAMGO, whereas the rhythm in Gad2-, Slc32a1-, and Slc6a5-Cre; Oprm1f/f slices was entirely eliminated, akin to wild type controls (Figure 4E,F, Figure 4—figure supplement 2). This demonstrates that glutamatergic excitatory neurons, representing ~50% of all preBötC Oprm1-expressing neurons and therefore 4% of preBötC neurons, mediate OIRD in vitro.

Next, we dissected the glutamatergic Oprm1 preBötC neurons by two developmental transcription factors, Dbx1 or Foxp2 (Gray et al., 2010; Bouvier et al., 2010; Gray, 2013), to determine if a subset can rescue rhythm depression (Figure 4G). Triple-labeling of Dbx1-YFP, OPRM1 fused to mCherry (OPRM1-mCherry), and FOXP2 protein quantified within a single preBötC revealed three molecular subtypes of P0 Oprm1 glutamatergic neurons: 92 ± 9 Dbx1, 50 ± 2 Dbx1/FOXP2, and 20 ± 4 FOXP2 (Figure 4H,I). We selectively eliminated the µ-Opioid receptor in these two lineages (Dbx1-Cre;Oprm1f/f or Foxp2-Cre;Oprm1f/f) and measured preBötC slice activity at increasing concentrations of DAMGO, exceeding the dose necessary to silence the control rhythm (500 nM vs. 50 nM). Elimination of Oprm1 from both genotypes was sufficient to rescue the frequency and amplitude of preBötC bursting in DAMGO, and the Dbx1 rescue was comparable to elimination of Oprm1 from all glutamatergic neurons, while the Foxp2 rescue was substantial, but partial (~50–60%, Figure 4J). This shows that opioids silence a small cohort (~140) of glutamatergic neurons to depress preBötC activity, and that a molecularly defined subpopulation, about half, can be targeted to rescue these effects.

Discussion

Here we show that two small brainstem sites are sufficient to rescue opioid induced respiratory depression in vivo. Between them, the preBötC is the critical site and we molecularly define ~140 Oprm1 glutamatergic neurons within that are responsible for this effect in vitro. Future study of these neurons will provide the first example of endogenous opioid modulation of breathing. Furthermore, characterization of these neurons and their molecular response to opioids may extend existing strategies (Manzke et al., 2003) or reveal a novel strategy for separating respiratory depression from analgesia and therefore enable the development of novel opioids or related compounds that relieve pain without risk of overdose.

A rubric for studying opioid and other respiratory depressants

We find that although multiple breathing parameters are impacted by opioids, decreased inspiratory airflow and delayed breath initiation, which we term pause, represent the primary changes that result in OIRD. Pauses occur during expiration and account for tens to hundreds of milliseconds of low airflow per breath. In hypercapnia, these pause periods terminate with an active expiration. The force, timing of inspiration, and expression of active expiration are ultimately determined by the inspiratory rhythm generator, the preBötC, and focused our initial studies to this site (Smith et al., 1991; Feldman et al., 2013; Cui et al., 2016; Huckstepp et al., 2016). Additionally, correlates of these two changes manifest as decreased burst size and frequency in the activity of the preBötC slice in vitro. These two key changes in the breath can guide future OIRD studies and efforts to characterize and test novel opioid drugs. Additionally, this workflow can be applied to the analysis of other respiratory depressants.

Just two small brainstem sites mediate OIRD

Our experimental design allowed us to determine that both the preBötC and PBN/KF have independent and additive rescue of OIRD. Of these two, the preBötC has the larger magnitude rescue of our two core breathing parameters. The combined deletion of µ-Opioid receptor from both sites essentially eliminates OIRD, even to extremely high doses of the potent opioid fentanyl. This suggests that targeting just these two sites is sufficient to rescue opioid respiratory depression. We interpret the small remaining effect of opioids we observe to be due to incomplete transduction of these brain areas but cannot rule out other minor contributing sites. It is also possible, given the challenge of restricting viral transduction, that some of the demonstrated effects are already due to spillover deletion of µ-Opioid receptor in neighboring brain areas, such as the bulbospinal rostral ventral respiratory group. Our studies were limited to two opioids (morphine and fentanyl) at a specific dose and it will be important in future work to determine if these two brain sites are also critical for OIRD caused by these opioids at different doses or other opioids altogether.

Depression of preBötC rhythm by silencing a small glutamatergic subpopulation

The two hallmark changes during OIRD, decreased inspiratory airflow and delayed initiation, perfectly match the opioid induced depression of amplitude and frequency in the preBötC slice. We show that ~140 Oprm1 glutamatergic preBötC neurons mediate this effect. And surprisingly, half this number, just ~70 glutamatergic neurons are sufficient to rescue opioid depression of the preBötC rhythm (50 Dbx1/FOXP2 and 20 FOXP2 in Foxp2-Cre;Oprm1f/f, Figure 4—figure supplement 3). Further, given the importance of Dbx1 neurons in respiratory rhythm generation (Gray et al., 2010; Bouvier et al., 2010), rescuing Oprm1 in just ~50/140 Dbx1 neurons (the Foxp2+ subset) may be sufficient to prevent preBötC depression, the smallest number of neurons we propose. This small number is remarkably consistent with the number of Dbx1 neurons that must be lesioned to arrest preBötC activity (Wang et al., 2014). Given the similarity of these effects, we hypothesize that opioids are primarily acting by silencing presynaptic release, effectively removing these neurons from the network. Alternatively, it is proposed that just a small subset of preBötC excitatory neurons may generate the inspiratory rhythm (Phillips et al., 2019) and perhaps these key Oprm1 neurons are enriched within this subgroup. In this instance, since hyperpolarization of preBötC rhythmogenic neurons slows and silences breathing (Koizumi et al., 2016), opioids may act postsynaptically as proposed by others (Montandon et al., 2011; Johnson et al., 1996). Regardless, it is profound that such a small number can abruptly halt the respiratory rhythm in a network of more than 1000 neurons and suggests that either these neurons act as a key population for rhythmogenesis, or that recurrent excitatory networks are exquisitely sensitive to the number of participating cells. Important future work will need to use the Dbx1/Oprm1 and Foxp2/Oprm1 molecular codes to selectively eliminate Oprm1 from these neurons to test if truly so few neurons profoundly control or modulate breathing in vivo.

Materials and methods

Key resources table
Reagent type
(species) or
resource		Source or
reference		IdentifiersAdditional
information
Genetic reagent (Mus musculus)Oprm1f/fThe Jackson Laboratory030074RRID:IMSR_JAX:030074
Genetic reagent (Mus musculus)Oprm1-mCherryThe Jackson Laboratory029013RRID:IMSR_JAX:29013
Genetic reagent (Mus musculus)Slc17a6-CreThe Jackson Laboratory016963RRID:IMSR_JAX:016963
Genetic reagent (Mus musculus)Gad2-CreThe Jackson Laboratory0101802RRID:IMSR_JAX:0101802
Genetic reagent (Mus musculus)Slc32a1-CreThe Jackson Laboratory028862RRID:IMSR_JAX:028862
Genetic reagent (Mus musculus)Slc6a5-CrePMID:25643296
Genetic reagent (Mus musculus)Dbx1-CrePMID:16041369
Genetic reagent (Mus musculus)Foxp2-CrePMID:27210758
Genetic reagent (Mus musculus)Rosa-LSL-YFPThe Jackson Laboratory006148RRID:IMSR_JAX:006148
AdenovirusAAV5-CMV-Cre-GFPUNC Vector CoreAAV5
AdenovirusAAV5-CAG-GFPUNC Vector CoreAAV5
AdenovirusAAV5-CAG-tdtomatoUNC Vector CoreAAV5
Antibodyrabbit anti-SSTPeninsulaT-41031:500
Antibodyrabbit anti-FOXP2Abcamab160461:500
Antibodychicken anti-GFPAbcamab139701:500
Antibodyrat anti-mCherryLifetechM112171:500
Antibodygoat anti-rat 555LifetechA214341:200
Antibodygoat anti-chicken 488LifetechA110391:200
Antibodygoat anti-rabbit 633Lifetech355621:200
Chemical compoundMorphine sulfateHenry Schein05720220 mg/kg
Chemical compoundFentanyl citrateSigmaF3886150 mg/kg
PeptideDAMGOAbcamab12067420–500 nM

Animals

Oprm1f/f (Weibel et al., 2013), Oprm1-mCherry (Erbs et al., 2015), Slc17a6-Cre (Vong et al., 2011), Gad2-Cre (Taniguchi et al., 2011), Slc32a1-Cre (Vong et al., 2011), Slc6a5-Cre (Sherman et al., 2015), Dbx1-Cre (Bielle et al., 2005), Foxp2-Cre (Rousso et al., 2016), Rosa-LSL-YFP (Madisen et al., 2010) have been described. Littermates of transgene-containing mice were used as wild type controls. C57Bl/6 mice were used for single cell mRNA sequencing. Mice were housed in a 12 hr light/dark cycle with unrestricted food and water. Oprm1f/f mice were assigned into experimental and control groups at weaning and given anonymized identities for experimentation and data collection. All animal experiments were performed in accordance with national and institutional guidelines with standard precautions to minimize animal stress and the number of animals used in each experiment.

Recombinant viruses

Request a detailed protocol

All viral procedures followed the Biosafety Guidelines approved by the University of California, San Francisco (UCSF) Institutional Animal Care and Use Program (IACUC) and Institutional Biosafety Committee (IBC). The following viruses were used: AAV5-CMV-Cre-GFP (4.7 × 1019 particles/mL, The Vector Core at the University of North Carolina at Chapel Hill), AAV5-CAG-GFP (1.0 × 1013 particles/mL, The Vector Core at the University of North Carolina at Chapel Hill) or AAV5-CAG-tdtomato (4.3 × 1012 particles/mL, The Vector Core at the University of North Carolina at Chapel Hill).

Immunostaining

Request a detailed protocol

Postnatal day 0–4 brains were dissected in cold PBS, and adult brains were perfused with cold PBS and then 4% paraformaldehyde by intracardiac perfusion. The isolated brains from neonates and adults were then fixed in 4% paraformaldehyde overnight at 4°C and dehydrated in 30% sucrose the next 24 hr at 4°C. Brains were embedded and frozen in OCT once equilibrated in 30% sucrose. Cryosections (18–25 μM) were washed twice for 5 min in 0.1% Tween-20 in PBS, once for 10 min in 0.3% Triton-X100 in PBS, and then twice for 5 min in 0.1% Tween-20 in PBS. Following wash, sections were blocked for 20 min with either 10% goat serum in 0.3% Trition-X100 PBS. Sections were then incubated overnight at 4°C in the appropriate block solution containing primary antibody. Primary antibodies used were: rabbit anti-SST (Peninsula T-4103, 1:500), rabbit anti-FOXP2 (Abcam ab16046, 1:500), chicken anti-GFP (Abcam ab13970, 1:500), rat anti-mCherry (Lifetech. M11217, 1:500). After primary incubation, sections were washed three times for 10 min in 0.1% Tween-20 in PBS, then incubated for 1 hr at room temperature or overnight at 4°C in block containing secondary antibody. Secondary antibodies were: goat anti-rat 555 (Lifetech A21434, 1:200), goat anti-chicken 488 (Lifetech A11039, 1:200), goat anti-rabbit 633 (Lifetech 35562, 1:200). After secondary incubation, sections were washed in 0.1% Tween-20 in PBS and mounted in Mowiol with DAPI mounting media to prevent photobleaching.

Plethysmography, respiratory and behavioral analysis

Request a detailed protocol

Adult (8–20 weeks) Oprm1f/f mice were first administered either IP 100–200 µL of saline or morphine (20 mg/kg, Henry Schein 057202) and placed in an isolated recovery cage for 15 min to allow full onset of action of the drug. Individual mice were then monitored in a 450 mL whole animal plethysmography chamber at room temperature (22°C) in 21% O2 balanced with N2 (normoxia) or 21% O2, 5% CO2 balanced with N2 (hypercapnia). For fentanyl (150 mg/kg, Sigma F3886) onset of action was so fast (<10 s) that animals were placed directly in the plethysmography chamber after administration of drug. Each session (combination of drug and oxygen condition) was separated by at least 24 hr to allow full recovery. Breathing was monitored by plethysmography, and other activity in the chamber monitored by video recording, for 40 min periods in normoxia and 10 min periods in hypercapnia. In cases where mice were subject to single or double site AAV injection to delete Oprm1 or sham controls, breathing was recorded first before viral injection and then again after deletion (or sham) more than 4 weeks later. Breathing traces were collected using EMKA iOX2 software and exported to Matlab for analysis. Each breath was automatically segmented based on airflow crossing zero as well as quality control metrics. Respiratory parameters (e.g. peak inspiratory flow, instantaneous frequency, pause length, tidal volume, etc) for each breath, as well as averages across states, were then calculated. Instantaneous frequency was defined as the inverse of breath duration. Pause length was defined as the expiratory period after airflow dropped below 0.5 mL/sec. The pause period is initially a prolonged airflow around or just above 0 mL/sec. and terminates with an increase in expiratory airflow, likely the active expiration induced by hypercapnia (11, Figure 1—figure supplement 1). The 0.5 mL/sec. threshold was chosen since it identifies low airflow pauses that are just above 0 mL/sec. which rarely occur in control hypercapnic breaths (Figure 1—figure supplement 2). Although pauses in length 50-100msec. could be considered false positives because they do not have a considerable low airflow period (see Figure 1—figure supplement 1 and , panel 2), they occur at a low rate in saline (1.53%) and we see an increased distribution of pauses in morphine that last hundreds of milliseconds (Figure 1I, see Figure 1—figure supplement 1 and , panel 3 and 4). Other respiratory parameters were defined by when airflow crosses the value of 0, with positive to negative being inspiration onset and negative to positive being expiration onset. Note, reported airflow in mL/sec. and tidal volume in mL are approximates of the true volumes. Whole body plethysmography imperfectly measures these parameters without corrections for humidity and temperature. However, since humidity and temperature are largely stable between recordings, because they are conducted in a temperature and humidity stable mouse facility, the estimated airflow (mL/sec.) and tidal volume (mL) can be compared in saline vs. morphine or pre and post-Cre virus injection studies. Additionally, in some instances respiratory parameters are appropriately normalized to animal weight in order to accurately compare between animals. However, this normalization is not appropriate for our study since lung volume in mice does not change in adulthood (Mitzner et al., 2001), and all respiratory measurements are compared statistically as the ratio of saline to morphine injections within the same animal. The analysis was performed with custom Matlab code available on Github with a sample dataset (Bachmutsky, 2020, https://github.com/YackleLab/Opioids-depress-breathing-through-two-small-brainstem-sites; copy archived at https://github.com/elifesciences-publications/Opioids-depress-breathing-through-two-small-brainstem-sites).

Due to limitations in breeding, a power calculation was not explicitly performed before our studies. Studies were conducted on all mice generated; six cohorts of animals. After respiration was measured, mice were sacrificed and injection sites were validated before inclusion of the data for further statistical analysis. We first conducted a Shapiro-Wilk normality on the average values (averaged across breaths) of the pre- and post-morphine respiratory parameters (e.g., peak inspiratory flow, instantaneous frequency) from n = 29 animals. We then used either paired Student’s t-test (if normal) or Wilcox Rank Sum test (if not normal) to evaluate statistical significance in comparing the distribution of these values. In comparisons of Oprm1-deleted vs. Sham conditions a mixed-repeated measure two-way ANOVA was performed to determine if these two groups were significantly different. Post-hoc Student’s t or Wilcox Rank Sum tests were then used to evaluate statistical significance between normalized (morphine/saline, or morphine-saline) respiratory parameters for intact vs. Oprm1 deleted or intact vs. Sham conditions. Normality in this case was determined by Shapiro-Wilk test on the distribution of normalized respiratory parameters from n = 29 animals. All the above statistics were performed using the publicly available Excel package ‘Real Statistics Functions’ and SPSS.

Tail flick assays

Request a detailed protocol

Mice were injected with saline (control trials) or 20 mg/kg morphine. 15 min later mice were put into a restraining wire mesh with the tail exposed. One-third of the tail was dipped into a 48–50°C water bath and time was measured for the tail to flick. Immediately after the flick, the tail was removed from the bath. If the tail did not flick within 10 s, then the tail was removed. The procedure was video recorded so time to response could be quantified post-hoc. Each mouse was recorded for two saline and two morphine trials.

Stereotaxic injection

Request a detailed protocol

Bilateral stereotaxic injections were performed in mice anesthetized by isoflurane. Coordinates used for the preBötC were: −6.75 mm posterior, −5.05 mm ventral from surface, ±1.3 mm lateral from bregma. Coordinates used for the PBN/KF were: −5.05 mm posterior, −3.7 ventral from surface, ±1.7 lateral from bregma. Injection sites specificity was confirmed by the restricted expression of Cre-GFP, GFP, or tdTomato centered in the anatomically defined Parabrachial/Kolliker-Fuse (Levitt et al., 2015) and preBötC (Smith et al., 1991; Feldman et al., 2013) areas. In the case of preBötC injections, anatomical location of injection site was also confirmed by localization with Somatostatin antibody staining (Tan et al., 2008). µ-Opioid receptor deletion was not explicitly demonstrated by immunohistochemistry. After injection of the virus, mice recovered for at least 3–4 weeks before breathing metrics were recorded again. In a subset of animals, mice were then subject to a second site deletion of the complementary brain area, ie. preBötC and then from the PBN/KF (Cohort 1) or vice versa (Cohort 2). These mice were then allowed to recover for another period of at least 3–4 weeks, after which a third set of breathing metrics were recorded. A subset of PBN/KF injected mice had only unilateral expression of Cre and their use is acknowledged in the text.

Slice electrophysiology

Request a detailed protocol

Rhythmic 550 to 650 μm-thick transverse medullary slices which contain the preBötC and cranial nerve XII (XIIn) from neonatal Oprm1f/f, Oprm1f/f;Slc17a6-Cre+/-, Oprm1f/f;Gad2-Cre+/-, Oprm1f/f;Slc6a5-Cre+/-, Oprm1f/f;Slc32a1-Cre+/-, Oprm1f/f;Dbx1-Cre+/-, Oprm1f/f;Foxp2-Cre+/- (P0-5) were prepared as described (Ruangkittisakul et al., 2014). Briefly, slices were cut in ACSF containing (in mM): 124 NaCl, 3 KCl, 1.5 CaCl2, 1 MgSO4, 25 NaHCO3, 0.5 NaH2PO4, and 30 D-glucose, equilibrated with 95% O2 and 5% CO2 (4°C, pH = 7.4). The rostral portion of the slice was taken once the compact nucleus ambiguus was visualized. The dorsal side of each slice containing the closing of the 4th ventricle. For recordings, slices were incubated with ACSF from above and the extracellular K+ was raised to 9 mM and temperature to 27°C. Slices equilibrated for 20 min before experiments were started. The preBötC neural activity was recorded from either XIIn rootlet or as population activity directly from the XII motor nucleus using suction electrodes. Activity was recorded with a MultiClamp700A or B using pClamp9 at 10000 Hz and low/high pass filtered at 3/400 Hz. After equilibration, 20 min. of baseline activity was collected and then increasing concentrations of DAMGO (ab120674) were bath applied (20 nM, 50 nM, 100 nM, 500 nM). Activity was recorded for 20 min. after each DAMGO application. After the rhythm was eliminated or 500 nM DAMGO was reached, 100 nM Naloxone (Sigma Aldrich N7758) was bath applied to demonstrate slice viability. Rhythmic activity was normalized to the first control recording for dose response curves.

Single cell mRNA sequencing and analysis

Request a detailed protocol

650 µm-thick medullary slices containing the preBötC were prepared from 10 P0 mice C57Bl/6 mice as described above. The preBötC and surrounding tissue was punched out of each slice with a P200 pipette tip and incubated in bubbled ACSF containing 1 mg/ml pronase for 30 min at 37°C with intermittent movement. Digested tissue was centrifuged at 800 rpm for 1 min, and the supernatant was discarded and replaced with 1% FBS in bubbled ACSF. The cell suspension was triturated serially with fire-polished pipettes with ~600 µm,~300 µm and ~150 µm diameter. The cells were filtered using a 40 µm cell strainer (Falcon 352340). DAPI was added to a final concentration of 1 µg/mL. The cell suspension was FACS sorted on a BD FACS AriaII for living (DAPI negative) single cells. The cells were centrifuged at 300 g for 5 min and resuspended in 30 µL 0.04% BSA in PBS. The library was prepared using the 10x Genomics Chromium Single Cell 3' Library and Gel Bead Kit v2 (1206267) and according to manufacturer’s instructions by the Gladstone genomics core. The final libraries were sequenced on HiSeq 4000.

For analysis, sequencing reads were processed using the 10x Genomics Cell Ranger v.2.01 pipeline. A total of 1860 cells were sequenced. Further analysis was performed using Seurat v2.3. Cells with less than 200 genes were removed from the dataset. Data was LogNormalized and scaled at 1e4. Highly variable genes were identified and used for principal component analysis. 25 principal components were used for unsupervised clustering using the FindCluster function. 12 clusters were identified at a resolution of 1.0, displayed in Figure 4—figure supplement 1. FindAllMarkers and violin plots of known cell type markers were used to identify each cluster.

Data availability

Summary data generated in this study are included as a supplemental supporting file. All Matlab code and an example data are posted on Github: https://github.com/YackleLab/Opioids-depress-breathing-through-two-small-brainstem-sites (copy archived at https://github.com/elifesciences-publications/Opioids-depress-breathing-through-two-small-brainstem-sites).

References

  47. Book
    1. West JF
    (2005)
    Respiratory Physiology: The Essentials
    Hagerstown: Lippincott Williams and Wilkins.

Decision letter

  1. Ronald L Calabrese
    Senior and Reviewing Editor; Emory University, United States
  2. Jan-Marino Ramirez
    Reviewer; Seattle Children's Research Institute, United States
  3. Gaspard Montandon
    Reviewer
  4. Jeffrey C Smith
    Reviewer; National Institute of Neurological Disorders and Stroke, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This is a technically sophisticated study employing mouse transgenic approaches, viral vector-based neuronal targeting, in vivo behavioral analyses, single cell transcriptomics, and in vitro electrophysiological measurements to explore the mechanisms underlying opioid respiratory depression. The tour-de-force of impressive tools and the clear presentation make this paper especially appealing to a wide audience beyond those who study respiration.

The authors determine that mu-opioid receptors (Oprm1) in neurons in two circumscribed brainstem sites- the preBötzinger Complex (preBötC) and parabrachial (PBN)/Kolliker-Fuse (KF) nucleus, account for opioid-induced respiratory depression (OIRD) in awake behaving adult mice in vivo as well as in rhythmically-active preBötC circuits in slices from neonatal mice in vitro. Importantly between the preBötC and PBN/KF, the preBötC is the more critical site in vivo, and that at least in the slices in vitro, a small subpopulation (~140) Oprm1-expressing glutamatergic neurons, including Dbx1and Foxp2 expressing glutamatergic neurons, within the preBötC are responsible for the opioid suppression of rhythmic activity.

Decision letter after peer review:

Thank you for submitting your article "Opioids depress breathing through two small brainstem sites" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Jan-Marino Ramirez as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Eve Marder as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Gaspard Montandon (Reviewer #2); Jeffrey C. Smith (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is a technically sophisticated study employing mouse transgenic approaches, viral vector-based neuronal targeting, in vivo behavioral analyses, single cell transcriptomics, and in vitro electrophysiological measurements demonstrating that mu-opioid receptors (Oprm1) in neurons in two circumscribed brainstem sites- the preBötC and PBN/KF, account for opioid-induced respiratory depression (OIRD) in awake behaving adult mice in vivo as well as in rhythmically-active preBötC circuits in slices from neonatal mice in vitro. The experimental approaches employed are novel, providing a number of important results that more clearly define the critical brainstem sites and molecular phenotypes of neurons involved in OIRD. The authors' strategy of Cre-viral injection into the preBötC and/or PBN/KF of Oprm1 (f/f) mice to genetically delete Oprm1 together with the in vivo behavioral analyses to measure the individual and combined contribution of these two functionally defined regions to OIRD proved to be very effective. Also very effective is their use of Vglut2-Cre, Vgat-Cre, Gad2-Cre, or Glyt2-Cre transgenic mouse lines crossed with the Oprm1 (f/f) mice to selectively genetically delete Oprm1 from different neuronal classes, as well as the dissection of the glutamatergic Oprm1 preBötC neurons by two developmental transcription factors, Dbx1 or Foxp2, all combined with electrophysiological analyses of the rhythmic activity responses to opioid receptor agonists in slices in vitro. The important results are that between the preBötC and PBN/KF, the preBötC is the more critical site in vivo, and that at least in the slices in vitro, a small subpopulation (~140) Oprm1-expressing glutamatergic neurons, including Dbx1and Foxp2 expressing glutamatergic neurons, within the preBötC are responsible for the opioid suppression of rhythmic activity. The paper is well written and the figures and supplementary material very nicely illustrate the essential experimental results. However, there are several concerns that need to be addressed.

Essential revisions:

1) The authors try to introduce a "gold standard" definition for how breathing changes in OIRD. Yes, it would be nice if there were a simple gold standard. However, this is not the reality. Gold standard for OIRD should come from a consensus of studies showing similar results. The research presented here show one example of respiratory depression with only one type of opioids, not highly specific for the µ-opioid receptors, at only one dosage. Also the "gold standard" proposed here is based upon flow which cannot be reliably measured with whole-body plethysmography. So don't state that you are introducing a gold standard. OIRD is very state dependent and shows huge interindividual variability. Trying to imply that the respiratory rhythm is simply depressed is an oversimplification. Just look at the huge variability in Te (Figure 1H). Plethysmograph recordings are extremely difficult to evaluate, because animals behave, morphine will be sedating before measuring the OIRD, this will not be a static response. We don't understand the definition of inspiratory time, expiratory time, and pause. It seems in Figure 1G that flow doesn't cross the zero at the end of expiration as shown in the figure, but rather at the end of the pause. Is the "pause" only a longer expiration? How was this pause detected or defined? If those pauses are part of expiration, then expiratory time is also increase by morphine. How was the criterion for pause of 0.5mL/sec defined? Knowing that flow is highly variable from one animal to the other it is very likely an unreliable threshold.

Along the same lines: The authors respiratory assessments in freely-behaving rodents limited for a few reasons: a) using an arbitrary threshold based on flow to define the end of expiration is not reliable. Flow can change from one animal to another, so the duration of their "pause" may differ depending upon the initial baseline of the animal. How do you determine the amplitude, where do you set the threshold = look at Figure 1A, what do you consider a breath and what not?

b) Using tidal volume or flow as measurements in whole-body plethysmography in rodents is problematic. Unless the right formula is used, it is very difficult to evaluate tidal volume in rodents. In addition, mL cannot be a correct measurement in rodents without normalizing the value according to body weight. Unless all animals have the exact body weight, flow and tidal volume need to be measured as ml/10g or other units. You need to carefully consider these caveats

c) One of the difficult of measuring breathing with plethysmography is to control for arousal levels. It is well know that sedation by opioids may affect the severity of respiratory depression so arousal levels before morphine may be an issue. Please discuss this important caveat.

2) While using hypercapnia as a tool may simplify the approach, it will dramatically change the behavioral state of the animal. Under hypercapnia, arousal levels may be severely disrupted and it has been shown that arousal levels are tightly linked to respiratory depression. Hypercapnia will also affect the opiate sensitivity, and this effect will not be uniform in different areas. Carefully discuss this important caveat, and don't imply that this is an advantage, other than the fact that it regularizes the rhythm.

3) Figure 2 characterizes the necessity of PreBötC. Without quantitative immunohistochemical confirmation (Figure 2—figure supplement 1) it is indeed difficult to know whether the injections were restricted to the preBötC, same applies to the KF injections. (Figure 3—figure supplement 1).

4) Oprm1-/- animals were not compared with other mice that received injection of scrambled AAV, but were compared to themselves before surgery, microinjection, and recovery. It is possible that the inflammation induced by AAV, and the damage done by the microinjection may change the response to opioids. We recommend that this should be verified with proper controls.

5) From the transcriptome profiling and neonatal in vitro results, the authors propose that opioids silence a small subset (~140) of glutamatergic neurons to depress preBötC activity, and that a molecularly defined subpopulation (~70 neurons) can be targeted to rescue these effects. It would be important to emphasize in the Discussion that tests need to be performed in the awake behaving mice in vivo with the transgenic lines utilized for the in vitro studies to determine if so few neurons are also responsible for OIRD in the adult system in vivo.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your article "Opioids depress breathing through two small brainstem sites" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Ronald Calabrese as the Senior Editor and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Gaspard Montandon (Reviewer #2); Jeffrey C Smith (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This paper has been previously reviewed and requires some further revisions. All these revisions can be accomplished without any further experiments. Some new analysis in needed but the vast majority of the changes involve rewriting.

Essential revisions:

There are still some outstanding issues that must be addressed.

Anatomy a) Regarding PBN/KF injection sites, it is clear that these encompassed a much larger area than the targeted region, which is not surprising for targeting these small areas in the mouse brainstem, although it looks like (at least from the examples shown) that the most concentrated fluorescent protein expression may typically be in and immediately around the targeted areas. So it is clear that the authors have included the targeted areas with their stereotaxic injection approach.

b) Regarding preBötC targeting, the reconstructions shown in Figure 2—figure supplement 1, part A and the two anterior sites in part B are reasonable for demonstrating preBötC targeting in the mouse, but the labeling for the posterior site reconstructed extends too caudal as the authors have represented the anatomy, implying some receptor deletion in the rVRG. The authors thusly should modify statements in the manuscript regarding site-specificity and that injection sites were confirmed by the restricted expression of Cre-GFP (subsection “Stereotaxic injection”, and figure legends), and they need to discuss any caveats associated with this issue.

c) Given the results showing functional rescue from depressed breathing frequency and peak inspiratory flow obtained with their Oprm1f/f transgenic and Cre vector construct, their results with control vector injections, and the injection site anatomical reconstructions, it is likely that the authors have deleted some opioid receptors in the regions of interest. We ask the authors to further clarify in the manuscript if/how they have validated deletion of opioid receptors with their experimental approach and to address any associated caveats. The authors could confirm the absence of MOR in knockout animals with Immunohistochemistry.

Hypercapnia

Measuring breathing in 5% CO2 likely limits the authors' conclusions. They need to mention that these data are valid in animals that are exposed to CO2, and discuss the issues related to high CO2, low pH, hyperventilation induced by CO2, and reduced arousal, which may limit the role of the preBotC in opioid-induced respiratory depression. The authors don't mention any papers in the discussion related to hypercapnia, medullary sites sensitive to CO2, arousal states, opioid receptor knockout animals etc.

Pauses

Definition of pause versus expiration. The definition of a pause according to the authors is when volume goes below 0.5mL during the expiratory period. According to Figure 1G, the last part of the pause with morphine seems to be above this threshold. This arbitrary threshold is concerning. The threshold is likely detecting different pauses in saline versus morphine considering that volume is considerably reduced by morphine. For instance, in Figure 1G, peak flow with saline condition is -6 mL/sec versus -2ml/sec for morphine, with corresponding differences in volume. The use of an absolute value (0.5mL) as a threshold means that the detection of the "pause" will likely be different between saline and morphine conditions, so not due to different timings but different detections. It would be easier to use the simple definitions of inspiratory and expiratory times, which would be consistent with previous reports showing that expiratory duration is affected by opioids. Also, we are not sure what the physiological relevance of a pause is. Is it controlled by different brainstem circuits? The long expirations are likely due to a combination of hypercapnia and hypoxia with morphine.

Discussion

The authors do not discuss previous studies about MOR-/-, preBötC, etc. There are many studies investigating this topic that could be discussed in the Discussion. Dahan et al., 2001, Montandon et al., 2011, 2016, Varga et al., 2020, Stucke et al., Mustapic et al., Lalley et al. etc.

https://doi.org/10.7554/eLife.52694.sa1

Author response

Essential revisions:

1) The authors try to introduce a "gold standard" definition for how breathing changes in OIRD. Yes, it would be nice if there were a simple gold standard. However, this is not the reality. Gold standard for OIRD should come from a consensus of studies showing similar results. The research presented here show one example of respiratory depression with only one type of opioids, not highly specific for the µ-opioid receptors, at only one dosage. Also the "gold standard" proposed here is based upon flow which cannot be reliably measured with whole-body plethysmography. So don't state that you are introducing a gold standard. OIRD is very state dependent and shows huge interindividual variability. Trying to imply that the respiratory rhythm is simply depressed is an oversimplification. Just look at the huge variability in Te (Figure 1H). Plethysmograph recordings are extremely difficult to evaluate, because animals behave, morphine will be sedating before measuring the OIRD, this will not be a static response.

We don't understand the definition of inspiratory time, expiratory time, and pause.

1) Inspiratory time (Ti) is defined as the period of negative airflow at the beginning of the breath, such that airflow is less than 0mL/sec. Once the 0mL/sec. threshold is crossed to positive values, inspiration is considered to be terminated.

2) Expiratory time (Te) is defined as the period of positive airflow immediately after inspiration, when the 0mL/sec. threshold is crossed until the airflow decreases below a second threshold of 0.5mL/sec. We use this second threshold to distinguish Te from the pause. We have now clarified in the manuscript that this is the initial portion of expiration (Results, second paragraph, subsection “A rubric for studying opioid and other respiratory depressants”, subsection “Plethysmography, respiratory and behavioral analysis”, first paragraph).

3) The pause is defined as the airflow after Te until the onset of the next inspiration. The specific details of the pause are discussed below.

It seems in Figure 1G that flow doesn't cross the zero at the end of expiration as shown in the figure, but rather at the end of the pause. Is the "pause" only a longer expiration?

The pause is an expiratory period that occurs after the initial large-amplitude expiratory pulse wherein the majority of tidal volume has been expelled. The pause is characterized by very low airflow and ends with a final brief expulsion of air. Since this phenomenon is being described in hypercapnia, we interpret this terminating expiratory airflow to be "active expiration" (Pisanski and Pagliardini, 2019). The low airflow pause period can vary in length from tens to hundreds of milliseconds. We have now clarified this definition in the second paragraph of the Results, subsection “A rubric for studying opioid and other respiratory depressants” and in the first paragraph of the subsection “Plethysmography, respiratory and behavioral analysis” and have added a supplementary figure (Figure 1—figure supplement 1) which shows breaths with different pause lengths aligned by the onset of the pause to better qualitatively demonstrate this phenomenon. Additionally, we have added a description in the Materials and methods and Figure 1—figure supplement 2 to clarify how the airflow threshold was chosen to define pause onset.

How was this pause detected or defined?

The pause is an apneic period of low airflow which we believe represents a failure or delay to initiate a subsequent breath. This period is qualitatively defined as the point during expiration when expiratory airflow crosses below 0.5mL/sec. All airflow after this point, until the next inspiration begins (continuous airflow below 0mL/sec.) is defined as the pause. In control hypercapnic breathing fewer than 2% of breaths have a pause longer than 5msec. by this definition (Figure 1—figure supplement 2). After morphine, ~40% of breaths have a pause between 5 and several hundred milliseconds (Figure 1—figure supplement 2). This definition is now clarified in the first paragraph of the subsection “Plethysmography, respiratory and behavioral analysis”and we have added a supplementary figure (Figure 1—figure supplement 2).

If those pauses are part of expiration, then expiratory time is also increase by morphine.

It is certainly true that the overall time between two inspirations does increases. However, the initial portion of expiration (before our pause) does not change in length. This is the data displayed in Figure 1H. We have now clarified our language to include the pause as part of the overall expiratory period in the second paragraph of the Results, subsection “A rubric for studying opioid and other respiratory depressants” and in the first paragraph of the subsection “Plethysmography, respiratory and behavioral analysis”.

How was the criterion for pause of 0.5mL/sec defined?

Please see discussion above and Figure 1—figure supplement 2.

Knowing that flow is highly variable from one animal to the other it is very likely an unreliable threshold.

Since the pause analysis was conducted on data from adult animals in hypercapnia, airflow recordings are very reproducible between animals and not "highly variable". For example, for 29 animals recorded, the mean+/-SD for average peak inspiratory airflow after saline injection was 7.2+/-0.57mL/sec. and after morphine injection was 3.60+/-0.62mL/sec. Furthermore, in Figure 1—figure supplement 2, where the pause threshold is defined, the data in the scatter plot was generated from 100 breaths from 15 different animals and all data points are intermixed and not clustering as individual animals. Therefore, our pause threshold is chosen to be a reliable metric between animals.

Along the same lines: The authors respiratory assessments in freely-behaving rodents limited for a few reasons: a) Using an arbitrary threshold based on flow to define the end of expiration is not reliable. Flow can change from one animal to another, so the duration of their "pause" may differ depending upon the initial baseline of the animal. How do you determine the amplitude, where do you set the threshold = look at Figure 1A, what do you consider a breath and what not?

Please see explanations above and Figure 1—figure supplement 2. Briefly, data and pause threshold between animals is highly reproducible and data from 29 animals was used to define the pause threshold.

b) Using tidal volume or flow as measurements in whole-body plethysmography in rodents is problematic. Unless the right formula is used, it is very difficult to evaluate tidal volume in rodents.

We appreciate the criticism that whole-body plethysmography inaccurately measures tidal volume and that a more correct estimate necessitates the incorporation of chamber humidity and temperature via the Drorbaugh and Fenn formula. We have now indicated that the displayed tidal volumes are approximates in the first and third paragraphs of the Results, the first paragraph of the subsection “Plethysmography, respiratory and behavioral analysis”, and in the legend of Figure 1C.

In addition, mL cannot be a correct measurement in rodents without normalizing the value according to body weight. Unless all animals have the exact body weight, flow and tidal volume need to be measured as ml/10g or other units. You need to carefully consider these caveats.

It is certainly important to normalize the airflow and tidal volume to body weight when animals of very different sizes are being compared. For example, this correction is particularly important when comparing developing rodents where lung size strongly correlates with size. However, we feel that this correction is not appropriate in our manuscript for four reasons:

1) When different animals are being compared, the respiratory parameters after morphine injection are normalized to those after saline injection recordings. These two recordings are performed within several days of each other (i.e. without significant weight change). All statistical tests are performed on normalized data.

2) As mentioned above, one mechanism that could explain changes in airflow in differently sized mice is if lung volume increased with body size. However once mice reach their adult size, although their body weight can increase, their lung volume does not. This has been clearly demonstrated with serial computed tomography imaging of lung size (Mitzner, Brown and Lee, 2001).

3) Another possible mechanism that could contribute to changes in airflow across different sized mice is if increased displacement of air in the plethysmography chamber distorts the airflow signal. However, in a toy experiment wherein the chamber is filled with objects that displace either 20, 25, or 30mL’s of air, the total volume of air injected by syringe (10ml) can be accurately calculated in all conditions. (See Author response image 1). This indicates that normalizing approximate airflow or tidal volume to weight, as a proxy for body volume, will negatively impact the accuracy of those estimates.

4) We can demonstrate the stability of airflow across recordings over time, even though the animal has gained some weight. When airflows from the same animal, after injection of saline, are compared at the beginning and end of our studies, the airflows are indistinguishable despite some mice increasing in weight (See Author response image 2 where specific breaths in hypercapnia are compared). In this case normalizing by weight would lead the experimenter to believe lung volume significantly decreases as animals increase in weight which would have no biological basis.

In summary, it is unlikely that either animal weight or size in adult mice is significantly biasing approximated respiratory airflow or tidal volume values, and therefore it would be inappropriate to normalize these values by weight.

Author response image 1
Download asset Open asset

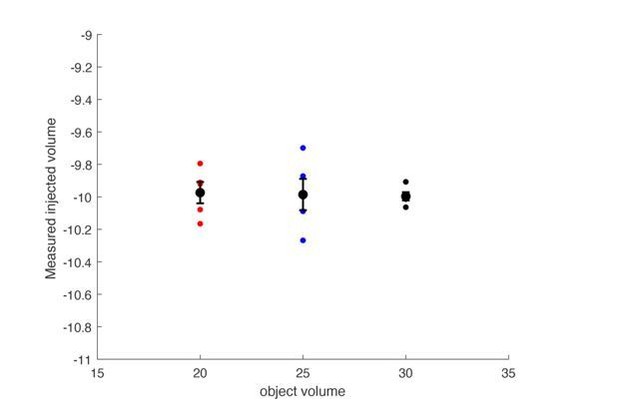

The plethysmograph was filled with either a 20, 25 or 30mL object to approximate a 20, 25, or 30 gram mouse.

The plethysmograph was injected with 10mL of air and the change in pressure was integrated to calculate a tidal volume. The calculated tidal volumes were all centered at 10mL’s and the size of the object did not impact the calculated volume.

Author response image 2
Download asset Open asset
Average +/- SD (top) and example breaths (bottom) that have Ti between 50-100msec.

from the same animal during control hypercapnia recordings from the beginning of our protocol (left) versus the end (right). Notice that although the mouse has gained weight, the airflow of these breaths has not changed.

c) One of the difficult of measuring breathing with plethysmography is to control for arousal levels. It is well know that sedation by opioids may affect the severity of respiratory depression so arousal levels before morphine may be an issue. Please discuss this important caveat.

We certainly appreciate that arousal levels impact the distribution of breaths that are taken by awake, behaving mice and in fact, this concern is exactly why we decided to measure breathing before and after morphine in hypercapnia in addition to normoxia (see Results, first paragraph). Although hypercapnia stimulates the respiratory system, it also normalizes the behavior and we presume the arousal state of mice. As a result, as we show in Figure 1, all of the changes in respiratory parameters are more reproducible between mice.

2) While using hypercapnia as a tool may simplify the approach, it will dramatically change the behavioral state of the animal. Under hypercapnia, arousal levels may be severely disrupted and it has been shown that arousal levels are tightly linked to respiratory depression. Hypercapnia will also affect the opiate sensitivity, and this effect will not be uniform in different areas. Carefully discuss this important caveat, and don't imply that this is an advantage, other than the fact that it regularizes the rhythm.

Although it is certain that hypercapnia alters arousal levels, breathing, and sensitivity to opioids, we use the regularization of breathing as a way to dissect the role of the preBötC and PBN/KF in OIRD. We acknowledge the benefit of hypercapnia (Results, first paragraph) is simply that it regularizes the respiratory rhythm which is in large part due to a reduction of behaviors performed, for example, far less sniffing and grooming. Although the changes to breathing in hypercapnia are quantitatively distinct from normoxia (Figure 1), the ability to eliminate the variability in breathing due to behavior enabled us to quantitively measure how breaths change in morphine and how these changes can be rescued after deletion of Oprm1 in the preBötC and/or PBN/KF sites.

Even if hypercapnia produces an altered arousal state that changes the OIRD response, we do not anticipate that it is due to the "masking" a third brain site that it critical for ORID in normoxia. This is because in all the animals studied, we also performed recordings in normoxia that demonstrate a rescue in respiratory rate and peak inspiratory flow after deletion of Oprm1 from the preBötC and then the PBN/KF which we now include in additional supplementary figures (Figure 2—figure supplement 2, Figure 3—figure supplement 3). This demonstrates that the rescues we observe are not unique to hypercapnia.

3) Figure 2 characterizes the necessity of PreBötC. Without quantitative immunohistochemical confirmation (Figure 2—figure supplement 1) it is indeed difficult to know whether the injections were restricted to the preBötC, same applies to the KF injections. (Figure 3—figure supplement 1).

We have now modified the supplementary figures that detail the preBötC and PBN/KF viral injections (Figure 2—figure supplement 1 and Figure 3—figure supplement 1). These figures now contain a schematic that details the brain anatomy from anterior to posterior brain sections and the extent of Cre-GFP expression from each animal. Note that the overlapping GFP-expressing region from all animals is the preBötC and PBN/KF.

4) Oprm1-/- animals were not compared with other mice that received injection of scrambled AAV, but were compared to themselves before surgery, microinjection, and recovery. It is possible that the inflammation induced by AAV, and the damage done by the microinjection may change the response to opioids. We recommend that this should be verified with proper controls.

We have now used a mixed repeated measures two-way ANOVA to compare our preBötC AAV-Cre injected animals with the control preBötC AAV-GFP or AAV-TdTomato injected animals (Figure 2 legend). Additionally, we have added 3 new control preBötC injected animals (new total is n=7) in order to match or exceed number of experimental animals (n=6). The addition of new mice has verified our original observations of no change in frequency, airflow and pause in control injected animals.

5) From the transcriptome profiling and neonatal in vitro results, the authors propose that opioids silence a small subset (~140) of glutamatergic neurons to depress preBötC activity, and that a molecularly defined subpopulation (~70 neurons) can be targeted to rescue these effects. It would be important to emphasize in the Discussion that tests need to be performed in the awake behaving mice in vivo with the transgenic lines utilized for the in vitro studies to determine if so few neurons are also responsible for OIRD in the adult system in vivo.

The limited expression of Oprm1 within the preBötC coupled with the in vivo OIRD rescue observed after deletion of Oprm1 from the preBötC makes (which is likely even incomplete, i.e. not all cells are expressing viral), makes the powerful prediction that just a small number of neurons is capable of dramatically changing the respiratory rhythm in vivo. Still, at the end of the Discussion we have now clarified that this is an important hypothesis that future experiment should test directly.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Please note, during the course of the revision we validated that our dose of morphine (20mg/kg) does not change respiration in mice completely lacking µOR-/-. This demonstrates that this dose of morphine is specific to µOR. As a result, we have removed a phrase in our Discussion suggesting this dose of morphine could activate kappa and δ opioid receptors (per the request of the reviewer in revision round 1).

Essential revisions:

There are still some outstanding issues that must be addressed.

Anatomy a) Regarding PBN/KF injection sites, it is clear that these encompassed a much larger area than the targeted region, which is not surprising for targeting these small areas in the mouse brainstem, although it looks like (at least from the examples shown) that the most concentrated fluorescent protein expression may typically be in and immediately around the targeted areas. So it is clear that the authors have included the targeted areas with their stereotaxic injection approach.

Ok.

b) Regarding preBötC targeting, the reconstructions shown in Figure 2—figure supplement 1, part A and the two anterior sites in part B are reasonable for demonstrating preBötC targeting in the mouse, but the labeling for the posterior site reconstructed extends too caudal as the authors have represented the anatomy, implying some receptor deletion in the rVRG. The authors thusly should modify statements in the manuscript regarding site-specificity and that injection sites were confirmed by the restricted expression of Cre-GFP (subsection “Stereotaxic injection”, and figure legends), and they need to discuss any caveats associated with this issue.

Subsection “Stereotaxic injection” now indicates that the site-specificity is indicated by the center of the Cre-GFP expression. We also have added additional discussion (subsection “Just two small brainstem sites mediate OIRD”) to note that we cannot exclude µOR deletion from neighboring regions.

c) Given the results showing functional rescue from depressed breathing frequency and peak inspiratory flow obtained with their Oprm1f/f transgenic and Cre vector construct, their results with control vector injections, and the injection site anatomical reconstructions, it is likely that the authors have deleted some opioid receptors in the regions of interest. We ask the authors to further clarify in the manuscript if/how they have validated deletion of opioid receptors with their experimental approach and to address any associated caveats. The authors could confirm the absence of MOR in knockout animals with Immunohistochemistry.

We clarified our methodology and describe that the Cre-GFP determined injection site-specificity indicates where the µ-opioid receptor deleted. Although we infer a deletion by the rescue of OIRD, we indicate that we do not explicitly confirm deletion by immunohistochemistry (Results, fourth paragraph and subsection “Stereotaxic injection”).

Hypercapnia

Measuring breathing in 5% CO2 likely limits the authors' conclusions. They need to mention that these data are valid in animals that are exposed to CO2, and discuss the issues related to high CO2, low pH, hyperventilation induced by CO2, and reduced arousal, which may limit the role of the preBotC in opioid-induced respiratory depression. The authors don't mention any papers in the discussion related to hypercapnia, medullary sites sensitive to CO2, arousal states, opioid receptor knockout animals etc.

We disagree with the reviewer that our conclusions are limited to 5% CO2 and a limited role of the preBötC for two simple reasons:

1) Much of the presented data are in under 5% CO2 conditions for uniformity and clarity of data presentation. However, as indicated in our experimental methods and Figure 2—figure supplement 2 and Figure 3—figure supplement 3, the OIRD rescues in peak inspiratory flow and frequency observed in 5% CO2 also occur in normoxia.

2) If 5% CO2 “[limits] the role of the preBötC in opioid induced respiratory depression” (as suggested above), then elimination of µOR from the preBötC would not result in rescued OIRD. This is simply not what we observe.

Pauses

Definition of pause versus expiration. The definition of a pause according to the authors is when volume goes below 0.5mL during the expiratory period. According to Figure 1G, the last part of the pause with morphine seems to be above this threshold. This arbitrary threshold is concerning. The threshold is likely detecting different pauses in saline versus morphine considering that volume is considerably reduced by morphine. For instance, in Figure 1G, peak flow with saline condition is -6 mL/sec versus -2ml/sec for morphine, with corresponding differences in volume. The use of an absolute value (0.5mL) as a threshold means that the detection of the "pause" will likely be different between saline and morphine conditions, so not due to different timings but different detections. It would be easier to use the simple definitions of inspiratory and expiratory times, which would be consistent with previous reports showing that expiratory duration is affected by opioids. Also, we are not sure what the physiological relevance of a pause is. Is it controlled by different brainstem circuits? The long expirations are likely due to a combination of hypercapnia and hypoxia with morphine.

We believe that by introducing the concept of a “pause” period is important for two reasons: 1) it is the most accurate way to describe our data and 2) reflective of the underlying physiology.

1) Perhaps the most obvious qualitative change in breathing under morphine are that many breaths have long periods (lasting several hundred milliseconds at 20mg/kg morphine) of little to no airflow (Figure 1A and D, Figure 1—figure supplement 1). We sought to rigorously and quantitatively describe this phenomenon. As we show in Figure 1—figure supplement 2, we do not “arbitrarily” choose the 0.5mL/sec. threshold, and instead chose this threshold because it identifies essentially no pauses in hypercapnia after saline injection (only 1.53% of breaths have a pause). Although pauses in length 50-100msec. could be considered false positives because they do not have a considerable apneic period (see Figure 1—figure supplement 1, panel 2), they occur at a low rate in saline (1.53%) and we see an increased distribution of pauses in morphine that last hundreds of milliseconds (Figure 1I, see Figure 1—figure supplement 1, panel 3 and 4). We now clarify this in the first paragraph of the subsection “Plethysmography, respiratory and behavioral analysis”.

2) We interpret the “pause” period as a delay to initiate the subsequent breath and this implicates the preBötC in OIRD. This falls in line with the fact that the autonomous respiratory rhythm generated by the preBötC slice slows after bath administration of opioid agonists, independent of any other brain areas. Further, after deletion of Oprm1 from the preBötC pause lengths are significantly decreased (Figure 2J). Since our recordings occur in hypercapnia, the pause terminates with a brief active expiration. However, active expiration depends upon preBötC activity (Huckstepp et al., 2016) and thus remains consistent with the pause reflecting a delay in preBötC inspiratory initiation.

Discussion

The authors do not discuss previous studies about MOR-/-, preBötC, etc. There are many studies investigating this topic that could be discussed in the Discussion. Dahan et al., 2001, Montandon et al., 2011, 2016, Varga et al., 2020, Stucke et al., Mustapic et al., Lalley et al. etc.

We appreciate your recommendations for citations. We have already discussed the importance of and cited Montandon et al., 2011, Varga et al., 2020 and Mustapic et al. in our manuscript.

https://doi.org/10.7554/eLife.52694.sa2

Article and author information

Author details

  1. Iris Bachmutsky

    1. Department of Physiology, University of California-San Francisco, San Francisco, United States
    2. Neuroscience Graduate Program, University of California-San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared

  2. Xin Paul Wei

    1. Department of Physiology, University of California-San Francisco, San Francisco, United States
    2. Biomedical Sciences Graduate Program, University of California-San Francisco, San Francisco, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared

  3. Eszter Kish

    1. Department of Physiology, University of California-San Francisco, San Francisco, United States
    2. Neuroscience Graduate Program, University of California-San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Investigation, Methodology
    Competing interests
    No competing interests declared

  4. Kevin Yackle

    Department of Physiology, University of California-San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    Kevin.Yackle@ucsf.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1870-2759

Funding

NIH Office of the Director (DP5-OD023116)

  • Kevin Yackle

University of California, San Francisco (Program for Breakthrough Biomedical Research)

  • Kevin Yackle

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Matthew Collie (currently Harvard University) for his scientific input throughout the project and experimental contributions to the slice electrophysiology. We thank Drs. David Julius and Roger Nicoll (University of California, San Francisco) for input and revision of the manuscript. We thank Dr. Massimo Scanziani (University of California, San Francisco) for mentorship, discussion, and revision of the manuscript. We thank Adelae Durand (Yackle lab, University of California, San Francisco) for data collection and her revision of the manuscript.

Senior and Reviewing Editor

  1. Ronald L Calabrese, Emory University, United States

Reviewers

  1. Jan-Marino Ramirez, Seattle Children's Research Institute, United States
  2. Gaspard Montandon
  3. Jeffrey C Smith, National Institute of Neurological Disorders and Stroke, United States

Publication history

  1. Received: October 12, 2019
  2. Accepted: February 17, 2020
  3. Accepted Manuscript published: February 19, 2020 (version 1)
  4. Version of Record published: March 17, 2020 (version 2)

Copyright

© 2020, Bachmutsky et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 16,665
    Page views
  • 771
    Downloads
  • 55
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Iris Bachmutsky
  2. Xin Paul Wei
  3. Eszter Kish
  4. Kevin Yackle
(2020)
Opioids depress breathing through two small brainstem sites
eLife 9:e52694.
https://doi.org/10.7554/eLife.52694

Categories and tags

Research organism

Further reading

    1. Neuroscience

    Early-life experience reorganizes neuromodulatory regulation of stage-specific behavioral responses and individuality dimensions during development

    Reemy Ali Nasser, Yuval Harel, Shay Stern
    Research Article Updated

    Early-life experiences may promote stereotyped behavioral alterations that are dynamic across development time, but also behavioral responses that are variable among individuals, even when initially exposed to the same stimulus. Here, by utilizing longitudinal monitoring of Caenorhabditis elegans individuals throughout development we show that behavioral effects of early-life starvation are exposed during early and late developmental stages and buffered during intermediate stages of development. We further found that both dopamine and serotonin shape the discontinuous behavioral responses by opposite and temporally segregated functions across development time. While dopamine buffers behavioral responses during intermediate developmental stages, serotonin promotes behavioral sensitivity to stress during early and late stages. Interestingly, unsupervised analysis of individual biases across development uncovered multiple individuality dimensions that coexist within stressed and unstressed populations and further identified experience-dependent effects on variation within specific individuality dimensions. These results provide insight into the complex temporal regulation of behavioral plasticity across developmental timescales, structuring shared and unique individual responses to early-life experiences.

    1. Computational and Systems Biology
    2. Neuroscience

    Flexible control of representational dynamics in a disinhibition-based model of decision making

    Bo Shen, Kenway Louie, Paul W Glimcher
    Research Article

    Inhibition is crucial for brain function, regulating network activity by balancing excitation and implementing gain control. Recent evidence suggests that beyond simply inhibiting excitatory activity, inhibitory neurons can also shape circuit function through disinhibition. While disinhibitory circuit motifs have been implicated in cognitive processes including learning, attentional selection, and input gating, the role of disinhibition is largely unexplored in the study of decision-making. Here, we show that disinhibition provides a simple circuit motif for fast, dynamic control of network state and function. This dynamic control allows a disinhibition-based decision model to reproduce both value normalization and winner-take-all dynamics, the two central features of neurobiological decision-making captured in separate existing models with distinct circuit motifs. In addition, the disinhibition model exhibits flexible attractor dynamics consistent with different forms of persistent activity seen in working memory. Fitting the model to empirical data shows it captures well both the neurophysiological dynamics of value coding and psychometric choice behavior. Furthermore, the biological basis of disinhibition provides a simple mechanism for flexible top-down control of the network states, enabling the circuit to capture diverse task-dependent neural dynamics. These results suggest a biologically plausible unifying mechanism for decision-making and emphasize the importance of local disinhibition in neural processing.

    1. Medicine
    2. Neuroscience

    Instantaneous antidepressant effect of lateral habenula deep brain stimulation in rats studied with functional MRI

    Gen Li, Binshi Bo ... Xiaojie Duan
    Research Article

    The available treatments for depression have substantial limitations, including low response rates and substantial lag time before a response is achieved. We applied deep brain stimulation (DBS) to the lateral habenula (LHb) of two rat models of depression (Wistar Kyoto rats and lipopolysaccharide-treated rats) and observed an immediate (within seconds to minutes) alleviation of depressive-like symptoms with a high-response rate. Simultaneous functional MRI (fMRI) conducted on the same sets of depressive rats used in behavioral tests revealed DBS-induced activation of multiple regions in afferent and efferent circuitry of the LHb. The activation levels of brain regions connected to the medial LHb (M-LHb) were correlated with the extent of behavioral improvements. Rats with more medial stimulation sites in the LHb exhibited greater antidepressant effects than those with more lateral stimulation sites. These results indicated that the antidromic activation of the limbic system and orthodromic activation of the monoaminergic systems connected to the M-LHb played a critical role in the rapid antidepressant effects of LHb-DBS. This study indicates that M-LHb-DBS might act as a valuable, rapid-acting antidepressant therapeutic strategy for treatment-resistant depression and demonstrates the potential of using fMRI activation of specific brain regions as biomarkers to predict and evaluate antidepressant efficacy.
