Delayed antibiotic exposure induces population collapse in enterococcal communities with drug-resistant subpopulations

  1. Kelsey M Hallinen
  2. Jason Karslake
  3. Kevin B Wood  Is a corresponding author
  1. Department of Biophysics, University of Michigan, United States
  2. Department of Physics, University of Michigan, United States
Research Article
  • Cited 2
  • Views 1,426
  • Annotations
Cite this article as: eLife 2020;9:e52813 doi: 10.7554/eLife.52813

Abstract

The molecular underpinnings of antibiotic resistance are increasingly understood, but less is known about how these molecular events influence microbial dynamics on the population scale. Here, we show that the dynamics of E. faecalis communities exposed to antibiotics can be surprisingly rich, revealing scenarios where increasing population size or delaying drug exposure can promote population collapse. Specifically, we demonstrate how density-dependent feedback loops couple population growth and antibiotic efficacy when communities include drug-resistant subpopulations, leading to a wide range of behavior, including population survival, collapse, or one of two qualitatively distinct bistable behaviors where survival is favored in either small or large populations. These dynamics reflect competing density-dependent effects of different subpopulations, with growth of drug-sensitive cells increasing but growth of drug-resistant cells decreasing effective drug inhibition. Finally, we demonstrate how populations receiving immediate drug influx may sometimes thrive, while identical populations exposed to delayed drug influx collapse.

eLife digest

Antibiotic resistance is a threat to human and animal health worldwide. Although we rely on antibiotics to treat diseases caused by bacteria, such as tuberculosis, some bacteria are already resistant to many of the drugs available. Understanding the basis of resistance is crucial for developing new antibiotics, and for using current drugs more efficiently.

One way that bacteria resist antibiotics is by producing enzymes that inactivate specific drugs. If a community of bacteria contains both vulnerable and resistant cells, this can lead to a phenomenon called ‘cooperative resistance’. When treated with antibiotics, vulnerable cells within the group are shielded by their resistant neighbors, which effectively remove the drugs from the environment.

Cooperative resistance can make it difficult for researchers to understand how resistance develops in different bacterial populations. This is because a large group of cells may collectively behave in a different way than individual cells. This means that bacterial populations are a more realistic model for ‘real-world’ infections and disease than studies of single cells. Now, Hallinen, Karslake and Wood show how cooperation between cells affects the way bacterial communities respond to beta-lactams, the most commonly prescribed class of antibiotic drugs.

Experiments using cultures of Enterococcus faecalis, a bacterium that often causes hospital infections, revealed that the density of different bacterial populations changes the effectiveness of drugs. Although increased cell density had a protective effect on populations containing only resistant bacteria, it made non-resistant populations even more vulnerable.

Mathematical modelling using information from the culture experiments predicted that interactions between vulnerable and resistant bacteria within a mixed community can determine how populations change over time. For example, if the number of antibiotic-sensitive cells is too high, this can cause the entire population to collapse. These predictions contradict the conventional understanding of how antibiotic resistance spreads, where small numbers of resistant cells multiply rapidly at the expense of vulnerable ones.

These results shed new light on the complex dynamics of antibiotic resistance within bacterial populations as a whole. In the future, they may inspire new ecology-based strategies for slowing the spread of resistance, ultimately helping reduce the burden of disease.

Introduction

Antibiotic resistance is a growing public health threat (Davies and Davies, 2010). Decades of rapid progress fueled by advances in microbiology, genomics, and structural biology have led to a detailed but still growing understanding of the molecular mechanisms underlying resistance (Blair et al., 2015). At the same time, recent studies have shown that drug resistance can be a collective phenomenon driven by emergent community-level dynamics (Vega and Gore, 2014; Meredith et al., 2015b). For example, drug degradation by a sub-population of enzyme-producing cells can lead to cooperative resistance that allows sensitive (non-producing) cells to survive at otherwise inhibitory drug concentrations (Yurtsev et al., 2013; Sorg et al., 2016; Yurtsev et al., 2016). Additional examples of collective resistance include density-dependent drug efficacy (Brook, 1989; Udekwu et al., 2009; Tan et al., 2012; Karslake et al., 2016), indole-mediated altruism (Lee et al., 2010), and increased resistance in dense surface-associated biofilms (Davies, 2003). The growing evidence for collective resistance underscores the need to understand not just the molecular underpinnings of resistance, but also the ways in which these molecular-level events shape population dynamics at the level of the bacterial community. Indeed, a wave of recent studies are inspiring novel strategies for combating resistance by exploiting different features of the population dynamics, ranging from competition for resources (Hansen et al., 2017; Hansen et al., 2019) or synergy with the immune system (Gjini and Brito, 2016) to temporal and spatial features of growth, selection, or the application of drug (Lipsitch and Levin, 1997; Meredith et al., 2015a; Fuentes-Hernandez et al., 2015; Zhang et al., 2011; Baym et al., 2016a; Greulich et al., 2012; Hermsen et al., 2012; Moreno-Gamez et al., 2015; De Jong and Wood, 2018; Trindade et al., 2009; Borrell et al., 2013; Bonhoeffer et al., 1997; Bergstrom et al., 2004; Bonhoeffer et al., 1997; Yoshida et al., 2017; Nichol et al., 2015; Roemhild et al., 2018; Baym et al., 2016b; Michel et al., 2008; Hegreness et al., 2008; Pena-Miller et al., 2013; Rodriguez de Evgrafov et al., 2015; Munck et al., 2014; Torella et al., 2010; Imamovic and Sommer, 2013; Kim et al., 2014; Pál et al., 2015; Barbosa et al., 2017; Barbosa et al., 2018; Nichol et al., 2019; Maltas and Wood, 2019; Podnecky et al., 2018; Imamovic et al., 2018; Dean et al., 2020). As a whole, these studies demonstrate the important role of community-level dynamics for understanding and predicting how bacteria respond and adapt to antibiotics. Despite the relatively mature understanding of resistance at the molecular level, however, the population dynamics of microbial communities in the presence of antibiotics are often poorly understood.

Here we investigate dynamics of E. faecalis populations exposed to (potentially time-dependent) influx of ampicillin, a commonly-used β-lactam. E. faecalis is an opportunistic pathogen that contributes to a number of clinical infections, including infective endocarditis, urinary tract infections, and blood stream infections (Clewell et al., 2014; Huycke et al., 1998; Hancock and Gilmore, 2006; Ch'ng et al., 2019). β-lactams are among the most commonly used antibiotics for treating E. faecalis infections, though resistance is a growing problem (Miller et al., 2014). Resistance to ampicillin can arise in multiple ways, including by mutations to the targeted penicillin binding proteins or production of β-lactamase, an enzyme that hydrolyzes the β-lactam ring and renders the drug ineffective. Enzymatic drug degradation is a common mechanism of antibiotic resistance across species and has been recently linked to cooperative resistance in E. coli (Yurtsev et al., 2013) and S. pneumoniae (Sorg et al., 2016). In addition, E. faecalis populations exhibit density-dependent growth when exposed to a wide rang-lactamse of antibiotics (Karslake et al., 2016). Increasing population density typically leads to decreased growth inhibition by antibiotics, consistent with the classical inoculum effect (IE) (Brook, 1989). However, β-lactams can also exhibit a surprising ‘reverse’ inoculum effect (rIE) characterized by increased growth of the population at lower densities (Karslake et al., 2016; Jokipii et al., 1985). In E. faecalis , the rIE arises from a decrease in local pH at increasing cell densities (Karslake et al., 2016), which are associated with increased activity of ampicillin and related drugs (Yang et al., 2014). Similar growth-driven changes in pH have been recently shown to modulate intercellular interactions (Ratzke and Gore, 2018), promote ecological suicide in some species (Ratzke et al., 2018), and even to modulate antibiotic tolerance in multispecies communities (Aranda-Díaz et al., 2020). In addition to these in vitro studies, recent work shows that E. faecalis infections started from high- and low-dose inocula lead to different levels of immune response and colonization in a mouse model (Chong et al., 2017).

In this work, we show that density-dependent feedback loops couple population growth and drug efficacy in E. faecalis communities comprised of drug-resistant and drug-sensitive cells exposed to time-dependent concentrations of antibiotic. By combining experiments in computer-controlled bioreactors with simple mathematical models, we demonstrate that coupling between cell density and drug efficacy can lead to rich dynamics, including bistabilities where low-density populations survive while high-density populations collapse. In addition, we experimentally show that there are certain scenarios where populations receiving immediate drug influx may eventually thrive, while identical populations exposed to delayed drug influx–which also experience lower average drug concentrations–are vulnerable to population collapse. These results illustrate that the spread of drug resistant determinants exhibits rich and counterintuitive dynamics, even in a simplified single-species population.

Results

Resistant and sensitive populations exhibit opposing density-dependent effects on antibiotic inhibition

To investigate the dynamics of E. faecalis populations exposed to β-lactams, we first engineered drug resistant E. faecalis strains that contain a multicopy plasmid that constitutively expresses β-lactamase (Materials and methods). Sensitive cells harbored a similar plasmid that lacks the β-lactamase insert. To characterize the drug sensitive and drug resistant strains, we estimated the half maximal inhibitory concentration, IC50, of ampicillin in liquid cultures starting from a range of inoculum densities (Figure 1A; Materials and methods). We found that the IC50 for sensitive strains is relatively insensitive to inoculum density over this range, while β-lactam producing resistant cells exhibit strong inoculum effects (IE) and show no inhibition for inoculum densities greater than 10-5 (OD units) even at the highest drug concentrations (10 µg/mL). To directly investigate growth dynamics at larger densities–similar to what can be resolved with standard optical density measurements–we used computer controlled bioreactors to measure per capita growth rates of populations held at constant densities and exposed to a fixed concentration of drug (as in Karslake et al., 2016). At these higher densities, we found that resistant strains are insensitive to even very large drug concentrations (in excess of 103 µg/mL). By contrast, sensitive populations are inhibited by concentrations smaller than 1 µg/mL, and the inhibition depends strongly on density, with higher density populations showing significantly decreased growth (Figure 1B)–indicative of a reverse inoculum effect (rIE). Taken together, these results illustrate opposing effects of cell density on drug efficacy in sensitive and resistant populations. In what follows, we focus on dynamics in the regime OD > 0.05, where the interplay between these two opposing effects may dictate survival or extinction of resistant populations.

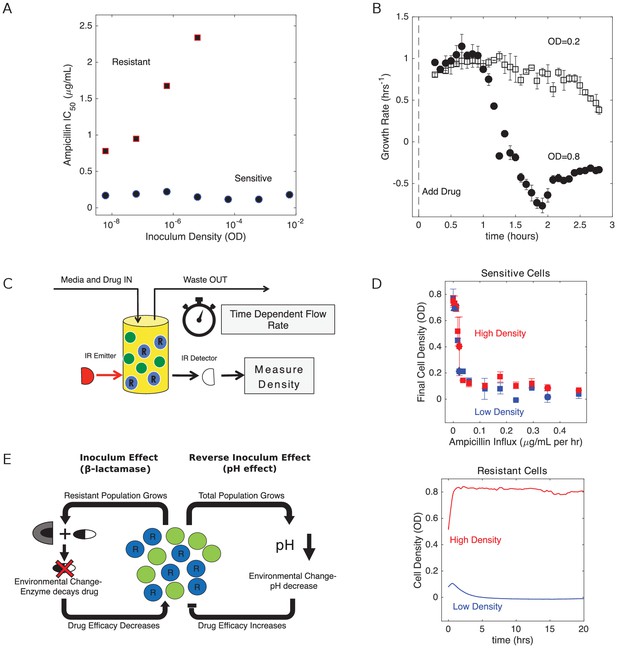

Changes in cell density have opposing effects on β-lactam efficacy in drug sensitive and drug resistant populations.

(A) Half-maximal inhibitory concentration (IC50) of ampicillin as a function of inoculum density for resistant (red squares) and sensitive (blue circles) populations. IC50 is estimated using a fit to Hill-like function f(x)=(1+(x/K)h)-1, where h is a Hill coefficient and K is the IC50. (B) Per capita growth rate of drug-sensitive populations held at a density of OD = 0.2 (open squares) and OD = 0.8 (filled circles) following addition of ampicillin at time 0. Growth rate is estimated, as in Karslake et al. (2016), from the average media flow rate required to maintain populations at the specified density in the presence of a constant drug concentration of 0.5 µg/mL. Flow rate is averaged over sliding 20 min windows after drug is added. Note that drug-resistant populations exhibit no growth inhibition over these density ranges, even for drug concentrations in excess of 10µg/mL. (C) Schematic of experimental setup. Cell density in planktonic populations is measured via light scattering from IR detector/emitter pairs calibrated to optical density (OD). Fresh media (containing appropriate drug concentrations) is introduced over time using computer-controlled peristaltic pumps, and waste is simultaneously removed to maintain constant volume (see Materials and methods). (D) Top panel: final cell density of drug sensitive populations exposed to constant drug influx over a 20 hr period. Experiments were started from either ‘high density’ (OD = 0.6, red) or ‘low density’ (OD = 0.1, blue) initial populations. Bottom panel: cell density time series for drug-resistant populations exposed to ampicillin influx of approximately 1200 µg/mL per hour. In all experiments media was refreshed and waste removed at a rate of µ0 ≈ 0.1 hr−1. E. In mixed populations containing both sensitive (green) and resistant (blue, ‘R’) cells, there are opposing density-dependent effects on drug efficacy. Increasing the density of resistant cells is expected to decrease drug efficacy as a result of increased β-lactamase production (left side). By contrast, increasing the density of the total cell population decreases the local pH and increases the efficacy of β-lactam antibiotics (right side).

Resistant populations exhibit bistability between survival and extinction in the presence of constant drug influx

Bacteria in natural or clinical environments may often be exposed to drug concentrations that change over time. To introduce non-constant antibiotic concentrations, we grew populations in computer controlled bioreactors capable of precise control of inflow (e.g. drug and media) and outflow in each growth chamber (Figure 1C; see also Toprak et al., 2012; Toprak et al., 2013; Karslake et al., 2016). Cell density is monitored with light scattering (OD), and each chamber received fresh media and drug at a rate µ0 ≈ 0.1 hr−1, which is approximately an order of magnitude slower than the per capita growth rate of sensitive cells in drug-free media. In the absence of drug, cells reach a steady state population size of C(1-μ), where C is the carrying capacity (C1 in our experiments), μ=μ0/gmax, and gmax is the drug-free (maximum) per capita growth rate of bacteria. By changing the concentration of drug Dr in the media reservoir, we can expose cells to effective rates of drug influx F=μ0Dr.

We first characterized the population dynamics of each cell type (resistant, sensitive) alone in response to different influx rates of ampicillin. In each experiment, we started one population at OD = 0.6 (‘high-density’) and one at OD = 0.1 (‘low density’). Not surprisingly, sensitive only populations exhibit a monotonic decrease in final (20 hr) population size with increasing drug concentration (Figure 1D, top panel), with both high- and low-density populations approaching extinction for F >0.1 µg/mL/ per hr. By contrast, high- and low-density populations of resistant cells exhibit divergent behavior, with high-density populations surviving and low-density populations collapsing (Figure 1D, bottom panel). In addition, we note that the resistant strains have dramatically increased minimum inhibitory concentrations (MIC), with high-density populations surviving at Dr=104 µg/mL (an effective influx of over 1000 µg/mL/hr). Indeed, the half-maximal inhibitory concentrations (IC50) for sensitive-only and resistant-only populations differ significantly even at very low densities (Figure 1A), suggesting intrinsic differences in resistance even in the absence of density-dependent coupling. This difference corresponds to a direct benefit provided to the enzyme-producing cells, above and beyond any benefit that derives from drug degradation by neighboring cells.

These results, along with those in previous studies (Karslake et al., 2016), are consistent with a picture of competing density-dependent feedback loops in populations comprised of both sensitive and resistant sub-populations (Figure 1E). Increasing the total population density potentiates the drug, a consequence of the pH-driven reverse inoculum effect (rIE). On the other hand, increasing the size of only the β-lactamase producing subpopulation is expected to decrease drug efficacy as enzymatic activity decreases the external drug concentration. These opposing effects couple the dynamics of different subpopulations with drug efficacy, which in turn modulates both the size and composition of the community.

Mathematical model of competing density effects predicts bistability favoring survival of high-density populations at high drug influx rates and low-density populations at low influx rates

To investigate the potential impact of these competing density effects on population dynamics, we developed a simple phenomenological mathematical model that ascribes density-dependent drug efficacy to a change in the effective concentration of the antibiotic (see SI for alternative models). Specifically, the dynamics of sensitive and resistant populations are described by

(1) dNsdt=g(D)(1Ns+NrC)NsμNs,dNrdt=g(D)(1Ns+NrC)NrμNr

where Ns is the density of sensitive cells, Nr the density of resistant cells, C is the carrying capacity (set to one without loss of generality), µ is a rate constant that describes the removal of cells due to (slow) renewal of media and addition of drug, D is the effective concentration of drug (measured in units of MIC of the sensitive cells), and D=D/Kr, where Kr is a factor that describes the increase in drug minimum inhibitory concentration (MIC) for the resistant (enzyme producing) cells in low-density populations where cooperation is negligible. The function g(x) is a dose response function that describes the per capita growth rate of a population exposed to concentration x of antibiotic and is given by Udekwu et al. (2009):

(2) g(x)=(1-xh)gmaxgminxhgmax+gmin

where h is a Hill coefficient that describes the steepness of the dose response function, gmax is the growth in the absence of drug, and gmin>0 is the maximum death rate. The function g(x) is a sigmoidal function that equals gmax at x=0 (no drug), decreases monotonically and crosses the horizontal axis at x=1, and then approaches the maximum death rate gmin as x approaches infinity (g(x)-gmin). Without loss of generality, we set gmax=1, which is equivalent to measuring all rates in time units set by gmax-1 (coincidentally, we find that drug-free growth rate under the current experimental conditions is approximately gmax=1 hr-1, so measuring rates in units of gmax-1 is equivalent to measuring time in hours).

To account for the density dependence of drug efficacy, we model the effective drug concentration as

(3) dDdt=F+ϵ1(Ns+Nr)D-ϵ2NrD-Dμ

where ϵ1>0 is an effective rate constant describing the reverse inoculum effect (proportional to total population size), which is modeled as an increase in the effective drug concentration with cell density. We do not mean to imply that the cells physically produce antibiotic; instead, this phenomenological model is intended to capture the increase in drug efficacy due to acidification of the local environment as density increases. Similarly, the parameter ϵ2>0 describes the enzyme-driven ‘normal’ inoculum effect (proportional to the size of the resistant subpopulation), which corresponds mathematically–and in this case, also physically–to a degradation of antibiotic. F=Drμ is rate of drug influx into the reservoir, which can be adjusted by changing the concentration Dr in the drug reservoir. When ϵ2ϵ1–when the per capita effect of the inoculum effect (IE) is less than or equal to that of its reverse (rIE) counterpart–the ϵ1 term is always larger in magnitude than the ϵ2 term and the net effect of increasing total cell density is to increase effective drug concentration, regardless of population composition. This regime is inconsistent with experiments, where resistant-only populations exhibit a strong IE and sensitive-only populations a rIE (Figure 1). We therefore focus on the case ϵ2>ϵ1, where density and composition-dependent trade-offs may lead to counterintuitive behavior.

Despite the simplicity of the model, it predicts surprisingly rich dynamics (Figure 2). At rates of drug influx below a critical threshold (F<Fc), populations reach a stable fixed point at a density approaching C(1-μ) as influx approaches zero. On the other hand, populations go extinct for large influx rates FFc, regardless of initial density or composition. Between the two regimes lies a region of bistability, where populations are expected to survive or die depending on the initial conditions. To characterize the behavior in this bistable region, we calculated the separatrix–the surface separating regions of phase space leading to survival from those leading to extinction–for different values of the antibiotic influx rate using an iterative bisection algorithm, similar to Cavoretto et al. (2017). The analysis reveals that increasing total population size can lead to qualitatively different behavior–survival or extinction–depending on the rate of drug influx.

Figure 2 with 1 supplement see all

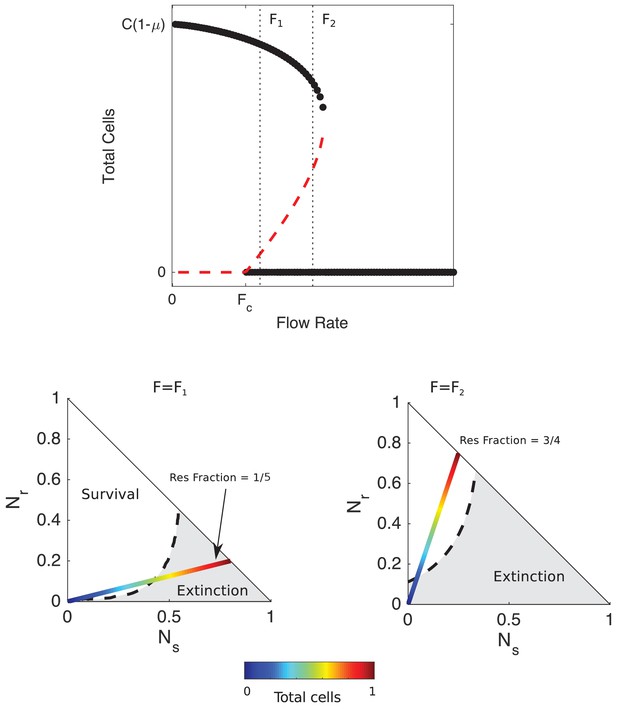

Mathematical model predicts bistability due to opposing density-dependent effects of sensitive and resistant cells on drug inhibition.

Top: bifurcation diagram showing stable (filled circles) and unstable (red dashed curves) fixed points for different values of drug influx (F) and the total number of cells (Ns+Nr). FcμK is the critical value of drug influx above which the zero solution (extinction) becomes stable; μ is the rate at which cells and drugs are removed from the system (and is measure in units of gmax, the maximum per capita growth rate of cells in drug-free media, and Kr is the factor increase in drug MIC of the resistant strain relative to the wild-type strain. Vertical black dashed lines correspond to F=F1>Fc (small drug influx, just above threshold) and F2Fc (large drug influx). Bottom panels: regions of survival (white) and extinction (grey) in the space of sensitive (Ns) and resistant (Nr) cells for flow rate F=F1 (left) and F=F2 (right). Dashed lines show separatrix, the contour separating survival from extinction. Multicolor lines represent constant resistant fractions (1/5, left; 3/4, right) at different total population sizes (ranging from 0 (blue) to a maximum density of 1 (red)). Cell numbers are measured in units of carrying capacity. Specific numerical plots were calculated with h=1.4, gmin=1/3, gmax=1, ϵ1=1.1, ϵ2=1.5, γ=0.1, Kr=14, F1=1.4, and F2=2.2.

For influx rates at the upper end of the bistable region–and for sufficiently high initial fractions of resistant cells– high-density populations survive while low-density populations go extinct (Figure 2, bottom right panel). For example, in populations with an initial resistant fraction of 3/4, small populations approach the extinction fixed point while large populations are expected to survive (Figure 2). Intuitively, the high-density populations have a sufficiently large number of resistant cells, and therefore produce a sufficient quantity of β-lactamase, that effective drug concentrations reach a steady state value below the MIC of the resistant cells, leading to a density-dependent transition from extinction to survival as the separatrix is crossed (Figure 2, bottom right).

Behavior in the low-influx regime of bistability (FFc) is more surprising. In this regime, the model predicts a region of bistability where initially high-density populations go extinct while low-density populations survive (Figure 2, bottom left). For example, at a resistant fraction of 1/4, low-density populations will approach the survival fixed point while high-density populations will approach extinction as the separatrix is crossed. These counterintuitive dynamics, which we refer to as ‘inverted bistability’, are governed in part by the reverse inoculum effect, which leads to a rapid increase in drug efficacy in the high-density populations and a corresponding population collapse. Mathematically, the different behavior corresponds to a translation in the separatrix curve as the influx rate is modulated (Figure 2; see also Figure 2—figure supplement 1). Interestingly, the stable solutions that correspond to survival are comprised of only resistant cells. Hence, the model is not predicting a stable coexistence of sensitive and resistant strains (though such coexistence can exist under some conditions; Lenski and Hattingh, 1986); instead, the initial presence of sensitive cells positions the population within the basin of attraction of states (like collapse) that would not be favored in their absence.

To further characterize the dynamics of the model, we numerically solved the coupled equations (Equations 1, 3) for different initial compositions (resistant cell fraction) and different drug influx rates. In each case, we considered both high-density (OD = 0.6) and low-density (OD = 0.1) populations. As suggested by the bifurcation analysis (Figure 2), the model exhibits bistability over a range of drug influx rates (Figure 3A). The qualitative behavior within this bistable region can vary significantly. For small resistant fractions and low drug influx, bistability favors survival of low-density populations, while large resistant fractions and high drug influx favor survival of high-density populations. The parameter space is divided into four non-overlapping regions, leading to a phase diagram that predicts regions of extinction, survival, and bistabilities. These qualitative features are not unique the specific model described here, but also occur in alternative models that include, for example, more realistic Monod-style growth (SI; Figure 3—figure supplement 1 through Figure 3—figure supplement 2). It is notable that the dynamics leading to the fixed points can be significantly more complex than simple mononotic increases or decreases in population size (Figure 3A, top panels).

Figure 3 with 8 supplements see all

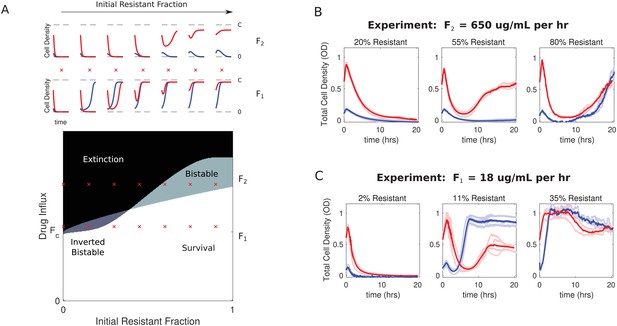

Bistability may favor survival of populations with highest or lowest initial density.

(A) Main panel: phase diagram indicating regions of extinction (black), survival (white), bistability (light gray; initially large population survives, small population dies), and ‘inverted’ bistability (dark gray; initially small population survives, large population dies). Red ’x’ marks correspond to the subplots in the top panels. Top panels: time-dependent population sizes starting from a small population (OD = 0.1, blue) and large population (OD = 0.6, red) at constant drug influx of F2Fc (large drug influx) and F1>Fc (small drug influx). Fc is the critical influx rate above which the extinct solution (population size 0) first becomes stable; it depends on model parameters, including media refresh rate (µ), maximum kill rate of the antibiotic (gmin), the Hill coefficient of the dose response curve (h), and the MIC of the drug-resistant population in the low-density limit where cooperation is negligible (K). Specific numerical plots were calculated with h=1.4, gmin=1/3, gmax=1, ϵ1=1.1, ϵ2=1.5, γ=0.1, Kr=14, F1=1.4, and F2=2.2. (B) Experimental time series for mixed populations starting at a total density of OD = 0.1 (blue) or OD = 0.6 (red). The initial populations are comprised of resistant cells at a total population fraction of 0.2 (left), 0.55 (center), and 0.80 right) for influx rate F1=650 µg/mL. Light curves are individual experiments, dark curves are means across all experiments. (C) Experimental time series for mixed populations starting at a total density of OD = 0.1 (blue) or OD = 0.6 (red). The initial populations are comprised of resistant cells at a total population fraction of 0.02 (left), 0.11 (center), and 0.35 right) for influx rate F1=18 µg/mL. Light curves are individual experiments, dark curves are means across all experiments.

Small E. faecalis populations survive and large populations collapse when drug influx is slightly supercritical and resistant subpopulations are small

To test these predictions experimentally, we first performed a preliminary scan of parameter space in short, 5-hr experiments starting from a wide range of initial population fractions and drug influx rates (Figure 3—figure supplement 3). Based on these experiments, we then narrowed our focus to a region of ‘high’ influx rate (F600-700 µg/mL/hr), where conditions may favor ‘normal’ bistability, and a region of ‘low’ influx rate (F15-20 µg/mL per hour), where conditions may favor ‘inverted’ bistability. Then, we performed replicate (N=3) 20 hr experiments starting from a range of population compositions. Note that in the absence of density-mediated changes in drug concentration, these flow rates are expected to produce drug concentrations that increase over time, rapidly eclipsing the low-density limits for IC50’s of both susceptible and resistant cells (see Figure 1) and exponentially approaching steady state values of D=F/μ8.5F with a time constant of μ-18.5 (and therefore μ0=8.5 hr).

The experiments confirm the existence of both predicted bistable regimes as well as the expected regimes of survival and extinction (Figure 3B–C). At each of the two flow rates (F1 and F2), we observe a transition from density-independent extinction–where populations starting from both high and low-densities collapse–to density-independent survival–where both populations survive–as the initial resistant population is increased (Figure 3B–C, left to right). However, in both cases, there are intermediate regimes where initial population density determines whether the population will survive or collapse. When drug influx is relatively high (F2) and the population is primarily comprised of resistant cells (55 percent), initially large populations survive while small populations collapse (Figure 3B, middle panel). On the other hand, when initial populations contain 11–15% resistant cells and drug influx is relatively small (F1), we observe a clear region of ‘inverted’ bistability (Figure 3C, middle panel). In this regime, high-density populations (red) grow initially before undergoing dramatic collapse, while low-density populations (blue) initially decay before recovering and eventually plateauing near the carrying capacity. In contrast to predictions of the model, the collapsing populations do not entirely go extinct. We confirmed that these populations do indeed contain living cells, and single colony isolates exhibit dose-response characteristics similar to those of the original sensitive and resistant strains, so there is no evidence that additional resistance has evolved during the experiment (Figure 3—figure supplement 4). Mathematical models do indicate the existence of long-lived but transient states of non-zero density near the onset of inverted bistability (Figure 3—figure supplement 4), which may partially explain the lack of complete extinction. However, it is also possible that it reflects features not included in the model. For example, while ampicillin is generally considered to be stable in solution for several days, the degradation rate depends on both temperature and pH (Hou and Poole, 1969), which could induce new dynamics on timescales of 10 s of hours. Similarly, β-lactamase activity can also vary slightly with pH, adding an additional layer of coupling between the density effects driven by sensitive and resistant cells (Ohsuka et al., 1995).

Inverted bistability depends on pH-dependent reverse inoculum effect

The model predicts that the inverted bistability relies on the reverse inoculum effect–specifically, it requires ε1> 0 and is eliminated when ε1 = 0 (Figure 4). Previous work showed that in this system, the reverse inoculum effect is driven by density-modulated changes in the local pH (Karslake et al., 2016). Conveniently, then, it is possible–in principle–to eliminate the effect by strengthening the buffering capacity of the media. To test this prediction, we repeated the experiments in the inverted bistable region in strongly buffered media (Figure 4). As predicted by the model, we no longer observe collapse of high-density populations, indicating that the region of inverted bistability is now a region of density-independent survival.

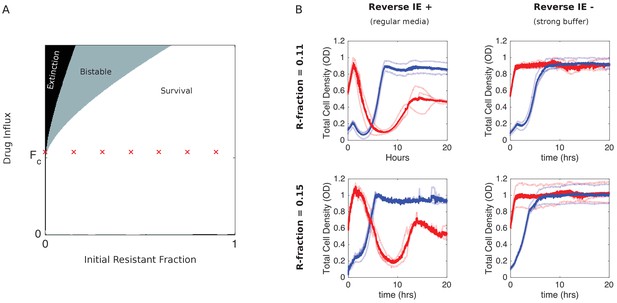

Eliminating reverse inoculum effect eliminates inverted bistability.

(A) Numerical phase diagram in absence of reverse inoculum effect (ϵ1=0) indicating regions of extinction (black), survival (white), and bistability (light gray; initially large population survives, small population dies). There are no regions of ‘inverted’ bistability (initially small population survives, large population dies). Red ’x’ marks fall along a line that previously traversed a region of inverted bistability in the presence of a reverse inoculum effect (Figure 3) but includes only surviving populations in its absence. Fc is the critical influx rate above which the extinct solution (population size 0) first becomes stable; it depends on model parameters, including media refresh rate (µ), maximum kill rate of the antibiotic (gmin), the Hill coefficient of the dose-response curve (h), and the MIC of the drug-resistant population in the low-density limit where cooperation is negligible (K). Specific phase diagram was calculated with same parameters as in Figure 3 except ϵ1, which corresponds to the reverse inoculum effect, is set to 0. (B) Experimental time series for mixed populations starting at a total density of OD = 0.1 (blue) or OD = 0.6 (red) in regular media (left panels) or strongly buffered media (right panels). The initial populations are comprised of resistant cells at a total population fraction of 0.11 (top) and 0.15 (bottom) and for influx rate of F1=18 µg/mL. Light curves are individual experiments, dark curves are means across all experiments.

Delaying antibiotic exposure can promote population collapse

The competing density-dependent effects on drug efficacy raise the question of whether different time-dependent drug dosing strategies might be favorable for populations with different starting compositions. In particular, we wanted to investigate the effect of delaying the start of antibiotic influx for different population compositions and influx rates. Based on the results of the model, we hypothesized that there would be two possible regimes where delay could dramatically impact survival dynamics: one (corresponding to ‘normal bistability’) where delaying treatment would lead to larger end-point populations, and a second (corresponding to“inverted bistabillity’) where delaying treatment could, counterintuitively, promote population collapse (see Figure 5—figure supplement 1).

To test this hypothesis, we measured the population dynamics in mixed populations starting from an initial OD of 0.1 at time zero. We then compared final population size for identical populations experiencing immediate or delayed drug influx, with delay ranging from 0.5 to 2.5 hr. In experiments with non-zero delays, antibiotic influx was replaced by influx of drug-free media (at the same flow rate) during the delay period. In the first case, we chose a relatively small initial resistant fraction (0.11) and a relatively slow drug influx rate (F=18 µg/mL), while in the second case we chose a larger initial resistant fraction (0.55) and a faster drug influx (F=650 µg/mL).

Remarkably, we found that delaying treatment can have opposing effects in the two scenarios (Figure 5). At high drug influx rates and largely resistant populations, immediate treatment leads to smallest final populations (Figure 5, right panels), consistent with model predictions of bistability. Intuitively, the delay allows the subpopulation of resistant cells to increase in size, eventually surpassing a critical density where the presence of enzyme is sufficient to counter the inhibitory effects of antibiotic. On the other hand, at lower influx rates and lower initial resistant fractions, we find that immediate treatment leads to initial inhibition followed by a phase of rapid growth as the population thrives; by contrast, delays in treatment allow the population to initially grow rapidly before collapsing (Figure 5, left panels). It is particularly striking that delayed treatments–which also use significantly less total drug–can promote population collapse when immediate treatments appear to fail. Similar to the ‘inverted bistability’ observed earlier, the beneficial effects of delayed treatment can be traced to density-dependent drug efficacy–in words, the delay means the drug is applied when the population is sufficiently large that pH-mediated drug potentiation promotes collapse.

Figure 5 with 1 supplement see all

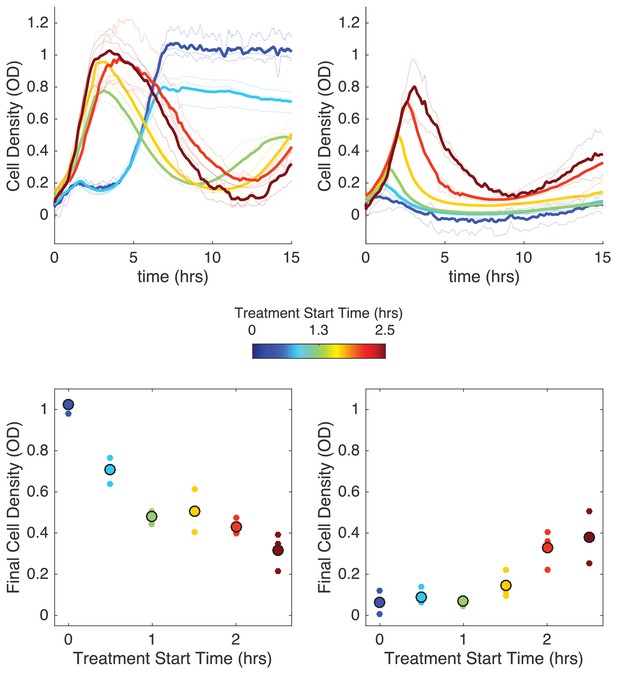

Delaying antibiotic exposure tips populations toward survival or extinction depending on initial resistance fraction and drug influx rate.

Top panels: experimental time series for mixed populations with small initial resistance and low drug influx (left; initial resistance fraction, 0.11 µg/mL) or large initial resistance and high drug influx (right; initial resistance fraction, 0.55 µg/mL). Antibiotic influx was started immediately (blue) or following a delay of up to 2.5 hr (dark red). Light transparent lines are individual replicates; dark lines are means over replicates. In experiments with nonzero delays, antibiotic influx was replaced by influx of drug-free media during the delay. Bottom panels: final cell density (15 hr) as a function of delay (‘treatment start time’). small points are individual replicates; large circles are means across replicates.

Discussion

We have shown that different types of coupling between cell density and drug efficacy can lead to surprising dynamics in E. faecalis populations exposed to time-dependent ampicillin concentrations. In regimes of relatively fast or slow rates of drug influx, the results are intuitive: populations either survive or collapse, independent of initial population size (density). The intermediate regime, however, is characterized by bistability, meaning that population collapse will depend on initial population size. In regimes where cooperative resistance–in this case, due to enzymatic degradation of drug–dominates, larger populations are favored, similar to results predicted from the classical inoculum effect (Udekwu et al., 2009; Karslake et al., 2016). Under those conditions, it is critical to immediately expose cells to drug influx, as delays lead to increasingly resilient populations. Even more surprisingly, regimes characterized by comparatively smaller resistant populations and slower drug influx can lead to ‘inverted bistability’ where initially small populations thrive while large populations collapse. In this case, delays to drug exposure can paradoxically promote population collapse. It is notable that the mathematical model suggests these results are not simply transient effects but instead reflect asymptotic behavior where the system approaches one of two stable fixed points (survival or extinction) with very different biological consequences.

Our goal was to understand population dynamics in simple, single-species populations where environmental conditions–including drug influx rate and population composition–can be well controlled. To make sense of experimental results and, more importantly, to generate new testable hypotheses, we developed a minimal mathematical model and analyzed its qualitative behavior using standard tools from dynamical systems and bifurcation theory. We chose to focus on a phenomenological model in an effort to simplify the assumptions and limit the number of unconstrained parameters. However, our model clearly omits a number of potentially relevant biological details. For example, the model neglects evolutionary changes, such as de novo mutations, that would impact behavior on longer time-scales. Similarly, previous work (Meredith et al., 2018) has shown that lysis of resistant cells can effectively increase the concentration of drug-degrading enzyme. We find that extending our phenomenological model to account for free enzyme leads to qualitatively similar behavior (see SI), but more accurate kinetic models may point to different dynamics in some regimes. Constructing detailed mechanistic models is notoriously difficult, but recent work shows that careful pairing of experiment and theory can be used to systematically overcome many common obstacles (Hart et al., 2019). A similar approach could potentially be applied to this system, leading to more accurate quantitative models that account for factors like spontaneous drug degradation (Hou and Poole, 1969), the pH dependence of β-lactamase activity (Ohsuka et al., 1995), and the kinetics of pH-modulated drug activity.

It is obvious that the specific in vitro conditions used here fail to capture numerous complexities associated with resistance in clinical settings (Bonten et al., 2001), including substantial spatial heterogeneity, potential for biofilm formation, effects of the host immune system, and drug concentrations that differ in both magnitude and time-course from the specific scenarios considered here. In particular, the effects of delayed antibiotic exposure in a clinical setting will depend on many factors not captured here, and there are unquestionably scenarios where such delay could be detrimental to patient well-being. In fact, our results indicate that delaying drug exposure can have differing effects in different parameter regimes, even in laboratory populations. Future work in clinically motivated in vitro systems, such as biofilms, and ultimately in vivo are needed to assess the feasibility of delayed dosing in more realistic scenarios. In addition, we note that β-lactamase producing enterococci are thought to be relatively rare, though they have been associated with multi-drug resistant, high-risk enterococcal infections (Murray, 1992; Wells et al., 1992; Arias et al., 2010) and may be more widespread that initially believed because of the difficulty of detection in traditional laboratory tests (Gagetti et al., 2019). Finally, our experimental model system is based on plasmid-mediated resistance, and while this fact is not explicitly assumed in any of our mathematical models, horizontal gene transfer may introduce new dynamics (Lopatkin et al., 2016; Lopatkin et al., 2017), particularly in high-density populations where conjugation is frequent.

Our results show that the response of microbial populations to antibiotic can be surprisingly complex, suggesting that the spread of resistance alleles may not always follow simple selection dynamics. These findings underscore the need for additional metrics (similar to the proposed notion of drug resilience; Meredith et al., 2018) that go beyond short-term growth measurements to for population dynamics over multiple timescales. More generally, we hope these results will motivate continued efforts to understand the potentially surprising ways that molecular level resistance events influence dynamics on the scale of microbial populations.

Materials and methods

Key resources table
Reagent (species)DesignationSourceAdditional info
Gene (E. faecalis )β-lactamaseZscheck and Murray, 1991; Rice et al. (1991); Rice and Marshall (1992)PCR from strain CH19
Gtrain (E. faecalis )OG1RFDunny et al. (1978); Oliver et al. (1977)
PlasmidpBSU101-DasherGFPAymanns et al. (2011); Hallinen et al. (2019)Reporter plasmid
PlasmidpBSU101-BFP-BLHallinen et al. (2019), this paperExpresses β-lactamase
DrugSpectinomcyin sulfateMP BiomedicalsCAT 0215899302
DrugAmpicillin Sodium SaltFisherCAT BP1760-25

Bacterial strains, media, and growth conditions

Request a detailed protocol

Experiments were performed with E. faecalis strain OG1RF, a fully sequenced oral isolate. Ampicillin-resistant strains were engineered by transforming (Dunny et al., 1991) OG1RF with a modified version of the multicopy plasmid pBSU101, which was originally developed as a fluorescent reporter for Gram-positive bacteria (Aymanns et al., 2011). The plasmid was chosen because it can be conveniently manipulated and propagated in multiple species (including E. coli) and contains a fluorescent reporter that provides a redundant control for readily identifying the strains. The modified plasmid, named pBSU101-BFP-BL, expresses BFP (rather than GFP in the original plasmid) and also constitutively expresses -lactamase driven by a native promoter isolated from the chromosome of clinical strain CH19 (Rice et al., 1991; Rice and Marshall, 1992). The β-lactamase gene and reporter are similar to those found in other isolates of enterococci and streptococci (Murray and Mederski-Samaroj, 1983; Zscheck and Murray, 1991). Similarly, sensitive strains were transformed with a similar plasmid, pBSU101-DasherGFP, a pBSU101 derivative that lacks the β-lactamase insert and where eGFP is replaced by a brighter synthetic GFP (Dasher-GFP; ATUM ProteinPaintbox, https://www.atum.bio/). The plasmids also express a spectinomycin resistance gene, and all media was therefore supplemented with spectinomycin.

Antibiotics

Request a detailed protocol

Antibiotics used in this study included Spectinomycin Sulfate (MP Biomedicals) and Ampicillin Sodium Salt (Fisher).

Estimating IC50 for sensitive and resistant strains

Request a detailed protocol

Experiments to estimate the half-maximal inhibitory concentration (IC50) for each population were performed in 96-well plates using an Enspire Multimodal Plate Reader. Overnight cultures were diluted 102 - 108 fold into individual wells containing fresh BHI and a gradient of 6–14 drug concentrations. After 20 hr of growth, the optical density at 600 nm (OD) was measured and used to create a dose response curve, which was fit to a Hill-like function f(x)=(1+(x/K)h)-1 using nonlinear least squares fitting, where K is the half-maximal inhibitory concentration (IC50) and h is a Hill coefficient describing the steepness of the dose-response relationship.

Continuous culture device

Request a detailed protocol

Experiments were performed in custom-built, computer-controlled continuous culture devices (CCD) as described in Karslake et al. (2016). Briefly, bacterial populations are grown in glass vials containing a fixed volume of 17 mL media. Cell density was measured at 1.5 s intervals in each vial using emitter/detector pairs of infrared LEDs (Radioshack). Detectors register a voltage output that is then converted to optical density using a calibration curve performed with a table top OD reader. Each vial contains input and output channels connected to silicone tubing and attached to a system of peristaltic pumps (Boxer 15000, Clark Solutions) that add drug and/or media and remove excess liquid on a schedule that can be programmed in advance or determined in real time. The entire system is controlled using a collection of DAQ and instrument control modules (Measurement Computing) along with the Matlab (MathWorks) Instrument Control Toolbox.

Drug dosing protocols

Request a detailed protocol

In ‘constant flow’ experiments, media (with drug, when relevant) is added at a rate of 1 mL/min for a total of 7.5 s every 3.75 min for an effective flow rate of 2 mL/hr (corresponding to a rate constant of µ = 10.12 hr-1 in 17 mL total volume). Media (plus cells and drug) is removed at an identical rate to maintain constant volume. While drug influx (and waste removal) strictly occurs on discrete on-off intervals, the timescale of those intervals (3–4 min) is an order of magnitude slower than the maximum bacterial growth rate under these conditions, which corresponds to a doubling time of approximately 30–40 min. The influx of drug is therefore approximately continuous on the timescale of bacterial dynamics. We experimentally modulate the influx rate of drug, F, without changing the background refresh rate (µ) by changing the drug concentration in the drug reservoir. For experiments involving time-dependent drug influx–for example, those in Figure 5, the media in the drug reservoirs is exchanged manually at specified times to mimic, for example, delayed treatment start times.

Experimental mixtures and set up

Request a detailed protocol

All experiments were started from overnight cultures inoculated from single colonies grown on BHI agar plates with streptomycin and incubated in sterile BHI (Remel) with streptomycin (120 µg/mL) overnight at 37C. Highly buffered media was prepared by supplementing standard BHI with 50 µM Dibasic Sodium Phosphate (Fisher). Overnight cultures were diluted 100–200 fold with fresh BHI in continuous culture devices and populations were allowed to reach steady state exponential growth at the specified density (typically OD = 0.1 or OD = 0.6) prior to starting influx and outflow of media and waste. Experiments were typically performed in triplicate.

Appendix 1

Alternative Models

In what follows, we outline three alternative but related models, each of which exhibits similar qualitative behavior to the one proposed in the main text (Figure 3—figure supplement 1). More specifically, all models are characterized by a region of extinction for sufficiently large drug influx, survival for sufficiently low drug influx, and a region of bistable behavior for intermediate rates of influx. The bistable regime in all cases consists of a region of 'inverted bistability', where low density populations survive while high-density populations collapse, and a region of 'normal bistability' where low density populations collapse while high-density populations survive. In all cases, the inverted bistable region occurs in regions of smaller drug influx and lower initial resistant fraction, while normal bistability occurs for larger rates of influx and higher initial resistant fractions.

Enzyme Release Model

Recent work has shown that lysis of enzyme-producing cells may lead to the release of enzyme into the media, which can continue to degrade drug even in the absence of the original (now lysed) cell. To capture this effect, we modify the original model to

(4) dNsdt=g(D)(1Ns+NrC)NsμNs,dNrdt=g(D)(1Ns+NrC)NrμNr,dDdt=F+ϵ1(Ns+Nr)Dϵ2NrDDμχED,dEdt=rdeath(1Ns+NrC)NrEμ,

where E describes lysed (resistant) cells, rdeath is the death rate of resistant cells due to antibiotic (rdeathgmax-g(D)) and χ is a parameter that sets the degradation rate of antibiotic per lysed cell (due to cell-free enzyme). We take χ=0.1 for the simulations in Figure 3—figure supplement 1; Figure 3—figure supplement 4.

As before, Ns is the density of sensitive cells, Nr the density of resistant cells, C is the carrying capacity (set to one without loss of generality), µ is a rate constant that describes the removal of cells due to (slow) renewal of media and addition of drug, D is the effective concentration of drug (measured in units of MIC of the sensitive cells), and D=D/Kr, where Kr is a factor that describes the increase in drug minimum inhibitory concentration (MIC) for the resistant (enzyme producing) cells in low density populations where cooperation is negligible, and the function g(x) is a dose response function with parameters h (a Hill coefficient), gmax (the growth in the absence of drug), and gmin>0 (the maximum death rate). In addition, ϵ1>0 is an effective rate constant describing the reverse inoculum effect (proportional to total population size), ϵ2>0 describes the enzyme-driven ‘normal’ inoculum effect, and F=Drμ is rate of drug influx into the reservoir, which can be adjusted by changing the concentration Dr in the drug reservoir.

pH-IC50 Model

The original model captures the pH-driven rIE using a density-dependent increase in the effective drug concentration. An alternative, and perhaps more intuitive (but related) phenomenological model assumes that the rIE leads directly to a density dependent change in the IC50 of the drug. In principle, the dependence of IC50 on density can be estimated from independent experiments, leading to a more quantitatively constrained model (similar to the approach in Hart et al., 2019). Specifically, we have

(5) dNsdt=g(D/Kd(n))(1Ns+NrC)NsμNs,dNrdt=g(D/Kd(n))(1Ns+NrC)NrμNr,dDdt=Fϵ2NrDDμ,

where we have now explicitly noted the dependence of the IC50, which we denote Kd(n), on the total cell density n=Ns+Nr. For simplicity, we take

(6) Kd(n)=K01+n/ϵ3

where K0 is the low density limit of the IC50 and ϵ3 sets the density scale at which the pH effects are half maximal. We take K0=1 and ϵ3=1/5 for the simulations in Figure 3—figure supplement 1; Figure 3—figure supplement 5.

Monod Growth Model

Because experiments take place in a chemostat, a more realistic description of growth is given by the classic Monod growth model, where growth is explicitly exponential (rather than logistic) but the rate depends on the concentration of a limiting nutrient S (Edelstein-Keshet, 2005; Allen and Waclaw, 2019). Specifically, we have

(7) dNsdt=g(D)gM(S)NsμNs,dNrdt=g(D)gM(S)NrμNr,dDdt=F+ϵ1(Ns+Nr)Dϵ2NrDDμ,dSdt=μ(C0S)η(Ns+Nr)gM(S),

where we have introduced a new equation for S, the limiting nutrient S, and where C0 is the concentration of nutrient in the stock (influx) reservoir and gM(S) is the nutrient-dependent Monod growth, given by

(8) gM(S)=SS+Ks.

For simplicity, we take C0=Ks=η=1, which leads to a drug-free steady state cell density similar to that in the other models (Figure 3—figure supplement 1; Figure 3—figure supplement 2).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Inoculum effect
    1. I Brook
    (1989)
    Clinical Infectious Diseases 11:361–368.
    https://doi.org/10.1093/clinids/11.3.361
  15. 15
  16. 16
  17. 17
  18. 18
    Enterococci: From Commensals to Leading Causes of Drug Resistant Infection
    1. DB Clewell
    2. MS Gilmore
    3. Y Ike
    4. N Shankar
    (2014)
    Massachusetts Eye and Ear Infirmary.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Gram-Positive Pathogens
    1. LE Hancock
    2. MS Gilmore
    (2006)
    299–311, Pathogenicity of enterococci, Gram-Positive Pathogens, American Society of Microbiology.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    Beta-lactamase-producing enterococci
    1. BE Murray
    (1992)
    Antimicrobial Agents and Chemotherapy 36:2355–2359.
    https://doi.org/10.1128/AAC.36.11.2355
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86

Decision letter

  1. Wenying Shou
    Reviewing Editor; Fred Hutchinson Cancer Research Center, United States
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France
  3. Wenying Shou
    Reviewer; Fred Hutchinson Cancer Research Center, United States
  4. Lingchong You
    Reviewer; Duke University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Hallinen et al. combine modeling and experiments to show that the density-dependent effects of antibiotic degradation by resistant cells and the pH influence on antibiotic survival can result in complex and counter-intuitive dynamics.

Decision letter after peer review:

Thank you for submitting your article "Delayed antibiotic exposure induces population collapse in enterococcal communities with drug-resistant subpopulations" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Wenying Shou as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Aleksandra Walczak as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Lingchong You (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

All three reviewers are positive about your work, although we feel that stating the limitations of your study is important. We are also confused about Figure 4C.

I attach modified full reviews to help with your revision.

Reviewer #1:

Hallinen et al. showed that the density-dependent effects of antibiotic degradation by resistant cells and the pH influence on antibiotic survival can result in complex and counter intuitive dynamics. Overall, I find the work quite interesting (although I am not intimately familiar with the field).

Major comments:

How mechanistic a model is a continuum. A phenomenological model was presented in this study. Have you ever tried constructing a more mechanistic model which would account for important aspects such as enzyme degradation of antibiotics and the pH effects? You can then use this model to explain reverse inoculum effect and possibly other experimental results. In the Discussion section, you delineated why a mechanistic model was not constructed, but I am not convinced, especially since you did not measure all parameters in your phenomenological model anyways. If you have tried to construct a more mechanistic model but it did not work, I think that it is still worth including such efforts in the Discussion section as well as speculations on why it might have failed. If you have not tried constructing a mechanistic model, you can cite examples where mechanistic modeling has been shown to be challenging (e.g. Hart et al., 2019).

Figure 4C middle panel: The red curve did not really go extinct, unlike the model prediction in Figure 3 or Figure 4A. Need to explain this.

Reviewer #2:

In this work, the authors investigate the population-level implications of two density-dependent effects that are known to influence bacterial resistance to β-lactam antibiotics (mediated by β-lactamase production). The first, the inoculum effect (IE), suggests that higher densities of resistant cells can decay more drug and therefore reduce its efficacy, while the second, the reverse inoculum effect (RIE), suggests that higher bacterial densities modulate the environment in ways that increase the sensitivity of populations to the drug. They probe this question using both mathematical modeling and bioreactor experiments with a mixed population of sensitive and resistant strains responding to ampicillin treatment. The authors observe both effects in their system and suggest that these competing effects can lead to complex dynamics, especially regions of bistability which implies that under different drug concentrations different initial densities will be favored. The authors attribute the reverse inoculum effect to pH effects, removing it with buffered media. Finally, they exploit this density dependence for populations where the inoculum effect is small (few resistant cells) by delaying treatment until the population density is high enough that the reverse inoculum effect dominates, and show that this delay can allow for population extinction where immediate treatment cannot.

I enjoyed reading the fascinating study, which underscores the rich population dynamics resulting from the interplay between bacterial populations and antibiotics. In particular, what's really interesting is how the composition of a mixture can dictate qualitatively opposite outcomes. The authors elegantly integrate analysis by a coarse-grained model and quantitative experiments throughout the study. The observed dynamics have implications for the effective design of antibiotic dosing when combating bacterial pathogens.

Reviewer #3:

The manuscript by Hallinen et al. is a well-crafted story involving an integration between computer-controlled bioreactors and simple mathematical models that reveals density-dependent feedback loops that address nonintuitive community-level behaviors upon antibiotic treatment. In particular it deals with β-lactam treatment of the pathogen E. faecalis when communities include a drug-resistant subpopulation that expresses a β-lactamase. The authors do a careful job of addressing the effects of treatment on resistant and sensitive populations as a function of density (either alone or in combination), and as a result are able to reveal some behaviors that highlight potentially important variables for driving resistant populations extinct.

A key aspect of their system is the reverse inoculum effect of β-lactams in which there is increased growth at lower densities, arising from changes in local pH. The authors do a good of breaking down the system into its component parts, demonstrating the rIE for their system and using this to motivate their mathematical model, which predicts a region of inverted bistability in which there is a big increase in drug efficacy in the high-density populations and a population collapse.

The work is well done and the paper is well written. I have a few comments/questions:

In Figure 4C (middle), the red population does undergo a large collapse, as stated in the paper in subsection “Small E. faecalis populations survive and large populations collapse when drug influx is slightly supercritical and resistant subpopulations are small”, but then it recovers. Why is this? Is there further resistance selection leading to other mutations (perhaps changes to the level of expression of the β-lactamase?)

One thing that pops out from their manuscript is that the conclusions are almost too clear once you know that there is both an inoculum effect and a reverse inoculum effect; nonetheless, it is good to see that the experiments can indeed achieve the predicted inverted bistability.

They take advantage of the inverted bistability to show that there are beneficial effects of delayed drug treatment. This is an interesting idea, but also very context dependent – you have to know a lot about drug concentration, relative populations of resistant/sensitive pools, initial density. It seems like this knowledge is important, but really hard to apply in a practical way. [This needs to be explicitly discussed in Discussion section.]

One thing the authors could do to address the point above is to do an experiment in a biofilm, where if they can see a similar inverted bistability, that would go a long way toward suggesting that this knowledge can be broadly useful. [Since this would be too substantial of a request, you could include this in the subsection “Future directions”.]

https://doi.org/10.7554/eLife.52813.sa1

Author response

Summary:

All three reviewers are positive about your work, although we feel that stating the limitations of your study is important. We are also confused about Figure 4C.

I attach modified full reviews to help with your revision.

Thank you for the positive evaluations and helpful feedback. In particular, we believe the expanded Discussion section of the study’s limitations has improved manuscript.

Reviewer #1:

Hallinen et al. showed that the density-dependent effects of antibiotic degradation by resistant cells and the pH influence on antibiotic survival can result in complex and counter intuitive dynamics. Overall, I find the work quite interesting (although I am not intimately familiar with the field).

We’re happy that the reviewer finds the work interesting.

Major comments:

How mechanistic a model is a continuum. A phenomenological model was presented in this study. Have you ever tried constructing a more mechanistic model which would account for important aspects such as enzyme degradation of antibiotics and the pH effects? You can then use this model to explain reverse inoculum effect and possibly other experimental results. In the Discussion section, you delineated why a mechanistic model was not constructed, but I am not convinced, especially since you did not measure all parameters in your phenomenological model anyways. If you have tried to construct a more mechanistic model but it did not work, I think that it is still worth including such efforts in the Discussion section as well as speculations on why it might have failed. If you have not tried constructing a mechanistic model, you can cite examples where mechanistic modeling has been shown to be challenging (e.g. Hart et al., 2019).

The reviewer makes an excellent point, and it’s one we struggle with often. We ultimately decided to focus on a phenomenological model because many of the kinetic parameters needed for a more mechanistic model would be difficult to constrain, particularly since the density driven pH effect is not fully understood at the molecular level. Nevertheless, we recognize the limitations of phenomenological models, which often lack the specificity to make quantitatively accurate predictions. We have now added an expanded discussion of these points in the Discussion section, including a reference to the suggested paper where a combination of experiment and theory were used to overcome these obstacles. Specifically, we say:

“Our goal was to understand population dynamics in simple, single-species populations where environmental conditions–including drug influx rate and population composition–can be well controlled. To make sense of experimental results and, more importantly, to generate new testable hypotheses, we developed a minimal mathematical model and analyzed its qualitative behavior using standard tools from dynamical systems and bifurcation theory. We chose to focus on a phenomenological model in an effort to simplify the assumptions and limit the number of unconstrained parameters. However, our model clearly omits a number of potentially relevant biological details. For example, the model neglects evolutionary changes, such as de novo mutations, that would impact behavior on longer time-scales. Similarly, previous work (67) has shown that lysis of resistant cells can effectively increase the concentration of drug- degrading enzyme. We find that extending our phenomenological model to account for free enzyme leads to qualitatively similar behavior (see SI), but more accurate kinetic models may point to different dynamics in some regimes. Constructing detailed mechanistic models is notoriously difficult, but recent work shows that careful pairing of experiment and theory can be used to systematically overcome many common obstacles (68). A similar approach could potentially be applied to this system, leading to more accurate quantitative models that account for factors like spontaneous drug degradation (65), the pH dependence of β-lactamase activity (66), and the kinetics of pH-modulated drug activity.”

In addition, to show that the qualitative features of the model are not specific to formulation we chose, we added a new section to the SI that discusses several alternative models, including (1) a model that includes drug decay due to enzymes released upon lysis of resistant cells, (2) a model that incorporates the pH effect by directly making the drug’s IC50 dependent on cell density, and (3) a model that incorporates a more realistic Monod-like growth. In all 3 cases, the system exhibits qualitatively similar phase diagrams, though the quantitative features will of course vary between models and as parameters are changed (Figure 3—figure supplement 1, Figure 3—figure supplement 2, Figure 3—figure supplement 4, Figure 3—figure supplement 5).

Figure 4C middle panel: The red curve did not really go extinct, unlike the model prediction in Figure 3 or Figure 4A. Need to explain this.

Thank you for pointing out this discrepancy. We verified experimentally that these populations do indeed contain living cells (e.g. living colonies on plates). We also measured dose response curves for 6 isolates from these populations; 4 showed dose response behavior similar to that of the original sensitive strains, and 2 showed behavior similar to that of the original resistant strains (Figure 3—figure supplement 7). So we do not believe the lack of extinction is due to the emergence of new resistance mutations. A second possible explanation is that these small but nonzero populations represent a long-lived transient state— and indeed these states are observed in the model when parameters are near the “inverted” bistable regime (Figure 3—figure supplement 8). Unfortunately, for technical reasons it is difficult to run the experiment for longer than approximately 24 hours, so we are not able to distinguish experimentally between longlived transient states and stable steady states. Finally, it’s also possible that this behavior arises from biological or chemical dynamics that are not included in the model. We have now added the following discussion of this point in Results section:

“In contrast to predictions of the model, the collapsing populations do not entirely go extinct. We confirmed that these populations do indeed contain living cells, and single colony isolates exhibit dose-response characteristics similar to those of the original sensitive and resistant strains, so there is no evidence that additional resistance has evolved during the experiment (Figure X). Mathematical models do indicate the existence of long-lived but transient states of non-zero density near the onset of inverted bistability (Figure X), which may partially explain the lack of complete extinction. However, it is also possible that it reflects features not included in the model. For example, while ampicillin is generally considered to be stable in solution for several days, the degradation rate depends on both temperature and pH (65), which could induce new dynamics on timescales of 10s of hours. Similarly, β-lactamase activity can also vary slightly with pH, adding an additional layer of coupling between the density effects driven by sensitive and resistant cells (66).”

Reviewer #2:

In this work, the authors investigate the population-level implications of two density-dependent effects that are known to influence bacterial resistance to β-lactam antibiotics (mediated by β-lactamase production). The first, the inoculum effect (IE), suggests that higher densities of resistant cells can decay more drug and therefore reduce its efficacy, while the second, the reverse inoculum effect (RIE), suggests that higher bacterial densities modulate the environment in ways that increase the sensitivity of populations to the drug. They probe this question using both mathematical modeling and bioreactor experiments with a mixed population of sensitive and resistant strains responding to ampicillin treatment. The authors observe both effects in their system and suggest that these competing effects can lead to complex dynamics, especially regions of bistability which implies that under different drug concentrations different initial densities will be favored. The authors attribute the reverse inoculum effect to pH effects, removing it with buffered media. Finally, they exploit this density dependence for populations where the inoculum effect is small (few resistant cells) by delaying treatment until the population density is high enough that the reverse inoculum effect dominates, and show that this delay can allow for population extinction where immediate treatment cannot.

I enjoyed reading the fascinating study, which underscores the rich population dynamics resulting from the interplay between bacterial populations and antibiotics. In particular, what's really interesting is how the composition of a mixture can dictate qualitatively opposite outcomes. The authors elegantly integrate analysis by a coarse-grained model and quantitative experiments throughout the study. The observed dynamics have implications for the effective design of antibiotic dosing when combating bacterial pathogens.

We’re delighted that the reviewer finds the work fascinating and supports publication.

Reviewer #3:

The manuscript by Hallinen et al. is a well-crafted story involving an integration between computer-controlled bioreactors and simple mathematical models that reveals density-dependent feedback loops that address nonintuitive community-level behaviors upon antibiotic treatment. In particular it deals with β-lactam treatment of the pathogen E. faecalis when communities include a drug-resistant subpopulation that expresses a β-lactamase. The authors do a careful job of addressing the effects of treatment on resistant and sensitive populations as a function of density (either alone or in combination), and as a result are able to reveal some behaviors that highlight potentially important variables for driving resistant populations extinct.

A key aspect of their system is the reverse inoculum effect of β-lactams in which there is increased growth at lower densities, arising from changes in local pH. The authors do a good of breaking down the system into its component parts, demonstrating the rIE for their system and using this to motivate their mathematical model, which predicts a region of inverted bistability in which there is a big increase in drug efficacy in the high-density populations and a population collapse.

The work is well done and the paper is well written. I have a few comments/questions:

We thank the reviewer for the positive evaluation.

In Figure 4C (middle), the red population does undergo a large collapse, as stated in the paper in subsection “Small E. faecalis populations survive and large populations collapse when drug influx is slightly supercritical and resistant subpopulations are small”, but then it recovers. Why is this? Is there further resistance selection leading to other mutations (perhaps changes to the level of expression of the β-lactamase?)

Please see our response to the major comments from reviewer 1 where we answer the same question.

One thing that pops out from their manuscript is that the conclusions are almost too clear once you know that there is both an inoculum effect and a reverse inoculum effect; nonetheless, it is good to see that the experiments can indeed achieve the predicted inverted bistability.

We are happy that the reviewer believes the conclusions are clear and appreciates the experimental verification.

They take advantage of the inverted bistability to show that there are beneficial effects of delayed drug treatment. This is an interesting idea, but also very context dependent – you have to know a lot about drug concentration, relative populations of resistant/sensitive pools, initial density. It seems like this knowledge is important, but really hard to apply in a practical way. [This needs to be explicitly discussed in Discussion section.]

One thing the authors could do to address the point above is to do an experiment in a biofilm, where if they can see a similar inverted bistability, that would go a long way toward suggesting that this knowledge can be broadly useful. [Since this would be too substantial of a request, you could include this in the subsection “Future directions”.]

The two points above are well taken. We have added a substantial discussion of the limitations of the study, particularly in the context of delayed drug treatment in clinical settings. We have also included the study of biofilms in a discussion of future work. Specifically, we now write:

“It is obvious that the specific in vitro conditions used here fail to capture numerous complexities associated with resistance in clinical settings (69), including substantial spatial heterogeneity, potential for biofilm formation, effects of the host immune system, and drug concentrations that differ in both magnitude and time-course from the specific scenarios considered here. In particular, the effects of delayed antibiotic exposure in a clinical setting will depend on many factors not captured here, and there are unquestionably scenarios where such delay could be detrimental to patient well- being. In fact, our results indicate that delaying drug exposure can have differing effects in different parameter regimes, even in laboratory populations. Future work in clinically motivated in vitro systems, such as biofilms, and ultimately in vivo are needed to assess the feasibility of delayed dosing in more realistic scenarios.”
