Intelligent classification of platelet aggregates by agonist type

  1. Yuqi Zhou
  2. Atsushi Yasumoto
  3. Cheng Lei  Is a corresponding author
  4. Chun-Jung Huang
  5. Hirofumi Kobayashi
  6. Yunzhao Wu
  7. Sheng Yan
  8. Chia-Wei Sun
  9. Yutaka Yatomi
  10. Keisuke Goda  Is a corresponding author
  1. Department of Chemistry, University of Tokyo, Japan
  2. Department of Clinical Laboratory Medicine, Graduate School of Medicine, University of Tokyo, Japan
  3. Institute of Technological Sciences, Wuhan University, China
  4. Department of Photonics, National Chiao Tung University, Taiwan
  5. Department of Bioengineering, University of California, United States
Short Report
  • Cited 0
  • Views 911
  • Annotations
Cite this article as: eLife 2020;9:e52938 doi: 10.7554/eLife.52938

Abstract

Platelets are anucleate cells in blood whose principal function is to stop bleeding by forming aggregates for hemostatic reactions. In addition to their participation in physiological hemostasis, platelet aggregates are also involved in pathological thrombosis and play an important role in inflammation, atherosclerosis, and cancer metastasis. The aggregation of platelets is elicited by various agonists, but these platelet aggregates have long been considered indistinguishable and impossible to classify. Here we present an intelligent method for classifying them by agonist type. It is based on a convolutional neural network trained by high-throughput imaging flow cytometry of blood cells to identify and differentiate subtle yet appreciable morphological features of platelet aggregates activated by different types of agonists. The method is a powerful tool for studying the underlying mechanism of platelet aggregation and is expected to open a window on an entirely new class of clinical diagnostics, pharmacometrics, and therapeutics.

eLife digest

Platelets are small cells in the blood that primarily help stop bleeding after an injury by sticking together with other blood cells to form a clot that seals the broken blood vessel. Blood clots, however, can sometimes cause harm. For example, if a clot blocks the blood flow to the heart or the brain, it can result in a heart attack or stroke, respectively. Blood clots have also been linked to harmful inflammation and the spread of cancer, and there are now preliminary reports of remarkably high rates of clotting in COVID-19 patients in intensive care units.

A variety of chemicals can cause platelets to stick together. It has long been assumed that it would be impossible to tell apart the clots formed by different chemicals (which are also known as agonists). This is largely because these aggregates all look very similar under a microscope, making it incredibly time consuming for someone to look at enough microscopy images to reliably identify the subtle differences between them. However, finding a way to distinguish the different types of platelet aggregates could lead to better ways to diagnose or treat blood vessel-clogging diseases.

To make this possible, Zhou, Yasumoto et al. have developed a method called the “intelligent platelet aggregate classifier” or iPAC for short. First, numerous clot-causing chemicals were added to separate samples of platelets taken from healthy human blood. The method then involved using high-throughput techniques to take thousands of images of these samples. Then, a sophisticated computer algorithm called a deep learning model analyzed the resulting image dataset and “learned” to distinguish the chemical causes of the platelet aggregates based on subtle differences in their shapes. Finally, Zhou, Yasumoto et al. verified iPAC method’s accuracy using a new set of human platelet samples.

The iPAC method may help scientists studying the steps that lead to clot formation. It may also help clinicians distinguish which clot-causing chemical led to a patient’s heart attack or stroke. This could help them choose whether aspirin or another anti-platelet drug would be the best treatment. But first more studies are needed to confirm whether this method is a useful tool for drug selection or diagnosis.

Introduction

Platelets are non-nucleated cells in blood whose principal function is to stop bleeding by forming aggregates for hemostatic reactions (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005). In addition to their participation in physiological hemostasis (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005), platelet aggregates are also involved in pathological thrombosis (Davì and Patrono, 2007; Ruggeri, 2002). Moreover, it is known that a range of diseases or medical conditions, such as inflammation, atherosclerosis, and cancer metastasis, are closely associated with platelet aggregation (Lievens and von Hundelshausen, 2011; Engelmann and Massberg, 2013; Franco et al., 2015; Gay and Felding-Habermann, 2011). Also, in patients with artificial lungs due to severe respiratory failure such as the coronavirus disease 2019 (COVID-19) caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) (Ramanathan et al., 2020; Ronco et al., 2020), the long-term foreign body contact of blood with the artificial devices in the extracorporeal circulation often leads to platelet aggregation and thrombus formation followed by serious complications (e.g., myocardial infarction, cerebral infarction) (Brodie et al., 2019; Brodie and Bacchetta, 2011; Oliver, 2009). Here, the aggregation of platelets is elicited by a variety of agonists, which bind to and activate specific receptors expressed on the platelet. This leads to platelet activation and structural and functional changes of glycoprotein IIb/IIIa expressed on the platelet surface. The activated form of the glycoprotein can bind with fibrinogen, enabling platelets to interact with each other and form aggregates (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005; Moser et al., 2008). Despite the existence of diverse agonist types, platelet aggregates look morphologically similar and have long been thought indistinguishable since the discovery of platelet aggregates in the 19th century (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005). This is because morphological characteristics of platelet aggregates on a large statistical scale have been overlooked as microscopy (a high-content, but low-throughput tool) has been the only method to examine them (Finsterbusch et al., 2018; Nitta et al., 2018).

In this Short Report, we present an intelligent method for classifying platelet aggregates by agonist type. This is enabled by performing high-throughput imaging flow cytometry of numerous blood cells, training a convolutional neural network (CNN) with the image data, and using the CNN to identify and differentiate subtle yet appreciable morphological features of platelet aggregates activated by different types of agonists. Our finding that platelet aggregates can be classified by agonist type through their morphology is unprecedented as it has never been reported previously. The information about the driving factors behind the formation of platelet aggregates is expected to lead to a better understanding of the underlying mechanism of platelet aggregation and open a window on an entirely new class of clinical diagnostics, pharmacometrics, and therapeutics.

Results

Development of the iPAC

Our procedure for developing an intelligent platelet aggregate classifier (iPAC) is schematically shown in Figure 1A. First, a blood sample obtained from a healthy person was separated into several different portions, into which different types of agonists were added to activate platelets while no agonist was added to the last portion for negative control (Figure 1—figure supplement 1; Materials and methods). Here, adenosine diphosphate (ADP), collagen, thrombin receptor activator peptide-6 (TRAP-6), and U46619 were used since they are commonly used in platelet aggregation tests (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005). Initially, the concentrations of the agonists were carefully chosen (20 µM for ADP, 10 µg/mL for collagen, 13 µM for TRAP-6, 14 µM for U46619) to minimize variations in aggregate size between the different blood sample portions. These images were acquired through six experimental trials (Figure 1—figure supplement 2) to mitigate potential bias in the dataset that may have come from experimental variations (e.g., signal-to-noise ratio, fluctuations in optical alignment, hydrodynamic cell focusing conditions, sample preparation). Then, four different concentrations of each agonist (2, 5, 10, 20 µM for ADP, 1, 5, 10, 20 µg/mL for collagen, 1, 5, 13, 20 µM for TRAP-6, 2.8, 5.6, 14, 28 µM for U46619) were used for platelet activation to examine the potential influence of agonist concentrations on the ability to differentiate platelet aggregates by agonist type, where the concentrations were chosen by referring to the concentrations of agonists used in light transmission aggregometry and in vitro flow-cytometric platelet aggregation tests (Koltai et al., 2017; Granja et al., 2015). The platelet aggregates were enriched by density-gradient centrifugation to remove erythrocytes from the blood sample portions. To prevent the platelet aggregates from dissolving during imaging flow cytometry, 2% paraformaldehyde was added to the blood sample portions to fix them. In addition to this sample preparation procedure, we tested other procedures such as pipetting, vortexing, fixation, and non-fixation and identified the current procedure to be advantageous over the others in preserving the morphology of platelet aggregates (Figure 1—figure supplement 3; Materials and methods). Second, an optofluidic time-stretch microscope (Goda et al., 2009; Jiang et al., 2017; Lei et al., 2018; Lau et al., 2016) was employed for high-throughput, blur-free, bright-field image acquisition of events (e.g., single platelets, platelet-platelet aggregates, platelet-leukocyte aggregates, single leukocytes, cell debris, remaining erythrocytes) in each sample portion (Figure 1—figure supplements 4 and 5; Materials and methods). Here, fluorescence image acquisition is not needed because fluorescence images of platelet aggregates would look very similar to their bright-field images (except for the colors). Third, the acquired images of the events were used to train two CNN models that classified the platelets based on their morphological features by agonist type (Figure 1B). Specifically, we first trained a CNN model with images of platelet aggregates activated by certain concentrations of agonists (12,000 images per agonist type) in order to examine their morphological changes while minimizing a potential influence of concentration-dependent factors on the morphology of the platelet aggregates. Then, we trained the other CNN model with a dataset in which the images of platelet aggregates activated by different concentrations of the agonists were equally mixed (12,000 images in total per agonist type) in order to show that different concentrations of the agonists do not perturb the CNN model’s ability to classify platelet aggregates. We employed the CNN (Krizhevsky et al., 2012) with an encoder-decoder architecture to disregard insignificant features such as background noise and keep important features in the bottleneck layer and trained it with the data of a single blood donor to ensure that only the morphological features driven by the agonists contributed to the development of the iPAC (Figure 1C; Materials and methods). In comparison, we measured the platelet samples that were prepared under the same procedure using a conventional flow cytometer (Cytomics FC500, Beckman Coulter) which is based on fluorescence measurements for cell classification. As shown in Figure 2, the flow cytometer was not capable of differentiating them as indicated by their significant overlap (Figure 2—source data 1; Materials and methods).

Figure 1 with 5 supplements see all

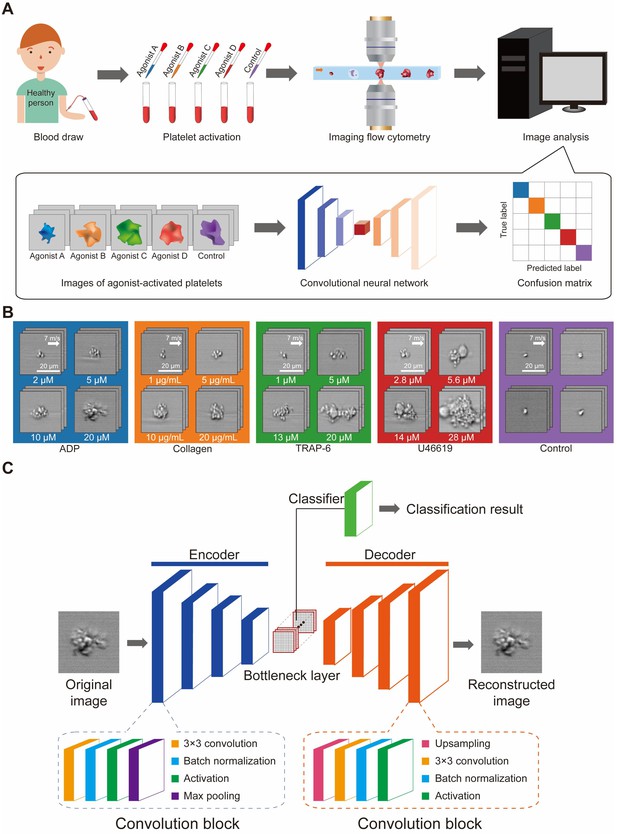

Development of the iPAC.

(A) Procedure for developing the iPAC. (B) Images of the agonist-activated platelet aggregates and single platelets (negative control). (C) Structure of the CNN with an encoder-decoder architecture used for the development of the iPAC.

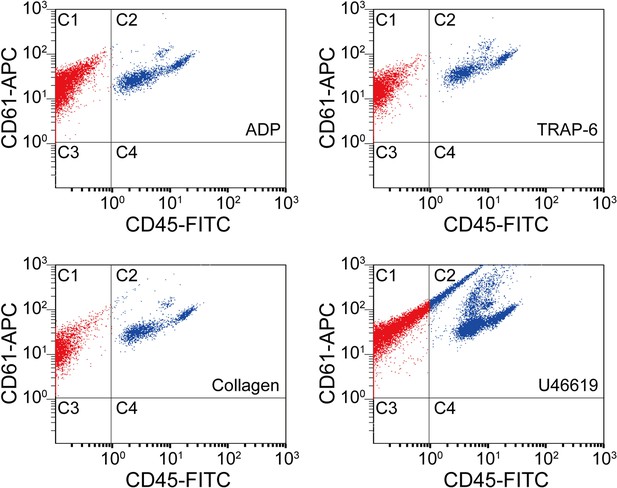

Scatter plots of agonist-activated platelets analyzed by a conventional flow cytometer.

The points in region C1 are colored in red, while the points in region C2 are colored in blue for distinguishing them visually. C1: single platelets and platelet-platelet aggregates. C2: leucocytes and platelet-leucocyte aggregates. C3: blood cells other than platelets and leucocytes. C4: leucocytes.

Demonstration of the iPAC

The iPAC is manifested as a confusion matrix with each row representing the examples in a predicted class and each column representing the examples in an actual or true class. As shown in Figure 3A, most of the images were classified into the correct groups in the diagonal line of the confusion matrix. Large separations between the different platelet sample portions in Figure 3B that visualizes the bottleneck layer in the CNN indicate the first CNN model’s ability to discriminate various types of agonist-activated platelet aggregates and negative control (Figure 3—source data 1). The negative control shows the highest classification accuracy, indicating that large morphological changes were made to the activated platelets. The U46619-treated blood sample portion shows the second highest classification accuracy of all the blood sample portions, indicating that the morphological changes caused by the agonist are very different from those caused by the other agonists. Many platelet-leukocyte aggregates were identified in the U46619-treated sample portion, but few in the other blood sample portions (Figure 2). This may be because U46619 acted as a thromboxane A2 (TXA2) receptor agonist, which activated TXA2 receptors that are abundantly expressed on platelets, vascular smooth muscle cells, and injured vascular endothelial cells. The activation of TXA2 receptors may affect the morphology of U46619-induced platelet aggregates by promoting the expression of adhesion molecules that favors the adhesion and infiltration of leukocytes (Michelson, 2012; George, 2000). The low classification accuracy values of the ADP-, collagen-, and TRAP-6-treated blood sample portions are presumably due to the fact that these agonists partially share similar mechanisms in forming platelets aggregates (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005; Li et al., 2000). For example, since platelets also release ADP themselves during activation (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005), platelet aggregates produced by other agonists may also share similar morphological features as ADP-activated platelet aggregates. In addition, TRAP-6 activates thrombin receptors while thrombin generation may be amplified by other agonists during platelet activation (Mann, 2011), which indicates that the low prediction values of TRAP-6 can be attributed to the participation of thrombin in platelet aggregation induced by all types of agonists. Furthermore, it is common that platelets are simultaneously activated by multiple agonists whose effects on platelet aggregation are coupled whereas they are also influenced by other factors such as locally produced inhibitors, vascular endothelial cells, blood flow, and coagulation proteins during activation (Cattaneo and Lecchi, 2007; Michelson, 2012), thereby leading to the low classification accuracy values of certain agonists, which can be overcome by including the influences into the classification model to cover a wide spectrum of aggregation factors. To demonstrate the reproducibility of the iPAC, we tested it with an independent dataset (a total of 25,000 images of all event types), which was performed under the same conditions as shown in Figure 1A. The contribution values over all the agonists are in good agreement with the values in the diagonal elements of the confusion matrix (Figure 3C), which validates the reliability of the iPAC.

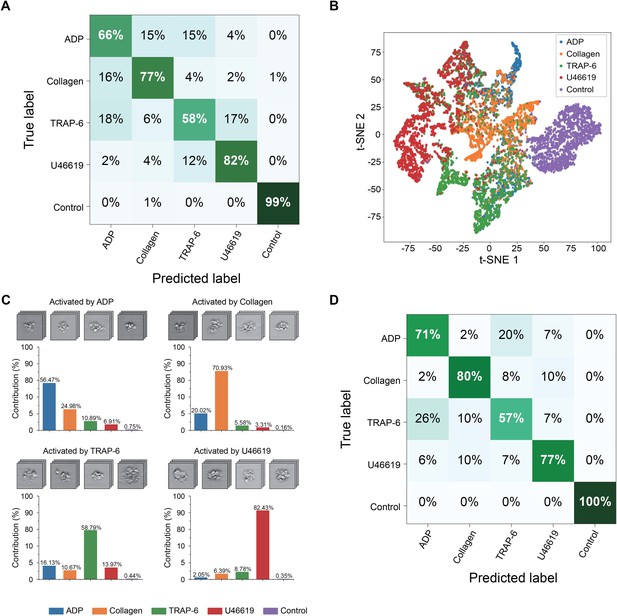

Demonstration of the iPAC.

(A) Confusion matrix as a manifestation of the iPAC. (B) t-SNE plot of the agonist-activated platelet aggregates and single platelets (negative control). (C) Validation of the reproducibility of the iPAC. (D) Confusion matrix of the CNN model trained with the images of platelet aggregates activated by different concentrations of agonists.

The iPAC’s ability to classify platelet aggregates by agonist type in a concentration-independent manner is indicated by the confusion matrix shown in Figure 3D with an average diagonal element value of 77%. The results also reveal the existence of the unique morphological features related to each agonist type, which is promising for potential application to diagnosis of thrombotic disorders by tracing back to the leading factors of platelet aggregation. In addition, from a viewpoint of potential clinical applications, while the conventional assays can only evaluate platelet aggregability qualitatively, the iPAC can quantify it with the resolving power to identify the contribution of each agonist type to it. However, it can be recognized from the image library (Figure 1B) that U46619-activated platelet aggregates have relatively larger size than those in the other sample portions, which may be captured as a type of morphological features by the CNN, leading to the high classification accuracy of the U46619-activated samples.

To demonstrate the diagnostic utility of the iPAC, we applied it to blood samples of four healthy human subjects to predict the contribution of each agonist type to platelet aggregates (if any) in the samples (Figure 4). The blood samples were prepared by following the same procedure as shown in Figure 1A except for the step of adding agonists (with 2000 images of events in each blood sample). The experiment was repeated under the same conditions three times. Over 85% of the total population of platelets in all the samples were identified as single platelets, which indicates the ability of the iPAC to differentiate single platelets and platelet aggregates. Furthermore, the agonist types of the platelet aggregates in each subject’s platelet classification results are consistent between the repeated experiments, indicating that the variations between the subjects resulted from platelet heterogeneity, not test variations. The iPAC’s diagnostic ability to obtain this type of information is an effective tool for studying and elucidating the mechanism of platelet aggregation and holds promise for clinical diagnostics, pharmacometrics, and therapeutics, although the iPAC needs more training with a wide spectrum of diseases and medical conditions for the purpose. For example, the iPAC may provide an important clue to the choice of drugs (e.g., aspirin or thienopyridines) for antiplatelet therapy (Mauri et al., 2014; Roe et al., 2012), the gold standard of the treatment and prevention of atherothrombosis (e.g., myocardial infarction, cerebral infarction), in that aspirin inhibits the formation of TXA2 whose stable analogue is U46619 while thienopyridines exert an antiplatelet effect by blocking the ADP receptor P2Y12. Furthermore, the iPAC may be able to identify TRAP-6-activated platelet aggregates in the bloodstream of patients with deep vein thrombosis (since TRAP-6 interacts with the receptor of thrombin) and suggest that they come from the venous side.

iPAC-based diagnosis of platelets from four healthy human subjects.

The experiment was repeated under the same conditions three times per subject.

Discussion

The information about the driving factors behind the formation of platelet aggregates is expected to lead to a better understanding of the underlying mechanisms of platelet aggregation and, thereby, open a window on an entirely new class of clinical diagnostics and therapeutics. For example, antiplatelet therapy is the gold standard of the treatment and prevention of atherothrombosis (e.g., myocardial infarction, cerebral infarction) for which aspirin and thienopyridines (e.g., prasugrel and clopidogrel) are primarily used as antiplatelet drugs worldwide (Mauri et al., 2014; Roe et al., 2012). Aspirin inhibits the formation of TXA2 whose stable analogue is U46619, whereas thienopyridines exert an antiplatelet effect by blocking the ADP receptor P2Y12. Accordingly, the ability to identify the type of platelet aggregates in the blood stream may provide an important clue to the choice of a drug for antiplatelet therapy. Furthermore, deep vein thrombosis (DVT) is a blood clot that normally occurs in a deep vein where coagulation activation plays an important role. Since TRAP-6 interacts with the receptor of thrombin (i.e., the product of the coagulation cascade), the ability to identify TRAP-6-activated platelet aggregates in the blood stream may suggest that aggregates come from the venous side. Therefore, the iPAC may pave the way for introducing a novel laboratory testing technique for the management of pathological thrombosis such as atherothrombosis and DVT although further basic and clinical studies are needed.

The relation between platelet activation signaling pathways and the formation of platelet aggregates has been extensively studied (Li et al., 2010; Michelson, 2012Brass et al., 2013). It is known that agonists activate platelets in a selective manner via specific receptors, which is followed by a variety of downstream signaling events (Li et al., 2010). For example, collagen interacts with the immune-like receptor glycoprotein VI, which signals through an immunoreceptor tyrosine-based activation motif and activates the tyrosine phosphorylation pathway (Michelson, 2012; Li et al., 2010) In contrast, soluble agonists such as TRAP-6, U46619, and ADP interact with G protein-coupled receptors (Michelson, 2012; Brass, 2003). Furthermore, each soluble agonist couples with a specific type of G protein, which leads to different aggregation mechanisms (Rivera et al., 2009) and thus suggests different underlying mechanisms for expressing different morphological features on platelet aggregates. It is challenging, but is expected to be intriguing to study and elucidate the mechanisms for a further understanding of the biology of platelets.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
AntibodyPE anti-human CD61 (mouse monoclonal)BioLegendCat#336405; RRID:AB_1227583Platelet samples (5 μL per sample)
AntibodyConjugated Antibody CD45-FITCBeckman CoulterCat#A07782; RRID:AB_10645157FACS (5 μL per test)
AntibodyAPC Mouse Anti-Human CD61 (mouse monoclonal)BD PharmingenCat#564174; RRID:AB_2738645FACS (5 μL per test)
Chemical compound, drugCollagenHYPHEN BioMedCat#AG005K-CSPlatelet activation
Chemical compound, drugRevohem ADPSysmexCat#AP-200–422Platelet activation
Chemical compound, drugTRAP-6 amide trifluoroacetate saltBACHEMCat#H-2936.0005Platelet activation
Chemical compound, drugU46619Cayman ChemicalCat#16450Platelet activation
Chemical compound, drug4% Paraformaldehyde Phosphate Buffer SolutionWAKOCat#30525-89-4Fixation (2% Paraformaldehyde)
Chemical compound, drugLymphoprepSTEMCELLSCat#ST07851Density-gradient medium
Chemical compound, drugKMPR 1035MicroChemCat#Y211066Negative photoresist
Chemical compound, drugSU-8 DeveloperMicroChemCat#Y020100Developer
Chemical compound, drugSYLGARD 184 Silicone ElastomerDow CorningCat#1064291Microfluidic device
Software, algorithmMatlabMathWorkshttps://mathworks.com/products/matlab.htmlImage recovery
Software, algorithmKerasothershttps://github.com/keras-team/kerasPython library; Image analysis
Software, algorithmTensorflowarXiv:1603.04467https://arxiv.org/abs/1603.04467Python library; Image analysis
Software, algorithmAutoCADAutodeskhttps://www.autodesk.com/products/autocad/overviewMicrofluidic channel design

Blood samples for detection of platelet aggregates

Request a detailed protocol

The detailed procedure of the sample preparation is shown in Figure 1—figure supplement 1, where platelets and platelet aggregates were enriched from whole blood by the density-gradient centrifugation to maximize the detection efficiency (Beakke, 1951). Specifically, blood samples were obtained from a healthy person with 3.2% citric acid as the anticoagulant (Figure 1—figure supplement 1A). Although it has a depressed concentration of ionized calcium, 3.2% citrate blood is desirable for clinical coagulation tests (Adcock et al., 1997; Cazenave et al., 2004). The other common anticoagulants, such as heparin and ethylenediaminetetraacetic acid (EDTA), are not suitable for this study because they influence the coagulation functions of platelets (Ludlam, 1981). Platelets were immunofluorescently labeled by adding 20 µL PE anti-human CD61 (BioLegend, 336405) to the blood samples to ensure that platelets would be detected in all images (Figure 1—figure supplement 1B). For each agonist type, 500 µL blood was incubated with 50 µL agonist solution, which contained 20 µM ADP (BioMed, AP-200–422), 10 µg/mL Collagen (BioMed, AG005K-CS), 13 µM TRAP-6 (H2936.0005, BACHEM), or 14 µM U46619 (Cayman Chemical, 16450), for 10 min (Figure 1—figure supplement 1C). The labeled, activated platelets were then diluted using 5 mL saline (Figure 1—figure supplement 1D). Next, the platelets were isolated by using Lymphoprep (STEMCELLS, ST07851), a density-gradient medium, using the protocol provided by the vendor. Specifically, the diluted blood was added on top of the Lymphoprep and then centrifuged at 800 g for 20 min (Figure 1—figure supplement 1E). After the centrifugation, 1 mL of the sample was taken from the mononuclear layer, to which 1 mL of 2% paraformaldehyde (Wako, 163–20145) was added for fixation (Lanier and Warner, 1981; Figure 1—figure supplement 1F,G). The operation of the fixation was performed at 4°C for 30 min while other operations were performed at 25°C room temperature. As shown in Figure 1—figure supplement 2, we first compared several procedures of preparing blood samples, but most of the procedures either left a large amount of non-target blood cells in the sample, thus decreasing the iPAC’s detection efficiency, or dismantled the agonist-activated platelet aggregates. The current procedure is advantageous over the procedures in preserving the morphology of platelet aggregates while eliminating non-target blood cells. This study was approved by the Institutional Ethics Committee in the School of Medicine at the University of Tokyo [no. 11049-(6)]. Written informed consents were obtained from the blood donors.

Microfluidic chip fabrication

Request a detailed protocol

The microfluidic chip was fabricated using standard photolithographic methods (Whitesides et al., 2001). A designed pattern of the microfluidic channel was drawn using AutoCAD (Autodesk) and printed on a film mask (UnnoGiken). Negative photoresist (KMPR 1035, MicroChem) was spin-coated on a silicon wafer and heated at 100°C for 10 min. Then, the silicon wafer, covered with the film mask, was exposed to ultraviolet (UV) light followed by hard baking at 100°C for 5 min and developed using SU-8 developer (MicroChem). After washing with isopropyl alcohol and water, the silicon wafer was heated at 150°C for 15 min. The negative photoresist mold on the silicon wafer was fixed in a Petri dish and then filled with polydimethylsiloxane (PDMS, Dow Corning) in which PDMS base and curing reagent were mixed at a ratio of 10:1 (Figure 1—figure supplement 4A). PDMS was heated at 80°C for 15 min, and then a small piece of coverslip was placed on PDMS right above the observation area of the microfluidic channel. This step improved the mechanical strength of PDMS so that the channel (Figure 1—figure supplement 4B) was able to resist the pressure inside the channel without deformation. After another heating for more than 1 hr, the PDMS layer was cut into a small piece so that it could fit in the size of a glass slide (Figure 1—figure supplement 4C). The inlets and outlet were punched by a 25G needle (Figure 1—figure supplement 4D). To form permanent bonding between the PDMS channel and the glass slide, both the PDMS device and the glass slide were treated with a plasma cleaner (Harrick Plasma) (Figure 1—figure supplement 4E). The dimensions of the microchannel in the observation area are about 80 μm in width and 40 μm in height (Figure 1—figure supplement 4F).

Optofluidic time-stretch microscopy

Request a detailed protocol

The optofluidic time-stretch microscope (Lei et al., 2016) is schematically shown in Figure 1—figure supplement 5. A Ti:Sapphire mode-locked femtosecond pulse laser with a center wavelength, bandwidth, and pulse repetition rate of 780 nm, 40 nm, and 75 MHz, respectively, was used as an optical source. Each laser pulse was first stretched temporally by a single-mode dispersive fiber with a group-velocity dispersion of −240 ps/nm (Nufern 630-HP) and then dispersed spatially by the first diffraction grating with a groove density of 1200 lines/mm. The stretched laser pulse was focused by the first objective lens (Olympus, 40×, NA 0.6) onto a flowing cell in the microfluidic channel. The pulse that contained the spatial profile of the cell on its spectrum was collected by the second objective lens and spatially recombined by the second diffraction grating, followed by photodetection with a high-speed photodetector (New Focus 1580-B) with a detection bandwidth of 12 GHz. To ensure imaging of platelet-related events (i.e., single platelets, platelet-platelet aggregates, platelet-leukocyte aggregates), fluorescence detection was used in conjunction with the optofluidic time-stretch microscope. A 488 nm continuous-wave laser was used to detect CD61 fluorescence signals with a photomultiplier tube (Hamamatsu H10723-01MOD). Only the image signals associated with CD61 fluorescence signals were collected. The image-encoded pulse and fluorescence signal were digitized using a high-speed oscilloscope (Tektronix DPO 71604B) with a detection bandwidth of 16 GHz and a sampling rate of 50 GS/s. Pulses were repeated by the mode-locked pulse laser at 75 MHz so that image-encoded pulses detected by the photodetector were digitally stacked to form 2D images using MATLAB R2018b (MathWorks). The pulse intensity profile (usually Gaussian-shaped with ripples) was normalized to obtain a flat background. Also, all the images were cropped into 160 × 160 pixels by the same cropping algorithm, by which the cell-contained part was completely included in each image for further analysis.

Evaluation of agonist-activated platelets by conventional flow cytometry

Request a detailed protocol

We analyzed agonist-activated platelets with a conventional flow cytometer (Cytomics FC500, Beckman Coulter) that can count and analyze large cell populations via scattering and fluorescence measurements with high throughput. Blood samples were processed using the same procedure as for optofluidic time-stretch microscopy, but labeled with anti-CD61-APC and anti-CD45-FITC antibodies (Beckman Coulter) for detecting white blood cells and platelets, respectively. To only detect single platelets and platelets aggregates, gating of cellular size and granularity was applied to the light scatter plots. As shown in Figure 2, the C1 areas, which correspond to CD61-APC positive and CD45-FITC negative, show events associated with single platelets and platelet-platelet aggregates. The C2 areas, which correspond to CD61-APC/CD45-FITC double positive, show events associated with platelet-leukocyte aggregates. The C3 areas (CD61-APC/CD45-FITC double negative) and C4 areas (CD61-APC negative and CD45-FITC positive) correspond to events which did not contain any platelets.

Convolutional neural network

Request a detailed protocol

The details of the CNN with the encoder-decoder architecture are as follows. The encoder was used to extract morphological features of platelet aggregates, while the decoder was used to recover the platelet aggregate images from the morphological features. This two-stage structure forced the encoder to extract features from the cells instead of the background or noise, which helped enhance the reliability and accuracy of classification. The images were normalized to 0-mean and divided into training, validation, and test sets at a ratio of 3:1:1. The CNN classifier was trained on the training set. The validation loss was calculated with the validation dataset at each epoch to monitor the learning process. The learning rate was reduced when the validation loss stopped descending for more than 3 epochs until it reached 1 × 10−8. The training was ceased when there was no more decrease in the validation loss for more than 6 epochs. After the training ended, the test set was processed to calculate the final classification accuracy for each agonist type. The CNN classifier was implemented on Keras (Chollet, 2015) with the Tensorflow (Abadi et al., 2016) backbone. The training of the CNN classifier was optimized by Adam with an initial learning rate of 0.001.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Preparation of washed platelet suspensions from human and rodent blood
    1. JP Cazenave
    2. P Ohlmann
    3. D Cassel
    4. A Eckly
    5. B Hechler
    6. C Gachet
    (2004)
    In: J. M Gibbins, M. P Mahaut-Smith, editors. Platelets and Megakaryocytes. Humana Press. pp. 13–28.
    https://doi.org/10.1385/1-59259-782-3:013
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    ImageNet classification with deep convolutional neural networks
    1. A Krizhevsky
    2. I Sutskever
    3. GE Hinton
    (2012)
    Advances in Neural Information Processing Systems. pp. 1097–1105.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Assessment of platelet function
    1. C Ludlam
    (1981)
    In: A Bloom, D. P Thomas, editors. Thrombosis and Haemostasis. New York: Churchill Livingstone. pp. 775–795.
  31. 31
  32. 32
  33. 33
  34. 34
    Platelets
    1. AD Michelson
    (2012)
    Cambridge: Academic Press.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Edward D Janus
    Reviewing Editor; University of Melbourne, Australia
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript describes a methodology to analyze platelet (and leukocyte) aggregates that utilizes microfluidics, optofluidic time-stretch microscopy and convolutional neural network analysis. The manuscript presents data that the technique can distinguish activation by four platelets agonist – ADP, collagen, U46619 and TRAP-6.

Decision letter after peer review:

Thank you for submitting your article "Intelligent classification of platelet aggregates by agonist type" for consideration by eLife. Your article has been reviewed by Aleksandra Walczak as the Senior Editor, a Reviewing Editor, and two reviewers. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors present a novel deep learning based method to classify platelet aggregation based on various agonists using high-throughput imaging. The sample preparation and the advantages of the procedure is well explained. The capture images are used to train and eventually classify images of platelet aggregates.The manuscript presents data that the technique can distinguish activation by four platelets agonist – ADP, collagen, U46619 and TRAP-6.

A number of questions have been raised. We invite you to submit a revised version addressing these.

Essential revisions:

1) Data are presented for three healthy subjects. One donor has a different pattern than the rest. The authors interpret this as showing that the test could have diagnostic utility. But all three donors where healthy, thus I interpret this as variation in the test. There is no other assessment of the variation amongst normals.

2) Endothlelial TXA2 receptors are cited (subsection “Demonstration of the iPAC”) as a mechanism of one effect from U46619, but they studied studied blood, which likely has, if anything, a very small amount of circulating endothelial cells.

3) It is unlikely that a platelet will ever see a single agonist in circulation. This is not discussed. Collagen-induced activation of platelets results in ADP and TXA2 release. They tested all three of those agonists. Some consideration of these combinations would aid in the feasibility of this novel technology. Similarly, platelets circulate in an environment with locally produced inhibitors (NO, prostacyclins, ADPases). Their effect has not been assessed, and this can be substantial (see Cattaneo et al., 2007).

4) Platelets circulate in vivo where the calcium concentration is 2 mM. The studies are done in citrated plasma where the calcium concentration is far lower. Studying platelets at artificially low calcium concentrations has, in the past, led to artifactual findings. Other anticoagulants could be used.

5) Was there additional activation of the platelets when they were spun on the gradient?

6) In deep learning network used for classification what is the need for the up-sampling layer (decoder part)? The decode part reconstructs the image. Is this reconstructed image being used anywhere? Why is the classifier layer at the CNN bottleneck not sufficient for classification?

7) The authors mention that crops from the actual image containing the cells are used for classification. However, how these crops are generated is a big question. Are they manually cropped from the image or some automated technique is used to obtain the cropped regions, specifically during testing phase?

8) The classification accuracy for the TRAP-6 in both confusion matrix of Figure 3 is low in comparison to the others. Is there any explanation on why so? Is there any class imbalance during training phase? How many total images were used for training and how mane images were there in each class?

9) Accuracy of which data is shown in Figure 3A and 3C?

10) A more elaborate explanation on what can be seen in the images in Figure 1—figure supplement 3 will be good. Also, can the images be shown at same pixel size/scale?

11) Has the classification accuracy been compared with any other multi-class classification method from literature?

12) As I understand, the classifier is trained using brightfield images. If the fluorescence images being used to capture any extra information for classification?

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Intelligent classification of platelet aggregates by agonist type" for further consideration by eLife. Your revised article has been evaluated by Aleksandra Walczak (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) Comment 2: Please change "endothelial TXA2 receptors" to "TXA2 receptors" to avoid confusion.

2) In response to comment 3, the authors did not address this concern about the lack of locally produced inhibitors (NO, PGI2, ectoADPases etc): "Similarly platelets circulate in an environment with locally produced inhibitors (NO, prostacyclins, ADPases). Their effect has not been assessed, and this can be substantial (see Cattaneo et al., 2007)."

3) In response to comment 4, the authors appear to misstate Cazenave et al., 2004 which says "Citrate is the preferred anticoagulant for blood collection,.…. however, this method has certain disadvantages. In particular, the PRP preparation has a limited stability (no longer than 2 hours) and contains plasma proteins, including enzymes. In addition, human platelet-rich plasma (PRP) prepared from blood collected into trisodium citrate (3.8% w/v) has a depressed ionic calcium concentration, which can cause platelet aggregation and release of substances during centrifugation (2). To overcome these different problems, a centrifugation technique has been developed for the isolation and washing of platelets from human or rodent blood anticoagulated with acid-citrate-dextrose (ACD). The cells are resuspended in a physiological buffer under well-defined conditions, notably the presence of plasmatic ionic calcium concentrations (2 mM) and the absence of coagulation factors or other plasma components". Thus, physiological calcium (2 mM) needs to be added back to the platelet suspension to avoid artifacts. If the authors wish to study platelet-rich plasma, an alternate non-calcium chelating anti-coagulant, such as PPACK could be used.

Please make textual changes to your manuscript to indicate these caveats to your data.

https://doi.org/10.7554/eLife.52938.sa1

Author response

Essential revisions:

1) Data are presented for three healthy subjects. One donor has a different pattern than the rest. The authors interpret this as showing that the test could have diagnostic utility. But all three donors where healthy, thus I interpret this as variation in the test. There is no other assessment of the variation amongst normals.

We thank the reviewer for the comment. We interpreted the data from the three healthy subjects as individual variations, not test variations, because all three donors are healthy, but their genders, ages, and races are different. To provide more solid evidence, we have performed additional experiments to obtain results from additional healthy subjects and repeat the experiments on different days three times. As shown in revised Figure 3E (now Figure 4 in the revised manuscript), each subject’s platelet classification results are consistent, indicating that the variations between the subjects result from the individual variations, not test variations. To address the reviewer’s comment, we have revised/added the following text in the revised manuscript (subsection “Demonstration of the iPAC”): “To demonstrate the diagnostic utility of the iPAC, we applied it to blood samples of four healthy human subjects to predict the contribution of each agonist type to platelet aggregates (if any) in the samples (Figure 4). The blood samples were prepared by following the same procedure as shown in Figure 1A except for the step of adding agonists (with 2,000 images of events in each blood sample). The experiment was repeated under the same conditions three times. Over 85% of the total population of platelets in all the samples were identified as single platelets, which indicates the ability of the iPAC to differentiate single platelets and platelet aggregates. Furthermore, the agonist types of the platelet aggregates in each subject’s platelet classification results are consistent between the repeated experiments, indicating that the variations between the subjects resulted from platelet heterogeneity, not test variations.”

2) Endothlelial TXA2 receptors are cited (subsection “Demonstration of the iPAC”) as a mechanism of one effect from U46619, but they studied studied blood, which likely has, if anything, a very small amount of circulating endothelial cells.

We thank the reviewer for the comment. As they correctly state, the concentration of circulating endothelial cells in blood is very small. However, TXA2 receptors on platelet membranes and vascular endothelial cells are abundantly expressed, such that they may have a significant effect on U46619-induced platelet aggregation. To clarify this point, we have added the following statement to the revised manuscript (subsection “Demonstration of the iPAC”): “U46619 acted as a thromboxane A2 (TXA2) receptor agonist to activate endothelial TXA2 receptors that are abundantly expressed on platelets, vascular smooth muscle cells, and injured vascular endothelial cells. The activation of TXA2 receptors may affect the morphology of U46619-induced platelet aggregates by promoting the expression of adhesion molecules that favors the adhesion and infiltration of leukocytes (Michelson, 2012; George, 2000).”

3) It is unlikely that a platelet will ever see a single agonist in circulation. This is not discussed. Collagen-induced activation of platelets results in ADP and TXA2 release. They tested all three of those agonists. Some consideration of these combinations would aid in the feasibility of this novel technology. Similarly, platelets circulate in an environment with locally produced inhibitors (NO, prostacyclins, ADPases). Their effect has not been assessed, and this can be substantial (see Cattaneo et al., 2007).

We thank the reviewer for the comment. It is true that a platelet in vivo is activated by multiple agonists simultaneously. This is why the diagonal values in the confusion matrices shown in Figure 3A and Figure 3D are not 100%, but there exist some cross-coupling effects from multiple agonists on platelet aggregation. Our ultimate goal is to develop a complete classification model that can predict the contribution of each agonist very accurately, even when multiple agonists influence platelet aggregation simultaneously. This requires image data from experiments in which multiple agonists are used to induce platelet aggregation both in vitro and in vivo. To clarify this point, we have added the following statement to the revised manuscript (subsection “Demonstration of the iPAC”): “Furthermore, it is common that platelets are simultaneously activated by multiple agonists whose effects on platelet aggregation are coupled, thereby leading to the low classification accuracy values of certain agonists, which can be overcome by including the influences of multiple agonists into the classification model to cover a wide spectrum of aggregation factors.”

4) Platelets circulate in vivo where the calcium concentration is 2 mM. The studies are done in citrated plasma where the calcium concentration is far lower. Studying platelets at artificially low calcium concentrations has, in the past, led to artifactual findings. Other anticoagulants could be used.

We thank the reviewer for the comment. In our study, we used citric acid because it is a reversible calcium chelator, does not significantly reduce the calcium concentration, and is commonly used in the study of platelets and coagulation proteins. Alternatively, ACD can be used because it is an anticoagulant that contains citric acid and is equivalent to citrated blood. On the other hand, other anticoagulants such as heparin and EDTA are not suitable for this study because heparin attenuates platelet function by the inhibition of thrombin while EDTA is a strong irreversible calcium chelator that completely suppresses platelet function. To clarify this point, we have added the following statement to the revised manuscript (Discussion section): “specifically, blood samples were obtained from a healthy person with citric acid as the anticoagulant, which did not dissociate platelet aggregates (Figure 1—figure supplement 1A) while maintaining the sufficient calcium concentration for platelet aggregation (Cazenave, 2004). The other common anticoagulants, such as heparin and ethylenediaminetetraacetic acid (EDTA), are not suitable for this study because they influence the coagulation functions of platelets (Ludlam, 1981).”

5) Was there additional activation of the platelets when they were spun on the gradient?

We thank the reviewer for the comment. The high percentage (99%) of the “control” in the confusion matrix indicates that platelets were not significantly affected by the sample preparation procedure. Furthermore, even if there is a minor influence from the density gradient on the morphology of platelet aggregates, it should be considered identical among all the samples since we applied the same protocol to each sample.

6) In deep learning network used for classification what is the need for the up-sampling layer (decoder part)? The decode part reconstructs the image. Is this reconstructed image being used anywhere? Why is the classifier layer at the CNN bottleneck not sufficient for classification?

We thank the reviewer for the comment. The reconstructed images were used in the training process to optimize the CNN’s performance. By minimizing the difference between the original images and the reconstructed images, we ensured in the CNN model that the features in the bottleneck layer were crucial to cellular morphology. This two-stage structure forced the encoder to extract features from the cells instead of the background or noise (while the classification result may be prone to noise if only the classifier is applied in the CNN), which helped us enhance the reliability and accuracy of platelet classification.

7) The authors mention that crops from the actual image containing the cells are used for classification. However, how these crops are generated is a big question. Are they manually cropped from the image or some automated technique is used to obtain the cropped regions, specifically during testing phase?

We thank the reviewer for the comment. The images were cropped in the image recovery process automatically. In the process, the region of the cell in each image is identified by using a segmentation algorithm. Then, the image was cropped into 160 x 160 pixels in size with the cell region at the center of the image. Therefore, the cell region remains intact in the image. This cropping algorithm was the same for all the images in this work. To clarify this point, we have added the following statement to the revised manuscript (subsection “Blood samples for detection of platelet aggregates”): “Also, all the images were cropped into 160×160 pixels by the same cropping algorithm, by which the cell-contained part was completely included in each image for further analysis.”

8) The classification accuracy for the TRAP-6 in both confusion matrix of Figure 3 is low in comparison to the others. Is there any explanation on why so? Is there any class imbalance during training phase? How many total images were used for training and how mane images were there in each class?

We thank the reviewer for the comment. The low classification accuracy elements of the TRAP-6-treated blood sample portions in the confusion matrix are presumably due to the fact that ADP, collagen, and TRAP-6 agonists partially share similar mechanisms in forming platelets aggregates, as discussed in previous publications (Michelson, 2012; George, 2000; Michelson, 2003; Harrison, 2005; Li et al., 2000). In particular, TRAP-6 activates protease-activated receptor-1 (PAR-1), which is one of the thrombin receptors. Meanwhile, thrombin is released into the blood when platelets are activated by the other agonists. Therefore, TRAP-6-induced platelet aggregates may be similar to those induced by other agonists due to the thrombin-related platelet aggregation. As for the number of images for training, the classes are balanced during the training process. In fact, 12,000 images for each class were used for the training (60,000 images in total). To clarify the point of the low TRAP-6 element value, we have added the following statement to the revised manuscript (subsection “Demonstration of the iPAC”): “In addition, TRAP-6 activates thrombin receptors while thrombin generation may be amplified by other agonists during platelet activation (Mann, 2011), which indicates that the low prediction values of TRAP-6 can be attributed to the participation of thrombin in platelet aggregation induced by all types of agonists. Furthermore, it is common that platelets are simultaneously activated by multiple agonists whose effects on platelet aggregation are coupled, thereby leading to the low classification accuracy values of certain agonists, which can be overcome by including the influences of multiple agonists into the classification model to cover a wide spectrum of aggregation factors.”

9) Accuracy of which data is shown in Figure 3A and 3C?

We thank the reviewer for the comment. Figure 3A shows the accuracy of the images of platelet aggregates induced by the optimized concentrations of agonists (20 µM for ADP, 10 µg/mL for collagen, 13 µM for TRAP-6, 14 µM for U46619), while Figure 3C shows the images and prediction results of an independent dataset that was not used in the training process. The independent dataset was acquired from the blood samples induced by the optimized concentrations of agonists (20 µM for ADP, 10 µg/mL for collagen, 13 µM for TRAP-6, 14 µM for U46619) under the same preparation procedure.

10) A more elaborate explanation on what can be seen in the images in Figure 1—figure supplement 3 will be good. Also, can the images be shown at same pixel size/scale?

We thank the reviewer for the suggestion. We have added more text to the legend of the supplementary figure and revised the figure with images at the same pixel size and scale.

11) Has the classification accuracy been compared with any other multi-class classification method from literature?

We thank the reviewer for the comment. To the best of our knowledge, this is the first time that we classify platelet aggregates by morphology and there is no previous work that shows classification of platelet aggregates.

12) As I understand, the classifier is trained using brightfield images. If the fluorescence images being used to capture any extra information for classification?

We thank the reviewer for the comment. Although we have not done high-throughput fluorescence imaging of platelets, we doubt that the fluorescence images will provide extra information for classification because fluorescence does not differentiate the contribution of each agonist and fluorescence images of platelet aggregates will look pretty much similar to their bright-field images (except for the colors). Since different types of leukocytes can be stained with different fluorescent probes, platelet-leukocytes can be better classified with the availability of their fluorescent images, but fluorescent labeling is not desirable for this work because it also activates platelets and may produce artifacts. To clarify this point, we have added the following statement to the revised manuscript (subsection “Development of the iPAC”): “Here, fluorescence image acquisition is not needed because fluorescence images of platelet aggregates would look very similar to their bright-field images (except for the colors).”

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) Comment 2: Please change "endothelial TXA2 receptors" to "TXA2 receptors" to avoid confusion.

We thank the reviewers for the comment. We have made the change as requested.

2) In response to comment 3, the authors did not address this concern about the lack of locally produced inhibitors (NO, PGI2, ectoADPases etc): "Similarly platelets circulate in an environment with locally produced inhibitors (NO, prostacyclins, ADPases). Their effect has not been assessed, and this can be substantial (see Cattaneo et al., 2007)."

We thank the reviewers for the comment. It is true that the locally produced inhibitors have a substantial effect on platelet aggregation. However, to evaluate this effect using our iPAC, an experiment has to be conducted in vivo, where locally produced inhibitors, vascular endothelial cells, blood flow, and coagulation proteins affect platelet aggregation simultaneously. In this manuscript, the purpose of our study is to classify platelet aggregates by agonist based on our intelligent classification model that was constructed by adding various agonists into whole blood in vitro, measuring their effects on the morphology of platelet-platelet aggregates and platelet-leukocyte aggregates, and forming the confusion matrix as a linear superposition of the effects. Thus, the low classification accuracy values of some agonists in the confusion matrices (Figure 3A, Figure 3D) are also attributed to the fact that in vitro experiments are not able to evaluate all factors of platelet aggregation. In other words, it is meaningful to perform this study in vitro because if these agonists are administrated in vivo to develop the confusion matrix, it can lead to thrombosis and death. On the other hand, we hope to perform in vivo experiments using animals and address this point in our future study. To clarify this point, we have revised the following statement in the manuscript (subsection “Demonstration of the iPAC”): “Furthermore, it is common that platelets are simultaneously activated by multiple agonists whose effects on platelet aggregation are coupled whereas they are also influenced by other factors such as locally produced inhibitors, vascular endothelial cells, blood flow, and coagulation proteins during activation (Cattaneo, 2007; Michelson, 2012), thereby leading to the low classification accuracy values of certain agonists, which can be overcome by including the influences into the classification model to cover a wide spectrum of aggregation factors.”

3) In response to comment 4, the authors appear to misstate Cazenave et al., 2004 which says "Citrate is the preferred anticoagulant for blood collection,.…. however, this method has certain disadvantages. In particular, the PRP preparation has a limited stability (no longer than 2 h) and contains plasma proteins, including enzymes. In addition, human platelet-rich plasma (PRP) prepared from blood collected into trisodium citrate (3.8% w/v) has a depressed ionic calcium concentration, which can cause platelet aggregation and release of substances during centrifugation (2). To overcome these different problems, a centrifugation technique has been developed for the isolation and washing of platelets from human or rodent blood anticoagulated with acid-citrate-dextrose (ACD). The cells are resuspended in a physiological buffer under well-defined conditions, notably the presence of plasmatic ionic calcium concentrations (2 mM) and the absence of coagulation factors or other plasma components". Thus, physiological calcium (2 mM) needs to be added back to the platelet suspension to avoid artifacts. If the authors wish to study platelet-rich plasma, an alternate non-calcium chelating anti-coagulant, such as PPACK could be used.

We thank the reviewers for the comment. Considering the practical utility of the iPAC, we used the same conditions as those used in conventional clinical coagulation tests in Japan, where 3.2% citrate blood is used. In addition, as described in the original manuscript, platelet aggregation was induced by adding various agonists into whole blood, instead of PRP used by Cazenave et al., before the centrifugation was performed. The use of washed platelets in PRP eliminates the involvement of leukocytes and coagulation factors and is significantly different from the mechanism of platelet aggregation in vivo, and therefore, we think it is important to do experiments with whole blood. Although the calcium concentration in citrate blood may not be the same with that in vivo, we expect the iPAC constructed based on in vitro experiments to be practically useful as a new laboratory testing tool for diagnosing thrombosis, and therefore, 3.2% citrate whole blood (not an alternate noncalcium chelating anticoagulant) was used in our experiments as it can minimize the problem of a depressed ionic calcium concentration. Meanwhile, we also consider the effect of the anticoagulant and ionic calcium concentration on the morphology of platelet aggregates as an exciting topic to address in the future. To clarify these points, we have revised the manuscript as follows (subsection “Blood samples for detection of platelet aggregates”): “Specifically, blood samples were obtained from a healthy person with 3.2% citric acid as the anticoagulant (Figure 1—figure supplement 1A). Although it has a depressed concentration of ionized calcium, 3.2% citrate blood is desirable for clinical coagulation tests (Adcock, 1997; Cazenave, 2004).”
