Respiratory tissue-associated commensal bacteria offer therapeutic potential against pneumococcal colonization

  1. Soner Yildiz
  2. João P Pereira Bonifacio Lopes
  3. Matthieu Bergé
  4. Víctor González-Ruiz
  5. Damian Baud
  6. Joachim Kloehn
  7. Inês Boal-Carvalho
  8. Olivier P Schaeren
  9. Michael Schotsaert
  10. Lucy J Hathaway
  11. Serge Rudaz
  12. Patrick H Viollier
  13. Siegfried Hapfelmeier
  14. Patrice Francois
  15. Mirco Schmolke  Is a corresponding author
  1. Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Switzerland
  2. Analytical Sciences, School of Pharmaceutical Sciences, University of Geneva, University of Lausanne, Switzerland
  3. Swiss Centre for Applied Human Toxicology, Switzerland
  4. Institute for Infectious Disease (IFIK), University of Bern, Switzerland
  5. Graduate School GCB, University of Bern, Switzerland
  6. Department of Microbiology, Icahn School of Medicine at Mount Sinai, United States
Research Article
  • Cited 0
  • Views 1,056
  • Annotations
Cite this article as: eLife 2020;9:e53581 doi: 10.7554/eLife.53581

Abstract

Under eubiotic conditions commensal microbes are known to provide a competitive barrier against invading bacterial pathogens in the intestinal tract, on the skin or on the vaginal mucosa. Here, we evaluate the role of lung microbiota in Pneumococcus colonization of the lungs. In eubiosis, the lungs of mice were dominantly colonized by Lactobacillus murinus. Differential analysis of 16S rRNA gene sequencing or L. murinus-specific qPCR of DNA from total organ homogenates vs.broncho alveolar lavages implicated tight association of these bacteria with the host tissue. Pure L. murinus conditioned culture medium inhibited growth and reduced the extension of pneumococcal chains. Growth inhibition in vitro was likely dependent on L. murinus-produced lactic acid, since pH neutralization of the conditioned medium aborted the antibacterial effect. Finally, we demonstrate that L. murinus provides a barrier against pneumococcal colonization in a respiratory dysbiosis model after an influenza A virus infection, when added therapeutically.

Introduction

Mucosal surfaces are major entry ports for microbial pathogens. In the densely colonized gut, commensal bacteria confer a prominent protective role against invading bacterial pathogens, in part by posing a competitive threshold within this ecological niche (Barthel et al., 2003). This biological barrier is absent in axenic mice and reduced in mice harboring a low-complexity microbiota colonized mice. Barrier function of the microbiota is consequently sensitive to antibiotics treatment in colonized conventionally housed mice (Barthel et al., 2003; Brugiroux et al., 2017). Skin microbiota poses a similar barrier against colonization by bacterial skin pathogens (reviewed in Parlet et al., 2019). In recent years, it became evident that the lower respiratory tract (LRT), previously considered quasi-sterile, also hosts a bacterial microbiota under healthy conditions (Dickson et al., 2015). Whether the bacterial LRT microbiota confers colonization resistance against bacterial pathogens, e.g. causing pneumonia, is unclear.

Recently, a number of groups, including ours, reported compositional changes in the intestinal and lower respiratory tract microbiota over the course of an IAV infection using a C57BL/6J mouse model housed under specific pathogen-free (SPF) conditions (Deriu et al., 2016; Groves et al., 2018; Planet et al., 2016; Yildiz et al., 2018). This opened a temporarily limited window for Salmonella enterica serovar Typhimurium infection in the intestine, similarly as in mice orally treated with antibiotics (Deriu et al., 2016; Yildiz et al., 2018). We found only little qualitative or quantitative differences in respiratory microbiota of IAV infected mice by 16S rRNA gene-specific next generation sequencing and qPCR. Nevertheless, we observed enhanced secondary colonization with Streptococcus pneumoniae following IAV infections, as described previously (McCullers and Rehg, 2002). The outcome of these super-infections is determined by host factors, viral factors and factors of the bacterial pathogen (reviewed in McCullers, 2014).

IAV infections take place in the poly-microbial environment of the respiratory tract and bacterial colonization of the lung is important to prime alveolar macrophages (Abt et al., 2012). However, the immediate role of the lung microbiota composition and complexity on invading bacterial pathogens is poorly investigated. We recently discovered a high content of Lactobacillaceae in the lung microbiota of healthy SPF housed mice, which was not reported before (Yildiz et al., 2018). Here we identify these commensal bacteria as Lactobacillus murinus, most probably a strain of the altered Schaedler flora (ASF). We provide in vitro evidence that it can limit pneumococcal growth, e.g. through release of lactic acid and reduces of chain formation of pneumococcus. Importantly, therapeutic application of L. murinus after IAV infection reduced the burden of secondary pneumococcal pneumonia.

Results

L. murinus (ASF361) could be a major constituent of mouse lung microbiota in laboratory settings

We previously demonstrated dominance of Lactobacillaceae in total lower respiratory tract (LRT) homogenates of SPF housed C57Bl/6J mice by 16S rRNA gene-specific NGS (Yildiz et al., 2018). In order to characterize these Lactobacillaceae in greater detail, we independently isolated and characterized two clones of phenotypically dominant bacteria from LRT homogenates cultivated on Columbia agar plates. After whole genome sequencing and de novo assembly we determined the evolutionary relationships of the two isolates based on the 16S rRNA gene. The phylogeny presented in Figure 1A is based on the alignment of approximately 1400 nucleotides of the 16S rRNA gene. The lung-isolated strains clustered with L. murinus and were clearly separated from L. animalis and L. apodemi isolates. One likely source for L. murinus is the altered Schaedler flora (ASF), introduced in 1978 to standardize mouse model colonization (Dewhirst et al., 1999; Schaedler et al., 1965; Wymore Brand et al., 2015) (indicated as L. murinus Schaedler in Figure 1B). Blasting of the de novo assembled genome against available genomes revealed that indeed L. murinus ASF361 was the best match to our L. murinus strain isolate (Figure 1B, z-score = 1, PRJNA591640 and Supplementary file 1). Alignment of the whole genome of our Lactobacillus isolate to the recently published reference genome of L. murinus ASF361 (Wannemuehler et al., 2014) resulted in >99. 5% sequence identity (Figure 1C).

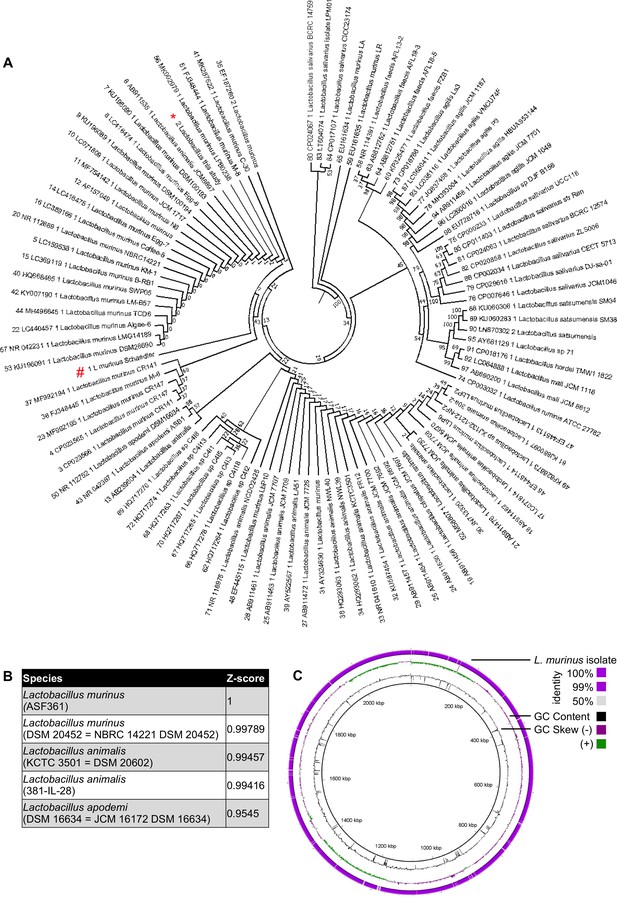

Lactobacillaceae isolate from total lung homogenates of mice is identified to be Lactobacillus murinus, a member of altered Scheadler Flora.

(A) Phylogenetic tree of Lactobacillaceae isolate (indicated with red asterisk) to other known members of Lactobacillaceae family (L. murinus ASF361 is indicated with a red octothorpe). The phylogeny presented is based on the alignment of approximately 1400 nucleotides of the 16S rRNA gene. The phylogenetic analyses were generated with the neighbor-joining method. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (100 replicates) is shown next to the branches. The trees are not rooted but drawn to scale with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The evolutionary distances were computed using the Kimura 2-parameter method for 16S rRNA gene. The analysis included 17 sequences. Evolutionary analyses were conducted using MEGA6. All sequences are labeled according to strain name, species and accession number.( B) Genome of Lactobacillaceae isolate was aligned to reference genome database. Z-scores are calculated based on Average nucleotide identity. Top five hits are represented on the table. (C) Alignment between genome of Lactobacillaceae isolate and reference L. murinus genome from ASF 361. Genomic location, GC content, GC skew and sequence similarity given from most inner circle to most outer circle, respectively. The GC skew should not be considered since the nucleotide 0, origin of the genome, is not at the correct position due to the lack of closed genome of L. murinus.

The high prevalence of L. murinus in the murine LRT microbiota was not reported by other studies. Previous analyses of murine LRT microbiota by 16S rRNA gene NGS revealed a higher diversity with a balanced distribution of Actinobacteria, Bacteroidetes, Firmicutes and Proteobacteria (Barfod et al., 2013; Poroyko et al., 2015; Singh et al., 2017; Yadava et al., 2016). We speculated that differences in sampling techniques (bronchoalveolar lavage fluid (BALF) vs. partial organs vs. total organs) might introduce a potential sampling bias by avoiding or limiting tissue-associated bacteria. To resolve this discrepancy, we directly compared the compositional profile of LRT microbiota from bronchoalveloar lavage fluid (BALF), total organ after bronchoalveloar lavage or total organ without manipulation from SPF (individually ventilated cage) and conventionally (open cage) housed C57Bl/6J mice (see methods section for details). As demonstrated before (Yildiz et al., 2018), we found predominantly Lactobacillaceae in total organ samples (Figure 2A/B). However, this family was poorly represented in BALF samples, indicating a tight association with lung tissue. Accordingly, alpha diversity was higher in BALF samples (Figure 2C) and the overall homogeneous composition of BALF microbiota confirmed previous analysis by other groups. Of note, total 16S copy numbers by qPCR on the same amount of input DNA were substantially higher in tissue-derived samples (Figure 2—figure supplement 1A) than in BALF samples. Effectively, BALF samples were indistinguishable from blanks and background by 16S rRNA-specific qPCR. As a control for successful BAL procedure we included a qPCR for host 18S rRNA (Figure 2—figure supplement 1B) would be.

Figure 2 with 1 supplement see all

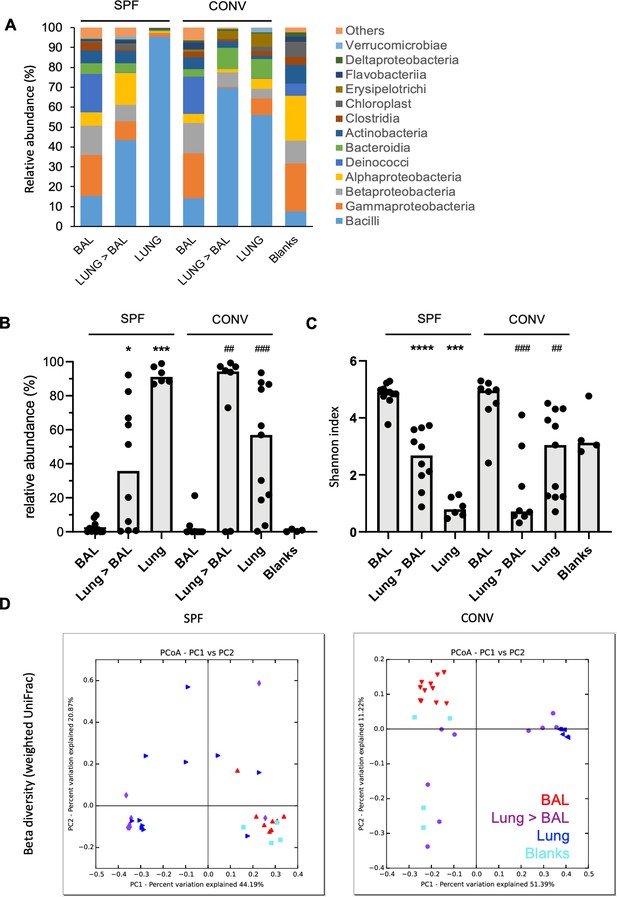

Bacilli class of bacteria is under-represented in bronchoalveloar lavage samples in mice in comparison to total lung homogenates.

BALF, total lung homogenates after BAL procedure (Lung >BAL) or directly sampled total lung homogenates (Lung) of mice housed in specific pathogen-free environment (SPF) or housed conventionally (CONV) were prepped for bacterial 16S rRNA DNA libraries. Samples from mice housed in two different cages from two independent experiments for each group were pooled for analysis (SPF; nBAL: 11, nLUNG>BAL:10, nLUNG:6, CONV; nBAL: 8, nLUNG>BAL:8, nLUNG:11). Empty tubes were processed in parallel (Blank) for evaluation of contamination. (A) Mean relative abundance (%) of different taxonomical classes of bacteria in BAL, Lung >BAL, Lung and Blank samples. Color codes for each bacterial class are given next to the graph. Number of animals used for evaluation is indicated on the graph for each group (n). (B) Relative abundance (%) of Lactobacillus genus in BAL, Lung >BAL, Lung and Blank samples. Each circle represents an individual mouse. Medians of each group are depicted as gray columns. Mann-Whitney test is applied for statistical analysis (*: in comparison to BAL of SPF mice, #: in comparison to BAL of CONV mice). (C) Individual Shannon indices of BAL, Lung >BAL, Lungs, and Blank samples. Each black circle represents an individual mouse. Medians of each group are depicted as columns. Mann-Whitney test is applied for statistical analysis (*: in comparison to BAL of SPF mice, #: in comparison to BAL of CONV mice). (D) 2D PCoA plots (UniFrac, weighted) of BAL (red head-down triangles), Lung >BAL (purple circles), Lungs (blue head-left triangles), and blanks (turquoise squares).

Regardless, the more sensitive NGS approach revealed OTUs in BALF (and tissue) samples, which were absent in blanks, such as Bacteroidia (Figure 2A). Beta-diversity (Weighted UniFrac) analysis revealed that BALF samples were found to be distinct in bacterial composition and abundance from tissue homogenates, resembling largely blank samples in SPF housed and separately positioned in CONV housed mice (Figure 2D). We next confirmed the presence of L. murinus in the lungs of SPF mice by two independent and species-specific techniques. First, we quantified L. murinus by specific primers using qPCR (Figure 3A). Genomic DNA from a defined amount of colony forming units of isolated L. murinus served as a standard to convert Ct values into cfu equivalents (Figure 3—figure supplement 1A). Four out of five SPF mice displayed DNA equivalent to >10e7 cfu/lung (Figure 3A and Figure 3—figure supplement 1B), which was about 100–1000 fold higher than the titers of life L. murinus determined by plating of lung homogenates (Yildiz et al., 2018) and potentially a result of dead L. murinus. In line with the 16S rRNA NGS date (Figure 2A) we did not detect L. murinus in DNA of BALF samples by L. murinus-specific qPCR, but in the majority of total lung DNA and DNA from lungs after BAL (Figure 3B). To gain insight into the anatomic distribution of L. murinus in the airways of mice, we performed highly sensitive RNAScope based ISH from frontal sections of total PFA fixed lungs (150 µm depth from ventral side) using probes specific for eubacteria or L. murinus. Bright red staining for L. murinus was exclusively visible in the airway space of SPF mouse lungs, but not in the germfree control specimen (Figure 3C). L. murinus was predominantely found in large airways of the bronchi, but not in the trachea or the alveolar space (upper panels). Staining of adjacent slides for eubacteria (lower panels), revealed overall good correlation of L. murinus-specific staining with total eubacterial staining. This confirms our initial finding, that L. murinus dominates the bacterial flora. The RNAScope data further support that L. murinus is viable in the lung, since we detected short lived bacterial RNA. A limitation to these findings is that they are based on data from two laboratories within a single animal facility. Facility and vendor-specific confounding effects will require to be addressed in the future.

Figure 3 with 1 supplement see all

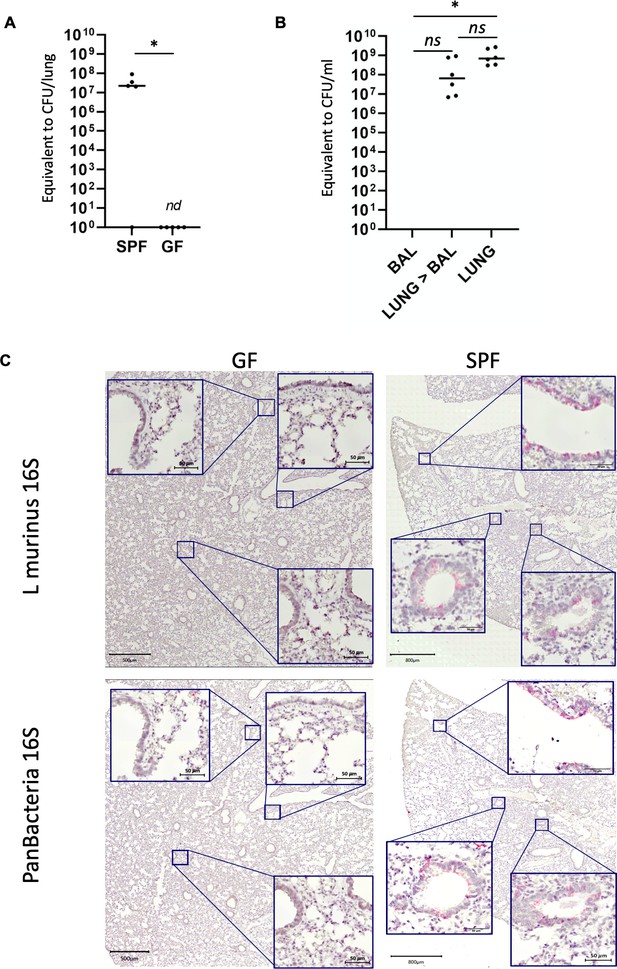

L. murinus is tightly associated with the respiratory tissue.

(A) L. murinus-specific qPCR was used to determine genome copies of L. murinus in total lung DNA extracted from SPF mice (n = 5) or germ-free (GF) mice (n = 5). CT values were compared to standard of L. murinus genomes (see Figure 3—figure supplement 3 and 1a). 1/5 SPF mice and all GF mice revealed no specific amplicon (see also Figure 3—figure supplement 3 and 1b). Median value is indicated, each dot represents an individual mouse. (B) L. murinus-specific qPCR was used to determine genome copies of L. murinus in BALF (n = 11), Lungs after BAL (n = 10) and total lung (n = 6) DNA extracted from SPF mice. CT values were compared to standard of L. murinus genomes, median values are indicated (see Figure 3—figure supplement 3 and 1a). Kruskal–Wallis test was used to determine statistical significance in multiple comparisons with Dunn’s correction. (C) Tissue distribution of L. murinus (upper panels) or total bacteria (lower panels) was determined in consecutive tissue slides of SPF mouse lungs (left panels) or GF mouse lungs (right panels). Bacterial colonization is indicated by a bright red/pink staining. Slides were counter-stained with hematoxylin. Representative sections of n = 5 mice for each group are shown.

L. murinus inhibits growth of bacterial lung pathogens

Direct competition of commensal microbiota with invading bacterial pathogens or already present pathobionts is believed to be a major host defense strategy against bacterial infections on mucosal surfaces. It was demonstrated for the intestine (Barthel et al., 2003; Brugiroux et al., 2017) and for the skin (Nakatsuji et al., 2017), but data from the LRT are currently not available. Mechanistically, commensal bacteria control outgrowth of pathobionts or invasion of pathogenic bacteria by different mechanisms: i.e. direct competition for nutrients and space, priming of innate immune cells, which are responsible for bacterial clearance and secretion of production/secretion of antibacterial metabolites (reviewed in Pickard et al., 2017).

Members of the family Lactobacillaceae were previously shown to inhibit growth of Gram-positive or Gram-negative bacteria in co-culture or by exposure to Lactobacillus conditioned medium (De Keersmaecker et al., 2006; Lu et al., 2009). Following a similar idea, we decided to first evaluate the effect of our L. murinus isolate on a common bacterial pathogen of the respiratory tract, S. pneumoniae, in an in vitro setting. Incompatibility of media requirements for efficient growth of these two bacteria did not allow us to perform co-culture studies. Instead, we used an experimental setup where S. pneumoniae was grown in presence of fresh MRS medium (FM) or L. murinus conditioned MRS medium (LmCM), both at a dilution of 1:10 with S. pneumoniae culture media (TSB). To further rule out that the antibacterial effects could merely be a consequence of depletion/reduction of nutrients in the growth media, we used a similarly prepared medium conditioned by control bacteria, E. coli (EcCM). This E. coli strain was previously isolated from the LRT of mice (Yildiz et al., 2018) and characterized by whole genome sequencing. Phylogenetic analysis revealed close relationship with E. coli SJ7 (Figure 4—figure supplement 1 and PRJNA591640 and Supplementary file 2). Only LmCM inhibited growth of S. pneumoniae cultures that prevented reaching the same optical density, even after prolonged incubation, compared S. pneumoniae grown in FM or EcCM supplemented TSB (Figure 4A). This result could be explained by the production of a soluble killing factor by L. murinus acting on S. pneumoniae and/or the inhibition of S. pneumoniae growth and division, without affecting viability. To decipher between the two possibilities, we conducted efficiency of plating assays of serially diluted S. pneumoniae cultures grown for 6 hr in FM, LmCM, or EcCM and found a one log in magnitude reduction of viability with LmCM compared to the other conditions, confirming the reduction in bacterial growth (Figure 4B,C). This result suggests a soluble killing activity produced by L. murinus that acts on S. pneumoniae.

Figure 4 with 1 supplement see all

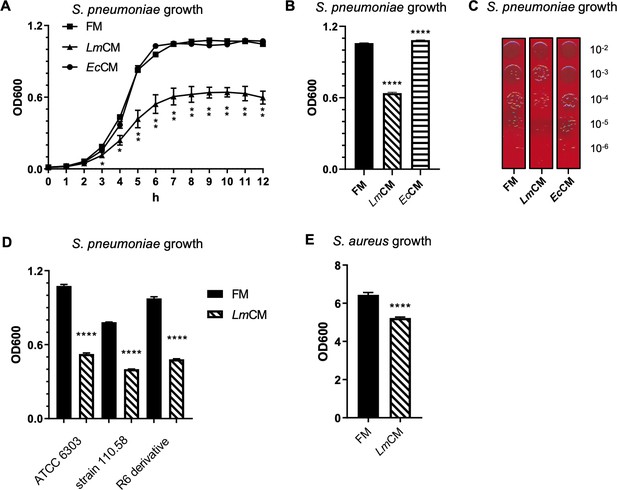

L. murinus conditioned media shows inhibitory role against S. pneumoniae growth in vitro.

(A) S. pneumoniae cultures were grown in presence of fresh (FM) or L. murinus (LmCM) or E. coli (EcCM) conditioned media. Culture growth was followed hourly by optical density at 600 nm (OD600) for 12 hr. Pooled data from two independent experiments are given as mean ± SD. Student t-test was applied for significance test. (B) S. pneumonia cultures were grown for 6 hr in presence of FM, LmCM, or EcCM. Culture growth was measured by OD600. Representative data from two independent experiments are depicted as mean ± sd (n = 3). Student t-test was applied for significance test in comparison to fresh media treated group.( C) Following incubation in presence of FM, LmCM, or EcCM for 6 hr (note, the same OD was taken for the efficiency of plating at the 6 hr time point), S. pneumonia cultures are serially diluted and growth on fresh TSB agar plate with 5% sheep blood for 24 hr. Representative images are shown. (D) Different S. pneumonia strains, that is the virulent encapsulated strain (ATCC6303), non-encapsulated clinical isolate (110.58) and a derivate of the non-encapsulated avirulent lab strain R6 (R-6 derivative), or (E) Staphylococcus aureus (USA300) cultures were grown in presence of FM, LmCM, or EcCM for 6 hr. Culture growth was measured by OD600. Representative data from two independent experiments are depicted as mean ± SD. Student t-test was applied for significance test in comparison to fresh media group of each bacterial strain.

Next, we asked whether growth inhibition by LmCM exhibits strain-specific differences on S. pneumoniae. To this end, we tested the activity of LmCM on two additional strains of S. pneumoniae, i.e. the non-encapsulated clinical isolate (110.58) and a derivate of the non-encapsulated avirulent lab strain R6. Our results indicate that inhibition of S. pneumoniae by LmCM is strain independent and is not affected by capsule formation since both strains displayed similar sensitivity to LmCM as the virulent encapsulated strain (ATCC6303) (Figure 4B–D). Since a wide range of bacterial pathogens causes bacterial pneumonia, we wondered if the inhibition by LmCM is specific to S. pneumoniae. Staphylococcus aureus, another Gram -positive bacterium, is a highly prevalence pathobiont, colonizing the upper respiratory tract of ~30% of the human population and frequently leading to bacterial pneumonia (Wertheim et al., 2005). Despite the much faster in vitro growth rate, LmCM reduced optical density of S. aureus cultures (Figure 4E), implicating a broader acting mechanism against at least two distinct pathogenic bacteria.

Encapsulated S. pneumonia forms linear chains in vitro and in vivo. Formation of chains was previously associated with tissue adhesion and pathogenicity in vivo (Rodriguez et al., 2012). We observed a significant decrease in median chain length of S. pneumonia when grown in the presence of LmCM (Figure 5A/B). EcCM, however, did not affect S. pneumoniae growth and/or chain length. In order to narrow down the nature of the soluble inhibitor of S. pneumoniae growth, we first treated the LmCM with Proteinase K. This treatment had no effect on its S. pneumoniae growth inhibition (Figure 5—figure supplement 1), excluding e.g. the action of bacteriocins. Our results suggested the active compound affecting S. pneumoniae growth in vitro could be a small bacterial metabolite.

Figure 5 with 3 supplements see all

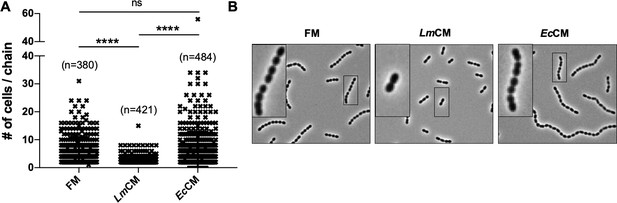

LmCM limits cellular chain length of S. pneumoniae cultures.

S. pneumonia cultures were grown to 0.6 OD600 in presence of FM, LmCM or EcCM. Cellular chain lengths of bacterial cultures are quantified using light microscopy. Each symbol represents an individual multicellular S. pneumoniae chain. Data was pooled from three independent experiments. Number of chains evaluated for each group indicated on the graph (n). Student t-test is applied for statistical analysis. Representative images are shown.

Secreted lactic acid is responsible for antibacterial effect of L. murinus

We first decided to identify metabolites specifically upregulated in LmCM as compared to control (Fresh media, FM) or EcCM with an untargeted multiplatform high-resolution mass spectrometry (HRMS) approach. 174 metabolite features that are at least 10-fold enriched in LmCM over in FM and not upregulated in EcCM (Figure 5—figure supplement 1) were detected. Two of these peaks were unambiguously identified by comparison to reference chemical standards: D-Glucosamine-6-phosphate and uridine-diphosphate-glucose. However, exposure of S. pneumoniae to these metabolites in concentrations up to 10 mM did not affect bacterial growth (Figure 5—figure supplement 2), making it unlikely that any of these putative L. murinus metabolites are responsible for the observed inhibition of S. pneumoniae growth. The chosen HRMS approach would not allow us to detect very low molecular weight metabolites such as reactive oxygen species or lactic acid, which were both previously described as metabolites produced by Lactobacillaceae with potential anti-bacterial action (Nardi et al., 2005). Some Lactobacillus species were previously reported to produce high levels of H2O2 when grown in presence of oxygen (Hertzberger et al., 2014; Kang et al., 2013; Marty-Teysset et al., 2000). However, supernatants of L. murinus grown in hypoxia showed similar levels of growth inhibition (Figure 5—figure supplement 3A). Moreover, catalase treatment did not affect the growth arrest on S. pneumoniae seen with LmCM, while it completely abolished the effect of H2O2 (Figure 5—figure supplement 3B). These results excluded reactive oxygen species from the candidate list of active metabolites in LmCM.

Of note, LmCM had a pH of 4.5 (Figure 6A). We observed a full recovery of S. pneumoniae growth, when the LCM was pH neutralized with NaOH (Figure 6B). We thus speculated that indeed lactic acid might be the compound responsible for the antimicrobial action of LmCM. An involvement of lactic acid would be in accordance with the rescue of S. pneumoniae growth after pH neutralization we observed earlier (Figure 6A/B). Indeed, quantification of lactic acid in LmCM by GC/MS revealed concentrations of approximately 100 µM (Figure 6C). In order to test if these concentrations are sufficient to explain the antibacterial effect of LmCM, we grew S. pneumoniae for 6 hr in TSB complemented with 100 µM DL-lactic acid. Indeed, we observed inhibition of S. pneumoniae growth at comparable levels to LmCM (Figure 6D), sustained over 24 hr (data not shown). These results suggest that lactic acid is the primary metabolite in LmCM causing growth arrest on S. pneumoniae.

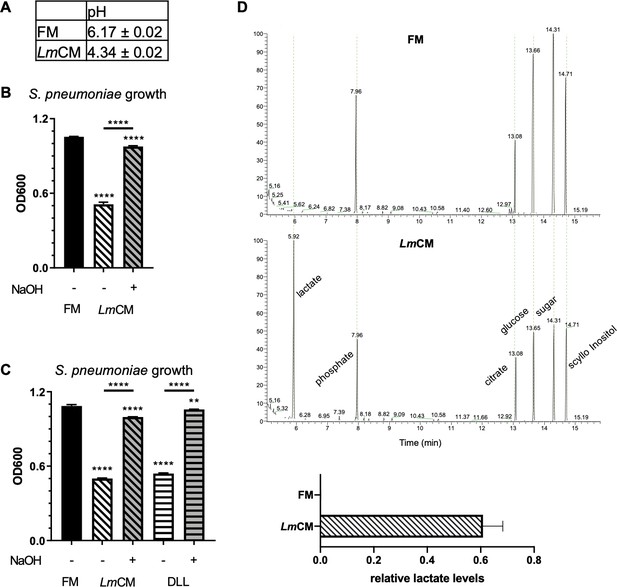

Lactic acid suppresses growth of S. pneumoniae.

Lactic acid present in LmCM is responsible for growth inhibition in S. pneumoniae cultures. (A) pH measurements of fresh (FM) or L. murinus conditioned (LmCM) media. Data is pooled from three independent experiments and depicted as mean ± SD (n = 3). (B) S. pneumonia cultures were grown for 6 hr in presence of FM, LmCM or pH adjusted LmCM (pH:~6.2, NaOH). Culture growth was measured by OD600. Representative data from two independent experiments are depicted as mean ± SD (n = 3). Student t-test was applied for significance test in comparison to fresh media treated group unless otherwise stated by the arrows. (C) Representative GC-MS total ion chromatograms of FM (dashed blue line) and LmCM (straight red line) are shown. Concentrations of Lactate in each media, calculated based on a standard curve acquired using DL-Lactic acid, depicted in the graph (Mean ± SD, n = 3). Student t-test was applied for significance test. (D) S. pneumonia cultures were grown for 6 hr in presence of FM, LmCM, DL-Lactic acid (DLL, 100 mM) or pH adjusted LmCM (pH:~6.2, NaOH) and pH adjusted DLL (pH:~6.2, NaOH). Culture growth was measured by OD600. Representative data from two independent experiments are depicted as mean ± SD (n = 3). Student t-test was applied for significance test in comparison to fresh media treated group unless otherwise stated by the arrows.

The second phenotype induced by LmCM, the reduction of median chain length of S. pneumoniae cultures (see Figure 4a), was not affected by presence of lactic acid (Figure 7A). Accordingly, pH neutralization did not restore chain length (Figure 7B). This implies that the effect of lactic acid on S. pneumoniae growth in vitro is independent of the previously observed inhibition of chain length. In order to characterize the nature of the compound responsible for inhibition of chain extension we repeated the treatment of LmCM with protease K. Proteinase K completely abolished the reduced chain extension (Figure 7C), suggesting a secreted protein or peptide could be responsible for disrupting or preventing chain formation.

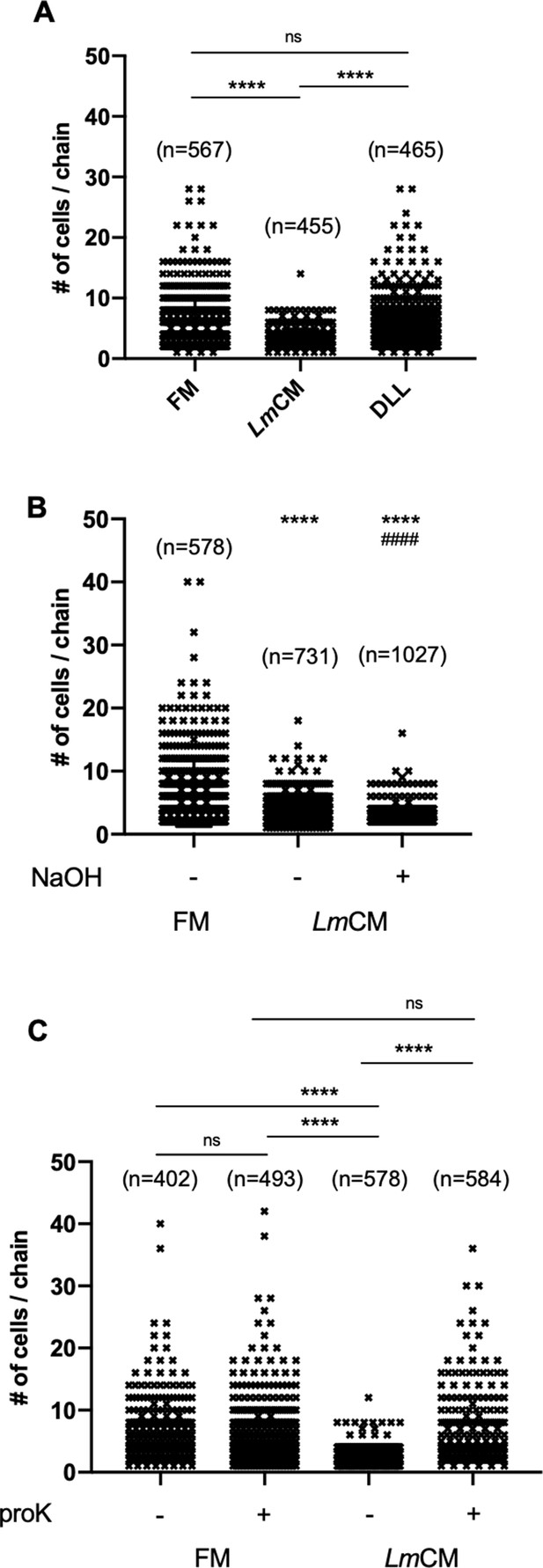

L. murinus secreted substance of protein origin is the cause of decrease in cellular chain length of S. pneumoniae cultures.

S. pneumonia cultures were grown to 0.6 OD600 in presence of (A) FM, LmCM or DL-Lactic acid (DLL,~100 mM), (B) FM, LmCM or pH adjusted LmCM (pH:~6.2, NaOH) and (C) mock or proteinase K (proK) treated FM and LmCM. Cellular chain lengths of bacterial cultures are quantified using light microscopy. Each symbol represents an individual multicellular S. pneumoniae chain. Data was pooled from three independent experiments. Number of chains evaluated for each group indicated on the graph (n). Student t-test is applied for statistical analysis.

Probiotic treatment with L. murinus reduces outgrowth of S. pneumoniae in vivo

In order to provide evidence that lung resident L. murinus does indeed provide colonization resistance against respiratory bacterial pathogens we inoculated germ-free (GF) mice and colonized SPF mice with either sterile PBS or 10e5 cfu L. murinus and challenged them 72 hr later with 10e3 S. pneumoniae (ATCC 6303). 24 hr later we measured S. pneumoniae titers in total lung homogenates. To our great surprise we did not find increased susceptibility of GF mice to S. pneumoniae infection over colonized SPF mice (Figure 8A). In fact, GF mice were resistant to colonization, largely independent of L. murinus pretreatment. Resistance did not correlate with significantly lowered lung pH (Figure 8B). In colonized SPF mice, the pretreatment with L. murinus had a small but statistically non-significant effect on S. pneumoniae colonization (Figure 8A), which is likely due to the already present population of respiratory commensal L. murinus. Of note, L. murinus instillation did not alter body weight of the mice, which indicates no adverse effects by this probiotic treatment.

Figure 8 with 1 supplement see all

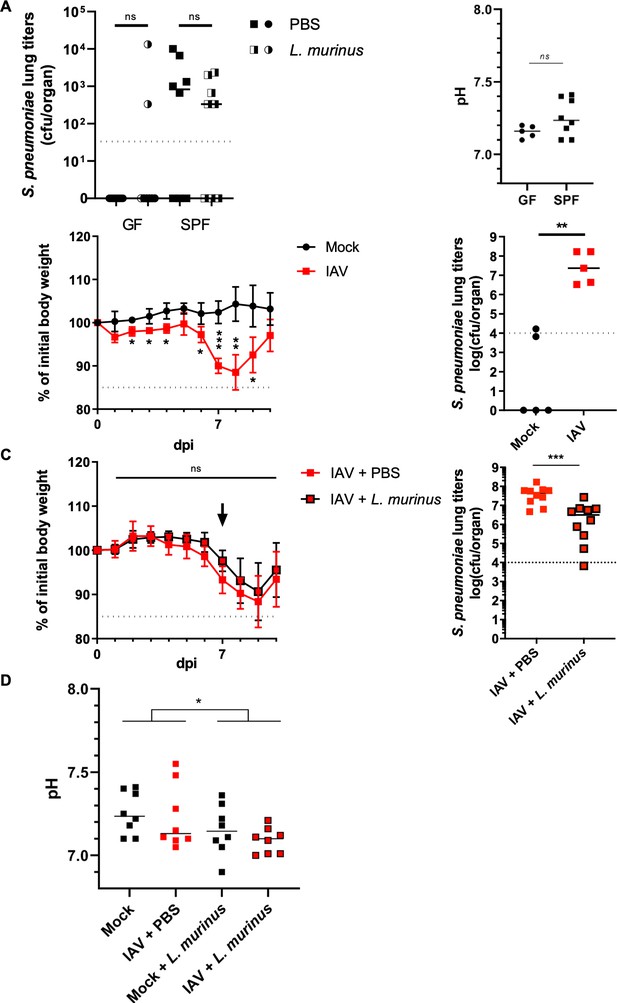

Therapeutic administration of L. murinus decreases S. pneumoniae titers in the lung of IAV infected mice.

(A) Germ-free (GF) or specific pathogen-free (SPF) mice were intranasally administered with PBS or L. murinus (~105 cfu/animal). Three days post-administration, mice were challenged with S. pneumoniae (~1500 cfu/animal). S. pneumoniae lung titers (cfu/organ) of L. murinus (half black/half white) or PBS (plain black) administered GF (circles) or SPF (squares) are quantified 24 hr post infection (n = 10). Medians are depicted by a black line for each group. Pooled data from two independent experiments are shown. BALF pH does not significantly differ between colonized and GF mice (right panel). Median pH values for indicated mice are shown. Each dot represents one animal. Mann-Whitney test is applied for statistical analysis.( B) Average relative initial body weight (%)± SD is depicted for mock treated (black line with circles) and IAV infected (red line with squares) mice (n = 5). Mice were challenged with S. pneumoniae (~1500 cfu/animal) 10 days post IAV infection. S. pneumoniae lung titers (cfu/organ) of mock treated (black circles) or IAV infected (red squares) are quantified 24 hr post infection (n = 5). Medians are depicted by a black line for each group. Student t-test was applied for significance test. (C) All mice are infected with IAV (40 pfu). Seven days post IAV infection, PBS (red line with red squares) or L. murinus (~105 cfu/animal, black line with red squares) is intranasally administered to the animals. Average relative initial body weight (%)± SD is depicted for both group (n = 10). Mice were challenged with S. pneumoniae (~1500 cfu/animal) 10 days post IAV challenge. S. pneumoniae lung titers (cfu/organ) of IAV infected, PBS (red squares) or L. murinus administered (black rounded red squares) are quantified 24 hr post infection (n = 10). Medians are depicted by a black line for each group. Pooled data from two independent experiments are shown. Student t-test was applied for significance test. (D) pH of BALF from mock treated or L. murinus colonized mice 3 days post colonization and 10 days post IAV vaccination (n = 7–8 animals/group).

We thus decided to choose an alternative more realistic model, in which mice become more susceptible to S. pneumoniae colonization. Even in SPF mice, the colonization of the respiratory tract with low doses of S. pneumoniae is quite inefficient. This natural colonization threshold can be lowered by previous, sub-lethal IAV infection (Figure 8B), modeling the frequently observed secondary bacterial pneumonia in human IAV patients (Morris et al., 2017). In order to address if L. murinus could overcome the IAV mediated sensitization toward S. pneumoniae colonization, we established a respiratory probiotics treatment protocol (Figure 8C, probiotics treatment indicated by black arrow). When inoculating IAV infected mice on day 7-post infection (after onset of clinical signs of IAV infection) with L. murinus via the intranasal route, we observed a significant reduction BALF pH and diminished pneumococcal colonization on day 11-post IAV infection (24 hr post secondary S. pneumoniae challenge) (Figure 8C/D). Lactic acid levels in BALF of these mice were not changed compared to IAV infected and mock colonized controls (Figure 8—figure supplement 1A). We can currently not rule out that lactic acid is quickly taken up by the surrounding tissue or commensal bacteria. Importantly, treatment with L. murinus did not influence the overall pathology of IAV infection as indicated by similar weight loss in both experimental groups (Figure 8—figure supplement 1C). Lactobacilli were previously shown to modulate inflammatory signaling. An involvement of the innate host protein response was ruled out by specific qPCR for key cytokines involved in antibacterial signaling (Figure 8—figure supplement 1B). IAV infected mice showed a robust inflammatory response in their lungs on D10 post infection, which was non-significantly impacted by administration of L. murinus. Finally we tested by 16S rRNA gene-specific NGS, if L. murinus colonization of the lungs would alter the resident lung microbiota. Indeed, we found a mild increase in Bacilli in SPF mice colonized with L. murinus and a homogenous reduction of the remaining bacterial classes (Figure 8—figure supplement 1C). The overall composition of lung microbiota was however indistinguishable as indicated by largely overlapping clouds in the PCoA (Figure 8—figure supplement 1D). These data indicate that L. murinus could be a safe and directly acting antibacterial probiotic candidate for the respiratory tract.

Discussion

The benefit of bacterial colonization of mucosal surfaces has been the center of attention of numerous scientific studies in recent years, ranging from nutritional science, to immunology and even behavioral studies. Most studies focus on the highly colonized digestive tract, where exposure of various immune cell types results in peripheral education of adaptive immune cells and fine-tuning of immune responses. Beyond these indirect effects, bacterial microbiota is posing a direct competitive threshold to colonization or outgrowth of pathogenic bacteria on barrier tissues.

Gnotobiotic animals, with an increased resistance to bacterial colonization, were first introduced in the mid-1960s by Russel W. Schaedler. This original Schaedler flora was later revised and became the ASF. Since the 1980s, all major commercial vendors provided mice for barrier facilities by colonizing germ-free animals with this standardized mix of eight bacterial strains. There are however numerous reports on vendor-specific variations in the commensal microbiota (Ericsson et al., 2015; Guo et al., 2019; Ivanov et al., 2009; Ivanov et al., 2008). Nevertheless, we believe our results are of importance for researchers working on lung physiology or pathology in commercially acquired mouse models.

In laboratory mice, L. murinus, as part of the ASF, was reported to colonize the intestine (Almirón et al., 2013; Hemme et al., 1980), the oral cavity (Blais and Lavoie, 1990; Rodrigue et al., 1993) and the vaginal tract (Jerse et al., 2002). In the lower respiratory tract L. murinus was to our best knowledge not reported as a dominant species, however Lactobacilli were previously found in high number in lung tissue microbiome (Singh et al., 2017; Zhang et al., 2018). Our data implicate that the sampling technique is critical for the adequate quantification of this species in the lung, since they might have a tight association with the host tissue. A previous comparison of BALF (+ or - cells) with lung tissue (from the distal tips of the lung) revealed enrichment of Firmicutes in tissue (Barfod et al., 2013), independently confirming our observation. Even within BAL samples of human patients, it was previously reported that a substantial proportion of commensal bacteria is tightly associated with cells and thus easily lost during removal of these cells (Dickson et al., 2014). From conventionally housed mice in our own facility, we know that Lactobacilli are still overall dominant in the lung tissue microbiome after two weeks of open cage housing.

Lactobacilli display a number of antimicrobial and immune modulatory activities. Depending on the ecological niche and the Lactobacillus strain investigated, diverse phenotypes have been observed: Colonization of GF mice with Lactobacillus spp. was proposed to increased alveoli numbers per µm2 and to enhanced mucus production after 16 weeks (Yun et al., 2014), comparable to non-SPF mice, albeit this was not independently confirmed by others. Intranasal application of L. rhamnosus GG or L. paracasei one reduces IL-5 and eotaxin production in the lung (Pellaton et al., 2012). Intranasal application of L. rhamnosus GG was recently shown to suppress allergic responses in mouse models (Spacova et al., 2019). Colonization with L. murinus H12 was recently described to protect neonatal rats from necrotizing enterocolitis (Isani et al., 2018).

Direct antibacterial effects were also previously reported. Lactobacilli produce antimicrobial peptides such as bacteriocins (Elayaraja et al., 2014) and metabolites that are antibacterial in nature such as reactive oxygen species and lactic acid (Nardi et al., 2005). Our data imply a direct function for lactic acid in the antagonism of pneumococcus growth. Lactic acid was shown to inhibit growth of various bacterial pathogens; E. coli, S. enterica Typhimurium serovar, L. monocytogenes (De Keersmaecker et al., 2006; Wang et al., 2015). This action is assigned to two mechanisms: (1) its capacity to penetrate cytoplasmic membranes in its non-dissociated form, which results in lowered cytoplasmic pH and disruption of the proton gradient across the cytoplasmic membrane (Alakomi et al., 2000); 2) its capacity to permeabilize the cytoplasmic membrane, which was proposed to increase in turn the sensitivity of lactic acid exposed bacteria (mainly gram-negative) to other antimicrobial compounds (Alakomi et al., 2000). Lactic acid levels where however not changed in vivo after exogenous application of L. murinus. We can thus not rule out that lactate independent mechanisms, e.g. the in vitro observed reduction of S. pneumoniae chain length, come into play in vivo. Additionally, we found a protease sensitive reduction of chain extension. It is currently unclear if both phenotypes contribute to the in vivo colonization defect of S. pneumoniae after probiotics treatment with L. murinus. The antibacterial activity was not limited to S. pneumoniae but also affected S. aureaus. Published reports indicate a broad antibacterial activity of L. murinus (Bilkova et al., 2011; Perelmuter et al., 2008). In our study the repressing effects on fast growing S. aureus were mild but evident. The antimicrobial effect of L. murinus on S. aureus growth depends on low pH as well (Bilkova et al., 2011).

Notably we found that germ-free mice were more difficult to colonize with S. pneumoniae. This appears as a contradiction to the hypothesis that lung microbiota poses a colonization barrier toward invading bacterial pathogens. An explanation to this dilemma could be that S. pneumoniae colonization requires yet unknown anatomical conditions induced by commensal lung microbiota. Future tests in antibiotic treated mice might resolve this phenomenon.

The majority of human lung microbiota studies rely on aspirates or endoscopic brushes. In a recent tissue-biopsy based human lung microbiota study (Yu et al., 2016), Firmicutes were found in all regions of the respiratory tract, albeit not to the same extend as shown here in SPF mice. We can moreover not rule out that other bacteria might produce lactic acid in the lung of humans to prevent colonization. One of the most prevalent KEGG pathways retrieved from the human tissue microbiome was carbohydrate metabolism (Yu et al., 2016), which includes the pathway involved in lactic acid generation. Under chronic inflammatory conditions as found in IPF patients, lactic acid levels in lungs are elevated albeit the source of this lactate could not be determined (Kottmann et al., 2012). In cystic fibrosis patients, neutrophils were identified as a source for lactic acid in sputum (Bensel et al., 2011). The contribution of commensal respiratory tract bacteria and host cells to antibacterial lactate production in healthy humans remains to be addressed.

Finally, we demonstrated here that lung resident commensals might be applicable as probiotics to counteract lung colonization by pathogenic bacteria, without major effects on lung commensals. In contrast to other Lactobacillus species (Ding et al., 2017) L. murinus is not immunogenic when administered orally in mice (Östberg et al., 2018). This was also confirmed here by overall similar levels of cytokine mRNAs involved in antibacterial signaling. However, it remains currently unclear through which mechanism IAV might weaken the commensal shield against colonization, or if the here demonstrated effect of probiotics treatment is solely based on alterations of the host immune response. Nevertheless, in the context of a lung environment prone to bacterial colonization, e.g. as we induced by IAV infection, this treatment could reduce the risk of superinfection or improve the clinical outcome. This is of special interest in elderly human patients with high susceptibility to respiratory tract infections and reduced lung microbiome complexity (Kovacs et al., 2017).

Conclusions

Lung tissue-associated microbiota of mice differ substantially from BALF microbiota, in containing large proportions of L. murinus. Future studies on respiratory microbiota should take this into account. Under dysbiotic conditions, intranasal instillation of L. murinus decreases the burden of S. pneumoniae colonization. In light of the ongoing antibiotic resistance crisis, probiotic treatment of bacterial lung infection might offer therapeutic alternatives.

Materials and methods

Animal experiments

Request a detailed protocol

Power analysis (G*power 3.1) was used to estimate group size for mouse experiments was performed based on experimental variation obtained in a previous study aiming for a power of 0.95 (Yildiz et al., 2018).

C57BL/6J mice (female, 7–8 weeks of age) were purchased from Charles River Laboratories (France) and housed under SPF/BSL2 conditions or under conventional non-SPF conditions with open cages. All animals were housed for 7 days to adjust to housing conditions under a strict 12 hr light/dark cycle and fed ad libitum. Conventionally housed animals were kept in open cages 14 days before experiments. germ-free animals with C57BL/6J background were generated by the Clean Mouse Facility of Department of Biomedical Research of the University of Bern. They were born and raised in flexible film isolators in the at University of Bern, transferred aseptically into sterile IVC cages provided with sterile food and water and kept in the BSL2 unit of the animal facility of the Centre Medical Universitaire, Geneva for the duration of the experiments. For inoculation with IAV, S. pneumonia or L. murinus, mice were injected intraperitoneally with a mix of ketamine/xylazine (100 mg/kg and 5 mg/kg, respectively) in 200 µl of sterile PBS. Upon reaching deep anesthesia, mice were inoculated with 40 µl of PBS, virus or bacterial suspension via the intranasal route.

Body weights were measured daily during the light phase. Upon reaching experimental or humane endpoints (85% of initial body weight), animals were euthanized using controlled CO2 exposure. Broncho alveolar lavages (BAL) or lungs were sampled immediately after euthanasia using sterile tools. BAL sampling was performed as previously described (Sun et al., 2017) with some modifications. Briefly, mice were sacrificed by controlled CO2 inhalation and fixed with needles to a Styrofoam panel. The skin from abdomen to neck was cut open to expose thoracic cage and neck. With a second set of sterile tools soft tissue around the neck was gently removed. Using forceps, approximately 10 cm sterile sewing thread was placed underneath the trachea. With sterile scissors the trachea was nicked and a 22G × 1’ Exel Safelet Catheter was inserted no more than 0.5 cm. The inner cannula was removed and the catheter was tied to trachea with a double knot in the sewing thread. 1 ml of PBS, or saline (0.9%) in experiments for pH or lactate measurements, was slowly introduced into the lung through the catheter with a 1 ml syringe, incubated for 10 s and aspirated back to the syringe. This procedure was repeated two more times, using a new sterile syringe in every step. Retrieved liquid was collected in a screw cap tube. Tools were changed in between organs and experimental groups to avoid cross contamination. BAL or lung samples were immediately stored at −80 °C until extraction of DNA.

In situ hybridization

Request a detailed protocol

Lungs were collected under sterile conditions from five SPF and five germ-free C57BL/6J mice, fixed in paraformaldehyde 4% solution and embedded in paraffin and sliced at two different depth levels (51 µM and 101 µM), using a standard microtome (1 µM thickness).

In situ detection of L. murinus 16S rRNA was performed using the RNAscope 2.5 HD Assay - RED (Advanced Cell Diagnostics) according to the manufacturer's protocol. Briefly, lung slides were deparaffinized by submerging the slides four rounds in 100% xylol and subsequently four rounds in 96% ethanol solutions. Slides were dried at 60°C. An incubation with hydrogen peroxide was performed for 10 min and target retrieval was achieved by incubating the slides with RNAscope 1x Target Retrieval Reagent for 45 min at 95°C. Tissue was permeabilized using RNAscope protease plus (Advanced Cell Diagnostics). Probe hybridization was performed with a specific RNA probe for the 16S rRNA of L. murinus or 16S rRNA Panbacteria (#475131 or #451961 Advanced Cell Diagnostics) for 2 hr at 40°C. Signal amplification was achieved by incubating the tissues at 40°C with AMP solutions provided by the kit and a final Fast Red dye incubation for 10 min. Slides were counter-stained with hematoxylin and EcoMount solution was added to preserve the coloration. Slides were visualized under Olympus VS120 brightfield microscope (Zeiss) under a 100x/1.4 Oil objective and processed using QuPath-0.2.1 Software. Random fields were picked from each slide and evaluated at 100x magnification. An average of 5–8 fields per sample were analyzed and positive staining was determined by red/pink punctate dots around epithelial cells of large airways.

Bacteria

L. murinus and Escherichia coli isolates were grown from serially diluted lung homogenates on Columbia agar + 5% sheep blood plates (bioMerieux, France) at 37°C under aerobic conditions. L. murinus was cultured in vitro at 37°C with 5% CO2 in static liquid broth or solid plates of MRS media (bioMerieux, France), prepared according to manufacturer’s instructions. E. coli was grown in standard LB broth with agitation (250 rpm) or on LB plates, with antibiotic where indicated, at 37°C, except for conditioned media experiments where MRS media instead of LB were used in the same incubation settings. For experiments using L. murinus conditioned media (LmCM) and E. coli conditioned media (EcCM), overnight cultures were adjusted to 0.1 optical density at OD600 nm in MRS media. To grow L. murinus anaerobically, cultures were prepared as described above except in air-sealed plastic containers containing atmosphere generator, GenBox Anaer (bioMerieux, France). After 8 hr of incubation, bacteria were pelleted by centrifugation at 4000 x g at 4°C for 10 min. Supernatants were filtered through a 0.22 µm PVDF syringe-top filters (Merck Millipore, Ireland). Similarly processed fresh MRS media (FM) used as a negative control. Streptococcus pneumoniae strains, i.e. antigenic type 3 (ATCC-6303, LGC, Germany), Swiss non-encapsulated nasopharyngeal pneumococcal isolate 110.58 (MLST 344) and R6-derivative strain, were cultivated on Trypticase soy agar plates (bioMerieux, France) with 5% sheep blood (bioMerieux, France) at 37°C with 5% CO2. Liquid cultures were grown directly from frozen stocks in Trypticase soy broth (bioMerieux, France) at 37°C with 5% CO2 in static culture up to 0.5 optical density (OD600 nm). Then, cultures were diluted in Trypticase soy broth (bioMerieux, France) to 0.01 OD600, mixed with FM, LmCM, or EcCM in 1:10 ratio and incubated for 6 hr until experimental end point unless otherwise stated. Hydrogen peroxide (H2O2), UDP-glucose, glucosamine 6 P and DL-Lactic acid were purchased from Sigma-Aldrich (Switzerland). They were diluted in water or MRS media to desired concentration and used in same experimental setting as described above. S. aureus USA300 strain was a kind gift from the lab of Dr. William Kelly, University of Geneva, Switzerland. S. aureus cultures were grown and used in experiments in Trypticase soy broth (bioMerieux, France) at 37°C with agitation (250 rpm). For administration of L. murinus to mice, overnight cultures were diluted in fresh media (1:200) incubated in conditions aforementioned for 4 hr. Then, bacteria were pelleted down, washed once with PBS and diluted to ~105 cfu/animal in PBS prior to administration. S. pneumoniae inoculation was performed as previously described (Yildiz et al., 2018).

Microscopy

Request a detailed protocol

Following incubation with fresh media, conditioned media or chemicals where indicated, S. pneumoniae cultures at optical density of 0.6 (OD600 nm) were installed on thin layer 1% pure agarose pads mounted on microscope slides. Alpha Plan-Apochromatic x 100/1.46 Ph3 (UV) VIS-IR oil objective on an Axio Imager M2 microscope (Zeiss) was used to visualize bacteria. A total number of 24–30 images of the samples were taken in triplicates; and representative images are shown. Number of individual cells per pneumococcal chain were counted to quantify the chain length.

Bacteria DNA extraction, library construction, and bioinformatics analysis

Request a detailed protocol

Total lung, from lower trachea downward, and BAL samples were collected as described above. DNA extraction was performed using QIAGEN Pathogen Cador Mini kit (USA) according to manufacturer’s protocol with slight modifications. Briefly, whole organ samples were homogenized with ¼” stainless steel grinding balls (MPBio, USA) or a QIAGEN Pathogen Cador Mini kit (USA) according to manufacturer’s protocol using matched blanks in 1 ml PBS, containing 15 µl Proteinase K supplied with the kit, using a Bead Blaster 24 (Benchmark Scientific, USA) with a speed setting of 6 m/s for 30’ and 30’ break, repeated 10 times. Then, together with BAL samples containing same amount of Proteinase K, all samples were incubated at 56°C for 30’. 200 μl of homogenates were used for further DNA extraction steps following the kits’ guidelines with pre-treatment T3 and B1. Empty sample tubes that are underwent the whole respective extraction procedure are used to evaluate to measure potential cross contamination during PCR. Libraries for bacterial composition analysis of total lungs and BALs were performed as previously described (Yildiz et al., 2018). With exception to Figure 8—figure supplement 1 QIIME was used for bioinformatics analysis of the sequences generated through Illumina (USA) sequencing through the pipeline previously described (Aronesty, 2013; Caporaso et al., 2010a; Caporaso et al., 2010b; Chao, 1984; Colwell et al., 2012; DeSantis et al., 2006; Lozupone and Knight, 2005; Shannon, 1984; Wang et al., 2007; Yildiz et al., 2018). For Figure 8—figure supplement 1 we used QIIME2 for bioinformatics analysis of the sequences generated through Illumina (USA) sequencing through the following pipeline (Bolyen et al., 2019). Samples were demultiplexed and trimmed to remove adapters, primers and primer links using cutadapt. Subsequently, pair ends were joined using vsearch with the default parameters and denoised using deblur with a 250nt length limit. A table was generated containing the features for each sample and was further filtered to keep samples containing features with a frequency higher than 1140 using feature-table.

Taxonomy attribution for each feature was performed using a Naive Bayes classifier trained on the Greengenes_13_5 database at a 97% identity level with the primer sequences of the V4 rRNA 16S region. A relative frequency table was generated and bar plots were constructed by taking the mean ceiling of each group’s taxa attribution at the class level. Beta-diversity was determined with Principal of Coordinates analysis by the weighted UniFrac method using diversity core-metrics-phylogenetic with a level of depth set to 500 on a rooted phylogenetic tree constructed with phylogeny align-to-tree-mafft-fasttree. 2D plots were constructed in emperor with the two axis that could explain most of the variability.

For whole genome sequencing, DNA was extracted from colony smears of L. murinus and E. coli using MOBIO DNA extraction kit according to manufacturer’s protocol. Bacterial genomic DNA was quantified with a Qubit fluorimeter (Life Technologies). The Nextera kit from Illumina (USA) was used for the library preparation with 50 ng of DNA as input. Library molarity and quality was assessed with the Qubit and TapeStation using a DNA High sensitivity chip (Agilent Technologies). Libraries were loaded on a HiSeq 4000 single-read Illumina flow cell. Single-end reads of 50 bases and barcodes strategy were obtained according to the Nextera XT kit (Illumina, USA), following the manufacturer's recommendations. Read quality was assessed with the Fastqc program (available at: http://www.bioinformatics.babraham.ac.uk/projects/fastqc/) and filtered using the FastqMcf program (Ea-utils; available at: http://code.google.com/p/ea-utils). Genome assembly was performed using the SPAdes39. The sequencing run produced on average a total of 15.5 million reads per sample, exhibiting very high theoretical coverage values (between 150 and 250 fold). The assembly produced very similar results for each pair of strains, resulting in an average genome size of 2152198 bp and 5205614 nucleotides for L. murinus and E. coli, respectively.

Assembled genomes were annotated using the RAST program (Treangen et al., 2014). Multi-locus sequence typing (MLST) analysis was performed using annotated genomes and submitted to the Center for Genomic Epidemiology database (http://cge.cbs.dtu.dk/services/MLST). The phylogenetic relationship of all isolates was investigated by genomic single-nucleotide polymorphism (SNP)–based analysis using as the reference genome in the Parsnp v1.0 program (Aziz et al., 2008). The BlastP analysis was used to investigate the presence of specific genes involved in the phenotype, evolution, and virulence of the isolates.

The MAFFT Web Server42 was used to perform the phylogenetic analysis of 16 s rRNA gene of public sequences of Lactobacillus spp. Phylogenetic tree topologies of nucleotide 16S rRNA gene was constructed with the neighbor-joining method using bootstrap (the accession numbers of all species are provided in the figure). The evolutionary distances were computed using default parameters.

Determination of average nucleotide identity (ANI) and in Ssilico DNA–DNA hybridization (DDH)

Request a detailed protocol

ANI- and DDH-values were assessed in silico using online tools. The assembled genome of strain Lacto_Soner was uploaded in GGDC (http://ggdc.dsmz.de/ggdc.php#) with the recommended local alignment tool BLAST+ and compared with the closest genomes available in public databases identified in the different phylogenetic trees, to obtain DDH-values. The accession numbers of the strains included in the phylogenetic analyses are provided in Supplementary file 1. The statistic comparison (logistic regression) used a significant probability value of DDH >79%. Pairwise ANI-values were obtained using JSpeciesWS (http://jspecies.ribohost.com/jspeciesws/#analyse) with BLAST.

Phylogenetic analysis

Request a detailed protocol

The phylogeny presented is based on the alignment of approximately 1400 nucleotides of the 16S rRNA gene. The phylogenetic analyses were generated with the neighbor-joining method. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (100 replicates) is shown next to the branches. The trees are not rooted and drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The evolutionary distances were computed using the Kimura 2-parameter method for 16S rRNA gene. The analysis included 17 sequences. Evolutionary analyses were conducted using MEGA6. All sequences are labeled according to strain name, species and accession number.

L. murinus-specific qPCR

Request a detailed protocol

For 16S rRNA gene DNA quantification, 200 ng of DNA extracted from organ homogenates were mixed with 10 μl of 2X ddPCR supermix for probes (BioRad), 1.8 μl of each Forward (10 μM) and Reverse (10 μM) primer, 0.4 μl of a DNA fluorescent probe and completed the volume to 20 μl with RNAse, DNase Free Molecular Biology Grade Water (Amimed, BioConcept, Switzerland). Quantitative PCR was performed following a thermal cycling protocol of an initial denaturation step at 95°C for 5 min, followed by 80 cycles of denaturation at 95°C for 30 s and annealing/extension at 61.5°C for 60 s. L. murinus 16S rRNA gene-specific primers and probe were used (probe: 5’-FAM-CTCAACCGTGCCGTTCAAACTG-MQ530-3′; 16Sfw: 5’- ACTGGCGATGTTACCTTTGG −3′ and 16Srev: 5’- CAGGCCTTTGTATTGGTGGT −3′). Amplicons were loaded on an 2% agarose gel stained with ethidium bromide and visualized with a BioRad Gel DocTM XR+ (BioRad).

For the standard curve construction and colony-forming unit (CFU) correlation, serial dilutions of L. murinus genomic DNA extracted from a colony grown overnight as previously described were added to the mix as described above with the same thermal cycling protocol settings. Briefly, 2 ml of L. murinus grown in MRS broth were divided in equal volumes and: (1) washed in PBS twice to remove remaining broth, heated at 100°C for 5 min and incubated in distilled water for 2 min. (2), serial-diluted and plated on MRS agar overnight to determine CFU. Genomes/lung calculation was adjusted by correcting to the amount of total DNA extracted from each lung and the total DNA input on each qPCR.

For RNA levels where stated, 500 ng total RNA was used to synthesize cDNA using M-MLV Reverse Transcriptase kit following kit’s guidelines (PROMEGA). Quantitative PCR was performed using 2X KAPA SYBR FAST qPCR Master Mix-universal according to manufacturer’s instructions. The following specific primers for murine cDNAs were used: mIP-10 fw: 5’-TTCACCATGTGCCATGCC-3′, mIP-10 rev: 5’-GAACTGACGAGCCTGAGCTAGG-3’, mIFN-γ fw: 5’-ATGAACGCTACACACTGCATC-3′, mIFN-γ rev: 5’-CCATCCTTTTGCCAGTTCCTC-3’, mTNF-α fw: 5’-AGAAACACAAGATGCTGGGACAGT-3’, mTNF-α rev: 5’-CCTTTGCAGAACTCAGGAATGG-3’, 18S fw: 5’-GTAACCCGTTGAACCCCATT-3’, 18S rev: 5’-CCATCCAATCGGTAGTAGCG-3’. Gene expression was normalized to 18S and fold induction was calculated compared to the mock group using the ΔΔCq formula.

Identification of metabolites in LmCM and EcCM

Request a detailed protocol

200 µl of fresh media, LmCM or EcCM were de-proteinized by adding 800 µl of ice-cold MeOH. After vortexing for 1 min, samples were centrifuged at 15000 xg and 4°C for 15 min. Supernatants were collected and evaporated under vacuum. Residues were re-dissolved in 500 µl of MeCN:H2O (50:50, v:v) and vortexed for 1 min. Samples were centrifugated under the same conditions prior to injection in the LC-MS system. Chromatography was performed on a Waters H-Class Acquity UPLC system composed of a quaternary pump, a column manager and an FTN autosampler (Waters Corporation, Milford, MA, USA). For RPLC analyses, samples were separated on a Kinetex C18 column (150 × 2.1 mm, 1.7 μm) and the corresponding SecurityGuard Ultra precolumn and holder (Phenomenex, Torrance, USA). Solvent A was H2O and solvent B was MeCN, both containing 0.1% formic acid. The column temperature and flow rate were set at 30°C and 300 µl min–1, respectively. The gradient elution was as follows: 2 to 100% B in 14 min, hold for 3 min, then back to 2% B in 0.1 min and re-equilibration of the column for 7.9 min. aHILIC separations were conducted on a Waters Acquity BEH Amide column (150 × 2.1 mm, 1.7 µm) bearing an adequate VanGuard pre-column. Solvent A was H2O:MeCN (5:95, v/v) and solvent B was H2O:MeCN (70:30, v/v) containing 10 mM ammonium formate (pH = 6.5 in the aqueous component). The following gradient was applied: 0% B for 2 min, increased to 70% B over 18 min, held for 3 min, and then returned to 0% B in 1 min and to re-equilibrate the column for 7 min (total run time was 31 min). The flow rate was 500 µl min–1, and the column temperature was kept at 40°C. For the zHILIC method, separation was performed on a Merck SeQuant Zic-pHILIC column (150 × 2.1 mm, 5 μm) and the appropriate guard kit. The following gradient of mobile phase A (MeCN) and mobile phase B (2.8 mM ammonium formate adjusted to pH 9.00) was applied: 5% B for 1 min, increased to 51% B over 9 min, held for 3 min at 51% B and then returned to 5% B for 0.1 min before re-equilibrating the column for 6.9 min (total run time was 20 min) at a flow rate of 300 µl/min and a column temperature of 40°C.

In all cases, a sample volume of 0.5 µl was injected. Samples were randomized for injection, and QC pools were analyzed every six samples to monitor the performance of the analytical platform.

The UPLC system was coupled to a maXis 3G Q-TOF high-resolution mass spectrometer from Bruker (Bruker Daltonik GmbH, Bremen, Germany) through an electrospray interface (ESI). The instrument was operated in TOF mode (no fragmentation). The capillary voltage was set at −4.7 kV for ESI+, drying gas temperature was 225°C, drying gas flow rate was set at 5.50 (RPLC), 8.00 (aHILIC) or 7.00 (zHILIC) L min-1 and nebulizing gas pressure was 1.8 (RPLC) or 2.0 bar (HILIC). Transfer time was set at 40 (RPLC) or 60 (HILIC) µs and pre-pulse storage duration at 7.0 (RP) or 5.0 μs (HILIC). For ESI– operation, the capillary voltage was set at 2.8 kV. All the remaining ion source and ion optics parameters remained as in ESI+. Data between 50 and 1000 m/z were acquired in profile mode at a rate of 2 Hz. ESI and MS parameters were optimised using a mix of representative standards fed by a syringe pump and mixed with the LC eluent (mid-gradient conditions) within a tee-junction. Format adducts in the 90–1247 m/z range were employed for in-run automatic calibration using the quadratic plus high-precision calibration algorithm provided by the instrument’s manufacturer. MS and UPLC control and data acquisition were performed through the HyStar v3.2 SR2 software (Bruker Daltonik) running the Waters Acquity UPLC v.1.5 plug-in.

Run alignment, peak piking and sample normalization were performed on Progenesis QI v2.3 (Nonlinear Dynamics, Waters, Newcastle upon Tyne, UK) and peaks were identified by matching their retention times, accurate masses and isotopic patterns to those of a library of chemical standards (MSMLS, Sigma-Aldrich, Buchs, Switzerland) analyzed under the same experimental conditions, as described elsewhere (Pezzatti et al., 2019).

Measurement of lactic acid levels in LmCM

Request a detailed protocol

D-/L-Lactic acid (D-/L-lactate) (Rapid) Assay Kit (Megazyme, USA) was used to quantify lactic acid levels in bacterial supernatants according to manufacturer’s instructions. For GC-MS, samples were diluted 1:10 in ultra-pure water. 5 µl of diluted fresh or spent medium were transferred to GC-MS vial inserts (Machery-Nagel, 702813) and dried down in a centrifugal evaporator (Speed Vac Concentrator, Savant) together with 10 µl scyllo-inositol (1 mM, Merck, I8132) as internal standard. Samples were re-dried after addition of 20 µl methanol (Merck, 34860). Vial inserts were transferred to 1.5 ml vials suitable for mass spectrometry (Machery-Nagel, 702282) and subsequently derivatised through addition of 20 µl pyridine and 20 µl bis(trimethylsilyl)trifluoroacetamide +1% trimethylchlorosilane (BSTFA +1% TMCS, Merck, B-023).

Samples were analyzed by GC-MS after >30 min incubation at room temperature using a Trace GC Ultra (Thermo Fisher Scientific) gas chromatography system equipped with a Phenomenex ZB-5MS capillary column (30 m x 0.25 mm, 0.25 µm, with inert guard). Using a Triplus RSH autosampler (Thermo Fisher Scientific) 2 µl of sample were injected. The GC was operated in splitless mode for one minute followed by split mode (1/13). The helium carrier gas flow rate was set to 1 ml/min, the temperature of the injector and transfer line were set to 270°C and 320°C, respectively. The oven temperature was at 70°C (1 min hold), increased to 295°C (12.5 °C/min) and raised to 320°C (25 °C/min, 2 min hold). The GC was coupled to a PolarisQ ion trap mass spectrometer (Thermo Fisher Scientific), operated in electron ionization (EI) mode (70 eV). The ion source was operated at 200°C and full scan data (m/z 50–650) was acquired after a solvent delay of 5 min. Relative levels of lactate were quantified by determining the intensity of the lactate ion m/z 219 relative to an abundant ion of the internal standard (m/z 318) using XCalibur (Thermo Fisher Scientific), OpenChrom and Excel (Microsoft).

pH measure in BALF

Request a detailed protocol

BALF were collected as described above. For pH measurement, samples were thawed on ice and the HALO – HANNA pH probe (Hanna Instruments) was submerged in each sample with a distilled water wash in between. pH was determined with the Edgeblu – HANNA pHmeter (Hanna Instruments) calibrated on the same day of the analysis.

Virus

Request a detailed protocol

Reverse genetics systems were kindly provided by Dr. Peter Palese and Dr. Adolfo García-Sastre (Icahn School of Medicine at Mount Sinai, New York, NY, USA). IAV A/Viet Nam/1203/2004 (VN/1203) HALo (low pathogenic version) was rescued and stocks were prepared as previously described (Anchisi et al., 2018; Eisfeld et al., 2014).

Statistics

In order to determine statistical significance, we applied Mann–Whitney test to OTU abundance, Shannon indices and bacterial titers from mouse organs using Graph Pad Prism 7.0. In vitro experiments were assessed with student's t-test. Where p is not indicated; ****: p≤0.0001, ***: p≤0.001, **: p≤0.01, *: p≤0.05, ns: not significant.

Ethical approval

Request a detailed protocol

All animal procedures were in accordance with federal regulations of the Bundesamt für Lebensmittelsicherheit und Veterenärwesen (BLV) Switzerland (Tierschutzgesetz) and approved by an institutional review board and the cantonal authorities (license number GE-159–17).

Consent for publication

Request a detailed protocol

All authors read the manuscript and agreed to its publication.

Data availability

Material from this study originally generated in our team, will be made available upon request in reasonable quantities.

The following data sets were generated
    1. Schmolke M
    (2019) NCBI BioProject
    ID PRJNA663937. Lactobacillus murinus isolated from laboratory mice.
    1. Schmolke M
    (2019) NCBI BioProject
    ID PRJNA591640. Escherichia coli isolated from laboratory mice.

References

    1. Hemme D
    2. Raibaud P
    3. Ducluzeau R
    4. Galpin JV
    5. Sicard P
    6. Van Heijenoort J
    (1980)
    "Lactobacillus murinus" n. sp., a new species of the autochtoneous dominant flora of the digestive tract of rat and mouse
    Annals of Microbiology 131:297–308.

Decision letter

  1. Peter Turnbaugh
    Reviewing Editor; University of California, San Francisco, United States
  2. Wendy S Garrett
    Senior Editor; Harvard T.H. Chan School of Public Health, United States
  3. Kenneth Klingenberg Barfod
    Reviewer; University of Copenhagen, Denmark

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The lung microbiome is an emerging area of study with clear clinical significance. While the mechanisms through which commensal bacteria in the gut protect against enteric pathogens has been well described, the role of lung commensals has not been clearly elucidated. This work identifies an enrichment of the commensal bacterium Lactobacillusmurinus in mouse lung tissue, which could potentially protect the host against pneumococcal colonization.

Decision letter after peer review:

Thank you for submitting your article "Respiratory tissue-associated commensal bacteria offer therapeutic potential against pneumococcal colonization" for consideration by eLife. Your article has been reviewed by Wendy Garrett as the Senior Editor, a Reviewing Editor, and three reviewers. The following individual involved in review of your submission has agreed to reveal their identity: Kenneth Klingenberg Barfod (Reviewer #3).

Summary:

Yildiz et al., describe the enrichment of Lactobacillusmurinus in mouse lung tissue, which could potentially protect the host against pneumococcal colonization. The lung microbiome is an emerging area of study with potential clinical significance. While the mechanisms through which commensal bacteria in the gut protect against enteric pathogens has been well described, the role of lung commensals has not been clearly elucidated. Here, they show that L. murinus suppresses the lung pathogen S. pneumoniae. SPF mice have high levels of L. murinus. Conditioned media suppresses S. pneumoniae growth likely due to lactic acid production. Finally, they show a significant reduction in S. pneumoniae levels in mouse models in the presence of L. murinus.

Essential revisions:

Addition of qPCR and/or FISH data: The authors did not show the 16S qPCR data to compare the overall bacterial load between BAL, total lung homogenate, and lung homogenate after BAL. However, such data is critical to demonstrate the difference of commensal bacteria that are reside in the airway vs. those are tissue-associated. While the authors mentioned the 16S copy is higher in tissue-derived samples than BALF samples, and the BALF samples are indistinguishable from background, it is necessary to directly show the results, with the proper normalization and control. In particular, adjacent sterile tissue (such as heart) could be used as a control for lung tissue samples. Alternatively, FISH could be performed to directly demonstrate the presence of L. murinus in the lower respiratory tract and their association with lung tissue.

In vivo measurements of pH and lactic acid levels: It is not clear if the proposed mechanism is physiologically relevant. Data on pH and lactic acid concentration of BALF samples from L. murinus colonized versus GF mice would be a good addition to the paper. This mechanism also seems to contradict the proteinase K experiment, which implicates a protein/peptide.

The authors should evaluate the alternative hypothesis that the impact of L. murinus is mediated through interactions with the immune system. As a first pass, the authors could perform cytokine analysis from the BAL/tissue of the animals or ideal repeat the experiment with flow cytometry.

The authors observe that the β diversity and 16S qPCR copy numbers of BAL and blanks (controls) were similar. This is surprising given that several other studies in mouse and humans (Charlson et al., 2012, Dickson, 2014) have clearly demonstrated significant differences in controls and BAL. The authors suggest that this indicates a high number of false positives. What do the authors think is the cause for this? Does it reflect an issue with contamination of the saline/sterile water used for BAL, their sequencing techniques, or something else?

Need to deposit sequencing data prior to resubmission. This includes the sequencing data from lung or bal of the mice from both model systems that were inoculated with L. murinus. This will provide insight into the other commensals or pathobionts that may have been are promoted or suppressed by L. murinus. It is possible that growth of other pathobionts/commensals in the lung due to L. murinus exposure may be in part or indirectly responsible for suppression of S. pneumoniae.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Respiratory tissue-associated commensal bacteria offer therapeutic potential against pneumococcal colonization" for consideration by eLife. Your article has been reviewed by Wendy Garrett as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Nirmal Sharma (Reviewer #2); Kenneth Klingenberg Barfod (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Yildiz et al., describe the enrichment of Lactobacillusmurinus in mouse lung tissue, which could potentially protect the host against pneumococcal colonization. The lung microbiome is an emerging area of study with potential clinical significance. While the mechanisms through which resident bacteria in the gut protect against enteric pathogens has been well described, the role of the lung microbiota has not been clearly elucidated. Herein, the data show that L. murinus suppresses the lung pathogen S. pneumoniae. L. murinus-conditioned media suppresses S. pneumoniae growth likely due to lactic acid production. Finally, the authors find a significant reduction in S. pneumoniae levels in mouse models in the presence of L. murinus.

Essential revisions:

The reviewers request that multiple claims in the paper be modified or weakened, setting the stage for future studies. The appropriate caveats could be added to the results or Discussion section. This includes:

It is still not clear what the overall bacterial load is in BAL, total lung homogenate, and lung homogenate after BAL by 16S qPCR. Without such data, there is not sufficient evidence to claim L. murinus is tightly associated with lung tissue.

Regarding the physiological relevance of lactate derived from L. murinus, the authors didn't observe any changes 3 days post L. murinus inoculation in mock or influenza A virus pre-treated mice.

Cytokine levels are interesting but would require flow cytometry and additional experiments to better understand how the immune system is involved.

Contamination introduced from the DNA preparation kit would also be present in lung samples.

Subsection “Lactobacillus murinus (ASF361) is a major constituent of mouse lung microbiota”: Please revise this subheading to be more specific to the current study, unless the authors meant to imply that L. murinus is a major player in the lung microbiota in all mice.

Please discuss why germ-free mice are resistant to S. pneumoniae infection regardless of L. murinus pre-treatment.

Make sure to include the appropriate statistical analysis and comparison groups in each figure.

Subsection “Lactobacillus murinus (ASF361) is a major constituent of mouse lung microbiota”: Show the data on 16S copy numbers based on qPCR.

Materials and methods section: It is imperative to describe how many cages, how they were housed and how many mice per cage. If you do not have many cages, it is unfortunate, but it should be clear. Please also make sure to describe the sample collection and BAL procedures more clearly.

https://doi.org/10.7554/eLife.53581.sa1

Author response

Essential revisions:

Addition of qPCR and/or FISH data: The authors did not show the 16S qPCR data to compare the overall bacterial load between BAL, total lung homogenate, and lung homogenate after BAL. However, such data is critical to demonstrate the difference of commensal bacteria that are reside in the airway vs. those are tissue-associated. While the authors mentioned the 16S copy is higher in tissue-derived samples than BALF samples, and the BALF samples are indistinguishable from background, it is necessary to directly show the results, with the proper normalization and control. In particular, adjacent sterile tissue (such as heart) could be used as a control for lung tissue samples. Alternatively, FISH could be performed to directly demonstrate the presence of L. murinus in the lower respiratory tract and their association with lung tissue.

This is an excellent point and indeed very few papers address the specific presence of lung resident microbiota by FISH. We used highly sensitive RNAScope technology and detected L. murinus and total eubacteria with specific probes in neighboring sections of SPF mouse lungs. GF mouse lung sections were used as negative controls. As shown in the new Figure 3B we found a clear and matching staining for both probes in large and medium sized airways.

In parallel we performed qPCR assays using L murinus specific primers and probes to quantify L. murinus in the lungs of SPF mice (new Figure 3A). Using a standard of genomic DNA from cultured L. murinus with a defined cfu we estimated the number of L. murinus to be around 10e7/lung. This estimate is about 100fold higher than the number of total cultured bacteria determined previously [Yildiz et al., 2018], which might be due to the presence of dead bacteria or a consequence of alternative organ processing for the two techniques.

in vivo measurements of pH and lactic acid levels: It is not clear if the proposed mechanism is physiologically relevant. Data on pH and lactic acid concentration of BALF samples from L. murinus colonized versus GF mice would be a good addition to the paper. This mechanism also seems to contradict the proteinase K experiment, which implicates a protein/peptide.

We agree with the notion that there might be more than mechanism in place, reducing replication of S. pneumoniae in presence of L. murinus. We compared lactate levels and pH in BALF of L. murinus treated SPF mice. We chose this model, since we observed here an effect on S. pneumoniae colonization. Lactate levels were unchanged 3 days post L. murinus inoculation in mock or influenza A virus pre-treated mice, which might be a consequence of quick absorption of lactic acid into the tissue or commensal bacteria. Nevertheless, we found a significant reduction of pH by 0.1 in BALF of mice treated with L. murinus. While this appears to be minor effect, previous publications suggest that a drop of 0.5 (assuming an overall pH of 7 in the lung), lead to 4 log10 reduction in in vitro experiments [Mazzola et al., 2003], which is clearly more dramatic than what we observed in our in vivo experiments. These data are included in the new Figure 8D and Figure 8—figure supplement 1A.

The authors should evaluate the alternative hypothesis that the impact of L. murinus is mediated through interactions with the immune system. As a first pass, the authors could perform cytokine analysis from the BAL/tissue of the animals or ideal repeat the experiment with flow cytometry.

Again, an excellent point: We performed qPCR analysis of mRNAs involved in inflammatory responses to bacteria. While we observed a mild reduction in mRNA levels for TNFa, IFNγ and IP10, these differences do not reach statistical significance. These data were included into the new Figure 8B.

The authors observe that the β diversity and 16S qPCR copy numbers of BAL and blanks (controls) were similar. This is surprising given that several other studies in mouse and humans (Charlson et al., 2012, Dickson, 2014) have clearly demonstrated significant differences in controls and BAL. The authors suggest that this indicates a high number of false positives. What do the authors think is the cause for this? Does it reflect an issue with contamination of the saline/sterile water used for BAL, their sequencing techniques, or something else?

We use as blank controls sampling tubes that are opened for a few seconds in the same biosafety cabinet, where mouse organs are samples, after this they are processed as all the other samples. Sterile PBS is aliquoted under a clean BSC for these experiments. Contamination could originate from the DNA preparation kit (which might pose a source of experimental variation between the reference above and our study) or cross contamination during library preparation (although this is rather unlikely, since the blanks are randomly included in the PCR plates.

Need to deposit sequencing data prior to resubmission. This includes the sequencing data from lung or bal of the mice from both model systems that were inoculated with L. murinus.

NGS sequences (including the new data from Figure 8—figure supplement 1C and D) are available under NCBI BioProject numbers PRJNA591377 (NGS MiSeq microbiome data).

This will provide insight into the other commensals or pathobionts that may have been are promoted or suppressed by L. murinus. It is possible that growth of other pathobionts/commensals in the lung due to L. murinus exposure may be in part or indirectly responsible for suppression of S. pneumoniae.

We performed 16S rRNA gene specific NGS on lung DNA of SPF mice and SPF mice treated with L. murinus. While we see an enhanced presence of Bacilli (as consequence of probiotics treatment) we do not see major shifts in the remaining microbial community. Accordingly, there are not striking differences in the β diversity of SPF and SPF+L. murinus mice. These data are now included into the new Figure 8C and 8D.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

The reviewers request that multiple claims in the paper be modified or weakened, setting the stage for future studies. The appropriate caveats could be added to the results or Discussion section. This includes:

It is still not clear what the overall bacterial load is in BAL, total lung homogenate, and lung homogenate after BAL by 16S qPCR. Without such data, there is not sufficient evidence to claim L. murinus is tightly associated with lung tissue.

We now provided the qPCR data for panbacterial 16S rRNA and L. murinus 16S rRNA for the three extraction conditions (BALF, lung after BALF and lung) from SPF housed and conventional mice (Figure 2—figure supplement 1A and Figure 3B).

Regarding the physiological relevance of lactate derived from L. murinus, the authors didn't observe any changes 3 days post L. murinus inoculation in mock or influenza A virus pre-treated mice.

This is correct. We can only speculate that the lactate might already have been taken up by the surrounding tissue or bacteria. Lactate-independent mechanisms (e.g. the reduced chain formation) acting in vivo might be an alternative explanation. We included this point into the Results and Discussion.

Cytokine levels are interesting but would require flow cytometry and additional experiments to better understand how the immune system is involved.

We actually do not think that there is a major effect on cytokine production. Statistically the reduction in cytokine mRNA levels from IAV infected mice to IAV+L murinus treated mice is not significant. Moreover, a reduced level of cytokines involved in antibacterial signaling would argue against an involvement of the host immune system, since we see less S. pneumonia in the lung after L. murinus addition.

Contamination introduced from the DNA preparation kit would also be present in lung samples.

Blank samples indicated in Figure 2A represent the contamination coming from the DNA preparation kits. We also provide a new Figure 2—figure supplement 1C showing the overall read counts from lung and blank samples.

Subsection “Lactobacillus murinus (ASF361) is a major constituent of mouse lung microbiota”: Please revise this subheading to be more specific to the current study, unless the authors meant to imply that L. murinus is a major player in the lung microbiota in all mice.

We agree that our findings potentially only apply to the chosen experimental conditions. In line with the reviewers comment we changed the subheading to:

Lactobacillusmurinus (ASF361) could be a major constituent of mouse lung microbiota in laboratory settings”

We additionally included the sentences: " A limitation to these findings is that they are based on data from two laboratories within a single animal facility. Facility and vendor specific confounding effects will require to be addressed in the future."

Please discuss why germ-free mice are resistant to S. pneumoniae infection regardless of L. murinus pre-treatment.

We included the following in the Discussion:

“Notably we found that germ-free mice were more difficult to colonize with S. pneumoniae. This appears as a contradiction to the hypothesis that lung microbiota poses a colonization barrier toward invading bacterial pathogens. An explanation to this dilemma could be that S. pneumoniae colonization requires yet unknown anatomical conditions induced by commensal lung microbiota. Future tests in antibiotic treated mice might resolve this phenomenon.”

Make sure to include the appropriate statistical analysis and comparison groups in each figure.

Statistical test are now included whenever appropriate in the figures and explained in the figure legend.

Subsection “Lactobacillus murinus (ASF361) is a major constituent of mouse lung microbiota”: Show the data on 16S copy numbers based on qPCR.

We included qPCR data for 16S and L. murinus for BALF, lung after BAL and total lung samples (Figure 2—figure supplement 1A and Figure 3B).

Materials and methods section: It is imperative to describe how many cages, how they were housed and how many mice per cage. If you do not have many cages, it is unfortunate, but it should be clear. Please also make sure to describe the sample collection and BAL procedures more clearly.

This information is now included into Figure legend 2. The BAL procedure was described in more detail (subsection “Fluorescence in situ hybridization”).

https://doi.org/10.7554/eLife.53581.sa2

Article and author information

Author details

  1. Soner Yildiz

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    João P Pereira Bonifacio Lopes
    Competing interests
    No competing interests declared
  2. João P Pereira Bonifacio Lopes

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Investigation
    Contributed equally with
    Soner Yildiz
    Competing interests
    No competing interests declared
  3. Matthieu Bergé

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0910-6114
  4. Víctor González-Ruiz

    1. Analytical Sciences, School of Pharmaceutical Sciences, University of Geneva, University of Lausanne, Geneva, Switzerland
    2. Swiss Centre for Applied Human Toxicology, Basel, Switzerland
    Contribution
    Resources, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Damian Baud

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Joachim Kloehn

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Inês Boal-Carvalho

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Olivier P Schaeren

    1. Institute for Infectious Disease (IFIK), University of Bern, Bern, Switzerland
    2. Graduate School GCB, University of Bern, Bern, Switzerland
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Michael Schotsaert

    Department of Microbiology, Icahn School of Medicine at Mount Sinai, New York, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  10. Lucy J Hathaway

    Institute for Infectious Disease (IFIK), University of Bern, Bern, Switzerland
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  11. Serge Rudaz

    1. Analytical Sciences, School of Pharmaceutical Sciences, University of Geneva, University of Lausanne, Geneva, Switzerland
    2. Swiss Centre for Applied Human Toxicology, Basel, Switzerland
    Contribution
    Supervision, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  12. Patrick H Viollier

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Supervision, Funding acquisition, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5249-9910
  13. Siegfried Hapfelmeier

    Institute for Infectious Disease (IFIK), University of Bern, Bern, Switzerland
    Contribution
    Supervision, Investigation, Methodology
    Competing interests
    No competing interests declared
  14. Patrice Francois

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  15. Mirco Schmolke

    Department of Microbiology and Molecular Medicine, Faculty of Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration
    For correspondence
    mirco.schmolke@unige.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2491-3029

Funding

Swiss National Science Foundation (155959)

  • Mirco Schmolke

Swiss National Science Foundation (182475)

  • Mirco Schmolke

Fondation Ernst et Lucie Schmidheiny

  • Mirco Schmolke

Fondation Ernest Boninchi

  • Inês Boal-Carvalho

Swiss National Science Foundation (162808)

  • Lucy J Hathaway

Swiss National Science Foundation (169791)

  • Siegfried Hapfelmeier

Swiss National Science Foundation (182576)

  • Patrick H Viollier

H2020 European Research Council (695596)

  • Joachim Kloehn

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful for excellent technical assistance by Chengyue Niu and Filomena Silva. We thank Ingrid Wagner from the team of Dr. Doron Merkler, University of Geneva, for providing guidance in setting up the RNAScope technique. We would like to extend our gratitude to the axenic mouse facility at the University of Bern and Dr. Mercedes Gomez, to the technical support of the mouse facility at the CMU, to the excellent support by the Genomics core facility, the Histology core facility and the Bioimaging facility of the CMU.

Ethics

Animal experimentation: All animal procedures were in accordance with federal regulations of the Bundesamt für Lebensmittelsicherheit und Veterenärwesen (BLV) Switzerland (Tierschutzgesetz) and approved by an institutional review board and the cantonal authorities (license number GE-159-17).

Senior Editor

  1. Wendy S Garrett, Harvard T.H. Chan School of Public Health, United States

Reviewing Editor

  1. Peter Turnbaugh, University of California, San Francisco, United States

Reviewer

  1. Kenneth Klingenberg Barfod, University of Copenhagen, Denmark

Publication history

  1. Received: November 13, 2019
  2. Accepted: November 18, 2020
  3. Version of Record published: December 8, 2020 (version 1)

Copyright

© 2020, Yildiz et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,056
    Page views
  • 174
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Epidemiology and Global Health
    2. Microbiology and Infectious Disease
    Paul Z Chen et al.
    Research Article

    Background: Which virological factors mediate overdispersion in the transmissibility of emerging viruses remains a longstanding question in infectious disease epidemiology.

    Methods: Here, we use systematic review to develop a comprehensive dataset of respiratory viral loads (rVLs) of SARS-CoV-2, SARS-CoV-1 and influenza A(H1N1)pdm09. We then comparatively meta-analyze the data and model individual infectiousness by shedding viable virus via respiratory droplets and aerosols.

    Results: The analyses indicate heterogeneity in rVL as an intrinsic virological factor facilitating greater overdispersion for SARS-CoV-2 in the COVID-19 pandemic than A(H1N1)pdm09 in the 2009 influenza pandemic. For COVID-19, case heterogeneity remains broad throughout the infectious period, including for pediatric and asymptomatic infections. Hence, many COVID-19 cases inherently present minimal transmission risk, whereas highly infectious individuals shed tens to thousands of SARS-CoV-2 virions/min via droplets and aerosols while breathing, talking and singing. Coughing increases the contagiousness, especially in close contact, of symptomatic cases relative to asymptomatic ones. Infectiousness tends to be elevated between 1-5 days post-symptom onset.

    Conclusions: Intrinsic case variation in rVL facilitates overdispersion in the transmissibility of emerging respiratory viruses. Our findings present considerations for disease control in the COVID-19 pandemic as well as future outbreaks of novel viruses.

    Funding: Natural Sciences and Engineering Research Council of Canada (NSERC) Discovery Grant program, NSERC Senior Industrial Research Chair program and the Toronto COVID-19 Action Fund.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Robert J Nichols et al.
    Research Article Updated

    Prokaryotic nanocompartments, also known as encapsulins, are a recently discovered proteinaceous organelle-like compartment in prokaryotes that compartmentalize cargo enzymes. While initial studies have begun to elucidate the structure and physiological roles of encapsulins, bioinformatic evidence suggests that a great diversity of encapsulin nanocompartments remains unexplored. Here, we describe a novel encapsulin in the freshwater cyanobacterium Synechococcus elongatus PCC 7942. This nanocompartment is upregulated upon sulfate starvation and encapsulates a cysteine desulfurase enzyme via an N-terminal targeting sequence. Using cryo-electron microscopy, we have determined the structure of the nanocompartment complex to 2.2 Å resolution. Lastly, biochemical characterization of the complex demonstrated that the activity of the cysteine desulfurase is enhanced upon encapsulation. Taken together, our discovery, structural analysis, and enzymatic characterization of this prokaryotic nanocompartment provide a foundation for future studies seeking to understand the physiological role of this encapsulin in various bacteria.
