Lin28a/let-7 pathway modulates the Hox code via Polycomb regulation during axial patterning in vertebrates

  1. Tempei Sato
  2. Kensuke Kataoka
  3. Yoshiaki Ito
  4. Shigetoshi Yokoyama
  5. Masafumi Inui
  6. Masaki Mori
  7. Satoru Takahashi
  8. Keiichi Akita
  9. Shuji Takada
  10. Hiroe Ueno-Kudoh
  11. Hiroshi Asahara  Is a corresponding author
  1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Japan
  2. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Japan
  3. Research Fellow of Japan Society for the Promotion of Science, Japan
  4. Research Core, Tokyo Medical and Dental University, Japan
  5. Laboratory of Metabolism, National Institutes of Health, United States
  6. Laboratory of Animal Regeneration Systemology, Meiji University, Japan
  7. Department of Medical Chemistry, Shiga University of Medical Science, Japan
  8. Department of Anatomy and Embryology, University of Tsukuba, Japan
  9. Department of Clinical Anatomy, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Japan
  10. Reproduction Center, Yokohama City University, Japan
  11. AMED-CREST, Japan Agency for Medical Research and Development (AMED), Japan
  12. Department of Molecular Medicine, The Scripps Research Institute, United States
Research Article
  • Cited 0
  • Views 620
  • Annotations
Cite this article as: eLife 2020;9:e53608 doi: 10.7554/eLife.53608

Abstract

The body plan along the anteroposterior axis and regional identities are specified by the spatiotemporal expression of Hox genes. Multistep controls are required for their unique expression patterns; however, the molecular mechanisms behind the tight control of Hox genes are not fully understood. In this study, we demonstrated that the Lin28a/let-7 pathway is critical for axial elongation. Lin28a–/– mice exhibited axial shortening with mild skeletal transformations of vertebrae, which were consistent with results in mice with tail bud-specific mutants of Lin28a. The accumulation of let-7 in Lin28a–/– mice resulted in the reduction of PRC1 occupancy at the Hox cluster loci by targeting Cbx2. Consistently, Lin28a loss in embryonic stem-like cells led to aberrant induction of posterior Hox genes, which was rescued by the knockdown of let-7. These results suggest that the Lin28/let-7 pathway is involved in the modulation of the ‘Hox code’ via Polycomb regulation during axial patterning.

Introduction

The precise positioning of each organ and tissue has to be tightly controlled during embryogenesis. The body plan along the anteroposterior axis is modulated by the spatiotemporal expression of Hox genes, which is known as the ‘Hox code’ (Wellik, 2007; Mallo and Alonso, 2013). Hox genes encode a family of transcription factors that contain a helix-turn-helix type homeodomain. In vertebrates, Hox genes are organized into four paralogous clusters (A to D) that can be divided into thirteen groups. The members of each paralogous group have partially redundant functions, but also acquire independent functions (Wellik, 2007; Mallo et al., 2010). During development, the paralogous group at the 3’ end of the clusters is expressed in the anterior part of the body, while the more 5’ genes are expressed in the more posterior part, towards the tail (Deschamps and van Nes, 2005; Dressler and Gruss, 1989; Duboule and Dollé, 1989; Gaunt and Strachan, 1996; Graham et al., 1989; Izpisúa-Belmonte et al., 1991b; Izpisúa-Belmonte et al., 1991a). These expression patterns modulate the anterior and posterior axis and specify the regional anatomical identities of the vertebrae: Hox gene-knockout mice show anterior transformations where specific vertebrae mimic the morphology of a more anterior one (Chisaka and Capecchi, 1991; Chisaka et al., 1992; Le Mouellic et al., 1992; Condie and Capecchi, 1993; Jeannotte et al., 1993; Small and Potter, 1993; Davis and Capecchi, 1994; Horan et al., 1994; Horan et al., 1995b; Horan et al., 1995a; Kostic and Capecchi, 1994; Davis et al., 1995; Rancourt et al., 1995; Suemori et al., 1995; Boulet and Capecchi, 1996; Fromental-Ramain et al., 1996b; Fromental-Ramain et al., 1996a; Carpenter et al., 1997; Chen and Capecchi, 1997; Chen et al., 1998; Manley and Capecchi, 1997; van den Akker et al., 2001; Garcia-Gasca and Spyropoulos, 2000; Wahba et al., 2001; Wellik and Capecchi, 2003; McIntyre et al., 2007). Multistage controls, such as transcriptional, posttranscriptional, and epigenetic regulation, are required for the nested expression patterns of Hox genes (Mallo and Alonso, 2013).

As for epigenetic control, Polycomb group (PcG) genes are involved in Hox gene regulation via the chromatin architecture at Hox cluster loci in a developmental time-dependent manner (Soshnikova, 2014). PcG genes form two complexes, the Polycomb Repressive Complex (PRC) one and PRC2. PRC2 includes Ezh2, which can catalyze H3K27me3 at target loci, and consequently, this specific histone modification causes the recruitment of PRC1 via Cbx2 in the complex to silence gene expression. Thus, the accumulation of PcG complexes at Hox clusters during embryogenesis leads to the transcriptional silencing of Hox genes, which is supported by evidence that the ablation of PcG genes dysregulates Hox gene expression, resulting in subsequent skeletal transformation in anteroposterior patterning (Mallo and Alonso, 2013; Soshnikova, 2014). During embryogenesis, PcG gene expression gradually diminishes (Hashimoto et al., 1998), which leads to the initiation of spatiotemporal Hox gene expression. However, the molecular mechanisms underlying the termination of PcG gene expression remain largely unclear.

Previously, we generated a whole-mount in situ hybridization database called ‘EMBRYS’ that covers ~1600 transcription factors and RNA-binding factors using mice at embryonic day (E)9.5, E10.5, and E11.5 (Yokoyama et al., 2009). Among these data, we were particularly interested in dynamic expressional changes of Lin28a during embryogenesis: at E9.5, Lin28a is expressed ubiquitously, whereas its expression gradually diminishes from head to tail at E10.5 and E11.5 (Yokoyama et al., 2008; Yokoyama et al., 2009). These unique expressional changes prompted us to analyze if Lin28a is involved in the spatiotemporal regulation of Hox genes.

Lin-28 was identified as a heterochronic gene that regulates the developmental timing of multiple organs in Caenorhabditis elegans (C.elegans) (Moss et al., 1997). Lin-28 encodes an RNA-binding protein, and the loss of function of Lin-28 causes precocious development, with skipping of events that are specific to the second larval stage (Ambros and Horvitz, 1984; Moss et al., 1997). In contrast, mutants of let-7, a microRNA-encoding heterochronic gene, exhibit reiteration of the fourth larval developmental stage because of failures in terminal differentiation and cell-cycle exit (Pasquinelli et al., 2000; Reinhart et al., 2000). Importantly, Lin-28 and let-7 form a negative feedback loop that is essential for developmental timing in C. elegans. This reciprocal regulation between Lin28a and let-7 is well conserved in mammals (Moss and Tang, 2003; Viswanathan et al., 2008); Lin28a promotes the degradation of let-7 precursors (Heo et al., 2009; Chang et al., 2013), whereas let-7 inhibits Lin28a expression via posttranscriptional regulation (Moss and Tang, 2003).

Vertebrates possess two homologs of Lin28 genes, Lin28a and Lin28b. Lin28a is highly expressed in pluripotent stem cells and is ubiquitously expressed in the early embryonic stage, and its expression is diminished during development (Yang and Moss, 2003; Shyh-Chang and Daley, 2013; Yokoyama et al., 2008; Yokoyama et al., 2009). In contrast, Lin28b is dominantly expressed in testes, placenta, and fetal liver, as well as in undifferentiated hepatocarcinoma (Guo et al., 2006). The versatile functions of Lin28a are observed in diverse events, such as germ layer formation (Faas et al., 2013), germ cell development (West et al., 2009), neural development (Yang et al., 2015), glucose metabolism (Zhu et al., 2011), and skeletal development (Aires et al., 2019; Robinton et al., 2019; Papaioannou et al., 2013). Conversely, let-7-family genes are highly expressed in differentiated tissues, and their products function as tumor suppressors via the inhibition of oncogenes such as c-Myc, K-ras, and Hmga2 (Mayr et al., 2007; Lee and Dutta, 2007; Johnson et al., 2005; Sampson et al., 2007). These observations prompted us to test the potential ‘heterochronic’ function of Lin28a in vertebrate development; however, it remains largely unclear if the evolutionally fundamental function of the Lin-28 and let-7 negative feedback loop in the regulation of developmental timing and pattern of C. elegans is conserved or adapted in vertebrates.

In this work, we generated Lin28a knockout (Lin28a–/–) mice and analyzed the function of this gene in developmental patterning. We showed that the Lin28a/let-7 pathway is critical for axial elongation and vertebral patterning. Lin28a–/– mice exhibited axial shortening with mild skeletal transformations of vertebrae, which were consistent with results observed in mice with tail bud-specific gain/loss of function of Lin28a (Aires et al., 2019; Robinton et al., 2019). The accumulation of let-7-family microRNAs in Lin28a–/– mice resulted in the reduction of PRC1 occupancy at the Hox cluster loci by targeting Cbx2. Consistent with these results, Lin28a loss in embryonic stem-like cells led to the aberrant induction of posterior Hox genes, which was rescued by knockdown of let-7-family microRNAs. These results suggest the involvement of the Lin28/let-7 pathway in the modulation of the ‘Hox code’ in vertebrates.

Results

Lin28a–/– mice exhibit skeletal patterning defects

Lin28a exhibits unique spatiotemporal expression changes during early development (Figure 1A; Yang and Moss, 2003; Yokoyama et al., 2008; Yokoyama et al., 2009). At E9.5, Lin28a is expressed ubiquitously; and subsequently, its expression disappears from head to tail at around E10.5 and E11.5 (Yokoyama et al., 2008; Yokoyama et al., 2009). To examine the potential significance of these dynamic expression changes and of the developmental function of Lin28a in mice, we generated Lin28a–/– mice (Figure 1—figure supplement 1). The normal Mendelian ratio of genotypes was observed for Lin28a–/– mice during early to mid embryogenesis. However, the frequency of Lin28a–/– mice decreased from E17.5 and after birth. Most of the Lin28a–/– mice died perinatally or within a few days after birth (Supplementary file 1). Lin28a–/– mice exhibited short stature compared with wild-type (Wt) mice and showed severe growth defects (Figure 1—figure supplement 2). These findings are consistent with previous reports that Lin28a is necessary for normal growth (Shinoda et al., 2013); however, our Lin28a–/– mice showed severe phenotypes that might have been caused by differences in gene targeting construct and genetic background.

Figure 1 with 2 supplements see all

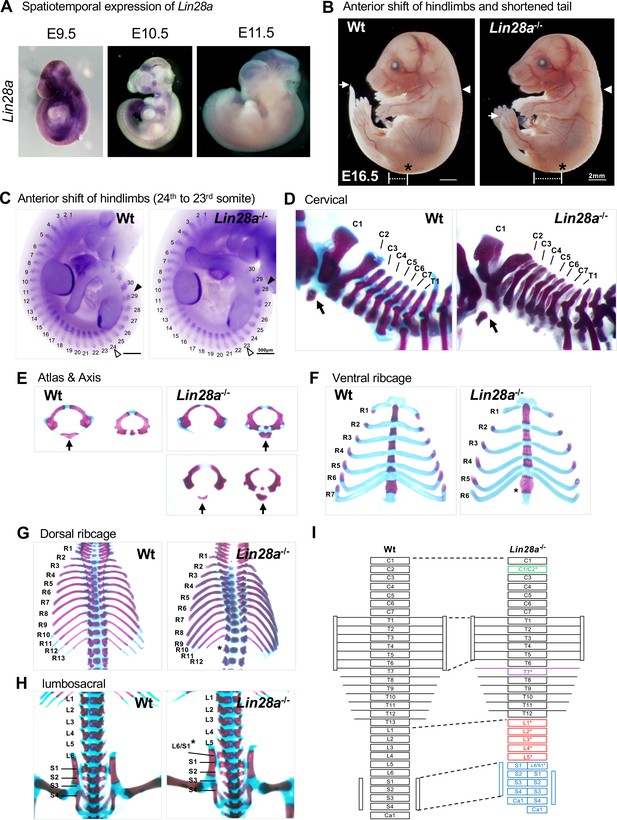

Skeletal patterning defects in Lin28a-/- mice.

(A) Whole-mount in situ hybridization of Lin28a in E9.5–11.5 embryos. (B) Lateral views of Wt (left panel) and Lin28a–/– mice (right panel) at E16.5. White arrow, the tip of the tail; white arrowhead, forelimb position; asterisk, hindlimb position. (C) Whole-mount in situ hybridization of Myog and FGF8 in E10.5 embryos. The numbers indicate the expression domains of Myog. White arrowhead, the starting position of the hindlimb bud; black arrowhead, the ending position of the hindlimb bud. (D–H) Representative skeletal preparations of Wt (left panels) and Lin28a–/– mice (right panels). Abbreviations/marks are described below. Lateral views of cervical and upper thoracic vertebrae (D); anterior views of the atlas and the axis (E); ventral views of the ribcage (F); dorsal views of thoracic vertebrae and ribs (G); and dorsal views of lumbar and sacral vertebrae (H) are shown. (I) Schematic diagram of skeletal phenotypes in Lin28a-/- mice. Each abbreviation in (D–I) indicates as follows: C1–C7, 1st to 7th cervical vertebrae; T1-T13, 1st and 13th thoracic vertebrae; R1–R13, 1st to 13th ribs; L1–L6, 1st to 6th lumbar vertebrae; S1–S4, 1st to 4th sacral vertebrae; Ca1, 1st caudal vertebrae. Black arrows in (D–E) indicate anterior arch of the atlas. Asterisks in (F–I) indicate the sites where skeletal deformations occurred.

We then examined anteroposterior axis formation in Lin28a–/– mice since Lin28a–/– mice showed a slight anterior shift of the hindlimbs and shortened tails (Figure 1B). To define the details of these phenotypes, whole-mount in situ hybridization of Myog and Fgf8 was performed to outline somites and limb buds. The hindlimbs of Lin28a–/– mice shifted anteriorly by one somite (from the 23rd to the 28th expression domains of Myog), whereas the position of the forelimb buds of Lin28a–/– mice were not altered (Figure 1C). These results are supported by previous reports that tail bud-specific overexpression or knockout of Lin28a affects the number of caudal vertebrae (Aires et al., 2019; Robinton et al., 2019).

To analyze the potential functions of Lin28a in skeletal patterning, Alcian blue and Alizarin red S staining were applied to the skeletal preparations. Although bone and cartilage development was normal, skeletal patterning defects were observed in Lin28a–/– mice (Figure 1D–H). In Lin28a–/– mice, the anterior arch of the atlas was formed from the second cervical vertebra (C2) (Figure 1D), and not from C1, as normally observed, or from the fusion of C1 and C2 (Figure 1E). These transformations were observed in 64.3% of Lin28a–/– mice and in 21.1% of Lin28a+/– mice; in contrast, they were never found in Wt mice (Table 1). There were only six pairs of true ribs attached to the sternum in Lin28a–/– mice, whereas Wt and Lin28a+/– mice had seven pairs (Figure 1F). Furthermore, an abnormal number of ribs was observed in Lin28a–/– mice at 100% penetrance, whereas Wt and Lin28a+/– mice exhibited the normal 13 pairs of ribs (Figure 1G and Table 1). These results suggest that posterior transformations of vertebral identity occur in the 7th and 13th thoracic vertebrae during skeletal patterning. Moreover, partial transformations were observed in the first sacral vertebra (S1), producing a morphological feature of lumbar vertebrae on only one side (Figure 1H). The frequency of these observations was significantly higher in Lin28a–/– mice (Table 1). Finally, Lin28a–/– mice showed various skeletal transformations (Figure 1I), suggesting that Lin28a plays a critical role in the specification of vertebrae along the anteroposterior axis.

Table 1
Summary of skeletal abnormalities in Lin28a mutant mice.

Anterior arch of the atlas*Ribs†Sternum attachment‡Lumbar§
131276165L6/S1*
Wt(n = 16)016 (100%)016 (100%)07 (43.8%)8 (50%)1 (6.2%)
Lin28a+/-(n = 19)4 (21.1%)19 (100%)019 (100%)0018 (94.7%)1 (5.3%)
Lin28a-/-
(n = 14)
9 (64.3%)014 (100%)014 (100%)09 (64.3%)5 (35.7%)
  1. The percentages of each phenotype are shown in parenthesis.

    * The anterior arch of the atlas was formed from C2 or via fusion.

  2. † Total number of pairs of ribs.

    ‡ Total number of pairs of true ribs that were attached to the sternum.

  3. § Total number of lumbar vertebrae. L6/S1* indicates an abnormal sacral vertebra that had morphological features of a lumbar vertebra on only one side.

Hox genes are dysregulated in Lin28a–/– mice

The morphologies and characteristics of each vertebra are specified by the spatiotemporal expression of Hox genes (Wellik, 2007). It was remarkable that Lin28a–/– mice exhibited global transformations with high penetration, whereas mutants of Hox genes showed abnormalities in a limited region of vertebrae. To test if Hox genes are involved in the phenotypes found in Lin28a–/– mice, we examined Hox gene expression during embryogenesis. Quantitative real-time polymerase chain reaction (q-PCR) analyses of Hox genes were performed at E9.5, a time at which Lin28a was ubiquitously expressed in Wt mice (Figure 1A). Lin28a–/– mice exhibited global dysregulation of Hox genes, which was most remarkable for the 5’ (posterior) Hox genes (Figure 2A). Whole-mount in situ hybridization analyses revealed that the expression domain of Hoxc13 and Hoxd12 was enlarged anteriorly (Figure 2B and C, and Figure 2—figure supplement 1). In contrast, there were no significant changes in the expression domain of the other Hox genes upregulated in Lin28a–/– mice (Hoxa3, d3, b8, c8, a11, and a13) (Figure 2—figure supplement 1). These results suggest that the short-tailed phenotype in Lin28a–/– mice might be caused by the anteriorization of Hox paralogous group 12 and 13 expression.

Figure 2 with 2 supplements see all

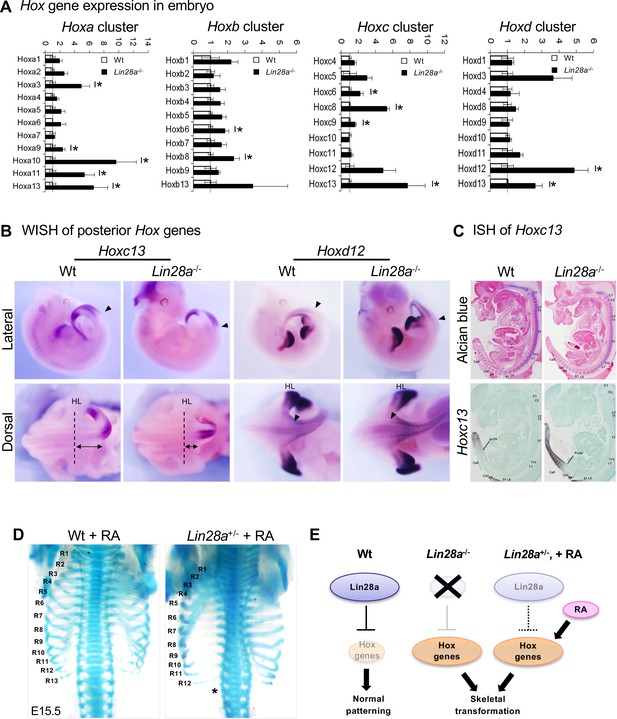

Hox gene dysregulation in Lin28a-/- mice.

(A) q-PCR analyses of all Hox genes. All data are expressed as the mean ± standard error of the mean (SEM) (n = 3). *p<0.05. (B) Whole-mount in situ hybridization of Hox genes in E11.5 embryos. Lateral views (top panels) and dorsal views (bottom panels) of hindlimb and tail region are shown. Black arrowhead, anterior domain of Hox gene; HL, hindlimb; dashed line, hindlimb position; two-way arrow, distance from the hindlimb to the anterior domain of Hoxc13. (C) Histological analysis of E12.5 animals. Alcian blue staining (top panels) and in situ hybridization of Hoxc13 (bottom panels) are shown. (D) Skeletal preparations of Wt (left panel) and Lin28a+/– mice (right panel) that received RA treatment. R1–R13, 1st to 13th ribs; asterisk, the ablation of the 13th rib. See also Figure 2—figure supplement 2. (E) Summary of Hox gene dysregulation in Lin28a mutants.

We next focused on the skeletal patterning defects from the cervical to sacral region. It is known that Hox genes are modulated by retinoic acid (RA) signaling, and that RA exposure causes posterior transformations of vertebrae via global anteriorization of Hox gene expression (Kessel and Gruss, 1991). Since Hox genes were dysregulated in Lin28a-/- embryos, we hypothesized that the patterning defects of vertebrae observed in Lin28a–/– mice are caused by the perturbation of Hox gene expression. To test this, we investigated the effects of perturbation of Hox gene expression by RA on skeletal pattern formation in Lin28a mutants. RA was injected intraperitoneally at 7.5 days postcoitum (dpc) and the skeletal patterning of each fetus was analyzed. We found that Lin28a mutant embryos showed RA sensitivity. Lin28a+/– mice that received RA treatment showed loss of the 13th pair of ribs, which coincided with the findings observed in Lin28a–/– mice, whereas no obvious defects were observed in Wt littermates (Figure 2D). In contrast, no additional defects in the thoracic region were observed in the Lin28a–/– embryos that natively had only 12 pairs of ribs (Figure 2—figure supplement 2A). In the cervical region, the severity of skeletal patterning defects correlated with the genotype of Lin28a (Figure 2—figure supplement 2B–2F). After RA treatment, some Lin28a+/– embryos exhibited the C1/C2 fusion phenotype (Figure 2—figure supplement 2D), whereas Lin28a–/– embryos showed more severe defects that were characterized by fusion of the exoccipital bone with C1 and C2 (Figure 2—figure supplement 2E and F). These results show that perturbation of Hox genes by RA administration enhances the Lin28a+/- and -/- phenotypes. In particular, since RA administration in Lin28a+/- mice results in the same phenotype as untreated Lin28a-/-, it is possible that dysregulation of Hox genes is responsible for the skeletal patterning defects in Lin28a–/– mice (Figure 2E).

Lin28a regulates Cbx2 expression via let-7 repression

We examined the molecular mechanism underlying the Lin28a-mediated regulation of Hox gene expression during embryogenesis. Since Lin28a is known as a negative regulator of let-7 biogenesis by interfering with Drosha processing of pri-let-7 (Newman et al., 2008; Viswanathan et al., 2008), and by TUT4-mediated terminal uridylation and inhibition of Dicer processing (Heo et al., 2009; Chang et al., 2013), we examined the microRNA expression profile of Lin28a–/– mice. TaqMan microRNA array analyses were performed on E9.5 embryos. Consistent with previous reports (Viswanathan et al., 2008; Rybak et al., 2008), we found that mature microRNAs of let-7-family members were significantly accumulated in Lin28a–/– mice (Figure 3A). These results were also confirmed by q-PCR analysis of let-7-family members (Figure 3B). There was no difference between Wt and Lin28a–/– mice with regards to the expression of either mir-10 and mir-196 family microRNAs, which are regulators of the spatial expression of Hox genes and of vertebral specification (Woltering and Durston, 2008; Yekta et al., 2004; Hornstein et al., 2005; Figure 3C). Consistent with previous reports (Heo et al., 2009; Chang et al., 2013), these results imply that the ablation of Lin28a promotes the specific accumulation of let-7 family microRNAs during embryogenesis.

Figure 3 with 2 supplements see all

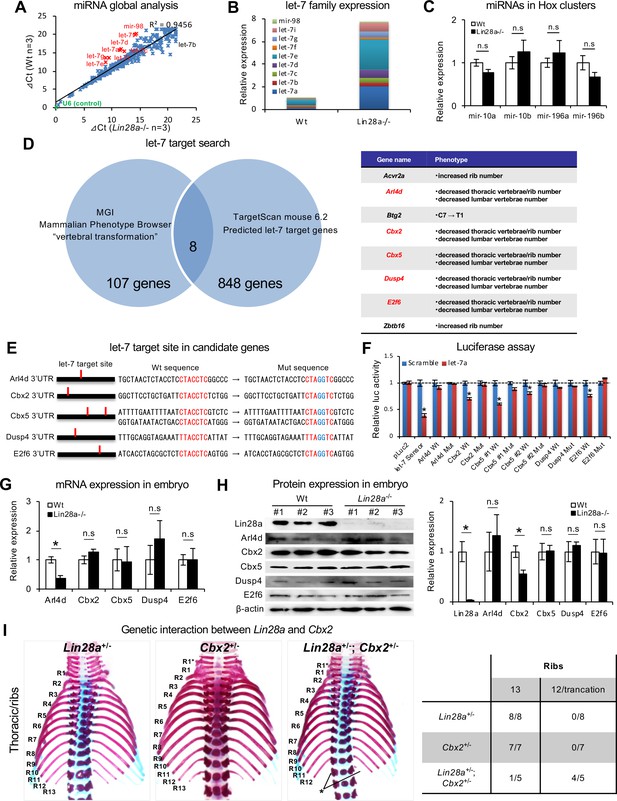

Let-7 targets the polycomb gene directly.

(A) Comparison of microRNA expression in Wt and Lin28a–/– embryos at E9.5. (B, C) q-PCR analyses of let-7-family members (B) and Hox-embedded microRNAs (C). In (B), data are expressed as the mean (n = 3), and the relative amount of total let-7 microRNAs is shown. (D) let-7 target search with TargetScan and Phenotype Browser. (E) The let-7 target site in the 3’UTR sequence of candidate genes. The let-7 seed-matched sequence and mutated sequence are shown in red and blue, respectively. (F) Luciferase reporter activity in the presence/absence of the let-7 target site in 3’UTR sequence. (G–H) qPCR and western blot analyses of candidate genes. (I) Dorsal views of thoracic vertebrae and ribs. Single heterozygous mutants (left and middle panels) and a double heterozygous mutant (right panel) are shown. R1–R13, 1st to 13th ribs; asterisk, the ablation or truncation of the 13th rib. See also Figure 3—figure supplement 1. (J) Frequency of rib defects in mutant mice. All data are expressed as the mean ± SEM (n = 3). *p<0.05. n.s., not significant.

We then sought a potential target gene for let-7, which may be involved in the skeletal transformations observed in Lin28a–/– mice. We performed comprehensive screening for the let-7 target candidate genes using the following criteria; 1) let-7 target genes, computationally predicted using TargetScan (856 genes), and 2) annotated genes responsible for posterior transformations and of which knockout mice show vertebrae that are similar to those observed in Lin28a-/- mice, as screened by Mouse Genome Informatics (115 genes). We found that five of the genes (Arl4d, Cbx2, Cbx5, Dusp4, and E2f6) satisfied both criteria (Figure 3D). Arl4d and E2f6 have been identified as potential let-7 target genes (Johnson et al., 2007; Li et al., 2015), suggesting that this screening successfully extracted candidate genes. Three of the five genes (Cbx2, Cbx5, and E2f6) are PcG genes or Polycomb-associated genes (Core et al., 1997; Nielsen et al., 2001; Courel et al., 2008), suggesting that Cbx5 and E2f6, as well as Cbx2, might be involved in Hox gene dysregulation via histone modifications and chromatin structural changes in Lin28a-/- mice. Based on this screening, we examined if those five genes are true targets of let-7 by Luciferase assay. We generated reporter constructs of luciferase-let-7 target site-mutated 3’UTR sequence of each gene, and quantified let-7-dependent reporter activity in comparison with a Luciferase-wild type 3’UTR sequence construct (Figure 3E). We found that three of the five genes, Cbx2, Cbx5, and E2f6, were down-regulated in a let-7-dependent manner, whereas this down-regulation effect was not observed in the let-7 target site mutated construct. In contrast, the potential let-7 target sequence of Arl4d and Dusp4 did not affect the expression of luciferase. While these results in HEK293T cells with partial 3’UTR sequences do not completely exclude the possibility that Dusp4 and Arl4d are not target genes of let-7, they do suggest that Cbx2, Cbx5 and E2f6 are direct targets of let-7 (Figure 3F).

To confirm that these genes are affected by the Lin28/let-7 axis in vivo, we performed mRNA and protein expression analyses on somite and neural tubes. qPCR analyses showed that Arl4d was significantly downregulated in Lin28a-/- embryos (Figure 3G). However, the luciferase assay revealed that luciferase expression was not affected by a let-7 target site mutation in the Ard4 3' UTR sequence, suggesting that Arl4d is not a direct target of let-7. Protein expression analyses revealed that Cbx2 was the only gene that was significantly downregulated in Lin28a-/- embryos, and also its expression was affected in a let-7-dependent manner (Figure 3F and H). These findings suggest that Cbx2 is, at least in part, a molecular target of the Lin28a/let-7 pathway in skeletal patterning.

Cbx2 is one of the PcG genes that regulates Hox genes via histone modification, and ablation of Cbx2 shows skeletal patterning defects in mice (Core et al., 1997; Nielsen et al., 2001; Courel et al., 2008). We considered that decreased expression of Cbx2 might cause the abnormal skeletal formation found in Lin28a-/- mice. Therefore, we examined whether decreasing the expression level of Cbx2 in Lin28a+/-could induce a similar phenotype as Lin28a-/- mice. We generated Cbx2 mutant mice using CRISPR/Cas9 and interbred the Cbx2 mutant with Lin28a+/– mice (Figure 3—figure supplement 1A). The Cbx2 homozygous mutants exhibited skeletal patterning defects (Figure 3—figure supplement 1B–1E): fusion of C1 and C2 vertebrae, additional rib formation from the 7th cervical vertebra, T1 to T2 transformation of the spinous process, and 13th rib truncation. Similar observations were reported for Cbx2-null mice (Core et al., 1997; Katoh-Fukui et al., 1998). We generated double heterozygous mutants of Lin28a and Cbx2 (Lin28a+/–; Cbx2+/–) and analyzed their skeletal patterning. The double heterozygous mice showed ablation or truncation of the 13th pair of ribs, although the Lin28+/– and Cbx2+/– single mutants did not show any obvious phenotypic irregularities (Figure 3I and J). These results show that decreased expression of Cbx2 enhances the Lin28a+/- phenotypes. In particular, since Lin28a+/-;Cbx2+/- double mutant mice showed the deformation of the 13th pair of ribs, which was similar to the phenotype observed in Lin28a-/- mice, it was possible that dysregulation of Cbx2 is responsible for the phenotype of Lin28a–/– mice. Together, these results indicate that let-7 directly regulates Cbx2, and that genetic interactions exist between Lin28a and Cbx2. Furthermore, they suggest that Lin28a/let-7 reciprocal feedback regulates Cbx2 expression, and that this pathway contributes to the regulation of proper skeletal patterning during embryogenesis.

The Lin28a/let-7 pathway modulates PRC1 occupancy at posterior Hox loci

Hox gene expression is epigenetically restricted to unique spatiotemporal patterns during embryogenesis by PcG genes (Soshnikova and Duboule, 2009). To determine if the Lin28a/let-7/Cbx2 axis regulates skeletal patterning via Hox gene expression, we analyzed histone modifications and PcG occupancy at the Hox loci. We performed chromatin immunoprecipitation (ChIP) and q-PCR analyses on E9.5 somites and neural tubes (Figure 4A). For each assay, ChIP was performed on a pool of dissected somites and neural tubes from ten embryos (as n = 1). First of all, we analyzed the repressive histone modification (H3K27me3) at Hoxa cluster loci of Wt. We found the promoter regions of Hoxa3, Hoxa9, Hoxa10, Hoxa11, and Hoxa13 exhibited a high concentration of histone H3K27me3 (Figure 4B). Intriguingly, the same genes were upregulated in Lin28a–/– mice (Figure 2A), suggesting that these genes are tightly regulated epigenetically and that the loss of repressive histone modifications leads to the upregulation of these Hox genes.

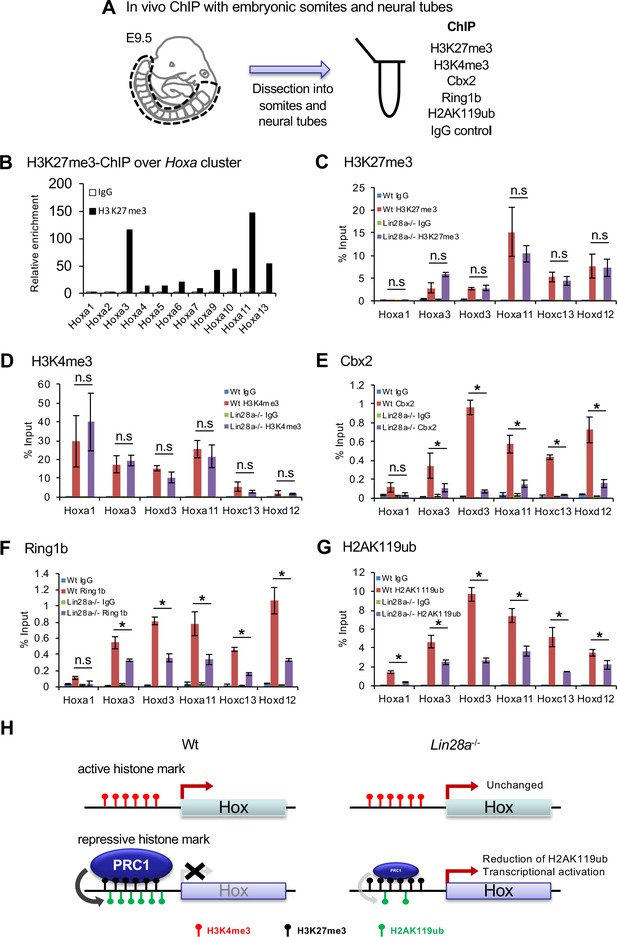

Histone modifications and polycomb occupancy at Hox loci in Lin28a-/- mice.

(A) Schematic diagram of the experimental procedure for ChIP analysis. (B) ChIP and q-PCR analyses of H2K27me3 in Hox A cluster genes in Wt embryos. (C–G) ChIP and q-PCR analyses of H3K27me3 (C), H3K4me3 (D), Cbx2 (E), Ring1b (F), and H2AK119ub (G). Percentages of immunoprecipitated DNA compared with the input are shown. (H) Summary of the chromatin state of Hox loci in Wt and Lin28a–/– embryos. All data are expressed as the mean ± SEM (n = 3). *p<0.05. n.s., not significant.

Based on the analysis of phenotype of the Lin28a–/– skeletal transformation (Figure 1B–I) and Hox cluster gene expression pattern of Lin28a–/– embryos (Figure 2A–C), we focused on Hoxa3 and Hoxd3, which are involved in C1-C2 malformation and partial fusion in knockout mice (Condie and Capecchi, 1994). In addition, we focused on Hoxa11, which has been reported as the responsible gene for T13 to L1 skeletal transformation in mutated mice (Small and Potter, 1993), Hoxd12 and Hoxc13, which were upregulated in Lin28a–/– embryos, and Hoxa1 as a representative of the anterior Hox genes (Figure 4C–G). Subsequently, we performed ChIP and q-PCR analyses using anti-H3K27me3 and anti-H3K4me3 antibodies in Wt and Lin28a–/– embryos (Figure 4C and D). We found that for histone H3 modifications, both K27me4 and K4me3 were not altered in Lin28a–/– embryos compared with Wt (Figure 4C and D). We also performed ChIP using antibodies against PRC1 components to test their occupancy at Hox loci (Figure 4E and F). Consistent with the expression level of Cbx2 (Figure 3G), we found at least a two-fold reduction of its binding at posterior Hox regions in Lin28a–/– mice (Figure 4E). Intriguingly, the occupancy of Ring1b, another component of PRC1 (Suzuki et al., 2002), and H2AK119 ubiquitination (H2AK119ub) which is catalyzed by Ring1b (Suzuki et al., 2002), were also reduced in Lin28a–/– mice (Figure 4F–G). Because each posterior Hox gene (Hoxa11, Hoxc13, and Hoxd12) is located on distinct chromosomes, these results indicate a critical role for the Lin28a/let-7 axis in PcG-mediated Hox gene repression. Taken together, these findings suggest that Cbx2 repression by let-7 leads to the reduction of PRC1 occupancy at the Hox loci and the transcriptional initiation of posterior Hox genes (Figure 4H).

Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells

To further elucidate the importance of the direct regulation of let-7 by Lin28a during Hox gene regulation, we tested whether Hox gene dysregulation could be rescued by knockdown of let-7-family microRNAs. To accomplish this, Lin28a–/–embryonic stem (ES)-like cells were established from mutant blastocysts. Each Lin28a–/– clone resembled Wt cells (Figure 5A), and we confirmed that the Lin28a protein was not detected in Lin28a–/– ES cells (Figure 5B). These colonies showed high alkaline phosphatase activity (Figure 5A) and also expressed pluripotent factors (Figure 5C). As observed in Lin28a–/– embryos (Figure 3B), global accumulation of let-7-family microRNAs was observed in the mutant cells (Figure 5D).

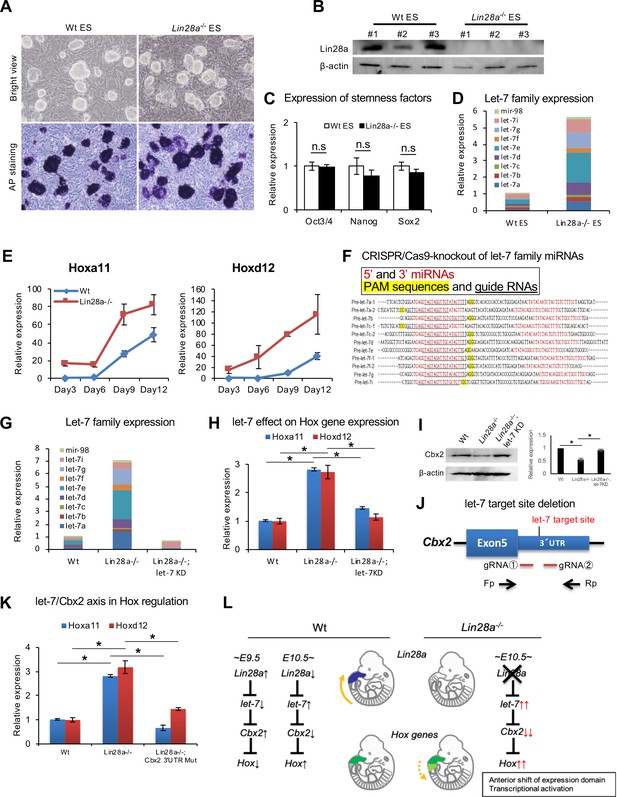

Knockdown of let-7 can reverse Hox gene dysregulation.

(A) Morphology (top panels) and alkaline phosphatase activity (bottom panels) of Wt and Lin28a–/– ES-like cells. (B) Western blot analysis of Lin28a in ES-like cells. β-actin is shown as a loading control. (C) q-PCR analysis of stemness factors. (D) q-PCR analysis of let-7-family members. The level of expression relative to total let-7 amount in Wt is shown. (E) q-PCR analyses of Hoxa11 and Hoxd12 over a time course of 3, 6, 9, 12 days following embryoid body formation. (F) Precursor sequences of let-7-family members and guide RNAs for let-7 targeting Let-7 mature microRNAs are shown in red. The protospacer adjacent motif (PAM) sequence for hCas9 is highlighted in yellow, and targeting sequences are underlined. (G) Let-7 expression in Wt, Lin28a–/– and Lin28a–/–; let-7 KD cells. The level of expression relative to total let-7 amount in Wt is shown. (H) Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells. (I) Cbx2 expression level of Wt, Lin28a–/– and Lin28a–/–; let-7 KD derived EBs. β-actin is shown as a loading control. (J) Schematic diagram of let-7 target site deletion from Cbx2 3’UTR and genotyping via PCR of mutant clones. (K) q-PCR analyses of Hoxa11 and Hoxd12 following embryoid body formation. (L) Schematic diagram of Lin28a/let-7 mediated Hox gene regulation. All data are expressed as the mean ± SEM (n = 3). n.s., not significant.

In the following experiments, we differentiated ES cells to embryoid bodies. ES cells and embryoid bodies require different PRC1 components to maintain their state. ES cells are maintained in an undifferentiated state, using Cbx7 containing PRC1. On the other hand, when ES cells exit the pluripotent state and differentiate into embryoid bodies, Cbx2 is expressed and becomes a component of PRC1 (Morey et al., 2012). Thus, we utilized embryoid bodies as an appropriate model to analyze Hox genes via Lin28/Let-7/Cbx2 axis. Embryoid bodies were produced from each clone and expression changes of Hox genes were analyzed. Hox genes were upregulated upon differentiation in these embryoid bodies, suggesting that a recapitulation of the Hox gene upregulation observed in Lin28a–/– mice occurred in Lin28a–/– ES-like cells (Figure 5E).

Next, we knocked down the let-7 family in Lin28a–/– ES-like cells using the CRISPR/Cas9 system to test if Hox gene upregulation could be rescued by the reduction of let-7 microRNAs. The major let-7 family is composed of 11 genes (a-1, a-2, b, c-1, c-2, d, e, f-1, f-2, g, and i), and we performed the knockdown of this series of let-7 genes using guide RNAs targeting let-7s (Figure 5F). The clone that yielded a highly efficient deletion of let-7 microRNAs in Lin28a–/– cells (Lin28a–/–; let-7KD) was selected for further analyses. We confirmed the accumulation of let-7 in Lin28a–/– cells and the drastic reduction in Lin28a–/–; let-7KD clones (Figure 5G). qPCR analysis revealed that dysregulation of Hoxa11 and Hoxd12 was rescued in Lin28a–/–; let-7KD clones (Figure 5H). Moreover, we also confirmed that a decreasing Cbx2 protein expression level in embryoid bodies-derived Lin28a–/– ES-like cells was rescued by knock down of let-7 (Figure 5I).

To directly prove that the Lin28a–/– phenotype results from the let-7-mediated down-regulation of Cbx2, we established Lin28a-/- ES cells with let-7 target site deletion from Cbx2 3’UTR (Lin28a–/–; Cbx2 3’UTR mutant) using CRISPR/Cas9 system, and examined whether let-7 target site deletion from Cbx2 3’UTR could rescue Hox gene dysregulation. Two guide RNAs targeting the let-7 binding site in Cbx2 3’UTR were constructed and transfected with the Cas9 expression vector into Lin28a–/– ES-like cells for the establishment of Cbx2 3’UTR mutant cell lines (Figure 5J). Furthermore, we generated embryoid bodies from Wt, Lin28a–/–, and Lin28a–/–; Cbx2 3’UTR mutant clones in the same manner as that of the let-7 knock down experiment (Figure 5G–I), and the expression level of Hox genes were analyzed. Consistent with the result of let-7 knock down (Figure 5G–I), we found that Hoxa11 and Hoxd12 were up-regulated in Lin28a–/– cells, and that this abnormal expression was absent in Lin28a–/–; Cbx2 3’UTR mutant cells (Figure 5K). These results suggest that let-7-mediated Cbx2 repression is, at least in part, responsible for Hox gene dysregulation in Lin28a–/– mice. Taken together, our results suggest that the upregulation of let-7 leads to decreased PRC1 occupancy, which causes the disruption of the ‘Hox code,’ thus indicating the potential role of the Lin28a/let-7 pathway in skeletal patterning via Polycomb-mediated Hox gene regulation (Figure 5L).

Discussion

The body plan along the anteroposterior axis is tightly regulated by Hox genes. During development, each Hox gene must be activated at a precise position with precise timing. Spatiotemporal regulation via chromatin conformational changes is essential for Hox gene expression and for subsequent anteroposterior patterning (Soshnikova, 2014); however, the molecular mechanisms behind these processes are not fully understood. In this study, we demonstrated the fundamental role of the Lin28a/let-7 pathway in skeletal patterning and vertebral specification. Lin28a-mediated repression of let-7 biogenesis is required for Cbx2 expression and Hox gene repression by PcG genes. It is known that the deletion mutants of the Hox early enhancer exhibit anterior transformations of vertebrae because of the heterochrony of Hox gene expression (Juan and Ruddle, 2003). In our Lin28a–/– mice, posterior transformations were observed in the thoracic region (Figure 1D–I), suggesting that developmental timing of Hox gene initiation occurs earlier than in Wt mice. Consistent with this speculation, precocious expression of Hoxc13 causes premature arrest of axial extension, similar to that of Lin28a–/– mice (Young et al., 2009; Mallo et al., 2010). This indicates that the tail truncation observed in Lin28a–/– mice might be caused by spatiotemporal dysregulation of Hoxc13 (Figure 2B and C). Recently, two independent groups reported the function of the Lin28 family as regulators of trunk elongation (Aires et al., 2019; Robinton et al., 2019). Tail bud specific overexpression of the Lin28 family increased caudal vertebrae number (Aires et al., 2019; Robinton et al., 2019). Moreover, the loss of Lin28 in the tail bud resulted in the reduction of caudal vertebrae number (Robinton et al., 2019). These results are consistent with our Lin28a -/- mice phenotypes with short stature and shortened tails (Figure 1B and Figure 1—figure supplement 2). Furthermore, Aires et al., 2019 showed that Lin28 and Hox13 had opposite functions in tail bud proliferation, suggesting that the balance of the expression of those two genes, which might be regulated by GDF signaling, is one of the determinants of tail length. Our results revealed the epigenetic inhibition of HoxPG13 by the Lin28a/let-7/Cbx2 pathway, which might be one of the mechanisms that explains the antagonistic function of Lin28a and HoxPG13 in axial elongation as well as in skeletal patterning.

In contrast to the short tailed-phenotype caused by HoxPG13 inhibition, the molecular mechanisms underlying the other skeletal patterning defects found in the cervical, thoracic, and lumbosacral regions were still unknown. Aires et al. and Robinton et al. showed that Lin28a regulated the cell fate choice between mesodermal cells and neural cells; however, no skeletal transformations were observed in their Lin28a mutant mice (Aires et al., 2019; Robinton et al., 2019). Further analyses are required to determine if the skeletal patterning defects found in the cervical, thoracic, and lumbosacral regions of Lin28a-/- mice are caused by the dysregulation of cell fate choice. Based on the analysis of phenotype of the Lin28a–/– skeletal transformations (Figure 1B–I), we focused on Hoxa3/d3 for the C1-C2 malformation and partial fusion (Condie and Capecchi, 1994), Hoxb8/c8 for rib patterning (van den Akker et al., 2001), and Hoxa11 for T13 to L1 skeletal transformation (Small and Potter, 1993). However, these Hox genes showed no obvious difference in their expression patterns, although the expression of the genes was up-regulated (Figure 2A and Figure 2—figure supplement 1). Skeletal transformations are mainly caused by the altered expression pattern of Hox genes. However, it is also possible that changes in the expression amount of Hox genes may be involved in skeletal patterning. For instance, Dll1 enhancer-driven Hoxb6 transgenic mice show ectopic rib-like structures in the cervical, lumber, sacral and caudal regions. However, malformation of the axial skeleton was shown even in the thorax, which is the regular expressing region of Hoxb6 (Vinagre et al., 2010). These results suggest that the Hox-code of this specific region might have been edited due to the elevated expression of a specific Hox gene, which might cause the morphological change of vertebrae in our Lin28a–/– mice.

PcG genes are regulators of the ‘Hox code’ at the level of chromatin structure, which occurs via epigenetic histone modifications (Mallo and Alonso, 2013; Soshnikova, 2014). In ES cells, Hox genes are silenced in a bivalent state containing both H3K27me3, a repressive, and H3K4me3, an active histone marker. During development, the epigenetic status of Hox loci is dynamically balanced by PcG genes and Trithorax group (TrxG) genes, which are required for the trimethylation of H3K4. PcG genes should be repressed prior to the initiation of Hox gene expression to open the chromatin along the anteroposterior axis. However, the precise molecular mechanisms underlying the inhibition of the expression of PcG genes during embryogenesis are not fully understood. Here, we provide evidence that the Lin28a/let-7 pathway is, at least in part, one of the mechanisms involved in the regulation of PcG genes (Figure 3). Cbx2 is required for the binding of PRC1 to target loci and recognition of H3K27me3, and these processes are catalyzed by Ezh2, the main component of PRC2. Ezh2 is directly targeted by let-7 microRNAs in primary fibroblasts and cancer cells (Kong et al., 2012). In contrast with those findings, there were no apparent differences in the level of H3K27me3 at Hox loci in Lin28a–/– mice (Figure 4C). Ezh2–/– embryos died at the peri- and post-implantation stages (O'Carroll et al., 2001), whereas mutant mice of the PRC1 genes exhibited skeletal transformations (van der Lugt et al., 1994; Akasaka et al., 1996; Core et al., 1997; Suzuki et al., 2002; Li et al., 2011; Katoh-Fukui et al., 1998) that were similar to those of Lin28a–/– mice (Figure 1D–I). These observations suggest that the Lin28a/let-7 pathway is involved in the later phases of epigenetic silencing of Hox genes during skeletal patterning. Since Lin28a+/-;Cbx2+/- double mutant mice showed the deformation of the 13th pair of ribs, which was similar to the phenotype observed in Lin28a-/- mice, it was possible that dysregulation of Cbx2 is responsible for the phenotype of Lin28a–/– mice (Figure 3I). Moreover, we observed the reduction of PRC1 occupancy at Hox loci in Lin28a–/– mice (Figure 4E and F). These findings indicate that let-7-mediated Cbx2 repression leads to the reduction of PRC1 occupancy at Hox loci, resulting in the transcriptional initiation of posterior Hox genes (Figure 4H).

In addition to epigenetic regulation by PcG genes, posttranscriptional regulation by microRNAs is also required for anteroposterior patterning. During mouse embryogenesis, mesoderm-specific ablation of Dicer, which is an RNase III enzyme that is required for microRNA biogenesis, results in a posterior shift in hindlimb position (Zhang et al., 2011), suggesting the involvement of microRNAs in normal skeletal patterning and vertebrae specification. Two microRNA families, mir-10s and mir-196s, are located in Hox clusters, and they are thought to regulate Hox gene expression and specify the regional identities along the anteroposterior axis (Heimberg and McGlinn, 2012). It has also been reported that the mir-17–92 cluster, which contains mir-17, mir-18, mir-19, mir-20, and mir-92, is required for normal skeletal patterning (Han et al., 2015). Although Lin28a is a regulator of let-7 microRNA biogenesis, the expression of these microRNAs was not altered in the Lin28a–/– mice compared with Wt animals (Figure 3A and C). These results suggest that the Lin28a/let-7 pathway acts independently of these microRNAs in Hox gene regulation. Mir-10s and mir-196s are involved in the spatial regulation of Hox genes to shut down target Hox genes in specific regions (Heimberg and McGlinn, 2012), whereas let-7 might be required for temporal activation of Hox genes via Lin28a downregulation during development. These results suggest that let-7 can be distinguished from other microRNAs in skeletal patterning, and that the Lin28a/let-7 pathway links posttranscriptional regulation to PcG-mediated epigenetic regulation in Hox gene regulation.

MicroRNAs are thought to regulate hundreds of target genes and to modulate multiple biological processes, and hence, the accumulation of let-7 observed in Lin28a–/– mice might lead to extensive disorders of gene regulatory networks. It is well known that the let-7 family regulates c-Myc, K-ras, Hmga2, and other genes that are involved in cell proliferation and oncogenesis (Mayr et al., 2007; Lee and Dutta, 2007; Johnson et al., 2005; Sampson et al., 2007). Knockout mice for these genes exhibit dwarfism caused by a reduction of cell proliferation that is similar to that observed in Lin28a–/– mice (Zhou et al., 1995; Koera et al., 1997; Johnson et al., 1997; Trumpp et al., 2001). These observations suggest that the growth defects and postnatal mortality of Lin28a–/– mice (Figure 1—figure supplement 2) may be attributed to the dysregulation of such genes; however, their requirement for skeletal patterning has not been characterized. Despite the contribution of these genes to the Lin28a–/– phenotype, it is noteworthy that there was a genetic interaction between Lin28a and Cbx2 during skeletal patterning (Figure 3I). These results suggest that the Lin28a/let-7/Cbx2 pathway is, at least in part, responsible for normal skeletal patterning. In addition to Lin28a, Lin28b regulates let-7 biogenesis, and it is known that single nucleotide polymorphisms (SNPs) of the human LIN28B locus correlated with height and the timing of menarche (Lettre et al., 2008; Perry et al., 2009; He et al., 2009; Ong et al., 2009; Widén et al., 2010; Sulem et al., 2009). These studies suggest that the regulation of developmental timing by Lin28b is also conserved in mammals; however, its requirement in skeletal patterning is still unclear.

The expression level of Cbx2 was also downregulated in heterozygous Lin28a+/- (Figure 3—figure supplement 2). This indicates that Lin28a expression in heterozygous Lin28a+/- is reduced to less than half (Figure 3—figure supplement 1C), suggesting that other target molecules regulated by Lin28a might be involved in this skeletal transformation phenotype. In addition to the regulation of let-7, it is also known that Lin28a and its homolog, Lin28b, bind to and modulate the translation efficiency of specific mRNAs, such as Igf2, Oct4, Ccnb1, Cdk6, Hist1h2a, and Bmp4 (Xu et al., 2009; Ma et al., 2013; Qiu et al., 2010; Xu and Huang, 2009). Moreover, recent HITS-CLIP and PAR-CLIP technology identified a variety of mRNAs as Lin28 family targets (Wilbert et al., 2012; Madison et al., 2013; Hafner et al., 2013; Cho et al., 2012). Among them, two studies showed that the Lin28 family might have the potential to bind specific Hox genes in HEK293T, DLD1, and Lovo cell lines (Lin28a to Hoxa9, a11, b4, b6, b9, c4, d11; Lin28b to Hoxa9, b3, b4, b7, b8, b9, d13) (Hafner et al., 2013; Madison et al., 2013), although CLIP-Seq analysis with ES cells did not show that (Cho et al., 2012). Moreover, Cbx5 is a Lin28a target gene as well as one of the potential let-7 targets. Cbx5 encodes a heterochromatin binding protein, and the depletion of this gene causes skeletal defects in mice, although the protein level of Cbx5 was not altered in Lin28a–/– mice. These previous reports and our results imply that both let-7-dependent and -independent function of Lin28a might affect skeletal patterning during development. However, further studies are required to deepen the understanding of the developmental functions of Lin28 family and its involvement in skeletal patterning.

Taken together, our results suggest that the negative feedback between Lin28a and let-7 regulates the PRC1 component, Cbx2, and the subsequent spatiotemporal expression of Hox genes during mammalian embryogenesis. The loss of Lin28a caused skeletal transformations via the premature loss of PRC1 at the promoter region of posterior Hox genes, thus establishing a new role of the Lin28a/let-7 pathway in the modulation of the ‘Hox code.’ It is of interest to test whether this role of Lin28a/let-7 in Hox regulation was acquired in the evolutional process, or if it has always been involved in heterochrony in C. elegans.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or
reference
IdentifiersAdditional
information
Antibodyanti-Arl4dSanta CruzSC-271274mouse monoclonal antibody, for western blot, at 1:500
Antibodyanti-b-actinSigmaA5316mouse monoclonal antibody, for western blot, at 1:2000
Antibodyanti-Cbx2Abcamab80044Rabbit polyclonal antibody, for western blot, at 1:500
Antibodyanti-CBX2Bethyl LaboratoriesA302-524ARabbit polyclonal antibody, for ChIP
Antibodyanti-Cbx5Cell Signaling Technology#2616SRabbit polyclonal antibody, for western blot, at 1:1000
Antibodyanti-DIG-AP Fab fragment antibodyRoche1-093-274sheep polyclonal antibody, for in situ hybridization
Antibodyanti-Dusp4 (MKP-2)Santa CruzSC-1200Rabbit polyclonal antibody, for western blot, at 1:250
Antibodyanti-E2f6Santa CruzSC-8366goat polyclonal antibody, for western blot, at 1:500
Antibodyanti-Lin28aCell Signaling Technology#3978SRabbit polyclonal antibody, for western blot, at 1:1000
Antibodyanti-mouse IgG HRP-conjugatedSigmaA2304goat affinity isolated antibody, for western blot, at 1:2000
Antibodyanti-rabbit IgG HRP-conjugatedSigmaA6154goat affinity isolated antibody, for western blot, at 1:2000
Antibodyanti-trimethyl-histone H3 (Lys27)Millipore#07–449Rabbit Polyclonal Antibody, for ChIP
Antibodyanti-trimethyl-histone H3 (Lys4)Millipore#07–473Rabbit Polyclonal Antibody,for ChIP
Antibodynormal rabbit IgGSanta CruzSC-2027Rabbit Polyclonal Antibody, for ChIP
AntibodyRING1B (D22F2) XP rabbit monoclonal antibody (mAb)Cell Signaling Technology#5694Srabbit monoclonal antibody, for ChiP
Cell LinesHEK293T cellsATCCRRID:CVCL_0063
Cell LinesWt or Lin28a-/-ES like cellsMaterials and methods sectionN/A
Chemical compound, drug2-mercaptoethanolGibco#21985023
Chemical compound, drugacetic anhydrideWako#011–00276
Chemical compound, drugAlcian BlueSigmaA5268-10G
Chemical compound, drugAlizarin Red SSigmaA5533-25G
Chemical compound, drugChapsDojindo Molecular Technologies349–04722
Chemical compound, drugCHIR 99021Wako034–23103
Chemical compound, drugFast Green FCFSigmaF7258-25G
Chemical compound, drugFast Red Violet LB SaltSigmaF3381-5G
Chemical compound, drugformamideSigmaSIGF5786
Chemical compound, drugG-418 SulfateWako074–05963
Chemical compound, drugglycineWako#077–00735
Chemical compound, drugheparinNacalai Tesque17513–96
Chemical compound, drugNBT/BCIPRoche#1697471
Chemical compound, drugPD0325901Wako162–25291
Chemical compound, drugPFAWako#162–16065
Chemical compound, drugRetinoic acid (all-trans)Wako182–01111
Chemical compound, drugsodium pyruvateGibco#11360070
Chemical compound, drugtriethanolamineWako142–05625
Commercial assay, kitChemi-Lumi OneNacalai Tesque#07880
Commercial assay, kitDirectPCR Lysis reagentViagen Biotech#102 T
Commercial assay, kitExoSAP-IT Express PCR Cleanup ReagentsThermoFisher scientific#75001
Commercial assay, kitFugeneHDPromegaE2312
Commercial assay, kitGoTaq Flexi DNA PolymerasePromegaM8298
Commercial assay, kitLipofectamine 2000Invitrogen#11668019
Commercial assay, kitMegaClear Transcription Clean-Up KitInvitrogenAM1908
Commercial assay, kitmMESSAGE mMACHINE T7 KitInvitrogenAM1344
Commercial assay, kitSuperSignal West Femto Maximum Sensitivity SubstrateThermo Fisher Scientific#34095
Commercial assay, kitSYBR Green PCR Master MixApplied Biosystems#4309155
Commercial assay, kitTaqMan MicroRNA AssaysApplied Biosystemslet-7a (#000377), let-7b (#002619), let-7c (#000379), let-7d (#002283), let-7e (#002406), let-7f (#000382), let-7g (#002282), let-7i (#002221), mir-98 (#000577), mir-10a (#000387), mir-10b (#002218), mir-196a (#241070), mir-196b (#002215),
RNU6B (#001093)
Commercial assay, kitTaqMan Rodent MicroRNA Array A and BApplied Biosystems#4398979
Commercial assay, kitTaqMan Rodent MicroRNA Array BApplied Biosystems#4398980
Commercial assay, kitTaqMan Universal Master Mix II, no UNGApplied Biosystems#4440040
Commercial assay, kitthe TaqMan MicroRNA Reverse Transcription kitApplied Biosystems#4366597
Peptide, recombinant proteinESGRO Recombinant Mouse LIF ProteinMerck MilliporeESG1107
Peptide, recombinant proteinProteinase K recombinant PCR GradeRoche03-115-887-001
StrainsCbx2 deficient miceMaterials and methods sectionN/A
StrainsLin28a deficient miceMaterials and methods sectionN/A
StrainsMeox2 CreThe Jackson LaboratoryN/A
OtherDulbecco’s Modified Eagle’s medium (DMEM)SigmaD5796
OtherGlutamaxGibco#35050061
OtherImmobilonMilliporeWBKLS0100
Othernonessential amino acids (NEAAs)Gibco#11140050
Othersheep serumThermo Fisher Scientific535–81301
Otherskim milkWako#190–12865
OthertRNARoche109–495

Generation of mutant mice

Request a detailed protocol

All animal experiments were performed in accordance with protocols approved by the Institutional Animal Care and Use Committee of the National Research Institute for Child Health and Development (permit numbers: 2004–003, 2014–001). To accomplish the Lin28a knockout, the targeting vector was constructed to replace the endogenous Lin28a locus with the Venus gene and PGK-neo cassette by homologous recombination in ES cells. The 5’ and 3’ sequences flanking the endogenous Lin28a locus were amplified by PCR from a C57BL/6N genomic bacterial artificial chromosome (BAC) clone (BACPAC Resource Center). The primer sequences used for homology arm cloning were as follows: 5’ homology arm forward primer (Fp) NotI, 5′–TTGCGGCCGCGGCTCCCTTGCCTGGTCCTCCTGCCGATTC–3′; 5’ homology arm reverse primer (Rp) SalI, 5′–GCGTCGACGGTCGTCTGCTGAGCCCGTGGCCCCGGG–3′; 3’ homology arm Fp ClaI, 5′–GGATCGATTCGAGCTTGCGATTCAGCGGGCACACCTTAGG–3′; and 3’ homology arm Rp AscI, 5′–AAGGCGCGCCAGGGTCTGGCAGCTGAGGAAGTTCCCCTAA–3′. These homology arms were cloned into a vector that incorporated both a neomycin-resistance cassette for positive selection and a diphtheria toxin A (DT-A) gene for negative selection. The targeting vector was linearized and electroporated into TT2F ES cells. Recombinant ES clones were isolated after culture in medium containing the G418 antibiotic and screened for proper integration by Southern blotting using the 5’ probe, 3’ probe, and neo cassette sequence. Two clones exhibited proper integration, as validated by genomic sequencing, and were chosen for microinjection into 8 cell stage embryos. The resulting chimeric offspring were crossed to C57BL/6N mice and germ-line transmission was confirmed by Southern blotting and PCR. The floxed PGK-neo cassette was removed by crossing with Meox2-Cre mice (The Jackson Laboratory). Genotyping of Lin28a mutant mice was performed by PCR analysis. Genomic DNA was isolated from mouse tail snips. Each tail snip was incubated at 50°C with DirectPCR Lysis reagent with Proteinase K for more than 6 hr, followed by heating at 80°C for 1 hr, to inactivate Proteinase K. The tail lysate (1 μL) was used as a PCR template. Genotyping PCR was carried out using GoTaq Flexi DNA Polymerase, according to the manufacturer’s protocol. The primer sequences used for Lin28a genotyping PCR were as follows: Lin28a KO genotyping 1, 5′–TACAAGCCACTGGAACACCA–3′; Lin28a KO genotyping 2, 5′–GGGGGTTGGGTCATTGTCTTT–3′; and Lin28a KO genotyping 3, 5′–GTTCTGCTGGTAGTGGTCGG–3′.

For CRISPR/Cas9-mediated gene targeting via nonhomologous end joining (Wang et al., 2013; Inui et al., 2015), the guide RNA containing the target sequence of the Cbx2 CDS (CTGAGCAGCGTGGGCGAGC) was synthesized in vitro using mMESSAGE mMACHINE T7 Kit and was purified using MegaClear Transcription Clean-Up kit, according to the manufacturer’s instructions. A mixture containing 250 ng/μL of guide RNA and hCas9 mRNA was microinjected into the cytoplasm of a 1 cell stage embryo (C57BL/6N background). For genotyping, genomic DNA was isolated from mouse tail snips. Genotyping PCR was carried out using GoTaq Flexi DNA Polymerase, according to the manufacturer’s protocol. The primer sequences used for Cbx2 genotyping PCR were as follows: Cbx2 CDS genotyping Fp, 5′–CCCTCTGGCCAAACAATAGCTTTCCGCAGGGACC–3′; and Cbx2 CDS genotyping Rp, 5′–GCGCCACTTGACCAGGTACTCCAGCTTGCCCTGC–3′. The PCR products were treated with ExoSAP-IT and were then used as a template for direct sequencing. Sequence analysis of the Cbx2 CDS locus was performed using F0 offspring, and mice that carried frameshift mutations were selected for further analysis.

HEK293T culture

Request a detailed protocol

HEK293T cells were purchased from the American Type Culture Collection (ATCC). Cells were maintained in Dulbecco’s Modified Eagle’s medium (DMEM) supplemented with 10% FBS and antibiotics. There is no mycoplasma contamination in this cell line.

Establishment of ES-Like cells

Request a detailed protocol

Lin28a–/– blastocysts were harvested and cultured on mouse embryonic fibroblasts (MEFs) in ES culture medium (15% FBS, 4.5 g/L of d-glucose, 1 × Glutamax, 1 mM sodium pyruvate, 1 × nonessential amino acids (NEAAs), 0.1 mM 2-mercaptoethanol, and 1 × 104 units/mL of LIF in DMEM) with 3 μM of CHIR 99021 and 1 μM of PD0325901. Each colony was isolated and expanded, followed by genotyping PCR. Wt and Lin28a–/– ES-like cells were stained with NBT/BCIP solution to test for alkaline phosphatase activity. There is no mycoplasma contamination in these cells. Western blotting and q-PCR analyses were performed for each genotype, as described below.

Western blotting

Request a detailed protocol

Whole-protein extracts from the somites and neural tubes of E9.5 embryos were prepared for western blotting. Samples were separated using 10% SDS–PAGE and blotted onto PVDF membranes. The membranes were first incubated with blocking solution (5% skim milk in TBST) and then incubated with the primary antibody in blocking solution. Membranes were washed in TBST three times for 15 min and incubated with a horseradish peroxidase (HRP)-conjugated secondary antibody in blocking solution. The blots were visualized using Chemi-Lumi One, Immobilon, SuperSignal West Femto Maximum Sensitivity Substrate, and LAS-3000 (Fujifilm), followed by analysis using the Multi Gauge Ver3.2 software. β-actin was measured as an internal control. The antibodies used and their dilutions were listed in Key Resources Table.

In situ hybridization

Request a detailed protocol

Lin28a–/– embryos and Wt littermates were obtained by intercrossing Lin28a+/– mice. Whole-mount in situ hybridization was performed as described previously (Yokoyama et al., 2009); the details of the probe sequence can be obtained from the ‘EMBRYS’ website (http://embrys.jp/embrys/html/MainMenu.html). Briefly, embryos were fixed in 4% PFA/PBT and dehydrated in a series of increasing MetOH concentrations. Rehydrated samples were bleached with 6% H2O2 in PBT and treated with 10 μg/mL of Protease K for 10 min at room temperature (RT), stopped with 0.2% glycine, and refixed with 4% PFA/0.2% glutaraldehyde in PBT for 20 min at RT. RNA hybridization was performed at 70°C for more than 14 hr, after prehybridization for 1 hr in hybridization buffer (50% formamide, 5 × SSC, 1% SDS, 50 μg/mL of tRNA, and 50 μg/mL of heparin in RNase-free H2O). Subsequently, embryos were washed three times in wash buffer 1 (50% formamide, 5 × SSC, and 1% SDS in RNase-free H2O) and twice in wash buffer 2 (50% formamide, 2 × SSC, and 5% Chaps in RNase-free H2O). After blocking with 10% sheep serum in TBST for 1 hr at RT, samples were incubated with an anti-DIG-AP Fab fragment antibody and 1% sheep serum in TBST overnight (O/N) at 4°C. After a series of washes with TBST, embryos were equilibrated in alkaline phosphatase buffer (NTMT) and developed with NBT/BCIP solution (Roche). After the color reaction, the embryos were rinsed in TBST several times and postfixed in 4% PFA/PBT at 4°C.

In situ hybridization of sections was performed on Wt and Lin28a–/– embryos at E12.5, as described previously (Uchibe et al., 2012). Embryos were fixed in 4% PFA/PBT, dehydrated in a series of increasing MetOH concentrations, and embedded in paraffin. Sagittal sections (10 μm) were stained with Alcian Blue and Fast Red to outline the pre-vertebrae. Deparaffinized and rehydrated sections were treated with 8 μg/mL of Proteinase K (Roche) in PBS for 10 min, and the reaction was stopped with 0.2% glycine in PBS. After postfixation with 4% PFA, samples were acetylated in acetylation buffer (100 mM triethanolamine, 2.5 mM acetic anhydride; pH was adjusted to 8.0 using HCl). Sections were incubated in prehybridization buffer (50% formamide, 5 × SSC) for 1 hr at 65°C. Subsequently, hybridization was performed O/N at 65°C using an RNA probe for Hoxc13 in hybridization buffer (50% formamide, 5 × SSC, 10% dextran sulfate, 5 × Denhardt’s solution, 0.1 mg/mL of salmon sperm DNA, and 0.25 mg/mL of tRNA). The sections were washed with 0.2 × SSC for 3 hr at 65°C and rinsed with neutralize tagment (NT) buffer (100 mM Tris-HCl, pH 7.5, 150 mM NaCl) for 5 min. After blocking with 10% sheep serum in NT buffer, samples were incubated with an anti-DIG-AP Fab fragment antibody and 1% sheep serum O/N at 4°C. After a series of washes with NT buffer, samples were equilibrated in NTM (100 mM NaCl, 100 mM Tris-HCl, pH 9.5, and 50 mM MgCl2) and developed using an NBT/BCIP solution. After the color reaction, the embryos were counterstained with Fast green.

Skeletal preparation

Request a detailed protocol

Whole-mount skeletal preparations of neonatal mice of each genotype were performed using Alcian Blue and Alizarin Red S staining. For RA treatment, 1 mg/kg of RA was injected intraperitoneally at 7.5 dpc, and the skeletal patterning of each genotype was analyzed at E15.5. The samples were fixed in 100% ethanol (EtOH) for 1–2 days after the majority of the skin and internal organs were removed. The 100% EtOH wash was changed several times. After fixation, the samples were incubated in Alcian Blue solution (0.03% Alcian Blue 8GX, 80% EtOH, and 20% acetic acid) for up to 2 days. The samples were rinsed in distilled water three times and incubated in Alizarin Red Solution (0.01% Alizarin Red S, 1% KOH in H2O) O/N. The samples were treated with discoloring solution (1% KOH, 20% glycerol in H2O) for 4–7 days. The samples were soaked in a series of glycerol/EtOH solutions (20% glycerol, 20% EtOH; 50% glycerol, 50% EtOH) and stored in 100% glycerol.

Quantitative PCR

Request a detailed protocol

Total RNA was isolated from whole embryos (Figure 3A and B), or from dissected somites and neural tubes (Figures 2A, 3C and G) at E9.5 using ISOGEN (Nippon Gene), according to the manufacturer’s instructions. For SYBR green q-PCR, a complementary DNA (cDNA) was produced using Superscript II reverse transcriptase, 1 μg of total RNA, and an oligo(dT)18 primer. q-PCR analysis was performed using the SYBR Green PCR Master Mix and an ABI 7900HT instrument (Applied Biosystems). Gapdh was measured as an internal control to normalize sample differences. The primer sets used for all Hox genes were described by Kondrashov et al., 2011. The primer sequences used for other genes were as follows: Lin28a Fp1, 5′–CTCGGTGTCCAACCAGCAGT–3′; Lin28a Rp1, 5′–CACGTTGAACCACTTACAGATGC–3′; Lin28a Fp2, 5′–AGGCGGTGGAGTTCACCTTTAAGA–3′; Lin28a Rp2, 5′–AGCTTGCATTCCTTGGCATGATGG–3′; Cbx2 Fp, 5′–AGGCCGAGGAAACACACAGT–3′; Cbx2 Rp, 5′–GGAGGAAGAGGACGAACTGC–3′; Oct3/4 Fp, 5′–GTTTCTGAAGTGCCCGAAGC–3′; Oct3/4 Rp, 5′–GCGCCGGTTACAGAACCATA–3′; Nanog Fp, 5′–ACCTCAGCCTCCAGCAGATG–3′; Nanog Rp, 5′–ACCGCTTGCACTTCATCCTT–3′; Sox2 Fp, 5′–GGCAGCTACAGCATGATGCAGGAGC–3′; Sox2 Rp, 5′–CTGGTCATGGAGTTGTACTGCAGG–3′; Gapdh Fp, 5′–CCTGGTCACCAGGGCTGC–3′; and Gapdh Rp, 5′–CGCTCCTGGAAGATGGTGATG–3′.

For microRNAs, cDNAs were produced using the TaqMan MicroRNA Reverse Transcription kit according to the manufacturer’s protocol. q-PCR was performed using TaqMan Rodent MicroRNA Array A and B and TaqMan MicroRNA Assays for let-7a, let-7b, let-7c, let-7d, let-7e, let-7f, let-7g, let-7i, mir-98, mir-10a, mir-10b, mir-196a, mir-196b, and RNU6B. RNU6B was measured as an internal control to normalize sample differences.

Luciferase assay

Request a detailed protocol

The pLuc2 reporter vector was as described previously (Miyaki et al., 2010). To create the let-7 sensor vector, the chemically synthesized let-7 complementary sequence was annealed and inserted between the EcoRI and XhoI sites. To create the pLuc2-candidate gene 3′UTR vector, the predicted let-7 target sequence of each genes of 3′UTR was cloned into pLuc2. Fragment containing mutation in let-7 target sequence were also cloned in pLux2. The miRNA precursor sequence (40 bp) was cloned into pcDNA3.1 and used as an miRNA-expressing vector. Transfection into HEK293T cells was performed using Lipofectamine 2000 or FugeneHD. The transfected cells were incubated for 48 hr, and luciferase activity was determined using the Dual-Glo Luciferase Assay System.

Chromatin immunoprecipitation

Request a detailed protocol

Harvested E9.5 embryos were dissected into somites and neural tubes. Genomic DNA was isolated from the yolk sac and genotyping PCR was performed. Samples were cryopreserved until use. For each assay, ChIP was performed on a pool of 10 embryos. Each antibody (5 μg) was used for immunoprecipitation. The antibodies used for ChIP were listed in Key Resources Table. The frozen samples were cross-linked with 1% formaldehyde in PBS for 10 min at RT. Cross-linking was stopped by adding 100 μL of 1.25 M glycine for 5 min at RT. Samples were washed with PBS and suspended in cell lysis buffer (10 mM Tris-HCl (pH 7.5), 10 mM NaCl, 3 mM MgCl2, 0.5% NP-40, and 1 mM PMSF). Nuclei were collected by centrifugation and resuspended in cell lysis buffer twice. Samples were suspended in 130 μL of nucleus lysis buffer (50 mM Tris-HCl (pH 8.0), 10 mM EDTA (pH 8.0), 1% SDS, and 1 mM PMSF) and transferred into Covaris microTUBEs. The chromatin was sheared by sonication (peak power, 105; duty factor, 5.0; cycles/burst, 200; duration, 10 min). The sheared DNA was diluted in IP dilution buffer (20 mM Tris-HCl (pH 8.0), 2 mM EDTA (pH 8.0), 150 mM NaCl, 1% Triton X-100, 0.1% SDS, and 1 mM PMSF), added to antibody beads, and rotated O/N at 4°C. Precipitated beads with chromatin were washed four times with ChIP wash buffer 1 (20 mM Tris-HCl (pH 8.0), 2 mM EDTA (pH 8.0), 150 mM NaCl, 1% Triton X-100, 0.1% SDS, and 1 mM PMSF) and twice with ChIP wash buffer 2 (20 mM Tris-HCl (pH 8.0), 2 mM EDTA (pH 8.0), 500 mM NaCl, 1% Triton X-100, 0.1% SDS, and 1 mM PMSF). After washing with TE, chromatin was isolated using nucleus lysis buffer at 65°C. The isolated chromatin was de-cross-linked for 6 hr at 65°C. After Proteinase K treatment, DNA was purified using a PCR purification kit (elute in 50 μL of H2O). q-PCR was performed on immunoprecipitated DNA and input DNA and analyzed for the efficiency of immunoprecipitation by each antibody. The primer sequences used for ChIP q-PCR were as follows: ChIP Hoxa1 Fp, 5′–TGAGAAAGTTGGCACGGTCA–3′; ChIP Hoxa1 Rp, 5′–CACTGCCAAGGATGGGGTAT–3′; ChIP Hoxa2 Fp, 5′–CTCCAAGGAGAAGGCCATGA–3′; ChIP Hoxa2 Rp, 5′–CGACAGGGGGAAAAGATGTC–3′; ChIP Hoxa3 Fp, 5′–GTTGTCGCTGGAGGTGGAG–3′; ChIP Hoxa3 Rp, 5′–GCCAGAGGACGCAGGAAAT–3′; ChIP Hoxa4 Fp, 5′–AACGACACCGCGAGAAAAAT–3′; ChIP Hoxa4 Rp, 5′–GGGAACTTGGGCTCGATGTA–3′; ChIP Hoxa5 Fp, 5′–TCCCCCGAATCCTCTGTATC–3′; ChIP Hoxa5 Rp, 5′–ATTGCATTTCCCTCGCAGTT–3′; ChIP Hoxa6 Fp, 5′–GTTCGGCCATCCAGAAACA–3′; ChIP Hoxa6 Rp, 5′–CCCCTCTGCAGGACTGTGAT–3′; ChIP Hoxa7 Fp, 5′–AGCCTTCACCCGACCTATCA–3′; ChIP Hoxa7 Rp, 5′–AGCACAGCCTCGTTCTCTCC–3′; ChIP Hoxa9 Fp, 5′–CCTCCCGGGTTAATTTGTAGC–3′; ChIP Hoxa9 Rp, 5′–CCCCTGCCTTGGTTATCCTT–3′; ChIP Hoxa10 Fp, 5′–CCTAGACTCCACGCCACCAC–3′; ChIP Hoxa10 Rp, 5′–GGCTGGAGACAGCTCCTCA–3′; ChIP Hoxa11 Fp, 5′–AGAGCTCGGCCAACGTCTAC–3′; ChIP Hoxa11 Rp, 5′–AACTGGTCGAAAGCCTGTGG–3′; ChIP Hoxa13 Fp, 5′–ACTTCGGCAGCGGCTACTAC–3′; ChIP Hoxa13 Rp, 5′–CATGTACTTGTCGGCGAAGG–3′; ChIP Hoxc13 Fp, 5′–CAGGAGACCCAGGCTTAGCA–3′; ChIP Hoxc13 Rp, 5′–GCATGCGGACACACTTCATT–3′; ChIP Hoxd12 Fp, 5′–GGAGATGTGTGAGCGCAGTC–3′; ChIP Hoxd12 Rp, 5′–CTGCCATTGGCTCTCAGGTT–3′.

Knockdown of let-7 in ES-like cells

Request a detailed protocol

To knockdown let-7 expression, guide-RNAs targeting the let-7 family members were constructed. The target sequences of let-7 family members were as follows: let-7a-1, TAGTAGGTTGTATAGTTTT; let-7a-2 and let-7c-1, GGTTGAGGTAGTAGGTTGT; let-7b, TAGTAGGTTGTGTGGTTTC; let-7c-2, TAGTAGGTTGTATGGTTTT; let-7d, TAGTAGGTTGCATAGTTTT; let-7e, GTAGGAGGTTGTATAGTTG; let-7f-1, TAGTAGATTGTATAGTTGT; let-7f-2, TAGTAGATTGTATAGTTTT; let-7g, TAGTAGTTTGTACAGTTTG; and let-7i, AGGTAGTAGTTTGTGCTGT (see also Figure 5H). Four guide-RNA-expressing plasmid vectors and an hCas9 vector (500 ng each) were transfected into 1 × 106 cells using the Neon transfection system, according to the manufacturer’s instructions. Transfected cells were cultured in ES medium containing 0.5 μg/mL of puromycin for 2 days. Each colony was isolated and expanded, followed by PCR and sequence analysis. The primer sequences used for let-7 genotyping PCR were as follows: let-7a-1 Fp, 5′–GGCTTATAGCCCAGGTGTATCAT–3′; let-7a-1 Rp, 5′–ACTTGCCCATTCCCATCATC–3′; let-7a-2 Fp, 5′–TTCTTATGAACGGCCCGAGT–3′; let-7a-2 Rp, 5′–CCGTTGATCACCTGTGTTGC–3′; let-7c-1 Fp, 5′–TGGTAGGCACAGGCCTTTCT–3′; let-7c-1 Rp, 5′–CAATGTGTGGTTGGCGATCT–3′; let-7b Fp, 5′–TTTGCTCGCTGCTAATGGAA–3′; let-7b Rp, 5′–GGCCTCATGGACTCATGACA–3′; let-7c-2 Fp, 5′–GTCTCCCCGTCTCCCCTTAC–3′; let-7c-2 Rp, 5′–AGGTGCCCTGAAAATGCTGT–3′; let-7d Fp, 5′–TTTGGCTTTTGCCAAGATCA–3′; let-7d Rp, 5′–TGCTTTCCAAAACTTCCCAGT–3′; let-7e Fp, 5′–TGAATTCCTGGGTTCCTTGG–3′; let-7e Rp, 5′–TCAAGATGGCATAGAGACTGCAA–3′; let-7f-1 Fp, 5′–GATGATGGGAATGGGCAAGT–3′; let-7f-1 Rp, 5′–CCAAAAGGCCTGGTCCTAGA–3′; let-7f-2 Fp, 5′–TCTTGTGTGCTTGTCTCCCATT–3′; let-7f-2 Rp, 5′–CTGAGAACCACTGCCACCAG–3′; let-7g Fp, 5′–TGGTGTATTTCTTTTGTTGGGTTG–3′; let-7g Rp, 5′–TGAACAACTCCAAGCCTCTCA–3′; let-7i Fp, 5′–GGGCCCCGGATGTAAGATGG–3′; and let-7i Rp, 5′–CCTCGAGAACGAAACCCAAC–3′. The PCR products were treated with ExoSAP-IT (Affimetrix) and used as templates for direct sequencing. Clones of let-7 family members with deletions of several nucleotides were selected for further analysis.

Embryoid bodies were produced from each clone, and expression changes of Hox genes were analyzed over 3 days. Cells (1 × 106) were suspended in 1 mL of DMEM with 10% FBS and plated in low-adhesion culture dishes. After several hours, self-aggregated ES-like cells were resuspended in 10 mL of medium. The medium was changed every other day. RNA isolation and q-PCR analysis are described above.

Statistical analyses

Request a detailed protocol

Two-tailed independent Student’s t-tests were used to determine all P values. Asterisks indicate statistically significant differences (at p<0.05), whereas n.s. indicates an absence of significance.

References

  1. 1
  2. 2
    A role for mel-18, a polycomb group-related vertebrate gene, during theanteroposterior specification of the axial skeleton
    1. T Akasaka
    2. M Kanno
    3. R Balling
    4. MA Mieza
    5. M Taniguchi
    6. H Koseki
    (1996)
    Development 122:1513–1522.
  3. 3
  4. 4
  5. 5
    Targeted disruption of Hoxd-10 affects mouse hindlimb development
    1. EM Carpenter
    2. JM Goddard
    3. AP Davis
    4. TP Nguyen
    5. MR Capecchi
    (1997)
    Development 124:4505–4514.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Mice homozygous for a targeted disruption of Hoxd-3 (Hox-4.1) exhibit anterior transformations of the first and second cervical vertebrae, the atlas and the axis
    1. BG Condie
    2. MR Capecchi
    (1993)
    Development 119:579–595.
  13. 13
  14. 14
    Altered cellular proliferation and mesoderm patterning in Polycomb-M33-deficient mice
    1. N Core
    2. S Bel
    3. SJ Gaunt
    4. M Aurrand-Lions
    5. J Pearce
    6. A Fisher
    7. M Djabali
    (1997)
    Development 124:721–729.
  15. 15
  16. 16
  17. 17
    Axial homeosis and appendicular skeleton defects in mice with a targeted disruption of hoxd-11
    1. AP Davis
    2. MR Capecchi
    (1994)
    Development 120:2187–2198.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Specific and redundant functions of the paralogous Hoxa-9 and Hoxd-9 genes in forelimb and axial skeleton patterning
    1. C Fromental-Ramain
    2. X Warot
    3. S Lakkaraju
    4. B Favier
    5. H Haack
    6. C Birling
    7. A Dierich
    8. P Doll e
    9. P Chambon
    (1996a)
    Development 122:461–472.
  23. 23
    Hoxa-13 and Hoxd-13 play a crucial role in the patterning of the limb autopod
    1. C Fromental-Ramain
    2. X Warot
    3. N Messadecq
    4. M LeMeur
    5. P Dollé
    6. P Chambon
    (1996b)
    Development 122:2997–3011.
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
    Involvement of the Polycomb-group gene Ring1B in the specification of the anterior-posterior Axis in mice
    1. M Suzuki
    2. Y Mizutani-Koseki
    3. Y Fujimura
    4. H Miyagishima
    5. T Kaneko
    6. Y Takada
    7. T Akasaka
    8. H Tanzawa
    9. Y Takihara
    10. M Nakano
    11. H Masumoto
    12. M Vidal
    13. K Isono
    14. H Koseki
    (2002)
    Development 129:4171–4183.
  89. 89
  90. 90
  91. 91
    Axial skeletal patterning in mice lacking all paralogous group 8 hox genes
    1. E van den Akker
    2. C Fromental-Ramain
    3. W de Graaff
    4. H Le Mouellic
    5. P Brûlet
    6. P Chambon
    7. J Deschamps
    (2001)
    Development 128:1911–1921.
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113

Decision letter

  1. Clifford J Rosen
    Senior Editor; Maine Medical Center Research Institute, United States
  2. Elizabeth Robertson
    Reviewing Editor; University of Oxford, United Kingdom
  3. Victor Ambros
    Reviewer; University of Massachusetts Medical School, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The paper demonstrates a role for the temporal regulatory microRNA let-7, and its mutual target, Lin-28, in skeletal anterior-posterior patterning. These findings reinforce the importance of precise timing and dosage of gene activity in achieving the proper spatial patterning of Hox gene activity.

Decision letter after peer review:

Thank you for submitting your article "Lin28a/let-7 Pathway Modulates the Hox Code via Polycomb Regulation during Axial Patterning in Vertebrates" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Clifford Rosen as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Sato et al. demonstrate a role in skeletal anterior-posterior patterning for the temporal regulatory microRNA let-7, and its mutual target, Lin-28. This is an important advance, because it reinforces the importance of precise timing and dosage of gene activity in achieving the proper spatial patterning of Hox gene activity. In addition the authors show that the action of Lin-28a/let-7 in axial patterning very likely reflects the regulation of the PcG gene Cbx2, thus linking these temporal regulators to the process of setting up the chromatin state of Hox genes. They exploited an ES cell differentiation model to critically test for whether let-7 family microRNAs mediate the effects on Hox gene expression of Lin-28a loss-of-function, and also to test for whether the let-7 complementary sites in the Cbx2 3' UTR are required to mediate the action of let-7 in this context.

Essential revisions:

This work is a technically thorough investigation of the phenotype of Lin28 mutant mice. However, the reviewers point out that the relatively single-sighted focus on Hox genes likely represents a 'miss' in interpreting the phenotype. There are many inconsistencies in this focus. Among them is using the term 'homeotic transformations' is technically acceptable perhaps, but the authors are really reporting a shortening of the axis with perhaps a 'perturbation' of C1/C2. These are mild 'transformations' to begin with and not really homeotic. The more substantial issue with this version of the manuscript is that it does not take into account a publication from February from Moises Mallo's laboratory (Aires, et al., Dev Cell), which closely examined a network of factors, including Lin28 in during tailbud transition. It seems the authors are not aware of this work that profoundly impacts the interpretation of this phenotype. It is critical that these authors carefully read this paper and rewrite theirs and resubmit with what seems likely to be a re-interpretation of their interesting phenotype – or, if not that, their interpretation in light of this work.

Reviewer #1:

1) It is not clear what the RA experiment adds to the story. As it stands, the argument is based on saying, "It is known that Hox genes are modulated by retinoic acid…" and then, "Therefore we administered…". The logic of the experiment needs to be more explicitly laid out. Also, the conclusions are not clearly linked to the result. At the end of the paragraph, the conclusion is drawn that the sensitivity of Lin-28a+/- to RA indicates that, “Lin-28a acts upstream of the Hox genes." But it is not immediately apparent that the observed synergy between Lin-28a+/- and RA might not be consistent with alternative interpretations, such as parallel pathways.

2) "To support this concept further…." is not really a satisfactory rationale for this genetic interaction experiment. The logic should be spelled out more explicitly. There is a related problem with the statement of the conclusions of the experiment, in the final sentence of the paragraph. "…these results suggest that the Lin-28a/let-7 reciprocal feedback regulates Cbx2 expression…." The authors need to tell us exactly why the synergy between Lin-28+/- and Cbx2+/- means that Lin-28a regulates Cbx2. In particular, does this result necessarily rule out the possibility that Cbx2 and Lin-28a could regulated skeletal patterning by parallel pathways? Also, the statement that "…this pathway is required for skeletal patterning…" is a bit too strong, as "required for" would imply strong loss-of-function phenotypes. More appropriate would be something like, "…this pathway contributes to the regulation of proper skeletal patterning…"

3) Subsection “Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells”, third paragraph: The data in Figure 5I needs to be quantitated; i.e., band intensities scanned. This is also the case for Figure 3—figure supplement 2. In order to argue that there was indeed a change in protein level, replicate samples need to be measured quantitatively, and statistical tests should be applied.

4) Subsection “Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells”, last paragraph: Referring to Figure 5L this point is confusing, because the depiction of the model in Figure 5L does not really account for how reduced Lin-28a would result in posterior transformations in cell fate, which is what the results indicate. Now, in the Discussion section (see below), the model is much better justified by taking into account what is known about the importance of timing in the establishment of proper Hox gene expression patterns. By the way, one source of confusion (at least for this reader) is the fact that the down regulation of Lin-28a during development occurs in a posterior-to-anterior direction; this led me to think in terms of the differential temporal regulation of posterior vs. anterior Hox genes by Lin-28a during e9.5-e10-5. But, unless I am still confused, it seems that the axial sweep of Lin-28a down regulation is not in itself terribly germane to the model.

5) Discussion, first paragraph: Here the model is made much more understandable by linking hox gene expression patterns to the timing of their repression or activation. Another key point is made where it is stated that "PcG genes should be repressed prior to the initiation of Hox gene expression to open the chromatin….". The diagrams shown in Figure 5L does not effectively convey these important temporal elements of the authors' model.

6) Discussion, second paragraph: See comments above about the need to explicate the logic for how the genetic interaction results support the conclusions. Don't get me wrong; I agree that these results support the model, but the logic is just not expressed in the narrative. Note, however that there are always caveats about interpreting genetic interactions too definitively. For example, the authors' results are also consistent with Lin-28a and Cbx2 acting in the same linear pathway, or in parallel pathways.

7) Figure 5 legend: As discussed above, I do not find the diagram in Panel L terribly helpful in understanding precisely what is the authors' model for how the developmental dynamics of Lin-28a/let-7 activity impacts hox gene spatial expression patterns. It is clear from the diagram that the "Time dependent down-regulation of Lin-28a" is important, and emphasis is placed on the fact that this down-regulation occurs progressively from the anterior towards the posterior of the embryo. However, there is no depiction of how those dynamics are connected to Hox patterning. In particular, the model depicts a transition from broad PcG expression at 9.5 to a posterior-enriched PcG expression pattern at 10.5, which seems to imply that the repression of Lin-28a by let-7 is similarly from anterior to posterior; but I'm not certain if that is the authors' intent. Also, the model also seems to suggest that the Lin-28a/let-7 circuit could be entirely responsible for the posterior-anterior down-regulation of PcG gene expression, but of course that is not the case.

Reviewer #2:

Introduction, last paragraph – as stated above, the phenotype is somewhat mild (except for the tail, i.e. Aires, et al) and is more accurately a shortening of the axis, not a homeotic transformation. Likewise, one would have to hypothesize a 'dysregulation of Hox genes, but the authors see an increase later. As shown by clear genetic work (Wellik and Capecchi, 2003, McIntyre, et al., 2007), Hox genes are not very sensitive to dosage! There is no reason to hypothesize that increasing expression – except for Hox13 (Mallo work) – would lead to changes observed here. The interpretation is highly consistent with Aires, et al., in axis elongation and conversion to tail bud!

Subsection “Hox genes are dysregulated in Lin28a–/– mice”: 'global transformation' is a very liberal interpretation of phenotype. It is mainly tail!

The RA experiments add little in this reviewer's view.

The let7 activity becomes more interesting in light of Aires, et al. and its effects on lin28 are highly interesting (if also supporting the strong conservation one might expect from previous work). The ES cell work is not highly compelling in light of Aires, et al., but could perhaps be used in light of this context…

The data supporting Cbx2 mutants as having 'homeotic transformations' is less supported than for Lin28. This statement should be highly modified or removed. It is very unclear why authors did not look at double mutants. One suspects this may not support 'Hox' part of story, but in light of Aires, et al., this phenotype may be highly interesting and allow support of an alternative interpretation. This reviewer is certainly curious about what happens! And a reinterpretation in general may be warranted here especially.

Subsection “Lin28a/let-7 pathway modulates PRC1 occupancy at posterior Hox loci” – very odd references to Hox mutants – the paralog mutants that establish clear homeosis as predicted from Drosophila work should be discussed here (Horan, van den Akker, Wellik, McIntyre).

Discussion and Reinterpretation of let7 experiments should be re-worked in light of Aires.

Reviewer #3:

1) Lin28a is ubiquitously expressed in embryonic development. Hox genes as well as Cbx2 have been shown to regulate AP patterning and other developmental processes such as limb patterning. Are there any other developmental defects observed in the Lin28a-/- mice that also support the role of Lin28a in regulating Cbx2 and Hox codes?

2) Most importantly, Figure 4H indicates that only 5' Hox genes and posterior regions should be affected in the Lin28a-/- mice, but homeotic transformations were seen in the cervical, thoracic and lumbosacral regions where Hoxc13 and Hoxd12 were not expressed.

3) The expression of Hox genes should be examined in more detail in both WT and mutant embryos at the same stages. In Figure 2B, how were the expression domains of Hoxc13 and Hoxd12 demarcated?

4) In Figure 2—figure supplement 1, comparison of Hox gene expression patterns should be done at the same stages with similar somite numbers and the expression domain should be properly demarcated with somite "landmarks".

5) The readouts of genetic interaction experiments by crossing to Cbx2 mutants and RA treatment were not robust. If posterior regions were more affected, homeotic transformation in the lumbosacral regions should be shown.

6) There seems to be some discrepancy in the regulation of Hox genes by Lin28a in vitro and in vivo. For instance, Hoxa11 expression was altered in vitro, but not in the somites in development by WISH (Figure 4E).

https://doi.org/10.7554/eLife.53608.sa1

Author response

Essential revisions:

This work is a technically thorough investigation of the phenotype of Lin28 mutant mice. However, the reviewers point out that the relatively single-sighted focus on Hox genes likely represents a 'miss' in interpreting the phenotype. There are many inconsistencies in this focus. Among them is using the term 'homeotic transformations' is technically acceptable perhaps, but the authors are really reporting a shortening of the axis with perhaps a 'perturbation' of C1/C2. These are mild 'transformations' to begin with and not really homeotic.

We agree with the reviewer’s comment that our observations of Lin28a-/- mice are rather mild 'transformations' not apparent 'homeotic transformations'. To avoid being potentially misleading in the interpretation of the phenotype, we have carefully revised the specific terms for each observed phenotype. As for skeletal patterning defects of C1/C2, we rephrase 'homeotic transformations' using other words such as 'skeletal transformation'; Abstract, Introduction, Results, Discussion and Figure 1 legend.

The more substantial issue with this version of the manuscript is that it does not take into account a publication from February from Moises Mallo's laboratory (Aires, et al., Dev Cell), which closely examined a network of factors, including Lin28 in during tailbud transition. It seems the authors are not aware of this work that profoundly impacts the interpretation of this phenotype. It is critical that these authors carefully read this paper and rewrite theirs and resubmit with what seems likely to be a re-interpretation of their interesting phenotype – or, if not that, their interpretation in light of this work.

We appreciate the reviewer’s advice. Although we had noted, and cited,Dr. Mallo's report (Aires, et al., Dev Cell) in the Discussion of the original manuscript, we should have discussed the comparison between their finding and our observation in more depth. This has now been included in the revised manuscript, in the Abstract, the Introduction, the Results and extensively in the Discussion.

Reviewer #1:

1) It is not clear what the RA experiment adds to the story. As it stands, the argument is based on saying, "It is known that Hox genes are modulated by retinoic acid…" and then, "Therefore we administered…". The logic of the experiment needs to be more explicitly laid out. Also, the conclusions are not clearly linked to the result. At the end of the paragraph, the conclusion is drawn that the sensitivity of Lin-28a+/- to RA indicates that, “Lin-28a acts upstream of the Hox genes." But it is not immediately apparent that the observed synergy between Lin-28a+/- and RA might not be consistent with alternative interpretations, such as parallel pathways.

We thank the reviewer for this comment and have better explained the logic of the experiment in the revised manuscript (subsection “Hox genes are dysregulated in Lin28a–/– mice). Specifically, we hypothesized that the patterning defects of vertebrae observed in Lin28a–/– mice were caused by the perturbation of Hox gene expression. To test that, we investigated the effects of perturbation of Hox gene expression by RA on skeletal pattern formation in Lin28a mutants. We conclude more cautiously by now saying that the results show that Hox gene perturbation by RA administration enhanced the Lin28a+/- and -/- phenotypes. In particular, since RA treated Lin28a+/- shows the same phenotype as untreated Lin28a-/-, we consider that there is a possibility that dysregulation of Hox genes might be responsible for the skeletal patterning defects in Lin28a–/–mice (Figure 2E).

2) "To support this concept further…." is not really a satisfactory rationale for this genetic interaction experiment. The logic should be spelled out more explicitly. There is a related problem with the statement of the conclusions of the experiment, in the final sentence of the paragraph. "…these results suggest that the Lin-28a/let-7 reciprocal feedback regulates Cbx2 expression…." The authors need to tell us exactly why the synergy between Lin-28+/- and Cbx2+/- means that Lin-28a regulates Cbx2. In particular, does this result necessarily rule out the possibility that Cbx2 and Lin-28a could regulated skeletal patterning by parallel pathways? Also, the statement that "…this pathway is required for skeletal patterning…" is a bit too strong, as "required for" would imply strong loss-of-function phenotypes. More appropriate would be something like, "…this pathway contributes to the regulation of proper skeletal patterning…"

We thank the reviewer for this helpful comment and apologise for the lack of clarity in the original version, and appearing to overinterpret the data. We now better explain the rationale, specifically that Cbx2 is a polycomb protein that epigenetically regulates Hox genes, and cite a new reference showing that ablation of Cbx2 shows skeletal patterning defects (Core et al., 1997), leading us to speculate that decreased expression of Cbx2 might cause the abnormal skeletal formation in Lin28a-/-mice. We also more carefully describe the Cbx2 homozygous mutant phenotype, and describe our reasoning why dysregulation of Cbx2 might be responsible for the phenotype of Lin28a–/–mice, as well as being more cautious in our interpretations, for example by concluding that this pathway contributes to the regulation of proper skeletal patterning, as suggested. See subsection “Lin28a regulates Cbx2 expression via let-7 repression”.

3) Subsection “Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells”, third paragraph: The data in Figure 5I needs to be quantitated; i.e., band intensities scanned. This is also the case for Figure 3—figure supplement 2. In order to argue that there was indeed a change in protein level, replicate samples need to be measured quantitatively, and statistical tests should be applied.

We have now quantified these data using imageJ, and added them to the revised Figure 5I and Figure 3—figure supplement 2.

4) Subsection “Let-7 knockdown rescues Hox gene dysregulation in Lin28a–/– cells”, last paragraph: Referring to Figure 5L this point is confusing, because the depiction of the model in Figure 5L does not really account for how reduced Lin-28a would result in posterior transformations in cell fate, which is what the results indicate. Now, in the Discussion section (see below), the model is much better justified by taking into account what is known about the importance of timing in the establishment of proper Hox gene expression patterns. By the way, one source of confusion (at least for this reader) is the fact that the down regulation of Lin-28a during development occurs in a posterior-to-anterior direction; this led me to think in terms of the differential temporal regulation of posterior vs. anterior Hox genes by Lin-28a during e9.5-e10-5. But, unless I am still confused, it seems that the axial sweep of Lin-28a down regulation is not in itself terribly germane to the model.

We apologize for the difficulty of understanding the contents of the figure. We revised the model with your helpful suggestions (Figure 5L).

5) Discussion, first paragraph: Here the model is made much more understandable by linking hox gene expression patterns to the timing of their repression or activation. Another key point is made where it is stated that "PcG genes should be repressed prior to the initiation of Hox gene expression to open the chromatin….". The diagrams shown in Figure 5L does not effectively convey these important temporal elements of the authors' model.

We thank the reviewer for this helpful comment. We have revised the diagram with the temporal regulation of gene expression as described above.

6) Discussion, second paragraph: See comments above about the need to explicate the logic for how the genetic interaction results support the conclusions. Don't get me wrong; I agree that these results support the model, but the logic is just not expressed in the narrative. Note, however that there are always caveats about interpreting genetic interactions too definitively. For example, the authors' results are also consistent with Lin-28a and Cbx2 acting in the same linear pathway, or in parallel pathways.

We thank the reviewer for this helpful comment and have revised the manuscript to address this concern, Discussion, third paragraph.

7) Figure 5 legend: As discussed above, I do not find the diagram in Panel L terribly helpful in understanding precisely what is the authors' model for how the developmental dynamics of Lin-28a/let-7 activity impacts hox gene spatial expression patterns. It is clear from the diagram that the "Time dependent down-regulation of Lin-28a" is important, and emphasis is placed on the fact that this down-regulation occurs progressively from the anterior towards the posterior of the embryo. However, there is no depiction of how those dynamics are connected to Hox patterning. In particular, the model depicts a transition from broad PcG expression at 9.5 to a posterior-enriched PcG expression pattern at 10.5, which seems to imply that the repression of Lin-28a by let-7 is similarly from anterior to posterior; but I'm not certain if that is the authors' intent. Also, the model also seems to suggest that the Lin-28a/let-7 circuit could be entirely responsible for the posterior-anterior down-regulation of PcG gene expression, but of course that is not the case.

We thank the reviewer for helpful comments and suggestions. We have revised the diagram to accommodate the temporal regulation of gene expression as described above (response for reviewer’s comment #4), and to explain our hypothesis that upregulation of let-7 in Lin28a-/- mice leads to decreased Cbx2 expression and subsequent PRC1 occupancy at Hox loci, which causes the disruption of the “Hox code.” Lin28a expression gradually diminishes from anterior to posterior during embryogenesis, however, it is not implies that Cbx2 expression is also downregulated from anterior to posterior.

Reviewer #2:

Introduction, last paragraph – as stated above, the phenotype is somewhat mild (except for the tail, i.e. Aires, et al) and is more accurately a shortening of the axis, not a homeotic transformation. Likewise, one would have to hypothesize a 'dysregulation of Hox genes, but the authors see an increase later. As shown by clear genetic work (Wellik and Capecchi, 2003, McIntyre, et al., 2007), Hox genes are not very sensitive to dosage! There is no reason to hypothesize that increasing expression – except for Hox13 (Mallo work) – would lead to changes observed here. The interpretation is highly consistent with Aires, et al., in axis elongation and conversion to tail bud!

We appreciate the comment. To avoid a potentially misleading description of the phenotype, we have now carefully replaced every instance of ‘homeotic transformation’, and used other wording, including 'skeletal transformation' and ‘skeletal patterning’: Abstract, Introduction, Results, Discussion and Figure 1 legend.

Although we indeed noted and citedDr. Mallo's report (Aires, et al., Dev Cell) in the Discussion of our original manuscript, we appreciate now that we should have discussed the comparison between their findings and our observations in more depth. This has now been included in the revised manuscript, in the Abstract, the Introduction, the Results and extensively in the Discussion.

Subsection “Hox genes are dysregulated in Lin28a–/– mice”: 'global transformation' is a very liberal interpretation of phenotype. It is mainly tail!

The RA experiments add little in this reviewer's view.

We have revised the manuscript to describe that Lin28a–/–mice exhibited multiple transformations, and have tried to better rationalize and explain the RA experiment. Briefly, we used the RA experiment to support the model that Lin28a acts upstream of the Hox genes, and that dysregulation of Hox genes might be responsible for the phenotype of Lin28a–/–mice (Figure 2E). We therefore think including it in the manuscript is justified and does add value.

The let7 activity becomes more interesting in light of Aires, et al. and its effects on lin28 are highly interesting (if also supporting the strong conservation one might expect from previous work). The ES cell work is not highly compelling in light of Aires, et al., but could perhaps be used in light of this context…

As mentioned above, we have revised the Discussion to include more in-depth discussion of the previous findings by Aires et al. Briefly, they showed that Lin28 and Hox13 had opposite functions in tail bud proliferation, suggesting that the balance of the expression of those two genes, which might be regulated by GDF signaling, is one of the determinants of tail length. Our results revealed the epigenetic inhibition of HoxPG13 by the Lin28a/let-7/Cbx2 pathway, which might be one of the mechanisms that explains the antagonistic function of Lin28a and HoxPG13 in axial elongation as well as in skeletal patterning. In Figure 5, we used embryoid bodies as a model and tested whether that Hox gene dysregulation could be rescued by knockdown of let-7 or Cbx2 3’UTR mutation. Unfortunately, we tried to test Hox13 expression as well, however, unfortunately, Hox13 was below the detection limit and could not be verified in this differentiation assay. However, we could rescue the gene expression Hox11 and Hox12 in Lin28a-/- cells, and these results suggest a new role of the Lin28a/let-7 pathway in the modulation of the “Hox code.”

The data supporting Cbx2 mutants as having 'homeotic transformations' is less supported than for Lin28. This statement should be highly modified or removed. It is very unclear why authors did not look at double mutants. One suspects this may not support 'Hox' part of story, but in light of Aires, et al., this phenotype may be highly interesting and allow support of an alternative interpretation. This reviewer is certainly curious about what happens! And a reinterpretation in general may be warranted here especially.

Both Lin28a-/- mice (in this study) and Cbx2-/- mice (Coré et al., 1997; Katoh-Fukui et al., 1998, in this study) exhibited skeletal transformations in the C1/C2 region, T13/L1 region, and L6/S1 region. In the case of Lin28a;Cbx2 double mutant mice, ablation or truncation of the 13th pair of ribs were observed (Figures 3I and 3J), although the Lin28+/– and Cbx2+/– single mutants did not show any obvious phenotypic irregularities. In the lumbosacral region, no additional phenotypes were observed in the double mutants, since almost all of the Lin28a+/- mice showed the same phenotype as the Lin28a-/- mice, which had only five lumbar vertebrae (Table 1). In caudal vertebrae, there were also no additional phenotypes in Lin28a;Cbx2 double mutant mice. Unfortunately, we could not obtain and analyze Lin28a/Cbx2 double KO mice. This is probably because most Lin28a-/- exhibited embryonic lethality, and Cbx2-/-also showed perinatal or postnatal lethality.

Recently, the mechanism of tail bud elongation regulation by Lin28a and Hox13 has been reported (Aires et al., 2019). According to Aires et al., Lin28a/b genes promote and Hox13 genes restrict tail bud progenitor expansion downstream of Gdf11. Elevated Hox13 expression also directly or indirectly suppresses Lin28, leading to shortening of the tail. Since the expression of Hox13 is increased in Lin28a-/-, shortening of the tail is considered to be due to abnormal expression of Hox13. Cbx2 epigenetically suppresses Hox13, and in fact, histone modification of the Hox13 loci was altered in Lin28a-/- mice. Thus, Lin28a/let-7-mediated Hox13 regulation by Cbx2 might be required for tail bud elongation and vertebrae formation. However, Cbx2-deficient mice did not show caudal vertebral defects and there was no effect on the tail of the Lin28a/Cbx2 double mutant. These results indicate that Hox13 regulation by Lin28a, via both Cbx2-dependent and -independent pathways, might be involved in tail bud progenitor expansion.

Subsection “Lin28a/let-7 pathway modulates PRC1 occupancy at posterior Hox loci” – very odd references to Hox mutants – the paralog mutants that establish clear homeosis as predicted from Drosophila work should be discussed here (Horan, van den Akker, Wellik, McIntyre).

We apologize for the omission. We now cite these papers in the Introduction.

Discussion and Reinterpretation of let7 experiments should be re-worked in light of Aires.

We have reworked the manuscript as described above.

Reviewer #3:

1) Lin28a is ubiquitously expressed in embryonic development. Hox genes as well as Cbx2 have been shown to regulate AP patterning and other developmental processes such as limb patterning. Are there any other developmental defects observed in the Lin28a-/- mice that also support the role of Lin28a in regulating Cbx2 and Hox codes?

As the reviewer points out, Hox mutant mice show multiple phenotypes, including skeletal patterning defects in both vertebrae and appendages. We found abnormal expression of posterior Hox genes such as Hox12 and Hox13, which are critical for limb patterning, however, there were no abnormalities on limb development. These results indicate the existence of different mechanisms for the regulation of posterior Hox genes by Lin28a in the vertebrae and limb bud.

Previously two independent Cbx2 mutants were generated by different groups (Coré et al., 1997; Katoh-Fukui et al., 1998). Both groups reported that Cbx2 KO mice exhibited skeletal patterning defects, neonatal and postnatal lethality with abnormal body weight. Moreover, Cbx2 KO mice showed male to female sex reversal (Katoh-Fukui et al., 1998), abnormal lymphocyte differentiation, and decreased proliferation of splenocytes and fibroblasts (Coré et al., 1997). Lin28a-/- mice showed skeletal defects similar to that observed in Cbx2 KO mice, however, the other phenotypes, such as sex determination defects, were not found in Lin28a-/- mice. We have not examined lymphocytes and fibroblasts, but in Lin28a-/- ES-like cells that we established in this report, there were no abnormalities in cell proliferation.

2) Most importantly, Figure 4H indicates that only 5' Hox genes and posterior regions should be affected in the Lin28a-/- mice, but homeotic transformations were seen in the cervical, thoracic and lumbosacral regions where Hoxc13 and Hoxd12 were not expressed.

We thank the reviewer for this important comment. Although we do not have a clear answer yet, we considered some possible explanations for the cause of the phenotype in the cervical, thoracic and lumbosacral regions: it is possible that the skeletal pattern was perturbed due to an abnormality in the cell fate determination of the mesenchymal system and the nervous system. We have revised the manuscript to include a discussion of this issue in the Discussion (second paragraph).

In addition, we have revised and simplified Figure 4H to enhance the reader’s understanding.

3) The expression of Hox genes should be examined in more detail in both WT and mutant embryos at the same stages. In Figure 2B, how were the expression domains of Hoxc13 and Hoxd12 demarcated?

WISH was performed using wild-type and mutants of the same developmental stage as possible. The distance from the hind limb to the anterior expression domain on the body axis was compared.

4) In Figure 2—figure supplement 1, comparison of Hox gene expression patterns should be done at the same stages with similar somite numbers and the expression domain should be properly demarcated with somite "landmarks".

We have tried co-staining with somite markers and Hox genes, but there were technical difficulties using mouse embryos. Although the expression region was examined while confirming the somites on the photograph, no anterior shift of the expression domain was confirmed in genes except for Hoxc13 and Hoxd12.

5) The readouts of genetic interaction experiments by crossing to Cbx2 mutants and RA treatment were not robust. If posterior regions were more affected, homeotic transformation in the lumbosacral regions should be shown.

At first, there were no abnormalities in the lumbosacral and caudal vertebrae in Lin28a;Cbx2 double mutant mice and RA treated Lin28a+/- embryos.

In the RA treatment experiment, no abnormalities were found in the lumbosacral and caudal vertebrae in Lin28a+/- embryos with RA. This might be due to the concentration of RA administered, but it could not be verified at higher concentrations because the fetuses died regardless of genotype.

Both Lin28a-/- mice (in this study) and Cbx2-/- mice (Coré et al., 1997; Katoh-Fukui et al., 1998, in this study) exhibited skeletal transformations in the C1/C2 region, T13/L1 region, and L6/S1 region. In the case of Lin28a;Cbx2 double mutant mice, ablation or truncation of the 13th pair of ribs was observed, although the Lin28+/– and Cbx2+/– single mutants did not show any obvious phenotypic irregularities (Figures 3I and 3J). In the lumbosacral region, no additional phenotypes were observed in the double mutants, since almost all of the Lin28a+/- mice showed the same phenotype as the Lin28a-/- mice, which had only five lumbar vertebrae (Table 1). In caudal vertebrae, there were also no additional phenotypes in Lin28a;Cbx2 double mutant mice.

Recently, the mechanism of tail bud elongation regulation by Lin28a and Hox13 has been reported (Aires et al., 2019). According to Aires et al., Lin28a/b genes promote and Hox13 genes restrict tail bud progenitor expansion in downstream of Gdf11. Elevated Hox13 expression also directly or indirectly suppresses Lin28, leading to shortening of the tail. Since the expression of Hox13 is increased in Lin28a-/-, shortening of the tail was considered to be due to abnormal expression of Hox13. Cbx2 epigenetically suppresses Hox13, and in fact, histone modification of the Hox13 loci was altered in Lin28a-/- mice. Thus, Lin28a/let-7-mediated Hox13 regulation by Cbx2 might be required for tail bud elongation and vertebrae formation. However, Cbx2-deficient mice did not show caudal vertebral defects and there was no effect in the tail of Lin28a/Cbx2 double mutant. These results indicate that Hox13 regulation by Lin28a occurs via both a Cbx2-dependent and -independent pathway, and might be involved in tail bud progenitor expansion. The above points are added to the revised Discussion section.

6) There seems to be some discrepancy in the regulation of Hox genes by Lin28a in vitro and in vivo. For instance, Hoxa11 expression was altered in vitro, but not in the somites in development by WISH (Figure 4E).

No change in the expression domain was observed except for Hox12 and Hox13 by WISH, however, the up-regulation of many Hox genes, such as Hoxa11, was found in embryonic somites and neural tubes by qPCR. In fact, ChIP analyses showed a decrease in the repressive histone modification, H2AK119ub, confirming the increased expression of the Hox gene in embryonic somites and neural tubes. So, in terms of gene expression levels, we believe there is no contradiction between the in vivo and in vitro experiments.

https://doi.org/10.7554/eLife.53608.sa2

Article and author information

Author details

  1. Tempei Sato

    1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    2. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    3. Research Fellow of Japan Society for the Promotion of Science, Tokyo, Japan
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8966-3374
  2. Kensuke Kataoka

    1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    2. Research Fellow of Japan Society for the Promotion of Science, Tokyo, Japan
    Contribution
    Conceptualization, Data curation, Funding acquisition, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Yoshiaki Ito

    1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    2. Research Core, Tokyo Medical and Dental University, Tokyo, Japan
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Shigetoshi Yokoyama

    1. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    2. Laboratory of Metabolism, National Institutes of Health, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4175-0548
  5. Masafumi Inui

    1. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    2. Laboratory of Animal Regeneration Systemology, Meiji University, Kanagawa, Japan
    Contribution
    Conceptualization, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4720-007X
  6. Masaki Mori

    1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    2. Department of Medical Chemistry, Shiga University of Medical Science, Shiga, Japan
    Contribution
    Conceptualization, Supervision, Investigation
    Competing interests
    No competing interests declared
  7. Satoru Takahashi

    Department of Anatomy and Embryology, University of Tsukuba, Ibaraki, Japan
    Contribution
    Conceptualization, Supervision, Investigation
    Competing interests
    No competing interests declared
  8. Keiichi Akita

    Department of Clinical Anatomy, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    Contribution
    Supervision, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2927-2937
  9. Shuji Takada

    Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    Contribution
    Supervision, Investigation
    Competing interests
    No competing interests declared
  10. Hiroe Ueno-Kudoh

    1. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    2. Reproduction Center, Yokohama City University, Yokohama, Japan
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Hiroshi Asahara

    1. Department of Systems BioMedicine, Graduate School of Medical and Dental Sciences, Tokyo Medical and Dental University, Tokyo, Japan
    2. Department of Systems BioMedicine, National Research Institute for Child Health and Development, Tokyo, Japan
    3. AMED-CREST, Japan Agency for Medical Research and Development (AMED), Tokyo, Japan
    4. Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration
    For correspondence
    asahara@scripps.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5215-8745

Funding

Japan Agency for Medical Research and Development (JP17gm0810008)

  • Hiroshi Asahara

National Institute of Arthritis and Musculoskeletal and Skin Diseases (AR050631)

  • Hiroshi Asahara

Japan Society for the Promotion of Science (15H02560)

  • Hiroshi Asahara

Core Research for Evolutional Science and Technology (JP15gm0410001)

  • Hiroshi Asahara

Japan Society for the Promotion of Science (13J00119)

  • Tempei Sato

Japan Society for the Promotion of Science (26113008)

  • Hiroshi Asahara

National Institute of Arthritis and Musculoskeletal and Skin Diseases (AR065379)

  • Hiroshi Asahara

Japan Society for the Promotion of Science (26113008)

  • Hiroshi Asahara

Japan Society for the Promotion of Science (15K15544)

  • Hiroshi Asahara

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Hirohito Shimizu for the technical advice on RA treatment assay, Ms. Moe Tamano for the embryo manipulation, Drs. Satohsi Yamashita and Kazuhiko Nakabayashi for technical advice on ChIP assay, Prof. Mikiko C Siomi for critical and helpful discussion, and Ms. Izumi A Tsune and Dr. Spencer J Spratt for their support in manuscript preparation. We also thank all other Asahara lab members for their support.

Ethics

Animal experimentation: All animal experiments were performed in accordance with protocols approved by the Institutional Animal Care and Use Committee of the National Research Institute for Child Health and Development (permit numbers: 2004-003, 2014-001).

Senior Editor

  1. Clifford J Rosen, Maine Medical Center Research Institute, United States

Reviewing Editor

  1. Elizabeth Robertson, University of Oxford, United Kingdom

Reviewer

  1. Victor Ambros, University of Massachusetts Medical School, United States

Publication history

  1. Received: November 17, 2019
  2. Accepted: May 18, 2020
  3. Version of Record published: May 29, 2020 (version 1)

Copyright

© 2020, Sato et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 620
    Page views
  • 105
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    David Melamed, Daniel Kalderon
    Research Article Updated

    Many adult stem cell communities are maintained by population asymmetry, where stochastic behaviors of multiple individual cells collectively result in a balance between stem cell division and differentiation. We investigated how this is achieved for Drosophila Follicle Stem Cells (FSCs) by spatially-restricted niche signals. FSCs produce transit-amplifying Follicle Cells (FCs) from their posterior face and quiescent Escort Cells (ECs) to their anterior. We show that JAK-STAT pathway activity, which declines from posterior to anterior, dictates the pattern of divisions over the FSC domain, promotes more posterior FSC locations and conversion to FCs, while opposing EC production. Wnt pathway activity declines from the anterior, promotes anterior FSC locations and EC production, and opposes FC production. The pathways combine to define a stem cell domain through concerted effects on FSC differentiation to ECs and FCs at either end of opposing signaling gradients, and impose a pattern of proliferation that matches derivative production.

    1. Developmental Biology
    2. Neuroscience
    André Ferreira Castro et al.
    Research Article

    Class I ventral posterior dendritic arborisation (c1vpda) proprioceptive sensory neurons respond to contractions in the Drosophila larval body wall during crawling. Their dendritic branches run along the direction of contraction, possibly a functional requirement to maximise membrane curvature during crawling contractions. Although the molecular machinery of dendritic patterning in c1vpda has been extensively studied, the process leading to the precise elaboration of their comb-like shapes remains elusive. Here, to link dendrite shape with its proprioceptive role, we performed long-term, non-invasive, in vivo time-lapse imaging of c1vpda embryonic and larval morphogenesis to reveal a sequence of differentiation stages. We combined computer models and dendritic branch dynamics tracking to propose that distinct sequential phases of stochastic growth and retraction achieve efficient dendritic trees both in terms of wire and function. Our study shows how dendrite growth balances structure–function requirements, shedding new light on general principles of self-organisation in functionally specialised dendrites.
