Slo2 potassium channel function depends on RNA editing-regulated expression of a SCYL1 protein
Abstract
Slo2 potassium channels play important roles in neuronal function, and their mutations in humans may cause epilepsies and cognitive defects. However, it is largely unknown how Slo2 is regulated by other proteins. Here we show that the function of C. elegans Slo2 (SLO-2) depends on adr-1, a gene important to RNA editing. ADR-1 promotes SLO-2 function not by editing the transcripts of slo-2 but those of scyl-1, which encodes an orthologue of mammalian SCYL1. Transcripts of scyl-1 are greatly decreased in adr-1 mutants due to deficient RNA editing at a single adenosine in their 3’-UTR. SCYL-1 physically interacts with SLO-2 in neurons. Single-channel open probability (Po) of neuronal SLO-2 is ~50% lower in scyl-1 knockout mutant than wild type. Moreover, human Slo2.2/Slack Po is doubled by SCYL1 in a heterologous expression system. These results suggest that SCYL-1/SCYL1 is an evolutionarily conserved regulator of Slo2 channels.
Introduction
Slo2 channels are large-conductance potassium channels existing in mammals as well as invertebrates (Kaczmarek, 2013; Yuan et al., 2000). They are the primary conductor of delayed outward currents in many neurons examined (Budelli et al., 2009; Liu et al., 2014). Human and mouse each has two Slo2 channels (Slo2.1/Slick and Slo2.2/Slack) (Kaczmarek, 2013), whereas the nematode C. elegans has only one (SLO-2). These channels are abundantly expressed in the nervous system (Bhattacharjee et al., 2002; Bhattacharjee et al., 2005; Joiner et al., 1998; Liu et al., 2018; Rizzi et al., 2016), and play major roles in shaping neuronal electrical properties and regulating neurotransmitter release (Kaczmarek, 2013; Liu et al., 2014). Mutations of Slo2 channels cause epilepsies and severe intellectual disabilities in humans (Ambrosino et al., 2018; Cataldi et al., 2019; Evely et al., 2017; Gururaj et al., 2017; Hansen et al., 2017; Kawasaki et al., 2017; Lim et al., 2016; McTague et al., 2018; Rizzo et al., 2016), and reduced tolerance to hypoxic environment in worms (Yuan et al., 2003). Emerging evidence suggests that physiological functions of these channels depend on other proteins. For example, in mice, the fragile mental retardation protein (FMRP), a RNA binding protein, enhances Slack activity by binding to its carboxyl terminus (Brown et al., 2010). In worms, HRPU-2, a RNA/DNA binding protein, controls the expression level of SLO-2 through a posttranscriptional effect (Liu et al., 2018).
RNA editing is an evolutionally conserved post-transcriptional process catalyzed by ADARs (adenosine deaminases acting on RNA) (Gott and Emeson, 2000; Jin et al., 2009). ADARs convert adenosine (A) to inosine (I) in double-stranded RNA. Since inosine is interpreted as guanosine (G) by cellular machineries (Basilio et al., 1962), A-to-I RNA editing may alter the function of a protein by changing its coding potential, or regulate gene expression through altering alternative splicing, microRNA processing, or RNA interference (Deffit and Hundley, 2016; Nishikura, 2016). Human and mouse each has three ADARs: ADAR1, ADAR2 and ADAR3 (Chen et al., 2000; Kim et al., 1994; Melcher et al., 1996). ADAR1 and ADAR2 possess deaminase activity and catalyze the A-to-I conversion (Tan et al., 2017), whereas ADAR3 is catalytically inactive with regulatory roles in RNA editing (Nishikura, 2016). Millions of A-to-I editing sites have been detected in the human transcriptome through RNA-seq, with the vast majority of them found in non-coding regions (Nishikura, 2016). Biological effects of RNA editing at coding regions have been revealed for a variety of genes, including those encoding ligand- and voltage-gated ion channels and G protein-coupled receptors (Bhalla et al., 2004; Brusa et al., 1995; Burns et al., 1997; Gonzalez et al., 2011; Huang et al., 2012; Lomeli et al., 1994; Palladino et al., 2000; Rula et al., 2008; Sommer et al., 1991; Streit et al., 2011). However, little is known about the roles of RNA editing in non-coding regions (Nishikura, 2016).
In a genetic screen for suppressors of a sluggish phenotype caused by expressing a hyperactive SLO-2 in worms, we isolated mutants of several genes, including adr-1, which encodes one of two ADARs in C. elegans (ADR-1 and ADR-2). While ADR-2 has deaminase activity and plays an indispensable role in the A-to-I conversion, ADR-1 is catalytically inactive but can promote RNA editing by binding to selected target mRNA and tethering ADR-2 to RNA substrates (Ganem et al., 2019; Rajendren et al., 2018; Washburn et al., 2014). We found that loss-of-function (lf) mutations of adr-1 inhibit SLO-2 function through impairing RNA editing of scyl-1, which encodes an orthologue of human and mouse SCYL1. In adr-1(lf) mutants, a lack of A-to-I conversion at a specific site in scyl-1 3’-UTR causes reduced scyl-1 expression. Knockout of scyl-1 severely reduces SLO-2 current in worms whereas coexpression of SCYL1 with human Slack in Xenopus oocytes greatly augments channel activity. These results suggest that SCYL-1/SCYL1 proteins likely play an evolutionarily conserved role in physiological functions of Slo2 channels. Mutations or knockout mammalian SCYL1 may cause neural degeneration, intellectual disabilities, and liver failure, but the underlying mechanisms are unclear (Lenz et al., 2018; Li et al., 2019; Shohet et al., 2019; Spagnoli et al., 2019). The revelation of SCYL-1/SCYL1 as a protein important to Slo2 channels suggests a potential link between diseases caused by SCLY1 mutations and Slo2 channel functions.
Results
adr-1 mutants suppress sluggish phenotype of slo-2(gf)
In a genetic screen for mutants that suppressed a sluggish phenotype caused by an engineered hyperactive or gain-of-function (gf) SLO-2 (Liu et al., 2018), we isolated two mutants (zw80 and zw81) of the adr-1 gene, as revealed by analyses of whole-genome sequencing data. zw80 and zw81 carry nonsense mutations leading to premature stops at tryptophan (W) 366 and W33, respectively (Figure 1A). slo-2(gf) worms showed greatly decreased locomotion speed compared with wild type, and this phenotype was substantially alleviated in slo-2(gf);adr-1(lf) double mutants (Figure 1B). To confirm that the suppression of slo-2(gf) phenotype resulted from mutations of adr-1 rather than that of another gene, we created a new adr-1 mutant allele (zw96) by introducing a premature stop codon at serine (S) 333 (Figure 1A) using the CRISPR/Cas9 approach. The sluggish phenotype of slo-2(gf) was similarly suppressed by adr-1(zw96), which, by itself, did not enhance locomotion speed (Figure 1B). Expression of wild-type adr-1 under the control of the pan-neuronal rab-3 promotor (Prab-3) in slo-2(gf);adr-1(zw96) unmasked the sluggish phenotype (Figure 1B). These results indicate that the sluggish phenotype of slo-2(gf) is mainly caused by SLO-2 hyperactivity in neurons, and that neuronal function of SLO-2(gf) depends on ADR-1.

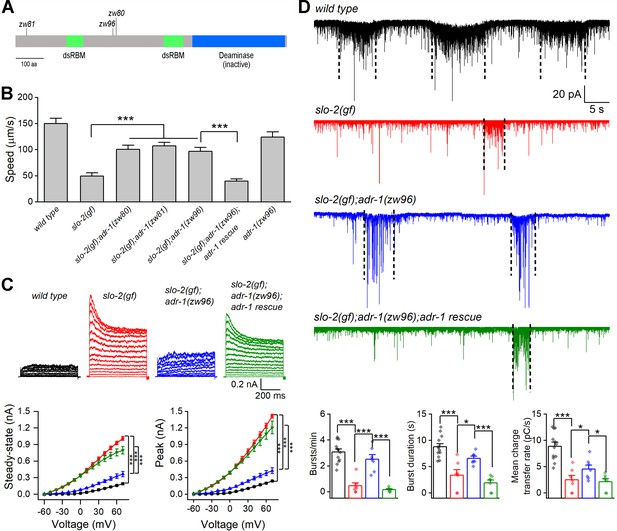

Loss-of-function mutations of adr-1 suppress phenotypes caused by a hyperactive SLO-2.
(A) Diagram of ADR-1 domain structures and locations of the non-sense mutations in the adr-1 mutants. ADR-1 has two double-stranded RNA-binding motifs (dsRBM) and a pseudodeaminase domain. (B) Mutations of adr-1 mitigated an inhibitory effect of hyperactive or gain-of-function (gf) SLO-2 on locomotion through acting in neurons. adr-1 rescue was achieved by expressing GFP-tagged wild-type ADR-1 in neurons under the control of Prab-3 (same in C and D). Sample sizes were 10–12 in each group. (C) adr-1(zw96) reduced an augmenting effect of slo-2(gf) on motor neuron whole-cell outward currents. Pipette solution I and bath solution I were used. Sample sizes were 7 wild type, 8 slo-2(gf), 9 slo-2(gf);adr-1(zw96), and 8 slo-2(gf);adr-1(zw96) rescue. (D) adr-1(zw96) mitigated an inhibitory effect of slo-2(gf) on postsynaptic current (PSC) bursts at the neuromuscular junction. The vertical dotted lines over the sample traces mark PSC bursts, which are defined as an apparent increase in PSC frequency accompanied by a sustained current (downward baseline shift) lasting >3 s. Pipette solution II and bath solution I were used. Sample sizes were 12 wild type, and 7 in each of the remaining groups. All values are shown as mean ± SE. The asterisks indicate statistically significant differences between indicated groups (*p<0.05, ***p<0.001) based on either two-way (C) or one-way (D) ANOVA with Tukey's post hoc tests.
-
Figure 1—source data 1
Raw data and numerical values for data plotted in Figure 1.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig1-data1-v2.xlsx
In C. elegans, cholinergic motor neurons control body-wall muscle cells by producing bursts of postsynaptic currents (PSC bursts) (Liu et al., 2014). To determine how adr-1 mutants might alleviate the slo-2(gf) locomotion defect, we recorded voltage-activated whole-cell currents from a representative cholinergic motor neuron (VA5) and postsynaptic currents from body-wall muscle cells in wild type, slo-2(gf), slo-2(gf);adr-1(zw96), and slo-2(gf);adr-1(zw96) with adr-1 rescued in neurons. Compared with wild type, the slo-2(gf) strain displayed much larger outward currents, and greatly decreased PSC burst frequency, duration and charge transfer (Figure 1C and D). These phenotypes of slo-2(gf) were mostly suppressed in the slo-2(gf);adr-1(zw96) strain (Figure 1C and D), suggesting that adr-1(lf) alleviated the sluggish phenotype through inhibiting SLO-2(gf). In addition, expression of wild-type adr-1 in neurons of slo-2(gf);adr-1(zw96) unmasked the effects of slo-2(gf) on VA5 whole-cell currents and PSC bursts (Figure 1C and D). These observations suggest that the suppressing effect of adr-1(lf) on the slo-2(gf) sluggish phenotype was likely due to reduced SLO-2 activities in motor neurons.
We suspected that the suppression of SLO-2(gf) by adr-1(lf) resulted from deficient RNA-editing. If so, adr-2(lf) might also suppress the sluggish phenotype of slo-2(gf) because ADR-2 is required for RNA editing. Indeed, the sluggish phenotype of slo-2(gf) worms was substantially alleviated in slo-2(gf);adr-2(lf) double mutants (Figure 2A), and the augmenting effect of slo-2(gf) on VA5 whole-cell outward currents was mostly eliminated by adr-2(lf) (Figure 2B). Furthermore, adr-2(lf) brought VA5 whole-cell currents below the wild-type level (Figure 2B), which presumably resulted from reduced activities of wild-type SLO-2. These results suggest that RNA editing is important to SLO-2 function in neurons.

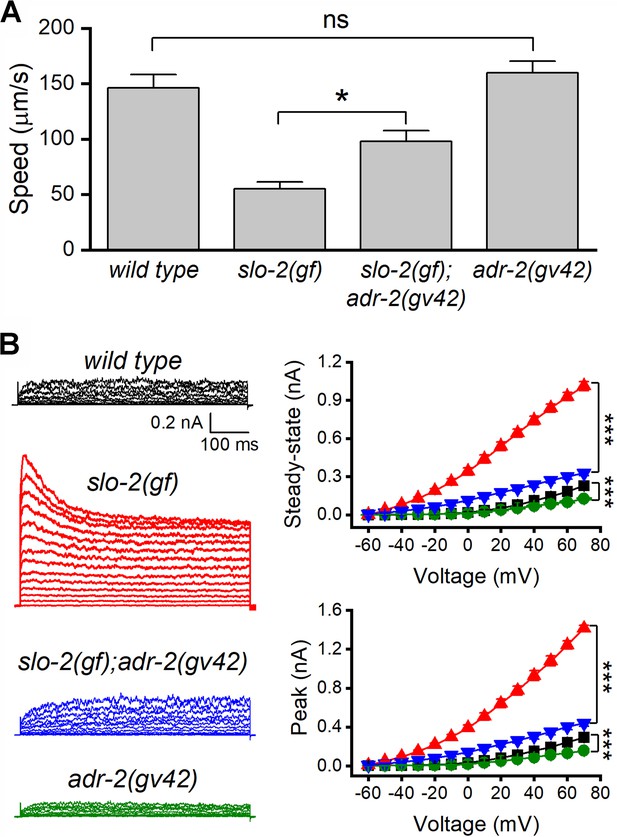

Loss-of-function mutation of adr-2 suppressed the effects of gain-of-function (gf) slo-2 on locomotion and motor neuron whole-cell currents.
(A) adr-2(gv42) alleviated an inhibitory effect of slo-2(gf) on locomotion speed. The sample size was 10–12 in each group. (B) adr-2(gv42) largely reversed an augmenting effect of slo-2(gf) on whole-cell currents in VA5 motor neuron. Sample sizes were 11 wild type, 8 slo-2(gf), 11 slo-2(gf);adr-2(gv42), and 10 adr-2(gv42). All data are shown as mean ± SE. Pipette solution I and bath solution I were used. The asterisks indicate statistically significant differences (*p<0.05; ***p<0.001) whereas ‘ns’ stands for ‘no significant difference’ between the indicated groups based on either one-way (A) or two-way (B) ANOVA with Tukey's post hoc tests.
-
Figure 2—source data 1
Raw data and numerical values for data plotted in Figure 2.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig2-data1-v2.xlsx
ADR-1 is expressed in neurons and localized in the nucleus
The expression pattern of adr-1 was examined by expressing GFP under the control of adr-1 promoter (Padr-1). In transgenic worms, strong GFP expression was observed in the nervous system, including ventral cord motor neurons and many neurons in the head and tail, while weak GFP expression was observed in the intestine and body-wall muscles (Figure 3A). We then examined the subcellular localization pattern of ADR-1 by expressing GFP-tagged full-length ADR-1 (ADR-1::GFP) under the control of Prab-3. We found that ADR-1::GFP is localized in the nucleus, as indicated by its colocalization with the mStrawberry-tagged nucleus marker HIS-58 (Liu et al., 2018) in ventral cord motor neurons (Figure 3B).

ADR-1 is coexpressed with SLO-2 in many neurons and localized in the nucleus.
(A) Expression of an adr-1 promoter (Padr-1)::GFP transcriptional fusion in worms resulted in strong GFP signal in many neurons (NR, nerve ring; VNC, ventral nerve cord; TG, tail ganglion) and weak GFP signal in body-wall muscles (BWM) and intestine (Int). (B) GFP-tagged ADR-1 (ADR-1::GFP) colocalized with a mStrawberry-tagged HIS-58 nucleus marker, as indicated by fluorescence images of VNC motor neurons. (C) adr-1 and slo-2 are co-expressed in many neurons but show differential expressions in the pharynx (Phx) and Int. Scale bar = 20 µm in in all panels.
To determine whether adr-1 is co-expressed with slo-2, we crossed the Padr-1::GFP transgene into an existing strain expressing Pslo-2::mStrawberry (Liu et al., 2018). We found that the expression patterns of adr-1 and slo-2 overlapped extensively in the nervous system (Figure 3C). For example, the majority of ventral cord motor neurons and numerous head neurons were colabeled by GFP and mStrawberry (Figure 3C). The occasional non-overlapping expressions of GFP and mStrawberry in ventral cord motor neurons probably resulted from mosaic expression of the transgenes.
ADR-1 regulates neurotransmitter release through SLO-2
SLO-2 is the primary conductor of delayed outward currents in C. elegans cholinergic motor neurons (Liu et al., 2014). We wondered whether the function of native SLO-2 channels in motor neurons depends on ADR-1. Consistent with our previous report (Liu et al., 2014), VA5 delayed outward currents were dramatically smaller and VA5 resting membrane potential was much less hyperpolarized in slo-2(lf) than wild type. While adr-1(lf) also caused significantly decreased outward currents and less hyperpolarized resting membrane potential in VA5, it did not produce additive effects when combined with slo-2(lf) (Figure 4A–C). These results suggest that adr-1(lf) affects motor neuron outward currents and resting membrane potential through SLO-2.

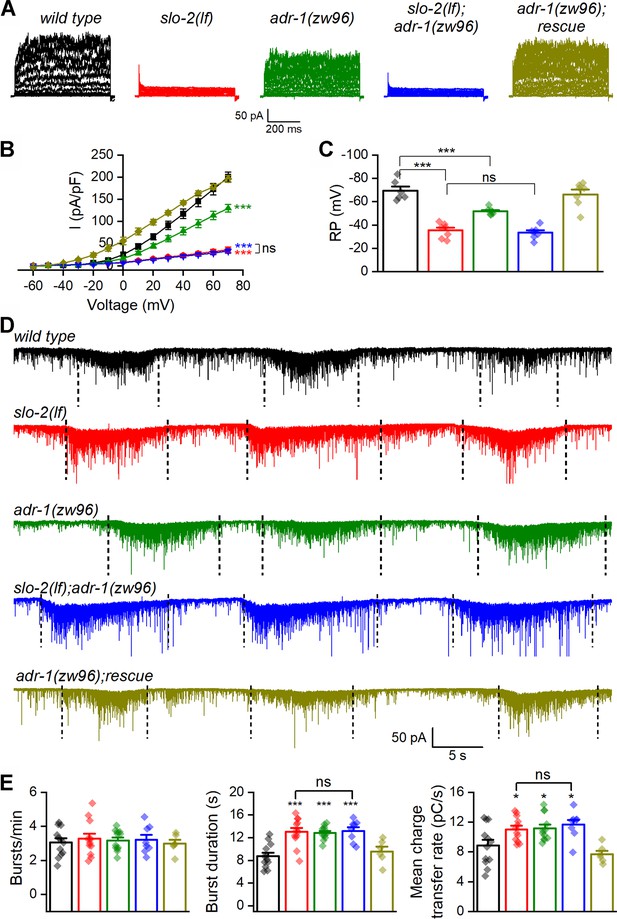

ADR-1 contributes to motor neuron whole-cell currents and regulates postsynaptic current (PSC) bursts through SLO-2.
(A) Representative VA5 whole-cell current traces. (B) Current (I) - voltage relationships of the whole-cell currents. Sample sizes were 8 wild type, 7 slo-2(lf), 9 adr-1(zw96), 7 slo-2(lf);adr-1(zw96), and 9 adr-1(zw96) rescue. (C) Resting membrane potentials of VA5. Sample sizes were 6 wild type, and 7 in each of the remaining groups. (D) Representative traces of spontaneous PSCs with PSC bursts marked by vertical dotted lines. (E) Comparisons of PSC burst properties. Sample sizes were 8 slo-2(lf);adr-1(zw96), 6 adr-1(zw96) rescue, and 12 in each of the remaining groups. All values are shown as mean ± SE. The asterisks indicate statistically significant differences (*p<0.05, ***p<0.001) compared with wild type whereas ‘ns’ stands for no significant difference between the indicated groups based on either two-way (B) or one-way (C and E) ANOVA with Tukey's post hoc tests. Pipette solution I and bath solution I were used in (A) and (C). Pipette solution II and bath solution I were used in (D).
-
Figure 4—source data 1
Raw data and numerical values for data plotted in Figure 4.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig4-data1-v2.xlsx
We next determined whether adr-1(lf) also alters PSC bursts. We found that adr-1(lf) caused an increase in the duration and mean charge transfer rate of PSC bursts without altering the burst frequency compared with wild type (Figure 4D and E). These phenotypes of adr-1(lf) were similar to those of slo-2(lf) and did not become more severe in the double mutants (Figure 4D and E), suggesting that ADR-1 modulates neurotransmitter release through SLO-2. The similar effects of adr-1(lf) and slo-2(lf) on PSC bursts are in contrast to their differential effects on VA5 outward currents and resting membrane potential. This discrepancy suggests that reducing SLO-2 activity beyond a certain threshold may produce similar effects on PSC bursts as does slo-2(lf).
ADR-1 regulates SLO-2 function through SCYL-1
Given that our results suggest that RNA editing is important to SLO-2 function, we determined whether adr-1(lf) causes deficient editing or decreased expression of slo-2 mRNA by comparing RNA-seq data between adr-1(lf) and wild type. The adr-1(zw96) allele was chosen for these analyses to avoid complications by potential mutations of other genes introduced into the genome during the generation of the other adr-1 mutants (zw80 and zw81). Unexpectedly, no RNA editing event was detected in slo-2 transcripts, and slo-2 mRNA level was similar between wild type and the adr-1 mutant (Figure 4—figure supplement 1). These results suggest that ADR-1 might regulate SLO-2 function through RNA editing of another gene.
A previous study identified 270 high-confidence editing sites in transcripts of 51 genes expressed in C. elegans neurons (Washburn et al., 2014). We suspected that the putative molecule mediating the effect of ADR-1 on SLO-2 is encoded by one of these genes, and the mRNA level of this gene is reduced in adr-1(lf). Therefore, we compared transcript expression levels of these genes (excluding those encoding transposons) in our RNA-Seq data between wild type and adr-1(zw96). Most of these genes showed either no decrease or only a small decrease in expression, but two of these genes, rncs-1 and scyl-1, were reduced greatly in adr-1(lf) compared with wild type (Figure 5). rncs-1 is not a conceivable candidate for the putative SLO-2 regulator because it is a non-coding gene expressed in the hypodermis and vulva (Hellwig and Bass, 2008). We therefore focused our analyses on scyl-1, which encodes an orthologue of mammalian SCYL1 important to neuronal function and survival (Pelletier, 2016). Like its mammalian homologs, SCYL-1 has an amino-terminal kinase domain that lacks residues critical to kinase activity, and a central domain containing five HEAT repeats (HEAT for Huntingtin, elongation factor 3, protein phosphatase 2A, yeast kinase TOR1) (Pelletier, 2016). SCYL-1 shares 38% identity and 60% similarity with human SCYL1. Notably, amino acid sequence in the HEAT domain, which is often highly degenerative (Pelletier, 2016), shows a very high level of sequence homology (53% identity and 76% similarity) between these two proteins (Figure 5—figure supplement 1).

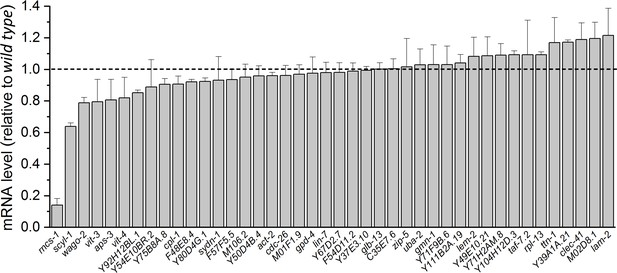

Normalized transcript expression levels of selected genes in adr-1(zw96) mutant.
The genes were selected based on the detection of ADR-1-dependent RNA editing events in their transcripts reported in an earlier study (Washburn et al., 2014). Transcript expression level of each gene in the mutant is normalized by that in the wild type. Shown are mean ± SE from three biological replicates of RNA-seq experiments.
-
Figure 5—source data 1
Raw data and numerical values for data plotted in Figure 5.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig5-data1-v2.xlsx
We examined the expression pattern of scyl-1 by expressing GFP under the control of scyl-1 promoter (Pscyl-1). Because another gene (lap-2) resides ~2 kb upstream of scyl-1 (www.wormbase.org), we first expressed GFP under the control of 2 kb Pscyl-1. However, no GFP signal was detected in transgenic worms (not shown). We then used an in vivo homologous recombination approach to express a Pscyl-1::GFP transcriptional fusion that included a much longer sequence upstream of the scyl-1 initiation site. Specifically, a 0.5 kb genomic fragment upstream of the scyl-1 initiation site was fused to GFP in a plasmid, which was co-injected with a fosmid covering part of the scyl-1 coding region and 32 kb sequence upstream of the initiation site into wild type worms. In vivo homologous recombination between the plasmid and the fosmid is expected to result in a promoter::GFP transcriptional fusion that includes all the upstream genomic sequence in the fosmid. Transgenic worms from coinjection of the plasmid and the fosmid showed GFP signal in a variety of cells (Figure 6), suggesting distant upstream sequences are required for scyl-1 expression. To determine how the expression pattern of scyl-1 correlates with that of slo-2, we crossed the transgene into the Pslo-2::mStrawberry strain, and examined the expression patterns of GFP and mStrawberry. Co-expression of scyl-1 and slo-2 was observed in many ventral cord motor neurons (Figure 6). However, most other neurons expressing slo-2 (e. g. head and tail neurons) did not appear to express scyl-1. In addition, scyl-1 expression was detected in some cells that did not express slo-2, including the excretory cell, spermatheca, uterine ventral cells, and intestinal cells (Figure 6).

scyl-1 and slo-2 are coexpressed in ventral cord motor neurons but differentially expressed in other cells.
In transgenic worms coexpressing Pscyl-1::GFP and Pslo-2::mStrawberry transcriptional fusions, GFP signal was observed in ventral nerve cord (VNC) motor neurons, the large H-shaped excretory (EXC) cell, uterine ventral (UV) cells, and spermatheca (Spe) while mStrawberry signal was detected in VNC motor neurons, body-wall muscles (BMW), and many other neurons. Scale bar = 20 µm.
We next determined whether SCYL-1 is important to SLO-2 function. To this end, we created a mutant, scyl-1(zw99), by introducing a stop codon after isoleucine 152 using the CRISPR/Cas9 approach, and examined the effect of this mutation on VA5 delayed outward currents. scyl-1(zw99) showed a substantial decrease in VA5 outward currents compared with wild type; this phenotype could be rescued by expressing wild-type SCYL-1 in neurons, and was non-additive with that of either slo-2(lf) or adr-1(zw96) (Figure 7A). These results suggest that SCYL-1 and ADR-1 likely act in a common pathway to contribute to SLO-2 function.

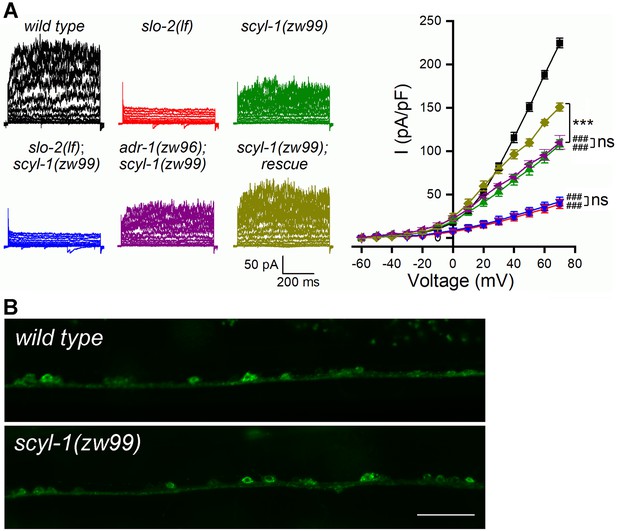

SCYL-1 contributes to motor neuron outward currents through SLO-2.
(A) Sample whole-cell current traces of VA5 motor neurons and the current-voltage relationships. Sample sizes were 9 wild type, 7 slo-2(lf), 10 scyl-1(zw99), 7 slo-2(lf);scyl-1(zw99), 7 adr-1(zw96);scyl-1(zw99), and 7 scyl-1(zw99) rescue. The rescue strain was created by expressing wild-type scyl-1 under the control of Prab-3. All values are shown as mean ± SE. The asterisks (***) and pound signs (###) indicate statistically significant differences (p<0.001) between the indicated groups and from wild type, respectively, whereas ‘ns’ stands for no significant difference between the indicated groups (two-way ANOVA with Tukey's post hoc tests). (B) GFP signal in ventral cord motor neurons was indistinguishable between wild type and scyl-1(zw99) worms expressing GFP-tagged full-length SLO-2 under the control of Prab-3. Scale bar = 20 µm.
-
Figure 7—source data 1
Raw data and numerical values for data plotted in Figure 7.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig7-data1-v2.xlsx
The decrease of delayed outward currents in scyl-1(lf) could have resulted from either reduced expression or reduced function of SLO-2. We first determined whether scyl-1(lf) alters SLO-2 expression by crossing a stable (near 100% penetrance) Prab-3::SLO-2::GFP transgene from an existing transgenic strain of wild-type genetic background (Liu et al., 2018) into scyl-1(zw99), and comparing GFP signal between the two strains. We found that GFP signal in the ventral nerve cord was similar between wild type and the scyl-1 mutant (Figure 7B), suggesting that SCYL-1 does not regulate SLO-2 expression. We then determined whether SCYL-1 regulates SLO-2 function by obtaining inside-out patches from VA5 and analyzing SLO-2 single-channel properties. SLO-2 showed >50% decrease in open probability (Po) without a change of single-channel conductance in scyl-1(zw99) compared with wild type, and this mutant phenotype was completely rescued by neuronal expression of wild-type SCYL-1 (Figure 8A). Analyses of single-channel open and closed events revealed that SLO-2 has at least two open states and three closed states, and that the decreased Po of SLO-2 in scyl-1(lf) mainly resulted from shorter and fewer long openings (Figure 8B) and a larger proportion of the longest closings (Figure 8C).

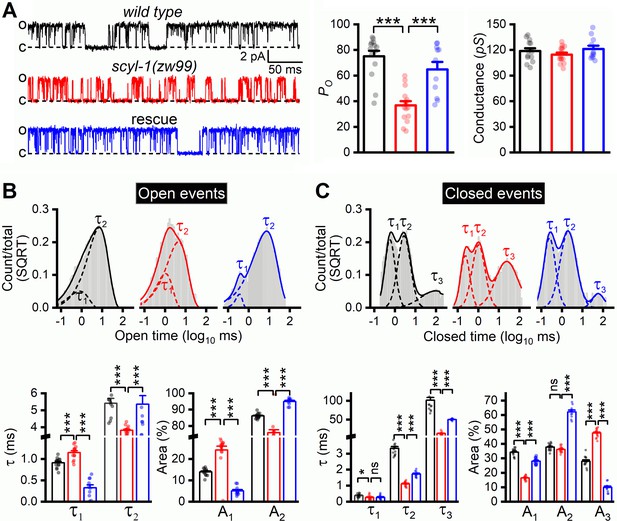

Single-channel open probability (Po) of SLO-2 is decreased in scyl-1 mutant.
(A) Representative SLO-2 single-channel currents from inside-out patches of the VA5 motor neuron, and comparisons of Po and single-channel amplitude between wild type (n = 14), scyl-1(zw99) (n = 15), and scyl-1(zw99) rescued by expressing wild-type scyl-1 in neurons under the control of Prab-3 (n = 11). (B and C) Fitting of open and closed dwell time histogram to exponentials, and comparisons of τ values and relative areas (A) of the fitted components. All the open and closed events of each group were pooled together to plot the dwell time histograms. Statistical comparisons shown below were based on the mean τ values of individual recordings with each dot representing the mean value of one recording. Pipette solution III and bath solution II were used. All values are shown as mean ± SE. The asterisks indicate a significant difference between the indicated groups (*p<0.05, ***p<0.001, one-way ANOVA with Tukey's post hoc tests).
-
Figure 8—source data 1
Raw data and numerical values for data plotted in Figure 8.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig8-data1-v2.xlsx
The observed effects of scyl-1(lf) on SLO-2 single-channel properties suggest that SCYL-1 may physically interacts with SLO-2. To address this possibility, we performed bimolecular fluorescence complementation (BiFC) (Hu et al., 2002) and coimmunoprecipitation assays, which indicate whether these two proteins are physically very close in vivo and whether they coexist in a molecular complex, respectively. In both assays, we determined whether full-length SCYL-1 interacts with either the full-length, the amino-terminal portion (amino acids 1–317), or the carboxyl-terminal portion (amino acids 318–1107) of SLO-2 (Figure 9A). In the BiFC assay, SCYL-1 and SLO-2 were fused to the N- and C-terminal portions of YFP (YFPa and YFPc), respectively (Figure 9A). A detection of YFP signal would indicate physical closeness of the two fusion proteins. We observed YFP fluorescence in ventral cord motor neurons when either the full-length or the C-terminal of SLO-2 was used but not when the N-terminal was used in the assays (Figure 9B). The coimmunoprecipitation assay was performed with homogenates of worms expressing HA-tagged SCYL-1 and GFP-tagged SLO-2. We found that the SCYL-1 immunoprecipitated with either full-length SLO-2 or SLO-2 C-terminal but not SLO-2 N-terminal (Figure 9C), which is in agreement with the BiFC results. Thus, both the BiFC and coimmunoprecipitation results suggest that SCYL-1 physically interacts with SLO-2, and this interaction is mediated by SLO-2 carboxyl terminal.

SCYL-1 physically interacts with SLO-2 in neurons.
(A) Diagrams of the various fusion proteins used in the BiFC assays (left) and of SLO-2 membrane topology (right). The arrow indicates the split site for SLO-2N and SLO-2C fusions. RCK, regulator of conductance for K+. (B) YFP signal was detected when SCYL-1 was coexpressed with either full-length or the carboxyl terminal portion of SLO-2 but not with the amino terminal portion of SLO-2. Shown are representative fluorescent images of the ventral nerve cord (indicated by arrows) with corresponding DIC images. The bright signals at the top of each fluorescence image was from auto-fluorescence of the intestine. Scale bar = 20 μm. (C) SCYL-1 co-immunoprecipitates with full-length SLO-2 and SLO-2C but not SLO-2N. IP, immunoprecipitation; IB, immunoblot. The molecular masses of the protein standard are indicated on the right. Note that multiple bands are seen in the lanes loaded with GFP fusions. The bands that match predicted molecular masses of SLO-2::GFP, SLO-2N::GFP, and SLO-2C::GFP fusions are indicated with arrows, respectively. The other bands likely resulted from cleaved or partially translated GFP fusion proteins.
scyl-1 expression depends on RNA editing at a specific 3’-UTR site
Our RNA-Seq data revealed eight high-frequency (>15%) adenosine-to-guanosine editing sites in scyl-1 transcripts of wild type (Figure 10A). All these editing sites are located within a predicted 746 bp hair-pin structure in the 3’ end of scyl-1 pre-mRNA, which contains an inverted repeat with >98% complementary base pairing (Figure 10B). Interestingly, RNA editing at only one of these sites was significantly deficient (by 74%) in adr-1(zw96) compared with wild type (Figure 10A). Sanger sequencing of scyl-1 mRNA and the corresponding genomic DNA from wild type, adr-1(zw96), and adr-2(gv42) showed that RNA editing at this site was deficient in both the adr-1 and adr-2 mutants whereas that at an adjacent site was deficient only in the adr-2 mutant (Figure 10C), suggesting that RNA editing at the site impaired by adr-1(lf) might be important to scyl-1 expression. To address this possibility, we created transgenic worms expressing a Prab-3::GFP transcriptional fusion (wp1923), in which a genomic DNA fragment covering part of the last exon of scyl-1 and 5 kb downstream sequence was fused in-frame to the 3’-end of GFP coding sequence (Figure 10D). We also created transgenic worms expressing a modified plasmid (wp1924), in which adenosine (A) at the specific ADR-1-dependent editing site was changed to guanosine (G) to mimic the edited nucleotide (Figure 10D). GFP signal was observed in worms harboring wp1924 but no GFP signal was detected in worms harboring wp1923 (Figure 10E). While observation of GFP signal in the wp1924 strain was expected, the complete absence of GFP signal in the wp1923 strain caught us by surprise. To better understand the role of ADR-1 in scyl-1 mRNA expression, we integrated the wp1924 transgene into the wild-type genome, crossed it into adr-1(zw96), and compared GFP signal in ventral cord motor neurons between wild type and the mutant. GFP signal was ~50% weaker in the mutant than wild type (Figure 10F and G). Because the transgene mimicked the edited 3’-UTR sequence of scyl-1 mRNA, the weaker GFP signal in the mutant than wild type suggests that ADR-1 can also increase scyl-1 mRNA level through a post-editing effect.

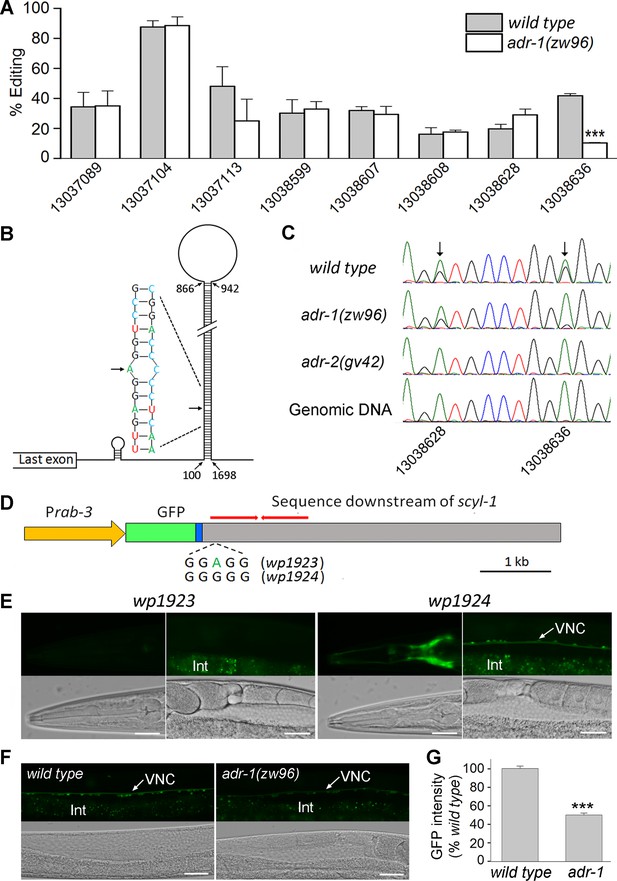

ADR-1 regulates scyl-1 expression through RNA editing at a specific nucleotide in the 3’-UTR.
(A) RNA editing at one out of eight highly (>15%) edited sites is severely deficient in adr-1(zw96) compared wild type. The percentage of editing was calculated by diving the number of reads containing A-I conversion by the total number of reads at each site. The x-axis indicates the positions of the edited adenosines in chromosome V (NC_003283). Shown are results (mean ± SE) of three RNA-seq experiments. The asterisks (***) indicate a statistically significant difference (p<0.001, unpaired t-test). (B) Diagram showing a predicted hair-pin structure in the 3’ end of scyl-1 pre-mRNA with 746 complementary base pairs. Nucleotide are numbered from the first nucleotide of the 3’-UTR. (C) Chromatograms of scyl-1 mRNA 3’-UTRs of wild type, adr-1(zw96), and adr-2(gv42), and of the corresponding wild type genomic DNA. Two editing sites in wild type mRNA (indicated by arrows) display a mixture of green (adenosine) and black (guanosine) peaks. While both editing events are non-existent in adr-2(gv42), only one of them is inhibited by adr-1(zw96). (D) Diagram of two GFP reporter constructs (wp1923 and wp1924) used to confirm the role of the ADR-1-dependent editing site in gene expression. GFP was placed under the control of Prab-3 and fused to the last exon (blue) of scyl-1 followed by 5 kb downstream genomic sequence. The red bars indicate the inverted repeat sequences that form the double-stranded RNA in the hair-pin structure (B). wp1923 contains the intact genomic sequence of scyl-1 3’-UTR, whereas wp1924 differs from it in an A-to-G conversion mimicking the ADR-1-dependent editing. (E) Effects of the A-to-G conversion on GFP reporter expression. Shown are fluorescent and corresponding DIC images of transgenic worms harboring either wp1923 or wp1924. GFP expression in the head and ventral nerve cord (VNC) was observed only in worms harboring wp1924. The diffused signal below the VNC in fluorescent images was from auto-fluorescence of the intestine (Int). Scale bar = 20 µm. (F) GFP expression from wp1924 was decreased in adr-1(zw96) compared with that in wild type. Scale bar = 20 µm. (G) Statistical comparison of GFP intensity in the VNC between wild type (n = 16) and adr-1(zw96) (n = 19). (***p<0.001, unpaired t-test).
-
Figure 10—source data 1
Raw data and numerical values for data plotted in Figure 10.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig10-data1-v2.xlsx
If ADR-1 does enhance scyl-1 mRNA level through a post-editing mechanism in addition to RNA editing, it likely perform this function through interacting with some other proteins, and such proteins might be identified by screening for mutants showing decreased GFP signal from the wp1924 transgene. Indeed, eleven mutants with reduced GFP expression were isolated from ~5000 mutagenized haploid genomes in a pilot genetic screen, as shown by two examples (Figure 10—figure supplement 1). The deficiency of GFP expression in these mutants was related to the function of scyl-1 3’-UTR because GFP expression from a control transgene with unc-10 3’-UTR was not compromised in these mutants (Figure 10—figure supplement 1). These results favor the notion that ADR-1 may also interact with other molecules after RNA editing to promote scyl-1 expression.
Human Slo2.2/Slack is regulated by SCYL1
The HEAT domain of SCYL proteins is important to protein-protein interactions but generally varies considerably in amino acid sequence for interactions with specific protein partners (Yoshimura and Hirano, 2016). The high level of sequence homology of the HEAT domain between mammalian SCYL1 and worm SCYL-1 (Figure 5—figure supplement 1) promoted us to test whether mammalian Slo2.2/Slack is also regulated by SCYL1. We expressed human Slo2.2 (hSlo2.2) either alone or together with mouse SCYL1 in Xenopus oocytes, and analyzed hSlo2.2 single-channel properties in inside-out patches. SCYL1 increased hSlo2.2 Po greatly without altering the single-channel conductance (Figure 11A). The channel has at least two open states and three closed states (Figure 11B–D). While events of both the open states and the two shorter closed states were numerous, those of the longest closed state were infrequent. Nevertheless, the longest closed state had a major impact on Po because of its rather long duration. Dwell time analyses indicate that SCYL1 increased hSlo2.2 Po mainly by increasing the duration and proportion of the longer open state, and shortening the duration of the longest closed state (Figure 11B–D). The overall effect of SCYL1 on hSlo2.2 Po is similar to that of SCYL-1 on SLO-2 Po in wild-type worms (Figure 8). Taken together, these results suggest that a physiological function of both mammalian SCYL1 and worm SCYL-1 is to enhance Slo2 channel activities.

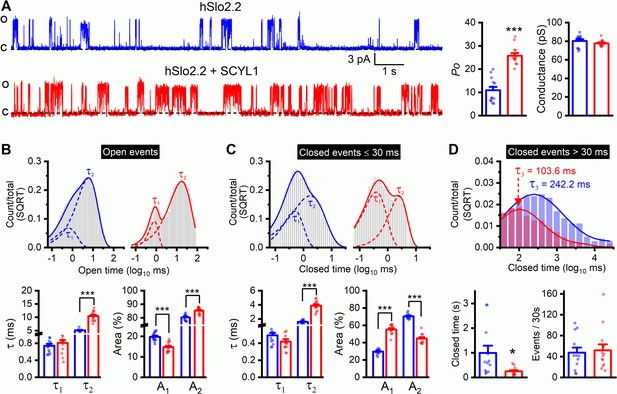

Single-channel open probability (Po) of human Slo2.2/Slack is augmented by SCYL1 in Xenopus oocyte expression system.
(A) Representative traces of single-channel currents from inside-out patches and comparisons of Po and single-channel amplitude between patches with and without mouse SCYL1. (B and C) Dwell time histograms and statistical comparisons of open and closed (≤30 ms in duration) events. The histograms were constructed and the τ values were quantified as described in Figure 8 legend. (D) Dwell time histograms and statistical comparisons of the long closed events. Closed events that were >30 ms in duration of all recordings in each group were pooled together to construct the dwell time histogram. The average duration and frequency of these events were compared between the two groups. Each dot represents the mean value of one recording. Sample sizes were 13 in both groups. All values are shown as mean ± SE. The asterisks indicate a significant difference compared between the indicated groups (*p<0.05, ***p<0.001, unpaired t-test).
-
Figure 11—source data 1
Raw data and numerical values for data plotted in Figure 11.
- https://cdn.elifesciences.org/articles/53986/elife-53986-fig11-data1-v2.xlsx
Discussion
This study shows that both ADR-1 and SCYL-1 are critical to SLO-2 physiological function in neurons. While ADR-1 enhances SLO-2 function indirectly through promoting SCYL-1 expression, SCYL-1 regulates SLO-2 through physical interactions. These conclusions are supported by multiple lines of evidence, including the isolation of adr-1(lf) mutants as suppressors of SLO-2(gf), the inhibition of SLO-2 activities by either adr-1(lf) or scyl-1(lf), the reduction of scyl-1 transcript expression in adr-1(lf), the correlation between scyl-1 mRNA level and RNA editing at its 3’-UTR, the evidence of physical interactions between SCYL-1 and SLO-2, and the reduction of SLO-2 Po due to changes in the dwell times of open and closed events in scyl-1(lf). Importantly, we found that the human Slo2.2/Slack is also regulated by SCYL1.
The biological significance of RNA editing at non-coding regions is only beginning to be appreciated. A recent study with C. elegans identified many neuron-specific A-to-I editing sites in the 3’-UTR of clec-41, and showed that elimination of these editing events by adr-2 knockout compromises clec-41 expression and impairs a chemotaxis behavior (Deffit et al., 2017). However, it remains to be determined how clec-41 expression is controlled by these editing events, and whether the chemotaxis defect of adr-2(lf) mutant is caused by decreased clec-41 expression. In the present study, we demonstrate that an A-to-I RNA editing event at the 3’UTR of scyl-1 controls its expression, and that SCYL-1 contributes to neuronal whole-cell currents through a direct effect on SLO-2. The results of these two studies have provided a glimpse of the biological roles of 3’-UTR RNA editing in gene expression and neuronal function.
Our results demonstrate that RNA editing at a single site in the 3’-UTR could have a profound effect on gene expression. The A-to-I conversion at the ADR-1-regulated editing site increases base pairing in the putative double-stranded structure of scyl-1 3’-UTR (Figure 10B). Increased base paring in a double-stranded RNA generally facilitates RNA degradation. It is therefore intriguing how such an editing event may cause increased gene expression. One possibility is that editing at this site helps maintain mRNA stability through recruiting other regulatory proteins to the 3’-UTR. The isolation of mutants exhibiting diminished GFP expression from a reporter construct containing the edited scyl-1 3’-UTR but not the unc-10 3’-UTR (Figure 10—figure supplement 1) indicates potential existence of such regulatory proteins. In combination with the observation that GFP signal was undetectable in transgenic worms expressing a reporter construct containing the non-edited scyl-1 3’-UTR, this result suggests that RNA editing at the ADR-1-dependent site in scyl-1 3’-UTR is likely important to recruiting the putative regulatory proteins to increase mRNA stability.
scyl-1 has four different transcripts with identical 5’-UTR and coding sequence but different 3’-UTRs of variable lengths (ranging from 167 to 1862 nucleotides) and sequences (www.wormbase.org). The ADR-1-dependent editing site exists only in the transcript with the longest 3’-UTR. The presence of an ADR-1-regulated editing site in this but not the other transcripts suggests that ADR-1 may regulate scyl-1 expression in a cell-specific manner depending on where the specific transcript is expressed. Interestingly, the 3’-UTR of human SCYL1 transcripts (NM_020680.4) also has a high probability of forming hair-pin structures based on software prediction (https://rna.urmc.rochester.edu/RNAstructureWeb/Servers). It remains to be determined whether human SCYL1 transcripts are also edited in the 3’-UTR, and if so, whether the editing regulates their expression.
SCYL1 proteins are evolutionarily conserved proteins that share an N-terminal pseudokinase domain (Manning et al., 2002; Pelletier, 2016). Results of previous studies with cultured cells suggest that SCYL1 may regulate intracellular trafficking between the Golgi apparatus and the ER (Burman et al., 2008; Burman et al., 2010), and facilitate nuclear tRNA export by acting at the nuclear pore complex (Chafe and Mangroo, 2010). Mutations of SCYL1 in humans are associated with a variety of disorders, including neurodegeneration, intellectual disabilities, and liver failure (Lenz et al., 2018; Li et al., 2019; Schmidt et al., 2015; Shohet et al., 2019; Spagnoli et al., 2019). Mice with SCYL1 deficiency develop an early onset and progressive neurodegenerative disorder (Pelletier et al., 2012). However, it is unclear whether the documented mutant phenotypes of SCYL1 are related to its roles in intracellular trafficking and nuclear tRNA export (Pelletier, 2016). This study brings into view a new potential mechanism for SCYL1 mutation-associated disorders: impairing Slo2 channel function. What might be the molecular mechanism through which SCYL-1 enhances SLO-2 activity? Since SCYL-1 physically associates with SLO-2, and enhances SLO-2 single-channel Po by altering the open and closed states, it likely regulates channel function either directly or through a closely associated protein. Although the exact mechanism remains to be determined, the similar effects of SCYL-1 and SCYL1 on Slo2 channels suggest that they likely play an important role in Slo2 physiological functions across animal species.
The expression patterns of scyl-1 and slo-2 largely do not overlap. Although they are coexpressed in ventral cord motor neurons, most other neurons expressing slo-2 do not express scyl-1, suggesting that the regulatory effect of SCYL-1 on SLO-2 is cell- and tissue-specific. The expression of scyl-1 in cells not expressing slo-2 suggests that SCYL-1 physiological functions are not limited to regulating SLO-2. In mouse, SCYL1 and Slo2.2 are both expressed in the hippocampus and cerebellum but their expression patterns do not completely overlap (Joiner et al., 1998; Schmidt et al., 2007). Conceivably, the regulation of hSlo2.2 by SCYL1 might also occur in a cell- and tissue-specific manner, and SCYL1 likely performs other physiological functions. The latter possibility is supported by the pleiotropic phenotypes observed in patients and mice with SCYL1 mutations (Lenz et al., 2018; Li et al., 2019; Pelletier et al., 2012; Schmidt et al., 2015; Shohet et al., 2019; Spagnoli et al., 2019).
In summary, this study demonstrates that ADAR-mediated RNA editing controls the expression of SCYL-1, which interacts with SLO-2 to allow SLO-2 perform its physiological functions. Moreover, this study shows that this regulatory mechanism is conserved with mammalian SCYL1 and Slo2. Our findings reveal a new molecular mechanism of Slo2 channel regulation, and provide the bases for investigating how physiological functions of human Slo2 are regulated by SCYL1, and whether the neurodegeneration and intellectual disability phenotypes of SCYL1 mutations are related to Slo2 channel dysfunction.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Strain, strain background(C. elegans) | N2 | Caenorhabditis Genetics Center | RRID:WB-STRAIN:WBStrain00000001 | Laboratory reference strain (wild type). |
Strain, strain background (C. elegans) | LY101 | Caenorhabditis Genetics Center | RRID:WB-STRAIN:WBStrain00026423 | Genotype: slo-2(nf101). |
Strain, strain background (C. elegans) | BB3 | Caenorhabditis Genetics Center | RRID:WB-STRAIN:WBStrain00000435 | Genotype: adr-2(gv42). |
Strain, strain background (C. elegans) | ZW860 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]. | |
Strain, strain background (C. elegans) | ZW876 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]; adr-1(zw80). | |
Strain, strain background (C. elegans) | ZW877 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]; adr-1(zw81). | |
Strain, strain background (C. elegans) | ZW983 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]; adr-2(gv42). | |
Strain, strain background (C. elegans) | ZW1049 | This paper | Genotype: zwEx221[Prab-3::slo-2::GFP]. | |
Strain, strain background (C. elegans) | ZW1388 | This paper | Genotype: zwEx260[Prab-3::His-58::mStrawberry(p1749), Prab-3::adr-1::GFP(p1374)]. | |
Strain, strain background (C. elegans) | ZW1394 | This paper | Genotype: adr-1(zw96). | |
Strain, strain background (C. elegans) | ZW1401 | This paper | Genotype: zwEx261[Padr-1::GFP(wp1872), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1407 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]; adr-1(zw96). | |
Strain, strain background (C. elegans) | ZW1408 | This paper | Genotype: zwIs139[Pslo-1::slo-2(gf)(wp1311), Pmyo-2::YFP(wp214)]; zwEx262[Prab-3::adr-1::GFP(p1374);Pmyo-2::mStrawberry (wp1613)]; adr-1(zw96). | |
Strain, strain background (C. elegans) | ZW1409 | This paper | Genotype: scyl-1(zw99). ZW1410: slo-2(nf101); scyl-1(zw99). | |
Strain, strain background (C. elegans) | ZW1415 | This paper | Genotype:: zwEx221[Prab-3::slo-2::GFP]; scyl-1(zw99). | |
Strain, strain background (C. elegans) | ZW1416 | This paper | Genotype: zwEx247[Pslo-2::mStrawberry(wp1776), lin-15(+)]; zwEx263[Pscyl-1::GFP(wp1901+wp1902), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1417 | This paper | Genotype: zwEx264[Prab-3::scyl-1(wp1912), Pmyo-2::mStrawberry (wp1613)]; scyl-1(zw99). | |
Strain, strain background (C. elegans) | ZW1418 | This paper | Genotype: zwEx247[Pslo-2::mStrawberry(wp1776), lin-15(+)]; zwEx261[Padr-1::GFP(wp1872), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1419 | This paper | Genotype: zwEx265[Prab-3::GFP::scyl-1 3-UTR(wp1923), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1420 | This paper | Genotype: zwEx266[Prab-3::GFP::scyl-1 3’-UTR(A-to-G)(wp1924), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1428 | This paper | Genotype: slo-2(nf101); adr-1(zw96). | |
Strain, strain background (C. elegans) | ZW1505 | This paper | Genotype: zwEx273[Prab-3::scyl-1::YFPc(wp1952), Prab-3::slo-2::YFPa(wp1783), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1506 | This paper | Genotype: zwEx274[Prab-3::scyl-1::YFPc(wp1952), Prab-3::slo-2N::YFPa(wp1784), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1507 | This paper | Genotype: zwEx275[Prab-3::scyl-1::YFPc(wp1952), Prab-3::slo-2C::YFPa(wp1785), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1537 | This paper | Genotype: adr-1(zw96);scyl-1(zw99). | |
Strain, strain background (C. elegans) | ZW1538 | This paper | Genotype: zwEx280[Prab-3::scyl-1::HA(wp1998), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1539 | This paper | Genotype: zwEx281[Prab-3::scyl-1::HA(wp1998), Prab-3::slo-2::GFP(wp1318), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1540 | This paper | Genotype: zwEx282[Prab-3::scyl-1::HA(wp1998), Prab-3::slo-2N::GFP(wp1999), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1541 | This paper | Genotype: zwEx283[Prab-3::scyl-1::HA(wp1998), Prab-3::slo-2C::GFP(wp2000), lin-15(+)]; lin-15(n765). | |
Strain, strain background (C. elegans) | ZW1544 | This paper | Genotype: zwIs146[Prab-3::GFP::scyl-1 3’-UTR(A-to-G)(wp1924)]. | |
Strain, strain background (C. elegans) | ZW1545 | This paper | Genotype: zwIs146[Prab-3::GFP::scyl-1 3’-UTR(A-to-G)(wp1924)]; adr-1(zw96). | |
Strain, strain background (C. elegans) | ZW1549 | This paper | Genotype: zwIs146[Prab-3::GFP::scyl-1 3’-UTR(A-to-G)(wp1924)]; zw103. | |
Strain, strain background (C. elegans) | ZW1552 | This paper | Genotype: zwIs146[Prab-3::GFP::scyl-1 3’UTR(A-to-G)(wp1924)]; zw105. | |
Strain, strain background (C. elegans) | ZW1562 | This paper | Genotype: zwEx284[Prab-3::GFP::unc-10 3’-UTR(wp70)]. | |
Strain, strain background (C. elegans) | ZW1563 | This paper | Genotype: zwEx284[Prab-3::GFP::unc-10 3’-UTR(wp70)]; zw103. | |
Strain, strain background (C. elegans) | ZW1564 | This paper | Genotype: zwEx284[Prab-3::GFP::unc-10 3’-UTR(wp70)]; zw105. | |
Antibody | Mouse monoclonal anti-HA | Santa Cruz Biotechnology | Cat# sc-7392, RRID:AB_627809 | WB: 1:500 |
Antibody | Mouse monoclonal anti-GFP | Santa Cruz Biotechnology | Cat# sc-9996, RRID:AB_627695 | WB: 1:500 |
Antibody | Donkey anti-Mouse IgG | Thermo Fisher Scientific | Cat# A16011, RRID:AB_2534685 | WB: 1:10000 |
Antibody | GFP-Trap_MA | ChromoTek | Cat# gtma-20, RRID:AB_2631358 | |
Commercial assay or kit | ECL Substrate | Bio-Rad | Cat# 1705060 | |
Commercial assay or kit | mMESSAGE mMACHINE | Ambion | Cat# AM1348 | |
Software, algorithm | Photoshop CS5 | Adobe | RRID:SCR_014199 | https://www.adobe.com/products/photoshop.html |
Software, algorithm | Origin | OriginLab | RRID:SCR_014212 | http://www.originlab.com/index.aspx?go=PRODUCTS/Origin |
Software, algorithm | ImageJ | NIH | RRID:SCR_003070 | https://imagej.nih.gov/ij/ |
Software, algorithm | pClamp | Molecular Devices | RRID:SCR_011323 | http://www.moleculardevices.com/products/software/pclamp.html |
Software, algorithm | MATLAB | MathWorks | RRID:SCR_001622 | http://www.mathworks.com/products/matlab/ |
Software, algorithm | TopHat | PMID:23618408 | RRID:SCR_013035 | http://ccb.jhu.edu/software/tophat/index.shtml |
Software, algorithm | Trim Galore | Babraham Bioinformatics | RRID:SCR_011847 | http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/ |
Software, algorithm | Track-A-Worm | PMID:23922769 | RRID:SCR_018299 | https://health.uconn.edu/worm-lab/track-a-worm/ |
C. elegans culture and strains
Request a detailed protocolC. elegans hermaphrodites were grown on nematode growth medium (NGM) plates spotted with a layer of OP50 Escherichia coli at 22°C inside an environmental chamber. All the strains used in this study are listed in the Key Resource Table (plasmids used in making the transgenic strains are indicated by numbers with a ‘wp’ prefix).
Mutant screening and mapping
Request a detailed protocolAn integrated transgenic strain expressing Pslo-1::SLO-2(gf) and Pmyo-2::YFP (transgenic marker) in the wild-type genetic background was used for mutant screen. L4-stage slo-2(gf) worms were treated with the chemical mutagen ethyl methanesulfonate (50 mM) for 4 hr at room temperature. F2 progeny from the mutagenized worms were screened under stereomicroscope for animals that moved better than the original slo-2(gf) worms. 17 suppressors were isolated in the screen and were subjected to whole-genome sequencing. Analysis of the whole-genome sequencing data showed that 2 mutants have mutations in the adr-1 gene (www.wormbase.com). Identification of adr-1 mutants was confirmed by the recovery of the sluggish phenotype when a wild-type cDNA of adr-1 under the control of Prab-3 was expressed in slo-2(gf);adr-1(zw81) double mutants.
Generation of adr-1 and scyl-1 knockout mutants
Request a detailed protocolThe CRISPR/Cas9 approach (Dickinson et al., 2013) was used to create adr-1 and scyl-1 knockouts. The guide RNA sequences for adr-1 and scyl-1 are 5’- CCAGTTTTCGAAGCTTCGG and 5’- GAGGAGATTGGAAAATTGG, which were inserted into pDD162 (Peft-3::Cas9 + Empty sgRNA; Addgene #47549), respectively. The resultant plasmids (wp1645 for adr-1 and wp1887 for scyl-1) were injected into wild type worms, respectively, along with a repair primer (5’-GAGAAGTATTCACCAGTTTTCGAAGCTTAATGAGTTCCAAAAGATCCAGAGATTCCCGAA for adr-1, and 5’-TTGTAACAGCCGGAGGAGATTGGAAAATCTAGCTGGTGGACTTCATTTGGTCACTGGATT for scyl-1) and Pmyo-2::mStrawberry (wp1613) as the transgenic marker. The adr-1 knockout worms were identified by PCR using primers 5’-TCACCAGTTTTCGAAGCTTAATGA (forward) and 5’-TCTTCTGCTGGCTCACATTCA (reverse). The scyl-1 knockout worms were identified by PCR using primers 5’- CCGAAGTCCCAATTCCCAT (forward) and 5’- CCAAATGAAGTCCACCAGCTAG (reverse). The knockout worms were confirmed by Sanger sequencing.
Analysis of expression pattern and subcellular localization
Request a detailed protocolThe expression pattern of adr-1 was assessed by expressing GFP under the control of 1.8 kb adr-1 promoter (Padr-1::GFP, wp1872). Primers for cloning Padr-1 are 5’- TAAGGTACCAAGGACACGTTGCATATGAAT (forward) and 5’- TTTACCGGTTGGCTGACATATTGTGGGA (reverse). Subcellular localization of ADR-1 was determined by fusing GFP to its carboxyl terminus and expressing the fusion protein under the control of Prab-3 (Prab-3::adr-1::GFP, wp1374). Primers for cloning adr-1 cDNA are 5’- AAAGCGGCCGCATGGATCAAAATCCTAACTACAA (forward) and 5’- TTTACCGGTCCATCGAAAGCAGCAAGAGTGAAG (reverse). A plasmid (wp1749) harboring Prab-3::his-58::mStrawberry serves as a nucleus marker. The expression pattern of scyl-1 was assessed by an in vivo recombination approach. Specifically, a 0.5 kb fragment immediately upstream of scyl-1 initiation site was cloned and fused to GFP using the primers 5’- AATCTGCAGCATCGGCACGAGAAGTACA (forward) and 5’- TTAGGATCCCTAAAAGTGATCGAAATTTA (reverse). The resultant plasmid (Pscyl-1::GFP, wp1902) was linearized and co-injected with a linearized (fosmid WRM068bA03), which contains 32 kb of scyl-1 upstream sequence and part of its coding region, into the lin-15(n765) strain along with a lin-15 rescue plasmid to serve as a transformation marker. To assay the effect of the identified adenosine site at the 3’UTR of scyl-1 on gene expression, a 5.1 kb genomic DNA fragment covering part of the scyl-1 last exon and subsequent sequence was cloned and fused in-frame to GFP using the primers 5’- AATGCTAGCATGCAGGCTAGAAATGAAGCTCG (forward) and 5’- TATGGGCCCGAAATCAGCATCTTTGACGAA (reverse). To mimic the A-to-I editing at the identified specific site, a second plasmid was made by mutating the specific adenosine to guanosine in the above plasmid. The two resultant plasmids were injected into lin-15(n765), respectively, with a lin-15 rescue plasmid as the transgenic marker. Images of transgenic worms were taken with a digital CMOS camera (Hamamatsu, C11440-22CU) mounted on a Nikon TE2000-U inverted microscope equipped with EGFP/FITC and mCherry/Texas Red filter sets (49002 and 49008, Chroma Technology Corporation, Rockingham, VT, USA).
Behavioral assay
Request a detailed protocolLocomotion velocity was determined using an automated locomotion tracking system as described previously (Wang and Wang, 2013). Briefly, a single adult hermaphrodite was transferred to an NGM plate without food. After allowing ~30 s for recovery from the transfer, snapshots of the worm were taken at 15 frames per second for 30 s using a IMAGINGSOURCE camera (DMK37BUX273) mounted on a stereomicroscope (LEICA M165FC). The worm was constantly kept in the center of the view field with a motorized microscope stage (OptiScanTM ES111, Prior Scientific, Inc, Rockland, MA, USA). Both the camera and the motorized stage were controlled by a custom program (Source code 1) running in MATLAB (The MathWorks, Inc, Natick, MA).
RNA-seq and data analysis
Request a detailed protocolTotal RNA was extracted from young adult-stage worms using TRIzol Reagent (Invitrogen) and treated with TURBO DNase (Ambion). RNA-seq was performed by Novogene Corp. Sacramento, CA.
Raw reads ware filtered using Trim Galore software (http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/) to remove reads containing adapters or reads of low quality. The filtered reads were mapped to C. elegans genome (ce11) using TopHat2 (Kim et al., 2013). The gene expression level is estimated by counting the reads that map to exons.
Bimolecular fluorescence complementation (BiFC) assay
Request a detailed protocolBiFC assays were performed by coexpressing SLO-2 and SCYL-1 tagged with the amino and carboxyl terminal portions of YFP (YFPa and YFPc), respectively, in neurons under the control of rab-3 promoter (Prab-3). To assay which portion of SLO-2 may interact with SCYL-1, the full-length, N-terminal, and C-terminal portion of SLO-2 were fused with YFPa, respectively. The resultant plasmids (wp1783, Prab-3::SLO-2::YFPa; wp1784, Prab-3::SLO-2N::YFPa, and wp1785, Prab-3::SLO-2C::YFPa) were coinjected with Prab-3::SCYL-1::YFPc (wp1952), respectively, into lin-15(n765) strain. A lin-15 rescue plasmid was also coinjected to serve as a transformation marker. Epifluorescence of the transgenic worms was visualized and imaged as described above.
Co-immunoprecipitation
Request a detailed protocolMixed stage transgenic worms expressing either SCYL-1::HA alone or SCYL-1::HA with one of the GFP fusions (full-length SLO-2, SLO-2 amino-terminal, and SLO-2 carboxyl-terminal) were homogenized in lysis buffer containing 150 mM NaCl, 0.5 mM EDTA, 0.5 % P40, and 10 mM Tris/Cl pH 7.5. Immunoprecipitation was performed with a GFP-Trap Magnetic Agarose Kit (gtmak-20, ChromoTek Inc) according to the manufacturer’s manual. The immune complexes and the worm lysates were separated on 4–20% Novex Tris-Glysine gels (XP04202BOX, Thermo Fisher Scientific) and probed with HA or GFP antibodies (sc-7392, sc-9996, Santa Cruz Biotechnology, Inc).
C. elegans electrophysiology
Request a detailed protocolAdult hermaphrodites were used in all electrophysiological experiments. Worms were immobilized and dissected as described previously (Liu et al., 2007). Borosilicate glass pipettes were used as electrodes for recording whole-cell currents. Pipette tip resistance for recording muscle cell currents was 3–5 MΩ whereas that for recording motor neuron currents was ~20 MΩ. The dissected worm preparation was treated briefly with collagenase and perfused with the extracellular solution for 5 to 10-fold of bath volume. Classical whole-cell configuration was obtained by applying a negative pressure to the recording pipette. Current- and voltage-clamp experiments were performed with a Multiclamp 700B amplifier (Molecular Devices, Sunnyvale, CA, USA) and the Clampex software (version 10, Molecular Devices). Data were sampled at a rate of 10 kHz after filtering at 2 kHz. Spontaneous membrane potential changes were recorded using the current-clamp technique without current injection. Motor neuron whole-cell outward currents were recorded by applying a series of voltage steps (−60 to +70 mV at 10 mV intervals, 600 ms pulse duration) from a holding potential of −60 mV. Spontaneous PSCs were recorded from body-wall muscle cells at a holding potential of −60 mV. Two bath solutions and three pipette solutions were used in electrophysiological experiments as specified in figure legends. Bath solution I contained (in mM) 140 NaCl, 5 KCl, 5 CaCl2, 5 MgCl2, 11 dextrose and 5 HEPES (pH 7.2). Bath solution II contained (in mM) 100 K+ gluconate, 50 KCl, 1 Mg2+ gluconate, 0.1 Ca2+ gluconate and 10 HEPES (pH 7.2). Pipette solution I contained (in mM) 120 KCl, 20 KOH, 5 Tris, 0.25 CaCl2, 4 MgCl2, 36 sucrose, 5 EGTA, and 4 Na2ATP (pH 7.2). Pipette solution II differed from pipette solution I in that 120 KCl was substituted by K+ gluconate. Pipette solution III contained (in mM) 150 K+ gluconate, 1 Mg2+ gluconate and 10 HEPES (pH 7.2).
Xenopus oocytes expression and electrophysiology
Request a detailed protocolA construct containing human Slack cDNA (pOX + hSlo2.2, a gift from Dr. Salkoff) was linearized with Pvu I. The mouse Scyl1 cDNA was amplified from a construct (MR210762, Origene) and cloned into an existing vector downstream of the T3 promoter. The resultant plasmid (wp1982) was linearized with NgoM4. Capped cRNAs were synthesized using the mMessage mMachine Kit (Ambion). Approximately 50 nl cRNA of either Slack alone (0.5 ng/nl) or Slack (0.5 ng/nl) plus Scyl1 (0.5 ng/nl) was injected into each oocyte using a Drummond Nanoject II injector (Drummond Scientific). Injected oocytes were incubated at 18°C in ND96 medium (in mM): 96 NaCl, 2 KCl, 1.8 CaCl2, 1 MgCl2, 5 HEPES (pH 7.5). 2 to 3 days after cRNA injection, single channel recordings were made in inside-out patches with a Multiclamp 700B amplifier (Molecular Devices, Sunnyvale, CA, USA) and the Clampex software (version 10, Molecular Devices). Data were sampled at 10 kHz after filtering at 2 kHz. Bath solution contained (in mM) 60 NaCl, 40 KCl, 50 K+ gluconate, 10 KOH, 5 EGTA, and 5 HEPES (pH 7.2). Pipette solution contained (in mM) 100 K+ gluconate, 60 Na+ gluconate, 2 MgCl2, and 5 HEPES (pH 7.2).
Data analyses for electrophysiology
Request a detailed protocolAmplitudes of whole-cell currents in response to voltage steps were determined from the mean current during the last 100 ms of the 1200 ms voltage pulses using the Clampfit software. The duration and charge transfer of PSC bursts were quantified with Clampfit software (version 10, Molecular Devices) as previously described (Liu et al., 2013). The frequency of PSC bursts was counted manually. For single channel analysis, the QuB software (https://qub.mandelics.com/) was used to fit open and closed times to exponentials, and to quantify the τ values and relative areas of the fitted components, which were automatically determined by the software. Single-channel conductance was calculated by dividing the single-channel current amplitude (determined from a Gaussian fit to the amplitude histogram) by the holding voltage. The first 30 s recording of each experiment was used for such analyses. Statistical comparisons were made with Origin Pro 2019 (OriginLab Corporation, Northampton, MA) using either ANOVA or unpaired t-test as specified in figure legends. p<0.05 is considered to be statistically significant. The sample size (n) equals the number of cells or membrane patches analyzed. All values are shown as mean ± SE and data graphing was done with Origin Pro 2019.
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1, 2, 4, 5, 7, 8, 10,and 11. Sequencing data have been deposited in GEO under accession code GSE141316.
-
NCBI Gene Expression OmnibusID GSE141316. Slo2 potassium channel function depends on a SCYL1 protein.
References
-
Control of human potassium channel inactivation by editing of a small mRNA hairpinNature Structural & Molecular Biology 11:950–956.https://doi.org/10.1038/nsmb825
-
Localization of the slack potassium channel in the rat central nervous systemThe Journal of Comparative Neurology 454:241–254.https://doi.org/10.1002/cne.10439
-
Localization of the na+-activated K+ channel slick in the rat central nervous systemThe Journal of Comparative Neurology 484:80–92.https://doi.org/10.1002/cne.20462
-
Scyl1, mutated in a recessive form of spinocerebellar neurodegeneration, regulates COPI-mediated retrograde trafficJournal of Biological Chemistry 283:22774–22786.https://doi.org/10.1074/jbc.M801869200
-
Scyl1 facilitates nuclear tRNA export in mammalian cells by acting at the nuclear pore complexMolecular Biology of the Cell 21:2483–2499.https://doi.org/10.1091/mbc.e10-03-0176
-
To edit or not to edit: regulation of ADAR editing specificity and efficiencyWiley Interdisciplinary Reviews: RNA 7:113–127.https://doi.org/10.1002/wrna.1319
-
Functions and mechanisms of RNA editingAnnual Review of Genetics 34:499–531.https://doi.org/10.1146/annurev.genet.34.1.499
-
Origins and evolution of ADAR-mediated RNA editingIUBMB Life 61:572–578.https://doi.org/10.1002/iub.207
-
Slack, slick, and Sodium-Activated potassium channelsISRN Neuroscience 2013:1–14.https://doi.org/10.1155/2013/354262
-
Recurrent acute liver failure associated with novel SCYL1 mutation: a case reportWorld Journal of Clinical Cases 7:494–499.https://doi.org/10.12998/wjcc.v7.i4.494
-
KCNT1 mutations in seizure disorders: the phenotypic spectrum and functional effectsJournal of Medical Genetics 53:217–225.https://doi.org/10.1136/jmedgenet-2015-103508
-
A-to-I editing of coding and non-coding RNAs by ADARsNature Reviews Molecular Cell Biology 17:83–96.https://doi.org/10.1038/nrm.2015.4
-
SCYL pseudokinases in neuronal function and survivalNeural Regeneration Research 11:42–44.https://doi.org/10.4103/1673-5374.175040
-
Differential distribution of the sodium-activated potassium channels slick and slack in mouse brainJournal of Comparative Neurology 524:2093–2116.https://doi.org/10.1002/cne.23934
-
Characterization of two de novoKCNT1 mutations in children with malignant migrating partial seizures in infancyMolecular and Cellular Neuroscience 72:54–63.https://doi.org/10.1016/j.mcn.2016.01.004
-
Developmental modulation of GABA(A) receptor function by RNA editingJournal of Neuroscience 28:6196–6201.https://doi.org/10.1523/JNEUROSCI.0443-08.2008
-
Disruptive SCYL1 mutations underlie a syndrome characterized by recurrent episodes of liver failure, peripheral neuropathy, cerebellar atrophy, and ataxiaThe American Journal of Human Genetics 97:855–861.https://doi.org/10.1016/j.ajhg.2015.10.011
-
HEAT repeats – versatile arrays of amphiphilic helices working in crowded environments?Journal of Cell Science 129:jcs.185710.https://doi.org/10.1242/jcs.185710
-
SLO-2, a K+ channel with an unusual cl− dependenceNature Neuroscience 3:771–779.https://doi.org/10.1038/77670
Decision letter
-
Oliver HobertReviewing Editor; Howard Hughes Medical Institute, Columbia University, United States
-
Richard W AldrichSenior Editor; The University of Texas at Austin, United States
-
Leonard KaczmarekReviewer; Yale University, United States
-
Thomas BoulinReviewer; University of Lyon - INSERM - CNRS, France
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Thank you for submitting your article "Slo2 potassium channel function depends on a SCYL1 protein" for consideration by eLife. Your article has been reviewed by Richard Aldrich as the Senior Editor, a Reviewing Editor (Oliver Hobert), and two reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Leonard Kaczmarek (Reviewer #1); Thomas Boulin (Reviewer #2).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. As you will see in the reviews below, there is general agreement about the general interest and importance of the study. However, a set of important clarifications and experiments need to be conducted to make this paper become acceptable for publication in eLife.
In brief, the requested experiments are:
1) Independent validation of interactions (reviewer #1, comment 2)
2) Engineering the A>G mutation into the genome (reviewer #2)
3) Improved expression pattern analysis (reviewer #2)(the in vivo recombineering technique has by now been shown to be inadequate).
There are also a number of very important clarifications that are required (e.g. reviewer #1, comment 1)
Reviewer #1:
This manuscript presents some very interesting work demonstrating that Slo2 channels in C-elegans interact with SYCL-1 to alter open probability of these channels. The effects of SYCL-1 on the channels is, in turn, influenced by ADR-2, which is required for A-to-I RNA editing of a site in the 3' UTR of the scyl-1 gene. The work is provocative and points the way to future work to unravel how this potential interaction affects the biology of neurons in the nematode and in mammalian systems.
1) My major comment is on the work that extrapolates the nematode findings to the human Slack channel. The latter has previously been shows to differ from the C-elegans channel in several ways. This interaction with the human channel is an important aspect of the presented work. Examination of the data in Figure 11, however, suggest that the gating of the human channel is quite different from the Slo2 channel records shown in Figure 8. Specifically (if the time bars shown in Figure 11A are correct, the overall open probability of the human channel is dominated by the presence of very long closed states (lasting many seconds). Examination of the X-axis scale bars in Figure 11B and C suggest these may have been excluded from the analyses. The conclusions on the effects of SCYL1 on open probability stated in the last paragraph of the Results section may not be completely valid until these are taken into account.
2) The bimolecular fluorescence complementation assay presented does make a case that there may be a physical interaction of SCLY-1 with SLO-2 but is not completely definitive. It would be good to have some other indicator of physical interaction to support this claim. A more conventional coimmunoprecipitation experiments would be a good addition, one that could perhaps be carried out using the co-expression Xenopus oocyte heterologous expression system.
Reviewer #2:
In this study Niu et al., describe a striking and entirely unsuspected regulatory cascade that controls SLO-2/Slo2 potassium channel activity. They report the role of SYCL-1, a novel physical interactor of the SLO-2 potassium channel, and describe how syCl-1 expression is controled by ADAR-dependent RNA editing in the non-coding sequence this gene. After dissecting this mechanism in worms, they proceed to directly demonstrate the conservation of this novel regulatory interaction with the human SLO-2 ortholog. Given the importance of this class of potassium channel in health and disease, identifying this modulatory mechanism is a very important finding in my opinion.
Essentiaol revisions:
- Please clarify the functional relationship between adr-1 and adr-2. Indeed, in the Introduction the authors seem to indicate that ADAR proteins could compete ("altering the accessibility") for certain binding sites. In this model, wouldn't one expect that adr-1(lf) would "free" access to the scyl-1 site, which would be inconsistent with the similarity of adr-1 and adr-2 mutant phenotypes?
Do the authors think that ADR-1 promotes the recruitement of ADR-2 to the scyl-1 3'UTR?
- I was very intrigued by the results described in Figure 10, and specifically Figure 10D/E. The result is not what I had intuitively expected. Since it was performed in an adr-1/2 wild-type background as far as I could determine from the Materials and methods section, I would have thought that ADAR activity would have edited the wild-type sequence and I would have expected to see GFP in both cases.
I would have performed this experiment in an adr-1(lf) background. Have the authors attempted this experiment in this background? How many independent lines were tested with the wp1923 construct? Is expression seen anywhere else in the nervous system (outside de VNC) to make sure that GFP can indeed be expressed from this transgene?
- Following on this previous point, a direct way to demonstrate the functional importance of this editing site would be to generate the following genotype by engineering the A>G mutation by CRISPR/Cas9 gene editing:slo-2(gf); adr-1(0); scyl-1(A>G)
My prediction would be that the mutation in scyl-1 would restore the slo-2 gain-of-function locomotor impairement, by bypassing the adr-1 requirement. To me this experiment would very strongly support this new and exciting functional regulation and I would encourage the authors to perform this rather simple experiment.
- In wormbase, the annotation of the scyl-1 locus shows a rather sizable 3'UTR. I was curious whether the authors have any comments on that point, and whether this is a common feature of ADAR-edited 3'UTRs.
Does the human SCYL1 3'UTR have a similar hair-pin structure, which could suggest a similar regulation mechanism?
- I was a bit surprised about the strategy used to generate the scyl-1 expression pattern. Why was the in vivo recombination approach used? What happens when the 0.5kb promoter-GFP construct is injected alone?
The previous gene is only approx 2kb upstream and there is significant sequence conservation to C. remanei and C. briggsae DNA less than 1kb upstream of the ATG (see UCSC genome browser for example). Did the authors test such a 2kb promoter fragment?
- Figure 6: I'm not convinced that scyl-1::GFP labels vm1 or vm2 muscles based on this image. I could be wrong, but higher magnification images would need to be checked.
https://doi.org/10.7554/eLife.53986.sa1Author response
Reviewer #1:
1) My major comment is on the work that extrapolates the nematode findings to the human Slack channel. The latter has previously been shows to differ from the C-elegans channel in several ways. This interaction with the human channel is an important aspect of the presented work. Examination of the data in Figure 11, however, suggest that the gating of the human channel is quite different from the Slo2 channel records shown in Figure 8. Specifically (if the time bars shown in Figure 11A are correct, the overall open probability of the human channel is dominated by the presence of very long closed states (lasting many seconds). Examination of the X-axis scale bars in Figure 11B and C suggest these may have been excluded from the analyses. The conclusions on the effects of SCYL1 on open probability stated in the last paragraph of the Results section may not be completely valid until these are taken into account.
We thank the reviewer for the comment. The open probability in the original Figure 11 was calculated from all the open and closed events. As the reviewer pointed out, events of the very long closed state had a major impact on the open probability. However, they had little contribution to the dwell time histograms in the original figure because these events account for a tiny (nearly negligible) portion of the total event counts and the majority of them fell outside of the x-axis displayed in the figure. In the revised manuscript, we added a new panel (panel D) to Figure 11 to show dwell time histograms of the very long closed events (>30 ms, chosen arbitrarily as the threshold) for both groups. Because these events were scarce, our approach used for comparing τ and A values in panels B and C of this figure and of Figure 8 could not be applied to them. Therefore, we compared the average duration and frequency of these very long closed events between hSlo2.2 and hSlo2.2+SCYL1 (Figure 11D, bottom). We also have replaced the traces in Figure 11A with longer and more representative ones. In addition, the dwell time histograms in panels B and C of both Figures 8 and Figure 11, which were based on a single sample recording trace in the original figures, have been revised to include events from all the recordings to be consistent with the histogram in the new panel D. In the revised manuscript, we describe the presence of the very long closed state and its impact on the open probability (–subsection “scyl-1 expression depends on RNA editing at a specific 3’-UTR site”). The legends of Figure 8 and Figure 11 have also been updated accordingly.
2) The bimolecular fluorescence complementation assay presented does make a case that there may be a physical interaction of SCLY-1 with SLO-2 but is not completely definitive. It would be good to have some other indicator of physical interaction to support this claim. A more conventional coimmunoprecipitation experiments would be a good addition, one that could perhaps be carried out using the co-expression Xenopus oocyte heterologous expression system.
We performed coimmunoprecipitation assays with transgenic worms expressing HA-tagged SCYL-1 and GFP-tagged SLO-2. Worms instead of a heterologous expression system were used for this experiment because SLO-2 is poorly expressed in both Xenopus oocytes and HEK293 cells even with a codon-optimized version (our unpublished observation). Our results of the co-IP assays were in agreement with those of the BiFC assays (Figure 9), which provides further evidence for physical interactions between SLO-2 and SCYL-1.
Reviewer #2:
Comments
1) Please clarify the functional relationship between adr-1 and adr-2. Indeed, in the Introducution the authors seem to indicate that ADAR proteins could compete ("altering the accessibility") for certain binding sites. In this model, wouldn't one expect that adr-1(lf) would "free" access to the scyl-1 site, which would be inconsistent with the similarity of adr-1 and adr-2 mutant phenotypes?
Do the authors think that ADR-1 promotes the recruitement of ADR-2 to the scyl-1 3'UTR?
We thank the reviewer for the comment. Indeed, our description about the functional relationship between ADR-1 and ADR-2 in the Introduction was inaccurate. ADR-1 promotes RNA editing by binding to target mRNAs and recruiting ADR-2 to some specific editing sites. Our results with adr-1(lf) and adr-2(lf) mutants are compatible with this knowledge. In the revised manuscript, a sentence in the Introduction has been changed to “ADR-1 is catalytically inactive but can promote RNA editing by binding to selected target mRNA and tethering ADR-2 to RNA substrates (Ganem et al., 2019; Rajendren et al., 2018; Washburn et al., 2014).” (Introduction)
2) I was very intrigued by the results described in Figure 10, and specifically Figure 10D/E. The result is not what I had intuitively expected. Since it was performed in an adr-1/2 wild-type background as far as I could determine from the Materials and methods section, I would have thought that ADAR activity would have edited the wild-type sequence and I would have expected to see GFP in both cases.
I would have performed this experiment in an adr-1(lf) background. Have the authors attempted this experiment in this background? How many independent lines were tested with the wp1923 construct? Is expression seen anywhere else in the nervous system (outside de VNC) to make sure that GFP can indeed be expressed from this transgene?
We obtained five wp1923 lines and three wp1924 lines. While GFP signal was observed in all the wp1924 lines, no GFP signal was detected anywhere in any of the wp1923 lines. We were also surprised by the lack of GFP expression in the wp1923 lines. As suggested, we performed the same experiments as those in Figure 10E with the adr-1(zw96) mutant. Specifically, adr-1(zw96) mutant strains expressing the wp1923 transgene were made by injecting the wp1923 plasmid into the mutant whereas that expressing the wp1924 transgene by first integrating the wp1924 transgene into the wild-type genome and then crossing it into adr-1(zw96). As expected, GFP signal was not detected in the adr-1(zw96) mutant worms harboring the wp1923 transgene (not shown). Interestingly, GFP signal from the wp1924 transgene was much weaker (by ~50%) in the mutant strain than the wild-type strain (Figure 10 F and G). Because scyl-1 3’-UTR had already been “edited” at the ADR-1-dependent editing site in the wp1924 transgene, the difference in GFP signal between wild-type and adr-1(zw96) strains suggests that ADR-1 can also regulate scyl-1 mRNA level through a post-editing effect, perhaps through interacting with some other proteins. In agreement with this possibility, we were able to isolate several mutants showing decreased GFP signal from the wp1924 transgene in a pilot genetic screen (Figure 10—figure supplement 1).
3) Following on this previous point, a direct way to demonstrate the functional importance of this editing site would be to generate the following genotype by engineering the A>G mutation by CRISPR/Cas9 gene editing:slo-2(gf); adr-1(0); scyl-1(A>G)
My prediction would be that the mutation in scyl-1 would restore the slo-2 gain-of-function locomotor impairement, by bypassing the adr-1 requirement. To me this experiment would very strongly support this new and exciting functional regulation and I would encourage the authors to perform this rather simple experiment.
As suggested by the reviewer, we tried to engineer the A>G mutation at the ADR-1-dependent editing site in scyl-1 3’-UTR in the worm genome by CRISPR/Cas9. Unfortunately, our attempt was unsuccessful, probably because this editing site is located within an inverted sequence (Figure 10D). We then tried to address the reviewer’s comment by expressing Prab-3::scyl-1::unc-10 3’-UTR in slo-2(gf);adr-1(lf) double mutant and wild type (as a control) in the hope that expression of this transgene in the double mutant would restore the slo-2(gf) sluggish locomotion by bypassing the ADR-1 requirement. However, expression of the transgene caused larval arrest in the double mutant and a sluggish phenotype in wildtype worms, which prevented us from performing further analysis. Finally, we built a scyl-1(zw99);adr1(zw96) double mutant, and recorded whole-cell currents from VA5 motor neuron. We observed similar VA5 outward currents between the double mutant and the scyl-1(zw99) single mutant (Figure 7A), suggesting that SCYL-1 and ADR-1 likely contribute to SLO-2 function through a common pathway. This result provides further evidence for the putative role of ADR-1 in regulating SCYL-1 expression.
4) – In wormbase, the annotation of the scyl-1 locus shows a rather sizable 3'UTR. I was curious whether the authors have any comments on that point, and whether this is a common feature of ADAR-edited 3'UTRs.
Does the human SCYL1 3'UTR have a similar hair-pin structure, which could suggest a similar regulation mechanism?
In Wormbase, there are four different scyl-1 transcripts that differ only in the 3’-UTR sequence and length (167 nt, 169 nt, 564 nt, and 1862 nt). The identified ADR-1-dependent editing site exists only in the variant with the longest 3’UTR, which we speculate could be a mechanism for cell-specific expression of scyl-1. It is difficult to comment on whether RNA editing by ADARs at 3’-UTRs is a common mechanism of regulating mRNA expression based on the rather limited literatures. The 3’-UTR of human SCYL1 transcripts (NM_020680.4) also has a high probability of forming hair-pin structures based on software prediction (https://rna.urmc.rochester.edu/RNAstructureWeb/Servers). It remains to be determined whether human SCYL1 transcripts are also edited at the 3’-UTR, and if so, whether the editing regulates SCYL1 transcript expression. We added these comments to the Discussion section in the revised manuscript –.
5) I was a bit surprised about the strategy used to generate the scyl-1 expression pattern. Why was the in vivo recombination approach used? What happens when the 0.5kb promoter-GFP construct is injected alone?
The previous gene is only approx 2kb upstream and there is significant sequence conservation to C. remanei and C. briggsae DNA less than 1kb upstream of the ATG (see UCSC genome browser for example). Did the authors test such a 2kb promoter fragment?
We initially tried to examine scyl-1 expression pattern using a 2-kb Pscyl-1 because, as the reviewer pointed out, another gene (lap-2) resides approximately 2 kb upstream of scyl-1. However, GFP signal was not detected in transgenic worms expressing the Pscyl-1(2 kb)::gfp transcriptional fusion. We therefore resorted to the commonly used in vivo homologous recombination approach to include potential distant upstream regulatory elements in the Pscyl-1::gfp transcriptional fusion. A description about the unsuccessful experiment with the 2-kb Pscyl-1 has been added to the manuscript (–subsection “ADR-1 regulates SLO-2 function through SCYL-1”). As suggested by the reviewer, we also created transgenic worms expressing only the Pscyl-1(0.5 kb)::gfp transcriptional fusion but were unable to detect any GFP signal from them (not shown).
6) Figure 6: I'm not convinced that scyl-1::GFP labels vm1 or vm2 muscles based on this image. I could be wrong, but higher magnification images would need to be checked.
We thank the reviewer for pointing out our mistake. In Figure 6, Pscyl-1::GFP labels uterine ventral cells rather than vulval muscle cells.
https://doi.org/10.7554/eLife.53986.sa2Article and author information
Author details
Funding
National Institute of General Medical Sciences (R01GM113004)
- Bojun Chen
National Institute of Mental Health (2R01MH085927)
- Zhao-Wen Wang
National Institute of Neurological Disorders and Stroke (1R01NS109388)
- Zhao-Wen Wang
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This work was supported by National Institute of Health (R01GM113004 to BC, and 2R01MH085927 and 1R01NS109388 to Z-WW). We thank Dr. Laurence Salkoff for the human Slo2.2/Slack construct. Some strains were provided by the CGC, which is funded by NIH Office of Research Infrastructure Programs (P40 OD010440).
Senior Editor
- Richard W Aldrich, The University of Texas at Austin, United States
Reviewing Editor
- Oliver Hobert, Howard Hughes Medical Institute, Columbia University, United States
Reviewers
- Leonard Kaczmarek, Yale University, United States
- Thomas Boulin, University of Lyon - INSERM - CNRS, France
Version history
- Received: November 26, 2019
- Accepted: April 20, 2020
- Accepted Manuscript published: April 21, 2020 (version 1)
- Version of Record published: May 1, 2020 (version 2)
Copyright
© 2020, Niu et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,159
- Page views
-
- 148
- Downloads
-
- 2
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Genetics and Genomics
- Neuroscience
A hexanucleotide repeat expansion in C9ORF72 is the most common genetic cause of amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD). A hallmark of ALS/FTD pathology is the presence of dipeptide repeat (DPR) proteins, produced from both sense GGGGCC (poly-GA, poly-GP, poly-GR) and antisense CCCCGG (poly-PR, poly-PG, poly-PA) transcripts. Translation of sense DPRs, such as poly-GA and poly-GR, depends on non-canonical (non-AUG) initiation codons. Here, we provide evidence for canonical AUG-dependent translation of two antisense DPRs, poly-PR and poly-PG. A single AUG is required for synthesis of poly-PR, one of the most toxic DPRs. Unexpectedly, we found redundancy between three AUG codons necessary for poly-PG translation. Further, the eukaryotic translation initiation factor 2D (EIF2D), which was previously implicated in sense DPR synthesis, is not required for AUG-dependent poly-PR or poly-PG translation, suggesting that distinct translation initiation factors control DPR synthesis from sense and antisense transcripts. Our findings on DPR synthesis from the C9ORF72 locus may be broadly applicable to many other nucleotide repeat expansion disorders.
-
- Cell Biology
- Neuroscience
The amyloid beta (Aβ) plaques found in Alzheimer’s disease (AD) patients’ brains contain collagens and are embedded extracellularly. Several collagens have been proposed to influence Aβ aggregate formation, yet their role in clearance is unknown. To investigate the potential role of collagens in forming and clearance of extracellular aggregates in vivo, we created a transgenic Caenorhabditis elegans strain that expresses and secretes human Aβ1-42. This secreted Aβ forms aggregates in two distinct places within the extracellular matrix. In a screen for extracellular human Aβ aggregation regulators, we identified different collagens to ameliorate or potentiate Aβ aggregation. We show that a disintegrin and metalloprotease a disintegrin and metalloprotease 2 (ADM-2), an ortholog of ADAM9, reduces the load of extracellular Aβ aggregates. ADM-2 is required and sufficient to remove the extracellular Aβ aggregates. Thus, we provide in vivo evidence of collagens essential for aggregate formation and metalloprotease participating in extracellular Aβ aggregate removal.
