Measuring ligand-cell surface receptor affinities with axial line-scanning fluorescence correlation spectroscopy

  1. Antonia Franziska Eckert
  2. Peng Gao
  3. Janine Wesslowski
  4. Xianxian Wang
  5. Jasmijn Rath
  6. Karin Nienhaus
  7. Gary Davidson  Is a corresponding author
  8. Gerd Ulrich Nienhaus  Is a corresponding author
  1. Institute of Applied Physics, Karlsruhe Institute of Technology, Germany
  2. Institute of Nanotechnology, Karlsruhe Institute of Technology, Germany
  3. Institute of Biological and Chemical Systems, Karlsruhe Institute of Technology, Germany
  4. Department of Physics, University of Illinois at Urbana-Champaign, United States
Tools and Resources
  • Cited 0
  • Views 743
  • Annotations
Cite this article as: eLife 2020;9:e55286 doi: 10.7554/eLife.55286

Abstract

Development and homeostasis of multicellular organisms is largely controlled by complex cell-cell signaling networks that rely on specific binding of secreted ligands to cell surface receptors. The Wnt signaling network, as an example, involves multiple ligands and receptors to elicit specific cellular responses. To understand the mechanisms of such a network, ligand-receptor interactions should be characterized quantitatively, ideally in live cells or tissues. Such measurements are possible using fluorescence microscopy yet challenging due to sample movement, low signal-to-background ratio and photobleaching. Here, we present a robust approach based on fluorescence correlation spectroscopy with ultra-high speed axial line scanning, yielding precise equilibrium dissociation coefficients of interactions in the Wnt signaling pathway. Using CRISPR/Cas9 editing to endogenously tag receptors with fluorescent proteins, we demonstrate that the method delivers precise results even with low, near-native amounts of receptors.

Introduction

In multicellular organisms, cell-cell communication is mediated to a large extent by cell surface receptors in the plasma membrane. They bind their cognate ligands from the extracellular space, which triggers a cascade of intracellular processes. Major signaling pathways form tightly regulated networks comprised of multiple receptors and protein ligands. Among these, Wnt signaling is an ancient and evolutionarily conserved, complex network that controls a variety of physiological processes essential for embryonic development and tissue homeostasis (Clevers and Nusse, 2012; Niehrs, 2012). There are 10 different Frizzled G-protein-coupled receptors binding 19 different Wnt glycolipoprotein ligands (in humans), and additional co-receptors and effector proteins are also crucially involved in the modulation of signal transduction (Niehrs, 2012). Knowledge about the strengths of the various biomolecular interactions is a prerequisite to understanding the function of such a complex network. Accordingly, the equilibrium dissociation coefficient, KD, which determines the fraction of ligand-bound receptors at a particular ligand concentration, should be measured for all relevant interactions in the network. To this end, a multitude of biochemical and biophysical in vitro assays have been devised. Those assays, however, may not completely emulate the complex environment of living cells and tissues; consequently, researchers are striving to measure biomolecular interactions as closely as possible to the real-life situation (Ries et al., 2009b; Ng et al., 2016).

Fluorescence correlation spectroscopy (FCS) is a powerful method for measuring ligand-receptor interactions within the plasma membrane of live cells (Bacia et al., 2006; Ries et al., 2009b; Dörlich et al., 2015). The technique requires that ligands and receptors are specifically labeled with different fluorescent markers so that their emission can be detected separately in two color channels. A confocal microscope allows a tiny observation volume (~1 fL) to be positioned within the sample, and the emitted fluorescence light is captured as a function of time (Zemanová et al., 2003). Fluctuations of the fluorescence intensity due to molecular diffusion into and out of the observation volume are analyzed by calculating intensity pair correlation functions, from which diffusion coefficients, related to the size of the diffusing entities, as well as local concentrations can be extracted. Importantly, dual-color cross-correlation analysis provides a means of selectively measuring the concentration of ligand-receptor complexes. Finally, KD values can be calculated from the local concentrations of free ligand as well as ligand-bound and ligand-free receptors.

The intrinsic dynamics of live cells and tissues poses considerable challenges to FCS measurements. Movement of the cell membrane within the observation volume gives rise to strong intensity fluctuations obscuring those resulting from molecular diffusion in the plane of the membrane. Line-scanning FCS (lsFCS) solves this problem by quickly scanning the observation volume perpendicularly through the membrane (Ries et al., 2009a). Another difficulty comes from the labeling procedure usually employed for live samples, that is the expression of fusion constructs of the proteins of interest with genetically encoded marker proteins of the GFP family (Nienhaus and Nienhaus, 2014). These markers are not as bright as synthetic dyes, and the signal-to-background ratio (SBR) is often small in the presence of the unavoidable cellular autofluorescence and especially at low expression levels, which are, however, desirable to avoid overexpression artifacts. The poor photostability of GFP-like proteins poses yet another challenge because the focused laser spot causes local photobleaching. Labels cannot be replenished efficiently from neighboring regions of the plasma membrane due to the low diffusivity of integral membrane proteins within biological membranes. Therefore, careful corrections are necessary to account for the loss of fluorescent labels.

Here, we present a novel framework for FCS-based measurement of ligand-receptor interactions featuring high sensitivity, precision and robustness. In contrast to earlier approaches (Ries et al., 2009a; Ries et al., 2009b; Dörlich et al., 2015), we employ axial (i.e. along the optical axis) line scanning at ultra-high speed by using a tunable acoustic gradient index of refraction (TAG) lens (Duocastella et al., 2014). This device allows us to sweep the observation volume through the membrane within a few microseconds and thus more than two orders of magnitude faster than with lateral line scanning by means of galvanometric scanners. With axial lsFCS, the correlation decay is significantly faster than with lateral lsFCS, resulting in shorter overall measurement times to reach comparable precision. Thus, changes in cellular morphology that may compromise the data are less likely to occur. Moreover, the much higher scanning frequency of TAG lens-based axial lsFCS results in an enhanced time resolution of the correlation functions. In dual-color cross-correlation experiments, optimal overlap of the observation volumes is much easier to achieve with axial lsFCS. It is also worth mentioning that, in a typical sample consisting of a layer of cells on a coverslip surface, axial scanning offers abundant spots for lsFCS measurements, greatly facilitating data collection. A new and powerful data analysis pipeline that includes background and photobleaching corrections allows us to extract precise equilibrium dissociation coefficients.

We have evaluated the method by measuring the binding of the Wnt signaling inhibitors human Dickkopf1 (DKK1) and Dickkopf2 (DKK2) to the Wnt co-receptor lipoprotein-receptor related protein 6 (LRP6) in human lung cancer (NCI-H1703) and human embryonic kidney (HEK293T) cells (Mao et al., 2001; Cruciat and Niehrs, 2013). For these interactions, KD values in the range of 0.3–0.5 nM (without error analysis) were determined by in vitro studies (Bafico et al., 2001; Mao et al., 2001; Semënov et al., 2001); a more recent paper reported 3 ± 1 nM (Bourhis et al., 2010).

As many biological studies involve overexpression of receptors far above the natural level, the effect of receptor density on the binding affinity is an issue of broad interest. To explore this issue, we varied the receptor density in the plasma membrane in the range 20–1000 µm–2 by using three different ways to express LRP6 receptors fused to fluorescent proteins in the cells. The respective gene was (1) introduced via transient transfection, or (2) stably integrated into the genome of cells by stable transfection, or (3) integrated into a cell line at the endogenous LRP6 gene locus by CRISPR/Cas9 editing. We have observed an impressive consistency in the KD determinations using LRP6 fused to mCherry and tdTomato markers, which differ considerably in size, brightness and emission spectrum (Shaner et al., 2005), attesting to the accuracy of the results. As another example, we have studied the binding of DKK1 to Kremen2, a receptor modulating the canonical Wnt signaling pathway, and the impact of LRP6 on this interaction (Davidson et al., 2002; Mao et al., 2002).

Results

3D confocal microscope with fast axial scanning

Our home-built microscope is shown schematically in Figure 1a; details of the design are provided in Materials and methods and Figure 1—figure supplement 1. For dual-color excitation, we select two out of three available lasers (blue (470 nm), green (561 nm) and red (640 nm)), pulsing every 25 ns with a mutual delay of 12.5 ns. This pulsed interleaved excitation scheme (Müller et al., 2005) yields two time-separated intervals of 12.5 ns during which photons are collected in two color channels; channel crosstalk is thus strongly reduced. Photons are registered by a time-correlated single photon counting (TCSPC) unit. For each photon, we record the absolute time from the start of data acquisition, that is the macro time, tM, and the time elapsed since the previous laser pulse, that is the micro time, tµ. The observation volume, formed by tight focusing of the laser beam with a high-NA objective and a confocal detection pinhole, is scanned laterally (within the focal plane) by galvanometric mirrors. In addition, we use a TAG lens driven in resonance (147 kHz) to move the observation volume up and down along the optical axis by several micrometer in an oscillatory manner with a period of ~6.8 µs (Figure 1—figure supplement 2). In addition to tM and tµ, the TCSPC card stores the lateral positions, x and y, of the galvanometer mirrors for each photon counting event as well as the timing pulse, tTAG, at the beginning of each TAG lens oscillation cycle. From tTAG, the z position is determined by a mapping procedure accounting for the nonlinear axial displacement with time (Figure 1—figure supplement 3). As a consequence, the pixel dwell times vary with the displacement, so that the collected photon events need to be rescaled. Finally, dual-color 3D images can be reconstructed from the arrival times and locations of origin of all photons registered (Figure 1). Because axial scanning is fast, the voxel dwell times are short but can be effectively increased by multiple axial scans in succession at a chosen x-y position.

Figure 1 with 3 supplements see all

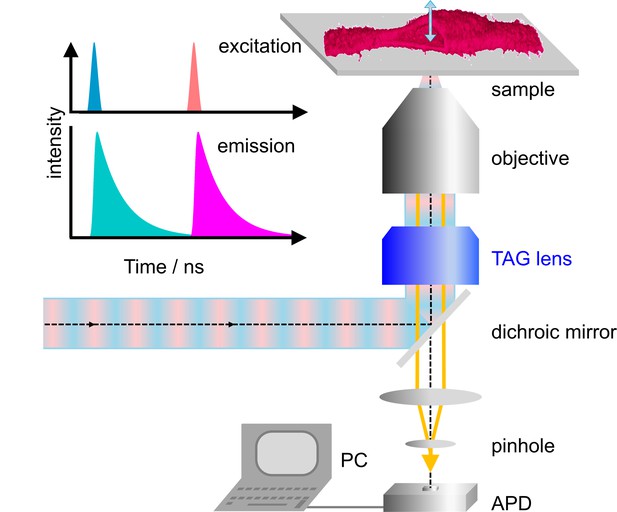

Dual-color confocal microscopy with pulsed interleaved excitation and ultrafast axial scanning with a tunable acoustic gradient index of refraction (TAG) lens.

Shown are a schematic depiction of the microscope and (upper left) the excitation pulse sequence and the ensuing fluorescence emission. The sample cell (shown as a 3D image) is cut open to visualize axial scanning across the top membrane. The 3D image has been merged from four image slices (80 × 80 µm2, 256 × 256 pixels, three scans, each with pixel dwell time 60 µs). APD, avalanche photodiode.

Comparison of axial and lateral lsFCS

We compared the two scanning modes with Atto647N-labeled giant unilamellar vesicles (GUVs) as a simple model system offering excellent SBR (Figure 2a). We took axial lsFCS data by continuously scanning through the top of a GUV for 60 s in an oscillatory fashion (Figure 2b). These data can be visualized as kymographs, displaying the intensity during the axial sweeps along the x-axis and multiple sweeps in succession along the y-axis (Figure 2c). We determine the intensity as a function of time by integrating over the emission signal during each membrane crossing event. From the intensity time trace, we calculate an autocorrelation function, which can be fitted very well with a model function based on a circular observation area in the x-y plane and 2D diffusion within the membrane (Figure 2d),

(1) G(τ)=N1(1+τ/τD)1.
Figure 2 with 1 supplement see all

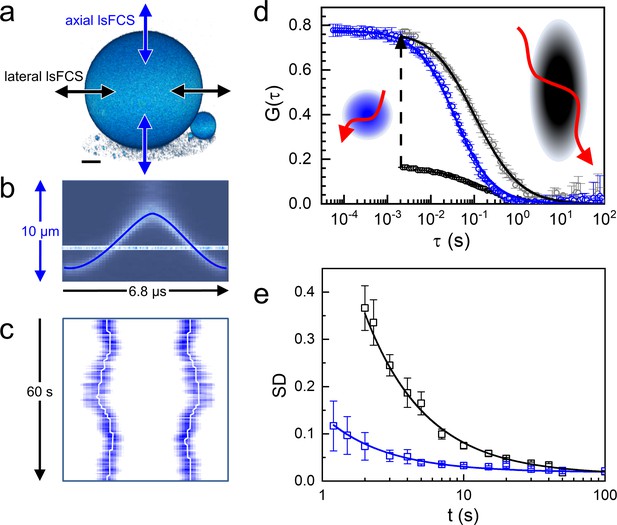

Axial and lateral line-scanning FCS on giant unilamellar vesicles (GUVs) labeled with lipid-bound Atto647N.

(a) 3D image of a GUV (diameter 60 µm), showing the scanning directions of the focus across the membrane in lateral and axial lsFCS; scale bar, 10 µm. (b) Axial focus position during a single oscillation cycle of 6.8 µs. (c) Kymograph, horizontal axis: intensity during axial focus oscillations (averaged over 500 ms), vertical axis: sequence of 500 ms periods during 60 s of axial scanning. Lines mark the membrane positions. (d) Autocorrelation curves for axial (blue) and lateral (black) scanning; points: experimental data; lines: fits with Equations (1) and (2), yielding τD = 36 ± 1 ms with axial scanning and τD = 46 ± 2 ms, S = 4.0 ± 0.3 with lateral scanning, respectively. The lateral lsFCS autocorrelation data have also been scaled to the axial ones (grey) for better comparison. Observation areas on the plasma membrane are depicted schematically in the corresponding colors, possible dye trajectories are shown in red. (e) Standard deviation (SD), calculated for two groups of seven normalized lateral (black) and axial (blue) lsFCS curves, plotted as a function of the overall time of data acquisition. For details, see Materials and methods.

Here, τ is the lag time and τD is the diffusional correlation time. The amplitude of the autocorrelation function, G0, equals the inverse of the average number of fluorescently labeled molecules in the observation area, N, which is the product of the average concentration (i.e. area density), C, and focal area, A, so that N=CA=Cπω02. Here, ω0 is the radial distance over which the intensity in the focal plane decays by a factor of e–2 (for details, see Figure 2—figure supplement 1 and Materials and methods). For lateral line scanning of the focus along the x direction, the resulting Gτ has a much lower time resolution (millisecond scale, Figure 2d) due to the lower speed of galvanometer scanning. Moreover, Gτ decays more slowly than with axial scanning because the observation area in the y-z plane, A=πω0z0, is significantly larger and elongated (Figure 2d, insets) because the axial extension, z0, of a confocal spot is about five times greater than the lateral one. Thus, there are more fluorophores in the observation area on average, resulting in a smaller amplitude, G0, of the autocorrelation function (Figure 2d). Fluorophores reside longer in the observation area and are thus more prone to photobleaching. The corresponding diffusional autocorrelation function,

(2) G(τ)=N1(1+τ/τD)1/2(1+S2τ/τD)1/2,

contains an extra anisotropy parameter, S = ω0/z0, which makes fitting more ambiguous. To conclude, axial lsFCS has several advantages over lateral scanning, resulting in a markedly reduced data acquisition time for comparable data quality (Figure 2e). Notably, an overall shorter measurement is less likely to be spoiled by sample movement, which is unavoidable in experiments on live specimens.

Analysis of fast axial lsFCS on live cells

In live-cell experiments, we survey cultured cells by collecting 3D image stacks to select suitable locations for axial lsFCS (Figure 3a, b). Subsequently, fluorescence intensity time traces are recorded from these spots for typically 60 s in two color channels. Notably, the unavoidable intrinsic background fluorescence of live samples and photobleaching of the markers during the experiment can severely compromise the analysis of FCS data. To cope with these adverse effects, we apply appropriate corrections to the data, which we illustrate with an axial lsFCS experiment on a stably transfected cell expressing LRP6-mCherry, exposed to conditioned medium (CM) containing DKK1-eGFP. The axial lsFCS data are visualized as kymographs, 2D plots of the intensity along the scan line versus time (Figure 4a). From these data, we determine the membrane positions, zMEM1(t) and zMEM2(t) based on the pixels with the highest photon counts (Figure 4a, thick white lines) and compute intensity time traces, IMEM1(t) and IMEM2(t), by integrating each scan over the pixel with the highest photon count and the neighboring two pixels on either side. Finally, the two membrane signals are joined into one raw intensity time trace for each color channel, Irawt. For background determination, we add the intensities of four regions of one pixel each, ~2 µm (10 pixels) to the left and right of zMEM1(t) and zMEM2(t) (Figure 4a, thin white lines). After scaling the background trace to the respective signal trace according to the pixel numbers, we subtract the background from the raw signal trace, I't= Irawt-Ibg(t). In Figure 4b, we have plotted the raw signal intensities, IG,raw(t) and IR,raw(t), and the scaled background intensities, IG,bg(t) and IR,bg(t), in the green and red channels, respectively, during a typical 60-s experiment.

Figure 3 with 9 supplements see all

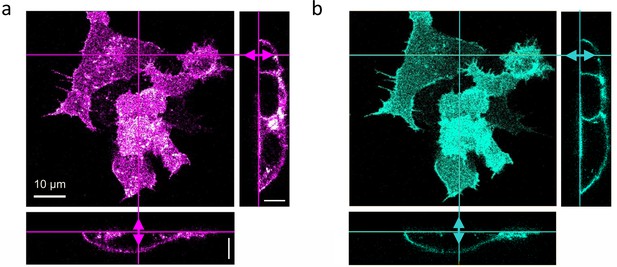

Dual-color confocal image stacks of live HEK293T cells, transiently transfected to express LRP6-mCherry (red-fluorescent) and incubated with CM containing 1 nM DKK1-eGFP (green-fluorescent) for 30 min.

Confocal images of cells were selected from image stacks taken sequentially (to avoid crosstalk) with 561 (3 µW) and 470 nm (5 µW) laser excitation to visualize (a) LRP6-mCherry and (b) DKK1-eGFP. A volume of 65 × 65 × 25 µm3 was scanned with 256 × 256 × 64 pixels (pixel dwell time, 40 µs). Shown are a lateral slice near the glass coverslip and cross-sections along the lines marked in the lateral view. Scale bars, 10 µm.

Figure 4 with 3 supplements see all

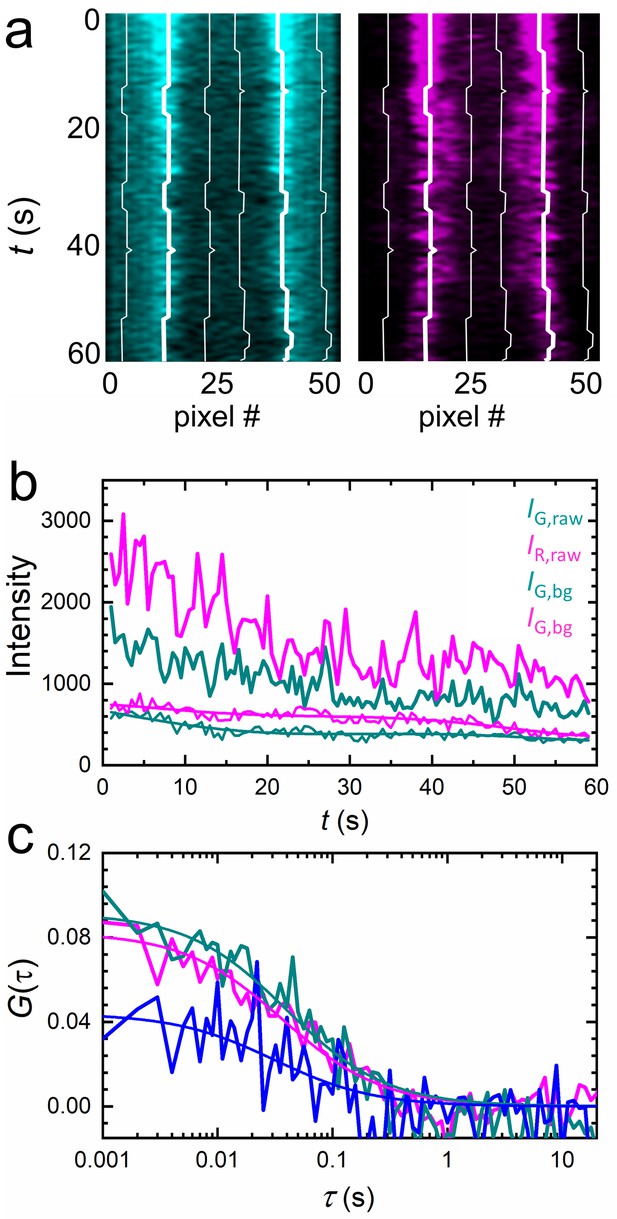

Extraction of correlation functions from axial lsFCS intensity time traces on live NCI-H1703 cells stably transfected with LRP6-mCherry and immersed in CM containing 5 nM DKK1-eGFP.

(a) Kymograph of the membrane scan recorded in the green (ligand, left) and red (receptor, right) color channels, showing the fluorescence from the membrane during 60 s of axial scanning (500 ms binning time). Thick white lines trace the membrane positions. (b) Time traces of the raw ligand (IG,raw) and receptor (IR,raw) intensities from the membrane and the corresponding background, IG,bg and IR,bg, determined ±10 pixels away from the membrane (thin white lines in panel a). Lines through, IG,bg and IR,bg are sums of six sine functions fitted to the data for noise filtering. (c) Autocorrelation (cyan, DKK1-eGFP; magenta, LRP6-mCherry) and cross-correlation (blue) functions after background and photobleaching corrections.

A significant loss of signal is apparent in the intensity time traces, indicating that photobleaching continually removes fluorescent markers from the observation area. We compensate the intensity decrease by calculating I'(0)/I'(t) and fitting this ratio with a smooth function,  γt, which we heuristically model as a sum of six sine functions (Dörlich et al., 2015). Then, we multiply the intensity time trace by this function, It= I'tγ(t). Finally, we calculate intensity autocorrelation functions of the green and red color channels, GCτ (color index C = G, R, respectively), and the cross-correlation function, G×τ

(3) GC(τ)=1γ(t)(IC(t)IC(t+τ)IC(t)21),
(4) G×(τ)=IG(t)IR(t+τ)IG(t)IR(t)1.

The angular brackets denote time averages over the total duration of the experiment. Importantly, the amplitudes of the autocorrelation functions have to be rescaled by γt-1 to correct for the loss of fluorophores due to photobleaching. G×(τ), however, does not require rescaling because photobleaching decreases the numerator and denominator in Equation 4 to equal extents so that the effect cancels. The correlation functions resulting from the single 60-s axial scanning data in Figure 4a, b are plotted in Figure 4c together with fits using the diffusional model correlation function, Equation 1. For illustration purposes, more correlation functions are presented in Figure 4—figure supplement 1. These data were measured under systematic variation of receptor density and ligand concentration. We have also included correlation curves of three sets of control experiments on live HEK293T cells as Figure 4—figure supplement 2. As a negative control, we have co-expressed our LRP6-mCherry receptor with the membrane marker Mem-eGFP. Both molecules diffuse within the plasma membrane but do not interact. Accordingly, the resulting cross-correlation has zero amplitude (Figure 4—figure supplement 2a). As a positive control, we have chosen LRP6-mCherry-eGFP, so that each receptor carries a green and a red fluorescent (or non-fluorescent) protein (Figure 4—figure supplement 2b). As another positive control, we have used LRP6-tdTomato, which can be excited at 470 and 561 nm. This experiment is expected to yield complete cross-correlation of the signals from the two color channels, so that the correlation amplitudes differ only due to the wavelength-dependent observation areas (Figure 4—figure supplement 2c). Experimental details have been included in the figure caption and Materials and methods section.

To achieve a high precision in KD determination, the ligand concentration in the CM has to be carefully measured, for example by solution FCS or spectrometrically (for details, see Materials and methods). We dilute the stock solution with cell culture medium, incubate the cells and perform axial lsFCS experiments for several logarithmically spaced ligand concentrations covering the region around KD. This range can easily be identified in confocal images of cultured cells by determining the ligand concentration above which membrane staining by ligands is clearly visible. If KD values are in the nanomolar range and below, even lower ligand concentrations are required in the CM. Consequently, the kinetics of ligand-receptor formation are slow and sufficient time must be allowed to ensure equilibration before the measurement (Figure 3—figure supplement 1).

Fits of the experimental correlation functions GG(τ), GRτ  and G×(τ) with Equation 1 yield the amplitudes, GG0, GR(0) and G×(0), for each ligand concentration. We then compute the expression,

(5) Γ(CL)=G×(0)2GG(0)GR(0)(CL)=Aβ11+KDCL.

Γ(CL) is the key function in our quantitative analysis and represents simply a scaled equilibrium binding isotherm, F CL=1+KD/CL-1. F CL represents the fraction of ligand-bound receptors, which depends on the ratio between the KD of the ligand-receptor pair and the ligand concentration, CL. The prefactor A depends on the detection areas and is a few percent shy of one for our excitation wavelengths (470 and 561 nm); the ratio between receptors carrying a functional fluorescent domain and all (exogenous or endogenous) receptors capable of specific binding is given by the parameter β. We note that, in Equation 5, we make the (optimistic) assumption that all receptors fused to fluorescent markers are expressed in their functional form, that is that they are competent of binding to their cognate ligand. Likewise, all ligand proteins dispersed in the CM are assumed to be able to recognize the receptor. A derivation and detailed discussion of the validity, assumptions and limitations of Equation 5 are given in Materials and methods. The parameters β and KD are determined by non-linear least-squares fits of Equation 5 to the data. Exemplary data on DKK1-eGFP binding to LRP6-mCherry measured on stably transfected NCI-H1703 cells are shown in Figure 5. In addition to data and fits of Γ(CL) (Figure 5a), we have plotted FCL together with the scaled experimental data (Figure 5c). Figure 5e displays, for all individual 60-s experiments, the photobleaching parameters γt used to correct the autocorrelation functions (Equation 3). In our analyses, we have observed that the function Γ(CL) is very robust against background due to cancellation effects (see Materials and methods). To illustrate this point, we have plotted results for the same experimental data as in Figure 5a but calculated without prior background correction of the intensity time traces (Figure 5b, d, f). Indeed, there is only a small and insignificant change of the resulting KD parameter from 0.08 ± 0.01 nM to 0.10 ± 0.02 nM, with and without background correction, respectively. The entire sequence of data analysis steps including data quality management is summarized in Figure 4—figure supplement 3.

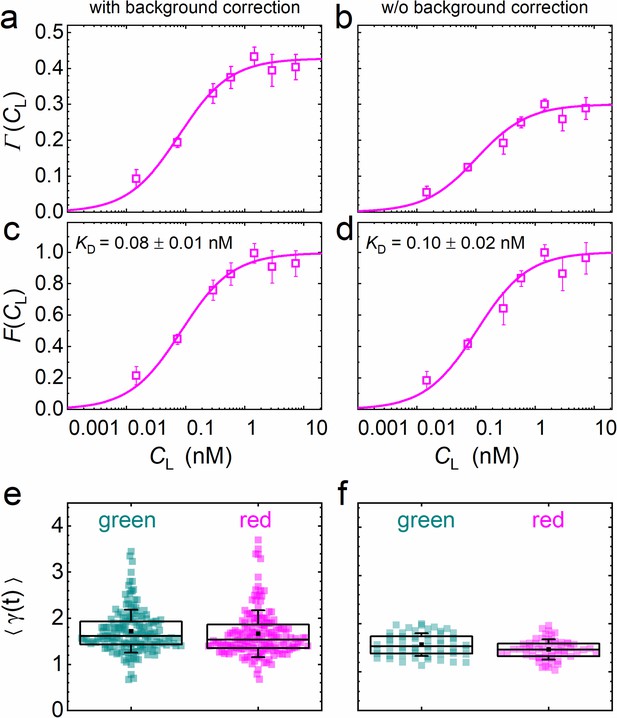

Analysis of the concentration dependence of ligand-receptor binding using axial lsFCS on NCI-H1703 cells stably transfected with LRP6-mCherry and immersed in CM containing DKK1-eGFP in varying concentrations.

Panels on the left and right show the data with and without background correction, respectively. (a, b) Ligand concentration dependence of the function Γ(CL) defined in Equation 5. (c, d) Fractional occupancies, F(CL), of receptors with DKK1 ligands. Symbols: experimental data (mean ± SEM) from five axial scans of 60 s each; lines: fits with Equation 5, yielding the parameters KD = 0.08 ± 0.01 nM and β = 0.44 ± 0.02 with background correction and KD = 0.10 ± 0.02 nM and β = 0.31 ± 0.01 without. (e, f) Parameter ⟨γ(t)⟩ used for photobleaching correction of the autocorrelation functions. Each point represents an individual 60 s scan. Boxes mark the 25–75% range. The median is indicated by the central line, the mean as a black square; whiskers indicate the SD.

DKK1 and DKK2 binding to LRP6-mCherry

To examine the reliability of our axial lsFCS-based analysis for the determination of KD values of ligand-receptor interactions, we studied DKK1-eGFP binding to NCI-H1703 lung cancer cells expressing LRP6-mCherry in widely differing amounts. To this end, we transiently transfected cells with LRP6-mCherry. Moreover, we used a cell line harboring stably integrated LRP6-mCherry and a CRISPR/Cas9 edited cell line expressing endogenously tagged LRP6-mCherry. A detailed characterization of both cell lines is provided in Figure 3—figure supplement 2. HEK293T cells transiently expressing LRP6-mCherry were also included in this comparison. We calculated receptor densities from GR0 and the size of the observation area (Figure 6a). Note that these figures include only receptors carrying a functional (i.e. fluorescent) mCherry tag; the real numbers are roughly a factor of two greater, assuming a chromophore maturation yield of around 0.5 for mCherry (Maeder et al., 2007; Yasuda et al., 2006). In any case, it is evident that the different types of gene insertion yield widely different LRP6-mCherry receptor densities at the cell membrane, ranging from 18 µm–2 for the CRISPR/Cas9 edited cells to ~1000 µm–2 for strongly overexpressing HEK293T cells. As one might expect, the relative scatter of receptor densities is greater for transiently transfected cells than for CRISPR/Cas9 edited and stably transfected cells. The ligand concentration dependencies of the fractional occupancies, FCL, are plotted in Figure 6b; the corresponding Γ(CL) data (Equation 5) are included as Figure 6—figure supplement 1. These data reveal a systematic effect of the expression level on the affinity. We find KD values of 0.08 ± 0.01 and 0.09 ± 0.01 nM for cell lines harboring stably integrated LRP6-mCherry and CRISPR/Cas9 edited cells, whereas three- to fourfold lower affinities are observed for transiently transfected cells. KD values and other parameters from the analysis are compiled in Table 1. For NCI-H1703 cells, the fraction of fluorescent receptors, β, varies widely, from 14% in the CRISPR/Cas9 cells to 47% in the overexpressing cells. On the one hand, β depends on the fraction of endogenously produced (unlabeled) receptors, which are present also in the (haploid) gene edited cells; on the other hand, β depends on the ability of the gene construct and the cell line to produce fully mature, fluorescent fusion proteins. For strongly overexpressing cells, this latter effect is predominant because their endogenous receptor production can be neglected. Accordingly, the β parameter is highest for the transiently overexpressing NCI-H1703 cells. However, a word of caution is in order here. As we discuss in Materials and methods, the amplitude of Γ(CL), which is controlled by β in our model, Equation 5, in fact also decreases with the maturation yield of the ligand marker and in the presence of non-functional receptors carrying a fluorescent label (see Materials and methods). We believe that this latter issue explains the relatively small amplitudes found for HEK293T cells. The diffusion coefficients (DG, DR) calculated from the correlation decay times of GGτ and GRτ  (Table 1) are around 0.3 – 0.4 µm2 s–1. However, their uncertainties are comparatively large, perhaps due to the intrinsic structural heterogeneity of the plasma membrane.

Figure 6 with 3 supplements see all

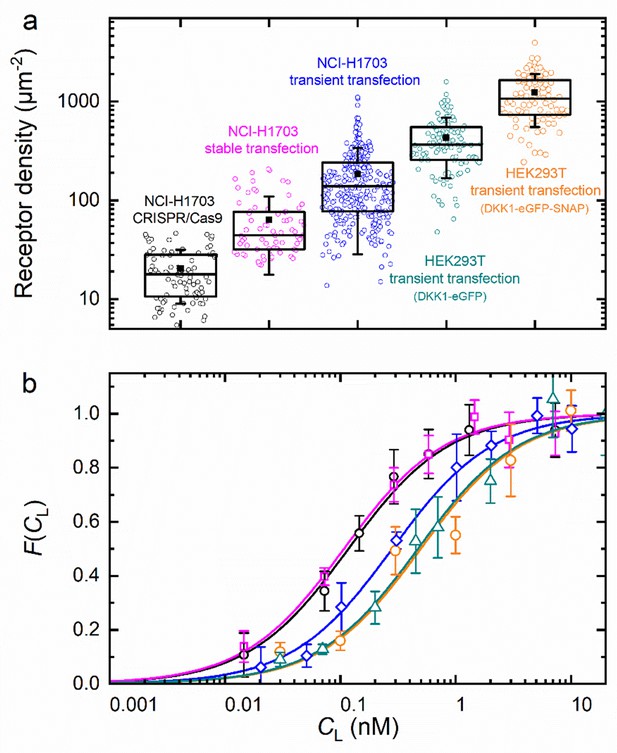

Axial lsFCS on transiently and stably transfected as well as CRISPR/Cas9 gene edited NCI-H1703 cells and transiently transfected HEK293T cells, all expressing LRP6-mCherry on their plasma membranes.

(a) Densities of fluorescently labeled receptors, determined from the autocorrelation amplitudes, GR(0), using ω0 = 0.25 µm. Each data point corresponds to an individual 60-s experiment. Boxes mark the 25 – 75% range; the median is shown as the central line and the mean as a black square. Whiskers indicate the SD. (b) Fractional occupancies, FCL, of receptors with Dkk1-eGFP as a function of the ligand concentration in the CM. Symbols (shapes/colors as in panel a), experimental data (mean ± SEM from at least three axial scans of 60 s each); lines, fits with Equation 5.

Table 1
Parameters obtained from the analysis of axial lsFCS data of DKK1 binding to LRP6-mCherry.
Cell lineHEK293TNCI-H1703
Receptor gene insertionTransient transfectionTransient transfectionStable transfectionCRISPR/Cas9 genome editing
LigandDKK1-eGFPDKK1-eGFP-SNAPDKK1-eGFP
Receptor density (µm‒2) *370 ± 1501080 ± 470140 ± 8045 ± 2318 ± 9
KD (nM)0.49 ± 0.090.46 ± 0.090.22 ± 0.020.08 ± 0.010.09 ± 0.01
β0.13 ± 0.010.15 ± 0.010.47 ± 0.010.44 ± 0.020.14 ± 0.01
DG (µm2 s‒1) 0.44 ± 0.080.40 ± 0.070.45 ± 0.110.29 ± 0.060.33 ± 0.15
DR (µm2 s‒1) 0.46 ± 0.090.45 ± 0.110.42 ± 0.130.27 ± 0.050.33 ± 0.06
⟨γG1.32 ± 0.111.25 ± 0.241.36 ± 0.211.62 ± 0.251.54 ± 0.23
⟨γR1.21 ± 0.081.26 ± 0.131.33 ± 0.161.54 ± 0.251.42 ± 0.29
  1. * Receptor densities are given as median ± half the range covered by the second and third quartile of the distribution. Individual data points were calculated from receptor autocorrelation amplitudes, GR(0), and the observation area (0.20 µm2).

    Diffusion coefficients of receptor-bound ligands and receptors were calculated from the translational diffusion times by using D = ω02/4τ.

  2. The photobleaching parameters ⟨γ⟩ are given as the median value ± half the range covered by the second and third quartile of the distribution compiled from all scans.

In addition, we have examined possible effects of the bulky fluorescent moiety (eGFP) fused to the DKK1 ligand on the strength of the receptor-ligand interaction. To this end, we have attached an additional SNAP-tag domain (19.4 kDa) to the C-terminus of eGFP, which further increases the bulk of the construct but does not change its fluorescence properties. Axial lsFCS experiments were carried out using HEK293T cells transiently overexpressing LRP6-mCherry. Binding of DKK1-eGFP and DKK1-eGFP-SNAP to the receptors yielded essentially identical results (Figure 6 and Table 1), with KD = 0.49 ± 0.09 and 0.46 ± 0.09 nM, respectively, suggesting that the fusion tag perturbs the interaction only in a very minor way.

We have further measured the binding of DKK2-eGFP to LRP6-mCherry in the plasma membrane of stably transfected NCI-H1703 cells (Figure 6—figure supplement 2 and Table 2). DKK2 has been reported to have a lower affinity toward LRP6 than DKK1 (Mao et al., 2001). Indeed, our result, KD = 0.26 ± 0.04 nM, for DKK2 indicates a significantly reduced affinity with respect to DKK1 binding to stably transfected NCI-H1703 cells (KD = 0.08 ± 0.01 nM, Table 1).

Table 2
Parameters obtained from the analysis of axial lsFCS data on NCI-1703 cells.
ReceptorLRP6-mCherryLRP6-tdTomatoLRP6-tdTomatoxKremen2-mCherryxKremen2-
mCherry, LRP6
Receptor gene insertionStable transfectionTransient transfectionCRISPR/Cas9 genome editingTransient transfectionTransient transfection
LigandDKK2-eGFPDKK1-eGFPDKK1-eGFPDKK1-eGFPDKK1-eGFP
Receptor density (µm‒2) *32 ± 16106 ± 5221 ± 1544 ± 3341 ± 30
KD (nM)0.26 ± 0.040.22 ± 0.030.10 ± 0.0210.3 ± 2.10.54 ± 0.06
β0.43 ± 0.020.51 ± 0.020.26 ± 0.010.45 ± 0.020.66 ± 0.03
DG (µm2 s‒1) 0.27 ± 0.080.35 ± 0.190.27 ± 0.190.25 ± 0.150.32 ± 0.18
DR (µm2 s‒1) 0.30 ± 0.070.44 ± 0.340.39 ± 0.190.19 ± 0.080.27 ± 0.09
⟨γG1.22 ± 0.171.31 ± 0.151.47 ± 0.251.36 ± 0.221.30 ± 0.22
⟨γR1.41 ± 0.191.41 ± 0.161.66 ± 0.391.42 ± 0.291.35 ± 0.16
  1. *Receptor densities were calculated from the amplitudes of the receptor autocorrelation functions, GR(0), and the observation area (0.20 µm2).

    Diffusion coefficients of receptor-bound ligands and receptors were calculated from the translational diffusion times by using D = ω02/4τ.

  2. The photobleaching parameters ⟨γ⟩ are given as the median of the distribution from all scans; the errors denote half the width of the second and third quartile of the distribution.

DKK1 binding to LRP6-tdTomato

To test the robustness of our analysis, we have further studied the binding of DKK1 to a fusion protein of LRP6 with a distinctly different fluorescent protein marker, tdTomato, emitting at 581 nm. Unlike monomeric mCherry, tdTomato is a tandem dimeric marker protein and thus twice as large as mCherry. It is 5- to 6-fold brighter than mCherry and, therefore, promises a significantly higher SBR in the red channel. We transiently transfected cells with LRP6-tdTomato and we also developed a CRISPR/Cas9 edited cell line expressing endogenously tagged LRP6-tdTomato. A comparison of endogenously tagged LRP6-mCherry and LRP6-tdTomato expressed in CRISPR/Cas9 edited cells is given in Figure 3—figure supplement 3. As expected, the calculated density of LRP6-tdTomato in CRISPR/Cas9 edited NCI-H1703 cells was much lower than in transiently transfected cells, with medians at 21 ± 15 and 106 ± 52 µm–2, respectively (Figure 6—figure supplement 3a). The ligand concentration dependencies of the Γ(CL) data (Equation 5) and the corresponding fractional occupancies, FCL, are included as Figure 6—figure supplement 3b, c; fit parameters are compiled in Table 2. For LRP6-tdTomato fusion constructs, we obtained KD values of 0.10 ± 0.02 and 0.22 ± 0.03 nM for DKK1 binding to CRISPR/Cas9 gene edited and transiently transfected cells, respectively. These values are identical within the error to those obtained for LRP6-mCherry. We also note that, as in the experiments with the mCherry label, the β parameter is lower for CRISPR/Cas9 edited than for transiently transfected NCI-H1703 cells, in line with the expectation that the fraction of non-fluorescent receptors in the plasma membranes of CRISPR/Cas9 edited cells is larger. Taken together, our results suggest that (i) the larger size of the tdTomato label does not adversely affect DKK1 binding and (ii) we can reliably measure affinities in the subnanomolar range in live cells even with less bright fluorescent protein tags such as mCherry.

Interactions between xKremen2-mCherry, DKK1 and LRP6

Kremen proteins (Kremen1 and 2) are type I transmembrane receptors known to modulate Wnt signaling in two distinctly different ways. They were originally identified as negative regulators of Wnt signaling (Mao et al., 2002; Ellwanger et al., 2008), amplifying DKK-mediated inhibition of Wnt signaling. Formation of a ternary complex of DKK, LRP6 and Kremen was proposed, which is rapidly endocytosed and thereby depletes the Wnt co-receptor LRP6 from the plasma membrane (Mao et al., 2002). In the absence of DKK, however, Kremen proteins have also been reported to enhance Wnt signaling by stabilizing the LRP6 receptor at the plasma membrane via Kremen-LRP6 heterodimer formation (Hassler et al., 2007). We generated (Xenopus laevis) xKremen2-mCherry and xKremen2-eGFP fusion proteins to study Kremen interactions using axial lsFCS. Activity tests confirmed that the presence of mCherry or eGFP appended to the intracellular domain of xKremen2 does not alter its ability to interact with DKK1-eGFP to inhibit Wnt signaling (Mao et al., 2002Figure 3—figure supplement 4).

We measured the strength of the Kremen-DKK1 interaction by incubating NCI-H1703 cells transiently expressing xKremen2-mCherry with CM containing DKK1-eGFP in varying concentrations (Figure 7). A series of dual-color confocal images showed weak staining of the plasma membrane by DKK1-eGFP binding from the CM at 4 nM but bright staining at 15 nM (Figure 7—figure supplement 1a). Consistent with this observation, axial lsFCS yielded a KD value of 10.3 ± 2.1 nM (Figure 7, Figure 7—figure supplement 2, Table 2), which is considerably higher than the previously reported in vitro values of <3 nM for DKK1 binding to mKremen2 (Mao et al., 2002). However, when unlabeled LRP6 was co-expressed together with xKremen2-mCherry, there was pronounced green staining of the plasma membrane by DKK1-eGFP already at ligand concentrations below 1 nM (Figure 7—figure supplement 1b). This effect was not a result of a markedly higher xKremen2-mCherry concentration in the membrane because axial lsFCS revealed an xKremen2-mCherry density of 68 ± 10 µm–2 with and 79 ± 11 µm–2 without LRP6 co-expression, respectively (Figure 7a). Instead, the apparent affinity of DKK1-eGFP toward xKremen2-mCherry was found to increase roughly 20-fold (KD = 0.54 ± 0.06 nM) in the presence of co-expressed, unlabeled LRP6 (Figure 7b). This finding suggests that LRP6, xKremen2 and DKK1 indeed engage in a ternary complex, with DKK1 binding mediated mainly by the receptor with higher affinity, that is LRP6. DKK1 binding within the LRP6-DKK1-xKremen2 complex is not as strong as to LRP6 alone (KD = 0.22 ± 0.02 nM, see Table 1), presumably because the presence of Kremen interferes with the optimal formation of DKK1-LRP6 binding interfaces. We also note that the β parameter, which is normally 0.4–0.5 for transiently transfected NCI-H1703 cells (Tables 1 and 2), is exceptionally high (0.66) in this experiment. We would actually have expected a smaller β, considering that we co-express non-labeled LRP, which can also bind DKK1 and thereby increase the amount of molecules contributing to the intensity of the green channel. We believe that the large β value indicates a fraction of complexes that are not simple ternary complexes but larger ones containing two or more xKremen2-mCherry molecules.

Figure 7 with 3 supplements see all

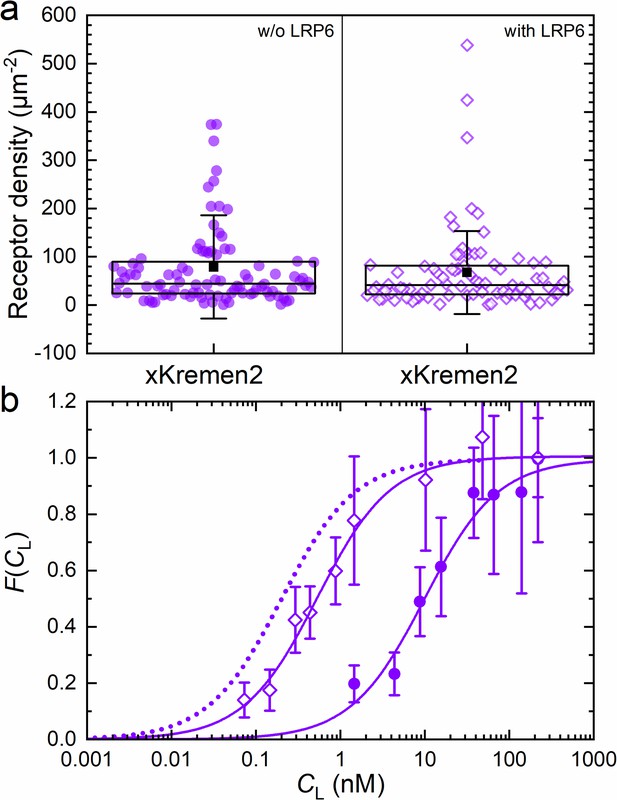

Axial line scanning FCS on transiently transfected NCI-H1703 cells expressing xKremen2-mCherry on the plasma membrane.

(a) Densities of fluorescently labeled receptors, determined from the autocorrelation amplitudes, GR(0), with ω0 = 0.25 µm. Data on the left and right show results without and with LRP6 cotransfection. Each symbol represents data from an individual 60-s experiment. Boxes mark the 25 – 75% range. The median is shown as the central line and the mean as a black square; whiskers indicate the SD. (b) Fractional occupancies, FCL, of receptors with DKK1-eGFP as a function of the ligand concentration in the CM. Open and closed symbols, experimental data (mean ± SEM from at least three axial scans of 60 s each) from cells with and without LRP6 co-transfection, respectively; solid lines, binding isotherms from fits with Equation 5; dotted line, DKK1-eGFP binding curve upon transfection with LRP6 only (for comparison).

The engagement of unlabeled (and thus not visible) LRP6 in the ternary complex was only indirectly inferred from the large change of the apparent binding affinity of DKK1 to xKremen2 upon LRP6 coexpression. Thus, we next aimed to directly observe a LRP6-xKremen2 interaction in the plasma membrane, as earlier suggested (Hassler et al., 2007). To this end, we performed axial lsFCS on a large number of NCI-H1703 cells stably expressing LRP6-mCherry and, in addition, xKremen2-eGFP using transient transfection. The FCS data showed almost exclusively that LRP6 was the less abundant of the two receptor species, in accord with a report by Li et al., 2010 that LRP6 expression is markedly suppressed upon co-transfection of the two receptors. We found that 25 ± 14% of LRP6 receptors co-diffused with the more abundant xKremen2 receptor, that is they were part of a dual-labeled receptor heterodimer; 15 ± 6% of the xKremen2 receptors co-diffused with LRP6 (Figure 7—figure supplement 3).

Discussion

We have developed a fluorescence microscopy-based methodology for the precise quantification of the strength of receptor-ligand interactions on live samples and applied it to the study of receptor-ligand interactions in the Wnt signaling network. In the investigations presented here, we have measured KD values between 0.08 and 10 nM and we estimate that it will be possible to extend this range by about one more order of magnitude, making the method broadly applicable to a wide range of ligand-receptor interactions. Notably, we are not limited to cultured cells but can also study tissue samples or model organisms.

We have equipped our confocal microscope with a TAG lens that allows ultrafast axial scanning of the observation spot. Here we have exploited this capability for dual-color lsFCS experiments to measure local concentrations of ligand-free and ligand-bound receptors residing in the plasma membrane. Axial scanning offers clear advantages over lateral scanning; most importantly, it features a smaller observation area of circular shape on the plasma membrane of cells. As a consequence, the overall data acquisition time can be reduced by about five-fold with respect to lateral scanning for comparable data precision, and the unavoidable changes in cell position and morphology are less likely to compromise the measurements. For the calculation of autocorrelation and cross-correlation functions, we have implemented a data analysis pipeline that corrects for background and photobleaching effects, which is especially important when using fusion constructs with GFP-like proteins for fluorescence labeling. KD values are determined by fitting the ligand concentration dependence of the ratios of cross- and autocorrelation functions according to Equation 5.

Our studies of ligand binding to membrane-bound receptors on living cells have demonstrated that dual-color axial lsFCS in conjunction with our new data analysis is a robust tool to precisely quantify the strengths of ligand-receptor interactions. Data could be collected at receptor densities as low as ca. 20 µm‒2, using, CRISPR/Cas9-edited NCI-H1703 cells expressing endogenously tagged receptors. Wild-type (wt) cells appear to express even lower levels of LRP6 than the endogenously tagged CRISPR/Cas9 edited cells, as judged from comparative western blot analysis. The CRISPR/Cas9 edited cells express the single (heterozygous) targeted allele of LRP6 at higher levels than both LRP6 alleles in wt cells. The endogenously tagged allele of CRISPR/Cas9 edited cells is also expressed at higher levels than the corresponding untagged allele. Possibly, the increased expression of endogenously tagged LRP6 may result from removal and/or displacement of micro-RNA binding sites present in the 3’ untranslated region, which function as negative regulatory elements for LRP6 expression (Zhang et al., 2018; Yang et al., 2019). In accord with a lower expression from the wild-type LRP6 gene locus, we were unable to detect plasma membrane fluorescence on wt cells upon immersion into DKK-eGFP containing CM at saturating DKK concentrations.

In agreement with earlier in-vitro studies (Bafico et al., 2001; Mao et al., 2001; Semënov et al., 2001; Bourhis et al., 2010), we determined subnanomolar equilibrium binding coefficients of eGFP labeled DKK1 and DKK2 ligands binding to LRP6 receptors tagged with mCherry and tdTomato at the C-terminus. The KD values of DKK1-LRP6 binding were found to increase noticeably with increasing apparent receptor density, from 0.08 nM at 20–50 µm‒2 to 0.5 nM at ~1000 µm‒2. Such an affinity modulation could result from receptor-receptor interactions, which become more prevalent at higher density. One may argue, though, that statistical dispersion of LRP6 receptors in the plasma membrane would lead to an average separation between LRP6 receptors of more than 30 nm at a density of 1000 µm–2, which appears too large for direct interactions. However, local LRP6 densities can be much higher if the receptors segregate into nanodomains embedded within our observation area of 0.2 µm2. Unfortunately, direct visualization of LRP6 clustering is precluded by the diffraction-limited resolution of our confocal microscope, but there is ample evidence for such clustering from a range of studies. In canonical Wnt signaling, LRP6 not only binds Wnt in a ternary complex with Frizzled receptors but also triggers formation of multi-protein complexes, signalosomes, as part of Wnt pathway activation. Interestingly, a LRP6 variant lacking the entire ectodomain composed of four 300-residue long, concatenated modules (PE1–4), each containing a YWTD β-propeller and an epidermal growth factor (EGF)-like domain, followed by three LDLR type A modules (LA1–3) of 40 residues each, is constitutively active in the absence of Wnt ligands (Mao et al., 2001; Liu et al., 2003; Brennan et al., 2004; Chen et al., 2014; Ren et al., 2015). Moreover, for a variety of engineered ectodomain variants, the level of signaling activity was found to scale inversely with the size of the ectodomain (Chen et al., 2014). Matoba et al., 2017 argued that there is an intrinsic tendency of the LRP6 transmembrane (TM) domain to oligomerize, leading to spontaneous signaling upon LRP6 overexpression. The curved shape of the bulky ectodomain on the cell surface, which they visualized by negative stain electron microscopy, presumably keeps the TM domains apart and thus counteracts oligomerization and spontaneous signaling. This repulsive effect may be relieved by conformational rearrangements straightening the ectodomain upon formation of LRP6-Wnt-Frizzled complexes (Matoba et al., 2017). By contrast, DKK binding would stabilize the bent form of the ectodomain. Thus, in our experiments, a higher LRP6 expression level could presumably lead to denser packing of the bulky LRP6 ectodomain, giving it less freedom to adopt the curved shape favorable for DKK binding, which then may causes the reduced affinity toward DKK antagonists at higher LRP6 expression levels.

We further quantified the interaction of DKK1 with another transmembrane receptor, xKremen2, known to regulate Wnt signaling (Mao et al., 2002). With NCI-H1703 cells overexpressing xKremen2, the measured KD of ~10 nM was much greater than the one previously reported from in-vitro experiments (Mao et al., 2002). Notably, upon coexpression of unlabeled LRP6, we observed an affinity increase of roughly 20-fold, implying formation of a complex comprising DKK1, LRP6, and xKremen2, with a much higher DKK1 binding strength. The resultant KD of 0.54 ± 0.06 nM is closer to but still not equal to the one measured for DKK1-LRP6 binding alone (KD = 0.22 ± 0.02 nM). These data suggest that the complex is stabilized by DKK1-LRP6 interactions which are reduced if xKremen2 is present, possibly due to steric interference. Notably, strong, synergistic binding of DKK1 to both receptors should lead to a lower KD than for DKK1-LRP6 binding alone. Thus, the DKK1-LRP6-xKremen complex appears to be mainly stabilized by interactions between DKK1-LRP6 and Kremen-LRP6, but not significantly by the weaker DKK1-xKremen2 interaction (KD = 10.3 ± 2.1 nM). This scenario implies a mutual interaction between the two receptors, which was confirmed by axial lsFCS experiments on cells expressing both receptors labeled in different colors, showing a high degree of heterodimer formation.

In conclusion, we have introduced a biophysical method based on lsFCS with fast axial scanning. In combination with a sophisticated correlation analysis pipeline, highly precise KD values can be obtained. Our investigations show that even small changes in KD values can be measured, attesting to the robustness and reliability of the method. However, besides statistical errors, there are always systematic errors that may deteriorate the accuracy of the results. Two sources of such errors, namely (1) incomplete fluorophore maturation in the fluorescent protein tag, and (2) lack of binding competence of a fraction of ligands or receptors, and their effects on the data have been discussed in the Materials and methods section. To achieve a high accuracy, it is of utmost importance to choose a fluorescent protein tag with optimal maturation yield for the ligands. Moreover, the production of CM should be optimized so as to ensure a large fraction of ligand molecules competent of binding to their cognate receptor. Finally, we note that the accuracy hinges on the precise knowledge of the ligand concentration in the CM. This is not at a trivial issue when dealing with highly dilute solutions in the (sub-)nanomolar range. These and other errors can be minimized by careful experimentation and analysis. Consequently, we feel greatly encouraged to investigate further ligand receptor binding reactions in the Wnt signaling pathway using axial lsFCS.

Materials and methods

Microscope setup

Request a detailed protocol

Our home-built microscope (see Figure 1—figure supplement 1 for a schematic) has three picosecond pulsed lasers (L1 – L3) for fluorescence excitation, emitting at 470, 561 nm and 640 nm. They are externally triggered by 40 MHz transistor–transistor logic (TTL) signals. A delay generator introduces a mutual delay of 12.5 ns between two of the three lasers chosen for dual-channel experiments to enable pulsed interleaved excitation (Müller et al., 2005), so that the fluorescence excited by the two lasers can be detected in two separate time windows of 12.5 ns width. The laser beams are coupled into a wideband fiber coupler (WFC) by a mirror (M) and two dichroic mirrors LP1 and LP2. To minimize axial misalignment of the foci, the combined beam is split into three paths via a wavelength division multiplexer (WDM), and further combined using a mirror M and dichroic beamsplitters LP3 and LP4. In each path, the axial focus position of the beam is carefully adjusted by changing the distance between the fiber end and the coupling lens. After reflection by quad-band mirror QB, the excitation light passes through a TAG lens enabling fast axial scanning of the excitation focus, the laser scanner, scan lens (SL), and enters a Leica DMi8 microscope frame (Leica Microsystems, Wetzlar, Germany), in which the beam is collimated by a tube lens (TL) and reflected by a mirror (M) into the vertical direction. A quarter-wave plate generates circular polarization to avoid polarized excitation. The laser beam is finally focused into the sample by a 63×/1.2 NA water immersion objective. For additional, slow scanning in the axial direction, the objective can be moved by a motorized linear actuator with an accuracy of 0.5 nm (M-122, Physik Instrumente, Karlsruhe, Germany) and a piezo actuator (P-720, Physik Instrumente).

The fluorescence emitted by the sample propagates back through QB and is coupled into a multi-mode fiber serving as a pinhole of 1 AU (for 640 nm light). Subsequently, it is separated into two color channels by a 555 nm longpass dichroic mirror LP5, passed through bandpass filters BPF1 and BPF2 and are finally detected by two avalanche photodiodes APD1 and APD2. A TCPSC card (SPC-150, Becker and Hickl GmbH, Berlin, Germany) records, for each photon, its absolute arrival time and its delay time with respect to the 40-MHz laser trigger and, furthermore, the lateral (x, y) positions of the galvanometer scanner as well as the timing signal, tTAG, issued by the TAG lens control unit for z coordinate determination.

Focus size calibration

Request a detailed protocol

Multi-color beads (TetraSpeck microspheres, diameter d = 0.1 µm, Thermo Fisher Scientific, Karlsruhe, Germany) were sparsely immobilized on a chambered glass plate and scanned with the focused 470 nm and 561 nm laser beams (both 5 µW). The emitted light was passed through Brightline bandpass filters (HC 525/50 for green emission, HC 600/37 for red emission, Semrock, Rochester, NY) before detection. In each color channel, ten beads were selected for focus size determination. By analyzing the intensity distributions across their centers and correcting the measured full widths at half maximum (FWHMm) values for the actual size of the beads according to FWHM = (FWHMm2d2)1/2, we obtained FWHM470nm = 242 ± 4 nm (mean ± standard error of the mean (SEM)) and FWHM561nm = 295 ± 9 nm (mean ± SEM). The focus parameter, ω0, which corresponds to the distance over which the intensity decays by a factor of 1/e2, was calculated by using the relation ω0 = (2 ln(2))1/2 FWHM, yielding ω0 = 207 ± 3 nm and 251 ± 8 nm for 470 nm and 561 nm laser excitation (see Figure 2—figure supplement 1).

Dependence of the precision of axial and lateral lsFCS on the duration of the measurement

Request a detailed protocol

The overall data acquisition time needed to obtain a FCS curve with sufficient quality is an important parameter, especially when studying live samples which unavoidably move during the experiment. To address this issue, we have performed 14 axial and lateral line scanning FCS experiments on Atto647N-labeled GUVs, each with a duration of 400 s. From the intensity time traces, 40 individual Gi(τ) curves were calculated, normalized to amplitude 1 and averaged to yield a single G¯(τ). The scatter of an individual curve around the average was quantified by the standard deviation (SD),

(6) SDi=1ττ(Gi(τ)G¯(τ))2.

This calculation was carried out for all 40 curves, and the average and SD were calculated for this ensemble. Subsequently, the procedure was repeated with the same but artificially shortened intensity time traces to generate the data presented in Figure 2e. This graph shows that SD ≈ 0.1 can be reached with axial lsFCS in one-fifth of the time needed with lateral lsFCS.

FCS data acquisition and analysis

Request a detailed protocol

Axial lsFCS data were collected on live cells for 60 s with 470 nm excitation of eGFP at 5 µW (2.8 kW/cm2) and 561 nm excitation of mCherry/tdTomato at 3 µW (1.5 kW/cm2). Cells were kept at 37°C and 5% CO2. Before data collection, the cell culture medium was replaced by 500 µl CM with DKK1-eGFP or DKK2-eGFP concentrations, CL, in the range of 0.01 nM ‒ 220 nM. To ensure that binding equilibrium was reached prior to the axial lsFCS experiment, at CL = 3.5 nM, the cells were incubated for 5 min (see Figure 3—figure supplement 1). For all other ligand concentrations, the incubation times were adjusted by the ratio 3.5 nM/CL, as expected for a bimolecular reaction. At concentrations below 1 nM, the CM was replaced by fresh medium in the middle of the incubation period to compensate for ligand depletion from the CM due to receptor binding or endocytosis.

At each CL, six cells were selected on average for axial lsFCS on both the basal and the top membranes (~50% each). With the TAG lens turned off, the focal volume was centered on the membrane under study. Then, the TAG lens was turned on (at 75% of its maximum amplitude) to scan the focus across the membrane, spanning roughly 5.3 μm in axial direction. Photons were registered by the TCSPC unit and sorted according to their macroscopic and microscopic arrival times to generate intensity time traces in the two color channels used for correlation analysis.

These data were plotted as kymographs, that is 2D plots of the intensity along the scan line (on the x-axis) line by line for the entire scan sequence and, thus, as a function of time (on the –y-axis). Data sets showing pronounced bright features near the membrane (fluorescent clusters) or strongly fluctuating membrane positions were discarded. Furthermore, kymographs were inspected for correct focusing, and if the plasma membrane was not near to the middle of the axial oscillation range, data were also discarded. After correcting the remaining intensity time traces for background and photobleaching, autocorrelation and cross-correlation curves were calculated with Equations 3 and 4, respectively, and fitted with the diffusional model correlation function, Equation 1. Those data sets for which the fit returned markedly deviant correlation times, τD, or different ones for the twocolor channels were discarded. From the amplitudes, GG0, GR0  and G×0, the function Γ(CL) was computed (Equation 5). At least three independent Γ(CL) values were determined and averaged for each particular ligand concentration, CL, plotted as a function of ligand concentration and fitted with Equation 5 by variation of two parameters, KD and β (see below). The entire sequence of data analysis steps including data quality management is shown diagrammatically in Figure 4—figure supplement 3.

To ensure proper functioning of the axial lsFCS apparatus and the analysis, we frequently performed control experiments with samples designed to give a sizeable (or complete) cross-correlation or none at all. Examples are shown in Figure 4—figure supplement 2.

Determination of KD from ligand concentration-dependent dual-color axial lsFCS

Request a detailed protocol

To measure the equilibrium dissociation coefficient of a ligand-receptor pair, we take axial lsFCS data over a wide range of free ligand concentrations on cells expressing the receptor. In the following, we assume that all receptors on the cell surface are capable of binding their cognate ligand, and that the ligands in turn are all competent of binding to their cognate receptor. We further assume that the ligands are labeled with fluorescent proteins emitting in the green channel and have a fluorophore maturation yield, η=CL/ (CL+Cl)=1, with CL,Cl denoting ligands carrying a functional (fluorescent) and non-functional (dark) marker protein, respectively. The extension to η<1 is straightforward and will be discussed below. By using regular solution FCS, we can precisely determine CL of the CM stock solution, from which a dilution series with a range of ligand concentrations is generated. Ligands in the medium bind to receptors on the cell membrane to form ligand-receptor complexes, which are present at concentrations (area densities) CRL (receptor fluorescent) and CrL (receptor nonfluorescent). Note that receptors may be nonfluorescent because the cells endogeneously produce (non-fluorescent) receptors, or the fluorescent moeity of the fusion protein did not mature to its functional form. Furthermore, depending on the ratio of KD and CL, there will be a smaller or larger fraction of fluorescently labeled receptors at a concentration, CR, that do not have a ligand bound.

For the analysis, it is important that fast 3D diffusion of the ligand in the medium and much slower 2D diffusion of the ligand in ligand-receptor complexes in the membrane are well separated in time. Thus, only slow 2D diffusion with characteristic times of milliseconds needs to be considered. Two autocorrelation functions, GGτ and GRτ, and one cross-correlation function, G×τ, can be calculated from our dual-color axial lsFCS data and modeled as

(7) GG(τ)=1AG(CrL+CRL)2(CrL+CRL)(1+4DRLτωG2)1,
(8) GR(τ)=1AR(CR+CRL)2(CR(1+4DRτωR2)1 +CRL(1+4DRLτωR2)1),
(9) G×(τ)=1Aeff(CR+CRL)(CrL+CRL)CRL(1+4DRLτωeff2)1.

Here, AG=πωG2 and AR=πωR2  are the confocal observation areas of the green and red color channels, respectively; Aeff=πωeff2 is the effective area in the dual-color experiment, with ωeff2=ωG2+ωR2/2. The diffusional correlation times of the different species are introduced as τD=ωG/R2/4D.

For KD determination, we are only interested in the concentrations of the different species and, thus, the amplitudes of the correlation functions at τ = 0. We calculate the ratios

(10) G×(0)GG(0)=AGAeffCRL(CR+CRL),
(11) G×(0)GR(0)=ARAeffCRL(CrL+CRL),

and multiply both equations to obtain

(12) G×(0)2GG(0)GR(0)=AGARAeff2CRL(CR+CRL)CRL(CrL+CRL).

In Equation 12, the observation areas appear in the form of the squared ratio of the geometric and arithmetic means, A=(AGAR)/Aeff2, which equals 0.967 for the observation areas of our dual-color FCS experiments with 470 and 561 nm laser excitation. In general, this parameter is just a few percent shy of one for realistic observation areas in a dual-color experiment. Thus, the geometric differences between the two color channels almost cancel if we ensure perfect overlap between the observation areas for the two colors. Notably, in lateral lsFCS and 3D FCS dual-color cross-correlation measurements, optimal overlap of the observation areas and volumes, respectively, is more difficult to achieve because of mutual displacements along the axial direction. This problem is completely absent in axial line-scanning FCS due to its intrinsic axial self-alignment.

We introduce the equilibrium dissociation coefficient, KD=CRCL/CRL, and rearrange Equation 12 to read

Γ(CL)=G×(0)2GG(0)GR(0)(CL)=Aβ11+KDCL.

Γ(CL) takes the form of a binding isotherm, multiplied by a scaling factor which includes, apart from the geometric parameter A, the maturation yield of the red fluorophores marking the receptor, β=CRL/CrL+CRL. Thus, the amplitude of Γ(CL) for CL yields an estimate of this value. Notably, incomplete fluorophore maturation of the receptor tag affects only the amplitude of the binding isotherm but not the KD value.

Up to this point, we have assumed that the maturation yield of the fluorescent protein marking the ligand is one. How does Equation 5 change upon generalization to η<1? In this case, the autocorrelation amplitude of the red channel, GR(0), is not only governed by ligand-free receptors but also those having a dark ligand bound. Then, KD in Equation 5 is not equal to CRCL/CRL but rather

(13) (CR+CRl)CLCRL=KD+CRlCRLCL=KD+(1η)ηCL.

Substituting KD in Equation 5 by the right-hand side of Equation 13 yields

(14) Γ(CL)=Aβη11+ηKDCL.

Equation 14 reveals that incomplete maturation of the ligand marker affects the binding curve in two ways: η becomes part of the overall scaling factor of the binding curve (y-axis) and decreases its amplitude. More importantly, in contrast to fluorophore maturation effects of the receptor tags, η also affects the location of the binding step along the CL coordinate (x-axis); the midpoint of the binding isotherm is at CL=ηKD and not at KD. Alternatively, one can view this modification as a redefinition of the x-axis to represent the total ligand concentration, CL+ Cl=CL/η. Thus, the presence of dark ligand markers affects the KD values. We note that maturation yields are difficult to determine, and are by no means characteristic parameters of the chosen fluorescent marker proteins. They generally vary with the conditions of the experiment including the nature of the expression system, expression temperature and yield, and details of the design of the fusion construct carrying the marker. To minimize this source of systematic error, we have chosen eGFP, a protein for which high maturation yields (80 – 100%) have been reported (Foo et al., 2012b; Komatsubara et al., 2019; Sniegowski et al., 2005; Ulbrich and Isacoff, 2007).

In addition to incomplete fluorescence marker maturation, there is another source of systematic error relevant to most methods of affinity measurement (with the exception of single molecule-based experiments, for example by Manz et al., 2017). A fraction of receptors on the plasma membrane as well as a fraction of ligands in the CM may be incompetent of binding, for example due to improper folding. Unlike the degree of fluorophore maturation, which can at least be estimated, quantification of the functional fraction is a formidable task. How does this problem affect the results of our axial lsFCS experiments? Let us start with the effect of non-binding ligands present in the CM. In this case, their concentration will be less than the one anticipated from the FCS amplitudes or from any spectroscopic method capable of concentration determination. Accordingly, we have to rescale the CL axis of our binding curves to represent only the functional ligand fraction, which leads to real KD values that are smaller than the apparent ones, that is when assuming 100% binding-competent ligands. The effect of binding-incompetent receptors being present is a little more involved and we only sketch the consequences here. We have to include an additional species, non-functional receptors, CR†, in GRτ in Equation 8. If we then calculate Γ(CL), yet another scaling factor appears in the amplitude of the binding isotherm, which represents the fraction of functional receptors, ρ=(CR+CRL)/(CR+CR+CRL). Importantly, in analogy to the case of incomplete fluorophore maturation of the receptor tag, the presence of receptors incapable of ligand binding only modifies the amplitude of the binding curve but has no effect on KD.

Throughout this work, we have used Equation 5 for our data analysis. The parameters β and KD were determined by non-linear least-squares fits of Γ(CL) to the experimental data. If the maturation yield of the ligand marker is known, one may choose Equation 14 or simply replace KD obtained from fitting with Equation 5 with KD/ η to correct for incomplete maturation of the ligand tag. Likewise, if the functional fractions are known, one can take them into acount as described above.

Finally, without going into detail, we note that the combination of correlation functions through which Γ(CL) is defined not only leads to rather simple expressions for the analysis of KD but also has the beneficial property that background contributions are largely cancelled even if explicit background correction of the intensity time traces is omitted (Figure 5). We refer interested readers to papers that discuss correction factors for pair correlation function amplitudes due to uncorrelated background (Weidemann et al., 2002; Foo, 2012a). From the equations presented in these papers, it can be easily verified that the correction factors indeed cancel in the calculation of Γ(CL).

Analysis of LRP6-xKremen2 heterodimer formation using dual-color axial lsFCS

Request a detailed protocol

To estimate the fraction of LRP6 molecules bound to xKremen2, we took axial lsFCS data on stably LRP6-mCherry expressing NCI-H1703 cells that were co-transfected with the xKremen2-eGFP plasmid. Importantly, background expression of endogenous (unlabeled) Kremen and LRP6 is negligible in NCI-H1703 cells. In the following analysis, we refer to xKremen2-eGFP as receptor G (emissive green form) or g (non-emissive green form) and, accordingly, to LRP6-mCherry as receptor R (emissive red form) or r (non-emissive red form). These species may be present in the plasma membrane either as monomers or as four different heterodimer species, GR, gr, gR and Gr. The amplitudes of the relevant pair correlation functions are given by

(15) GG(0)=1AG(CGR+CG+CGr)=1AG(ηR1CGR+CG),
(16) GR(0)=1AR(CGR+CR+CgR)=1AR(ηG1CGR+CR),
(17) G×(0)=CGRAeff(CGR+CR+CgR)(CGR+CG+CGr)=CGRAeff(ηG1CGR+CR)(ηR1CGR+CG).

Here we have introduced the maturation yields, ηG=CG/ (CG+Cg) and  ηR=CR/ (CR+Cr), that is the fractions of eGFP and mCherry proteins, respectively, carrying a functional fluorophore. The observation area-weighted ratios of cross- and autocorrelation functions, FR' and FG', are given by the following expressions,

(18) FR=AeffAGG×(0)GG(0)=CGRηG1CGR+CR  FR=CGRCGR+CR=1FR 1+(1ηG1),
(19) FG=AeffARG×(0)GR(0)=CGRηR1CGR+CG  FG=CGRCGR+CG=1FG 1+(1ηR1),

with Aeff/AG = 1.23 and Aeff/AR = 0.84 under our experimental conditions. FR' and FG' correspond to bound fractions only for 100% fluorophore maturation but, as shown above, allow one to calculate the true bound fractions, FR and FG, provided that the maturation yields are known. According to Equations 18 and 19, the experimentally determined average FR'= 0.25  (Figure 7—figure supplement 3) corresponds to a bound fraction of LRP6 receptors, FR= 0.26, assuming ηG=0.9 for eGFP. Lower maturation yields result in larger relative corrections. Thus, the experimentally determined average FG'= 0.15 yields FG= 0.18, assuming ηR=0.5 for mCherry.

Giant unilamellar vesicles

Request a detailed protocol

GUVs were prepared according to the protocol by García-Sáez et al., 2010 using a lipid mixture consisting of 50 mol% sphingomyelin (SM, Sigma-Aldrich, Darmstadt, Germany), 49.999 mol% cholesterol (Sigma-Aldrich) and 0.001 mol% 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine (DPPE) labeled with Atto 647N (Sigma-Aldrich).

Plasmids

pCS2+hLRP6-tdTomato was generated by replacing the mCherry open reading frame (ORF) of pCS2+hLRP6-mCherry (Dörlich et al., 2015) with the ORF of tdTomato, using the XbaI and SnaBI restriction sites. For the cell line stably expressing LRP6-mCherry, the ORF of the hLRP6-mCherry fusion was inserted between the NheI/NotI restriction sites of the pEF1a-IRES-Neo plasmid (a gift from Thomas Zwaka, Addgene plasmid # 28019) to create pEF1a-hLRP6-mCherry-IRES-Neo. pCS2+V5-xKremen2-mCherry was generated by replacing the hLRP6 ORF of pCS2+hLRP6-mCherry with the ORF of xKremen2 using NEBuilderHiFi DNA Assembly (New England Biolabs E2621S). pCS2+hDKK1-eGFP and pCS2+hDKK2-eGFP were described previously (Krupnik et al., 1999; Brott and Sokol, 2002; Dörlich et al., 2015). pCS2+hDKK1-eGFP-SNAP was generated from pCS2+hDKK1-eGFP by adding 36 bases (GGTTCAGCAGGTTCTGCAGCAGGTTCTGGAGAGTTC) coding for a 12-amino acid linker (GSAGSAAGSGEF) and the gene of the SNAP-tag domain (a kind gift from Professor Nils Johnsson, University of Ulm, Germany) using the NEBuilderHiFi DNA Assembly kit (New England Biolabs). The pCS2+hLRP6-mCherry-eGFP construct was built in an analogous fashion, using the eGFP instead of the SNAP-tag gene.

Generation of cell lines stably expressing fluorescently tagged LRP6

Request a detailed protocol

NCI-H1703 cells were transfected with 2 µg pEF1a-hLRP6-mCherry-IRES-Neo in six-well plates using ScreenFectA (ScreenFect GmbH, Eggenstein, Germany) according to the manufacturer’s one-step protocol. 24 hr post-transfection, the medium was exchanged, and 48 hr post-transfection one tenth of the cells were transferred to 10 cm2 dishes and cultured in RPMI 1640 supplemented with 700 µg/ml G418 (Sigma-Aldrich). Selection was performed for 12 d. Clonal lines were obtained by limited dilutions in 96-well plates.

Generation of CRISPR/Cas9 cell lines expressing fluorescently tagged LRP6

Request a detailed protocol

The human LRP6 locus was targeted within exon 23 for C-terminal endogenous tagging with a fluorescent protein (see Figure 3—figure supplement 5). Using the E-CRISP online tool (Heigwer et al., 2014), we identified a 20 bp protospacer (5’-ACGTTGGAGGCAGTCAGAGG-3’) followed on the 3’ end by a NGG PAM (protospacer adjacent motif) downstream of the LRP6 stop codon, in exon 23. DNA oligonucleotides were designed and annealed to generate the following short double-stranded DNA fragment containing the 20 bp protospacer, an additional guanine nucleotide at the 5’end that increases targeting efficiency (Cong et al., 2013) and 4 bp overhangs suitable for ligation into a BbsI restiction site (Figure 3—figure supplement 6). This short double-stranded DNA fragment was ligated into the BbsI restriction site of the pX330-U6-Chimeric_BB-CBh-hSpCas9 (D10) vector (Cong et al., 2013), generating a plasmid encoding a single guide RNA (sgRNA) harboring the LRP6 specific 20 bp protospacer under the control of a U6 RNA Polymerase III promotor.

The PCR2.1-PITX-eGFP-PGK-Puro vector (Hockemeyer et al., 2011) was used as a template to create the PCR2.1-hLRP6-mCherry-PGK-Puro and PCR2.1-hLRP6-tdTomato-PGK-Puro donor vectors. DNA sequences of ~700 bp for the left and the right homology arms (LHA, RHA) of LRP6 were PCR-amplified from genomic DNA using the primer pairs:

  • LHA-F 5’-AAACCTGCAGGCCCATTCTTCCCATGGG-3’,

  • LHA-R 5’-AAAGCTAGCGGAGGAGTCTGTACAGGG-3’; and

  • RHA-F 5’-AAAGGCGCGCCTGAGGAGGGGCCCTCCTC-3’,

  • RHA-R 5’-AAAGGCCGGCCCAGAGACTTGCACACACACACAGC-3’.

The homology arm PCR products were cloned into the PCR2.1 donor vector using the SBfI/NheI (LHA) or AscI/FseI (RHA) restriction sites. The PCR amplified mCherry and tdTomato ORFs were cloned into the PCR2.1 donor vector using the NheI/EcoRI restriction sites. For the LRP6-mCherry donor vector, complementary single strand oligonucleotides bearing a 12-amino acid linker (ASTLEASLERAS) were annealed and cloned into the NheI digested vector between LHA and mCherry. For the LRP6-tdTomato donor, the NheI restiction site (AS) served as a linker between LRP6 and tdTomato. In order to protect the donor vector from cleavage by the Cas9 nuclease, a silent mutation within the PAM site of the right homology arm of LRP6 was introduced using the QuickChange Lightning Site-directed Mutagenesis Kit (Agilent Technologies, Waldbronn, Germany).

To establish a cell line expressing endogenously tagged LRP6, NCI-H1703 cells cultured in 6-well plates were transfected with 1 µg donor plasmid and 1 µg CRIPSPR/Cas9 plasmid using ScreenFectA (ScreenFect GmbH) according to the manufacturer’s 1-step protocol. 24 hr post-transfection the medium was exchanged. 48 hr post-transfection, one tenth of the cells were transferred to 10 cm2 dishes and cultured in medium supplemented with 2 µg/ml puromycin (Sigma-Aldrich). After 5 days of selection, single cells were transferred to 96-well plates using limited dilutions to amplify the clonal lines. Initial screening of these cell lines for edited LRP6 using SDS-PAGE and western blot indicated a CRISPR/Cas9 targeting efficiency of 57%. Genomic DNA from promising candidate cell lines was sent for sequencing (Microsynth AG, Balgach, Switzerland). The results indicated that only heterozygous clones were obtained. siRNA gene knock-down experiments confirmed the heterozygous nature of the cells (Figure 3—figure supplement 7). For the CRISPR/Cas9 edited cells used in this work, we confirmed that the fluorescently tagged LRP6 receptors were properly localized at the cell surface (Figure 3—figure supplement 3b and Figure 3—figure supplement 8b) and underwent Wnt-dependent post-translational modification similar to wt receptors (Figure 3—figure supplement 8a). The CRISPR/Cas9 edited cells were also tested for their ability to activate and inhibit Wnt/β-catenin pathway signaling in response to Wnt and Dkk ligand stimulation, respectively (Figure 3—figure supplement 2c and Figure 3—figure supplement 8a).

Cell culture and transient transfection

Request a detailed protocol

An 8-well Nunc Lab-Tek chambered cover glass (Thermo Fisher Scientific, Waltham, USA) was coated with fibronectin (Sigma-Aldrich, St. Louis, MO) to ensure efficient adhesion of the cells. To this end, each well was incubated with 200 µl fibronectin (50 µg/ml, diluted in Dulbecco’s phosphate buffered saline (DPBS, no calcium, no magnesium, Sigma Aldrich)) for at least 1 hr at room temperature. Afterwards, the solution was removed by aspiration, and the chamber was allowed to dry. Fibronectin coated chambers were either used directly or stored for a maximum of 1 ‒ 2 weeks at 4°C. Before use, the fibronectin-coated wells were washed with DPBS. Stably transfected or CRISPR/Cas9 gene-edited cells were seeded in the pretreated wells; cell experiments were performed on the next day. Wt cells were allowed to attach for at least 1 hr before transient transfection. They were investigated 23 ‒ 36 hr after transfection to ensure comparable results.

Human embryonic kidney 293T (HEK293T) cells (DSMZ ACC-635) were cultured in Dulbecco's Modified Eagle Medium (DMEM, Thermo Fisher, Waltham, MA) supplemented with 10% fetal bovine serum (FBS, Thermo Fisher) and 1% penicillin/streptomycin (P/S; Thermo Fisher). NCI-H1703 human lung carcinoma cells (ATCC CRL-5889) were cultured in RPMI 1640 medium (Thermo Fisher) supplemented with 10% FBS and 1 mM sodium pyruvate (Thermo Fisher). Both cell lines were maintained at 37°C and 5% CO2. Expi293F suspension cells (Thermo Fisher A14527) were cultured in Expi293 Expression Medium (Thermo Fisher) at 37°C and 8% CO2 with 125 rpm orbital shaking. All cell lines tested negative for mycoplasma.

HEK293T wt and NCI-H1703 wt cells were transfected with 1 ‒ 2 µg DNA per well at a 1:6 ratio of MesD:hLRP6-Fluorophore using Xfect (TaKaRa Clontech, Mountain View, CA) according to the manufacturer's protocol. Six hours after transfection, the medium was exchanged with fresh cell culture medium supplemented with 10% FBS and 1 mM sodium pyruvate. For co-expression of LRP6 and xKremen2-eGFP in NCI-H1703 cells, transfections were performed sequentially. First, cells were transfected with 1500 ng LRP6 plasmid and 5 hr later, the same cells were transfected with 400–500 ng xKremen2 plasmid. After 2.5 hr, the medium was completely exchanged and the cells were cultured overnight.

Preparation of Conditioned Medium (CM)

Request a detailed protocol

HEK 293F suspension cells in Expi293 Expression Medium (30 ml, 2.5 × 106 cells/ml) were transfected with 30 µg pCS2+human-DKK1/2-eGFP plasmid using ScreenFectUP-293 + Booster (ScreenFect GmbH) according to the manufacturer's instruction. DKK1-eGFP CM was collected 96 hr post-transfection. TOPFLASH Wnt reporter assays and western blot analysis confirmed both the integrity and activity of the DKK-eGFP fusion proteins produced from suspension cell cultures (Figure 3—figure supplement 9). For experiments using NCI-H1703 cells, the harvested cell culture medium was concentrated 30-fold using Amicon 10 kDa ultra filters (Merck KGaA, Darmstadt, Germany) and reconstituted to the same volume with fresh RPMI containing 10% FBS. For experiments with HEK293T cells, the same procedure was followed using DMEM instead of RPMI medium. The CM was sterilized using a 0.22 µm filter and stored at 4°C. DKK2-eGFP CM was prepared using the same protocol but reconstituted to only half the original volume. Mouse Wnt3a CM was prepared from mouse L cells stably transfected with mouse Wnt3a (ATCC CRL-2647). Control CM was prepared from non-transfected L cells (ATCC CRL-2648). Cells were maintained at 37°C and 5% CO2.

DKK1-eGFP concentration in the CM

Request a detailed protocol

The ligand concentration in the CM needs to be measured as precisely as possible because it determines the scaling of the x-axis of the binding curves. Thus, any error in this quantity will directly affect the measured KD values. In this work, we have routinely measured the ligand concentration in CM with solution FCS using PEG-coated sample chambers to minimize errors due to protein adsorption. To examine the reliability of these concentration determinations by independent means, we developed a protocol based on optical absorption and fluorescence spectrometry. A solution of purified eGFP was prepared to serve as a reference; its concentration was determined with an absorption spectrometer (Cary 100, Agilent Technologies, Santa Clara, CA). Next, the eGFP stock solution was diluted in three steps, each time roughly by a factor of ten, to a final concentration of a few ten nanomolar, similar to the ligand concentration of the CM. To measure the dilution factors as precisely as possible, emission spectra were taken with a Fluorolog-3 spectrofluorometer (HORIBA Jobin Yvon, Edison, NJ) before and after each dilution step (with identical spectrometer settings) to account for pipetting errors and protein loss due to adsorption onto the quartz cuvette surfaces. Then, emission spectra of DKK1-eGFP CM and control CM (without DKK1-eGFP) were taken. Finally, the emission spectrum of DKK1-eGFP CM was quantitatively decomposed into eGFP and background fluorescence spectra by using the spectra of purified eGFP and control CM. This procedure yielded results identical to those from solution FCS.

siRNA transfection

Request a detailed protocol

siRNAs targeting the fluorescently tagged LRP6 mRNA were designed using the Dharmacon ‘siDesign’ center. They were obtained from Dharmacon (Horizon Discovery group, Cambridge, UK) and have the following sequences: mCherry, CCUACAACGUCAACAUCAAUU; tdTomato, UCAAAGAGUUCAUGCGCUUUU (MQ-003845–03, siGENOME LRP6 siRNA set of 4 and D-001210–03, siGENOME Non-Targeting siRNA #3). siRNA transfection was performed by using ScreenFectA (ScreenFect GmbH, Eggenstein, Germany) according to the manufacturer’s protocol.

Western blot analysis

Request a detailed protocol

Expression of fluorescently tagged proteins was verified by SDS-PAGE/western blot analysis (see Figure 3—figure supplement 2, Figure 3—figure supplement 3, Figure 3—figure supplement 4, Figure 3—figure supplement 7, Figure 3—figure supplement 8, Figure 3—figure supplement 9). For western blot analysis of LRP6 expressed in CRISPR/Cas9 edited, stably transfected and corresponding wt cells, 60 μl control or Wnt3a CM was added to the cells cultured in 96-well plates. After overnight incubation, cells were lysed in 1% Triton lysis buffer (1% Triton X-100, 50 mM Tris-HCl (pH 7.0), 150 mM NaCl, 25 mM NaF, 5 mM Na3VO4, 0,1% NP-40, 1 mM EDTA) containing Complete protease inhibitor cocktail (Roche, Basel, Switzerland). After 15 min incubation on ice, cell lysates were centrifuged at 10,000 × g at 4°C for 10 min and supernatants were taken.

For membrane protein extraction, adherent cells from confluent 10 cm2 dishes were detached with 2 ml low-salt buffer (5 mM HEPES (pH 7.0), 1 mM MgCl2, 10 mM NaF, 5 mM Na3VO4) containing Complete protease inhibitor cocktail (Roche, Basel, Switzerland). Detached cells were transferred to a pre-cooled dounce tissue grinder and cell membranes were disrupted using 50 rapid strokes on ice. Lysates were centrifuged at 20,000 × g for 30 min at 4°C to pellet the membranes, which were dissolved in 200 µl 1% Triton lysis buffer.

For western blot analysis of DKK1/2-eGFP, 10 µl of the original, serum-free DKK2-eGFP CM and 0.33 µl of the DKK1-eGFP CM were heat-denatured in Laemmli sample buffer and separated by SDS-PAGE before transfer to a PVDF membrane using a Bio-Rad Transblot-Turbo system (Bio-Rad, Hercules, CA). Membranes were blocked at room temperature for 1 hr in 5% BSA – TBST blocking buffer (5% BSA, 137 mM NaCl, 2,7 mM KCl, 19 mM Tris base (pH 7.4), 0.1% Tween-20) and transferred to a BioLane HTI automated western blot processor for antibody incubation and washing steps. The following antibodies were used: anti-total-LRP6 ([1C10], 1:1000, Abcam, Cambridge, UK), anti-phospho-LRP6 (Sp1490, 1:1000, Cell Signaling, Frankfurt am Main, Germany), anti-mCherry (ab183628, 1:2500, Abcam), anti-GFP (Ab1828,1:2000, Abcam), anti-Vinculin (E1E9V, 1:1000, Cell Signaling), anti-Transferrin receptor (#136800, 1:10,000, Thermo Fisher) and HRP-conjugated anti-rabbit or anti-mouse secondary antibodies (Dako Denmark A/S, Glostrup, Denmark). For semi-quantitative detection of protein bands, the membranes were incubated with ECL Prime (GE-Healthcare, Freiburg, Germany) and imaged using a ChemiDoc Touch Imaging System (Bio-Rad).

Cell surface biotinylation

Request a detailed protocol

To compare the levels of LRP6 localized on the plasma membrane of wt and CRISPR/Cas9 edited NCI-H1703 cells, cell surface biotinylation assays were performed. 1.2 × 106 cells were seeded in a 6-well plate and, after 24 hr, treated with control CM, DKK1-eGFP CM, or mWnt3a CM for 2 hr. After washing the cells three times with ice-cold PBS (pH 8.0), 1 ml of a freshly prepared biotin solution (EZ-Link Sulfo-NHS-SS-biotin 5 (Thermo Fisher, Cat. No.21328), 5 mg/ml stock solution in ultrapure water, diluted in PBS to a final concentration of 0.5 mg/ml) was added to each well. The 6-well plate was gently shaken for 1.5 hr on ice. Cells were washed with quenching buffer (35 mM Tris buffer, pH 8.0) to remove un-reacted biotin and washed twice with ice-cold PBS (pH 8.0). Cells were lysed in 300 µl 1% Triton lysis buffer and centrifuged at 10,000 × g at 4°C for 5 min. 30 µl of the resulting supernatant was removed for ‘input’ analysis. The remaining 250 µl of supernatant was mixed with 50 µl of a 50% NeutrAvidin agarose slurry (Pierce, Cat. No. 29200) and gently shaken overnight at 4°C. Samples were then centrifuged at 500 × g for 1 min and the supernatants collected as ‘flow through’. The pelleted beads were washed four times with TBST buffer (Tris-buffered saline with Tween20), then heated to 98°C in Laemmli buffer for 5 min before centrifugation at 10,600 × g for 5 min. Supernatants were collected as’ biotin labeled protein’ samples. All samples were processed for western blot analysis as described below.

Luciferase reporter assays

Request a detailed protocol

To test the biological activity of the fluorescently tagged LRP6 fusion proteins, 5.5 × 104 cells cultured in 96-well plates were transfected with 20 ng TCF firefly luciferase (TOPFLASH) and 2 ng CMV Renilla luciferase (Korinek, 1997) using ScreenFectA according to the manufacturer’s 1-step protocol (ScreenFect GmbH). 12 hr post-transfection, 60 μl of control or Wnt3a CM was carefully added to the cells, which were then incubated for another 6 hr before harvesting cell lysates.

To test the biological activity of the DKK1/2-eGFP fusion proteins, NCI-H1703 lung cancer cells cultured in 96-well plates were transfected with TOPFLASH/Renilla reporter plasmids (20/2 ng). The next day, 80 µl medium was exchanged by either control CM or Wnt3a CM. After 6 hr, 120 µl DKK1/2-eGFP CM was added. The cells were incubated for another 12 hr before harvesting cell lysates.

To determine the biological activity of V5-xKremen2-mCherry/eGFP in HEK293T cells, cells cultivated in 96-well plates were transfected (per well) with 20/2 ng TOPFLASH/Renilla reporter plasmids, 8 ng mWnt1, 1 ng mFrizzled8, 1 ng DKK1-eGFP, and 1 ng V5-xKremen2-mCherry/eGFP. Cell lysates were harvested for luciferase reporter assay 24 hr post-transfection.

To compare the responsiveness of CRISPR/Cas9 endogenously tagged cell lines, stably transfected NCI-H1703 cell lines and wt parental cells to mWnt3a and DKK1, cells cultured in 96-well plates were transfected with TOPFLASH/Renilla reporter plasmids (20/2 ng) and, as indicated, 8 ng of mWnt3a and 25 ng of DKK1-eGFP. Cell lysates were harvested 48 hr post transfection.

For the luciferase assays, cells from 96-well plates were harvested in 35 µl passive lysis buffer (Promega, Mannheim, Germany) and processed according to the manufacturer’s protocol. TOPFLASH luciferase values were normalized to control Renilla luciferase values. All error bars shown in the TOPFLASH data (Figure 3—figure supplement 4, Figure 3—figure supplement 7, Figure 3—figure supplement 9) are standard deviations from the mean of 4 samples; experiments were performed at least three times.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Fluorescent Proteins II. Springer Series on Fluorescence (Methods and Applications
    1. YH Foo
    (2012a)
    In: G Jung, editors. Fluorescence Correlation and Cross-Correlation Spectroscopy Using Fluorescent Proteins for Measurements of Biomolecular Processes in Living Organisms. Springer. pp. 12–16.
    https://doi.org/10.1007/4243_2011_16
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. Hannes Neuweiler
    Reviewing Editor; University of Würzburg, Germany
  2. José D Faraldo-Gómez
    Senior Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  3. Hannes Neuweiler
    Reviewer; University of Würzburg, Germany
  4. Thorsten Wohland
    Reviewer; National University of Singapore, Singapore

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Value assessment: Binding of ligands to cellular membrane receptors is fundamental to processes like cell-cell communication, signaling, and initiation of biochemical cascades. Methods that can detect and quantify such interactions are scarce. This "Tools and Resources" contribution introduces a fast variant of line-scanning fluorescence correlation spectroscopy that facilitates detection and quantification of binding of fluorescently modified ligands to their target receptors on cell membranes.

Decision letter after peer review:

Thank you for submitting your article "Precise quantification of ligand-cell surface receptor interactions using axial line-scanning FCS" for consideration by eLife. Your article has been seen by three peer reviewers, including Hannes Neuweiler as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by José Faraldo-Gómez as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Thorsten Wohland (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Major concerns include the novelty of the proposed methodology, estimation of equilibrium dissociation constants, additional controls, and details on data processing and analysis.

Reviewer #1:

The manuscript "Precise quantification of ligand-cell surface receptor interactions using axial line-scanning FCS" by Eckert et al. reports a modification of existing line-scanning fluorescence correlation spectroscopy (lsFCS) for improved detection and quantification of binding strengths of protein-ligand interactions on cell surfaces with live cell applicability. Eckert et al. implement a tuneable acoustic gradient index of refraction (TAG) lens in a multi-colour lsFCS setup that facilitates microsecond scanning of biological samples in axial direction. The axial scan is reported to be two orders of magnitude faster than existing lateral scanning techniques, thus alleviating complications arising from cell membrane dynamics and poor photophysical properties of fluorescent tags. The authors demonstrate the capabilities of their technique through quantitative analysis of inhibition of Wnt signalling using fluorescently modified DKK1 and DKK2 ligands that bind the Wnt co-receptor LRP6 in human lung cancer and human embryonic kidney cells. Eckert et al. test three different methods of LRP6 expression in their assays. Axial lsFCS is finally applied to investigate ternary interactions of DKK1 with the co-receptor Kremen2 and LRP6.

The elucidation of pathways of cellular signalling is a current challenge in molecular biophysics. It requires methods that can detect and quantify protein-ligand interactions in membrane receptors. Temporal analysis of fluorescence fluctuations of modified proteins involving modern multi-colour fluorescence microscopy is a promising approach. Fluorescent background, dynamics of cell membranes and changes in cell morphology, however, complicate a reliable analysis within a cellular environment. The new tool reported by Eckert et al. extends existing lsFCS to overcome such complications by rapidly scanning samples in axial direction thereby improving time resolution in correlation analysis and shortening the overall measurement time. Eckert et al. report clean binding isotherms and the associated equilibrium dissociation constants, measured by their technique, of interactions of DKK1 and DKK2 with the membrane receptors LRP6 and Kremen2. The study involves different fluorescent fusion proteins as tags and different transfection/expression techniques, testifying general applicability. The manuscript is well written. Technique, experimental data together with their analysis are clearly presented and discussed. The advantage of the axial scanning mode in live cell applications appears convincing.

However, the following points should be addressed before publication.

1) The authors report that the Kd of DKK1/LRP6 increases with increasing expression level of LRP6 (subsection “DKK1 and DKK2 binding to LRP6-mCherry”). Eckert et al. rationalize the effect by a reduced affinity of the LRP6 receptor due to packing of LRP6 in the membrane (Discussion paragraph four). But an alternative explanation would be that a significant fraction of DKK1, which is applied at nM concentrations in conditioned medium, binds to over-expressed LRP6 located at cellular sites beyond lsFCS detection. Such undetected binding events can lead to "lost" ligand and would consequently result in artificially high Kds in titration experiments.

2) The authors find similar Kds of DKK1 interactions using mCherry and tdTomato as fluorescent fusions on LRP6 and argue that the change of fluorescent reporters proves reliable and tag-independent measurement of Kds. An important additional control would be to change the tag on the ligand DKK1. eGFP fused to DKK1 may also perturb binding.

3) The authors find that overexpression of unlabelled LRP6 leads to an increase of affinity of DKK1-eGFP. The observation may report on a perturbation of DKK1 binding caused by the fluorescent fusion on LRP6. The possibility of a probe-induced artefact should be discussed.

4) Figure 3—figure supplement 1: the authors detect a decrease of time constant of DKK1-eGFP binding to HEK cells with increasing concentration of DKK1-eGFP. It would be interesting to see if the observed rate constants of binding increase linearly with increasing DKK1-eGFP concentration. This is expected for a bi-molecular reaction in solution. A linear fit to the observed concentration-dependent rate constants yields a microscopic rate constant of DKK1 binding. The microscopic rate constant of ligand-binding to a cellular receptor is interesting because such quantities are usually inferred from in-vitro kinetic experiments on isolated proteins that may not reflect the in-vivo situation.

Reviewer #2:

Nienhaus et al. present a tool for improving fluorescence correlation spectroscopy by axial line scanning using a TAG lens. In large parts the study shows systematic and rigorous experimental work with several proteins interrogated at different densities.

1) Major concern about novelty: The idea of axial scanning to improve the data quality in membrane FCS studies is not new (https://arxiv.org/pdf/1806.00070.pdf) or the work by Jonas Ries (DOI: 10.1039/b718132a). The (only) difference here is that the authors use an ultra-fast TAG lens. Unfortunately, the Introduction is misleading and makes the reader believe that axial scanning FCS is an invention by Nienhaus et al. Moreover, the impact compared to previously reported studies remains unclear.

2) Major concern about data interpretation/processing: One major concern is that it remains unclear how the authors reach the precision reported. How exactly are the data processed and how is the outcome generated? How was the FCS data analyzed? What software program was used? If self-written, why is the source code/ compiled version not provided with example data and manual?

Reviewer #3:

The article by Eckert et al. introduces a new scanning fluorescence correlation spectroscopy (FCS) modality to quantitatively measure molecular affinities of ligand-receptor systems on cell membranes. The authors perform scanning along the optical axis using a tunable lens. This preserves the advantages of lateral scanning, namely the removal of sample movement artefacts, but is much faster as axial scanning by the tunable lens can be performed at higher frequencies than the galvano-scanner based lateral scan systems, reducing measurement time. The authors demonstrate the capability of axial line-scanning FCS by measuring the interaction of various proteins of the Wnt signaling pathway, including DKK1, LRP6, xKremn2, showing that DKK1-LRP6 and Kremen-LRP6 interactions stabilize the trimeric protein complex with a weaker contribution by DKK1-xKremen2 interactions. The article introduces a new method that corrects for many possible artefacts in previous FCS approaches and provides biologically interesting and quantitative Kd values with small errors. The article is well written and convincing but needs to address some concerns:

1) The authors show almost no experimental correlation curves. Especially on cells there is only one set of curves shown in the supplement. But these curves are noisy. At this correlation function quality, how well are the fractions of the different components determined (Equations 8 and 9)? It would also be instructive to see a set of curves at different ligand concentrations.

2) Can the authors either include a positive and negative control?

3) The dissociation constants determined are very strong, below the nanomolar range. Thus the interaction is quite easy to measure and experiments can be performed at low concentrations. Nevertheless, as remarked under point 1 the curves are quite noisy and this will likely get worse at higher concentrations to measure higher Kds. It would be therefore useful if the authors could provide an estimated concentration and Kd range they think they can measure.

4) Subsection “Analysis of fast axial lsFCS on live cells”: The background signal seems to follow the intensity and is not constant as one would assume. Is this an overcorrection or do the authors assume that the background is also bleaching?

5) The authors bleach-correct their time traces. But the correction needs to conserve the variance of the signal, otherwise the amplitudes are changed by the correction. As their correction function is itself a function of time it is not evident whether their transformation fulfills this condition.

In addition, why do the autocorrelations require an extra scaling factor if the intensity traces have already been rescaled to the initial intensity I'(0)? For the cross-correlation they acknowledge that there is no re-scaling necessary. There is no explanation why the cross- should be different from the auto-correlation.

6) The authors state that as the intensities were already corrected, any correction factors would cancel. But overall with bleaching the interacting particles will decrease and that cannot be taken account of in that format. So bleaching will still decrease the cross-correlation amplitude and thus also the determined Kd. Authors might want to discuss this point.

7) The authors use pulsed laser excitation and thus can unambiguously assign photons removing cross-talk. This should result in completely flat cross-correlation functions for a negative control. However, they still have cross-talk from a red label into the green channel when excited with a green dye? This is quite surprising. Thus, a negative control to document this would be very useful.

8) As the background is different for the different wavelength channels, it will lead to different corrections in amplitude for the different correlation functions. This in general will not lead to cancellation effects. While in the authors situation the effect might have been sufficiently small it should not be neglected if axial-line scanning FCS is to be used in general. This point should be elaborated and if the authors think they can neglect background effects, then this should be shown (also note that the shift in Kd is 4 times higher than the error claimed so is not completely negligible).

9) The authors treat non-fluorescent proteins and endogenous proteins the same way. But this is not entirely correct. Cells will have a certain level of endogenous proteins. Depending on the amount of recombinant labeled protein expressed this endogenous protein will have a stronger or weaker influence. If, e.g., 80% of a fluorescent protein are fluorescent, then the measured value of non-fluorescent proteins (parameter β) will be influenced by endogenous proteins. At a high recombinant protein concentration, endogenous proteins play little role and one recovers 80% of fluorescent proteins. But at lower recombinant protein concentrations, the endogenous proteins play a much larger role and values <80% will be recovered for fluorescent proteins. Thus, β is not a constant if one measures on different cells with different recombinant protein expression levels.

10) Increase of Kd with receptor density. This could also be a result of background issues or bleaching, or of the issue with β just mentioned. A positive control at different concentrations would help clarifying the issue.

11) The simplifications constrain the technique. The authors should report how much these assumptions change their actual experimental estimates for the Kd. e.g. the assumption that GFP is 100% fluorescent is not really borne out by recent experiments that rather report 80%. Also the assumption that there are no non-fluorescent tdTomato in the dimers is not entirely justified. Reports on red fluorescent proteins being fluorescent vary between 20 to maximally 60%. Even in the best case this still would lead to 16% non-fluorescent proteins. Furthermore, tdTomato with one or two fluorophores contribute very differently to the correlation functions as the contribution depends not linearly on the brightness. So I agree that the simplifications make the data more easily treatable. But the authors should at least show once the full solution and compare the results of it to the approximation.

https://doi.org/10.7554/eLife.55286.sa1

Author response

Reviewer #1:

The manuscript "Precise quantification of ligand-cell surface receptor interactions using axial line-scanning FCS" by Eckert et al. reports a modification of existing line-scanning fluorescence correlation spectroscopy (lsFCS) for improved detection and quantification of binding strengths of protein-ligand interactions on cell surfaces with live cell applicability. Eckert et al. implement a tuneable acoustic gradient index of refraction (TAG) lens in a multi-colour lsFCS setup that facilitates microsecond scanning of biological samples in axial direction. The axial scan is reported to be two orders of magnitude faster than existing lateral scanning techniques, thus alleviating complications arising from cell membrane dynamics and poor photophysical properties of fluorescent tags. The authors demonstrate the capabilities of their technique through quantitative analysis of inhibition of Wnt signalling using fluorescently modified DKK1 and DKK2 ligands that bind the Wnt co-receptor LRP6 in human lung cancer and human embryonic kidney cells. Eckert et al. test three different methods of LRP6 expression in their assays. Axial lsFCS is finally applied to investigate ternary interactions of DKK1 with the co-receptor Kremen2 and LRP6.

The elucidation of pathways of cellular signalling is a current challenge in molecular biophysics. It requires methods that can detect and quantify protein-ligand interactions in membrane receptors. Temporal analysis of fluorescence fluctuations of modified proteins involving modern multi-colour fluorescence microscopy is a promising approach. Fluorescent background, dynamics of cell membranes and changes in cell morphology, however, complicate a reliable analysis within a cellular environment. The new tool reported by Eckert et al. extends existing lsFCS to overcome such complications by rapidly scanning samples in axial direction thereby improving time resolution in correlation analysis and shortening the overall measurement time. Eckert et al. report clean binding isotherms and the associated equilibrium dissociation constants, measured by their technique, of interactions of DKK1 and DKK2 with the membrane receptors LRP6 and Kremen2. The study involves different fluorescent fusion proteins as tags and different transfection/expression techniques, testifying general applicability. The manuscript is well written. Technique, experimental data together with their analysis are clearly presented and discussed. The advantage of the axial scanning mode in live cell applications appears convincing.

We appreciate the overall very positive assessment by Dr. Hannes Neuweiler. In his second paragraph, he summarizes – in impressive clarity – the importance of precise measurements of protein-ligand interactions for biology and identifies the novel and advantageous aspects of our approach. We were delighted about his overly positive summarizing remarks.

1) The authors report that the Kd of DKK1/LRP6 increases with increasing expression level of LRP6 (subsection “DKK1 and DKK2 binding to LRP6-mCherry”). Eckert et al. rationalize the effect by a reduced affinity of the LRP6 receptor due to packing of LRP6 in the membrane (Discussion paragraph four). But an alternative explanation would be that a significant fraction of DKK1, which is applied at nM concentrations in conditioned medium, binds to over-expressed LRP6 located at cellular sites beyond lsFCS detection. Such undetected binding events can lead to "lost" ligand and would consequently result in artificially high Kds in titration experiments.

If we understand the reviewer correctly, he raises the concern that, at nanomolar concentrations (and below), the concentration of free ligands, which governs equilibrium, may be decreased from its nominal value due to receptor binding. Consequently, the more receptors are expressed on the plasma membrane, the greater would be the effect. While this concern is in general justified, we explain why this is not a problem below.

In our experimental procedures, we have taken precautions to avoid this problem. In particular, we have (1) kept cell confluency to <10% surface coverage, (2) used excessive CM volume (500 µL per well) and (3) exchanged the CM in the middle of the incubation period for the lowest ligand concentrations (i.e., <1 nM). See the description in the manuscript.

To explore if there is a problem with free ligand depletion, let us do a rough back-of-the-envelope calculation and estimate the absolute numbers of ligand and receptor molecules: At 1 nM, we have 3 × 1011 ligand molecules in 500 µL of CM. The plasma membrane area decorated by receptors is roughly twice the covered area. Thus, at 10% confluency in a 0.8 cm2 well, we thus have 0.16 cm2 effective area. Therefore, the number of receptors is about 0.16 × 108 µm2 × 1000 µm-2 (assuming worst case conditions, i.e., the highest receptor density that we encountered), yielding 1.6 × 1010 receptors in total per well. Therefore, ligands are still in ~20-fold excess even for this case. By exchanging with fresh medium, we further re-establish the free ligand concentration in the medium.

An additional note: How does ligand depletion manifest itself in binding isotherms such as those reported in Figure 6? The typical signature is that the measured isotherm drops more steeply than expected below a certain ligand concentration because the concentration of free ligands in the CM is no longer maintained at its initial value before adding it to the cells. We have not observed this deviation from the standard Langmuir isotherm behavior even at the highest receptor densities. Therefore, we are confident that this problem does not exist under our experimental conditions.

2) The authors find similar Kds of DKK1 interactions using mCherry and tdTomato as fluorescent fusions on LRP6 and argue that the change of fluorescent reporters proves reliable and tag-independent measurement of Kds. An important additional control would be to change the tag on the ligand DKK1. eGFP fused to DKK1 may also perturb binding.

We agree with the reviewer that careful, quantitative studies of the effect of tags on receptors and ligands are very worthwhile, as fusion tags have the capacity to modify the binding properties to a lesser or greater extent depending on the details of the fusion construct. However, we stress that the topic of our manuscript is to present the axial lsFCS approach; the analysis of effects due to perturbations by the fusion markers is an important yet separate issue.

Notably, our new method appears suitable for careful examination of tag effects because even modest changes in Kd can be revealed. We found, however, that the differences in Kd for LRP6 fused to mCherry and tdTomato are smaller than the reported uncertainties (cmp. Tables 1 and 2). These results appear reasonable in view of the fact that the C-terminally attached fusion tag resides within the cell, whereas DKK binds from the outside. We also believe that the consistent Kd values obtained by independent measurements with different fusion constructs attests to the precision of our method.

To accommodate the reviewer’s request, we have modified the tag on the DKK1 ligand. Instead of using a different fluorescent protein, we have fused an additional SNAP-tag domain (~20 kDa) to the C-terminus of the DKK1-eGFP construct to maintain the fluorescence properties of the tag. Axial lsFCS revealed identical Kds (within the statistical error) and further reinforces our view that the method is robust and precise. See the data in Figure 6, Table 1 and added text in lines paragraph two in subsection “DKK1 and DKK2 binding to LRP6-mCherry”.

3) The authors find that overexpression of unlabelled LRP6 leads to an increase of affinity of DKK1-eGFP. The observation may report on a perturbation of DKK1 binding caused by the fluorescent fusion on LRP6. The possibility of a probe-induced artefact should be discussed.

We were a bit puzzled about this remark because there is no fluorescent fusion on LRP6 in the studies referred to here, in which we analyzed the binding of DKK1-eGFP to xKremen2-mCherry. Thus, we are afraid that he did not grasp the exact point raised here and have rephrased paragraph two of subsection “Interactions between xKremen2-mCherry, DKK1 and LRP6”. Kremen is another receptor involved in the Wnt signaling pathway, and only unlabeled LRP6 was used in these experiments. The mere co-expression of unlabeled LRP6 causes a 20-fold increase in the Kremen-DKK1 binding affinity, which suggests that LRP6 engages in a ternary complex with the other two (fluorescent!) partners. This interpretation is supported by other reports in the literature (e.g., heterodimer formation of Kremen-LRP6), as discussed in the manuscript.

4) Figure 3—figure supplement 1: the authors detect a decrease of time constant of DKK1-eGFP binding to HEK cells with increasing concentration of DKK1-eGFP. It would be interesting to see if the observed rate constants of binding increase linearly with increasing DKK1-eGFP concentration. This is expected for a bi-molecular reaction in solution. A linear fit to the observed concentration-dependent rate constants yields a microscopic rate constant of DKK1 binding. The microscopic rate constant of ligand-binding to a cellular receptor is interesting because such quantities are usually inferred from in-vitro kinetic experiments on isolated proteins that may not reflect the in-vivo situation.

We entirely agree with the reviewer’s point regarding the linear concentration dependence of the apparent on-rate coefficient. We note that modeling of binding with an isotherm, as we do in this work, also requires the appropriateness of a bimolecular reaction. We have to stress, though, that kinetic measurements on single cells are tedious and imprecise due to systematic errors, and do not yield robust kinetic and equilibrium data.

In response to the reviewer’s request, we have added an inset to the figure showing that the apparent rate coefficients are indeed linear in concentration. Moreover, in the caption, we present the on- and off-rate coefficients and the resulting Kds for the single-cell data shown, and also data averaged over an ensemble of 50 cells. Clearly, these painful and time-consuming quantitative imaging experiments are conceptually simple but cannot serve as substitutes for elegant and precise methods such as axial lsFCS.

Reviewer #2:

Nienhaus et al. present a tool for improving fluorescence correlation spectroscopy by axial line scanning using a TAG lens. In large parts the study shows systematic and rigorous experimental work with several proteins interrogated at different densities.

1) Major concern about novelty: The idea of axial scanning to improve the data quality in membrane FCS studies is not new (https://arxiv.org/pdf/1806.00070.pdf) or the work by Jonas Ries (DOI: 10.1039/b718132a). The (only) difference here is that the authors use a ultra-fast TAG lens. Unfortunately, the Introduction is misleading and makes the reader believe that axial scanning FCS is an invention by Nienhaus et al. Moreover, the impact compared to previously reported studies remains unclear.

We have to admit we were much bewildered by this remark. After thorough consideration, we can only assume that this statement results from a major semantic confusion. In fact, the two references mentioned above do NOT AT ALL address the axial lsFCS method. In the quoted literature, we found that (at least semantically) the most closely related (though still completely different) technique is z-scan FCS. We assume that the reviewer confuses “z-scan FCS” and “axial lsFCS”. To clarify the issue, we briefly explain these very different approaches in the following.

z-scan FCS: By measuring a stack of correlation curves at discrete axial positions (“z-scan”), one can select the correlation curve corresponding to the smallest diffusion time and minimal number of particles. Note that each FCS experiment is performed at a fixed z-position, so there is no z-scan running while FCS data are being taken (despite the notion “z-scan”).

Axial lsFCS: Axial line scanning stands for focus displacement along the optical axis of the microscope, in contrast to lateral line scanning, which describes focus displacement along a line perpendicular to the optical axis, i.e., to the side (“laterally”). Regular, commercial confocal microscopes permit fast lateral line scanning due to the built-in galvanometric scanner. In our manuscript, we give clear credit to previous work introducing lateral line scanning FCS. Displacement along the optical axis is typically accomplished either manually or with a motorized piezo stage changing the distance between the sample and the objective lens. This process is slow due to the inertia involved and, therefore, fast axial line scanning FCS (i.e., on the time scale of 1 ms, which is required for measurements of the kind addressed in our manuscript) was not feasible so far. With the advent of TAG lenses, we are now in the position to scan along the axial direction with periods of several microseconds, as is demonstrated in our manuscript. We emphasize that this is a truly enabling technology and a great advance, and certainly not “the only difference”, as the reviewer states.

Axial scanning offers several advantages, as advertised in the manuscript. First of all, there are many spots on the basal and apical side of a cell membrane to pick for an experiment, which is not the case for lateral scanning. Second, the time resolution is enhanced by more than two orders of magnitude, which facilitates measurement of the full correlation curve (for membrane diffusion). Third, the observation area of axial lsFCS is smaller by a factor of five with respect to lateral lsFCS and spherical, whereas it is elliptical for lateral scanning. The smaller volume is beneficial; it enhances fluctuations and leads to a faster correlation decay, resulting in shorter measurement times to reach the same data quality (see Figure 2D, E). This, in turn, leads to less photobleaching and suppresses the probability of perturbations during the experiment, e.g., by strongly fluorescent vesicles moving close to the plasma membrane. This latter point will be much appreciated by researchers familiar with FCS on live specimens. Fourth, there is no anisotropy parameter included in the fit, so the results are more robust. Finally, for dual-color cross-correlation experiments, ensuring focal volume/area overlap is much easier with axial line scanning because of “axial self-alignment”. By contrast, lateral lsFCS or 3D FCS cross-correlation analysis require careful minimization of axial displacements of the observation volumes, e.g., due to chromatic aberrations of the objective lenses.

2) Major concern about data interpretation/processing: One major concern is that it remains unclear how the authors reach the precision reported. How exactly are the data processed and how is the outcome generated? How was the FCS data analyzed? What software program was used? If self-written, why is the source code/ compiled version not provided with example data and manual?

In the original manuscript, we have aimed to describe the data analysis in a detailed fashion to make the general procedures comprehensible to the general reader. It was, however, not our intention to publish an FCS software package. We have been involved in FCS-based research for more than 20 years and have always relied on writing our own code for the analysis of FCS data for more than two dozen papers using this method. Here, we have employed our own MATLAB code for intensity time trace analysis including background correction, to calculate correlation functions and to fit the correlation data with the model functions. These MATLAB routines are strongly interwoven with the specific microscopy hardware employed. The fitted parameters of the correlation functions were then exported to OriginPro for analysis of the concentration dependence of the function Γ (CL), Equation 5. Therefore, the errors quoted for the Kds are statistical errors provided by commercial software.

To further clarify the analysis procedures, in the revised manuscript, we have rewritten the Materials and methods part addressing the data analysis workflow, moved Figure 2—figure supplement 2 to the main text (now Figure 4) and included a flowchart (Figure 4—figure supplement 3) that visualizes the individual steps taken to determine binding isotherms and Kds.

Reviewer #3:

The article by Eckert et al. introduces a new scanning fluorescence correlation spectroscopy (FCS) modality to quantitatively measure molecular affinities of ligand-receptor systems on cell membranes. The authors perform scanning along the optical axis using a tunable lens. This preserves the advantages of lateral scanning, namely the removal of sample movement artefacts, but is much faster as axial scanning by the tunable lens can be performed at higher frequencies than the galvano-scanner based lateral scan systems, reducing measurement time. The authors demonstrate the capability of axial line-scanning FCS by measuring the interaction of various proteins of the Wnt signaling pathway, including DKK1, LRP6, xKremn2, showing that DKK1-LRP6 and Kremen-LRP6 interactions stabilize the trimeric protein complex with a weaker contribution by DKK1-xKremen2 interactions. The article introduces a new method that corrects for many possible artefacts in previous FCS approaches and provides biologically interesting and quantitative Kd values with small errors. The article is well written and convincing but needs to address some concerns:

We thank reviewer #3, Prof. Thorsten Wohland, for his clear summary of our work pointing to the advantages of the technique, and his overall positive assessment. He has evaluated the manuscript in great detail and raised a number of concerns that we have addressed below.

1) The authors show almost no experimental correlation curves. Especially on cells there is only one set of curves shown in the supplement. But these curves are noisy. At this correlation function quality, how well are the fractions of the different components determined (Equations 8 and 9)? It would also be instructive to see a set of curves at different ligand concentrations.

We are happy to follow the reviewer’s suggestion to present more experimental correlation curves. For illustration, we have included two sets of example correlation curves, one with variation of receptor density and one with variation the DKK ligand concentration, as Figure 4—figure supplement 1.

Indeed, our correlation curves are noisier than what is often presented because we have limited our data acquisition time to 60 s. Obviously, we could measure longer to achieve better time averaging. Then, however, photobleaching would be more severe and require more extensive corrections. Although our bleaching correction is mathematically strictly correct, the overall signal-to-background ratio will be worse for longer traces, causing greater uncertainties in the Kd determination in the end. Even though the pair correlations show significant noise, a fit with only two free parameters (Equation 1) gives robust results. We note that the specific advantages of axial over lateral lsFCS are beneficial for the extraction of parameters, (1) the steeper temporal decay of the correlations and (2) the simpler model function with only two rather than three fit parameters. For better statistics, we take multiple measurements on several cells at each ligand concentration. In the next step, we determine KD from the ligand concentration dependence of the function Γ(CL) shown in Equation 5. In this procedure, we fit experimental data comprising several ten measurements with only two varying parameters. Thus, the problem is mathematically overdetermined, resulting in a high precision of KD.

2) Can the authors either include a positive and negative control?

We fully agree with the reviewer that it is worthwhile to frequently carry out positive and negative control experiments to ensure proper functioning of the apparatus and data analysis routines. Thus, in response to the reviewer’s request, we have included three sets of control experiments on live HEK293T cells as Figure 4—figure supplement 2 (described in subsection “Analysis of fast axial lsFCS on live cells”). As a negative control, we have co-expressed our LRP6-mCherry receptor with the membrane marker Mem-eGFP. Both molecules independently diffuse within the plasma membrane but do not interact. Accordingly, the resulting cross-correlation has zero amplitude. As a positive control, we have used LRP6-mCherry-eGFP, so that each receptor carries a green and a red fluorescent (or non-fluorescent) protein. As another positive control, we have used LRP6-tdTomato, which can be excited both with 470 and 561 nm lasers (PIE). This experiment is expected to yield complete cross-correlation for the two color channels, so that the correlation amplitudes differ only due to the wavelength-dependent observation areas. Experimental details have been included in the figure caption.

3) The dissociation constants determined are very strong, below the nanomolar range. Thus the interaction is quite easy to measure and experiments can be performed at low concentrations. Nevertheless, as remarked under point 1 the curves are quite noisy and this will likely get worse at higher concentrations to measure higher Kds. It would be therefore useful if the authors could provide an estimated concentration and Kd range they think they can measure.

First of all, we would like to point out that affinities/avidities of biological receptors toward their cognate ligands are typically high (subnanomolar to nanomolar) to allow specific binding even under conditions of low abundance of ligand. Thus, our method is not limited to receptor-ligand binding in the Wnt signaling pathway but should be broadly applicable to cell signaling interactions in general. We do not agree, though, with the reviewer that it is quite easy to measure at low concentrations. Quantitative studies at subnanomolar concentrations have their own experimental challenges because equilibration times tend to become very long and the cells need to stay in good shape during long equilibration times. Moreover, molecule numbers and thus fluorescence signals are small while autofluorescence remains high, and the ratio of ligand versus receptor numbers is no longer large. There is also the risk that surface adhesion causes a significant concentration decrease when handling picomolar solutions (CM) unless great care is being taken to avoid such problems.

The reviewer is perfectly correct, however, in stating that there are intrinsic limitations of the method for studies of systems with larger Kd (lower affinity). Measurements of binding isotherms requires higher ligand concentrations, fluctuation amplitudes decrease while, at the same time, there is much higher background in the extracellular space filled with CM and, after a while, also in the cytosol due to endocytosis. As we have described in the manuscript, we extract fluorescence intensities from the membrane as well as background near the membrane from our axial lsFCS data. At high ligand concentrations, background may become so large that it dwarfs the signal. To arrive at a reasonable estimate, we may take a signal-to-background ratio of 1:10 as the limiting case. We note that this background is taken to be uncorrelated and just represents an offset in our intensity time traces. The extracellular volume contributing to the background of the membrane signal is half the confocal volume, i.e., 0.1 fL (assuming ω0 = 207 nm, z0 = 5ω0). Thus the average number of ligands causing fluorescent background from this volume is 0.06 CL [nM]. The number of receptors is simply the area density times the observation area (0.14 µm2). In a “worst case” scenario, i.e., for only 20 receptors per squared micron (as in our CRISPR cell line), we have ~3 receptors within the observation area on average. Assuming equal brightnesses of receptors and ligands, we can thus work with up to 3/0.06 = 50 nM ligand concentration. This is a conservative estimate; see Figure 7B for data with 220 nM ligand concentration. If we want to be very thorough with our Kd determination and aim to measure the binding isotherm within +/– 1 order of magnitude around Kd (a rule that is often seen not to be obeyed), the upper value of Kd would be 5 nM (for low-level receptor expression). This value scales linearly with the receptor density and, thus, Kds up to 50 nM can be measured with 200 receptors per micrometer squared, a typical value for transiently transfected, overexpressing cells. If we relax the requirement of measuring the full binding curve (10% – 90%), we may gain up to an order of magnitude. Finally, at even higher concentrations, we entirely lose our intensity fluctuations on which FCS is based. We have included the results of these considerations in subsection “Interactions between xKremen2-mCherry, DKK1 and LRP6”.

4) Subsection “Analysis of fast axial lsFCS on live cells”: The background signal seems to follow the intensity and is not constant as one would assume. Is this an overcorrection or do the authors assume that the background is also bleaching?

Indeed, as the reviewer recognizes, the background shown in Figure 4 is not constant. Bleaching of background from the extracellular side can be excluded but may in fact occur on the intracellur side of the plasma membrane (static or slowly moving cellular structures). However, this apparent bleaching of the background mainly results from the fact that a fraction of the membrane fluorescence emitted by the periphery of the focus was included in the background. Subtraction of a small fraction of the signal included in the background effectively rescales the intensity trace and will not influence the correlation results. We prefer to lose some signal in this way instead of measuring the background further away from the membrane location, which introduces additional uncertainties.

5) The authors bleach-correct their time traces. But the correction needs to conserve the variance of the signal, otherwise the amplitudes are changed by the correction. As their correction function is itself a function of time it is not evident whether their transformation fulfills this condition.

Here we disagree with the reviewer. Indeed, we correct the intensity time traces to restore a constant mean intensity, which evidently does not conserve the variance. However, there is no requirement to conserve the variance of the intensity time trace. Instead, we can later apply this correction to the intensity-normalized variance of the (raw) autocorrelation function, G(0), which is used for our further analysis. This correction is introduced in Equation 3 and, as this procedure is not evident to the reviewer, we sketch the main ideas in the following.

We start with the key assumption that the bleaching effect is quasi-stationary over the correlation time window. Otherwise, photobleaching would distort the correlation function itself. This approximation holds very well, given that the correlations decay within a fraction of a second (thanks to the axial scanning geometry, see Figure 2D) and the bleaching function γ(t) varies slowly over the total duration of the trace (60 s). Then, the overall autocorrelation function, G(τ), of the entire trace can be computed as an average over all sub-correlation functions, Gi(τ), taken over short time intervals, i, along the trace, with γ(t) = γι constant. As explained in the manuscript, we use I(t) = I’(t) γ(t), where the prime denotes raw (uncorrected) data. As usual, I’(t) is assumed to be strictly proportional to the number of fluorophores in the sensitive volume. For each sub-correlation, Gi(0) = 1 / <I’(0)>i = γi / <I(0)>i (Poisson process); averages (< >) are calculated over the time interval i. With increasing time (index i), the correlation amplitude increases as a consequence of fluorophore depletion. We would like to calculate the amplitude at the earliest times of the trace, G0(0), because that condition reflects the fluorophore numbers or concentrations in the absence of photobleaching. Thus, with γ0=1,G0(0) = <I’(0)>0-1 = <I(0)>0-1. If we then average over all Gi(0) to calculate the G(0) of the entire trace, we simply obtain an additional factor of <γ> (averaged over all intervals) in the numerator, which we have to cancel to arrive at the expression for G0(0), as is done in Equation 3.

In addition, why do the autocorrelations require an extra scaling factor if the intensity traces have already been rescaled to the initial intensity I'(0)? For the cross-correlation they acknowledge that there is no re-scaling necessary. There is no explanation why the cross- should be different from the auto-correlation.

We are a bit puzzled about the first question because, in his previous point, reviewer 3 rightfully argues that the mean but not the variance has been corrected in the intensity time trace. Please see our response to the previous point for the explanation of the extra scaling factor of the autocorrelation function.

For the cross-correlation, there is no correction required according to the following line of argument. The amplitude G×(0) is given by Ngr / [(Nr + Ngr)(Ng + Ngr)], with the numbers of complexes, receptors and ligands denoted Ngr, Nr and Ng. Let us focus on photobleaching of (red) receptors: Bleaching depletes ligand-receptor complexes and monomeric receptors equally in terms of relative fractions (not absolute numbers!). If we find 10% bleaching of receptors engaged in complexes, we also expect 10% bleaching of monomeric receptors (as long as binding does not affect the photophysical properties). Thus, the bleaching effect will cancel in the expression for G×(0) shown above because it affects the numerator and denominator in the same fashion. Moreover, the law of mass action, which holds for a bimolecular reaction in dynamic equilibrium, will restore the monomer-complex ratio even if there were an imbalance (within the characteristic time of the reaction). For the bleaching of (green) ligands, the same argument holds (for symmetry reasons). Note that Ng = 0 because ligand diffusion in the solvent is too fast to cause fluctuations in our time window, and there are no slowly moving ligands on the plasma membrane unless they are specifically bound to the receptors.

6) The authors state that as the intensities were already corrected, any correction factors would cancel. But overall with bleaching the interacting particles will decrease and that cannot be taken account of in that format. So bleaching will still decrease the cross-correlation amplitude and thus also the determined Kd. Authors might want to discuss this point.

We are afraid that we disagree with the reviewer on this point and refer to our response to his point #5 for the explanation as to why the cross-correlation is not affected by bleaching. The reviewer is certainly correct in stating that bleaching decreases the number of interacting particles, which are in the numerator in the G×(0) expression given in our response to the previous point. However, the concomitant decrease of the denominator ensures that the cross-correlation amplitude retains its magnitude. You can also look at Equation 4 and scale the intensities with a constant <1 to mimic photobleaching, which can be pulled out from the averages in the numerator and denominator. This again requires that we assume quasi-stationarity of bleaching effects (weak bleaching) over the time window of correlation.

7) The authors use pulsed laser excitation and thus can unambiguously assign photons removing cross-talk. This should result in completely flat cross-correlation functions for a negative control. However, they still have cross-talk from a red label into the green channel when excited with a green dye? This is quite surprising. Thus, a negative control to document this would be very useful.

We are most thankful to the reviewer for drawing our attention to this issue. He is completely correct that, under ideal circumstances, a negative control such as a receptor-expressing cell in medium without DKK ligands should give zero cross-correlation amplitude. Nevertheless, in the data collected, we frequently found finite cross-correlations (which is in the numerator of Γ(CL)) even without any ligands in the solution.

We have looked into this issue and made additional experiments to gain a thorough understanding of the problem. First, we performed careful in-vitro spectroscopic analyses on mCherry, showing that the fraction excited with 470 nm light and emitted into the green channel should only be 0.16% with respect to the red emission and not 4 – 5% as quoted in the original manuscript. Thus, crosstalk by red-fluorescent mCherry is NOT a viable explanation. Another possibility could be the presence of a green-fluorescent mCherry byproduct which is a well known dead-end intermediate in the fluorophore maturation pathway. However, we have convinced ourselves that this cannot contribute in a sufficiently strong way. The real problem became clear when we scrutinized our raw data and noticed that a small amount of correlated background occurred in some of the measurements whenever there were bright intracellular fluorescent structures in the vicinity of the plasma membrane close to the point chosen for axial scanning. The wavelength band of the green detection channel [500 – 550 nm] agrees with the wavelength region where cellular autofluorescence predominantly emits (Aubin, J. Histochem. Cytochem. 27: 36-43 (1979)). We suspect that this correlated background comes from moving vesicles close to the membrane. Indeed, longer correlation times than those of single receptors were typically found in these cases. This background problem becomes more severe for cells expressing receptors at a higher level, which justifies in a way that we treated this component proportionally to the receptor density in the derivation of Equation 5.

To solve this problem, we implemented a stringent data quality management that removes problematic correlation data from the analysis. The rejection criteria are described in Figure 4—figure supplement 3. Without this crosstalk complication, the Kd analysis becomes significantly simpler, see Γ(CL) in the revised Equation 5. Accordingly, we have rewritten the entire Materials and methods part referring to this issue, and we have also added a derivation for the case that maturation of the label attached to the ligand is not complete. Finally, while the analysis without included crosstalk leads to a considerably changed and in fact simplified expression for Γ(CL)) due to the absence of correction factors, we emphasize that, because the binding isotherm governs the expression, there are only small changes of the resulting Kd values in comparison to the earlier version.

8) As the background is different for the different wavelength channels, it will lead to different corrections in amplitude for the different correlation functions. This in general will not lead to cancellation effects. While in the authors situation the effect might have been sufficiently small it should not be neglected if axial-line scanning FCS is to be used in general. This point should be elaborated and if the authors think they can neglect background effects, then this should be shown (also note that the shift in Kd is 4 times higher than the error claimed so is not completely negligible).

We believe that the reviewer may have misunderstood our procedures. Background is removed from ALL intensity time traces in our standard analysis and, therefore, this is not a relevant issue for our approach to determine Kd, so there is really no need to cancel anything.

However, in Figure 5, we demonstrate that we can use the time traces even without background subtraction and, nevertheless, we end up with only a slightly changed Kd. This exercise was only included to illustrate that background effects cancel to a high degree in the function Γ(CL). We find the reviewer’s criticism that “the shift in Kd is 4 times higher than the error claimed so is not completely negligible” somewhat harsh because the error reported is solely of statistical nature, whereas Kd values reported in the literature typically suffer from (often much larger) systematic errors that are hard to estimate. For example, it is not at all trivial to generate CM solutions with precisely defined subnanomolar concentrations of ligands and to maintain that concentration when immersing the cells.

We still want to comment on the observation that the (uncorrelated) background cancels to a great extent. We can write the intensity time trace as the sum of signal and background,

(1) Ic(t)=Icsig(t)+Icbg(t).

Here, the index c = R, G stands for the red and green color channels, respectively. Then, according to Weidemann et al., 2002, the correlation functions are

(2) Gc(τ)= 1(1+ηc)2 Gc0(τ),
(3) G×(τ)= 1(1+ηr)(1+ηg) G×0(τ),

with ηc=Icbg(t)/Icsig(t). The superscript “0” on the right hand sides of Equations 2 and 3 denotes correlation functions in the absence of background. Obviously, the factors in front of these correlation functions cancel in the expression Gx2(0)/[GR(0)GG(0)], Equation 5 in the manuscript. Interestingly, we also came across a nicely written book chapter (Foo et al., 2012a) from the reviewer’s lab. Just look at your own Equations 26 and 27. In Gx2(0)/[GR(0)GG(0)], all prefactors correcting for background modification of the amplitudes cancel.

9) The authors treat non-fluorescent proteins and endogenous proteins the same way. But this is not entirely correct. Cells will have a certain level of endogenous proteins. Depending on the amount of recombinant labeled protein expressed this endogenous protein will have a stronger or weaker influence. If, e.g., 80% of a fluorescent protein are fluorescent, then the measured value of non-fluorescent proteins (parameter β) will be influenced by endogenous proteins. At a high recombinant protein concentration, endogenous proteins play little role and one recovers 80% of fluorescent proteins. But at lower recombinant protein concentrations, the endogenous proteins play a much larger role and values <80% will be recovered for fluorescent proteins. Thus, β is not a constant if one measures on different cells with different recombinant protein expression levels.

We completely agree with the reviewer that the dark receptor fraction includes both non-matured, “exogenous” fusion proteins and endogenously produced receptors. Accordingly, in the original manuscript, we wrote: “On the one hand, β depends on the fraction of endogenously produced (unlabeled) receptors, which are present also in the (haploid) gene edited cells; on the other hand, it depends on the ability of the gene construct and the cell line to produce fully mature, fluorescent fusion proteins.” This sentence has not been changed in the revised version.

Endogenous receptors play a role if and only if the cells produce them in quantities that are not negligible with respect to the exogenous proteins. From the reported receptor densities (Figure 6), it is clear that endogenous proteins are an absolute minority species in overexpressing cells. Note that the β values in the Tables reflect the behavior described by the reviewer. We emphasize that this parameter affects only the amplitude of Γ(CL)) and thus has no influence whatsoever on Kd.

In the original manuscript text, we defined βas the fraction of receptors carrying a functional fluorescent domain, implying that the fraction is calculated with respect to all receptors that can bind the cognate ligand. To state this fact explicitly, we have now modified the sentence to read: “…the ratio between receptors carrying a functional fluorescent domain and all (exogenous or endogenous) receptors capable of specific binding.”

10) Increase of Kd with receptor density. This could also be a result of background issues or bleaching, or of the issue with β just mentioned. A positive control at different concentrations would help clarifying the issue.

In our responses to previous points of reviewer 3, we have shown that there are no background or bleaching issues or issues with the parameter β that we have reasons to worry about. To avoid misunderstandings, we again briefly reiterate these points.

Parameter β:Τhere is no issue at all. In our response to point #9, we have stated that this parameter obviously depends on the amount of endogenously produced receptors, as we have never disputed, the reviewer has recognized and our data also indicate. A look at our model equation (Equation 5) will convince the reader that β is merely a scaling factor of the binding isotherm and does not affect Kd at all.

Bleaching issues: As we report in the manuscript, the average bleaching factor <γ> is small in all our measurements (only ~1.5, i.e., ~30% bleaching), thanks in part to short data acquisition times, and well compensated by following a strict mathematical procedure (Equation 3). Thus, it makes no sense to suspect that the Kd variation with receptor density (Figure 6) can be due to bleaching issues.

Background issues: As we have stated in the manuscript and our responses above, background is subtracted from the membrane-derived intensities and thus has no role to play here. This argument is further strengthened by our response to point #8, namely, that background effects are largely compensated by our analysis strategy; even without any correction, the Kd value is minimally affected (Figure 5). Moreover, we can infer from the data themselves that the shift of Kd is not due to background issues. In our experiments on NCI-H1703 cells (Figure 6, Table 1), the background-to-signal ratio increased in the order transient transfection (receptor density (median): 139±82 μm2) stable transfection (density: 45±23 μm2) CRISPR/CAS9 (density: 18±9 μm2) and thus as expected from the decrease in receptor numbers. Despite the difference in receptor density by more than twofold, there is no shift of Kd between the latter two samples, however. Only for densities above the one observed for stably transfected cells do we observe the shifts, suggesting that there is a critical density above which the effect appears. A further piece of evidence that the reported small changes of Kd should be taken seriously is the comparison of DKK1 and DKK2. We determined KD = 0.26 ± 0.04 nM and 0.08 ± 0.01 nM for Dkk2-LRP6 and DKK1-LRP6 binding in stably transfected cells, respectively, and thus a significantly lower affinity of LRP6 toward DKK2 under similar expression conditions. This finding is in perfect agreement with literature values from in-vitro studies (Mao et al., 2001).

11) The simplifications constrain the technique. The authors should report how much these assumptions change their actual experimental estimates for the Kd. E.g. the assumption that GFP is 100% fluorescent is not really borne out by recent experiments that rather report 80%. Also the assumption that there are no non-fluorescent tdTomato in the dimers is not entirely justified. Reports on red fluorescent proteins being fluorescent vary between 20 to maximally 60%. Even in the best case this still would lead to 16% non-fluorescent proteins. Furthermore, tdTomato with one or two fluorophores contribute very differently to the correlation functions as the contribution depends not linearly on the brightness. So I agree that the simplifications make the data more easily treatable. But the authors should at least show once the full solution and compare the results of it to the approximation.

We were a bit puzzled by this remark. The reviewer refers to a part of the manuscript that addresses the analysis of fractions of heterodimeric receptor-receptor complexes and not Kd determination. Therefore, it does not appear meaningful to request that we “….should report how much these assumptions change their actual experimental estimates for the Kd.” Moreover, this part concerns a small side issue disconnected from the main topic, which is Kd determination. Here we wanted to show that our data give evidence of heterodimeric xKremen2-LRP6 complexes in the plasma membrane. We did not aim to be strictly quantitative; this is why we introduced a number of simplifications which, however, do not have any implication for our conclusion that xKremen2-LRP6 heterodimers exist.

The reviewer asked us to discuss the validity of our assumptions and compare the results with the full solution. However, since this is only a side issue, we feel that it does not make sense to expand this part of the Materials and methods section even further. Thus, we have instead aimed to shorten this subsection while, at the same time, accommodating the reviewer’s requests to avoid simplifications. To this end, we have rewritten this entire subsection to treat the maturation yields of the fluorescent proteins explicitly in the equations. Because the maturation yield is not a precise, characteristic parameter of a chosen type of fluorescent marker protein but depends on the specifics of the experiment, we assume values of maturation yields that appear reasonable to us (and hopefully also to readers) and show the extents of the resulting corrections.

https://doi.org/10.7554/eLife.55286.sa2

Article and author information

Author details

  1. Antonia Franziska Eckert

    Institute of Applied Physics, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Data curation, Formal analysis, Investigation
    Contributed equally with
    Peng Gao and Janine Wesslowski
    Competing interests
    No competing interests declared
    Additional information
    These authors are listed in alphabetical order
  2. Peng Gao

    1. Institute of Applied Physics, Karlsruhe Institute of Technology, Karlsruhe, Germany
    2. Institute of Nanotechnology, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Present address
    School of Physics and Optoelectronic Engineering, Xidian University, Xi’an, China
    Contribution
    Resources, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Antonia Franziska Eckert and Janine Wesslowski
    Competing interests
    No competing interests declared
    Additional information
    These authors are listed in alphabetical order
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5354-3944
  3. Janine Wesslowski

    Institute of Biological and Chemical Systems, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Resources, Formal analysis, Investigation, Visualization
    Contributed equally with
    Antonia Franziska Eckert and Peng Gao
    Competing interests
    No competing interests declared
    Additional information
    These authors are listed in alphabetical order
  4. Xianxian Wang

    Institute of Biological and Chemical Systems, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Resources, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  5. Jasmijn Rath

    Institute of Applied Physics, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Karin Nienhaus

    Institute of Applied Physics, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Supervision, Validation, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8357-846X
  7. Gary Davidson

    Institute of Biological and Chemical Systems, Karlsruhe Institute of Technology, Karlsruhe, Germany
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Methodology, Project administration
    For correspondence
    gary.davidson@kit.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2264-5518
  8. Gerd Ulrich Nienhaus

    1. Institute of Applied Physics, Karlsruhe Institute of Technology, Karlsruhe, Germany
    2. Institute of Nanotechnology, Karlsruhe Institute of Technology, Karlsruhe, Germany
    3. Institute of Biological and Chemical Systems, Karlsruhe Institute of Technology, Karlsruhe, Germany
    4. Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    uli@uiuc.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5027-3192

Funding

Deutsche Forschungsgemeinschaft (SFB 1324, project A6)

  • Gerd Ulrich Nienhaus

Deutsche Forschungsgemeinschaft (SFB 1324, project Z2)

  • Gary Davidson

Helmholtz-Gemeinschaft (STN)

  • Gerd Ulrich Nienhaus

Helmholtz-Gemeinschaft (BIFTM)

  • Gary Davidson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Benedikt Prunsche for technical assistance. This work was supported by the Deutsche Forschungsgemeinschaft (DFG) through grant SFB 1324 (projects A6 and Z2). GUN and GD also acknowledge funding by the KIT in the context of the Helmholtz programs Science and Technology of Nanosystems (STN) and BioInterfaces in Technology and Medicine (BIFTM), respectively.

Senior Editor

  1. José D Faraldo-Gómez, National Heart, Lung and Blood Institute, National Institutes of Health, United States

Reviewing Editor

  1. Hannes Neuweiler, University of Würzburg, Germany

Reviewers

  1. Hannes Neuweiler, University of Würzburg, Germany
  2. Thorsten Wohland, National University of Singapore, Singapore

Publication history

  1. Received: January 20, 2020
  2. Accepted: May 21, 2020
  3. Accepted Manuscript published: May 22, 2020 (version 1)
  4. Version of Record published: June 11, 2020 (version 2)

Copyright

© 2020, Eckert et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 743
    Page views
  • 167
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Physics of Living Systems
    Akanksha Thawani et al.
    Research Article Updated
    1. Neuroscience
    2. Physics of Living Systems
    Joanne C Gordon et al.
    Research Article Updated
