Revealing the structure of information flows discriminates similar animal social behaviors

  1. Gabriele Valentini
  2. Nobuaki Mizumoto
  3. Stephen C Pratt
  4. Theodore P Pavlic  Is a corresponding author
  5. Sara I Walker  Is a corresponding author
  1. Arizona State University, School of Earth and Space Exploration, United States
  2. Arizona State University, School of Life Sciences, United States
  3. Okinawa Institute of Science & Technology Graduate University, Onna-son, Japan
  4. Arizona State University, ASU–SFI Center for Biosocial Complex Systems, United States
  5. Arizona State University, Beyond Center for Fundamental Concepts in Science, United States
  6. Arizona State University, School of Computing, Informatics, and Decision Systems Engineering, United States
  7. Arizona State University, School of Sustainability, United States
Research Article
  • Cited 0
  • Views 320
  • Annotations
Cite this article as: eLife 2020;9:e55395 doi: 10.7554/eLife.55395

Abstract

Behavioral correlations stretching over time are an essential but often neglected aspect of interactions among animals. These correlations pose a challenge to current behavioral-analysis methods that lack effective means to analyze complex series of interactions. Here we show that non-invasive information-theoretic tools can be used to reveal communication protocols that guide complex social interactions by measuring simultaneous flows of different types of information between subjects. We demonstrate this approach by showing that the tandem-running behavior of the ant Temnothorax rugatulus and that of the termites Coptotermes formosanus and Reticulitermes speratus are governed by different communication protocols. Our discovery reconciles the diverse ultimate causes of tandem running across these two taxa with their apparently similar signaling mechanisms. We show that bidirectional flow of information is present only in ants and is consistent with the use of acknowledgement signals to regulate the flow of directional information.

eLife digest

Social animals continuously influence each other’s behavior. Most of these interactions simply consist in an individual immediately responding to the behavior of another in a predictable way. Still, when the same individuals interact over long periods, complex social interactions can arise. These can be difficult for scientists to study, because how animals behave at a given moment depends on their shared history.

Certain species of ants and termites use smell and touch to do ‘tandem runs’ and move in pairs through the environment. Only ants, however, can learn a new route from their running partner. Understanding how this difference arises means examining how the animals interact and communicate over longer time scales. This requires new approaches to capture how information flows between the insects.

Here, Valentini et al. used a scientific methodology known as information theory to study tandem running in one species of ants and two species of termites. Information theory provides a framework to quantify how information is shared, processed and stored.

The flow of information between individuals was measured separately for different aspects of tandem running. At small time scales, ant and termite behavior appeared identical, but over longer periods, it was possible to distinguish between the two types of insects.

In termites, only one individual in a pair sent information to the other to instruct the second termite where to go. By contrast, in ants, both members of the tandem communicated with each other in a way that was consistent with how humans acknowledge information they receive from other individuals.

The approach used by Valentini et al. will be useful to researchers who study how complex and often cryptic social interactions develop over extended periods in social animals. This framework could also be applied in other systems such as groups of cells, or economic networks.

Introduction

Social interactions among individuals unfold across different scales of space and time (Flack, 2012). At short time scales, causal relationships can often be captured by experiments that manipulate an immediate stimulus to reveal its causal connection(s) to a stereotyped response, or fixed action pattern. In herring gulls, for example, the feeding behavior of chicks is visually triggered by a red spot on the lower bill of adult gulls—a causal relationship revealed through experiments in which changes in the color of this spot were shown to affect the likelihood that chicks will engage in feeding behavior (Tinbergen, 1953). However, interactions are often more complex than this because they follow a protocol where rules are conditionally applied over time contingent upon the outcome of previous interactions. In these cases, where short-term histories may affect longer-term outcomes, the ability to make testable predictions requires quantitative tools that can capture the dynamics of the interaction protocol at an intermediate time scale. Considering only short-term interactions, like the stimulus-and-response of herring-gull parent and chick, might not explain functional differences observed at long time scales in otherwise similar behaviors.

Consider the tandem-running behavior of many ants and termites, in which one individual leads a follower through their environment, the follower walking closely behind the leader throughout the run. (Figure 1A). At short time scales, tandem runs in the ant Temnothorax rugatulus appear identical to those in the termites Coptotermes formosanus and Reticulitermes speratus. They use similar signaling mechanisms, in which the leader releases a short-range pheromone that attracts the follower (Möglich et al., 1974; Bordereau and Pasteels, 2010), while the follower taps the leader’s body with its antennae to indicate its continued presence (Möglich et al., 1974; Franks and Richardson, 2006; Nutting, 1969; Vargo and Husseneder, 2009). Upon removal of the follower, the leader stops and waits for the follower to resume contact both in ants (Möglich et al., 1974; Franks and Richardson, 2006) and in termites (Mizumoto and Dobata, 2019). At long time scales, however, there exist clear functional differences in these seemingly similar behaviors. Leaders in T. rugatulus use tandem runs as a recruitment mechanism that allows followers to learn a route and acquire navigational information necessary to later repeat the same journey independently of the leader (Figure 1B). In contrast, termites usually use tandem runs during mating, except for one example of recruitment in a basal termite (Sillam-Dussès et al., 2007). In a mated pair, the male follows the female leader only to maintain spatial cohesion when searching for a new home; once a suitable location is found, the termites remain there to start a new colony, and neither partner ever retraces the route of their tandem run.

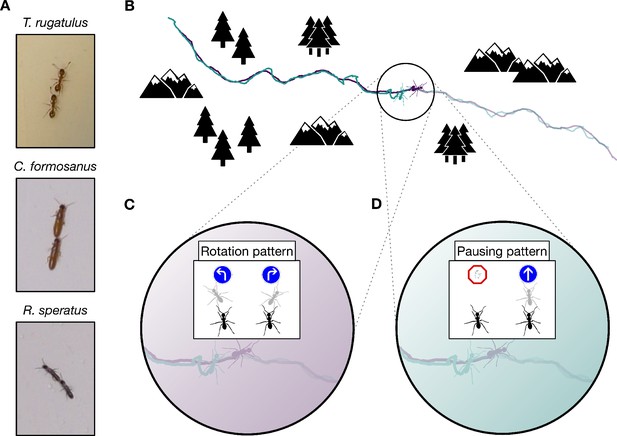

Tandem run recruitment by ants and termites.

(A) Tandem running pairs of the ant species T. rugatulus and the termite species C. formosanus and R. speratus. (B) A sampled tandem run trajectory within an idealized environment. The encoding schemas used to discretise spatial trajectories of each ant and each termite on the basis of (C) the rotation pattern and (D) the pausing pattern.

Short-term signaling mechanisms (i.e., their stimulus and response dynamics) are similar between ants and termites and cannot explain species differences in the function of tandem runs (i.e., route learning versus spatial cohesion). These differences are likely encoded at intermediate time scales, where it becomes possible in principle to detect the communication protocol (i.e., set of interaction rules) that describes how and when leader and follower use each short-term signaling mechanism. However, experimental manipulations that operate at intermediate time scales also interfere with and constrain normal patterns of behavior over time. As we show in this study, information-theoretic methods can reveal the structure of information flow between subjects based only on observational data from many repeated interactions. Moreover, these model-free methods do not rely on a priori assumptions and can be applied over different ecological scenarios allowing for comparisons across a wide taxonomic range (McCowan et al., 1999).

Information theory provides a model-free formalism to explicitly quantify the effects of the interaction between individuals across space and time (Cover and Thomas, 2005; Lizier et al., 2008). Whereas the generic concept of entropy quantifies the uncertainty in a distribution of outcomes, the derived construct of transfer entropy quantifies the reduction of uncertainty about the future state of a putative receiver given knowledge of the present state of the corresponding sender (Schreiber, 2000). Transfer entropy is well suited for studying message passing; it naturally incorporates temporal ordering, from the sender’s present to the receiver’s future, and quantifies the additional predictive power gained from the sender beyond what is contained in the receiver’s past. In this way, it accounts for autocorrelations that might otherwise affect behavioral data (Mitchell et al., 2019). Previous studies have used symbolic transfer entropy (Staniek and Lehnertz, 2008) to reveal whether one animal is influencing another on the basis of a single symbolic representation of behavioral data (Orange and Abaid, 2015; Butail et al., 2016; Kim et al., 2018; Ward et al., 2018; Porfiri et al., 2019; Ray et al., 2019). We extend these methods by applying transfer entropy to different symbolic representations of the same data to capture parallel information flows within the same behavior (e.g., patterns embedded in symbols representing the direction of motion or the speed of motion as shown in Figure 1C and D). Using different symbolic representations of the same raw data allows us to uncover the complex, multi-layered structure of causal relationships between subjects. Following this approach, we provide evidence that the communication protocol used by leaders and followers over intermediate time scales explains the functional differences between the tandem runs of ants and termites despite their using similar signaling mechanisms at short time scales.

Results

We first used transfer entropy to find whether the leader’s or the follower’s behavior better predicts the direction of motion of the other runner along the route. In ants, the leader is demonstrating a known route to the follower (Franks and Richardson, 2006), and in termites the leader is directing a random search for a new home across the environment with the follower in tow (Nutting, 1969; Vargo and Husseneder, 2009). In both cases, the leader is expected to be the best predictor of the direction of the pair’s motion. Consequently, we expect the leader’s behavior to be more informative about the direction of the follower than the other way around in both ants and termites. To test this hypothesis, we coarse grained the spatial trajectories of each runner into sequences of clockwise and counterclockwise turns (Figure 1C and Materials and methods). We then measured the flow of information between the pair averaged over the entire duration of the tandem run (i.e., over intermediate time scales). We found that, as expected, the leader better predicts the direction of motion of the follower than vice versa across all three species (Figure 2A, rotation bars, and Tables 1 and 2).

Information flow during tandem run recruitment.

(A) The predominant direction of predictive information given by the proportion of uncertainty reduction explained by the interaction between leader and follower (mean normalized transfer entropy and standard error). (B) A schematic illustration and (C) a mechanistic illustration of the regulation of information flow in ants' tandem runs. Source data of predictive information are available in Figure 2—source data 1.

Table 1
Selected parameter configurations.

For each species and behavioral pattern, the table provides the number of tandem runs used in the study, the sampling period and corresponding number of time steps in each time series, and the history length.

Species#Tandem runsBehavioral patternSampling period (s)#Time stepsHistory length k
T. rugatulus20Rotation1.50155999
Pausing0.967693013
Pausing and Rotation1.23467288
C. formosanus17Rotation0.367024522
Pausing0.166853951
Pausing and Rotation0.367024522
R. speratus20Rotation0.500517981
Pausing0.467119261
Pausing and Rotation0.500517982
Table 2
Statistics about transfer entropy.

Mean value and standard error of transfer entropy for the experimental (TXY) and surrogate (TXYs) datasets and of normalized transfer entropy (T˜XY) from the predominant source of predictive information to its destination (i.e., always from leader to follower except for the pausing pattern of T. rugatulus when information is transferred from follower to leader).

SpeciesBehavioral patternTLFTLFsTFLTFLsT~LF(T~FL)
T. rugatulusRotation.1488±.0504.0366±.0026.0368±.0125.0371±.0073.1197±.0543
Pausing.0058±.0033.0047±.0015.0423±.021.0081±.0044.0795±.0401
Pausing and Rotation.2656±.034.1429±.0092.1836±.0368.1847±.0269.1246±.035
C. formosanusRotation.2063±.0731.0009±.0019.0091±.0077.0012±.0017.2884±.0844
Pausing.0303±.0209.0001±.0003.0064±.0056.0001±.0001.1532±.0865
Pausing and Rotation.2593±.072.0024±.0028.013±.0135.0026±.0014.2991±.0583
R. speratusRotation.1804±.1097.0001±.0003.0027±.0137.0001±.0003.1949±.119
Pausing.0228±.0149.0001±.0002.0055±.0087.0001±.0001.0698±.0445
Pausing and Rotation.2385±.1446.0011±.0013.0081±.0121.0011±.0007.2082±.1359

Next, we focused on the frequent brief interruptions that give tandem runs a distinctive stop-and-go appearance. During these interruptions, the follower breaks tactile contact with the leader, who then pauses while the follower performs a local random search (Franks et al., 2010; Mizumoto and Dobata, 2019). When the follower again touches the leader, the latter resumes motion, and the pair continues on their way. In ants, these frequent interruptions are believed to regulate the speed of the run to better enable followers to acquire navigational information (Franks and Richardson, 2006; Franklin et al., 2011). As termites do not use tandem runs to learn a route, interruptions may be more consistent with accidental chance separations from the leader. Thus, we hypothesize that in ants, but not in termites, followers better predict the cessation and resumption of motion than do leaders. Under this hypothesis, followers send acknowledgment signals (Figure 2B and C) similar to the use of utterances (e.g., ‘mm-hmm’ described by Jefferson, 1984) or gestures (e.g., the nodding of one’s head) in human conversations, as well as ‘ACK’ messages in Internet protocols that confirm receipt of other content-laden packets (Cerf and Kahn, 1974). If our hypothesis is correct, we would expect the information-theoretic signature of the tandem pair’s pausing pattern in ants to differ from that of termites. To test this, we analyzed the spatial trajectories using a different representation obtained by coarse graining them into sequences of pauses and movements (Figure 1D). As hypothesized, we found that the leader remains the best source of predictive information in termites, but in ants the follower instead controls the flow of information and better predicts the future pausing behavior of the leader (Figure 2A, pausing bars, and Table 2).

Side-by-side comparison of tandem-run trajectories (Figures 3A and 4A) shows that ants, but not termites, evince a tension between cohesion and information acquisition. Leader and follower ants repeatedly switch in and out of proximity regulation under the control of the follower (Figure 3B and C). The predictive power of the leader’s rotation pattern dominates at close distances up to two body lengths, when the pair is undergoing sustained motion and seeking cohesion (point 1, rotation regime). When their distance increases further, the follower becomes more informative, predicting pauses in the motion of the leader (point 2, pausing regime). Their separation then decreases as the follower approaches the stationary leader (point 3) and predicts her resumption of motion. When leader and follower are again in close proximity, the leader begins to move away (point 4) and this pattern repeats. Large separations are evidently generated by the follower ant and are unrelated to rotational course corrections.

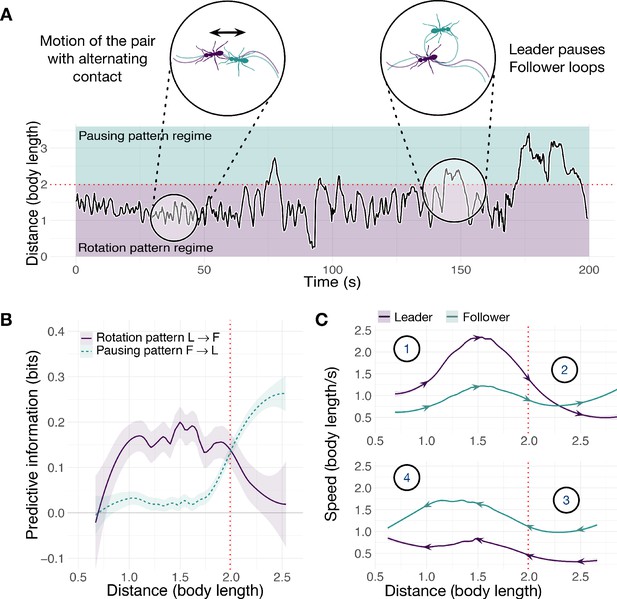

Spatiotemporal dynamics of the ant T. rugatulus.

(A) Distance between the centroids of runners as a function of time. (B) Average predictive information (measured with local transfer entropy) as a function of the distance between centroids of runners (smoothed conditional means with LOESS smoothing and 0.3 span). (C) Average speed of leader and follower as a function of the distance between their centroids for increasing and decreasing distance. Purple represents the leader, green represents the follower. Source data of predictive information are available in Figure 3—source data 1.

Figure 4 with 1 supplement see all
Spatiotemporal dynamics of the termite C. formosanus.

(A) Distance between the centroids of runners as a function of time. (B) Average predictive information (measured with local transfer entropy) as a function of the distance between centroids of runners (smoothed conditional means with LOESS smoothing and 0.3 span). (C) Average speed of leader and follower as a function of the distance between their centroids for increasing and decreasing distance. Purple represents the leader, green represents the follower. See also Figure 4—figure supplement 1. Source data of predictive information are available in Figure 4—source data 1 and Figure 4—source data 2.

In contrast to ants, the termite leader dominates both regimes of predictive information (Figure 4). Furthermore, these regimes are inverted with respect to ants: rotation is predicted at larger distances and pausing of motion at shorter distances. The distance between a leader and a follower is characterized by oscillations with higher frequency but lower amplitude than those of the ants (Figure 3A and Figure 4A). These oscillations are largely within the rotation regime due to sustained motion. In this regime, tandem runners frequently alternate between a phase in which the leader is the faster of the two and their distance increases (Figure 4C, point 1a) and a phase in which the follower moves faster than the leader, reducing the gap (point 2a). Sporadically, leader and follower can be found very close to each other (less than 0.89 body lengths, Figure 4B) where they enter the pausing regime. When this happens, the leader’s motion initially predicts the decrease and then the increase in speed of the follower (points 1b and 2b). The pausing regime is then quickly abandoned, and rotation information regains dominance. This behavior is consistent with relatively close proximity facilitating momentary large course corrections (Figure 4A, right inset). Leader-initiated pauses in termites might serve some unknown function, for example motor planning (Card and Dickinson, 2008; Hunt et al., 2016); however, unlike the case of ants, we uncover no evidence that the termite pauses facilitate follower control over any aspects of the trajectory.

Discussion

Although both ants and termites have similar mechanisms for mutual signaling at short time scales, route learning by ants requires a communication protocol at intermediate time scales different from that needed solely to maintain spatial cohesion. In principle, both ant and termite followers can transfer information to their leaders by signaling their presence through physical contact. However, in contrast to ants, termite followers in our experiments transfer information only when establishing contact at the beginning of a run and sporadically after accidental breaks. Once contact is established and the run is proceeding steadily, termite followers cease to transfer information to their leaders who instead control both the direction and the speed of the run. Although manipulation experiments acting at short time scales can show bidirectional flow in all three species, we found evidence that communication at intermediate time scales is consistently bidirectional only in ants (from leader to follower for rotations and from follower to leader for pauses) whereas, with the exception of accidental breaks, it is consistently unidirectional in termites (from leader to follower for both rotations and pauses).

The communication protocol followed by termites can be likened to a person leading another by the hand. The protocol of ants reveals instead a more complex coordination of social behavior as leader and follower systematically alternate between close contact and separation. We suggest that the ants’ intermittent motion and bidirectional feedback is akin to the pausing for acknowledgment observed between machines on a computer network. In this case, communication theory can aid in understanding the frequency of acknowledgments in terms of the receiver’s informational capacity and the complexity of the information being received (Cover and Thomas, 2005). The selective exposure of a follower to navigational information from the environment is akin to the sending of a complex message over a simple channel which, in machine-to-machine communication, requires flow control mechanisms to prevent overwhelming the receiver.

Tandem running by the related and behaviorally similar ant T. albipennis has also been likened to teaching—a social behavior often used to distinguish humans from other animals—because the leader modifies her behavior in the presence of a naïve follower at some cost and as a result of bidirectional feedback (Franks and Richardson, 2006; Richardson et al., 2007). Our results reveal how the regulation of information flow might be an underappreciated requirement of teaching. This assumption could be investigated by applying the methodology we put forward here to other examples of teaching known in the animal kingdom (Hoppitt et al., 2008). Moreover, although social insects use cue-based mechanisms for flow and congestion control of physical quantities, such as food or nesting material (Seeley, 1989; Prabhakar et al., 2012), our study is the first to reveal a protocol for the application of stereotyped signals to control the flow of other information (i.e., a non-physical quantity) in a non-human organism. Furthermore, tandem running has evolved multiple times in the ants but not all instances necessarily require acknowledgment signals (Kaur et al., 2017), and so comparing across taxa may reveal the ecological context that led to the evolution of signals that regulate other signals.

Conclusions

Temporal correlations manifesting over intermediate time scales represent an important but often neglected aspect in behavioral ecology (Mitchell et al., 2019). Complex spatiotemporal interactions among individuals (i.e., those interactions evolving over intermediate time scales) are difficult to study by direct manipulation in highly controlled laboratory settings. Instead, quantitative and non-interventional methods applied over longer observational periods can be used to capture the dynamical aspect of social interactions, but these methods are generally underdeveloped and sporadically used in behavioral ecology. As we have shown in this study, information theory offers tools such as transfer entropy that can disentangle the temporal structure of the interaction between individuals.

Whereas the construct of transfer entropy has seen extensive applications in the neurosciences, particularly to study effective connectivity in the brain (Vicente et al., 2011), its application in the field of animal behavior is less frequent and has focused primarily on revealing leader–follower relationships in fish (Butail et al., 2016; Kim et al., 2018; Ward et al., 2018) and bats (Orange and Abaid, 2015), with more recent applications in the study of decision-making in humans (Grabow et al., 2016; Porfiri et al., 2019) and slime molds (Ray et al., 2019). These previous applications set out to answer the generic question of whether one subject is influencing another on the basis of a single symbolic representation of raw data (e.g., a single encoding that carries information only about the direction of motion). Such uses of transfer entropy and other information-theoretic measures (McCowan et al., 1999) cannot disentangle the complex structure of information flow between subjects when simultaneous aspects of their interaction carry different forms of information transmitted in different directions and at different time scales. By quantifying multiple, concurrent symbolic patterns (i.e., variation over time in both direction and speed) and subsequently relating the structure of information flows latent in these data to each other, we have shown how to uncover more complex communication protocols as opposed to simply identifying distinct individuals within a social interaction.

The methodology we put forward, which applies advanced information-theoretic measures to different symbolic representations of the same dataset, has allowed us to show differences in the communication protocol used by tandem-running ants and termites, and to explain the disparity in their function. Our approach is sufficiently generic to enable the discovery of cryptic signaling behaviors in other taxa and to provide deeper insights into behaviors whose function is poorly or partially understood (e.g., turn-taking [Flack, 2013; Pika et al., 2018] and complex coordinated dances in birds [Ota et al., 2015]). Furthermore, we have shown how the generality of this approach can extend traditional information-theoretic analysis from a mechanistic focus on one species toward a comparison across a wide taxonomic range. Such a common language of information processing can enable the posing of new questions, hypotheses, and predictions for the evolution of information processing itself.

Materials and methods

Data and source code are available in Valentini et al., 2020.

Ant experiments

Request a detailed protocol

We used 6 colonies of T. rugatulus (between 30–60 individuals each) collected in the Pinal Mountains near Globe, Arizona, during September 2017. Each colony was kept in a plastic box (110 mm by 110 mm) with a nest, a water tube, and an agar-based diet (Bhatkar and Whitcomb, 1970). Nests (50 mm by 75 mm) were composed of a balsa-wood slat with a central rectangular cavity (30 mm by 50 mm) and sandwiched between two glass slides (Figure 5A). The top slide had a 2 mm hole over the center of the nest cavity to allow ants to enter and leave the nest. We conducted emigration experiments to induce ants to perform tandem runs. To obtain sufficiently long tandem runs, we used a large experimental arena (370 mm by 655 mm) delimited by walls (37 mm tall) and subdivided by five barriers (10 mm by 310 mm) placed to form a contiguous corridor with alternating left and right turns (Figure 5B). The design and dimensions of this arena were informed by a preliminary analysis of termite experiments (see Computation of statistics). Both walls and barriers were coated with Fluon to prevent ants from leaving the experimental arena. A new nest was placed at one extremity of the corridor and was covered with a transparent red filter to encourage the ants, which prefer dark cavities (Franks et al., 2003), to move in. The nest housing a colony was transferred from its plastic box and placed at the other extremity of the corridor. Colony emigration was induced by removing the top slide of the occupied nest. We performed six experiments, one for each colony, and recorded them at 30 frames per second using a video camera with 1K resolution. For each colony, we then selected between 1 and 6 pairs of ants performing tandem runs obtaining a total of 20 samples. Selected tandem runs last more than 15 min and have the same pair of ants travelling between the two nests with no or minimal interaction with other members of the colony.

Experimental setup for experiments performed with the ant T. rugatulus.

(A) Nest architecture with the entrance in the center of the roof. (B) Experimental arena partitioned into a corridor with the old nest (bottom right) and the new nest (top left) positioned at the extremities.

Termite experiments

Request a detailed protocol

Experiments with C. formosanus and R. speratus were performed as part of a study on sexually dimorphic movements of termites during mate search (Mizumoto and Dobata, 2019). Alates from 2 colonies of C. formosanus were collected in Wakayama, Japan, in June 2017; alates from 5 colonies of R. speratus were collected in Kyoto, Japan, in May 2017. After controlled nuptial flight experiments, termites that shed their wings were selected and used for tandem run experiments. Experiments were performed in a Petri dish (145 mm Ø) filled with moistened plaster whose surface was scraped before each trial. A female and a male termite were introduced in the experimental arena with the opportunity to tandem run for up to 1 hr. A total of 17 experiments were performed for C. formosanus and 20 experiments for R. speratus using different individuals. Tandem runs were recorded at 30 frames per second using a video camera with a resolution of 640 by 480 pixels.

Data extraction

Request a detailed protocol

We extracted motion trajectories from video recordings of tandem runs by automatically tracking the position over time of leaders and followers. Motion tracking was accomplished using the UMATracker software platform (Yamanaka and Takeuchi, 2018). Because we tracked the centroids of each runner’s body, the distance between individuals was always greater than zero even when leader and follower were in contact with each other. All trajectories were sampled at 30 frames per second and shortened to a duration of 15 min. Trajectories were then converted from pixels to millimeters using a scaling factor estimated by measuring known features of the experimental arena with ImageJ (Schneider et al., 2012). The body size of each runner (average ± standard deviation) was measured from video recordings of the experiments using ImageJ (T. rugatulus: 2.34 ± 0.3 mm, C. formosanus: 8.89 ± 0.42 mm, R. speratus: 5.5 ± 0.3 mm).

Encoding behavioral patterns into symbolic time series

Request a detailed protocol

We considered three possible behavioral patterns for each runner: pausing pattern, rotation pattern, and their combination pausing and rotation pattern. We did so by coarse-graining the space-continuous trajectories of each leader and each follower using three different symbolic representations. Each spatial trajectory consists of a sequence (q1, q2,) of 2-dimensional points, qi=(qix, qiy), representing spatial coordinates over time which are then encoded into a symbolic time series X= (x1, x2,). To capture the time interval where the sender best predicts the behavior of the receiver, we subsampled spatial trajectories in time before encoding the behavioral patterns of each runner. We considered different sampling periods, starting from a short period of one sample every 33.3667 ms (29.97 Hz) to a long period of one sample every 1.5015 s (0.666 Hz) with an interval between each period of 33.3667 ms (i.e., sampling period { 0.0334s, 0.667s, , 1.5015s }). Depending on the sampling period, the resulting time series have a number of time steps between 599 and 26973.

The pausing pattern is encoded using two states: the motion state (M) and the pause state (P). The motivation for this coding scheme is to capture when a tandem runner pauses while waiting for the other to re-join the tandem run or to react to physical contact. Pauses, small adjustments of the position of the runner, or changes due to noise in the sampled trajectories may each accidentally be considered as genuine acts of motion. To prevent these spurious classifications, we used a threshold based on travelled distance to distinguish segments of the trajectory into those identifying motion and those identifying pauses. We first computed the probability distribution of step sizes, that is, the distance travelled by a runner between two consecutive sampled positions qi and qi+1 for each species and sampling period (Figure 6 and supplements). These distributions show two distinct modes: short steps (i.e., low speed) characteristic of pauses and long steps (i.e., high speed) characteristic of sustained motion. After inspection, we chose the 10th percentile of each probability distribution as the distance threshold used to distinguish between motion and pauses. We therefore encoded as pause states all time steps in a given spatial trajectory with a corresponding travelled distance in the 10th size percentile and the remaining 90% of time steps as motion states. This threshold was varied in the interval { 5%,6%,, 15% } during a perturbation analysis of predictive information (see Computation of statistics).

Figure 6 with 2 supplements see all

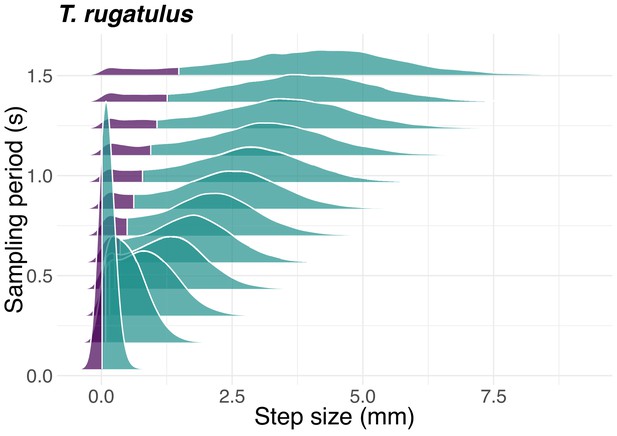

Step-size distribution as a function of sampling period.

Probability density function of the step size for the ant T. rugatulus as a function of the sampling period. Purple represents the 10% probability mass used to define the pause state; green represents the remaining 90% of the probability mass defining the motion state. See also Figure 6—figure supplement 1 for the termite C. formosanus and Figure 6—figure supplement 2 for R. speratus.

The rotation pattern is also encoded using two states: clockwise (CW) and counterclockwise (CCW). The direction of rotation at time i is obtained by looking at three consecutive positions, qi1, qi, qi+1, in the spatial trajectory of each runner. The rotation is clockwise when the cross product qi1qi×qiqi+1 is negative, counterclockwise when it is positive, and collinear when it is exactly zero. As we aim to model only clockwise and counter-clockwise rotations, we do not consider any tolerance threshold to explicitly capture collinear motion. Instead, in the rare occurrences of collinear motion, the direction of rotation at the previous time step, i1, is copied over in the time series.

As a control for our choices of possible behavioral outcomes, we also considered a compound pausing and rotation pattern that simultaneously encodes both components of tandem running. A possible approach to do so is to use the time series of each behavioral pattern separately but then rely on multivariate measures of predictive information. However, in our scenario, pauses have a mutually exclusive relation with rotations that cannot be preserved using multivariate measures. The pausing and rotation pattern is defined therefore using a ternary coding scheme that encodes motion bouts in the states pause (P), clockwise (CW) and counterclockwise (CCW). As for the pausing pattern, the shortest 10% of steps in the spatial trajectories are encoded as pausing (see Computation of statistics for a perturbation analysis of this parameter). The remaining 90% of steps are encoded using states clockwise and counterclockwise following the same methodology used for the rotation pattern.

Measuring predictive information

Request a detailed protocol

Our analysis of communication in tandem running is grounded in the theory of information (Cover and Thomas, 2005) and its constructs of entropy, conditional entropy, and transfer entropy. We aim to quantify how knowledge of the current behavior of the sender allows us to predict the future behavior of the receiver, that is, to measure causal interactions in a Wiener-Granger sense (Bossomaier et al., 2016). We consider the behavioral patterns of leaders and followers as the series of realizations (li,i1) and (fi,i1) of two random variables, L and F, corresponding to the leader and follower, respectively. For simplicity, the following presentation focuses on predicting the future of the follower, Fi+1= (fi+1,i1), from the present of the leader, L, but in our analysis we also consider how much of the future of the leader, Li+1, is predicted by the present of the follower, F.

The overall uncertainty about the future Fi+1 of the follower is quantified by the (marginal) entropy (Shannon, 1948) H(Fi+1)=fi+1p(fi+1)log2p(fi+1). Entropy measures the average amount of information necessary to uniquely identify an outcome of Fi+1. Knowing the history of the follower may reduce the uncertainty in the distribution of possible outcomes for the future of the follower, and the reduction in uncertainty can be quantified by the difference between the marginal entropy and the entropy after the historical information is considered. Let fi(k)={ fik+1, , fi1,fi } represent the finite history with length k of F up to the current time i and F(k) a new random variable defined over a series (fi(k),i1) of k-histories. The amount of uncertainty about Fi+1 that is left after accounting for its past behavior F(k) is given by the conditional entropy:

H(Fi+1|F(k))= fi(k),fi+1p(fi(k),fi+1)log2p(fi(k),fi+1)p(fi(k)),

for history length 1k<. H(Fi+1|F(k)) represents the average amount of information necessary to uniquely identify the future behavior of the follower given what we know about its past behavior.

A second step to obtain additional information about the future of the follower is to consider the time-delayed effects of its interaction with the leader. Transfer entropy was introduced for this purpose (Schreiber, 2000). It measures the amount of information about the future behavior of the receiver given by knowledge of the current behavior of the sender that is not contained in the receiver’s past. Due to its time directionality (i.e., from the present of the sender to the future of the receiver), it is considered a measure of information transfer or predictive information (Lizier and Prokopenko, 2010). Transfer entropy is defined as:

TLF=fi+1, fi(k), lip(fi+1, fi(k), li)log2p(fi+1 | fi(k), li)p(fi+1| fi(k))

and measures the reduction of uncertainty of Fi+1 given from knowledge of L which is not already given by F(k). The logarithm in the above equation is known as local transfer entropy (Lizier et al., 2008) and tells us whether, at time i, the interaction  li |  fi(k) fi+1  | fi(k) between the two processes is informative (>0) or misinformative (<0). In our analysis, we look at local transfer entropy averaged over the distance between leader and follower to understand the spatiotemporal dynamics of communication during tandem running.

Due to the asymmetry of transfer entropy, TLFTFL, we can obtain the predominant direction and the magnitude of predictive information by studying the difference:

TLFTFL.

This quantity is positive when information flows predominantly from leader to follower (TLF>TFL) and negative when it flows from follower to leader (TLF<TFL). Its value is known as net transfer entropy (Porfiri, 2018). Finally, as transfer entropy can be rewritten as TLF=H(Fi+1|F(k))H(Fi+1|F(k), L), we can normalize this quantity in the interval [0;1] simply by dividing it by the conditional entropy as in:

TLFH(Fi+1|F(k))=H(Fi+1|F(k))H(Fi+1|F(k), L)H(Fi+1|F(k)).

Normalized transfer entropy (Porfiri, 2018) is a dimensionless quantity that captures the proportion of the future behavior Fi+1 of the follower that is explained by the interaction with the leader at time i. When Fi+1 is completely predicted by L, the conditional entropy H(Fi+1|F(k), L) is zero and normalized transfer entropy is maximal and equal to 1; instead, when Fi+1 is independent of L, H(Fi+1|F(k))=H(Fi+1|F(k),L) and normalized transfer entropy is minimal and equal to 0.

Computation of statistics

Request a detailed protocol

We computed information-theoretic measures for both leaders and followers. In our computations, we assume that the pausing and rotation patterns of ants and termites are peculiar features of the species rather than of specific pairs of tandem runners. As such, rather than treating each trial separately and then aggregating the results, we estimated the necessary probabilities from all experimental trials together and obtained a single estimate of transfer entropy for each considered species and parameter configuration. Our measures of predictive information are therefore averaged over all trials of the same species. Probability distributions are estimated from the frequencies of blocks of consecutive symbols within the time series. For example, the probability for a follower to have a history of rotations fi(3)={ fi2=CW, fi1=CW, fi=CCW } is estimated by counting the number of times the symbols { CW, CW, CCW } occur consecutively at any point in the time series of any follower; this count is then normalized by the number of samples to obtain a measure of probability. All information-theoretic measures were computed in R 3.4.3 using the rinform-1.0.1 package (Moore et al., 2018).

To ensure that the measured interactions are valid and not the result of artefacts that may arise due to finite sample sets, we compared transfer entropy measured from the experimental data with measurements from surrogate datasets artificially created by pairing independent time series (Porfiri, 2018). To create a surrogate dataset, we randomly paired the behavioral patterns of leaders and followers belonging to different tandem runs, obtaining a dataset with the same size as the original. We then computed transfer entropy for this surrogate data. Although leaders and followers from different runs are still influenced by the same environmental cues, this randomization process breaks possible causal interactions within the surrogate pair. For each species and parameter configuration, we repeated this randomization process 50 times obtaining 50 surrogate datasets that were used to estimate mean and standard error of transfer entropy. Finally, measurements of transfer entropy for the experimental data were discounted by a correction factor given by the estimated means.

The sampling period of continuous spatial trajectories and the history length of transfer entropy define the parameter space of our study. The optimal choice of these parameters likely varies for different species and between leaders and followers within a species as a result of behavioral, morphological, and cognitive differences manifesting at different time scales. To choose a suitable parameter configuration and control for its robustness, we computed net transfer entropy for 900 different parameter configurations for each species (history length k{ 1,, 20 } and sampling period { 0.0334s, , 1.5015s }). From the resulting landscapes of information transfer, which show robustness to variation of parameters, we then selected the parameter configurations that maximize the net transfer of information (see Figure 7 and Table 1). A similar analysis was preliminarily performed for increasing duration of tandem runs on the basis of the termite data with the aim to inform the design of the experimental arena used for ants (see Figure 7—figure supplement 1). These parameters, whose values converge for increasing length of the time series, are relatively similar across behavioral patterns for both species of termites. Ants instead are characterized by more diverse time scales likely because leaders and followers cause different aspects of tandem running and, possibly, because they do so by following cognitive processes with different time constraints (see Table 2 for summary statistics).

Figure 7 with 3 supplements see all
Landscape of net information transfer.

Net transfer entropy (bits) as a function of the sampling period and of the history length. (A), (B), and (C) show the results for the rotation pattern, (D), (E), and (F) show the results for the pausing pattern, and (G), (H), and (I) show the results for the compound pausing and rotation pattern. The first, second, and third columns show the results, respectively, for T. rugatulus, C. formosanus, and R. speratus. Colors indicate the intensity and predominant direction of information transfer (purple, from leader to follower; green, from follower to leader); the red diamond symbol indicates the configuration with maximum magnitude. See also Figure 7—figure supplements 13. Source data of net transfer entropy are available in Figure 7—source data 1.

For the chosen parameter configurations, we tested both the significance of our estimate of transfer entropy with respect to surrogate data and that of leader–follower relations observed in Figure 2A. One-sided two-sample Wilcoxon rank-sum tests with continuity correction show values of transfer entropy for the experimental data significantly greater than those for surrogate data (Table 3, columns 3 and 4) in all but four of these tests. One-sided paired Wilcoxon signed-rank tests with continuity correction were used instead to test differences in causal interactions between leaders and followers and to confirm the effects shown in Figure 2A. All leader–follower interactions were correctly identified by this analysis and none of the significant tests is among the four cases mentioned above (Table 3, columns 5 and 6). Next, we performed a perturbation analysis of the probability threshold used to separate pauses from motion in the pausing pattern and in the pausing and rotation pattern ({ 5%, 6%,, 15% }). Although the magnitude is subject to some variation, the direction of information transfer that represents our primary observable remains unaltered (see Figure 7—figure supplement 2). Finally, we also controlled for our choices of symbolic representation on possible outcomes in the behavioral patterns by considering a compound pausing and rotation pattern. Figure 7—figure supplement 3 shows the results of this analysis which closely resemble those shown in Figure 3 for T. rugatulus, Figure 4 for C. formosanus, and Figure 4—figure supplement 1 for R. speratus.

Table 3
Results of hypothesis testing of information transfer between leaders and followers.

Columns 3 and 4 report the results of one-sided two-sample Wilcoxon rank-sum tests with continuity correction (p-value and W statistic) testing if the experimental dataset has significantly higher transfer entropy than the surrogate one. Columns 5 and 6 report the results of one-sided paired Wilcoxon signed-rank tests with continuity correction (p-value and V statistic) testing, respectively, if the leader is significantly more informative than the follower and vice versa. Significant p-values are reported in bold.

SpeciesBehavioral patternH1: TLF>TLFsH1: TFL>TFLsH1: TLF>TFLH1: TFL>TLF
T. rugatulusRotationp<.001 (W=380)p=.51 (W=200)p<.001 (V=209)p=1.0 (V=1)
Pausingp=.21 (W=230)p<.001 (W=388)p=1.0 (V=0)p<.001 (V=210)
Pausing and Rotationp<.001 (W=400)p=.7 (W=181)p<.001 (V=207)p=1.0 (V=3)
C. formosanusRotationp<.001 (W=289)p=.002 (W=226)p<.001 (V=153)p=1.0 (V=0)
Pausingp<.001 (W=272)p<.001 (W=272)p=.001 (V=138)p=1.0 (V=15)
Pausing and Rotationp<.001 (W=289)p=.001 (W=229)p<.001 (V=153)p=1.0 (V=0)
R. speratusRotationp<.001 (W=380)p=.3 (W=220)p<.001 (V=201)p=1.0 (V=9)
Pausingp<.001 (W=380)p<.001 (W=340)p<.001 (V=195)p=1.0 (V=15)
Pausing and Rotationp<.001 (W=380)p=.018 (W=278)p<.001 (V=193)p=1.0 (V=17)

References

  1. 1
  2. 2
    Pheromones and chemical ecology of dispersal and foraging in termites
    1. C Bordereau
    2. JM Pasteels
    (2010)
    In: D Bignell, Y Roisin, N Lo, editors. Biology of Termites: A Modern Synthesis. Springer. pp. 279–320.
    https://doi.org/10.1007/978-90-481-3977-4_11
  3. 3
    An Introduction to Transfer Entropy
    1. T Bossomaier
    2. L Barnett
    3. M Harré
    4. JT Lizier
    (2016)
    Springer.
  4. 4
  5. 5
  6. 6
  7. 7
    Elements of Information Theory
    1. TM Cover
    2. JA Thomas
    (2005)
    John Wiley & Sons, Inc.
  8. 8
    Multiple time-scales and the developmental dynamics of social systems
    1. JC Flack
    (2012)
    Philosophical Transactions of the Royal Society B: Biological Sciences 367:1802–1810.
    https://doi.org/10.1098/rstb.2011.0214
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    The Herring Gull’s World: A Study of the Social Behaviour of Birds
    1. N Tinbergen
    (1953)
    Praeger Inc.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47

Decision letter

  1. Laurent Keller
    Reviewing Editor; University of Lausanne, Switzerland
  2. Christian Rutz
    Senior Editor; University of St Andrews, United Kingdom
  3. Jean-Louis Deneubourg
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your analyses of social interaction with information theory are very interesting and pave a new way for the study of the organisation of social organisms. We are therefore pleased to publish your paper.

Decision letter after peer review:

Thank you for submitting your article "Revealing the structure of information flows discriminates similar animal social behaviors" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Christian Rutz as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal their identity: Jean-Louis Deneubourg (Reviewer #1).

On the basis of the three reviews, which are appended below, the Reviewing Editor has drafted this decision letter to help you prepare a revised submission. In recognition of the fact that revisions may take longer than the two months we typically allow, until the research enterprise restarts in full, we will give authors as much time as they require to submit revised manuscripts.

We agree with the three reviewers that this well-written paper presents interesting work that should be of interest to a general audience. The three reviewers made valuable comments, which all need to be addressed carefully. We agree in particular with their concern that it is not easy to make robust comparisons across species, given differences in their biology and the experimental procedures used, so this point requires particular attention.

Reviewer #1:

The Valentini et al.'s work is highly original and opens new perspectives for better understanding how animal communicate. This paper presents highly original methods (based on the information theory) and results (interaction between social insects) as to justify its publication in eLife. In short, I strongly recommend its publication.

Valentini et al. show that non-invasive information-theoretic tools reveal the communication protocol by measuring simultaneous flows of different information between social individuals. The authors demonstrate the power of their approach/method by showing that the tandem recruitment of ants and termites are governed by different communication protocols. They also stress – and I share their statements – the fact that their method is non-invasive (based only on observational data from many repeated interactions) and does not rely on a priori assumptions (model-free). The subject is not only an issue concerning biology of social insects but it is of interest to a wide readership including specialists in social behaviour, collective phenomena, complex systems, etc.

More specifically, one of the interesting results – and it is surprising – is the difference concerning the transfer of information (in tandem recruitment) from follower to leader between ants and termites.

The Abstract summarizes well the content of the paper. The Introduction does a good job summarizing the biological challenges (function of tandem running behaviour) and the theoretical background (information theory). The manuscript is very well-written and very pleasant to read. The goals of the work are clearly set out, the methods (and theoretical tools) are very well explained and the results are impressive and convincing.

Reviewer #2:

This paper provides an information-theoretic explanation for the different purposes of tandem running in ants and termites. In agreement with the literature, while followers in ants participate in the tandem runs to learn a route, and followers in termites simply help explore the region the authors reveal different directionalities of information transfer between these species. These different purposes manifest in the form of how leader-follower relationships emerge within seemingly similar trajectory data. Symbolic time-series representation is used to encode different behaviors within the tandem run. The paper is well written and the results are impactful providing a mathematical interpretation to complex behaviors. The authors have taken care to ensure that the results are robust through a detailed sensitivity analysis.

I have few questions/comments regarding the methodology:

1) I was not able to understand how exactly the behaviors were encoded? Is there a manual step or is it all automatic. The para starting from 267 gets somewhat involved and does not explain how exactly the authors went from trajectory data to symbols. What exactly do the authors mean by 10th percentile of a sequence. The next paragraph on rotation was clearer but there too I was wondering if there were any thresholds to distinguish collinear motion from rotational motion.

2) Related to above, how did the authors determine the length of a sequence to be encoded? Was it a moving window?

3) What was the size of the dataset? How many instances of behaviors were compared for each species?

4) Is the leader ant always the one moving in front. This should be explicitly noted somewhere because it may not be true for all species. Perhaps the authors can consider renaming front-back ants/termites to not confuse with leader-follower which term is use to imply a causal relationship in itself.

5) What were the reasons for selecting different sampling periods and history lengths for the same species. For the ant for example the values are very far apart. The authors can either (a) pick similar values where they can, or (b) discuss why they think information transfer is maximized at different scales for the same species for different behaviors.

6) I couldn't find any statistics on the rotation bars in Figure 1D.

Reviewer #3:

The paper demonstrates an interesting model-free methodology for extracting and interpreting qualitatively different behaviors in pairs of insects moving together in a nominally similar way (i.e. tandem running). The experiments and analytical tools are generally well explained. However, I have a fundamental concern about the conclusions that are drawn as they relate to the species tested, but not acknowledging the dramatic differences in the experimental procedures used for ants versus termites.

1) My major concern is that the experiments used to gather the data from the ants and the two species of termites seem very different. The ants are recorded when the whole colony is perturbed and seeks to move to a new nest. The termites are sexed pairs exploring their environment in a featureless petri dish. I am not an expert in social insects, but I would imagine either one of these species would behave differently in the two different experiments. I think a strong argument must be made if that's not the case. If that is the case, I think the work here is still very valuable. However, the conclusion which can be drawn from the results may be not so much about differences between species, but instead about how the information-theoretic methodology is able to extract qualitatively different strategies that the animals may be using.

2) Another concern is the lack of detail provided about the correction factor used as a control condition. The authors scramble the data from matched pairs of insects and rerun the analysis to measure a "baseline" information flow which simply is the result of these animals moving in the same space and responding to the same global cues. This is a really important part of the study in my opinion, since it is known that transfer entropy cannot distinguish between "x causes y" and "z causes x and y". The correction factor which is computed should be reported, and statistical tests should be performed to say that the measured effect is significantly more than this control. Perhaps this was done by the authors, but I was not able to tell from the text.

https://doi.org/10.7554/eLife.55395.sa1

Author response

We agree with the three reviewers that this well-written paper presents interesting work that should be of interest to a general audience. The three reviewers made valuable comments, which all need to be addressed carefully. We agree in particular with their concern that it is not easy to make robust comparisons across species, given differences in their biology and the experimental procedures used, so this point requires particular attention.

We thank the editors and all the reviewers for their constructive feedback that helped us to improve our study. We revised the manuscript and hope you will find the revised version suitable for publication in eLife. In our response to the reviewers (see below), we provide detailed descriptions of how we answered each of the reviewers’ comments reporting all main edits to the manuscript. Among the uploaded files, you can find a version of the manuscript with tracked changes.

In the current version, we put particular emphasis on clarifying differences in the function, and therefore in the experimental protocol, between ants and termites. We are also more forward-looking regarding the fact that our results are peculiar to these differences rather than generic across species of ants and termites (see the answer to comment #2 of reviewer #3).

We also improved our reporting of statistics as suggested by the reviewers by including a table summarizing mean and standard error for various measures and all considered datasets (experimental and surrogate), a table summarizing results from statistical hypothesis tests testing the significance of all effects, and the results of a power analysis for the length of time series.

In addition to the edits necessary to address the comments of editors and reviewers, we rearranged figures and tables throughout the manuscript. The revised manuscript has 7 main figures, 3 main tables, and 6 figure supplements. Finally, we revised the material available on figshare: datasets include, in addition to raw data, all intermediate results and aggregated statistics; the source code includes functions to repeat every step of the analysis and plot all figures.

Reviewer #2:

[…] I have few questions/comments regarding the methodology:

1) I was not able to understand how exactly the behaviors were encoded? Is there a manual step or is it all automatic. The para starting from 267 gets somewhat involved and does not explain how exactly the authors went from trajectory data to symbols. What exactly do the authors mean by 10th percentile of a sequence. The next paragraph on rotation was clearer but there too I was wondering if there were any thresholds to distinguish collinear motion from rotational motion.

Given a set of continuous spatial trajectories and a choice for the distance threshold, the encoding of all three behavioral patterns is entirely automatic (see function discretizeTrajectories() available in the preprocessing.R script, https://figshare.com/s/91986a474d89938e8239).

To capture pauses in the motion of runners, we first compute the probability distribution of step sizes (i.e., the distance travelled by any runner between two consecutive time steps, i and i+1, for a given species and sampling period) which is analogous to considering the instantaneous speed of runners. This provide us with a model of motion/speed that we can leverage to define pause and motion states. Specifically, we define as pause states all those time steps within a time series whose corresponding travelled distance is within the lowest 10% of the probability mass of all considered runners (10th percentile). The remaining 90% of the time steps are encoded as motion states. The only manual step required was for us to initially inspect the probability distribution of step sizes (see Figure 6 and Figure 6—figure supplements 1 and 2) to determine a suitable initial value for the probability threshold before encoding time series programmatically and varying this parameter in the perturbation analysis. We clarified this aspect of the methodology in Materials and methods (Encoding behavioral patterns into symbolic time series, second paragraph):

“To prevent these spurious classifications, we used a threshold based on travelled distance to distinguish segments of the trajectory into those identifying motion and those identifying pauses. […] We therefore encoded as pause states all time steps in a given spatial trajectory with a corresponding travelled distance in the 10th size percentile and the remaining 90% of time steps as motion states.”

For the case of the rotation pattern, no thresholds were used to distinguish between rotational motion (i.e., both clockwise and counterclockwise turns) and collinear motion as this encoding has a formal definition based on the cross product qi1qi×qiqi+1. In particular, we have collinear motion only when qi1qi×qiqi+1 is exactly zero without considering any tolerance threshold. Due to tracking accuracy and position adjustments at the highest sampling frequencies and to the likely rotations induced by a six-legged locomotion architecture at lower sampling frequencies, collinear motion is observed in our entire dataset only a handful of times (i.e., our description of the collinear case is aimed at completeness of the methodology). This aspect is advantageous for us because we want to model only rotations. We clarified this point as follows (Encoding behavioral patterns into symbolic time series, third paragraph):

“The rotation is clockwise when the cross product qi1qi×qiqi+1 is negative, counterclockwise when it is positive, and collinear when it is exactly zero. […] Instead, in the rare occurrences of collinear motion, the direction of rotation at the previous time step, i1, is copied over in the time series.”

2) Related to above, how did the authors determine the length of a sequence to be encoded? Was it a moving window?

The choice for this study parameter was the result of a compromise between the statistical power of the observed primary effects (Figure 2A and Table 3), the number of samples (i.e., time steps per series) required to accurately represent local predictive information as a function of the distance between runners (Figures 3B and 4B) which spreads samples over an additional dimension, and physical and tracking constraints of emigrations experiments with T. rugatulus.

As termite data were already available and their tandem runs last for about an hour, we initially used these datasets to perform the study of the landscape of information transfer as a function of sampling period and history length (i.e., equivalent to Figure 7) for increasing lengths of the time series. This procedure provided us with an educated guess for the minimum duration of tandem runs to be recorded from ant emigrations (about 10 minutes, Figure 7—figure supplement 1). Since ants cease to tandem run as soon as they reach their destination, we then designed a dedicated experimental setup (Figure 5) aimed at maximizing their total travelled distance (and time) while still allowing us to track trajectories of runners. The resulting setup led to tandem runs that were generally longer than 15 minutes. We selected 20 of such tandem runs and shortened trajectories to 15 minutes to obtain time series of equal length.

In the revised version of the manuscript we included a new figure (Figure 7—figure supplement 1) showing the results of this procedure and we added the following sentence to Materials and methods (Ant experiments):

“The design and dimensions of this arena were informed by a preliminary analysis of termite experiments (see Computation of statistics).”

We also included this description in Materials and methods (Computation of statistics, third paragraph):

“From the resulting landscapes of information transfer, which show robustness to variation of parameters, we then selected the parameter configurations that maximize the net transfer of information (see Figure 7 and Table 1). A similar analysis was preliminarily performed for increasing duration of tandem runs on the basis of the termite data with the aim to inform the design of the experimental arena used for ants (see Figure 7—figure supplement 1).”

3) What was the size of the dataset? How many instances of behaviors were compared for each species?

We acknowledge that this information was not accessible in a unique point of our manuscript as we preferred to provide these details separately in the Materials and methods where the narrative allows us to provide better explanations. For each species, we considered 20 tandem runs with the exception of C. formosanus for which only 17 tandem runs were available. This information can be found in Materials and methods, respectively, in subsections Ants experiments and Termites experiments:

“We performed 6 experiments, one for each colony, and recorded them at 30 frames per second using a video camera with 1K resolution. For each colony, we then selected between 1 and 6 pairs of ants performing tandem runs obtaining a total of 20 samples.”

and

“A total of 17 experiments were performed for C. formosanus and 20 experiments for R. speratus using different individuals.”

The overall duration of the times series extracted from these tandem runs is described in the section Data extraction:

“All trajectories were sampled at 30 frames per second and shortened to a duration of 15 minutes.”

As we vary the sampling period (see Figure 7), the length of time series varies for each considered parameter configuration. The maximum number of time steps in a time series is 26973 when the sampling period is the shortest (33.36 ms); the minimum number is 599 when sampling period is the longest (1.5015 s). We included the following sentence in Materials and methods (Encoding behavioral patterns into symbolic time series, first paragraph):

“Depending on the sampling period, the resulting time series have a number of time steps between 599 and 26973.”

To provide a single point in the manuscript that summarizes all parameters, we added the number of tandem runs and the exact number of time steps of time series for each selected parameter configuration in Table 1.

4) Is the leader ant always the one moving in front. This should be explicitly noted somewhere because it may not be true for all species. Perhaps the authors can consider renaming front-back ants/termites to not confuse with leader-follower which term is use to imply a causal relationship in itself.

We thank the reviewer for their suggestion. Leader and follower always refer, respectively, to the runner in the front and the one in the back of the tandem run. As this terminology has long been used within the community of researchers studying tandem running, we preferred to clarify its meaning at the beginning of the manuscript (while explicitly mentioning causal interactions at the place of leadership for the results of transfer entropy) instead of changing terminology to avoid confusion. We clarified the terminology in the Introduction of the manuscript (second paragraph) as follows:

Consider the tandem-running behavior of many ants and termites, in which one individual leads a follower through their environment, the follower walking closely behind the leader throughout the run. (Figure 1A).”

5) What were the reasons for selecting different sampling periods and history lengths for the same species. For the ant for example the values are very far apart. The authors can either (a) pick similar values where they can, or (b) discuss why they think information transfer is maximized at different scales for the same species for different behaviors.

On the one hand, the reason to choose different parameter configurations is to prioritize accuracy over simplicity (less parameters) and select the parameters that, given our data, maximize transfer of information for each different behavioral pattern. Choosing parameters that maximize information transfer is the canonical approach in the case of a single symbolic representation of data as it generally provides parameterizations that better capture underlying patterns. Our approach is to apply this criterion to each different behavioral pattern. Averaging parameterizations reduces the number of parameters, simplifying the discussion to a certain extent, but at the risk of reducing the accuracy.

On the other hand, different individuals can cause different components (e.g., rotation versus motion) of a more complex behavior as observed for leaders and followers in the case of ants. Furthermore, one individual can in general exert its influence on separate components of a behavior but do this at possibly different time scales because it follows different decision-making processes and/or responds to different cues. In the case of ants, whereas both leader and follower likely respond to the same environmental cues, the cognitive requirements of learning new information (i.e., learning of visual landmarks by the follower) are likely different from those necessary to recall information already available in the brain and compare it with environmental cues (navigation by the leader).

We clarified these points in Materials and methods (Computation of statistics, third paragraph) by adding the following sentences:

“The optimal choice of these parameters likely varies for different species and between leaders and followers within a species as a result of behavioral, morphological, and cognitive differences manifesting at different time scales.”

“These parameters, whose values converge for increasing length of the time series, are relatively similar across behavioral patterns for both species of termites. Ants instead are characterized by more diverse time scales likely because leaders and followers cause different aspects of tandem running and, possibly, because they do so by following cognitive processes with different time constraints (see Table 2 for summary statistics).”

We also mentioned the possibility of different time scales in the second paragraph of the Conclusions:

“Such uses of transfer entropy and other information-theoretic measures (McCowan, Hanser and Doyle, 1999) cannot disentangle the complex structure of information flow between subjects when simultaneous aspects of their interaction carry different forms of information transmitted in different directions and at different time scales.”

6) I couldn't find any statistics on the rotation bars in Figure 1D.

In the revised version of the manuscript we included two new tables: Table 2 gives mean and standard error for transfer entropy (both experimental and control/surrogate datasets) and for normalized transfer entropy; Table 3 gives the results of hypothesis testing by reporting p-value and test statistic for tested difference between experimental and surrogate datasets and between leaders and followers.

In addition to Table 2 and Table 3, we also modified Figure 2A (formerly referred to as Figure 1D) by adding error-bars that represent the standard error characteristic of the mean of normalized transfer entropy computed over tandem runs.

Reviewer #3:

The paper demonstrates an interesting model-free methodology for extracting and interpreting qualitatively different behaviors in pairs of insects moving together in a nominally similar way (i.e. tandem running). The experiments and analytical tools are generally well explained. However, I have a fundamental concern about the conclusions that are drawn as they relate to the species tested, but not acknowledging the dramatic differences in the experimental procedures used for ants versus termites.

We thank the reviewer for their constructive feedback and very much appreciate their comments. In the following, we describe how we revised the manuscript to better acknowledge differences in experimental procedures and to clarify the focus of our conclusions.

1) My major concern is that the experiments used to gather the data from the ants and the two species of termites seem very different. The ants are recorded when the whole colony is perturbed and seeks to move to a new nest. The termites are sexed pairs exploring their environment in a featureless petri dish. I am not an expert in social insects, but I would imagine either one of these species would behave differently in the two different experiments. I think a strong argument must be made if that's not the case. If that is the case, I think the work here is still very valuable. However, the conclusion which can be drawn from the results may be not so much about differences between species, but instead about how the information-theoretic methodology is able to extract qualitatively different strategies that the animals may be using.

We believe that the last sentence of the reviewer’s comment perfectly summarizes the objectives of our study. Indeed, whereas our measurements of information transfer are quantitative, our comparison between ants and termites is instead qualitative and focused on the direction of causal interactions (Figure 2) and underlying communication strategies (Figure 3 and 4).

As the reviewer suggests, the function of tandem runs is different between ants and termites. Ants use tandem runs as a recruitment mechanism to a known location whereas termites rely on this behavior when searching the environment. We are not aware of examples of ants using tandem runs as a search strategy; likewise, termites do not generally use tandem runs for recruitment, which instead relies on pheromone trails, even though there is some evidence in the workers of the most basal termites that the former behavior might have been a precursor of the latter (Sillam-Dussès, David, et al. "Trail-following pheromones in basal termites, with special reference to Mastotermes darwiniensis." Journal of Chemical Ecology 33.10 (2007): 1960-1977).

Differences in the function of tandem running between ants and termites would make a quantitative comparison of information transfer appropriate only between the two species of termites. However, these functional differences do not affect a qualitative comparison. In our case, they provide us instead with the primary rational to qualitatively investigate the communication strategies underlying an otherwise superficially similar behavior.

In the revised manuscript, we clarified the different contexts of tandem running in the second paragraph of the Introduction:

“At long time scales, however, there exist clear functional differences in these seemingly similar behaviors. […] In a mated pair, the male follows the female leader only to maintain spatial cohesion when searching for a new home; once a suitable location is found, the termites remain there to start a new colony, and neither partner ever retraces the route of their tandem run.”

We also clarified at the beginning of the Discussion that our results are peculiar of the different contexts and functions of tandem running across the considered species of ants and termites.

“Although both ants and termites have similar mechanisms for mutual signaling at short time scales, route learning by ants requires a communication protocol at intermediate time scales different from that needed solely to maintain spatial cohesion. […] However, in contrast to ants, termite followers in our experiments transfer information only when establishing contact at the beginning of a run and sporadically after accidental breaks.”

2) Another concern is the lack of detail provided about the correction factor used as a control condition. The authors scramble the data from matched pairs of insects and rerun the analysis to measure a "baseline" information flow which simply is the result of these animals moving in the same space and responding to the same global cues. This is a really important part of the study in my opinion, since it is known that transfer entropy cannot distinguish between "x causes y" and "z causes x and y". The correction factor which is computed should be reported, and statistical tests should be performed to say that the measured effect is significantly more than this control. Perhaps this was done by the authors, but I was not able to tell from the text.

We thank the reviewer for their suggestion. Although leaders and followers from different runs are still influenced by the same environmental cues, the randomization process used to compute the correction factor breaks possible causal interactions within the surrogate pair. We revised the corresponding description in the manuscript increasing the level of detail and including the results of statistical hypothesis tests (Table 3). We now refer explicitly to surrogate datasets and provide statistics for mean values and their standard errors (Table 2). The revised explanation of surrogate dataset and correction factor in Materials and methods (Computation of statistics, second paragraph) is:

“To ensure that the measured interactions are valid and not the result of artefacts that may arise due to finite sample sets, we compared transfer entropy measured from the experimental data with measurements from surrogate datasets artificially created by pairing independent time series (Porfiri, 2018). […] Finally, measurements of transfer entropy for the experimental data were discounted by a correction factor given by the estimated means.”

In the last paragraph of Computation of statistics we now report the results of statistical hypothesis tests for testing both the validity of our results against surrogate data and the significance of leader-follower interactions observed in Figure 2A:

“For the chosen parameter configurations, we tested both the significance of our estimate of transfer entropy with respect to surrogate data and that of leader-follower relations observed in Figure 2A. […] All leader-follower interactions were correctly identified by this analysis and none of the significant tests is among the four cases mentioned above (Table 3, columns 5 and 6).”

https://doi.org/10.7554/eLife.55395.sa2

Article and author information

Author details

  1. Gabriele Valentini

    1. Arizona State University, School of Earth and Space Exploration, Tempe, United States
    2. Arizona State University, School of Life Sciences, Tempe, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8961-3211
  2. Nobuaki Mizumoto

    1. Arizona State University, School of Life Sciences, Tempe, United States
    2. Okinawa Institute of Science & Technology Graduate University, Onna-son, Okinawa, Japan
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6731-8684
  3. Stephen C Pratt

    1. Arizona State University, School of Life Sciences, Tempe, United States
    2. Arizona State University, ASU–SFI Center for Biosocial Complex Systems, Tempe, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1086-4019
  4. Theodore P Pavlic

    1. Arizona State University, School of Life Sciences, Tempe, United States
    2. Arizona State University, ASU–SFI Center for Biosocial Complex Systems, Tempe, United States
    3. Arizona State University, Beyond Center for Fundamental Concepts in Science, Tempe, United States
    4. Arizona State University, School of Computing, Informatics, and Decision Systems Engineering, Tempe, United States
    5. Arizona State University, School of Sustainability, Tempe, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    tpavlic@asu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7073-6932
  5. Sara I Walker

    1. Arizona State University, School of Earth and Space Exploration, Tempe, United States
    2. Arizona State University, ASU–SFI Center for Biosocial Complex Systems, Tempe, United States
    3. Arizona State University, Beyond Center for Fundamental Concepts in Science, Tempe, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    sara.i.walker@asu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5779-2772

Funding

National Science Foundation (PHY-1505048)

  • Stephen Pratt
  • Theodore P. Pavlic
  • Sara Walker

Japan Society for the Promotion of Science (Overseas Research Fellowship)

  • Nobuaki Mizumoto

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by NSF grant No. PHY-1505048. NM was supported by a JSPS Overseas Research Fellowship. The authors would like to thank Dr. Anna Dornhaus for constructive criticism of the manuscript.

Senior Editor

  1. Christian Rutz, University of St Andrews, United Kingdom

Reviewing Editor

  1. Laurent Keller, University of Lausanne, Switzerland

Reviewer

  1. Jean-Louis Deneubourg

Publication history

  1. Received: January 23, 2020
  2. Accepted: July 9, 2020
  3. Version of Record published: July 30, 2020 (version 1)

Copyright

© 2020, Valentini et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 320
    Page views
  • 35
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Ecology
    2. Evolutionary Biology
    Youngsung Joo, Meredith C Schuman
    Insight

    A common rice pest can avoid its natural parasite by settling on plants that smell like they have been damaged by a species of caterpillar.

    1. Ecology
    2. Evolutionary Biology
    Syuan-Jyun Sun, Rebecca M Kilner
    Research Article

    Ecological conditions are known to change the expression of mutualisms though the causal agents driving such changes remain poorly understood. Here we show that temperature stress modulates the harm threatened by a common enemy, and thereby induces a phoretic mite to become a protective mutualist. Our experiments focus on the interactions between the burying beetle Nicrophorus vespilloides, an associated mite species Poecilochirus carabi and their common enemy, blowflies, when all three species reproduce on the same small vertebrate carrion. We show that mites compete with beetle larvae for food in the absence of blowflies, and reduce beetle reproductive success. However, when blowflies breed on the carrion too, mites enhance beetle reproductive success by eating blowfly eggs. High densities of mites are especially effective at promoting beetle reproductive success at higher and lower natural ranges in temperature, when blowfly larvae are more potent rivals for the limited resources on the carcass.
