Smchd1 is a maternal effect gene required for genomic imprinting

  1. Iromi Wanigasuriya
  2. Quentin Gouil
  3. Sarah A Kinkel
  4. Andrés Tapia del Fierro
  5. Tamara Beck
  6. Ellise A Roper
  7. Kelsey Breslin
  8. Jessica Stringer
  9. Karla Hutt
  10. Heather J Lee
  11. Andrew Keniry
  12. Matthew E Ritchie
  13. Marnie E Blewitt  Is a corresponding author
  1. Walter and Eliza Hall Institute of Medical Research, Australia
  2. The Department of Medical Biology, The University of Melbourne, Australia
  3. Faculty of Health and Medicine, The University of Newcastle, Australia
  4. Monash Biomedicine Discovery institute, Monash University, Australia
  5. The Department of Mathematics and Statistics, The University of Melbourne, Australia
Research Article
  • Cited 0
  • Views 1,028
  • Annotations
Cite this article as: eLife 2020;9:e55529 doi: 10.7554/eLife.55529

Abstract

Genomic imprinting establishes parental allele-biased expression of a suite of mammalian genes based on parent-of-origin specific epigenetic marks. These marks are under the control of maternal effect proteins supplied in the oocyte. Here we report epigenetic repressor Smchd1 as a novel maternal effect gene that regulates the imprinted expression of ten genes in mice. We also found zygotic SMCHD1 had a dose-dependent effect on the imprinted expression of seven genes. Together, zygotic and maternal SMCHD1 regulate three classic imprinted clusters and eight other genes, including non-canonical imprinted genes. Interestingly, the loss of maternal SMCHD1 does not alter germline DNA methylation imprints pre-implantation or later in gestation. Instead, what appears to unite most imprinted genes sensitive to SMCHD1 is their reliance on polycomb-mediated methylation as germline or secondary imprints, therefore we propose that SMCHD1 acts downstream of polycomb imprints to mediate its function.

Introduction

Genomic imprinting describes the process that enables monoallelic expression of a set of genes according to their parent-of-origin (McGrath and Solter, 1984; Surani et al., 1984). Classically, these imprinted genes are located in clusters. Disruption of imprinting at specific gene clusters leads to imprinting disorders. For example, loss of imprinting at the SNRPN cluster is responsible for Prader-Willi syndrome or Angelman syndrome, and loss of imprinting at the IGF2/H19 and KCNQ1 clusters is responsible for Beckwith-Wiedemann syndrome (Tucci et al., 2019; Peters, 2014; Sutcliffe et al., 1997; Matsuura et al., 1997; Kishino et al., 1997; Nicholls et al., 1989; Sun et al., 1997; Zhang et al., 1997). Imprinted expression is enabled by germline DNA methylation or histone methylation imprints that resist pre-implantation reprogramming and therefore retain their parent-of-origin specific marks (Ferguson-Smith, 2011; Barlow and Bartolomei, 2014; Inoue et al., 2017a; Inoue et al., 2018). The clusters controlled by germline DNA methylation imprints are classically described as the canonical imprinted genes. Whereas the more recently discovered imprinted genes controlled by germline histone 3 lysine 27 trimethylation (H3K27me3) imprints have been termed non-canonical imprinted genes (Inoue et al., 2017a; Inoue et al., 2017b). In addition to the germline imprints, secondary imprints are found at some imprinted loci. For the canonical imprinted genes, these can include both DNA methylation and histone methylation that occur post-fertilization dependent on the germline imprint (Hanna et al., 2019).

Evidence suggests that proteins found in the oocyte establish both canonical and non-canonical imprints and enable them to resist pre-implantation reprogramming. Therefore, these maternally derived proteins are crucial for imprinted gene expression control. To date, only a small number of such maternal effect genes have been tested for and found to play a role in regulating imprinting, including Trim28, Zfp57, Dppa3, Rlim, Nlrp2, Dnmt3l, Dnmt1, and Eed (Inoue et al., 2018; Inoue et al., 2017a; Howell et al., 2001; Payer et al., 2003; Hiura et al., 2006; Li et al., 2008; Shin et al., 2010; Messerschmidt et al., 2012; McGraw et al., 2013; Alexander et al., 2015; Mahadevan et al., 2017).

SMCHD1 is an epigenetic modifier, the zygotic form of which is required for both X chromosome inactivation (Blewitt et al., 2008; Gendrel et al., 2012) and silencing of clustered autosomal loci, including genes at the Snrpn and Igf2r-Airn imprinted clusters (Mould et al., 2013; Gendrel et al., 2013; Chen et al., 2015; Jansz et al., 2018a). Homozygous removal of zygotic SMCHD1 causes the loss of imprinting at a few genes at these clusters, hypomethylation of the secondary DMR at the Snrpn cluster (Mould et al., 2013), but does not change the H3K27me3 found across the Snrpn imprinted region (Chen et al., 2015). SMCHD1 function is also relevant in the context of disease (Jansz et al., 2017). Heterozygous mutations in SMCHD1 are found in two distinct human disorders: loss of function mutations in facioscapulohumeral muscular dystrophy (FSHD)(Lemmers et al., 2012), and potentially gain of function mutations in the rare craniofacial disorder Bosma arhinia and microphthalmia (BAMS)(Gordon et al., 2017; Shaw et al., 2017; Gurzau et al., 2018). The role of SMCHD1 in normal development and disease has led to an increase in interest in how and when it contributes to gene silencing at each of its genomic targets.

Recent work by our group and others have shown that SMCHD1 is required for long-range chromatin interactions on the inactive X chromosome (Jansz et al., 2018a; Wang et al., 2018; Gdula et al., 2019), and at its autosomal targets including the imprinted loci (Jansz et al., 2018a). In cells lacking SMCHD1, other epigenetic regulators are enriched at SMCHD1 targets, for example, CCCTC-binding factor (CTCF) binding is enhanced at the inactive X chromosome and the clustered protocadherins (Chen et al., 2015; Wang et al., 2018; Gdula et al., 2019). The inactive X also shows an accumulation of H3K27me3 in the absence of SMCHD1 (Jansz et al., 2018a). These data led to a model where SMCHD1-mediated chromatin interactions insulate the genome against the action of other epigenetic regulators, such as CTCF (Chen et al., 2015; Jansz et al., 2018a; Wang et al., 2018; Gdula et al., 2019); however, it is not known whether this model holds true for all SMCHD1 target genes.

Based on SMCHD1’s known role at some imprinted clusters (Mould et al., 2013; Gendrel et al., 2013; Chen et al., 2015; Jansz et al., 2018a) and its expression in the oocyte (Midic et al., 2018), we sought to test the role of oocyte-supplied maternal Smchd1 in regulating imprinted gene expression. Here we show that Smchd1 is a novel maternal effect gene, required for the imprinted expression of 10 genes. Furthermore, we reveal a dose-dependent role for zygotic SMCHD1 in regulating imprinted expression of seven genes across the Snrpn, Igf2r-Airn, and Kcnq1 canonically imprinted clusters. What appears to unite most of these two sets of genes is the reliance on H3K27me3 germline or secondary imprints. These data lead us to propose that SMCHD1 interprets H3K27me3 imprints to establish an epigenetic state required for imprinted expression.

Results

Genetic deletion of maternal Smchd1

To determine whether maternally derived SMCHD1 is required for autosomal imprinting, we deleted Smchd1 in the oocyte using MMTV-Cre or Zp3-Cre (Figure 1a). Contrary to previous reports where SMCHD1 depletion by siRNA knockdown in pre-implantation embryos resulted in reduced blastocyst formation, hatching and survival to term (Midic et al., 2018; Ruebel et al., 2019), we found no embryonic or preweaning lethality following the maternal deletion of Smchd1 (Figure 1—figure supplement 1a), and normal weights at P2 (Figure 1—figure supplement 1b). Using MMTV-Cre, SMCHD1 was deleted progressively from the early secondary to antral follicle stages of oocyte development, whereas Zp3-Cre deleted earlier, in the primary follicle (Figure 1b). Using our SMCHD1-GFP fusion knock-in mouse (Jansz et al., 2018a), we found that paternally encoded native SMCHD1-GFP protein was not detectable until the 16-cell stage (Figure 1c). We confirmed the expression by immunofluorescence and found very low levels of paternal SMCHD1 switching on from the 8-cell stage (Figure 1—figure supplement 1c), but its expression is much lower than maternal SMCHD1 at this time (Figure 1d). Together these data suggest maternal SMCHD1 is the primary source of protein until at least the 32-cell stage. These data define the period of maternal deletion of Smchd1 in each model. Using the same approach, we also confirmed that maternal SMCHD1 localizes to the nucleus in the pre-implantation period (Figure 1d), as expected if SMCHD1 plays a functional role in gene silencing at this time.

Figure 1 with 2 supplements see all

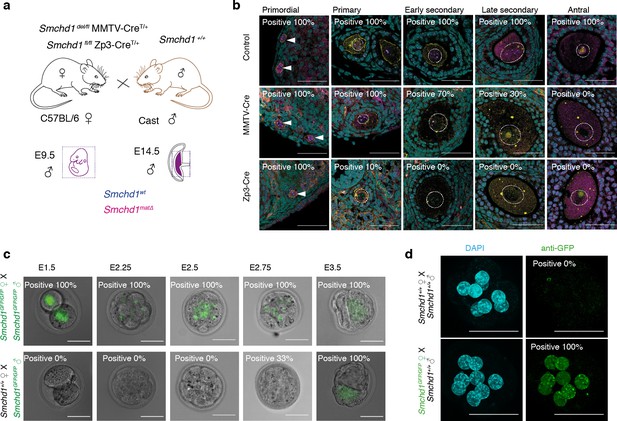

Maternal deletion of Smchd1 during oocyte development depletes SMCHD1 until the 16-cell embryonic stage.

(a) Schematic for maternal deletion of Smchd1. (b) Deletion of Smchd1 in oocyte development with MMTV-Cre and Zp3-Cre. Arrowheads indicate primordial follicle oocyte nuclei, white dotted lines surround primary-antral follicle oocytes. Smchd1 (magenta), c-KIT (yellow), DAPI (cyan). n = 15–27 sections for two ovaries per cohort. A total of 5–20 follicles were observed for primordial – late secondary stages and 2–3 antral follicles for each genotype. (c) Detection of paternal SMCHD1-GFP from day 1.5 to 3.5 in pre-implantation embryos. Smchd1GFP/GFP embryos were used as positive controls. (d) Detection of maternal SMCHD1-GFP in the nuclei of E2.5 (8 cell) embryos, with Smchd1+/+ used as negative controls. Nuclei marked with DAPI (cyan). Scale bar – 50 µm.

Using this system, we analyzed the effect of maternal SMCHD1 on expression using RNA-seq in male Smchd1 maternally deleted (Smchd1matΔ) E9.5 embryos and the embryonic portion of E14.5 placentae. We chose to sample embryos at E9.5 as this is before SMCHD1 zygotic-null females die; meanwhile mid-gestation placenta is the time and place where many genes display imprinted expression, including those known to be sensitive to loss of zygotic SMCHD1 (Mould et al., 2013; Gendrel et al., 2013; Andergassen et al., 2019). Females were not examined here due to the confounding role of SMCHD1 in X chromosome inactivation, which is the focus of a separate project. We found only five consistently differentially expressed genes between Smchd1matΔ and control placental samples from both Cre models, with modest fold-changes (Figure 1—figure supplement 2a–c, Supplementary file 12): one upregulated (Gm8493) and four downregulated (Ceacam12, Psg16, Gm7863, and Afp). Differential expression in the E9.5 embryos (MMTV-Cre, Figure 1—figure supplement 2d) was more pronounced (although not validated by a second Cre system), notably with the four-fold upregulation of protocadherin genes (Pcdhb17-22) - known SMCHD1 targets (Chen et al., 2015). Overall there were 229 upregulated and 39 downregulated genes in this tissue (Supplementary file 2), most with modest fold-changes. They did not include imprinted genes and did not overlap with the misregulated genes common to the two Cre models in E14.5 placenta. These data suggest the removal of maternal SMCHD1 does not have a striking effect on global gene expression in the placenta and has a slightly larger effect in the embryo. These data are consistent with no observable effect of deleting maternal Smchd1 on viability or postnatal weight (Figure 1—figure supplement 1).

Maternal SMCHD1 is not required to regulate the imprinting of known SMCHD1 targets, although they are sensitive to Smchd1 haploinsufficiency

Besides its documented role in silencing a number of autosomal clustered gene families such as protocadherins, zygotic SMCHD1 is also known to regulate a selection of imprinted genes. To examine the role of maternal SMCHD1 in imprinted expression we took advantage of the single nucleotide polymorphisms within the same C57BL/6 x CAST/EiJ F1 samples for allele-specific analyses (Figure 1a). We observed consistent effects on imprinted expression with both Cre strains, suggesting that the stage of deletion during oogenesis does not influence the outcome (Figure 2—figure supplement 1a). Therefore, we pooled data from both Cre strains for statistical analyses. We imposed a 5% FDR as well as an absolute difference in the proportion of the RNA derived from the silenced allele greater than 5% to call differential imprinted expression. E14.5 Smchd1matΔ placentae displayed partial loss of imprinted expression at known SMCHD1-sensitive genes in the Snrpn cluster (Magel2, Peg12, and Ndn, Figure 2a, Supplementary file 1) and the Igf2r-Airn cluster (Slc22a3 Figure 2b, Supplementary file 1), due to an increase in the expression of the silenced allele (Figure 2—figure supplement 1b and c). We additionally observed that Pde10a displayed partial loss of imprinting in the SMCHD1 maternal null samples, adding this gene in the Igf2r-Airn cluster to the list of SMCHD1-sensitive gene (Figure 2b).

Figure 2 with 2 supplements see all

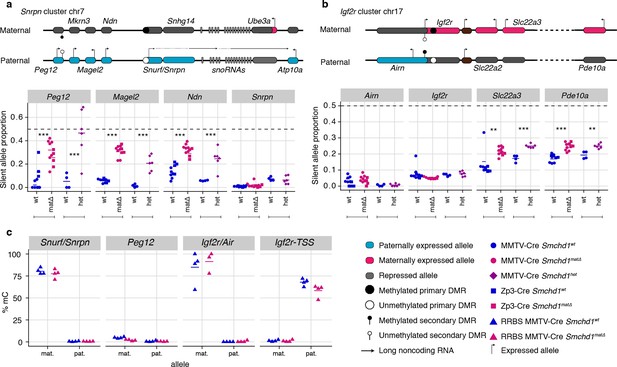

Heterozygous deletion of Smchd1 results in partial loss of imprinting at known SMCHD1-sensitive clusters.

(a-b) Expression of the silent allele as a proportion of total expression of the gene, obtained by allele-specific RNA-seq from the embryonic portion of the placenta of Smchd1 wild-type (wt), heterozygous (het) and maternal null (matΔ) conceptuses. Expression data for (a) Snrpn cluster genes on chromosome seven and (b) Igf2r cluster genes on chromosome 17. (c) Percentage methylation (% mC) on the maternal and paternal alleles at primary and secondary DMRs at Snrpn and Igf2r clusters in Smchd1 maternal null and wild-type placental samples. *p<0.05, **p<0.01, ***p<0.001, when the difference in mean silent allele proportions between genotypes is of at least 5%. RNA-seq sample sizes: for maternal deletion experiment, MMTV-Cre 6 wt and seven matΔ, Zp3-Cre 4 wt and four matΔ; for the heterozygous deletion experiment, 4 wt and six het E14.5 placental samples. RRBS: n = 4 MMTV-Cre for both matΔ and wt E14.5 placental samples.

To test whether partial loss of imprinting was due to a maternal effect or haploinsufficiency for Smchd1, we created F1 Smchd1 heterozygous E14.5 placentae that inherited the null allele from the sire, and littermate wildtype controls (Figure 2—figure supplement 2a). Similar to the maternal null samples, these showed virtually no global differential expression (only three genes passing below the 5% FDR, but with fold-changes below 2: downregulated Smchd1 and upregulated Peg12 and Pisd-ps2, Figure 2—figure supplement 2b and Supplementary file 1) as well as partial loss of imprinting at the same genes affected by the maternal deletion (Figure 2a and b).

In the embryo, far fewer genes are imprinted compared with the placenta, however partial loss of imprinted expression was also observed at Peg12 and Ndn in E9.5 maternal null embryos (Figure 2—figure supplement 2c, Supplementary file 1).

Together these data show that the Snrpn and Igf2r-Airn clusters are sensitive to heterozygous loss of zygotic SMCHD1, consistent with previous findings that showed these genes exhibit loss of imprinting in zygotic null samples (Mould et al., 2013; Gendrel et al., 2013). At this stage of development, these clusters are not specifically sensitive to the loss of maternal SMCHD1.

We analyzed DNA methylation in male E14.5 placentae by reduced representation bisulfite sequencing (RRBS). Deletion of maternal Smchd1 did not have a large effect on global CpG island methylation. Only 33 and 42 CpG islands out of 13,840 showed appreciable hypo- and hyper-methylation, respectively (Figure 2—figure supplement 2d and Supplementary file 4). The only association with differential expression was the hypermethylation of the CpG island 1.8 kb upstream of Gm45104, downregulated three-fold in the placental sample with MMTV-Cre Smchd1 deletion.

Examining imprinted differentially methylated regions (DMRs), we found that despite partial loss of imprinted expression in Smchd1matΔsamples, DNA methylation at germline DMRs at the Snrpn and Igf2r-Airn clusters was maintained (Figure 2c, Supplementary file 3). We and others previously showed that Smchd1 null embryos display hypomethylation of the Peg12 secondary DMR (Mould et al., 2013; Gendrel et al., 2013), however this region is not methylated in the placenta so we could not directly compare with our current data.

These data show that haploinsufficiency for Smchd1 results in the partial loss of imprinted expression at the Snrpn and Igf2r-Airn clusters without altering imprinted DNA methylation. Maternal SMCHD1 is not required for imprinted expression at this stage of development of genes in the Snrpn and Igf2r-Airn clusters where zygotic SMCHD1 plays a role.

Two genes in the Kcnq1 cluster are under the control of SMCHD1

Next, we analyzed all other canonical imprinted genes in both the maternal null and heterozygous placental samples. We observed partial loss of imprinted expression of two additional genes in the Kcnq1 cluster, Tssc4 and Ascl2. This change occurred without loss of imprinting at any other genes in the cluster, including the long non-coding RNA Kcnq1ot1, and the neighboring Ckdn1c and Phlda2 genes whose silencing depends on allelic repressive histone marks. Similarly to the Snrpn and Igf2r-Airn clusters, we detected partial loss of imprinting in maternal null and heterozygous samples for Ascl2; however, Tssc4 did not show a heterozygote effect, suggesting that maternal SMCHD1 may contribute to Tssc4 imprinted expression (Figure 3a, Supplementary file 1). Again, consistent with the Snrpn and Igf2r-Airn clusters, we observed no DMR hypomethylation at either the germline (Kcnq1ot1) or secondary DMRs (Kcnq1l1 and 2) in the Kcnq1 cluster (Figure 3b). Supporting a role for SMCHD1 in regulating the Kcnq1 cluster, we found SMCHD1 enrichment across this cluster as well as the Snrpn and Igf2r-Airn imprinted clusters in placental samples and somatic cells (Figure 3—figure supplement 1a–c). These data reveal a broader role for SMCHD1 in canonical imprinting than previously known.

Figure 3 with 1 supplement see all

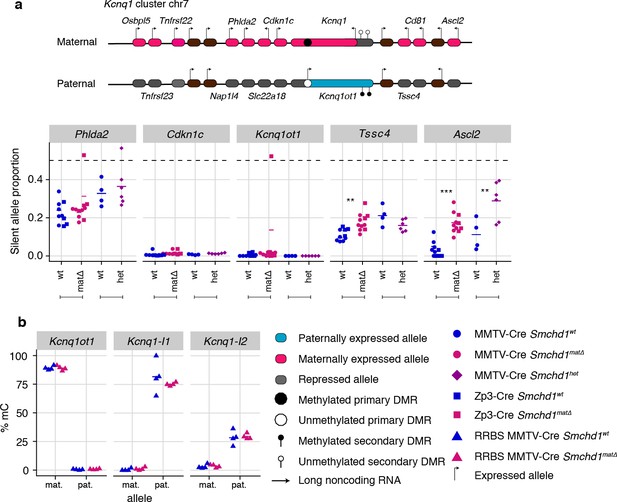

Maternal and heterozygous deletions of Smchd1 result in loss of imprinting at the Kcnq1 imprinted cluster without changes to primary or secondary DMR methylation.

(a) Expression of the silent allele as a proportion of total expression of the gene, obtained by allele-specific RNA-seq from the embryonic portion of the placenta of Smchd1 wild-type (wt), heterozygous (het), and maternal null (matΔ) conceptuses. Expression data for (a) Kcnq1 cluster genes on chromosome 7, and (b) Percentage methylation (% mC) for each parental allele at the DMRs for the Kcnq1 cluster. Kcnq1-I1: Kcnq1-Intergenic1; Kcnq1-I2: Kcnq1-Intergenic2 *p<0.05, **p<0.01, ***p<0.001, when the difference in silent allele proportions is of at least 5%. RNA-seq sample sizes: for maternal deletion experiment, MMTV-Cre 6 wt and seven matΔ, Zp3-Cre 4 wt and four matΔ; for the heterozygous deletion experiment, 4 wt and six het E14.5 placental samples. RRBS: n = 4 MMTV-Cre for both matΔ and wt E14.5 placental samples.

Maternal SMCHD1 regulates non-canonical imprinted gene expression

Using the same maternal null and heterozygous placental samples, we analyzed the effect of maternal SMCHD1 on the non-canonical imprinted genes, that have H3K27me3 germline imprints, and candidate new imprinted genes from our previous study (Gigante et al., 2019). In this case, we found that Jade1, Platr4, Sfmbt2, Smoc1, Epop, and Spp1 showed partial loss of imprinted expression exclusively in the maternal null samples (Tucci et al., 2019; Inoue et al., 2017b; Hanna et al., 2019; Matoba et al., 2018; Wang et al., 2011; Andergassen et al., 2017; Calabrese et al., 2015). No loss of imprinting was observed for the other two non-canonical imprinted genes that retained imprinted expression at this stage of development (Gab1 and Slc38a4) (Inoue et al., 2017b). No loss of imprinting was seen in heterozygous samples (Figure 4a, Supplementary file 1), suggesting that maternal SMCHD1 is required for appropriate imprinted expression of these non-canonical imprinted genes.

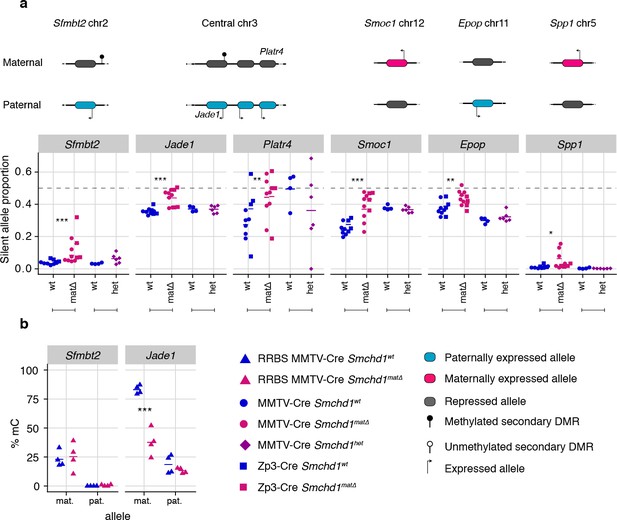

Only maternal deletion of Smchd1 results in loss of imprinting at lone imprinted genes.

(a) Expression of the silent allele as a proportion of total expression of the gene, obtained by allele-specific RNA-seq from the embryonic portion of the placenta of Smchd1 wild-type (wt), heterozygous (het), and maternal null (matΔ) conceptuses, at lone imprinted genes: Sfmbt2, Jade1, Platr4, Smoc1, Epop and Spp1. (b) Percentage methylation (% mC) for each parental allele at the DMRs for Sfmbt2 and Jade1. *p<0.05, **p<0.01, ***p<0.001, when the difference in silent allele proportions is of at least 5%. RNA-seq sample sizes: for maternal deletion experiment, MMTV-Cre 6 wt and seven matΔ, Zp3-Cre 4 wt and four matΔ; for the heterozygous deletion experiment, 4 wt and six het E14.5 placental samples. RRBS: n = 4 MMTV-Cre for both matΔ and wt E14.5 placental samples.

While the non-canonical imprinted genes have germline H3K27me3, they sometimes also have a secondary DNA methylation imprint, such as at Sfmbt2 and Jade1. We observed no DMR hypomethylation at Sfmbt2, but we did observe hypomethylation at the Jade1 secondary DMR (Figure 4b, Supplementary file 3). These data suggest that maternal SMCHD1 can exert its effect without affecting the secondary DMR methylation.

Maternal and zygotic SMCHD1 contribute to non-canonical imprinted gene expression

Earlier work on Zfp57 and Trim28 showed that either maternal or zygotic deletions resulted in partially penetrant loss of imprinting, whereas deletion of both maternal and zygotic increased the penetrance, evidence that both the oocyte and zygotic supply of these proteins contribute to imprint regulation (Li et al., 2008; Alexander et al., 2015). To understand the contribution of maternal versus zygotic SMCHD1 at imprinted genes, we produced embryonic and placental samples that were wild-type, Smchd1matΔ, zygotic-deleted (Smchd1zygΔ) or maternal-and-zygotic-deleted for Smchd1 (Smchd1matzygΔ). The consequence of our specific breeding scheme was that on average only half of the imprinted genes in each sample had the polymorphisms between parental alleles required for allele-specific analyses (Figure 5—figure supplement 1a), and some genes had no informative samples. Acknowledging this limitation, we only identified one additional SMCHD1-sensitive imprinted genes in Smchd1zygΔ or Smchd1matzygΔ samples compared with the maternal deletion alone: Mkrn3 in the Snprn cluster in the embryonic samples. Although not significant, the maternal deleted samples were consistent with a partially penetrant loss of imprinting at this gene as well (Supplementary file 1, Figure 5—figure supplement 1b).

In general, we observed a stronger effect of homozygous zygotic deletion on imprinted gene expression compared with maternal Smchd1 deletion or heterozygosity for Smchd1 (Figure 5a–c, Figure 5—figure supplement 1b and c). For the canonical imprinted genes, Peg12, Magel2, Mkrn3, and Ndn showed complete loss of imprinted expression in Smchd1zygΔ and Smchd1matzygΔ embryos and placentae, compared with only partial loss of imprinted expression in Smchd1matΔ or heterozygous samples (Figure 2a, Figure 5a, and Figure 5—figure supplement 1b). Slc22a3 and Pde10a Smchd1zygΔ samples also showed significantly higher loss of imprinted expression compared to Smchd1matΔ or heterozygous samples in placentae (Figure 5b). At the Kcnq1 cluster, for the samples we had, we observed stronger loss of imprinting at Tssc4 and Ascl2 in samples with a zygotic and maternal deletion of Smchd1. Since we do not have zygotic deletion alone, we cannot confirm if this is due to solely zygotic SMCHD1 or a combination of maternal and zygotic SMCHD1. Together, these data are consistent with zygotic SMCHD1 playing the primary role at these canonical imprinted genes.

Figure 5 with 1 supplement see all

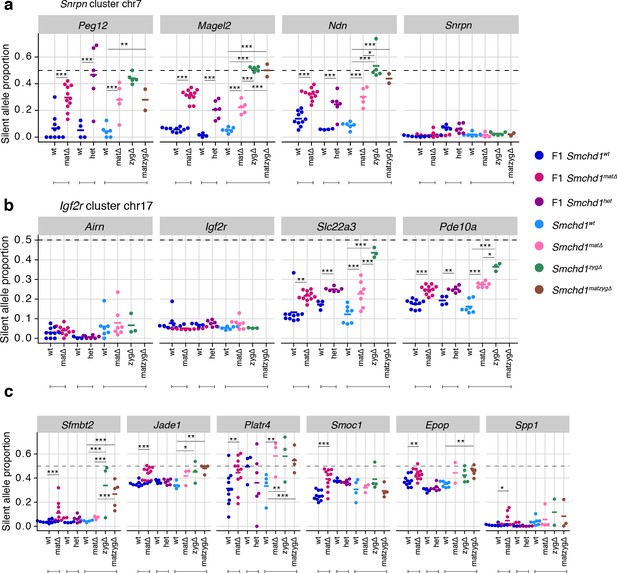

Homozygous zygotic deletion of Smchd1 generally results in more severe loss of imprinting at genes sensitive to maternal or heterozygous deletions.

MMTV-Cre Smchd1 maternal deletion data and heterozygous deletion data (F1 wt, F1 matΔ, F1 het) from Figures 1 and 2, along with samples produced to compare Smchd1 wild-type (wt), oocyte-deleted (matΔ), zygote-deleted (zygΔ), and oocyte-and-zygote-deleted (matzygΔ) genotypes. Samples from the embryonic portion of the placenta and expression of the silent allele is shown as a proportion of total expression of the gene, obtained by allele-specific RNA-seq. (a) Snrpn cluster genes. (b) Igf2r-Airn cluster genes. (c) Sfmbt2, Jade1, Platr4, Smoc1, Epop, and Spp1 genes. *p<0.05, **p<0.01, ***p<0.001, when the difference in silent allele proportions is at least 5%. RNA-seq sample sizes: for maternal deletion experiment, 10 wt and 11 matΔ; for the heterozygous deletion experiment, 4 wt and six het; for the maternal and zygotic deletion experiment, 13 wt, seven matΔ, eight zygΔ, and six matzygΔ E14.5 MMTV-Cre placentae.

In general, we did not observe enhanced loss of imprinting at non-canonical imprinted genes from the zygotic null placentae. Notably, the non-canonical imprinted genes were not all strongly imprinted in the placental samples, as expected based on earlier publications (Inoue et al., 2017b; Hanna et al., 2019), and this potentially limited our ability to detect stronger loss of imprinting. Sfmbt2 was the exception, where we both observed strong imprinted expression and significantly more loss of imprinting in the Smchd1zygΔ and Smchd1matzyg Δ compared with Smchd1mat Δ placental samples (Figure 5c). These data suggest that both maternal Smchd1 and zygotic SMCHD1 can play a role in regulating some non-canonical imprinted genes.

Maternal SMCHD1 sets up imprinting during the pre-implantation period

Given that maternal SMCHD1 plays its role in the pre-implantation period, we directly tested the role of maternal SMCHD1 using allele-specific methylome and transcriptome sequencing of Smchd1matΔ and control 16 cell stage embryos. This is a period when maternally derived SMCHD1 provides the primary supply of SMCHD1 protein (Figure 1c). Although we found minimal differential expression genome-wide (Figure 6—figure supplement 1a), we found 89 genes with imprinted expression at this stage (Supplementary file 1), four of which showed significant loss of imprinted expression in the Smchd1matΔ samples (Figure 6a and b, Figure 6—figure supplement 1b and c). Two out of the four genes, Jade1 and Etv6, were non-canonical imprinted genes; Jade1 also showed loss of imprinting in the placental samples but Sfmbt2 did not yet show an effect. These data suggest SMCHD1 is already necessary for imprinting of Jade1 and at least one more non-canonical imprinted gene in the pre-implantation period, but by contrast is required for maintenance of imprinted expression for Sfmbt2 (Figure 6a and b).

Figure 6 with 1 supplement see all
Maternal SMCHD1 establishes an epigenetic memory required for imprinted gene expression.

(a) Summarised analysis of SMCHD1-sensitive imprinted genes from E14.5 placentae and E9.5 embryos in E2.75 embryo transcriptome sequencing. (b) Expression of the silent allele as a proportion of total expression of the gene, obtained by allele-specific RNA-seq from whole E2.75 Smchd1 maternal null (matΔ) and wild-type (wt) embryos. (c) Percentage methylation (% mC) on each parental allele for the DMRs of SMCHD1-sensitive imprinted clusters and genes in Smchd1 maternal null (matΔ) compared with control (wt) E2.75 embryos. Kcnq1-I1: Kcnq1-Intergenic1; Kcnq1-I2: Kcnq1-Intergenic2 *p<0.05, **p<0.01, ***p<0.001, when the difference in silent allele proportions is at least 5%. n = 5 wt and n = 8 matΔ E2.75 embryos.

Unfortunately, none of the other SMCHD1-sensitive imprinted genes identified later in gestation were able to be analyzed for differential imprinted expression at this time based on both expression and coverage of informative SNPs. Therefore, we were unable to assess the role of maternal SMCHD1, particularly at canonical imprinted genes where zygotic SMCHD1 plays a role, at this stage of development.

An alternative way to look at canonically imprinted genes is to assess the effect of maternal SMCHD1 on germline DNA methylation imprints. Our previous DNA methylation analyses were performed on samples taken 11–12 days after zygotic SMCHD1 was switched on, potentially masking any effect on DNA methylation that could have occurred earlier in development. Therefore, we chose to analyze DNA methylation at E2.75 (16 cell stage), before zygotic SMCHD1 has made a contribution. We again found no differences at germline DMRs. As expected, secondary DMRs were not appreciably methylated at this stage (Figure 6c, Supplementary file 3). No change in germline DMR methylation is consistent with the (Chen et al., 2015; Jansz et al., 2018a) loss of imprinting only occurring at selected genes within the Snrpn, Kcnq1, and Igf2r-Airn clusters. These data show that maternal SMCHD1 does not contribute to DNA methylation at germline DMRs. Furthermore, we observe little genome-wide differential methylation in the pre-implantation samples: only 8 out 13,840 CpG islands, 45 out of 52,444 promoters, and 872 out of 272,566 10 kb bins were differentially methylated, suggesting that maternal SMCHD1 contributes little to overall methylation patterns at the pre-implantation stage (Figure 6—figure supplement 1d-f and Supplementary file 4), similar to later in gestation.

Discussion

Here, we identified Smchd1 as a novel maternal effect gene. For the first time, we revealed new canonical and non-canonical imprinted genes that are sensitive to deletion of maternal SMCHD1 (Table 1). These genes are also regulated by zygotic SMCHD1. We also revealed a third cluster of canonical imprinted genes regulated by zygotic SMCHD1, the Kcnq1 cluster. The three canonical imprinted clusters have a dose-dependent reliance on zygotic SMCHD1, unlike the non-canonical imprinted genes. Together these data dramatically expand the number of imprinted loci that are sensitive to SMCHD1 removal.

Table 1
Summary of SMCHD1-sensitive imprinted genes.
geneclustertypesensitive tissueSmchd1 sensitivityhaploinsufficiency
Peg12SnrpncanonicalE9.5 embryo, E14.5 placentazygoticyes
Magel2SnrpncanonicalE9.5 embryo, E14.5 placentazygoticyes
NdnSnrpncanonicalE9.5 embryo, E14.5 placentazygoticyes
Mkrn3SnrpncanonicalE9.5 embryo, E14.5 placentazygoticnot significant
Snhg14SnrpncanonicalE2.75 embryomaternalno
Slc22a3Airn/Igf2rcanonicalE14.5 placentazygoticyes
Pde10aAirn/Igf2rcanonicalE14.5 placentazygoticyes
Tssc4Kcnq1canonicalE14.5 placentamaternal and zygoticno
Ascl2Kcnq1canonicalE14.5 placentazygoticyes
Jade1Jade1non-canonicalE2.75 embryo, E14.5 placentamaternalno
Platr4Jade1non-canonicalE14.5 placentamaternalno
Sfmbt2lonenon-canonicalE14.5 placentamaternalno
Smoc1lonenon-canonicalE14.5 placentamaternalno
Epoplone?E14.5 placentamaternalno
Spp1lone?E14.5 placentamaternalno
H13lonecanonicalE2.75 embryomaternalno
Etv6lonenon-canonicalE2.75 embryomaternalno

For some non-canonical imprinted genes (Smoc1, Jade1, Sfmbt2), it has recently been shown that the H3K27me3 imprint is lost during pre-implantation development and through an unknown mechanism the imprint is transferred into a secondary DNA methylation imprint (Hanna et al., 2019). By contrast, the Kcnq1 cluster, the Igf2r-Airn cluster and the Magel2 region of the Snrpn cluster gain H3K27me3 in post-implantation tissues, dependent on the germline DMR imprint (Hanna et al., 2019), and for the Kcnq1 and Igf2r-Airn clusters through the action of imprinted long noncoding RNAs (Redrup et al., 2009; Nagano et al., 2008; Sleutels et al., 2002). Interestingly, Dnmt1 knockout studies have shown that while imprinting of genes located centrally in the Kcnq1 cluster is maintained via germline DMR methylation, genes affected by the loss of SMCHD1, Tssc4, and Ascl2, are maintained via histone modifications (Frost and Moore, 2010; Lewis et al., 2004; Umlauf et al., 2004). Similar to the distal Tssc4 and Ascl2 genes in the Kcnq1 cluster, the SMCHD1-sensitive genes at the Snrpn and Igf2r-Airn clusters are also far away from the ICR, while the genes whose promoter or TSS contain the ICR are not affected by the loss of SMCHD1. What appears to unite the SMCHD1-sensitive imprinted genes is their reliance on H3K27me3 either as a germline or secondary imprint. Based on two lines of evidence, we suggest that SMCHD1 acts downstream of these H3K27me3 imprints. First, we find the most striking loss of imprinted expression at both non-canonical and canonical imprinted genes in Smchd1zygΔ samples (Figure 4). These samples likely have no disruption to SMCHD1 levels in the oocyte or pre-implantation and therefore the non-canonical H3K27me3 imprints should remain. Second, we have previously found no effect on H3K27me3 in Smchd1 zygotic null samples at the SMCHD1-sensitive clustered imprinted genes, that is, secondary H3K27me3 imprints (Chen et al., 2015). Together these data suggest SMCHD1 acts downstream of H3K27me3 in mediating imprinted expression (Figure 6). We have previously shown that for the inactive X chromosome, SMCHD1 is recruited in a polycomb repressive complex 1-dependent manner (Jansz et al., 2018b). Potentially, a related pathway exists at these imprinted clusters.

We propose that SMCHD1 plays a role in protecting the repressed imprinted genes from inappropriate activation. We and others have previously found that cells without SMCHD1 have increased CTCF binding (Chen et al., 2015; Wang et al., 2018; Gdula et al., 2019). At SMCHD1-sensitive imprinted genes we have found increased H3K4me2 or H3K4me3 (Mould et al., 2013; Chen et al., 2015). Therefore, we suggest that SMCHD1 may ensure that H3K27me3 imprints result in transcriptional silencing by preventing the action of CTCF or other epigenetic activators via an insulating mechanism.

Conclusions

We have discovered SMCHD1 is a novel maternal effect gene required for genomic imprinting. Recently, we and others discovered that zygotic SMCHD1 mediates long-range chromatin interactions at its target genes, both at imprinted regions and elsewhere in the genome (Jansz et al., 2018a; Wang et al., 2018; Gdula et al., 2019). Based on the data presented here, we propose that SMCHD1 is required to translate germline imprints into a chromatin state required to silence expression at select imprinted genes. Given that some SMCHD1-sensitive imprinted genes are not yet expressed in the pre-implantation period, we hypothesize the chromatin state that maternal SMCHD1 establishes, provides an epigenetic memory that is then maintained by zygotic SMCHD1 (Figure 7). This work opens a new avenue to understand how imprinted expression is established during development and may be relevant for patients with SMCHD1 mutations.

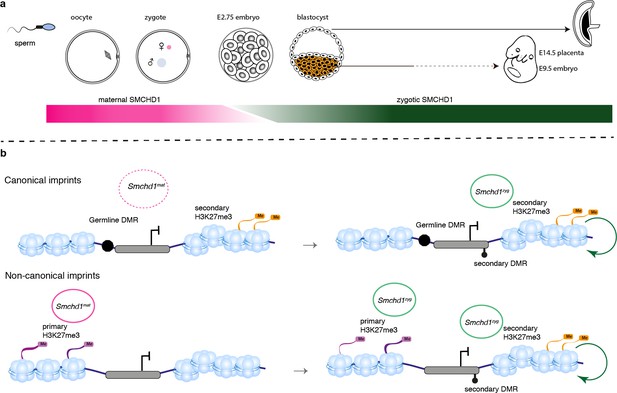

SMCHD1 translates the imprints to establish a heritable chromatin state required for imprinted expression later in development.

(a) Developmental windows of activity of maternal and zygotic SMCHD1. (b) Proposed model illustrating the regulation of imprinted genes by SMCHD1. Both oocyte and zygotic SMCHD1 contribute to an epigenetic memory downstream of polycomb repressive histone marks.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
 Gene (M. musculus)Structural maintenance of chromosomes hinge domain containing 1 (Smchd1)PMID:15890782
PMID:18425126
NM_028887
 Strain, strain background (M. musculus, males and females)Castaneus EiJThe Jackson Laboratory000928
 Strain, strain background (M. musculus, females and males)C57BL/6JThe Jackson Laboratory000664
 Genetic reagent (M. musculus, females and males)MMTV-CrePMID:9336464Strain back-crossed from FVB/N to C57BL/6J background for this study
 Genetic reagent (M. musculus, females and males)Zp3-CrePMID:9016703C57BL/6J background
 Genetic reagent (M. musculus, females and males)Smchd1 conditional knockout (Smchd1fl)PMID:29281018C57BL/6J background
 Genetic reagent (M. musculus, females and males)Smchd1fl/fl MMTV-CreThis studyC57BL/6J background. MMTV-Cre transgene on the Smchd1fl background.
 Genetic reagent (M. musculus, females and males)Smchd1fl/fl Zp3-CreThis reportC57BL/6J background, Zp3-Cre transgene on the Smchd1fl/fl background.
 Genetic reagent (M. musculus, males and females)Smchd1GFPPMID:30127357C57BL/6J background
Biological sample
(M. musculus, male)
Smchd1GFP/GFP, primary Neural Stem Cells (NSCs)This studyProduced fresh from Smchd1GFP/GFP E14.5 embryos in Blewitt lab.
Antibodyanti-SMCHD1 ATPase domain (rat monoclonal)In house.
Source - PMID:30127357
#5 or
Clone 5H4
(1:100)
Antibodyanti-SMCHD1 ATPase domain (rat monoclonal)In house.
Source - PMID:30428357
#8 or
Clone 2B8
(1:100)
Antibodyanti-c-Kit (goat polyclonal)NovusCat. #: af1356(1:500)
Antibodyanti-GFP (rabbit polyclonal)ThermoFisher ScientificCat. #: A11122(1:100)
Antibodyanti-goat Alexa 488 (donkey polyclonal)Thermo Fisher ScientificCat. #: A-11055(1:500)
Antibodyanti-rat IgG DyLight 550 (donkey polyclonal)InvitrogenCat. #:SA5-10027(1:500)
Antibodyanti-rabbit Alexa 488 (donkey polyclonal)Thermo Fisher ScientificCat. #: A21206(1:500)
Chemical compound, drugProLong Diamond Antifade Mountant with DAPIThermo Fisher ScientificCat. #: P36931
Chemical compound, drugVectashieldVector LabsH-1000
Commercial assay or kitQiagen All prep kitQiagenCat. #:80204
Commercial assay or kitZymo Quick DNA/RNA miniprep plus kitZymo researchCat. #:D7003
Commercial assay or kitTruSeq V1 or V2 RNA sample preparation kitIlluminaCat. #:RS-122–2001
Cat. #:RS-122–2002
Commercial assay or kitZymo research DNA Clean and concentrator-5 kitZymo researchCat. #:D4103
Commercial assay or kitQubit dsDNA assay kitThermoFisher ScientificCat. #:Q32853
Commercial assay or kitNuGEN Ovation RRBS methyl-seq systemIntegrated sciencesCat. #:0553–32
Commercial assay or kitQIAGEN EpiTect Fast DNA Bisulfite KitQiagenCat. #:59824
Commercial assay or kitIllumina TruSeq DNA Sample Preparation KitIlluminaCat. #:FC-121–2001 Cat. #:FC-121–2002
Commercial
assay or kit
Nextera XT kitIlluminaCat. #:FC-131–1002
Commercial assay or kitNEBNext Ultra II DNA Library Prep Kit for IlluminaNEBCat. #:E7645
Software, algorithmFIJIPMID:3855844
Software, algorithmSNPsplitPMID:21493656v0.3.2
Software, algorithmHISAT2PMID:25751142v2.0.5
Software, algorithmRR Core Team3.5.1Available: https://www.R-project.org/
Software, algorithmfeatureCountsPMID:24227677
Software, algorithmRsubreadPMID:307836531.32.1
Software, algorithmrpartR package version 4.1–15Available: https://
CRAN.R-project.org/package=rpart
Software, algorithmedgeRPMID:19910308
PMID:22287627
3.24.0
Software, algorithmGlimmaPMID:282037141.10.0
Software, algorithmggplot2Available: https://ggplot2.tidyverse.org
Software, algorithmcowplotR package version 1.0.0Available: https://CRAN.R-project.org/package=cowplot
Software, algorithmggbeeswarmR package version 0.6.0Available: https://CRAN.R-project.org/package=ggbeeswarm
Software, algorithmggrepelR package version 0.8.1Available: https://CRAN.R-project.org/package=ggrepel
Software, algorithmggrastrR package version 0.1.7
Software, algorithmpheatmapR package version 1.0.12Available: https://CRAN.R-project.org/package=pheatmap
Software, algorithmTrimGalore!v0.4.4
Software, algorithmBismarkPMID:21493656v0.20.0
Software, algorithmFastQCv0.11.8Available: http://www.bioinformatics.babraham.ac.uk/projects/fastqc
Software, algorithmBowtie2PMID:22388286v2.3.4.1
Software, algorithmSeqMonkv1.45.1Available: https://www.bioinformatics.babraham.ac.uk/projects/seqmonk/
Software, algorithmTMM methodPMID:20196867
Software, algorithmquasi-likelihood F-testsPMID:27008025
Software, algorithmBenjamini-Hochberg method10.1111/j.2517–6161.1995.tb02031.x
Software, algorithmEnriched Domain DetectorPMID:24782521v1.1.19

Mouse strains and genotyping

Request a detailed protocol

The MMTV-Cre transgene line A (Wagner et al., 1997) was backcrossed for more than 10 generations onto the C57BL/6 background from the FVB/N background for use in this study. This was used in combination with a Smchd1 deleted allele (Smchd1del) in trans to the Smchd1 floxed (Smchd1fl) allele (de Greef et al., 2018). The Smchd1del allele was generated from the Smchd1fl allele using a line of C57BL/6 mice expressing a constitutive Cre transgene (Orban et al., 1992). The Smchd1fl and Smchd1Del lines were produced and maintained on the C57BL/6 background. The Zp3-Cre line was backcrossed onto the Smchd1fl allele (Lewandoski et al., 1997).

To create the heterozygous placental samples, we used Smchd1del/fl MMTV-CreT/+ sires mated with Cast/EiJ strain females. The Cast/EiJ strain was purchased from the Jackson laboratory. We observed occasional leakiness of the Cre transgene, which created some mosaic placental samples. These were excluded from our analyses.

To study loss of zygotic SMCHD1 along with loss of oocyte SMCHD1, we produced an F1 line of mice from Cast/EiJ strain dams mated with C57BL/6 Smchd1del/+ sires. By mating with C57BL/6 Smchd1del/+ dams or Smchd1del/fl; MMTV-CreT/+ dams we could generate embryos where on average half of the imprinted clusters would have a Cast/EiJ allele in trans to C57BL/6, (and therefore be informative for allele-specific analyses) and also be null for Smchd1.

The Smchd1GFP allele was backcrossed to C57BL/6 for more than 10 generations, and kept as a homozygous breeding line as previously described (Jansz et al., 2018a).

Genotyping for the Smchd1 alleles and sex chromosomes was done as previously described (Jansz et al., 2018a). The Cre transgenes were genotyped using a general Cre PCR as previously described (Leong et al., 2013).

All post-implantation embryos were generated via natural timed matings. All pre-implantation embryos were generated following superovulation as previously described (Keniry et al., 2016).

All illustrations of embryos were adapted from the atlas of embryonic development (Theiler, 1989) https://creativecommons.org/licenses/by/3.0/.

Embryo, placental, and ovary dissections

Request a detailed protocol

The embryonic portion of the E14.5 placenta was dissected as previously described (Mould et al., 2013). The dissection was learned using a GFP transgene that is transmitted from the sire, and therefore only present in the embryonic portion of the placenta. Based on the structure of the placenta, the tissue included labyrinth, spongiotrophoblast, and trophoblast giant cells. The yolk sac or a portion of the embryo was taken for genotyping, while the placental piece was snap-frozen for later RNA and DNA preparation. The E9.5 embryos were dissected and snap-frozen whole.

Sectioning and immunofluorescence studies of the ovary

Request a detailed protocol

The ovaries from 6- to 14 week-old mice were harvested and fixed in 10% formalin overnight. Immunofluorescence was performed on paraffin embedded, serially sectioned (4 µm) ovaries. A total of 5–9 slides (three sections per slide) were assessed from each ovary. Briefly, paraffin sections were dewaxed in histolene and heat-induced epitope retrieval was performed in 10 mM sodium citrate buffer (pH 6). Sections were blocked in 10% donkey serum (Sigma Aldrich, D9663) in Tris-sodium chloride (TN) buffer with 3% bovine serum albumin (BSA) (Sigma Aldrich, A9418). Sections were then incubated with buffer only (as negative controls) or primary antibodies for 24 hr at 4°C in TN with 1% BSA in the following dilutions: 1:100 SMCHD1 #5 or #8 (own derivation) and 1:500 CD117/c-kit Antibody (NOVUS af1356). Donkey anti-Goat Alexa 488 (Thermo Fisher Scientific, A-11055) and Donkey anti-Rat IgG DyLight 550 (Invitrogen, SA5-10027) secondary antibodies were applied at 1:500 in TN after washing. Slides were cover-slipped with ProLong Diamond Antifade Mountant with DAPI (Thermo Fisher Scientific, Waltham, MA, P36931) and imaged via a confocal Nikon Eclipse 90i (Nikon Corp., Tokyo, Japan) microscope. Images were processed and analyzed using FIJI software (Schindelin et al., 2012). A minimum of 5 follicles for primordial, late secondary follicles and 2–3 antral follicles were tracked and imaged across multiple sections for each genotype.

Native GFP imaging of pre-implantation embryos

Request a detailed protocol

Pre-implantation embryos were collected by flushing oviducts/uteri at 2 cell, 4 cell, 8 cell, 16 cell, 32 cell and blastocyst stages, at E1.5, E2.0, E2.25, E2.75, E3.5 as described previously (Borensztein et al., 2017). Embryos collected from Smchd1GFP/GFP females crossed Smchd1GFP/GFP males were used as positive controls and embryos from Smchd1+/+ parents were used as negative controls simultaneously with the test embryos to ensure autofluorescence could be accounted for in imaging for GFP. Pre-implantation embryos were fixed with 4% paraformaldehyde for 10 min, washed with PBS, and imaged in Fluorobrite DMEM media (ThermoFisher scientific A1896701) using an AxioObserver microscope (Zeiss) at 20× magnification. Images were processed and analyzed using FIJI software (Schindelin et al., 2012). For each experiment, at least three embryos were scored.

Immunofluorescence of pre-implantation embryos

Request a detailed protocol

Embryos were collected from Smchd1GFP/GFP females crossed with Smchd1+/+ male and Smchd1+/+ females crossed with Smchd1GFP/GFP male as tests, Smchd1+/+ crossed with Smchd1+/+ as negative controls, and Smchd1GFP/GFP females crossed Smchd1GFP/GFP male as positive controls at 8 cell, 12–16 cell and 24–32 cell stage embryos. The zona pellucida was removed using Acid Tyrode's solution (Sigma T1788), then embryos washed with M2 solution (Sigma M7167) and fixed with 2% PFA for 20 min at room temperature. Embryos were permeabilized in 0.1% Triton-X100 (Sigma T8787) in PBS for 20 min at room temperature. Embryos were blocked in 0.25% gelatin in PBS (gelatin, Sigma, G1393) for 20 min at room temperature. Embryos were transferred to the primary antibody, rabbit anti-GFP (Thermo Fisher A11122, lot 2015993) diluted in block and incubated for 1 hr. Embryos were washed with PBS then transferred to the secondary antibody, anti-rabbit Alexa 488 (Thermofisher A21206, lot 1874771) diluted in block and incubated for 40 min in a dark humidified chamber. The embryos were finally washed with PBS, stained with DAPI for 10 min, washed with PBS again, and mounted into Vectashield H-1000 (Vector labs). The embryos were imaged using the Zeiss LSM 880 system, 40× magnification with airyscan processing. Images were processed and analyzed using FIJI software (Schindelin et al., 2012). Negative and positive controls were used to normalize the fluorescence signal.

Bulk RNA and DNA preparation from embryos and placentae

Request a detailed protocol

RNA and DNA were prepared from snap-frozen samples either using a Qiagen All prep kit (Qiagen, Cat # 80204), or a Zymo Quick DNA/RNA miniprep plus kit (Zymo research, Catalog # D7003). DNA and RNA were quantified using nanodrop (Denovix DS-11 spectrophotometer).

Bulk RNA-sequencing and analysis

Request a detailed protocol

Libraries were prepared using TruSeq V1 or V2 RNA sample preparation kits from 500 ng total RNA as per manufacturers’ instructions. Fragments above 200 bp were size-selected and cleaned up using AMPure XP magnetic beads. Final cDNA libraries were quantified using D1000 tape on the TapeStation (4200, Agilent Technologies) for sequencing on the Illumina Nextseq500 platform using 80 bp, paired-end reads.

RNA-seq reads were trimmed for adapter and low quality sequences using TrimGalore! v0.4.4, before mapping onto the GRCm38 mouse genome reference N-masked for Cast SNPs prepared with SNPsplit v0.3.2 (Krueger and Andrews, 2016) with HISAT2 v2.0.5 (Kim et al., 2015), in paired-end mode and disabling soft-clipping. Alignments specific to the C57BL/6 and Cast alleles were separated using SNPsplit v0.3.2 in paired-end mode.

Gene counts were obtained in R 3.5.1 (R Development Core Team, 2019) from the split and non-split bam files with the featureCounts function from the Rsubread package (1.32.1 Liao et al., 2014; Liao et al., 2019), provided with the GRCm38.90 GTF annotation downloaded from Ensembl, and ignoring multi-mapping or multi-overlapping reads.

Because the samples for the maternal and zygotic deletion experiment are first-generation backcrosses of CastB6F1s to C57BL/6, differential expression between alleles can only be performed in genomic regions that are heterozygous (half of the genome, on average). To identify these regions for each sample, we fit a recursive partition tree with R rpart (R Development Core Team, 2019; Therneau and Atkinson, 2019; Breiman et al., 1984) function to the proportion of Cast/EiJ reads in each 100 kb bin tiling the genome, with options minsplit = 4, cp = 0.05.

Genes were defined as expressed and retained for differential expression analysis if they had at least one count per million (cpm) in at least a third of the libraries in the non-haplotyped data.

For analysis of global expression changes, total (non-haplotyped) counts were normalized in edgeR v3.24.0 (Robinson et al., 2010McCarthy et al., 2012) with the TMM method (Robinson and Oshlack, 2010), and differential expression analysis performed with quasi-likelihood F-tests (Lun et al., 2016). P-values were corrected with the Benjamini-Hochberg method (Benjamini and Hochberg, 1995). Differential expression results were visualized with Glimma 1.10.0 (Su et al., 2017), with differential expression cut-offs of adjusted p-value<0.05 and log2-fold-change>1. Plots were generated in R with the ggplot2 (Wickham, 2016), cowplot (Wilke, 2019), ggbeeswarm (Clarke and Sherrill-Mix, 2017), ggrepel (Slowikowski, 2019), ggrastr (Petukhov, 2019), and pheatmap (Kolde, 2019) packages.

Testing for changes in imprinted expression was performed as follows: we compiled a list of all 316 known mouse imprinted genes and kept autosomal genes expressed in the experiment of interest (based on total counts, as above). Gatm was removed because the biased maternal expression is a result of maternal decidua contamination in the embryonic placenta dissection (Okae et al., 2012). To determine whether they were imprinted in the tissue of interest, we then fitted a logistic regression with the glm function from the stats package (R Development Core Team, 2019) on the maternal and paternal counts for each gene in the wild-type samples and retained the genes with an absolute log-ratio of expression greater than or equal to log(1.5). Genes without on average at least 10 haplotyped counts per sample for each genotype were also excluded from further analysis.

To investigate the effect of Smchd1 oocyte-deletion on imprinted expression, we used edgeR’s paired-sample design (Chen et al., 2017) with tagwise dispersion to model the maternal and paternal counts as a function of genotype (and Cre-deletion, in the case of placental samples where we had both Zp3-Cre and MMTV-Cre samples). We tested the effect of genotype with a likelihood ratio test. The p-values were corrected with the Benjamini-Hochberg method. Genes were considered differentially imprinted when the adjusted p-value was less than 0.05 and the absolute difference in silent allele proportion average between wild-type and oocyte-deleted samples was greater than 5% (for at least one Cre construct in the case of the placenta).

We could not use the same approach for the zygotic-and-oocyte deletion experiment as the genetic heterogeneity of the samples resulted in a haplotyped counts matrix with about half of the values missing. Instead, we fitted a beta-binomial regression with the betabin function from package the aod (Lesnoff and Lancelot, 2012) package on the maternal and paternal counts for each gene with informative samples, with a fixed dispersion of 0.01 estimated from the oocyte-only deletion data. We used the same criteria of 5% false discovery (FDR) and 5% absolute difference in silent allele proportion to call differential imprinting.

Bulk reduced representation bisulfite sequencing and analysis

Request a detailed protocol

DNA extracted above was cleaned up using Zymo research DNA Clean and concentrator-5 kit. DNA was quantified using the Qubit dsDNA assay kit (Thermo Fisher Scientific Q32853) and 100 ng were used as input for library preparation with the NuGEN Ovation RRBS methyl-seq system (Integrated sciences). Bisulfite conversion was carried out using QIAGEN EpiTect Fast DNA Bisulfite Kit. Quantitative and Qualitative analysis of library prep was carried out using D1000 tape on TapeStation 2200 (Agilent Technologies). Samples were sequenced on the HiSeq2500 platform using 100 bp paired-end reads.

Paired RRBS reads were trimmed first for an adapter and low-quality sequences with TrimGalore! v0.4.4 specifying the options -a AGATCGGAAGAGC -a2 AAATCAAAAAAAC, and then for the diversity bases introduced during library preparation with the trimRRBSdiversityAdaptCustomers.py script provided by NuGEN (Lovci, 2018). Trimmed reads were mapped onto the GRCm38 mouse genome reference N-masked for Cast SNPs with Bismark v0.20.0 (86) and the alignments were split by allele with SNPsplit v0.3.2 in bisulfite mode. Methylation calls were extracted with Bismark’s bismark_methylation_extractor function.

We compiled a list of 45 known imprinted Differentially Methylated Regions (DMRs) and aggregated the haplotyped methylated and unmethylated counts over these regions. Regions with fewer than 10 counts per sample on average for wild-type and oocyte-deleted genotypes were filtered out, as were regions with an average methylation difference between the parental alleles in wild-type samples of less than 10%. Methylated and unmethylated counts for the hypermethylated allele were analyzed with edgeR’s paired-sample design, setting the dispersion as the common dispersion (Chen et al., 2017). The p-values were adjusted for multiple testing with the Benjamini-Hochberg correction. Hypermethylated alleles were considered to be differentially methylated between wild-type and oocyte-deleted samples when the adjusted FDR was below 0.05.

To analyze methylation on CpG islands across the genome, we collected total (non-split by allele) methylated and unmethylated counts over the mm10 CpG island annotation from Seqmonk \cite (Andrews, 2007). Regions with fewer than 10 counts were excluded, and we subjected the remaining loci to a logistic regression followed by Benjamini-Hochberg correction of the p-values. We considered CpG islands as differentially methylated when the average difference in methylation proportion between wild-type and maternally-deleted samples was at least 10% and the adjusted p-value was below 0.05. We associated CpG islands with genes by annotating the island with its closest gene within 2 kb.

Smchd1-GFP ChIP-Seq in neural stem cells

Request a detailed protocol

Three primary female Smchd1GFP/GFP NSC lines were derived as previously described (Chen et al., 2015) and harvested with Accutase (Sigma-Aldrich), washed with culture medium, and PBS and cross-linked with 1% formaldehyde (vol/vol) for 10 min at room temperature with rotation, and subsequently quenched with glycine. The cells were immediately pelleted at 456 g for 5 min at 4°C and washed twice in cold PBS. The crosslinked pellets were then snap-frozen in dry ice.

For each cell line, 4 × 107 crosslinked nuclei were extracted from frozen pellets by incubating on ice for 10 min in 14 mL of ChIP buffer (150 mM NaCl, 50 mM) Tris-HCl pH 7.5, 5 mM EDTA, 0.5% vol/vol Igepal CA-630, 1% Triton X-100, 1× cOmplete cocktail (Roche), and homogenizing 25 times in a tight dounce on ice. Nuclei were pelleted at 12,000 g for 1 min at 4°C, washed with ChIP buffer then resuspended in 1.6 mL of MNase buffer with 1× BSA (NEB). The nuclei solution was preincubated at 37°C for 5 min, then 2 × 104 U of MNase (NEB) was added and incubated for a further 5 min. The reaction was stopped by adding 10 mM of EDTA and incubating on ice for 10 min. Nuclei were pelleted (4°C, 12,000 g, 1 min), resuspended in 520 µL of ChIP buffer then sonicated with a Covaris S220 sonicator (peak power, 125; duty factor, 10; cycle/burst, 200; duration, 15 s) in Covaris microTubes. Sonicated solution was diluted 10 times with ChIP buffer then spun at 12,000 g at 4°C for 1 min to clear debris. 20 uL of the supernatant was taken for the whole-cell extract (WCE) samples and the rest was used for immunoprecipitation overnight at 4°C with rotation with 16 µg of anti-GFP antibody (Invitrogen A11122). The chromatin was then cleared by centrifugation (12,000 g for 10 min at 4°C) and 80 µL of protein G DynaBeads (Thermo Fisher, washed three times in cold ChIP buffer right before use) were added before incubating at 4°C for 1 hr with rotation. The samples were then washed six times with cold ChIP buffer. The antibody-bound chromatin was eluted from the beads with two rounds of 400 µL of elution buffer (1% SDS, 0.1 M NaHCO3) by rotating at room temperature for 15 min. 8 µL of 5M NaCl and 1 µL of RNase A (NEB) were added to every 200 µL of eluate and to the WCE samples (diluted to 200 µL with elution buffer), incubated overnight at 65°C to reverse crosslinking then treated with 4 µL of 20 µg/mL Proteinase K at 65°C for 1 hr. DNA was extracted with Zymo ChIP DNA clean and concentrator kit.

Libraries were generated with an Illumina TruSeq DNA Sample Preparation Kit. 200- to 400 bp fragments were size-selected with AMPure XP magnetic beads. Libraries were quantified with a D1000 tape in a 4200 Tapestation (Agilent). Libraries were pooled and sequenced on the Illumina NextSeq platform, with 75 bp single-end reads.

Adapter trimming was performed with Trim galore! v0.4.4, library QC was assessed with FastQC v0.11.8 (Andrews, 2010) before mapping with Bowtie2 v2.3.4.1 (Langmead and Salzberg, 2012) with default options to the GRCm38.p6 version of the reference mouse genome. BAM files were imported into SeqMonk v1.45.1 (Andrews, 2007) extending them by 150 bp and peaks were called with the MACS-style caller within the SeqMonk package (settings for 300 bp fragments, p<1 × 10−5) by merging all three Smchd1-GFP IP and both input biological replicates into replicate sets. Larger regions enriched for Smchd1 binding were called with Enriched Domain Detector (https://academic.oup.com/nar/article/42/11/e92/1432049) with a 3 kb bin size.

SMCHD1-GFP ChIP-Seq in E14.5 placenta

Request a detailed protocol

The ChIP protocol was adapted from Skene and Henikoff, 2017. Three snap-frozen E14.5 placentae (about 150 mg each) from a B6Cast F1 mouse with a heterozygous SMCHD1-GFP tag were ground in liquid nitrogen with a mortar and pestle. The tissue powder was resuspended in ice-cold PBS with proteinase inhibitors and spun for 3 min at 600 g, at 4°C. The pellet was resuspended in 1 mL PBS at room temperature for a 15 min fixation with 1% formaldehyde. After quenching for 2 min with 125 mM glycine, the cross-linked tissue was pelleted as before and washed twice with ice-cold PBS with proteinase inhibitors. Nuclei were extracted by incubating in 600 uL ice-cold lysis buffer for 10 min. After dilution with 5.4 mL ChIP dilution buffer and pre-warming at 37°C, 15 uL MNase (NEB, 2000 U/uL) were added for a 15 min digestion at 37°C. The digestion was stopped with 10 mM EDTA and 20 mM EGTA, and the nuclei were pelleted by centrifugation at 12,000 g for 1 min at 4°C. The rest of the steps followed the above protocol for ChIP-seq in NSCs.

Libraries were made from the immunoprecipitated DNA and the input control using the NEB Ultra II DNA library preparation kit, using 1:10 adaptor dilution and 11 cycles of PCR. Libraries were sequenced in 80PE on a NextSeq.

Adapter trimming was performed with Trim galore! v0.4.4, library QC was assessed with FastQC v0.11.8 (Clarke and Sherrill-Mix, 2017) before mapping with Bowtie2 v2.3.4.1 (Slowikowski, 2019) in paired-end mode with default options to the GRCm38.p6 version of the reference mouse genome with N-masked Cast SNPs.

Regions enriched for SMCHD1 binding were called with Enriched Domain Detector (https://academic.oup.com/nar/article/42/11/e92/1432049) with a 3 kb bin size and peaks were called with MACS2 with the ‘broad peaks’ setting (Zhang et al., 2008).

Single pre-implantation embryo M and T-seq

Request a detailed protocol

E2.75 embryos were sorted into a preprepared lysis buffer containing 2.5 µL of RLT Plus (Qiagen) with 1 U/µL SUPERase-IN (Ambion). Genomic DNA and mRNA were separated using oligo-dT conjugated magnetic beads according to the G and T-seq protocol (Macaulay et al., 2015), however, gDNA was eluted into 10 µL of H2O and 16 cycles of amplification followed for cDNA synthesis.

Bisulfite libraries were prepared using an adapted scBS-seq protocol (Angermueller et al., 2016). Briefly, bisulfite conversion was performed before introducing Illumina adaptor sequences with random priming oligos. Only one round of first and second strand synthesis was performed, using primers compatible with the NEBNext multiplex oligos for library production (Forward: 5'-CTACACGACGCTCTTCCGATCTNNNNNN-3'; Reverse: 5'- CAGACGTGTGCTCTTCCGATCTNNNNNN-3'). Sixteen cycles of library amplification followed and all Ampure XP bead (Beckman Coulter) purifications were performed at 0.65×. To assess the library quality and quantity a High-Sensitivity D5000 ScreenTape on the Agilent TapeStation and the ProNex NGS Library Quantification Kit were used. Single-embryo bisulfite libraries were pooled for 150 bp paired-end sequencing on a NovaSeq6000.

RNA-seq libraries were prepared from amplified cDNA using the Nextera XT kit (Illumina) according to the manufacturer’s guidelines but using one-fifth volumes. Single-embryo RNA-seq libraries were pooled for 75 bp paired-end sequencing on a NextSeq500.

Single pre-implantation embryo M and T-seq analysis

Methylome analysis

Request a detailed protocol

To remove sequence biases due to the post-bisulfite adapter tagging, the first nine base pairs from read 1 and read two were removed with Trim Galore! v0.4.4 (http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/), in addition to adapter and quality trimming, with options (--clip_R1 9 --clip_R2 9). The reads were then first mapped to the Cast-masked GRCm38 genome in paired-end mode with Bismark v0.20.0 (Krueger and Andrews, 2011) with the pbat option to allow dovetail mapping, and keeping unmapped reads (--unmapped). Unmapped reads 1 and 2 were then mapped in single-end mode, with the --pbat option set for read 1. Each alignment file (paired, unmapped reads 1, and unmapped reads 2) was then deduplicated with deduplicate_bismark, and haplotyped with SNPsplit v0.3.2. Methylation calls were obtained with bismark_methylation_extractor and pooled (paired, unmapped reads one and unmapped reads 2).

Embryos were sexed based on their Cast-haplotyped bisulfite reads mapping to the X chromosome. Embryos that did not produce a library, showed evidence of maternal contamination (much higher proportion of C57BL/6 reads compared to Cast reads in the methylome and transcriptome data), or displayed chromosomal abnormalities were excluded.

Differences in methylation at known imprinted DMRs were tested in edgeR as for the bulk samples, although we also tested the non-split data in addition to the hypermethylated allele to increase the coverage and have more testable regions.

The whole-genome differential methylation analysis of the non-split data was performed on CpG islands, on gene transcriptional start sites (−4 kb to +1 kb of the TSS) and over non-overlapping 10 kb windows tiling the genome, testing methylation counts in edgeR as before.

Transcriptome analysis

Request a detailed protocol

RNA-seq analyses for the single embryos passing quality control were performed as for the bulk samples, except that the dispersion was set as the common dispersion (rather than tagwise) to avoid unreliable estimates of dispersion for individual genes on sparser single-embryo expression data.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Classification and Regression Trees (First Edition)
    1. L Breiman
    2. J Friedman
    3. JC Stone
    4. RA Olshen
    (1984)
    Taylor & Francis Ltd.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    R: A Language and Environment for Statistical Computing, version 2.6.2
    1. R Development Core Team
    (2019)
    R Foundation for Statistical Computing, Vienna, Austria.
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93

Decision letter

  1. Kevin Struhl
    Senior Editor; Harvard Medical School, United States
  2. Deborah Bourc'his
    Reviewing Editor; Institut Curie, France
  3. Deborah Bourc'his
    Reviewer; Institut Curie, France
  4. Adele Murrell
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This study highlights the divergent mechanisms that control the allelic expression of canonical (DNA methylation-dependent) imprinted genes versus non-canonical (polycomb-dependent) imprinted genes. This has implications in epigenetics but also for the etiology of syndromes related to mutations in SMCHD1.

Decision letter after peer review:

Thank you for submitting your article "Smchd1 is a maternal effect gene required for autosomal imprinting" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Deborah Bourc’his as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kevin Struhl as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Adele Murrell (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Imprinted gene expression relies on parent-specific epigenetic marks that are laid down in the parental gametes and maintained after fertilization. DNA methylation was thought to be the only mark to control imprinting, but oocyte H3K27me3 was recently shown to cross fertilization, to be maintained for a few cell cycles in the embryo, and to trigger the regulation of (a few) imprinted genes in the placenta after implantation. The authors report here the involvement of the chromatin SCMCHD1 protein as a maternal regulator of a defined set of imprinted genes, using allelic RNA-seq, DNA methylation by RRBS, single embryo RNA-seq and methylome analyses. The authors observed partial reactivation of the normally silent allele of some imprinted genes in the placenta of maternally SMCHD1-depleted conceptuses. This effect is independent of DNA methylation and seems to affect specifically genes that are regulated by H3K27me3, either maternally provided or established in the early embryo, independently from their expression in the early embryo.

The authors propose that maternal SMCHD1 may consolidate the chromatin state that is inherited by some imprinted genes in the early embryo, and this may be required for the "long-lived" epigenetic regulation of allele-specific repression. In contrast to previously known maternal regulators of imprinting, the effect is independent from DNA methylation. While the data are sound and the manuscript well written, the study is quite succinct, very descriptive and with limited breadth. Notably, genome-wide assays are not fully exploited, it seems both biased and superficial to narrow the analysis to imprinted genes only. The authors could likely learn more about the role of maternal SMCHD1 by looking at non-imprinted targets.

Essential revisions:

1) Some canonical imprinted genes that show effects in the current analysis have been originally identified as maternally expressed in the placenta only. The authors should be aware that the imprinting status of these genes can be fallacious, resulting from contamination with maternal material (See Proudhon and Bourc'his, 2010, Okae et al., 2012). On this matter, Gatm is no longer considered as a truly maternally expressed imprinted gene, but rather as a gene that is very highly expressed in maternal decidua cells, which cannot be totally removed during placenta isolations (Oake et al., 2012). This is actually a very good indicator of the level of maternal contamination in placenta dissections, and from the heatmap in Figure 2—figure supplement 1A, two samples appear with particularly high degree of maternal contamination. Please remove the inclusion of Gatm from the manuscript.

2) Considering the recognized role of SMCHD1 as a transcriptional repressor, could the authors specify what are the genes that are upregulated in the RNA-seq of Zp3-CRE (n=11) and MMTV-CRE (n=-3) Smchd1-deleted placentae? And what is the unique gene that is in common between the two models? Are these genes also misregulated in the E9.5 embryo sample (MMTV-CRE )? Do they show relationships with H3K27me3-centered regulation?

3) Regarding the DNA methylation analyses of maternal SMCHD1 deficiency (RRBS and single embryos): although the authors could not see DNA methylation defects at imprinted loci, what about the rest of the genome? Was there any differentially methylated regions elsewhere?

4) Because the authors do not mention it, I suspect that imprinted genes were not among the upregulated genes of the RNA-seq. Could the authors clearly state this in the text? Although the authors report the relative expression of parental alleles, they never provide quantitative values of global expression of these genes showing allelic disturbance. Please provide quantitative RT-PCR of the expression levels of imprinted genes that show the highest degree of reactivation of the normally silent allele in placentae.

5) The authors fail to mention in the text and the figure legends from which ChIP datasets the SMCHD1 binding sites (reported in Figures 2, and 3) are extracted. However, from the Materials and methods section and the legend of Supplementary Figure 3B, it appears that the ChIP-seq was performed in neural stem cells. What is the relevance of reporting the binding sites that SMCHD1 has in neurons relative to expression patterns that were measured in placentae? ChIP-seq analysis in E14.5 placenta (from Smchd1-GFP mouse) is needed.

6) The emphasis on the "long-lived" epigenetic effects of SMCHD1 presence in the embryo is overrated. First, effects are mostly seen in the placenta, a short-lived organ whose existence is limited to gestation. Then, we would like to see some late placenta to see whether the effects are maintained, and earlier placenta, to see whether the effects may be reducing with time. Targeted approaches could be used here. If you do not provide these data, please refrain from using "long-lived".

7) The lack of apparent phenotypic effects in the SMCHD1 maternally deficient progenies (at least until weaning age) suggests that the biological relevance of such regulation is weak. This should be clearly acknowledged in the Discussion. Moreover, if SMCHD1 effects are linked to H3K27me3, is there some phenotypic overlap with mouse models of maternal H3K27me3 deficiency (Prokopuk et al., 2018)? In other words, although litter size is normal at weaning, what about the weight? Any noticeable difference at birth or any time before weaning?

8) Please state that other non-canonical imprinted genes were not affected by Smchd1 maternal effect. If the authors do not state it clearly, readers have to perform searches of the supplementary data.

9) Genes in the chr7 imprinting cluster (Tssc4 and Ascl2) show clear reactivation (Figure 3). Seeing that imprinting of the neighbouring Cdkn1c and Phlda2 also depends on allelic repressive histone modifications, the authors should report if these are susceptible to LOI and if there are any changes to the Cdkn1c somatic DMR.

10) Please state why E14.5 placentae were analyzed yet E9.5 embryos? Why not at the same developmental age?

11) On the same matter, please state what cell types were collected and analyzed when referring to "embryonic proportion of the placenta" (Labyrinth, Spongiotrophoblast, giant trophoblast etc?).

https://doi.org/10.7554/eLife.55529.sa1

Author response

Summary:

Imprinted gene expression relies on parent-specific epigenetic marks that are laid down in the parental gametes and maintained after fertilization. DNA methylation was thought to be the only mark to control imprinting, but oocyte H3K27me3 was recently shown to cross fertilization, to be maintained for a few cell cycles in the embryo, and to trigger the regulation of (a few) imprinted genes in the placenta after implantation. The authors report here the involvement of the chromatin SCMCHD1 protein as a maternal regulator of a defined set of imprinted genes, using allelic RNA-seq, DNA methylation by RRBS, single embryo RNA-seq and methylome analyses. The authors observed partial reactivation of the normally silent allele of some imprinted genes in the placenta of maternally SMCHD1-depleted conceptuses. This effect is independent of DNA methylation and seems to affect specifically genes that are regulated by H3K27me3, either maternally provided or established in the early embryo, independently from their expression in the early embryo.

The authors propose that maternal SMCHD1 may consolidate the chromatin state that is inherited by some imprinted genes in the early embryo, and this may be required for the "long-lived" epigenetic regulation of allele-specific repression. In contrast to previously known maternal regulators of imprinting, the effect is independent from DNA methylation. While the data are sound and the manuscript well written, the study is quite succinct, very descriptive and with limited breadth. Notably, genome-wide assays are not fully exploited, it seems both biased and superficial to narrow the analysis to imprinted genes only. The authors could likely learn more about the role of maternal SMCHD1 by looking at non-imprinted targets.

We now fully describe the results of the genomic data, explaining that we concentrated on the role of maternal Smchd1 at imprinted genes because the maternal deletion has limited impact on genome-wide gene expression and DNA methylation.

We also performed Smchd1 ChIP in placenta and analysed these data in relation to histone marks including H3K27me3 to strengthen the manuscript as requested by the reviewers.

Essential revisions:

1) Some canonical imprinted genes that show effects in the current analysis have been originally identified as maternally expressed in the placenta only. The authors should be aware that the imprinting status of these genes can be fallacious, resulting from contamination with maternal material (See Proudhon and Bourc'his, 2010, Okae et al., 2012). On this matter, Gatm is no longer considered as a truly maternally expressed imprinted gene, but rather as a gene that is very highly expressed in maternal decidua cells, which cannot be totally removed during placenta isolations (Oake et al., 2012). This is actually a very good indicator of the level of maternal contamination in placenta dissections, and from the heatmap in Figure 2—figure supplement 1A, two samples appear with particularly high degree of maternal contamination. Please remove the inclusion of Gatm from the manuscript.

Thank you for highlighting these papers for us. We have removed Gatm from the revised manuscript.

2) Considering the recognized role of SMCHD1 as a transcriptional repressor, could the authors specify what are the genes that are upregulated in the RNA-seq of Zp3-CRE (n=11) and MMTV-CRE (n=-3) Smchd1-deleted placentae? And what is the unique gene that is in common between the two models? Are these genes also misregulated in the E9.5 embryo sample (MMTV-CRE )? Do they show relationships with H3K27me3-centered regulation?

We appreciate that more fully detailing the differential expression genome-wide is useful for readers, and may reveal a maternal effect of Smchd1 at non-imprinted targets as well. The full results of the differential expression analyses of total counts are now provided in Supplementary file 2 (results of the allelic proportion analyses are in Supplementary file 1) and we explicitly compared the results from the different tissues and Cre models (Figure 1—figure supplement 2A). The text now reads:

“We found only five consistently differentially expressed genes between Smchd1mat∆

and control placental samples from both Cre models, with modest fold-changes (Figure 1—figure supplement 2A-C, Supplementary files 1-2): one upregulated (Gm8493) and four downregulated (Ceacam12, Psg16, Gm7863and Afp). […] These data are consistent with no observable effect of deleting maternal Smchd1 on viability or postnatal weight (Figure 1—figure supplement 1A and B).”

Because of the modest fold-changes, limited overlap between the two Cre experiments in placenta and the two tissues (see Figure 1—figure supplement 2A), in addition to potential for litter effects as the matΔ and wt samples cannot be litter-matched, we did not want to overinterpret the larger DE in E9.5 embryo data. The tighter MA-plot from the litter-matched het and wt placenta samples (Figure 2—figure supplement 2B) compared to MMTV-Cre mat placenta is consistent with litter-to-litter variability being the potential cause of the larger DE in E9.5 embryos. In the E9.5 embryo data, other clustered gene families such as cathepsins on chromosome 13 (Cts3, Cts6, Ctsj, Ctsq), prolactin genes in a different region of chromosome 13 (Prl7a2, Prl7d1, Prl8a8, Prl8a9), or carcino-embryonic antigen-like cellular adhesion molecules (CEACAM) genes on chromosome 7 were also significantly upregulated, but this was driven by one maternally-deleted outlier. Given this variability, the caveat of litter effects also applicable here, and the single Cre model for the E9.5 embryo data, we maintain the focus of the manuscript on the imprinted genes. The imprinted genes apparently provide the most sensitive system in which to investigate the mechanism of gene regulation by Smchd1, and maternal Smchd1 in particular.

To test association with Polycomb marks, we obtained H3K27me3, H3K36me3 and H3K4me3 peaks from Hanna et al., 2019, in E6.5 epiblast and E7.5 extraembryonic tissue. The Pcdhb17-22 clustered genes are enriched for H3K27me3, and we detected broad Smchd1-binding on either side in addition to sharper peaks in our newly provided Smchd1 ChIP-seq data from placenta and the existing Smchd1 ChIP-seq in NSCs. Gm8493 was marked with H3K4me3 but not H3K27me3, while Cathepsins, Ceacams and Prolactins did not demonstrate H3K27me3 enrichment in E6.5 epiblast tissue.

We include the histone marks from E7.5 extraembryonic tissue in the depictions of Smchd1 binding at the Snrpn, Kcnq1 and Igf2r clusters in Figure 3—figure supplement 1.

3) Regarding the DNA methylation analyses of maternal SMCHD1 deficiency (RRBS and single embryos): although the authors could not see DNA methylation defects at imprinted loci, what about the rest of the genome? Was there any differentially methylated regions elsewhere?

We appreciate the suggestion to report these analyses. We found little significant differential methylation elsewhere in the genome, which we have now stated in the text.

We have added the following paragraph to the RRBS section:

“Deletion of maternal Smchd1 did not have a large effect on global CpG island methylation. […] The only association with differential expression was the hypermethylation of the CpG island 1.8 kb upstream of Gm45104, downregulated three-fold in placental sample with MMTV-Cre Smchd1 deletion.”

In the single preimplantation embryos, CpG-island and promoter-centric analyses also revealed very few changes in DNA methylation. A genome-wide analysis on 10-kb bins uncovered a bias for hypermethylation but the absolute differences in methylation remained small, and the overall proportion of affected bins small. We have amended the text and present these results in scatter plots (Figure 6—figure supplement 1D-F) and as supplementary tables (Supplementary file 4):

“Furthermore we observe little genome-wide differential methylation in the preimplantation samples: only 8 out 13,840 CpG islands, 45 out of 52,444 promoters, and 872 out of 272,566 10kb bins were differentially methylated, suggesting that maternal Smchd1 contributes very little to overall methylation patterns at the preimplantation stage (Figure 6—figure supplement 1D-F and Supplementary file 4), similar to later in gestation.”

4) Because the authors do not mention it, I suspect that imprinted genes were not among the upregulated genes of the RNA-seq. Could the authors clearly state this in the text? Although the authors report the relative expression of parental alleles, they never provide quantitative values of global expression of these genes showing allelic disturbance. Please provide quantitative RT-PCR of the expression levels of imprinted genes that show the highest degree of reactivation of the normally silent allele in placentae.

We now more fully describe our differential expression analyses genome-wide in the text, as detailed in the answer to point 2. We observe little differential expression with our chosen FDR (5%) and log2-fold-change (1) thresholds. This is not unexpected given that we only observe partial loss of imprinting when using the more powerful allele-specific analyses.

In our study we have used 6 separate RNA-seq datasets to analyse imprinted gene expression (E14.5 placenta oocyte only deletion for 2 Cre lines, E14.5 placenta for heterozygous controls of zygotic deletion, E9.5 embryo oocyte only deletion for 1 Cre line, E14.5 placenta with oocyte and zygotic deletion of Smchd1, E9.5 embryos with oocyte and zygotic deletion of Smchd1). Using these data we can appropriately normalise our data and therefore obtain quantitative measures of gene expression to reliably detect small changes in expression levels. By contrast qRT-PCR is heavily reliant on a small number of housekeeping genes, and is not useful for detecting small expression changes, such as those observed here. Therefore, to clearly show the changes in absolute expression (total and split by allele), we plot these absolute levels in Figure 2—figure supplement 1C for the Snrpn cluster (Igf2r and Kcnq1 clusters can also be seen). Along with the MA-plots in Figure 2—figure supplement 1B, these plots demonstrate that the allelic disturbance is explained by a loss of silencing of the repressed allele rather than downregulation of the expressed allele.

5) The authors fail to mention in the text and the figure legends from which ChIP datasets the SMCHD1 binding sites (reported in Figures 2, and 3) are extracted. However, from the Materials and methods section and the legend of Supplementary Figure 3B, it appears that the ChIP-seq was performed in neural stem cells. What is the relevance of reporting the binding sites that SMCHD1 has in neurons relative to expression patterns that were measured in placentae? ChIP-seq analysis in E14.5 placenta (from Smchd1-GFP mouse) is needed.

We agree that ChIP-seq for Smchd1 binding in the placenta is ideal for comparison to our placental data sets. We have now performed ChIP-seq for Smchd1-GFP in a placental sample, and report these data in Figure 3—figure supplement 1. We found that the global enrichment patterns of Smchd1 were very well conserved between the placenta and the NSC ChIP-seq, with the same broad regions detected as enriched by the Enriched Domain Detector software. At a finer scale, the overlap between the peaks called in placenta and NSCs was not as extensive. The resolution of the Smchd1-GFP ChIP-seq in placenta however appeared lower than that of the NSC dataset, therefore we removed the Smchd1 binding sites from the schematics in Figures 2 and 3, and only show them as a track in Figure 3—figure supplement 1. The text now reads:

“Supporting a role for Smchd1 in regulating the Kcnq1 cluster, we found Smchd1 enrichment across this cluster as well as the Snrpn and Igf2r-Airn imprinted clusters in placental samples and somatic cells (Figure 3—figure supplement 1A-C).”

6) The emphasis on the "long-lived" epigenetic effects of SMCHD1 presence in the embryo is overrated. First, effects are mostly seen in the placenta, a short-lived organ whose existence is limited to gestation. Then, we would like to see some late placenta to see whether the effects are maintained, and earlier placenta, to see whether the effects may be reducing with time. Targeted approaches could be used here. If you do not provide these data, please refrain from using "long-lived".

We have refrained from using the term long-lived.

7) The lack of apparent phenotypic effects in the SMCHD1 maternally deficient progenies (at least until weaning age) suggests that the biological relevance of such regulation is weak. This should be clearly acknowledged in the Discussion. Moreover, if SMCHD1 effects are linked to H3K27me3, is there some phenotypic overlap with mouse models of maternal H3K27me3 deficiency (Prokopuk et al., 2018)? In other words, although litter size is normal at weaning, what about the weight? any noticeable difference at birth or any time before weaning?

We have generated additional data on weight of offspring at postnatal day 2, from oocyte deleted mothers, control mothers or from a reciprocal cross. We found that progeny from Smchd1 maternal null females were not significantly different in weight to either set of control litters (wildtype matings from the same strain, or a reciprocal cross). These data are now presented in Figure 1—figure supplement 1B alongside the litter size data (Figure 1—figure supplement 1A). While the genes we do alter are controlled by H3K27me3, they still represent a very limited set of genes compared with all polycomb targets. Moreover, the loss of imprinting we observe usually translates into small absolute log-fold changes, therefore we are not surprised this doesn’t have the same effect as observed by Prokopuk et al. for Eed disruption.

Our data could be viewed as maternal Smchd1 having little biological relevance; however we propose that to make this claim we would need to make more comprehensive analyses of phenotype than weight or litter size in future studies, particularly as the impacts of non-canonical imprints on phenotype are not well known. Here we focused on maternal Smchd1’s role in controlling imprinting, rather than the phenotypic consequences of removing Smchd1. We have noted this limitation of our study in the revised manuscript, and that in the future we will also study the consequences for phenotype. We don’t believe this weakens our study, but instead has kept it focused on the molecular aspects of imprinting control.

8) Please state that other non-canonical imprinted genes were not affected by Smchd1 maternal effect. If the authors do not state it clearly, readers have to perform searches of the supplementary data.

We agree this will be helpful for readers. We have now noted in the Results section “Maternal Smchd1 regulates non-canonical imprinted gene expression” that “No loss of imprinting was observed for the other two non-canonical imprinted genes that retained imprinted expression at this stage of development (Gab1 and Slc38a4).”

9) Genes in the chr7 imprinting cluster (Tssc4 and Ascl2) show clear reactivation (Figure 3). Seeing that imprinting of the neighbouring Cdkn1c and Phlda2 also depends on allelic repressive histone modifications, the authors should report if these are susceptible to LOI and if there are any changes to the Cdkn1c somatic DMR.

Thank you for this suggestion. We have added Phlda2 to Figure 3A, and added comments on these genes in the Results paragraph dedicated to the Kcnq1 cluster:

“We observed partial loss of imprinted expression of 2 additional genes in the Kcnq1 cluster, Tssc4 and Ascl2. […] Again consistent with the Snrpn and Igf2r-Airn clusters, we observed no DMR hypomethylation at either the germline (Kcnq1ot1) or secondary DMRs (Kcnq1l1 and 2) in the Kcnq1 cluster (Figure 3B)”.

10) Please state why E14.5 placentae were analyzed yet E9.5 embryos? Why not at the same developmental age?

Even though this paper focuses on the males, we wanted to dissect embryos at a time when Smchd1 zygotic null female embryos would still be alive and have healthy tissue, i.e. prior to E10. We chose to sample embryos at E9.5 rather than earlier, as it would provide an ample source of tissue. For placentae, our prior work and that of others showed that zygotic Smchd1 is required for imprinting of Slc22a3, which is not always imprinted (Zwart et al., Genes Dev 2001). We found more data available on imprinting in mid-gestation placentae than E9.5, and finally, we had the expertise to dissect the embryonic portion of the placenta at E14.5. We have added an explanation to the text:

“We chose to sample embryos at E9.5 as this is before Smchd1 zygotic-null females die; meanwhile mid-gestation placenta is the time and place where many genes display imprinted expression, including those known to be sensitive to loss of zygotic Smchd1. Females were not examined here due to the confounding role of Smchd1 in X chromosome inactivation, which is the focus of a separate project.”

11) On the same matter, please state what cell types were collected and analyzed when referring to "embryonic proportion of the placenta" (Labyrinth, Spongiotrophoblast, giant trophoblast etc?).

Our dissections did not discriminate cell types, but rather were informed by the expression of a GFP transgene transmitted from the father and therefore only present in the embryonic portion of the placenta (see Mould et al., 2013). Such a cross was used to learn the procedure. The tissue dissected was as consistent as possible between samples. We have added comments in the Materials and methods to this effect and noted that based on the known structure of placenta the tissue included labyrinth, spongiotrophoblast and trophoblast giant cells.

https://doi.org/10.7554/eLife.55529.sa2

Article and author information

Author details

  1. Iromi Wanigasuriya

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Quentin Gouil
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2941-8764
  2. Quentin Gouil

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Iromi Wanigasuriya
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5142-7886
  3. Sarah A Kinkel

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Andrés Tapia del Fierro

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Tamara Beck

    Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Ellise A Roper

    Faculty of Health and Medicine, The University of Newcastle, Newcastle, Australia
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Kelsey Breslin

    Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Jessica Stringer

    Monash Biomedicine Discovery institute, Monash University, Clayton, Australia
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Karla Hutt

    Monash Biomedicine Discovery institute, Monash University, Clayton, Australia
    Contribution
    Data curation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5111-8389
  10. Heather J Lee

    Faculty of Health and Medicine, The University of Newcastle, Newcastle, Australia
    Contribution
    Conceptualization, Resources, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Andrew Keniry

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Matthew E Ritchie

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    3. The Department of Mathematics and Statistics, The University of Melbourne, Parkville, Australia
    Contribution
    Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Marnie E Blewitt

    1. Walter and Eliza Hall Institute of Medical Research, Parkville, Australia
    2. The Department of Medical Biology, The University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    blewitt@wehi.edu.au
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2984-1474

Funding

National Health and Medical Research Council (1098290)

  • Matthew E Ritchie
  • Marnie E Blewitt

Bellberry-Viertel Senior Medical Research Fellowship

  • Marnie E Blewitt

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Kay-Uwe Wagner, Jane Visvader, Patrick Western, and Graham Kay for provision of the MMTV-Cre, Zp3-Cre, and Smchd1-GFP mice used in the study. We thank Stephen Wilcox and Jafar Jabbari for sequencing. We thank Peter Hickey, Yunshun Chen, and Gordon Smyth for statistical advice and Natasha Jansz for critical reading of the manuscript.

Ethics

Animal experimentation: This study was performed in accordance with the recommendations of the Australian code for ethical use of laboratory animals. All animals were handled according to approved institutional animal ethics committee protocols (WEHI AEC 2014.026, 2018.004).

Senior Editor

  1. Kevin Struhl, Harvard Medical School, United States

Reviewing Editor

  1. Deborah Bourc'his, Institut Curie, France

Reviewers

  1. Deborah Bourc'his, Institut Curie, France
  2. Adele Murrell

Publication history

  1. Received: January 28, 2020
  2. Accepted: October 26, 2020
  3. Version of Record published: November 13, 2020 (version 1)

Copyright

© 2020, Wanigasuriya et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,028
    Page views
  • 137
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Yan Xiong et al.
    Research Article Updated

    Islet vascularization is essential for intact islet function and glucose homeostasis. We have previously shown that primary cilia directly regulate insulin secretion. However, it remains unclear whether they are also implicated in islet vascularization. At eight weeks, murine Bbs4-/-islets show significantly lower intra-islet capillary density with enlarged diameters. Transplanted Bbs4-/- islets exhibit delayed re-vascularization and reduced vascular fenestration after engraftment, partially impairing vascular permeability and glucose delivery to β-cells. We identified primary cilia on endothelial cells as the underlying cause of this regulation, via the vascular endothelial growth factor-A (VEGF-A)/VEGF receptor 2 (VEGFR2) pathway. In vitro silencing of ciliary genes in endothelial cells disrupts VEGF-A/VEGFR2 internalization and downstream signaling. Consequently, key features of angiogenesis including proliferation and migration are attenuated in human BBS4 silenced endothelial cells. We conclude that endothelial cell primary cilia regulate islet vascularization and vascular barrier function via the VEGF-A/VEGFR2 signaling pathway.

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    David Melamed, Daniel Kalderon
    Research Article Updated

    Many adult stem cell communities are maintained by population asymmetry, where stochastic behaviors of multiple individual cells collectively result in a balance between stem cell division and differentiation. We investigated how this is achieved for Drosophila Follicle Stem Cells (FSCs) by spatially-restricted niche signals. FSCs produce transit-amplifying Follicle Cells (FCs) from their posterior face and quiescent Escort Cells (ECs) to their anterior. We show that JAK-STAT pathway activity, which declines from posterior to anterior, dictates the pattern of divisions over the FSC domain, promotes more posterior FSC locations and conversion to FCs, while opposing EC production. Wnt pathway activity declines from the anterior, promotes anterior FSC locations and EC production, and opposes FC production. The pathways combine to define a stem cell domain through concerted effects on FSC differentiation to ECs and FCs at either end of opposing signaling gradients, and impose a pattern of proliferation that matches derivative production.
