Convergent evolution of small molecule pheromones in Pristionchus nematodes

  1. Chuanfu Dong
  2. Cameron J Weadick
  3. Vincent Truffault
  4. Ralf J Sommer  Is a corresponding author
  1. Department for Integrative Evolutionary Biology, Max Planck Institute for Developmental Biology, Germany
  2. Department of Biosciences, University of Exeter, United Kingdom
  3. Max Planck Institute for Developmental Biology, Germany
Research Article
  • Cited 0
  • Views 687
  • Annotations
Cite this article as: eLife 2020;9:e55687 doi: 10.7554/eLife.55687

Abstract

The small molecules that mediate chemical communication between nematodes—so-called ‘nematode-derived-modular-metabolites’ (NDMMs)—are of major interest because of their ability to regulate development, behavior, and life-history. Pristionchus pacificus nematodes produce an impressive diversity of structurally complex NDMMs, some of which act as primer pheromones that are capable of triggering irreversible developmental switches. Many of these NDMMs have only ever been found in P. pacificus but no attempts have been made to study their evolution by profiling closely related species. This study brings a comparative perspective to the biochemical study of NDMMs through the systematic MS/MS- and NMR-based analysis of exo-metabolomes from over 30 Pristionchus species. We identified 36 novel compounds and found evidence for the convergent evolution of complex NDMMs in separate branches of the Pristionchus phylogeny. Our results demonstrate that biochemical innovation is a recurrent process in Pristionchus nematodes, a pattern that is probably typical across the animal kingdom.

Introduction

Pheromonal signaling appears to be the most ancient and widespread form of communication used in the animal kingdom (Agosta, 1992; Krieger and Breer, 1999). Deciphering the chemical components used for pheromonal communication is key to understanding why animals release information into their social environment, and to determining how we might exploit these signaling systems for management purposes. A major challenge to achieving these aims is the simple fact that pheromones are exceptionally diverse. In terms of biochemical structure, any molecule that can be released and subsequently detected can act as a pheromone. Moreover, animals often release complex blends of compounds, and they do so in context-dependent ways that are sensitive to sex, age, and condition (Wyatt, 2003). Finally, natural selection may shape these pheromonal signals to serve a wide variety of biological tasks, including mate detection, territorial defense, and quorum sensing (Agosta, 1992; Schneider, 1992; Hansson, 1995; Rutherford and Bassler, 2012). Consequently, pheromonal communication systems represent promising systems for exploring the evolution of diversity at the interface of biochemistry, molecular physiology, and behavioral ecology (Symonds and Elgar, 2008; Missbach et al., 2014). However, not all animals are equally suited to such integrative research—effectively studying the how and why of pheromonal communication requires systems that are both experimentally tractable and amenable to unbiased biochemical characterization.

The nematodes Caenorhabditis elegans and Pristionchus pacificus have emerged as powerful systems for studying the biochemistry and genetics of pheromonal signaling (Ludewig and Schroeder, 2013; Sommer, 2015). Nematodes have long been known to communicate via pheromones, producing both releaser pheromones (those that trigger short-term behavioral responses, for example mate attraction) and primer pheromones (those that trigger long-term developmental responses, such as the production of quiescent dauer larvae) (Bone and Shorey, 1978; Golden and Riddle, 1982). Subsequent efforts to characterize these pheromonal signals biochemically revealed that nematodes release and respond to a diverse suite of ascarosides. Simple ascarosides consist of a 3,6-dideoxy-L-ascarylose sugar coupled to a fatty-acid-derived side chain (Jeong et al., 2005; Butcher et al., 2007). From this basic framework, nematodes produce hundreds of distinct molecules that are collectively referred to as nematode-derived modular metabolites (NDMMs). This structural diversity of NDMMs results from variation in the sugar (some NDMMs replace ascarylose with the related sugars paratose or L-3,6-dideoxy-lyxo-hexose), the fatty acid (length, saturation, and attachment position can all vary), the presence or absence of additional moieties (including both amino acid and nucleoside-derived moieties), and whether the NDMM exists as a monomer or a dimer (Bose, 2012; von Reuss et al., 2012; Ludewig and Schroeder, 2013; Schroeder, 2015; von Reuss and Schroeder, 2015; Butcher, 2017a; Butcher, 2017b; von Reuss, 2018; Artyukhin et al., 2018; Butcher, 2019; Bergame et al., 2019).

Several NDMMs have been confirmed to influence aspects of behavior (e.g., aggregation behavior in C. elegans) and development (e.g., control of the mouth-form polyphenism in P. pacificus) (Srinivasan et al., 2012; Bose, 2012). Moreover, genetic studies have begun to shed light on both the biochemical pathways responsible for NDMM production and the neurobiological and developmental pathways that underlie receiver response (Butcher et al., 2009; von Reuss et al., 2012; Zhang et al., 2015; Leighton and Sternberg, 2016; Zhang et al., 2016; Panda et al., 2017; Falcke et al., 2018; Zhang et al., 2018; Zhou et al., 2018; McGrath and Ruvinsky, 2019). However, we currently know very little about the evolution of NDMMs. Targeted screening for known compounds confirmed that NDMM production is widespread across the nematode phylum (Choe et al., 2012), and earlier work identified long-chain ascarosides in the eggshells of parasitic Ascaris nematodes (Bartley et al., 1996), but there remains a need for unbiased biochemical screens that speak to the diversity of NDMMs present both within and across species. This is in strong contrast to past research on plants and insects, where small molecules involved in signaling have been surveyed broadly and shown to undergo rapid evolutionary changes (Symonds and Elgar, 2008; Engl et al., 2018; Lombe et al., 2019). With densely sampled comparative data in hand, it should become possible to address key questions about NDMM evolution, such as does phylogeny reliably predict NDMM production, and how repeatable is biochemical innovation?

Pristionchus nematodes are well suited for phylogeny-informed research on NDMM diversity. P. pacificus is a free-living soil nematode that is reliably found in association with scarab beetles (Herrmann et al., 2006a; Herrmann et al., 2006b; Herrmann et al., 2007), and that has been developed as a model system in developmental genetics and comparative evolutionary biology. Many studies in this species focused on two examples of phenotypic plasticity, and these efforts revealed that P. pacificus and C. elegans produce and use NDMMs in distinct ways. The first example involves the development of the buccal cavity, with individuals adopting either the stenostomatous (St) mouth form with a single tooth, resulting in strict bacterial feeding, or the alternative eurystomatous (Eu) form with two teeth, which allows for predation on other nematodes (Bento et al., 2010; Bumbarger et al., 2013; Sieriebriennikov et al., 2017; Sieriebriennikov and Sommer, 2018). This behavioral-morphological polyphenism is broadly conserved within the Pristionchus genus and the larger Diplogastridae family (Susoy et al., 2015), but is not found in non-Diplogastrids such as C. elegans. Second, P. pacificus worms, similar to C. elegans worms, can enter an arrested and long-lived dauer stage in response to harsh environmental conditions (Ogawa et al., 2009). Both mouth-form plasticity and dauer induction are sensitive to population density in P. pacificus, with NDMMs serving as chemical indicators of competitive environments in which predation or diapause represent adaptive survival strategies (Bento et al., 2010; Werner et al., 2018a). However, completely different NDMMs are involved in the regulation of these two plastic traits (Bose, 2012; Sommer and Mayer, 2015), and P. pacificus and C. elegans employ different NDMMs as molecular triggers for dauer entry (Bose, 2012; Schroeder, 2015). Together, these studies demonstrated evidence for divergence of NDMM signaling between species and across developmental pathways.

Biochemical analysis of the P. pacificus exo-metabolome showed that this species produces a surprising diversity of complex NDMMs that are not found in C. elegans, including the dimeric NDMM dasc#1 and several highly modular compounds that are characterized by the presence of complex sidechains that incorporate intermediates from different primary metabolic pathways (the UBAS, PASC, and NPAR NDMMs) (Figure 1Bose, 2012; Yim et al., 2015; Artyukhin et al., 2018; Falcke et al., 2018). However, the common ancestor of P. pacificus and C. elegans existed around 100 million years ago (Prabh et al., 2018; Werner et al., 2018b; Hong et al., 2019) and comparing just these two species can provide only limited insights into patterns of small molecule evolution in nematodes. By contrast, comparative analysis involving multiple species across a shallower phylogenetic scale has the potential to shed light on the origins of complex NDMMs and the divergence of pheromone profiles. The availability of many culturable species and knowledge about phylogenetic relationships are key prerequisites for such studies, both of which are met in Pristionchus. Many Diplogastrid species, covering multiple genera, can be cultured in the laboratory, thereby allowing for fine-scale comparative analysis (Susoy et al., 2015). This diversity includes more than 40 Pristionchus species that have been isolated from world-wide samplings of scarab beetles and other invertebrates (Kanzaki et al., 2012a; Kanzaki et al., 2012b; Kanzaki et al., 2012c; Yoshida et al., 2018). These Pristionchus species fall into four major clades—the pacificus, maupasi, entomophagus, and triformis clades—plus an outgroup (Figure 1—figure supplement 1), nearly all of which are culturable under laboratory conditions. Within these clades, most species show geographically restricted distribution patterns that are often correlated with major continents. For example, species of the pacificus-clade are largely restricted to Asia. Although the majority of Pristionchus species are gonochoristic (comprised of males and females), self-fertilizing hermaphroditism has evolved at least six times independently within the genus, and the model species P. pacificus reproduces in this way (Rödelsperger et al., 2018; Weadick and Sommer, 2016a).

Figure 1 with 1 supplement see all

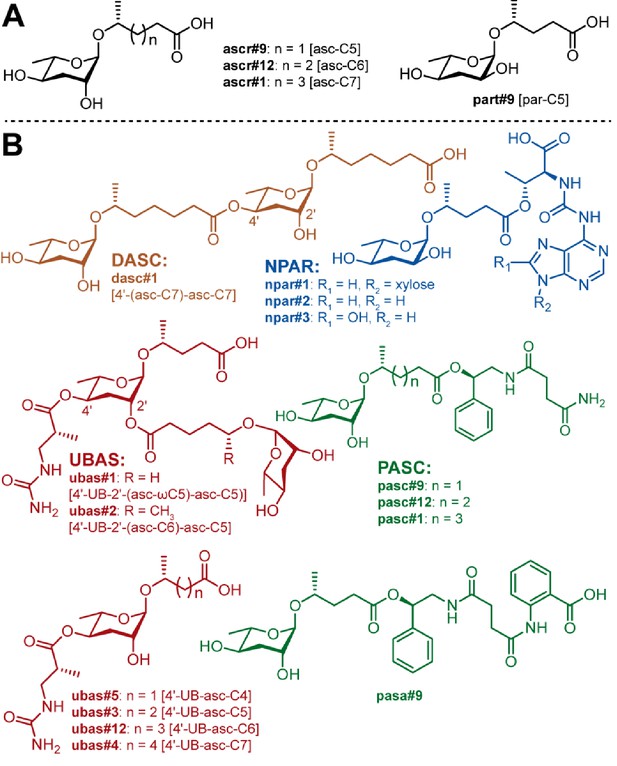

Known NDMMs from P. pacificus.

(A) Simple ascarosides, and the paratoside part#9 [par-C5]. (B) Modular NDMMs (DASC, NPAR, PASC, and UBAS chemicals) from P. pacificus.

Here, we bring the comparative method of evolutionary biology (Harvey and Pagel, 1991) to the chemical analysis of NDMMs to obtain insight into their evolutionary dynamics. Exo-metabolomes derived from 32 Pristionchus species and six non-Pristionchus species from different Diplogastridae genera were prepared for a systematic analysis using HPLC-MS/MS and NMR. Through these efforts, we uncovered an unexpected structural diversity of simple and complex NDMMs, including 16 novel DASC chemicals, 12 novel UBAS chemicals, and a new family of UPAS chemicals. By analyzing these results in the light of known Pristionchus relationships, we found evidence that NDMM production is strongly correlated with phylogeny, with several structurally distinct NDMMs showing clade-specific distributions, and with more closely related species tending to possess more similar NDMM compositional profiles. That said, our analyses also revealed the convergent evolution of highly modular NDMMs in distantly related branches of the phylogeny, indicating that biochemical innovation is a repeatable process in Pristionchus nematodes. We speculate that such patterns are probably typical of pheromonal small molecules across the animal kingdom.

Results

Uncovering the chemical diversity of NDMMs in Pristionchus nematodes

P. pacificus produces a diverse set of NDMMs that can be classified into five major groups: simple, dimeric (DASC), NPAR, PASC, and UBAS (Figure 1). Of these, only a few of the simple ascarosides (i.e. ascr#9 [asc-C5], ascr#12 [asc-C6], and ascr#1 [asc-C7]) have also been identified in C. elegans or other nematodes. However, because of limited sampling, it is not currently possible to say whether this reflects true species-specificity, or whether the various complex compounds are shared broadly across species. Obtaining a historical and functional understanding of NDMM evolutionary innovation therefore requires a comparative perspective. To investigate the dynamics of NDMM production in Pristionchus nematodes, we selected 32 culturable species (Figure 1—figure supplement 1), including both hermaphroditic and gonochoristic species from all four major phylogeographic clades (Figure 2), and produced exo-metabolomes for comparative LC-MS/MS analysis (see 'Materials and methods'). Given our sample collection and biochemical analysis protocols, we employed an ion intensity threshold of 1.0 × 103: samples detected at levels above this value could be reliably quantified whereas samples detected at levels below this value were considered to be present only at trace levels.

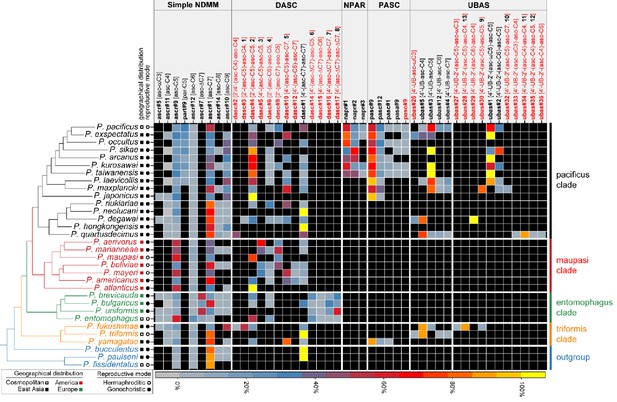

Comparative analysis of the exo-metabolomes of 32 Pristionchus nematodes revealed evolutionary diversity of NDMMs.

Three biological replicates for each species were grown in 100 ml S-medium for comparative LC-MS/MS analysis (see 'Materials and methods'). Simple NDMMs and complex NDMMs including DASC, NPAR, PASC, and UBAS chemicals (Supplementary file 3—Tables 1–3) are summarized; compounds found at trace levels (including the newly described UPAS class) are not included. Values were standardized within classes to help to visualize variation in relative production levels within rare NDMM classes, as overall production levels were dominated by simple NDMMs (see Figure 2—source data 1). NDMM abundances were standardized by dividing mean peak area for each NDMM by the total for the respective NDMM class then expressing the abundance as a percentage for each species; for clarity, monomeric and dimeric UBAS compounds were standardized separately. Black cells represent the apparent absence of the chemical. Black and red compound labels represent known and novel NDMMs, respectively.

The simple NDMMs, which often act as biosynthetic precursors for more complex compounds, consist of a single sugar coupled to a fatty acid side chain. Consistent with previous studies, we identified four simple NDMMs in P. pacificus: the ascarosides ascr#9, ascr#12, and ascr#1, which form a homologous series with fatty acid side chains of differing length, and the paratoside part#9, which is similar to ascr#9 but which uses paratose as the sugar moiety in place of ascarylose. We found six additional simple NDMMs when examining other Pristionchus species: ascr#5 [asc-ωC3], ascr#11 [asc-C4], ascr#7 [asc-ΔC7], ascr#14 [asc-C8], ascr#10 [asc-C9] and ascr#18 [asc-C11] (Figures 2 and 3A; Figure 3—figure supplements 1 and 2; Supplementary file 3—Table 1). Most of these are similar to ascr#9, ascr#12, and ascr#1, possessing saturated fatty acids attached via the ω−1 carbon, but ascr#5 and ascr#7 are structurally distinct: ascr#5 possesses a C3 fatty acid side chain that attaches to the sugar via the terminal ω carbon (Butcher et al., 2008), whereas ascr#7 possesses an unsaturated C7 side chain (Pungaliya et al., 2009). ascr#1, ascr#9 and ascr#12 were produced by all species, consistent with an ancient origin of these simple NDMMs (Figure 2 and Figure 2—source data 1; Supplementary file 1a—Figures 1–9). By contrast, a few NDMMs, most notably ascr#7 (Figure 3—figure supplement 3; Supplementary file 1a—Figures 10–11) and part#9, were restricted to specific clades; ancestral reconstruction analyses suggest a single origin for ascr#7 along the branch that defines the entomophagus-clade, and two origins for part#9 within the pacificus-clade (Supplementary file 4—Figures 1–2). The remaining simple NDMMs were phylogenetically patchy, possibly indicating repeated silencing and reactivation of conserved biochemical pathways. For example, ascr#10, a known attractant of C. elegans hermaphrodites (Izrayelit et al., 2012), was absent from 6 of 7 hermaphroditic species but present in 23 of 25 gonochoristic species, and was often produced by males at particularly high levels (Supplementary file 1a—Figures 12–24), suggesting a broadly conserved role as a sex pheromone in gonochoristic species (Figures 2 and 3B; Figure 3—figure supplement 4A). The lack of ascr#10 in hermaphroditic species might simply reflect the culture conditions (in which males are generally rare as the result of self-fertilization), but we note that ascr#10 was not detected in separate assays focused exclusively on P. pacificus males (Figure 3C and Figure 3—figure supplement 4B), consistent with a total loss of ascr#10 biosynthesis in at least one hermaphroditic species. Quantitative variation in simple NDMM levels was also apparent; depending on species, the most abundant compound was either ascr#1, ascr#9, ascr#10, or ascr#7. Moreover, a food limitation (starvation) treatment altered NDMM levels in P. pacificus hermaphrodites, indicating that NDMM production rates are plastic (Figure 3C and Figure 3—figure supplement 4B). Combined, these results demonstrate high levels of species-specificity within the simple NDMM class and indicate that NDMM production by Pristionchus correlates with phylogeny in some respects but is also influenced by sex, the mode of reproduction, and the environment. Similar patterns emerge from comparative study of complex NDMMs, albeit with more pronounced evidence for lineage-specificity and clear signatures of convergent evolution, as shown below.

Figure 3 with 4 supplements see all

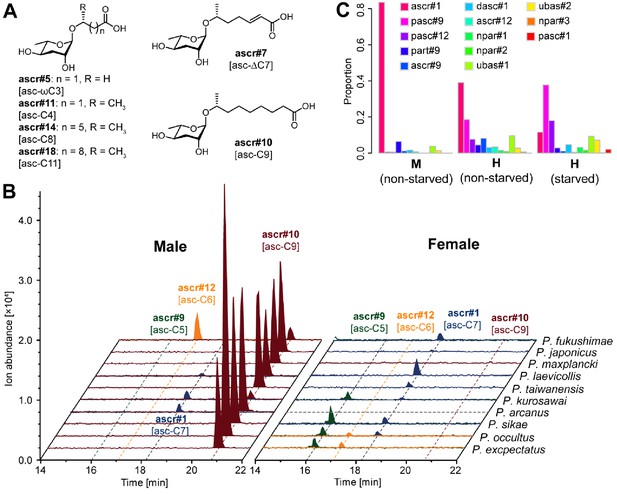

Simple ascarosides detected from Pristionchus nematodes.

(A) Chemical structures of newly detected simple ascarosides. (B) Males of 10 gonochoristic species release large amounts of ascr#10 [asc-C9] in a sex-specific manner. Dashed gray line indicates that nothing was detected in the culture, probably because of contamination of the P. arcanus females. (C) Males and hermaphrodites of P. pacificus released ascr#1 [asc-C7] and pasc#9, respectively, but no ascr#10 [asc-C9]. M, male; H, hermaphrodite.

Table 1
Mode of evolution of major Pristionchus NDMMs.
NDMMClassConservation PatternfitMk modelSIMMAP changesDP (Ho: D = 0)P (Ho: D = 1)Phylogenetic interpretation
ascr#1Simple
NDMM
ConstantStrictly conserved
ascr#10Simple
NDMM
VariableARD17.500.96450.25240.8989Variable
ascr#11Simple
NDMM
VariableER15.71−0.32630.66970.0051Somewhat conserved (Brownian?)
ascr#12Simple
NDMM
ConstantStrictly conserved
ascr#14Simple
NDMM
VariableER26.250.44240.61160.2027Variable
ascr#5Simple
NDMM
VariableER8.540.22760.86700.1933Variable
ascr#7Simple
NDMM
VariableER1.10−3.01850.08540.0000Highly conserved
ascr#9Simple
NDMM
ConstantStrictly conserved
part#9Simple
NDMM
VariableER2.72−1.75180.08540.0000Highly conserved
dasc#1DASCVariableER15.770.97140.24870.8989Variable
dasc#10DASCVariableARD24.711.02610.19280.9866Variable
dasc#12DASCVariableER1.64−2.44390.23350.0035Somewhat conserved (Brownian?)
dasc#14DASCVariableER1.17−3.05600.08540.0000Highly conserved
dasc#15DASCVariableER1.16−3.08050.08540.0000Highly conserved
dasc#16DASCVariableER1.25−2.95280.09930.0000Highly conserved
dasc#17DASCVariableER1.08−3.07720.08540.0000Highly conserved
dasc#2DASCVariableER2.500.88500.66970.8989Variable
dasc#3DASCVariableER2.661.50250.40770.7440Variable
dasc#4DASCVariableER18.900.13250.86700.0644Somewhat conserved (Brownian?)
dasc#5DASCVariableARD6.83−1.61650.24870.0032Somewhat conserved (Brownian?)
dasc#6DASCVariableER37.880.85520.24870.7392Variable
dasc#9DASCVariableARD17.900.52670.61160.3702Variable
npar#1NPARVariableER1.17−2.23880.08540.0000Highly conserved
npar#2NPARVariableER1.19−2.23180.08540.0000Highly conserved
npar#3NPARVariableARD8.11−0.58350.64630.0644Somewhat conserved (Brownian?)
pasa#9PASCVariableARD7.16−0.72730.61160.0254Somewhat conserved (Brownian?)
pasc#1PASCVariableARD7.89−0.16430.86010.0644Somewhat conserved (Brownian?)
pasc#12PASCVariableER2.52−1.69140.05130.0000Highly conserved
pasc#9PASCVariableER2.52−1.69280.05130.0000Highly conserved
paso#9PASCVariableARD4.19−1.74830.11080.0000Somewhat conserved (Brownian?)
ubas#1UBASVariableER5.94−1.04250.28250.0006Somewhat conserved (Brownian?)
ubas#12UBASVariableER5.990.65700.61160.6005Variable
ubas#2UBASVariableARD11.46−0.01600.91720.1368Variable
ubas#26UBASVariableARD6.372.24100.05130.0993Over-dispersed
ubas#27UBASSingletonYoung
ubas#28UBASSingletonYoung
ubas#29UBASSingletonYoung
ubas#3UBASVariableARD11.67−0.19310.82620.0255Somewhat conserved (Brownian?)
ubas#30UBASVariableER2.661.69390.28250.6054Variable
ubas#32UBASSingletonYoung
ubas#33UBASSingletonYoung
ubas#34UBASSingletonYoung
ubas#35UBASSingletonYoung
ubas#36UBASSingletonYoung
ubas#4UBASVariableER6.010.66060.61160.6005Variable
ubas#5UBASVariableER9.220.64130.60070.5546Variable

Pristionchus nematodes produce diverse dimeric ascarosides

P. pacificus produces a dimeric ascaroside (dasc#1 [4'-(asc-C7)-asc-C7]) from two ascr#1 units that can pheromonally trigger development of the Eu mouth-form (Figure 1BBose, 2012). In theory, additional DASC compounds could be produced by the use of alternative simple ascarosides and/or alternative attachment positions. We detected dasc#1 from most Pristionchus species (24/32) alongside a number of additional DASC compounds that were formed from different simple ascarosides attached at either the 2'- or 4'-position of the ascarylose moiety (Figures 2 and 4A–B; Supplementary file 3—Table 2). These new DASCs were distributed across 27 of the 32 analyzed species, including dasc#1-producing P. pacificus and eight of the nine species for which dasc#1 was not detected. All told, DASC compounds were identified in 31 of 32 species, suggesting that this NDMM class originated prior to the diversification of the Pristionchus genus (Supplementary file 4—Figure 2). Most species produced multiple DASCs, among which dimers containing ascr#9 [asc-C5] and/or ascr#1 [asc-C7] were the most abundant (Figure 4—figure supplement 1D). This pattern is presumably due, at least in part, to the fact that these two precursors are produced at high levels in most species (Figure 2 and Figure 2—source data 1).

Figure 4 with 5 supplements see all

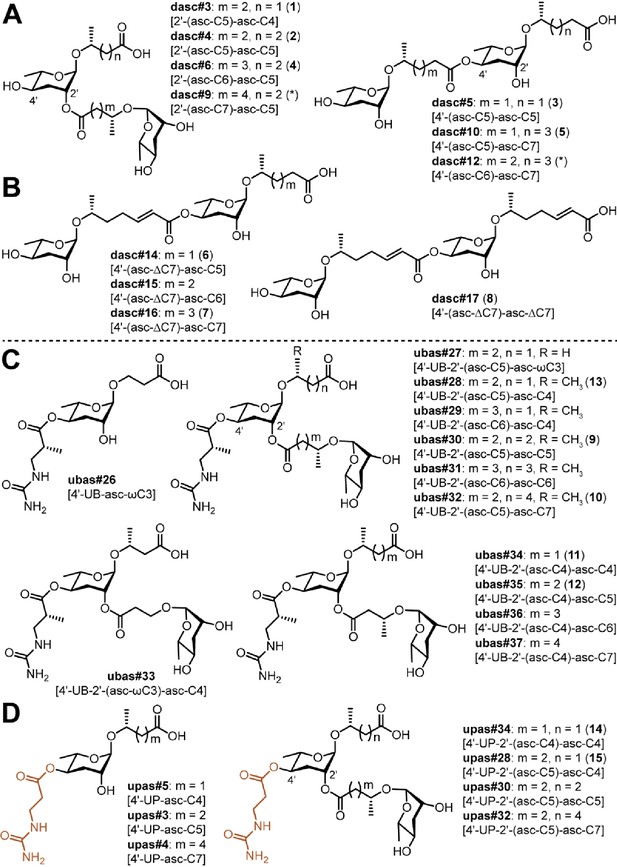

Novel DASC, UBAS, and UPAS chemicals detected from Pristionchus species.

(A) Structures of new DASC chemicals identified from Pristionchus nematodes with linkage at the 2'- or 4'-position. Note that the asterisk-marked dasc#9 [2'-(asc-C7)-asc-C5] and dasc#12 [4'-(asc-C6)-asc-C7] were tentatively assigned as being linked at the 2'- or 4'-position, respectively. (B) Nematodes from the entomophagus clade specifically produced four novel DASC chemicals harboring one or two units of asc#7 [asc-ΔC7]. (C) Structures of novel UBAS chemicals identified from Pristionchus nematodes. (D) Newly identified UPAS chemicals carrying a ureidopropionic acid group at the 4'-position of ascarylose. For further details on NDMM nomenclature, see 'Materials and methods'.

To elucidate the chemical structures of newly identified DASCs, a combination of MS and NMR techniques was applied. Specifically, we used LC-ESI-(+)-MS/MS to cleave the terminal side chain to support the assignments of individual ascaroside units (Figure 4—figure supplement 1C), and we used 2D NMR (dqf-COSY) data to clarify whether the linkage involved the 2'- or 4'-position. For example, LC-ESI-(+)-MS/MS fragmentation of dasc#3 [2'-(asc-C5)-asc-C4, 1], detected in P. degawai and P. fukushimae (Figures 2 and 4A), afforded an ion signal of C17H28NaO8+ (m/z 383.1667, [M + Na]+, Δ 2.4 ppm) with a loss of the C4 side chain (Supplementary file 2a—Figure 1), which helped to assign the first and the second ascarosides as ascr#9 [asc-C5] and ascr#11 [asc-C4], respectively (see Figure 4—figure supplement 1A-B for details on the nomenclature of DASC chemicals). Subsequent analysis of the dqf-COSY spectrum of dasc#3 (1) from P. fukushimae corroborated these assignments and further demonstrated that ascr#9 was connected to the 2'-position of ascr#11 (Supplementary file 1b—Figure 1 and Supplementary file 3—Table 7). Interestingly, we found that two ascr#9 units can be linked at the 2'- or 4'-position, resulting in two isomers, dasc#4 [2'-(asc-C5)-asc-C5, 2] (Figures 2, 4A and 5A; Supplementary file 3—Table 8) and dasc#5 [4'-(asc-C5)-asc-C5, 3] (Figures 2, 4A and 5B; Supplementary file 3—Table 9), the latter of which displayed a high specificity to nematodes of the maupasi clade (Figure 4—figure supplements 2 and 3). These findings revealed a rich chemical diversity of previously unknown DASC chemicals in Pristionchus nematodes.

Figure 5 with 5 supplements see all

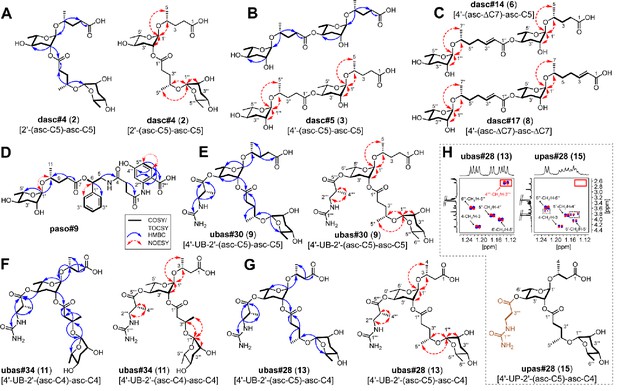

Elucidation of the structures of novel NDMMs.

(A) dasc#4 [2'-(asc-C5)-asc-C5, 2], (B) dasc#5 [4'-(asc-C5)-asc-C5, 3], (C) dasc#14 [4'-(asc-ΔC7)-asc-C5, 6], dasc#17 [4'-(asc-ΔC7)-asc- ΔC7, 8], (D) paso#9, (E) ubas#30 [4'-UB-2'-(asc-C5)-asc-C5, 9], (F) ubas#34 [4'-UB-2'-(asc-C4)-asc-C4, 11], (G) ubas#28 [4'-UB-2'-(asc-C5)-asc-C4, 13], and (H) upas#28 [4'-UP-2'-(asc-C5)-asc-C4, 15]. Key COSY/TOCSY, NOESY, and/or HMBC correlations of each compound are summarized. Comparison of selected dqf-COSY spectra between ubas#28 (13) and upas#28 (15), highlighting correlations with methyl groups, indicates that upas#28 (15) contains a ureidopropionic acid moiety (H). The dashed boxes in panel (H) signal impurities, and the red-lined box highlights the absence of a methyl group in upas#28 (15). For details, see Supplementary file 1d—Figure 38 and Supplementary file 1e—Figure 2.

Further chemical analysis revealed several homologous series of DASC chemicals in Pristionchus nematodes. The first series includes dasc#4 [2'-(asc-C5)-asc-C5, 2], dasc#6 [2'-(asc-C6)-asc-C5, 4], and dasc#9 [2'-(asc-C7)-asc-C5], which incorporate different simple ascarosides at the 2'-position of ascr#9 [asc-C5] (Figure 4A; Supplementary file 2a—Figures 7–8; Supplementary file 3—Table 10). Another homologous series of DASC chemicals includes dasc#10 [4'-(asc-C5)-asc-C7, 5], dasc#12 [4'-(asc-C6)-asc-C7], and dasc#1 [4'-(asc-C7)-asc-C7] (Figure 4A; Supplementary file 2a—Figures 9–11; Supplementary file 3—Table 11), which each have a simple ascaroside attached to the 4'-position of ascr#1 [asc-C7]. Finally, we found four new dimeric ascarosides containing at least one ascr#7 [asc-ΔC7] unit, namely dasc#14 [4'-(asc-ΔC7)-asc-C5, 6], dasc#15 [4'-(asc-ΔC7)-asc-C6], dasc#16 [4'-(asc-ΔC7)-asc-C7, 7], and dasc#17 [4'-(asc-ΔC7)-asc-ΔC7, 8] (Figures 2 and 4B). These DASC compounds were exclusively detected in species from the entomophagus clade, the only group in which the ascr#7 precursor was found (Figure 4—figure supplement 4). Here, LC-ESI-(+)-MS/MS analysis generated a fragment ion signal of C19H30NaO8+ (m/z 409.1865, [M + Na]+, Δ 2.6 ppm) upon cleavage of the terminal side chains, indicating that ascr#7 is the first ascaroside in dasc#14–16 (Supplementary file 2a—Figures 17–19). According to the MS/MS analysis, the fourth dimer, dasc#17 (8), probably contained two identical ascr#7 units (Supplementary file 2a—Figure 20). To corroborate these assignments, reverse-phase C18 solid phase extraction (SPE) and HPLC were employed to purify dasc#14 (6) and dasc#17 (8) from P. entomophagus and P. uniformis, respectively. NMR analysis demonstrated the presence of one unsubstituted ascarylose moiety, one 4'-substituted ascarylose moiety, a (ω−1)-oxygenated C5 side chain and an unsaturated (ω−1)-oxygenated C7 side chain in dasc#14 (6), suggesting that ascr#7 [asc-ΔC7] was linked to the 4'-position of ascr#9 [asc-C5] (Figure 5C and Supplementary file 3—Table 12). 2D NMR data for dasc#17 (8) confirmed that two identical ascr#7 units were connected at the 4'-position (Figure 5C and Supplementary file 3—Table 13). Furthermore, analysis of the dqf-COSY spectrum of an enriched mixture of dasc#16 (7) and dasc#17 (8) indicated that ascr#7 [asc-ΔC7] was also linked to the 4'-position of ascr#1 [asc-C7] in dasc#16 (Supplementary file 1b—Figure 47). Thus, these four DASCs all have a linkage at the 4'-position. These results show how the production of novel simple NDMMs (i.e., ascr#7, which is found only in the entomophagus clade) can underlie the production of related modular compounds, thereby demonstrating linked innovation at multiple structural levels.

P. pacificus and its close relatives produce a diverse suite of structurally complex NDMMs

In addition to its simple and dimeric NDMMs, P. pacificus produces a variety of more structurally complex compounds—the NPAR, PASC and UBAS NDMMs (Figure 1B)—some of which are known to act as pheromonal regulators of dauer formation and mouth-form development (Bose, 2012; Bose et al., 2014; Yim et al., 2015). These three classes are defined by the presence of additional structural components that are attached to the sugar and the fatty acid side chain. The additional components derive from several different metabolic pathways, ranging from nucleotide to amino acid metabolism. Characterizing the phylogenetic history of these highly modular compounds is a key step in revealing the origins of NDMM complexity.

NPAR compounds, which are distinguished by the presence of nucleoside- and amino acid-containing sidechains and by the use of paratose as the sugar scaffold, were observed in the exo-metabolomes of P. pacificus and its six closest relatives, with npar#1 typically present at the highest relative levels (Figure 2). This distribution closely but imperfectly matches that of the NPAR precursor molecule, the simple paratoside part#9, with seven of the eight pacificus-clade species that produce part#9 also producing NPAR NDMMs. Ancestral reconstruction analyses point to a single origin for NPAR compounds that coincided with one of the two predicted origins for part#9, suggesting that part#9 production is a necessary but not sufficient condition for NPAR production in Pristionchus nematodes (Figure 6A and Supplementary file 4 - Figure 2).

Figure 6 with 1 supplement see all

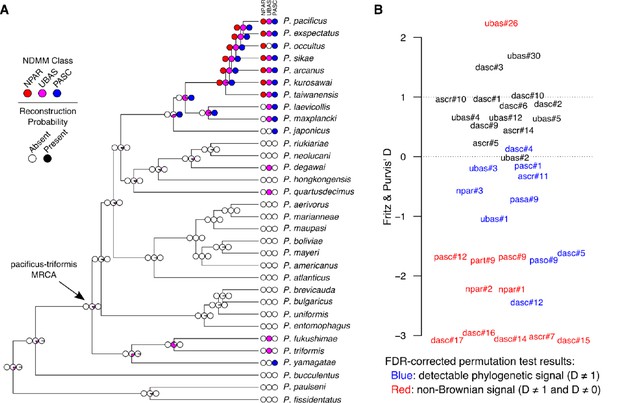

Comparative analysis of NDMMs in Pristionchus.

(A) Convergent evolution of PASC and UBAS-type NDMMs in the pacificus and triformis clades. The evolution of complex NDMMs was reconstructed via Bayesian stochastic character mapping. Colored circles at the tips of the phylogeny denote the presence (dark color) or absence (white) of NPAR (red), UBAS (magenta), and PASC (blue) NDMMs; those at the internal nodes denote the probability of presence versus absence. Results indicate that NPAR compounds evolved only once (within the pacificus clade), whereas both PASC and UBAS compounds evolved convergently within the pacificus and triformis clades. The estimated probability of being present at the node representing the most recent common ancestor (MRCA) of the pacificus and triformis clades is less than 0.01 for both NPAR and PASC, and 0.12 for UBAS. Ancestral character mapping results for individual NDMMs are provided in Table 1 and Figure 6—figure supplement 1. (B) Variation in phylogenetic signal strength among Pristionchus NDMMs. Binary-trait phylogenetic signal (Fritz and Purvis' D) was estimated for all non-constant, non-singleton NDMMs. D values of 0 and 1 correspond to expectations under Brownian evolution and non-phylogenetic randomness, respectively. Red labels denote NDMMs with D significantly different from both 0 and 1, whereas blue labels indicate those with D significantly different from 1 but not 0, on the basis of the results of permutation test-derived FDR corrected (10% threshold) P values. The remainder (black) represent cases in which we were unable to reject either baseline hypothesis. D-value estimates and permutation P values are provided in Table 1.

The fatty acid side chains of PASC NDMMs link to components that are derived from neurotransmitter metabolism and the citric acid cycle. PASC compounds were produced consistently by P. pacificus and its nine closest relatives, with pasc#9 being the most abundant compound in each case (Figure 2 and Supplementary file 1c—Figures 1–4). Among the five PASC compounds detected in the present study were two pentamodular NDMMs, pasa#9 (Yim et al., 2015) and paso#9, which both include anthranilic acid as an additional side chain moiety. The production of paso#9 by P. pacificus was previously demonstrated by Artyukhin et al., 2018 but its structure was incompletely characterized; our NMR analysis indicated the presence of a 4-hydroxyanthranilic acid moiety in paso#9 (Figures 2 and 5D; Figure 5—figure supplement 1; Supplementary file 2b—Figure 1; Supplementary file 3—Table 14).

UBAS is a diverse class of NDMMs defined by the presence of ureidoisobutyric acid at the 4'-position of ascarylose (Bose, 2012; Artyukhin et al., 2018; Falcke et al., 2018) and, in some cases (the dimeric UBASs), by the presence of an additional ascaroside unit that is attached as a side chain at the 2'-position. Our comparative screen uncovered several novel compounds and showed that UBAS is produced by most members of the pacificus clade, with a broader but patchier phylogenetic distribution than was seen for the PASC and NPAR classes (Figure 2). LC-ESI-(+)-MS/MS analysis of known UBAS chemicals yielded a characteristic fragment ion signal of C11H19N2O5+ (m/z 259.1334, [M + H]+) containing a ureidoisobutyric acid moiety and an ascarylose unit (Figure 5—figure supplement 2A–C). This prompted us to perform a targeted MS/MS screen (Figure 5—figure supplement 2DDong et al., 2016) that enabled the identification of a series of novel UBAS chemicals from pacificus-clade species and, unexpectedly, from triformis-clade species, including ubas#26 (which lacks a 2'-linked sidechain) and the dimeric UBASs ubas#27–#37 (defined by the presence of various 2'-linked ascaroside side chains) (Figures 2 and 4C; Supplementary file 3—Table 3). Representative novel UBAS chemicals, including ubas#30 [4'-UB-2'-(asc-C5)-asc-C5, 9] (Figure 5E and Supplementary file 3—Table 15), ubas#34 [4'-UB-2'-(asc-C4)-asc-C4, 11] (Figure 5F and Supplementary file 3—Table 16), and ubas#28 [4'-UB-2'-(asc-C5)-asc-C4, 13] (Figure 5G and Supplementary file 3—Table 18), were identified from P. maxplancki, P. quartusdecimus, and P. fukushimae. Biosynthesis of these novel dimeric UBAS chemicals was correlated to high levels of production of simple UBAS precursors such as ubas#3 [4'-UB-asc-C5] and ubas#5 [4'-UB-asc-C4] (Figure 2 and Supplementary file 1d—Figures 30–35). These new discoveries, combined with our findings on DASC compounds (described above), highlight dimerization as an important mechanism for expanding the structural diversity of NDMMs.

Convergent evolution of UBAS and PASC chemicals in Pristionchus nematodes

NPAR, PASC, and UBAS chemicals were not detected in the maupasi and entomophagus clades, nor were they found in any of the outgroup Pristionchus species (Figure 2). However, UBAS and PASC compounds were unexpectedly also found in members of the triformis clade. With regard to PASC compounds, we found that P. yamagatae produced pasc#9, pasc#12, and pasc#1. With regard to UBAS compounds, we found that P. triformis and P. hoplostomus produced a variety of monomeric UBAS NDMMs and that P. fukushimae produced a mixture of monomeric and dimeric compounds, some of which were entirely novel (Figures 2 and 4C; Figure 5—figure supplement 3). These phylogenetic patterns could conceivably be explained by the production of PASC and UBAS compounds in the most recent common ancestor of the pacificus and triformis clades, followed by multiple loss events in other Pristionchus clades. However, ancestral reconstruction analyses of both individual NDMMs and overall NDMM classes strongly suggest that neither PASC nor UBAS compounds were produced by this ancestral species (Figure 6A and Supplementary file 4—Figure 2). Rather, PASC compounds were predicted to have evolved twice (once each within the pacificus and triformis clades), whereas UBAS was predicted to have evolved four times (once within the triformis clade and three times within the pacificus clade) (Figure 6).These analyses therefore argue for the convergent evolution of highly modular PASC and UBAS NDMMs in the distantly related pacificus and triformis clades.

To shed greater light on the ancestral state for Pristionchus nematodes, we characterized NDMM production in several non-Pristionchus diplogastrid species (Figure 7 and Figure 7—figure supplement 1). Specifically, we investigated a single species from each of Parapristionchus (the sister group to Pristionchus), Micoletzkya, Fuchsnema, Diplogasteroides, Acrostichus, and Allodiplogaster, thereby covering the deepest phylogenetic splits within the Diplogastridae family (Susoy et al., 2015). Doing so uncovered a variety of simple and DASC NDMMs, supporting the notion that these compounds originated prior to the establishment and diversification of the Pristionchus genus. However, NPAR, PASC, and UBAS chemicals were not detected in any of the assayed species, even at trace levels, indicating that these highly modular compounds are Pristionchus-specific evolutionary innovations. Negative findings are of course sensitive to detection limits, but given the overall power of our analytical platform and the fact that we replicated this search over six outgroup species, we take the apparent lack of NPAR, PASC, and UBAS NDMMs in non-Pristionchus diplogastrids to indicate that these highly modular compounds are Pristionchus-specific evolutionary innovations.

Figure 7 with 1 supplement see all

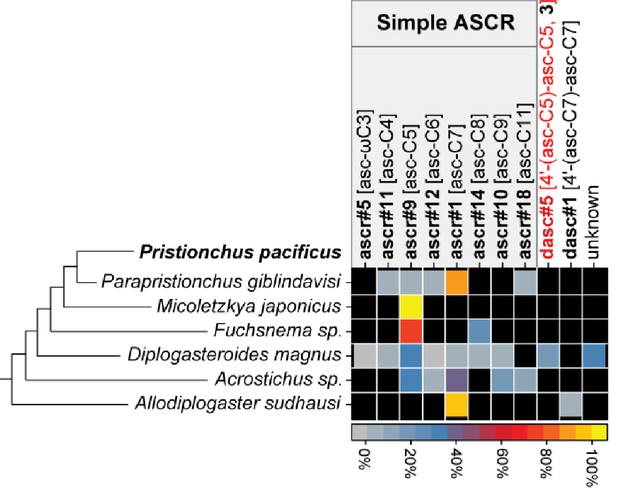

Summary of NDMMs in six (non-Pristionchus) Diplogastridae species that represent distant relatives of P. pacificus.

Three biological replicates for each species were grown in 100 ml S-medium for LC/MS analysis (see 'Materials and methods'). Mean peak area for each compound from each species was divided by total peak area, thereby representing the abundance of each compound as a percentage (Figure 7—source data 1). Black color represents the apparent absence of the chemical. Black and red compound labels are known and novel NDMMs, respectively. 'Unknown' represents uncharacterized ascaroside.

Comparative analysis of NDMMs in Pristionchus

We quantified phylogenetic signal in NDMM presence/absence for the 35 non-constant and non-singleton NDMMs (Supplementary file 4—Figures 1 and 2) reported in Figure 2 using the binary-trait D statistic of Fritz and Purvis, 2010. D values of 1 are expected under random distributions, whereas D values of 0 are expected if the trait evolves according to a Brownian process. D was significantly different from one for 21 of 35 compounds, indicating the presence of phylogenetic signal for most Pristionchus NDMMs (Figure 6B). Of these, D was significantly less than zero for 10, identifying cases where the action of stabilizing selection has been particularly strong (i.e., stronger than expected under Brownian evolution).

We then tested for phylogenetic signal in overall NDMM profiles by examining whether multivariate phenotypic distances between NDMM profiles correlated with pairwise phylogenetic distances. Differences among NDMM profiles were quantified by calculating Bray-Curtis dissimilarities using the compositional data shown in Figure 2 (but standardizing to 100% across all classes rather than within each class), whereas phylogenetic distances were extracted from an ultrametric rescaling of the Pristionchus phylogeny shown in Figure 1—figure supplement 1. Ordination of NDMM profile dissimilarities via non-metric multidimensional scaling was indicative of phylogenetic signal, returning more-or-less distinct clusters for the entomophagus clade, the maupasi clade, and the Pristionchus outgroups (Figure 6—figure supplement 1A). The distantly related pacificus and triformis clades, by contrast, overlapped with one another, suggesting convergence. Pairwise phenotypic dissimilarities were significantly positively related to pairwise phylogenetic distances (Mantel test: Spearman’s rho = 0.308; p=0.002); the relationship was linear at lower evolutionary scales but plateaued when pairwise distances involved the distantly related outgroup species (Figure 6—figure supplement 1B). Notably, the intercept term for the linear fit was significantly greater than zero (95% CI = 0.354–0.433 when including outgroup comparisons, and 0.224–0.311 when ignoring outgroup comparisons; assuming independence among data points in both cases). A positive intercept implies that considerable phenotypic divergence is present at the point of speciation. Note that NDMM production rates are known to be sensitive to environmental factors (Figure 3CKaplan et al., 2011). We prepared nematode exo-metabolomes under identical laboratory conditions for all species, but because population growth rates varied among species, imposing standard culture conditions may have counterintuitively generated environmental variation in NDMM production rates. An exploration of the effects of culture conditions on NDMM diversity and evolution are beyond the scope of the present study but will be prioritized in future work.

Trace amounts of pheromonal small molecules include a new family of UPAS chemicals from Pristionchus nematodes

Biochemical screens for pheromonal small molecules possess an inherent limitation, namely the detection limit imposed by the techniques used for biological sample collection and subsequent chemical analysis. We restricted our comparative analyses to consider only compounds detected at quantifiable levels (ion intensity of at least 1.0 × 103). However, we also detected the presence of several novel NDMMs in Pristionchus exo-metabolomes at unquantifiably low (trace) amounts, including one simple ascroside, five DASC NDMMs, two UBAS NDMMs, and a novel NDMM class that we refer to as UPAS (Supplementary file 3—Table 5). Reassuringly, the distribution of trace NDMMs does not appear to affect the general patterns identified when considering abundant NDMMs, most importantly the phylogenetically split distributions observed for UBAS and PASC compounds. The functional significance of NDMMs that are produced at such low levels is unclear and they may simply represent precursors or byproducts that are released unintentionally alongside more abundant NDMMs. Regardless, their identification provides yet more evidence for NDMM diversity in Pristionchus, and their structural characterization may prove useful for future studies focused on dissecting NDMM biosynthesis pathways. Structural details on the novel simple UBAS and DASC compounds can be found in Figure 3—figure supplement 2, Figure 4C and Figure 4—figure supplement 5. Here, we highlight the newly discovered UPAS class.

In several species, we found trace amounts of novel ascarosides that share very similar molecular formulas with UBAS chemicals (Figure 5—figure supplement 4). When performing LC-ESI-(-)-MS/MS experiments, we observed a common fragment ion signal of C4H7N2O3(m/z 131.0468, [M – H]) (Figure 5—figure supplement 5), suggesting that these compounds carry a ureidopropionic acid moiety at the 4’-position of ascarylose instead of ureidoisobutyric acid. Consistent with existing nomenclature rules, we named these as UPAS chemicals (Figure 4D and Supplementary file 3—Table 4; nomenclature of UPAS chemicals, see Figure 5—figure supplement 5C and 'Materials and methods').

To characterize these structures, two representative UPAS chemicals, upas#34 [4'-UP-2'-(asc-C4)-asc-C4, 14] and upas#28 [4'-UP-2'-(asc-C5)-asc-C4, 15] were enriched from P. quartusdecimus and P. fukushimae, respectively. Analysis of the dqf-COSY spectrum of upas#34 (14) confirmed a 2'- and 4'-substituted ascarylose unit, an unsubstituted ascarylose unit, a ureidopropionic acid moiety (Nair et al., 2010; Vogels and Van der Drift, 1976), and two (ω−1)-oxygenated C4 side chains (Figure 4D and Supplementary file 3—Table 19). The presence of a ureidopropionic acid group (C4H7N2O3, m/z 131.0468, [M – H]) in upas#34 (14) was further confirmed by the comparative analysis of MS/MS fragmentation patterns between ubas#34 [4'-UB-2'-(asc-C4)-asc-C4, 11] and upas#34 (14) (Supplementary file 2c—Figure 9 and Supplementary file 2d—Figure 4). Similarly, MS/MS analysis of ubas#28 [4'-UB-2'-(asc-C5)-asc-C4, 13] and upas#28 (15) suggested that upas#28 (15) also carries a ureidopropionic acid group, and both of these compounds possibly harbor an identical heterodimer consisting of ascr#11 [asc-C4] and ascr#9 [asc-C5] (Supplementary file 2c—Figure 14 and Supplementary file 2d—Figure 5). Analysis of the dqf-COSY data of upas#28 (15) confirmed the presence of a 2'- and 4'-substituted ascarylose unit, an unsubstituted ascarylose unit, a ureidopropionic acid moiety, one (ω−1)-oxygenated C4 side chain, and one (ω−1)-oxygenated C5 side chain (Figure 5H and Supplementary file 3—Table 20). Further comparison of dqf-COSY spectra between ubas#28 (13) and upas#28 (15) clearly showed that the methyl group at C-3'''' is absent in upas#28 (15) (Figure 5H). However, chemical synthesis would be required to determine their exact structures. In summary, UPAS chemicals were, like UBAS NDMMs, detected within the phylogenetically separated pacificus and triformis clades, suggesting that they may be produced through a common biosynthetic pathway.

Discussion

This study was designed to bring the comparative method (Harvey and Pagel, 1991) to the analysis of small molecule chemistry in Pristionchus nematodes. Previous studies indicated that the NDMM repertoire released by the model species P. pacificus differed substantially from that of C. elegans, but little was known about the underlying evolutionary dynamics. Given that C. elegans and P. pacificus belong to different nematode families and have been separated for roughly 100 million years, and the fact that two-species comparisons are inherently limiting, it was not possible to address the question of how NDMM biosynthesis evolves. However, findings from different research areas provided some initial insights into the patterns and processes of NDMM divergence. First, comparing different strains of P. pacificus revealed the existence of natural variation in NDMM production, thereby demonstrating the presence of the raw material needed for divergence among populations and, ultimately, species (Bose et al., 2014; Falcke et al., 2018). Second, comparative genomic studies comparing eight Pristionchus species revealed rapid gene turnover within gene families that are potentially involved in the biosynthesis of NDMMs (Prabh et al., 2018). Finally, many of the evolutionary and ecological processes that are at the focus of current research in P. pacificus, including competition and cheating with respect to the induction of dauer larvae, nematode predation, and self-recognition, revealed substantial cross-species interactions, suggesting the divergent evolution of signaling systems (Bose et al., 2014; Mayer et al., 2015; Wilecki et al., 2015; Lightfoot et al., 2019). These co-evolutionary and ecological processes might drive divergent evolution of NDMM structure, function, and biosynthesis. Building on these studies and determining the processes that shape the evolution of pheromonal systems requires an appreciation of the diversity of signaling molecules used among species. With this in mind, we set out to characterize patterns of NDMM production across the Pristionchus genus, thereby filling an important gap in our understanding of small molecule signaling in nematodes.

Consistent with expectations, our comparative analysis of 32 culturable Pristionchus species revealed considerable NDMM diversity. This diversity includes complex NDMMs that were previously only described from P. pacificus, as well as a wide variety of simple ascarosides that are found across the nematode phylum. Several simple ascarosides that were described before from C. elegans, yet were absent in P. pacificus, have now been found in other Pristionchus species. On top of this, we uncovered 16 novel DASC chemicals, 12 novel UBAS chemicals, and a new family of UPAS chemicals, thereby greatly expanding the catalog of complex NDMMs. These discoveries suggest the potential for communication via highly specific signaling channels in Pristionchus nematodes and, more broadly, indicate that biochemical characterization of additional nematode species will continue to uncover new dimensions of NDMM structural diversity.

The phylogenetic distribution of the major NDMMs within the Pristionchus genus, as summarized in Figure 2, allows several major conclusions. First, the core set of Pristionchus NDMMs consists of simple and DASC compounds: simple NDMMs are produced by all studied species, whereas DASCs are produced by most, including multiple non-Pristionchus outgroup species, with multiple DASC compounds reconstructed at deep nodes within the Pristionchus phylogeny. Second, Pristionchus nematodes have expanded upon this core set of NDMMs in both lineage- and compound-specific ways. The highly modular NPAR, PASC, and UBAS NDMMs include various metabolic building blocks as accessory components that are attached to either the sugar or fatty acid moiety. These NDMMs all appear to be evolutionary innovations of the Pristionchus genus, being absent from outgroup Pristionchus species, other diplogastrids, and rhabditid nematodes such as C. elegans. On top of this, our results suggest that UBAS and PASC NDMMs are evolutionary novelties that, counterintuitively, evolved repeatedly, with both classes being found across several pacificus-clade species and some triformis-clade species. This finding prompts several questions about the functional role and biochemical synthesis of UBAS and PASC compounds. In terms of function, it will be interesting to see whether similar structures imply similar pheromonal roles: selection may have led to convergent structural evolution if these compounds target a conserved receptor or if the metabolic accessories that they incorporate provide information about conserved aspects of Pristionchus physiology. In terms of biochemistry, convergent production might indicate de novo evolution of biosynthetic pathways that are capable of combining UBAS and PASC precursor molecules in the two Pristionchus lineages. Alternatively, this could reflect the convergent repurposing of functionally similar enzymes. The latter idea would seem to be most parsimonious, although high levels of de novo gene evolution have been observed in Pristionchus nematodes (Prabh et al., 2018), suggesting that the former idea should not be ruled out. A related idea is that a single set of enzymes for producing UBAS and PASC NDMMs may have been present ancestrally but silenced and only reawakened in the pacificus and triformis lineages. This idea has been invoked to explain large-scale variation in the presence or absence of classes of signaling cuticular hydrocarbons in the Hymenoptera (Kather and Martin, 2015).

Pristionchus NDMMs evolved in distinct ways. This is clear from a visual inspection of their phylogenetic distribution and from formal estimation of the strength of phylogenetic signal via Fritz and Purvis’ D statistic: some compounds are highly variable, with more-or-less random distributions (D ≈ 1), whereas others are more phylogenetically restricted (D < 1). Notably, the set of NDMMs that have particularly low D values (D < 0)—that is, compounds with highly constrained distributions—is comprised of three groups of structurally related compounds: (1) the unsaturated simple NDMM ascr#7 and the four ascr#7-containing DASC compounds (all found exclusively within the entomophagus clade); (2) the simple paratoside part#9 and its modular derivatives npar#1 and npar#2 (all found only within the pacificus clade); and (3) the PASC compounds pasc#9 and pasc#12 (both found within the pacificus clade and, separately, within P. yamagatae of the triformis clade). This finding suggests that phylogenetic signal for Pristionchus NDMM presence or absence is largely the result of clade-specific enzymatic innovation. Determining which enzymes are involved will be a challenge because of the fact that most of these compounds are restricted to Pristionchus nematodes, so that it is not straightforward to transfer insights from previous studies of NDMM production in C. elegans. However, the simple NDMM ascr#7 is produced by C. elegans, and in this case we speculate that similar molecular mechanisms are involved in the biosynthesis of its unsaturated C7 side chain, namely acox activity (Butcher et al., 2009; von Reuss et al., 2012). One option forward might be to combine insights gleaned from P. pacificus-centered genetic screens with phylostratigraphic data obtained from comparative genomic surveys (Falcke et al., 2018; Rödelsperger et al., 2018).

The dynamic evolutionary patterns seen for the different NDMM classes result in considerable variability among species: aside from the outgroup species P. paulseni and P. bucculentus, no two Pristionchus species produce fully compatible sets of compounds. Moreover, quantitative NDMM levels can be quite different even for species that produce qualitatively similar sets of compounds. This combination of qualitative (presence/absence) and quantitative (relative abundance) variation lead to high levels of species-specificity. Our results suggest that the evolution of highly specific NDMM profiles across the genus involved a mixture of gradual change and rapid divergence. On the one hand, the positive relationship between NDMM profile dissimilarity and phylogenetic distance appears to be largely linear (especially when discounting the divergent outgroup species), suggesting gradualism—as species became more evolutionarily distant, their NDMM profiles became less and less alike. On the other hand, the positive intercept term suggests that even young species pairs with negligible evolutionary distance would have distinct NDMM profiles. This sort of pattern has been taken as evidence for a link between pheromonal divergence and speciation in ants (van Wilgenburg et al., 2011) and bark beetles (Symonds and Gitau-Clarke, 2016), the idea being that signaling systems involved in mate choice would be under strong selection to diverge so as to facilitate accurate reproductive decisions. Whether NDMMs contribute to mate signaling in Pristionchus has not yet been examined, but it seems plausible as NDMMs have been linked to sex-specific signaling in Caenorhabditis nematodes (Leighton and Sternberg, 2016). Together, these patterns suggest that future studies should place greater emphasis on the ways that NDMMs affect sex-specific signaling and reproductive biology, in particular on how this varies among closely related species. Research efforts in Pristionchus have primarily focused on hermaphroditic P. pacificus, but future exploration of sex-specific NDMMs would be best served through a focus on gonochoristic species in which mate signaling is presumably much more tightly linked to fitness. Indeed, recent studies on longevity revealed fundamental differences between hermaphroditic and gonochoristic Pristionchus species (Weadick and Sommer, 2016a; Weadick and Sommer, 2016b; Weadick and Sommer, 2017). Finally, it seems likely that the rapid evolution of pheromonal signaling during speciation would be facilitated by there being ample standing genetic variation in NDMM production rates, as has been previously documented in P. pacificus (Bose et al., 2014; Falcke et al., 2018). However, comparable studies of intraspecific NDMM diversity in gonochorists have not yet been attempted.

The identification and structural elucidation of many novel NDMMs, as provided here, stands to motivate multiple lines of inquiry. First, the assignment of biological functions to individual NDMMs requires their chemical synthesis, followed by appropriate bioassays of said compounds (both individually and in biologically relevant combinations). When the diversity of NDMMs structures was first discovered in P. pacificus, subsequent synthesis of selected NDMMs revealed functions for some but not all of the individual compounds, such as dasc#1 (mouth form development) and npar#1 (dauer development) (Bose, 2012). Second, the identification of the biosynthetic pathways that are involved in the generation of structurally diverse NDMMs will represent the major challenge for future research. In general, the elucidation of biosynthetic pathways is slow, but in principle possible. Previous work in P. pacificus revealed that linking patterns of genomic and metabolomic variation seem among natural isolates can uncover genes that are involved in the biosynthesis of UBAS chemicals (Falcke et al., 2018). However, such studies require multiple strains and the existence of sufficient natural variation in NDMM synthesis, a pre-requisite that might not be fulfilled for all compounds. Third, promiscuity is to be expected for some of the enzymes involved in NDMM production (Panda et al., 2017; Zhou et al., 2018). Therefore, some of the NDMMs that we uncovered might represent by-products that have little or no biological function. Indeed, previous studies on two Ppa-daf-22 genes involved in β-oxidation and the Ppa-uar-1 gene involved in UBASs biosynthesis revealed the production of so-called ‘shunt metabolites’, which are mostly seen in NDMM biosynthesis-defective animals, a phenomenon also known in C. elegans (von Reuss et al., 2012; Markov et al., 2016; Falcke et al., 2018). Another possibility is that certain NDMMs represent ancestral relics that used to be functional and are simply produced because of the inability of evolution to immediately and completely erase the past. Given the rapid turnover seen across the phylogeny, these relics might be a fairly important contributor to extant diversity patterns.

Pristionchus nematodes clearly produce an impressive diversity of small molecules, including numerous highly modular compounds that have never before been discovered in nature. The structural nature of these compounds may prove to be specific to Pristionchus, but the evolutionary processes that generated this complexity are likely to be shared broadly. Most of these compounds presumably play some role in pheromonal communication. We suspect that competitive interactions in the decaying scarab beetle ecosystem, where Pristionchus worms compete for food and mating partners alongside many other chemically communicating species (including other ascaroside-producing nematodes), promote co-evolutionary pheromonal diversification, similar to that shown for insects and plants that also harbor high levels of secreted small-molecule diversity (Symonds and Elgar, 2008; Engl et al., 2018; Lombe et al., 2019). From this, we speculate that small molecules are, in general, rapidly evolving in nematodes, albeit with lineage-specific axes of structural diversification (Dong et al., 2016; Dong et al., 2018; Dolke et al., 2019; Bergame et al., 2019). Such patterns are most probably also connected to the highly dynamic patterns of genome evolution seen in nematodes, which involve the rapid turnover of genes that are linked to small molecule biosynthesis. Pristionchus nematodes provide an ideal system for exploring the interrelated mechanisms—co-evolutionary ecology-driven processes on the one hand and the dynamics of genome and gene family evolution on the other—that drive the rapid and, in some cases, repeated evolution of small molecule architecture.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Caenorhabditis elegans)N2Caenorhabditis Genetics Center
Strain, strain background (Pristionchus pacificus)RS2333RJ Sommer Lab
Strain, strain background (P. pacificus)RS5410 (Ex[eud-1])RJ Sommer Lab
Strain, strain background (P. exspectatus)RS5522RJ Sommer Lab
Strain, strain background (P. occultus)RS5811RJ Sommer Lab
Strain, strain background (P. sikae)RS5901RJ Sommer Lab
Strain, strain background (P. arcanus)RS5527RJ Sommer Lab
Strain, strain background (P. kurosawai)RS5527RJ Sommer Lab
Strain, strain background (P. taiwanensis)RS5797RJ Sommer Lab
Strain, strain background (P. laevicollis)RS5939RJ Sommer Lab
Strain, strain background (P. maxplancki)RS5594RJ Sommer Lab
Strain, strain background (P. japonicus)RS5238RJ Sommer Lab
Strain, strain background (P. riukiariae)RS5937RJ Sommer Lab
Strain, strain background (P. neolucani)RS5949RJ Sommer Lab
Strain, strain background (P. degawai)RS5938RJ Sommer Lab
Strain, strain background (P. hongkongensis)RS5957RJ Sommer Lab
Strain, strain background (P. quartusdecimus)RS5230RJ Sommer Lab
Strain, strain background (P. pseudoaerivorus)RS5139RJ Sommer Lab
Strain, strain background (P. aerivorus)RS5106RJ Sommer Lab
Strain, strain background (P. marianneae)RS5108RJ Sommer Lab
Strain, strain background (P. maupasi)RS0143RJ Sommer Lab
Strain, strain background (P. boliviae)RS5518RJ Sommer Lab
Strain, strain background (P. mayeri)RS5460RJ Sommer Lab
Strain, strain background (P. americanus)RS5140RJ Sommer Lab
Strain, strain background (P. atlanticus)CZ3975RJ Sommer Lab
Strain, strain background (P. brevicauda)RS5231RJ Sommer Lab
Strain, strain background (P. bulgaricus)RS5283RJ Sommer Lab
Strain, strain background (P. uniformis)RS0141RJ Sommer Lab
Strain, strain background (P. entomophagus)RS0144RJ Sommer Lab
Strain, strain background (P. fukushimae)RS5595RJ Sommer Lab
Strain, strain background (P. hoplostomus)JU1090RJ Sommer Lab
Strain, strain background (P. triformis)RS5233RJ Sommer Lab
Strain, strain background (P. yamagatae)RS5964RJ Sommer Lab
Strain, strain background (P. bucculentus)RS5596RJ Sommer Lab
Strain, strain background (P. paulseni)RS5918RJ Sommer Lab
Strain, strain background (P. fissidentatus)RS5133RJ Sommer Lab
Strain, strain background (Micoletzkya japonicus)RS5524BRJ Sommer Lab
Strain, strain background (Parapritionchus giblindavisi)RS5555BRJ Sommer Lab
Strain, strain background (Diplogasteroides magnus)RS5740RJ Sommer Lab
Strain, strain background (Diplogasteroides magnus)RS1987RJ Sommer Lab
Strain, strain background (Allodiplogaster sudhausi)SB413RJ Sommer Lab
Strain, strain background (Fuchsnema sp.)RS5592RJ Sommer Lab
Strain, strain background (Acrostichus sp.)RS5722RJ Sommer Lab

Nomenclature of ascarosides

Request a detailed protocol

Newly identified ascarosides were named using four-letter codes according to the nomenclature system for ‘Nematode Derived Modular Metabolites’ (NDMMs) established for the SMID database (www.smid-db.org), which is maintained by Frank C Schroeder and Lukas Mueller in collaboration with Wormbase (www.wormbase.org). Given that one DASC (dasc#1) and 25 UBAS chemicals were previously reported from P. pacificus (Bose, 2012; Artyukhin et al., 2018; Falcke et al., 2018), the newly identified DASC chemicals were named dasc#2–17 and, similarly, the newly identified UBAS chemicals were named ubas#26–37. When compared to the UBAS chemicals containing an ureidoisobutyric acid group at the 4'-position, newly identified UPAS chemicals that harbor the same ascaroside scaffold but that have an alternative ureidopropionic acid group at the 4'-position were named using the same number. For example, two different NDMMs containing the same unit of ascr#11 but different moieties of ureidoisobutyric acid and ureidopropionic acid at the 4'-position of ascr#11, were named as ubas#5 [4'-UB-asc-C4] and upas#5 [4'-UP-asc-C4], respectively. To describe easily the MS/MS fragmentation patterns of DASC, UBAS, and UPAS chemicals, structure-based abbreviations were also used to name these newly identified ascarosides as follows: (head group-)asc-(ω)(Δ)C#(terminal group). For complex NDMMs containing two simple ascarosides units, the ascarosides were labeled as first or second on the basis of their relative spatial positions (see Figure 4—figure supplement 1A-B; Figure 5—figure supplement 2C; and Figure 5—figure supplement C), and the first ascaroside was placed in parentheses to differentiate it from the second ascaroside.

Nematode strains and maintenance

Request a detailed protocol

Nematodes listed in Figure 1—figure supplement 1 were used for this study. Recipes for nematode growth medium (NGM) plates and the general maintenance of worms have been described previously (Ogawa et al., 2009).

Chemicals and reagents

Request a detailed protocol

Synthetic ascarosides and paratosides were used as standards for chemical analysis (Bose, 2012; Yim et al., 2015). Celite for column chromatography was purchased from Macherey-Nagel, Germany. Previously described ascarosides and paratosides from P. pacificus and C. elegans are listed in Supplementary file 3—Table 1; newly identified DASC, UBAS, and UPAS chemicals are listed in Supplementary file 3—Table 2–4.

Chromatographic spectrometers

Request a detailed protocol

LC-HR(ESI–/+)-MS and LC-HR(ESI–/+)-MS/MS analysis was performed using a Dionex Ultimate 3000 HPLC instrument coupled to a Bruker Impact II ultrahigh resolution qTOF mass spectrometer equipped with an electrospray ionization, operating in negative or positive ion mode. A chromatographic reverse phase C18 column (Agilent Eclipse XDB-C18, 250 × 4.6 mm, 5 µm) was used to separate chemicals. A mixture of water (H2O + 0.1% formic acid) and acetonitrile (ACN + 0.1% formic acid) was used to elute the LC-MS system with a flow rate of 0.4 ml/min. Electrospray ionization (ESI) conditions for the Impact II ultrahigh resolution qTOF system were end plate offset 500 V, capillary voltage 4500 V, dry gas flow of 12.0 l/min and dry temperature 200°C. A sodium formate solution (250 ml isopropanol, 1 ml formic acid, 5 ml 1 M NaOH in 500 ml water) was used as calibration solution. LC-MS or LC-MS/MS analysis were conducted using the single MS mode or ‘Auto MS/MS’ mode by scanning from m/z 50 to 1300, respectively. Compass DataAnalysis software was used to calibrate, process and analyze MS or MS2 data. For initial fractionation of crude extracts, a reverse phase C18 SPE column (45 ml/5000 mg, Macherey-Nagel, Germany) was used with a mixture of H2O and MeOH as solvent. Target SPE fractions were further separated by a Bio-Brad semi-preparative HPLC instrument equipped with a reverse phase C18 column (Ascentis C18, 250 × 10 mm, 5 µm), which was eluted using a mixture of water (H2O + 0.1% formic acid) and acetonitrile (ACN + 0.1% formic acid) with a flow rate of 2.0 ml/min.

NMR spectroscopy

Request a detailed protocol

All 1D and 2D NMR spectra of isolated or enriched ascarosides were acquired using a Bruker Avance III 800 MHz spectrometer equipped with a triple gradient x, y, z-TXI probe-head. Only parts of the NMR spectra of paso#9 (listed in Supplementary file 1c—Figures 5–7) were acquired using a Bruker Avance II 400 MHz spectrometer. All samples were dissolved in CD3OD and all NMR spectra were acquired at 298°K (24.85°C). Chemical shifts were referenced to δ(CHD2OD) = 3.31 ppm and δ(CHD2OD) = 49.00 ppm. dqf-COSY, TOCSY and NOESY spectra were acquired with a relaxation delay of 1.8 s. 4096 (t2) x 142 (t1) complex points were used for the dqf-COSY; 1024 (t2) x 256 (t1) for the TOCSY (spin lock mixing time of 70 ms); and 2048 (t2) x 128 (t1) for the NOESY (NOE mixing time of 300 ms). Carbon shifts were determined from HSQC and HMBC spectra. Both HSQC and HMBC spectra were recorded with 1024 (t2) x 128 (t1) complex points using a relaxation delay of 1.5 s. Bruker Topspin four software was used to process and analyze acquired NMR data.

Chemical analysis of exo-metabolomes derived from 100 males and females of gonochoristic species

Request a detailed protocol

To analyze the chemical composition of sex-specific excretomes, several gonochoristic species that were known to produce ascr#10 abundantly were selected for chemical analysis. 100 males and females were separately cultured in 100 µl M9 buffer for 24 hr without bacterial food. Worms were filtered, and the resulting supernatant was directly injected into LC-MS (with an injection volume of 20 µl) for chemical analysis and quantification of NDMMs (see Figure 3B and Figure 3—figure supplement 4).

Chemical analysis of exo-metabolomes derived from 1000 P. pacificus males and hermaphrodites

Request a detailed protocol

One thousand P. pacificus RS2333 males or hermaphrodites were collected just prior to maturation and washed several times with sterile water before being transferred into a 1.5 ml microcentrifuge tube. Each tube contained sterilized 990 μl of tap water and 10 μl of freeze-killed OP50 in S-medium (0.2 g/ml), for a final concentration of 1 worm/µl. Tubes were incubated for approximately 20 hr at 20°C (with constant agitation), after which the supernatant was isolated and frozen at −20 °C in preparation for chemical analysis. Three replicates each were prepared for males and hermaphrodites. Small molecule profiling of the sex-specific supernatants was carried out by selective ion monitoring (SIM)-HPLC-MS analysis (von Reuss et al., 2012) of NDMMs from P. pacificus. Small molecule profiles were estimated by calculating the integral of the (SIM)-HPLC-MS peak for each compound, divided by the grand within-sample total. We also obtained small molecule profile data for RS2333 worms cultured under dauer-inducing conditions. Relative to the sex-specific cultures described above, dauer-cultures have higher population densities and lower food supplies, resulting in prolonged starvation conditions (see Figure 3C).

Preparation of Escherichia coli pellets as a food source for maintaining nematodes in liquid culture

Request a detailed protocol

LB medium (4.0 l) inoculated with a single colony of E. coli OP50 was incubated in a shaker at 37°C with 170 rpm for one night. E. coli OP50 was harvested next morning through centrifugation (SLA-3000 rotor, 4250 rpm, 10 min, 4°C). E. coli OP50 pellets were transferred into 50 ml falcon tubes for further centrifugation (F13−14 × 50 CY rotor, 6000 rpm, 10 min, 4°C). The resulting E. coli OP50 pellets were equally split into six 50.0 ml falcon tubes and stored in the cold room (8°C) for further usage. E. coli OP50 pellets were diluted using M9 buffer and added into the nematode liquid cultures as a food source.

Establishment of small-scale liquid culture (100 ml) of nematodes for comparative analysis

Request a detailed protocol

Worms from five large (10 cm diameter) agar plates were washed with 6 ml M9 buffer into 250 ml flasks containing 100 ml S-medium and diluted E. coli OP50 pellet. Nematodes in the liquid culture were grown in a shaker at 22°C and 120 rpm for two weeks. During the first week, E. coli OP50 pellets were diluted using 9 ml M9 buffer and added into the flasks as the food source at two-day intervals (1/3, 1/3, 1/2, and 1 tube of diluted E. coli OP50 pellets were added into each flask, respectively) (Dong et al., 2016). Worms were harvested after two weeks by centrifugation (F13−14 × 50 CY rotor, 6000 rpm, 10 min, 4°C). The resulting supernatants were frozen at −80°C for one night and further dried by lyophilization into solid powder, which was extracted using 3 × 100 ml MeOH. Crude extracts were combined, filtered and dried (40°C) under reduced pressure to remove MeOH. Samples were finally dissolved in 2.0 ml MeOH, and 100 μl aliquots were used for LC-MS analysis. In total, six culturable Diplogastrid species and 32 culturable Pristionchus species were grown as 100 ml liquid cultures for comparative LC/MS analysis. Three replicates for each species were established.

Untargeted screening for ascarosides in established small-scale liquid culture extracts

Request a detailed protocol

Following initial processing of the small-scale liquid culture samples, untargeted NDMM screening was conducted via LC-MS using a small aliquot of 100 µl, an injection volume of 5 µl, and a flow rate of 0.4 ml/min. A mixture of solvents containing water (H2O + 0.1% formic acid) and acetonitrile (ACN + 0.1% formic acid) was used to wash the LC/MS system. During the first 3 min, 3% ACN was applied to wash and equilibrate the LC/MS system, after which gradient washing was applied with the ACN content increased from 3% to 100% over the following 30 min. Isocratic washing with 100% ACN was used to wash the LC/MS system for 5 min, after which the ACN content of the solvent was decreased to 3% within the next 5 min. MS detection was performed using the Bruker Impact II ultrahigh resolution qTOF system, which was equipped with an electrospray ionization (ESI) source operating in negative or positive ion mode. ESI conditions for the Impact II ultrahigh resolution qTOF system were end plate offset 500 V, capillary voltage 4500 V, dry gas flow of 12.0 l/min and dry temperature 200°C. A sodium formate solution was used as calibration solution. After every third sample, a blank MeOH run was performed using the same method. For LC-MS analysis, samples were analyzed by LC-MS using single MS mode by scanning from m/z 50 to 1300. MS/MS analysis was conducted using nitrogen as collision gas, and ‘Auto MS/MS’ mode was applied by scanning from m/z 50 to 1300. All of the exo-metabolome extracts (derived from 100 ml liquid culture) were comparatively and systematically analyzed using LC-MS and LC-MS/MS approaches in both positive and negative ion modes. MS or MS2 data were calibrated, processed, and analyzed using the Compass DataAnalysis software.

Establishment of large-scale liquid culture for compound isolation

Request a detailed protocol

Twelve species (P. pacificus, P. taiwanensis, P. laevicollis, P. maxplancki, P. quartusdecimus, P. mayeri, P. bulgaricus, P. uniformis, P. entomophagus, P. fukushimae, P. triformis and D. magnus) were cultured in 2.0 l S-medium for chemical purification or enrichment (Supplementary file 3—Table 6). Worms from each of 10 big (10 cm diameter) agar plates were washed with 12 ml M9 buffer into 500 ml flasks containing 200 ml S-medium and diluted E. coli OP50 pellets, resulting in a total of 2.0 l (10 flasks × 200 ml) liquid culture, which was incubated in a shaker at 22°C and 120 rpm for two weeks. During the first week, E. coli OP50 pellets were diluted using 9 ml M9 buffer and added into the flasks as a food source at two-day intervals (1/3, 1/3, 1/2 and 1 tube of diluted E. coli OP50 pellets were added into each flask, respectively) (Dong et al., 2016). Worms were harvested after two weeks by centrifugation (F13−14 × 50 CY rotor, 6000 rpm, 10 min, 4°C). The resulting supernatants were frozen at −80°C for one night and further dried by lyophilization into solid powder, which was extracted using MeOH. Crude extracts were combined, filtered and dried (at 40°C) under reduced pressure to remove MeOH.

Initial fractionation of established large-scale liquid culture extracts

Request a detailed protocol

Large-scale liquid culture (2.0 l) extracts were initially fractionated using a RP-C18 SPE column to enrich the target compounds for further purification (Supplementary file 3—Table 6). First, the RP-C18 SPE column was flushed with 20 ml MeOH followed by 60 ml distilled H2O before sample application. Crude extracts mixed with an equal weight of Celite (about 2.0 g) were loaded onto the RP-C18 SPE column, which was washed with 20 ml distilled H2O. Next, 20 ml of solvent (H2O and MeOH) was applied to elute compounds, with the MeOH content progressively increased from 10% to 100% in increments of 10%. Eluents were collected in 10 fractions and monitored by LC/MS. Fractions containing target compounds were combined and subjected to 2D NMR (dqf-COSY) measurements and semi-preparative HPLC purification (see below).

Purification or enrichment of ascarosides from target SPE fractions using semi-preparative HPLC

Request a detailed protocol

Target SPE fractions were combined, filtered, dried, and finally dissolved in 280 µl MeOH, which was subjected to semi-preparative HPLC for further purification or enrichment (Supplementary file 3—Table 6). Before sample application, a mixture solvent (97% H2O and 3% ACN + 0.1% formic acid) was used to wash and equilibrate the HPLC system with a flow rate of 2.0 ml/min. Gradient washing steps with the application of 20 µl samples (injection volume for each run) were used by increasing the ACN content from 3% to 100% within the next 30 min, followed by 5 min isocratic washing using 100% ACN. Within the next 5 min, the ACN content in the solvent was decreased to 3% ACN, which lasted for another 10 min to equilibrate the HPLC system. Eluents were collected in 177 fractions and monitored by LC-MS. Fractions containing target compounds were combined and dissolved in CD3OD for acquisition of 1D and 2D NMR spectra.

Phylogenetic analyses

Request a detailed protocol

Comparative analyses were conducted using a rescaled and pruned version of the Pristionchus phylogeny of Rödelsperger et al., 2018 (Figure 1—figure supplement 1). This tree had been estimated via maximum likelihood analysis of a concatenated alignment of ~350,000 AAs. Here, the non-Pristionchus outgroups were dropped and the rooted ingroup was rescaled to generate an ultrametric tree using the penalized likelihood method of Sanderson, 2002, as implemented in the ape R package (Paradis and Schliep, 2019). For this, the optimal scaling factor (lambda) was determined via cross-validation using the chronopl() function (testing lambda = 10k for k in −10 to 10), after which the tree was rescaled using the chronos() function with lambda = 106 and a root age of 1. Species without NDMM profile data were then pruned, leaving a final ultrametric tree of 32 species.

We tested for phylogenetic signal in the qualitative distributions of NDMM compounds by estimating D statistics (Fritz and Purvis, 2010) using the phylo.d() function from the caper R package (Orme et al., 2018). This approach estimates the number of transitions between binary states (here, the presence or absence of the compound) across the phylogeny, standardized against the number of changes expected under Brownian evolution and under non-phylogenetic randomness. Here, departures from D = 1 are evidence of phylogenetic signal, with D < 1 suggesting increased conservation (with D = 0 being the special case of Brownian evolution) and D > 1 suggesting phylogenetic overdispersion. D cannot be estimated and tested for constant traits or for traits where a single species differs from all others. For each remaining compound, the null hypotheses D = 1 and D = 0 were evaluated by comparing observed D against expected D on the basis of N = 10,000 permutations, with the one-sided p-values provided by the phylo.d() function manually converted to two-sided p-values. P-values were adjusted to control the false discovery rate by applying the correction method of Benjamini and Hochberg, 1995 and using an FDR threshold of 10% to gauge statistical significance; this was done separately for the two sets of tests. Note that estimation of D is sensitive to sample size (number of species) and trait prevalence (fraction of species possessing one state). Fritz and Purvis, 2010 found that these tests had good power with sample sizes of 50, especially when prevalence was moderate, but were somewhat underpowered for sample sizes of 25. Our study covers 32 species, suggesting that our results may be somewhat conservative.

To test for phylogenetic signal in a way that accounts for quantitative variation among NDMM profiles, we examined whether multivariate trait-space distances between NDMM profiles correlated with pairwise phylogenetic distances. Multivariate analyses were conducted using functions from the vegan (Oksanen et al., 2019) and ape (Paradis and Schliep, 2019) R packages. Here, the raw data table (i.e., the MS area-under-peak data for each NDMM) was closed and expressed as within-species percentages (i.e., as compositions). This was done to remove the potential effect of absolute-scale variation in NDMM production rates. Pairwise distances between NDMM profiles were estimated using the Bray-Curtis dissimilarity statistic (using the vegan package's vegdist() function). Pairwise phylogenetic distances between tips were extracted from the ultrametric Pristionchus phylogeny using the ape function cophenetic(). A Mantel Test was used to test for a relationship between the values in these two dissimilarity matrices, using the function mantel() and with the significance of the observed Spearman correlation coefficient evaluated using a null distribution generated via N = 999 permutations. The nature of the relationship between the two matrices was visualized via a scatterplot with a linear fit and a LOESS curve. Relationships among NDMM profiles were additionally visualized through non-metric multidimensional scaling (NMDS) analysis of the compositional data set, using the vegan package's metaMDS() function with the following options: distance=‘bray’, k = 2, autotransform = F, expand = F.

NDMM evolutionary histories were reconstructed using the SIMMAP approach of Bollback, 2006, as implemented in the phytools R package (Revell, 2012). This is a Bayesian reconstruction method in which discrete traits are repeatedly mapped onto a phylogeny in light of a stochastic state-change model. As with the above-described estimation of binary-trait phylogenetic signal, ancestral reconstruction was not applied to NDMMs found in all species (which are simply assumed to be present at all ancestral nodes) or to singletons (which are simply assumed to have evolved on the relevant tip branch). We also reconstructed three NDMM-class traits that combined data across individual NDMMs for the NPAR, UBAS, and PASC classes. The state-change model for each case was selected through likelihood ratio tests of the ‘equal rates’ (ER) and ‘all rates differ’ (ARD) models, using the fitMk() function and assuming an equal prior distribution for the root. The more complex ARD model was favored in 13 of 43 cases when considering individual NDMMs; the ER model was favored in each case when considering NDMM-classes. SIMMAP was implemented using the make.simmap() function, using 100 simulations per NDMM, an equal root-state prior probability distribution, and the state-change model chosen for the given NDMM. The ‘mcmc’ option was selected to account for uncertainty in rate-change estimates within the state-change matrix. Ancestral reconstructions were extracted using the describe.simmap() function, with a particular focus on the nodes that define the four major Pristionchus ingroup clades (i.e., the pacificus, maupasi, entomophagus, and triformis clades).

Statistics

R version 3.3.2 (http://www.R-project.org/) was used to perform statistical analysis of the data. Statistical methods are indicated in the 'Phylogenetic analyses' section of the 'Materials and methods'.

References

  1. 1
    Chemical Communication: The Language of Pheromones
    1. WC Agosta
    (1992)
    Scientific American Library.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Two new species of Pristionchus (Rhabditida: diplogastridae): dentatus n. sp. from Nepal and La re and P. elegans n. sp. from Japan Union Island
    1. N Kanzaki
    2. EJ Ragsdale
    3. M Herrmann
    4. RJ Sommer
    (2012a)
    Journal of Nematology 44:80–91.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
    Nematology Monographs and Perspectives
    1. RJ Sommer
    (2015)
    Pristionchus pacificus-a nematode model for comparative and evolutionary biology, Nematology Monographs and Perspectives, Brill Academic Pubulisher.
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89

Decision letter

  1. Jon Clardy
    Reviewing Editor; Harvard Medical School, United States
  2. Michael A Marletta
    Senior Editor; University of California, Berkeley, United States
  3. Jon Clardy
    Reviewer; Harvard Medical School, United States
  4. Paul W Sternberg
    Reviewer; Howard Hughes Medical Institute, California Institute of Technology, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This data-rich comparison of the small molecule pheromone suites of two different nematodes – one a popular laboratory model – provides a detailed account of the functional convergence of genetically encoded signaling molecules. It also provides the basis for future work on these systems and a model for incorporating new systems.

Decision letter after peer review:

Thank you for submitting your article "Rapid evolution of small-molecule architecture in Pristionchus" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Jon Clardy as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Michael Marletta as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Paul W Sternberg (Reviewer #3).

All three reviewers appreciated both the quantity and quality of the data reported in this manuscript along with its potential for informing our understanding of the evolution of small molecule signals. They also felt that there were shortcomings with current version of the manuscript that would require significant revisions but no additional experiments. In general the revisions suggested an effort to make the article more accessible and to discuss technological limitations and caveats to a greater extent.

In more detail:

The Introduction of the manuscript should be rewritten to place the study in a context accessible to the general reader. Beginning with why nematodes are studied and what we've learned from them would be very useful or why studying the evolution of small molecule signals is of broad interest.

This manuscript analyzes the ascarosides and paratosides present in several non-Pristionchus diplogastrids and a large number of Pristionchus species and uses this information to describe patterns seen in the evolution of different compound classes, such as the independent development of the same type of ascaroside in two separate clades. These patterns are interesting, and the manuscript might be presented better if the authors focused on these patterns. As written, the results begin with a number of findings related to simple ascarosides, many of which are not backed up by experimental data (such as the possible role of asc-C9 as a sex pheromone), and these results could be consolidated.

There are general statements that need additional qualification or explanation, like the use of rapid. Rapid compared to what? Also, the manuscript suggests that P. pacificus produces complex ascarosides but C. elegans does not, but it could easily be argued that both produce complex ascarosides. C. elegans produces ascarosides with a variety of head and terminus modifications, including ascarosides with multiple modifications and modifications that include multiple types of groups, and many of the modifications can be quite complex. The authors cite several papers to show that Caenorhabditis nematodes produce relatively simple ascarosides, but many of these papers (Choe et al., 2012, and Dong et al., 2018) used detection methods that could only detect previously identified and/or unmodified ascarosides. It would be better to focus on defining why and to what degree Pristionchus produces ascarosides with modifications that have not yet been found in other nematodes.

The findings of the manuscript are quite interesting in their own right, and that should be the focus, not greater complexity of faster evolution.

https://doi.org/10.7554/eLife.55687.sa1

Author response

All three reviewers appreciated both the quantity and quality of the data reported in this manuscript along with its potential for informing our understanding of the evolution of small molecule signals. They also felt that there were shortcomings with current version of the manuscript that would require significant revisions but no additional experiments. In general the revisions suggested an effort to make the article more accessible and to discuss technological limitations and caveats to a greater extent.

We are thankful to this overall recommendation. We have tried throughout the manuscript to make the text more accessible to a general readership. This starts already with the Abstract and continues throughout the whole manuscript.

In more detail:

The Introduction of the manuscript should be rewritten to place the study in a context accessible to the general reader. Beginning with why nematodes are studied and what we've learned from them would be very useful or why studying the evolution of small molecule signals is of broad interest.

We were very pleased that the reviewers and editors encouraged us to have a longer and more general Introduction. We have followed this advice and have added 3 additional paragraphs at the beginning of the Introduction that introduce small molecule/pheromone communication in general and the suitability of nematodes for such studies. We have moved one paragraph with more specific details of our study system to the beginning of the Result section to even further increase readability of the manuscript.

This manuscript analyzes the ascarosides and paratosides present in several non-Pristionchus diplogastrids and a large number of Pristionchus species and uses this information to describe patterns seen in the evolution of different compound classes, such as the independent development of the same type of ascaroside in two separate clades. These patterns are interesting, and the manuscript might be presented better if the authors focused on these patterns. As written, the results begin with a number of findings related to simple ascarosides, many of which are not backed up by experimental data (such as the possible role of asc-C9 as a sex pheromone), and these results could be consolidated.

We followed the suggestions to try to concentrate on the interesting evolutionary patterns including clade-specificities and convergent evolution of pheromonal small-molecule in Pristionchus nematodes. Specifically, we tried to describe the discovery of different classes of compounds in an evolutionary context (followed by structural characterization of novel compounds, as needed), starting with the simple ascarosides before describing compounds of greater degrees of complexity (dimeric ascarosides, and modular chemicals such as NPAR, PASC and UBAS). The paragraph on ascr#10 is now reduced and combined with results for other simple ascarosides. Next, we added one new paragraph to highlight the convergent evolution of small molecules given that we observed biosynthesis of PASC and UBAS compounds in both pacificus- and triformis-clades. Furthermore, we reorganized our presentation of the evolutionary analysis that clearly indicated convergent evolution for these identified chemicals, as well as our section an outgroup species, so as to improve emphasis and readability. Finally, we mentioned the chemical diversity and great biosynthetic capacity by focusing on some of those trace compounds. We believe that these arrangements make the text much more focused on the most interesting findings of clade-specificity and convergent evolution of small molecules in Pristionchus nematodes (changes are in blue in the marked copy of the manuscript).

There are general statements that need additional qualification or explanation, like the use of rapid. Rapid compared to what? Also the manuscript suggests that P. pacificus produces complex ascarosides but C. elegans does not, but it could easily be argued that both produce complex ascarosides. C. elegans produces ascarosides with a variety of head and terminus modifications, including ascarosides with multiple modifications and modifications that include multiple types of groups, and many of the modifications can be quite complex. The authors cite several papers to show that Caenorhabditis nematodes produce relatively simple ascarosides, but many of these papers (Choe et al., 2012, and Dong et al., 2018) used detection methods that could only detect previously identified and/or unmodified ascarosides. It would be better to focus on defining why and to what degree Pristionchus produces ascarosides with modifications that have not yet been found in other nematodes.

We have basically followed all of these suggestions:

1) We removed the term “rapid” from the title and Abstract, and from most locations throughout the Results and Discussion sections. Instead, we followed the recommendation to focus on the patterns of convergent evolution observed in our study. We have therefore, for example, changed our title introducing the convergent evolution aspect (see also comment below).

2) We have better defined the NDMM patterns of P. pacificus as requested.

3) Also, we specifically addressed the methodologies used in the various comparative studies on nematode NDMMs.

The findings of the manuscript are quite interesting in their own right, and that should be the focus, not greater complexity of faster evolution.

We are again thankful for this overall recommendation. In response, we have downplayed the complexity and faster evolution arguments altogether and focus more on the specific findings. This resulted not only in a change of title and Abstract (as already indicated above), but also re-organization of the Results and Discussion section as already indicated above.

https://doi.org/10.7554/eLife.55687.sa2

Article and author information

Author details

  1. Chuanfu Dong

    Department for Integrative Evolutionary Biology, Max Planck Institute for Developmental Biology, Tübingen, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3043-7257
  2. Cameron J Weadick

    Department of Biosciences, University of Exeter, Exeter, United Kingdom
    Contribution
    Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Vincent Truffault
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8022-1783
  3. Vincent Truffault

    Max Planck Institute for Developmental Biology, Tübingen, Germany
    Contribution
    Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Cameron J Weadick
    Competing interests
    No competing interests declared
  4. Ralf J Sommer

    Department for Integrative Evolutionary Biology, Max Planck Institute for Developmental Biology, Tübingen, Germany
    Contribution
    Conceptualization, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    ralf.sommer@tuebingen.mpg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1503-7749

Funding

Max-Planck-Gesellschaft

  • Ralf J Sommer

Royal Society (Dorothy Hodgkin Fellowship)

  • Cameron J Weadick

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Neelanjan Bose and Frank C Schroeder for the chemical analysis of exudates derived from P. pacificus males and hermaphrodites. We also thank Wen Hu for preparing and providing P. pacificus inbred strains for chemicals analysis. Synthetic standard chemical of ascr#1 was kindly provided by Stephan H von Reuss from the University of Neuchâtel. We are also grateful to Michael Reichelt (Department for Biochemistry, MPICE, Jena) for performing MS/MS precursor ion screening experiments, and to Matthias Herrmann and Christian Weiler for collecting Pristionchus nematodes. Transcriptome data for Pristionchus species provided by Christian Rödelsperger and discussions with Marc Claassen are gratefully acknowledged. CJW was supported by a Royal Society Dorothy Hodgkin Fellowship during the latter stages of this project. This work is funded by the Max Planck Society.

Senior Editor

  1. Michael A Marletta, University of California, Berkeley, United States

Reviewing Editor

  1. Jon Clardy, Harvard Medical School, United States

Reviewers

  1. Jon Clardy, Harvard Medical School, United States
  2. Paul W Sternberg, Howard Hughes Medical Institute, California Institute of Technology, United States

Publication history

  1. Received: February 3, 2020
  2. Accepted: April 24, 2020
  3. Accepted Manuscript published: April 27, 2020 (version 1)
  4. Version of Record published: May 14, 2020 (version 2)

Copyright

© 2020, Dong et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 687
    Page views
  • 88
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Evolutionary Biology
    Jocelyn A McDonald, Yoshinori Tomoyasu
    Insight
    1. Evolutionary Biology
    2. Neuroscience
    Francisco M Nadal-Nicolás et al.
    Short Report
