Inhibiting IRE1α-endonuclease activity decreases tumor burden in a mouse model for hepatocellular carcinoma

  1. Nataša Pavlović
  2. Carlemi Calitz
  3. Kess Thanapirom
  4. Guiseppe Mazza
  5. Krista Rombouts
  6. Pär Gerwins
  7. Femke Heindryckx  Is a corresponding author
  1. Department of Medical Cell Biology, Uppsala University, Sweden
  2. Regenerative Medicine & Fibrosis Group, Institute for Liver and Digestive Health, University College London, United Kingdom
  3. Department of Radiology, Uppsala University Hospital, Sweden
Research Article
  • Cited 1
  • Views 570
  • Annotations
Cite this article as: eLife 2020;9:e55865 doi: 10.7554/eLife.55865

Abstract

Hepatocellular carcinoma (HCC) is a liver tumor that usually arises in patients with cirrhosis. Hepatic stellate cells are key players in the progression of HCC, as they create a fibrotic micro-environment and produce growth factors and cytokines that enhance tumor cell proliferation and migration. We assessed the role of endoplasmic reticulum (ER) stress in the cross-talk between stellate cells and HCC cells. Mice with a fibrotic HCC were treated with the IRE1α-inhibitor 4μ8C, which reduced tumor burden and collagen deposition. By co-culturing HCC-cells with stellate cells, we found that HCC-cells activate IREα in stellate cells, thereby contributing to their activation. Inhibiting IRE1α blocked stellate cell activation, which then decreased proliferation and migration of tumor cells in different in vitro 2D and 3D co-cultures. In addition, we also observed cell-line-specific direct effects of inhibiting IRE1α in tumor cells.

Introduction

Hepatocellular carcinoma (HCC) is a primary liver tumor that typically arises in a background of chronic liver disease and cirrhosis (Calderaro et al., 2019). One of the key players in the progression of cirrhosis to HCC is the hepatic stellate cell, which is activated during liver damage and differentiates towards a contractile myofibroblast-like cell that deposits extracellular matrix proteins (ECM), such as collagen (Coulouarn and Clément, 2014). Activated stellate cells can induce phenotypic changes in cancer cells through the production of growth factors and cytokines that stimulate tumor cell proliferation and induce a pro-metastatic phenotype (Yu et al., 2013). Malignant hepatocytes secrete high levels of transforming growth factor beta (TGFβ), which can contribute to the activation of stellate cells in the nearby stroma (Giannelli et al., 2014; Nitta et al., 2008; Dooley et al., 2009). These activated stellate cells are then responsible for the deposition of ECM. Several of the ECM-components such as proteoglycans, collagens, laminin, and fibronectin interact with tumor cells and cells in the stroma, which can directly promote cellular transformation and metastasis (Lin et al., 2014; Song et al., 2016). The ECM can also act as a reservoir for growth factors and cytokines, which can be rapidly released to support the tumor's needs. In addition, activated stellate cells contribute to a highly vascularized tumor micro-environment, by secreting pro-angiogenic molecules and by recruiting pro-angiogenic (and pro-tumoral) myeloid and lymphoid derived cell types (Zhang et al., 2017). By constricting the hepatic microvasculature, they also cause hypoxia, which contributes to the angiogenic switch and can induce a more aggressive tumor phenotype (Taura et al., 2008). It is therefore not surprising that tumor cells actively secrete growth factors (such as TGFβ) to induce activation and migration of stellate cells, which creates a fibrotic environment that further supports and enhances tumor progression (Coulouarn and Clément, 2014; Caja et al., 2018; Lu et al., 2015). Since activated stellate cells play an essential role in the onset and progression of HCC, blocking their activation has been proposed as a potential therapy for patients with HCC (Carloni et al., 2014). One strategy to prevent stellate cell activation, is by blocking the IRE1α-pathway of the unfolded protein response (UPR) (Heindryckx et al., 2016; Liu et al., 2019).

The UPR serves to cope with the accumulation of misfolded or unfolded proteins in the endoplasmic reticulum (ER) in an attempt to restore protein folding, increase ER-biosynthetic machinery and maintain cellular homeostasis (Schröder and Kaufman, 2005). It can exert a cytoprotective effect by re-establishing cellular homeostasis, while apoptotic signaling pathways will be activated in case of severe and/or prolonged ER-stress (Lam et al., 2020). The presence of misfolded proteins is sensed via three transmembrane proteins in the ER: inositol requiring enzyme 1α (IRE1α), protein kinase RNA-like ER-kinase (PERK) and activating transcription factor 6α (ATF6α) (Acosta-Alvear et al., 2018). The development of solid tumors is characterized by uncontrolled growth and proliferation of malignant cells, resulting in a compact mass of cells and a hypoxic tumor micro-environment, two conditions that are well-characterized ER-stress inducers. Therefore, it is not surprising that activation of the UPR represents a major hallmark of several solid tumors, such as breast cancer (Liang et al., 2018), colon cancer (Li et al., 2017b), and HCC (Vandewynckel et al., 2013). The induction of the UPR in cancer cells may serve as a double-edged sword, which can aid tumor progression as well as prevent tumor growth in a context-dependent manner. Persistent ER-stress can activate pathways that induce cell death, effectively eliminating cells with a potential to become malignant. On the other hand, tumor cells may hijack the ER-stress pathways to provide survival signals required for uncontrolled growth and eventually avoid apoptosis (Kim et al., 2015). Activation of the UPR has also been shown to affect different fibrotic diseases (Heindryckx and Li, 2018), including non-alcoholic fatty liver disease (Bandla et al., 2018; Kwanten et al., 2016; Dasgupta et al., 2020), hepatitis-B-induced carcinogenesis (Li et al., 2017a), and biliary cirrhosis (Sasaki et al., 2015). We have previously shown that inhibiting the IRE1α-branch of the UPR-pathway using 4μ8C, blocks TGFβ-induced activation of fibroblasts and stellate cells in vitro and reduces liver fibrosis in vivo (Heindryckx et al., 2016). In the current study, our aim was to define the role of IRE1α in the cross-talk between hepatic stellate cells and tumor cells in liver cancer. We show that pharmacologic inhibition of the IRE1α-signaling pathway decreases tumor burden in a chemically induced mouse model for HCC. Using several in vitro co-culturing methods, we identified that blocking IRE1α in hepatic stellate cells prevents their activation. This then decreases proliferation and migration of tumor cells in co-cultures, in addition to the direct effect of inhibiting IRE1α in tumor cells. Our results also indicate that there are cell-line-specific differences in how cells respond to IRE1α-inhibition, including differences in the IRE1α-dependent generation of reactive oxygen species.

Results

Pharmacological inhibition of IRE1α reduces tumor burden in a chemically induced mouse model for HCC

Hepatocellular carcinoma was induced in mice by weekly injections with N-nitrosodiethylamine (DEN) for 25 weeks (Heindryckx et al., 2010). From week 10, IRE1α-endonuclease activity was pharmacologically inhibited with 4μ8C. Histological analysis of liver tissue confirmed the presence of liver tumors in a fibrotic background at 25 weeks (Figure 1A). Treatment with 4μ8C significantly reduced tumor burden (Figure 1B), as measured on H and E-stained liver sections (Figure 1A). Stellate cell activation and liver fibrosis was quantified by Sirius Red staining (Figure 1A and C) and immunohistochemical staining with αSMA-antibodies (Figure 1A and D) on liver sections. Mice with HCC had a significant increase in the percentage of collagen (Figure 1C) and αSMA-staining (Figure 1D), compared to healthy mice. Treatment with 4μ8C restored collagen (Figure 1C) and αSMA-levels (Figure 1D and Figure 1E) to healthy baseline levels. mRNA-expression levels of Pcna were determined on tumor nodules and surrounding non-tumor stromal tissue (Figure 1E). As expected, proliferation of cells was increased within the tumor itself, compared to the levels in healthy liver tissue and stromal tissue. Treatment with 4μ8C significantly decreased the levels of Pcna-mRNA expression within the tumor, suggesting a decrease in tumor cell proliferation. A proteomics array using the Olink Mouse Exploratory assay revealed that DEN-induced murine tumors had a significantly increased protein expression of 20 oncogenic proteins compared to healthy controls (Figure 1F and Table 1). In the 4μ8C-treated group, only 11 oncogenic proteins were increased compared to healthy controls (Figure 1F and Table 1). Treatment with 4μ8C also significantly reduced protein expression of two HCC promotors, PRDX5, and DDAH1 (Figure 1F and Table 1).

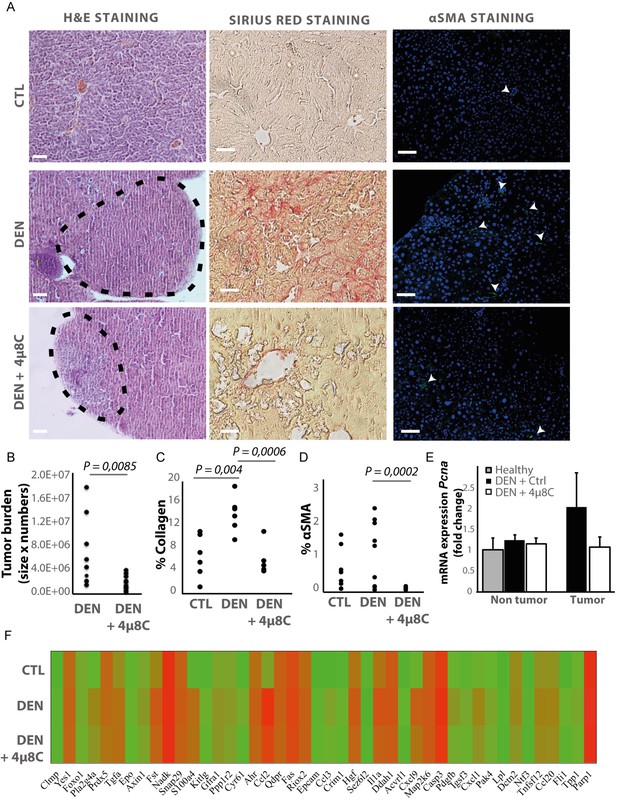

Inhibiting IRE1α reduces tumor burden in vivo.

(A) Representative images of liver slides stained with hematoxylin and eosin (H and E), Sirius red and αSMA-antibodies. (B) tumor burden of mice with DEN-induced HCC treated with 4μ8C or vehicle-treated controls. (C) Quantification of percentage of collagen and (D) αSMA on liver slides. (E) mRNA expression of Pcna in liver tissue from mice with HCC treated with 4μ8C (F). Heatmap showing protein expression levels in healthy liver, DEN-induced HCC and DEN-induced HCC treated with 4μ8C from three biological replicates per group. p-Values were calculated via the Student's T-test, scale bars = 120 μm.

Table 1
A proteomics array using the Olink Mouse Exploratory assay – source data Figure 1F.
CTLDenDEN+4 u8cStatistical significance
Protein nameBiological processMeanSt. DevAverageSt. DevAverageSt. DevDEN vs CtrlDEN vs 4 u8CCtrl vs 4 u8c
ClmpNot prognostic in HCC1.680.142.971.002.480.64*
Yes1HCC promotor7.110.297.510.207.440.19*
Foxo1Tumor suppressor4.150.064.120.733.870.49
Pla2g4aHCC promotor3.420.385.701.365.040.80**
Prdx5HCC promotor7.370.497.230.266.670.34*
TgfaTumor growth factor5.360.526.810.646.930.88**
EpoUnfavorable prognotic marker3.200.343.710.353.370.33
Axin1HCC promotor4.240.384.800.374.390.35
FstHCC promotor5.870.318.040.737.500.71**
NadkNot prognostic in HCC10.100.1310.140.1810.300.27
Snap29Not prognostic in HCC7.700.327.870.327.620.30
S100a4HCC promotor2.730.747.010.626.850.97**
KitlgMetastasis2.480.423.740.623.310.98*
Gfra1HCC promotor4.400.355.070.404.920.39*
Ppp1r2Not prognostic in HCC4.370.164.860.464.470.43
Cyr61HCC promotor2.400.534.141.643.131.22*
AhrNot prognostic in HCC6.950.467.680.747.380.64
Ccl2HCC promotor4.590.589.692.048.93.**
QdprNot prognostic in HCC7.710.117.720.147.540.15
FasHCC promotor8.660.188.830.188.700.18
Riox2HCC promotor7.100.157.710.387.590.14**
EpcamHCC promotor1.560.333.161.143.270.89*
Ccl3Prognostic marker1.490.394.421.863.731.07**
Crim1HCC promotor2.460.283.711.093.210.56**
HgfTumor growth factor6.690.357.941.017.410.71*
Sez6l2HCC promotor−0.290.150.610.530.190.29*
Il1aInflammation and fibrosis6.650.518.350.657.620.54**
Ddah1HCC promotor8.040.228.180.057.840.18*
Acvrl1Not prognostic in HCC2.090.183.441.312.810.47
Cxcl9Inflammation and fibrosis3.680.867.711.686.651.58**
Map2k6Not prognostic in HCC7.750.157.980.417.880.28
Casp3Tumor surrpressor9.220.199.740.359.430.26
PdgfbTumor growth factor3.520.314.961.273.970.40*
Igsf3Unfavorable prognotic marker3.120.284.190.823.640.72
Cxcl1HCC promotor3.770.405.740.785.060.51**
Pak4HCC promotor3.470.424.390.683.930.54
LplNot prognostic in HCC1.660.402.440.452.020.60
Dctn2Unfavorable prognotic marker5.481.315.670.704.980.55
Ntf3Not prognostic in HCC2.160.272.800.712.270.40
Tnfsf12HCC promotor5.280.356.000.765.590.62
Ccl20Unfavorable prognotic marker5.200.345.920.815.530.66
Fli1HCC promotor1.910.223.731.382.980.83
Tpp1Unfavorable prognotic marker3.670.384.240.643.730.50
Parp1Unfavorable prognotic marker10.300.7210.930.4910.510.62

Markers of the unfolded protein response are upregulated in HCC and mainly located in the tumor stroma

mRNA-levels of different ER-stress-genes were measured in tumor and surrounding non-tumor tissue of mice with DEN-induced HCC (Figure 2A). Hspa5-mRNA-expression was increased in the surrounding non-tumor tissue of DEN-induced mice with HCC, while there was no difference within the tumor, compared to healthy controls (Figure 2A and B). Western blot confirmed the increase of BIP-protein expression in DEN-induced livers, which was reduced after treatment with 4μ8C (Figure 2C). The ratio of spliced to unspliced Xbp1-mRNA was significantly increased in the surrounding non-tumor tissue of DEN-induced mice (Figure 2D). Treatment with 4μ8C significantly reduced the ratio of spliced to unspliced Xbp1-mRNA in surrounding non-tumorous stromal tissue (Figure 2D). Western blot on whole tissue samples – containing both tumor and non-tumoral tissue – also confirmed a significant decrease of XBP1-splicing after treatment with 4μ8C (Figure 2E,F and G). Immunohistochemical straining with XBP1-antibodies against the spliced variant further demonstrate that the expression of spliced XBP1 is mainly located in the peritumoral area (Figure 2H). Spliced XBP1 was significantly increased in the DEN-induced liver tissue and treatment with 4μ8C restored these levels to a similar level as seen in healthy controls (Figure 2I). Co-staining of liver tissue with antibodies against αSMA and antibodies against spliced XBP1 (Figure 2—figure supplements 1A and 2A), total XBP1 (Figure 2—figure supplements 1B and 2B), IRE1α (Figure 2—figure supplements 1C and 2C), phospho-IRE1α (Figure 2—figure supplements 1D and 2D), and BIP (Figure 2—figure supplements 1E and 2E), revealed that expression of markers from the IRE1α-pathway were mainly localized within activated stellate cells in the liver, although other hepatic cell populations also expressed some of these markers. At a higher magnification (Figure 2—figure supplement 1F), it also becomes clear that the expression of spliced XBP1 is not only cytoplasmic but some staining appears peri-nuclear and nuclear.

Figure 2 with 2 supplements see all

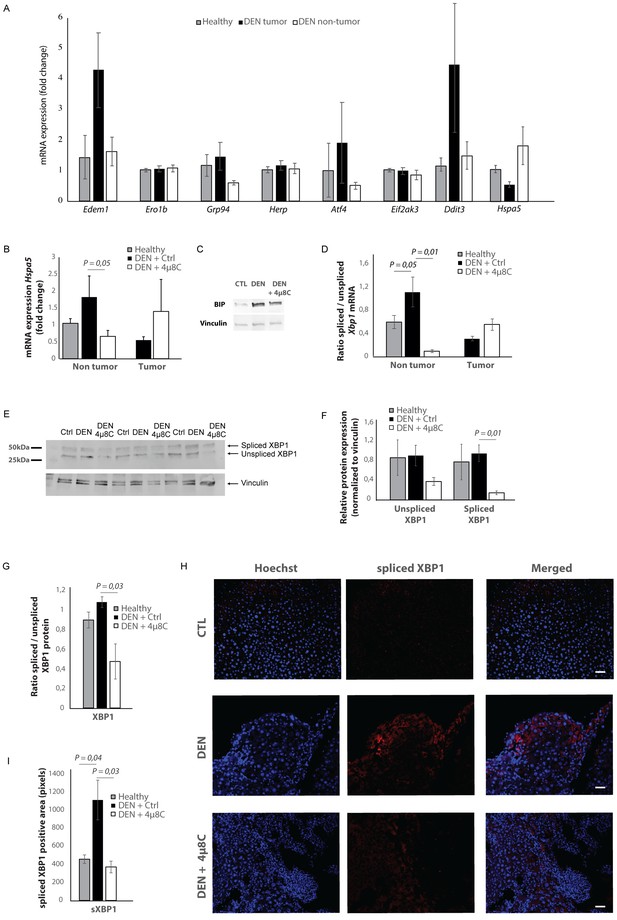

Increased expression of ER-stress markers in mice with HCC.

(A) mRNA expression of ER-stress markers Edem1, Ero1b, Grp94, Herp, Atf4, Eif2ak3, Ddit3, and Hspa5 in liver tissue from healthy mice; and tumor tissue and surrounding non-tumoral tissue from mice with DEN-induced HCC. (B) Hspa5-mRNA and (C) protein expression of BIP in murine liver tissue. (D) Ratio of spliced to unspliced XBP1 in liver tissue from healthy mice; and tumor tissue and surrounding non-tumoral tissue from mice with DEN-induced HCC, treated with 4μ8C. (E) Representative western blot image of spliced and unspliced XBP1 protein and vinculin in healthy liver, DEN-induced HCC and DEN-induced HCC treated with 4μ8C. (F) quantification of spliced and unspliced XBP1, normalized to total vinculin levels. (G) Ratio of spliced to unspliced XBP1 protein levels. (H) Representative images and (I) quantification of liver tissue sections stained with antibodies against spliced XBP1. p-Values were calculated via the Student's T-test with five biological replicates per group. Scale bars = 120 μm.

A gene-set enrichment assay on microarray data from HCC-patients with fibrotic septae and without fibrotic septae showed an increase of genes involved in the UPR in the fibrotic HCC samples compared to non-fibrous HCC (Figure 3A). Several actors of the IRE1α-branch of the UPR are amongst the genes that contribute to the core-enrichment of this analysis (Table 2). Immunohistochemical staining of liver biopsies from HCC-patients further confirmed presence of IRE1α-mediated ER-stress markers BIP, PPP2R5B, SHC1, and WIPI1 localized in the fibrotic scar tissue and near hepatic blood vessels (Figure 3B). In addition, increased expression of these markers was significantly correlated with poor survival in patients with liver cancer (Figure 3C).

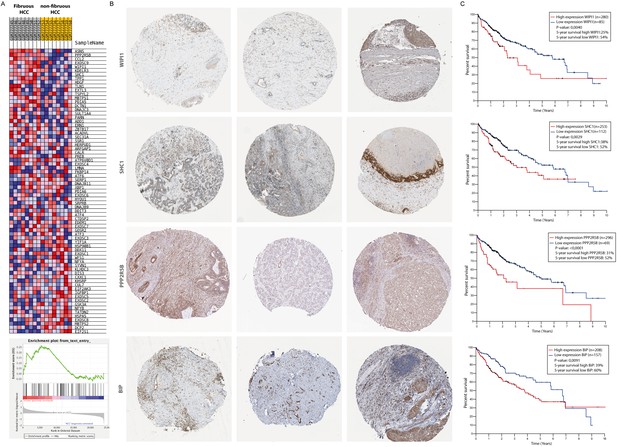

Activation of the unfolded protein response pathway is increased in patients with fibrotic HCC.

(A) Heat map showing gene-set enrichment analysis results from samples from fibrous HCC versus non-fibrous HCC. (C) Immunohistochemically stained liver biopsies from HCC-patients obtained from the human protein atlas, using antibodies against IRE1α-mediated actors of the unfolded protein response: WIPI1, SHC1, PPP2R5B, and BIP. (D) Kaplan-Meier survival curves of HCC-patients with high or low expression of WIPI1, SHC1, PPP2R5B, and BIP. p-Values were calculated via a Log-Rank test.

Table 2
Genes the contributed to the core-enrichment of the GSEA.
ProbeDescriptionRank Gene listRank Metric scoreCore enrichmentUPR branch
ASNSAsparagine synthetase (glutamine-hydrolyzing) [Source:HGNC Symbol;Acc:HGNC:753]2070.940YesPerk
PPP2R5BProtein phosphatase two regulatory subunit B'beta [Source:HGNC Symbol;Acc:HGNC:9310]4230.821YesIre1a
CCL2C-C motif chemokine ligand 2 [Source:HGNC Symbol;Acc:HGNC:10618]8470.689YesIre1a and Perk
EXOSC9Exosome component 9 [Source:HGNC Symbol;Acc:HGNC:9137]10040.654YesIre1a and Perk
WIPI1WD repeat domain, phosphoinositide interacting 1 [Source:HGNC Symbol;Acc:HGNC:25471]10220.649YesIre1a
KDELR3KDEL endoplasmic reticulum protein retention receptor 3 [Source:HGNC Symbol;Acc:HGNC:6306]11060.635YesIre1a
SHC1SHC adaptor protein 1 [Source:HGNC Symbol;Acc:HGNC:10840]26910.432YesIre1a
TPP1Tripeptidyl peptidase 1 [Source:HGNC Symbol;Acc:HGNC:2073]28840.414YesIre1a
HDGFHeparin binding growth factor [Source:HGNC Symbol;Acc:HGNC:4856]32350.386YesIre1a
TLN1Talin 1 [Source:HGNC Symbol;Acc:HGNC:11845]32640.384YesIre1a
EXTL3Exostosin like glycosyltransferase 3 [Source:HGNC Symbol;Acc:HGNC:3518]34880.365YesIre1a
TSPYL2TSPY like 2 [Source:HGNC Symbol;Acc:HGNC:24358]36800.350YesIre1a
MBTPS1Membrane-bound transcription factor peptidase, site 1 [Source:HGNC Symbol;Acc:HGNC:15456]39960.327YesAtf6
PDIA5Protein disulfide isomerase family A member 5 [Source:HGNC Symbol;Acc:HGNC:24811]45300.294YesIre1a
DCTN1Dynactin subunit 1 [Source:HGNC Symbol;Acc:HGNC:2711]46380.287YesIre1a
DNAJC3DnaJ heat-shock protein family (Hsp40) member C3 [Source:HGNC Symbol;Acc:HGNC:9439]47610.281YesIre1a
SULT1A4Sulfotransferase family 1A member 4 [Source:HGNC Symbol;Acc:HGNC:30004]49380.272YesIre1a
PARNPoly(A)-specific ribonuclease [Source:HGNC Symbol;Acc:HGNC:8609]50370.266YesPerk
ADD1Adducin 1 [Source:HGNC Symbol;Acc:HGNC:243]53750.250YesIre1a
ERN1Endoplasmic reticulum to nucleus signaling 1 [Source:HGNC Symbol;Acc:HGNC:3449]54110.248YesIre1a

Tumor cells secrete factors that induce ER-stress in hepatic stellate cells

Hepatic stellate cell-lines (LX2) and HCC-cell lines (HepG2 and Huh7) were grown in different compartments using a transwell-assay. This confirmed that tumor cells secrete factors that induce mRNA-expression of EIF2AK3, DDIT3, HSPA5 (Figure 4A), spliced XBP1 (Figure 4B,C and D), and HSPA5 (Figure 4C), as well as protein expression of p-IRE1α (Figure 4F) in hepatic stellate cells co-cultured with tumor cells, indicating the presence of ER-stress. Co-culturing also led to their activation, as measured by mRNA-expression of ACTA2 (Figure 4F) and collagen (Figure 4G) in LX2-cells grown with HepG2 or Huh7-cells in a transwell-assay. The mRNA-expression of ACTA2 and collagen was restored to baseline levels when 4μ8C was added to the transwell co-cultures.

Figure 4 with 1 supplement see all

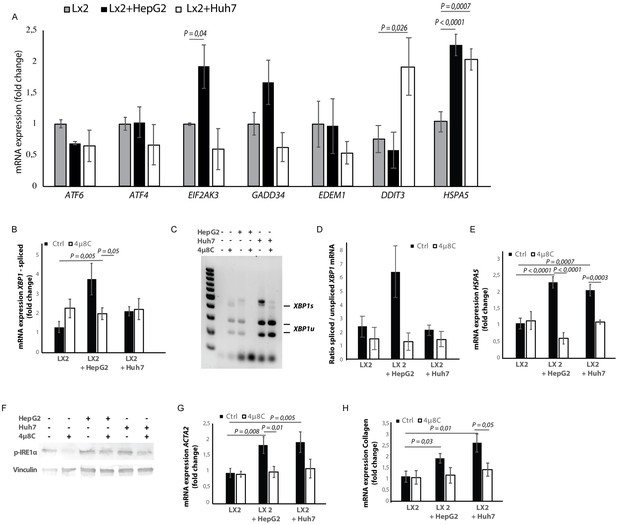

Tumor cells secrete factors that induce ER-stress in stellate cells, which contributes to their activation.

(A) mRNA-expression of ER-stress markers ATF6, ATF4, EIF2AK3, GADD34, EDEM1, DDIT3 and HSPA5, in stellate cells (LX2) co-cultured with cancer cells (HepG2 or Huh7) and treated with 4μ8C or control. (B) Detection of spliced (XBP1s) and unspliced XBP1 (XBP1u) via qPCR and (C) via digestion of the XBP1u-RT-qPCR product by Pst-I and subsequent visualization by separation of on agarose gel. (D) Quantified ratio of spliced and unspliced measured on agarose gel after digestion by Pst-I (E) mRNA expression of HSPA5 in stellate cells (LX2) co-cultured with cancer cells (HepG2 or Huh7) and treated with 4μ8C or control. (F) protein expression of p-IRE1α and vinculin in stellate cells (LX2) co-cultured with cancer cells (HepG2 or Huh7) in transwell assays and treated with 4μ8C or control. (G) mRNA-expression of stellate cell activation markers ACTA2 and (H) collagen in LX2-cells co-cultured with HepG2 or Huh7-cells and treated with or without 4μ8C. p-Values were calculated via ANOVA with 10 biological replicates per group.

De-cellularized human liver 3D-scaffolds were engrafted with hepatic stellate cells (LX2) and tumor cells (HepG2). Sirius red staining and H and E staining confirmed that that LX2-cells and HepG2-cells successfully engrafted the collagen-rich matrix of the decellularized human liver scaffolds (Figure 5A and B). Engrafting both LX2-stellate cells and HepG2-cancer cells led to a significant increase of collagen staining (Figure 5B) and mRNA-expression of collagen, HSPA5, and spliced XBP1 (Figure 5C) compared to scaffolds that were only engrafted with LX2-cells. Adding 4μ8C significantly decreased mRNA-expression of collagen and HSPA5 in the LX2 and HepG2 co-cultured scaffolds (Figure 5C).

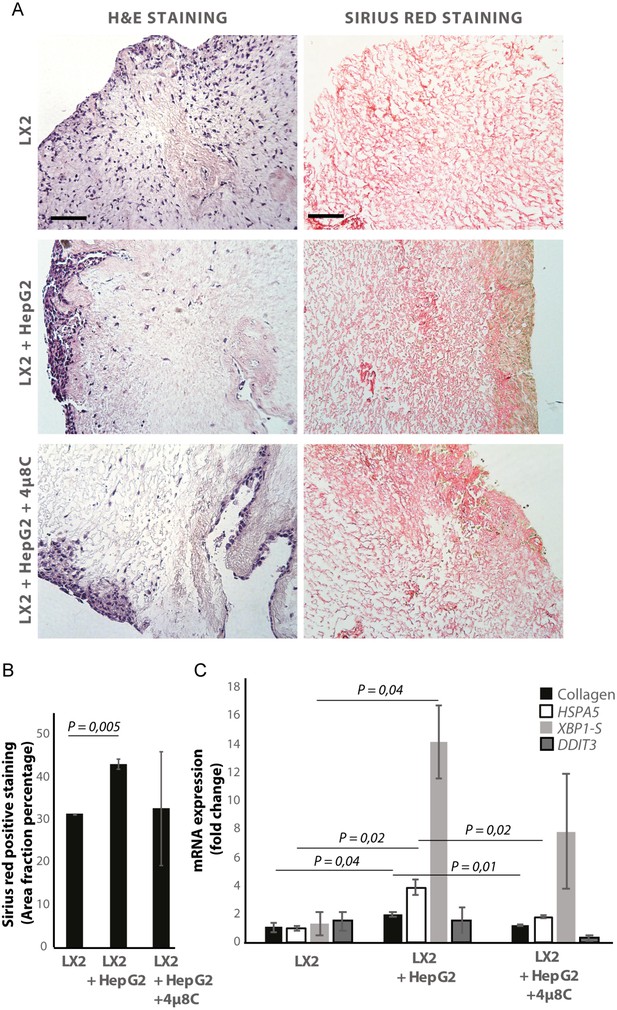

Inhibiting IRE1α decreases stellate cell activation in human liver 3D scaffolds engrafted with stellate cells and tumor cells.

(A) Representative images of H and E and Sirius red stained slides of decellularized human liver scaffolds engrafted with LX2 stellate cells and HepG2-tumor cells treated with 4μ8C or control. (B) Quantification of collagen-stained area fraction of liver scaffolds engrafted with LX2 stellate cells and HepG2-tumor cells treated with 4μ8C or control. (C) mRNA-expression of the stellate cells activation marker collagen and ER-stress markers HSPA5, spliced XBP-1 (XBP1-S), and DDIT3 in liver scaffolds engrafted with stellate cells (LX2) and cancer cells (HepG2), treated with 4μ8C or control. p-Values were calculated via ANOVA from three biological replicates per group, scale bars = 100 μm.

Tumor cells are important sources of TGFβ, which is a known activator of stellate cells. Surprisingly, measuring TGFβ in mono-cultures lead to undetectable levels of TGFβ in Huh7-cells and low-levels in HepG2-cells (Figure 4—figure supplement 1A). These levels increased when LX2-cells were added to the co-cultures (Figure 4—figure supplement 1A). Engrafting both LX2-stellate cells and HepG2-cancer cells in the human liver scaffolds, slightly increased TGFβ-levels in the medium compared to scaffolds engrafted by only one cell type, but overall no significant differences were seen (Figure 4—figure supplement 1B). It is important to note that the baseline TGFβ-levels were markedly higher in the mono-cultured scaffolds, compared to the levels measured in cells grown in a standard 2D in vitro set-up (Figure 4—figure supplement 1A). Blocking TGFβ-receptor signaling with SB-431541 significantly reduced mRNA-expression of ER-stress markers DDIT3 (Figure 4—figure supplement 1C), spliced XBP1 (Figure 4—figure supplement 1D) and HSPA5 (Figure 4—figure supplement 1F) in stellate cells co-cultured with tumor cells using transwells. Adding a TGFβ-receptor-inhibitor to stellate cell – tumor cell co-cultures also reduced stellate cell activation, as measured by mRNA-expression of ACTA2 (Figure 4—figure supplement 1G) and collagen (Figure 4—figure supplement 1H). This indicates that TGFβ-secretion by tumor cells could be, at least in part, responsible for activating stellate cells and for inducing the IRE1α-branch of the UPR.

Pharmacological inhibition of IRE1α decreases tumor cell proliferation in stellate cell – tumor cell co-cultures

In transwell co-culturing assays, we found that co-culturing HepG2 or Huh7-tumor cells with LX2-stellate cells significantly increased PCNA-mRNA-expression in HepG2 and Huh7-tumor cell lines (Figure 6A). Adding 4μ8C significantly decreased mRNA-expression of PCNA in Huh7-cells grown in a transwell co-culture with LX2-cells, while not affecting PCNA-expression in tumor cell monocultures (Figure 6A). PCNA-levels in HepG2-LX2 transwell co-cultures were slightly decreased, but this was not significant. Proliferation was measured 24 hr after exposure to 4μ8C in tumor cells (HepG2 and Huh7) grown as mono-cultures and in co-culture with LX2-stellate cells. While 4μ8C induced a significant increase in proliferation of HepG2-monocultures, no difference was seen in LX2-monocultures and a significant decrease was seen in the HepG2-LX2 co-cultures (Figure 6B). In the Huh7 tumor cell line, 4μ8C significantly decreased cell number compared to untreated controls and a similar reduction was seen in the Huh7-LX2 co-cultures (Figure 6C). Immunohistochemical staining with antibodies against EPCAM and KI67 show that the effect on proliferation is mainly localized in the tumor cell population of these co-cultures (Figure 6D).

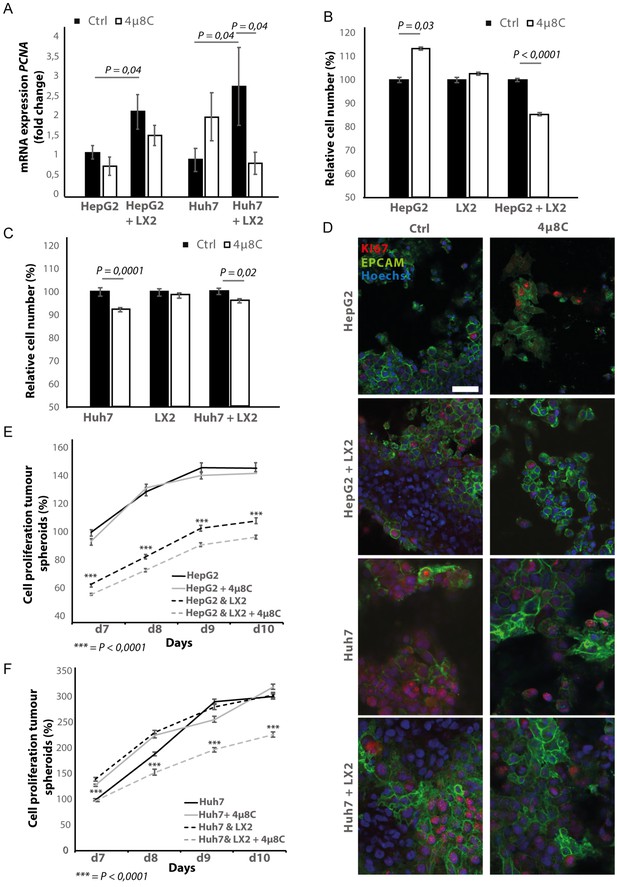

Inhibition of IRE1α decreases tumor cell proliferation.

(A) PCNA mRNA-expression of HepG2 or Huh7-cells grown with LX2-cells in transwell inserts and treated with the IRE1α-inhibitor 4μ8C or control. (B) Relative cell number of LX2 and HepG2 or (C) LX2 and Huh7-cells treated with 4μ8C or control. (D) Representative images of tumor cells (HepG2 or Huh7) and LX2-stellate cells stained with antibodies against the HCC-marker EPCAM and the proliferation marker KI67. (E) Cell proliferation of HepG2 or HepG2+LX2 spheroids and (F) Huh7 or Huh7+LX2 spheroids treated with 4μ8C or control. p-Values were calculated via the Student's T-test from nine biological replicates per group, scale bars = 50 μm.

3D-spheroids were generated using tumor cells alone (HepG2 or Huh7) or in combination with LX2-cells. While the HepG2-spheroids experienced a lower proliferation rate when generated in combination with LX2 stellate cells (Figure 6E), there was no difference in proliferation between spheroid-monocultures and spheroid-co-cultures in the Huh7-cells (Figure 6F). Treatment with 4μ8C significantly decreased proliferation of the tumor spheroids consisting of tumor cells (Huh7 or HepG2) and stellate cells (LX2), while tumor spheroid monocultures were not affected by 4μ8C. Similarly, PCNA-mRNA-expression significantly increased in human liver scaffolds engrafted with HepG2 and LX2-cells, compared to those engrafted with only tumor cells (Figure 7A). Treatment with 4μ8C significantly decreased PCNA-mRNA-expression in the LX2+HepG2 liver scaffolds, whilst not affecting those engrafted with only tumor cells. This further confirms our hypothesis that 4μ8C can affect tumor cell proliferation indirectly, namely by blocking the activation of stellate cells and thus impairing the interaction between tumor and stromal cells.

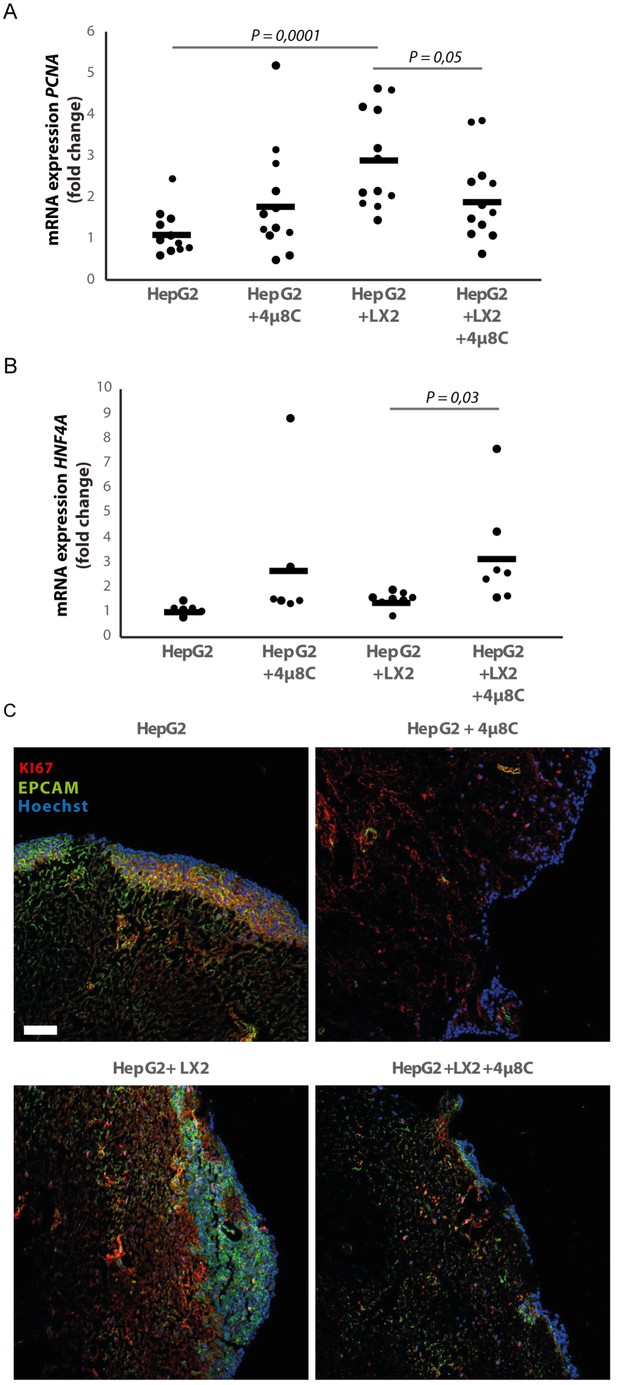

Inhibition of IRE1α decreases cell proliferation and improves liver function in human liver scaffolds engrafted with stellate cells and tumor cells.

(A) PCNA and (B) HNF4A expression of human liver scaffolds engrafted with HepG2-tumor cells and LX2-stellate cells, treated with 4μ8C or control. (C) Representative images of tumor cells (HepG2) and LX2-stellate cells stained with antibodies against the HCC-marker EPCAM and the proliferation marker KI67. p-Values were calculated via ANOVA on three biological replicates per group, scale bars = 100 μm.

We measured the mRNA-expression of hepatocyte-nuclear-factor-4-alpha (HNF4A), which is a liver function marker that is correlated to a favorable outcome for HCC-patients (Hang et al., 2017). While co-engraftment of LX2 and HepG2-cells in the liver scaffolds only lead to a marginal increase of HNF4A, treatment with 4μ8C significantly increased HNF4A-mRNA-expression, thus suggesting an overall improvement of liver function and possibly improved prognosis (Figure 7B). Immunohistochemical staining of EPCAM and KI67, showed that the HCC-cells have successfully engrafted the entire surface of the scaffolds and that 4μ8C decreased proliferation (Figure 7C).

Pharmacological inhibition of IRE1α decreases tumor cell migration in stellate cell – tumor cell co-cultures

Co-culturing HepG2 and Huh7-tumor cells with LX2-cells in the transwell assays significantly increased mRNA-expression of the pro-metastatic marker MMP9 in HepG2-cells (Figure 8A) and MMP1 in HepG2 and Huh7-cells (Figure 8B). Adding 4μ8C significantly decreased the mRNA-expression of MMP1 in HepG2+LX2 and Huh7+LX2 transwell co-cultures, while a non-significant decrease of MMP9 mRNA-expression was seen in Huh7+LX2 transwell co-cultures. To assess whether this reduction in mRNA-expression of pro-metastatic markers has a functional effect on cell migration, a scratch wound assay was performed on confluent layers of mono-cultures (HepG2 or LX2) or tumor cell (HepG2) – stellate cell (LX2) co-cultures (Figure 8C). To visualize closing of the scratch wound by each individual cell type, cells were fluorescently labeled using CellTracker Green (tumor cells) or CellTracker Red (LX2 stellate cells) (Figure 8D). Tumor-stellate cell co-cultures were the most efficient to close the scratch wound (Figure 8E). This was significantly inhibited when co-cultures were treated with 4μ8C. We also observed a direct effect of 4μ8C on LX2 and HepG2-migration, since treatment with 4μ8C lead to a significant reduction in wound closure after 24 hr, compared to untreated controls. It is important to note that traditional scratch wound assays cannot distinguish between proliferation and migration (Cormier et al., 2015). To overcome this limitation (Bise et al., 2011), we counted the individual number of cells in the middle of the wound area (Figure 8F and G). No significant difference was seen between HepG2 or LX2-cells within the wound area of HepG2-LX2 co-cultures after 24 hr (Figure 8F). However, 4μ8C-treatment significantly decreased migration of HepG2-cells and LX2-cells inside the scratch wound in co-cultures, while not affecting mono-cultures (Figure 8G).

Figure 8 with 1 supplement see all

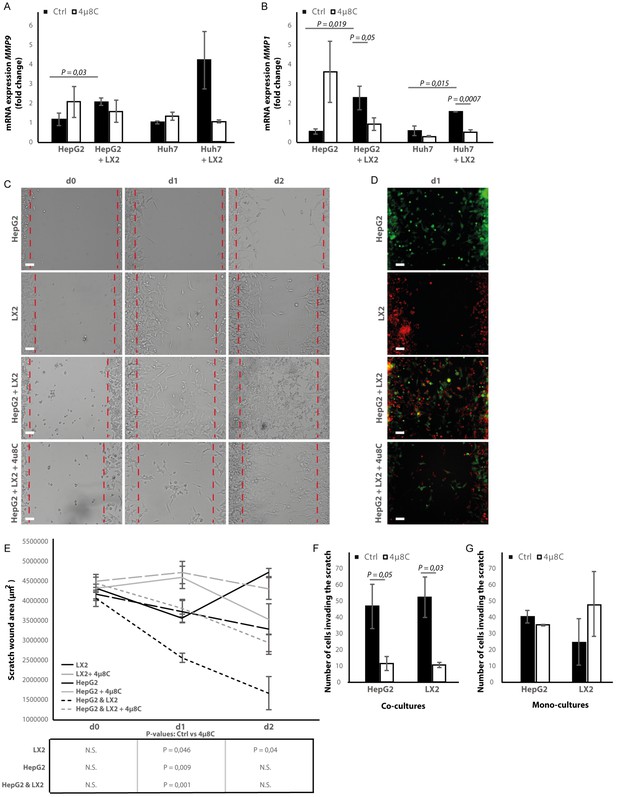

Inhibition of IRE1α decreases cell migration.

(A) mRNA-expression of pro-metastatic markers MMP9 and (B) MMP1 in HepG2 and Huh7-cells co-cultured with LX2-cells and treated with 4μ8C or control. (C) Scratch wound on HepG2-cells and LX2-cells treated with 4μ8C or control. (D) Images of Cell Tracker stained HepG2-cells (Green) and LX2-cells (Red) invading the scratch area. (E) Quantification of wound size in HepG2-cells and LX2-cells treated with 4μ8C or control. (F) Number of HepG2-cells and LX2-cells invading the scratch wound after 24 hr in co-cultures and (G) mono-cultures. p-Values were calculated via the Student's T-test from 10 biological replicates per group (panel A and B) or six biological replicates per group (panel E-G), scale bars = 120 μm.

Metastasis is usually a result of directed migration and chemotaxis toward physical and biochemical gradients within the tumor stroma (Oudin and Weaver, 2016). We used a microfluidic-based device for studying cell migration toward a stable gradient of chemotactic factors, such as FBS. 4μ8C significantly decreased total migration (Figure 8—figure supplement 1A–C) and directional migration towards FBS (Figure 8—figure supplement 1B and D) of HepG2-cells co-cultured with LX2-cells. Similarly, inhibition of IRE1α with 4μ8C significantly decreased total migration (Figure 8—figure supplement 1E and G) and directional migration toward FBS (Figure 8—figure supplement 1F and H) of LX2-cells co-cultured with HepG2-cells. Overall, these data suggest that stellate cells increase proliferation and pro-metastatic potential of tumor cells and blocking the IRE1α-RNase activity decreases tumor cell proliferation and migration.

Silencing of IRE1α in stellate cells decreases tumor cell proliferation and migration in co-cultures

To investigate whether the effect of blocking IRE1α is due to a direct effect on the tumor cells or because of an indirect effect via stellate cells, we transfected the stellate-line LX2 and the tumor cell lines Huh7 and HepG2 with an-siRNA targeting IRE1α, prior to co-culturing. In the LX2-cells, transfection efficiency was determined via qPCR and showed a 50% reduction in the ERN1-mRNA-expression (Figure 9A) compared to mock-transfected (Scr) controls. In the transwell co-culturing assay, we found that silencing IRE1α in the LX2-cells significantly decreased PCNA-mRNA-expression in HepG2-cells (Figure 9B). Silencing IRE1α in the LX2-cells also lead to a significant reduction of proliferation in LX2-HepG2 co-cultures (Figure 9C) and LX2-HepG2 spheroids (Figure 9—figure supplement 1A). Immunocytochemical staining with αSMA-antibodies (Figure 9—figure supplement 1B), confirmed a significant reduction of αSMA after si-IRE1α-transfection of LX2-stellate cells in HepG2-LX2 spheroid co-cultures (Figure 9—figure supplement 1C). A scratch wound assay on HepG2-LX2 co-cultures verified that silencing of IRE1α in LX2-cells significantly reduced wound closure compared to non-transfected and mock-transfected stellate cells (Figure 9—figure supplement 1D–E). Overall, these data confirm that blocking the IRE1α-pathway in hepatic stellate cells decreases proliferation and pro-metastatic potential of tumor cells in co-cultures.

Figure 9 with 1 supplement see all

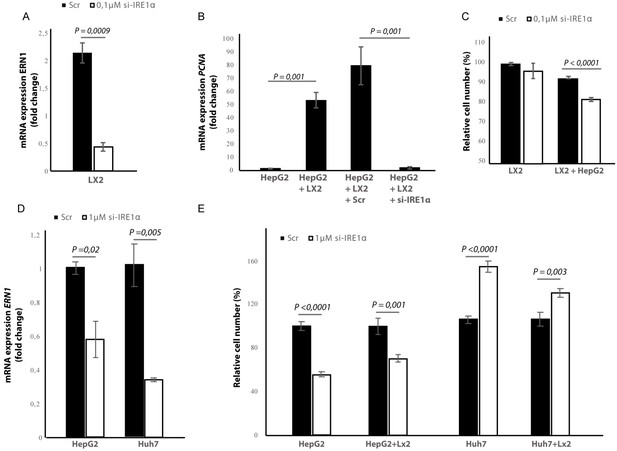

Silencing IRE1α in LX2-cells mimics 4μ8C.

(A) ERN1-mRNA-expression of LX2-cells transfected with IRE1α-siRNA (si-IRE1α) or mock-transfected (Scr) (B) PCNA-mRNA-expression of HepG2-cells co-cultured with IRE1α-silenced LX2-cells or controls (C). Relative cell numbers in co-cultures of HepG2-cells and IRE1α-silenced LX2-cells or controls. (D) ERN1-mRNA-expression of HepG2- and Huh7-cells transfected with IRE1α-siRNA (si-IRE1α) or mock-transfected (Scr). (E) Relative cell numbers in co-cultures LX2-cells or and si-RNE. Transfected HepG2 or Huh7 cells or mock-transfected controls (Scr). p-Values were calculated via the Student's T-test from three biological replicates per group (panel A, B and D) or six biological replicates (panel C and E).

In the cancer-cells, transfection efficiency was determined via qPCR and showed a 40% reduction in the ERN1-mRNA-expression in HepG2-cells and 65% in the Huh7-cells (Figure 9D). Interestingly, we found that silencing IRE1α in the HepG2-cells led to a significant reduction of proliferation in LX2-HepG2 co-cultures and in the HepG2-monocultures, while silencing IRE1α in the Huh7-cells led to a significant increase in both mono- and co-cultures (Figure 9E). These results indicate that silencing IRE1α in the tumor cells also directly affects tumor cell proliferation, but the effect seems to be cell line dependent.

Inhibiting IRE1α affects the generation of reactive oxygen species

To study if the observed effects of inhibiting IRE1α are through an effect on the generation of reactive oxygen species (ROS), we measured intracellular ROS-levels in 4μ8C-treated (Figure 10A) and IRE1α-silenced cell lines (Figure 10B). Treatment with 50 μM 4μ8C and 100 μM 4μ8C significantly decreased intracellular ROS-levels in LX2, HepG2 and Huh7-cells (Figure 10A). No differences were observed between the two concentrations (Figure 10A). In the si-IRE1α transfected cells, the effect on ROS-generation seemed to be dependent on the cell type (Figure 10B). Transfecting LX2-cells with si-IRE1α led to a significant decrease in intracellular ROS, while this caused a significant increase in the HepG2-cell line (Figure 10B). No significant differences were seen in the Huh7-cells (Figure 10B). Treatment with 4μ8C further decreased ROS-generation in all transfected cell lines (Figure 10B).

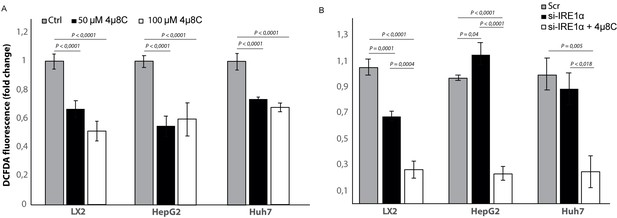

Inhibiting IRE1α alters generation of ROS.

(A) intracellular ROS-levels in LX2, HepG2, and Huh7 cells treated with 50 μM 4μ8C, 100 μM 4μ8C or controls. (B) intracellular ROS-levels in LX2, HepG2 and Huh7 cells transfected with IRE1α-siRNA (si-IRE1α) or mock-transfected (Scr). p-Values were calculated via the Student's T-test from three biological replicates per group.

Discussion

There is increasing evidence that ER-stress and activation of the UPR play an essential role during hepatic inflammation and chronic liver disease. We have previously shown that inhibition of IRE1α prevents stellate cell activation and reduces liver cirrhosis in vivo (Heindryckx et al., 2016). In this report, we further define a role of the IRE1α-branch of the UPR in the interaction between tumor cells and hepatic stellate cells. We also show that IRE1α could form a valuable therapeutic target to slow down the progression of hepatocellular carcinoma, both through the effect on stromal cells and via the direct effect on cancer cells.

Activated stellate cells play an important role in promoting tumorigenesis and tumors are known to secrete cytokines, such as TGFβ, which activate stellate cells and thereby creates an environment that helps to sustain tumor growth (Heindryckx, 2014). Since over 80% of HCC arises in a setting of chronic inflammation associated with liver fibrosis, targeting the fibrotic tumor micro-environment is often proposed as a valuable therapeutic strategy for HCC-patients (Coulouarn and Clément, 2014). We and others have shown that ER-stress plays an important role in stellate cell activation and contributes to the progression of liver fibrosis (Heindryckx et al., 2016; Koo et al., 2016; Hernández-Gea et al., 2013; Kim et al., 2016; Mao and Fan, 2015). The mechanisms by which the UPR promotes stellate cell activation have been attributed to regulating the expression of c-MYB (Heindryckx et al., 2016), increasing the expression of SMAD-proteins (Koo et al., 2016) and/or by triggering autophagy (Kim et al., 2016; Mao and Fan, 2015).

In our study, we show that IRE1α plays an important role in stellate cell – tumor cell interactions and that pharmacological inhibition of IRE1α-endoribonuclease activity slows down the progression of HCC in vivo. We demonstrate that tumor cells can induce the IRE1α-branch of the UPR in hepatic stellate cells, thereby contributing to their activation and creating an environment that is supportive for tumor growth and metastasis. By co-culturing stellate cells with tumor cells, we mainly observed an increase of the IRE1α-branch of the UPR; however, it is important to note that HepG2-cells also significantly induced mRNA-expression of EIF2AK3, while Huh7-cells seemed to induce DDIT3 in the LX2-cells. These results indicate that ATF6α and PERK-pathways may also play an important role in the interaction between stellate cells and tumor cells. In our study, we also observe that overall levels of XBP1 (spliced and unspliced) were very low in the LX2 monocultures and LX2 + HepG2 co-cultures treated with 4μ8C. This is likely the result of low baseline levels of total XBP1 in these conditions. Several studies have shown that constitutive levels of total XBP1 can be low (Zeng et al., 2009) and that the levels of spliced and unspliced XBP1 can both increase during ER-stress (Yoshida et al., 2001; Cassimeris et al., 2019; Kishino et al., 2017). The conditions where we observe low levels of both unspliced and spliced XBP1 correspond to those where we expect to see low levels of IRE1α activation and thus possibly suggest that ER-stress increased the levels of total XBP1 in hepatic stellate cells. Another unexpected finding in our study is the predominant cytoplasmic localization of spliced XBP1 in liver tissue. Spliced XBP1 contains a nuclear localization signal and a transcriptional activation domain, which can activate the transcription of the UPR target genes. In our study, we do not observe a clear nuclear expression of spliced XBP1, which is in contrast to the study of Yoshida et al., 2006, which shows that spliced XBP1 predominantly localizes in the nucleus of HeLa-cells exposed to acute ER-stress. This study also describes a mechanism whereby unspliced-XBP1 forms a complex with the spliced isoform, thereby exporting it from the nucleus to the cytoplasm, resulting in subsequent degradation by the proteasome. However, this event has been described during the recovery phase of an acute ER-stress event. In our mouse model, we treated mice with a hepatocarcinogenic compound for 25 weeks, resulting in a chronic inflammation and a subsequent activation of IRE1α-dependent ER-stress pathways. It is therefore not unlikely that different cells in this model are experiencing different phases of ER-stress and recovery. At a higher magnification, it becomes clear that the expression of spliced XBP1 is not only cytoplasmic but some staining appears peri-nuclear and nuclear. This could represent different stages of ER-stress activation and recovery in different cell populations; however, more experiments would be needed to verify this hypothesis.

Our results show that TGFβ-secretion by tumor cells could be in part responsible for activating stellate cells and for inducing the IRE1α-branch of the UPR. However, this seems to depend on the cell lines used, as the effect was not seen in the LX2 and HepG2 co-cultures. In these co-cultures, an autocrine signaling mechanism may be playing a role in the LX2-cells and the HepG2 cells may even prevent this. One possible alternative mechanism is through CCN protein upregulation, as this has been shown to induce ER-stress and UPR-activation in both stellate cells and hepatocytes by in vitro and in vivo approaches. CCN proteins are ECM-associated secreted proteins which play a role in a with a wide array of important functions, such as wound healing and tumorigenesis (Park et al., 2019). Adenoviral CCN gene transfer and overexpression of CCN proteins have been shown to induce ER-stress-mediated stellate cell senescence and apoptosis in later stages of fibrosis, consequently contributing to fibrosis resolution (Borkham-Kamphorst et al., 2016; Borkham-Kamphorst et al., 2018). While ER stress is known to play a key role in stellate cell activation and hepatocyte apoptosis during the fibrosis progression, inducing ER-stress-mediated apoptosis in activated stellate cells in advanced stages of fibrosis could be a relevant therapeutic strategy to attenuate liver fibrosis (Borkham-Kamphorst et al., 2016; Borkham-Kamphorst et al., 2018).

Activated stellate cells are known to enhance migration and proliferation of tumor cells in vitro (Song et al., 2016) and in vivo (Amann et al., 2009), by producing ECM-proteins and by secreting growth factors. Extracellular matrix proteins such as collagen can act as a scaffold for tumor cell migration (Han et al., 2016), alter the expression of MMPs (Song et al., 2016) and induce epithelial-mesenchymal transition (Kumar et al., 2014). Activated stellate cells are also an important source of hepatocyte growth factor, which promotes proliferation, cell invasion, and epithelial-mesenchymal transition via the c-MET signaling pathway (Liu et al., 2016). Interestingly, blocking IRE1α in the stellate cell population reduced tumor-induced activation toward myofibroblasts, which then decreases proliferation and migration of tumor-cells in co-cultures. This suggests that targeting the microenvironment using an ER-stress inhibitor could be a promising strategy for patients with HCC.

The UPR has been described as an essential hallmark of HCC (Shuda et al., 2003), although its role within tumorigenesis remains controversial (Vandewynckel et al., 2013). While a mild-to-moderate level of ER-stress leads to activation of the UPR and enables cancer cells to survive and adapt to adverse environmental conditions, the occurrence of severe or sustained ER-stress leads to apoptosis. Both ER-stress inhibitors and ER-stress inducers have therefore been shown to act as potential anti-cancer therapies (Corazzari et al., 2017). A recent study by Wu et al., 2018, demonstrated that IRE1α promotes progression of HCC and that hepatocyte-specific ablation of IRE1α results in a decreased tumorigenesis. In contrast to their study, we found a greater upregulation of actors of the IRE1α-branch within the stroma than in the tumor itself and identified that expression of these IRE1α-markers was mainly localized within the stellate cell population. An important difference between both studies is the mouse model that was used. While Wu et al used a single injection of DEN, we performed weekly injections, causing tumors to occur in a background of fibrosis, similar to what is seen in patients (Heindryckx et al., 2010). Our in vitro studies with mono-cultures confirm that 4μ8C and transfection with si-IRE1α also has a direct effect on proliferation, migration, and intracellular levels of ROS in HCC-cells – similar to the findings of Wu et al - and the response seems to depend on the tumor cell line. Adding 4μ8C to HepG2-cells significantly increased proliferation, while a significant decrease was seen in the Huh7-cells. This difference in response could be due IRE1α's function as a key cell fate regulator. On the one hand, IRE1α can induce mechanisms that restore protein homeostasis and promote cytoprotection, whereas on the other hand IRE1α also activates apoptotic signaling pathways. How and when IRE1α exerts its cytoprotective or its pro-apoptotic function remains largely unknown. The duration and severity of ER-stress seems to be a major contributor to the switch toward apoptosis, possibly by inducing changes in the conformational structure of IRE1α (Ghosh et al., 2014). The threshold at which cells experience a severe and prolonged ER-stress that would induce apoptosis could differ between different cell lines, depending on the translational capacity of the cells (e.g. ER-size, number of chaperones and the amount of degradation machinery) and the intrinsic sources that cause ER-stress (Cubillos-Ruiz et al., 2017). A study of Li et al., 2012, has specifically looked at how IRE1α regulates cell growth and apoptosis in HepG2-cells. Similar to our findings, they discovered that inhibiting IRE1α enhances cell proliferation, while over-expression of IRE1α increases the expression of polo-like kinase, which leads to apoptosis. Interestingly, polo-like kinases have divergent roles on HCC-cell growth depending on which cell line is used, which could explain the different response to 4μ8C in Huh7 and HepG2-cells (Pellegrino et al., 2010). Studies on glioma cells show that IRE1α regulates invasion through MMPs (Auf et al., 2010). In line with these results, we also detected a reduction of MMP1-mRNA expression after 4μ8C-treatment and observed a direct effect on wound closure in HepG2-cells. These results indicate that IRE1α could play a direct role in regulating tumor cell invasion, in addition to its indirect effect via stellate cells. This is also in line with our findings that silencing IRE1α in the tumor cells affects tumor cell proliferation, although this effect seems to be cell line dependent.

Another possible mechanism that explains the cell line specific differences in response to inhibiting IRE1α, is through the generation of ROS. Studies have shown that IRE1α plays an important role in mediating ROS-generation (Abuaita et al., 2015) and 4μ8C has been described as a potent ROS-scavenger (Chan et al., 2018). IRE1α generates ROS through Ca2+-mediated signaling between the IRE1α-InsP3R pathway in the ER and the redox-dependent apoptotic pathway in the mitochondrion, as well as via activation of CHOP, BIP and through XBP1-splicing (Riaz et al., 2020; Zeeshan et al., 2016). In line with these findings, we found a significant reduction in intracellular ROS-levels after treatment with 4μ8C in LX2, HepG2 and Huh7-cells. Interestingly, a similar reduction in ROS-generation as in the 4μ8C-treated LX2-cells was seen after transfection of LX2-cells, while an increase of ROS-generation was noted in the transfected HepG2-cells. These results indicate that the reduction in ROS could partially be explained through the decreased activation of the IRE1α-pathway in the LX2-cells. However, how the IRE1α-pathway affects the generation of ROS, seems to be cell-type dependent, as we see different results in the different cell lines we tested. This is in line with previous studies, which also observed this cell line dependent effect on IRE1α-dependent ROS-generation (Chan et al., 2018; Zeeshan et al., 2016). The HepG2 and Huh7-cell lines used in this study are known to have different sensitivities to doxorubicin, a property that has been ascribed to their differences in intracellular ROS-generation after treatment with this chemotherapeutic agent (Dubbelboer et al., 2019). Alterations in oxidative stress can affect cell proliferation, specifically in cancer cells and stellate cells (Montiel-Duarte et al., 2004). In addition, ROS is one of the critical mediators of stellate cell activation and ECM-production (Kong et al., 2019). Oxidative stress has been recognized as one of the key factors in the pathogenesis of HCC and treatment strategies aiming at controlling oxidative stress have shown promising pre-clinical results (Takaki and Yamamoto, 2015; Uchida et al., 2020). Therefore, an IRE1α-mediated regulation of ROS-generation might be a contributing factor that explains our findings on stellate cell activation and tumor cell proliferation after inhibiting IRE1α with 4μ8C or transfection. However, more research is necessary to further elucidate the role of IRE1α in mediating ROS-generation in different cell types. In addition, since we see a potent decrease on ROS-levels after treatment with 4μ8C, even in the cells that were transfected with si- IRE1α, we cannot exclude that – at least part – of our results could be explained through the off-target effect of 4μ8C as a ROS-scavenger. Inhibiting oxidative stress has been shown to attenuate tumor progression in different pre-clinical models for HCC and ROS is a known contributor to the chronic liver disease and HCC (Tien Kuo and Savaraj, 2006; Klieser et al., 2019). Further research is necessary to assess to which extent the ROS-scavenging effect in our study has influenced cancer progression.

In conclusion, the aim of this study was to define the role of IRE1α in the cross-talk between hepatic stellate cells and tumor cells in liver cancer. We show that pharmacologic inhibition of the IRE1α-signaling pathway decreases tumor burden in a DEN-induced mouse model for HCC. Using several in vitro 2D and 3D co-culturing methods, we show that tumor cells can induce the IRE1α-branch of the ER-stress pathways in hepatic stellate cells and that this contributes to their activation. Blocking IRE1α-in these hepatic stellate cells prevents their activation. This then contributes to a decreased proliferation and migration of tumor cells in co-cultures, in addition to the direct effect of inhibiting IRE1α in tumor cells. Our results indicate that there are cell-line-specific differences in the response to IRE1α-inhibition, including intercellular variations in how blocking IRE1α affects the generation of ROS.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus)Sv129 miceTaconic129S6HCC mouse model, Heindryckx et al., 2010; Heindryckx et al., 2012
Cell line (Homo sapiens)HepG2ATCCHB-8065
Cell line (Homo sapiens)Huh7Gifted, Karolinska institute
Cell line (Homo sapiens)LX2Sigma-AldrichSCC064
Transfected construct (human)si-IRE1αThermoFishers2004320,1–1 µM
Transfected construct (human)Si-Ctrl; ScrThermoFisher43908430,1–1 µM
AntibodyKI67 (rat monoclonal)eBioscienceSolA151:100
AntibodyEPCAM (rabbit polyclonal)Abcamab719161:100
AntibodySpliced XBP1 (goat monoclonal)AbcamAb855461:50
AntibodyTotal XBP1 (Rabbit polyclonal)AbcamAb371525 µg/ml
AntibodyIRE1a (rabbit polyclonal)AbcamAb370731 µg/ml
Antibodyp-IRE1 (rabbit polyclonal)AbNovaPAB124351:100
AntibodyαSMA (Rabbit Polyclonal)ThermoFisher7104871:200
AntibodyαSMA (Goat monocolonal)AbcamAb210271–2 µg/ml
AntibodyBIP (goat polyclonal)AbcamAb210271 µg/ml
AntibodyVinculin (Mouse monoclonal)ThermoFisher14-9777-821–5 µg/ml
Peptide, recombinant proteinPst-IThermoFisherER0615
Commercial assay or kitPierce BCA-protein assay kitThermoFisher233225
Commercial assay or kitEZNA RNA isolation Kit IIVWRR6934-02
Commercial assay or kitRNeasy Universal Mini KitQiagen73404
Commercial assay or kitDiva Decloacker solutionBiocareDV2004
Commercial assay or kitDCFDA - Cellular ROS Detection Assay KitAbcamab113851
Chemical compound, drugN-Nitrosodiethylamine, DENSigma-Aldrich1002877809
Chemical compound, drug4μ8CSigma-AldrichSML0949-25MGHeindryckx et al., 2016
Chemical compound, drugSB-431541, TGF-ß receptor inhibitorTocris161410 μM
Chemical compound, drugResazurinSigma-AldrichR7017-1G1:80 dilution
Commercial assay or kitIngenio electroporation solutionMirus Bio LLCMIR50114Ice-cold
Commercial assay or kitCellTracker Red CMTPXThermoFisherC345521 μM
Commercial assay or kitCellTracker Green CMFDAThermoFisherC29251 μM
Other12-well CorningCostar TranswellplatesSigma-Aldrich3460Calitz et al., 2020
OtherCorning CostarUltra-Low attachment 96-well platesSigma-AldrichCLS3471Calitz et al., 2019
OtherCellDirectorGradienTech11-001-10Fuchs et al., 2020

Mouse model

Request a detailed protocol

A chemically induced mouse model for HCC was used, as previously described (Heindryckx et al., 2010; Heindryckx et al., 2012). Briefly, 5-week-old male Sv129 mice received intraperitoneal injections once per week with 35 mg/kg bodyweight N-Nitrosodiethylamine (DEN) (1002877809, Sigma-Aldrich, Darmstadt, Germany) diluted in saline. From week 10, mice were injected twice per week with 10 μg/g bodyweight 4μ8C (SML0949-25MG, Sigma-Aldrich, Darmstadt, Germany) in saline. After 25 weeks, mice were euthanized and samples were taken for analysis. The methods were approved by the Uppsala ethical committee for animal experimentation (C95/14). Each group contained eight mice, which generates enough power to pick up statistically significant differences between treatments, as determined from previous experience (Heindryckx et al., 2010; Heindryckx et al., 2012). Mice were assigned to random groups before treatment.

Sampling of animal tissue

Request a detailed protocol

Liver tissue for mRNA-analysis was divided in non-tumor tissue and tumor tissue, by excising macroscopically visible tumors using surgical micro-scissors. Tissue fragments were then immersed in RNA-later solution (Sigma-Aldrich, Darmstadt, Germany) and incubated on ice for 30 min, followed by snap freezing on dry ice and storage in −80°C. For protein analysis, liver tissue was immediately snap frozen without separating tumor and non-tumor tissue. For paraffin-embedding, half of the left liver lobe was rinsed in ice-cold saline solution and fixed in 4% paraformaldehyde for 24 hr.

Olink multiplex proximity extension assay

Request a detailed protocol

Liver samples were homogenized in ice-cold radioimmunoprecipitation assay (RIPA) buffer (20–188, Merck-Millipore, Solna, Sweden), containing Halt Protease inhibitor cocktail (78425, ThermoFisher Scientific, Stockholm, Sweden). Homogenates were kept on ice for 20–30 min, whilst mixing vigorously to enhance disruption of the cell membranes. The homogenates were then centrifuged (20 min, 13,000 rpm, 4°C) and supernatant containing protein was collected. Supernatant was stored at −20°C until protein measurement. Protein concentration was measured using the Pierce BCA-protein assay kit (233225, ThermoFisher Scientific, Stockholm, Sweden) and all samples were diluted to 1 mg/mL protein in RIPA-buffer. Samples from three biological replicates per group were analyzed with a multiplex proximity extension assay for ninety-two biomarkers in the murine exploratory panel (Olink Bioscience, Uppsala, Sweden) (Krauthamer et al., 2013). Samples were loaded at random on the assay plates. Raw data was deposited in Dryad (Heindryckx, 2020).

Cell culture and reagents

Request a detailed protocol

The HCC-cell lines (HepG2, ATCC HB-8065 and Huh7, kind gift from Dilruba Ahmed, Karolinska Institute, Sweden) and the human hepatic stellate cell-line LX2 (SCC064, Sigma-Aldrich, Darmstadt, Germany) were cultured at 37°C with 5% CO2 in high glucose Dulbecco modified eagle medium, GlutaMAX supplemented (DMEM) (31066047, ThermoFisher Scientific, Stockholm, Sweden) supplemented with 1% antibiotic antimycotic solution (A5955-100ML, Sigma-Aldrich, Darmstadt, Germany) followed by 10% and 2% fetal bovine serum (FBS) (10270106, ThermoFisher Scientific, Stockholm, Sweden) for the HCC cell lines and LX2 cell line, respectively (Calitz et al., 2020). No FBS was used during starvation and stimulation with growth factors. Misidentification of the three cell lines was checked at the Register of Misidentified Cell Lines, and none of the chosen cell lines were on the list (Capes-Davis et al., 2010). Extracted DNA from all our cell lines are sent yearly to Eurofins Genomics (Ebersberg, Germany) for cell line authentication using DNA/STR-profiles. Authentication confirmed the correct identity of each cell line and each cell line was tested negative for mycoplasma contamination.

For transwell co-culturing experiments, cells were grown on 12-well Corning Costar Transwell plates (3460, Sigma-Aldrich, Darmstadt, Germany) with 0.4 μm-pore polyester membrane, allowing the exchange of soluble factors, but preventing direct cell contact (Calitz et al., 2020). Cells were detached using 0.05% trypsin-EDTA (15400054, ThermoFisher Scientific, Stockholm, Sweden), re-suspended in growth medium and seeded at a density of 1.0 × 105 cells per well and 4.0 × 104 cells per insert. Cells were allowed to attach and left undisturbed for 8 hr, followed by 16 hr of starvation in serum-free medium. Afterwards, fresh starvation medium containing indicated growth factors or substances were added. Cells were exposed for 48 hr to 50 μM or 100 μM 4μ8C or 10 μM SB-431541 (1614, Tocris, Abingdon, UK), as previously described (Heindryckx et al., 2016).

3D-tumor spheroids were generated in flat bottom Corning Costar Ultra-Low attachment 96-well plates (CLS3471, Sigma-Aldrich, Darmstadt, Germany) (Calitz et al., 2019). After 6 days, spheroids had reached approximately 1 mm2 and 4μ8C was added. Proliferation was monitored during the subsequent 4 days. Tumor spheroids were retrieved from the plates after 10 days and used for immunohistochemical staining.

Human liver scaffold decellularization and cell culture usage

Request a detailed protocol

Human healthy livers were obtained under the UCL Royal Free BioBank Ethical Review Committee (NRES Rec Reference: 11/WA/0077) approval. Informed consent was obtained for each donor and confirmed via the NHSBT ODT organ retrieval pathway (Mazza et al., 2017). Liver 3D-scaffolds, were decellularized, sterilized and prepared for cell culture use, as previously described (Mazza et al., 2017). LX2 and HepG2-cells, as either mono-cultures or mixed co-culture, were at a seeding density of 2.5 × 105 cells in volume of 20 µL per scaffold (Thanapirom et al., 2019).

Proliferation

Request a detailed protocol

Cell proliferation was monitored via a resazurin reduction assay (Präbst et al., 2017). Cells were seeded onto Corning 96-well, flat, clear bottom, black plates (CLS3603-48EA, Sigma-Aldrich, Darmstadt, Germany) at a seeding density of 1.0 × 104 cells for monocultures and a 1:1 ratio of 5.0 × 103 cells for co-cultures, per well. A 1% resazurin sodium salt solution (R7017-1G, Sigma-Aldrich, Darmstadt, Germany) was added in 1/80 dilution to the cells and incubated for 24 hr, after which fluorescent signal was measured with a 540/35 excitation filter and a 590/20 emission filter on a Fluostar Omega plate reader.

Transfections

Request a detailed protocol

Nucleofection with 0.1–1 µM si-IRE1α (s200432, ThermoFisher Scientific, Stockholm, Sweden), or 0.1 µM siCtrl (4390843, ThermoFisher Scientific, Stockholm, Sweden) was done using Amaxa Nucleofector program S-005 (LX2-cells) or T-028 (HepG2 and Huh7) in ice-cold Ingenio electroporation solution (MIR50114, Mirus Bio LLC, Taastrup, Denmark) on 1.0 × 106 cells per transfection. Cells were promptly re-suspended in 2 mL DMEM with 10% FBS and left adhere for 6–8 hr, after which the medium was changed to fresh DMEM. Transfection efficiency was checked 24 hr post-transfection by qPCR. Only one si-RNA was used, as this reduced mRNA expression by >40% in all cell lines.

Migration and chemotaxis

Request a detailed protocol

Non-directional migration was assessed using a scratch wound assay, as previously described (Pinto et al., 2019). In short, cells fluorescently labeled by using CellTracker dye, according to manufacturer's instructions. Cell pellets were incubated 30 min with 1 μM of CellTracker Red CMTPX (C34552, ThermoFisher Scientific, Stockholm, Sweden) or 1 μM of CellTracker Green CMFDA (C2925, ThermoFisher Scientific, Stockholm, Sweden). Cells were washed twice in phosphate buffered saline (PBS) (P4417-100TAB, Sigma-Aldrich, Darmstadt, Germany) and seeded in 12-well plates. The cells were left to reach 100% confluency overnight, after which a scratch was created on the confluent cell layer, using a 200 µL pipette tip. Medium was aspirated from each well and replaced by fresh DMEM containing 10% FBS. Invasion of cells into the scratch wound area was monitored using fluorescence microscopy images and light microscopy images. Scratch size was measured by analyzing light microscopy images in ImageJ, using the MRI Wound Healing Tool plug-in (http://dev.mri.cnrs.fr/projects/imagej-macros/wiki/Wound_Healing_Tool). Image analysis was done in ImageJ.

Directional migration was assessed using CellDirector-devices (11-001-10 GradienTech, Uppsala, Sweden), following manufacturer's recommendations (Fuchs et al., 2020). HepG2 and LX2-cells were labeled with CellTracker-dye and left to adhere overnight in the CellDirector-devices. Non-adherent cells were washed away with DMEM and cells were starved for 1 hr prior to commencing experiments. A gradient of 0% to 10% FBS was created with a flow rate of 1.5 µl/min. Cell movement was recorded using an Axiovision 200M microscope (Zeiss, Stockholm, Sweden) for 4 hr and tracked using Axiovision software (Zeiss, Stockholm, Sweden). During the assay cells were kept at 37 °C with 5% CO2.

Quantitative RT-PCR of mRNA

Request a detailed protocol

RNA was isolated from tissue or cell culture using the EZNA RNA isolation Kit II (R6934-02, VWR, Spånga, Sweden) or using QIAzol lysis reagent (79306, Qiagen, Sollentuna, Sweden) and RNeasy Universal Mini Kit (73404, Qiagen, Sollentuna, Sweden) for human liver scaffolds (Mazza et al., 2017). RNA-concentration and purity were evaluated using Nanodrop. Afterwards, 500 ng of mRNA was reverse transcribed using iScript select cDNA synthesis kit (1708897, Bio-rad, Solna, Sweden). Amplifications were done using primers summarized in Supplementary file 1, table 1. mRNA-expression was normalized to 18S, GAPDH and/or TBP1. Fold change was calculated via the delta-delta-CT method, by using the average CT value of three technical replicates.

The procedure to detect the spliced and unspliced isoforms of XBP1 was done by digesting RT-PCR product with the restriction enzyme Pst-I (ER0615, ThermoFisher Scientific, Stockholm, Sweden). This cleaves unspliced-XBP1 containing the Pst-I-cleavage site (CTGCA^G), but leaves the spliced isoform intact. The digestion reaction was stopped after 18 hr by 0,5M EDTA (pH 8.0) and run on a 2.5% agarose (A9539-250G, Sigma-Aldrich, Darmstadt, Germany) gel for 1 hr at 180V. Nucleic acids were visualized by adding GelRed Nucleic Acid Gel Stain (Biotium, Solna, Sweden) in a 1:10,000 dilution to the agarose gels. Agarose gels were scanned using an Odyssey scanner (LI-COR Biotechnology) and bands were quantified using ImageJ.

Stainings and immunocytochemistry

Request a detailed protocol

Tissue samples were fixed in 4% paraformaldehyde for 24 hr and subsequently embedded in paraffin. Cells and tumor spheroids were fixed for 10 min in 4% paraformaldehyde and stored at 4°C until further processing. Paraffin-embedded tissue samples were cut at 5 μm and dried overnight. Sections were de-paraffinized and rehydrated prior to staining. Collagen was stained using the picrosirius red staining with an incubation time of 30 min, followed by 10 min washing in distilled water (Huang et al., 2013). Haematoxylin-eosin (H and E) staining was done according to standard practice (Cardiff et al., 2014). Images were acquired using a Nikon eclipse 90i microscope equipped with a DS-Qi1Mc camera and Nikon plan Apo objectives. NIS-Elements AR 3.2 software was used to save and export images. Quantification of collagen deposition was performed blindly with ImageJ software by conversion to binary images after color de-convolution to separate Sirius Red staining, as previously described (Ruifrok and Johnston, 2001).

Paraformaldehyde fixed cells and spheroids were washed with tris-buffered saline (TBS) (T5030-50TAB, Sigma-Aldrich, Darmstadt, Germany) and blocked for 30 min using 1% bovine serum albumin in TBS + 0,1% Tween 20 (P7949-500ML, Sigma-Aldrich, Darmstadt, Germany). For liver tissue, antigen retrieval was done at 95°C in sodium citrate buffer or Diva Decloacker solution (DV2004, Biocare, Gothenburg, Sweden). Blocking was done using TNB blocking reagent (FP1020, Perkin-Elmer, Hägersten, Sweden) for 45 min and followed by an overnight incubation at 4°C with primary antibodies (Supplementary file 2, table 2). A 40 min incubation was used for the secondary antibody (Rabbit anti-mouse Alexa Fluor-488 or donkey anti-rabbit Alexa Fluor-633) and cell nuclei were stained with Hoechst for 8 min. Images were taken using an inverted confocal microscope (LSM 700, Zeiss, Stockholm, Sweden) using Plan-Apochromat 20 × objectives and the Zen 2009 software (Zeiss, Stockholm, Sweden). The different channels of immunofluorescent images were merged using ImageJ software. Quantifications were done blindly with ImageJ software by conversion to binary images for each channel and automated detection of staining on thresholded images using a macro.

For histological and immunohistochemical analysis of the human liver scaffolds, 4 μm slides were cut from paraffin embedded blocks. The sections were de-paraffinized and rehydrated prior to staining. To retrieve the antigens, slides were microwaved at high power for 5 min in pre-heated 10 mM sodium citrate buffer, and subsequently left to cool down to room temperature. Following this, a single wash was performed in 100 mM Glycine in PBS, after which the slides were blocked for 2 hr in TNB Blocking Reagent. Slides were then incubated for 2 hr in the following antibodies; KI67 (1:100; SolA15, eBioscience, Stockholm, Sweden), and EPCAM (1:100; ab71916, Abcam, Cambridge, UK). A 1 hr incubation was used for the secondary antibody (goat anti-rat Alexa Fluor 555 and Rabbit anti-mouse Alexa Fluor 488, ThermoFisher, Stockholm, Sweden). Sections were mounted with Fluoromount-G (F4680-25ML, Sigma-Aldrich, Darmstadt, Germany) with DAPI (00-4959-52, Invitrogen, Stockholm, Sweden). Images were taken with using an inverted confocal microscope (LSM 780, Zeiss) using Plan-Apochromat 10 × objectives and the Zen 2009 software (Zeiss).

Enzyme-linked immune sorbent assay (ELISA)

Request a detailed protocol

Medium samples from cells and from the engrafted scaffolds were used to measure TGFβ via ELISA (88-8350-22, ThermoFisher, Stockholm, Sweden), following manufacturer's guidelines. The averages from four biological replicates and two technical replicates were used for calculations.

SDS-PAGE and western blot

Request a detailed protocol

Protein lysates in lysis buffer were mixed with 2x Laemmli buffer and heated to 95 °C for 5 min before being loaded onto a Precast Mini-Protean TGX gels (456–9034, Biorad, Solna, Sweden). After separation, proteins were transferred to an Immobilon-Fl membrane (IPFL0010, Millipore, Solna, Sweden) (Eaton et al., 2014). The membrane was blocked using the Intercept (TBS) blocking buffer (927–60001, Li-Cor, Bad Homburg, Germany) diluted 1:4 in PBS, and then incubated with primary and secondary antibodies. After primary and secondary antibody incubation the membrane was washed 3 × 15 min in PBS-T (PBS + 0.1% Tween20). Primary antibodies used were BIP (ab21685, Abcam, Cambridge, UK), XBP1 (ab37152, Abcam, Cambridge, UK), p-IRE1α (PAB12435, Abnova, Heidelberg, Germany) or vinculin (14-9777-82, ThermoFisher, Stockholm, Sweden), diluted in blocking buffer with 0.1% Tween20. Secondary antibodies used were goat-anti-rabbit Alexa 680 (A21088, Invitrogen, Stockholm, Sweden) and goat-anti-mouse IRDye 800 (Rockland, Stockholm, Sweden), diluted 1:20,000 in blocking buffer with 0.1% Tween20% and 0.01% SDS. All incubations were carried out at room temperature for 1 hr or overnight at 4°C. The membranes were scanned using an Odyssey scanner (LI-COR Biotechnology) and band intensities quantified using the Odyssey 2.1 software and normalized to the vinculin signal in each sample (Eaton et al., 2014).

Gene-set enrichment analysis

Request a detailed protocol

Gene expression profiles of HCC with a fibrous stroma and without fibrous stroma were accessed through PubMed's Gene Expression Omnibus via accession number GSE31370 (Seok et al., 2012). A gene-set containing 79 genes involved in the unfolded protein response was downloaded from The Harmonizome (Rouillard et al., 2016) and GSEA software was used to perform a gene-set enrichment assay (Subramanian et al., 2005).

Reactive oxygen species (ROS) assay

Request a detailed protocol

Generation of ROS was measured using DCFDA - Cellular ROS Detection Assay Kit (ab113851, Abcam, Cambridge, UK) in a microplate format. Cells were seeded in flat clear bottom black 96-well plates at a density of 1.0 × 105 cells/well and left to adhere overnight. On the next day, cells were stained with 25 µM DCFDA for 45 min at 37°C, according to manufacturer’s guidelines. After 6 hr of treatment, fluorescence was measured at 485 nm excitation and 535 nm emission wavelengths, using a Fluostar Omega plate reader. Results of the microplate assay are shown as fold change fluorescence from six biological replicates.

Human protein atlas

Request a detailed protocol

Images from biopsies from; HCC patients stained with antibodies against WIPI1 (The Human Protein Atlas, 2019d), SHC1 (The Human Protein Atlas, 2019a), PPP2R5B (The Human Protein Atlas, 2019b) and BIP (The Human Protein Atlas, 2019c) were obtained through the Human Protein Atlas (Uhlén et al., 2015).

Statistics

Data are presented as mean ± standard error of the mean. Statistical significance was determined using an unpaired, two-tailed Student’s T-test or one-way analysis of variance (ANOVA) followed by Tukey's multiple comparison test. Survival curves were generated with the Kaplan-Meier method and statistical comparisons were made using the log-rank method. p-values<0.05 were considered statistically significant. In vitro experiments were done in at least three biological replicates, which we define as parallel measurements of biologically distinct samples taken from independent experiments. Technical replicates we define as loading the same sample multiple times on the final assay. The in vivo experiments were done on at least five independent animals. Outliers were kept in the analyses, unless they were suspected to occur due to technical errors, in which case the experiment was repeated.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Quantification of histochemical staining by color deconvolution
    1. AC Ruifrok
    2. DA Johnston
    (2001)
    Analytical and Quantitative Cytology and Histology 23:291–299.
  69. 69
  70. 70
    ER stress and the unfolded protein response
    1. M Schröder
    2. RJ Kaufman
    (2005)
    Mutation Research/Fundamental and Molecular Mechanisms of Mutagenesis 569:29–63.
    https://doi.org/10.1016/j.mrfmmm.2004.06.056
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
    Liver cancer
    1. The Human Protein Atlas
    (2019a)
    Accessed September 5, 2019.
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
    The paradox of the unfolded protein response in Cancer
    1. YP Vandewynckel
    2. D Laukens
    3. A Geerts
    4. E Bogaerts
    5. A Paridaens
    6. X Verhelst
    7. S Janssens
    8. F Heindryckx
    9. H Van Vlierberghe
    (2013)
    Anticancer Research 33:4683–4694.
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92

Decision letter

  1. Lynne-Marie Postovit
    Reviewing Editor; University of Alberta, Canada
  2. Päivi M Ojala
    Senior Editor; University of Helsinki, Finland
  3. Lynne-Marie Postovit
    Reviewer; University of Alberta, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The current manuscript reveals a previously unappreciated role for the unfolded protein response (UPR) in Hepatocellular carcinoma (HCC) progression. The authors demonstrate that factors, such as Transforming Growth Factor Β (TGFb), which are secreted by HCC cells cause the UPR concomitant with an activated phenotype in stellate cells. Activated stellate cells subsequently support HCC progression via an IRE1a-RNAse dependent mechanism. Accordingly, inhibiting IRE1a RNAse activity may be used to uncouple dynamic reciprocities between HCC and stromal stellate cells in order to mitigate neoplastic progression.

Decision letter after peer review:

Thank you for submitting your article "Inhibiting endoplasmic reticulum stress decreases tumor burden in a mouse model for hepatocellular carcinoma" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Lynne-Marie Postovit as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Päivi Ojala as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to their labs, we will give authors as much time as they need to submit revised manuscripts. We are also strongly recommending you to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. eLife is aiming to make posting to bioRxiv or medRxiv – either by the authors or the journal – the default for all eLife submissions. Authors will be able to opt out, but we will strongly encourage them not to. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The current manuscript by Pavlovic et al. focuses on the role of ER stress and UPR activation in communication between hepatocellular cancer cells (HCC) and hepatic stellate cells. This study builds upon a recent EMBO Molecular Medicine paper by the same group which reported a role for IRE1 in α-SMA activation in stellate cells treated with TGF-β. In the current study, the authors suggest that TGF-β from HCC cells causes the UPR in stellate cells and that these cells subsequently support pro-tumorigenic properties through an IRE1a-RNAse-dependent mechanism. While 4u8C (an IRE1alpha RNAse inhibitor) did seem to prevent pro-tumorigenic phenomena induced when HCC and LX2 stellate cells were co-cultured; the manuscript failed to convincingly demonstrate a role for HCC-derived TGF-β in the process. Moreover, mechanistic insight regarding how IRE1alpha RNAase activity in stellate cells may be promoting a pro-tumorigenic niche was lacking. Hence, the paper would require extensive revision before it would be acceptable for publications in eLife.

Essential revisions:

1) Many of the experiments related to the activation of the UPR were overly simplified with only certain aspects of each arm explored. For example, the data presented is limited to BiP, IRE1 and in some cases CHOP. To make such generalized statements referring to the UPR other arms PERK and ATF6 should also be included or the text amended to reflect that a full profile of UPR activation has not been completed.

2) The role of XBP-1 splicing / IRE1a-RNAse activity must be better substantiated, particularly since results often contradict each other, with variability in the effect of 4u8C. Validation or verification strategies must be included to verify the functionality of 4u8c inhibition, particularly in vivo. This could be done, for example, by assessing XBP1 splicing via QPCR or IHC in the DEN induced in vivo model. In addition, genetic approaches such as IRE1 knockdown or knockout are required to solidify those results obtained with 4u8c in the in vitro models, particularly given the potential for off-target effects (such as ROS generation) which may occur at the relatively high concentration of 4u8c (100uM) used in the current study. This was exasperated by the fact that 4u8c reduced phosphorylation of IRE1. In the original study Cross et al. (PNAS 2012) 32uM of 4u8c blocked XBP1 splicing in response to thapsigarin but did not alter IRE1 phosphorylation. Hence, the specificity of the P-IRE1 antibody used in this study should be validated.

3) The results in Figure 4—figure supplement 1 actually refute the hypothesis that HCC-derived TGFβ may be promoting the UPR in stellate cells. In fact, the results rather suggest that an autocrine signaling mechanism may be playing a role in the LX2 cells and that the HepG2 cells may even prevent this somehow. Accordingly, another mechanism of action should be considered using genetic approaches in the stellate versus HCC cells and/or the conclusions drawn from this work should be altered.

4) The quality of the microscopy images presented could in many instances be improved. The co-localization referred to by the authors in many figures e.g. Supplemental Figure 1D and E is not convincing. In Supplemental Figure 1 E, the staining looks to be in the pericytes. Please include more pictures and/or ensure cells are stellate cells.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Inhibiting IRE1α-endonuclease activity decreases tumor burden in a mouse model for hepatocellular carcinoma." for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Päivi Ojala as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

The revised manuscript has been looked at again by the reviewers. While the paper has been improved, a number of concerns remain, which I believe are significant enough to warrant further revisions.

Revisions for this paper:

Significant concerns remain regarding the of target effect of 4u8c. While we agree that IRE1 signalling itself could be triggering ROS, it would be prudent to ensure that the observations attributed to 4u8c in this study are due to its on-target effect on IRE1 and not its off-target antioxidant effect as has previously been reported. The authors should add 4u8c to IRE1 knockout cells, at least in the HepG2 cell line wherein it seems that ROS levels are deferentially affected by 4u8c and IRE1 knockdown.

This revised panels in Figure 2 and Figure 2—figure supplement 1 do not convincingly demonstrate co-localisation with XBP1s. Specifically, the level of signal for IRE1, p-IRE1 and BiP is very low, making it difficult to formulate a conclusion. Please improve these panels.

Please correct labelling and include molecular weight markers in Figure 2E. As it stands, the molecular weights of the bands indicated on the Western blot do not correspond to XBP1 unspliced (which should be 33kDa) and spliced (which should be 55 kDa).

In Figure 2H, XBP1s localisation seems to be entirely cytoplasmic. This is rather unexpected as at least some XBP1s would be expected to localise to the nucleus. Please comment on this result in relation to the extant literature.

In Figure 4, lanes 2 and 4 have no product, despite the fact that Pst1 should digest XBP1 unspliced but not XBP1 spliced. The authors should carefully check and/or comment upon this result.

Please confirm IRE1 knockdown at the protein level.

https://doi.org/10.7554/eLife.55865.sa1

Author response

Essential revisions:

1) Many of the experiments related to the activation of the UPR were overly simplified with only certain aspects of each arm explored. For example, the data presented is limited to BiP, IRE1 and in some cases CHOP. To make such generalized statements referring to the UPR other arms PERK and ATF6 should also be included or the text amended to reflect that a full profile of UPR activation has not been completed.

We completely agree that this manuscript mainly focusses on the IRE1a branch of the UPR. We have therefore updated the text, so that we do not make generalized statements regarding ER-stress, but specify that the effects we see is through IRE1a. In addition, we have also presented more data regarding the involvement of PERK and ATF6 in the animal model (Figure 2A) and the co-cultures (Figure 4A).

2) The role of XBP-1 splicing / IRE1a-RNAse activity must be better substantiated, particularly since results often contradict each other, with variability in the effect of 4u8C. Validation or verification strategies must be included to verify the functionality of 4u8c inhibition, particularly in vivo. This could be done, for example, by assessing XBP1 splicing via QPCR or IHC in the DEN induced in vivo model.

Thank you for this suggestion. It is important to note that we have used a concentration of 4u8C that has been shown to be effective in several other in vivo studies [1-3]. We have now looked at the effect of 4u8C via PCR + enzymatic digestion with Pst-I, Western blot and immunohistochemical staining (Figure 2D-I). This shows that 4u8C-treatment decreases splicing of XBP1 in our mouse model.

In addition, genetic approaches such as IRE1 knockdown or knockout are required to solidify those results obtained with 4u8c in the in vitro models, particularly given the potential for off-target effects (such as ROS generation) which may occur at the relatively high concentration of 4u8c (100uM) used in the current study. This was exasperated by the fact that 4u8c reduced phosphorylation of IRE1. In the original study Cross et al. (PNAS 2012) 32uM of 4u8c blocked XBP1 splicing in response to thapsigarin but did not alter IRE1 phosphorylation. Hence, the specificity of the P-IRE1 antibody used in this study should be validated.

The concentration of 4u8C that we used are within the range of what is described in literature [1-4]. In the original study from Cross et al., no reduction in p-IRE1a was seen after treatment with 4u8C [5]. However, subsequent studies have also shown that 4u8C treatment can reduce IRE1a-phosphorylation. The Nelson et al. (J. Immunol, 2018) study described 4u8C as an inhibitor of IRE1a-phosphorylation in B cells [6, 7]. Similarly, treatment with 4u8C reduced the protein levels of p-IRE1a in Hela cells [8] and in tunicamycin-induced cardiomyocytes [9].

To assess if the effect is through generation of ROS, we have quantified the intracellular ROS levels after treatment with 50uM and 100 μm of 4u8C (Figure 10). After 6 hours, 4u8C decreased the generation of ROS in LX2, HepG2 and Huh7 cells in both concentrations. This could mean that the results could be partially caused by decreasing ROS-generation. This is in line with the study from Chan et al. (2018), who describes that 4u8C is a potent ROS-scavenger [5]. However, studies have shown that IRE1a itself plays an important role in the generation of ROS [10]. IRE1α generates ROS through Ca2+- mediated signaling between the IRE1α-InsP3R pathway in the ER and the redox-dependent apoptotic pathway in the mitochondrion, as well as via induction of activation of CHOP, BiP and through spliced XBP1 [10-12]. Therefore, the relation between IRE1a reduction with 4u8C and the effect on ROS-generation might be more complicated. To support this, we transfected LX2-cells, HepG2-cells and Huh7-cells with si-IRE1a. Interestingly, a similar reduction in ROS generation was seen after transfection of LX2-cells as in the 4u8C-treated LX2-cells, while an increase of ROS generation was noted in the transfected HepG2-cells. These results indicate that the reduction in ROS could partially be explained through the decreased activation of the IRE1a-pathway in the LX2-cells. However, how the IRE1a-pathway affects the generation of ROS, seems to be cell-type dependent, as we see different results in the different cell lines we tested. This is in line with previous studies, which also observed this cell-line dependent effect on IRE1a-dependent ROS-generation.

To further solidify our results obtained with 4u8C, we have done transfections in the in vitro models (Figure 9 and Figure 9—figure supplement 1) using an siRNA that silences IRE1a in the hepatic stellate cells and tumor cells. Silencing IRE1a in the LX2 cells significantly decreases mRNA expression of proliferation marker PCNA, as well as the relative cell number measured by resazurin reduction assay in co-cultures. Similarly, silencing IRE1a in the HepG2 cells decreased proliferation by 45% in the monocultures and 30% in the co-cultures. In contrast to this, we saw an increase of 47% and 27% after silencing IRE1a in the Huh7 monocultures and co-cultures. We have now changed the conclusions of the manuscript so that we not only focus on the effect on stellate cells, but also explain that part of the results can be explained through a direct effect on tumor cells, which seems to be cell-line specific.

To test whether these differences between the cell lines could be attributed to differences in ROS-generation, we measured ROS using DCFDA (Figure 10). We observed that transfecting the different cell lines with si-IRE1a affected the generation of ROS, but the extend and direction of this effect seemed to be cell line dependent. Oxidative stress can affect cell proliferation, specifically in cancer cells and stellate cells. In addition, ROS is one of the critical mediators of stellate cell activation and ECM-production. Therefore, our results can also be explained through IRE1a-dependent mechanisms of ROS-generation. Further studies are needed to verify this interesting link between IRE1a and ROS-generation, however, we feel like this is beyond the scope of our current study. This has now been added to the Discussion.

3) The results in Figure 4—figure supplement 1 actually refute the hypothesis that HCC-derived TGFβ may be promoting the UPR in stellate cells. In fact, the results rather suggest that an autocrine signaling mechanism may be playing a role in the LX2 cells and that the HepG2 cells may even prevent this somehow. Accordingly, another mechanism of action should be considered using genetic approaches in the stellate versus HCC cells and/or the conclusions drawn from this work should be altered.

We have now added additional data showing the effect of IRE1a-silencing in the HCC-cells compared to the silencing in the LX2-cells, provide an alternative mechanism through the effect of IRE1a-inhibition on ROS-production and also mention other alternative mechanisms in the Discussion.

4) The quality of the microscopy images presented could in many instances be improved. The co-localization referred to by the authors in many figures e.g. Supplemental Figure 1D and E is not convincing. In Supplemental Figure 1 E, the staining looks to be in the pericytes. Please include more pictures and/or ensure cells are stellate cells.

We have included more images to the manuscript (Figure 2—figure supplement 1) and also clarify that there is some co-localization, but that the expression is not exclusively located in the hepatic stellate cells. It is also important to note that hepatic stellate cells are liver-specific pericytes, that reside in the perisinusoidal space of Disse, between endothelial cells and hepatocytes.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Revisions for this paper:

Significant concerns remain regarding the of target effect of 4u8c. While we agree that IRE1 signalling itself could be triggering ROS, it would be prudent to ensure that the observations attributed to 4u8c in this study are due to its on-target effect on IRE1 and not its off-target antioxidant effect as has previously been reported. The authors should add 4u8c to IRE1 knockout cells, at least in the HepG2 cell line wherein it seems that ROS levels are deferentially affected by 4u8c and IRE1 knockdown.

For the revised version of this manuscript, we have added the requested experiment and we indeed see that 4u8C continues to decrease ROS-production in the transfected cells. We agree that part of the results could be explained through an off-target effect and more experiments are needed to assess this possibility. Therefore, we have altered our claims in the Discussion and specify that an off-target effect is also a possible explanation for some of the conclusions drawn in this paper. We are continuing our studies on the effect of 4u8C as a ROS-scavenger, as well as the potential interaction between the IRE1a-pathway and ROS-generation. In a preliminary experiment, we found that treatment with the ER-stress inducer tunicamycin, increases the levels of ROS in HepG2 and Huh7 cell lines, thus possibly supporting our hypothesis that there is an interaction between ER-stress pathways and ROS-generation (Author response image 1A). In this experiment we did not observe the same markable decrease in ROS-production after 4u8C-treatment, however, it is important to note that this was measured after a 2 hour incubation time, while in the manuscript we used 6 hours. Treatment with 4u8C seems to affect ROS-generation in a time-dependent matter, so this would probably explain the discrepancy (Author response image 1B).

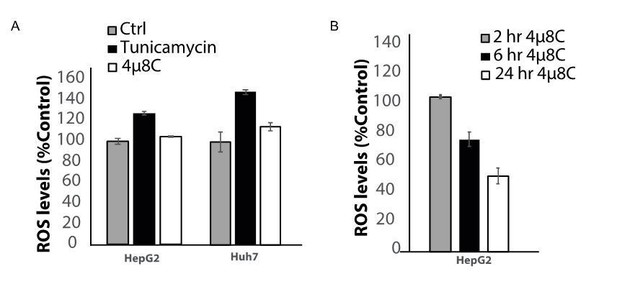

Author response image 1
Effect of ER-stress on ROS production.

(A) the ER-stress inducer increases ROS levels in HepG2 and Huh7 cells. (B) The ROS-scavenging effect of 4u8C increases over time.

In our ongoing studies, we also found co-culturing cells in different combinations with an IRE1a-silenced cell line affects ROS-levels and that this effect is different compared to mono-cultured cell lines (Author response image 2). The most remarkable finding from this experiment is that transfecting LX2-cells with si-IRE1a increases ROS-generation in the LX2 + HepG2 co-culture, while a decrease is seen in the LX2-monoculture (Author response image 2A). More studies are necessary to verify what this means in terms of explaining the interaction between stellate cells and tumor cells. The generation of ROS is a very well-known contributor to stellate cell activation in chronic liver disease, as infiltrated inflammatory cells and Kupffer cells produce ROS to induce activation and proliferation of stellate cells. However, ROS-generation can also have the opposite effect, as exogenous and intracellular oxidative stress can induce cell death of activated stellate cells, thereby contributing to the resolution of fibrosis. We hope to study the role of IRE1a-mediated ROS-generation in the interaction between stellate cells and tumor cells in the future, either by adding additional information to this existing paper (through BioRxiv or eLife´s Research Advance) or publish this as a follow-up paper.

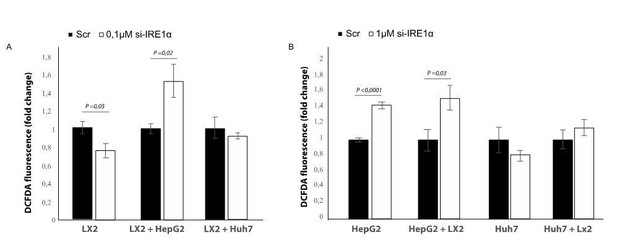

Author response image 2
Effect of silencing IRE1a in different co-culture conditions.

(A) LX2-cells transfected with si-RNA targeting IRE1a or mock-transfected (Scr) in mono-culture or co-culture with tumor cells (HepG2 and Huh7). (B) HepG2 or Huh7-cells transfected with si-RNA targeting IRE1a or mock-transfected (Scr) in mono-culture or co-culture with LX2-stellate cells.

This revised panels in Figure 2 and Figure 2—figure supplement 1 do not convincingly demonstrate co-localisation with XBP1s. Specifically, the level of signal for IRE1, p-IRE1 and BiP is very low, making it difficult to formulate a conclusion. Please improve these panels.

We have now added another supplementary figure, where we provide images at a higher magnification. We would like to point out that we do not use the term “co-localization” as it is unlikely that there would be expression of XBP1s and aSMA within the same pixel. What we state in the text is that expression of aSMA and several ER-stress markers is localized within close proximity from each other and that it is probably localized within the same cell, especially when considering the location of the nearby nuclei on Hoechst staining. We hope that the higher magnification clarifies this issue.

Please correct labelling and include molecular weight markers in Figure 2E. As it stands, the molecular weights of the bands indicated on the Western blot do not correspond to XBP1 unspliced (which should be 33kDa) and spliced (which should be 55 kDa).

Thank you for pointing this out, we have now corrected this in the figure.

In Figure 2H, XBP1s localisation seems to be entirely cytoplasmic. This is rather unexpected as at least some XBP1s would be expected to localise to the nucleus. Please comment on this result in relation to the extant literature.

Indeed, we do not observe a clear nuclear expression of spliced XBP1, which is in contrast to the study of Yoshida et al., which shows that spliced XBP1 predominantly localizes in the nucleus of HeLa-cells exposed to acute ER-stress [13]. This study also describes a mechanism whereby unspliced-XBP1 forms a complex with the spliced isoform, thereby exporting it from the nucleus to the cytoplasm, resulting in subsequent degradation by the proteasome. However, this event has been described during the recovery phase of an acute ER-stress event. In our mouse model, we have treated the mice with a carcinogenic compound for 25 weeks, which results in a chronic inflammation and a subsequent activation of the ER-stress pathways. It is therefore not unlikely that different cells in this model are experiencing different phases of acute ER-stress and recovery. At a higher magnification, it becomes clear that the expression of spliced XBP1 is not only cytoplasmic but some staining appears peri-nuclear and nuclear. This could represent different stages of ER-stress activation and recovery in different cell populations; however, more experiments would be needed to verify this hypothesis. A summarized version of this explanation has been added to the Discussion.

In Figure 4, lanes 2 and 4 have no product, despite the fact that Pst1 should digest XBP1 unspliced but not XBP1 spliced. The authors should carefully check and/or comment upon this result.

We are aware of that there seems to be no product in lanes 2 and 4 in the image provided in the manuscript. We have first checked several issues to verify that this is not due to a technical artifact. Firstly, all conditions contain the same amount of cDNA. This cDNA has also been used for qPCR, where all samples have a stable expression the reference genes. Secondly, in other biological replicates of this experiment we did observe a faint band in these lanes (Author response image 3). Thirdly, when looking at the raw qPCR-data from spliced and unspliced XBP1, we also note that in samples from these conditions have a very low expression of unspliced XBP1, with CT values between 30 and 34, while GAPDH comes up around cycle 20. Therefore, we suspect that this is due to a low expression of total XBP1 (spliced and unspliced). Discrepancies between the baseline expressions of XBP1 can be observed between different studies, depending on the cell type or tissue used. For instance, the study of Cassimeris et al., describes barely detectable levels of both spliced and unspliced XBP1 in epidermal keratinocytes of the healthy hind limbs of animals with endocrinopathic equine laminitis, while a high level of total XBP1 was observed in these cells derived from the diseased front limbs of the same animal [14]. These levels correlated with the overall levels of ER-stress, which differed between diseased and healthy tissue and thereby suggest that both unspliced and spliced XBP1 can be affected by levels of ER-stress. In line with our findings, the study of Kishino et al. (2017) reports constitutively low levels of unspliced XBP1 in untreated auditory cells, which increases during tunicamycin-induced ER-stress. In this study, the expression level of unspliced XBP1 peaked at 24 h and decreased at 48 h after the treatment with tunicamycin, thus suggesting that levels of unspliced XBP1 can also be affected by the levels of ER-stress in a time-dependent matter [15]. The conditions where we observe lower levels of both unspliced and spliced XBP1 correspond to those where we expect to see generally low levels of IRE1a activation, namely LX2-monocultures and LX2+Hep2 co-cultures treated with 4u8C. A summarized version of this explanation has been added to the Discussion.

Author response image 3
Visible bands in lane 2 and 4, which corresponds to LX2-monocultures and LX2+Hep2 co-cultures treated with 4u8C.

Please confirm IRE1 knockdown at the protein level.

We did not have an optimized protocol for western blot using the IRE1a antibody that we use in our lab. During one of our first tests, we managed to see a protein band for IRE1a in the Huh7-cells, clearly showing that the si-RNA decreased protein levels of IRE1a (Author response image 4). Unfortunately, we have used up all the si-RNA reagents at the moment and cannot repeat this experiment on the LX2 and HepG2 cells. A new order has been placed, but due to the ongoing COVID19 pandemic both the si-RNA and the Ingenio electroporation solution are currently back-ordered. We understand that this experiment is an important part of eLife´s quality control, however, we hope that the editor and reviewers are understanding about the current unusual conditions and that we can submit this information at a later time-point through biorxiv.

Author response image 4
Protein levels of IRE1a in mock transfected and si-IRE1a transfected Huh7 cells.

References:

1. Heindryckx, F., et al., Endoplasmic reticulum stress enhances fibrosis through IRE1alpha-mediated degradation of miR-150 and XBP-1 splicing. EMBO Mol Med, 2016. 8(7): p. 729-44.2. Qiu, Q., et al., Toll-like receptor-mediated IRE1alpha activation as a therapeutic target for inflammatory arthritis. EMBO J, 2013. 32(18): p. 2477-90.3. Lebeaupin, C., et al., Bax inhibitor-1 protects from nonalcoholic steatohepatitis by limiting inositol-requiring enzyme 1 α signaling in mice. Hepatology, 2018. 68(2): p. 515-532.4. Stewart, C., et al., Regulation of IRE1alpha by the small molecule inhibitor 4mu8c in hepatoma cells. Endoplasmic Reticulum Stress Dis, 2017. 4(1): p. 1-10.5. Chan, S.M.H., et al., The inositol-requiring enzyme 1 (IRE1alpha) RNAse inhibitor, 4micro8C, is also a potent cellular antioxidant. Biochem J, 2018. 475(5): p. 923-929.6. Nelson, A.M., et al., RNA Splicing in the Transition from B Cells to Antibody-Secreting Cells: The Influences of ELL2, Small Nuclear RNA, and Endoplasmic Reticulum Stress. J Immunol, 2018. 201(10): p. 3073-3083.7. Carew, N.T., et al., Linking Endoplasmic Reticular Stress and Alternative Splicing. Int J Mol Sci, 2018. 19(12).8. Li, Y., et al., eIF2alpha-CHOP-BCl-2/JNK and IRE1alpha-XBP1/JNK signaling promote apoptosis and inflammation and support the proliferation of Newcastle disease virus. Cell Death Dis, 2019. 10(12): p. 891.9. Liu, M., et al., Activation of the unfolded protein response downregulates cardiac ion channels in human induced pluripotent stem cell-derived cardiomyocytes. J Mol Cell Cardiol, 2018. 117: p. 62-71.10. Zeeshan, H.M., et al., Endoplasmic Reticulum Stress and Associated ROS. Int J Mol Sci, 2016. 17(3): p. 327.11. Abuaita, B.H., et al., The Endoplasmic Reticulum Stress Sensor Inositol-Requiring Enzyme 1alpha Augments Bacterial Killing through Sustained Oxidant Production. mBio, 2015. 6(4): p. e00705.12. Riaz, T.A., et al., Role of Endoplasmic Reticulum Stress Sensor IRE1alpha in Cellular Physiology, Calcium, ROS Signaling, and Metaflammation. Cells, 2020. 9(5).13. Yoshida, H.; Oku, M.; Suzuki, M.; Mori, K., pXBP1(U) encoded in XBP1 pre-mRNA negatively regulates unfolded protein response activator pXBP1(S) in mammalian ER stress response. J Cell Biol 2006, 172, (4), 565-75.14. Cassimeris, L.; Engiles, J. B.; Galantino-Homer, H., Detection of endoplasmic reticulum stress and the unfolded protein response in naturally-occurring endocrinopathic equine laminitis. BMC Vet Res 2019, 15, (1), 24.15. Kishino, A.; Hayashi, K.; Hidai, C.; Masuda, T.; Nomura, Y.; Oshima, T., XBP1-FoxO1 interaction regulates ER stress-induced autophagy in auditory cells. Sci Rep 2017, 7, (1), 4442.

https://doi.org/10.7554/eLife.55865.sa2

Article and author information

Author details

  1. Nataša Pavlović

    Department of Medical Cell Biology, Uppsala University, Uppsala, Sweden
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Carlemi Calitz

    Department of Medical Cell Biology, Uppsala University, Uppsala, Sweden
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Kess Thanapirom

    Regenerative Medicine & Fibrosis Group, Institute for Liver and Digestive Health, University College London, London, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Guiseppe Mazza

    Regenerative Medicine & Fibrosis Group, Institute for Liver and Digestive Health, University College London, London, United Kingdom
    Contribution
    Validation, Methodology
    Competing interests
    No competing interests declared
  5. Krista Rombouts

    Regenerative Medicine & Fibrosis Group, Institute for Liver and Digestive Health, University College London, London, United Kingdom
    Contribution
    Supervision, Investigation, Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Pär Gerwins

    1. Department of Medical Cell Biology, Uppsala University, Uppsala, Sweden
    2. Department of Radiology, Uppsala University Hospital, Uppsala, Sweden
    Contribution
    Supervision, Funding acquisition, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Femke Heindryckx

    Department of Medical Cell Biology, Uppsala University, Uppsala, Sweden
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    femke.heindryckx@mcb.uu.se
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1987-7676

Funding

Cancerfonden (CAN 2017/518)

  • Femke Heindryckx

Svenska Sällskapet för Medicinsk Forskning (S17-0092)

  • Femke Heindryckx

O. E. och Edla Johanssons Vetenskapliga Stiftelse

  • Femke Heindryckx

Olga Jonssons stiftelse

  • Femke Heindryckx

Cancerfonden (CAN2013/1273)

  • Femke Heindryckx

Barncancerfonden

  • Pär Gerwins

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research was funded through grants obtained from the Swedish Cancer Foundation (Cancerfonden, CAN2017/518 and CAN2013/1273), The Swedish children’s cancer foundation (Barncancerfonden), the Swedish society for medical research (SSMF, S17-0092), the OE och Edla Johanssons stiftelse and Olga Jönssons stiftelse. These funding sources were not involved in the study design; collection, analysis and interpretation of data; writing of the report; and in the decision to submit the article for publication. We would like to thank visiting students Kim Vanhollebeke and Justine Dobbelaere for their technical assistance; GradienTech for providing us with their CellDirector assays and Paul O´Callaghan for his valuable input on our project.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations by FELASA. All of the animals were handled according to approved institutional animal care and Uppsala University approved protocols were used. The protocol was approved by the Committee on the Ethics of Animal Experiments of Uppsala (C95/14). All effort was made to minimise suffering and to decrease animal usage.

Senior Editor

  1. Päivi M Ojala, University of Helsinki, Finland

Reviewing Editor

  1. Lynne-Marie Postovit, University of Alberta, Canada

Reviewer

  1. Lynne-Marie Postovit, University of Alberta, Canada

Publication history

  1. Received: February 9, 2020
  2. Accepted: October 26, 2020
  3. Accepted Manuscript published: October 26, 2020 (version 1)
  4. Version of Record published: November 12, 2020 (version 2)

Copyright

© 2020, Pavlović et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 570
    Page views
  • 114
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    Isabelle Schmutz et al.
    Research Article

    Telomere shortening is a presumed tumor suppressor pathway that imposes a proliferative barrier (the Hayflick limit) during tumorigenesis. This model predicts that excessively long somatic telomeres predispose to cancer. Here, we describe cancer-prone families with two unique TINF2 mutations that truncate TIN2, a shelterin subunit that controls telomere length. Patient lymphocyte telomeres were unusually long. We show that the truncated TIN2 proteins do not localize to telomeres, suggesting that the mutations create loss-of-function alleles. Heterozygous knock-in of the mutations or deletion of one copy of TINF2 resulted in excessive telomere elongation in clonal lines, indicating that TINF2 is haploinsufficient for telomere length control. In contrast, telomere protection and genome stability were maintained in all heterozygous clones. The data establish that the TINF2 truncations predispose to a tumor syndrome. We conclude that TINF2 acts as a haploinsufficient tumor suppressor that limits telomere length to ensure a timely Hayflick limit.

    1. Cancer Biology
    2. Cell Biology
    Rui Tang et al.
    Tools and Resources Updated

    Cell-cell interactions influence all aspects of development, homeostasis, and disease. In cancer, interactions between cancer cells and stromal cells play a major role in nearly every step of carcinogenesis. Thus, the ability to record cell-cell interactions would facilitate mechanistic delineation of the role of the cancer microenvironment. Here, we describe GFP-based Touching Nexus (G-baToN) which relies upon nanobody-directed fluorescent protein transfer to enable sensitive and specific labeling of cells after cell-cell interactions. G-baToN is a generalizable system that enables physical contact-based labeling between various human and mouse cell types, including endothelial cell-pericyte, neuron-astrocyte, and diverse cancer-stromal cell pairs. A suite of orthogonal baToN tools enables reciprocal cell-cell labeling, interaction-dependent cargo transfer, and the identification of higher order cell-cell interactions across a wide range of cell types. The ability to track physically interacting cells with these simple and sensitive systems will greatly accelerate our understanding of the outputs of cell-cell interactions in cancer as well as across many biological processes.
