Therapeutic effects of anodal transcranial direct current stimulation in a rat model of ADHD

  1. Da Hee Jung
  2. Sung Min Ahn
  3. Malk Eun Pak
  4. Hong Ju Lee
  5. Young Jin Jung
  6. Ki Bong Kim
  7. Yong-Il Shin
  8. Hwa Kyoung Shin
  9. Byung Tae Choi  Is a corresponding author
  1. Department of Korean Medical Science, School of Korean Medicine, Pusan National University, Republic of Korea
  2. Graduate Training Program of Korean Medicine for Healthy Aging, Pusan National University, Republic of Korea
  3. Korean Medical Science Research Center for Healthy Aging, Pusan National University, Republic of Korea
  4. Department of Radiological Science, Health Science Division, Dongseo University, Republic of Korea
  5. Department of Korean Pediatrics, School of Korean Medicine, Pusan National University, Republic of Korea
  6. Department of Rehabilitation Medicine, School of Medicine, Pusan National University, Republic of Korea

Abstract

Most therapeutic candidates for treating attention-deficit hyperactivity disorder (ADHD) have focused on modulating the dopaminergic neurotransmission system with neurotrophic factors. Regulation of this system by transcranial direct current stimulation (tDCS) could contribute to the recovery of cognitive symptoms observed in patients with ADHD. Here, male spontaneously hypertensive rats (SHR) were subjected to consecutive high-definition tDCS (HD-tDCS) (20 min, 50 μA, current density 63.7 A/m2, charge density 76.4 kC/m2) over the prefrontal cortex. This treatment alleviated cognitive deficits, with an increase in tyrosine hydroxylase and vesicular monoamine transporter two and significantly decreased plasma membrane reuptake transporter (DAT). HD-tDCS application increased the expression of several neurotrophic factors, particularly brain-derived neurotrophic factor (BDNF), and activated hippocampal neurogenesis. Our results suggest that anodal HD-tDCS over the prefrontal cortex may ameliorate cognitive dysfunction via regulation of DAT and BDNF in the mesocorticolimbic dopaminergic pathways, and therefore represents a potential adjuvant therapy for ADHD.

Introduction

Attention-deficit hyperactivity disorder (ADHD) is a heterogeneous neuropsychiatric disorder highly prevalent in children, characterized by impairments in attention and/or hyperactivity-impulsivity (Faraone et al., 2015; Tsai, 2017). Psychostimulants, such as amphetamine and methylphenidate (MPH) that work by increasing central dopamine and norepinephrine activity in the brain, are recommended as first-line pharmacological therapy for patients with ADHD (Faraone, 2018). Although these drugs impact executive and attentional functions, some patients fail to respond or experience adverse effects including cardiovascular effects, and discontinue the treatment (Faraone, 2018; Tsai, 2017).

The pathogenesis of ADHD is not fully understood, but genetic factors play a significant role in its development (Kent, 2004). Most therapeutic candidates have focused on modulating the dopaminergic neurotransmission system, with additional candidates involving the noradrenergic and serotonergic systems (Banaschewski et al., 2010; Kent, 2004). In particular, the neurotransmitter dopamine plays an important role in behavioral processes such as cognition and emotional processing; therefore, its dysfunction is involved in several neuropsychiatric disorders including ADHD (Faraone and Biederman, 1998; Leo et al., 2018). Alterations in dopaminergic neurotransmission within the mesocorticolimbic system are involved in the pathophysiology of ADHD, with functional abnormalities in fronto-basal ganglia networks (Biederman and Faraone, 2002; Hart et al., 2013).

Genes associated with neuronal development and plasticity are considered another important target in the clinical manifestation and pathogenesis of ADHD (Banaschewski et al., 2010; Galvez-Contreras et al., 2017; Tsai, 2017). Neurotrophic factors (NTFs) are essential for neural development of the brain and plasticity in adults and are involved in the pathogenesis of ADHD (Bilgiç et al., 2017; Tsai, 2017). In particular, brain-derived neurotrophic factor (BDNF) has been identified in the pathophysiology of ADHD and represents a biological target for treatments of this disorder (Conner et al., 2008; Kent et al., 2005; Tsai, 2017).

Transcranial direct current stimulation (tDCS) has been extensively investigated in children with a variety of diagnoses, including neuropsychiatric disorders, and has shown no serious adverse effects (Bikson et al., 2016). tDCS improves short- and long-term memory deficits and is associated with altered dopamine levels and enhanced synaptic activity, respectively, as shown in an ADHD animal model (Leffa et al., 2018; Leffa et al., 2016). Anodal tDCS exerts beneficial effects on higher order cognitive functions, such as working memory, attention, and perception, in patients with diabetes and animal models through the augmentation of synaptic plasticity, thus requiring BDNF secretion (Coffman et al., 2014; Wu et al., 2017). Because ADHD has comorbid cognitive dysfunction disorders (Faraone et al., 2015; Tsai, 2017), tDCS has been proposed as a possible therapeutic option for treating patients with ADHD (Leffa et al., 2018; Leffa et al., 2016).

Conventional tDCS using saline sponge-based rectangular pads stimulates a large scalp area; thus, the current flow is not concentrated on targeted neuronal populations (Brunoni et al., 2012). However, high-definition tDCS (HD-tDCS) uses small ring-based electrodes to facilitate stimulation and target current delivery, thereby overcoming the lack of specificity (Datta et al., 2009). As HD-tDCS is a potential tool for brain stimulation in the treatment of cognitive deficits, we hypothesized that the regulation of dopaminergic neurotransmission and NTFs using an HD-tDCS approach would contribute to the recovery from cognitive symptoms in patients with ADHD. We therefore modified anodal HD-tDCS for rodents using a small ring-based electrode to optimize focality and intensity. The aim of this study was to identify the therapeutic effects of modified HD-tDCS in a preclinical model of ADHD and to investigate the underlying mechanisms related to these effects. We evaluated the therapeutic effects of HD-tDCS using behavioral assessments of cognitive functions, and performed biochemical and immunofluorescence assays to investigate alterations in dopaminergic neurotransmission and NTFs at the core sites of dopaminergic pathways.

Results

Effects of HD-tDCS application on the cognitive dysfunctions in the ADHD rat model

We performed various cognitive tests to investigate whether HD-tDCS application improves functions in this rat model of ADHD. In the open-field test, the spontaneously hypertensive (SHR) and sham animals showed significant hyperactivity compared to the Wistar-Kyoto rat (WKY) group, which was reduced by HD-tDCS and MPH treatment, especially in the tDCS-PFC group (Figure 1A, F(5,42)=5.984, p<0.001 and Figure 1—figure supplement 1A). In the delayed non-match to place (DNMTP) version of the T-maze, HD-tDCS and MPH treatment significantly increased performance. Moreover, the tDCS-PFC group showed more improvement than the tDCS-M1 group (Figure 1B, F(5,54)=116.861, p<0.001 and Figure 1—figure supplement 1B). In the Y-maze, the tDCS-M1 group showed a significant decrease in time spent in the new arm compared to the SHR group in the modified version; however, the tDCS-PFC and MPH groups showed significantly increased spontaneous alternation compared to the sham group in the alternation task, especially with respect to same-arm returns (SAR) (Figure 1C and D, F(5,36)=0.750, p=0.591 and Figure 1—figure supplement 1C and D). Retention latency in the passive avoidance test was significantly increased in the HD-tDCS and MPH-treated groups compared to the sham group (Figure 1E, F(5,30)=31.245, p<0.001). In the object-place recognition test, all groups demonstrated a similar total distance during training and test sessions. The discrimination ratio was significantly increased in the HD-tDCS and MPH-treated groups compared to the SHR group; however, only the tDCS-PFC group showed significant changes compared to the sham results (Figure 1F, F(5,42)=6.554, p<0.001 and Figure 1—figure supplement 1E). To confirm that WKY are the ideal control for SHR rats, we performed a behavioral analysis on hyperactivity and cognitive performance, comparing the WKY, WKY-sham, and WKY-tDCS-PFC groups. There was no significant difference among these groups in the open-field test and the DNMTP (Figure 1—figure supplement 2). These results suggest that HD-tDCS application alleviates cognitive dysfunction in this ADHD rat model, especially after stimulation over the prefrontal cortex.

Figure 1 with 2 supplements see all
Effects of HD-tDCS application on cognitive behaviors in a rat model of ADHD.

(A) Performance and mean speed on the open-field test. Hyperactivity in the open-field test was significantly reduced in the tDCS-PFC group compared with the sham group (n = 8). (B) A DNMTP of the T-maze results, total % of correct choices for 10 sessions. The % correct choices were significantly higher in all HD-tDCS and MPH-treated groups compared to the sham group (n = 7). (C) Modified Y-maze results, % of time in new arm. The time in the new arm was significantly decreased in the tDCS-M1 group compared with the SHR group (n = 8). (D) Y-maze spontaneous alternation task, % alternation performance of SAP, AAR, and SAR. SAR was significantly lower in the tDCS-PFC and MPH groups compared with the sham group (n = 7). (E) Passive avoidance test, latency. HD-tDCS and MPH-treated groups showed significantly higher latency compared to the sham group (n = 6). (F) Object-place recognition test, representative examples of movement path and discrimination ratio. The tDCS-PFC group showed a marked increase in time spent exploring the novel placed object compared to the sham group (n = 8). SAP; spontaneous alternation performance, AAR; alternate arm return. Data are presented as mean ± SEM. *p<0.05, **p<0.01, and ***p<0.001 vs. WKY; #p<0.05, ##p<0.01, and ###p<0.001 vs. SHR; &p<0.05, &&p<0.01, and &&&p<0.001 vs. sham; $$p<0.01 vs. tDCS-PFC.

Figure 1—source data 1

Source files for behavior tests.

This zip archive contains all source data on the cognitive behaviors shown in Figure 1.

https://cdn.elifesciences.org/articles/56359/elife-56359-fig1-data1-v2.zip

Effects of HD-tDCS application on gene expression of dopaminergic neurotransmission factors and NTFs in the ADHD rat model

Next, we compared the gene expression of dopaminergic neurotransmission factors such as tyrosine hydroxylase (TH), plasma membrane reuptake transporter (DAT), and vesicular monoamine transporter 2 (VMAT2) as well as NTFs including BDNF, transforming growth factor-beta1 (TGF-β1), glial-cell-derived neurotrophic factor (GDNF), nerve growth factor (NGF), and neurotrophin-3 (NT3) in the core regions of dopaminergic projections, that is, the prefrontal cortex, striatum, hippocampus, and substantia nigra/ventral tegmental area (SN/VTA). Generally, the HD-tDCS and MPH-treated groups showed increased TH and VMAT2 gene expression compared to the sham group, whereas DAT gene expression was decreased. These patterns were especially pronounced in the hippocampus and the SN/VTA region. Compared to the sham group, the tDCS-PFC group showed a significant increase in TH and VMAT2 gene expression in the SN/VTA and prefrontal cortex, respectively, and a significant decrease in DAT gene expression in all other regions except the prefrontal cortex. A significant decrease in DAT expression was also observed in the hippocampus and SN/VTA region of the tDCS-M1 group. However, the MPH group showed significant changes in TH and DAT expression only in the striatum (Table 1).

Table 1
Effect of HD-tDCS on gene expressions of dopaminergic neurotransmission factors in the prefrontal cortex, striatum, hippocampus, and SN/VTA (n = 4).
Fold change
(of WKY)
SHRShamtDCS-PFCtDCS-M1MPHSham vs. tDCS-PFCSham vs. tDCS-M1Sham vs. MPHPFC vs. M1
Prefrontal cortex
TH0.29 ± 0.050.31 ± 0.050.34 ± 0.040.26 ± 0.170.24 ± 0.05p=0.493p=0.686p=0.078p=0.486
DAT0.34 ± 0.240.51 ± 0.390.76 ± 0.690.50 ± 0.450.59 ± 0.38p=0.552p=0.963p=0.783p=0.544
F(1,6)=0.397F(1,6)=0.00237F(1,6)=0.0828F(1,6)=0.413
VMAT20.19 ± 0.030.13 ± 0.080.31 ± 0.110.23 ± 0.180.20 ± 0.02p=0.040p=0.355p=0.343p=0.475
F(1,6)=6.800F(1,6)=1.002F(1,6)=0.579
Striatum
TH0.50 ± 0.160.67 ± 0.210.63 ± 0.101.14 ± 0.331.37 ± 0.24p=0.778p=0.054p=0.005p=0.027
F(1,6)=0.0868F(1,6)=5.724F(1,6)=19.243F(1,6)=8.493
DAT1.38 ± 0.581.32 ± 0.230.41 ± 0.171.01 ± 0.340.77 ± 0.14p=<0.001p=0.176p=0.006p=0.029
F(1,6)=41.344F(1,6)=2.349F(1,6)=17.006
VMAT20.33 ± 0.250.63 ± 0.270.36 ± 0.171.00 ± 0.800.67 ± 0.41p=0.140p=0.886p=0.870p=0.343
 F(1,6)=2.891F(1,6)=0.0292
Hippocampus
TH0.47 ± 0.150.45 ± 0.210.80 ± 0.280.62 ± 0.170.44 ± 0.06p=0.091p=0.242p=1.000p=0.320
F(1,6)=4.061F(1,6)=1.683F(1,6)=1.173
DAT1.42 ± 0.441.48 ± 0.380.60 ± 0.160.92 ± 0.171.16 ± 0.60p=0.005p=0.037p=0.397p=0.031
F(1,6)=18.468F(1,6)=7.101F(1,6)=0.831F(1,6)=7.884
VMAT20.51 ± 0.180.56 ± 0.270.92 ± 0.340.79 ± 0.250.48 ± 0.08p=0.147p=0.246p=0.597p=0.574
 F(1,6)=2.776F(1,6)=1.650F(1,6)=0.311F(1,6)=0.353
SN/VTA
TH0.32 ± 0.040.30 ± 0.181.09 ± 0.570.46 ± 0.280.65 ± 0.41p=0.039p=0.343p=0.343p=0.094
F(1,6)=6.880F(1,6)=3.947
DAT1.20 ± 0.201.62 ± 0.550.58 ± 0.180.85 ± 0.131.02 ± 0.47p=0.011p=0.034p=0.146p=0.056
F(1,6)=12.964F(1,6)=7.526F(1,6)=2.781F(1,6)=5.618
VMAT20.22 ± 0.080.49 ± 0.270.92 ± 0.531.00 ± 0.470.89 ± 0.46p=0.343p=0.111p=0.175p=0.843
F(1,6)=3.499F(1,6)=2.362F(1,6)=0.0428
  1. Expression of the TH, DAT, and VMAT2 genes, expressed as fold changes of WKY. Data represent the mean ± SEM. Data were analyzed using ANOVA for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered statistically significant; significant results are highlighted in bold.

As for NTF gene expression, an increase in expression in the HD-tDCS and MPH treatment groups was observed, especially for the BDNF gene. Increases in NTF genes were most noticeable in the hippocampus, followed by the SN/VTA. Compared to the sham group, the tDCS-PFC group showed a significant increase in BDNF gene expression in the hippocampus, increased TGF-β1 expression in the striatum and SN/VTA, increased GDNF expression in the prefrontal cortex and hippocampus, increased NGF expression in the hippocampus, and increased NT3 expression in the prefrontal cortex and striatum. The tDCS-M1 group showed significantly increased BDNF expression in the prefrontal cortex and hippocampus and NT3 expression in the striatum. Moreover, all NTF genes examined (except GDNF) were significantly upregulated in this group. The MPH group showed significant changes in BDNF and GDNF gene expression in the striatum, and in NGF and NT3 expression in the hippocampus (Table 2). These results suggest that HD-tDCS application regulates the gene expression of dopaminergic neurotransmission factors and NTFs, in particular the DAT and the BDNF gene, in this ADHD rat model.

Table 2
Effect of HD-tDCS on gene expressions of NTFs in the prefrontal cortex, striatum, hippocampus, and SN/VTA (n = 4–5).
Fold change
(of WKY)
SHRShamtDCS-PFCtDCS-M1MPHSham vs. tDCS-PFCSham vs. tDCS-M1Sham vs. MPHPFC vs. M1
Prefrontal cortex
BDNF1.15 ± 0.310.87 ± 0.111.23 ± 0.481.65 ± 0.390.89 ± 0.38p=0.146p=0.003p=0.929p=0.162
F(1,8)=2.595F(1,8)=18.279F(1,8)=0.00857F(1,8)=2.373
TFG-ß11.37 ± 0.351.07 ± 0.121.82 ± 0.750.88 ± 0.331.16 ± 0.27p=0.056p=0.260p=0.507p=0.033
F(1,8)=1.467F(1,8)=0.483F(1,8)=6.576
GDNF1.13 ± 0.371.05 ± 0.230.68 ± 0.170.86 ± 0.250.80 ± 0.18p=0.022p=0.262p=0.095p=0.022
F(1,8)=8.090F(1,8)=1.456F(1,8)=3.586F(1,8)=8.090
NGF1.22 ± 0.311.51 ± 0.121.49 ± 0.301.19 ± 0.371.44 ± 0.43p=0.904p=0.104p=0.722p=0.197
F(1,8)=0.0154F(1,8)=3.360F(1,8)=0.136F(1,8)=1.980
NT30.69 ± 0.240.64 ± 0.120.40 ± 0.080.59 ± 0.120.51 ± 0.11p=0.006p=0.586p=0.119p=0.017
F(1,8)=13.944F(1,8)=0.321F(1,8)=3.042F(1,8)=8.977
Striatum
BDNF1.65 ± 0.671.65 ± 0.572.69 ± 1.071.75 ± 1.020.76 ± 0.58p=0.090p=0.852p=0.041p=0.192
F(1,8)=3.707F(1,8)=0.0372F(1,8)=5.884F(1,8)=2.035
TFG-ß10.69 ± 0.420.95 ± 0.332.61 ± 0.720.94 ± 0.041.02 ± 0.21p=0.002p=1.000p=0.710p=0.008
F(1,8)=21.618F(1,8)=0.148
GDNF0.87 ± 0.171.19 ± 0.341.66 ± 0.581.17 ± 0.311.64 ± 0.25p=1.2368p=0.927p=0.046p=0.132
F(1,8)=2.475F(1,8)=0.00895F(1,8)=5.585F(1,8)=2.805
NGF1.27 ± 0.681.41 ± 0.451.67 ± 0.821.19 ± 0.351.35 ± 0.34p=0.550p=0.430p=0.835p=0.270
F(1,8)=0.390F(1,8)=0.691F(1,8)=0.0464F(1,8)=1.404
NT30.85 ± 0.350.60 ± 0.090.25 ± 0.120.97 ± 0.320.61 ± 0.29p=<0.001p=0.035p=0.943p=0.001
F(1,8)=27.650F(1,8)=6.386F(1,8)=0.00554F(1,8)=22.822
Hippocampus
BDNF1.96 ± 0.261.89 ± 0.584.27 ± 1.673.27 ± 0.702.31 ± 0.27p=0.008p=0.032p=0.183p=0.151
F(1,8)=2.122
TFG-ß10.98 ± 0.310.74 ± 0.271.14 ± 0.311.44 ± 0.330.87 ± 0.07p=0.062p=0.006p=0.690p=0.095
F(1,8)=4.704F(1,8)=13.400
GDNF1.03 ± 0.230.72 ± 0.111.67 ± 0.590.82 ± 0.170.84 ± 0.10p=0.029p=0.384p=0.173p=0.029
F(1,6)=0.882F(1,6)=2.387
NGF1.16 ± 0.300.91 ± 0.312.85 ± 0.922.46 ± 0.231.59 ± 0.20p=0.007P=<0.001p=0.011p=0.448
F(1,6)=15.973F(1,6)=63.722F(1,6)=13.366F(1,6)=0.660
NT31.17 ± 0.151.09 ± 0.271.77 ± 0.751.74 ± 0.271.42 ± 0.15p=0.093p=0.005p=0.041p=0.935
F(1,8)=3.637F(1,8)=14.400F(1,8)=5.931F(1,8)=0.00709
SN/VTA
BDNF1.02 ± 0.181.28 ± 0.131.74 ± 0.421.69 ± 0.331.42 ± 0.54p=0.114p=0.062p=0.641p=0.846
F(1,6)=5.217F(1,6)=0.241F(1,6)=0.0412
TFG-ß10.49 ± 0.140.56 ± 0.090.86 ± 0.120.63 ± 0.120.75 ± 0.19p=0.008p=0.373p=0.119p=0.042
F(1,6)=14.868F(1,6)=0.928F(1,6)=3.303F(1,6)=6.629
GDNF0.52 ± 0.040.57 ± 0.041.00 ± 0.260.51 ± 0.050.96 ± 0.16p=0.156p=0.428p=0.061p=0.118
F(1,6)=2.635F(1,6)=0.723F(1,6)=5.299F(1,6)=3.331
NGF1.24 ± 0.140.93 ± 0.070.62 ± 0.410.98 ± 0.351.24 ± 0.98p=0.188p=0.764p=0.486p=0.200
F(1,6)=2.209F(1,6)=0.0991
NT31.13 ± 0.351.21 ± 0.070.79 ± 0.481.55 ± 0.961.45 ± 0.60p=0.343p=0.486p=1.000p=0.486
  1. Expression of the BDNF, TGF- β1, GDNF, NGF, and NT3 genes, expressed as fold changes of WKY. Data represent the mean ± SEM. Data were analyzed using ANOVA for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered statistically significant; significant results are highlighted in bold.

Effects of HD-tDCS application on protein expression of dopaminergic neurotransmission factors and NTFs in the ADHD rat model

To confirm the protein expression of dopaminergic neurotransmission factors and NTFs, such as BDNF, TGF-β1, and GDNF, we performed a western blot analysis. Similar to the gene expression findings, HD-tDCS and MPH treatment increased the expression of the dopaminergic transmission factors TH and VMAT2 and decreased the expression of DAT compared to the findings for the sham group. The tDCS-PFC group showed the most similar pattern, followed by the MPH group. Compared to the sham group results, significant changes were observed in the SN/VTA, including alterations in DAT expression in the tDCS-PFC group, in TH and DAT expression in the tDCS-M1 group, and in TH expression in the MPH group (Table 3, Figure 2—figure supplement 1A). When we considered the ratio between VMAT2 and DAT, significant changes were observed in the prefrontal cortex, striatum, and hippocampus in the tDCS-PFC group, in the hippocampus and SN/VTA in the tDCS-M1 group, and in the hippocampus in the MPH group (Table 4).

Table 3
Effect of HD-tDCS on protein expression of dopaminergic neurotransmission factors in the prefrontal cortex, striatum, hippocampus, and SN/VTA (n = 5).
% of WKYSHRShamtDCS-PFCtDCS-M1MPHSham vs. tDCS-PFCSham vs. tDCS-M1Sham vs. MPHPFC vs. M1
Prefrontal cortex
TH53.52 ± 31.7582.28 ± 43.03100.94 ± 26.5498.30 ± 43.8865.79 ± 18.48p=0.43p=0.58p=0.45p=0.91
F(1,8)=0.68F(1,8)=0.34F(1,8)=0.62F(1,8)=0.01
DAT89.41 ± 52.58108.69 ± 31.9389.63 ± 39.4183.32 ± 32.2086.40 ± 27.72p=0.43p=0.25p=0.27p=0.79
F(1,8)=0.70F(1,8)=1.56F(1,8)=1.39F(1,8)=0.08
VMAT271.61 ± 48.2657.09 ± 24.0876.33 ± 20.6271.56 ± 40.2370.45 ± 29.33p=0.21p=0.51p=0.45p=0.82
F(1,8)=1.84F(1,8)=0.48F(1,8)=0.62F(1,8)=0.06
Striatum
TH103.70 ± 15.1495.96 ± 11.46101.56 ± 22.6191.96 ± 11.52103.76 ± 21.11p=0.63p=0.55p=0.49p=0.42
F(1,8)=0.24F(1,8)=0.53F(1,8)=0.72
DAT117.76 ± 37.47101.44 ± 34.52120.34 ± 71.05101.35 ± 47.65107.57 ± 34.41p=0.61p=1.0p=0.79p=0.63
F(1,8)=0.29F(1,8)=0.08F(1,8)=0.25
VMAT290.46 ± 57.1966.67 ± 38.5671.25 ± 35.2285.87 ± 56.8373.78 ± 25.00p=0.85p=0.55p=0.74p=0.64
F(1,8)=0.04F(1,8)=0.39F(1,8)=0.12F(1,8)=0.24
Hippocampus
TH79.55 ± 40.22111.39 ± 31.3178.36 ± 45.7096.29 ± 52.8178.48 ± 46.69p=0.22p=0.60p=0.23p=0.58
F(1,8)=1.78F(1,8)=0.30F(1,8)=1.71F(1,8)=0.33
DAT64.33 ± 35.74159.83 ± 87.3587.51 ± 56.22152.10 ± 68.8077.47 ± 28.67p=0.16p=0.88p=0.08p=0.14
F(1,8)=2.42F(1,8)=0.024F(1,8)=4.01F(1,8)=2.64
VMAT281.40 ± 30.6088.84 ± 26.80113.49 ± 33.1791.26 ± 17.67117.83 ± 22.95p=0.23p=0.87p=0.10p=0.22
F(1,8)=1.67F(1,8)=0.028F(1,8)=3.38F(1,8)=1.75
SN/VTA
TH84.35 ± 48.8968.41 ± 30.3894.69 ± 34.28120.88 ± 31.89142.75 ± 58.04p=0.24p=0.03p=0.04p=0.25
F(1,8)=1.65F(1,8)=7.10F(1,8)=6.44F(1,8)=1.56
DAT56.52 ± 27.6796.48 ± 21.3340.37 ± 29.7256.96 ± 27.1472.24 ± 47.04p=0.01p=0.03p=0.33p=0.38
F(1,8)=11.76F(1,8)=6.56F(1,8)=1.10F(1,8)=0.85
VMAT256.87 ± 33.0374.15 ± 31.3979.95 ± 25.7053.48 ± 17.0957.24 ± 28.47p=0.76p=0.23p=0.40p=0.09
F(1,8)=0.10F(1,8)=1.67F(1,8)=0.80F(1,8)=3.68
  1. Expression of the TH, DAT, and VMAT2 proteins, expressed as percentages of WKY. Data are presented as the mean ± SEM. Data were analyzed using ANOVA for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered statistically significant; significant results are highlighted in bold.

Table 4
Effect of HD-tDCS on the ratio between VMAT2 and DAT protein in the prefrontal cortex, striatum, hippocampus, and SN/VTA (n = 4).
VMAT2/DAT ratioWKYSHRShamtDCS-PFCtDCS-M1MPHSham vs. tDCS-PFCSham vs. tDCS-M1Sham vs. MPHPFC vs. M1
Prefrontal cortex2.80 ± 0.982.05 ± 1.241.35 ± 0.222.61 ± 0.062.61 ± 0.411.66 ± 0.23p=0.029p=0.939p=0.108p<0.001
F(1,6)=3.55F(1,6)=35.56
Striatum2.71 ± 0.811.32 ± 1.131.16 ± 0.712.96 ± 1.271.94 ± 0.961.53 ± 0.15p=0.048p=0.240p=0.358p=0.200
F(1,6)=6.11F(1,6)=1.70F(1,6)=0.99
Hippocampus2.44 ± 1.251.31 ± 0.320.60 ± 0.101.68 ± 0.681.14 ± 0.331.86 ± 0.58p=0.029p=0.029p=0.029p=0.207
F(1,6)=2.00
SN/VTA0.91 ± 0.160.19 ± 0.060.42 ± 0.091.12 ± 0.691.14 ± 0.580.60 ± 0.31p=0.114p=0.049p=0.303p=0.114
F(1,6)=6.03F(1,6)=1.27
  1. Data are presented as the mean ± SEM. Data were analyzed using ANOVA for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered statistically significant; significant results are highlighted in bold.

The tDCS-PFC group generally showed an increase in mature BDNF (mBDNF) expression in all regions except the hippocampus. A similar pattern was observed in the striatum and SN/VTA in the tDCS-M1 group, and in the striatum in the MPH group. Compared to the sham group, the tDCS-PFC group showed a significant increase in TGF-β1 in the striatum, in GDNF in the hippocampus, and in mBDNF in the SN/VTA. The tDCS-M1 group showed significant changes in mBDNF in the SN/VTA, while in the MPH group, TGF-β1 expression was changed in the striatum and GDNF expression in the hippocampus (Table 5, Figure 2—figure supplement 1B). These results suggest that HD-tDCS application over the prefrontal cortex regulates protein expression of dopaminergic neurotransmission factors and NTFs, in particular of DAT and BDNF, in this ADHD rat model.

Table 5
Effect of HD-tDCS on protein expression of NTFs in the prefrontal cortex, striatum, hippocampus, and SN/VTA (n = 5).
% of WKYSHRShamtDCS-PFCtDCS-M1MPHSham vs. tDCS-PFCSham vs. tDCS-M1Sham vs. MPHPFC vs. M1
Prefrontal cortex
mBDNF46.16 ± 13.9748.99 ± 26.0082.54 ± 20.3772.62 ± 19.3651.81 ± 14.08p=0.053p=0.14p=0.84p=0.45
F(1,8)=5.16F(1,8)=2.66F(1,8)=0.05F(1,8)=0.62
TFG-ß136.61 ± 15.3668.19 ± 34.3476.41 ± 31.1263.55 ± 19.2256.20 ± 31.88p=0.70p=0.80p=0.58p=0.45
F(1,8)=0.16F(1,8)=0.07F(1,8)=0.33F(1,8)=0.62
Striatum
mBDNF70.62 ± 13.0158.01 ± 20.0475.05 ± 15.9781.41 ± 18.3694.96 ± 38.41p=0.18p=0.09p=0.09p=0.58
F(1,8)=2.21F(1,8)=3.71F(1,8)=3.64F(1,8)=0.34
TFG-ß175.83 ± 31.2061.40 ± 18.3296.49 ± 16.7381.31 ± 36.9095.82 ± 19.27p=0.01p=0.31p=0.02p=0.43
F(1,8)=10.00F(1,8)=1.17F(1,8)=8.38F(1,8)=0.70
Hippocampus
mBDNF48.39 ± 20.5778.16 ± 18.6876.51 ± 19.7382.80 ± 9.0772.31 ± 24.47p=0.90p=0.63p=0.68p=0.54
F(1,8)=0.02F(1,8)=0.25F(1,8)=0.18F(1,8)=0.42
TFG-ß142.67 ± 18.2470.02 ± 27.53104.94 ± 67.0853.83 ± 31.9594.76 ± 64.33p=0.31p=0.42p=0.45p=0.16
F(1,8)=1.16F(1,8)=0.74F(1,8)=0.63F(1,8)=2.37
GDNF129.07 ± 53.16181.27 ± 22.52322.41 ± 109.41182.26 ± 43.25235.44 ± 42.26p=0.02p=0.97p=0.04p=0.03
F(1,8)=7.98F(1,8)=6.40F(1,8)=7.10
SN/VTA
mBDNF68.10 ± 17.6576.63 ± 8.76102.87 ± 15.04103.20 ± 8.12100.30 ± 30.01p=0.01p=0.001p=0.13p=0.97
F(1,8)=11.36F(1,8)=24.74F(1,8)=2.87
TFG-ß172.73 ± 26.3577.68 ± 36.44100.19 ± 45.32111.19 ± 16.4677.67 ± 49.81p=0.41p=0.10p=1.00p=0.624
F(1,8)=0.75F(1,8)=3.51F(1,8)=0.26
  1. Expression of the mBDNF, TFG-ß1, and GDNF proteins, expressed as percentages of WKY. Data are presented as the mean ± SEM. Data were analyzed using ANOVA for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered statistically significant; significant results are highlighted in bold.

Effects of HD-tDCS application on free TH and mBDNF in the ADHD rat model and its control strain

To confirm free TH and mBDNF content induced by HD-tDCS, we performed an ELISA analysis in both the ADHD rat model and its WKY control strain, 2 days after the last HD-tDCS application. TH and mBDNF showed lower levels in the SHR groups compared to all WKY groups. In the ADHD rat model, free TH levels were significantly increased in the SHR-tDCS-PFC group, compared to the SHR-sham group, in the PFC (Figure 2A, prefrontal cortex: F(5,18)=9.262, p<0.001). The content of mBDNF was significantly induced in the SHR-tDCS-PFC group, compared to the SHR-sham group, in the PFC and the hippocampus (Figure 2B, prefrontal cortex: F(5,18)=15.327, p<0.001, hippocampus: F(5,18)=14.924, p<0.001). However, the control strain, the WKY-tDCS-PFC group, showed no differences in free TH and mBDNF levels compared to any of the WKY and WKY-sham groups. To check for possible stress induced by HD-tDCS, we also analyzed corticosterone plasma levels. The SHR-tDCS-PFC and WKY-tDCS-PFC groups showed no changes in corticosterone plasma levels compared to the naive and the sham group (Figure 2—figure supplement 2, F(5,18)=9.262, p<0.001).

Figure 2 with 2 supplements see all
Effect of HD-tDCS application over the prefrontal cortex on free TH and mBDNF levels.

(A, B) Free TH and mBDNF levels measured by ELISA at 2 days after the last HD-tDCS application in our ADHD rat model and its WKY control strain (n = 4). In the ADHD rat model, TH and mBDNF levels were significantly increased in the prefrontal cortex in the SHR-tDCS-PFC group compared to the sham group. mBDNF levels were also significantly increased in the hippocampus in the SHR-tDCS-PFC group. (C, D) Free TH and mBDNF levels measured by ELISA at 8 days after the last HD-tDCS application in our rat model of ADHD (n = 4). Levels of TH were significantly increased in the prefrontal cortex in the tDCS-PFC and MPH-treated groups compared to the sham group. mBDNF levels were markedly increased in the prefrontal cortex, striatum, and SN/VTA in the tDCS-PFC group compared to the sham group. Data are presented as the mean ± SEM. &p<0.05 and &&&p<0.001 vs. sham, $p<0.05 vs. tDCS-PFC.

Figure 2—source data 1

Source files for quantification of ELISA analysis.

This zip archive contains all source data for ELISA analysis shown in Figure 2.

https://cdn.elifesciences.org/articles/56359/elife-56359-fig2-data1-v2.zip

To confirm that these changes were continuous, and also to compare the effect of HD-tDCS with a positive control in our ADHD rat model, we performed an additional ELISA analysis in the tDCS-PFC and MPH groups and compared the results to those obtained in the sham group at 8 days after the last HD-tDCS application. The content of TH generally increased after HD-tDCS-PFC and MPH treatment, and a significant increase was observed in the prefrontal cortex, compared to the sham results (Figure 2C, prefrontal cortex: F(2,9)=17.628, p<0.001, striatum: F(2,9)=4.036, p=0.056). The mBDNF content also showed a similar pattern following HD-tDCS-PFC and MPH treatment, and significant increases were observed in the prefrontal cortex, striatum, and SN/VTA in the tDCS-PFC group, compared to the sham results (Figure 2D, prefrontal cortex: F(2,9)=12.181, p=0.008, striatum: F(2,9)=17.204, p<0.001, hippocampus: F(2,9)=5.964, p=0.037, SN/VTA: F(2,9)=5.261, p=0.031). These results suggest that HD-tDCS application over the prefrontal cortex induces an increase of free TH and mBDNF content in this ADHD rat model, but not in the WKY control strain, and that these content changes were continuous.

Effects of HD-tDCS application on TH- and DAT-positive cells in the ADHD rat model

We first verified whether HD-tDCS induces a neuroinflammatory response in the brain tissue. The observed changes in activated microglia stained with ionized calcium-binding adaptor molecule 1 (Iba1) indicates that the charge density of anodal HD-tDCS application cannot trigger an inflammatory response but rather reduces it in the PFC (Figure 3—figure supplement 1, prefrontal cortex: F(2,12)=13.008, p<0.001, primary motor cortex: F(2,12)=4.541, p=0.034). Then, we performed immunofluorescence to reveal the distribution of TH- and DAT-positive cells in the tDCS-PFC and MPH groups, and compared the results to the distribution observed in the sham animals. The mean integral optical density (IOD) of TH-positive cells was significantly increased in the medial prefrontal cortex and striatum in the tDCS-PFC and MPH groups, while IOD in the nucleus accumbens (NAc) core of the MPH group was similar to that observed in the sham animals. The IOD of DAT was also significantly reduced in the medial prefrontal cortex, dorsal striatum, and SN/VTA in the tDCS-PFC group. The IOD of TH/DAT double-positive cells showed a marked decrease in the NAc core and SN/VTA in the tDCS-PFC group and in the NAc core in the MPH group (Figure 3, dorsal striatum: TH; F(2,12)=7.667, p=0.007, NAc core: TH; F(2,12)=21.182, p<0.001, hippocampus: TH; F(2,12)=8.988, p=0.004, SN: DAT; F(2,12)=11.406, p=0.002, TH/DAT; F(2,12)=6.015, p=0.016, VTA: DAT; F(2,12)=7.874, p=0.007, TH/DAT; F(2,12)=9.477, p=0.003). When we further divided the VTA into medial and lateral regions, sham animals demonstrated a higher IOD of TH/DAT double-positive cells in the lateral region. However, these values were significantly reduced in the tDCS-PFC group, compared to the values observed in sham animals (Figure 3—figure supplement 2, sham: F(4,3)=10.116, p=0.001, vlVTA: F(2, 12)=4.302, p=0.039). Together, these results suggest that HD-tDCS over the prefrontal cortex may enhance dopaminergic neurotransmission by down-regulation of DAT, especially in the prefrontal cortex, striatum, and SN/VTA.

Figure 3 with 2 supplements see all
Effect of HD-tDCS application over the prefrontal cortex on TH- and DAT-positive cells in a rat model of ADHD.

(A, E) Photomicrograph and histogram showing the mean IOD of TH- and DAT-positive cells in the medial prefrontal cortex, (B, F) in the striatum, (C, G) in the dorsal hippocampus, and (D, H) in the SN/VTA. The IOD of TH-positive cells was significantly increased in the medial prefrontal cortex and striatum of tDCS-PFC group compared to the sham results. The IOD of DAT-positive cells was significantly decreased in the medial prefrontal cortex, dorsal striatum, and SN/VTA in the tDCS-PFC group compared to the sham results. Data are presented as the mean ± SEM. mPFC, medial prefrontal cortex. &p<0.05 and &&p<0.01 vs. sham, $p<0.05 and $$p<0.01 vs. tDCS-PFC. Scale bar = 100 µm.

Figure 3—source data 1

Source file for quantification of Iba1-, TH-, and DAT-positive cells.

This zip archive contains all source data for Iba1-, TH-, and DAT-positive cells analysis shown in Figure 3, and Figure 3—figure supplements 1 and 2.

https://cdn.elifesciences.org/articles/56359/elife-56359-fig3-data1-v2.zip

Effects of HD-tDCS application on BDNF- and its activated receptor-positive cells in the ADHD rat model

Lastly, we performed immunofluorescence for mBDNF and its activated phospho-tropomyosin receptor kinase B (pTrkB). In the tDCS-PFC group, the numbers of mBDNF-, pTrkB-, and mBDNF/pTrkB double-positive cells were significantly increased in all target regions except the SN. A similar pattern was also observed in the medial prefrontal cortex and the NAc core in the MPH group, with more mBDNF/pTrkB double-positive cells in the dorsal striatum (Figure 4, medial prefrontal cortex: mBDNF; F(2,12)=17.827, p<0.001, pTrkB; F(2,12)=55.806, p<0.001, mBDNF/pTrkB; F(2, 12)=15.605, p<0.001, dorsal striatum: mBDNF; F(2, 12)=15.951, p<0.001, pTrkB; F(2, 12)=17.250, p<0.001, mBDNF/pTrkB; F(2, 12)=20.562, p<0.001, NAc core: mBDNF; F(2, 12)=28.260, p<0.001, pTrkB; F(2, 12)=22.552, p<0.001, mBDNF/pTrkB; F(2, 12)=23.163, p<0.001, hippocampus: mBDNF/pTrkB; F(2, 12)=8.227, p=0.006, VTA: mBDNF; F(2, 12)=27.217, p<0.001, pTrkB; F(2, 12)=12.689, p=0.001, mBDNF/pTrkB; F(2,12)=21.925, p<0.001). Considering that hippocampal neurogenesis is closely related to BDNF expression, we examined bromodeoxyuridine (BrdU)-positive and BrdU/neuronal nuclei (NeuN) double-positive cells in the dentate gyrus of the hippocampus. BrdU-positive cells increased following HD-tDCS and MPH treatment, and a significant increase was observed in the number of BrdU/NeuN double-positive cells in the tDCS-PFC group compared to the sham group (Figure 5). These results suggest that HD-tDCS application over prefrontal cortex significantly induced activation of BDNF-TrkB signaling in most examined brain regions. Moreover, HD-tDCS application activated hippocampal neurogenesis.

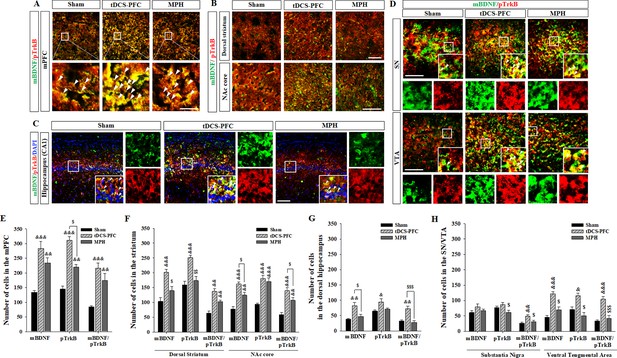

Effects of HD-tDCS application over the prefrontal cortex on mBDNF- and pTrkB-positive cells in our rat model of ADHD.

(A, E) Photomicrograph and histogram showing the mean number of mBDNF- and pTrkB-positive cells in the medial prefrontal cortex, (B, F) in the striatum, (C, G) in the dorsal hippocampus, and (D, H) in the SN/VTA. The mBDNF- and pTrkB-positive cells were significantly increased in the tDCS-PFC group compared to the sham animals at all sites except the SN. Significantly more mBDNF/pTrkB double-positive cells were also detected in the SN. Data are presented as the mean ± SEM. &p<0.05, &&p<0.01 and &&&p<0.001 vs. sham; $p<0.05, $$p<0.01 and $$$p<0.001 vs. tDCS-PFC. Scale bar = 100 µm.

Figure 4—source data 1

Source files for quantification of BDNF and its activated receptor.

This file contains all source data for BDNF and its activated receptor shown in Figure 4.

https://cdn.elifesciences.org/articles/56359/elife-56359-fig4-data1-v2.xlsx
Effect of HD-tDCS application over the prefrontal cortex on hippocampal neurogenesis in our rat model of ADHD.

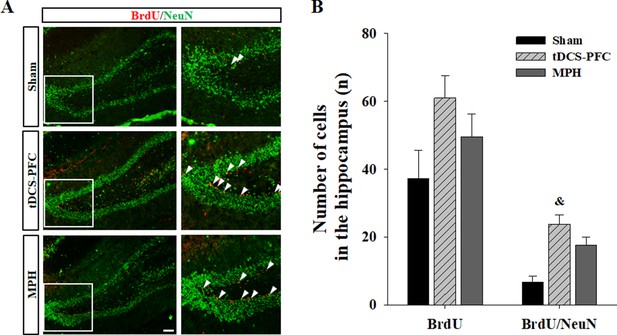

(A, B) Photomicrograph and histogram showing the mean number of BrdU - and NeuN-positive cells in the dentate gyrus of the hippocampus. The number of BrdU/NeuN double-positive cells was significantly higher in the tDCS-PFC group compared to the sham animals. Data are presented as the mean ± SEM. &p<0.05 vs. sham. Scale bar = 100 µm.

Figure 5—source data 1

Source files for quantification of BrdU- and BrdU/NeuN-double-positive cells.

This file contains all source data for BrdU- and BrdU/NeuN-double-positive cells analysis shown in Figure 5.

https://cdn.elifesciences.org/articles/56359/elife-56359-fig5-data1-v2.xlsx

Discussion

We investigated the therapeutic effects of multi-day sessions of HD-tDCS on recovery from cognitive symptoms observed in a rat model of ADHD. The main findings of the present study are the following: (1) application of anodal HD-tDCS over the prefrontal cortex was associated with beneficial effects on cognition; (2) application of anodal HD-tDCS increased dopaminergic signaling factors TH and VMAT2, and significantly decreased DAT; (3) application of anodal HD-tDCS led to an increase in several NTFs, such as BDNF, TGF-β1, and GDNF. In particular, BDNF showed the most significant increase and was associated with hippocampal neurogenesis. Taken together, our findings suggest that anodal HD-tDCS over the prefrontal cortex regulates dopaminergic neurotransmission and NTFs and that it therefore provides a potential therapeutic tool for cognitive dysfunction in patients with ADHD.

ADHD is a heterogeneous neuropsychiatric disorder associated with impaired cognitive function, including problems with behavioral flexibility (Cui et al., 2018; Faraone et al., 2015; Tsai, 2017). Recent studies suggest that non-invasive brain stimulation with tDCS may have therapeutic potential for improving cognitive impairments in patients with ADHD (Coffman et al., 2014; Leffa et al., 2018; Leffa et al., 2016; Wu et al., 2017). The major concerns associated with tDCS treatment are related to its safeness as well as to cortical excitability. Two generalized safety parameters for dosing, electrode current, and charge density have been suggested (Jackson et al., 2017; Liebetanz et al., 2009), and our electrode montage provides an additional safety margin (Jackson et al., 2017; Liebetanz et al., 2009). More than 80% of the applied current is lost in the rat; enough current flowing from the electrode is, however, essential to elicit cortical electric fields (Vöröslakos et al., 2018). Our computational models predicted that values for both electric field intensity and current density would peak at the prefrontal or primary motor cortex according to the electrode position. Electric fields as low as ~1 V/m can affect the timing of action potentials; however, higher intensities (~2 V/m) are required to measurably affect local field potential and the associated brain networks (Liu et al., 2018; Vöröslakos et al., 2018). Our predicted peak electric field intensity was slightly lower than the values in previous rodent experiments, which reported an average intracranial field intensity of 6.8 ± 3.8 V/m (Liu et al., 2018). It also predicted the absence of brain lesions, in line with animal models indicating that brain injury occurs at values of 6.3–13 A/m2 (Antal et al., 2017; Bikson et al., 2016).

We first investigated whether HD-tDCS improves cognitive function and flexibility in our rat model of ADHD. We found that HD-tDCS application over the prefrontal cortex exerted a greater beneficial effect than HD-tDCS over the primary motor cortex. HD-tDCS over the prefrontal cortex reduced hyperactivity and alleviated cognitive dysfunctions in spatial learning and working memory, behavioral flexibility, and discrimination and exploratory behavior. These effects were similar to those in the positive control group receiving MPH treatment, with even greater benefits with respect to discrimination ability.

According to the ‘compartment concept’ of dopamine action, extracellular space is considered a site of potential action; thus inhibition of intracellular uptake (or enhancement of vesicular transporters) has been regarded as a target for therapeutic trials (Uhl, 1998). In the dopaminergic neurotransmission system, DAT modulates levels of extracellular and intracellular dopamine stores by controlling reuptake from the extracellular space (Jones et al., 1998; Leo et al., 2018). VMAT2 is a transporter protein expressed on vesicular membranes for monoamines such as dopamine and modulates dopamine release dynamics (Sandoval et al., 2002; Uhl, 1998). DAT and VMAT2 are main regulators of dopamine homeostasis and signaling dynamics between extra- and intracellular compartments in the brain (Guillot and Miller, 2009).

We analyzed gene and protein expression for dopaminergic neurotransmission factors in the core regions of the mesocorticolimbic dopamine pathway. HD-tDCS application induced increases in TH and VMAT2 gene and protein expression and a decrease in DAT expression, a pattern that was most pronounced following HD-tDCS application over the prefrontal cortex. DAT is considered the main target for stimulant drugs used to treat ADHD, such as methylphenidate, a DAT antagonist that works by elevating extracellular dopamine levels (Bonvicini et al., 2016). The ratio between DAT and VMAT2, key regulators of dopaminergic neurotransmission, is a useful molecular marker for dopamine homeostasis; that is, elevated levels of VMAT2 relative to DAT protein translate to higher extracellular levels and, presumably, decreased cytosolic levels of dopamine (Guillot and Miller, 2009; Lohr et al., 2014; Uhl, 1998). HD-tDCS application over the prefrontal cortex showed significant changes in VMAT2 relative to DAT in the prefrontal cortex, striatum, and hippocampus, suggesting possible higher extracellular levels of dopamine in these regions.

NTFs related to neuronal development and plasticity are believed to be involved in the clinical manifestation of ADHD (Banaschewski et al., 2010; Galvez-Contreras et al., 2017; Tsai, 2017). One strong candidate that may play a role in the pathogenesis of ADHD is BDNF (Kent et al., 2005). Bdnf knockout mice exhibit fundamental behavioral characteristics of ADHD (Kernie et al., 2000), and drugs that can activate BDNF signaling have shown therapeutic potential for ADHD (Tsai, 2017). HD-tDCS application induced the upregulation of several NTF genes, including a significant upregulation of BDNF, TGF-β1, and GDNF. In particular, HD-tDCS application over the prefrontal cortex generally induced an increase in BDNF gene and protein expression in all brain regions examined except the hippocampus. Significant induction of BDNF protein was also observed in the SN/VTA of HD-tDCS-treated mice. ADHD rats exhibited decreased BDNF expression in the hippocampus, and impaired spatial learning ability (Jeong et al., 2014). BDNF secretion is essential for learning and memory in tDCS application (Fritsch et al., 2010; Podda et al., 2016). Similarly, our study found that BDNF expression was more markedly increased by HD-tDCS application compared to changes in the other examined NTFs. We confirmed TH and BDNF protein content by ELISA and found that HD-tDCS application induced a significant and continuous increase, not observed in the WKY control stain, in TH levels in the prefrontal cortex and in mBDNF levels in the prefrontal cortex, striatum, and SN/VTA.

Finally, we performed immunofluorescence to observe the distribution of TH/DAT-positive cells, the main target for therapeutic drugs for ADHD (Bonvicini et al., 2016; Uhl, 1998), and of BDNF/pTrkB-positive cells, which have shown therapeutic potential in learning and memory in ADHD (Fritsch et al., 2010; Tsai, 2017). Similar to the results on gene and protein expressions, HD-tDCS application over the prefrontal cortex induced a significant increase in TH-positive cells in the medial prefrontal cortex and the striatum. A marked decrease in DAT-positive cells was observed in the medial prefrontal cortex, dorsal striatum, and SN/VTA. Dopaminergic innervations from the VTA mainly target the prefrontal cortex and ventral striatum (NAc), and also innervate other regions such as the hippocampus. Thus, dopamine signaling represents a crucial factor modulating executive functions including cognitive flexibility, incentive motivation, and reward processing (Russo and Nestler, 2013). Midbrain dopaminergic neurons also project to the striatum and NAc topographically along the mediolateral axis; thus, lateral VTA neurons that project to the NAc core influence motor responses related to reward stimuli (Nobili et al., 2017). There were significantly fewer DAT-positive cells in the prefrontal cortex and striatum and TH/DAT double-positive cells in the lateral region of the VTA following HD-tDCS application, suggesting that HD-tDCS affects executive functions through the regulation of dopaminergic neurotransmission in the prefrontal cortex and the NAc.

HD-tDCS application induced the activation of BDNF/TrkB, even more than MPH treatment, in all target regions except the SN. Enhancing adult hippocampal neurogenesis improves cognitive function and is closely related to BDNF expression (Choi et al., 2018). Thus, we quantified neurogenesis in the dentate gyrus of the hippocampus and found a significant increase in newly formed neurons following HD-tDCS application. A comparison of the HD-tDCS group with the positive control group receiving DAT antagonist MPH revealed similar therapeutic effects. Indeed, HD-tDCS application over the prefrontal cortex had a more significant effect on BDNF expression than MPH. This suggests that long-term application of tDCS may mediate N-methyl-D-aspartate (NMDA) receptors and increase intracellular calcium levels that link to the downstream molecular cascades, leading to the secretion of activity-dependent growth factors such as BDNF (Liebetanz et al., 2002; Nitsche et al., 2003; Wu et al., 2017). BDNF also enhances dopamine release in the NAc through the activation of TrkB receptors on dopaminergic nerve terminals, and is thus considered a key regulator of the mesolimbic dopamine pathway linking cognitive processes (Berton et al., 2006; Goggi et al., 2003). Our results shed light on the possibility that the activation of the BDNF/TrkB pathway may be involved in dopamine release at the core sites of dopaminergic pathways.

Non-invasive brain stimulators generate neuronal activation at the primary target site and then spread to subcortical sites of the mesocorticolimbic dopamine system via mediating NMDA receptors that induce intracellular calcium cascades (Diana et al., 2017; Ferenczi and Deisseroth, 2016; Liebetanz et al., 2002; Nitsche et al., 2003; Wu et al., 2017). The observed connectivity-based spread from the prefrontal cortex to subcortical sites following HD-tDCS may be related to the therapeutic effects on cognitive deficits in patients with ADHD. Our results show that similar therapeutic effects in the tDCS-PFC and the tDCS-M1 groups, potentially due to connectivity-based spread from the prefrontal cortex to subcortical sites (Liebetanz et al., 2002; Nitsche et al., 2003; Wu et al., 2017) and direct electrical stimulation of subcortical structures (Hadar et al., 2020; Thibaut et al., 2015). However, other possible mechanisms should be considered that the stimulation of HD-tDCS may partially induce cortical excitability via transcutaneous peripheral nerve stimulation, depending on the location of the active and reference electrode (Asamoah et al., 2019; Tsuiki et al., 2019).

While our study suggests that tDCS application provides a potential adjuvant therapy for ADHD, our findings have some limitations regarding their transfer to the clinical practice. The charge density and predicted current density was much higher than what is currently applied in patients, which makes it difficult to directly transfer our approach to clinical situations (Bikson et al., 2016; Liebetanz et al., 2009). However, head size needs to be considered regarding the transfer of stimulation parameters and dose regimes need to be adapted to achieve comparable conditions in animal and clinical studies. The relative difference in electric field strength between the mouse and humans is 100 times, with a typical transcranial electric stimulation intensity of 1–2 mA in humans approximately translating to 10–20 μA in mice (Alekseichuk et al., 2019). Compared to the intensity of <1 V/m measured in conventional human studies (Liu et al., 2018), rodent studies typically employ stronger intensities. The human brain also requires a higher field intensity than that used in conventional tDCS to reliably affect local field potential (Liu et al., 2018; Vöröslakos et al., 2018). Our results encourage the development of intensified tDCS protocols to induce more stable or more potent, that is, therapeutically longer-lasting, benefits of neuromodulation in psychiatric disorders (Antal et al., 2017; Jackson et al., 2016; Liebetanz et al., 2009).

Consequently, our results present evidence of the therapeutic potential of anodal HD-tDCS over the prefrontal cortex in the treatment of ADHD. This treatment regulated dopaminergic neurotransmission factors (especially DAT) and BDNF signaling in the core dopaminergic pathways, subsequently ameliorating cognitive dysfunction. The results of our gene and protein expression analysis, that is, TGF-β1 protein in the striatum and GDNF protein in the hippocampus indicate that NTFs such as TGF-β1 and GDNF are also activated; future research that aims to clarify these mechanisms is warranted. In summary anodal HD-tDCS application offers a potential adjuvant therapy for psychiatric disorders such as ADHD and may improve recovery of cognitive dysfunctions.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Male. Rattus)Wistar kyoto ratsIzm
Strain, strain background (Male. Rattus)Spontaneously hypertensive ratsIzm
Chemical compound, drugMPHThe United States Pharmacopeial Convention14330082 mg/kg
Chemical compound, drugBrdUMerckB5002-5G50 mg/kg
Commercial assay or kitTOPscriptTM cDNA Synthesis KitEnzynomicsEZ005SUsed following manufacturer’s recommendations
Commercial assay or kitQuantikine free BDNF ELISA kitR and D SystemsDBD00Used following manufacturer’s recommendations
Commercial assay or kitTH ELISA kitCusabioCSB-E13102rUsed following manufacturer’s recommendations
Commercial assay or kitCorticosterone ELISA kitEnzo Life Sciences IncADI-900–097Used following manufacturer’s recommendations
Sequence-based reagentTH forwardThis paperPCR primersTTATGGTGCAGGGCTGCTGTCTT
Sequence-based reagentTH reverseThis paperPCR primersACAGGCTGGTAGGTTTGATCTTGG
Sequence-based reagentDAT forwardThis paperPCR primersCAGCCTATGGAAGGGAGTAAAG
Sequence-based reagentDAT reverseThis paperPCR primersCACACTGAGGTATGCTCTGATG
Sequence-based reagentVMAT2 forwardThis paperPCR primersGCTCCTCACTAACCCATTCATA
Sequence-based reagentVMAT2 reverseThis paperPCR primersGCTGGAGAAGGCAAACATAAC
Sequence-based reagentBDNF forwardThis paperPCR primersCCTGTGGAGGCTAAGTGGAG
Sequence-based reagentBDNF reverseThis paperPCR primersCCTGCTCTGAAGGGTGCTT
Sequence-based reagentTGF- β1 forwardThis paperPCR primersCTGTGGAGCAACACGTAGAA
Sequence-based reagentTGF- β1 reverseThis paperPCR primersGTATTCCGTCTCCTTGGTTCAG
Sequence-based reagentGDNF forwardThis paperPCR primersCCAGAGAATTCCAGAGGGAAAG
Sequence-based reagentGDNF reverseThis paperPCR primersCTTCACAGGAACCGCTACAA
Sequence-based reagentNGF forwardThis paperPCR primersCCTCTTCGGACAATATGG
Sequence-based reagentNGF reverseThis paperPCR primersCGTGGCTGTGGTCTTATC
Sequence-based reagentNT3 forwardThis paperPCR primersAGGTCACAATTCCAGCCGAT
Sequence-based reagentNT3 reverseThis paperPCR primersGTTTCCTCCGTGGTGATGTT
Sequence-based reagentGAPDH forwardThis paperPCR primersTGAACGGGAAGCTCACTG
Sequence-based reagentGAPDH reverseThis paperPCR primersGCTTCACCACCTTCTTGATG
AntibodyAnti- mBDNF (Rabbit polyclonal)NovusCat#: NB100-98682
RRID:AB_1290643
WB (1:1000)
AntibodyAnti-TGF-ß1(Rabbit polyclonal)AbcamCat#: ab92486
RRID:AB_10562492
WB (1:500)
AntibodyAnti-GDNF(Mouse monoclonal)Santa CruzCat#: sc13147
RRID:AB_627672
WB (1:500)
AntibodyAnti-NGF(Rabbit polyclonal)AbcamCat#:ab6199 RRID:AB_2152414WB (1:500)
AntibodyAnti-NT3(Rabbit polyclonal)Alomne LabsCat#:ANT003 RRID:AB_2040013WB (1:200)
AntibodyAnti-TH(Rabbit polyclonal)AbcamCat#:ab112 RRID:AB_297840WB (1:200)
AntibodyAnti-DAT(Rabbit polyclonal)MilliporeCat#:AB1591P RRID:AB_90808WB (1:100)
AntibodyAnti-VMAT2(Rabbit polyclonal)NovusCat#:NB110-68123 RRID:AB_1111327WB (1:500)
AntibodyAnti-mBDNF(Sheep polyclonal)AbcamCat#:ab75040 RRID:AB_1280756IF (1:500)
AntibodyAnti-pTrkB(Rabbit polyclonal)AbcamCat#:ab131483 RRID:AB_11156897IF (1:500)
AntibodyAnti-TH(Mouse monoclonal)Santa CruzCat#:sc25269 RRID:AB_628422IF (1:1000)
AntibodyAnti-DAT(Rat monoclonal)Santa CruzCat#:sc32259 RRID:AB_627402IF (1:50)
AntibodyAnti-BrdU(Rabbit monoclonal)Bio-RadCat#:MCA2483 RRID:AB_808349IF (1:500)
AntibodyAnti-NeuN(Rabbit polyclonal)MilliporeCat#:ABN78 RRID:AB_10807945IF (1:1000)
AntibodyAnti-Iba1(Rabbit polyclonal)WakoCat#:019–19741 RRID:AB_839504IF (1:500)
Software, algorithmG*PowerG*Power 3.1 softwareRRID:SCR_013726Germany; http://www.gpower.hhu.de/
Software, algorithmSigmaPlotSigmaPlot 11.2RRID:SCR_010285
Software, algorithmITK-SNAPITK-SNAP v3.8.0RRID:SCR_002010www.itksnap.org
Software, algorithmMVGC Multivariate Granger Causality Matlab ToolboxMatlab 9.8RRID:SCR_015755
Software, algorithmBioMesh3Dversion 1.5RRID:SCR_009534www.wias-berlin.de
Software, algorithmCoMetCoMetRRID:SCR_011925
Software, algorithmSMART Video-trackingSMART v3.0 video tracking systemRRID:SCR_002852
Software, algorithmIMT i-SolutionIMT i-Solution Inc 10.1

Experimental procedures

Request a detailed protocol

Male Wistar Kyoto rats (WKY/Izm; n = 25) and spontaneously hypertensive rats (SHR/Izm; n = 65) were obtained from the Inasa and Nakaizu Production Facility (Japan SLC, Inc, Kotoh-cho, Japan). Rats were randomized into eight experimental groups (n = 10/group); WKY (control strain), SHR (model of ADHD), sham (SHR or WKY rats receiving sham stimulation), tDCS-PFC (SHR or WKY rats stimulated with anodal HD-tDCS over the prefrontal cortex), tDCS-M1 (SHR rats stimulated with anodal HD-tDCS over the primary motor cortex), and MPH (SHR rats treated with methylphenidate; positive control). Three-dimensional (3D) numerical simulations were performed to identify the stimulated patterns of brain regions according to the electrode position and current (Figure 6A). Then, HD-tDCS treatment was performed once a day for 5 days, beginning 7 days after electrode implantation, followed by a rest interval of 2 days, and then another 5 days of treatment. Behavioral tests (n = 5–8/group) of cognitive function were performed according to the experimental schedule presented in Figure 6C. All behavioral experiments were performed by independent, blinded observers. Expression of dopaminergic neurotransmission and NTF genes was evaluated using real-time polymerase chain reaction (PCR) of tissues (n = 4–5/group) obtained from the prefrontal cortex, striatum, hippocampus, and substantia nigra/ventral tegmental area. The expression and secretion of dopaminergic neurotransmission and NTFs were also evaluated using a western blot (n = 5/group) and enzyme-linked immunosorbent assay (ELISA, n = 4–5/group). Lastly, immunohistochemical analyses were performed to detect the distribution of specific cells of dopaminergic neurotransmission factors and NTFs. All data analyses used the mean of three samples per animal and were conducted by investigators who were blinded to genotypes and treatments. All experiments were approved by the Pusan National University Animal Care and Use Committee and were performed in accordance with the National Institutes of Health Guidelines (PNU-2018–1932).

Figure 6 with 1 supplement see all

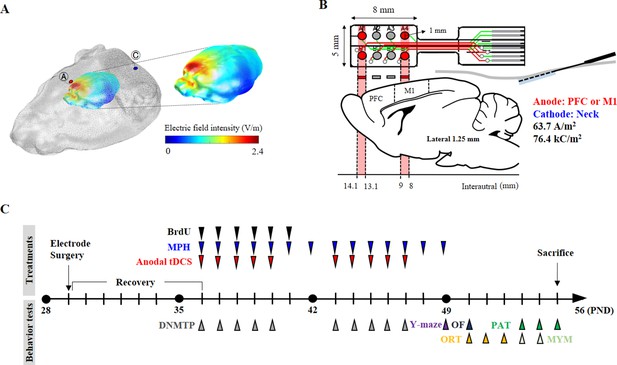

Experimental schematic diagram.

(A) Three-dimensional tDCS simulation over the prefrontal cortex. The highest electric field intensity values are represented in red, and the lowest electric field intensity values are represented in blue. False color: electric field intensity (V/m). Ⓐ, anode electrode; Ⓒ, reference electrode. Anodal stimulation was delivered at an intensity of 63.7 A/m2 over the prefrontal cortex. The predicted peak electric field intensity was 2.4 V/m in the frontal cortex. (B) Schematic diagram showing each electrode position and corresponding cerebral cortical region. The anodal stimulation was pointed over the frontal cortex and the primary motor cortex via the electrode, and the cathode was positioned on the skin of the neck. (C) The time schedule of HD-tDCS or MPH treatment and behavior tests. OF, open-field test; PAT, passive avoidance test; MYM, modified version of the Y-maze test.

Animals

A total number of 90 (25 WKY/lzm and 65 SHR/lzm) male rats (PND 25 ± 1, 100–140 g) were obtained from the Inasa and Nakaizu Production Facility (Japan SLC, Inc). The animal room was temperature-controlled (22 ± 1°C) and ventilated, and maintained on a 12 hr light-dark cycle (dark from 06:00 to 18:00 hr). The animals had free access to food and water. We minimized animal suffering and used the minimum number of animals necessary to assess significance. The sample size was determined based on the speed (cm/s) of the open field test after tDCS treatments in our previous results using G*Power 3.1 software (Heinrich-Heine-Universität, Düsseldorf, Germany; http://www.gpower.hhu.de/). Our previous results suggested an expected sample size for this research study of n = 5 for each six groups, a fixed effect, omnibus, one-way ANOVA with six groups, and an effect size f = 0.8, at α = 0.05 and β = 0.2. Consequently, group sizes of n > 5 were used for the behavioral tests. Computer-generated randomization was conducted using SigmaPlot 11.2 (Systat Software Inc, San Jose, CA, USA), to allocate 10 animals per groups to either sham or real treatment. After randomization, the SHR rats were allocated in a blinded fashion.

Three-dimensional tDCS simulation

Request a detailed protocol

For the 3D tDCS simulation, magnetic resonance (MR) and microcomputed tomography (micro-CT) images from the head and neck of Long-Evans rats (NeuroImaging Tools and Resources Collaborator, https://www.nitrc.org) were employed. From the micro-CT image of a rat, a 3D skin and skull surface mesh model was generated using itk-SNAP (itk-SNAP v3.8.0, www.itksnap.org). Subsequently, a 3D surface mesh model from an MR image was generated. The three-surface mesh mode was configured as one 3D surface model mesh using Matlab 2020 (Matlab 9.8, c, Natick, MA, USA). The 3D volume mesh was generated using TetGen (version 1.5., www.wias-berlin.de) for finite element model (FEM) analysis. The 3D FEM model of the rat was comprised of four structures: scalp, skull, cerebrospinal fluid, and brain (conductivity properties: scalp, 0.465; skull, 0.015; cerebrospinal fluid, 1.65; and brain, 0.3). The generated volume mesh model was used for the 3D tDCS simulation using Comets Software (Jung et al., 2013; Lee et al., 2017). The 3D tDCS numerical simulation results predicted that a current at a density of 63.7 A/m2 flowing from the anode electrode reaches the brain region close to the anode electrode. The placement of electrodes over the prefrontal or primary motor cortex predicted that both peak electric field intensity and current density would be observed under the electrode and its periphery. The predicted peak electric field intensity was 2.4 V/m in the prefrontal cortex and 3.5 V/m in the primary motor cortex. The predicted peak current densities were 2.1 A/m2 and 3.3 A/m2 in the prefrontal cortex and primary motor cortex, respectively. In addition, it was also predicted that the areas where the electric field is thresholded above 2 V/m focalized to the prefrontal and primary motor cortex (Figure 6A, Figure 6—figure supplement 1).

High-definition transcranial direct current stimulation

Request a detailed protocol

For the epicranial electrode implant, SHR and WKY rats were anesthetized using the VIP 3000 calibrated vaporizer (Midmark, Orchard Park, OH, USA) with 2% isoflurane (Choongwae, Seoul, Korea) on a heating pad (37°C). The scalp and underlying tissue were removed, and the electrode was implanted using dental cement (38216, Durelon carboxylate luting cement, 3M, Neuss, Germany). The anode at the center of the first two active electrodes (radius, 0.5 mm) was positioned over the prefrontal cortex (1.25 mm left and right, 4.35 mm anterior from bregma) or at the center of the last two electrodes were placed over the primary motor cortex (1.25 mm left and right, −0.5 mm from bregma) (Figure 6B). The non-epicranial electrode implant animals were also anesthetized at the same time for the surgical operation, and then all animals were transferred to care cases (under a heat lamp). After a check for generalized movements, they were moved to their home cage. An anodal HD-tDCS current was applied continuously for 20 min (intensity, 50 μA; current density, 63.7 A/m2; charge density, 76.4 kC/m2) using a constant current stimulator (8CH-tDCS; Neuro Rehap, Busan, Korea) under isoflurane anesthesia. The cathode was inserted below the skin of the back of the neck using a needle (0.30 mm in diameter and 40 mm in length) as an extracephalic reference electrode to avoid common side-effects including transient sensation at the skin (Kronberg and Bikson, 2012). The non-HD-tDCS groups were anesthetized at the same time for 20 min. HD-tDCS was repeated once a day beginning from 7 days after the electrode surgery, for a total of 5 consecutive days, followed by a rest period of 2 days before five additional daily treatments, to avoid possible stress induced by consecutive application. The current intensity was ramped for 30 s to prevent a stimulation break effect. The sham group was connected to the system for sham stimulation where no current was applied. On each day, the HD-tDCS intervention was performed at approximately the same time (at 10:00 a.m.). Pain or stress that may be caused by HD-tDCS application was estimated via measuring weight, resting times in the central zone in the open field test, and corticosterone levels in the plasma.

Methylphenidate treatment

Request a detailed protocol

As a positive control, MPH (1433008, The United States Pharmacopeial Convention, North Bethesda, MD, USA) was injected once a day (i.p.; 2 mg/kg dissolved in saline) from 7 days after the electrode surgery, for 2 weeks. Other groups were injected with a 0.9% saline vehicle.

BrdU labeling

Request a detailed protocol

To label proliferating cells in the brain, animals received BrdU (i.p.; 50 mg/kg; B5002-5G, Merck KGaA, Darmstadt, Germany) once a day for 6 consecutive days beginning 7 days after the electrode surgery. BrdU is a synthetic thymidine analog that is incorporated into the DNA of dividing cells during the S-phase and can subsequently be detected with an anti-BrdU-specific antibody.

Open-field test

View detailed protocol

Rats were assessed in an open field apparatus to evaluate spontaneous locomotor behavior. The open field (60 × 60 × 30 cm3) was a black square box divided into a center (30 × 30 cm2) and a surrounding zone. Rats were placed in an individual box in the center, following 5 min of habituation. During the 15 min test, the total distance (cm), velocity (cm/s), and resting times in the center zone (s) were measured using a SMART v3.0 video tracking system (Panlab, S.L.U., Barcelona, Spain), under low-light intensity (<50 lx) in a quiet room.

T-maze, delayed non-match to place version

View detailed protocol

The DNMTP version of the T-maze was used to assess the animals’ spatial working memory using rewarded alternation. Rats underwent 2 days of habituation, during which they were allowed to freely visit all arms of the T-maze for 10 min. During a sample phase, rats were placed in the starting arm and forced to randomly enter either the right or left arm, receiving a food reward (Figure 1—figure supplement 1B). For the test phase, both arms were open, and there was one food reward arm and one empty (error) arm. The intra-trial retention interval (delay) between the forced run and the choice run was set at 10 s, and the inter-trial interval between trial pairs was 30 min. All animals performed more than seven trials in each session; the index of reward performance was calculated as the average of the correct number of choices.

Y-maze, modified and spontaneous alternation task version

View detailed protocol

A modified version of the Y-maze test was used to assess working memory and behavioral flexibility. The apparatus used consisted of black polypropylene walls with three arms, each 40 cm long, 10 cm wide, and 16 cm high. Rats were habituated for 2 days before testing. In the sample phase trial, each animal was individually placed in the maze with one of the three arms closed. The animals were allowed to explore the other two arms freely for 10 min. The test phase trial was conducted 24 hr after the sample phase trial. The previously closed arm was opened in the test phase trial and defined as the ‘new arm’. Behavior was video-recorded for later analysis. Percent time spent in the new arm was measured using a SMART v3.0 video tracking system (Panlab, S.L.U., Barcelona, Spain) in a quiet room.

Y-maze spontaneous alternation is a test used to measure spatial working memory during exploratory activity. Rats freely explored the three arms of a Y-shaped maze for 30 min to habituate in the maze, and the task began at the center of the maze 10 min after habituation. Each rat was placed at the end of one arm (labeled ‘A’, ‘B’, or ‘C’) and allowed to move freely through the maze for 8 min. SAP was defined as visiting three different arms consecutively (i.e. ABC, ACB, BCA, BAC). Percent spontaneous alternation was calculated as [(number of alternations) / (total arm entries − 2)]×100. The AARs and SARs were also scored in order to assess aspects of attention within spontaneous exploratory behavior.

Passive avoidance test

Request a detailed protocol

The passive avoidance test assesses learning and memory. The passive avoidance test used here (Med Associates Inc, St. Albans, VT, USA) consisted of three sessions. An illuminated compartment (20 × 20 × 25 cm3) and a dark compartment (20 × 20 × 25 cm2) were separated by a sliding door. In the first session, each rat underwent training trials moving from the light compartment to the dark compartment. After training, when the rats entered the dark compartment, the door closed automatically and a single inescapable scrambled foot shock (0.8 mA; 3 s) was delivered through the grid floor. During the final session, the procedure was repeated until the latency to enter the dark box was ≥300 s.

Object-place recognition test

Request a detailed protocol

For the object-place recognition test to evaluate spatial memory with discrimination, rats were individually habituated to an open-field box (60 × 60 × 30 cm3) for 10 min. After habituation, the rats were allowed to explore two identical objects (each of which was a 5 × 5×15 cm3 bottle; referred to as ‘A1’ and ‘A2’) for 10 min, positioned at the back corners of the arena, 10 cm from the wall. The total time that the rats spent exploring each of the two objects was measured, and then the rat was returned to the home cage. In a test trial performed 24 hr later, one of the objects was displaced to a new position (B1) while the other object (A2) remained at the same location. Novel place discrimination was assessed by comparing the time spent exploring the familiar object (A2) with that exploring the novel object (B1). Data were used to determine a discrimination score using the following equation: [(B1 – A2)/ (B1 + A2)]. The time spent exploring each object was analyzed using a SMART v3.0 video tracking system (Panlab, S.L.U., Barcelona, Spain).

Quantitative real-time PCR

Request a detailed protocol

Total RNA was isolated from frozen brain tissue from the prefrontal cortex, striatum, hippocampus, and SN/VTA, using TRIzol reagent (Thermo Fisher Scientific, Waltham, MA, USA). Extracted RNA was dissolved in diethyl pyrocarbonate-treated water. The purity and integrity of extracted RNA were evaluated by optical density measurements (260/280 nm ratios) using a Nanodrop Spectrophotometer (nd-1000, Thermo Fisher Scientific). Total RNA was reverse transcribed into cDNA using a TOPscriptTM cDNA Synthesis Kit (EZ005S, Enzynomics, Daejeon, Korea). Then, 2 mg of cDNA and gene-specific primers were added to SYBR green mastermix (RR420A, Takara Bio Inc, Kusatsu, Japan), and subjected to PCR amplification. Primer sets are listed below:

  • TH forward, 5′- TTATGGTGCAGGGCTGCTGTCTT −3′

  • TH reverse, 5′- ACAGGCTGGTAGGTTTGATCTTGG −3′

  • DAT forward, 5′- CAGCCTATGGAAGGGAGTAAAG −3′

  • DAT reverse, 5′- CACACTGAGGTATGCTCTGATG −3′

  • VMAT2 forward, 5′- GCTCCTCACTAACCCATTCATA −3′

  • VMAT2 reverse, 5′- GCTGGAGAAGGCAAACATAAC −3′

  • BDNF forward, 5′- CCTGTGGAGGCTAAGTGGAG −3′

  • BDNF reverse, 5′- CCTGCTCTGAAGGGTGCTT −3′

  • TGF- β1 forward, 5′- CTGTGGAGCAACACGTAGAA −3′

  • TGF- β1 reverse, 5′- GTATTCCGTCTCCTTGGTTCAG −3′

  • GDNF forward, 5′- CCAGAGAATTCCAGAGGGAAAG −3′

  • GDNF reverse, 5′- CTTCACAGGAACCGCTACAA −3′

  • NGF forward, 5′- CCTCTTCGGACAATATGG −3′

  • NGF reverse, 5′- CGTGGCTGTGGTCTTATC −3′

  • NT3 forward, 5′- AGGTCACAATTCCAGCCGAT −3′

  • NT3 reverse, 5′- GTTTCCTCCGTGGTGATGTT −3′

  • GAPDH forward, 5′- TGAACGGGAAGCTCACTG −3′

  • GAPDH reverse, 5′- GCTTCACCACCTTCTTGATG −3′

Denaturation was performed at 95°C for 10 min, after which, segment 1 (95 °C for 10 s), segment 2 (60 °C for 15 s), and segment 3 (72 °C for 10 s) were repeated for 40 cycles. Relative expression data were quantified using 2-ΔΔCT, where the threshold value (Ct) is the threshold value. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as a housekeeping gene. Gene expressions were expressed as fold changes of WKY.

Western blotting

Request a detailed protocol

Frozen tissue was homogenized in a lysis buffer containing 250 mM NaCl, 5 mM EDTA (pH 7.5), 25 mM Tris-HCl (pH 7.5), 1% NP40, 1 mM phenylmethylsulfonyl fluoride (PMSF), 5 mM dithiothreitol (DTT), 0.1 mM sodium orthovanadate (Na3VO4), 10 mM NaF, leupeptin, and protein inhibitor cocktail at 4°C for 5 min. Proteins from the soluble fraction (20 µl) were resolved using 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and then transferred to a nitrocellulose membrane (Whatman, Piscataway, NJ, USA) using a blotting system (Bio-Rad). The membrane was incubated in a 5% solution of non-fat milk for 1 hr at 20°C. The membrane was then washed and incubated overnight at 4 °C with primary antibodies against mBDNF (NB100-98682, Novus Biologicals, LLC., Centennial, CO, USA), TGF-ß1 (ab92486, Abcam, Cambridge, UK), GDNF (sc13147, Santa Cruz Biotechnology, Inc, Dallas, TX, USA), NGF (ab6199, Abcam), NT3 (ANT003, Alomne Labs, Jerusalem, Israel), TH (ab112, Abcam), DAT (AB1591P, Millipore Corporation, Billerica, MA, USA), and VMAT2 (NB110-68123, Novus). The blots were washed for 20 min and incubated at room temperature for 1 hr with secondary antibodies according to the appropriate species: anti-mouse or anti-rabbit immunoglobulin G (ADI-SAB-100 or 300; Enzo Life Sciences, Inc, Farmingdale, NY, USA). Quantification of band immunoreactivity was visualized using an enhanced chemiluminescence system (Pierce, Rockford, IL, USA) and imaged with an Image Quant LAS-4000 imaging system (Fujifilm, Tokyo, Japan). Western blotting was analyzed using the IMT i-Solution Inc 10.1 (17TH-5989 Walter Gage Rd., Vancouver, BC, CA) image analysis software. Protein expressions/ß-actin ratios were calculated, and data were expressed as percentages of the mean values of WKY protein levels.

Enzyme-linked immunosorbent assay (ELISA)

Request a detailed protocol

Protein levels for mBDNF, TH, and corticosterone were measured using a Quantikine free BDNF ELISA kit (DBD00, R and D Systems Inc, Minneapolis, MN, USA), a TH ELISA kit (CSB-E13102r, Cusabio Biotech CO., LTD, Wuhan, China), and a corticosterone ELISA kit (ADI-900–097, Enzo Life Sciences Inc, Farmingdale, NY, USA). Tissue samples for free BDNF ELISA were homogenized with lysis buffer containing 200 mM Tris (pH 8.0), 150 mM NaCl, 2 mM EDTA, 1 mM NaF, 1% NP40, 1 mM PMSF, 1 mM Na3VO4, and a protease inhibitor cocktail, and then centrifuged at 13,000 rpm for 30 min at 4°C. TH ELISA samples were obtained from 30 mg of tissue homogenized with 150 μl of 1 X PBS and stored overnight at −20°C. After two freeze-thaw cycles, samples were centrifuged at 5000 rpm for 5 min at 4°C. For corticosterone ELISA, blood samples were collected from the heart within 3 min using a needle and transferred to a EDTA BD Vacutainer containing blood collections tubes (367835, Becton Dickinson, Franklin Lakes, NJ, USA). The plasma was separated from the whole blood by centrifuging at 5000 g for 5 min at 4°C. Samples and standards were applied to titer plates. Final reactions were measured using a SpectraMax 190 microplate reader (Molecular Devices, Sunnyvale, CA, USA). A standard curve of recombinant BDNF (0–4,000 pg/well), TH (0–5,000 pg/well), and corticosterone (0–20,000 pg/well) was plotted for each plate. The average value of the sample was normalized against the total protein concentration.

Immunofluorescence staining

Request a detailed protocol

For immunofluorescence analysis, 25 μm serial cryosections were obtained using a CM3050 cryostat (Leica Microsystems, Wetzlar, Germany). After incubation in a blocking buffer (1 × PBS/1% bovine serum albumin/0.3% Triton X-100) for 1 hr at room temperature, sections were incubated with the following primary antibodies overnight in PBS at 4°C: mBDNF (ab75040, Abcam), pTrkB (ab131483, Abcam), TH (sc25269, Santa Cruz Biotechnology, Inc), DAT (sc32259, Santa Cruz Biotechnology, Inc), BrdU (MCA2483, Bio-Rad, Hercules, CA, USA), NeuN (ABN78, Millipore Corporation), and Iba1 (019–19741, Wako Chemicals, Richmond, VA, USA). Sections were washed with PBST and incubated with fluorescent secondary antibodies (A11001, A11007, or A11037, Invitrogen, Carlsbad, CA, USA; CA94010, Vector Laboratories, Inc, Burlingame, CA, USA) for 2 hr at room temperature. Sections were mounted onto slides using a mounting medium (H-1200, Vector Laboratories, Inc) and imaged using a fluorescence microscope (Carl Zeiss Imager M1, Carl Zeiss AG, Oberkochen, Germany). Immunofluorescence was analyzed using the IMT i-Solution Inc 10.1 (17TH-5989 Walter Gage Rd., Vancouver, BC, CA) image analysis software.

Statistical analyses

Request a detailed protocol

All data are expressed as the mean ± standard error of the mean (SEM). Data were analyzed using SigmaPlot Version 11.0 (Systat Software, San Jose, CA, USA). Statistical analyses were performed using one-way analyses of variance (ANOVAs) for repeated measures, followed by Tukey's tests for multiple comparisons. p<0.05 was considered a significant difference. All statistical analyses were performed on raw data. No samples were excluded from analysis.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures and Tables.

References

  1. Conference
    1. Kronberg G
    2. Bikson M
    (2012) Electrode assembly design for transcranial direct current stimulation: a FEM modeling study
    Conference Proceedings : . Annual International Conference of the IEEE Engineering in Medicine and Biology Society Annual Conference. pp. 891–895.
    https://doi.org/10.1109/EMBC.2012.6346075

Decision letter

  1. Richard B Ivry
    Senior Editor; University of California, Berkeley, United States
  2. Marom Bikson
    Reviewing Editor; The City College of New York of the City University of New York, Department of Biomedical Engineering, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Transcranial direct current stimulation (tDCS) is among the most investigated interventional neurotechnolgies in cognitive neuroscience and for neuropsychiatric indictions. This work adds rigor through using high-definition tDCS in a rat model of ADHD, showing alleviation cognitive deficits linked to dopaminergic neurotransmission factors, increased expression of several neurotrophic factors involving BDNF, and activated hippocampal neurogenesis. This work supports the notion that tDCS can activated a consultation of linked neuro-restorative processes, with broad applications.

Decision letter after peer review:

Thank you for submitting your article "Therapeutic effects of anodal transcranial direct current stimulation in a rat model of ADHD" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Richard Ivry as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below substantial changes are required to determine its suitability for publication.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This is an intriguing study that bridges molecules to behavior in establishing a mechanism and rational for the use of tDCS as a potential intervention in ADHD. These results indicate that tDCS can alleviate behavioral deficits in a rat model of ADHD. The study appears to be very thorough, both in the battery of behavioral tests used and assays used to measure changes in dopaminergic pathways, neurotrophic pathways and hippocampal neurogenesis.

Major issues for revision:

1) Important methodological details are missing or unclear. This concern must be fully addressed to warrant review of a revision. To provide a few examples:

a) Lack of clarity on dosing (unacceptable to refer reader to prior publications on critical methodological details). Indeed, if the dosing is ultimately not so focal then the current is passing through most of the brain, brain stem, spinal cord, periphery etc. This would change the potential impact of the paper.

b) Concerns about control/sham are equally essential. If the stimulation provided (electric field in brain) is much higher than tDCS, the paper may not be suitable for publication without additional experiments.

c) What were the animals doing during the tDCS session?

d) What time of day was it applied?

e) The anodes are not explained well and the cathodes completely opaque. The current density is presumably quite high for the anodes, but might be even much higher for the cathodes, which are presented as needles.

f) There is no data that present whether the rats are comfortable with the stimulation or not. Pain and stress might lower movement or enhance agitation in rats, depending on the strain and individual biological variability.

g) The lack of information on a reasonable control groups is also the reason that there is no data about the effects of the surgical procedure and the post-operative care.

2) Issues with sham. Procedure for sham is not clear. Is it no stimulation or a ramp up/down? What sensation does it produce? An "active control" would have some advantages over sham and may be essential if the sham is problematic.

3) As understood from the text, the Wistar-Kyoto rats (WKY), which are indeed the best control for SHR rats, were not operated at all, and they were completely naïve. There is no WKY-sham group, and no WKY-tDCS group. The lack of proper control groups makes the drawing of conclusions difficult.

4) Stimulation intensity. There is no discussion of the choice of current intensity or how this intensity is related to human tDCS techniques. The authors report current/charge density at the skull which is close to values that created lesions in other studies (Jackson et al., 2017). Of course, it is unlikely that lesions were created here, but this suggests that the electric field/current density generated in the rat brain may be very high. In the absence of evidence that similar behavioral effects are observed with weaker stimulation, or evidence that the stimulation intensity used here is comparable to human tDCS, the relevance of this study for treating ADHD in humans is limited. A good way to address this issue is a computational model as in Jackson et al., 2017. Otherwise, the authors may be able to extrapolate from other models or intracranial measurements to approximate the electric field magnitude in their study. tDCS is low intensity. If this paper is high intensity, maybe even supra-threshold intensity, it highly limited (as much proper animal tDCS work) and the authors should not resubmit without more experiments.

5) The effects of such chronic stimulation on the tissue below the anodes was not investigated with histopathological studies. The tissue below the electrodes might suffer some damage, though previous studies showed that such current density does not inflict tissue damage, it is worthwhile to examine that with these unique electrodes.

6) A potential confound in animal studies of electrical stimulation is the role of somatosensation or peripheral nerve stimulation due to electrodes placed on the body. A control condition with active stimulation that does not target relevant brain areas (or the brain at all) can help alleviate this issue. To this end, comparisons between tDCS-PFC and tDCS-M1 are useful. It appears that in many of the behavioral assays used here, both stimulation types have beneficial effects. To what degree could the common effects of these protocols be explained by common peripheral effects? The authors should discuss this potential confound.

7) The authors claim that they perform an HD-tDCS. The montage shown is not HD-tDCS per se but a version modified for animals. This could be innovative but need to know more about dosing and brain current flow. This montage probably makes most of the electricity to run via the skin on the back of the neck.

8) This work has the potential to be of high translational impact. However, it is not clear how the stimulation intensity used here relates to studies in humans, which is critical for its translational impact, and therefore its suitability for publication in eLife. Can this dosing be scaled to human dosing?

9) While some results separate by dose, others do not, and does this question focality? tDCS of M1 showed similar effects to those of the PFC group in both reduction in hyperactivity component (Results paragraph one and Figure 1A) and in passive avoidance test (Figure 1E). This might be due to spillage of current.

10) The effects of the surgical procedure and the post-operative measures were not investigated as a factor. The stress of the surgical procedure and the restraint required for proper sham or tDCS application and the inconvenience/pain that might be due to the electricity in the real tDCS might be a factor that was not investigated. For example, the timing of the biochemical sampling of TH and BDNF levels is not necessarily related to tDCS beneficial effects. The sampling was 8 days after the last stimulation. Whether this is related to behavior or stress is really not answered. Reviewers had mixed views on if it would be better/needed if the WKY would also contain sham and tDCS, on the expense of the M1 group for example. The positive control group of the MPH is useful.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Therapeutic Effects of Anodal Transcranial Direct Current Stimulation in a Rat Model of ADHD" for further consideration by eLife. Your revised article has been evaluated by Richard Ivry (Senior Editor) and Marom Bikson (Reviewing Editor).

The manuscript has been improved but there are some remaining issues that need to be addressed.

1) The original concern regarding stimulation intensity and focality remains. An essential question that remains unanswered is how the brain electric field distribution in this study compares to typical human tDCS (or what is achievable with human tDCS). While the authors have created a model as recommended, it is not clear how their use of the model addresses this fundamental issue. The model should address 1) whether the stimulation produces too strong of an electric field in the brain to be comparable to human tDCS (intensity) and 2) the degree to which this stimulation is focal (e.g. restricted to PFC or M1). Instead the authors seem to use the modeling results to show that brain current density peaks under the anode and moves when the anode is moved. These two points are mostly trivial (they have been noted by many other studies). Moreover, the way that the model is presented (Figure 6) does not facilitate any quantitative comparison with human tDCS or other animal mechanistic studies. Some suggestions for how to improve the presentation and discussion of the model results.

a) Report electric field: the majority of mechanistic or neurophysiological studies of electrical stimulation have controlled for electric field magnitude. The modeling results should be reported in these units to facilitate comparison across systems.

b) Peak electric field: We know what peak electric fields in the human cortex during tDCS are (~1 V/m). How does the peak electric field compare in this study? The peak electric field here may be an order of magnitude higher.

c) Focality: several studies have suggested that measurable effects on neuronal firing require ~1V/m electric field. The model can help predict how much of the brain crosses this pseudo-threshold in your study. Is it restricted to PFC/M1? Does it reach subcortical structures? It may be that most of the brain in this study is above or near this pseudo-threshold.

d) Colormap: Consider using a colormap where electric field magnitude corresponds to color intensity and perhaps an additional figure where the electric field is thresholded above 1 V/m, making the degree of focality obvious.

These changes would help facilitate comparison with human tDCS, and help other researchers determine whether these results are likely to apply to their protocol. They may also help interpret your own results (e.g. perhaps PFC and M1 stimulation exhibit similar effects due to direct electrical stimulation of subcortical structures with both montages).

2) With regard to modeling technique, you should explicitly model CSF with a different conductivity from the brain itself. CSF strongly affects current flow patterns due to its high conductivity.

3) The western blotting has been removed altogether from the manuscript in response to the comment that BDNF was not in the size that fits the mature form. The authors' claim that they cannot display the western blots according to the journal requirements-the argument for this is not clear. Please explain. And if removed from the results, then reference to them should be removed from the Materials and methods, too.

4) The authors depend on ELISA for measuring BDNF. The assay used is actually for a human BDNF. It is true that there is ~50% cross-reactivity, but is there good justification that this is a reliable BDNF assay for the rat?

https://doi.org/10.7554/eLife.56359.sa1

Author response

Major issues for revision:

1) Important methodological details are missing or unclear. This concern must be fully addressed to warrant review of a revision. To provide a few examples:

a) Lack of clarity on dosing (unacceptable to refer reader to prior publications on critical methodological details). Indeed, if the dosing is ultimately not so focal then the current is passing through most of the brain, brain stem, spinal cord, periphery etc. This would change the potential impact of the paper.

We appreciate your helpful comment. We additionally performed three-dimensional (3D) numerical tDCS simulations to identify the stimulating patterns of brain regions according to the electrode position and proper dosing of tDCS treatment. As for your comment, the major concerns associated with tDCS treatment are related to its safety and cortical excitability. Based on the 3D tDCS simulation results, we identified that a current of 63.7 A/m2 flowing from the anode electrode penetrates the skull and reaches the brain region close to the anode electrode. In addition, our results predicted that as the position of the anode changes, the position of the brain region that is intensively stimulated also changes. They also predicted no brain lesions (predicted brain injury range 6.3–13 A/m2) (Bikson et al., 2016; Antal et al., 2017).

b) Concerns about control/sham are equally essential. If the stimulation provided (electric field in brain) is much higher than tDCS, the paper may not be suitable for publication without additional experiments.

In the previously submitted manuscript, only SHR sham group was employed (model of ADHD). We performed additional experiments and compared parameters between sham and tDCS treatment groups among WKY rats (genetic control strain) (Figure 1-figure supplement 2). We also confirmed the safety of tDCS through corticosterone levels (Figure 2—figure supplement 2) and microglial activation (Figure 3—figure supplement 1). Additionally, we confirmed the animals’ weight during the HD-tDCS sessions, which showed no difference between the control, sham, and tDCS groups. Moreover, we added a clearer description of the sham groups to the Materials and methods section.

c) What were the animals doing during the tDCS session?

Anodal tDCS current was applied continuously for 20 min under isoflurane anesthesia. Animals in the non-tDCS group underwent the same procedure as the stimulated groups for 20 min, without any current being applied.

d) What time of day was it applied?

We performed the tDCS application at the same time daily (at 10:00 a.m.).

e) The anodes are not explained well and the cathodes completely opaque. The current density is presumably quite high for the anodes, but might be even much higher for the cathodes, which are presented as needles.

We added a clearer and more detailed description of the anode and cathode to the Materials and methods section. Cathode stimulation was applied to the back of the necks, via extracephalic reference electrodes, to exclude an effect of the reference electrode. Not only the surface electrode but also the needle electrode can be used as a tDCS reference electrode (Morya et al., 2019, PMID 31730494). Moreover, the standard pad electrode led to a higher concentration of current density at the pad electrode edges, and we employed needle cathode inserting below the skin of the back of the neck to avoid common side-effects including transient sensation at the skin (Kamida et al., 2011, PMID 20826186; Morya et al., 2019, PMID 31730494; Kronberg and Bikso, 2012).

f) There is no data that present whether the rats are comfortable with the stimulation or not. Pain and stress might lower movement or enhance agitation in rats, depending on the strain and individual biological variability.

We agree with your comment and performed additional experiments on the resting times in the open field test, weight during tDCS treatment, and corticosterone levels (Figure 2-figure supplement 2) in the plasma to confirm pain and stress levels caused by the tDCS stimulation. All these additional results show that tDCS did not induce pain and stress in the animals.

g) The lack of information on a reasonable control groups is also the reason that there is no data about the effects of the surgical procedure and the post-operative care.

We added a sentence about the control groups for the surgical procedure and the post-operative care. All animals including the control groups were anesthetized at the same time (for 20 min) and then transferred to care cases (under a heat lamp). After checking for generalized movements, they were moved to their home cage.

2) Issues with sham. Procedure for sham is not clear. Is it no stimulation or a ramp up/down? What sensation does it produce? An "active control" would have some advantages over sham and may be essential if the sham is problematic.

Following your suggestion, we included an additional sentence on the sham treatments. The current intensity was ramped for 30 s to prevent a stimulation break effect. The sham group was connected to the system for sham stimulation, while no current was applied. Moreover, we performed additional experiments and also compared between the sham and tDCS treatment groups among the genetic control strain WKY.

3) As understood from the text, the Wistar-Kyoto rats (WKY), which are indeed the best control for SHR rats, were not operated at all, and they were completely naïve. There is no WKY-sham group, and no WKY-tDCS group. The lack of proper control groups makes the drawing of conclusions difficult.

Following the reviewer’s comments, we performed additional experiments on behaviors and ELISA analysis in WKY, WKY-sham, and WKY-tDCS-PFC groups to confirm that WKY is the ideal control for SHR rats. We measured the concentration of TH and BDNF in the plasma, along with cognitive behaviors and hyperactivity for these groups. There were no significant differences among the WKY, WKY-sham, and WKY-tDCS-PFC groups. Interestingly, no behavioral changes and no changes in levels of TH and BDNF were observed in the WKY groups, indicating that WKY rats are a good control for our SHR ADHD animal model.

4) Stimulation intensity. There is no discussion of the choice of current intensity or how this intensity is related to human tDCS techniques. The authors report current/charge density at the skull which is close to values that created lesions in other studies (Jackson et al., 2017). Of course it is unlikely that lesions were created here, but this suggests that the electric field/current density generated in the rat brain may be very high. In the absence of evidence that similar behavioral effects are observed with weaker stimulation, or evidence that the stimulation intensity used here is comparable to human tDCS, the relevance of this study for treating ADHD in humans is limited. A good way to address this issue is a computational model as in Jackson et al., 2017. Otherwise, the authors may be able to extrapolate from other models or intracranial measurements to approximate the electric field magnitude in their study. tDCS is low intensity. If this paper is high intensity, maybe even supra-threshold intensity, it highly limited (as much proper animal tDCS work) and the authors should not resubmit without more experiments.

We agree that our tDCS charge density was higher than that used in clinical studies with human patients. For our study design, we needed to assess the safety of tDCS and cortical excitability in rodents. We referred to the previous literature, such as to studies by Liebetanz et al., 2009, and Jackson et al., 2017, to assess possible brain damage according to anode intensity. We also confirmed that previous studies used similar current and charge densities (63.7 A/m2, 76.4 kC/m2). Our employed densities are very close to values that create lesions, but the smaller the electrode the lower the lesion area in the same current density; the lesion area is thus dependent on the size of the electrode (Jackson et al., 2017). We thus used a smaller electrode than previous studies (0.785 mm2, radius 0.5 mm) (Jackson et al., 2017).

Additionally, we confirmed the lesion area by H&E staining. The PFC of the tDCS-PFC group and the M1 of the tDCS-M1 group did not show lesions, indicating that this current density does not induce tissue damage).

However, this density is two orders of magnitude higher than the charge density currently applied in clinical studies with human patients (ranging from 170 to 480 C/m2) (Liebetanz et al., 2009). Thus, effects cannot simply be translated into the clinics, which is a problematic issue for most experimental tDCS-studies. This is now mentioned in the Discussion section, with three additional references.

Moreover, following your suggestions, we additionally performed three-dimensional (3D) numerical simulations to predict the safety of our tDCS approach and the induced cortical excitability. Based on our 3D tDCS simulation results, a 50-uA current (63.7 A/m2) flowing from the anode electrode penetrates the skull and reaches the brain regions; especially those close to the anode electrode are intensively stimulated. If the current is increased on the anode electrode at the same anatomical position and shape, the stimulated pattern on the rat cortex proportionally increases. In addition, our results predicted that as the position of the anode changes, the position of the brain region that is intensively stimulated also changes. When the anode located in the PFC or M1 and the cathode located at the neck of the animal were stimulated with 63.7 A/m2, the peak of the electrode field of the value of the HD-tDCS was 2.0 and 3.2 A/m2 in the PFC and M1, respectively. No brain lesions were predicted, because animal models indicate that brain injury occurs at 6.3–13 A/m2 (Bikson et al., 2016; Antal et al., 2017).

5) The effects of such chronic stimulation on the tissue below the anodes was not investigated with histopathological studies. The tissue below the electrodes might suffer some damage, though previous studies showed that such current density does not inflict tissue damage, it is worthwhile to examine that with these unique electrodes.

Following your suggestion, we performed additional investigations for histopathological analysis through HE and Iba-1 staining. The results did not show brain damage due to histological and microbial changes. Moreover, microglial activation by Iba-1 staining was significantly reduced in the SHR-tDCS group compared to that in the SHR group in the prefrontal cortex, in line with previous studies showing that tDCS reduces inflammation.

6) A potential confound in animal studies of electrical stimulation is the role of somatosensation or peripheral nerve stimulation due to electrodes placed on the body. A control condition with active stimulation that does not target relevant brain areas (or the brain at all) can help alleviate this issue. To this end, comparisons between tDCS-PFC and tDCS-M1 are useful. It appears that in many of the behavioral assays used here, both stimulation types have beneficial effects. To what degree could the common effects of these protocols be explained by common peripheral effects? The authors should discuss this potential confound.

We fully agree with your comment. This may be an important limitation of this study, in that the efficacy of and the mechanism underlying tDCS have not been fully elucidated. As seen in our 3D tDCS analysis, tDCS application is predicted to stimulate certain cerebral regions. However, the mechanisms underpinning tDCS findings are often controversial, as studies show that the current reaching the cortex may not be strong enough to entrain neural activity (much of the current applied through a scalp electrode never reaches the target cortex). Some previous studies report that the efficacy of tDCS may be affected by transcutaneous stimulation of peripheral nerves or somatosensation in the skin (Tsuiki et al., 2019; Asamoah et al., 2019). However, we suggest that the main cause of these effects may be a connectivity-based spread from the prefrontal cortex to subcortical sites via mediating NMDA receptors, as mentioned in the Discussion section of our manuscript. We now fully describe this issue in the Discussion section.

7) The authors claim that they perform an HD-tDCS. The montage shown is not HD-tDCS per se but a version modified for animals. This could be innovative but need to know more about dosing and brain current flow. This montage probably makes most of the electricity to run via the skin on the back of the neck.

We agree that our montage is not HD-tDCS per se but a modified version. However, high-definition (HD) electrodes, not pad electrodes, are circular, <1 cm in diameter, and employ a higher number and density of HD electrodes. When one or more HD electrodes are used, tDCS is called high-definition tDCS (HD-tDCS), regardless of the number of electrodes, if stimulation is optimized for focality or intensity (Bikson et al., 2016). We used modified HD transcranial DC stimulation using a small electrode (radius, 0.5 mm). Therefore, we call this “HD-tDCS” in our manuscript. In order to avoid misunderstandings, a part of the Introduction section has been revised.

As for your comment, the electricity induced by HD-tDC stimulation may run via the skin on the back of the neck when an extracephalic reference electrodes is used. However, the use of extracephalic reference electrodes allows for the robust and intuitive estimation of cortical modulations with little dependence on the reference electrode location (Im et al., 2012, PMID 22452936). Moreover, we employed a epicranial electrode implant model (epicranial stimulation of the rat brain, stimulation applied over the skull), and our 3D tDCS simulation results showed that the 63.7-A/m2 current flowing from the anode electrode reaches the brain, and that the brain regions close to the anode electrode were intensively stimulated.

8) This work has the potential to be of high translational impact. However, it is not clear how the stimulation intensity used here relates to studies in humans, which is critical for its translational impact, and therefore its suitability for publication in eLife. Can this dosing be scaled to human dosing?

We appreciate this constructive comment. Although we employed a rat epicranial electrode montage that provides for an additional safety margin (Liebetanz et al., 2009; Jackson et al., 2017), the charge density was much higher than that currently applied in human clinical studies. Thus, our results cannot be directly transferred to clinical situations. However, we have to consider head size to transfer stimulation parameters and dose regimes to achieve comparable conditions between animal and human clinical studies. The electric field strengths in a mouse model roughly relate to those in humans at 100:1; a typical transcranial electric stimulation intensity of 1–2 mA in humans approximately translates to 10–20 μA in mice (Alekseichuk et al., 2019). We used an intensity of 50 μA, which results in 5 mA if we convert it into a human dose, the maximum output in tDCS in patients (Furubayashi et al., 2007, PMID 17940759). Moreover, our animal results encourage the development of intensified tDCS protocols to produce more stable or more potent, i.e., therapeutically longer-lasting benefits of neuromodulation in psychiatric disorders (Liebetanz et al., 2009; Jackson et al., 2016; Antal et al., 2017). We now describe this issue in the Discussion section.

9) While some results separate by dose, others do not, and does this question focality? tDCS of M1 showed similar effects to those of the PFC group in both reduction in hyperactivity component (Results paragraph one and Figure 1A) and in passive avoidance test (Figure 1E). This might be due to spillage of current.

Thank you for your constructive comment. This may be a limitation of our study, in that the function of tDCS has not been fully elucidated (please also see our response to comment 6). The mechanisms underpinning tDCS findings are controversial, as studies show that the current reaching the cortex may not be focused enough to entrain neural activity in specific regions according to the location of the reference electrode. Regarding your comment, the application of tDCS over M1 showed similar effects to those observed in the PFC group regarding some behavioral results. This may be explained by a variety of factors, as seen in the response to comment 6 above. We now describe this issue in the Discussion section of our manuscript.

10) The effects of the surgical procedure and the post-operative measures were not investigated as a factor. The stress of the surgical procedure and the restraint required for proper sham or tDCS application and the inconvenience/pain that might be due to the electricity in the real tDCS might be a factor that was not investigated. For example, the timing of the biochemical sampling of TH and BDNF levels is not necessarily related to tDCS beneficial effects. The sampling was 8 days after the last stimulation. Whether this is related to behavior or stress is really not answered. Reviewers had mixed views on if it would be better/needed if the WKY would also contain sham and tDCS, on the expense of the M1 group for example. The positive control group of the MPH is useful.

We appreciate this helpful comment. We performed additional experiments on stress and depression levels, that is, on resting times in the open field test, weight during the experiments, and corticosterone levels in the serum at 2 days after the last tDCS application. We also included additional WKY, WKY-sham, and WKY-tDCS-PFC groups and conducted behavioral tests. There were no significant differences in resting times, weight, or corticosterone levels between the WKY-tDCS and SHR-tDCS groups and naïve or sham animals (Figure 2—figure supplement 1). To clarify the analysis on TH and mBDNF, we performed an additional ELISA analysis using the control strain WKY (WKY, WKY-sham, WKY-tDCS-PFC) and SHR (SHR, SHR-sham, SHR-tDCS-PFC) groups at 2 days after the last application (Figure 2A, B).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed.

1) The original concern regarding stimulation intensity and focality remains. An essential question that remains unanswered is how the brain electric field distribution in this study compares to typical human tDCS (or what is achievable with human tDCS). While the authors have created a model as recommended, it is not clear how their use of the model addresses this fundamental issue. The model should address 1) whether the stimulation produces too strong of an electric field in the brain to be comparable to human tDCS (intensity) and 2) the degree to which this stimulation is focal (e.g. restricted to PFC or M1). Instead the authors seem to use the modeling results to show that brain current density peaks under the anode and moves when the anode is moved. These two points are mostly trivial (they have been noted by many other studies). Moreover, the way that the model is presented (Figure 6) does not facilitate any quantitative comparison with human tDCS or other animal mechanistic studies. Some suggestions for how to improve the presentation and discussion of the model results.

a) Report electric field: the majority of mechanistic or neurophysiological studies of electrical stimulation have controlled for electric field magnitude. The modeling results should be reported in these units to facilitate comparison across systems.

b) Peak electric field: We know what peak electric fields in the human cortex during tDCS are (~1 V/m). How does the peak electric field compare in this study? The peak electric field here may be an order of magnitude higher.

c) Focality: several studies have suggested that measurable effects on neuronal firing require ~1V/m electric field. The model can help predict how much of the brain crosses this pseudo-threshold in your study. Is it restricted to PFC/M1? Does it reach subcortical structures? It may be that most of the brain in this study is above or near this pseudo-threshold.

d) Colormap: Consider using a colormap where electric field magnitude corresponds to color intensity and perhaps an additional figure where the electric field is thresholded above 1 V/m, making the degree of focality obvious.

These changes would help facilitate comparison with human tDCS, and help other researchers determine whether these results are likely to apply to their protocol. They may also help interpret your own results (e.g. perhaps PFC and M1 stimulation exhibit similar effects due to direct electrical stimulation of subcortical structures with both montages).

We appreciate the reviewer’s kind and helpful comments. We have now generated new three-dimensional (3D) tDCS simulations of four structures, including cerebrospinal fluid. We have also added information about electric field intensity and current density to facilitate comparisons with human tDCS and other studies. Our 3D model analysis predicted peak electric field intensities of 2.4 V/m and 3.5 V/m in PFC and M1, respectively. The predicted peak current density was 2.1 A/m2 in PFC and 3.3 A/m2 in M1. These results are described in the Materials and methods section and compared with the rodent and human tDCS results in the Discussion section.

As the reviewer highlights, an electric field as low as ~1 V/m can affect the timing of action potentials (Terzuolo and Bullock, 1956, PMID: 16589932; Liu et al., 2018; Voroslakos et al., 2018). However, higher intensities are required to measurably affect local field potential and associated brain networks, corresponding to intracranial fields of approximately 2 V/m (Liu et al., 2018; Voroslakos et al., 2018). The aims of our study were to identify the therapeutic effects of tDCS for cognitive dysfunction in ADHD and to specifically investigate alterations in dopaminergic neurotransmission and neurotrophic factors at the core sites of mesocorticolimbic dopaminergic pathways. Therefore, additional figures are presented for areas where the electric field is thresholded above 2 V/m to show the degree of focality for PFC and M1. Unfortunately, we could not assess the effects on the activation of subcortical structures due to the limitations of our CoMet program (impossible cross-section view). We have now included a discussion on the higher than expected electric field intensity and current density in our manuscript.

2) With regard to modeling technique, you should explicitly model CSF with a different conductivity from the brain itself. CSF strongly affects current flow patterns due to its high conductivity.

We have generated new three-dimensional tDCS simulations of structures, including cerebrospinal fluid.

3) The western blotting has been removed altogether from the manuscript in response to the comment that BDNF was not in the size that fits the mature form. The authors' claim that they cannot display the western blots according to the journal requirements-the argument for this is not clear. Please explain. And if removed from the results, then reference to them should be removed from the Materials and methods, too.

In the first submission, we included western blot images as a supplementary figure to the corresponding table. However, due to the journal’s formatting restrictions, we could not attach a supplementary figure to the table in the second submission. Thus, we had to exclude the western blot images. In this submission, we have included the western blot images as a supplementary figure to the most relevant figure (Figure 2).

4) The authors depend on ELISA for measuring BDNF. The assay used is actually for a human BDNF. It is true that there is ~50% cross-reactivity, but is there good justification that this is a reliable BDNF assay for the rat?

We measured the amount of BDNF in brain tissue using a commercial ELISA kit. The BDNF gene is conserved in numerous species, including chimpanzees, rhesus monkeys, dogs, cows, mice, rats, chickens, zebrafishes, and frogs (https://www.ncbi.nlm.nih.gov/gene/627). As the commercial kit employs antibodies against human or human recombinant BDNF, it can also be applied to samples from other animals because of the high homology in the protein sequence across species (Klein et al., 2011, PMID: 20604989). As mature BDNF and pro-BDNF elicit opposing biological effects by activating distinct receptors (Yang et al., 2014, PMID: 24746813), the choice of ELISA kit for mature BDNF was particularly important in our study. Lim et al. (2015, PMID: 25824396) reported that the anti-BDNF from the ELISA kit from R&D Systems recognizes mature BDNF with relatively high reactivity compared to the anti-BDNF from other commercial kits. Therefore, we employed the Quantikine BDNF ELISA kit (R&D Systems) for measuring free mature BDNF in our study. The Quantikine BDNF ELISA kit shows < 50% cross-species reactivity and has previously been used for the detection of rat BDNF (Golder et al., 2008, PMID: 18305238; Lim et al., 2015, PMID: 25824396).

https://doi.org/10.7554/eLife.56359.sa2

Article and author information

Author details

  1. Da Hee Jung

    1. Department of Korean Medical Science, School of Korean Medicine, Pusan National University, Yangsan, Republic of Korea
    2. Graduate Training Program of Korean Medicine for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  2. Sung Min Ahn

    Korean Medical Science Research Center for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  3. Malk Eun Pak

    Korean Medical Science Research Center for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  4. Hong Ju Lee

    1. Department of Korean Medical Science, School of Korean Medicine, Pusan National University, Yangsan, Republic of Korea
    2. Graduate Training Program of Korean Medicine for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  5. Young Jin Jung

    Department of Radiological Science, Health Science Division, Dongseo University, Busan, Republic of Korea
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Ki Bong Kim

    Department of Korean Pediatrics, School of Korean Medicine, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Data curation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5724-4653
  7. Yong-Il Shin

    Department of Rehabilitation Medicine, School of Medicine, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  8. Hwa Kyoung Shin

    1. Department of Korean Medical Science, School of Korean Medicine, Pusan National University, Yangsan, Republic of Korea
    2. Graduate Training Program of Korean Medicine for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    3. Korean Medical Science Research Center for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared
  9. Byung Tae Choi

    1. Department of Korean Medical Science, School of Korean Medicine, Pusan National University, Yangsan, Republic of Korea
    2. Graduate Training Program of Korean Medicine for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    3. Korean Medical Science Research Center for Healthy Aging, Pusan National University, Yangsan, Republic of Korea
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing - original draft
    For correspondence
    choibt@pusan.ac.kr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5965-4346

Funding

National Research Foundation of Korea (2018R1A2A2A05018926)

  • Byung Tae Choi

National Research Foundation of Korea (2014R1A5A2009936)

  • Byung Tae Choi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: All experiments were approved by the Pusan National University Animal Care and Use Committee and were performed in accordance with the National Institutes of Health Guidelines (PNU-2018-1932).

Senior Editor

  1. Richard B Ivry, University of California, Berkeley, United States

Reviewing Editor

  1. Marom Bikson, The City College of New York of the City University of New York, Department of Biomedical Engineering, United States

Publication history

  1. Received: February 25, 2020
  2. Accepted: September 19, 2020
  3. Accepted Manuscript published: September 21, 2020 (version 1)
  4. Version of Record published: October 5, 2020 (version 2)

Copyright

© 2020, Jung et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,458
    Page views
  • 241
    Downloads
  • 10
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Da Hee Jung
  2. Sung Min Ahn
  3. Malk Eun Pak
  4. Hong Ju Lee
  5. Young Jin Jung
  6. Ki Bong Kim
  7. Yong-Il Shin
  8. Hwa Kyoung Shin
  9. Byung Tae Choi
(2020)
Therapeutic effects of anodal transcranial direct current stimulation in a rat model of ADHD
eLife 9:e56359.
https://doi.org/10.7554/eLife.56359

Further reading

    1. Neuroscience
    Davide Reato, Raphael Steinfeld ... Alfonso Renart
    Research Article Updated

    Sensory responses of cortical neurons are more discriminable when evoked on a baseline of desynchronized spontaneous activity, but cortical desynchronization has not generally been associated with more accurate perceptual decisions. Here, we show that mice perform more accurate auditory judgments when activity in the auditory cortex is elevated and desynchronized before stimulus onset, but only if the previous trial was an error, and that this relationship is occluded if previous outcome is ignored. We confirmed that the outcome-dependent effect of brain state on performance is neither due to idiosyncratic associations between the slow components of either signal, nor to the existence of specific cortical states evident only after errors. Instead, errors appear to gate the effect of cortical state fluctuations on discrimination accuracy. Neither facial movements nor pupil size during the baseline were associated with accuracy, but they were predictive of measures of responsivity, such as the probability of not responding to the stimulus or of responding prematurely. These results suggest that the functional role of cortical state on behavior is dynamic and constantly regulated by performance monitoring systems.

    1. Neuroscience
    Lucas Benjamin, Ana Fló ... Ghislaine Dehaene-Lambertz
    Research Article Updated

    Successive auditory inputs are rarely independent, their relationships ranging from local transitions between elements to hierarchical and nested representations. In many situations, humans retrieve these dependencies even from limited datasets. However, this learning at multiple scale levels is poorly understood. Here, we used the formalism proposed by network science to study the representation of local and higher-order structures and their interaction in auditory sequences. We show that human adults exhibited biases in their perception of local transitions between elements, which made them sensitive to high-order network structures such as communities. This behavior is consistent with the creation of a parsimonious simplified model from the evidence they receive, achieved by pruning and completing relationships between network elements. This observation suggests that the brain does not rely on exact memories but on a parsimonious representation of the world. Moreover, this bias can be analytically modeled by a memory/efficiency trade-off. This model correctly accounts for previous findings, including local transition probabilities as well as high-order network structures, unifying sequence learning across scales. We finally propose putative brain implementations of such bias.
