Critical role of WNK1 in MYC-dependent early mouse thymocyte development

  1. Robert Köchl  Is a corresponding author
  2. Lesley Vanes
  3. Miriam Llorian Sopena
  4. Probir Chakravarty
  5. Harald Hartweger
  6. Kathryn Fountain
  7. Andrea White
  8. Jennifer Cowan
  9. Graham Anderson
  10. Victor LJ Tybulewicz  Is a corresponding author
  1. The Francis Crick Institute, United Kingdom
  2. Kings College London, United Kingdom
  3. University of Birmingham, United Kingdom
  4. Imperial College, United Kingdom
Research Article
  • Cited 0
  • Views 598
  • Annotations
Cite this article as: eLife 2020;9:e56934 doi: 10.7554/eLife.56934

Abstract

WNK1, a kinase that controls kidney salt homeostasis, also regulates adhesion and migration in CD4+ T cells. Wnk1 is highly expressed in thymocytes, and since migration is important for thymocyte maturation, we investigated a role for WNK1 in mouse thymocyte development. We find that WNK1 is required for the transition of double negative (DN) thymocytes through the β-selection checkpoint and subsequent proliferation and differentiation into double positive (DP) thymocytes. Furthermore, we show that WNK1 negatively regulates LFA1-mediated adhesion and positively regulates CXCL12-induced migration in DN thymocytes. Despite this, migration defects of WNK1-deficient thymocytes do not account for the developmental arrest. Instead, we show that in DN thymocytes WNK1 transduces pre-TCR signals via OXSR1 and STK39 kinases, and the SLC12A2 ion co-transporter that are required for post-transcriptional upregulation of MYC and subsequent proliferation and differentiation into DP thymocytes. Thus, a pathway regulating ion homeostasis is a critical regulator of thymocyte development.

Introduction

With No Lysine kinase 1 (WNK1) is a member of a family of four mammalian serine/threonine-specific protein kinases that are broadly conserved across evolution and are found in all multicellular organisms (Veríssimo and Jordan, 2001). Mutations in WNK1 and WNK4 result in familial hypertension due to altered salt reabsorption in the kidney, because they regulate ion transport in kidney epithelial cells (Wilson et al., 2001). WNK kinases phosphorylate and activate the related OXSR1 and STK39 kinases, which in turn phosphorylate and activate the Na+K+Cl- co-transporters SLC12A1 and SLC12A2 and the Na+Cl- co-transporter SLC12A3 (Rafiqi et al., 2010; Thastrup et al., 2012), allowing Na+, K+, and Cl- ions to enter the cell. Furthermore, they phosphorylate and inhibit the K+Cl- co-transporters SLC12A4, SLC12A5, SLC12A6, SLC12A7 (Mercado et al., 2016), blocking K+ and Cl- from leaving the cell. Thus, the net effect of WNK kinase signaling is to promote movement of Na+, K+, and Cl- ions into the cell. Beyond its role in ion homeostasis, WNK1 has been proposed to regulate vesicular trafficking, proliferation and cell volume (de Los Heros et al., 2018; McCormick and Ellison, 2011).

Unexpectedly, we recently showed that signaling from both the T-cell antigen receptor (TCR) and from the CCR7 chemokine receptor in CD4+ T cells lead to activation of WNK1 (Köchl et al., 2016). Furthermore, we found that WNK1 is a negative regulator of TCR- or CCR7-induced adhesion to ICAM1 mediated by LFA1. Conversely, WNK1 is a positive regulator of chemokine-induced migration through OXSR1, STK39, and SLC12A2. As a result, WNK1-deficient T cells home less efficiently to lymphoid organs and migrate more slowly through them. Thus, a pathway that regulates salt homeostasis in the kidney, also controls T-cell adhesion and migration.

Wnk1 expression levels are particularly high in the thymus (Shekarabi et al., 2013), where αβ and γδ T cells develop. Generation of αβ T cells occurs through a series of well-defined developmental subsets. The most immature double negative (DN) thymocytes, expressing neither CD4 nor CD8, can be subdivided into DN1 (CD25-CD44+CD117+, early thymic progenitors, ETP), DN2 (CD25+CD44+CD117+), DN3 (CD25+CD44-CD117-) and DN4 (CD25-CD44-CD117-) subsets (Bhandoola et al., 2007; Godfrey et al., 1993; Yui et al., 2010). Subsequently, the cells upregulate CD8 and then CD4, becoming CD4-CD8+immature single positive (ISP) cells and then CD4+CD8+double positive (DP) thymocytes. Finally, they lose expression of either CD4 or CD8 to become CD4+ or CD8+ single positive (4SP or 8SP) cells and emigrate from the thymus as CD4+ or CD8+ T cells.

To generate T cells that have successfully rearranged both TCRα and TCRβ genes and express an αβTCR that is both restricted by self-MHC and self-tolerant, thymocytes need to pass three checkpoints (Carpenter and Bosselut, 2010). Thymic progenitors migrate from the bone marrow via the blood, entering the thymus at the cortico-medullary junction as DN1 cells (ETP). DN2 and DN3 thymocytes begin to re-arrange TCRβ genes and migrate to the sub-capsular zone of the cortex. If rearrangement is successful, TCRβ protein binds to pre-Tα and together with CD3γ, CD3δ, CD3ε and CD3ζ forms the pre-TCR (Yamasaki and Saito, 2007). Signals from the pre-TCR within DN3 cells result in an increase in cell size and expression of CD27 andCD28, changes which can be used to distinguish DN3a and DN3b cells before and after pre-TCR signaling respectively (Hoffman et al., 1996; Taghon et al., 2006; Teague et al., 2010; Williams et al., 2005). Pre-TCR signals are required for the survival and proliferative expansion of DN3b and DN4 thymocytes, and subsequent differentiation into ISP and DP cells, a checkpoint termed β-selection (Kreslavsky et al., 2012; Mingueneau et al., 2013). Progression through this checkpoint is also supported by signals from CXCR4 and NOTCH1 (Janas et al., 2010; Maillard et al., 2006; Trampont et al., 2010).

Subsequently, DP thymocytes, now in the cortex, rearrange TCRα genes. If they successfully make an αβTCR that can bind weakly to self-peptide-MHC complexes, the cells undergo positive selection into 4SP and 8SP cells and migrate into the medulla (Klein et al., 2014). Alternatively, if the αβTCR binds strongly to self-peptide-MHC, auto-reactive T cells are eliminated by negative selection.

In view of the important role of migration during thymocyte development, the high expression of Wnk1 in the thymus, and our previous work showing that WNK1 regulates adhesion and migration of CD4+ T cells, we investigated a potential role for WNK1 during thymocyte development. We find that WNK1 is required for DN thymocytes to progress past the β-selection checkpoint. We show that in DN thymocytes, WNK1 is a negative regulator of LFA1-mediated adhesion and a positive regulator of chemokine-induced migration. However, changes in migration are unlikely to cause the developmental arrest in WNK1-deficient thymocytes. Instead, WNK1, acting through OXSR1, STK39 and SLC12A2, is required for pre-TCR-induced post-transcriptional upregulation of MYC, and subsequent proliferation of DN4 thymocytes and differentiation into DP cells. Thus, a pathway that regulates ion homeostasis is a critical and previously unknown regulator of early thymocyte development.

Results

WNK1 pathway genes expressed throughout thymic development

To extend the previous observation that Wnk1 is expressed at a high level in the thymus (Shekarabi et al., 2013), we re-analyzed RNAseq data from multiple stages of thymic development (Hu et al., 2013), focusing on expression of WNK-family kinases and proteins in the WNK pathway. We found that Wnk1 is the only member of the WNK-family expressed in thymocytes, with high expression at all stages of development (Figure 1—figure supplement 1). Substantially more Oxsr1 than Stk39 is expressed at all stages, except for 4SP thymocytes where the expression of Stk39 exceeds levels of Oxsr1. Of the Na+K+Cl- and Na+Cl- co-transporters, only Slc12a2 is expressed in the thymus. Finally, there is substantial expression of the Slc12a6 and Slc12a7 K+Cl- co-transporters. Thus, multiple genes in the WNK1 pathway are expressed throughout thymic development.

Essential role for WNK1 in thymocyte development

To test whether WNK1 is required during T-cell development, we used the CD2-Cre transgene to delete loxP-flanked (floxed) alleles of Wnk1 (Wnk1fl) starting at the DN1 (ETP) stage of development (de Boer et al., 2003; Siegemund et al., 2015). We compared Wnk1fl/flCD2-Cre mice with control Wnk1fl/+CD2-Cre mice in which thymocytes have homozygous or heterozygous loss of Wnk1 respectively. We found that loss of WNK1 resulted in a 10-fold reduction in total thymocyte numbers and a progressive loss of cells from the DN4 stage onwards, with a 92% reduction in numbers of ISP thymocytes and a 98–99% reduction in DP, 4SP, and 8SP thymocytes (Figure 1A–C). In contrast, there was no change in the numbers of TCRγδ+ thymocytes. Analysis of Wnk1 mRNA levels showed that while Wnk1 expression was lost in DN and ISP populations in thymi from Wnk1fl/flCD2-Cre mice, from the DP stage onwards the expression levels were similar to or higher in comparison to control animals (Figure 1D), demonstrating that the few remaining DP cells are those that have failed to delete Wnk1. Hence, WNK1 is absolutely required for the development of DP thymocytes.

Figure 1 with 1 supplement see all

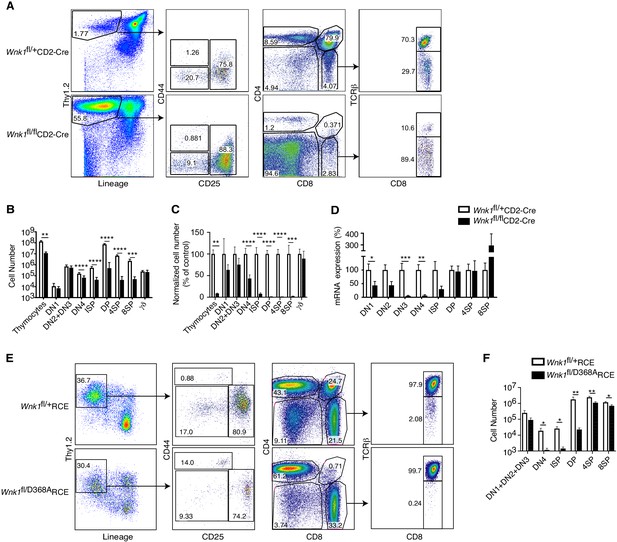

Essential role for WNK1 in thymocyte development.

(A) Flow cytometric analysis of thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice showing double negative (DN, Thy1.2+Lineage-) thymocytes subdivided into DN1 (CD44+CD25-), DN2+DN3 (CD25+), and DN4 (CD44-CD25-) subsets, immature single positive (ISP, CD4-CD8+TCRβ-), double positive (DP, CD4+CD8+), CD4+ single positive (4SP, CD4+CD8-), and CD8+ single positive (8SP, CD4-CD8+TCRβ+) thymocytes. Numbers show % of cells falling into each gate. (B) Mean ± SEM number of total thymocytes and of thymocytes at each developmental stage defined using the gates in A, as well as γδ thymocytes (CD4-TCRγ+). (C) Mean ± SEM number of cells in each thymocyte population in Wnk1fl/flCD2-Cre animals normalized to Wnk1fl/+CD2-Cre controls (set to 100%). (D) Mean ± SEM Wnk1 mRNA levels in thymic subsets from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice, normalized to Wnk1fl/+CD2-Cre controls (set to 100%) measured by Q-PCR from exon 1 to exon 2. CD44 levels were used to separate DN2 (CD44+) and DN3 (CD44-) thymocytes. (E) Flow cytometric analysis of Rag1-/- radiation chimeras reconstituted with bone marrow from Wnk1fl/+RCE and Wnk1fl/D368ARCE mice, treated with tamoxifen and analyzed 7 d later showing gating for thymocyte subsets as in A, with DN (Thy1.2+Lineage-) thymocytes pre-gated on CD4-CD8- cells. (F) Mean ± SEM number of cells in thymocyte subsets of Rag1-/- chimeras as in E. *0.01 < p < 0.05, ** 0.001 < p < 0.01, and ***p<0.001. Significance calculated by Mann-Whitney test. Sample sizes: five Wnk1fl/+CD2-Cre and six Wnk1fl/flCD2-Cre mice (B, C), seven (D), and six (F) of each genotype. Data are pooled from two independent experiments.

Next, we evaluated whether the kinase activity of WNK1 is required for thymic development. We generated compound heterozygous mice with both a kinase-inactive allele (Wnk1D368A) and a floxed allele of Wnk1 and a tamoxifen-inducible Cre in the ROSA26 locus (ROSA26CreERT2, RCE) and generated bone marrow chimeras by reconstituting irradiated RAG1-deficient mice with marrow from either Wnk1fl/D368ARCE mice or Wnk1fl/+RCE mice as a control. Following tamoxifen treatment of these chimeras, lymphocytes are the only cell type in which all cells delete the floxed Wnk1 allele, leaving them with either a wild-type or D368A Wnk1 allele. We found that after 7d of tamoxifen treatment, development of thymocytes expressing only WNK1-D368A was again very strongly blocked from the DN4 stage onwards (Figure 1E,F), demonstrating that WNK1 kinase activity is required for thymocyte development from the DN to DP stages.

WNK1 is required for thymocytes to develop past the pre-TCR checkpoint

The block in T-cell development between the DN3 and DN4 and subsequent DP stages in the absence of WNK1 coincides with the β-selection checkpoint, where DN3 cells that have productively rearranged the TCRβ locus and express TCRβ protein assemble the pre-TCR. Subsequent pre-TCR signals result in survival and proliferative expansion of DN4 cells, and differentiation into DP cells. To determine if this β-selection checkpoint might be compromised in WNK1-deficient thymocytes, we used cell size and expression of CD28 to separate DN3 thymocytes into DN3a (small, CD28-) and DN3b (large, CD28+) cells (Hoffman et al., 1996; Teague et al., 2010; Williams et al., 2005), which correspond to cells before and after the checkpoint respectively. Loss of WNK1 results in no change in the number of DN3a cells, but a substantial drop in DN3b and DN4 cells, consistent with a block at the pre-TCR β-selection checkpoint (Figure 2A). To evaluate if this block could be due to a failure to assemble the pre-TCR, we assessed expression of pre-TCR components. Flow cytometric analysis of DN2 and DN3 thymocytes showed that a similar fraction (~10%) of both control and WNK1-deficient cells expressed intracellular TCRβ, corresponding to cells that have successfully rearranged the TCRβ locus, indicating that loss of WNK1 does not impair TCRβ locus rearrangement (Figure 2B). A similar analysis of DN4 cells showed that most control cells expressed intracellular TCRβ, as would be expected for cells successfully undergoing β-selection. In contrast, only ~10% of WNK1-deficient DN4 cells express intracellular TCRβ, similar to the percentage in DN3 cells (Figure 2B). Thus, in the absence of WNK1, there is no selective expansion of TCRβ+ cells. Cell-surface levels of CD3ε and pre-Tα in WNK1-deficient DN2 and DN3 cells were comparable to controls, while CD3ε levels were increased in WNK1-deficient DN4 cells (Figure 2C). Taken together, these results show that the developmental block in WNK1-deficient DN thymocytes is unlikely to be due to a failure to make pre-TCR subunits. Instead, the phenotype may be caused by failure of pre-TCR signaling.

WNK1 is required for thymocytes to develop past the pre-TCR checkpoint.

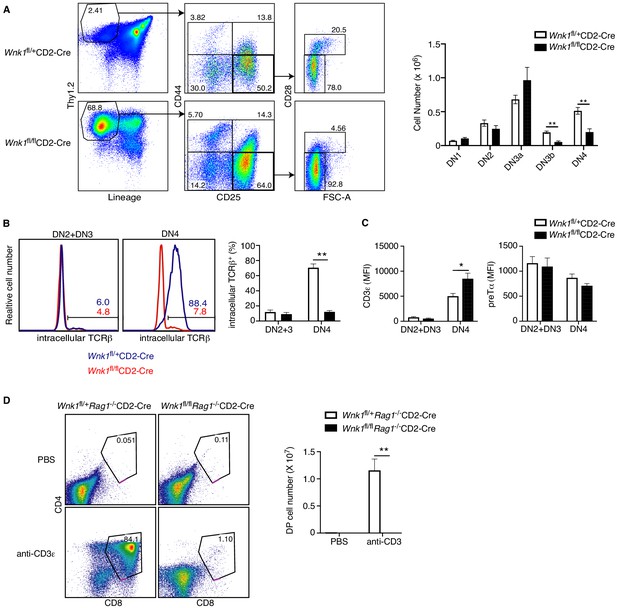

(A) Left: flow cytometric analysis of Thy1.2+Lineage- thymocytes separated by expression of CD44 and CD25, and then DN3 (CD44-CD25+) cells separated into DN3a (small, FSClowCD28-) and DN3b (large, FSChighCD28+) cells. Right: Mean ± SEM cell numbers in DN subsets. (B) Left: Flow cytometric analysis of thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice showing intracellular TCRβ levels in DN2+DN3 and DN4 subsets. Numbers indicate the percentage of TCRβ+ cells. Right: Mean ± SEM percentage of DN2+DN3 and DN4 cells that are intracellular TCRβ+. (C) Mean ± SEM of CD3ε or pre-Tα surface levels measured as mean fluorescence intensity (MFI) in flow cytometry of DN2+DN3 and DN4 thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. (D) Left: flow cytometric analysis of CD4 and CD8 levels on thymocytes from Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice harvested 4 d after intraperitoneal injection with PBS or anti-CD3ε antibody. Gate indicates DP thymocytes and number shows percentage of cells in the gate. Right: mean ± SEM number of DP thymocytes defined using the gates on the left. *0.01<p<0.05, and **p<0.01. Significance calculated by Mann-Whitney test. Sample sizes: six of each genotype (A, B), eight Wnk1fl/+CD2-Cre and ten Wnk1fl/flCD2-Cre mice (C), four Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice injected with PBS and five Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice injected with anti-CD3ε (D). Data are pooled from two independent experiments.

To directly test this, we made use of an approach in which anti-CD3ε antibodies are injected into RAG1-deficient mice that have arrested thymocyte development at the DN3 stage because of a failure to rearrange TCR genes. RAG1-deficient DN3 thymocytes express small amounts of the CD3 proteins on the cell surface and binding of anti-CD3ε mimics a pre-TCR signal, resulting in differentiation of the thymocytes into DP cells (Levelt et al., 1993; Shinkai and Alt, 1994). As expected, injection of anti-CD3ε into control Wnk1fl/+Rag1-/-CD2-Cre mice resulted in the generation of large numbers of DP thymocytes. By stark contrast, DP thymocytes were almost completely absent in anti-CD3ε treated Wnk1fl/flRag1-/-CD2-Cre mice (Figure 2D), indicating that WNK1 is essential for pre-TCR signaling that controls the DN-DP transition in thymocytes.

RNAseq of WNK1-deficient thymocytes reveals significant changes in five distinct processes

To gain further insight into the role of WNK1 in this developmental transition, we used RNA sequencing (RNAseq) to analyze the transcriptome of DN3 and DN4 cells sorted from the thymi of Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice, harvested 0, 3, 24, and 48 hr after injection with anti-CD3ε (Figure 3A,B, Supplementary file 1). Principal component analysis (PCA) of the results revealed that the biggest differences between the samples were caused by anti-CD3ε stimulation and not by genotype (Figure 3C). Both, WNK1-deficient thymocytes and control cells followed a similar trajectory on the PCA plot as a function of time after anti-CD3ε injection, suggesting that pre-TCR signaling is able to induce similar transcriptional changes in control and WNK1-deficient thymocytes. Nevertheless, comparing the transcriptomes of control and WNK1-deficient thymocytes, we identified a large number of statistically significant differentially expressed genes (DEGs) at each time point, including in unstimulated cells (Figure 3D, Supplementary files 2, 3).

RNAseq of WNK1-deficient thymocytes reveals significant changes in five distinct processes.

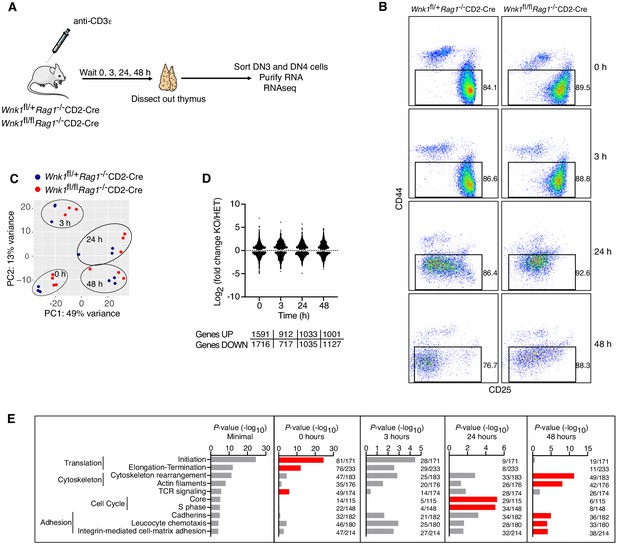

(A) Thymi were harvested from Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice that were either untreated (0 hr) or had been injected with anti-CD3ε antibody 3, 24 or 48 hr earlier. DN3+DN4 thymocytes were sorted, RNA purified and analyzed by RNAseq, results of which are shown in C-E. (B) Flow cytometric analysis of DN thymocytes from the experiment described in A. Gates indicate cells (Thy1.2+, CD44-) that were sorted for further RNAseq analysis. (C) Principal component analysis using expression of all normalized genes for all samples from the experiment described in A. (D) Log2 fold changes and total number of statistically significant differentially expressed genes (DEGs) in samples from Wnk1fl/flRag1-/-CD2-Cre (KO) mice compared to Wnk1fl/+Rag1-/-CD2-Cre (HET) mice at each time point (Supplementary files 2, 3). (E) Metacore process analysis of DEGs. Selected processes and their P-values are shown at each time point; graph on left shows the lowest P-value for each process from any of the four time points. Red bars indicate time point with the lowest P-values for each process (Minimal). Ratios indicate the number of DEGs at each time point over the number of all genes in the indicated processes. Significance calculated by Wald’s test (D) and Hypergeometric test (E). Sample sizes: three Wnk1fl/+Rag1-/-CD2-Cre and four Wnk1fl/flRag1-/-CD2-Cre mice for 0 hr time point, three mice of each genotype for all other time points; data are from one experiment.

To further characterize these changes, we carried out a process enrichment analysis taking into account all DEGs at each time point and found that most of the identified processes fit into five functional groups: genes associated with TCR signaling, protein translation, cytoskeleton, adhesion and cell cycle (Figure 3E). The TCR signaling and translation signatures were most enriched at the 0 hr time point, cytoskeleton and adhesion at 48 hr, and cell cycle at 24 hr. Thus, WNK1 deficiency causes changes in several key biochemical pathways, any or all of which could be causing the developmental arrest.

WNK1 deficiency does not perturb early pre-TCR-induced signaling and protein translation

We investigated the potential contribution of each of the perturbed processes to the developmental block caused by loss of WNK1. Inspection of the TCR signaling signature showed that WNK1-deficient thymocytes had decreased levels of mRNA for Cd3d, Cd3e, Cd3g, Lck, and Syk, coding for CD3 proteins and the LCK and SYK tyrosine kinases and an increase in Lcp2 mRNA, which codes for the SLP76 adapter protein (Figure 4A), suggesting that pre-TCR signaling may be perturbed, though we note that at least for CD3ε, reduced mRNA level in WNK1-deficient cells did not result in reduced cell-surface protein level (Figure 2C). However, analysis of transcriptional changes driven by pre-TCR stimulation showed that both control and WNK1-deficient cells upregulated Nur77, Cd27, and Cd28, and downregulated Il2ra, Hes1, Rag2, and Ptcra to a similar extent (Figure 4B). Furthermore, anti-CD3ε-induced downregulation of surface levels of CD25 (encoded by Il2ra) also occurred normally in WNK1-deficient cells (Figures 3B and 4C). These results imply that loss of WNK1 does not have a major effect on pre-TCR signaling, at least for the first 24 hr after stimulation.

Figure 4 with 1 supplement see all
WNK1 deficiency does not perturb early pre-TCR-induced signaling.

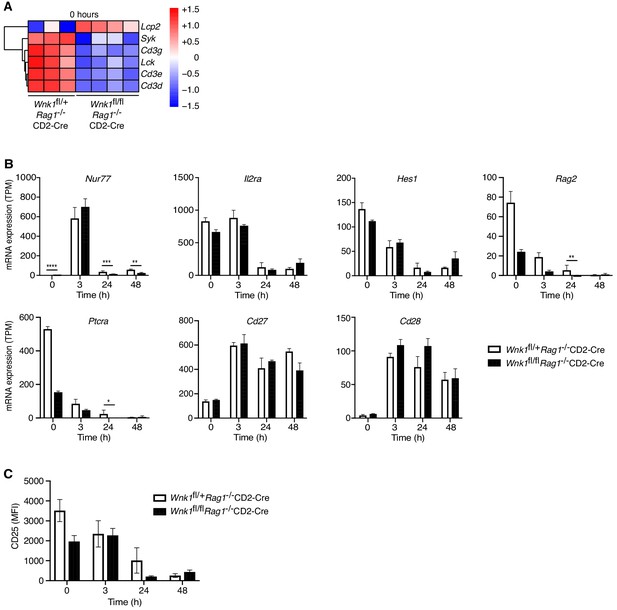

(A) Analysis of RNAseq experiment described in Figure 3A, showing heatmap and hierarchical clustering of selected genes from the TCR signaling signature at 0 hr in Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice. Red and blue colors indicate increased or decreased expression of indicated genes relative to the mean expression of each row using normalized log2 expression values. (B) Mean ± SEM expression of selected genes; TPM, transcripts per million reads. (C) Mean ± SEM surface levels of CD25 on CD44- thymocytes analyzed as in Figure 3B. *0.01 < p < 0.05, ** 0.001 < p < 0.01, ***0.0001 < p < 0.001, ****p<0.0001. Significance displayed in (B) is from the analysis of the RNAseq data and was calculated by the Wald test (Supplementary file 3). Sample sizes: three Wnk1fl/+Rag1-/-CD2-Cre and four Wnk1fl/flRag1-/-CD2-Cre mice for 0 hr time point and three mice of each genotype for all other time points. Data are from one experiment.

The most highly enriched processes in the RNAseq analysis were associated with protein translation, with many of the genes in these processes being downregulated in WNK1-deficient cells, particularly at the 0 hr time point (Figure 3E, Figure 4—figure supplement 1A). We hypothesized that this could lead to lower overall protein synthesis and might explain the developmental block. To test this, we measured levels of phosphorylated S6 (pS6), a hallmark of active translation, in DN3 and DN4 thymocytes from mice 24 hr after injection of anti-CD3ε, and also directly tested the capacity of the cells to synthesize proteins using a puromycin incorporation assay. We found that pS6 levels in WNK1-deficient cells were similar to those in control cells before stimulation and higher than in controls 24 hr after anti-CD3ε stimulation (Figure 4—figure supplement 1B). Furthermore, rates of protein synthesis were increased to a similar extent by anti-CD3ε in both control and mutant thymocytes (Figure 4—figure supplement 1C). Thus, despite the reduced expression of genes associated with translation, the absence of WNK1 does not cause substantial changes in rates of protein synthesis, and these are unlikely to explain the developmental block.

WNK1 regulates thymocyte migration and adhesion

In the process enrichment analysis of the RNAseq data we identified cytoskeleton and adhesion signatures. At the 24 hr time point WNK1-deficient thymocytes had increased expression of Itgb2 and Itgal, the subunits of LFA1, as well as Rap1a and Rap2a that encode GTPases required for integrin signaling, and several chemokine receptors (Ccr2, Ccr5, and Cxcr5), although Cxcr4 expression was reduced (Figure 5A); some of the same changes were also visible 48 hr after stimulation. In agreement with this, cell-surface LFA1 was increased and CXCR4 was decreased on both WNK1-deficient DN2+DN3 and DN4 thymocytes (Figure 5B). We have previously shown that WNK1 is a negative regulator of LFA1-mediated adhesion and a positive regulator of chemokine-induced migration in CD4+ T cells (Köchl et al., 2016). These functions, together with the transcriptional changes seen here, suggest that WNK1 may also regulate adhesion and migration of DN thymocytes, which could account for the developmental block.

WNK1 regulates thymocyte migration and adhesion.

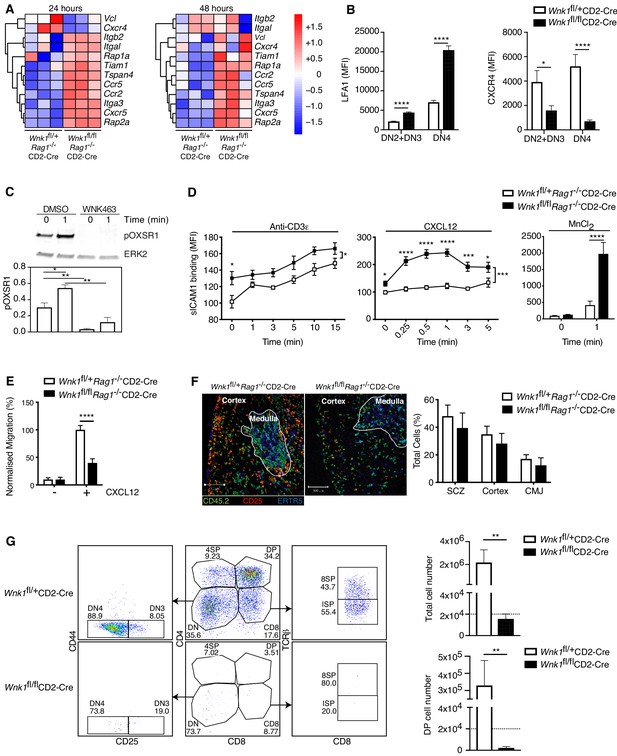

(A) Heatmap and hierarchical clustering of selected genes from the adhesion signature at 24 and 48 hr after injection of anti-CD3ε into Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice from the experiment described in Figure 3A. (B) Mean ± SEM LFA1 and CXCR4 surface levels in DN2+DN3 and DN4 thymocytes, pre-gated on double negative (TCRβ-, Thy1.2+, Lineage-) thymocytes, from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. (C) Top, representative immunoblot analysis of phosphorylated OXSR1 (pOXSR1) and ERK2 in total Rag1-/- thymocytes incubated with DMSO or WNK463 and stimulated for 0 or 1 min with CXCL12. Below, quantification of pOXSR1 normalized to the abundance of ERK2. (D) Binding of soluble ICAM1 complexes to mouse DN2+DN3 thymocytes from Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice in response to treatment for various times with anti-CD3ε, CXCL12 or MnCl2. (E) Migration of mouse DN2+DN3 thymocytes from the top chamber to the bottom chamber of a Transwell plate in the presence (+) or absence (-) of CXCL12. (F) Left: representative images of frozen thymus sections from lethally irradiated B6.SJL mice, reconstituted with a 80:20 mixture of bone marrow from B6.SJL (CD45.2-) and either Wnk1fl/+Rag1-/-CD2-Cre or Wnk1fl/flRag1-/-CD2-Cre mice (both CD45.2+), stained with antibodies to the indicated antigens, as well as antibodies to CD11b and CD11c (not shown). Right: distribution of Wnk1fl/+Rag1-/-CD2-Cre or Wnk1fl/flRag1-/-CD2-Cre derived DN2+DN3 (CD25+CD45.2+CD11b-CD11c-) thymocytes between the subcapsular zone (SCZ), cortex and cortico-medullary junction (CMJ) as defined by the ERTR5 staining for medullary epithelial cells. (G) Left: flow cytometric analysis of DN2+DN3 thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice after culturing on OP9-DL1 cells for 7 d. Gates indicate DN (CD4-CD8-), DN3 (CD4-CD8-CD25+CD44-), DN4 (CD4-CD8-CD25-CD44-), ISP (CD4-CD8+TCRβ-) DP (CD4+CD8+), 4SP (CD4+CD8-) and 8SP (CD4-CD8+TCRβ+) cells. Right: mean ± SEM number of all cells and number of DP cells recovered after 7 d. Dashed line indicates number of cells seeded into the cultures on day 0. *0.01 < p < 0.05, ** 0.001 < p < 0.01, ***0.0001 < p < 0.001, ****p<0.0001. Significance calculated by Mann-Whitney test. Sample sizes: three of each genotype (A), eight Wnk1fl/+CD2-Cre and ten Wnk1fl/flCD2-Cre mice (B), five (C), five Wnk1fl/+CD2-Cre and seven Wnk1fl/flCD2-Cre mice for the anti-CD3ε- and MnCl2-induced adhesion assays and five and six for the CXCL12-induced adhesion assays (D), six (E, G), and four (F) of each genotype. Data are from one experiment (A) or pooled from two (B, D–G) or five (C) experiments.

To investigate if CXCR4 can activate the WNK1 pathway in thymocytes, we stimulated primary mouse DN3 cells from Rag1-/- mice with CXCL12, the ligand for CXCR4, in the presence or absence of the WNK1 inhibitor WNK463 and analyzed phosphorylation of OXSR1 on Ser325, a WNK1 substrate (Vitari et al., 2005). We found that CXCL12 resulted in the phosphorylation of OXSR1, which was abrogated in WNK1 inhibitor-treated cells (Figure 5C). Thus, CXCR4 transduces signals through WNK1 leading to the phosphorylation and, presumably, activation of OXSR1.

These results suggest that, as in CD4+ T cells, WNK1 may also regulate CXCR4-induced adhesion and migration in DN thymocytes, possibilities we tested directly. We found that in response to stimulation through either CD3ε or CXCR4, or with Mn2+ which directly activates LFA1, WNK1-deficient DN3 thymocytes showed increased binding of ICAM1, indicating increased LFA1-mediated adhesion (Figure 5D). Furthermore, WNK1-deficient DN3 cells had reduced migration in response to CXCL12 (Figure 5E). Thus, WNK1 is a negative regulator of LFA1-mediated adhesion and a positive regulator of CXCL12-induced migration in DN3 thymocytes.

Loss of CXCR4 results in defective thymocyte development in part because CXCR4-induced migration is required for DN thymocytes to migrate from the cortico-medullary junction where they first arrive in the thymus, to the sub-cortical zone where as DN3 cells they undergo β-selection (Trampont et al., 2010). Thus, the block in development of WNK1-deficient thymocytes may be due to defects in this stereotypical CXCR4-induced migration. To address this, we generated mixed bone marrow chimeras by reconstituting irradiated B6.SJL mice (CD45.1+CD45.2-) with an 80:20 mixture of marrow from B6.SJL mice and from either Wnk1fl/+Rag1-/-CD2-Cre or Wnk1fl/flRag1-/-CD2-Cre mice (CD45.1-CD45.2+). In the thymi of these animals, the RAG1-deficient hematopoietic cells can only develop as far as the DN3 stage, and we were able to analyze their distribution within normal thymic architecture generated by the excess of wild-type B6.SJL thymocytes. We found that WNK1-deficient DN3 cells accumulated in the sub-cortical zone with a similar frequency to WNK1-expressing cells and showed no excess accumulation at the cortico-medullary junction (Figure 5F). Thus, despite an in vitro migration defect, WNK1-deficient DN3 thymocytes migrate to the correct anatomical location in vivo, even when in competition with WT counterparts. Collectively these data indicate that the developmental block seen in WNK-1 deficient thymocytes is unlikely to be caused by defective localization within intra-thymic microenvironments.

To extend this, we made use of an in vitro thymocyte development assay in which DN thymocytes are cultured on OP9-DL1 cells (Schmitt and Zúñiga-Pflücker, 2002). In this system, over the course of 7d, thymocyte expansion and development occurs independently of the intra-thymic migration events seen in the thymus in vivo. Thus, we used it to evaluate if loss of WNK1 still affected thymic development even when migration was no longer relevant, by comparing the development of DN thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. As expected, we found that WNK1-expressing DN thymocytes expanded 100-fold in number and the majority differentiated into DP, 4SP and 8SP cells (Figure 5G). In contrast, WNK1-deficient cells did not increase in number and while most of them became DN4 cells (CD25-CD44-), almost none differentiated beyond the DN stage, resulting in a striking absence of DP thymocytes. Taken together, these results show that the block in T-cell development caused by WNK1 deficiency can be dissociated from its role in the regulation of thymocyte migration.

WNK1 controls entry of thymocytes into S-phase

RNAseq analysis revealed a particularly strong cell-cycle signature at the 24 hr time point, though not at 0 or 3 hr (Figure 3E). While at 3 hr post-stimulation, induction of genes associated with progression from the early to late G1 phase of the cell cycle (CDK4, CDK6, CYCLIN D2 and CYCLIN D3) occurred normally (Figure 6—figure supplement 1A), at 24 hr genes encoding positive regulators of S-phase entry (CDK2, CYCLIN E1, CYCLIN E2, and E2F-, ORC- and MCM-family proteins) were downregulated in WNK1-deficient thymocytes, while negative regulators, such as Cdkn1b, Cdkn1c and Fbwx7 were upregulated (Figure 6A,B, Figure 6—figure supplement 1B). To test whether S-phase entry is defective we measured DNA content of thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. We found that while 11% of both control and WNK1-deficient DN2 and DN3 thymocytes were in the S/G2/M phases of the cell cycle, at the DN4 stage 30% of control cells but only 5% of WNK1-deficient cells had progressed beyond the G1 phase (Figure 6C). Furthermore, loss of WNK1 abrogated the increase in cell size seen during the transition of DN3 cells to the DN4 stage, a hallmark of dividing cells (Figure 6D). Thus, WNK1 is required for DN4 thymocytes to enter the S/G2/M phases of the cell cycle.

Figure 6 with 1 supplement see all
WNK1 controls entry into S-phase.

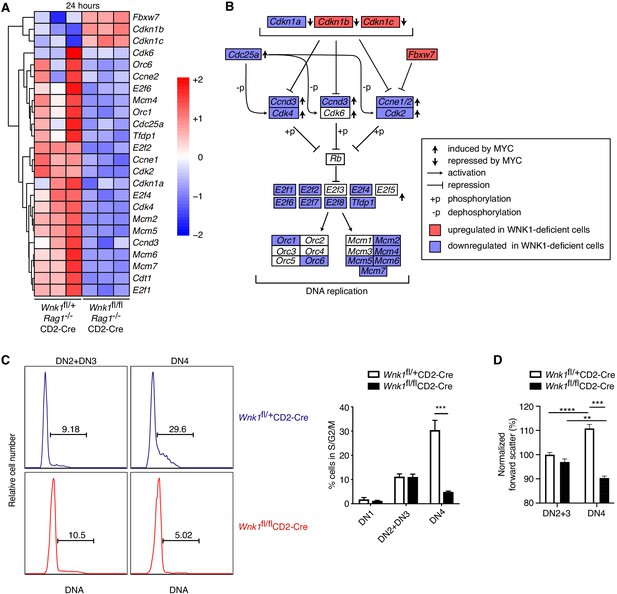

(A) Analysis of RNAseq experiment described in Figure 3A, showing heatmap and hierarchical clustering of selected genes from the cell-cycle signature at 24 hr after injection of anti-CD3ε. (B) Canonical cell-cycle signaling diagram for the transition from G1 to S-phase. Genes colored in blue are downregulated at the 24 hr time point in samples from Wnk1fl/flRag1-/-CD2-Cre mice compared to Wnk1fl/+Rag1-/-CD2-Cre mice, genes in red are upregulated. Vertical arrows indicate genes induced or repressed by MYC (Bretones et al., 2015) (C) Left: flow cytometric analysis of DNA content in DN2+DN3 and DN4 thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. Gates show percentage of cells containing more than the diploid amount of DNA (S, G2 and M phases of cell cycle). Right: mean ± SEM percentage of cells in S/G2/M phases of the cell cycle based on gate shown on histograms. (D) Mean ± SEM forward scatter, a measure of cell size, measured by flow cytometry of DN2+DN3 and DN4 thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice; data normalized to Wnk1fl/+CD2-Cre DN2+DN3 cells (set to 100%). **0.001 < p < 0.01, ***0.0001 < p < 0.001, ****p<0.0001. Significance was calculated by the Mann-Whitney test. Sample sizes: three (A) or five (C) of each genotype and nine Wnk1fl/+CD2-Cre and seven Wnk1fl/flCD2-Cre mice (D). Data are from one experiment (A), or pooled from two (C, D).

WNK1 is required for pre-TCR induced regulation of MYC

To gain further insight into this cell-cycle defect, we used a computational approach to identify transcription factors whose targets were most enriched among either all DEGs or only DEGs encoding cell-cycle genes at 24 hr (Figure 7A) and extended the analysis to test the expression levels of the identified transcription factors themselves (Figure 7B). The transcription factor, whose known target genes were both most numerous and most highly enriched within the list of all DEGs at 24 hr was ETS1. Deletion of ETS1 impairs the development of DN3 into DP thymocytes because ETS1-deficient DN4 thymocytes are more likely to die (Eyquem et al., 2004). ETS1 regulates the expression of the anti-apoptotic Bcl2A1 gene in endothelial cells (Wei et al., 2009), suggesting that it may perform a similar function in thymocytes. However, analysis of the five anti-apoptotic members of the BCL2-family that are expressed in thymocytes, showed that WNK1-deficient thymocytes express substantially more Bcl2 and Bcl2l1 (Figure 7—figure supplement 1A). In addition, WNK1-deficient DN2+DN3 and DN4 thymocytes did not show increased levels of active Caspase-3 as would be expected if they were dying at a greater rate (Figure 7—figure supplement 1B). Thus, it is unlikely that loss of WNK1 perturbs cell survival at the β-selection checkpoint. Furthermore, loss of ETS1 does not affect proliferation of DN4 cells (Eyquem et al., 2004), thus reduced levels of ETS1 are not the main cause of the defect in WNK1-deficient thymocytes.

Figure 7 with 1 supplement see all
WNK1 is required for pre-TCR induced post-transcriptional regulation of MYC.

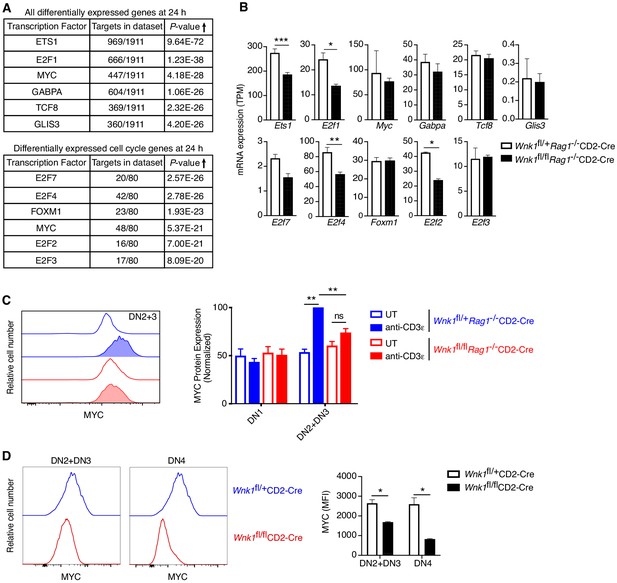

(A, B) Analysis of RNAseq experiment described in Figure 3A. (A) Table shows top six transcription factors whose known target genes were most enriched among all significant DEGs at 24 hr or among only cell-cycle genes at 24 hr; results from Metacore transcription factor analysis. (B) Mean ± SEM expression of mRNAs for transcription factors identified in A. Note that graphs of E2f1, E2f2, E2f4 and E2f7 are duplicated from Figure 6—figure supplement 1B. (C) Left: flow cytometric analysis of MYC levels in DN2+DN3 thymocytes from Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice either untreated (UT) or 48 hr after injection with anti-CD3ε. Right: mean ± SEM levels of MYC protein in DN1 and DN2+DN3 thymic subsets normalized to levels in DN2+DN3 cells from injected Wnk1fl/+Rag1-/-CD2-Cre control mice (set to 100%). (D) Left: flow cytometric analysis of MYC levels in DN2+DN3 or DN4 thymocytes from Wnk1fl/+CD2-Cre and Wnk1fl/flCD2-Cre mice. Right: mean ± SEM levels of MYC in DN2+DN3 or DN4 thymocytes. MFI, mean fluorescence intensity. ns, not significant; *0.01 < p < 0.05, **0.001 < p < 0.01, ***p<0.001. Significance calculated by hypergeometric test (A), the Wald test (B), or the Mann-Whitney test (C, D). Sample sizes: three (A, B), five (C) or four (D) of each genotype. Data are from one experiment (A, B, D), or pooled from three (C).

Another high scoring transcription factor was MYC, whose targets were also strongly enriched within all DEGs and the more limited cell-cycle gene set (Figure 7A). MYC regulates the expression of cell-cycle genes, including CDK-, CYCLIN-, and E2F-family proteins, many of which are dysregulated in WNK1-deficient thymocytes (Figure 6BBretones et al., 2015). Indeed, four direct MYC targets, E2F2, E2F3, E2F4, and E2F7, were identified among the transcription factors most likely to cause dysregulation of cell-cycle genes (Figure 7A). Furthermore, thymic development is blocked in the absence of MYC, because of a failure of DN thymocytes to proliferate (Dose et al., 2006; Douglas et al., 2001), similar to the phenotype in WNK1-deficient thymocytes. Thus, we hypothesized that WNK1 may be required for pre-TCR-induced proliferation in DN4 thymocytes because it regulates MYC activity.

Myc transcription in thymocytes is induced by Notch signaling (Weng et al., 2006), whereas pre-TCR signaling leads to increased MYC protein levels (Dose et al., 2006; Mingueneau et al., 2013). Myc mRNA levels were unaltered in WNK1-deficient DN3 thymocytes 24 hr after anti-CD3ε stimulation, implying that Notch regulation of Myc transcription is not affected in the absence of WNK1 (Figure 7B). The expression of another Notch target, Hes1, was also unaltered by the loss of WNK1 (Figure 4B), reinforcing the conclusion that WNK1 is not required for Notch function. In contrast, loss of WNK1 affected levels of MYC protein. Whereas anti-CD3ε stimulation resulted in increased MYC in control DN3 cells, no such rise was seen in WNK1-deficient cells (Figure 7C). Furthermore, analysis of Wnk1fl/flCD2-Cre mice also showed reduced levels of MYC in both DN2+DN3 and DN4 thymocytes compared to control mice (Figure 7D). Thus, WNK1 is required for pre-TCR-induced post-transcriptional upregulation of MYC in DN thymocytes, and the failure to upregulate MYC in WNK1-deficient DN cells may account for their reduced proliferation and failure to differentiate into DP thymocytes.

OXSR1 and STK39 are required for pre-TCR induced proliferation and regulation of MYC

We have previously shown that in CD4+ T cells, WNK1 transduces signals via the related OXSR1 and STK39 kinases and the SLC12A2 ion co-transporter (Köchl et al., 2016). To test if these proteins are also required for T-cell development, we evaluated thymocyte numbers in mice bearing a point mutation in Stk39 (Stk39T243A) and Oxsr1 (Oxsr1T185A). These residues are phosphorylated by WNK1 leading to the activation of STK39 and OXSR1, respectively and thus STK39-T243A and OXSR1-T185A can no longer be activated by WNK1. To analyze the effect of the Stk39T243A mutation, we compared Stk39T243A/T243A and control mice, whereas to assess the effect of the Oxsr1T185A mutation we reconstituted irradiated RAG1-deficient mice with Oxsr1T185A/T185A and control fetal liver cells, since this homozygous mutation is lethal in late gestation (Rafiqi et al., 2010). We found that thymocyte numbers in both mutant mouse strains were normal (Figure 8A,B), suggesting that individually WNK1 activation of either STK39 or OXSR1 is not required for thymocyte development.

OXSR1 and STK39 are required for pre-TCR induced proliferation and regulation of MYC.

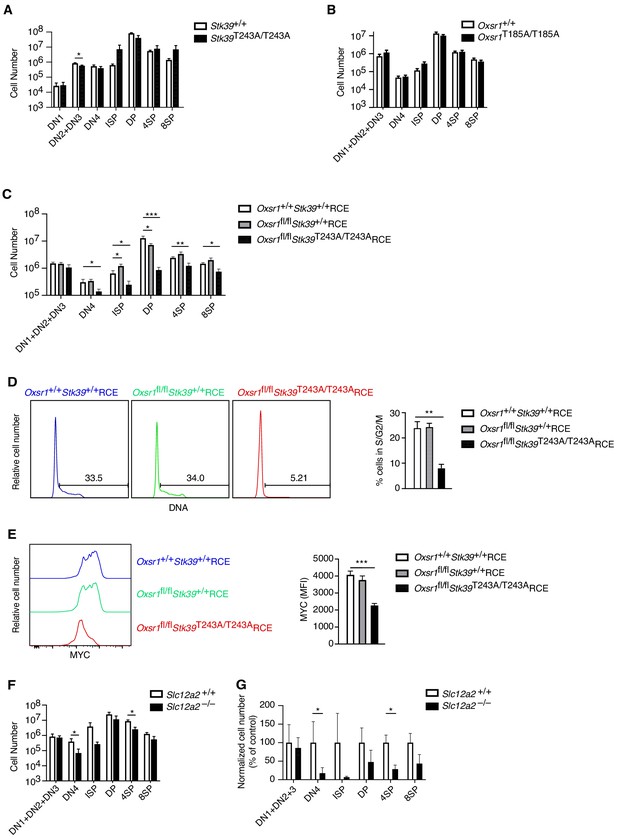

(A–C) Mean ± SEM number of thymocytes at each developmental stage in Stk39+/+ and Stk39T243A/T243A mice (A) or in Rag1-/- radiation chimeras reconstituted with fetal liver cells from Oxsr1+/+ and Oxsr1T185A/T185A embryos (B) or reconstituted with bone marrow cells from Oxsr1+/+Stk39+/+RCE, Oxsr1fl/flStk39+/+RCE and Oxsr1fl/flStk39T243A/T243ARCE mice (C). The chimeric mice in C were analyzed 7 d after treatment with tamoxifen. Thymocyte subsets were identified by flow cytometry as shown in Figure 1A,E. (D) Left: flow cytometric analysis of DNA content in DN4 thymocytes from Rag1-/- radiation chimeras reconstituted with bone marrow cells of the indicated genotypes. Gates show percentage of cells containing more than the diploid amount of DNA (S, G2, and M phases of cell cycle). Right: mean ± SEM percentage of cells in S/G2/M phases of the cell cycle based on gate shown on histograms. (E) Left: flow cytometric analysis of MYC levels in DN4 thymocytes from Rag1-/- radiation chimeras reconstituted with bone marrow cells of the indicated genotypes. Right: mean ± SEM levels of MYC in DN4 thymocytes. (F) Mean ± SEM number of thymocytes at each developmental stage in Rag1-/- radiation chimeras reconstituted with liver cells from Slc12a2+/+ and Slc12a2-/- embryos. (G) Mean ± SEM number of cells in each thymocyte population in chimeras reconstituted with Slc12a2-/- fetal liver normalized to Slc12a2+/+ control chimeras (set to 100%). *0.01 < p < 0.05, **0.001 < p < 0.01, and ***p<0.001. Significance calculated by Mann-Whitney test. Sample sizes: six (A, F, G) or eight (B) of each genotype, or eight Oxsr1+/+Stk39+/+RCE, and seven Oxsr1fl/flStk39+/+RCE and Oxsr1fl/flStk39T243A/T243ARCE mice (C–E). In all cases, data are pooled from two independent experiments.

However, since OXSR1 and STK39 are related kinases, they could be functionally redundant with each other. We were unable to test this possibility by simply combining the Oxsr1T185A and Stk39T243A mutations, since embryos homozygous for both mutations die early in gestation before fetal liver cells can be harvested to make radiation chimeras (not shown). Instead, we intercrossed mice with a floxed allele of Oxsr1 (Oxsr1fl), the Stk39T243A allele and RCE, the tamoxifen-inducible Cre to generate mice whose bone marrow cells we used to reconstitute the hematopoietic system of irradiated RAG1-deficient mice. Subsequent treatment of the mice with tamoxifen allowed us to compare development of control thymocytes expressing wild-type OXSR1 and STK39 (Oxsr1+/+Stk39+/+RCE), cells missing OXSR1 but expressing wild-type STK39 (Oxsr1fl/flStk39+/+RCE) or double mutant cells missing OXSR1 and expressing a mutant STK39 (Oxsr1fl/flStk39T243A/T243ARCE). In the double mutant animals there was a large reduction in DN4, ISP and DP thymocytes compared to control or single mutant mice (Figure 8C), demonstrating that OXSR1 and STK39 are required for development beyond the pre-TCR checkpoint, but that the kinases have redundant function with each other. Furthermore, DN4 thymocytes deficient in both OXSR1 and STK39 had reduced entry into S-phase and reduced levels of MYC, similar to the phenotype seen in WNK1-deficient thymocytes (Figure 8D,E). Finally, we extended this to analysis of chimeras reconstituted with fetal livers from SLC12A2-deficient embryos and found their thymocytes to also be substantially reduced at the DN4, ISP, and 4SP stages, though the effect was not as large as that caused by loss of WNK1 (Figure 8F,G).

Forced expression of MYC rescues the developmental block in WNK1-deficient thymocytes

The findings described above support a hypothesis in which reduced amounts of MYC in WNK1-deficient thymocytes were responsible for the defective pre-TCR checkpoint block. To directly test this, we performed MYC rescue experiments where irradiated RAG2-deficient mice were reconstituted with Wnk1fl/flRCE or control Wnk1fl/+RCE bone marrow cells infected with retroviral vectors expressing MYC or MYC-T58A, a mutant that is degraded more slowly (Gregory et al., 2003; Preston et al., 2015; Welcker et al., 2004a; Welcker et al., 2004b). We used an empty vector as a control, and all retroviral vectors also expressed GFP to identify transduced cells (Figure 9A). The resultant chimeric mice were treated with tamoxifen to delete the Wnk1 gene and analyzed 7 d later. As seen previously, loss of WNK1 resulted in a large reduction in the numbers of DN3b, DN4, ISP and DP thymocytes (Figure 9B–D). In both control and WNK1-deficient thymocytes infected with empty vector, the normalized % GFP+ cells decreased from the DN3a to DN3b to DN4 subsets as thymocytes developed across the pre-TCR checkpoint (Figure 9E,F). In contrast, and compared to cells infected with empty vector, transduction of both control and WNK1-deficient thymocytes with MYC or MYC-T58A vectors resulted in a significant increase in the normalized % GFP+ cells as they developed from DN3a to DN3b to DN4. Thus, cells overexpressing MYC demonstrate a selective advantage at the pre-TCR transition checkpoint. Importantly, this result implies that levels of endogenous MYC were limiting at this transition and are consistent with our hypothesis that the developmental block in WNK1-deficient thymocytes is caused by reduced levels of MYC.

Ectopic expression of MYC promotes development of WNK1-deficient thymocytes through the pre-TCR checkpoint.

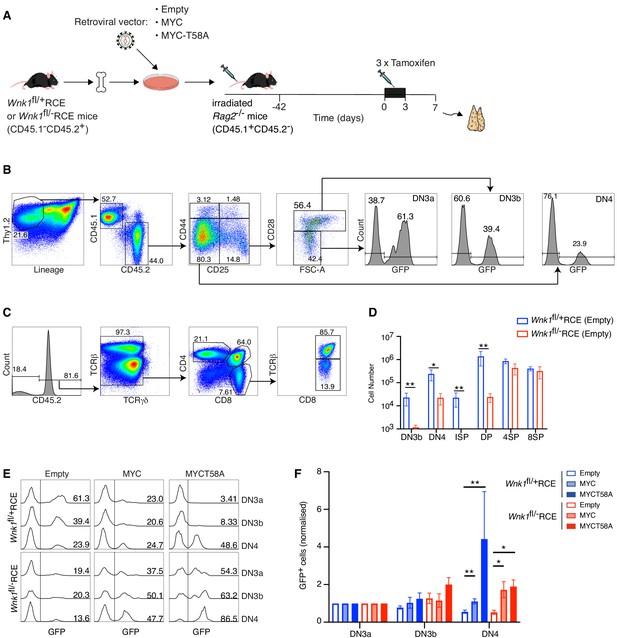

(A) Bone marrow from Wnk1fl/+RCE or Wnk1fl/-RCE mice (CD45.1-CD45.2+) was infected in vitro with MIGR1 retroviral vectors expressing MYC, MYCT58A or no gene of interest (Empty); all vectors expressed GFP. Infected bone marrow was used to reconstitute irradiated RAG2-deficient mice (CD45.1+CD45.2-). 42 d later mice were treated with three daily injections tamoxifen and analyzed 7 d after start of tamoxifen treatment. (B, C) Flow cytometric analysis showing (B) gating of Thy1.2+Lineage-CD45.1-CD45.2+ thymocytes separated into DN3a (CD44-CD25+CD28-FSClow), DN3b (CD44-CD25+CD28+FSChigh) and DN4 (CD44-CD25-CD28+) cells, within which GFP+ cells have been infected with the retroviral vector and (C) gating of CD45.2+TCRγδ- thymocytes separated into ISP (CD4-CD8+TCRβ-), DP (CD4+CD8+), 4SP (CD4+CD8-) and 8SP (CD4-CD8+TCRβ+) cells. Numbers indicate percentage of cells in gates. (D) Mean ± SEM number of cells in thymocyte subsets of Rag2-/- chimeras reconstituted with bone marrow from Wnk1fl/+RCE or Wnk1fl/-RCE mice retrovirally transduced with empty vector gated as in B and C. (E) Histograms showing GFP expression in DN3a, DN3b, and DN4 cells from chimeras reconstituted with Wnk1fl/+RCE or Wnk1fl/-RCE marrow that had been infected with indicated retroviral vectors. Numbers indicate percentage of GFP+ cells. (F) Graph of mean (± SEM) % GFP+ cells in DN3a, DN3b, and DN4 cells from chimeras reconstituted with Wnk1fl/+RCE or Wnk1fl/-RCE marrow that had been infected with indicated retroviral vectors, normalized to % GFP+ cells in DN3a cells of each chimera (set to 1). Significance calculated by Mann-Whitney test. *0.01 < p < 0.05, **p<0.01. Sample sizes: (D) five chimeras reconstituted with each genotype; (F) six chimeras reconstituted with Wnk1fl/+RCE marrow infected with empty vector or MIGR1-MYC, four chimeras reconstituted with Wnk1fl/+RCE marrow infected with MIGR1-MYCT58A, five chimeras reconstituted with Wnk1fl/-RCE marrow infected with empty vector or MIGR1-MYC and seven chimeras reconstituted with Wnk1fl/-RCE marrow infected with MIGR1-MYCT58A. Data are from one experiment.

Taken together, these results show that a WNK1-OXSR1-STK39-SLC12A2 pathway that regulates ion homeostasis plays a critical role at the pre-TCR checkpoint, by transducing signals that regulate thymocyte proliferation and differentiation into DP thymocytes, and that it may do so by controlling levels of MYC.

Discussion

T-cell development in the thymus is a highly regulated process, and critical checkpoints at specific thymocyte stages remain poorly understood. We show here that WNK1 and its kinase activity are absolutely required for the transition of DN to DP thymocytes at the β-selection checkpoint. Specifically, in the absence of WNK1 there is a failure of the proliferative expansion of TCRβ+ DN4 cells and subsequent differentiation into DP cells, hallmarks of β-selection. This developmental transition depends on signals from at least three receptors: pre-TCR, CXCR4, and NOTCH1 (Carpenter and Bosselut, 2010). NOTCH1 signaling appears to be unaffected by loss of WNK1, since WNK1-deficient DN thymocytes have normal expression of the NOTCH1-regulated Hes1 and Myc genes. Instead, the developmental block in WNK1-deficient thymocytes is more likely caused by defective signaling from the pre-TCR, CXCR4 or both.

Interestingly, the loss of WNK1 does not affect development of γδ thymocytes. The decision of whether DN thymocytes develop into the αβ or the γδ lineage is most likely driven by signal strength: a weak pre-TCR signal or a strong TCRγδ signal resulting in αβ or γδ development respectively (Sumaria et al., 2019). Our data imply that the stronger TCRγδ signal does not require WNK1.

Our results demonstrate that WNK1 transduces signals from the pre-TCR and CXCR4 in DN thymocytes. Furthermore, we showed that WNK1-deficient cells have increased anti-CD3ε- and CXCL12-induced LFA1-mediated adhesion and reduced CXCL12-induced migration. Thus, WNK1 is a negative regulator of adhesion and a positive regulator of migration in DN3 thymocytes. This mirrors our findings in CD4+ T cells, where we showed that WNK1 transduces signals from the TCR and CCR7 in CD4+ T cells to regulate both adhesion and migration (Köchl et al., 2016). WNK1 may be independently acting downstream of both the pre-TCR and CXCR4, but the two receptors may co-localize, with CXCR4 acting as a co-receptor for the pre-TCR (Trampont et al., 2010); other studies have shown that the TCR and CXCR4 physically associate to form a complex (Kumar et al., 2006). Thus, WNK1 may transduce signals from a pre-TCR–CXCR4 complex.

CXCR4-deficient mice show a strong developmental block at the β-selection checkpoint, similar to that seen in the absence of WNK1 (Janas et al., 2010; Trampont et al., 2010). This block was ascribed to mislocalization of DN3 thymocytes, with fewer cells reaching the sub-capsular zone (Trampont et al., 2010). Reduced CXCL12-induced migration of WNK1-deficient DN3 thymocytes in vitro suggested that mislocalization of DN3 cells may also account for the developmental arrest in WNK1-deficient thymi. However in vivo we found that WNK1-deficient DN3 thymocytes localized correctly to the sub-capsular zone and defective migration is unlikely to account for the developmental defect. This conclusion is further supported by the strong developmental arrest of WNK1-deficient thymocytes cultured on OP9-DL1 cells, a system where thymocyte development does not require migration. Since development of DP cells in this system requires CXCL12 produced by the OP9-DL1 cells, CXCR4 contributes to development through the β-selection checkpoint by more than just controlling thymocyte migration (Janas et al., 2010). Indeed, CXCR4, acting with the pre-TCR is required for proliferation of DN thymocytes as they undergo β-selection (Trampont et al., 2010).

Analysis of WNK1-deficient DN3 thymocytes responding to pre-TCR signals showed that the initial responses of the cells are largely normal. They increase rates of translation, transiently induce expression of Nur77, upregulate expression of Cd27 and Cd28, downregulate expression of Il2ra, Rag2 and Ptcra, and lose surface expression of CD25, phenotypically becoming DN4 thymocytes. Furthermore, after 3 hr of stimulation with anti-CD3ε, they progress into the late G1 phase of the cell cycle as indicated by upregulation of Cdk6, Ccnd2, and Ccnd3. However, they have a profound block in entry into S-phase 24 hr after stimulation, with reduced expression of Cdk2, Ccne1, and Ccne2, as well as genes encoding E2F-, ORC-, and MCM-family proteins. In agreement with this, many fewer WNK1-deficient DN4 thymocytes entered S/G2/M phases of the cell cycle. Since proliferation of DN thymocytes is required for their differentiation into DP cells (Kreslavsky et al., 2012), this proliferative defect also accounts for the failure of WNK1-deficient cells to develop into DP thymocytes.

MYC is upregulated at the β-selection checkpoint as thymocytes transit from the DN3 to DN4 stage and start to proliferate (Dose et al., 2006; Mingueneau et al., 2013). Importantly, we found that WNK1-deficient DN3 thymocytes failed to upregulate MYC in response to pre-TCR stimulation. Furthermore, many MYC target genes were dysregulated in the absence of WNK1, especially cell- cycle genes. MYC-deficiency results in a similar thymic phenotype to that seen in the absence of WNK1 – reduced proliferation of DN thymocytes, failure to increase in cell size and a substantial reduction of DP thymocytes (Dose et al., 2006; Douglas et al., 2001). Importantly, ectopic expression of MYC provided a selective advantage for WNK1-deficient thymocytes developing across the pre-TCR checkpoint. Taken together, we propose that the reduced proliferation of WNK1-deficient DN4 thymocytes may be caused by failure to upregulate MYC, and hence reduced expression of genes required for S-phase entry.

The upregulation of MYC at the β-selection checkpoint is post-transcriptional – MYC protein increases despite constant Myc mRNA levels (Mingueneau et al., 2013). Loss of WNK1 affects this post-transcriptional regulation since mutant DN thymocytes had reduced MYC protein, but unchanged levels of Myc mRNA. MYC is regulated at the level of protein stability. It has a short half-life, estimated to be around 20 min, caused by rapid proteasomal degradation and its stability is regulated by phosphorylation; ERK phosphorylation stabilizes MYC, whereas GSK3β-dependent phosphorylation results in ubiquitination of MYC by E3-ligases such as FBXW7 and subsequent proteasomal degradation (Dang, 2012; Gregory et al., 2003; Welcker et al., 2004a; Welcker et al., 2004b; Yada et al., 2004). Notably, deletion of Fbxw7 in the thymus results in high levels of MYC, increased proliferation and hypercellularity (Onoyama et al., 2007). Interestingly, the expression of Fbxw7 is increased in WNK1-deficient DN3 thymocytes 24 hr after anti-CD3ε stimulation, which may contribute to destabilizing MYC.

Since loss of both OXSR1 and STK39 also leads to a block at the pre-TCR checkpoint, along with reduced MYC levels and decreased proliferation of DN4 thymocytes, we hypothesize that WNK1 transduces pre-TCR and CXCR4 signals via OXSR1 and STK39 to the upregulation of MYC, and hence to entry into S-phase and increased cell division. OXSR1 and STK39 phosphorylate multiple members of the SLC12A-family of ion co-transporters. Deficiency of SLC12A2, a Na+K+Cl- transporter, showed a block at the pre-TCR checkpoint, which was less complete than that seen in the absence of WNK1. This suggests that OXSR1 and STK39 may be transducing signals that regulate MYC via several SLC12A-family proteins, including SLC12A2. The WNK1-OXSR1-STK39-SLC12A2 pathway regulates ion uptake in kidney epithelial cells. Our results suggest that regulation of ion homeostasis may be essential for pre-TCR induced proliferation of thymocytes. Further studies will be needed to establish if it is the ion movement per se or the subsequent osmotic movement of water into the cell which is essential for thymic development.

Interestingly, among >1400 cancer cell lines, the expression of WNK1 is highest in T-cell acute lymphoblastic leukemia (T-ALL) lines, many of which originate from immature thymocytes (Cancer Cell Line Encyclopedia, CCLE https://portals.broadinstitute.org/ccle) (Barretina et al., 2012; Tan et al., 2017). Furthermore, T-ALL lines are the most sensitive to loss of WNK1, as measured by growth inhibition (CCLE) (Tsherniak et al., 2017), implying that WNK1 plays a key role in these thymically-derived tumors. Since T-ALL cells express high levels of MYC, which is essential for their proliferation (Sanchez-Martin and Ferrando, 2017), we hypothesize that WNK1 may contribute to the growth of T-ALL by maintaining high levels of MYC, making WNK1 a potential therapeutic target in this thymocyte-derived leukemia.

In summary we have shown that WNK1 is an essential regulator of early thymocyte development, where, during β-selection, it transduces signals from the pre-TCR and CXCR4 via OXSR1, STK39, and SLC12A2 that lead to upregulation of MYC, proliferation of DN4 thymocytes and differentiation into DP cells.

Materials and methods

Mice

Mice with a conditional allele of Wnk1 containing loxP sites flanking exon 2 (Wnk1tm1Clhu, Wnk1fl), with a conditional allele of Oxsr1 containing loxP sites flanking exons 9 and 10 (Oxsr1tm1.1Ssy, Oxsr1fl) with a transgenic Cre recombinase under the control of the human CD2 promoter (Tg(CD2-icre)4Kio, CD2-Cre), with a kinase-inactive allele of Wnk1 (Wnk1tm1.1Tyb, Wnk1D368A), with a tamoxifen-inducible Cre in the ROSA26 locus (Gt(ROSA)26Sortm1(cre/ERT2)Thl, ROSA26CreERT2, RCE), mice expressing OXSR1-T185A (Oxsr1tm1.1Arte, Oxsr1T185A), STK39-T243A (Stk39tm1.1Arte, Stk39T243A), and carrying loss of function alleles of Slc12a2 (Slc12a2tm1Ges Slc12a2-, imported from MMRRC), Rag2 (Rag2tm1Fwa, Rag2-) and Rag1 (Rag1tm1Mom, Rag1-) have been described before (de Boer et al., 2003; de Luca et al., 2005; Flagella et al., 1999; Köchl et al., 2016; Lin et al., 2011; Mombaerts et al., 1992; Rafiqi et al., 2010; Shinkai et al., 1992; Xie et al., 2009). Mice with a deleted allele of Wnk1 (Wnk1tm1.1Clhu, Wnk1-) were generated by crossing Wnk1fl/+ mice with C57BL/6J.129S4-Tg(Prm-cre)70Og/Nimr mice that delete loxP-flanked alleles in the male germline (O'Gorman et al., 1997). All mice were bred and maintained on a C57BL/6J background, except RAG2-deficient mice which were maintained on a B6.SJL background. All breeding was initially carried out at the MRC National Institute for Medical Research and then at the Francis Crick Institute. All experiments were carried out under the authority of a Project Licence granted by the UK Home Office.

Radiation chimeras

Request a detailed protocol

To generate radiation chimeras, either bone marrow cells were harvested from Wnk1fl/+RCE or Wnk1fl/D368ARCE mice or from Oxsr1+/+Stk39+/+RCE, Oxsr1fl/flStk39+/+RCE and Oxsr1fl/flStk39T243A/T243ARCE mice, or fetal livers were harvested from E14.5 embryos with the required genotypes (Oxsr1+/+ and Oxsr1T185A/T185A or Slc12a2+/- and Slc12a2-/-). RAG1-deficient animals (5–8 weeks of age) were irradiated with 5Gy using a 137Cs-source, and then reconstituted intravenously with at least 1 × 106 bone marrow cells/recipient or 0.5 × 106 fetal liver cells/recipient. All chimeric animals received Baytril in their drinking water (0.02%, Bayer Healthcare) for at least 4 weeks post-transplantation. If required, 8–20 weeks after reconstitution chimeric mice were injected intraperitoneally for 3 d with 2 mg/day of tamoxifen (Sigma) re-suspended at 20 mg/ml in corn oil (Sigma) and analyzed 7 d after start of tamoxifen treatment.

Ectopic expression of MYC in radiation chimeras

Request a detailed protocol

Mouse MYC cDNA was inserted into the EcoRI site of the MIGR1 retroviral vector (Pear et al., 1998) to generate MIGR1-MYC in which the MYC cDNA is followed by an internal ribosomal entry site and GFP (Luo et al., 2005). MIGR1-MYCT58A was generated by site directed mutagenesis from MIGR1-MYC. Infectious retroviruses were generated from these vectors by transfection into Plat-E cells (Morita et al., 2000) and used to infect bone marrow cells as previously described (Schweighoffer et al., 2013). Bone marrow cells from Wnk1fl/+RCE or Wnk1fl/-RCE mice on a C57BL/6J background (CD45.1-CD45.2+) were infected with MIGR1 (empty vector), MIGR1-MYC or MIGR1-MYCT58A retroviral vectors. RAG2-deficient mice on a B6.SJL background (CD45.1+CD45.2-) that had been irradiated with 5Gy using a 137Cs-source were reconstituted intravenously with at least 1 × 106 infected bone marrow cells/recipient. Chimeric mice received Baytril in their drinking water for at least 4 weeks post-transplantation. 6 weeks after reconstitution chimeric mice were injected intraperitoneally for 3 d with 2 mg/day of tamoxifen and analyzed 7 d after start of tamoxifen treatment.

Flow cytometry, antibodies, cytokines, and other materials

Request a detailed protocol

Flow cytometry was carried out using standard techniques with pre-titered antibodies. Antibodies for stimulations and flow cytometry against the following proteins were obtained from BioLegend, eBioscience, BD Biosciences, BD Pharmingen or Tonbo (clone names indicated in parentheses): B220 (RA3-6B2), CD3ε (2C11), CD4 (RM4-4 or GK1.5), CD8 (53–6.7), CD11b (M1/70), CD11c (N418 or HL3), CD19 (1D3 or MB19-1) CD25 (3C7 or PC-61.5 or 7D4), CD28 (E18), CD44 (IM7), CD45.1 (A20), CD45.2 (104), DX5, GR-1 (RB6-8C5), LFA-1 (M17/4), NK1.1 (PK136), PTCRA (2F5), TCRβ (H57-597), TCRγδ (UC7-13-D5), Thy1.2 (53–2.1). Further reagents: anti-active Caspase-3 (C92-605, BD Pharmingen), anti-CXCR4 (2B11, BD Pharmingen), anti-mouse IgG1-biotin (A85-1, BD Pharmingen), anti-MYC (Y69, Abcam), anti-pS325-OXSR1/pS383-STK39 (MRC-PPU), anti-pS235/pS236-S6 (D57.2.2E, Cell Signaling); 7AAD, Foxp3/Transcription factor staining buffer set (eBioscience), mouse CXCL12, mouse ICAM1-Fc (R and D systems), FxCycle Violet Stain, LIVE/DEAD NearIR (Thermo Fisher), Zombie Aqua (Biolegend). If not stated otherwise antibody dilutions were 1:200 for flow cytometry and thymocyte enrichment, and 1:1000 for immunoblotting experiments. If not otherwise stated antibodies to exclude lineage were a mixture of antibodies against the proteins B220, CD3ε, CD4, CD8, CD11b, CD11c, CD19, DX5, GR-1, NK1.1, TCRβ and TCRγδ. For the analysis of intracellular phospho-S6 levels single-cell suspensions of thymocytes were fixed in 2% PFA for 15 min at 4°C and then permeabilized with ice-cold 90% methanol over night at −20°C. Thymocytes were washed 2 x with PBS, containing 0.5% FCS before adding anti-pS235/pS236-S6 (1:50) and antibodies against surface markers in PBS with 0.5% FCS. Cells were analyzed by flow cytometry. For the analysis of intracellular MYC or active Caspase-3, single-cell suspensions of thymocytes were first stained with antibodies against surface markers and then fixed for 20 min with BD Fix/Perm solution, before being washed 2x with BD Perm/Wash buffer and incubated with anti-MYC (1:400) or anti-active-Caspase-3-PE (1:50) in Perm/Wash buffer for 30 min. After two further washes with BD Perm/Wash buffer cells were analyzed by flow cytometry. For the analysis of DNA content single-cell suspensions of thymocytes were first stained with antibodies against surface markers and then fixed for 20 min with Fix/Perm buffer from the Foxp3 kit, before being washed 3x with Perm/Wash buffer from the kit and incubated in 7AAD or with FxCycle Violet Stain diluted 1:400 or 1:1000, respectively, into Perm/Wash buffer for 30 min. 7AAD and FxCycle Violet Stain fluorescence was analyzed by flow cytometry, with the fluorescence parameter set to linear; in all other cases, fluorescence was acquired on a logarithmic scale.

Cell lines

Request a detailed protocol

OP9-DL1 and Platinum E (Plat-E) packaging cells were obtained from Cell Services of the Francis Crick Institute and were validated by Short Tandem Repeat profiling and tested for absence of mycoplasma contamination.

RNA sequencing (RNAseq)

Request a detailed protocol

For RNAseq, Wnk1fl/+Rag1-/-CD2-Cre and Wnk1fl/flRag1-/-CD2-Cre mice were injected with anti-CD3ε (150 µg). Thymi were harvested 3, 24, and 48 hr later. Thymi from uninjected mice were used for the 0 hr time point. CD44- Thy1.2+ thymocytes were sorted into Trizol (Life Technologies) using a Beckman Coulter MoFlo XDP cell sorter. RNA was purified using the RNEasy mini kit (Qiagen). Stranded polyA-enriched libraries were made using the KAPA mRNA HyperPrep Kit (Roche) according to the manufacturer’s instructions and sequenced in the HiSeq 4000 (Illumina), collecting 28–73 million single-end reads of 75 bases per sample. Read trimming and adapter removal were performed using Trimmomatic (version 0.36) (Bolger et al., 2014). The RSEM package (version 1.2.31) (Li and Dewey, 2011), and STAR (version 2.5.2a) (Dobin et al., 2013) were used to align reads to the mouse genome (Ensembl GRCm38 release 86) and to obtain gene-level counts. For RSEM, all parameters were run as default except ‘--forward-prob’ that was set to ‘0’. Differential expression analysis was carried out with DESeq2 package (Love et al., 2014). Genes were considered to be differentially expressed with adjusted p-value (padj) ≤0.05. For data processing in Metacore, only genes with an average expression of transcripts per million (TPM) >3 over all conditions were considered. All RNAseq data have been deposited in Gene Expression Omnibus (GEO) with accession number GSE136210.

For the re-analysis of RNAseq data from thymocyte subsets (Hu et al., 2013), Fastq files were obtained from the Gene Expression Omnibus (GSE48138). Gene-level TPM abundance estimates were calculated with RSEM using STAR to align reads against the NCBIM37 (mm9) genome assembly with Ensembl release 67 transcript annotations.

Q-PCR for Wnk1 mRNA

Request a detailed protocol

Up to 5 × 104 cells of each thymic population from thymi of control or WNK1-deficient animals were sorted directly into RLT lysis buffer, total RNA was extracted with an RNAEasy Plus Micro Kit (Qiagen) and cDNA was synthesized with a Superscript III kit (Life Technologies). Samples were analyzed on an ABI 7900 using a TaqMan gene expression assay (Life Technologies) spanning exon1 and exon 2 of Wnk1. Data was normalized to Hprt1 and analyzed using the comparative threshold cycle method.

Enrichment of DN thymocytes

Request a detailed protocol

DN thymocytes were enriched by negative selection. Single-cell suspensions were incubated with biotin-conjugated antibodies against lineage markers B220, CD3ε, CD4, CD8, CD11b, CD11c, CD19, DX5, GR-1, NK1.1, TCRβ, and TCRγδ, and were then washed and incubated with Streptavidin-conjugated magnetic beads (Dynabeads, Life Technologies) and cells bound to the beads removed according to the manufacturer’s instructions.

Stimulation of thymocyte development and signaling in RAG1-deficient mice

Request a detailed protocol

Development of double positive thymocytes was induced by a single intraperitoneal injection of 30 µg anti-CD3ε antibody into RAG1-deficient mice, followed by harvesting the thymus for flow cytometric analysis 4 d later. For all other experiments where pre-TCR signaling responses were being measured, RAG1-deficient mice were injected with 150 µg anti-CD3ε.

MetaCore analysis

Request a detailed protocol

The lists of filtered differentially expressed genes were uploaded to MetaCore and analyzed with the Process Networks analysis and Transcription Factor analysis modules (MetaCore version 19.1 build 69600).

Heatmaps

Request a detailed protocol

Selected genes from a number of enriched processes were used to generate a heatmap using the R package pheatmap. Genes were clustered using an Euclidean distance matrix and complete linkage clustering. Red indicates higher expression and blue indicates low expression relative to the mean expression of the gene across all samples.

Protein synthesis assay

Request a detailed protocol

Mice were injected intraperitoneally with 150 µg anti-CD3ε or left untreated. 24 hr later thymi were harvested. Single-cell suspensions were prepared and either pre-treated with 10 µM cycloheximide for 30 min or not, before being incubated with 5 µM O-propargyl-puromycin (OPP) or not for 30 min at 37°C. Thymocytes were washed 2x in PBS 0.5% FCS, incubated with surface antibodies and fixed with 1% PFA for 15 min at room temperature. Cells were permeabilized with 0.5% Triton for 15 min at room temperature, washed 2x with PBS 0.5% FCS and then stained with the Click-it Plus OPP Protein Synthesis Kit Alexa Fluor 647 (C10458, Thermo Fisher) according to the manufacturer’s instructions. Cells were washed 2x PBS 0.5% FCS and analyzed by flow cytometry.

Adhesion assays

Request a detailed protocol

Binding of ICAM1 complexes to primary mouse thymocytes was analyzed as described (Konstandin et al., 2006). Soluble ICAM1-Fc-F(ab’)2 complexes were generated by diluting APC-labeled goat anti-human IgG F(ab’)2 fragments (109-135-098, Jackson Immunoresearch) 1:6.25 with ICAM1-Fc (200 µg/ml final) in HBSS and incubated for 30 min in HBSS at 4°C. Thymocytes were rested for 3 hr in IMDM, 5% FCS at 37°C, centrifuged and re-suspended in HBSS, 0.5% BSA. Each adhesion reaction (50 µl) contained 20 × 106 cells/ml, 25 µg/ml ICAM1 complex and the appropriate stimulus and was incubated at 37°C for the indicated times. Cells were fixed in PFA for 20 min and binding of ICAM1 complexes to CD25+CD44- DN2+DN3 thymocytes analyzed by flow cytometry.

Migration assays

Request a detailed protocol

Migration assays were carried out in 96-well Transwell plates, containing polycarbonate filters (5 µm pore size, Corning). Transwell filters were coated overnight with 500 ng/ml mouse ICAM1-Fc in PBS and blocked with PBS, 2% BSA for 2 hr. The receiver plate was filled with RPMI, 0.5% BSA, containing CXCL12 (100 ng/ml) or no chemokine, and 4 × 104 DN thymocytes in RPMI, 0.5% BSA were added to each well of the filter plate. After 5 hr the filter plate was removed, EDTA was added to each well (40 mM final concentration) and the cells were transferred to 96 well V-bottom plates, spun, re-suspended in PBS, 0.5% BSA, and analyzed on a flow cytometer. Percentage migration was calculated by dividing the number of cells that migrated through the filter by the total number of cells that had been added to each well.

Immunoblotting

Request a detailed protocol

DN3 thymocytes from indicated mouse lines were enriched by negative depletion with anti-CD44 and rested for at least 90 min in IMDM, 5% FCS at 37°C. During the last 60 min, either DMSO or 10 µM WNK463 (HY-100626, Insight Biotechnology) was added to the cell suspensions. If required, cells were stimulated with CXCL12 (500 ng/ml) for 1 min. Subsequent immunoblotting analysis was performed as described previously (Degasperi et al., 2014; Reynolds et al., 2002). The following antibodies were used for detection of proteins by Western blotting: anti-ERK2 (C-14, Santa Cruz), anti-pS325-OXSR1/pS383-STK39 (MRC-PPU).

Histology

Request a detailed protocol

Lethally irradiated B6.SJL mice were reconstituted with an 80:20 mixture of bone marrow from B6.SJL (CD45.2-) and either Wnk1fl/+Rag1-/-CD2-Cre or Wnk1fl/flRag1-/-CD2-Cre mice (both CD45.2+). Thymic tissue was isolated from the chimeras 8–12 weeks after reconstitution, and frozen 7 µm sections were cut and the fixed in acetone. Sections were stained with the following antibodies: ERTR5 (a gift from Dr W van Ewijk, Riken Research Centre for Allergy and Immunology, Yokohama, Japan) and detected with goat anti-rat IgM coupled to AlexaFluor647, biotinylated anti-CD45.2 detected with streptavidin-AlexaFluor555, anti-CD25 coupled to FITC, anti-CD11b coupled to eFluor450, and anti-CD11c coupled to eFluor450. For confocal quantification, a minimum of three separate thymus sections from each mouse were analyzed at least 10 µm apart, and the frequency of CD45.2+CD25+CD11b-CD11c- cells was recorded in the subcapsular zone, cortex, and cortico-medullary junction (CMJ) in a set area as described (Cowan et al., 2014). The CMJ was defined by ERTR5 staining for medullary epithelial cells. Images were obtained using a Zeiss LSM 780 microscope and analyzed using Zeiss LSM software.

In vitro thymocyte development

Request a detailed protocol

OP9-DL1 cells were maintained as previously described (Ciofani and Zúñiga-Pflücker, 2005). DN2+DN3 thymocytes (Lineage-, Thy1.2+, CD25+) were sorted and for each experimental condition, 25,000 cells were cultured with 10 ng/ml IL7 in 48-well plates that had been previously seeded with 10,000 irradiated OP9-DL1 cells. Cells were cultured for 7 d and then analyzed by flow cytometry.

Statistical analysis

Request a detailed protocol

All statistical comparisons were carried out using the nonparametric two-tailed Mann-Whitney test, Hypergeometric test, Wald test, or two-way ANOVA. The specific analysis used is described in each Figure Legend, along with the number of times experiments were carried out and the number of samples (n numbers) for each experiment. N numbers always refer to biological repeats, not to technical repeats. Biological repeats were defined as analysis carried out on different animals, or on cells from different animals. Repeat measurements on cells from the same animal were defined as technical repeats. Only biological repeats were used for statistical analysis. No outliers were removed and no experiments were excluded.

Appendix 1

Appendix 1—key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Mus musculus)Wnk1EnsemblENSMUSG00000045962
Gene (Mus musculus)Oxsr1EnsemblENSMUSG00000036737
Gene (Mus musculus)Stk39EnsemblENSMUSG00000027030
Gene (Mus musculus)Slc12a2EnsemblENSMUSG00000024597
Gene (Mus musculus)MycEnsemblENSMUSG00000022346
Genetic reagent (Mus musculus)Wnk1tm1Clhu; Wnk1flXie et al., 2009
doi:10.2353/ajpath.2009.090094
RRID:MGI:4360972
Genetic reagent (Mus musculus)Wnk1tm1.1Clhu; Wnk1-Köchl et al., 2016
doi:10.1038/ni.3495
RRID:MGI:6286269
Genetic reagent (Mus musculus)Oxsr1tm1.1Ssy; Oxsr1flLin et al., 2011
doi:10.1073/pnas.1107452108
RRID:MGI:5297491
Genetic reagent (Mus musculus)Tg(CD2-icre)4Kio; CD2Crede Boer et al., 2003
doi:10.1002/immu.200310005
RRID:MGI:2449947
Genetic reagent (Mus musculus)Wnk1tm1.1Tyb; Wnk1D368AKöchl et al., 2016
doi:10.1038/ni.3495
RRID:MGI:6286266
Genetic reagent (Mus musculus)Gt(ROSA)26Sortm1(cre/ERT2)Thl; ROSA26CreERT2, RCEde Luca et al., 2005
doi:10.1172/JCI24059
RRID:MGI:3701992
Genetic reagent (Mus musculus)Oxsr1tm1.1Arte; Oxsr1T185ARafiqi et al., 2010
doi:10.1002/emmm.200900058
RRID:MGI:5462099
Genetic reagent (Mus musculus)Stk39tm1.1Arte; Stk39T243ARafiqi et al., 2010
doi:10.1002/emmm.200900058
RRID:MGI:5462098
Genetic reagent (Mus musculus)Slc12a2tm1Ges; Slc12a2-Flagella et al., 1999
doi:10.1074/jbc.274.38.26946
RRID:MGI:1935144
Genetic reagent (Mus musculus)Rag2tm1Fwa; Rag2-Shinkai et al., 1992
doi:10.1016/0092-8674(92)90029 C
RRID:MGI:1858556
Genetic reagent (Mus musculus)Rag1tm1Mom; Rag1-Mombaerts et al., 1992
doi:10.1016/0092-8674(92)90030 G
RRID:MGI:1857241
Genetic reagent (Mus musculus)C57BL/6J.129S4-Tg(Prm-cre)70OgO'Gorman et al., 1997
doi:10.1073/pnas.94.26.14602
RRID:MGI:2388049
Cell line (Mus musculus)OP9-DL1Schmitt and Zúñiga-Pflücker, 2002
doi:10.1016/s1074-7613 (02)00474–0
RRID:CVCL_B218
Cell line (Homo-sapiens)Platinum E (Plat-E)Morita et al., 2000
doi:10.1038/sj.gt.3301206
RRID:CVCL_B488Retroviral packaging cell line
Recombinant DNA reagentpMIGR1 (plasmid)Pear et al., 1998
doi:10.1182/blood.V92.10.3780
RRID:Addgene_27490Retroviral construct encoding GFP
Recombinant DNA reagentpMIGR1-MYC (plasmid)Luo et al., 2005
doi:10.1182/blood-2005-02-0734
Retroviral construct encoding MYC and GFP
Recombinant DNA reagentpMIGR1-MYCT58A (plasmid)This paperRetroviral construct encoding MYC-T58A and GFP
Antibodyanti-B220-biotin (RA3-6B2) (Rat monoclonal)InvitrogenCat# 13-0452-86; RRID:AB_466451FACS (1:200)
Antibodyanti-B220-FITC (RA3-6B2) (Rat monoclonal)BiolegendCat# 103206; RRID:AB_312991FACS (1:200)
Antibodyanti-active Caspase 3-PE (C92-605) (Rabbit monoclonal)BD PharmingenCat# 550821; RRID:AB_393906FACS (1:50)
Antibodyanti-CD3ε-biotin (2C11) (Armenian hamster monoclonal)BiolegendCat# 100304; RRID:AB_312669FACS (1:200)
Antibodyanti-CD3ε-FITC (2C11) (Armenian hamster monoclonal)eBioscienceCat# 11-0031-85; RRID:AB_464883FACS (1:200)
Antibodyanti-CD3ε purified, endotoxin low (2C11) (Armenian hamster monoclonal)TonboCat# 40–0031 M001; RRID:AB_464883IV injection
Antibodyanti-CD4-biotin (RM4-4) (Rat monoclonal)eBioscienceCat# 13-0043-85; RRID:AB_466334FACS (1:200)
Antibodyanti-CD4-FITC (GK1.5) (Rat monoclonal)eBioscienceCat# 11-0041-86; RRID:AB_464894FACS (1:200)
Antibodyanti-CD4-BV421 (RM4-5) (Rat monoclonal)BiolegendCat# 100544; RRID:AB_11219790FACS (1:200)
Antibodyanti-CD4-PerCP (RM4-5) (Rat monoclonal)BiolegendCat# 100538; RRID:AB_893325FACS (1:200)
Antibodyanti-CD4-APC-CY7 (GK1.5) (Rat monoclonal)BD PharmingenCat# 552051; RRID:AB_394331FACS (1:200)
Antibodyanti-CD8-biotin (53–6.7) (Rat monoclonal)BiolegendCat# 100704; RRID:AB_312743FACS (1:200)
Antibodyanti-CD8-FITC (53–6.7) (Rat monoclonal)BiolegendCat# 100706; RRID:AB_312745FACS (1:200)
Antibodyanti-CD8-BV421 (53–6.7) (Rat monoclonal)BiolegendCat# 100738; RRID:AB_11204079FACS (1:200)
Antibodyanti-CD8-APC (53–6.7) (Rat monoclonal)eBioscienceCat# 17-0081-83; RRID:AB_469336FACS (1:200)
Antibodyanti-CD8-PE-CY7 (53–6.7) (Rat monoclonal)BiolegendCat# 100722; RRID:AB_312761FACS (1:200)
Antibodyanti-CD11b-biotin (M1/70) (Rat monoclonal)BiolegendCat# 101204; RRID:AB_312787FACS (1:200)
Antibodyanti-CD11b-FITC (M1/70) (Rat monoclonal)BiolegendCat# 101206; RRID:AB_312789FACS (1:200)
Antibodyanti-CD11c-biotin (N418) (Armenian Hamster monoclonal)BiolegendCat# 117304; RRID:AB_313773FACS (1:200)
Antibodyanti-CD11c-FITC (HL3) (Armenian Hamster monoclonal)BD PharmingenCat# 553801; RRID:AB_395060FACS (1:200)
Antibodyanti-CD19-biotin (1D3) (Rat monoclonal)BD PharmingenCat# 553784; RRID:AB_395048FACS (1:200)
Antibodyanti-CD19-FITC (MB19-1) (Mouse monoclonal)eBioscienceCat# 11-0191-85; RRID:AB_464966FACS (1:200)
Antibodyanti-CD25-eF450 (PC-61.5) (Rat monoclonal)eBioscienceCat# 48-0251-82; RRID:AB_10671550FACS (1:200)
Antibodyanti-CD25-FITC (7D4) (Rat monoclonal)BD PharmingenCat# 553072; RRID:AB_394604FACS (1:200)
Antibodyanti-CD25-PE (3C7) (Rat monoclonal)BD PharmingenCat# 553075; RRID:AB_394605FACS (1:200)
Antibodyanti-CD28-PE-CY7 (E18) (Mouse monoclonal)BiolegendCat# 122014; RRID:AB_604079FACS (1:200)
Antibodyanti-CD44-PE (IM7) (Rat monoclonal)eBioscieneCat# 12-0441-83; RRID:AB_465665FACS (1:200)
Antibodyanti-CD44-APC (IM7) (Rat monoclonal)eBioscienceCat# 17-0441-83; RRID:AB_469391FACS (1:200)
Antibodyanti-CD44-APC-eF780 (IM7) (Rat monoclonal)eBioscienceCat# 47-0441-82; RRID:AB_1272244FACS (1:200)
AntibodyCD45.1-PerCP-Cy5.5 (A20) (Mouse monoclonal)eBioscienceCat# 45-0453-82; RRID:AB_1107003FACS (1:200)
AntibodyCD45.2-APC-eF780 (104) (Mouse monoclonal)eBioscienceCat# 47-0454-82; RRID:AB_1272175FACS (1:200)
Antibodyanti-CXCR4-PE (2B11)BD PharmingenCat# 12-9991-82; RRID:AB_891391FACS (1:100)
Antibodyanti-DX5-biotin (Rat monoclonal)eBioscienceCat# 13-5971-85; RRID:AB_466826FACS (1:200)
Antibodyanti-DX5-FITC (Rat monoclonal)BiolegendCat# 108906; RRID:AB_313413FACS (1:200)
Antibodyanti-GR-1-biotin (RB6-8C5) (Rat monoclonal)BiolegendCat# 108404; RRID:AB_313369FACS (1:200)
Antibodyanti-LFA-1-PE (M17/4) (Rat monoclonal)BD BioscienceCat# 12-0111-82; RRID:AB_465544FACS (1:200)
Antibodyanti-mouse IgG1-biotin (A85-1) (Rat monoclonal)BD Pharmingen553441; RRID:AB_394861FACS (1:100)
Antibodyanti-MYC-AF647 (Y69) (Rabbit monoclonal)AbcamCat# ab190560; RRID:AB_2876372FACS (1:400)
Antibodyanti-NK1.1-biotin (PK136) (Mouse monoclonal)eBioscienceCat# 13-5941-85; RRID:AB_466805FACS (1:200)
Antibodyanti-NK1.1-FITC (PK136) (Mouse monoclonal)BiolegendCat# 108706; RRID:AB_313393FACS (1:200)
Antibodyanti-pS325-OXSR1/pS383-STK39 (sheep polyclonal)MRC-PPUCat# S670B; RRID:AB_2876373IB (1 µg/ml)
Antibodyanti-PTCRA (2F5) (Mouse monoclonal)BD PharmingenCat# 552407; RRID:AB_394381FACS (1:100)
Antibodyanti-pS235/pS236-S6-AF488 (D57.2.2E) (Rabbit monoclonal)Cell SignalingCat# 5317; RRID:AB_10694920FACS (1:50)
Antibodyanti-TCRβ-bio (H57-597) (Armenian Hamster monoclonal)eBioscienceCat# 13-5961-85; RRID:AB_466820FACS (1:200)
Antibodyanti-TCRβ-FITC (H57-597) (Armenian Hamster monoclonal)BiolegendCat# 109206; RRID:AB_313429FACS (1:200)
Antibodyanti-TCRβ-APC (H57-597) (Armenian Hamster monoclonal)TonboCat#
20–5961 U100, RRID:AB_2621612
FACS (1:200)
Antibodyanti-TCRγδ-biotin (UC7-13D5) (Armenian Hamster monoclonal)eBioscienceCat# 13-5811-82; RRID:AB_466684FACS (1:200)
Antibodyanti-TCRγδ-FITC (UC7-13D5) (Armenian Hamster monoclonal)BiolegendCat# 107504; RRID:AB_313313FACS (1:200)
Antibodyanti-TCRγδ-PE (GL3) (Armenian Hamster monoclonal)eBioscienceCat# 12-5711-82; RRID:AB_465934FACS (1:200)
Antibodyanti-Thy1.2-BV605 (53–2.1) (Rat monoclonal)BiolegendCat# 140317; RRID:AB_11203724FACS (1:500)
Antibodyanti-Thy1.2-FITC (53–2.1) (Rat monoclonal)BiolegendCat# 140304; RRID:AB_10642812FACS (1:500)
Antibodyanti-Thy1.2-APC (53–2.1) (Rat monoclonal)eBioscienceCat# 17-0902-83; RRID:AB_469423FACS (1:500)
Peptide, recombinant proteinStreptavidin-PEBiolegendCat #: 405204FACS (1:200)
Peptide, recombinant proteinStreptavidin-PerCPBiolegendCat #: 405213FACS (1:200)
Peptide, recombinant proteinmouse CXCL12R and D systemsCat # 460-SD-010/CF(500 ng/ml)
Peptide, recombinant proteinmouse ICAM1-FcR and D systemsCat # 796-IC-050Transwell assay (500 ng/ml); Adhesion Assay (25 µg/ml)
Commercial assay or kitFoxp3/Transcription factor staining buffer seteBioScienceCat # 00-5523-00
Chemical compound, drugTamoxifenMillipore-SigmaCat # T5648
Software, algorithmGraphpad Prism 8GraphpadRRID:SCR_002798
Software, algorithmFlowjo 10FlowjoRRID:SCR_008520
Other7AADMerckCat # SML1633
OtherFxCycle Violet StainThermo FisherCat # F10347(1:1000)
OtherLIVE/DEAD NearIRThermo FisherCat # L10119(1:500)
OtherZombie AquaBiolegendCat # 423102(1:500)

References

    1. Bretones G
    2. Delgado MD
    3. León J
    (2015) Myc and cell cycle control
    Biochimica Et Biophysica Acta (BBA) - Gene Regulatory Mechanisms 1849:506–516.
    https://doi.org/10.1016/j.bbagrm.2014.03.013
    1. Godfrey DI
    2. Kennedy J
    3. Suda T
    4. Zlotnik A
    (1993)
    A developmental pathway involving four phenotypically and functionally distinct subsets of CD3-CD4-CD8- triple-negative adult mouse thymocytes defined by CD44 and CD25 expression
    The Journal of Immunology 150:4244–4252.

Decision letter

  1. Bernard Malissen
    Reviewing Editor; Centre d'Immunologie de Marseille-Luminy, Aix Marseille Université, France
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India
  3. Juan Carlos Zuniga-Pflucker
    Reviewer; University of Toronto, Canada
  4. David Wiest
    Reviewer; Fox Chaser Cancer Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript addresses the molecular pathways used by the pre-TCR, a key molecular checkpoint controlling the development of early T cells in the thymus. The WNK1-OXSR1-STK39-SLC12A2 signaling axis was specifically found to be used by the pre-TCR for the post-transcriptional upregulation of MYC and the subsequent proliferation and differentiation of developing T cells.

Decision letter after peer review:

Thank you for submitting your article "Critical role of WNK1 in MYC-dependent early thymocyte development" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Satyajit Rath as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Juan Carlos Zuniga-Pflucker (Reviewer #2); David Wiest (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Based on the discussions between reviewers and the individual reviews below, we would like to inform you that a revision would be most welcome if it provides, at the very least:

1) The 'MYC rescue' experiment via ectopic expression of MYC in OP9-DL cultures.

2) Description of the effects of WNK1 mutation on γδ T cell development, given that they do not appear to be as dependent upon proliferation.

3) Essential information such as the numbers of mice that were analyzed.

Although the other requests for additional data in the reviews are sound, they might be too difficult to perform under the present circumstances. Nonetheless, the full reviews are being provided below for your reference and use in revision.

Reviewer #1:

In this manuscript, Kochl et al. demonstrate that WNK1 is required during early T cell development using genetic mouse models and claim a regulatory axis that controls pre-TCR selection. Unfortunately, the paper has issues regarding the data presentation and interpretation as a result of unclear definitions of the precise developmental stages. This leads to conflicting data and renders it difficult to understand the precise value of the work. In addition, the direct evidence for the proposed axis is insufficiently demonstrated. Therefore, I believe that a major reanalysis using more appropriate markers and with inclusion of rescue experiments would be required to support the claims of the authors.

1) There is a lack in clarity and accuracy for the dissection and identification of the stages of early thymocyte development (in the Introduction and experimental data in the manuscript) which is important for the interpretation of the data. This is already the case for the DN1 and DN2 stages which are poorly defined in light of the current state-of-the-art (DN1/ETP and DN2a/DN2b, Yui et al., 2010), but this is particularly an issue for understanding the impact at β-selection which now is confusingly associated with DN2/DN3 to DN4 as well as DN4 to ISP and DP stages. This renders the interpretation of the data extremely difficult and inconsistent despite the fact that β-selection has been clearly defined by various labs (Hayday using size, Rothenberg using CD27 and Hodes using CD28). Figure 3B suggests that there is no impact of β-selection in fact since the DN3 to DN4 transition there seems unaffected. However, the DN4 subsets also need a clear and better definition since this is a mixture of cells if insufficient markers are included in the panel. This fraction may include γδ T cells and other lineages. This is also important for clearly understanding the frequency of TCRβ expressing thymocytes in DN3 and DN4 stages (Figure 2A). Thus, it is extremely difficult to make clear conclusions on the precise developmental stage that is impacted by WNK1. This needs extensive revision in my opinion.

2) Another major issue relates to the choice of the mouse model for conditional deletion of Wnk1. The authors use hCD2-iCre to mediate deletion of floxed Wnk1 gene and state that this deletion started at the DN2 stage. This is not in agreement with literature on this mouse model since hCD2-iCre expression has been detected in immature (ETP for T; pro-B for B lineage) and mature B/T cells, and also in bone marrow lymphoid progenitors (CLPs), natural killer cells and dendritic cells (Siegemund et al., 2015). In fact, the authors show in Figure 1D that significant reduction of Wnk1 mRNA expression was detected at DN1 stage of Wnk1fl/fl/hCD2-iCre thymocytes compared to the control. So, the authors need to consider the pleiotropic effects of conditional deletion of Wnk1 using hCD2-iCre mice which might be particularly important in relation to intrathymic DC development. Cpa3-Cre mice would allow T-specific deletion of Wnk1 (Feyerabend, Immunity. 2009). Alternatively, the authors could perform knockdown of Wnk1 in sorted wild type thymocytes and performed in-vitro co-culture assay to demonstrate the similar developmental defects observed in the mouse model.

3) There appear to be some inconsistencies in the data. In Figure 1A, the DN fraction of Wnk1-deleted thymi is much higher compared to the control (1.77% in Wnk1fl/+/hCD2-iCre vs. 55.8% in Wnk1fl/fl/hCD2-iCre). However, this is inconsistent with Figure 1B/C where none of the DN subsets have increased cell numbers or frequencies. In general, to understand the precise impact on cellularity and for clear interpretation of Figure 1, it is important to provide the data for total thymic cellularity. In Figure 2, the authors shown that DN4 cells are reduced in the KO. However, in Figure 3B, the authors show that there is no blockade or arrest in development of DN3 cells to DN4 stage. This is also inconsistent with the data in Figure 1B-C and may relate to the unclear definitions of the developmental stages.

4) It is not clear to me how many mice were analyzed and how the data is presented. For instance, the legend of Figure 1 states that data are from one of two experiments but according to the reporting form this should be more given that 5-7 mice were analyzed according to that same legend.

5) In general, there is insufficient direct evidence for the proposed regulatory axis as proposed by the authors. The data mainly shows indirect relationships and the paper would strongly benefit from functional rescue experiments to support these strong conclusions.

Reviewer #2:

The work by Köchl investigates the role of WNK1, a S/T kinase, during T cell development, by performing a set of elegant and beautifully executed experiments, which support the conclusion that WNK1 is necessary for the differentiation of thymocytes from the early CD4-CD8- (DN) to the CD4+CD8+ stage of T cell differentiation. The authors establish a signaling paradigm in which WNK1 appears to function downstream of preTCR/CXCR4 signaling and acts on OXSR1 and STK39 to somehow affect the post-translational stability of MYC, which is known to play a critical role at the DN to DP transition. Using elegant genetic approaches and adoptive transfer experiments, the intrinsic requirement for WNK1 function is clearly established, and the use of in vitro cultures separates the effect on cell adhesion and chemokine signaling from the differentiation block. Using an in vivo model of pre-T cell receptor signaling, RNAseq analyses reveals that proliferation and protein synthesis regulation are affected in the absence of WNK1. Overall, the findings are exciting and provide important insights as to the role of WNK1 signaling in T cell development are revealed by the work, which are major contributions to our current understanding.

1) The authors clearly establish that MYC protein levels in thymocytes are lower in the absence of WNK1, however it would be important to show whether ectopic expression of MYC could lead the rescue of the proliferation and/or differentiation defect. This can be easily performed, as per Wong et al. (PMID: 22649105), a related paper that examined the role of pre-TCR, Notch and MYC during T cell development.

2) The clear effect on pre-TCR signaling and the block in the DN to DP differentiation begs the question as to whether γ/δ-T cell differentiation is similarly affected or not, which would position WNK1 as uniquely required for α/β-T lineage differentiation or as shared signaling axis for both lineages. Simply showing whether γδ T cells are present in the thymus and peripheral tissues would directly address this point.

3) It curious that the authors did not directly address whether the absence of WNK1 in DN cells has an effect on any aspects of ion transport.

Reviewer #3:

The study by Kochl et al. explores the role of the Ser/Thr kinase WNK1 in regulating early T cell development. Wnk1 function has been implicated in numerous cellular processes, including controlling the balance of migration vs. adhesion of mature T cells; however, its role in T cell development had not previously been assessed. The authors provide compelling evidence that Wnk1 function is required for early thymocytes to traverse the β-selection checkpoint, proliferate and differentiate to the CD4+CD8+ stage. While defects in adhesion and migration of Wnk1-deficient thymocytes are noted, the impaired development appears to result from other Wnk1-regulated events and it is associated with impaired MYC induction. The authors propose that the failure to induce MYC results from attenuation of the activity of OXSR1 and STK39 kinases, which are necessary to induce the sodium/potassium/chloride ion transporter, SLC12A2, upon which MYC induction depends. While the link between Wnk1 and the OXSR1/STK39/SLC12A2 axis had been described in other cells, it's role in MYC regulation and T cell development was not previously appreciated. Consequently, the authors provide support for a new role of this axis in controlling T cell development at least in part through effects on an ion channel.

This study is well designed, executed, and thoughtfully interpreted and brings new understanding to signaling axes controlling T cell development. There are however, a few issues that would strengthen the manuscript if addressed.

1) The important role played by STK39 is somewhat remarkable given how little appears to be expressed in early thymocytes. Could the authors please comment on this?

2) It would be useful for the authors to measure by flow the levels of MYC in the SLC12A2-ko thymocytes.

3) While the role of MYC in controlling cell size, cell proliferation, and thymocyte development is well documented, it would be a nice finishing touch to test whether ectopic expression of MYC would rescue the developmental defects seen in the Wnk1-deficient thymocytes, if only in vitro in OP9 cultures.

https://doi.org/10.7554/eLife.56934.sa1

Author response

Based on the discussions between reviewers and the individual reviews below, we would like to inform you that a revision would be most welcome if it provides, at the very least:

1) The ‘MYC rescue' experiment via ectopic expression of MYC in OP9-DL cultures.

We have carried out an in vivo rescue experiment in mice, which showed that ectopic expression of MYC or MYCT58A confers a selective advantage to both control and WNK1-deficient thymocytes developing across the pre-TCR checkpoint, consistent with our hypothesis that amounts of MYC are limiting in the absence of WNK1. This data is presented in a new Figure 9.

2) Description of the effects of WNK1 mutation on γδ T cell development, given that they do not appear to be as dependent upon proliferation.

We have added new data on the numbers of γδ thymocytes to Figure 1B, C. The loss of WNK1 does not affect their numbers.

3) Essential information such as the numbers of mice that were analyzed.

We have ensured that the numbers of mice analysed and the numbers of experiments are indicated on each figure legend, changing wording where this had been unclear.

Although the other requests for additional data in the reviews are sound, they might be too difficult to perform under the present circumstances. Nonetheless, the full reviews are being provided below for your reference and use in revision.

As described below, and despite limited access to the lab because of the COVID19 pandemic, we have been able to address a number of the additional points raised by the reviewers through the addition of extra data and by amending text.

Reviewer #1:

In this manuscript, Kochl et al. demonstrate that WNK1 is required during early T cell development using genetic mouse models and claim a regulatory axis that controls pre-TCR selection. Unfortunately, the paper has issues regarding the data presentation and interpretation as a result of unclear definitions of the precise developmental stages. This leads to conflicting data and renders it difficult to understand the precise value of the work. In addition, the direct evidence for the proposed axis is insufficiently demonstrated. Therefore, I believe that a major reanalysis using more appropriate markers and with inclusion of rescue experiments would be required to support the claims of the authors.

1) There is a lack in clarity and accuracy for the dissection and identification of the stages of early thymocyte development (in the Introduction and experimental data in the manuscript) which is important for the interpretation of the data. This is already the case for the DN1 and DN2 stages which are poorly defined in light of the current state-of-the-art (DN1/ETP and DN2a/DN2b, Yui et al., 2010), but this is particularly an issue for understanding the impact at β-selection which now is confusingly associated with DN2/DN3 to DN4 as well as DN4 to ISP and DP stages. This renders the interpretation of the data extremely difficult and inconsistent despite the fact that β-selection has been clearly defined by various labs (Hayday using size, Rothenberg using CD27 and Hodes using CD28).

We have edited the Introduction to clearly define DN1/ETP and DN2 cells as c-Kit+ (CD117+) and to more accurately define the β-selection checkpoint between DN3a and DN3b cells characterised by increased cell size and increased expression of CD27 and CD28, referencing additional relevant papers.

To better define the defect in WNK1-deficient thymocytes we have added a new Figure 2A in which we now separate DN3a and DN3b cells based on CD28 expression and cell size and show that loss of WNK1 does not affect the numbers of DN3a cells but causes a significant decrease in DN3b and DN4 cells, consistent with defective β-selection. However, we note that despite the reduced numbers of DN3b and DN4 cells, they are not completely absent. As shown in Figure 1C, DN4 cell numbers are reduced to ~40% of controls, and these residual cells have lost almost all Wnk1 mRNA (Figure 1D). Thus, the loss of WNK1 is not equivalent to, for example, loss of RAG1 which results in a complete arrest of development at the DN3a stage just before the pre-TCR checkpoint. Instead, in the absence of WNK1, development can still proceed to the DN3b and DN4 stages, albeit with greatly reduced efficiency.

Figure 3B suggests that there is no impact of β-selection in fact since the DN3 to DN4 transition there seems unaffected.

Stimulation of WNK1-deficient Rag1-/- thymocytes with anti-CD3 clearly induces early transcriptional and cell surface makers changes typical of transition of DN3a to DN4 cells: there is upregulation of Cd27 and Cd28 (new data added to Figure 4B) and downregulation of Il2ra (Figure 4B) accompanied by loss of CD25 from the surface (Figures 3B, 4C). Thus, the cells are phenotypically becoming DN4 cells. However, they do not expand in number and do not progress to the DP stage (Figure 2D), both of which are hallmark features of β-selection.

On the face of it, as the reviewer suggests, this looks different from the result in Figures 1B and 2A which shows a block between DN3a and DN3b, with reduced numbers of DN4 cells. However, the two experiments are different. In Figures 2D and 3B we analysed RAG1-deficient mice in which maturation from the DN3a compartment was acutely induced by injection of anti-CD3 antibody, resulting in a synchronous development of the cells into DN4 cells over a period of 48 h. In contrast, in Figures 1B and 2A the development across the β-selection checkpoint was driven by the normal physiological pre-TCR signal, and the analysis is of a thymus under steady state conditions, with continuous production of DN3a cells and then pre-TCR induced maturation of some of these into DN3b, DN4 etc. It is thus not surprising that there are some differences in the measured percentages of cells in the DN3 v DN4 compartments. Nonetheless, as noted above, even in the steady state conditions in Figures 1B and 2A some WNK1-deficient DN3a cells develop into DN3b and DN4 cells, but they are reduced in number. In the anti-CD3 induced development the cells become DN4 cells, but do not expand in number.

In our view, these two studies give a consistent picture that WNK1-deficient DN3a cells can differentiate into DN3b and DN4 cells, but that they then do not expand in number as control cells do, supporting our conclusion that WNK1 is required for the pre-TCR driven cell proliferation, but not the initial differentiation into DN3b and DN4 cells.

However, the DN4 subsets also need a clear and better definition since this is a mixture of cells if insufficient markers are included in the panel. This fraction may include γδ T cells and other lineages. This is also important for clearly understanding the frequency of TCRβ expressing thymocytes in DN3 and DN4 stages (Figure 2A).

We agree that it is very important to remove all the non-T cell lineage cells in order to get meaningful results on intracellular TCRβ expression in DN3 and DN4 cells. The DN subsets were defined as being positive for Thy1, but negative for a mixture of ‘Lineage’ antibodies specific for B220, CD3, CD4, CD8, CD11b, CD11c, CD19, DX5, GR-1, NK1.1, TCRβ and TCRγδ. Using this mixture, we excluded B cells, DCs, macrophages, NK cells, neutrophils as well as DP and SP thymocytes, and αβ and γδ T cells. The DN cells were then further separated by CD25 and CD44 for the DN1-4 subsets as shown in the manuscript. We note that DN4 cells were CD28+ as would be expected for bona fide DN4 thymocytes. Thus, we believe that the DN3 (a and b) and DN4 cells are well defined. This information is detailed in the Materials and methods.

Thus, it is extremely difficult to make clear conclusions on the precise developmental stage that is impacted by WNK1. This needs extensive revision in my opinion.

2) Another major issue relates to the choice of the mouse model for conditional deletion of Wnk1. The authors use hCD2-iCre to mediate deletion of floxed Wnk1 gene and state that this deletion started at the DN2 stage. This is not in agreement with literature on this mouse model since hCD2-iCre expression has been detected in immature (ETP for T; pro-B for B lineage) and mature B/T cells, and also in bone marrow lymphoid progenitors (CLPs), natural killer cells and dendritic cells (Siegemund et al., 2015). In fact, the authors show in Figure 1D that significant reduction of Wnk1 mRNA expression was detected at DN1 stage of Wnk1fl/fl/hCD2-iCre thymocytes compared to the control. So, the authors need to consider the pleiotropic effects of conditional deletion of Wnk1 using hCD2-iCre mice which might be particularly important in relation to intrathymic DC development. Cpa3-Cre mice would allow T-specific deletion of Wnk1 (Feyerabend, Immunity. 2009). Alternatively, the authors could perform knockdown of Wnk1 in sorted wild type thymocytes and performed in-vitro co-culture assay to demonstrate the similar developmental defects observed in the mouse model.

We agree with the reviewer that CD2Cre is already active at the DN1 (ETP) stage in the thymus and we correct this point in the manuscript. Indeed, as noted by the reviewer, analysis of Wnk1 mRNA in Figure 1D showed a 50% loss already in DN1 and DN2 cells. So, deletion is seen at DN1 stage, and may well occur earlier, but at these stages it is only partial. Deletion is not complete until DN3 stage (>90% loss of mRNA). We do not expect this 50% loss of Wnk1 mRNA at the DN1 and DN2 stages to have an effect because heterozygous loss of Wnk1 does not cause an arrest in thymic development.

Regarding the possibility that loss of Wnk1 in DCs is affecting thymic development, this is possible in Figure 1A-C, but the experiment in Figure 1E-F (analysis of the Wnk1D368A mutation) uses radiation chimeras made in sub-lethally irradiated RAG1-deficient mice, hence the DCs are largely Wnk1+/+ in these mice and unlikely to affect the phenotype.

3) There appear to be some inconsistencies in the data. In Figure 1A, the DN fraction of Wnk1-deleted thymi is much higher compared to the control (1.77% in Wnk1fl/+/hCD2-iCre vs. 55.8% in Wnk1fl/fl/hCD2-iCre). However, this is inconsistent with Figure 1B/C where none of the DN subsets have increased cell numbers or frequencies. In general, to understand the precise impact on cellularity and for clear interpretation of Figure 1, it is important to provide the data for total thymic cellularity.

As requested, we have added data on total thymic cellularity to Figure 1B,C. The Wnk1 mutation causes a >90% reduction in the total number of thymocytes.

The DN fraction is increased as a percentage in the WNK1-deficient thymus in Figure 1A, but this is because there is huge loss of DP and SP thymocytes and greatly reduced total thymocytes numbers, not because there is an increase in the number of DN cells. Calculation of the numbers of DN cells shows no significant change in numbers of DN1 and DN2/3 cells, but a 60% reduction in the number of DN4 cells (Figure 1B, C). Note that in Figure 1C we show the normalized abundance of each subset in the WNK1-deficient thymus expressed as a percentage of the number of cells in the control thymi – this is not a graph of the % of cells in each subset. To make this clearer we have re-labelled the y-axis of the graph in Figure 1C as ‘Normalized cell number (% of control)’.

In Figure 2, the authors shown that DN4 cells are reduced in the KO. However, in Figure 3B, the authors show that there is no blockade or arrest in development of DN3 cells to DN4 stage. This is also inconsistent with the data in Figure 1B-C and may relate to the unclear definitions of the developmental stages.

As discussed above, the loss of WNK1 in the CD2Cre mice (Figure 1B-C) shows a 60% reduction in the number of DN4 cells. However, they are not all gone. In the experiments shown in Figures 2D and 3B development of RAG1-deficient DN3a cells is triggered by anti-CD3. This causes the DN3a cells to become DN4 cells (Figure 3B), but there is no expansion of cell numbers or differentiation into DP cells (Figure 2D). Overall the data in the two studies give a consistent picture that WNK1 is required for pre-TCR driven cell proliferation, but not the initial differentiation into DN3b and DN4 cells.

4) It is not clear to me how many mice were analyzed and how the data is presented. For instance, the legend of Figure 1 states that data are from one of two experiments but according to the reporting form this should be more given that 5-7 mice were analyzed according to that same legend.

Each figure legend lists the numbers of mice being analysed in each part of the figure and explains whether this was data from one experiment out of several, or whether the data has been pooled from more than one experiment. Individual experiments contained multiple animals. We have edited the legends to make this clearer. For example, the graphs in Figure 1B-D, F show data pooled from two independent experiments, as stated in the legend.

5) In general, there is insufficient direct evidence for the proposed regulatory axis as proposed by the authors. The data mainly shows indirect relationships and the paper would strongly benefit from functional rescue experiments to support these strong conclusions.

We have added a new experiment in Figure 9, addressing the question of whether ectopic expression of MYC can rescue the developmental block in WNK1-deficient thymocytes.

We generated bone marrow radiation chimeras using bone marrow from mice with a floxed allele of Wnk1 and tamoxifen-inducible Cre and infected these cells with retroviral vectors expressing MYC, MYC-T58A (a stabilised form of MYC) or with an empty vector. Six weeks after reconstitution we induced deletion of Wnk1 with tamoxifen and analysed thymi 7 days later. Analysis shows that once again we see that loss of WNK1 results in a drop in the number of DN3b, DN4, ISP and DP cells (Figure 9D).

The efficiency of retroviral transduction in the chimeras (as detected by % of GFP+ cells) varied significantly from mouse to mouse. Consequently, analysis of cell numbers following expression of MYC or MYC-T58A would not generate meaningful data to assess whether MYC rescues WNK1-deficient thymocytes. However, by normalizing the % GFP+ cells in DN3b and DN4 subsets to the % GFP+ cells in the DN3a subset in each individual mouse, we were able to evaluate if expression of MYC or MYC-T58A provides a selective advantage to cells transiting through the pre-TCR checkpoint.

Importantly, we found that control or WNK1-deficient thymocytes with the empty vector became less abundant as cells developed from DN3a to DN3b and to DN4. In contrast, cells infected with MYC or MYC-T58A-expressing retroviruses became more abundant (Figure 9E, F). Collectively, this new data demonstrates that ectopic expression of MYC or MYCT58A confers a selective advantage to both control and WNK1-deficient thymocytes developing across the pre-TCR checkpoint, which is consistent with our hypothesis that amounts of MYC are limiting in the absence of WNK1.

Reviewer #2:

[…] (1) The authors clearly establish that MYC protein levels in thymocytes are lower in the absence of WNK1, however it would be important to show whether ectopic expression of MYC could lead the rescue of the proliferation and/or differentiation defect. This can be easily performed, as per Wong et al. (PMID: 22649105), a related paper that examined the role of pre-TCR, Notch and MYC during T cell development.

To address this issue, we adopted an in vivo approach to test the hypothesis that MYC can rescue the development of WNK1-deficient thymocytes across the pre-TCR checkpoint. This new data is included in Figure 9. For a detailed response to this comment, please see reviewer 1, major comments point 5.

2) The clear effect on pre-TCR signaling and the block in the DN to DP differentiation begs the question as to whether γ/δ-T cell differentiation is similarly affected or not, which would position WNK1 as uniquely required for α/β-T lineage differentiation or as shared signaling axis for both lineages. Simply showing whether γδ T cells are present in the thymus and peripheral tissues would directly address this point.

We have added new data on the numbers of γδ thymocytes to Figure 1B, C. The loss of WNK1 does not affect their numbers.

3) It curious that the authors did not directly address whether the absence of WNK1 in DN cells has an effect on any aspects of ion transport.

This would be a very interesting parameter to measure, however this has not been possible for technical reasons. There are fluorescent dyes that are claimed to report concentrations of Na+ and K+ ions, but we have not been able to get them to work. We have had some success in measuring the amounts of Na+ and K+ in T cell lines using inductively coupled plasma mass spectrometry, but we have not yet managed to get this to work in mature T cells and this is not currently feasible with the very small numbers of DN thymocytes.

Reviewer #3:

[…] This study is well designed, executed, and thoughtfully interpreted and brings new understanding to signaling axes controlling T cell development. There are however, a few issues that would strengthen the manuscript if addressed.

1) The important role played by STK39 is somewhat remarkable given how little appears to be expressed in early thymocytes. Could the authors please comment on this?

We too were surprised by this. Based on the RNAseq we expected that OXSR1 would be the dominant kinase and that mutation of STK39 would have little or no effect. One possibility is that despite low levels of Stk39 mRNA, the amount of STK39 protein may be closer in amount to OXSR1 because of post-transcriptional effects (e.g. translation, protein stability). This could be looked at by immunoblotting, but we have not been able to identify good antibodies to STK39.

2) It would be useful for the authors to measure by flow the levels of MYC in the SLC12A2-ko thymocytes.

We agree with the reviewer that this would have been a good experiment to add. Unfortunately, this has not been possible due to the Covid-19 pandemic – we had to remove the Slc12a2 mutant mice from the breeding unit.

3) While the role of MYC in controlling cell size, cell proliferation, and thymocyte development is well documented, it would be a nice finishing touch to test whether ectopic expression of MYC would rescue the developmental defects seen in the Wnk1-deficient thymocytes, if only in vitro in OP9 cultures.

To address this issue, we adopted an in vivo approach to test the hypothesis that MYC can rescue the development of WNK1-deficient thymocytes across the pre-TCR checkpoint. This new data is included in Figure 9. For a detailed response to this comment, please see reviewer 1, major comments point 5.
